Understanding Success Criterion 2.4.11: Focus Appearance (Minimum)

Success Criterion 2.4.11 Focus Appearance (Minimum) (Level AA): When user interface components receive keyboard focus, all of the following are true:

A keyboard focus indicator which has a pattern or gradient may have parts that do not meet the 3:1 contrast ratio for the change of contrast, as long as an area equal to the minimum does meet the contrast ratio.

If the component has a visible boundary smaller than the hit area, or the size of the component is not available, the minimum area can be taken from the visible boundary.

The working group is interested in feedback about the minimum area metric, and if there are unusual scenarios where visible indicators are caught by the wording.

Status

This understanding document is part of the draft WCAG 2.2 content. It may change or be removed before the final WCAG 2.2 is published.

Intent

The purpose of this Success Criterion is to ensure a keyboard focus indicator is clearly visible and discernible. This criterion is closely related to 2.4.7 Focus Visible and 1.4.11 Non-text Contrast. Where Focus Visible merely requires a visible focus indicator, 2.4.11 defines a minimum level of visibility. Where Non-text Contrast requires a component to have adequate contrast against the background in each of its states, 2.4.11 requires sufficient contrast between the focused and unfocused states.

For sighted people with mobility impairments who use a keyboard-like device (e.g., a switch, voice input), knowing the current point of focus is very important. Visible focus must also meet the needs of low-vision users, who may also be keyboard-only users.

A keyboard focus indicator can take different forms; this Success Criterion sets a requirement to make it clearly distinguishable. For example, using a thick outline that contrasts with the background behind the component would pass this criterion.

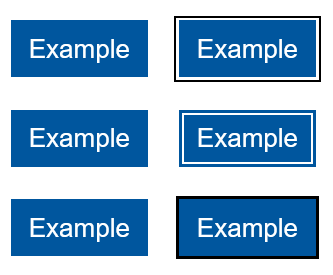

Three example indicators, an outline separated from the button, an inner outline, and a thick outline.
Figure 1 Examples of outlines that would pass easily on a light background.

The minimum size requirement for each focus indicator shown above are:

Any outline that is at least 2px thick and contrasts with the non-focused state would pass this criterion. The detail in this document is for people who do not wish to use such an outline.

The default focus indicators in some browsers can be difficult to see, such as a 1px dotted outline, or a blue indicator which happens to be on a blue background. It is generally best to either define a keyboard focus style which meets this criterion, or test the focus styles across the browsers that are relied upon for conformance.

Keyboard focus

The keyboard focus is the point of interaction for someone using a keyboard. For environments with a keyboard-operable interface, the keyboard focus can be moved around the interface in order to interact with different elements. Whichever element is being interacted with has focus.

Some components have sub-components that can take focus, such as the menu items on a menu. The item considered to be focused is whichever is being interacted with. For example, if you tab to a menu and arrow down to a menu item, it is the menu item that is in focus; pressing Enter would activate the menu item.

Some non-operable elements can take focus (such as a heading element that is the target of a skip link); however, it is only when the element with focus is operable by keyboard that this Success Criterion applies.

Contrasting area

  • Contrasting area: There is an area of the focus indicator that has a contrast ratio of at least 3:1 between the colors in the focused and unfocused states.

The greater the change of contrast between states the easier it is for users to see it. Authors are encouraged to make the change of color contrast as great as possible.

When a component changes to include a focus indicator, that change can be measured as a change of color contrast. For example, if a yellow outline is added to a button on a blue background, the change of color is from blue to yellow. This change can be measured whether the focus indicator is on the background around the component, or the background within the component.

Three dark blue buttons on a white background. The middle button has a yellow inner border.
Figure 2 Adding a yellow outline to a link is a change of color from blue to yellow. That change has a contrast ratio of 12:1.

Text and non-text contrast measures use adjacent colors; this Success Criterion measures the change in color between non-focused and focused states.

Three buttons with light background and dark border on a white background. The middle button has a light grey outline.
Figure 3 The second link has a light-grey (#ccc) focus outline which fails this Success Criterion because the change from white-background to light-grey outline does not meet 3:1.
Note

Color contrast measurements in WCAG are based on luminance (brightness) regardless of the hue.

If a control receiving focus changes its background (fill color) to a color that contrasts less than 3:1 with the original background, that would not pass the change of contrast.

Three black buttons with a dark background. The middle button has a dark grey background.
Figure 4 The second link has a dark-grey (#555) which fails this Success Criterion because the change from black-background to dark-grey background does not meet 3:1.

If the background change is sufficient, it is a method of passing the criterion.

Three black buttons with a dark border and two have a dark background. The middle button has a white background.
Figure 5 The second link has a white background (#fff) which passes this Success Criterion because the change from black-background to white-background meets 3:1.

It is possible to use visual patterns such as strips switching places to disguise a change of focus indicator. This is not considered a visible indicator.

Minimum area

  • Minimum area: The contrasting area is at least as large as:
    • Outline: the area of a 1 CSS pixel thick perimeter of the unfocused component, or
    • Shape: the area of a 4 CSS pixel thick line along the shortest side of a minimum bounding box of the unfocused component, and no thinner than 2 CSS pixels.

The bigger the visible change when an item receives focus, the easier it is for someone to see. Authors are encouraged to make the change as significant as possible, for example, by designing a thick border around the element.

The Success Criterion defines a minimum area using a calculation for perimeter, and a secondary minimum based on the shortest side of the control. It does not restrict where the indicators are placed, it is just providing two methods to calculate a minimum area.

For the first calculation, the minimum area of the focus indicator must be at least as large as the area of a 1 CSS pixel thick perimeter (border) of the control in its unfocussed state. The indicator does not have to be a border, but the indicator's area must be at least as large. For example, if a control is a rectangle of 90px wide and 30px tall, the size of the outer border is 90 + 90 + 30 + 30 = 240 CSS pixels. You then must subtract the 4 corner pixels (which are counted twice, both horizontally and vertically), for a total minimum area of 236 CSS pixels.

Note

A CSS pixel is what developers use in CSS declarations like “width: 200px”, it is device-independent and not to be confused with device pixels which vary depending on the physical pixel density.
The rest of this document notates CSS pixels as "px".

The following 3 examples use a 90px wide by 30px tall button, therefore the surface area requirement is 236px (240px minus corner 4 pixels). The middle button is focused in each example.

Three dark blue buttons on a white background. The middle button has a yellow inner border.
Figure 6 The inner outline is slightly smaller than the outer edge of the component (236px minus 2px on each side), but using a 2px thick indicator means it is well over the minimum requirement of 236px squared.
Three dark blue buttons on a white background. The middle button has a thick yellow line under the text.
Figure 7 The thick (3px) yellow underline is almost as long as the longest edge, 80px multiplied by 3px exceeds the requirement of 236px squared.

If controls change size across different variations of a page (e.g., in a responsive design), it helps to use a proportionally sized indicator such as an outline or background change. In that way you can be sure of meeting the size requirement.

The Success Criterion includes an alternative size measure of "at least as large as a 4 CSS pixels border along the shortest side, and no thinner than 2 CSS pixels". This is included to allow for smaller but thick indicators. For example, some controls might be of a fixed height but variable width, in which case this measure allows for a more consistent approach. Although the area is less than the primary measure, the minimum thickness helps to maintain the visibility.

Two dark blue buttons on a white background. The left button has a very thick yellow block of color left of the text.
Figure 8 The yellow block on the left is along the short side, but very thick.

Typical focus indicators:

  • A solid outline around the whole component would pass the size requirement;
  • A 1 CSS pixel dotted outline around the whole component would not pass the size requirement, as it is roughly 50% of the surface area of a solid line.
  • Changing the background within a control would pass the size requirement;
  • A 1px wide vertical line (such as a blinking cursor) would not pass the size requirement, a text input would need a larger or separate focus indicator.

If you need to use complex mathematics to work out if a focus indicator is large enough, it is probably a sign that you should use a larger and proportional indicator that will provide a more visible indicator.

Where a focus indicator is defined in code as a certain size, e.g. 2px thickness, anti-aliasing can be ignored for the purposes of calculation. Dotted or dashed outlines have various levels of gaps depending on the browser, screen density, and thickness. For example, in most browsers a "dotted" line will have roughly half the number of pixels due to gaps. However, in some sizes or browsers it might be slightly less than half, so increasing the thickness may be required.

Unusual shapes and gradients

If you have an unusual shape (not rectangular), some mathematics may be required if the focus indicator is on the edge of the size requirement. For example, if the focusable control is a circle with a diameter of 100px, the circumference would be 314 pixels. A 1px (or greater) outline would meet the size criterion.

Two orange circular buttons with an icon in the middle. The right hand circle has a dark outline around the whole circle to indicate focus
Figure 9 A circular button in the default state, and then with a focus indicator.

If a focus indicator is an irregular shape, such as a drop-shadow under a star icon, it helps if the contrasting area is quite large.

Two yellow star symbols, the second has a dark drop-shadow.
Figure 10 The default and focused states of a star component.

What is the contrasting area of the drop shadow? The quick method is:

  • Look at the size of the component, how long is it around the edges?
  • Look at the (contrasting) area of the focus indicator.
  • Mentally compare the focus indicator to the border of the component.

If it is too close to call, you could extract the contrasting area of the focus indicator and evaluate the surface area.

If a focus indicator has a gradient, the principle is to measure the contrast of the changed area, and ignore the change that does not meet 3:1.

Three buttons, the middle with a heavy drop-shadow indicating focus.
Figure 11 When a gradient is used on a focus indicator, the measure of surface area should only include the area that has changed enough to meet the 3:1 contrast ratio.

If you take some spot-checks on the gradient area and establish what area meets the contrast, it is straightforward to work out if that area is sufficient.

The middle button with the drop-shadow included, but the subtle grey areas removed to only show the contrasting area.
Figure 12 The focused button with the non-contrasting areas removed, showing that it is a thick indicator that meets the requirements.

If an inline link is broken over two or more lines, the indicator can be split between them. In this case the link element is still treated as a single control.

Some designs have pages with a non-solid background image covering the whole (or part) of the page or make use of parallax scrolling effects which result in a near-infinite number of color combinations if a page is scrolled and/or changes are made to the viewport size.

If the contrast of background colors that change are close enough to need to be tested for each combination then they would likely not meet the user need of people with low vision in certain scroll combinations and would likely fail in certain combinations as well. In these cases it would be an easy solution to use a double ring focus indicator or some other mechanism to indicate focus such as a solid box with a border to guarantee there is sufficient contrast across variations of background images or background gradients.

Adjacent contrast

  • Adjacent contrast: The contrasting area also has a contrast ratio of least 3:1 against adjacent colors in the focused component, or the contrasting area has a thickness of at least 2 CSS pixels.

Where a control is a solid color, and you add a border or outline of a very similar color, it is difficult to perceive the change to the control.

Three dark buttons, the middle one appears very slightly larger due to a thin dark outline.
Figure 14 Adding a 1px dark outline around a dark button does not differentiate it. This example fails the Success Criterion.

The requirement is to have an indicator that has a 3:1 contrast ratio with the adjacent colors of the component, or to be separated from the component, or to be at least 2px thick.

Three dark buttons, the middle one appears larger due to a thick dark outline.
Figure 15 Adding a 2px border around the button helps to differentiate which one is focused.
Three dark buttons, the middle one has a outline slightly offset away from the component, so there is a gap between the component's background and the outline.
Figure 16 Adding an outline that is separated from the button helps to differentiate which one is focused.

If the focus indicator uses several colors, any color which does not interfere with identifying the indicator can be ignored for the purpose of measuring contrast ratio. For example, a 3D drop-shadow on a focus indicator is considered to be subsumed into the color closest in brightness (perceived luminance). If the size is uncertain, calculate the minimum size based on the area which meets the contrast change requirement.

Two dark blue buttons on a white background. The second one has a dark outline, then a light grey outline on the outside.
Figure 17 The light grey outline can be ignored, the 3px thick dark outline meets the size and change of contrast requirements.

Not fully obscured

  • Not fully obscured: The item with focus is not entirely hidden by author-created content.

Where other content can overlap with a focused item, the focused element should not be hidden. Typical types of content that can overlap focused items are sticky footers, sticky headers, or non-modal dialogues. As a user tabs through the page, these layers of content can obscure the focused item, including the focus indicator. If the interface is configurable so that the user can move toolbars and non-modal dialogs around, then only the initial positions of user-movable content would be considered for testing and conformance of the "Not fully obscured" bullet.

Note

The criterion specifies the "focused item" in the 'Not fully obscured' bullet rather than the "focus indicator". The requirements for the indicator are set in the previous bullets; the last bullet applies to the item as a whole.

Relationship to Non-text Contrast

Success Criterion 1.4.11 Non-text Contrast requires that a UI component maintains contrast against the adjacent background for each of its states. When it does not have focus, it must be visible against the background. When it receives focus, it still must be visible. However, Non-text Contrast does not require contrast between the UI component's focused and non-focused states, merely that in each state it contrasts against the adjacent background.

Focus Appearance (Minimum) requires that the focused and unfocused states can be distinguishable from each other. It does this by requiring sufficient differences in contrast (not just hue) between the appearance of a component when focused and when not focused.

Four checkboxes. Unchecked is a plain box. Focused has a circular line outside. Checked is dark green with a white tick. Focused and checked also has a dark green circle around it.
Figure 18 Four checkboxes in different combinations of checked and focused. The circular indicators (lines) provide a sufficient change of color contrast.

In the example above:

  • The dark square outline of the checkbox has sufficient contrast with its adjacent light background in the default state (meeting 1.4.11 Non-text Contrast).
  • When the checkbox receives focus in the second image, a grey ring appears around it. The ring contrasts against the light page background sufficiently (still meeting 1.4.11). The size of the ring's dark outline is large enough to meet the Minimum area requirement of 2.4.11 Focus Appearance. The color of the pixels making up the ring's outline versus the same pixels in the unfocused state meets the 2.4.11 Change of contrast bullet. The ring's outline also contrasts against the inside shading (another more subtle indicator of focus), so both the inner and outer edges of the ring's outline meet 2.4.11's Adjacent contrast bullet.
  • In the third image, the checked state is indicated by two visual changes. The checkbox changes color from gray to a greenish teal, and the checkbox is entirely filled in except the outline of a white tick mark. The contrast between the white tick mark and the teal color of the checkbox is sufficient to pass the 1.4.11 Non-text Contrast requirement to identify its (checked) state.
  • The fourth image shows the checkmark both checked and focused. The component still uses a ring to indicate focus. The ring's color has changed, but it still contrasts against the light page background and, on its adjacent inner edge, against the shading. (The color difference between the grey of the unchecked box and the teal of the checked version is irrelevant to the assessment. Since the tick mark indicates the checked state, the color change is just a secondary visual effect.)
Two checkboxes, the second has a dark blue outline around it.
Figure 19 A default checkbox and a focused checkbox.

The contrast of the default checkbox passes 1.4.11 because the black border and white background have a contrast ratio greater than 3:1. When the checkbox receives focus, the dark blue focus indicator passes Focus Appearance (Minimum) because:

  • Its thick blue border has a sufficient Minimum area.
  • The pixels making up the blue focus indicator have a sufficient Change of contrast from their white color in the unfocused state
  • The blue focus indicator, although not contrasting with the black checkbox border, has a thickness of 2 CSS pixels and so meets Adjacent contrast.
The focused state contrasts with the white background, so the component continues to pass 1.4.11.

Benefits

Examples

Techniques

Each numbered item in this section represents a technique or combination of techniques that the WCAG Working Group deems sufficient for meeting this Success Criterion. However, it is not necessary to use these particular techniques. For information on using other techniques, see Understanding Techniques for WCAG Success Criteria, particularly the "Other Techniques" section.

Sufficient Techniques

  1. G195: Using an author-supplied, highly visible focus indicator
  2. C40: Creating a two-color focus indicator to ensure sufficient contrast with all components
  3. C41: Creating a strong focus indicator within the component

Key Terms

css pixel

visual angle of about 0.0213 degrees

A CSS pixel is the canonical unit of measure for all lengths and measurements in CSS. This unit is density-independent, and distinct from actual hardware pixels present in a display. User agents and operating systems should ensure that a CSS pixel is set as closely as possible to the CSS Values and Units Module Level 3 reference pixel [[!css3-values]], which takes into account the physical dimensions of the display and the assumed viewing distance (factors that cannot be determined by content authors).

focus indicator

the pixels that are changed to visually indicate when a user interface component is in a focused state.

minimum bounding box

the smallest enclosing box within which all the points of a shape lie. Where a component consists of disconnected parts, such as a link that wraps onto multiple lines, each part is considered to have its own bounding box.

perimeter

continuous line forming the boundary of a shape not including shared pixels, or the minimum bounding box of a complex shape, whichever is shortest. For example, the perimeter calculation for a rectangle is 2h+2w -4, where h is the height and w is the width and the corners are not counted twice. The perimeter of a circle is 2𝜋r.

user interface component

a part of the content that is perceived by users as a single control for a distinct function

Note

Multiple user interface components may be implemented as a single programmatic element. "Components" here is not tied to programming techniques, but rather to what the user perceives as separate controls.

Note

User interface components include form elements and links as well as components generated by scripts.

Note

What is meant by "component" or "user interface component" here is also sometimes called "user interface element".

An applet has a "control" that can be used to move through content by line or page or random access. Since each of these would need to have a name and be settable independently, they would each be a "user interface component."
