W3C

Synchronized Multimedia Integration Language (SMIL 3.0)

W3C Recommendation 01 December 2008

This version:
http://www.w3.org/TR/2008/REC-SMIL3-20081201/
Latest SMIL 3 version:
http://www.w3.org/TR/SMIL3/
Latest SMIL Recommendation:
http://www.w3.org/TR/SMIL/
Previous version:
http://www.w3.org/TR/2008/PR-SMIL3-20081006/
Editors:
Dick Bulterman, CWI - Jack Jansen, CWI - Pablo Cesar, CWI - Sjoerd Mullender, CWI - Eric Hyche, RealNetworks - Marisa DeMeglio, DAISY Consortium - Julien Quint, DAISY Consortium - Hiroshi Kawamura, NRCD - Daniel Weck, NRCD - Xabiel García Pañeda, Universidad de Oviedo - David Melendi, Universidad de Oviedo - Samuel Cruz-Lara, INRIA - Marcin Hanclik ACCESS Co., Ltd - Daniel F. Zucker, Nokia - Thierry Michel, W3C.

Please refer to the errata for this document, which may include some normative corrections.

This document is also available in a non-normative format: single HTML file.

See also translations.


Abstract

This document specifies the third version of the Synchronized Multimedia Integration Language (SMIL, pronounced "smile"). SMIL 3.0 has the following design goals:

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This document has been reviewed by W3C Members, by software developers, and by other W3C groups and interested parties, and is endorsed by the Director as a W3C Recommendation. It is a stable document and may be used as reference material or cited from another document. W3C's role in making the Recommendation is to draw attention to the specification and to promote its widespread deployment. This enhances the functionality and interoperability of the Web.

This SMIL 3.0 edition is a new version, it extends the functionalities contained in SMIL 2.1 [SMIL21], incorporating new features useful within the industry.

This SMIL3.0 W3C Recommendation supersedes the 13 December 2005 SMIL 21 Recommendation [SMIL21].

The SMIL 3.0 test suite along with an implementation report are publicly released and are intended solely to be used as proof of SMIL 3.0 implementability. It is only a snapshot of the actual implementation behaviors at one moment of time, as these implementations may not be immediately available to the public. The interoperability data is not intended to be used for assessing or grading the performance of any individual implementation.

This document has been produced by the SYMM Working Group as part of the W3C Synchronized Multimedia Activity, following the procedures set out for the W3C Process. The goals of the SYMM Working Group are discussed in the SYMM Working Group Charter. The authors of this document are the SYMM Working Group members. Different parts of the document have different editors.

Please report errors in this document to www-smil@w3.org - (public archives) including the prefix '[SMIL30 REC]' in the subject line.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Quick Table of Contents

Full Table of Contents

1. About SMIL 3.0

Editor
Thierry Michel, W3C.

1.1 Introduction

This section is informative.

This document specifies the third version of the Synchronized Multimedia Integration Language (SMIL, pronounced "smile"). SMIL 3.0 has the following design goals:

SMIL 3.0 is defined as a set of markup modules, which define the semantics and an XML syntax for certain areas of SMIL functionality.

1.2 Content of this Specification

This section is informative.

This specification is structured as a set of Chapters, each defining one or more modules:

This specification also defines five Profiles that are built using the above SMIL 3.0 modules.

1.3 Relation to SMIL 2.1

This section is informative.

SMIL 3.0 is a new version. It is built on top of SMIL 2.1.
A large number of SMIL 2.1 Modules [SMIL21-modules] remain the same in SMIL 3.0.
SMIL 3.0 introduces new SMIL 3.0 Modules with extended functionalities.

SMIL 3.0 also defines three new profiles that are built using the SMIL 3.0 modules specified in this specification.

If this specification is approved as a W3C Recommendation, it will supersede the 13 December 2005 version of the SMIL 2.1 Recommendation [SMIL21].

Note: SMIL document players, those applications that support playback of "application/smil+xml" documents, and host language conformant document profiles are expected to support the deprecated SMIL 2.1 functionalities as well as the new SMIL 3.0 functionalities.

1.4 Summary of Changes for SMIL 3.0

This section is informative.

1.4.1 Functional areas affected by SMIL 3.0

SMIL 3.0 specification provides three classes of changes to the SMIL 2.1 Recommendation, among the functional areas. For more details on the SMIL 3.0 Modules changes, refer to the next SMIL 3.0 Modules chapter.

1- New SMIL 3.0 functional areas

SMIL 3.0 adds the following new sections introducing new modules where new elements or attributes semantics are specified.

2- Revised SMIL 3.0 functional areas

In these sections, updated or new modules are introduced where new and updated elements or attributes semantics are specified.

3- Unchanged SMIL 3.0 functional areas

The modules, elements and attributes semantics in the following sections remain the same as in SMIL2.1 [SMIL21]. There are no major changes to the document; apart from minor issues related to wording, typos, links and references.

1.4.2 Profiles affected by SMIL 3.0

1- New SMIL 3.0 Profiles:

SMIL3.0 adds the following three new Profiles:

2- Updated SMIL 3.0 Profiles:

The following Profiles are updated from SMIL 2.1 [SMIL21] to include new SMIL 3.0 functionalities.

Finally, SMIL 3.0 provides a Scalability Framework, where a family of scalable SMIL profiles may be defined using a sub- or superset of the SMIL 3.0 Language, DAISY, or Unified Mobile Profile profiles, or a superset of the SMIL 3.0 Tiny profile.

1.5 About normative and informative sections

This section is informative.

Throughout the document, normative and informative sections are labelled with following rules:

1.5.1 Section styling

Informative sections are color coded as follows. All other sections (without a gray background and green border) are normative.

This section is informative.

1.6 Conformance

This section is normative.

The keywords "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "RECOMMENDED", "MAY", and "OPTIONAL" in the normative parts of this document are to be interpreted as described in [RFC2119].

For readability, these words do not appear in all uppercase letters in this specification.

1.7 Acknowledgements

This section is informative.

This document has been prepared by the Synchronized Multimedia Working Group (SYMM WG) of the World Wide Web Consortium.
The SYMM WG which specified SMIL 3.0 included the following individuals:

Dick Bulterman, CWI - Alessio Cartocci, IWA-HWG - Pablo Cesar, CWI - Samuel Cruz-Lara, INRIA - Marisa DeMeglio, DAISY Consortium - Xabiel García Pañeda, Universidad de Oviedo - Luiz Fernando Gomes Soares, Invited Expert - Marcin Hanclik ACCESS Co., Ltd. - Eric Hyche, RealNetworks - Jack Jansen, CWI - Hiroshi Kawamura, NRCD - Nabil Layaïda, INRIA - David Melendi, Universidad de Oviedo, Thierry Michel, W3C - Sjoerd Mullender, CWI - Julien Quint, DAISY Consortium - Petri Vuorimaa, Helsinki University of Technology - Daniel Weck, NRCD - Daniel F. Zucker, Nokia.

The former SYMM WG which specified the previous SMIL versions included the following individuals:

Kazuhide Tanaka, ACCESS Co., Ltd. - Hanan Rosenthal, Canon - Jin Yu, Compaq - Pietro Marchisio, CSELT - Lynda Hardman, CWI - Jacco van Ossenbruggen, CWI - Lloyd Rutledge, CWI - Ishan Vaishnavi, CWI - Markku Hakkinen, DAISY Consortium - Olivier Avaro, France Telecom - Vincent Mahe, France Telecom - Ted Wugofski, Gateway (Invited Expert) - Masayuki Hiyama, Glocomm - Keisuke Kamimura, Glocomm - Michelle Y. Kim, IBM - Steve Wood, IBM - Jeff Boston, IBM - Nabil Layaïda, INRIA - Muriel Jourdan, INRIA - Aaron Cohen, Intel - Wayne Carr, Intel - Masaru Sugano, KDDI Corporation - Tomoyuki Shimizu, KDDI Corporation - Marcel Wong, Ericsson - Ken Day, Macromedia - Daniel Weber, Panasonic - Patrick Schmitz, Microsoft - Debbie Newman, Microsoft - Pablo Fernicola, Microsoft - Aaron Patterson, Microsoft - Kevin Gallo, Microsoft - Paul David, Microsoft - Don Cone, Netscape/AOL - Wo Chang, NIST - Guido Grassel, Nokia - Didier Chanut, Nokia - Antti Koivisto, Nokia - Andrei Popescu, Nokia - Roberto Castagno, Nokia - Jack Jansen, Oratrix - Sjoerd Mullender, Oratrix - Dick Bulterman, Oratrix - Kenichi Kubota, Panasonic - Warner ten Kate, Philips - Ramon Clout, Philips - Jeff Ayars, RealNetworks - Erik Hodge, RealNetworks - Rob Lanphier, RealNetworks - Bridie Saccocio, RealNetworks - Eric Hyche, RealNetworks - Robin Haglund, RealNetworks - Yoshihisa Gonno, Sony Corporation - Geoff Freed, WGBH - Philipp Hoschka, W3C - Philippe Le Hégaret, W3C - Thierry Michel, W3C.

2. The SMIL 3.0 Modules

Editor:
Thierry MICHEL, W3C.

2.1 Introduction

This section is informative.

Since the publication of SMIL 1.0 [SMIL10], interest in the integration of SMIL concepts with the HTML, the HyperText Markup Language [HTML4], and other XML languages, has grown. Likewise, the W3C HTML Working Group has specified XHTML, the Extensible HyperText Markup Language [XHTML10], in preparation to subset, extend, and integrate it with other languages. The strategy considered for integrating respective functionality with other XML-based languages is based on the concepts of modularization and profiling [SMIL-MOD], [XMOD].

Modularization is an approach in which markup functionality is specified as a set of modules that contain semantically-related XML elements, attributes, and attribute values. Profiling is the creation of an XML-based language through combining these modules, in order to provide the functionality required by a particular application.

Profiling introduces the ability to tailor an XML-based language to specific needs, e.g. to optimize presentation and interaction for the client's capabilities. Profiling also adds the ability for integrating functionality from other markup languages, releasing the language designer from specifying that functionality. Moreover, it provides for consistency in markup through the use of the same model to incorporate a function. Identical constructs ease authoring, while at the user agent side there is a potential for re-use of code. For example, a scheduler supporting SMIL timing and synchronization functionality could be used for SMIL documents, XHTML+SMIL documents, and SVG documents.

Modularization enables language designers to specify dedicated markup intended for integration with other, existing, profiles. Examples of specifications intended for such integration are MathML and XForms [MathML], [XFORMS10].

Modularization and profiling use the extensibility properties of XML, and related technology like XML namespaces and XML Schema [XML11], [XML-NS], [XSCHEMA].

This part of the SMIL 3.0 specification describes the framework on which SMIL modularization and profiling is based, and specifies the SMIL 3.0 Modules, their identifiers, and the requirements for conformance within this framework.

2.2 Modularization and Profiling

This section is informative.

The modularization approach used in this specification derives from that set forth in XHTML Modularization [XMOD]. The framework on which SMIL modularization and profiling is based, is informally described here.

A Module is a collection of semantically-related XML elements, attributes, and attribute values that represents a unit of functionality. Modules are defined in coherent sets.

A Profile is a combination of modules. Modules are atomic, i.e. they may not be subset when included in a profile. Furthermore, a module specification may include a set of integration requirements, to which profiles that include the module must comply.

Commonly, there is a main profile that incorporates nearly all the modules associated with a single namespace. For this version of SMIL, this is the SMIL 3.0 Language profile.

Other profiles may be specified that are subsets of the larger one, or that incorporate a mixture of modules associated with different namespaces. SMIL 3.0 Tiny is an example of the first, XHTML+SMIL of the latter.

Several of SMIL's modules define features that that characterize the core of the functionality provided by SMIL. This is expressed by the notions of host language and integration set. Both of them relate to a set of conformance requirements for language profiles, which includes the requirement to incorporate at least the core set of modules. The set may be different for a host language and an integration set. A host language must incorporate the Structure module; an integration set need not. There may be other differences as well.

The main purpose of profile conformance is to enhance interoperability. Preferably, the mandatory modules for host language conformance are defined in such a way that any document interchanged in a conforming profile will yield a reasonable presentation when the document renderer, while supporting the associated mandatory module set, would ignore all other (unknown) elements and attributes. Here, "reasonable presentation" is to be understood as something intelligible, which is not necessarily a close reflection of the author's original intentions. To achieve the latter, a negotiation would have to be conducted to agree on the specific profile to be used for the document interchange.

2.3 Summary of Changes for the SMIL 3.0 Modules

This section is informative.

SMIL 3.0 specification provides three classes of changes to the SMIL 2.1 Recommendation, among the functional areas;

  1. New Modules are introduced (e.g. the MediaPanZoom module, MediaOpacity, BasicText, TextStyling, TextMotion; StateTest, UserState, StateSubmission, StateInterpolation; StructureLayout modules and DOMTimingMethods.
  2. Former SMIL Modules are revised allowing extended functionalities (example are Metainformation, BasicLayout, MediaParam modules).
  3. Former SMIL Modules are unchanged; the modules, elements and attributes semantics remain the same as in SMIL2.1 [SMIL21]. There are no major changes to the modules; apart from minor issues related to typos, links and references.

The following functional areas are affected by SMIL 3.0:

DOM

Content Control

This functional area is currently unchanged, apart from repartitioning of the content control module structure in order to support the SMIL Tiny profile. In a future version the content control mechanisms specified will be modified to better align with the expression and test logic being developed within the SMIL 3.0 State modules.

Layout

SMIL 3.0 extends the Layout capabilities as follows:

Linking

SMIL 3.0 linking integrates the general features of the XHTML-2 access and role attributes as an extension and replacement for the accessKey attribute.

Media Object

SmilText

This new smilText functionality provides a new media type for use in SMIL presentations. The smilText modules provide a text container element with an explicit content model for defining in-line text, and a set of additional elements and attributes to control explicit in-line text rendering.

The following 3 modules are introduced in the new Text functional area allowing use of in-line text content:

In addition, SMIL 3.0 also defines the smilText profile, which allows timed text markup to be placed in a light-weight external container.

Metainformation

Metainformation mechanisms in SMIL 3.0 provide a general purpose approach to attaching metainformation to any element within the presentation.

Structure

The new Identity module identifies the SMIL version and the SMIL profile. This replaces the former SMIL approach of defining separate namespaces for individual modules and profiles.

Timing

The SMIL 3.0 specification leaves the basic syntax and semantics of the SMIL 2.1 timing model [SMIL21-timing] unchanged apart from the following changes:

State

The new modules in this section provide a mechanism whereby the document author may create more complex controlflow than what SMIL provides through the timing and content control modules, without having to go all the way of using a scripting language. One way to provide this is to allow a document to have some explicit state (think: variables) along with ways to modify, use and save this state.

The following 4 modules are introduced in the State functional areas:

2.4 SMIL 3.0 Modules

This section is normative.

SMIL functionality is partitioned into 12 functional areas. Within each functional area a further partitioning is applied into modules. All of these modules, and only these modules, are associated with the SMIL namespace.

The functional areas and their corresponding modules are:

Note: Modules marked with (**) are new Modules added in SMIL 3.0. Modules marked with (*) are revised modules from SMIL 2.1.

  1. Animation
    1. BasicAnimation
    2. SplineAnimation
  2. Content Control
    1. BasicContentControl
    2. CustomTestAttributes
    3. PrefetchControl
    4. RequiredContentControl (**)
    5. SkipContentControl
  3. Layout
    1. AlignmentLayout
    2. AudioLayout
    3. BackgroundTilingLayout
    4. BasicLayout (*)
    5. MultiWindowLayout
    6. OverrideLayout
    7. StructureLayout (**)
    8. SubRegionLayout
  4. Linking
    1. BasicLinking
    2. LinkingAttributes
    3. ObjectLinking
  5. Media Objects
    1. BasicMedia
    2. BrushMedia
    3. MediaAccessibility
    4. MediaClipping
    5. MediaClipMarkers
    6. MediaDescription
    7. MediaOpacity (**)
    8. MediaPanZoom (**)
    9. MediaParam (*)
    10. MediaRenderAttributes(**)
  6. SmilText
    1. BasicText (**)
    2. TextStyling(**)
    3. TextMotion (**)
  7. Metainformation
    1. Metainformation (*)
  8. Structure
    1. Structure
    2. Identity (**)
  9. Timing
    1. AccessKeyTiming
    2. BasicInlineTiming
    3. BasicTimeContainers
    4. BasicExclTimeContainers
    5. BasicPriorityClassContainers
    6. DOMTimingMethods (**)
    7. EventTiming
    8. FillDefault
    9. MediaMarkerTiming
    10. MinMaxTiming
    11. MultiArcTiming
    12. RepeatTiming
    13. RepeatValueTiming
    14. RestartDefault
    15. RestartTiming
    16. SyncbaseTiming
    17. SyncBehavior
    18. SyncBehaviorDefault
    19. SyncMaster
    20. TimeContainerAttributes
    21. WallclockTiming
  10. Time Manipulations
    1. TimeManipulations
  11. State
    1. StateTest (**)
    2. UserState (**)
    3. StateSubmission (**)
    4. StateInterpolation (**)
  12. Transitions
    1. BasicTransitions
    2. InlineTransitions
    3. TransitionModifiers
    4. FullScreenTransitionEffects

Each of these modules introduces a set of semantically-related elements, properties, and attributes. Each functional area has a corresponding section in this specification document. Further details on each of the modules is specified within those sections.

The modules may be independent or complementary. For example, the SyncMaster module requires and builds upon the SyncBehavior module, but the PrefetchControl and SkipContentControl modules are independent from each other. In addition, some modules require modules from other functional areas.

Modules specify their integration requirements. When one module requires another module for basic features and as a prerequisite for integration, a profile must include the second module in order to include the first. The first module is said to be a dependent of the second module. Dependency may be nested, in that a module may be dependent on a module that is a dependent itself.

Table 1 presents the SMIL 3.0 modules and the modules they depend on.

Table 1: The SMIL 3.0 Modules and their Dependencies.
Module Dependencies
AccessKeyTiming NONE
AlignmentLayout BasicLayout
AudioLayout BasicLayout
BackgroundTilingLayout BasicLayout
BasicAnimation BasicInlineTiming
BasicContentControl NONE
BasicInlineTiming NONE
BasicExclTimeContainers NONE
BasicLayout StructureLayout
BasicLinking NONE
BasicMedia NONE
BasicPriorityClassContainers BasicExclTimeContiners
BasicText NONE
BasicTimeContainers NONE
BasicTransitions NONE
BrushMedia NONE
CustomTestAttributes BasicContentControl
DOMTimingMethods NONE
EventTiming NONE
FillDefault BasicTimeContainers, and/or BasicExclTimeContainers, BasicPriorityClassContainers, and/or TimeContainerAttributes
FullScreenTransitionEffects BasicTransitions
Identity NONE
InlineTransitions NONE
LinkingAttributes NONE
MediaAccessibility MediaDescription
MediaClipMarkers MediaClipping
MediaClipping BasicMedia
MediaDescription NONE
MediaMarkerTiming NONE
MediaOpacity BasicMedia
MediaPanZoom BasicMedia
MediaParam BasicMedia
MediaRenderAtrributes NONE
MetaInformation NONE
MinMaxTiming NONE
MultiArcTiming AccessKeyTiming, and/or BasicInlineTiming, and/or EventTiming, and/or
MediaMarkerTiming, and/or RepeatValueTiming, and/or
SyncbaseTiming, and/or WallclockTiming
MultiWindowLayout BasicLayout
ObjectLinking BasicLinking
OverrideLayout BasicLayout, SubRegionLayout
PrefetchControl NONE
RepeatTiming NONE
RepeatValueTiming NONE
RequiredContentControl NONE
RestartDefault RestartTiming
RestartTiming NONE
SkipContentControl NONE
SplineAnimation BasicAnimation
StateInterpolation NONE
StateSubmission UserState
StateTest NONE
Structure BasicContentControl, and BasicInlineTiming, and BasicLayout, and
BasicLinking, and BasicMedia, and BasicTimeContainers, and
SkipContentControl, and SyncbaseTiming
StructureLayout Structure
SubRegionLayout BasicLayout
SyncbaseTiming NONE
SyncBehavior BasicTimeContainers, and/or
BasicExclTimeContainers, BasicPriorityClassContainers, and/or
TimeContainerAttributes
SyncBehaviorDefault SyncBehavior
SyncMaster SyncBehavior
TextMotion BasicText
TextStyling BasicText
TimeContainerAttributes NONE
TimeManipulations NONE
TransitionModifiers BasicTransitions, and/or InlineTransitions
UserState NONE
WallclockTiming NONE

2.5 Identifiers for SMIL 3.0 MIME Type and the SMIL 3.0 Modules

This section is normative.

This section specifies the identifiers for the SMIL 3.0 MIME Type and the SMIL 3.0 modules. The identifiers for SMIL 3.0 profiles are defined as part of the profile specification.

2.5.1 The SMIL Mime Type

Documents authored in host-language conformant profiles may be associated with the "application/smil+xml" mime type: "application/smil+xml" mime type are required to be host language conformant. The "application/smil" mime type as specified in SMIL 2.0 [SMIL20] is obsolete.

2.5.2 Identifiers for SMIL 3.0 Modules

Each module in this specification has a unique identifier associated with it. They are intended to uniquely and consistently identify each of them. They should be used as values in a test for whether an implementation includes a specific module, as well as in other circumstances where a need to refer to a specific SMIL 3.0 module is necessary. These identifiers are to be used with the systemRequired attribute from the RequiredContentControl module.

Table 2 summarizes the identifiers for SMIL 3.0 modules.

Table 2: The SMIL 3.0 Module Identifiers.
Module name Identifier
AccessKeyTiming http://www.w3.org/2008/SMIL30/AccessKeyTiming
AudioLayout http://www.w3.org/2008/SMIL30/AudioLayout
BackgroundTilingLayout http://www.w3.org/2008/SMIL30/BackgroundTilingLayout
AlignmentLayout http://www.w3.org/2008/SMIL30/AlignmentLayout
BasicAnimation http://www.w3.org/2008/SMIL30/BasicAnimation
BasicContentControl http://www.w3.org/2008/SMIL30/BasicContentControl
BasicInlineTiming http://www.w3.org/2008/SMIL30/BasicInlineTiming
BasicExclTimeContainers http://www.w3.org/2008/SMIL30/BasicExclTimeContainers
BasicLayout http://www.w3.org/2008/SMIL30/BasicLayout
BasicLinking http://www.w3.org/2008/SMIL30/BasicLinking
BasicMedia http://www.w3.org/2008/SMIL30/BasicMedia
BasicPriorityClassContainers http://www.w3.org/2008/SMIL30/BasicPriorityClassContainers
BasicText http://www.w3.org/2008/SMIL30/BasicText
BasicTimeContainers http://www.w3.org/2008/SMIL30/BasicTimeContainers
BasicTransitions http://www.w3.org/2008/SMIL30/BasicTransitions
BrushMedia http://www.w3.org/2008/SMIL30/BrushMedia
CustomTestAttributes http://www.w3.org/2008/SMIL30/CustomTestAttributes
DOMTimingMethods http://www.w3.org/2008/SMIL30/DOMTimingMethods
EventTiming http://www.w3.org/2008/SMIL30/EventTiming
FillDefault http://www.w3.org/2008/SMIL30/FillDefault
FullScreenTransitionEffects http://www.w3.org/2008/SMIL30/FullScreenTransitionEffects
Identity http://www.w3.org/2008/SMIL30/Identity
InlineTransitions http://www.w3.org/2008/SMIL30/InlineTransitions
LinkingAttributes http://www.w3.org/2008/SMIL30/LinkingAttributes
MediaAccessibility http://www.w3.org/2008/SMIL30/MediaAccessibility
MediaClipMarkers http://www.w3.org/2008/SMIL30/MediaClipMarkers
MediaClipping http://www.w3.org/2008/SMIL30/MediaClipping
MediaDescription http://www.w3.org/2008/SMIL30/MediaDescription
MediaMarkerTiming http://www.w3.org/2008/SMIL30/MediaMarkerTiming
MediaOpacity http://www.w3.org/2008/SMIL30/MediaOpacity
MediaPanZoom http://www.w3.org/2008/SMIL30/MediaPanZoom
MediaParam http://www.w3.org/2008/SMIL30/MediaParam
MediaRenderAttributes http://www.w3.org/2008/SMIL30/MediaRenderAttributes
Metainformation http://www.w3.org/2008/SMIL30/Metainformation
MinMaxTiming http://www.w3.org/2008/SMIL30/MinMaxTiming
MultiArcTiming http://www.w3.org/2008/SMIL30/MultiArcTiming
MultiWindowLayout http://www.w3.org/2008/SMIL30/MultiWindowLayout
ObjectLinking http://www.w3.org/2008/SMIL30/ObjectLinking
OverrideLayout http://www.w3.org/2008/SMIL30/OverrideLayout
PrefetchControl http://www.w3.org/2008/SMIL30/PrefetchControl
RepeatTiming http://www.w3.org/2008/SMIL30/RepeatTiming
RepeatValueTiming http://www.w3.org/2008/SMIL30/RepeatValueTiming
RequiredContentControl http://www.w3.org/2008/SMIL30/RequiredContentControl
RestartDefault http://www.w3.org/2008/SMIL30/RestartDefault
RestartTiming http://www.w3.org/2008/SMIL30/RestartTiming
SkipContentControl http://www.w3.org/2008/SMIL30/SkipContentControl
SplineAnimation http://www.w3.org/2008/SMIL30/SplineAnimation
StateTest http://www.w3.org/2008/SMIL30/StateTest
StateInterpolation http://www.w3.org/2008/SMIL30/StateInterpolation
StateSubmission http://www.w3.org/2008/SMIL30/StateSubmission
Structure http://www.w3.org/2008/SMIL30/Structure
StructureLayout http://www.w3.org/2008/SMIL30/StructureLayout
SubRegionLayout http://www.w3.org/2008/SMIL30/SubRegionLayout
SyncbaseTiming http://www.w3.org/2008/SMIL30/SyncbaseTiming
SyncBehavior http://www.w3.org/2008/SMIL30/SyncBehavior
SyncBehaviorDefault http://www.w3.org/2008/SMIL30/SyncBehaviorDefault
SyncMaster http://www.w3.org/2008/SMIL30/SyncMaster
TextMotion http://www.w3.org/2008/SMIL30/TextMotion
TextStyling http://www.w3.org/2008/SMIL30/TextStyling
TimeContainerAttributes http://www.w3.org/2008/SMIL30/TimeContainerAttributes
TimeManipulations http://www.w3.org/2008/SMIL30/TimeManipulations
TransitionModifiers http://www.w3.org/2008/SMIL30/TransitionModifiers
UserState http://www.w3.org/2008/SMIL30/UserState
WallclockTiming http://www.w3.org/2008/SMIL30/WallclockTiming

2.5.3 Identifiers for SMIL 3.0 Profiles and Features

In addition to the module identifiers above, there are different sets of features that may be expressed using the following identifiers:

http://www.w3.org/2008/SMIL30/NestedTimeContainers
Profile allows nesting of the par and seq time containers.
http://www.w3.org/2008/SMIL30/SMIL20DeprecatedFeatures
Profile supports deprecated SMIL SMIL 2.0 features.
http://www.w3.org/2008/SMIL30/SMIL10DeprecatedFeatures
Profile supports deprecated SMIL 1.0 features.

Modules may also be identified collectively. When grouped into SMIL 3.0 profiles, the module identification string is placed in the profile specification. Profiles will also provide an identification string for their DTD specification. In addition, the following general module collections are defined:

http://www.w3.org/2008/SMIL30/
All the modules specified by the SMIL 3.0 specification.
http://www.w3.org/2008/SMIL30/HostLanguage
The modules required for SMIL Host Language Conformance.
http://www.w3.org/2008/SMIL30/IntegrationSet
The modules required for SMIL Integration Set Conformance.

Implementations must allow these as identifiers for use with the systemRequired attribute from the RequiredContentControl module.

Profiles must identify those attributes for which an implementation must return "true" (this is an integration requirement). Implementations must return "false" for modules or features which are not fully supported.

2.6 SMIL Conformance

This section is normative.

The rules for host-language and SMIL 3.0 document conformance, as well as the rules for SMIL 3.0 User Agent conformance are provided as part of the SMIL Scalability Framework.

2.7 Creating a DTD for a SMIL 3.0 Profile

This section is informative.

This section describes how profiles could be defined using the SMIL 3.0 modular DTDs. The reader is assumed to be familiar with the mechanisms defined in "Modularization of XHTML" [XMOD], in particular Appendix D [XMOD-APPD] and Appendix E [XMOD-APPE]. In general, the SMIL 3.0 modular DTDs use the same mechanisms as the XHTML modular DTDs use. Exceptions to this are:

  1. SMIL supports qualified attribute names for SMIL attributes that may appear on non-SMIL elements. This enables these attributes to use prefixes to indicate that they belong to the SMIL 3.0 namespace.
  2. SMIL supports module level INCLUDE/IGNORE instead of XHTML's element/attlist level. Similar to XHTML Modularization, this prohibits profiles from importing only part of a module -- they have to support either all the elements and attributes or none.

Below, we give a short description of the files that are used to define the SMIL 3.0 modular DTDs. See the table and the end of the section for a complete list of the filenames involved.

Following the same mechanisms as the XHTML modular DTDs, the SMIL 3.0 specification places the XML element declarations (e.g. <!ELEMENT...>) and attribute list declarations (e.g. <!ATTLIST...>) of all SMIL 3.0 elements in separate files, the SMIL module files. A SMIL module file is provided for each functional area in the SMIL 3.0 specification (that is, there is a SMIL module file for animation, layout, timing, etc).

The SMIL module files are used in the normative definitions of the specification of the SMIL 3.0 Language profile. Usage of the same module files for defining other SMIL profiles is recommended, but not required. The requirements that SMIL profiles must follow are stated in the SMIL 3.0 specification, not in the DTD code.

To make the SMIL module files independent of each other, and independent of the profiles, the element and attribute declarations make heavy use of XML entities. This provides profiles with the necessary hooks to define the actual content models and attributes of the SMIL elements.

The SMIL 3.0 Language profile provides examples of how the SMIL module files may be used. Most of the DTD files are reused across the different profiles. Reused are the SMIL module files, the files that define the data types and the common attributes, the "qname" file that takes care of adding namespace prefixes if necessary, and the framework file, which takes care of including files in the appropriate order.

The file that is different for each profile is the driver file, and possibly the document model file. To define a new profile, one has to write the extension module(s), the driver file that defines which modules are used, and a document model file that defines the extended document model. A new profile that merely reuses SMIL 3.0 modules may not need a new document model file. The driver file and document model file are described in more detail below.

The driver file.

This is the file that would be referenced by a document's DOCTYPE declaration. Its main job is to define the modules and features that are included in the DTD. The file contains the following parts.

The document model file.

The document model file contains the XML entities that are used by the SMIL module files to define the content models and attribute lists of the elements in that profile.

Content models generally differ from profile to profile, or contain elements from other modules. To avoid these dependencies in the SMIL module files, content models may be defined in the document model file. The (dummy) default content model as defined in the SMIL module files is "EMPTY" for all SMIL 3.0 elements.

For the same reasons, the SMIL module files only define a default attribute list for their elements. This default list only contains the SMIL 3.0 core attributes and the attributes that are defined in the same SMIL module file. All other attributes may be added to this default list by defining the appropriate XML entities. For example, the Media Objects Module file only adds the core and media related attributes on the media objects; other attributes, such as the timing attributes, are added to this list by the document model file.

Table 7: Formal public identifiers and system identifiers of all files used in the SMIL 3.0 modular DTDs.
Driver files for the predefined profiles
-//W3C//DTD SMIL 3.0 Language//EN http://www.w3.org/2008/SMIL30/SMIL30Language.dtd
-//W3C//DTD SMIL 3.0 Unified Mobile//EN http://www.w3.org/2008/SMIL30/SMIL30UnifiedMobile.dtd
-//W3C//DTD SMIL 3.0 Daisy//EN http://www.w3.org/2008/SMIL30/SMIL30Daisy.dtd
-//W3C//DTD SMIL 3.0 Tiny//EN http://www.w3.org/2008/SMIL30/SMIL30Tiny.dtd
-//W3C//DTD SMIL 3.0 smilText//EN http://www.w3.org/2008/SMIL30/SMIL30smilText.dtd
Document model files for the predefined profiles
-//W3C//ENTITIES SMIL 3.0 Document Model 1.0//EN http://www.w3.org/2008/SMIL30/smil-profile-model-1.mod
SMIL 3.0 module files
-//W3C//ELEMENTS SMIL 3.0 Animation//EN http://www.w3.org/2008/SMIL30/SMIL-anim.mod
-//W3C//ELEMENTS SMIL 3.0 Content Control//EN http://www.w3.org/2008/SMIL30/SMIL-control.mod
-//W3C//ELEMENTS SMIL 3.0 Layout//EN http://www.w3.org/2008/SMIL30/SMIL-layout.mod
-//W3C//ELEMENTS SMIL 3.0 Linking//EN http://www.w3.org/2008/SMIL30/SMIL-link.mod
-//W3C//ELEMENTS SMIL 3.0 Media Objects//EN http://www.w3.org/2008/SMIL30/SMIL-media.mod
-//W3C//ELEMENTS SMIL 3.0 Document Metainformation//EN http://www.w3.org/2008/SMIL30/SMIL-metainformation.mod
-//W3C//ELEMENTS SMIL 3.0 SMILtext//EN http://www.w3.org/2008/SMIL30/SMIL-smiltext.mod
-//W3C//ELEMENTS SMIL 3.0 State//EN http://www.w3.org/2008/SMIL30/SMIL-state.mod
-//W3C//ELEMENTS SMIL 3.0 Document Structure//EN http://www.w3.org/2008/SMIL30/SMIL-struct.mod
-//W3C//ELEMENTS SMIL 3.0 Timesheet//EN http://www.w3.org/2008/SMIL30/SMIL-timesheet.mod
-//W3C//ELEMENTS SMIL 3.0 Timing//EN http://www.w3.org/2008/SMIL30/SMIL-timing.mod
-//W3C//ELEMENTS SMIL 3.0 Transition//EN http://www.w3.org/2008/SMIL30/SMIL-transition.mod
Other utilities: data types, common attributes, qname and frame work files
-//W3C//ENTITIES SMIL 3.0 Common Attributes 1.0//EN http://www.w3.org/2008/SMIL30/smil-attribs-1.mod
-//W3C//ENTITIES SMIL 3.0 Datatypes 1.0//EN http://www.w3.org/2008/SMIL30/smil-datatypes-1.mod
-//W3C//ENTITIES SMIL 3.0 Modular Framework 1.0//EN http://www.w3.org/2008/SMIL30/smil-framework-1.mod
-//W3C//ENTITIES SMIL 3.0 Qualified Names 1.0//EN http://www.w3.org/2008/SMIL30/smil-qname-1.mod

3. SMIL 3.0 Structure

Editor for SMIL 3.0
Thierry Michel, W3C
Editor for Earlier Versions of SMIL
Warner ten Kate, Philips Electronics
Aaron Cohen, Intel.

3.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 specification adds the Identity Module to the SMIL 2.1 Structure Module [SMIL21-structure]. It also adds the xml:id attribute, which should be used to assign identity to elements instead of the id attribute, which has been deprecated in SMIL 3.0.

3.2 Introduction

This section is informative

This Section defines the SMIL Structure module and the Identity Module.
The Structure module provides the base elements for structuring SMIL content. These elements act as the root in the content model of all SMIL Host Language conformant language profiles. The Structure module is a mandatory module for SMIL Host Language conformant language profiles. The SMIL Structure module is composed of the smil, head, and body elements, and is compatible with SMIL 1.0 [SMIL10]. The corresponding SMIL 1.0 elements form a subset of the Structure module, both in syntax and semantics, as their attributes and content model is also exposed by the Structure module. Thus, the Structure module is backwards compatible with SMIL 1.0.

The Identity Module provides attributes to identify the SMIL version and the SMIL profile.

3.3 The SMIL 3.0 Structure Module Syntax and Semantics

This section is normative

3.3.1 Elements and attributes

This section defines the elements and attributes that make up the SMIL 3.0 Structure module.

The smil element

The smil element acts as the root element for all SMIL Host Language conformant language profiles.

Element attributes

The smil element may have the following attributes:

xml:id
The xml:id attribute uniquely identifies an element within a document. Its value is an XML identifier. Refer to the "xml:id Version 1.0" Recommendation [XML-ID]. It is strongly recommended that SMIL generators and authors use only xml:id to assign identity to elements.
id (Deprecated.)
The id attribute uniquely identifies an element within a document. Its value is an XML identifier. The id attribute is deprecated in SMIL 3.0; SMIL 3.0 content should use xml:id instead. If the xml:id and id attributes are used on the same element, the id will be ignored. The id attribute may become obsolete in a future version of SMIL. User agents should continue to support this deprecated attribute for reasons of backward compatibility.
class
The class attribute assigns a class name or a set of class names to an element. Any number of elements may be assigned the same class name or names. Multiple class names must be separated by white space characters.
xml:lang
The xml:lang attribute specifies the language of an element, and is specified in XML 1.1 [XML11]. xml:lang differs from systemLanguage test attribute in one important respect. xml:lang provides information about content's language independent of what implementations do with the information, whereas systemLanguage is a test attribute with specific associated behavior (see systemLanguage in SMIL 3.0 BasicContentControl Module for details).
title
The title attribute offers advisory information about the element for which it is set. Values of the title attribute may be rendered by user agents in a variety of ways. For instance, visual browsers frequently display the title as a "tool tip" (a short message that appears when the pointing device pauses over an object).
xmlns[:/prefix/]
The standard XML attribute for identifying an XML namespace. Refer to the "Namespaces in XML" Recommendation [XML-NS] and to the rules for SMIL 3.0 Conformant Documents.
Element content

The smil element may contain the following elements:

head
body

The head element

The head element contains information that is not related to the temporal behavior of the presentation. Three types of information may be contained by head. These are meta information, layout information, and author-defined content control.

Element attributes

The head element may have the following attributes:

xml:id
Defined in xml:id under the smil element.
id
Defined in id under the smil element. It is recommended to use xml:id instead.
class
Defined in class under the smil element.
xml:lang
Defined in xml:lang under the smil element.
title
Defined in title under the smil element.
Element content

The head element contains elements depending on the other modules and specific syntax included in the language profile integrating this module.

The body element

The body element contains information that is related to the temporal and linking behavior of the document. It acts as the root element of the timing tree.

The body element has the timing semantics of a time container equal to that of the seq element [BasicTimeContainers module]. Note, that in other language profiles, where a body element from another (Structure) Module is in use, that body element may have different timing semantics. For example, in the XHTML+SMIL language profile (still in progress and not yet a W3C Recommendation), the body element comes from HTML, and acts as a par time container.

Element attributes

The body element may have the following attributes:

xml:id
Defined in xml:id under the smil element.
id (Deprecated.)
Defined in id under the smil element. It is recommended to use xml:id instead.
class
Defined in class under the smil element.
xml:lang
Defined in xml:lang under the smil element.
title
Defined in title under the smil element.

The timing attributes defined in the various SMIL 3.0 Timing modules are part of the body element so far as the corresponding timing modules, such as BasicInlineTiming, are part of the language profile. When a timing module is included in a language profile, the features of that module should be supported on the body element just as they are supported on the other elements in the profile. For example, the syncMaster attribute should be supported on the body element if the SyncMaster module is included in the integrating profile.

Element content

The body element contains elements depending on the other modules and specific syntax included in the language profile integrating this module.

3.4 Integrating the SMIL Structure Module

This section is normative

When this module is included in a language profile, the xml:id, class, and title attributes defined in this module must be included on all elements from all modules used in the profile, including those from other module families and of non-SMIL origin. The integrating profile should also consider adding the xml:lang attribute to the applicable elements.

The SMIL Structure module is the starting module when building any SMIL Host Language conformant language profile. The Structure module may not be used for building other, non-SMIL Host Language conformant language profiles. This implies that the SMIL Structure module must at least be accompanied with the other modules mandatory for SMIL Host language conformance, and the elements in the structure module must include at least the minimum content models required for SMIL Host language conformance.

When modules from outside the SMIL 3.0 namespace are integrated in the language profile, it must be specified how the elements from those non-SMIL modules fit into the content model of the used SMIL modules (and vice versa). For example, with respect to the SMIL Structure module, the Profiling Entities in the DTD should be overridden. This creates a so-called hybrid document type [XMOD]. In case of a so-called compound document type, the rules of XML namespaces must be satisfied [XML-NS].

3.5 The SMIL 3.0 Identity Module

This section is normative

3.5.1 SMIL 3.0 Identity Module Overview

This module contains two attributes, version and baseProfile, which are used to identify which version of SMIL and for which Profile the document is written for.

3.5.2 Elements and attributes

Element definition

The Identity Module does not contain any element definitions.

Attribute definition

This section defines the attributes that make up the SMIL 3.0 Identity Module.

version
value: version-number
version-number ::= "3.0"
The version attribute identifies the SMIL version number. If the version attribute value is different from the above value, the user agent should specify an error. See also Handling syntax errors.
baseProfile
value: profile-name
profile-name ::= "Language" | "UnifiedMobile" | "Daisy" | "Tiny" | "smilText" | user-defined-profile-name
user-defined-profile-name ::= "x-" NMTOKEN
The baseProfile attribute specifes the SMIL Profile used. If the baseProfile attribute value is different from the above values, the user agent should specify an error. See also Handling syntax errors.

This section is informative

Example of version and baseProfile attribute use

<smil xml:id="root" xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Tiny" >
  <head xml:id="head"> ...   </head>
  <body xml:id="body"> ...   </body>
</smil>

3.5.3 Integration Requirements for the SMIL 3.0 Identity Module

It is the responsibility of the language profile to specify which elements support the version and baseProfile attributes. All profiles should at least support these two attributes on the top-level smil element.

4. SMIL 3.0 Media Object

Editor for SMIL 3.0
Dick Bulterman, CWI
Eric Hyche, RealNetworks.
Editor for SMIL 2.0
Dick Bulterman, CWI
Rob Lanphier, RealNetworks.

4.1 Changes for SMIL 3.0

This section is informative.

There are three major changes to the Media Object modules for SMIL 3.0: the first is the splitting of the SMIL 2.1 MediaParam module into two modules: the MediaParam and MediaRenderAttributes modules; the second is the introduction of the MediaOpacity module, containing new rendering attributes for chroma key and opacity control; the third is the introduction of the MediaPanZoom module. The rationale for these changes is:

  1. The splitting of the SMIL 2.1 MediaParam module provides a better differentiation of functionality, which may help user agent profile designers be more selective in the features they wish to support.
  2. The MediaOpacity module is added to define control over various aspects of media opacity using the mediaOpacity, mediaBackgroundOpacity, chromaKey, chromaKeyOpacity, and chromaKeyTolerance attributes.
  3. The MediaPanZoom module defines the panZoom attribute to provide a framework for panning and zooming over media content. (This attribute is based largely on equivalent functionality in the SVG viewBox attribute.)

The MediaParam module also includes new text that explicitly discusses the behavior of adding the various media control attributes defined in that section to a SMIL layout region definition as a means of providing a global mechanism for applying default attribute settings to all content rendered within that region.

A number of editorial changes have also been integrated into the various Media Object modules descriptions; these do not impact the functionality defined in earlier versions of SMIL.

4.2 Introduction

This section is informative.

This section defines the SMIL media object modules, which are composed of the BasicMedia module and nine modules with additional functionality that build on top of the BasicMedia module: the BrushMedia, MediaClipping, MediaClipMarkers, MediaParam, MediaRenderAttributes, MediaOpacity, MediaAccessibility, MediaDescription, and MediaPanZoom modules. These modules contain elements and attributes used to reference external media objects or control media object rendering behavior. Since these elements and attributes are defined in a series of modules, designers of other markup languages may reuse the SMIL media module when they wish to include media objects into their language.

The differences between current media object functionality and that provided by the SMIL 1.0 specification are explained in Appendix A.

4.3 Definitions

This section is normative.

This section provides convenience definitions for common timing and resource identifier terms used in this module.

SMIL provides a number of timing-related concepts that are used to determine activation, duration and termination of media objects in a presentation. The temporal semantics of these concepts are discussed in the SMIL 3.0 Timing and Synchronization module.

Intrinsic Duration
The duration of a referenced media item based on the temporal properties of that item (defined next), without any explicit SMIL timing markup. Some media objects have a well-defined notion of implicit duration (such as a 7 second audio clip), while other objects do not have well-defined durations (such as a string of plain text). In SMIL, the implicit duration for any media object that does not have a well-defined duration is set to be zero seconds. The implicit duration is used to calculate scheduling information; it is sometimes independent of the actual duration of a media object (such as with a live media stream or with an image with multiple internal frames when no particular duration can be derived by the SMIL scheduler). From a scheduling perspective, an object's intrinsic duration forms the basis for the simple duration of the object during presentation. This duration may be shortened or extended using SMIL timing markup.
Continuous Media
Media objects, such as stored audio or video files, for which there is a measurable and well-understood duration. For example, a five second audio clip is continuous media, because it has a well-understood duration of five seconds. Opposite of "discrete media". See also the definition of continuous media in the Timing module.
Discrete Media
Media objects, such as images or non-timed text data, that has no obvious duration. For example, a JPEG image is generally considered discrete media, because there's nothing in the file indicating how long the JPEG should be displayed. Opposite of "continuous media". See also the definition of discrete media in the Timing module.

The distinction between continuous and discrete media is sometimes arbitrary and may be SMIL renderer dependent. For example, animated images that do not have a well-defined duration (simply a repeating collection of frames) are classified for SMIL scheduling purposes as being discrete media; such objects have an intrinsic scheduling duration of zero seconds.

In this specification, the term URI [URI] refers to a universal resource identifier, as defined in [RFC3986] and subsequently extended under the name IRI in [RFC3987]. In some cases, the term URI has been retained in the specification to avoid using new names for concepts such as "Base URI" that are defined or referenced across a whole family of XML specifications.

4.4 SMIL BasicMedia Module

This section is normative.

This module defines the baseline media functionality of a SMIL player.

4.4.1 Media Object Elements - ref, and its synonyms animation, audio, img, text, textstream and video

SMIL defines a single generic media object element that allows the inclusion of external media objects into a SMIL presentation. Media objects are included by reference (using a IRI).

ref
Generic media reference

In addition to the ref element, SMIL allows the use of the following set of synonyms:

animation
Animated vector graphics or other animated format
audio
Audio clip
Still image, such as PNG or JPEG
text
External text reference
textstream
A text document that includes timing information for the purpose of time-dependent rendering of portions of the text document.
video
Video clip

All of these media elements are semantically identical. When playing back an external media object, the player must not derive the exact type of the media object from the name of the media object element. Instead, it must rely solely on other sources about the type, such as the type information communicated by a server or the operating system, or by using type information contained in the type attribute.

This section is informative.

Authors are encouraged to use meaningful synonyms (animation, audio, img, video, text or textstream) when referencing external media objects. This is in order to increase the readability of the SMIL document. Some SMIL implementations may require the use of an element type that matches the information type of the object. When in doubt about the group of a media object, authors should use the generic "ref" element.

The animation element defined here should not be confused with the elements defined in the SMIL 3.0 Animation Module. The animation element defined in this module is used to include an external animation object file (such as a vector graphics animation) by reference. This is in contrast to the elements defined in the Animation module, which provide an in-line syntax for the animation of attributes and properties of other elements.

SMIL 3.0 also supports the smilText element for defining in-line timed text content. This functionality is described in the smilText Modules specification.

Anchors and links may be attached to visual media objects, i.e. media objects rendered on a visual abstract rendering surface.

Attributes Definitions

Languages implementing the SMIL BasicMedia Module must define which attributes may be attached to media object elements. In all languages implementing the SMIL BasicMedia module, media object elements may have the following attributes:

src
The value of the src attribute is the IRI [IRI] of the media element, used for locating and fetching the associated media.

The attribute supports fragment identifiers and the '#' connector in the IRI value. The fragment part is an id value that identifies one of the elements within the referenced media item. With this construct, SMIL 3.0 supports locators as currently used in HTML (that is, it uses locators of the form http://www.example.org/some/path#anchor1), with the difference that the values are of unique identifiers and not the values of "name" attributes. Generally speaking, this type of addressing implies that the target media is of a structured type that supports the concept of id, such as HTML or XML-based languages.

Note that this attribute is not required. A media object with no src attribute has an intrinsic duration of zero, and participates in timing just as any other media element. No media will be fetched by the SMIL implementation for a media element without a src attribute.

type
Content type of the media object referenced by the src attribute. The usage of this attribute depends on the protocol of the src attribute.
RTSP [RTSP]
The type attribute is used for purposes of content selection and when the type of the referenced media is not otherwise available. It may be overridden by the contents of the RTSP DESCRIBE response or by the static RTP payload number.
HTTP [HTTP]
The type attribute is used as an alternative method of content selection and when the type of the referenced media is not otherwise available. It may override the contents of the "Content-type" field in an HTTP exchange only if a user has allowed such overrides, as specified in the TAG Finding Authoritative Metadata [AM]. The nominal precedence order for type resolution is: via the HTTP content-type field, via the type attribute, and then by using other clues (such as file inspection or use of the file extension).
FTP [FTP] and local file playback IRI [URI]
The type attribute value takes precedence over other possible sources of the media type (for instance, the file extension).

When the content represented by a URL is available in many data formats, implementations MAY use the type value to influence which of the multiple formats is used. For instance, on a server implementing HTTP content negotiation, the client may use the type attribute to order the preferences in the negotiation. The type attribute is not intended for use in media sub-stream selection.

For protocols not enumerated in this specification, implementations should use the following rules: When the media is encapsulated in a media file and delivered intact to the SMIL user agent via a protocol designed for delivery as a complete file, the media type as provided by this protocol should take precedence over the type attribute value. For protocols which deliver the media in a media-aware fashion, such as those delivering media in a manner using or dependent upon the specific type of media, the application of the type attribute is not defined by this specification.

Element Content

Languages utilizing the SMIL BasicMedia module must define the complete set of elements which may act as children of media object elements. There are currently no required children of a media object defined in the BasicMedia Module, but languages utilizing the BasicMedia module may impose requirements beyond this specification.

4.4.2 Integration Requirements

If the including profile supports the XMLBase functionality [XMLBase] , the values of the src and longdesc attributes on the media object elements must be interpreted in the context of the relevant XMLBase URI prefix.

User-agent implementations are responsible for defining the rendering behavior when fragment addressing is used in the src attribute. Such definition should be added to language profiles that wish to include specific media addressing features. For example:
- User-agents should define the default behavior for when referencing a non-existing id in the target media document.
- User-agents should define the rendering method for the selected media fragment: in context, with or without highlighting and scrolling, or stand-alone (selective rendering only).
- User-agents should describe the timing implication for when addressing timed-content.

SMIL 3.0 allows but does not require user agents to be able to process XPointer values in the IRI value of the src attribute. The SMIL 3.0 Linking Module provides additional information related to XPointer.

4.5 SMIL MediaParam Module

This section is normative.

This section defines the elements and attributes that make up the SMIL MediaParam Module definition. The MediaParam module is intended to provide a uniform mechanism for media object initialization. Languages implementing elements and attributes found in the MediaParam module must implement all elements and attributes defined below, as well as BasicMedia.

4.5.1 The param element

The param element allows a general parameter value to be sent to a media object renderer as a name/value pair. This parameter is sent to the renderer at the time that the media object is processed by the scheduler. It is up to the media renderer to associate an action with the given param. The media renderer may choose to ignore any unknown or inappropriate param values (such as sending a font size to an audio object).

Any number of param elements may appear (in any order) in the content of a media object element or in a paramGroup element. If a given parameter is defined multiple times, the lexically last version of that parameter value should be used.

The syntax of names and values is assumed to be understood by the object's implementation. The SMIL specification does not specify how user agents should retrieve name/value pairs.

Attribute definitions
name
(CDATA) This attribute defines the name of a run-time parameter, assumed to be known by the inserted object. Whether the property name is case-sensitive depends on the specific object implementation.
value
(CDATA) This attribute specifies the value of a run-time parameter specified by name. Property values have no meaning to SMIL; their meaning is determined by the object in question.
valuetype
["data"|"ref"|"object"] This attribute specifies the type of the value attribute. Possible values:
  • data This is default value for the attribute. It means that the value specified by value will be evaluated and passed to the object's implementation as a string.
  • ref The value specified by value is a IRI [IRI] that designates a resource where run-time values are stored. This allows support tools to identify URIs given as parameters. The IRI must be passed to the object as is, i.e., unresolved.
  • object The value specified by value is an identifier that refers to a media object declaration in the same document. The identifier must be the value of the id attribute set for the declared media object element.
type
This attribute specifies the content type of the resource designated by the value attribute only in the case where valuetype is set to "ref". This attribute thus specifies for the user agent, the type of values that will be found at the IRI designated by value. See 6.7 Content Type in [HTML4] for more information.

Example

This section is informative.

To illustrate the use of param, suppose that we have a facial animation plug-in that is able to accept different moods and accessories associated with characters. These could be defined in the following way:
<ref src="http://www.example.com/herbert.face">
  <param name="mood" value="surly" valuetype="data"/>
  <param name="accessories" value="baseball-cap,nose-ring" valuetype="data"/>
</ref>

4.5.2 The paramGroup element

The paramGroup element provides a convenience mechanism for defining a collection of media parameters that may be reused with several different media objects. If present, the paramGroup element must appear in the head section of the document. The content of the paramGroup element consists of zero or more param elements. The paramGroup element may not contain nested paramGroup element definitions.

Element attributes

This element does not define any new attributes. Profiles integrating this element must specify an attribute of type ID [XML11] by which the param group is referenced in a media object reference. For SMIL 3.0, the xml:id attribute will typically be used.

Examples

This section is informative.

This section contains several fragments that illustrate uses of the paramGroup element.

In the following fragment, a paramGroup is created to define parameters that are passed to several different media objects:

<smil ... >
  <head>
    ...
    <paramGroup xml:id="clown">
       <param name="mood" value="upBeat" valuetype="data"/>
       <param name="accessories" value="flowers,dunceCap"/>
    </paramGroup>
    ...
  </head>
  <body>
    ...
    <ref src="http://www.example.com/andy.face" paramGroup="clown"/>
    ...
    <ref src="http://www.example.com/sally.face" paramGroup="clown"/>
    ...
  </body>
</smil>

In the following example, a media object provides an additional param value:

<smil ... >
  <head>
    ...
    <paramGroup xml:id="clown">
       <param name="mood" value="upBeat" valuetype="data"/>
       <param name="accessories" value="flowers,dunceCap"/>
    </paramGroup>
    ...
  </head>
  <body>
    ...
    <ref src="http://www.example.com/andy.face" paramGroup="clown">
      <param name="gender" value="male"/>
    </ref>
    ...
  </body>
</smil>

In this final example, a media object provides a duplicate param value. The behavior in this case depends on the media renderer; all param values are passed to the renderer in the lexical order of the SMIL source file. It is expected that the lexically last value for any parameter sent to the renderer be used, if possible.

<smil ... >
  <head>
    ...
    <paramGroup xml:id="clown">
       <param name="mood" value="upBeat" valuetype="data"/>
       <param name="accessories" value="flowers,dunceCap"/>
    </paramGroup>
    ...
  </head>
  <body>
    ...
    <ref src="http://www.example.com/andy.face" paramGroup="clown">
      <param name="gender" value="male"/>
      <param name="mood" value="depressed" valuetype="data"/>
    </ref>
    ...
  </body>
</smil>

4.5.3 Element Attributes for Media Object Initialization

In addition to the element attributes defined in BasicMedia, media object elements and layout regions may add the media initialization attribute defined below.

paramGroup
Used to specify the name of a paramGroup that was defined in the document head. The value is a single IDREF [XML11] that refers to the ID [XML11] of a paramGroup element. If the named paramGroup does not exist, this attribute is ignored. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region.

4.5.4 Integration Requirements

Any profile that integrates the functionality of this module is strongly encouraged to define a set of common parameter names that may be used to initialize common media object types for that profile. This can significantly increase interoperability of user agents and media rendering libraries.

The supported uses of the type and valuetype attributes on the param element must be specified by the integrating profile. If a profile does not specify this, the type and valuetype attributes will be ignored in that profile.

4.6 SMIL MediaRenderAttributes Module

This section is normative.

This section defines the elements and attributes that make up the SMIL MediaRenderAttributes Module definition. Languages implementing elements and attributes found in the MediaRenderAttributes module must implement all elements and attributes defined below, as well as BasicMedia.

4.6.1 Elements

This module does not define any elements.

4.6.2 Element Rendering Attributes for All Media Objects

In addition to the element attributes defined in BasicMedia, media object elements and layout regions may have the attributes and attribute extensions defined below.

erase
Controls the behavior of the media object after the effects of any timing are complete. For example, when SMIL Timing is applied to a media element, erase controls the display of the media when the active duration of the element and when the freeze period defined by the fill attribute is complete (see SMIL Timing and Synchronization module). If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region.

Values:

whenDone (default)
When this is specified (or implied) the media removal occurs at the end of any applied timing.
never
When this value is specified, the last state of the media is kept displayed until the display area is reused (or if the display area is already being used by another media object). Any profile that integrates this element must define what is meant by "display area" and further define the interaction. Intrinsic hyperlinks (e.g., Flash, HTML) and explicit hyperlinks (e.g., area, a) stay active as long as the hyperlink is displayed. If timing is re-applied to an element, the effect of the erase=never is cleared. For example, when an element is restarted according to the SMIL Timing and Synchronization module, the element is cleared immediately before it restarts.

Example:

This section is informative.

<par>
  <seq>
    <par>
      <img src="image1.jpg" region="foo1" fill="freeze" erase="never" .../>
      <audio src="audio1.au"/>
    </par>

    <par>
      <img src="image2.jpg" region="foo2" fill="freeze" erase="never" .../>
      <audio src="audio2.au"/>
    </par>
     ...
    <par>
      <img src="imageN.jpg" region="fooN" fill="freeze" erase="never" .../>
      <audio src="audioN.au"/>
    </par>
  </seq>
</par>

In this example, each image is successively displayed and remains displayed until the end of the presentation.

mediaRepeat
Used to strip the intrinsic repeat value of the underlying media object. The interpretation of this attribute is specific to the media type of the media object, and is only applicable to those media types for which there is a definition of a repeat value found in the media type format specification. Media type viewers used in SMIL implementations should expose an interface for controlling the repeat value of the media for this attribute to be applied. For all media types where there is an expectation of interoperability between SMIL implementations, there should be a formal specification of the exact repeat value to which the mediaRepeat attribute applies. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region.

Values:

strip
Strip the intrinsic repeat value of the media object.
preserve (default)
Leave the intrinsic repeat value of the media object intact.

As an example of how this would be used, many animated GIFs intrinsically repeat indefinitely. The application of mediaRepeat= "strip" allows an author to remove the intrinsic repeat behavior of an animated GIF on a per-reference basis, causing the animation to display only once, regardless of the repeat value embedded in the GIF.

When mediaRepeat is used in conjunction with SMIL Timing Module attributes, this attribute is applied first, so that the repeat behavior can then be controlled with the SMIL Timing Module attributes such as repeatCount and repeatDur.

sensitivity
Used to provide author control over the sensitivity of media to user interface selection events, such as the SMIL 2.1 activateEvent, and hyperlink activation. If the media is sensitive at the event location, it captures the event, and will not pass the event through to underlying media objects. If not, it allows the event to be passed through to any media objects lower in the display hierarchy. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region.

Values:

opaque
The media is sensitive to user interface selection events over the entire area of the media. This is the default.
transparent
The media is not sensitive to user interface selection events over the entire area of the media. Any user interface selection events will be "passed through" to any underlying media.
percentage-value
The media sensitivity to user interface selection events is dependent upon the opacity of the media at the location of the event (the alpha channel value). If rendered media supports an alpha channel and the opacity of the media is less than the given percentage value at the event location, the behavior will be transparent as specified above. Otherwise the behavior will be as opaque. Valid values are non-negative CSS2 percentage values.

4.6.3 Integration Requirements

Any profile that supports the erase attribute must define what is meant by "display area" and further define the interaction. See the definition of erase for more details.

4.7 SMIL MediaOpacity Module

This section is normative.

This section defines the elements and attributes that make up the SMIL MediaOpacity Module definition. Languages implementing elements and attributes found in the MediaOpacity module must implement all elements and attributes defined below, as well as BasicMedia.

4.7.1 Elements

This module does not define any elements.

4.7.2 Element Attributes for All Media Objects

In addition to the element attributes defined in BasicMedia, media object elements and layout regions may have the attributes and attribute extensions defined below.

chromaKey
This attribute defines the color to be used for chroma key opacity manipulation. It accepts a single CSS2 color value. If media objects or implementations cannot support manipulation of the chroma key value, this attribute is ignored. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region.
chromaKeyOpacity
This attribute defines the opacity of the chroma key value defined with the chromaKey attribute. It accepts a percentage value in the range 0-100% or a number in the range 0.0-1.0, with 100% or 1.0 meaning fully opaque. If a chroma key color is defined, the default value is 0% (fully transparent). If no chroma key color is defined or if implementations cannot support manipulation of the media opacity value, this attribute is ignored. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region.
chromaKeyTolerance
This attribute defines a color value that specifies a tolerance value that is added and subtracted from the effective chroma key. If a chroma key color was defined, the default value of this attribute is #000000. If no chroma key color was defined or if implementations cannot support manipulation of the chroma key value, this attribute is ignored. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region.
mediaOpacity
This attribute defines the opacity of the media object. It accepts a percentage value in the range 0-100% or a number in the range 0.0-1.0, with 100% or 1.0 meaning fully opaque. If implementations cannot support manipulation of the media opacity value, this attribute is ignored. The default value of this attribute is 100%. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all content displayed within that region. The media opacity manipulation does not apply to a background color for a media object, if such a color is defined. The background color opacity is manipulated using the mediaBackgroundOpacity attribute.
mediaBackgroundOpacity
This attribute defines the background color opacity of the media object for media objects that explicitly define a media background color. It accepts a percentage value in the range 0-100% or a number in the range 0.0-1.0, with 100% or 1.0 meaning fully opaque. If either media objects or implementations cannot support manipulation of the media background color opacity, this attribute is ignored. The default value of this attribute is 100%. If this attribute is defined on a SMIL layout region definition, it specifies a default value for all media background opacity displayed within that region.

This section is informative.

The attributes in this module allow the opacity (that is, the degree to which a media object is transparent) to be defined. Opacity may be controlled in several ways, depending on the type of media being used. For unstructured media (that is, media that does not contain an explicitly-defined background color), the chromaKey attribute may be used to identify a particular color that will serve as the background color for purposes of opacity manipulation. If a chromaKey is used, the chromaKeyOpacity attribute may specify the degree of transparency desired. Since the color used to define a background may not be exactly preserved within a media object, the chromaKeyTolerance attribute allows a tolerance range to be defined for the chroma key color.

Some media objects, such as RealText, smilText, GIF, PNG, and Flash, define an explicit background color. In these cases, the specification of the opacity of that color can be done using the mediaBackgroundOpacity attribute. In these cases, only the defined color is manipulated.

In addition to specifying the transparency level of a particular background color, SMIL also allows the specification of the transparency level of a total media object. This is accomplished using the mediaOpacity attribute.

Note that SMIL layout also defines the backgroundOpacity attribute to control the transparency of a layout region.

4.7.3 Integration Requirements

This module does not introduce any special integration constraints.

4.8 SMIL MediaClipping Module

This section is normative.

This section defines the attributes that make up the SMIL MediaClipping Module definition. Languages implementing the attributes found in the MediaClipping module must implement the attributes defined below, as well as BasicMedia.

4.8.1 MediaClipping Attributes

clipBegin (clip-begin)
The clipBegin attribute specifies the beginning of a sub-clip of a continuous media object as offset from the start of the media object. This offset is measured in normal media playback time from the beginning of the media.
Values in the clipBegin attribute have the following syntax:
Clip-value-MediaClipping ::= [ Metric "=" ] ( Clock-val | Smpte-val )
Metric            ::= Smpte-type | "npt"
Smpte-type        ::= "smpte" | "smpte-30-drop" | "smpte-25"
Smpte-val         ::= Hours ":" Minutes ":" Seconds
                      [ ":" Frames [ "." Subframes ]]
Hours             ::= DIGIT+
Minutes           ::= DIGIT DIGIT /* range from 00 to 59 */
Seconds           ::= DIGIT DIGIT /* range from 00 to 59 */

Frames            ::= DIGIT DIGIT /* smpte range = 00-29, smpte-30-drop range = 00-29, smpte-25 range = 00-24 */
Subframes         ::= DIGIT DIGIT /* smpte range = 00-01, smpte-30-drop range = 00-01, smpte-25 range = 00-01 */
DIGIT             ::= [0-9]


The value of this attribute consists of a metric specifier, followed by a time value whose syntax and semantics depend on the metric specifier. The following formats are allowed:

SMPTE Timestamp
SMPTE time codes [SMPTE] may be used for frame-level access accuracy. The metric specifier may have the following values:
smpte
smpte-30-drop
These values indicate the use of the "SMPTE 30 drop" format (approximately 29.97 frames per second), as defined in the SMPTE specification (also referred to as "NTSC drop frame"). The "frames" field in the time value may assume the values 0 through 29. The difference between 30 and 29.97 frames per second is handled by dropping the first two frame indices (values 00 and 01) of every minute, except every tenth minute.
smpte-25
The "frames" field in the time specification may assume the values 0 through 24. This corresponds to the PAL standard as noted in [SMPTE]

The time value has the format hours:minutes:seconds:frames.subframes. If the subframe value is zero, it may be omitted. Subframes are measured in one-hundredths of a frame.
Examples:
clipBegin="smpte=10:12:33"

This section is informative.

The introduction of subframe notation in SMIL 2.1 introduced an inconsistency with SMIL 1.0. As of this draft, SMIL 3.0 has deprecated the subframe notation.

Normal Play Time
Normal Play Time expresses time in terms of SMIL clock values. The metric specifier is "npt", and the syntax of the time value is identical to the syntax of SMIL clock values.
Examples:
clipBegin="npt=123.45s"
clipBegin="npt=12:05:35.3
"
Marker
Not defined in this module. See clipBegin Media Marker attribute extension in the MediaClipMarkers module.

If no metric specifier is given, then a default of "npt=" is presumed.

When used in conjunction with the timing attributes from the SMIL Timing Module, this attribute is applied before any SMIL Timing Module attributes.

clipBegin may also be expressed as clip-begin for compatibility with SMIL 1.0. Software supporting the SMIL 2.1 Language Profile must be able to handle both clipBegin and clip-begin, whereas software supporting only the SMIL MediaClipping module only needs to support clipBegin. If an element contains both a clipBegin and a clip-begin attribute, then clipBegin takes precedence over clip-begin.

Example:

This section is informative.

<audio src="radio.wav" clip-begin="5s" clipBegin="10s" />

The clip begins at second 10 of the audio, and not at second 5, since the clip-begin attribute is ignored. A strict SMIL 1.0 implementation will start the clip at second 5 of the audio, since the clipBegin attribute will not be recognized by that implementation. See Changes to SMIL 1.0 Media Object Attributes for more discussion on this topic.

clipEnd (clip-end)
The clipEnd attribute specifies the end of a sub-clip of a continuous media object as offset from the start of the media object. This offset is measured in normal media playback time from the beginning of the media. It uses the same attribute value syntax as the clipBegin attribute.
If the value of the clipEnd attribute exceeds the duration of the media object, the value is ignored, and the clip end is set equal to the effective end of the media object. clipEnd may also be expressed as clip-end for compatibility with SMIL 1.0. Software supporting the SMIL 2.1 Language Profile must be able to handle both clipEnd and clip-end, whereas software supporting only the SMIL media object module only needs to support clipEnd. If an element contains both a clipEnd and a clip-end attribute, then clipEnd takes precedence over clip-end. When used in conjunction with the timing attributes from the SMIL Timing Module, this attribute is applied before any SMIL Timing Module attributes.

See Changes to SMIL 1.0 Media Object Attributes for more discussion on this topic.

4.9 SMIL MediaClipMarkers Module

This section is normative.

This section defines the attribute extensions that make up the SMIL MediaClipMarkers Module definition. Languages implementing elements and attributes found in the MediaClipMarkers module must implement all elements and attributes defined below, as well as BasicMedia and MediaClipping.

4.9.1 MediaClipMarkers Attribute Extensions

clipBegin Media Marker attribute extension
Used to define a clip using named time points in a media object, rather than using clock values or SMPTE values. The metric specifier is "marker", and the marker value is a IRI (see [IRI] ). The IRI is relative to the src attribute, rather than to the document root or the XML base of the SMIL document.

Clip-value-MediaClipMarkers ::= Clip-value-MediaClipping |
                      "marker" "=" URI-reference
   /* "URI-reference" is defined in  [URI]  */

Example: Assume that a recorded radio transmission consists of a sequence of songs, which are separated by announcements by a disk jockey. The audio format supports marked time points, and the begin of each song or announcement with number X is marked as songX or djX respectively. To extract the first song using the "marker" metric, the following audio media element may be used:

<audio clipBegin="marker=#song1" clipEnd="marker=#dj1" />
clipEnd Media Marker attribute extension
clipEnd media markers use the same attribute value syntax as the clipBegin media marker extension media marker attribute extension. For the complete description, see clipBegin media marker extension.

4.10 SMIL BrushMedia Module

This section is normative.

This section defines the elements and attributes that make up the SMIL BrushMedia Module definition. Languages implementing elements and attributes found in the BrushMedia module must implement all elements and attributes defined below.

4.10.1 The brush element

The brush element is a lightweight media object element which allows an author to paint a solid color in place of a media object. Attributes associated with media objects may also be applied to brush element. (A specific profile will determine the attribute set applied to this element.)

Attribute definitions
color
The use and definition of this attribute are identical to the "background-color" property in the CSS2 specification.

4.10.2 Integration Requirements

Profiles including the BrushMedia module must provide semantics for using a color attribute value of inherit on the brush element. Because inherit doesn't make sense in all contexts, the value of inherit is prohibited on the color attribute of the brush element for profiles that do not otherwise define these semantics.

4.11 SMIL MediaAccessibility Module

This section is normative.

This section defines the elements and attributes that make up the SMIL MediaAccessibility Module definition. Languages implementing elements and attributes found in the MediaAccessibility module must implement all elements and attributes defined below, as well as MediaDescription.

4.11.1 MediaAccessibility Attributes

Attribute definitions
alt
For user agents that cannot display a particular media object, this attribute specifies alternate text. alt may be displayed in addition to the media, or instead of media when the user has configured the user agent to not display the given media type.

It is strongly recommended that all media object elements have an "alt" attribute with a brief, meaningful description. Authoring tools should ensure that no element may be introduced into a SMIL document without this attribute.

The value of this attribute is a CDATA text string.

longdesc
This attribute specifies a IRI link ([IRI] ) to a long description of a media object. This description should supplement the short description provided using the alt attribute or the abstract attribute. When the media object has associated hyperlinked content, this attribute should provide information about the hyperlinked content.

readIndex
This attribute specifies the position of the current element in the order in which longdesc, title and alt text are read aloud by assistive devices (such as screen readers) for the current document. User agents should ignore leading zeros. The default value is 0.

Elements that contain alt, title or longdesc attributes are read by the assistive technology according to the following rules:

  • Those elements that assign a positive value to the readindex attribute are read out first. Navigation proceeds from the element with the lowest readindex value to the element with the highest value. Values need not be sequential nor must they begin with any particular value. Elements that have identical readindex values should be read out in the order they appear in the character stream of the document.
  • Those elements that assign it a value of "0" are read out in the order they appear in the character stream of the document.
  • Elements in a switch statement that have test-attributes which evaluate to "false" are not read out.

Example

This section is informative.

<par>
  <video xml:id="carvideo" src="car.rm" region="videoregion" title="Car video"
         alt="Illustration of relativistic time dilation and length
              contraction."
         longdesc="carvideodesc.html" readIndex="3"/>
  <audio xml:id="caraudio" src="caraudio.rm" region="videoregion"
         title="Car presentation voiceover" begin="bar.begin"/>
  <animation xml:id="cardiagram" src="car.svg" region="animregion"
         title="Diagram of the car" readIndex="2"/>
  <img xml:id="scvad" src="scv.png" region="videoregion"
         title="Advertisement for Sugar Coated Vegetables"
         readIndex="1"/>
</par>

In this example, an assistive device that is presenting titles should present the "scvad" element title first (having the lowest readIndex value of "1"), followed by the "cardiagram" title, followed by the "carvideo" element title, and finally present the "caraudio" element title (having an implicit readIndex value of "0").

Note that not all examples in this specification use all media accessibility attributes because the purpose of the sample code is to illustrate specific language features.

4.12 SMIL MediaDescription Module

This section is normative.

This section defines the elements and attributes that make up the SMIL MediaDescription Module definition. Languages implementing elements and attributes found in the MediaDescription module must implement all elements and attributes defined below.

4.12.1 MediaDescription Attributes

Attribute definitions
abstract
A brief description of the content contained in the element. Unlike alt, this attribute is generally not displayed as alternate content to the media object. It is typically used as a description when table of contents information is generated from a SMIL presentation, and typically contains more information than would be advisable to put in an alt attribute.

This attribute is deprecated in favor of using appropriate SMIL metadata markup in RDF. For example, this attribute maps well to the "description" attribute as defined by the Dublin Core Metadata Initiative [DC] .

author
The name of the author of the content contained in the element.

The value of this attribute is a CDATA text string.

copyright
The copyright notice of the content contained in the element.

The value of this attribute is a CDATA text string.

title
The title attribute as defined in the SMIL Structure module. It is strongly recommended that all media object elements have a title attribute with a brief, meaningful description. Authoring tools should ensure that no element may be introduced into a SMIL document without this attribute.
xml:lang
Used to identify the natural or formal language for the element. For a complete description, see section 2.12 Language Identification of [XML11].

xml:lang differs from the systemLanguage test attribute in one important respect. xml:lang provides information about the content's language independent of what implementations do with the information, whereas systemLanguage is a test attribute with specific associated behavior (see systemLanguage in SMIL Content Control Module for details)

This section is informative.

SMIL 3.0 also supports the use of the element within the MetaInformation Module to supply additional or alternative forms of metainformation for any media object.

4.13 MediaPanZoom Module

This section is normative.

4.13.1 Overview

This section is informative.

The SMIL MediaPanZoom module integrates the functionality of the SVG viewBox attribute and adapts it for use within the SMIL media framework. The SMIL panZoom attribute allows a SMIL author to define a two-dimensional extent over the visible surface of a media object and to subsequently project the contents within the panZoom area into a SMIL presentation.

Most of SMIL's layout elements and attributes provide the ability to define and manage a two-dimensional rendering space. This space is defined relative to a root-layout (or topLayout) specification. All of the coordinate and size specifications are in terms of the coordinate space defined for the layout root. In contrast, the panZoom attribute allows users to define an area in terms of the coordinate space used by the media object that is associated with the panZoom area. The panZoom area may be smaller, equal to, or larger than the related media object.

The following illustration shows three views of a 300x200 pixel image. In the left view, a panZoom area is shown that is the same size as the media object; in the middle view, a panZoom area is defined that covers the middle part of the image only; in the right view, a panZoom area is illustrated that is positioned (in both dimensions) partially outside the media object. Note that while this illustration shows the panZoom area projected onto an image, similar illustrations could be defined for videos or text objects, or any other object that may be mapped to a particular media bounding box.

Picture showing a base image and three panZoom area examples

Once a portion of a media object's visible area is defined with a panZoom area, the portion within the panZoom area is processed further as if it defined the full native view of the media object. The content within the panZoom area is projected into a region in a manner that is dependent on the region element associated with that object, including any scaling dictated by the fit attribute or (if appropriate), sub-region positioning and alignment directives.

If the region and the panZoom area have the same aspect ratios, then the panZoom area will, by default, fill the entire region. If the effective pixel dimensions of the region are larger than that of the panZoom area, the effect will be an enlargement of the media content. If the effective pixel dimensions of the window are smaller than that of the panZoom area, the effect will be a reduction in size of the media object. Other effects may be obtained by manipulating the fit attribute of the region.

If supported by the profile implementing this module, a dynamic pan-and-zoom effect may be obtained by applying standard SMIL animation primitives to the dimensions of the panZoom area. A pan effect may be obtained by varying the X and Y positioning values, and a zoom effect may be obtained by changing the size dimensions of the panZoom area. Examples of these effects are given later in this module description. Given the nature of independently animating collections of attribute values, care should be taken when specifying animation behavior.

If a panZoom area extends past the viewable extents of a media object (such as in the rightmost illustration, above), then the effective contents of these extended areas will be transparent.

4.13.2 Elements and Attributes for the MediaPanZoom Module

This module does not define any new elements. It provides extensions to the ref element (and its synonyms), and to the region element.

The ref Element

The panZoom attribute is added to media object references.

Element attributes
panZoom
This attribute specifies a rectangular area in media coordinates that defines the portion of a media object that is to be used within a SMIL presentation. The panZoom attribute defines an ordered list of four values, separated by a comma:
left
A value (using CSS2 pixel or percentage values) that defines the minimum X coordinate of a rectangle in media space that serves as the X origin of the panZoom area. If pixel notation is used, the 'px' suffix may be omitted. An effective value of '0px' represents the left edge of the media object.
top
A value (using CSS2 pixel or percentage values) that defines the minimum Y coordinate of a rectangle in media space that serves as the Y origin of the panZoom area. If pixel notation is used, the 'px' suffix may be omitted. A value of '0' represents the top edge of the media object.
width
A non-negative length value (using CSS2 pixel or non-negative percentage values) that defines the horizontal dimension of the panZoom area. If pixel notation is used, the 'px' suffix may be omitted. A negative value is an error. The default value of width is set to the intrinsic width of the associated media object.
height
A non-negative length value (using CSS2 pixel or non-negative percentage values) that defines the vertical dimension of the panZoom area. If pixel notation is used, the 'px' suffix may be omitted. A negative value is an error. The default value of set to the intrinsic height of the associated media object.
The default panZoom area behavior is to select the entire visual space of the media object; this is equivalent to panZoom="0, 0, 100%, 100%".

The panZoom area is processed on the media object before any other SMIL layout processing occurs. The actual visual rendering of the content resulting from the processed panZoom area will be determined by, among other factors: the size of the target region, the application of sub-region positioning in that region (if supported by the profile), the value of the fit attribute on the region, and the effect of SMIL alignment attributes (if supported by the profile).

This section is informative.

If the profile integrating the panZoom element allows each of the attribute values to be animated, care should be taken to choose an animation calculation mode that will yield predictable results (such as using a linear mode). The animation of mixed percentage/pixel values for height and width is not recommended.

Note that the specification of negative values for left and top is not an error; this allows placing (a portion of) the panZoom area outside of the media.

Element content

The SMIL MediaPanZoom module does not extend the content model for the ref element integrating these attributes.

The region Element

The panZoom attribute is added to regions definitions.

Element attributes
panZoom
This attribute is identical in definition to the panZoom attribute defined for the ref element in this section, with the exception that it defines a default panZoom area that is applied to all media rendered in the associated region. All other aspects of panZoom area processing are the same as with the ref element, except that the values defined for the panZoom area on a region may be overridden by a panZoom area specification on the ref element.
Element content

The SMIL MediaPanZoom module does not extend the content model for the region element integrating these attributes.

Attribute Examples

This section is informative.

Assume the following SMIL example:

<smil ...>
  <head>
  ...
    <layout>
      <root-layout height="200" width="300" backgroundColor="red" />
      <region xml:id="I" top="0" left="0" height="200" width="300"  backgroundColor="blue" />
    </layout>
  </head>
  <body>
    <seq>
      <ref xml:id="R1" src="table.jpg" panZoom="0,0,300,200" dur="5s" region="I" />
      <ref xml:id="R2" src="table.jpg" panZoom="80,50,160,125" dur="5s" region="I" fit="meet"/>
      <ref xml:id="R3" src="table.jpg" panZoom="80,50,160,125" dur="5s" region="I" fit="meetBest"/>
      <ref xml:id="R4" src="table.jpg" panZoom="240,120,85,110" dur="5s" region="I" fit="meet"/>
    </seq>
  </body>
</smil>

In this example, a single region is defined that is used to display four instances of the same image. Each media reference within the sequence S contains a different panZoom area definition, each of which will result in the following behavior:

  1. The media reference R1 defines a panZoom area that encompasses the entire media object space; the full image will be shown in region I, as is shown in the following image:
    A panZoom area projection that is the same size as the target region.
    Note that the origin of the image is aligned with the origin of the media object, at the top-left of the region.
  2. The media reference R2 defines a panZoom area that encompasses the center portion of the media object space. The projection of the media into region I will result in a zoom into the source image, as is shown in the following image:
    A panZoom area projection that is smaller than the target region, resulting in a zoom effect.

    Note that the origin of the sub-image defined by the panZoom area is placed at the origin of the top-left of the region. Note also that the value of the fit attribute determines that the image is scaled (while maintaining the aspect ratio), resulting in the zoom effect.

  3. The media reference R3 defines a panZoom area that is the same as in reference R2; the difference in this example is that the value of the fit attribute does not permit enlargement of the source image into the region. As a result, the image is placed at top-left in an unscaled rendering:
    A panZoom area projection that is smaller than the target region, but with a fit=
  4. The media reference R4 defines a panZoom area that extends beyond the boundaries of the media object. When it is projected into the region I with a fit value that scales the image with preserved aspect ratio, the entire extent of the panZoom area is scaled: the areas that extend beyond the image content are rendered as (scaled) transparent content:
    A panZoom area projection that extends beyond the right/bottom edge of the image -- the extended part of the box will be transparent.

All of the previous examples illustrate how a panZoom area operates on a media object that contains a media-defined viewable extent. The panZoom attribute may also be applied to visual objects that do not have predefined extents. Consider the following example, in which an unstructured text object is placed in a region:

<smil ...>
  <head>
  ...
    <layout>
      <root-layout height="200" width="300" backgroundColor="red" />
      <region xml:id="T" top="0" left="0" height="50" width="300"  backgroundColor="blue" />
    </layout>
  </head>
  <body>
    <seq>
      <ref xml:id="R0" src="short_story.txt" panZoom="0,10,50,200" dur="10s" region="T" />
    </seq>
  </body>
</smil>

In this example, a single region is defined that is used to display a undimensioned text object. In SMIL 3.0, the text object would first be rendered to an off-screen bitmap based on the default settings for the media object (font, font size, font color) and then a panZoom area of the defined size would be overlaid on this text representation. This facility is especially useful when combined with SMIL Animation, as discussed in the next example.

The ability to define a panZoom area, when combined with SMIL animation primitives, provides a simple mechanism for doing pan/zoom animations over a visual object. (These pan/zoom animations are often called 'Ken Burns' animations.) The following example illustrates how a pan window may be positioned and moved over an image area:

<smil ...>
  <head>
  ...
    <layout>
      <root-layout height="200" width="300" backgroundColor="red" />
      <region xml:id="B" top="0" left="0" height="50" width="75"  backgroundColor="blue" />
    </layout>
  </head>
  <body>
    <seq>
      <ref xml:id="R0" src="table_233x150.jpg" panZoom="0,0,50,75" dur="20s" region="B" fit="meet" >
         <animate attributeName="panZoom"
                     values="25,20,50,75; 45,55,50,75; 140,40,50,75; 35,0,100,150; 0,0,100,150"
                     dur="20s" />
      </ref>
      ...
    </seq>
  </body>
</smil>

In this example, an image with intrinsic size of 233x150 pixels is rendered into a region of size 50x75. An initial panZoom area is defined that displays a 50x75 portion of that image, positioned in its top-left corner. During the following 20 seconds, the panZoom area is moved across the image according to the behavior of the animate element; the panZoom area changes are scheduled at equal points across the animation timeline (in this case, every 5 seconds). During the final animation, the panZoom area is extended to implement a zoom-out across the entire image. An illustration of the rendering results is shown below:


A panZoom area projection and a set of animations that move the panZoom area across the source image.

4.13.3 MediaPanZoom Module Events

This module does not define any SMIL events.

4.13.4 SMIL MediaPanZoom Implementation and Integration

Implementation Details

The MediaPanZoom module allows individual media object references to override the default values for certain attributes. In all cases, the attributes will apply only to the (sub-)region referenced by the media object. Changes will not propagate to child sub-regions or to parent regions.

Integration Requirements

The functionality in this module builds on top of the functionality in the Media module, which is a required prerequisite for inclusion of the MediaPanZoom module.

Differences with the SVG viewBox Attribute

The functionality in this module builds on the viewBox definition of SVG. Unlike SVG, the SMIL panZoom attribute defines a logical sub-image that contains only content within the panZoom area; SVG uses the viewBox to define a minimum viewing dimension for content, but allowing content outside the viewBox to be displayed in the region.

The MediaPanZoom module does not define a preserveAspectRatio attribute, since this functionality is already provided by the SMIL fit and registration/alignment attributes.

4.13.5 Document Type Definition (DTD) for the MediaPanZoom Module

See the full DTD for the SMIL Layout modules.

4.14 Appendices

This section is informative.

4.14.1 Appendix A: Changes to SMIL 1.0 Media Object Attributes

clipBegin, clipEnd, clip-begin, clip-end

With regards to the clipBegin/clip-begin and clipEnd/clip-end elements, SMIL 3.0 defines the following changes to the syntax defined in SMIL 1.0:

Handling of clipBegin/clipEnd syntax in SMIL 1.0 software

Using attribute names with hyphens such as clip-begin and clip-end is problematic when using a scripting language and the DOM to manipulate these attributes. Therefore, this specification adds the attribute names clipBegin and clipEnd as an equivalent alternative to the SMIL 1.0 clip-begin and clip-end attributes. The attribute names with hyphens are deprecated.

Authors may use two approaches for writing SMIL 3.0 presentations that use the new clipping syntax and functionality ("marker", default metric) defined in this specification, but can still can be handled by SMIL 1.0 software. First, authors may use non-hyphenated versions of the new attributes that use the new functionality, and add SMIL 1.0 conformant clipping attributes later in the text.

Example:

<audio src="radio.wav" clipBegin="marker=song1" clipEnd="marker=moderator1"
       clip-begin="npt=0s" clip-end="npt=3:50" />

SMIL 1.0 players implementing the recommended extensibility rules of SMIL 1.0 [SMIL10] will ignore the clip attributes using the new functionality, since they are not part of SMIL 1.0. SMIL 3.0 players, in contrast, will ignore the clip attributes using SMIL 1.0 syntax, because the SMIL 3.0 syntax takes precedence over the SMIL 1.0 syntax.

The second approach is to use the following steps:

  1. Add a "system-required" test attribute to media object elements using the new functionality. The value of the "system-required" attribute would correspond to a namespace prefix whose namespace IR ([IRI] ) points to a SMIL specification which integrates the new functionality.
  2. Add an alternative version of the media object element that conforms to SMIL 1.0
  3. Include these two elements in a "switch" element

Example:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
...
<switch>
  <audio src="radio.wav" clipBegin="marker=song1" clipEnd="marker=moderator1"
   system-required="smil2" />
  <audio src="radio.wav" clip-begin="npt=0s" clip-end="npt=3:50" />
</switch>

Additional Accessibility Attributes

readIndex
Allows explicit ordering for controlling assistive technology.

Additional Advanced Media Attributes

mediaRepeat
The mediaRepeat attribute was added to provide better timing control over media with intrinsic repeat behavior (such as animated GIFs).
erase
Provides a way for visual media to remain visible throughout the duration of a presentation by overriding the default erase behavior.

5. SMIL 3.0 Timing and Synchronization

Editor for SMIL 3.0
Sjoerd Mullender, CWI
Editor for Earlier Versions of SMIL
Dick Bulterman, CWI/Amsterdam
Patrick Schmitz, Microsoft
Jeff Ayars, RealNetworks
Bridie Saccocio, RealNetworks
Muriel Jourdan, INRIA.

5.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 specification leaves the basic syntax and semantics of the SMIL 2.1 timing model unchanged [SMIL21-timing]. The only change for SMIL 3.0 are that the four DOM method calls which were reserved in SMIL 2.1 have now been defined. A new module, DOMTimingMethods, was added which contains these DOM methods.

In addition to these changes, various typos were corrected and some clarifications were added.

5.2 Introduction

This section is informative

SMIL 1.0 solved fundamental media synchronization problems and defined a powerful way of choreographing multimedia content. SMIL 2.0 extends the timing and synchronization support, adding capabilities to the timing model and associated syntax. SMIL 3.0 adds Document Object Model support. Some SMIL 1.0 syntax has been changed or deprecated. This section of the document specifies the Timing and Synchronization module.

There are two intended audiences for this module: implementers of SMIL 3.0 document viewers or authoring tools, and authors of other XML languages who wish to integrate timing and synchronization support. A language with which this module is integrated is referred to as a host language. A document containing SMIL Timing and Synchronization elements and attributes is referred to as a host document.

As this module is used in different profiles (i.e. host languages), the associated syntax requirements may vary. Differences in syntax should be minimized as much as is practical.

SMIL 3.0 Timing and Synchronization support is broken down into 17 modules, allowing broad flexibility for language designers integrating this functionality. These modules are described in Appendix A: SMIL Timing and Synchronization modules.

5.3 Overview of SMIL timing

This section is informative

SMIL Timing defines elements and attributes to coordinate and synchronize the presentation of media over time. The term media covers a broad range, including discrete media types such as still images, text, and vector graphics, as well as continuous media types that are intrinsically time-based, such as video, audio and animation.

Three synchronization elements support common timing use-cases:

These elements are referred to as time containers. They group their contained children together into coordinated timelines.

SMIL Timing also provides attributes that may be used to specify an element's timing behavior. Elements have a begin, and a simple duration. The begin may be specified in various ways - for example, an element may begin at a given time, or based upon when another element begins, or when some event (such as a mouse click) happens. The simple duration defines the basic presentation duration of an element. Elements may be defined to repeat the simple duration, a number of times or for an amount of time. The simple duration and any effects of repeat are combined to define the active duration. When an element's active duration has ended, the element may either be removed from the presentation or frozen (held in its final state), e.g. to fill any gaps in the presentation.

An element becomes active when it begins its active duration, and becomes inactive when it ends its active duration. Within the active duration, the element is active, and outside the active duration, the element is inactive.

Figure 1 illustrates the basic support of a repeating element within a simple <par> time container. The corresponding syntax is included with the diagram.

Basic strip illustration of timing

<par begin="0s" dur="33s">
   <video begin="1s" dur="10s" repeatCount="2.5" fill="freeze" .../>
</par>

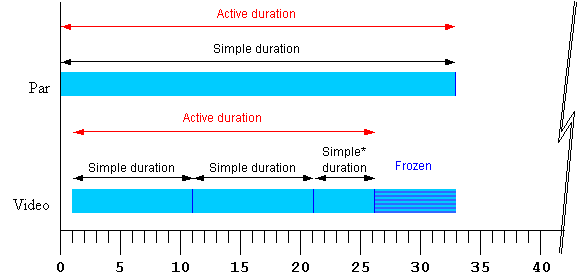

Figure 1 - Strip diagram of basic timing support. The starred "Simple*" duration indicates that the simple duration is partial (i.e. it is cut off early).

The attributes that control these aspects of timing may be applied not only to media elements, but to the time containers as well. This allows, for example, an entire sequence to be repeated, and to be coordinated as a unit with other media and time containers. While authors may specify a particular simple duration for a time container, it is often easier to leave the duration unspecified, in which case the simple duration is defined by the contained child elements. When an element does not specify a simple duration, the time model defines an implicit simple duration for the element. For example, the implicit simple duration of a sequence is based upon the sum of the active durations of all the children.

Each time container also imposes certain defaults and constraints upon the contained children. For example in a <seq>, elements begin by default right after the previous element ends, and in all time containers, the active duration of child elements is constrained not to extend past the end of the time container's simple duration. Figure 2 illustrates the effects of a repeating <par> time container as it constrains a <video> child element.

More complex strip illustration of timing

<par begin="0s" dur="12s" repeatDur="33s" fill="freeze" >
   <video begin="1s" dur="5s" repeatCount="1.8" fill="freeze" .../>
</par>

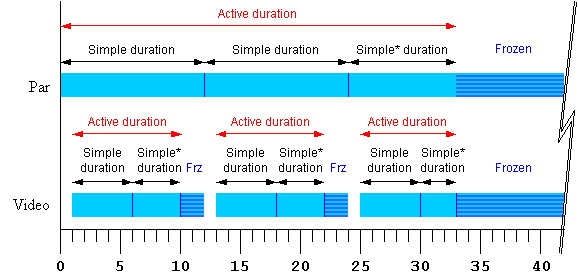

Figure 2 - Strip diagram of time container constraints upon child elements. The starred "Simple*" durations indicate that the simple duration is partial (i.e. it is cut off early).

The SMIL Timing Model defines how the time container elements and timing attributes are interpreted to construct a time graph. The time graph is a model of the presentation schedule and synchronization relationships. The time graph is a dynamic structure, changing to reflect the effect of user events, media delivery, and DOM control of the presentation. At any given instant, the time graph models the document at that instant, and the semantics described in this module. However, as user events or other factors cause changes to elements, the semantic rules are re-evaluated to yield an updated time graph.

When a begin or end value refers to an event, or to the begin or active end of another element, it may not be possible to calculate the time value. For example, if an element is defined to begin on some event, the begin time will not be known until the event happens. Begin and end values like this are described as unresolved. When such a time becomes known (i.e. when it can be calculated as a presentation time), the time is said to be resolved. A resolved time is said to be definite if it is not the value "indefinite". See also the discussion of Unifying scheduled and interactive timing.

In an ideal environment, the presentation would perform precisely as specified. However, various real-world limitations (such as network delays) may influence the actual playback of media. How the presentation application adapts and manages the presentation in response to media playback problems is termed runtime synchronization behavior. SMIL includes attributes that allow the author to control the runtime synchronization behavior for a presentation.

5.4 Language definition

This section is normative

5.4.1 Changes for SMIL 3.0

This section is informative

This section remains largely unchanged for SMIL 3.0 except for the relaxation of the restrictions on the begin attributes of children of a seq time container. Also, a number of examples have been added.

5.4.2 Overview

This section is informative

The timing model is defined by building up from the simplest to the most complex concepts: first the basic timing and simple duration controls, followed by the attributes that control repeating and constraining the active duration. Finally, the elements that define time containers are presented.

The time model depends upon several definitions for the host document: A host document is presented over a certain time interval.

5.4.3 Attributes

This section defines the set of timing attributes that are common to all of the SMIL synchronization elements.

Unless otherwise specified below, if there is any error in the argument value syntax for an attribute, the attribute will be ignored (as though it were not specified).

The begin and dur attributes: basic timing support

This section is informative

The basic timing for an element is described using the begin and dur attributes. Authors may specify the begin time of an element in a variety of ways, ranging from simple clock times to the time that an event (e.g. a mouse click) happens. The simple duration of an element is specified as a simple time value. The begin attribute syntax is described below.

The normative syntax rules for each attribute value variant are described in Timing attribute value grammars; an attribute value syntax summary is provided here as an aid to the reader.

begin : SMIL-1-syncbase-value | Begin-value-list
Defines when the element becomes active.
The attribute value is either a SMIL 1.0 syncbase declaration, or a semi-colon separated list of values.
SMIL-1-syncbase-value
Deprecated. Describes a syncbase and an offset from that syncbase. The element begin is defined relative to the begin or active end of another element.
Begin-value-list : Begin-value (";" Begin-value-list )?
A semi-colon separated list of begin values. The interpretation of a list of begin times is detailed in the section Evaluation of begin and end time lists.
Begin-value : ( Offset-value | Syncbase-value | Event-value | Repeat-value | Accesskey-value | Media-Marker-value | Wallclock-sync-value | "indefinite" )
Describes the element begin.
Offset-value
Describes the element begin as an offset from an implicit syncbase. The definition of the implicit syncbase depends upon the element's parent time container. The offset is measured in parent simple time.
Syncbase-value
Describes a syncbase and an offset from that syncbase. The element begin is defined relative to the begin or active end of another element.
Event-value
Describes an event and an optional offset that determine the element begin. The element begin is defined relative to the time that the event is raised. Events may be any event defined for the host language in accordance with [DOM2Events]. These may include user-interface events, event-triggers transmitted via a network, etc. Details of event-based timing are described in the section below on Unifying Event-based and Scheduled Timing.
Repeat-value
Describes a qualified repeat event. The element begin is defined relative to the time that the repeat event is raised with the specified Iteration value.
Accesskey-value
Describes an accesskey that determines the element begin. The element begin is defined relative to the time that the accesskey character is input by the user.
Media-Marker-value
Describes the element begin as a named marker time defined by a media element.
Wallclock-sync-value
Describes the element begin as a real-world clock time. The wallclock time syntax is based upon syntax defined in [ISO8601].
"indefinite"
The begin of the element will be determined by a "beginElement()" method call or a hyperlink targeted to the element.
The SMIL Timing and Synchronization DOM methods are described in the DOMTimingMethods section.
Hyperlink-based timing is described in the Hyperlinks and timing section.
Begin value semantics

This section is informative

Children of a par begin by default when the par begins (equivalent to begin="0s"). Children of a seq begin by default when the previous child ends its active duration (equivalent to begin="0s"); the first child begins by default when the parent seq begins. Children of an excl default to a begin value of "indefinite".

The begin value may specify a list of times. This can be used to specify multiple "ways" or "rules" to begin an element, e.g. if any one of several events is raised. A list of times may also define multiple begin times, allowing the element to play more than once (this behavior can be controlled, e.g. to only allow the earliest begin to actually be used - see also the restart attribute).

In general, the earliest time in the list determines the begin time of the element. There are additional constraints upon the evaluation of the begin time list, detailed in Evaluation of begin and end time lists.

Note that while it is legal to include "indefinite" in a list of values for begin, "indefinite" is only really useful as a single value. Combining it with other values does not impact begin timing, as DOM begin methods may be called with or without specifying "indefinite" for begin.

When a begin time is specified as a syncbase variant, a marker value or a wallclock value, the defined time must be converted by the implementation to a time that is relative to the parent time container (i.e. to the equivalent of an offset value). This is known as timespace conversion, and is detailed in the section Converting between local and global times.

Handling negative offsets for begin

The computed begin time defines the scheduled synchronization relationship of the element, even if it is not possible to begin the element at the computed time. The time model uses the computed begin time, and not the observed time of the element begin.

This section is informative

The use of negative offsets to define begin times merely defines the synchronization relationship of the element. It does not in any way override the time container constraints upon the element, and it cannot override the constraints of presentation time.

If an element has a begin time that resolves to a time before the parent time container begins, the parent time container constraint still applies. For example:

<par>
   <video xml:id="vid" begin="-5s" dur="10s" src="movie.mpg" />
   <audio begin="vid.begin+2s" dur="8s" src="sound.au" />
</par>

The video element cannot begin before the par begins. The begin is simply defined to occur "in the past" when the par begins. The viewer will observe that the video begins 5 seconds into the media, and ends after 5 seconds. Note that the audio element begins relative to the video begin, and that the computed begin time is used, and not the observed begin time as constrained by the parent. Thus the audio begins 3 seconds into the media, and also lasts 5 seconds.

The behavior can be thought of as a clipBegin value applied to the element, that only applies to the first iteration of repeating elements. In the example above, if either element were defined to repeat, the second and later iterations of the media would play from the beginning of the media (see also the repeatCount, repeatDur, and repeat attributes: repeating elements).

This section is informative

The behavior can be thought of as a clipBegin value applied to the element, that only applies to the first iteration of repeating elements.

The element will actually begin at the time computed according to the following algorithm:

Let o be the offset value of a given begin value,
d be the associated simple duration,
AD be the associated active duration.
Let rAt be the time when the begin time becomes resolved.
Let rTo be the resolved sync-base or event-base time without the offset
Let rD be rTo - rAt.  If rD < 0 then rD is set to 0.

If AD is indefinite, it compares greater than any value of o or ABS(o).
REM( x, y ) is defined as x - (y * floor( x/y )).
If y is indefinite or unresolved, REM( x, y ) is just x.

Let mb = REM( ABS(o), d ) - rD
If ABS(o) >= AD then the element does not begin.
Else if mb >= 0 then the media begins at mb.
Else the media begins at mb + d.

If the element repeats, the Iteration value of the repeat event has the calculated value based upon the above computed begin time, and not the observed number of repeats.

This section is informative

Thus for example:

<smil ...>
...
<ref begin="foo.activateEvent-8s" dur="3s" repeatCount="10" .../>
...
</smil>

The element begins when the user activates (for example, clicks on) the element "foo". Its calculated begin time is actually 8 seconds earlier, and so it begins to play at 2 seconds into the 3 second simple duration, on the third repeat iteration. One second later, the fourth iteration of the element will begin, and the associated repeat event will have the Iteration value set to 3 (since it is zero based). The element will end 22 seconds after the activation. The beginEvent event is raised when the element begins, but has a time stamp value that corresponds to the defined begin time, 8 seconds earlier. Any time dependents are activated relative to the computed begin time, and not the observed begin time.

Note: If script authors wish to distinguish between the computed repeat iterations and observed repeat iterations, they can count actual repeat events in the associated event handler.

Negative begin delays

This section is informative

A begin time specifies a synchronization relationship between the element and the parent time container. Syncbase variants, eventbase, marker and wallclock timing are implicitly converted to an offset on the parent time container, just as an offset value specifies this directly. For children of a seq, the result is always a positive offset from the begin of the seq time container. However, for children of par and excl time containers the computed offset relative to the parent begin time may be negative.

Note that an element cannot actually begin until the parent time container begins. An element with a negative time delay behaves as if it had begun earlier.

The presentation effect for the element (e.g. the display of visual media) is equivalent to that for a clipBegin value (with the same magnitude) for the first -- and only the first -- iteration of a repeated element. If no repeat behavior is specified, the element presentation effect of a negative begin offset is equivalent to a clipBegin specification with the same magnitude as the offset value. Nevertheless, the timing side effects are not equivalent to a clipBegin value as described. Time dependents of the begin value will behave as though the element had begun earlier.

Dur value semantics

The length of the simple duration is specified using the dur attribute. The dur attribute syntax is described below.

dur
Specifies the simple duration.
The attribute value may be any of the following:
Clock-value
Specifies the length of the simple duration, measured in element active time.
Value must be greater than 0.
"media"
Specifies the simple duration as the intrinsic media duration. This is only valid for elements that define media.
"indefinite"
Specifies the simple duration as indefinite.

If there is any error in the argument value syntax for dur, the attribute will be ignored (as though it were not specified).

If the "media" attribute value is used on an element that does not define media (e.g. on the SMIL 3.0 time container elements par, seq and excl), the attribute will be ignored (as though it were not specified). Contained media such as the children of a par are not considered media directly associated with the element.

If the element does not have a (valid) dur attribute, the simple duration for the element is defined to be the implicit duration of the element.

This section is informative

The implicit duration depends upon the type of an element. The primary distinction is between different types of media elements and time containers. If the media element has no timed children, it is described as a simple media element.

If the author specifies a value for dur that is shorter than the implicit duration for an element, the implicit duration will be cut short by the specified simple duration.

If the author specifies a simple duration that is longer than the implicit duration for an element, the implicit duration of the element is extended to the specified simple duration:

This section is informative

Note that when the simple duration is "indefinite", some simple use cases can yield surprising results. See the related example #4 in Appendix B.

Examples

This section is informative

The following example shows simple offset begin timing. The <audio> element begins 5 seconds after the <par> time container begins, and ends 4 seconds later.

<par>
   <audio src="song1.au" begin="5s" dur="4s" />
</par>

The following example shows syncbase begin timing. The <img> element begins 2 seconds after the <audio> element begins.

<par>
   <audio xml:id="song1" src="song1.au" />
   <img src="img1.jpg" begin="song1.begin+2s" />
</par>

Elements may also be specified to begin in response to an event. In this example, the image element begins (appears) when the user clicks on element "show". The image will end (disappear) 3 and a half seconds later.

<smil ...>
...
<text xml:id="show" ... />
<img begin="show.activateEvent" dur="3.5s" ... />
...
</smil>

The end attribute: controlling active duration

SMIL 3.0 provides an additional control over the active duration. The end attribute allows the author to constrain the active duration by specifying an end value using a simple offset, a time base, an event-base, a syncbase, or DOM methods calls. The rules for combining the attributes to compute the active duration are presented in the section, Computing the active duration.

The normative syntax rules for each attribute value variant are described in the section Timing attribute value grammars; a syntax summary is provided here as an aid to the reader.

end : SMIL-1-syncbase-value | End-value-list
Defines an end value for the element that may constrain the active duration.
The attribute value is either a SMIL 1.0 syncbase declaration, a semi-colon separated list of values.
SMIL-1-syncbase-value
Deprecated. Describes a syncbase and an offset from that syncbase. The end value is defined relative to the begin or active end of another element.
End-value-list : End-value (";" End-value-list )?
A semi-colon separated list of end values. The interpretation of a list of end times is detailed in the section Evaluation of begin and end time lists.
End-value : ( Offset-value | Syncbase-value | Event-value | Repeat-value | Accesskey-value | Media-Marker-value | Wallclock-sync-value | "indefinite" )
Describes the end value of the element.
Offset-value
Describes the end value as an offset from an implicit syncbase. The definition of the implicit syncbase depends upon the element's parent time container. The offset is measured in parent simple time.
Syncbase-value
Describes a syncbase and an offset from that syncbase. The end value is defined relative to the begin or active end of another element.
Event-value
Describes an event and an optional offset that determine the end value. The end value is defined relative to the time that the event is raised. Events may be any event defined for the host language in accordance with [DOM2Events]. These may include user-interface events, event-triggers transmitted via a network, etc. Details of event-based timing are described in the section below on Unifying Event-based and Scheduled Timing.
Repeat-value
Describes a qualified repeat event. The end value is defined relative to the time that the repeat event is raised with the specified Iteration value.
Accesskey-value
Describes an accesskey that determines the end value. The end value is defined as the time that the accesskey character is input by the user.
Media-Marker-value
Describes the end value as a named marker time defined by a media element.
Wallclock-sync-value
Describes the end value as a real-world clock time. The wallclock time is based upon syntax defined in [ISO8601].
"indefinite"
The end value of the element will be determined by an endElement() method call.
The SMIL Timing and Synchronization DOM methods are described in the DOMTimingMethods section.

This section is informative

If an end attribute is specified but none of dur, repeatCount and repeatDur are specified, the simple duration is defined to be indefinite, and the end value constrains this to define the active duration. The behavior of the simple duration in this case is defined in Dur value semantics, as though dur had been specified as "indefinite".

If the end value becomes resolved while the element is still active, and the resolved time is in the past, the element should end the active duration immediately. Time dependents defined relative to the end of this element should be resolved using the computed active end (which may be in the past), and not the observed active end.

The deprecated SMIL-1-syncbase-values are semantically equivalent to the following SMIL 3.0 End-value types:

This section is informative

The end value may specify a list of times. This can be used to specify multiple "ways" or "rules" to end an element, e.g. if any one of several events is raised. A list of times may also define multiple end times that may correspond to multiple begin times, allowing the element to play more than once (this behavior can be controlled - see also the restart attribute).

In the following example, the dur attribute is not specified, and so the simple duration is defined to be the implicit media duration. In this case (and this case only) the value of end will extend the active duration if it specifies a duration greater than the implicit duration. The video will be shown for 8 seconds, and then the last frame will be shown for 2 seconds.

<video end="10s" src="8-SecondVideo.mpg" .../>

If an author wishes to specify the implicit duration as well as an end constraint, the dur attribute may be specified as "media". In the following example, the element will end at the earlier of the intrinsic media duration, or a mouse click:

<smil ...>
...
<video dur="media" end="activateEvent" src="movie.mpg" .../>
...
</smil>

These cases arise from the use of negative offsets in the sync-base and event-base forms, and authors should be aware of the complexities this can introduce. See also Handling negative offsets for end.

In the following example, the active duration will end at the earlier of 10 seconds, or the end of the "foo" element. This is particularly useful if "foo" is defined to begin or end relative to an event.

<audio src="foo.au" dur="2s" repeatDur="10s"
       end="foo.end" .../>

In the following example, the active duration will end at 10 seconds, and will cut short the simple duration defined to be 20 seconds. The effect is that only the first half of the element is actually played. For a simple media element, the author could just specify this using the dur attribute. However in other cases, it is sometimes important to specify the simple duration independent of the active duration.

<par>
   <audio src="music.au" dur="20s" end="10s" ... />
</par>

In the following example, the element begins when the user activates (e.g., clicks on) the "gobtn" element. The active duration will end 30 seconds after the parent time container begins.

<smil ...>
...
<par>
<audio src="music.au" begin="gobtn.activateEvent" repeatDur="indefinite"
          end="30s" ... />
     <img src="foo.jpg" dur="40s" ... />
</par>
...
</smil>

Note that if the user has not clicked on the target element before 30 seconds elapse, the element will never begin. In this case, the element has no active duration and no active end.

The defaults for the event syntax make it easy to define simple interactive behavior. The following example stops the image when the user clicks on the element.

<smil ...>
...
<img src="image.jpg" end="activateEvent" />
...
</smil>

Using end with an event value enables authors to end an element based on either an interactive event or a maximum active duration. This is sometimes known as lazy interaction.

In this example, a presentation describes factory processes. Each step is a video, and set to repeat 3 times to make the point clear. Each element may also be ended by clicking on the video, or on some element "next" that indicates to the user that the next step should be shown.

<smil ...>
...
<seq>
  <video dur="5s" repeatCount="3" end="activateEvent; next.activateEvent" .../>
  <video dur="5s" repeatCount="3" end="activateEvent; next.activateEvent" .../>
  <video dur="5s" repeatCount="3" end="activateEvent; next.activateEvent" .../>
  <video dur="5s" repeatCount="3" end="activateEvent; next.activateEvent" .../>
  <video dur="5s" repeatCount="3" end="activateEvent; next.activateEvent" .../>
</seq>
...
</smil>

In this case, the active end of each element is defined to be the earlier of 15 (5s dur * 3 repeats) seconds after it begins, or a click on "next". This lets the viewer sit back and watch, or advance the presentation at a faster pace.

Handling negative offsets for end

The min and max attributes: more control over the active duration

The min/max attributes provide the author with a way to control the lower and upper bound of the element active duration.

min
Specifies the minimum value of the active duration.
The attribute value may be either of the following:
Clock-value
Specifies the length of the minimum value of the active duration, measured in element active time.
Value must be greater than or equal to 0.
"media"
Specifies the minimum value of the active duration as the intrinsic media duration. This is only valid for elements that define media.

If there is any error in the argument value syntax for min, the attribute will be ignored (as though it were not specified).

The default value for min is "0". This does not constrain the active duration at all.

max
Specifies the maximum value of the active duration.
The attribute value may be either of the following:
Clock-value
Specifies the length of the maximum value of the active duration, measured in element active time.
Value must be greater than 0.
"media"
Specifies the maximum value of the active duration as the intrinsic media duration. This is only valid for elements that define media.
"indefinite"
The maximum value of the duration is indefinite, and so is not constrained.

If there is any error in the argument value syntax for max, the attribute will be ignored (as though it were not specified).

The default value for max is "indefinite". This does not constrain the active duration at all.

If the "media" argument value is specified for either min or max on an element that does not define media (e.g. on the SMIL 3.0 time container elements par, seq and excl), the respective attribute will be ignored (as though it were not specified). Contained media such as the children of a par are not considered media directly associated with the element.

If both min and max attributes are specified then the max value must be greater than or equal to the min value. If this requirement is not fulfilled then both attributes are ignored.

The rule to apply to compute the active duration of an element with min or max specified is the following: Each time the active duration of an element is computed (i.e. for each interval of the element if it begins more than once), this computation is made without taking into account the min and max attributes (by applying the algorithm described in Computing the active duration). The result of this step is checked against the min and max bounds. If the result is within the bounds, this first computed value is correct. Otherwise two situations may occur:

This section is informative

The following examples illustrate some simple use cases for min and max attributes:

Example 1. In the following example, the video will only play for 10 seconds.

<smil ...>
...
<par >
   <video xml:id="video_of_15s" max="10s".../>
</par>
...
</smil>

Example 2. In the following example, if an activate event happens before 10 seconds, this activation (e.g. click) does not interrupt the video immediately, but the video plays until 10 seconds and then stops. If a click event happens after 10 seconds, the video plays (repeating) until the click happens. Note, the endEvent is only raised if a click occurs after 10 seconds, not at the simple end of each repeat.

<smil ...>
...
<par >
   <video xml:id="video_of_15s" repeatDur="indefinite" end="activateEvent" min="10s".../>
</par>
...
</smil>

Example 3. In the following example, if an activate event happens on element "foo" at 5 seconds, this event does not end the time container immediately, but rather at 12 seconds. The simple duration is defined to be "indefinite" (because an end attribute is specified with no dur attribute), and so the time container plays normally until it ends at 12 seconds.

<smil ...>
...
<par end="foo.activateEvent" min="12s" >
   <video xml:id="video_of_15s" .../>
   <video xml:id="video_of_10s" .../>
</par>
...
</smil>

Example 4. In the following example, if a click event happens on the first video at 5 seconds, then the simple duration of the time container is computed as 5 seconds. Respecting the fill attribute in the time between the end of the simple duration and the end of the active duration, the two videos are frozen between 5 seconds and 12 seconds.

<smil ...>
...
<par endsync="first" min="12s" fill="freeze" >
   <video xml:id="video_of_15s" end="activateEvent" ...>
   <video xml:id="video_of_10s" .../>
</par>
...
</smil>

Example 5. In the following example, the time container simple duration is defined to be 5 seconds, and the min constraint defines the active duration to be 12 seconds. Since the default value of fill in this case is "remove", nothing is shown for the time container between 5 seconds and 12 seconds.

<par dur="5s" min="12s" >
   <video xml:id="video_of_15s" .../>
   <video xml:id="video_of_10s" .../>
</par>
The min attribute and negative begin times

This section is informative

If an element is defined to begin before its parent (e.g. with a simple negative offset value), the min duration is measured from the calculated begin time not the observed begin (see example 1 below). This means that the min value may have no observed effect (as in example 2 below).

Example 1. In the following example, the image will be displayed from the beginning of the time container for 2 seconds.

<par>
   <img xml:id="img" begin="-5s" min="7s" dur="5s" .../>
</par>

Example 2. In the following example, the image will not be displayed at all.

<par>
   <img xml:id="img" begin="-5s" min="4s" dur="2s" .../>
</par>

See also the sections The min attribute and restart and Time container constraints on child durations.

Timing attribute value grammars

The syntax specifications are defined using EBNF notation as defined in XML 1.1 [XML11]

In the syntax specifications that follow, allowed white space is indicated as "S", defined as follows (taken from the [XML11] definition for 'S'):

S ::= (#x20 | #x9 | #xD | #xA)+
Begin values

A Begin-value-list is a semi-colon separated list of timing specifiers:

Begin-value-list ::= Begin-value (S? ";" S? Begin-value-list )?
Begin-value      ::= (Offset-value | Syncbase-value
                      | Event-value | Repeat-value | Accesskey-value
                      | Media-Marker-value | Wallclock-sync-value
                      | "indefinite" )
End values

An End-value-list is a semi-colon separated list of timing specifiers:

End-value-list ::= End-value (S? ";" S? End-value-list )?
End-value      ::= (Offset-value | Syncbase-value
                      | Event-value | Repeat-value | Accesskey-value
                      | Media-Marker-value | Wallclock-sync-value
                      | "indefinite" )
Parsing timing specifiers

Several of the timing specification values have a similar syntax. To parse an individual item in a value-list, the following approach defines the correct interpretation. In addition, Id-values and Event-symbols are XML NMTOKEN values and as such are allowed to contain the full stop '.' and hyphen-minus '-' characters. The reverse solidus character '\' must be used to escape these characters within Id-values and Event-symbols, otherwise these characters will be interpreted as the full stop separator and hyphen-minus sign, respectively. Once these rules are interpreted, but before Id-values in syncbase values, event values, or media-marker values are further handled, all leading and embedded escape characters should be removed.

  1. Strip any leading, trailing, or intervening white space characters.
  2. If the value begins with a number or numeric sign indicator (i.e. '+' or '-'), the value should be parsed as an offset value.
  3. Else if the value begins with the unescaped token "wallclock", it should be parsed as a Wallclock-sync-value.
  4. Else if the value is the unescaped token "indefinite", it should be parsed as the value "indefinite".
  5. Else: Build a token substring up to but not including any sign indicator (i.e. strip off any offset, parse that separately, and add it to the result of this step). In the following, any '.' characters preceded by a reverse solidus '\' escape character should not be treated as a separator, but as a normal token character.
    1. If the token contains no '.' separator character, then the value should be parsed as an Event-value with an unspecified (i.e. default) eventbase-element.
    2. Else if the token ends with the unescaped string ".begin" or ".end", then the value should be parsed as a Syncbase-value.
    3. Else if the token contains the unescaped string ".marker(", then the value should be parsed as a Media-Marker-value.
    4. Else, the value should be parsed as an Event-value (with a specified eventbase-element).

This section is informative

This approach allows implementations to treat the tokens wallclock and indefinite as reserved element IDs, and begin, end and marker as reserved event names, while retaining an escape mechanism so that elements and events with those names may be referenced.

Clock values

Clock values have the following syntax:

Clock-value         ::= ( Full-clock-value | Partial-clock-value | Timecount-value )
Full-clock-value    ::= Hours ":" Minutes ":" Seconds ("." Fraction)?
Partial-clock-value ::= Minutes ":" Seconds ("." Fraction)?
Timecount-value     ::= Timecount ("." Fraction)? (Metric)?
Metric              ::= "h" | "min" | "s" | "ms"
Hours               ::= DIGIT+ /* any positive number */
Minutes             ::= 2DIGIT /* range from 00 to 59 */
Seconds             ::= 2DIGIT /* range from 00 to 59 */
Fraction            ::= DIGIT+
Timecount           ::= DIGIT+
2DIGIT              ::= DIGIT DIGIT
DIGIT               ::= [0-9]

For Timecount values, the default metric suffix is "s" (for seconds).

This section is informative

No embedded white space is allowed in clock values, although leading and trailing white space characters will be ignored.

The following are examples of legal clock values:

Fractional values are just (base 10) floating point definitions of seconds. The number of digits allowed is unlimited (although actual precision may vary among implementations).

This section is informative

For example:

00.5s = 500 milliseconds
00:00.005 = 5 milliseconds
Offset values

This section is informative

Offset values are used to specify when an element should begin or end relative to its syncbase.

An offset value has the following syntax:

Offset-value   ::= ( S? ("+" | "-") S? )? ( Clock-value )

The implicit syncbase for an offset value is dependent upon the time container:

SMIL 1.0 begin and end values

This section is informative

Deprecated.

SMIL-1-syncbase-value  ::= SMIL-1-Id-value
                           ( "(" ( "begin" | "end" | Clock-value) ")" )?
SMIL-1-Id-value        ::= "id(" Idref ")"
ID-Reference values

ID reference values are references to the value of an "id" attribute of another element in the document.

Id-value                   ::= Id-ref-value
Id-ref-value               ::= Idref | Escaped-Id-ref-value
Idref                      ::= Name
Escaped-Id-ref-value       ::= Escape-Char? NameStartChar (Escape-Char? NameChar)*
Escape-Char                ::= "\"

If the element referenced by the Idref is ignored as described in the Content Control modules (e.g. if it specifies test attributes that evaluate false), the associated time value (i.e.. the syncbase value or the eventbase value that specifies the Id-value) will be considered invalid.

This section is informative

The semantics of ignored elements may change in a future version of SMIL. One possible semantic is that the associated sync arc arguments will not be invalid, but will instead always be "unresolved". When this behavior needs to be simulated in this version of SMIL Timing and Synchronization, an author may include the value "indefinite" in the list of values for the begin or end attribute.

Syncbase values

A syncbase value starts with a Syncbase-element term defining the value of an "id" attribute of another element referred to as the syncbase element.

A syncbase value has the following syntax:

Syncbase-value   ::= ( Syncbase-element "." Time-symbol )
                      ( S? ("+"|"-") S? Clock-value )?
Syncbase-element ::= Id-value
Time-symbol      ::= "begin" | "end"

The syncbase element is qualified with one of the following time symbols:

begin
Specifies the begin time of the syncbase element.
end
Specifies the Active End of the syncbase element.

This section is informative

Examples

begin="x.end-5s" : Begin 5 seconds before "x" ends
begin=" x.begin " : Begin when "x" begins
end="x.begin + 1min" : End 1 minute after "x" begins

Event values

An Event value starts with an Eventbase-element term that specifies the event-base element. The event-base element is the element on which the event is observed. Given DOM event bubbling, the event-base element may be either the element that raised the event, or it may be an ancestor element on which the bubbled event may be observed. Refer to DOM-Level2-Events [DOM2Events] for details.

An event value has the following syntax:

Event-value       ::= ( Eventbase-element "." )? Event-symbol
                        ( S? ("+"|"-") S? Clock-value )?
Eventbase-element ::= Id-value
Event-symbol      ::= Nmtoken

The symbol Nmtoken is defined in XML 1.1 [XML11].

The eventbase-element must be another element contained in the host document.

If the Eventbase-element term is missing, the event-base element defaults to the element on which the eventbase timing is specified (the current element). A host language designer may override the definition of the default eventbase element. As an example of this, the SMIL 3.0 Animation modules describe Timing integration requirements for the animation elements (animate, animateMotion, etc.). These requirements specify that the default eventbase element is the target element of the animation. See the section Common Animation Integration Requirements.

The event value must specify an Event-symbol. This term is an XML NMTOKEN that specifies the name of the event that is raised on the Event-base element. The host language designer must specify which events may be specified.

The last term specifies an optional Offset-value that is an offset from the time of the event.

This section is informative

This module defines several events that may be included in the supported set for a host language, including beginEvent and endEvent. These should not be confused with the syncbase time values. See the section on Events and event model.

The semantics of event-based timing are detailed in Unifying Scheduling and Interactive Timing. Constraints on event sensitivity are detailed in Event sensitivity.

Examples:

begin=" x.load " : Begin when "load" is observed on "x"
begin="x.focus+3s" : Begin 3 seconds after a "focus" event on "x"
begin="x.endEvent+1.5s" : Begin 1 and a half seconds after an "endEvent" event on "x"
begin="x.repeat" : Begin each time a repeat event is observed on "x"

The following example describes a qualified repeat eventbase value:

<smil ...>
...
<video xml:id="foo" repeatCount="10" end="endVideo.activateEvent" ... />
<img xml:id="endVideo" begin="foo.repeat(2)" .../>
...
</smil>

The "endVideo" image will appear when the video "foo" repeats the second time. This example allows the user to stop the video after it has played though at least twice.

Repeat values

Repeat values are a variant on event values that support a qualified repeat event. The repeat event defined in Events and event model allows an additional suffix to qualify the event based upon an Iteration value.

A repeat value has the following syntax:

Repeat-value       ::= ( Eventbase-element "." )? "repeat(" Iteration ")"
                        ( S? ("+"|"-") S? Clock-value )?
Iteration          ::= DIGIT+

If this qualified form is used, the eventbase value will only be resolved when a repeat is observed that has an Iteration value that matches the specified iteration.

This section is informative

The qualified repeat event syntax allows an author to respond only to an individual repeat of an element.

Accesskey values

Accesskey values allow an author to tie a begin or end time to a particular key press, independent of focus issues. It is modeled on the HTML accesskey support. Unlike with HTML, user agents should not require that a modifier key (such as "ALT") be required to activate an access key.

An access key value has the following syntax:

Accesskey-value  ::= "accesskey(" Char ")"
                       ( S? ("+"|"-") S? Clock-value )?

The Char symbol is defined in XML 1.1 [XML11].

The time value is defined as the time that the access key character is input by the user.

Media marker values

This section is informative

Certain types of media can have associated marker values that associate a name with a particular point (i.e. a time) in the media. The media marker value provides a means of defining a begin or end time in terms of these marker values. Note that if the referenced id is not associated with a media element that supports markers, or if the specified marker name is not defined by the media element, the associated time may never be resolved.

Media-Marker-value ::= Id-value ".marker(" S? Marker-name S? ")"
Marker-name        ::= (Char - ")")+
Wallclock-sync values

Wallclock-sync values have the following syntax. The values allowed are based upon several of the "profiles" described in [DATETIME], which is based upon [ISO8601].

Wallclock-sync-value  ::= "wallclock(" S? (DateTime | WallTime | Date)  S? ")"
DateTime       ::= Date "T" WallTime
Date           ::= Years "-" Months "-" Days
WallTime       ::= (HHMM-Time | HHMMSS-Time)(TZD)?
HHMM-Time      ::= Hours24 ":" Minutes
HHMMSS-Time    ::= Hours24 ":" Minutes ":" Seconds ("." Fraction)?
Years          ::= 4DIGIT;
Months         ::= 2DIGIT /* range from 01 to 12 */
Days           ::= 2DIGIT /* range from 01 to 31 */
Hours24        ::= 2DIGIT /* range from 00 to 23 */
4DIGIT         ::= DIGIT DIGIT DIGIT DIGIT
TZD            ::= "Z" | (("+" | "-") Hours24 ":" Minutes )

This section is informative

Complete date plus hours and minutes:

   YYYY-MM-DDThh:mmTZD (e.g. 1997-07-16T19:20+01:00)

Complete date plus hours, minutes and seconds:

   YYYY-MM-DDThh:mm:ssTZD (e.g. 1997-07-16T19:20:30+01:00)

Complete date plus hours, minutes, seconds and a decimal fraction of a second

   YYYY-MM-DDThh:mm:ss.sTZD (e.g. 1997-07-16T19:20:30.45+01:00)

Note that the Minutes, Seconds, Fraction, 2DIGIT and DIGIT syntax is as defined for Clock-values. Note that white space is not allowed within the date and time specification.

There are three ways of handling time zone offsets:

  1. Times are expressed in UTC (Coordinated Universal Time), with a special UTC designator ("Z").
  2. Times are expressed in local time, together with a time zone offset in hours and minutes. A time zone offset of "+hh:mm" indicates that the date/time uses a local time zone which is "hh" hours and "mm" minutes ahead of UTC. A time zone offset of "-hh:mm" indicates that the date/time uses a local time zone which is "hh" hours and "mm" minutes behind UTC.
  3. Times are expressed in local time, as defined for the presentation location. The local time zone of the end-user platform is used.

This section is informative

The presentation engine must be able to convert wallclock-values to a time within the document.

This section is informative

Note that the resulting begin or end time may be before the begin, or after end of the parent time container. This is not an error, but the time container constraints still apply. In any case, the semantics of the begin and end attribute govern the interpretation of the wallclock value.

Examples

This section is informative

The following examples all specify a begin at midnight on January 1st 2000, UTC:

begin="wallclock( 2000-01-01T00:00Z )"
begin="wallclock( 2000-01-01T00:00:00Z )"
begin="wallclock( 2000-01-01T00:00:00.0Z )"
begin="wallclock( 2000-01-01T00:00:00.0Z )"
begin="wallclock( 2000-01-01T00:00:00.0-00:00 )"

The following example specifies a begin at 3:30 in the afternoon on July 28th 1990, in the Pacific US time zone:

begin="wallclock( 1990-07-28T15:30-08:00 )"

The following example specifies a begin at 8 in the morning wherever the document is presented:

begin="wallclock( 08:00 )"

The endsync attribute

The endsync attribute controls the implicit duration of time containers, as a function of the children. The endsync attribute is only valid for par and excl time container elements, and media elements with timed children (e.g. animate or area elements). Integrating languages may allow the endsync attribute on any element with time container semantics.

This section is informative

The endsync attribute is particularly useful with children that have "unknown" duration, e.g. an MPEGmovie, that must be played through to determine the duration, or elements with event-based end timing.

endsync = ( "first" | "last" | "all" | "media" | Id-value | SMIL-1-Id-value )
Legal values for the attribute are:
first
The par, excl, or media element's implicit duration ends with the earliest active end of all the child elements. This does not refer to the lexical first child, or to the first child to start, but rather refers to the first child to end its (first) active duration.
last
The par, excl, or media element's implicit duration ends with the last active end of the child elements. This does not refer to the lexical last child, or to the last child to start, but rather refers to the last active end of all children that have a resolved, definite begin time. If the time container has no children with a resolved begin time, the time container ends immediately. If child elements have multiple begin times, or otherwise restart, the child elements must complete all instances of active durations for resolved begin times (see The instance times lists).
This is the default value for par and excl elements.
all
The par, excl, or media element's implicit duration ends when all of the child elements have ended their respective active durations. Elements with indefinite or unresolved begin times will keep the simple duration of the time container from ending.
When all elements have completed the active duration one or more times, the parent time container may end.
media
The time container element's implicit duration ends when the intrinsic media duration of the element ends. This must be defined by a host language. If the time container element does not define an intrinsic media duration, the host language must define the simple duration for the element.
This is the default value for media time container elements.
Id-value
The par, excl, or media element time container's implicit duration ends when the specified child ends its (first) active duration. The id must correspond to one of the immediate timed children of the time container.
SMIL-1-Id-value
This is a SMIL 1.0 identifier value of the form "id(" Idref ")". The semantics are identical to those of the Id-value immediately above. This syntax is deprecated.

Semantics of endsync and dur and end:

Semantics of endsync and restart:

Semantics of endsync and paused elements:

This section is informative

Semantics of endsync and unresolved child times:

The following pseudo-code describes the endsync algorithm:

//
// boolean timeContainerHasEnded()
//
// method on time containers called to evaluate whether
// time container has ended, according to the rules of endsync.
// Note: Only supported on par and excl
//
// A variant on this could be called when a child end is updated to
// create a scheduled (predicted) end time for the container.
//
// Note that we never check the end time of children - it doesn't matter.
//
// Assumes:
//     child list is stable during evaluation
//     isActive state of children is up to date for current time.
//      [In practice, this means that the children must all be
//        pre-visited at the current time to see if they are done.
//        If the time container is done, and repeats, the children
//        may be resampled at the modified time.]
//
//   Uses interfaces:
//   on TimedNode:
//     isActive()             tests if node is currently active
//     hasStarted()           tests if node has (ever) begun
//     begin and end          begin and end TimeValues of node
//
//   on TimeValue         (a list of times for begin or end)
//   is Resolved(t)          true if there is a resolved time
//                                     at or after time t
//

boolean timeContainerHasEnded()
{

TimeInstant now = getCurrentTime(); // normalized for time container

boolean assumedResult;

// For first or ID, we assume a false result unless we find a child that has ended
// For last and all, we assume a true result unless we find a disqualifying child

if( ( endsyncRule == first ) || ( endsyncRule == ID ) )
   assumedResult = false;
else
   assumedResult = true;

// Our interpretation of endsync == all:
//          we're done when all children have begun, and none is active
//

// loop on each child in collection of timed children,
//  and consider it in terms of the endsyncRule

 foreach ( child c in timed-children-collection )
{
   switch( endsyncRule ) {
      case first:
         // as soon as we find an ended child, return true.
         if( c.hasStarted() & !c.isActive() )
            return true;
         // else, keep looking (assumedResult is false)
         break;

      case ID:
         // if we find the matching child, just return result
         if( endsyncID == c.ID )
                 return( c.hasStarted() & !c.isActive() );
         // else, keep looking (we'll assume the ID is valid)
         break;

      case last:
         // we just test for disqualifying children
         // If the child is active, we're definitely not done.
         // If the child has not yet begun but has a resolved begin,
         // then we're not done.
         if( c.isActive()
             || c.begin.isResolved(now) )
             return false;
         // else, keep checking (the assumed result is true)
         break;

      case all:
         // we just test for disqualifying children
        // all_means_last_done_after_all_begin

         // If the child is active, we're definitely not done.
         // If the child has not yet begun then we're not done.
         // Note that if it has already begun,
         // then we still have to wait for any more resolved begins
         if( c.isActive() || !c.hasStarted()
             || c.begin.isResolved(now) )
             return false;
         // else, keep checking (the assumed result is true)
         break;

   } // close switch

} // close foreach loop

return assumedResult;

} // close timeContainerHasEnded()

The repeatCount, repeatDur, and repeat attributes: repeating elements

This section is informative

SMIL 1.0 introduced the repeat attribute, which is used to repeat a media element or an entire time container. SMIL 2.0 introduces two new controls for repeat functionality that supersede the SMIL 1.0 repeat attribute. The new attributes, repeatCount and repeatDur, provide a semantic that more closely matches typical use-cases, and the new attributes provide more control over the duration of the repeating behavior.

Repeating an element causes the simple duration to be "played" several times in sequence. This will effectively copy or loop the contents of the element media (or an entire timeline in the case of a time container). The author may specify either how many times to repeat, using repeatCount, or how long to repeat, using repeatDur. Each repeat iteration is one instance of "playing" the simple duration.

repeatCount
Specifies the number of iterations of the simple duration. It may have the following attribute values:
numeric value
This is a (base 10) "floating point" numeric value that specifies the number of iterations. It may include partial iterations expressed as fraction values. A fractional value describes a portion of the simple duration. Values must be greater than 0.
"indefinite"
The element is defined to repeat indefinitely (subject to the constraints of the parent time container).
repeatDur
Specifies the total duration for repeat. It may have the following attribute values:
Clock-value
Specifies the duration in element active time to repeat the simple duration.
"indefinite"
The element is defined to repeat indefinitely (subject to the constraints of the parent time container).

This section is informative

Examples

This section is informative

In the following example, the implicit duration of the audio is constrained by repeatCount. Only the first half of the clip will play; the active duration will be 1.5 seconds.

<audio src="3second_sound.au" repeatCount="0.5" />

In this example, the 3 second (implicit) simple duration will be played three times through and then is constrained by the dur attribute on the parent par; the active duration will be 9 seconds.

<par dur="9s">
   <audio src="3second_sound.au" repeatCount="100" />
</par>

In the following example, the 2.5 second simple duration will be repeated twice; the active duration will be 5 seconds.

<audio src="background.au" dur="2.5s" repeatCount="2" />

In the following example, the 3 second (implicit) simple duration will be repeated two full times and then the first half is repeated once more; the active duration will be 7.5 seconds.

<audio src="3second_sound.au" repeatCount="2.5" />

In the following example, the audio will repeat for a total of 7 seconds. It will play fully two times, followed by a fractional part of 2 seconds. This is equivalent to a repeatCount of 2.8.

<audio src="music.mp3" dur="2.5s" repeatDur="7s" />

Note that if the simple duration is indefinite, repeat behavior is not defined (but repeatDur still contributes to the active duration). In the following example the simple duration is 0 and indefinite respectively, and so the repeatCount is ignored. Nevertheless, this is not considered an error. The active duration is equal to the simple duration: for the first element, the active duration is 0, and for the second element, the active duration is indefinite.

<img src="foo.jpg" repeatCount="2" />
<img src="bar.png" dur="indefinite" repeatCount="2" />

In the following example, the simple duration is 0 for the image and indefinite for the text element, and so repeat behavior is not meaningful. The active duration is 0 for the first element, however for the second element, the active duration is determined by the repeatDur value, and so is 10 seconds. The effect is that the text is shown for 10 seconds.

<img src="foo.jpg" repeatDur="10s" />
<text src="intro.html" dur="indefinite" repeatDur="10s" />

In the following example, if the audio media is longer than the 5 second repeatDur, then the active duration will effectively cut short the simple duration.

<audio src="8second_sound.au" repeatDur="5s" />

The repeatCount and repeatDur attributes may also be used to repeat an entire timeline (i.e. a time container simple duration), as in the following example. The sequence has an implicit simple duration of 13 seconds. It will begin to play after 5 seconds, and then will repeat the sequence of three images 3 times. The active duration is thus 39 seconds long.

<seq begin="5s" repeatCount="3" >
   <img src="img1.jpg" dur="5s" />
   <img src="img2.jpg" dur="4s" />
   <img src="img3.jpg" dur="4s" />
</seq>
The min attribute and restart:

This section is informative

The min attribute does not prevent an element from restarting before the minimum active duration is reached. If in the following example, the "user.activateEvent" occurs once at 2 seconds, then again at 5 seconds, the "image" element will begin at 2 seconds, play for 3 seconds, and then be restarted at 5 seconds. The restarted interval (beginning at 5 seconds) will display the image until 12 seconds.

<smil ...>
...
<par>
   <img xml:id="image" begin="user.activateEvent" min="7s" dur="5s"
        restart="always" fill="freeze".../>
</par>
...
</smil>
SMIL 1.0 repeat (deprecated)

This section is informative

The SMIL 1.0 repeat attribute behaves in a manner similar to repeatCount, but it defines the functionality in terms of a sequence that contains the specified number of copies of the element without the repeat attribute. This definition has caused some confusion among authors and implementers. See also the SMIL 1.0 specification [SMIL10].

In particular, there has been confusion concerning the behavior of the SMIL 1.0 end attribute when used in conjunction with the repeat attribute. SMIL 3.0 complies with the common practice of having the end attribute define the element's simple duration when the deprecated repeat attribute is used. Only SMIL document user agents must support this semantic for the end attribute. Only a single SMIL 1.0 "end" value (i.e. an Offset-value or a SMIL-1-syncbase-value, but none of the new SMIL 2.0 timing) is permitted when used with the deprecated repeat attribute. If repeat is used with repeatCount or repeatDur on an element, or if repeat is used with an illegal end value, the repeat value is ignored.

repeat
This attribute has been deprecated in SMIL 2.0 in favor of the new repeatCount and repeatDur attributes.
This causes the element to play repeatedly for the specified number of times. It is equivalent to a seq element with the stated number of copies of the element without the "repeat" attribute as children. All other attributes of the element, including any begin delay, are included in the copies.
Legal values are integer iterations, greater than 0, and "indefinite".

The fill attribute: extending an element

This section is informative

When an element's active duration ends, it may be frozen at the final state, or it may no longer be presented (i.e., its effect is removed from the presentation). Freezing an element extends it, using the final state defined in the last instance of the simple duration. This may be used to fill gaps in a presentation, or to extend an element as context in the presentation (e.g. with additive animation - see the SMIL 3.0 Animation chapter).

The fill attribute allows an author to specify that an element should be extended beyond the active duration by freezing the final state of the element. The fill attribute is also used to determine the behavior when the active duration is less than the duration specified in the min attribute. For this reason, rather than referring to the end of the active duration, this description refers to the "last instance of the simple duration".

The last instance of the simple duration is the last frame or value that was played during the last instance (see The instance times lists) of the simple duration of the element before it finished or was stopped because of an end attribute.

This section is informative

The syntax of the fill attribute is the same as in SMIL 1.0, with two extensions. In addition, the fill attribute may now be applied to any timed element, including time containers.

fill = ( "remove" | "freeze" | "hold" | "transition" | "auto" | "default" )
This attribute may have the following values:
remove
Specifies that the element will not extend past the end of the last instance of the simple duration.
freeze
Specifies that the element will extend past the end of the last instance of the simple duration by "freezing" the element state at that point. The parent time container of the element determines how long the element is frozen (as described immediately below).
hold
Setting this to "hold" has the same effect as setting to "freeze", except that the element is always frozen to extend to the end of the simple duration of the parent time container of the element (independent of the type of time container). For profiles that support a layered layout model (e.g., SMIL 3.0 Language Profile), held elements (elements with fill="hold") will refresh their display area when a layer is added on top then later removed.
transition
Setting this to "transition" has the same effect as setting to "freeze", except that the element is removed at the end of the transition. This value is only allowed on elements with media directly associated with them. If specified on any other element (e.g. a time container element in the SMIL language profile), the attribute is ignored. See the SMIL Transitions module.
auto
The fill behavior for this element depends on whether the element specifies any of the attributes that define the simple or active duration:
  • If none of the attributes dur, end, repeatCount or repeatDur are specified on the element, then the element will have a fill behavior identical to that if it were specified as "freeze".
  • Otherwise, the element will have a fill behavior identical to that if it were specified as "remove".
default
The fill behavior for the element is determined by the value of the fillDefault attribute.
This is the default value.
If the application of fillDefault to an element would result in the element having a value of fill that is not allowed on that element, the element will instead have a fill value of "auto".

This section is informative.

Note that given the default values for fill and fillDefault attributes, if the fill attribute is not specified for an element, and if the fillDefault attribute is not specified for any ascendant of the element, the behavior uses "auto" semantics.

An element with "freeze" behavior is extended according to the parent time container:

When applied to media, fill only has a presentation effect on visual media. Non-visual media (audio) will simply be silent (although they are still frozen from a timing perspective).

The fillDefault attribute
fillDefault = ( "remove" | "freeze" | "hold" | "transition" | "auto" | "inherit" )
Defines the default value for the fill behavior for an element and all descendants.
The values "remove", "freeze", "hold", "transition" and "auto" specify that the element fill behavior is the respective value.
inherit
Specifies that the value of this attribute (and of the fill behavior) are inherited from the fillDefault value of the parent element. If there is no parent element, the value is "auto".
This is the default value.
The Event sensitivity and fill

The effects of the fill attribute apply only to the timing semantics. If an element is still visible while frozen, it behaves normally with respect to other semantics such as user event processing. In particular, elements such as a and area are still sensitive to user activation (e.g. clicks) when frozen. See also the SMIL 1.0 specification [SMIL10].

This section is informative

The fill attribute may be used to maintain the value of a media element after the active duration of the element ends:

<par endsync="last">
   <video src="intro.mpg" begin= "5s" dur="30s" fill="freeze" />
   <audio src="intro.au"  begin= "2s" dur="40s"/>
</par>

The video element ends 35 seconds after the parent time container began, but the video frame at 30 seconds into the media remains displayed until the audio element ends. The attribute "freezes" the last value of the element for the remainder of the time container's simple duration.

This functionality is also useful to keep prior elements on the screen while the next item of a seq time container prepares to display as in this example:

<seq>
   <video xml:id="v1" fill="freeze" src.../>
   <video xml:id="v2" begin="2s" src.../>
</seq>

The first video is displayed and then the last frame is frozen for 2 seconds, until the next element begins. Note that if it takes additional time to download or buffer video "v2" for playback, the first video "v1" will remain frozen until video "v2" actually begins.

The restart attribute

This section is informative

Note that there are several ways that an element may be restarted. The behavior (i.e. to restart or not) in all cases is controlled by the restart attribute. The different restart cases are:

As with any begin time, if an element is scheduled to restart after the end of the parent time container simple duration, the element will not restart.

For the precise definition of when restart semantics apply, see the section Evaluation of begin and end time lists.

restart = ( "always" | "whenNotActive" | "never" | "default" )
always
The element may be restarted at any time.
whenNotActive
The element may only be restarted when it is not active (i.e. it may be restarted after the active end). Attempts to restart the element during its active duration are ignored.
never
The element cannot be restarted for the remainder of the current simple duration of the parent time container.
default
The restart behavior for the element is determined by the value of the restartDefault attribute.
This is the default value.

The restartDefault attribute may be used to control the default behavior of the restart attribute. This is described below in Controlling the default behavior of restart.

This section is informative.

For details on when and how the restart attribute is evaluated, see Evaluation of begin and end time lists.

Using restart for toggle activation

This section is informative

A common use-case requires that the same UI event is used to begin an element and to end the active duration of the element. This is sometimes described as "toggle" activation, because the UI event toggles the element "on" and "off". The restart attribute can be used to author this, as follows:

<smil ...>
...
<img xml:id="foo" begin="bar.activateEvent" end="bar.activateEvent"
              restart="whenNotActive" ... />
</smil>

If "foo" were defined with the default restart behavior "always", a second activateEvent on the "bar" element would simply restart the element. However, since the second activateEvent cannot restart the element when restart is set to "whenNotActive", the element ignores the "begin" specification of the activateEvent event. The element may then use the activateEvent event to end the active duration and stop the element.

Note that in SMIL Language documents, a SMIL element cannot be visible before it begins so having a begin="activateEvent" means it won't ever begin. In languages with timeAction support, this may not be the case. For example, the following is reasonable:

<html xmlns:smil="http://www.w3.org/ns/SMIL" ...>
...
<span smil:begin="click" smil:end="click" smil:timeAction="class:highlight" smil:restart="whenNotActive">
  Click here to highlight. Click again to remove highlight.
</span>
...
</html>

This is based upon the event sensitivity semantics described in Event sensitivity and Unifying Scheduling and Interactive Timing.

Controlling the default behavior of restart

The following attribute is provided to specify the default behavior for restart:

restartDefault = ( "always" | "whenNotActive" | "never" | "inherit" )
Defines the behavior of the restart attribute when its value is "default".
The values "always", "whenNotActive" and "never" specify that the element restart behavior is the respective value.
inherit
Specifies that the value of this attribute (and of the restart behavior) are inherited from the restartDefault value of the parent element. If there is no parent element, the value is "always".
This is the default value.

This section is informative.

Given the default values of this attribute ("inherit") and of the restart attribute ("default"), a document that does not specify these attributes will have restart="always" behavior for all timed elements.

Resetting element state

When a time container repeats or restarts, all descendant children are "reset" with respect to certain state:

  1. Any instance times associated with past Event-values, Repeat-values, Accesskey-values or added via DOM method calls are removed from the dependent begin and end instance times lists. In effect, all events and DOM methods calls in the past are cleared. This does not apply to an instance time that defines the begin of the current interval. (See also Evaluation of begin and end time lists)
  2. Any syncbase times are reevaluated (i.e. the translation between timespaces must be recalculated - see Converting between local and global times).
  3. A resolved syncbase time is removed from the dependent instance time list when a common ascendant of the syncbase and the dependent element restarts or repeats
  4. Any state associated with the interpretation of the restart semantics is reset.

This section is informative

Thus, for example if an element specifies restart="never", the element may begin again after a reset. The restart="never" setting is only defined for the extent of the parent time container simple duration.

When an element restarts, rules 1 and 2 are also applied to the element itself, although rule 4 (controlling restart behavior) is not applied.

Note that when any time container ends its simple duration (including when it repeats), all timed children that are still active are ended. See also Time container constraints on child durations.

When an excl time container restarts or repeats, in addition to ending any active children, the pause queue for the excl is cleared.

The syncBehavior, syncTolerance, and syncMaster attributes: controlling runtime synchronization

This section is informative

New support in SMIL 2.0 introduces finer grained control over the runtime synchronization behavior of a document. The syncBehavior attribute allows an author to describe for each element whether it must remain in a hard sync relationship to the parent time container, or whether it may be allowed slip with respect to the time container. Thus, if network congestion delays or interrupts the delivery of media for an element, the syncBehavior attribute controls whether the media element may slip while the rest of the document continues to play, or whether the time container must also wait until the media delivery catches up.

The syncBehavior attribute may also be applied to time containers. This controls the sync relationship of the entire timeline defined by the time container. In this example, the audio and video elements are defined with hard or "locked" sync to maintain lip sync, but the "speech" par time container is allowed to slip:

<par>
   <animation src="..." />
   ...
   <par xml:id="speech" syncBehavior="canSlip" >
      <video src="speech.mpg" syncBehavior="locked" />
      <audio src="speech.au"  syncBehavior="locked" />
   </par>
   ...
</par>

If either the video or audio must pause due to delivery problems, the entire "speech" par will pause, to keep the entire timeline in sync. However, the rest of the document, including the animation element will continue to play normally. Using the syncBehavior attribute on elements and time containers, the author can effectively describe the "scope" of runtime sync behavior, defining some portions of the document to play in hard sync without requiring that the entire document use hard synchronization.

This functionality also applies when an element first begins, and the media must begin to play. If the media is not yet ready (e.g. if an image file has not yet downloaded), the syncBehavior attribute controls whether the time container must wait until the element media is ready, or whether the element begin may slip until the media is downloaded.

An additional extension allows the author to specify that a particular element should define or control the synchronization for a time container. This is similar to the default behavior of many user agents that "slave" video and other elements to audio, to accommodate the audio hardware inaccuracies and the sensitivity of listeners to interruptions in the audio playback. The syncMaster attribute allows an author to explicitly define that an element defines the playback "clock" for the time container, and all other elements should be held in sync relative to the syncMaster element.

In practice, linear media often need to be the syncMaster, where non-linear media can more easily be adjusted to maintain hard sync. However, a user agent cannot always determine which media behaves in a linear fashion and which media behaves in a non-linear fashion. In addition, when there are multiple linear elements active at a given point in time, the user agent cannot always make the "right" decision to resolve sync conflicts. The syncMaster attribute allows the author to specify the element that has linear media, or that is "most important" and should not be compromised by the syncBehavior of other elements.

syncBehavior = ( "canSlip" | "locked" | "independent" | "default" )
Defines the runtime synchronization behavior for an element.
Legal values are:
canSlip
Allows the associated element to slip with respect to the parent time container.
When this value is used, any syncTolerance attribute is ignored.
locked
Forces the associated element to maintain sync with respect to the parent time container. This may be eased with the use of the syncTolerance attribute.
independent
Declares an independent timeline that is scheduled with the timegraph, but will ignore any seek operations on the parent.
default
The runtime synchronization behavior for the element is determined by the value of the syncBehaviorDefault attribute.
This is the default value.

The argument value independent is equivalent to setting syncBehavior="canSlip" and syncMaster="true" so that the element is scheduled within the timegraph, but is unaffected by any other runtime synchronization issues. Setting syncBehavior="canSlip" and syncMaster="true" declares the element as being the synchronization master clock and that the element may slip against its parent time line

syncTolerance = ( Clock-value | "default" )
This attribute on timed elements and time containers defines the synchronization tolerance for the associated element . The attribute has an effect only if the element's runtime synchronization behavior is "locked". This allows a locked sync relationship to ignore a given amount of slew without forcing resynchronization.
Clock-value
Specifies the synchronization tolerance as a value. Clock values are measured in element simple time.
default
The synchronization tolerance for the element is determined by the value of the syncToleranceDefault attribute.
This is the default value.
syncMaster = ( "true" | "false" )
Boolean attribute on media elements and time containers that forces other elements in the time container to synchronize their playback to this element.
The default value is false.

This section is informative

Note that the semantics of syncBehavior do not describe or require a particular approach to maintaining sync; the approach will be implementation dependent. Possible means of resolving a sync conflict may include:

Additional control is provided over the hard sync model using the syncTolerance attribute. This specifies the amount of slip that may be ignored for an element. Small variance in media playback (e.g. due to hardware inaccuracies) can often be ignored, to allow the overall performance to appear smoother.

When any element is paused (including the cases described above for runtime sync behavior), the computed end time for the element may change or even become resolved, and the time model must reflect this. This is detailed in Paused elements and the active duration.

Controlling the default behavior

Two attributes are defined to specify the default behavior for runtime synchronization:

syncBehaviorDefault = ( "canSlip" | "locked" | "independent" | "inherit" )
Defines the behavior of the syncBehavior attribute when its value is "default".
The values "canSlip", "locked" and "independent" specify that the element's runtime synchronization behavior is the respective value.
inherit
Specifies that the value of this attribute (and the value of the element's runtime synchronization behavior) are inherited from the syncBehaviorDefault value of the parent element. If there is no parent element, the value is implementation dependent.
This is the default value.
syncToleranceDefault = ( Clock-value | "inherit" )
Defines the behavior of the syncTolerance attribute when its value is "default".
Clock values specify that the element's runtime synchronization tolerance value is the respective value.
inherit
Specifies that the value of this attribute (and the value of the element's runtime synchronization tolerance value) are inherited from the syncToleranceDefault value of the parent element. If there is no parent element, the value is implementation dependent but should be no greater than two seconds.
This is the default value.
The accumulated synchronization offset

If an element slips synchronization relative to its parent, the amount of this slip at any point is described as the accumulated synchronization offset. This offset is used to account for pause semantics as well as performance or delivery related slip. This value is used to adjust the conversion between element and parent times, as described in Converting between local and global times. The offset is computed as follows:

Let tc(tps) be the computed element active time for an element at the parent simple time tps, according to the defined synchronization relationship for the element.

Let to(tps) be the observed element active time for an element at the parent simple time tps.

The accumulated synchronization offset O is:

O = to(tps) - tc(tps)

This offset is measured in parent simple time.

This section is informative.

Thus an accumulated synchronization offset of 1 second corresponds to the element playing 1 second "later" than it was scheduled. An offset of -0.5 seconds corresponds to the element playing a half second "ahead" of where it should be.

Attributes for timing integration: timeContainer and timeAction

This section is informative

The modularization of SMIL 3.0 functionality allows language designers to integrate SMIL Timing and Synchronization support into any XML language. In addition to just scheduling media elements as in SMIL language documents, timing may be applied to the elements of the host language. For example, the addition of timing to HTML (i.e. XHTML) elements will control the presentation of the HTML document over time, and to synchronize text and presentation with continuous media such as audio and video.

Two attributes are introduced to support these integration cases. The timeContainer attribute allows the author to specify that any XML language element has time container behavior. E.g., an HTML <ol> ordered list element may be defined to behave as a sequence time container. The timeAction attribute allows the author to specify what it means to apply timing to a given element.

The timeContainer attribute

XML language elements may be declared to have time container semantics by adding the timeContainer attribute. The syntax is:

timeContainer = ( "par" | "seq" | "excl" | "none" )
par
Defines a parallel time container.
seq
Defines a sequence time container.
excl
Defines an exclusive time container.
none
Defines the current element to not have time container behavior (i.e. to behave as a simple time leaf).
This is the default.

Constraints upon the use of the timeContainer attribute are:

The timeAction attribute

The timeAction attribute provides control over the effect of timing upon an attribute. A host language must specify which values are allowed for each element in the language. A host language must specify the intrinsic timing behavior of each element to which timeAction may be applied. In addition, a host language may specify additional timeAction values. The syntax is:

timeAction = ( "intrinsic" | "display" | "visibility" | "style" | "class" | "none" )
intrinsic
Specifies that timing controls the intrinsic behavior of the element.
This is the default.
display
Specifies that timing controls the display of the element, as defined by CSS. The timing of the element may affect the presentation layout. For languages that incorporate CSS, the CSS "display" property should be controlled over time.
visibility
Specifies that timing controls the visibility of the element, as defined by CSS. The timing of the element should not affect the presentation layout. For languages that incorporate CSS, the CSS "visibility" property should be controlled over time.
style
Specifies that timing controls the application of style defined by an inline "style" attribute.
class:classname
Specifies that timing controls the inclusion of the specified class-name in the set of classes associated with the element (i.e. the XML class attribute value list).
none
Specifies that timing has no effect upon the presentation of the element.

The intrinsic behavior is defined by a host language. For example in the SMIL language, the intrinsic behavior of media elements is to schedule and control the visibility of the media. For some elements or some languages, the intrinsic behavior may default to one of the other behaviors.

Additional timeAction semantics and constraints:

Certain special elements may have specific intrinsic semantics. For example, linking elements like a and area may have an intrinsic behavior that controls the sensitivity of the elements to actuation by the user. This may have presentation side-effects as well. In XHTML for example, making these elements insensitive also has the effect that the default styling (e.g. a color and underline) that is applied to sensitive links is removed when the element is not active or frozen.

Host language designers should carefully consider and define the behavior associated with applying timing to an element. For example, script elements could be defined to execute when the element begins, or the language could disallow the timeAction attribute on the element. Similarly, link elements could apply a linked stylesheet when the element begins or the language could disallow the timeAction attribute on link.

For details of the CSS properties visibility and display, see [CSS2].

Examples:

This section is informative.

These examples assume that the namespace declaration xmlns:smil="http://www.w3.org/ns/SMIL" is in scope.

The following example shows a simple case of controlling visibility over time. The text is hidden from 0 to 3 seconds, shown normally for 5 seconds, and then hidden again.

<span smil:timeAction="visibility" smil:begin="3s" smil:dur="5s">
   Show this text for a short period.
</span>


The following example shows a simple case of controlling display over time. Each list element is shown for 5 seconds, and is removed from the layout when not active or frozen. The ordered list element is set to be a sequence time container as well (note that each list element retains its ordinal number even though the others are not displayed):

<ol smil:timeContainer="seq" smil:repeatDur="indefinite">
   <li smil:timeAction="display" smil:dur="5s">
      This is the first thing you will see. </li>
   <li smil:timeAction="display" smil:dur="5s">
      You will see this second. </li>
   <li smil:timeAction="display" smil:dur="5s">
      Last but not least, you will see this. </li>
</ol>


The following example shows how an element specific style may be applied over time. The respective style is applied to each HTML label for 5 seconds after a focus event is raised on the element:

<form ...>
...
   <label for="select_red" smil:begin="focus" smil:dur="5s" smil:timeAction="style"
          style="color:red; font-weight:bold" >
      Make things RED.
   </label>
   <input xml:id="select_red" .../>
   <label for="select_green" smil:begin="focus" smil:dur="5s" smil:timeAction="style"
          style="color:green; font-weight:bold" >
      Make things GREEN.
   </label>
   <input xml:id="select_green" .../>
...
</form>

5.4.4 Elements

This section is informative

SMIL 3.0 specifies three types of time containers. These may be declared with the elements par, seq, and excl, or in some integration profiles with a timeContainer attribute. Media elements with timed children are defined to be "media time containers", and have semantics based upon the par semantics (see also Attributes for timing integration: timeContainer and timeAction and Implicit duration of media element time containers).

This document refers in general to time containers by reference to the elements, but the same semantics apply when declared with an attribute, and for media time containers.

The par element

par
A par container, short for "parallel", defines a simple time grouping in which multiple elements may play back at the same time.

The implicit syncbase of the child elements of a par is the begin of the par. The default value of begin for children of a par is "0".

This section is informative.

This is the same element introduced with SMIL 1.0.

The par element supports all element timing.

Implicit duration of par

The implicit duration of a par is controlled by endsync. By default, the implicit duration of a par is defined by the endsync="last" semantics. The implicit duration ends with the last active end of the child elements.

The seq element

seq
A seq container defines a sequence of elements in which elements play one after the other.

This section is informative.

This is the same element introduced with SMIL 1.0, but the semantics (and allowed syntax) for child elements of a seq are clarified.

The seq element itself supports all element timing except endsync.

When a hyperlink traversal targets a child of a seq, and the target child is not currently active, part of the seek action must be to enforce the basic semantic of a seq that only one child may be active at a given time. For details, see Hyperlinks and timing and specifically Implications of beginElement() and hyperlinking for seq and excl time containers.

Implicit duration of seq containers

The excl element

This section is informative.

SMIL 3.0 defines a time container, excl, that allows the interactive (or a-temporal) activation of child elements.

excl
This defines a time container with semantics based upon par, but with the additional constraint that only one child element may play at any given time. If any element begins playing while another is already playing, the element that was playing is stopped. If the priorityClass element is also supported by a profile, child elements in an excl container may be grouped into categories; the behavior of the element that was playing at the time a new element starts may be defined to have stop/pause/interruption behavior. The priorityClass may be used to define several levels of interrupt behavior (one per class), each of which may be controlled explicitly.

The implicit syncbase of the child elements of the excl is the begin of the excl. The default value of begin for children of excl is "indefinite". This means that the excl has 0 duration unless a child of the excl has been added to the timegraph.

The excl element itself supports all element timing.

This section is informative

With the excl time container, common use cases that were either difficult, or impossible, to author are now easier and possible to create. The excl time container is used to define a mutually exclusive set of clips, and to describe pausing and resuming behaviors among these clips. Examples include:

interactive playlist
A selection of media clips is available for the user to choose from, only one of which plays at a time. A new selection replaces the current selection.
audio descriptions
For visually impaired users, the current video is paused and audio descriptions of the current scene are played. The video resumes when the audio description completes.
interactive video sub-titles
Multiple language sub-titles are available for a video. Only one language version may be shown at a time with the most recent selection replacing the previous language choice, if any.

The interactive playlist use case above could be accomplished using a par whose sources have interactive begin times and end events for all other sources. This would require a prohibitively long list of values for end to maintain. The excl time container provides a convenient short hand for this - the element begin times are still interactive, but the end events do not need to be specified because the excl, by definition, only allows one child element to play at a time.

The audio descriptions use case is not possible without the pause/resume behavior provided by excl and priorityClass. This use case would be authored with a video and each audio description as children of the excl. The video element would be scheduled to begin when the excl begins and the audio descriptions, peers of the video element, would start at scheduled begin times or in response to stream events raised at specific times.

The dynamic video sub-titles use case requires the "play only one at a time" behavior of excl. In addition, the child elements are declared in such a way so as to preserve the sync relationship to the video:

<smil ...>
...
<par endsync="vid1">
   <video xml:id="vid1" .../>
   <excl dur="indefinite">
      <par begin="englishBtn.activateEvent" >
         <audio begin="vid1.begin" src="english.au" />
      </par>
      <par begin="frenchBtn.activateEvent" >
         <audio begin="vid1.begin" src="french.au" />
      </par>
      <par begin="swahiliBtn.activateEvent" >
         <audio begin="vid1.begin" src="swahili.au" />
      </par>
   </excl>
</par>
...
</smil>

The three par elements are children of the excl, and so only one can play at a time. The audio child in each par is defined to begin when the video begins. Each audio can only be active when the parent time container (par) is active, but the begin still specifies the synchronization relationship. This means that when each par begins, the audio will start playing at some point in the middle of the audio clip, and in sync with the video.

The excl time container is useful in many authoring scenarios by providing a declarative means of describing complex clip interactions.

Implicit duration of excl containers
The priorityClass element

This section is informative

Using priority classes to control the pausing behavior of children of the excl allows the author to group content into categories of content, and then to describe rules for how each category will interrupt or be interrupted by other categories. Attributes of the new grouping element priorityClass describe the intended interactions.

Each priorityClass element describes a group of children, and the behavior of those children when interrupted by other time-children of the excl. The behavior is described in terms of peers, and higher and lower priority elements. Peers are those elements within the same priorityClass element.

When one element within the excl begins (or would normally begin) while another is already active, several behaviors may result. The active element may be paused or stopped, or the interrupting element may be deferred, or simply blocked from beginning.

The careful choice of defaults makes common use cases very simple. See the examples below.

priorityClass
Defines a group of excl time-children, and the pause/interrupt behavior of the children. If a priorityClass element appears as the child of an excl, then the excl must only contain priorityClass elements (i.e. the author must not mix timed children and priorityClass elements within an excl).

If no priorityClass element is used, all the children of the excl are considered to be peers, with the default peers behavior "stop".

The peers, higher, and lower attributes

This section is informative

Note that the rules define the behavior of the currently active element and the interrupting element. Any elements in the pause queue are not affected (except that their position in the queue may be altered by new queue insertions).

peers = ( "stop" | "pause" | "defer" | "never" )
Controls how child elements of this priorityClass will interrupt one another.
Legal values for the attribute are:
stop
If a child element begins while another child element is active, the active element is simply stopped.
This is the default for peers.
pause
If a child element begins while another child element is active, the active element is paused and will resume when the new (interrupting) element completes its active duration (subject to the constraints of the excl time container). The paused element is added to the pause queue.
defer
If a child element attempts to (i.e. would normally) begin while another child element is active, the new (interrupting) element is deferred until the active element completes its active duration.
never
If a child element attempts to (i.e. would normally) begin while another child element is active, the new (interrupting) element is prevented from beginning. The begin of the new (interrupting) element is ignored.
higher = ( "stop" | "pause" )
Controls how elements with higher priority will interrupt child elements of this priorityClass.
Legal values for the attribute are:
stop
If a higher priority element begins while a child element of this priorityClass is active, the active child element is simply stopped.
pause
If a higher priority element begins while a child element of this priorityClass is active, the active child element is paused and will resume when the new (interrupting) element completes its active duration (subject to the constraints of the excl time container). The paused element is added to the pause queue.
This is the default for the higher attribute.
lower = ( "defer" | "never" )
Controls how elements defined with lower priority will interrupt child elements of this priorityClass.
Legal values for the attribute are:
defer
If a lower priority element attempts to (would normally) begin while a child element of this priorityClass is active, the new (interrupting) element is deferred until the active element completes its active duration. The rules for adding the element to the queue are described below.
This is the default for the lower attribute.
never
If a lower priority element attempts to begin while a child element of this priorityClass is active, the new (interrupting) element is prevented from beginning. The begin of the new (interrupting) element is ignored, and it is not added to the queue.

When an element begin is blocked (ignored) because of the "never" attribute value, the blocked element does not begin in the time model. The time model should not propagate begin or end activations to time dependents, nor should it raise begin or end events.

The pauseDisplay attribute

This section is informative

The pauseDisplay attribute controls the behavior when paused of the children of a priorityClass element. When a child of a priorityClass element is paused according to excl and priorityClass semantics, the pauseDisplay attribute controls whether the paused element will continue to show or apply the element (i.e. the state of the element for the time at which it is paused), or whether it is removed altogether from the presentation (i.e. disabled) while paused.

pauseDisplay = ( "disable" | "hide" | "show" )
Controls how child elements of the priorityClass element behave when paused. This attribute only applies if peers="pause" or higher="pause".
Legal values for the attribute are:
disable
Continue to display visual media when the element is paused by the excl and priorityClass, but appear disabled. It is implementation dependent how a disabled element appears (rendered in some different way to distinguish from the active state -- e.g., grayed out); disabled elements do not respond to mouse events.
hide
Remove the effect of the element (including any rendering) when the element is paused by the excl and priorityClass semantics.
show
Continue to show the effect of the element (including any rendering) when the element is paused by the excl and priorityClass semantics. This value has no effect on a aural media.
This is the default.
Examples using excl and priorityClass

This section is informative

Note that because of the defaults, the simple cases work without any additional syntax. In the basic case, all the elements default to be peers, and stop one another:

<excl dur="indefinite">
   <audio xml:id="song1" .../>
   <audio xml:id="song2" .../>
   <audio xml:id="song3" .../>
   ...
   <audio xml:id="songN" .../>
</excl>

is equivalent to the following with explicit settings:

<excl dur="indefinite">
   <priorityClass peers="stop">
     <audio xml:id="song1" .../>
     <audio xml:id="song2" .../>
     <audio xml:id="song3" .../>
     ...
     <audio xml:id="songN" .../>
   </priorityClass>
</excl>

If the author wants elements to pause rather than stop, the syntax is:

<excl dur="indefinite">
   <priorityClass peers="pause">
     <audio xml:id="song1" .../>
     <audio xml:id="song2" .../>
     <audio xml:id="song3" .../>
     ...
     <audio xml:id="songN" .../>
   </priorityClass>
</excl>

The audio description use case for visually impaired users would look very similar to the previous example:

<excl dur="indefinite">
   <priorityClass peers="pause">
     <video xml:id="main_video" .../>
     <audio xml:id="scene1_description" begin="20s"  dur="30s".../>
     <audio xml:id="scene2_description" begin="2min" dur="30s" .../>
     ...
     <audio xml:id="sceneN_description" .../>
   </priorityClass>
</excl>

This example shows a more complex case of program material and several commercial insertions. The program videos will interrupt one another. The ads will pause the program, but will not interrupt one another.

<excl dur="indefinite">
   <priorityClass xml:id="ads" peers="defer">
     <video xml:id="advert1" .../>
     <video xml:id="advert2" .../>
   </priorityClass>
   <priorityClass xml:id="program" peers="stop" higher="pause">
     <video xml:id="program1" .../>
     <video xml:id="program2" .../>
     <video xml:id="program3" .../>
     <video xml:id="program4" .../>
   </priorityClass>
</excl>

The following example illustrates how defer semantics and priority groups can interact. When "alert1" tries to begin at 5 seconds, the "program" priorityClass will force "alert1" to defer, and so "alert1" will be placed upon the queue. When "alert2" tries to begin at 6 seconds, the same semantics will force "alert2" onto the queue. Note that although the "alerts" priorityClass defines the peers rule as "never", "alert1" is not active at 6 seconds, and so the interrupt semantics between "alert1" and "alert2" are not evaluated. The resulting behavior is that when "prog1" ends at 20 seconds, "alert1" will play, and then when "alert1" ends, "alert2" will play.

<excl dur="indefinite">
   <priorityClass xml:id="program" lower="defer">
     <video xml:id="prog1" begin="0" dur="20s" .../>
   </priorityClass>
   <priorityClass xml:id="alerts" peers="never">
     <video xml:id="alert1" begin="5s" .../>
     <video xml:id="alert2" begin="6s" .../>
   </priorityClass>
</excl>

This example illustrates pauseDisplay control. When an element is interrupted by a peer, the interrupted element pauses and is shown in a disabled state. It is implementation dependent how the disabled video is rendered. Disabled elements do not respond to mouse events.

<excl dur="indefinite">
   <priorityClass peers="pause" pauseDisplay="disable">
      <video xml:id="video1" .../>
      <video xml:id="video2" .../>
      <video xml:id="video3" .../>
      ...
      <video xml:id="videoN" .../>
   </priorityClass>
</excl>

In this example, when a child of a higher priorityClass element interrupts a child of the "program" priorityClass, the child of "program" pauses and remains onscreen. If a peer of the "program" priorityClass interrupts a peer, the element that was playing stops and is no longer displayed.

<excl dur="indefinite">
   <priorityClass xml:id="ads" peers="defer">
      <video xml:id="advert1" .../>
      <video xml:id="advert2" .../>
   </priorityClass>
   <priorityClass xml:id="program" peers="stop" higher="pause" pauseDisplay="show">
      <video xml:id="program1" .../>
      <video xml:id="program2" .../>
      <video xml:id="program3" .../>
      <video xml:id="program4" .../>
   </priorityClass>
</excl>
Pause queue semantics

Elements that are paused or deferred are placed in a priority-sorted queue of waiting elements. When an active element ends its active duration and the queue is not empty, the first (i.e. highest priority) element in the queue is pulled from the queue and resumed or activated.

The queue semantics are described as a set of invariants and the rules for insertion and removal of elements. For the purposes of discussion, the child elements of a priorityClass element are considered to have the priority of that priorityClass, and to have the behavior described by the peers, higher and lower attributes on the priorityClass parent.

Queue invariants
  1. The queue is sorted by priority, with higher priority elements before lower priority elements.
  2. An element may not appear in the queue more than once.
  3. An element may not simultaneously be active and in the queue.
Element insertion and removal
  1. Elements are inserted into the queue sorted by priority (by invariant 1).
    1. Paused elements are inserted before elements with the same priority.
    2. Deferred elements are inserted after elements with the same priority.
  2. Where the semantics define that an active element must be paused, the element is paused at the current simple time (position) when placed on the queue. When a paused element is pulled normally from the queue, it will resume from the point at which it was paused.
  3. Where the semantics define that an element must be deferred, the element is inserted in the queue, but is not begun. When the element is pulled normally from the queue, it will begin (i.e. be activated).
  4. When an element is placed in the queue any previous instance of that element is removed from the queue (by invariant 2).
  5. When the active child (i.e. time-child) of an excl ends normally (i.e. not when it is stopped by another, interrupting element), the element on the front of the queue is pulled off the queue, and resumed or begun (according to rule 2 or 3).

Note that if an element is active and restarts (subject to the restart rule), it does not interrupt itself in the sense of a peer interrupting it. Rather, it simply restarts and the queue is unaffected.

Runtime synchronization behavior and pause/defer semantics

The runtime synchronization behavior of an element (described in the syncBehavior, syncTolerance, and syncMaster attributes: controlling runtime synchronization) does not affect the queue semantics. Any element that is paused or deferred according to the queue semantics will behave as described. When a paused element is resumed, the synchronization relationship will be reestablished according to the runtime synchronization semantics. The synchronization relationship for a deferred element will be established when the element actually begins.

Calculated times and pause/defer semantics

When an element is paused, the calculated end time for the element may change or even become resolved, and the time model must reflect this. This is detailed in Paused elements and the active duration. In some cases, the end time is defined by other elements unaffected by the pause queue semantics.

This section is informative.

In the following example, the "foo" element will be paused at 8 seconds, but it will still end at 10 seconds (while it is paused):

<img "joe" end="10s" .../>
<excl dur="indefinite">
   <priorityClass peers="pause">
      <img xml:id="foo" end="joe.end" .../>
      <img xml:id="bar" begin="8s" dur="5s" .../>
   </priorityClass>
</excl>

If an element ends while it is in the pause queue, it is simply removed from the pause queue. All time dependents will be notified normally, and the end event will be raised at the end time, as usual.

When an element is deferred, the begin time is deferred as well. Just as described in Paused elements and the active duration, the begin time of a deferred element may become unresolved, or it may simply be delayed.

This section is informative.

In the following example, the "bar" element will initially have an unresolved begin time. If the user clicks on "foo" at 8 seconds, "bar" would resolve to 8 seconds, but will be deferred until 10 seconds (when "foo" ends):

<smil ...>
...
<excl dur="indefinite">
   <priorityClass peers="defer">
      <img xml:id="foo" begin="0s" dur="10s" .../>
      <img xml:id="bar" begin="foo.click" .../>
   </priorityClass>
</excl>
...
</smil>

If there is enough information to determine the new begin time (as in the example above), an implementation must compute the correct begin time when an element is deferred. The change to the begin time that results from the element being paused must be propagated to any sync arc time dependents (i.e. other elements with a begin or end defined relative to the begin of the deferred element). See also the Propagating changes to times section.

This section is informative.

One exception to normal processing is made for deferred elements, to simplify the model: a deferred element ignores propagated changes to its begin time. This is detailed in the Deferred elements and propagating changes to begin section.

Scheduled begin times and excl

Although the default begin value for children of an excl is indefinite, scheduled begin times are permitted. Scheduled begin times on children of the excl cause the element to begin at the specified time, pausing or stopping other siblings depending on the priorityClass settings (and default values).

Handling Simultaneous Begins within excl

If children of an excl attempt to begin at the same time, the evaluation proceeds in document order. For each element in turn, the priorityClass semantics are considered, and elements may be paused, deferred or stopped.

This section is informative

The following examples both exhibit this behavior (it can result from any combination of scheduled times, interactive timing, hyperlink or DOM activation):

<smil ...>
...
<excl>
   <img src="image1.jpg" begin="0s" dur="5s"/>
   <img src="image2.jpg" begin="0s" dur="5s"/>
   <img src="image3.jpg" begin="0s" dur="5s"/>
</excl>

<excl dur ="indefinite">
   <img xml:id="img1" src="image1.jpg" begin="foo.activateEvent" dur="5s"/>
   <img xml:id="img2" src="image2.jpg" begin="img1.begin" dur="5s"/>
   <img xml:id="img3" src="image3.jpg" begin="img2.begin" dur="5s"/>
</excl>
...
</smil>

In the first example, the images are scheduled to begin immediately, where in the second, they will all begin once the user activates the "foo" element. The end result of the two (other than the begin time) is the same. Given the default interrupt semantics for excl, the first image will begin and then be immediately stopped by the second image, which will in turn be immediately stopped by the third image. The net result is that only the third image is seen, and it lasts for 5 seconds. Note that the begin and end events for the first two images are raised and propagated to all time dependents. If the behavior is set to "pause" as in this example, the declared order is effectively reversed:

<excl>
   <priorityClass peers="pause">
      <img src="image1.jpg" begin="0s" dur="5s"/>
      <img src="image2.jpg" begin="0s" dur="5s"/>
      <img src="image3.jpg" begin="0s" dur="5s"/>
   </priorityClass>
</excl>

In this case, the first image will begin and then be immediately paused by the second image, which will in turn be immediately paused by the third image. The net result is that the third image is seen for 5 seconds, followed by the second image for 5 seconds, followed by the first image for 5 seconds. Note that the begin events for the first two images are raised and propagated to all time dependents when the excl begins.

In the following slideshow example, images begin at the earlier of their scheduled begin time or when activated by a user input event:

<smil ...>
...
<excl>
   <img src="image1.jpg" begin="0s".../>
   <img src="image2.jpg" begin="10s; image1.activateEvent".../>
   <img src="image3.jpg" begin="20s; image2.activateEvent".../>
</excl>
...
</smil>

Note, some surprising results may occur when combining scheduled and interactive timing within an excl. If in the above example, the user clicks on image1 and then on image2 before ten seconds have elapsed, image 2 will re-appear at the ten second mark. Image 3 will appear at twenty seconds. The likely intent of this particular use-case would be better represented with a seq time container.

Side effects of activation

This section is informative

Children of the excl may be activated by scheduled timing, hyperlinks, events or DOM methods calls. For all but hyperlink activation, the excl time container must be active for child elements of the excl to be activated. With hyperlink activation, the document may be seeked to force the parent excl to be active, and a seek may occur to the begin time target child if it has a resolved begin time. That is, the normal hyperlink seek semantics apply to a timed child of an excl.

With activation via a DOM method call (e.g. the beginElement() method), the element will be activated at the current time (subject to the priorityClass semantics), even if the element has a scheduled begin time. The exclusive semantics of the time container (allowing only one active element at a time) and all priorityClass semantics are respected nevertheless.

This section is informative.

See also Hyperlinks and timing and specifically Implications of beginElement() and hyperlinking for seq and excl time containers.

Implicit duration of media element time containers

The implicit duration of a media time container combines the intrinsic duration of the media with the children to define the implicit simple duration. For the "ID-REF" value of endsync, the semantics are the same as for a normal time container. For the "media" value of endsync, implicit simple duration is equal to the intrinsic duration of the media directly associated with the element. For the values "first", "last" and "all", the media element acts as a par time container, but treats the element's associated media as an additional condition as far as determining when the criteria for "first", "last" and "all" endsync values have been satisfied.

If the implicit duration defined by endsync is longer than the intrinsic duration for a continuous media element, the ending state of the media (e.g. the last frame of video) will be shown for the remainder of the implicit duration. This only applies to visual media - aural media will simply stop playing.

This section is informative

This semantic is similar to the case in which the author specifies a simple duration that is longer than the intrinsic duration for a continuous media element. Note that for both cases, although the media element is effectively frozen for the remainder of the simple duration, the time container simple time is not frozen during this period, and any children will run normally without being affected by the media intrinsic duration.

Examples:

This section is informative.

Assume that "vid1" is 10 seconds long in the following examples.

The default value of endsync for media elements is "media", and so the simple duration in the following example is 10 seconds. This will cut short the animate child 8 seconds into its simple duration:

<video src="vid1.mpg" >
   <animate begin="2s" dur="12s" .../>
</video>

Specifying endsync="first" in the example below causes the simple duration of the video element to be 10 seconds, since the media finishes before the animate child.

<video src="vid1.mpg" endsync="first" >
   <animate begin="2s" dur="12s" .../>
</video>

Specifying endsync="last" in the following example causes the simple duration of the video element to be 14 seconds. The video will show a still frame (the last frame) for the last 4 seconds of this:

<video src="vid1.mpg" endsync="last" >
   <set dur="8s" .../>
   <animate begin="2s" dur="12s" .../>
</video>

Specifying endsync="all" in the following example causes the simple duration of the video element to last at least 10 seconds (the intrinsic duration of the video), and at most until 5 seconds after the user clicks on the video. The video will show a still frame (the last frame) for any duration in excess of 10 seconds:

<smil ...>
...
<video src="vid1.mpg" endsync="all" >
   <set dur="8s" .../>
   <animate begin="activateEvent" dur="5s" .../>
</video>
...
</smil>

Thus if the user clicks on the video after 1 second, the simple duration is 10 seconds. If the user does not click until 15 seconds, the simple duration is 20 seconds, and the last frame will be shown between 10 and 20 seconds. The video can still be clicked even though it stops normal play at 10 seconds.

Media time containers of other types

This section is informative.

In some language integrations, it will be possible to declare a media time container to have sequence or exclusive semantics, in addition to the default parallel semantics described above. For example:

<html ...>
...
<video xmlns="http://www.w3.org/ns/SMIL" src="vid1.mpg" timeContainer="seq" endsync="first" >
   <animate dur="4s" .../>
   <animate end="click" .../>
</video>
...
</html>

The animate children of the video will act in sequence. The endsync semantics define a simple duration for the video that is no more than 10 seconds (the intrinsic duration of the video) but may be just over 4 seconds, if the user clicks on the video as soon as the last animate begins.

5.4.5 Semantics of the Timing Model

Resolving times

A begin or end time is said to be unresolved when either an associated begin or end event has not yet occurred (within the constraints of Event sensitivity), or the begin or end time is dependent upon another element's begin or end time that is unresolved. The begin or end time becomes resolved as soon as the syncbase element's time is resolved, or when the event occurs (within the constraints of Event sensitivity).

If a begin or end value resolves to a time in the past, this value is propagated to other synchronization dependents. Similarly, a simple or active duration may be unresolved but may become resolved when end conditions are met or the parent time container constrains the element's duration.

Definite times

A resolved time is said to be definite if it is not the value "indefinite".

Defining the simple duration

The simple duration of an element is determined by the dur attribute, the implicit duration of the element, and one special-case rule to ensure SMIL 1.0 backward compatibility. Apply the first rule in the table that matches the given criteria.

Computation of the simple duration is based on the information available at the time the calculation is made. Unresolved quantities may require the simple duration to be recomputed when an unresolved quantity becomes resolved.

dur implicit element duration repeatDur and repeatCount Simple Duration
unspecified (ignored) unspecified, end specified indefinite
Clock-value (ignored) (ignored) dur or Clock-value
indefinite (ignored) (ignored) indefinite
unspecified resolved (ignored) implicit element duration
or Clock-value
unspecified unresolved (ignored) unresolved
media resolved or unresolved (ignored) implicit element duration

Simple Duration Table

The repeatCount and unresolved simple duration

When repeatCount is specified, it is understood to represent a count of iterations of simple duration. Each iteration of the simple duration may be different, and so a simple multiplication of the repeatCount and a given simple duration may not yield an accurate active duration. In the case of a partial repeatCount and a simple duration that is not resolved, the most recent simple duration should be multiplied by the fractional part of the repeatCount to constrain the last simple duration. If the last iteration of the simple duration otherwise ends before this time, the repeatCount should be considered to be complete. If a repeatCount is less than 1 and the simple duration is unresolved, the repeatCount cannot be correctly respected, and will behave as though a repeatCount of "1" were specified.

This section is informative

If an element specifying audio media has a simple duration of 0 (e.g., because of clipBegin and clipEnd values), nothing should be played even if the repeatDur specifies an active duration. The time model behaves according to the description, but no audio should be played.

If a repeatDur is shorter than the simple duration, or if repeatCount is less than 1, the active duration may cut short the defined simple duration.

If repeatDur is "indefinite" and neither of repeatCount or end are specified, the active duration is indefinite. If repeatCount is indefinite, the simple duration is greater than 0 and neither of repeatDur or end are specified, then the active duration is indefinite.

Note that unlike in SMIL 1, when an element defines a begin offset and repeat behavior with repeatCount or repeatDur, the begin offset is not included in each repeat.

Computing the active duration

The active duration of an element defines the entire period that an element's timeline is active. It takes into account the element simple duration evaluated above, the end attribute, and any repeat behavior defined by the repeatDur and repeatCount attributes.

Active duration arithmetic rules

Computing the active duration requires defining arithmetic operations on all of the possible values that simple duration may have.

Multiplication
Addition and Subtraction
Minimization Function

Where anything means zero value, non-zero value, indefinite, or unresolved.

Maximization Function
Active duration algorithm

In this section, references to begin and end values should be understood as the current effective values in each respective value list. These values are determined by the rules described in Evaluation of begin and end time lists.

The following symbols are used in the algorithm as a shorthand:

B
The begin of an element.
d
The simple duration of an element.
PAD
The preliminary active duration of an element, before accounting for min and max semantics.
AD
The active duration of an element.

Computation of the active duration is based on the information available at the time the calculation is made. Unresolved quantities may require the active duration to be recomputed when an unresolved quantity becomes resolved.

To compute the active duration, use the following algorithm:

If end is specified, and none of dur, repeatDur, and repeatCount are specified, then the simple duration is indefinite from the simple duration table above, and the active duration is defined by the end value, according to the following cases:

If end is resolved to a value, then PAD = end - B,

else, if end is indefinite, then PAD = indefinite,

else, if end is unresolved, then PAD is unresolved, and needs to be recomputed when more information becomes available.

Else, if no end value is specified, or the end value is specified as indefinite, then the active duration is determined from the Intermediate Active Duration computation given below:

PAD = Result from Intermediate Active Duration Computation

Otherwise, an end value not equal to indefinite is specified along with at least one of dur, repeatDur, and repeatCount. Then the PAD is the minimum of the result from the Intermediate Active Duration Computation given below and duration between end and the element begin:

PAD = MIN( Result from Intermediate Active Duration Computation, end - B)

Finally, the computed active duration AD is obtained by applying min and max semantics to the preliminary active duration PAD. In the following expression, if there is no min value, substitute a value of 0, and if there is no max value, substitute a value of "indefinite":

AD = MIN( max, MAX( min, PAD ))
Intermediate Active Duration Computation

We define three intermediate quantities, p0, p1, and p2, and produce an intermediate result, the Intermediate Active Duration (IAD) to be used in the computation above.

p0 is the simple duration from the Simple Duration Table, given above.

If repeatCount is not specified, p1 has the value indefinite. Otherwise, p1 is the accumulated sum of the specified number of simple durations of the iterations of this element. p1 will have a value of unresolved until the simple duration for each iteration is resolved. Partial iterations will contribute the specified fraction of the simple duration to the sum. This product can be based on either the known fixed simple duration of the media, or if unknown, the simple duration from the previous iteration of the current set of repetitions. In general for media without a fixed simple duration, p1 will not be resolved until the specified integral number of simple durations has passed.

p2 is the value of repeatDur. If repeatDur is unspecified, then p2 will have a value of indefinite.

Then IAD is given by:

If p0 equals 0, then

IAD = 0

Else if repeatDur and repeatCount are unspecified then:

IAD = p0

else:

IAD = MIN( p1, p2, indefinite)

This section is informative

As an example, if an element specifies:

<smil ...>
...
<audio dur="5s" end="foo.activateEvent" .../>
...
</smil>

The active duration is initially defined as 5 seconds, based upon the specified simple duration. If the user activates "foo" before 5 seconds, the end value becomes resolved and the active duration is re-evaluated. This causes the element to end at the time of the activation.

Some of the rules and results that are implicit in the algorithm, and that should be noted in particular are:

It is possible to combine scheduled and interactive timing. For example:

<smil ...>
...
<par dur="30s">
   <img xml:id="mutebutton" src="mute.jpg"/>
   <text  src="description.html" />
   <audio src="audio.au" end="mutebutton.activateEvent"/>
</par>
...
</smil>

The image and the text appear for the specified duration of the par (30 seconds). The active duration of the audio is initially defined to be indefinite because its end time is unresolved. The audio will stop early if the image is activated (e.g., clicked) before the implicit end of the audio. If the image is not activated, the dur attribute on the parent time container will constrain playback.

It is possible to declare both a scheduled duration, as well as an event-based active end. This facilitates what are sometimes called "lazy interaction" use-cases, such as a slideshow that will advance in response to user clicks, or on its own after a specified amount of time:

<smil ...>
...
<seq>
   <img src="slide1.jpg" dur="10s" end="activateEvent" />
   <img src="slide2.jpg" dur="10s" end="activateEvent" />
   <img src="slide3.jpg" dur="10s" end="activateEvent" />
   <!-- etc., etc. -->
</seq>
...
</smil>

In this case, the active end of each element is defined to be the earlier of the specified duration, or a click on the element. This lets the viewer sit back and watch, or advance the slides at a faster pace.

Paused elements and the active duration

An element may be paused while it is active. This may happen in a number of ways, including via a DOM method call or because of excl semantics. When an element is paused, a resolved end time for the element may change, or it may become unresolved. The synchronization relationship between the paused element and its parent time container is re-established when the paused element is resumed. If for example the element below is paused with a DOM method call, there is no way to know when the element will end, and so the end time must be considered unresolved:

<img dur="30s" .../>

However, in the following case, the "bar" element will still end at 10 seconds, even if it is paused at 8 seconds. In this case, the end time does not change:

<img xml:id="foo" dur="10s" .../>
<img xml:id="bar" end="foo.end" .../>

Finally, in the following case the "foo" element will initially be computed to end at 10 seconds. If the "bar" element begins (i.e. if the user activates or clicks on "foo"), at 8 seconds, "foo" will be paused. However, since the duration of "bar" is known, and the semantics of the excl pause queue are well defined, the end of "foo" can be computed to be 15 seconds:

<smil ...>
...
<excl dur="indefinite">
   <priorityClass peers="pause">
      <img xml:id="foo" dur="10s" .../>
      <img xml:id="bar" begin="foo.activateEvent" dur="5s" .../>
   </priorityClass>
</excl>
...
</smil>

If there is enough information to determine the new end time (as in the example above), an implementation must compute the correct end time when an element is paused. Any change to the end time that results from the element being paused must be propagated to any sync arc time dependents (i.e. other elements with a begin or end defined relative to the active end of the paused element). See also the Propagating changes to times section.

In addition, when an element is paused, the accumulated synchronization offset will increase to reflect the altered sync relationship. See also The accumulated synchronization offset.

Finally, when an element is paused it may end because the parent time container ends., any fill behavior is interpreted using the element active time when the element ends (that is, it will use the element active time at which it was paused to determine what to display).

Evaluation of begin and end time lists

This section is informative

Children of par and excl time containers may have multiple begin and end values. We need to specify the semantics associated with multiple begin and end times, and how a dynamic timegraph model works with these multiple times.

The model is based around the idea of intervals for each element. An interval is defined by a begin and an end time. As the timegraph is played, more than one interval may be created for an element with multiple begin and end times. At any given moment, there is one current interval associated with each element. Intervals are created by evaluating a list of begin times and a list of end times, each of which is based upon the conditions described in the begin and end attributes for the element.

The list of begin times and the list of end times used to calculate new intervals are referred to as lists of "instance times". Each instance time in one of the lists is associated with the specification of a begin or end condition defined in the attribute syntax. Some conditions - for example Offset-values - only have a single instance in the list. Other conditions may have multiple instances if the condition can happen more than once. For example a Syncbase-value may have multiple instance times if the syncbase element has played several intervals, and an Event-value may have multiple instance times if the event has happened more than once.

The instance times lists for each element are initialized when the timegraph is initialized, and exist for the entire life of the timegraph. Some instance times such as those defined by Offset-values remain in the lists forever, while others may come and go. For example, times associated with Event-values are only added when the associated event happens, and are removed when the element resets, as described in Resetting element state. Similarly, Instance times for Syncbase-values are added to the list each time a new interval is created for the syncbase element, but these instance times are not removed by a reset, and remain in the list.

When the timegraph is initialized, each element attempts to create a first current interval. The begin time will generally be resolved, but the end time may often be unresolved. If the element can restart while active, the current interval may end (early) at the next begin time. This interval will play, and then when it ends, the element will review the lists of begin and end instance times. If the element should play again, another interval will be created and this new interval becomes the current interval. The history of an element can be thought of as a set of intervals.

Because the begin and end times may depend on other times that can change, the current interval is subject to change, over time. For example, if any of the instance times for the end changes while the current interval is playing, the current interval end will be recomputed and may change. Nevertheless, once a time has happened, it is fixed. That is, once the current interval has begun, its begin time can no longer change, and once the current interval has ended, its end time can no longer change. For an element to restart, it must end the current interval and then create a new current interval to effect the restart.

When a begin or end condition defines a time dependency to another element (e.g. with a Syncbase-value), the time dependency is generally thought of as a relationship between the two elements. This level of dependency is important to the model when an element creates a new current interval. However, for the purposes of propagating changes to individual times, time dependencies are more specifically a dependency from a given interval of the syncbase element to a particular instance time in one of the dependent element's instance time lists. Since only the current interval's begin and end times can change, only the current interval will generate time-change notices and propagate these to the dependent instance times.

When this section refers to the begin and end times for an element, the times are described as being in the space of the parent simple duration. All sync-arcs, event arcs, wallclock values, etc. must be converted to this time space for easy comparison. This is especially important when referring to begin times "before 0", which assumes that "0" is the beginning of the parent simple duration. The model does not depend upon this definition - e.g. an implementation could do everything in global document time.

Cycles in the timegraph must be detected and broken to ensure reasonable functioning of the implementation. A model for how to do this in the general case is described (it is actually an issue that applies even to SMIL 1.0). A mechanism to support certain useful cyclic dependencies falls out of the model.

The rest of this section details the semantics of the instance times lists, the element life cycle, and the mechanisms for handling dependency relationships and cycles.

The instance times lists

Instance lists are associated with each element, and exist for the duration of the document (i.e. there is no life cycle for instance lists). Instance lists may change, and some times may be added and removed, but the begin and end instance times lists are persistent.

Each element may have a begin attribute that defines one or more conditions that may begin the element. In addition, the timing model describes a set of rules for determining the end of the element, including the effects of an end attribute that may have multiple conditions. In order to calculate the times that should be used for a given interval of the element, we must convert the begin times and the end times into parent simple time, sort each list of times (independently), and then find an appropriate pair of times to define an interval.

The instance times may be resolved or unresolved. In the case of the end list, an additional special value "indefinite" is allowed. The lists are maintained in sorted order, with "indefinite" sorting after all other resolved times, and unresolved times sorting to the end.

For begin, the list interpretation is straightforward, since begin times are based only upon the conditions in the attribute or upon the default begin value if there is no attribute. However, when a begin condition is a Syncbase-value, the syncbase element may have multiple intervals, and we must account for this in the list of begin times associated with the conditions.

For end, the case is somewhat more complex, since the end conditions are only one part of the calculation of the end of the active duration. The instance times list for end are used together with the other SMIL Timing semantics to calculate the actual end time for an interval.

If an instance time was defined as Syncbase-values, the instance time will maintain a time dependency relationship to the associated interval for the syncbase element. This means that if the associated begin or end time of the syncbase current interval changes, then the dependent instance time for this element will change as well.

When an element creates a new interval, it notifies time dependents and provides the begin and end times that were calculated according to the semantics described in "Computing the active duration". Each dependent element will create a new instance time tied to (i.e. with a dependency relationship to) the new syncbase current interval.

Building the instance times lists

The translation of begin or end conditions to instance times depends upon the type of condition:

If no attribute is present, the default begin values must be evaluated. For children of par, this is equivalent to an Offset-value of 0, and yields one persistent instance value. For children of excl, this is equivalent to "indefinite", and so does not yield an instance value.

If a DOM method call is made to begin or end the element (beginElement(), beginElementAt(), endElement() or endElementAt()), each method call creates a single instance time (in the appropriate instance times list). These time instances are cleared upon reset just as for event times. See Resetting element state.

When a new time instance is added to the begin list, the current interval will evaluate restart semantics and may ignore the new time or it may end the current interval (this is detailed in Interaction with restart semantics). In contrast, when an instance time in the begin list changes because the syncbase (current interval) time moves, this does not invoke restart semantics, but may change the current begin time: If the current interval has not yet begun, a change to an instance time in the begin list will cause a re-evaluation of the begin instance lists, which may cause the interval begin time to change. If the interval begin time changes, a time-change notice must be propagated to all dependents, and the current interval end must also be re-evaluated.

When a new instance time is added to the end list, or when an instance time in the end list changes, the current interval will re-evaluate its end time. If it changes, it must notify dependents.

If an element has already played all intervals, there may be no current interval. In this case, additions to either list of instance times, as well as changes to any instance time in either list cause the element to re-evaluate the lists just as it would at the end of each interval (as described in End of an interval below). This may or may not lead to the creation of a new interval for the element.

When times are added to the instance times lists, they may or may not be resolved. If they are resolved, they will be converted to parent simple time. If an instance time changes from unresolved to resolved, it will be similarly converted.

There is a difference between an unresolved instance time, and a begin or end condition that has no associated instance. If, for example, an event value condition is specified in the end attribute, but no such event has happened, there will be no associated instance time in the end list. However, if a syncbase value condition is specified for end, and if the syncbase element has a current interval, there will be an associated instance time in the end list. Since the syncbase value condition may be relative to the end of the syncbase element, and since the end of the syncbase current interval may not be resolved, the associated instance time in the end list may be unresolved. Once the syncbase current interval actually ends, the dependent instance time in the end list will get a time-change notification for the resolved syncbase interval end. The dependent instance time will convert the newly resolved syncbase time to a resolved time in parent simple time. If the instance lists did not include the unresolved instance times, some additional mechanism would have to be defined to add the end instance time when the syncbase element's current interval actually ended, and resolved its end time.

The list of resolved times includes historical times defined relative to sync base elements, and so can grow over time if the sync base has many intervals. Implementations may filter the list of times as an optimization, so long as it does not affect the semantics defined herein.

Principles for building and pruning intervals

This section is informative

The following set of principles underlie the interval model. This is not a complete model - it is just meant provide an additional view of the model.

First we define the terms pruning and cutting off an interval - these concepts should not be confused.

In some cases, after an interval has been created, it must later be pruned (deleted/removed from the timegraph) as more information becomes known and semantic constraints must be applied. When an interval is pruned, it will not be shown, it will not raise begin or end events, and any associated instance times for syncbase time dependents must be removed from the respective instance times lists. It is as though the pruned interval had not been specified.

In other cases, especially related to negative begin times on parent time containers, a valid interval for a child may not be shown, even though it is otherwise legal with respect to the parent time constraints. For example:

<par begin="-10s" dur="20s">
   <img xml:id="slide1" src="slide1.jpg" dur="3s" />
   <img xml:id="slide2" src="slide2.jpg" begin="slide1.end+3s" dur="10s" />
   <img xml:id="note1" src="note1.jpg" begin="slide1.beginEvent" dur="20s" />
</par>

The "slide1" image will be cut off, but is not pruned. It is cut off because the par could not have been started 10s before its parent time container, and instead will be started at 0s into its parent time synced at 10s into its simple duration. The "slide1" image begins and ends before 10s into the par, and so cannot be shown and is cut off, Intervals that are cut off are not shown and do not raise begin or end events, but still create valid instance times for any syncbase time dependents. Thus, "slide2" will be shown (the interval is from minus 4 seconds to 6 seconds, document time, and so will be shown for 6 seconds, from 0 seconds to 6 seconds), but "note1" will not be shown.

The principles underlying the interval life cycle model are:

  1. Try to build the current interval as early as possible.
    1. The "next" interval can be computed no earlier than the end of the current interval.
  2. Do not change any interval time that is in the past. Do not prune an interval that has already begun. Note that this refers to intervals and not instance times.
  3. When building an interval from a set of instance times, if the duration is resolved and negative, reject the interval; do not propagate the interval to time dependents.
    1. When the current interval has not yet begun, if the interval times change such that the duration is negative, prune the interval.
  4. When building an interval from a set of instance times, if the end is resolved and is <= 0 (in parent simple time), reject the interval; do not propagate the interval to time dependents.
    1. When the current interval has not yet begun, if the interval times change such that the end is <= 0, prune the interval.
  5. When building an interval from a set of instance times, if the interval begin is >= the (resolved) simple end of the parent time container, reject the interval.
    1. When the current interval has not yet begun, if the interval times change such that the begin is >= the parent time container simple end, prune the interval.
    2. When the current interval has not yet begun, if the parent simple end time changes such that the current interval begin is >= the parent time container simple end, prune the interval.

An implication of principle 5 is that we will get no intervals with unresolved begin times, since these will necessarily compare >= the parent simple end.

Element life-cycle

The life cycle of an element can be thought of as the following basic steps:

  1. Startup - getting the first interval
  2. Waiting to begin the current interval
  3. Active time - playing an interval
  4. End of an interval - compute the next one and notify dependents
  5. Post active - perform any fill and wait for any next interval

Steps 2 to 5 can loop for as many intervals as are defined before the end of the parent simple duration. At any time during step 2, the begin time for the current interval may change, and at any time during steps 2 or 3, the end time for the current interval may change. When either happens, the changes are propagated to time dependents.

When the document and the associated timegraph are initialized, the instance lists are empty. The simple offset values and any "indefinite" value in an end attribute can be added to the respective lists as part of initialization, as they are independent of the begin time of parent simple time.

When an element has played all allowed instances, it can be thought of as stuck in step 5. However any changes to the instance lists during this period cause the element to jump back to step 4 and consider the creation of a new current interval.

Startup - getting the first interval

An element life cycle begins with the beginning of the simple duration for the element's parent time container. That is, each time the parent time container (or more generally any ascendant time container) repeats or restarts, the element resets (see also Resetting element state) and starts "life" anew.

Three things are important about the beginning of the life-cycle:

  1. Any and all resolved times defined as Event-values, Repeat-values, Accesskey-values or added via DOM method calls are cleared.
  2. Any and all resolved times defined as Syncbase-values, Wallclock-sync-values or Media-Marker-values must be reconverted from the syncbase time space to the parent simple time space.
  3. The first current interval is computed.

Action 1) is also described in Resetting element state. This action also happens each time the element restarts, although in that case the element must not clear an event time that defined the current begin of the interval.

Action 2) Simply updates values to reflect the current sync relationship of the parent simple duration to the rest of the document.

The third action requires some special consideration of the lists of times, but is still relatively straightforward. It is similar to, but not the same as the action that applies when the element ends (this is described in End of an interval). The basic idea is to find the first interval for the element, and make that the current interval. However, the model should handle three edge cases:

  1. The element may begin before the parent simple begin time (i.e. before 0 in parent simple time), and so appears to begin part way into the local timeline (somewhat like a clipBegin effect on a media element). The model must handle begin times before the parent begin.
  2. The element has one or more intervals defined that begin and end before the parent simple begin (before 0). These are filtered out of the model.
  3. The element has one or more intervals defined that begin after the parent simple end. These are filtered out of the model. Note that if the parent simple end is unresolved, any resolved begin time happens before the parent simple end.

Thus the strict definition of the first acceptable interval for the element is the first interval that ends after the parent simple begin, and begins before the parent simple end. Here is some pseudo-code to get the first interval for an element. It assumes an abstract type "Time" that supports a compare function. It may be a resolved numeric value, the special value INDEFINITE (only used with end), and it may be the special value UNRESOLVED. Indefinite compares "greater than" all resolved values, and UNRESOLVED is "greater than" both resolved values and INDEFINITE. The code uses the instance times lists associated with the begin and end attributes, as described in the previous section.

// Utility function that returns true if the end attribute specification
// includes conditions that describe Event-values, Repeat-values or Accesskey-values.
boolean endHasEventConditions();
// Calculates the first acceptable interval for an element
// Returns:
//    Interval if there is such an interval
//    FAILURE if there is no such interval
Interval getFirstInterval()
{
Time beginAfter=-INFINITY;

while( TRUE ) // loop till return
{
   If (currentInterval.end > currentInterval.begin)
Set tempBegin = the first value in the begin list that is >= beginAfter.
Else
Set tempBegin = the first value in the begin list that is > beginAfter.
If there is no such value // No interval return FAILURE; If tempBegin >= parentSimpleEnd // Can't begin after parent ends return FAILURE; If there was no end attribute specified // this calculates the active end with no end constraint tempEnd = calcActiveEnd( tempBegin ); else { // We have a begin value - get an end Set tempEnd = the first value in the end list that is >= tempBegin. // Allow for non-0-duration interval that begins immediately // after a 0-duration interval. If tempEnd == tempBegin && tempEnd has already been used in an interval calculated in this method call { set tempEnd to the next value in the end list that is > tempEnd } If there is no such value { // Events leave the end open-ended. If there are other conditions // that have not yet generated instances, they must be unresolved. if endHasEventConditions() OR if the instance list is empty tempEnd = UNRESOLVED; // if all ends are before the begin, bad interval else return FAILURE; } // this calculates the active dur with an end constraint tempEnd = calcActiveEnd( tempBegin, tempEnd ); } // We have an end - is it after the parent simple begin? // Handle the zero duration intervals at the parent begin time as a special case if( tempEnd > 0 || (tempBegin==0 && tempEnd==0)) return( Interval( tempBegin, tempEnd ) ); else // Change beginAfter to find next interval, and loop beginAfter = tempEnd; } // close while loop } // close getFirstInterval

Note that while we might consider the case of restart="always" separately from restart="whenNotActive", it would just be busy work since we need to find an interval that begins after tempEnd.

If the model yields no first interval for the element, it will never begin, and so there is nothing more to do at this point. However if there is a valid interval, the element must notify all time dependents that there is a new interval of the element. This is a notice from this element to all elements that are direct time dependents. This is distinct from the propagation of a changed time.

When a dependent element gets a "new interval" notice, this includes a reference to the new interval. The new interval will generally have a resolved begin time and may have a resolved end time. An associated instance time will be added to the begin or end instance time list for the dependent element, and this new instance time will maintain a time dependency relationship to the syncbase interval.

Waiting to begin the interval

This period only occurs if the current interval does not begin immediately when (or before) it is created. While an interval is waiting to begin, any changes to syncbase element current interval times will be propagated to the instance lists and may result in a change to the current interval.

If the element receives a "new interval" notice while it is waiting to begin, it will add the associated time (i.e. the begin or end time of the syncbase interval) to the appropriate list of resolved times.

When an instance time changes, or when a new instance time is added to one of the lists, the element will re-evaluate the begin or end time of the current interval (using the same algorithm described in the previous section). If this re-evaluation yields a changed interval, time change notice(s) will be sent to the associated dependents.

It is possible during this stage that the begin and end times could change such that the interval would never begin (e.g. the interval end is before the interval begin). In this case, the interval must be pruned and all dependent instance times must be removed from the respective instance lists of dependent elements. These changes to the instance lists will cause re-evaluation of the dependent element current intervals, in the same manner as a changed instance time does.

This section is informative.

One exception to normal processing is made for elements that are deferred according to excl interrupt semantics: a deferred element ignores propagated changes to its begin time. This is detailed in the Deferred elements and propagating changes to begin section.

Active time - playing an interval

This period occurs when the current interval is active (i.e. once it has begun, and until it has ended). During this period, the end time of the interval may change, but the begin time cannot. If any of the instance times in the begin list change after the current interval has begun, the change will not affect the current interval. This is different from the case of adding a new instance time to the begin list, which can cause a restart.

If the element receives a "new interval" notice while it is active, it will add the associated time (i.e. the begin or end time of the syncbase interval) to the appropriate list of resolved times. If the new interval adds a time to the begin list, restart semantics are considered, and this may end the current interval.

If restart is set to "always", then the current interval will end early if there is an instance time in the begin list that is before (i.e. earlier than) the defined end for the current interval. Ending in this manner will also send a changed time notice to all time dependents for the current interval end. See also Interaction with restart semantics.

End of an interval

If an element specifies restart="never" then no further action is taken at the end of the interval, and the element sits in the "post interval" state unless and until an ascendant time container repeats or restarts.

If an element specifies other values for restart, when it ends the current interval the element must reconsider the lists of resolved begin and end times. If there is another legal interval defined to begin at or after the just completed end time, a new interval will be created. When a new interval is created it becomes the current interval and a new interval notice is sent to all time dependents.

The algorithm used is very similar to that used in step 1, except that we are interested in finding an interval that begins after the most recent end.

// Calculates the next acceptable interval for an element
// Returns:
//    Interval if there is such an interval
//    FAILURE if there is no such interval
Interval getNextInterval()
{
// Note that at this point, the just ended interval is still the "current interval"
Time beginAfter=currentInterval.end;

   Set tempBegin = the first value in the begin list that is >= beginAfter.
   If there is no such value  // No interval
      return FAILURE;

   If tempBegin >= parentSimpleEnd // Can't begin after parent ends
      return FAILURE;

   If there was no end attribute specified
      // this calculates the active end with no end constraint
      tempEnd = calcActiveEnd( tempBegin );
   else
   {
      // We have a begin value - get an end
      Set tempEnd = the first value in the end list that is >= tempBegin.
      // Allow for non-0-duration interval that begins immediately
      // after a 0-duration interval.
      If tempEnd == currentInterval.end
      {
         set tempEnd to the next value in the end list that is > tempEnd
      }
      If there is no such value
      {
         // Events leave the end open-ended. If there are other conditions
         // that have not yet generated instances, they must be unresolved.
         if endHasEventConditions()
            OR if the instance list is empty
            tempEnd = UNRESOLVED;
         // if all ends are before the begin, bad interval
         else
            return FAILURE;
      }
      // this calculates the active dur with an end constraint
      tempEnd = calcActiveEnd( tempBegin, tempEnd );
   }

   return( Interval( tempBegin, tempEnd ) );

} // close getNextInterval
Post active

This period can extend from the end of an interval until the beginning of the next interval, or until the end of the parent simple duration (whichever comes first). During this period, any fill behavior is applied to the element. The times for this interval can no longer change. Implementations may as an optimization choose to break the time dependency relationships since they can no longer produce changes.

Interaction with restart semantics

There are two cases in which restart semantics must be considered:

  1. When the current interval is playing, if restart="always" then any instance time (call it T) in the begin list that is after (i.e. later than) the current interval begin but earlier than the current interval end will cause the current interval to end at time T. This is the first step in restarting the element: when the current interval ends, that in turn will create any following interval.
  2. When a new instance time is added to the begin list of instance times, restart rules may apply. The new instance times may result from a begin condition that specifies one of the syncbase value conditions, for which a new instance notice is received. It may also result from a begin condition that specifies one of the event value conditions, for which the associated event happens.
    In either case, the restart setting and the state of the current interval controls the resulting behavior. The new instance time is computed (e.g. from the syncbase current interval time or from the event time, and including any offset), and added to the begin list. Then:
    • If the current interval is waiting to play, the element recalculates the begin and end times for the current interval, as described in the Element life-cycle step 1 (for the first interval) or step 4 (for all later intervals). If either the begin or end time of the current interval changes, these changes must be propagated to time dependents accordingly.
    • If the current interval is playing (i.e. it is active), then the restart setting determines the behavior:
      • If restart="never" then nothing more is done. It is possible (if the new instance time is associated with a syncbase value condition) that the new instance time will be used the next time the element life cycle begins.
      • If restart="whenNotActive"then nothing more is done. If the time falls within the current interval, the element cannot restart, and if it falls after, then the normal processing at the end of the current interval will handle it. If the time falls before the current interval, as can happen if the time includes a negative offset, the element does not restart (the new instance time is effectively ignored).
      • If restart="always" then case 1 above applies, and will cause the current interval to end.
Cyclic dependencies in the timegraph

There are two types of cycles that can be created with SMIL 3.0, closed cycles and open or propagating cycles. A closed cycle results when a set of elements has mutually dependent time conditions, and no other conditions on the affected elements can affect or change this dependency relationship, as in examples 1 and 2 below. An open or propagating cycle results when a set of elements has mutually dependent time conditions, but at least one of the conditions involved has more than one resolved condition. If any one of the elements in the cycle can generate more than one interval, the cycle can propagate. In some cases such as that illustrated in example 3, this can be very useful.

Times defined in a closed cycle are unresolved, unless some external mechanism resolves one of the element time values (for example a DOM method call or the traversal of a hyperlink that targets one of the elements). If this happens, the resolved time will propagate through the cycle, resolving all the associated time values.

Closed cycles are an error, and may cause the entire document to fail. In some implementations, the elements in the cycle may just not begin or end correctly. Examples 1 and 2 describe the most forgiving behavior, but implementations may simply reject a document with a closed cycle.

Detecting Cycles

Implementations can detect cycles in the timegraph using a visited flag on each element as part of the processing that propagates changes to time dependents. As a changed time notice is propagated, each dependent element is marked as having been visited. If the change to a dependent instance time results in a change to the current interval for that element, this change will propagate in turn to its dependents. This second chained notice happens in the context of the first time-change notice that caused it. The effect is like a stack that builds as changes propagate throughout the graph, and then unwinds when all changes have propagated. If there is a dependency cycle, the propagation path will traverse an element twice during a given propagation chain. This is a common technique used in graph traversals.

A similar approach can be used when building dependency chains during initialization of the timegraph, and when propagating new interval notices - variations on the theme will be specific to individual implementations.

When a cycle is detected, the change propagation is ignored. The element that detected the second visit ignores the second change notice, and so breaks the cycle.

Examples

This section is informative.

Example 1: In the following example, the 2 images define begin times that are mutually dependent. There is no way to resolve these, and so the images will never begin.

<img xml:id="foo" begin="bar.begin" .../>
<img xml:id="bar" begin="foo.begin" .../>

Example 2: In the following example, the 3 images define a less obvious cycle of begin and end times that are mutually dependent. There is no way to resolve these. The image "joe" will begin but will never end, and the images "foo" and "bar" will never begin.

<img xml:id="foo" begin="joe.end" .../>
<img xml:id="bar" begin="foo.begin" dur="3s" .../>
<img xml:id="joe" begin="0" end="bar.end" .../>

Example 3: In the following example, the 2 images define begin times that are mutually dependent, but the first has multiple begin conditions that allow the cycle to propagate forwards. The image "foo" will first be displayed from 0 to 3 seconds, with the second image "bar" displayed from 2 to 5 seconds. As each new current interval of "foo" and "bar" are created, they will add a new instance time to the other element's begin list, and so the cycle keeps going forward. As this overlapping "ping-pong" behavior is not otherwise easy to author, these types of cycles are not precluded. Moreover, the correct behavior will fall out of the model described above.

<img xml:id="foo" begin="0; bar.begin+2s" dur="3s" .../>
<img xml:id="bar" begin="foo.begin+2s" dur="3s" .../>

Example 4: In the following example, an open cycle is described that propagates backwards. The intended behavior does not fall out of the model, and is not supported. In this example, however, each time the parent time container repeats, the video elements will begin two seconds earlier than they did in the previous parent iteration. This is because the begin instance times associated with syncbase value conditions are not cleared when the parent repeats. By the last iteration of the parent time container, both video elements would begin so early that they will be completely cut off by the parent begin constraint.

<par dur="10s" repeatCount="11" >
   <video xml:id="foo" begin="0; bar.begin-1s" dur="10s" .../>
   <video xml:id="bar" begin="foo.begin-1s" dur="10s" .../>
</par>

Timing and real-world clock times

This section is informative

In this specification, elements are described as having local "time". In particular, many offsets are computed in the simple time of a parent time container. However, simple durations may be repeated, and elements may begin and restart in many ways.

Interval timing

This section is informative

The SMIL timing model assumes the most common model for interval timing.

This section is informative

This is also referred to as end-point exclusive timing. This model makes arithmetic for intervals work correctly, and provides sensible models for sequences of intervals.

Background rationale

This section is informative.

In the real world, this is equivalent to the way that seconds add up to minutes, and minutes add up to hours. Although a minute is described as 60 seconds, a digital clock never shows more than 59 seconds. Adding one more second to "00:59" does not yield "00:60" but rather "01:00", or 1 minute and 0 seconds. The theoretical end time of 60 seconds that describes a minute interval is excluded from the actual interval.

In the world of media and timelines, the same applies: Let "A" be a video, a clip of audio, or an animation. Assume "A" begins at 10 and runs until 15 (in any units - it does not matter). If "B" is defined to follow "A", then it begins at 15 (and not at 15 plus some minimum interval). When a runtime actually renders out frames (or samples for audio), and must render the time "15", it should not show both a frame of "A" and a frame of "B", but rather should only show the new element "B". This is the same for audio, or for any interval on a timeline. If the model does not use endpoint-exclusive timing, it will draw overlapping frames, or have overlapping samples of audio, of sequenced animations, etc.

Note that transitions from "A" to "B" also adhere to the interval timing model. They do require that "A" not actually end at 15, and that both elements actually overlap. Nevertheless, the "A" duration is simply extended by the transition duration (e.g. 1 second). This new duration for "A" is also endpoint exclusive - at the end of this new duration, the transition will be complete, and only "B" should be rendered - "A" is no longer needed.

Implications for the time model

This section is informative.

For the time model, several results of this are important: the definition of repeat, and the state of the element applied or displayed when the element is "frozen".

When repeating an element's simple duration, the arithmetic follows the end-point exclusive model. Consider the example:

<video dur="4s" repeatCount="4" .../>

At time 0, the simple duration is also at 0, and the first frame of video is presented. This is the inclusive begin of the interval. The simple duration proceeds normally up to 4 seconds.

This section is informative.

Using this, a time of 4 (or 8 or 12) maps to the time of 0 on the simple duration. The endpoint of the simple duration is excluded from (i.e. not actually sampled on) the simple duration.

For most continuous media, this aligns to the internal media model, and so no frames (or audio samples) are ever excluded. However for sampled timeline media (like animation), the distinction is important, and requires a specific semantic for elements that are frozen.

This section is informative.

The effect of this semantic upon animation functions is detailed in the SMIL 3.0 Animation chapter.

Event sensitivity

This section is informative

The SMIL 3.0 timing model supports synchronization based upon unpredictable events such as DOM events or user interface generated events. The model for handling events is that the notification of the event is delivered to the timing element, and the timing element uses a set of rules to resolve any synchronization dependent upon the event.

Note:

The semantics of element sensitivity to events are described by the following set of rules:

  1. While a time container is not active (i.e. before the time container begin or after the time container active end), child elements do not respond to events (with respect to the Time model). Note that while a parent time container is frozen, it is not active, and so children do not handle begin or end event specifications.
    1. If an element and an ascendant time container are both specified to begin with the same event, the behavior is not predictable (based upon DOM event semantics). Authors are discouraged from authoring these cases.
  2. If an element is not active (but the parent time container is), then events are only handled for begin specifications. Thus if an event is raised and begin specifies the event, the element begins. While the element is not active, any end specification of the event is ignored.
  3. If an element is (already) active when an event is raised, and begin specifies the event, then the behavior depends upon the value of restart:
    1. If restart="always", then a new begin time is resolved for the element based on the event time. Any specification of the event in end is ignored for this event instance.
    2. If restart="never" or restart="whenNotActive", then any begin specification of the event is ignored for this instance of the event. If end specifies the event, an end value is resolved based upon the event time, and the active duration is re-evaluated (according to the rules in Computing the active duration).

It is important to notice that in no case is a single event occurrence used to resolve both a begin and end time on the same element.

This section is informative

Rule 1a discourages the use of cases such as the following:

<smil ...>
...
<par xml:id="bad_example" begin="link9.activateEvent">
   <img begin="link9.activateEvent" .../>
</par>
...
</smil>

Various alternative approaches can be used. One possible approach is to define the descendant element to begin relative to the ascendant begin, as in the following example (the begin rule for the image could be simpler, but this illustrates the general point):

<smil ...>
...
<par xml:id="better_example" begin="link9.activateEvent">
   <img begin="better_example.begin" .../>
</par>
...
</smil>

The event sensitivity rules may be used with the restart attribute to describe "toggle" activation use cases, as described in the section: Using restart for toggle activation.

Since the same event instance cannot be used to resolve both the begin and end time on a single element, uses like the following will have behavior that may seem non-intuitive to some people:

<smil ...>
...
<audio src="bounce.wav" begin="foo.activateEvent"
        end="foo.activateEvent+3s" restart="whenNotActive"/>
...
</smil>

This example will begin repeating the audio clip when "foo" is clicked, and stop the audio clip 3 seconds after "foo" is clicked a second time. It is incorrect to interpret this example as playing the audio clip for 3 seconds after "foo" is clicked. For that behavior, the following markup should be used:

<smil ...>
...
<audio src="bounce.wav" begin="foo.activateEvent" dur="3s"
        restart="whenNotActive"/>
...
</smil>
User event sensitivity and timing

The timing model and the user event model are largely orthogonal. While the timing model does reference user events, it does not define how these events are generated, and in particular does not define semantics of keyboard focus, mouse containment, "clickability", and related issues. Because timing can affect the presentation of elements, it may impact the rules for user event processing, however it only has an effect to the extent that the presentation of the element is affected.

In particular, many user event models will make no distinction between an element that is "playing" and one that is "frozen". The effects of the fill attribute apply only to the timing semantics. If an element is still visible while frozen, it behaves normally with respect to other semantics such as user event processing. In particular, elements such as a and area are still sensitive to user activation (e.g. clicks) when frozen.

Link Activation compared to Event activation

This section is informative.

Related to event-activation is link-activation. Hyperlinking has defined semantics in SMIL 1.0 to seek a document to a point in time. When combined with interactive timing (e.g. begin="indefinite"), hyperlinking yields a variant on user-interactive content.

This section is informative.

The details of when hyperlinks activate an element, and when they seek the document timeline are presented in the section Hyperlinks and timing.

Converting between local and global times

To convert a document time to an element local time, the original time is converted to a simple time for each time container from the root time container down to the parent time container for the element. This recursive algorithm allows for a simple model of the conversion from parent simple time to element active and element simple time. The first step calculates element active time, and the second step calculates element simple time.

The steps below assume that the associated times are resolved and not indefinite. If a required time is not resolved or is indefinite, then the conversion is not defined, and cannot be performed.

Element active time calculation

The input time is a time in parent simple time. This is normalized to the element active duration, adjusting for the accumulated synchronization offset (described in The accumulated synchronization offset).

Let tps be a time in parent simple time, B be the begin time for an element, and O be the accumulated synchronization offset for an element, measured in parent simple time.

The element active time ta for any child element is:

ta = tps - B - O
Element simple time calculation

The element simple time is the time that is used to establish runtime synchronization for a media element, or to compute an animation function's input value or sampling time. If the element is a time container, this is also the time that is seen by all children of a time container (as the time container element's simple time).

To compute the element simple time ts from an element active time ta, accounting for any repeat behavior:

If there is no repeating behavior:
ts = ta

Else, the element simple time is just computed from the begin time of the most recent iteration - call this tlast-repeat. Some other mechanism (such as endsync logic or a media player) must note when the simple duration ends, and reset the value of tlast-repeat. If the element has not yet repeated, a value of 0 is used in place of tlast-repeat.

ts = ta - tlast-repeat

Note that the above semantic covers the special (ideal) case when the simple duration dur is fixed and does not vary. In this case (and this case only) tlast-repeat may be obtained directly for the simple duration dur and so the expression may be reduced to:

ts = REMAINDER( ta, dur )

where REMAINDER( t, d ) is defined as (t - d*floor(t/d)).

Converting wall-clock values

When the document begins, the current wall-clock time is noted and saved as twallclock-begin. To convert a wall-clock value twc to an element active simple time ts, first convert twc to a document global time tra (i.e. an element active time for the root time container):

tra = twc - twallclock-begin

This may yield a negative time if the wallclock value is a time before the document began. Nevertheless, this is a legal value.

The time tra is then converted normally to element active time or element local time as needed.

Converting from event time to element time

Event times are generally stamped with a time relative to system time or when the document began. The conversion is as for wallclock values, in that the event time is converted to an active time for the root time container, and then converted normally to an element time.

Converting from element time to element time

To convert from one element timespace to another, the time for the first element te1 must first be converted to a simple time on the closest ascendant time container that contains both elements. Converting from an element time to the parent time reverses the process described above. Again, it is recursive, and so the conversions are described generically from element simple to element active time, and from element active to parent simple time.

To convert from element simple time to element active time requires the begin time of the most recent iteration, tlast-repeat. If the element does not repeat or has not yet repeated, a value of 0 is used in place of tlast-repeat.

ta = ts + tlast-repeat

Conversion from element active time to parent simple time uses the associated begin of the element and the accumulated synchronization offset.

tps = ta + B + O
Time conversions and sampling the time graph

This section is informative.

Note that the pure conversions do not take into account the clamping of active durations, nor the effects of fill (where time is frozen).

Global to local time conversions used to translate between timespaces must ignore these issues, and so may yield a time in the destination local timespace that is well before or well after the simple duration of the element.

This section is informative.

An alternate form of the conversion is used when actually sampling the time graph.

A time container is only sampled if it is active or frozen, and so no times will be produced that are before a time container begins. If the global to local time conversion for a time container yields a time during which the time container is frozen, the time is clamped to the value of the active end.

Hyperlinks and timing

This section is informative

Hyperlinking semantics must be specifically defined within the time model in order to ensure predictable behavior. Earlier hyperlinking semantics, such as those defined by SMIL 1.0 are insufficient because they do not handle unresolved times, nor do they handle author-time restart restrictions. Here we extend SMIL 1.0 semantics for use in presentations using elements with unresolved timing (including interactive timing) and author-time restart restrictions.

A hyperlink may be targeted at an element by specifying the value of the id attribute of an element in the fragment part of the link locator. Traversing a hyperlink that refers to a timed element will behave according to the following rules:

  1. If the target element is active, seek the document time back to the begin time of the current interval for the element.
  2. Else if the target element begin time is resolved (i.e. there is at least one interval defined for the element), seek the document time (forward or back, as needed) to the begin time of the first interval for the target element. Note that the begin time may be resolved as a result of an earlier hyperlink, DOM or event activation. Once the begin time is resolved (and until the element is reset, e.g. when the parent repeats), hyperlink traversal always seeks. For a discussion of "reset", see Resetting element state. Note also that for an element begin to be resolved, the begin time of all ancestor elements must also be resolved.
  3. Else (i.e. there are no defined intervals for the element), the target element begin time must be resolved. This may require seeking and/or resolving ancestor elements as well. This is done by recursing from the target element up to the closest ancestor element that has a resolved begin time (again noting that for an element to have a resolved begin time, all of its ancestors must have resolved begin times). Then, the recursion is "unwound", and for each ancestor in turn (beneath the resolved ancestor) as well as the target element, the following steps are performed:
    1. If the element begin time is resolved, seek the document time (forward or back, as needed) to the begin time of the first interval for the target element.
    2. Else (if the begin time is not resolved), just resolve the element begin time at the current time on its parent time container (given the current document position). Disregard the sync-base or event base of the element, and do not "back-propagate" any timing logic to resolve the element, but rather treat it as though it were defined with begin="indefinite" and just resolve begin time to the current parent time. This should create an interval and propagate to time dependents.

In the above rules, the following additional constraint must also be respected:

  1. If a begin time to be used as the seek target occurs before the beginning of the parent time container, the seek-to time is clamped to the begin time of the parent time container. This constraint is applied recursively for all ascendant time containers.
  2. If a begin time to be used as the seek target occurs after the end of any ascendant time container's simple duration, then the seek-to time is clamped to the time container simple end time.

This section is informative

Note that the first constraint means that a hyperlink to a child of a time container will never seek to a time earlier than the beginning of the time container. The second constraint implies that a hyperlink to a child that begins after the end of the parent simple duration will seek to the end of the parent, and proceed from there. While this may produce surprising results, it is the most reasonable fallback semantic for what is essentially an error in the presentation.

If a seek of the presentation time is required, it may be necessary to seek either forward or backward, depending upon the resolved begin time of the element and the presentation current time at the moment of hyperlink traversal.

The net effect is that seeking forward to a presentation time puts the document into a state largely identical to that as if the document presentation time advanced undisturbed to reach the seek time. If the presentation is authored with no beginEvent, endEvent or repeatEvent based timing and no automatic hyperlinks, then state of the document after a seek should be identical to that had the document presentation time advanced undisturbed to reach the seeked-to time.

If the resolved activation time for an element that is the target of a hyperlink traversal occurs in the past, the presentation time must seek backwards. Seeking backwards will rewind any elements active at the time of hyperlinking.

This section is informative

These hyperlinking semantics assume that a record is kept of the resolved begin time for all elements, and this record is available to be used for determining the correct presentation time to seek to. For example:

<smil ...>
...
<par begin="0">
   <img xml:id="A" begin="10s" .../>
   <img xml:id="B" begin="A.begin+5s" .../>
   <img xml:id="C" begin="B.activateEvent" .../>
   <img xml:id="D" begin="C.begin+5s" .../>
   ...
   <a href="#D">Begin image D</a>
</par>
...
</smil>

The begin time of elements A and B can be immediately resolved to be at 10 and 15 seconds respectively. The begin of elements C and D are unresolved when the document starts. Therefore activating the hyperlink will resolve the begin of D but have no effect upon the presentation time for element C.

Now, assume that B is clicked at 25 seconds into the presentation. The click on B resolves the begin of C; this in turn resolves D to begin at 30 seconds. From this point on, traversing the hyperlink will cause the presentation time to be seeked to 30 seconds.

If at 60 seconds into the presentation, the user again clicks on B, D will become re-resolved to a presentation time of 65 seconds. Subsequent activation of the hyperlink while D is active will result in the seeking the presentation to 65 seconds. If the hyperlink is activated when D is no longer active, the presentation will seek to the earliest resolved begin time of D, at 30 seconds.

Implications of beginElement() and hyperlinking for seq and excl time containers

For a child of a sequence time container, if a hyperlink targeted to the child is traversed, this seeks the sequence to the beginning of the child.

This section is informative

Note that if a hyperlink targets (or if beginElement() or beginElementAt() is called for) an element A defined to begin when another element B ends, and the other element B has (e.g.) an event-base or syncbase end, the hyperlink or method call will not end element B. It will only activate element A. If the two elements are siblings within a seq or excl time container, the parent time container enforces its semantics and stops (or pauses) the running element.

If a hyperlink targets a child of an excl time container, activating the link will seek to the earliest computed begin. This means that pause/defer stack semantics do not need to be accounted for when linking to an element. Instead the document timeline will simply be seeked to the first resolved time for the element, or seeked to the start of the time container and the target element simply started if there is no resolved begin time.

Propagating changes to times

This section is informative

There are several cases in which times may change as the document is presented. In particular, when an element time is defined relative to an event, the time (i.e. the element begin or active end) is resolved when the event occurs. Another case arises with restart behavior - the element gets a new begin and active end time when it restarts. Since the begin and active end times of one element may be defined relative to the begin or active end of other elements, any changes to times must be propagated throughout the document.

When an element "foo" has a begin or active end time that specifies a syncbase element (e.g. "bar" as below):

<img xml:id="foo" begin="bar.end" .../>

we say that "foo" is a time-dependent of "bar" - that is, the "foo" begin time depends upon the active end of "bar". Any changes to the active end time of "bar" must be propagated to the begin of "foo" so that "foo" begins properly when "bar" ends. The effect on "foo" of the propagated change depends upon the state of "foo" when the change happens.

Deferred elements and propagating changes to begin

This section is informative.

One exception to normal processing is made for elements that are deferred according to excl interrupt semantics. This exception is made to simplify the model: once an element is deferred, it will stop normal handling of time change notices that are propagated to the element begin conditions, as time dependents of syncbase elements. That is, with respect to the behavior of the element as a time dependent, the element behaves as though it had already begun. This exception is made so that the deferred element cannot change its begin time due to syncbase element changes, while it is deferred. In effect, the element should have begun at the time it was deferred, and so it should no longer handle changed time notices.

Restart and propagating changes to times

This section is informative

In some cases, the semantics of restart may preclude the correct propagation of changes to time, as in the following example:

<smil ...>
...
<par>
   <img xml:id="img1" dur="10s" end="activateEvent" .../>
   <video begin="img1.end-3s" restart="whenNotActive" .../>
</par>
...
</smil>

If the user clicks the image at 8 seconds, the image will end at that point, and the changed end time will propagate to the video. However, the video will have begun at 7 seconds (3 seconds before the calculated end of 10 seconds), and cannot restart. The propagated change will be ignored. See also Interaction with restart semantics in the section on Evaluation of begin and end time lists.

Time container duration

This section is informative

The implicit duration of a time container is defined in terms of the children of the container. The children can be thought of as the "media" that is "played" by the time container element. The semantics are specific to each of the defined time container variants, and are described in the respective sections: The par element, the seq element, and the excl element.

Note that the term "computed values" should not be confused with the values of times that are dynamic within the time graph. In the following example, the video will be cut short if the user activates (e.g., clicks on) it before 10 seconds. If the user does not click, the par has a simple duration of 10 seconds. If the user activates the video at 5 seconds, the par has a simple duration of 8 seconds. Although the original end time for the video could be computed by an implementation as 10 seconds, the endsync semantics must be evaluated with the updated times that account for the user events.

<smil ...>
...
<par endsync="last" >
   <audio dur="8s" .../>
   <video begin="0" dur="10s" end="click" .../>
</par>
...
</smil>

Time container constraints on child durations

Time containers place certain overriding constraints upon the child elements. These constraints may cut short the active duration of any child element.

All time containers share the basic overriding constraint:

This section is informative

While the child may define a sync relationship that places the begin before the parent begin, the child is not active until the parent begins. This is equivalent to the semantic described in Negative begin delays.

If the child defines an active duration (or by the same token a simple duration) that extends beyond the end of the parent simple duration, the active duration of the child will be cut short when the parent simple duration ends. Note that this does not imply that the child duration is automatically shortened, or that the parent simple duration is "inherited" by the child.

For example:

<par dur="10s" repeatDur="25s">
   <video dur="6s" repeatCount="2" .../>
   <text xml:id="text1" begin="5s" dur="indefinite" .../>
   <audio begin="text1.end" .../>
</par>

The video will play once for 6 seconds, and then a second time but only for 4 seconds - the last 2 seconds will get cut short and will not be seen. The text shows up for the last 5 seconds of the par, and the indefinite duration is cut short at the end of the simple duration of the par. The audio will not show up at all, since it is defined to begin at the end of the active duration of the previous element (the text element). Since the text element ends when the time container ends, the audio would begin after the time container has ended, and so never is heard. When the par repeats the first time, everything happens just as it did the first time. However the last repeat is only a partial repeat (5 seconds), and so only the video will be seen, but it will not be seen to repeat, and the last second of the video will be cut off.

In addition, excl time containers allow only one child to play at once. Subject to the priorityClass semantics, the active duration of an element may be cut short when another element in the time container begins.

The min attribute and time container constraints on child durations

This section is informative.

The fill attribute is also used to extend the active duration if it is less than the duration specified in the min attribute.

<par dur="5s">
   <img xml:id="img" min="7s" dur="4s" fill="freeze".../>
</par>

Time container constraints on sync-arcs and events

This section is informative

SMIL 1.0 defined constraints on sync-arc definition (e.g., begin="id(image1)(begin)"), allowing references only to qualified siblings. SMIL 2.0 explicitly removes this constraint. SMIL 2.0 also adds event-based timing. Both sync-arcs and event-timing are constrained by the parent time container of the associated element as described above.

Specifics for sync-arcs

While a sync-arc is explicitly defined relative to a particular element, if this element is not a sibling element, then the sync is resolved as a sync-relationship to the parent (i.e. to an offset from the parent begin).

This section is informative

Note that in particular, an element defined with a sync-arc begin will not automatically force the parent or any ancestor time container to begin.

For the case that an element with a sync-arc is in a parent (or ancestor) time container that repeats: for each iteration of the parent or ancestor, the element is played as though it were the first time the parent timeline was playing. With each repeat of the parent, the sync-arc will be recalculated to yield a begin time relative to the parent time container. See also the section Resetting element state.

Specifics for event-based timing

This section is informative

The specifics for event-based timing are discussed in the Event Sensitivity section.

Behavior of 0 duration elements

Whether or not media with zero duration and no fill period is retrieved and/or briefly rendered is implementation dependent.

5.4.6 Clarifications and surprising results

This section is informative

When an element begins, any event-based begin times are cleared. In the following example, if an activate event occurs and then one second later bar ends, then foo begins immediately and the element does not restart four seconds later regardless of the restart setting. However, if an activate event occurs and bar does not end during the next five seconds, the element will restart at the end of that time.

<audio xml:id="foo" begin="bar.end; activateEvent+5s".../>

See Evaluation of begin and end time lists.

5.5 Integrating SMIL Timing and Synchronization into a host language

This section is normative.

This section is informative

This section describes what a language designer must actually do to specify the integration of SMIL Timing and Synchronization support into a host language. This includes basic definitions, constraints upon specification, and allowed/supported events.

5.5.1 Required host language definitions

The host language designer must define some basic concepts in the context of the particular host language. These provide the basis for timing and presentation semantics.

This section is informative

A typical example for "presenting a document" is displaying it on a screen. Possible definitions for the document begin are that the document begins when the complete document has been received by a client over a network, or that the document begins when certain document parts have been received. A typical example of the document end is when the associated application exits or switches context to another document.

5.5.2 Required definitions and constraints on element timing

Supported events for event-base timing

5.5.3 Error handling semantics

5.6 Document object model support

This section is normative.

5.6.1 Changes for SMIL 3.0

This section is informative

In SMIL 2.1 four DOM methods for controlling the timing of elements were reserved. These methods are now defined. The definition is essentially the same as the definition in SMIL Animation [SMIL-ANIMATION].

5.6.2 Introduction

This section is informative.

Any XML-based language that integrates SMIL Timing will inherit the basic interfaces defined in DOM [DOM2] (although not all languages may require a DOM implementation). SMIL Timing specifies the interaction of timing functionality and DOM. SMIL Timing also defines constraints upon the basic DOM interfaces, and specific DOM interfaces to support SMIL Timing. The DOM Modules chapter has more information about DOM support in SMIL.

No syntax support is required to make use of the defined interfaces, although the "indefinite" argument value on the begin and end attributes may be used to describe timing that will be initiated by DOM methods. In any case, the actions of DOM timing methods are subject to the constraints of the time model, as described in this document.

A language integrating SMIL Timing and Synchronization need not require a DOM implementation.

5.6.3 Events and event model

This section is informative

SMIL event-timing assumes that the host language supports events, and that the events can be bound in a declarative manner. DOM Level 2 Events [DOM2Events] describes functionality to support this.

The specific events supported are defined by the host language. If no events are defined by a host language, event-timing is effectively omitted.

This module defines a set of events that may be included by a host language. These include:

beginEvent
This event is raised when the element local timeline begins to play. It will be raised each time the element begins the active duration (i.e. when it restarts, but not when it repeats). It may be raised both in the course of normal (i.e. scheduled or interactive) timeline play, as well as in the case that the element was begun with a DOM method.
endEvent
This event is raised at the active end of the element. Note that this event is not raised at the simple end of each repeat. This event may be raised both in the course of normal (i.e. scheduled or interactive) timeline play, as well as in the case that the element was ended with a DOM method.
repeatEvent and repeat
Depending on the profile, one or the other of these events is raised when the element local timeline repeats. It will be raised each time the element repeats, after the first iteration.
repeat (n)
This event is raised when the element local timeline repeats. It will be raised each time the element repeats, after the first iteration. Associated with the repeat event is an integer that indicates which repeat iteration is beginning. The value is a 0-based integer, but the repeat event is not raised for the first iteration and so the observed values will be >= 1.

This section is informative.

If an element is restarted while it is currently playing, the element will raise an endEvent and then a beginEvent, as the element restarts.

In order to make the model operate consistently and remove the effects of synchronization slew in a chain of event times, the timestamp value associated with events such as the beginEvent, endEvent, and repeat events is not (necessarily) the actual time that the event is raised, nor is it the time when a time dependent is actually notified of the event. Rather the event timestamp is the earliest time that the event could be raised (given the timing model semantics, and assuming that elements would begin and end precisely when they are defined to). There are three basic cases corresponding to begin and end conditions with zero, positive, and negative offsets respectively:

Example 1

This section is informative.

These examples assume video and audio media that are recorded to be in exact sync with one another.

<par dur="indefinite">
  <img xml:id="foo" end="click" .../>
  <video xml:id="bar" begin="foo.endEvent" .../>
  <audio xml:id="copy" begin="foo.end" .../>
</par>

The image "foo" will end when the user clicks on it. The defined time of the end is actually the time of the click event (even if it takes a while to propagate the click event through the presentation mechanism). The "foo" element will raise an endEvent with a timestamp equal to the time of the click event. The behavior in this example is that "bar" and "copy" will be in precise synchronization (although "bar" may actually begin very slightly later, since it can take a while to propagate the events through a system).

Example 2

This section is informative.

<par dur="indefinite">
  <img xml:id="foo" .../>
  <video xml:id="bar" begin="foo.click+3s" .../>
  <audio xml:id="copy" begin="bar.beginEvent" .../>
</par>

The video "bar" will begin 3 seconds after the user clicks on "foo". The beginEvent for "bar" will have a timestamp equal to the "foo.click" event timestamp plus 3 seconds.  The behavior is that in the example above, "bar" and "copy" will be in precise synchronization (although "copy" may actually begin slightly later, since it can take a while to propagate the events through a system).

Example 3

This section is informative.

<par dur="indefinite">
  <img xml:id="foo" .../>
  <video xml:id="bar" begin="foo.click-3s" .../>
  <audio xml:id="copy" begin="bar.beginEvent" .../>
</par>

The video "bar" will begin when the user clicks on "foo". The video will begin to play at a 3 second offset into the actual content, because it is defined to begin 3 seconds before the click. However, since "bar" cannot begin any sooner than "now" when the event is raised, it will raise a beginEvent that has the same time as the "foo.click" event. Thus in this case, the audio element "copy" will be precisely three seconds behind (out of sync with) the video.

Additional time model constraints can cause the beginEvent (or endEvent) event timestamp to differ from the calculated begin (or end) time for an element. For example the element can specify a begin time before the beginning of its parent time container (either with a negative offset value, or with a syncbase time that resolves to a time before the parent begin). In this case, a time dependent of the begin syncbase time will be defined relative to the calculated begin time. However, the element is constrained to not actually begin before the parent time container. The beginEvent will be raised when the element actually begins - in the example case when the parent time container begins. Similarly, the endEvent is raised when the element actually ends, which may differ from the calculated end time (e.g. when the end is specified to be after the end of the parent simple duration).

The distinction between syncbase and event times can be useful in certain situations. Consider the following example:

<par>
  <par begin="5s">
    <par begin="-5s">
      <img xml:id="foo" begin="1s; 8s" dur="3s" .../>
    </par>
  </par>
  <img xml:id="bar" begin="foo.begin" dur="1s" .../>
  <audio xml:id="beep" begin="foo.beginEvent" dur="1s" .../>
</par>

The "foo" element defines two intervals. The inner par cuts off - but does not prune - the first interval, because the innermost par is constrained by the middle par and cannot actually begin until 5s into the document. However the inner par is still synchronized to the document time of 0s. As such, "bar" will play twice: once at 1 second, and again at 8 seconds, because syncbase values use calculated interval times. However the "beep" audio will only play once at 8 seconds which is when "foo" is actually displayed, because intervals that are cut off do not raise events.

While authors are unlikely to author the above example, similar cases can easily arise using syncbase timing. When it is important to distinguish the observed begin time from the scheduled begin time, Event-value timing with the beginEvent or endEvent can be used. However, the author must be aware of the constraints on Event-value timing. These include the event sensitivity constraints, and the fact that many implementations will not optimize scheduling and media preparation for elements with Event-value timing as well as for elements with scheduled Syncbase-value timing. See also the discussion Propagating changes to times.

5.6.4 Supported interfaces

This section is informative.

SMIL Timing supports several methods for controlling the behavior of animation: beginElement(), beginElementAt(), endElement(), and endElementAt(). These methods are used to begin and end the active duration of an element. Authors may (but are not required to) declare the timing to respond to the DOM using the following syntax:

<img begin="indefinite" end="indefinite" .../>

If a DOM method call is made to begin or end the element (using beginElement(), beginElementAt(), endElement() or endElementAt()), each method call creates a single instance time (in the appropriate instance times list). These times are then interpreted as part of the semantics of lists of times, as described in Evaluation of begin and end time lists.

The expectation of the following interface is that an instance of the ElementTimeControl interface can be obtained by using binding-specific casting methods on an instance of an animate element. A DOM application may use the hasFeature method of the DOMImplementation interface to determine whether the ElementTimeControl interface is supported or not. The feature string for this interface is "TimeControl".

Interface ElementTimeControl
IDL Definition
interface ElementTimeControl {
  void               beginElement();
  void               beginElementAt(in float offset));
  void               endElement();
  void               endElementAt(in float offset);
};

Methods
beginElement
Creates a begin instance time for the current time which is added to the list of begin instance times.
Return Value
void
No Parameters
beginElementAt
Creates a begin instance time for the current time plus or minus the passed offset which is added to the list of begin instance times.
Parameters
float offset The offset in seconds at which to begin the element.
Return Value
void
endElement
Creates an end instance time for the current time which is added to the list of end instance times.
Return Value
void
No Parameters
endElementAt
Creates an end instance time for the current time plus or minus the passed offset which is added to the list of end instance times.
Parameters
float offset The offset in seconds at which to end the element. Must be >= 0.
Return Value
void
Interface TimeEvent
The TimeEvent interface provides specific contextual information associated with Time events.
IDL Definition
interface TimeEvent : events::Event {
  readonly attribute views::AbstractView  view;
  readonly attribute long             detail;
  void               initTimeEvent(in DOMString typeArg,
                                   in views::AbstractView viewArg,
                                   in long detailArg);
};

Attributes
view of type views::AbstractView, readonly
The view attribute identifies the AbstractView from which the event was generated.

detail of type long, readonly
Specifies some detail information about the Event, depending on the type of event.

Methods
initTimeEvent
The initTimeEvent method is used to initialize the value of a TimeEvent created through the DocumentEvent interface. This method may only be called before the TimeEvent has been dispatched via the dispatchEvent method, though it may be called multiple times during that phase if necessary. If called multiple times, the final invocation takes precedence.
Parameters
DOMString typeArg Specifies the event type.
views::AbstractView viewArg Specifies the Event's AbstractView.
long detailArg Specifies the Event's detail.
No Return Value
No Exceptions

The different types of events that may occur are:

beginEvent
Raised when the element begins. See also Events and event model.
  • Bubbles: No
  • Cancelable: No
  • Context Info: None
endEvent
Raised when the element ends its active duration. See also Events and event model.
  • Bubbles: No
  • Cancelable: No
  • Context Info: None
repeatEvent
Raised when the element repeats. See also Events and event model.
  • Bubbles: No
  • Cancelable: No
  • Context Info: detail (current iteration)

5.6.5 IDL definition

smil.idl:

// File: smil.idl
#ifndef _SMIL_IDL_
#define _SMIL_IDL_

#include "dom.idl"

#pragma prefix "dom.w3c.org"

module smil
{
  typedef dom::DOMString DOMString;

  interface ElementTimeControl {
    void            beginElement();
    void            beginElementAt(in float offset);
    void            endElement();
    void            endElementAt(in float offset);
  };

  interface TimeEvent : events::Event {
    readonly attribute views::AbstractView  view;
    readonly attribute long             detail;
    void               initTimeEvent(in DOMString typeArg,
                                     in views::AbstractView viewArg,
                                     in long detailArg);
  };
};

#endif // _SMIL_IDL_

5.6.6 Java language binding

org/w3c/dom/smil/ElementTimeControl.java:

package org.w3c.dom.smil;

import org.w3c.dom.DOMException;

public interface ElementTimeControl {
    public void  beginElement();

    public void  beginElementAt(float offset);

    public void endElement();

    public void endElementAt(float offset);

}

org/w3c/dom/smil/TimeEvent.java:

package org.w3c.dom.smil;

import org.w3c.dom.events.Event;
import org.w3c.dom.views.AbstractView;

public interface TimeEvent extends Event {
    public AbstractView getView();

    public int getDetail();

    public void initTimeEvent(String typeArg,
                              AbstractView viewArg,
                              int detailArg);

}

5.6.7 ECMAScript language binding

Object ElementTimeControl
The ElementTimeControl object has the following methods:
beginElement()
This method returns a void.
beginElementAt(offset)
This method returns a void. The offset parameter is of type float.
endElement()
This method returns a void.
endElementAt(offset)
This method returns a void. The offset parameter is of type float.
Object TimeEvent
TimeEvent has all the properties and methods of Event as well as the properties and methods defined below.
The TimeEvent object has the following properties:
view
This property is of type AbstractView.
detail
This property is of type long.
The TimeEvent object has the following methods:
initTimeEvent(typeArg, viewArg, detailArg)
This method returns a void. The typeArg parameter is of type DOMString. The viewArg parameter is of type views::AbstractView. The detailArg parameter is of type long.

5.7 Glossary

This section is normative.

5.7.1 General concepts

This section is informative

The following concepts are the basic terms used to describe the timing model.

Synchronization relationship

A synchronization relationship is defined by the author to express that two or more elements' playback is synchronized.

Time graph

A time graph is used to represent the temporal relations of elements in a document with SMIL timing. Nodes of the time graph represent elements in the document. Parent nodes may "contain" children, and children have a single parent. Siblings are elements that have a common parent. The links or "arcs" of the time graph represent synchronization relationships between the nodes of the graph.

Descriptive terms for times

The time model description uses a set of adjectives to describe particular concepts of timing:

implicit
This describes a time that is defined intrinsically by the element media (e.g. based upon the length of a movie), or by the time model semantics (e.g., duration of par time container).
explicit
This describes a time that has been specified by the author, using the SMIL syntax.
desired
This is a time that the author intended - it is generally the explicit time if there is one, or the implicit time if there is no explicit time.
effective
This is a time that is actually observed at document playback. It reflects both the constraints of the timing model as well as real-world issues such as media delivery.
definite
A time is definite if it is resolved to a finite, non-indefinite value.

Local time and global time

Global time is defined relative to the common reference for all elements, the document root. This is sometimes also referred to as document time.

Within a document, when a given element is active or "plays", the contents of that element progress from the beginning of the active duration to the end of the active duration. There will also be a progression from the beginning to the end of each simple duration (the distinction is clearest when the element repeats). It is often convenient to talk about times in terms of a given element's simple duration or its active duration. Generically, this is referred to as local time, meaning that times are relative to an element-local reference.

The following terms are used to more precisely qualify local times:

active time
Time as measured relative to the element's active duration. A time is measured as an offset from the active begin of the element.
simple time
Time as measured relative to the element's simple duration. A time is measured as an offset from the beginning of a particular instance of the simple duration.
media time
Time as measured relative to the element's media duration. A time is measured as an offset from the beginning of the media, as modified by any clipBegin or clipEnd attributes.

To be meaningful, these terms are described relative to some element. For example, when describing timing semantics, element active time refers to active time for the element under discussion, and parent simple time refers to simple time for that element's parent.

Conversion from global (document) time to an element time, or from one element time to another element time, is described in Converting between local and global times.

When measuring or calculating time, a reference element and the local time form (active, simple or media time) are specified. The measured time or duration is defined in terms of the element time progress. E.g. if the reference element pauses, this may impact the semantics of times or durations measured relative to the element.

Linear and Non-linear media

Linear media is continuous media that cannot be played in a random-access manner. For example, most Internet streaming video and audio are linear.

Non-linear media can be played in a random access manner. For example, algorithmic animation is non-linear. Discrete media may behave in a non-linear manner.

The linear or non-linear behavior of the media is not a function of the media type, but rather of the renderer or playback engine, and often depends upon the delivery mechanism for the media.

Scheduled timing

An element is considered to have scheduled timing if the element's start time is given relative to the begin or active end of another element. A scheduled element can be inserted directly into the time graph.

document begin

The start of the interval in which the document is presented is referred to as the document begin.

document end

The end of the interval in which the document is presented is referred to as the document end.

document duration

The difference between the end and the begin is referred to as the document duration.

This section is informative

Events and interactive timing

Begin and active end times in SMIL 3.0 may be specified to be relative to events that are raised in the document playback environment. This supports declarative, interactive timing. Interactive in this sense includes user events such as mouse clicks, events raised by media players like a mediaComplete event, and events raised by the presentation engine itself such as a pause event.

Syncbases

In scheduled timing, elements are timed relative to other elements. The syncbase for an element A is the other element B to which element A is relative. More precisely, it is the begin or active end of the other element. The syncbase is not simply a scheduled point in time, but rather a point in the time graph.

Sync arcs

"Sync-arc" is an abbreviation for "synchronization arc". Sync-arcs are used to relate nodes in the time graph, and define the timing relationship between the nodes. A sync-arc relates an element to its syncbase. The sync-arc may be defined implicitly by context, explicitly by Id-value or event name, or logically with special syntax.

Clocks

A Clock is a particular timeline reference that may be used for synchronization. A common example that uses real-world local time is referred to as wall-clock timing (e.g. specifying 10:30 local time). Other clocks may also be supported by a given presentation environment.

UTC: Coordinated Universal Time

Coordinated Universal Time (UTC) is the universal time scale on which time zones the world over are based. UTC is based on International Atomic Time (TAI) with leap seconds added at irregular intervals to compensate for irregularities in the Earth's rotation, so that when averaged, the Sun crosses the Greenwich meridian at noon UTC to within 0.9s. Times given in UTC are almost always given in terms of a 24-hour clock. Thus, 14:42 is 2:42 p.m., and 21:17 is 9:17 p.m.

Hyperlinking and timing

A hyperlink into or within a timed document may cause a seek of the current presentation time or may activate an element (if it is not in violation of any timing model rules).

Activation

During playback, an element may be activated automatically by the progression of time, via a hyperlink, or in response to an event. When an element is activated, playback of the element begins.

Discrete and continuous Media

SMIL includes support for declaring media, using element syntax defined in "The SMIL Media Object Module". The media that is described by these elements is described as either discrete or continuous:

discrete
The media does not have intrinsic timing, or intrinsic duration. These media are sometimes described as "rendered" or "synthetic" media. This includes images, text and some vector media.
continuous
The media is naturally time-based, and generally supports intrinsic timing and an intrinsic notion of duration (although the duration may be indefinite). These media are sometimes described as "time-based" or "played" media. This includes most audio, movies, and time-based animations.

5.7.2 Timing concepts

Time containers

Time containers group elements together in time. They define common, simple synchronization relationships among the grouped child elements. In addition, time containers constrain the time that children may be active. Several containers are defined, each with specific semantics and constraints on its children.

Content/Media elements

SMIL timing and synchronization support ultimately controls a set of content or media elements. The content includes things like video and audio, images and vector graphics, as well as text or HTML content. SMIL documents use the SMIL media elements to reference this content. XML and HTML documents that integrate SMIL 3.0 functionality may use SMIL media elements and/or content described by the integrated language (e.g. paragraphs in HTML).

Basic markup

All elements - content/media as well as time containers - support timing markup to describe a begin time and a duration, as well as the ability to play repeatedly. There are several ways to define the begin time. The semantics vary somewhat depending upon an element's time container.

Simple and active durations

The time model defines two concepts of duration for each element - the simple duration and the active duration. These definitions are closely related to the concept of playing something repeatedly.

simple duration
This is the duration defined by the basic begin and duration markup. It does not include any of the effects of playing repeatedly, or of fill. The simple duration is defined by the explicit begin and duration, if one is specified. If the explicit times are not specified, the simple duration is defined to be the implicit duration of the element.
active duration
This is the duration during which the element plays normally. If no repeating behavior is specified, and end is not specified, the active duration is the same as the simple duration. If the element is set to play repeatedly, the simple duration is repeated for the active duration, as defined by the repeat markup.
The active duration does not include the effect of fill, except when the effect of the min attribute extends a shorter active duration. See The min and max attributes: more control over the active duration.

The constraints of a parent time container may override the duration of its children. In particular, a child element may not play beyond the simple end of the time container.

The terms for these durations may be modified with the Descriptive Terms for Times, to further distinguish aspects of the time graph.

Hard and soft sync

SMIL 1.0 introduced the notion of synchronization behavior, describing user agent behavior as implementing either "hard synchronization" or "soft synchronization". Using hard sync, the entire presentation would be constrained to the strict description of sync relationships in the time graph. Soft sync allowed for a looser (implementation dependent) performance of the document.

While a document is playing, network congestion and other factors will sometimes interfere with normal playback of media. In a SMIL 1.0 hard sync environment, this will affect the behavior of the entire document. In order to provide greater control to authors, SMIL 2.0 extends the hard and soft sync model to individual elements. This support allows authors to define which elements and time containers must remain in strict or "hard" sync, and which elements and time containers may have a "soft" or slip sync relationship to the parent time container.

See also the section: The syncBehavior, syncTolerance, and syncMaster attributes: controlling runtime synchronization.

Pruning and cutting off an interval

The concepts of interval pruning and cutting off are distinct and should not be confused.

In some cases, after an interval has been created, it must later be pruned (deleted/removed from the timegraph) as more information becomes known and semantic constraints must be applied. When an interval is pruned, it will not be shown, it will not raise begin or end events, and any associated instance times for syncbase time dependents must be removed from the respective instance times lists. It is as though the pruned interval had not been specified.

In other cases, especially related to negative begin times on parent time containers, a valid interval for a child may not be shown, even though it is otherwise legal with respect to the parent time constraints. These intervals are said to be cut off.

For example:

<par begin="-10s" dur="20s">
   <img xml:id="slide1" src="slide1.jpg" dur="3s" />
   <img xml:id="slide2" src="slide2.jpg" begin="slide1.end+3s" dur="10s" />
   <img xml:id="note1" src="note1.jpg" begin="slide1.beginEvent" dur="20s" />
</par>

The "slide1" image will be cut off, but is not pruned. It is cut off because the par could not have been started 10s before its parent time container, and instead will be started at 0s into its parent time synced at 10s into its simple duration. The "slide1" image begins and ends before 10s into the par, and so cannot be shown and is cut off, Intervals that are cut off are not shown and do not raise begin or end events, but still create valid instance times for any syncbase time dependents. Thus, "slide2" will be shown (the interval is from minus 4 seconds to 6 seconds, document time, and so will be shown for 6 seconds, from 0 seconds to 6 seconds), but "note1" will not be shown.

5.8 Appendix A: SMIL Timing and Synchronization modules

This section is normative.

This section defines the seventeen SMIL 3.0 Timing Modules, which include the BasicInlineTiming module and sixteen other modules that combine to provide full SMIL 3.0 timing support. The separation of the SMIL 3.0 Timing modules is based on the inclusion of the syntactic expression of features using elements, attributes, and attribute values. Including a module in a profile adds both the syntax and associated semantics defined elsewhere in this specification to that profile.

AccessKeyTiming
This module defines the attribute value syntax for the begin and end attributes that allow elements to begin and end based upon the user actuating a designated access key.
Module dependencies
None.
Included features
begin and end with access key values.
Other module specific integration requirements
The access key requested by the author may not be made available by the player (for example it may not exist on the device used, or it may be used by the user agent itself). Therefore the user agent should make the specified key available, but may map the access key to a different interaction behavior. The user agent must provide a means of identifying the access keys that may be used in a presentation. This may be accomplished in different ways by different implementations, for example through direct interaction with the application or via the user's guide.
BasicInlineTiming
This module defines the attributes that make up basic timing support for adding timing to XML elements.
Module dependencies
None.
Included features
dur with all allowed values, and begin and end attributes with simple offset values, and "indefinite".
Other module specific integration requirements
None.
BasicTimeContainers
This module defines basic time container elements, attributes that describe an element's display behavior within a time container, and end conditions for time containers.
Module dependencies
None.
Included features
par, seq elements, fill, endsync attributes.
Other module specific integration requirements
fill=transition is only supported when BasicTransitions or InlineTransitions is included in the language profile. If FillDefault is not included in the profile, fill=default is interpreted the same as fill=auto.
EventTiming
This module defines the attribute value syntax for begin and end attributes that allow elements to begin and end in response to an event.
Module dependencies
None.
Included features
begin and end with event values.
Other module specific integration requirements
None. A Host language may specify that it does not support offsets on event values.
ExclTimeContainers
This module is depreciated in SMIL 2.1.
BasicExclTimeContainers
This module is new to SMIL 2.1. It includes a time container that defines a mutually exclusive set of elements and describes the 'stop' interrupt semantic among these elements.
Module dependencies
None.
Included features
excl element, fill and endsync attributes.
Other module specific integration requirements
fill="transition" is only supported when BasicTransitions or InlineTransitions is included in the language profile. If FillDefault is not included in the profile, fill="default" is interpreted the same as fill="auto".
BasicPriorityClassContainers
This module is new to SMIL 2.1. It includes a child element for the excl that is used to describe interrupt semantics among group of children of the the exclusive element.
Module dependencies
The BasicExclTimeContiners module must be included in a profile containing the BasicPriorityClassContainers module
Included features
priorityClass element.
Other module specific integration requirements
None.
FillDefault
This module defines syntax for specifying default display behavior for elements.
Module dependencies
BasicTimeContainers or ExclTimeContainers or TimeContainerAttributes.
Included features
fillDefault attribute.
Other module specific integration requirements
fill=transition is only supported when BasicTransitions or InlineTransitions is included in the language profile.
MediaMarkerTiming
This module defines the attribute value syntax for the begin and end attributes that allow elements to begin and end based upon markers contained in the source content.
Module dependencies
None.
Included features
begin and end with media marker values.
Other module specific integration requirements
None.
MinMaxTiming
This module defines the attributes that allow setting minimum and maximum bounds on element active duration.
Module dependencies
None.
Included features
The max and min attributes.
Other module specific integration requirements
None.
MultiArcTiming
This module extends the attribute value syntax for the begin and end attributes to allow multiple semicolon-separated values. Any combination of the simple begin and end value types provided by the other timing modules included in the profile are allowed.
Module dependencies
At least one of: AccessKeyTiming, BasicInlineTiming, EventTiming, MediaMarkerTiming, RepeatValueTiming, SyncbaseTiming, WallclockTiming.
Included features
Any combination of the individual begin and end attribute values included in the profile, separated by semicolons.
Other module specific integration requirements
None.
RepeatTiming
This module defines the attributes that allow repeating an element for a given duration or number of iterations.
Module dependencies
None.
Included features
The repeatDur, repeatCount , and repeat attributes.
Other module specific integration requirements
repeat is deprecated and only requires inclusion in SMIL Host Language conformant profiles.
RepeatValueTiming
This module defines the attribute value syntax for begin and end attributes that allow elements to begin and end in response to repeat events with a specific Iteration value.
Module dependencies
None.
Included features
begin and end with repeat values.
Other module specific integration requirements
None.
RestartDefault
This module defines syntax for specifying default restart semantics for elements.
Module dependencies
RestartTiming.
Included features
restartDefault attribute.
Other module specific integration requirements
None.
RestartTiming
This module defines an attribute for controlling the begin behavior of an element that has previously begun.
Module dependencies
None.
Included features
restart attribute.
Other module specific integration requirements
If this module is not included, the integrating profile must define the semantics of attempting to restart and element that has already begun.
SyncBehavior
This module defines syntax for specifying the runtime synchronization behavior among elements.
Module dependencies
BasicTimeContainers or ExclTimeContainers or TimeContainerAttributes.
Included features
syncBehavior, syncTolerance attributes.
Other module specific integration requirements
None.
SyncBehaviorDefault
This module defines syntax for specifying default synchronization behavior for elements and all descendants.
Module dependencies
SyncBehavior.
Included features
syncBehaviorDefault, syncToleranceDefault attributes.
Other module specific integration requirements
None.
SyncbaseTiming
This module defines the attribute value syntax for the begin and end attributes that allow elements to begin and end relative to each other.
Module dependencies
None.
Included features
begin and end with syncbase values.
Other module specific integration requirements
None.
SyncMaster
This module defines syntax for specifying the synchronization master for a timeline.
Module dependencies
SyncBehavior.
Included features
syncMaster attribute.
Other module specific integration requirements
None.
TimeContainerAttributes
This module defines attributes for adding time container support to any XML language elements.
Module dependencies
None.
Included features
timeContainer, timeAction, fill and endsync attributes.
Other module specific integration requirements
The profile must define on what elements these attributes are legal. fill=transition is only supported when BasicTransitions or InlineTransitions is included in the language profile. If FillDefault is not included in the profile, fill=default is interpreted the same as fill=auto.
WallclockTiming
This module the attribute value syntax for the begin and end attributes that allow elements to begin and end relative to real world clock time.
Module dependencies
None.
Included features
begin and end with wallclock times.
Other module specific integration requirements
None.
DOMTimingMethods
This module is new to SMIL 3.0. It defines the SMIL timing and synchronization DOM method calls.
Module dependencies
None.
Included features
The DOM interface ElementTimeControl with the DOM methods beginElement, beginElementAt, endElement, endElementAt; and the DOM interface TimeEvent with the attributes view and detail and the method initTimeEvent.
Other module specific integration requirements
None.

5.9 Appendix B: Annotated examples

This section is informative.

5.9.1 Example 1: Simple timing within a Parallel time container

This section includes a set of examples that illustrate both the usage of the SMIL syntax, as well as the semantics of specific constructs. This section is informative.

Note: In the examples below, the additional syntax related to layout and other issues specific to individual document types is omitted for simplicity.

All the children of a par begin by default when the par begins. For example:

<par>
   <img xml:id="i1" dur="5s"  src="img.jpg" />
   <img xml:id="i2" dur="10s" src="img2.jpg" />
   <img xml:id="i3" begin="2s" dur="5s" src="img3.jpg" />
</par>

Elements "i1" and "i2" both begin immediately when the par begins, which is the default begin time. The active duration of "i1" ends at 5 seconds into the par. The active duration of "i2" ends at 10 seconds into the par. The last element "i3" begins at 2 seconds since it has an explicit begin offset, and has a duration of 5 seconds which means its active duration ends 7 seconds after the par begins.

5.9.2 Example 2: Simple timing within a Sequence time container

Each child of a seq begins by default when the previous element ends. For example:

<seq>
   <img xml:id="i1" begin="0s" dur="5s" src="img1.jpg" />
   <img xml:id="i2" dur="10s" src="img2.jpg" />
   <img xml:id="i3" begin="1s" dur="5s" src="img3.jpg" />
</seq>

The element "i1" begins immediately, with the start of the seq, and ends 5 seconds later. Note: specifying a begin time of 0 seconds is optional since the default begin offset is always 0 seconds. The second element "i2" begins, by default, 0 seconds after the previous element "i1" ends, which is 5 seconds into the seq. Element "i2" ends 10 seconds later, at 15 seconds into the seq. The last element, "i3", has a begin offset of 1 second specified, so it begins 1 second after the previous element "i2" ends, and has a duration of 5 seconds, so it ends at 21 seconds into the seq.

5.9.3 Example 3: excl time container with child timing variants

  1. Exclusive element, children activated via link-based activation:
    <par>
        <excl>
            <par xml:id="p1">
            ...
            </par>
            <par xml:id="p2">
            ...
            </par>
        </excl>
        <a href="p1"><img src="Button1.jpg"/></a>
        <a href="p2"><img src="Button2.jpg"/></a>
    </par>

    This example models jukebox-like behavior. Activating the first image hyperlink activates the media items of parallel container "p1". If the link on the second image is traversed, "p2" is started (thereby deactivating "p1" if it would still be active) from time 0.

  2. Exclusive element combined with event-based activation:
    <smil ...>
    ...
    <par>
        <excl>
            <par begin="btn1.activateEvent">
            ...
            </par>
            <par begin="btn2.activateEvent">
            ...
            </par>
        </excl>
        <img xml:id="btn1" src=... />
        <img xml:id="btn2" src=... />
    </par>
    ...
    <smil>

    The same jukebox example, using event-based activation.

  3. Exclusive element using scheduled timing:
    <excl>
        <ref xml:id="a" begin="0s" ... />
        <ref xml:id="b" begin="5s" ... />
    </excl>

    In the example above, the beginning of "b" deactivates "a" (assuming that a is still active after 5 seconds). Note that this could also be modeled using a sequence with an explicit duration on the children. While the scheduled syntax is allowed, this is not expected to be a common use-case scenario.

5.9.4 Example 4: default duration of discrete media

For simple media elements (i.e., media elements that are not time containers) that reference discrete media, the implicit duration is defined to be 0. This can lead to surprising results, as in this example:

<seq>
   <img src="img1.jpg" />
   <video src="vid2.mpg" />
   <video src="vid3.mpg" />
</seq>

The implicit syncbase of a sequence is defined to be the effective active end of the previous element in the sequence. In the example, the implicit duration of the image is used to define the simple and active durations. As a result, the default begin of the second element causes it to begin at the same time as the image. Thus, the image will not show at all! Authors will generally specify an explicit duration for any discrete media elements.

5.9.5 Example 5: end specifies end of active dur, not end of simple dur

There is an important difference between the semantics of end and dur. The dur attribute, in conjunction with the begin time, specifies the simple duration for an element.

This is the duration that is repeated when the element also has a repeat behavior specified. The attribute end on the other hand overrides the active duration of the element. If the element does not have repeat behavior specified, the active duration is the same as the simple duration. However, if the element has a repeat behavior specified, then the end will override the repeat, but will not affect the simple duration. For example:

<smil ...>
...
<seq repeatCount="10" end="stopBtn.activateEvent">
   <img src="img1.jpg" dur="2s" />
   <img src="img2.jpg" dur="2s" />
   <img src="img3.jpg" dur="2s" />
</seq>
...
</smil>

The sequence will play for 6 seconds on each repeat iteration. It will play through 10 times, unless the user clicks on a "stopBtn" element before 60 seconds have elapsed.

5.9.6 Example 6: DOM-initiated timing

When an implementation supports the DOM methods described in this document, it will be possible to make an element begin or end the active duration using script or some other browser extension. When an author wishes to describe an element as interactive in this manner, the following syntax can be used:

<audio src="song1.au" begin="indefinite" />

The element will not begin until the beginElement() method is called.

5.10 Appendix C: Differences from SMIL 1.0

This section is informative.

SMIL 1.0 defines the model for timing, including markup to define element timing, and elements to define parallel and sequence time containers. This version introduces some syntax variations and additional functionality, including:

The complete syntax is described here, including syntax that is unchanged from SMIL 1.0.

5.11 Appendix D: Unifying event based and scheduled timing

This section is informative.

A significant motivation for SMIL 2.0 is the desire to integrate declarative, determinate scheduling with interactive, indeterminate scheduling. The goal is to provide a common, consistent model and a simple syntax.

Note that "interactive" content does not refer simply to hypermedia with support for linking between documents, but specifically to content within a presentation (i.e. a document) that is activated by some interactive mechanism (often user-input events, but including local hyperlinking as well).

SMIL 3.0 describes extensions to SMIL 1.0 to support interactive timing of elements. These extensions allow the author to specify that an element should begin or end in response to an event (such as a user-input event like "activateEvent" or "click"), or to a hyperlink activation, or to a DOM method call.

The syntax to describe this uses Event-value specifications and the special argument value "indefinite" for the begin and end attribute values. Event values describe user interface and other events. If an element should only begin (or end) with a DOM method call, the begin and end attributes allow the special value "indefinite" to indicate this. Setting begin="indefinite" can also be used when a hyperlink will be used to begin the element. The element will begin when the hyperlink is actuated (usually by the user clicking on the anchor). It is not possible to control the active end of an element using hyperlinks.

5.11.1 Background

SMIL 2.0 represents an evolution from earlier multimedia runtimes. These were typically either pure, static schedulers or pure event-based systems. Scheduler models present a linear timeline that integrates both discrete and continuous media. Scheduler models tend to be good for storytelling, but have limited support for user-interaction. Event-based systems, on the other hand, model multimedia as a graph of event bindings. Event-based systems provide flexible support for user-interaction, but generally have poor scheduling facilities; they are best applied to highly interactive and experiential multimedia.

The SMIL 1.0 model is primarily a scheduling model, but with some flexibility to support continuous media with unknown duration. User interaction is supported in the form of timed hyperlinking semantics, but there was no support for activating individual elements via interaction.

5.11.2 Modeling interactive, event-based content in SMIL

To integrate interactive content into SMIL timing, the SMIL 1.0 scheduler model is extended to support several new concepts: indeterminate timing and event-activation.

With indeterminate timing, an element has an undefined begin or end time. The element still exists within the constraints of the document, but the begin or end time is determined by some external activation. Activation may be event-based (such as by a user-input event), hyperlink based (with a hyperlink targeted at the element), or DOM based (by a call to the beginElement() or beginElementAt() methods). From a scheduling perspective, the time is described as unresolved.

The event-activation support provides a means of associating an event with the begin or end time for an element. When the event is raised (e.g. when the user clicks on something), the associated time is resolved to a determinate time. begin or end time is computed as the time the event is raised plus or minus any specified offset.

The computed time defines the synchronization for the element relative to the parent time container. It is possible for the computed begin or end time to occur in the past, e.g. when a negative offset value is specified, or if there is any appreciable delay between the time the event is raised and when it is handled by the SMIL implementation. See also the section Handling negative offsets for begin.

Note that an event based end will not be activated until the element has already begun. Any specified end event is ignored before the element begins.

The constraints imposed on an element by its time container are an important aspect of the event-activation model. In particular, when a time container is itself inactive (e.g. before it begins or after it ends), no events are handled by the children. If the time container is frozen, no events are handled by the children. No event-activation takes place unless the time container of an element is active. For example:

<smil ...>
...
<par begin="10s" dur="5s">
   <audio src="song1.au" begin="btn1.activateEvent" />
</par>
...
</smil>


If the user activates (e.g., clicks on) the "btn1" element before 10 seconds, or after 15 seconds, the audio element will not play. In addition, if the audio element begins but would extend beyond the specified active end of the par container, it is effectively cut off by the active end of the par container.

See also the discussion of Event sensitivity.

6. SMIL 3.0 Content Control

Editor for SMIL 3.0
Dick Bulterman, CWI.
Editors for earlier versions of SMIL
Dick Bulterman, Oratrix/CWI
Jeffrey Ayars, RealNetworks
Thierry Michel, W3C.

6.1 Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 specification extends the functionality SMIL 2.1 Content Control Modules [SMIL21-content-control] by introducing three new attributes: allowReorder, systemBaseProfile, and systemVersion. In addition, the new module RequiredContentControl has been defined that allows the systemRequired attribute to be specified in profiles that do not otherwise use SMIL content control. There are no new elements or other attributes provided in this version because, with the introduction of SMIL State functionality in SMIL 3.0, it is expected that new developments for managing control of content and control flow will migrate to the State-based notation. The editorial changes for SMIL 3.0 are (1) a clarification in a Normative section on expected behaviour for user agents that support dynamic evaluation and system- and/or custom-test variables, and (2) a repartitioning of the content control module structure in order to support the SMIL Tiny profile.

6.2 Introduction

This section is normative.

This section defines the SMIL 3.0 content control modules. These modules contain elements and attributes which provide for runtime content choices and optimized content delivery. SMIL content control functionality is partitioned across five modules:

Since all of the content control elements and attributes are defined in modules, designers of other markup languages may reuse this functionality on a module by module basis when they wish to include media content control in their language.

The functionality in the CustomTestAttributes module builds on the functionality of the BasicContentControl module; profiles implementing the CustomTestAttributes module must also implement the BasicContentControl and RequiredContentControl modules. The PrefetchControl and SkipContentControl modules have no prerequisites.

This section is informative.

In some of the module descriptions for content control, the concept of "user preference" may be present. User preferences are usually set by the playback engine using a preferences dialog box, but this specification does not place any restrictions on how such preferences are communicated from the user to the SMIL player.

It is implementation dependent when content control attributes are evaluated. Attributes may be evaluated multiple times. Dynamic reevaluation is allowed but not required. When dynamic reevaluation is supported by a user agent, it is expected that any system- or custom-test variable will be evaluated at the beginning of a node's execution (either at its initial begin time or each time a repeated element restarts). For situations in which more explicit control over reevaluation is required, the use of the SMIL 3.0 State modules is encouraged.

6.3 The SMIL 3.0 BasicContentControl Module

This section is normative.

6.3.1 SMIL 3.0 BasicContentControl Module Overview

SMIL 1.0 provides a "test-attribute" mechanism to process an element only when certain conditions are true, for example when the language preference specified by the user matches that of a media object. One or more test attributes may appear on media object references or timing structure elements; if the attribute evaluates to true, the containing element is played, and if the attribute evaluates to false the containing element is ignored. SMIL 1.0 also provides the switch element for expressing that a set of document parts are alternatives, and that the first one fulfilling certain conditions should be chosen. This is useful to express that different language versions of an audio file are available, and that the client may select one of them.

The SMIL 3.0 BasicContent module includes the test attribute functionality from SMIL 1.0 and extends it by supporting new system test attributes. This section will describe the use of the predefined system test attributes, the switch element and test attribute in-line placement. A mechanism for extending test attributes is presented in the CustomTestAttributes module.

Predefined System Test Attributes

This specification defines a list of test attributes that can be added to language elements, as allowed by the language designer. In SMIL 1.0, these elements are synchronization and media elements. Conceptually, these attributes represent Boolean tests. When any of the test attributes specified for an element evaluates to false, the element carrying this attribute is ignored.

SMIL 3.0 supports the full set of SMIL 2.1 system attributes. The SMIL 2.1 compatible system test attributes are:

Note that, with the exception of system-overdub-or-caption, the names of these attributes have been changed to reflect SMIL 3.0's camelCase conventions. The SMIL 1.0 hyphenated names are deprecated in this release.

SMIL 3.0 also supports system test attributes that define additional characteristics of the system environment. These are:

Finally, SMIL 3.0 supports system test attributes that define characteristics of the SMIL version (starting with version 3.0) and base profile supported by the system environment. These are:

The complete definition of each attribute is given in the attributes definition section.

The switch element

The switch element allows an author to specify a set of alternative elements from which only the first acceptable element is chosen.

This section is informative.

An example of the use of the switch is:

  ...
  <par>
    <video src="anchor.mpg" ... />
    <switch>
      <audio src="dutchHQ.aiff" systemBitrate="56000" ... />
      <audio src="dutchMQ.aiff" systemBitrate="28800" ... />
      <audio src="dutchLQ.aiff" ... />
    </switch>
  </par>
  ...

In this example, one audio object is selected to accompany the video object. If the system bitrate is 56000 or higher, the object dutchHQ.aiff is selected. If the system bitrate is at least 28800 but less than 56000, the object dutchMQ.aiff is selected. If no other objects are selected, the alternative dutchLQ.aiff is selected, since it has no test attribute (thus is always acceptable) and no other test attributes evaluated to true.

Authors should order the alternatives from the most desirable to the least desirable. Furthermore, authors may wish to place a relatively fail-safe alternative as the last item in the switch so that at least one item within the switch is chosen (unless this is explicitly not desired). If all alternatives are equivalent an author should signal this through the allowReorder attribute on the switch, this gives the user agent the freedom to pick the best match (as opposed to the first match).

Note that some network protocols, e.g. HTTP and RTSP, support content-negotiation, which may be an alternative to using the switch element in some cases.

It is the responsibility of the SMIL user agent to determine the setting for system test attribute values. Such settings may be determined statically based on configuration settings, or they may be determined (and re-evaluated) dynamically, depending on the player implementation. When dynamic reevaluation is supported by a user agent, it is expected that any system- or custom-test variable will be evaluated at the beginning of a nodes execution (either at its initial begin time or each time a repeated element restarts). For situations in which more explicit control over reevaluation is required, the use of the SMIL 3.0 State modules is encouraged. Players may not select members of a switch at random.

System Test Attribute In-Line Use

To allow more flexibility in element selection, test attributes may also be used outside of the switch element.

This section is informative.

In the following example of in-line test attribute use, captions are shown only if the user wants captions on.

 ...
 <par>
    <audio src="audio.rm"/>
    <video src="video.rm"/>
    <textstream src="stockticker.rt"/>
    <textstream src="closed-caps.rt" systemCaptions="on"/>
 </par>
 ...

The alternatives indicated by the in-line construct could be represented as a set of switch statements, although the resulting switch could become explosive in size. Use of an in-line test mechanism significantly simplifies the specification of adaptive content, especially in those cases where many independent alternatives exist. Note, however, that there is no fail-safe alternative mechanism (such as defining an element without a test attribute inside of a switch) when using test attributes in-line.

This section is informative.

Examples of Switch and Test Attribute Use

  1. Choosing between content with different total bitrates

    In a common scenario, implementations may wish to allow for selection via a systemBitrate attribute on elements. The SMIL 3.0 player evaluates each of the elements within the switch one at a time, looking for an acceptable bitrate value.

     ...
     <par>
        <text .../>
        <switch>
           <par systemBitrate="40000">
           ...
           </par>
           <par systemBitrate="24000">
           ...
           </par>
           <par systemBitrate="10000">
           ...
           </par>
        </switch>
     </par>
     ...

    In this example, if the system bitrate has been determined to be less than 10000 (in mobile telephone cases, for example), then none of the par constructs would be included.

  2. Choosing between audio resources with different bitrates

    The elements within the switch may be any combination of elements. For instance, one could specify an alternate audio track:

     ...
     <switch>
        <audio src="joe-audio-better-quality" systemBitrate="16000" />
        <audio src="joe-audio" />
     </switch>
     ...

    If the system bitrate was less than 16000, the standard-quality audio would be presented by default.

  3. Choosing between audio resources in different languages

    In the following example, an audio resource is available both in Dutch and in English. Based on the user's preferred language, the player can choose one of these audio resources.

     ...
     <switch>
        <audio src="joe-audio-nederlands" systemLanguage="nl"/>
        <audio src="joe-audio-english" systemLanguage="en"/>
     </switch>
     ...

    In this example, if the system language setting was anything other than Dutch or English, no audio would be presented. To make a choice the default, it should appear as the last item in the list and not contain a test attribute. In the following fragment, English is used as the default:

     ...
     <switch>
        <audio src="joe-audio-nederlands" systemLanguage="nl"/>
        <audio src="joe-audio-english" />
     </switch>
     ...

    If the alternatives are equivalent an author may specify this through the allowReorder attribute, which gives the user agent the freedom to select the second alternative for someone who speaks both German and Dutch but prefers German:

     ...
     <switch allowReorder="yes">
        <audio src="joe-audio-nederlands" systemLanguage="nl"/>
        <audio src="joe-audio-deutsch" systemLanguage="de"/>
        <audio src="joe-audio-english" />
     </switch>
     ...

    Note that none of these examples show the full power of language tag matching, please refer to BCP47 [BCP47] for more elaborate examples.

  4. Choosing between content written for different screens

    In the following example, the presentation contains alternative parts designed for screens with different resolutions and bit-depths. Depending on the particular characteristics of the screen, the player must use the first alternative in which all of the test attributes evaluate to true.

     ...
     <par>
        <text .../>
        <switch>
           <par systemScreenSize="1024X1280" systemScreenDepth="16">
           ...
           </par>
           <par systemScreenSize="480X640" systemScreenDepth="32">
           ...
           </par>
           <par systemScreenSize="480X640" systemScreenDepth="16">
           ...
           </par>
        </switch>
     </par>
     ...
  5. Supporting multiple options via in-line use

    This example shows a video that is accompanied by zero or more media objects. If the system language has been set to either Dutch or English, then the appropriate audio object will play. In addition, if the system language has been set to either Dutch or English and systemCaptions has also been set to on, the appropriate text files will also be displayed.

      ...
      <par>
        <video src="anchor.mpg" ... />
        <audio src="dutch.aiff"   systemLanguage="nl"  ... />
        <audio src="english.aiff" systemLanguage="en" ... />
        <text  src="dutch.html"   systemLanguage="nl" systemCaption="on"... />
        <text  src="english.html" systemLanguage="en" systemCaption="on"... />
      </par>
      ...

    If system language is set to something other than Dutch or English, no objects will be rendered (except the video). Note that there is no catch-all default mechanism when using test attributes for in-line evaluation.

  6. Choosing the language of overdub and subtitle tracks

    In the following example, a French-language movie is available with English, German, and Dutch overdub and subtitle tracks. The following SMIL segment expresses this, and switches on the alternatives that the user prefers.

     ...
     <par>
        <switch>
           <audio src="movie-aud-en.rm" systemLanguage="en"
                 systemOverdubOrSubtitle="overdub"/>
           <audio src="movie-aud-de.rm" systemLanguage="de"
                 systemOverdubOrSubtitle="overdub"/>
           <audio src="movie-aud-nl.rm" systemLanguage="nl"
                 systemOverdubOrSubtitle="overdub"/>
           <!-- French for everyone else -->
           <audio src="movie-aud-fr.rm"/>
        </switch>
        <video src="movie-vid.rm"/>
        <switch>
           <textstream src="movie-sub-en.rt" systemLanguage="en"
                 systemOverdubOrSubtitle="subtitle"/>
           <textstream src="movie-sub-de.rt" systemLanguage="de"
                 systemOverdubOrSubtitle="subtitle"/>
           <textstream src="movie-sub-nl.rt" systemLanguage="nl"
                 systemOverdubOrSubtitle="subtitle"/>
           <!-- French captions for those that really want them -->
           <textstream src="movie-caps-fr.rt" systemCaptions="on"/>
        </switch>
     </par>
     ...

6.3.2 Elements and Attributes

SMIL 3.0 BasicContentControl defines the switch element, the allowReorder attribute and a set of predefined system test attributes.

The switch element

The switch element allows an author to specify a set of alternative elements. An element is selected as follows: the player evaluates the elements in the order in which they occur in the switch element. The first acceptable element is selected at the exclusion of all other elements within the switch. Implementations must NOT arbitrarily pick an object within a switch when test attributes for all child elements fail.

Element attributes

This element allows the allowReorder attribute, in addition to those required of all elements in the profile.

Element content

The content of the element is language implementation dependent.

In the SMIL 3.0 language profile, if the switch is used as a direct or indirect child of a body element, it may contain any media object or timing structure container, or it may contain nested switch elements. All of these elements may appear multiple times inside the switch. If the switch is used as a direct or indirect child of a head element, it may contain one or more layout elements.

The allowReorder Attribute

The allowReorder attribute signals whether a user agent may reorder the direct descendents of the switch element, based on user preferences, if it thinks this could lead to a better user experience.

The possible values are no, the default, disallowing reordering and yes, allowing reordering.

This section is informative.

User agents are free to ignore the allowReorder attribute, but if they implement prioritized language ranges as defined in BCP47 [BCP47] they are expected to use that prioritization to reorder children with systemLanguage attributes. The effect should be that the users are presented with the alternative that best matches their language preferences. Any final child without systemLanguage attribute should retain its place as the default item to present.

Authors should add the allowReorder attribute if all items in the switch are equivalent.

Predefined Test Attributes

SMIL 3.0 defines the following system test attributes. When any of the test attributes specified for an element evaluates to false, the element carrying this attribute is ignored. Note that most hyphenated test attribute names from SMIL 1.0 have been deprecated in favor of names using the current SMIL camelCase convention. For these, the deprecated SMIL 1.0 name is shown in parentheses after the preferred name.

systemAudioDesc
values: on | off
This test attribute specifies whether or not closed audio descriptions should be rendered. This is intended to provide authors with the ability to support audio descriptions in the same way that systemCaptions provides text captions. The value of systemAudioDesc is used to control object rendering in conjunction with the user's preference for receiving audio descriptions of a media object if and when these are available. A value of on indicates a preference to have such descriptions rendered when available. A value of off indicates a preference not to render such descriptions.
Authors should place systemAudioDesc = on only on elements that they wish to render when the user has indicated they want audio descriptions. Authors should place systemAudioDesc = off only on elements that they wish to render when the user has indicated they DON'T want audio descriptions.
Evaluates to true if the user preference matches this attribute value. Evaluates to false if they do not match.
systemBaseProfile
value: profile-name
Profile-name ::= "Language" | "UnifiedMobile" | "Daisy" | "Tiny" | "smilText" |User-defined-profile-name
User-defined-profile-name ::= "x-" NMTOKEN
This attribute may be used to test the base profile used by the SMIL player to execute the document. The profile name may be used to determine the presence of a set of profile-specific features. Note that since this attribute was introduced in SMIL version 3.0, only the profiles supported in that version and later may be tested with this attribute.
systemBitrate (system-bitrate)
value: the approximate bandwidth, in bits-per-second, available to the system.
The measurement of bandwidth is application specific, meaning that applications may use sophisticated measurement of end-to-end connectivity, or a simple static setting controlled by the user. In the latter case, this could for instance be used to make a choice based on the user's connection to the network. Typical values for modem users would be 14400, 28800, 56000 bit/s etc. Evaluates to true if the available system bitrate is equal to or greater than the given value. Evaluates to false if the available system bitrate is less than the given value.
The attribute can assume any integer value greater than 0. If the value exceeds an implementation-defined maximum bandwidth value, the attribute always evaluates to false.
systemCaptions (system-captions)
values: on | off
This attribute allows authors to specify a redundant text equivalent of the audio portion of the presentation. Examples of intended use are: audiences with hearing disabilities, those learning to read, or anyone who wants or needs this information.
Evaluates to true if the user preference matches this attribute value. Evaluates to false if they do not match.
systemComponent
value: an XML CDATA string containing one or more white-space separated URI's.
Each URI identifies a component of the playback system, e.g. user agent component/feature, number of audio channels, codec, HW MPEG decoder, etc. The URI is implementation dependent. Each implementation is encouraged to publish a list of component URIs which may be used to identify and resolve the presence of implementation-dependent components.
Evaluates to true if all URI's match one of the URI's that the user agent recognizes. Evaluates to false otherwise.
systemCPU
value: an XML NMTOKEN([[XML11]).
This test attribute specifies the CPU on which a user agent may be running. An implementation must allow the user the ability to set the system value to unknown for privacy.
The following list contains the suggested values for this test attribute (additional names may be supported by an implementation): alpha, arm, arm32, hppa1.1, m68k, mips, ppc, rs6000, vax, x86, unknown.

These values come from the _PR_SI_ARCHITECTURE constants defined by the mozilla project.

Evaluates to true if the user preference matches this attribute value. Evaluates to false if they do not match. The value is case-sensitive.
systemLanguage (system-language)
values: a comma-separated list of language tags as defined in BCP47 [BCP47], or an empty/null string
Each of the language tags is matched against the users' language preferences according to the BCP47 Basic Filtering matching algorithm [BCP47]. If any language tag matches the test attribute evaluates to true, else it evaluates to false.
If a null or empty string is specified, the test attribute evaluates to false.

The syntax of the systemLanguage and the deprecated system-language attributes are defined using EBNF notation (as defined in [XML11]) as list of XML namespace prefixes [XML-NS], separated by the ',' character:

SystemLanguageArgumentValue ::= (LanguageTag (S? "," S? LanguageTag)*)?


Where allowed white space is indicated as 'S', defined as follows (taken from the [XML11] definition for 'S'):

S ::= (#x20 | #x9 | #xD | #xA)+

This section is informative.

BCP47: This is actually an active document that can, over time, refer to newer RFCs as technology progresses. As of this writing BCP47 consists of RFC4646 for defining language tags and RFC4647 for defining the matching algorithm.

Implementation: When making the choice of linguistic preference available to the user, implementers should take into account the fact that most users are not familiar with the details of RFC4647 language matching, and should provide appropriate guidance. As an example, users may mistakenly assume that on selecting "en-gb", they will be served any kind of English document if British English is not available. The user interface for setting user preferences should guide the user to add "en" to get the best matching behavior.

systemOperatingSystem
value: an XML NMTOKEN ([XML11])
This test attribute specifies the operating system on which a user agent may be running. An implementation must allow the user the ability to set the user preference to unknown for privacy.
The following list contains the suggested values for this test attribute (additional names may be supported by an implementation): aix, beos, bsdi, dgux, freebsd, hpux, irix, linux, macos, ncr, nec, netbsd, nextstep, nto, openbsd, openvms, os2, osf, palmos, qnx, sinix, rhapsody, sco, solaris, sonly, sunos, unixware, win16, win32, win9x, winnt, wince, unknown.

This section is informative.

These values come from the _PR_SI_SYSNAME constants defined by the mozilla project.

Evaluates to true if the user preference matches this attribute value. Evaluates to false if they do not match. The value is case-sensitive.
systemOverdubOrSubtitle
values: overdub | subtitle
This attribute specifies whether subtitles or overdub is rendered. overdub selects for substitution of one voice track for another, and subtitle means that the user prefers the display of text in a language other than that which is being used in the audio track.
Evaluates to true if the user preference matches this attribute value. Evaluates to false if they do not match.
system-overdub-or-caption
values: caption | overdub
This test attribute has been deprecated in favor of using systemOverdubOrSubtitle and systemCaptions.
This attribute is a setting which determines if users prefer overdubbing or captioning when the option is available.
Evaluates to true if the user preference matches this attribute value. Evaluates to false if they do not match.
systemScreenDepth (system-screen-depth)
values: a number greater than 0
This attribute specifies the depth of the screen color palette in bits required for displaying the element. Typical values are 1 | 4 | 8 | 24 | 32.
Evaluates to true if the playback engine is capable of displaying images or video with the given color depth. Evaluates to false if the playback engine is only capable of displaying images or video with a smaller color depth.
systemScreenSize (system-screen-size)
value: Screen-size
Attribute values have the following syntax:
Screen-size ::= Screen-height S? "X" S? Screen-width
Each of these is a pixel value, and must be an integer value greater than 0.
Evaluates to true if the playback engine is capable of displaying a presentation of the given size. Evaluates to false if the playback engine is only capable of displaying smaller presentations.
systemVersion
value: 3.0 .
This attribute may be used to test the version number of the SMIL player executing the document. The number may be used to determine the presence of a set of specification-specific features. Since this attribute was introduced in SMIL version 3.0, only values of 3.0 and later may be tested with this attribute.

It is the responsibility of the SMIL 3.0 Player to determine the settings for each predefined test variable. These values may be determined by static configuration settings, or they may be evaluated dynamically during runtime. Such setting and (re)evaluation behavior is implementation dependent. When dynamic reevaluation is supported by a user agent, it is expected that any system- or custom-test variable will be evaluated at the beginning of a nodes execution (either at its initial begin time or each time a repeated element restarts). For situations in which more explicit control over reevaluation is required, the use of the SMIL 3.0 State modules is encouraged.

For this version of SMIL elements with specified test attributes that evaluate to false, or elements within a switch that are not selected, are considered to be ignored and will behave as though they were not specified in the document. Any references to these elements will be as if the elements were not in the document. In particular, any ID references to the element will act as if there was no element with that ID. Languages that integrate this module must specify any additional behavior related to these ignored elements. In the SMIL 3.0 Language profile, timing attributes that reference invalid IDs are treated as being indefinite.

This section is informative.

Authors should be aware that this model for handling ignored elements may be revised in a future version of SMIL, and the related semantics may well change. These changes should not affect implementations that only support parse-time (or equivalent) evaluation of test attributes and/or the switch element. However, the semantics of dynamic re-evaluation (i.e. re-evaluation during document presentation) of test attributes and/or switch elements are not defined in this version of SMIL; this will be addressed in a future version.

Authors should realize that if several alternative elements are enclosed in a switch, and none of them evaluate to true, this may lead to situations such as a media object being shown without one or more companion objects. It is thus recommended to include a "catch-all" choice at the end of a switch which is acceptable in all cases.

6.3.3 Integration Requirements for the BasicContentControl Module

The functionality in this module does not build on functionality defined in other SMIL 3.0 modules.

6.3.4 Document Type Definition (DTD) for the BasicContentControl Module

See the full DTD for the SMIL Content Control modules.

6.4 The SMIL 3.0 CustomTestAttributes Module

This section is normative.

6.4.1 SMIL 3.0 CustomTestAttributes Module Overview

The use of predefined system test attributes in the SMIL BasicContentControl module provides a selection mechanism based on attributes that are fixed within the module's definition. The CustomTestAttribute module extends this facility with the definition of author-defined custom test attributes. Custom test attributes allow presentation authors to define their own test attributes for use in a specific document. Custom test attributes may be shared among application documents using the uid attribute.

As with system test attributes, custom test attributes may be used within timing structure and media object elements; if they evaluate to true, the containing element is activated and if they evaluate to false, the containing element is ignored. In this version of SMIL, an ignored element will be treated as if it were not part of the source document. As a result, any element referencing the ID of the ignored node will, in effect, reference an invalid ID. Languages that integrate this module must specify any additional behavior related to these ignored elements.

Since custom test attributes are application/document specific, they need a mechanism to allow attribute definition and attribute setting. Attribute definition is done via the customAttributes and customTest elements. The initial state of any custom test attribute may be set at author-time with the defaultState attribute, which takes a value of either true or false. This module provides an override attribute with a value hidden that gives an author the ability to discourage runtime resetting of any attributes using these mechanisms.

The state of the attribute can be changed in one of three ways:

  1. by modifying the value of the default state attribute in the document source before delivery to the player;
  2. by using the unique identifier given in the uid attribute to dereference a runtime value for the customTest; or
  3. by an interface presented to the user (or the user agent) through the document player at runtime.

The exact rules for setting and modifying the values associated with custom test attributes are given below.

An implementation may support either, both, or none of methods 2 and 3. If method 2 is supported, the URI value in uid is simply a unique identifier and does not imply that the runtime value must be fetched over the Web. The value may be stored and retrieved locally, and simply identified by the uid. The precise manner in which this is done is implementation dependent. If method 3 is supported, the custom test attribute facility does not require any specific UI support for direct user manipulation of the custom test attributes.

This section is informative.

Example Use

The following example shows one way in which custom test attributes may be applied within a SMIL 3.0 Language profile document:

<smil>
  <head>
    <layout>
       <!-- define projection regions -->
    </layout>
    <customAttributes>
      <customTest xml:id="west-coast" title="West Coast Edition"
        defaultState="false" override="visible"
        uid="http://defs.example.org/user-settings/west-coast" />
      <customTest xml:id="east-coast" title="East Coast Edition"
        defaultState="false" override="visible"
        uid="http://defs.example.org/user-settings/east-coast" />
      <customTest xml:id="far-north"  title="Northern Edition"
        defaultState="false" override="visible"
        uid="http://defs.example.org/user-settings/far-north" />
      <customTest xml:id="the-rest"   title="National Edition"
        defaultState="true"  override="hidden" />
    </customAttributes>
  </head>
  <body>
    ...
    <par>
      <img src="background.png" region="a"/>
      <video src="story_1v.rm" region="b" />
      <switch>
        <audio src="story_1w.rm" region="c" customTest="west-coast"/>
        <audio src="story_1e.rm" region="c" customTest="east-coast"/>
        <audio src="story_1n.rm" region="c" customTest="far-north"/>
        <audio src="story_1r.rm" region="c" customTest="the-rest"/>
      </switch>
    </par>
    ...
  </body>
</smil>

The customAttributes element in the header contains the definition of the available custom test attributes. Each custom test attribute, defined by the customTest element, contains an identifier and a title (which may be used by a user agent, if available, to label the attribute), as well as an (optional) initial state definition, a UID that contains a unique identifier for the value setting for this attribute and an override flag.

The custom test variables named "west-coast", "east-coast" and "far-north" are defined with a default rendering state of false. They each contain a reference to a URI which is used to define local settings for the respective variables.

The custom test variable "the-rest" is defined with a default rendering setting of true.

Inside the body, a SMIL switch construct is used to select media objects for inclusion in a presentation depending on the values of the various custom test attributes. The first object that contains a value of true will be rendered, and since in this example the last option will always resolve true, it will be rendered if no other objects resolve to true.

While this example shows switch-based use of custom test attributes, the facility could also be applied as test attributes in in-line use.

Rules for Setting Values

The setting of the value associated with a custom test attribute proceeds as follows:

  1. The initial setting is taken from the value of the defaultState attribute, if present. If no default state is explicitly defined, a value of false is used.
  2. Next, if a URI mechanism is supported by the implementation, the URI defined by the uid attribute is checked to see if a persistent value has been defined for the custom test attribute with the associated id. If such a value is present, it is used instead of the default state defined in the document (if any). Otherwise, the existing initial state is maintained.
  3. Next, if a UI-based mechanism (either via the SMIL DOM, a player GUI or some other means) is available and a value has been set by the user, the value associated with the custom test attribute is set to the user-specified value. If no user preference has been defined, either the UID-based value or the default value from the document text (in that order) is used.

Note that a user setting of the custom test attribute will take precedence over a URI setting. If the user has not specified a value for the attribute then the URI setting takes precedence. As with predefined system test attributes, this evaluation will occur in an implementation-defined manner. The value may be (re)evaluated dynamically, but this is not required. When dynamic reevaluation is supported by a user agent, it is expected that any system- or custom-test variable will be evaluated at the beginning of a nodes execution (either at its initial begin time or each time a repeated element restarts). For situations in which more explicit control over reevaluation is required, the use of the SMIL 3.0 State modules is encouraged. Note also that not all implementations need support uid or UI setting of attributes.

6.4.2 Elements and Attributes

This section defines the elements and attributes that make up the functionality in the SMIL CustomTestAttributes module. The customAttributes and customTest elements are used to define custom test attribute variables and the customTest attribute is used in-line on media object and timing structure references to control evaluation of the containing elements.

The customAttributes element

The customAttributes element contains definitions of each of the custom test attributes. The contained elements define a collection of author-specified test attributes that may be used in switch statements or as in-line test attributes in the document.

Element attributes

This element does not have attributes beyond those required of all elements in the profile.

Element content

The customAttributes element may contain one or more customTest elements.

The customTest element

The customTest element defines an author-specified name that will be used as the test argument in the switch element or in-line on media object and timing structure elements. The customTest elements are defined within the section delineated by the customAttributes elements that make up part of the document header.

Element attributes
defaultState
values: true | false
The initial state for the named custom test variable is given in the value of this attribute. If unspecified, it defaults to false.
The run-time state for the named custom test variable may be set according to the rules for uid and/or override attribute processing, if present. The values are not case-sensitive.
override
values: visible | hidden
This attribute allows the author to choose whether the ability to override the initial state of a custom test variable should be presented to the typical user, or whether that choice should be reserved for users that specifically express a preference for this access. If the value of the override attribute is visible, then the user agent should make available to the user a means to set the custom test variable value in its default configuration either directly, via the SMIL DOM, or by some other mechanism. If the value of the override attribute is hidden, then the user agent should not present to the user a means to set the custom attribute value unless the user has expressed a preference for this access. The values are not case-sensitive. The default value is hidden.
uid
values: A URI
The URI identifies the associated custom test for persistent use. The user agent should use this as the key to store and retrieve values associated with the custom test attribute, and take care that privacy and security issues are regarded. If permitted by the override attribute, a resolved reference to a setting via the uid attribute defines the initial setting of the custom test value; this value may be overridden by the user/user-agent if permitted by the override attribute. It is up to the runtime environment to enforce this attribute.

This section is informative.

The actual evaluation mechanism associated with the URI is implementation dependent. It may vary from a simple lookup in a local file or registry, to a secure reference via a capabilities database, and may be influenced by other configuration settings provided by the implementation.

Element content

None.

The customTest attribute

In addition to the customAttributes and customTest elements, this module provides a customTest attribute that can be applied by language designers to media objects and timing structure elements requiring selection. In all operational aspects, the custom test attribute is similar to the predefined system test attribute facility of the BasicContentControl module.

customTest
value: a list of XML identifiers
The identifiers, defined in the customTest elements, define variables that are evaluated as test attributes. If the variables all evaluate to true, the associated element is evaluated, otherwise it and its content are skipped. customTest attributes whose values don't match the identifier of a customTest element evaluate to false

The syntax of the customTest is defined using EBNF notation (as defined in [XML11]) as list of  customTest element identifier references, separated by the '+' character:

CustomTestArgumentValue ::= Idref (S? "+" S? Idref)*
Idref ::= Name

Where allowed white space is indicated as 'S', defined as follows (taken from the [XML11] definition for 'S'):

S ::= (#x20 | #x9 | #xD | #xA)+

and Idref is a Name as defined in [XML11] is a reference to a customTest element.

6.4.3 Integration Requirements for the CustomTestAttribute Module

The functionality in this module builds on functionality defined in the BasicContentControl module, which is a required prerequisite for inclusion of the CustomTestAttribute module.

The profile implementing the custom test elements and attributes must provide a means of associating a unique XML identifier with a customTest element, so that it can be used by the customTest attribute. And the profile should provide a means of associating descriptive text with a customTest element, which may be used in a GUI or other selection mechanism that may be presented to the user. For the SMIL 3.0 Language Profile, the element's id and title attributes serve this purpose.

6.4.4 Document Type Definition (DTD) for the CustomTestAttribute Module

See the full DTD for the SMIL Content Control modules.

6.5 The SMIL 3.0 PrefetchControl Module

This section is normative.

6.5.1 SMIL 3.0 PrefetchControl Module Overview

This module defines an element and attributes that may be used to control the fetching of content from a server in a manner that will improve the rendering performance of the document.

This element will give a suggestion or hint to a user agent that a media resource will be used in the future and the author would like part or all of the resource fetched ahead of time to make the document playback smoother. User-agents may ignore prefetch elements, though doing so may cause an interruption in the document playback when the resource is needed. It gives authoring tools or savvy authors the ability to schedule retrieval of resources when they think that there is available bandwidth or time to do it. A prefetch element is contained within the body of an XML document, and its scheduling is based on its lexical order unless explicit timing is present.

This section is informative.

Prefetching data from a URL that changes the content dynamically is potentially dangerous: if the entire resource isn't prefetched, a subsequent request for the remaining data may yield data from a newer resource. A user agent should respect any appropriate caching directives applied to the content, e.g. no-cache 822 headers in HTTP. More specifically, content marked as non-cacheable would have to be refetched each time it was played, where content that is cacheable could be prefetched once, with the results of the prefetch cached for future use.

Examples

  1. Prefetch an image so it can be displayed immediately after a video ends:
     <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
       <body>
         <seq>
           <par>
             <prefetch xml:id="endimage"
                src="http://www.example.org/logo.gif"/>
             <text xml:id="interlude"
                src="http://www.example.org/pleasewait.html" fill="freeze"/>
           </par>
           <video xml:id="main-event" src="rtsp://www.example.org/video.mpg"/>
           <img src="http://www.example.org/logo.gif" dur="5s"/>
        </seq>
       </body>
     </smil>

    The example starts with a prefetch in parallel with the rendering of a text object. The text is discrete media so it ends immediately, the prefetch is defaulted to prefetch the entire image at full available bandwidth and the prefetch element ends when the image is downloaded. That ends the <par> and the video begins playing. When the video ends the image is shown.

  2. Prefetch the images for a button so that rollover occurs quickly for the end user:
     <html>
     <body>
         <prefetch xml:id="upimage" src="http://www.example.org/up.gif"/>
         <prefetch xml:id="downimage" src="http://www.example.org/down.gif"/>
         ....
         <!-- script will change the graphic on rollover -->
         <img src="http://www.example.org/up.gif"/>
       </body>
     </html>


6.5.2 Elements and Attributes

The prefetch element

The prefetch gives authors a mechanism to influence the scheduling of media object transfers from a server to the player.

Documents must still playback even when the prefetch elements are ignored, although rebuffering or pauses in presentation of the document may occur. If the prefetch for a prefetch element is ignored, any timing on the element is still respected, e.g. if a prefetch element has a dur="5s", elements that depend on the prefetch element's timing behave as if the prefetch took 5 seconds.

The intrinsic duration of a prefetch element is either the duration of the media fetch, if the prefetch operation is supported by the implementation, or zero if prefetch is not supported.

If a prefetch element is repeated, due to restart or repeat on a parent element the prefetch operation should occur again. This insures appropriately "fresh" data is displayed if, for example, the prefetch is for a banner ad to a URL whose content changes with each request.

Element attributes

The prefetch element supports the following attributes:

mediaSize
values: Bytes-value | Percent-value
Defines how much of the resource to fetch as a function of the file size of the resource. To fetch the entire resource without knowing its size, specify 100%. The default is 100%.
mediaTime
values: Clock-value | Percent-value
Defines how much of the resource to fetch as a function of the duration of the resource. To fetch the entire resource without knowing its duration, specify 100%. The default is 100%.
For discrete media (non-time based media like text/html or image/png) using this attribute causes the entire resource to be fetched.
bandwidth
values: Bitrate-value | Percent-value
Defines how much network bandwidth the user agent should use when doing the prefetch. To use all that is available, specify 100%. The default is 100%.

Any attribute with a value of "0%" is ignored and treated as if the attribute wasn't specified.

If both mediaSize and mediaTime are specified, mediaSize is used and mediaTime is ignored.

If the clipBegin or clipEnd in the media object are different from the prefetch, an implementation can use any data that was fetched but the result may not be optimal.

Attribute value syntax
Bytes-value
The Bytes-value value has the following syntax:

Bytes-value ::= DIGIT+ /* any positive number */

Percent-value
The percent-val value has the following syntax:

Percent-value ::= DIGIT+ "%" /* any positive number in the range 0 to 100 */

Clock-value
The Clock-value value has the following syntax:
Clock-value       ::= ( Hms-val | Smpte-val )
Smpte-val         ::= ( Smpte-type )? Hours ":" Minutes ":" Seconds
                      ( ":" Frames ( "." Subframes )? )?
Smpte-type        ::= "smpte" | "smpte-30-drop" | "smpte-25"
Hms-val           ::= ( "npt=" )? (Full-clock-val | Partial-clock-val
                      | Timecount-val)
Full-clock-val    ::= Hours ":" Minutes ":" Seconds ("." Fraction)?
Partial-clock-val ::= Minutes ":" Seconds ("." Fraction)?
Timecount-val     ::= Timecount ("." Fraction)? (Metric)?
Metric            ::= "h" | "min" | "s" | "ms"
Hours             ::= DIGIT+ /* any positive number */
Minutes           ::= 2DIGIT /* range from 00 to 59 */
Seconds           ::= 2DIGIT /* range from 00 to 59 */
Frames            ::= 2DIGIT /* smpte range = 00-29, smpte-30-drop range = 00-29, smpte-25 range = 00-24 */
Subframes         ::= 2DIGIT /* smpte range = 00-01, smpte-30-drop range = 00-01, smpte-25 range = 00-01 */
Fraction          ::= DIGIT+
Timecount         ::= DIGIT+
2DIGIT            ::= DIGIT DIGIT
DIGIT             ::= [0-9]

For Timecount values, the default metric suffix is "s" (for seconds).

This note is informative

A value of three sets of colon-separated digits can be produced both by Hms-val and Smpte-val. This is however not aproblem since in both cases the values are interpreted as Hours, Minutes and Seconds.

Bitrate-value
The Bitrate-value value specifies a number of bits per second. It has the following syntax:

Bitrate-value ::= DIGIT+ /* any positive number */

6.5.3 Integration Requirements for the PrefetchControl Module

A profile integrating the PrefetchControl module must add the attributes necessary to specify the media to be fetched. In general, these will be the same resource specifying attributes as those on the media elements themselves. In addition, the profile must add any necessary attributes to control the timing of the prefetch element.

6.5.4 Document Type Definition (DTD) for the PrefetchControl Module

See the full DTD for the SMIL Content Control modules.

6.6 The SMIL 3.0 SkipContentControl Module

This section is normative.

6.6.1 SMIL 3.0 SkipContentControl Module Overview

This module contains one attribute, skip-content attribute, that can be used to selectively control the evaluation of the element on which this attribute appears. This attribute is introduced for future extensibility of SMIL. The functionality is unchanged from SMIL 1.0.

6.6.2 Elements and Attributes

Element definition

The SkipContentControl module does not contain any element definitions.

The skip-content attribute

skip-content
value: true | false
This attribute controls whether the content of an element is evaluated or should be skipped.
  • If a new element is introduced in a future version of language allowing markup from a previous version of the language as element content, the skip-content attribute controls whether this content is processed by the user agent.
  • If an empty element in a version of a language becomes non-empty in a future SMIL version, the skip-content attribute controls whether this content is ignored by a user agent, or results in a syntax error.
If the value of the skip-content attribute is true, and one of the cases above apply, the content of the element is ignored. If the value is false, the content of the element is processed.
The default value for skip-content is true.

6.6.3 Integration Requirements for the SkipContentControl Module

It is the responsibility of the language profile to specify which elements have skip-content attributes to enable this expansion mechanism.

6.7 The SMIL 3.0 RequiredContentControl Module

This section is normative.

6.7.1 SMIL 3.0 RequiredContentControl Module Overview

This module contains one attribute, systemRequired, which is used to identify one or more namespace prefixes. These prefixes may be used to define a minimum set of modules that a user agent must support to process a given SMIL file. This attribute is a critical component of the SMIL Scalability Framework.

6.7.2 Elements and Attributes

Element definition

The RequiredContentControl module does not contain any element definitions.

The systemRequired attribute

systemRequired (system-required)
value: list of namespace prefix language extensions
This attributes provides an extension mechanism for new elements or attributes. Evaluates to true if all of the extensions in the list are supported by the implementation, otherwise, this evaluates to false. The syntax of the systemRequired and the deprecated system-required attributes are defined using EBNF notation (as defined in [XML11]) as list of XML namespace prefixes [XML-NS], separated by the '+' character:
SystemRequiredArgumentValue := Nmtoken (S? "+" S? Nmtoken)*

Where allowed white space is indicated as 'S', defined as follows (taken from the [XML11] definition for 'S'):

S ::= (#x20 | #x9 | #xD | #xA)+

6.7.3 Integration Requirements for the RequiredContentControl Module

It is the responsibility of the language profile to specify which elements support the systemRequired attribute. In order to support the SMIL Scalability Framework, all profiles are expect to at least support this attribute on the top-level SMIL element.

7. SMIL 3.0 Layout

Editor for SMIL 3.0
Dick Bulterman, CWI
Editors for Earlier Versions of SMIL
Aaron Cohen, Intel
Dick Bulterman, Oratrix/CWI
Erik Hodge, RealNetworks.

7.1 Summary of Changes for SMIL 3.0

This section is informative.

In order to provide better support for multiple layout processors and to meet the needs of the new SMIL 3.0 Tiny profile, SMIL 3.0 Layout defines the StructureLayout module. This module defines the layout element, which can now be used to identify the layout mechanism used by a SMIL profile independently of the SMIL basic layout architecture.

SMIL 3.0 Layout also extends the BasicLayout module with the backgroundOpacity attribute, which specifies the background opacity of a region. This attribute applies to both the background color of a SMIL layout region and to the opacity of background images specified for a region (if supported by the profile). This attribute complements new features defined in the Media Objects module to control media opacity for media types that support opacity control.

SMIL 3.0 Layout now restricts the functionality in the OverrideLayout module to be dependent on the ability to define dynamic subregions on media objects in the SubRegionLayout module. This removes a functional conflict with overriding behavior on base region values when subregion positioning is not supported.

SMIL 3.0 changes the value of the soundLevel attribute to now contain a relative sound level definition. This provides a logarithmic/exponential volume control mechanism for audio.

This version of the SMIL 3.0 Layout modules also provides minor editorial changes to the text of all of the module descriptions and it provides an expanded set of informative examples of layout element and attribute use.

7.2 Introduction

This section is normative.

This section defines the SMIL Layout Modules, which contain elements and attributes that allow positioning of media elements on visual and audio rendering surfaces and to control of audio volume. Since these elements and attributes are defined in modules, designers of other markup languages can choose the appropriate level of functionality to be included in their languages. Language designers incorporating other SMIL modules may include all, some or none of the modules described in this section.

7.2.1 Module Overview

SMIL 3.0 Layout functionality is partitioned across the following eight modules:

StructureLayout
The StructureLayout module defines the top-most layout element and its attribute. This element identifies the layout mechanism used in a SMIL presentation (if any). All other layout modules are dependent on this functionality.
BasicLayout
The BasicLayout module extends the StructureLayout module and defines the core SMIL layout elements and their attributes. Using these attributes, basic positioning may be achieved for simple presentations.
AudioLayout
The AudioLayout module extends the BasicLayout module with a single attribute to control audio output sound levels.
MultiWindowLayout
The MultiWindowLayout module extends the BasicLayout module by defining an alternative to the root-layout element for defining the outer containing rendering space for a presentation. This module also defines functionality for supporting multiple top-level windows simultaneously.
SubRegionLayout
The SubRegionLayout module extends the BasicLayout module by defining a facility for creating logically nested regions. These regions may be created statically within the layout element or dynamically on a media object reference.
AlignmentLayout
The AlignmentLayout module extends the BasicLayout module by defining attributes to position content within a region based on a set of registration points and alignment algorithms. Several convenience attribute values are also provided to simply common authoring cases.
BackgroundTilingLayout
The BackgroundTilingLayout module extends the BasicLayout module by defining a facility to fill a region background with a tiled image instead of simply a background color.
OverrideLayout
The OverrideLayout module extends the SubRegionLayout module by allowing per-media-object overrides of various layout attribute values.

This section is informative.

Note that the SMIL 2.0 HierarchicalLayout module was deprecated in SMIL 2.1; all of this module's functionality was partitioned across other layout modules and thus it is not part of SMIL 3.0 Layout.

7.2.2 Support for Multiple Layout Models

The SMIL layout architecture allows support for multiple layout models within a presentation. Media layout may be described using the SMIL layout syntax described in this chapter or by using another layout mechanism, such as CSS2 syntax [CSS2]. Other layout types are possible as well.

Support for multiple layout models is implementation profile dependent. A given profile may support multiple layout models simultaneously (with selection performed using the SMIL switch element), or it may dictate that only a single layout model is supported (such as the use of CSS2 layout within the XHTML+SMIL candidate profile[XHTMLplusSMIL].

The remainder of this chapter defines the mechanism to identify the layout model used by a presentation and then describes the features of the SMIL 3.0 smil-basic layout semantics.

7.3 The SMIL StructureLayout Module

This section is normative.

7.3.1 Overview

The SMIL StructureLayout module defines the layout element, which is used to indicate the layout model to be used with a given SMIL document. The layout element is used in the document head section.

7.3.2 Elements and Attributes

This section defines the elements and attributes that make up the functionality in the SMIL StructureLayout module.

The layout element

The layout element contains the elements that define a particular layout model to be used within a SMIL presentation. If present, the layout element must appear in the head section of the document.

If a document contains no layout element, no SMIL-defined default values are assigned and the positioning of the body elements is totally implementation-dependent.

SMIL-defined default layout semantics can be assigned to all renderable elements by selecting the empty layout element <layout></layout>.

Element Attributes
type
This attribute specifies which layout language is used in the layout element. If the user agent does not understand this language, it must skip the element and all of its content up until the next </layout> tag. The default value of the type attribute is "text/smil-basic-layout". This identifier value supports SMIL 3.0 BasicLayout module layout semantics.
Element content

If the type attribute of the layout element has the value "text/smil-basic-layout", (or if no type attribute is defined) the layout element may contain the elements of the BasicLayout module, plus any additional layout modules defined by the profile incorporating these modules. Profiles incorporating the BasicLayout module may define additional elements that are allowed as children of the layout element.

If the type attribute of the layout element has a value other than "text/smil-basic-layout", the element contains character data.

7.3.3 StructureLayout Module Events

This module does not define any SMIL events.

7.3.4 SMIL StructureLayout Implementation and Integration

Implementation Details

This module provides a wrapper for a particular layout model. A given SMIL rendering agent may support all, some or none of the layout models defined for use with SMIL 3.0.

Integration Requirements

The functionality in this module builds on top of the functionality in the Structure module, which is a required prerequisite for inclusion of the StructureLayout module.

7.3.5 Document Type Definition (DTD) for the StructureLayout Module

See the full DTD for the SMIL Layout modules.

7.4 The SMIL BasicLayout Module

This section is normative.

7.4.1 Overview

SMIL BasicLayout module defines a layout model for organizing media elements into regions on the visual rendering surface. The regions are declared within the layout element in the document head. Media elements declare which region they are to be rendered into with the region attribute.

Each region has a set of CSS2 compatible properties such as top, left, height, width, and backgroundColor. These properties may be declared using a syntax defined by the type attribute of the layout element. In this way, media layout can be described using the either SMIL basic layout syntax or CSS2 [[CSS2 - absolute-positioning]] syntax (note that these are not functionally identical). Other layout types are possible as well.

This section is informative.

An example declaration to define a region with the id "r" at location 15,20 that is 100 pixels wide by 50 pixels tall using the SMIL BasicLayout module is:

    <layout>
      <region xml:id="r" top="15px" left="20px" width="100px" height="50px"/>
    </layout>

To display a media element in the region declared above, specify the region's id as the region attribute of the media element:

    <ref region="r" src="http://..." />

7.4.2 Elements and Attributes

This section defines the elements and attributes that make up the functionality in the SMIL BasicLayout module.

The region element

The region element controls the position, size and scaling of media object elements that are placed within its rendering space.

The position of a region, as specified by its top, bottom, left, and right attributes, is always relative to the parent geometry, which is defined by the parent element. For the SMIL BasicLayout module, all region elements must have as their immediate parent a layout element, and the region position is defined relative to the root window declared in the sibling root-layout element. The root-layout element is considered to be the logical parent of all region elements in SMIL BasicLayout. The intrinsic size of a region is equal to the size of the logical parent's geometry.

When region sizes, as specified by width and height attributes are declared relative with the "%" notation, the size of a region is relative to the size of the parent geometry. Sizes declared as absolute pixel values maintain those absolute values.

Conflicts between the region size and position attributes width, height, bottom, left, right, and top are resolved according to the rules for placeholder elements as detailed below. The default values of region position and size attributes is specified as auto. This attribute value has the same meaning here that it does in [CSS2], when there is no distinction drawn between replaced and non-replaced element.

A placeholder element is one which has no intrinsic width or height, but does have a bounding-box which has a width and height. SMIL BasicLayout regions are placeholder elements. Placeholder elements are clipped to the bounding box.

The governing equation for the horizontal dimension is:

bbw (bounding-box-width) = left + width + right

Given that each of these three parameters may have either a value of "auto" or a defined value not "auto", then there are 8 possibilities:

Attribute values

Result before clipping to the bounding box

left width right left width right
auto auto auto 0 bbw 0
auto auto defined 0 bbw - right right
auto defined auto 0 width bbw - width
auto defined defined bbw - right - width width right
defined auto auto left bbw - left 0
defined auto defined left bbw - right - left right
defined defined auto left width bbw - left - width
defined defined defined left width bbw - left - width

The vertical attributes height, bottom, and top are resolved similarly. The governing equation for the vertical dimension is:

bbh (bounding-box-height) = top + height + bottom

Given that each of these three parameters may have either a value of "auto" or a defined value not "auto", then there are 8 possibilities:

Attribute values

Result before clipping to the bounding box

top height bottom top height bottom
auto auto auto 0 bbh 0
auto auto defined 0 bbh - bottom bottom
auto defined auto 0 height bbh - height
auto defined defined bbh - bottom - height height bottom
defined auto auto top bbh - top 0
defined auto defined top bbh - bottom - top bottom
defined defined auto top height bbh - top - height
defined defined defined top height bbh - top - height
Element attributes

The region element may have the following visual attributes:

backgroundColor
The use and definition of this attribute are identical to the "background-color" property in the CSS2 specification. Unlike SMIL 1.0, this module requires support for CSS2 system colors [CSS2], (Section 18.2).
This attribute specifies the background color used to fill the area of a region displaying media that is not filled by the media. The display of the background color when the region is not in use by a media element is controlled by the showBackground attribute.
The backgroundColor attribute may take on the CSS value inherit. This means that the background color will be that of the parent element. If the parent element does not have an applicable background color property, the default value depends on the language profile: if the background-color attribute is supported by the language profile, the default value of backgroundColor is inherited from background-color. Otherwise, the default value is transparent. The interaction of this attribute with backgroundOpacity is discussed in the Implementation section.
background-color
Deprecated. Equivalent to backgroundColor, which replaces this attribute. The language profile must define whether or not the background-color attribute is supported. The default value of the background-color attribute is transparent.
backgroundOpacity
This attribute defines the opacity of the background of the region. It accepts a percentage value in the range 0-100% or a number in the range 0.0-1.0, with 100% or 1.0 meaning fully opaque. If an implementation cannot support manipulation of the background opacity value, this attribute is ignored. The default value of this attribute is 100%. The interaction of this attribute with backgroundColor is discussed in the Implementation section.
bottom
The use and definition of this attribute are identical to the "bottom" property in the CSS2 specification. Attribute values can be non-negative "percentage" values, and a variation of the "length" values defined in CSS2. For "length" values, SMIL BasicLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2). Conflicts between the region size attributes bottom, left, right, top, width, and height are resolved according to the rules for absolutely positioned, replaced elements in [CSS2]. The default value of bottom attribute is auto.
fit
This attribute specifies the behavior if the intrinsic height and width of a visual media object differ from the values specified by the height and width attributes in the region element. This attribute does not have a one-to-one mapping onto a CSS2 property, but may be simulated in CSS2.
This attribute may have the following values:
fill
Scale the object's height and width independently so that the content just touches all edges of the box.
hidden
Has the following effect:
  • If the intrinsic height (width) of the media object element is smaller than the height (width) defined in the region element, render the object starting from the top (left) edge and fill up the remaining height (width) with the background color.
  • If the intrinsic height (width) of the media object element is greater than the height (width) defined in the region element, render the object starting from the top (left) edge until the height (width) defined in the region element is reached, and clip the parts of the object below (right of) the height (width).
meet
Scale the visual media object while preserving its aspect ratio until its height or width is equal to the value specified by the height or width attributes, while none of the content is clipped. The object's left top corner is positioned at the top-left coordinates of the box, and empty space at the right or bottom is filled up with the background color.
meetBest
The semantic of this value is identical to meet except that the image is not scaled to greater than 100% in either dimension. This limits degradation of upwardly-scaled media content.
scroll
A scrolling mechanism should be invoked when the element's rendered contents exceed its bounds.
slice
Scale the visual media object while preserving its aspect ratio so that its height or width are equal to the value specified by the height and width attributes while some of the content may get clipped. Depending on the exact situation, either a horizontal or a vertical slice of the visual media object is displayed. Overflow width is clipped from the right of the media object. Overflow height is clipped from the bottom of the media object.

The default value of fit is hidden.

Note that the fit attribute applies to visual media once it has an intrinsic two-dimensional size, such as images and video. It does not apply to visual media that is rendered and adapted to varying circumstances, such as the visual display of HTML, until its two-dimensional spatial dimensions have been determined, such as after an HTML page has been laid out to specific size.

height
The use and definition of this attribute are identical to the "height" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the bottom attribute. The intrinsic height of a region is the same as that of the parent geometry. The default value of the height attribute is auto.
left
The use and definition of this attribute are identical to the "left" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the "bottom" attribute. The default value of the left attribute is auto.
regionName
This attribute assigns a name to this region element that can be referred to by the region attribute of media object elements. The regionName attribute is not a unique identifier; multiple region elements can share the same regionName attribute value. This attribute does not have a default value.
right
The use and definition of this attribute are identical to the "right" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the "bottom" attribute. The default value of right attribute is auto.
showBackground
This attribute controls whether the backgroundColor of a region is shown when no media is being rendered to the region:
  • If the value of showBackground is always, then the background color will be shown in the region when no media object is rendering into that region. If the region is part of a hierarchical sub-region layout, then any ancestor regions must also either be active or have a showBackground value of always for the background color to be shown.
  • If the value of showBackground is whenActive, then the background color will be not be shown in the region when no media object is rendering into that region. If the region is part of a hierarchical sub-region layout, then the background color will also be shown when any descendent regions are active.
The default value of showBackground is always.
top
The use and definition of this attribute are identical to the "top" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the bottom attribute. The default value of the top attribute is auto.
width
The use and definition of this attribute are identical to the "width" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the bottom attribute. The intrinsic width of a region is the same as that of the parent geometry. The default value of width attribute is auto.
z-index
The use and definition of this attribute are identical to the "z-index" property in the CSS2 specification, with the following exception:

If two boxes generated by elements A and B have the same stack level, then:
  • If the display of an element A starts later than the display of an element B, the box of A is stacked on top of the box of B (temporal order).
  • Else, if the display of the elements starts at the same time, and an element A occurs later in the SMIL document text than an element B, the box of A is stacked on top of the box of B (document tree order as defined in CSS2).

A profile integrating the SMIL BasicLayout module must provide a means of declaring an XML identifier on region elements.

Element examples

This section is informative.

In the following example fragment, the position of a text element is set to a 5 pixel distance from the top border of the rendering window:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
<head>
...
<layout>
...
<region xml:id="a" top="5" />
...
</layout>
</head>
<body>
...
<text region="a" src="text.html" dur="10s" />
...
</body>
</smil>

The root-layout element

The root-layout element determines the value of the layout properties of the root element, which in turn determines the size of the window in which the SMIL presentation is rendered.

If more than one root-layout element is parsed within a single layout element, this is an error, and the document should not be displayed. This does not include root-layout elements skipped by the user agent (e.g. because the enclosing layout element was skipped due to an unrecognized type or because a test attribute evaluated to false).

The semantics of the root-layout element are as in SMIL 1.0: the attributes of the root-layout element determine the size of the top level presentation window, and the declared sibling regions are arranged within this top level window. If either the height or width of the root-layout element is not specified, the value of the attribute is implementation-dependent.

Element attributes
backgroundColor
Defined in backgroundColor under the region element. Note that the effective default behavior is transparent, which implies that, by default, the implementation-dependent window background will be shown.
background-color
Deprecated. Defined in background-color under the region element.
backgroundOpacity
Defined in backgroundOpacity under the region element.
height
Sets the height of the root element. Only length values are allowed. For "length" values, SMIL BasicLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
width
Sets the width of the root element. Only length values are allowed. For "length" values, SMIL BasicLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
Element content

The root-layout element is an empty element. This element supports the SMIL 1.0 syntax where the root-layout element is an empty sibling of the top level region elements.

Element examples

This section is informative.

The following example extends the fragment above with a specification of the root-layout element:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
<head>
<layout>
<root-layout width="320" height="480" />
<region xml:id="a" top="5" />
</layout>
</head>
<body>
<text region="a" src="text.html" dur="10s" />
</body>
</smil>

Note that the root-layout element is placed at a peer-level within the layout section. SMIL Layout also supports a nested containment model using the topLayout element defined in the MultiWindowLayout module.

The region attribute

The region attribute is added to the ref element (and its synonyms). The target of this attribute will be one or more regions with a regionName declared that matches the value of this attribute, or a single region element with a region attribute that matches this value. For processing rules, see the section Implementation details.

7.4.3 SMIL BasicLayout Implementation and Integration

Implementation Details

SMIL BasicLayout module is consistent with the visual rendering model defined in CSS2, it reuses the formatting properties defined by the CSS2 specification, and newly introduces the fit attribute [CSS2]. The reader is expected to be familiar with the concepts and terms defined in CSS2.

SMIL layout regions influence the propagation of user interface events (such as a mouse click, or hyperlink activation) to underlying visible elements. When the location of an event corresponds to the background of a region rather than the media that is displayed in that region, a region background color of transparent allows user interface events to pass through to elements lower in the display stacking order. Conversely, regions with non-transparent background colors will capture user interface events, not allowing the event to pass through to elements lower in the display stacking order. This behavior is separate from that of a language profile's ability to make use of user interface events captured by region elements.

An element that does not refer to a valid region element will display in the default region. If not otherwise specified by the profile, the default region is defined as filling and aligned to the upper-left corner of the presentation window. This default region takes on default values for all other region attributes.

The region attribute is applied to an element in order to specify which rendering region is assigned to the element. The attribute refers to the abstract rendering region (either visual or acoustic) defined within the layout section of the document. The referenced abstract rendering region is determined by applying the following rules, in order:

  1. Find all elements in the layout section with regionName attributes that are assigned the same value as that of the region attribute.
  2. Remove the elements from this collection that are removed from the rendered presentation due to the processing of switch elements and test attributes.
  3. If any elements remain, the media should be rendered in all of the referred to regions. If the implementation cannot render the media simultaneously in multiple regions, then the media should be rendered using the lexically first remaining element.
  4. If no elements have a regionName attribute that is assigned the same value as that of the region attribute, then select the element in the layout section whose unique identifier is the value of the region attribute.

If this process selects no rendering surface defined in the layout section, the values of the formatting properties of this element are defined by the default layout values, which is described in the section on integration requirements for this module.

The definition of backgroundOpacity and the value transparent for backgroundColor are independent. For example, a combination of backgroundOpacity=100% and backgroundColor=transparent results in a transparent background.

Integration Requirements

A profile integrating the SMIL BasicLayout module must define the content models for the layout element if any elements beyond those specified here are to be allowed as children.

A profile integrating the SMIL BasicLayout module must provide a means of declaring an XML identifier on region elements if the profile intends on referring to region elements by XML identifier. This value is used as the argument value to the region attribute. This is not required if the profile will only use the regionName method of referring to a region element.

A profile integrating the SMIL BasicLayout module must specify which elements have a region attribute and any inheritance of the attribute.

If not otherwise defined by the profile, the default values of the layout attributes listed in the SMIL layout modules will apply to presented elements not otherwise specifying layout semantics.

The functionality in this module builds on top of the functionality in the StructureLayout module, which is a required prerequisite for inclusion of the BasicLayout module.

7.4.4 Document Type Definition (DTD) for the BasicLayout Module

See the full DTD for the SMIL Layout modules.

7.5 The SMIL AudioLayout Module

This section is normative.

7.5.1 Overview

In SMIL AudioLayout, one attribute is supported that allows the relative sound intensity of an audio object to be specified via the soundLevel attribute. When used in conjunction with SMIL 3.0 Animation (and if supported by the profile), the value of the attribute may be varied over time.

This section is informative.

The following region defines an audio sound level that is set to -6dB relative to its normal recorded value:

  <layout>
    ...
    <region xml:id="a" soundLevel="-6dB"/>
    ...
  </layout>

The same approximate effect could be obtained by using the attribute's percentage notation:

  <layout>
    ...
    <region xml:id="a" soundLevel="50%"/>
    ...
  </layout>

7.5.2 Audio Volume Control

SMIL AudioLayout module supports control of aural media volumes via a property on the region element, soundLevel. Multimedia assigned to a region with an explicit soundLevel attribute will have its audio rendered at the given relative sound intensity. If the profile integrating this module also include the OverrideLayout module, the soundLevel attribute may also be placed as modifiers on individual media references.

7.5.3 Elements and Attributes

This section defines the soundLevel attribute that makes up the SMIL AudioLayout module.

The region element

The region element defined in the BasicLayout module is extended with the addition of the soundLevel attribute.

Element attributes

The region element may have the following aural attribute:

soundLevel
Specifies the relative volume of the audio portion of a media element assigned to play within the given region. This associates the region element with a sound reproduction unit. Cascaded regions will accumulate their respective sound level settings, as will be explained below. Regions that are used for multiple sources apply their sound level setting to all of them. A sound source may be reproduced by different units, e.g., through application of the regionName attribute. In such a "multiple window" case, a separate soundLevel may be applied to each instance of the sound source, one per region. Sound level settings are as percentage values or in decibels (dB). Assigned level changes accumulate across nested regions by summing values.

Valid values are either non-negative CSS2 percentage values [CSS2], (section 4.3.3) or signed ("+" or "-") CSS2 numbers [CSS2] (section 4.3.1), immediately followed by the suffix "dB".

Percentage values are interpreted relative to the recorded volume of the media. A setting of '0%' plays the media silently. A value of '100%' will play the media at its recorded volume (0 dB). Similarly, a value of '200%' will play the media nearly twice as loud (6 dB) as its recorded volume (subject to hardware limitations). The default value is '100%'.

Decibel values are interpreted relative to the recorded volume of the media. The values are interpreted as a ratio of the squares of the new signal amplitude (a1) and the recorded amplitude (a0), and are defined in terms of dB:

soundLevel(dB) = 10 log10 (a1*a1 / a0*a0) = 20 log10 (a1 / a0)

A setting of a large negative value effectively plays the media silently. A value of '-6.0dB' will play the media at approximately half the amplitude of its recorded signal amplitude, and is equivalent to a percentage value of 50%. Similarly, a value of '+6dB' will play the media at approximately twice the amplitude of its recorded signal amplitude (subject to hardware limitations), and is equivalent to a percentage notation of 200%. The default value is '+0.0dB', which specifies no change to the recorded signal amplitude.

The absolute sound level of media perceived is further subject to system volume settings, which cannot be controlled with this attribute.

7.5.4 Integration Requirements for the AudioLayout Module

The functionality in this module builds on top of the functionality in the BasicLayout module, which is a required prerequisite for inclusion of the AudioLayout module.

7.5.5 Document Type Definition (DTD) for the AudioLayout Module

See the full DTD for the SMIL Layout modules.

7.6 The SMIL MultiWindowLayout Module

This section is normative.

7.6.1 Overview

This section defines the functionality in the SMIL MultiWindowLayout module. This level contains elements and attributes providing for creation and control of multiple top level windows on the rendering device.

In the architecture of the SMIL BasicLayout module, each presentation is rendered into a single root window of a specific size/shape. The root window contains all of the regions used to manage the rendering of specific media objects and is defined by a peer-level root-layout element.

The SMIL Layout specification extends the root container level with the notion of a top-level rendering window, called a topLayout window. A SMIL layout section may support one or more topLayout windows. The assignment of the regions to individual top level windows allows independent placement and resizing of each top-level window, if supported by the including profile and implementation. The initial placement of the top level windows on the display device and any available means of relocating the top level windows is implementation-dependent.

The top-level windows function as rendering containers only, that is, they do not carry temporal significance. In other words, each window does not define a separate timeline or any other time-container properties. There is still a single master timeline for the SMIL presentation, no matter how many top-level windows have been created. This is important to allow synchronization between media displayed in separate top-level windows.

The display of top level windows can be controlled automatically by the player, or manually by the user of the application. If a window is closed (by the user) while any of the elements displayed in that window are active, there is no effect on the timeline (if any) of those elements. However, a player may choose not to decode content as a performance improvement. The means provided to a user to close top level windows is implementation-dependent.

For SMIL 1.0 compatibility, the root-layout element will continue to support SMIL 1.0 layout semantics. The new topLayout element will support the extension semantics and the improved, nested syntax.

Note also that any one region may belong to at most one top-level (or root-level) window. Regions not declared as children of a topLayout element belong to the root-layout window. If no root-layout element has been declared, the region is assigned to an additional window according to the semantics in the BasicLayout module.

7.6.2 Elements and Attributes

This section defines the elements and attributes that make up the SMIL MultiWindowLayout module.

The topLayout element

The topLayout element determines the size of the a window in which the SMIL presentation is rendered, as well as serving as a top level window in which to place child region elements.

Multiple topLayout elements may appear within a single layout element, each declaring an independent top-level window.

Each instance of a topLayout element determines the size of a separate top-level presentation window, and the descendant regions are arranged within this top-level window and relative to the coordinate system of this window.

This module also provides control over when topLayout windows open and close in a presentation. Note that the precise mapping of topLayout windows on to the host environment is implementation-dependent. It is expected that implementations will "pop up" independent desktop windows if they can, but other means of supporting multiple topLayouts, such as by using frames, are allowed. When automatically opening and closing windows, applications should try to comply with the WAI User Agent Guidelines [UAAG] and allow the user to choose whether to be warned that windows are being opened and closed, and give a method for disabling automatic opening and closing of windows.

Element attributes
backgroundColor
Defined in backgroundColor under the region element. Note that the effective default behavior is transparent, which implies that, by default, the implementation-dependent window background will be shown.
backgroundOpacity
Defined in backgroundOpacity under the region element.
close
Specifies when the top level window should be closed. If the value of close is onRequest, then the top level window should not be closed automatically by the player and will only close if the user explicitly closes it via the user interface. If the value of close is whenNotActive, then the top level window should close automatically when no media is being displayed in any one of the window's regions. For timed media using the SMIL timing and synchronization modules, this means when there is no media within its active duration or freeze period using any region of the topLayout. The default value of close is onRequest.
height
Sets the height of the top-level window. Only length values are allowed. For "length" values, SMIL MultiWindowLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
open
Specifies when the top level window should be opened. If the value of open is onStart, then the top level window should be opened when the presentation begins, and if closed, should not be reopened automatically during the presentation. If the value of open is whenActive, then, if not already open, the top level window should be opened when media is displayed in one of the window's regions. For timed media using the SMIL timing and synchronization modules, this means when there is any media within its active duration or freeze period using any region of the topLayout. The default value of open is onStart.
width
Sets the width of the top-level window. Only length values are allowed. For "length" values, SMIL MultiWindowLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
Element content

The topLayout element may contain any number of region elements, or be empty.

Element examples

This section is informative.

The following example provides a restatement of the root-layout example:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  <head>
    <layout>
      <topLayout width="320" height="480" />
        <region xml:id="a" top="5" />
      </topLayout/>
    </layout>
  </head>
  <body>
    <text region="a" src="text.html" dur="10s" />
  </body>
</smil>

Multiple instances of the topLayout element may occur within a single layout element:

  <layout>
    <topLayout xml:id="WinV" title="Video" width="320" height="240"/>
      <region xml:id="pictures" title="pictures" height="100%" fit="meet"/>
    </topLayout>
    <topLayout xml:id="WinC" title="Captions" width="320" height="60">
      <region xml:id="captions" title="caption text" top="90%" fit="meet"/>
    </topLayout>
  </layout>

In this example, two top-level windows are defined ("WinV" and "WinC"), and two regions are defined with one region ("pictures") assigned to WinV and the other ("captions") to WinC. These windows may be opened and closed independently by the presentation or by a user.

The layout element

The MultiWindowLayout module does not redefine the BasicLayout layout element. Instead, it simply extends the content model for that element, as described in the following subsection.

Element content

The layout element defined in the SMIL BasicLayout module is extended by adding topLayout element to the content model of the layout element if the type attribute of the layout element has the value "text/smil-basic-layout".

7.6.3 MultiWindowLayout Module Events

This module includes two events that may be included in the integrating language profile.

topLayoutOpenEvent
Raised when a topLayout window opens. This event is delivered to the associated topLayout element. If a topLayout closes and then reopens when additional media becomes active in any of its regions, this event will be raised again, and will be raised every subsequent time it reopens.
topLayoutCloseEvent
Raised when a topLayout closes for any reason. This event is delivered to the associated topLayout element. If a topLayout reopens when additional media becomes active in any of its regions, this event will be raised again if and when the topLayout closes again, and will be raised every subsequent time it closes.

7.6.4 Implementation and Integration Requirements for the MultiWindowLayout Module

Implementation details

Allowing multiple topLayout elements within a single layout element implies support for multiple top level windows. If an implementation does not support multiple top level windows (because of device or processing restrictions), only content in the first top-level window defined in the layout will be rendered. Non-rendered objects will still participate in all SMIL timing and scheduling operations.

If used together with the root-layout element, any direct peer-level regions to the root-layout will be contained within the extents of the root-layout.

7.6.5 Integration Requirements for the MultiWindowLayout Module

The functionality in this module builds on top of the functionality in the BasicLayout module, which is a required prerequisite for inclusion of the MultiWindowLayout module.

The language profile must specify the declarative names for binding the topLayoutOpenEvent and topLayoutCloseEvent events described in the MultiWindowLayout Module Events section, as well as the bubbling behavior of the events.

7.6.6 Document Type Definition (DTD) for the MultiWindowLayout Module

See the full DTD for the SMIL Layout modules.

7.7 The SMIL SubRegionLayout Module

This section is normative.

7.7.1 Overview

The SubRegionLayout module defines two mechanisms for defining regions that are logically contained within a parent region (these are SMIL's sub-regions). First, the SubRegionLayout module extends the definition of the region element to allow for the specification of sub-regions within the layout section as hierarchical content of regions. Second, the SubRegionLayout module extends the attributes allowed on (media) object references to allow a dynamic sub-region to be defined in-line by that object instance only. All values given for placement within sub-regions are defined in terms of the parent region's placement attributes. The ability to define sub-regions may be exploited for authoring convenience or when changing the location of a group of related regions using SMIL Animation.

This section is informative.

In the following fragment, a parent region (CaptionedVideo) is defined that contains two hierarchical sub-regions: image and captions. The placement of the image and caption content is specified as relative to the dimensions of the parent region. This is an example of a statically-defined hierarchy of sub-regions.

  <layout>
     ...
     <region xml:id="CaptionedVideo" top="10px" left="20px" width="320" height="300">
       <region xml:id="image" title="image content" width="100%" height="240px" fit="meet"/>
       <region xml:id="captions" title="caption text" top="240px" height="60px" fit="meet"/>
     </region>
     ...
  </layout>

A presentation using the above layout specification could also create a dynamic sub-region that is defined for use by this single object:

  <body>
      ...
     <img xml:id="Title" region="image" top="5%" left="3" bottom="10%" right="15%"  src="TitleImage.png"/>
     ...
  </body>

This statement creates a sub-region with the named region "image" with the given extents. In the example above, the effective boundaries of the sub-region for the placement of this object are defined by declaring the top, bottom, left and right edges of the region to the values shown, and then filling the resulting sub-region with the specified image as directed by the fit attribute. If the size of the media object being displayed is smaller than that of the resulting sub-region, the display will be similar to: picture of sub-regions

The use of in-line sub-region placement is intended as a light-weight alternative to defining a large number of single-use regions. Often, the dimensions used for the sub-region will match the dimensions of the media object being placed, but in all cases the values of the fit attribute will govern rendering of the object in the sub-region. The other attributes on the media element that would have been applied to a referenced region are applied to the sub-region instead. Note that the default values for the sub-region attributes are all 'auto', meaning that, by default, a sub-region is created having the same size and position as the parent region.

The use of sub-region positioning leads to authoring convenience and SMIL file compactness, since many separate regions do not need to be defined to handle incidental layout needs. The support for a hierarchy of sub-regions also allows multiple layout objects to be animated in concert by moving the parent region using SMIL Animation facilities.

7.7.2 Elements and attributes

This section defines extensions to the region and ref elements (and its synonyms) to support sub-region functionality.

The region element

This module extends the definition of the region element to include the definition of hierarchical sub-regions.

Element attributes

In the SubRegionLayout module, the region element has no additional attributes beyond that provided in the other included layout modules. However, the semantics of the z-index attribute are extended to support hierarchical sub-regions.

z-index
This attribute is defined as in the BasicLayout module with extensions presented here.
The z-index attribute defines the level of the region within the parent region stacking context. Elements assigned to higher level regions are rendered in front of lower level regions within the same parent region. Child regions are always placed in front of their parent region. This results in a two stage sorting of region visibility: first by parent-child containment, and then by z-index among siblings.

Just as with simple non-hierarchical regions, the stacking order of hierarchical regions may be affected by temporal activation. A region becomes active either when media begins rendering into it, or when one of its child regions becomes active. If two sibling regions have the same z-index, the region most recently made active is in front of the other region.

Element content

The SMIL SubRegionLayout module extends the region element content model to include region elements.

The ref element (and its synonyms)

The SubRegionLayout module extends the ref element to allow a separate, unnamed sub-region to be defined for the media object reference containing the sub-region positioning attributes.

Element attributes

The ref element defined in the MediaObject module and its synonyms are extended to include the following positioning attributes.

top
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the top edge of the sub-region relative to the top of the region. The "px" unit qualifier in pixel values may be omitted. The default value of top is auto.
bottom
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the bottom edge of the sub-region relative to the bottom of the region. The "px" unit qualifier in pixel values may be omitted. The default value of bottom is auto.
height
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the bottom edge of the sub-region relative to the top side of the sub-region. The "px" unit qualifier in pixel values may be omitted. The default value of height is auto.
left
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the left edge of the sub-region relative to the left of the region. The "px" unit qualifier in pixel values may be omitted. The default value of left is auto.
right
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the right edge of the sub-region relative to the right side of the region. The "px" unit qualifier in pixel values may be omitted. The default value of right is auto.
width
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the right edge of the sub-region relative to the left side of the sub-region. The "px" unit qualifier in pixel values may be omitted. The default value of width is auto.

Conflicts between the region size attributes bottom,height, left, right, top, and width are resolved according to the rules for placeholder elements described in the section on the region element.

The sub-region positioning attributes will be ignored if they are used on an element without a region attribute (or, if supported, the regionName attribute) that resolves to a region element in the layout section.

7.7.3 SubRegionLayout Module Events

This module does not define any SMIL events.

7.7.4 SubRegionLayout Implementation and Integration

Implementation Details

The position of a region, as specified by its top and left attributes, is always relative to the parent geometry, which is defined by the parent element. For the SMIL SubRegionLayout module, all hierarchical region elements must have as their immediate parent a region or topLayout element. The position of the hierarchical region is defined relative to that parent element. The intrinsic size of a region is equal to the size of the parent geometry.

When region sizes, as specified by width and height attributes are declared relative with the "%" notation, the size of the hierarchical region is relative to the size of the parent region. Sizes declared as absolute pixel values are absolute values even when used with a child region.

Note that a (hierarchical) region may be defined in such a way as to extend beyond the limits of its parent. In this case the child region must be clipped to the parent boundaries.

If a z-index attribute is defined on the hierarchical region, it is evaluated as a local index within that of the parent.

If the fit attribute and alignment attributes regPoint and regAlign are relevant to the placement of a particular media object, the interaction is the same as described in the definition of regPoint. If sub-region positioning attributes are used on a media object along with fit or the alignment attributes regPoint and regAlign, these attributes apply to the sub-region. In this case the fit setting on the referenced region element does not apply to the sub-region.

For both sub-region positioning and registration point use (as defined in the module), the value of the z-index attribute on the associated region is used. If media objects overlap spatially, existing rules for resolving z-index conflicts are applied.

Note that placement within the region may be defined in such a way as to extend the media object beyond the limits of the region. In this case the media object must be clipped to the region boundaries.

If two hierarchical regions with the same z-index attribute value overlap, the existing rules for z-index processing defined in the BasicLayout module are applied. Specifically, the rule concerning time priority is maintained, meaning that in the case of a z-index conflict, the media visible in the overlap will be determined by the region that is rendering the media that has most recently begun in time. If the conflicting media began at the same time, then the rule using the textual order of the media elements in the SMIL document is applied.

This section is informative.

For example:

<layout>
   <root-layout width="640px" height="480px" />
   <region xml:id="whole" top="0px" left="0px" width="640px"
                                height="480px" z-index="5"/>
   <region xml:id="right" top="0px" left="320px" width="320px"
                                height="480px" z-index="4">
       <region xml:id="inset" top="140px" left="80" width="160px"
                                height="200px" z-index="6"/>
       <region xml:id="inset2" top="140px" left="80" width="160px"
                                height="200px" z-index="6"/>
       <region xml:id="inset3" top="140px" left="80" width="160px"
                                height="200px" z-index="7"/>
   </region>
</layout>
...
<par>
        <img xml:id="A" region="whole" src="imageA.jpg" dur="10s"/>
        <img xml:id="B" region="inset" src="imageB.jpg" dur="10s"/>
</par>
<par>
        <img xml:id="D" region="inset2" src="imageD.jpg" begin="1s" dur="10s"/>
        <img xml:id="C" region="inset" src="imageC.jpg" begin="0s" dur="10s"/>
</par>
<par>
        <img xml:id="E" region="inset2" src="imageE.jpg" dur="10s"/>
        <img xml:id="F" region="inset3" src="imageF.jpg" dur="10s"/>
</par>
  1. In the first "par", image "A" and image "B" begin at the same time. Image A will obscure image "B", even though the z-index of "inset" is greater than that of "whole". This is because the z-index of "right", which is the region containing "inset" is less than that of "whole".
  2. In the second "par", images "C" and "D" are rendered into regions occupying the same area of the rendering surface. Image "C" will be shown for one second and then obscured by Image "D", since "D" begins after image "C". Note that lexical order is irrelevant here.
  3. In the third "par", the z-index of region "inset" is considered when computing stacking between siblings, and therefore image "F" will be shown, but image "E" will be obscured for the entire 10 seconds that they are both active.

Integration Requirements for the SubRegionLayout Module

The functionality in this module builds on top of the functionality in the BasicLayout module and the MediaObject module, which are required prerequisites for inclusion of the SubRegionLayout module. If the functionality in this module is to be used with the topLayout construct, the MultiWindowLayout module is a prerequisite.

7.7.5 Document Type Definition (DTD) for the SubRegionLayout Module

See the full DTD for the SMIL Layout modules.

7.8 AlignmentLayout Module

This section is normative.

7.8.1 Overview

A registration element is an element defined within this module that is used to define a point within a region and a default object alignment algorithm about that point. The element may be used in a media object element, where it is associated with a region and an optional override alignment algorithm. The placement values within registration elements can be either percentages or pixels.

The use of registration points allows for consistent relative placement across regions. As such, registration points are defined outside of any single region.

Registration points may be used to coordinate the placement of a set of media objects that do not share the same sizes. (For example, a set of images may be aligned to the center of a region.) They can also be used to coordinate the display of images about a particular point in a region.

For authoring convenience, SMIL AlignmentLayout module provides several pre-defined region registration points including topLeft, topMid, topRight, midLeft, center, midRight, bottomLeft, bottomMid, and bottomRight.

As a further convenience, SMIL AlignmentLayout module provides the mediaAlign attribute, which defines a combination of regAlign and regPoint attributes. For example, media objects may be centered in any region using mediaAlign as follows:

    <ref ... mediaAlign="center" />

If the mediaAlign attribute and either (or both) of the regPoint and regAlign attributes are used together, the regPoint and/or regAlign value(s) will override the corresponding effective regPoint/regAlign value(s) defined by the mediaAlign value.

The default value of regAlign for a region is topLeft. If the regAlign attribute is used without a regPoint attribute, the alignment operation is relative to the upper left point of the region containing this object, that is, the behavior is the same as if the regPoint were to be specified as topLeft.

Rules for handling clipping of objects within regions based on the regPoint and regAlign attributes are defined below.

This section is informative.

An example is given in the following code of two registration points (with id values "midPoint" and "topMargin"), one of which is defined as a relative location and one at a fixed pixel location, using the SMIL AlignmentLayout syntax:

    <layout>
<regPoint xml:id="midPoint" top="50%" left="50%" regAlign="center" />
<regPoint xml:id="topMargin" top="10" left="15" regAlign="topLeft" />
<region xml:id="a" ... />
<region xml:id="b" ... />
</layout>

In this example, the registration point with the id value "midPoint" has a default alignment algorithm that centers the media object about the defined point, while the registration point with the id value "topMargin" has a default alignment algorithm that places the top-left point of the media object at the registration point.

Various media elements could be displayed in the regions using the alignment points as follows:


<ref region="a" src="rtsp://..." dur="2s" regPoint="midPoint" />
<ref region="b" src="http://..." dur="2s"
regPoint="midPoint" regAlign="bottomRight"/>
<ref region="a" src="http://..." dur="2s" regPoint="topMargin" />
<ref region="b" src="http://..." dur="2s"
regPoint="topMargin" regAlign="center"/>

In the first example, a media object is centered in the middle of regiona. In the second example, a media object has its bottom right corner centered in the middle of region b. Similarly, in the third example, a media object has its top left corner placed at a point 10,15 within region a, and in the fourth example, an object is centered around the point 10,15 in region b.

The following example illustrates how images may be aligned at a particular point in a region:

   <layout>
<regPoint xml:id="middle" top="50%" left="50%" regAlign="center" />
<region xml:id="a" ... />
</layout>
...
<seq>
<ref region="a" src="rtsp://..." dur="2s" regPoint="middle"
regAlign="bottomRight"/>
<ref region="a" src="http://..." dur="2s" regPoint="middle"
regAlign="bottomLeft"/>
<ref region="a" src="http://..." dur="2s" regPoint="middle"
regAlign="topLeft"/>
<ref region="a" src="http://..." dur="2s" regPoint="middle"
regAlign="topRight"/>
</seq>

In this example, four objects are aligned over time to the middle of region. If any media element extends outside the bounds of a region, it will be clipped to the region.

In the following example, media objects may be centered in any region using pre-defined registration and alignment points:

    <ref ... regPoint="center" regAlign="center" />

Note that registration points are global within the context of a layout, and are not tied to a particular region, but can be reused across regions. As such, pixel-based offsets should be used with care.

7.8.2 Elements and Attributes for the AlignmentLayout Module

This section defines the elements and attributes that make up the SMIL AlignmentLayout module.

The layout element

This element extends the content model of the layout element to support the registration point functionality described in this section.

Element content

If the type attribute of the layout element has the value "text/smil-basic-layout", it is extended to contain the following elements:

region
root-layout
regPoint

The regPoint element

The regPoint element determines the (x, y) coordinates of a point relative to a region upper-left corner for use in aligning elements in the document's body on regions within a visual rendering surface. A regPoint may be defined using absolute (pixel) or relative (percentage) based values. The regPoint functionality is not defined and may not be used for media without intrinsic size.

For the purposes of regPoint functionality, media and regions are defined to be rectangular, with perpendicular sides, with the sides ordered clockwise top, right, bottom, and left. The top side is the edge closest to the point or edge of the display device considered "up".

Element attributes
top
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the top of the region. The "px" unit qualifier in pixel values may be omitted. The default value of top is auto.
bottom
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the bottom of the region. The "px" unit qualifier in pixel values may be omitted. The default value of bottom is auto.
left
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the left location of the region. The "px" unit qualifier in pixel values may be omitted. The default value of left is auto.
right
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the right location of the region. The "px" unit qualifier in pixel values may be omitted. The default value of right is auto.
regAlign
This attribute specifies the default alignment algorithm which is associated with a regPoint relative to the media object. The value of topLeft is the default. The following values are allowed:
topLeft
Align the top-left corner of the object with the registration point.
topMid
Align the top-middle point of the object with the registration point. The top-middle is the point offset width/2 to the right of the object top-left corner.
topRight
Align the top-right corner of the object with the registration point.
midLeft
Align the middle-left point of the object with the registration point. The middle-left is the point offset height/2 down from the object top-left corner.
center
Align the center of the object with the registration point.
midRight
Align the middle-right point of the object with the registration point. The middle-right is the point offset height/2 down from the object top-right corner.
bottomLeft
Align the bottom-left corner of the object with the registration point.
bottomMid
Align the bottom-middle point of the object with the registration point. The bottom-middle is the point offset width/2 right from the object bottom-left corner.
bottomRight
Align the bottom-right corner of the object with the registration point.
Element content

None.

The region element

This module extends the definition of the region element to include the definition of default alignment policies for content in that region.

Element attributes
regPoint
This attribute is identical to the regPoint attribute on media objects defined below, except that it defines a default alignment point for all media objects placed in the region. The default value for this attribute when used on the region element is topLeft.
regAlign
This attribute is identical to the regAlign attribute on media objects defined below, except that it defines a default alignment policy for all media objects placed in the region. The default value for this attribute when used on the region element is topLeft.
mediaAlign
This attribute is identical to the mediaAlign attribute on media objects defined below, except that it defines a default combination registration point/alignment policy for all media objects placed in the region. The default value for this attribute when used on the region element is undefined; the default behavior of this attribute is the behavior resulting from the application of the regPoint and regAlign attributes. (Note that this defines an effective default behavior of topLeft.)
soundAlign
This attribute is identical to the soundAlign attribute on media objects defined below, except that it defines a default 2D placement of the audio portion of a media element assigned to play within the given region. The default value for this attribute when used on the region element is both.
Element content

SMIL AlignmentLayout module does not extend the region element content model.

The ref element (and its synonyms)

The AlignmentLayout module extends the ref element to allow the positioning of media content within a region based on the an alignment registration point and an alignment policy.

Element attributes

The ref element defined in the MediaObject module is extended to include the mediaAlign and regPoint attributes, both in conjunction with the regPoint element. If a regPoint attribute is missing or refers to a non-existent regPoint element the value of the regAlign attributes are applied to the top-left point of the region containing the media object.

regPoint
This value uniquely identifies the registration point to be used for the placement of the object. The value should be an XML identifier of a regPoint element.
The following values are predefined registration points that do not have to be declared as regPoint elements before they are used:
topLeft
Same as using top="0%" left="0%" on the element without the regPoint attribute.
topMid
Same as using top="0%" left="50%" on the element without the regPoint attribute.
topRight
Same as using top="0%" left="100%" on the element without the regPoint attribute.
midLeft
Same as using top="50%" left="0%" on the element without the regPoint attribute.
center
Same as using top="50%" left="50%" on the element without the regPoint attribute.
midRight
Same as using top="50%" left="100%" on the element without the regPoint attribute.
bottomLeft
Same as using top="100%" left="0%" on the element without the regPoint attribute.
bottomMid
Same as using top="100%" left="50%" on the element without the regPoint attribute.
bottomRight
Same as using top="100%" left="100%" on the element without the regPoint attribute.
Note that the predefined registration points have the same meaning relative to the region as the regAlign attribute values have relative to the media. The default value is inherited from the regPoint value defined for the associated region. This implies a default behavior of topLeft.
regAlign
This value uniquely identifies the registration algorithm to be used for the regPoint defined for the object, and overrides any regAlign attribute on the referenced regPoint element. Permissible values are those defined under the regAlign attribute for the regPoint element. If used without an explicit regPoint attribute, the value is relative to the top left point of the region used by the associated media object. The default value is inherited from the regAlign value defined for the associated region. This implies a default behavior of topLeft.
mediaAlign
This value uniquely identifies a short-hand notation for combining set combinations of regAlign and regPoint attributes. Valid values are:
topLeft
Same as using the regPoint ="topLeft" and regAlign="topLeft" attributes.
topMid
Same as using the regPoint ="topMid" and regAlign="topMid" attributes.
topRight
Same as using the regPoint ="topRight" and regAlign="topRight" attributes.
midLeft
Same as using the regPoint ="midLeft" and regAlign="midLeft" attributes.
center
Same as using the regPoint ="center" and regAlign="center" attributes.
midRight
Same as using the regPoint ="midRight" and regAlign="midRight" attributes.
bottomLeft
Same as using the regPoint ="bottomLeft" and regAlign="bottomLeft" attributes.
bottomMid
Same as using the regPoint ="bottomMid" and regAlign="bottomMid" attributes.
bottomRight
Same as using the regPoint ="bottomRight" and regAlign="bottomRight" attributes.
If specified together with either (or both) of the regPoint and/or regAlign attributes, the effect values of the respective positioning attribute(s) specified by mediaAlign will be overridden by the values given for regPoint and/or regAlign. This attribute does not have a default value; the default behavior is inherited from the effective values of the regPoint and regAlign attributes.
soundAlign
Specifies the coarse 2D placement of the audio portion of a media element assigned to play within the given region. The default value is inherited from the region. The following values are allowed:
both
Place the audio on both channels. If stereo or other dual-channel audio is used, the audio will be reproduced on both channels, implementation permitting.
left
Place the audio on the left channel only. If stereo audio is used, only the left source audio will be reproduced on the left audio channel, implementation permitting.
right
Place the audio on the right channel only. If stereo audio is used, only the right source audio will be reproduced on the right audio channel, implementation permitting.
Element content

SMIL AlignmentLayout module does not extend the ref element content model.

7.8.3 AlignmentLayout Module Events

This module does not define any SMIL events.

7.8.4 SMIL AlignmentLayout Implementation and Integration

Implementation Details

If an implementation cannot support the soundLevel attribute, it may be ignored. Even when processing is ignored, the attribute must be correctly parsed.

The regPoint element may only appear as an immediate child of a layout element.

If the registration point functionality is used on a media object that also uses sub-region positioning, the registration point applies to the subregion.

For registration point use, the value of the z-index attribute on the associated region is used. If media objects overlap spatially, existing rules for resolving z-index conflicts are applied.

Note that placement within the region may be defined in such a way as to extend the media object beyond the limits of the region. In this case the media object must be clipped to the region boundaries.

The default value of regAlign for a region is topLeft. If the regAlign attribute is used without a regPoint attribute, the alignment operation is relative to the upper left point of the region containing this object, that is, the behavior is the same as if the regPoint were to be specified as topLeft.

If the registration point or alignment functionality is used on a media object, the interaction between the regPoint attribute value, the regAlign attribute value, and the fit attribute value of the region in which the media object is displayed is as follows:

fill fit value:
This depends on the value of the regAlign attribute. (Note: in all cases, the media must maintain proper alignment over the regPoint):
topLeft regAlign value:
Scale the object's height and width independently so that the content just touches the bottom and right edges of the box.
topMid regAlign value:
Scale the object's height and width independently so that the content just touches the bottom edge of the box, and the nearest (to the regPoint) of the left or right edges of the box.
topRight regAlign value:
Scale the object's height and width independently so that the content just touches the bottom and left edges of the box.
midLeft regAlign value:
Scale the object's height and width independently so that the content just touches the nearest (to the regPoint) of the top or bottom edges of the box, and touches the right edge of the box.
center regAlign value:
Scale the object's height and width independently so that the content just touches the nearest (to the regPoint) of the top or bottom edges of the box, and touches the nearest (to the regPoint) of the left or right edges of the box.
midRight regAlign value:
Scale the object's height and width independently so that the content just touches the nearest (to the regPoint) of the top or bottom edges of the box, and touches the left edge of the box.
bottomLeft regAlign value:
Scale the object's height and width independently so that the content just touches the top and right edges of the box.
bottomMid regAlign value:
Scale the object's height and width independently so that the content just touches the top edge of the box, and the nearest (to the regPoint) of the left or right edges of the box.
bottomRight regAlign value:
Scale the object's height and width independently so that the content just touches the top and left edges of the box.
hidden fit value:
Align the media over the given regPoint per the regAlign attribute. If the media so positioned extends past the bounds of the region, clip the excess media. If the media so positioned doesn't meet the bounds of the region, fill the remaining space with the background color of the region.
meet fit value:
This depends on the value of the regAlign attribute. Any part of the region that is not covered by the media is then filled with the region's background color. (Note: in all cases, the media must maintain proper alignment over the regPoint):
topLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the right or bottom edge of the box while none of the content is clipped.
topMid regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the left, right, or bottom edges while none of the content is clipped.
topRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the left or bottom edge of the box while none of the content is clipped.
midLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, right, or bottom edges while none of the content is clipped.
center regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, left, right, or bottom edges while none of the content is clipped.
midRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, left, or bottom edges while none of the content is clipped.
bottomLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or right edge of the box while none of the content is clipped.
bottomMid regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, left, or right edges while none of the content is clipped.
bottomRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or left edge of the box while none of the content is clipped.
meetBest fit value:
This interaction with the regAlign and regPoint attributes is identical that that of the meet fit value, with the exception that the size of the related media object is never scaled above 100%.
scroll fit value:
Align the media over the given regPoint per the regAlign attribute. If any part of the media extends beyond the bounds of the region, a scrolling mechanism should be invoked that allows viewing of the media that is clipped beyond the bounds of the region.
slice fit value:
This depends on the value of the regAlign attribute. (Note: in all cases, the media must maintain proper alignment over the regPoint):
topLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the right or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.
topMid regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the left, right, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
topRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the left or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.
midLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, right, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
center regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, left, right, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to three sides of the region.
midRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, left, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
bottomLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or right edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.
bottomMidregAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, left, or right edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
bottomRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or left edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.

For example, a wide-screen video may be made to play in "letterbox" mode in a region, whose width-to-height ratio is smaller, by using regPoint ="center" and regAlign="center" and setting the region's fit value to "meet". The result is the video will touch the left and right edges of the region and will be centered vertically with the gaps above and below filled in with the region's background color.

Integration Requirements

The functionality in this module builds on top of the functionality in the BasicLayout module and the MediaObject module, which are required prerequisites for inclusion of the AlignmentLayout module.

7.8.5 Document Type Definition (DTD) for the AlignmentLayout Module

See the full DTD for the SMIL Layout modules.

7.9 BackgroundTilingLayout Module

This section is normative.

7.9.1 Overview

The SMIL BackgroundTilingLayout module defines a backgroundImage attribute that allows an image to be placed onto the background of a layout region. It also provides the same capability for the root-layout and any of the topLayout element(s), if supported by the language profile. This module also defines the backgroundRepeat attribute to control tiling of the background image. These facilities are provided as a convenience extension to SMIL's use of a background color in a region. Although similar functionality can be defined by using a combination of the image media object, the z-index attribute and subregions positioning, this would require substantially more authoring effort.

The BackgroundTilingLayout module allows simple convenience tiling support in a manner that is consistent with CSS2 [CSS2]. For more complex background image operations such as support for animated images or non-image background content, users are expected to use the standard media placement and alignment facilities available in SMIL Layout.

The opacity of the background images, whether or not tiled, is defined by the value of the backgroundOpacity attribute.

If a backgroundImage is defined along with a backgroundColor attribute, the background color will be used to color any part of the background left exposed after processing the background image.

When used with the showBackground attribute. the background image behaves as if it were a simple background color.

7.9.2 Elements and Attributes for the BackgroundTilingLayout Module

This section defines the backgroundImage and backgroundRepeat attributes that make up the SMIL BackgroundTilingLayout module.

The region Element

The root-layout Element

The topLayout Element

This module extends the attribute set for the region, root-layout and topLayout elements.

Element attributes
backgroundImage
This attribute may be used to specify an image that may be placed as the background of a region.
In SMIL Layout, the image is treated as a single image frame; any behavior that is specified in the image (such as animations or multiple frames) will be ignored. The legal values for this attribute are:
<uri>
This value consists of a URI containing the location of an image to be used as a background image. If the image is larger than the background, it will be clipped as if a fit attribute of hidden was specified. If the image is smaller in either or both dimensions than the region's dimensions, it will be processed according to the value of the backgroundRepeat attribute.
none
This value indicates that no background image should be used.
inherit
This value indicates that the same background image should be used as the logical parent of this region.
The default value is none.
backgroundRepeat
This attribute allows a repeat or tiling strategy to be specified for the background image. The legal values for this attribute are:
repeat
This value indicates that the background image should be repeated horizontally and vertically (that is, it should be tiled).
repeatX
This value indicates that the background image should be repeated horizontally only.
repeatY
This value indicates that the background image should be repeated vertically only.
noRepeat
This value indicates that the background image should not be repeated.
inherit
This value indicates that the same background repeat policy should be used as in the logical parent of this region.
The default value is repeat.
Element content

The SMIL BackgroundTilingLayout module does not extend the content model for elements integrating these attributes.

7.9.3 BackgroundTilingLayout Module Events

This module does not define any SMIL events.

7.9.4 SMIL BackgroundTilingLayout Implementation and Integration

Implementation details

For purposes of establishing an inheritance default value, the root-layout element defined in SMIL BasicLayout is considered the root of the background image inheritance tree. In this case, both backgroundImage and backgroundRepeat may be used with the root-layout and region elements.

For profiles implementing the SMIL MultiWindowLayout module, each top-level layout element is considered to define a separate root of the background image inheritance tree. In this case, both backgroundImage and backgroundRepeat may be used with any topLayout elements.

Integration Requirements

The functionality in this module builds on top of the functionality in the BasicLayout module, which is a required prerequisite for inclusion of the BackgroundTilingLayout module. If this functionality is to be applied to multiple top-level windows, the MultiWindowLayout module must be included.

7.9.5 Document Type Definition (DTD) for the BackgroundTilingLayout Module

See the full DTD for the SMIL Layout modules.

7.10 OverrideLayout Module

This section is normative.

7.10.1 Overview

The SMIL OverrideLayout module includes the ability to override the default values of the fit, z-index, backgroundColor and backgroundOpacity attributes on objects displayed in a (dynamically created) sub-region. This functionality may only be used in conjunction with sub-region positioning.

For languages and profiles integrating the AlignmentLayout module, the ability to specify override behavior for the regAlign, regPoint, mediaAlign, and soundAlign, attributes are defined as part of that module's specification and do not need to be explicitly specified in the OverrideLayout module.

7.10.2 Elements and Attributes for the OverrideLayout Module

This module does not define any new elements. It provides extensions to the ref element (and its synonyms).

The ref Element

The backgroundColor, backgroundOpacity, fit, soundLevel and z-index attributes are added to media object references.

Element attributes
backgroundColor
This attribute specifies the background color that will be used in a media reference. The range of legal values are the same as the backgroundColor attribute on the region element. The default value for this attribute is transparent.
backgroundOpacity
This attribute specifies the background opacity that will be used in a media reference. The range of legal values are the same as with the backgroundOpacity attribute under the region element. The default value for this attribute is 100%.
soundLevel
This attribute specifies the background opacity that will be used in a media reference. The range of legal values are the same as with the soundLevel attribute under the region element. The default value for this attribute is 100% (0db).
fit
This attribute is used on a media element to override the fit attribute defined in the corresponding region definition. It takes the same values as the fit attribute on the region element, and has the same semantics with the exception that the declared fit only applies to the media element using it, and not to other elements which may use the same parent region. The default value for this attribute is inherited from the region element.
z-index
This attribute is used on a media element to override the z-index attribute defined in the corresponding region definition. It takes the same values as the z-index attribute on the region element, and has the same semantics with the exception that the declared z-index only applies to the dynamic subregion that contains the media element, and not to other elements which may use the same parent region. The default value for this attribute is inherited from the region element.
Element content

The SMIL OverrideLayout module does not extend the content model for the ref element integrating these attributes.

7.10.3 OverrideLayout Module Events

This module does not define any SMIL events.

7.10.4 SMIL OverrideLayout Implementation and Integration

Implementation Details

The OverrideLayout module allows individual media object references to override the default values for certain attributes. In all cases, the attributes will apply only to a dynamically created sub-region that is created by the the activation of the media object reference. Changes will not propagate to child sub-regions or to parent regions.

Integration Requirements

The functionality in this module builds on top of the functionality in the SubRegionLayout module, which is a required prerequisite for inclusion of the OverrideLayout module.

7.10.5 Document Type Definition (DTD) for the OverrideLayout Module

See the full DTD for the SMIL Layout modules.

8. SMIL 3.0 smilText

Editors for SMIL 3.0
Dick Bulterman, CWI
Sjoerd Mullender, CWI
Samuel Cruz-Lara, INRIA

8.1 Changes for SMIL 3.0

This section is informative.

This module defines new functionality for SMIL 3.0. It extends the media types available for SMIL, but does not alter any other existing functionality from SMIL 2.1 or earlier versions.

8.2 Introduction

This section is normative.

The functionality described in these modules provide a new media type for use in SMIL presentations. This functionality is called smilText. Unlike other media types defined in the media object module, all of which are synonyms of the ref element, the smilText modules provide a text container element with an explicit content model for defining timed text. The smilText modules also define a set of additional elements and attributes to control timed text rendering. All smilText content is processed in a manner consistent with other SMIL media. This means, among other aspects, that smilText respects SMIL timing and layout behavior, including the semantics of the fit and fill attributes of SMIL Layout.

The smilText Modules are composed of a BasicText module and two modules with additional functionality that build on top of the BasicText module: the TextStyling and TextMotion modules. These modules contain elements and attributes used to define in-line text content. The SmilText profile allows smilText to be used as an external format; this is described informally in Appendix B.

Since the smilText elements and attributes are defined in a series of modules, designers of other markup languages may reuse these modules when they wish to include a simple form of timed text functionality into their language.

8.2.1 Motivation

This section is informative.

The purpose of including text content functionality into SMIL 3.0 is to allow authors to define small amounts of lightly-formatted text containing embedded temporal markup within the context of a SMIL presentation. Such text may be used for labels within a presentation or for incidental captions or foreign-language subtitles. Users who wish to use large amounts of structured text (with or without temporal markup) should consider the use of smilText as an text media object, or the use of objects encoded in formats such as XHTML or the "Distribution Format Exchange Profile" (DFXP) of Timed Text [DFXP].

All versions of SMIL have had support for the text element, which is defined as an alias of the generic SMIL ref media reference element. A typical use of the text element is:

    <text region="Title" src="Headline.html" dur="10s" >

Users new to SMIL are often surprised that the text element does not have a content model -- that is, an ability to specify the content text along with the element, such as in:

    <text region="Title" dur="10s" >
       Willemijn's 11th Birthday Party
    </text>

More advanced users of SMIL found that they were able to insert in-line text content into the SMIL file using a data URL, such as:

    <text src="data:,Willemijn's%2011th%20Birthday%20Party"
          region="Title" dur="10s" >

However, the strict syntax of this approach, plus the limited styling options available, make it a less-than-optimal way of including incidental text content into a SMIL presentation. A more author-friendly approach to text inclusion was a requirement for SMIL 3.0.

The implementation of SMIL on a wide range of devices, from set-top boxes and mobile devices to conventional desktop computers, means that care needed to be taken in defining the complexity of the smilText modules. The motivation of the SMIL's in-line text facility was not to provide complete support for all types of text, but to provide a balance between authoring convenience and player complexity. smilText was also designed to differentiate text styling from general layout and positioning so that smilText could be used efficiently with SMIL Layout. Both of these motivations, plus the desire to define a media facility that could be used across all of SMIL's implementation platforms, has resulted in a simple text specification that meet many of the requirements for incidental text within a SMIL document.

smilText has been designed as a functional subset of the W3C Timed Text Distribution Format Exchange Profile (DFXP) of TimedText. While users familiar with DFXP will recognize the functionality included in this specification, the differences in temporal and layout specifications between SMIL and DFXP have resulted in a slightly different syntax in the two languages. The SYMM working group has striven to minimize these differences. A complete list of differences between smilText and DFXP is presented in Appendix A.

8.2.2 The smilText Rendering Model

In order for text content to be compatible with the SMIL timing semantics, a general text processing model has been defined for smilText. In this model, text is classified as a continuous media type, with the inherent duration defined by timing mark-up within the smilText definition. All text content is processed as if it were first rendered to an off-screen bitmap; this bitmap is then used as the basis for inclusion into a SMIL presentation much as if it were a video object. If the smilText contains no internal timing mark-up, the processing model treats it as if it were a logical image.

The dimensions used in constructing the off-screen bitmap representation of smilText will depend on a number of factors. In general, the layout model used to define a drawing area for the text content will provide initial values for the extents of the text area. The default text-wrap behavior for smilText is to wrap the text content based on region width. In this case, the region will determine the text-area width and the text content will determine the effective off-screen bitmap height. If the wrap behavior is set to disallow automatic text wrapping (which is only possible if the TextStyle module is supported by the profile implementing smilText), the effective height is determined based on the number of lines of text (which in turn is determined by the number of manual line breaks created via the br element) and constrained by the region height, while the text content determines the off-screen bitmap width.

In most cases, content defined in a smilText element will define a new off-screen bitmap pseudo-image that will replace any existing content in the target region. If multiple smilText elements are active simultaneously and target the same layout region, the behavior is fully defined by the semantics of the SMIL timing and layout models. Users of smilText are encouraged to study the examples at the end of each module description to better understand the impact of SMIL timing on text rendering with smilText.

When used as an external format, a smilText object consists of a smil host-level identifier with a smilText base profile, and a set of dimensioning and temporal parameters. With the exception of event processing, the functionality of embedding a smilText object as an in-line element in a SMIL presentation and storing it in an external object in a separate file is identical.

8.3 SMIL 3.0 BasicText Module

This section is normative.

This section defines the elements and attributes that make up the functionality in the SMIL 3.0 BasicText module. Languages implementing elements and attributes found in the BasicText Module must implement all elements and attributes defined in this section.

8.3.1 Elements and Attributes

The SMIL 3.0 BasicText module defines four elements and four attributes which, together, provide basic support for in-line text within a SMIL presentation. The functionality provided by these elements and attributes represent the minimum level of text processing that is required by a user agent implementing smilText.

The elements defined in this module are:

smilText
tev
clear
br

The attributes defined in this module are:

begin
next
textWrapOption
xml:space

In addition, this module extends the definition of the SMIL Layout region element to include the textWrapOption attribute.

Note that unless overridden by the profile integrating these modules, all smilText elements will also reference the xml:id, xml:lang and ITS attributes to specify the identity and the language used in a particular text fragment.

For profiles that support only the BasicText module, all in-line text content styling and processing is defined and controlled by the SMIL user agent rendering the text. Additional content styling elements and attributes are defined in the TextStyling and TextMotion modules; support for this extended functionality is profile dependent.

For implementations that support the use of smilText as an external object, a separate rendering agent will control the processing of smilText content. Depending on the implementation of this agent, functionality in the TextStyling and TextMotion modules may be available. Functionality defined in the BasicText module must be supported.

The smilText Element

The smilText element functions as a logical and temporal structuring element that allows the inclusion of in-line text content into a SMIL presentation.

When rendering in-line text, the smilText element provides a top-level container for timing semantics. Additional timing semantics may be defined on the content within the smilText element. When rendering text specified in an external file, the smil element together with the smilText baseProfile attribute value provides a top-level container for text content. As defined within the SmilText profile, default timing and spatial characteristics may be defined on the external smilText encoding; when embedded as a media object in a SMIL presentation, these default characteristics will be overridden by the effective values of identical attributes specified on the media object reference in the SMIL presentation.

When text is rendered into an associated region, the existing content of the region is replaced by the element content. The properties of the region will determine the extents of the rendering area and the clipping behavior of text placed in the region. The effective value of the textWrapOption attribute will determine if lines wrap if they are wider than the space provided. In-line text is considered to be rendered instantaneously at the beginning of the simple duration of the text element unless temporal markup using the tev or clear elements is defined within the text. In smilText, extra white space between characters is processed according to the xml:space model defined in XML 1.1 [XML11]. The xml:space attribute is reused in smilText, with the conventional semantics described in the section xml:space, below.

Anchors and links, if supported by the profile integrating this module, may be attached to content within the smilText element. In these cases, the syntax and semantics of SMIL Linking will be expected, including temporal attributes on anchors.

Element attributes

This element accepts the textWrapOption and xml:space attributes, which will override the effective value for these attribute defined on the layout region.

Profiles including the smilText element must define which other SMIL attributes may be attached to this element. At a minimum, the definition of an associated layout region (for in-line use) or the definition of a height/width of the rendering area (for external use), and basic SMIL timing control, including the definition of a begin and end or duration, will be expected.

Element Content

The smilText element contains mixed content. The profile integrating this element will define a content model. If character content is present, it will be rendered as text in a manner consistent with other elements and attributes in this module. The intrinsic duration of a smilText element ends as soon as the last resolved tev or clear element is processed. If a smilText element does not contain any internal timing, then the simple duration will be determined by timing markup on the element itself. If no content is present, the smilText element must still observe all SMIL timing properties.

The tev Element

The tev element defines a "temporal moment" within a block of smilText content. Depending on the values of the begin or next attributes, it determines a scheduling time at which the associated text content (up to the following tev or clear element or the end of the smilText element) is rendered. The tev element does not define a content container, but is simply a temporal marker within a text fragment.

Element attributes

This element accepts the begin and next attributes. Profiles including the tev element must define which other SMIL attributes will be attached to this element.

Element content

This element has no content.

The clear Element

The clear element defines a "temporal moment" within a block of smilText content at which the full contents of the rendering area are cleared. Depending on the values of the begin or next attributes, it also determines a scheduling time at which the associated text content (up to the following tev or clear element or the end of the smilText element) is rendered. This element is functionally equivalent to the tev element, except that it has a side-effect of clearing the rendering area before any new content is rendered. This element does not define a content container, but is simply a temporal marker within a text fragment.

Element attributes

This element accepts the begin and next attributes. Profiles including the clear element must define which other SMIL attributes will be attached to this element.

Element content

This element has no content.

The br Element

The br element functions as a forced line break within in-line content defined in a smilText element. The br element is only valid within as content of a smilText element and has no temporal semantics other than those of its parent smilText element.

Element attributes

This element does not accept any attributes beyond those specified by the profile.

Element content

This element has no content.

The begin Attribute

This attribute defines an absolute time, relative to the beginning of the parent smilText element, when the associated tev or clear element becomes active. Within a single element, absolute begin times are expected to be specified in temporal order. If this is not the case, the associated tev or clear element becomes active as soon as the previous fragment is activated.
The attribute value is a semi-colon separated list of begin-values.
For in-line use of smilText, the values of the begin attribute are:
begin-value : ( clock-value | ed-value )
Defines the element's begin time.
Clock-value
Describes the element begin as a non-negative offset from the start of the element's smilText container. The offset is measured in parent simple time.
event-value : ( Id-value "." )? ( event-ref? ) ( ( "+" ) Clock-value )?
Describes an event and an optional offset that determine the element begin. The element begin is defined relative to the time that the event is raised. Events may be any event defined for the host language in accordance with [DOM2Events]. These may include user-interface events, event-triggers transmitted via a network, etc. When using smilText, only event-based timing is supported. The use of offsets based on scheduled activation of other elements is not supported. All support for event timing is optional and not required. If event timing cannot be supported, the associated time will be ignored.


When used as an external container format, the attribute value is a single clock valued, defined as follows:

begin-value : clock-value
Defines the element's begin time.
Clock-value
Describes the element begin as a non-negative offset from the start of the element's smilText container. The offset is measured in parent simple time.

The general semantics of this element are the same as the SMIL begin attribute defined within the timing module, with the restriction that only the subset of potential time values defined above are supported.

If both a begin and next attribute are defined on any tev/clear elements, only the begin attribute will be recognized.

The next Attribute

The next attribute defines a relative start time, relative to the effective begin time of the parent smilText element, or the most recently activated tev or clear element within the parent.
The attribute value is a single clock value.
Clock-value
Defines a time marker relative to the effective start time of the preceding temporal marker The offset is measured in parent simple time.

If both a begin and next attribute are defined on any tev/clear elements, only the begin attribute will be recognized.

The textWrapOption Attribute

The textWrapOption attribute specifies whether text content that is larger than the effective space available on one line in a region wraps. Given the complexities of general support for line breaking in different languages, smilText only guarantees implementation-dependent, best effort support for determining appropriate line break points.

Values:

wrap (default)
Text is wrapped across lines within a region: content that extends beyond the logical boundary of the rendering region will be displayed across multiple lines or columns.
noWrap
Text is not wrapped across lines within a region: content that extends beyond the logical boundary of the rendering region will be truncated in an implementation-dependent manner.
inherit
The effective value is used, as defined by the initial value or an override value.

The initial value is set to wrap.

Unless otherwise defined by the profile integrating this attribute, it may be used on the smilText element or as a default on the region element.

This section is informative.

Since smilText is expected to be supported by a wide range of rendering agents, the behavior associated with text wrapping is defined to be best-effort. In general, rendering agents are encouraged to support text wrapping as defined by DFXP [DFXP].

The xml:space Attribute

The xml:space attribute specifies how whitespace and linefeeds are processed.

Values:

default (default)
Whitespace is collapsed according to the semantics defined by XML 1.1, ([XML11] section 2.10).

As with DFXP, smilText processing with an effective value for xml:space of default must occur as if the following XSL 1.1 [XSL11] properties were specified:

  • suppress-at-line-break="auto"

  • linefeed-treatment="treat-as-space"

  • white-space-collapse="true"

  • white-space-treatment="ignore-if-surrounding-linefeed"

preserve
Whitespace is preserved according to the semantics defined by XML 1.1, ([XML11], section 2.10).

As with DFXP, smilText processing with an effective value for xml:space of preserve must occur as if the following XSL 1.1 [XSL11] properties were specified:

  • suppress-at-line-break="retain"

  • linefeed-treatment="preserve"

  • white-space-collapse="false"

  • white-space-treatment="preserve"

This attribute may be used on the smilText element or as a default on the region element. In general, smilText does not add white space into a text string unless explicitly authored.

Evaluation of begin and end time lists

A smilText object is defined as a collection of text characters that may have one or more timing markers inserted in the text. The markers allow incremental appearance of text fragments.

In its most simple form, a smilText element contains a block of text that is displayed in its entirety at the effective start time of the element. This behavior is logically equivalent to placing a clear element with a begin time of '0' at the start of the smilText element.

It is possible to insert one or more tev elements within the smilText content. Each of these elements specify an absolute or relative starting time for the text immediately after the tev element. The text is displayed instantaneously up to the following tev element. If a clear element is used, any content within the associated rendering region is erased before the new text is displayed.

The next attribute defines a relative offset as the start time of the associated tev or clear element. This time is defined as being relative to the effective start time of the preceding tev (or clear) element -- or from the start of the smilText element if no preceding tev/clear element was defined. The effective start time is the time that the preceding element actually was activated, either by a resolved time value or in response to an event.

The intrinsic duration of a smilText element is one of the following:

Examples

This section is informative.

In-Line Use of smilText

The smilText element provides a temporal wrapper for in-line text:

    <smilText>
       Hello world!
    </smilText>

The smilText element is the equivalent of allowing a data URL that contains text content, such as: <ref src="data:,Hello%20world!" ... > . Note that since this example does not define explicit temporal markup on the smilText element, the intrinsic duration will be zero seconds. The fill semantics of the embedding SMIL content will determine the visual persistence of the content.

In this simple form, the text will be rendered based on the default layout properties defined for the user agent. If SMIL Layout is used, the default behavior is that a dynamic region will be defined that contains the text content of the element. All styling information -- including font, font size, font style and font color -- will be determined by the SMIL player.

If the SMIL Layout BasicLayout module is also supported by the profile implementing this module, the rendering extent and the clipping behavior of the text rendered in a SMIL region will be determined by the effective value of SMIL's layout attributes.

<smil ...>
 <head>
   ...
   <layout>
     ...
     <region xml:id="Title" top="5px" left="10%" width="80%" height="30px" />
     ...
   </layout>
  </head>
  <body>
   ...
    <smilText region="Title" dur="10s">
       Hello World!
    </smilText>
   ...
  </body>
</smil>

This is equivalent to specifying: <ref region="Title" src="data:,Hello%20world!" ... >. In both cases, the properties associated with the region named Title will be used when positioning the text.

If the rendering space for the content of the smilText element is greater horizontal extent of one line, the effective value of the textWrapOption attribute will determine whether content will be clipped or wrapped:

<smil ...>
 <head>
     ...
     <region xml:id="Title" top="5px" left="10%" width="80%" height="30px"
          textWrapOption="wrap"/>
     ...
  </head>
  <body>
   ...
    <smilText region="Title" dur="10s">
       Willemijn's 11th Birthday Party was held six weeks late. (Again!)
    </smilText>
   ...
  </body>
</smil>

Line breaks within smilText content may be forced by using the br element within text content:

   ...
    <smilText region="Title" dur="10s">
       Willemijn's 11th Birthday Party<br/>was held six weeks late.<br/>(Again!)
    </smilText>
   ...
  </body>
</smil>

The following fragment illustrates use of temporal markers with a smilText element that contains an explicit duration:

 <smil ...>
  <head>
     ...
    <layout>
     <root-layout width="400" height="300"/>
      <region xml:id="Contents" top="5px" left="10%" width="80%" height="300"/>
    </layout>
   </head>
   <body>
      ...
        <smilText xml:id="TS01" region="Contents" dur="6s">
           Willemijn's 11th Birthday Party
           <tev xml:id="TS02" next="2s"/>
           was held six weeks late.
           <clear xml:id="TS03" begin="4s"/>
           (Again!)
        </smilText>
         ...
   </body>
 </smil>

The smilText element TS01 is active for 6s. All activity occurs within this time period, even if the timing definition within the smilText object extends beyond the 6s time limit. If SMIL Layout is used (as in this case), the fill attribute will determine the visual persistence of the text content if its internal timing was shorter than that of the smilText object.

The initial content that is rendered is the string Willemijn's 11th Birthday Party. At 2s after the start of the TS01 container, the fragment with id TS02 gets rendered. In this case, the content was held six weeks late. is displayed along with the previous contents of the smilText element. (The exact display depends on the size of the rendering region and the setting of the textWrapOption attribute.)

At 4s after the start of the parent smilText container, the fragment with the id TS03 is displayed. The use of the clear element causes the display area to be erased before the new text is displayed. Note that since a begin attribute is used instead of the next attribute, the activation time of this fragment is relative to the containing smilText container instead of relative to TS02.

The following fragment is similar to the previous example, except that it illustrates use of temporal markers with a smilText element that does not contain an explicit duration (and in which the duration is dependent on the intrinsic duration of the smilText content):

 <smil ...>
  <head>
     ...
    <layout>
     <root-layout width="400" height="300"/>
      <region xml:id="Contents" top="5px" left="10%" width="80%" height="300"/>
    </layout>
   </head>
   <body>
      ...
        <smilText xml:id="TS04" region="Contents">
           Willemijn's 11th Birthday Party
           <tev xml:id="TS05" next="2s"/>
           was held six weeks late.
           <clear xml:id="TS06" begin="4s"/>
           (Again!)
        </smilText>
         ...
   </body>
 </smil>

The smilText element TS04 is active for a duration that is determined by its content. All activity occurs within this time period. Note that in this example, this may lead to an unexpected result.

The initial content that is rendered is the string Willemijn's 11th Birthday Party. At 2s after the start of the TS05 container, the fragment with id TS02 gets rendered. In this case, the content was held six weeks late. is displayed along with the previous contents of the smilText element.

At 4s after the start of the parent smilText container, the fragment with the id TS06 is displayed. The use of the clear element causes the display area to be erased before the new text is displayed. All of the text that is defined to be rendered at this instance is placed into the region, but after this the smilText element ends: no additional timing markup has been provided to extend its intrinsic duration. The fill semantics associated with the smilText element will determine the visual persistence of the content, if any.

The following example is used to illustrate smilText behavior when used with event-based timing:

      ...
    <par>
        <smilText xml:id="TS11" region="Contents" dur="6s">
           Willemijn's 11th Birthday Party
           <tev xml:id="TS12" next="2s"/>
           was held six weeks late.
           <clear xml:id="TS13" begin="TS14.beginEvent"/>
           (Again!)
        </smilText>
        <audio xml:id="TS14" begin="4.5s" src="gongAudio.mp3">
    </par>
      ...

In this example, elements TS11 and TS12 act as TS01 and TS02 in the example earlier in this section. Coincident with the start of TS12, the potential active period for TS13 begins. Anytime between 2s after TS11 and the end of the smilText element, TS13 will begin if the "gong.beginEvent" is activated. In this example, the activation happens at 4.5 after the start of the par element containing both the smilText and audio object.

The following example illustrates the interaction of timing rules within smilText:

      ...

        <smilText xml:id="TS31" region="Contents" dur="10s">
           fragment 1,
           <tev xml:id="TS32" next="2s"/>
           fragment 2,
           <clear xml:id="TS33" begin="1s"/>
           fragment 3,
           <clear xml:id="TS34" begin="XXX.beginEvent"/>
           fragment 4,
           <clear xml:id="TS35" next="5s"/>
           fragment 5,
           <clear xml:id="TS36" begin="8s"/>
           fragment 6.
        </smilText>
      ...

The TS31 smilText element starts, and 'fragment 1,' is rendered. Then, 2s later, TS32 is appended to the displayed text. At the same time, TS33 is appended to the display: it has an absolute begin time of 1s after the start of TS31, but its temporal scope only becomes active once TS32 has displayed. (The begin time is still absolute, so the fragment is displayed immediately.) TS34 comes into temporal scope at 2s (that is, at the effective begin time of its predecessor), so the associated fragment will be displayed if the event is triggered between 2s and 10s in the presentation. TS35 is displayed 5s after the effective start of TS34 (assuming the parent smilText container is still active). The effective begin time of TS36 will depend on a number of factors: if the TS35 fragment starts before an absolute 8s, TS36 will wait until 8s. If it starts later (but before the end of the smilText container), the fragment will start immediately.

External Use of smilText

It is possible to define an external file with timed text content using smilText semantics. The capabilities of such an external use are defined in the SmilText profile. A full SMIL rendering agent is not required to render the smilText content.

The following example shows an external encoding of smilText content:



        <smil xmlns="http://www.w3.org/ns/smil" version="3.0" baseProfile="smilText"
              height="50" width="30" dur="6s">
         <body>
           Willemijn's 11th Birthday Party
           <tev xml:id="TS12" next="2s"/>
           was held six weeks late.
           <clear xml:id="TS13" begin="TS14.beginEvent"/>
           (Again!)
         </body>
        </smil>

The external file (which in this example we assume is named "external.smil"), may be referenced by any smilText-complaint rendering agent. If that rendering agent is a SMIL 3.0 player, then the following reference to the text file may be used:

     ...
     <par>
        <textstream src="external.smil" dur="10s" width="40" region="Contents" >
        <audio xml:id="TS14" begin="4.5s" src="gongAudio.mp3">
     </par>
     ...

In this example, the source smilText file is defined as proscribed by the SmilText profile. It contains a namespace declaration for smil plus the smilText base profile definition, as well as default values for height, width and duration. The SMIL fragment shown next illustrates a <par> containing an audio object and a textstream object that references the smilText encoding. The SMIL-based reference overrides the width specification given in the smilText source file. The smilText duration is treated as the intrinsic duration of the object; the duration is extended in the SMIL file in a manner similar to the reference of a video object.

Fill Semantics of smilText

SMIL timing defines a number of rules that govern the rendering persistence of smilText content. These are:

Layout and Rendering Consequences of smilText

In terms of visual behavior, the value of the fit attribute will determine clipping behavior of the text. Since not all user agents may be expected to dynamically scale plain text, fit="slice" will be the expected default behavior with basic smilText.

In terms of the rendering semantics defined in the TextStyling module, the only behavior defined by basic smilText is the append text mode semantic.

8.3.2 Integration Requirements

If the including profile supports the XMLBase functionality [XMLBase] , the values of the longdesc attribute (of present) on the smilText element must be interpreted in the context of the relevant XMLBase URI prefix.

All of the attributes specified for media within the SMIL MediaParam module must be supported by implementations integrating this module.

Any profile that integrates the clear element must define what is meant by "display area" and further define the interaction.

A profile integrating this module will define the event names generated when named elements are activated in smilText. Unless overridden by the profile, each tev and clear element must raise an event named tevEvent. This event must also be raised at the start and end of the smilText element; the smilText element must also raise the standard beginEvent and endEvent events.

8.4 SMIL 3.0 TextStyling Module

This section is normative.

This section defines the elements and attributes that make up the SMIL TextStyling Module. Languages implementing the elements and attributes in the TextStyling Module must implement all elements and attributes defined below, as well as those defined in the BasicText module.

8.4.1 Elements and Attributes

The TextStyling module defines the following five elements:

div
p
span
textStyle
textStyling

The TextStyling module defines the following twelve attributes:

textAlign
textBackgroundColor
textColor
textDirection
textFontFamily
textFontSize
textFontStyle
textFontWeight
textMode
textPlace
textStyle
textWritingMode

In addition, for in-line use of smilText, this module extends the definition of the SMIL Layout region element to include the TextStyling attributes listed above.

Since smilText is designed to be implemented on a wide range of rendering agents, not all agents may be expected to support all of the styling attributes defined in this section. If a given attribute is not supported, an implementation-dependent behavior may be substituted by the rendering agent.

The div Element

The div element functions as a logical container for in-line formatting attributes defined within a smilText element. The div element does not define any temporal semantics within a smilText element. Use of the div element causes an implicit line break before the rendering of the element. User agents may supply an additional line of white space.

Element attributes

Unless otherwise defined by the profile integrating this module, the div element may (re)specify values for the following attributes:

textAlign
textBackgroundColor
textColor
textFontFamily
textFontSize
textFontStyle
textFontWeight
textStyle
textWrapOption
textWritingMode
xml:space

Unless specified otherwise by the profile integrating this element, the profile's core attributes may also be used. All other attributes are ignored.

Element content

Unless overridden by the profile integrating this module, this element accepts mixed content including zero or more characters to which the specified styling is applied. Any styling attributes changed within the scope of this element must be restored to their previous values outside the scope of this element. The content accepted by this element is defined by the profile integrating this module.

The p Element

The p element functions as a logical container for in-line formatting attributes defined within a smilText or div element. The p element may not be nested within another p element. The p element does not define any temporal semantics within a smilText element. The use of the p element causes an implicit line break. User agents may supply an additional line of white space after the implicit line break. Any extra empty lines may be merged with empty lines produced by the div element on a best-effort basis.

Element attributes

Unless defined otherwise by the profile integrating this module, the p element may (re)specify values for the following attributes:

textBackgroundColor
textColor
textFontFamily
textFontSize
textFontStyle
textFontWeight
textStyle
textWrapOption
textWritingMode
xml:space

Unless specified otherwise by the profile integrating this element, the profile's core attributes may also be used. All other attributes are ignored.

Element content

Unless otherwise specified by the profile integrating this module, this element accepts mixed content, including zero or more characters to which the specified styling is applied. Any styling attributes changed within the scope of this element must be restored to their previous values outside the scope of this element. The content accepted by this element is defined by the profile integrating this module.

The span Element

The span element functions as a logical container for in-line formatting attributes defined within a smilText, div, or p element. The span element does not define any temporal semantics within a smilText element. The use of the span element does not cause a line break nor does it insert any white space before or after the scope of the element.

Element attributes

Unless specified otherwise in the profile integrating this module, the span element may (re)specify values for the following attributes:

textBackgroundColor
textColor
textDirection
textFontFamily
textFontSize
textFontStyle
textFontWeight
textStyle
xml:space

Unless specified otherwise by the profile integrating this element, the profile's core attributes may also be used. All other attributes are ignored.

Element content

Unless overridden by the profile integrating this module, this element accepts mixed content, including zero or more characters to which the specified styling is applied. Any styling attributes changed within the scope of this element must be restored to their previous values outside the scope of this element. The content accepted by this element is defined by the profile integrating this module.

The textStyle Element

The textStyle element is used to define a set of text style attributes in the document head section. The style group defined with this element may be used within a SMIL layout region to define default styles for text elements in that region, or within the smilText content elements smilText, div, and p.

Element attributes

All of the styling attributes defined in this module (with the exception of the textStyle attribute) may be specified within a textStyle element in the head section. Note that if text style attributes are referenced on an element to which they do not apply, they are ignored. If multiple instances of the same styling attribute are defined, the value associated with the lexically-last instance is used.

This element will use the xml:id attribute within the profile's core attribute set to define a unique identity for the set of text style attributes.

Element content

This element has no content.

The textStyling Element

The textStyling element delineates a set of textStyle elements in the document head section.

Element attributes

Unless specified otherwise by the profile integrating this element, the profile's core attributes may also be used. All other attributes are ignored.

Element content

This element contains one or more textStyle elements as children.

The textAlign Attribute

The textAlign attribute provides a hint on how text should be aligned within the region referenced by the smilText element, based on the primary writing direction defined by the textWritingMode attribute. textAlign attribute may be used on the smilText and div elements or as a default on the region and textStyle elements. It is supported on a best-effort basis. The semantics of this attribute are a subset of those defined in XSL 1.1, ([XSL11], section 7.16.9).

Values:

start
The text is aligned on the starting edge of the rendering region based on the primary writing direction defined by the textWritingMode attribute. For example, it will be left-aligned in the region if the primary writing mode is left-to-right, and it will be right-aligned in the region if the primary writing mode is right-to-left.
end
The text is aligned on the ending edge of the rendering region based on the primary writing direction defined by the textWritingMode attribute. For example, it will be right-aligned in the region if the primary writing mode is left-to-right, and it will be left-aligned in the region if the primary writing mode is right-to-left.
left
If the primary writing direction is either left-to-right or right-to-left, the text is left-aligned in the region. It is ignored otherwise.
right
If the primary writing direction is either left-to-right or right-to-left, the text is right-aligned in the region. It is ignored otherwise.
center
If the primary writing direction is either left-to-right or right-to-left, the text is center-aligned in the region. It is ignored otherwise.
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is start.

This section is informative.

Because of the implementation complexities of arbitrary text placement, not all text renderers may support all of the alignment operations specified by this attribute. If the selected attribute value is not supported, a renderer may substitute a player-dependent behavior.

The textBackgroundColor Attribute

The textBackgroundColor attribute is identical to the "background-color" property in the XSL 1.1, ([XSL11], section 7.8.2) specification. As such, support for CSS2 system colors is required. This attribute specifies the background color used to fill the area around text content that falls within a player-defined bounding box. This attribute may be used on the smilText, div, p or span elements, or as a default on the region and textStyle elements.

Values:

CSS2 color specification
The textBackgroundColor attribute may take on the CSS value inherit. This means that the background color used for text will be that of the backgroundColor attribute defined for the region specified by the parent text element.

If no color has been specified, the default is transparent.

The textColor Attribute

The textColor attribute is identical to the "color" property in the XSL 1.1, ([XSL11], section 7.18.1) specification. As such, support for CSS2 system colors is required. This attribute specifies the color used to render text content in the region specified by the parent text element. This attribute may be used on the smilText, div, p or span elements, or as a default on the region and textStyle elements.

Values:

CSS2 color specification
The textColor attribute may take on the CSS value inherit. This means that the color used for text will be that of the color attribute defined for the region specified by the parent text element.

If no color has been specified, the default is implementation dependent.

The textDirection Attribute

The textDirection attribute provides a hint on the desired horizontal direction of text within a span. The specified direction may be overridden by the font based on the Unicode Bidirectional algorithm. This attribute is supported on a best-effort basis. The semantics defined in XSL 1.1, ([XSL11], section 7.29.1) are available, plus two attributes that allow default unicode-BIDI behavior to be overriden. Unlike XSL 1.1 and DFXP, smilText only supports this functionality within a span element or as a default on the textStyle element. For block-level control of text direction, see the textWritingMode attribute.

Values:

ltr
Text is written in a left-to-right direction, unless overridden by font unicode-BIDI processing.
rtl
The text is written in a right-to-left direction, unless overridden by font unicode-BIDI processing.
ltro
Text is written in a left-to-right direction, and any font unicode-BIDI processing is explicitly overridden.
rtlo
The text is written in a right-to-left direction, and any font unicode-BIDI processing is explicitly overridden.
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is ltr.

This section is informative.

Because of the implementation complexities of arbitrary text placement, not all text renderers may support all of the direction operations specified by this attribute. If the selected attribute value cannot supported, a renderer may substitute a player-dependent behavior.

In XSL and DFXP, two attributes are used to control direction and unicode-BIDI override. Given the lightweight nature of smilText, basic override behavior is supported within the textDirection attribute.

The textFontFamily Attribute

This attribute defines the family of font used to render text. An ordered list of specific font names and/or a generic family name may be supplied. The resolution of a generic family name to a specific font instance is not defined by this specification, but may be defined by a profile implementing this module. The sansSerif and serif fonts are expected to be proportional. See XSL 1.1, ([XSL11], section 7.9.2) for font family details. This attribute may be used on the smilText, div, p or span elements, or as a default on the region and textStyle elements.

Values:

font-list:
a prioritized, comma-separated list of font names, optionally including one or more of the generic font identifiers monospace, sansSerif, and/or serif.
inherit: (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is sansSerif. If an unrecognized or unsupported textFontFamily is specified, monospace will be expected.

The textFontSize Attribute

This attribute defines the size of the font to be used. In order to reduce implementation burden and to provide scalability across device classes, only absolute and relative sizes (as defined in XSL 1.1, ([XSL11], section 7.9.4) are supported by smilText. This attribute may be used on the smilText, div, p or span elements, or as a default on the region and textStyle elements.

Values:

length
absolute-size
absolute-size represents a set of absolute font sizes, maintained by the SMIL player (and possible influenced by the player user agent). Expected absolute sizes are: [ xx-small | x-small | small | medium | large | x-large | xx-large ]. As recommended in XSL 1.1, it is expected that each of the absolute sizes will differ by a factor of 1.2. The default absolute size is medium.
relative-size
relative-size represents a relative increase or reduction in the absolute font size value. Expected values are: [ larger | smaller ]. Effective font sizes larger absolute-size xx-large or smaller than the absolute-size xx-small will not be supported.
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is medium. If a specified size cannot be support, implementations are expected to provide a best-effort substitute size.

The textFontStyle Attribute

This attribute defines the style (italic, oblique, reverseOblique or normal) of the text displayed. If the specified style is not available, a style of normal will be used. This attribute may be used on the smilText, div, p or span elements, or as a default on the region and textStyle elements. Of the values defined in XSL 1.1, ([XSL11], section 7.9.7), only the options defined in the following list will be supported by smilText.

Values:

normal
italic
oblique
reverseOblique
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is normal. If a particular style cannot be support, implementations may provide an implementation-dependent alternative style.

The textFontWeight Attribute

This attribute defines the weight (bold or regular) of text displayed. If the specified weight is not available, a weight of normal will be used. This attribute may be used on the smilText, div, p or span elements, or as a default on the region and textStyle elements. Of the values defined in XSL 1.1, ([XSL11], section 7.9.9), only the options defined in the following list will be supported by smilText.

Values:

normal
The normal font weight for the font family selected is used.
bold
The bold font weight for the font family selected is used.
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is normal. If a particular weight cannot be support, implementations may provide an implementation-dependent alternative weight.

The textMode Attribute

The attribute defines the manner in which each temporal fragment within a smilText element is added to the rendering area. This attribute may be used on the smilText element or as a default on the region and textStyle elements.

Values:

append
The new fragment is added to any existing content in the rendering area. The new content is appended to the text at the logical end of the display without the introduction of any additional white space.
replace
New content replaces any existing content in the rendering area. The new content becomes the only content within the display.
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is append.

This section is informative.

The textStyling module extends the single default value of append defined by the BasicText module with replace and inherit. Note that the textMotion module further extends this attribute with values that specify how text movement is controlled.

The textPlace Attribute

The attribute provides a hint on where content is initially placed in a rendering area, both as an initial string and after a clear operation. The placement is defined in terms of the secondary writing direction, as defined by the textWritingMode attribute. The textPlace attribute may be used on the smilText element or as a default on the region and textStyle elements.

Values:

start
New content in an empty region is placed first at the starting edge of the secondary writing direction, and then flowed in the secondary writing direction as text is wrapped or explicit br elements are used. For example, if the secondary writing direction is top-to-bottom, the content will initially be placed at the top of the region.
center
New content in an empty region is placed first at the center of the secondary writing direction, and then flowed in the secondary writing direction as text is wrapped or explicit br elements are used. For example, if the secondary writing direction is top-to-bottom, the content will initially be placed at the vertical center of the region.
end
New content in an empty region is placed first at the ending edge of the secondary writing direction, and then flowed in the secondary writing direction as text is wrapped or explicit br elements are used. For example, if the secondary writing direction is top-to-bottom, the content will initially be placed at the bottom of the region.
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is start.

This section is informative.

If no text motion attributes have been defined, any text that is explicitly or implicitly placed beyond the ending boundary of the region will not be displayed. As a consequence, if the value end is used without motion, only one line of content will be visible.

The textStyle Attribute

The attribute references a text style set defined using the textStyle element in the document head. This attribute may be used on the smilText, div, p or span elements, or as a default on the region element.

Values:

IDREF
The ID of a textStyle definition. If the IDREF specified as a value does not refer to a valid textStyle set definition, this attribute is ignored.

The textStyle attribute will be applied only to the content within the scope of the element to which it is applied.

The textWritingMode Attribute

The textWritingMode attribute provides a hint on the desired primary and secondary writing directions of text added to a region. It is supported on a best-effort basis. The semantics defined in XSL 1.1, ([XSL11], section 7.29.7) are available, with the restriction that only the subset provided below may be available. This attribute may be used on the smilText, div or p elements, or as a default on the region and textStyle elements. When used with the div or p elements, implementations may limit the allowable the override behavior to the opposite of the primary writing direction. The specified behavior may be overridden by the Unicode BIDI algorithm. Within a p, the direction of text and unicode-BIDI processing may be overridden by the textDirection attribute.

Values: lr-tb | rl-tb | tb-rl | tb-lr | lr | rl | inherit

lr-tb
The primary writing direction of text is a left-to-right progression and the secondary writing direction is a top-to-bottom progression.
rl-tb
The primary writing direction of text is a right-to-left progression and the secondary writing direction is a top-to-bottom progression.
tb-lr
The primary writing direction of text is a top-to-bottom progression and the secondary writing direction is a left-to-right progression.
tb-rl
The primary writing direction of text is a top-to-bottom progression and the secondary writing direction is a right-to-left progression.
lr
A shortcut for lr-tb.
rl
A shortcut for rl-tb.
inherit (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is lr-tb.

This section is informative.

Because of the implementation complexities of arbitrary text placement, not all text renderers may support all of the alignment operations specified by this attribute. A given profile may further restrict the available values. If the selected attribute value is not supported, a renderer may substitute a player-dependent behavior. At a minimum, lr-tb may be expected.

Implementations may define default behavior if a div or p element attempts to override both the primary and secondary writing directions (such as changing from lr-tb to tb-lr). Additionally, changes to the primary writing direction may be ingored if the text mode is set to crawl, and changes to the secondary writing direction may be ignored if the text mode is set to scroll, as defined within the TextMotion module.

Note that only the subset of XSL 1.1's writing-mode attribute supported by DFXP are adopted by smilText. In smilText, the XSL naming conventions for the writing modes are adopted.

Examples

This section is informative.

The following example provides an indication of the use of smilText within a profile that provides support for the TextStyling module (such as the SMIL 3.0 Language profile).

00 <smil ...>
01  <head>
     ...
02    <textStyling>
03      <textStyle xml:id="HeadlineStyle" textFontFamily="serif" textFontSize="12px"
             textFontWeight="bold" textFontStyle="italic"
             textWrapOption="noWrap" textColor="blue" textBackgroundColor="white" />
04    </textStyling>
05    <layout>
         ...
06      <region xml:id="Title" top="5px" left="10%" width="80%" height="25px"
             textStyle="HeadlineStyle" />
07      <region xml:id="Captions" top="215px" left="10%" width="80%" height="35px"
          textFontFamily="serif" textColor="orange"  backgroundColor="blue"/>
08      <region xml:id="Slides" top="10px" left="5%" width="90%" height="200px" />
09    </layout>
10   </head>
11   <body>
      ...
12    <par>
13     <smilText region="Title" textFontFamily="sansSerif" fill="freeze">
14        Willemijn's 11th Birthday Party
15     </smilText>
16     <seq>
17       <par>
18         <img region="slides" src="p001.jpg" begin="1s" dur="9s"/>
19         <audio ... src="yip.mp3" begin="woof.tevEvent"/>
20         <smilText region="Captions" textAlign="start" dur="8s">
21              Shortly <span textFontStyle="italic">before</span> dawn ...
22              <tev next="1.5s"/>
23              <div textAlign="center" textColor="green">
24              just as the clock began
25              </div>
26              <br/>
27              to chime six times...
28              <tev begin="4s"/>
29              our trusty dog Gretchen
30              <tev xml:id="woof" begin="3s"/>
31              barked.
32         </smilText>
33       </par>
         ...
34       <par>
35         <img region="Slides" src="p128.jpg" dur="7s"/>
36         <text region="Captions" src="c128.html" dur="7s"/>
37       </par>
38     </seq>
39     <audio ... src="Commentary.mp3" />
40    </par>
41   </body>
42 </smil>

In this example, one text style is defined (on line 03) and three layout regions are defined, one of which (on line 06) references a style definition with local overrides, and another of which (on line 07) uses mostly default style. In the body of the presentation, a parallel container is defined that contains a text title (on line 13); most of the styling attributes are defined on the region via the text style attribute. Later in the presentation, a sequence of images are defined that are each accompanied by one or more text captions. The text definition on line 13 illustrates that text, like images, has no inherit duration, but that by using the SMIL fill attribute, the content of the smilText element remains visible until the end of the parent time container (in this case, the par that is defined on line 12). The three smilText fragments that accompany the image defined on line 18 illustrate that the in-line text object may use the standard SMIL timing attributes, plus several new attributes to explicitly control text placement and styling. A tevEvent will be generated by a text fragment and used to control some other portion of the presentation, as is shown in line 30's triggering of the sound on line 19. Finally, the text element on line 36 illustrates that it is possible to mix in-line and external text in a single document.

8.4.2 Integration Requirements

None.

8.5 SMIL 3.0 TextMotion Module

This section is normative.

This section defines the elements and attributes that make up the SMIL TextMotion Module. Languages implementing the elements and attributes in the TextMotion Module must implement all elements and attributes defined below, as well as those defined in the BasicText and TextStyling modules.

8.5.1 Elements and Attributes

This section defines the elements and attributes that make up the functionality in the SMIL 3.0 TextMotion module.

This module does not define any new elements.

This module:

  1. extends the definition of the BasicText module's smilText element and the TextStyling module's textStyle element to include the textConceal and textRate attributes;
  2. extends the definition of the TextStyling module's textMode attribute to include the crawl, scroll and jump attribute values; and
  3. extends the definition of the SMIL Layout region element to include the textConceal and textRate attributes.

The textMode Attribute

The textMode is extended to support three values for motion-based text presentation of a smilText object. These values may be used on the smilText element or as a default on the region and textStyle elements.

Values:

crawl
This value causes text to move as a single line against the primary writing direction (as defined by the textWritingMode attribute). The initial position of the text in the primary writing direction will be determined by the textAlign attribute, unless overridden by the textConceal attribute. The position of the text in the secondary writing direction will be determined by the textPlace attribute. All line breaks, either implicit or explicit, will be ignored. The speed of movement, in pixels per second, is determined by the textRate attribute. If present, the tev/clear elements may be used to specify incremental appearance of content within a crawling string.
scroll
This value causes text to move smoothly against the secondary writing direction (as defined by the textWritingMode attribute). The alignment of the text in the primary writing direction will be determined by the textAlign attribute. The initial position of the text in the secondary writing direction is defined by the textPlace attribute, unless overridden by the textConceal attribute. All line breaks, either implicit or explicit, will be respected. The speed of movement, in pixels per second, is determined by the textRate attribute. Unless otherwise specified by the textRate attribute, the tev/clear elements may be used to specify incremental presentation of content within a scrolling string.
jump
This value causes text to jump against the secondary writing direction (as defined by the textWritingMode attribute) by line within the region when the current line fills (or after an explicit br). The alignment of the text in the primary writing direction will be determined by the textAlign attribute. The initial position of the text in the secondary writing direction is defined by the textPlace attribute, unless overridden by the textConceal attribute. All line breaks, either implicit or explicit, will be respected. The number of line jumped is determined by the textRate attribute. The tev/clear elements may be used to specify incremental presentation of content within a jumping block.

The default value for this attribute is given in the textMode definition in the TextStyling module.

The textMode will be applied to all text displayed in the region.

This section is informative.

Given the complexities of supporting text motion, it is expected that motion in all primary and secondary modes may not be available. At a minimum, motion should be supported with an effective text writing mode of lr-tb.

The textConceal Attribute

The textConceal attribute specifies the initial and ending positioning content as a result of a textMode setting of crawl, scroll or jump. This attribute may be specified on the smilText element or as a default on the region and textStyle elements.

Values:

none:
Text initially will be rendered at the starting point in the region defined by the textPlace and textAlign attributes, and will finish at the terminating placement determined by the normal processing of the content. No leading or trailing space will be added.
initial:
Text initially will be rendered at a starting point that is just outside the region and enter the region once the simple duration begins. Text will finish at the terminating placement determined by the normal processing of the content. This has the visual effect that leading spaces will be added to the content. If textMode is set to crawl, the textAlign attribute will be ignored. If textMode is set to scroll or jump, the textPlace attribute will be ignored.
This setting will extend the intrinsic duration of the content to support the rendering of leading spaces.
final:
Text initially will be rendered at the starting point in the region defined by the textPlace and textAlign attributes. At the conclusion of normal processing of the content, any content left in the rendering region will be crawled, scrolled or jumped out of view. This has the visual effect that trailing spaces will be added to the content.
This setting will extend the intrinsic duration of the content to support the rendering of trailing spaces.
both:
The initial and final behavior described for this attribute are both applied to the text.
This setting will extend the intrinsic duration of the content to support the rendering of leading and trailing spaces.
inherit: (default)
The effective value is used, as defined by the initial value or an override value.

The initial value for this attribute is none.

This section is informative.

Given the complexities of supporting text motion and recalculating the intrinsic duration, only best-effort support for all textConceal modes can be expected.

The textRate Attribute

The textRate specifies the rate of motion of smilText elements that have the crawl, scroll or jump values defined for the textMode attribute. This attribute may be specified on the smilText element or as a default on the region and textStyle elements.

Values:

auto (default):
The interpretation of this value depends on the effective motion mode of text. When used with the crawl or scroll text modes, this value specifies that the rendering system should determine the appropriate rate of movement (in pixels per second) to display the entire content of the smilText element (including any extra spacing required for processing the textConceal attribute) within its simple duration. All timing markup on tev/clear elements to be ignored and no activation events will be generated from within the smilText element. If the simple duration is not known, implementations may make an informed guess or provide a default rate. When used with the jump text mode, this value specifies that a single line in the secondary writing direction is jumped when an explicit or implicit line break is generated. There is no further impact on temporal processing of the text. When used with all other text modes, this attribute is ignored.
CSS2 pixel value:
The interpretation of this value depends on the effective motion mode of text. When used with the crawl or scroll text modes, this value defines a non-negative integer representing a pixel movement rate in pixels per second. The "px" unit qualifier in pixel values may be omitted. When used with the jump text mode, this value will be interpreted as a non-negative integer and the "px" qualifier, if present, will be ignored. When used with all other text modes, this attribute is ignored.
non-negative integer:
The interpretation of this value depends on the effective motion mode of text. When used with the crawl or scroll text modes, this value will be interpreted as a CSS2 pixel value without the "px" qualifier. When used with the jump text mode, this value defines the number of lines to jump when adding new content. When used with any other text mode, this attribute is ignored.

Implementations may use simple algorithms to determine the rate of motion, either based on a fixed pixel movement value per update cycle or as a default value.

Looping behavior of crawling, scrolling or jumping text may be specified using standard SMIL repeat semantics on the smilText element.

Examples

This section is informative.

The text motion rendering behavior of within this module has been designed to be relatively simple to implement and stay consistent with other forms of scrollable/crawlable text. The following example illustrates the use of the attributes and attribute values defined in this section.

 <smil ...>
  <head>
     ...
    <layout>
        ...
      <region xml:id="Contents" top="5px" left="10%" width="80%" height="300px"
             textMode="crawl" textRate="20px" />
    </layout>
   </head>
   <body>
      ...
        <smilText xml:id="TS21" region="Contents" textAlign="right">
           Willemijn's 11th Birthday Party
           <tev begin="5s"/>
           was held six weeks late.
           <tev next="5s"/>
           (Again!)
        </smilText>
         ...
   </body>
 </smil>

This example displays a crawling text string that is initially aligned at the right of the display. The text crawls across the screen in a direction that is opposite to the (in this case default) textWritingMode of left-to-right. Initially, only the first fragment is visible. After 5 seconds, the entire portion of the second fragment is made visible; note that a portion may be initially clipped from view. After another 5 seconds, the final fragment is added to the text display.

8.5.2 Integration Requirements

None.

8.6 Appendices

8.6.1 Appendix A: Differences with the DFXP Specification

This section is informative.

While smilText has been modelled as a functional subset of the "Distribution Format Exchange Profile" [DFXP] of W3C Timed Text, there are several differences between the languages. In this section, we review the components taken from DFXP, the components not taken from DFXP and the extensions defined that are not in DFXP.

Components Taken From DFXP for smilText

The following elements and attributes have been taken from DFXP [DFXP] and are included in smilText. Note that relevant attribute names from DFXP are preceded with 'text' to avoid conflict with attributes used in SMIL layout.

Component DFXP Name smilText Name Differences
Content br
div
p
span
br
div
p
span
The br element is identical in use.
The div and span elements may not be nested in smilText. The div, p and span elements may not contain timing markup in smilText.
Styling elements style
styling
textStyle
textStyling
These elements are declared in the document head.
smilText allows styles to be associated with layout regions as default values.
Styling attributes textAlign
backgroundColor
color
direction
fontFamily
fontSize
fontWeight
style
wrapOption
writingMode
textAlign
textBackgroundColor
textColor
textFontFamily
textFontSize
textFontWeight
textStyle
textWrapOption
textWritingMode
smilText limits the range of values permitted for some of these attributes. Several attributes are considered to be hints in smilText: these are textAlign, textDirection, textWrapOption, and textWritingMode. Renderers may supply implementation-dependent behavior for these attributes.

Components Not Taken From DFXP for smilText

The following elements and attributes are not included in smilText.

Additions in smilText Not in DFXP

The following elements and attributes are included in smilText but are not directly available in DFXP [DFXP]:

8.6.2 Appendix B: Using SMIL 3.0 SmilText as a Stand-Alone External Format

This section is informative.

This section defines the use of SmilText as an external, stand-alone timed text format. This is accomplished by using the SMIL 3.0 SmilText profile. In the following sections, examples of the use of the SMIL 3.0 SmilText profile are provided. Full details of the profile are given in the SMIL 3.0 SmilText profile specification.

Elements and Attributes

The SMIL 3.0 smilText profile provides a light-weight collection of SMIL elements and attributes that are specifically defined to allow the specification of an external smilText object. This profile allows an author to encode in-line smilText content in an external file with little modification. The profile does not define any new elements or attributes. The basic difference from the in-line specification of SmilText content is that the external content uses the smilText element as the top-level container element. The external smilText element is expanded with dimensioning and background color attributes that allow a simple smilText engine to effectively render the content. These attributes are defined in the following sections.

The dur Attribute

This attribute is functionally and syntactically equivalent to the dur attribute defined in the SMIL Timing Modules. When placed on the top-level smil element in the external file that also includes a baseProfile attribute with the value SmilText, the dur attribute defines the intrinsic value of the duration of the text object. The default value for this attribute is zero (0). A value of indefinite is allowed and specifies an object that does not have a self-scheduled end.

The height Attribute

This attribute specifies the height of a rendering area for the SmilText content. It is functionally and syntactically equivalent to the height attribute defined in the SMIL Layout Modules, with the exception that percentage values are not supported in external SmilText profile files. The default value for this attribute is auto, which allows the (SMIL or other) rendering agent to determine the height of the rendering area based on definitions made in the rendering agent. When used with an external object that will be rendered by a SMIL processor, any value for this attribute in the external file will be overridden by the effective height value defined for the media element that references the external file.

The width Attribute

This attribute specifies the width of a rendering area for the SmilText content. This attribute is functionally and syntactically equivalent to the width attribute defined in the SMIL Layout Modules, with the exception that percentage values are not supported in external SmilText profile files. The default value for this attribute is auto, which allows the (SMIL or other) rendering agent to determine the width of the rendering area based on definitions made in the rendering agent. When used with an external object that will be rendered by a SMIL processor, any value for this attribute in the external file will be overridden by the effective width value defined for the media element that references the external file.

The backgroundColor Attribute

This attribute is used to specify the background color of the rendering area containing the external SmilText content. This attribute is functionally and syntactically equivalent to the backgroundColor attribute defined in the SMIL Layout Modules. The default value for this attribute is transparent. When used with an external object that will be rendered by a SMIL processor, any value for this attribute in the external file will be overridden by the effective backgroundColor value defined for the media element that references the external file.

Other External SmilText Attributes

The SmilText profile may define other attributes that may be used on the top-level smil element, or specific SmilText modules that may be used within by the external SmilText context. These are not considered here.

Examples

The following example illustrates the use of SmilText as an external timed-text format. Assume that the following file is named externalText.smil:

 <smilText xmlns="http://www.w3.org/ns/smil" height="40" width="60" dur="12s" backgroundColor="white" textAlign="right">
      Willemijn's 11th Birthday Party
      <tev begin="5s"/>
      was held six weeks late.
      <tev next="5s"/>
      (Again!)
</smilText>

This example displays text string that is aligned at the right of the 40x60 rendering extent. The background color of the rendering area is set to white. The intrinsic duration is set to 12 seconds. Note that the smilText element is used as a top-level content container for text. No head or element body need be specified. The SMIL version and baseProfile attributes are set to 3.0 and smilText by default. (The profile specification defines the rules for default content of all elements and attributes.)

Since the external smilText file does not have a layout section in the head, there is no requirement to use layout related attributes (such as region) on the smilText definition. Note that to enhance copy/paste transfer of smilText objects between internal and external files, the specification of any non-recognized attributes is ignored by the SmilText profile.

The following SMIL 3.0 fragment illustrates the use of an external SmilText definition within a SMIL file:

 <smil ...>
  <head>
     ...
    <layout>
        ...
      <region xml:id="Contents" top="5px" left="10%" width="80%" height="300px" />
    </layout>
   </head>
   <body>
      ...
        <textstream xml:id="ST99" region="Contents" src="externalText.smil" dur="25s"/>
      ...
   </body>
 </smil>

In this example, the effective values for height, width, backgroundColor and duration are taken from the embedding SMIL file rather than the external SmilText profile file.

8.6.3 Appendix C: Using ITS Facilities with SMIL 3.0 SmilText

This section is informative.

W3C publishes a set of internationalization and localization guidelines [ITS] that allow content to be easily localized and translated. The smilText modules provide a direct means of specify content, and the ITS facilities have been defined to apply to smilText, div, p and spanelements.

The following fragment illustrates an ITS rules file:

<its:rules
  xmlns:its="http://www.w3.org/2005/11/its"
  xmlns:s="http://www.w3.org/2008/SMIL30/" version="1.0">

 <!-- Rule number 1 -->
 <its:translateRule selector="//s:*" translate="no"/>

 <!-- Rule number 2 -->
 <its:translateRule selector="//s:smilText | //s:div | //s:p | //s:span " translate="yes"/>

<!-- Rule number 3 -->
<its:withinTextRule selector="//s:span" withinText="yes"/>

</its:rules>

The first two rules are used to separate translatable and non-translatable content. They can be read as: the default for elements is that they are not translatable (first <translateRule> element). The exceptions (translatable elements and attribute content) are handled by the second <translateRule> element, which takes precedence over the first one.

The third rule about "Elements within Text" describes that the <span> element appears in the flow of other elements, like <smilText>, <p> or <div>. The default for "Elements Within Text" is that elements are not nested.

For internationalization and localization purposes, a SMIL 3.0 file is associated to the ITS rules file indicated above.

9. SMIL 3.0 Linking

Editors for SMIL 3.0
Jack Jansen, CWI
Thierry Michel, W3C
Editors for Earlier Versions of SMIL
Lloyd Rutledge, CWI
Aaron Cohen, Intel.

9.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

This version contains a redefinition of the attribute values for sourceLevel and destinationLevel; these now make use of the decibel notation also used for the soundLevel attribute in the Layout module. Further changes are limited to minor editorial improvements for SMIL-3.0.

The SMIL 3.0 specification had expected to integrate the general features of the HTML-5/XHTML-2 access and role attributes as an extension and replacement for the accessKey attribute, but a lack of consensus among the proposals from XHTML-2 and HTML-5 has caused us to postpone this integration to a future version of SMIL.

9.2 Introduction

This section is informative.

The SMIL 3.0 Linking Modules define the SMIL 3.0 document attributes and elements for navigational hyperlinking. These are navigations through the SMIL presentation that may be triggered by user interaction or other triggering events, such as temporal events. SMIL 3.0 provides only for in-line link elements. Links are limited to uni-directional single-headed links (i.e. all links have exactly one source and one destination resource).The SMIL 3.0 Linking Modules are named LinkingAttributes, BasicLinking and ObjectLinking. The LinkingAttributes module includes a set of attributes used to provide SMIL linking semantics to linking elements. The BasicLinking module includes the SMIL 3.0 linking elements themselves. The ObjectLinking module includes additional optional linking features that a language profile may wish to include. Note that the BasicLinking module explicitly includes the attributes from the LinkingAttributes module on its elements.

9.3 Module Overview

This section is informative.

SMIL 3.0 Linking functionality is partitioned across the following 2 modules:

9.4 Relationship with Other XML Linking-related Formats

This section is informative.

9.4.1 Relationship with XPointer

XPointer [XPTR] allows components of XML documents to be addressed in terms of their placement in the XML structure rather than on their unique identifiers. This allows referencing of any portion of an XML document without having to modify that document. Without XPointer, pointing within a document may require adding unique identifiers to it, or inserting specific elements into the document, such as a named anchor in HTML. XPointers are put within the fragment identifier part of a URI [URI] attribute value. The SMIL 3.0 specification allows but does not require that user agents be able to process XPointers in SMIL 3.0 URI attribute values.

9.4.2 Relationship with XLink

Where possible, SMIL linking constructs have the same names as constructs from XLink [XLINK]. This makes it easier to learn to write linking in code in both formats: authors familiar with XLink may more quickly learn SMIL linking, and vice versa. It also makes it easier for SMIL code to be processed into and recognized as XLink code when the appropriate transform mechanisms become available. However, the SMIL linking attributes are distinct from the XLink constructs and are part of a separate namespace. Using SMIL's modularization mechanism, these constructs are not in the XLink namespace but in the namespace defined in the SMIL 3.0 specification.

9.4.3 Relationship with XML Base

SMIL profiles may use XML Base [XMLBase]. The SMIL 3.0 Language Profile, for example, includes support for XML Base. When XML Base is incorporated into a profile, XML Base declarations apply to the URI attribute values of SMIL used in that profile's documents. These attributes include the href attribute of the SMIL BasicLinking Module and the src attribute of the SMIL BasicMedia Module.

9.4.4 Relationship with XHTML

The elements names, attributes names and attribute values of SMIL linking constructs are, where possible, the same as constructs in XHTML [XHTML11] with corresponding linking behavior. This facilitates learning and writing in both languages and avoids confusion. It may also facilitate the processibility of both languages' linking constructs as XLink once the format is released. The linking constructs in SMIL, however, fall under the namespace defined in SMIL 3.0, and not under any XHTML-related namespace.

9.5 Linking into SMIL 3.0 Documents

This section is normative.

The SMIL 3.0 Linking Modules support name fragment identifiers and the '#' connector. The fragment part is an id value that identifies one of the elements within the referenced SMIL document. With this construct, SMIL 3.0 supports locators as currently used in HTML (that is, it uses locators of the form "http://www.example.org/some/path#anchor1"), with the difference that the values are of unique identifiers and not the values of "name" attributes. Of course, this type of link may only target elements that have an attribute of type ID.

Links using fragment identifiers enable authors to encode links to a SMIL 3.0 presentation at the start time of a particular element rather than at the beginning of its presentation. If a link containing a fragment part is followed, the presentation should start as if the user had fast-forwarded the presentation represented by the destination document to the effective begin of the element designated by the fragment. See the discussion of linking to timing constructs in the SMIL 3.0 Timing and Synchronization Modules for more information.

There are special semantics defined for following a link containing a fragment part into a document containing SMIL timing. These semantics are defined in the SMIL 3.0 Timing and Synchronization Modules.

9.5.1 Handling of Links in Embedded Documents

Due to its integrating nature, the presentation of a SMIL 3.0 document may involve other (non-SMIL) applications or plug-ins. For example, a SMIL 3.0 user agent may use an HTML plug-in to display an embedded HTML page. Vice versa, an HTML user agent may use a SMIL plug-in to display a SMIL 3.0 document embedded in an HTML page. Note that this is only one of the supported methods of integrating SMIL 3.0 and HTML. Another alternative is to use the merged language approach. See the SMIL 3.0 Modules for further details.

In embedded presentations, links may be defined by documents at different levels and conflicts may arise. In this case, the link defined by the containing document should take precedence over the link defined by the embedded object. Note that since this might require communication between the user agent and the plug-in, SMIL 3.0 implementations may choose not to comply with this recommendation.

If a link is defined in an embedded SMIL 3.0 document, traversal of the link affects only the embedded SMIL 3.0 document.

If a link is defined in a non-SMIL document which is embedded in a SMIL 3.0 document, link traversal may only affect the presentation of the embedded document and not the presentation of the containing SMIL 3.0 document. This restriction may be relaxed in future versions of SMIL.

9.5.2 Error Handling

When a link into a SMIL 3.0 document contains an un-resolvable fragment identifier ("dangling link") because it identifies an element that is not actually part of the document, SMIL 3.0 software should ignore the fragment identifier, and start playback from the beginning of the document.

When a link into a SMIL 3.0 document contains a fragment identifier which identifies an element that is the content of a switch element, SMIL 3.0 software should interpret this link as going to the outermost ancestor switch element instead. In other words, the link should be considered as accessing the switch ancestor element that is not itself contained within a switch.

9.6 SMIL 3.0 LinkingAttributes Module

This section is normative.

The SMIL 3.0 LinkingAttribues module defines several attributes that a language profile may include on linking elements to add SMIL linking semantics to those elements. The elements in the BasicLinking Module explicitly include these attributes. These attributes may be applied to linking elements from other namespaces if allowed by the language profile.

sourceLevel
This attribute sets the relative audio volume of media objects in the presentation containing the link when the link is followed. This attribute takes signed number values. The units of the sourceLevel attribute are consistent with those described for the soundLevel attribute of the SMIL 3.0 Layout Modules, and the audio levels are modified in the same manner. The application of sourceLevel volume control is cumulative with any media specific volume control (such as the soundLevel attribute) on the presentation containing the link. When the display of the destination resource completes, the effect of sourceLevel attribute on the originating presentation should be removed. The default value is '+0.0dB' (or 100% in percentage notation).
destinationLevel
This attribute sets the relative audio volume of media objects in the remote resource when the link is followed. This attribute may take signed number decibel (dB) values. The destinationLevel attribute is applied to the natural or intrinsic audio volume of the destination media, and therefore is relative to the volume that the media would be played without application of the destinationLevel attribute. The units of the destinationLevel attribute are consistent with those described for the soundLevel attribute of the SMIL 3.0 Layout Modules, and the audio levels are modified in the same manner. The application of destinationLevel volume control is cumulative with any media specific volume control (such as the soundLevel attribute) specified by the remote resource. The default value is '+0.0dB' (or 100% in percentage notation).
sourcePlaystate
This attribute controls the temporal behavior of the presentation containing the link when the link is traversed. It may have the following values:
  • play: When the link is traversed, the presentation containing the link continues playing.
  • pause: When the link is traversed, the presentation containing the link pauses. When the display of the destination resource completes, the originating presentation should resume playing.
  • stop: When the link is traversed, the presentation containing the link stops. That is, it is reset to the beginning of the presentation. The termination of the destination resource will not cause the originating presentation to continue or restart.
The value of the show attribute may determine the default value of or override the assignment of the sourcePlaystate attribute. In general, the show attribute takes precedence over the sourcePlaystate attribute. The rules for the impact of show on sourcePlaystate are:
  • If the show attribute is assigned the value new, then the default for the sourcePlaystate attribute is play.
  • If the show attribute is assigned the value replace or the deprecated value pause, then the presentation behaves as if the sourcePlaystate attribute had been set to pause. Any assignment of the sourcePlaystate attribute is ignored.
Note that the definition of what constitutes a resource completing needs to be defined in the language profile, or may be implementation dependent. Typical definitions would be when the user closes the display window, or when a continuous media object ends.
destinationPlaystate
This attribute controls the temporal behavior of the external resource (typically identified by the href attribute) when the link is followed. It only applies when this resource is a continuous media object. It have the following values:
  • play: When the link is traversed, the destination of the link plays.
  • pause: When the link is traversed, the destination of the link is displayed in a paused state at the point depicted by the value of the href attribute.

The default value is play.

show
This attribute specifies how to handle the current state of the presentation at the time in which the link is activated. The following values are allowed:
  • new: The presentation of the destination resource starts in a new context, not affecting the source resource. If both the presentation containing the link and the remote resource contain audio media, both are played in parallel.
  • pause: This value is deprecated in favor of setting the show attribute to new and the sourcePlaystate attribute to pause.
  • replace: The current presentation is paused at its current state and is replaced by the destination resource. If the player offers a history mechanism, the source presentation resumes from the state in which it was paused when the user returns to it. The default value of  sourcePlaystate is pause when the show attribute has the value replace. If the link destination is within the same document in which this link element lies, then any assignment of this element's sourcePlaystate attribute is ignored, and the link is processed as if the value of sourcePlaystate was stop. For more discussion regarding hyperlinking within the current document, see the "Hyperlinks and Timing" section of the SMIL 3.0 Timing and Synchronization Modules.

The default value of show is replace.

external
This attribute defines whether the link destination should be opened by the current application or some external application. A value of true will open the link in an external application defined on the system to handle this media type. A value of false will open the destination in the current application, however, if the current application does not support the media type of the referenced media, then it should attempt to render the media using an external application. Note that the means of associating media types with external applications is system dependent and not defined here. The default value of external is false.
Note that the above behavior for the external attribute applies to mailto links as well as media.
actuate
The actuate attribute determines whether or not the link is triggered by some event or automatically traversed when its time span is active. Its default value is onRequest, which means something must trigger the link traversal, typically user interaction. A value of onLoad may also be assigned. This value indicates that the link is automatically traversed when the linking element becomes active. For linking elements containing SMIL timing, this is when the active duration of the linking element effectively begins, in other words, when the element's beginEvent event is fired. This means that a SMIL link may be encoded to be triggered by any event that may trigger the begin of a timed element. See the SMIL 3.0 Timing and Synchronization Modules for more details.

Each of the following attributes has the same syntax as the attributes of the same name in HTML [HTML4] and, where applicable, the same semantics:

alt
This attribute is defined for SMIL 3.0 in the SMIL 3.0 Media Object Modules. The recommendations given there for the alt attribute on media object elements apply to its use in linking elements as well.
accesskey
This attribute assigns a keyboard key whose activation by the user in turn activates this link. It has the same meaning as the attribute of the same name in HTML [HTML4]. Keystroke-activated links in embedded presentations stay effective when embedded -- that is, if the user hits that key during the SMIL presentation, that navigation occurs within the embedded media. The rules for disambiguating links in multiple objects are:
  • Keystroke links defined in SMIL dominate over those defined in embedded media.
  • When simultaneously active SMIL linking elements have the same "accesskey", then priority goes to the one activated earliest, then to the one defined first on the SMIL code.
  • In profiles in which the SMIL 3.0 Layout Modules are used, links in media objects placed in the foremost region dominate, as defined by "stacking level" in the SMIL 3.0 Layout Modules.
  • Media objects for which no region is assigned are assumed to be more forward on the stacking level than all media objects assigned regions. This allows for the possibility of audio objects that have keystroke input, such as hyperlinked talking books for the sight-impaired.
tabindex
This attribute provides the same functionality as the tabindex attribute in HTML [HTML4]. It specifies the position of the element in the tabbing order for the current document. The tabbing order defines the order in which elements will receive focus when navigated by the user via the keyboard. At any particular point in time, only elements with an active timeline are taken into account for the tabbing order. Inactive elements should be ignored for the tabbing order.
When a media object element has a tabindex attribute, then its ordered tab index is inserted in the SMIL tab index at the location specified by the media object's tabindex attribute value. This assumes the media object itself has tab indices, such as embedded HTML with tabindex attributes. This enables all link starting points in a SMIL presentation to have a place on the ordered list to be tab-keyed through, including those in embedded presentations.
target
This attribute defines either the existing display environment in which the link should be opened (e.g., a SMIL region, an HTML frame or another named window), or triggers the creation of a new display environment with the given name. Its value is the identifier of the display environment. If no currently active display environment has this identifier, a new display environment is opened and assigned the identifier of the target. When a presentation uses different types of display environments (e.g. SMIL regions and HTML frames), the namespace for identifiers is shared between these different types of display environments. For example, one may not use a target attribute with the value "foo" twice in a document, and have it point once to an HTML frame, and then to a SMIL region. If the element has both a show attribute and a target attribute, the show attribute is ignored.

This section is informative.

Examples

These examples are encoded in the SMIL 3.0 Language Profile.

Example 1

This examples shows the use of the target and accesskey attributes. The upper half of the display shows an image. If the user clicks on the image, a SMIL presentation is played in the lower half of the display. The same thing happens if the user hits the 'a' key.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  <head>
    <layout>
      <region xml:id="source"      height="50%"/>
      <region xml:id="destination" top   ="50%"/>
    </layout>
 </head>
 <body>
   <a href="embeddedSMIL.smil" target="destination" accesskey="a">
     <img region="source" src="source.jpg" dur="indefinite"/>
   </a>
 </body>
</smil>

Example 2

This example shows the use of the tabindex attribute on media object elements. The HTML file "caption1.html" has 3 links, so the first 3 tabs focus on those links in turn. The file caption2.html has 4 links, so tabs 4-7 focus on them in turn. Tabs 8 and 9 focus the two links inside v1.mpg. Tab 10 focuses on the whole presentation of graph.imf. If any of the first 9 tabbed foci is activated, then a link inside one of the embedded presentations caption1.html, caption2.rtx or v1.mpg is triggered, affecting only that presentation. If the 10th tabbed focus is activated, then the SMIL presentation itself is affected, loading http://www.example.org/presentation into the same presentation space.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <seq>
    <video src="http://www.example.org/graph.imf"/>
    <par>
        <a tabindex="4" href="http://www.example.org/presentation">
            <video src="http://www.example.org/graph.imf" ... />
        </a>
        <video tabindex="3" src="http://www.example.org/v1.mpg" ... />
        <text tabindex="1" src="http://www.example.org/caption1.html" ... />
        <text tabindex="2" src="http://www.example.org/caption2.html" ... />
    </par>
  </seq>

9.7 SMIL 3.0 BasicLinking Module

This section is normative.

The link elements allows the description of navigational links between objects. SMIL 3.0 linking provides only uni-directional, single-headed, in-line link elements.

9.7.1 The a Element

The functionality of the a element is very similar to the functionality of the a element in HTML [HTML4]. For synchronization purposes, the a element is transparent. That is, it does not influence the synchronization of its child elements. a elements may not be nested. An a element must have an href attribute.

An a element may specify several triggers for its traversal simultaneously. For example, the element's content visual media object may be selected by the user or the key specified by the accesskey attribute may be typed to trigger a traversal. In cases where multiple triggers are specified, any of them may activate the link's traversal. That is, a logical OR is applied to the list of triggering conditions to determine if traversal occurs.

Traversal occurs if one of the conditions for traversal is met during the time that the a element is active. An a element is sensitive if the media or elements that it contains are active or frozen. See the SMIL 3.0 Timing and Synchronization Modules for further details. For timing purposes an a element is considered to be discrete media, that is, the intrinsic duration is 0. Note that an a element is not a time container and does not constrain the timing of its child elements.

Attributes
href
This attribute has the same syntax and semantics as the href attribute of HTML [HTML4]. It contains the URI of the link's destination. The href attribute is required for a elements.

The a element also includes the attributes defined in the SMIL 3.0 LinkingAttributes Module:

Element Content

The content of the a element must be defined by the language profile. In general, it is expected that a elements may contain the media and timing elements present in the language profile as children.

Other Integration Requirements

Language profiles that apply SMIL 3.0 timing to the a element must specify the default and allowed values of the fill attribute on the a element. Languages applying SMIL 3.0 timing to the a element wishing to remain compatible with SMIL 1.0, such as the SMIL 3.0 language profile, must default the value of the fill attribute on the a element to auto, and should consider fixing the value to auto. In all other cases, for compatibility, it is recommended to use a default value of auto

If not otherwise specified by the profile, the value of the fill attribute on the a element is fixed to auto.

This section is informative.

Examples

These examples are encoded in the SMIL 3.0 Language Profile.

Example 1

The link starts up the new presentation replacing the presentation that was playing.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <a href="http://www.example.org/somewhereelse.smi">
     <video src="rtsp://www.example.org/graph.imf" region="l_window"/>
  </a>

Example 2

The link starts up the new presentation in addition to the presentation that was playing.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <a href="http://www.example.org/somewhereelse.smi" show="new">
     <video src="rtsp://www.example.org/graph.imf" region="l_window"/>
  </a>

This could allow a SMIL 3.0 player to spawn off an HTML user agent:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <a href="http://www.example.org/somewebpage.html" show="new">
     <video src="rtsp://www.example.org/graph.imf" region="l_window"/>
  </a>

Example 3

The link starts up the new presentation and pauses the presentation that was playing.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <a href="http://www.example.org/somewhereelse.smi" show="new" sourcePlaystate="pause">
     <video src="rtsp://www.example.org/graph.imf" region="l_window"/>
  </a>

Example 4

The following example contains a link from an element in one presentation A to the middle of another presentation B. This would play presentation B starting from the effective begin of the element with id "next".

Presentation A:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <a href="http://www.example.org/presentationB#next">
    <video src="rtsp://www.example.org/graph.imf"/>
  </a>


Presentation B (http://www.example.org/presentation):

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <seq>
    <video src="rtsp://www.example.org/graph.imf"/>
    <par>
      <video src="rtsp://www.example.org/timbl.rm" region="l_window"/>
      <video xml:id="next" src="rtsp://www.example.org/v1.rm" region="r_window"/>
             ^^^^^^^^^
      <text src="rtsp://www.example.org/caption1.html" region="l_2_title"/>
      <text src="rtsp://www.example.org/caption2.rtx" region="r_2_title"/>
    </par>
  </seq>

9.7.2 The area Element

The functionality of the a element is restricted in that it only allows associating a link with a complete media object. The HTML area element [HTML4] has demonstrated that it is useful to associate links with spatial portions of an object's visual display.

The semantics of the area element in SMIL 3.0 is the same as it is for HTML in that it may specify that a spatial portion of a visual media object may be selected to trigger the appearance of the link's destination. The coords attribute specifies this spatial portion. In contrast, if an a element is applied to a visual media object, then it specifies that any visual portion of that object may be selected to trigger the link traversal.

The area element also extends the syntax and semantics of the HTML area element by providing for linking from non-spatial portions of the media object's display. When used in profiles that include SMIL 3.0 Timing and Synchronization Modules, the area element allows breaking up an object into temporal subparts, using attributes such as the begin and end attributes. The values of the begin and end attributes are relative to the beginning of the containing media object. The area element may allow to make a subpart of the media object the destination of a link, using these timing attributes and the id attribute.

The anchor element of SMIL 1.0 [SMIL10] is deprecated in favor of area. For purposes of this specification of SMIL 3.0, the anchor element should be treated as a synonym for area

Attributes

The area element may have the attributes listed below, with the same syntax as in HTML [HTML4] and, where applicable, the same semantics:

href
Defined in the BasicLinking module.
alt
Defined in the LinkingAttributes module.
tabindex
Defined in the LinkingAttributes module.
accesskey
Defined in the LinkingAttributes module.
target
Defined in the LinkingAttributes module.
nohref
When set, this attribute specifies that the region has no associated link, even if other area elements for the media object define links for it. It uses the same syntax as for the nohref attribute in HTML 4.01.

shape
This attribute specifies the shape of an anchor on the screen, and is used with the coords attribute. The shape attribute of SMIL has the same behavior as in HTML [HTML4]. The object that the shape attribute is applied to is the media of the containing element after the media has been scaled for presentation but before it has been clipped.
coords
Along with the shape attribute, this attribute specifies the position and shape of the anchor on the screen. The number and order of values depends on the shape being defined. Where SMIL and HTML share visual display behavior, the coords attribute of SMIL has the same behavior as in HTML [HTML4]. How the coords attribute of SMIL applies to SMIL visual display behavior is as follows:
  1. The upper-left corner origin used by the coords attribute is in the image display space, not the region it is displayed in. One example of when the image and region upper-left corner differ is when left and top attributes are used in the media object elements and applied to the region.
  2. As in HTML, pixel values of the coords attribute refer to the pixels of the display space - that is, typically, of the user's screen. These may differ from the pixel values of the source image. One example of when they may differ in SMIL is when the fit attribute of the region element used is not "hidden".
  3. In SMIL, it is possible for a portion of the image to be not visible. For example, this may happen when the fit attribute of the region element is hidden, and the image is bigger in pixels than the region. In such cases, the rules for placing active areas on the image apply to the screen space the image would take if no cropping occurred. This is particular important to note for percentage values: these do not apply to the cropped image but to the space the image would occupy if it weren't cropped. Areas that, with this rule, are placed beyond display boundaries are not active.
If multiple area element children of the same media object element define simultaneously active overlapping areas with their coords attributes, then, as in HTML [HTML4], the area element that is encoded earliest in the document takes precedence.

The following attributes of the area element are unique to SMIL and not found in HTML. They are defined above in the section on LinkingAttributes module attributes:

Element Content

The area element is empty.

This section is informative.

Examples

These examples are encoded in the SMIL 3.0 Language Profile.

1) Decomposing a video into temporal segments

In the following example,  the temporal structure of an interview in a newscast (camera shot on interviewer asking a question followed by shot on interviewed person answering) is exposed by fragmentation:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  <body>
    <video src="video" title="Interview" >
      <area xml:id="firstQ" begin="0s" dur="20s" title="first question" alt="subclip of 20 seconds of video for first question" />
      <area xml:id="firstA" begin="firstQ.end" dur="50s" title="first answer" alt=" subclip of 50 seconds of video for first answer" />
    </video>
  </body>
</smil>

2) Associating links with spatial segments In the following example, the screen space taken up by a video clip is split into two sections. A different link is associated with each of these sections.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  <body>
    <video src="video" title="Interview" >
      <area shape="rect" coords="5,5,50,50"
            title="Journalist" alt="rectangle cropping of video for journalist" href="http://www.example.org/journalist"/>

      <area shape="rect" coords="60,5,100,50"
            title="Subject" alt="rectangle cropping of video for subject" href="http://www.example.org/subject"/>
   </video>
  </body>
</smil>

3) Associating links with temporal segments

In the following example, the duration of a video clip is split into two sub-intervals. A different link is associated with each of these sub-intervals.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  <body>
    <video src="video" title="Interview" >
        <area begin="0s" dur="20s" title="first question"
              href="http://www.example.org/question" ... />
        <area begin="20s" dur="50s" title="first answer"
              href="http://www.example.org/answer" ... />
   </video>
  </body>
</smil>

4) Associating links with spatial subparts

In the following example, two areas are assigned in the screen space taken up by a video clip. A different link is associated with each of these areas.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <video src="http://www.example.org/CoolStuff">
    <area href="http://www.example.org/AudioVideo" coords="0%,0%,50%,50%" ... />
    <area href="http://www.example.org/Style"      coords="50%,50%,100%,100%" ... />
  </video>

5) Associating links with temporal subparts

In the following example, the duration of a video clip is split into two subintervals. A different link is associated with each of these subintervals.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <video src="http://www.example.org/CoolStuff">
    <area href="http://www.example.org/AudioVideo" begin="0s" end="5s" ... />
    <area href="http://www.example.org/Style"      begin="5s" end="10s" .../>
  </video>

6) Jumping to a subpart of an object

The following example contains a link from an element in one presentation A to the middle of a video object contained in another presentation B. This would play presentation B starting from second 5 in the video. That is, the presentation would start as if the user had fast-forwarded the whole presentation to the point at which the designated fragment in the "CoolStuff" video begins.

Presentation A:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <a href="http://www.example.org/mm/presentationB#tim">
     <video xml:id="graph" src="rtsp://www.example.org/graph.imf" region="l_window"/>
  </a>


Presentation B:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <video src="http://www.example.org/CoolStuff">
    <area xml:id="joe" begin="0s" end="5s" ... />
    <area xml:id="tim" begin="5s" end="10s" ... />
  </video>

7) Combining different uses of links

The following example shows how the different uses of associated links may be used in combination.

Presentation A:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <a href="http://www.example.org/mm/presentationB#tim">
    <video xml:id="graph" src="rtsp://www.example.org/graph.imf" region="l_window"/>
  </a>


Presentation B:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <video src="http://www.example.org/CoolStuff">
    <area xml:id="joe" begin="0s" end="5s" coords="0%,0%,50%,50%"
            href="http://www.example.org/" ... />
    <area xml:id="tim" begin="5s" end="10s" coords="0%,0%,50%,50%"
            href="http://www.example.org/Tim" ... />
  </video>

8) The coords attribute and re-sized images

The following example shows the image file "example.jpg", which has the dimensions of 100x100 pixels. The active area for "example1.smil" is the entire display space, which is the cropped upper-left quarter of the original image. The active area for "example2.smil" may not be triggered because the image area corresponding to it was cropped.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  <head>
    <layout>
      <region xml:id="region" right="50" bottom="50"/>
    </layout>
  </head>
  <body>
    <img src="example.jpg" region="region">
      <area shape="rect" coords="0%,0%,50%,50%" href="example1.smil" ... />
      <area shape="rect" coords="50%,50%,100%,100%" href="example2.smil" ... />
    </img>
  </body
</smil>

9.8 SMIL 3.0 ObjectLinking Module

This section is normative.

The contents of this section represent capabilities that may be optionally included in the document profile. These features may or may not be included in a language profile, but they should not be optional features within a profile. This module requires support of the BasicLinking Module.

9.8.1 The fragment Attribute

A profile may choose to include the fragment attribute as part of the area element. It provides for a host document to externally include a link in a contained media object that will be processed at the level of the host document.

fragment
This attribute refers to a portion of the embedded media object that is to act as the starting point of this link in the SMIL presentation. If the user clicks on, or otherwise activates, this portion of the embedded media display, the SMIL user agent recognizes this as the current link being activated. This overrides any linking that may happen within the embedded display of the media object.

The value of the fragment attribute must be recognizable by the process managing the media object as an activate-able portion of the object. If the referenced media object is an HTML file, then the value of the fragment attribute is a named anchor within the HTML file. If the referenced media object is an XML file, then the value of the fragment attribute is a fragment identifier (the part that comes after a '#' in a URI [URI]).

This section is informative.

Take for example the following SMIL code. It establishes a portion of the display as a formatted text menu. Clicking on an item in this menu triggers a link to elsewhere within the presentation.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
  ...
  <ref src="menu.html" region="menubar">
    <area fragment="menuitem1" href="#selection1"/>
  </ref>

In the rendered HTML display, there is a portion of displayed text that is marked-up as an area with the name "menuitem1". If the user clicks on this during the SMIL presentation, a SMIL-activated link is triggered, navigating to the portion of the SMIL document with the ID "selection1". If the HTML area named "menuitem1" has an href attribute itself, then this hyperlink is overridden - only the SMIL hyperlink is processed. HTML area with href attributes and no associated SMIL fragment attributes are not overridden. This HTML area activates links within the embedded HTML presentation when clicked upon.

Use of the fragment attribute may override linking in the embedded media. If the attribute refers to a portion of the embedded media that is a link within that media, activating that link will trigger navigation in the SMIL presentation only, and not in the embedded presentation. For example, suppose a fragment attribute refers to a named anchor in an embedded HTML document. This named area has an href attribute, making it the starting point of a potential navigation within the HTML presentation itself. When embedded in the SMIL presentation, activation of this part of the HTML display triggers the SMIL link and not the HTML link. Links in embedded media that are not overridden in this manner, on the other hand, continue to trigger navigation within the embedded display when activated. All functionality defined for the SMIL link will override any equivalent functionality defined for the link in the embedded media. With the above example, the alt attribute of the SMIL area element would override the alt tag of the embedded HTML anchor.

The referencing performed by the fragment attribute only applies to one level of depth of embedded media. It only applies to directly embedded media; it does not apply to media embedded in turn within media embedded in a SMIL presentation. For example, consider a SMIL presentation that embeds a second SMIL presentation within it. The media object element of the first that embeds the second has within it an area element with a fragment attribute. The value of this attribute applies only to the embedded SMIL document itself. It does not apply to any media embedded within this second SMIL presentation.

This section is informative.

Examples

These examples are encoded in the SMIL 3.0 Language Profile.

Associating links with syntactic subparts

Below is an example with an integrated HTML file that displays a menu of

  link one
  link two

The user may click on one of the menu items, and the matching HTML file is displayed. That is, if user clicks on "link one", the "Link1.html" file is displayed in the "LinkText" region. Note that the links defined inside the embedded HTML presentation, those to "overridden1.html" and "overridden2.html" are not active when embedded here because they are overridden by the fragments.

The "menu.html" file contains the code:

<html>
...
   <A NAME="link1" HREF="overridden1.html">link one</A><BR/>
   <A NAME="link2" HREF="overridden2.html">link two</A>

The SMIL 3.0 file is:

   <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
    <head>
      <layout>
        <region xml:id="HTML"     width="100" height="100"/>
        <region xml:id="LinkText" width="100" top   ="100"/>
      </layout>
    </head>
    <body>
      <par>
        <text region="HTML" src="menu.html" dur="indefinite">
          <area fragment="link1" href="#LinkOne"/>
          <area fragment="link2" href="#LinkTwo"/>
        </text>
        <excl dur="indefinite" >
          <text xml:id="LinkOne" region="LinkText" src="Link1.html" dur="indefinite"/>
          <text xml:id="LinkTwo" region="LinkText" src="Link2.html" dur="indefinite"/>
        </excl>
      </par>
    </body>
  </smil>

10. SMIL 3.0 Metainformation

Editors for SMIL 3.0:
Dick Bulterman, CWI.
Marisa DeMeglio, DAISY Consortium.
Editors for Earlier Versions of SMIL:
Thierry Michel, W3C.

10.1 Summary of Changes for SMIL 3.0

This section is informative.

There are three sets of changes to this module. First, the SMIL 3.0 specification now allows metainformation to be placed on elements within the body instead of being restricted to the head element. This may make it easier to provide information on semantic intent within a SMIL presentation by making the binding of that information with the relevant nodes more local. Second, the text in this section makes it clear that several different types of metainformation encodings may be used within a single presentation. Third, the label attribute has been added to the Metainformation module so that extended content information can be provided for document components.

10.2 Introduction

This section is normative.

This section defines the SMIL 3.0 Metainformation Module. The SMIL metainformation facilities are composed of a module containing elements and attributes that allow description of metadata annotation of presentation creation information and presentation semantic intent to be added to SMIL documents. Since these elements and attributes are defined in a module, designers of other markup languages may choose whether or not to include this functionality in their languages.

This section is informative.

The SMIL 1.0 specification allowed authors to describe documents with a very basic vocabulary using the meta element. This was extended in the SMIL 2.0 specification with the introduction of the element. The element introduced the capability for describing metadata using the Resource Description Framework Model and Syntax [RDFsyntax]. In SMIL 3.0, the element's description is expanded to allow multiple metainformation encodings to be used within a single presentation. Note that the profile integrating these modules will ultimately determine which metainformation formalisms will be required to be supported by user agents for that profile.

Both the meta and elements were originally intended to be used in the head section of a SMIL document. While this was useful for general information about a document (such as when, where, and by whom it was created), this was deemed to be less appropriate for more semantic information about the intended use of individual media objects or structural elements of the presentation. For this reason, the descriptions and examples for the metadata element now explicitly cite the ability of including metainformation descriptions within the body section of the presentation as well. As with multiple metainformation formats, it is the profile integrating these modules that will ultimately determine which elements may have metainformation as child elements.

SMIL 3.0 also extends the capabilities presented for describing the nature of a content fragment within a document by introducing the label attribute. This attribute specifies a URI to a SMIL document that provides additional information in an accessible manner on the related element.

Unless specified otherwise by a profile, a SMIL user agent is not required to process or otherwise interpret specific metainformation strings. In all cases, metainformation may be considered to be optional information in a presentation.

10.3 The SMIL 3.0 Metainformation Module

This section is normative.

This section defines the elements and attributes that make up the functionality in the SMIL Metainformation module.

10.3.1 Elements and Attributes

The SMIL 3.0 Metainformation module defines two elements and one attribute that provide basic support for metainformation markup within a SMIL presentation.

The elements defined in this module are:

meta

The attribute defined in this module is:

label

The meta element

The meta element specifies a single property/value pair in its name and content attributes, respectively. Multiple property/value pairs must be described in multiple instances of the meta element.

Element Attributes

The meta element defines the following attributes:

name = CDATA
This attribute identifies a property name. The name attribute is required for meta elements. The list of properties for the name attribute is open-ended and may be extended by a particular SMIL profile. This specification defines the following properties:
  • base (deprecated ): The value of this property determines the base URI for all relative URIs used in the document.

    This section is informative.

    Note: the base property has been deprecated in favor of the more general XML base URL mechanism described in [XMLBase]. The language profile including the SMIL 3.0 metainformation module will determine if the base property will be supported by that profile.
  • pics-label or PICS-Label: The value of this property specifies a valid rating label for the document as defined by PICS [PICS] .
  • title: The value of this property specifies the title of the presentation. SMIL user agents may use this property to display a title for the presentation during rendering.
content = CDATA
This attribute specifies a property's value. This specification does not list legal values for this attribute.
The content attribute is required for meta elements.
Element Content

The meta element is an empty element.

The metadata element

The element contains information that is also related to metainformation of the document or document components. The element allows metainformation to be defined using a wide range of metainformation structuring languages. In many cases, it will act as the root element of an RDF tree, but it may also act as the root of other application-domain-specific metainformation structuring languages. The contents of the element are not processed within the context of a SMIL presentation, although different user agents may use the information within the element to support functionality such as searching or content labelling.

Element Attributes

The metadata element does not define any new attributes.

Element Content

When used with RDF, the element is expected to contain an RDF element and its sub-elements [RDFsyntax].

When used with other metainformation structuring languages, the element is expected to contain a metainformation description based on the structure and vocabulary of that language.

The label attribute

The label attribute specifies the name of a SMIL presentation that may be referenced by the user agent to provide additional information on the element to which this attribute is attached. A SMIL file is used as the target because this can provide a richer description of an element than a single text string or audio fragment. In this way, a richer mechanism is providing information on the intent of the relevant element than is available with other metadata facilities.

Attribute Values
label = URI
This attribute specifies a URI to a SMIL document containing a description of the element. If selected, a new document instance will be created to display the target SMIL file, and the source presentation will be paused.

10.4 Compatibility with Earlier Versions of SMIL

This section is informative.

To insure backward compatibility with SMIL 1.0, the meta element as specified in the SMIL 1.0 [SMIL10] Recommendation may be used to define properties of a document (e.g., author/creator, expiration date, a list of keywords, etc.) and assign values to those properties. SMIL does not define which document properties must be used and it does not define a vocabulary of values for these properties. Use of properties defined in the [DC] is recommended.

SMIL 2.1 extended SMIL 1.0 metainformation functionalities with the new element to host RDF statements. RDF is a declarative language and provides a W3C-recommended way for using XML to represent metadata in the form of statements about properties and relationships of items on the Web. Such items, known as resources, can be almost anything, provided they have a Web address. This means that you may associate metadata information with a SMIL document, but also a graphic, an audio file, a movie clip, or a structural sub-portion of a SMIL document. The specifications for RDF can be found at:

SMIL 3.0 maintains the use of both the meta and elements. New to SMIL 3.0 is the explicit possibility to allow the element to appear within the body section of a SMIL document. This allows the semantic intent of a portion of a SMIL document to be described in a manner that is local to the media objects (or SMIL structure) being described. Note that it is ultimately up to the designer of the relevant SMIL 3.0 profile to determine where the element may appear in a SMIL document -- this Module simply highlights the possibility for including such information outside of the head section.

10.5 Examples

This section is informative.

This section contains five examples of the use of metainformation in a SMIL presentation.

The first example uses the Dublin Core version 1.0 RDF schema [DC] and a set of RDF descriptions, all contained in the document head section. The XML base attribute is used with the host-level language description to define the base address of relative URI references in the document.

<?xml version="1.1" ?>
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language" xml:base="http://example.org/metaInf/assets/" >

 <head>
   <meta xml:id="meta-smil1.0-a" name="Publisher" content="W3C" />
   <meta xml:id="meta-smil1.0-b" name="Date" content="2007-01-03" />
   <meta xml:id="meta-smil1.0-c" name="Rights" content="Copyright 2007 John Smith" />
   <meta xml:id="meta-smil1.0-d" http-equiv="Expires" content="16 Apr 2051 12:00:00 UTC"/>


   <metadata xml:id="meta-rdf">
     <rdf:RDF
       xmlns:rdf = "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
       xmlns:rdfs = "http://www.w3.org/2000/01/rdf-schema#"
       xmlns:dc = "http://purl.org/dc/elements/1.1/"
       xmlns:smilmetadata = "http://www.example.org/AudioVideo/.../smil-ns#" >

<!-- Metadata about the SMIL presentation -->
     <rdf:Description rdf:about="http://www.example.com/meta.smil">
          ...
     </rdf:Description>

<!-- Metadata about the video -->
     <rdf:Description rdf:about="http://www.example.com/videos/meta-1999.mpg">
        ...
     </rdf:Description>

<!-- Metadata about a scene of the video -->
     <rdf:Description rdf:about="#scene1" >
        ...
     </rdf:Description>
    </rdf:RDF>
   </metadata>

   <layout>
    <region xml:id="a" top="5" />
   </layout>
 </head>
 <body>
   <video region="a" src="/videos/meta-1999.mpg" >
     <area xml:id="scene1" begin="0s" end ="30s"/>
     <area xml:id="scene2" begin="30s" end ="60s"/>
   </video>
   <video region="a" src="/videos/meta2-1999.mpg"/>
 </body>
</smil>

The second example is similar to the first, except that references on individual media elements are placed within the document definition instead of the head element.

<?xml version="1.1" ?>
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language" xml:base="http://example.org/metaInf/assets/" >
 <head>
 <meta xml:id="meta-smil1.0-a" name="Publisher" content="W3C" />
 <meta xml:id="meta-smil1.0-b" name="Date" content="2007-01-03" />
 <meta xml:id="meta-smil1.0-c" name="Rights" content="Copyright 2007 John Smith" />
 <meta xml:id="meta-smil1.0-d" http-equiv="Expires" content="16 Apr 2051 12:00:00 UTC"/>


  <metadata xml:id="meta-rdf">
   <rdf:RDF
       xmlns:rdf = "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
       xmlns:rdfs = "http://www.w3.org/2000/01/rdf-schema#"
       xmlns:dc = "http://purl.org/dc/elements/1.1/"
       xmlns:smilmetadata = "http://www.example.org/AudioVideo/.../smil-ns#" >

<!-- Metadata about the SMIL presentation -->
   <rdf:Description rdf:about="http://www.example.com/meta.smil">
        ...
   </rdf:Description>
  </rdf:RDF>
 </metadata>

 <layout>
    <region xml:id="a" top="5" />
 </layout>
 </head>
 <body>
   <video xml:id="v1" region="a" src="/videos/meta-2006.mpg" >
      <metadata xml:id="meta-rdf">
         <rdf:RDF
            xmlns:rdf = "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
            xmlns:rdfs = "http://www.w3.org/2000/01/rdf-schema#"
            xmlns:dc = "http://purl.org/dc/elements/1.1/"
            xmlns:smilmetadata = "http://www.example.org/AudioVideo/.../smil-ns#" >

            <!-- Metadata about the video -->
              <rdf:Description rdf:about="http://www.example.com/videos/meta-1999.mpg" >
                ...
              </rdf:Description>
        </rdf:RDF>
     </metadata>
     <area xml:id="scene1" begin="0s" end ="30s">
        <metadata xml:id="meta-rdf">
           <rdf:RDF
              xmlns:rdf = "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
              xmlns:rdfs = "http://www.w3.org/2000/01/rdf-schema#"
              xmlns:dc = "http://purl.org/dc/elements/1.1/"
              xmlns:smilmetadata = "http://www.example.org/AudioVideo/.../smil-ns#" >

           <!-- Metadata about a scene of the video -->
             <rdf:Description rdf:about="#scene1" >
                  ...
             </rdf:Description>
         </rdf:RDF>
        </metadata>
     </area>
     <area xml:id="scene2" begin="30s" end ="60s"/>
   </video>
   <video region="a" src="/videos/meta2-2007.mpg"/>
 </body>
</smil>

In this example, separate metainformation blocks have been defined for the presentation, the video element 'v1' and each of the scenes of the video. Although RDF has been used for all of these objects, other formalisms (such as MPEG-7 or TV-Anytime) may also be used.

The third example shows the use of the label attribute as a pointer to a separate SMIL presentation. It can therefore be referred using a simple URI with no XPointer or ID fragment.

<?xml version="1.1" ?>
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language" xml:base="http://example.org/metaInf/assets/" >
 ...
 <body>
   <!–– This part of the presentation is a chapter ––>
   <seq label="chapterlabel.smil">
     <par>
       <text src="example.html#fragment_one"/>
       <audio src="audio_document.mp3" clipBegin="0.00s" clipEnd="5.00s"/>
     </par>
     ...
   </seq>
 </body>
</smil>

The label is in a separate file (chapterlabel.smil):

<?xml version="1.1" ?>
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language" xml:base="http://example.org/metaInf/assets/" >
 ...
 <body>
   <!––the label itself, as text and audio––>
   <par>
     <text>Chapter</text>
     <audio src="chapter.mp3"/>
   </par>
 </body>
</smil>
The fourth example shows a presentation with two content control options, to be set by the user. Both labels used here are found in the same external SMIL file, wrapped in an excl container (so that only one is played at a time). The referencing URI specifies which label is required.
 ...
 <head>
   <customAttributes>
     <!–– the option to play page numbers ––>
     <customTest xml:id="pagenumbersOn" defaultState="false" override="visible" label="labels.smil#pagenumbers"/>
     <!–– the option to play footnotes ––>
     <customTest xml:id="footnotesOn" defaultState="true" override="visible" label="labels.smil#footnotes"/>
   </customAttributes>
 </head>
 ...

The following SMIL file (labels.smil) contains both labels used in example four:

<?xml version="1.1" ?>
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language" xml:base="http://example.org/metaInf/assets/" >
   ...
 <body>
   <excl>
     <par xml:id="footnotes">
       <text>Footnotes</text>
       <audio src="footnotes.mp3" clipBegin="0.00s" clipEnd="1.54s"/>
     </par>
     <par xml:id="pagenumbers">
       <!–– the label's textual content may reference inline or external text ––>
       <text src="labeltext.xml#pagenum"/>
       <audio src="pagenumbers.mp3"/>
     </par>
   </excl>
 </body>
</smil>

The fifth example illustrates how SMIL meta content can be included within the body of a presentation by including it as content of the metadata element.

<?xml version="1.1" ?>
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language" xml:base="http://example.org/metaInf/assets/" >
 <head>
 <meta xml:id="meta-smil1.0-a" name="Publisher" content="W3C" />
 <meta xml:id="meta-smil1.0-b" name="Date" content="2007-01-03" />
 <meta xml:id="meta-smil1.0-c" name="Rights" content="Copyright 2007 John Smith" />
 <meta xml:id="meta-smil1.0-d" http-equiv="Expires" content="16 Apr 2051 12:00:00 UTC"/>

 <layout>
    <region xml:id="a" top="5" />
 </layout>
 </head>
 <body>
   <video xml:id="v1" region="a" src="/videos/meta-2007.mpg" >
      <metadata xml:id="meta-rdf">
      <meta name="Studio" content="AmstelProductions" />
      <meta name="Director" content="Willem.van.Oranje" />
      <meta name="Rights" content="OpenSourceVideo-v1a" />
      </metadata>
   </video>
 </body>
</smil>

The collection of elements that allow the element as a child is determined by the SMIL language profile integrating this module.

11. SMIL 3.0 Transition Effects

Editor for SMIL 3.0:
Thierry Michel, W3C
Editors for Earlier Versions of SMIL:
Guido Grassel, Nokia
Jack Jansen, CWI/Amsterdam
Antti Koivisto, Nokia
Eric Hyche, RealNetworks
Debbie Newman, Microsoft

11.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 specification leaves the SMIL 2.1 Transition Effects Module [SMIL21-transition] mostly unchanged. The only changes are that several typos and some examples have been corrected and some clarifications were added.

11.2 Introduction

This section is informative.

In most public descriptions of SMIL, the language is described as "allowing authors to bring TV-like content to the Web." One aspect of presentations commonly seen on television are transitions such as fades and wipes. The purpose of this section is to specify the semantics and syntax for describing transitions within SMIL and other XML-based documents. Also, this specification describes a taxonomy of transitions based on SMPTE 258M-1993 [SMPTE-EDL] as well as a compact set of parameters which be used to express this set of transitions.

Consider a simple still image slideshow of four images, each displayed for 5 seconds. Using SMIL Timing, this slideshow might look like the following:

...
<seq>
    <img src="butterfly.jpg" dur="5s" ... />
    <img src="eagle.jpg"     dur="5s" ... />
    <img src="wolf.jpg"      dur="5s" ... />
    <img src="seal.jpg"      dur="5s" ... />
</seq>
...

Currently when this presentation plays, we see a straight "cut" from one image to another, as shown in this animated image. However, what we would like to see are three left-to-right wipes in between the four images: in between butterfly.jpg and eagle.jpg at 5 seconds, in between eagle.jpg and wolf.jpg at 10 seconds, and in between wolf.jpg and seal.jpg at 15 seconds. This is illustrated by this animated image. The purpose of this document is to define the syntax and semantics of specifying transitions such as these in XML-based documents.

Although the transitions described in this document are visual transitions, the concepts apply to audio transitions as well by focusing on the overlap of the audio media in time rather than overlap in the layout. However, this document does not define any audio transition effects or specifically address how audio transitions should behave.

11.3 Module Overview

This section is normative.

SMIL 3.0 Transition functionality is partitioned across the following 4 modules:

11.4 Transition Model

This section is informative.

Transitions are modeled as animated filter behaviors. When a transition module is included in a language profile, all elements with renderable content implicitly have the transition filter behavior added to them. By default the behavior has no effect, but attributes and elements are provided to specify and control the effect of the transition behavior on the renderable content. Renderable content is declared in the SMIL Media Object Modules using media elements. Other languages, such as HTML, provide additional elements such as the span and div for rendering. In this document the terms "media element" and "media object" include all "renderable content", defined by the host language.

The transition filter behavior uses the background as one input. In this context, the background is whatever is currently present in the layout where the transition will be applied. Therefore, the background might include actively changing media, frozen media, or solid background colors. It also takes as input the media object to which the transition will be applied. The media object may be used as either the source or the destination input, with the background supplying the other input. The media object also defines the area in which the transition will occur. Certain transitions, such as fade-in from a solid color, will only take one input - the media object to which the transition is applied.

In case a SMIL language profile supports FullScreenTransitions module the area to which the transition applies may be different and, hence, the effect perceived by the viewer is of multiple media items transitioning. However, all timing rules and other rules for applying transitions still treat the transition exactly the same as when applying it to a single media item.

A free parameter common to all transition filter behaviors is the progress through the simple duration of the transition effect, which is abstractly considered to be the progress through the filter effect. We establish the convention that progress is a real number in the range 0.0-1.0, where a progress of 0.0 implies that the output of the filter is completely the background and where a progress of 1.0 implies the output of the filter is completely the destination media. Values in between result in an application of the transition filter behavior that combines the background and destination media in some manner. All other parameters of the transition are assumed to be part of the filter effect itself. Progress is the only parameter which is animated. Other parameters are used to specify the filter effect, but are not animated.

The distinction between animating only the progress of the filter versus animating one or more properties of the media is illustrated by the following. In the left-to-right wipe in the Introductory example, we could either think of this transition as:

  1. A filter which clips the destination media. The left side of the clipping rectangle would always be coincident with the left side of the destination media and the right side of the clipping rectangle would vary. Therefore, this transition could be thought of as animating the right side of the clipping rectangle.
  2. A filter which is predefined to be a left-to-right wipe whose progress varies in the range 0.0-1.0. When progress is 0.0, the background is shown. When progress is 0.5, the left half of the destination media is shown and the right half of the background is shown. When progress is 1.0, all of the destination media is shown.

This may seem to be a very minor distinction for a left-to-right wipe, but then think of the corresponding distinction for a cross-fade. We could think of a cross-fade transition as:

  1. Animation of an "opacity" property of both the destination media and the background; or
  2. Animation of progress in a filter which knows that a progress of 0.5 means a 50% blend, a progress of 0.75 means 75% of the destination media and 25% of the background, etc.

In some cases, it may seem convenient to think of animating a particular property unique to each type of transition. However, that model does not generalize well across the broad variety of transitions currently in use today. Therefore, in order to maintain simplicity of this model, we think of both the left-to-right wipe and the cross-fade as "black boxes" which both take the same inputs - the background, destination media, and the progress value.

XML elements and attributes are provided to control the properties of the transition. However, the transitions themselves are not a property of the attribute or elements used to control the transition behavior. In the model, the transitions are a behavioral property of the media element itself.

Transitions are hints to the presentation. Implementations must be able to ignore transitions if they so desire and still play the media of the presentation. This is equivalent to saying that the transition filter behavior does not execute, or has no effect. Transitions do not alter the active duration of the media elements that are involved in the transition. The transition behaviors operate within the active duration of their respective media elements. The behavior of multiple simultaneous transitions active on an element at a time is undefined.

We will introduce two methods of specifying transitions:

  1. "Style-like" transition shorthand. In this case, the author defines a set of transition classes and then sets the transition filter behavior to one of these classes by using attributes on the media elements. The same transition class may be applied several times to different media via the transIn and transOut attributes as specified in the BasicTransitions module. Additionally, each of the transitions plays in a default manner; that is, the progress runs linearly from 0.0-1.0 over the specified transition duration.
  2. Inline transitions. In this case, the author has full control over the progress of a transition. The progress may be accelerated, decelerated, animated forward, animated backwards, etc. These transitions are applied with a transitionFilter element as described in the InlineTransitions module. Inline transitions are based on the animation framework in the BasicAnimation module and allow the progress of a media element's transition behavior to be explicitly controlled, much like the animateMotion element allows the spatial location of a media object to be directly manipulated.

11.5 Transition Taxonomy

This section is normative.

We will classify transitions according to a two-level taxonomy of types and subtypes. Each of the transition types describe a group of transitions which are closely related. Within that type, each of the individual transitions are assigned a subtype which emphasizes the distinguishing characteristic of that transition. Usually, that distinguishing characteristic has something to do with the origin or direction of the geometric pattern of that transition. For instance, one of the transition types is called "barWipe" and represents SMPTE Wipe Codes 1 and 2. SMPTE Wipe Code 1 is a wipe consisting of a vertical bar moving left to right. SMPTE Wipe Code 2 is a horizontal bar moving top to bottom. Therefore, the subtype for SMPTE Wipe Code 1 is called "leftToRight" and the subtype for SMPTE Wipe Code 2 is called "topToBottom".

Since the table of transition types and subtypes is quite extensive, we will not present the exhaustive list here. For the complete list of the predefined transition types and subtypes, as well as their mapping to SMPTE Wipe Codes, see the Appendix. Note that the mapping to SMPTE Wipe Codes are provided for reference only.

11.5.1 Default Transition Subtypes

For each of the types, one of the subtypes is labeled as the "default" subtype in the Appendix. If this transition class is not available or not implemented by the user agent, then the user agent should fall back on the default subtype for that transition family. This allows authors to specify a type for a transition class without requiring that they specify a subtype for the transition class. For more detail on parsing rules and fallback semantics, see the Transition Parsing Rules section.

11.5.2 Required Transitions

Implementations are required to implement the default subtype for each of the following transition types.

Transition type Default Transition subtype SMPTE Wipe Code
barWipe leftToRight 1
irisWipe rectangle 101
clockWipe clockwiseTwelve 201
snakeWipe topLeftHorizontal 301

Implementation of the rest of the transition types and subtypes listed in the Appendix is encouraged, but not required due to the large number of transitions.

11.6 BasicTransitions Module

This section is normative.

Now that a taxonomy of transition types and subtypes is defined, we now discuss a "style-like" shorthand syntax for transitions. This shorthand syntax requires specification of the following:

  1. The class of transition to be applied. For instance, to use a 1-second left-to-right wipe in a presentation, the wipe is defined as a transition class defined with the transition element.
  2. The media elements to which this transition class is applied. In this shorthand syntax, the transition class is applied to the media element with the transIn and transOut attributes.

11.6.1 The transition element

The transition element defines a single transition class. This element may appear in different places in the document, depending upon the language profile. However in most cases, the transition element will be allowed only in the head of the document. For clarity, a grouping "container" element (such as the layout element in SMIL) may be desired in order to group all of the transition elements together. Since there may be multiple transition classes used in a document, then there may be multiple transition elements in the head of the document.

Element attributes

type
This is the type or family of transition. This attribute is required and must be one of the transition families listed in the Taxonomy section (or it must be an extended transition type provided by the user agent). See the Transition Parsing Rules for an algorithm to determine which transition to use.
subtype
This is the subtype of the transition. This parameter is optional and if specified, must be one of the transition subtypes appropriate for the specified type as listed in the Appendix (or it must be an extended transition subtype provided by the user agent). If this parameter is not specified then the transition reverts to the default subtype for the specified transition type. See the Transition Parsing Rules for an algorithm to determine which transition to use.
dur
This is the duration of the transition. The value of this attribute must be a clock-value as defined by the SMIL Timing and Synchronization Module. The default duration is the intrinsic duration built into the transition. All of the transitions defined in the Appendix have a default duration of 1 second.
startProgress
This is the amount of progress through the transition at which to begin execution. Legal values are real numbers in the range 0.0-1.0. For instance, we may want to begin a crossfade with the destination image being already 30% faded in. For this case, startProgress would be 0.3.
The default value is 0.0.
endProgress
This is the amount of progress through the transition at which to end execution. Legal values are real numbers in the range 0.0-1.0 and the value of this attribute must be greater than or equal to the value of the startProgress attribute. If endProgress is equal to startProgress, then the transition remains at a fixed progress for the duration of the transition.
The default value is 1.0.
direction
This specifies the direction the transition will run. The legal values are "forward" and "reverse". The default value is "forward". Note that this does not impact the media being transitioned to, but only affects the geometry of the transition. For instance, if you specified a type of "barWipe" and a subtype of "leftToRight", then the media would be wiped in by a vertical bar moving left to right. However, if you specified direction="reverse", then it would be wiped in by the same vertical bar moving right to left. Another example is the type of "starWipe" and subtype of "fourPoint". For this transition, running the transition forward reveals the destination media on the inside of a four-point star which starts small and gets larger as the transition progresses. Running this transition in reverse would reveal the destination media in the area outside of a large four-point star. The star begins large and gets smaller as the transition progresses. Note that not all transitions will have meaningful reverse interpretations. For instance, a crossfade is not a geometric transition, and therefore has no interpretation of reverse direction. Transitions which do not have a reverse interpretation should ignore the direction attribute and assume the default value of "forward".
fadeColor
If the value of the "type" attribute is "fade" and the value of the "subtype" attribute is "fadeToColor" or "fadeFromColor", then this attribute specifies the starting or ending color of the fade. If the value of the "type" attribute is not "fade", or the value of the "subtype" attribute is not "fadeToColor" or "fadeFromColor", then this attribute is ignored. Legal color values are CSS2 color values [CSS2-color-values].
The default value is "black".

Element content

The transition element may have the param element as a child.

Examples of the transition element

This section is informative.

For example, suppose we wanted to define two transition classes: a simple 2-second fade-to-black and a 5-second keyhole-shaped iris wipe. These transition classes may be expressed as:

    ...
    <transition xml:id="ftb2" type="fade" subtype="fadeToColor"
                dur="2s" fadeColor="#000000" />
    <transition xml:id="star5" type="starWipe" subtype="fivePoint"
                dur="5s" />
    ...

11.6.2 The param element

This section is normative.

The set of parameters discussed above are adequate for expressing all the transitions defined in this document. However, an implementation may choose to extend the set of transitions and define their own transition types and subtypes. Some of these new transition classes may need parameters which are not covered by the current set of attributes listed above. The purpose of the param element is to provide a generic means of supplying parameters to these extended transition types and subtypes.

The transition element may take the param element, defined in the SMIL MediaParam Module, as a child element. This element may be included from HTML or from some other module, depending upon the profile of the host language.

This section is informative.

For instance, suppose an implementation decided to create a new transition type called "superCool" and a subtype called "fire". This new transition needs a parameter called "flameLength". The example below shows how this implementation could use the param element to provide a value for "flameLength".

<transition xml:id="myfire" type="superCool" subtype="fire">
    <param name="flameLength" value="20" />
</transition>

Note that the meaning of the additional parameters provided to the transition element depends upon the implementation of the specific transition.

11.6.3 The transIn and transOut attributes

This section is normative.

Once a transition class has been defined in the head of a document, then a transition instance may be created by applying the transition class to the active duration of a media object element or other element with "renderable content". We do this by specifying a transIn or transOut attribute on the media object element. Transitions specified with a transIn attribute will begin at the beginning of the media element's active duration. Transitions specified with a transOut attribute will end at the end of the media element's active duration or end at the end of the element's fill state if a non-default fill value is applied.

The transIn and transOut attributes are added to all media object elements listed in the SMIL Media Object Module. The default value of both attributes is an empty string, which indicates that no transition should be performed.

The value of these attributes is a semicolon-separated list of transition id's. Each of the id's should correspond to the value of the XML identifier of one of the transition elements previously defined in the  document. The purpose of the semicolon-separated list is to allow authors to specify a set of fallback transitions if the preferred transition is not available. The first transition in the list should be performed if the user-agent has implemented this transition. If this transition is not available, then the second transition in the list should be performed, and so on. If the value of the transIn or transOut attribute does not correspond to the value of the XML identifier of any one of the transition elements previously defined, then this is an error. In the case of this error, the value of the attribute should be considered to be the empty string and therefore no transition should be performed. For more detailed parsing rules, see the Transition Parsing Rules section.

Rules For Applying Transitions to Media Elements

This section is informative.

  1. Since the purpose of transitions is to pass from one media object to another, then transitions are applied so that they either begin or end (or both) with some media object.

    However, the visual effect may appear to be applying this transition in the middle of an element's active duration. Consider the following example:

        ...
        <par>
            <img src="butterfly.jpg" dur="10s" />
            <img src="eagle.jpg" begin="3s" dur="4s" />
        </par>
        ...


    Assuming that eagle.jpg is z-ordered on top of butterfly.jpg, then transitions applied to both the beginning and end of eagle.jpg would have the visual appearance of being applied during the active duration of butterfly.jpg. However, from the authoring perspective, they are still applied at the beginning and end of eagle.jpg.

  2. Transitions happen by default during the active duration plus any fill period of the element to which they are applied. See the next rule for the effect of the fill value on the begin time of an out transition (transOut). Applying a transition to an element does not affect duration of the element. For instance, in the example below, applying a 1-second transition at the beginning of eagle.jpg does not add or subtract from the active duration of eagle.jpg - it is still displayed from 5-10 seconds in the presentation. Applying a 1-second transition at the beginning of eagle.jpg makes the transition take place from 5-6 seconds and applying a 2-second transition at the end of eagle.jpg would make the transition happen from 8-10 seconds.
    ...
    <seq>
        <img src="butterfly.jpg" dur="5s" ... />
        <img src="eagle.jpg"     dur="5s" ... />
    </seq>
    ...
  3. Out transitions (transOut) end at the end of the active duration of an element plus any fill period. For elements with the default fill behavior of remove, out transitions end at the end of the active duration of the element. For elements with other values of fill, the transition ends at the end of the frozen period of the element.

    For instance, in the following presentation the fill behavior of the image element is "freeze", which keeps the image frozen until its parent ends. The parent ends when all of its children end, which is the end of the video at 30 seconds. In order to end at the end of the frozen duration (30 seconds) the fade-to-black transition begins at 29 seconds. Therefore both elements fade to black together at 29 seconds.

        ...
        <transition xml:id="toblack1s" type="fade" subtype="fadeToColor"
                       fadeColor="#000000" dur="1s"/>
        ...
        <par>
            <img   ... dur="10s" transOut="toblack1s" fill="freeze"/>
            <video ... dur="30s" transOut="toblack1s"/>
        </par>


    However, in the following example the fill behavior of the image element is "remove". Therefore, the transition ends at the end of the active duration of the element. The image element fades to black starting at 9 seconds and the video element fades to black starting at 29 seconds.

        ...

        <transition xml:id="toblack1s"   type="fade" subtype="fadeToColor"
                       fadeColor="#000000" dur="1s"/>
        ...
        <par>
            <img   ... dur="10s" transOut="toblack1s" fill="remove"/>
            <video ... dur="30s" transOut="toblack1s"/>
        </par>

  4. The active duration for the media element to be  transitioned to (the destination media) should either overlap the active duration or the fill state for the media element to be  transitioned from (the background). In the Introductory example, the active duration for each destination media object immediately follows the end of the active duration of each background media object. In these cases (where the active durations immediately follow but do not overlap), the fill="transition" value should be used to enable the transition between the frozen last frame of the previous (background) media and active frames of the current (destination) media. See fill="transition" for more information. In cases where the active durations overlap (and hence the media being played to have different z-orders), the transition is between active frames of both media.

    In the following example the active durations do not overlap but the fill="transition" freezes the last frame of the first video. The result is a crossfade between the last frame of foo1.mpg and active frames of foo2.mpg.

        ...
        <seq>
            <video src="foo1.mpg" fill="transition"... />
            <video src="foo2.mpg" transIn="xfade1s" ... />
        </seq>
        ...


    In the following presentation, however, the crossfades both at the beginning and end of foo2.mpg are between active frames of both foo1.mpg and foo2.mpg since their active durations overlap. The example assumes the videos are at different z-orders.

        ...
        <transition xml:id="xfade" type="fade" subtype="crossfade" dur="1s" />
        ...
        <par>
            <video src="foo1.mpg" dur="30s" />
            <video src="foo2.mpg" begin="10s" dur="10s"
                   transIn="xfade" transOut="xfade" />
        </par>
        ...

  5. If the active durations for the media objects involved in the transition do not overlap, then the background for the area behind the media should be used. For example, the active durations for img1.jpg and img2.jpg do not overlap in the following example. Therefore, img1.jpg will transition to whatever is behind it.
        ...
        <transition xml:id="awipe" type="barWipe" dur="1s" ... />
        ...
        <par>
            <img src="img1.jpg" dur="2s" transOut="awipe" .../>
            <img src="img2.jpg" begin="5s" dur="2s"       .../>
        </par>
        ...

  6. If both an in and out transition are specified on a media element, and the times for those transitions overlap, then the in transition takes precedence, and the out transition should be ignored and no out transition should be performed.

    For instance, in the following example, the "barWipe" in transition will take precedence over the "fadeToColor" out transition. The in transition will fully take place for the first 2 seconds of img1.jpg, and the out transition is ignored and no out transition is performed.

        ...
        <transition xml:id="awipe"   type="barWipe"    dur="2s" ... />
        <transition xml:id="toblack" type="fadeToColor dur="2s" ... />
        ...
        <img src="img1.jpg" dur="3s" transIn="awipe" transOut="toblack" .../>
        ...

  7. Since transitions imply passing from the beginning or end of display of one media to another, transitions do not repeat.

    Consider the following example. The img2.jpg has a simple duration of 5 seconds, but an active duration of 15 seconds, since it plays a total of three times. However, the in transition only plays once at the beginning of the active duration of img2.jpg, which is at 5 seconds into the active duration of the sequence time container. The out transition also plays only once, starting at 19 seconds into the active duration of the sequence time container.

        ...
        <transition xml:id="awipe"   type="barWipe"     dur="1s" ... />
        <transition xml:id="toblack" type="fadeToColor" dur="1s" ... />
        ...
        <seq>
            <img src="img1.jpg" dur="5s" fill="transition" .../>
            <img src="img2.jpg" dur="5s" repeatCount="3"
                 transIn="awipe" transOut="toblack" ... />
            <img src="img3.jpg" dur="5s" .../>
        </seq>
        ...


Use of fill="transition"

The fill attribute, defined in the SMIL Timing and Synchronization Modules, allows an author to specify that an element should be extended beyond its active duration by freezing the final state of the element. A new fill value, "transition", is required to enable transitions between elements that would not normally be displayed at the same time. This fill attribute value may be applied only to elements with renderable content and is not applicable to pure time container elements such as par, seq, and excl. If fill="transition" is applied to a pure time container element, then the value is ignored and reverts to its default value.

The fill="transition" value indicates that after its active duration ends the element will be frozen and it will remain frozen until the end of the next transition on an element with which it overlaps in the layout. The element containing the fill="transition" will be removed when the transition ends. The timing rules defined in the SMIL Timing and Synchronization Modules still apply: the element is subject to the constraints of its parent time container and may be removed by its parent regardless of whether or not a transition is declared. Each profile should define the meaning of overlapping in the layout.

In the following example not using transitions, the default behavior is to remove the object representing img1.jpg after 10 seconds.

    ...
    <seq>
        <img src="img1.jpg" dur="10s" ... />
        <img src="img2.jpg" dur="10s" ... />
    </seq>
    ...

Adding a transition between img1.jpg and img2.jpg requires that img1.jpg remains displayed after its active duration ends so that it may be used by the transition to img2.jpg. The first image is removed as soon as the transition ends. The fill="transition" enables this behavior as illustrated by the following example.

    ...
    <transition xml:id="awipe" type="barWipe" dur="1s" ... />
    ...
    <seq>
        <img src="img1.jpg" dur="10s" fill="transition" ... />
        <img src="img2.jpg" dur="10s" transIn="awipe"   ... />
    </seq>
    ...

Slideshow example with transitions

After adding the fill and transIn attributes, our example slideshow from the Introduction section now looks like the following:

...
<transition xml:id="wipe1" type="barWipe" subtype="leftToRight" dur="1s"/>
...
<seq>
    <img src="butterfly.jpg" dur="5s" fill="transition" ... />
    <img src="eagle.jpg"     dur="5s" fill="transition" transIn="wipe1" ... />
    <img src="wolf.jpg"      dur="5s" fill="transition" transIn="wipe1" ... />
    <img src="seal.jpg"      dur="5s"                   transIn="wipe1" ... />
</seq>

Now the presentation plays as follows, as illustrated by this animated image

  • At 0 seconds, cuts directly to butterfly.jpg.
  • At 5 seconds begins a 1-second left-to-right wipe from butterfly.jpg to eagle.jpg.
  • At 6 seconds, eagle.jpg is fully displayed and remains displayed for 4 more seconds until 10 seconds.
  • At 10 seconds, begins a 1-second left-to-right wipe from eagle.jpg to wolf.jpg.
  • At 11 seconds, wolf.jpg is fully displayed for 4 more seconds until 15 seconds.
  • At 15 seconds, begins a 1-second left-to-right wipe to from wolf.jpg to seal.jpg.
  • At 16 seconds, seal.jpg is fully displayed for 4 more seconds until 20 seconds.
  • At 20 seconds the presentation ends.

Notice that these transitions occur during the active duration of each of the images which reference the transition and do not add or subtract from their host element's active duration. In this case, the transition occurs at the beginning of each media element's active duration.

Notice the importance of fill="transition". If we had not specified fill="transition" on butterfly.jpg, eagle.jpg, and wolf.jpg, then the transitions at 5, 10, and 15 seconds would have taken place between the background of the playback area (or the default background color, depending on how the layout language is specified) instead of the previous image in the sequence.

Exclusive children and fill="transition"

The fill="transition" also enables transitions from one excl child to another when the previously active child would normally be removed from the display. In the following example the first image transitions in from the background, displays for 5 seconds and then freezes because of the fill="transition". The next child activated by a button click will transition in from butterfly.jpg. When that child completes it will also freeze due to the fill="transition", remaining available for use in the next transition. It will transition in to the next image activated by a button click, and so on.

...
<transition xml:id="wipe1" type="barWipe" subtype="leftToRight" dur="1s"/>
...
<excl>
    <img src="butterfly.jpg" begin="0" dur="5s" fill="transition" transIn="wipe1" ... />
    <img src="eagle.jpg"     begin="button1.click" dur="5s" fill="transition" transIn="wipe1" ... />
    <img src="wolf.jpg"      begin="button2.click" dur="5s" fill="transition" transIn="wipe1" ... />
    <img src="seal.jpg"      begin="button3.click" dur="5s" fill="transition" transIn="wipe1" ... />
</excl>

Note that fill takes effect after the active duration of an element ends. In the above example, if button2 is clicked at 3 seconds, then butterfly.jpg will end, and the fill="transition" value for butterfly.jpg will be in effect through the end of the next transition. Therefore the transition will occur from butterfly.jpg to wolf.jpg and the frozen butterfly.jpg will disappear when the transition completes.

The pauseDisplay attribute of the priorityClass element, defined in the SMIL Timing and Synchronization Modules may also be used to control the display of children of an exclusive element. In the example above, pauseDisplay could be used to keep butterfly.jpg displayed when paused so the transition would occur between butterfly.jpg to the next media activated, and butterfly.jpg would continue to be displayed after the transition (assuming that it is not completely covered by the other media).

11.6.4 Handling Parameter Errors

This section is normative.

Transitions parameters may be specified incorrectly in many different ways with varying levels of severity. Therefore, the following errors should be handled with the specified action:

  1. Transition type is not valid. If the implementation does not recognize the value of the type attribute, or if that transition type is not implemented, then this transition class is invalid. However, this does not necessarily mean that no transition will be performed, as specified in the Transition Parsing Rules section.
  2. Transitions subtype is not valid for specified transition type. The specified transition subtype should be ignored and the default subtype for the specified transition type should be performed.
  3. Transition duration is not specified. The default duration of 1 second should be assumed.
  4. Transition parameter besides type or subtype is outside the legal range. If a transition parameter is specified outside of the legal range, then the default value of the parameter should be assumed.
  5. Transition parameter does not apply to this transition type. Since not all transition parameters apply to all transition types, then a common error could be to specify a transition parameter which does not apply to the specified transition type. These irrelevant parameters should be ignored. For instance, the "borderWidth" parameter does not apply to the "fade" transition type. If "borderWidth" were to be specified for the "fade" transition type, then it should be ignored.
  6. Transition duration is longer than the duration of the media object itself. In this case, the entire transition should be ignored and not performed.

11.6.5 Transition Parsing Rules

This section is normative.

As stated earlier, each transition may have a default transition subtype. Also, the transIn or transOut attributes on media elements take a semicolon-separated list of transition id's to indicate a list of fallback transitions. To eliminate ambiguity between the default subtype and the fallback list, this section defines an algorithm that must be followed to determine the transition to perform. The general procedure is that the first resolved transition from the list of fallback transitions is the one that should be performed.

Given one or more previously declared transition elements and a list of fallback transition id's (specified on the transIn or transOut attributes),  an implementation must use the following algorithm to determine the transition to perform.

  1. Set current-id to the first id in the list.
  2. If current-id is empty (we have no more id's in the list), then exit this algorithm. The implementation must not consider this an error and must not perform any transition.
  3. If current-id is the id of some previously defined transition element then go to Step 4. If not, then set current-id to the next id in the list and go to Step 2.
  4. If the value of the "type" attribute on the transition element identified by current-id is known to the implementation then go to Step 5. If not, then set current-id to the next id in the list and go to Step 2.
  5. If the "subtype" attribute is specified on the transition element identified by current-id then go to Step 6. If it is not specified, then the implementation must exit this algorithm and perform the default transition subtype for the specified transition type.
  6. If the value of the "subtype" attribute on the transition element identified by current-id  is known to the implementation then the implementation must exit this algorithm and perform the transition specified by the type and subtype. If it is not, then set current-id to the next id in the list and go to Step 2.

11.6.6 Audio Transitions

This section is normative.

Audio transitions animate the audio component of the target media object. SMIL specifies two audio transitions, "audioFade" and "audioVisualFade". They both adjust the audio volume of the target media. The latter one also animates the visual component of the media.

The "audioFade" transition fades an audio clip in or out by linearly adjusting the volume of the clip. As with the visual "fade" transition the direction of the transition depends on whether it is used in transIn or transOut attribute. To achieve cross-fade effect between two audio clips, the clips must overlap in time and the "audioFade" transitions may be applied simultaneously to both.

The "audioVisualFade" fade acts like a combination of the "audioFade" and the visual "fade" transitions. It has the same subtypes as "fade" transition. Future versions of the specification may provide a general mechanism for combining transitions.

Since the fill attribute semantics dictate that audio is silent during the fill period, the fill value fill="transition" can't be used for transition effects between audio clips. To mix audio clips using transition effects the timeline of the clips must overlap.

This section is informative.

Example:

The following example cross-fades between two audio clips. For cross-fade effect the clips must overlap in the presentation timeline. Since audio clips are not audible during the fill period, a sequence time container would not be suitable for achieving this effect.

<transition xml:id="four_sec_fade" type="audioFade" subType=fade" dur="4s"/>
. . .
<par>
  <audio xml:id="audio1" ... transOut="four_sec_fade" />
  <audio xml:id="audio2" ... begin="audio1.end-4s" transIn="four_sec_fade" />
</par>

11.6.7 FullScreen Transitions Module

This section is normative.

The FullScreenTransitions module adds a single attribute to the transition element:

Element attributes

The transition element is extended with the following attribute:

scope
This attribute designates the destination area of the transition. The allowable values are
region
In this case the transition behaves as specified in the BasicTransitions module. This is the default value.
screen
In this case the destination area encompasses a larger area, as defined in the language profile.

The media items that transition together with the master media item are all those media items that are rendering within the area defined by the scope attribute at the time the transition starts. Therefore, a transIn transition effect transitions from the set of media items defined as "background" in the Transition Model to the set of media items that would have been visible at the start time if no transIn attribute had been present. A transOut transition is from a set of media items visible at the start time of the transition to the set of media items that should be visible just after the master media item finishes (note that this set does not depend on whether transOut is specified or not).

Media items that start or end during the transition are treated in the same way as the background media items (see the BasicTransitions module).

This section is informative.

Using these definitions a full-screen transition may be added to above example as follows:

...
<head>
   <transition xml:id="diagonalWipeFullScreenTransition" type="clockWipe" subtype="clockwiseTwelve"
               dur="1s" scope="screen" />
  ...
</head>
<body>
  <par dur="10s">
        <img  xml:id="left1"   src="left1.jpg"  region="leftpane"  dur="7s" fill="transition"  />
        <text xml:id="right1"  src="right1.txt" region="rightpane" dur="7s" fill="transition"  />

        <img  xml:id="left2"   src="left2.jpg"  region="leftpane"  begin="7s" dur="7s" />
        <text xml:id="right2"  src="right2.txt" region="rightpane" begin="7s" dur="7s"
                           transIn="diagonalWipeFullScreenTransition" />
  </par>
</body>
...

11.6.8 Extending The Set Of Transitions

This section is normative.

In the algorithm specified earlier for determining which transition to perform, there is an implicit method for extending the set of transitions. If the new transition does not fall into any of the general descriptions of transition families in the Transition Taxonomy section, implementations may create a new transition type (a new family of transitions) and then create new transition subtypes under that newly-defined type. However, it is recommended that if the new transition falls into one of the existing families of transitions, implementations should simply extend the set of subtypes for that existing type. Implementations may use whatever type and subtype names they choose for these extended transitions. However, when these new transitions are used within a document, they must be namespace-qualified.

11.7 InlineTransitions Module

This section is informative.

As mentioned in the Transition Model section, SMIL 3.0 Transitions allow two methods of specifying transitions: a shorthand method and an inline method. The BasicTransitions module specifies the shorthand method while this module specifies the inline method. Inline transitions provide additional timing and progress control compared to the shorthand transitions. The transitionFilter element provides the inline transition support.

11.7.1 The transitionFilter element

This section is normative.

The transitionFilter element is an animation element, similar to the animateMotion element defined in the SMIL 3.0 BasicAnimation Module. The animateMotion element animates the position of an element. In contrast, the transitionFilter element animates the progress of a filter behavior (transition) on a media element or elements with renderable content. The filter behavior temporarily alters the visual or aural rendering of the media. The transitionFilter element may target any element with "renderable content", not necessarily a media element. The host language determines which elements to which transitionFilter may be applied. For instance, in HTML, a span or a div may represent "renderable content". The transitionFilter element may target a renderable content element in two ways: it may be the child of that element, or with the targetElement attribute.

The transitionFilter element shares many of the attributes from the transition element. It integrates timing support from the SMIL 3.0 BasicInlineTiming Module, and animation support from the SMIL 3.0 BasicAnimation module. This module may also be combined with other SMIL 3.0 Modules such as TimeManipulations, depending on the modules implemented by the host language.

A transitionFilter element may define the target element of the transition either explicitly or implicitly. An explicit definition uses an attribute to specify the target element. The syntax for this is described below.
If no explicit target is specified, the implicit target element is the parent element of the transitionFilter element in the document tree. It is expected that the common case will be that a transitionFilter element is declared as a child of the element to be animated. In this case, no explicit target need be specified.
This element must target a media element or other element with renderable content, as defined by the host language. This is in contrast to BasicTransitions that are declared in the "transition" element and then specified in the transIn or transOut attributes that are applied to media elements.
When an implicit targetElement reference is used, the transitionFilter element must be a child of an element that supports transition effects (or it has no effect).

Similar to how transIn and transOut are attributes of the media object to which the transition is applied, the transitionFilter element is a child of the media object to which the transition is applied. However, even though the transitionFilter element is a child of a media object, it is not a time container, and may not extend the active duration of the media object. Therefore, if transitionFilter is a child of a media element, it may only apply a transition to that media element during that media element's active duration. If it is desired to apply a transition during an element's frozen period, then transitionFilter should not be a child of the media element. Rather, the targetElement attribute should be used to target that media element.

Note that the transitionFilter element represents an "in" transition in the sense that the destination media (the media that is fully visible when progress is 1.0) is the media to which the transition is applied (the parent media, in this case). However, since transitionFilter gives full control over the timing of the progress, an "in" transition may be made to look like an "out" transition by simply running the transition from a progress of 1.0 and ending the transition at a progress of 0.0.

transitionFilter Element attributes

type
This is the same attribute as in the transition element.
subtype
This is the same attribute as in the transition element.
mode
Indicates whether the transitionFilter's parent element will transition in or out. Legal values are "in" indicating that the parent media will become more visible as the transition progress increases and "out" indicating that the parent media will become less visible as the transition progress increases. The default value is "in". Unlike the transIn and transOut attributes on media elements, the mode attribute does not automatically tie the transitionFilter to the begin or end of the media. Authors may use the begin attribute on the transitionFilter to indicate the begin time for the transitionFilter.
fadeColor
This is the same attribute as in the transition element.
begin
Defined in the SMIL Timing and Synchronization Module. This attribute is optional and the default is 0 seconds.
dur
Defined in the SMIL Timing and Synchronization Module. The default duration is the intrinsic duration built into the transition. All of the transitions defined in the Appendix have a default duration of 1 second.
end
Defined in the SMIL Timing and Synchronization Module.
repeatCount
Defined in the SMIL Timing and Synchronization Module.
repeatDur
Defined in the SMIL Timing and Synchronization Module.
from
Amount of progress through the transitionFilter from which to begin execution of the transitionFilter. Legal values are real numbers in the range 0.0-1.0. For instance, this attribute would equal "0.3" to begin a cross-fade with the destination image faded in by 30%. This attribute is defined in the SMIL 3.0 BasicAnimation Module and is similar to the startProgress attribute on the transition element. The default value is 0.0. Ignored if the values attribute is specified.
to
Amount of progress through the transitionFilter at which to end execution of the transitionFilter. Legal values are real numbers in the range 0.0-1.0. This attribute is defined in the SMIL 3.0 BasicAnimation Module and is similar to the endProgress attribute on the transition element. The default value is 1.0. Ignored if the values attribute is specified.
by
Specifies a relative offset value for the progress of the transitionFilter. Legal values are real numbers in the range 0.0-1.0. Defined in the SMIL 3.0 BasicAnimation Module. Ignored if the values attribute is specified.
values
A semicolon-separated list of one or more values specifying the progress of the transitionFilter. This attribute may provide more precise control over the progress than a combination of the from, to, and by attributes and overrides those attributes if specified. Legal values are real numbers in the range 0.0-1.0. Defined in the SMIL 3.0 BasicAnimation Module. Use the calcMode attribute to determine how the values are interpreted.
calcMode
Specifies the interpolation mode of the progress of the transitionFilter. Defined in SMIL 3.0 BasicAnimation Module. The calcMode attribute may take any of the following values:
discrete
This specifies that the transitionFilter progress will jump from one value to the next without any interpolation.
linear
Simple linear interpolation between values is used to calculate the progress of the transitionFilter. This is the default.
paced
This value will be ignored if specified for a transitionFilter element. The default value ("linear") will be used instead.
targetElement
This attribute specifies the target element to be animated. The attribute value must be the value of an XML identifier attribute of an element (i.e. an "IDREF") within the host document. For a formal definition of IDREF, refer to XML 1.1 [XML11].
href
This attribute specifies the target element to be animated. The attribute value must be an XLink locator, referring to the target element to be animated.

When integrating transitionFilter elements into the host language, the language designer should avoid including both of these attributes. If however, the host language designer chooses to include both attributes in the host language, then when both are specified for a given animation element the XLink href attribute takes precedence over the targetElement attribute.

This section is informative.

The advantage of using the targetElement attribute is the simpler syntax of the attribute value compared to the href attribute. The advantage of using the XLink href attribute is that it is extensible to a full linking mechanism in future versions of SMIL Transitions, and the animation element may be processed by generic XLink processors. The XLink form is also provided for host languages that are designed to use XLink for all such references. The following two examples illustrate the two approaches.

This example uses the simpler targetElement syntax:

<transitionFilter targetElement="foo" .../>

This example uses the more flexible XLink locater syntax, with the equivalent target:

<transitionFilter xmlns:xlink="http://www.w3.org/1999/xlink" xlink:href="#foo" .../>

When using an XLink href attribute on a transitionFilter element, the following additional XLink attributes may be defined in the host language. These may be defined in a DTD, or the host language may require these in the document syntax to support generic XLink processors. For more information, refer to [XLINK].

The following XLink attributes are required by the XLink specification. The values are fixed, and so may be specified as such in a DTD. All other XLink attributes are optional, and do not affect SMIL Transitions semantics.

XLink attributes for href
type
Must be simple. Identifies the type of XLink being used.
actuate
Must be onLoad. Indicates that the link to the target element is followed automatically (i.e., without user action).
show
Must be embed. Indicates that the reference does not include additional content in the file.

Additional details on the target element specification as relates to the host document and language are described in the Integration section.

Media Element fill="transition"
fill
This module adds the "transition" value to the possible values of the fill attribute defined on media in the SMIL Timing and Synchronization Module. This is the same attribute as specified in the BasicTransitions module.

Element content

The transitionFilter element may have the param element as a child.

This section is informative.

Examples of the transitionFilter element

Example 1: transitionFilter slide show

The following example uses inline transitions to provide a slideshow that includes transitions between the images, similar to the example discussed in the introduction. The presentation plays as follows.

  • Beginning at 0 seconds, butterfly displays for 5 seconds.
  • At 5 seconds butterfly freezes due to the fill="transition" specified on it and the 1-second left-to-right wipe from butterfly into eagle occurs.
  • At 6 seconds, eagle is fully displayed and remains displayed for 4 more seconds.
  • At 10 seconds eagle freezes due to the fill="transition" and the 1-second left-to-right wipe from eagle to wolf occurs.
  • At 11 seconds, wolf is fully displayed and remains displayed for 4 more seconds.
  • At 15 seconds wolf freezes due to the fill="transition" and the 1-second left-to-right wipe from wolf to seal occurs.
  • At 16 seconds, seal is fully displayed and remains displayed for 4 more seconds.
  • At 20 seconds the presentation ends.
...
<seq>
    <img xml:id="butterfly" src="butterfly.jpg" dur="5s" fill="transition" />
    <img xml:id="eagle" src="eagle.jpg" dur="5s" fill="transition" >
        <transitionFilter type="barWipe" subtype="leftToRight" dur="1s" />
    </img>
    <img xml:id="wolf" src="wolf.jpg" dur="5s" fill="transition" >
        <transitionFilter type="barWipe" subtype="leftToRight" dur="1s" />
    </img>
    <img xml:id="seal" src="seal.jpg" dur="5s" >
        <transitionFilter type="barWipe" subtype="leftToRight" dur="1s" />
    </img>
</seq>
...

Example 2: transitionFilter discrete clock transition

The following example uses a values list and discrete calcMode to specify the progress of the transition in 12 steps. The transition begins 2 seconds after the video begins and continues for 12 seconds. Since the transition is circular, the effect is that of a clock-wipe that reveals one hour on the clock face at a time.

<video xml:id="video1" src="car.avi" ... >
    <transitionfilter xml:id="trans1"
         type="ellipseWipe" subtype="circle"
         begin="2" dur="12" calcMode="discrete"
         values="0.083; 0.166; 0.250; 0.333; 0.416; 0.500;
             0.583; 0.666; 0.750; 0.833; 0.916; 1.000"/>
</video>

Example 3: transitionFilter from and to

The following example uses a partial transition that progresses from 0 to 50% (0.5) complete. It assumes that the video is positioned directly on top of the image in the layout. The presentation plays as follows.

  • Beginning at 0 seconds the car displays. The image begins as well, but is not visible because it is behind the video.
  • At 1 second the transition begins to wipe away the car and reveal the background image. Over the duration of the transition (2 seconds) the wipe proceeds clockwise from the 12 o'clock position revealing 50% of the image behind the car, up through the 6 o'clock position.
  • At 3 seconds the car and transition both end, revealing all of racing.jpg.
  • At 5 seconds the image ends.
<par>
    <img src="racing.jpg" begin="0s" dur="5s" />
    <video xml:id="car" src="car.avi" begin="0s" dur="3s"
        <transitionfilter type="clockWipe" subtype="clockwiseTwelve"
            begin="1s" dur="2s" from="0.0" to="0.5" />
    </video>
</par>

11.7.2 The param element

The transitionFilter element may take the param element, defined in the SMIL MediaParam Module, as a child element. This element may be included from HTML or from some other module, depending upon the profile of the host language. The param element defines parameter information specific to the individual transitionFilter. For example, the implementation of a windshieldWipe could take a parameter that defines the length of the radius for the wipe as follows:

<transitionfilter type="windshieldWipe"
    begin="4" dur="3" from="0.5" to="1.0" >
    <param name="radius" value="3in" />
</transitionFilter>

Support of the param element is implementation-dependent. The meaning of the parameters depends upon the implementation of the specific transition.

11.8 TransitionModifiers Module

This section is normative.

The TransitionModifiers module gives additional control over the visual effect of the transition: controlling the horizontal and vertical repeat pattern, and controlling the visual effect along the pattern border. The SMPTE standard also allows for this type of geometric control.

This module requires either the BasicTransitions Module or the InlineTransitions Module.

horzRepeat
This attribute specifies how many times to perform the transition pattern along the horizontal axis.
The default value is 1 (the pattern occurs once horizontally).
vertRepeat
This attribute specifies how many times to perform the transition pattern along the vertical axis.
The default value is 1 (the pattern occurs once vertically).
borderWidth
This attribute specifies the width of a generated border along a wipe edge. Legal values are integers greater than or equal to 0. If borderWidth is equal to 0, then no border should be generated along the wipe edge.
The default value is 0.
borderColor
If the value of the type attribute is not "fade", then this attribute specifies the content of the generated border along a wipe edge. Legal color values are CSS2 color values [CSS2-color-values] or the string "blend". If the value of this attribute is a color, then the generated border along the wipe or warp edge is filled with this color. If the value of this attribute is "blend", then the generated border along the wipe blend is an additive blend (or blur) of the media sources. The default value is "black".

11.8.1 Horizontal and Vertical Pattern Repeat

Using the horzRepeat and vertRepeat attributes, the geometric pattern which makes up the transition may be repeated in both the horizontal and vertical directions over the area occupied by the media. To achieve the repeat, the area occupied by the destination media is divided into equal sections horizontally and/or vertically according to the values of horzRepeat and vertRepeat. Identical transitions are then performed, one in each of the resulting sections, at the same time.

The following diagrams illustrate the difference between the behavior provided by the default horzRepeat and vertRepeat attributes and each attribute with two copies of the transition applied to an image.

Image without any transition applied

Figure 1.  An image that does not have any transitions applied to it.

Default Vertical Repeat

Figure 2. The image from Figure 1 with a fan transition in progress. The current area of the transition is illustrated by the black triangle. This example uses the default value of one for both horzRepeat and vertRepeat, which yields one occurrence of the transition. Therefore, the fan pattern is not repeated in either direction.

This animated image illustrates the single fan transition from Figure 2. The fan transition could be declared as follows:

<transition ... type="fanWipe" subtype="centerTop" dur="1s"/>

Horizontal Repeat of two

Figure 3. The same fan transition from Figure 2 in progress, but with two horizontal repetitions (horzRepeat="2"). The repeat yields two smaller, but identical copies of the transition, one in the left half of the image and one in the right half of the image. The number of patterns in the horizontal direction equals horzRepeat.

Vertical Repeat of two

Figure 4. The same fan transition from Figure 2 in progress, but with two vertical repetitions (vertRepeat="2"). The repeat yields two smaller, but identical copies of the transition, one in the top half of the image and one in the bottom half of the image. The number of patterns in the vertical direction equals vertRepeat.

The following example shows the declaration of the transition from Figure 4. It specifies a vertRepeat value of 2 which indicates that the fan transition will occur in two locations on the media at once.

<transition ... type="fanWipe" subtype="centerTop" dur="1s"
        horzRepeat="1" vertRepeat="2"/>

Note that we didn't have set to horzRepeat to one, since one is the default value, but we explicitly set it here for clarity. This transition is illustrated by this animated image.

In a more complex example, if horzRepeat was set to 3 and vertRepeat was set to 2 then 6 small fan transitions would occur at once over the media, in a pattern of 3 wide (horzRepeat) and 2 high (vertRepeat).

Note that the horzRepeat and vertRepeat attributes might not produce a visual change depending on the type of transition. Specifically, these attributes have no visual affect if replicating the transition pattern produces identical results. For example, a vertRepeat attribute set equal to two would have no visual impact on a left-to-right push- or slideWipe because the transition would still occur from the left edge all the way to the right edge of the media. In contrast, the same vertRepeat attribute would affect a top-to-bottom push- or slideWipe because one transition would occur from the top to the middle of the media and the other transition would occur from the middle to the bottom of the media at the same time. Neither horzRepeat nor vertRepeat affect a fade transition because the fade applies uniformly regardless of how many times it is replicated.

Implementations may choose to optimize by ignoring the horzRepeat and vertRepeat attributes in cases where they would have no effect.

11.9 Integration

This section is normative.

The purpose of this section is to specify requirements and recommendations on the host language or profile in order to integrate SMIL Transitions.

  1. Profiles that include the TransitionModifiers Module must also include either the BasicTransitions Module or the InlineTransitions Module
  2. Since transitions are applied to media and are not specific to the layout of that media, then SMIL Transitions are layout agnostic. Any type of layout language may be used.
  3. Profiles that include the BasicTransitions Module must have some method of specifying the transition element. It is recommended that all transition elements be specified in the <head> of the document (if one exists) and also that there be some sort of container element which groups all the transition elements together (similar to the <layout> element in the <head> of SMIL 1.0 documents).
  4. A profile integrating the BasicTransitions Module must provide a means of declaring an XML identifier on transition elements.
  5. A profile integrating the InlineTransitions Module module must provide a means of declaring an XML identifier on transitionFilter elements.
  6. The profile must define what overlapping in the layout means for fill="transition" (required in the BasicTransitions Module and the InlineTransitions Module).
  7. If the profile includes the InlineTranstions Module, then the host language designer must choose whether to support the targetElement attribute or the XLink attributes for specifying the target element. Note that if the XLink syntax is used, the host language designer must decide how to denote the XLink namespace for the associated attributes. The namespace may be fixed in a DTD, or the language designer may require colonized attribute names (qnames) to denote the XLink namespace for the attributes. The required XLink attributes have fixed values, and so may also be specified in a DTD, or may be required on the animation elements. Host language designers may require that the optional XLink attributes be specified. These decisions are left to the host language designer - the syntax details for XLink attributes do not affect the semantics of SMIL Transitions.

11.10 Appendix: Taxonomy Tables

Table 1: The Taxonomy Table contains a detailed list of transition type and subtype names. The names of the types and subtypes have been chosen so that the name provides some hint of the visual effect of the transition. However, in some cases, the name alone is not enough to visually describe these transitions. For a better understanding of these transitions, please see pages 11-16 of SMPTE 258M-1993 [SMPTE-EDL]

As an assistance to the reader in identifying the patterns of the SMPTE transitions this Appendix also provides illustrations of the corresponding SMPTE wipes in the following tables.

Table 2: SMPTE Edge Wipes

Table 3: SMPTE Iris Wipes

Table 4: SMPTE Clock Wipes

Table 5: SMPTE Matrix Wipes

In the case of any discrepancies between type and subtype names in the Taxonomy Table and in the illustrated tables, the Taxonomy Table takes precedence. The SMPTE specification [SMPTE-EDL] takes precedence over the illustrated tables in this appendix. The illustrations are provided for convenience only.

11.10.1 Table 1: The Taxonomy Table

The SMPTE Wipe Codes (where appropriate) are provided in parentheses after the subtype name and are for reference only. The Wipe Codes are not part of the transition subtype name. The default transition subtype for each type is indicated by the word [default].

Transition type

Transition subtypes (SMPTE Wipe Codes in parentheses)

Edge Wipes - wipes occur along an edge

"barWipe" "leftToRight" (1) [default], "topToBottom" (2)
"boxWipe" "topLeft" (3) [default], "topRight" (4), "bottomRight" (5), "bottomLeft" (6), "topCenter" (23), "rightCenter" (24), "bottomCenter" (25), "leftCenter" (26)
"fourBoxWipe" "cornersIn" (7) [default], "cornersOut" (8)
"barnDoorWipe" "vertical" (21) [default], "horizontal" (22), "diagonalBottomLeft" (45), "diagonalTopLeft" (46)
"diagonalWipe" "topLeft" (41) [default], "topRight" (42)
"bowTieWipe" "vertical" (43) [default], "horizontal" (44)
"miscDiagonalWipe" "doubleBarnDoor" (47) [default], "doubleDiamond" (48)
"veeWipe" "down" (61) [default], "left" (62), "up" (63), "right" (64)
"barnVeeWipe" "down" (65) [default], "left" (66), "up" (67), "right" (68)
"zigZagWipe" "leftToRight" (71) [default], "topToBottom" (72)
"barnZigZagWipe" "vertical" (73) [default], "horizontal" (74)

Iris Wipes - shapes expand from the center of the media

"irisWipe" "rectangle" (101) [default], "diamond" (102)
"triangleWipe" "up" (103) [default], "right" (104), "down" (105), "left" (106)
"arrowHeadWipe" "up" (107) [default], "right" (108), "down" (109), "left" (110)
"pentagonWipe" "up" (111) [default], "down" (112)
"hexagonWipe" "horizontal" (113) [default], "vertical" (114)
"ellipseWipe" "circle" (119) [default], "horizontal" (120), "vertical" (121)
"eyeWipe" "horizontal" (122) [default], "vertical" (123)
"roundRectWipe" "horizontal" (124) [default], "vertical" (125)
"starWipe" "fourPoint" (127) [default], "fivePoint" (128), "sixPoint" (129)
"miscShapeWipe" "heart" (130) [default], "keyhole" (131)

Clock Wipes - rotate around a center point

"clockWipe" "clockwiseTwelve" (201) [default], "clockwiseThree" (202), "clockwiseSix" (203), "clockwiseNine" (204)
"pinWheelWipe" "twoBladeVertical" (205) [default], "twoBladeHorizontal" (206), "fourBlade" (207)
"singleSweepWipe" "clockwiseTop" (221) [default], "clockwiseRight" (222), "clockwiseBottom" (223), "clockwiseLeft" (224), "clockwiseTopLeft" (241), "counterClockwiseBottomLeft" (242), "clockwiseBottomRight" (243), "counterClockwiseTopRight" (244)
"fanWipe" "centerTop" (211) [default], "centerRight" (212), "top" (231), "right" (232), "bottom" (233), "left" (234)
"doubleFanWipe" "fanOutVertical" (213) [default], "fanOutHorizontal" (214), "fanInVertical" (235), "fanInHorizontal" (236)
"doubleSweepWipe" "parallelVertical" (225) [default], "parallelDiagonal" (226), "oppositeVertical" (227), "oppositeHorizontal" (228), "parallelDiagonalTopLeft" (245), "parallelDiagonalBottomLeft" (246)
"saloonDoorWipe" "top" (251) [default], "left" (252), "bottom" (253), "right" (254)
"windshieldWipe" "right" (261) [default], "up" (262), "vertical" (263), "horizontal" (264)

Matrix Wipes - media is revealed in squares following a pattern

"snakeWipe" "topLeftHorizontal" (301) [default], "topLeftVertical" (302), "topLeftDiagonal" (303), "topRightDiagonal" (304), "bottomRightDiagonal" (305), "bottomLeftDiagonal" (306)
"spiralWipe" "topLeftClockwise" (310) [default], "topRightClockwise" (311), "bottomRightClockwise" (312), "bottomLeftClockwise" (313), "topLeftCounterClockwise" (314), "topRightCounterClockwise" (315), "bottomRightCounterClockwise" (316), "bottomLeftCounterClockwise" (317)
"parallelSnakesWipe" "verticalTopSame" (320), [default] "verticalBottomSame" (321), "verticalTopLeftOpposite" (322), "verticalBottomLeftOpposite" (323), "horizontalLeftSame" (324), "horizontalRightSame" (325), "horizontalTopLeftOpposite" (326), "horizontalTopRightOpposite" (327), "diagonalBottomLeftOpposite" (328), "diagonalTopLeftOpposite" (329)
"boxSnakesWipe" "twoBoxTop" (340) [default], "twoBoxBottom" (341), "twoBoxLeft" (342), "twoBoxRight" (343), "fourBoxVertical (344), "fourBoxHorizontal" (345)
"waterfallWipe" "verticalLeft" (350) [default], "verticalRight" (351), "horizontalLeft" (352), "horizontalRight" (353)

Non-SMPTE Wipes

"pushWipe" "fromLeft" [default], "fromTop", "fromRight", "fromBottom"
"slideWipe" "fromLeft" [default], "fromTop", "fromRight", "fromBottom"
"fade" "crossfade" [default], "fadeToColor", "fadeFromColor"

Audio

"audioFade" "fade" [default]
"audioVisualFade" "crossfade" [default], "fadeToColor", "fadeFromColor"

Descriptions of non-SMPTE Transitions

The "pushWipe" transitions looks as if the destination media "pushes" the background media away. In other words, both the background media and the destination media are moving.

In the "slideWipe" transitions, the destination media moves, but the background media does not. The visual effect of "slideWipe" transitions is that the destination media is "sliding" in across the background media.

The "fade" transitions are pixel-by-pixel blends between the destination media and either the background media or a specified color. The "fadeToColor" and "fadeFromColor" subtypes are equivalent. The fade direction is determined by whether it is used as transIn or transOut.

11.10.2 Table 2: SMPTE Edge Wipes

Edge wipes start from a horizontal, vertical, or diagonal edge and expand in a given shape. The direction of change is to increase the white area.


"barWipe"

SMPTE Wipe #1
"leftToRight" (1) [default]

SMPTE Wipe #2
"topToBottom" (2)


"boxWipe"

SMPTE Wipe #3
"topLeft" (3) [default]

SMPTE Wipe #5
"bottomRight" (5)

SMPTE Wipe #23
"topCenter" (23)

SMPTE Wipe #25
"bottomCenter" (25)

SMPTE Wipe #4
"topRight" (4)

SMPTE Wipe #6
"bottomLeft" (6)

SMPTE Wipe #24
"rightCenter" (24)

SMPTE Wipe #26
"leftCenter" (26)


 "fourBoxWipe"

SMPTE Wipe #7
"cornersIn" (7) [default]

SMPTE Wipe #8
"cornersOut" (8)


 "barnDoorWipe"

SMPTE Wipe #21
"vertical" (21) [default]

SMPTE Wipe #45
"diagonalBottomLeft" (45)

SMPTE Wipe #22
"horizontal" (22)

SMPTE Wipe #46
"diagonalTopLeft" (46)


 "diagonalWipe"

SMPTE Wipe #41
"topLeft" (41) [default]

SMPTE Wipe #42
"topRight" (42)


 "bowTieWipe"

SMPTE Wipe #43
"vertical" (43) [default]

SMPTE Wipe #44
"horizontal" (44)


 "miscDiagonalWipe"

SMPTE Wipe #47
"doubleBarnDoor" (47) [default]

SMPTE Wipe #48
"doubleDiamond" (48)


"veeWipe"

SMPTE Wipe #61
"down" (61) [default]

SMPTE Wipe #63
"up" (63)

SMPTE Wipe #62
"left" (62)

SMPTE Wipe #64
"right" (64)


 "barnVeeWipe"

SMPTE Wipe #65
"down" (65) [default]

SMPTE Wipe #67
"up" (67)

SMPTE Wipe #66
"left" (66)

SMPTE Wipe #68
"right" (68)


 "zigZagWipe"

SMPTE Wipe #71
"leftToRight" (71) [default]

SMPTE Wipe #72
"topToBottom" (72)


 "barnZigZagWipe"

SMPTE Wipe #73
"vertical" (73) [default]

SMPTE Wipe #74
"horizontal" (74)





11.10.3 Table 3: SMPTE Iris Wipes

Iris wipes expand in a given shape from the center of the media. The direction of change is to increase the white area.


 "irisWipe"

SMPTE Wipe #101
"rectangle" (101) [default]

SMPTE Wipe #102
"diamond" (102)


 "triangleWipe"

SMPTE Wipe #103
"up" (103) [default]

SMPTE Wipe #105
"down" (105)

SMPTE Wipe #104
"right" (104)

SMPTE Wipe #106
"left" (106)


 "arrowHeadWipe"

SMPTE Wipe #107
"up" (107) [default]

SMPTE Wipe #109
"down" (109)

SMPTE Wipe #108
"right" (108)

SMPTE Wipe #110
"left" (110)


 "pentagonWipe"

SMPTE Wipe #111
"up" (111) [default]

SMPTE Wipe #112
"down" (112)


 "hexagonWipe"

SMPTE Wipe #113
"horizontal" (113) [default]

SMPTE Wipe #114
"vertical" (114)


 "ellipseWipe"

SMPTE Wipe #119
"circle" (119) [default]

SMPTE Wipe #121
"vertical" (121)

SMPTE Wipe #120
"horizontal" (120)


 "eyeWipe"

SMPTE Wipe #122
"horizontal" (122) [default]

SMPTE Wipe #123
"vertical" (123)


 "roundRectWipe"

SMPTE Wipe #124
"horizontal" (124) [default]

SMPTE Wipe #125
"vertical" (125)


 "starWipe"

SMPTE Wipe #127
"fourPoint" (127) [default]

SMPTE Wipe #129
"sixPoint" (129)

SMPTE Wipe #128
"fivePoint" (128)




 "miscShapeWipe"

SMPTE Wipe #130
"heart" (130) [default]

SMPTE Wipe #131
"keyhole" (131)



11.10.4 Table 4: SMPTE Clock Wipes

Clock wipes rotate around a center point. The center of rotation is indicated in the following illustrations by the Center of rotation symbol. The arrow curved arrow shows the direction of rotation. The direction of change is to increase the white area.


 "clockWipe"

SMPTE Wipe #201
"clockwiseTwelve" (201) [default]

SMPTE Wipe #203
"clockwiseSix" (203)

SMPTE Wipe #202
"clockwiseThree" (202)

SMPTE Wipe #204
"clockwiseNine" (204)


 "pinWheelWipe"

SMPTE Wipe #205
"twoBladeVertical" (205) [default]

SMPTE Wipe #207
"fourBlade" (207)

SMPTE Wipe #206
"twoBladeHorizontal" (206)




 "singleSweepWipe"

SMPTE Wipe #221
"clockwiseTop" (221) [default]

SMPTE Wipe #223
"clockwiseBottom" (223)

SMPTE Wipe #241
"clockwiseTopLeft" (241)

SMPTE Wipe #243
"clockwiseBottomRight" (243)

SMPTE Wipe #222
"clockwiseRight" (222)

SMPTE Wipe #224
"clockwiseLeft" (224)

SMPTE Wipe #242
"counterClockwiseBottomLeft" (242)

SMPTE Wipe #244
"counterClockwiseTopRight" (244)


 "fanWipe"

SMPTE Wipe #211
"centerTop" (211) [default]

SMPTE Wipe #231
"top" (231)

SMPTE Wipe #233
"bottom" (233)

SMPTE Wipe #212
"centerRight" (212)

SMPTE Wipe #232
"right" (232)

SMPTE Wipe #234
"left" (234)


 "doubleFanWipe"

SMPTE Wipe #213
"fanOutVertical" (213) [default]

SMPTE Wipe #235
"fanInVertical" (235)

SMPTE Wipe #214
"fanOutHorizontal" (214)

SMPTE Wipe #236
"fanInHorizontal" (236)


 "doubleSweepWipe"

SMPTE Wipe #225
"parallelVertical" (225) [default]

SMPTE Wipe #227
"oppositeVertical" (227)

SMPTE Wipe #245
"parallelDiagonalTopLeft" (245)

SMPTE Wipe #226
"parallelDiagonal" (226)

SMPTE Wipe #228
"oppositeHorizontal" (228)

SMPTE Wipe #246
"parallelDiagonalBottomLeft" (246)


 "saloonDoorWipe"



SMPTE Wipe #251
"top" (251) [default]

SMPTE Wipe #253
"bottom" (253)

SMPTE Wipe #252
"left" (252)

SMPTE Wipe #254
"right" (254)


 "windshieldWipe"



SMPTE Wipe #261
"right" (261) [default]

SMPTE Wipe #263
"vertical" (263)

SMPTE Wipe #262
"up" (262)

SMPTE Wipe #264
"horizontal" (264)



11.10.5 Table 5: SMPTE Matrix Wipes

Matrix wipes reveal media in squares following a pattern. The arrow arrow shows the pattern.


 "snakeWipe"

SMPTE Wipe #301
"topLeftHorizontal" (301) [default]

SMPTE Wipe #303
"topLeftDiagonal" (303)

SMPTE Wipe #305
"bottomRightDiagonal" (305)

SMPTE Wipe #302
"topLeftVertical" (302)

SMPTE Wipe #304
"topRightDiagonal" (304)

SMPTE Wipe #306
"bottomLeftDiagonal" (306)


 "spiralWipe"

SMPTE Wipe #310
"topLeftClockwise" (310) [default]

SMPTE Wipe #312
"bottomRightClockwise" (312)

SMPTE Wipe #314
"topLeftCounterClockwise" (314)

SMPTE Wipe #316
"bottomRightCounterClockwise" (316)

SMPTE Wipe #311
"topRightClockwise" (311)

SMPTE Wipe #313
"bottomLeftClockwise" (313)

SMPTE Wipe #315
"topRightCounterClockwise" (315)

SMPTE Wipe #317
"bottomLeftCounterClockwise" (317)


 "parallelSnakesWipe"



SMPTE Wipe #320
"verticalTopSame" (320) [default]

SMPTE Wipe #322
"verticalTopLeftOpposite" (322)

SMPTE Wipe #324
"horizontalLeftSame" (324)

SMPTE Wipe #326
"horizontalTopLeftOpposite" (326)

SMPTE Wipe #328
"diagonalBottomLeftOpposite" (328)

SMPTE Wipe #321
"verticalBottomSame" (321)

SMPTE Wipe #323
"verticalBottomLeftOpposite" (323)

SMPTE Wipe #325
"horizontalRightSame" (325)

SMPTE Wipe #327
"horizontalTopRightOpposite" (327)

SMPTE Wipe #329
"diagonalTopLeftOpposite" (329)


 "boxSnakesWipe"



SMPTE Wipe #340
"twoBoxTop" (340) [default]

SMPTE Wipe #342
"twoBoxLeft" (342)

SMPTE Wipe #344
"fourBoxVertical (344)

SMPTE Wipe #341
"twoBoxBottom" (341)

SMPTE Wipe #343
"twoBoxRight" (343)

SMPTE Wipe #345
"fourBoxHorizontal" (345)


 "waterfallWipe"

SMPTE Wipe #350
"verticalLeft" (350) [default]

SMPTE Wipe #352
"horizontalLeft" (352)

SMPTE Wipe #351
"verticalRight" (351)

SMPTE Wipe #353
"horizontalRight" (353)

12. SMIL 3.0 Animation

Editor for SMIL 3.0
Sjoerd Mullender, CWI
Editors for Earlier Versions of SMIL
Dick Bulterman, CWI/Amsterdam
Patrick Schmitz , Microsoft
Aaron Cohen, Intel
Ken Day, Macromedia

12.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 specification leaves the SMIL 2.1 Animation Modules [SMIL21-animation] mostly unchanged. The only changes are that normative text is added that clarifies the ability of a host language designer to override the event base default element, and that several typos and some examples have been corrected.

12.2 Introduction

This section is informative.

This section defines the SMIL 3.0 Animation Modules, which are composed of a BasicAnimation module and a SplineAnimation module. These modules contain elements and attributes for incorporating animation onto a time line, and a mechanism for composing the effects of multiple animations. Since these elements and attributes are defined in modules, designers of other markup languages may choose whether or not to include this functionality in their languages. Language designers incorporating other SMIL modules do not need to include the animation modules if animation functionality is not needed.

The examples in this document that include syntax for a host language use SMIL 3.0, [SVG], [HTML4] and [CSS2]. These are provided as an indication of possible integrations with various host languages.

While this document defines a base set of animation capabilities, it is assumed that host languages may build upon the support to define additional or more specialized animation elements. Animation only manipulates attributes and properties of the target elements, and so does not require any knowledge of the target element semantics beyond basic type information. Basic type information includes such information as whether a type supports addition, and whether a list of numbers is just that, or whether it represents e.g. a set of coordinates.

Note that the host language determines which attributes may be animated.

This module depends on the SMIL 3.0 BasicInlineTiming module, using elements and attributes from the Timing module for its time line. The BasicInlineTiming module is a prerequisite for any profile using SMIL Animation. The reader is presumed to have read and be familiar with the SMIL 3.0 Timing modules.

This section first presents the underlying principles of animation in SMIL 3.0, then the elements and attributes of the BasicAnimation module and of the SplineAnimation module.

12.3 Module Overview

This section is informative.

SMIL 3.0 Animation functionality is partitioned across the following 2 modules:

BasicAnimation
The BasicAnimation module defines simple animation functions defined by sets of points to be visited in sequence, with the function defined between those using discrete, linear or paced interpolation.
SplineAnimation
The SplineAnimation module extends the discrete, linear and paced calculation modes of the BasicAnimation module, providing additional control over interpolation and timing.

12.4 Animation Model

This section is normative.

This section is informative.

This section describes the semantics underlying the SMIL 3.0 animation modules. The specific elements are not described here, but rather the common concepts and syntax that comprise the model for animation. Document issues are described, as well as the means to target an element for animation. The animation model is then defined by building up from the simplest to the most complex concepts: first the simple duration and simple animation function f(t), and then the overall effect F(t,u).

12.4.1 Summary of symbols used in the semantic descriptions

This section is informative.

In the definitions of the animation functions, a number of symbols are used. These symbols are summarized here.

a
The target attribute of an animation element.
d
The simple duration of the element.
AD
The active duration of the element.
IAD
The intermediate active duration of the element. This value is the duration for which the element is to repeat, only taking the dur, repeatCount and repeatDur attributes into account.
rd
The repeat duration of the element. This is defined as the minimum of the active duration and the intermediate active duration. It is the time during which the animation plays normally. If the intermediate active duration is less than the active duration, the animation is either frozen or not present during the difference.
t
A time. Depending on the context, t may be in user-perceived time, an element's active duration, or its simple duration.
u
The underlying value of the target attribute a, generally at a specific time t.
f(t)
The simple animation function of times within the simple duration. This is defined for t: 0<=t<d.

Note that while F(t,u) defines the mapping for the entire animation, f(t) has a simplified model that just handles the simple duration.

f(d)
While f(t) is not defined for the value t=d, the expression f(d) is used as a shorthand to refer to the last value defined for the animation function.
F(t,u)
The effect of an animation for any point in the active duration of the animation. This maps times within the active duration (t: 0<=t<AD) and an underlying value to a value for the target attribute. A time value of 0 corresponds to the time at which the animation begins. F(t,u) combines the simple animation function f(t) with all the other aspects of animation and timing controls.

12.4.2 The simple animation function f(t)

Animation is defined as a time-based function of a target element (or more specifically of some attribute of the target element, the target attribute). The animation defines a mapping of time to values for the target attribute. This mapping takes into account all aspects of timing, as well as animation-specific semantics. The overall mapping is based on a simple animation function f(t) which describes the animation over the simple duration of the element. Every animation defines a simple animation function which produces a value for the target attribute for any time within the simple duration.

A target attribute is the name of a feature of a target element as defined in a host language document.

This may be (e.g.) an XML attribute contained in the element or a CSS property that applies to the element. By default, the target element of an animation will be the parent of the animation element (an animation element is typically a child of the target element). However, the target may be any element in the document, identified either by an XML ID reference or via an XLink [XLINK] locator reference.

This section is informative.

As a simple example, the following defines an animation of an SVG rectangle shape. The rectangle will change from being tall and thin to being short and wide.

<rect ...>
   <animate attributeName="width"  from="10px"  to="100px"
            begin="0s" dur="10s" />
   <animate attributeName="height" from="100px" to="10px"
            begin="0s" dur="10s" />
</rect>

The rectangle begins with a width of 10 pixels and increases to a width of 100 pixels over the course of 10 seconds. Over the same ten seconds, the height of the rectangle changes from 100 pixels to 10 pixels.

When an animation is running, it should not actually change the attribute values in the DOM [DOM2]. The animation runtime should maintain a presentation value for each animated attribute, separate from the DOM or CSS Object Model (OM). If an implementation does not support an object model, it should maintain the original value as defined by the document as well as the presentation value. The presentation value is reflected in the displayed form of the document. Animations thus manipulate the presentation value, and should not affect the base value exposed by DOM or CSS OM. This is detailed in The animation sandwich model.

The base value of a target attribute a at time t is the value of a to which animation is applied at time t.

The presentation value of a target attribute a at time t is the value of a resulting from the application of animation at time t.

The presentation value reflects the effect of animation on the base value. The effect is the change to the base value of the target attribute at any given time. When an animation completes, the effect of the animation is no longer applied, and the presentation value reverts to the base value by default. The animation effect may also be extended to freeze the last value for the length of time determined by the semantics of the fill attribute.

An animation element defines a simple animation function which is evaluated as needed over time by the implementation. The resulting values are applied to the presentation value for the target attribute. Animation functions are continuous in time and may be sampled at whatever frame rate is appropriate for the rendering system. The syntactic representation of the simple animation function is independent of this model, and may be described in a variety of ways. The animation elements in this specification support syntax for a set of discrete or interpolated values, a path syntax for motion based upon SVG paths, keyframe based timing, evenly paced interpolation, and variants on these features.

This section is informative.

In the example immediately above, the simple animation function for the width attribute, specified by 'from="10px" to="100px" ... dur="10s"' is

f(t) = (10 + 90*t/10) px, where t is given in seconds.

Simple animation functions may be defined which have additional parameters, or that are purely or partially algorithmic. For example, a "to" animation interpolates from the current value to the "to" value:

<animate attributeName="top" to="10" dur="2.5s" />

The animation function is a function of the current position, as well as of time:

f(t,u) = (u*(2.5s-t)/2.5s) + 10*(t/2.5s)

In all cases, the animation exposes this as a function of time.

The simple animation function defined by an animation element is a function of time, f(t), defined for times t, 0<=t<=d, where d is the simple duration of the element.

The simple animation function may be defined as a function which depends on factors in addition to time. This does not affect the model of animation, beyond the trivial addition of additional parameters to f(t), such as f(t,u) used in the "to" animation example immediately above.

Animations may be defined to either override or add to the base value of an attribute. In this context, the base value may be the DOM value, or the result of other animations that also target the same attribute. This more general concept of a base value is termed the underlying value. Animations that add to the underlying value are described as additive animations. Animations that override the underlying value are referred to as non-additive animations. The animation effect function of an element is the function which includes the effect of the underlying value and accounts for repeating and freezing of the element. Because the animation effect may be affected by repeating and freezing, it is defined over the active duration of the element rather than its simple duration.

Animations may be combined in ways which produce intermediate values outside of the domain of the target attribute, but where the presentation value produced is valid. The type of a target attribute is this larger set. This is detailed in The animation sandwich model.

The type of a target attribute a is the base type of which the domain of a is a subset.

The underlying value u of a target attribute a of an animation element at time t is the value of a to which the animation effect is applied at time t.

The animation effect function, F(t,u), of an animation element with active duration AD is a function mapping times t: 0<=t<AD and values u of the type of the target attribute a into values of the type of a.

The animation effect function F(t,u) is usually defined as a function of the simple animation function f(t). f(t) must be defined in such a manner that F(t,u) produces values of the correct type.

12.4.3 The animation sandwich model

When an animation is running, it does not actually change the attribute values in the DOM. The animation runtime should ideally maintain a presentation value for any target attribute, separate from the DOM, CSS, or other object model (OM) in which the target attribute is defined. The presentation value is reflected in the display form of the document. The effect of animations is to manipulate this presentation value, and not to affect the underlying DOM or CSS OM values.

The remainder of this discussion uses the generic term OM for both the XML DOM [DOM2] as well as the CSS-OM. If an implementation does not support an object model, it should ideally maintain the original value as defined by the document as well as the presentation value; for the purposes of this section, we will consider this original value to be equivalent to the value in the OM.

In some implementations of DOM, it may be difficult or impractical to maintain a presentation value as described. CSS values should always be supported as described, as the CSS-OM provides a mechanism to do so. In implementations that do not support separate presentation values for general XML DOM properties, the implementation must at least restore the original value when animations no longer have an effect.

The rest of this discussion assumes the recommended approach using a separate presentation value.

The model accounting for the OM and concurrently active or frozen animations for a given attribute is described as a "sandwich", a loose analogy to the layers of meat and cheeses in a "submarine sandwich" (a long sandwich made with many pieces of meats and cheese layered along the length of the bread). In the analogy, time is associated with the length of the sandwich, and each animation has its duration represented by the length of bread that the layer covers. On the bottom of the sandwich is the base value taken from the OM. Each active (or frozen) animation is a layer above this. The layers (i.e. the animations) are placed on the sandwich both in time along the length of the bread, as well as in order according to priority, with higher priority animations placed above (i.e. on top of) lower priority animations. At any given point in time, you can take a slice of the sandwich and see how the animation layers stack up.

Note that animations manipulate the presentation value coming out of the OM in which the attribute is defined, and pass the resulting value on to the next layer of document processing. This does not replace or override any of the normal document OM processing cascade.

Specifically, animating an attribute defined in XML will modify the presentation value before it is passed through the style sheet cascade, using the XML DOM value as its base. Animating an attribute or property defined in a style sheet language will modify the presentation value passed through the remainder of the cascade.

In CSS2 and the DOM 2 CSS-OM, the terms "specified", "computed" and "actual" are used to describe the results of evaluating the syntax, the cascade and the presentation rendering. When animation is applied to CSS properties of a particular element, the base value to be animated is read using the (readonly) getComputedStyle() method on that element. The values produced by the animation are written into an override stylesheet for that element, which may be obtained using the getOverrideStyle() method. Note that it is assumed that before reading the value, the override stylesheet is cleared so that the animation works on the original document value. These new values then affect the cascade and are reflected in a new computed value (and thus, modified presentation). This means that the effect of animation overrides all style sheet rules, except for user rules with the !important property. This enables !important user style settings to have priority over animations, an important requirement for accessibility. Note that the animation may have side effects upon the document layout. See also section 6.1, "Specified, computed, and actual values," of [CSS2] and section 5.2.1, "Override and computed style sheet," of [DOM2CSS].

Within an OM, animations are prioritized according to when each begins. The animation first begun has lowest priority and the most recently begun animation has highest priority. When two animations start at the same moment in time, the activation order is resolved as follows:

Note that if an animation is restarted, it will always move to the top of the priority list, as it becomes the most recently activated animation. That is, when an animation restarts, its layer is pulled out of the sandwich, and added back on the very top. In contrast, when an element repeats the priority is not affected (repeat behavior is not defined as restarting).

This remark is informative.

For more information about restarting, see Restarting animations.

Each additive animation adds its effect to the result of all sandwich layers below. A non-additive animation simply overrides the result of all lower sandwich layers. The end result at the top of the sandwich is the presentation value that must be reflected in the document view.

Some attributes that support additive animation have a defined legal range for values (e.g. an opacity attribute may allow values between 0 and 1). In some cases, an animation function may yield out of range values. It is recommended that implementations clamp the results to the legal range as late as possible, before applying them to the presentation value. Ideally, the effect of all the animations active or frozen at a given point should be combined, before any clamping is performed. Although individual animation functions may yield out of range values, the combination of additive animations may still be legal. Clamping only the final result and not the effect of the individual animation functions provides support for these cases. Intermediate results may be clamped when necessary although this is not optimal. The host language must define the clamping semantics for each attribute that may be animated. As an example, this is defined for animateColor element.

Initially, before any animations for a given attribute are active, the presentation value will be identical to the original value specified in the document (the OM value).

When all animations for a given attribute have completed and the associated animation effects are no longer applied, the presentation value will again be equal to the OM value. Note that if any animation is defined with fill="freeze", the effect of the animation will be applied as long as the animation element remains in the frozen state, and so the presentation value will continue to reflect the animation effect. Refer also to the section "Freezing animations".

Some animations (e.g. animateMotion) will implicitly target an attribute, or possibly several attributes (e.g. the "posX" and "posY" attributes of some layout model). These animations must be combined with any other animations for each attribute that is affected. Thus, e.g. an animateMotion animation may be in more than one animation sandwich (depending upon the layout model of the host language). For animation elements that implicitly target attributes, the host language designer must specify which attributes are implicitly targeted, and the runtime must accordingly combine animations for the respective attributes.

Note that any queries (via DOM interfaces) on the target attribute will reflect the OM value, and will not reflect the effect of animations. Note also that the OM value may still be changed via the OM interfaces (e.g. using script). While it may be useful or desired to provide access to the final presentation value after all animation effects have been applied, such an interface is not provided as part of SMIL Animation. A future version may address this.

Although animation does not manipulate the OM values, the document display must reflect changes to the OM values. Host languages may support script languages that may manipulate attribute values directly in the OM. If an animation is active or frozen while a change to the OM value is made, the behavior is dependent upon whether the animation is defined to be additive or not, as follows: (see also the section Additive animation).

12.4.4 Animation elements as "continuous media"

Within the timing model, animation is considered to be "continuous" media. The animation elements defined in SMIL Animation do not have a natural intrinsic duration, so they are assigned an intrinsic duration of indefinite.

This section is informative.

This has several consequences, which are noted in various sections below. In particular, most animation elements will have an explicit duration set with the dur attribute, since a finite, known duration is required for interpolation.

12.4.5 The animation effect function F(t,u)

This section is informative.

As described above, the simple animation function f(t) defines the animation for the simple duration d. However, SMIL Timing allows the author to repeat the simple duration. SMIL Timing also allows authors to specify whether the animation should simply end when the active duration completes, or whether it should be frozen at the last value. SMIL Animation specifies what it means for an animation to be frozen. In addition, the author may specify how each animation should be combined with other animations and the original DOM value.

This section describes the semantics for the additional functionality, including a detailed model for combining animations. This is presented as a sequence of functions building on the simple animation function:

Since these functions describe the animation outside of the simple duration, they are defined for any time t: 0<=t<AD . The frozen animation function ff(t),is additionally defined for t=AD, to account for the case when the element is frozen.

Repeating animations

As described in the section Interval timing of the BasicInlineTiming module, repeating an element causes the element to be "played" several times in sequence. The repeated period is 0 to the simple duration of the element. Animation follows this model, where "playing" the animation means applying the simple animation function f(t) repeatedly.

The repeated animation function, fr(t), for any simple animation function f(t) is

fr(t) = f( REMAINDER( t, d ) ),

where t>=0, d is the simple duration , and REMAINDER( t, d ) is defined as (t - d*floor(t/d)).

This formulation follows the end-point exclusive model described in Interval timing. As an animation repeats, it starts at f(0), is sampled and applied up to but not including the end-point f(d). At the end of the simple duration, i.e. at the beginning of the next iteration, it starts back at f(0). f(d) may never actually be applied.

Examples

This section is informative.

In the following example, the 2.5 second animation function will be repeated twice; the active duration will be 5 seconds. The attribute top will go from 0 to (almost) 10, return to 0 at 2.5 seconds, and repeat.

<animate attributeName="top" from="0" to="10" dur="2.5s"
repeatCount="2"
/>

In the following example, the animation function will be repeated two full times and then the first half is repeated once more; the active duration will be 7.5 seconds.

<animate attributeName="top" from="0" to="10" dur="3s"
repeatCount="2.5"
/>

In the following example, the animation function will repeat for a total of 7 seconds. It will play fully two times, followed by a fractional part of 2 seconds. This is equivalent to a repeatCount of 2.8. The last (partial) iteration will apply values in the range "0" to "8".

<animate attributeName="top" from="0" to="10" dur="2.5s"
repeatDur="7s" />

Note that if the simple duration is not defined (e.g. it is indefinite), repeat behavior is not defined (but repeatDur still defines the active duration). In the following example the simple duration is indefinite, and so the repeatCount is effectively ignored. Nevertheless, this is not considered an error: the active duration is also indefinite. The effect of the animation is to just use the value for f(0), setting the fill color to red for the remainder of the animate element's duration.

<animate attributeName="fill" from="red" to="blue" repeatCount="2" />

In the following example, the simple duration is indefinite, but the repeatDur still determines the active duration. The effect of the animation is to set the fill color to red for 10 seconds.

<animate attributeName="fill" from="red" to="blue" repeatDur="10s" />

In the following example, the simple duration is longer than the duration specified by repeatDur, and so the active duration will effectively cut short the simple duration. However, the animation function still interpolates using the specified simple duration. The effect of the animation is to interpolate the value of "top" from 10 to 17, over the course of 7 seconds.

<animate attributeName="top" from="10" to="20"
dur="10s" repeatDur="7s" />

Controlling behavior of repeating animation - Cumulative animation

This section is informative.

The author may also select whether a repeating animation should repeat the original behavior for each iteration, or whether it should build upon the previous results, accumulating with each iteration. For example, a motion path that describes an arc may repeat by moving along the same arc over and over again, or it may begin each repeat iteration where the last left off, making the animated element bounce across the window. This is called cumulative animation.

Whether an animation is cumulative is specified with the accumulate attribute.

Every animation element must be defined as either cumulative or non-cumulative. An animation element may be defined as cumulative only if addition is defined for the target attribute.

First we define some intermediate functions. The first iteration f0(t) is unaffected by accumulate, and so is the same as the original simple animation function definition. Each subsequent iteration adds to the result of the previous iterations:

f0(t) = f(t)

If the animation is non-cumulative, then:

fi(t) = f(t - (i*d)) for any integer i > 0.

If the animation is cumulative, then:

fi(t) = (f(d) * i) + f(t - (i*d)) for any integer i > 0.

The cumulative animation function, fc(t), for any simple animation function f(t) is then:

fc(t) = fi(t), where i = floor(t/d).

This section is informative.

Note that for a cumulative animation fi+1(t)starts at f(d)*i + f(0). To avoid jumps, authors will typically choose animation functions which start at 0.

For example, the path notation for a simple arc (detailed in The spline animateMotion element) can be used to describe a bouncing motion:

<img ...>
   <animateMotion path="m 0 0 c 30 50 70 50 100 0 z" dur="5s"
      accumulate="sum" repeatCount="4" />
</img>

The image moves from the original position along the arc over the course of 5 seconds. As the animation repeats, it builds upon the previous value and begins the second arc where the first one ended, as illustrated in Figure 1, below. In this way, the image "bounces" across the screen. The same animation could be described as a complete path of 4 arcs, but in the general case the path description can get quite large and cumbersome to edit.

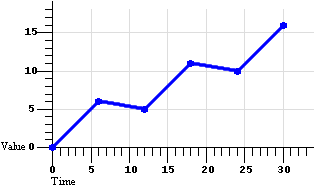

Figure 1 - Illustration of repeating animation with accumulate="sum".

Diagram showing accumlating animation

Figure 1 - A cumulative repeating animation. Each repeat iteration builds upon the previous.

Note that cumulative animation only controls how a single animation accumulates the results of the simple animation function as it repeats. It specifically does not control how one animation interacts with other animations to produce a presentation value. This latter behavior is described in the section Additive animation. Similarly, if an element restarts, the accumulate from the first run is not applied to the second. See Restarting animations.

Any numeric attribute that supports addition may support cumulative animation. For example, we can define a "pulsing" animation that will grow the "width" of an SVG <rect> element by 100 pixels in 50 seconds.

<rect width="20px"...>
   <animate attributeName="width" dur="5s"
      values="0; 15; 10" additive="sum"
      accumulate="sum" repeatCount="10" />
</rect>

Each simple duration causes the rectangle width to bulge by 15 pixels and end up 10 pixels larger. The shape is 20 pixels wide at the beginning, and after 5 seconds is 30 pixels wide. The animation repeats, and builds upon the previous values. The shape will bulge to 45 pixels and then end up 40 pixels wide after 10 seconds, and will eventually end up 120 (20 + 100) pixels wide after all 10 repeats.

Freezing animations

This section is informative.

Animation elements follow the definition of fill in the Timing module. This section extends that specification to cover animation-specific semantics.

Note that when a min attribute extends the preliminary active duration, forming an active duration which is longer, the extra time is divided up into the repeating duration during which time the animation plays normally and the remaining time during which the animation is treated exactly the same as any frozen time due to a fill attribute, i.e. the element is frozen if the fill behavior is "freeze" and removed from consideration if the behavior is remove.

By default when an animation element ends, its effect is no longer applied to the presentation value for the target attribute. For example, if an animation moves an image and the animation element ends, the image will "jump back" to its original position.

<img top="3" ...>
   <animate begin="5s" dur="10s" attributeName="top" by="100"/>
</img>

As shown in Figure 2, the image will appear stationary at the top value of "3" for 5 seconds, then move 100 pixels down in 10 seconds. 15 seconds after the document begin, the animation ends, the effect is no longer applied, and the image jumps back from 103 to 3 where it started (i.e. to the underlying DOM value of the top attribute).

Figure 2 - Illustration of animation without freezing.

Diagram showing an animation with default fill.

Figure 2 - Simple animation without freezing. After the animate element ends, the effect of the animation is removed.

The fill attribute may be used to maintain the value of the animation after the active duration of the animation element ends:

<img top="3" ...>
   <animate begin= "5s" dur="10s" attributeName="top" by="100"
          fill="freeze" />
</img>

The animation ends 15 seconds after the document begin, but the image remains at the top value of 103 (Figure 3). The attribute freezes the last value of the animation for the duration of the freeze effect. This duration is controlled by the time container (for details, see SMIL Timing and Synchronization).

Figure 3 - Illustration of animation with fill="freeze".

Diagram showing a frozen animation.

Figure 3 - Simple frozen animation. After the animate element ends, the effect of the animation is retained.

If the active duration cuts short the simple duration (including the case of partial repeats), the effect value of a frozen animation is defined by the shortened simple duration. In the following example, the simple animation function repeats two full times and then again for one-half of the simple duration. In this case, the value while frozen will be 53:

<img top="3" ...>
   <animate begin= "5s" dur="10s" attributeName="top" by="100"
          repeatCount="2.5" fill="freeze" />
</img>

Figure 4 - Illustration of animation combining a partial repeat and fill="freeze".

Diagram showing an animation with a partial repeat and freezing.

In the following example, the dur attribute is missing, and so the simple duration is indefinite. The active duration is constrained by end to be 10 seconds. Interpolation is not defined, and the value while frozen will be the from value, 10:

<animate from="10" to="20" end="10s" fill="freeze" .../>

Stating this formally:

For an element with active duration AD and intermediate active duration IAD, we define the repeat duration rd as:

rd = min(AD,IAD).

The frozen animation function is then given by:

ff(t) = fc(t) for all times t: 0<=t<rd;

ff(t) = ff(rd) for all times t: rd<=t<=AD where ff(rd) is defined below.

This is the value before the element is frozen.

When the element is frozen, t is effectively equal to AD, which according to the above definition is equivalent to saying t is effectively equal to rd.

In the following equations we define ff(rd).

If rd is not an integer multiple of the simple duration d, then ff(rd) = fi(rd), where i = floor(rd/d).

This is equivalent to fc(rd), except that fc(t) is not formally defined for t=rd. In this case, the equations remain consistent, and so the equivalent of fc(rd) is used for the frozen value ff(rd).

If rd is an integer multiple of d, i.e. rd = d*i for some positive integer i, and the animation is non-cumulative,
ff(rd) = f(d)
.

If rd is an integer multiple of d, i.e. rd = d*i for some positive integer i, and the animation is cumulative,

ff(rd) = f(d) * i.

Note that f(d) is a shorthand for the "last value defined for the animation function" (e.g., the to value or the last value in the values list).

Also note that if the fill behavior of the animation element is "remove", the animation effect is removed at the end of the repeat duration and the definition of fc(rd) is not used. The remainder of the active duration (if any) is only relevant for synchronization purposes.

Additive animation

This section is informative.

In addition to repeating and accumulating values of a single animation, an animation may be expressed as a delta to an attribute's value, rather than as an absolute value. This may be used in a single animation to adapt the underlying DOM value, or complex animations may be produced by combining several simple ones.

For example, a simple "grow" animation can increase the width of an object by 10 pixels:

<rect width="20px" ...>
   <animate attributeName="width" from="0px" to="10px" dur="10s"
      additive="sum"/>
</rect>

The width begins at 20 pixels, and increases to 30 pixels over the course of 10 seconds. If the animation were declared to be non-additive, the same from and to values would make the width go from 0 to 10 pixels over 10 seconds.

Many complex animations are best expressed as combinations of simpler animations. A "vibrating" path, for example, can be described as a repeating up and down motion added to any other motion:

<img ...>
   <animateMotion from="0,0" to="100,0" dur="10s" />
   <animateMotion values="0,0; 0,5; 0,0" dur="1s"
                  repeatDur="10s" additive="sum"/>
</img>

The animation effect function, captures the semantics of this for a single animation element:

Every animation element must be defined as either additive or non-additive. An element may be defined as additive only if addition is defined for the type of the target attribute.

The animation effect function F(t,u) combines all previously defined functions into one for a single animation element.

If the animation is additive, F(t,u) = u + ff(t).

If the animation is non-additive, F(t,u) = ff(t).

This section is informative.

When there are multiple animations defined for a given attribute that overlap at any moment, the two either add together or one overrides the other. Animations overlap when they are both either active or frozen at the same moment. The ordering of animations (e.g. which animation overrides which) is determined by a priority associated with each animation. The animations are prioritized according to when each begins. The animation first begun has lowest priority and the most recently begun animation has highest priority.

Higher priority animations that are not additive will override all earlier (lower priority) animations, and simply set the attribute value. Animations that are additive apply (i.e. add to) to the result of the earlier-activated animations. For details on how animations are combined, see The animation sandwich model.

Additive animation is defined for numeric attributes and other data types for which an addition function is defined. This includes numeric attributes for concepts such as position, widths and heights, sizes, etc. This also includes color (refer to The animateColor element), and may include other data types as specified by the host language.

It is often useful to combine additive animations and fill behavior, for example when a series of motions are defined that should build upon one another:

<img ...>
   <animateMotion begin="0" dur="5s" path="[some path]"
           additive="sum" fill="freeze" />
   <animateMotion begin="5s" dur="5s" path="[some path]"
           additive="sum" fill="freeze" />
   <animateMotion begin="10s" dur="5s" path="[some path]"
           additive="sum" fill="freeze" />
</img>

The image moves along the first path, and then starts the second path from the end of the first, then follows the third path from the end of the second, and stays at the final point.

While many animations of numerical attributes will be additive, this is not always the case. As an example of an animation that is defined to be non-additive, consider a hypothetical extension animation "mouseFollow" that causes an object to track the mouse.

<img ...>
   <animateMotion dur="10s" repeatDur="indefinite"
           path="[some nice path]" />
   <mouseFollow begin="mouseover" dur="5s"
           additive="replace" fill="remove" />
</img>

The mouse-tracking animation runs for 5 seconds every time the user mouses over the image. It cannot be additive, or it will just offset the motion path in some odd way. The mouseFollow needs to override the animateMotion while it is active. When the mouseFollow completes, its effect is no longer applied and the animateMotion again controls the presentation value for position.

In addition, some numeric attributes (e.g. a telephone number attribute) may not sensibly support addition. It is left to the host language to specify which attributes support additive animation. Attribute types for which addition is not defined, such as strings and Booleans, may not support additive animation.

Additive and Cumulative animation

The accumulate attribute should not be confused with the additive attribute. The additive attribute defines how an animation is combined with other animations and the base value of the attribute. The accumulate attribute defines only how the simple animation function interacts with itself, across repeat iterations.

Typically, authors expect cumulative animations to be additive (as in the examples described for accumulate above), but this is not required. The following example is cumulative but not additive.

<img ...>
   <animate dur="10s" repeatDur="indefinite"
            attributeName="top" from="20" by="10"
            additive="replace" accumulate="sum" />
</img>

The animation overrides whatever original value was set for "top", and begins at the value 20. It moves down by 10 pixels to 30, then repeats. It is cumulative, so the second iteration starts at 50 (the value of 30 from the previous iteration plus the from value, 20) and moves down by another 10 to 60, and so on.

When a cumulative animation is also defined to be additive, the two features function normally. The accumulated effect for F(t,u) is used as the value for the animation, and is added to the underlying value for the target attribute. For example:

<img top="10" ... >
  <animate dur="10s" repeatDur="indefinite"

           attributename="top" from="20" by="10"

           additive="sum" accumulate="sum" />
</img>

The animation adds to the original value of 10 that was set for "top", and begins at the value 30. It moves down by 10 pixels to 40, then repeats. It is cumulative, so the second iteration starts at 60 (the value of 30 from the previous iteration plus 20 from the from attribute and plus 10 from the underlying value) and moves down by another 10 to 70, and so on.

Refer also to The animation sandwich model.

12.4.6 Restarting animations

This section is informative.

Animation elements follow the definition of restart in the SMIL Timing module. This section is descriptive.

When an animation restarts, the defining semantic is that it behaves as though this were the first time the animation had begun, independent of any earlier behavior. The animation effect function F(t,u) is defined independent of the restart behavior. Any effect of an animation playing earlier is no longer applied, and only the current animation effect F(t,u) is applied.

If an additive animation is restarted while it is active or frozen, the previous effect of the animation (i.e. before the restart) is no longer applied to the attribute. Note in particular that cumulative animation is defined only within the active duration of an animation. When an animation restarts, all accumulated context is discarded, and the animation effect F(t,u) begins accumulating again from the first iteration of the restarted active duration.

12.4.7 Animation function value details

This section is informative.

Many animations specify the simple animation function f(t) as a sequence of values to be applied over time. For some types of attributes (e.g. numbers), it is also possible to describe an interpolation function between values.

As a simple form of describing the values, animation elements may specify a from value and a to value. If the attribute takes values that support interpolation (e.g. a number), the simple animation function may interpolate values in the range defined by from and to, over the course of the simple duration. A variant on this uses a by value in place of the to value, to indicate an additive change to the attribute.

More complex forms specify a list of values, or even a path description for motion. Authors may also control the timing of the values, to describe "keyframe" animations, and even more complex functions.

In all cases, the animation effect function, F(t,u), must yield legal values for the target attribute. Three classes of values are described:

  1. Unitless scalar values. These are simple scalar values that can be parsed and set without semantic constraints. This class includes integers (base 10) and floating point (format specified by the host language).
  2. String values. These are simple strings.
  3. Language abstract values. These are values like CSS-length and CSS-angle values that have more complex parsing, but that can yield values that may be interpolated.

The animate element can interpolate unitless scalar values, and both animate and set elements can handle String values without any semantic knowledge of the target element or attribute. The animate and set elements must support unitless scalar values and string values. The host language must define which additional language abstract values should be handled by these elements. Note that the animateColor element implicitly handles the abstract values for color values, and that the animateMotion element implicitly handles position and path values.

In order to support interpolation on attributes that define numeric values with some sort of units or qualifiers (e.g. "10px", "2.3feet", "$2.99"), some additional support is required to parse and interpolate these values. One possibility is to require that the animation framework have built-in knowledge of the unit-qualified value types. However, this violates the principle of encapsulation and does not scale beyond CSS to XML languages that define new attribute value types of this form.

The recommended approach is for the animation implementation for a given host environment to support two interfaces that abstract the handling of the language abstract values. These interfaces are not formally specified, but are simply described as follows:

  1. The first interface converts a string (the animation function value) to a unitless, canonical number (either an integer or a floating point value). This allows animation elements to interpolate between values without requiring specific knowledge of data types like CSS-length. The interface will likely require a reference to the target attribute, to determine the legal abstract values. If the passed string cannot be converted to a unitless scalar, the animation element will treat the animation function values as strings, and the calcMode will default to "discrete".
  2. The second interface converts a unitless canonical number to a legal string value for the target attribute. This may, for example, simply convert the number to a string and append a suffix for the canonical units. The animation element uses the result of this to actually set the presentation value.

Support for these two interfaces ensures that an animation engine need not replicate the parser and any additional semantic logic associated with language abstract values.

This is not an attempt to specify how an implementation provides this support, but rather a requirement for how values are interpreted. Animation behaviors should not have to understand and be able to convert among all the CSS-length units, for example. In addition, this mechanism allows for application of animation to new XML languages, if the implementation for a language can provide parsing and conversion support for attribute values.

The above recommendations notwithstanding, it is sometimes useful to interpolate values in a specific unit-space, and to apply the result using the specified units rather than canonical units. This is especially true for certain relative units such as those defined by CSS (e.g. em units). If an animation specifies all the values in the same units, an implementation may use knowledge of the associated syntax to interpolate in the unit space, and apply the result within the animation sandwich, in terms of the specified units rather than canonical units. As noted above, this solution does not scale well to the general case. Nevertheless, in certain applications (such as CSS properties), it may be desirable to take this approach.

Interpolation and indefinite simple durations

If the simple duration of an animation is indefinite (e.g. if no dur value is specified), interpolation is not generally meaningful. While it is possible to define an animation function that is not based upon a defined simple duration (e.g. some random number algorithm), most animations define the function in terms of the simple duration. If an animation function is defined in terms of the simple duration and the simple duration is indefinite, the first value of the animation function (i.e. f(0)) should be used (effectively as a constant) for the animation function.

12.5 Overview of the SMIL 3.0 BasicAnimation Module

This section is informative.

The SMIL 3.0 BasicAnimation module provides

The BasicAnimation module defines attributes and elements following the model presented in the Animation Model section.

12.6 SMIL 3.0 BasicAnimation Module Common Attributes

This section is normative.

This remark is informative.

The elements of the BasicAnimation module have in common the attributes used to identify the target attribute and, less universally, the attributes by which the animation functions are specified.

12.6.1 Specifying the animation target

The animation target is defined as a specific attribute of a particular element. The means of specifying the target attribute and the target element are detailed in this section.

The target attribute

The target attribute to be animated is specified with attributeName. The value of this attribute is a string that specifies the name of the target attribute, as defined in the host language.

The attributes of an element that may be animated are often defined by different languages, and/or in different namespaces. For example, in many XML applications, the position of an element (which is a typical target attribute) is defined as a CSS property rather than as XML attributes. In some cases, the same attribute name is associated with attributes or properties in more than one language, or namespace. To allow the author to disambiguate the name mapping, an additional attribute attributeType is provided that specifies the intended namespace.

The attributeType attribute is optional. By default, the animation runtime will resolve the names according to the following rule: If there is a name conflict and attributeType is not specified, the list of CSS properties supported by the host language is matched first (if CSS is supported in the host language); if no CSS match is made (or CSS does not apply) the per-element-type partition namespace for the target element will be matched.

If a target attribute is defined in an XML Namespace other than the per-element-type partition namespace for the target element, the author must specify the namespace of the target attribute using the associated namespace prefix as defined in the scope of the animation element. The prefix is prepended to the value for attributeName.

For more information on XML namespaces, see [XML-NS].

Target attribute attributes

attributeName
Specifies the name of the target attribute. An xmlns prefix may be used to indicate the XML namespace for the attribute [XML-NS]. The prefix will be interpreted in the scope of the animation element.
attributeType
Specifies the namespace in which the target attribute and its associated values are defined. The attribute value is one of the following (values are case-sensitive):
CSS
This specifies that the value of attributeName is the name of a CSS property, as defined for the host document. This argument value is only meaningful in host language environments that support CSS.
XML
This specifies that the value of "attributeName" is the name of an XML attribute defined in the default XML namespace for the target element. Note that if the value for attributeName has an XMLNS prefix, the implementation must use the associated namespace as defined in the scope of the animation element.
auto
The implementation should match the attributeName to an attribute for the target element. The implementation must first search through the list of CSS properties for a matching property name, and if none is found, search the default XML namespace for the element.
This is the default.

The target element

An animation element may define the target element of the animation either explicitly or implicitly. An explicit definition uses an attribute to specify the target element. The syntax for this is described below.

If no explicit target is specified, the implicit target element is the parent element of the animation element in the document tree. It is expected that the common case will be that an animation element is declared as a child of the element to be animated. In this case, no explicit target need be specified.

If an explicit target element reference cannot be resolved (e.g. if no such element can be found), the animation has no effect. In addition, if the target element (either implicit or explicit) does not support the specified target attribute, the animation has no effect. See also Handling syntax errors.

The following two attributes may be used to identify the target element explicitly:

Target element attributes

targetElement
This attribute specifies the target element to be animated. The attribute value must be the value of an XML identifier attribute of an element (i.e. an "IDREF") within the host document. For a formal definition of IDREF, refer to XML 1.1 [XML11].
href
This attribute specifies the target element to be animated. The attribute value must be an XLink locator, referring to the target element to be animated.

When integrating animation elements into the host language, the language designer should avoid including both of these attributes. If however, the host language designer chooses to include both attributes in the host language, then when both are specified for a given animation element the XLink href attribute takes precedence over the targetElement attribute.

This section is informative.

The advantage of using the targetElement attribute is the simpler syntax of the attribute value compared to the href attribute. The advantage of using the XLink href attribute is that it is extensible to a full linking mechanism in future versions of SMIL Animation, and the animation element may be processed by generic XLink processors. The XLink form is also provided for host languages that are designed to use XLink for all such references. The following two examples illustrate the two approaches.

This example uses the simpler targetElement syntax:

<animate targetElement="foo" attributeName="bar" .../>

This example uses the more flexible XLink locator syntax, with the equivalent target:

<foo xmlns:xlink="http://www.w3.org/1999/xlink">
   ...
   <animate xlink:href="#foo" attributeName="bar" .../>
   ...
</foo>

When using an XLink href attribute on an animation element, the following additional XLink attributes must be defined in the host language. These may be defined in a DTD, or the host language may require these in the document syntax to support generic XLink processors. For more information, refer to [XLINK].

The following XLink attributes are required by the XLink specification. The values are fixed, and so may be specified as such in a DTD. All other XLink attributes are optional, and do not affect SMIL Animation semantics.

XLink attributes for href

type
Must be simple. Identifies the type of XLink being used.
actuate
Must be onLoad. Indicates that the link to the target element is followed automatically (i.e., without user action).
show
Must be embed. Indicates that the reference does not include additional content in the file.

Additional details on the target element specification as relates to the host document and language are described in Required definitions and constraints on animation targets.

12.6.2 Specifying the simple animation function f(t)

Every animation function defines the value of the attribute at a particular moment in time. The time range for which the animation function is defined is the simple duration. The animation function does not produce defined results for times outside the range of 0 to the simple duration.

An animation is described either as a list of values, or in a simplified form that describes the from, to and by values. The from/to/by form is defined in Simple animation functions defined by from, to and by.

Simple animation function attributes

values
A semicolon-separated list of one or more values, each of which must be a legal value for the specified attribute. Vector-valued attributes are supported using the vector syntax of the attributeType domain. Leading and trailing white space, and white space before and after semi-colon separators, will be ignored.

If any values are not legal, the animation will have no effect (see also Handling Syntax Errors).

calcMode
Specifies the interpolation mode for the animation. If the target attribute does not support linear interpolation (e.g. for strings), or if the values attribute has only one value, the calcMode attribute is ignored and discrete interpolation is used. The calcMode attribute may take any of the following values:
discrete
This specifies that the animation function will jump from one value to the next without any interpolation.
linear
Simple linear interpolation between values is used to calculate the animation function.
This is the default.
paced
Defines interpolation to produce an even pace of change across the animation. This is only supported for values that define a linear numeric range, and for which some notion of "distance" between points can be calculated (e.g. position, width, height, etc.). If this value is applied to an attribute that does not have a notion of "distance", the value is ignored (and hence reverts to the default linear).

The animation will apply the values in order over the course of the animation. For discrete and linear animations, values in the values attribute are equally spaced through the animation duration. For paced animations, the values are spaced so that a uniform rate of change is obtained.

This section is informative.

The following example using the values syntax animates the width of an SVG shape over the course of 10 seconds, interpolating from a width of 40 to a width of 100 and back to 40.

<rect ...>
   <animate attributeName="width" values="40;100;40" dur="10s"/>
</rect>

The simple animation function for this example (with time in seconds) is

f(t) = 40 + 60*t/5, 0 <= t < 5, and
f(t) = 100 - 60*(t-5)/5, 5 <= t <= 10.

The simple animation function defined by the values and calcMode attributes can be formally specified:

Let i = floor((t*n)/d), d be the simple duration of the animation element, n be the number of entries in the values attribute, value[i] be the ith entry (counting from 0), di be the duration of the the ith time period, and ti be the time at which the the ith time period begins.

Note that a linear or paced animation will be a smoothly closed loop if the first value is repeated as the last. The keyTimes attribute is described in the SplineAnimation section.

Interpolation modes illustrated

This section is informative.

The three figures 5a, 5b and 5c below show how the same basic animation will change a value over time, given different interpolation modes. All examples are based upon the following example, but with different values for calcMode:

<animate dur="30s" values="0; 6; 5; 11; 10; 16" calcMode="[as specified]" />

Figure 5 - Discrete, linear and paced animation

Diagram of linear         interpolation

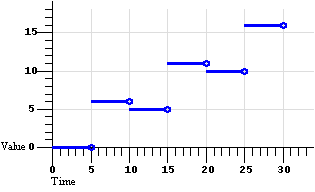

Figure 5a: Default discrete animation.

calcMode="discrete"

There are 6 segments of equal duration: 1 segment per value.

Diagram of linear interpolation

Figure 5b: Default linear animation.

calcMode="linear"

There are 5 segments of equal duration: n-1 segments for n values.

Diagram of linear interpolation

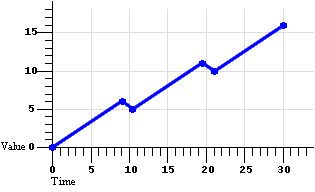

Figure 5c: Default paced animation.

calcMode="paced"

There are 5 segments of varying duration: n-1 segments for n values, computed to yield a constant rate of change in the value.

Examples of calcMode

This section is informative.

The following example describes a simple discrete animation:

<animate attributeName="foo" dur="8s"
     values="bar; fun; far; boo" />

The value of the attribute "foo" will be set to each of the four strings for 2 seconds each. Because the string values cannot be interpolated, only discrete animation is possible; any calcMode attribute would be ignored.

The following example describes a simple linear animation:

<animate attributeName="x" dur="10s" values="0; 10; 100"
     calcMode="linear"/>

The value of "x" will change from 0 to 10 in the first 5 seconds, and then from 10 to 100 in the second 5 seconds. Note that the values in the values attribute are spaced evenly in time; in this case the result is a much larger actual change in the value during the second half of the animation. Contrast this with the same example changed to use "paced" interpolation:

<animate attributeName="x" dur="10s" values="0; 10; 100"
     calcMode="paced"/>

To produce an even pace of change to the attribute "x", the second segment defined by the values list gets most of the simple duration: The value of "x" will change from 0 to 10 in the first second, and then from 10 to 100 in the next 9 seconds. While this example could be easily authored as a from-to animation without paced interpolation, many examples (such as motion paths) are much harder to author without the paced value for calcMode.

12.6.3 Specifying the animation effect function F(t,u)

This section is informative.

As described in The animation effect function F(t,u), the simple animation function may be

The animation effect function F(t,u) defines the semantics of these attributes, and gives examples. This section gives only the syntax.

See the BasicInlineTiming module for definitions of the attributes repeatCount, repeatDur and fill.

The additive and cumulative behavior of repeating animations is controlled with the additive and accumulate attributes, respectively:

Animation effect function attributes

accumulate
Controls whether or not the animation is cumulative. May be either of the following two values:
sum
Specifies that the animation is cumulative, i.e. each repeat iteration after the first builds upon the last value of the previous iteration.
none
Specifies that the animation is non-cumulative, i.e. repeat iterations simply repeat the animation function f(t).
This is the default.
This attribute is ignored if the target attribute value does not support addition, or if the animation element does not repeat.
additive
Controls whether or not the animation is additive.
sum
Specifies that the animation is additive, i.e. will add to the underlying value of the attribute and other lower priority animations.
replace
Specifies that the animation is non-additive, i.e. will override the underlying value of the attribute and other lower priority animations. This is the default.
This attribute is ignored if the target attribute does not support additive animation.

12.6.4 Simple animation functions specified by from, to and by

An animation is described either as a list of values, as described earlier, or in a simplified form that uses from, to and by values.

From/to/by attributes for simple animation functions

from
Specifies the starting value of the animation. Must be a legal value for the specified attribute. Ignored if the values attribute is specified.
to
Specifies the ending value of the animation. Must be a legal value for the specified attribute. Ignored if the values attribute is specified.
by
Specifies a relative offset value for the animation. Must be a legal value of a domain for which addition to the target attribute domain is defined and which yields a value in the target attribute domain. Ignored if the values attribute is specified. Ignored if addition is not defined for the domain of target attribute.

The simpler from/to/by syntax provides for several variants. To use one of these variants, one of by or to must be specified; a from may be specified. The by and to attributes must not both be specified; if both are specified, only the to attribute will be used (the by will be ignored). The combinations of attributes yield the following classes of animation.

from-to animation
Specifying a from value and a to value defines a simple animation. The animation function is defined to start with the from value, and to finish with the to value.

Normative: A from-to animation with a from value vf and a to value vt is equivalent to the same animation with a values list with 2 values, vf and vt.
from-by animation
Specifying a from value and a by value defines a simple animation in which the animation function is defined to start with the from value, and to change this over the course of the simple duration by a delta specified with the by attribute. This may only be used with attributes that support addition (e.g. most numeric attributes).

Normative: A from-by animation with a from value vf and a by value vb is equivalent to the same animation with a values list with 2 values, vf and (vf+vb).
by animation
Specifying only a by value defines a simple animation in which the animation function is defined to offset the underlying value for the attribute, using a delta that varies over the course of the simple duration, starting from a delta of 0 and ending with the delta specified with the by attribute. This may only be used with attributes that support additive animation.

Normative: A by animation with a by value vb is equivalent to the same animation with a values list with 2 values, the neutral element for addition for the domain of the target attribute (denoted 0) and vb, and additive="sum". Any other specification of the additive attribute in a by animation is ignored.
to animation
This describes an animation in which the animation function is defined to start with the underlying value for the attribute, and finish with the value specified with the to attribute. Using this form, an author may describe an animation that will start with any current value for the attribute, and will end up at the desired to value.

A normative definition of a to animation is given below in To animation.

This section is informative.

Examples

The following "from-to animation" example animates the width of an SVG shape over the course of 10 seconds from a width of 50 to a width of 100.

<rect ...>
   <animate attributeName="width" from="50" to="100" dur="10s"/>
</rect>

The following "from-by animation" example animates the width of an SVG shape over the course of 10 seconds from a width of 50 to a width of 75.

<rect ...>
   <animate attributeName="width" from="50" by="25" dur="10s"/>
</rect>

The following "by animation" example animates the width of an SVG shape over the course of 10 seconds from the original width of 40 to a width of 70.

<rect width="40"...>
   <animate attributeName="width" by="30" dur="10s"/>
</rect>

From-to and from-by animations also support cumulative animation, as in the following example:

<rect width="20px"...>
   <animate attributeName="width" dur="5s" from="10px" to="20px"
      accumulate="sum" repeatCount="10" />
</rect>

The rectangle will grow from 10 to 20 pixels in the first 5 seconds, and then from 30 to 40 in the next 5 seconds, and so on up to 200 pixels after 10 repeats. Note that since the default value for additive is replace, the original value is ignored. The following example makes the animation explicitly additive:

<rect width="20px"...>
   <animate attributeName="width" dur="5s" from="10px" to="20px"
      accumulate="sum" additive="sum" repeatCount="10" />
</rect>

The results are the same as before, except that all the values are shifted up by the original value of 20. After 5 seconds, the rectangle jumps from 40 pixels to 50 pixels wide, and it is 220 pixels wide at the end of the 10th repeat.

To animation

This section is informative.

A to animation of an attribute which supports addition is a kind of mix of additive and non-additive animation. The underlying value is used as a starting point as with additive animation, however the ending value specified by the to attribute overrides the underlying value as though the animation was non-additive.

The following "to animation" example animates the width of an SVG shape over the course of 10 seconds from the original width of 40 to a width of 100.

<rect width="40"...>
   <animate attributeName="width" to="100" dur="10s"/>
</rect>

Since a to animation has only 1 value, a discrete to animation will simply set the to value for the simple duration. In the following example, the rect will be blue for the 10 second duration of the animate element.

<rect color="red"...>
   <animate attributeName="color" to="blue" dur="10s" calcMode="discrete"/>
</rect>

The semantics of to animation fit into the general animation model, but with a few special cases. The normative definition given here parallels the definition for other types of animation presented in the Animation Model section.

The simple animation function f(t,u) for a discrete to animation with to value vt is a constant function which ignores the underlying value:

f(t,u) = vt

Otherwise, the simple animation function f(t,u) for a to animation with to value vt is a linear interpolation between the underlying value, u, and the to value:

f(t,u) = (u * (d-t)/d) + (vt * t/d), for t: 0<=t<=d where d is the simple duration.

If no other (lower priority) animations are active or frozen, this defines simple interpolation. However if another animation is manipulating the underlying value, the to animation will initially add to the effect of the lower priority animation, and increasingly dominate it as it nears the end of the simple duration, eventually overriding it completely. The value for f(t,u) at the end of the simple duration is just the to value.

Repeating to animations is the same as repeating other animations:

Normative

The repeated animation function, fr(t,u), has the standard definition:
fr(t,u) = f( REMAINDER(t,d), u ).

Because to animation is defined in terms of absolute values of the target attribute, cumulative animation is not defined:

The cumulative animation function, fc(t), for a to animation is
fc(t,u) =fr(t,u).

A frozen to animation takes on the value at the time it is frozen, masking further changes in the underlying value. This matches the dominance of the to value at the end of the simple duration. Even if other, lower priority animations are active while a to animation is frozen, the value does not change.

The frozen animation function, ff(t), for a to animation is
ff(t,u) = fc(t,u), if the animation is not frozen at time t, and

ff(t,u) = vf, if the animation is frozen at time t, where vf is the value of ff(t,u) at the moment the animation was frozen.

This remark is informative.

For example, consider

<rect width="40"...>
   <animate attributeName="width" to="100" dur="10s" repeatCount="2.5" fill="freeze"/>
</rect>

The width will animate from 40 to 100 pixels in the first 10 seconds, repeat 40 to 100 in the second 10 seconds, go from 40 to 70 in the final 5 seconds, and freeze at 70.

To animation defines its own kind of additive semantics, so the additive attribute is ignored.

The animation effect function, F(t,u) for a to animation is
F(t,u) = ff(t,u).

Multiple to animations will also combine according to these semantics. As the animation progresses, the higher-priority animation will have greater and greater effect, and the end result will be to set the attribute to the final value of the higher-priority to animation.

This section is informative.

For an example of additive to animation, consider the following two additive animations. The first, a by-animation applies a delta to attribute "x" from 0 to -10. The second, a to animation animates to a final value of 10.

 <foo x="0" ...>
    <animate xml:id="A1" attributeName="x"
        by="-10" dur="10s" fill="freeze" />
    <animate xml:id="A2" attributeName="x"
        to="10"  dur="10s" fill="freeze" />
 </foo>

The presentation value for "x" in the example above, over the course of the 10 seconds is presented in Figure 6 below. These values are simply computed using the formula described above. Note that the value for F(t,u) for A2 is the presentation value for "x", since A2 is the higher-priority animation.

Figure 6 - Effect of Additive to animation example

Time F(t,u) for A1 F(t,u) for A2
0 0 0
1 -1 0.1
2 -2 0.4
3 -3 0.9
4 -4 1.6
5 -5 2.5
6 -6 3.6
7 -7 4.9
8 -8 6.4
9 -9 8.1
10 -10 10

12.7 SMIL 3.0 BasicAnimation Elements

This section is normative.

The SMIL BasicAnimation module defines four elements, animate, set, animateMotion and animateColor.

12.7.1 The animate element

The animate element introduces a generic attribute animation that requires little or no semantic understanding of the attribute being animated. It can animate numeric scalars as well as numeric vectors. It can also animate a single non-numeric attribute through a discrete set of values. The animate element is an empty element; it does not have child elements.

This element supports from/to/by and values descriptions for the animation function, as well as all of the calculation modes. It supports all the described timing attributes. These are all described in respective sections above.

Element attributes

attributeName and
attributeType
The attribute to be animated. See The target attribute. attributeName is required; attributeType is optional.
targetElement,
href,
actuate,
show, and
type
The target element. See The target element. All are optional.
from,
to,
by,
values,
calcMode,
accumulate, and
additive
Specify the animation function and effect. See Specifying the simple animation function f(t) and Specifying the animation effect F(t,u).

Numerous examples are provided above, as are normative definitions of the semantics of all attributes supported by animate.

12.7.2 The set element

The set element provides a simple means of just setting the value of an attribute for a specified duration. As with all animation elements, this only manipulates the presentation value, and when the animation completes, the effect is no longer applied. That is, set does not permanently set the value of the attribute.

The set element supports all attribute types, including those that cannot reasonably be interpolated and that more sensibly support semantics of simply setting a value (e.g. strings and Boolean values). The set element is non-additive. The additive and accumulate attributes are not allowed, and will be ignored if specified.

The set element supports all the timing attributes to specify the simple and active durations. However, the repeatCount and repeatDur attributes will just affect the active duration of the set, extending the effect of the set (since it is not really meaningful to "repeat" a static operation). Note that using fill="freeze" with set will have the same effect as defining the timing so that the active duration is indefinite.

The set element supports a more restricted set of attributes than the animate element. Only one value is specified, and neither interpolation control nor additive or cumulative animation is supported:

Element attributes

attributeName and
attributeType
The attribute to be animated. See The target attribute. attributeName is required; attributeType is optional.
targetElement,
href,
actuate,
show, and
type
The target element. See The target element. All are optional.
to
Specifies the value for the target attribute during the active duration of the set element. The argument value must match the target attribute type.
The simple animation function defined by a set element is
f(t) = v

where v is the value of the to attribute.

The set element is non-cumulative and non-additive.

Examples

This section is informative.

The following changes the stroke-width of an SVG rectangle from the original value to 5 pixels wide. The effect begins at 5 seconds and lasts for 10 seconds, after which the original value is again used.

<rect ...>
   <set attributeName="stroke-width" to="5px"
            begin="5s" dur="10s" fill="remove" />
</rect>

The following example sets the class attribute of the text element to the string "highlight" when the mouse moves over the element, and removes the effect when the mouse moves off the element.

<text>This will highlight if you mouse over it...
   <set attributeName="class" to="highlight"
            begin="mouseover" end="mouseout" />
</text>

12.7.3 The animateMotion element

The animateMotion element will move an element along a path. The element abstracts the notion of motion and position across a variety of layout mechanisms - the host language defines the layout model and must specify the precise semantics of position and motion. The path may be described in either of two ways:

All values must be x, y value pairs. Each x and y value may specify any units supported for element positioning by the host language. The host language defines the default units. In addition, the host language defines the reference point for positioning an element. This is the point within the element that is aligned to the position described by the motion animation. The reference point defaults in some languages to the upper left corner of the element bounding box; in other languages the reference point may be implicit, or may be specified for an element.

The syntax for the x, y value pairs is:

Coordinate-pair ::= "(" Coordinate Comma-wsp Coordinate ")"
Coordinate      ::= Num
Num             ::= Number

Coordinate values are separated by at least one white space character or a comma. Additional white space around the separator is allowed. The values of Coordinate must be defined as some sort of number in the host language.

The attributeName and attributeType attributes are not used with animateMotion, as the manipulated position attribute(s) are defined by the host language. If the position is exposed as an attribute or attributes that may also be animated (e.g. as "top" and "left", or "posX" and "posY"), implementations must combine animateMotion animations with other animations that manipulate individual position attributes. See also The animation sandwich model.

If none of the from, to, by and values attributes are specified, the animation will have no effect.

The default calculation mode (calcMode) for animateMotion is paced. This will produce constant velocity motion along the specified path. Note that while animateMotion elements may be additive, the addition of two or more paced (constant velocity) animations may not result in a combined motion animation with constant velocity.

Element attributes

targetElement,
href,
actuate,
show, and
type
The target element. See The target element. All are optional.
from,
to,
by,
values,
accumulate, and
additive
Specify the animation function and effect. See Specifying the simple animation function f(t) and Specifying the animation effect F(t,u).
calcMode
Defined as above in Specifying the simple animation function f(t), but note that the default calcMode for animateMotion is paced. This will produce constant velocity motion.

The use of linear for the calcMode with more than 2 points described in the values attribute may result in motion with varying velocity. The linear calcMode specifies that time is evenly divided among the segments defined by the values. The use of linear does not specify that time is divided evenly according to the distance described by each segment.

For motion with constant velocity, calcMode should be set to paced.

origin
Specifies the origin of motion for the animation. The values and semantics of this attribute are dependent upon the layout and positioning model of the host language. In some languages, there may be only one option, default. However, in CSS positioning for example, it is possible to specify a motion path relative to the container block, or to the layout position of the element. It is often useful to describe motion relative to the position of the element as it is laid out (e.g. from off screen left to the layout position, specified as from="(-100,0)" and to="(0,0)". Authors must be able to describe motion both in this manner, as well as relative to the container block. The origin attribute supports this distinction. Nevertheless, because the host language defines the layout model, the host language must also specify the "default" behavior, as well as any additional attribute values that are supported.
Note that the definition of the layout model in the host language specifies whether containers have bounds, and the behavior when an element is moved outside the bounds of the layout container. In CSS2 [CSS2], for example, this may be controlled with the "clip" property.
Note that for additive animation, the origin distinction is not meaningful. This attribute only applies when additive is set to replace.

12.7.4 The animateColor element

The animateColor element specifies an animation of a color attribute. The host language must specify those attributes that describe color values and may support color animation.

All values must represent [sRGB] color values. Legal value syntax for attribute values is defined by the host language.

Interpolation is defined on a per-color-channel basis.

Element attributes

attributeName and
attributeType
The attribute to be animated. See The target attribute. attributeName is required; attributeType is optional.
targetElement,
href,
actuate,
show, and
type
The target element. See The target element. All are optional.
from,
to,
by,
values,
calcMode,
accumulate, and
additive
Specify the animation function and effect. See Specifying the simple animation function f(t), Specifying the animation effect F(t,u).

The values in the from/to/by and values attributes may specify negative and out of gamut values for colors. The function defined by an individual animateColor may yield negative or out of gamut values. The implementation must correct the resulting presentation value, to be legal for the destination (display) colorspace. However, as described in The animation sandwich model, the implementation should only correct the final combined result of all animations for a given attribute, and should not correct the effect of individual animations.

Values are corrected by "clamping" the values to the correct range. Values less than the minimum allowed value are clamped to the minimum value (commonly 0, but not necessarily so for some color profiles). Values greater than the defined maximum are clamped to the maximum value (defined by the host language) .

This section is informative.

Note that color values are corrected by clamping them to the gamut of the destination (display) colorspace. Some implementations may be unable to process values which are outside the source (sRGB) colorspace and must thus perform clamping to the source colorspace, then convert to the destination colorspace and clamp to its gamut. The point is to distinguish between the source and destination gamuts; to clamp as late as possible, and to realize that some devices, such as inkjet printers which appear to be RGB devices, have non-cubical gamuts.

Note to implementers: When animateColor is specified as a to animation, the animation function should assume Euclidean RGB-cube distance where deltas must be computed. See also Specifying the simple animation function f(t) and Simple animation functions specified by from, to and by. Similarly, when the calcMode attribute for animateColor is set to paced, the animation function should assume Euclidean RGB-cube distance to compute the distance and pacing.

12.8 SMIL 3.0 BasicAnimation Module Details

This section is normative.

12.8.1 BasicAnimation integration requirements

This section describes what a language designer must actually do to specify the integration of SMIL Animation into a host language. This includes basic definitions and constraints upon animation.

In addition to the requirements listed in this section, those listed in Common animation integration requirements must be satisfied.

Required definitions and constraints on animation targets

Specifying the target element

The host language designer must choose whether to support the targetElement attribute or the XLink attributes for specifying the target element. Note that if the XLink syntax is used, the host language designer must decide how to denote the XLink namespace for the associated attributes. The namespace may be fixed in a DTD, or the language designer may require colonized attribute names (qnames) to denote the XLink namespace for the attributes. The required XLink attributes have fixed values, and so may also be specified in a DTD, or may be required on the animation elements. Host language designers may require that the optional XLink attributes be specified. These decisions are left to the host language designer - the syntax details for XLink attributes do not affect the semantics of SMIL Animation.

In general, target elements may be any element in the document. Host language designers must specify any exceptions to this. Host language designers are discouraged from allowing animation elements to target elements outside of the document in which the animation element is defined. The XLink syntax for the target element could allow this, but the SMIL timing and animation semantics of this are not defined in this version of SMIL Animation.

Target attribute issues

The definitions in this module may be used to animate any attribute of any element in a host document. However, it is expected that host language designers integrating SMIL Animation may choose to constrain which elements and attributes may support animation. For example, a host language may choose not to support animation of the language attribute of a script element. A host language which included a specification for DOM functionality might limit animation to the attributes which may legally be modified through the DOM.

Any attribute of any element not specifically excluded from animation by the host language may be animated, as long as the underlying data type (as defined by the host language for the attribute) supports discrete values (for discrete animation) and/or addition (for interpolated, additive and cumulative animation).

All constraints upon animation must be described in the host language specification or in an appropriate schema, as the DTD alone cannot reasonably express this.

The host language must define which language abstract values should be handled for animated attributes. For example, a host language that incorporates CSS may require that CSS length values be supported. This is further detailed in Animation function value details.

The host language must specify the interpretation of relative values. For example, if a value is specified as a percentage of the size of a container, the host language must specify whether this value will be dynamically interpreted as the container size is animated.

The host language must specify the semantics of clamping values for attributes. The language must specify any defined ranges for values, and how out of range values will be handled.

The host language must specify the formats supported for numeric attribute values. This includes both integer values and floating point values. As a reasonable minimum, host language designers are encouraged to support the format described in section 4.3.1, "Integers and real numbers," of [CSS2].

Integrating animateMotion functionality

The host language specification must define which elements may be the target of animateMotion. In addition, the host language specification must describe the positioning model for elements, and must describe the model for animateMotion in this context (i.e. the semantics of the default value for the origin attribute must be defined). If there are different ways to describe position, additional attribute values for the origin attribute should be defined to allow authors control over the positioning model.

12.8.2 Document type definition (DTD) for the BasicAnimation module

This section is informative.

See the full DTD for the SMIL Animation Modules.

12.9 Overview of the SMIL 3.0 SplineAnimation Module

This section is normative.

This section is informative.

This section defines the functionality of the SMIL 3.0 SplineAnimation module. This module adds attributes for spline interpolation and for uneven spacing of points in time. These attributes may be used in animate, animateMotion and animateColor elements.

12.9.1 SMIL 3.0 SplineAnimation Module Attributes

Spline animation function calculation mode

The SplineAnimation module extends the discrete, linear and paced calculation modes of the BasicAnimation module, providing additional control over interpolation and timing:

Calculation mode attributes

calcMode
In addition to the values discrete, linear and paced of the BasicAnimation module, the SplineAnimation module supports the value
spline
Interpolates from one value in the values list to the next according to a time function defined by a cubic Bezier spline. The points of the spline are defined in the keyTimes attribute, and the control points for each interval are defined in the keySplines attribute.

The use of discrete for the calcMode together with a path specification is allowed, but will simply jump the target element from point to point. The times are derived from the points in the path specification, as described in the path attribute, immediately below.

keyTimes
A semicolon-separated list of time values used to control the pacing of the animation. Each time in the list corresponds to a value in the values attribute list, and defines when the value should be used in the animation function. Each time value in the keyTimes list is specified as a floating point value between 0 and 1 (inclusive), representing a proportional offset into the simple duration of the animation element.

If a list of keyTimes is specified, there must be exactly as many values in the keyTimes list as in the values list.

If no keyTimes attribute is specified, the simple duration is divided into equal segments as described in The simple animation function f(t).

Each successive time value must be greater than or equal to the preceding time value.

The keyTimes list semantics depends upon the interpolation mode:

  • For linear and spline animation, the first time value in the list must be 0, and the last time value in the list must be 1. The keyTime associated with each value defines when the value is set; values are interpolated between the keyTimes.
  • For discrete animation, the first time value in the list must be 0. The time associated with each value defines when the value is set; the animation function uses that value until the next time defined in keyTimes.

If the interpolation mode is paced, the keyTimes attribute is ignored.

If there are any errors in the keyTimes specification (bad values, too many or too few values), the animation will have no effect.

If the simple duration is indefinite and the interpolation mode is linear or spline, any keyTimes specification will be ignored.

keySplines
A set of Bezier control points associated with the keyTimes list, defining a cubic Bezier function that controls interval pacing. The attribute value is a semicolon separated list of control point descriptions. Each control point description is a set of four floating point values: x1 y1 x2 y2, describing the Bezier control points for one time segment. The keyTimes values that define the associated segment are the Bezier "anchor points", and the keySplines values are the control points. Thus, there must be one fewer sets of control points in the keySplines attribute than there are keyTimes.

The values must all be in the range 0 to 1.

This attribute is ignored unless the calcMode is set to spline.


If there are any errors in the keySplines specification (bad values, too many or too few values), the animation will have no effect.

This semantic (the duration is divided into n-1 equal periods) applies as well when the keySplines attribute is specified, but keyTimes is not. The times associated to the keySplines values are determined as described above.

The syntax for the control point sets in keySplines lists is:

Control-pt-set ::= ( Fpval Comma-wsp Fpval Comma-wsp Fpval Comma-wsp Fpval )

Using:

Fpval          ::= Floating point number
Comma-wsp      ::= S? (S|",") S?
S              ::= (#x20 | #x9 | #xD | #xA)+ /* from [XML11] */

Control point values are separated by at least one white space character or a comma. Additional white space around the separator is allowed. The allowed syntax for floating point numbers must be defined in the host language.

If the argument values for keyTimes or keySplines are not legal (including too few or too many values for either attribute), the animation will have no effect (see also Handling syntax errors).

In the calcMode, keyTimes and keySplines attribute values, leading and trailing white space and white space before and after semicolon separators will be ignored.

This section is informative.

Examples of advanced uses of calcMode

Discrete animation may be used with keyTimes, as in the following example:

<animateColor attributeName="color" dur="10s" calcMode="discrete"
     values="green; yellow; red" keyTimes="0.0; 0.5; 0.8" />

The value of the "color" attribute will be set to green for 5 seconds, and then to yellow for 3 seconds, and then will remain red for the last 2 seconds.

When using discrete animation with a keyTimes value of 1, the result may be somewhat surprising. Consider the following example:

<par dur="30">
  <animate calcMode="discrete" repeatCount="2" dur="10" fill="freeze"
    accumulate="[as specified]" keyTimes="0.0; 0.5; 1.0" values="0; 1; 2" .../>
</par>

This example is tricky because of the end-point-exclusive nature of the SMIL time model. At first flush, the final value is never reached since the final time is never reached, but the definitions above make that the value is used anyway. The table gives the value for selected times for the possible values of the accumulate attribute:

time accumulate
none sum
t=0 0 0
t=5 1 1
t=10 0 2
t=15 1 3
t=20 2 4
t=25 2 4

The following example illustrates the use of keyTimes:

<animate attributeName="x" dur="10s" values="0; 50; 100"
     keyTimes="0; .8; 1" calcMode="linear"/>

The keyTimes values cause the "x" attribute to have a value of "0" at the start of the animation, "50" after 8 seconds (at 80% into the simple duration) and "100" at the end of the animation. The value will change more slowly in the first half of the animation, and more quickly in the second half.

Interpolation with keySplines

For some attributes, the pace of change may not be easily discernibly by viewers. However for animations like motion, the ability to make the speed of the motion change gradually, and not in abrupt steps, can be important. The keySplines attribute provides this control.

Extending the above example to use keySplines:

<animate attributeName="x" dur="10s" values="0; 50; 100"
     keyTimes="0; .8; 1" calcMode="spline"
     keySplines=".5 0 .5 1; 0 0 1 1" />

The keyTimes still cause the "x" attribute to have a value of "0" at the start of the animation, "50" after 8 seconds and "100" at the end of the animation. However, the keySplines values define a curve for pacing the interpolation between values. In the example above, the spline causes an ease-in and ease-out effect between time 0 and 8 seconds (i.e. between keyTimes 0 and .8, and values "0" and "50"), but a strict linear interpolation between 8 seconds and the end (i.e. between keyTimes .8 and 1, and values "50" and "100"). Figure 7 shows the curves that these keySplines values define.

Figure 7 - Illustration of keySplines effect

Example keySplines01 -                         keySplines of 0 0 1 1 (the default)
keySplines="0 0 1 1"
(the default)
Example keySplines02 -                         keySplines of .5 0 .5 1
keySplines=".5 0 .5 1"
Example keySplines03 - keySplines of 0 .75 .25                         1
keySplines="0 .75 .25 1"
Example keySplines04 - keySplines of 1 0 .25                         .25
keySplines="1 0 .25 .25"

Each diagram in Figure 7 illustrates the effect of keySplines settings for a single interval (i.e. between the associated pairs of values in the keyTimes and values lists.). The horizontal axis can be thought of as the input value for the unit progress of interpolation within the interval - i.e. the pace with which interpolation proceeds along the given interval. The vertical axis is the resulting value for the unit progress, yielded by the keySplines function. Another way of describing this is that the horizontal axis is the input unit time for the interval, and the vertical axis is the output unit time. See also the section Timing and real-world clock times.

To illustrate the calculations, consider the simple example:

<animate dur="4s" values="10; 20" keyTimes="0; 1"
     calcMode="spline" keySplines={as in table} />

Using the keySplines values for each of the four cases above, the approximate interpolated values as the animation proceeds are:

keySplines values Initial value After 1s After 2s After 3s Final value
0 0 1 1 10.0 12.5 15.0 17.5 20.0
.5 0 .5 1 10.0 11.0 15.0 19.0 20.0
0 .75 .25 1 10.0 18.0 19.3 19.8 20.0
1 0 .25 .25 10.0 10.1 10.6 16.9 20.0

For a formal definition of Bezier spline calculation, see [COMP-GRAPHICS], pages 488-491.

The keyTimes and keySplines attributes may also be used with the from/to/by shorthand forms for specifying values, as in the following example:

<animate attributeName="foo" from="10" to="20"
     dur="10s" keyTimes="0.0; 1.0"
     calcMode="spline" keySplines=".5 0 .5 1" />

The value will change from 10 to 20, using an "ease-in/ease-out" curve specified by the keySplines values. The keyTimes values cause the value of 20 to be reached at 10 seconds.

The following example describes a somewhat unusual usage, a from-to animation with discrete animation. The stroke-linecap attribute of SVG elements takes a string, and so implies a calcMode of discrete. The animation will set the stroke-linecap attribute to round for 5 seconds (half the simple duration) and then set the stroke-linecap to square for 5 seconds.

<rect stroke-linecap="butt"...>
   <animate attributeName="stroke-linecap"
      from="round" to="square" dur="10s"/>
</rect>

12.9.2 SMIL 3.0 SplineAnimation Module Elements

This remark is informative.

The SplineAnimation module extends the BasicAnimation elements animate, animateMotion and animateColor, adding the attributes keyTimes and keySplines, and the value spline for the calcMode attribute.

12.9.3 The spline animate element

The SplineAnimation module extends the animate element defined by the BasicAnimation module, adding the following attributes and values.

Element attributes

all attributes and associated elements of the animate element in BasicAnimation.
See The animate element.
keyTimes,
keySplines, and
calcMode
Extend the specification animation function and effect. See The animate element and Spline animation function calculation mode.

Examples are provided above, as are normative definitions of the semantics of all attributes supported by animate.

12.9.4 The spline animateMotion element

The SplineAnimation module extends the animateMotion element defined by the BasicAnimation module, adding the following attributes and values.

Element attributes

all attributes and associated elements of the animateMotion element in BasicAnimation.
See The animateMotion element.
keyTimes,
keySplines, and
calcMode
Extend the specification animation function and effect. See The animateMotion element and Spline animation function calculation mode.
path
Specifies the curve that describes the attribute value as a function of time. The supported syntax is a subset of the SVG path syntax. Support includes commands to describe lines ("MmLlHhVvZz") and Bezier curves ("Cc"). For details refer to the path specification in SVG [SVG].
Note that SVG provides two forms of path commands, "absolute" and "relative". These terms may appear to be related to the definition of additive animation and/or to the from attribute, but they are orthogonal. The terms "absolute" and "relative" apply only to the definition of the path itself, and not to the operation of the animation. The "relative" commands define a path point relative to the previously specified point. The terms "absolute" and "relative" are unrelated to the definitions of both "additive" animation and any specification of origin.
  • For the "absolute" commands ("MLHVZC"), the host language must specify the coordinate system of the path values.
  • If the "relative" commands ("mlhvzc") are used, they simply define the point as an offset from the previous point on the path. This does not affect the definition of "additive" or origin for the animateMotion element.

A path data segment must begin with either one of the "moveto" commands.

Move To commands - "M <x> <y>" or "m <dx> <dy>"
Start a new sub-path at the given (x,y) coordinate. If a moveto is followed by multiple pairs of coordinates, the subsequent pairs are treated as implicit lineto commands.
Line To commands - "L <x> <y>" or "l <dx> <dy>"
Draw a line from the current point to the given (x,y) coordinate which becomes the new current point. A number of coordinate pairs may be specified to draw a polyline.
Horizontal Line To commands - "H <x>" or "h <dx>"
Draws a horizontal line from the current point (cpx, cpy) to (x, cpy). Multiple x values may be provided.
Vertical Line To commands - "V <y>" or "v <dy>"
Draws a vertical line from the current point (cpx, cpy) to (cpx, y). Multiple y values may be provided.
Closepath commands - "Z" or "z"
The "closepath" causes an automatic straight line to be drawn from the current point to the initial point of the current subpath.
Cubic Bezier Curve To commands -
"C <x1> <y1> <x2> <y2> <x> <y>" or
"c <dx1> <dy1> <dx2> <dy2> <dx> <dy>"
Draws a cubic Bezier curve from the current point to (x,y) using (x1,y1) as the control point at the beginning of the curve and (x2,y2) as the control point at the end of the curve. Multiple sets of coordinates may be specified to draw a polybezier.

For all calcMode settings, the definition of the simple animation function, f(t), uses the number of values in the values attribute to determine how the simple duration d is divided into segments. When a path attribute is used, the number of values is defined to be the number of points defined by the path, unless there are "move to" commands in the path after the initial "move to" command. A "move to" command does not define an additional "segment" for the purposes of timing or interpolation. A "move to" command does not count as an additional point when dividing up the duration. Note that the control points for a Bezier curve also do not define an additional "segment". When a path is combined with a paced calcMode setting, all "move to" commands are considered to have 0 duration (i.e. they always happen instantaneously), and should not be considered in computing the pacing.

If the path attribute is is specified, any from/to/by or values attribute values will be ignored.

Examples are provided above, as are normative definitions of the semantics of all attributes supported by animate.

For complete velocity control, calcMode may be set to spline and the author may specify a velocity control spline with keyTimes and keySplines.

This remark is informative.

Note that using a cubic Bezier curve requires numerical calculations to calculate the length of the path along the curve so that movement along the path can be done at a constant rate. Implementations are expected to do a "best effort".

12.9.5 The spline animateColor element

The SplineAnimation module extends the animateColor element defined by the BasicAnimation module, adding the following attributes and values.

Element attributes

all attributes and associated elements of the animateColor element in BasicAnimation.
See The animateColor element.
keyTimes,
keySplines, and
calcMode
Extend the specification animation function and effect. See The animateColor element and Spline animation function calculation mode.

12.10 SMIL 3.0 SplineAnimation Module Details

This section is normative.

12.10.1 SplineAnimation integration requirements

To specify the integration of the SMIL 3.0 SplineAnimation module into a host language, the language designer must integrate SMIL 3.0 BasicAnimation into the language, satisfying all the requirements listed in BasicAnimation integration requirements.

In addition to integrating BasicAnimation, the requirements listed in Common animation integration requirements must be satisfied for the SplineAnimation module.

12.10.2 Document type definition (DTD) for the SplineAnimation module

This remark is informative.

See the full DTD for the SMIL Animation Modules.

12.11 Common Animation Integration Requirements

This section is normative.

This remark is informative.

This section presents host-language-integration issues which are the same for the BasicAnimation and SplineAnimation modules.

12.11.1 Integration requirements

The host language profile must integrate the SMIL 3.0 BasicInlineTiming module into the host language, satisfying all requirements of that module. In addition, all modules of the SMIL 3.0 Timing and Synchronization modules and of the SMIL 3.0 Time Manipulation modules which are integrated into the host language must be available on BasicAnimation elements.

In particular, the fill attribute is supported on animation elements only if the host language integrates the SMIL 3.0 BasicTimeContainers module in addition to the BasicInlineTiming module.

If the Eventbase-element term is missing, the event-base element is defined to be the target element of the animation.

The host language profile may add additional attributes to Animation elements. Attributes added to any Animation element must be added to all Animation elements. In particular, this module does not define an XML ID attribute. It is expected that the host language profile will add an XML ID attribute to the Animation elements.

Extending Animation

Language designers integrating SMIL Animation are encouraged to define new animation elements where such additions will be of convenience to authors. The new elements must be based on SMIL Animation and SMIL Timing and Synchronization, and must stay within the framework provided by SMIL Timing and Synchronization and SMIL Animation.

Language designers are also encouraged to define support for additive and cumulative animation for non-numeric data types where addition can sensibly be defined.

Constraints on manipulating animation elements

Language designers integrating SMIL Animation are encouraged to disallow manipulation of attributes of the animation elements after the document has begun. This includes both the attributes specifying targets and values, as well as the timing attributes. In particular, the id attribute (of type ID) on all animation elements must not be mutable (i.e. should be read-only). Requiring animation runtimes to track changes to id values introduces considerable complexity, for what is at best a questionable feature.

It is recommended that language specifications disallow manipulation of animation element attributes through DOM interfaces after the document has begun. It is also recommended that language specifications disallow the use of animation elements to target other animation elements.

Note in particular that if the attributeName attribute can be changed (either by animation or script), problems may arise if the target attribute has a namespace qualified name. Current DOM specifications do not include a mechanism to handle this binding.

Dynamically changing the attribute values of animation elements introduces semantic complications to the model that are not yet sufficiently resolved. This constraint may be lifted in a future version of SMIL Animation.

Handling syntax errors

The specific error handling mechanisms for each attribute are described with the individual syntax descriptions. Some of these specifications describe the behavior of an animation with syntax errors as "having no effect". This means that the animation will continue to behave normally with respect to timing, but will not manipulate any presentation value, and so will have no visible impact upon the presentation.

In particular, this means that if other animation elements are defined to begin or end relative to an animation that "has no effect", the other animation elements will begin and end as though there were no syntax errors. The presentation runtime may indicate an error, but need not halt presentation or animation of the document.

Some host languages and/or runtimes may choose to impose stricter error handling (see also Error handling semantics for a discussion of host language issues with error handling). Authoring environments may also choose to be more intrusive when errors are detected.

Error handling semantics

The host language designer may impose stricter constraints upon the error handling semantics. That is, in the case of syntax errors, the host language may specify additional or stricter mechanisms to be used to indicate an error. An example would be to stop all processing of the document, or to halt all animation.

Host language designers may not relax the error handling specifications, or the error handling response (as described in Handling syntax errors). For example, host language designers may not define error recovery semantics for missing or erroneous values in the values or keyTimes attribute values.

13. SMIL 3.0 State

Editors for SMIL 3.0
Jack Jansen, CWI
Julien Quint, DAISY Consortium

13.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The modules defined in this chapter are all new modules which were not part of the SMIL 2.1 specification.

13.2 Introduction

This section is informative.

A SMIL 2.1 presentation has a lot of state that influences how the presentation runs. Or, to rephrase that in a procedural way, state that influences decisions that the SMIL scheduler makes. All this state is either implicit in the presentation (what nodes are active and how long into their duration they are, how many iterations of a repeat we have done, which nodes in an excl are paused because a higher priority node has preempted them, etc.), or completely external to the presentation (system tests and custom tests).

This has the effect that the only control flow that the SMIL author has at his/her disposal is that which is built in to the language, unless the SMIL engine includes some scripting language component and a DOM interface to the document that the author may use to create more complex logic.

The modules in this section provide a mechanism whereby the document author may create more complex control flow than what SMIL provides through the timing and content control modules, without having to go all the way of using a scripting language. One way to provide this is to allow a document to have some explicit state (think: variables) along with ways to modify, use and save this state.

In addition, the mechanisms that the SMIL BasicContentControl and CustomTestAttributes modules provide for testing values are limited: basically one can only test for predefined conditions being true (not for them being false) and there is a limited form of testing for multiple conditions with "and" being the only boolean operator.

Application areas include things like quizzes, interactive adaptation of presentations to user preferences, computer-aided instruction and distant learning.

This section is informative.

The design of these modules was done after meeting with the W3C Backplane Group (part of the Hypertext Coordination Group) and various choices were influenced by the direction that group is taking.

These modules therefore borrow heavily from work done by other W3C working groups:

The intention of these modules it to provide authors with the minimum functionality required to create compelling presentations, not to import all functionality from the standards they were lifted from, and concentrate on the timing integration issues. Applications requiring a richer set of primitives should import, for example, the XForms data model through the XML namespace mechanism.

13.4 Module Overview

This section is normative.

This chapter defines the following modules:

13.5 The SMIL StateTest Module

13.5.1 Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 StateTest Module defined in this document is a new module which was not part of the SMIL 2.1 specification.

13.5.2 Overview

This section is informative.

The mechanisms that the BasicContentControl and CustomTestAttributes modules provide for testing values are limited: basically one can only test for predefined conditions being true (not for them being false) and by specifying multiple system test attributes an author has a way to simulate an and operator but that is all.

This module introduces a generalized expr attribute that contains an expression. If the expression evaluates to false the element carrying the attribute is ignored. If the expression evaluates to true or if there is any error (this ranges from expression syntax errors and type errors to unavailability of the expression language engine) the element is treated normally.

13.5.3 Elements and Attributes

This section is normative.

The expr Attribute

expr
This attribute contains an expression that is evaluated at runtime, i.e. each time the element becomes active. If the expression evaluates to false the element is ignored (including its hierarchy of descendants). If it is impossible to resolve the expression specified in the expr attribute to a boolean, user-agents must ignore the expr attribute.
Any profile using this module needs to define the language used to specify the expression.

This section is informative.

The SMIL 3.0 Language Profile specifies that XPath 1.0 is used as the default expression language, and the context in which the expressions are evaluated is as follows:

Alternative expression languages that could be used are a scaled down form of XPath as used by DI, or EcmaScript, Python, Lua or any other language suitable for the application domain of the profile.

Note that there is a slight but important semantic difference between using content control attributes and using expr: the latter is guaranteed to be dynamically evaluated at runtime and may therefore be used for more dynamic control whereas there is no such guarantee for the former.

13.5.4 Functions

This section is normative.

This module defines a set of functions for use in the expr attribute (possibly in addition to functions already defined in the expression language). The naming convention used for the functions is compatible with XPath 1.0 expressions, a profile using this module with another expression language must specify a transformation that needs to be applied to these function names to make them compatible with the expression language specified.

boolean smil-audioDesc()
Corresponds to systemAudioDesc.
number smil-bitrate()
Corresponds to systemBitrate.
boolean smil-captions()
Corresponds to systemCaptions.
boolean smil-component(string uri)
Corresponds to systemComponent, checks for availability of a single playback component.
boolean smil-customTest(string name)
Corresponds to customTest, checks the current state of the given custom test.
string smil-CPU()
Related to systemCPU. This function returns the CPU on which the user agent runs.
number smil-language(string lang)
Related to systemLanguage. The string argument should be a BCP47 [BCP47] language tag. If the language does not match any language range in the users' preferences the function returns 0. If the tag does match the function returns a positive number, such that languages that match higher in the language priority list return a higher number.
string smil-operatingSystem()
Related to systemOperatingSystem. This function returns the operating system on which the user agent runs.
string smil-overdubOrSubtitle()
Values: overdub or subtitle
Corresponds to systemOverdubOrSubtitle.
boolean smil-required(string uri)
Corresponds to systemRequired.
number smil-screenDepth()
Corresponds to systemScreenDepth.
number smil-screenHeight()
Related to systemScreenSize, returns the height of the screen in pixels.
number smil-screenWidth()
Related to systemScreenSize, returns the width of the screen in pixels.

13.5.5 Examples

This section is informative.

Here is a SMIL 3.0 Language Profile example of an audio element that is only played if audio descriptions are off and the internet connection is faster than 1Mbps. Think of using it for playing background music only when this will not interfere too much with the real presentation:

   <audio src="background.mp3"
             expr="not(smil-audioDesc()) and smil-bitrate() &gt; 1000000" />

Here is an example that will show the image colour.jpg to most english-speaking people. However, people preferring American English over other variants of english will see color.jpg. Non-english speaking people will see couleur.jpg.

    <switch>
      <img src="color.jpg" expr="smil-systemLanguage('en-us') &gt;= smil-systemLanguage('en')" />
      <img src="colour.jpg" expr="smil-systemLanguage('en')" />
      <img src="couleur.jpg" />
    </switch>

13.6 The SMIL UserState Module

13.6.1 Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 UserState Module defined in this document is a new module which was not part of the SMIL 2.1 specification.

13.6.2 Overview

This section is informative.

This section introduces a data model that document authors may refer to in the context of the expr attribute, allowing elements to be rendered depending on author-defined values. A mechanism to change values in the data model is also included.

The actual choice of the expression language is made in the language profile. The SMIL 3.0 Language Profile requires support for the XPath 1.0 expression language (but allows use of other languages as well).

13.6.3 Elements and Attributes

This section is normative.

The UserState module defines the elements state, setvalue, newvalue and delvalue and the attributes language, ref, where, name and value.

The state Element

The state element sets global, document-wide, information for the other elements and attributes in this module. It selects the expression language to use and it may also be used to initialize the data model.

Initialization of the data model may be done in-line, through the contents of the state element, or from an external source through the src attribute (defined in the Media Object Modules section).

The src takes precedence over the inline content, which is only used if the src attribute is not specified or if the document it refers to cannot be found.

Initialization of the data model (including retrieval of the data) happens at the beginning of document playback. This may include modifications to the data model to make it play well with SMIL State use. Such modifications must be defined in the profile including this module.

This section is informative.

Allowing both inline content and a src attribute allows the former to be used as a fallback mechanism.

Note that beginning of document playback may be different than document parse time: depending on the user interface of the user agent a document may be played multiple times after being parsed once.

The SMIL language profile specifies that, in the case of using the XPath data model, an empty data model will be modified so that it consists of a single empty <data/> root element.

Element Attributes

The state element accepts the language and src attributes.

The setvalue Element

The setvalue element modifies the value of an item in the data model, similar to the corresponding element from XForms, but it takes its time behaviour from the SMIL ref element.

Note that setvalue only modifies existing items, it is therefore an error to specify a non-existing item, depending on the expression language semantics. In case of such an error SMIL Timing semantics of the element are not affected.

The setvalue supports all timing attributes, and participates normally in timing computations. The effect of setvalue happens at the beginning of its simple duration.

Element Attributes

The setvalue element accepts the ref and value attributes. Both of these are required attributes.

The newvalue Element

The newvalue element introduces a new, named, item into the data model.

The newvalue supports all timing attributes, and participates normally in timing computations. The effect of newvalue happens at the beginning of its simple duration. Depending on the semantics of the expression language it may be an error to execute the newvalue element more than once. In case of such an error SMIL Timing semantics of the element are not affected.

The ref and where determine where in the data model the new item is introduced. If the expression language does not support a hierarchical namespace these attributes are ignored. The name attribute determines the name for the new item.

Element Attributes

The newvalue element accepts the ref, where, name and value attributes. Which of these are required depends on the expression language.

The delvalue Element

The delvalue element deletes a named item from the data model.

The delvalue supports all timing attributes, and participates normally in timing computations. The effect of delvalue happens at the beginning of its simple duration. Depending on the semantics of the expression language deletion of variables may not be supported, or it may be an error to execute the delvalue element on a non-existing item. In case of such errors SMIL Timing semantics of the element are not affected.

Element Attributes

The delvalue element accepts the ref attribute.

The language Attribute

The language attribute selects the expression language to use. Its value should be a URI defining that language. The default value for this attribute is defined in the profile.

SMIL implementations should allow expression language availability to be tested through the systemComponent attribute.

The ref Attribute

The ref attribute indicates which item in the data model will be changed. The language used to specify this, plus any additional constraints on the attribute value, depend on the expression language used.

This section is informative.

The reason that newvalue has both a ref and a name attribute is that some languages, notably XPath 1.0, do not support ref referring to a non-existing named item in the data model. Therefore, name is used to give the name for the new item and ref and where specify where it is inserted. For expression languages without a hierarchical namespace ref and where should be omitted and only name is needed.

This section is informative.

For the SMIL 3.0 Language Profile the value of the ref attribute is an XPath expression that evaluates to a node-set. It is an error if the node-set does not refer to exactly one node.

The where Attribute

The where attribute indicates where in the data model the new item will be inserted, if the expression language supports a hierarchical data model. The allowed values are before, after and child, the default.

The name Attribute

The name attribute specifies the name for the new data model item. This name must adhere to constraints set by the expression language used.

The value Attribute

The value attribute specifies the new value of the data model item referred to by the ref element. How the new value is specified in the value attribute is defined in the profile that includes this module. This specification also states whether only simple values are allowed or also expressions, and when those expressions are evaluated.

If a statically-typed language is used as the data model language it is an error if the type of the value expression cannot be coerced to the type of the item referred to by the ref.

13.6.4 Examples

This section is informative.

Here is a SMIL 3.0 Language Profile example of a sequence of audio clips that remembers the last audio clip played, omitting the state declaration in the head for brevity:

   <seq>
       <audio src="chapter1.mp3" />
       <setvalue ref="lastPlayed" value="1" />
       <audio src="chapter2.mp3" />
       <setvalue ref="lastPlayed" value="2" />
       <audio src="chapter3.mp3" />
       <setvalue ref="lastPlayed" value="3" />
   </seq>

Here is an extension of the previous example: not only is the last clip remembered but if this sequence is played again, later during the presentation, any audio clips played previously are skipped:

   <seq>
       <seq expr="lastPlayed &lt; 1">
           <audio src="chapter1.mp3" />
           <setvalue ref="lastPlayed" value="1" />
       </seq>
       <seq expr="lastPlayed &lt; 2">
           <audio src="chapter2.mp3" />
           <setvalue ref="lastPlayed" value="2" />
       </seq>
       <seq expr="lastPlayed &lt; 3">
           <audio src="chapter3.mp3" />
           <setvalue ref="lastPlayed" value="3" />
       </seq>
   </seq>

13.6.5 Data Model

This section is informative.

As stated before, the normative choice of an expression language and data model is made in the profile that includes this module, but for ease of reading this section informatively describes the choices in the SMIL 3.0 Language Profile: XPath 1.0 operating on a simple XML document contained in the state element.

It is important to note that the data model is an XML document. This is not to be confused with the variable bindings in the expression context, another namespace that XPath has. These variable bindings are not supported through SMIL State. Therefore references to state elements are node-set expressions, not $name-style variable references. This usage allows for nested variables and more complex data structures than the flat namespace of the variable bindings provides. SMIL follows the lead of XForms here.

The state element, of which at most one may occur, in the head section, should either be empty or contain a well-formed XML document.

The XPath context in which the expressions are evaluated is as follows:

This context means that an expression of the form count has the same meaning as one of the form /data/count. Moreover, the XPath type conversion rules result in count + 1 in meaning the exact same things as number(/data/count) + 1.

Data Model Examples

Here is the minimal state section that corresponds to the audio clip example above:

    <smil>
     <head>
      <state>
         <data xmlns="">
          <lastPlayed>0</lastPlayed>
         </data>
      </state>
      ...

Expression Constraints

The UserState module does not constrain the data model and expressions of the underlying language, unless specifically done so in a profile. For ease of reading most examples in this document use simple variable-style names, but richer constructs, such as setting attribute values with XPath or using compound values in Python, are allowed.

13.6.6 Data Model Events

This section is informative.

Supported events for event-based timing are normatively specified in the profile. For ease of reading we include the relevant event defined in the SMIL 3.0 Language Profile here as well. The purpose of these events is to allow document authors to create documents (or sections of documents) that restart and re-evaluate conditional expressions whenever the values underlying the expressions have changed.

stateChange(ref)
Raised by the state element. The parameter is a reference to an item (or multiple items) in the data model. Whenever any of the data model items referenced by the parameter is changed this event is raised. The event does not bubble.
contentControlChange(attrname)
Raised by the root of the SMIL document when the named Content Control test values has changed. The list of allowed values for attrname is taken from the Content Control Module attribute names. The event does not bubble.
contentControlChange
Raised by the root of the SMIL document when any Content Control test value has changed. The event does not bubble.

Raising the stateChange event on the state element instead of on the data model element itself allows for external data models (which have a distinct xmlid-space) and on non-XML data models (depending on the expression language).

If any of the Content Control test values changes both the specific event and the general event are raised. This is because for some documents the author will want to react to a change in a specific parameter (bandwidth, screensize) only, whereas for other use cases the author may want to reconfigure the whole presentation on any change.

13.7 The SMIL StateSubmission Module

13.7.1 Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 StateSubmission Module defined in this document is a new module which was not part of the SMIL 2.1 specification.

13.7.2 Overview

This section is informative.

This section introduces a method to save author defined state or to transmit it to an external server.

13.7.3 Elements and Attributes

This section is normative.

The StateSubmission module defines two elements, submission and send, and the attributes submission, action, method, replace and target.

The submission Element

The submission element carries the information needed to determine which parts of the data model should be sent, where it should be sent and what to do with any data returned. The ref attribute selects the portion of the data model to transmit and in case of XPath should be a node-set expression. The default is to transmit the whole data model (in case of xpath: "/"). The other attributes are explained below.

Element Attributes

The submission element accepts the ref, action, method, replace and target attributes. The action and method attributes are required.

Depending on the method this element describes either transmission of data, reception of data or both. The ref element is ignored if no transmission happens. The replace and target attributes are ignored if no reception happens.

This section is informative

This element was lifted straight from XForms, with the accompanying attributes. Support for asynchronous submission and the corresponding events are not needed because of SMIL's inherent parallelism.

The send Element

The send element causes the data model, or some part of the data model, to be submitted to server, saved to disk or transmitted externally through some other method. It does not specify any of this directly but contains only a reference to such submission instructions.

The send supports all timing attributes, and participates normally in timing computations. The effect of send happens at the beginning of its simple duration.

Element Attributes

The send element accepts the submission attribute.

The submission Attribute

The submission attribute is an IDREF that should refer to a submission element.

The action Attribute

A URL specifying where to transmit or save the nodeset. Which URLs are allowable must take security and privacy considerations into account.

The method Attribute

How to serialize and transmit the data. Allowed values are at least put and get but may be extended by the profile.

put and get must be symmetrical, and if there is a canonical external representation for the data model language put must create that representation.

The replace Attribute

What to replace with the reply. Allowed values are all for the whole SMIL presentation, instance for the instance data, none for nothing.

The target Attribute

If the value of replace is instance, the optional target attribute specifies which part of the data model to replace. The default is to replace the whole instance.

This section is informative.

The SMIL 3.0 Language Profile includes the StateSubmission module, and it defines that the submission element must occur in the head section.

13.7.4 Examples

This section is informative.

Here is an example of asynchronous submission: whenever the lastPlayed item changes because another clip has been played this fact is communicated to some server.

      <smil>
       <head>
        <state xml:id="stateid">
           <data xmlns="">
            <lastPlayed>0</lastPlayed>
           </data>
        </state>
        <submission xml:id="subid" action="http://www.example.com/savexmldoc" method="put" />
       </head>
       <body>
        <par>
         <send submission="subid" begin="stateid.stateChange(lastPlayed)" restart="always" />
         ...
         <seq end="... some interactive end condition ..." >
          <seq expr="lastPlayed &lt; 1">
           <audio src="chapter1.mp3" />
           <setvalue ref="lastPlayed" value="1" />
          </seq>
          <seq expr="lastPlayed &lt; 2">
           <audio src="chapter2.mp3" />
           <setvalue ref="lastPlayed" value="2" />
          </seq>
          <seq expr="lastPlayed &lt; 3">
           <audio src="chapter3.mp3" />
           <setvalue ref="lastPlayed" value="3" />
          </seq>
         </seq>
        </par>

In another presentation we could pick this value up again synchronously and use it.

    <smil>
     <head>
      <state>
      </state>
      <submission xml:id="subid" action="http://www.example.com/loadxmldoc" replace="instance" method="get" />
     </head>
       <body>
      <par>
       ...
       <seq >
        <send submission="subid" />
        <seq expr="lastPlayed &lt; 1">
         <audio src="chapter1.mp3" />
         <setvalue ref="lastPlayed" value="1" />
        </seq>
        <seq expr="lastPlayed &lt; 2">
         <audio src="chapter2.mp3" />
         <setvalue ref="lastPlayed" value="2" />
        </seq>
        <seq expr="lastPlayed &lt; 3">
         <audio src="chapter3.mp3" />
         <setvalue ref="lastPlayed" value="3" />
        </seq>
       </seq>
      </par>

That last example is actually a procedural roundabout way to get the same effect as using <state src="http://www.example.com/loadxmldoc" /> without submissions.

13.8 The SMIL StateInterpolation Module

13.8.1 Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 StateInterpolation Module defined in this document is a new module which was not part of the SMIL 2.1 specification.

13.8.2 Overview

This section is normative.

This section introduces a mechanism whereby document authors may use values from the data model to construct attribute values at runtime. The mechanism has been borrowed from XSLT attribute value templates.

Substitution is triggered by using the construct {expression} anywhere inside an attribute value. The expression is evaluated, converted to a string value and substituted into the attribute value.

This substitution happens when the element containing the attribute with the {expression} attribute becomes active.

If any error occurs during the evaluation of the expression no substitution takes place, and the {expression} construct appears verbatim in the attribute value.

If a profile includes this module it must list all attributes for which this substitution is allowed. It must use the same expression language for interpolation as the one used for StateTest expressions.

13.8.3 Elements and Attributes

This section is normative.

This module does not define any new elements or attributes.

This section is informative

The SMIL 3.0 Language Profile includes the StateInterpolation module. It allows its use in the same set of attributes for which SMIL animation is allowed plus the src, href, clipBegin and clipEnd attributes. It disallows its use on the Timing and Synchronization attributes. Its use on other attributes is implementation-dependent.

13.8.4 Examples

This section is informative.

This SMIL 3.0 Language Profile example shows an icon corresponding to the current CPU on which the user views the presentation, or a default icon for an unknown CPU:

   <switch>
    <img src="cpu-icons/{smil-CPU()}.png" />
    <img src="cpu-icons/unknown.png" />
   </switch>

13.8.5 StateInterpolation, Animation and DOM access

This section is normative.

Because StateInterpolation may also change attribute values its interaction with animation and DOM access needs to be defined, the so-called "sandwich model". StateInterpolation sits between DOM access and animation, i.e. DOM access will see the {expression} strings verbatim and it may set these values too. SMIL animation will operate on the value of the expression.

14. SMIL 3.0 Time Manipulations

Editor for SMIL 3.0:
Sjoerd Mullender, CWI
Editor for Earlier Versions of SMIL:
Patrick Schmitz, Microsoft

14.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 specification leaves the SMIL 2.1 Time Manipulations Module [SMIL21-timemanipulations] unchanged.

14.2 Introduction

This section is informative.

This module introduces new attributes for advanced manipulation of time behavior, such as controlling the speed or rate of time for an element. These time manipulations are especially suited to animation and non-linear or discrete media. Not all continuous media types will fully support time manipulations. For example, streaming MPEG 1 video will not generally support backwards play. A fallback mechanism is described for these kinds of media.

Four new attributes add support for time manipulations to SMIL timing modules, including control over the speed of an element, and support for acceleration and deceleration.  The impact on overall timing and synchronization is described. A definition is provided for reasonable fallback mechanisms for media players that cannot support the time manipulations.

An accessibility requirement for control of the playback speed is related to the speed control, but may also be controlled through some other mechanism such as DOM interfaces.

14.3 Module Overview

This section is normative

This section is informative

A common application of timing supports animation. The recent integration of SMIL timing with SVG is a good example of the interest in this area.  Animation in the more general sense includes the time-based manipulation of basic transforms, applied to a presentation. Some of the effects supported include motion, scaling, rotation, color manipulation, as well as a host of presentation manipulations within a style framework like CSS.

Animation is often used to model basic mechanics. Many animation use-cases are difficult or nearly impossible to describe without a simple means to control pacing and to apply simple effects that emulate common mechanical phenomena. While it is possible to build these mechanisms into the animation behaviors themselves, this requires that every animation extension duplicate this support. This makes the framework more difficult to extend and customize. In addition, a decentralized model allows any animation behavior to introduce individual syntax and semantics for these mechanisms. The inconsistencies that this would introduce make the authoring model much harder to learn, and would complicate the job of any authoring tool designer as well. Finally, an ad hoc, per-element model precludes the use of such mechanisms on structured animations (e.g. applying time manipulations to a time container of synchronized animation behaviors).

A much simpler model for providing the necessary support centralizes the needed functionality in the timing framework. This allows all timed elements to support this functionality, and provides a consistent model for authors and tool designers. The most direct means to generalize pacing and related functionality is to transform the pacing of time for a given element. This is an extension of the general framework for element time (sometimes referred to as "local time"), and of the support to convert from time on one element to time on another element. Thus, to control the pacing of a motion animation, a temporal transform is applied that adjusts the pacing of time (i.e., the rate of progress) for the motion element. If time is scaled to advance faster than normal presentation time, the motion will appear to run faster. Similarly, if the pacing of time is dynamically adjusted, acceleration and deceleration effects are easily obtained.

The time manipulations are based upon a model of cascading time. That is, each element defines its active and simple time as transformations of the parent simple time. This recurses from the root time container to each "leaf" in the time graph. If a time container has a time manipulation defined, this will be reflected in all children of the time container, since they define their time in terms of the parent time container. In the following example a sequence time container is defined to run twice as fast as normal (i.e. twice as fast as its respective time container).

<seq speed="2.0">
   <video src="movie1.mpg" dur="10s" />
   <video src="movie2.mpg" dur="10s" />
   <img src="img1.jpg" begin="2s" dur="10s">
      <animateMotion from="-100,0" to="0,0" dur="10s" />
   </img>
   <video src="movie4.mpg" dur="10s" />
</seq>

The entire contents of the sequence will be observed to play (i.e., to progress) twice as fast. Each video child will be observed to play at twice the normal rate, and so will only last for 5 seconds.  The image child will be observed to delay for 1 second (half of the specified begin offset). The animation child of the image will also "inherit" the speed manipulation from the sequence time container, and so will run the motion twice as fast as normal, leaving the image in the final position after only 5 seconds. The simple duration and the active duration of the sequence will be 21 seconds (42 seconds divided by 2).

14.3.1 Overview of support

This section is informative

Three general time manipulations are defined:

accelerate, decelerate
These two attributes provide a simple shorthand for controlling the rate of progress of element simple time to simulate common mechanical motion. A simple model is presented to allow acceleration from rest at the beginning of the simple duration, and/or deceleration to rest at the end of the simple duration. This model has the advantage that it preserves the simple duration. The model is sometimes presented to authors as "Ease-In, Ease-Out".
autoReverse
When set to "true" causes the simple duration to be played once forward, and then once backward. This will double the declared or implicit simple duration. Support for autoReverse is often presented to authors as "Play Forward, then Backward".
speed
Controls the pacing (or speed) of element active time. The speed effectively scales the rate of progress of the element active duration, relative to the rate of progress of the parent time container.

When the speed of time is filtered with any of the time manipulations, this affects how a document time is converted to an element simple time. To understand this, think of  the contents of an element progressing at a given rate. An unmodified input time value is converted to an accumulated progress for the element contents. Element progress is expressed as filtered time. This allows the effect of any rate (including acceleration and deceleration) to cascade to any timed children. If element progress is advancing at a constant rate (e.g. with a speed value of 2), the filtered time calculation is just the input time multiplied by the rate. If the rate is changing, the filtered time is computed as an integral of the changing rate. The equations used to calculate the filtered time for a given input time are presented in Converting document time to element time.

The accelerate and decelerate features are applied locally on the simple duration, and have no side effects upon the length of the simple duration or active duration of the element. When applied to a time container, accelerate and decelerate apply to the time container simple duration and all its timed children, affecting the observed duration of the timed children.

The autoReverse feature is applied directly to the simple duration, and doubles a declared or implicit simple duration. Thus if the simple duration is defined (according to the normal timing semantics) to be 5 seconds, setting the autoReverse to "true" will cause the simple duration to be 10 seconds. Thus if the active duration is defined in terms of the simple duration (for example by specifying a repeatCount), then autoReverse will also double the active duration. However if the active duration is defined independent of the simple duration (for example by specifying a repeat duration, an end value and/or min and max values), then autoReverse may not affect the active duration. The active duration is computed according to the semantics of the Timing and Synchronization model; the only change is to use the modified (doubled) simple duration value.

The speed attribute scales the progress of element time for the element. When applied to a time container, the contents of the time container collectively play at the scaled speed. If an element plays twice as fast as normal, the observed simple duration will be only half as long as normal. This may or may not affect the active duration, depending upon how it is defined for the element. The attributes repeatDur, min and max are all measured in element active time, and so the associated values will be scaled by the element speed. Similarly, an element defined with a repeatCount will also be scaled, since the simple duration is scaled. However, if an element specifies an end attribute, the end value is not affected by the element speed. Offset values for the end attribute are measured in parent simple time, and so are excluded from the effects of element speed. Other values (including syncarc-values, event-values, etc.) must be converted to parent simple time, and are similarly unaffected by the element speed.

Note that a speed attribute on an element does not affect the element begin time. Offset values for the begin attribute are measured in parent simple time, and so are excluded from the effects of element speed. (The begin time is affected by any time manipulations on the parent or other ascendant time containers).

When these time manipulations are applied to a time container, they affect the way that the entire contents of the time container proceeds - i.e. they affect all timed descendants of the time container. As a global time is converted to element time, the time manipulations for each ancestor are applied, starting with the root of the timegraph and proceeding down to the parent time container for the element. Thus the simple time and active time for a given element are ultimately computed as a function of the time manipulations of all ascendant time containers, as well as any time manipulations defined on the element itself. This is described more completely in Details of timing model arithmetic.

The net cascaded speed of an element is a function of any time manipulations on the element and all of its ascendant time containers. Although this may be computed directly from the described values, the speed may also be thought of as the derivative of the rate of time (i.e. the rate of progress) at any point.

This section is informative

This model lends itself well to an implementation based upon "sampling" a timegraph, with non-linear media (also called "random access" media). The time manipulations model is based upon a model commonly used in graphics and animation, in which an animation graph is "sampled" to calculate the current values for the animation, and then the associated graphics are rendered. Some linear media players may not perform well with the time manipulations (e.g. players that may only play at normal play speed). A fallback mechanism is described in which the timegraph and syncbase-value times are calculated using the pure mathematics of the time manipulations model, but individual media elements simply play at the normal speed or display a still frame.

Some of the examples below include animation elements such as animate and animateMotion. These elements are defined in the Animation section of SMIL 3.0. Additional elements and attributes related to timing and synchronization are described in the Timing section of SMIL 3.0.

14.3.2 Attribute syntax

The accelerate and decelerate attributes

These attributes define a simple acceleration and deceleration of element time, within the simple duration. The values are expressed as a proportion of the simple duration (i.e. between 0 and 1), and are defined such that the length of the simple duration is not changed by the use of these attributes. The normal play speed within the simple duration is increased to compensate for the periods of acceleration and deceleration (this is how the simple duration is preserved). The modified speed is termed the run rate. As the simple duration progresses (i.e., plays back), acceleration causes the rate of progress to increase from a rate of 0 up to the run rate. Progress continues at the run rate until the deceleration phase, when progress slows from the run-rate down to a rate of 0. This is illustrated in Figure 1, below:

Diagram relating input time to element progress

<animation dur="10s" accelerate="0.3" decelerate="0.3" .../>

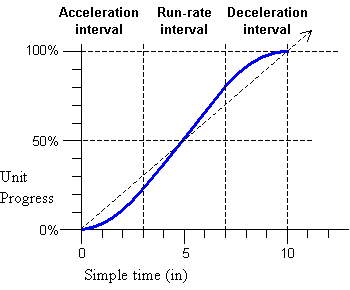

Figure 1: Effect of acceleration and deceleration upon the rate of progress.

These attributes apply to the simple duration; if these attributes are combined with repeating behavior, the acceleration and/or deceleration occurs within each repeat iteration.

accelerate = " number "
Defines a simple acceleration of time for the element. Element time will accelerate from a rate of 0 at the beginning up to a run rate, over the course of the specified proportion of the simple duration.
The default value is 0 (no acceleration).
Legal values are floating point values between 0 and 1 (inclusive).
decelerate = " number "
Defines a simple deceleration of time for the element. Element time will decelerate from a run rate down to 0 at the end of the simple duration, over the course of the specified proportion of the simple duration.
The default value is 0 (no deceleration).
Legal values are floating point values between 0 and 1 (inclusive).

The sum of accelerate and decelerate must not exceed 1. If the individual values of the accelerate and decelerate attributes are between 0 and 1 and the sum is greater than 1, then both the accelerate and decelerate attributes will be ignored and the timed element will behave as if neither attribute was specified.

If the simple duration of the element is not resolved or if it is resolved to be indefinite, then the accelerate and decelerate attributes are ignored.

For details of computing the run-rate, and for converting from parent simple time to element simple time when accelerate and/or decelerate are specified, see Computing the element run-rate and Converting document time to element time.

This section is informative

Examples

In this example, a motion path will accelerate up from a standstill over the first 2 seconds, run at a faster than normal rate for 4 seconds, and then decelerate smoothly to a stop during the last 2 seconds.  This makes the motion animation look more realistic.

<img ...>
    <animateMotion dur="8s" accelerate=".25" decelerate=".25" .../>
</img>

In the following example, the image will "fly in" from offscreen left, and then decelerate during the last second to "ease in" to place. This assumes a layout model that supports positioning (for example CSS positioning, or the position of a region in SMIL Layout).

<img ...>
    <animate attributeName="left" dur="4s" decelerate=".25"
             from="-1000" to="0" additive="sum" />
</img>

The autoReverse attribute

Another common mechanical phenomenon is that of a process that advances and reverses. Some examples include:

Because so many common use-cases apply repeat to the modified local time (as in the examples above), this function is modeled as modifying the simple duration. As such, autoReverse doubles the declared or implicit simple duration. When combined with repeating behavior, each repeat iteration will play once forwards, and once backwards.

autoReverse = ( "true" | "false" )
Controls autoReverse playback mode.
Argument values are Booleans.
The default value is false (i.e. play normally).

When this is applied to a time container, it will play the time container forwards and then backwards. The semantics of playing a time container backwards are detailed in Implications of time manipulations on time containers.

This section is informative

The autoReverse time manipulation does not initially require a resolved simple duration, although it will not begin playing backwards until the simple duration is resolved and has completed. This may happen when the simple duration is defined by an unresolved implicit simple duration (such as the intrinsic media duration). In this case, the element will continue to play forward until the implicit simple duration is resolved (or until the active duration or the parent time container cuts short the simple duration, as described in the Timing section of SMIL 3.0). If the implicit simple duration becomes resolved before the end of the active duration, then the simple duration will be resolved to 2 times this implicit duration, and the implicit simple duration will play backwards.

Any time that the element will play backwards, including the second part of the autoReverse manipulation, the simple duration must be resolved. See also The speed attribute.

In this example, a motion path will animate normally for 5 seconds moving the element 20 pixels to the right, and then run backwards for 5 seconds (from 20 pixels to the right back to the original position). The repeating behavior causes it to repeat this 2 more times, finally leaving the element at its original location. The computed simple duration of the animation is 10 seconds, and the active duration is 30 seconds.

<img ...>
    <animateMotion by="20, 0" dur="5s" autoReverse="true" repeatCount="3"/>
</img>

In the following example the motion path will behave as above, but will end at the earlier of 15 seconds or when the user clicks on the image. If the element ends at 15 seconds (if the user does not click), the motion path will leave the element at the end of the defined path, 20 pixels to the right. Since the active duration is defined by the repeatDur and end, the active duration is not affected by the autoReverse attribute in this case. The semantics of fill are not changed by time manipulations: the media state at the end of the active duration is used during any fill period. The end of the active duration may fall part of the way through a play forward interval, or part of the way through a play backward interval.

<img ...>
    <animateMotion  by="20, 0" dur="5s" autoReverse="true"
         repeatDur="15" end="activateEvent" fill="freeze"/>
</img>

The accelerate and decelerate attributes may be combined with autoReverse, and are applied to the unmodified simple duration. For example:

<img ...>
    <animateMotion by="20, 0" dur="4s" autoReverse="true"
       accelerate=".25" decelerate=".25" />
</img>

This will produce a kind of elastic motion with the path accelerating for 1 second from the original position as it moves to the right, moving slightly faster than normal for 2 seconds, and then decelerating for 1 second as it nears the points 20 pixels to the right. It accelerates back towards the original position and decelerates to the end of the reversed motion path, at the original position.

The following example of a rotation (based upon the SVG animateTransform element) also demonstrates the combination of accelerate, decelerate and autoReverse. It will produce an approximation of a simple pendulum swing on the target (assume that the target is a pendulum shape with the transform origin at the top):

<animateTransform type="rotate" from="20" to="-20" dur="1s" repeatCount="indefinite"
        accelerate=".5" decelerate=".5" autoReverse="true" ... />

The pendulum swings through an arc in one second, and then back again in a second. The acceleration and deceleration are applied to the unmodified simple duration, and autoReverse plays this modified simple duration forwards and then backwards. The effect is to accelerate all the way through the downswing, and then decelerate all through the upswing. The autoReverse feature then makes the same animation (i.e. the simple duration) play in reverse, and the pendulum swings back to the starting position. The entire modified simple duration repeats, producing continuous back and forth animation. This produces a realistic looking animation of real-world pendulum motion.

The speed attribute

The speed attribute controls the local playback speed of an element, to speed up or slow down the effective rate of play relative to the parent time container. The speed attribute is supported on all timed elements. The argument value does not specify an absolute play speed, but rather is relative to the playback speed of the parent time container.  The specified value cascades to all time descendants. Thus if a par and one of its children both specify a speed of 50%, the child will play at 25% of normal playback speed.

speed = " number "
Defines the playback speed of element time.
Legal values are signed floating point values. A value of 0 is not allowed (and will be ignored)
The default is "1.0" (no modification of speed).

Values less than 0 are allowed, and cause the element to play backwards. An element mayonly play backwards if there is sufficient information about the simple and active durations. Specifically:

If the cascaded speed value for the element is negative and if either of the above two conditions is not met, the element will begin and immediately end (i.e. it will behave as though it had a specified active duration of 0). If there is a min attribute specified, the time container will simply be frozen at the initial state for the specified minimum duration.

The details of the effect of the element speed upon the timing calculations are described in Details of timing model arithmetic.

Examples

This section is informative

The following motion animation will move the target twice as fast as normal:

<animateMotion dur="10s" repeatCount="2" speed="2.0" path= ... />

The target will move over the path in 5 seconds (simple dur/speed =10s/2.0 = 5s), and then repeat this motion (because repeatCount is set to 2). The active duration is thus 10 seconds.

When speed is applied to a time container, it scales the rate of progress through the time container timeline. This effect cascades. When descendants also specify a speed value, the parent speed and the child speed are multiplied to yield the result. For example:

<par speed="2.0">
   <animate begin="2s" dur="9s" speed="0.75" .../>
</par>

The observed rate of play of the animate element is 1.5 times the normal play speed (2.0 * 0.75 = 1.5). The element begins 1 second after the par begins (the begin offset is scaled only by the parent speed), and ends 6 seconds later (dur/speed = 9/1.5 = 6).

The following example shows how an event based end combines with time manipulations:

<par speed="2.0">
   <animate begin="2s" dur="9s" speed=0.75
        repeatCount="4" end="activateEvent" .../>
</par>

This behaves as in the first example, but the animate element will repeat 4 times for an observed time of 24 seconds (dur/cascaded speed = 9s/(2.0 * 0.75) = 6s, and 6s * 4 repeats = 24s). If a click occurs before this, the element ends at the time of the click. A variant on this demonstrates syncbase timing:

<par speed="2.0">
   <img xml:id="foo" dur="30s" .../>
   <animate dur="9s" speed="0.75"
        repeatCount="4" end="activateEvent; foo.end" .../>
</par>

The image will display for 15 seconds. The animate element plays at an observed rate of 1.5 times play speed (2.0 * 0.75), but it will end after 15 seconds, when the image ends. The observed simple duration will be 6 seconds long (9 seconds divided by the cascaded speed 1.5). The animation will repeat 2.5 times during the active duration. Note that although the animation has a speed value, this does not impact the semantic of the syncbase timing. When the syncbase, eventbase, wallclock or media marker time is observed to happen, it will be applied anywhere it is used at that actual time (although conversions  are applied internally, e.g. from syncbase element active time to parent simple time - see also Converting document time to element time).

Note that in the examples above, the default duration of the par container is defined as endsync="last". This behavior is not affected by the speed modifications, in the sense that the observed end of the elements will produce the correct simple duration on the parent time container.

The following example illustrates an important effect of offset time scaling:

<par speed="2.0">
   <img xml:id="foo" dur="30s" .../>
   <animate begin="2s" dur="9s" speed="0.75"
        repeatCount="4" end="foo.end+6s" .../>
</par>

The image will display for 15 seconds, as above. The animate element begins at 1 second, since the begin offset is scaled by the parent time container speed, but not by the element speed. The animate element will end at 18 seconds (15 seconds plus 6 seconds divided by the time container speed of 2.0). The "6s" offset added to "foo.end" is scaled by the parent time container speed, but not by the element speed.

14.3.3 Details of timing model arithmetic

Timing and real-world clock times

When the time manipulation attributes are used to adjust the speed and/or pacing within the simple duration, the semantics may be thought of as changing the pace of time in the given interval. An equivalent model is these attributes simply change the pace at which the presentation progresses through the given interval. The two interpretations are equivalent mathematically, and the significant point is that the notion of "time" as defined for the element simple duration should not be construed as real world clock time. For the purposes of SMIL Time manipulations (as for SMIL Timing and Synchronization), "time" may behave quite differently from real world clock time.

Common definitions

In the following discussion, several symbols are used as shorthand:

Let a be the value of accelerate, and d be the value of decelerate. Both take on (floating point) values 0 to 1, and will not sum to more than 1.

Let dur be the value of the simple duration as defined by the Timing and Synchronization model. This is the actual simple duration, and not simply the dur attribute. This value does not account for the effect of any time manipulations.

Let dacc be the duration of the acceleration phase, and ddec be the duration of the deceleration phase. These values are computed as a function of the unmodified simple duration. Note that with the described model for acceleration and deceleration, the observed duration during which time accelerates and/or decelerates may be greater than dacc and ddec respectively.

dacc = dur * a

ddec = dur * d

Computing the element run-rate

In order to preserve the simple duration, the speed through the simple duration must be increased to account for acceleration and deceleration. To compute the run rate over the course of the simple duration, the following formula is used. The run rate R is then:

R = 1 / ( 1 - a/2 - d/2 )

This section is informative

Thus, for example, if the value of accelerate is 1 (i.e. accelerate throughout the entire simple duration), the run rate is 2 (twice the normal play speed).

r(t) is the speed modification due to acceleration and deceleration, at any time t within the simple duration. The parameter time t must not already be modified to account for acceleration and deceleration. In the terms of the discussion below, Converting document time to element time, the parameter time t is in the tsu' space.  The speed modification is defined as a function of the run rate R, as follows:

In the acceleration interval, where ( 0 <= t < dacc )
r(t) = R * ( t / dacc )

In the run-rate interval, where ( dacc <= t <= ( dur - ddec ) )

r(t) = R

In the deceleration interval, where ( ( dur - ddec ) < t <= dur )

r(t) = R * ( dur - t ) / ( ddec )

The run-rate only describes the modification applied to account for any acceleration and deceleration. This is combined with any element speed, as well as the speed inherited from the parent time container. The combined or "net" speed is defined in the section Computing the net cascaded speed for an element.

Converting document time to element time

To convert a document time to an element time, the original time is converted to a simple time for each time container from the root time container down to the parent time container for the element. This recursive algorithm allows for a simple model of the conversion from parent simple time to element active and element simple time. The first step calculates element active time, and the second step calculates element simple time.

These steps are based upon a simpler, general model for time conversion that applies to the timing model independent of the time manipulations functionality (see also the Timing section of SMIL 3.0). The steps below describe the modified arithmetic for converting times, taking into account the semantics of time manipulations.

The steps below assume that the associated times are resolved and not indefinite. If a required time is not resolved or is indefinite, then the conversion is not defined, and maynot be performed.

Filtered active time calculation

In order to reflect the semantics of element speed, the element active time must be adjusted. The adjusted time is called the filtered active time, and is used by the element where the timing semantics refer to "element active time".  The autoReverse  and accelerate /decelerate attributes only affect the computation of the filtered simple time, and so do not come into play in this step.

The input time is a time in parent simple time. This is normalized to the element active duration, adjusting for the accumulated synchronization offset (described in The accumulated synchronization offset).

Let tps be a time in parent simple time, and B be the begin time, and O be the accumulated synchronization offset for an element, measured in parent simple time. Let AD be the Active Duration.

The unfiltered active time tau for any child element is:

tau = tps - B - O

Given an unfiltered active tau, the filtered active time taf is only a function of the speed for the element (this is the value specified in a speed attribute, or the default, and not the net cascaded speed):

If( speed > 0 )  i.e. if the local speed is forwards
taf = tau * speed

Else   i.e. if the local speed is backwards

taf = AD - tau * ABS( speed )

As expected, if the speed value is 1 (the default), this is an identity function, and so taf = tau. When speed is less than 0 (in the backwards direction), the active duration proceeds from the end of the active duration towards 0.

Filtered simple time calculation

In order to reflect the semantics of the autoReverse  and accelerate /decelerate attributes, the element simple time must be adjusted. The adjusted time is called the filtered simple time. The filtered simple time is defined as a function of the filtered active time, and so reflects all the time manipulations on an element.

The element simple time is the time that is used to establish runtime synchronization for a media element, or to compute an animation function's input value or sampling time. If the element is a time container, this is also the time that is seen by all children of a time container (as the time container element's simple time).

The input time is a filtered active time taf.

Let dur' be the modified simple duration that accounts for the effect of the autoReverse attribute. It is computed as follows:
If autoReverse is false:

dur' = dur

Else (if autoReverse is true)

dur' = dur * 2

The steps to compute the filtered simple time are described below.

  1. Compute the unfiltered simple time tsu, accounting for any repeat behavior.

    If there is no repeating behavior:

    tsu = taf

    Else, if the modified simple duration dur' is fixed and does not vary (ideal case):

    tsu = REMAINDER( taf, dur' )

    where REMAINDER( t, d ) is defined as (t - d*floor(t/d)).

    Else, if the modified simple duration dur' varies from repeat iteration to repeat iteration, or if it is unknown, then the unfiltered simple time is just computed from the begin time of the most recent iteration - call this tlast-repeat. Some other mechanism (such as endsync logic or a media player) must note when the simple duration ends, and reset the value of tlast-repeat. If the element has not yet repeated, a value of 0 is used in place of tlast-repeat.

    tsu = taf - tlast-repeat
  2. Account for autoReverse behavior. If autoReverse is false, tsu' = tsu.

    Else if autoReverse is true (note that the following steps use the unmodified duration dur, and not dur'):

    If tsu < dur
    tsu' = tsu

    Else ( tsu >= dur )

    tsu' = dur - ( tsu - dur ) = 2*dur - tsu
  3. Account for acceleration and/or deceleration behavior. This takes as input tsu' (the result of steps 1 and 2).
The filtered simple time tsf is computed as a function of the input time tsu' and the run rates in effect over the interval from 0 to tsu'. The filtered simple time is the accumulated progress up to the input time, and is computed as the integral of the acceleration, run-rate and deceleration rates. Since the rate of acceleration and deceleration are constant, the integral simplifies to a function of the average rate of progress for each of the three intervals defined by the acceleration and deceleration values. The steps below compute the filtered time by multiplying the input time and the average rates of progress. In the acceleration interval, since acceleration is constant and the rate changes from 0 to R, the average rate is just 1/2 of the instantaneous rate r(t) defined above:
average rate =(r(t) + r(0) ) / 2) = r(t)/2

In the deceleration interval, the average rate is similarly computed. In the run-rate interval the rate is constant, and so the average rate is equal to the run-rate.

In the acceleration interval, where ( 0 <= tsu' < dacc ), the filtered simple time is the input time multiplied by the average run-rate during the acceleration interval:

tsf = tsu' * r(tsu') / 2

In the run-rate interval, where ( dacc <= tsu' <= ( dur - ddec ) ), the filtered simple time is computed from the input time and the rates in the acceleration and run-rate intervals. This adds the accumulated progress in the acceleration interval to the progress within the run-rate interval:

tsf = dacc * R / 2  + ( tsu' - dacc ) * R

    = R * ( dacc / 2  + ( tsu' - dacc ))

    = R * (  tsu' - dacc / 2 )

In the deceleration interval, where ( ( dur - ddec ) < tsu' <= dur ), the filtered simple time is computed from the input time and the rates in all three intervals. This sums the total progress in the acceleration interval, the total progress within the run-rate interval, and the progress within the deceleration interval.

To simplify the expressions, we define tdec, the time spent in the deceleration interval:

tdec =  tsu' - ( dur - ddec )

We also define the proportional duration within the deceleration interval as:

pd =  tdec / ddec

The filtered time within the deceleration interval is then:

tsf = dacc * R / 2
          + ( dur - dacc - ddec ) * R
          + tdec * (( R + R*(1 - pd )) / 2 ))
     = R * ( dur - dacc / 2 - ddec

          + tdec * ( 2 - pd ) / 2 )

Converting element time to document time

To convert from one element timespace to another, the time for the first element te1 must first be converted to a simple time on the closest ascendant time container that contains both elements. Converting from an element time to the parent time reverses the process described above. Again, it is recursive, and so the conversions are described generically from element simple to element active time, and from element active to parent simple time.

To convert from element simple time to element active time requires the begin time of the most recent iteration, tlast-repeat. If the element does not repeat or has not yet repeated, a value of 0 is used in place of tlast-repeat

ta = ts + tlast-repeat

Conversion from element active time to parent simple time uses the associated begin of the element and the accumulated synchronization offset.

tps = ta + B + O

This section is informative

Note that the pure conversions do not take into account the clamping of active durations, nor the effects of fill (where time is frozen).

Global to local time conversions used to translate between timespaces must ignore these issues, and so may yield a time in the destination local timespace that is well before or well after the simple duration of the element.

This section is informative

An alternate form of the conversion is used when actually sampling the time graph.

A time container is only sampled if it is active or frozen, and so no times will be produced that are before a time container begins. If the global to local time conversion for a time container yields a time during which the time container is frozen, the time is clamped to the value of the active end.

Computing the net cascaded speed for an element

The net cascaded speed for a given element at a given point in time may be used to set the correct playback rate for a media element. It is not otherwise used directly in the time manipulations model.

To compute the net cascaded speed speednc(t) for an element at a given point in time, we combine the net cascaded parent speed at the point in time speednc-parent(t) with the element speed value speed and the instantaneous run rate r(t) computed from any acceleration and deceleration. If the element has no time parent, use 1 for speednc-parent(t).

Note that the net cascaded parent speed will be computed in simple time for the parent, and so the element simple time will have to be converted to a parent simple time. This is described above in Converting element time to document time.

The parameter time value must be in the range of the simple duration. The time value must not already be modified to account for acceleration and deceleration. In the terms of the discussion above, Converting document time to element time, the parameter time is in the tsu' space.

The net cascaded speed speednc(t) for a given unfiltered simple time tsu' is then:

speednc(tsu') =  speednc-parent(tsu') * speed * r(tsu')

This definition is recursive up to the root of the time containment hierarchy, and so accounts for any speed settings on the parent and all other ascendant time containers.

14.3.4 Media fallback semantics

This section is informative

A theoretical model may be described that assumes that all element local timelines (including any media elements) are completely non-linear and have unconstrained ballistics (i.e. they may be sampled at any point at any moment, and may adjust the observed playback rate instantaneously). This ideal model may be applied to many applications, including pure rendered graphics, text, etc. Nevertheless, many common applications also include media with linear behavior and other limitations on playback. When the timegraph includes media elements that have linear behavior, the time manipulations model must accommodate these real world limitations.

While the model does support timegraphs with a mix of linear and non-linear behavior, and defines specific semantics for media elements that may not support the ideal non-linear model, it is not a goal to provide an ideal alternative presentation for all possible timegraphs with such a mix. It is left to authors and authoring tools to apply the time manipulations in appropriate situations. This section describes both the ideal model as well as the semantics associated with linear-media elements.

Ideal model

This section is informative

In the ideal model, the pace or speed of local time may be manipulated arbitrarily. The graph advances (or is sampled, depending upon your perspective) as the presentation time advances. A time container samples each of its children in turn, so that a graph traversal is performed for each render time.  Elements that are neither active nor frozen may be pruned from the traversal as an optimization. As the traversal moves down the graph (from time containers to children), each local timeline simply transforms the current time from the parent time-space to the local time space, and then samples the local timeline at the transformed current time. Note that the speed and effects of the time filters effectively cascade down the time graph, since each element transforms element time and element speed for itself and all descendants.

This is the model that is described by the arithmetic model in Details of timing model arithmetic.

When linear media are added to this model and the "current time" (sample) traversal encounters a media element, the media element is effectively told to "sample" at a particular position and a particular rate. Given that linear media may not sample arbitrarily (i.e., they may not immediately seek to and display an arbitrary frame or sample) , the media element player may not be able to match the ideal model.

Many media elements may not play off-speed (i.e. at other than normal play speed), and so must simply ignore the requested speed. As the element plays, it will fall out of sync with the sync relationship defined in the timing syntax. Within the limits defined by the SMIL syncTolerance attribute, divergence from the theoretical timeline position may be ignored. However, for further divergence beyond this tolerance the element will be considered out of sync; if the element is defined with syncBehavior="locked", the playback engine will try to enforce the runtime synchronization semantics (and this will probably not yield a desirable presentation playback). Authors applying time manipulations to linear media or to time containers that include linear media will likely wish to specify the syncBehavior for the linear media as "canSlip".

Fallbacks for time filters on a media element

The fallback semantics depend upon how much or how little the media player is capable of. Some players for some media may play forwards and backwards but only at the normal rate of play, others may only support normal forward play speed.

If the element speed (i.e. the cascaded value) is not supported by the media element, the media should play at the closest supported speed ("best effort"). If the element cannot play slower or faster than the normal play speed, the closest supported speed will be the normal play speed.

In any case, the computed simple duration, as modified by the time filters, is respected.

The semantics of clipBegin and clipEnd are not affected by time manipulations. The clipBegin and clipEnd semantics are always interpreted in terms of normal forward play speed. They are evaluated before any effects of time filters have been applied to the time model. This is consistent with the model that they may be evaluated by the media element handler, independent of the time model.

Authoring considerations for the fallback semantics

This section is informative

In this fallback model, some media elements may not be able to play at the computed speed defined by the time graph. The fallback semantics may cause the media element to fall out of visual synchronization with respect to the rest of the timegraph. For example, if an image element is defined to begin 10 seconds after a video element begins, and then a speed of 2.0 is applied to a time container for both elements, the image element will begin at 5 seconds (10s/2.0). If the video cannot play at twice the normal speed, it will not be 10 seconds into the video when the image shows up, and so the presentation may appear to be out of sync.

When time manipulations are used with linear media, authors may use media-marker-values to define the sync relationships. This may help to maintain the "visual" sync regardless of the fallback behavior. Since the media-marker-values are defined to happen when a particular point in the media is played, this timing will respect the actual behavior of the media, rather than the computed speed behavior.

Implications of time manipulations on time containers

The time manipulations may apply to any element, including time containers. There are two primary implications of this for the time model:

  1. The rate (relative to normal play speed) at which time proceeds in the parent may affect the observed begin and end times for children of the time container. In the process of converting times from one element's time space in the graph to another element's time space, all time manipulations on ascendant time containers must be respected. Thus for example, if a time container has acceleration defined, children that are defined to begin with simple offset conditions will be observed (in real time) to begin later (than the specified offset), since time moves more slowly at the beginning of the parent simple duration. See also Details of timing model arithmetic.
  2. When a time container is defined to play backwards, the begin and end times for the children must be calculated with a modified algorithm (described immediately below). This is not defined (only) relative to the speed or autoReverse attributes on the time container. Rather, when the net, cascaded speed for the time container is less than zero, the modified semantics are applied. See also Computing the net cascaded speed for an element.
Handling negative speeds on time containers

The following discussion is based upon the semantics of begin and end instance lists and the interpretation of lists of begin and end times described in the Timing section of SMIL 3.0

If the time container may play backwards (based upon the general constraints for backwards play upon the simple  and active durations), then the children must play the defined intervals in reverse order. This is accomplished with the following modified life cycle for child elements. In the following description, the terms "begin" and "end" for intervals are used relative to the normal play direction. When used as a verb ("the interval begins"), begin and end refer to the current interval becoming active and inactive, respectively. Intervals are described as playing from the end of the interval to the beginning, and so they begin at the interval end, and end at the interval begin.

  1. Find first interval to play: The child element will compute the first interval to play, which is actually the last interval defined by the instance times. This is done by considering the instance times lists in the normal order from earlier to later, calculating the last interval that begins before the end of the time container simple duration. The same basic approach is used for this as is used to determine the first interval for normal play, and accounts for restart semantics given the known times in the instance lists. One way to think of this is that with respect to the child element, the parent simple time is advanced from 0 to the end of the simple duration, and the last interval found is the one to use. No intervals are created in this process, until the correct times are found, and then one current interval is defined, and has side effects just the same as during normal play: all time-dependents are notified, and will create new instance times associated with this current interval.
  2. Wait to play interval: As time proceeds from the end of the time container simple duration towards 0, the current interval may wait to be active. The current interval will become active when the time container simple time reaches the defined end time of the current interval. During the period that the current interval is waiting to begin, any fill effect must be applied. This is defined the same as for normal forward play, using the element state at the defined end of the current interval.
  3. Actively playing: When the current interval becomes active, a beginEvent event is raised. The event is raised to indicate that the element has become active, even though it has become active at the end of the interval. The current interval will remain active until the parent simple time reaches the begin time of the current interval. Once the current interval has become active, any changes to instance times will have no impact upon the current interval. This is slightly different from the normal mechanism, but provides a significant simplification to the model without significant loss of functionality. Note that this semantic is only applied when the parent time container of an element is playing backwards.
  4. Ended - get next interval: When the current interval becomes inactive, an endEvent event is raised. The event is raised to indicate that the element has become inactive, even though it has become inactive at the begin of the current interval. At this point, the element considers the instance times lists and calculates a next interval (if there is one). The same approach is used as in phase 1 above, except that the next interval must begin before the (just ended) current interval begins. In addition, the end of the next interval is constrained according to the restart semantics to end no later than the begin of the (just ended) current interval. Thus the next interval (if there is one) will begin before the begin of the current interval, and will end no later than the begin of the current interval. It is possible that this interval will be defined to begin before the parent begin.
  5. No more intervals: Once all defined intervals  between the end and the beginning of the parent simple duration have been played, the current life cycle for the child element is complete.

When a time container is defined to play backwards, a child element may define additional time manipulations that affect the speed, or even the direction of play. Any such additional time manipulations on the child element do not impact the model described above.

The life cycle is restarted each time the parent (or any ascendant) time container repeats or restarts, just as for the normal play direction.

Because of the reversed evaluation of intervals, some cyclic time dependencies that would correctly propagate forwards when played normally will not propagate correctly when played backwards. The rules for evaluating and halting cycles in the time graph are unchanged by the semantics of time manipulations.

15. SMIL 3.0 DOM

Editor for SMIL 3.0
Sjoerd Mullender, CWI

15.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The following SMIL 3.0 DOM Module defined in this Chapter is a new module which was not part of SMIL 2.1.

15.2 Introduction

This section is informative.

This chapter describes the SMIL 3.0 DOM support. SMIL is an XML-based language and conforms to the (XML) DOM Core [DOM1], [DOM2]. A language profile may include DOM support. The granularity of DOM being supported corresponds to the modules being selected in that language profile. As with all modules, required support for the DOM is an option of the language profile. DOM support consists of two independently usable parts, a module which contains methods to start and stop parts of a presentation during playback, and a description of the effects of changing attributes during playback.

No SMIL-specific interfaces are defined to change elements and attributes. The only SMIL-specific interfaces that are defined are an interface to start and stop parts of the running presentation, and an interface to handle events.

The section The animation sandwich model in the SMIL 3.0 Animation chapter describes the presentation effects of changing attributes that can be animated, whether or not any animations on the attribute are active.

15.3 Overview

This section is normative.

Using DOM level 2 methods [DOM2] an application may change the values of attributes and add and delete elements in a running SMIL presentation. Whether such editing is allowed is implementation dependent, although a profile may require support. In terms from the SMIL 3.0 Animation chapter, changing the value of an attribute through a DOM method changes the base value of the attribute. If animations are included in the profile, any animations on the same attribute build upon this changed base value. The presentation value which results from applying an animation is not visible through the DOM. The presentation effect of other changes through the DOM to a document while it is being played back is implementation-dependent.

In the chapter SMIL 3.0 Timing and Synchronization, the module DOMTimingMethods is defined which contains DOM methods to start and stop parts of a presentation during playback, and also DOM events that may be used to influence a presentation. The complete definition of these methods and events and their effects on a presentation is given in the section Document object model support of the Timing and Synchronization Module chapter.

This section is informative.

The functions supported in this version of the SMIL 3.0 DOM Modules draft are restricted to providing external access to attributes that profiles implementing this module also are able to change dynamically using SMIL animation primitives. A future version of this module description will likely contain a broader scope for DOM support.

16. SMIL 3.0 Scalability Framework

Editor for SMIL 3.0
Dick Bulterman, CWI
Editors for Earlier Versions of SMIL
Nabil Layaïda, INRIA
Kenichi Kubota, Panasonic
Aaron Cohen, Intel
Michelle Kim, IBM.

16.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 Scalability Framework revises the SMIL 2.1 Basic Profile and Scalability Framework [SMIL21-basic-profile]. With the introduction of the SMIL 3.0 Tiny profile, the definition of the Scalability Framework has been migrated into a separate document. The text has been revised to conform to current SMIL practice and intent.

16.2 Abstract

This section is normative.

SMIL 3.0 provides a scalability framework, where a family of scalable SMIL profiles can be defined using a sub- or superset of the SMIL 3.0 Language, DAISY, or UnifiedMobile profiles, or a superset of the SMIL 3.0 Tiny profile. A SMIL document can be authored conforming to the scalability framework such that it provides limited functionality on a resource-constrained device while allowing richer capabilities on a more capable device. This section defines the requirements for conforming SMIL documents and SMIL user agents. Moreover, it describes scalable SMIL profile architecture, guidelines for defining them, and their conformance requirements.

16.3 Introduction to the SMIL 3.0 Scalability Framework

This section is informative.

The Synchronized Multimedia Integration Language (SMIL) includes powerful functionality for various multimedia services for platforms of various/differing complexities, ranging from desktops to ubiquitous information appliances such as minimum capability mobile phones, car navigation systems, television sets, and voice user agents. Each of these platforms has its specific capabilities and requirements. It is clear that not all of the SMIL 3.0 elements and attributes will be required on all platforms. SMIL 3.0 modularization groups semantically related SMIL elements, attributes, and attribute values into a disjoint set of SMIL modules. These modules can then be recombined to produce a SMIL profile that meets the needs of different communities. For example, a hand held device, digital talking book player, or a mobile phone may only support a small subset of SMIL 3.0 modules in its own profile.

The W3C SYMM working group has defined a scalability architecture that allows a SMIL user agent to implement only the sub- or superset of the SMIL 3.0 standard it needs, while maintaining document interoperability between device profiles built for different needs. A scalable profile enables user agents to support incremental extra collections of modules containing the baseline functionality needed for an implementation environment, or it allows certain modules to be removed from a more extensive profile in those situations where this extra functionality is not necessary.

At the same time, SMIL 3.0 provides an additional mechanism in which a document author is given the ability to specify which SMIL modules are required within a document.

Conformance to the scalable SMIL profile architecture provides a basis for interoperability guarantees. The advantages of scalable profiles include:

The SMIL 3.0 scalability framework allows inclusion or exclusion of functionality. SMIL user agent developers are also able to focus their implementations by specifically excluding support for individual SMIL elements or attributes, as is explained in the section on document conformance. Note that in these cases, a document containing unsupported elements or attributes should always parse correctly on any SMIL-compliant user agent.

16.4 Normative Definition of the SMIL 3.0 Scalability Framework

This section is normative.

The SMIL Scalability Framework specifies the rules for SMIL 3.0 profile, document and user agent conformance, and the mechanism for creating dynamic, scalable profiles using the SMIL 3.0 extension mechanism. This section provides a normative definition of these three aspects.

All SMIL host-language conformant profiles must reference and adhere to the rules specified in this SMIL Scalability Framework. All such profiles must supply profile-specific information that is required by the SMIL Scalability Framework.

16.4.1 Definitions

The SMIL 3.0 Scalability Framework makes use of a hierarchy of conformance definitions for profiles, documents and user agents that are based in whole or in part on SMIL 3.0 modules. The elements in this hierarchy (from least restrictive to most restrictive) are given in this section.

SMIL 3.0 Document Conformance Definitions

SMIL 3.0 defines a hierarchy of conforming profiles based on the following definitions:

SMIL 3.0 Document Conformance Definitions

SMIL 3.0 defines a conforming document to be a document that conforms to a SMIL 3.0 profile and is valid per the normative DTD identified by that profile. Documents may be:

SMIL 3.0 User Agent Conformance Definitions

A Conformant SMIL 3.0 User Agent is a user agent that renders a document in accordance with the functionality of the associated profile and which adheres to the rules set out in the section Rules for SMIL 3.0 Conformant User Agents.

SMIL 3.0 Elements and Attributes Collection Definitions

The following sections detail the rules for profile, document and user agent conformance. These rules make use of the following definitions for collections of elements and attributes. In these tables, the term "minimum support" is used to refer to the minimum set of elements that an element may contain, and the minimum set of attributes that may be used on an element.

Table: Names of SMIL 3.0 Element Collections.
Element Set Name Elements
TIMING-ELMS par, seq
MEDIA-ELMS ref, animation, audio, img, video, text, textstream
EMPTY no elements are required as a minimum
Table: Names of SMIL 3.0 Attribute Collections.
Attribute Set Name Attributes
TIMING-ATTRS begin, end, dur, repeatDur, repeatCount, fill, endsync
CONTCTRL-ATTRS systemRequired
MEDIA-ATTRS src, type
COMMON-ATTRS xml:id, id, class, xml:lang, title
IDENTITY-ATTRS version, baseProfile

16.4.2 Conforming SMIL 3.0 Profile Rules

This section defines the rules for creating conformant SMIL 3.0 profiles. The rules are considered by conformant profile type, as defined in the section Definitions.

Neither the SMIL 3.0 definition nor these conformance criteria provide designated size limits on any aspect of SMIL 3.0 content. There are no maximum values on the number of elements, the amount of character data, or the number of characters in attribute values.

Rules for SMIL 3.0 Conformant Profiles

A SMIL 3.0 profile is a conformant SMIL 3.0 profile if it adheres fully to the following criteria:

  1. The profile defines the SMIL 3.0 modules it collects.
  2. The profile includes all elements, attributes, and attribute values specified by the collected modules.
  3. The profile complies with the integration requirements set forth by the modules it collects.
  4. The profile specifies the semantics related to the integration of the modules.
  5. The profile defines its DTD or XML Schema.
  6. The profile defines a unique identifier string that can be used by a systemRequired attribute.

There are no minimum set of required modules for a Conformant SMIL 3.0 Profile.

Rules for SMIL 3.0 Integration-Set Conformant Profiles

A SMIL 3.0 profile is an integration-set conformant SMIL 3.0 profile if it meets all of the requirements of a Conformant SMIL 3.0 Profile and if it also adheres fully to the following criteria:

  1. The profile supports the functionality contained in the modules required for integration set conformance.
  2. The profile fulfills the "minimum support" requirements for elements and attributes as listed in the integration-set minimum support table.
  3. The SyncbaseTiming module should be included in Integration Set conformant profiles, although it is not strictly required. We strongly recommend inclusion of this module in Integration Set conformant profiles to maintain a high level of consistency and interoperability with other languages that have integrated SMIL modules including the SMIL 3.0 Language, XHTML+SMIL [XHTMLplusSMIL], and SVG [SVG]. Only profiles designed to operate on severely constrained devices may omit the SyncbaseTiming module.
Modules Required for Integration-Set Conformance

A profile that is said to be SMIL 3.0 integration set conformant must include the following modules:

  1. BasicInlineTiming
  2. BasicMedia
  3. BasicTimeContainers
  4. Identity
  5. RepeatTiming
  6. RequiredContentControl
  7. SyncbaseTiming (Recommended, not Required)
Integration-Set Minimum Support Table
Table: Minimum Support for SMIL Integration Set Conformance.
Element Minimum Support
Content Attributes
ref, animation, audio, img, video, text, textstream EMPTY CONTCTRL-ATTRS, IDENTITY-ATTRS, TIMING-ATTRS, MEDIA-ATTRS
par, seq TIMING-ELMS, MEDIA-ELMS CONTCTRL-ATTRS, IDENTITY-ATTRS, TIMING-ATTRS

Support of deprecated elements and attributes is not required for SMIL 3.0 integration-set conformance. However, when included, the above requirements also apply to these elements and attributes. Also, when supported, it is required that all the deprecated elements and attributes from all the included modules are supported as a whole.

Rules for SMIL 3.0 Host-Languages Conformant Profiles

A SMIL 3.0 profile is an host-language conformant SMIL 3.0 profile if it meets all of the requirements of a Integration Set Conformant SMIL 3.0 Profile and if it also adheres fully to the following criteria:

  1. The profile supports the functionality contained in the modules required for host-language conformance.
  2. The profile fulfills the "minimum support" requirements for elements and attributes as listed in the host-language minimum support table.
  3. The SyncbaseTiming module should be included in host-language conformant profiles, although it is not strictly required. We strongly recommend inclusion of this module in host-language conformant profiles to maintain a high level of consistency and interoperability with other languages that have integrated SMIL modules including the SMIL 3.0 Language, XHTML+SMIL [XHTMLplusSMIL], and SVG [SVG]. Only profiles designed to operate on severely constrained devices may omit the SyncbaseTiming module.
Modules Required for Host-Language Conformance

A profile that is said to be SMIL 3.0 host-language conformant must include the following modules:

  1. BasicInlineTiming
  2. BasicMedia
  3. BasicTimeContainers
  4. Identity
  5. RepeatTiming
  6. RequiredContentControl
  7. SkipContentControl
  8. Structure
  9. StructureLayout
  10. SyncbaseTiming (Recommended, not Required)
Host-Language Minimum Support Table
Table: Minimum Support for SMIL Host Language Conformance.
Element Minimum Support
Content Attributes
smil head, body COMMON-ATTRS, CONTCTRL-ATTRS, IDENTITY-ATTRS, xmlns
head layout, meta, COMMON-ATTRS, IDENTITY-ATTRS
body TIMING-ELMS, MEDIA-ELMS, COMMON-ATTRS, IDENTITY-ATTRS
layout EMPTY COMMON-ATTRS, CONTCTRL-ATTRS, IDENTITY-ATTRS, type, skip-content
ref, animation, audio, img, video, text, textstream COMMON-ATTRS, CONTCTRL-ATTRS, IDENTITY-ATTRS, TIMING-ATTRS, MEDIA-ATTRS, skip-content
par, seq TIMING-ELMS, MEDIA-ELMS, COMMON-ATTRS, IDENTITY-ATTRS, CONTCTRL-ATTRS, TIMING-ATTRS
meta EMPTY COMMON-ATTRS, CONTCTRL-ATTRS, IDENTITY-ATTRS, skip-content
EMPTY COMMON-ATTRS, CONTCTRL-ATTRS, IDENTITY-ATTRS, skip-content

Support of deprecated elements and attributes is no longer required for SMIL 3.0 host language conformance but it is highly recommended for all modules the given language supports. Support of deprecated elements and attributes may only be left out in cases where interoperability with SMIL 1.0 implementations is not an issue.

Since the SMIL 3.0 Structure module may only be used in a profile that is SMIL host language conformant, this implies that the SMIL 3.0 Structure module must at least be accompanied with the other modules required for host language conformance that were named above. Those modules themselves may still be used in other non-SMIL host-language conformant profiles.

16.4.3 Conforming SMIL 3.0 Document Rules

This section defines the rules for creating conformant SMIL 3.0 documents. The rules are considered by conformant profile type, as defined in the section Definitions.

Rules for SMIL 3.0 Conformant Documents

A SMIL 3.0 document is a conformant SMIL 3.0 document if it adheres fully to the following criteria:

  1. The SMIL 3.0 Conformant document MUST be well-formed XML.
  2. The SMIL 3.0 Conformant document MUST conform to the following W3C Recommendations:
    • The XML 1.1 specification (Extensible Markup Language (XML) 1.1) [XML11].
      Note: SMIL 3.0 conforms to both XML 1.1 [XML11] and XML 1.0 [XML10], with XML 1.1 being the definitive reference because it is newer. SMIL 3.0 itself uses no features that are in XML 1.1 other than for character processing in IRI's and xml:id's, but new development should use an XML 1.1 parser to make sure documents that use XML 1.1 extensions are handled correctly.
    • Namespaces in XML [XML-NS]. Full XML Namespaces must be supported.
    • Any use of CSS styles and properties shall conform to Cascading Style Sheets, level 2 CSS2 Specification [CSS2].
  3. The SMIL 3.0 Conformant document MUST be based on a SMIL 3.0 Conformant profile.
  4. The SMIL 3.0 Conformant document MUST use the root element defined by the profile specification.
  5. The SMIL 3.0 Conformant document MUST reference the following namespace, either as the default namespace or as an additional prefix-qualified namespace):
    xmlns="http://www.w3.org/ns/SMIL"
  6. The SMIL 3.0 Conformant document MAY use a DOCTYPE, as defined in the profile specification. If a document contains a DOCTYPE declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD are not allowed. If specified, documents must be valid per the normative DTD identified by that profile
  7. When the document uses the functionality of a particular SMIL 3.0 module through SMIL 3.0 elements and attributes and the semantics associated with these elements and attributes, it must do so in ways consistent with the SMIL 3.0 specification.
  8. The SMIL 3.0 Conformant document MUST adhere to any additional conformance rules for the profile, as defined in the SMIL 3.0 Conformant profile specification.

Rules for SMIL 3.0 Integration-Set Conformant Documents

A SMIL 3.0 document is a integration-set conformant SMIL 3.0 document if it adheres fully to the criteria specified by the host-language for that document, and it adheres to the following criteria:

  1. The SMIL 3.0 Integration-Set Conformant document MUST be well-formed XML.
  2. The SMIL 3.0 Integration-Set Conformant document MUST conform to the following W3C Recommendations:
    • The XML 1.1 specification (Extensible Markup Language (XML) 1.1) [XML11], (see Note).
    • Namespaces in XML [XML-NS]. Full XML Namespaces must be supported.
    • Any use of CSS styles and properties shall conform to Cascading Style Sheets, level 2 CSS2 Specification [CSS2].
  3. The SMIL 3.0 Integration-Set Conformant document MUST be based on a SMIL 3.0 Conformant profile.
  4. The SMIL 3.0 Integration-Set Conformant document MUST use the root element defined by the profile specification.
  5. The SMIL 3.0 Integration-Set Conformant document MUST reference the following namespace, either as the default namespace or as an additional prefix-qualified namespace):
    xmlns="http://www.w3.org/ns/SMIL"
  6. The SMIL 3.0 Integration-Set Conformant document MAY use a DOCTYPE, as defined in the profile specification. If a document contains a DOCTYPE declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD are not allowed. If specified, documents must be valid per the normative DTD identified by that profile
  7. When the document uses the functionality of a particular SMIL 3.0 module through SMIL 3.0 elements and attributes and the semantics associated with these elements and attributes, it must do so in ways consistent with the SMIL 3.0 specification.
  8. The SMIL 3.0 Integration-Set Conformant document MUST adhere to any additional conformance rules for the profile, as defined in a SMIL 3.0 Integration-Set Conformant profile specification.

Rules for SMIL 3.0 Host-Language Conformant Documents

A SMIL 3.0 document is a host-language conformant SMIL 3.0 document if it adheres to the following criteria:

  1. The SMIL 3.0 Host-Language Conformant document MUST be well-formed XML.
  2. The SMIL 3.0 Host-Language Conformant document MUST conform to the following W3C Recommendations:
    • The XML 1.1 specification (Extensible Markup Language (XML) 1.1) [XML11], (see Note).
    • Namespaces in XML [XML-NS]. Full XML Namespaces must be supported.
    • Any use of CSS styles and properties shall conform to Cascading Style Sheets, level 2 CSS2 Specification [CSS2].
  3. The SMIL 3.0 Integration-Set Conformant document MUST be based on a SMIL 3.0 Conformant profile.
  4. The root element of the SMIL 3.0 Host-Language Conformant document MUST be the smil element.
  5. The SMIL 3.0 Host-Language Conformant document MUST reference the following default namespace:
    xmlns="http://www.w3.org/ns/SMIL"
    The SYMM working group MAY reuse this namespace URI in a future specification that revises the SMIL 3.0 DTD, thus affecting the validity of published documents.

    This section is informative.

    SMIL 3.0 no longer assigns individual namespace identifiers to SMIL 3.0 modules, as all elements and attributes are defined within the single SMIL 3.0 namespace. SMIL 3.0 does define a set of module identifier strings that may be used with as part of the SMIL extension mechanism.

  6. A SMIL 3.0 Host-Language Conformant document MAY contain a DOCTYPE declaration, as defined by the relevant profile specification. The DTD referenced in the DOCTYPE declaration will, among other things, define default values for the language version number and the base profile name associated with the DTD. If a document contains a DOCTYPE declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD are not allowed. As per section 7.6 of the W3C Process Document, W3C will make every effort to make this normative DTD available in its original form at the URI defined by the profile. The SYMM WG also publishes a non-normative SMIL 3.0 DTD identified by:
    http://www.w3.org/2008/SMIL30/informative-DTD/SMIL30XXX.dtd ,
    where the string SMIL30XXX is replaced by the name string defined in the relevant profile specification for the informative DTD.
    The SYMM WG plans to make changes to the non-normative DTD over time to correct errata. If you choose to refer to the non-normative DTD, please note that it is subject to change without notice at any time. The SYMM WG MAY publish a normative "snapshot" of the corrected DTD at a new URI by following the W3C Process for modifying a Recommendation. Individuals are free to use either the normative or non-normative URIs as the system identifier in the SMIL 3.0 profile's DOCTYPE, according to the desired level of stability.
  7. A SMIL 3.0 Host-Language Conformant document MAY declare a version number and base profile by using the version and baseProfile attributes on the smil root element. If a DOCTYPE declaration is present, the version and base profiles defined must match those in the profile DTD. If a DOCTYPE declaration containing a valid SMIL profile DTD is not given and if no version attribute is specified, version 3.0 will be used. If a DOCTYPE declaration containing a valid SMIL profile DTD is not given and if no baseProfile attribute is defined, the Language base profile will be used.
  8. Given that, as of this writing, DTDs have no way to describe the allowability of namespace-qualified extensions, and that extensions to SMIL 3.0 host-language conformant documents must be namespace-qualified, here is the algorithm to be used to validate documents with extensions:
    • If all non-SMIL 3.0 namespace elements and attributes and all xmlns attributes which refer to non-SMIL 3.0 namespace elements are removed from the given document and if the appropriate <!DOCTYPE ... > statement which points to the SMIL 3.0 DTD is included, the result is a valid XML document.
  9. The SMIL 3.0 Host-Language Conformant document MUST adhere to any additional conformance rules for the profile, as defined in a SMIL 3.0 Host-Language Conformant profile specification.

SMIL 3.0 deprecates base as a property value for the content attribute of the meta element of SMIL 1.0 in favor of the more general XML Base URI mechanisms.

All SMIL 3.0 profile specifications support the XML Base Recommendation [XMLBase]. XML Base is supported on all elements, and affects the interpretation of URIs as specified in the individual modules defining the URI attributes. Specifically, any applicable XML Base base URI must be applied to the interpretation of the href attribute of the link elements a, area and anchor, as well as the src attribute of the media elements audio, video, img, animation, textstream, text, and ref. XML Base must also be applied on longdesc and label attributes of all of the SMIL 3.0 elements.

Rules for SMIL 3.0 Strict Host-Language Conformant Documents

A SMIL 3.0 document is a strict host-language conformant SMIL 3.0 document if it adheres to the criteria for Rules for SMIL 3.0 Host-Language Conformant Documents and it meets the following criteria:

  1. The SMIL 3.0 Strict Host-Language Conformant document MUST use only the elements and attributes defined for the SMIL 3.0 namespace.

16.4.4 Conforming SMIL 3.0 User Agents

A conforming SMIL 3.0 user agent is a program which can parse and process a SMIL 3.0 document and render the contents of the document onto output media. A conforming SMIL 3.0 user agent must meet all of the following criteria:

  1. In order to be consistent with the XML 1.1 Recommendation [XML11], (see Note), the user agent MUST parse and evaluate a SMIL 3.0 document for well-formedness. If the user agent claims to be a validating user agent, it MUST also validate documents against their referenced DTDs according to [XML11].
  2. When the user agent claims to support the functionality of a particular SMIL 3.0 profile through SMIL 3.0 elements and attributes and the semantics associated with these elements and attributes, it must do so in ways consistent with the SMIL 3.0 specification.
  3. The user agent must be able to successfully parse any host-language conforming SMIL 3.0 document as specified by the relevant profile document, and to process, support and correctly implement the semantics of all features of the relevant SMIL 3.0 profile UNLESS a particular feature has been explicitly removed from the user agent implementation according to the rules set forth under Extending/Restricting SMIL 3.0 Profiles.
  4. The XML parser of the user agent must be able to parse and process XML constructs defined in [XML11] and [XML-NS].
  5. Processing the default namespace on the smil element will fall into one of three cases:
    1. The default namespace on the smil root element is recognized by the user agent. The user agent should process the document as the version identified by the recognized namespace (and, starting in SMIL 3.0, the values of the version and baseProfile attributes). Any elements, attributes, or other syntax not defined by the default namespace on the smil root element must be fully namespace qualified using standard XML mechanisms for declaring namespaces for elements and attributes described in [XML-NS], as further described in the section on Expanding/Restricting SMIL Profiles. Unqualified elements not part of the default namespace are illegal and must result in an error.

      This section is informative.

      Examples:

      1) A pure SMIL 1.0 document:

      <smil xmlns="http://www.w3.org/TR/REC-smil">
       ...
      </smil>

      2) A pure SMIL 3.0 Language profile document:

      <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
       ...
      </smil>
    2. No default namespace declaration is present on the smil root element in the document. The document MUST be processed as a SMIL 1.0 document.
    3. The default namespace declaration on the smil root element unrecognized. A SMIL user agent will not recognize the document as any version of SMIL and MUST issue an error.
  6. The user agent MUST support the following W3C Recommendations with regard to SMIL 3.0 content:
    • Complete support for the XML 1.1 specification (Extensible Markup Language (XML) 1.1) [XML11].
    • Complete support for inclusion of non-SMIL 3.0 namespaces within SMIL 3.0 content via Namespaces in XML [XML-NS]. A xmlns declaration or xmlns prefix declaration may be used on any element in the SMIL 3.0 document.
  7. The user agent MUST ignore namespace prefix qualified elements from unrecognized namespaces and MUST support the skip-content attributes. If no skip-content attributes are declared, the value of true is assumed.
  8. The user agent MUST ignore elements with unrecognized default namespace declarations and MUST support the skip-content attribute. If no skip-content attributes are declared, the value of true is assumed.
  9. The user agent MUST issue an error for an attribute value which does not conform to the syntax specified for that attribute.
  10. The detection of a syntax error in a SMIL 3.0 document MUST result in the user agent issuing an error and not playing the document.
  11. When the hyphenated (deprecated) and the camelCase version of an attribute syntax are used in the same element, SMIL 3.0 user agents should take into account the camelCase version only.

The Web Accessibility Initiative has defined the "User Agent Accessibility Guidelines 1.0" [UAAG]. Developers are encouraged to design user agents that satisfy at least the Level A requirements of that document.

Specifying Required Support by a SMIL 3.0 User Agent

If a particular SMIL 3.0 document requires a particular language feature to be supported for author-determined correct rendering of document content, the document may define the modules that support the required feature(s) as described in the section specifying required modules. User agents that do not support the required features MUST result in the user agent issuing an error and not playing the document.

Error Handling in SMIL Host Language Conformant Documents

Syntax errors in a SMIL Host Language conformant document are handled according to the XML rules for well-formed or valid XML [XML11], (see Note).

Semantic errors may arise at various levels. One is where the declared attribute values are of unknown value. Another is where the assembled presentation is (possibly) conflicting, as in a case where media objects are competing for display space or where they are synchronized ambiguously. These latter types, although maybe an error according to the author's intentions, are not considered an error and the user agent will present according to the resolution rules defined in this specification.

Handling of Syntax errors in Attribute Values

Errors in attribute values might remain undetectable to the parser, because the value type is declared as CDATA, or because the value range is open ended, as in the case of events, for example. However, errors in attribute values may be detected within a given profile, where that profile specifies the supported value set. Specifications of profiles are required to specify the error handling that is required when such an attribute value error occurs.

16.4.5 Extending/Restricting a SMIL 3.0 Profile

The rules for restricting and extending the functionality of any SMIL profile are defined in this section.

Restricting a SMIL 3.0 Profile

Individual user agents may opt-out of a particular language feature by explicitly ignoring it during document processing. In this way, both author and user-agent-development needs are supported for a wide community without having to define a large number of standard profiles.

Developers of user agents that explicitly support only a subset of a profile's functionality are encouraged to publish a list of these restrictions on a web site maintained by W3C and the Synchronized Multimedia working group.

Extending a SMIL 3.0 Profile

A scalable profile is defined by extending any SMIL host language conforming profile using the content control facilities to support application/device specific features via a module identification mechanism, as described in the section specifying required modules.

A scalable profile is defined by extending its set of modules using the content control facilities to support application/device specific features. The scalable profile must include the description of the profile it extends, for example by including a declaration of the version and base profile attributes for the profile. A family of scalable SMIL profiles can be built using the SMIL 3.0 Tiny Profile plus additional sets of modules geared to the particular needs each profile addresses.

In the future, a SMIL 3.0 profile may be extended by other W3C Recommendations, or by private extensions. For these extensions, the following rules must be obeyed:

Conformant SMIL 3.0 user agents are prepared to handle documents containing extensions that obey these two rules. The SMIL 3.0 namespace may be used with other XML namespaces as per [XML-NS].

16.4.6 Rules for Constructing Scalable Profiles

A scalable profile is specified by using the content control facilities via a namespace mechanism as follows:

  1. The basis of the scalability mechanism in SMIL is the SMIL module, not a particular element or attribute. A scalable SMIL 3.0 profile contains all the Modules Required for Host-Language Conformance. Additionally it may contain any one or more additional modules from the set defined by the SMIL 3.0 Modules.
  2. The xmlns mechanism is used to identify a module prefix that is used by the scalability framework. The xmlns mechanism is used only to define a prefix, and NOT to declare a module-based namespace. The prefix may only be used as a value of the systemRequired attribute.
  3. The systemRequired attribute MUST be supported by all conformant SMIL 3.0 profiles.
  4. The systemRequired attribute is used to specify a set of modules that are necessary to support the extended profile. The effective profile used by the document is defined as the union of the modules defined for the relevant SMIL 3.0 profile and those specified in the systemRequired attribute.
  5. The systemRequired attribute may always be specified on the root smil element. SMIL 3.0 profiles may also allow the systemRequired attribute to be specified on elements other than the root element. When used on the smil element, if the value of the systemRequired attribute resolves to FALSE, the document should not be played. When used on any interior element, if the value of the systemRequired attribute resolves to FALSE, the containing element should be ignored.

16.5 SMIL 3.0 Document Scalability Guidelines

This section is informative.

This section presents scalability guidelines for SMIL content authors that will enable their content to be played on the widest range of SMIL conformant devices.

A SMIL 3.0 document must declare a default namespace for its elements with its xmlns attribute at the smil root element with its identifier URI:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
... </smil>

If no namespace is specified, the namespace will default to: xmlns="http://www.w3.org/TR/REC-smil", which is the SMIL 1.0 namespace.

The version and baseProfile attributes may be used to specify a particular profile for use when processing the document. If a DOCTYPE is used to define the profile, then the version and base profile will be defined by the DTD in the DOCTYPE. If both a DOCTYPE DTD is defined and the version and/or baseProfile attributes, both sets must refer to the same profile.

A SMIL 3.0 document with custom extensions conforming to a custom DTD may be declared as follows:

<!DOCTYPE smil SYSTEM "http://www.example.org/myCustomSMIL.dtd">
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language"
        xmlns:myStuff="http://www.example.org/2008/Custom">
        <myStuff:foo>
        ...
        </myStuff:foo>
</smil>

The systemRequired attribute is used to specify which components of SMIL 3.0 are required to render the document.

Examples:

If supported by the profile used as the base for the scalable document, the author may choose to explicitly qualify blocks of content with the systemRequired attribute. The following example contains the systemRequired attribute on the seq container within a switch, allowing the inclusion of the brush element when the "BrushMedia" test succeeds, and providing an image based alternative when the BrushMedia module is not supported:

<smil xmlns="http://www.w3.org/2008/SMIL30/Mobile"
      xmlns:BrushMedia="http://www.w3.org/2008/SMIL30/BrushMedia" >
  <head>
    <layout>
      <region xml:id="colorbox" top="0px" left="0px" height="50px" width="50px" />
    </layout>
  </head>
  <body>
    <switch>
      <seq systemRequired="BrushMedia">
        <brush dur="5s" color="#0000FF" region="colorbox"/>
        <brush dur="5s" color="#00FF00" region="colorbox"/>
        <brush dur="5s" color="#FF0000" region="colorbox"/>
      </seq>
      <seq>
        <img dur="5s" src="blue.jpg"  region="colorbox"/>
        <img dur="5s" src="green.jpg" region="colorbox"/>
        <img dur="5s" src="red.jpg"   region="colorbox"/>
      </seq>
    </switch>
  </body>
</smil>

Note that there is an difference between the systemRequired on the smil element and an "inline" systemRequired on the other SMIL elements (if supported by the base profile). The former is a hard requirement for rendering the document. For example, if the systemRequired on the smil element lists a module that the user agent does not support even though the module is not actually used in the document, the document is still prohibited from presentation by that user agent.

Conversely, the use of the systemRequired attribute on other elements only specifies a requirement for rendering a sub-tree of the document. If some of the content of a presentation requires support beyond that provided by the base profile and that specified on the systemRequired attribute on the smil element, the additional features should be wrapped with the switch element and system test attributes, which can then be evaluated by a user agent and be processed accordingly.

The SMIL 3.0 profiles are organized from the least capable to the most capable as follows:

  1. SMIL 3.0 Tiny Profile
  2. SMIL 3.0 UnifiedMobile Profile
  3. SMIL 3.0 DAISY Profile
  4. SMIL 3.0 Language Profile

When extending a particular profile with additional modules, the namespace used in the extended profile should be that of the SMIL profile that includes the smallest difference in modules needed to support the document. The systemRequired attribute should also be used and set to the original profile namespace together with the module(s) used in the extension. For example, suppose the SMIL 3.0 UnifiedMobile Profile is to be extended with the BasicPriorityClassContainers module. The version and base profile used in documents for the extension should be set to the SMIL 3.0 UnifiedMobile profile and the systemRequired attribute should be set to the SMIL 3.0 UnifiedMobile profile identifier and the BasicPriorityClassContainers module identifier:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="UnifiedMobile"
xmlns:ump="http://www.w3.org/2008/SMIL30/UnifiedMobile"
xmlns:bpcc="http://www.w3.org/2008/SMIL30/BasicPriorityClassContainers"
systemRequired="ump+bpcc">
...
</smil>

Note that it is also possible to use the full SMIL 3.0 Language Profile identifier in the above example:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language"
xmlns:lang="http://www.w3.org/2008/SMIL30/Language"
xmlns:bpcc="http://www.w3.org/2008/SMIL30/BasicPriorityClassContainers"
systemRequired="lang+bpcc">
...
</smil>

This practice is NOT recommended because the resulting document will only be able to be processed by implementations that support the full SMIL 3.0 Language profile, and not by implementations that support the more restricted SMIL 3.0 UnifiedMobile profile -- even though the UnifiedMobile Profile provides all of the functionality required in the document.

17. SMIL 3.0 Language Profile

Editor for SMIL 3.0:
Sjoerd Mullender, CWI
Editors for Earlier Versions of SMIL:
Nabil Layaïda, INRIA

17.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 Language profile extends the SMIL 2.1 Language profile with new functionalities introduced in SMIL 3.0 Modules. Specifically, the following modules have been added to the list of modules:

The following modules were changed for SMIL 3.0:

In addition to new and changed modules, this version of SMIL also has a new requirement about the media formats that are to be supported by user agents, and the readIndex attribute was added to the Core collection, meaning it may occur on many more elements.

17.2 Abstract

This section is normative.

The SMIL 3.0 Language profile describes the SMIL 3.0 modules that are included in the SMIL 3.0 Language and details how these modules are integrated. It contains support for all of the major SMIL 3.0 features including animation, content control, layout, linking, media object, meta-information, structure, timing and transition effects. It is designed for Web clients that support direct playback from SMIL 3.0 markup.

17.3 Introduction to the SMIL 3.0 Language Profile

This section is informative.

The SMIL 3.0 Language profile is defined as a markup language. The syntax of this language is formally described with a document type definition (DTD) or an XML Schema which is based on the SMIL modules as defined in "The SMIL 3.0 Modules".

The SMIL 3.0 Language profile design requirements are:

  1. Ensure that the profile is completely backward compatible with SMIL 1.0.
  2. Ensure that the profile is completely backward compatible with SMIL 2.1.
  3. Ensure that all the modules' semantics maintain compatibility with SMIL semantics (this includes content and timing).
  4. Adopt new W3C Recommendations when appropriate without conflicting with other requirements.

17.4 Normative Definition of the SMIL 3.0 Language Profile

This section is normative.

In the text in this profile specification, the term Language Profile will be considered to refer exclusively to the SMIL 3.0 Language profile as defined in this document.

17.4.1 SMIL 3.0 Language Profile Conformance

The definition of conformance for a SMIL 3.0 profile is given in the Definitions section of the SMIL 3.0 Scalability Framework. Based on these definitions, the Language profile is a Strict Host-Language Conformant SMIL 3.0 Profile.

Within the referenced sections of the Scalability Framework, the following definitions should be used:

  1. The profile identification string for the Language profile is: http://www.w3.org/2008/SMIL30/Language.
  2. Documents written for the Language profile must declare the default SMIL namespace with the xmlns attribute on the smil root element. For SMIL 3.0, this is:
    xmlns="http://www.w3.org/ns/SMIL"
  3. The SMIL 3.0 Language profile DOCTYPE is:
    <!DOCTYPE smil PUBLIC "-//W3C//DTD SMIL 3.0 Language//EN"
    "http://www.w3.org/2008/SMIL30/SMIL30Language.dtd">
    If a document contains this declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD (or in the corresponding XML or RelaxNG schemas) are not allowed. If the document is invalid, the user agent should issue an error.
  4. The identification string for the non-normative DTD used for integration of errata is:
    http://www.w3.org/2008/SMIL30/informative-DTD/SMIL30Language.dtd
  5. Documents written for the Language Profile must declare (explicitly or implicitly via the DTD) the following values for the version and baseProfile attributes:
    version="3.0" baseProfile="Language"
    As a consequence of the two requirements above, the effective root element declaration for a Language profile document must be:
    <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Language">
         ...
    </smil>
    The root element may be extended as required with additional atttributes.

This version of SMIL provides a definition of strict host-language conformant SMIL 3.0 documents, which are restricted to tags and attributes from the SMIL 3.0 namespace. The Section "Extending/Restricting a SMIL 3.0 Profile" provides information on using the SMIL 3.0 Language profile with other namespaces, for instance, on including new tags within SMIL 3.0 documents.

Language designers and implementors wishing to extend the Language profile must consider the implications of the use of namespace extension syntax. Please consult the section on Scalable Profiles for restrictions and recommendations for best practice when extending SMIL.

17.4.2 SMIL 3.0 Language Profile User Agent Conformance

The definition of user agent conformance for SMIL 3.0 Language profile documents is given in the Conforming SMIL 3.0 User Agents section of the SMIL 3.0 Scalability Framework. Conforming Language profile user agents must adhere completely to this section.

17.4.3 The SMIL 3.0 Language Profile

The SMIL 3.0 Language profile supports the structured-timeline-centric multimedia features found in the SMIL 3.0 modules. It uses only modules from the SMIL 3.0 recommendation. This Language profile includes the following SMIL 3.0 modules:

  1. Structure functionality
    1. Structure Module
    2. Identity Module
  2. Media functionality
    1. BasicMedia Module
    2. BrushMedia Module
    3. MediaAccessibility Module
    4. MediaClipMarkers Module
    5. MediaClipping Module
    6. MediaDescription Module
    7. MediaOpacity Module
    8. MediaPanZoom Module
    9. MediaParam Module
    10. MediaRenderAttributes Module
  3. Timing functionality
    1. AccessKeyTiming Module
    2. BasicExclTimeContainers Module
    3. BasicInlineTiming Module
    4. BasicPriorityClassContainers Module
    5. BasicTimeContainers Module
    6. EventTiming Module
    7. FillDefault Module
    8. MediaMarkerTiming Module
    9. MinMaxTiming Module
    10. MultiArcTiming Module
    11. RepeatTiming Module
    12. RepeatValueTiming Module
    13. RestartDefault Module
    14. RestartTiming Module
    15. SyncbaseTiming Module
    16. SyncBehaviorDefault Module
    17. SyncBehavior Module
    18. WallclockTiming Module
  4. Content Control functionality
    1. BasicContentControl Module
    2. CustomTestAttributes Module
    3. PrefetchControl Module
    4. RequiredContentControl Module
    5. SkipContentControl Module
  5. Layout functionality
    1. AlignmentLayout Module
    2. AudioLayout Module
    3. BackgroundTilingLayout Module
    4. BasicLayout Module
    5. MultiWindowLayout Module
    6. OverrideLayout Module
    7. StructureLayout Module
    8. SubRegionLayout Module
  6. smilText functionality
    1. BasicText Module
    2. TextMotion Module
    3. TextStyling Module
  7. Linking functionality
    1. BasicLinking Module
    2. LinkingAttributes Module
    3. ObjectLinking Module
  8. Metainformation functionality
    1. Metainformation Module
  9. Transition Effects functionality
    1. BasicTransitions Module
    2. FullScreenTransitions Module
    3. TransitionModifiers Module
  10. Animation functionality
    1. BasicAnimation Module
  11. State functionality
    1. StateInterpolation Module
    2. StateSubmission Module
    3. StateTest Module
    4. UserState Module

The collection names contained in the following table define the SMIL 3.0 Language profile vocabulary.

SMIL 3.0 Language Profile
Collection Name Elements in Collection
Animation animate, animateColor, animateMotion, set
ContentControl prefetch, switch
Layout layout, region, regPoint, root-layout, topLayout
LinkAnchor a, area (anchor)
MediaContent animation, audio, brush, img, ref, smilText, text, textstream, video
Metainformation meta,
Schedule excl, par, seq
State delvalue, newvalue, send, setvalue
Structure smil, head, body
TextContent tev, clear, br, span, p, div, textStyle, textStyling
Transition transition
Other customAttributes, customTest, param, paramGroup, priorityClass, state, submission

In the following sections, we define the set of elements and attributes used in each of the modules included in the SMIL 3.0 Language profile. The content model for each element is described. The content model of an element is a description of elements which may appear as its direct children. The special content model "EMPTY" means that a given element may not have children.

Collection Name Attributes in Collection
Core alt (CDATA), baseProfile 'Language', class (CDATA), label (CDATA), longdesc (CDATA), readIndex '0', title (CDATA), version (3.0) '3.0', xml:base (CDATA) [XMLBase], xml:id (id) (ID)
I18n its:dir (lro | ltr | rlo | rtl), its:locNote (CDATA), its:locNoteRef (CDATA), its:locNoteType (alert | description), its:term (no | yes), its:termInfoRef (CDATA), its:translate (no | yes), xml:lang (CDATA)

The xml:id and id attributes are used to assign a unique XML identifier to every element in a SMIL document. The xml:id and id attributes are equivalent and must not both be used on an element. The xml:id should be used in preference to the id attribute. When the document uses the SMIL 3.0 Language Profile DOCTYPE, only xml:id must be used.

The attributes in the collection Core are defined for all the elements of the SMIL 3.0 Language profile.

In this document, equivalent but deprecated attributes and elements are in parentheses.

17.4.4 Structure Modules

The Structure Module provides a framework for structuring a SMIL document. The Structure Module defines semantics for the smil, head and body elements. The SMIL 3.0 Language profile includes the Structure functionality of the Structure module.

The Identity Module provides attributes to identify the SMIL version and profile used in a SMIL document. The Identity Module defines semantics for the version and baseProfile attributes. The SMIL 3.0 Language profile includes the functionality of the Identity Module. The SMIL 3.0 Language Profile DTD provides default values for version and baseProfile.

In the SMIL 3.0 Language profile, the Structure elements may have the following attributes and content model :

Structure Module
Elements Attributes Content model
smil Core, I18n, Test, xmlns, xmlns:its 'http://www.w3.org/2005/11/its' (()*, (head, ()*)?, (body, ()*)?)
head Core, I18n ((meta)*, ((customAttributes), (meta)*)?, ((), (meta)*)?, ((textStyling), (meta)*)?, ((layout | switch), (meta)*)?, ((state), (meta)*)?, ((submission), (meta)*)*, (((transition)+), (meta)*)?, (((paramGroup)+), (meta)*)?)
body Core, I18n, MediaDescriptionAttributes, Timing, fill (auto | default | freeze | hold | remove | transition) 'default' (Animation | ContentControl | MediaContent | Schedule | State | a | )*

The attribute xmlns must be present on the element smil and it must have the value 'http://www.w3.org/ns/SMIL'.

The body element acts as the root element to span the timing tree. The body element has the behavior of a seq element. Timing on the body element is supported. The syncbase of the body element is the application begin time, which is implementation dependent, as is the application end time. Note that the effect of fill on the body element is between the end of the presentation and the application end time, and therefore the effect of fill is implementation dependent.

17.4.5 Media Object Modules

The Media Object Modules provide a framework for declaring media. The Media Object Modules define semantics for the ref, animation, audio, img, text, textstream, video and brush elements. The SMIL 3.0 Language profile includes the Media functionality of the BasicMedia, BrushMedia, MediaAccessibility, MediaClipping, MediaClipMarkers, MediaDescription, MediaOpacity, MediaPanZoom, MediaParam and MediaRenderAttributes modules.

In the SMIL 3.0 Language profile, media elements may have the following attributes and content model:

Media Object Module
Elements Attributes Content model
ref, animation, audio, img, text, textstream, video Core, I18n, MediaDescriptionAttributes, MediaOpacityAttributes, SubregionAttributes, Test, Timing, clip-begin, clip-end, clipBegin, clipEnd, customTest, endsync 'media', erase (never | whenDone) 'whenDone', expr, fill (auto | default | freeze | hold | remove | transition) 'default', mediaRepeat (preserve | strip) 'preserve', panZoom, paramGroup, region, sensitivity 'opaque', soundLevel '+0.0dB', src, tabindex, transIn, transOut, type (Animation | area (anchor) | | param | switch)*
brush Core, I18n, MediaDescriptionAttributes, Test, Timing, backgroundColor, backgroundOpacity '100%', bottom 'auto', color, customTest, endsync 'media', erase (never | whenDone) 'whenDone', expr, fill (auto | default | freeze | hold | remove | transition) 'default', fit (fill | hidden | meet | meetBest | scroll | slice), height 'auto', left 'auto', mediaAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), paramGroup, regAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), regPoint, region, right 'auto', sensitivity 'opaque', skip-content (false | true) 'true', tabindex, top 'auto', transIn, transOut, width 'auto', z-index (Animation | area (anchor) | | param | switch)*
param Core, I18n, Test, customTest, name, skip-content (false | true) 'true', type, value, valuetype (data | object | ref) 'data' ()*
paramGroup Core, I18n, skip-content (false | true) 'true' ( | param)*

The attribute collections MediaDescriptionAttributes and MediaOpacityAttributes are defined as follows:

Collection Name Attributes in Collection
MediaDescriptionAttributes abstract (CDATA), author (CDATA), copyright (CDATA)
MediaOpacityAttributes chromaKey, chromaKeyOpacity, chromaKeyTolerance, mediaBackgroundOpacity, mediaOpacity

This profile adds the ref, animation, audio, img, text, textstream, video and brush elements to the content model of the par, seq, excl and priorityClass elements of the Timing and Synchronization Modules. It also adds these elements to the content model of the body element of the Structure Module, to the content model of the a element of the Linking Modules and to the content model of the switch element of the Content Control Modules.

SMIL 1.0 only allowed anchor as a child element of a media element. In addition to anchor, the following elements are allowed in SMIL 3.0 as children of a SMIL media object: area, param, animate, set, animateColor, animateMotion, meta, (note that the a element is not included). The switch element is allowed, with the restriction that in this case the content of the switch may only be from the same set of elements.

Media Object Integration Requirements

The MediaRenderAttributes Module defines the erase attribute, and defers definition of the "display area" to the language profile. "Display area" for the purposes of the SMIL 3.0 Language corresponds to a SMIL BasicLayout region. The effects of erase="never" apply after the active duration of the media object and any fill period (defined by SMIL Timing and Synchronization), and only until other media plays to the region targeted by the media object, or until the same media object restarts.

17.4.6 Timing and Synchronization Modules

The Timing and Synchronization Modules provide a framework for describing timing structure, timing control properties and temporal relationships between elements. The Timing and Synchronization Modules define semantics for par, seq, excl and priorityClass elements. In addition, these modules define semantics for attributes including begin, dur, end, fill, fillDefault, repeat (deprecated), repeatCount, repeatDur, restart, restartDefault, syncBehavior, syncBehaviorDefault, syncTolerance, syncToleranceDefault. The SMIL 3.0 Language profile includes the Timing functionality of the AccessKeyTiming Module, BasicInlineTiming Module, BasicTimeContainers Module, BasicExclTimeContaine Module, BasicPriorityClassContainers Module, EventTiming Module, FillDefault Module, MediaMarkerTiming Module, MinMaxTiming Module, MultiArcTiming Module, RepeatTiming Module, RepeatValueTiming Module, RestartDefault Module, RestartTiming Module, SyncbaseTiming Module, SyncBehavior Module, SyncBehaviorDefault Module, WallclockTiming Module modules.

In the SMIL 3.0 Language profile, Timing and Synchronization elements may have the following attributes and content model :

Timing and Synchronization Module
Elements Attributes Content model
par Core, I18n, MediaDescriptionAttributes, Test, Timing, customTest, endsync 'last', expr, fill (auto | default | freeze | hold | remove | transition) 'default', region (Animation | ContentControl | MediaContent | Schedule | State | a | )*
seq Core, I18n, MediaDescriptionAttributes, Test, Timing, customTest, expr, fill (auto | default | freeze | hold | remove | transition) 'default', region (Animation | ContentControl | MediaContent | Schedule | State | a | )*
excl Core, I18n, MediaDescriptionAttributes, Test, Timing, customTest, endsync 'last', expr, fill (auto | default | freeze | hold | remove | transition) 'default', region, skip-content (false | true) 'true' (()*, (((Schedule | MediaContent | Animation | ContentControl | a | State), ()*)* | (priorityClass, ()*)+))
priorityClass Core, I18n, MediaDescriptionAttributes, Test, customTest, higher (pause | stop) 'pause', lower (defer | never) 'defer', pauseDisplay (disable | hide | show) 'show', peers (defer | never | pause | stop) 'stop', skip-content (false | true) 'true' (Animation | ContentControl | MediaContent | Schedule | State | a | )*

The Attribute collections Timing and BasicTiming are defined as follows:

Collection Name Attributes in Collection
BasicTiming begin, dur, end, max 'indefinite', min '0', repeat, repeatCount, repeatDur
Timing begin, dur, end, fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', max 'indefinite', min '0', repeat, repeatCount, repeatDur, restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', syncBehavior (canSlip | default | independent | locked) 'default', syncBehaviorDefault (canSlip | independent | inherit | locked) 'inherit', syncTolerance 'default', syncToleranceDefault 'inherit'

This profile adds the par, seq and excl elements to the content model of the body element of the Structure Module, to the content model of the a element of the Linking Modules and to the content model of the switch element of the Content Control Modules.

Elements of the Media Object Modules, elements of the Animation Module, elements of the State Modules and the smilText element of the smilText Modules have the attributes describing timing and properties of contents.

Supported Event Symbols

The SMIL 3.0 Language profile specifies which types of events may be used as part of the begin and end attribute values. The supported events are described as Event-symbols according to the syntax introduced in the SMIL Timing and Synchronization module.

The supported event symbols in the SMIL 3.0 Language profile are:

Event example
focusInEvent end="foo.focusInEvent + 3s"
focusOutEvent begin="foo.focusOutEvent"
activateEvent begin="foo.activateEvent"
beginEvent begin="foo.beginEvent + 2s"
endEvent end="foo.endEvent + 2s"
repeatEvent end="foo.repeatEvent"
inBoundsEvent end="foo.inBoundsEvent"
outOfBoundsEvent begin="foo.outOfBoundsEvent + 5s"
topLayoutCloseEvent end="toplayout1.topLayoutCloseEvent"
topLayoutOpenEvent end="toplayout2.topLayoutOpenEvent+5s"
stateChange(ref) end="foo.stateChange(//*)"
contentControlChange(attrname) end="root.contentControlChange(systemBitrate)"
contentControlChange end="root.contentControlChange"

Event semantics

focusInEvent:
Raised when a media element gets the keyboard focus in its rendering space, i.e., when it becomes the media element to which all subsequent keystroke-event information is passed. Once an element has the keyboard focus, it continues to have it until a user action or DOM method call either removes the focus from it or gives the focus to another media element, or until its rendering space is removed. Only one media element may have the focus at any particular time. The focusInEvent is delivered to media elements only, and does not bubble.
focusOutEvent:
Raised when a media element loses the keyboard focus from its rendering space, i.e., when it stops being the media element to which all subsequent keystroke-event information is passed. The focusOutEvent is delivered to media elements only, and does not bubble.
activateEvent:
Raised when a media element is activated by user input such as by a mouse click within its visible rendering space or by specific keystrokes when the element has the keyboard focus. The activateEvent is delivered to media elements only, and does not bubble.
beginEvent:
Raised when the element actually begins playback of its active duration. If an element does not ever begin playing, this event is never raised. If an element has a repeat count, beginEvent only is raised at the beginning of the first iteration. The beginEvent is delivered to elements which support timing, such as media elements and time containers, and does not bubble.
endEvent:
Raised when an element actually ends playback; this is when its active duration is reached or whenever a playing element is stopped.

This example is informative.

In the following example,

<ref xml:id="x" end="30s" src="15s.mpg" />
<ref xml:id="y" end="10s" src="20s.mpg" />
<ref xml:id="z" repeatCount="4" src="5s.mpg" />

x.endEvent occurs at roughly 30s when the active duration is reached, y.endEvent occurs at roughly 10s when the playback of the continuous media is ended early by the active duration being reached, and z.endEvent occurs at roughly 20s when the fourth and final repeat has completed, thus reaching the end of its active duration.

The endEvent is delivered to elements which support timing, such as media elements and time containers, and does not bubble.

repeatEvent:
Raised when the second and subsequent iterations of a repeated element begin playback. An element that has no repeatDur, repeatCount, or repeat attribute but that plays two or more times due to multiple begin times will not raise a repeatEvent when it restarts. Also, children of a time container that repeats will not raise their own repeatEvents when their parent repeats and they begin playing again. The repeatEvent is delivered to elements which support timing, such as media elements and time containers, and does not bubble.
inBoundsEvent:
Raised when one of the following happens:
  • by any input from the mouse or other input device that brings the mouse cursor from outside to within the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time, i.e., z-order is not a factor.
  • by any other action that moves the "cursor" or "pointer", as defined by the implementation, from outside to within the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time, i.e., z-order is not a factor. An implementation may decide, for instance, to raise an inBoundsEvent on an element whenever it gets the focus, including when keystrokes give it the focus.

A media element's bounds are restrained by the bounds of the region in which it is contained., i.e., a media element's bounds do not extend beyond its region's bounds. The inBoundsEvent is delivered to media elements only, and does not bubble.

Note that, unlike with keyboard focus which may only be active on one object at a time, the state of being within an object's bounds may be true for multiple objects simultaneously. For instance, if one object is on top of another and the cursor is placed on top of both objects, both would have raised an inBoundsEvent more recently than the raising of any respective outOfBoundsEvent.

outOfBoundsEvent:
Raised when one of the following happens:
  • by any input from the mouse or other input device that brings the mouse cursor from within to outside the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time,
  • by any other action that moves the "cursor" or "pointer", as defined by the implementation, from within to outside the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time.

A media element's bounds are restrained by its region's bounds, i.e., a media element's bounds do not extend beyond its region's bounds. The outOfBoundsEvent is delivered to media elements only, and does not bubble.

topLayoutCloseEvent:
Raised when a topLayout closes for any reason. This event is delivered to that topLayout. If a topLayout reopens when additional media becomes active in its region(s), this event will be raised again if and when the topLayout closes again, and will be raised every subsequent time it closes. This event is delivered to topLayout elements only and does not bubble.
topLayoutOpenEvent:
Raised when a topLayout window opens. This event is delivered to that topLayout. If a topLayout closes and then reopens when additional media becomes active in its region(s), this event will be raised again, and will be raised every subsequent time it reopens. This event is delivered to topLayout elements only and does not bubble.
stateChange(ref):
Raised by the state element. The parameter is a reference to an item in the data model. Whenever any of the referenced data model item is changed, this event is raised.
contentControlChange(attrname):
Raised by the root of the SMIL document when the named Content Control test values has changed. It does not bubble. The list of allowed values for attrname is taken from the Content Control Module attribute names. The parameterless contentControlChange event is raised as well.
contentControlChange:
Raised by the root of the SMIL document when any Content Control test value has changed. It does not bubble.

Order of raising of simultaneous events:

There will be cases where events occur simultaneously. To ensure that each SMIL 3.0 Language implementation handles them in the same order, the following order must be used to resolve ties:

  1. InBoundsEvent
  2. focusInEvent (should follow 1)
  3. OutOfBoundsEvent
  4. activateEvent (should follow 2)
  5. focusOutEvent (should follow 3)
  6. endEvent
  7. beginEvent (must follow 6)
  8. repeatEvent
  9. topLayoutCloseEvent
  10. topLayoutOpenEvent (must follow 9)
  11. stateChange
  12. contentControlChange(param)
  13. contentControlChange

Events are listed in order of precedence, e.g., if event #6 in this list occurs at the same time as event #7, then #6 must be raised prior to #7.

The InBoundsEvent, focusInEvent, OutOfBoundsEvent, activateEvent and focusOutEvent events do not bubble and are delivered to the target media element.

The beginEvent, endEvent and repeatEvent events do not bubble and are delivered to the timed element on which the event occurs.

The topLayoutOpenEvent and topLayoutCloseEvent events do not bubble and are delivered to the topLayout element on which the event occurs.

Extending the set of supported events

The SMIL 3.0 Language profile supports an extensible set of events. In order to resolve possible name conflicts with the events that are supported in this profile qualified event names are supported. Namespace prefixes are used to qualify the event names. As a result, the colon is reserved in begin and end attributes for qualifying event names.

This example is informative.

For example:

<smil ... xmlns:example="http://www.example.com">
   <img xml:id="foo" .../>
   <audio begin="foo.example:focusInEvent".../>
    ...
</smil>

Integration definitions

A SMIL document's begin time is defined as the moment a user agent begins the timeline for the overall document. A SMIL document's end time is defined as equal to the end time of the body element.

17.4.7 Content Control Modules

The Content Control Modules provide a framework for selecting content based on a set of test attributes. The Content Control Modules define semantics for the switch, prefetch, customAttributes and customTest elements. The SMIL 3.0 Language profile includes the Content Control functionality of the BasicContentControl, CustomTestAttributes, PrefetchControl, RequiredContentControl and SkipContentControl modules.

In the SMIL 3.0 Language profile, Content Control elements may have the following attributes and content model :

Content Control Module
Elements Attributes Content model
switch Core, I18n, Test, allowReorder (no | yes) 'no', customTest (( | switch)*, ((((Animation), ( | switch)*)*, (((Schedule | MediaContent | State | prefetch | a)+, ( | Animation | switch)*)+ | ((param | area (anchor)), ( | Animation | switch)*)+)) | (layout, ( | switch)*)*))
prefetch Core, I18n, Test, Timing, bandwidth '100%', clip-begin, clip-end, clipBegin, clipEnd, customTest, expr, mediaSize, mediaTime, skip-content (false | true) 'true', src ()*
customAttributes Core, I18n, skip-content (false | true) 'true' (()*, (customTest, ()*)+)
customTest Core, I18n, defaultState (false | true) 'false', override (hidden | visible) 'hidden', skip-content (false | true) 'true', uid ()*

This profile adds the switch element to the content model of the par, seq and excl elements of the Timing and Synchronization Modules, the content model of the body and the head elements of the Structure Module, the content model of the a element of the Linking Modules, and the content model of the ref, animation, audio, img, text, textstream, video and brush elements of the Media Object Modules. The profile adds the customAttributes element to the content model of the head element and the customTest element to the content model of the customAttributes element.

The Content Control functionality is used to define the Attribute set "Test":

Collection Name Attributes in Collection
Test system-bitrate, system-captions (off | on), system-language, system-overdub-or-caption (caption | overdub), system-required, system-screen-depth, system-screen-size, systemAudioDesc (off | on), systemBaseProfile, systemBitrate, systemCPU, systemCaptions (off | on), systemComponent, systemLanguage, systemOperatingSystem, systemOverdubOrSubtitle (overdub | subtitle), systemRequired, systemScreenDepth, systemScreenSize, systemVersion (3.0)

The collection of Attributes Test is added to all the elements defined in the SMIL 3.0 Language profile, except body, br, clear, customAttributes, customTest, div, head, meta, , p, span, state, submission, tev and textStyling. A SMIL 3.0 user agent must support all of the values for the systemOperatingSystem and systemCPU attributes listed in the Content Control Modules. In addition, the user agent should accept namespaced values as future extensions, and not declare a syntax error. The user agent should return false for unrecognized values of the systemOperatingSystem and systemCPU attributes.

17.4.8 Layout Modules

The Layout Modules provide a framework for spatial layout of visual components. The Layout Modules define semantics for the region, root-layout, topLayout, layout and the regPoint elements. The SMIL 3.0 Language profile includes the Layout functionality of the AlignmentLayout Module, AudioLayout Module, BackgroundTilingLayout Module, BasicLayout Module, MultiWindowLayout Module, OverrideLayout Module, StructureLayoutModule, SubRegionLayout Module modules.

In the SMIL 3.0 Language profile, Layout elements may have the following attributes and content model :

Layout Module
Elements Attributes Content model
region Core, I18n, MediaOpacityAttributes, SubregionAttributes, Test, TextAttributes, background-color, backgroundImage 'none', backgroundRepeat (inherit | noRepeat | repeat | repeatX | repeatY) 'repeat', customTest, erase (never | whenDone) 'whenDone', panZoom, regionName, sensitivity 'opaque', showBackground (always | whenActive) 'always', skip-content (false | true) 'true', soundLevel '+0.0dB', textAlign (center | end | inherit | left | right | start) 'inherit', textDirection (inherit | ltr | ltro | rtl | rtlo) 'inherit', textMode (append | crawl | inherit | jump | replace | scroll) 'inherit', textPlace (center | end | inherit | start) 'inherit', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' ( | region)*
root-layout Core, I18n, Test, background-color, backgroundColor, backgroundImage 'none', backgroundOpacity '100%', backgroundRepeat (inherit | noRepeat | repeat | repeatX | repeatY) 'repeat', customTest, height 'auto', skip-content (false | true) 'true', width 'auto' ()*
topLayout Core, I18n, Test, backgroundColor, backgroundImage 'none', backgroundOpacity '100%', backgroundRepeat (inherit | noRepeat | repeat | repeatX | repeatY) 'repeat', close (onRequest | whenNotActive) 'onRequest', customTest, height 'auto', open (onStart | whenActive) 'onStart', skip-content (false | true) 'true', width 'auto' ( | region)*
layout Core, I18n, Test, customTest, type 'text/smil-basic-layout' ( | region | root-layout | topLayout | regPoint)*
regPoint Core, I18n, Test, bottom 'auto', customTest, left 'auto', regAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), right 'auto', skip-content (false | true) 'true', top 'auto' ()*

The "background-color" attribute of SMIL1.0 is deprecated in favor of "backgroundColor", but both are supported.

The attribute collection SubregionAttributes is defined as follows:

Collection Name Attributes in Collection
SubregionAttributes backgroundColor, backgroundOpacity '100%', bottom 'auto', fit (fill | hidden | meet | meetBest | scroll | slice), height 'auto', left 'auto', mediaAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), regAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), regPoint, right 'auto', soundAlign (both | left | right), top 'auto', width 'auto', z-index

This profile adds the layout element to the content model of the head element of the Structure Module. It also adds this element to the content model of the switch element of the Content Control Modules, when the switch element is a child of the head element.

17.4.9 smilText Modules

The smilText Modules provide a light-weight method of adding in-line text to a SMIL presentation. The smilText Modules define semantics for the smilText, tev, clear, br, span, p, div, textStyle, textStyling elements and their attributes. The SMIL 3.0 Language profile includes the smilText functionality of the BasicText, TextStyling and TextMotion modules.

In the SMIL 3.0 Language profile, SMILtext elements may have the following attributes and content model:

Text Module
Elements Attributes Content model
smilText Core, I18n, MediaDescriptionAttributes, MediaOpacityAttributes, Test, TextAttributes, Timing, backgroundColor, backgroundOpacity '100%', bottom 'auto', customTest, endsync 'media', erase (never | whenDone) 'whenDone', expr, fill (auto | default | freeze | hold | remove | transition) 'default', fit (fill | hidden | meet | meetBest | scroll | slice), height 'auto', left 'auto', mediaAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), paramGroup, regAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), regPoint, region, right 'auto', sensitivity 'opaque', skip-content (false | true) 'true', tabindex, textAlign (center | end | inherit | left | right | start) 'inherit', textConceal (both | final | inherit | initial | none) 'inherit', textMode (append | crawl | inherit | jump | replace | scroll) 'inherit', textPlace (center | end | inherit | start) 'inherit', textRate 'auto', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit', top 'auto', transIn, transOut, width 'auto', z-index (#PCDATA | br | clear | div | | p | param | span | tev)
tev Core, I18n, begin, next ()*
clear Core, I18n, begin, next ()*
br Core, I18n ()*
div Core, I18n, MediaDescriptionAttributes, TextAttributes, textAlign (center | end | inherit | left | right | start) 'inherit', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' (#PCDATA | br | clear | div | | p | span | tev)
p Core, I18n, MediaDescriptionAttributes, TextAttributes, textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' (#PCDATA | br | clear | | span | tev)
span Core, I18n, MediaDescriptionAttributes, TextAttributes, textDirection (inherit | ltr | ltro | rtl | rtlo) 'inherit', textWrapOption (inherit | noWrap | wrap) 'wrap' (#PCDATA | br | clear | | span | tev)
textStyle Core, I18n, Test, TextAttributes, textAlign (center | end | inherit | left | right | start) 'inherit', textConceal (both | final | inherit | initial | none) 'inherit', textDirection (inherit | ltr | ltro | rtl | rtlo) 'inherit', textMode (append | crawl | inherit | jump | replace | scroll) 'inherit', textPlace (center | end | inherit | start) 'inherit', textRate 'auto', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' ()*
textStyling Core, I18n (()*, (textStyle, ()*)+)

This profile adds the smilText element to the content model of the par, seq, excl and priorityClass elements of the Timing and Synchronization Modules. It also adds the elements to the content model of the body element of the Structure Module, to the content model of the a element of the Linking Modules and to the content model of the switch element of the Content Control Modules.

The SMILtext functionality is used to define the Attribute set "TextAttributes":

Collection Name Attributes in Collection
TextAttributes textBackgroundColor 'transparent', textColor, textFontFamily 'inherit', textFontSize 'inherit', textFontStyle (inherit | italic | normal | oblique | reverseOblique) 'inherit', textFontWeight (bold | inherit | normal) 'inherit', textStyle, xml:space (default | preserve) 'default'

17.4.10 Linking Modules

The Linking Modules provide a framework for relating documents to content, documents and document fragments. The Linking Modules define semantics for the a and area (anchor) elements. They define also the semantics of a set of attributes defined for these elements. The SMIL 3.0 Language profile includes the Linking functionality of the BasicLinking, LinkingAttributes and ObjectLinking modules.

Both the a and area elements have an href attribute, whose value must be a valid URI.

Support for URIs with XPointer fragment identifier syntax is not required.

In the SMIL 3.0 Language profile, Linking elements may have the following attributes and content model :

Linking Module
Elements Attributes Content model
a BasicTiming, Core, I18n, Test, accesskey, actuate (onLoad | onRequest) 'onRequest', customTest, destinationLevel '+0.0dB', destinationPlaystate (pause | play) 'play', external (false | true) 'false', href, show (new | pause | replace) 'replace', sourceLevel '+0.0dB', sourcePlaystate (pause | play | stop), tabindex, target (Animation | ContentControl | MediaContent | Schedule | State | )*
area (anchor) BasicTiming, Core, I18n, Test, accesskey, actuate (onLoad | onRequest) 'onRequest', coords, customTest, destinationLevel '+0.0dB', destinationPlaystate (pause | play) 'play', expr, external (false | true) 'false', fragment, href, nohref (nohref), shape (circle | default | poly | rect) 'rect', show (new | pause | replace) 'replace', skip-content (false | true) 'true', sourceLevel '+0.0dB', sourcePlaystate (pause | play | stop), tabindex, target (animate | | set)*

This profile adds the a element to the content model of the par, seq and excl elements of the Timing and Synchronization Modules. It also adds the elements to the content model of the body element of the Structure Module and to the content model of the switch element of the Content Control Modules.

In the SMIL 3.0 language profile, a value of onLoad set on the attribute actuate indicates that the link is automatically traversed when the linking element becomes active. For linking elements containing SMIL timing, this is when the active duration of the linking element begins.

The attribute tabindex specifies the position of the element in the tabbing order at a particular instant for the current document. The tabbing order defines the order in which elements will receive focus when navigated by the user via an input device such as a keyboard. At any particular point in time, only active elements are taken into account for the tabbing order; inactive elements are ignored.

When a media object element has a tabindex attribute and becomes active, then its ordered tab index is inserted in the SMIL tab index at the location specified by the media object's tabindex attribute value. This assumes that the media object itself has tab indices, such as embedded HTML with tabindex attributes. This enables all link starting points in a SMIL presentation to have a place on the ordered list to be tab-keyed through, including those in embedded presentations.

For SMIL 1.0 backward compatibility, the anchor element is available but deprecated in favor of area. The anchor element supports the same attributes as area, both the new SMIL 3.0 attributes and the SMIL 1.0 attributes as defined in [SMIL10].

SMIL 1.0 backward compatibility: The show attribute value pause is deprecated in favor of setting the show attribute to new and the sourcePlaystate attribute to pause.

17.4.11 Metainformation Module

The Metainformation Module provides a framework for describing a document, either to inform the human user or to assist in automation. The Metainformation Module defines semantics for the meta and elements. The SMIL 3.0 Language profile includes the Metainformation functionality of the Metainformation module.

In the SMIL 3.0 Language profile, Metainformation elements may have the following attributes and content model :

Metainformation Module
Elements Attributes Content model
meta Core, I18n, content, name, skip-content (false | true) 'true' EMPTY
Core, I18n, skip-content (false | true) 'true' EMPTY

This profile adds the meta and elements to the content model of all elements except meta, and state.

The content model of metadata is empty. Profiles that extend the SMIL 3.0 Language profile may define the RDF (Resource Description Framework) schema to be used in extending the content model of the metadata element. The Resource Description Framework is defined in the W3C RDF Recommendation [RDFsyntax]. Other XML-based metadata formats may also be included in a smiliar manner. Note that if any content is added to the element, a DOCTYPE must not be declared in the document.

17.4.12 Transition Effects Modules

The Transition Modules provide a framework for describing transitions such as fades and wipes. The Transition Modules define semantics for the transition element and the transIn and transOut attributes. The SMIL 3.0 Language profile includes the functionality of the BasicTransitions, TransitionModifiers and the FullScreenTransitions Module modules.

In the SMIL 3.0 Language profile, Transition Effects elements have the following attributes and content model :

Transition Effects Module
Elements Attributes Content model
transition Core, I18n, Test, borderColor 'black', borderWidth '0', customTest, direction (forward | reverse) 'forward', dur, endProgress '1.0', fadeColor 'black', horzRepeat '1', scope (region | screen) 'region', skip-content (false | true) 'true', startProgress '0.0', subtype (bottom | bottomCenter | bottomLeft | bottomLeftClockwise | bottomLeftCounterClockwise | bottomLeftDiagonal | bottomRight | bottomRightClockwise | bottomRightCounterClockwise | bottomRightDiagonal | centerRight | centerTop | circle | clockwiseBottom | clockwiseBottomRight | clockwiseLeft | clockwiseNine | clockwiseRight | clockwiseSix | clockwiseThree | clockwiseTop | clockwiseTopLeft | clockwiseTwelve | cornersIn | cornersOut | counterClockwiseBottomLeft | counterClockwiseTopRight | crossfade | diagonalBottomLeft | diagonalBottomLeftOpposite | diagonalTopLeft | diagonalTopLeftOpposite | diamond | doubleBarnDoor | doubleDiamond | down | fadeFromColor | fadeToColor | fanInHorizontal | fanInVertical | fanOutHorizontal | fanOutVertical | fivePoint | fourBlade | fourBoxHorizontal | fourBoxVertical | fourPoint | fromBottom | fromLeft | fromRight | fromTop | heart | horizontal | horizontalLeft | horizontalLeftSame | horizontalRight | horizontalRightSame | horizontalTopLeftOpposite | horizontalTopRightOpposite | keyhole | left | leftCenter | leftToRight | oppositeHorizontal | oppositeVertical | parallelDiagonal | parallelDiagonalBottomLeft | parallelDiagonalTopLeft | parallelVertical | rectangle | right | rightCenter | sixPoint | top | topCenter | topLeft | topLeftClockwise | topLeftCounterClockwise | topLeftDiagonal | topLeftHorizontal | topLeftVertical | topRight | topRightClockwise | topRightCounterClockwise | topRightDiagonal | topToBottom | twoBladeHorizontal | twoBladeVertical | twoBoxBottom | twoBoxLeft | twoBoxRight | twoBoxTop | up | vertical | verticalBottomLeftOpposite | verticalBottomSame | verticalLeft | verticalRight | verticalTopLeftOpposite | verticalTopSame), type (arrowHeadWipe | audioFade | audioVisualFade | barWipe | barnDoorWipe | barnVeeWipe | barnZigZagWipe | bowTieWipe | boxSnakesWipe | boxWipe | clockWipe | diagonalWipe | doubleFanWipe | doubleSweepWipe | ellipseWipe | eyeWipe | fade | fanWipe | fourBoxWipe | hexagonWipe | irisWipe | miscDiagonalWipe | miscShapeWipe | parallelSnakesWipe | pentagonWipe | pinWheelWipe | pushWipe | roundRectWipe | saloonDoorWipe | singleSweepWipe | slideWipe | snakeWipe | spiralWipe | starWipe | triangleWipe | veeWipe | waterfallWipe | windshieldWipe | zigZagWipe), vertRepeat '1' ()*

This profile adds the transition element to the content model of the head element of the Structure Module.

The Transition Effects Modules add transIn and transOut attributes to ref, animation, audio, img, text, textstream, video and brush elements of the Media Object Modules.

The Transition Effects Modules add the transition value to the fill attribute for all elements on which this value of the fill attribute is supported.

17.4.13 Animation Module

The Animation Module provides a framework for incorporating animation into a timing framework, and a mechanism for composing the effects of multiple animations. The Animation Module uses the timing modules included in this profile for the underlying model of time. The SMIL 3.0 Language profile includes the animation functionality of the BasicAnimation module. The BasicAnimation Module defines the semantics for the animate, set, animateMotion and animateColor elements.

In the SMIL 3.0 Language profile, Animation elements may have the following attributes and content model :

Animation Module
Elements Attributes Content model
animate BasicTiming, Core, I18n, Test, accumulate (none | sum) 'none', additive (replace | sum) 'replace', attributeName, attributeType (CSS | XML | auto) 'auto', by, calcMode (discrete | linear | paced) 'linear', customTest, expr, fill (auto | default | freeze | hold | remove | transition) 'default', fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', from, restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true', targetElement, to, values ()*
set BasicTiming, Core, I18n, Test, attributeName, attributeType (CSS | XML | auto) 'auto', customTest, expr, fill (auto | default | freeze | hold | remove | transition) 'default', fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true', targetElement, to ()*
animateMotion BasicTiming, Core, I18n, Test, accumulate (none | sum) 'none', additive (replace | sum) 'replace', by, calcMode (discrete | linear | paced) 'linear', customTest, expr, fill (auto | default | freeze | hold | remove | transition) 'default', fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', from, origin (default) 'default', restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true', targetElement, to, values ()*
animateColor BasicTiming, Core, I18n, Test, accumulate (none | sum) 'none', additive (replace | sum) 'replace', attributeName, attributeType (CSS | XML | auto) 'auto', by, calcMode (discrete | linear | paced) 'linear', customTest, expr, fill (auto | default | freeze | hold | remove | transition) 'default', fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', from, restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true', targetElement, to, values ()*

This profile adds the animate, set, animateMotion and animateColor elements to the content model of the par, seq, excl and priorityClass elements of the Timing and Synchronization Modules. It also adds these elements to the content model of the body element of the Structure Module, to the content model of the a element of the Linking Modules and to the content model of the switch element of the Content Control Modules.

Specifying the target element of the animation

The animation target elements supported in the SMIL 3.0 Language profile are the region element defined in the Layout Modules, the area (anchor) element defined in the Linking Modules and the ref, animation, audio, img, text, textstream, video and the brush elements defined in the Media Objects modules.

The SMIL 3.0 Language profile uses the targetElement attribute to identify the element to be affected by animation elements. As recommended in the BasicAnimation Module when the targetElement attribute is supported, this profile excludes the XLink attributes href, type, actuate and show from the animate, set, animateMotion and animateColor elements.

Specifying the target attribute of the animation

The target attributes of the animations are a subset of those of the region, area (anchor) and media elements. The animatable attributes of the region, area (anchor) and media elements are listed in the table below.

The area (anchor) element has the coords attribute which may be subject to animation. The attribute coords is considered of type string in this profile. This means that only discrete non-additive animation is supported on this attribute.

The media elements have the following sub-region attributes which may be subject to animation: left, right, top, bottom, width, height, z-index and backgroundColor.

Elements Target Element Target Attributes
animate region soundLevel, left, right, top, bottom, width, height, z-index, backgroundColor (background-color), panZoom, regionName
area (anchor) coords (string)
text, img, audio, animation, video, ref, textstream left, right, top, bottom, width, height, z-index, backgroundColor, panZoom
brush left, right, top, bottom, width, height, z-index, backgroundColor, color
set region soundAlign, soundLevel, left, right, top, bottom, width, height, z-index, backgroundColor (background-color), panZoom, regionName
area (anchor) coords (string)
text, img, audio, animation, video, ref, textstream left, right, top, bottom, width, height, z-index, backgroundColor, panZoom
brush left, right, top, bottom, width, height, z-index, color
animateMotion region Animates the top and left attributes of the region.
text, img, audio, animation, video, ref, textstream Animates the top and left attributes of the sub-region associated with the media element.
animateColor region backgroundColor (background-color)
text, img, audio, animation, video, ref, textstream backgroundColor
brush color

Integration definitions

The SMIL 3.0 Language profile defines a set of integration definitions as required by the Animation modules. These definitions are:

17.4.14 State Modules

The State Modules provide a framework for declaratively manipulating various bits of state in a SMIL presentation. The State Modules define semantics for the delvalue, newvalue, send, setvalue, state and submission elements and the action, expr, language, method, name, ref, replace, submission and value attributes. The SMIL 3.0 Language profile includes the State functionality of the StateTest, UserState, StateSubmission, StateInterpolation modules.

In the SMIL 3.0 Language profile, the State elements may have the following attributes and content model:

State Module
Elements Attributes Content model
delvalue BasicTiming, Core, I18n, Test, customTest, expr, fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', ref, restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true' ()*
newvalue BasicTiming, Core, I18n, Test, customTest, expr, fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', name, ref '/*', restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true', value, where (after | before | child) 'child' ()*
send BasicTiming, Core, I18n, Test, customTest, expr, fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true', submission ()*
setvalue BasicTiming, Core, I18n, Test, customTest, expr, fillDefault (auto | freeze | hold | inherit | remove | transition) 'inherit', ref, restart (always | default | never | whenNotActive) 'default', restartDefault (always | inherit | never | whenNotActive) 'inherit', skip-content (false | true) 'true', value ()*
state Core, I18n, language 'http://www.w3.org/TR/1999/REC-xpath-19991116', skip-content (false | true) 'true', src EMPTY
submission Core, I18n, action, method (get | post | put), ref, replace (all | instance | none), target ()*

This profile adds the state and submission elements to the content model of the head element of the Structure Module, and the setvalue, newvalue, delvalue and send elements to the content model of the body, switch, a, par, seq, excl, priorityClass elements. It also adds the expr attribute to all timed elements within the content model of the body element.

The content model of the state element is declared as empty. The state element defines the data model of the SMIL State engine using the language defined by the language attribute. If that language is XPath 1.0 the contents of the state element is an XML document that is not imported into SMIL 3.0 but needs to be declared using a namespace prefix. For other languages the contents of the state element are probably CDATA. Note that if any content is added to the state element, a DOCTYPE must not be declared in the document.

The submission attribute value is an IDREF that refers to a submission element.

The method attribute must at least support the values get, put and post. Serialization and submission must follow the description of these methods in [XFORMS10], section 11.2. Support for other methods described in that document is optional.

Interpolation of values using the mechanism from the StateInterpolation module is supported on the attributes for which animation is supported. Interpolation is also supported on the src, href, clipBegin and clipEnd attributes. Interpolation is disallowed on the Timing and Synchronization attributes. Use of interpolation on other attributes is implementation-dependent.

Expression Language and Data Model

Support for using XPath 1.0 as the expression language is required. Support for other languages is implementation-defined. The default value for the language attribute is http://www.w3.org/TR/1999/REC-xpath-19991116, which denotes the use of XPath 1.0 as the expression language.

When using XPath as the expression language, the content of the state element must be a single XML document. If this document is empty at initialization time a single empty <data/> root element is added.

When using XPath as the expression language the following constraints are in force:

Interpretation of XPath expressions depends on an expression context. That context is defined thus:

17.5 Appendix A: SMIL 3.0 Document Type Definition

This section is normative.

The SMIL 3.0 Language profile Document Type Definition is defined as a set of SMIL 3.0 modules. All SMIL 3.0 modules are integrated according to the guidelines in the W3C Note "Synchronized Multimedia Modules based upon SMIL 1.0" [SMIL-MOD], and defined within their respective module sections.

17.6 Appendix B: Recommended MIME Types

This section is normative.

The following royalty-free media formats should be supported:

While many SMIL user agents support speciality media types for streaming audio and video content, SMIL user agent developers are also encouraged to support the following non-royalty-free media formats to further interoperability of SMIL content:

Since both of these technologies are not freely available to user agent developers, the actual availability will remain player dependent.

This section is informative.

Authors are encouraged to encode media objects using one of the recommended MIME types whenever possible. This will ensure that their SMIL documents can be played back by a wide range of SMIL user agents.

Note that the MIME type for Ogg Vorbis audio and Ogg Theora video are listed as application/ogg. The Xiph.org Foundation has decided that it wants to change the MIME types of the various formats it defines, so this MIME type may change in the future.

If authors use a MIME type that is not in the list of recommended types, they should provide an alternative version encoded using a baseline format. This may be achieved by using a switch element as shown in the following example:

<switch>
  <audio src="non-baseline-format-object" ... />
  <audio src="baseline-format-object" ... />
</switch>

In this example, a user agent that supports the non-baseline format will play the first audio media object, and a user agent that does not support the non-baseline format will play the second media object.

Implementers are encouraged to implement support for other license-free codecs as this will probably lead to enhanced interoperability.

17.6.1 JPEG Support

This section is informative.

SMIL 3.0 follows the lead of SVG Tiny in the way JPEG is required. The normative text is adapted from [SVGMobile12-JPEG].

This section specifies the JPEG support recommended by a SMIL 3.0 implementations. The recommended support is targeted at specifying a level of functionality known to be compatibly supported within the industry and without licensing issues.

In general when people refer to JPEG [JPEG], they actually mean JPEG compressed images within the JFIF [JFIF] file format. JFIF was created by the Independent JPEG Group (IJG) for storing a single JPEG-compressed image in a file.

SMIL 3.0 User Agents should support JPEG images stored in a JFIF file [JFIF]. Other transport or storage mechanisms may be supported.

The following coding processes defined by the JPEG specification [JPEG], in Table 1, section 4.11, should be supported:

The following statements also apply:

The following encoding processes may be supported

SMIL 3.0 UA's should convert Y,Cb,Cr values compressed in the JPEG image to RGB as defined in the JFIF specification [JFIF] and may assume that the RGB values are sRGB.

18. SMIL 3.0 UnifiedMobile Profile

Editors for SMIL 3.0
Dick C.A. Bulterman, CWI
Marcin Hanclik, ACCESS Co., Ltd.
Thierry Michel, W3C
Daniel F. Zucker, Nokia.
Editors for Earlier Versions of SMIL
Dick C.A. Bulterman, CWI
Aaron Cohen, Intel
Michelle Kim, IBM.
Nabil Layaïda, INRIA
Kenichi Kubota, Panasonic
Jacco Van Ossenbruggen, CWI
Daniel F. Zucker, ACCESS Co., Ltd.

18.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 UnifiedMobile profile integrates the functionalities of the SMIL 2.1 Mobile [SMIL21-mobile-profile] and SMIL 2.1 Extended Mobile [SMIL21-extended-mobile-profile] profiles, and aligns the specification with newly structured existing functionality, plus extends the functionalities available in SMIL 2.1 with modules introduced in SMIL 3.0.

The following modules used in earlier mobile profiles were changed for SMIL 3.0:

Restructuring of existing SMIL 2.1 functionality in SMIL 3.0 has resulted in the inclusion of the following new modules:

The following modules contain new or expanded functionality in the UnifiedMobile profile in SMIL 3.0:

In addition to new and changed modules, this version of SMIL also has a new requirement about the media formats that are to be supported by user agents.

18.2 Abstract

This section is normative.

The SMIL 3.0 UnifiedMobile profile is a collection of SMIL 3.0 modules that provide extensive support for the SMIL 3.0 Language within the context of a representative (for 2008) mobile device. Such a device is expected to have a high-resolution display and sufficient memory and processor capacity to render nontrival SMIL documents. Although not as complete as the full SMIL 3.0 Language Profile, the SMIL 3.0 UnifiedMobile profile is rich enough to meet the needs of a wide range of interactive presentations.

The functionality of the SMIL 3.0 UnifiedMobile profile may be extended or reduced by using the SMIL 3.0 Scalability Framework.

The W3C Synchronized Multimedia Working Group (SYMM) recognizes that many mobile handsets will be configured according to the specifications of other industry standards organizations. The UnifiedMobile profile has been developed in part to give these organizations guidance on the functionality within SMIL that the SYMM working groups feels appropriate for consideration in specifications that are based (in part) on this document.

18.3 Introduction to the SMIL 3.0 UnifiedMobile Profile

This section is informative.

The SMIL 3.0 UnifiedMobile profile is defined as a markup language. The syntax of this language is formally described with a document type definition (DTD) or an XML Schema which is based on the SMIL modules as defined in "The SMIL 3.0 Modules".

The UnifiedMobile profile design requirements are:

  1. Ensure that the profile is backward compatible with the SMIL 2.1 Mobile and Extended Mobile Profiles.
  2. Ensure that the profile is a proper subset of the SMIL 3.0 Language Profile.

18.3.1 Relationship with the 3GPP2 SMIL Language Profile

The Third Generation Partnership Project 2 (3GPP2) [3GPP2] defines its own SMIL language profile. The revision A of the 3GPP2 SMIL File Formats for Multimedia Services, defines the SMIL profile including some additional modules compared to the 3GPP SMIL profile [3GPP26.234R5]; AccessKeyTiming Module, MultiArcTiming Module, BasicAnimation Module and AudioLayout Module. A future revision of it may incorporate SMIL 3.0.

The UnifiedMobile profile includes all modules of 3GPP2 revision A SMIL, plus: BasicExclTimeContainers Module, SubRegionLayout Module, BackgroundTilingLayout Module, AlignmentLayout Module, OverrideLayout Module, FullScreenTransitions Module, BasicText Module, TextStyling Module, TextMotion Module, SMIL DOM Module, MediaPanZoom Module and the BrushMedia Module.

Note: because of the repartitioning of some SMIL modules (such as BasicContentControl and BasicLayout), 3GPP and SMIL 3.0 are no longer aligned with respect to module definition, but the collection of elements and attributes have not changed.

18.4 Normative Definition of the UnifiedMobile Profile

This section is normative.

In the text in this profile specification, the term UnifiedMobile Profile will be considered to refer exclusively to the SMIL 3.0 UnifiedMobile profile as defined in this document.

18.4.1 SMIL 3.0 UnifiedMobile Profile Conformance

The definition of conformance for a SMIL 3.0 profile is given in the Definitions section of the SMIL 3.0 Scalability Framework. Based on these definitions, the UnifiedMobile profile is a Strict Host-Language Conformant SMIL 3.0 Profile.

Within the referenced sections of the Scalability Framework, the following definitions should be used:

  1. The profile identification string for the UnifiedMobile profile is: http://www.w3.org/2008/SMIL30/UnifiedMobile.
  2. Documents written for the UnifiedMobile profile must declare the default SMIL namespace with the xmlns attribute on the smil root element. For SMIL 3.0, this is:
    xmlns="http://www.w3.org/ns/SMIL"
  3. The SMIL 3.0 UnifiedMobile profile DOCTYPE is:
    <!DOCTYPE smil PUBLIC "-//W3C//DTD SMIL 3.0 UnifiedMobile//EN"
    "http://www.w3.org/2008/SMIL30/SMIL30UnifiedMobile.dtd">
    If a document contains this declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD (or in the corresponding XML or RelaxNG schemas) are not allowed. If the document is invalid, the user agent should issue an error.
  4. The identification string for the non-normative DTD used for integration of errata is:
    http://www.w3.org/2008/SMIL30/informative-DTD/SMIL30UnifiedMobile.dtd
  5. Documents written for the UnifiedMobile Profile must declare (explicitly or implicitly via the DTD) the following values for the version and baseProfile attributes:
    version="3.0" baseProfile="UnifiedMobile"
    As a consequence of the two requirements above, the effective root element declaration for a UnifiedMobile profile document must be:
    <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="UnifiedMobile">
         ...
    </smil>
    The root element may be extended as required with additional atttributes.

This version of SMIL provides a definition of strict host-language conformant SMIL 3.0 documents, which are restricted to tags and attributes from the SMIL 3.0 namespace. The Section "Extending/Restricting a SMIL 3.0 Profile" provides information on using the SMIL 3.0 UnifiedMobile profile with other namespaces, for instance, on including new tags within SMIL 3.0 documents.

Language designers and implementors wishing to extend the UnifiedMobile profile must consider the implications of the use of namespace extension syntax. Please consult the section on Scalable Profiles for restrictions and recommendations for best practice when extending SMIL.

18.4.2 SMIL 3.0 UnifiedMobile Profile User Agent Conformance

The definition of user agent conformance for SMIL 3.0 UnifiedMobile profile documents is given in the Conforming SMIL 3.0 User Agents section of the SMIL 3.0 Scalability Framework. Conforming UnifiedMobile profile user agents must adhere completely to this section.

18.4.3 The SMIL 3.0 UnifiedMobile Profile

The UnifiedMobile profile supports the multimedia document features appropriate for mobile platforms. It uses only modules from the SMIL 3.0 recommendation. This profile includes the following SMIL 3.0 modules:

The collection names contained in the following table define the UnifiedMobile profile vocabulary.

SMIL 3.0 UnifiedMobile Profile
Collection Name Elements in Collection
Animation animate, animateColor, animateMotion, set
ContentControl prefetch, switch
Layout region, root-layout, layout, regPoint
LinkAnchor a, area [anchor]
MediaContent animation, audio, img, ref, text, textstream, video
Metainformation meta,
Structure smil, head, body
Schedule excl, par, seq
Transition transition

In the following sections, we define the set of elements and attributes used in each of the modules included in the UnifiedMobile profile. The content model for each element is described. The content model of an element is a description of elements which may appear as its direct children. The special content model "EMPTY" means that a given element may not have children.

Collection Name Attributes in Collection
Core alt (CDATA), baseProfile 'UnifiedMobile', class (CDATA), label (CDATA), longdesc (CDATA), readIndex '0', title (CDATA), version (3.0) '3.0', xml:base (CDATA) [XMLBase], xml:id (id) (ID)
I18n its:dir (lro | ltr | rlo | rtl), its:locNote (CDATA), its:locNoteRef (CDATA), its:locNoteType (alert | description), its:term (no | yes), its:termInfoRef (CDATA), its:translate (no | yes), xml:lang (CDATA)

The xml:id and id attribute are used in the UnifiedMobile Profile to assign a unique XML identifier to every element in a SMIL document. The xml:id and id attributes are equivalent and must not both be used on an element. The xml:id should be used in preference to the id attribute.
When the document uses the SMIL 3.0 UnifiedMobile Profile DOCTYPE, only xml:id must be used.

The xml:id, [id], class and title attributes in the collection Core are defined for all the elements of the SMIL3.0 UnifiedMobile profile.

In this document, equivalent but deprecated attributes and elements are in square brakets.

A conforming UnifiedMobile profile document should not use the SMIL 1.0 attributes that have been depreciated in SMIL 2.0. UnifiedMobile profile implementations are not required to support these attributes. This would be considered an unjustified burden for the targeted constraint devices. The unsupported depreciated SMIL 1.0 attributes are the following: anchor, background-color, clip-begin, clip-end, repeat; and the additional depreciated test attributes of Content Control: system-bitrate, system-captions, system-language, system-required, system-screen-size, and, system-screen-depth.

18.4.4 Animation Module

The Animation Module provides a framework for incorporating animation into a timing framework, and a mechanism for composing the effects of multiple animations. The Animation Module uses the timing modules included in this profile for the underlying model of time. The UnifiedMobile profile includes the Animation functionality of the BasicAnimation module. The BasicAnimation Module defines the semantics for the animate, set, animateMotion and animateColor elements.

In the UnifiedMobile profile, Animation elements may have the following attributes and content model :

Animation Module
Elements Attributes Content model
animate Core, I18n, Test, Timing, accumulate (none | sum) 'none', additive (replace | sum) 'replace', attributeName, attributeType (CSS | XML | auto) 'auto', by, calcMode (discrete | linear | paced) 'linear', fill (auto | default | freeze | hold | remove | transition) 'default', from, skip-content (false | true) 'true', targetElement, to, values ()*
animateColor Core, I18n, Test, Timing, accumulate (none | sum) 'none', additive (replace | sum) 'replace', attributeName, attributeType (CSS | XML | auto) 'auto', by, calcMode (discrete | linear | paced) 'linear', fill (auto | default | freeze | hold | remove | transition) 'default', from, skip-content (false | true) 'true', targetElement, to, values ()*
animateMotion Core, I18n, Test, Timing, accumulate (none | sum) 'none', additive (replace | sum) 'replace', by, calcMode (discrete | linear | paced) 'linear', fill (auto | default | freeze | hold | remove | transition) 'default', from, origin (default) 'default', skip-content (false | true) 'true', targetElement, to, values ()*
set Core, I18n, Test, Timing, attributeName, attributeType (CSS | XML | auto) 'auto', fill (auto | default | freeze | hold | remove | transition) 'default', skip-content (false | true) 'true', targetElement, to ()*

This profile adds the animate, set, animateMotion and animateColor elements to the content model of the par, seq, and excl elements of the Timing and Synchronization Modules. It also adds these elements to the content model of the body element of the Structure Module.

Specifying the target element of the animation

The animation target elements supported in the UnifiedMobile profile are the region element defined in the Layout Modules, the area [anchor] element defined in the Linking Modules and the text, img, audio, animation, video, ref, textstream and the brush elements defined in the Media Objects modules.

The SMIL UnifiedMobile profile uses the targetElement attribute to identify the element to be affected by animation elements. As recommended in the BasicAnimation Module when the targetElement attribute is supported, this profile excludes the XLink attributes href, type, actuate and show from the animate, set, animateMotion and animateColor elements.

Specifying the target attribute of the animation

The target attributes of the animations are a subset of those of the region, area [anchor], and media elements. The animatable attributes of the region, area [anchor], and media elements are listed in the table below.

The area [anchor] element has the coords attribute which may be subject to animation. The attribute coords is considered of type string in this profile. This means that only discrete non-additive animation is supported on this attribute.

Media elements have the following region attributes which may be subject to animation: left, right, top, bottom, width, height, z-index and backgroundColor [background-color].

Elements Target Element Target Attributes
animate region soundLevel, left, right, top, bottom, width, height, z-index, backgroundColor [background-color], regionName
area [anchor] coords(string)
text, img, audio, animation, video, ref, textstream left, right, top, bottom, width, height, z-index, backgroundColor [background-color]
brush left, right, top, bottom, width, height, z-index, backgroundColor [background-color], color
set region soundAlign, soundLevel, left, right, top, bottom, width, height, z-index, backgroundColor [background-color], regionName
area [anchor] coords(string)
text, img, audio, animation, video, ref, textstream left, right, top, bottom, width, height, z-index, backgroundColor [background-color]
brush left, right, top, bottom, width, height, z-index, color
animateMotion region Animates the top and left attributes of the region.
text, img, audio, animation, video, ref, textstream Animates the top and left attributes of the sub-region associated with the media element.
animateColor region backgroundColor [background-color]
text, img, audio, animation, video, ref, textstream backgroundColor [background-color]
brush color

Integration definitions

The UnifiedMobile profile defines a set of integration definitions as required by the Animation modules. These definitions are:

18.4.5 Content Control Modules

The Content Control Modules provide a framework for selecting content based on a set of test attributes. The Content Control Modules define semantics for the switch and prefetch elements. The UnifiedMobile profile includes the Content Control functionality of the BasicContentControl, RequiredContentControl Module, PrefetchControl and SkipContentControl modules.

In the UnifiedMobile profile, Content Control elements may have the following attributes and content model :

Content Control Module
Elements Attributes Content model
prefetch Core, I18n, Test, Timing, bandwidth '100%', clipBegin, clipEnd, mediaSize, mediaTime, skip-content (false | true) 'true', src ()*
switch Core, I18n, Test, allowReorder (no | yes) 'no' (( | switch)*, ((((Animation), ( | switch)*)*, (((Schedule | MediaContent | brush | smilText | prefetch | a)+, ( | Animation | switch)*)+ | ((param | area), ( | Animation | switch)*)+)) | (layout, ( | switch)*)*))

This profile adds the switch element to the content model of the par, seq and excl elements of the Timing and Synchronization Modules, of the body and the head elements of the Structure Module, of the content model of the a element of the Linking Modules.

Content Control functionality is used to define the attribute set Test:

Collection Name Attributes in Collection
Test systemAudioDesc (off | on), systemBaseProfile, systemBitrate, systemCPU, systemCaptions (off | on), systemComponent, systemLanguage, systemOperatingSystem, systemOverdubOrSubtitle (overdub | subtitle), systemRequired, systemScreenDepth, systemScreenSize, systemVersion (3.0)

The Test attributes collection is added to all the elements defined in the UnifiedMobile profile. An UnifiedMobile user agent must support all of the values for the systemOperatingSystem and systemCPU attributes listed in the Content Control Modules. In addition, the user agent should accept namespaced values as future extensions, and not declare a syntax error. The user agent should return false for unrecognized values of the systemOperatingSystem and systemCPU attributes.

18.4.6 Layout Modules

The Layout Modules provide a framework for spatial layout of visual components. The Layout Modules define semantics for the region, root-layout, layout and the regPoint elements. The UnifiedMobile Profile includes the Layout functionality of the BasicLayout, StructureLayout Module, AudioLayout, SubRegionLayout, BackgroundTilingLayout, AlignmentLayout, OverrideLayout modules.

In the UnifiedMobile profile, Layout elements may have the following attributes and content model :

Layout Module
Elements Attributes Content model
layout Core, I18n, Test, type 'text/smil-basic-layout' ( | region | root-layout | regPoint)*
region Core, I18n, SubregionAttributes, Test, TextAttributes, background-color, backgroundImage 'none', backgroundRepeat (inherit | noRepeat | repeat | repeatX | repeatY) 'repeat', erase (never | whenDone) 'whenDone', panZoom, regionName, sensitivity 'opaque', showBackground (always | whenActive) 'always', skip-content (false | true) 'true', soundLevel '+0.0dB', textAlign (center | end | inherit | left | right | start) 'inherit', textDirection (inherit | ltr | ltro | rtl | rtlo) 'inherit', textMode (append | crawl | inherit | jump | replace | scroll) 'inherit', textPlace (center | end | inherit | start) 'inherit', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' ( | region)*
regPoint Core, I18n, Test, bottom 'auto', left 'auto', regAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), right 'auto', skip-content (false | true) 'true', top 'auto' ()*
root-layout Core, I18n, Test, background-color, backgroundColor, backgroundImage 'none', backgroundOpacity '100%', backgroundRepeat (inherit | noRepeat | repeat | repeatX | repeatY) 'repeat', height 'auto', skip-content (false | true) 'true', width 'auto' ()*

The attribute collection SubregionAttributes is defined as follows:

Collection Name Attributes in Collection
SubregionAttributes backgroundColor, backgroundOpacity '100%', bottom 'auto', fit (fill | hidden | meet | meetBest | scroll | slice), height 'auto', left 'auto', mediaAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), regAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), regPoint, right 'auto', soundAlign (both | left | right), top 'auto', width 'auto', z-index

This profile adds the layout element to the content model of the head element of the Structure Module. It also adds this element to the content model of the switch element of the Content Control Modules, when the switch element is a child of the head element.

18.4.7 Linking Modules

The Linking Modules provide a framework for relating documents to content, documents and document fragments. The Linking Modules define semantics for the a and area [anchor] elements. They define also the semantics of a set of attributes defined for these elements. The SMIL 3.0 UnifiedMobile profile includes the Linking functionality of the BasicLinking and LinkingAttributes modules.

Both the a and area [anchor] elements have an href attribute, whose value must be a valid URI.

Support for URIs with XPointer fragment identifier syntax is not required.

In the UnifiedMobile profile, Linking elements may have the following attributes and content model :

Linking Module
Elements Attributes Content model
a Core, I18n, Test, Timing, accesskey, actuate (onLoad | onRequest) 'onRequest', destinationLevel '+0.0dB', destinationPlaystate (pause | play) 'play', external (false | true) 'false', href, show (new | pause | replace) 'replace', sourceLevel '+0.0dB', sourcePlaystate (pause | play | stop), tabindex, target (Animation | ContentControl | MediaContent | Schedule | brush | | smilText)*
area Core, I18n, Test, Timing, accesskey, actuate (onLoad | onRequest) 'onRequest', coords, destinationLevel '+0.0dB', destinationPlaystate (pause | play) 'play', external (false | true) 'false', href, nohref (nohref), shape (circle | default | poly | rect) 'rect', show (new | pause | replace) 'replace', skip-content (false | true) 'true', sourceLevel '+0.0dB', sourcePlaystate (pause | play | stop), tabindex, target (animate | | set)*

This profile adds the a element to the content model of the par, seq, and excl elements of the Timing and Synchronization Modules. It also adds these elements to the content model of the body element of the Structure Module.

In the UnifiedMobile profile, a value of onLoad set on the attribute actuate indicates that the link is automatically traversed when the linking element becomes active. For linking elements containing SMIL timing, this is when the active duration of the linking element begins.

Linking behavior in the UnifiedMobile profile may be used to navigate within a document or to link across documents. When linking to destinations outside the current document, implementations may ignore the values "play" and "pause" of the sourcePlaystate attribute, and the values "new" and "pause" of the show attribute; in these cases, the semantics of the "stop" attribute (for sourcePlaystate ) and the "replace" attribute (for show) should be used. If an implementation ignores the values of the sourcePlaystate and show attributes, it may also ignore the sourceLevel attribute.

The attribute tabindex specifies the position of the element in the tabbing order at a particular instant for the current document. The tabbing order defines the order in which elements will receive focus when navigated by the user via an input device such as a keyboard. At any particular point in time, only active elements are taken into account for the tabbing order; inactive elements are ignored.

When a media object element has a tabindex attribute and becomes active, then its ordered tab index is inserted in the SMIL tab index at the location specified by the media object's tabindex attribute value. This assumes that the media object itself has tab indices, such as embedded HTML with tabindex attributes. This enables all link starting points in a SMIL presentation to have a place on the ordered list to be tab-keyed through, including those in embedded presentations.

The UnifiedMobile profile does not define four-way navigation in the SMIL 3.0 release. A definition for four-way navigation is expected in the future version of SMIL.

18.4.8 Media Object Modules

The Media Object Modules provide a framework for declaring media. The Media Object Modules define semantics for the ref, animation, audio, img, video, text, textstream, param, paramGroup and brush elements. The UnifiedMobile Profile includes the Media Object functionality of the BasicMedia, MediaClipping, MediaParam, BrushMedia and MediaAccessibility modules.

In the UnifiedMobile profile, media elements may have the following attributes and content model:

Media Object Module
Elements Attributes Content model
brush Core, I18n, MediaDescriptionAttributes, Test, Timing, backgroundColor, backgroundOpacity '100%', bottom 'auto', color, endsync 'media', erase (never | whenDone) 'whenDone', fill (auto | default | freeze | hold | remove | transition) 'default', fit (fill | hidden | meet | meetBest | scroll | slice), height 'auto', left 'auto', mediaAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), paramGroup, regAlign (bottomLeft | bottomMid | bottomRight | center | midLeft | midRight | topLeft | topMid | topRight), regPoint, region, right 'auto', sensitivity 'opaque', skip-content (false | true) 'true', tabindex, top 'auto', transIn, transOut, width 'auto', z-index (Animation | area | | param | switch)*
param Core, I18n, Test, name, skip-content (false | true) 'true', type, value, valuetype (data | object | ref) 'data' ()*
paramGroup Core, I18n, skip-content (false | true) 'true' ( | param)*
ref, animation, audio, img, text, textstream, video Core, I18n, MediaDescriptionAttributes, SubregionAttributes, Test, Timing, clipBegin, clipEnd, endsync 'media', erase (never | whenDone) 'whenDone', fill (auto | default | freeze | hold | remove | transition) 'default', mediaRepeat (preserve | strip) 'preserve', panZoom, paramGroup, region, sensitivity 'opaque', soundLevel '+0.0dB', src, tabindex, transIn, transOut, type (Animation | area | | param | switch)*

The attribute collection MediaDescriptionAttributes is defined as follows:

Collection Name Attributes in Collection
MediaDescriptionAttributes abstract (CDATA), author (CDATA), copyright (CDATA)

This profile adds the ref, animation, audio, img, video, text, textstream and brush elements to the content model of the par, seq, and excl elements of the Timing and Synchronization Modules and also adds these elements to the content model of the body element of the Structure Module. It also adds these elements to the content model of the a element of the Linking Modules. Lastly, this profile adds the paramGroup element to the region element of the Layout Modules.

The following elements are allowed as children of a media object reference: anchor, area [anchor], param, animate, set, animateColor, animateMotion. The a element is not included in this list. The switch element is allowed, with the restriction that in this case the content of the switch may only be from the same set of elements as is listed above.

18.4.9 Required MIME Types

This section is informative.

Previous versions of SMIL did not mandate supported media types. Unfortunately, this has led to generally spotty interoperability since different SMIL players do not support a common set of media formats.

To remedy this situation, the SMIL 3.0 UnifiedMobile profile mandates a common set of media formats to be supported. These formats have been selected both because they are royalty-free as well as generally accepted by the community.

The SMIL 3.0 UnifiedMobile profile recommends the use of the following royalty-free media formats. Refer to the list of recommended MIME Types.

This section is informative.

We recognize that other industry groups such as 3GPP also mandate a list of required codecs. However, these codecs often require a license fee, which may limit the availability of such codes on open-source implementations. Given the nature of market developments, the version of the SMIL 3.0 Unified Mobile profile does contain a list of recommended non-license-free codecs; these should be integrated if possible.

The following licensed media formats are recommended to be supported:

This section is informative.

Authors are encouraged to encode media objects using one of the required MIME types whenever possible. This will ensure that their SMIL documents can be played back by a wide range of SMIL user agents.

If authors use a MIME type that is not in the list of required types, they should provide an alternative version encoded using a baseline format. This can be achieved by using a switch element as shown in the following example:

<switch>
  <audio src="non-baseline-format-object" />
  <audio src="baseline-format-object" />
</switch>

In this example, a user agent that supports the non-baseline format will play the first audio media object, and a user agent that does not support the non-baseline format will play the second media object.

Media Object Integration Requirements

The MediaParam module defines the erase attribute, and defers definition of the "display area" to the language profile. "Display area" for the purposes of the UnifiedMobile profile corresponds to a SMIL BasicLayout region. The effects of erase="never" apply after the active duration of the media object and any fill period (defined by SMIL Timing and Synchronization), and only until other media plays to the region targeted by the media object, or until the same media object restarts.

18.4.10 Metainformation Module

The Metainformation Module provides a framework for describing a document, either to inform the human user or to assist in automation. The Metainformation Module defines semantics for the meta and elements. The UnifiedMobile Profile includes the Metainformation functionality of the Metainformation module.

In the UnifiedMobile profile, Metainformation elements may have the following attributes and content model :

Metainformation Module
Elements Attributes Content model
meta Core, I18n, content, name, skip-content (false | true) 'true' EMPTY
Core, I18n, skip-content (false | true) 'true' EMPTY

This profile adds the meta element to the content model of the head element of the Structure Module.

The content model of metadata is empty. Profiles that extend the Unified Mobile profile may define the RDF (Resource Description Framework) schema to be used in extending the content model of the metadata element. The Resource Description Framework is defined in the W3C RDF Recommendation [RDFsyntax].

18.4.11 Structure Module

The Structure Module provides a framework for structuring a SMIL document. The Structure Module defines semantics for the smil, head, and body elements. The UnifiedMobile profile includes the Structure functionality of the Structure module.

In the UnifiedMobile profile, the Structure elements may have the following attributes and content model :

Structure Module
Elements Attributes Content model
smil Core, I18n, Test, xmlns, xmlns:its 'http://www.w3.org/2005/11/its' (()*, (head, ()*)?, (body, ()*)?)
head Core, I18n ((meta)*, ((), (meta)*)?, ((textStyling), (meta)*)?, ((layout | switch), (meta)*)?, (((transition)+), (meta)*)?, (((paramGroup)+), (meta)*)?)
body Core, I18n, MediaDescriptionAttributes, Timing, fill (auto | default | freeze | hold | remove | transition) 'default' (Animation | ContentControl | MediaContent | Schedule | a | brush | | smilText)*

The body element acts as the root element to span the timing tree. The body element has the behavior of a seq element. Timing on the body element is supported. The syncbase of the body element is the application begin time, which is implementation dependent, as is the application end time. Note that the effect of fill on the body element is between the end of the presentation and the application end time, and therefore the effect of fill is implementation dependent.

18.4.12 Timing and Synchronization Modules

The Timing and Synchronization Modules provide a framework for describing timing structure, timing control properties and temporal relationships between elements. The Timing and Synchronization Modules define semantics for par, seq and excl elements. In addition, these modules define semantics for attributes including begin, dur, end, repeat (deprecated), repeatCount, repeatDur, min, max. The UnifiedMobile profile includes the Timing and Synchronization functionality of the BasicInlineTiming, EventTiming, RepeatTiming, MultiArcTiming, AccessKeyTiming, BasicTimeContainers, BasicExclTimeContainers modules.

In the UnifiedMobile profile, Timing and Synchronization elements can have the following attributes and content model :

Timing and Synchronization Module
Elements Attributes Content model
excl Core, I18n, MediaDescriptionAttributes, Test, Timing, endsync 'last', fill (auto | default | freeze | hold | remove | transition) 'default', region, skip-content (false | true) 'true' (Animation | ContentControl | MediaContent | Schedule | a | brush | | smilText)*
par Core, I18n, MediaDescriptionAttributes, Test, Timing, endsync 'last', fill (auto | default | freeze | hold | remove | transition) 'default', region (Animation | ContentControl | MediaContent | Schedule | a | brush | | smilText)*
seq Core, I18n, MediaDescriptionAttributes, Test, Timing, fill (auto | default | freeze | hold | remove | transition) 'default', region (Animation | ContentControl | MediaContent | Schedule | a | brush | | smilText)*

The Attribute collection Timing is defined as follows:

Collection Name Attributes in Collection
Timing begin, dur, end, repeatCount, repeatDur

This profile adds the par, seq, and excl elements to the content model of the body element of the Structure Module and adds these elements to the content model of the a element of the Linking Modules.

Elements of the Media Object Modules have the attributes describing timing and properties of contents.

Supported Event Symbols

The UnifiedMobile profile specifies which types of events may be used as part of the begin and end attribute values. The supported events are described as Event-symbols according to the syntax introduced in the SMIL Timing and Synchronization module.

The supported event symbols in the UnifiedMobile profile are:

Event example
focusInEvent end="foo.focusInEvent + 3s"
focusOutEvent begin="foo.focusOutEvent"
activateEvent begin="foo.activateEvent"
beginEvent begin="foo.beginEvent + 2s"
endEvent end="foo.endEvent + 2s"
repeatEvent end="foo.repeatEvent"
inBoundsEvent end="foo.inBoundsEvent"
outOfBoundsEvent begin="foo.outOfBoundsEvent + 5s"

As defined by the SMIL syncbase timing semantics, any event timing attributes that reference an invalid time-value description will be treated as if "indefinite" were specified.

Event semantics

focusInEvent:
Raised when a media element gets the keyboard focus in its rendering space, i.e., when it becomes the media element to which all subsequent keystroke-event information is passed. Once an element has the keyboard focus, it continues to have it until a user action or DOM method call either removes the focus from it or gives the focus to another media element, or until its rendering space is removed. Only one media element may have the focus at any particular time. The focusInEvent is delivered to media elements only, and does not bubble.
focusOutEvent:
Raised when a media element loses the keyboard focus from its rendering space, i.e., when it stops being the media element to which all subsequent keystroke-event information is passed. The focusOutEvent is delivered to media elements only, and does not bubble.
activateEvent:
Raised when a media element is activated by user input such as by a mouse click within its visible rendering space or by specific keystrokes when the element has the keyboard focus. The activateEvent is delivered to media elements only, and does not bubble.
beginEvent:
Raised when the element actually begins playback of its active duration. If an element does not ever begin playing, this event is never raised. If an element has a repeat count, beginEvent is only raised at the beginning of the first iteration. The beginEvent is delivered to elements that support timing, such as media elements and time containers, and does not bubble.
endEvent:
Raised when an element actually ends playback; this is when its active duration is reached or whenever a playing element is stopped. In the following example,
<ref xml:id="x" end="30s" src="15s.mpg" />
<ref xml:id="y" end="10s" src="20s.mpg" />
<ref xml:id="z" repeatCount="4" src="5s.mpg" />

x.endEvent occurs at roughly 30s when the active duration is reached, y.endEvent occurs at roughly 10s when the playback of the continuous media is ended early by the active duration being reached, and z.endEvent occurs at roughly 20s when the fourth and final repeat has completed, thus reaching the end of its active duration. The endEvent is delivered to elements which support timing, such as media elements and time containers, and does not bubble.

repeatEvent:
Raised when the second and subsequent iterations of a repeated element begin playback. An element that has no repeatDur, repeatCount, or repeat attribute but that plays two or more times due to multiple begin times will not raise a repeatEvent when it restarts. Also, children of a time container that repeats will not raise their own repeatEvents when their parent repeats and they begin playing again. The repeatEvent is delivered to elements which support timing, such as media elements and time containers, and does not bubble.
inBoundsEvent:
Raised when one of the following happens:
  • by any input from the mouse or other input device that brings the mouse cursor from outside to within the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time, i.e., z-order is not a factor.
  • by any other action that moves the "cursor" or "pointer", as defined by the implementation, from outside to within the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time, i.e., z-order is not a factor. An implementation may decide, for instance, to raise an inBoundsEvent on an element whenever it gets the focus, including when keystrokes give it the focus.

A media element's bounds are restrained by the bounds of the region in which it is contained., i.e., a media element's bounds do not extend beyond its region's bounds. The inBoundsEvent is delivered to media elements only, and does not bubble.

Note that, unlike with keyboard focus which may only be active on one object at a time, the state of being within an object's bounds can be true for multiple objects simultaneously. For instance, if one object is on top of another and the cursor is placed on top of both objects, both would have raised an inBoundsEvent more recently than the raising of any respective outOfBoundsEvent. If a player does not support a pointer cursor, then these players will typically not generate the inBoundsEvent and outOfBoundEvent events.

outOfBoundsEvent:
Raised when one of the following happens:
  • by any input from the mouse or other input device that brings the mouse cursor from within to outside the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time,
  • by any other action that moves the "cursor" or "pointer", as defined by the implementation, from within to outside the bounds of a media element's rendering space, regardless of what part, if any, of that rendering space is visible at the time.

A media element's bounds are restrained by its region's bounds, i.e., a media element's bounds do not extend beyond its region's bounds. The outOfBoundsEvent is delivered to media elements only, and does not bubble.

Order of raising of simultaneous events:

There will be cases where events occur simultaneously. To ensure that each UnifiedMobile implementation handles them in the same order, the following order must be used to resolve ties:

  1. InBoundsEvent
  2. focusInEvent (should follow 1)
  3. activateEvent (should follow 2)
  4. OutOfBoundsEvent
  5. focusOutEvent (should follow 4)
  6. endEvent
  7. beginEvent (must follow 6)
  8. repeatEvent

Events are listed in order of precedence, e.g., if event #6 in this list occurs at the same time as event #7, then #6 must be raised prior to #7.

The InBoundsEvent, focusInEvent, OutOfBoundsEvent, activateEvent, and focusOutEvent events do not bubble and are delivered to the target media element.

The beginEvent, endEvent and repeatEvent events do not bubble and are delivered to the timed element on which the event occurs.

Extending the set of supported events

The UnifiedMobile profile supports an extensible set of events. In order to resolve possible name conflicts with the events that are supported in this profile qualified event names are supported. Namespace prefixes are used to qualify the event names. As a result, the colon is reserved in begin and end attributes for qualifying event names.

For example:

<smil ... xmlns:example="http://www.example.com">
   <img xml:id="foo" .../>
   <audio begin="foo.example:focusInEvent".../>
    ...
</smil>

Integration definitions

A SMIL document's begin time is defined as the moment a user agent begins the timeline for the overall document. A SMIL document's end time is defined as equal to the end time of the body element.

18.4.13 Transition Effects Modules

The Transition Effects Modules provide a framework for describing transitions such as fades and wipes. The Transition Modules define semantics for the transition element. The Unified Mobile Profile includes the functionality of the BasicTransitions and FullScreenTransitions modules.

In the UnifiedMobile profile, Transition Effects elements have the following attributes and content model :

Transition Effects Module
Elements Attributes Content model
transition Core, I18n, Test, direction (forward | reverse) 'forward', dur, endProgress '1.0', fadeColor 'black', scope (region | screen) 'region', skip-content (false | true) 'true', startProgress '0.0', subtype (bottom | bottomCenter | bottomLeft | bottomLeftClockwise | bottomLeftCounterClockwise | bottomLeftDiagonal | bottomRight | bottomRightClockwise | bottomRightCounterClockwise | bottomRightDiagonal | centerRight | centerTop | circle | clockwiseBottom | clockwiseBottomRight | clockwiseLeft | clockwiseNine | clockwiseRight | clockwiseSix | clockwiseThree | clockwiseTop | clockwiseTopLeft | clockwiseTwelve | cornersIn | cornersOut | counterClockwiseBottomLeft | counterClockwiseTopRight | crossfade | diagonalBottomLeft | diagonalBottomLeftOpposite | diagonalTopLeft | diagonalTopLeftOpposite | diamond | doubleBarnDoor | doubleDiamond | down | fadeFromColor | fadeToColor | fanInHorizontal | fanInVertical | fanOutHorizontal | fanOutVertical | fivePoint | fourBlade | fourBoxHorizontal | fourBoxVertical | fourPoint | fromBottom | fromLeft | fromRight | fromTop | heart | horizontal | horizontalLeft | horizontalLeftSame | horizontalRight | horizontalRightSame | horizontalTopLeftOpposite | horizontalTopRightOpposite | keyhole | left | leftCenter | leftToRight | oppositeHorizontal | oppositeVertical | parallelDiagonal | parallelDiagonalBottomLeft | parallelDiagonalTopLeft | parallelVertical | rectangle | right | rightCenter | sixPoint | top | topCenter | topLeft | topLeftClockwise | topLeftCounterClockwise | topLeftDiagonal | topLeftHorizontal | topLeftVertical | topRight | topRightClockwise | topRightCounterClockwise | topRightDiagonal | topToBottom | twoBladeHorizontal | twoBladeVertical | twoBoxBottom | twoBoxLeft | twoBoxRight | twoBoxTop | up | vertical | verticalBottomLeftOpposite | verticalBottomSame | verticalLeft | verticalRight | verticalTopLeftOpposite | verticalTopSame), type (arrowHeadWipe | audioFade | audioVisualFade | barWipe | barnDoorWipe | barnVeeWipe | barnZigZagWipe | bowTieWipe | boxSnakesWipe | boxWipe | clockWipe | diagonalWipe | doubleFanWipe | doubleSweepWipe | ellipseWipe | eyeWipe | fade | fanWipe | fourBoxWipe | hexagonWipe | irisWipe | miscDiagonalWipe | miscShapeWipe | parallelSnakesWipe | pentagonWipe | pinWheelWipe | pushWipe | roundRectWipe | saloonDoorWipe | singleSweepWipe | slideWipe | snakeWipe | spiralWipe | starWipe | triangleWipe | veeWipe | waterfallWipe | windshieldWipe | zigZagWipe) ()*

This profile adds the transition element to the content model of the head element of the Structure Module.

The Transition Effects Modules add transIn and transOut attributes to ref, animation, audio, img, video, text, textstream and brush elements of the Media Object Modules.

The Transition Effects Modules add the transition value to the fill attribute for all elements on which this value of the fill attribute is supported.

18.5 Appendix A: SMIL 3.0 Document Type Definition

This section is normative.

The UnifiedMobile profile Document Type Definition is defined as a set of SMIL 3.0 modules. All SMIL 3.0 modules are integrated according to the guidelines in the W3C Note "Synchronized Multimedia Modules based upon SMIL 1.0" [SMIL-MOD], and defined within their respective module sections.

19. SMIL 3.0 DAISY Profile

Editors
Marisa DeMeglio, DAISY
Hiroshi Kawamura, NRCD
Julien Quint, DAISY
Daniel Weck, NRCD

19.1 Changes for SMIL 3.0

This section is informative.

The DAISY profile is new for SMIL 3.0.

19.2 Abstract

This section is normative.

DAISY [DAISY] digital talking books are fully accessible for persons with print disabilities, such as those with blindness, low vision, hearing impairments, deaf-blindness, motor disabilities, dyslexia, and a wide range of cognitive/intellectual disabilities. DAISY is the recognized international standard for digital talking books and has been adopted worldwide by organizations serving these groups.

With the release of SMIL 3.0, the pre-existing DAISY standard has gotten the opportunity to move into the mainstream of multimedia development. Several accessibility features have been added to the SMIL language, and a fully-conforming language profile has been defined for DAISY books.

19.3 Introduction to the DAISY Profile

This section is informative.

Although SMIL has always been an integral part of the DAISY standard, none of the existing profiles fit the needs of DAISY. The full language profile is too large to be considered practical, while the Tiny profile lacks certain timing, state, and media object modules required by DAISY. The UnifiedMobile profile also lack some of what is necessary for representing DAISY books in SMIL (e.g. the state modules), and include modules which are not required by DAISY (e.g. animation, tiling, and transitions modules).

19.4 Normative Definition of the SMIL 3.0 DAISY Profile

This section is normative.

In the text in this profile specification, the term DAISY profile will be considered to refer exclusively to the SMIL 3.0 DAISY profile as defined in this document.

19.4.1 SMIL 3.0 DAISY Profile Conformance

The definition of conformance for a SMIL 3.0 profile is given in the Definitions section of the SMIL 3.0 Scalability Framework. Based on these definitions, the DAISY profile is a Strict Host-Language Conformant SMIL 3.0 Profile.

Within the referenced sections of the Scalability Framework, the following definitions should be used:

  1. The profile identification string for the DAISY profile is: http://www.w3.org/2008/SMIL30/Daisy.
  2. Documents written for the DAISY profile must declare the default SMIL namespace with the xmlns attribute on the smil root element. For SMIL 3.0, this is:
    xmlns="http://www.w3.org/ns/SMIL"
  3. The SMIL 3.0 DAISY profile DOCTYPE is:
    <!DOCTYPE smil PUBLIC "-//W3C//DTD SMIL 3.0 Daisy//EN"
    "http://www.w3.org/2008/SMIL30/SMIL30Daisy.dtd">
    If a document contains this declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD (or in the corresponding XML or RelaxNG schemas) are not allowed. If the document is invalid, the user agent should issue an error.
  4. The identification string for the non-normative DTD used for integration of errata is:
    http://www.w3.org/2008/SMIL30/informative-DTD/SMIL30Daisy.dtd
  5. Documents written for the DAISY profile must declare (explicitly or implicitly via the DTD) the following values for the version and baseProfile attributes:
    version="3.0" baseProfile="Daisy"
    As a consequence of the two requirements above, the effective root element declaration for a DAISY profile document must be:
    <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Daisy">
         ...
    </smil>
    The root element may be extended as required with additional atttributes.

This version of SMIL provides a definition of strict host-language conformant SMIL 3.0 documents, which are restricted to tags and attributes from the SMIL 3.0 namespace. The Section "Extending/Restricting a SMIL 3.0 Profile" provides information on using the SMIL 3.0 DAISY profile with other namespaces, for instance, on including new tags within SMIL 3.0 documents.

Language designers and implementors wishing to extend the DAISY profile must consider the implications of the use of namespace extension syntax. Please consult the section on Scalable Profiles for restrictions and recommendations for best practice when extending SMIL.

19.4.2 SMIL 3.0 DAISY Profile User Agent Conformance

The definition of user agent conformance for SMIL 3.0 DAISY profile documents is given in the Conforming SMIL 3.0 User Agents section of the SMIL 3.0 Scalability Framework. Conforming DAISY profile user agents must adhere completely to this section.

19.4.3 The DAISY Profile

The DAISY profile includes the following SMIL modules:

The collection names contained in the following table define the DAISY profile vocabulary.

DAISY Profile
Collection Name Elements in Collection
Layout region, root-layout, layout
LinkAnchor a, area (anchor)
MediaContent animation, audio, img, ref, text, textstream, video
Metainformation meta,
State delvalue, newvalue, send, setvalue
Structure smil, head, body
Schedule excl, par, seq
Other paramGroup, switch

In the following sections, we define the set of elements and attributes used in each of the modules included in the DAISY profile. The content model for each element is described. The content model of an element is a description of elements which may appear as its direct children. The special content model "EMPTY" means that a given element may not have children.

Collection Name Attributes in Collection
Core alt (CDATA), baseProfile 'Daisy', class (CDATA), label (CDATA), longdesc (CDATA), readIndex '0', title (CDATA), version (3.0) '3.0', xml:base (CDATA) [XMLBase], xml:id (id) (ID)
I18n its:dir (lro | ltr | rlo | rtl), its:locNote (CDATA), its:locNoteRef (CDATA), its:locNoteType (alert | description), its:term (no | yes), its:termInfoRef (CDATA), its:translate (no | yes), xml:lang (CDATA)
Role xhtml:role, with [xmlns:xhtml="http://www.w3.org/1999/xhtml"]

All attributes in the collection Core are defined for all the elements of the DAISY profile. The xml:id attribute is used in the DAISY profile to assign a unique XML identifier to every element in a SMIL document.

XHTML Role Attribute Module

The DAISY profile includes the separate XHTML Role Attribute Module [XHTMLrole]. This provides a mechanism for allowing a semantic classification of elements via the xhtml:role attribute. The DAISY profile adds the xhtml:role attribute to the switch, region, a, area, text, img, audio, video, ref, textstream, par, seq, and excl elements.

This section is informative

The DAISY profile allows authors to use the xhtml:role attribute to provide semantic classification of elements, but does not impose any specific user-agent behavior for when these semantic values are encountered.

The DAISY profile does not explicitly extend the collection of roles defined by the XHTML Role Attribute Module, and does not impose restrictions on the number of actual semantic roles a single xhtml:role attribute value may provide. Instead, implementations that wish to formalize the possible values for the xhtml:role semantic annotation should follow the XHTML Role Attribute Module's extension guidelines [XHTMLrole-ExtensionGuidelines].

According to the XHTML Role Attribute Module's Host Language Conformance rules [XHTMLrole-HostLanguageConformance], it is a requirement to prefix the role attribute name with the imported namespace prefix for "http://www.w3.org/1999/xhtml". For example:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Daisy" xmlns:xhtml="http://www.w3.org/1999/xhtml" >
    ...
    <par xhtml:role="...">
        ...
    </par>
    ...
</smil>

19.4.4 Content Control Modules

In the DAISY profile, Content Control elements may have the following attributes and content model :

Content Control Module
Elements Attributes Content model
switch Core, I18n, Role, Test, allowReorder (no | yes) 'no' (( | switch)*, (((((Schedule | MediaContent | State | a)+, ( | switch)*)+ | ((param | area), ( | switch)*)+)) | (layout, ( | switch)*)*))

This profile adds the switch element to the content model of the par, seq and excl elements of the Timing and Synchronization Modules, of the body and the head elements of the Structure Module, of the content model of the a element of the Linking Modules.

The switch element has the restriction that the content of the switch may only be from the same set of elements.

The Content Control functionality is used to define the Attribute set "Test":

Collection Name Attributes in Collection
Test systemAudioDesc (off | on), systemBaseProfile, systemBitrate, systemCPU, systemCaptions (off | on), systemComponent, systemLanguage, systemOperatingSystem, systemOverdubOrSubtitle (overdub | subtitle), systemRequired, systemScreenDepth, systemScreenSize, systemVersion (3.0)

19.4.5 Layout Modules

In the DAISY profile, Layout elements may have the following attributes and content model :

Layout Module
Elements Attributes Content model
region Core, I18n, Role, SubregionAttributes, Test, background-color, regionName, showBackground (always | whenActive) 'always', skip-content (false | true) 'true' ( | region)*
root-layout Core, I18n, Test, background-color, backgroundColor, backgroundOpacity '100%', height 'auto', skip-content (false | true) 'true', width 'auto' ()*
layout Core, I18n, Test, type 'text/smil-basic-layout' ( | region | root-layout)*

The attribute collection SubregionAttributes is defined as follows:

Collection Name Attributes in Collection
SubregionAttributes backgroundColor, backgroundOpacity '100%', bottom 'auto', fit (fill | hidden | meet | meetBest | scroll | slice), height 'auto', left 'auto', right 'auto', top 'auto', width 'auto', z-index

This profile adds the layout element to the content model of the head element of the Structure Module. It also adds this element to the content model of the switch element of the Content Control Modules, when the switch element is a child of the head element.

19.4.6 Linking Modules

This profile includes both timing and linking modules; however, the profile authors have decided to explicitly exclude timing attributes on linking elements because it introduces too much complexity.

Both the a and area elements have an href attribute, whose value must be a valid URI or XPointer [XPTR] fragment identifier.

In the DAISY profile, linking elements may have the following attributes and content model :

Linking Module
Elements Attributes Content model
a Core, I18n, Role, Test, Timing, href (MediaContent | Schedule | State | | switch)*
area Core, I18n, Role, Test, Timing, coords, expr, href, nohref (nohref), shape (circle | default | poly | rect) 'rect', skip-content (false | true) 'true' ()*

This profile adds the a element to the content model of the par, seq, and excl elements of the Timing and Synchronization Modules. It also adds these elements to the content model of the body element of the Structure Module.

19.4.7 Media Object Modules

In the DAISY profile, media elements may have the following attributes and content model:

Media Object Module
Elements Attributes Content model
ref, animation, audio, img, text, textstream, video Core, I18n, MediaDescriptionAttributes, Role, Test, Timing, bottom 'auto', clipBegin, clipEnd, endsync 'media', expr, fill (auto | default | freeze | hold | remove | transition) 'default', height 'auto', left 'auto', mediaRepeat (preserve | strip) 'preserve', paramGroup, region, right 'auto', src, top 'auto', type, width 'auto' (area | | param | switch)*
param Core, I18n, Test, name, skip-content (false | true) 'true', type, value, valuetype (data | object | ref) 'data' ()*
paramGroup Core, I18n, skip-content (false | true) 'true' ( | param)*

The attribute collection MediaDescriptionAttributes is defined as follows:

Collection Name Attributes in Collection
MediaDescriptionAttributes abstract (CDATA), author (CDATA), copyright (CDATA)

This profile adds the ref, animation, audio, img, video, text, and textstream elements to the content model of the par, seq, and excl elements of the Timing and Synchronization Modules. It also adds these elements to the content model of the body element of the Structure Module. It also adds these elements to the content model of the a element of the Linking Modules.

Examples

This section is informative.

Text media with an external source may put a URI in the src attribute. For instance:

An example of referring to a text fragment in an external file by specifying the fragment's xml:id value:

<par>
    <text src="text.xml#id"/>
    <audio src="audio.mp3"/>
</par>

An example of referring to a document fragment (for example, the second paragraph) by using XPointer:

<par>
    <text src="text.xml#xpointer(/body/p[2])"/>
    <audio src="audio.mp3"/>
</par>

Using param

The param element conveys rendering instructions about a media type.

The DAISY profile defines the following name values as rendering instructions for text media:

name attribute values on the param element
name value Description
daisy:use-renderer tts | braille | avatar | tactile Send the media data to a text-to-speech engine, a Braille display, a (sign language) avatar, or a tactile display.
daisy:display-in-context true | false If true, display the text document in the text region and focus on the specified fragment. If false, render only the text fragment by itself (not in its parent document) in the text region.
daisy:css-highlight-style A simple CSS style. To give the effect of a highlight on the text fragment, CSS style may be used.

It is expected that media objects using <param name="daisy:use-renderer" value="..." /> exist alongside a default rendering of the media.

In the case where the whole document is being shown at once (<param name="daisy:display-in-context" value="true"/>), an intelligent renderer will ensure that the portion of the parent document containing the specified fragment will be put in view so the fragment may be seen. It is left to the renderer to decide how much of the surrounding document context to include (lines above and below the target fragment).

Examples:

This section is informative.

The parameters below specify that this text element must be displayed in the context of its parent document, and that it must be highlighted with the given style attributes when it is active.

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Daisy" >
    ...
  <body>
      ...
      <par>
          <text src="example.html#p2" region="centerTextRegion" >
              <param name="daisy:display-in-context" value="true" />
              <param name="daisy:css-highlight-style" value="background-color: yellow; color: black; border: solid thin green"/>
          </text>
      </par>
      ...
  </body>
</smil>

To reduce verbosity, the param elements may be put in a paramGroup element, and this may be referenced from the region. For example:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Daisy" >
    <head>
        <paramGroup xml:id="textParams">
              <param name="daisy:display-in-context" value="true" />
            <param name="daisy:css-highlight-style" value="background-color: yellow; color: black; border: solid thin green"/>
        </paramGroup>
        <region xml:id="textWindow" width="100%" height="100%" paramGroup="textParams"/>
        ...
    </head>
    <body>
        ...
        <par>
            <text src="my_text.txt" region="textWindow"/>
            <audio src="audio.mp3" clipBegin="0.00s" clipEnd="3.00s"/>
        </par>
        ...
    </body>
</smil>

MIME Types

This profile does not require support of any particular formats. However, it is strongly recommended to support the formats listed in the SMIL 3.0 Language profile's Required MIME Types section.

19.4.8 Metainformation Modules

In the DAISY profile, Metainformation elements may have the following attributes and content model :

Metainformation Module
Elements Attributes Content model
meta Core, I18n, content, name, skip-content (false | true) 'true' EMPTY
Core, I18n, skip-content (false | true) 'true' EMPTY

This profile adds the meta element to the content model of the head element of the Structure Module.

The content model of is EMPTY. Profiles that extend the DAISY profile may define the RDF (Resource Description Framework) schema to be used in extending the content model of the element. The Resource Description Framework is defined in the W3C RDF Recommendation [RDFsyntax].

Note that because the element may appear on its own, it may be used to wrap a meta element and placed anywhere in the document.

The following name attribute values may be used to specify the relationship between documents:

name attribute values on the meta element
value Description
next Value of content gives the next SMIL document in the presentation
prev Value of content gives the previous SMIL document in the presentation

An example using this to define the static default playback order in a multi-document SMIL presentation:

<-- chapter2.smil -->
<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Daisy" >
    <head>
        <meta name="next" content="chapter3.smil"/>
        <meta name="prev" content="chapter1.smil"/>
        ...
    </head>
    <body>
        ...
    </body>
</smil>

19.4.9 State Modules

The State Modules provide a framework for declaratively manipulating various bits of state in a SMIL presentation. The State Modules define semantics for the submission, send, state, setvalue, newvalue, and delvalue elements and the expr, submission, action, method, replace, target, language, ref, where, name, value attributes. The DAISY profile includes the State functionality of the StateTest, UserState, StateSubmission, and StateInterpolation modules.

In the DAISY profile, the State elements may have the following attributes and content model:

State Module
Elements Attributes Content model
delvalue Core, I18n, Test, Timing, expr, ref, skip-content (false | true) 'true' ()*
newvalue Core, I18n, Test, Timing, expr, name, ref '/*', skip-content (false | true) 'true', value, where (after | before | child) 'child' ()*
send Core, I18n, Test, Timing, expr, skip-content (false | true) 'true', submission ()*
setvalue Core, I18n, Test, Timing, expr, ref, skip-content (false | true) 'true', value ()*
state Core, I18n, language 'http://www.w3.org/TR/1999/REC-xpath-19991116', skip-content (false | true) 'true', src EMPTY
submission Core, I18n, action, method (get | post | put), ref, replace (all | instance | none), target ()*

This profile adds the state and submission elements to the content model of the head element of the Structure Module, and the setvalue, newvalue, delvalue, and send elements to the content model of the body, switch, a, par, seq, excl elements. It also adds the expr attribute to all elements within the content model of the body element (i.e. excluding the body element itself).

The content model of the state element is declared as EMPTY. The state element defines the data model of the SMIL State engine using the XForms 1.0 syntax. The elements are not imported into SMIL 3.0 and must be fully qualified.

The submission attribute value is an IDREF that refers to a submission element.

The method attribute must at least support the values get, put and post. Serialization and submission must follow the description of these methods in [XFORMS10], section 11.2. Support for other methods described in that document is optional.

Interpolation of values using the mechanism from the StateInterpolation module is supported on the href, src, clipBegin, clipEnd and value attributes.

Expression Language and Data Model

Support for using XPath 1.0 [XPATH10] as the expression language is required. The default value for the language attribute is http://www.w3.org/TR/1999/REC-xpath-19991116, which denotes the use of XPath 1.0 as the expression language.

The content of the state element must be a single XML document. If this document is empty at initialization time a single empty <data/> root element is added.

The following constraints are in force:

Interpretation of XPath expressions depends on an expression context. That context is defined thus:

Using state

This section is informative.

In DAISY books, publication components such as page number announcements and footnotes may be turned on or off. These playback options are implemented using state expressions.

The DAISY specification is extensible to be able to incorporate content written in other XML languages (such as MathML); however, not all user agents will support these extensions. In these cases, fallbacks specified using state expressions may give alternatives to user agents.

This example shows how to use state and param together to target specialized text renderers. A state expression controls whether the element will be rendered or not, and param provides additional information about the media. A presentation is being rendered on a user's computer, to which an electronic Braille display is attached . The SMIL player is aware that this display is enabled. The Braille display normally receives the same text output as is shown on-screen and renders it as Braille. When the SMIL player reaches a point where specialized text (such as a mathematical expression, which is represented differently in Braille markup) has to be substituted for the on-screen text, it notifies the Braille display. The part of the presentation in which this substitution takes place would be authored as follows:

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Daisy" >
  <head>
  <--This state data model could live in a separate file and be accessed by other user agent components -->
  <state xmlns:f="http://www.w3.org/2002/xforms">
    <f:model>
      <data xmlns="">
        <brailleAvailable>true</brailleAvailable>
      </data>
    </f:model>
    <f:bind nodeset="brailleAvailable" type="xsd:boolean"/>
</state>
    ...
  </head>
  <body>
      <seq>
          <par>
            <-- This is the Braille rendering equivalent of the text contents.  A Braille display is required to show it. -->
            <text src="special-notation-for-braille.xml#p4" dur="indefinite" expr="brailleAvailable">
                <param name="daisy:use-renderer" value="braille"/>
            </text>
            <-- This is the default visual rendering of the text contents.-->
            <text src="my_text.xml#p4"/>
            <audio src="audio.mp3" clipBegin="0.00s" clipEnd="3.00s"/>
          </par>
          ...
      </seq>
  </body>
</smil>

19.4.10 Structure Modules

In the DAISY profile, Structure elements may have the following attributes and content model:

Structure Module
Elements Attributes Content model
smil Core, I18n, Test, xmlns, xmlns:its 'http://www.w3.org/2005/11/its', xmlns:xhtml 'http://www.w3.org/1999/xhtml' (()*, (head, ()*)?, (body, ()*)?)
head Core, I18n ((meta)*, ((), (meta)*)?, ((layout | switch), (meta)*)?, ((state), (meta)*)?, ((submission), (meta)*)*, (((paramGroup)+), (meta)*)?)
body Core, I18n, MediaDescriptionAttributes, Timing, fill (auto | default | freeze | hold | remove | transition) 'default' (MediaContent | Schedule | State | a | | switch)*

19.4.11 Timing Modules

In the DAISY profile, Timing elements may have the following attributes and content model:

Timing and Synchronization Module
Elements Attributes Content model
par Core, I18n, MediaDescriptionAttributes, Role, Test, Timing, endsync 'last', expr, fill (auto | default | freeze | hold | remove | transition) 'default', region (MediaContent | Schedule | State | a | | switch)*
seq Core, I18n, MediaDescriptionAttributes, Role, Test, Timing, expr, fill (auto | default | freeze | hold | remove | transition) 'default', region (MediaContent | Schedule | State | a | | switch)*
excl Core, I18n, MediaDescriptionAttributes, Role, Test, Timing, endsync 'last', expr, fill (auto | default | freeze | hold | remove | transition) 'default', region, skip-content (false | true) 'true' (MediaContent | Schedule | State | a | | switch)*

The Attribute collection Timing is defined as follows:

Collection Name Attributes in Collection
Timing begin, dur, end

Special values for the end attribute

This profile defines the following values for the end attribute, in addition to what is given by SMIL.

special end attribute values
value Description
daisy:userEscape;childId-value.end The time container ends when the daisy:userEscape event happens or when the last child finishes playing. This may be used for escapable content, i.e., parts of the book which the user may "jump out of", such as nested tables.
daisy:userResume(;childId-value.end + Clock-value)? The time container ends when the daisy:userResume event happens or at a predefined length of time after the last child element finishes playing. This may be used for authoring pauses into a presentation.

19.5 Appendix A: SMIL DTD

This section is normative.

The DAISY profile Document Type Definition is defined as a set of SMIL 3.0 modules, with the addition of the XHTML Role Attribute Module [XHTMLrole]. All SMIL 3.0 modules are integrated according to the guidelines in the W3C Note "Synchronized Multimedia Modules based upon SMIL 1.0" [SMIL-MOD], and defined within their respective module sections. The XHTML Role Attribute Module's DTD Implementation [XHTMLrole-DTDImpl] is used for integrating role into the DAISY profile DTD.

19.6 Appendix B: A sample presentation

This section is informative.

This document shows a SMIL file representing part of a DAISY book which has been produced according to the SMIL 3.0 DAISY profile. It renders synchronized text and audio with user-controlled playback options. It adds the following new features, which have not been present in previous versions of DAISY specifications:

Important note: the namespace "daisyskip" has not yet been officially defined and is included here in concept only. The concept is that there should be a separate section for variables whose values may be set by the user agent.

<?xml version="1.0" encoding="iso-8859-1"?>
<!DOCTYPE smil PUBLIC "-//W3C//DTD SMIL 3.0 Daisy//EN" "http://www.w3.org/2008/SMIL30/SMIL30Daisy.dtd">

<smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Daisy" xmlns:xhtml="http://www.w3.org/1999/xhtml" xmlns:daisyskip="http://daisy.org/smil/features/skippability" >
<head>
    <meta name="title" content="Smil 3 Demo"/>
    <meta name="next" content="bagw0002.smil"/>
    <meta name="previous" content="bagw0000.smil"/>

    <paramGroup xml:id="textParams">
        <param name="daisy:display–in–context" value="true" />
        <param name="daisy:css–highlight–style" value="background–color: yellow; color: black; border: solid thin green"/>
    </paramGroup>

    <layout>
        <root-layout xml:id="root-layout" width="100%" height="100%"/>
        <region xml:id="text" width="100%" height="100%" paramGroup="textParams"/>
    </layout>

    <!--Note that, instead of the following state element, that data could go in a separate file-->
    <!--such as: <state src="stateData.xml"/>-->
    <state xmlns:f="http://www.w3.org/2002/xforms">
        <f:model>

            <!--Everything in the daisyskip namespace should be exposed by the user agent-->
            <!--Variables that are for internal use only (there are none here) would be declared in the same way, but without the daisyskip: prefix-->
            <f:instance>
                <!--The label references a text/audio representation of "play page number announcements"-->
                <daisyskip:playPageAnnouncements label="labels.smil#play_page">true</daisyskip:playPageAnnouncements>
                <daisyskip:playProducerNotes label="labels.smil#play_prodnote">true</daisyskip:playProducerNotes>
           </f:instance>

            <f:bind nodeset="/daisyskip:playPageAnnouncements" type="xsd:boolean"/>
            <f:bind nodeset="/daisyskip:playProducerNotes" type="xsd:boolean"/>
        </f:model>

    </state>

</head>
<body>
    <seq dur="30.076s">

        <par endsync="last" xhtml:role="sectionStart" label="labels.smil#section">
            <text src="ncconlydemo.html#bagw_0001" xml:id="bagw_0001" region="text"/>
            <seq>
                <audio src="bagw0019.mp3" clip-begin="npt=0.000s" clip-end="npt=2.035s" xml:id="qwrt_0001"/>
            </seq>
        </par>

        <par endsync="last" xhtml:role="paragraph">
            <text src="ncconlydemo.html#bagw_0001" xml:id="xbag_0001" region="text"/>
            <seq>
                <audio src="bagw0019.mp3" clip-begin="npt=2.035s" clip-end="npt=8.901s" xml:id="qwrt_0002"/>
            </seq>
        </par>

        <par endsync="last" xhtml:role="ProducerNote" expr="/daisyskip:playProducerNotes">
            <text src="ncconlydemo.html#bagw_0002" xml:id="bagw_0002" region="text"/>
            <seq>
                <audio src="bagw0019.mp3" clip-begin="npt=8.901s" clip-end="npt=19.554s" xml:id="qwrt_0003"/>
                <audio src="bagw0019.mp3" clip-begin="npt=19.554s" clip-end="npt=28.774s" xml:id="qwrt_0004"/>
            </seq>

        </par>
        <par endsync="last" xhtml:role="PageAnnouncement" expr="/daisyskip:playPageAnnouncements">
            <text src="ncconlydemo.html#bagw_0003" xml:id="bagw_0003" region="text"/>
            <seq>
                <audio src="bagw0019.mp3" clip-begin="npt=28.774s" clip-end="npt=30.076s" xml:id="qwrt_0005"/>
            </seq>

        </par>
        <par endsync="last" xhtml:role="Page">
            <text src="ncconlydemo.html#bagw_0003" xml:id="bagw_0003" region="text"/>
            <seq>
                <audio src="bagw0019.mp3" clip-begin="npt=28.774s" clip-end="npt=30.076s" xml:id="qwrt_0005"/>
            </seq>

        </par>
        <par endsync="last" xhtml:role="Page">
            <text src="ncconlydemo.html#bagw_0003" xml:id="bagw_0003" region="text"/>
            <seq>
                <audio src="bagw0019.mp3" clip-begin="npt=28.774s" clip-end="npt=30.076s" xml:id="qwrt_0005"/>
            </seq>

        </par>
    </seq>
</body>
</smil>

20. SMIL 3.0 Tiny Profile

Editors
Xabiel García Pañeda, Universidad de Oviedo
David Melendi Palacio, Universidad de Oviedo
Dick Bulterman, CWI
Eric Hyche, RealNetworks
Pablo Cesar, CWI

20.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 Tiny Profile is a new profile introduced in SMIL 3.0. It was not part of the SMIL 2.1.

20.2 Abstract

This section is normative.

The SMIL 3.0 Tiny Profile is the minimum collection of SMIL 3.0 modules that provide support for the SMIL 3.0 language.

This profile is suitable for systems which require very simple SMIL presentations where user interactions and specific content layout are not necessary. This is, for instance, the case of devices with reduced computing capabilities such as MP3/MP4 players, minimum capability mobile phones, car navigation systems, television sets or voice user agents. Also, it is possible to use the profile in the development of server-side playlists. These playlists are used to generate continuous streams from individual video or audio files. The server processes the playlists without any user interaction.

The functionality of the SMIL 3.0 Tiny Profile may be extended by using the SMIL 3.0 Scalability Framework.

20.3 Introduction to the SMIL 3.0 Tiny Profile

This section is informative.

The SMIL 3.0 Tiny Profile is defined as a markup language. The syntax of this language is formally described by a document type definition (DTD), or an XML or RelaxNG Schema which is based on the SMIL modules as defined in "The SMIL 3.0 Modules".

The Tiny Profile design requirements are:

  1. Ensure that the profile is a proper subset of the SMIL 3.0 Language Profile.
  2. Provide a minimum collection of SMIL 3.0 elements.

Examples of use cases for this profile are resource-constrained devices and server-side playlists.

There are many small devices in the market specifically designed to reproduce multimedia contents but without the capabilities of either a computer or even a mobile phone or a PDA. To define simple presentations for these devices there are several formats available such as M3U, PLS or WPL. The SMIL Tiny Profile meets the requirements of these devices as it includes a reduced set of modules of the SMIL language and may be integrated very easily. The simplest devices may be equipped with a SMIL parser to play sequences of files and show metadata, and complex devices equipped with a graphical display may use the profile to play audios, videos, pictures and text.

Server-side playlists allow content servers to generate a live stream combining stored audio, video and live streams in a way specified by a document named playlist. The basic idea behind using SMIL in server-side playlists is to standardize the format of the playlists used by different providers, thus, different servers could share the same playlist, playlists may easily be installed into a new solution or different authoring tools could be used to generate playlists no matter the type of server we are using.

20.4 Normative Definition of the SMIL 3.0 Tiny Profile

This section is normative.

Within this profile specification, the term Tiny Profile will be considered to refer exclusively to the SMIL 3.0 Tiny Profile as defined in this document.

20.4.1 SMIL 3.0 Tiny Profile Conformance

The definition of conformance for a SMIL 3.0 profile is given in the Definitions section of the SMIL 3.0 Scalability Framework. Based on these definitions, the Tiny profile is a Strict Host-Language Conformant SMIL 3.0 Profile.

Within the referenced sections of the Scalability Framework, the following definitions should be used:

  1. The profile identification string for the Tiny profile is: http://www.w3.org/2008/SMIL30/Tiny.
  2. Documents written for the Tiny profile must declare the default SMIL namespace with the xmlns attribute on the smil root element. For SMIL 3.0, this is:
    xmlns="http://www.w3.org/ns/SMIL"
  3. The SMIL 3.0 Tiny profile DOCTYPE is:
    <!DOCTYPE smil PUBLIC "-//W3C//DTD SMIL 3.0 Tiny//EN"
    "http://www.w3.org/2008/SMIL30/SMIL30Tiny.dtd">
    If a document contains this declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD (or in the corresponding XML or RelaxNG schemas) are not allowed. If the document is invalid, the user agent should issue an error.
  4. The identification string for the non-normative DTD used for integration of errata is:
    http://www.w3.org/2008/SMIL30/informative-DTD/SMIL30Tiny.dtd
  5. Documents written for the Tiny Profile must declare (explicitly or implicitly via the DTD) the following values for the version and baseProfile attributes:
    version="3.0" baseProfile="Tiny"
    As a consequence of the two requirements above, the effective root element declaration for a Tiny profile document must be:
    <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Tiny">
         ...
    </smil>
    The root element may be extended as required with additional atttributes.

This version of SMIL provides a definition of strict host-language conformant SMIL 3.0 documents, which are restricted to tags and attributes from the SMIL 3.0 namespace. The Section "Extending/Restricting a SMIL 3.0 Profile" provides information on using the SMIL 3.0 Tiny profile with other namespaces, for instance, on including new tags within SMIL 3.0 documents.

Language designers and implementors wishing to extend the Tiny profile must consider the implications of the use of namespace extension syntax. Please consult the section on Scalable Profiles for restrictions and recommendations for best practice when extending SMIL.

20.4.2 Conforming SMIL 3.0 Tiny Profile User Agents

The definition of user agent conformance for SMIL 3.0 Tiny profile documents is given in the Conforming SMIL 3.0 User Agents section of the SMIL 3.0 Scalability Framework. Conforming Tiny profile user agents must adhere completely to this section.

20.4.3 The SMIL 3.0 Tiny Profile

The Tiny Profile supports the SMIL 3.0 features for basic multimedia presentations. It uses only modules from the SMIL 3.0 Recommendation. This Tiny profile includes the following SMIL 3.0 modules:

The collection names contained in the following table define the Tiny Profile vocabulary.

SMIL 3.0 Tiny Profile
Collection Name Elements in Collection
Structure smil, head, body
Layout layout
Metainformation meta,
MediaContent animation, audio, img, ref, text, textstream, video
Schedule par, seq

In the following sections, we define the set of elements and attributes used in each of the modules included in the Tiny Profile. The content model for each element is described. The content model of an element is a description of elements which may appear as its direct children. The special content model "EMPTY" means that a given element may not have children.

Collection Name Attributes in Collection
Core alt (CDATA), baseProfile 'Tiny', class (CDATA), label (CDATA), longdesc (CDATA), readIndex '0', title (CDATA), version (3.0) '3.0', xml:base (CDATA) [XMLBase], xml:id (id) (ID)
I18n xml:lang (CDATA)

The xml:id and id attributes are used to assign a unique XML identifier to every element in a SMIL document. These attributes are equivalent and must not both be used on an element. xml:id should be used in preference to id. When the document uses the SMIL 3.0 Tiny Profile DOCTYPE, only xml:id must be used.

The xml:id (id), class and title attributes in the collection Core are defined for all the elements of the Tiny Profile. The id attribute is used in the Tiny Profile to assign a unique XML identifier to every element in a SMIL document.

A conforming Tiny Profile document should not use the SMIL 1.0 attributes that have been depreciated in SMIL 2.0, SMIL 2.1 or SMIL 3.0. Tiny Profile implementations are not required to support these attributes. This would be considered as an unjustified burden for the targeted constraint devices. This applies to the depreciated test attribute of Content Control system-required.

20.4.4 Structure Module

The Structure Module provides a framework for structuring a SMIL document. The Structure Module defines semantics for the smil, head, and body elements. The Tiny Profile includes the Structure functionality of the Structure module and the Identity module.

In the Tiny Profile, the Structure elements may have the following attributes and content model :

Structure Module
Elements Attributes Content model
smil Core, I18n, systemRequired, xmlns (()*, (head, ()*)?, (body, ()*)?)
head Core, I18n ((meta)*, ((), (meta)*)?, ((layout), (meta)*)?)
body Core, I18n, MediaDescriptionAttributes, Timing, fill (auto | default | freeze | hold | remove | transition) 'default' (MediaContent | Schedule | )*

The body element acts as the root element to span the timing tree. The body element has the behavior of a seq element. Timing on the body element is supported. The syncbase of the body element is the application begin time, which is implementation dependent, as is the application end time.

20.4.5 Layout Module

The Layout Module provides a framework for spatial layout of visual components. It defines semantics for the layout element. The Tiny Profile includes the Layout functionality of the StructureLayout module.

In the Tiny Profile, Layout elements may have the following attributes and content model:

Layout Module
Elements Attributes Content model
layout Core, I18n, systemRequired, type 'text/smil-basic-layout' ()*

This profile adds the element to the content model of the head element of the Structure Module.

The content model of layout is empty. Profiles that extend the Tiny Profile may define their own content model of the layout element.

20.4.6 Metainformation Module

The Metainformation Module provides a framework for describing a document, either to inform the human user or to assist in automation. The Metainformation Module defines semantics for the meta and elements. In addition, this module defines semantics for the label attribute. The Tiny Profile includes the Metainformation functionality of the Metainformation module.

In the Tiny Profile, Metainformation elements may have the following attributes and content model:

Metainformation Module
Elements Attributes Content model
meta Core, I18n, content, name, skip-content (false | true) 'true' EMPTY
Core, I18n, skip-content (false | true) 'true' EMPTY

This profile adds the meta element to the content model of the head element of the Structure Module, as well as the element to the content model of the head and body elements of the Structure Module, to the ref, audio, img, video, text, and textstream elements of the BasicMedia module and to the par and seq elements of the BasicTimeContainers module.

The content model of metadata is empty. Profiles that extend the Tiny Profile may define their own content model of the metadata element.

20.4.7 Media Object Modules

The Media Object Modules provide a framework for declaring media. The Media Object Modules define semantics for the ref, audio, img, video, text, and textstream elements. The Tiny Profile includes the Media Object functionality of the BasicMedia and MediaDescription modules.

In the Tiny Profile, media elements may have the following attributes and content model:

Media Object Module
Elements Attributes Content model
ref, animation, audio, img, text, textstream, video Core, I18n, MediaDescriptionAttributes, Timing, endsync 'media', fill (auto | default | freeze | hold | remove | transition) 'default', mediaRepeat (preserve | strip) 'preserve', src, systemRequired, type ()*

The attribute collection MediaDescriptionAttributes is defined as follows:

Collection Name Attributes in Collection
MediaDescriptionAttributes abstract (CDATA), author (CDATA), copyright (CDATA)

This profile adds the ref, audio, img, video, text, and textstream elements to the content model of the par and seq elements of the Timing and Synchronization Modules and to the content model of the body element of the Structure Module.

20.4.8 Timing and Synchronization Modules

The Timing and Synchronization Modules provide a framework for describing timing structure, timing control properties and temporal relationships between elements. The Timing and Synchronization Modules define semantics for par and seq elements. In addition, these modules define semantics for attributes including begin, dur and end. The Tiny Profile includes the Timing and Synchronization functionality of the BasicInlineTiming and BasicTimeContainers modules.

In the Tiny Profile, Timing and Synchronization elements may have the following attributes and content model :

Timing and Synchronization Module
Elements Attributes Content model
par Core, I18n, MediaDescriptionAttributes, Timing, endsync 'last', fill (auto | default | freeze | hold | remove | transition) 'default', systemRequired (MediaContent | Schedule | )*
seq Core, I18n, MediaDescriptionAttributes, Timing, fill (auto | default | freeze | hold | remove | transition) 'default', systemRequired (MediaContent | Schedule | )*

The Attribute collection Timing is defined as follows:

Collection Name Attributes in Collection
Timing begin, dur, end

This profile adds the par and seq elements to the content model of the body element of the Structure Module.

Elements of the Media Object Modules have the attributes describing timing and properties of contents.

20.4.9 Content Control Modules

The Content Control Modules provide a framework for selecting content based on a set of attributes. The Tiny Profile includes the Content Control functionality of the SkipContentControl and RequiredContentControl modules.

In the Tiny Profile no Content Control elements are defined. It only contains the skip-content and systemRequired attributes. While the first may be used to selectively control the evaluation of the element on which the attribute appears, the second provides an extension mechanism for new elements or attributes.

20.5 Use Cases

This section is informative.

20.5.1 Server-side playlists

Server-side playlists allow content servers to generate a live stream from a set of contents. A computing system may retrieve stored audio, video and live streams, and combine them in a way specified by a document named playlist.

Nowadays these systems run as follows:

The basic idea behind using SMIL in server-side playlists is to standardize the playlists used by different providers. Depending on the format of the files to be used, different servers could share the same playlist. So if a new technology is used, the playlists can easily be installed into the new solution. Also, different authoring tools could be used to generate these playlists no matter the type of server we have.

Depending on the future evolution of the currently available implementations of server-side playlists, this functionality may be split to a SMIL Server-Side Playlist Profile. This would allow consideration for new functionality. For instance, we may alternate between live and stored contents in the same playlist, play with the layout to have complex streams (similar to those available in a conventional TV channel), or add complex timing features, etc.

Current playlist support

RealNetworks is one of the companies which implements this type of systems. To generate its live streams, it mainly uses a program called slta. This program uses a plain-text file where the path and names of the files to be used are provided. When the program starts, it opens the playlist file and starts to deliver data packets to the server by putting the files into a sequence. When the program reaches the end of the playlist or a certain length of this playlist, it may stop or it may read it and start again (the slta can loop the list of pre-recorded files either a specified number of times or indefinitely) Also, it is possible to add meta-data. As far as we know, it is impossible to alter the layout of the files. For instance, if we are a content provider working for several broadcasters we need to generate different versions of the same contents even if small variations are needed (like the insertion of a logo image). Also, timing functionality is very limited and only stored content can be used. An example of a slta playlist follows:

llandecubel_cabraliega.rm?title="Cabraliega"&autor="Llan de Cubel"
corquieu_labarquera_tanda.rm?title="Tanda"&author="Corquieu"
tolimorilla_desitiempupoema-a.rm?title="Desi tiempu"&author="Toli Morilla"
losberrones_10anos_ladelatele-a.rm?title="La de la tele"&author="Los Berrones"
jingle_1-a.rm?title="Jingle Asturies.Com"&author="Asturies.Com Canal UN"
elpresi_laxatapinta-a.rm?title="La xata pinta"&author="El Presi"
tolimorilla_natocintura-a.rm?title="Na to cintura"&author="Toli Morilla"

In the example, the playlist uses 7 files in rm format and each of the files has two associated meta-data items: a title and the name of the author. The slta will open these files sequentially or randomly depending on an input parameter.

Other developers are Microsoft (Windows Media Services) and Apple (Darwin/Quicktime Streaming Server). These companies provide what they call Server-Side playlists. They have included a management tool to create and manage these lists of contents. A module in the server uses these playlists and performs actions similar to those exposed in the case of RealNetworks solutions. A reduced set of SMIL 2.0 is available in Microsoft solutions. An example of a Microsoft Server-Side Playlist follows:

<?wsx version="1.0"?>
<smil>
<seq>
<media src="c:\wmpub\wmroot\audio1.wma" clipBegin="2:42" />
<media src="c:\wmpub\wmroot\audio2.wma" clipBegin="0:00" />
<media src="c:\wmpub\wmroot\audio3.wma" clipBegin="2min" />
<media src="c:\wmpub\wmroot\audio4.wma" clipBegin="0h" dur="30" />
</seq>
</smil>

In this example, the playlist uses 4 files in wma format which will be opened sequentially with different starting points according to their internal timeline.

20.5.2 Low-capacity devices

There are many small devices in the market specifically designed to reproduce multimedia contents but without the capabilities of either a computer or even a mobile phone or a PDA. An example is an mp3 player.

An mp3 player is a low-capacity device designed to reproduce audio files encoded in several formats. Usually, these devices are able to reproduce the files they contain sequentially, ordered by file name, or randomly. But in some cases, they are able to process a playlist in which a particular order for the files to be read is specified.

Nowadays there are several playlist formats used for this purpose. Some devices can use the M3U format, others PLS or WPL, etc. An example of an M3U playlist follows:

#EXTM3U

#EXTINF:167,Jorge Tuya - Puente de Ribadesella
tonada\puenteRibadesella.mp3
#EXTINF:193,Anabel Santiago - Coyi dun artu una flor
tonada\coyiArtuFlor.mp3
#EXTINF:207,Jesus Garcia - Tengo de subir al puertu
tonada\subirPuertu.mp3

In the example, three mp3 files stored in the tonada directory are played in sequence. Each #EXTINF: entry provides the length of the following file and the title which should be shown in the display of the player/device.

In conclusion, the SMIL Tiny Profile meets the requirements of the described devices. It includes a reduced set of modules of the SMIL language and can be integrated very easily. The simplest devices, designed to reproduce only audio, can be equipped with a SMIL parser to play sequences of files and show their associated metadata. Moreover, complex devices equipped with a graphical display, and video and image renderers, can use the profile to play sequences of audios and videos, or even a picture of the artist, or the title of the song being played is shown on the display.

Standardizing the format used in these devices allows users not only to reuse their multimedia files but also their playlists, once a new device has been bought.

20.6 Expanding the SMIL 3.0 Tiny Profile

This section is informative.

The SMIL 3.0 Tiny Profile is the minimum collection of SMIL 3.0 modules that provides support for the SMIL 3.0 language. Nevertheless, the SMIL Language includes powerful functionality for various/differing complexities, ranging from desktops to ubiquitous information appliances such as minimal capability mobile phones, car navigation systems, television sets, and voice user agents. Each of these platforms has its own specific capabilities and requirements. It is clear that not all SMIL 3.0 elements and attributes will be required on all platforms. SMIL 3.0 modularization groups semantically related SMIL elements, attributes, and attribute values into a disjoint set of SMIL modules. These modules may then be recombined to produce a SMIL profile that meets the needs of different communities. For example, a hand held device, digital talking book player, or a mobile phone may only support a small subset of SMIL 3.0 modules in its own profile.

For this purpose, the W3C SYMM working group has defined a scalability architecture in the SMIL 3.0 Scalability Framework. A scalable profile enables user agents to support incremental extra collections of modules containing the baseline functionality needed for an implementation environment, thus, a family of scalable SMIL profiles may be built using the SMIL 3.0 Tiny Profile plus additional sets of modules geared to the particular needs each profile addresses.

Example

The following example shows how a television channel may build a server-side playlist, based on the following broadcast table:

TV Channel Time Table
Begin End Program Provider Type
20:00 21:00 News Own Live
21:00 22:00 Coronation Avenue Equirrel Productions Stored
22:00 00:00 Football: Sporting de Gijón vs Real Oviedo AudioVisual Sport Live
00:00 01:00 News Own Live
01:00 02:15 International Cinema: Xicu'l Toperu Producciones Esbardu Stored

The resulting document is the SMIL presentation following the Tiny profile:

01 <?xml version="1.0" encoding="iso-8859-1" ?>
02
03 <smil xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="Tiny"
04        xmlns:Wallclock="http://www.w3.org/2008/SMIL30/WallclockTiming"
05        xmlns:MediaClipping="http://www.w3.org/2008/SMIL30/MediaClipping"
06        systemRequired="Wallclock+MediaClipping" >
07  <head>
08     <layout></layout>
09     <meta name="Broadcaster" content="TV Channel" />
10     <meta name="Rights" content="Copyright 2007 TV Channel" />
11   </head>
12   <body>
13     <seq>
14       <video src="rtsp://videoserver.tvchannel.com/livenews.rm" begin="wallclock(20:00:00)" dur="60:00" title="News">
15         <!-- Metadata of the news -->
16         <metadata ...>
17         ...
18         </metadata>
19       </video>
20       <video src="./series/coronationAv/chapter20.rm" clipBegin="5:00" clipEnd="65:00" title="Coronation Avenue" >
21         <!-- Metadata of Coronation Avenue -->
22         <metadata ...>
23         ...
24         </metadata>
25       </video>
26       <video src="rtsp://videoserver.audiovisualsport.com/xixonUvieu.rm" dur="120:00" title="Sporting de Gijón vs. Real Oviedo" />
27       <video src="rtsp://videoserver.tvchannel.com/livenews.rm" dur="60:00" title="News" />
28       <video src="./movies/xicuToperu.rm" end="wallclock(02:15:00)" title="Xicu'l Toperu" />
29     </seq>
30   </body>
31 </smil>

The previous example uses the functionality defined by the SMIL 3.0 Tiny Profile. For example, lines 15-18 exemplifies how the metadata information can be included in the body section of the document, thus annotating specific programs. In addition, the example uses the clipBegin and clipEnd attributes from the MediaClipping module and the wallclock from the WallclockTiming module. These two required modules are declared in the smil element as defined in the SMIL 3.0 Scalability Framework.

IPTV and Interactive Television

As shown in the previous example, the SMIL 3.0 Tiny profile can be used for transmission of digital television channels. Nevertheless, IPTV and Interactive Television content will require a number of extra modules than those included in the SMIL 3.0 Tiny profile, such as linking, state, and layout functionality.

20.7 Appendix A: SMIL 3.0 Document Type Definition

This section is normative.

The Tiny Profile Document Type Definition is defined as a set of SMIL 3.0 modules. All SMIL 3.0 modules are integrated according to the guidelines in the W3C Note "Synchronized Multimedia Modules based upon SMIL 1.0" [SMIL-MOD], and defined within their respective module sections.

21. SMIL 3.0 smilText Profile

Editors
Dick Bulterman, CWI
Sjoerd Mullender, CWI
Eric Hyche, RealNetworks

21.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

The SMIL 3.0 smilText profile is a new profile introduced in SMIL 3.0. It was not part of the SMIL 2.1.

21.2 Abstract

This section is normative.

The SMIL 3.0 smilText profile is a collection of SMIL 3.0 modules that provide support for the specification of an external streaming text container. This container allows the functionality of the SMIL 3.0 smilText modules to be referenced outside of the content of a SMIL file.

This profile is suitable for systems which require simple streaming timed text. A separate smilText rendering engine will be required to process documents defined using this profile. In many cases, SMIL 3.0 engines will provide this capability, but other stand-alone implementations may also be developed.

21.3 Introduction to the SMIL 3.0 smilText Profile

This section is informative.

The SMIL 3.0 smilText profile is defined as a markup language. The syntax of this language is formally described by a document type definition (DTD), or an XML or RelaxNG Schema which is based on the modules as defined in "SMIL 3.0 Modules" section.

The smilText profile design requirements are:

  1. Provide an external container format for smilText markup.
  2. Ensure that the profile is a proper subset of the in-line processing of smilText as supported by the SMIL 3.0 Language Profile.

Examples of use cases for this profile are SMIL rendering engines, plus stand-alone media players that wish to support a simple, streamable timed-text format.

21.4 Normative Definition of the smilText Profile

This section is normative.

Within this profile specification, the term smilText profile will be considered to refer exclusively to the SMIL 3.0 smilText profile as defined in this document.

21.4.1 SMIL 3.0 smilText Profile Conformance

The definition of conformance for the SMIL 3.0 profile is given in the Definitions section of the SMIL 3.0 Scalability Framework. Based on these definitions, the smilText profile is a Conformant SMIL 3.0 Profile.

Within the referenced sections of the Scalability Framework, the following definitions should be used:

  1. The profile identification string for the smilText profile is: http://www.w3.org/2008/SMIL30/smilText .
  2. Documents written for the smilText profile must declare the default SMIL namespace with the xmlns attribute on the smilText root element. For SMIL 3.0, this is:
    xmlns="http://www.w3.org/ns/SMIL"
  3. The SMIL 3.0 smilText profile DOCTYPE is:
    <!DOCTYPE smilText PUBLIC "-//W3C//DTD SMIL 3.0 smilText //EN"
    "http://www.w3.org/2008/SMIL30/SMIL30smilText.dtd">
    If a document contains this declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD (or in the corresponding XML or RelaxNG schemas) are not allowed. If the document is invalid, the user agent should issue an error.
  4. The identification string for the non-normative DTD used for integration of errata is:
    http://www.w3.org/2008/SMIL30/informative-DTD/SMIL30smilText.dtd
  5. Documents written for the smilText Profile must declare (explicitly or implicitly via the DTD) the following values for the version and baseProfile attributes:
    version="3.0" baseProfile="smilText "
    As a consequence of the two requirements above, the effective root element declaration for a smilText profile document must be:
    <smilText xmlns="http://www.w3.org/ns/SMIL" version="3.0" baseProfile="smilText ">
         ...
    </smil>
    The root element may be extended as required with additional atttributes.

Language designers and implementors wishing to extend the smilText profile must consider the implications of the use of namespace extension syntax. Please consult the section on Scalable Profiles for restrictions and recommendations for best practice when extending SMIL.

The smilText profile specifies additional rules for smilText profile, document and user-agent conformance. It also specifies the elements and attribute values, plus any restrictions, required to support the smilText profile. This section provides a normative definition of these three aspects.

The smilText profile is not a SMIL host-language conformant profile. The smilText profile does not support extension using the SMIL 3.0 Scalability Framework.

21.4.2 Document Conformance

This version of the smilText profile provides a definition of strictly conforming external smilText profile documents, which are restricted to tags and attributes from the SMIL 3.0 namespace. In the future, the language described in this profile may be extended by other W3C Recommendations, or by private extensions. For these extensions, the following rule must be obeyed:

An external smilText document is a conforming smilText profile document if it adheres to the specification of the SMIL 3.0 smilText profile definition. A conforming smilText profile document must meet all of the following criteria:

  1. The root element of the smilText profile document MUST be the smilText element.
  2. The smilText profile document MUST be well-formed XML.
  3. The smilText profile document MUST conform to the following W3C Recommendations:
    • The XML 1.1 specification (Extensible Markup Language (XML) 1.1) [XML11].
    • Namespaces in XML [XML-NS]. Full XML Namespaces must be supported.
    • Any use of CSS styles and properties shall conform to Cascading Style Sheets, level 2 CSS2 Specification [CSS2].
  4. A smilText profile document MUST reference the SMIL 3.0 default namespace:
    xmlns="http://www.w3.org/ns/SMIL"
    The default namespace name will be reused in any update of SMIL 3.0 which is made for the purpose of clarification or bug fixes. These changes will be minor in that they do not (a) change the meaning of existing documents written using the namespace, or (b) affect the operation of existing software written to process such documents. The SYMM working group MAY reuse this namespace URI in a future specification that revises the SMIL 3.0 DTD, thus affecting the validity of published documents.
  5. A smilText profile document MAY contain the following DOCTYPE declaration:
    <!DOCTYPE smilText PUBLIC "-//W3C//DTD SMIL 3.0 smilText//EN"
    "http://www.w3.org/2008/SMIL30/SMIL30smilText.dtd">
    The DTD referenced in the DOCTYPE declaration will, among other things, define default values for the language version number and the base profile name associated with the DTD. If a document contains a DOCTYPE declaration, it must be a valid XML document. Note that this implies that extensions to the syntax defined in the DTD are not allowed. A document is a conforming smilText profile document if it satisfies the requirements of the smilText profile specification and is valid per the normative DTD identified by the profile. As per section 7.6 of the W3C Process Document, W3C will make every effort to make this normative DTD available in its original form at this URI. The SYMM WG also publishes a non-normative DTD identified by:
    http://www.w3.org/2008/SMIL30/SMIL30smilText.dtd
    The SYMM WG plans to make changes to this DTD over time to correct errata. If you choose to refer to this DTD, please note that it is subject to change without notice at any time. The SYMM WG MAY publish a normative "snapshot" of the corrected DTD at a new URI by following the W3C Process for modifying a Recommendation. Individuals are free to use either of the two URIs above as the system identifier in the smilText profile's DOCTYPE, according to the desired level of stability.
  6. A smilText profile document MAY declare a version number and base profile by using the version and baseProfile attributes on the smilText root element. If a DOCTYPE declaration is present, the version and base profiles defined must match those in the profile DTD. If a DOCTYPE declaration containing a valid SMIL profile DTD is not given and if no version attribute is specified, version 3.0 will be used. If a DOCTYPE declaration containing a valid SMIL profile DTD is not given and if no baseProfile attribute is defined, the smilText base profile will be used.
  7. A smilText profile document MAY declare both an XML DOCTYPE declaration (as defined in [XML11]) and one or more XML namespace declarations (as defined in [XML-NS]). To be recognized as a smilText profile document by a conforming smilText profile user agent, the document MUST include the SMIL 3.0 namespace identifier as the default namespace on the <smilText> tag.
  8. Given that, as of this writing, DTDs have no way to describe the allowability of namespace-qualified extensions, and that extensions to smilText profile conformant documents must be namespace-qualified, here is the algorithm to be used to validate documents with extensions:
    • If all non-SMIL 3.0 namespace elements and attributes and all xmlns attributes which refer to non-SMIL 3.0 namespace elements are removed from the given document and if the appropriate <!DOCTYPE ... > statement which points to the smilText profile DTD is included, the result is a valid XML document.

Neither the smilText profile definition nor these conformance criteria provide designated size limits on any aspect of smilText profile content. There are no maximum values on the number of elements, the amount of character data, or the number of characters in attribute values.

Conforming SMIL 3.0 smilText Profile User Agents

A conforming smilText profile user agent is a program which can parse and process a smilText profile document and render the contents of the document onto output media. A conforming smilText profile user agent must meet all of the following criteria:

  1. In order to be consistent with the XML 1.1 Recommendation [XML11], the user agent MUST parse and evaluate a smilText profile document for well-formedness. If the user agent claims to be a validating user agent, it MUST also validate documents against the smilText profile DTD according to [XML11].
  2. When the user agent claims to support the functionality of the smilText profile through smilText profile elements and attributes and the semantics associated with these elements and attributes, it must do so in ways consistent with the smilText profile specification.
  3. The user agent must be able to successfully parse and process any conforming smilText profile document as specified by the relevant profile document, and support and correctly implement the semantics of all features of the smilText profile UNLESS a particular feature has been explicitly removed from the user agent.
  4. The XML parser of the user agent must be able to parse and process XML constructs defined in [XML11] and [XML-NS].
  5. Processing the default namespace on the smilText element will fall into one of three cases:
    1. The default namespace on the smilText root element is recognized by the user agent. The user agent should process the document as the version identified by the effective values of the version and baseProfile attributes. Any elements, attributes, or other syntax not defined by the default namespace on the smilText root element must be fully namespace qualified using standard XML mechanisms for declaring namespaces for elements and attributes described in [XML-NS], as further described in the section on Expanding/Restricting SMIL Profiles. Unqualified elements not part of the default namespace are illegal and must result in an error.
    2. The default namespace declaration on the smilText root element unrecognized. A smilText user agent will not recognize the document as any version of smilText and MUST issue an error.
  6. The user agent MUST support the following W3C Recommendations with regard to smilText profile content:
    • Complete support for the XML 1.1 specification (Extensible Markup Language (XML) 1.1) [XML11].
    • Complete support for inclusion of non-SMIL 3.0 namespaces within smilText profile content via Namespaces in XML [XML-NS]. A xmlns declaration or xmlns prefix declaration may be used on any element in the smilText profile document.
  7. The user agent MUST ignore namespace prefix qualified elements from unrecognized namespaces and MUST support the skip-content attributes. If no skip-content attributes are declared, the value of true is assumed.
  8. The user agent MUST ignore elements with unrecognized default namespace declarations and MUST support the skip-content attribute. If no skip-content attributes are declared, the value of true is assumed.
  9. The user agent MUST ignore attributes from the default namespace that are not otherwise supported by the smilText profile.
  10. The user agent MUST issue an error for an attribute value which does not conform to the syntax specified for that attribute.
  11. The detection of a syntax error in a smilText profile document MUST result in the user agent issuing an error and not playing the document.

21.4.3 Details of the SMIL 3.0 smilText Profile

The smilText profile supports the SMIL 3.0 smilText features for the presentation of basic timed text functionality. It uses only modules from the SMIL 3.0 Recommendation. The smilText profile includes the following SMIL 3.0 modules:

The collection names contained in the following table define the smilText 1.0 Profile vocabulary.

smilText Profile
Module Name Elements in Module
Identity None.
RequiredContentControl None.
BasicText smilText, tev, clear, br
TextStyling div, p, span, textStyle
TextMotion None.
Metainformation

In the following sections, we define the set of elements and attributes used in each of the modules included in the smilText profile. The content model for each element is described. The content model of an element is a description of elements which may appear as its direct children. The special content model "EMPTY" means that a given element may not have children.

Collection Name Attributes in Collection
Core baseProfile 'smilText', version (3.0) '3.0', xml:base (CDATA) [XMLBase], xml:id (ID)
I18n its:dir (lro | ltr | rlo | rtl), its:locNote (CDATA), its:locNoteRef (CDATA), its:locNoteType (alert | description), its:term (no | yes), its:termInfoRef (CDATA), its:translate (no | yes), xml:lang (CDATA)

The xml:id attributes in the collection Core are defined for all the elements of the smilText profile. The xml:id attribute is used in the smilText profile to assign a unique XML identifier to every element in a smilText document.

21.4.4 Identity Module

The smilText profile integrates the baseProfile and version attributes from the Identity module into the Core collection.

21.4.5 RequiredContentControl Module

The smilText profile integrates the systemRequired attribute from the RequiredContentControl module as an attribute of the smilText root element.

21.4.6 smilText Modules

The smilText Modules provide a light-weight method of defining timed text in an external container format. The smilText Modules section of SMIL 3.0 define semantics for the smilText, tev, clear, br, span, p, div, textStyle elements and their attributes. The smilText profile includes the smilText functionality of the BasicText, TextStyling, and TextMotion modules.

In the smilText profile, smilText elements may have the following attributes and content model:

Text Module
Elements Attributes Content model
smilText Core, I18n, systemRequired, TextExternal, textAlign (center | end | inherit | left | right | start) 'inherit', textConceal (both | final | inherit | initial | none) 'inherit', textMode (append | crawl | inherit | jump | replace | scroll) 'inherit', textPlace (center | end | inherit | start) 'inherit', textRate 'auto', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit', (#PCDATA | | tev | clear | br | span | p | div)
tev Core, I18n, begin, next ()*
clear Core, I18n, begin, next ()*
br Core, I18n, ()*
div Core, I18n, TextAttributes, textAlign (center | end | inherit | left | right | start) 'inherit', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' (#PCDATA | | tev | clear | br | div | p | span)
p Core, I18n, TextAttributes, textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' (#PCDATA | | tev | clear | br | span)
span Core, I18n, TextAttributes, textDirection (inherit | ltr | ltro | rtl | rtlo) 'inherit', textWrapOption (inherit | noWrap | wrap) 'wrap' (#PCDATA | | tev | clear | br | span)
textStyle Core, I18n, TextAttributes, textAlign (center | end | inherit | left | right | start) 'inherit', textConceal (both | final | inherit | initial | none) 'inherit', textDirection (inherit | ltr | ltro | rtl | rtlo) 'inherit', textMode (append | crawl | inherit | jump | replace | scroll) 'inherit', textPlace (center | end | inherit | start) 'inherit', textRate 'auto', textWrapOption (inherit | noWrap | wrap) 'wrap', textWritingMode (inherit | lr | lr-tb | rl | rl-tb | tb-lr | tb-rl) 'inherit' ()*
textStyling Core, I18n (()*, (textStyle, ()*)+)

The SMILtext functionality is used to define the Attribute set "TextAttributes":

Collection Name Attributes in Collection
TextAttributes textBackgroundColor 'transparent', textColor, textFontFamily 'inherit', textFontSize 'inherit', textFontStyle (inherit | italic | normal | oblique | reverseOblique) 'inherit', textFontWeight (bold | inherit | normal) 'inherit', textStyle, xml:space (default | preserve) 'default'

The smilText profile also integrates attribute definitions in the TextExternal attribute set from the BasicLayout module (backgroundColor 'transparent', height, and width) and the BasicTimeContainers module (dur). While these modules do not form a part of the smilText profile, the attributes used have the same meaning as in the referenced module specifications.

Collection Name Attributes in Collection
TextExternal version '1.0 (1.0)', backgroundColor 'transparent', height, width, dur

21.4.7 Metainformation Module

The Metainformation Module provides a framework for describing a document, either to inform the human user or to assist in automation. The Metainformation Module defines semantics for element. In addition, this module defines semantics for the label attribute. The smilText profile includes the Metainformation functionality of the Metainformation module.

In the smilText profile, Metainformation elements may have the following attributes and content model:

Metainformation Module
Elements Attributes Content model
Core, I18n EMPTY

This profile adds the element to the content model of all of the elements in the profile, with the exception of the metadata element itself.

The content model of metadata is empty. Profiles that extend the smilText Profile may define their own content model of the metadata element.

21.5 Appendix A: SMIL 3.0 smilText Document Type Definition

This section is normative.

The SMIL 3.0 smilText profile Document Type Definition is defined as a set of SMIL 3.0 modules. All SMIL 3.0 modules are integrated according to the guidelines in the W3C Note "Synchronized Multimedia Modules based upon SMIL 1.0" [SMIL-MOD], and defined within their respective module sections.

Appendix A. SMIL 3.0 DTDs

A.1 Overview and Summary of Changes for SMIL 3.0

This section is informative.

This section defines the DTDs for SMIL 3.0 Modules and Profiles. A zip archive of the SMIL 3.0 DTDs is also available.

This SMIL version also provides Informative Relax NG schemas for SMIL 3.0 Modules and Profiles to validate SMIL 3.0 documents.

Informative tables of elements content for SMIL 3.0 profiles (Language Profile, Unified Mobile Profile, DAISY Profile, Tiny Profile and smilText Profile are provided for user convenience.

The following SMIL 3.0 DTDs are Normative for validation of SMIL 3.0 documents. The Relax NG schemas are only informative.

The working group may make changes to the SMIL 3.0 DTD to correct errata. A non-normative version of the SMIL 3.0 DTD with corrections made is available here.


This section is Normative.

A.2 SMIL 3.0 Module DTDs:

A.2.1 The SMIL 3.0 Structure Module

<!-- ====================================================================== -->
<!-- SMIL 3.0 Structure Module ============================================ -->
<!-- file: SMIL-struct.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Warner ten Kate,
        Jacco van Ossenbruggen, Sjoerd Mullender.
        Revision: 1.6
        Date: 2008/09/07 20:36:50

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Structure//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-struct.mod"

     ====================================================================== -->

<![%SMIL.Structure.module;[
  <!-- ================== SMIL Document Root ============================== -->
  <!ENTITY % SMIL.smil.attrib  "" >
  <!ENTITY % SMIL.smil.content "EMPTY" >
  <!ENTITY % SMIL.smil.qname   "smil" >

  <!-- If smil: prefixes are used, we supply a default xmlns:smil attribute.
       If no prefix is used, we require an xmlns attribute instead.
       Note that the xmlns:smil attribute declaration is part of
       %SMIL.Core.attrib;.
  -->
  <![%SMIL.prefixed;[
    <!ENTITY % SMIL.smil.xmlns.attrib "">
  ]]>
  <!ENTITY % SMIL.smil.xmlns.attrib "xmlns %URI.datatype; #REQUIRED">
  <!ELEMENT %SMIL.smil.qname; %SMIL.smil.content;>
  <!ATTLIST %SMIL.smil.qname; %SMIL.smil.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.smil.xmlns.attrib;
  >

  <!-- ================== The Document Head =============================== -->
  <!ENTITY % SMIL.head.content "EMPTY" >
  <!ENTITY % SMIL.head.attrib  "" >
  <!ENTITY % SMIL.head.qname   "head" >

  <!ELEMENT %SMIL.head.qname; %SMIL.head.content;>
  <!ATTLIST %SMIL.head.qname; %SMIL.head.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
  >

  <!--=================== The Document Body - Timing Root ================= -->
  <!ENTITY % SMIL.body.content "EMPTY" >
  <!ENTITY % SMIL.body.attrib  "" >
  <!ENTITY % SMIL.body.qname   "body" >

  <!ELEMENT %SMIL.body.qname; %SMIL.body.content;>
  <!ATTLIST %SMIL.body.qname; %SMIL.body.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
  >
]]>
<!-- end of SMIL-struct.mod -->

A.2.2 The SMIL 3.0 Media Objects Modules

<!-- ====================================================================== -->
<!-- SMIL 3.0 Media Objects Modules ======================================= -->
<!-- file: SMIL-media.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Rob Lanphier,
        Jacco van Ossenbruggen,, Sjoerd Mullender Sjoerd Mullender.
        Revision: 1.9
        Date: 2008/09/07 20:36:50

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Media Objects//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-media.mod"

     ====================================================================== -->

<!-- ================== Profiling Entities ================================ -->

<!ENTITY % SMIL.MediaParam.module "IGNORE">
<![%SMIL.MediaParam.module;[
  <!ENTITY % SMIL.param.attrib "">
  <!ENTITY % SMIL.param.qname "param">
  <!ENTITY % SMIL.param.content "EMPTY">
  <!ELEMENT %SMIL.param.qname; %SMIL.param.content;>

  <!ATTLIST %SMIL.param.qname; %SMIL.param.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    name        CDATA                   #IMPLIED
    value       CDATA                   #IMPLIED
    valuetype   (data | ref | object)   'data'
    type        %ContentType.datatype;  #IMPLIED
  >

  <!ENTITY % SMIL.paramGroup.content "(%SMIL.param.qname;*)">
  <!ENTITY % SMIL.paramGroup.attrib "">
  <!ENTITY % SMIL.paramGroup.qname "paramGroup">

  <!ELEMENT %SMIL.paramGroup.qname; %SMIL.paramGroup.content;>
  <!-- normally we get xml:id from the Structure module, but in case
       that is not included, we define it ourselves -->
  <![%SMIL.Structure.module;[
    <!ENTITY % SMIL.paramGroup.id.attrib "">
  ]]>
  <!ENTITY % SMIL.paramGroup.id.attrib "xml:id ID #IMPLIED">
  <!ATTLIST %SMIL.paramGroup.qname; %SMIL.paramGroup.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.paramGroup.id.attrib;
  >

]]>

<!ENTITY % SMIL.mo-attributes "
      %SMIL.media-object.attrib;
      %SMIL.Core.attrib;
      %SMIL.I18n.attrib;
      %SMIL.Description.attrib;
      %SMIL.MediaRenderAttributes.attrib;
">

<!ENTITY % SMIL.BasicMedia.module "IGNORE">
<![%SMIL.BasicMedia.module;[
  <!ENTITY % SMIL.media-object.content "EMPTY">
  <!ENTITY % SMIL.media-object.attrib "">
  <!ENTITY % SMIL.soundAlign.attrib "">

  <!-- ================ Media Objects Entities ============================ -->

  <!--
     Most info is in the attributes, media objects are empty or
     have children defined at the language integration level:
  -->

  <!ENTITY % SMIL.mo-content "%SMIL.media-object.content;">

  <!-- ================ Media Objects Elements ============================ -->
  <!ENTITY % SMIL.ref.qname           "ref">
  <!ENTITY % SMIL.animation.qname     "animation">
  <!ENTITY % SMIL.audio.qname         "audio">
  <!ENTITY % SMIL.img.qname           "img">
  <!ENTITY % SMIL.text.qname          "text">
  <!ENTITY % SMIL.textstream.qname    "textstream">
  <!ENTITY % SMIL.video.qname         "video">

  <!ENTITY % SMIL.ref.content         "%SMIL.mo-content;">
  <!ENTITY % SMIL.animation.content   "%SMIL.mo-content;">
  <!ENTITY % SMIL.audio.content       "%SMIL.mo-content;">
  <!ENTITY % SMIL.img.content         "%SMIL.mo-content;">
  <!ENTITY % SMIL.text.content        "%SMIL.mo-content;">
  <!ENTITY % SMIL.textstream.content  "%SMIL.mo-content;">
  <!ENTITY % SMIL.video.content       "%SMIL.mo-content;">

  <!ELEMENT %SMIL.ref.qname;          %SMIL.ref.content;>
  <!ELEMENT %SMIL.animation.qname;    %SMIL.animation.content;>
  <!ELEMENT %SMIL.audio.qname;        %SMIL.audio.content;>
  <!ELEMENT %SMIL.img.qname;          %SMIL.img.content;>
  <!ELEMENT %SMIL.text.qname;         %SMIL.text.content;>
  <!ELEMENT %SMIL.textstream.qname;   %SMIL.textstream.content;>
  <!ELEMENT %SMIL.video.qname;        %SMIL.video.content;>

  <!ATTLIST %SMIL.ref.qname;
          %SMIL.MediaClip.attrib;
          %SMIL.MediaClip.attrib.deprecated;
          %SMIL.mo-attributes;
          %SMIL.MediaOpacity.attrib;
          %SMIL.MediaPanZoom.attrib;
          %SMIL.soundAlign.attrib;
          src         %URI.datatype;          #IMPLIED
          type        %ContentType.datatype;  #IMPLIED
          mediaRepeat (preserve|strip)        'preserve'
  >
  <!ATTLIST %SMIL.animation.qname;
          %SMIL.MediaClip.attrib;
          %SMIL.MediaClip.attrib.deprecated;
          %SMIL.mo-attributes;
          %SMIL.MediaOpacity.attrib;
          %SMIL.MediaPanZoom.attrib;
          %SMIL.soundAlign.attrib;
          src         %URI.datatype;          #IMPLIED
          type        %ContentType.datatype;  #IMPLIED
          mediaRepeat (preserve|strip)        'preserve'
  >
  <!ATTLIST %SMIL.audio.qname;
          %SMIL.MediaClip.attrib;
          %SMIL.MediaClip.attrib.deprecated;
          %SMIL.mo-attributes;
          %SMIL.MediaOpacity.attrib;
          %SMIL.MediaPanZoom.attrib;
          %SMIL.soundAlign.attrib;
          src         %URI.datatype;          #IMPLIED
          type        %ContentType.datatype;  #IMPLIED
          mediaRepeat (preserve|strip)        'preserve'
  >
  <!ATTLIST %SMIL.img.qname;
          %SMIL.MediaClip.attrib;
          %SMIL.MediaClip.attrib.deprecated;
          %SMIL.mo-attributes;
          %SMIL.MediaOpacity.attrib;
          %SMIL.MediaPanZoom.attrib;
          %SMIL.soundAlign.attrib;
          src         %URI.datatype;          #IMPLIED
          type        %ContentType.datatype;  #IMPLIED
          mediaRepeat (preserve|strip)        'preserve'
  >
  <!ATTLIST %SMIL.text.qname;
          %SMIL.MediaClip.attrib;
          %SMIL.MediaClip.attrib.deprecated;
          %SMIL.mo-attributes;
          %SMIL.MediaOpacity.attrib;
          %SMIL.MediaPanZoom.attrib;
          %SMIL.soundAlign.attrib;
          src         %URI.datatype;          #IMPLIED
          type        %ContentType.datatype;  #IMPLIED
          mediaRepeat (preserve|strip)        'preserve'
  >
  <!ATTLIST %SMIL.textstream.qname;
          %SMIL.MediaClip.attrib;
          %SMIL.MediaClip.attrib.deprecated;
          %SMIL.mo-attributes;
          %SMIL.MediaOpacity.attrib;
          %SMIL.MediaPanZoom.attrib;
          %SMIL.soundAlign.attrib;
          src         %URI.datatype;          #IMPLIED
          type        %ContentType.datatype;  #IMPLIED
          mediaRepeat (preserve|strip)        'preserve'
  >
  <!ATTLIST %SMIL.video.qname;
          %SMIL.MediaClip.attrib;
          %SMIL.MediaClip.attrib.deprecated;
          %SMIL.mo-attributes;
          %SMIL.MediaOpacity.attrib;
          %SMIL.MediaPanZoom.attrib;
          %SMIL.soundAlign.attrib;
          src         %URI.datatype;          #IMPLIED
          type        %ContentType.datatype;  #IMPLIED
          mediaRepeat (preserve|strip)        'preserve'
  >
]]>

<!-- BrushMedia -->
<!ENTITY % SMIL.BrushMedia.module "IGNORE">
<![%SMIL.BrushMedia.module;[
  <!ENTITY % SMIL.brush.attrib "">
  <!ENTITY % SMIL.brush.content "%SMIL.mo-content;">
  <!ENTITY % SMIL.brush.qname "brush">
  <!ELEMENT %SMIL.brush.qname; %SMIL.brush.content;>
  <!ATTLIST %SMIL.brush.qname; %SMIL.brush.attrib;
        %SMIL.mo-attributes;
        color        %Color.datatype;            #IMPLIED
  >
]]>

<!-- end of SMIL-media.mod -->

A.2.3 The SMIL 3.0 Timing and Synchronization Modules

<!-- ====================================================================== -->
<!-- SMIL 3.0 Timing and Synchronization Modules ========================== -->
<!-- file: SMIL-timing.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Sjoerd Mullender.
        Revision: 1.7
        Date: 2008/09/07 20:36:50

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Timing//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-timing.mod"

     ====================================================================== -->


<!-- ================== Timing Elements =================================== -->

<!ENTITY % SMIL.BasicTimeContainers.module "IGNORE">
<![%SMIL.BasicTimeContainers.module;[
  <!ENTITY % SMIL.par.content "EMPTY">
  <!ENTITY % SMIL.par.attrib  "">
  <!ENTITY % SMIL.par.qname   "par">

  <!ELEMENT %SMIL.par.qname; %SMIL.par.content;>
  <!ATTLIST %SMIL.par.qname; %SMIL.par.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.Description.attrib;
  >

  <!ENTITY % SMIL.seq.content "EMPTY">
  <!ENTITY % SMIL.seq.attrib  "">
  <!ENTITY % SMIL.seq.qname   "seq">

  <!ELEMENT %SMIL.seq.qname; %SMIL.seq.content;>
  <!ATTLIST %SMIL.seq.qname; %SMIL.seq.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.Description.attrib;
  >
]]>  <!-- End of BasicTimeContainers.module -->


<!ENTITY % SMIL.BasicExclTimeContainers.module "IGNORE">
<![%SMIL.BasicExclTimeContainers.module;[
  <!ENTITY % SMIL.excl.content          "EMPTY">
  <!ENTITY % SMIL.excl.attrib           "">
  <!ENTITY % SMIL.excl.qname            "excl">

  <!ELEMENT %SMIL.excl.qname; %SMIL.excl.content;>
  <!ATTLIST %SMIL.excl.qname; %SMIL.excl.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.Description.attrib;
  >
]]>  <!-- End of BasicExclTimeContainers.module -->

<!ENTITY % SMIL.BasicPriorityClassContainers.module "IGNORE">
<![%SMIL.BasicPriorityClassContainers.module;[
  <!ENTITY % SMIL.priorityClass.content "EMPTY">
  <!ENTITY % SMIL.priorityClass.attrib  "">
  <!ENTITY % SMIL.priorityClass.qname   "priorityClass">

  <!ELEMENT %SMIL.priorityClass.qname; %SMIL.priorityClass.content;>
  <!ATTLIST %SMIL.priorityClass.qname; %SMIL.priorityClass.attrib;
    peers       (stop|pause|defer|never) 'stop'
    higher      (stop|pause)             'pause'
    lower       (defer|never)            'defer'
    pauseDisplay (disable|hide|show )    'show'
    %SMIL.Description.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
  >
]]>  <!-- End of BasicPriorityClassContainers.module -->

<!-- end of SMIL-timing.mod -->

A.2.4 The SMIL 3.0 Content Control Module

<!-- ====================================================================== -->
<!-- SMIL 3.0 Content Control Module ====================================== -->
<!-- file: SMIL-control.mod

      This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Aaron Cohen, Sjoerd Mullender.
        Revision: 1.7
        Date: 2008/09/07 20:36:49

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Content Control//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-control.mod"

     ====================================================================== -->

<!ENTITY % SMIL.BasicContentControl.module "IGNORE">
<![%SMIL.BasicContentControl.module;[
  <!ENTITY % SMIL.switch.attrib "">
  <!ENTITY % SMIL.switch.content "EMPTY">
  <!ENTITY % SMIL.switch.qname "switch">

  <!ELEMENT %SMIL.switch.qname; %SMIL.switch.content;>
  <!ATTLIST %SMIL.switch.qname; %SMIL.switch.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        allowReorder         (yes|no)           'no'
  >
]]>

<!-- ========================= CustomTest Elements ======================== -->
<!ENTITY % SMIL.CustomTestAttributes.module "IGNORE">
<![%SMIL.CustomTestAttributes.module;[

  <!ENTITY % SMIL.customTest.attrib "">
  <!ENTITY % SMIL.customTest.qname "customTest">
  <!ENTITY % SMIL.customTest.content "EMPTY">
  <!ELEMENT %SMIL.customTest.qname; %SMIL.customTest.content;>
  <!ATTLIST %SMIL.customTest.qname; %SMIL.customTest.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        defaultState (true|false)                   'false'
        override     (visible|hidden)               'hidden'
        uid          %URI.datatype;                 #IMPLIED
  >
  <!ENTITY % SMIL.customAttributes.attrib "">
  <!ENTITY % SMIL.customAttributes.qname "customAttributes">
  <!ENTITY % SMIL.customAttributes.content "(customTest+)">
  <!ELEMENT %SMIL.customAttributes.qname; %SMIL.customAttributes.content;>
  <!ATTLIST %SMIL.customAttributes.qname; %SMIL.customAttributes.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
  >

]]> <!-- end of CustomTestAttributes -->

<!-- ========================= PrefetchControl Elements =================== -->
<!ENTITY % SMIL.PrefetchControl.module "IGNORE">
<![%SMIL.PrefetchControl.module;[
  <!ENTITY % SMIL.prefetch.attrib "">
  <!ENTITY % SMIL.prefetch.qname "prefetch">
  <!ENTITY % SMIL.prefetch.content "EMPTY">
  <!ELEMENT %SMIL.prefetch.qname; %SMIL.prefetch.content;>
  <!ATTLIST %SMIL.prefetch.qname; %SMIL.prefetch.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        bandwidth     CDATA             '100&#37;'
        mediaSize     CDATA             #IMPLIED
        mediaTime     CDATA             #IMPLIED
        src           %URI.datatype;    #IMPLIED
  >
]]>

<!-- end of SMIL-control.mod -->

A.2.5 The SMIL 3.0 Layout Modules

<!-- ====================================================================== -->
<!-- SMIL 3.0 Layout Modules ============================================== -->
<!-- file: SMIL-layout.mod

        This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Aaron Cohen, Sjoerd Mullender.
        Revision: 1.12
        Date: 2008/09/18 10:33:45

        This DTD module is identified by the PUBLIC and SYSTEM identifiers:

        PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Layout//EN"
        SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-layout.mod"

        =================================================================== -->

<!-- ================== StructureLayout =================================== -->
<!ENTITY % SMIL.StructureLayout.module "IGNORE">
<![%SMIL.StructureLayout.module;[
  <!-- ================== StructureLayout Profiling Entities ============== -->
  <!ENTITY % SMIL.layout.attrib       "">
  <!ENTITY % SMIL.layout.content     "EMPTY">

  <!-- ================== StructureLayout Elements ======================== -->
  <!--
     Layout contains the region and root-layout elements defined by
     smil-basic-layout or other elements defined by an external layout
     mechanism.
  -->

  <!ENTITY % SMIL.layout.qname "layout">
  <!ELEMENT %SMIL.layout.qname; %SMIL.layout.content;>
  <!ATTLIST %SMIL.layout.qname; %SMIL.layout.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        type CDATA 'text/smil-basic-layout'
  >
]]> <!-- end StructureLayout.module -->

<!-- ================== BasicLayout ======================================= -->
<!ENTITY % SMIL.BasicLayout.module "IGNORE">
<![%SMIL.BasicLayout.module;[
  <!-- ================== BasicLayout Profiling Entities ================== -->
  <!ENTITY % SMIL.region.attrib       "">
  <!ENTITY % SMIL.rootlayout.attrib   "">
  <!ENTITY % SMIL.region.content     "EMPTY">
  <!ENTITY % SMIL.rootlayout.content "EMPTY">

  <!-- ================== BasicLayout Entities ============================ -->
  <!-- Serious hacking: we need an extra level of indirection to get
       the correct default value of the backgroundOpacity attribute
  -->
  <!ENTITY % SMIL.backgroundOpacity.attrib-indirect "%SMIL.backgroundOpacity.attrib;">
  <!ENTITY % SMIL.backgroundOpacity.attrib-indirect2 "%SMIL.backgroundOpacity.attrib-indirect;">
  <!ENTITY % SMIL.common-layout-attrs "
        %SMIL.region-size.attrib;
        %SMIL.backgroundColor.attrib;
        %SMIL.backgroundOpacity.attrib-indirect2;
  ">

  <!ENTITY % SMIL.region-attrs "
        %SMIL.region-positioning.attrib;
        %SMIL.z-index.attrib;
        %SMIL.fit.attrib;
        showBackground      (always|whenActive) 'always'
  ">

  <!-- ================== Region Element ================================== -->
  <!ENTITY % SMIL.region.qname "region">
  <!ELEMENT %SMIL.region.qname; %SMIL.region.content;>
  <!ATTLIST %SMIL.region.qname; %SMIL.region.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        %SMIL.backgroundColor.deprecated.attrib;
        %SMIL.common-layout-attrs;
        %SMIL.region-attrs;
        regionName NMTOKEN #IMPLIED
  >

  <!-- ================== Root-layout Element ============================= -->
  <!ENTITY % SMIL.root-layout.qname "root-layout">
  <!ELEMENT %SMIL.root-layout.qname; %SMIL.rootlayout.content; >
  <!ATTLIST %SMIL.root-layout.qname; %SMIL.rootlayout.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        %SMIL.backgroundColor.deprecated.attrib;
        %SMIL.common-layout-attrs;
  >
]]> <!-- end BasicLayout.module -->

<!-- ================== AudioLayout ======================================= -->
<!ENTITY % SMIL.AudioLayout.module "IGNORE">
<![%SMIL.AudioLayout.module;[
  <!-- ================== AudioLayout Entities ============================ -->
  <!ENTITY % SMIL.soundLevel.attrib "
        soundLevel                        CDATA    '+0.0dB'
  ">

  <!-- ================ AudioLayout Elements ============================== -->
  <!-- ================ Add soundLevel to region element ================== -->
  <!ATTLIST %SMIL.region.qname; %SMIL.soundLevel.attrib;>
  <!-- ================ Add soundLevel to media elements ================== -->
  <!ENTITY % SMIL.OverrideLayout.module "IGNORE">
  <![%SMIL.OverrideLayout.module;[
    <!ATTLIST %SMIL.ref.qname; %SMIL.soundLevel.attrib;>
    <!ATTLIST %SMIL.animation.qname; %SMIL.soundLevel.attrib;>
    <!ATTLIST %SMIL.audio.qname; %SMIL.soundLevel.attrib;>
    <!ATTLIST %SMIL.img.qname; %SMIL.soundLevel.attrib;>
    <!ATTLIST %SMIL.text.qname; %SMIL.soundLevel.attrib;>
    <!ATTLIST %SMIL.textstream.qname; %SMIL.soundLevel.attrib;>
    <!ATTLIST %SMIL.video.qname; %SMIL.soundLevel.attrib;>
  ]]>
]]> <!-- end AudioLayout.module -->


<!-- ================ MultiWindowLayout =================================== -->
<!ENTITY % SMIL.MultiWindowLayout.module "IGNORE">
<![%SMIL.MultiWindowLayout.module;[
  <!-- ============== MultiWindowLayout Profiling Entities ================ -->
  <!ENTITY % SMIL.topLayout.attrib    "">
  <!ENTITY % SMIL.topLayout.content   "EMPTY">

  <!-- ============== MultiWindowLayout Elements ========================== -->
  <!--================= topLayout element ================================= -->
  <!ENTITY % SMIL.topLayout.qname "topLayout">
  <!ELEMENT %SMIL.topLayout.qname; %SMIL.topLayout.content;>
  <!ATTLIST %SMIL.topLayout.qname; %SMIL.topLayout.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        %SMIL.common-layout-attrs;
        close               (onRequest|whenNotActive) 'onRequest'
        open                (onStart|whenActive)      'onStart'
  >
]]> <!-- end MultiWindowLayout.module -->


<!-- ====================== AlignmentLayout =============================== -->
<!ENTITY % SMIL.AlignmentLayout.module "IGNORE">
<![%SMIL.AlignmentLayout.module;[
  <!-- ========== AlignmentLayout Profiling Entities ====================== -->
  <!ENTITY % SMIL.regPoint.attrib     "">
  <!ENTITY % SMIL.regPoint.content   "EMPTY">

  <!-- ============ AlignmentLayout Elements ============================== -->
  <!ENTITY % SMIL.regPoint.qname "regPoint">
  <!ELEMENT %SMIL.regPoint.qname; %SMIL.regPoint.content;>
  <!ATTLIST %SMIL.regPoint.qname; %SMIL.regPoint.attrib;
        %SMIL.Core.attrib;
        %SMIL.I18n.attrib;
        %SMIL.regAlign.attrib;
        %SMIL.region-positioning.attrib;
  >
  <!ATTLIST %SMIL.region.qname;
       %SMIL.RegistrationPoint.attrib;
       %SMIL.soundAlign.attrib;
  >
]]> <!-- end AlignmentLayout.module -->

<!-- ================== BackgroundTilingLayout ============================ -->
<!ENTITY % SMIL.BackgroundTilingLayout.module "IGNORE">
<![%SMIL.BackgroundTilingLayout.module;[
  <!-- ================== BackgroundTilingLayout Entities ================= -->
  <!ENTITY % SMIL.BackgroundTiling-attrs "
    backgroundImage  %URI.datatype;                            'none'
    backgroundRepeat (repeat|repeatX|repeatY|noRepeat|inherit) 'repeat'
">

  <!-- ================ BackgroundTilingLayout Elements =================== -->
  <!-- ================ Add attributes to region element ================== -->
  <!ATTLIST %SMIL.region.qname; %SMIL.BackgroundTiling-attrs;>
  <!ATTLIST %SMIL.root-layout.qname; %SMIL.BackgroundTiling-attrs;>
  <![%SMIL.MultiWindowLayout.module;[
    <!ATTLIST %SMIL.topLayout.qname; %SMIL.BackgroundTiling-attrs;>
  ]]>
]]> <!-- end BackgroundTilingLayout.module -->




<!-- end of SMIL-layout.mod -->

A.2.6 The SMIL 3.0 smilText Modules

<!-- ====================================================================== -->
<!-- SMIL 3.0 smilText Modules ============================================ -->
<!-- file: SMIL-smiltext.mod

        This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Revision: 1.10
        Date: 2008/09/07 20:36:50

        This DTD module is identified by the PUBLIC and SYSTEM identifiers:

        PUBLIC "-//W3C//ELEMENTS SMIL 3.0 SMILtext//EN"
        SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-smiltext.mod"

        =================================================================== -->

<!-- ================== TextExternal ====================================== -->
<!ENTITY % SMIL.TextExternal.module "IGNORE">
<![%SMIL.TextExternal.module;[
  <!ENTITY % SMIL.TextExternal.attrib "
    dur              %TimeValue.datatype; #IMPLIED
    height           CDATA                'auto'
    width            CDATA                'auto'
    backgroundColor  %Color.datatype;     'transparent'
    xmlns            %URI.datatype;       #REQUIRED
  ">
]]>
<!ENTITY % SMIL.TextExternal.attrib "">

<!-- ================== BasicText ========================================= -->
<!ENTITY % SMIL.BasicText.module "IGNORE">
<![%SMIL.BasicText.module;[
  <!ENTITY % SMIL.smilText.attrib "">
  <!ENTITY % SMIL.smilText.content "EMPTY">
  <!ENTITY % SMIL.smilText.qname "smilText">
  <!ELEMENT %SMIL.smilText.qname; %SMIL.smilText.content;>
  <!ATTLIST %SMIL.smilText.qname; %SMIL.smilText.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.Description.attrib;
    %SMIL.BasicText.attrib;
    %SMIL.textAlign.attrib;
    %SMIL.TextStyling.attrib;
    %SMIL.textMode.attrib;
    %SMIL.textPlace.attrib;
    %SMIL.textWritingMode.attrib;
    %SMIL.TextMotion.attrib;
    %SMIL.MediaOpacity.attrib;
    %SMIL.MediaRenderAttributes.attrib;
    %SMIL.TextExternal.attrib;
  >

  <!ENTITY % SMIL.tev.attrib "">
  <!ENTITY % SMIL.tev.content "EMPTY">
  <!ENTITY % SMIL.tev.qname "tev">
  <!ELEMENT %SMIL.tev.qname; %SMIL.tev.content;>
  <!ATTLIST %SMIL.tev.qname; %SMIL.tev.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    begin CDATA #IMPLIED
    next  CDATA #IMPLIED
  >

  <!ENTITY % SMIL.clear.attrib "">
  <!ENTITY % SMIL.clear.content "EMPTY">
  <!ENTITY % SMIL.clear.qname "clear">
  <!ELEMENT %SMIL.clear.qname; %SMIL.clear.content;>
  <!ATTLIST %SMIL.clear.qname; %SMIL.clear.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    begin CDATA #IMPLIED
    next  CDATA #IMPLIED
  >

  <!ENTITY % SMIL.br.attrib "">
  <!ENTITY % SMIL.br.content "EMPTY">
  <!ENTITY % SMIL.br.qname "br">
  <!ELEMENT %SMIL.br.qname; %SMIL.br.content;>
  <!ATTLIST %SMIL.br.qname; %SMIL.br.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
  >
]]>

<!-- ================== TextStyling ======================================= -->
<!ENTITY % SMIL.TextStyling.module "IGNORE">
<![%SMIL.TextStyling.module;[
  <!ENTITY % SMIL.div.attrib "">
  <!ENTITY % SMIL.div.content "EMPTY">
  <!ENTITY % SMIL.div.qname "div">
  <!ELEMENT %SMIL.div.qname; %SMIL.div.content;>
  <!ATTLIST %SMIL.div.qname; %SMIL.div.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.Description.attrib;
    %SMIL.BasicText.attrib;
    %SMIL.textAlign.attrib;
    %SMIL.TextStyling.attrib;
    %SMIL.textWritingMode.attrib;
  >

  <!ENTITY % SMIL.p.attrib "">
  <!ENTITY % SMIL.p.content "EMPTY">
  <!ENTITY % SMIL.p.qname "p">
  <!ELEMENT %SMIL.p.qname; %SMIL.p.content;>
  <!ATTLIST %SMIL.p.qname; %SMIL.p.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.Description.attrib;
    %SMIL.BasicText.attrib;
    %SMIL.TextStyling.attrib;
    %SMIL.textWritingMode.attrib;
  >

  <!ENTITY % SMIL.span.attrib "">
  <!ENTITY % SMIL.span.content "EMPTY">
  <!ENTITY % SMIL.span.qname "span">
  <!ELEMENT %SMIL.span.qname; %SMIL.span.content;>
  <!ATTLIST %SMIL.span.qname; %SMIL.span.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.Description.attrib;
    %SMIL.BasicText.attrib;
    %SMIL.TextStyling.attrib;
    %SMIL.textDirection.attrib;
  >

  <!ENTITY % SMIL.textStyle.attrib "">
  <!ENTITY % SMIL.textStyle.content "EMPTY">
  <!ENTITY % SMIL.textStyle.qname "textStyle">
  <!ELEMENT %SMIL.textStyle.qname; %SMIL.textStyle.content;>
  <!ATTLIST %SMIL.textStyle.qname; %SMIL.textStyle.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.BasicText.attrib;
    %SMIL.TextStyling.attrib;
    %SMIL.textAlign.attrib;
    %SMIL.textDirection.attrib;
    %SMIL.textMode.attrib;
    %SMIL.textPlace.attrib;
    %SMIL.textWritingMode.attrib;
    %SMIL.TextMotion.attrib;
  >

  <!ENTITY % SMIL.textStyling.attrib "">
  <!ENTITY % SMIL.textStyling.content "(%SMIL.textStyle.qname;)*">
  <!ENTITY % SMIL.textStyling.qname "textStyling">
  <!ELEMENT %SMIL.textStyling.qname; %SMIL.textStyling.content;>
  <!ATTLIST %SMIL.textStyling.qname; %SMIL.textStyling.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
  >
]]>

<!-- ================== TextMotion ======================================== -->
<!ENTITY % SMIL.TextMotion.module "IGNORE">
<![%SMIL.TextMotion.module;[
]]>

<!-- end of SMIL-smiltext.mod -->

A.2.7 The SMIL 3.0 Linking Module

<!-- ====================================================================== -->
<!-- SMIL 3.0 Linking Module ============================================== -->
<!-- file: SMIL-link.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Lloyd Rutledge, Aaron Cohen, Sjoerd Mullender.
        Revision: 1.10
        Date: 2008/09/07 20:36:50

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Linking//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-link.mod"

     ====================================================================== -->

<!-- ======================== LinkingAttributes Entities ================== -->
<!ENTITY % SMIL.LinkingAttributes.module "IGNORE">
<![%SMIL.LinkingAttributes.module;[
  <!ENTITY % SMIL.linking-attrs "
        sourceLevel             CDATA               '+0.0dB'
        destinationLevel        CDATA               '+0.0dB'
        sourcePlaystate         (play|pause|stop)   #IMPLIED
        destinationPlaystate    (play|pause)        'play'
        show                    (new|pause|replace) 'replace'
        accesskey               %Character.datatype; #IMPLIED
        target                  CDATA                #IMPLIED
        external                (true|false)        'false'
        actuate                 (onRequest|onLoad)  'onRequest'
        %SMIL.tabindex.attrib;
  ">
]]>
<!ENTITY % SMIL.linking-attrs "">


<!-- ======================== ObjectLinking =============================== -->
<!ENTITY % SMIL.ObjectLinking.module "IGNORE">
<![%SMIL.ObjectLinking.module;[

  <!ENTITY % SMIL.Fragment "
    fragment                  CDATA               #IMPLIED
  ">
]]>
<!ENTITY % SMIL.Fragment "">

<!-- ========================= BasicLinking Elements ====================== -->
<!ENTITY % SMIL.BasicLinking.module "IGNORE">
<!ENTITY % SMIL.BasicLinking.deprecated.module "IGNORE">
<![%SMIL.BasicLinking.module;[

  <!-- ======================= BasicLinking Entities ====================== -->
  <!ENTITY % SMIL.Shape "(rect|circle|poly|default)">
  <!ENTITY % SMIL.Coords "CDATA">
    <!-- comma separated list of lengths -->

  <!ENTITY % SMIL.a.attrib  "">
  <!ENTITY % SMIL.a.content "EMPTY">
  <!ENTITY % SMIL.a.qname   "a">
  <!ELEMENT %SMIL.a.qname; %SMIL.a.content;>
  <!ATTLIST %SMIL.a.qname; %SMIL.a.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.linking-attrs;
    href                      %URI.datatype;      #REQUIRED
  >

  <!ENTITY % SMIL.area.attrib  "">
  <!ENTITY % SMIL.area.content "EMPTY">
  <!ENTITY % SMIL.area.qname   "area">
  <!ELEMENT %SMIL.area.qname; %SMIL.area.content;>
  <!ATTLIST %SMIL.area.qname; %SMIL.area.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.linking-attrs;
    %SMIL.Fragment;
    shape                     %SMIL.Shape;        'rect'
    coords                    %SMIL.Coords;       #IMPLIED
    href                      %URI.datatype;      #IMPLIED
    nohref                    (nohref)            #IMPLIED
  >

  <![%SMIL.BasicLinking.deprecated.module;[
    <!ENTITY % SMIL.anchor.attrib  "">
    <!ENTITY % SMIL.anchor.content "EMPTY">
    <!ENTITY % SMIL.anchor.qname  "anchor">
    <!ELEMENT %SMIL.anchor.qname; %SMIL.anchor.content;>
    <!ATTLIST %SMIL.anchor.qname; %SMIL.anchor.attrib;
      %SMIL.Core.attrib;
      %SMIL.I18n.attrib;
      %SMIL.linking-attrs;
      %SMIL.Fragment;
      shape                     %SMIL.Shape;        'rect'
      coords                    %SMIL.Coords;       #IMPLIED
      href                      %URI.datatype;      #IMPLIED
      nohref                    (nohref)            #IMPLIED
    >
  ]]>
]]> <!-- end of BasicLinking -->

<!-- end of SMIL-link.mod -->

A.2.8 The SMIL 3.0 Metainformation Module

<!-- ====================================================================== -->
<!-- SMIL 3.0 Metainformation Module ====================================== -->
<!-- file: SMIL-metainformation.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Thierry Michel,
        Jacco van Ossenbruggen, Sjoerd Mullender.
        Revision: 1.7
        Date: 2008/09/07 20:36:50

     This module declares the meta and metadata elements types and
     its attributes, used to provide declarative document metainformation.

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Metainformation//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-metainformation.mod"

     ====================================================================== -->


<!-- ================== Profiling Entities ================================ -->

<!ENTITY % SMIL.Metainformation.module "IGNORE">
<![%SMIL.Metainformation.module;[
  <!ENTITY % SMIL.meta.content     "EMPTY">
  <!ENTITY % SMIL.meta.attrib      "">
  <!ENTITY % SMIL.meta.qname       "meta">

  <!ENTITY % SMIL.metadata.content "EMPTY">
  <!ENTITY % SMIL.metadata.attrib  "">
  <!ENTITY % SMIL.metadata.qname   "metadata">

  <!-- ================== meta element ==================================== -->

  <!ELEMENT %SMIL.meta.qname; %SMIL.meta.content;>
  <!ATTLIST %SMIL.meta.qname; %SMIL.meta.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    content CDATA #REQUIRED
    name CDATA #REQUIRED
    >

  <!-- ================== metadata element ================================ -->

  <!ELEMENT %SMIL.metadata.qname; %SMIL.metadata.content;>
  <!ATTLIST %SMIL.metadata.qname; %SMIL.metadata.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
  >
]]>

<!-- end of SMIL-metainformation.mod -->

A.2.9 The SMIL 3.0 Transition Module

<!-- ====================================================================== -->
<!-- SMIL 3.0 Transition Module =========================================== -->
<!-- file: SMIL-transition.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Sjoerd Mullender.
        Revision: 1.7
        Date: 2008/09/07 20:36:50

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Transition//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-transition.mod"

     ====================================================================== -->

<!ENTITY % SMIL.TransitionModifiers.module "IGNORE">
<![%SMIL.TransitionModifiers.module;[
  <!ENTITY % SMIL.transition-modifiers-attrs "
    horzRepeat   CDATA                  '1'
    vertRepeat   CDATA                  '1'
    borderWidth  CDATA                  '0'
    borderColor  CDATA                  'black'
  ">
]]> <!-- End of TransitionModifiers.module -->
<!ENTITY % SMIL.transition-modifiers-attrs "">

<!ENTITY % SMIL.transition-types "(barWipe|boxWipe|fourBoxWipe|barnDoorWipe|
 diagonalWipe|bowTieWipe|miscDiagonalWipe|veeWipe|barnVeeWipe|zigZagWipe|
 barnZigZagWipe|irisWipe|triangleWipe|arrowHeadWipe|pentagonWipe|
 hexagonWipe|ellipseWipe|eyeWipe|roundRectWipe|starWipe|miscShapeWipe|
 clockWipe|pinWheelWipe|singleSweepWipe|fanWipe|doubleFanWipe|doubleSweepWipe|
 saloonDoorWipe|windshieldWipe|snakeWipe|spiralWipe|parallelSnakesWipe|
 boxSnakesWipe|waterfallWipe|pushWipe|slideWipe|fade|audioFade|
 audioVisualFade)"
>

<!ENTITY % SMIL.transition-subtypes "(bottom|bottomCenter|bottomLeft|
 bottomLeftClockwise|bottomLeftCounterClockwise|
 bottomLeftDiagonal|bottomRight|bottomRightClockwise|
 bottomRightCounterClockwise|bottomRightDiagonal|centerRight|centerTop|
 circle|clockwiseBottom|clockwiseBottomRight|clockwiseLeft|clockwiseNine|
 clockwiseRight|clockwiseSix|clockwiseThree|clockwiseTop|clockwiseTopLeft|
 clockwiseTwelve|cornersIn|cornersOut|counterClockwiseBottomLeft|
 counterClockwiseTopRight|crossfade|diagonalBottomLeft|
 diagonalBottomLeftOpposite|diagonalTopLeft|diagonalTopLeftOpposite|
 diamond|doubleBarnDoor|doubleDiamond|down|fadeFromColor|fadeToColor|
 fanInHorizontal|fanInVertical|fanOutHorizontal|fanOutVertical|fivePoint|
 fourBlade|fourBoxHorizontal|fourBoxVertical|fourPoint|fromBottom|fromLeft|
 fromRight|fromTop|heart|horizontal|horizontalLeft|horizontalLeftSame|
 horizontalRight|horizontalRightSame|horizontalTopLeftOpposite|
 horizontalTopRightOpposite|keyhole|left|leftCenter|leftToRight|
 oppositeHorizontal|oppositeVertical|parallelDiagonal|
 parallelDiagonalBottomLeft|parallelDiagonalTopLeft|
 parallelVertical|rectangle|right|rightCenter|sixPoint|top|topCenter|
 topLeft|topLeftClockwise|topLeftCounterClockwise|topLeftDiagonal|
 topLeftHorizontal|topLeftVertical|topRight|topRightClockwise|
 topRightCounterClockwise|topRightDiagonal|topToBottom|twoBladeHorizontal|
 twoBladeVertical|twoBoxBottom|twoBoxLeft|twoBoxRight|twoBoxTop|up|
 vertical|verticalBottomLeftOpposite|verticalBottomSame|verticalLeft|
 verticalRight|verticalTopLeftOpposite|verticalTopSame)"
>

<!ENTITY  % SMIL.transition-attrs "
   type         %SMIL.transition-types;     #IMPLIED
   subtype      %SMIL.transition-subtypes;  #IMPLIED
   fadeColor    CDATA                  'black'
   %SMIL.transition-modifiers-attrs;
">

<!ENTITY % SMIL.BasicTransitions.module "IGNORE">
<![%SMIL.BasicTransitions.module;[
 <!ENTITY % SMIL.transition.attrib  "">
 <!ENTITY % SMIL.transition.content "EMPTY">
 <!ENTITY % SMIL.transition.qname   "transition">
 <!ELEMENT %SMIL.transition.qname; %SMIL.transition.content;>
 <!ATTLIST %SMIL.transition.qname; %SMIL.transition.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.transition-attrs;
    dur           %TimeValue.datatype; #IMPLIED
    startProgress CDATA              '0.0'
    endProgress   CDATA              '1.0'
    direction     (forward|reverse)  'forward'
 >
]]> <!-- End of BasicTransitions.module -->

<!ENTITY % SMIL.InlineTransitions.module "IGNORE">
<![%SMIL.InlineTransitions.module;[

  <!ENTITY % SMIL.transitionFilter.attrib  "">
  <!ENTITY % SMIL.transitionFilter.content "EMPTY">
  <!ENTITY % SMIL.transitionFilter.qname   "transitionFilter">
  <!ELEMENT %SMIL.transitionFilter.qname; %SMIL.transitionFilter.content;>
  <!ATTLIST %SMIL.transitionFilter.qname; %SMIL.transitionFilter.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    %SMIL.transition-attrs;
    mode        (in|out)                'in'
    begin       %TimeValue.datatype;    #IMPLIED
    dur         %TimeValue.datatype;    #IMPLIED
    end         %TimeValue.datatype;    #IMPLIED
    %SMIL.RepeatTiming.attrib;
    from        CDATA                   '0.0'
    to          CDATA                   '1.0'
    by          CDATA                   #IMPLIED
    values      CDATA                   #IMPLIED
    calcMode    (discrete|linear|paced) 'linear'
  >

  <!-- Language Designer chooses to integrate targetElement or XLink
       attributes.  To integrate the targetElement attribute, define
       the entity SMIL.transition-targetElement as "INCLUDE"; to
       integrate the XLink attributes, define
       SMIL.transition-XLinkTarget as "INCLUDE".

       If InlineTransitions are included, one or the other MUST be
       defined.  It is strongly recommended that only one of the two be
       defined.
  -->
  <!ENTITY % SMIL.transition-XLinkTarget "IGNORE">
  <![%SMIL.transition-XLinkTarget;[
    <!ATTLIST %SMIL.transitionFilter.qname;
      href    %URI.datatype;                #IMPLIED
      type    (simple|extended|locator|arc) #FIXED 'simple'
      actuate (onLoad|onRequest)            #FIXED 'onLoad'
      show    (embed|new|replace)           #FIXED 'embed'
    >
  ]]>
  <!ENTITY % SMIL.transition-targetElement "IGNORE">
  <![%SMIL.transition-targetElement;[
    <!ATTLIST %SMIL.transitionFilter.qname;
      targetElement IDREF #IMPLIED
    >
  ]]>
]]> <!-- End of InlineTransitions.module -->

<!-- ================== FullScreenTransitionEffects ======================= -->
<!ENTITY % SMIL.FullScreenTransitionEffects.module "IGNORE">
<![%SMIL.FullScreenTransitionEffects.module;[
  <!-- ================== FullScreenTransitionEffects Entities ============ -->
  <!ENTITY % SMIL.scope-attrs "
    scope (region|screen) 'region'
  ">

  <!-- ================ Add attributes to region element ================== -->
  <!ATTLIST %SMIL.transition.qname; %SMIL.scope-attrs;>
]]> <!-- end FullScreenTransitionEffects.module -->

<!-- end of SMIL-transition.mod -->

A.2.10 The SMIL 3.0 Animation Module

<!-- ====================================================================== -->
<!-- SMIL 3.0 Animation Module ============================================ -->
<!-- file: SMIL-anim.mod

  This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Sjoerd Mullender.
        Revision: 1.7
        Date: 2008/09/07 20:36:49

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Animation//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-anim.mod"

     ====================================================================== -->


<!ENTITY % SMIL.BasicAnimation.module "IGNORE">

<!-- ============================= Dependencies =========================== -->
<!-- The integrating profile is expected to define the following entities,
     Unless the defaults provided are sufficient.
 -->

<!-- SMIL.SplineAnimation.module entity: Define as "INCLUDE" if the
     integrating profile includes the SMIL 3.0 SplineAnimation Module,
     "IGNORE" if not.  The default is "IGNORE", i.e. by default
     SplineAnimation is not included in the integrating language
     profile.
 -->
<!ENTITY % SMIL.SplineAnimation.module "IGNORE">

<!-- Language Designer chooses to integrate targetElement or XLink
     attributes.  To integrate the targetElement attribute, define the
     entity animation-targetElement as "INCLUDE"; to integrate the
     XLink attributes, define animation-XLinkTarget as "INCLUDE".

     One or the other MUST be defined.  It is strongly recommended
     that only one of the two be defined.
-->

<![%SMIL.BasicAnimation.module;[

<!ENTITY % SMIL.animation-targetElement "IGNORE">
<![%SMIL.animation-targetElement;[
  <!ENTITY % SMIL.animTargetElementAttr "
    targetElement  IDREF  #IMPLIED
  ">
]]>
<!ENTITY % SMIL.animTargetElementAttr "">

<!ENTITY % SMIL.animation-XLinkTarget "IGNORE">
<![%SMIL.animation-XLinkTarget;[
  <!ENTITY % SMIL.animTargetElementXLink "
    actuate        (onRequest|onLoad)                  'onLoad'
    href           %URI.datatype;                      #IMPLIED
    show           (new | embed | replace)             #FIXED 'embed'
    type           (simple | extended | locator | arc) #FIXED 'simple'
  ">
]]>
<!ENTITY % SMIL.animTargetElementXLink "">


<!-- ========================== Attribute Groups ========================== -->

<!-- All animation elements include these attributes -->
<!ENTITY % SMIL.animAttrsCommon "
  %SMIL.Core.attrib;
  %SMIL.I18n.attrib;
  %SMIL.animTargetElementAttr;
  %SMIL.animTargetElementXLink;
">

<!-- All except animateMotion need an identified target attribute -->
<!ENTITY % SMIL.animAttrsNamedTarget "
  %SMIL.animAttrsCommon;
  attributeName  NMTOKEN            #REQUIRED
  attributeType  (CSS | XML | auto) 'auto'
">

<!-- All except set support the full animation-function specification,
     additive and cumulative animation.
     SplineAnimation adds the attributes keyTimes, keySplines and
     path, and the calcMode value "spline", to those of
     BasicAnimation.
 -->
<![%SMIL.SplineAnimation.module;[
  <!ENTITY % SMIL.splineAnimCalcModeValues "| spline">
  <!ENTITY % SMIL.splineAnimValueAttrs "
    keyTimes CDATA #IMPLIED
    keySplines CDATA #IMPLIED
  ">
  <!ENTITY % SMIL.splineAnimPathAttr "
    path CDATA #IMPLIED
  ">
]]>
<!ENTITY % SMIL.splineAnimCalcModeValues "">
<!ENTITY % SMIL.splineAnimValueAttrs "">
<!ENTITY % SMIL.splineAnimPathAttr "">

<!ENTITY % SMIL.animValueAttrs "
  %SMIL.BasicAnimation.attrib;
  calcMode   (discrete|linear|paced %SMIL.splineAnimCalcModeValues;) 'linear'
  %SMIL.splineAnimValueAttrs;
  additive   (replace | sum) 'replace'
  accumulate (none | sum) 'none'
">


<!-- ========================== Animation Elements ======================== -->

<!ENTITY % SMIL.animate.attrib  "">
<!ENTITY % SMIL.animate.content "EMPTY">
<!ENTITY % SMIL.animate.qname   "animate">
<!ELEMENT %SMIL.animate.qname; %SMIL.animate.content;>
<!ATTLIST %SMIL.animate.qname; %SMIL.animate.attrib;
  %SMIL.animAttrsNamedTarget;
  %SMIL.animValueAttrs;
>

<!ENTITY % SMIL.set.attrib  "">
<!ENTITY % SMIL.set.content "EMPTY">
<!ENTITY % SMIL.set.qname   "set">
<!ELEMENT %SMIL.set.qname; %SMIL.set.content;>
<!ATTLIST %SMIL.set.qname; %SMIL.set.attrib;
  %SMIL.animAttrsNamedTarget;
  to  CDATA  #IMPLIED
>

<!ENTITY % SMIL.animateMotion.attrib  "">
<!ENTITY % SMIL.animateMotion.content "EMPTY">
<!ENTITY % SMIL.animateMotion.qname   "animateMotion">
<!ELEMENT %SMIL.animateMotion.qname; %SMIL.animateMotion.content;>
<!ATTLIST %SMIL.animateMotion.qname; %SMIL.animateMotion.attrib;
  %SMIL.animAttrsCommon;
  %SMIL.animValueAttrs;
  %SMIL.splineAnimPathAttr;
  origin  (default)  'default'
>


<!ENTITY % SMIL.animateColor.attrib  "">
<!ENTITY % SMIL.animateColor.content "EMPTY">
<!ENTITY % SMIL.animateColor.qname   "animateColor">
<!ELEMENT %SMIL.animateColor.qname; %SMIL.animateColor.content;>
<!ATTLIST %SMIL.animateColor.qname; %SMIL.animateColor.attrib;
  %SMIL.animAttrsNamedTarget;
  %SMIL.animValueAttrs;
>

]]> <!-- BasicAnimation.module -->

<!-- ========================== End Animation ============================= -->
<!-- end of SMIL-anim.mod -->

A.2.11 The SMIL 3.0 State Modules

<!-- ====================================================================== -->
<!-- SMIL 3.0 State Modules =============================================== -->
<!-- file: SMIL-state.mod

        This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Revision: 1.8
        Date: 2008/09/07 20:36:50

        This DTD module is identified by the PUBLIC and SYSTEM identifiers:

        PUBLIC "-//W3C//ELEMENTS SMIL 3.0 State//EN"
        SYSTEM "http://www.w3.org/2008/SMIL30/SMIL-state.mod"

        =================================================================== -->

<!-- ================== StateTest ========================================= -->
<!ENTITY % SMIL.StateTest.module "IGNORE">
<![%SMIL.StateTest.module;[
  <!-- this module only defines the expr attribute, for which
       see smil-attribs-1.mod
  -->
]]>

<!-- ================== UserState ========================================= -->
<!ENTITY % SMIL.UserState.module "IGNORE">
<![%SMIL.UserState.module;[
  <!-- can be overridden by the profile -->
  <!ENTITY % SMIL.language-attrib-default "#IMPLIED">
  <!ENTITY % SMIL.newvalue-ref-attrib-default "#IMPLIED">
  <!ENTITY % SMIL.newvalue-name-attrib-default "#IMPLIED">

  <!ENTITY % SMIL.state.attrib "">
  <!ENTITY % SMIL.state.content "EMPTY">
  <!ENTITY % SMIL.state.qname "state">
  <!ELEMENT %SMIL.state.qname; %SMIL.state.content;>
  <!ATTLIST %SMIL.state.qname; %SMIL.state.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    language %URI.datatype; %SMIL.language-attrib-default;
    src      %URI.datatype; #IMPLIED
  >

  <!ENTITY % SMIL.setvalue.attrib "">
  <!ENTITY % SMIL.setvalue.content "EMPTY">
  <!ENTITY % SMIL.setvalue.qname "setvalue">
  <!ELEMENT %SMIL.setvalue.qname; %SMIL.setvalue.content;>
  <!ATTLIST %SMIL.setvalue.qname; %SMIL.setvalue.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    ref   CDATA #REQUIRED
    value CDATA #REQUIRED
  >

  <!ENTITY % SMIL.newvalue.attrib "">
  <!ENTITY % SMIL.newvalue.content "EMPTY">
  <!ENTITY % SMIL.newvalue.qname "newvalue">
  <!ELEMENT %SMIL.newvalue.qname; %SMIL.newvalue.content;>
  <!ATTLIST %SMIL.newvalue.qname; %SMIL.newvalue.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    ref   CDATA                    %SMIL.newvalue-ref-attrib-default;
    where (before | after | child) 'child'
    name  CDATA                    %SMIL.newvalue-name-attrib-default;
    value CDATA                    #IMPLIED
  >

  <!ENTITY % SMIL.delvalue.attrib "">
  <!ENTITY % SMIL.delvalue.content "EMPTY">
  <!ENTITY % SMIL.delvalue.qname "delvalue">
  <!ELEMENT %SMIL.delvalue.qname; %SMIL.delvalue.content;>
  <!ATTLIST %SMIL.delvalue.qname; %SMIL.delvalue.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    ref CDATA #REQUIRED
  >
]]>

<!-- ================== StateSubmission =================================== -->
<!ENTITY % SMIL.StateSubmission.module "IGNORE">
<![%SMIL.StateSubmission.module;[
  <!ENTITY % SMIL.method-types "">

  <!ENTITY % SMIL.submission.attrib "">
  <!ENTITY % SMIL.submission.content "EMPTY">
  <!ENTITY % SMIL.submission.qname "submission">
  <!ELEMENT %SMIL.submission.qname; %SMIL.submission.content;>
  <!ATTLIST %SMIL.submission.qname; %SMIL.submission.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    ref     CDATA                            #IMPLIED
    action  %URI.datatype;                   #REQUIRED
    method  (put | get %SMIL.method-types;)  #REQUIRED
    replace (all | instance | none)          #IMPLIED
    target  CDATA                            #IMPLIED
  >

  <!ENTITY % SMIL.send.attrib "">
  <!ENTITY % SMIL.send.content "EMPTY">
  <!ENTITY % SMIL.send.qname "send">
  <!ELEMENT %SMIL.send.qname; %SMIL.send.content;>
  <!ATTLIST %SMIL.send.qname; %SMIL.send.attrib;
    %SMIL.Core.attrib;
    %SMIL.I18n.attrib;
    submission IDREF #IMPLIED
  >
]]>

<!-- ================== StateInterpolation ================================ -->
<!ENTITY % SMIL.StateInterpolation.module "IGNORE">
<![%SMIL.StateInterpolation.module;[
  <!-- no new elements or attributes -->
]]>

<!-- end of SMIL-state.mod -->

A.3 SMIL 3.0 Profiles:

A.3.1 The SMIL 3.0 Document Model Module

<!-- ====================================================================== -->
<!-- SMIL 3.0 Document Model Module ======================================= -->
<!-- file: smil-profile-model-1.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Warner ten Kate,
        Jacco van Ossenbruggen, Aaron Cohen, Sjoerd Mullender.
        Id: smil-profile-model-1.mod,v 1.22 2008/09/07 20:36:50 smullend Exp
        Date: 2008/09/07 20:36:50

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Document Model 1.0//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/smil-profile-model-1.mod"

     ====================================================================== -->

<!--
        This file defines the SMIL 3.0 Document Model.
        All attributes and content models are defined in the second
        half of this file.  We first start with some utility definitions.
        These are mainly used to simplify the use of Modules in the
        second part of the file.

        Note that in this model, the Metainformation module is required.
-->

<!-- ================== Util: Body - Content Control ====================== -->
<!ENTITY % SMIL.BasicContentControl.module "IGNORE">
<![%SMIL.BasicContentControl.module;[
  <!ENTITY % SMIL.switch-control "| %SMIL.switch.qname;">
]]>
<!ENTITY % SMIL.switch-control "">
<!ENTITY % SMIL.PrefetchControl.module "IGNORE">
<![%SMIL.PrefetchControl.module;[
  <!ENTITY % SMIL.prefetch-control "| %SMIL.prefetch.qname;">
]]>
<!ENTITY % SMIL.prefetch-control "">
<!ENTITY % SMIL.content-control "%SMIL.switch-control;%SMIL.prefetch-control;">

<!ENTITY % SMIL.content-control-attrs "%SMIL.Test.attrib;
                                       %SMIL.customTestAttr.attrib;
                                       %SMIL.skip-content.attrib;">

<!-- ================== Util: Head ======================================== -->
<!ENTITY % SMIL.head-meta.content       "%SMIL.metadata.qname;">
<!ENTITY % SMIL.TextStyling.module "IGNORE">
<![%SMIL.TextStyling.module;[
  <!ENTITY % SMIL.head-textStyling.content ",((%SMIL.textStyling.qname;), %SMIL.meta.qname;*)?">
]]>
<!ENTITY % SMIL.head-textStyling.content "">
<!ENTITY % SMIL.StructureLayout.module "IGNORE">
<![%SMIL.StructureLayout.module;[
  <!ENTITY % SMIL.head-layout.content ",((%SMIL.layout.qname; %SMIL.switch-control;), %SMIL.meta.qname;*)?">
]]>
<!ENTITY % SMIL.head-layout.content "">
<!ENTITY % SMIL.CustomTestAttributes.module "IGNORE">
<![%SMIL.CustomTestAttributes.module;[
  <!ENTITY % SMIL.head-control.content ",((%SMIL.customAttributes.qname;), %SMIL.meta.qname;*)?">
]]>
<!ENTITY % SMIL.head-control.content "">
<!ENTITY % SMIL.BasicTransitions.module "IGNORE">
<![%SMIL.BasicTransitions.module;[
  <!ENTITY % SMIL.head-transition.content ",((%SMIL.transition.qname;+),%SMIL.meta.qname;*)?">
]]>
<!ENTITY % SMIL.head-transition.content "">
<!ENTITY % SMIL.MediaParam.module "IGNORE">
<![%SMIL.MediaParam.module;[
  <!ENTITY % SMIL.head-media.content      ",((%SMIL.paramGroup.qname;+), %SMIL.meta.qname;*)?">
]]>
<!ENTITY % SMIL.head-media.content "">
<!ENTITY % SMIL.UserState.module "IGNORE">
<![%SMIL.UserState.module;[
  <!ENTITY % SMIL.head-state.content ",((%SMIL.state.qname;), %SMIL.meta.qname;*)?">
]]>
<!ENTITY % SMIL.head-state.content "">
<!ENTITY % SMIL.StateSubmission.module "IGNORE">
<![%SMIL.StateSubmission.module;[
  <!ENTITY % SMIL.head-submission.content ",((%SMIL.submission.qname;),%SMIL.meta.qname;*)*">
]]>
<!ENTITY % SMIL.head-submission.content "">

<!--=================== Util: Body - Animation ============================ -->
<!ENTITY % SMIL.BasicAnimation.module "IGNORE">
<![%SMIL.BasicAnimation.module;[
  <!ENTITY % SMIL.animation.elements "| %SMIL.animate.qname;
                                      | %SMIL.set.qname;
                                      | %SMIL.animateMotion.qname;
                                      | %SMIL.animateColor.qname;">
  <!ENTITY % SMIL.simple-animation.elements "| %SMIL.animate.qname;
                                             | %SMIL.set.qname;">
]]>
<!ENTITY % SMIL.animation.elements "">
<!ENTITY % SMIL.simple-animation.elements "">

<!--=================== Util: Body - Media ================================ -->

<!ENTITY % SMIL.BasicText.module "IGNORE">
<![%SMIL.BasicText.module;[
  <!ENTITY % SMIL.BasicText.content "| %SMIL.smilText.qname;">
]]>
<!ENTITY % SMIL.BasicText.content "">
<!ENTITY % SMIL.BrushMedia.module "IGNORE">
<![%SMIL.BrushMedia.module;[
  <!ENTITY % SMIL.BrushMedia.content "| %SMIL.brush.qname;">
]]>
<!ENTITY % SMIL.BrushMedia.content "">
<!ENTITY % SMIL.Timesheet.module "IGNORE">
<![%SMIL.Timesheet.module;[
  <!ENTITY % SMIL.Timesheet.content "| %SMIL.item.qname;">
]]>
<!ENTITY % SMIL.Timesheet.content "">
<!ENTITY % SMIL.BasicMedia.module "IGNORE">
<![%SMIL.BasicMedia.module;[
  <!ENTITY % SMIL.media-object "| %SMIL.audio.qname;
                                | %SMIL.video.qname;
                                | %SMIL.animation.qname;
                                | %SMIL.text.qname;
                                | %SMIL.img.qname;
                                | %SMIL.textstream.qname;
                                | %SMIL.ref.qname;
                                %SMIL.BrushMedia.content;
                                %SMIL.BasicText.content;
                                %SMIL.Timesheet.content;">
]]>
<!ENTITY % SMIL.media-object "%SMIL.BrushMedia.content;
                              %SMIL.BasicText.content;
                              %SMIL.Timesheet.content;">

<!--=================== Util: Body - State ================================ -->
<![%SMIL.StateSubmission.module;[
  <!ENTITY % SMIL.send.element "| %SMIL.send.qname;">
  <!ENTITY % SMIL.submission.content "(%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.submission-post "IGNORE">
  <![%SMIL.submission-post;[
    <!ENTITY % SMIL.method-types "| post">
  ]]>
]]>
<!ENTITY % SMIL.send.element "">
<!ENTITY % SMIL.UserState.module "IGNORE">
<![%SMIL.UserState.module;[
  <!ENTITY % SMIL.state.elements "
    | %SMIL.newvalue.qname;
    | %SMIL.delvalue.qname;
    | %SMIL.setvalue.qname;
    %SMIL.send.element;
  ">
  <!ENTITY % SMIL.state.attrib "%SMIL.skip-content.attrib;">
]]>
<!ENTITY % SMIL.state.elements "%SMIL.send.element;">

<!-- ================== Util: Body - Linking ============================== -->
<!ENTITY % SMIL.BasicLinking.module "IGNORE">
<!ENTITY % SMIL.BasicLinking.deprecated.module "IGNORE">
<![%SMIL.BasicLinking.module;[
  <![%SMIL.BasicLinking.deprecated.module;[
    <!ENTITY % SMIL.anchor-control "| %SMIL.anchor.qname; | %SMIL.area.qname;">
  ]]>
  <!ENTITY % SMIL.anchor-control "| %SMIL.area.qname;">
  <!ENTITY % SMIL.a-control "| %SMIL.a.qname;">
]]>
<!ENTITY % SMIL.anchor-control "">
<!ENTITY % SMIL.a-control "">

<!--=================== Util: Body - Timing =============================== -->
<!ENTITY % SMIL.BasicTimeContainers.class "%SMIL.par.qname;
                                         | %SMIL.seq.qname;">

<!ENTITY % SMIL.BasicExclTimeContainers.module "IGNORE">
<![%SMIL.BasicExclTimeContainers.module;[
  <!ENTITY % SMIL.ExclTimeContainers.class "|%SMIL.excl.qname;">
]]>
<!ENTITY % SMIL.ExclTimeContainers.class "">

<!ENTITY % SMIL.timecontainer.class   "%SMIL.BasicTimeContainers.class;
                                       %SMIL.ExclTimeContainers.class;">

<!ENTITY % SMIL.timecontainer.content "%SMIL.timecontainer.class;
                                       %SMIL.media-object;
                                       %SMIL.animation.elements;
                                       %SMIL.content-control;
                                       %SMIL.a-control;
                                       %SMIL.state.elements;">

<!ENTITY % SMIL.smil-basictime.attrib "
 %SMIL.BasicInlineTiming.attrib;
 %SMIL.RepeatTiming.attrib;
 %SMIL.RepeatTiming.deprecated.attrib;
 %SMIL.MinMaxTiming.attrib;
">

<!ENTITY % SMIL.timecontainer.attrib "
 %SMIL.smil-basictime.attrib;
 %SMIL.TimeManipulations.attrib;
 %SMIL.RestartTiming.attrib;
 %SMIL.RestartDefaultTiming.attrib;
 %SMIL.SyncBehavior.attrib;
 %SMIL.SyncBehaviorDefault.attrib;
 %SMIL.SyncMaster.attrib;
 %SMIL.fillDefault.attrib;
">

<!-- ====================================================================== -->
<!-- ====================================================================== -->
<!-- ====================================================================== -->

<!--
     The actual content model and attribute definitions for each module
     sections follow below.
-->

<!-- ================== Linking =========================================== -->
<!ENTITY % SMIL.BasicLinking.module "IGNORE">
<![%SMIL.BasicLinking.module;[
  <!ENTITY % SMIL.a.content      "(%SMIL.timecontainer.class;
                                   %SMIL.media-object;
                                   %SMIL.animation.elements;
                                   %SMIL.state.elements;
                                   %SMIL.content-control;
                                  |%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.area.content   "(%SMIL.metadata.qname;
                                   %SMIL.simple-animation.elements;)*">
  <!ENTITY % SMIL.anchor.content "(%SMIL.metadata.qname;
                                   %SMIL.simple-animation.elements;)*">

  <!ENTITY % SMIL.a.attrib "
    %SMIL.smil-basictime.attrib;
    %SMIL.Test.attrib;
    %SMIL.customTestAttr.attrib;
    %XHTML-Role-attrib;
  ">
  <!ENTITY % SMIL.area.attrib "
    %SMIL.smil-basictime.attrib;
    %SMIL.content-control-attrs;
    %SMIL.StateTest.attrib;
    %XHTML-Role-attrib;
  ">
  <!ENTITY % SMIL.anchor.attrib "
    %SMIL.smil-basictime.attrib;
    %SMIL.content-control-attrs;
    %SMIL.StateTest.attrib;
    %XHTML-Role-attrib;
  ">
]]>

<!-- ================== Content Control =================================== -->
<![%SMIL.BasicAnimation.module;[
  <!ENTITY % SMIL.animation-switch "((%SMIL.animate.qname; | %SMIL.set.qname; | %SMIL.animateMotion.qname; | %SMIL.animateColor.qname;), (%SMIL.metadata.qname; %SMIL.switch-control;)*)*,">
]]>
<!ENTITY % SMIL.animation-switch "">

<!-- The content model of the switch element is very complex:
     - if switch occurs inside the head element, the only allowed
       content is layout (and Metainformation and nested switch);
     - if switch occurs inside a media element, the only allowed
       content is param, area (anchor), and animation elements (and
       Metainformation and nested switch);
     - if switch occurs inside a par, seq or excl element, the only
       allowed content is time containers (par, seq, excl), media
       elements (ref and friends, smilText, etc.), animation elements,
       and the a and prefetch elements (and Metainformation and nested
       switch).
     Note that there is overlap in the allowed content for the various
     cases.
-->
<![%SMIL.MediaParam.module;[
  <![%SMIL.BasicLinking.module;[
    <!ENTITY % SMIL.param-anchor "(%SMIL.param.qname; %SMIL.anchor-control;),">
  ]]>
  <!ENTITY % SMIL.param-anchor "%SMIL.param.qname;,">
]]>
<![%SMIL.BasicLinking.module;[
  <!ENTITY % SMIL.param-anchor "(%SMIL.anchor.qname; | %SMIL.area.qname;),">
]]>
<!ENTITY % SMIL.param-anchor "">
<!ENTITY % SMIL.switch.content "((%SMIL.metadata.qname;
                                  %SMIL.switch-control;)*,
                                 ((%SMIL.animation-switch;
                                   (((%SMIL.timecontainer.class;
                                      %SMIL.media-object;
                                      %SMIL.state.elements;
                                      %SMIL.prefetch-control;
                                      %SMIL.a-control;)+,
                                     (%SMIL.metadata.qname;
                                      %SMIL.animation.elements;
                                      %SMIL.switch-control;)*)+ |
                                    (%SMIL.param-anchor;
                                     (%SMIL.metadata.qname;
                                      %SMIL.animation.elements;
                                      %SMIL.switch-control;)*)+)) |
                                  (%SMIL.layout.qname;,
                                   (%SMIL.metadata.qname;
                                    %SMIL.switch-control;)*)*))">

<!ENTITY % SMIL.switch.attrib "
 %SMIL.Test.attrib;
 %SMIL.customTestAttr.attrib;
 %XHTML-Role-attrib;
">
<!ENTITY % SMIL.prefetch.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.prefetch.attrib "
 %SMIL.timecontainer.attrib;
 %SMIL.MediaClip.attrib;
 %SMIL.MediaClip.attrib.deprecated;
 %SMIL.Test.attrib;
 %SMIL.customTestAttr.attrib;
 %SMIL.skip-content.attrib;
 %SMIL.StateTest.attrib;
">

<!ENTITY % SMIL.customAttributes.content "
        ((%SMIL.metadata.qname;)*,
         (%SMIL.customTest.qname;,
          (%SMIL.metadata.qname;)*)+)">
<!ENTITY % SMIL.customAttributes.attrib  "
 %SMIL.skip-content.attrib;
">
<!ENTITY % SMIL.customTest.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.customTest.attrib "
 %SMIL.skip-content.attrib;
">

<!-- ================== Animation ========================================= -->

<![%SMIL.BasicAnimation.module;[
  <!-- choose targetElement or XLink: -->
  <!ENTITY % SMIL.animation-targetElement "IGNORE">
  <!ENTITY % SMIL.animation-XLinkTarget   "IGNORE">

  <!ENTITY % SMIL.animate.content "(%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.animateColor.content "(%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.animateMotion.content "(%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.set.content "(%SMIL.metadata.qname;)*">

  <!ENTITY % SMIL.animate.attrib "
    %SMIL.smil-basictime.attrib;
    %SMIL.TimeManipulations.attrib;
    %SMIL.RestartTiming.attrib;
    %SMIL.RestartDefaultTiming.attrib;
    %SMIL.fill.attrib;
    %SMIL.fillDefault.attrib;
    %SMIL.Test.attrib;
    %SMIL.customTestAttr.attrib;
    %SMIL.skip-content.attrib;
    %SMIL.StateTest.attrib;
  ">
  <!ENTITY % SMIL.animateColor.attrib "
    %SMIL.smil-basictime.attrib;
    %SMIL.TimeManipulations.attrib;
    %SMIL.RestartTiming.attrib;
    %SMIL.RestartDefaultTiming.attrib;
    %SMIL.fill.attrib;
    %SMIL.fillDefault.attrib;
    %SMIL.Test.attrib;
    %SMIL.customTestAttr.attrib;
    %SMIL.skip-content.attrib;
    %SMIL.StateTest.attrib;
  ">
  <!ENTITY % SMIL.animateMotion.attrib "
    %SMIL.smil-basictime.attrib;
    %SMIL.TimeManipulations.attrib;
    %SMIL.RestartTiming.attrib;
    %SMIL.RestartDefaultTiming.attrib;
    %SMIL.fill.attrib;
    %SMIL.fillDefault.attrib;
    %SMIL.Test.attrib;
    %SMIL.customTestAttr.attrib;
    %SMIL.skip-content.attrib;
    %SMIL.StateTest.attrib;
  ">
  <!ENTITY % SMIL.set.attrib "
    %SMIL.smil-basictime.attrib;
    %SMIL.TimeManipulations.attrib;
    %SMIL.RestartTiming.attrib;
    %SMIL.RestartDefaultTiming.attrib;
    %SMIL.fill.attrib;
    %SMIL.fillDefault.attrib;
    %SMIL.Test.attrib;
    %SMIL.customTestAttr.attrib;
    %SMIL.skip-content.attrib;
    %SMIL.StateTest.attrib;
  ">
]]>

<!-- ================== Layout ============================================ -->
<!ENTITY % SMIL.BasicLayout.module "IGNORE">
<![%SMIL.BasicLayout.module;[
  <!ENTITY % SMIL.BasicLayout-content "|%SMIL.region.qname;|%SMIL.root-layout.qname;">
]]>
<!ENTITY % SMIL.BasicLayout-content "">
<!ENTITY % SMIL.MultiWindowLayout.module "IGNORE">
<![%SMIL.MultiWindowLayout.module;[
  <!ENTITY % SMIL.MultiWindowLayout-content "|%SMIL.topLayout.qname;">
]]>
<!ENTITY % SMIL.MultiWindowLayout-content "">
<!ENTITY % SMIL.AlignmentLayout.module "IGNORE">
<![%SMIL.AlignmentLayout.module;[
  <!ENTITY % SMIL.AlignmentLayout-content "|%SMIL.regPoint.qname;">
]]>
<!ENTITY % SMIL.AlignmentLayout-content "">
<!ENTITY % SMIL.SubRegionLayout.module "IGNORE">
<![%SMIL.SubRegionLayout.module;[
  <!ENTITY % SMIL.SubRegionLayout-content "|%SMIL.region.qname;">
]]>
<!ENTITY % SMIL.SubRegionLayout-content "">

<!ENTITY % SMIL.layout.content "(%SMIL.metadata.qname;
                                 %SMIL.BasicLayout-content;
                                 %SMIL.MultiWindowLayout-content;
                                 %SMIL.AlignmentLayout-content;)*">
<!ENTITY % SMIL.region.content "(%SMIL.metadata.qname;
                                 %SMIL.SubRegionLayout-content;)*">
<![%SMIL.MultiWindowLayout.module;[
  <!ENTITY % SMIL.topLayout.content "(%SMIL.region.qname;
                                     |%SMIL.metadata.qname;)*">
]]>
<![%SMIL.BasicLayout.module;[
  <!ENTITY % SMIL.rootlayout.content "(%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.rootlayout.attrib "
    %SMIL.content-control-attrs;
  ">
  <!ENTITY % SMIL.region.attrib "
    %SMIL.content-control-attrs;
    %SMIL.BasicText.attrib;
    %SMIL.MediaOpacity.attrib;
    %SMIL.MediaPanZoom.attrib;
    %SMIL.MediaRenderAttributes.attrib;
    %SMIL.textAlign.attrib;
    %SMIL.textDirection.attrib;
    %SMIL.textMode.attrib;
    %SMIL.textPlace.attrib;
    %SMIL.TextStyling.attrib;
    %SMIL.textWritingMode.attrib;
    %XHTML-Role-attrib;
  ">
]]>
<![%SMIL.AlignmentLayout.module;[
  <!ENTITY % SMIL.regPoint.content "(%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.regPoint.attrib "
    %SMIL.content-control-attrs;
  ">
]]>
<![%SMIL.SubRegionLayout.module;[
  <!ENTITY % SMIL.topLayout.attrib "
    %SMIL.content-control-attrs;
  ">
]]>
<!ENTITY % SMIL.layout.attrib "
 %SMIL.Test.attrib;
 %SMIL.customTestAttr.attrib;
">

<!-- ================== Media  ============================================ -->
<![%SMIL.MediaParam.module;[
  <!ENTITY % SMIL.param.content       "(%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.param.attrib        "%SMIL.content-control-attrs;">
  <!ENTITY % SMIL.paramGroup.content  "(%SMIL.param.qname;|%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.paramGroup.attrib   "
    %SMIL.skip-content.attrib;
  ">

  <!ENTITY % SMIL.param-control "| %SMIL.param.qname;">
  <!ENTITY % SMIL.paramGroup-control "| %SMIL.paramGroup.qname;">
]]>
<!ENTITY % SMIL.param-control "">
<!ENTITY % SMIL.paramGroup-control "">

<!ENTITY % SMIL.media-object.content "(%SMIL.metadata.qname;
                                       %SMIL.param-control;
                                       %SMIL.anchor-control;
                                       %SMIL.switch-control;
                                       %SMIL.animation.elements;)*">
<!ENTITY % SMIL.media-object.attrib "
  %SMIL.timecontainer.attrib;
  %SMIL.endsync.media.attrib;
  %SMIL.fill.attrib;
  %SMIL.Test.attrib;
  %SMIL.customTestAttr.attrib;
  %SMIL.regionAttr.attrib;
  %SMIL.Transition.attrib;
  %SMIL.SubRegionLayout.attrib;
  %SMIL.OverrideLayout.attrib;
  %SMIL.RegistrationPoint.attrib;
  %SMIL.tabindex.attrib;
  %SMIL.MediaObject.attrib;
  %SMIL.StateTest.attrib;
  %XHTML-Role-attrib;
">

<!ENTITY % SMIL.brush.attrib        "%SMIL.skip-content.attrib;">

<!-- ================== Metadata ========================================== -->
<!ENTITY % SMIL.meta.content     "EMPTY">
<!ENTITY % SMIL.meta.attrib      "%SMIL.skip-content.attrib;">

<!ENTITY % SMIL.metadata.content "EMPTY">
<!ENTITY % SMIL.metadata.attrib  "%SMIL.skip-content.attrib;">

<!-- ================== smilText ========================================== -->
<!ENTITY % SMIL.smilText.content "(
         #PCDATA
        |%SMIL.metadata.qname;
        |%SMIL.tev.qname;
        |%SMIL.clear.qname;
        |%SMIL.br.qname;
        |%SMIL.span.qname;
        |%SMIL.p.qname;
        |%SMIL.div.qname;
         %SMIL.param-control;
)*">
<!ENTITY % SMIL.smilText.attrib "
  %SMIL.skip-content.attrib;
  %SMIL.media-object.attrib;
">
<!ENTITY % SMIL.tev.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.clear.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.br.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.div.content "(
         #PCDATA
        |%SMIL.metadata.qname;
        |%SMIL.tev.qname;
        |%SMIL.clear.qname;
        |%SMIL.br.qname;
        |%SMIL.div.qname;
        |%SMIL.p.qname;
        |%SMIL.span.qname;
)*">
<!ENTITY % SMIL.p.content "(
         #PCDATA
        |%SMIL.metadata.qname;
        |%SMIL.tev.qname;
        |%SMIL.clear.qname;
        |%SMIL.br.qname;
        |%SMIL.span.qname;
)*">
<!ENTITY % SMIL.span.content "(
         #PCDATA
        |%SMIL.metadata.qname;
        |%SMIL.tev.qname;
        |%SMIL.clear.qname;
        |%SMIL.br.qname;
        |%SMIL.span.qname;
)*">
<!ENTITY % SMIL.textStyle.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.textStyling.content "((%SMIL.metadata.qname;)*,(%SMIL.textStyle.qname;,(%SMIL.metadata.qname;)*)+)">
<!ENTITY % SMIL.textStyle.attrib "
  %SMIL.Test.attrib;
">

<!-- ================== UserState ========================================= -->
<!ENTITY % SMIL.language-attrib-default
  "'http://www.w3.org/TR/1999/REC-xpath-19991116'">
<!ENTITY % SMIL.newvalue-ref-attrib-default "'/*'">
<!ENTITY % SMIL.newvalue-name-attrib-default "#REQUIRED">

<!ENTITY % SMIL.newvalue.attrib "
  %SMIL.smil-basictime.attrib;
  %SMIL.TimeManipulations.attrib;
  %SMIL.RestartTiming.attrib;
  %SMIL.RestartDefaultTiming.attrib;
  %SMIL.fillDefault.attrib;
  %SMIL.Test.attrib;
  %SMIL.customTestAttr.attrib;
  %SMIL.skip-content.attrib;
  %SMIL.StateTest.attrib;
">
<!ENTITY % SMIL.setvalue.attrib "
  %SMIL.smil-basictime.attrib;
  %SMIL.TimeManipulations.attrib;
  %SMIL.RestartTiming.attrib;
  %SMIL.RestartDefaultTiming.attrib;
  %SMIL.fillDefault.attrib;
  %SMIL.Test.attrib;
  %SMIL.customTestAttr.attrib;
  %SMIL.skip-content.attrib;
  %SMIL.StateTest.attrib;
">
<!ENTITY % SMIL.delvalue.attrib "
  %SMIL.smil-basictime.attrib;
  %SMIL.TimeManipulations.attrib;
  %SMIL.RestartTiming.attrib;
  %SMIL.RestartDefaultTiming.attrib;
  %SMIL.fillDefault.attrib;
  %SMIL.Test.attrib;
  %SMIL.customTestAttr.attrib;
  %SMIL.skip-content.attrib;
  %SMIL.StateTest.attrib;
">
<!ENTITY % SMIL.newvalue.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.setvalue.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.delvalue.content "(%SMIL.metadata.qname;)*">

<!ENTITY % SMIL.send.attrib "
  %SMIL.smil-basictime.attrib;
  %SMIL.TimeManipulations.attrib;
  %SMIL.RestartTiming.attrib;
  %SMIL.RestartDefaultTiming.attrib;
  %SMIL.fillDefault.attrib;
  %SMIL.Test.attrib;
  %SMIL.customTestAttr.attrib;
  %SMIL.skip-content.attrib;
  %SMIL.StateTest.attrib;
">
<!ENTITY % SMIL.send.content "(%SMIL.metadata.qname;)*">

<!-- ================== Structure ========================================= -->
<!ENTITY % SMIL.smil.content "((%SMIL.metadata.qname;)*,
                               (%SMIL.head.qname;,
                                (%SMIL.metadata.qname;)*)?,
                               (%SMIL.body.qname;,
                                (%SMIL.metadata.qname;)*)?)">
<!ENTITY % SMIL.head.content "(
         %SMIL.meta.qname;*
         %SMIL.head-control.content;
         ,((%SMIL.head-meta.content;),      %SMIL.meta.qname;*)?
         %SMIL.head-textStyling.content;
         %SMIL.head-layout.content;
         %SMIL.head-state.content;
         %SMIL.head-submission.content;
         %SMIL.head-transition.content;
         %SMIL.head-media.content;
)">
<!ENTITY % SMIL.body.content "(%SMIL.timecontainer.class;
                               %SMIL.media-object;
                               %SMIL.animation.elements;
                               %SMIL.state.elements;
                               %SMIL.content-control;
                               %SMIL.a-control;
                              |%SMIL.metadata.qname;)*">

<!ENTITY % SMIL.smil.attrib "
        %SMIL.Test.attrib;
        %SMIL.ModuleNamespaces;
        %ITSNS;
        %XHTMLNS;
">
<!ENTITY % SMIL.head.attrib "">
<!ENTITY % SMIL.body.attrib "
        %SMIL.timecontainer.attrib;
        %SMIL.Description.attrib;
        %SMIL.fill.attrib;
">

<!-- ================== Transitions ======================================= -->
<!ENTITY % SMIL.transition.content "(%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.transition.attrib "%SMIL.content-control-attrs;
">

<!-- ================== Timing ============================================ -->
<!ENTITY % SMIL.par.attrib "
        %SMIL.endsync.attrib;
        %SMIL.fill.attrib;
        %SMIL.timecontainer.attrib;
        %SMIL.Test.attrib;
        %SMIL.customTestAttr.attrib;
        %SMIL.regionAttr.attrib;
        %SMIL.StateTest.attrib;
        %XHTML-Role-attrib;
">
<!ENTITY % SMIL.seq.attrib "
        %SMIL.fill.attrib;
        %SMIL.timecontainer.attrib;
        %SMIL.Test.attrib;
        %SMIL.customTestAttr.attrib;
        %SMIL.regionAttr.attrib;
        %SMIL.StateTest.attrib;
        %SMIL.Timesheet.attrib;
        %XHTML-Role-attrib;
">
<!ENTITY % SMIL.excl.attrib "
        %SMIL.endsync.attrib;
        %SMIL.fill.attrib;
        %SMIL.timecontainer.attrib;
        %SMIL.Test.attrib;
        %SMIL.customTestAttr.attrib;
        %SMIL.regionAttr.attrib;
        %SMIL.skip-content.attrib;
        %SMIL.StateTest.attrib;
        %XHTML-Role-attrib;
">
<!ENTITY % SMIL.par.content "(%SMIL.timecontainer.content;|%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.seq.content "(%SMIL.timecontainer.content;|%SMIL.metadata.qname;)*">
<!ENTITY % SMIL.BasicPriorityClassContainers.module "IGNORE">
<![%SMIL.BasicPriorityClassContainers.module;[
  <!-- An excl element contains either only priorityClass children or
       no priorityClass children.  It is made more complex by the fact
       that in either case there may be switch, meta, and metadata
       children interspersed.
  -->
  <!ENTITY % SMIL.excl.content "
        ((%SMIL.metadata.qname;)*,
         (((%SMIL.timecontainer.content;),
           (%SMIL.metadata.qname;)*)* |
          (%SMIL.priorityClass.qname;,
           (%SMIL.metadata.qname;)*)+))">

  <!ENTITY % SMIL.priorityClass.attrib  "
    %SMIL.content-control-attrs;
  ">
  <!ENTITY % SMIL.priorityClass.content "(%SMIL.timecontainer.content; |
                                          %SMIL.metadata.qname;)*">
]]>
<!ENTITY % SMIL.excl.content "(%SMIL.timecontainer.content; |
                               %SMIL.metadata.qname;)*">

<!-- External Timing -->
<!ENTITY % SMIL.Timesheet.module "IGNORE">
<![%SMIL.Timesheet.module;[
  <!ENTITY % SMIL.timesheet.content "(%SMIL.timecontainer.class;
                                      %SMIL.media-object;
                                      %SMIL.animation.elements;
                                      %SMIL.state.elements;
                                      %SMIL.content-control;
                                      %SMIL.a-control;
                                     |%SMIL.metadata.qname;)*">
  <!ENTITY % SMIL.timesheet.attrib "
    %SMIL.media-object.attrib;
  ">
]]>

<!-- end of smil-profile-model-1.mod -->

A.3.2 The SMIL 3.0 Language DTD

<!-- ...................................................................... -->
<!-- SMIL 3.0 Language DTD ................................................ -->
<!-- file: SMIL30Language.dtd

        This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Sjoerd Mullender.
        Revision: 1.8
        Date: 2008/09/07 20:36:50

 This is the driver file for the SMIL 3.0 Language Profile DTD.

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//DTD SMIL 3.0 Language//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL30Language.dtd"

-->

<!-- Define the prefix to be used (none) -->
<!ENTITY % NS.prefixed "IGNORE" >

<!-- Define the default for the baseProfile attribute -->
<!ENTITY % SMIL.baseProfile.default "#FIXED 'Language'">

<!-- Define which modules to include -->
<!-- Structure -->
<!ENTITY % SMIL.Structure.module                      "INCLUDE">
<!ENTITY % SMIL.Identity.module                       "INCLUDE">
<!-- Media Object -->
<!ENTITY % SMIL.BasicMedia.module                     "INCLUDE">
<!ENTITY % SMIL.BrushMedia.module                     "INCLUDE">
<!ENTITY % SMIL.MediaAccessibility.module             "INCLUDE">
<!ENTITY % SMIL.MediaClipMarkers.module               "INCLUDE">
<!ENTITY % SMIL.MediaClipping.module                  "INCLUDE">
<!ENTITY % SMIL.MediaDescription.module               "INCLUDE">
<!ENTITY % SMIL.MediaOpacity.module                   "INCLUDE">
<!ENTITY % SMIL.MediaPanZoom.module                   "INCLUDE">
<!ENTITY % SMIL.MediaParam.module                     "INCLUDE">
<!ENTITY % SMIL.MediaRenderAttributes.module          "INCLUDE">
<!-- Timing and Synchronization -->
<!ENTITY % SMIL.AccessKeyTiming.module                "INCLUDE">
<!ENTITY % SMIL.BasicExclTimeContainers.module        "INCLUDE">
<!ENTITY % SMIL.BasicInlineTiming.module              "INCLUDE">
<!ENTITY % SMIL.BasicPriorityClassContainers.module   "INCLUDE">
<!ENTITY % SMIL.BasicTimeContainers.module            "INCLUDE">
<!ENTITY % SMIL.DOMTimingMethods.module               "IGNORE">
<!ENTITY % SMIL.EventTiming.module                    "INCLUDE">
<!ENTITY % SMIL.FillDefault.module                    "INCLUDE">
<!ENTITY % SMIL.MediaMarkerTiming.module              "INCLUDE">
<!ENTITY % SMIL.MinMaxTiming.module                   "IGNORE">
<!ENTITY % SMIL.MultiArcTiming.module                 "INCLUDE">
<!ENTITY % SMIL.RepeatTiming.module                   "INCLUDE">
<!ENTITY % SMIL.RepeatValueTiming.module              "INCLUDE">
<!ENTITY % SMIL.RestartDefault.module                 "INCLUDE">
<!ENTITY % SMIL.RestartTiming.module                  "INCLUDE">
<!ENTITY % SMIL.SyncbaseTiming.module                 "INCLUDE">
<!ENTITY % SMIL.SyncBehaviorDefault.module            "INCLUDE">
<!ENTITY % SMIL.SyncBehavior.module                   "INCLUDE">
<!ENTITY % SMIL.SyncMaster.module                     "IGNORE">
<!ENTITY % SMIL.TimeContainerAttributes.module        "IGNORE">
<!ENTITY % SMIL.WallclockTiming.module                "INCLUDE">
<!-- Content Control -->
<!ENTITY % SMIL.BasicContentControl.module            "INCLUDE">
<!ENTITY % SMIL.CustomTestAttributes.module           "INCLUDE">
<!ENTITY % SMIL.PrefetchControl.module                "INCLUDE">
<!ENTITY % SMIL.RequiredContentControl.module         "INCLUDE">
<!ENTITY % SMIL.SkipContentControl.module             "INCLUDE">
<!-- Layout -->
<!ENTITY % SMIL.AlignmentLayout.module                "INCLUDE">
<!ENTITY % SMIL.AudioLayout.module                    "INCLUDE">
<!ENTITY % SMIL.BackgroundTilingLayout.module         "INCLUDE">
<!ENTITY % SMIL.BasicLayout.module                    "INCLUDE">
<!ENTITY % SMIL.MultiWindowLayout.module              "INCLUDE">
<!ENTITY % SMIL.OverrideLayout.module                 "INCLUDE">
<!ENTITY % SMIL.StructureLayout.module                "INCLUDE">
<!ENTITY % SMIL.SubRegionLayout.module                "INCLUDE">
<!-- smilText -->
<!ENTITY % SMIL.BasicText.module                      "INCLUDE">
<!ENTITY % SMIL.TextMotion.module                     "INCLUDE">
<!ENTITY % SMIL.TextStyling.module                    "INCLUDE">
<!-- Linking -->
<!ENTITY % SMIL.BasicLinking.module                   "INCLUDE">
<!ENTITY % SMIL.LinkingAttributes.module              "INCLUDE">
<!ENTITY % SMIL.ObjectLinking.module                  "INCLUDE">
<!-- Metainformation -->
<!ENTITY % SMIL.Metainformation.module                "INCLUDE">
<!-- Transition Effects -->
<!ENTITY % SMIL.BasicTransitions.module               "INCLUDE">
<!ENTITY % SMIL.FullScreenTransitionEffects.module    "INCLUDE">
<!ENTITY % SMIL.InlineTransitions.module              "IGNORE">
<!ENTITY % SMIL.TransitionModifiers.module            "INCLUDE">
<!-- Animation -->
<!ENTITY % SMIL.BasicAnimation.module                 "INCLUDE">
<!ENTITY % SMIL.SplineAnimation.module                "IGNORE">
<!-- State -->
<!ENTITY % SMIL.StateInterpolation.module             "INCLUDE">
<!ENTITY % SMIL.StateSubmission.module                "INCLUDE">
<!ENTITY % SMIL.StateTest.module                      "INCLUDE">
<!ENTITY % SMIL.UserState.module                      "INCLUDE">
<!-- Time Manipulation -->
<!ENTITY % SMIL.TimeManipulations.module              "IGNORE">
<!-- External Timing -->
<!ENTITY % SMIL.Timesheet.module                      "IGNORE">

<!-- Define which variants to use -->
<!ENTITY % SMIL.animation-targetElement               "INCLUDE">
<!ENTITY % SMIL.animation-XLinkTarget                 "IGNORE">
<!ENTITY % SMIL.transition-targetElement              "INCLUDE">
<!ENTITY % SMIL.transition-XLinkTarget                "IGNORE">
<!ENTITY % SMIL.ContentControl.deprecated.module      "INCLUDE">
<!ENTITY % SMIL.MediaClipping.deprecated.module       "INCLUDE">
<!ENTITY % SMIL.RepeatTiming.deprecated.module        "INCLUDE">
<!ENTITY % SMIL.BasicLinking.deprecated.module        "INCLUDE">
<!ENTITY % SMIL.IncludeModuleNamespaces               "IGNORE">
<!ENTITY % SMIL.ITS-Attributes.module                 "INCLUDE">
<!ENTITY % SMIL.RoleAttributes.module                 "IGNORE">
<!ENTITY % SMIL.submission-post                       "INCLUDE">

<!-- Define the Content Model -->
<!ENTITY % smil-model.mod
    PUBLIC "-//W3C//ENTITIES SMIL 3.0 Document Model 1.0//EN"
           "smil-profile-model-1.mod" >

<!-- Modular Framework Module  ............................................ -->
<!ENTITY % smil-framework.module "INCLUDE" >
<![%smil-framework.module;[
<!ENTITY % smil-framework.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Modular Framework 1.0//EN"
            "smil-framework-1.mod" >
%smil-framework.mod;]]>

<!-- List module files to include -->
<!ENTITY % SMIL.anim-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Animation//EN"
  "SMIL-anim.mod">
<!ENTITY % SMIL.control-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Content Control//EN"
  "SMIL-control.mod">
<!ENTITY % SMIL.layout-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Layout//EN"
  "SMIL-layout.mod">
<!ENTITY % SMIL.link-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Linking//EN"
  "SMIL-link.mod">
<!ENTITY % SMIL.media-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Media Objects//EN"
  "SMIL-media.mod">
<!ENTITY % SMIL.meta-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Metainformation//EN"
  "SMIL-metainformation.mod">
<!ENTITY % SMIL.struct-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Structure//EN"
  "SMIL-struct.mod">
<!ENTITY % SMIL.text-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 SMILtext//EN"
  "SMIL-smiltext.mod">
<!ENTITY % SMIL.state-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 State//EN"
  "SMIL-state.mod">
<!ENTITY % SMIL.timing-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Timing//EN"
  "SMIL-timing.mod">
<!ENTITY % SMIL.transition-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Transition//EN"
  "SMIL-transition.mod">

<!-- Include module files -->
%SMIL.struct-mod;
%SMIL.anim-mod;
%SMIL.control-mod;
%SMIL.meta-mod;
%SMIL.layout-mod;
%SMIL.link-mod;
%SMIL.media-mod;
%SMIL.text-mod;
%SMIL.state-mod;
%SMIL.timing-mod;
%SMIL.transition-mod;

<!-- end of SMIL30Language.dtd -->

A.3.3 The SMIL 3.0 Unified Mobile DTD

<!-- ...................................................................... -->
<!-- SMIL 3.0 Unified Mobile DTD  ......................................... -->
<!-- file: SMIL30UnifiedMobile.dtd

        This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Sjoerd Mullender.
        Revision: 1.3
        Date: 2008/09/07 20:36:50

 This is the driver file for the SMIL 3.0 Unified Mobile Profile DTD.

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//DTD SMIL 3.0 Unified Mobile//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL30UnifiedMobile.dtd"

-->

<!-- Define the prefix to be used (none) -->
<!ENTITY % NS.prefixed "IGNORE" >

<!-- Define the default for the baseProfile attribute -->
<!ENTITY % SMIL.baseProfile.default "#FIXED 'UnifiedMobile'">

<!-- Define which modules to include -->
<!-- Structure -->
<!ENTITY % SMIL.Structure.module                      "INCLUDE">
<!ENTITY % SMIL.Identity.module                       "INCLUDE">
<!-- Media Object -->
<!ENTITY % SMIL.BasicMedia.module                     "INCLUDE">
<!ENTITY % SMIL.BrushMedia.module                     "INCLUDE">
<!ENTITY % SMIL.MediaAccessibility.module             "INCLUDE">
<!ENTITY % SMIL.MediaClipMarkers.module               "IGNORE">
<!ENTITY % SMIL.MediaClipping.module                  "INCLUDE">
<!ENTITY % SMIL.MediaDescription.module               "INCLUDE">
<!ENTITY % SMIL.MediaOpacity.module                   "IGNORE">
<!ENTITY % SMIL.MediaPanZoom.module                   "INCLUDE">
<!ENTITY % SMIL.MediaParam.module                     "INCLUDE">
<!ENTITY % SMIL.MediaRenderAttributes.module          "INCLUDE">
<!-- Timing and Synchronization -->
<!ENTITY % SMIL.AccessKeyTiming.module                "INCLUDE">
<!ENTITY % SMIL.BasicExclTimeContainers.module        "INCLUDE">
<!ENTITY % SMIL.BasicInlineTiming.module              "INCLUDE">
<!ENTITY % SMIL.BasicPriorityClassContainers.module   "IGNORE">
<!ENTITY % SMIL.BasicTimeContainers.module            "INCLUDE">
<!ENTITY % SMIL.DOMTimingMethods.module               "IGNORE">
<!ENTITY % SMIL.EventTiming.module                    "INCLUDE">
<!ENTITY % SMIL.FillDefault.module                    "IGNORE">
<!ENTITY % SMIL.MediaMarkerTiming.module              "IGNORE">
<!ENTITY % SMIL.MinMaxTiming.module                   "IGNORE">
<!ENTITY % SMIL.MultiArcTiming.module                 "INCLUDE">
<!ENTITY % SMIL.RepeatTiming.module                   "INCLUDE">
<!ENTITY % SMIL.RepeatValueTiming.module              "IGNORE">
<!ENTITY % SMIL.RestartDefault.module                 "IGNORE">
<!ENTITY % SMIL.RestartTiming.module                  "IGNORE">
<!ENTITY % SMIL.SyncbaseTiming.module                 "IGNORE">
<!ENTITY % SMIL.SyncBehaviorDefault.module            "IGNORE">
<!ENTITY % SMIL.SyncBehavior.module                   "IGNORE">
<!ENTITY % SMIL.SyncMaster.module                     "IGNORE">
<!ENTITY % SMIL.TimeContainerAttributes.module        "IGNORE">
<!ENTITY % SMIL.WallclockTiming.module                "IGNORE">
<!-- Content Control -->
<!ENTITY % SMIL.BasicContentControl.module            "INCLUDE">
<!ENTITY % SMIL.CustomTestAttributes.module           "IGNORE">
<!ENTITY % SMIL.PrefetchControl.module                "INCLUDE">
<!ENTITY % SMIL.RequiredContentControl.module         "INCLUDE">
<!ENTITY % SMIL.SkipContentControl.module             "INCLUDE">
<!-- Layout -->
<!ENTITY % SMIL.AlignmentLayout.module                "INCLUDE">
<!ENTITY % SMIL.AudioLayout.module                    "INCLUDE">
<!ENTITY % SMIL.BackgroundTilingLayout.module         "INCLUDE">
<!ENTITY % SMIL.BasicLayout.module                    "INCLUDE">
<!ENTITY % SMIL.MultiWindowLayout.module              "IGNORE">
<!ENTITY % SMIL.OverrideLayout.module                 "INCLUDE">
<!ENTITY % SMIL.StructureLayout.module                "INCLUDE">
<!ENTITY % SMIL.SubRegionLayout.module                "INCLUDE">
<!-- smilText -->
<!ENTITY % SMIL.BasicText.module                      "INCLUDE">
<!ENTITY % SMIL.TextMotion.module                     "INCLUDE">
<!ENTITY % SMIL.TextStyling.module                    "INCLUDE">
<!-- Linking -->
<!ENTITY % SMIL.BasicLinking.module                   "INCLUDE">
<!ENTITY % SMIL.LinkingAttributes.module              "INCLUDE">
<!ENTITY % SMIL.ObjectLinking.module                  "IGNORE">
<!-- Metainformation -->
<!ENTITY % SMIL.Metainformation.module                "INCLUDE">
<!-- Transition Effects -->
<!ENTITY % SMIL.BasicTransitions.module               "INCLUDE">
<!ENTITY % SMIL.FullScreenTransitionEffects.module    "INCLUDE">
<!ENTITY % SMIL.InlineTransitions.module              "IGNORE">
<!ENTITY % SMIL.TransitionModifiers.module            "IGNORE">
<!-- Animation -->
<!ENTITY % SMIL.BasicAnimation.module                 "INCLUDE">
<!ENTITY % SMIL.SplineAnimation.module                "IGNORE">
<!-- State -->
<!ENTITY % SMIL.StateInterpolation.module             "IGNORE">
<!ENTITY % SMIL.StateSubmission.module                "IGNORE">
<!ENTITY % SMIL.StateTest.module                      "IGNORE">
<!ENTITY % SMIL.UserState.module                      "IGNORE">
<!-- Time Manipulation -->
<!ENTITY % SMIL.TimeManipulations.module              "IGNORE">
<!-- External Timing -->
<!ENTITY % SMIL.Timesheet.module                      "IGNORE">

<!-- Define which variants to use -->
<!ENTITY % SMIL.animation-targetElement               "INCLUDE">
<!ENTITY % SMIL.animation-XLinkTarget                 "IGNORE">
<!ENTITY % SMIL.transition-targetElement              "INCLUDE">
<!ENTITY % SMIL.transition-XLinkTarget                "IGNORE">
<!ENTITY % SMIL.ContentControl.deprecated.module      "IGNORE">
<!ENTITY % SMIL.MediaClipping.deprecated.module       "IGNORE">
<!ENTITY % SMIL.RepeatTiming.deprecated.module        "IGNORE">
<!ENTITY % SMIL.BasicLinking.deprecated.module        "IGNORE">
<!ENTITY % SMIL.ITS-Attributes.module                 "INCLUDE">
<!ENTITY % SMIL.RoleAttributes.module                 "IGNORE">
<!ENTITY % SMIL.submission-post                       "IGNORE">

<!-- Define the Content Model -->
<!ENTITY % smil-model.mod
    PUBLIC "-//W3C//ENTITIES SMIL 3.0 Document Model 1.0//EN"
           "smil-profile-model-1.mod" >

<!-- Modular Framework Module  ............................................ -->
<!ENTITY % smil-framework.module "INCLUDE" >
<![%smil-framework.module;[
<!ENTITY % smil-framework.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Modular Framework 1.0//EN"
            "smil-framework-1.mod" >
%smil-framework.mod;]]>

<!-- List module files to include -->
<!ENTITY % SMIL.anim-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Animation//EN"
  "SMIL-anim.mod">
<!ENTITY % SMIL.control-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Content Control//EN"
  "SMIL-control.mod">
<!ENTITY % SMIL.layout-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Layout//EN"
  "SMIL-layout.mod">
<!ENTITY % SMIL.link-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Linking//EN"
  "SMIL-link.mod">
<!ENTITY % SMIL.media-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Media Objects//EN"
  "SMIL-media.mod">
<!ENTITY % SMIL.meta-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Metainformation//EN"
  "SMIL-metainformation.mod">
<!ENTITY % SMIL.struct-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Structure//EN"
  "SMIL-struct.mod">
<!ENTITY % SMIL.timing-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Timing//EN"
  "SMIL-timing.mod">
<!ENTITY % SMIL.transition-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Transition//EN"
  "SMIL-transition.mod">

<!-- Include module files -->
%SMIL.struct-mod;
%SMIL.anim-mod;
%SMIL.control-mod;
%SMIL.meta-mod;
%SMIL.layout-mod;
%SMIL.link-mod;
%SMIL.media-mod;
%SMIL.timing-mod;
%SMIL.transition-mod;

<!-- end of SMIL30UnifiedMobile.dtd -->

A.3.4 The SMIL 3.0 DAISY DTD

<!-- ...................................................................... -->
<!-- SMIL 3.0 DAISY DTD  .................................................. -->
<!-- file: SMIL30Daisy.dtd

        This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Revision: 1.12
        Date: 2008/09/07 20:36:50

 This is the driver file for the SMIL 3.0 DAISY Profile DTD.

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//DTD SMIL 3.0 Daisy//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL30Daisy.dtd"

-->

<!-- Define the prefix to be used (none) -->
<!ENTITY % NS.prefixed "IGNORE" >

<!-- Define the default for the baseProfile attribute -->
<!ENTITY % SMIL.baseProfile.default "#FIXED 'Daisy'">

<!-- Define which modules to include -->
<!-- Structure -->
<!ENTITY % SMIL.Structure.module                      "INCLUDE">
<!ENTITY % SMIL.Identity.module                       "INCLUDE">
<!-- Media Object -->
<!ENTITY % SMIL.BasicMedia.module                     "INCLUDE">
<!ENTITY % SMIL.BrushMedia.module                     "IGNORE">
<!ENTITY % SMIL.MediaAccessibility.module             "INCLUDE">
<!ENTITY % SMIL.MediaClipMarkers.module               "IGNORE">
<!ENTITY % SMIL.MediaClipping.module                  "INCLUDE">
<!ENTITY % SMIL.MediaDescription.module               "INCLUDE">
<!ENTITY % SMIL.MediaOpacity.module                   "IGNORE">
<!ENTITY % SMIL.MediaPanZoom.module                   "IGNORE">
<!ENTITY % SMIL.MediaParam.module                     "INCLUDE">
<!ENTITY % SMIL.MediaRenderAttributes.module          "IGNORE">
<!-- Timing and Synchronization -->
<!ENTITY % SMIL.AccessKeyTiming.module                "IGNORE">
<!ENTITY % SMIL.BasicExclTimeContainers.module        "INCLUDE">
<!ENTITY % SMIL.BasicInlineTiming.module              "INCLUDE">
<!ENTITY % SMIL.BasicPriorityClassContainers.module   "IGNORE">
<!ENTITY % SMIL.BasicTimeContainers.module            "INCLUDE">
<!ENTITY % SMIL.DOMTimingMethods.module               "IGNORE">
<!ENTITY % SMIL.EventTiming.module                    "INCLUDE">
<!ENTITY % SMIL.FillDefault.module                    "IGNORE">
<!ENTITY % SMIL.MediaMarkerTiming.module              "IGNORE">
<!ENTITY % SMIL.MinMaxTiming.module                   "IGNORE">
<!ENTITY % SMIL.MultiArcTiming.module                 "INCLUDE">
<!ENTITY % SMIL.RepeatTiming.module                   "IGNORE">
<!ENTITY % SMIL.RepeatValueTiming.module              "IGNORE">
<!ENTITY % SMIL.RestartDefault.module                 "IGNORE">
<!ENTITY % SMIL.RestartTiming.module                  "IGNORE">
<!ENTITY % SMIL.SyncbaseTiming.module                 "IGNORE">
<!ENTITY % SMIL.SyncBehaviorDefault.module            "IGNORE">
<!ENTITY % SMIL.SyncBehavior.module                   "IGNORE">
<!ENTITY % SMIL.SyncMaster.module                     "IGNORE">
<!ENTITY % SMIL.TimeContainerAttributes.module        "IGNORE">
<!ENTITY % SMIL.WallclockTiming.module                "IGNORE">
<!-- Content Control -->
<!ENTITY % SMIL.BasicContentControl.module            "INCLUDE">
<!ENTITY % SMIL.CustomTestAttributes.module           "IGNORE">
<!ENTITY % SMIL.PrefetchControl.module                "IGNORE">
<!ENTITY % SMIL.RequiredContentControl.module         "INCLUDE">
<!ENTITY % SMIL.SkipContentControl.module             "INCLUDE">
<!-- Layout -->
<!ENTITY % SMIL.AlignmentLayout.module                "IGNORE">
<!ENTITY % SMIL.AudioLayout.module                    "IGNORE">
<!ENTITY % SMIL.BackgroundTilingLayout.module         "IGNORE">
<!ENTITY % SMIL.BasicLayout.module                    "INCLUDE">
<!ENTITY % SMIL.MultiWindowLayout.module              "IGNORE">
<!ENTITY % SMIL.OverrideLayout.module                 "IGNORE">
<!ENTITY % SMIL.StructureLayout.module                "INCLUDE">
<!ENTITY % SMIL.SubRegionLayout.module                "INCLUDE">
<!-- smilText -->
<!ENTITY % SMIL.BasicText.module                      "IGNORE">
<!ENTITY % SMIL.TextMotion.module                     "IGNORE">
<!ENTITY % SMIL.TextStyling.module                    "IGNORE">
<!-- Linking -->
<!ENTITY % SMIL.BasicLinking.module                   "INCLUDE">
<!ENTITY % SMIL.LinkingAttributes.module              "IGNORE">
<!ENTITY % SMIL.ObjectLinking.module                  "IGNORE">
<!-- Metainformation -->
<!ENTITY % SMIL.Metainformation.module                "INCLUDE">
<!-- Transition Effects -->
<!ENTITY % SMIL.BasicTransitions.module               "IGNORE">
<!ENTITY % SMIL.FullScreenTransitionEffects.module    "IGNORE">
<!ENTITY % SMIL.InlineTransitions.module              "IGNORE">
<!ENTITY % SMIL.TransitionModifiers.module            "IGNORE">
<!-- Animation -->
<!ENTITY % SMIL.BasicAnimation.module                 "IGNORE">
<!ENTITY % SMIL.SplineAnimation.module                "IGNORE">
<!-- State -->
<!ENTITY % SMIL.StateInterpolation.module             "INCLUDE">
<!ENTITY % SMIL.StateSubmission.module                "INCLUDE">
<!ENTITY % SMIL.StateTest.module                      "INCLUDE">
<!ENTITY % SMIL.UserState.module                      "INCLUDE">
<!-- Time Manipulation -->
<!ENTITY % SMIL.TimeManipulations.module              "IGNORE">
<!-- External Timing -->
<!ENTITY % SMIL.Timesheet.module                      "IGNORE">

<!-- Define which variants to use -->
<!ENTITY % SMIL.animation-targetElement               "IGNORE">
<!ENTITY % SMIL.animation-XLinkTarget                 "IGNORE">
<!ENTITY % SMIL.transition-targetElement              "IGNORE">
<!ENTITY % SMIL.transition-XLinkTarget                "IGNORE">
<!ENTITY % SMIL.ContentControl.deprecated.module      "IGNORE">
<!ENTITY % SMIL.MediaClipping.deprecated.module       "IGNORE">
<!ENTITY % SMIL.RepeatTiming.deprecated.module        "IGNORE">
<!ENTITY % SMIL.BasicLinking.deprecated.module        "IGNORE">
<!ENTITY % SMIL.ITS-Attributes.module                 "INCLUDE">
<!ENTITY % SMIL.RoleAttributes.module                 "INCLUDE">
<!ENTITY % SMIL.submission-post                       "INCLUDE">

<!-- Define the Content Model -->
<!ENTITY % smil-model.mod
    PUBLIC "-//W3C//ENTITIES SMIL 3.0 Document Model 1.0//EN"
           "smil-profile-model-1.mod" >

<!-- Modular Framework Module  ............................................ -->
<!ENTITY % smil-framework.module "INCLUDE" >
<![%smil-framework.module;[
<!ENTITY % smil-framework.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Modular Framework 1.0//EN"
            "smil-framework-1.mod" >
%smil-framework.mod;]]>

<!-- List module files to include -->
<!ENTITY % SMIL.control-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Content Control//EN"
  "SMIL-control.mod">
<!ENTITY % SMIL.layout-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Layout//EN"
  "SMIL-layout.mod">
<!ENTITY % SMIL.link-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Linking//EN"
  "SMIL-link.mod">
<!ENTITY % SMIL.media-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Media Objects//EN"
  "SMIL-media.mod">
<!ENTITY % SMIL.meta-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Metainformation//EN"
  "SMIL-metainformation.mod">
<!ENTITY % SMIL.struct-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Structure//EN"
  "SMIL-struct.mod">
<!ENTITY % SMIL.state-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 State//EN"
  "SMIL-state.mod">
<!ENTITY % SMIL.timing-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Timing//EN"
  "SMIL-timing.mod">

<!-- Include module files -->
%SMIL.struct-mod;
%SMIL.control-mod;
%SMIL.meta-mod;
%SMIL.layout-mod;
%SMIL.link-mod;
%SMIL.media-mod;
%SMIL.state-mod;
%SMIL.timing-mod;

<!-- end of SMIL30Daisy.dtd -->

A.3.5 The SMIL 3.0 Tiny DTD

<!-- ...................................................................... -->
<!-- SMIL 3.0 Tiny DTD  ................................................... -->
<!-- file: SMIL30Tiny.dtd

        This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Revision: 1.13
        Date: 2008/09/07 20:36:50

 This is the driver file for the SMIL 3.0 Tiny Profile DTD.

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//DTD SMIL 3.0 Tiny//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL30Tiny.dtd"

-->

<!-- Define the prefix to be used (none) -->
<!ENTITY % NS.prefixed "IGNORE" >

<!-- Define the default for the baseProfile attribute -->
<!ENTITY % SMIL.baseProfile.default "#FIXED 'Tiny'">

<!-- Define which modules to include -->
<!-- Structure -->
<!ENTITY % SMIL.Structure.module                      "INCLUDE">
<!ENTITY % SMIL.Identity.module                       "INCLUDE">
<!-- Media Object -->
<!ENTITY % SMIL.BasicMedia.module                     "INCLUDE">
<!ENTITY % SMIL.BrushMedia.module                     "IGNORE">
<!ENTITY % SMIL.MediaAccessibility.module             "INCLUDE">
<!ENTITY % SMIL.MediaClipMarkers.module               "IGNORE">
<!ENTITY % SMIL.MediaClipping.module                  "IGNORE">
<!ENTITY % SMIL.MediaDescription.module               "INCLUDE">
<!ENTITY % SMIL.MediaOpacity.module                   "IGNORE">
<!ENTITY % SMIL.MediaPanZoom.module                   "IGNORE">
<!ENTITY % SMIL.MediaParam.module                     "IGNORE">
<!ENTITY % SMIL.MediaRenderAttributes.module          "IGNORE">
<!-- Timing and Synchronization -->
<!ENTITY % SMIL.AccessKeyTiming.module                "IGNORE">
<!ENTITY % SMIL.BasicExclTimeContainers.module        "IGNORE">
<!ENTITY % SMIL.BasicInlineTiming.module              "INCLUDE">
<!ENTITY % SMIL.BasicPriorityClassContainers.module   "IGNORE">
<!ENTITY % SMIL.BasicTimeContainers.module            "INCLUDE">
<!ENTITY % SMIL.DOMTimingMethods.module               "IGNORE">
<!ENTITY % SMIL.EventTiming.module                    "IGNORE">
<!ENTITY % SMIL.FillDefault.module                    "IGNORE">
<!ENTITY % SMIL.MediaMarkerTiming.module              "IGNORE">
<!ENTITY % SMIL.MinMaxTiming.module                   "IGNORE">
<!ENTITY % SMIL.MultiArcTiming.module                 "IGNORE">
<!ENTITY % SMIL.RepeatTiming.module                   "IGNORE">
<!ENTITY % SMIL.RepeatValueTiming.module              "IGNORE">
<!ENTITY % SMIL.RestartDefault.module                 "IGNORE">
<!ENTITY % SMIL.RestartTiming.module                  "IGNORE">
<!ENTITY % SMIL.SyncbaseTiming.module                 "IGNORE">
<!ENTITY % SMIL.SyncBehaviorDefault.module            "IGNORE">
<!ENTITY % SMIL.SyncBehavior.module                   "IGNORE">
<!ENTITY % SMIL.SyncMaster.module                     "IGNORE">
<!ENTITY % SMIL.TimeContainerAttributes.module        "IGNORE">
<!ENTITY % SMIL.WallclockTiming.module                "IGNORE">
<!-- Content Control -->
<!ENTITY % SMIL.BasicContentControl.module            "IGNORE">
<!ENTITY % SMIL.CustomTestAttributes.module           "IGNORE">
<!ENTITY % SMIL.PrefetchControl.module                "IGNORE">
<!ENTITY % SMIL.RequiredContentControl.module         "INCLUDE">
<!ENTITY % SMIL.SkipContentControl.module             "INCLUDE">
<!-- Layout -->
<!ENTITY % SMIL.AlignmentLayout.module                "IGNORE">
<!ENTITY % SMIL.AudioLayout.module                    "IGNORE">
<!ENTITY % SMIL.BackgroundTilingLayout.module         "IGNORE">
<!ENTITY % SMIL.BasicLayout.module                    "IGNORE">
<!ENTITY % SMIL.MultiWindowLayout.module              "IGNORE">
<!ENTITY % SMIL.OverrideLayout.module                 "IGNORE">
<!ENTITY % SMIL.StructureLayout.module                "INCLUDE">
<!ENTITY % SMIL.SubRegionLayout.module                "IGNORE">
<!-- smilText -->
<!ENTITY % SMIL.BasicText.module                      "IGNORE">
<!ENTITY % SMIL.TextMotion.module                     "IGNORE">
<!ENTITY % SMIL.TextStyling.module                    "IGNORE">
<!-- Linking -->
<!ENTITY % SMIL.BasicLinking.module                   "IGNORE">
<!ENTITY % SMIL.LinkingAttributes.module              "IGNORE">
<!ENTITY % SMIL.ObjectLinking.module                  "IGNORE">
<!-- Metainformation -->
<!ENTITY % SMIL.Metainformation.module                "INCLUDE">
<!-- Transition Effects -->
<!ENTITY % SMIL.BasicTransitions.module               "IGNORE">
<!ENTITY % SMIL.FullScreenTransitionEffects.module    "IGNORE">
<!ENTITY % SMIL.InlineTransitions.module              "IGNORE">
<!ENTITY % SMIL.TransitionModifiers.module            "IGNORE">
<!-- Animation -->
<!ENTITY % SMIL.BasicAnimation.module                 "IGNORE">
<!ENTITY % SMIL.SplineAnimation.module                "IGNORE">
<!-- State -->
<!ENTITY % SMIL.StateInterpolation.module             "IGNORE">
<!ENTITY % SMIL.StateSubmission.module                "IGNORE">
<!ENTITY % SMIL.StateTest.module                      "IGNORE">
<!ENTITY % SMIL.UserState.module                      "IGNORE">
<!-- Time Manipulation -->
<!ENTITY % SMIL.TimeManipulations.module              "IGNORE">
<!-- External Timing -->
<!ENTITY % SMIL.Timesheet.module                      "IGNORE">

<!-- Define which variants to use -->
<!ENTITY % SMIL.animation-targetElement               "IGNORE">
<!ENTITY % SMIL.animation-XLinkTarget                 "IGNORE">
<!ENTITY % SMIL.transition-targetElement              "IGNORE">
<!ENTITY % SMIL.transition-XLinkTarget                "IGNORE">
<!ENTITY % SMIL.ContentControl.deprecated.module      "IGNORE">
<!ENTITY % SMIL.MediaClipping.deprecated.module       "IGNORE">
<!ENTITY % SMIL.RepeatTiming.deprecated.module        "IGNORE">
<!ENTITY % SMIL.BasicLinking.deprecated.module        "IGNORE">
<!ENTITY % SMIL.ITS-Attributes.module                 "IGNORE">
<!ENTITY % SMIL.RoleAttributes.module                 "IGNORE">
<!ENTITY % SMIL.submission-post                       "IGNORE">

<!-- Define the Content Model -->
<!ENTITY % smil-model.mod
    PUBLIC "-//W3C//ENTITIES SMIL 3.0 Document Model 1.0//EN"
           "smil-profile-model-1.mod" >

<!-- Modular Framework Module  ............................................ -->
<!ENTITY % smil-framework.module "INCLUDE" >
<![%smil-framework.module;[
<!ENTITY % smil-framework.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Modular Framework 1.0//EN"
            "smil-framework-1.mod" >
%smil-framework.mod;]]>

<!-- List module files to include -->
<!ENTITY % SMIL.control-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Content Control//EN"
  "SMIL-control.mod">
<!ENTITY % SMIL.layout-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Layout//EN"
  "SMIL-layout.mod">
<!ENTITY % SMIL.media-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Media Objects//EN"
  "SMIL-media.mod">
<!ENTITY % SMIL.meta-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Metainformation//EN"
  "SMIL-metainformation.mod">
<!ENTITY % SMIL.struct-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Structure//EN"
  "SMIL-struct.mod">
<!ENTITY % SMIL.timing-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Timing//EN"
  "SMIL-timing.mod">

<!-- Include module files -->
%SMIL.struct-mod;
%SMIL.control-mod;
%SMIL.meta-mod;
%SMIL.layout-mod;
%SMIL.media-mod;
%SMIL.timing-mod;

<!-- end of SMIL30Tiny.dtd -->

A.3.6 The SMIL 3.0 smilText DTD

<!-- ...................................................................... -->
<!-- SMIL 3.0 smilText DTD ................................................ -->
<!-- file: SMIL30smilText.dtd

        This is SMIL 3.0.

        Copyright: 2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor: Sjoerd Mullender, CWI
        Revision: 1.4
        Date: 2008/09/07 20:39:37

 This is the driver file for the SMIL 3.0 smilText Profile DTD.

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//DTD SMIL 3.0 smilText//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/SMIL30smilText.dtd"

-->

<!-- Define the prefix to be used (none) -->
<!ENTITY % NS.prefixed "IGNORE" >

<!-- Define the default for the baseProfile attribute -->
<!ENTITY % SMIL.baseProfile.default "#FIXED 'smilText'">

<!-- Define which modules to include -->
<!-- Structure -->
<!ENTITY % SMIL.Structure.module                      "IGNORE">
<!ENTITY % SMIL.Identity.module                       "INCLUDE">
<!-- Media Object -->
<!ENTITY % SMIL.BasicMedia.module                     "IGNORE">
<!ENTITY % SMIL.BrushMedia.module                     "IGNORE">
<!ENTITY % SMIL.MediaAccessibility.module             "IGNORE">
<!ENTITY % SMIL.MediaClipMarkers.module               "IGNORE">
<!ENTITY % SMIL.MediaClipping.module                  "IGNORE">
<!ENTITY % SMIL.MediaDescription.module               "IGNORE">
<!ENTITY % SMIL.MediaOpacity.module                   "IGNORE">
<!ENTITY % SMIL.MediaPanZoom.module                   "IGNORE">
<!ENTITY % SMIL.MediaParam.module                     "IGNORE">
<!ENTITY % SMIL.MediaRenderAttributes.module          "IGNORE">
<!-- Timing and Synchronization -->
<!ENTITY % SMIL.AccessKeyTiming.module                "IGNORE">
<!ENTITY % SMIL.BasicExclTimeContainers.module        "IGNORE">
<!ENTITY % SMIL.BasicInlineTiming.module              "IGNORE">
<!ENTITY % SMIL.BasicPriorityClassContainers.module   "IGNORE">
<!ENTITY % SMIL.BasicTimeContainers.module            "IGNORE">
<!ENTITY % SMIL.DOMTimingMethods.module               "IGNORE">
<!ENTITY % SMIL.EventTiming.module                    "IGNORE">
<!ENTITY % SMIL.FillDefault.module                    "IGNORE">
<!ENTITY % SMIL.MediaMarkerTiming.module              "IGNORE">
<!ENTITY % SMIL.MinMaxTiming.module                   "IGNORE">
<!ENTITY % SMIL.MultiArcTiming.module                 "IGNORE">
<!ENTITY % SMIL.RepeatTiming.module                   "IGNORE">
<!ENTITY % SMIL.RepeatValueTiming.module              "IGNORE">
<!ENTITY % SMIL.RestartDefault.module                 "IGNORE">
<!ENTITY % SMIL.RestartTiming.module                  "IGNORE">
<!ENTITY % SMIL.SyncbaseTiming.module                 "IGNORE">
<!ENTITY % SMIL.SyncBehaviorDefault.module            "IGNORE">
<!ENTITY % SMIL.SyncBehavior.module                   "IGNORE">
<!ENTITY % SMIL.SyncMaster.module                     "IGNORE">
<!ENTITY % SMIL.TimeContainerAttributes.module        "IGNORE">
<!ENTITY % SMIL.WallclockTiming.module                "IGNORE">
<!-- Content Control -->
<!ENTITY % SMIL.BasicContentControl.module            "IGNORE">
<!ENTITY % SMIL.CustomTestAttributes.module           "IGNORE">
<!ENTITY % SMIL.PrefetchControl.module                "IGNORE">
<!ENTITY % SMIL.RequiredContentControl.module         "INCLUDE">
<!ENTITY % SMIL.SkipContentControl.module             "IGNORE">
<!-- Layout -->
<!ENTITY % SMIL.AlignmentLayout.module                "IGNORE">
<!ENTITY % SMIL.AudioLayout.module                    "IGNORE">
<!ENTITY % SMIL.BackgroundTilingLayout.module         "IGNORE">
<!ENTITY % SMIL.BasicLayout.module                    "IGNORE">
<!ENTITY % SMIL.MultiWindowLayout.module              "IGNORE">
<!ENTITY % SMIL.OverrideLayout.module                 "IGNORE">
<!ENTITY % SMIL.StructureLayout.module                "IGNORE">
<!ENTITY % SMIL.SubRegionLayout.module                "IGNORE">
<!-- smilText -->
<!ENTITY % SMIL.BasicText.module                      "INCLUDE">
<!ENTITY % SMIL.TextMotion.module                     "INCLUDE">
<!ENTITY % SMIL.TextStyling.module                    "INCLUDE">
<!-- Linking -->
<!ENTITY % SMIL.BasicLinking.module                   "IGNORE">
<!ENTITY % SMIL.LinkingAttributes.module              "IGNORE">
<!ENTITY % SMIL.ObjectLinking.module                  "IGNORE">
<!-- Metainformation -->
<!ENTITY % SMIL.Metainformation.module                "INCLUDE">
<!-- Transition Effects -->
<!ENTITY % SMIL.BasicTransitions.module               "IGNORE">
<!ENTITY % SMIL.FullScreenTransitionEffects.module    "IGNORE">
<!ENTITY % SMIL.InlineTransitions.module              "IGNORE">
<!ENTITY % SMIL.TransitionModifiers.module            "IGNORE">
<!-- Animation -->
<!ENTITY % SMIL.BasicAnimation.module                 "IGNORE">
<!ENTITY % SMIL.SplineAnimation.module                "IGNORE">
<!-- State -->
<!ENTITY % SMIL.StateInterpolation.module             "IGNORE">
<!ENTITY % SMIL.StateSubmission.module                "IGNORE">
<!ENTITY % SMIL.StateTest.module                      "IGNORE">
<!ENTITY % SMIL.UserState.module                      "IGNORE">
<!-- Time Manipulation -->
<!ENTITY % SMIL.TimeManipulations.module              "IGNORE">
<!-- External Timing -->
<!ENTITY % SMIL.Timesheet.module                      "IGNORE">

<!-- Define which variants to use -->
<!ENTITY % SMIL.animation-targetElement               "IGNORE">
<!ENTITY % SMIL.animation-XLinkTarget                 "IGNORE">
<!ENTITY % SMIL.transition-targetElement              "IGNORE">
<!ENTITY % SMIL.transition-XLinkTarget                "IGNORE">
<!ENTITY % SMIL.ContentControl.deprecated.module      "IGNORE">
<!ENTITY % SMIL.MediaClipping.deprecated.module       "IGNORE">
<!ENTITY % SMIL.RepeatTiming.deprecated.module        "IGNORE">
<!ENTITY % SMIL.BasicLinking.deprecated.module        "IGNORE">
<!ENTITY % SMIL.ITS-Attributes.module                 "INCLUDE">
<!ENTITY % SMIL.RoleAttributes.module                 "IGNORE">
<!ENTITY % SMIL.submission-post                       "IGNORE">
<!ENTITY % SMIL.TextExternal.module                   "INCLUDE">

<!-- Define the Content Model -->
<!ENTITY % smil-model.mod
    PUBLIC "-//W3C//ENTITIES SMIL 3.0 Document Model 1.0//EN"
           "smil-profile-model-1.mod" >

<!-- Modular Framework Module  ............................................ -->
<!ENTITY % smil-framework.module "INCLUDE" >
<![%smil-framework.module;[
<!ENTITY % smil-framework.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Modular Framework 1.0//EN"
            "smil-framework-1.mod" >
%smil-framework.mod;]]>

<!-- List module files to include -->
<!ENTITY % SMIL.control-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Content Control//EN"
  "SMIL-control.mod">
<!ENTITY % SMIL.meta-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Metainformation//EN"
  "SMIL-metainformation.mod">
<!ENTITY % SMIL.struct-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 Document Structure//EN"
  "SMIL-struct.mod">
<!ENTITY % SMIL.text-mod
  PUBLIC "-//W3C//ELEMENTS SMIL 3.0 SMILtext//EN"
  "SMIL-smiltext.mod">

<!-- Include module files -->
%SMIL.struct-mod;
%SMIL.control-mod;
%SMIL.meta-mod;
%SMIL.text-mod;

<!-- end of SMIL30smilText.dtd -->

A.4 General modularization framework:

A.4.1 The SMIL 3.0 Datatypes Module

<!-- ...................................................................... -->
<!-- SMIL 3.0 Datatypes Module  ........................................... -->
<!-- file: smil-datatypes-1.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Sjoerd Mullender.
        Revision: 1.6
        Date: 2008/09/07 20:36:49

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Datatypes 1.0//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/smil-datatypes-1.mod"

     ...................................................................... -->

<!-- Datatypes

     defines containers for the following datatypes, many of
     these imported from other specifications and standards.
-->

<!ENTITY % Character.datatype "CDATA">
    <!-- a single character from [ISO10646] -->
<!ENTITY % Color.datatype "CDATA">
    <!-- a CSS2 color specification -->
<!ENTITY % ContentType.datatype "CDATA">
    <!-- media type, as per [RFC2045] -->
<!ENTITY % LanguageCode.datatype "CDATA">
    <!-- a language code, as per [BCP47] -->
<!ENTITY % LanguageCodes.datatype "CDATA">
    <!-- comma-separated list of language codes, as per [BCP47] -->
<!ENTITY % Number.datatype "CDATA">
    <!-- one or more digits -->
<!ENTITY % Script.datatype "CDATA">
    <!-- script expression -->
<!ENTITY % Text.datatype "CDATA">
    <!-- used for titles etc. -->
<!ENTITY % TimeValue.datatype "CDATA">
    <!-- a Number, possibly with its dimension, or a reserved
         word like 'indefinite' -->
<!ENTITY % URI.datatype "CDATA" >
    <!-- used for URI (IRI) references -->

<!-- end of smil-datatypes-1.mod -->

A.4.2 The SMIL 3.0 Common Attributes Module

<!-- ...................................................................... -->
<!-- SMIL 3.0 Common Attributes Module  ................................... -->
<!-- file: smil-attribs-1.mod

      This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Warner ten Kate,
        Jacco van Ossenbruggen, Sjoerd Mullender.
        Revision: 1.16
        Date: 2008/09/07 20:36:49

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Common Attributes 1.0//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/smil-attribs-1.mod"

     ...................................................................... -->

<!-- Common Attributes

     This module declares the common attributes for the SMIL DTD Modules.
-->

<!ENTITY % SMIL.pfx "">

<!ENTITY % SMIL.Structure.module "IGNORE">
<![%SMIL.Structure.module;[
  <!ENTITY % SMIL.id.attrib
   "xml:id                 ID                       #IMPLIED"
  >

  <!ENTITY % SMIL.class.attrib
   "%SMIL.pfx;class        CDATA                    #IMPLIED"
  >
]]>
<!ENTITY % SMIL.TextExternal.module "IGNORE">
<![%SMIL.TextExternal.module;[
  <!ENTITY % SMIL.id.attrib
   "xml:id                 ID                       #IMPLIED"
  >
]]>
<!ENTITY % SMIL.id.attrib "">
<!ENTITY % SMIL.class.attrib "">

<!-- the title and xml:lang attributes are defined both in the
     Structure module and the MediaDescription module, but they are
     defined identically
-->
<!ENTITY % SMIL.Structure.module "IGNORE">
<![%SMIL.Structure.module;[
  <!ENTITY % SMIL.title.attrib
   "%SMIL.pfx;title        %Text.datatype;                   #IMPLIED"
  >
  <!ENTITY % SMIL.xml.lang.attrib
   "xml:lang %LanguageCode.datatype; #IMPLIED"
  >
]]>
<!ENTITY % SMIL.MediaDescription.module "IGNORE">
<![%SMIL.MediaDescription.module;[
  <!ENTITY % SMIL.title.attrib
   "%SMIL.pfx;title        %Text.datatype;                   #IMPLIED"
  >
  <!ENTITY % SMIL.xml.lang.attrib
   "xml:lang %LanguageCode.datatype; #IMPLIED"
  >
]]>
<![%SMIL.TextExternal.module;[
  <!ENTITY % SMIL.xml.lang.attrib
   "xml:lang %LanguageCode.datatype; #IMPLIED"
  >
]]>
<!ENTITY % SMIL.title.attrib "">
<!ENTITY % SMIL.xml.lang.attrib "">

<!ENTITY % SMIL.Identity.module "IGNORE">
<![%SMIL.Identity.module;[
  <!-- the baseProfile declaration may be overridden by the profile -->
  <!ENTITY % SMIL.baseProfile.default "#IMPLIED">
  <!ENTITY % SMIL.Identity.attrib "
    %SMIL.pfx;version      (3.0)                    #FIXED '3.0'
    %SMIL.pfx;baseProfile  NMTOKEN                  %SMIL.baseProfile.default;
  ">
]]>
<!ENTITY % SMIL.Identity.attrib "">

<!ENTITY % SMIL.Metainformation.module "IGNORE">
<![%SMIL.Metainformation.module;[
  <!ENTITY % SMIL.label.attrib "
    %SMIL.pfx;label        %URI.datatype;           #IMPLIED
  ">
]]>
<!ENTITY % SMIL.label.attrib "">

<!ENTITY % SMIL.MediaAccessibility.module "IGNORE">
<![%SMIL.MediaAccessibility.module;[
  <!ENTITY % SMIL.Accessibility.attrib "
    %SMIL.pfx;alt          %Text.datatype;                   #IMPLIED
    %SMIL.pfx;longdesc     %URI.datatype;                    #IMPLIED
    %SMIL.pfx;readIndex    CDATA                             '0'
  ">
]]>
<!ENTITY % SMIL.Accessibility.attrib "">


<!ENTITY % SMIL.Core.extra.attrib "" >
<!ENTITY % SMIL.Core.attrib "
  xml:base %URI.datatype; #IMPLIED
  %SMIL.id.attrib;
  %SMIL.class.attrib;
  %SMIL.title.attrib;
  %SMIL.Accessibility.attrib;
  %SMIL.label.attrib;
  %SMIL.Identity.attrib;
  %SMIL.xmlns.extra.attrib;
  %SMIL.Core.extra.attrib;
">

<!ENTITY % SMIL.RoleAttributes.module "IGNORE">
<![%SMIL.RoleAttributes.module;[
  <!ENTITY % XHTMLNS "
    xmlns:xhtml CDATA 'http://www.w3.org/1999/xhtml'
  ">

  <!ENTITY % XHTMLPR "xhtml:">

  <!ENTITY % XHTML-Role-attrib "
    %XHTMLPR;role CDATA #IMPLIED
  ">
]]>
<!ENTITY % XHTMLNS "">
<!ENTITY % XHTML-Role-attrib "">

<!ENTITY % SMIL.ITS-Attributes.module "IGNORE">
<![%SMIL.ITS-Attributes.module;[
  <!-- Entity for the definition of the ITS namespace, necessary for
       DTD processing
  -->
  <!ENTITY % ITSNS "
    xmlns:its CDATA 'http://www.w3.org/2005/11/its'
  ">

  <!-- Prefix commonly used for ITS markup -->
  <!ENTITY % ITSPR "its:">

  <!-- Entity which contains local ITS markup for internationalization
       and localization purposes. Explanatations:
       - its:translate : Attribute to express translation
         information. See
         http://www.w3.org/TR/2007/REC-its-20070403/#trans-datacat .
       - its:locNote : Attribute for localization notes. See
         http://www.w3.org/TR/2007/REC-its-20070403/#locNote-datacat .
       - its:locNoteType: Attribute for the localization note type
         (description or alert). See
         http://www.w3.org/TR/2007/REC-its-20070403/#locNote-datacat .
       - its:term : Attribute to specify terms. See
         http://www.w3.org/TR/2007/REC-its-20070403/#terminology .
       - its:termInfoRef : Attribute to provide references to
         additional information about a term. See
         http://www.w3.org/TR/2007/REC-its-20070403/#terminology .
       - its:dir : Attribute to supply information about text
         directionality. See
         http://www.w3.org/TR/2007/REC-its-20070403/#directionality .
  -->
  <!ENTITY % ITS-LOCAL-ATTR "
    %ITSPR;translate   (yes | no)              #IMPLIED
    %ITSPR;locNote     CDATA                   #IMPLIED
    %ITSPR;locNoteType (alert | description)   #IMPLIED
    %ITSPR;locNoteRef  CDATA                   #IMPLIED
    %ITSPR;termInfoRef CDATA                   #IMPLIED
    %ITSPR;term        (yes | no)              #IMPLIED
    %ITSPR;dir         (ltr | rtl | lro | rlo) #IMPLIED
  ">
]]>
<!ENTITY % ITSNS "">
<!ENTITY % ITS-LOCAL-ATTR "">

<!ENTITY % SMIL.I18n.extra.attrib "" >
<!ENTITY % SMIL.I18n.attrib "
  %SMIL.xml.lang.attrib;
  %SMIL.I18n.extra.attrib;
  %ITS-LOCAL-ATTR;
">
<!-- ITS-LOCAL-ATTR contains attribute declarations for
     internationalization and localization related markup. See
     http://www.w3.org/TR/2007/REC-its-20070403/ for more information.
-->

<![%SMIL.MediaDescription.module;[
  <!ENTITY % SMIL.Description.attrib "
    %SMIL.pfx;abstract        %Text.datatype;   #IMPLIED
    %SMIL.pfx;author          %Text.datatype;   #IMPLIED
    %SMIL.pfx;copyright       %Text.datatype;   #IMPLIED
  ">
]]>
<!ENTITY % SMIL.Description.attrib "">

<!ENTITY % SMIL.LinkingAttributes.module "IGNORE">
<![%SMIL.LinkingAttributes.module;[
  <!ENTITY % SMIL.tabindex.attrib "
    %SMIL.pfx;tabindex        %Number.datatype;   #IMPLIED
  ">
]]>
<!ENTITY % SMIL.tabindex.attrib "">

<!-- ================== BasicLayout ======================================= -->
<!ENTITY % SMIL.BasicLayout.module "IGNORE">
<![%SMIL.BasicLayout.module;[
  <!ENTITY % SMIL.regionAttr.attrib "
   %SMIL.pfx;region                CDATA    #IMPLIED
  ">

  <!-- add one &#38; for each level of indirection -->
  <!ENTITY % SMIL.backgroundOpacity.attrib "
   %SMIL.pfx;backgroundOpacity     CDATA    '100&#38;#38;#38;#37;'
  ">

  <!ENTITY % SMIL.backgroundColor.attrib "
   %SMIL.pfx;backgroundColor       %Color.datatype;    #IMPLIED
  ">
  <!ENTITY % SMIL.backgroundColor.deprecated.attrib "
   %SMIL.pfx;background-color      %Color.datatype;    #IMPLIED
  ">

  <!ENTITY % SMIL.region-positioning.attrib "
   %SMIL.pfx;top                   CDATA    'auto'
   %SMIL.pfx;bottom                CDATA    'auto'
   %SMIL.pfx;left                  CDATA    'auto'
   %SMIL.pfx;right                 CDATA    'auto'
  ">

  <!ENTITY % SMIL.region-size.attrib "
   %SMIL.pfx;height                CDATA    'auto'
   %SMIL.pfx;width                 CDATA    'auto'
  ">

  <!ENTITY % SMIL.z-index.attrib "
   %SMIL.pfx;z-index               CDATA    #IMPLIED
  ">

  <!ENTITY % SMIL.fit.attrib "
   %SMIL.pfx;fit           (hidden|fill|meet|meetBest|scroll|slice)   #IMPLIED
  ">
]]>
<!ENTITY % SMIL.regionAttr.attrib "">
<!ENTITY % SMIL.backgroundOpacity.attrib "">
<!ENTITY % SMIL.backgroundColor.attrib "">
<!ENTITY % SMIL.backgroundColor.deprecated.attrib "">
<!ENTITY % SMIL.region-positioning.attrib "">
<!ENTITY % SMIL.region-size.attrib "">
<!ENTITY % SMIL.z-index.attrib "">
<!ENTITY % SMIL.fit.attrib "">

<!-- ================== SubRegionLayout =================================== -->
<!ENTITY % SMIL.SubRegionLayout.module "IGNORE">
<![%SMIL.SubRegionLayout.module;[
  <!-- requires BasicLayout -->
  <!ENTITY % SMIL.SubRegionLayout.attrib "
    %SMIL.region-positioning.attrib;
    %SMIL.region-size.attrib;
  ">
]]>
<!ENTITY % SMIL.SubRegionLayout.attrib "">

<!-- ================== OverrideLayout ==================================== -->
<!ENTITY % SMIL.OverrideLayout.module "IGNORE">
<![%SMIL.OverrideLayout.module;[
  <!-- requires BasicLayout -->
  <!ENTITY % SMIL.OverrideLayout.attrib "
    %SMIL.backgroundColor.attrib;
    %SMIL.backgroundOpacity.attrib;
    %SMIL.fit.attrib;
    %SMIL.z-index.attrib;
  ">
]]>
<!ENTITY % SMIL.OverrideLayout.attrib "">

<!-- ================ Registration Point attribute for media elements ===== -->
<!-- integrating language using AlignmentLayout must include regPoint       -->
<!-- attribute on media elements for regPoint elements to be useful         -->

<!ENTITY % SMIL.AlignmentLayout.module "IGNORE">
<![%SMIL.AlignmentLayout.module;[
  <!ENTITY % SMIL.regPointAttr.attrib "
    %SMIL.pfx;regPoint  CDATA    #IMPLIED
  ">

  <!ENTITY % SMIL.regAlign.attrib "
    %SMIL.pfx;regAlign  (topLeft|topMid|topRight|midLeft|center|
                     midRight|bottomLeft|bottomMid|bottomRight) #IMPLIED
  ">

  <!ENTITY % SMIL.mediaAlign.attrib "
    %SMIL.pfx;mediaAlign (topLeft|topMid|topRight|midLeft|center|
                     midRight|bottomLeft|bottomMid|bottomRight) #IMPLIED
  ">

  <!ENTITY % SMIL.soundAlign.attrib "
    %SMIL.pfx;soundAlign (left|both|right) #IMPLIED
  ">
]]>
<!ENTITY % SMIL.regPointAttr.attrib "">
<!ENTITY % SMIL.regAlign.attrib "">
<!ENTITY % SMIL.mediaAlign.attrib "">
<!ENTITY % SMIL.soundAlign.attrib "">

<!ENTITY % SMIL.RegistrationPoint.attrib "
  %SMIL.regPointAttr.attrib;
  %SMIL.regAlign.attrib;
  %SMIL.mediaAlign.attrib;
">

<!--=================== Content Control =======================-->
<!-- customTest Attribute, do not confuse with customTest element! -->
<!ENTITY % SMIL.CustomTestAttributes.module "IGNORE">
<![%SMIL.CustomTestAttributes.module;[
  <!ENTITY % SMIL.customTestAttr.attrib "
    %SMIL.pfx;customTest              CDATA          #IMPLIED
  ">
]]>
<!ENTITY % SMIL.customTestAttr.attrib "">

<!-- ========================= SkipContentControl Module ================== -->
<!ENTITY % SMIL.SkipContentControl.module "IGNORE">
<![%SMIL.SkipContentControl.module;[
  <!ENTITY % SMIL.skip-content.attrib "
    %SMIL.pfx;skip-content          (true|false)    'true'
  ">
]]>
<!ENTITY % SMIL.skip-content.attrib "">

<!-- Content Control Test Attributes -->

<!ENTITY % SMIL.BasicContentControl.module "IGNORE">
<!ENTITY % SMIL.ContentControl.deprecated.module "IGNORE">
<![%SMIL.BasicContentControl.module;[
  <!ENTITY % SMIL.BasicContentControl.attrib "
    %SMIL.pfx;systemAudioDesc               (on|off)        #IMPLIED
    %SMIL.pfx;systemBaseProfile             NMTOKEN         #IMPLIED
    %SMIL.pfx;systemBitrate                 CDATA           #IMPLIED
    %SMIL.pfx;systemCaptions                (on|off)        #IMPLIED
    %SMIL.pfx;systemComponent               CDATA           #IMPLIED
    %SMIL.pfx;systemCPU                     NMTOKEN         #IMPLIED
    %SMIL.pfx;systemLanguage                CDATA           #IMPLIED
    %SMIL.pfx;systemOperatingSystem         NMTOKEN         #IMPLIED
    %SMIL.pfx;systemOverdubOrSubtitle       (overdub|subtitle) #IMPLIED
    %SMIL.pfx;systemScreenDepth             CDATA           #IMPLIED
    %SMIL.pfx;systemScreenSize              CDATA           #IMPLIED
    %SMIL.pfx;systemVersion                 (3.0)           #IMPLIED
  ">
  <![%SMIL.ContentControl.deprecated.module;[
    <!ENTITY % SMIL.BasicContentControl.deprecated.attrib "
      %SMIL.pfx;system-bitrate                CDATA           #IMPLIED
      %SMIL.pfx;system-captions               (on|off)        #IMPLIED
      %SMIL.pfx;system-language               CDATA           #IMPLIED
      %SMIL.pfx;system-overdub-or-caption     (overdub|caption) #IMPLIED
      %SMIL.pfx;system-screen-depth           CDATA           #IMPLIED
      %SMIL.pfx;system-screen-size            CDATA           #IMPLIED
    ">
  ]]>
]]>
<!ENTITY % SMIL.BasicContentControl.attrib "">
<!ENTITY % SMIL.BasicContentControl.deprecated.attrib "">

<!ENTITY % SMIL.RequiredContentControl.module "IGNORE">
<![%SMIL.RequiredContentControl.module;[
  <!ENTITY % SMIL.RequiredContentControl.attrib "
    %SMIL.pfx;systemRequired                CDATA           #IMPLIED
  ">
  <![%SMIL.ContentControl.deprecated.module;[
    <!ENTITY % SMIL.RequiredContentControl.deprecated.attrib "
      %SMIL.pfx;system-required               CDATA           #IMPLIED
    ">
  ]]>
]]>
<!ENTITY % SMIL.RequiredContentControl.attrib "">
<!ENTITY % SMIL.RequiredContentControl.deprecated.attrib "">

<!ENTITY % SMIL.Test.attrib "
  %SMIL.BasicContentControl.attrib;
  %SMIL.BasicContentControl.deprecated.attrib;
  %SMIL.RequiredContentControl.attrib;
  %SMIL.RequiredContentControl.deprecated.attrib;
">

<!-- SMIL Animation Module  =============================================== -->
<!ENTITY % SMIL.BasicAnimation.module "IGNORE">
<![%SMIL.BasicAnimation.module;[
  <!ENTITY % SMIL.BasicAnimation.attrib "
    %SMIL.pfx;values     CDATA #IMPLIED
    %SMIL.pfx;from       CDATA #IMPLIED
    %SMIL.pfx;to         CDATA #IMPLIED
    %SMIL.pfx;by         CDATA #IMPLIED
  ">
]]>
<!ENTITY % SMIL.BasicAnimation.attrib "">

<!-- SMIL SMILtext Module  ================================================ -->
<!ENTITY % SMIL.BasicText.module "IGNORE">
<![%SMIL.BasicText.module;[
  <!ENTITY % SMIL.BasicText.attrib "
    %SMIL.pfx;textWrapOption (wrap|noWrap|inherit) 'wrap'
    xml:space                (default|preserve)    'default'
  ">
]]>
<!ENTITY % SMIL.BasicText.attrib "">

<!ENTITY % SMIL.TextMotion.module "IGNORE">
<![%SMIL.TextMotion.module;[
  <!ENTITY % SMIL.textMode-motion-values "|crawl|scroll|jump">
  <!ENTITY % SMIL.TextMotion.attrib "
    %SMIL.pfx;textConceal (none|initial|final|both|inherit) 'inherit'
    %SMIL.pfx;textRate    CDATA                             'auto'
  ">
]]>
<!ENTITY % SMIL.textMode-motion-values "">
<!ENTITY % SMIL.TextMotion.attrib "">

<!ENTITY % SMIL.TextStyling.module "IGNORE">
<![%SMIL.TextStyling.module;[
  <!ENTITY % SMIL.textAlign.attrib "
    %SMIL.pfx;textAlign (start|end|left|right|center|inherit) 'inherit'
  ">
  <!ENTITY % SMIL.textDirection.attrib "
    %SMIL.pfx;textDirection (ltr|rtl|ltro|rtlo|inherit) 'inherit'
  ">
  <!ENTITY % SMIL.textMode.attrib "
    %SMIL.pfx;textMode (append|replace%SMIL.textMode-motion-values;|inherit) 'inherit'
  ">
  <!ENTITY % SMIL.textPlace.attrib "
    %SMIL.pfx;textPlace (start|center|end|inherit) 'inherit'
  ">
  <!ENTITY % SMIL.textWritingMode.attrib "
    %SMIL.pfx;textWritingMode (lr-tb|rl-tb|tb-lr|tb-rl|lr|rl|inherit) 'inherit'
  ">
  <!ENTITY % SMIL.TextStyling.attrib "
    %SMIL.pfx;textBackgroundColor %Color.datatype;      'transparent'
    %SMIL.pfx;textColor           %Color.datatype;      #IMPLIED
    %SMIL.pfx;textFontFamily      CDATA                 'inherit'
    %SMIL.pfx;textFontSize        CDATA                 'inherit'
    %SMIL.pfx;textFontStyle       (normal|italic|oblique|reverseOblique|inherit) 'inherit'
    %SMIL.pfx;textFontWeight      (normal|bold|inherit) 'inherit'
    %SMIL.pfx;textStyle           IDREF                 #IMPLIED
  ">
]]>
<!ENTITY % SMIL.textAlign.attrib "">
<!ENTITY % SMIL.textDirection.attrib "">
<!ENTITY % SMIL.textMode.attrib "">
<!ENTITY % SMIL.textPlace.attrib "">
<!ENTITY % SMIL.textWritingMode.attrib "">
<!ENTITY % SMIL.TextStyling.attrib "">

<!-- SMIL State Module  =================================================== -->
<!ENTITY % SMIL.StateTest.module "IGNORE">
<![%SMIL.StateTest.module;[
  <!ENTITY % SMIL.StateTest.attrib "
    %SMIL.pfx;expr CDATA #IMPLIED
  ">
]]>
<!ENTITY % SMIL.StateTest.attrib "">

<!-- SMIL Timing Module  ================================================== -->
<!ENTITY % SMIL.begin.attrib "%SMIL.pfx;begin %TimeValue.datatype; #IMPLIED">
<!ENTITY % SMIL.end.attrib "%SMIL.pfx;end %TimeValue.datatype; #IMPLIED">

<!ENTITY % SMIL.BasicInlineTiming.module "IGNORE">
<![%SMIL.BasicInlineTiming.module;[
  <!ENTITY % SMIL.BasicInlineTiming.attrib "
    %SMIL.begin.attrib;
    %SMIL.pfx;dur                       %TimeValue.datatype; #IMPLIED
    %SMIL.end.attrib;
  ">
]]>

<!ENTITY % SMIL.AccessKeyTiming.module "IGNORE">
<![%SMIL.AccessKeyTiming.module;[
  <!ENTITY % SMIL.BasicInlineTiming.attrib "
    %SMIL.begin.attrib;
    %SMIL.end.attrib;
  ">
]]>

<!ENTITY % SMIL.EventTiming.module "IGNORE">
<![%SMIL.EventTiming.module;[
  <!ENTITY % SMIL.BasicInlineTiming.attrib "
    %SMIL.begin.attrib;
    %SMIL.end.attrib;
  ">
]]>

<!ENTITY % SMIL.MediaMarkerTiming.module "IGNORE">
<![%SMIL.MediaMarkerTiming.module;[
  <!ENTITY % SMIL.BasicInlineTiming.attrib "
    %SMIL.begin.attrib;
    %SMIL.end.attrib;
  ">
]]>

<!ENTITY % SMIL.RepeatValueTiming.module "IGNORE">
<![%SMIL.RepeatValueTiming.module;[
  <!ENTITY % SMIL.BasicInlineTiming.attrib "
    %SMIL.begin.attrib;
    %SMIL.end.attrib;
  ">
]]>

<!ENTITY % SMIL.SyncbaseTiming.module "IGNORE">
<![%SMIL.SyncbaseTiming.module;[
  <!ENTITY % SMIL.BasicInlineTiming.attrib "
    %SMIL.begin.attrib;
    %SMIL.end.attrib;
  ">
]]>

<!ENTITY % SMIL.WallclockTiming.module "IGNORE">
<![%SMIL.WallclockTiming.module;[
  <!ENTITY % SMIL.BasicInlineTiming.attrib "
    %SMIL.begin.attrib;
    %SMIL.end.attrib;
  ">
]]>
<!ENTITY % SMIL.BasicInlineTiming.attrib "">

<!ENTITY % SMIL.RepeatTiming.module "IGNORE">
<!ENTITY % SMIL.RepeatTiming.deprecated.module "IGNORE">
<![%SMIL.RepeatTiming.module;[
  <!ENTITY % SMIL.RepeatTiming.attrib "
    %SMIL.pfx;repeatCount               %Number.datatype;    #IMPLIED
    %SMIL.pfx;repeatDur                 %TimeValue.datatype; #IMPLIED
  ">
  <![%SMIL.RepeatTiming.deprecated.module;[
    <!ENTITY % SMIL.RepeatTiming.deprecated.attrib "
      %SMIL.pfx;repeat                  %TimeValue.datatype; #IMPLIED
    ">
  ]]>
]]>
<!ENTITY % SMIL.RepeatTiming.attrib "">
<!ENTITY % SMIL.RepeatTiming.deprecated.attrib "">

<!ENTITY % SMIL.MinMaxTiming.module "IGNORE">
<![%SMIL.MinMaxTiming.module;[
  <!ENTITY % SMIL.MinMaxTiming.attrib "
    %SMIL.pfx;min                       %TimeValue.datatype; '0'
    %SMIL.pfx;max                       %TimeValue.datatype; 'indefinite'
  ">
]]>
<!ENTITY % SMIL.MinMaxTiming.attrib "">

<!ENTITY % SMIL.BasicTimeContainers.module "IGNORE">
<![%SMIL.BasicTimeContainers.module;[
  <!ENTITY % SMIL.IncludeFillEndsync "INCLUDE">
]]>
<!ENTITY % SMIL.BasicExclTimeContainers.module "IGNORE">
<![%SMIL.BasicExclTimeContainers.module;[
  <!ENTITY % SMIL.IncludeFillEndsync "INCLUDE">
]]>
<!ENTITY % SMIL.TimeContainerAttributes.module "IGNORE">
<![%SMIL.TimeContainerAttributes.module;[
  <!ENTITY % SMIL.IncludeFillEndsync "INCLUDE">
]]>
<!ENTITY % SMIL.IncludeFillEndsync "IGNORE">

<![%SMIL.IncludeFillEndsync;[
  <!ENTITY % SMIL.fill.attrib "
    %SMIL.pfx;fill (remove|freeze|hold|transition|auto|default) 'default'
  ">

  <!ENTITY % SMIL.endsync.attrib "
    %SMIL.pfx;endsync               CDATA 'last'
  ">

  <!-- endsync has a different default when applied to media elements -->
  <!ENTITY % SMIL.endsync.media.attrib "
    %SMIL.pfx;endsync               CDATA 'media'
  ">
]]>
<!ENTITY % SMIL.fill.attrib "">
<!ENTITY % SMIL.endsync.attrib "">
<!ENTITY % SMIL.endsync.media.attrib "">

<!ENTITY % SMIL.FillDefault.module "IGNORE">
<![%SMIL.FillDefault.module;[
  <!ENTITY % SMIL.fillDefault.attrib "
    %SMIL.pfx;fillDefault (remove|freeze|hold|transition|auto|inherit) 'inherit'
  ">
]]>
<!ENTITY % SMIL.fillDefault.attrib "">

<![%SMIL.TimeContainerAttributes.module;[
  <!ENTITY % SMIL.TimeContainerAttributes.attrib "
    %SMIL.pfx;timeAction            CDATA #IMPLIED
    %SMIL.pfx;timeContainer         CDATA #IMPLIED
  ">
]]>
<!ENTITY % SMIL.TimeContainerAttributes.attrib "">

<!ENTITY % SMIL.RestartTiming.module "IGNORE">
<![%SMIL.RestartTiming.module;[
  <!ENTITY % SMIL.RestartTiming.attrib "
    %SMIL.pfx;restart (always|whenNotActive|never|default) 'default'
  ">
]]>
<!ENTITY % SMIL.RestartTiming.attrib "">

<!ENTITY % SMIL.RestartDefault.module "IGNORE">
<![%SMIL.RestartDefault.module;[
  <!ENTITY % SMIL.RestartDefaultTiming.attrib "
    %SMIL.pfx;restartDefault (inherit|always|never|whenNotActive) 'inherit'
  ">
]]>
<!ENTITY % SMIL.RestartDefaultTiming.attrib "">

<!ENTITY % SMIL.SyncBehavior.module "IGNORE">
<![%SMIL.SyncBehavior.module;[
  <!ENTITY % SMIL.SyncBehavior.attrib "
    %SMIL.pfx;syncBehavior (canSlip|locked|independent|default) 'default'
    %SMIL.pfx;syncTolerance %TimeValue.datatype;                'default'
  ">
]]>
<!ENTITY % SMIL.SyncBehavior.attrib "">

<!ENTITY % SMIL.SyncBehaviorDefault.module "IGNORE">
<![%SMIL.SyncBehaviorDefault.module;[
  <!ENTITY % SMIL.SyncBehaviorDefault.attrib "
    %SMIL.pfx;syncBehaviorDefault (canSlip|locked|independent|inherit) 'inherit'
    %SMIL.pfx;syncToleranceDefault  %TimeValue.datatype;               'inherit'
  ">
]]>
<!ENTITY % SMIL.SyncBehaviorDefault.attrib "">

<!ENTITY % SMIL.SyncMaster.module "IGNORE">
<![%SMIL.SyncMaster.module;[
  <!ENTITY % SMIL.SyncMaster.attrib "
    %SMIL.pfx;syncMaster    (true|false)                 'false'
  ">
]]>
<!ENTITY % SMIL.SyncMaster.attrib "">

<!-- ================== Time Manipulations ================================ -->
<!ENTITY % SMIL.TimeManipulations.module "IGNORE">
<![%SMIL.TimeManipulations.module;[
  <!ENTITY % SMIL.TimeManipulations.attrib "
    %SMIL.pfx;accelerate          %Number.datatype; '0'
    %SMIL.pfx;decelerate          %Number.datatype; '0'
    %SMIL.pfx;speed               %Number.datatype; '1.0'
    %SMIL.pfx;autoReverse         (true|false)      'false'
  ">
]]>
<!ENTITY % SMIL.TimeManipulations.attrib "">

<!-- ================== Media Objects ===================================== -->
<!ENTITY % SMIL.MediaClipping.module "IGNORE">
<![%SMIL.MediaClipping.module;[
  <!ENTITY % SMIL.MediaClip.attrib "
    %SMIL.pfx;clipBegin      CDATA   #IMPLIED
    %SMIL.pfx;clipEnd        CDATA   #IMPLIED
  ">
  <!ENTITY % SMIL.MediaClipping.deprecated.module "IGNORE">
  <![%SMIL.MediaClipping.deprecated.module;[
    <!ENTITY % SMIL.MediaClip.attrib.deprecated "
      %SMIL.pfx;clip-begin     CDATA   #IMPLIED
      %SMIL.pfx;clip-end       CDATA   #IMPLIED
    ">
  ]]>
]]>
<!ENTITY % SMIL.MediaClip.attrib "">
<!ENTITY % SMIL.MediaClip.attrib.deprecated "">

<!ENTITY % SMIL.MediaParam.module "IGNORE">
<![%SMIL.MediaParam.module;[
  <!ENTITY % SMIL.MediaObject.attrib "
    %SMIL.pfx;paramGroup     NMTOKEN #IMPLIED
  ">
]]>
<!ENTITY % SMIL.MediaObject.attrib "">

<!ENTITY % SMIL.MediaRenderAttributes.module "IGNORE">
<![%SMIL.MediaRenderAttributes.module;[
  <!ENTITY % SMIL.MediaRenderAttributes.attrib "
    %SMIL.pfx;erase        (whenDone|never)   'whenDone'
    %SMIL.pfx;sensitivity   CDATA             'opaque'
  ">
]]>
<!ENTITY % SMIL.MediaRenderAttributes.attrib "">

<!ENTITY % SMIL.MediaOpacity.module "IGNORE">
<![%SMIL.MediaOpacity.module;[
  <!ENTITY % SMIL.MediaOpacity.attrib "
    %SMIL.pfx;chromaKey              CDATA    #IMPLIED
    %SMIL.pfx;chromaKeyOpacity       CDATA    #IMPLIED
    %SMIL.pfx;chromaKeyTolerance     CDATA    #IMPLIED
    %SMIL.pfx;mediaOpacity           CDATA    #IMPLIED
    %SMIL.pfx;mediaBackgroundOpacity CDATA    #IMPLIED
  ">
]]>
<!ENTITY % SMIL.MediaOpacity.attrib "">

<!ENTITY % SMIL.MediaPanZoom.module "IGNORE">
<![%SMIL.MediaPanZoom.module;[
  <!ENTITY % SMIL.MediaPanZoom.attrib "
    %SMIL.pfx;panZoom                CDATA    #IMPLIED
  ">
]]>
<!ENTITY % SMIL.MediaPanZoom.attrib "">

<!-- ================== Transitions Media ================================= -->
<!ENTITY % SMIL.BasicTransitions.module "IGNORE">
<![%SMIL.BasicTransitions.module;[
  <!ENTITY % SMIL.Transition.attrib "
   %SMIL.pfx;transIn                CDATA        #IMPLIED
   %SMIL.pfx;transOut               CDATA        #IMPLIED
  ">
]]>
<!ENTITY % SMIL.Transition.attrib "">

<!-- ================== Timesheets ======================================== -->
<!ENTITY % SMIL.Timesheet.module "IGNORE">
<![%SMIL.Timesheet.module;[
  <!ENTITY % SMIL.Timesheet.attrib "
    %SMIL.pfx;first     CDATA     #IMPLIED
    %SMIL.pfx;last      CDATA     #IMPLIED
    %SMIL.pfx;next      CDATA     #IMPLIED
    %SMIL.pfx;prev      CDATA     #IMPLIED
  ">
]]>
<!ENTITY % SMIL.Timesheet.attrib "">

<!-- ================== Module Namespace Prefixes ========================= -->
<!ENTITY % SMIL.IncludeModuleNamespaces "IGNORE">
<![%SMIL.IncludeModuleNamespaces;[
  <!ENTITY % SMIL.ModuleNamespaces "
    xmlns:Structure %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/Structure'
    xmlns:Identity %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/Identity'
    xmlns:BasicMedia %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicMedia'
    xmlns:BrushMedia %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BrushMedia'
    xmlns:MediaAccessibility %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaAccessibility'
    xmlns:MediaClipMarkers %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaClipMarkers'
    xmlns:MediaClipping %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaClipping'
    xmlns:MediaDescription %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaDescription'
    xmlns:MediaOpacity %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaOpacity'
    xmlns:MediaPanZoom %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaPanZoom'
    xmlns:MediaParam %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaParam'
    xmlns:MediaRenderAttributes %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaRenderAttributes'
    xmlns:AccessKeyTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/AccessKeyTiming'
    xmlns:BasicExclTimeContainers %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicExclTimeContainers'
    xmlns:BasicInlineTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicInlineTiming'
    xmlns:BasicPriorityClassContainers %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicPriorityClassContainers'
    xmlns:BasicTimeContainers %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicTimeContainers'
    xmlns:DOMTimingMethods %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/DOMTimingMethods'
    xmlns:EventTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/EventTiming'
    xmlns:FillDefault %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/FillDefault'
    xmlns:MediaMarkerTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MediaMarkerTiming'
    xmlns:MinMaxTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MinMaxTiming'
    xmlns:MultiArcTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MultiArcTiming'
    xmlns:RepeatTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/RepeatTiming'
    xmlns:RepeatValueTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/RepeatValueTiming'
    xmlns:RestartDefault %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/RestartDefault'
    xmlns:RestartTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/RestartTiming'
    xmlns:SyncbaseTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/SyncbaseTiming'
    xmlns:SyncBehaviorDefault %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/SyncBehaviorDefault'
    xmlns:SyncBehavior %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/SyncBehavior'
    xmlns:SyncMaster %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/SyncMaster'
    xmlns:TimeContainerAttributes %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/TimeContainerAttributes'
    xmlns:WallclockTiming %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/WallclockTiming'
    xmlns:BasicContentControl %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicContentControl'
    xmlns:CustomTestAttributes %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/CustomTestAttributes'
    xmlns:PrefetchControl %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/PrefetchControl'
    xmlns:RequiredContentControl %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/RequiredContentControl'
    xmlns:SkipContentControl %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/SkipContentControl'
    xmlns:AlignmentLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/AlignmentLayout'
    xmlns:AudioLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/AudioLayout'
    xmlns:BackgroundTilingLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BackgroundTilingLayout'
    xmlns:BasicLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicLayout'
    xmlns:MultiWindowLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/MultiWindowLayout'
    xmlns:OverrideLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/OverrideLayout'
    xmlns:StructureLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/StructureLayout'
    xmlns:SubRegionLayout %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/SubRegionLayout'
    xmlns:BasicText %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicText'
    xmlns:TextMotion %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/TextMotion'
    xmlns:TextStyling %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/TextStyling'
    xmlns:BasicLinking %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicLinking'
    xmlns:LinkingAttributes %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/LinkingAttributes'
    xmlns:ObjectLinking %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/ObjectLinking'
    xmlns:Metainformation %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/Metainformation'
    xmlns:BasicTransitions %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicTransitions'
    xmlns:FullScreenTransitionEffects %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/FullScreenTransitionEffects'
    xmlns:InlineTransitions %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/InlineTransitions'
    xmlns:TransitionModifiers %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/TransitionModifiers'
    xmlns:BasicAnimation %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/BasicAnimation'
    xmlns:SplineAnimation %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/SplineAnimation'
    xmlns:StateInterpolation %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/StateInterpolation'
    xmlns:StateSubmission %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/StateSubmission'
    xmlns:StateTest %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/StateTest'
    xmlns:UserState %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/UserState'
    xmlns:TimeManipulations %URI.datatype; #FIXED 'http://www.w3.org/2008/SMIL30/TimeManipulations'
  ">
]]>
<!ENTITY % SMIL.ModuleNamespaces "">

<!-- end of smil-attribs-1.mod -->

A.4.3 The SMIL Qualified Names Module

<!-- ...................................................................... -->
<!-- SMIL Qualified Names Module  ......................................... -->
<!-- file: smil-qname-1.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Sjoerd Mullender.
        Revision: 1.9
        Date: 2008/09/07 20:36:50

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

       PUBLIC "-//W3C//ENTITIES SMIL 3.0 Qualified Names 1.0//EN"
       SYSTEM "http://www.w3.org/2008/SMIL30/smil-qname-1.mod"

     ...................................................................... -->

<!-- SMIL Qualified Names

     This module is contained in two parts, labeled Section 'A' and 'B':

       Section A declares parameter entities to support namespace-
       qualified names, namespace declarations, and name prefixing
       for SMIL and extensions.

       Section B declares parameter entities used to provide
       namespace-qualified names for all SMIL element types:

         %SMIL.animation.qname; the xmlns-qualified name for <animation>
         %SMIL.video.qname;     the xmlns-qualified name for <video>
         ...

     SMIL extensions would create a module similar to this one,
     using the '%smil-qname-extra.mod;' parameter entity to insert
     it within Section A.  A template module suitable for this purpose
     ('template-qname-1.mod') is included in the XHTML distribution.
-->

<!-- Section A: SMIL XML Namespace Framework :::::::::::::::::::::::::::::: -->

<!-- 1. Declare a %SMIL.prefixed; conditional section keyword, used
        to activate namespace prefixing. The default value should
        inherit '%NS.prefixed;' from the DTD driver, so that unless
        overridden, the default behavior follows the overall DTD
        prefixing scheme.
-->
<!ENTITY % NS.prefixed "IGNORE" >
<!ENTITY % SMIL.prefixed "%NS.prefixed;" >

<!-- 2. Declare parameter entities (e.g., %SMIL.xmlns;) containing
        the URI reference used to identify the SMIL namespace:
-->

<!ENTITY % SMIL.xmlns  "http://www.w3.org/ns/SMIL" >

<!-- 3. Declare parameter entities (e.g., %SMIL.prefix;) containing
        the default namespace prefix string(s) to use when prefixing
        is enabled. This may be overridden in the DTD driver or the
        internal subset of a document instance. If no default prefix
        is desired, this may be declared as an empty string.

     NOTE: As specified in [XMLNAMES], the namespace prefix serves
     as a proxy for the URI reference, and is not in itself significant.
-->
<!ENTITY % SMIL.prefix  "smil" >

<!-- 4. Declare parameter entities (e.g., %SMIL.pfx;) containing the
        colonized prefix(es) (e.g., '%SMIL.prefix;:') used when
        prefixing is active, an empty string when it is not.
-->
<![%SMIL.prefixed;[
  <!ENTITY % SMIL.pfx  "%SMIL.prefix;:" >
]]>
<!ENTITY % SMIL.pfx  "" >

<!-- 5. The parameter entity %SMIL.xmlns.extra.attrib; may be
        redeclared to contain any non-SMIL namespace declaration
        attributes for namespaces embedded in SMIL. When prefixing
        is active it contains the prefixed xmlns attribute and any
        namespace declarations embedded in SMIL, otherwise an empty
        string.
-->
<![%SMIL.prefixed;[
  <!ENTITY % SMIL.xmlns.extra.attrib
        "xmlns:%SMIL.prefix;    %URI.datatype;  #FIXED  '%SMIL.xmlns;'" >
]]>
<!ENTITY % SMIL.xmlns.extra.attrib "" >

<!ENTITY % XHTML.xmlns.extra.attrib
      "%SMIL.xmlns.extra.attrib;"
>


<!--  Declare the two parameter entities used to support XLink,
      first the parameter entity container for the URI used to
      identify the XLink namespace:
-->
<!ENTITY % XLINK.xmlns "http://www.w3.org/1999/xlink" >
<!-- This contains the XLink namespace declaration attribute. -->
<!ENTITY % XLINK.xmlns.attrib
     "xmlns:xlink  %URI.datatype;           #FIXED '%XLINK.xmlns;'"
>


<!-- declare qualified name extensions here -->
<!ENTITY % smil-qname-extra.mod "" >
%smil-qname-extra.mod;


<!-- Section B: SMIL Qualified Names :::::::::::::::::::::::::::::::::::::: -->

<!-- This section declares parameter entities used to provide
     namespace-qualified names for all SMIL element types.
-->

<!-- Structure Module -->
<!ENTITY % SMIL.smil.qname             "%SMIL.pfx;smil" >
<!ENTITY % SMIL.head.qname             "%SMIL.pfx;head" >
<!ENTITY % SMIL.body.qname             "%SMIL.pfx;body" >

<!-- BasicMedia Module -->
<!ENTITY % SMIL.ref.qname              "%SMIL.pfx;ref" >
<!ENTITY % SMIL.animation.qname        "%SMIL.pfx;animation" >
<!ENTITY % SMIL.audio.qname            "%SMIL.pfx;audio" >
<!ENTITY % SMIL.img.qname              "%SMIL.pfx;img" >
<!ENTITY % SMIL.text.qname             "%SMIL.pfx;text" >
<!ENTITY % SMIL.textstream.qname       "%SMIL.pfx;textstream" >
<!ENTITY % SMIL.video.qname            "%SMIL.pfx;video" >
<!-- MediaParam Module -->
<!ENTITY % SMIL.param.qname            "%SMIL.pfx;param" >
<!ENTITY % SMIL.paramGroup.qname       "%SMIL.pfx;paramGroup" >
<!-- BrushMedia Module -->
<!ENTITY % SMIL.brush.qname            "%SMIL.pfx;brush" >

<!-- BasicTimeContainers Module -->
<!ENTITY % SMIL.par.qname              "%SMIL.pfx;par" >
<!ENTITY % SMIL.seq.qname              "%SMIL.pfx;seq" >
<!-- BasicExclTimeContainers Module -->
<!ENTITY % SMIL.excl.qname             "%SMIL.pfx;excl" >
<!-- BasicPriorityClassContainers Module -->
<!ENTITY % SMIL.priorityClass.qname    "%SMIL.pfx;priorityClass">

<!-- BasicContentControl Module -->
<!ENTITY % SMIL.switch.qname           "%SMIL.pfx;switch" >
<!-- CustomTestAttributes Module -->
<!ENTITY % SMIL.customAttributes.qname "%SMIL.pfx;customAttributes" >
<!ENTITY % SMIL.customTest.qname       "%SMIL.pfx;customTest" >
<!-- PrefetchControl Module -->
<!ENTITY % SMIL.prefetch.qname         "%SMIL.pfx;prefetch" >

<!-- StructureLayout Module -->
<!ENTITY % SMIL.layout.qname           "%SMIL.pfx;layout" >
<!-- BasicLayout Module -->
<!ENTITY % SMIL.region.qname           "%SMIL.pfx;region" >
<!ENTITY % SMIL.root-layout.qname      "%SMIL.pfx;root-layout" >
<!-- MultiWindowLayout Module -->
<!ENTITY % SMIL.topLayout.qname        "%SMIL.pfx;topLayout" >
<!-- AlignmentLayout Module -->
<!ENTITY % SMIL.regPoint.qname         "%SMIL.pfx;regPoint" >

<!-- BasicText Module -->
<!ENTITY % SMIL.br.qname               "%SMIL.pfx;br" >
<!ENTITY % SMIL.clear.qname            "%SMIL.pfx;clear" >
<!ENTITY % SMIL.smilText.qname         "%SMIL.pfx;smilText" >
<!ENTITY % SMIL.tev.qname              "%SMIL.pfx;tev" >
<!-- TextStyling Module -->
<!ENTITY % SMIL.div.qname              "%SMIL.pfx;div" >
<!ENTITY % SMIL.p.qname                "%SMIL.pfx;p" >
<!ENTITY % SMIL.span.qname             "%SMIL.pfx;span" >
<!ENTITY % SMIL.textStyle.qname        "%SMIL.pfx;textStyle" >
<!ENTITY % SMIL.textStyling.qname      "%SMIL.pfx;textStyling" >

<!-- BasicLinking -->
<!ENTITY % SMIL.a.qname                "%SMIL.pfx;a" >
<!ENTITY % SMIL.anchor.qname           "%SMIL.pfx;anchor" >
<!ENTITY % SMIL.area.qname             "%SMIL.pfx;area" >

<!-- Metainformation Module -->
<!ENTITY % SMIL.meta.qname             "%SMIL.pfx;meta" >
<!ENTITY % SMIL.metadata.qname         "%SMIL.pfx;metadata" >

<!-- BasicTransitions Module -->
<!ENTITY % SMIL.transition.qname       "%SMIL.pfx;transition" >
<!-- InlineTransitions Module -->
<!ENTITY % SMIL.transitionFilter.qname "%SMIL.pfx;transitionFilter" >

<!-- BasicAnimation Module -->
<!ENTITY % SMIL.animate.qname          "%SMIL.pfx;animate" >
<!ENTITY % SMIL.animateColor.qname     "%SMIL.pfx;animateColor" >
<!ENTITY % SMIL.animateMotion.qname    "%SMIL.pfx;animateMotion" >
<!ENTITY % SMIL.set.qname              "%SMIL.pfx;set" >

<!-- UserState Module -->
<!ENTITY % SMIL.delvalue.qname         "%SMIL.pfx;delvalue" >
<!ENTITY % SMIL.newvalue.qname         "%SMIL.pfx;newvalue" >
<!ENTITY % SMIL.setvalue.qname         "%SMIL.pfx;setvalue" >
<!ENTITY % SMIL.state.qname            "%SMIL.pfx;state" >
<!-- StateSubmission Module -->
<!ENTITY % SMIL.send.qname             "%SMIL.pfx;send" >
<!ENTITY % SMIL.submission.qname       "%SMIL.pfx;submission" >

<!-- External Timing (Timesheets) -->
<!ENTITY % SMIL.item.qname             "%SMIL.pfx;item" >
<!ENTITY % SMIL.timesheet.qname        "%SMIL.pfx;timesheet" >

<!-- end of smil-qname-1.mod -->

A.4.4 The SMIL 3.0 Modular Framework Module

<!-- ...................................................................... -->
<!-- SMIL 3.0 Modular Framework Module  ................................... -->
<!-- file: smil-framework-1.mod

     This is SMIL 3.0.

        Copyright: 1998-2008 W3C (MIT, ERCIM, Keio), All Rights
        Reserved.  See http://www.w3.org/Consortium/Legal/.

        Editor for SMIL 3.0: Sjoerd Mullender, CWI
        Editor for previous versions of SMIL: Jacco van Ossenbruggen,
        Sjoerd Mullender.
        Revision: 1.7
        Date: 2008/09/07 20:36:49

     This DTD module is identified by the PUBLIC and SYSTEM identifiers:

     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Modular Framework 1.0//EN"
     SYSTEM "http://www.w3.org/2008/SMIL30/smil-framework-1.mod"

         .................................................................. -->

<!-- Modular Framework

     This required module instantiates the modules needed
     to support the SMIL 3.0 modularization model, including:

        +  datatypes
        +  namespace-qualified names
        +  common attributes
        +  document model
-->

<!ENTITY % smil-datatypes.module "INCLUDE" >
<![%smil-datatypes.module;[
<!ENTITY % smil-datatypes.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Datatypes 1.0//EN"
            "smil-datatypes-1.mod" >
%smil-datatypes.mod;]]>

<!ENTITY % smil-qname.module "INCLUDE" >
<![%smil-qname.module;[
<!ENTITY % smil-qname.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Qualified Names 1.0//EN"
            "smil-qname-1.mod" >
%smil-qname.mod;]]>

<!ENTITY % smil-attribs.module "INCLUDE" >
<![%smil-attribs.module;[
<!ENTITY % smil-attribs.mod
     PUBLIC "-//W3C//ENTITIES SMIL 3.0 Common Attributes 1.0//EN"
            "smil-attribs-1.mod" >
%smil-attribs.mod;]]>

<!ENTITY % smil-model.module "INCLUDE" >
<![%smil-model.module;[
<!-- A content model MUST be defined by the driver file -->
%smil-model.mod;]]>

<!-- end of smil-framework-1.mod -->

Appendix B. Index of SMIL 3.0 Modules

Note: Modules marked with (**) are new Modules added in SMIL3.0. Modules marked with (*) are revised modules from SMIL 2.1

Module Name specified in
AccessKeyTiming SMIL 3.0 Timing
AlignmentLayout SMIL 3.0 Layout
AudioLayout SMIL 3.0 Layout
BackgroundTilingLayout SMIL 3.0 Layout
BasicAnimation SMIL 3.0 Animation
BasicContentControl SMIL 3.0 ContentControl
BasicInlineTiming SMIL 3.0 Timing
BasicExclTimeContainers SMIL 3.0 Timing
BasicLayout (*) SMIL 3.0 Layout
BasicLinking SMIL 3.0 Linking
BasicMedia SMIL 3.0 Media Object
BasicPriorityClassContainers SMIL 3.0 Timing
BasicText (**) SMIL 3.0 smilText
BasicTimeContainers SMIL 3.0 Timing
BasicTransitions SMIL 3.0 Transitions
BrushMedia SMIL 3.0 Media Object
CustomTestAttributes SMIL 3.0 ContentControl
DOMTimingMethods (**) SMIL 3.0 Timing
EventTiming SMIL 3.0 Timing
FillDefault SMIL 3.0 Timing
FullScreenTransitionEffects SMIL 3.0 Transitions
Identity (**) SMIL 3.0 Structure
InlineTransitions SMIL 3.0 Transitions
LinkingAttributes SMIL 3.0 Linking
MediaAccessibility SMIL 3.0 Media Object
MediaClipMarkers SMIL 3.0 Media Object
MediaClipping SMIL 3.0 Media Object
MediaDescription SMIL 3.0 Media Object
MediaMarkerTiming SMIL 3.0 Timing
MediaOpacity (**) SMIL 3.0 Media Object
MediaPanZoom (**) SMIL 3.0 Media Object
MediaParam (*) SMIL 3.0 Media Object
MediaRenderAttributes (**) SMIL 3.0 Media Object
Metainformation SMIL 3.0 Metadata
MinMaxTiming SMIL 3.0 Timing
MultiArcTiming SMIL 3.0 Timing
MultiWindowLayout SMIL 3.0 Layout
ObjectLinking SMIL 3.0 Linking
OverrideLayout SMIL 3.0 Layout
PrefetchControl SMIL 3.0 ContentControl
RepeatTiming SMIL 3.0 Timing
RepeatValueTiming SMIL 3.0 Timing
RequiredContentControl (**) SMIL 3.0 Content Control
RestartDefault SMIL 3.0 Timing
RestartTiming SMIL 3.0 Timing
SkipContentControl SMIL 3.0 ContentControl
SplineAnimation SMIL 3.0 Animation
StateInterpolation (**) SMIL 3.0 State
StateSubmission (**) SMIL 3.0 State
StateTest (**) SMIL 3.0 State
Structure SMIL 3.0 Structure
StructureLayout (**) SMIL 3.0 Layout
SubRegionLayout SMIL 3.0 Layout
SyncbaseTiming SMIL 3.0 Timing
SyncBehavior SMIL 3.0 Timing
SyncBehaviorDefault SMIL 3.0 Timing
SyncMaster SMIL 3.0 Timing
TextMotion (**) SMIL 3.0 smilText
TextStyling (**) SMIL 3.0 smilText
TimeContainerAttributes SMIL 3.0 Timing
TimeManipulations SMIL 3.0 Time manipulations
TransitionModifiers SMIL 3.0 Transitions
UserState (**) SMIL 3.0 State
WallclockTiming SMIL 3.0 Timing

Appendix C. Index of SMIL 3.0 Elements

Note: Elements marked with (**) are new elements added in SMIL 3.0.

Element Name

specified in

a SMIL 3.0 Linking
anchor SMIL 3.0 Linking
animate SMIL 3.0 Animation
animateColor SMIL 3.0 Animation
animateMotion SMIL 3.0 Animation
animation SMIL 3.0 Media Object
area SMIL 3.0 Linking
audio SMIL 3.0 Media Object
body SMIL 3.0 Structure
br (**) SMIL 3.0 smilText
brush SMIL 3.0 Media Object
clear (**) SMIL 3.0 smilText
customAttributes SMIL 3.0 Content Control
customTest SMIL 3.0 Content Control
delvalue (**) SMIL 3.0 State
div (**) SMIL 3.0 smilText
excl SMIL 3.0 Timing and Synchronization
head SMIL 3.0 Structure
img SMIL 3.0 Media Object
layout SMIL 3.0 Layout
meta SMIL 3.0 Metainformation
metadata SMIL 3.0 Metainformation
newvalue (**) SMIL 3.0 State
p (**) SMIL 3.0 smilText
par SMIL 3.0 Timing and Synchronization
param SMIL 3.0 Media Object
paramGroup SMIL 3.0 Media Object
prefetch SMIL 3.0 Content Control
priorityClass SMIL 3.0 Timing and Synchronization
ref SMIL 3.0 Media Object
region SMIL 3.0 Layout
regPoint SMIL 3.0 Layout
root-layout SMIL 3.0 Layout
send (**) SMIL 3.0 State
seq SMIL 3.0 Timing and Synchronization
set SMIL 3.0 Animation
setvalue (**) SMIL 3.0 State
smil SMIL 3.0 Structure
smilText (**) SMIL 3.0 smilText
span (**) SMIL 3.0 smilText
state (**) SMIL 3.0 State
submission (**) SMIL 3.0 State
switch SMIL 3.0 Content Control
tev (**) SMIL 3.0 smilText
text SMIL 3.0 Media Object
textStyle (**) SMIL 3.0 smilText
textStyling (**) SMIL 3.0 smilText
textstream SMIL 3.0 Media Object
topLayout SMIL 3.0 Layout
transition SMIL 3.0 Transition Effects
transitionFilter SMIL 3.0 Transition Effects
video SMIL 3.0 Media Object Chapter

Appendix D. Index of SMIL 3.0 Attributes

Attribute Name

Specified in

abstract SMIL 3.0 Media Object
accelerate SMIL 3.0 Time Manipulations
accesskey SMIL 3.0 Linking
accumulate SMIL 3.0 Animation
action SMIL 3.0 State
actuate SMIL 3.0 Linking
actuate SMIL 3.0 Animation
additive SMIL 3.0 Animation
allowReorder SMIL 3.0 Animation
alt SMIL 3.0 Linking
alt SMIL 3.0 Media Object
attributeName SMIL 3.0 Animation
attributeType SMIL 3.0 Animation
author SMIL 3.0 Media Object
autoReverse SMIL 3.0 Time Manipulations
background-color SMIL 3.0 Layout
backgroundColor SMIL 3.0 Layout
backgroundImage SMIL 3.0 Layout
backgroundOpacity SMIL 3.0 Layout
backgroundRepeat SMIL 3.0 Layout
bandwidth SMIL 3.0 Content Control
baseProfile SMIL 3.0 Layout
begin SMIL 3.0 Timing and Synchronization
begin SMIL 3.0 Transition Effects
begin SMIL 3.0 Text
borderColor SMIL 3.0 Transition Effects
borderWidth SMIL 3.0 Transition Effects
bottom SMIL 3.0 Layout
bottom SMIL 3.0 Layout (RegPoint element)
bottom SMIL 3.0 Layout (Sub-region positioning)
by SMIL 3.0 Animation
by SMIL 3.0 Transition Effects
calcMode SMIL 3.0 Animation
calcMode SMIL 3.0 Animation (SplineAnimation)
calcMode SMIL 3.0 Animation (transitionFilter element)
chromaKey SMIL 3.0 Media Object
chromaKeyOpacity SMIL 3.0 Media Object
chromaKeyTolerance SMIL 3.0 Media Object
class SMIL 3.0 Structure
clip-begin SMIL 3.0 Media Object
clipBegin SMIL 3.0 Media Object
clip-end SMIL 3.0 Media Object
clipEnd SMIL 3.0 Media Object
close SMIL 3.0 Layout (topLayout element)
color SMIL 3.0 Media Object
content SMIL 3.0 Metainformation
coords SMIL 3.0 Linking
copyright SMIL 3.0 Media Object
customTest SMIL 3.0 Content Control
decelerate SMIL 3.0 Time Manipulations
defaultState SMIL 3.0 Content Control
destinationLevel SMIL 3.0 Linking
destinationPlaystate SMIL 3.0 Linking
direction SMIL 3.0 Transition Effects
dur SMIL 3.0 Timing and Synchronization
dur SMIL 3.0 Transition Effects (transition element)
dur SMIL 3.0 Transition Effects (transitionFilter element)
end SMIL 3.0 Timing and Synchronization
dur SMIL 3.0 Transition Effects (transitionFilter element)
endProgress SMIL 3.0 Transition Effects (transition element)
endsync SMIL 3.0 Timing and Synchronization
expr SMIL 3.0 State
erase SMIL 3.0 Media Object
external SMIL 3.0 Linking
fadeColor SMIL 3.0 Transition Effects (transitionFilter element)
fadeColor SMIL 3.0 Transition Effects (transition element)
fill SMIL 3.0 Timing and Synchronization
fillDefault SMIL 3.0 Timing and Synchronization
fillTransition SMIL 3.0 Transition Effects
fit SMIL 3.0 Layout
fit SMIL 3.0 Layout (ref Element)
fragment SMIL 3.0 Linking
from SMIL 3.0 Animation
from SMIL 3.0 Transition Effects (transitionFilter element)
height SMIL 3.0 Layout
height SMIL 3.0 Layout (root-layout element)
height SMIL 3.0 Layout (topLayout element)
height SMIL 3.0 Layout (Sub-region positioning)
higher SMIL 3.0 Timing and Synchronization
horzRepeat SMIL 3.0 Transition Effects )
href SMIL 3.0 Linking
href SMIL 3.0 Animation (animate element)
id SMIL 3.0 Structure
its:dir with [xmlns:its="http://www.w3.org/2005/11/its"]
its:locNote with [xmlns:its="http://www.w3.org/2005/11/its"]
its:locNoteRef with [xmlns:its="http://www.w3.org/2005/11/its"]
its:locNoteType with [xmlns:its="http://www.w3.org/2005/11/its"]
its:term with [xmlns:its="http://www.w3.org/2005/11/its"]
its:termInfoRef with [xmlns:its="http://www.w3.org/2005/11/its"]
its:translate with [xmlns:its="http://www.w3.org/2005/11/its"]
keySplines SMIL 3.0 Animation
keyTimes SMIL 3.0 Animation
label SMIL 3.0 Metainformation
language SMIL 3.0 State
left SMIL 3.0 Layout
left SMIL 3.0 Layout (RegPoint element)
left SMIL 3.0 Layout (Sub-region positioning)
longdesc SMIL 3.0 Media Object
lower SMIL 3.0 Timing and Synchronization
max SMIL 3.0 Timing and Synchronization
mediaAlign SMIL 3.0 Layout
mediaOpacity SMIL 3.0 Media Object
mediaBackgroundOpacity SMIL 3.0 Media Object
mediaRepeat SMIL 3.0 Media Object
mediaSize SMIL 3.0 Content Control
mediaTime SMIL 3.0 Content Control
method SMIL 3.0 State
min SMIL 3.0 Timing and Synchronization
mode SMIL 3.0 Transition Effects
name SMIL 3.0 Metainformation
name SMIL 3.0 State
name SMIL 3.0 Media Object (param element)
next SMIL 3.0 smilText
nohref SMIL 3.0 Linking
open SMIL 3.0 Layout (topLayout element)
origin SMIL 3.0 Animation
override SMIL 3.0 Content Control
panZoom SMIL 3.0 Media Object
path SMIL 3.0 Animation
paramGroup SMIL 3.0 Media Object
pauseDisplay SMIL 3.0 Timing and Synchronization
peers SMIL 3.0 Timing and Synchronization
readIndex SMIL 3.0 Media Object (param element)
ref SMIL 3.0 State
regAlign SMIL 3.0 Layout
regAlign SMIL 3.0 Layout (RegPoint element)
regPoint SMIL 3.0 Layout
region SMIL 3.0 Layout
regionName SMIL 3.0 Layout
repeat SMIL 3.0 Timing and Synchronization
repeatCount SMIL 3.0 Timing and Synchronization
repeatCount SMIL 3.0 Transition Effects (transitionFilter element)
repeatDur SMIL 3.0 Timing and Synchronization
repeatDur SMIL 3.0 Transition Effects (transitionFilter element)
replace SMIL 3.0 State
restart SMIL 3.0 Timing and Synchronization
restartDefault SMIL 3.0 Timing and Synchronization
right SMIL 3.0 Layout
right SMIL 3.0 Layout (RegPoint element)
right SMIL 3.0 Layout (Sub-region positioning)
sensitivity SMIL 3.0 Media Object
scope SMIL 3.0 Transition Effects
shape SMIL 3.0 Linking
show SMIL 3.0 Linking
show SMIL 3.0 Animation
showBackground SMIL 3.0 Layout
skip-content SMIL 3.0 Content Control
soundAlign SMIL 3.0 Layout
soundLevel SMIL 3.0 Layout
sourceLevel SMIL 3.0 Linking
sourcePlaystate SMIL 3.0 Linking
speed SMIL 3.0 Time Manipulations
src SMIL 3.0 Media Object
startProgress SMIL 3.0 Transition Effects (transition element)
submission SMIL 3.0 State
subtype SMIL 3.0 Transition Effects
subtype SMIL 3.0 Transition Effects (transitionFilter element)
syncBehavior SMIL 3.0 Time Manipulations
syncBehaviorDefault SMIL 3.0 Time Manipulations
syncMaster SMIL 3.0 Time Manipulations
syncTolerance SMIL 3.0 Time Manipulations
syncToleranceDefault SMIL 3.0 Time Manipulations
systemAudioDesc SMIL 3.0 Content Control
systemBaseProfile SMIL 3.0 Content Control
systemBitrate SMIL 3.0 Content Control
systemCaptions SMIL 3.0 Content Control
systemComponent SMIL 3.0 Content Control
systemCPU SMIL 3.0 Content Control
systemLanguage SMIL 3.0 Content Control
systemOperatingSystem SMIL 3.0 Content Control
systemOverdubOrSubtitle SMIL 3.0 Content Control
system-overdub-or-caption SMIL 3.0 Content Control
systemRequired SMIL 3.0 Content Control
systemScreenDepth SMIL 3.0 Content Control
systemScreenSize SMIL 3.0 Content Control
systemVersion SMIL 3.0 Content Control
tabindex SMIL 3.0 Linking
target SMIL 3.0 Linking
target SMIL 3.0 State
targetElement SMIL 3.0 Animation
textAlign SMIL 3.0 Text
textBackgroundColor SMIL 3.0 Text
textColor SMIL 3.0 Text
textConceal SMIL 3.0 Text
textDirection SMIL 3.0 Text
textFontFamily SMIL 3.0 Text
textFontSize SMIL 3.0 Text
textFontStyle SMIL 3.0 Text
textFontWeight SMIL 3.0 Text
textMode SMIL 3.0 Text
textPlace SMIL 3.0 Text
textRate SMIL 3.0 Text
textStyle SMIL 3.0 Text
textWrapOption SMIL 3.0 Text
textWritingMode SMIL 3.0 Text
timeAction SMIL 3.0 Timing and Synchronization
timeContainer SMIL 3.0 Timing and Synchronization
title SMIL 3.0 Structure
to SMIL 3.0 Animation
to SMIL 3.0 Animation (set element)
to SMIL 3.0 Transition Effects (transitionFilter element)
top SMIL 3.0 Layout
top SMIL 3.0 Layout (Sub-region positioning)
top SMIL 3.0 Layout (RegPoint element)
transIn SMIL 3.0 Transition Effects
transOut SMIL 3.0 Transition Effects
type SMIL 3.0 Animation
type SMIL 3.0 Media Object
type SMIL 3.0 Layout (media element)
type SMIL 3.0 Media Object (media element)
type SMIL 3.0 Transition Effects (transition element)
type SMIL 3.0 Transition Effects (transitionFilter element)
uid SMIL 3.0 Content Control
value SMIL 3.0 Media Object
value SMIL 3.0 State
values SMIL 3.0 Animation
values SMIL 3.0 Transition Effects (transitionFilter element)
valuetype SMIL 3.0 Media Object
vertRepeat SMIL 3.0 Transition Effects
version SMIL 3.0 Structure
where SMIL 3.0 State
width SMIL 3.0 Layout
width SMIL 3.0 Layout (root-layout element)
width SMIL 3.0 Layout (topLayout element)
width SMIL 3.0 Layout (Sub-region positioning)
xml:id SMIL 3.0 Structure
xml:base [XMLBase]
xml:lang SMIL 3.0 Media Object
xml:lang SMIL 3.0 Structure
xml:space SMIL 3.0 SmilText
xmlns SMIL 3.0 Structure
z-index SMIL 3.0 Layout
xhtml:role with [xmlns:xhtml="http://www.w3.org/1999/xhtml"]

Appendix E. SMIL 3.0 References

E.1 Normative References

[AM]
"Authoritative Metadata", Ian Jacobs. TAG Finding 25 February 2004.
This document is available at http://www.w3.org/2001/tag/doc/mime-respect-20040225.
A draft of a proposed revision is available at http://www.w3.org/2001/tag/doc/mime-respect-20051205.
The latest draft or approved version is available at http://www.w3.org/2001/tag/doc/mime-respect.html
[CSS2]
"Cascading Style Sheets, level 2: CSS2 Specification", B. Bos, et al., Editors. World Wide Web Consortium, 12 May 1998. This W3C Recommendation is available at http://www.w3.org/TR/1998/REC-CSS2-19980512/.
The latest version is available at http://www.w3.org/TR/REC-CSS2/
[CSS2-color-values]
"Cascading Style Sheets, level 2: CSS2 Specification, (section 4.3.6 Colors) ", B. Bos, et al., Editors. World Wide Web Consortium, 12 May 1998. This W3C Recommendation is available at http://www.w3.org/TR/1998/REC-CSS2-19980512/syndata.html#color-units".
The latest version is available at http://www.w3.org/TR/REC-CSS2/
[FTP]
"File Transfer Protocol (FTP)" J. Postel, J. Reynolds, October 1985.
This RFC is available at http://www.ietf.org/rfc/rfc959.txt
[HTML4]
"HTML 4.01 Specification" D. Raggett, A. Le Hors, I. Jacobs. World Wide Web Consortium, 24 December 1999. This W3C Recommendation is available at http://www.w3.org/TR/1999/REC-html401-19991224/.
The latest version is available at http://www.w3.org/TR/html401/
[HTTP]
"HTTP Version 1.1 ", R. Fielding, J. Gettys, J. Mogul, H. Frystyk Nielsen, and T. Berners-Lee, January 1997.
This RFC is available at http://www.ietf.org/rfc/rfc2068.txt
[IRI]
"Internationalized Resource Identifiers (IRIs)", M. Duerst, M. Suignard, January 2005.
This RFC is available at http://www.ietf.org/rfc/rfc3987.txt
[RTSP]
"Real Time Streaming Protocol (RTSP)" H. Schulzrinne, Netscape, R. Lanphier, RealNetworks, April 1998.
This RFC is available at http://www.ietf.org/rfc/rfc2326.txt
[RFC2119]
"Key words for use in RFCs to Indicate Requirement Levels" S. Bradner, March 1997.
This RFC is available at http://www.ietf.org/rfc/rfc2119.txt
[SMIL10]
"Synchronized Multimedia Integration Language (SMIL) 1.0". World Wide Web Consortium 15 June 1998. This W3C Recommendation is available at http://www.w3.org/TR/1998/REC-smil-19980615/.
The latest version is available at http://www.w3.org/TR/REC-smil/
[SMIL20]
"Synchronized Multimedia Integration Language (SMIL 2.0) Specification - [Second Edition]", Jeff Ayars et al., Editors, World Wide Web Consortium, 07 January 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20050107/.
The latest version is available at http://www.w3.org/TR/smil20/
[SMIL21]
"Synchronized Multimedia Integration Language (SMIL 2.1) Specification - ", Dick Bulterman et al., Editors, World Wide Web Consortium, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-modules]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Modules Module", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-modules.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-animation]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Animation Module", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/animation.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-content-control]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Content Control Modules", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-content.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-layout]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Layout Modules", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/layout.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-linking]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Linking Modules", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/extended-linking.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-media]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Media Object Modules", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.wWorld Wide Web Consortium, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/extended-media-object.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-meta]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Metainformation Module", Dick Bulterman et al., Editors, ds, Jeff Ayars Eds, World Wide Web Consortium, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/metadata.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-structure]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Structure Module", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/structure.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-timing]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Timing and Synchronization Module", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-timing.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-timemanipulations]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Time Manipulations Module", Dick Bulterman et al., Editors, World Wide Web Consortium, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-timemanip.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-transition]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Transition Effects Module", Dick Bulterman et al., Editors, World Wide Web Consortium, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-transitions.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-language-profile]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Language Profile", Dick Bulterman et al., Editors, , World Wide Web Consortium, 013 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/SMIL21-profile.html
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-basic-profile]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Basic Profile", Dick Bulterman et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.wWorld Wide Web Consortium, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-basic.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-mobile-profile]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Mobile Profile", Jeff Ayars et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-mobile.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[SMIL21-extended-mobile-profile]
"Synchronized Multimedia Integration Language (SMIL 2.1) - Extended Mobile Profile", Jeff Ayars et al., Editors, 13 December 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-SMIL2-20051213/smil-extended-mobile.html.
The latest version is available at http://www.w3.org/TR/SMIL2/
[URI]
"Uniform Resource Identifiers (URI): Generic Syntax", T. Berners-Lee, R. Fielding, L. Masinter, August 1998. Note that RFC 2396 was obsoleted by RFC 3986.
This RFC is available at http://www.ietf.org/rfc/rfc3986.txt
[XSL11]
"Extensible Stylesheet Language (XSL) Version 1.1", Anders Berglund, Editor. World Wide Web Consortium, 05 December 2006. This W3C Recommendation is available at http://www.w3.org/TR/2006/REC-xsl11-20061205/
The latest version of XSL 1.1 is available at http://www.w3.org/TR/xsl11/
[XML10]
"Extensible Markup Language (XML) 1.0", T. Bray et al., Editors. World Wide Web Consortium, 16 August 2006. This W3C Recommendation is available at http://www.w3.org/TR/2006/REC-xml-20060816
The latest version of XML 1.0 is available at http://www.w3.org/TR/xml
[XML11]
"Extensible Markup Language (XML) 1.1", T. Bray et al., Editors. World Wide Web Consortium, 16 August 2006. This W3C Recommendation is available at http://www.w3.org/TR/2006/REC-xml11-20060816
The latest version of XML 1.1 is available at http://www.w3.org/TR/xml11
[XMLBase]
"XML Base", Jonathan Marsh, Microsoft. World Wide Web Consortium, 27 June 2001. This W3C Recommendation is available at http://www.w3.org/TR/2001/REC-xmlbase-20010627/.
The latest version is available at http://www.w3.org/TR/xmlbase/
[XML-ID]
"xml:id Version 1.0", Jonathan Marsh et al., Editors. World Wide Web Consortium, 9 September 2005. This W3C Recommendation is available at http://www.w3.org/TR/2005/REC-xml-id-20050909/.
The latest version of xml:id is available at http://www.w3.org/TR/xml-id/
[XML-NS]
"Namespaces in XML 1.1", T. Bray et al., Editors. World Wide Web Consortium, 4 February 2004. This W3C Recommendation is available at http://www.w3.org/TR/2004/REC-xml-names11-20040204.
The latest version of XML Namespaces is available at http://www.w3.org/TR/xml-names11

E.2 Informative References

[3GPP]
"3rd Generation Partnership Project"
The 3GPP homepage is available at http://www.3gpp.org/
[3GPP26.234R4]
3rd Generation Partnership Project: Technical Specification Group Services and System Aspects; Transparent end-to-end Packet-switched
Streaming Service (PSS); Protocols and codecs (Release 4); TS 26.234v4.5.0; Section 8.1
".
This Technical Specification is available at ftp://ftp.3gpp.org/Specs/archive/26_series/26.234/26234-450.zip
[3GPP26.234R5]
"3rd Generation Partnership Project: Technical Specification Group Services and System Aspects; Transparent end-to-endPacket-switched
Streaming Service (PSS); Protocols and codecs (Release 5); TS 26.234v5.6.0
".
This Technical Specification is available at ftp://ftp.3gpp.org/Specs/archive/26_series/26.234/26234-560.zip
[3GPP26.246R6]
"3rd Generation Partnership Project: Technical Specification Group Services and System Aspects; Transparent end-to-endPacket-switched
streaming service (PSS); 3GPP SMIL Language Profile (Release 6); TS 26.246v6.0.0
".
This Technical Specification is available at ftp://ftp.3gpp.org/Specs/archive/26_series/26.246/26246-600.zip
[3GPP2]
"3rd Generation Partnership Program 2"
The 3GPP2 homepage is available at http://www.3gpp2.org/
[3GPP2.C.S0050-0]
"3rd Generation Partnership Project 2: Technical Specification Group cdma2000(R) (TSG-C); 3GPP2 File Formats for Multimedia Services; C.S0050-0 v1.0"
This Technical Specification is available at http://www.3gpp2.org/Public_html/specs/C.S0050-0_v1.0_121503.pdf
[3GPP2.C.S0045]
"3rd Generation Partnership Project 2: Technical Specification Group cdma2000(R) (TSG-C); Multimedia Messaging Service (MMS) Media Format and Codecs for cdma2000 Spread Spectrum Systems; C.S0045"
[AAC]
"MPEG-4 AAC Low Complexity object type, part of 3GP file format."
[ASCII]
ANSI X3.4, 1986: "Information Systems; Coded Character Set 7Bit; American National Standard Code for Information Interchange"
[BCP47]
"Tags for Identifying Languages", A. Phillips, M. Davis, Editors., September 2006.
This RFC is available at http://www.rfc-editor.org/rfc/bcp/bcp47.txt
[CC/PP]
"Composite Capability/Preference Profiles (CC/PP): A user side framework for content negotiation", Franklin Reynolds, et al., Editors. World Wide Web Consortium, 27 July 1999. This W3C Note is available at http://www.w3.org/1999/07/NOTE-CCPP-19990727/
The latest version is available at http://www.w3.org/TR/NOTE-CCPP/
[COMP-GRAPHICS]
"Computer Graphics: Principles and Practice - Second Edition", James D. Foley, Andries van Dam, Steven K. Feiner, John F. Hughes, Richard L. Phillips, Addison-Wesley, pp. 488-491.
[DAISY]
"DAISY digital talking books", DAISY Consortium.
[DATETIME]
"Date and Time Formats", M. Wolf, C. Wicksteed. World Wide Web Consortium, 27 August 1998. This W3C Note is available at http://www.w3.org/TR/1998/NOTE-datetime-19980827/.
The latest version is available at at: http://www.w3.org/TR/NOTE-datetime/
[DISELECT10]
"Content Selection for Device Independence (DISelect) 1.0", Rhys Lewiset al., Editors. World Wide Web Consortium, 10 October 2006. This W3C Recommendation is available at http://www.w3.org/TR/2006/WD-cselection-20061010/.
The latest version is available at at: http://www.w3.org/TR/cselection/
[DC]
"Dublin Core Metadata Initiative", a Simple Content Description Model for Electronic Resources,
Available at http://dublincore.org/
[DFXP]
"Timed Text (TT) Authoring Format 1.0 – Distribution Format Exchange Profile (DFXP)" Specification, Glenn Adams. W3C Candidate Recommendation 16 November 2006,
Available at http://www.w3.org/TR/2006/CR-ttaf1-dfxp-20061116/
The latest version is available at http://www.w3.org/TR/ttaf1-dfxp/
[DOM1]
"Document Object Model (DOM) Level 1 Specification", Vidur Apparao et al., Editors. World Wide Web Consortium, 1 October 1998. This W3C Recommendation is available at http://www.w3.org/TR/1998/REC-DOM-Level-1-19981001/.
The latest version is available at http://www.w3.org/TR/REC-DOM-Level-1/
[DOM2Events]
"Document Object Model (DOM) Level2 : Events", Tom Pixley. World Wide Web Consortium, 13 November 2000. This W3C Recommendation is available at http://www.w3.org/TR/2000/REC-DOM-Level-2-Events-20001113/events.html.
The latest version is available at http://www.w3.org/TR/DOM-Level-2-Events/events.html
[DOM2]
"Document Object Model (DOM) Level 2 : Core Specification", Arnaud Le Hors et al., Editors. World Wide Web Consortium, 13 November 2000. This W3C Recommendation is available at http://www.w3.org/TR/2000/REC-DOM-Level-2-Core-20001113/.
The latest version is available at http://www.w3.org/TR/DOM-Level-2-Core/
[DOM2CSS]
"Document Object Model (DOM) Level 2 : Document Object Model CSS", Chris Wilson et al., Editors. World Wide Web Consortium, 13 November 2000. This W3C Recommendation is available at http://www.w3.org/TR/2000/REC-DOM-Level-2-Style-20001113/css.html.
The latest version is available at http://www.w3.org/TR/DOM-Level-2-Style/css.html
[draft-ietf-avt-rtp-mime-00]
"MIME Type Registration of RTP Payload Formats", Steve Casner et al., Editors, June 1999.
[IEEE-Arithmetic]
"IEEE Standard for Binary Floating-Point Arithmetic, 754-1985 (R1990)".
[ISO8601]
"Data elements and interchange formats - Information interchange - Representation of dates and times", International Organization for Standardization, 1998.
[ISO10646]
"ISO/IEC 10646:2003, Information technology - Universal Multiple-Octet Coded Character Set (UCS)", as, from time to time, amended, replaced by a new edition or expanded by the addition of new parts.
The latest version is available at http://www.iso.org/iso/en/ISOOnline.openerpage
[ITS]
"Internationalization Tag Set (ITS) Version 1.0)" Christian Lieske, Felix Sasaki, Editors. World Wide Web Consortium, 03 April 2007. This W3C Recommendation is available at http://www.w3.org/TR/2007/REC-its-20070403/.
The latest version is available at http://www.w3.org/TR/its/
[JFIF]
"JPEG File Interchange Format, Version 1.02"; Eric Hamilton, World Wide Web Consortium September 1,1992. This specification is available at http://www.w3.org/Graphics/JPEG/jfif.txt
[JPEG]
"Information technology; Digital compression and coding of continuous-tone still images: Requirements and guidelines". ITU-T Recommendation T.81.
[H263]
"Video coding for low bit rate communication". ITU-T Recommendation H.263.
[H264]
"Video coding for low bit rate communication". ITU-T Recommendation H.264.
[MathML]
"Mathematical Markup Language (MathML) Version 2.0 (Second Edition)", David Carlisle et al., Editors. World Wide Web Consortium 21 October 2003. This W3C Recommendation is available at http://www.w3.org/TR/2003/REC-MathML2-20031021/.
The latest version is available at http://www.w3.org/TR/MathML2
[MIME-2]
"RFC 2046: Multipurpose Internet Mail Extensions (MIME) Part Two: Media Types"; N. Freed, N. Borenstein, November 1996,
Available at ftp://ftp.isi.edu/in-notes/rfc2046.txt
[MOBILE-GUIDE]
"HTML4.0 Guidelines for Mobile Access", T. Kamada, Takuya Asada, Masayasu Ishikawa, Shin'ichi Matsui, World Wide Web Consortium 15 March 1999. This W3C NOTE is available at http://www.w3.org/TR/1999/NOTE-html40-mobile-19990315/.
The latest version is available at http://www.w3.org/TR/NOTE-html40-mobile/
[PICS]
"PICS 1.1 Label Distribution - Label Syntax and Communication Protocols", T. Krauskopf, J. Miller, P. Resnick and W. Trees. W3C Recommendation 31 October 1996,
Available at http://www.w3.org/TR/REC-PICS-labels
[PNG-MIME]
"Registration of new Media Type image/png"; Glenn Randers-Pehrson, Thomas Boutell, 27 July 1996.
Available at http://www.iana.org/assignments/media-types/image/png
[PNG-REC]
"Portable Network Graphics (PNG) Specification (Second Edition)" Information technology — Computer graphics and image processing — Portable Network Graphics (PNG): Functional specification. ISO/IEC 15948:2003 (E).Thomas Boutell (Ed.), World Wide Web Consortium 01 October 1996. This W3C Recommendation is available at http://www.w3.org/TR/REC-png
[RDFschema]
"Resource Description Framework (RDF) Schema Specification", Dan Brickley and R.V. Guha. W3C Candidate Recommendation 27 March 2000,
Available at http://www.w3.org/TR/rdf-schema
[RDFsyntax]
"Resource Description Framework (RDF) Model and Syntax Specification", Ora Lassila and Ralph R. Swick, World Wide Web Consortium 22 February 1999. This W3C Recommendation is available at http://www.w3.org/TR/1999/REC-rdf-syntax-19990222/
The latest version is available at http://www.w3.org/TR/rdf-primer/
[RFC2046]
"Multipurpose Internet Mail Extensions (MIME) Part Two: Media Types", N. Freed and N. Borenstein, November 1996.
Note that this RFC obsoletes RFC1521, RFC1522, and RFC1590.
This RFC is available at http://www.ietf.org/rfc/rfc2046.txt
[RFC3986]
Uniform Resource Identifiers (URI): Generic Syntax. T. Berners-Lee, R. Fielding, L. Masinter, August 1998.
Available at http://www.ietf.org/rfc/rfc3986.txt
[RFC3987]
Internationalized Resource Identifiers (IRIs). M. Duerst, M. Suignard, January 2005.
Available at http://www.ietf.org/rfc/rfc3987.txt
[SMIL-ANIMATION]
"SMIL Animation", Patrick Schmitz and Aaron Cohen. World Wide Web Consortium, 04 September 2001. This W3C Recommendation is available at http://www.w3.org/TR/2001/REC-smil-animation-20010904/.
The latest version is available at http://www.w3.org/TR/smil-animation/
[SMIL-CSS2]
"Displaying SMIL Basic Layout with a CSS2 Rendering Engine". World Wide Web Consortium, 20 July 1998. This W3C NOTE is available at http://www.w3.org/TR/1998/NOTE-CSS-smil-19980720.
The latest version is available at: http://www.w3.org/TR/NOTE-CSS-smil.html
[SMIL-MOD]
"Synchronized Multimedia Modules based upon SMIL 1.0", Patrick Schmitz, Ted Wugofski and Warner ten Kate, World Wide Web Consortium 23 February 1999. This W3C NOTE is available at http://www.w3.org/TR/1999/NOTE-SYMM-modules-19990223/.
The latest version is available at http://www.w3.org/TR/NOTE-SYMM-modules
[SMPTE]
"Time and Control Codes for 24, 25 or 30 Frame-Per-Second Motion-Picture Systems - RP 136-1995". Society of Motion Picture & Television Engineers.
[SMPTE-EDL]
"Transfer of Edit Decision Lists", ANSI/SMPTE 258M/1993
[sRGB]
"IEC 61966-2-1 (1999-10) - Multimedia systems and equipment - Colour measurement and management - Part 2-1: Colour management - Default RGB colour space - sRGB", ISBN: 2-8318-4989-6 - ICS codes: 33.160.60, 37.080 - TC 100 - 51 pp.
Available at: http://www.iec.ch/nr1899.htm
[SVG]
"Scalable Vector Graphics (SVG) 1.1 Specification", Jon Ferraiolo et al., Editors. World Wide Web Consortium, 14 January 2003. This W3C Recommendation is available at http://www.w3.org/TR/2003/REC-SVG11-20030114/.
The latest version is available at http://www.w3.org/TR/SVG/
[SVGMobile12-JPEG]
"Scalable Vector Graphics (SVG) Tiny 1.2 Specification", Ola Andersson et al., Editors. World Wide Web Consortium, 15 September 2008. This W3C Working Draft is available at http://www.w3.org/TR/2008/WD-SVGMobile12-20080915/
The latest version is available at http://www.w3.org/TR/SVGMobile12/
[SVG-Mobile]
"Mobile SVG Profiles: SVG Tiny and SVG Basic", Tolga Capin. World Wide Web Consortium, 14 January 2003. This W3C Recommendation is available at http://www.w3.org/TR/2003/REC-SVGMobile-20030114/.
The latest version is available at http://www.w3.org/TR/SVGMobile/
[THEORA]
"Theora video format" from Xiph.Org Foundation. A fully open, non-proprietary, patent-and-royalty-free, general-purpose compressed video format ". The Theora specification is available at http://www.xiph.org/theora/
[UAAG]
"User Agent Accessibility Guidelines 1.0", Ian Jacobs, Jon Gunderson, Eric Hansen. World Wide Web Consortium, 17 December 2002. This Recommendation is available at http://www.w3.org/TR/2002/REC-UAAG10-20021217/.
The latest version is available at http://www.w3.org/TR/UAAG10/
[UTF8]
"UTF-8, A Transformation format of ISO 10646 ", IETF; RFC 2279: ". This RFC is available at http://www.ietf.org/rfc/rfc2279.txt
[VORBIS]
"Ogg Vorbis audio format" from Xiph.Org Foundation. A fully open, non-proprietary, patent-and-royalty-free, general-purpose compressed audio format ". The Ogg Vorbis specification is available at http://www.xiph.org/vorbis/doc/
[XFORMS10]
"XForms 1.0: Data Model", Micah Dubinko, Leigh L. Klotz, Editors. World Wide Web Consortium, 14 October 2003. This W3C Recommendation is available at,
http://www.w3.org/TR/2003/REC-xforms-20031014/ .
The latest version is available at http://www.w3.org/TR/xforms/
[WAI-SMIL-ACCESS]
"Accessibility Features of SMIL " Marja-Riitta Koivunen, Ian Jacobs. World Wide Web Consortium, 21 September 1999. This W3C NOTE is available at http://www.w3.org/TR/1999/NOTE-SMIL-access-19990921/.
The latest version is available at http://www.w3.org/TR/SMIL-access/
"XForms 1.0: Data Model", Micah Dubinko et al., Editors. World Wide Web Consortium, 14 October 2003. This W3C Recommendation is available at http://www.w3.org/TR/2003/REC-xforms-20031014/.
The latest version is available at http://www.w3.org/TR/xforms/
[XHTML10]
"The Extensible HyperText Markup Language: A Reformulation of HTML 4.0 in XML 1.0", Steven Pemberton et al., Editors. World Wide Web Consortium, 1 August 2002. This W3C Recommendation is available at http://www.w3.org/TR/2002/REC-xhtml1-20020801/.
The latest version is available at http://www.w3.org/TR/xhtml1/
[XHTML11]
"XHTML 1.1 - Module-based XHTML", Murray Altheim, Shane McCarron. World Wide Web Consortium, 31 May 2001. This W3C Recommendation is available at http://www.w3.org/TR/2001/REC-xhtml11-20010531/.
The latest version is available at http://www.w3.org/TR/xhtml11/
[XHTML-BASIC]
"XHTML Basic", Masayasu Ishikawa, Shinichi Matsui, Peter Stark, Toshihiko Yamakami. World Wide Web Consortium, 19 December 2000. This W3C Recommendation is available at http://www.w3.org/TR/2000/REC-xhtml-basic-20001219/.
The latest version is available at http://www.w3.org/TR/xhtml-basic/
[XHTMLplusSMIL]
"XHTML+SMIL Profile" Debbie Newman, Patrick Schmitz, Aaron Patterson. World Wide Web Consortium, 31 January 2002. This W3C NOTE is available at http://www.w3.org/TR/2002/NOTE-XHTMLplusSMIL-20020131/.
The latest version is available at http://www.w3.org/TR/XHTMLplusSMIL/
[XHTMLrole]
"XHTML Role Attribute Module " Mark Birbeck et al., Editors. World Wide Web Consortium, 4 October 2007. This W3C Working Draft is available at http://www.w3.org/TR/2007/WD-xhtml-role-20071004.
The latest version is available at http://www.w3.org/TR/xhtml-role
[XHTMLrole-ExtensionGuidelines]
"XHTML Role Attribute Module: Extension Guidelines " Mark Birbeck et al., Editors. World Wide Web Consortium, 4 October 2007. This W3C Working Draft is available at http://www.w3.org/TR/2007/WD-xhtml-role-20071004/#sec_4.1.
The latest version is available at http://www.w3.org/TR/xhtml-role
[XHTMLrole-HostLanguageConformance]
"XHTML Role Attribute Module: Host Language Conformance" Mark Birbeck et al., Editors. World Wide Web Consortium, 4 October 2007. This W3C Working Draft is available at http://www.w3.org/TR/2007/WD-xhtml-role-20071004/#hostconf
. The latest version is available at http://www.w3.org/TR/xhtml-role
[XHTMLrole-DTDImpl]
"XHTML Role Attribute Module: DTD Implementation" Mark Birbeck et al., Editors. World Wide Web Consortium, 4 October 2007. This W3C Working Draft is available at http://www.w3.org/TR/2007/WD-xhtml-role-20071004/#a_DTD_definition
. The latest version is available at http://www.w3.org/TR/xhtml-role
[XLINK]
"XML Linking Language (XLink)", S. DeRose, E. Maler, D. Orchard and B. Trafford. World Wide Web Consortium, 27 June 2001. This W3C Recommendation is available at http://www.w3.org/TR/2001/REC-xlink-20010627/.
The latest version is available at http://www.w3.org/TR/xlink/
[XMOD]
"XHTML Modularization 1.1", Shane McCarron, Murray Altheim, et al. World Wide Web Consortium, 8 October 2008. This W3C Recommendation is available at http://www.w3.org/TR/2008/REC-xhtml-modularization-20081008
The latest version is available at http://www.w3.org/TR/xhtml-modularization/
[XMOD-APPD]
"Modularization of XHTML- DTD module rules", Shane McCarron, Murray Altheim, et al. World Wide Web Consortium, 10 April 2001. This W3C Recommendation is available at http://www.w3.org/TR/2001/REC-xhtml-modularization-20010410/dtd_module_rules.html
The latest version is available at http://www.w3.org/TR/xhtml-modularization/dtd_module_rules.html
[XMOD-APPE]
"Modularization of XHTML- DTD developing", Shane McCarron, Murray Altheim, et al. World Wide Web Consortium, 10 April 2001. This W3C Recommendation is available at http://www.w3.org/TR/2001/REC-xhtml-modularization-20010410/dtd_developing.html
The latest version is available at http://www.w3.org/TR/xhtml-modularization/dtd_developing.html
[XPATH-CoreFunctionLibrary]
XML Path Language (XPath) Version 1.0)", James Clark, et al. World Wide Web Consortium, 16 November 1999. This W3C Recommendation is available at http://www.w3.org/TR/1999/REC-xpath-19991116#corelib.
The latest version is available at http://www.w3.org/TR/xpath
[XPATH10]
XML Path Language (XPath) Version 1.0)", James Clark, et al. World Wide Web Consortium, 16 November 1999. This W3C Recommendation is available at http://www.w3.org/TR/1999/REC-xpath-19991116/.
The latest version is available at http://www.w3.org/TR/xpath
[XPTR]
XML Pointer Language (XPointer)",  Steve DeRose and Ron Daniel Jr. World Wide Web Consortium, 19 December 2002. This Working Draft is available at http://www.w3.org/TR/2002/WD-xptr-xpointer-20021219/.
The latest version is available at http://www.w3.org/TR/xptr-xpointer/
[XSCHEMA]
"XML Schema Part 1: Structures", H. S. Thompson, et al., Editors. World Wide Web Consortium, 28 October 2004. This W3C Recommendation is available at http://www.w3.org/TR/2004/REC-xmlschema-1-20041028/.
The latest version is available at http://www.w3.org/TR/xmlschema-1/
[XSLT10]
"XSL Transformations (XSLT) Version 1.0", James Clark, Editor. World Wide Web Consortium, 16 November 1999. This W3C Recommendation is available at http://www.w3.org/TR/1999/REC-xslt-19991116
The latest version is available at http://www.w3.org/TR/xslt
[XSLT20]
"XSL Transformations (XSLT) Version 2.0", Michael Kay, Editor. World Wide Web Consortium, 23 January 2007. This W3C Recommendation is available at http://www.w3.org/TR/2007/REC-xslt20-20070123/
The latest version is available at http://www.w3.org/TR/xslt20/
