The attributes defined in this specification enable XML [XML] languages to add information about the behavior of an element. States and Properties are mapped to accessibility frameworks (such as a screen reader) that use this information to provide alternative access solutions. Similarly, States and Properties can be used to change the rendering of content dynamically using different style sheet properties. The result is an interoperable method for associating behaviors with document-level markup.
This document and the Roles for Accessible Rich Internet Applications (WAI-ARIA Roles) [ARIA_ROLE] fill information gaps identified by the Roadmap for Accessible Rich Internet Applications (WAI-ARIA Roadmap) [ARIA-ROADMAP] to enable accessible dynamic Web content and applications. The WAI-ARIA Roadmap performs the gap analysis identifying what technology is needed to keep the new, richly interactive Web universally accessible. The WAI-ARIA Roles specification sets out an abstract model of building blocks for accessible interfaces. This includes interactive widgets, navigable structures, and an extension mechanism. This specification creates a language module implementing the functional requirements of the abstract model that is ready for incorporation in content format profiles that follow the methods of XHTML Modularization [XHTMLMOD]. It also introduces one such profile for the use of this module in XHTML.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This document is a Working Draft by the Protocols & Formats Working Group of the Web Accessibility Initiative. This version provides additional states and properties to improve alignment with accessibility APIs, and documents applicability to the roles defined in Roles for Accessible Rich Internet Applications (WAI-ARIA Roles) [ARIA_ROLE]. Some now apply to all roles or all elements of the host language. The document has also been restructured for easier comprehension, and explanatory materials expanded. Refer to the history of changes to WAI-ARIA States and Properties for more details.
Feedback on the module provided here is essential to the ultimate success of the Web in creating Rich Internet Applications that afford full access to their information and operations. The PFWG asks in particular:
Comments on this document may be sent to public-pfwg-comments@w3.org (Archive).
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
The disclosure obligations of the Participants of this group are described in the charter.
This section is informative.
The domain of Web accessibility defines how to make Web content usable by people with disabilities. People with some types of disabilities use Assistive Technology (AT) to interact with content. AT can transform the presentation of content into a format more suitable to the user, and can allow the user to interact in different ways than the author designed. In order to accomplish this, AT must understand the semantics of the content. Semantics are knowledge of roles, states, and properties, as a person would understand them, that apply to elements within the content. For instance, if a paragraph is semantically identified as such, AT can interact with it as a unit separable from the rest of the content, knowing the exact boundaries of that paragraph. A slider or tree control is a more complex example, in which various parts of a widget each have semantics that must be properly identified for the computer to support effective interaction.
Established content technologies define semantics for elements commonly used in those technologies. However, new technologies can overlook some of the semantics required for accessibility. Furthermore, new authoring practices evolve which override the intended semantics—elements that have one defined semantic meaning in the technology are used with a different semantic meaning intended to be understood by the user.
For example, Dynamic HTML can be used to present a tree control even though HTML lacks a semantic element for that. A different element must be used, possibly a list element with display instructions to make it look and behave like a tree control. Assistive technology, however, must re-present the element in a different modality and the display instructions may not be applicable. The AT will present it as a list, which has very different display and interaction from a tree control, and the user may be unsuccessful at understanding and operating the control.
Roles for Accessible Rich Internet Applications [ARIA_ROLE] provides a way to identify element types that do not change with time or user actions. Changeable states and properties of elements are defined in this specification. States and Properties are used to declare important properties of an element that affect and describe interaction. These properties enable the user agent or operating system to properly handle the element—even when these properties are altered dynamically by scripts. For example, alternative input and output technology such as screen readers, speech dictation software and on-screen keyboards must recognize the state of an element (such as: if an object is disabled, checked, focused, collapsed, hidden, etc.).
While it is possible for assistive technologies to access these properties through the Document Object Model [DOM], the preferred mechanism is for the user agent to map the States and Properties to the accessibility API of the operating system.

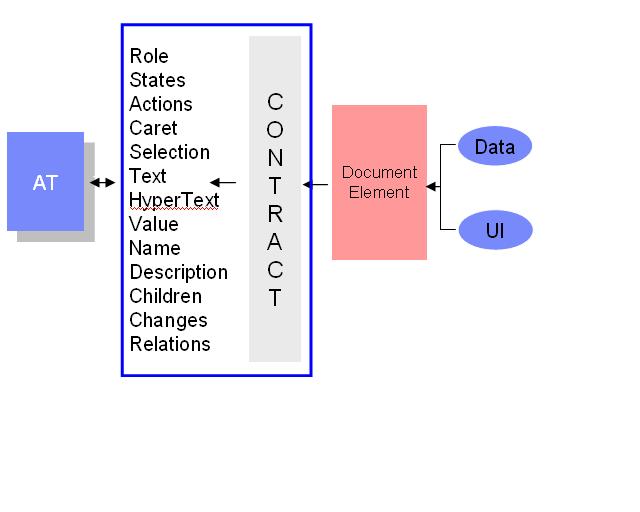

Figure 1.0 illustrates a typical Document Object Model (DOM) [DOM] node. Placed within the DOM node and the assistive technology is a box containing the contract provided by the user agent to the assistive technology. This data includes typical accessibility information found in the accessibility API for many of our accessible platforms for GUIs (role, state, caret, selection, event notification, parent/child information, relationship, and descriptions).
For more information see the Roadmap for Accessible Rich Internet Applications for the use of roles in making interactive content accessible.
While some terms are defined in place, the following definitions are used throughout this document. Familiarity with W3C XHTML 1.1 Recommendation [XHTML] and the W3C XML 1.0 Recommendation [XML] is highly recommended to understand these definitions.
This section is informative.
The design aims of creating this specification include:
This section is informative.
An application becomes accessible when:
Features of the States and Properties Module can be used to provide information about any missing states, properties, and relationships that the assistive technology needs to understand the behavior of the elements inside the application.
States and Properties can be used to assign meaningful properties that change with time and events. For element types and semantics that do not change with time, use a role taxonomy such as such as that defined in Roles for Accessible Rich Internet Applications [ARIA-ROLE].
To build an accessible application first check that each element or widget is marked with full and correct semantics that fully describes its behavior. The procedure for this is described in ARIA Roles [ARIA-ROLE, Section 2.1]. Then use the features of this specification to ensure:
This requires the author to:
For example: If the user is required to fill in a form element, set the
aaa:required
property to "true" on that element.
The States and Properties module also defines ways to indicate certain relationships. For example: If container A contains search results, and container B contains the search controls, then mark each container as a region and set the aaa:controls property in region B to reference region A (by ID).
Sometimes the relationships can be made clear via facilities of the native markup language, such as the label tag in [HTML]. Relationships can also be implied via the [DOM]. For example, when a well marked-up list contains list items, it is known that they belong to the containing list. In such cases you do not need to set properties from this specification to make the relationship explicit.
This specification corrects keyboard focus gaps in XTML. For details on those changes see section 4.4.This section is normative.
This specification defines the States and Properties module for XHTML [XHTML]. It also defines a representative profile which extends the XHTML 1.1 - Full profile by adding this module.
All examples are informative. Examples in this document that use the
namespace prefix "aaa" all assume a valid XML namespace declaration
xmlns:aaa = "http://www.w3.org/2005/07/aaa"
in the document involved.
Section 3.1 below discusses examples of how the module may be integrated into language profiles. Section 3.2 below then defines the particulars of the module.
Language profiles wishing to use these states and properties must integrate the module in a way which makes this document the governing specification for the semantics of these language features. Appropriate methods of module integration include but are not limited to all methods as specified in XHTML Modularization [XHTMLMOD].
Appendix A.2 provides a driver DTD which integrates a new profile for XHTML which augments XHTML 1.1 Full with the capabilities in the new module introduced here.
Valid XHTML 1.1 documents that wish to use this profile must use the following DOCTYPE declaration:
<DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications//EN" "http://www.w3.org/2005/07/aaa/xhtml11-aaa.dtd">
Attributes for States and Properties should be used with prefix "aaa". For example:
<?xml version="1.0" encoding="UTF-8"?> <DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications//EN"> <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en"> <head> <title>DHTML Checkbox</title> </head> <body> <p>Here's a three state checkbox that you can click on.</p> <div class="checkboxtristate " role="checkboxtristate" id=" chbox1" aaa:required="true" aaa:readonly="true " aaa:random="sometext " onkeydown="return checkBoxEvent(event);" onclick="return checkBoxEvent(event);" > Sign me up for all the weekly rdf and xml newsletters :) </div> </body> </html>
You can change the default prefix by extending the DOCTYPE of your XHTML document.
The following code would define "state" as the prefix for the WAI-ARIA attributes.
<!DOCTYPE html PUBLIC "-//W3C//ELEMENTS DTD XHTML 1.1 For Accessible Adaptable Applications//EN" "http://www.w3.org/2005/07/aaa/xhtml11-aaa-base.dtd" [ <!ENTITY % aaa.prefixed "INCLUDE"> <!ENTITY % aaa.prefix "state"> ]>
tabindex
is not a state and has not been added to the http://www.w3.org/2005/07/aaa
namespace. However, to help the accessibility of accessible XHTML
applications, tabindex
has been added to the tags div, span, p, td, th and li
in the extended XHTML Doctype. The tabindex
change enables support of User Agent
Accessibility Guidelines ([UAAG]). tabindex
should not be used with a prefix.
tabindex
also supports the values of "0" and "-1." See section 4.4 for details.
Prefixes can sometimes be dropped when using XHTML 1.1 For Accessible Adaptable Applications. For example:
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE html PUBLIC "-//W3C//ELEMENTS DTD XHTML 1.1 For Accessible Adaptable Applications//EN" "http://www.w3.org/2005/07/aaa/xhtml11-aaa-base.dtd"> <html xmlns="http://www.w3.org/1999/xhtml " xml:lang="en "> <head> <title>DHTML Checkbox</title > </head> <body> <p >Here's a three state checkbox that you can click on.</p> <div class="checkboxtristate " role= "checkboxtristate" id="chbox1 " required="true" readonly="true " random="sometext " onkeydown="return checkBoxEvent(event);" onclick="return checkBoxEvent(event);"> Sign me up for weekly rdf newsletter :) </div> </body> </html>
However, this is not advisable because of namespace conflict. The ARIA States and Properties XHTML 1.1 module extends already existing attributes such as readonly. These attributes therefore require prefixing. We therefore recommend always using the default "aaa" prefix.
The list of conflicts are:
States and Properties can also be used with other XML languages using the following namespace :
xmlns:aaa="http://www.w3.org/2005/07/aaa"
The following example demonstrates using States and Properties with SVG [SVG]:
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11-flat-20030114.dtd"> <svg xmlns="http://www.w3.org/2000/svg " xmlns:aaa="http://www.w3.org/2005/07/aaa " width="100% " height="100% "> <desc> Example of using state-attributes from Accessible Adaptable Applications Namespace: </desc> <!-- an expanded group of rectangles --> <g aaa:expanded="true "> <!-- this rectangle is zoomed --> x="1cm " y="3cm " width="1cm " height="1cm " /> <rect x="3cm " y="3cm " width="1cm " height="1cm " /> </g> </svg>
There is no normative way to apply states and properties in HTML, but it is recommended to use the HTML implementation technique.
This section is informative.
This example shows a role being used to make a simple widget known to the user agent, so that the user agent can handle it correctly.
In this example a div has been used with scripts to act as a tristate checkbox. The ARIA State and Properties of checked has been set to true.
The XHTML role element gives the use agent information about the behavior of the widget. For more information on Roles see the Roles for Accessible Rich Internet Applications [ARIA_ROLE].
<span class="checkboxtristate" id="chbox1" role="wairole:checkboxtristate" aaa:checked="true" tabindex="0" onkeydown="return checkBoxEvent(event);" onkeyup="return checkBoxEvent(event);" > A checkbox label </span>
JavaScript can then manipulate the widget via the DOM. However, because States and Properties are mapped to the accessibility platforms, the assistive technology and user agents can understand the widget behavior and respond appropriately.
java script snippet : if ((event.type == "keyup" && event.button == 0){ // Toggle checkbox var checkbox = event.target; if (checkbox.getAttributeNS(" http://www.w3.org/2005/07/aaa ", "checked") == "true") { checkbox.removeAttributeNS(" http://www.w3.org/2005/07/aaa ", "checked"); } return false; // Don't continue propagating event} return true; // Browser can still use event }
Typically, States and Properties will work well with other supporting technologies, such as the Roles for Accessible Rich Internet Applications [ARIA_ROLE] and [XML events].
This section is normative.
The keywords "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in RFC 2119 [RFC2119].
States and Properties is not a stand-alone document type. It is intended to be integrated into other host languages such as XHTML. A conforming document is a document that requires only the facilities described as mandatory in this specification and the facilities described as mandatory in its host language. Such a document must meet all the following criteria:
The document must conform to the constraints expressed in Appendix A. DTD Implementation combined with the constraints expressed in its host language implementation.
Editorial Note: the public string of the DTD may need to be updated to match ARIA name, here and elsewhere it appears. We also need to look at what this would do to the aaa namespace, and whether it should have trailing slash (currently does because of link checker).
<html xmlns=" http://www.w3.org/1999/xhtml " xml:lang="en" xmlns:aaa=" http://www.w3.org/2005/07/aaa " >
When States and Properties are included in a host language, all of the facilities required in this specification must be included in the host language.
User agents that conform to States and Properties Module for Accessible Rich Internet Applications expose state information provided by the author to assistive technologies, and if they are assistive technologies themselves, use state information to enhance the presentation and interaction. Conformance requirements:
User agents MUST make all states and properties, and their values, provided by the author available in the DOM, using the attribute name, namespace, and values defined in this specification. This requirement parallels User Agent Accessibility Guidelines 1.0 Section 6.2: DOM access to HTML/XML content [UAAG, Section 6.2].
User agents SHOULD expose state and property information provided by the author to the platform accessibility API. Refer to Mapping States and Properties to Accessibility APIs for guidance about how to expose this information. This requirement parallels User Agent Accessibility Guidelines 1.0 Section 6.3: Programmatic Access to non-HTML/XML Content [UAAG, Section 6.3], except that it applies even to HTML and XML content.
Note: Not all platforms provide accessibility APIs, or provide interfaces that map to all the states and properties defined in this specification. User agents should expose those states and properties that are supported in order to support assistive technologies that work through the accessibility API. The remaining states and properties are available to assistive technologies via the DOM as per point 1 above, for those that provide explicit support for this specification.
Assistive technologies that conform to this specification MUST use state and property information to present content to and support interaction with users in a manner appropriate to that state or property. The manner in which this is done is specific to each user agent but should be appropriate to the specified description of the state or property. This requirements parallels User Agent Accessibility Guidelines 1.0 Section 6.5: Programmatic operation of user agent user interface and Section 6.6: Programmatic notification of changes [UAAG, Section 6.5 and 6.6] except that it applies to content, not just the user agent itself.
Note: This does not specify how assistive technology obtains state and property information. Assistive technologies may obtain state and property information directly from content, through the DOM, or through the platform accessibility API. In the latter case, only incomplete state and property information may be available. This point only requires that assistive technology use the states and properties that are actually available to it to support the user.
The States and Properties Module supports the following attributes:
This section contains states specific to user common interface elements found on GUI systems or in a Rich Internet Applications which receive user input and process user actions. These states are used to support the widget roles found in the ARIA Roles taxonomy. Widget states may be mapped by a user agent to platform accessibility API states, for access by an assistive technology, or they may be accessed directly from the [DOM]. Changes in states should result in a notification to an assistive technology either through DOM attribute change events or platform accessibility API events.
Value: | (true | false | mixed) |
---|---|
Related Concepts: | |
Applicability: | |
Descendant Roles: |
This state is used for 2-state or 3-state widgets such as checkboxes to indicate whether they are checked.
Values:
true | indicates that the current item is checked. |
---|---|
false | roles that support being checked but are not currently checked. |
mixed | indicates a mixed mode for a tri-state checkbox. This is only supported on checkboxtristate and menuitemcheckbox. |
Value: | (true | false ) |
---|---|
Related Concepts: | |
Applicability: | button |
Descendant Roles: |
Used for buttons that are toggleable to indicate their current pressed state.
Toggle buttons require a full pressed and released cycle to toggle their value. Activating it once changes the pressed state to "true", and activating it another time changes the pressed state back to "false". If the state is not present, the button is not a toggle button.
Values:
true | indicates that the button is depressed. |
---|---|
false | the button is not depressed. |
Value: | (true | false) |
---|---|
Related Concepts: | |
Applicability: | |
Descendant Roles: |
|
Indicates that the widget is present, but is not allowed for user actions. For example, irrelevant options in a radio group may be disabled.
Disabled elements often cannot have focus.
There should be a change of appearance to indicate that the item has been disabled (grayed out, etc.).
Values:
true | : |
---|---|
false |
Value: | (true | false) |
---|---|
Related Concepts: | [XForms] Readonly |
Applicability: | |
Descendant Roles: |
Indicates that the widget is not editable.
Unlike a disabled object, readonly objects are relevant to the user.
Examples include:
Values:
true | : |
---|---|
false |
Value: | (true | false) |
---|---|
Related Concepts: | |
Applicability: | |
Descendant Roles: |
Indicates that user may select more than one item from the current list.
Examples include: lists, trees, spreadsheets
Values:
true | : |
---|---|
false |
Value: | (true | false | undefined) |
---|---|
Related Concepts: | Tapered prompts in voice browsing. Switch in [SMIL] . |
Applicability: | |
Descendant Roles: |
Indicates whether an expandable/collapsible group of elements is currently expanded or collapsed.
Examples include: to expand or collapse a portion of the tree, or an "expanded" version such as acronyms, rollovers, diagram sections.
Values:
true | : |
---|---|
false | |
undefined |
Value: | (true | false | undefined) |
---|---|
Related Concepts: | |
Applicability: | |
Descendant Roles: |
Sets whether the user has selected an item or not.
For example, a role such as a radio button may support being selected, but that does not mean that at any one time it is checked.
Values:
true | a selectable element is actually selected. |
---|---|
false | the element is not selected. |
undefined | the element is not selectable. |
Value: | (true | false) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Indicates that user input is required on the control before a form may be submitted.
For example, if a user must fill in an address field, then required is set to true.
Note: the fact that the element is required is often visually presented (such as a sign or symbol after the control). Using the required attribute makes it much easier for user agents to pass on this important information to the user.
Values:
true | : |
---|---|
false |
Value: | CDATA |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Datatype defines the format type of an element.
Datatype should be a qname that refer to an XML Schema [XSD] defined type. For example, a datatype may be xsd:integer. The author may also reference their own custom datatypes as long as they are simple types. Clearly [XSD] base types are simpler for the user agent to understand.
Datatype applies to the content of an element, e.g., the value of an input element that the user could change. This can facilitate automatic validation of user input. Datatype also applies to the value of valuenow when provided. If no datatype is provided, the default value the user agent should assume is "xsd:string", which is a simple character string with no intrinsic format.
Values:
Val: | description |
---|
Value: | CDATA |
---|---|
Related Concepts: | [XForms] range, start |
Applicability: | |
Descendant Roles: |
The current value of a widget.
Used, for example, for a range control such as a slider or progress bar, and for a date.
If the value is not known (as often occurs with progress bars) then the valuenow attribute should not be set at all. If the valuenow attribute is absent, no information is implied about the current value.
An author has the option of specifying a datatype for valuenow to help an assistive
technology process the value in a meaningful way, such as providing a datatype="xsd:date"
. If the valuenow has a known maximum
and minimum, the author should provide properties for valuemax and valuemin.
Values:
Val: | description |
---|
Value: | CDATA |
---|---|
Related Concepts: | [XForms] range |
Applicability: | |
Descendant Roles: |
Maximum allowed value for a range type of widget.
A range control may start with a given value, which can be increased until a maximum value, defined by this property, is reached.
Declaring the valuemax will allow for alternate device to calibrate an arrow up effect, validate, or simply let the user know the size of the range on offer.
An author has the option of specifying a datatype for valuenow to help an assistive
technology process the value in a meaningful way, such as providing a datatype="xsd:date"
. If the valuenow has a known maximum and minimum, the
author should provide properties for valuemax and valuemin.
Values:
Val: | description |
---|
Value: | CDATA |
---|---|
Related Concepts: | [XForms] range |
Applicability: | |
Descendant Roles: |
Minimum allowed value for a range type of widget.
A range control may start with a given value, which can be decreased until a minimum value, defined by this property, is reached.
Declaring the valuemin allows for alternate device to calibrate an arrow up effect, validate, or simply let the user know the size of the range on offer.
An author has the option of specifying a datatype for valuenow to help an assistive
technology process the value in a meaningful way, such as providing a datatype="xsd:date"
. If the valuenow has a known maximum and minimum, the
author should provide properties for valuemax and valuemin.
Values:
Val: | description |
---|
Value: | (true | false) |
---|---|
Related Concepts: | [XForms] 'invalid' event http://www.w3.org/TR/2006/REC-xforms-20060314/slice4.html#evt-revalidateNote: This state is true if a form field is required but empty. However, [XForms]'s valid property would be set to false. |
Applicability: | All elements of the base markup |
Descendant Roles: |
Indicates that the element's value is currently invalid, which discourages the form from being submitted.
If the state is computed to be invalid, out-of-range, or required this value should be set as true.
Values:
true | Todo: |
---|---|
false |
Value: | ( true | false ) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Indicates that element may launch a pop-up window such as a context menu or submenu.
This is a special case of
owns
where activation renders conditional
content. Note that tooltips are not considered popups in this context.
Values:
true | indicates it has a popup menu, either as a descendant or pointed to by
owns
|
---|---|
false | (default) has no popup |
Value: | Number |
---|---|
Related Concepts: | |
Applicability: | treeitem |
Descendant Roles: |
Level is the hierarchical level of an element within a structure. This can be applied inside trees to tree items, or to headings inside a document. Levels must be >= 1.
Values:
Val: | description |
---|
This section contains properties specific to live regions in your rich internet application. These properties may be applied to any element. The purpose of these properties is to indicate that changes to this section may occur without it having focus and to provide the assistive technology information on how to process live updates in this section of the page. If possible, it is best that the live property be assigned to sections of the document with a pre-defined specific role such as the standard XHTML role landmarks or custom regions such as log.
Value: | (off | polite | assertive | rude) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Describes the types of updates the user agent, assistive technology, and user can expect from an alert or live region of Web content.
It is essential to describe the types of updates the user agent and user can expect from a live region of Web content.
Examples include:
An example of assertive content is a site notifying its users that its connection is going down in 5 minutes.
Values:
off | (Default) The region is not currently live. |
---|---|
polite | (Background change) This is normal operation and the default behavior for live regions. It is not necessary to respond until user completes their current activity. |
assertive | This information has a higher priority than normal but does not necessarily interrupt immediately. |
rude | This information has the highest priority and should typically result in an interrupt to the user. This may disorientate users causing them not to continue in their current task. |
Value: | (true | false) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Atomic is an optional property of live regions. When the region is updated, the atomic property is used to indicate if the assistive technology should present all or part of the changed region to the user.
Both accessibility APIs and the Document Object Model [DOM] provide events to allow the assistive technology to determine changes areas of the document.
When a node changes, the AT should look at the current element and then traverse the ancestors to find the first element with aaa:atomic set.
The AT may choose to combine several changes and present the entire changed region at once.
Values:
true | the assistive technology should present the entire region as a whole. |
---|---|
false | (default), a change within the region may be processed by the assistive technology on its own |
Value: | (additions | removals | text | all) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Indicates the relevant areas of change within a live region.
The property is represented as space delimited list of the following values: additions, removals, text, all.
Relevant is an optional property of live regions within a document. Relevant is unrestrictive as to how an assistive technology processes attributes. When the relevant property is not provided, the default is to assume there are text changes and additions.
Both accessibility APIs and the Document Object Model [DOM] provide events to allow the assistive technology to determine changes areas of the document.
Value: | ( true | false | error ) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Indicates whether a live region is finished updating.
The default is that busy is false. For example, if authors know that multiple parts of the same live region need to be loaded, they can set busy to true when the first part is loaded and then set busy to false when the last part is loaded.
Values:
true | The live region is still being updated |
---|---|
false | (default) There are no more expected updates for that live region |
error | An error has occurred and the live region may not have received all the updates that it should have |
This section defines properties which must be applied by an author to indicate the state of objects which may be “grabbed” for a drag operation as well as the state of drop targets once a drag operation has been started. This information is designed to facilitate a drag and drop operation by identify “draggable” objects and drop target. This information by rendered visually or provided to the user by an assistive technology through and alternative modality.
Value: | ( true | supported | false ) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
This property is set to show an object's state in drag and drop.
When it is set to "grab" it has been selected for dragging, supported indicates that the object is grabable, but is not currently grabbed, false indicates the object is is not grabable (default). When set to drop the drag over IDREF is the IDREF of final target element. This is an event after which the application needs to act out the drop effect by adjusting the DOM and/or states and properties settings, so that now the new relationships, ownerships and elements are represented in the mark-up.
Values:
true | Indicates that the document element has been "grabbed" for dragging.: |
---|---|
supported | Indicates that the document element supports being dragged. |
false | (default) Indicates that the document element does not support being dragged. |
Value: | ( copy | move | reference | none ) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
This property is set for the target of a drag and drop operation to show the effect when the dragged object is released.
Also, providing a property allows authors to provide a visual indication of the drag source to the user during drag operations with a style sheet. Alternatively, if only one type of operation is supported, it can be set at page load.
Values:
copy | A duplicate of the source object will be dropped into the target. |
---|---|
move | The source object will be removed from its original location and dropped into the target. |
reference | A reference or short cut to the dragged object will be created in the target object. |
none | (default) No operation can be performed; effectively cancels the drag operation if an attempt is made to drop on this object |
This section defines properties are used to help the user agent and assistive technology process user focus.
Value: | integer |
---|---|
Related Concepts: | [SVG]: focus |
Applicability: | All elements of the base markup |
Descendant Roles: |
Indicates tab order of elements. Elements with negative values are able to receive focus but are not included in the basic tabbing navigation list or cycle.
Elements of types div, span, p, td, th and li for which no TABINDEX value is given likewise do not participate in the 'tabbing' navigation list.
Elements with disabled="true" do not participate in the tabbing navigation list.
Elements bearing positive values of TABINDEX are navigated as in the [HTML] 4.01 Specification, to whit:
Those elements that support the tabindex attribute and assign a positive value to it are navigated first. Navigation proceeds from the element with the lowest tabindex value to the element with the highest value. Values need not be sequential nor must they begin with any particular value. Elements that have identical tabindex values should be navigated in the order they appear in the character stream.
Elements of types div, span, p, td, th and li bearing a zero value of TABINDEX, together with elements of types A, AREA, BUTTON, INPUT, OBJECT, SELECT, TEXTAREA bearing a zero value or no value of TABINDEX, are navigated next, as in [HTML] 4.01:
These elements are navigated in the order they appear in the character stream.
(Note: The applicability of this attribute has been extended to the div, span, p, td, th and li elements, within the XHTML namespace. It should not be used with a prefix referring to the [aaa namespace].)
Values:
Val: | description |
---|
Value: | IDREF |
---|---|
Related Concepts: | [SVG] [DOM] active |
Applicability: | |
Descendant Roles: |
An element which has focus may specify its current active child. This is used when a element is responsible for managing its current active child to reduce the overhead of having all children be focusable.
Examples include: multi-level lists, trees, spreadsheets.
Values:
Val: | description |
---|
This section defines relationships or associations between elements which cannot be readily determined from the document structure.
Value: | IDREFS |
---|---|
Related Concepts: | A related concept is label in [XForms] and [HTML]. |
Applicability: | All elements of the base markup |
Descendant Roles: |
Points to the element which labels the current element.
The label should provide the user with the essence of the what the object does whereas describedby provides additional information which some users might need.
Values:
Val: | description |
---|
Value: | IDREFS |
---|---|
Related Concepts: | Related concepts: [HTML] label element, and [HTML] table cell headers are de facto describedby values. |
Applicability: | All elements of the base markup |
Descendant Roles: |
Points to an element which describes the widget.
(A label should provide the user with the essence of the what the object does whereas describedby is intended to provide additional information which some users might need. )
Values:
Val: | description |
---|
Value: | IDREF |
---|---|
Related Concepts: | [XHTML] 2.0 :nextfocus[XHTML] 2.0 :prevfocus |
Applicability: | All elements of the base markup |
Descendant Roles: |
Establishes the recommended reading order of content, overriding the general default to read in document order. The IDREF refers to the next object that should be read.
Values:
Val: | description |
---|
Value: | IDREFS |
---|---|
Related Concepts: | [XML events] objecthyperlink target in [HTML][XML events] |
Applicability: | All elements of the base markup |
Descendant Roles: |
Defines the elements that are controlled by the current element.
Values:
Val: | description |
---|
This section defines miscellaneous accessibility properties in a rich internet application which do not fall under a specific category.
Value: | Number |
---|---|
Related Concepts: | |
Applicability: | |
Descendant Roles: |
Indicates an item's number or position within the current level of a tree or list.
For example, if this element is the third item in a group then posinset is equal to three (integer: 1<=posinset<=n.)
Values:
Val: | description |
---|
Value: | Number |
---|---|
Related Concepts: | |
Applicability: | |
Descendant Roles: |
The setsize property refers to the number of items in the current level of a list or tree.
For example, if this element is in a group of six items at the same level then setsize is equal to six. Setsize must be >= 1.
Editorial Note: it is currently under discussion whether this should apply to container or leaf nodes.
Values:
Val: | description |
---|
Value: | ( ascending | descending) |
---|---|
Related Concepts: | |
Applicability: | |
Descendant Roles: |
The sort property is used to indicate if items in a table or grid are sorted in ascending or descending order. Should be applied only to table or grid headers.
Values:
ascending | items are sorted in ascending order |
---|---|
descending | items are sorted in descending order |
Value: | ( true | false ) |
---|---|
Related Concepts: | |
Applicability: | All elements of the base markup |
Descendant Roles: |
Defines whether or not the object is visible to the user.
For example, if a menu is only visible after some user action, this property would be set to true until the user performs the necessary action at which time this property would then be set to false.
It is recommended that authors key visibility of objects off this attribute, rather than change visibility and separately have to remember to update this property. CSS 2 provides a way to select on attribute values [CSS, Section 5.8.1]. The following pair of CSS declarations make content visible unless the hidden property is true; scripts need only update the value of this property to change visibility:
*{visibility: visible;} *[waistate:hidden=true] {visibility: hidden;}
Values:
true | Indicates that this section of the document and its children are hidden from the rendered view. |
---|---|
false | (default) Indicates that this section of the document is rendered. |
For reference purposes, here is an alphabetical list of states and properties defined in this specification.
State | Definition |
---|---|
activedescendent | An element which has focus may specify its current active child. This is used when a element is responsible for managing its current active child to reduce the overhead of having all children be focusable. |
atomic | Atomic is an optional property of live regions. When the region is updated, the atomic property is used to indicate if the assistive technology should present all or part of the changed region to the user. |
busy | Indicates whether a live region is finished updating. |
checked | This state is used for 2-state or 3-state widgets such as checkboxes to indicate whether they are checked. |
controls | Defines the elements that are controlled by the current element. |
datatype | Datatype defines the format type of an element. |
describedby | Points to an element which describes the widget. |
disabled | Indicates that the widget is present, but is not allowed for user actions. For example, irrelevant options in a radio group may be disabled. |
dropeffect | This property is set for the target of a drag and drop operation to show the effect when the dragged object is released. |
expanded | Indicates whether an expandable/collapsible group of elements is currently expanded or collapsed. |
flowto | Establishes the recommended reading order of content, overriding the general default to read in document order. The IDREF refers to the next object that should be read. |
grab | This property is set to show an object's state in drag and drop. |
haspopup | Indicates that element may launch a pop-up window such as a context menu or submenu. |
hidden | Defines whether or not the object is visible to the user. |
invalid | Indicates that the element's value is currently invalid, which discourages the form from being submitted. |
labelledby | Points to the element which labels the current element. |
level | Level is the hierarchical level of an element within a structure. This can be applied inside trees to tree items, or to headings inside a document. Levels must be >= 1. |
live | Describes the types of updates the user agent, assistive technology, and user can expect from an alert or live region of Web content. |
multiselectable | Indicates that user may select more than one item from the current list. |
owns | Defines an object as a parent of another document element, when the child does not appear directly in the subtree of the owner. |
posinset | Indicates an item's number or position within the current level of a tree or list. |
pressed | Used for buttons that are toggleable to indicate their current pressed state. |
readonly | Indicates that the widget is not editable. |
relevant | Indicates the relevant areas of change within a live region. |
required | Indicates that user input is required on the control before a form may be submitted. |
selected | Sets whether the user has selected an item or not. |
setsize | The setsize property refers to the number of items in the current level of a list or tree. |
sort | The sort property is used to indicate if items in a table or grid are sorted in ascending or descending order. Should be applied only to table or grid headers. |
tabindex | Indicates tab order of elements. Elements with negative values are able to receive focus but are not included in the basic tabbing navigation list or cycle. |
valuemax | Maximum allowed value for a range type of widget. |
valuemin | Minimum allowed value for a range type of widget. |
valuenow | The current value of a widget. |
This section is normative.
Note that this module defines the parameter entity
aaa.attrs.qname;
. This entity is intended to be used in the
attribute lists of elements in any host language that permits the use of AAA
attributes on elements in its own namespace. In this case the Host Language
driver should set a parameter entity %aaa.prefixed;
to
INCLUDE.
The default prefix to be used is aaa:.
<!-- ...................................................................... --> <!-- aaa-qname Module ................................................... --> <!-- file: aaa-qname.mod PUBLIC "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications Namespace//EN" SYSTEM "http://www.w3.org/2005/07/aaa/aaa-qname.mod"> xmlns:aaa="http://www.w3.org/2005/07/aaa " ...................................................................... --> <!ENTITY % XHTML.version "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications Namespace//EN" > <!-- 1. Namespace declarations ::::::::::::::::::::::::::::: --> <!ENTITY % NS.prefixed "IGNORE" > <!ENTITY % aaa.prefixed "%NS.prefixed;" > <!-- Declare the actual namespace of this module --> <!ENTITY % aaa.xmlns "http://www.w3.org/2005/07/aaa" > <!ENTITY % aaa.prefix "aaa" > <![%aaa.prefixed;[ <!ENTITY % aaa.xmlns.extra.attrib "" > ]]> <!ENTITY % aaa.xmlns.extra.attrib "" > <![%aaa.prefixed;[ <!ENTITY % aaa.pfx "%aaa.prefix;:" > <!ENTITY % aaa.xmlns.attrib "xmlns:%aaa.prefix; CDATA #FIXED '%aaa.xmlns;' %aaa.xmlns.extra.attrib;" > ]]> <!ENTITY % aaa.pfx "" > <!ENTITY % aaa.xmlns.attrib "xmlns CDATA #FIXED '%aaa.xmlns;' %aaa.xmlns.extra.attrib;" > <![%NS.prefixed;[ <!ENTITY % XHTML.xmlns.extra.attrib "%aaa.xmlns.attrib;" > ]]> <!-- 2. XML Qualified Names for AAA ::::::::::::::::::::::::::::: --> <!-- This section declares parameter entities used to provide namespace-qualified names for all element types. --> <!ENTITY % xhtml-datatypes.mod PUBLIC "-//W3C//ENTITIES XHTML Datatypes 1.0//EN" "http://www.w3.org/TR/xhtml-modularization/DTD/xhtml-datatypes-1.mod" > %xhtml-datatypes.mod; <!-- core attributes to add to all elements; --> <!-- states --> <!ENTITY % aaa.busy.qname "%aaa.pfx;busy"> <!ENTITY % aaa.checked.qname "%aaa.pfx;checked"> <!ENTITY % aaa.disabled.qname "%aaa.pfx;disabled"> <!ENTITY % aaa.expanded.qname "%aaa.pfx;expanded"> <!ENTITY % aaa.grab.qname "%aaa.pfx;grab"> <!ENTITY % aaa.hidden.qname "%aaa.pfx;hidden"> <!ENTITY % aaa.invalid.qname "%aaa.pfx;invalid"> <!ENTITY % aaa.pressed.qname "%aaa.pfx;pressed"> <!ENTITY % aaa.selected.qname "%aaa.pfx;selected"> <!-- properties --> <!ENTITY % aaa.activedescendent.qname "%aaa.pfx;activedescendent"> <!ENTITY % aaa.atomic.qname "%aaa.pfx;atomic"> <!ENTITY % aaa.controls.qname "%aaa.pfx;controls"> <!ENTITY % aaa.datatype.qname "%aaa.pfx;datatype"> <!ENTITY % aaa.describedby.qname "%aaa.pfx;describedby"> <!ENTITY % aaa.dropeffect.qname "%aaa.pfx;dropeffect"> <!ENTITY % aaa.flowto.qname "%aaa.pfx;flowto"> <!ENTITY % aaa.haspopup.qname "%aaa.pfx;haspopup"> <!ENTITY % aaa.labelledby.qname "%aaa.pfx;labelledby"> <!ENTITY % aaa.level.qname "%aaa.pfx;level"> <!ENTITY % aaa.live.qname "%aaa.pfx;live"> <!ENTITY % aaa.multiselectable.qname "%aaa.pfx;multiselectable"> <!ENTITY % aaa.owns.qname "%aaa.pfx;owns"> <!ENTITY % aaa.posinset.qname "%aaa.pfx;posinset"> <!ENTITY % aaa.readonly.qname "%aaa.pfx;readonly"> <!ENTITY % aaa.relevant.qname "%aaa.pfx;relevant"> <!ENTITY % aaa.required.qname "%aaa.pfx;required"> <!ENTITY % aaa.setsize.qname "%aaa.pfx;setsize"> <!ENTITY % aaa.sort.qname "%aaa.pfx;sort"> <!ENTITY % aaa.valuemax.qname "%aaa.pfx;valuemax"> <!ENTITY % aaa.valuemin.qname "%aaa.pfx;valuemin"> <!ENTITY % aaa.valuenow.qname "%aaa.pfx;valuenow"> <!-- tabindex --> <!ENTITY % aaa.tabindex.qname "tabindex"> <!-- The following defines a PE for use in the attribute sets of elements in other namespaces that want to incorporate the XML Role attributes. Note that in this case the XML-ROLES.pfx should always be defined. --> <!ENTITY % aaa.states.qname " %aaa.busy.qname; ( true | false | error ) 'false' %aaa.checked.qname; (true | false | mixed) #IMPLIED %aaa.disabled.qname; (true | false) #IMPLIED %aaa.expanded.qname; (true | false | undefined) #IMPLIED %aaa.grab.qname; ( true | supported | false ) 'false' %aaa.hidden.qname; ( true | false ) 'false' %aaa.invalid.qname; (true | false) #IMPLIED %aaa.pressed.qname; (true | false ) #IMPLIED %aaa.selected.qname; (true | false | undefined) #IMPLIED "> <!ENTITY % aaa.props.qname " %aaa.activedescendent.qname; IDREF #IMPLIED %aaa.atomic.qname; (true | false) 'false' %aaa.controls.qname; IDREFS #IMPLIED %aaa.datatype.qname; CDATA #IMPLIED %aaa.describedby.qname; IDREFS #IMPLIED %aaa.dropeffect.qname; ( copy | move | reference | none ) 'none' %aaa.flowto.qname; IDREF #IMPLIED %aaa.haspopup.qname; ( true | false ) 'false' %aaa.labelledby.qname; IDREFS #IMPLIED %aaa.level.qname; %Number.datatype; #IMPLIED %aaa.live.qname; (off | polite | assertive | rude) 'off' %aaa.multiselectable.qname; (true | false) #IMPLIED %aaa.owns.qname; IDREFS #IMPLIED %aaa.posinset.qname; %Number.datatype; #IMPLIED %aaa.readonly.qname; (true | false) #IMPLIED %aaa.relevant.qname; (additions | removals | text | all) #IMPLIED %aaa.required.qname; (true | false) #IMPLIED %aaa.setsize.qname; %Number.datatype; #IMPLIED %aaa.sort.qname; (ascending | descending) #IMPLIED %aaa.valuemax.qname; CDATA #IMPLIED %aaa.valuemin.qname; CDATA #IMPLIED %aaa.valuenow.qname; CDATA #IMPLIED "> <!ENTITY % aaa.extra.attrs.qname "%aaa.tabindex.qname; %Number.datatype; #IMPLIED" > <!ENTITY % aaa.attrs.qname "%aaa.states.qname; %aaa.props.qname; %aaa.extra.attrs.qname;" > <!ENTITY % aaa-qname.module "IGNORE" > <!-- End aaa-qname Module ................................................... -->
This DTD extends XHTML 1.1 and adds the States and Property attributes to all its elements.
The attribute tabindex
is added to elements p
,
div
, span
, th
, td
and
li
<!-- ELEMENTS DTD XHTML 1.1 For Accessible Adaptable Applications --> <!-- File: xhtml11-aaa-base.dtd Copyright (c) 2005, Unbounded Access, All Rights Reserved. This DTD module is identified by the PUBLIC and SYSTEM identifiers: PUBLIC "-//W3C//ELEMENTS DTD XHTML 1.1 For Accessible Adaptable Applications//EN" SYSTEM "http://www.w3.org/2005/07/aaa/xhtml11-aaa-base.dtd" xmlns:aaa="http://www.w3.org/2005/07/aaa" The DOCTYPE declaration that should be used is as follows; <!DOCTYPE html PUBLIC "-//W3C//ELEMENTS DTD XHTML 1.1 For Accessible Adaptable Applications//EN" "http://www.w3.org/2005/07/aaa/xhtml11-aaa-base.dtd"> ...................................................................... --> <!ENTITY % XHTML.version "-//W3C//ELEMENTS DTD XHTML 1.1 For Accessible Adaptable Applications//EN" > <!ENTITY % aaa-qname.mod PUBLIC "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications Namespace//EN" "http://www.w3.org/2005/07/aaa/aaa-qname.mod" > %aaa-qname.mod; <!-- add AAA attribute set to all XHTML elements --> <!ENTITY % Common.extra.attrib "%aaa.attrs.qname;" > <!ENTITY % xhtml11.mod PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd" > %xhtml11.mod; <!-- add tabindex to text containers --> <!ATTLIST %div.qname; %aaa.extra.attrs.qname; > <!ATTLIST %span.qname; %aaa.extra.attrs.qname; > <!ATTLIST %p.qname; %aaa.extra.attrs.qname; > <!ATTLIST %th.qname; %aaa.extra.attrs.qname; > <!ATTLIST %td.qname; %aaa.extra.attrs.qname; > <!ATTLIST %li.qname; %aaa.extra.attrs.qname; > <!ENTITY % aaa.prefixed "INCLUDE"> <!-- End xhtml11-aaa-base.dtd -->
This DTD requires the use of the "aaa" prefix.
<!-- DTD XHTML 1.1 For Accessible Adaptable Applications --> <!-- File: xhtml11-aaa.dtd Copyright (c) 2005, Unbounded Access, All Rights Reserved. This DTD module is identified by the PUBLIC and SYSTEM identifiers: PUBLIC "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications//EN" SYSTEM "http://www.w3.org/2005/07/aaa/xhtml11-aaa.dtd" xmlns:aaa="http://www.w3.org/2005/07/aaa" The DOCTYPE declaration that should be used is as follows; <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications//EN" "http://www.w3.org/2005/07/aaa/xhtml11-aaa.dtd"> ...................................................................... --> <!ENTITY % XHTML.version "-//W3C//DTD XHTML 1.1 For Accessible Adaptable Applications//EN" > <!-- Enable prefixing --> <!ENTITY % aaa.prefixed "INCLUDE"> <!ENTITY % xhtml11-aaa.mod PUBLIC "-//W3C//ELEMENTS DTD XHTML 1.1 For Accessible Adaptable Applications//EN" "http://www.w3.org/2005/07/aaa/xhtml11-aaa-base.dtd" > %xhtml11-aaa.mod; <!-- End xhtml11-aaa.dtd -->
This section is informative.
Managed states are state attributes managed and controlled by the user agent. Often these states have corresponding CSS pseudo classes to reflect necessary style changes. The states in this specification are typically controlled by the author and are not managed (unmanaged) states.
Accessibility APIs typically map to both managed and unmanaged states. An example of a managed state would be element focus and hover.
Note: Invalid is a managed state in [XForms]. However in most other languages (such as [HTML] forms) it is not managed.
This section is informative.
Mapped properties (Please note: This is a common subset of all mapping options)
States and Properties module | User Agent mapping via MSAA | User Agent mapping via ATK |
---|---|---|
disabled | MSAA:STATE_SYSTEM_UNAVAILABLE | ATK:ATK_STATE_DISABLED |
checked | MSAA: STATE_SYSTEM_CHECKED | ATK: ATK_STATE_CHECKED |
expanded | If the hidden property is set to true
: MSAA:STATE_SYSTEM_COLLAPSED
If the hidden property is set to false: MSAA:STATE_SYSTEM_EXPANDED |
If the hidden property is set to true
: ATK: ATK_STATE_EXPANDABLE
If the hidden property is set to false: ATK:ATK_STATE_EXPANDED |
haspopup | This state should be mapped to true on
Windows systems when an event handler has a role of pop-up menu.
MSAA: haspopup |
ATK: not necessary in ATK because it has multiple actions with description |
invalid | MSAA: no mapping
In the case of MSAA the user agent should provide a specialized API to return its value. Alternatively, if the user agent provides a specialized API for [XForms] it may provide invalid(), outOfRange(), or empty() (returns true when required but not available). This information is computed from the instance data associated with the form element. |
ATK:ATK_STATE_INVALID |
multiselectable | MSAA:STATE_SYSTEM_EXTSELECTABLE | ATK:ATK_STATE_MULTISELECTABLE |
pressed | MSAA: STATE_SYSTEM_PRESSED is true when checked. | ATK: ATK_STATE_PRESSED is true when checked |
readonly | MSAA:STATE_SYSTEM_READONLY | ATK:ATK_STATE_READONLY=inverse of readonly |
required | MSAA: There is no mapping.
User agent must make available through the [DOM] or a specialized API. Note: While optional could be combined with required this is kept to be consistent with CSS3 pseudo classes and [XForms]. |
ATK: There is no mapping. |
selected | MSAA:STATE_SYSTEM_SELECTED | ATK:ATK_STATE_SELECTED |
unknown | MSAA:mixed | ATK:indeterminate |
value | MSAA: should return the value for getValue(). | ATK: should return this as part of the AccessibleValue structure. |
(As yet) unmapped properties are:
This section is informative.
The following contributed to the development of this document.
Special thanks to Aaron Leventhal for effort and insight as he implemented a working prototype of accessibility API bindings.
Christian Cohrs, Becky Gibson, Barbara Hartel, Jael Kurz, Vitaly Sourikov.
This publication has been funded in part with Federal funds from the U.S. Department of Education under contract number ED05CO0039. The content of this publication does not necessarily reflect the views or policies of the U.S. Department of Education, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government.
