This document describes a formal model and a common representation for a Web of Things (WoT) Thing Description 1.1. A Thing Description describes the metadata and interfaces of Things, where a Thing is an abstraction of a physical or virtual entity that provides interactions to and participates in the Web of Things. Thing Descriptions provide a set of interactions based on a small vocabulary that makes it possible both to integrate diverse devices and to allow diverse applications to interoperate. Thing Descriptions, by default, are encoded in a JSON format that also allows JSON-LD processing. The latter provides a powerful foundation to represent knowledge about Things in a machine-understandable way. A Thing Description instance can be hosted by the Thing itself or hosted externally when a Thing has resource restrictions (e.g., limited memory space) or when a Web of Things-compatible legacy device is retrofitted with a Thing Description. Furthermore, this document introduces the Thing Model, which allows to describe only the model or class of an IoT entity. Thing Models can be seen as a template for Thing Description instances, but with reduced constraints such as no or few requirements for specific communication metadata.
This specification describes a superset of the features defined in Thing Description 1.0 [WOT-THING-DESCRIPTION]. Unless otherwise specified, documents created with version 1.0 of this specification remain compatible with Thing Description 1.1.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
This document was published by the Web of Things Working Group as an Editor's Draft.
GitHub Issues are preferred for discussion of this specification. Alternatively, you can send comments to our mailing list. Please send them to public-wot-wg@w3.org (subscribe, archives).
Publication as a Working Draft does not imply endorsement by the W3C Membership.
This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 1 August 2017 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 15 September 2020 W3C Process Document.
This section is non-normative.
The WoT Thing Description (TD) is a central building block in the W3C Web of Things (WoT) and can be considered as the entry point of a Thing (much like the index.html of a Web site). A TD instance has four main components: textual metadata about the Thing itself, a set of Interaction Affordances that indicate how the Thing can be used, schemas for the data exchanged with the Thing for machine-understandability, and, finally, Web links to express any formal or informal relation to other Things or documents on the Web.
The Interaction Model of
W3C WoT
defines three types of Interaction
Affordances: Properties (PropertyAffordance
class) can be used for sensing and controlling parameters,
such as getting the current value or setting an operation
state. Actions (ActionAffordance
class)
model invocation of physical (and hence time-consuming)
processes, but can also be used to abstract RPC-like calls of
existing platforms. Events (EventAffordance
class)
are used for the push model of communication where
notifications, discrete events, or streams of values are sent
asynchronously to the receiver. See [WOT-ARCHITECTURE]
for details.
In general, the TD provides metadata for different
Protocol Bindings
identified by URI schemes [RFC3986]
(e.g., http
, coap
, etc.
[IANA-URI-SCHEMES]),
content types based on media types [RFC2046]
(e.g., application/json
,
application/xml
, application/cbor
,
application/exi
, etc. [IANA-MEDIA-TYPES]), and security
mechanisms (for authentication, authorization,
confidentiality, etc.). Serialization of TD instances is
based on JSON [RFC8259],
where JSON names refer to terms of the TD vocabulary, as
defined in this specification document. In addition the JSON
serialization of TDs follows the syntax of JSON-LD 1.1
[JSON-LD11] to
enable extensions and rich semantic processing.
Example 1 shows a TD instance and illustrates the Interaction Model with Properties, Actions, and Events by describing a lamp Thing with the title MyLampThing.
From this TD example, we know there exists one Property affordance with the title
status. In addition, information is provided to
indicate that this Property is accessible via (the secure
form of) the HTTP protocol with a GET method at the URI
https://mylamp.example.com/status
(announced
within the forms
structure by the
href
member), and will return a string-based
status value. The use of the GET method is not stated
explicitly, but is one of the default assumptions defined by
this document.
In a similar manner, an Action
affordance is specified to toggle the switch status using
the POST method on the
https://mylamp.example.com/toggle
resource,
where POST is again a default assumption for invoking
Actions.
The Event affordance
enables a mechanism for asynchronous messages to be sent by a
Thing. Here, a subscription to
be notified upon a possible overheating event of the lamp can
be obtained by using HTTP with its long polling subprotocol
on https://mylamp.example.com/oh
.
This example also specifies the basic
security scheme, requiring a username and password for
access. Note that a security scheme is first given a name in
securityDefinitions
and then activated by
specifying that name in a security
section. In
combination with the use of the HTTP protocol this example
demonstrates the use of HTTP Basic Authentication.
Specification of at least one security scheme at the top
level is mandatory, and gives the default access requirements
for every resource. However, security schemes can also be
specified per-form, with configurations given at the form
level overriding configurations given at the
Thing
level, allowing for the specification of
fine-grained access control. It is also possible to use a
special nosec
security scheme to indicate that
no access control mechanisms are used. Additional examples
will be provided later.
The Thing Description offers the possibility to add
contextual definitions in some namespace. This mechanism can
be used to integrate additional semantics to the content of
the Thing Description instance, provided that formal
knowledge, e.g., logic rules for a specific domain of
application, can be found under the given namespace.
Contextual information can also help specify some
configurations and behavior of the underlying communication
protocols declared in the forms
field. Example 2 extends
the TD sample from Example 1 by introducing a second
definition in the @context
to declare the prefix
saref
as referring to SAREF, the Smart Appliance
Reference Ontology [SMARTM2M].
This IoT ontology includes terms interpreted as semantic
labels that can be set as values of the @type
field, giving the semantics of Things and their Interaction
Affordances. In the example below, the Thing is labelled with
saref:LightSwitch
, the status
Property is labelled
with saref:OnOffState
and the
toggle
Action
with saref:ToggleCommand
.
The declaration mechanism inside some
@context
is specified by JSON-LD. A TD instance
complies to version 1.1 of that specification
[json-ld11].
Hence, a TD instance can be also processed as an RDF document
(for details about semantic processing, please refer to
Appendix § C. JSON-LD Context
Usage and the documentation under the namespace IRIs,
e.g., https://www.w3.org/2019/wot/td).
One of the main intentions of a Thing Description is to provide a Consumer with all the details necessary to successfully interact with a Thing. In some IoT application scenarios, a fully detailed Thing Description, e.g., with communication metadata is not necessary (e.g., IoT ecosystems may implicitly handle communication separately), or may not be available because a new entity has not yet been deployed (e.g., IP address is not yet known). Sometimes, also a kind of class definition is required that forces capability definitions that should be available for all created instances (e.g., large-scale production of new devices).

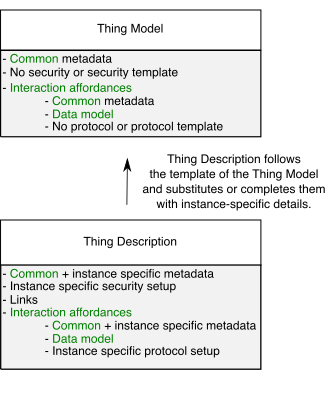

In order to address the above-mentioned scenarios or others, the Thing Model can be used that mainly provides the data model definitions within Things' Properties, Actions, and/or Events and can be potentially used as template for creating Thing Description instances. In the following a sample Thing Model is presented that can be seen as a model for the Thing Description instance in Example 1.
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"title": "Lamp Thing Model",
"properties": {
"status": {
"description": "current status of the lamp (on|off)",
"type": "string",
"readOnly": true
}
},
"actions": {
"toggle": {
"description": "Turn the lamp on or off"
}
},
"events": {
"overheating": {
"description": "Lamp reaches a critical temperature (overheating)",
"data": {"type": "string"}
}
}
}
Thing
Model definitions are identified by the "@type":
"tm:ThingModel"
. As the example shows, it does not
provide details about a single Thing instance due to the lack of
communication and security metadata. This specification
presents a mechanism for deriving valid Thing
Description instances from such Thing Model definitions.
In addition, other design concepts are specified, including
how to override, extend, and reuse existing Thing Model
definitions.
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words MAY, MUST, MUST NOT, RECOMMENDED, SHOULD, and SHOULD NOT in this document are to be interpreted as described in BCP 14 [RFC2119] [RFC8174] when, and only when, they appear in all capitals, as shown here.
A Thing Description instance complies with this specification if it follows the normative statements in § 5. TD Information Model and § 6. TD Representation Format regarding Thing Description serialization.
A JSON Schema [JSON-SCHEMA] to validate Thing Description instances is provided in Appendix § B. JSON Schema for TD Instance Validation.
This section is non-normative.
The fundamental WoT terminology such as Thing, Consumer, Thing Description (TD), Partial TD, Thing Model (TM), Interaction Model, Interaction Affordance, Property, Action, Event, Protocol Binding, Servient, Vocabulary, Term, Vocabulary Term, WoT Interface, and WoT Runtime are defined in Section 3 of the WoT Architecture specification [WOT-ARCHITECTURE].
In addition, this specification introduces the following definitions:
Thing
class. For that purpose, a TD Processor
may compute forms of Thing Descriptions
in which all possible Default Values are
assigned. A TD
Processor is typically a sub-system of a WoT Runtime.
Implementations of a TD Processor may be a TD producer only
(able to serialize to TD Documents) or a TD consumer only
(able to deserialize from TD Documents).
These definitions are further developed in § 5.2 Preliminaries.
The following introduced namespaces for Thing Description 1.1 are placeholders for the time the specification has the Draft status. Final namespaces are introduced at the time of the Candidate Recommendation status.
The version of the TD Information Model defined in § 5. TD Information Model of this specification is identified by the following IRI:
https://www.w3.org/ns/td
This IRI [RFC3987], which is also a URI [RFC3986], can be dereferenced to obtain a JSON-LD context file [json-ld11], allowing the compact strings in TD Documents to be expanded to full IRI-based Vocabulary Terms. However, this processing is only required when transforming JSON-based TD Documents to RDF, an optional feature of TD Processor implementations.
In the present specification, Vocabulary Terms are always presented in their compact form. Their expanded form can be accessed under the namespace IRI of the Vocabulary they belong to. These namespaces follow the structure of § 5.3 Class Definitions. Each Vocabulary used in the TD Information Model has its own namespace IRI, as follows:
Vocabulary | Namespace IRI |
---|---|
Core | http://www.w3.org/ns/td |
Data Schema | https://www.w3.org/ns/json-schema |
Security | https://www.w3.org/ns/security |
Hypermedia Controls | https://www.w3.org/ns/hypermedia |
Thing Model | http://www.w3.org/ns/tm |
Please note that the namespaces listed above are temporary namespaces and will be replaced by final namespaces when this document reaches Candidate Recommendation.
The Vocabularies are independent
from each other. They may be reused and extended in other
W3C
specifications. Every breaking change in the design of a
Vocabulary will require
the assignment of a new year-based namespace URI. Note that to
maintain the general coherence of the TD Information Model, the
associated JSON-LD context file is versioned such that every
version has its own URI (v1
, v1.1
,
v2
, ...) to also identify non-breaking changes, in
particular the addition of new Terms.
Because a Vocabulary under some namespace IRI can only undergo non-breaking changes, its content can be safely cached or embedded in applications. One advantage of exposing relatively static content under a namespace IRI is to optimize payload sizes of messages exchanged between constrained devices. It also avoids any privacy leakage resulting from devices accessing publicly available vocabularies from private networks (see also § 9.1 Context Fetching Privacy Risk).
This section introduces the TD Information Model. The TD Information Model serves as the conceptual basis for the processing of Thing Descriptions and their serialization, which is described separately in § 6. TD Representation Format.
The TD Information Model is built upon the following, independent Vocabularies:
Each of these Vocabularies is essentially a set of Terms that can be used to build data structures, interpreted as objects in the traditional object-oriented sense. Objects are instances of classes and have properties. In the context of W3C WoT, they denote Things and their Interaction Affordances. A formal definition of objects is given in § 5.2 Preliminaries. The main elements of the TD Information Model are then presented in § 5.3 Class Definitions. Certain object properties may be omitted in a TD when Default Values exist. A list of defaults is given in § 5.4 Default Value Definitions.
The UML diagram shown next gives an overview of the
TD Information Model.
It represents all classes as tables and the associations that
exist between classes, starting from the class Thing
, as directed arrows. For the
sake of readability, the diagram was split in four parts, one
for each of the four base Vocabularies.
The following figures are automatically generated based on the underlying ontology definitions.
To provide a model that can be easily processed by both, simple rules on a tree-based document (i.e., raw JSON processing) and rich Semantic Web tooling (i.e., JSON-LD processing), this document defines the following formal preliminaries to construct the TD Information Model accordingly.
All definitions in this section refer to sets, which intuitively are collections of elements that can themselves be sets. All arbitrarily complex data structures can be defined in terms of sets. In particular, an Object is a data structure recursively defined as follows:
Though this definition does not prevent Objects to include multiple name-value pairs with the same name, they are generally not considered in this specification. An Object whose elements only have numbers as names is called an Array. Similarly, an Object whose elements only have Terms (that do not belong to any Vocabulary) as names is called a Map. All names appearing in some name-value pair in a Map are assumed to be unique within the scope of the Map.
Moreover, Objects can be instances of some Class. A Class, which is denoted by a Vocabulary Term, is first defined by a set of Vocabulary Terms called a Signature. A Class whose Signature is empty is called a Simple Type.
The Signature of a Class allows to construct two
functions that further define Classes: an Assignment Function and a Type
Function. The Assignment Function
of a Class takes a Vocabulary Term of the
Class's Signature as input and returns
either true
or false
as output.
Intuitively, the Assignment Function
indicates whether an element of the Signature is mandatory or
optional when instantiating the Class. The Type Function of a
Class also takes a Vocabulary Term of the
Class's Signature as input and returns
another Class as
output. These functions are partial: their domain is
limited to the Signature of the Class being defined.
On the basis of these two functions, an Instance Relation can be defined for a pair composed of an Object and a Class. This relation is defined as constraints to be satisfied. That is, an Object is an instance of a Class if the two following constraints are both satisfied:
true
, the Object includes a name-value
pair with the Vocabulary Term as name.
According to the definition above, an Object would be an instance of
every Simple
Type, regardless of its structure. Instead, another
definition for the Instance Relation is
introduced for Simple
Types: an Object is
an instance of a Simple Type if it is a
Term with a given lexical form
(e.g., true
, false
for the
boolean
type, 1
, 2
,
3
, ... for the unsignedInt
type,
etc.).
Moreover, additional Classes, called Parameterized Classes, can be derived from the generic Map and Array structures. An Object is a Map of some Class, that is, an instance of the Map type parameterized with some Class, if it is a Map such that the value in all the name-value pairs it contains is an instance of this Class. The same applies to Arrays.
Finally, a Class is a Subclass of some other Class if every instance of the former is also an instance of the latter.
Given all definitions above, the TD Information Model is to be
understood as a set of Class definitions, which include a
Class name (a Vocabulary Term), a
Signature (a set of
Vocabulary Terms),
an Assignment Function,
and a Type
Function. These Class
definitions are provided as tables in § 5.3 Class Definitions. For each table, the
values "mandatory" (respectively, "optional") in the
assignment column indicates that the Assignment Function
returns true
(respectively, false
)
for the corresponding Vocabulary Term.
By convention, Simple Types are denoted by
names starting with lowercase. The TD Information Model
references the following Simple Types defined in
XML Schema [XMLSCHEMA11-2-20120405]:
string
, anyURI
,
dateTime
, integer
,
unsignedInt
, double
, and
boolean
. Their definition (i.e., the
specification of their lexical form) is outside of the scope
of the TD
Information Model.
In addition, the TD Information Model defines a
global function on pairs of Vocabulary Terms. The
function takes a Class name
and another Vocabulary Term as input and
returns an Object.
If the returned Object is
different from null
, it represents the
Default Value for
some assignment on the input Vocabulary Term in an
instance of the input Class. This function allows to
relax the constraint defined above on the Assignment Function:
an Object is an instance of
a Class if it includes all
mandatory assignments or if Default Value exist for
the missing assignments. All Default Values are given in
the table of § 5.4 Default Value
Definitions. In each table of § 5.3 Class Definitions, the assignment
column contains the value "with default" if a Default Value is
available for the corresponding combination of Class and Vocabulary Term in the
TD Information
Model.
The formalization introduced here does not consider the possible relation between Objects as abstract data structures and physical world objects such as Things. However, care was given to the possibility of re-interpreting all Vocabulary Terms involved in the TD Information Model as RDF resources, so as to integrate them in a larger model of the physical world (an ontology). For details about semantic processing, please refer to § C. JSON-LD Context Usage and the documentation under the namespace IRIs, e.g., https://www.w3.org/2019/wot/td.
A TD Processor MUST satisfy the Class instantiation constraints on all Classes defined in § 5.3.1 Core Vocabulary Definitions, § 5.3.2 Data Schema Vocabulary Definitions, § 5.3.3 Security Vocabulary Definitions, and § 5.3.4 Hypermedia Controls Vocabulary Definitions.
Thing
An abstraction of a physical or a virtual entity whose metadata and interfaces are described by a WoT Thing Description, whereas a virtual entity is the composition of one or more Things.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
@context |
JSON-LD keyword to define short-hand names called terms that are used throughout a TD document. | mandatory |
anyURI or Array
|
@type |
JSON-LD keyword to label the object with semantic tags (or types). | optional |
string or Array of
string
|
id |
Identifier of the Thing in form of a URI [RFC3986] (e.g., stable URI, temporary and mutable URI, URI with local IP address, URN, etc.). | optional |
anyURI
|
title |
Provides a human-readable title (e.g., display a text for UI representation) based on a default language. | mandatory |
string
|
titles |
Provides multi-language human-readable titles (e.g., display a text for UI representation in different languages). Also see MultiLanguage. | optional |
Map of
string
|
description |
Provides additional (human-readable) information based on a default language. | optional |
string
|
descriptions |
Can be used to support (human-readable) information in different languages. Also see MultiLanguage. | optional |
Map of
string
|
version |
Provides version information. | optional |
VersionInfo
|
created |
Provides information when the TD instance was created. | optional |
dateTime
|
modified |
Provides information when the TD instance was last modified. | optional |
dateTime
|
support |
Provides information about the TD maintainer as
URI scheme (e.g., mailto
[RFC6068],
tel [RFC3966],
https ). |
optional |
anyURI
|
base |
Define the base URI that is used for all
relative URI references throughout a TD document.
In TD instances, all relative URIs are resolved
relative to the base URI using the algorithm
defined in [RFC3986].base does not affect the URIs used in
@context and the IRIs used within
Linked Data [LINKED-DATA]
graphs that are relevant when semantic processing
is applied to TD instances. |
optional |
anyURI
|
properties |
All Property-based Interaction Affordances of the Thing. | optional |
Map of PropertyAffordance
|
actions |
All Action-based Interaction Affordances of the Thing. | optional |
Map of ActionAffordance
|
events |
All Event-based Interaction Affordances of the Thing. | optional |
Map of EventAffordance
|
links |
Provides Web links to arbitrary resources that relate to the specified Thing Description. | optional |
Array of Link
|
forms |
Set of form hypermedia controls that describe how an operation can be performed. Forms are serializations of Protocol Bindings. In this version of TD, all operations that can be described at the Thing level are concerning how to interact with the Thing's Properties collectively at once. | optional |
Array of Form
|
security |
Set of security definition names, chosen from
those defined in securityDefinitions .
These must all be satisfied for access to
resources. |
mandatory |
string or Array of
string
|
securityDefinitions |
Set of named security configurations
(definitions only). Not actually applied unless
names are used in a security
name-value pair. |
mandatory |
Map of SecurityScheme
|
profile |
Indicates the WoT Profile mechanisms followed by this Thing Description and the corresponding Thing implementation. | optional |
anyURI or Array of
anyURI
|
The @context
name-value pair MUST contain the
anyURI https://www.w3.org/2019/wot/td/v1
either directly when of type anyURI
or as
first element when of type Array. When @context
is an Array,
the anyURI https://www.w3.org/2019/wot/td/v1
MAY be followed by elements of type
anyURI
or type Map in any order, while it is
RECOMMENDED to include only one
Map with all the
name-value pairs in the @context
Array. Maps contained in an
@context
Array MAY contain
name-value pairs, where the value is a namespace
identifier of type anyURI
and the name a
Term or prefix denoting
that namespace. One Map contained in an
@context
Array SHOULD
contain a name-value pair that defines the default
language for the Thing Description, where the name is the
Term
@language
and the value is a well-formed
language tag as defined by [BCP47] (e.g.,
en
, de-AT
, gsw-CH
,
zh-Hans
, zh-Hant-HK
,
sl-nedis
).
The computation of the base direction of all human-readable text strings is defined by the following set of rules:
MultiLanguage
Maps, the base direction
MAY be inferred from the language
tag of the default language.MultiLanguage
Maps, the base direction of
each value of the name-value pairs MAY be
inferred from the language tag given in the
corresponding name.@language
or
MultiLanguage
Maps MUST include
a script subtag, so that an appropriate base direction
can be inferred. An example is Azeri, which is
written LTR when Latin script is used (specified using
az-Latn
) and RTL when Arabic script is
used (specified using az-Arab
).TD Processors should be aware of certain special cases when processing bidirectional text. They should take care to use bidi isolation when presenting strings to users, particularly when embedding in surrounding text (e.g., for Web user interface). Mixed direction text can occur in any language, even when the language is properly identified.
TD producers should attempt to provide mixed direction strings in a way that can be displayed successfully by a naive user agent. For example, if an RTL string begins with an LTR run (such as a number or a brand or trade name in Latin script), including an RLM character at the start of the string or wrapping opposite direction runs in bidi controls can assist in proper display.
Strings on the Web: Language and Direction Metadata [string-meta] provides some guidance and illustrates a number of pitfalls when using bidirectional text.
In addition to the
explicitly provided Interaction
Affordances in the properties
,
actions
, and events
Arrays, a Thing can also provide
meta-interactions, which are indicated by
Form
instances in its optional
forms
Array. When the
forms
Array of a Thing instance contains
Form
instances, the string values assigned
to the name op
, either directly or within an
Array, MUST
be one of the following operation types:
readallproperties
,
writeallproperties
,
readmultipleproperties
,
writemultipleproperties
,
observeallproperties
, or
unobserveallproperties
. (See an example for an usage
of form
in a Thing instance.)
The data schema for each of these meta-interactions is
constructed by combining the data schemas of each
PropertyAffordance
instance in a single
ObjectSchema
instance, where the
properties
Map of the
ObjectSchema
instance contains each data
schema of the PropertyAffordances
identified
by the name of the corresponding
PropertyAffordances
instance.
If not specified otherwise (e.g., through a TD Context
Extension), the request data of the
readmultipleproperties
operation is an
Array that contains
the intended PropertyAffordances
instance
names, which is serialized to the content type specified
by the Form
instance.
InteractionAffordance
Metadata of a Thing that shows the possible choices to Consumers, thereby suggesting how Consumers may interact with the Thing. There are many types of potential affordances, but W3C WoT defines three types of Interaction Affordances: Properties, Actions, and Events.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
@type |
JSON-LD keyword to label the object with semantic tags (or types). | optional |
string or Array of
string
|
title |
Provides a human-readable title (e.g., display a text for UI representation) based on a default language. | optional |
string
|
titles |
Provides multi-language human-readable titles (e.g., display a text for UI representation in different languages). Also see MultiLanguage. | optional |
Map of
string
|
description |
Provides additional (human-readable) information based on a default language. | optional |
string
|
descriptions |
Can be used to support (human-readable) information in different languages. Also see MultiLanguage. | optional |
Map of
string
|
forms |
Set of form hypermedia controls that describe how an operation can be performed. Forms are serializations of Protocol Bindings. | mandatory |
Array of Form
|
uriVariables |
Define URI query template variables as collection based on DataSchema declarations. The individual variables DataSchema cannot be an ObjectSchema or an ArraySchema. | optional |
Map of DataSchema
|
The class InteractionAffordance
has the
following subclasses:
PropertyAffordance
An Interaction Affordance that exposes state of the Thing. This state can then be retrieved (read) and optionally updated (write). Things can also choose to make Properties observable by pushing the new state after a change.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
observable |
A hint that indicates whether Servients hosting
the Thing and Intermediaries should provide a
Protocol Binding that supports the
observeproperty and
unobserveproperty operations for this
Property. |
optional |
boolean
|
Property instances are also instances of
the class DataSchema. Therefore, it can contain the
type
, unit
,
readOnly
and writeOnly
members, among others.
PropertyAffordance
is a Subclass of the
InteractionAffordance
Class and the
DataSchema
Class. When a Form
instance is within a PropertyAffordance
instance, the value assigned to op
MUST be one of
readproperty
, writeproperty
,
observeproperty
,
unobserveproperty
or an Array containing a combination
of these terms.
It is considered to be good practice that
each observeproperty
has a corresponding
unobserveproperty
unless the protocol
supports implicit unsubscription mechanisms (e.g.,
heartbeat to detect connection loss).
ActionAffordance
An Interaction Affordance that allows to invoke a function of the Thing, which manipulates state (e.g., toggling a lamp on or off) or triggers a process on the Thing (e.g., dim a lamp over time).
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
input |
Used to define the input data schema of the Action. | optional |
DataSchema
|
output |
Used to define the output data schema of the Action. | optional |
DataSchema
|
safe |
Signals if the Action is safe (=true) or not. Used to signal if there is no internal state (cf. resource state) is changed when invoking an Action. In that case responses can be cached as example. | with default |
boolean
|
idempotent |
Indicates whether the Action is idempotent (=true) or not. Informs whether the Action can be called repeatedly with the same result, if present, based on the same input. | with default |
boolean
|
ActionAffordance
is a Subclass of the
InteractionAffordance
Class. When a Form
instance is within an ActionAffordance
instance, the value assigned to op MUST be
invokeaction
.
EventAffordance
An Interaction Affordance that describes an event source, which asynchronously pushes event data to Consumers (e.g., overheating alerts).
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
subscription |
Defines data that needs to be passed upon subscription, e.g., filters or message format for setting up Webhooks. | optional |
DataSchema
|
data |
Defines the data schema of the Event instance messages pushed by the Thing. | optional |
DataSchema
|
cancellation |
Defines any data that needs to be passed to cancel a subscription, e.g., a specific message to remove a Webhook. | optional |
DataSchema
|
EventAffordance
is a Subclass of the
InteractionAffordance
Class. When a Form
instance is within an EventAffordance
instance, the value assigned to op
MUST be either
subscribeevent
,
unsubscribeevent
, or both terms within an
Array.
It is considered to be good practice that
each subscribeevent
has a corresponding
unsubscribeevent
unless the protocol
supports implicit unsubscription mechanisms (e.g.,
heartbeat to detect connection loss).
VersionInfo
Metadata of a Thing that provides version information about the TD document. If required, additional version information such as firmware and hardware version (term definitions outside of the TD namespace) can be extended via the TD Context Extension mechanism.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
instance |
Provides a version indicator of this TD. instance. | mandatory |
string
|
model |
Provides a version indicator of the underlying TM. instance. | optional |
string
|
It is recommended that the values within
instances
and model
of the
VersionInfo
Class follow the semantic
versioning pattern, where a sequence of three numbers
separated by a dot indicates the major version, minor
version, and patch version, respectively. See
[SEMVER] for
details.
MultiLanguage
A Map providing a set of human-readable texts in different languages identified by language tags described in [BCP47]. See § 6.3.2 Human-Readable Metadata for example usages of this container in a Thing Description instance.
Each name of the
MultiLanguage
Map MUST be a language tag as defined in
[BCP47].
Each value of the
MultiLanguage
Map MUST be of type
string
.
A data schema is an abstract notation for data contained in data formats.
The data schema vocabulary definition is reflecting a very common subset of the terms defined by JSON Schema [JSON-SCHEMA]. It is noted that data schema definitions within Thing Description instances are not limited to this defined subset and may use additional terms found in JSON Schema using a TD Context Extension for the additional terms as described in § 7. TD Context Extensions, otherwise these terms are semantically ignored by TD Processors (for details about semantic processing, please refer to § C. JSON-LD Context Usage and the documentation under the namespace IRIs, e.g., https://www.w3.org/2019/wot/td).
In a TD, concrete data formats are specified in Forms
(see § 5.3.4.2 Form
) using content
types. When the value of a content type in an instance of
the Form is application/json
, the data schema
can be processed directly by JSON Schema processors.
Otherwise, Web of Things (WoT) Binding Templates
[WOT-BINDING-TEMPLATES]
defines data schema's available mappings to other content
types such as XML [xml].
If the content type in an instance of the Form is not
application/json
and if no mapping is defined
for the content type, specifying a data schema does not
make sense for the content type.
The following table is at risk but contains content types which MAY use data schema.
Format | Content Type |
---|---|
JSON | application/json application/ld+json application/senml+json application/cbor application/senml+cbor |
XML | application/xml application/senml+xml application/exi |
DataSchema
Metadata that describes the data format used. It can be used for validation.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
@type |
JSON-LD keyword to label the object with semantic tags (or types) | optional |
string or Array of
string
|
title |
Provides a human-readable title (e.g., display a text for UI representation) based on a default language. | optional |
string
|
titles |
Provides multi-language human-readable titles (e.g., display a text for UI representation in different languages). Also see MultiLanguage. | optional |
Map of
string
|
description |
Provides additional (human-readable) information based on a default language. | optional |
string
|
descriptions |
Can be used to support (human-readable) information in different languages. Also see MultiLanguage. | optional |
Map of
string
|
const |
Provides a constant value. | optional | any type |
default |
Supply a default value. The value should validate against the data schema in which it resides. | optional | any type |
unit |
Provides unit information that is used, e.g., in international science, engineering, and business. | optional |
string
|
oneOf |
Used to ensure that the data is valid against one of the specified schemas in the array. | optional |
Array of DataSchema
|
enum |
Restricted set of values provided as an array. | optional | Array of any type |
readOnly |
Boolean value that is a hint to indicate whether a property interaction / value is read only (=true) or not (=false). | with default |
boolean
|
writeOnly |
Boolean value that is a hint to indicate whether a property interaction / value is write only (=true) or not (=false). | with default |
boolean
|
format |
Allows validation based on a format pattern such as "date-time", "email", "uri", etc. (Also see below.) | optional |
string
|
contentEncoding |
Specifies the encoding used to store the contents, as specified in RFC 2054. The values that are accepted: "7bit", "8bit", "binary", "quoted-printable" and "base64". | optional |
string
|
contentMediaType |
Specifies the MIME type (e.g., image/png, audio/mpeg) of the contents of a string value, as described in RFC 2046. | optional |
string
|
type |
Assignment of JSON-based data types compatible with JSON Schema (one of boolean, integer, number, string, object, array, or null). | optional | any type (one of object ,
array , string ,
number , integer ,
boolean , or null ) |
The class DataSchema
has the following
subclasses:
The format
string values are known from a
fixed set of values and their corresponding format rules
defined in [JSON-SCHEMA]
(Section 7.3 Defined Formats in particular). Servients MAY
use the format
value to perform additional
validation accordingly. When a value that is
not found in the known set of values is assigned to
format
, such a validation SHOULD succeed.
The format
term is not widely
implemented by JSON Schema tools. In addition, the term
format
is being discussed by the JSON
Schema standardisation community and may be replaced by
another mechanism or removed in a future JSON Schema
version.
ArraySchema
Metadata describing data of type Array. This Subclass is indicated by
the value array
assigned to
type
in DataSchema
instances.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
items |
Used to define the characteristics of an array. | optional |
DataSchema
or Array of DataSchema
|
minItems |
Defines the minimum number of items that have to be in the array. | optional |
unsignedInt
|
maxItems |
Defines the maximum number of items that have to be in the array. | optional |
unsignedInt
|
BooleanSchema
Metadata describing data of type boolean
.
This Subclass is indicated by the
value boolean
assigned to type
in DataSchema
instances.
NumberSchema
Metadata describing data of type number
.
This Subclass is indicated by the
value number
assigned to type
in DataSchema
instances.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
minimum |
Specifies a minimum numeric value, representing an inclusive lower limit. Only applicable for associated number or integer types. | optional |
double
|
exclusiveMinimum |
Specifies a minimum numeric value, representing an exclusive lower limit. Only applicable for associated number or integer types. | optional |
double
|
maximum |
Specifies a maximum numeric value, representing an inclusive upper limit. Only applicable for associated number or integer types. | optional |
double
|
exclusiveMaximum |
Specifies a maximum numeric value, representing an exclusive upper limit. Only applicable for associated number or integer types. | optional |
double
|
multipleOf |
Specifies the multipleOf value number. The value must strictly greater than 0. Only applicable for associated number or integer types. | optional |
double
|
IntegerSchema
Metadata describing data of type integer
.
This Subclass is indicated by the
value integer
assigned to type
in DataSchema
instances.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
minimum |
Specifies a minimum numeric value, representing an inclusive lower limit. Only applicable for associated number or integer types. | optional |
integer
|
exclusiveMinimum |
Specifies a minimum numeric value, representing an exclusive lower limit. Only applicable for associated number or integer types. | optional |
integer
|
maximum |
Specifies a maximum numeric value, representing an inclusive upper limit. Only applicable for associated number or integer types. | optional |
integer
|
exclusiveMaximum |
Specifies a maximum numeric value, representing an exclusive upper limit. Only applicable for associated number or integer types. | optional |
integer
|
multipleOf |
Specifies the multipleOf value number. The value must strictly greater than 0. Only applicable for associated number or integer types. | optional |
integer
|
ObjectSchema
Metadata describing data of type object
.
This Subclass is indicated by the
value object
assigned to type
in DataSchema
instances.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
properties |
Data schema nested definitions. | optional |
Map of DataSchema
|
required |
Defines which members of the object type are mandatory. | optional |
Array of
string
|
StringSchema
Metadata describing data of type string
.
This Subclass is indicated by the
value string
assigned to type
in DataSchema
instances.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
minLength |
Specifies the minimum length of a string. Only applicable for associated string types. | optional |
unsignedInt
|
maxLength |
Specifies the maximum length of a string. Only applicable for associated string types. | optional |
unsignedInt
|
pattern |
Provides a regular expressions to express constraints of the string value. The regular expression must follow the [ECMA-262] dialect. | optional |
string
|
NullSchema
Metadata describing data of type null
.
This Subclass is indicated by
the value null
assigned to type
in DataSchema
instances. This Subclass
describes only one acceptable value, namely
null
. It can be used as part of a
oneOf
declaration, where it is used to
indicate, that the data can also be
null
.
This specification provides a selection of well-established security mechanisms that are directly built into protocols eligible as Protocol Bindings for W3C WoT or are widely in use with those protocols. The current set of HTTP security schemes is partly based on OpenAPI 3.0.1 (see also [OPENAPI]). However while the HTTP security schemes, Vocabulary, and syntax given in this specification share many similarities with OpenAPI, they are not compatible.
SecurityScheme
Metadata describing the configuration of a security
mechanism. The value assigned to the name
scheme
MUST be defined
within a Vocabulary included in
the Thing Description,
either in the standard Vocabulary defined in
§ 5. TD
Information Model or in a TD Context
Extension.
For all security schemes, any private keys, passwords, or other sensitive information directly providing access should be shared and stored out-of-band and MUST NOT be stored in the TD. The purpose of a TD is to describe how to access a Thing if and only if a Consumer already has authorization, and is not meant be used to grant that authorization.
Security schemes generally may require additional
authentication parameters, such as a password or key. The
location of this information is indicated by the value
associated with the name in
, often in
combination with the value associated with
name
. The value associated with
in
can take one of the following values:
header
:name
.query
:name
.body
:name
. When used in the context
of a body
security information location,
the value of name
MUST be in
the form of a JSON pointer [RFC6901]
relative to the root of the input
DataSchema
for each interaction it is used
with. Since this value is not a fragment
identifier, and is not relative to the root of the TD
but to whichever data schemas the security scheme is
bound to, this value should not start with
#
; it is a "pure" JSON pointer. Since this
value is not a fragment identifier, it also does not
need to URL-encode special characters. The targeted
element may or may not already exist at the specified
location in the referenced data schema. If it does not,
it will be inserted. This avoids having to duplicate
definitions in the data schemas of every interaction.
When an element
of a data schema indicated by a JSON pointer indicated
in a body
locator does not already exist
in the indicated schema, it MUST be possible
to insert the indicated element at the location
indicated by the pointer. The JSON pointer
used in the body
locator MAY
use the "-
" character to indicate a
non-existent array element when it is necessary to
insert an element after the last element of an existing
array. The element
referenced (or created) by a body
security
information location MUST be required
and of type "string
". If
name
is not given, it is assumed the
entire body is to be used as the security
parameter.cookie
:name
.uri
:name
. This is more general than the
query
mechanism but more complex.
The value
uri
SHOULD be
specified for the name in
in a security
scheme only if query
is not
applicable. The URIs provided in
interactions where a security scheme using
uri
as the value for in
MUST be a URI template including
the defined variable.combo
security scheme and allOf
. In some cases
parameters may not actually be secret but a user may wish
to leave them out of the TD to help protect privacy. As
an example of this, some security mechanisms require both
a client identifier and a secret key. In theory, the
client identifier is public however it may be hard to
update and pose a tracking risk. In such a case it can be
provided as an additional security parameter so it does
not appear in the TD.
The names of URI
variables declared in a SecurityScheme
MUST be distinct from all other URI
variables declared in the TD.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
@type |
JSON-LD keyword to label the object with semantic tags (or types). | optional |
string or Array of
string
|
description |
Provides additional (human-readable) information based on a default language. | optional |
string
|
descriptions |
Can be used to support (human-readable) information in different languages. Also see MultiLanguage. | optional |
Map of
string
|
proxy |
URI of the proxy server this security configuration provides access to. If not given, the corresponding security configuration is for the endpoint. | optional |
anyURI
|
scheme |
Identification of the security mechanism being configured. | optional | any type (one of nosec ,
combo , basic ,
digest , bearer ,
psk , oauth2 , or
apikey ) |
The class SecurityScheme
has the
following subclasses:
NoSecurityScheme
A security configuration corresponding to identified
by the Vocabulary Term
nosec
(i.e., "scheme":
"nosec"
), indicating there is no authentication or
other mechanism required to access the resource.
ComboSecurityScheme
This section is at risk.
A combination of other security schemes identified by
the Vocabulary Term
combo
(i.e., "scheme":
"combo"
). Elements of this scheme define various
ways in which other named schemes defined in
securityDefinitions
, including other
ComboSecurityScheme
definitions, are to be combined to create a new scheme
definition. Exactly one
of either oneOf
or allOf
MUST be included. Only
security scheme definitions which can be used together
can be combined with allOf
. For example, it
is not possible in general to combine different OAuth 2.0
flows together using allOf
unless one
applies to a proxy and one to the endpoint. Note that
when multiple named security scheme definitions are
listed in a security
field the same
semantics apply as in an allOf
combination
(and the same limitations on allowable combinations). The
oneOf
combination is equivalent to using
different security schemes on forms that are otherwise
identical. In this sense a oneOf
scheme is
not an essential feature but it does avoid redundancy in
such cases.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
oneOf |
Array of two or more strings identifying other named security scheme definitions, any one of which, when satisfied, will allow access. Only one may be chosen for use. | mandatory |
string or Array of
string
|
allOf |
Array of two or more strings identifying other named security scheme definitions, all of which must be satisfied for access. | mandatory |
string or Array of
string
|
The ComboSecurityScheme may be
applied recursively to generate Boolean expressions for
combinations of security schemes. One use case for this
is when multiple security schemes are needed for a
proxy in combination with multiple security schemes for
an endpoint. Suppose for example a proxy accepts either
schemes A or B, and then the endpoint accepts either C
or D. Then the possible combinations are AC, AD, BC,
and BD. These could be expressed directly at the
Form
level but would require four-fold
redundancy. Instead, three combo
nodes can
be used to combine the four leaf schemes in the correct
way into a single scheme. It is not clear however if
other use cases exist for deeper expression trees and
if not, we may consider limiting the recursion depth to
two.
BasicSecurityScheme
Basic Authentication [RFC7617]
security configuration identified by the Vocabulary Term
basic
(i.e., "scheme":
"basic"
), using an unencrypted username and
password. This scheme should be used with some other
security mechanism providing confidentiality, for
example, TLS.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
name |
Name for query, header, cookie, or uri parameters. | optional |
string
|
in |
Specifies the location of security authentication information. | optional |
string (one of
header , query ,
body , cookie , or
uri )
|
DigestSecurityScheme
Digest Access Authentication [RFC7616]
security configuration identified by the Vocabulary Term
digest
(i.e., "scheme":
"digest"
). This scheme is similar to basic
authentication but with added features to avoid
man-in-the-middle attacks.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
name |
Name for query, header, cookie, or uri parameters. | optional |
string
|
in |
Specifies the location of security authentication information. | optional |
string (one of
header , query ,
body , cookie , or
uri )
|
qop |
Quality of protection. | optional |
string (one of
auth , or auth-int )
|
APIKeySecurityScheme
API key authentication security configuration
identified by the Vocabulary Term
apikey
(i.e., "scheme":
"apikey"
). This scheme is to be used when the
access token is opaque, for example when a key in an
unknown or proprietary format is provided by a cloud
service provider. In this case the key may not be using a
standard token format. This scheme indicates that the key
provided by the service provider needs to be supplied as
part of service requests using the mechanism indicated by
the "in"
field.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
name |
Name for query, header, cookie, or uri parameters. | optional |
string
|
in |
Specifies the location of security authentication information. | optional |
string (one of
header , query ,
body , cookie , or
uri )
|
BearerSecurityScheme
Bearer Token [RFC6750]
security configuration identified by the Vocabulary Term
bearer
(i.e., "scheme":
"bearer"
) for situations where bearer tokens are
used independently of OAuth2. If the oauth2
scheme is specified it is not generally necessary to
specify this scheme as well as it is implied. For
format
, the value jwt
indicates
conformance with [RFC7519],
jws
indicates conformance with
[RFC7797],
cwt
indicates conformance with
[RFC8392], and
jwe
indicates conformance with
[RFC7516], with
values for alg
interpreted consistently with
those standards. Other formats and
algorithms for bearer tokens MAY be specified in
vocabulary extensions.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
authorization |
URI of the authorization server. | optional |
anyURI
|
name |
Name for query, header, cookie, or uri parameters. | optional |
string
|
alg |
Encoding, encryption, or digest algorithm. | optional |
string (e.g., MD5 ,
ES256 , or ES512-256 )
|
format |
Specifies format of security authentication information. | optional |
string (e.g., jwt ,
cwt , jwe , or
jws )
|
in |
Specifies the location of security authentication information. | optional |
string (one of
header , query ,
body , cookie , or
uri )
|
PSKSecurityScheme
Pre-shared key authentication security configuration
identified by the Vocabulary Term
psk
(i.e., "scheme": "psk"
).
This is meant to identify that a standard is used for
pre-shared keys such as TLS-PSK [rfc4279],
and that the ciphersuite used for keys will be
established during protocol negotiation.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
identity |
Identifier providing information which can be used for selection or confirmation. | optional |
string
|
OAuth2SecurityScheme
OAuth 2.0 authentication security configuration for
systems conformant with [RFC6749],
[RFC8252] and (for
the device
flow) [RFC8628],
identified by the Vocabulary Term
oauth2
(i.e., "scheme":
"oauth2"
).
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
authorization |
URI of the authorization server. In the case of
the device flow, the URI provided for
the authorization value refers to the
device authorization endpoint [RFC8628]. |
optional |
anyURI
|
token |
URI of the token server. | optional |
anyURI
|
refresh |
URI of the refresh server. | optional |
anyURI
|
scopes |
Set of authorization scope identifiers provided
as an array. These are provided in tokens returned
by an authorization server and associated with
forms in order to identify what resources a client
may access and how. The values associated with a
form should be chosen from those defined in an
OAuth2SecurityScheme active on that
form. |
optional |
string or Array of
string
|
flow |
Authorization flow. | mandatory |
string (e.g., code ,
client , or device )
|
For the code
flow both authorization
and
token
MUST be
included. For the
client
flow token
MUST be included. For the
client
flow authorization
MUST NOT be included.
For the
device
flow both authorization
and token
MUST be
included. In the case of the device
flow the value provided for authorization
refers to the device authorization endpoint defined in
[RFC8628].
The mandatory elements for each flow are summarized in
the following table:
Element | code |
client |
device |
---|---|---|---|
authorization |
mandatory | omit | mandatory; refers to device authorization endpoint |
token |
mandatory | mandatory | mandatory |
refresh |
optional | optional | optional |
Note that the
OAuth2SecurityScheme
class definition
lists these elements as "optional". In fact whether
they are mandatory or not depends on the flow. The
token
element is listed as optional even
though it is mandatory for all predefined flows since
it might not be mandatory for some flows defined in an
extension. We should investigate whether there is a
better way to express these "variant record"
constraints.
If multiple flows are available (for example, multiple
OAuth 2.0 security schemes with different flows are given
for a Form
) then only one may be selected
for use by a Consumer. If an OAuth 2.0 flow
other than code
, client
or
device
needs to be specified an extension
vocabulary MUST be used.
This includes the password
and
implicit
flows, which are no longer
considered best practice [WOT-SECURITY-GUIDELINES].
This also applies to flows that are similar at the
protocol level but do not exactly follow the OAuth 2.0
specification, for example by automating grants rather
than invoking a user agent to interact with a human
resource owner. If no scopes
are defined in
the SecurityScheme
then they are considered
to be empty.
The device authorization endpoint
technically uses a different protocol than the
authorization endpoint used by other flows, and it
might be possible for a developer to confuse the two.
However, since the device
flow does not
use the regular authorization endpoint there should be
no ambiguity. We are considering however an alternative
design where there is a separate element,
device_authorization
, which MUST be included for the
device
flow (and then the regular
authorization endpoint then MUST
NOT be used).
The present model provides a representation for (typed)
Web links and Web forms exposed by a Thing. The Link
class definition is reflecting a very common subset of the
terms defined in Web Linking [RFC8288]. The defined terms can be
used, e.g., to describe the relation to another Thing such as a Lamp
Thing is controlled by a Switch Thing. The
Form
class corresponds to a newly introduced
form of hypermedia control to manipulate the state of
Things (and other Web
resources).
Link
A link can be viewed as a statement of the form "link context has a relation type resource at link target", where the optional target attributes may further describe the resource.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
href |
Target IRI of a link or submission target of a form. | mandatory |
anyURI
|
type |
Target attribute providing a hint indicating what the media type [RFC2046] of the result of dereferencing the link should be. | optional |
string
|
rel |
A link relation type identifies the semantics of a link. | optional |
string
|
anchor |
Overrides the link context (by default the
Thing itself identified by its id )
with the given URI or IRI. |
optional |
anyURI
|
sizes |
Target attribute that specifies one or more sizes for the referenced icon. Only applicable for relation type "icon". The value pattern follows {Height}x{Width} (e.g., "16x16", "16x16 32x32"). | optional |
string
|
Link relations can be used to describe relations such as to other Things (e.g., a Switch Thing controls a Lamp Thing), to a specific kind of Thing Models (e.g., a Thing Description is an instance of a specific Thing Model), or to further documentations information (e.g., device manual of a Thing). It is recommended to reuse existing and established Link Relation definitions from IANA.
In the following a best practice relation type table is introduced that is recommended to use within WoT Thing Description or Thing Model instances.
Value | Occurrence | Explanation | Source of value origin |
---|---|---|---|
icon |
0..* | Imports an icon associated to the Thing (e.g., for UI purposes). | IANA Link Relation |
service-doc |
0..* | Relation to a resource that provide (human-readable) documentation or descriptions. | IANA Link Relation |
alternate |
0..* | Point to alternative representation of the Thing (i.e. RDF-Turtle, human-readable HTML document, ...). | IANA Link Relation |
type |
0..1 | Indicate that the Thing is an instance of the target resource such as to a Thing Model. | IANA Link Relation |
tm:extends |
0..1 | Extends an existing definition of the target resource such as a Thing Model. Only applicable for Thing Model definitions. | W3C WoT Thing Model |
manifest |
0..* | Point to a software implementation of the TD. | IANA Link Relation |
proxy-to |
0..* | Target resource provide the address of a proxy. | W3C WoT Security and WoT Binding Template |
collection |
0..1 | Points to a collections of Things. | IANA Link Relation |
item |
0..* | Points to a Thing that is member of the current Thing collections. | IANA Link Relation |
predecessor-version |
0..1 | Points to a previous Thing Description or Thing Model version. | IANA Link Relation |
controlledBy |
0..* | Refers to a Thing that controls the context Thing. | W3C Thing Description |
Form
A form can be viewed as a statement of "To perform an operation type operation on form context, make a request method request to submission target" where the optional form fields may further describe the required request. In Thing Descriptions, the form context is the surrounding Object, such as Properties, Actions, and Events or the Thing itself for meta-interactions.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
href |
Target IRI of a link or submission target of a form. | mandatory |
anyURI
|
contentType |
Assign a content type based on a media type
(e.g., text/plain ) and potential
parameters (e.g., charset=utf-8 ) for
the media type [RFC2046]. |
with default |
string
|
contentCoding |
Content coding values indicate an encoding transformation that has been or can be applied to a representation. Content codings are primarily used to allow a representation to be compressed or otherwise usefully transformed without losing the identity of its underlying media type and without loss of information. Examples of content coding include "gzip", "deflate", etc. . | optional |
string
|
security |
Set of security definition names, chosen from
those defined in securityDefinitions .
These must all be satisfied for access to
resources. |
optional |
string or Array of
string
|
scopes |
Set of authorization scope identifiers provided
as an array. These are provided in tokens returned
by an authorization server and associated with
forms in order to identify what resources a client
may access and how. The values associated with a
form should be chosen from those defined in an
OAuth2SecurityScheme active on that
form. |
optional |
string or Array of
string
|
response |
This optional term can be used if, e.g., the output communication metadata differ from input metadata (e.g., output contentType differ from the input contentType). The response name contains metadata that is only valid for the primary response messages. | optional |
ExpectedResponse
|
additionalResponses |
This optional term can be used if additional expected responses are possible, e.g. for error reporting. Each additional response needs to be distinguished from others in some way (for example, by specifying a protocol-specific error code), and may also have its own data schema. | optional |
AdditionalExpectedResponse
or Array of AdditionalExpectedResponse
|
subprotocol |
Indicates the exact mechanism by which an
interaction will be accomplished for a given
protocol when there are multiple options. For
example, for HTTP and Events, it indicates which of
several available mechanisms should be used for
asynchronous notifications such as long polling
(longpoll ), WebSub [websub]
(websub ), Server-Sent Events
(sse ) [html] (also known as
EventSource). Please note that there is no
restriction on the subprotocol selection and other
mechanisms can also be announced by this
subprotocol term. |
optional |
string (e.g.,
longpoll , websub , or
sse )
|
op |
Indicates the semantic intention of performing the operation(s) described by the form. For example, the Property interaction allows get and set operations. The protocol binding may contain a form for the get operation and a different form for the set operation. The op attribute indicates which form is for which and allows the client to select the correct form for the operation required. op can be assigned one or more interaction verb(s) each representing a semantic intention of an operation. | optional |
string or Array of
string (one of
readproperty ,
writeproperty ,
observeproperty ,
unobserveproperty ,
invokeaction ,
subscribeevent ,
unsubscribeevent ,
readallproperties ,
writeallproperties ,
readmultipleproperties ,
writemultipleproperties ,
observeallproperties , or
unobserveallproperties )
|
Possible values for the contentCoding
property can be found, e.g., in the
IANA HTTP content coding registry.
The list of possible operation types of a form is fixed. As of this version of the specification, it only includes the well-known types necessary to implement the WoT interaction model described in [WOT-ARCHITECTURE]. Future versions of the standard may extend this list but operations types SHOULD NOT be arbitrarily set by servients.
The optional response
name-value pair can
be used to provide metadata for the expected response
message. With the core vocabulary, it only includes
content type information, but TD Context Extensions could
be applied. If no
response
name-value pair is provided, it
MUST be assumed that the content type
of the response is equal to the content type assigned to
the Form instance. Note that
contentType
within an
ExpectedResponse
Class does not have a Default Value.
For instance, if the value of the content type of the
form is application/xml
the assumed value of
the content type of the response will be also
application/xml
. In some cases additional
responses might be possible. One example of this is error
responses but in some cases there might also be
additional successful responses. In this case the
response
name-value pair is still used for
the primary response but additionalResponses
may also be provided, whose value is an array of
AdditionalExpectedResponse
objects. Each
additional response must be distinguished in some way
from the primary response, either by
contentType
or by protocol-specific settings
such as error code header values. Each additional
response may also have a data schema which can differ
from the normal output data schema for the
interaction.
In some use cases, input and output data might be
represented in a different form, for instance an Action
that accepts JSON, but returns an image. In such a case,
the optional response
name-value pair can
describe the content type of the expected response.
If the content type of
the expected response differs from the content type of
the form, the Form
instance MUST
include a name-value pair with the name
response
. For instance, an
ActionAffordance
could only accept
application/json
for its input data, while
it will respond with an image/jpeg
content
type for its output data. In that case the content types
differ and the response
name-value pair has
to be used to provide response content type
(image/jpeg
) information to the Consumer. Similar
considerations apply to additional responses, although in
this case the contentType
is optional if it
is the same as the input content Type (e.g. JSON).
If the
content type of an additional expected response differs
from the content type of the form, the Form
instance MUST include an entry in the array
associated with the name additionalResponses
that includes a value for the name
contentType
. If the data schema
of an additional expected response differs from the
output data schema of the interaction, the
Form
instance MUST include an
entry in the array associated with the name
additionalResponses
that includes a value
for the name schema
.
A Thing Description of a WoT producer may have multiple forms entries with, e.g., different protocol and/or content types declarations that a Consumer could possibly support. In that case the Consumer may choose any form entry that works (e.g., the protocol and content type is supported) for them. When one form is chosen, it is expected that the Consumer will continue to use it as long as possible for every new interaction with the WoT producer.
ExpectedResponse
Communication metadata describing the expected response message for the primary response.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
contentType |
Assign a content type based on a media type
(e.g., text/plain ) and potential
parameters (e.g., charset=utf-8 ) for
the media type [RFC2046]. |
mandatory |
string
|
AdditionalExpectedResponse
Communication metadata describing the expected response message for additional responses.
Vocabulary term | Description | Assignment | Type |
---|---|---|---|
success |
Signals if an additional response should not be considered an error. | with default |
boolean
|
schema |
Used to define the output data schema of the Interaction for an additional response. | optional |
DataSchema
|
contentType |
Assign a content type based on a media type
(e.g., text/plain ) and potential
parameters (e.g., charset=utf-8 ) for
the media type [RFC2046]. |
optional |
string
|
When assignments in a TD are missing, a TD Processor MUST follow the Default Value assignments expressed in the table of Default Value Definitions.
The following table gives all Default Values defined in the TD Information Model.
Class | Vocabulary Term | Default Value | Comment |
---|---|---|---|
Form |
contentType |
application/json |
|
DataSchema |
readOnly |
false |
|
DataSchema |
writeOnly |
false |
|
ActionAffordance |
safe |
false |
|
ActionAffordance |
idempotent |
false |
|
AdditionalExpectedResponse |
success |
false |
|
Form |
op |
Array of
string with the elements
readproperty and
writeproperty when readOnly
and writeOnly are set to
false or Array of
string with the element
readproperty when readOnly
is set to true or Array of
string with the element
writeproperty when
writeOnly is set to
true . |
If defined within an instance of
PropertyAffordance |
Form |
op |
invokeaction |
If defined within an instance of
ActionAffordance |
Form |
op |
Array of
string with the elements
subscribeevent and
unsubscribeevent
|
If defined within an instance of
EventAffordance |
BasicSecurityScheme |
in |
header |
|
DigestSecurityScheme |
in |
header |
|
BearerSecurityScheme |
in |
header |
|
APIKeySecurityScheme |
in |
query |
|
DigestSecurityScheme |
qop |
auth |
|
BearerSecurityScheme |
alg |
ES256 |
|
BearerSecurityScheme |
format |
jwt |
WoT Thing Descriptions represent Things and are modeled and
structured based on § 5. TD Information
Model. This section defines a JSON-based representation
format for Things, a
serialization of instances of the Class Thing
defined by
the TD
Information Model.
A TD Processor MUST be able to serialize Thing Descriptions into the JSON format [RFC8259] and/or deserialize Thing Descriptions from that format, according to the rules noted in § 6.1 Mapping to JSON Types and § 6.3 Information Model Serialization.
The JSON serialization of the TD Information Model is aligned with the syntax of JSON-LD 1.1 [json-ld11] in order to streamline semantic evaluation. Hence, the TD representation format can be processed either as raw JSON or with a JSON-LD 1.1 processor (for details about semantic processing, please refer to § C. JSON-LD Context Usage and the documentation under the namespace IRIs, e.g., https://www.w3.org/2019/wot/td).
In order to support interoperable internationalization, TDs MUST be serialized according to the requirements defined in Section 8.1 of RFC8259 [RFC8259] for open ecosystems. In summary, this requires the following:
The TD Information Model is constructed, so that there is an easy mapping between model Objects and JSON types. Every Class instances maps to a JSON object, where each name-value pair of the Class instance is a member of the JSON object.
Every Simple
Type mentioned in § 5.3 Class
Definitions (i.e., string
,
anyURI
, dateTime
,
integer
, unsignedInt
,
double
, and boolean
) maps to a
primitive JSON type (string, number, boolean), as per the
rules listed below. These rules apply to values in name-value
pairs:
string
or anyURI
MUST be serialized as JSON
strings.dateTime
MUST be
serialized as JSON strings following the "date-time" format
specified by [RFC3339].
Examples would include 2019-05-24T13:12:45Z
and 2015-07-11T09:32:26+08:00
. Values that are of type
dateTime
SHOULD use
the literal Z
representing the UTC time zone
instead of an offset.integer
or unsignedInt
MUST be serialized as JSON numbers without a
fraction or exponent part.double
MUST be
serialized as JSON number.boolean
MUST be
serialized as JSON boolean.Every complex type of the TD Information Model (i.e., Arrays, Maps, and Class instances) maps to a structured JSON type (array and object), as per the rules listed below:
A Thing Description serialization may omit Vocabulary Term for which Default Values are defined, as listed in the table given in § 5.4 Default Value Definitions.
The following example shows the TD instance from Example 1 with a checkbox to also include the members with Default Values (=checkbox checked). These members can be omitted (=checkbox unchecked) to simplify the TD serialization. Note that a TD Processor interprets these omitted members identically as if they were explicitly present with a given Default Value.
Please note that, depending on the Protocol Binding used, additional protocol-specific Vocabulary Terms may apply. They may also have associated Default Values, and hence can also be omitted as explained in this subsection. Further information can be found in § 8.3 Protocol Bindings.
A Thing Description is a data structure rooted at an
Object of type
Thing
. In turn, a JSON
serialization of the Thing Description is a JSON object,
which is the root of a syntax tree constructed from the
TD
Information Model.
The root
element of a TD Serialization
MUST be a JSON object that
includes a member with the name @context
and a
value of type string or array that equals or respectively
contains http://www.w3.org/ns/td
.
In general, this URI is used to identify the TD
representation format version defined by this
specification. For JSON-LD processing [json-ld11], this URI
specifies the Thing Description context file. An
@context
of type array indicates TD Context Extensions
(see § 7. TD Context
Extensions for details).
{
"@context": "http://www.w3.org/ns/td",
...
}
All name-value pairs of an instance
of Thing
, where the name is a Vocabulary Term in the
Signature of
Thing
, MUST be
serialized as JSON members of the root object.
A TD snippet for a serialized root object including all mandatory and optional members is given below:
{
"@context": "http://www.w3.org/ns/td",
"@type": "Thing",
"id": "urn:dev:ops:32473-Thing-1234",
"title": "MyThing",
"titles": {...},
"description": "Human readable information.",
"descriptions": {...},
"support": "mailto:support@example.com",
"version": {...},
"created": "2018-11-14T19:10:23.824Z",
"modified": "2019-06-01T09:12:43.124Z",
"securityDefinitions": {...},
"security": ...,
"base": "https://servient.example.com/",
"properties": {...},
"actions": {...},
"events": {...},
"links": [...],
"forms": [...]
}
All
values assigned to version
,
securityDefinitions
, properties
,
actions
, and events
in an
instance of the Class
Thing
MUST be
serialized as JSON objects.
All
values assigned to links
, and
forms
in an instance of the Class Thing
MUST be serialized as JSON arrays
containing JSON objects as defined in § 6.3.8
links
and § 6.3.9
forms
, respectively.
The value assigned to
security
in an instance of Class Thing
MUST be serialized as
JSON string or as JSON array whose elements are JSON
strings.
JSON members named title
and
description
are used within a TD document to
provide human-readable metadata. They can be used as
comments for developers inspecting a TD document or as
display texts for user interface.
As defined in § 5.3.1.1
Thing
, the base text direction used to
display human-readable metadata can either be estimated
using heuristics such as the first-strong rule or inferred
from language information. In TD documents the default
language is defined by a value assigned to
@language
in the @context
, and
this, along with a script subtag if necessary, can be used
to determine a base text direction. However,
when interpreting human-readable text, each human-readable
string value MUST be processed
independently. In other words, a TD Processor
cannot carry forward changes in direction from one string
to another, or infer direction for one string from another
one elsewhere in the TD.
Strings on the Web [STRING-META] suggests both strong-first and language-based inferencing as means to determine the base text direction. Given that the Thing Description format is based on JSON-LD 1.1 [json-ld11], which currently lacks explicit direction metadata, these approaches are currently considered appropriate at the time of this publication. However, if JSON-LD 1.1 adopts support for explicit base direction metadata as recommended by [STRING-META], the Thing Description format should be updated to take advantage of that feature.
A TD snippet using title
and
description
is shown below. The default
language is set to en
through the definition
of the @language
member within a JSON object
in the @context
array.
{
"@context": [
"http://www.w3.org/ns/td",
{ "@language" : "en" }
],
"title": "MyThing",
"description": "Human readable information.",
...
"properties": {
"on": {
"title": "On/Off",
"type": "boolean",
"forms": [...]
},
"status": {
"title": "Status",
"type": "object",
...
"forms": [...]
}
},
...
}
The JSON members named titles
and
descriptions
are used within the TD document
to provide human-readable metadata in multiple languages
within a single TD document. All name-value
pairs of a MultiLanguage
Map MUST be serialized as members of a JSON
object, where the name is a well-formed language tag as
defined by [BCP47] and the
value is a human-readable string in the language indicated
by the tag. See § 5.3.1.7
MultiLanguage
for details. All
MultiLanguage
object within a TD document
SHOULD contain the same set of
language members.
A TD snippet using titles
and
descriptions
at different levels is given
below:
{
"@context": "http://www.w3.org/ns/td",
"title": "MyThing",
"titles": {
"en":"MyThing",
"de": "MeinDing",
"ja": "私の物",
"zh-Hans": "我的东西",
"zh-Hant": "我的東西"
},
"descriptions": {
"en":"Human readable information.",
"de": "Menschenlesbare Informationen.",
"ja": "人間が読むことができる情報",
"zh-Hans": "人们可阅读的信息",
"zh-Hant": "人們可閱讀的資訊"
},
...
"properties": {
"on": {
"titles": {
"en": "On/Off",
"de": "An/Aus",
"ja": "オンオフ",
"zh-Hans": "开关",
"zh-Hant": "開關" },
"type": "boolean",
"forms": [...]
},
"status": {
"titles": {
"en": "Status",
"de": "Zustand",
"ja": "状態",
"zh-Hans": "状态",
"zh-Hant": "狀態" },
"type": "object",
...
"forms": [...]
}
},
...
}
TD instances may also combine the use of
title
and description
with
titles
and descriptions
.
When title
and
titles
or description
and
descriptions
are present within the same JSON
object, the values of title
and
description
MAY be
seen as the default text. When
title
and titles
or
description
and descriptions
are
present in a TD document, each title
and
description
member SHOULD have a corresponding
titles
and descriptions
member,
respectively. The language of the default text is
indicated by the default language, which is usually set by
the creator of the Thing Description instance.
{
"@context": [
"http://www.w3.org/ns/td",
{ "@language" : "de" }
],
"title": "MeinDing",
"titles": {
"en": "MyThing",
"de": "MeinDing",
"ja": "私の物",
"zh-Hans": "我的东西",
"zh-Hant": "我的東西"
},
"description": "Menschenlesbare Informationen.",
"descriptions": {
"en": "Human readable information.",
"de": "Menschenlesbare Informationen.",
"ja": "人間が読むことができる情報",
"zh-Hans": "人们可阅读的信息",
"zh-Hant": "人們可閱讀的資訊"
},
...
"properties": {
"on": {
"title": "An/Aus",
"titles": {
"en": "On/Off",
"de": "An/Aus",
"ja": "オンオフ",
"zh-Hans": "开关",
"zh-Hant": "開關" },
"type": "boolean",
"forms": [...]
},
"status": {
"title": "Zustand",
"titles": {
"en": "Status",
"de": "Zustand",
"ja": "状態",
"zh-Hans": "状态",
"zh-Hant": "狀態" },
"type": "object",
...
"forms": [...]
}
},
...
}
Another possibility to set the default language is
through a language negotiation mechanism, such as the
Accept-Language
header field of HTTP.
In cases where
the default language has been negotiated, an
@language
member MUST
be present to indicate the result of the negotiation and
the corresponding default language of the returned
content. When the
default language has been negotiated successfully, TD
documents SHOULD include the
appropriate matching values for the members
title
and description
in
preference to MultiLanguage
objects in
titles
and descriptions
members. Note
however that Things MAY choose to
not support such dynamically-generated TDs nor to support
language negotiation (e.g., because of resource
constraints).
version
All
name-value pairs of an instance of
VersionInfo
, where the name is a Vocabulary Term included
in the Signature of
VersionInfo
, MUST be
serialized as JSON members with the Vocabulary Term as
name.
A TD snippet of a version information object is given below:
{
...
"version": { "instance": "1.2.1" },
...
}
The version
member is intended as container
for additional application- and/or device-specific version
information based on TD Context Extensions. See
§ 7.1 Semantic
Annotations for details.
securityDefinitions
and
security
In a Thing
instance, the value assigned to
securityDefinitions
is a Map of instances of
SecurityScheme
. All name-value pairs
of a Map of
SecurityScheme
instances MUST be serialized as members of the
JSON object that results from serializing the Map; the name of a pair MUST be serialized as a JSON string and
the value of the pair, an instance of
SecurityScheme
, MUST
be serialized as a JSON object.
All name-value pairs of an instance
of one of the Subclasses of
SecurityScheme
, where the name is a Vocabulary Term included
in the Signature of that Subclass or in the
Signature of
SecurityScheme
, MUST
be serialized as members of the JSON object that results
from serializing the SecurityScheme
Subclass's instance, with
the Vocabulary Term as
name.
The following TD snippet shows a simple security
configuration specifying basic username/password
authentication in the header. The value given for
in
is actually the Default Value
(header
) and could be omitted. A named
security configuration must be given in the
securityDefinitions
map. That definition must
be activated by including its JSON name in the
security
member, which can and should be of
type string when only one definition is activated.
...
"securityDefinitions": {
"basic_sc": {
"scheme": "basic",
"in": "header"
}
},
"security": "basic_sc",
...
Here is a more complex example: a TD snippet showing
digest authentication on a proxy combined with bearer token
authentication on the Thing. In the
digest
scheme, the Default Value
of in
(i.e., header
) is omitted,
but still applies. Note that the corresponding private
security configuration such as username/password and tokens
must be configured in the Consumer to interact
successfully. When activating multiple security
definitions, the security
member becomes an
array.
...
"securityDefinitions": {
"proxy_sc": {
"scheme": "digest",
"proxy": "https://portal.example.com/"
},
"bearer_sc": {
"scheme": "bearer",
"in":"header",
"format": "jwt",
"alg": "ES256",
"authorization": "https://servient.example.com:8443/"
}
},
"security": ["proxy_sc", "bearer_sc"],
...
However, the use of an array with multiple elements to
combine security schemes in a security
element
is now deprecated. A ComboSecurityScheme
should be used instead as in the following example, which
is exactly equivalent to the one above:
...
"securityDefinitions": {
"proxy_sc": {
"scheme": "digest",
"proxy": "https://portal.example.com/"
},
"bearer_sc": {
"scheme": "bearer",
"in":"header",
"format": "jwt",
"alg": "ES256",
"authorization": "https://servient.example.com:8443/"
},
"combo_sc": {
"scheme": "combo",
"allOf": ["proxy_sc", "bearer_sc"]
}
},
"security": "combo_sc",
...
Security configuration in the TD is mandatory.
At least one security definition
MUST be activated through the
security
member at the Thing level (i.e., in
the TD root object). This configuration can be seen
as the default security mechanism required to interact with
the Thing.
Security definitions MAY also be activated at the form level by
including a security
member in form objects,
which overrides (i.e., completely replace) all definitions
activated at the Thing level.
The nosec
security scheme is provided for
the case that no security is needed. The minimal security
configuration for a Thing is activation of the
nosec
security scheme at the Thing level, as
shown in the following example:
{
"@context": "http://www.w3.org/ns/td",
"id": "urn:dev:ops:32473-Thing-1234",
"title": "MyThing",
"description": "Human readable information.",
"support": "https://servient.example.com/contact",
"securityDefinitions": { "nosec_sc": { "scheme": "nosec" }},
"security": "nosec_sc",
"properties": {...},
"actions": {...},
"events": {...},
"links": [...]
}
To give a more complex example, suppose we have a
Thing where all
Interaction
Affordances require basic authentication except for
one, for which no authentication is required. For the
status
Property and the toggle
Action, basic
authentication is required and
defined at the Thing level. For the
overheating
Event, however, no authentication
is required, and hence the security configuration is
overridden at the form level.
{
...
"securityDefinitions": {
"basic_sc": {"scheme": "basic"},
"nosec_sc": {"scheme": "nosec"}
},
"security": "basic_sc",
...
"properties": {
"status": {
...
"forms": [{
"href": "https://mylamp.example.com/status"
}]
}
},
"actions": {
"toggle": {
...
"forms": [{
"href": "https://mylamp.example.com/toggle"
}]
}
},
"events": {
"overheating": {
...
"forms": [{
"href": "https://mylamp.example.com/oh",
"security": "nosec_sc"
}]
}
}
}
Security configurations can also can be specified for
different forms within the same Interaction
Affordance. This may be required for devices that
support multiple protocols, for example HTTP and CoAP
[RFC7252],
which support different security mechanisms. This is also
useful when alternative authentication mechanisms are
allowed. Here is a TD snippet demonstrating three possible
ways to activate a Property affordance: via HTTPS with
basic authentication, with digest authentication, with
bearer token authentication. In other words, the use of
different security configurations within multiple forms
provides a way to combine security mechanisms in an "OR"
fashion. In contrast, putting multiple security
configurations in the same security
member
combines them in an "AND" fashion, since in that case they
would all need to be satisfied to allow activation of the
Interaction
Affordance. Note that activating one (default)
configuration at the Thing level is still mandatory.
{
...
"securityDefinitions": {
"basic_sc": { "scheme": "basic" },
"digest_sc": { "scheme": "digest" },
"bearer_sc": { "scheme": "bearer" }
},
"security": "basic_sc",
...
"properties": {
"status": {
...
"forms": [{
"href": "https://mylamp.example.com/status"
}, {
"href": "https://mylamp.example.com/status",
"security": "digest_sc"
}, {
"href": "https://mylamp.example.com/status",
"security": "bearer_sc"
}]
}
},
...
}
To avoid redundancy in this case, e.g. repeating the
details of the form
elements, a ComboSecurityScheme
with oneOf
can be used instead.
{
...
"securityDefinitions": {
"basic_sc": { "scheme": "basic" },
"digest_sc": { "scheme": "digest" },
"bearer_sc": { "scheme": "bearer" },
"combo_sc": {
"scheme": "combo",
"oneOf": [ "basic_sc", "digest_sc", "bearer_sc" ]
}
},
"security": "combo_sc",
...
"properties": {
"status": {
...
"forms": [{
"href": "https://mylamp.example.com/status"
}]
}
},
...
}
As another more complex example, OAuth 2.0 makes use of
scopes. These are identifiers that may appear in tokens and
must match with corresponding identifiers in a resource to
allow access to that resource (or Interaction
Affordance in the case of W3C WoT). For example,
in the following, the status
Property can be
read by Consumers using bearer tokens
containing the scope limited
, but the
configure
Action can only be invoked with a
token containing the special
scope. Scopes are
not identical to roles, but are often associated with them;
for example, perhaps only those in an administrative role
are authorized to perform "special" interactions. Tokens
can have more than one scope. In this example, an
administrator would probably be issued tokens with both the
limited
and special
scopes, while
ordinary users would only be issued tokens with the
limited
scope.
{
...
"securityDefinitions": {
"oauth2_sc": {
"scheme": "oauth2",
...
"flow": "code",
"authorization": "https://example.com/authorization",
"token": "https://example.com/token",
"scopes": ["limited", "special"]
}
},
"security": "oauth2_sc",
...
"properties": {
"status": {
...
"forms": [{
"href": "https://scopes.example.com/status",
"scopes": ["limited"]
}]
}
},
"actions": {
"configure": {
...
"forms": [{
"href": "https://scopes.example.com/configure",
"scopes": ["special"]
}]
}
},
...
}
To give another example of the use of the ComboSecurityScheme
and the use of URI templates to embed security keys in
URLs, suppose there is a security scheme where a client ID
and a "secret" key provided by a cloud service provider
must both be embedded in the URL. Technically, only the key
is actually secret and must be handled out-of-band, and the
client ID, which is not secret, could be embedded in the
TD. However, if the client ID cannot be easily rotated we
may want to avoid embedding it in the TD to enhance
privacy. In this case we can combine two instances of
APIKeySecurityScheme
,
both using the uri
value for the
in
location specifier, to declare two URI
variables. These can then (in fact, they must) be used in
the href
in a Form
where the
security scheme is active. An example follows:
{
...
"securityDefinitions": {
"apikey_key": {
"scheme": "apikey",
"in": "uri",
"name": "secKey"
},
"apikey_id": {
"scheme": "apikey",
"in": "uri",
"name": "secClientID"
},
"apikey_combo": {
"scheme": "combo",
"allOf": ["apikey_key","apikey_id"]
}
},
"security": "apikey_combo",
...
"properties": {
"status": {
...
"forms": [{
"href": "https://example.com/{secClientID}/status/{secKey}",
...
}]
}
},
...
}
While not shown in this example, it is legal to declare
additional URI template variables using
uriVariables
and include them in the same URI
template, although the names cannot conflict with those
declared in security schemes. Using a specific prefix as in
the above example for URI variables declared in security
schemes can make it easier to avoid name conflicts.
Security parameters might also be included along with
the payload in some systems. For example, suppose a system
requires every payload to be a JSON object including a
member named auth
whose value is an object
containing a member called key
containing an
access key. Depending on the interaction, however, other
elements of the JSON object might vary. This situation can
be dealt with using the body
security
information location. Note that for this location, the
name
parameter is actually a JSON pointer
evaluated relative to the root of the
DataSchema
for each interaction it is bound
with, which allows it to be used with payloads that vary in
other respects. As an example, here is a light that has a
property to set its brightness and color and two separate
actions to turn it on and off. Although the JSON payloads
are different for these actions the /auth/key
element occurs in the same relative location so single JSON
pointer can be used. Note: if the security key occurs in
different inconsistent locations, it will be necessary to
use multiple security scheme definitions.
{
...
"securityDefinitions": {
"apikey_body": {
"scheme": "apikey",
"in": "body",
"name": "/auth/key"
}
},
"security": "apikey_body",
...
"properties": {
"color": {
...
"type": "object",
"properties": {
"brightness": {
"type": "number",
...
},
"rgb": {
"type": "array",
...
},
"auth": {
"type": "object",
"properties": {
"key": {
"type": "string"
}
},
"required": ["key"]
}
},
"required": ["brightness", "rgb", "auth"],
"forms": [{
"href": "https://example.com/color",
...
}]
}
},
"action": {
"on": {
...
"input": {
"auth": {
"type": "object",
"properties": {
"key": {
"type": "string"
}
},
"required": ["key"]
}
},
"required": ["auth"],
"forms": [{
"href": "https://example.com/on",
...
}]
},
"off": {
...
"input": {
"auth": {
"type": "object",
"properties": {
"key": {
"type": "string"
}
},
"required": ["key"]
}
},
"required": ["auth"],
"forms": [{
"href": "https://example.com/off",
...
}]
}
},
...
}
body
location will be automatically inserted
if it does not exist. In this case the above example can be
simplified to the following. Note that in fact a data
schema will effectively be created for the actions
"on
" and "off
" to hold just the
security information.
{
...
"securityDefinitions": {
"apikey_body": {
"scheme": "apikey",
"in": "body",
"name": "/auth/key"
}
},
"security": "apikey_body",
...
"properties": {
"color": {
...
"type": "object",
"properties": {
"brightness": {
"type": "number",
...
},
"rgb": {
"type": "array",
...
}
},
"required": ["brightness", "rgb"],
"forms": [{
"href": "https://example.com/color",
...
}]
}
},
"action": {
"on": {
...
"required": ["auth"],
"forms": [{
"href": "https://example.com/on",
...
}]
},
"off": {
...
"forms": [{
"href": "https://example.com/off",
...
}]
}
},
...
}
properties
The value assigned to properties
in a
Thing
instance is a Map of instances of
PropertyAffordance
. All name-value pairs
of a Map of
PropertyAffordance
instances MUST be serialized as members of the
JSON object that results from serializing the Map; the name of a pair MUST be serialized as a JSON string and
the value of the pair, an instance of
PropertyAffordance
, MUST be serialized as a JSON
object.
All name-value pairs of an instance of
PropertyAffordance
, where the name is a
Vocabulary Term included in
(one of) the Signatures of
PropertyAffordance
,
InteractionAffordance
, or
DataSchema
, MUST be
serialized as members of the JSON object that results from
serializing the PropertyAffordance
instance,
with the Vocabulary Term as
name. See § 6.3.10 Data
Schemas for details on serializing DataSchema
instances.
The value assigned to
forms
in an instance of
PropertyAffordance
MUST be serialized as a JSON array
containing one or more JSON object serializations as
defined in § 6.3.9
forms
.
A snippet for two Property affordances is given below:
actions
In a Thing
instance, the value assigned to
actions
is a Map of instances of
ActionAffordance
. All name-value pairs of
a Map of
ActionAffordance
instances MUST be serialized as members of the
JSON object that results from serializing the Map; the name of a pair MUST be serialized as a JSON string and
the value of the pair, an instance of
ActionAffordance
, MUST be serialized as a JSON
object.
All
name-value pairs of an instance of
ActionAffordance
, where the name is a Vocabulary Term included
in (one of) the Signatures of
ActionAffordance
or
InteractionAffordance
, MUST be serialized as members of the JSON
object that results from serializing the
ActionAffordance
instance, with the Vocabulary Term as
name.
The values assigned to
input
and output
in an instance
of ActionAffordance
MUST be serialized as JSON objects.
They rely on the Class
DataSchema
, whose serialization
is defined in § 6.3.10 Data
Schemas.
The value assigned to forms
in an instance of ActionAffordance
MUST be serialized as a JSON array
containing one or more JSON object serializations as
defined in § 6.3.9
forms
.
A TD snippet of an Action affordance is given below:
events
In a Thing
instance, the value assigned to
events
is a map of instances of
EventAffordance
. All name-value pairs of
a Map of
EventAffordance
instances MUST be serialized as members of the
JSON object that results from serializing the Map; the name of a pair MUST be serialized as a JSON string and
the value of the pair, an instance of
EventAffordance
, MUST
be serialized as a JSON object.
All
name-value pairs of an instance of
EventAffordance
, where the name is a Vocabulary Term included
in (one of) the Signatures of
EventAffordance
or
InteractionAffordance
, MUST be serialized as members of the JSON
object that results from serializing the
EventAffordance
instance, with the Vocabulary Term as
name.
The values assigned to
subscription
, data
, and
cancellation
in an instance of
EventAffordance
MUST
be serialized as JSON objects. They rely on the
Class DataSchema
,
whose serialization is defined in § 6.3.10 Data
Schemas.
The
value assigned to forms
in an instance of
EventAffordance
MUST
be serialized as a JSON array containing one or more JSON
object serializations as defined in § 6.3.9
forms
.
A TD snippet of an Event object is given below:
Event affordances have been defined in a flexible
manner, in order to adopt existing (e.g., WebSub
[websub]) or
customer-oriented event mechanisms (e.g., Webhooks). For
this reason, subscription
and
cancellation
can be defined according to the
desired mechanism. Please find further details in
[WOT-BINDING-TEMPLATES].
Example § A.3 Webhook Event
Example illustrates how Events can use
subscription
and cancellation
to
describe Webhooks.
links
All
name-value pairs of an instance of Link
, where
the name is a Vocabulary Term included in
the Signature of
Link
, MUST be
serialized as members of the JSON object that results from
serializing the Link
instance, with the
Vocabulary Term as
name.
It is recommended to follow the link relation values as
provided in Section § 5.3.4.1
Link
. In the following examples are
provide that uses different link relation values.
A reference can be provided that points to a Thing (e.g., a controller) that
controls the underlying unit (e.g., a lamp). For this
controlledBy
can be used:
To point to a developer documentation of a Thing the value
service-doc
can be used:
...
"links": [{
"rel": "service-doc",
"href": "https://example.com/howTo",
"type": "application/pdf"
}]
...
A superordinate Thing can collect a group of Things and
refer to them by using the item
value:
"title" : "Electric Drive",
...
"links": [{
"rel": "item",
"href": "coaps://motor1.example.com",
"type": " application/td+json"
},
{
"rel": "item",
"href": "coaps://motor2.example.com",
"type": " application/td+json"
}
]
...
A Thing refers to a group in which it is collected with
the collection
value:
"title" : "Electric Motor 1",
"base": "coaps://motor1.example.com",
...
"links": [{
"rel": "collection",
"href": "coaps://drive.example.com",
"type": " application/td+json"
}]
...
forms
All
name-value pairs of an instance of Form
, where
the name is a Vocabulary Term included in
the Signature of
Form
, MUST be
serialized as members of the JSON object that results from
serializing the Form
instance, with the
Vocabulary Term as
name.
If required, form objects MAY be supplemented with protocol-specific Vocabulary Terms identified with a prefix. See also § 8.3 Protocol Bindings.
A TD snippet of a form object in the forms
array is given below:
href
may also carry a URI that contains
dynamic variables such as lat
and
lon
in
http://example.org/weather/?lat=35&lon=139
.
In that case the URI can be defined as template as defined
in [RFC6570]:
http://example.org/weather/{?lat,long}
.
In such a case, the URI Template
variables MUST be collected in the
JSON-object based uriVariables
member with the
associated (unique) variable names as JSON
names.
The serialization of each
value in the map assigned to uriVariables
in
an instance of Form
MUST rely on the Class DataSchema
, whose
serialization is defined in § 6.3.10 Data
Schemas.
A TD snippet using a URI Template and
uriVariables
is given below:
{
"@context": [
"http://www.w3.org/ns/td",
{ "eg": "http://www.example.org/iot#" }
],
...
"properties": {
"weather": {
...
"uriVariables": {
"lat": { "type": "number", "minimum": 0, "maximum": 90, "description": "Latitude for the desired location in the world" },
"long": { "type": "number", "minimum": -180, "maximum": 180, "description": "Longitude for the desired location in the world" }
},
"forms": [{
"href": "http://example.org/weather/{?lat,long}",
"htv:methodName": "GET"
}]
},
...
},
...
}
uriVariables
are mainly for properties and
events. When retrofitting an existing system, it may be
necessary to use uriVariables
for actions. In
general, it is recommended to avoid
uriVariables
as much as possible when a new
WoT-based system is designed.
The contentType
member is used to assign a
media type [RFC2046]
including media type parameters as attribute-value pairs
separated by a ;
character. Example:
...
"contentType": "text/plain; charset=utf-8",
...
In some use cases, the form metadata of the Interaction
Affordance not only describes the request, but also
provides metadata for the expected response. For instance,
an Action takePhoto
defines an
input
schema to submit parameter settings of a
camera (aperture priority, timer, etc.) using JSON for the
request payload (i.e., "contentType":
"application/json"
). The output of this action is
the photo taken, which is available in JPEG format, for
example. In such cases, the response
member is
used to indicate the representation format of the response
payload (e.g., "contentType": "image/jpeg"
).
Here no output
schema is required, as the
content type fully specifies the representation format.
If present, the value assigned to
response
in an instance of Form
MUST be a JSON object.
If
present, the response object MUST
contain a contentType
member as defined in the
Class definition of
ExpectedResponse
.
A form
snippet with the
response
member is shown below based on the
takePhoto
Action described above:
{
...
"actions": {
"takePhoto": {
...
"forms": [{
"op": "invokeaction",
"href": "http://camera.example.com/api/snapshot",
"contentType": "application/json",
"response": {
"contentType": "image/jpeg"
}
}]
}
},
...
}
In some cases binary data is embedded in text-based
values, e.g., a JSON string-based value embeds a base64
encoded image. The terms contentMediaType
and
contentEncoding
can be used to clarify the
context and encoding format of such name-value pairs. A
sample usage of contentMediaType
and
contentEncoding
is shown below:
{
...
"properties": {
"image": {
"description": "Provides latest image",
"type": "string",
"contentMediaType": "image/png",
"contentEncoding": "base64",
"forms": [{
"op": "readproperty",
"href": "coaps://mylamp.example.com/lastPicture",
"cov:methodName": "GET",
"contentType": "application/json"
}]
}
},
...
}
When forms
is present at the top level, it
can be used to describe meta interactions offered by a
Thing. For example, the
operation types "readallproperties" and
"writeallproperties" are for meta interactions with a
Thing by which Consumers can read and
write all properties at once. In the example below, a
forms
member is included in the TD root object
and the Consumer can use the
submission target
https://mylamp.example.com/allproperties
both
to read or write all Properties (i.e., on
,
brightness
, and timer
) of the
Thing in a single
protocol transaction.
{
...
"properties": {
"on": {
"type": "boolean",
"forms": [...]
},
"brightness": {
"type": "number",
"forms": [...]
},
"timer": {
"type": "integer",
"forms": [...]
}
},
...
"forms": [{
"op": "readallproperties",
"href": "https://mylamp.example.com/allproperties",
"contentType": "application/json",
"htv:methodName": "GET"
}, {
"op": "writeallproperties",
"href": "https://mylamp.example.com/allproperties",
"contentType": "application/json",
"htv:methodName": "PUT"
}]
}
In the case of operation type
writeallproperties
, it is expected that the
Consumer provides
all writable (non readOnly
) properties and the
(new) assigned values (e.g., within payload). Similarly,
for the writemultipleproperties
operation
type, it is expected that the Consumer provides writable
(non readOnly
) properties. On the Thing side, Thing is expected to return
readable (non writeOnly
) properties in the
case of readmultipleproperties
and
readallproperties
operation types.
The data schemas of the WoT Thing Description defined
through the DataSchema
Class are based on a subset of
the JSON Schema terms [JSON-SCHEMA].
Thus, serializations of the TD data schemas can be fed
directly into JSON Schema validator implementations to
validate the data exchanged with Things.
Data schema serialization applies to
PropertyAffordance
instances, the values
assigned to input
and output
in
ActionAffordance
instances, the values
assigned to subscription
, data
,
and cancellation
in
EventAffordance
instances, and the value
assigned to uriVariables
in instances of
Subclasses of
InteractionAffordance
(when a form object uses a URI
Template).
All
name-value pairs of an instance of one of the Subclasses of
DataSchema
, where the name is a Vocabulary Term included
in the Signature of that Subclass or in the
Signature of
DataSchema
, MUST be
serialized as members of the JSON object that results from
serializing the DataSchema
Subclass's instance, with
the Vocabulary Term as
name.
The value assigned to
properties
in an instance of
ObjectSchema
MUST be
serialized as a JSON object.
The values assigned to
enum
, required
, and
oneOf
in an instance of
DataSchema
MUST be
serialized as a JSON array.
The value assigned to
items
in an instance of
ArraySchema
MUST be
serialized as a JSON object or a JSON array containing JSON
objects.
A TD snippet data schema members is given below. Note
that the surrounding object may be a data schema object
(e.g., for input
and output
) or a
Property object, which would contain additional
members.
The terms readOnly
and
writeOnly
can be used signal which data items
are exchanged in read interactions (i.e., when reading a
Property) and which in write interactions (i.e., when
writing a Property). This can be used as workaround when
Properties of an unconventional Thing exhibit different data for
reading and writing, which can be the case when augmenting
an existing device or service with a Thing Description.
A TD snippet with the usage of readOnly
and
writeOnly
is given below:
...
"properties": {
"status": {
"description": "Read or write On/Off status.",
"type": "object",
"properties": {
"latestStatus": {
"type": "string",
"enum": ["On", "Off"],
"readOnly": true
},
"newStatusValue": {
"type": "string",
"enum": ["On", "Off"],
"writeOnly": true
}
},
forms: [...]
}
}
...
When the status
Property is read, the
status data is returned using a latestStatus
member in the payload. To update the status
Property, the new value must be provided through a
newStatusValue
member in the payload.
As an additional feature, a Thing Description instance
allows the usage of a unit
member within data
schemas. This can be used to associate a unit of measure to
a data item. Its string value can be selected freely.
However, it is recommended to select units defined in
well-known Vocabularies. See § 7. TD Context
Extensions for an example.
The JSON-based serialization of Thing Descriptions is
identified by the media type application/td+json
or the CoAP Content-Format ID 432
(see § 11. IANA Considerations).
This section refers to tagging of assertions into different categories for the purposes of validation. This has not yet been done but will be done prior to CR transition.
Validation of extensions is difficult for various reasons so we may extend this with variants that support extensions or not e.g. "Basic Validation with/without Extensions".
In several contexts automatic validation of a JSON-based serialization of a Thing Description is useful. Formally, a valid TD must satisfy all the assertions in this specification, but not all assertions can be validated given only the JSON serialization, for instance, the assertions listed under § 8. Behavioral Assertions that relate a TD to the behavior of a Thing that it describes. Extensions are also problematic, in that even if formal metadata is given for validating an extension, dynamically fetching this metadata in a deployment might pose a privacy risk. In this section, therefore, we name and define various levels of validation appropriate for different contexts.
Minimal Validation is appropriate where validation needs to be self-contained (e.g. devices on isolated networks). It does not attempt to validate context extensions and vocabularies.
In practice, these assertions can be validated using a JSON Schema in combination with a few spot checks, for example to check that security schema names have matching definitions.
This level of validation includes all assertions implied by normative tables in this document as well as all assertions marked with the "Minimal" tag.
Basic validation is appropriate in situations where network access is possible and does not pose a privacy risk, and for relatively unconstrained computing requirements. It is suitable for gateways, for example, but not for endpoints, since semantic processing is required. It can validate extensions.
In this case, context definition files and SHACL definitions can be used to validate additional assertions and check TDs for semantic consistency. In addition, if context definitions and SHACL constraints for extension vocabularies can be fetched, then these can be used to validate extensions.
This level of validation includes all those covered by § 6.5.1 Minimal Validation as well as all assertions marked with the "Basic" tag.
Full validation confirms that all the assertions in this document are satisfied, including the assertions given in § 8. Behavioral Assertions that confirm the TD is consistent with the Thing it describes. This level of validation is appropriate during development, before release, and possibly after installation. Validation during development would have to be on test Things. Actual installation of instances of such Things requires updating the TD with appropriate per-instance identifiers and URLs and so for maximum assurance, in-field validation would have to take place after installation.
Canonicalization is a process applied to the JSON serialization of a TD that removes variations between different expressions of the same information model, so that the same information always results in the same JSON serialization. This unique representation of the information in a TD is called a Canonical TD. Canonical TDs are important for applications that need to compare TDs as strings, for example, to compute signatures on TDs, or to compute differences between TDs. There are many places in which optional features are included in JSON, such as white space, or where different representation formats are possible, such as the number of digits in a number representation or the order of elements in an object. In addition to variation due to JSON serialization, TDs have additional features that also permit different ways to express the same thing. However, whenever there is a choice of multiple ways to present information, canonicalization needs to select only one.
Some of the choices leading to the efficient computation of a canonical form, such as the suppression of white space and sorting of elements in objects do make the representation less human readable. In general, the canonical form presented here is optimized for machine-to-machine use cases such as signing.
The starting point for the process described here is the JSON serialization of a TD. The following sequence of transformations and constraints are then applied:
dateTime
MUST use the literal "Z
"
representing the UTC time zone instead of an
offset.dateTime
MUST serialize the fractional part of the
seconds field as other numbers under the JSON
Canonicalization Scheme, except that negative numbers and
exponents are not permitted. Note in particular that
trailing zeros and zero fractional seconds are not
permitted under this serialization.dateTime
MUST NOT use '24' in the hours
field.observable
is false
. If an input
TD omits observable
where it is allowed, it
must still explicitly appear in the canonical form with the
value of false
. Note that this also applies to
extension vocabularies, e.g. for protocol bindings. If any
such extension defines default values they must be given
explicitly in the canonical form.The dateTime
restrictions specified above are
consistent with the restrictions used in Canonical XML as
defined in XML Schema 2 [xmlschema-2].
The JSON Canonicalization Scheme, and by extension the
process defined here, preserves the order of elements in
arrays. There are some array-valued elements in TDs where the
order is not meaningful, such as the list of
scopes
in a Form
. In
order to support canonicalization, implementations of TD
Processors MUST preserve the order
of elements in all arrays.
If extension vocabularies are used, the prefixes need to be preserved as well. In theory for JSON-LD prefixes are just shorthand for URLs and can be changed without changing the meaning of a TD. However, doing so would result in a different serialization. In order to support canonicalization, implementations of TD Processors MUST preserve the prefixes used for extension vocabularies. This includes preserving and expressing a vocabulary term as a URL if no prefix was used.
Some systems support different forms of URLs that are equivalent, for example, by mapping upper to lower case. It is also legal to percent-encode unreserved characters, even though this is unnecessary and discouraged [RFC3986]. For canonicalization, however, such URL variants cannot be considered equivalent. In order to support canonicalization, implementations of TD Processors MUST NOT modify input URLs. Of course some applications will need to modify URLs in TDs, i.e. to express the result of protocol translation or to add entry points to a proxy. The result should technically be considered a new TD related to the old one, but not equivalent.
TDs should be validated before being canonicalized. TD validation requires that URLs be fully conformant with the standard [RFC3986] and this in particular requires (for example) that characters outside the basic set defined for URLs be percent-encoded.
Here is an example TD that is in canonical form, except that white space and newlines have been inserted to make it more readable:
However, the actual true Canonical TD has all extra whitespace removed, and looks like the following:This section is non-normative.
In addition to the standard Vocabulary definitions in § 5. TD Information Model, the WoT Thing Description offers the possibility to add context knowledge from additional namespaces. This mechanism can be used to enrich the Thing Description instances with additional (e.g., domain-specific) semantics. It can also be used to import additional Protocol Bindings or new security schemes in the future.
For such TD Context
Extensions, the Thing Descriptions use the
@context
mechanism known from JSON-LD
[json-ld11].
When using TD Context
Extensions, the value of @context
of the
Class Thing
is an
Array with additional elements of type anyURI
identifying JSON-LD context files or Map containing namespace IRIs as
defined in § 5.3.1.1 Thing
.
The serialization rules for complex types in § 6.1 Mapping to JSON Types define the
serialization of an extended @context
name-value
pair. A snippet with TD Context Extensions is given
below:
{
"@context": [
"http://www.w3.org/ns/td",
{
"eg": "http://example.org/iot#",
"cov": "http://www.example.org/coap-binding#"
},
"https://schema.org/"
],
...
}
TD
Context Extensions allow for additional Vocabulary Terms to a
Thing Description instance. If the included namespaces are
based on Class
definitions such as those provided by the RDF Schema or OWL,
they can be used to annotate any Class instance of a Thing
Description semantically by associating the instance to a
such an external Class
definition. This is done by assigning a Class name to the
@type
name-value pair or including Class name in its Array value for multiple
associations/annotations. Following the serialization rules
in § 6.1 Mapping to JSON
Types, @type
is either serialized as JSON
string or as JSON array. @type
is the JSON-LD
keyword [json-ld11] used to set the type of a
node.
TD Context Extensions also allow the inclusion of additional name-value pairs and well-defined values within any Class instance of a Thing Description. These pairs and values are defined through the included Vocabulary Terms and are serialized as additional members in the corresponding JSON objects or values of existing members, respectively. Examples are additional version metadata for the Thing or units of measure for data items.
Next subsections show some sample usage of different kind of ontologies in Thing Descriptions.
The TD snippet given below extends the version information container by adding version numbers for the hardware and firmware of the Thing, and uses values from external Vocabularies for the Thing and for the data schema unit: SAREF, also used in Example 2, and OM, the Ontology of Units of Measure [RIJGERSBERG]. These Vocabularies are used as examples—others may exist, in particular in the home automation domain.
{
"@context": [
"http://www.w3.org/ns/td",
{
"v": "http://www.example.org/versioningTerms#",
"saref": "https://w3id.org/saref#",
"om": "http://www.ontology-of-units-of-measure.org/resource/om-2/"
}
],
"version": {
"instance": "1.2.1",
"v:firmware": "0.9.1",
"v:hardware": "1.0"
},
...
"@type": "saref:TemperatureSensor",
"properties": {
"temperature": {
"description": "Temperature value of the weather station",
"type": "number",
"minimum": -32.5,
"maximum": 55.2,
"unit": "om:degree_Celsius",
"forms": [...]
},
...
},
...
}
In many cases, TD Context Extensions may be used to annotate pieces of a data schema, to be able to semantically process the state information of the physical world object, which is represented by the data exchanged during an interaction (e.g., in the payload of a response). For example, a semantic description of this state information in RDF can be embedded in the TD Document and pieces of a data schema can be individually annotated as referring to specific parts of that RDF-modeled state of the physical world object.
The TD snippet below uses SAREF to describe the state of
a lamp. The external Vocabulary Term
ssn:forProperty
, taken from SSN, the Semantic
Sensor Network Ontology [VOCAB-SSN],
is being used to link the data schema of the
status
Property with the actual
on/off state of the physical world object.
{
"@context": [
"http://www.w3.org/ns/td",
{
"saref": "https://w3id.org/saref#",
"ssn": "http://www.w3.org/ns/ssn/"
}
],
"id": "urn:dev:ops:32473-WoTLamp-1234",
"@type": "saref:LightSwitch",
"saref:hasState": {
"@id": "urn:dev:ops:32473-WoTLamp-1234/state",
"@type": "saref:OnOffState"
},
...
"properties": {
"status": {
"ssn:forProperty": "urn:dev:ops:32473-WoTLamp-1234/state",
"type": "string",
"forms": [{"href": "https://mylamp.example.com/status"}]
},
"fullStatus": {
"ssn:forProperty": "urn:dev:ops:32473-WoTLamp-1234/state",
"type": "object",
"properties": {
"statusString": { "type": "string" },
"statusCode": { "type": "number" },
"statusDescription": { "type": "string" }
},
"forms": [{"href": "https://mylamp.example.com/status?full=true"}]
},
...
},
...
}
In Example 2, the state of the
Thing is given by the
status
affordance itself and possible state
changes are given by the toggle
affordance. In
other words, the state of the physical world object
directly provides the Interaction
Affordances of the Thing. This design is
satisfactory for simple cases. In more elaborate cases,
however, several affordances may be available for the same
physical state. In the example above, the
fullStatus
Property provides an
alternative, more verbose representation for the state of
the lamp.
This new subsection is in work in progress. Examples will be updated based on experience of the next PlugFests.
For many use cases like in building, agriculture, or smart city location based data is required. This information can be provided in the Thing Description in different ways and can be relied on different kind of location ontologies (e.g.,[w3c-basic-geo], schema.org) depending on purpose (e.g., indoor, outdoor). Also see [sdw-bp].
The TD snippet below uses lat
and
long
from the [w3c-basic-geo]
ontology to provide static latitude and longitude metadata
at Thing's top level.
{
"@context": [
"http://www.w3.org/ns/td",
{
"geo": "http://www.w3.org/2003/01/geo/wgs84_pos#"
}
],
"@type": "Thing",
"geo:lat": "26.58",
"geo:long": "297.83",
...
"properties": {
...
}
In some use cases location based metadata have to be
provided at the interaction level, e.g., as provided as a
Property that returns
the latest longitude
, latitude
,
and elevation
values based on schema.org:
{
"@context": [
"http://www.w3.org/ns/td",
{
"schema": "http://schema.org#"
}
],
...
"properties": {
"position": {
"type": "object",
"@type": "schema:GeoCoordinates",
"properties": {
"longitude": { "type": "number" },
"latitude": { "type": "number" },
"elevation": { "type": "number" }
},
"forms": [{"href": "https://robot.example.com/position"}]
},
...
},
...
}
In case a different name is desired for, e.g.,
longitude
, latitude
, and
elevation
in the data model, the
jsonld:context
can be used to link terms to
specific vocabulary from an ontology (also see
[JSON-SCHEMA-ONTOLOGY],
Section 3.3 Defining a JSON-LD context for data
instances):
{
"@context": [
"http://www.w3.org/ns/td",
{
"schema": "http://schema.org#"
}
],
...
"properties": {
"position": {
"jsonld:context": {
"schema": "http://schema.org/"
"long": "schema:longitude",
"lat": "schema:latitude",
"height": "schema:elevation"
},
"type": "object",
"properties": {
"long": { "type": "number" },
"lat": { "type": "number" },
"height": { "type": "number" }
}
}
},
...
}
With the TD
Context Extensions in a Thing Description, the
communication metadata can be supplemented or new Protocol
Bindings added through additional Vocabulary Terms
serialized into JSON objects representing a Form
instance. (see also § 8.3 Protocol
Bindings).
The following TD example uses a fictional CoAP Protocol
Binding, as no such Protocol Binding is
available at the time of writing this specification. This
TD
Context Extension assumes that there is a CoAP in RDF
vocabulary similar to HTTP Vocabulary in RDF
1.0 [HTTP-in-RDF10] that
is accessible via an example namespace
http://www.example.org/coap-binding#
. The
supplemented cov:methodName
member instructs the
Consumer which CoAP
method has to be applied (e.g., GET
for the CoAP
Method Code 0.01, POST
for the CoAP Method Code
0.02, or iPATCH
for CoAP Method Code 0.07).
Finally, new security schemes that are not included in
§ 5.3.3 Security
Vocabulary Definitions can be imported using the TD Context Extension
mechanism. This example uses a fictional ACE security scheme
based on [ACE]
that is, for this example, defined by the namespace at
http://www.example.org/ace-security#
. Note that
such additional security schemes must be Subclasses of the Class SecurityScheme
.
{
@context: [
"http://www.w3.org/ns/td",
{
"cov": "http://www.example.org/coap-binding#",
"ace": "http://www.example.org/ace-security#"
}
],
...
"securityDefinitions": {
"ace_sc": {
"scheme": "ace:ACESecurityScheme",
...
"ace:as": "coaps://as.example.com/token",
"ace:audience": "coaps://rs.example.com",
"ace:scopes": ["limited", "special"],
"ace:cnonce": true
}
},
"security": ["ace_sc"],
"properties": {
"status": {
...
"forms": [{
"op": "readproperty",
"href": "coaps://rs.example.com/status",
"contentType": "application/cbor",
"cov:methodName": "GET",
"ace:scopes": ["limited"]
}]
}
},
"actions": {
"configure": {
...
"forms": [{
"op": "invokeaction",
"href": "coaps://rs.example.com/configure",
"contentType": "application/cbor",
"cov:methodName": "POST",
"ace:scopes": ["special"]
}]
}
},
...
}
Note that all security schemes defined in § 5.3.3 Security Vocabulary Definitions are already part of the TD context and need not to be included through a TD Context Extension.
The following assertions relate to the behavior of components of a WoT system, as opposed to the representation or information model of the TD. However, note that TDs are descriptive, and may in particular be used to describe pre-existing network interfaces. In these cases, assertions cannot be made that constrain the behavior of such pre-existing interfaces. Instead, the assertions must be interpreted as constraints on the TD to accurately represent such interfaces.
To enable secure interoperation, security configurations must accurately reflect the requirements of the Thing:
The data schemas provided in the TD should accurately represent the data payloads returned and accepted by the described Thing in the interactions specified in the TD. In general, Consumers should follow the data schemas strictly, not generating anything not given in the WoT Thing Description, but should accept additional data from the Thing not given explicitly in the WoT Thing Description. In general, Things are described by WoT Thing Descriptions, but Consumers are constrained to follow WoT Thing Descriptions when interacting with Things.
ObjectSchema
and
ArraySchema
(when items
is an
Array of DataSchema
) where there can be
additional properties or items in the data returned. This
behaves as if "additionalProperties":true
or
"additionalItems":true
as defined in
[JSON-SCHEMA].ObjectSchema
and ArraySchema
(when items
is an Array of
DataSchema
) where there can be additional
properties or items in the data returned. This behaves as
if "additionalProperties":true
or
"additionalItems":true
as defined in
[JSON-SCHEMA].A Protocol Binding is the
mapping from an Interaction
Affordance to concrete messages of a specific protocol
such as HTTP [RFC7231],
CoAP [RFC7252],
or MQTT [MQTT].
Protocol Bindings of
Interaction
Affordances are serialized as forms
as
defined in § 6.3.9
forms
.
Every form in a WoT Thing Description must have a
submission target, given by the href
member. The
URI scheme of this submission target indicates what Protocol
Binding the Thing
implements [WOT-ARCHITECTURE].
For instance, if the target starts with http
or
https
, a Consumer can then infer the
Thing implements the Protocol
Binding based on HTTP and it should expect HTTP-specific
terms in the form instance (see next section, § 8.3.1 Protocol Binding based on HTTP).
href
member.Per default the Thing Description supports the Protocol
Binding based on HTTP by including the HTTP RDF
vocabulary definitions from HTTP Vocabulary in RDF
1.0 [HTTP-in-RDF10].
This vocabulary can be directly used within TD instances by
the usage of the prefix htv
, which points to
http://www.w3.org/2011/http#
. Further details
of Protocol Binding
based on HTTP can be found in [WOT-BINDING-TEMPLATES].
To interact with a Thing that implements the
Protocol Binding
based on HTTP, a Consumer needs to know what
HTTP method to use when submitting a form. In the general
case, a Thing Description can explicitly include a term
indicating the method, i.e., htv:methodName
.
For the sake of conciseness, the Protocol
Binding based on HTTP defines Default Values
for the operation types listed below, which also aims at
convergence of the methods expected by Things (e.g., GET to read, PUT
to write). When no method is indicated in a
form representing an Protocol Binding
based on HTTP, a Default Value MUST be assumed as shown in the following
table.
Vocabulary term | Default value | Context |
---|---|---|
htv:methodName |
GET |
Form with operation type
readproperty ,
readallproperties ,
readmultipleproperties |
htv:methodName |
PUT |
Form with operation type
writeproperty ,
writeallproperties ,
writemultipleproperties |
htv:methodName |
POST |
Form with operation type
invokeaction |
For example, the Example 1 in § 1. Introduction does not contain operation types and HTTP methods in the forms. The following Default Values should be assumed for the forms in the Example 1:
In the case of a forms
entry that has
multiple op
values the usage of the
htv:methodName
is not permitted. A TD Processor
will extend the multiple op
values to separate
forms
entries and associates a single
operation with the default assumption. The address
information (e.g. href
) and other metadata are
taken over in the extended version.
The number of Protocol Bindings a Thing can implement is not restricted. Other Protocol Bindings (e.g., for CoAP, MQTT, or OPC UA) are intended to be standardized in separate documents such as a protocol Vocabulary similar to HTTP Vocabulary in RDF 1.0 [HTTP-in-RDF10] or specifications including Default Value definitions. Such protocols can be simply integrated into the TD by the usage of the TD Context Extension mechanism (see § 7. TD Context Extensions).
Please refer to [WOT-BINDING-TEMPLATES] for information on how to describe IoT platforms and ecosystems.
This section is non-normative.
In general the security measures taken to protect a WoT system will depend on the threats and attackers that system may face and the value of the assets needs to protect. In addition privacy risks will depend on the association of Things with identifiable people and both the direct information and the inferred information available from such an association. A detailed discussion of security and privacy considerations for the Web of Things, including a threat model that can be adapted to various circumstances, is presented in the informative document [WOT-SECURITY-GUIDELINES]. This section discusses only security and privacy risks and possible mitigations directly relevant to the WoT Thing Description.
A WoT Thing Description can describe both secure and insecure network interfaces. When a Thing Description is retro-fitted to an existing network interface, no change in the security status of the network interface is to be expected.
The use of a WoT Thing Description introduces the security and privacy risks given in the following sections. After each risk, we suggest some possible mitigations.
Fetching the vocabulary files given in the
@context
member of any JSON-LD [json-ld11] document can be a privacy
risk. In the case of the WoT, an attacker can observe the
network traffic produced by such fetches and can use the
metadata of the fetch, such as the destination IP address, to
infer information about the device especially if
domain-specific vocabularies are used. This is a risk even if
the connection is encrypted, and is related to DNS privacy
leaks.
@context
member serving only as an identifier
of the (known) vocabulary. This requires the use of strict
version control, as updates should use a new URI to ensure
that existing URIs can refer to immutable data. Use
well-known standard vocabulary files whenever possible to
improve the chances that the context file will be available
locally to systems interpreting the metadata in a Thing
Description.A Thing Description containing an identifier
(id
) may describe a Thing that is associated
with an identifiable person. Such identifiers pose various
risks including tracking. However, if the identifier is also
immutable, then the tracking risk is amplified, since a
device may be sold or given to another person and the known
ID used to track that person.
id
of a Thing. Specifically, the
id
of a Thing should not be fixed in
hardware. This does, however, conflict with the Linked
Data ideal that identifiers are fixed URIs. In many
circumstances it will be acceptable to only allow updates
to identifiers if a Thing is reinitialized. In
this case as a software entity the old Thing ceases to exist and a
new Thing
is created. This can be sufficient to break a tracking
chain when, for example, a device is sold to a new owner.
Alternatively, if more frequent changes are desired
during the operational phase of a device, a mechanism can
be put into place to notify only authorized users of the
change in identifier when a change is made. Note however
that some classes of devices, e.g., medical devices, may
require immutable IDs by law in some jurisdictions. In
this case extra attention should be paid to secure access
to files, such as Thing Descriptions, containing such
immutable identifiers. It may also be desirable to not
share the "true" immutable identifier in such a case in
the TD whenever possible.
As noted above, the id
member in a TD can
pose a privacy risk. However, even if the id
is
updated as described to mitigate its tracking risk, it may
still be possible to associate a TD with a particular
physical device, and from there to an identifiable person,
through fingerprinting.
Even if a specific device instance cannot be identified through fingerprinting, it may be possible to infer the type of a device from the information in the TD, such as the set of interactions, and use this type to infer private information about an identifiable person, such as a medical condition.
id
can
be omitted. If the Consumer does not need certain
interactions for its use case, they can be omitted. If
the Consumer is not authorized to use certain
interactions, they can likewise be omitted. If the
Consumer does not have any capability to display
human-readable information such as titles or
descriptions, they can be omitted or replaced with
zero-length strings.
Globally unique identifiers pose a privacy risk if a centralized authority is needed to create and distribute them, since then a third party has knowledge of the identifiers.
id
field in TDs are intentionally not
required to be globally unique. There are several
cryptographic mechanisms available to generate suitable IDs
in a distributed fashion that do not require a central
registry. These mechanisms typically have a very low
probability of generating duplicate identifiers, and this
needs to be taken into account in the system design; for
example, by detecting duplicates and regenerating IDs when
necessary. The scope of IDs also does not need to be
global: it is acceptable to use identifiers that only
distinguish Things in a certain context, such as within a
home or factory.Intercepting and tampering with TDs can be used to launch man-in-the-middle attacks, for example by rewriting URLs in TDs to redirect accesses to a malicious intermediary that can capture or manipulate data.
Intercepting and tampering with context files can be used to facilitate attacks by modifying the interpretation of vocabulary.
In many locales, in order to protect the privacy of users, there are legal requirements for the handling of personally identifiable information, that is, information that can be associated with a particular person. Such information can of course be generated by IoT devices directly. However, the existence and metadata of IoT devices (the kind of data stored in a Thing Description) can also contain or be used to infer personally identifiable information. This information can be as simple as the fact that a certain person owns a certain type of device, which can lead to additional inferences about that person.
The following section has its origin in [wot-thing-description], Annex C. Here Thing Description Template is renamed to Thing Model, but keeps the same intention. For this version of the specification, Thing Model and its model features (e.g., extensions, referencing, obligations, placeholder) are formal introduced. For Thing Model, an own content type is under discussion. Please note this section is in work in progress.
A Thing Model enables the opportunity to define the basic information model of a Thing. It can be seen as a template for Thing Descriptions, however, that have less restriction as driven in § 5. TD Information Model and § 6. TD Representation Format. Typically Thing Model examples does not contain any instance-specific information such as protocol specific data like IP addresses. However, instead of having, e.g., concrete URLs, Thing Model allows the usage of URL templates.
The figure below illustrates the relation of the Thing Model and Thing Description. A Thing Model mainly describes interaction affordances such as the Properties, Actions, and Events and common metadata. This kind of template should be valid and followed for all instantiated Thing Descriptions that are relied on this Thing Model. This paradigm can be compared with abstract class or interface definition (~Thing Model) in object-oriented programming to create objects (~Thing Descriptions).
The Thing Model enables:
The Thing Model is a logical description of the interface and possible interaction with Thing's Properties, Actions, and Events, however it does not contain Thing instance-specific information, such as concrete protocol usage (e.g., IP address), or even a serial number and GPS location. However, Thing Models allows to include, e.g., security schemes if they apply to the entire class of instances the model describes. They might have URLs (e.g., like token servers) that might need to be omitted or parameterized (with templates) although in a lot of cases these might also be given.
Thing Model can be serialized in the same JSON-based format as a Thing Description which also allows JSON-LD processing. Note that a Thing Model cannot be validated in the same way as Thing Description instances due to some missing mandatory terms.
A Thing
Model is recognized by the top level @type.
Thing Model definitions
MUST use the keyword @type
at top level and a value of type string or array that equals
or respectively contains tm:ThingModel
.
The prefix tm
is defined within Thing
Descriptions' context and points to the Thing Model namespace as
defined in § 4. Namespaces.
It is intended that vocabulary from the tm
context only be used in Thing Model definitions and
are removed or replaced when Thing Descriptions are
generated (also see § 10.4
Derivation to Thing Description Instances).
A Thing Model MAY NOT contain instance specific Protocol Binding and security information such as endpoint addresses. As consequent, Thing Model definitions will be also valid if there are no JSON members like forms, base, securityDefinitions, and security. Thing Models are also valid even if these JSON members are used (e.g., as template), however, the nested mandatory members like href are omitted.
Example 3 shows a valid sample lamp Thing Model without any protocol and security information.
In the context of Thing Model definitions specifics features are introduced that can be used for Thing modelling.
Over time, Thing Model definitions
may change and must be made identifiable through
versioning. In that case the string-based term
model
can be used within the
version
container to provide a version pattern
like [SEMVER]. The
following snippet shows the usage of model
in
a Thing Model instance.
{
...
"@type" : "tm:ThingModel",
"title": "Lamp Thing Model",
"description": "Lamp Thing Description Model",
"version" : {"model" : "1.0.0" },
...
}
Due to the definition of Thing Model the term
instance
can be omitted within the
version
container.
A Thing
model can extend an existing Thing model by using the
tm:extends
mechanism announced in the
links
definition: A Thing Model MUST use at least one links
entry with "rel":"tm:extends"
that targets to
a Thing
Model that is be extended. The Thing Model will
inherit all definitions from the extended Thing Model. There is
the opportunity to extend the existing definition with
further metadata by providing further JSON name-value pairs
from existing TD information model (§ 5. TD Information
Model) or using the context extension concept (§ 7. TD Context
Extensions). A Thing Model can also
overwrite existing definitions such as
title(s)
and maximum
etc.. For
this there exists two limitations: A
Thing
Model SHOULD NOT overwrite the
JSON names defined within the properties
,
actions
, and/or events
Map of the extended Thing Model.
Definitions SHOULD NOT be overwritten in such a way that
possible instance values are no longer valid compared to
the origin extended definitions. Those assertations
preserve the semantics throughout of the extended Thing Model. E.g., it
is not allowed that a "minimum":2
from a
extended Thing
Model can be overwritten with "minimum":0
.
Meanwhile, overwriting with "minimum":5
would
work since all instances values will always fulfill the
restrictions of the extended Thing Model.
Lets assume we have a basic model description as provided in the following example:
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"title": "Basic On/Off Thing Model",
"properties": {
"onOff": {
"type": "boolean"
}
}
}
Now it is designed a new device class model called
'Smart Lamp Control' that should be used as template for
creating TD instances. This model will reuse the existing
definition of the 'Basic On/Off Thing Model' and extend it
with a dim
property:
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"title": "Smart Lamp Control with Dimming",
"links" : [{
"rel": "tm:extends",
"href": "http://example.com/BasicOnOffTM",
"type": "application/td+json"
}],
"properties" : {
"dim" : {
"type": "integer",
"minimum": 0,
"maximum": 100
}
}
}
Please note that the title
is overwritten
and will be used when TD instances are created (also see in
the next subsection § 10.4
Derivation to Thing Description Instances).
The tm:extends
feature only allows to
inherit all definitions of one TM. In many use cases,
however, it is desired to import sub-definition of one or
more TMs. For doing this, the tm:ref
term is
introduced with a JSON Pointer-based value [rfc6901]
that allows to copy a definition within an existing TM into
a new created local context definition. The value of
tm:ref
term MUST be a
valid JSON Pointer that identifies to a pre-existing
definition based on Thing Model
specifications. Every time tm:ref
is used,
the referenced pre-definition and its dependencies (e.g.,
by context extension) MUST be
assumed at this point.
The following example shows a new TM definition that
imports the existing definition of the property
onOff
from Example
50 into the new property definition
switch
.
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"title": "Smart Lamp Control",
"properties" : {
"switch" : {
"tm:ref" :"http://example.com/BasicOnOffTM.tm.jsonld#/properties/onOff"
}
}
}
At the place the "tm:ref" is defined, additional
name-value pairs can be added. It is also allowed to
override name-value pairs from the referenced definition.
If it is intended to override an
existing JSON name-value pair definition from
tm:ref
, the same JSON name MUST be used at the same level of the
tm:ref
declearation that provides a new
value. Similar to
tm:extends
and to keep the semantic meaning,
definitions SHOULD NOT be
overwritten in such a way that possible instance values are
no longer valid compared to the origin referenced
definition.
The following example shows a new TM definition that overwrite and extend an existing definition from Example 51.
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"title": "Smart Lamp Control",
"properties" : {
"dimming" : {
"tm:ref" :"http://example.com/SmartLampControlwithDimming.tm.jsonld#/properties/dim",
"maximum": 80,
"unit" : "%"
}
}
}
The tm:extends
and the import mechanism
based on tm:ref
can be also used at the same
time in a TM definition. The following example extends the
TM from Example 50 and imports the
status
and dim
definitions from
Example
3 and Example 51 respectively.
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"title": "Smart Lamp Control",
"links" : [{
"rel": "extends",
"href": "http://example.com/BasicOnOffTM",
"type": "application/td+json"
}],
"properties" : {
"status" : {
"tm:ref" :"http://example.com/LampTM.tm.jsonld#/properties/status"
},
"dimming" : {
"tm:ref" :"http://example.com/LampWithDimmingTM.tm.jsonld#/properties/dim"
}
}
}
Thing
Model can specify which terms should be taken in a TD
instance, but their values are unspecific and are first
known during TD instantiation. In such a case the
placeholder labeling MAY be used
in Thing Model that MUST be
substituted with a concrete value when TD instance is
created from the Thing Model. The
string-based pattern of the placeholder MUST follow
{{PLACEHOLDER_IDENTIFIER}}
, which should
contain a placeholder identifier name. The identifier name
can be used to identify the placeholder for the
substitution process. Placeholder can be only
applied within the value of the JSON name-value pair and
the value have to be typed as JSON string.
In the case a non
string-based value of a JSON name-value pair should have a
placeholder the value must be (temporary) typed as string.
After replacing the placeholder, e.g. when creating a Thing
Description instance, the original type can be applied with
the corresponding replaced value.
The following Thing Model example defines different placeholders. The placeholder map is used to apply the replacement and to transform the intended value type.
In some cases it is desirable to force the information
which interaction model is mandatory and has to be
definitely implemented in a Thing Description
instance or can be always expected by the Thing Model.
To
guarantee the implementation of particular kind of
interaction models, Thing Model definitions MUST use the JSON member name
tm:required
. tm:required
MUST be a JSON array at the top
level. The value of
tm:required
MUST
provide JSON Pointer [RFC6901]
references to the required interaction model
definitions. The JSON Pointers of
tm:required
MUST
resolve to an entire interaction affordance Map
definition.
The following sample shows the usage of
tm:required
for the Property interaction
status
and Action interaction
toggle
.
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"title": "Lamp Thing Model",
"description": "Lamp Thing Description Model",
"tm:required": [
"#/properties/status",
"#/actions/toggle"
],
"properties": {
"status": {
"description": "current status of the lamp (on|off)",
"type": "string",
"readOnly": true
}
},
"actions": {
"toggle": {
"description": "Turn the lamp on or off"
}
},
"events": {
"overheating": {
"description": "Lamp reaches a critical temperature (overheating)",
"data": {"type": "string"}
}
}
}
Since the Event
overheating
is not mandatory it may be not
available in a Thing Description
instance.
Thing Models can be used as template to generate Thing Description based on the restriction defined in Sections § 5. TD Information Model and § 6. TD Representation Format. During this process missing data such as communication and security metadata have to be complemented to create valid Thing Description instances. A Thing Model MUST be defined in such a way that there are no inconsistencies that would result in a Thing Description not being able to meet the requirements as described in Section § 5. TD Information Model and § 6. TD Representation Format. A TM-to-TD generator to derive a Thing Description instance from a Thing Model transforms it to a Partial TD using the following steps:
links
element entry with
"rel":"tm:extends"
MUST be removed from the current Partial TD
tm:ThingModel
value of the top-level
@type
MUST to be
replaced by the value Thing
in the Partial TD instance.
tm:required
feature is used based on Section
§ 10.3.4
Required, the required interactions MUST definitly be taken over in the
Partial TD instance.
securityDefinitions
and
security
and/or § 6.3.9
forms
.
Thing description instances that follow a Thing model can
carry the information which type of Thing model is derived.
In this context, the linking concept can be used with
"rel" : "type"
(also see Section § 5.3.4.1
Link
), as shown in the following
example:
Please not that a TD can only be an instance of only one
TM at a time. That means for Thing Descriptions: The links
array can use the entry with "rel" : "type"
maximum one.
The following Thing Model extends the
model as shown in Example 51 and overwrites the
maximum
value of the dim
property
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "tm:ThingModel",
"links" : [{
"rel": "tm:extends",
"href": "http://example.com/SmartControlLampTM",
"type": "application/td+json"
}],
"properties" : {
"dim" : {
"maximum": 200
}
}
}
The expected Thing Description that is derived from this Thing Model would be (with HTTP Binding and basic security applied):
{
"@context": ["http://www.w3.org/ns/td"],
"@type" : "Thing",
"title": "Smart Lamp Control",
"securityDefinitions": {
"basic_sc": {"scheme": "basic", "in": "header"}
},
"security": "basic_sc",
"links" : [{
"rel": "type",
"href": "url/to/SmartLampControlModifiedDimTM",
"type": "application/td+json"
}
],
"properties" : {
"onOff : {
"type: "boolean",
"forms": [{"href": "https://smartlamp.example.com/onoff"}]
},
"dim" : {
"type": "integer",
"minimum": 0,
"maximum": 200,
"forms": [{"href": "https://smartlamp.example.com/dim"}]
}
}
}
application/td+json
Media Type
RegistrationSince WoT Thing Description is
intended to be a pure data exchange format for Thing metadata, the
serialization SHOULD NOT be
passed through a code execution mechanism such as
JavaScript's eval()
function to be
parsed. An (invalid) document may contain code
that, when executed, could lead to unexpected side
effects compromising the security of a system.
WoT Thing Descriptions can be evaluated with a JSON-LD 1.1 processor, which typically follows links to remote contexts (i.e., TD context extensions, see W3C WoT Thing Description, section 7) automatically, resulting in the transfer of files without the explicit request of the Consumer for each one. If remote contexts are served by third parties, it may allow them to gather usage patterns or similar information leading to privacy concerns. While implementations on resource-constrained devices are expected to perform raw JSON processing (as opposed to JSON-LD processing), implementations in general SHOULD statically cache vetted versions of their supported context extensions and not to follow links to remote contexts. Supported context extensions can be managed through a secure software update mechanism instead.
Context Extensions (see W3C WoT Thing Description, section 7) that are loaded from the Web over non-secure connections, such as HTTP, run the risk of being altered by an attacker such that they may modify the TD Information Model in a way that could compromise security. For this reason, Consumer again SHOULD vet and cache remote contexts before allowing the system to use it.
Given that JSON-LD processing usually includes the substitution of long IRIs [RFC3987] with short terms, WoT Thing Descriptions may expand considerably when processed using a JSON-LD 1.1 processor and, in the worst case, the resulting data might consume all of the recipient's resources. Consumers SHOULD treat any TD metadata with due skepticism.
Rules for processing both conforming and non-conforming content are defined in this specification.
IANA assigns compact CoAP Content-Format IDs for media types in the CoAP Content-Formats subregistry within the Constrained RESTful Environments (CoRE) Parameters registry [RFC7252]. The Content-Format ID for WoT Thing Description is 432.
This section is non-normative.
Feature list of the Thing:
{
"@context": [
"http://www.w3.org/ns/td",
{
"cov": "http://www.example.org/coap-binding#"
}
],
"id": "urn:dev:ops:32473-WoTLamp-1234",
"title": "MyLampThing",
"description": "MyLampThing uses JSON serialization",
"securityDefinitions": {"psk_sc":{"scheme": "psk"}},
"security": ["psk_sc"],
"properties": {
"status": {
"description": "Shows the current status of the lamp",
"type": "string",
"forms": [{
"op": "readproperty",
"href": "coaps://mylamp.example.com/status",
"cov:methodName": "GET"
}]
}
},
"actions": {
"toggle": {
"description": "Turn on or off the lamp",
"forms": [{
"href": "coaps://mylamp.example.com/toggle",
"cov:methodName": "POST"
}]
}
},
"events": {
"overheating": {
"description": "Lamp reaches a critical temperature (overheating)",
"data": {"type": "string"},
"forms": [{
"href": "coaps://mylamp.example.com/oh",
"cov:methodName": "GET",
"subprotocol": "cov:observe"
}]
}
}
}
Feature list of the Thing:
/illuminance
by the MQTT broker
running behind the address 192.168.1.187:1883.{
"@context": "http://www.w3.org/ns/td",
"title": "MyIlluminanceSensor",
"id": "urn:dev:ops:32473-WoTIlluminanceSensor-1234",
"securityDefinitions": {"nosec_sc": {"scheme": "nosec"}},
"security": ["nosec_sc"],
"events": {
"illuminance": {
"data":{"type": "integer"},
"forms": [
{
"href": "mqtt://192.168.1.187:1883/illuminance",
"contentType": "text/plain",
"op": "subscribeevent"
}
]
}
}
}
Feature list of the Thing:
temperature
which periodically
pushes the latest temperature value to the Consumer using a Webhook
mechanism, where the Thing sends POST requests to
a callback URI provided by the Consumer. To describe this,
the subscription
member defines a write-only
parameter callbackURL
, which must be
submitted through the subscribeevent
form.
The read-only parameter subscriptionID
is
returned by the subscription. The WebhookThing
will then periodically POST to this callback URI with a
payload defined by data
. To unsubscribe, the
Consumer has to submit the
unsubscribeevent
form, which makes use of a
URI Template. The uriVariables
member
informs the Consumer to include the
subscriptionID
string. This can be further
automated by using a TD Context Extension to
include proper semantic annotations. Alternatively, one
can imagine unsubscribing using the
cancellation
member similarly to
subscription
and combine this with a
unsubscribeevent
form that describes a POST
request with payload to unsubscribe.
{
"@context": "http://www.w3.org/ns/td",
"id": "urn:dev:ops:32473-Thing-1234",
"title": "WebhookThing",
"description": "Webhook-based Event with subscription and unsubscribe form.",
"securityDefinitions": {"nosec_sc": {"scheme": "nosec"}},
"security": ["nosec_sc"],
"events": {
"temperature": {
"description": "Provides periodic temperature value updates.",
"subscription": {
"type": "object",
"properties": {
"callbackURL": {
"type": "string",
"format": "uri",
"description": "Callback URL provided by subscriber for Webhook notifications.",
"writeOnly": true
},
"subscriptionID": {
"type": "string",
"description": "Unique subscription ID for cancellation provided by WebhookThing.",
"readOnly": true
}
}
},
"data": {
"type": "number",
"description": "Latest temperature value that is sent to the callback URL."
},
"cancellation": {
"type": "object",
"properties": {
"subscriptionID": {
"type": "integer",
"description": "Required subscription ID to cancel subscription.",
"writeOnly": true
}
}
},
"uriVariables": {
"subscriptionID": { "type": "string" }
},
"forms": [
{
"op": "subscribeevent",
"href": "http://192.168.0.124:8080/events/temp/subscribe",
"contentType": "application/json",
"htv:methodName": "POST"
},
{
"op": "unsubscribeevent",
"href": "http://192.168.0.124:8080/events/temp/{subscriptionID}",
"htv:methodName": "DELETE"
}
]
}
}
}
This section is non-normative.
Below is a JSON Schema [JSON-SCHEMA] document for syntactically validating Thing Description instances serialized in JSON based format.
The Thing Description defined by this document
allows for adding external vocabularies by using
@context
mechanism known from JSON-LD
[json-ld11],
and the terms in those external vocabularies can be used in
addition to the terms defined in § 5. TD Information
Model. For this reason, the below JSON schema is
intentionally non-strict in that regard. You can replace the
value of additionalProperties
schema property
true
with false
in different
scopes/levels in order to perform a stricter validation in
case no external vocabularies are used.
Please note that some JSON Schema validation
tools do not support the iri
string format.
The following JSON Schema for validating TD instances does not require the terms with Default Values to be present. Thus the terms with Default Values are optional. (see also § 5.4 Default Value Definitions)
{
"title": "WoT TD Schema - 16 February 2021",
"description": "JSON Schema for validating TD instances against the TD model. TD instances can be with or without terms that have default values",
"$schema ": "http://json-schema.org/draft-07/schema#",
"definitions": {
"anyUri": {
"type": "string",
"format": "iri-reference"
},
"description": {
"type": "string"
},
"descriptions": {
"type": "object",
"additionalProperties": {
"type": "string"
}
},
"title": {
"type": "string"
},
"titles": {
"type": "object",
"additionalProperties": {
"type": "string"
}
},
"security": {
"oneOf": [{
"type": "array",
"items": {
"type": "string"
}
},
{
"type": "string"
}
]
},
"scopes": {
"oneOf": [{
"type": "array",
"items": {
"type": "string"
}
},
{
"type": "string"
}
]
},
"subprotocol": {
"type": "string",
"enum": [
"longpoll",
"websub",
"sse"
]
},
"thing-context-w3c-uri": {
"type": "string",
"enum": [
"https://www.w3.org/2019/wot/td/v1",
"http://www.w3.org/ns/td"
]
},
"thing-context": {
"oneOf": [{
"type": "array",
"items": [{
"$ref": "#/definitions/thing-context-w3c-uri"
}],
"additionalItems": {
"anyOf": [{
"$ref": "#/definitions/anyUri"
},
{
"type": "object"
}
]
}
},
{
"$ref": "#/definitions/thing-context-w3c-uri"
}
]
},
"type_declaration": {
"oneOf": [{
"type": "string",
"not": {"const":"tm:ThingModel"}
},
{
"type": "array",
"items": {
"type": "string",
"not": {"const":"tm:ThingModel"}
}
}
]
},
"dataSchema": {
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"title": {
"$ref": "#/definitions/title"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"titles": {
"$ref": "#/definitions/titles"
},
"writeOnly": {
"type": "boolean"
},
"readOnly": {
"type": "boolean"
},
"oneOf": {
"type": "array",
"items": {
"$ref": "#/definitions/dataSchema"
}
},
"unit": {
"type": "string"
},
"enum": {
"type": "array",
"minItems": 1,
"uniqueItems": true
},
"format": {
"type": "string"
},
"const": {},
"contentEncoding":{
"type": "string"
},
"contentMediaType":{
"type": "string"
},
"type": {
"type": "string",
"enum": [
"boolean",
"integer",
"number",
"string",
"object",
"array",
"null"
]
},
"items": {
"oneOf": [{
"$ref": "#/definitions/dataSchema"
},
{
"type": "array",
"items": {
"$ref": "#/definitions/dataSchema"
}
}
]
},
"maxItems": {
"type": "integer",
"minimum": 0
},
"minItems": {
"type": "integer",
"minimum": 0
},
"minimum": {
"type": "number"
},
"maximum": {
"type": "number"
},
"minLength":{
"type": "integer",
"minimum": 0
},
"maxLength":{
"type": "integer",
"minimum": 0
},
"multipleOf":{
"oneOf":[{"type": "integer"},{"type": "number"}]
},
"properties": {
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
},
"required": {
"type": "array",
"items": {
"type": "string"
}
}
}
},
"form_element_property": {
"type": "object",
"properties": {
"op": {
"oneOf": [{
"type": "string",
"enum": [
"readproperty",
"writeproperty",
"observeproperty",
"unobserveproperty"
]
},
{
"type": "array",
"items": {
"type": "string",
"enum": [
"readproperty",
"writeproperty",
"observeproperty",
"unobserveproperty"
]
}
}
]
},
"href": {
"$ref": "#/definitions/anyUri"
},
"contentType": {
"type": "string"
},
"contentCoding": {
"type": "string"
},
"subprotocol": {
"$ref": "#/definitions/subprotocol"
},
"security": {
"$ref": "#/definitions/security"
},
"scopes": {
"$ref": "#/definitions/scopes"
},
"response": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
}
}
},
"additionalResponses": {
"type": "array",
"items": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
},
"schema": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
}
}
}
}
},
"required": [
"href"
],
"additionalProperties": true
},
"form_element_action": {
"type": "object",
"properties": {
"op": {
"oneOf": [{
"type": "string",
"enum": [
"invokeaction"
]
},
{
"type": "array",
"items": {
"type": "string",
"enum": [
"invokeaction"
]
}
}
]
},
"href": {
"$ref": "#/definitions/anyUri"
},
"contentType": {
"type": "string"
},
"contentCoding": {
"type": "string"
},
"subprotocol": {
"$ref": "#/definitions/subprotocol"
},
"security": {
"$ref": "#/definitions/security"
},
"scopes": {
"$ref": "#/definitions/scopes"
},
"response": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
}
}
},
"additionalResponses": {
"type": "array",
"items": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
},
"schema": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
}
}
}
}
},
"required": [
"href"
],
"additionalProperties": true
},
"form_element_event": {
"type": "object",
"properties": {
"op": {
"oneOf": [{
"type": "string",
"enum": [
"subscribeevent",
"unsubscribeevent"
]
},
{
"type": "array",
"items": {
"type": "string",
"enum": [
"subscribeevent",
"unsubscribeevent"
]
}
}
]
},
"href": {
"$ref": "#/definitions/anyUri"
},
"contentType": {
"type": "string"
},
"contentCoding": {
"type": "string"
},
"subprotocol": {
"$ref": "#/definitions/subprotocol"
},
"security": {
"$ref": "#/definitions/security"
},
"scopes": {
"$ref": "#/definitions/scopes"
},
"response": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
}
}
},
"additionalResponses": {
"type": "array",
"items": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
},
"schema": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
}
}
}
}
},
"required": [
"href"
],
"additionalProperties": true
},
"form_element_root": {
"type": "object",
"properties": {
"op": {
"oneOf": [{
"type": "string",
"enum": [
"readallproperties",
"writeallproperties",
"readmultipleproperties",
"writemultipleproperties",
"observeallproperties",
"unobserveallproperties"
]
},
{
"type": "array",
"items": {
"type": "string",
"enum": [
"readallproperties",
"writeallproperties",
"readmultipleproperties",
"writemultipleproperties",
"observeallproperties",
"unobserveallproperties"
]
}
}
]
},
"href": {
"$ref": "#/definitions/anyUri"
},
"contentType": {
"type": "string"
},
"contentCoding": {
"type": "string"
},
"subprotocol": {
"$ref": "#/definitions/subprotocol"
},
"security": {
"$ref": "#/definitions/security"
},
"scopes": {
"$ref": "#/definitions/scopes"
},
"response": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
}
}
},
"additionalResponses": {
"type": "array",
"items": {
"type": "object",
"properties": {
"contentType": {
"type": "string"
},
"schema": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
}
}
}
}
},
"required": [
"href"
],
"additionalProperties": true
},
"property_element": {
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"title": {
"$ref": "#/definitions/title"
},
"titles": {
"$ref": "#/definitions/titles"
},
"forms": {
"type": "array",
"minItems": 1,
"items": {
"$ref": "#/definitions/form_element_property"
}
},
"uriVariables": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
},
"observable": {
"type": "boolean"
},
"writeOnly": {
"type": "boolean"
},
"readOnly": {
"type": "boolean"
},
"oneOf": {
"type": "array",
"items": {
"$ref": "#/definitions/dataSchema"
}
},
"unit": {
"type": "string"
},
"enum": {
"type": "array",
"minItems": 1,
"uniqueItems": true
},
"format": {
"type": "string"
},
"const": {},
"type": {
"type": "string",
"enum": [
"boolean",
"integer",
"number",
"string",
"object",
"array",
"null"
]
},
"items": {
"oneOf": [{
"$ref": "#/definitions/dataSchema"
},
{
"type": "array",
"items": {
"$ref": "#/definitions/dataSchema"
}
}
]
},
"maxItems": {
"type": "integer",
"minimum": 0
},
"minItems": {
"type": "integer",
"minimum": 0
},
"minimum": {
"type": "number"
},
"maximum": {
"type": "number"
},
"minLength":{
"type": "integer",
"minimum": 0
},
"maxLength":{
"type": "integer",
"minimum": 0
},
"multipleOf":{
"oneOf":[{"type": "integer"},{"type": "number"}]
},
"properties": {
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
},
"required": {
"type": "array",
"items": {
"type": "string"
}
}
},
"required": [
"forms"
],
"additionalProperties": true
},
"action_element": {
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"title": {
"$ref": "#/definitions/title"
},
"titles": {
"$ref": "#/definitions/titles"
},
"forms": {
"type": "array",
"minItems": 1,
"items": {
"$ref": "#/definitions/form_element_action"
}
},
"uriVariables": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
},
"input": {
"$ref": "#/definitions/dataSchema"
},
"output": {
"$ref": "#/definitions/dataSchema"
},
"safe": {
"type": "boolean"
},
"idempotent": {
"type": "boolean"
}
},
"required": [
"forms"
],
"additionalProperties": true
},
"event_element": {
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"title": {
"$ref": "#/definitions/title"
},
"titles": {
"$ref": "#/definitions/titles"
},
"forms": {
"type": "array",
"minItems": 1,
"items": {
"$ref": "#/definitions/form_element_event"
}
},
"uriVariables": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/dataSchema"
}
},
"subscription": {
"$ref": "#/definitions/dataSchema"
},
"data": {
"$ref": "#/definitions/dataSchema"
},
"cancellation": {
"$ref": "#/definitions/dataSchema"
}
},
"required": [
"forms"
],
"additionalProperties": true
},
"base_link_element": {
"type": "object",
"properties": {
"href": {
"$ref": "#/definitions/anyUri"
},
"type": {
"type": "string"
},
"rel": {
"type": "string"
},
"anchor": {
"$ref": "#/definitions/anyUri"
}
},
"required": [
"href"
],
"additionalProperties": true
},
"link_element": {
"allOf": [
{
"$ref": "#/definitions/base_link_element"
},
{
"not": {
"description": "A basic link element should not contain sizes",
"type": "object",
"properties": {
"sizes": {}
},
"required": [
"sizes"
]
}
},
{
"not": {
"description": "A basic link element should not contain icon or tm:extends",
"properties": {
"rel": {
"enum": [
"icon",
"tm:extends"
]
}
},
"required": [
"rel"
]
}
}
]
},
"icon_link_element": {
"allOf": [
{
"$ref": "#/definitions/base_link_element"
},
{
"properties": {
"rel": {
"const": "icon"
},
"sizes": {
"type": "string",
"pattern": "[0-9]*x[0-9]+"
}
}
}
]
},
"securityScheme": {
"oneOf": [{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"nosec"
]
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"combo"
]
},
"oneOf": {
"type": "array",
"minItems": 2,
"items": {
"type": "string"
}
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"combo"
]
},
"allOf": {
"type": "array",
"minItems": 2,
"items": {
"type": "string"
}
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"basic"
]
},
"in": {
"type": "string",
"enum": [
"header",
"query",
"body",
"cookie"
]
},
"name": {
"type": "string"
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"digest"
]
},
"qop": {
"type": "string",
"enum": [
"auth",
"auth-int"
]
},
"in": {
"type": "string",
"enum": [
"header",
"query",
"body",
"cookie"
]
},
"name": {
"type": "string"
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"apikey"
]
},
"in": {
"type": "string",
"enum": [
"header",
"query",
"body",
"cookie"
]
},
"name": {
"type": "string"
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"bearer"
]
},
"authorization": {
"$ref": "#/definitions/anyUri"
},
"alg": {
"type": "string"
},
"format": {
"type": "string"
},
"in": {
"type": "string",
"enum": [
"header",
"query",
"body",
"cookie"
]
},
"name": {
"type": "string"
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"psk"
]
},
"identity": {
"type": "string"
}
},
"required": [
"scheme"
]
},
{
"type": "object",
"properties": {
"@type": {
"$ref": "#/definitions/type_declaration"
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"proxy": {
"$ref": "#/definitions/anyUri"
},
"scheme": {
"type": "string",
"enum": [
"oauth2"
]
},
"authorization": {
"$ref": "#/definitions/anyUri"
},
"token": {
"$ref": "#/definitions/anyUri"
},
"refresh": {
"$ref": "#/definitions/anyUri"
},
"scopes": {
"oneOf": [{
"type": "array",
"items": {
"type": "string"
}
},
{
"type": "string"
}
]
},
"flow": {
"type": "string",
"enum": [
"code"
]
}
},
"required": [
"scheme"
]
}
]
}
},
"type": "object",
"properties": {
"id": {
"type": "string",
"format": "uri"
},
"title": {
"$ref": "#/definitions/title"
},
"titles": {
"$ref": "#/definitions/titles"
},
"properties": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/property_element"
}
},
"actions": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/action_element"
}
},
"events": {
"type": "object",
"additionalProperties": {
"$ref": "#/definitions/event_element"
}
},
"description": {
"$ref": "#/definitions/description"
},
"descriptions": {
"$ref": "#/definitions/descriptions"
},
"version": {
"type": "object",
"properties": {
"instance": {
"type": "string"
}
},
"required": [
"instance"
]
},
"links": {
"type": "array",
"items": {
"oneOf": [
{
"$ref": "#/definitions/link_element"
},
{
"$ref": "#/definitions/icon_link_element"
}
]
}
},
"forms": {
"type": "array",
"minItems": 1,
"items": {
"$ref": "#/definitions/form_element_root"
}
},
"base": {
"$ref": "#/definitions/anyUri"
},
"securityDefinitions": {
"type": "object",
"minProperties": 1,
"additionalProperties": {
"$ref": "#/definitions/securityScheme"
}
},
"support": {
"$ref": "#/definitions/anyUri"
},
"created": {
"type": "string",
"format": "date-time"
},
"modified": {
"type": "string",
"format": "date-time"
},
"security": {
"oneOf": [{
"type": "string"
},
{
"type": "array",
"minItems": 1,
"items": {
"type": "string"
}
}
]
},
"@type": {
"$ref": "#/definitions/type_declaration"
},
"@context": {
"$ref": "#/definitions/thing-context"
}
},
"required": [
"title",
"security",
"securityDefinitions",
"@context"
],
"additionalProperties": true
}
This section is non-normative.
The present specification introduces the TD Information Model as a set of
constraints over different Vocabularies, i.e. sets of
Vocabulary Terms. This
section briefly explains how a machine-readable definition of
these constraints can be integrated into client applications,
by making use of the mandatory @context
of a TD
document.
Accessing the TD Information Model from a TD document is done in two steps. First, clients must retrieve a mapping from JSON strings to IRIs. This mapping is defined as a JSON-LD context, as explained later. Second, clients can access the constraints defined on these IRIs by dereferencing them. Constraints are defined as logical axioms in the RDF format, readily interpretable by client programs.
All Vocabulary
Terms referenced in § 5. TD
Information Model are serialized as (compact) JSON strings
in a TD document. However, each of these terms is unambiguously
identified by a full IRI, as per the first Linked Data
principle [LINKED-DATA]. The
mappings from JSON keys to IRIs is what the
@context
value of a TD points to. For instance,
the file at
http://www.w3.org/ns/td
includes the following mappings (among others):
properties |
→ |
https://www.w3.org/2019/wot/td#hasPropertyAffordance |
object |
→ |
https://www.w3.org/2019/wot/json-schema#ObjectSchema |
basic |
→ |
https://www.w3.org/2019/wot/security#BasicSecurityScheme |
href |
→ |
https://www.w3.org/2019/wot/hypermedia#hasTarget |
... |
This JSON file follows the JSON-LD 1.1 syntax
[JSON-LD11].
Numerous JSON-LD libraries can automatically process the
@context
of a TD and expand all the JSON strings
it includes.
Once every Vocabulary Term of a TD is expanded to a IRI, the second step consists in dereferencing this IRI to get fragments of the TD Information Model that refer to that Vocabulary Term. For instance, dereferencing the IRI
https://www.w3.org/2019/wot/json-schema#ObjectSchema
results in an RDF document stating that the term
ObjectSchema
is a Class and more precisely, a
sub-class of DataSchema
. Such logical axioms are
represented in RDF using formalisms of various complexity:
here, sub-class relations are expressed as RDF Schema axioms
[RDF-SCHEMA]. Moreover, these axioms
may be serialized in various formats. Here, they are serialized
in the Turtle format [TURTLE]:
<https://www.w3.org/2019/wot/json-schema#ObjectSchema>
a rdfs:Class .
<https://www.w3.org/2019/wot/json-schema#ObjectSchema>
rdfs:subClassOf <https://www.w3.org/2019/wot/json-schema#DataSchema> .
By default, if a user agent does not perform any content
negotiation, a human-readable HTML documentation is returned
instead of the RDF document. To negotiate content, clients must
include the HTTP header Accept: text/turtle
in
their request.
Thing
, a new term profile
is
added
InteractionAffordance
, the description for
uriVariables
was clarified.
PropertyAffordance
, the description for
observable
was clarified.
VersionInfo
, a new term model
was added.
DataSchema
:
default
was added.format
implementations and
standardisation.NumberSchema
and § 5.3.2.5
IntegerSchema
, two new terms
exclusiveMinimum
and
exclusiveMaximum
were added.
StringSchema
, a new term
pattern
was added.
SecurityScheme
:
in
were
added, including how in
together with
name
can be used to represent multiple
parameters.uri
was added as one of valid
values of in
.APIKeySecurityScheme
, the description of
the schemes was improved.
PSKSecurityScheme
, the description of the
schemes was improved.
Link
:
sizes
is now
available.rel
values.Form
:
additionalResponses
was
added. It can be used to define error
responses.observeallproperties
and
unobserveallproperties
were added to
the definition of op
.contentType
,
contentCoding
, security
,
op
were changed.AdditionalExpectedResponse
was
introduced.
Form
class's op
term used in
PropertyAffordance
.AdditionalExpectedResponse
class's
success
term.securityDefinitions
and
security
, three examples (Example
Example 18, Example 19 and Example 20) were added.
links
, two example serializations were
added to further demonstrate the use of rel
.
forms
, the usage of
uriVariables
was clarified.
htv:methodName
is not permitted when the
forms
entry has multiple op
values.
Changes from Recommendation 9 April 2020 are described in the First Public Working Draft
The editors would like to special thank Matthias Kovatsch (co-editor of TD 1.0), Michael Koster, Michael Lagally, Kazuyuki Ashimura, Ege Korkan, Daniel Peintner, Toru Kawaguchi, María Poveda, Dave Raggett, Kunihiko Toumura, Takeshi Yamada, Ben Francis, Manu Sporny, Klaus Hartke, Addison Phillips, Jose M. Cantera, Tomoaki Mizushima, Soumya Kanti Datta and Benjamin Klotz for providing contributions, guidance and expertise.
Also, many thanks to the W3C staff and all other current and former active Participants of the W3C Web of Things Interest Group (WoT IG) and Working Group (WoT WG) for their support, technical input and suggestions that led to improvements to this document.
Finally, special thanks to Joerg Heuer for leading the WoT IG for 2 years from its inception and guiding the group to come up with the concept of WoT building blocks including the Thing Description.
Temporary ReSpec fix regarding non-listed references: [RFC6068], [RFC3966], [html], [RFC6750], [RFC7519], [RFC7797], [RFC8392], [RFC7516], [LDML], [SEMVER], [RFC7617], [RFC7616]
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
