Final Specification: 24 April 2012
This Version: http://www.w3.org/community/odrl/model/2.0/
Latest Version: http://www.w3.org/community/odrl/model/2/
- Editors:
- Renato Iannella, Semantic Identity, ri
semanticidentity.com
- Susanne Guth, Vodafone, susanne.guth
vodafone.com
- Daniel Paehler, University of Koblenz, tulkas
uni-koblenz.de
- Andreas Kasten, University of Koblenz, andreas.kasten
uni-koblenz.de
Status of this document
This specification was published by the W3C ODRL Community Group. It is not a W3C Standard nor is it on the W3C Standards Track. Please note that under the W3C Community Contributor License Agreement (CLA) there is a limited opt-out and other conditions apply. Learn more about W3C Community and Business Groups.
The W3C ODRL Community Group publishes a Final Specification to indicate that the document is believed to be mature and stable for implementation by the wider community. This Final Specification is now endorsed by the W3C ODRL Community Group as appropriate for widespread deployment and that promotes the Community Groups’s mission.
Discussion and feedback of this document takes place on the W3C ODRL Community Group mailing list (see Contributor Archive). Feedback from the public is encouraged and can be send to public-odrl@w3.org (see Public Archive).
Copyright © 2012 the Contributors to the Final Specification, published by the W3C ODRL Community Group under the W3C Community Final Specification Agreement (FSA). A human-readable summary is available.
Table of contents
- 1. Overview
- 2. ODRL Core Model
- 3. Scenarios (Informative)
- 4. Profiles (Informative)
- 5. Experimental Features (Informative)
- Acknowledgements
- References
1. Overview
The ODRL policy expression language has benefited from a robust underlying information model that has captured its semantics and provided extensibility paths for various communities. ODRL Version 2.0 is a major update for ODRL and will supersede Version 1.1.[ODRL11]
The ODRL Core Model is designed to be independent from implementation mechanisms and is focussed on the optimal model and semantics to represent policy-based information.
The following documents are part of the ODRL Version 2.0 series:
- ODRL V2.0 – Requirements [ODRL-REQ]. The Requirements document represents requirements for the language that have been gathered since ODRL Version 1.1 has been released. Not all requirements are aimed to be met.
- ODRL V2.0 – Core Model (this document)
- ODRL V2.0 – Common Vocabulary. This document specifies the terms (vocabulary) used by the Core Model for policy expression needs across communities [ODRL-VOCAB]. (This was called the “data dictionary” previously.)
- ODRL V2.0 – XML Encoding. The XML Encoding document specifies the serialisation of the Core Model in XML [ODRL-XML].
- ODRL V2.0 – RDF Encoding. The RDF Encoding document will specify the serialisation of the Core Model in W3C Semantic Web languages.
The updated model is based on additional semantics and requirements gathered from the DRM community, the latest research on security, access control, obligation management as well as the past experiences in implementations and research of ODRL. The requirements for Version 2.0 are documented [ODRL-REQ] and will be directly referenced in this document to ensure that they have been adequately addressed (where applicable).
The model shall be formally specified using UML notation [UML] [ODRL-REQ-6] and shall utilise the key words “MUST”, “MAY”, “REQUIRED”, and “OPTIONAL” in accordance to [RFC2119].
To make keywords easily distinguishable, this document uses syntax highlighting (formatted coded typeface) to indicate Core Model entities, the entities’ attributes, and concrete values for the attributes.
2. ODRL Core Model
Figure 2.1 below shows the complete version 2.0 ODRL Core Model. Policy
is the central entity that holds an ODRL policy together. In its encoded form, e.g. in an XML document, it makes the policy addressable from the outside word via its uid
attribute. Policy
can refer to Permission
s and Prohibition
s.
A Permission
allows a particular Action
to be executed on a related Asset
, e.g. “play the audio file abc.mp3”. A Constraint
like “at most 10 times” might be added to specify the Permission
more precisely. The Party
that grants this Permission
is linked to it with the Role
assigner
, the Party
that is granted the Permission
is linked to it with the Role
assignee
, e.g. “assigner
VirtualMusicShop grants the Permission
to assignee
Alice”. Additionally, a Permission
MAY be linked to Duty
entities.
Similar to Permission
s, a Duty
states that a certain Action
MAY be executed by the Party
with the Role
assignee
for the Permission
to be valid, e.g. “Alice must pay 5 EUR in order to get the Permission
to play abc.mp3″.
The Prohibition
entity is used in the same way as Permission
, with the two differences that it does not refer to Duties
and (obviously) that it forbids the Action
, e.g. “Alice is forbidden to use abc.mp3 commercially”.
Figure 2.1 – ODRL Core Model Version 2.0 |
The following sections describes each entity of the Core Model in greater detail.
2.1 Policy
The Policy
entity is the top-level entity and contains the following attributes:
uid
: the unique identification of thePolicy
entity (REQUIRED)type
: indicates the semantics of thePolicy
entity (REQUIRED). These are further described in the Common Vocabulary and ODRL Profiles.conflict
: indicates the precedence betweenPermission
s andProhibition
s (OPTIONAL)undefined
: indicates how to handle undefinedAction
s (OPTIONAL)inheritAllowed
: indicates if thePolicy
entity can be inherited (OPTIONAL)inheritFrom
: the identifier from which thisPolicy
inherits from it’s parentPolicy
(OPTIONAL)inheritRelation
: the identifier for the relationship type of this inheritance structure (OPTIONAL)
The uid
attribute MUST be a unique identifier.
The range of values for the Policy
entity’s type
attribute will be described in the Common Vocabulary document or in community profiles. This value MAY also impose further constraints on the Core Model, such as are exemplified in the Scenarios for types Offer
and Agreement
. It is important that the type
attribute be clearly understood in policy expressions as the semantics MAY impose restrictions on the expression language constructs such as cardinalities between entities.
The conflict
attribute is used to resolve conflicts arising from the merging of policies, specifically when there are conflicting Action
s in the Permission
s and Prohibition
s. If present, the conflict
attribute MUST take one of the following values:
perm
: thePermission
s will always takes precedenceprohibit
: theProhibition
s will always takes precedenceinvalid
: the policy is not valid
If the conflict
attribute is not explicitly set, its default value will be used instead. The default value of the conflict
attribute is invalid
.
The undefined
attribute is used to indicate how to support Action
s that are not part of any known profile in the policy expression system. If present, the undefined
attribute MUST take one of
the following values:
support
: theAction
is to be supported as part of the policy – and the policy remains validignore
: theAction
is to be ignored and not part of the policy – and the policy remains validinvalid
: theAction
is unknown – and the policy is invalid
In the support
case, even though the Action
is unknown, the policy still is valid and the consuming parties or system of the policy MUST be made aware of the unknown Action
. This MAY be via a user interface that displays the unknown Action
for human readability.
In the ignore
case, even though the Action
is unknown, the policy still is valid and the consuming parties or system of the policy MAY be made aware of the unknown Action
.
In the invalid
case with the unknown Action
, the policy is invalid and the consuming parties or system of the policy MUST be made aware of this.
If the undefined
attribute is not explicitly set, its default value will be used instead. The default value of the undefined
attribute is invalid
.
Other attributes MAY be added to the Policy
entity to support additional functions and requirements. Typically, these will be from different community vocabularies. For example, to indicate the issued date or valid dates of the Policy
entity, use of the Dublin Core Metadata Terms would be recommended.
2.1.1 Inheritance
The inheritAllowed
attribute in the Policy
entity is used to indicate if the Policy
expression can be used in any inheritance relationship [ODRL-REQ-1.20]. If present, the value of the inheritAllowed
attribute MUST take one of the following values:
true
: thePolicy
expression can be used for inheritancefalse
: thePolicy
expression can not be used for inheritance
If the inheritAllowed
attribute is not explicitly set, its default value will be used instead. The default value of the inherit
attribute is true
.
Only if the inheritAllowed
attribute has the value true
can the inheritFrom
and inheritRelation
attributes be specified.
The inheritFrom
attribute in the (child) Policy
will uniquely identify (via a UID) the (parent) Policy
from which the inheritance will be performed.
The inheritRelation
attribute in the (child) Policy
will uniquely identify (via a UID) the type of inheritance from the (parent) Policy
. For example, this may indicate the business scenario, such as subscription. Such terms MAY be defined in the Common Vocabulary or community Profiles.
The following restrictions apply when using inheritance:
- Single inheritance is only supported. (One Parent
Policy
to one or more ChildPolicy
entities. No ChildPolicy
can inherit from two or more ParentPolicy
entities.) - Inheritance can be to any depth. (Multiple levels of Children
Policy
entities.) - Inheritance cannot be circular.
- The Child
Policy
MUST override the ParentPolicy
. i.e.: If the sameAction
appears in the Parent, then it is replaced by the Child version, otherwise the ParentAction
s are added to the Child’sAction
s. - No state information is transferred from the policy in the Parent
Policy
to the ChildPolicy
2.2 Asset
The Asset
entity is aimed at identifying the content that is the subject of an ODRL policy, e.g. a media file or ebook. Furthermore, it can be used to represent other Asset
entities that are needed to undertake the Policy expression, such as with the Duty
entity. The Asset
entity is referred to by the Permission
and/or Prohibition
entities, and also by the Duty
entity.
The Asset
entity contains the following attribute:
uid
: the unique identification of theAsset
(REQUIRED)
The identification of the Asset
entity is a key foundation of the ODRL Policy language. However, there are some use cases where the ODRL Policy expression MAY be embedded inside the target Asset
. In these cases, it MAY be more appropriate to provide, or infer, a link to the Asset
entity (as the complete Asset
uid
may not be known at the time) through the local context. Use of such inference and context MUST be documented in the relevant ODRL community Profile.
Since ODRL policies could deal with any kind of asset, the ODRL Core Model does not provide additional metadata to describe Asset
entities of particular media types. It is recommended to use already existing metadata standards, such as Dublin Core Metadata Terms that are appropriate to the Asset
type or purpose.
The Relation
entity is used to associate the Asset
entity with the relevant Permission
, Prohibition
, and Duty
entities
2.2.1 Relation
The Relation
entity is an association class and can be used to link to an Asset
from either Permission
, Duty
or Prohibition
, indicating how the Asset
MAY be utilised in respect to the entity that links to it.
The Relation
entity contains the following attribute:
relation
: indicates the relationship of theAsset
to the linked entity (REQUIRED)
The default value for the relation
attribute is target
which indicates that the Asset
is the primary object to which the Permission
, Duty
or Prohibition
actions apply.
Other values for the Relation
entity MAY be defined in the Common Vocabulary and community Profiles.
2.3 Party
The Party
entity is aimed at identifying a person, group of people, or organisation. The Party
MUST identify a (legal) entity that can participate in policy transactions [ODRL-REQ-1.5].
The Party
entity contains the following attribute:
uid
: the unique identification of the party (REQUIRED)scope
: defines how the role shall be interpreted under different contexts. (OPTIONAL)
The ODRL Core Model does not provide additional metadata for the Party
element. It is recommended to use already existing metadata standards, such as IETF vCard that are appropriate to the Party
type or purpose.
The Role
entity is used to associate the Party
entity with the relevant Permission
, Prohibition
, and Duty
entities.
2.3.1 Role
The Role
entity is an association class and can be used to link to a Party
from either Permission
, Duty
or Prohibition
, indicating which role the Party
takes with respect to the entity that links to it.
The Role
entity contains the following attributes:
function
: the functional role theParty
takes (REQUIRED)
The function
attribute MUST take one of the following values:
assigner
: indicates that theParty
has assigned the associatedPermission
,Duty
, orProhibition
. In other words, theParty
grants aPermission
or requires aDuty
to be performed or states aProhibition
.assignee
: indicates that theParty
has been assigned the associated entity, i.e. they are granted aPermission
or required to perform aDuty
or have to adhere to aProhibition
.
Other values for the function
attribute MAY be defined in the Common Vocabulary and community Profiles.
The scope
attribute MAY be used to indicate the context under which to interpret the Party
entity. If present, the scope
attribute MAY take one of the following values:
individual
: indicates that theParty
entity is a single individual. The linkedPermission
,Duty
orProhibition
is applicable for that individual only.group
: indicates that theParty
entity represents a group. The group consisting of many individual members. The linkedPermission
,Duty
orProhibition
is applicable for each member of that group. For example, a (constrained)Permission
to play a movie 5 times is valid for eachParty
member or theDuty
to pay 3 EUR has to be fulfilled by eachParty
member.
Other values for the scope
attribute MAY be defined in the Common Vocabulary and community Profiles.
2.4 Permission
The Permission
entity indicates the Action
s that the assignee
is permitted to perform on the associated Asset
. In other words, what the assigner
(supplier) has granted to the assignee
(consumer).
An ODRL policy expression MAY contain at least one Permission
. It is important to verify the semantics of the Policy
type
attribute as this MAY indicate additional constraints on the Policy expression structure.
If several Permission
entities are referred to by a Policy
, then all of them are valid.
The Permission
entity has the following relations:
Asset
: thePermission
entity MUST refer to anAsset
(where at least one, and only one,relation
value istarget
) on which the linkedAction
MAY be performed (REQUIRED)Action
: thePermission
entity MUST refer to exactly oneAction
that indicates the granted operation on the targetAsset
(REQUIRED)Party
: thePermission
MUST refer to one or moreParty
entities linked via theRole
entity (see Section 2.3.1) (OPTIONAL)Constraint
: thePermission
MAY refer to one or moreConstraint
s which affect the validity of thePermission
, e.g. if theAction
play
is only permitted for a certain period of time (OPTIONAL)Duty
: thePermission
MAY refer to one or moreDuty
entities that indicate a requirement that MAY be fulfilled in return for receiving thePermission
(OPTIONAL)
2.5 Duty
The Duty
entity indicates a requirement that MAY be fulfilled in return for being entitled to the referring Permission
entity [ODRL-REQ-1.8]. While implying different semantics, the Duty
entity is similar to Permission
in that it is an Action that can be undertaken. If a Permission
refers to several Duty
entities, all of them have to be fulfilled for the Permission
to become valid. If several Permission
entities refer to one Duty
, then the Duty only has to be fulfilled once for all the Permission
entities to become valid.
The Duty
entity contains the following attributes:
uid
: a unique identification for thisDuty
. Used to refer a singleDuty
to multiplePermission
entities (OPTIONAL)
The Duty
entity has the following relations:
Action
: indicates the operation (e.g.pay
) that MAY be performed (REQUIRED). Note: It is assumed that the assigned Party has the appropriate permissions to perform this action.Party
: aDuty
MAY refer toParty
entities with differentRole
s (see Section 2.3.1). If no explicitParty
is linked to asassignee
orassigner
, theParties
with the respectiveRole
s are taken from the referringPermission
. (OPTIONAL)Asset
: aDuty
entity MAY refer to anAsset
(where at least one, and only one,relation
value istarget
) related to fulfilling theDuty
. For example, apay
Action
must be linked to a targetAsset
that indicates the amount to pay. The mechanisms to perform this linking/packaging are defined by community Profiles. (OPTIONAL)Constraint
: aDuty
MAY link to one or moreConstraint
s [ODRL-REQ-1.10] (OPTIONAL)
A Duty
entity does not, by itself, specify any conditions on when the Duty
Action
MUST or MAY be performed, such as to pay
before viewing the movie. Such conditions MAY be expressed through Constraint
entities.
To support cases where the Duty
MAY be performed for each Action
on an Asset
(for example, pay-per-view) then the use of a Constraint
(e.g. count=1) on the Permission
(e.g. play) can express these semantics.
2.6 Prohibition
The Prohibition
entity indicates the Action
s that the assignee
is prohibited to perform on the related Asset
[ODRL-REQ-1.7]. Prohibition
s are issued by the supplier of the Asset
– the Party
with the Role
assigner
. If several Prohibition
entities are referred to by a Policy
, all of them are valid.
The Prohibition
entity has the following relations:
Asset
: theProhibition
entity MUST refer to anAsset
(where at least one, and only one,relation
value istarget
) on which theAction
is prohibited (REQUIRED)Action
: theProhibition
entity MUST refer to exactly oneAction
that is prohibited (REQUIRED)Party
: theProhibition
MAY refer to one or moreParty
entities linked via theRole
entity (see Section 2.3.1) (OPTIONAL)Constraint
: theProhibition
MAY refer to one or moreConstraint
entities (OPTIONAL)
2.7 Action
The Action
entity (when related to a Permission
entity) indicates the operations (e.g. play
, copy
, etc.) that the assignee
(i.e. the consumer) is permitted to perform on the related Asset
linked to by Permission
. When related to a Prohibition
, the Action
entity indicates the operations that the assignee
(again the consumer) is prohibited to perform on the Asset
linked to by Prohibition
. Analogously, when related to a Duty
, it indicates the operation to be performed.
Action
contains the following attribute:
name
: indicates theAction
entity term (REQUIRED)
As its value, the name
attribute MAY take one of a set of Action
names which are formally defined in profiles. The ODRL Common Vocabulary defines a standard set of potential terms that MAY be used. Communities will develop new (or extend existing) profiles to capture additional and refined semantics.
2.8 Constraint
The Constraint
entity indicates limits and restrictions to the Permission
, the Prohibition
and the Duty
entity [ODRL-REQ-1.9]. Constraint
s express mathematical terms with two operands and one operator. For example, the “number of usages” (name
) must be “smaller than” (operator
) the “number 10” (rightOperand
).
If multiple Constraint
entities are linked to the same Permission
, Prohibition
, or Duty
entity, then all of the Constraint
entities MUST be satisfied. That is, all the Constraint
entities are (boolean) anded. In the case where the same Constraint
is repeated, then these MUST be represented as a single Constraint
entity using an appropriate operator
value (for example, isAnyOf
).
The Constraint
entity contains the following attributes:
name
: a name that identifies the the left operand of the operation (REQUIRED)operator
: an operator function (REQUIRED)rightOperand
: the right operand of the operation (REQUIRED)status
: the current value of the left operand (OPTIONAL)
The name
identifies the left operand of the mathematical operation for the Constraint
such as “Number of Usages” and “Expiration Date” etc. The operator
identifies the comparative operation such as “greater than” or “equal to”. The rightOperand
identifies the value that is being compared. When processing policy expressions, these Constraint
names MAY be directly linked to a procedure that can determine the outcome of the operations, such as the number of already performed usages and the current date. The name
and operator
are defined in the ODRL Common Vocabulary or community profiles.
The status
provides the current value of the Constraint
variable (i.e. current value of name
) [ODRL-REQ-1.3]. This is useful in cases where the current status of Constraint
s needs to be captured and expressed in the ODRL Core Model.
3. Scenarios (Informative)
This section shows a number of policy expression scenarios. In these examples, the different policy expression type
s that are used are for illustrative purposes only and are not part of this normative specification. Also, the specific Action
and Constraint
names (etc.) used in these examples are for illustrative purposes only. Please note that formal policy expression type
s and other entities are defined in the ODRL Common Vocabulary specification, or in community profiles.
3.1 Set
The following shows an instance of a set
Policy
. The Set
shows a policy expression, stating that the Asset
http//example.com/asset:9898
is the target
of the Permission
reproduce
and the Prohibition
to modify
. No parties or other elements are involved. This set
could be used, for example, as a template or an instant license.
Figure 3.1 – An instance of a Set Policy |

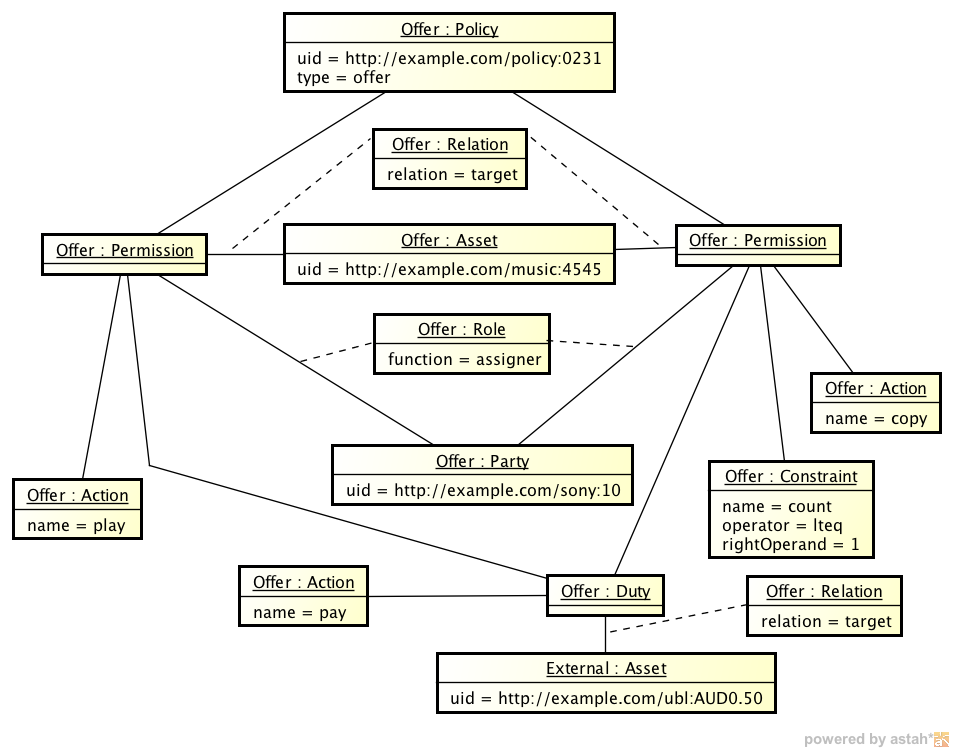

3.2 Offer
The following shows the instance of an offer
Policy
. The offer
contains the music file http//example.com/music:4545
that is offered by the Party
http//example.com/sony:10
with the Permission
s to play
and copy
the file. The Permission
copy
is only granted once. The two Permission
s are offered for a payment of AUD$0.50.
Figure 3.2 – An instance of an Offer Policy |

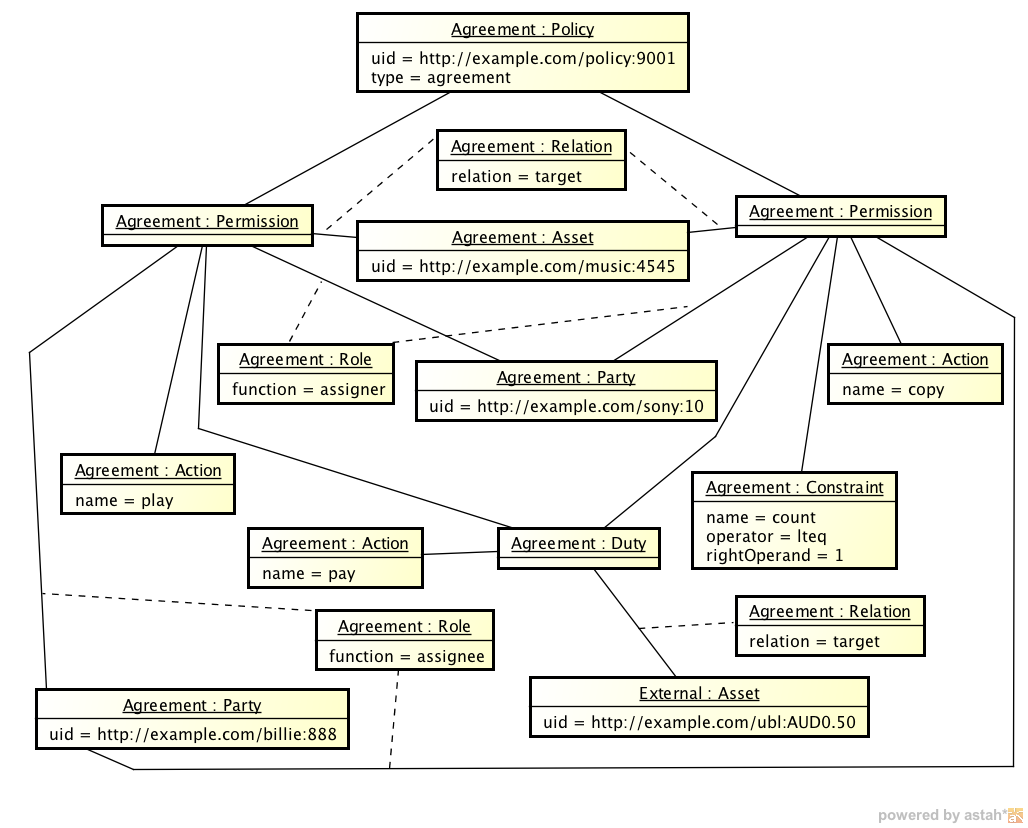

3.3 Agreement
The following shows the instance of an agreement
Policy
. The agreement
contains all entities shown in the offer
scenario above. A new Party
element http//example.com/billie:888
has been added. This Party
accepted the previous offer
and thus is now the buyer of the Permission
play
and copy
, i.e. is now linked as assignee
of the Permission
s and Duty
entities.
Figure 3.3 – An instance of an Agreement Policy |
3.4 Request
The following shows the instance of a request
Policy
. The Party
http//example.com/guest:0589
has requested the Permission
to display
the target
Asset
http//example.com/news:0099
.
Figure 3.4 – An instance of a Request Policy |
3.5 Ticket
The following shows the instance of a ticket
Policy
. The ticket
expresses the play
Permission
for the target
Asset
http//example.com/game:4589
. The Ticket
is valid until the end of the year 2010. Any valid holder of this ticket may exercise this Permission
.
Figure 3.5 – An instance of a Ticket Policy |
3.6 Offer and Next Policy
The following shows the instance of an offer
Policy
showing the nextPolicy
structure. The party http//example.com/sony:99
assigns the Permission
distribute
directly to the potential buyer of the permission who will pay $EU1,000. The distribute
Permission
is also constrained to the country Italy. The potential assignee
may then distribute
the target
Asset
according to the nextPolicy
target
Asset
linked directly from this Duty
. In this case, the next Policy Asset
stipulates that the potential assignee
may only offer the display
Permission
to downstream consumers.
Figure 3.6 – An instance of an Offer and Next Policy Policy |

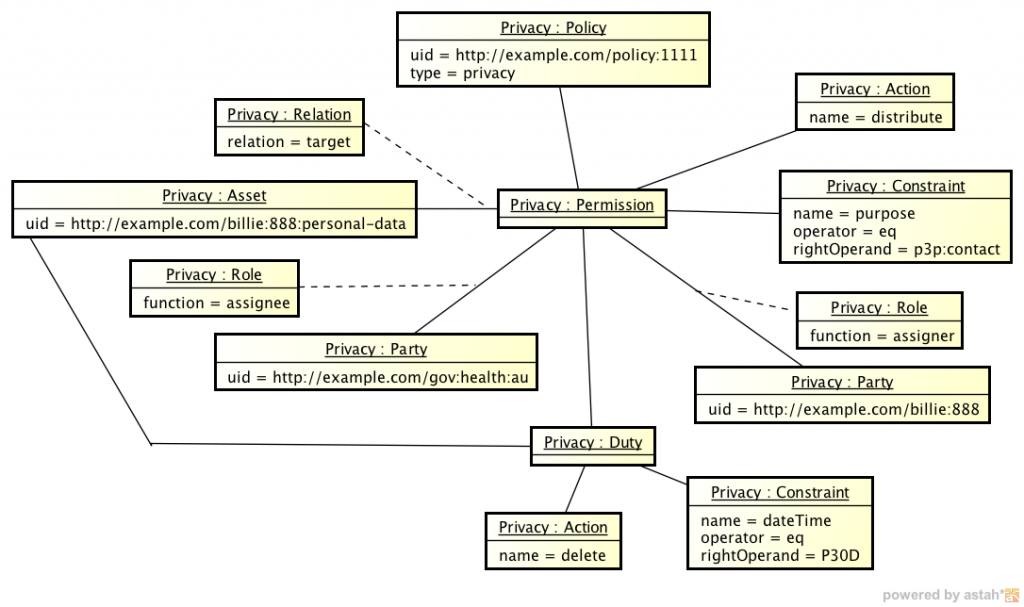

3.7 Privacy
The following shows the instance of an privacy
Policy
.
The target
Asset
is Personal Data and the assignee
is allowed to distribute
the Asset
only for the purpose
of contacting the subject of the Personal Data. The purpose value is taken from the P3P privacy purpose vocabulary.
Additionally, the assigner
(the Party
who the personal data is about) has stipulated that the assignee
must delete
the Asset
after a 30 day period (retention policy).
Figure 3.7 – An instance of an Privacy Policy |

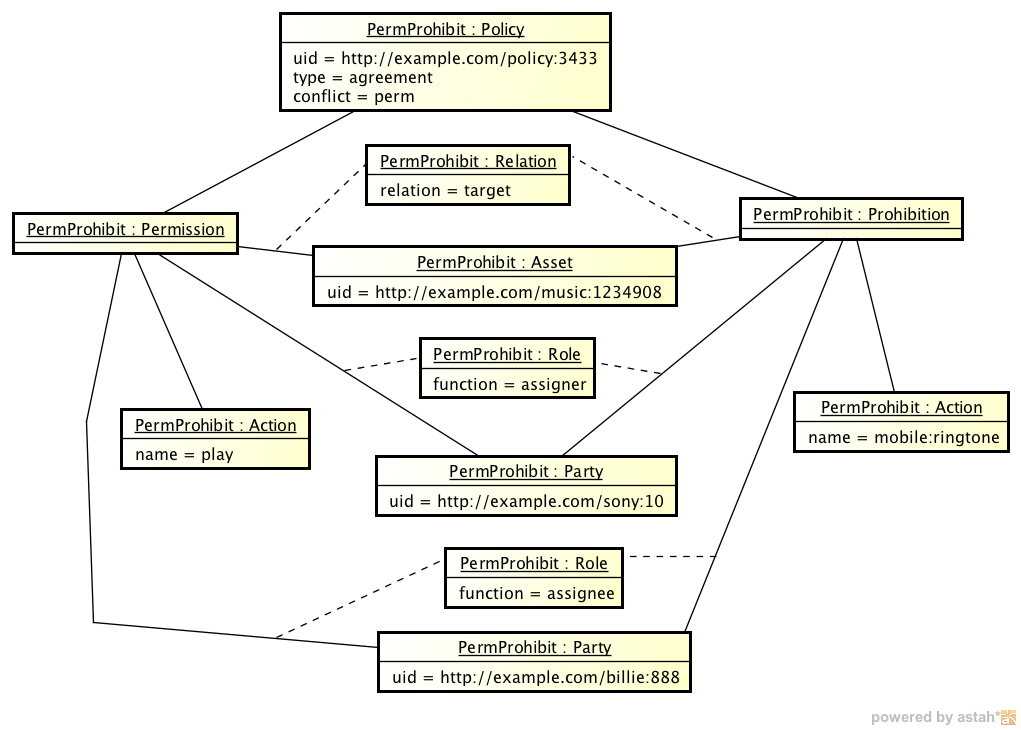

3.8 Permission and Prohibition
The following shows the instance of an agreement
Policy
with both a Permission
and a Prohibition
. The party http//example.com/sony:10
assigns the Permission
play
to the Party
http//example.com/billie:888
at the same time they are prohibited from utilising the target
Asset
as a mobile:ringtone
. Additionally, in case of any conflict, the conflict
attribute is set to perm
indicating that the Permission
entity will take precedence.
Figure 3.8 – An instance of an Permission and Prohibition Policy |
3.9 Inheritance
The following shows the instance of a (child) Policy
http//example.com/policy:9999
inheriting from another (parent) Policy
http//example.com/policy:5531
. The inheritFrom
attribute of the (child) Policy
has the same identifier as the (parent) Policy
. In this inheritance example, the (parent) Policy
allows the Party
http//example.com/billie:888
to print
the (parent’s) target
Asset
. The (child) Policy
allows the Party
http//example.com/class:IT01
(a group of people) to display
the (child’s) target
Asset
. Since the (child) Policy
also inherits from the (parent) Policy
, then the Party
http//example.com/class:IT01
can also print
the (parent’s) target
Asset
.
Figure 3.9 – An instance of an Inheritance Policy |
3.10 Social Network
The following shows the instance of an agreement
Policy
for a Social Network scenario.
The target
Asset
are photos posted to a Social Network site and the assigner
is the owner of the photos. The assignee
is a Party
group
and represents the football network members on the social network, who are each allowed to display
the photos.
Figure 3.10 – An instance of an Social Network Policy |
3.11 Multiple Assets
The following shows an instance of a set
Policy
utilising multiple Asset
entities.
The index
Permission
is granted to the target
Asset
. As well, the x:collection
Asset
specifies which database the index
outcome should be stored in.

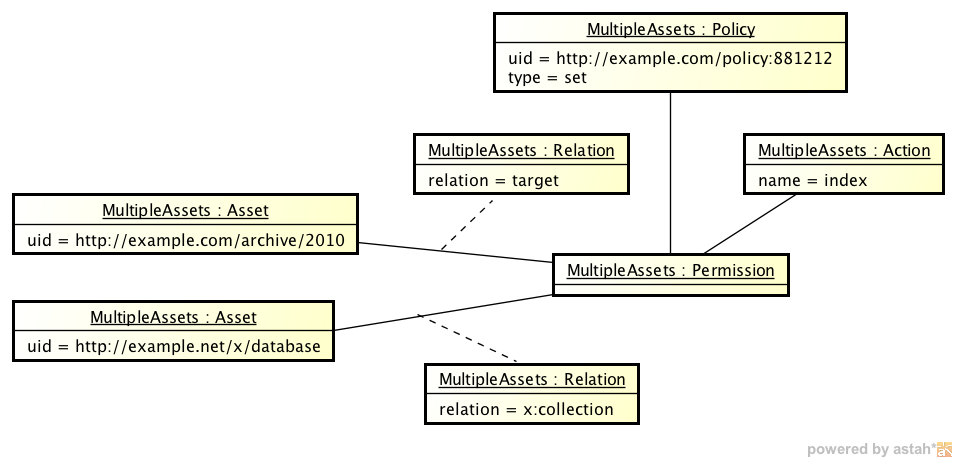

Figure 3.11 – An instance of an Multiple Assets Policy |
4. Profiles (Informative)
The ODRL Core Model represents a broad need for policy expressibility. As a result, different communities will require less or more elements from the Core Model. Community profiles of the ODRL model are expected to be developed that adequately document these changes in respect to the Core Model. Some requirements of this process include:
- Document any additions to the Core Model
- Document any aspects of the Core Model that will have different default values
- Document which aspects of the Core Model are not being used (deprecated)
- Document Vocabulary terms
- Declare your communities namespace (see Encoding specifications)
- Share the Community profile with the ODRL community for feedback and comments
5. Experimental Features (Informative)
This section contains advanced ODRL features. Although not part of the normative specification, they provide an opportunity for communities to experiment with and provide feedback on experiences that may be included in future ODRL versions.
5.1 Extended Relations
Extended Relations
may tie Permission
, Prohibition
, Duty
, and Constraint
entities together with an AND
, OR
or XOR
relationship. Only entities of the same type can be linked with this model. For example, a Permission
and Prohibition
cannot be linked together within this model. The Extended Relations model supports the following attribute:
operation
: may be set with one of the mathematical valuesAND
,OR
andXOR
. (OR
is the default if not specified.)
The following table outlines the semantics of Extended Relations with respect to each of the main entity types.
Permission |
Prohibition |
Duty |
Constraint |
|
OR |
The related party may perform any (at least) one of the Action s |
The related party MAY NOT perform at least one of the Action s |
The related party MUST perform at least one of the Action s |
The related Permission /Prohibition /Duty is restricted by at least one of the Constraint s |
AND |
The related party MUST perform all of the Action s |
The related party MAY NOT perform all of the Action s |
The related party MUST perform all of the Action s |
The related Permission /Prohibition /Duty is restricted by all of the Constraint s |
XOR |
The related party MAY perform only one of the Action s |
The related party MAY NOT perform only one of the Action s |
The related party MUST perform only one of the Action s |
The related Permission /Prohibition /Duty is restricted by only one of the Constraint s. |
Note that Extended Relations are not needed to assign two or more Permission
s to a Party
entity. In this case simply use as many Assignee
relations between Party
and Permission
as needed.
5.2 Abstract Policy Expression
As the Core Model diagram shows (see Figure 5.1), the key Permission
, Prohibition
and Duty
entities are very similar since they have (more or less) the same relationships to the other entities. They core difference is in their semantics:
Permission
says that theassignee
may do something,Duty
says that theassignee
should do something, and-
Prohibition
says that they should not do it.
In an implementation that interprets ODRL, it may make sense to introduce a common superclass Rule
, as shown in the (abbreviated) Model in Figure 5.1.

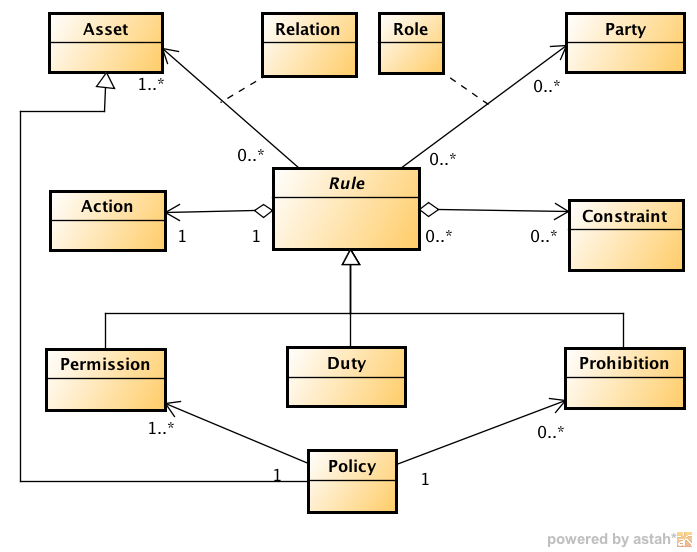

Figure 5.1 – ODRL Abstract Policy Model |
By implementing Permission
, Prohibition
and Duty
as subclasses of Rule
, the redundancy of having very similar, but separately developed classes in an application’s source code can be avoided. Furthermore, Rule
makes it possible to easily extend the Core Model in Profiles by adding policy expressions (as subclasses of Rule
) that are not possible by default.
5.3 Remedies
In the ODRL Core Model, Duties
are only directly related to Permission
s, meaning that for a Permission
to become effective, the related Duty
should be performed. For some use cases though, it might be useful to attach a Duty
to a Prohibition
, meaning that if a Prohibition
is violated, the Duty
has to be performed as a kind of remedy or consequence for the violation.
Not only can a Prohibition
have a Duty
attached to it as a remedy, even Duties
themselves may have remedies, e.g. “For the Permission
to play audio file xyz to become effective, you have to perform the Duty
‘pay 2€’. If you don’t perform this Duty
(even though you’ve played yxz), you have to remedy this by performing the Duty
‘pay 5€'”.
In order to distinguish between a Duty
that has to be fulfilled as a requirement and one that has to be fulfilled as a remedy, different relation names are introduced as shown in the Figure 5.2.

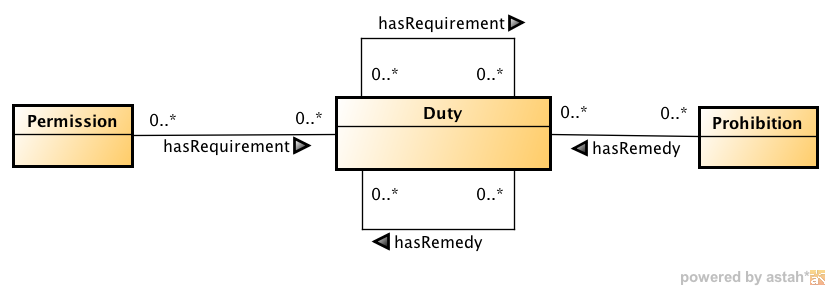

Figure 5.2 – Remedy Model |
The relation between Permission
and Duty
, which was unnamed before, is now named hasRequirement
. This is needed not only to make the different semantics clearer, but also because a Duty
can refer to yet another Duty
as a requirement, e.g. “If you want to print this written article, you have the Duty
to attach a particular image of the author, and if you do that, you have the Duty
to attribute the image to the photographer”.
Acknowledgements
The editors gratefully acknowledge feedback and contributions to this document from:
- Vicky Weissman, Mark Strembeck, Alapan Arnab, Steven Rowat, Eetu Luoma, Jaime Delgado, Ruediger Grimm, Helge Hundacker, Stuart Myles, Francis Cave, Rigo Wenning, Hassan Abdel-Rahman, Jonas Zitz
- Members of the W3C ODRL Community Group
References
[ODRL-11] | R. Iannella (ed). Open Digital Rights Language (ODRL) Version 1.1. W3C Note, 19 Sept 2002. http://www.w3.org/TR/odrl/ |
[ODRL-REQ] | S. Guth & R. Iannella (eds). Open Digital Rights Language (ODRL) Version 2.0 Requirements (Working Draft), ODRL Initiative, http://odrl.net/2.0/v2req.html, 24 November 2004. |
[ODRL-VOCAB] | S. Guth & R. Iannella (eds). Open Digital Rights Language (ODRL) Version 2.0 – Common Vocabulary. Final Specification, W3C ODRL Community Group, 19 April 2012. http://www.w3.org/community/odrl/two/vocab/ |
[ODRL-XML] | R. Iannella (ed). Open Digital Rights Language (ODRL) Version 2.0 – XML Encoding. Final Specification, W3C ODRL Community Group, 19 April 2012. http://www.w3.org/community/odrl/two/xml/ |
[RFC2119] | Key words for use in RFCs to Indicate Requirement Levels, S. Bradner. The Internet Society, March 1997. http://tools.ietf.org/html/rfc2119 |
[UML] | Unified Modeling Language (UML), Object Management Group, 2003. http://www.omg.org/technology/documents/formal/uml.htm |
