Technique SL8:Displaying HelpText in Silverlight User Interfaces


  • Microsoft Silverlight, versions 3 and greater
  • Silverlight managed programming model and Silverlight XAML

Microsoft has stopped updating and distributing Silverlight, and authors are encouraged to use HTML for accessible web content.

This technique is not referenced from any Understanding document.


The objective of this technique is to provide a long text alternative that replaces content when a short text alternative is not sufficient for a given user, and the user specifically requests that the application should provide more context or more information through the application user interface. The technique could also apply for providing a long text alternative for a nontext object, for example for an image that contains a level of detail that is difficult to capture in a standard visible-in-UI image caption.

Silverlight supports a UI Automation property named HelpText, to connote its possible usage to provide imperative instructions for interactive elements. HelpText is not always forwarded to users by existing assistive technologies, which is an issue discussed in the technique . Rather than relying on a particular assistive technology's support for enabling users to access the UIA HelpText, application authors can introduce user interface elements into their design that databind directly to the HelpText property, but where the interface element is not necessarily displayed by default. An interface update might be designed to occur if the application user specifically activates a "Get Help" action that is presented in the initial user interface.

This technique emphasises a "HelpText" model as a factoring practice. Silverlight application authors can use the HelpText as a data source that centralizes such information, because it already exists and has that intended purpose in accessibility frameworks. For example, the HelpText could be shown in a tooltip, a popup, a separate user interface element that is deliberately rendered in close proximity, etc. For accessibility support, a recommended display option for HelpText is to add or dynamically alter a Silverlight text element in the primary user interface. Silverlight supports an adaptive layout metaphor. Adding text to the runtime elements in the application generally causes an interface redraw, which in turn informs assistive technologies (through UIA properties and events) that content might have changed.

To set the UIA HelpText in Silverlight, you set the attached property AutomationProperties.HelpText. AutomationProperties.HelpText can be set in code, but is typically set in XAML that defines a Silverlight UI.

HelpText and Tooltip

The same information that is used for AutomationProperties.HelpText long text alternatives could also be useful to sighted users. In this case, the same text could be displayed in a Silverlight ToolTip control. The reason that application authors should use both AutomationProperties.HelpText AND Tooltip in conjunction is because the Tooltip information is not introduced into the runtime accessibility framework information set by UI Automation, because that information set does not anticipate the mouse action triggers that cause tooltips to display. In Silverlight programming, a useful technique for sharing the same resource is to combine the Silverlight data binding feature with the .NET Framework embedded resource feature. For more information on combining Silverlight data binding and resources for common string sources, see How to Make XAML Content Localizable.


Example 1: Displaying a long text alternative for an Image with XAML

Application authors can specify the AutomationProperties.HelpText attribute on the Image element. The value provided for the attribute should be a meaningful long text alternative for the image content. The value of AutomationProperties.HelpText should augment rather than duplicate any AutomationProperties.Name or an associated Label or LabeledBy caption. One or both of these is also typically specified to provide the basic (short-text) accessibility support for an image.

<StackPanel x:Name="imgContainer">
   Height="400" Width="600"
   AutomationProperties.HelpText=”The standard office layout
includes one corner desk unit in the corner farthest from the
door, and one file cabinet against the same wall as the door.”/>
 <sdk:Label x:Name="lblimgOffice" Target="{Binding ElementName=imgOffice}">Diagram of standard office layout</sdk:Label>
 <Button x:Name="HelpButton" Click="HelpButton_Click">Provide text-only alternative description of the previous image</Button>

The following event handler removes the Help button and replaces it in UI with a TextBox that displays the long text alternative.

       private void HelpButton_Click(object sender, RoutedEventArgs e)
           TextBox tb = new TextBox();
           tb.Text = AutomationProperties.GetHelpText(imgOffice);

Example 2: Using HelpText to augment existing form labels, to provide long text instructions

This example provides instructions for two form fields. The same text is also displayed for mouse users as a Tooltip and the AutomationProperties.HelpText string is used as a common source for both display options. In this example, the form submission does not perform client-side validation (although server-side validation following a data round trip might still exist, or validation could be added similar to the technique shown in ).

The following is the XAML UI:

<UserControl xmlns:sdk=""
       <Grid x:Name="LayoutRoot" Background="White" Margin="10">
               <RowDefinition Height="Auto"/>
               <RowDefinition Height="Auto"/>
               <RowDefinition Height="Auto"/>
               <RowDefinition Height="Auto"/>
               <RowDefinition Height="Auto"/>
               <ColumnDefinition Width="Auto"/>
               <ColumnDefinition Width="200"/>
               <ColumnDefinition Width="Auto"/>
           <TextBlock Text="Form With Tooltips" FontSize="16" FontWeight="Bold"
     Grid.Column="1" HorizontalAlignment="Center" />
           <sdk:Label x:Name="NameLabel" Target="{Binding ElementName=NameTextBox}"
     Grid.Row="2" Margin="3"/>
           <TextBox x:Name="NameTextBox"
     AutomationProperties.Name="{Binding Content, ElementName=NameLabel}"
     Text="{Binding Name, Mode=TwoWay, UpdateSourceTrigger=Explicit}"
     Grid.Column="1" Grid.Row="2" Margin="3"
                    AutomationProperties.HelpText="{Binding NameTextBoxToolTipString,Source={StaticResource TooltipStrings}}">
               <ToolTip Content="{Binding NameTextBoxToolTipString,Source={StaticResource TooltipStrings}}" />
           <sdk:Label x:Name="AgeLabel" Target="{Binding ElementName=AgeTextBox}"
     Grid.Row="3" Margin="3" HorizontalAlignment="Right"/>
           <TextBox x:Name="AgeTextBox"
     AutomationProperties.Name="{Binding Content, ElementName=AgeLabel}"
     Text="{Binding Age, Mode=TwoWay, UpdateSourceTrigger=Explicit}"
     Grid.Column="1" Grid.Row="3" Margin="3"
    AutomationProperties.HelpText="{Binding AgeTextBoxToolTipString,Source={StaticResource TooltipStrings}}">
               <ToolTip Content="{Binding AgeTextBoxToolTipString,Source={StaticResource TooltipStrings}}" />
       <StackPanel Orientation="Horizontal">
           <Button x:Name="SubmitButton" Content="Submit" Click="SubmitButton_Click" Grid.Column="1" Grid.Row="4" Width="50" Margin="3" />
           <Button x:Name="HelpButton" Click="HelpButton_Click">Get Help</Button>

The following is the resource definition in app.xaml:

           <resources:Resource1 x:Key="TooltipStrings"/>

The generated resource code that defines the "Resource1" class is not shown here because it is mostly infrastructure that is produced by a generation task in Visual Studio. For more information about embedded resources in Silverlight, see Resources Overview on MSDN. The resources here contain just two strings:

  • NameTextBoxToolTipString: Must be 10 characters or less. Required.
  • AgeTextBoxToolTipString Must be a value between 0 and 120. Required.

The following is the event handler code, which changes the interface.

       private void HelpButton_Click(object sender, RoutedEventArgs e)
           AgeLabel.Content = AgeLabel.Content + ": " + AutomationProperties.GetHelpText(AgeTextBox);
           NameLabel.Content = NameLabel.Content + ": " + AutomationProperties.GetHelpText(NameTextBox);

Note the call to Focus() - this puts the screen reader focus on the first form element so that the added text can be read. The very same text source as used for the Tooltip is added programmatically to the existing Label controls.

After the Get Help button is clicked, the visual appearance of the application is modified:

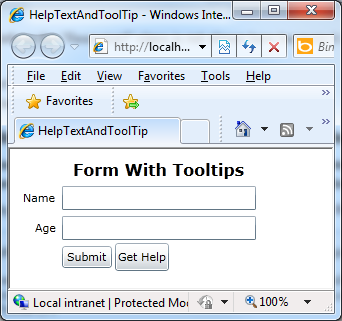

Before activating Get Help

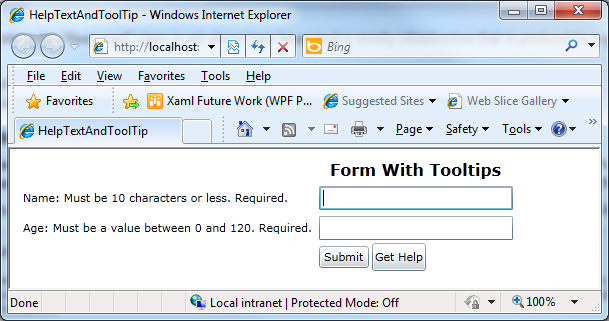

After activating Get Help

This example is shown in operation in the working example of HelpText and Tooltip.

Other sources

No endorsement implied.



  1. Using a browser that supports Silverlight, open an HTML page that references a Silverlight application through an object tag. To see UI Automation, use Microsoft Windows as platform.
  2. For a control where this technique is used to provide a long text alternative, verify that an identifiable and usable "Get Help" control is present in the initial user interface or assistive technology representation of that interface.
  3. Verify that activating the "Get Help" control changes the user interface, and the changed user interface now displays or reports long text alternatives that better address the user's information needs.
  4. If using a screen reader, verify that the long text alternative can be read aloud.

Expected Results

#2 and #3 are true. If testing with a screen reader, #4 is true.
