W3C W3C Incubator Report

Rich Web Application Backplane XG Final Report

W3C Incubator Group Report 30 October 2009

This version:
http://www.w3.org/2005/Incubator/app-backplane/XGR-app-backplane-20091030/
Latest version:
http://www.w3.org/2005/Incubator/app-backplane/XGR-app-backplane/
Authors:
Charlie Wiecha, Chair (IBM)
Mark Birbeck (Invited Expert, Backplane Ltd.)
John Boyer (IBM)
Jack Jansen (CWI)
Steven Pemberton (CWI)
Gregory Rosmaita (Invited Expert)

Abstract

This final report of the Rich Web Application Backplane Incubator Group (XG) describes two areas of work undertaken by the XG. We present a range of authoring patterns helpful in supporting high-function web applications in managing client-side data and user interaction control (in addition to the rich graphics traditionally assumed in such applications). In addition, a range of methods are considered for implementing such patterns in current browsers without requiring plug-ins or extensions using javascript-based markup behaviors. Examples are given showing the integration of HTML, XForms, SVG, SMIL, and Open Document Format (ODF) into rich web applications directly renderable in the browser. Recommendations for next steps include a focus on standards for greater interoperability of such script-based markup implementations.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of Final Incubator Group Reports is available. See also the W3C technical reports index at http://www.w3.org/TR/.

This document was developed by the Rich Web Application Backplane Incubator Group.

Publication of this document by W3C as part of the W3C Incubator Activity indicates no endorsement of its content by W3C, nor that W3C has, is, or will be allocating any resources to the issues addressed by it. Participation in Incubator Groups and publication of Incubator Group Reports at the W3C site are benefits of W3C Membership.

Incubator Groups have as a goal to produce work that can be implemented on a Royalty Free basis, as defined in the W3C Patent Policy. Participants in this Incubator Group have agreed to offer patent licenses according to the W3C Royalty-Free licensing requirements described in Section 5 of the W3C Patent Policy for any portions of the XG Reports produced by this XG that are subsequently incorporated into a W3C Recommendation produced by a Working Group which is chartered to take the XG Report as an input.

Comments on this document are welcome. Please send them to the public mailing list public-xg-app-backplane@w3.org (archive).

Table of Contents

1. Introduction

The W3C Architecture allows for markup languages for different application areas such as graphics, multimedia, maths and hypertext to be defined separately, and then to be combined into applications using the facilities defined in those markup languages. Examples of use of this approach include XHTML+Math+SVG, Joost, and XSmiles.

However, since these markup languages are defined to a degree in isolation from the other markup languages that they are used with, it can arise that some incompatibilities become apparent on combining them. Examples that have arisen include how events are used, accessibility concerns, and how data is submitted from forms.

The initial remit of the Backplane XG was to identify and explore these areas, and to investigate the possibility of defining central facilites that application markups could use and plug into, without having to redefine them.

During the period of its working the XG actually started implementing its ideas, and what evolved was a plan for an architecture of implementing XML-based applications within current-day browsers, using Javascript as a definition language, the idea being if you could define a standard method of allowing the subparts to communicate, you could define both the syntax and the semantics of markup languages without those languages knowing about each other's existence, and they could be combined and work together without further intervention.

2. Rich web platforms and formats

Web users today seek ever increasing interactivity and responsiveness in Web applications, particularly as those applications expand in scope and function to provide increasing levels of capability ("richness") in presentation, control, and data management. The drive for richness stems from a desire for authors to address greater functional goals in their applications -- moving from web content to commerce to collaborative services. The means for achieving richness stem largely from migrating function back to the client that historically has been resident on the server -- we do not seek to re-establish a world of client-server computing but rather to increasingly leverage client capabilities in an era of greatly expanded distributed computing and online services.

The Rich Web Application Backplane Incubator Group (XG) has had as its goal understanding, demonstrating, and documenting two areas of work: (1) authoring patterns for increased client-side capabilities in not only rich presentation or graphics but also in navigation control and data management for high-function web applications, and (2) techniques for extending current browser runtimes to support these authoring patterns across a variety of markup formats beyond the variants of HTML supported natively by existing browsers.

Following the introductory material of this XG report, we continue in Section 3 to illustrate the manner in which a variety of markup formats including XHTML, SVG, XForms, SMIL, and other emerging formats such as the Open Document Format (ODF) may come together providing each of the model, view, and controller artifacts of a Rich Web Application.

In Section 4, we describe an approach to implementing many of these formats in current browser platforms. We have come to focus on this point significantly in the XG's work since we believe that in the evolution of the web today it is not sufficient only to propose improved formats without corresponding emphasis on pragmatic routes to adoption.

Section 5 outlines some ways in which the accessibility requirements in ARIA could benefit from the browser implementation techniques just reviewed.

Section 6 illustrates a set of authoring patterns using existing markup formats for RIAs. In many cases the patterns we describe have been known for some time but have not reached critical mass in the developer community due to lack of convenient runtime support rather than lack of consensus as to their utility. We are excited at this point as to the potential for greater cross-format adoption of concepts such as MVC data binding, event-based coordination, implicit creation of the UI through repeats over queries on the active client data, and so on precisely since we now see and are actively involved in the creation of practical, performant, and deployable techniques for their use in current browser technologies.

Finally, the Conclusions section, along with Section 4.7 on Standardization, suggest possible follow-on actions within the W3C to support a broader and interoperable use of the patterns and markup implementation techniques discussed in this paper.

3. Structure of a rich web document

Figure 1 shows a cut-away view of the layers of a running Rich Internet Application (RIA) document. Richness of interaction results from increased client-side support for presentation, data, and control.

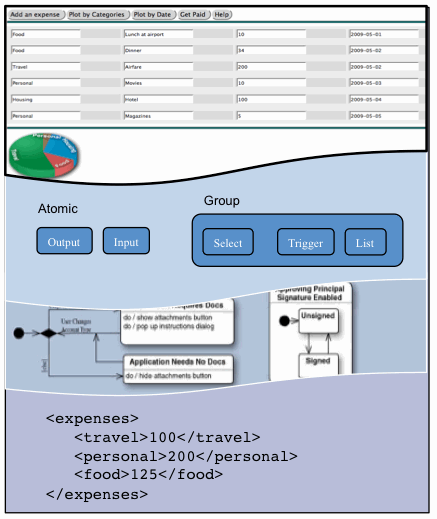

Figure 1: Layers of a Rich Internet Application
Figure 1: Layers of the Rich Web Application Backplane [Description of Figure 1]

Multiple markup formats have been defined specializing in each of these application concerns, as follows from top to bottom of the figure:

As a result, RIAs will increasingly be authored as a composition of multiple markup formats as shown in the diagram -- not as separable "modalities" of a mashed-up application, but as a single coherent user experience.

4. Rich web applications in the browser: extensibility

The markups outlined above are examples of multiple formats which collectively describe the structure and behavior of rich web applications. Markups for RIAs will in general be interactive formats, i.e. have processing models controlling behavior in addition to content models defining structure. Rather than authoring-time formats intended for mapping into HTML (applicable at best for a subset of the concrete presentation formats and irrelevant for control and data formats), we need methods to support the behavior of extensible formats directly in the browser as runtime vocabularies.

It's also important to track emerging markup formats from sources other than the W3C and ask whether they might be of interest as components of web-based applications. Our example below shows one such format, from OASIS -- the Open Document Text format used as a concrete presentation markup. There are potentially other emerging formats, particularly in the space of industry vertical standards, which may similarly be of interest for use client-side with first-class implementation of their behaviors. Examples might include HL7 and Clinical Document Architecture (CDA) from the healthcare industry, ACORD from insurance, and XBRL from the finance industry. These formats are of potential interest not just as data-exchange formats but to the extent they have interactive behaviors also as components of client-side web applications.

In the discussion below we consider various approaches to supporting both the structural and behavioral requirements of non-HTML markups without requiring plug-ins or extension components in the browser.

4.1 Server-side transcoding

Historically, the preferred approach to supporting "foreign" markups has been to transcode them to HTML on the server and either associate event handlers either to implement markup semantics client side in script or to delegate user events to the server to update remotely the running page. While popular (having been used to implement XForms, ODF, and a number of specialized formats) this approach suffers from the obvious performance handicap of remote event processing and corresponding lack of scalability of server middleware. Some implementations (e.g. EMC XForms) include complete client-side implementations of the required lifecycle support, for example in a Javascript engine loaded alongside the transcoded markup.

A significant drawback for RIAs, and for the accessibility of their documents, is that the client-side document structure resulting from transcoding bears little or no resemblance in general to the document as authored. Transcoding algorithms may be driven by convenience in terms of output markup placement, style, and naming conventions. For authors of other components on the page interested in mashing up with transcoded content these issues can pose significant barriers to knowing where to dispatch events and how to update page content dynamically. The principle of "view source" is important not just for offline designers but also for page execution at runtime.

4.2 Progressive enhancement and unobtrusive javascript

An approach very common to AJAX libraries (e.g. Dojo, YUI) is the "progressive enhancement" of a browser page with CSS, Javascript, and other style or behavior-related extensions through artifacts separated from the original, sparse, source document. This "unobtrusive" style provides a separation of concerns that allows in principle for the original source document to run correctly on backlevel browsers, but more generally for the required enhancements needed by RIAs to be factored away from the application-specific document markup.

As in the server-side transcoding discussion, the main concern from this approach results from an under-specified or non-standard relationship (1) between the original source markup and its generated (or "shadow") content, and (2) in the mechanisms for matching on source patterns and triggering the generation of enhanced content.

Implementors of AJAX frameworks have considerable latitude in managing the mapping between source elements and generated content. Ignoring accessibility issues, preserving the semantic structure of the input document is not in general critical to providing an effective visual experience to the end-user looking only at what is presented "on the glass". Generated markup may be placed under the source element, may replace the source element, or may appear in totally unrelated sections of the document and be displayed out of document order under control of dynamic positioning attributes.

Further, there is currently no standard (outside of XBL, see below) for the naming, structure, or behavior of shadow content relative to its parent. Authors wanting to dispatch events or register listeners on generated widget content have in general no guidance as to the relationship between internal widget behavior and its originating source element. We see in practice authors violating good principles of abstraction by falling back on detailed knowledge of widget internals -- a coding practice obviously fragile in terms of changes in the underlying framework.

Implementors of AJAX frameworks also have considerable latitude in pattern matching and progressive enhancement mechanisms. Various page loading events, perhaps differing by browser, may be used to trigger queries to find content to be enhanced. Triggering enhancement only at page loading time precludes incremental enhancement as content is created dynamically -- or requires different triggering mechanisms for those cases. Various combinations of element name, attributes, and often CSS classes may be used -- with little standardization -- to signal content needing enhancement. Finally, as described above, the result of that enhancement may appear in various locations throughout the document with underspecified mapping to the original content.

While in general it is possible to load and execute multiple AJAX libraries in the same document (provided the underlying script code adheres to best practices for naming and function patterns), for authors there may be less reuse of content across those libraries given the nonstandard conventions for enhancing their content.

4.3 Client-side pre-processors

Client-side pre-processors differ from progressive enhancement in that the source document is not seen as executable directly in any form without transcoding, for example to HTML. The source is a design-time artifact, and the runtime artifact is generated to match the capabilities of a given target platform.

Client-side transcoding will in general suffer the same issues surrounding transparent page content as server-based approaches. Client processors rarely maintain a relationship between the original input content and its transcoded result. Bi-directional mappings between source and target formats would be needed to permit interactive editing or dynamic modification of the original content incrementally to update the running page.

4.4 Client-based tab library frameworks

In practice many client-side transcoders do not preserve the original document markup nor link it to generated HTML content as required to support such an interactive relationship. A framework implementing tag libraries as "code behind" the HTML DOM (e.g. AmpleSDK) does maintain the runtime identity of the elements in the custom namespace -- typically in a parallel DOM associated by event handlers with generated HTML content.

4.5 XBL

XBL formalizes the client-side tag library mechanism by defining both the structural and behavioral relationship between source content and shadow content. XBL bindings define properties, fields, methods and events linking source and shadow content. The semantic structure of the original source document is preserved, as is recommended for accessibility and to support transparent attachment of associated components in mash-ups or for document automation (help wizards, navigation aids, etc.). XBL bindings may be applied recursively allowing for content to be defined initially as part of applications, i.e. as root document content, and then driven into XBL bindings for reuse.

4.6 Cross-platform client-side behaviors

The Ubiquity framework achieves many of the objectives of XBL by attaching executable "behaviors" directly to the original source document elements. The technique used for this behavioral "decoration" varies by browser but such differences are localized to page loading time and are not visible to page authors as they continue to see a common document structure consistent with its originally authored structure (view source is what is running not transcoded into HTML) and consistent behavior in all browsers supported by this library (currently Internet Explorer 7, FireFox 3, and the Safari/Chrome WebKit-based rendering engines).

Indeed, we see this approach to using Javascript as an important implementation technique for extensible markup elements whether they are XML or HTML-based. The examples we have given are from XML vocabularies but a script-based "tag library" mechanism would be interesting for supporting incremental modules of HTML5, for example, as they appear in working drafts or perhaps separable Recommendations -- and also as a means to accelerate their implementation and adoption in a broad developer community before "native" implementations in each browser are fully available.

4.7 Standardization

Currently there is only one interoperable extension method available in mainstream browsers - using Javascript to add semantics to markup within a DOM tree. There are several methods for attaching the Javascript to the tree, for instance using XBL, or directly adding it to the tree by hand, or indirectly via Javascript calls; however, once that is done, there is no further standard or agreement, except by particular libraries, on how to ensure that different parts of the Javascript work amicably together.

Since extension via Javascript is such an core and widely-used technology, it seems an essential area for standardization, especially for allowing independent technologies to work together in one page. Using the experience based on Ubiquity, a submission could be made to W3C as a basis for such standardization.

5. Accessibility and Rich Internet Applications

Persons with disabilities often interact with their computers using third-party assistive software such as speech synthesis, braille output, screen magnification, voice input or an on-screen keyboard. Even in environments where multi-modal output is natively supported by the user's underlying operating system, assistive technology is only capable of providing an equivalent user experience with a Rich Internet Application if there exist explicit bindings between scripted objects or routines and regions of the RIA which are dynamically updated. When a script manipulates the contents of a page, assistive technology cannot be relied upon to update the user of the new data or content output by a scripted process, because the script, and not the underlying declarative framework utilized for the RIA, directly generates the output. Where declarative markup languages lack the semantics to convey rich controls to assistive technologies, as they are typically composed of a series of images and styling so that the controls in the RIA visually look like traditional desktop widgets. Furthermore, sudden focus changes by the user agent in response to scripted action is extremely disorienting and inherently confusing for those not only using dedicated assistive technologies, but also for those using the user agent's default screen magnification mechanism "zoom". Such obtrusive focus methods -- such as alerts, as well as the common practice of moving focus to a part of the RIA which has been updated -- disrupts the user's current workflow, with no defined mechanism to retain or restore focus where the user last interacted with the RIA prior to the generation of an alert or dynamically updated content.

5.1 ARIA: Accessible Rich Internet Applications

The W3C has developed a technology to address these issues: Accessible Rich Internet Applications (ARIA). ARIA enables multi-modal navigation and interaction with scripted objects and their output, through the use of explicit role and state properties which can be bound to the declarative framework upon which a javascripted object or element is presented to the user. ARIA also provides focus management mechanisms, which are critical to an assistive technology users' understanding of, and ability to interact with, the RIA. In the absence of ARIA bindings, scripted objects and the changes to a web document caused by scripting, constitute perceptual and functional black holes. Thus, the additional semantics provided by ARIA allows authors to restructure and substitute alternative content in an RIA and ensures that assistive technologies can communicate changes of "role", "state", or "property" caused by scripting, as well as ensuring that dynamically updated content is accessible to the user of an assistive technology.

While there are a handful of markup languages that explicitly separate presentation from content -- in particular XForms and MathML -- and provide explicit binding mechanisms, the overwhelming majority of RIAs currently implemented on the web use a generic markup language, such as HTML or XHTML. Even when using a declarative markup language which has been designed so as to be natively accessible to persons with disabilities, there is still a need for ARIA bindings in order to facillitate multi-modal exposition of the content and interactivity provided by the RIA through the use of scripting, as javascript overrides the default user agent behavior at the DOM node when manipulating and/or managing data, the content, and/or the style of an RIA in response to events caused either by user interaction or by background scripts which produce custom widgets and update specific areas of the RIA.

ARIA is intended to be used as a supplement for native language semantics, not a replacement. When the host language provides a feature that is equivalent to the ARIA feature, the host language feature should be used. ARIA should be used in cases where the host language lacks the needed role, state and/or property indicator. Authors are advised to first use a host language feature that is as similar as possible to an ARIA feature, then refine the meaning of the feature by adding ARIA. This allows for the best possible fallback for user agents that do not support ARIA and preserves the integrity of the host language semantics. ARIA also enables a user to control the behavior of an element in response to user input events such as from the keyboard and the mouse. Authors are advised to use device-independent events with supporting javascript to handle user interaction.

5.2 ARIA live regions and politeness levels

In RIAs, alerts and dialogs are often used to convey important messages and feedback to the user. ARIA provides mechanisms which ensure that a user, no matter what her means of interacting with the web, is notified of dynamic changes to a RIA's content by processing the alert or dialog as a "live region". An example of a live region is a section of an RIA that reflects dynamic data management, such as auto-updating stock quotes or updating a designated region on an interactive financial form. ARIA contains attributes specific to live regions, using the aria-live attribute, which may be applied to any element. Use of the aria-live attribute indicates that content changes may occur without the element to which the content change is bound receiving focus, thereby providing an assistive technology with sufficient information on how to process those content updates by first Indicating that an element will be updated, and describes the types of updates which the user agent, the assistive technology and individual users can expect from the live region.

The aria-live attribute is the primary determination for the order of presentation of changes to live regions. ARIA describes live regions in terms of "politeness levels". Regions specified as polite will notify users of updates, but do not generally interrupt the current task. ARIA's assertive value is used when the update needs to be communicated to the user more urgently; for example, warning or error messages in a form that performs immediate validation for each form field.

Politeness levels are essentially an ordering mechanism for updates and serve as a strong suggestion to the user agent or assistive technology. The value may be overridden by the user agent, assistive technology, or user. Since different users have different needs, it is up to the user to tweak his or her assistive technology's response to a live region with a certain politeness level from the commonly defined baseline.

Implementations must also consider the default level of politeness in a role when the aria-live attribute is not set in the ancestor chain (for example, log changes are polite by default). Items which are assertive should be presented immediately, followed by polite items. An assistive technology is thus able to implement increasing and decreasing levels of granularity so that the user can exercise control over queues, interruptions and dynamic updates, which -- without ARIA bindings -- would be imperceptible to the user of assistive technology.

5.3 Implications of browser extension methodologies for supporting ARIA

ARIA cites several key characteristics of authoring style which lead to accessible applications: using native markup when possible, preserving semantic document structure, and building and maintaining stable relationships between elements and maintaining focus. A key opportunity for standardization is thus to document approaches to browser extensibility which maintain the characteristics of document structure under transformations for progressive enhancement or attachment of dynamic behaviors. We list several possibilities above and suggest follow-on work to this XG to evaluate and formalize such techniques. RIA authors are advised to consult the suite of ARIA documents available from the W3C.

6. Formats and application patterns supporting RIAs

In this section we present authoring patterns found in a number of existing markup formats which we suggest are useful more broadly additional formats needed for RIAs. Our goal is to make explicit common patterns specifically cutting across multiple working groups in the W3C but also including others (e.g. ODF) where additional awareness, discussion, and re-factoring of specifications could lead to improved interoperability and easier authoring of composite applications making use of multiple formats at one time.

We highlight common approaches to data management, mapping of data to abstract and concrete presentation, and interaction control. These patterns form the essentials of what we have come to call the rich web "backplane" in that they provide a structural underpinning to a client-side web document independent of the particular content type being presented, facilitate the separation of concerns such as data versus presentation versus control, and hence provide a common skeleton -- a.k.a. backplane -- assisting in the composition of more complex web applications from a collaborating set of more primitive components.

While there are many widget or other component architectures emerging some of which (e.g. iWidget) also facilitate cross-component data sharing and communication, these approaches are coarser-grained units of composition than what we describe. The patterns which follow are embedded directly into the behavior of individual elements and groups of elements of their host languages and hence we view them as inherently integrated in those vocabularies rather than layered on top as is typical for widgets.

6.1 A simple example: Tracking expenses

Figure 2 shows the main page of a simple expense tracking web application that we will use to illustrate authoring patterns and runtime integration of multiple markup formats. A list of expenses can be entered with a category, description, date, and amount for each. Expenses are stored in an XForms data model bound to this list. All of the XForms, ODF, and SMIL features of this application have been implemented using the javascript Ubiquity and Ubiquity-XForms open source libraries.

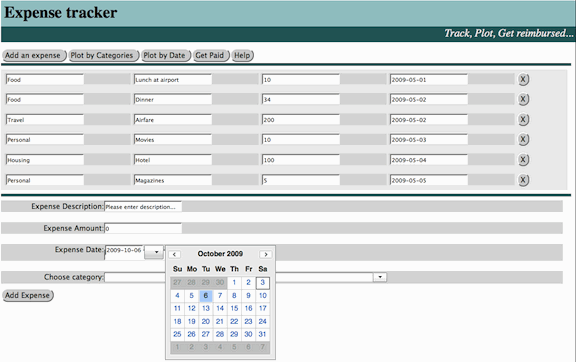

Figure 2: Tracking expenses
Figure 2: Tracking expenses [Description of Figure 2]

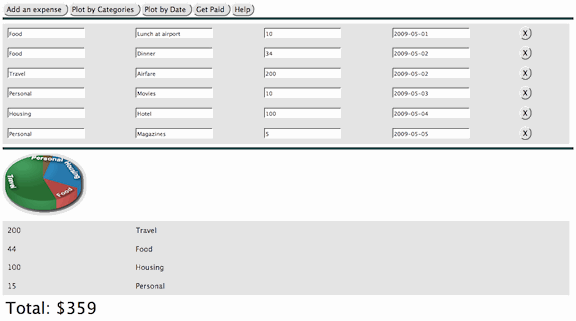

Figure 3 shows a graphical view of expenses aggregated by category and drawn using an SVG piechart. The expense categories included in the piechart are determined dynamically by a data-driven aggregation of all non-zero categories from the underlying expense list as described and illustrated in markup in the next section.

Figure 3: Expenses by category in SVG
Figure 3: Expenses by category in SVG [Description of Figure 3]

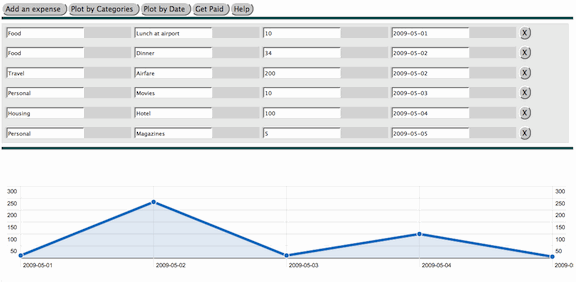

Figure 4 similarly shows a projection of expense entries by date again using SVG. The importance of the use of SVG in these examples is not in that format per se, as SVG is already achieving considerable adoption natively in many browsers. Rather, as discussed below, our interest is in treating SVG and other graphical widgets as concrete presentation markups managed by abstract UI controls with model bindings providing their data context and update behavior.

Figure 4: Expenses by time in SVG
Figure 4: Expenses by time in SVG [Description of Figure 4]

A set of expenses, once entered, may be submitted for re-imbursement by a report-generation tab implemented using the Open Document Format (ODF) text format as shown in Figure 5. Open Document text (ODT) elements are used to define a template for expense reimbursement with the actual expense document containing only those categories with non-zero expenses. ODF documents in the OASIS 1.0 specification may include XForms data models. As shown in Figure 4 we use this capability to bind the expense report directly to data in the underlying expense tracker's data model. Finally, entries for a table of contents are computed dynamically across the sections dynamically found in the document. Of particular note in this example is this enablement of ODF as a web-centric markup format participating directly in the overall page lifecycle with other web formats such as XHTML, XForms, and SVG.

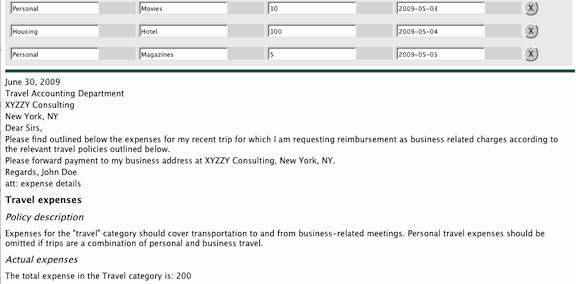

Figure 5: Expense reporting in Open Document Text format
Figure 5: Expenses summarized and reported in Open Document Text format [Description of Figure 5]

The schematic document structure for this expense-tracing example is shown shown in Example 1 and includes the following markup formats:


<html>
  <body class="yui-skin-sam">
    <xforms:model id="model">
        <xforms:instance id="expenses"/>

        <!-- other instances for record keeping, etc -->

        <!-- xforms binds to compute totals and transform data for charting/graphing -->

    </xforms:model>

    <!-- ODF-related form declarations -->

    <office:forms>
        <form:form>
            <form:text form:name="TextBox" xforms:bind="travel_bind"
                       form:id="control1" form:current-value="100">
            </form:text>
            <!-- etc...other fields -->
        </form:form>
    </office:forms>

    <!-- HTML and XForms UI controls for master expense list -->

    <xforms:repeat nodeset="instance('expenses')/expense" id="expenseTable" startindex="1">
        <!-- ... -->
    </xforms:repeat>

    <xforms:switch>
        <xforms:case id="add_expense">
            <!-- detail fields for adding expenses -->
        </xforms:case>

        <xforms:case id="SVG_by_category">
            <xforms:repeat nodeset="instance('categories')/category[total!=0]" role="output-proportional">
                <xforms:output ref="total" role="value"></xforms:output>
                <xforms:output ref="name" role="label"></xforms:output>
            </xforms:repeat>
        </xforms:case>

        <xforms:case id="SVG_by_date">
            <xforms:repeat nodeset="instance('date_rollup')/point" role="output-trend">
                <xforms:output ref="value" role="value"></xforms:output>
                <xforms:output ref="date" role="label"></xforms:output>
            </xforms:repeat>
        </xforms:case>

        <xforms:case id="ODF_invoice">

            <!-- ODF-based expense report -->
            <!-- intro boiler-plate text -->

            <text:h text:outline-level="1">Travel expenses</text:h>
            <text:h text:outline-level="2">Policy description </text:h>


            <text:p>The total expense in the Travel category is:
                <draw:control draw:name="Control1" draw:control="control1"></draw:control>
            </text:p>

            <!-- remaing expense categories in ODF... -->

        </xforms:case>
      </xforms:switch>
    </body>
</html>
Example 1: Expense application document structure

6.2 XML Events: Transparent composition patterns

We begin with a simple observation as to the importance of transparent control within web pages. By "transparent" we mean the ability for one component in a page to observe, participate, and potentially alter the execution of another component in the page. This capability is desirable for authors adding function to an existing page, e.g. in "mashing up" content, in that it allows for their incremental content not only to provide additional presentation but also to augment the interactive behavior of the page in previously unanticipated (by the original author) ways.

The principle means for observing and augmenting control is through a consistent adoption of an event-based pattern of cross-component control rather than direct invocation of methods or procedures within a page. Direct invocation, while commonly used and simple to author, results in hidden paths of control which can not be observed or intercepted by code elsewhere on the page.

An event-based pattern, on the other hand, begins with a signaling phase in which external observers are notified as to the impending execution of the "default action" of the event. Handlers called at either capture or bubbling phases may inject additional logic to prepare for or as a consequence of the default action.

For those events which are cancelable, handlers may suppress the default action perhaps replacing it with logic of their own. A familiar example is the default action of selecting an anchor tag is to traverse the link. Canceling that event does not stop its propagation to notify other handlers, but does prevent traversal of the link at the end of the bubble phase.

One can think of this pattern as a partial "aspect oriented" programming within web pages where event propagation prior to the default action provides hooks for injecting code at various points in the event lifecycle. The potential utility of a secondary capture/bubble phase following default action execution (completing the analogy with AOP) probably lacks sufficient use cases to balance the increased expense of additional event propagation.

From a "backplane" perspective, the importance of this discussion is not due to the novelty of event-based patterns. Indeed, web authors are quite familiar with adding handlers to click, onload, and other HTML-related page events. Rather, since extensibility through the creation of new elements rather than script-based code has not been the norm to date on the web we don't see authors readily creating custom elements and hence extending their pages with custom events conforming to a transparent event-based pattern. Providing a well-defined means for declarative extension of web pages may provide the corresponding incentive to adopt more aspect-like patterns of composition as well.

6.2.1 Subsetting the DOM Event lifecycle

We observe that DOM and XML events, and hence the above composition pattern, are feasible even for formats that do not specify explicitly their conformance with DOM event behavior. SMIL 3.0, for example, treats event implementations flexibly, adapting to the specific requirements of its host language -- whether DOM oriented or not. However, we think it is useful to consider such cases as in fact more strictly DOM conformant with the provision that the DOM event lifecycle has been subsetted to support just those behaviors appropriate to the markup format in question.

For example, one could define SMIL as DOM conformant by restricting listeners to register and be called only on target-phase processing, omitting capture and bubble processing. In this way, composition patterns elsewhere on the page could continue to use DOM or XML event registration, as well as default action cancellation when desired, to achieve greater interoperability among formats in a document.

6.3 XForms: client-side rich data patterns

Moving additional data and its associated calculation, transformation, and validation to the client is a key feature of rich web applications. Often, however, this aspect of interactivity is overlooked in comparison to the rich presentational impact of raster or vector graphics or video in adding dynamic behavior to client-side web documents. This section focuses, therefore, on various patterns which add "rich data" behavior to web applications in a manner we see as applying horizontally to an increasing number of web formats.

The XForms data model is well described elsewhere and we do not repeat that discussion here. Rather, we focus on the emerging use of that format beyond conventional "forms" applications for data maangement in web applications and indeed beyond that context to formats such as Open Document not traditionally thought of as web document markups. Again from a "backplane" perspective, it is clear to us that the ability to store "instances" of data (whether XML or otherwise), to validate that data, compute over it to derive related data, and to associate metadata indicating the validity, relevance, and required states of that data are features of not only forms, but of rich web applications generally and also of rich document applications based for example on ODF.

6.3.1 Data transformations

A key feature of assisting user interaction with complex data is adapting the format and structure of that data for more convenient presentation and input. Often, data is stored in back-end systems in a structure convenient for database performance or perhaps to conform to standards defined in a given industry. Such data may be inconvenient for display or input by being decomposed into too many separate fields, or conversely by being aggregated into too few compact fields (think ISO date-time, for example). Data extracted from back-end systems is typically encoded using internal key values which also require translation for external display and input.

End-to-end rich web applications thus typically contain a pipeline of data transformations between back-end and on-the-glass presentation. Example 2 shows a set of transformations in the expense tracking scenario which maintain subtotals over each expense category. These constraints are expressed in a declarative form as a set of data-driven XPath expressions linking inputs in the instance values to computed outputs elsewhere in the data model. The model maintains a dependency graph of these constraints and re-evaluates them as necessary whenever input values change driving corresponding updates to other fields on the client.

<xforms:model id="model">

    <xforms:instance id="expenses">
        <expenses xmlns="">
            <expense>
                <description>Lunch at airport</description>
                <amount>10</amount>
                <date>2009-05-01</date>
                <category>Food</category>
            </expense>

            <!-- etc... -->

        </expenses>
    </xforms:instance>

    <xforms:instance id='categories'>
        <categories>
            <category><name>Travel</name><total>0</total></category>
            <category><name>Entertainment</name><total>0</total></category>
            <!-- etc -->
        </categories>
    </xforms:instance>

    <xforms:bind nodeset="instance('categories')/category[name='Travel']/total"
                    calculate="sum(instance('expenses')/expense[category='Travel']/amount)"></xforms:bind>
    <!-- etc -->
</xforms:model>
Example 2: XForms data transformations using bind elements

The current capabilities of this calculation engine allow for scalar dependencies (i.e. individual element values) for inputs and outputs and do not support iteration. We can thus compute subtotals over known expense categories as in Example 2, but currently do not have a declarative notation for example to project expenses onto a set of dates where the date ranges and values are not known (or conveniently expressed) at authoring time. The graphical view of expenses by date in Figure 4, therefore, is computed procedurally by iterating over the instance data and creating output instance data in the desired format for use by subsequent stages in the transformation or display pipeline.

6.4 XForms: Model-View-Controller patterns

From a backplane perspective, we are interested in the ability to connect to the data model capabilities of maintaining instance values, computing derived values, and computing metadata (so-called Model-Item-Properties for validity, relevance, etc., see [XForms MIPs]) as a generic capability -- i.e. independent of any particular markup vocabulary for a user interface view, or indeed as a means to bind other elements of markup such as fragments of controller logic in SMIL (see below).

6.4.1 Single node data binding

The xf:ref and xf:bind attributes define a lifecycle for model-view binding which can be applied not only to those elements defined in the XForms set of atomic and container level controls but indeed in any UI vocabulary needing data and MIP connectivity.

ODF is an example of a specification that today uses this pattern of single-node-binding (we'll consider binding to sets of data in the next section). ODF allows authors to include an XForms model in text, spreadsheet, and presentation documents and to insert model data values into formatted content using a two-layer field and drawing architecture shown in Figure 6. ODF fields are not XForms controls but they do bind to data using the xf:bind attribute and therefore obtain the value-change and MIP lifecycle behavior implied by that binding. We illustrate this capability in the expense tracker by including an implementation of a subset of ODF elements sufficient as a proof-of-concept of mixing ODF behavior in web documents.

Figure 6 shows the ODF binds selecting instance values in the data model. This, and all other ODF markup, was generated by use of production ODF editors such as Open Office and IBM Symphony and inserted into this web application with modification only to alter the placement of the data model in the root web page rather than in the ODF subtree. This extension does not alter the mechanism of data binding but is reflective of the use of ODF content in a mixed document rather than as a stand-alone office format.

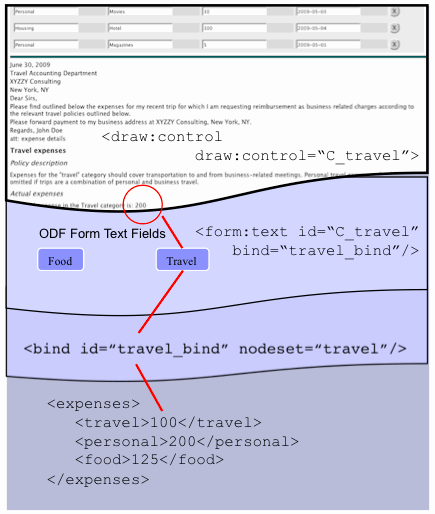

Single node data binding in ODF
Figure 6: Single node data binding in ODF [Description of Figure 6]

ODF fields are abstract form fields which use xf:bind to connect to instance data but do not themselves draw that data directly in formatted content. ODF provides a separate draw:control element to manage that final layer of concrete presentation as described below in the discussion on mapping between layers of presentation. Thus ODF fields play a role similar to XForms abstract UI controls which are intended in general to be embedded in a host language for concrete styling and interaction control.

6.4.2 Container level controls and data binding

Single node data binding can be used as well with container-level controls, i.e. those that do not display or input data directly but have children which do. Container controls use xf:ref and xf:bind to set an evaluation context allowing for relative data binding expressions in their children but importantly also to receive MIP events for relevance, validation, and required status. This status is then inherited to child elements allowing, for example, for sections of ODF content in the expense reimbursement markup to display conditionally whenever the expense data in the category it is bound to is non-zero.

6.4.3 Nodeset binding

UI controls can bind to collections of data in addition to individual nodes using the "nodeset" level of data binding. Nodesets are constructed by XPath queries over instance data and the associated UI content is treated as a template to be repeated for each entry in the set. Relative binding (either nested nodesets or single node binding) applies within the set to continue the template expansion as many levels as required. The behavior of nodeset binding is particularly powerful as changes to the query are tracked dynamically and additional template content is instantiated, or existing content removed, accordingly to maintain a current relationship between data model and view. This mechanism provides an implicit, or data-driven, declaration of the structural relationship between model and view over and above the two-way data synchronization provided by single node bindings.

Continuing our use of ODF as an example host language for data-aware web applications, two of us (Boyer, Wiecha) have proposed extensions to the ODF forms vocabulary to support repeating content as well as static form fields. We see use cases both for xf:repeat as a container control around existing ODF field elements such as those shown in Figure 6, as well as the extension of the ODF forms vocabulary to allow for XForms controls to be used directly in repeats or elsewhere in ODF forms. Similarly, we would be interested to explore xf:repeat as a data-driven UI template for other UI vocabularies such as SVG, VoiceXML, and potentially for generating more dynamic content for controller vocabularies such as SMIL and SCXML.

6.5 Embedding existing presentation formats in the Backplane

While not required, typically, UI controls that bind to data are abstract controls in that they provide data connections, manage the behavior of their local interaction state (working data entry fields, selection status of single or multiple selection lists, etc.), but do not present their bound data directly. Rather, some means of mapping between abstract controls and one or more concrete controls accomplishes this "last mile" to the user.

6.5.1 AJAX widgets

In Figure 2, abstract UI controls are extended dynamically at page load time (or following element creation as the page is later extended incrementally during execution). The runtime structure of the xf:input element bound to a data value with type xsd:date is shown in Figure 7. In this case, the YUI calendar widget is used to provide the concrete realization of an interaction technique appropriate for the bound data type, but the synchronization behavior with the backplane data model is abstracted away into the xf:input parent element.

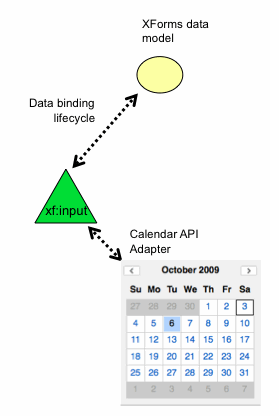

Figure 7: Data-bound custom controls using YUI widgets
Figure 7: Data-bound custom controls using YUI widgets [Description of Figure 7]

6.5.2 SVG

A second example leverages the increasing availability of SVG as a native UI format in modern browsers. The piechart and expense charting shown above are drawn dynamically by javascript functions attached as event listeners to data model change notifications received by their controlling xf:repeat elements. Both SVG examples are cases where the concrete presentation subtrees are built as siblings of the abstract xf:repeat container element to avoid conflict with the existing behavior of xf:repeat as it manages the set of replicated data as its own children.

Figure 8: Nodeset data-bound custom controls using SVG
Figure 8: Nodeset data-bound custom controls using SVG. [Description of Figure 8]

6.5.3 ODF

The ODF draw:control element is responsible for surfacing data model values into formatted content (whether text, spreadsheets, or presentations). Rather than achieving this embedding syntactically by nesting ODF fields directly in formatted content, the draw:control element is another example of sibling mapping resolved using cross-references by ID between abstract form fields and drawn content. The draw:control elements, like the SVG content in xf:repeats, function as listeners to data model changes and redraw their content as necessary.

6.6 SMIL and SCXML: controller patterns

Along with the migration of function from server to client typical in a rich web application there comes a corresponding need for control over the resulting increased level of complexity of behavior. Rich web documents may have multiple interacting components on the same page, requiring coordination to achieve a coherent aggregate user experience. Rich web documents very often have asynchronous interactions with remote services, also requiring coordination to track requests and update client-side data or UI as responses are received.

Many AJAX-based applications today share this behavior but implement their controller logic directly in a scripting language such as Javascript. While perfectly functional, there may be categories of control logic that are particularly suited to special-purpose controller formats. Two of these are explored in this section and their implementations as modules leveraging the Ubiquity extension framework are detailed in the Appendix below.

6.6.1 SMIL

SMIL is a format centered on time-based control abstractions, useful as a stand-alone web format (i.e., as the root document type) as well as a controller embedded in other formats such as the XHTML/ODF compound document used in our expense tracker application. Time based control is particularly prevalent in multimedia presentations and demonstrations, for example in kiosks and online training.

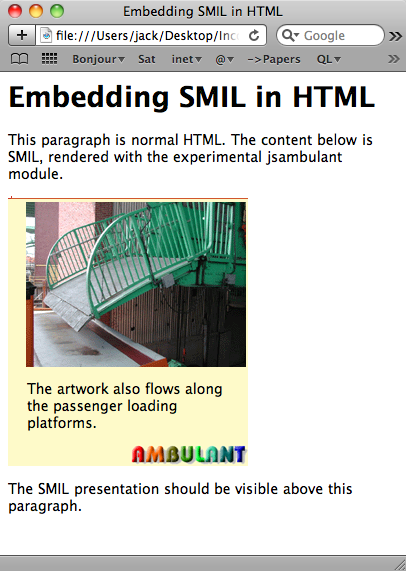

Figure 9: A SMIL slideshow embedded in a webpage
Figure 9: A SMIL slideshow embedded in a webpage [Description of Figure 9: A SMIL slideshow]

The NYC tour in Figure 9 consists of a coordinated set of images, audio, and captions. Each set is played in parallel, with the next set shown when the previous one has finished. The overall control structure of this simple example is then a sequence of parallel sections, each containing audio, image, and caption.

This markup for this example is executable directly in the Safari, Chrome, IE, and FireFox browsers using the proof-of-concept SMIL Ubiquity implementation jsambulant.

SMIL control can not only be time-based but also event-based, to allow for user interaction within a SMIL presentation. SMIL also has a data model, shared with XForms, to allow stateful presentations. In a rich web document, these features allow creation of an adaptive multimedia presentation that reacts to things happening elsewhere in the document. Example 3 is an example of this (referring back to the data model of Figure 7): it will play a warning message -- once only -- whenever your entertainment costs go over $100.


<smil:par>
  <smil:video begin="stateChange(instance('categories')/category/total)"
         expr="instance('categories')/category[name='Entertainment']/total &gt; 100"
         src="expense_warning.ogv"
         restart="never" />
  <!-- rest of SMIL presentation -->
</smil:par>
Example 3: SMIL reacting to data model changes

The event model and the data model, augmented with XForms facilities like xf:dispatch and xf:send, enable the use of SMIL as a controller language. The temporal logic of the application could be specified in SMIL, using the data or event model to drive other components of the application. This pattern can be used on various scales. As an example of a small-scale use, think of things like a wizard controller, where it drives the order of a number of sequenced forms. Large scale examples would be things like courseware, quizzes or games.

6.6.2 SCXML

The State Chart XML (SCXML) format being defined by the Voice Browser Working Group is centered around reactive systems modeled conveniently by state machine-based semantics. Reactive systems are particularly prevalent in less modal UIs where multiple components, agents, or avatars interact concurrently and where cross-component coordination is required. While we have a small subset of SCXML implemented in Javascript we have not to date based this on the Ubiquity library nor explored its integration with scenarios such as the expense tracker.

Like SMIL, State Chart XML offers interesting possibilities as an embedded controller for rich web applications. Indeed, achieving coherent user experience in a web application assembled as a mash-up of multiple components is a challenge in that they need to share not only data (accomplished by binding to common data model elements as above) but control. When selecting a stock symbol and date range in an input dialog, for example, not only does the related stock widget need to accept those values but also to trigger the "Get Quote" operation as well. A controller such as SMIL or SCXML can conveniently add this control layer over and above the implicit data synchronization provided by shared model state.

7. Conclusions

W3C has dedicated significant resources to developing XML interaction formats as a modular, extensible architecture which has proved itself in the market place. However, a new deployment technique is emerging of implementing the XML interaction stack in the browser, using Javascript as the implementation language. For this to be useful as intended in the XML architecture, there needs to be agreement on how implementations of particular markup-languages use the Javascript facilities, so that different modules can be used together without prior agreement -- avoiding potential pitfalls such as collision among multiple javascript frameworks used in the same page, code generation lifecycles and location of generated code in the document, mapping between events in generated and source code markup, and so on.

Note that Javascript-based libraries are, of course, effective means for implementing emerging non-XML markup formats as well as XML-based ones. New features of HTML5, or later versions of HTML, might be implemented in Javascript-based libraries to speed their adoption in the marketplace in advance of the availability of native browser implementations.

The Backplane XG recommends that a workshop be organized bringing together interested parties with an aim to creating a Working Group to define a standardized architecture and API for XML and HTML interaction formats implemented in Javascript.

References

[HTML+MATH+SVG]
"An XHTML + MathML + SVG Profile", [1]
[Joost]
"Joost", [2]
[XSmiles]
"X-SMILES, an open XML browser for exotic devices", [3]
[ODF]
"OASIS Open Document Format for Office Applications", [4]
[HL7]
"Health Level Seven", [5]
[CDA]
"Clinical Document Architecture", [6]
[ACORD]
"ACORD Insurance Data Standards", [7]
[XBRL]
"eXtensible Business Reporting Language", [8]
[EMC XForms]
"The EMC Documentum XForms Engine", [9]
[Dojo]
"Dojo: The javascript toolkit", [10]
[YUI]
"YUI Library", [11]
[Ample SDK]
"Ample SDK: Open-source GUI Framework", [12]
[XBL]
"XML Binding Language", [13]
[Ubiquity Library]
" Ubiquity: Application Framework", [14]
[Ubiquity XForms]
" Ubiquity-XForms: XForms in Web Browsers and Presentational Ajax Libraries", [15]
[ARIA]
"Accessible Rich Internet Applications", [16]
[iWidget]
"iWidget v1.0 Specification", [17]
[XForms 1.1]
"XForms 1.1", [18]
[Open Office]
"Open Office", [19]
[IBM Symphony]
"IBM Lotus Symphony", [20]
[ODF Next]
"Enriching the interactive user experience of open document format", [21]
[SMIL 3.0]
"Synchronized Multimedia Integration Language (SMIL 3.0)", [22]
[SCXML]
"State Chart XML (SCXML): State Machine Notation for Control Abstraction", [23]
