This section is normative.

SMIL functionality is partitioned into 13 functional areas. Within each functional area a further partitioning is applied into modules. All of these modules, and only these modules, are associated with the SMIL namespace.

The functional areas and their corresponding modules are:

Note: Modules marked with (**) are new Modules added in SMIL 3.0. Modules marked with (*) are revised modules from SMIL

1. Animation
   1. BasicAnimation
   2. SplineAnimation
2. Content Control
   1. BasicContentControl
   2. CustomTestAttributes
   3. PrefetchControl
   4. SkipContentControl
3. Layout
   1. AlignmentLayout
   2. AudioLayout
   3. BackgroundTilingLayout
   4. BasicLayout (*)
   5. MotionLayout (**)
   6. MultiWindowLayout
   7. OverrideLayout
   8. SubRegionLayout
4. Linking
   1. BasicLinking
   2. LinkingAttributes
   3. ObjectLinking
5. Media Objects
   1. BasicMedia
   2. BrushMedia
   3. MediaAccessibility
   4. MediaClipping
   5. MediaClipMarkers
   6. MediaDescription
   7. MediaPanZoom (**)
   8. MediaParam (*)
6. Text
   1. BasicText (**)
   2. TextStyling(**)
   3. TextFlow (**)
7. Metainformation
   1. Metainformation (*)
8. Structure
   1. Structure
9. Timing
   1. AccessKeyTiming
   2. BasicInlineTiming
   3. BasicTimeContainers
   4. BasicExclTimeContainers
   5. BasicPriorityClassContainers
   6. DOMTimingMethods (**)
   7. EventTiming
   8. FillDefault
   9. MediaMarkerTiming
   10. MinMaxTiming
   11. MultiArcTiming
   12. RepeatTiming
   13. RepeatValueTiming
   14. RestartDefault
   15. RestartTiming
   16. SyncbaseTiming
   17. SyncBehavior
   18. SyncBehaviorDefault
   19. SyncMaster
   20. TimeContainerAttributes
   21. WallclockTiming
10. Time Manipulations
    1. TimeManipulations
11. External Timing
    1. BasicTimesheets (**)
12. State
    1. StateTest (**)
    2. UserState (**)
    3. StateSubmission (**)
    4. StateInterpolation (**)
13. Transitions
    1. BasicTransitions
    2. InlineTransitions
    3. TransitionModifiers
    4. FullScreenTransitionEffects

Each of these modules introduces a set of semantically-related elements, properties, and attributes. Each functional area has a corresponding section in this specification document. Further details on each of the modules is specified within those sections.

The modules may be independent or complementary. For example, the SyncMaster module requires and builds upon the SyncBehavior module, but the PrefetchControl and SkipContentControl modules are independent from each other. In addition, some modules require modules from other functional areas.

Modules specify their integration requirements. When one module requires another module for basic features and as a prerequisite for integration, a language profile must include the second module in order to include the first. The first module is said to be a dependent of the second module. Dependency may be nested, in that a module may be dependent on a module that is a dependent itself.

Table 1 presents the SMIL 3.0 modules and the modules they depend on.

This section is normative.

This section specifies the identifiers for the SMIL 3.0 namespace and the SMIL 3.0 modules. Each SMIL host language conformant language profile should explicitly state the namespace URI that is to be used to identify it. That namespace URI must comply with the "Requirements on Identifiers for SMIL Host Language Conformant Language Profiles", defined below.

2.4.1 The SMIL Mime Type

Documents authored in language profiles that include the SMIL Structure module can be associated with the "application/smil+xml" mime type. Documents using the "application/smil+xml" mime type are required to be host language conformant. This Recommendation obsoletes the former "application/smil" mime type as specified in SMIL 2.0 [SMIL20].

2.4.2 XML Namespace Identifier for the SMIL 3.0 Modules

The XML namespace identifier for the complete set of SMIL 3.0 modules, elements and attributes, are contained within the following namespace:

http://www.w3.org/2006/SMIL30/WD/

2.4.3 Identifiers for SMIL 3.0 Modules

Each module in this specification has a unique identifier associated with it. They are intended to uniquely and consistently identify each of them. They should be used as values in a test for whether an implementation includes a specific module, as well as in other circumstances where a need to refer to a specific SMIL 3.0 module is necessary.

Table 2 summarizes the identifiers for SMIL 3.0 modules.

2.4.4 Identifiers for SMIL 3.0 Profiles and Features

This section is normative.

This section is not fully updated

The following two tables list names used to collectively reference certain sets of SMIL 3.0 elements and attributes. These are used in the definitions of the minimum support in the two sections below on SMIL host language conformance and SMIL integration set conformance. The term "minimum support" is used to refer to the minimum set of elements that an element can contain, and the minimum set of attributes that can be used on an element.

2.5.1 SMIL Host Language Conformance

A language profile is said to be SMIL 3.0 host language conformant if it includes the following modules:

1. Structure
2. BasicContentControl
3. BasicInlineTiming
4. BasicLayout
5. BasicLinking
6. BasicMedia
7. BasicTimeContainers
8. MinMaxTiming
9. RepeatTiming
10. SkipContentControl
11. SyncbaseTiming

In addition, the following requirements must be satisfied:

1. The language profile defines what modules it collects.
2. The language profile includes all elements, attributes, and attribute values specified by the collected modules.
3. The language profile fulfills the "minimum support" requirements for elements and attributes as listed in Table 5 below.
4. The language profile complies with the integration requirements set forth by the modules it collects.
5. The language profile specifies the semantics related to the integration of the modules.
6. The language profile defines its DTD or XML Schema.
7. The language profile defines a unique identifier conforming to the requirements set forth in Requirements on Identifiers for SMIL Host Language Conformant Language Profiles.
8. The SyncbaseTiming module should be included in Host Language conformant profiles, although it is not strictly required. We strongly recommend inclusion of this module in Host Language conformant profiles to maintain a high level of consistency and interoperability with other languages that have integrated SMIL modules including the SMIL Language, XHTML+SMIL, and SVG. Only profiles designed to operate on severely constrained devices may omit the SyncbaseTiming module.

Support of deprecated elements and attributes is no longer required for SMIL 3.0 host language conformance but it is highly recommended for all modules the given language supports. Support of deprecated elements and attributes can only be left out in cases where interoperability with SMIL 1.0 implementations is not an issue. For example, if a SMIL 3.0 host language supports the MultiArcTiming module, it is highly recommended that it support the deprecated syntax defined in the MultiArcTiming module.

Since the SMIL 3.0 Structure module may only be used in a profile that is SMIL host language conformant, this implies that the SMIL 3.0 Structure module must at least be accompanied with the nine other modules required for host language conformance that were named above. Those modules themselves can still be used in other, non SMIL host language conformant, language profiles.

2.5.2 SMIL Integration Set Conformance

A language profile is said to be SMIL 3.0 integration set conformant if it includes the following modules:

1. BasicContentControl
2. BasicInlineTiming
3. BasicMedia
4. BasicTimeContainers
5. MinMaxTiming
6. RepeatTiming
7. SyncbaseTiming

In addition, the following requirements must be satisfied:

1. The language profile defines what modules it collects.
2. The language profile includes all elements, attributes, and attribute values specified by the collected SMIL 3.0 modules.
3. The language profile fulfills the "minimum support" requirements for elements and attributes as listed in Table 6 below.
4. The language profile complies with the integration requirements set forth by the SMIL 3.0 modules it collects.
5. The SyncbaseTiming module should be included in Integration Set conformant profiles, although it is not strictly required. We strongly recommend inclusion of this module in Integration Set conformant profiles to maintain a high level of consistency and interoperability with other languages that have integrated SMIL modules including the SMIL 3.0 Language, XHTML+SMIL [XHTMLplusSMIL], and SVG [SVG]. Only profiles designed to operate on severely constrained devices may omit the SyncbaseTiming module.

Support of deprecated elements and attributes is not required for SMIL 3.0 integration set conformance. However, when included, the above requirements also apply to these elements and attributes. Also, when supported, it is required that all the deprecated elements and attributes from all the included modules are supported as a whole.

This section is normative.

For the purpose of identifying the version and the language profile used, SMIL host language conformant documents must satisfy the following requirements:

1. The document should declare a default namespace [XML-NS].
2. The default namespace must be declared on the smil root element.
3. In case the SMIL host language conformant language profile has been issued as a W3C Recommendation, the default namespace identifier must satisfy the following requirements:
   1. The URI is constructed conformant to the requirements set forth by the W3C [W3C-NSURI].
   2. The default namespace identifier should identify the language profile.
      In case the language profile is a subset of a larger one, the default namespace identifier may also identify that larger language profile. The module collection that is required to be supported in the subset language profile may be indicated through the systemRequired attribute on the smil element.
      See the SMIL Basic Language Profile specification for an example.

2.5.4 Error Handling in SMIL Host Language Conformant Documents

Syntax errors in a SMIL Host Language conformant document are handled according to the XML rules for well-formed or valid XML [XML11].

Semantic errors can arise at various levels. One is where the declared attribute values are of unknown value. Another is where the assembled presentation is (possibly) conflicting, as in a case where media objects are competing for display space or where they are synchronized ambiguously. These latter types, although maybe an error according to the author's intentions, are not considered an error and the user agent will present according to the resolution rules defined in this specification.

2.5.5 Handling of Syntax errors in Attribute Values

Errors in attribute values might remain undetectable to the parser, because the value type is declared as CDATA, or because the value range is open ended, as in the case of events, for example. However, errors in attribute values can be detected within a given language profile, where that language profile specifies the supported value set. Specifications of language profiles are required to specify the error handling that is required when such an attribute value error occurs.

This section is normative.

SMIL 3.0 Animation functionality is partitioned across the following 2 modules:

BasicAnimation

The BasicLayout module defines simple animation functions defined by sets of points to be visited in sequence, with the function defined between those using discrete, linear or paced interpolation.

SplineAnimation

The SplineAnimation module extends the discrete, linear and paced calculation modes of the BasicAnimation module, providing additional control over interpolation and timing.

This section is normative.

Animation is defined as a time-based function of a target element (or more specifically of some attribute of the target element, the target attribute). The animation defines a mapping of time to values for the target attribute. This mapping takes into account all aspects of timing, as well as animation-specific semantics.  The overall mapping is based on a simple animation function f(t) which describes the animation over the simple duration of the element. Every animation defines a simple animation function which produces a value for the target attribute for any time within the simple duration.

A target attribute is the name of a feature of a target element as defined in a host language document.

This may be (e.g.) an XML attribute contained in the element or a CSS property that applies to the element.  By default, the target element of an animation will be the parent of the animation element (an animation element is typically a child of the target element). However, the target may be any element in the document, identified either by an XML ID reference or via an XLink [XLINK] locator reference.

This section is normative.

Normative

The base value of a target attribute a at time t is the value of a to which animation is applied at time t.

The presentation value of a target attribute a at time t is the value of a resulting from the application of animation at time t.

The presentation value reflects the effect of animation on the base value. The effect is the change to the base value of the target attribute at any given time. When an animation completes, the effect of the animation is no longer applied, and the presentation value reverts to the base value by default. The animation effect can also be extended to freeze the last value for the length of time determined by the semantics of the fill attribute.

An animation element defines a simple animation function which is evaluated as needed over time by the implementation. The resulting values are applied to the presentation value for the target attribute. Animation functions are continuous in time and can be sampled at whatever frame rate is appropriate for the rendering system. The syntactic representation of the simple animation function is independent of this model, and may be described in a variety of ways. The animation elements in this specification support syntax for a set of discrete or interpolated values, a path syntax for motion based upon SVG paths, keyframe based timing, evenly paced interpolation, and variants on these features.

In the example immediately above, the simple animation function for the width attribute, specified by 'from="10px" to="100px" ... dur="10s"' is

f(t) = (10 + 90*t/10) px, where t is given in seconds.

Simple animation functions may be defined which have additional parameters, or that are purely or partially algorithmic. For example, a "to" animation interpolates from the current value to the "to" value:

<animate attributeName="top" to="10" dur="2.5s" />

The animation function is a function of the current position, as well as of time:

f(t,u) = (u*(2.5s-t)/2.5s) + 10*(t/2.5s)

In all cases, the animation exposes this as a function of time.

Normative

The simple animation function defined by an animation element is a function of time, f(t), defined for times t, 0<=t<=d, where d is the simple duration of the element.

The simple animation function may be defined as a function which depends on factors in addition to time. This does not affect the model of animation, beyond the trivial addition of additional parameters to f(t), such as f(t,u) used in the "to" animation example immediately above.

Animations can be defined to either override or add to the base value of an attribute. In this context, the base value may be the DOM value, or the result of other animations that also target the same attribute. This more general concept of a base value is termed the underlying value. Animations that add to the underlying value are described as additive animations. Animations that override the underlying value are referred to as non-additive animations. The animation effect function of an element is the function which includes the affect of the underlying value and accounts for repeating and freezing of the element. Because the animation effect can be affected by repeating and freezing, it is defined over the active duration of the element rather than its simple duration.

Animations can be combined in ways which produce intermediate values outside of the domain of the target attribute, but where the presentation value produced is valid. The type of a target attribute is this larger set. This is detailed in The animation sandwich model.

Normative

The type of a target attribute a is the base type of which the domain of a is a subset.

The animation effect function, F(t,u), of an animation element with active duration AD is a function mapping times t: 0<=t<AD and values u of the type of the target attribute a into values of the type of a.

The underlying value u of a target attribute a of an animation element at time t is the value of a to which the animation effect is applied at time t.

The animation effect function F(t,u) is usually defined as a function of the simple animation function f(t). f(t) must be defined in such a manner that F(t,u) produces values of the correct type.

This section is normative.

As described in the section Interval timing of the BasicInlineTiming module, repeating an element causes the element to be "played" several times in sequence. The repeated period is 0 to the simple duration of the element. Animation follows this model, where "playing" the animation means applying the simple animation function f(t) repeatedly.

Normative

The repeated animation function, fr(t), for any simple animation function f(t) is

fr(t) = f( REMAINDER( t, d ) ),

where t>=0, d is the simple duration , and REMAINDER( t, d ) is defined as (t - d*floor(t/d)).

This formulation follows the end-point exclusive model described in Interval timing. As an animation repeats, it starts at f(0), is sampled and applied up to but not including the end-point f(d). At the end of the simple duration, i.e. at the beginning of the next iteration, it starts back at f(0). f(d) may never actually be applied.

Examples

Controlling behavior of repeating animation - Cumulative animation

The author may also select whether a repeating animation should repeat the original behavior for each iteration, or whether it should build upon the previous results, accumulating with each iteration. For example, a motion path that describes an arc can repeat by moving along the same arc over and over again, or it can begin each repeat iteration where the last left off, making the animated element bounce across the window. This is called cumulative animation.

Normative

Every animation element must be defined as either cumulative or non-cumulative. An animation element may be defined as cumulative only if addition is defined for the target attribute. The cumulative animation function, fc(t), for any simple animation function f(t) is

fc(t) = fr(t), if the element is non-cumulative.

If the element is cumulative:

Let fi(t) represent the cumulative animation function for a given iteration i.

The first iteration f0(t) is unaffected by accumulate, and so is the same as the original simple animation function definition. Each subsequent iteration adds to the result of the previous iterations:

f0(t) = f(t)

fi(t) = (f(d) * i) + f(t - (i*d))   for any integer i > 0.

The cumulative animation function is then

fc(t) = fi(t), where i = floor(t/d).

<img ...>
   <animateMotion path="m 0 0 c 30 50 70 50 100 0 z" dur="5s"
      accumulate="sum" repeatCount="4" />
</img>

<rect width="20px"...>
   <animate attributeName="width" dur="5s"
      values="0; 15; 10" additive="sum"
      accumulate="sum" repeatCount="10" />
</rect>

<img top="3" ...>
   <animate begin="5s" dur="10s" attributeName="top" by="100"/>
</img>

<img top="3" ...>
   <animate begin= "5s" dur="10s" attributeName="top" by="100"
          fill="freeze" />
</img>

<img top="3" ...>
   <animate begin= "5s" dur="10s" attributeName="top" by="100"
          repeatCount="2.5" fill="freeze" />
</img>

<animate from="10" to="20" end="10s" fill="freeze" .../>

Stating this formally:

Normative

The frozen animation function, ff(t), for an element with active duration AD, is given by

ff(t) = fc(t) for all times t: 0<=t<AD (i.e. before it is frozen)

When the element is frozen, t is effectively equal to AD.

The following equations assume that t is set to AD when the element is frozen.

If AD is not an even multiple of the simple duration d, ff(t) = fi(t), where i = floor(t/d).

This is equivalent to fc(t), except that fc(t) is not formally defined for t=AD. In this case, the equations remain consistent, and so the equivalent of fc(t) is used for the frozen value ff(t).

If AD is an even multiple of d, i.e. AD = d*i for some positive integer i , and the animation is non-cumulative,
ff(t) = f(d).

If AD is an even multiple of d, i.e. AD = d*i for some positive integer i, and the animation is cumulative,

ff(t) = f(d) * i.

Note that f(d) is a shorthand for the "last value defined for the animation function" (e.g., the "to" value or the last value in the "values" list).

This section is normative.

The animation effect function, captures the semantics of this for a single animation element:

Normative

Every animation element must be defined as either additive or non-additive. An element may be defined as additive only if addition is defined for type type of the target attribute.

If the animation is additive, F(t,u) = u + ff(t).

If the animation is non-additive, F(t,u) = ff(t).

This section is normative.

The animation target is defined as a specific attribute of a particular element. The means of specifying the target attribute and the target element are detailed in this section.

The target attribute

The target attribute to be animated is specified with attributeName. The value of this attribute is a string that specifies the name of the target attribute, as defined in the host language.

The attributes of an element that can be animated are often defined by different languages, and/or in different namespaces. For example, in many XML applications, the position of an element (which is a typical target attribute) is defined as a CSS property rather than as XML attributes. In some cases, the same attribute name is associated with attributes or properties in more than one language, or namespace.  To allow the author to disambiguate the name mapping, an additional attribute attributeType is provided that specifies the intended namespace.

The attributeType attribute is optional. By default, the animation runtime will resolve the names according to the following rule: If there is a name conflict and attributeType is not specified, the list of CSS properties supported by the host language is matched first (if CSS is supported in the host language); if no CSS match is made (or CSS does not apply) the per-element-type partition namespace for the target element will be matched.

If a target attribute is defined in an XML Namespace other than the per-element-type partition namespace for the target element, the author must specify the namespace of the target attribute using the associated namespace prefix as defined in the scope of the animation element. The prefix is prepended to the value for attributeName.

For more information on XML namespaces, see [XML-NS].

The target element

An animation element can define the target element of the animation either explicitly or implicitly. An explicit definition uses an attribute to specify the target element. The syntax for this is described below.

If no explicit target is specified, the implicit target element is the parent element of the animation element in the document tree. It is expected that the common case will be that an animation element is declared as a child of the element to be animated. In this case, no explicit target need be specified.

If an explicit target element reference cannot be resolved (e.g. if no such element can be found), the animation has no effect. In addition, if the target element (either implicit or explicit) does not support the specified target attribute, the animation has no effect. See also Handling syntax errors.

The following two attributes can be used to identify the target element explicitly:

When integrating animation elements into the host language, the language designer should avoid including both of these attributes. If however, the host language designer chooses to include both attributes in the host language, then when both are specified for a given animation element the XLink href attribute takes precedence over the targetElement attribute.

The advantage of using the targetElement attribute is the simpler syntax of the attribute value compared to the href attribute. The advantage of using the XLink href attribute is that it is extensible to a full linking mechanism in future versions of SMIL Animation, and the animation element can be processed by generic XLink processors. The XLink form is also provided for host languages that are designed to use XLink for all such references. The following two examples illustrate the two approaches.

This example uses the simpler targetElement syntax:

<animate targetElement="foo" attributeName="bar" .../>

This example uses the more flexible XLink locater syntax, with the equivalent target:

<foo xmlns:xlink="http://www.w3.org/1999/xlink">
   ...
   <animate xlink:href="#foo" attributeName="bar" .../>
   ...
</foo>

When using an XLink href attribute on an animation element, the following additional XLink attributes need to be defined in the host language. These may be defined in a DTD, or the host language may require these in the document syntax to support generic XLink processors. For more information, refer to [XLINK].

The following XLink attributes are required by the XLink specification. The values are fixed, and so may be specified as such in a DTD. All other XLink attributes are optional, and do not affect SMIL Animation semantics.

Additional details on the target element specification as relates to the host document and language are described in Required definitions and constraints on animation targets.

3.6.2 Specifying the simple animation function f(t)

Every animation function defines the value of the attribute at a particular moment in time. The time range for which the animation function is defined is the simple duration. The animation function does not produce defined results for times outside the range of 0 to the simple duration.

An animation is described either as a list of values, or in a simplified form that describes the from, to and by values. The from/to/by form is defined in Simple animation functions defined by from, to and by.

The animation will apply the values in order over the course of the animation. For discrete and linear animations, values in the values attribute are equally spaced through the animation duration. For paced animations, the values are spaced so that a uniform rate of change is obtained.

<rect ...>
   <animate attributeName="width" values="40;100;40" dur="10s"/>
</rect>

The simple animation function defined by the values and calcMode attributes can be formally specified:

Normative

Let i = floor((t*n)/d), d be the simple duration of the animation element, n be the number of entries in the values attribute, value[i] be the ith entry (counting from 0), di be the duration of the the ith time period, and ti be the time at which the the ith time period begins.

• For discrete animation, with nokeyTimes attribute, the duration is divided into n equal time periods, one per value. With a keyTimes attribute, the time periods are specified by the keyTimes values. The animation function takes on the values in order, one value for each time period:

      f(t) = value[i]

• For linear animation with nokeyTimes attribute, the duration is divided into n-1 equal periods, and di = d/(n-1) for any value of i. The animation function is a linear interpolation between the values at the associated times:

        f(t) = value[i] + (value[i+1]-value[i]) * (t-ti)/di.

  With a keyTimes attribute, the time periods are specified by the keyTimes values and so di is the duration of the ith period as defined by the keyTimes values:

  di = (keyTimes[i+1] - keyTimes[i]) * d

• For paced animations, the duration is divided into periods of lengths such that the rate of change of the attribute remains constant. If the distance between two values is dist(v1,v2), the total distance traversed D(i) up to and including value[i] is

  D(0) = 0, and

  D(i) = dist(value[0],value[1]) + dist(value[1],value[2]) +...+ dist(value[i-1],value[i]), for integers i with 0<i<=n.

  The animation function takes on the values in the values attribute at times determined by these distances:

   ti = (D(i)/D(n)) * d, for integers i with 0<=i<=n.

  di = ti+1 - ti = ((D(i+1) - D(i)) / D(n)) * d = (dist(value[i],value[i+1]) / D(n)) * d

   f(t) = value[i] + (value[i+1]-value[i]) * (t-ti)/ di

  where i is the largest non-negative integer such that ti<=t.

Note that a linear or paced animation will be a smoothly closed loop if the first value is repeated as the last. The keyTimes attribute is described in the SplineAnimation section.

Interpolation modes illustrated

This section is informative.

The three figures 5a, 5b and 5c below show how the same basic animation will change a value over time, given different interpolation modes.  All examples are based upon the following example, but with different values for calcMode:

<animate dur="30s" values="0; 6; 5; 11; 10; 16" calcMode="[as specified]" />

Figure 5 - Discrete, linear and paced animation

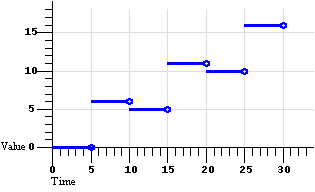

	Figure 5a: Default discrete animation. calcMode="discrete" There are 6 segments of equal duration: 1 segment per value.

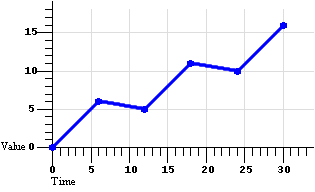

	Figure 5b: Default linear animation. calcMode="linear" There are 5 segments of equal duration: n-1 segments for n values.
	Figure 5c: Default paced animation. calcMode="paced" There are 5 segments of varying duration: n-1 segments for n values, computed to yield a constant rate of change in the value.

Examples of calcMode

The following example describes a simple discrete animation:

<animate attributeName="foo" dur="8s"
     values="bar; fun; far; boo" />

The value of the attribute "foo" will be set to each of the four strings for 2 seconds each. Because the string values cannot be interpolated, only discrete animation is possible; any calcMode attribute would be ignored.

The following example describes a simple linear animation:

<animate attributeName="x" dur="10s" values="0; 10; 100"
     calcMode="linear"/>

The value of "x" will change from 0 to 10 in the first 5 seconds, and then from 10 to 100 in the second 5 seconds. Note that the values in the values attribute are spaced evenly in time; in this case the result is a much larger actual change in the value during the second half of the animation. Contrast this with the same example changed to use "paced" interpolation:

<animate attributeName="x" dur="10s" values="0; 10; 100"
     calcMode="paced"/>

To produce an even pace of change to the attribute "x", the second segment defined by the values list gets most of the simple duration: The value of "x" will change from 0 to 10 in the first second, and then from 10 to 100 in the next 9 seconds. While this example could be easily authored as a from-to animation without paced interpolation, many examples (such as motion paths) are much harder to author without the paced value for calcMode.

This section is normative.

As described in The animation effect function F(t,u), the simple animation function may be

• Repeated or frozen, using the attributes repeatCount, repeatDur and fill of the BasicInlineTiming module.
• Defined as cumulative or non-cumulative when repeated.
• Defined as additive or non-additive when combined with the underlying value.

The animation effect function F(t,u) defines the semantics of these attributes, and give examples. This section gives only the syntax.

See the BasicInlineTiming module for definitions of the attributes repeatCount, repeatDur and fill.

The additive and cumulative behavior of repeating animations is controlled with the additive and accumulate attributes, respectively:

3.6.4 Simple animation functions specified by from, to and by

An animation is described either as a list of values, as described earlier, or in a simplified form that uses from, to and by values.

The simpler from/to/by syntax provides for several variants. To use one of these variants, one of by or to must be specified; a from value is optional. It is not legal to specify both by and to attributes; if both are specified, only the to attribute will be used (the by will be ignored). The combinations of attributes yield the following classes of animation.

from-to animation

Specifying a from value and a to value defines a simple animation. The animation function is defined to start with the from value, and to finish with the to value.

Normative: A from-to animation with a from value vf and a to value vt is equivalent to the same animation with a values list with 2 values, vf and vt.

from-by animation

Specifying a from value and a by value defines a simple animation in which the animation function is defined to start with the from value, and to change this over the course of the simple duration by a delta specified with the by attribute. This may only be used with attributes that support addition (e.g. most numeric attributes).

Normative: A from-by animation with a from value vf and a by value vb is equivalent to the same animation with a values list with 2 values, vf and (vf+vb).

by animation

Specifying only a by value defines a simple animation in which the animation function is defined to offset the underlying value for the attribute, using a delta that varies over the course of the simple duration, starting from a delta of 0 and ending with the delta specified with the by attribute. This may only be used with attributes that support additive animation.

Normative: A by animation with a by value vb is equivalent to the same animation with a values list with 2 values, 0 and vb, and additive="sum". Any other specification of the additive attribute in a by animation is ignored.

to animation

This describes an animation in which the animation function is defined to start with the underlying value for the attribute, and finish with the value specified with the to attribute. Using this form, an author can describe an animation that will start with any current value for the attribute, and will end up at the desired to value.

A normative definition of a to animation is given below in To animation

<rect ...>
   <animate attributeName="width" from="50" to="100" dur="10s"/>
</rect>

<rect ...>
   <animate attributeName="width" from="50" by="25" dur="10s"/>
</rect>

<rect width="40"...>
   <animate attributeName="width" by="30" dur="10s"/>
</rect>

<rect width="20px"...>
   <animate attributeName="width" dur="5s" from="10px" to="20px"
      accumulate="sum" repeatCount="10" />
</rect>

<rect width="20px"...>
   <animate attributeName="width" dur="5s" from="10px" to="20px"
      accumulate="sum" additive="sum" repeatCount="10" />
</rect>

<rect width="40"...>
   <animate attributeName="width" to="100" dur="10s"/>
</rect>

<rect color="red"...>
   <animate attributeName="color" to="blue" dur="10s" calcMode="discrete"/>
</rect>

Normative

The simple animation function f(t,u) for a to animation with to value vt is a linear interpolation between the underlying value, u, and the to value:

f(t,u) = (u * (d-t)/d) + (vt * t/d), for t: 0<=t<=d where d is the simple duration.

If no other (lower priority) animations are active or frozen, this defines simple interpolation. However if another animation is manipulating the underlying value, the to animation will initially add to the effect of the lower priority animation, and increasingly dominate it as it nears the end of the simple duration, eventually overriding it completely. The value for f(t,u) at the end of the simple duration is just the to value.

Repeating to animations is the same as repeating other animations:

Normative

The repeated animation function, fr(t,u), has the standard definition:

fr(t,u) = f( REMAINDER(t,d), u ).

Because to animation is defined in terms of absolute values of the target attribute, cumulative animation is not defined:

Normative

The cumulative animation function, fc(t), for a to animation is

fc(t,u) =fr(t,u).

A frozen to animation takes on the value at the time it is frozen, masking further changes in the underlying value. This matches the dominance of the to value at the end of the simple duration. Even if other, lower priority animations are active while a to animation is frozen, the value does not change.

Normative

The frozen animation function, ff(t), for a to animation is

ff(t,u) = fc(t,u), if the animation is not frozen at time t, and

ff(t,u) = vf, if the animation is frozen at time t, where vf is the value of ff(t,u) at the moment the animation was frozen.

For example, consider

<rect width="40"...>
   <animate attributeName="width" to="100" dur="10s" repeatCount="2.5" fill="freeze"/>
</rect>

The width will animate from 40 to 100 pixels in the first 10 seconds, repeat 40 to 100 in the second 10 seconds, go from 40 to 70 in the final 5 seconds, and freeze at 70.

To animation defines its own kind of additive semantics, so the additive attribute is ignored.

Normative

The animation effect function, F(t,u) for a to animation is

F(t,u) = ff(t,u).

Multiple to animations will also combine according to these semantics. As the animation progresses, the higher-priority animation will have greater and greater effect, and the end result will be to set the attribute to the final value of the higher-priority to animation.

 <foo x="0" ...>
    <animate id="A1" attributeName="x"
        by="-10" dur="10s" fill="freeze" />
    <animate id="A2" attributeName="x"
        to="10"  dur="10s" fill="freeze" />
 </foo>

This section is normative.

The SMIL BasicAnimation module defines four elements, animate, set, animateMotion and animateColor.

3.7.1 The animate element

The animate element introduces a generic attribute animation that requires little or no semantic understanding of the attribute being animated. It can animate numeric scalars as well as numeric vectors. It can also animate a single non-numeric attribute through a discrete set of values. The animate element is an empty element; it cannot have child elements.

This element supports from/to/by and values descriptions for the animation function, as well as all of the calculation modes. It supports all the described timing attributes. These are all described in respective sections above.

Numerous examples are provided above, as are normative definitions of the semantics of all attributes supported by animate.

3.7.2 The set element

The set element provides a simple means of just setting the value of an attribute for a specified duration. As with all animation elements, this only manipulates the presentation value, and when the animation completes, the effect is no longer applied. That is, set does not permanently set the value of the attribute.

The set element supports all attribute types, including those that cannot reasonably be interpolated and that more sensibly support semantics of simply setting a value (e.g. strings and Boolean values). The set element is non-additive. The additive and accumulate attributes are not allowed, and will be ignored if specified.

The set element supports all the timing attributes to specify the simple and active durations. However, the repeatCount and repeatDur attributes will just affect the active duration of the set, extending the effect of the set (since it is not really meaningful to "repeat" a static operation). Note that using fill="freeze" with set will have the same effect as defining the timing so that the active duration is indefinite.

The set element supports a more restricted set of attributes than the  animate element. Only one value is specified, and neither interpolation control nor additive or cumulative animation is supported:

Normative

The simple animation function defined by a set element is

f(t) = v

were v is the value of the to attribute.

The set element is non-cumulative and non-additive.

<rect ...>
   <set attributeName="stroke-width" to="5px"
            begin="5s" dur="10s" fill="remove" />
</rect>

<text>This will highlight if you mouse over it...
   <set attributeName="class" to="highlight"
            begin="mouseover" end="mouseout" />
</text>

3.7.3 The animateMotion element

The animateMotion element will move an element along a path. The element abstracts the notion of motion and position across a variety of layout mechanisms - the host language defines the layout model and must specify the precise semantics of position and motion. The path can be described in either of two ways:

• Specifying an x,y pair for each of the from/to/by attributes. These will define a straight line motion path.
• Specifying a semicolon separated list of x,y pairs for the values attribute. This will define a motion path of straight line segments, or points (if calcMode is set to discrete). This will override any from/to/by attribute values.

All values must be x, y value pairs. Each x and y value may specify any units supported for element positioning by the host language. The host language defines the default units. In addition, the host language defines the reference point for positioning an element. This is the point within the element that is aligned to the position described by the motion animation. The reference point defaults in some languages to the upper left corner of the element bounding box; in other languages the reference point may be implicit, or may be specified for an element.

The syntax for the x, y value pairs is:

coordinate-pair ::= "("coordinate comma-wsp coordinate")"
coordinate      ::= num
num             ::= Number

Coordinate values are separated by at least one white space character or a comma. Additional white space around the separator is allowed. The values of coordinate must be defined as some sort of number in the host language.

The attributeName and attributeType attributes are not used with animateMotion, as the manipulated position attribute(s) are defined by the host language. If the position is exposed as an attribute or attributes that can also be animated (e.g. as "top" and "left", or "posX" and "posY"), implementations must combine animateMotion animations with other animations that manipulate individual position attributes. See also The animation sandwich model.

If none of the from, to, by and values attributes are specified, the animation will have no effect.

The default calculation mode (calcMode) for animateMotion is paced. This will produce constant velocity motion along the specified path. Note that while animateMotion elements can be additive, the addition of two or more paced (constant velocity) animations may not result in a combined motion animation with constant velocity.

3.7.4 The animateColor element

The animateColor element specifies an animation of a color attribute. The host language must specify those attributes that describe color values and can support color animation.

All values must represent [sRGB] color values. Legal value syntax for attribute values is defined by the host language.

Interpolation is defined on a per-color-channel basis.

The values in the from/to/by and values attributes may specify negative and out of gamut values for colors.  The function defined by an individual animateColor may yield negative or out of gamut values.  The implementation must correct the resulting presentation value, to be legal for the destination (display) colorspace. However, as described in The animation sandwich model, the implementation should only correct the final combined result of all animations for a given attribute, and should not correct the effect of individual animations.

Values are corrected by "clamping" the values to the correct range. Values less than the minimum allowed value are clamped to the minimum value (commonly 0, but not necessarily so for some color profiles). Values greater than the defined maximum are clamped to the maximum value (defined by the host language) .

This section is normative.

3.8.1 BasicAnimation integration requirements

This section describes what a language designer must actually do to specify the integration of SMIL Animation into a host language. This includes basic definitions and constraints upon animation.

In addition to the requirements listed in this section, those listed in Common animation integration requirements must be satisfied.

Required definitions and constraints on animation targets

Specifying the target element

The host language designer must choose whether to support the targetElement attribute or the XLink attributes for specifying the target element. Note that if the XLink syntax is used, the host language designer must decide how to denote the XLink namespace for the associated attributes. The namespace can be fixed in a DTD, or the language designer can require colonized attribute names (qnames) to denote the XLink namespace for the attributes. The required XLink attributes have fixed values, and so may also be specified in a DTD, or can be required on the animation elements. Host language designers may require that the optional XLink attributes be specified. These decisions are left to the host language designer - the syntax details for XLink attributes do not affect the semantics of SMIL Animation.

In general, target elements may be any element in the document. Host language designers must specify any exceptions to this. Host language designers are discouraged from allowing animation elements to target elements outside of the document in which the animation element is defined. The XLink syntax for the target element could allow this, but the SMIL timing and animation semantics of this are not defined in this version of SMIL Animation.

Target attribute issues

The definitions in this module can be used to animate any attribute of any element in a host document. However, it is expected that host language designers integrating SMIL Animation may choose to constrain which elements and attributes can support animation. For example, a host language may choose not to support animation of the language attribute of a script element. A host language which included a specification for DOM functionality might limit animation to the attributes which may legally be modified through the DOM.

Any attribute of any element not specifically excluded from animation by the host language may be animated, as long as the underlying data type (as defined by the host language for the attribute) supports discrete values (for discrete animation) and/or addition (for interpolated, additive and cumulative animation).

All constraints upon animation must be described in the host language specification or in an appropriate schema, as the DTD alone cannot reasonably express this.

The host language must define which language abstract values should be handled for animated attributes. For example, a host language that incorporates CSS may require that CSS length values be supported. This is further detailed in Animation function value details.

The host language must specify the interpretation of relative values. For example, if a value is specified as a percentage of the size of a container, the host language must specify whether this value will be dynamically interpreted as the container size is animated.

The host language must specify the semantics of clamping values for attributes. The language must specify any defined ranges for values, and how out of range values will be handled.

The host language must specify the formats supported for numeric attribute values. This includes both integer values and floating point values. As a reasonable minimum, host language designers are encouraged to support the format described in section 4.3.1, "Integers and real numbers," of [CSS2].

Integrating animateMotion functionality

The host language specification must define which elements can be the target of animateMotion. In addition, the host language specification must describe the positioning model for elements, and must describe the model for animateMotion in this context (i.e. the semantics of the default value for the origin attribute must be defined). If there are different ways to describe position, additional attribute values for the origin attribute should be defined to allow authors control over the positioning model.

3.8.2 Document type definition (DTD) for the BasicAnimation module

This section is normative.

This section defines the functionality of the SMIL 3.0 SplineAnimation module. This module adds attributes for spline interpolation and for uneven spacing of points in time. These attributes may be used in animate, animateMotion and animateColor elements.

3.9.1 SMIL 3.0 SplineAnimation Module Attributes

Spline animation function calculation mode

The SplineAnimation module extends the discrete, linear and paced calculation modes of the BasicAnimation module, providing additional control over interpolation and timing:

• The calcMode attribute is extended to support splines.
• A path attribute is added to the animateMotion element, allowing authors to define a motion path using a subset of the SVG [SVG] path syntax, and providing smooth path motion.
• The keyTimes attribute provides additional control over the timing of the animation function, associating a time with each value in the values list (or the points in a path description for the animateMotion element).
• The keySplines attribute provides a means of controlling the pacing of interpolation between the values in the values list.

This semantic (the duration is divided into n-1 even periods) applies as well when the keySplines attribute is specified, but keyTimes is not. The times associated to the keySplines values are determined as described above.

The syntax for the control point sets in keySplines lists is:

control-pt-set ::= ( fpval comma-wsp fpval comma-wsp fpval comma-wsp fpval )

Using:

fpval          ::= Floating point number
S              ::= spacechar*
comma-wsp      ::= S (spacechar|",") S
spacechar      ::= (#x20 | #x9 | #xD | #xA)

Control point values are separated by at least one white space character or a comma. Additional white space around the separator is allowed. The allowed syntax for floating point numbers must be defined in the host language.

If the  argument values for keyTimes or keySplines are not legal (including too few or too many values for either attribute), the animation will have no effect (see also Handling syntax errors).

In the calcMode, keyTimes and keySplines attribute values, leading and trailing white space and white space before and after semicolon separators will be ignored.

This section is informative.

Examples of advanced uses of calcMode

Discrete animation can be used with keyTimes, as in the following example:

<animateColor attributeName="color" dur="10s" calcMode="discrete"
     values="green; yellow; red" keyTimes="0.0; 0.8;" />

This example also shows how keyTimes values can interact with an indefinite duration. The value of the "color" attribute will be set to green for 5 seconds, and then to yellow for 5 seconds, and then will remain red for the remainder of the document, since the (unspecified) duration defaults to "indefinite".

The following example illustrates the use of keyTimes:

<animate attributeName="x" dur="10s" values="0; 50; 100"
     keyTimes="0; .8; 1" calcMode="linear"/>

The keyTimes values cause the "x" attribute to have a value of "0" at the start of the animation, "50" after 8 seconds (at 80% into the simple duration) and "100" at the end of the animation. The value will change more slowly in the first half of the animation, and more quickly in the second half.

Interpolation with keySplines

For some attributes, the pace of change may not be easily discernable by viewers. However for animations like motion, the ability to make the speed of the motion change gradually, and not in abrupt steps, can be important. The keySplines attribute provides this control.

Extending the above example to use keySplines:

<animate attributeName="x" dur="10s" values="0; 50; 100"
     keyTimes="0; .8; 1" calcMode="spline"
     keySplines=".5 0 .5 1; 0 0 1 1" />

The keyTimes still cause the "x" attribute to have a value of "0" at the start of the animation, "50" after 8 seconds and "100" at the end of the animation. However, the keySplines values define a curve for pacing the interpolation between values. In the example above, the spline causes an ease-in and ease-out effect between time 0 and 8 seconds (i.e. between keyTimes 0 and .8, and values "0" and "50"), but a strict linear interpolation between 8 seconds and the end (i.e. between keyTimes .8 and 1, and values  "50" and "100"). Figure 7 shows the curves that these keySplines values define.

Figure 7 - Illustration of keySplines effect

	keySplines="0 0 1 1" (the default)		keySplines=".5 0 .5 1"
	keySplines="0 .75 .25 1"		keySplines="1 0 .25 .25"

Each diagram in Figure 7 illustrates the effect of keySplines settings for a single interval (i.e. between the associated pairs of values in the keyTimes and values lists.). The horizontal axis can be thought of as the input value for the unit progress of interpolation within the interval - i.e. the pace with which interpolation proceeds along the given interval. The vertical axis is the resulting value for the unit progress, yielded by the keySplines function. Another way of describing this is that the horizontal axis is the input unit time for the interval, and the vertical axis is the output unit time. See also the section Timing and real-world clock times.

To illustrate the calculations, consider the simple example:

<animate dur="4s" values="10; 20" keyTimes="0; 1"
     calcMode="spline" keySplines={as in table} />

Using the keySplines values for each of the four cases above, the approximate interpolated values as the animation proceeds are:

keySplines values	Initial value	After 1s	After 2s	After 3s	Final value
0 0 1 1	10.0	12.5	15.0	17.5	20.0
.5 0 .5 1	10.0	11.0	15.0	19.0	20.0
0 .75 .25 1	10.0	18.0	19.3	19.8	20.0
1 0 .25 .25	10.0	10.1	10.6	16.9	20.0

For a formal definition of Bezier spline calculation, see [COMP-GRAPHICS], pages 488-491.

The keyTimes and keySplines attributes can also be used with the from/to/by shorthand forms for specifying values, as in the following example:

<animate attributeName="foo" from="10" to="20"
     dur="10s" keyTimes="0.0; 0.7"
     calcMode="spline" keySplines=".5 0 .5 1" />

The value will change from 10 to 20, using an "ease-in/ease-out" curve specified by the keySplines values. The keyTimes values cause the value of 20 to be reached at 7 seconds, and to hold there for the remainder of the 10 second simple duration.

The following example describes a somewhat unusual usage, a from-to animation with discrete animation. The stroke-linecap attribute of SVG elements takes a string, and so implies a calcMode of discrete. The animation will set the stroke-linecap attribute to round for 5 seconds (half the simple duration) and then set the stroke-linecap to square for 5 seconds.

<rect stroke-linecap="butt"...>
   <animate attributeName="stroke-linecap"
      from="round" to="square" dur="10s"/>
</rect>

3.9.2 SMIL 3.0 SplineAnimation Module Elements

The SplineAnimation module extends the BasicAnimation elements animate, animateMotion and animateColor, adding the attributes keyTimes and keySplines, and the value spline for the caclMode attribute.

3.9.3 The spline animate element

The SplineAnimation module extends the animate element defined by the BasicAnimation module, adding the following attributes and values.

Examples are provided above, as are normative definitions of the semantics of all attributes supported by animate.

3.9.4 The spline animateMotion element

The SplineAnimation module extends the animateMotion element defined by the BasicAnimation module, adding the following attributes and values.

Examples are provided above, as are normative definitions of the semantics of all attributes supported by animate.

For complete velocity control, calcMode can be set to spline and the author can specify a velocity control spline with keyTimes and keySplines.

3.9.5 The spline animateColor element

The SplineAnimation module extends the animateColor element defined by the BasicAnimation module, adding the following attributes and values.

3.10 SMIL 3.0 SplineAnimation Module Details

3.10.1 SplineAnimation integration requirements

To specify the integration of the SMIL 3.0 SplineAnimation module into a host language, the language designer must integrate SMIL 3.0 BasicAnimation into the language, satisfying all the requirements listed in BasicAnimation integration requirements.

In addition to integrating BasicAnimation, the requirements listed in Common animation integration requirements must be satisfied for the SplineAnimation module.

3.10.2 Document type definition (DTD) for the SplineAnimation module

See the full DTD for the SMIL Animation Modules.

3.11 Common Animation Integration Requirements

This section presents host-language-integration issues which are the same for the BasicAnimation and SplineAnimation modules.

3.11.1 Integration requirements

The host language profile must integrate the SMIL 3.0 BasicInlineTiming module into the host language, satisfying all requirements of that module. In addition, all modules of the SMIL 3.0 Timing and Synchronization modules and of the SMIL 3.0 Time Manipulation modules which are integrated into the host language must be available on BasicAnimation elements.

In particular, the fill attribute is supported on animation elements only if the host language integrates the SMIL 3.0 BasicTimeContainers module in addition to the BasicInlineTiming module.

normative section

If the Eventbase-element term is missing, the event-base element is defined to be the target element of the animation.

The host langauge profile may add additional attributes to Animation elements. Attributes added to any Animation element must be added to all Animation elements. In particular, this module does not define an XML ID attribute. It is expected that the host language profile will add an XML ID attribute to the Animation elements.

Extending Animation

Language designers integrating SMIL Animation are encouraged to define new animation elements where such additions will be of convenience to authors. The new elements must be based on SMIL Animation and SMIL Timing and Synchronization, and must stay within the framework provided by SMIL Timing and Synchronization and SMIL Animation.

Language designers are also encouraged to define support for additive and cumulative animation for non-numeric data types where addition can sensibly be defined.

Constraints on manipulating animation elements

Language designers integrating SMIL Animation are encouraged to disallow manipulation of attributes of the animation elements after the document has begun. This includes both the attributes specifying targets and values, as well as the timing attributes. In particular, the id attribute (of type ID) on all animation elements must not be mutable (i.e. should be read-only). Requiring animation runtimes to track changes to id values introduces considerable complexity, for what is at best a questionable feature.

It is recommended that language specifications disallow manipulation of animation element attributes through DOM interfaces after the document has begun.  It is also recommended that language specifications disallow the use of animation elements to target other animation elements.

Note in particular that if the attributeName attribute can be changed (either by animation or script), problems may arise if the target attribute has a namespace qualified name. Current DOM specifications do not include a mechanism to handle this binding.

Dynamically changing the attribute values of animation elements introduces semantic complications to the model that are not yet sufficiently resolved. This constraint may be lifted in a future version of SMIL Animation.

Handling syntax errors

The specific error handling mechanisms for each attribute are described with the individual syntax descriptions.  Some of these specifications describe the behavior of an animation with syntax errors as "having no effect".  This means that the animation will continue to behave normally with respect to timing, but will not manipulate any presentation value, and so will have no visible impact upon the presentation.

In particular, this means that if other animation elements are defined to begin or end relative to an animation that "has no effect", the other animation elements will begin and end as though there were no syntax errors. The presentation runtime may indicate an error, but need not halt presentation or animation of the document.

Some host languages and/or runtimes may choose to impose stricter error handling (see also Error handling semantics for a discussion of host language issues with error handling). Authoring environments may also choose to be more intrusive when errors are detected.

Error handling semantics

The host language designer may impose stricter constraints upon the error handling semantics. That is, in the case of syntax errors, the host language may specify additional or stricter mechanisms to be used to indicate an error. An example would be to stop all processing of the document, or to halt all animation.

Host language designers may not relax the error handling specifications, or the error handling response (as described in Handling syntax errors). For example, host language designers may not define error recovery semantics for missing or erroneous values in the values or keyTimes attribute values.

This section is normative.

This section defines the SMIL Layout Modules, which contain elements and attributes that allow positioning of media elements on visual and audio rendering surfaces and to control of audio volume. Since these elements and attributes are defined in modules, designers of other markup languages can choose the appropriate level of functionality to be included in their languages. Language designers incorporating other SMIL modules may include all, some or none of the modules described in this section.

5.2.1 Module Overview

SMIL 3.0 Layout functionality is partitioned across the following eight modules:

BasicLayout

The BasicLayout module defines the core SMIL layout elements and their attributes. Using these attributes, basic positioning can be achieved for simple presentations.

AudioLayout

The AudioLayout module extends the BasicLayout module with a single attribute to control audio output sound levels.

MultiWindowLayout

The MultiWindowLayout module extends the BasicLayout module by defining an alternative to the root-layout element for defining the outer containing rendering space for a presentation. This module also defines functionality for supporting multiple top-level windows simultaneously.

SubRegionLayout

The SubRegionLayout module extends the BasicLayout module by defining a facility for creating logically nested regions. These regions can be created statically within the layout section or dynamically on a media object reference.

AlignmentLayout

The AlignmentLayout module extends the BasicLayout module by defining attributes to position content within a region based on a set of registration points and alignment algorithms. Several convenience attribute values are also provided to simply common authoring cases.

BackgroundTilingLayout

The BackgroundTilingLayout module extends the BasicLayout module by defining a facility to fill a region background with a tiled image instead of simply a background color.

OverrideLayout

The OverrideLayout module extends the BasicLayout module by allowing per-media-object overrides of various layout attribute values.

MotionLayout

The MotionLayout module extends the BasicLayout module by allowing per-media-object specification of a crawl rate and a scroll rate; these allow horizontal and vertical movement of content within a region.

5.2.2 Support for Multiple Layout Models

The SMIL layout architecture allows support for multiple layout models within a presentation. Media layout may be described using the SMIL layout syntax described in this chapter or by using another layout mechanism, such as CSS2 syntax [CSS2]. Other layout types are possible as well.

Support for multiple layout models is implementation profile dependent. A given profile may support multiple layout models simultaneously (with selection performed using the SMIL switch element), or it may dictate that only a single layout model is supported (such as the use of CSS2 layout within the XHTML+SMIL candidate profile[XHTMLplusSMIL].

The remainder of this chapter will focus solely on the use of SMIL 3.0 layout semantics.

This section is normative.

5.3.1 Overview

SMIL BasicLayout module includes a layout model for organizing media elements into regions on the visual rendering surface. The layout element is used in the document head to declare a set of regions on which media elements are rendered. Media elements declare which region they are to be rendered into with the region attribute.

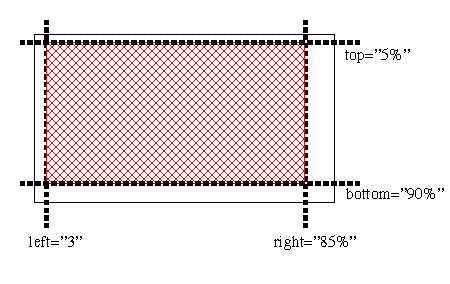

Each region has a set of CSS2 compatible properties such as top, left, height, width, and backgroundColor. These properties can be declared using a syntax defined by the type attribute of the layout element. In this way, media layout can be described using the either SMIL basic layout syntax or CSS2 syntax (note that these are not functionally identical). Other layout types are possible as well.

    <layout>
      <region id="r" top="15px" left="20px" width="100px" height="50px"/>
    </layout>

    <ref region="r" src="http://..." />

5.3.2 Elements and Attributes

This section defines the elements and attributes that make up the functionality in the SMIL BasicLayout module.

The layout element

The layout element defines a collection of rendering regions that determine how the elements in the document's body are positioned on an abstract rendering surface (either visual or acoustic).

The layout element must appear before any of the declared layout is used in the document. If present, the layout element must appear in the head section of the document. SMIL-defined default layout values can be assigned to all renderable elements by selecting the empty layout element <layout></layout>. If a document contains no layout element, no SMIL-defined default values are assigned and the positioning of the body elements is totally implementation-dependent.
