This specification defines a collection of information that describes the structure of Web Publications so that user agents can provide user experiences specially tailored to reading publications, such as sequential navigation and offline reading. This information includes the default reading order, a list of resources, and publication-wide metadata.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
This draft provides a draft version of a Web Publication. Many details are under active consideration within the Publishing Working Group and are subject to change. The most prominent known issues have been identified in this document and links provided to comment on them.
The most significant change to this draft is the tightening of its focus on the Web Publication manifest and structure. Removed are the sections on affordances and Web Publication locators. Rendering details are instead described in [PWP-UCR].
This document was published by the Publishing Working Group as a Working Draft. This document is intended to become a W3C Recommendation.
GitHub Issues are preferred for discussion of this specification. Alternatively, you can send comments to our mailing list. Please send them to public-publ-wg@w3.org (archives).
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 1 February 2018 W3C Process Document.
This section is non-normative.

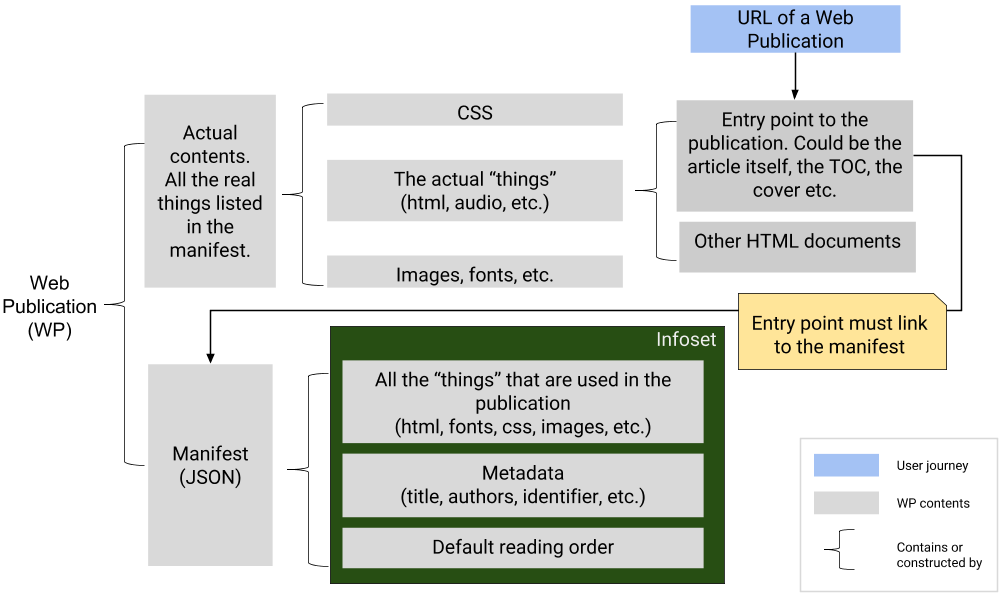

A Web Publication is a discoverable and identifiable collection of resources. Information about the Web Publication is expressed in a machine-readable document called a manifest, which is what enables user agents to understand the bounds of the Web Publication and the connection between its resources.
The manifest includes metadata that describe the Web Publication, as a publication has an identity and nature beyond its constituent resources. The manifest also provides a list of all the resources that belong to the Web Publication and a default reading order, which is how it connects resources into a single contiguous work.
A Web Publication is discoverable in one of two ways: resources either include a link to the manifest
(via an HTTP Link header or an HTML
link
element [html]), or the
manifest can be loaded directly by a compatible user agent.
With the establishment of Web Publications, user agents can build new experiences tailored specifically for their unique reading needs.
This section is non-normative.
This specification defines requirements for the production of Web Publications. It does not attempt to constrain the nature of a Web Publication—any type of work that can be represented on the Web constitutes a potential Web Publication. It is also designed to be adaptable to the needs of specific areas of published, such as audiobook production, and encourages a modular approach for creating specializations.
As much as possible, this specification leverages existing Open Web Platform technologies to achieve its goal—that being to allow for a measure of boundedness on the Web without changing the way that the Web itself operates.
Moreover, the specification is designed to adapt automatically to updates to Open Web Platform technologies in order to ensure that Web Publications continue to interoperate seamlessly as the Web evolves (e.g., by referencing the latest published versions instead of specific dated versions).
The specification is also intended to facilitate different user agent architectures for the consumption of Web Publications. While a primary goal is that traditional Web user agents (browsers) will be able to consume Web Publications, this should not limit the capabilities of any other possible type of user agent (e.g., applications, whether standalone or running within a user agent, or even Web Publications that include their own user interface). As a result, the specification does not attempt to architect required solutions for situations whose expected outcome will vary depending on the nature of the user agent and the expectations of the user (e.g., how to prompt to initiate a Web Publication, or at what point or how much of a Web Publication to cache for offline use).
This specification does not define how user agents are expected to render Web Publications. Details about the types of afforances that user agents can provide to enhance the reading experience for users are instead defined in [PWP-UCR].
This document uses terminology defined by the W3C Note "Publishing and Linking on the Web" [publishing-linking], including, in particular, user, user agent, browser, and address.
An identifier is metadata that can be used to refer to Web Content in a persistent and unambiguous manner. URLs, URNs, DOIs, ISBNs, and PURLs are all examples of persistent identifiers frequently used in publishing.
A manifest represents structured information about a Web Publication, such as informative metadata, a list of all resources, and a default reading order.
For the purposes of this specification, non-empty is used to refer to an element, attribute or property whose text content or value consists of one or more characters after whitespace normalization, where whitespace normalization rules are defined per the host format.
The general term URL is defined by the URL Standard [url]. It is used as in other W3C specifications, like HTML [html]. In particular, a URL allows for the usage of characters from Unicode following [rfc3987]. See the note in the HTML5 specification for further details.
A Web Publication is a collection of one or more resources, organized together through a manifest into a single logical work with a default reading order. The Web Publication is uniquely identifiable and presentable using Open Web Platform technologies.
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words MAY, MUST, MUST NOT, OPTIONAL, RECOMMENDED, REQUIRED, SHOULD, and SHOULD NOT are to be interpreted as described in [RFC2119].
This specification defines two conformance classes: one for Web Publications and one for user agents that process them.
A Web Publication conforms to this specification if it meets the following criteria:
A user agent conforms to this specification if it meets the following criteria:
This section is non-normative.
Although a Web Publication manifest is authored as [json-ld], a user agent processes this information into an internal data structure in order to utilize the properties. The exact manner in which this processing occurs, and how the data is used internally, is user agent-dependent.
To ensure interoperability when exposing the items, this specification defines an abstract representation of the data structures using the Web Interface Definition Language (WebIDL) [webidl-1]. The WebIDL definitions express the expected names, datatypes, and possible restrictions for each member of the manifest. (A WebIDL representation can be mapped onto ECMAScript, C, or other programming languages.)
Authors of Web Publications are encouraged to review these definitions, but they are not necessary to understand.
WebPublicationManifest
Dictionarydictionary WebPublicationManifest
{
};
The WebPublicationManifest
dictionary is the [webidl-1] representation of the collection of Web
Publication manifest properties. WebIDL definitions are also provided at the end of each
property that belongs to the dictionary — these represent the members of the
WebPublicationManifest
dictionary.
Refer to E.
IDL Index for a complete listing of the
WebPublicationManifest
dictionary.
A Web Publication Manifest MUST start by setting the JSON-LD context [json-ld]. The context has the following two major components:
https://schema.org
https://www.w3.org/ns/wp-context
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
…
}
The Web Publication context document adds features to the properties defined in Schema.org (e.g., the requirement for the creator property to be order preserving).
As part of the continuous contacts with Schema.org the additional features defined in the Web Publication context file could migrate to the core Schema.org vocabulary.
Although Schema.org is often referenced using the http
URI scheme, the vocabulary is being migrated to use
the secure https
scheme as its default. This specification requires the use
https
when referencing Schema.org in the manifest.
Various manifest properties can have one or more values. As a general rule, these values can be expressed as [json] arrays. When the property value is an array with a single element, however, the array syntax MAY be omitted.
Various manifest properties are expected to be expressed as [json] objects. Although the use of objects is usually RECOMMENDED, it is also acceptable to use string values that are interpreted as objects depending on the context. The exact mapping of text values to objects is part of the property or object definitions.
With the exception of the descriptive properties, Web Publication properties typically link to one or more resources. When a property requires a link value, the link MUST be expressed in one of the following two ways:
LinkedResource
object that can be used to express the URL, the media type, and other characteristics of the target resource.In other words, a single string value is a shorthand for a LinkedResource
object
whose url
property is set to that string value. (See also 3.1.4.2
Text Values or Objects.)
{
…
"resources" : [
"datatypes.svg",
{
"type" : "LinkedResource",
"url" : "test-utf8.csv",
"encodingFormat" : "text/csv",
"name" : "Test Results",
"description" : "CSV file containing the full data set used."
},
{
"type" : "LinkedResource",
"url" : "terminology.html",
"encodingFormat" : "text/html",
"rel" : "glossary"
}
]
}
LinkedResource
DefinitionThis specification defines a new type for links called
LinkedResource
. It
consists of the following properties:
Term | Description | Required Value | [schema.org] Mapping | Optionality |
---|---|---|---|---|
url
|
Location of the resource. | A URL [url]. Refer to the property definitions that accept this type for additional restrictions. |
url
|
REQUIRED |
encodingFormat
|
Media type of the resource (e.g., text/html ). |
MIME Media Type [rfc2046]. |
encodingFormat
|
OPTIONAL |
name
|
Name of the item. | One or more Text items. |
name
|
OPTIONAL |
description
|
Description of the item. | Text. |
description
|
OPTIONAL |
rel
|
The relationship of the resource to the Web Publication. |
One or more relations. The values are either the relevant relationship terms of the IANA link registry [iana-link-relations], or specially-defined URLs if no suitable link registry item exists. |
(None) | OPTIONAL |
dictionary LinkedResource
{
required DOMString url
;
DOMString encodingFormat
;
sequence<LocalizableString
> name
;
LocalizableString
description
;
sequence<DOMString> rel
;
};
The Web Publication Manifest MUST include a Publication Type using the type
term [json-ld]. The type MAY be mapped onto CreativeWork
[schema.org].
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"type" : "CreativeWork"
…
}
Schema.org also includes a number of more specific subtypes of CreativeWork
, such as
Article
, Book
, TechArticle
, and Course
. These MAY be used instead of, or in addition to, CreativeWork
.
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"type" : "Book"
…
}
Each Schema.org type defines a set of properties that are valid for use with it. To ensure that the manifest can be validated and processed by Schema.org aware processors, the manifest SHOULD contain only the properties associated with the selected type.
If properties from more than one type are needed, the manifest MAY include multiple type declarations.
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"type" : ["Book", "VisualArtwork"],
…
}
User agents SHOULD NOT fail to process manifests that are not valid to their declared Schema.org type(s).
Refer to the Schema.org site for the complete list of CreativeWork
subtypes.
partial dictionary WebPublicationManifest
{
required sequence<DOMString> type
;
};
The naming, syntax, and requirements for manifest properties are defined in 4. Web Publication Properties.
Although authors only have to understand the serialization requirements for manifest terms, they are encouraged to read through the full definitions for each property. The definitions describe, in some cases, how items are compiled into the Canonical Manifest in the absence of explicit information.
Relative URL strings MAY be used in the manifest. These URLs are resolved to absolute URL strings using a base URL [url].
The base URL for relative URLs is determined as follows:
By consequence, relative URLs in embedded
manifests are resolved against the URL of the
primary entry page unless the page declares a base direction (i.e., in a <base>
element in its header).
The usage (or not) of the <base>
element for embedded manifests
is currently the subject of several issues in the JSON-LD Working Group: JSON-LD #22, JSON-LD #57, and, ultimately,
TAG #312.
A manifest MAY be embedded only in the primary entry page. In this case, the manifest MUST be included in a script
element [html] whose type
attribute is set to
application/ld+json
.
Additionally, the script
element MUST include
a unique identifier in an id
attribute [html]. This identifier ensures that the manifest can be referenced.
<script id="example_manifest" type="application/ld+json">
{
…
}
</script>
With the exception of the primary entry page, linking a resource to its Web Publication manifest is OPTIONAL. Including a link is encouraged whenever possible, however, as it allows user agents to immediately ascertain that a resource belongs to a Web Publication regardless of how the user reaches the resource.
Links to a Web Publication manifest MUST take one or both of the following forms:
An HTTP Link
header field [rfc5988] with its rel
parameter set to the value
"publication
".
Link: <https://example.com/webpub/manifest>; rel=publication
A link
element [html] with its rel
attribute set to the value
"publication
".
<link href="https://example.com/webpub/manifest" rel="publication"/>
When a manifest is embedded within an HTML
document, the link MUST include a fragment identifier that
references the script
element that contains the manifest (see 3.1.8
Embedding).
<link href="#example_manifest" rel="publication">
…
<script id="example_manifest" type="application/ld+json">
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
…
}
</script>
The exact value of rel
is still to be agreed upon and should be
registered by IANA.
The following details might be moved to the lifecycle section in a future draft.
When a resource links to multiple manifests, a user agent MAY choose to present one or more alternatives to the end user, or choose a single alternative on its own. The user agent MAY choose to present any manifest based upon information that it possesses, even one that is not explicitly listed as a parent (e.g., based upon information it calculates or acquires out of band). In the absence of a preference by user agent implementers, selection of the first manifest listed is suggested as a default.
A Web Publication consists of a finite set of resources that represent its content. This extent is known as its bounds and is defined within its manifest — it is obtained from the union of resources listed in the default reading order and resource list.
To determine whether a resource is within the bounds of a Web Publication, user agents MUST compare the absolute URL of a resource to the absolute URLs of the resources obtained from the union. If the resource is identified in the enumeration, it is within the bounds of the Web Publication. All other resources are external to the Web Publication.
Resources within the bounds of a Web Publication do not have to share the same domain.
A Web Publication MUST include at least one HTML document [html]—the primary entry page.
There are no restrictions on a Web Publication beyond this requirement. The Web Publication MAY include references to resources of any media type, both in the default reading order and as dependencies of other resources.
When adding resources to a Web Publication, consider support in user agents. The use of progressive enhancement techniques and the provision of fallback content, as appropriate, will ensure a more consistent reading experience for users regardless of their preferred user agent.
The primary entry page represents the preferred starting resource for a Web Publication and enables discovery of its manifest. It is the resource that is returned when accessing the Web Publication's address, and MUST be included in either the default reading order or the resource list.
Although any resource can link to the Web Publication manifest, the primary entry page typically introduces the publication and provides access to the content. It might contain all the content, in the case of a single-page Web Publication, or provide navigational aids to begin reading a multi-document Web Publication. To facilitate the user ease of consumption, the primary entry page SHOULD contain the table of contents.
It is not required that the primary entry page be included in the default reading order, nor that it be the first document listed when it is included. This specification leaves the exact nature of the document intentionally underspecified to provide flexibility for different approaches. If a default reading order is not provided, however, user agents will create one using the primary entry page.
The primary entry page is the only resource in which a manifest can be embedded. To ensure discovery of the manifest, the primary entry page MUST provide a link to the manifest, regardless of whether the manifest is embedded within the page or external to it.
The address of the primary entry page is also the canonical identifier for the Web Publication (i.e., it serves as the unique identifier for the Web Publication).
In certain cases where information has been omitted from the manifest, user agents will sometimes use the primary entry page as a fallback source of information (see language and base direction and title).
The table of contents provides a hierarchical list of links that reflects the structural outline of the major sections of the Web Publication.
The table of contents is expressed via an [html] element (typically a nav
element) in
one of the resources. This element MUST be identified by the role
attribute [html] value "doc-toc
" [dpub-aria-1.0], and MUST be the first element in the document — in document tree order [dom] — with that role
value.
If the table of contents is not located in the primary entry page, the manifest SHOULD identify the resource that contains the structure.
When specified, the table of content MUST include a link to at least one resource, and all links SHOULD refer to resources within publication bounds.
Refer to the table of contents property definition for more information on how to identify which resource contains the table of contents.
The page list is a list of links that provides navigation to static page demarcation points within the content. These locations allow users to coordinate access into the content, for example. The exact nature of these locations is left to content creators to define. They usually correspond to pages of a print document which is the source of the digital publication, but might be a purely digital creation added to ease navigation.
The page list is expressed via an [html] element
(typically a nav
element) in one of the resources. This element MUST be identified by the role
attribute [html] value
"doc-pagelist
" [dpub-aria-1.0], and MUST be the first
element in the document — in document tree
order [dom] — with that
role
value.
If the page list is not located in the primary entry page, the manifest SHOULD identify the resource that contains the structure.
There are no requirements on the page list itself, except that, when specified, it MUST include a link to at least one resource.
Refer to the pagelist
property definition for more information
on how to identify which resource contains the page list.
This section is non-normative.
The Web Publication manifest is defined by a set of properties that describe the basic information a user agent requires to process and render a Web Publication. These properties are categorized as followed:
Descriptive properties describe aspects of a Web Publication, such as its title, creator, and language. These properties are primarily drawn from Schema.org and its hosted extensions [schema.org], so they map to one or several Schema.org properties and inherit their syntax and semantics. (The following property categories typically do not have Schema.org equivalents, so are defined specifically for Web Publications.)
Resource categorization properties describe or identify common sets of resources, such as the resource list and default reading order. These properties refer to one or more resources, such as HTML documents, images, script files, and separate metadata files.
Informative properties identify resources that contain additional information about the Web Publication, such as its privacy policy or accessibility report.
Structural properties identify key meta structures of the Web Publication, such as the cover image, table of contents, and page list.
The categorization of properties is done to simplify comprehension of their purpose; the groupings have no relevance outside this specification (i.e., the groupings do not exist in the manifest).
Each manifest item drawn from schema.org identifies the property it maps to and includes its defining type in parentheses. Properties are often available in many types, however, as a result of the schema.org inheritance model. Refer to each property definition for more detailed information about where it is valid to use.
Schema.org additionally includes a large number of properties that, though relevant for publishing, are not mentioned in this specification — Web Publication authors can use any of these properties. This document defines only the minimal set of manifest items.
There are discussion on whether a best practices document would be created, referring to more schema.org terms. If so, it should be linked from here.
The requirements for the expression of Web Publication properties are defined as follows:
These properties do not all have to be serialized in the authored manifest. Refer to each property's definition to determine whether it is required in the manifest or can be compiled into the canonical manifest from other information.
This section is non-normative.
The way that properties are expressed in the manifest often differs from how they are referred to using natural language. The following table provides a mapping between property names and the sections where they are explained to help clarify the differing nomenclature:
Property Name | Defined In |
---|---|
accessMode
|
Accessibility |
accessModeSufficient
|
Accessibility |
accessibilityAPI
|
Accessibility |
accessibilityControl
|
Accessibility |
accessibilityFeature
|
Accessibility |
accessibilityHazard
|
Accessibility |
accessibilitySummary
|
Accessibility |
artist
|
Creators |
author
|
Creators |
contents
|
Table of Contents |
contributor
|
Creators |
creator
|
Creators |
dateModified
|
Last Modification Date |
datePublished
|
Publication Date |
editor
|
Creators |
https://www.w3.org/ns/wp#accessibility-report
|
Accessibility Report |
https://www.w3.org/ns/wp#cover
|
Cover |
https://www.w3.org/ns/wp#pagelist
|
Pagelist |
id
|
Canonical Identifier |
illustrator
|
Creators |
inDirection
|
Direction |
inker
|
Creators |
inLanguage
|
Language |
letterer
|
Creators |
link
|
Links |
name
|
Title |
penciler
|
Creators |
privacy-policy
|
Privacy Policy |
publisher
|
Creators |
readBy
|
Creators |
readingOrder
|
Default Reading Order |
readingProgression
|
Reading Progression Direction |
resources
|
Resource List |
translator
|
Creators |
url
|
Address |
The accessibility properties provides information about the suitability of a Web Publication for consumption by users with varying preferred reading modalities. These properties typically supplement an evaluation against established accessibility criteria, such as those provided in [WCAG20]. (For linking to a detailed accessibility report, see 4.6.1 Accessibility Report.)
The following properties are categorized as accessibility properties:
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
accessMode
|
The human sensory perceptual system or cognitive faculty through which a person may process or perceive information. | One or more text(s). Expected values. |
accessMode (CreativeWork) |
accessModeSufficient
|
A list of single or combined accessModes that are sufficient to understand all the intellectual content of a resource. | One or more ItemList. Expected values. |
accessModeSufficient (CreativeWork) |
accessibilityAPI
|
Indicates that the resource is compatible with the referenced accessibility APIs. | One or more text(s).Expected values. |
accessibilityAPI (CreativeWork) |
accessibilityControl
|
Identifies input methods that are sufficient to fully control the described resource. | One or more text(s). Expected values. |
accessibilityControl (CreativeWork) |
accessibilityFeature
|
Content features of the resource, such as accessible media, alternatives and supported enhancements for accessibility. | One or more text(s). Expected values. |
accessibilityFeature (CreativeWork) |
accessibilityHazard
|
A characteristic of the described resource that is physiologically dangerous to some users. | One or more text(s).Expected values. |
accessibilityHazard (CreativeWork) |
accessibilitySummary
|
A human-readable summary of specific accessibility features or deficiencies, consistent with the other accessibility metadata but expressing subtleties such as “short descriptions are present but long descriptions will be needed for non-visual users” or “short descriptions are present and no long descriptions are needed.” | Text. |
accessibilitySummary (CreativeWork) |
Detailed descriptions of these properties are available on the WebSchemas Wiki site.
Values SHOULD be drawn from the preferred vocabulary for each accessibility property, but user agents MUST NOT omit values from that are not included in the lists when generating the canonical manifest.
The author can also provide a reference to a detailed Accessibility Report if more information is needed than can be expressed by these properties.
partial dictionary WebPublicationManifest
{
sequence<DOMString> accessMode
;
sequence<DOMString> accessModeSufficient
;
sequence<DOMString> accessibilityAPI
;
sequence<DOMString> accessibilityControl
;
sequence<DOMString> accessibilityFeature
;
sequence<DOMString> accessibilityHazard
;
LocalizableString
accessibilitySummary
;
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "CreativeWork",
…
"accessibilityAPI" : "ARIA",
"accessMode" : ["textual", "visual"],
"accessModeSufficient" : [
{
"type" : "ItemList",
"itemListElement": ["textual", "visual"]
},
{
"type" : "ItemList",
"itemListElement": ["textual"]
}
],
…
}
A Web Publication's
address is a URL [url] that represents the primary entry page for the Web Publication. It
is expressed using the url
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
url
|
URL of the primary entry page. | A URL [url]. |
url (Thing) |
If the address does not resolve to an HTML document [html], user agents SHOULD NOT provide access to the resource to users. A Web Publication MAY have more than one address, but all the addresses MUST resolve to the same document.
The referenced document SHOULD be a resource of the Web Publication. It can be any resource, including one that is not listed in the default reading order. This document MUST include a link to the manifest to ensure a bidirectional linking relationship (i.e., that user agents can also locate the manifest from the document at the address).
If the document is not a Web Publication resource, user agents SHOULD load the first document in the default reading order when initiating the Web Publication.
To improve the usability of Web Publications, particularly in user agents that do not support Web Publications, authors are encouraged to include navigation aids in the referenced document that facilitate consumption of the content, (e.g., provide a table of contents or a link to one).
partial dictionary WebPublicationManifest
{
required DOMString url
;
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
…
}
A Web Publication's
canonical identifier is a unique
identifier that resolves to the preferred version of the Web Publication. It is expressed using
the id
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
id
|
Preferred version of the Web Publication. | A URL [url]. | (None) |
Ensuring uniqueness of canonical identifiers is outside the scope of this specification. The actual achievable uniqueness depends on such factors as the conventions of the identifier scheme used and the degree of control over assignment of identifiers.
The canonical identifier is intended to provide a measure of permanence above and beyond the Web Publication's address(es). If a Web Publication is permanently relocated to a new URL, for example, the canonical identifier provides a way of discovering the new location (e.g., a DOI registry could be updated with the new URL, or a redirect could be added to the URL of the canonical identifier). It is also intended to provide a means of identifying instances of the same Web Publication hosted at different URLs.
If a URL is not provided in the manifest, or the value is an invalid URL, the Web Publication does not have a canonical identifier. User agents MUST NOT attempt to construct a canonical identifier from any other identifiers provided in the manifest for the canonical manifest.
The specification of the canonical identifier MAY be
complemented by the inclusion of additional types of identifiers for the Web Publication using
the identifier
property [schema.org] and/or its subtypes.
partial dictionary WebPublicationManifest
{
DOMString id
;
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"isbn" : "9780123456789",
"url" : "https://publisher.example.org/mobydick",
…
}
A creator is an individual or entity responsible for the creation of the Web Publication.
The following properties are categorized as creators:
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
artist
|
The primary artist for the publication, in a medium other than pencils or digital line art. | One or more Person . |
artist (VisualArtwork) |
author
|
The author of the publication. | One or more Person and/or Organization . |
author (CreativeWork) |
colorist
|
The individual who adds color to inked drawings. | One or more Person . |
colorist (VisualArtwork) |
contributor
|
Contributor whose role does not fit to one of the other roles in this table. | One or more Person and/or Organization . |
contributor (CreativeWork) |
creator
|
The creator of the publication. | One or more Person and/or Organization . |
creator (CreativeWork) |
editor
|
The editor of the publication. | One or more Person . |
editor (CreativeWork) |
illustrator
|
The illustrator of the publication. | One or more Person . |
illustrator (Book) |
inker
|
The individual who traces over the pencil drawings in ink. | One or more Person . |
inker (VisualArtwork) |
letterer
|
The individual who adds lettering, including speech balloons and sound effects, to artwork. | One or more Person . |
letterer (VisualArtwork) |
penciler
|
The individual who draws the primary narrative artwork. | One or more Person . |
penciler (VisualArtwork) |
publisher
|
The publisher of the publication. | One or more Person and/or Organization . |
publisher (CreativeWork) |
readBy
|
A person who reads (performs) the publication (for audiobooks). | One or more Person . |
readBy (Audiobook) |
translator
|
The translator of the publication. | One or more Person and/or Organization . |
translator (CreativeWork) |
Creators are represented in one of the following two ways:
Person
[schema.org]; orPerson
or Organization
[schema.org].In other words, a single string value is a shorthand for a [schema.org] Person
whose
name
property is set to that string value. (See also 3.1.4.2
Text Values or Objects.)
When compiling each set of creator information
from a [schema.org] Person
or Organization
type, user agents MUST retain the following information when available:
type
name
id
url
Note that user agents MAY interpret a wider range of creator properties defined by Schema.org than the ones in the preceding list.
The manifest MAY include more than one of each type of creator.
partial dictionaryWebPublicationManifest
{ sequence<CreatorInfo
>artist
; sequence<CreatorInfo
>author
; sequence<CreatorInfo
>colorist
; sequence<CreatorInfo
>contributor
; sequence<CreatorInfo
>creator
; sequence<CreatorInfo
>editor
; sequence<CreatorInfo
>illustrator
; sequence<CreatorInfo
>inker
; sequence<CreatorInfo
>letterer
; sequence<CreatorInfo
>penciler
; sequence<CreatorInfo
>publisher
; sequence<CreatorInfo
>readBy
; sequence<CreatorInfo
>translator
; }; dictionaryCreatorInfo
{ sequence<DOMString>type
; required sequence<LocalizableString
>name
; DOMStringid
; DOMStringurl
; };
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"author" : {
"type" : "Person",
"name" : "Herman Melville"
}
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"author" : [
"Jeni Tennison",
{
"type" : "Person",
"name" : "Gregg Kellogg",
},{
"type" : "Person",
"name" : "Ivan Herman",
"id" : "https://www.w3.org/People/Ivan/"
}
],
"editor" : [
"Jeni Tennison",
{
"type" : "Person",
"name" : "Gregg Kellogg",
}
],
"publisher" : {
"type" : "Organization",
"name" : "World Wide Web Consortium",
"id" : "https://www.w3.org/"
}
…
}
The Web Publication has a natural language value (e.g., English, French, Chinese), as well as a natural base writing direction (the display direction, either left-to-right or right-to-left). The manifest has entries to set these values, which can influence, for example, the behavior of a user agent (e.g., it might place a pop-up for a table of contents on the right hand side for publications whose natural base direction is right-to-left).
Similarly, each natural language property value in the Web Publication's manifest (e.g., title, creators) is localizable [string-meta], meaning that the same information is available for each.
As a result, the manifest has entries to set:
of both the Web Publication and the natural language properties values of the manifest.
If a user agent requires the language and one is not available in the authored manifest (either globally or specifically for that property), or the obtained value is invalid, the user agent MAY attempt to determine the language when generating the canonical manifest. This specification does not mandate how such a language tag is created. The user agent might:
No default values are specified for the language or the default base direction.
Proposal for handling localizable texts (writeup of the F2F discussions)
The manifest MAY include global language and base direction declarations for the Web Publication using the following properties.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
inLanguage
|
Default language for the Web Publication as well as the textual manifest values | language code as defined in [bcp47] |
inLanguage (Property) |
inDirection
|
Default base direction for the Web Publication as well as the textual manifest values | ltr , rtl , or auto |
(None) |
The natural language MUST be a tag that conforms
to [bcp47], while the base language direction
MUST have one of the following values:
ltr
: indicates that the
textual values are explicitly directionally set to left-to-right text;rtl
: indicates that the
textual values are explicitly directionally set to right-to-left text;auto
: indicates that the
textual values are explicitly directionally set to the direction of the first character
with a strong directionality.When specified, these properties are also used as defaults for textual values in the manifest.
It is important to differentiate the language of the publication from the language and the base direction of the individual resources that compose it. If such resources are, for example, in HTML, the language and direction need to be set in those resources, too. The language and base direction of the publication are not inherited.
The global language information MAY be overridden by individual values.
If the manifest is embedded in the primary entry page via a
script
element, and the manifest does not set the global language and/or
the base direction (see 4.4.5.1
Global Language and Direction), the lang
and the dir
attributes of the script
element are used as the
global language and base direction,
respectively (see the details on handling the lang
and dir
attributes in [html]).
It is to be discussed whether this last paragraph, i.e., inheriting values from
script
, should be kept.
If authors intend to use a manifest, or a manifest template, both as embedded
manifest and as a separate resource, they are strongly encouraged to set these
properties explicitly to avoid interference of the containing script
element in case of embedding.
partial dictionaryWebPublicationManifest
{ DOMStringinLanguage
;TextDirection
inDirection
; }; enumTextDirection
{ "ltr
", "rtl
", "auto
" };
It is possible to set the language for any textual value in the manifest. This information
MUST be set as a localizable string
, i.e., using the value
and language
terms (instead of a simple
string) [json-ld]:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"author" : {
"type" : "Person",
"name" : {
"value" : "Marcel Proust",
"language" : "fr"
}
}
}
The value of the language
MUST be set to a language code as defined in [bcp47].
When used in a context of localizable texts, a simple string value is a shorthand for a localizable
string
, with the value
set to the string value, and the language
set to the value of the inLanguage
property, if applicable, and unset otherwise. In other
words, the previous example is equivalent to:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
"inLanguage" : "fr",
…
"author" : "Marcel Proust",
}
(See also 3.1.4.2 Text Values or Objects.)
It is not possible to set the direction explicitly for a value.
Setting the direction for a natural text value is currently not possible in JSON-LD [json-ld]. In case the JSON-LD community, as well as the schema.org community, introduces such a feature, future versions of this specification may extend the ability of Web Publication Manifests to include this.
When using Web Publication manifests with bidirectional text, user agents SHOULD identify the base direction of any given natural language value by scanning the text for the first strong directional character. Once the base direction has been identified, user agents MUST determine the appropriate rendering and display of natural language values according to the Unicode Bidirectional Algorithm [bidi]. This could require wrapping additional control characters or markup around the string prior to display, in order to apply the base direction. (See C. Examples for bidirectional texts.)
dictionary LocalizableString
{
required DOMString value
;
DOMString language
;
};
The last modification date is the
date when the Web
Publication was last updated (i.e., whenever changes were last made to any of the
resources of the Web Publication, including the manifest). It is expressed using the dateModified
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
dateModified
|
Last modification date of the publication. | A Date or DateTime
value [schema.org], both expressed in ISO 8601 Date, or Date Time formats,
respectively [iso8601]. |
dateModified (CreativeWork) |
The last modification date does not necessarily reflect all changes to the Web Publication (e.g., third-party content could change without the author being aware). User agents SHOULD check the last modification date of individual resources to determine if they have changed and need updating.
partial dictionary WebPublicationManifest
{
DOMString dateModified
;
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"dateModified" : "2015-12-17",
…
}
The publication date is the date on
which the Web
Publication was originally published. It represents a static event in the lifecycle of a
Web Publication and allows subsequent revisions to be identified and compared. It is expressed
using the datePublished
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
datePublished
|
Creation date of the publication. | A Date or DateTime , both expressed in
ISO 8601 Date, or Date Time formats, respectively [iso8601]. |
datePublished (CreativeWork) |
The exact moment of publication is intentionally left open to interpretation: it could be when the Web Publication is first made available online or could be a point in time before publication when the Web Publication is considered final.
partial dictionary WebPublicationManifest
{
DOMString datePublished
;
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"datePublished" : "2015-12-17",
"dateModified" : "2016-01-30",
…
}
The reading progression
establishes the reading direction
from one resource to the next within a Web Publication. It is expressed using the
readingDirection
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
readingProgression
|
Reading direction from one resource to the other. | ltr or rtl |
(None) |
The value of this property MUST be either:
ltr
: left-to-right;rtl
: right-to-left.The default value is ltr
.
This property has no effect on the rendering of the individual primary resources; it is only relevant for the progression direction from one resource to the other.
The reading progression of a Web Publication is used to adapt such publication level interactions as menu position, swap direction, defining tap zones to lead the user to the next and previous pages, touch gestures, etc.
If the readingProgression
is not set, user agents MUST use the default value ltr
when generating the canonical
manifest.
partial dictionaryWebPublicationManifest
{ProgressionDirection
readingProgression
= "ltr"; }; enumProgressionDirection
{ "ltr
", "rtl
" };
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"readingProgression" : "ltr"
}
The title provides the human-readable name of the Web Publication. It is expressed using the
name
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
name
|
Human-readable title of the Web Publication. | One or more text items for the title. |
name (Thing) |
The title is specified by the manifest expression, when present. If not
included in the authored manifest, the user agent MUST use the value of the title
element [html] of the Web
Publication’s primary
entry page, if present, when generating the canonical manifest.
If the title is not available either in the authored manifest or as a non empty title
element in the primary entry page, the user agent MUST create one. This specification does not specify what heuristics the user agent
should use; it can, for example, use a language-specific placeholder title, use the URL of the manifest or the primary entry page, or
use the value of the address in the authored manifest.
Relying on the title
element could be semantically problematic if the
Web Publication consists of several HTML
resources (e.g., one per chapter of a book), because the HTML definition defines this element as
"metadata" for the enclosing HTML document,
not for a collection of resources. Using this element is, on the other hand, preferred in
the case of a publication consisting of a single HTML document (e.g., a scholarly journal article).
A user agent is not expected to produce a meaningful title [wcag20] for a Web Publication when one is not specified.
partial dictionary WebPublicationManifest
{
required sequence<LocalizableString
> name
;
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick"
}
Web Publication resources are specified via the default reading order, the resource list, and the links, as defined in this section. These lists contain references to informative properties like the privacy policy, and structural properties like the table of contents.
Note that a particular resource's URL MUST NOT appear in more than one of these lists, and a URL MUST NOT be repeated within a list.
The manifest itself MUST NOT include a reference to itself, i.e., the reference to the manifest MUST NOT appear within these lists.
The default reading order is a specific progression through a set of Web Publication resources. A user might follow alternative pathways through the content, but in the absence of such interaction the default reading order defines the expected progression from one resource to the next.
The default reading order is expressed using the readingOrder
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
readingOrder
|
An array of:
The order in the array is significant. The URLs
MUST NOT include fragment identifiers.
Non-HTML resources SHOULD be expressed as
|
(None) |
The default reading order MUST include at least one resource.
The default reading order is specified directly in the manifest, but MAY be omitted when it only consists of the primary entry page. When the default reading order is absent, user agents MUST include an entry for the primary entry page when compiling the canonical manifest.
If present in the Web Publication Manifest, this item MUST
be mapped on the readingOrder
term, defined specifically for Web Publications.
partial dictionary WebPublicationManifest
{
required sequence<LinkedResource
> readingOrder
;
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"readingOrder" : [
"html/title.html",
"html/copyright.html",
"html/introduction.html",
"html/epigraph.html",
"html/c001.html",
…
]
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"readingOrder" : [{
"type" : "LinkedResource",
"url" : "html/title.html",
"encodingFormat" : "text/html",
"name" : "Title page"
},{
"type" : "LinkedResource",
"url" : "html/copyright.html",
"encodingFormat" : "text/html",
"name" : "Copyright page"
},{
…
}]
}
The resource list enumerates any additional
resources used in the processing and rendering of a Web Publication
that are not already listed in the default reading order. It is expressed using the
resources
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
resources
|
An array of:
The order in the array is not significant. The URLs
MUST NOT include fragment identifiers.
It is RECOMMENDED to use
|
(None) |
The completeness of the resource list will affect the usability of the Web Publication in certain reading scenarios (e.g., the ability to read the Web Publication offline). For this reason, it is strongly RECOMMENDED to provide a comprehensive list of all of the Web Publication's constituent resources beyond those listed in the default reading order.
In some cases, a comprehensive list of these resources might not be easily achieved (e.g., third-party scripts that reference resources from deep within their source), but a user agent SHOULD still be able to render a Web Publication even if some of these resources are not identified as belonging to the Web Publication (e.g., when it is taken offline without them).
partial dictionary WebPublicationManifest
{
sequence<LinkedResource
> resources
= [];
};
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
"resources" : [
"datatypes.html",
"datatypes.svg",
"datatypes.png",
"diff.html",
{
"type" : "LinkedResource",
"url" : "test-utf8.csv",
"encodingFormat" : "text/csv"
},{
"type" : "LinkedResource",
"url" : "test-utf8-bom.csv",
"encodingFormat" : "text/csv"
},{
…
}
],
…
}
Links provide a list of resources that are not required for the processing and rendering of a Web
Publication (i.e., the content of the Web Publication remains unaffected even if these resources
are not available). They are expressed using the links
property.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
links
|
An array of:
The order in the array is not significant. It is RECOMMENDED to use |
(None) |
Linked resources are typically made available to user agents to augment or enhance the processing or rendering of it, such as:
Links can also be used to identify resources that are used in the online rendering of a Web Publication, but that are not essential to include with it when it is taken offline or packaged (e.g., to minimize the size). These include:
The links
list SHOULD include resources
necessary to render a linked resource (e.g., scripts, images, style sheets).
Resources listed in the links
list MUST
NOT be listed in the default reading order or resource list.
User agents MAY ignore linked resources, and are not required to take them offline with a Web Publication. These resources SHOULD NOT be included when packaging a Web Publication.
partial dictionary WebPublicationManifest
{
sequence<LinkedResource
> links
= [];
};
An accessibility report provides information about the suitability of a Web Publication for consumption by users with varying preferred reading modalities. These reports typically identify the result of an evaluation against established accessibility criteria, such as those provided in [WCAG21], and are an important source of information in determining the usability of a Web Publication.
An accessibility report is identified using the
https://www.w3.org/ns/wp#accessibility-report
link relationship.
The manifest SHOULD include a link to an accessibility report when one is available for a Web Publication. It is RECOMMENDED that the report be included as a resource of the Web Publication.
It is also RECOMMENDED that the accessibility report be provided in a human-readable format, such as [html]. Augmenting these reports with machine-processable metadata, such as provided in Schema.org [schema.org], is also RECOMMENDED.
If present in the manifest, the accessibility report MUST
be expressed as a LinkedResource
. The
rel
value of the LinkedResource
MUST include the
https://www.w3.org/ns/wp#accessibility-report
identifier.
The Working Group will attempt to define the accessibility-report
term
with IANA, to avoid using a URL.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"links" : [{
"type" : "LinkedResource",
"url" : "https://www.publisher.example.org/mobydick-accessibility.html",
"rel" : "https://www.w3.org/ns/wp#accessibility-report"
},{
…
}],
…
}
Users often have the legal right to know and control what information is collected about them, how such information is stored and for how long, whether it is personally identifiable, and how it can be expunged. Including a statement that addresses such privacy concerns is consequently an important part of publishing Web Publications. Even if no information is collected, such a declaration increases the trust users have in the content.
A privacy policy is identified using the privacy-policy
link relationship.
A link to a privacy policy can be included in the manifest. It is RECOMMENDED that the privacy policy be included as a resource of the Web Publication.
It is RECOMMENDED that the privacy policy be provided in a human-readable format, such as HTML [html].
Refer to 7. Privacy for more information about privacy considerations in Web Publications.
If present in the manifest, the privacy policy
MUST be expressed as a LinkedResource
. The rel
value of the LinkedResource
MUST include the privacy-policy
identifier [iana-link-relations].
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
"links" : [{
"type" : "LinkedResource",
"url" : "https://www.w3.org/Consortium/Legal/privacy-statement-20140324",
"encodingFormat" : "text/html",
"rel" : "privacy-policy"
},{
…
}],
…
}
The cover is a resource that user agents can use to present the Web Publication (e.g., in a library or bookshelf, or when initially loading the Web Publication).
The cover is identified by the https://www.w3.org/ns/wp#cover
link relationship.
The manfiest SHOULD include a reference to a cover.
More than one cover MAY be referenced from the manifest (e.g., to provide alternative formats and sizes for different device screens). If multiple covers are specified, each instance MUST define at least one unique property to allow user agents to determine its usability (e.g., a different format, height, width or relationship).
If present in the manifest, the cover MUST be expressed as
a LinkedResource
. The URL expressed in the url
term MUST NOT include a fragment identifier.
The rel
value of the LinkedResource
MUST include the
https://www.w3.org/ns/wp#cover
identifier.
If the cover is in an image format, a title
and description
SHOULD be provided. User agents can use these properties
to provide alternative text and descriptions when necessary for accessibility.
The Working Group will attempt to define the cover
term by IANA, to
avoid using a URL.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/donquixote",
"name" : "Don Quixote",
"resources" : [{
"type" : "LinkedResource",
"url" : "cover.html",
"encodingFormat" : "text/html"
"rel" : "https://www.w3.org/ns/wp#cover"
},{
…
}],
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"resources" : [{
"type" : "LinkedResource",
"url" : "whale-image.jpg",
"encodingFormat" : "image/jpeg",
"rel" : "https://www.w3.org/ns/wp#cover",
"name" : "Moby Dick attacking hunters",
"description" : "A white whale is seen surfacing from the water to attack a small whaling boat"
},{
…
}],
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/donquixote",
"name" : "Gulliver's Travels",
"resources" : [{
"type" : "LinkedResource",
"url" : "lilliput.jpg",
"encodingFormat" : "image/jpeg",
"rel" : "https://www.w3.org/ns/wp#cover"
},{
"type" : "LinkedResource",
"url" : "lilliput.svg",
"encodingFormat" : "image/svg+xml",
"rel" : "https://www.w3.org/ns/wp#cover"
},{
…
}],
…
}
The pagelist property identifies the resource that contains the Web Publication's page list.
The page list is identified by the https://www.w3.org/ns/wp#pagelist
link
relationship.
User agents MUST compute the pagelist
as
follows:
rel
value including https://www.w3.org/ns/wp#pagelist
,
the corresponding url
value identifies the page list resource. If there
are several such resources, the first one MUST
be used, with the default reading order taking
precedence over resource-list. role
[html] value doc-pagelist
[dpub-aria-1.0], the user agent MUST use that element as the page list. If there are
several such HTML elements the user agent MUST use the first in document tree
order [dom]. If this process does not result in a link to the page list, the Web Publication does not have a page list and this property MUST NOT be included in the canonical manifest.
The Working Group will attempt to define the pagelist
term by IANA, to
avoid using a URL.
If present in the manifest, the page list MUST be expressed
as a LinkedResource
. The URL expressed in the url
term MUST NOT include a fragment identifier.
The rel
value of the LinkedResource
MUST include the
https://www.w3.org/ns/wp#pagelist
identifier.
The link to the page list MAY be specified in either the default reading order or resource-list, but MUST NOT be specified in both.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"resources" : [{
"type" : "LinkedResource",
"url" : "toc_file.html",
"rel" : "https://www.w3.org/ns/wp#pagelist"
},{
…
}],
…
}
The table of contents property identifies the resource that contains the Web Publication's table of contents.
The table of contents is identified by the contents
link relationship.
User agents MUST compute the toc
as
follows:
rel
value including contents
[iana-link-relations], the corresponding url
value
identifies the table of contents resource. If there are several such resources, the
first one MUST be used, with the default reading order taking precedence over
resource-list. role
[html] value doc-toc
[dpub-aria-1.0], the user agent
MUST use that element as the table of contents. If
there are several such HTML elements the user
agent MUST use the first in document tree
order [dom]. If this process does not result in a link to the table of contents, the Web Publication does not have a table of contents and this property MUST NOT be included in the canonical manifest.
See the separate section A. Machine-Processable Table of Contents for the HTML structure that the table of content SHOULD adhere to.
If present in the manifest, the table of
contents
MUST be expressed as a LinkedResource
. The URL
expressed in the url
term MUST NOT
include a fragment identifier.
The rel
value of the LinkedResource
MUST include the contents
identifier [iana-link-relations].
The link to the table of contents MAY be specified in either the default reading order or resource-list, but MUST NOT be specified in both.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"resources" : [{
"type" : "LinkedResource",
"url" : "toc_file.html",
"rel" : "contents"
},{
…
}],
…
}
<head>
…
<script type="application/ld+json">
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
}
</script>
…
</head>
<body>
…
<section role="doc-toc">
…
</section>
…
</body>
The manifest is designed to provide a basic set of properties for use by user agents in presenting and rendering a Web Publication, but MAY be extended in the following ways:
Although both methods are valid, the use of linked records is RECOMMENDED.
This specification does not define how such additional properties are compiled, stored or exposed by user agents in their internal representation of the manifest. A user agent MAY ignore some or all extended properties.
Extending the manifest through links to a record, such as an ONIX [onix] or BibTeX [bibtex] file, MUST
be expressed using a LinkedResource
object,
where:
rel
value of the LinkedResource
SHOULD include a relevant identifier defined by IANA
or by other organizations; if the link record contains descriptive metadata it MUST include the describedby
(IANA)
identifier; encodingFormat
in the link MUST use the MIME media type [rfc2046] defined for that particular type of record, if applicable.Linked records MUST be included in the resource list when they are part of the Web Publication (i.e., are needed for more than just manifest extensibility). Otherwise, they MUST be included in the links list.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"links" : [{
"type" : "LinkedResource",
"url" : "https://www.publisher.example.org/mobydick-onix.xml",
"encodingFormat" : "application/onix+xml",
"rel" : "describedby"
},{
…
}],
…
}
The application/onix+xml
MIME type has not yet been registered by IANA
at the time of writing this document, and is included in the example for illustrative
purposes only.
Additional properties can be included directly in the manifest. It is RECOMMENDED that these properties be taken from public schemes like [schema.org] or [dcterms] and use values from controlled vocabularies whenever possible. Proprietary terms MAY be used, but it is RECOMMENDED that such terms be included using Compact IRIs [json-ld], with prefixes defined as part of the context.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"copyrightYear" : "2015",
"copyrightHolder" : "World Wide Web Consortium",
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"type" : "CreativeWork",
…
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"dc:subject" : ["Web data description languages","Data integration","Data Exchange"]
…
}
A prefix definition dc
for [dcterms] is included in the context file of [schema.org]. This means that it is
not necessary to add the prefix explicitly. The same is true for a number of other public
vocabularies; see the schema.org
context file for further details.
See the diagrams in the appendix for a visual representation of the lifecycle algorithm.
The steps for obtaining a manifest, starting from the primary entry page, are given by the following algorithm. The algorithm, if successful, returns a processed manifest; otherwise, it terminates prematurely and returns nothing. In the case of nothing being returned, the user agent MUST ignore the manifest declaration.
Document
of the top-level browsing context of the primary entry
page, let origin be the Document
's origin, and manifest
link be the first link
element in tree order in Document
whose rel
attribute contains the publication
token. null
, terminate this algorithm. href
attribute's value is the empty string,
terminate this algorithm. href
attribute's value is a relative URL, i.e., it points to origin and it has
a non-null fragment identifying
an identifier id in Document
: script
element in
tree order, whose id
attribute is equal to id and whose
type
attribute is equal to application/ld+json
. null
, terminate this algorithm.
script
element
. This branch is in use when the manifest is embedded in the primary entry page. The
algorithm locates the script
element and extract the manifest itself. The
document's URL or, if set by the author,
the value of a possible base
element will be used to turn relative URLs into absolute ones.
href
attribute, relative to the element's base
URL. If parsing fails, then abort
these steps. Document
. crossOrigin
attribute's value is
'use-credentials
', then set request's credentials to
'include
'. This branch is in use when the manifest is in a separate file. It performs the standard operations to retrieve the manifest from the Web; the URL of the manifest file will be used to turn relative URLs into absolute ones.
Object
, terminate this algorithm. Document
as input to the algorithm
described in 5.2
Generating a Canonical Manifest. The algorithm does not describes how error and warning messages should be reported. This is implementation dependent.
The steps to convert a Web Publication Manifest into a Canonical Manifest are given by the following algorithm. The algorithm takes the following arguments:
The steps of the algorithm are described below. As an abuse of notation, P["term"] refers
to the value in the object P for the label "term", where P is
either manifest, or an object appearing within manifest (e.g., a
Person). The algorithm replaces or adds some terms to manifest; the
replacement terms are expressed in JSON syntax as {"term":"value"}
.
lang
value for the script
element in the primary
entry page, in case the manifest is embedded;
or undefined
otherwiseThis value is used in the step on language below.
dir
value for the script
element in the primary
entry page, in case the manifest is embedded;
or undefined
otherwiseThis value is used in the step on base direction below.
undefined
, then locate the title
HTML element using document. If that
element exists and is non-empty, let t be its text content, and add to
manifest: title
is explicitly set to the value of l, then add "name": [{"value": t, "language": l}]
"name": [t]
This step ensures that the title
element's content in the primary entry page
can be used, as a default, as the title of the publication. For example,
<html>
<head>
<title>Moby Dick</title>
…
<script type="application/ld+json">
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
…
}
</script>
yields (unless the name
is set explicitly in the manifest):
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"name" : ["Moby Dick"],
…
}
undefined
and the value of lang
is not
undefined
, add"inLanguage": lang
This step ensures that the language explicitly set in the primary entry page is valid for an embedded manifest content. For example,
<html>
<head>
…
<script type="application/ld+json" lang=ur>
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
…
}
</script>
yields (unless the language and the direction are set explicitly in the manifest):
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"inLanguage" : "ur",
…
}
undefined
and the value of dir
is not
undefined
, add"inDirection": dir
This step ensures that the base direction explicitly set in the primary entry page is valid for an embedded manifest content. For example,
<html>
<head>
…
<script type="application/ld+json" dir=rtl lang=ur>
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"inLanguage" : "ur",
…
}
</script>
yields (unless the language and the direction are set explicitly in the manifest):
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"inLanguage" : "ur",
"inDirection" : "rtl"
…
}
undefined
, let u be the value
of document.URL, and add"readingOrder": [{"type": ["LinkedResource"], "url": u}]
If the publication consists only of the primary entry page, the default reading order can be omitted; it will consist, automatically, of that single resource.
type
; oraccessibilitySummary
; orname
; orrel
.v
, then change the
relevant term/value to"term": [v]
A number of terms require their values to be arrays but, for the sake of convenience, authors are allowed to use a single value instead of a one element array. For example,
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"name" : "Moby Dick",
"author" : "Herman Melville",
"resources" : [{
"type" : "LinkedResource",
"rel" : "https://www.w3.org/ns/wp#cover-page",
"url" : "images/cover.jpg"
"encodingFormat" : "image/jpeg"
},
…
}],
…
}
yields:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"name" : ["Moby Dick"],
"author" : ["Herman Melville"],
"resources" : [{
"type" : ["LinkedResource"],
"rel" : ["https://www.w3.org/ns/wp#cover-page"],
"url" : "images/cover.jpg"
"encodingFormat" : "image/jpeg"
},
…
}],
…
}
localizable string
, exchange that
element in the array to{"type": ["Person"], "name": [v]}
An author, editor, etc., should be explicitly designed as an object of type
Person
but, for the sake of convenience, authors are allowed to just
give their name. For example,
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"name" : ["Moby Dick"],
"author" : ["Herman Melville"],
…
}
yields:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"name" : ["Moby Dick"],
"author" : [{
"type" : ["Person"],
"name" : "Herman Melville"
}],
…
}
{"type": ["LinkedResource"], "url": v}
Resource links should be explicitly designed as an object of type
LinkedResource
but, for the sake of convenience, authors are allowed to
just give their absolute or relative URL.
For example,
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
…
"resources" : [
"css/mobydick.css",
…
],
…
}
yields:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
…
"resources" : [{
"type" : ["LinkedResource"],
"url" : "css/mobydick.css"
},
…
],
…
}
accessibilitySummary
; orname
; ordescription
."term": {"value": v,"language": l}
"term": {"value": v}
Natural language text values should be explicitly designed as localizable string objects
but, for the sake of convenience, authors are allowed to just use a simple string. I.e.,
if no language information has been provided (via inLanguage
) in the
manifest then, for example,
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"name" : ["Moby Dick"],
"author" : ["Herman Melville"],
…
}
yields:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"name" : [{
"value" : "Moby Dick"
}],
"author" : [{
"value" : "Herman Melville"
}],
…
}
If an explicit language has also been provided in the manifest, that language is also added to the localizable string object. For example,
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"inLanguage" : "en",
"name" : ["Moby Dick"],
"author" : ["Herman Melville"],
…
}
yields:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"inLanguage": "en",
"name" : [{
"value" : "Moby Dick",
"language" : "en"
}],
"author" : [{
"value" : "Herman Melville"
"language" : "en"
}],
…
}
url
; orid
"term": au
All relative URLs in the publication manifest must be resolved against the base value to yield absolute URLs.
manifest
. See the diagram in the appendix for a visual representation of the algorithm. Also, to help understanding the result of the algorithm, there is a link to the corresponding canonical manifests for all the examples in B. Manifest Examples.
The steps for processing a manifest are given by the following algorithm. The algorithm takes a json object representing a canonical manifest. The output from inputting a JSON object into this algorithm is a processed manifest. The goal of the algorithm is to ensure that the data represented in json abides to the minimal requirements on the data, removing, if applicable, non-conformant data.
WebPublicationManifest
dictionary. accessModeSufficient
and accessibilitySummary
, check
whether all tokens listed in manifest[term] are defined in the preferred
vocabulary (see the list of
expected values for each). Issue a warning for each unrecognized value.This section is non-normative.
To facilitate navigation within pages and across sites, HTML uses the nav
element [html] to
express lists of links. Although generic in nature by default, the purpose of a nav
element can be more specifically identified by use of the role
attribute
[html]. In particular, the
doc-toc
role from the [dpub-aria-1.0] vocabulary identifies the nav
element as the Web
Publications’s table of contents.
Including an identifiable table of contents is an accessible way to produce any publication, but due to the flexibility of HTML markup, it also presents challenges for user agents trying to extract a meaningful hierarchy of links (e.g., to provide a custom view available from any page). To avoid duplicating the tables of contents for different uses, this section defines a syntax that is both human friendly and commonly used while still providing enough structure for user agent extraction.
Authors have a choice of lists (ordered or unordered) to construct their table of contents. By
tagging each link within these lists in anchor tags (a
elements), user agents can easily differentiate the information they need from any
peripheral content (asides) or stylistic tagging that has also been added. The table of contents can
consist of both active links (with an href
attribute) and inactive links (excluding the
href
attribute), providing additional flexibility in how the table of contents is
constructed (e.g., to omit links to certain headings or only link to certain content in a
preview).
This section is non-normative.
The machine-readable table of contents is defined within an [html] nav
element. As described in 3.5
Table of Contents, this nav
element has to be
both the first element in the document and identifiable by a role
attribute with the
value doc-toc
.
Although the content model of the nav
element is not restricted, user agents will only
be able to extract a usable table of contents when the following markup guidelines are followed:
Although a title for the table of contents is optional, to avoid having a user agent generate
a placeholder title when one is needed, it is advised to add one. Titles are specified using
any of the [html] h1
through h6
elements. Note that only the first such
element is recognized as the title. If a heading element is not found before the list of links, user agents will assume that one has not been
specified.
The first [html] ol
or ul
list element encountered in the nav
element is assumed
to contain the list that defines the links into the content. This list will be found even if
it is nested inside of div
elements, for example, as the algorithm ignores elements that are not relevant to its
processing. The list cannot occur inside of any skipped
elements, however, since their internal contents are not evaluated.
If the nav
element does not contain one of these elements, then user agents will
not register the Web Publication as containing a usable table of contents (e.g., a
machine-rendered option will not be available).
If the table of contents is considered as a tree of links, then each list item (li
element) inside of the list of links represents one
branch. Each of these branches has to have a name and optional destination in order to be
presented to users, and this information is obtained from the first a
element found within the list item, wherever it is
nested (again, excluding any a
elements inside of skipped elements.)
The link destination for the branch is obtained from the a
element's
href
attribute, when specified. This attribute can be omitted if a link is
not available (e.g., in a preview) or not relevant (e.g., a grouping header). When providing
a link into the content, it is also possible to specify the relationship of the linked
document (in a rel
attribute) and the media type of the linked resource (in a
type
attribute).
After finding the a
element that labels the branch, user agents will continue to
inspect the markup for another list element (i.e., sub-branches). If a list is found, it is
similarly processed to extract its links, and so on, until there are no more nested branches
left to process.
A small set of elements are ignored when the parsing table of contents to avoid misinterpretation. These are the [html] sectioning content elements and sectioning root elements. The reason they are ignored is because they can defined their own outlines (i.e., they can represent embedded content that is self-contained and not necessarily related to the structure of content links).
Any element that has its hidden
attribute set is also skipped, since hidden elements are not intended to be directly
accessed by users.
Although these elements can be included in the nav
element, care has to be taken
not to embed important content within them (e.g., do not wrap a section
element
around the list item that contains all the links into the content).
All elements that are not relevant to extracting the table of contents, and are not skipped, are ignored. Unlike skipped elements, ignoring means that user agents will continue to search inside them for relevant content, allowing greater flexibility in terms of the tagging that can be used.
This section is non-normative.
This section defines an algorithm for extracting a table of contents from a nav
element.
It is defined in terms of a walk over the nodes of a DOM tree, in tree order, with each node
being visited when it is entered and when it is exited during the walk. Each time
a node is visited, it can be seen as triggering an enter or exit event.
For illustrative purposes, the examples in this section show the structure of the table of contents as JavaScript objects. User agents can process and internalize the resulting structure in whatever language and form is appropriate.
For the purposes of this algorithm, a list
element is defined as either an [html]
ol
or
ul
element.
The following algorithm MUST be applied to a walk of a DOM
subtree rooted at the first nav
element in document order with the role
attribute value doc-toc
. All explanations are informative.
Let toc be a object that represents the table of contents and initialize it as follows:
name
property for toc that represents the title of the
table of contents and set to an empty string.entries
property for toc that represents all the
branches of the table of contents and set to an empty array.This step initializes the toc object that will store the title and the branches of the table of contents.
Initialize a stack.
The stack is used to hold branches that are not yet complete. As a new sub-branch is encountered, the parent gets pushed onto the stack so it can be retrieved later.
Let current toc branch be a variable set to null
.
current toc branch is used to hold the object that represents the branch of the table of contents that is currently being processed.
Walk over the DOM in tree
order, starting with the nav
element the table of contents is being
built from, and trigger the first relevant step below for each element as the walk enters
and exits it.
When entering a heading content element:
Run these steps:
name
property of toc is an
empty string, calculate the accessible name [accname-1.1] of the element. If the resulting value is not
an empty string after trimming all leading and trailing whitespace, set the
name
property of toc to the value. Otherwise, set the
name
property either to a placeholder value or to
null
.This step identifies the heading for the table of contents. A heading is only
processed if the value of the toc
name
property is an empty string (i.e., no headings have yet been
encountered).
If the name
is not an empty string, or is null
, then a
previous heading has already been encountered or content has been encountered
that indicates the nav
element does not have a heading (e.g., a
list has already been processed, since the heading would not follow the list of
links).
When entering a list element:
Run these steps:
If the name
property of toc is an empty string, set
name
to null
.
If current toc branch is not null
:
entries
property of current toc branch is
null
or a non-empty array, exit the element and
continue processing with the next element.null
.Otherwise, if the stack is empty:
entries
property of toc is
null
or a non-empty array, exit the element and
continue processing with the next element.This algorithm does not process multiple lists in a single branch or at the root
of the nav
element, so if a list has already been encountered (the
entries
property contains one or more branches or is set to
null
), this list is skipped.
If a list is encountered and the table of contents (toc
) still does
not have a name (i.e., no heading element has been encountered), the table of
contents is assumed to not have a heading (i.e., the heading for the table of
contents cannot appear after the first list of entries). The value of the
name
property is changed from an empty string to
null
as no further headings encountered apply, either.
When exiting a list element:
If the stack is not empty, pop the top object off the stack and set current toc branch to it.
This resets current toc branch back to the parent object after all of its child branches have been processed.
When entering a list item element:
Run these steps:
name
, url
, type
, and
rel
properties for the object and set them to empty
strings.entries
property for the object and set it to an empty
array.Each list item represents a possible new branch in the table of contents, so whenever one is encountered a new blank object is created in current toc branch.
This object gets populated with information as a descendant a
element and list are encountered.
When exiting a list item element:
Run these steps:
If entries
property of current toc branch contains an
empty array, set its value to null
.
If the stack contains one or more entries:
entries
property of current toc branch
contains a non-empty array, and its name
property is an
empty string, set its name
to a placeholder value or
null
;entries
property of current toc branch
contains an empty array, and its name
property is an empty
string, set current toc branch to null and exit this processing
step.Add current toc branch to the array in the entries
property of the object at the top of the stack.
Otherwise, add the object in current toc branch to the
entries
array of toc.
Set current toc branch to null
.
Exiting a list item indicates that processing of the current branch is complete.
Before adding this branch to its parent's entries
array, the branch
needs to be tested to see if it has a name and/or any sub-branches. If it does
not have a name but has sub-branches, the branch is kept. The user agent can
either supply a placeholder value of its own creation or set the value to null.
If it does not have a name or any branches, it is invalid and is discarded.
To determine where to merge the branch, the stack is checked. If there are no
objects in the stack, it is added into the entries
property of the
root toc object (i.e., it is a top-level branch). Otherwise, it gets
added into the entries
property of the object immediately preceding
it in the stack.
As a final step, current toc branch is reset back to
null
.
When entering an anchor element and current toc branch is not
null
:
Run these steps:
If the name
property of current toc branch is not an
empty string, do nothing.
Otherwise:
name
property of current
toc branch to the resulting value. Otherwise, set the property
to null
.href
attribute and the IRI in the
attribute resolves to a resource in the default reading order or resource list, set the url
property of current
toc branch to the value. Otherwise, set the property to
null
.type
attribute, and the value of the
attribute is not an empty string after trimming leading and trailing
white space, set the type
property of current toc
branch to its value. Otherwise, set the property to
null
.rel
attribute, and the value of the
attribute is not an empty string after trimming leading and trailing
white space, set the rel
property of current toc
branch to its value. Otherwise, set the property to
null
.Exit the element and continue processing with the next element.
This step processes anchor tags to obtain values for the name
and
url
properties of a branch.
If the name of the current branch is already defined, then processing of this element is terminated (i.e., to avoid processing multiple links for a single branch).
In addition to having an href
attribute specified, it is necessary
that it resolve to a resource that belongs to the publication to meet the
requirements of this specification. If not, the branch is retained but the entry
will not be linkable.
Additional information about the target of the link — the type of resource and its relationship — is also retained.
When entering a sectioning content element, a sectioning root element, or an element with a hidden attribute:
Exit the element and continue processing with the next element.
As sectioning and sectioning root elements can define their own outlines, descending into them poses problems for generating the table of contents (i.e., they may contain content that is not directly related). As a result, they are skipped over when encountered to prevent their child content from being processed.
Otherwise: do nothing.
For all other elements, this steps allows their descendant elements to continue to be processed.
After completing the DOM walk, if the entries property of toc contains a non-empty array, toc represents the machine-processed table of contents.
Otherwise, the Web Publication does not have a table of contents that can be used for machine rendering purposes.
If the entries
array in the root toc object does not contain any
branches (either because no list was found in the nav
element or the list
did not contain any conforming list items), then the algorithm did not produce a usable
table of contents.
This section is non-normative.
A manifest for a simple book. The canonical version of this manifest is also available.
{
"@context": ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"type": "Book",
"url": "https://publisher.example.org/mobydick",
"author": "Herman Melville",
"dateModified": "2018-02-10T17:00:00Z",
"readingOrder": [
"html/title.html",
"html/copyright.html",
"html/introduction.html",
"html/epigraph.html",
"html/c001.html",
"html/c002.html",
"html/c003.html",
"html/c004.html",
"html/c005.html",
"html/c006.html"
],
"resources": [
"css/mobydick.css",
{
"type": "LinkedResource",
"rel": "https://www.w3.org/ns/wp#cover-page",
"url": "images/cover.jpg",
"encodingFormat": "image/jpeg"
},{
"type": "LinkedResource",
"url": "html/toc.html",
"rel": "contents"
},{
"type": "LinkedResource",
"url": "fonts/STIXGeneral.otf",
"encodingFormat": "application/vnd.ms-opentype"
},{
"type": "LinkedResource",
"url": "fonts/STIXGeneralBol.otf",
"encodingFormat": "application/vnd.ms-opentype"
},{
"type": "LinkedResource",
"url": "fonts/STIXGeneralBolIta.otf",
"encodingFormat": "application/vnd.ms-opentype"
},{
"type": "LinkedResource",
"url": "fonts/STIXGeneralItalic.otf",
"encodingFormat": "application/vnd.ms-opentype"
}
]
}
Example for an embedded manifest example. The canonical version of the manifest is, as well as a more elaborate version for the same document are also available.
<!DOCTYPE html>
<html lang="en-US">
<head>
<title>Model for Tabular Data and Metadata on the Web</title>
<link href="#wpm" rel="publication" />
...
<script id="wpm" type="application/ld+json">
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"type" : "TechArticle",
"id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"copyrightYear" : "2015",
"copyrightHolder" : "World Wide Web Consortium",
"creator" : ["Jeni Tennison", "Gregg Kellogg", "Ivan Herman"],
"publisher" : {
"type" : "Organization",
"name" : "World Wide Web Consortium",
"id" : "https://www.w3.org/"
},
"datePublished" : "2015-12-17",
"resources" : [
"datatypes.html",
"datatypes.svg",
"datatypes.png",
"diff.html",
{
"type" : "LinkedResource",
"url" : "test-utf8.csv",
"encodingFormat" : "text/csv"
},
{
"type" : "LinkedResource",
"url" : "test.xlsx",
"encodingFormat" : "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet"
}
],
}
</script>
</head>
<body>
....
<section id="toc" role="doc-toc">
<h2 resource="#h-toc" id="h-toc" class="introductory">Table of Contents</h2>
<ul class="toc">
<li class="tocline"><a class="tocxref" href="#intro"><span class="secno">1. </span>Introduction</a></li>
...
</ul>
</section>
...
</body>
</html>
A manifest for an audiobook. The canonical version of this manifest is also available.
{
"@context": ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"type": "Audiobook",
"id": "https://librivox.org/flatland-a-romance-of-many-dimensions-by-edwin-abbott-abbott/",
"url": "https://w3c.github.io/wpub/experiments/audiobook/",
"name": "Flatland: A Romance of Many Dimensions",
"author": "Edwin Abbott Abbott",
"readBy": "Ruth Golding",
"publisher": "Librivox",
"inLanguage": "en",
"dateModified": "2018-06-14T19:32:18Z",
"datePublished": "2008-10-12",
"license": "https://creativecommons.org/publicdomain/zero/1.0/",
"resources": [
{"rel": "cover", "url": "http://ia800704.us.archive.org/9/items/LibrivoxCdCoverArt12/Flatland_1109.jpg", "encodingFormat": "image/jpeg"},
{"rel": "contents", "url": "toc.html", "encodingFormat": "text/html"}
],
"readingOrder": [
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_1_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 1 - 3"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_2_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 4 - 5"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_3_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 6 - 7"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_4_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 8 - 10"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_5_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 11 - 12"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_6_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 13 - 14"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_7_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 15 - 17"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_8_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 18 - 20"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_9_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 21 - 22"}
]
}
This section is non-normative.
(These examples were originally published in the Activity Streams Recommendation [activitystreams-core].)
Character order in memory | Direction | Method | Expected display |
---|---|---|---|
פעילות הבינאום, W3C
|
rtl | First strong directional character | פעילות הבינאום, W3C |
The document is titled, "⁧פעילות הבינאום, W3C⁩"
|
ltr | First strong directional character | The document is titled, "פעילות הבינאום, W3C" |
‏HTML היא שפת
סימון
|
rtl | Bidi Control Character |
HTML היא שפת סימון
|
‎'سلام' is hello in Persian
|
ltr | Bidi Control Character |
'سلام' is hello in Persian
|
This section is non-normative.
These diagrams provide a visual view of the lifecycle steps, as specified in 5. Web Publication Lifecycle.
dictionaryWebPublicationManifest
{ }; dictionaryLinkedResource
{ required DOMStringurl
; DOMStringencodingFormat
; sequence<LocalizableString
>name
;LocalizableString
description
; sequence<DOMString>rel
; }; partial dictionaryWebPublicationManifest
{ required sequence<DOMString>type
; }; partial dictionaryWebPublicationManifest
{ sequence<DOMString>accessMode
; sequence<DOMString>accessModeSufficient
; sequence<DOMString>accessibilityAPI
; sequence<DOMString>accessibilityControl
; sequence<DOMString>accessibilityFeature
; sequence<DOMString>accessibilityHazard
;LocalizableString
accessibilitySummary
; }; partial dictionaryWebPublicationManifest
{ required DOMStringurl
; }; partial dictionaryWebPublicationManifest
{ DOMStringid
; }; partial dictionaryWebPublicationManifest
{ sequence<CreatorInfo
>artist
; sequence<CreatorInfo
>author
; sequence<CreatorInfo
>colorist
; sequence<CreatorInfo
>contributor
; sequence<CreatorInfo
>creator
; sequence<CreatorInfo
>editor
; sequence<CreatorInfo
>illustrator
; sequence<CreatorInfo
>inker
; sequence<CreatorInfo
>letterer
; sequence<CreatorInfo
>penciler
; sequence<CreatorInfo
>publisher
; sequence<CreatorInfo
>readBy
; sequence<CreatorInfo
>translator
; }; dictionaryCreatorInfo
{ sequence<DOMString>type
; required sequence<LocalizableString
>name
; DOMStringid
; DOMStringurl
; }; partial dictionaryWebPublicationManifest
{ DOMStringinLanguage
;TextDirection
inDirection
; }; enumTextDirection
{ "ltr
", "rtl
", "auto
" }; dictionaryLocalizableString
{ required DOMStringvalue
; DOMStringlanguage
; }; partial dictionaryWebPublicationManifest
{ DOMStringdateModified
; }; partial dictionaryWebPublicationManifest
{ DOMStringdatePublished
; }; partial dictionaryWebPublicationManifest
{ProgressionDirection
readingProgression
= "ltr"; }; enumProgressionDirection
{ "ltr
", "rtl
" }; partial dictionaryWebPublicationManifest
{ required sequence<LocalizableString
>name
; }; partial dictionaryWebPublicationManifest
{ required sequence<LinkedResource
>readingOrder
; }; partial dictionaryWebPublicationManifest
{ sequence<LinkedResource
>resources
= []; }; partial dictionaryWebPublicationManifest
{ sequence<LinkedResource
>links
= []; };
This section is non-normative.
This section is non-normative.
The editors would like to specially thank the following individuals for making significant contributions to the authoring and editing of this specification:
Additionally, the following people were members of the Working Group at the time of publication:
The Working Group would also like to thank the members of the Digital Publishing Interest Group for all the hard work they did paving the road for this specification.
