4.11. Interactive elements
4.11.1. The details
element
- Categories:
- Flow content.
- Sectioning root.
- Interactive content.
- Palpable content.
- Contexts in which this element can be used:
- Where flow content is expected.
- Content model:
- One
summary
element followed by flow content. - Tag omission in text/html:
- Neither tag is omissible
- Content attributes:
- Global attributes
open
- Whether the details are visible- Allowed ARIA role attribute values:
group
role (default - do not set)- Allowed ARIA state and property attributes:
- Global aria-* attributes
- Any
aria-*
attributes applicable to the default role. - DOM interface:
-
interface
HTMLDetailsElement
: HTMLElement { attribute boolean open; };
The details
element represents a disclosure widget from which the
user can obtain additional information or controls.
The details
element is not appropriate for footnotes. Please see §4.13.5 Footnotes for details on how to mark up footnotes.
If the details
element has a summary
child element, then the first summary child element represents the summary or legend of the details element. If there is no summary child
element, a user agent should provide its own legend (e.g. in English "Details"
or Spanish "Detalles").
The legend text should be presented in the language determined from the computed language of the element, if available, rather than from the locale of the browser/system.
The rest of the element’s contents represents the additional information or controls.
The open
content attribute is a boolean
attribute. If present, it indicates that both the summary and the additional information is
to be shown to the user. If the attribute is absent, only the summary is to be shown.
When the element is created, if the attribute is absent, the additional information should be hidden; if the attribute is present, that information should be shown. Subsequently, if the attribute is removed, then the information should be hidden; if the attribute is added, the information should be shown.
The user agent should allow the user to request that the additional information be shown or
hidden. To honor a request for the details to be shown, the user agent must set the open
attribute on the element to the empty string. To honor a request for the information to be hidden,
the user agent must remove the open
attribute from the element.
This ability to request that additional information be shown or hidden may simply be
the activation behavior of the appropriate summary
element, in the case such an element
exists. However, if no such element exists, user agents can still provide this ability through some
other user interface affordance.
Whenever the open
attribute is added to or removed from
a details
element, the user agent must queue a task that runs the
following steps, which are known as the details notification task steps, for this details
element:
-
If another task has been queued to run the details notification task steps for this
details
element, then abort these steps.When the
open
attribute is toggled several times in succession, these steps essentially get coalesced so that only one event is fired. - Fire a simple event named
toggle
at thedetails
element.
The task source for this task must be the DOM manipulation task source.
The open
IDL attribute must reflect the open
content attribute.
details
element being used to hide technical
details in a progress report.
<section class="progress window"> <h1>Copying "Really Achieving Your Childhood Dreams"</h1> <details> <summary>Copying... <progress max="375505392" value="97543282"></progress> 25%</summary> <dl> <dt>Transfer rate:</dt> <dd>452KB/s</dd> <dt>Local filename:</dt> <dd>/home/rpausch/raycd.m4v</dd> <dt>Remote filename:</dt> <dd>/var/www/lectures/raycd.m4v</dd> <dt>Duration:</dt> <dd>01:16:27</dd> <dt>Color profile:</dt> <dd>SD (6-1-6)</dd> <dt>Dimensions:</dt> <dd>320×240</dd> </dl> </details> </section>
details
element can be used to hide some controls by default:
<details> <summary><label for=fn>Name & Extension:</label></summary> <p><input type=text id=fn name=fn value="Pillar Magazine.pdf"> <p><label><input type=checkbox name=ext checked> Hide extension</label> </details>

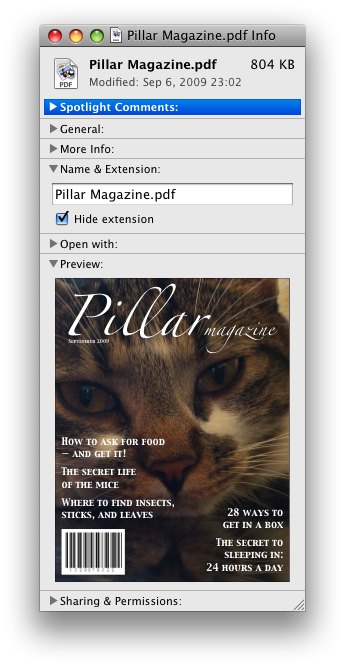

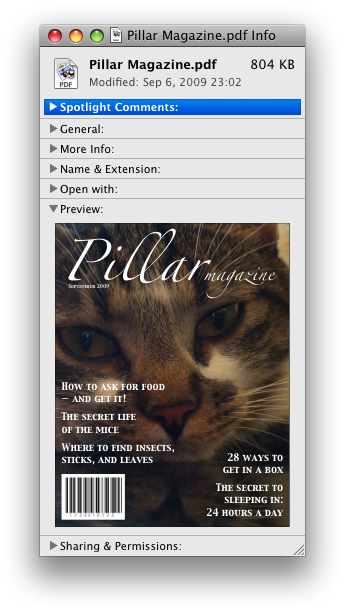

One could use this in conjunction with other details
in a list to allow the user
to collapse a set of fields down to a small set of headings, with the ability to open each
one.
In these examples, the summary really just summarizes what the controls can change, and not the actual values, which is less than ideal.
open
attribute is added and removed
automatically as the user interacts with the control, it can be used in CSS to style the element
differently based on its state. Here, a stylesheet is used to animate the color of the summary
when the element is opened or closed:
<style> details > summary { transition: color 1s; color: black; } details[open] > summary { color: red; } </style> <details> <summary>Automated Status: Operational</summary> <p>Velocity: 12m/s</p> <p>Direction: North</p> </details>
4.11.2. The summary
element
- Categories:
- None.
- Contexts in which this element can be used:
- As the first child of a
details
element. - Content model:
- Either: phrasing content.
- Or: one element of heading content.
- Tag omission in text/html:
- Neither tag is omissible
- Content attributes:
- Global attributes
- Allowed ARIA role attribute values:
button
.- Allowed ARIA state and property attributes:
- Global aria-* attributes
- Any
aria-*
attributes applicable to the allowed roles. - DOM interface:
- Uses
HTMLElement
.
The first summary
child element of a details
element represents a summary, caption, or legend for the rest of the contents of the
parent details
element, if any.
The activation behavior of summary
elements is to run the following steps:
- If this
summary
element has no parent node, then abort these steps. - Let parent be this
summary
element’s parent node. - If parent is not a
details
element, then abort these steps. -
If the
open
attribute is present on parent, then remove it. Otherwise, set parent’sopen
attribute to the empty string.This will then run the details notification task steps.
4.11.3. Commands
4.11.3.1. Facets
A command is the abstraction behind buttons, and links. Once a command is defined, other parts of the interface can refer to the same command, allowing many access points to a single feature to share facets such as the Disabled State.
Commands are defined to have the following facets:
- Label
-
The name of the command as seen by the user.
- Access Key
-
A key combination selected by the user agent that triggers the command. A command might not have an Access Key.
- Hidden State
-
Whether the command is hidden or not.
- Disabled State
-
Whether the command is relevant and can be triggered or not.
- Action
-
The actual effect that triggering the command will have. This could be a scripted event handler, a URL to which to navigate, or a form submission.
User agents may expose the commands that match the following criteria:
- The facet is false (visible)
- The element is in a
Document
that has an associated browsing context. - Neither the element nor any of its ancestors has a
attribute specified.
User agents are encouraged to do this especially for commands that have Access Keys, as a way to advertise those keys to the user.
4.11.3.2. Using the a
element to define a command
An a
element with an href
attribute defines a command.
The Label of the command is the string given by the
element’s textContent
IDL attribute.
The Access Key of the command is the element’s assigned access key, if any.
The attribute, and false otherwise.
The Disabled State facet of the command is true if the element or one of its ancestors is inert, and false otherwise.
The Action of the command, if the element has a
defined activation behavior, is to run synthetic click activation steps on the element. Otherwise, it is just to fire a click
event at the element.
4.11.3.3. Using the button
element to define a command
A button
element always defines a command.
The Label, Access Key, , and Action facets of the command are determined as for a
elements (see the previous section).
The Disabled State of the command is true if the element or one of its ancestors is inert, or if the element’s disabled state is set, and false otherwise.
4.11.3.4. Using the input
element to define a command
An input
element whose type
attribute is in
one of the Submit Button
, Reset Button
, Image Button
, Button
, Radio Button
, or Checkbox
states defines a command.
The Label of the command is determined as follows:
- If the
type
attribute is in one of theSubmit Button
,Reset Button
,Image Button
, orButton
states, then the Label is the string given by thevalue
attribute, if any, and a user agent-dependent, locale-dependent value that the user agent uses to label the button itself if the attribute is absent. - Otherwise, if the element is a labeled control, then the Label is the string given by the
textContent
of the firstlabel
element in tree order whose labeled control is the element in question. (In DOM terms, this is the string given byelement.labels[0].textContent
.) - Otherwise, if the
value
attribute is present, then the Label is the value of that attribute. - Otherwise, the Label is the empty string.
The Access Key of the command is the element’s assigned access key, if any.
The attribute, and false otherwise.
The Disabled State of the command is true if the element or one of its ancestors is inert, or if the element’s disabled state is set, and false otherwise.
The Action of the command, if the element has a
defined activation behavior, is to run synthetic click activation steps on the element. Otherwise, it is just to fire a click
event at the element.
4.11.3.5. Using the option
element to define a command
An option
element with an ancestor select
element and either no value
attribute or a value
attribute that is not the empty string defines a command.
The Label of the command is the value of the option
element’s label
attribute, if there is
one, or else the value of option
element’s textContent
IDL attribute,
with leading and trailing white space
stripped, and with any sequences of two or more space
characters replaced by a single U+0020 SPACE character.
The Access Key of the command is the element’s assigned access key, if any.
The attribute, and false otherwise.
The Disabled State of the command is true if
the element is disabled, or if its nearest ancestor select
element is disabled, or if it or one
of its ancestors is inert, and false otherwise.
If the option
’s nearest ancestor select
element has a multiple
attribute, the Action of the command is to pick the option
element. Otherwise, the Action is to toggle the option
element.
4.11.3.6. Using the accesskey
attribute
on a label
element to define a command
A label
element that has an assigned access key and a labeled
control and whose labeled control defines a command, itself defines a command.
The Label of the command is the string given by the
element’s textContent
IDL attribute.
The Access Key of the command is the element’s assigned access key.
The Disabled State, and Action facets of the command are the same as the respective facets of the element’s labeled control.
,4.11.3.7. Using the accesskey
attribute
on a legend
element to define a command
A legend
element that has an assigned access key and is a child of a fieldset
element that has a descendant that is not a descendant of the legend
element and is neither a label
element nor a legend
element but that defines a command, itself defines a command.
The Label of the command is the string given by the
element’s textContent
IDL attribute.
The Access Key of the command is the element’s assigned access key.
The Disabled State, and Action facets of the command are the same as the respective
facets of the first element in tree order that is a descendant of the parent of the legend
element that defines a command but is not
a descendant of the legend
element and is neither a label
nor a legend
element.
4.11.3.8. Using the accesskey
attribute to define a command on other elements
An element that has an assigned access key defines a command.
If one of the earlier sections that define elements that define commands define that this element defines a command, then that section applies to this element, and this section does not. Otherwise, this section applies to that element.
The Label of the command depends on the element. If
the element is a labeled control, the textContent
of the first label
element in tree order whose labeled control is the
element in question is the Label (in DOM terms, this is
the string given by element.labels[0].textContent
). Otherwise,
the Label is the textContent
of the element
itself.
The Access Key of the command is the element’s assigned access key.
The attribute, and false otherwise.
The Disabled State of the command is true if the element or one of its ancestors is inert, and false otherwise.
The Action of the command is to run the following steps:
- Run the focusing steps for the element.
- If the element has a defined activation behavior, run synthetic click activation steps on the element.
- Otherwise, if the element does not have a defined activation behavior, fire a
click
event at the element.

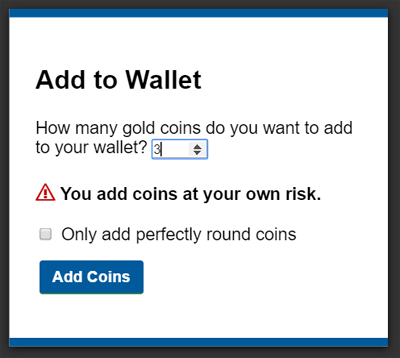

4.11.4. The dialog
element
- Categories:
- Flow content.
- Sectioning root.
- Contexts in which this element can be used:
- Where flow content is expected.
- Content model:
- Flow content.
- Tag omission in text/html:
- Neither tag is omissible
- Content attributes:
- Global attributes
open
- Whether the dialog box is showing- Allowed ARIA role attribute values:
dialog
(default - do not set) oralertdialog
.- Allowed ARIA state and property attributes:
- Global aria-* attributes
- Any
aria-*
attributes applicable to the default or allowed roles. - DOM interface:
-
interface
HTMLDialogElement
: HTMLElement { attribute boolean open; attribute DOMString returnValue; void show(optional (MouseEvent or Element)anchor
); void showModal(optional (MouseEvent or Element)anchor
); void close(optional DOMStringreturnValue
); };
The dialog
element represents a part of an application that a user interacts with
to perform a task, for example a dialog box, inspector, or window.
The open
attribute is a boolean
attribute. When specified, it indicates that the dialog
element is active and
that the user can interact with it.
The following is an example of a modal dialog
which provides a form for a user to add
coins to their wallet, as part of an online game.
... <body> <div> <!-- body content --> </div> <dialog> <h1>Add to Wallet</h1> <label for="num">How many gold coins do you want to add to your wallet?</label> <div><input name=amt id="num" type=number min=0 step=0.01 value=100></div> <p><strong>You add coins at your own risk.</strong></p> <div><label><input name=round type=checkbox> Only add perfectly round coins </label> <div><input type=button onclick="submit()" value="Add Coins"></div> </dialog> </body> ...
A dialog
element without an open
attribute
specified should not be shown to the user. This requirement may be implemented indirectly through
the style layer. For example, user agents that support the suggested
default rendering implement this requirement using the CSS rules described in §10 Rendering.
The tabindex
attribute must not be specified on dialog
elements.
- dialog .
show
( [ anchor ] ) -
Displays the
dialog
element.The argument, if provided, provides an anchor point to which the element will be fixed.
- dialog .
showModal
( [ anchor ] ) -
Displays the
dialog
element and makes it the top-most modal dialog.The argument, if provided, provides an anchor point to which the element will be fixed.
This method honors the
autofocus
attribute. - dialog .
close
( [ result ] ) -
Closes the
dialog
element.The argument, if provided, provides a return value.
- dialog .
returnValue
[ = result ] -
Returns the
dialog
’s return value.Can be set, to update the return value.
When the show()
method is invoked, the user
agent must run the following steps:
- If the element already has an
open
attribute, then abort these steps. - Add an
open
attribute to thedialog
element, whose value is the empty string. - If the
show()
method was invoked with an argument, set up the position of thedialog
element, using that argument as the anchor. Otherwise, set thedialog
to the normal alignment mode. - Run the dialog focusing steps for the
dialog
element.
Each Document
has a stack of dialog
elements known as the pending dialog stack. When a Document
is created, this stack must be
initialized to be empty.
When an element is added to the pending dialog stack, it must also be added to the top layer. When an element is removed from the pending dialog stack, it must be removed from the top layer. [FULLSCREEN]
When the showModal()
method is invoked,
the user agent must run the following steps:
- Let subject be the
dialog
element on which the method was invoked. - If subject already has an
open
attribute, then throw anInvalidStateError
exception and abort these steps. - If subject is not in a
Document
, then throw anInvalidStateError
exception and abort these steps. - Add an
open
attribute to subject, whose value is the empty string. - If the
showModal()
method was invoked with an argument, set up the position of subject, using that argument as the anchor. Otherwise, set thedialog
to the centered alignment mode. - Let subject’s node document be blocked by the modal dialog subject.
- Push subject onto subject’s node document’s pending dialog stack.
- Run the dialog focusing steps for subject.
The dialog focusing steps for a dialog
element subject are as follows:
- If for some reason subject is not a control group owner at this point, or if it is inert, abort these steps.
-
Let control be the first non-inert focusable area in subject’s control group whose DOM anchor has an
autofocus
attribute specified.If there isn’t one, then let control be the first non-inert focusable area in subject’s control group.
If there isn’t one of those either, then let control be subject.
- Run the focusing steps for control.
If at any time a dialog
element is removed from a Document
, then if that dialog
is in that Document
’s pending dialog stack, the following steps must be run:
- Let subject be that
dialog
element and document be theDocument
from which it is being removed. - Remove subject from document’s pending dialog stack.
- If document’s pending dialog stack is not empty, then let document be blocked by the modal dialog that is at the top of document’s pending dialog stack. Otherwise, let document be no longer blocked by a modal dialog at all.
When the close()
method is invoked, the user
agent must close the dialog that the method was invoked on. If the method was invoked
with an argument, that argument must be used as the return value; otherwise, there is no return
value.
When a dialog
element subject is to be closed, optionally with a return value result, the user agent
must run the following steps:
- If subject does not have an
open
attribute, then abort these steps. - Remove subject’s
open
attribute. - If the argument result was provided, then set the
returnValue
attribute to the value of result. -
If subject is in its
Document
’s pending dialog stack, then run these substeps:- Remove subject from that pending dialog stack.
- If that pending dialog stack is not empty, then let subject’s node document be blocked by the modal dialog that is at the top of the pending dialog stack. Otherwise, let document be no longer blocked by a modal dialog at all.
- Queue a task to fire a simple event named
close
at subject.
The returnValue
IDL attribute, on
getting, must return the last value to which it was set. On setting, it must be set to the new
value. When the element is created, it must be set to the empty string.
Canceling dialogs: When a Document
’s pending dialog
stack is not empty, user agents may provide a user interface that, upon activation, queues a task to fire a simple event named cancel
that is cancelable at the top dialog
element on
the Document
’s pending dialog stack. The default action of this event
must be to check if that element has an open
attribute, and
if it does, close the dialog with no return value.
An example of such a UI mechanism would be the user pressing the "Escape" key.
All dialog
elements are always in one of three modes: normal alignment, centered alignment, and magic alignment. When a dialog
element
is created, it must be placed in the normal alignment mode. In this mode, normal CSS
requirements apply to the element. The centered alignment mode is only used for dialog
elements that are in the top layer. [FULLSCREEN] [CSS-2015]
When an element subject is placed in centered alignment mode, and when it is in that mode and has new rendering boxes created, the user agent must set up the element such that its top static position, for the purposes of calculating the used value of the top property, is the value that would place the element’s top margin edge as far from the top of the viewport as the element’s bottom margin edge from the bottom of the viewport, if the element’s height is less than the height of the viewport, and otherwise is the value that would place the element’s top margin edge at the top of the viewport.
If there is a dialog
element with centered alignment and that is being rendered when its browsing context changes viewport width (as
measured in CSS pixels), then the user agent must recreate the element’s boxes, recalculating its
top static position as in the previous paragraph.
This top static position of a dialog
element with centered alignment must remain the element’s top static position until its boxes are recreated. (The element’s static
position is only used in calculating the used value of the top property in certain situations;
it’s not used, for instance, to position the element if its position property is set to static.)
When a user agent is to set up the position of an element subject using an anchor anchor, it must run the following steps:
-
If anchor is a
MouseEvent
object, then run these substeps:- If anchor’s target element does not have a rendered box, or is in a different document than subject, then let subject be in the centered alignment mode, and abort the set up the position steps.
- Let anchor element be an anonymous element rendered as a box with zero height and width (so its margin and border boxes both just form a point), positioned so that its top and left are at the coordinate identified by the event, and whose properties all compute to their initial values.
Otherwise, let anchor element be anchor.
- Put subject in the magic alignment mode, aligned to anchor element.
While an element A has magic alignment, aligned to an element B, the following requirements apply:
-
If at any time either A or B cease having rendered boxes, A and B cease being in the same
Document
, or B ceases being earlier than A in tree order, then, if subject is in the pending dialog stack, let subject’s mode become centered alignment, otherwise, let subject’s mode become normal alignment. -
A’s position property must compute to the keyword 'absolute-anchored' rather than whatever it would otherwise compute to (i.e., the position property’s specified value is ignored).
The 'absolute-anchored' keyword’s requirements are described below.
-
The anchor points for A and B are defined as per the appropriate entry in the following list:
- If the computed value of anchor-point is none on both A and B
- The anchor points of A and B are the center points of their respective first boxes' border boxes.
- If the computed value of anchor-point is none on A and a specific point on B
-
The anchor point of B is the point given by its anchor-point property.
If the anchor point of B is the center point of B’s first box’s border box, then A’s anchor point is the center point of its first box’s margin box.
Otherwise, A’s anchor point is on one of its margin edges. Consider four hypothetical half-infinite lines L1, L2, L3, and L4 that each start in the center of B’s first box’s border box, and that extend respectively through the top left corner, top right corner, bottom right corner, and bottom left corner of B’s first box’s border box. A’s anchor point is determined by the location of B’s anchor point relative to these four hypothetical lines, as follows:
If the anchor point of B lies on L1 or L2, or inside the area bounded by L1 and L2 that also contains the points above B’s first box’s border box, then let A’s anchor point be the horizontal center of A’s bottom margin edge.
Otherwise, if the anchor point of B lies on L3 or L4, or inside the area bounded by L3 and L4 that also contains the points below B’s first box’s border box, then let A’s anchor point be the horizontal center of A’s top margin edge.
Otherwise, if the anchor point of B lies inside the area bounded by L4 and L1 that also contains the points to the left of B’s first box’s border box, then let A’s anchor point be the vertical center of A’s right margin edge.
Otherwise, the anchor point of B lies inside the area bounded by L2 and L3 that also contains the points to the right of B’s first box’s border box; let A’s anchor point be the vertical center of A’s left margin edge.
- If the computed value of anchor-point is a specific point on A and none on B
-
The anchor point of A is the point given by its anchor-point property.
If the anchor point of A is the center point of A’s first box’s margin box, then B’s anchor point is the center point of its first box’s border box.
Otherwise, B’s anchor point is on one of its border edges. Consider four hypothetical half-infinite lines L1, L2, L3, and L4 that each start in the center of A’s first box’s margin box, and that extend respectively through the top left corner, top right corner, bottom right corner, and bottom left corner of A’s first box’s margin box. B’s anchor point is determined by the location of A’s anchor point relative to these four hypothetical lines, as follows:
If the anchor point of A lies on L1 or L2, or inside the area bounded by L1 and L2 that also contains the points above A’s first box’s margin box, then let B’s anchor point be the horizontal center of B’s bottom border edge.
Otherwise, if the anchor point of A lies on L3 or L4, or inside the area bounded by L3 and L4 that also contains the points below A’s first box’s margin box, then let B’s anchor point be the horizontal center of B’s top border edge.
Otherwise, if the anchor point of A lies inside the area bounded by L4 and L1 that also contains the points to the left of A’s first box’s margin box, then let B’s anchor point be the vertical center of B’s right border edge.
Otherwise, the anchor point of A lies inside the area bounded by L2 and L3 that also contains the points to the right of A’s first box’s margin box; let B’s anchor point be the vertical center of B’s left border edge.
- If the computed value of anchor-point is a specific point on both A and B
- The anchor points of A and B are the points given by their respective anchor-point properties.
The rules above generally use A’s margin box, but B’s border box. This is because while A always has a margin box, and using the margin box allows for the dialog to be positioned offset from the box it is annotating, B sometimes does not have a margin box (e.g., if it is a table-cell), or has a margin box whose position may be not entirely clear (e.g., in the face of margin collapsing and clear handling of in-flow blocks).
In cases where B does not have a border box but its border box is used by the algorithm above, user agents must use its first box’s content area instead. (This is in particular an issue with boxes in tables that have border-collapse set to collapse.)
-
When an element’s position property computes to 'absolute-anchored', the float property does not apply and must compute to none, the display property must compute to a value as described by the table in the section of CSS 2.1 describing the relationships between display, position, and float, and the element’s box must be positioned using the rules for absolute positioning but with its static position set such that if the box is positioned in its static position, its anchor point is exactly aligned over the anchor point of the element to which it is magically aligned. Elements aligned in this way are absolutely positioned. For the purposes of determining the containing block of other elements, the 'absolute-anchored' keyword must be treated like the absolute keyword.
The trivial example of an element that does not have a rendered box is one whose display property computes to none. However, there are many other cases; e.g., table columns do not have boxes (their properties merely affect other boxes).
If an element to which another element is anchored changes rendering, the anchored element will be repositioned accordingly. (In other words, the requirements above are live, they are not just calculated once per anchored element.)
The 'absolute-anchored'
keyword is not a keyword that can be specified in CSS; the position property can only compute to
this value if the dialog
element is positioned via the APIs described above.
User agents in visual interactive media should allow the user to pan the viewport to access all
parts of a dialog
element’s border box, even if the element is larger than the viewport and the viewport would otherwise not have a scroll mechanism (e.g., because the viewport’s overflow property is set to hidden).
The open
IDL attribute must reflect the open
content attribute.
4.11.4.1. Anchor points
This section will eventually be moved to a CSS specification; it is specified here only on an interim basis until an editor can be found to own this.
Name: | anchor-point |
---|---|
Value: | [ none | <position> ] |
Initial: | none |
Applies to: | all elements |
Inherited: | no |
Percentages: | refer to width or height of box; see prose |
Media: | visual |
Computed value: | The specified value, but with any lengths replaced by their corresponding absolute length |
Canonical order: | per grammar |
Animatable: | no |
The anchor-point property specifies a point to which dialog boxes are to be aligned.
If the value is a <position>, the anchor point is the point given by the value, which must be interpreted relative to the element’s first rendered box’s margin box. Percentages must be calculated relative to the element’s first rendered box’s margin box (specifically, its width for the horizontal position and its height for the vertical position). [CSS-VALUES] [CSS-2015]
If the value is the keyword none, then no explicit anchor point is defined. The user agent
will pick an anchor point automatically if necessary (as described in the definition of the open()
method above).
