A Algorithm for SCXML
Interpretation
This section contains a normative algorithm for the
interpretation of an SCXML document. Implementations are free to
implement SCXML interpreters in any way they choose, but they MUST behave
as if they were using the algorithm defined here.

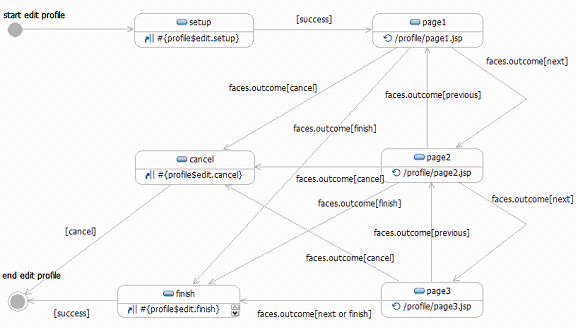

The fact that SCXML implements a variant of the Statechart
formalism does not as such determine a semantics for SCXML. Many
different Statechart variants have been proposed, each with its own
semantics. This section presents an informal semantics of SCXML
documents, as well as a normative algorithm for the interpretation
of SCXML documents.
[This section is informative.]
The following definitions and highlevel principles and
constraint are intended to provide a background to the normative
algorithm, and to serve as a guide for the proper understanding of
it.
Preliminary definitions
- state
- An element of type <state>, <parallel>, or
<final>.
- pseudo state
- An element of type <initial> or <history>.
- transition target
- A state, or an element of type <history>.
- atomic state
- A state of type <state> with no child states, or a state
of type <final>.
- compound state
- A state of type <state> with at least one child
state.
- configuration
- The maximal consistent set of states (including parallel and
final states) that the machine is currently in. We note that if a
state s is in the configuration c, it is always the case that the
parent of s (if any) is also in c. Note, however, that
<scxml> is not a(n explicit) member of the
configuration.
- source state
- The source state of a transition is the state which contains
the transition.
- target state
- A target state of a transition is a state that the transition
is entering. Note that a transition can have zero or more target
states.
- targetless transition
- A transition having zero target states.
- eventless transition
- A transition lacking the 'event' attribute.
- external event
- An SCXML event appearing in the external event queue. Such
events are either sent by external sources or generated with the
<send> element.
- internal event
- An event appearing in the internal event queue. Such events are
either raised automatically by the platform or generated with the
<raise> or <send> elements.
- microstep
- A microstep involves the processing of a single transition (or,
in the case of parallel states, a single set of transitions.) A
microstep may change the the current configuration, update the
datamodel and/or generate new (internal and/or external) events.
This, by causality, may in turn enable additional transitions which
will be handled in the next microstep in the sequence, and so
on.
- macrostep
- A macrostep consists of a sequence (a chain) of microsteps, at
the end of which the state machine is in a stable state and ready
to process an external event. Each external event causes an SCXML
state machine to take exactly one macrostep. However, if the
external event does not enable any transitions, no microstep will
be taken, and the corresponding macrostep will be empty.
Principles and Constraints
We state here some principles and constraints, on the level of
semantics, that SCXML adheres to:
- Encapsulation
- An SCXML processor is a pure event processor. The only
way to get data into an SCXML statemachine is to send external
events to it. The only way to get data out is to receive events
from it.
- Causality
- There shall be a causal justification of why events
are (or are not) returned back to the environment, which can be
traced back to the events provided by the system environment.
- Determinism
- An SCXML statemachine which does not invoke any external event
processor must always react with the same behavior (i.e. the same
sequence of output events) to a given sequence of input events
(unless, of course, the statemachine is explicitly programmed to
exhibit an non-deterministic behavior). In particular, the
availability of the <parallel> element must not introduce any
non-determinism of the kind often associated with concurrency. Note
that observable determinism does not necessarily hold for state
machines that invoke other event processors.
- Completeness
- An SCXML interpreter must always treat an SCXML document as
completely specifying the behavior of a statemachine. In
particular, SCXML is designed to use priorities (based on document
order) to resolve situations which other statemachine frameworks
would allow to remain under-specified (and thus non-deterministic,
although in a different sense from the above).
- Run to completion
- SCXML adheres to a run to completion semantics in the sense
that an external event can only be processed when the processing of
the previous external event has completed, i.e. when all microsteps
(involving all triggered transitions) have been completely
taken.
- Termination
- A microstep always terminates. A macrostep may not. A macrostep
that does not terminate may be said to consist of an infinitely
long sequence of microsteps. This is currently allowed.
Algorithm
[This section is normative.]
This section presents a normative algorithm for the
interpretation of SCXML documents. Implementations are free to
implement SCXML interpreters in any way they choose, but they must
behave as if they were using the algorithm defined here.
Note that the algorithm assumes a Lisp-like semantics in which the
empty Set null is equivalent to boolean 'false' and all other
entities are equivalent to 'true'.
Datatypes
These are the abstract datatypes that are used in the
algorithm.
datatype List
function head() // Returns the head of the list
function tail() // Returns the tail of the list
function append(l) // Returns the list appended with l
function filter(f) // Returns the list of elements that satisfy the predicate f
function some(f) // Returns true if some element in the list satisfies the predicate f
function every(f) // Returns true if every element in the list satisfies the predicate f
datatype OrderedSet
procedure add(e) // Adds e to the set if it is not already a member
procedure delete(e) // Deletes e from the set
function member(e) // Is e a member of set?
function isEmpty() // Is the set empty?
function toList() // Converts the set to a list that reflects the order in which elements were originally added.
procedure clear() // Remove all elements from the set (make it empty)
datatype Queue
procedure enqueue(e) // Puts e last in the queue
function dequeue() // Removes and returns first element in queue
function isEmpty() // Is the queue empty?
datatype BlockingQueue
procedure enqueue(e) // Puts e last in the queue
function dequeue() // Removes and returns first element in queue, blocks if queue is empty
Global variables
The following variables are global from the point of view of the
algorithm. Their values will be set in the
procedureinterpret().
global configuration
global statesToInvoke
global datamodel
global internalQueue
global externalQueue
global historyValue
global running
global binding
Predicates
The following binary predicates are used for determining the
order in which states are entered and exited.
entryOrder // Ancestors precede descendants, with document order being used to break ties
(Note:since ancestors precede descendants, this is equivalent to document order.)
exitOrder // Descendants precede ancestors, with reverse document order being used to break ties
(Note: since descendants follow ancestors, this is equivalent to reverse document order.)
Procedures and Functions
This section defines the procedures and functions that make up
the core of the SCXML interpreter.
procedure interpret(scxml,id)
The purpose of this procedure is to initialize the interpreter
and to start processing.
In order to interpret an SCXML document, first (optionally)
perform [XInclude] processing and
(optionally) validate the document, throwing an exception if
validation fails. Then convert initial attributes to
<initial> container children with transitions to the state
specified by the attribute. (This step is done purely to simplify
the statement of the algorithm and has no effect on the system's
behavior. Such transitions will not contain any executable
content). Create an empty configuration complete with a new
populated instance of the data model and a execute the global
scripts. Create the two queues to handle events and set the global
running variable to true. Finally call enterStates on the initial
transition that is a child of scxml and start the interpreter's
event loop.
procedure interpret(doc):
if not valid(doc): failWithError()
expandScxmlSource(doc)
configuration = new OrderedSet()
statesToInvoke = new OrderedSet()
datamodel = new Datamodel(doc)
executeGlobalScriptElements(doc)
internalQueue = new Queue()
externalQueue = new BlockingQueue()
running = true
binding = doc.binding
if binding == "early":
initializeDatamodel(datamodel, doc)
executeTransitionContent([doc.initial.transition])
enterStates([doc.initial.transition])
mainEventLoop()
procedure mainEventLoop()
This loop runs until we enter a top-level final state or an
external entity cancels processing. In either case 'running' will
be set to false (see EnterStates, below, for termination by
entering a top-level final state.)
At the top of the loop, we have either just entered the state
machine, or we have just processed an external event. Each
iteration through the loop consists of four main steps: 1)Take any
internally enabled transitions, namely those that don't require an
event or that are triggered by an internal event. 2) execute any
<invoke> tags for states that we entered on the last
iteration through the loop 3) repeat step 1 to handle any errors
raised by the <invoke> elements. 4) When the internal event
queue is empty, wait for an external event and then execute any
transitions that it triggers. However special preliminary
processing is applied to the event if the state has executed any
<invoke> elements. First, if this event was generated by an
invoked process, apply <finalize> processing to it. Secondly,
if any <invoke> elements have autoforwarding set, forward the
event to them. These steps apply before the transitions are
taken.
This event loop thus enforces run-to-completion semantics, in
which the system process an external event and then takes all the
'follow-up' transitions that the processing has enabled before
looking for another external event. For example, suppose that the
external event queue contains events ext1 and ext2 and the
machine is in state s1. If processing ext1 takes the machine to s2
and generates internal event int1, and s2 contains a
transition t triggered by int1, the system is guaranteed to take t,
no matter what transitions s2 or other states have that would be
triggered by ext2. Note that this is true even though ext2 was
already in the external event queue when int1 was generated. In
effect, the algorithm treats the processing of int1 as finishing up
the processing of ext1.
procedure mainEventLoop():
while running:
enabledTransitions = null
stable = false
# Here we handle eventless transitions and transitions
# triggered by internal events until machine is stable
while running and not stable:
enabledTransitions = selectEventlessTransitions()
if enabledTransitions.isEmpty():
if internalQueue.isEmpty():
stable = true
else:
internalEvent = internalQueue.dequeue()
datamodel["_event"] = internalEvent
enabledTransitions = selectTransitions(internalEvent)
if not enabledTransitions.isEmpty()::
microstep(enabledTransitions.toList())
# Here we invoke whatever needs to be invoked
for state in statesToInvoke:
for inv in state.invoke:
inv.invoke(inv)
statesToInvoke.clear()
# Invoking may have raised internal error events and we
# need to back up and handle those too
if not internalQueue.isEmpty():
continue
# A blocking wait for an external event. Alternatively, if we have been invoked
# our parent session also might cancel us. The mechanism for this is platform specific,
# but here we assume it's a special event we receive
externalEvent = externalQueue.dequeue()
if isCancelEvent(externalEvent)
running = false
continue
datamodel["_event"] = externalEvent
for state in configuration:
for inv in state.invoke:
if inv.invokeid == externalEvent.invokeid:
applyFinalize(inv, externalEvent)
if inv.autoforward:
send(inv.id, externalEvent)
enabledTransitions = selectTransitions(externalEvent)
if not enabledTransitions.isEmpty()::
microstep(enabledTransitions.toList())
# If we get here, we have reached a top-level final state or have been cancelled
exitInterpreter()
procedure
exitInterpreter()
The purpose of this procedure is to exit the current SCXML
process by exiting all active states. If the machine is in a
top-level final state, a Done event is generated. (Note that in
this case, the final state will be the only active state.) The
implementation of returnDoneEvent is platform-dependent, but if
this session is the result of an <invoke> in another SCXML
session, returnDoneEvent will cause the event
done.invoke.<id> to be placed in the external event queue of
that session, where <id> is the id generated in that session
when the <invoke> was executed.
procedure exitInterpreter():
statesToExit = configuration.toList().sort(exitOrder)
for s in statesToExit:
for content in s.onexit:
executeContent(content)
for inv in s.invoke:
cancelInvoke(inv)
configuration.delete(s)
if isFinalState(s) and isScxmlState(s.parent):
returnDoneEvent(s.donedata)
function
selectEventlessTransitions()
This function selects all transitions that are enabled in the
current configuration that do not require an event trigger. First
find a transition with no 'event' attribute whose condition
evaluates to true. If multiple matching transitions
are present, take the first in document order. If none are present,
search in the state's ancestors in ancestry order until one is
found. As soon as such a transition is found, add it to
enabledTransitions, and proceed to the next atomic state in the
configuration. If no such transition is found in the state or its
ancestors, proceed to the next state in the configuration. When all
atomic states have been visited and transitions selected, filter
the set of enabled transitions, removing any that are preempted by
other transitions, then return the resulting set.
function selectEventlessTransitions():
enabledTransitions = new OrderedSet()
atomicStates = configuration.toList().filter(isAtomicState).sort(documentOrder)
for state in atomicStates:
loop: for s in [state].append(getProperAncestors(state, null)):
for t in s.transition:
if not t.event and conditionMatch(t):
enabledTransitions.add(t)
break loop
enabledTransitions = filterPreempted(enabledTransitions)
return enabledTransitions
function
selectTransitions(event)
The purpose of the selectTransitions()procedure is to collect
the transitions that are enabled by this event in the current
configuration.
Create an empty set of enabledTransitions. For each
atomic state , find a transition whose 'event' attribute matches
event and whose condition evaluates to
true. If multiple matching transitions are present,
take the first in document order. If none are present, search in
the state's ancestors in ancestry order until one is found. As soon
as such a transition is found, add it to enabledTransitions, and
proceed to the next atomic state in the configuration. If no such
transition is found in the state or its ancestors, proceed to the
next state in the configuration. When all atomic states have been
visited and transitions selected, filter out any preempted
transitions and return the resulting set.
function selectTransitions(event):
enabledTransitions = new OrderedSet()
atomicStates = configuration.toList().filter(isAtomicState).sort(documentOrder)
for state in atomicStates:
loop: for s in [state].append(getProperAncestors(state, null)):
for t in s.transition:
if t.event and nameMatch(t.event, event.name) and conditionMatch(t):
enabledTransitions.add(t)
break loop
enabledTransitions = filterPreempted(enabledTransitions)
return enabledTransitions
function
filterPreempted(enabledTransitions)
Filter out any transition in enabledTransitions that is
preempted by a transition that precedes it in enabledTransitions.
Note that enabledTransitions will contain multiple transitions only
if a parallel state is active. In that case, we may have one
transition selected for each of its children. These transitions may
conflict with each other in the sense that they have incompatible
target states. When such a conflict occurs, we select the first
transition in document order and say that it preempts the other
transitions.
function filterPreempted(enabledTransitions):
filteredTransitions = new OrderedSet()
for t in enabledTransitions:
# does any t2 in filteredTransitions preempt t? if not, add t to filteredTransitions
if not filteredTransitions.some(lambda t2: preemptsTransition(t2, t)):
filteredTransitions.add(t)
return filteredTransitions
function
preemptsTransition(t1, t2)
There are three types of transitions: 1) targetless transitions 2)
transitions within a single child of <parallel> 3)
transitions that cross child boundaries (including exiting and
reentering a single child) and/or leave the parallel region
altogether. Type 1 transitions do not preempt any other
transitions. Type 2 transitions preempt subsequent type 3
transitions (but not other type 2 transitions). Type 3 transitions
preempt all other transitions.
function preemptsTransition(t1, t2):
if isType2(t) and isType3(t2): return True
elif isType3(t): return True
else return False
procedure
microstep(enabledTransitions)
The purpose of the microstep procedure is to
process a single set of transitions. These may have been enabled by
an external event, an internal event, or by the presence or absence
of certain values in the datamodel at the current point in time.
The processing of the enabled transitions must be done in parallel
('lock step') in the sense that their source states must first be
exited, then their actions must be executed, and finally their
target states entered.
If a single atomic state is active, then enabledTransitions will
contain only a single transition. If multiple states are active
(i.e., we are in a parallel region), then there may be multiple
transitions, one per active atomic state (though some states may
not select a transition.) In this case, the transitions are taken
in the document order of the atomic states that selected them.
procedure microstep(enabledTransitions):
exitStates(enabledTransitions)
executeTransitionContent(enabledTransitions)
enterStates(enabledTransitions)
procedure
exitStates(enabledTransitions)
Create an empty statesToExit set. For each transition t in
enabledTransitions, if t is targetless then do nothing, else then
let the transition's ancestor state be the source state (in the
case of internal transitions) or (in the case of external
transitions) the least common compound ancestor state of the source
state and target states of t. Add to the statesToExit set all
states in the configuration that are descendants of the ancestor.
Next remove all the states on statesToExit from the set of states
that will have invoke processing done at the start of the next
macrostep. (Suppose macrostep M1 consists of microsteps m11 and
m12. We may enter state s in m11 and exit it in m12. We will add s
to statesToInvoke in m11, and must remove it in m12. In the
subsequent macrostep M2, we will apply invoke processing to all
states that were entered, and not exited, in M1.) Then convert
statesToExit to a list and sort it in exitOrder.
For each state s in the list, if s has a deep history state h,
set the history value of h to be the list of all atomic descendants
of s that are members in the current configuration, else set its
value to be the list of all immediate children of s that are
members of the current configuration. Again for each state s in the
list, first execute any onexit handlers, then cancel any ongoing
invocations, and finally remove s from the current
configuration.
procedure exitStates(enabledTransitions):
statesToExit = new OrderedSet()
for t in enabledTransitions:
if t.target:
tstates = getTargetStates(t.target)
if t.type == "internal" and isCompoundState(t.source) and tstates.every(lambda s: isDescendant(s,t.source))::
ancestor = t.source
else:
ancestor = findLCCA([t.source].append(getTargetStates(t.target)))
for s in configuration:
if isDescendant(s,ancestor):
statesToExit.add(s)
for s in statesToExit:
statesToInvoke.delete(s)
statesToExit = statesToExit.toList().sort(exitOrder)
for s in statesToExit:
for h in s.history:
if h.type == "deep":
f = lambda s0: isAtomicState(s0) and isDescendant(s0,s)
else:
f = lambda s0: s0.parent == s
historyValue[h.id] = configuration.toList().filter(f)
for s in statesToExit:
for content in s.onexit:
executeContent(content)
for inv in s.invoke:
cancelInvoke(inv)
configuration.delete(s)
procedure
executeTransitionContent(enabledTransitions)
For each transition in the list of
enabledTransitions, execute its executable
content.
procedure executeTransitionContent(enabledTransitions):
for t in enabledTransitions:
executeContent(t)
procedure
enterStates(enabledTransitions)
Create an empty statesToEnter set, and an empty
statesForDefaultEntry set. For each transition t in
enabledTransitions, if t is targetless then do nothing, else for
each target state s, call addStatesToEnter. This will add to
statesToEnter s plus any descendant states that will have to be
entered by default once s is entered. (If s is atomic, there will
not be any such states.) Now for each target state s, add any of
s's ancestors that must be entered when s is entered. (These will
be any ancestors of s that are not currently active. Note that
statesToEnter is a set, so it is harmless if the same ancestor is
entered multiple times.) In the case where the ancestor state is
parallel, call addStatesToEnter on any of its child states that do
not already have a descendant on statesToEnter. (If a child state
already has a descendant on statesToEnter, it will get added to the
list when we examine the ancestors of that descendant.)
We now have a complete list of all the states that will be
entered as a result of taking the transitions in
enabledTransitions. Add them to statesToInvoke so that invoke
processing can be done at the start of the next macrostep. Convert
statesToEnter to a list and sort it in entryOrder. For each state s
in the list, first add s to the current configuration. Then if we
are using late binding, and this is the first time we have entered
s, initialize its data model. Then execute any onentry handlers. If
s's initial state is being entered by default, execute any
executable content in the initial transition. Finally, if s is a
final state, generate relevant Done events. If we have reached a
top-level final state, set running to false as a signal to stop
processing.
procedure enterStates(enabledTransitions):
statesToEnter = new OrderedSet()
statesForDefaultEntry = new OrderedSet()
for t in enabledTransitions:
if t.target:
tstates = getTargetStates(t.target)
if t.type == "internal" and isCompoundState(t.source) and tstates.every(lambda s: isDescendant(s,t.source)):
ancestor = t.source
else:
ancestor = findLCCA([t.source].append(tstates))
for s in tstates:
addStatesToEnter(s,statesToEnter,statesForDefaultEntry)
for s in tstates:
for anc in getProperAncestors(s,ancestor):
statesToEnter.add(anc)
if isParallelState(anc):
for child in getChildStates(anc):
if not statesToEnter.some(lambda s: isDescendant(s,child)):
addStatesToEnter(child,statesToEnter,statesForDefaultEntry)
statesToEnter = statesToEnter.toList().sort(enterOrder)
for s in statesToEnter:
configuration.add(s)
statesToInvoke.add(s)
if binding == "late" and s.isFirstEntry:
initializeDataModel(datamodel.s,doc.s)
s.isFirstEntry = false
for content in s.onentry:
executeContent(content)
if statesForDefaultEntry.member(s):
executeContent(s.initial.transition)
if isFinalState(s):
parent = s.parent
grandparent = parent.parent
internalQueue.enqueue(new Event("done.state." + parent.id, s.donedata))
if isParallelState(grandparent):
if getChildStates(grandparent).every(isInFinalState):
internalQueue.enqueue(new Event("done.state." + grandparent.id))
for s in configuration:
if isFinalState(s) and isScxmlState(s.parent):
running = false
procedure
addStatesToEnter(state,root,statesToEnter,statesForDefaultEntry)
The purpose of this procedure is to add to statesToEnter state
and/or any of its descendants that must be entered as a result of
state being the target of a transition. Note that this procedure
permanently modifies both statesToEnter and
statesForDefaultEntry.
First, If state is a history state then add either the history
values associated with state or state's default target to
statesToEnter. Else (if state is not a history state), add state to
statesToEnter. Then, if state is a a compound state, add state to
statesForDefaultEntry and recursively call addStatesToEnter on its
default initial state(s). Otherwise, if state is a parallel state,
recursively call addStatesToEnter on each of its child states.
procedure addStatesToEnter(state,statesToEnter,statesForDefaultEntry):
if isHistoryState(state):
if historyValue[state.id]:
for s in historyValue[state.id]:
addStatesToEnter(s,statesToEnter,statesForDefaultEntry)
for anc in getProperAncestors(s,state):
statesToEnter.add(anc)
else:
for t in state.transition:
for s in getTargetStates(t.target):
addStatesToEnter(s,statesToEnter,statesForDefaultEntry)
else:
statesToEnter.add(state)
if isCompoundState(state):
statesForDefaultEntry.add(state)
for s in getTargetStates(state.initial):
addStatesToEnter(s,statesToEnter,statesForDefaultEntry)
elif isParallelState(state):
for s in getChildStates(state):
addStatesToEnter(s,statesToEnter,statesForDefaultEntry)
procedure
isInFinalState(s)
Return true if s is a compound <state> and one of its
children is an active <final> state (i.e. is a member of the
current configuration), or if s is a <parallel> state and
isInFinalState is true of all its children.
function isInFinalState(s):
if isCompoundState(s):
return getChildStates(s).some(lambda s: isFinalState(s) and configuration.member(s))
elif isParallelState(s):
return getChildStates(s).every(isInFinalState)
else:
return false
function findLCCA(stateList)
The Least Common Compound Ancestor
is the <state> or <scxml> element s such that s is a
proper ancestor of all states on stateList and no descendant of s
has this property. Note that there is guaranteed to be such an
element since the <scxml> wrapper element is a common
ancestor of all states. Note also that since we are speaking of
proper ancestor (parent or parent of a parent, etc.) the LCCA is
never a member of stateList.
function findLCCA(stateList):
for anc in getProperAncestors(stateList.head(),null).filter(isCompoundState):
if stateList.tail().every(lambda s: isDescendant(s,anc)):
return anc
function
getProperAncestors(state1, state2)
If state2 is null, returns the set of all ancestors of state1 in
ancestry order (state1's parent followed by the parent's parent,
etc.). If state2 is non-null, returns in ancestry order the set of
all ancestors of state1, up to but not including state2.
