This document defines platform and language neutral interfaces that provide Web applications with access to a hierarchy of dynamic properties representing device capabilities, configurations, user preferences and environmental conditions.
This document is a public W3C Last Call Working Draft for review by W3C members and other interested parties.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This document is a Working Draft for review by W3C members and other interested parties. Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document has been produced as part of the W3C Multimodal Interaction Activity, following the procedures set out for the W3C Process, with the intention of advancing it along the W3C Recommendation track. The authors of this document are members of the W3C Multimodal Interaction Working Group (members only).
This document was produced under the 24 January 2002 CPP as amended by the W3C Patent Policy Transition Procedure. The Working Group maintains a public list of patent disclosures relevant to this document; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) with respect to this specification should disclose the information in accordance with section 6 of the W3C Patent Policy.
This specification describes platform and language neutral interfaces for the Dynamic Property Framework (DPF) component in the W3C Multimodal Interaction Framework [MMI]. These interfaces provide dynamic access to a hierarchy of heterogeneous properties representing device capabilities, device configuration, user preferences and environmental conditions. In response to feedback from reviewers, the specification has been renamed to the "Dynamic Properties Framework" from the "System and Environment Framework" since the previous publication.
This Last Call Working Draft is for public review, and comments and discussion are welcomed on the public mailing list <www-multimodal@w3.org>. The archive for the list is accessible online.
The Working Group's intention is to advance this specification to Candidate Recommendation during the 1st half of 2005 (see Work Items of the Multimodal Interaction Activity). Reviewers are encouraged to send their comments on this working draft before 10 January 2005.
Multimodal applications are expected to function in heterogeneous environments with widely varying device capabilities. The device configuration, user preferences and environmental conditions can vary dynamically and applications need to be able to respond accordingly. How should the application deal with low battery alerts or with loss of network connectivity? Perhaps the user has just muted the microphone or disabled the audio output? Dynamic configurations include snapping a camera attachment onto a cell phone or bringing devices together with Bluetooth, for example, a camera phone and a color printer. These dynamic changes to the configuration can directly effect the features that applications offer to users.
The W3C Multimodal Interaction Framework [MMI] identifies the major components for multimodal systems. At its heart, lies the Interaction Manager [IM], which coordinates data and manages execution flow from various input and output modalities. The Dynamic Properties Framework provides the Interaction Manager with dynamic access to a hierarchy of properties representing the current device capabilities, device configuration, user preferences and environmental conditions. These properties indicate which modes of interaction are supported, which are currently active, as well as a means to enable or disable particular modes, and to get notifications when users make changes themselves.
Within a Multimodal application, it is the devices capabilities and operational environment that can shape the input and output presented to the user. Once the available modes have been established, it is useful to distinguish between persistent (static) and transient (dynamic) properties. Static properties refers to data that remains constant for the session duration, for example specifying a users language preference for prompt playback, while dynamic properties refers to notifications and events during a session, for example generated through GPS notifications [LIF] updating the reported location of a mobile device.
Multimodality is best demonstrated on mobile devices, where the constraints of the device and the environment dictate which modes get utilized. WiFi PDA's are typically large portable devices with high resolution displays, touch screens, powerful CPU's and high bandwidth data channels. In comparison, todays mobile phones have much smaller lower resolution screens, limited keypad (DTMF) for input and low bandwidth data chanels. The rapid acceleration of the mobile handset industry—coupled to next generation mobile networks—clearly indicate that tomorrow's emerging smart phones will be richer, faster and far more capable. The proliferation of such mobile devices will demand multimodal interaction because of the wide range of basic functionality; some devices may have full keyboards, others only keypads, likewise touchscreens for pen input, local or remote speech recognition, GPS location etc. For a Multimodal content provider, it will be increasingly challenging to create content that can be re-purposed for all mobile contexts. Likewise, from a user's perspective, it will be increasingly important to choose which modes they want to use.
Typical environmental properties involve dynamic status information, such as the remaining battery life, mobile signal strength, ambient brightness, location and display orientation information. These properties often vary during a session and need to be signaled to the application to adapt to the new environmental conditions. Static properties are typically defined by user preferences and device context, such as the selected voice for speech synthesis, a preference for pen input over the keypad, or preferences for the font size and color. Such properties usually remain persistent for the duration of the session and can be configured at the start of the session.
The Dynamic Properties Framework provides a mechanism to both query and update properties. For dynamic properties it is important to be able to respond to changes when they occur, for example, the devices' new location, consequently a mechanism to subscribe and unsubscribe to specific events is required. This functionality directly supports the basic requirements of the W3C Multimodal Interaction Requirements [MMIReqs] (MMI-G14, MMI-G15, MMI-A4).
The Dynamic Properties Framework is designed to allow for properties to be defined by different organizations. For instance, the W3C Device Independence Activity [DevInd] is working on defining a set of core presentation attributes. The Open Mobile Alliance [OMA] (OMA - formerly known as the WAP Forum) has developed a set of properties for describing static characteristics of mobile phones. Device vendors are expected to define additional properties for proprietary features.
W3C's Composite Capability/Preference Profiles [CC/PP] is an XML [XML] representation of device characteristics that is based on the Resource Description Framework [RDF]. CC/PP allows devices to pass a description of these characteristics to Web servers for use in content selection/adaptation. CC/PP has been used for the OMA User Agent Profiles [UAPROF], which describe three classes of static device characteristics:
CC/PP is complementary to the Dynamic Properties Framework. CC/PP provides the means to transfer sets of device characteristics from one device to another, while the Dynamic Properties Framework provides Interaction Managers with dynamic access to device characteristics on a moment to moment basis, thereby enabling applications to respond to changes in real time.
The Dynamic Properties Framework is based upon the following assumptions:
Properties are associated with XML namespaces and can be arranged in hierarchies. This enables properties to be defined by multiple organizations without fear of name conflicts.
Property names are further constrained so that they can be exposed in XPath [XPath] expressions as element names, for example, "/a/b/c[3]", and as identifiers such as "a.b.c[2]" in languages such as ECMAScript [ECMAScript] and Java. Formally, the set of valid property names is the intersection of the set of valid ECMA 262 identifiers and the set of valid XML element names.
Properties may be dependent on data held remotely. The interfaces must be consistent with the apartment threading model, for example blocking for any significant length of time is unacceptable.
There is a flexible means to subscribe and unsubscribe to notifications of changes to properties. This gives authors detailed control over notifications which are raised in a property specific manner.
Notifications (events) are associated with namespaces.
Properties may be dynamically added, removed or changed at runtime. For instance, when a camera module is connected to a cell phone the capability to take photographs is added.
Each property is associated with a given datatype, for example a number, a string or structured types like arrays or named fields. This will build upon the types defined by the W3C DOM working group. This section is informative, please see the DOM Object Model Core [DOM3-Core] for definitive details. Some of the common data types in the DOM include:
The DOM normally handles errors by passing back error conditions. In truly exceptional circumstances, a DOMException may be raised, for example when an operation cannot be completed.
XML namespaces [XML-Namespaces] and URI's in general are treated as being of type DOMString.
This section describes the interfaces for the Dynamic Properties Framework.
The Dynamic Properties Framework is treated as a hierarchy of properties rooted in the DPFComponent as shown in Figure 1. Each property is associated with a name, a namespace, a value and an ordered list of subsidiary (child) properties.

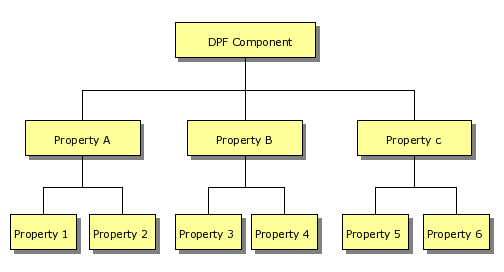

Figure 1. DPF component hierarchy.
The Dynamic Properties Framework is formally defined in terms of OMG IDL [IDL] interfaces. The DPFProperty interface is modeled on the DOM Node interface and represents a single property. It provides support for creating and manipulating a hierarchy of properties. The DPFPropertyList is modeled on the DOM NodeList interface and plays an analogous role in providing access to the direct children of a given property. The DPFComponent is itself a property node, and provides readonly access to the Dynamic Properties Framework version number.
Properties raise events to notify changes in property values, or the removal or addition of properties themselves. DPFProperty supports methods for adding and removing event listeners. The DPFProperty supports the event capture/bubbling model. This allows you to add an event listener at different levels of the property hierarchy when you want to listen to events that recursively bubble up from child properties. This is independent of the event propagation model in the host environment.
Properties are only accessible within the DPF tree after they have been initialized. The means to initialize and to de-initialize properties is outside the scope of the Dynamic Properties Framework. The time at which properties are initialized may vary from property to property. Some properties may be initialized when the device or application is started. Others may be initialized the first time properties are needed. In general, properties may be dynamically added or removed from the DPF property tree as the capabilities available to the device change over time.
For distributed applications, some properties may be dependent on data held on a server or on another device. One example is a property indicating the toner levels in a networked printer. Another is a property for the geographic location of a phone where the property value is obtained from a remote third-party service that translates raw positioning data into the format needed by the application on the phone.
The addressing mechanisms and protocols used to synchronize such properties are outside the scope of this specification. Some possibilities include SIP Events, Web Services, Universal Plug and Play. For each property, information may be provided for use in initialization, and for determining the conditions under which events are raised to signal updates to the property value. A means to re-initialize the property may be provided to cater for changes to these conditions. This information can be exposed either as subproperties or as metadata associated with the property.
The DPF provides a means for accessing and updating user preferences, device configuration and environmental factors. Some form of access control is needed along with the means to ensure that integrity constraints are upheld.
There is a need to provide an access rights mechanism for controlling property access within the DPF tree. There are instances where certain components should be prevented from modifying property values or adding/removing properties. Access rights are also be useful for restricting event handling.
Access rights could be provided by a separate component within the DPF. Each entity requiring DPF services registers with a particular category (component category). Certain rights are associated with each category and access control can be taken care of by the rights-manager component.
Integrity checks are appropriate whenever the DPF hierarchy is modified. For example, a property describing a speech recognizer might not be permissible as a subproperty of the devices's geographical location. In general, the types and values for subproperties need to be consistent with their parent property. These constraints could in principle be expressed as a data schema. The details for such a mechanism are outside the current scope of this specification.
Properties raise events to notify changes to property values. The data passed with each event will vary according to the property. All events extend the DPFEvent interface, which exposes the event's namespace URI and type, as well as the property on which the event was raised. The conditions under which an event is raised also vary and can be controlled through the value of subsidiary properties.
For some properties an event is raised each time its value changes. This works fine for properties limited to a small set of possible values, for instance, the mute state of the microphone is either true or false. For slowly changing real valued properties, it is better to only raise notifications when the value crosses suitable thresholds, for instance when it goes above a certain percentage of the value at which the last notification was raised.
For notifications incurring network traffic, there are considerations of cost and efficient network utilization. An example is location updates for a cell phone. Some applications will want updates at frequent intervals, while others will only need updates when the location has changed by a suitable amount, or when the phone is approaching key landmarks (street intersection, bank, restaurant or freeway exit).
Additional events are used to notify when properties are removed or added to the hierarchy. An open issue is whether these should be standardized as part of the Dynamic Properties Framework, or left as property specific.
This framework doesn't normatively define particular events, but rather shows how events fit into the framework. Informative examples are given to explain how this works, for example low battery alerts, loss of network connectivity, location updates, and alerts for when speech recognition rates drops below some predefined threshold.
Objects implementing this interface represent properties. The interface is modeled on the DOM Node interface. Note that the interface provides a means for manipulating the hierarchy of properties but not for the creation or destruction of properties. Further information on events is covered in Section 5. Exception handlers are covered in Section 4.8. Ultimately, the implementation is responsible for access control and data integrity.
readonly attribute DOMString name; // name of this property readonly attribute DOMString namespaceURI; // namespace for this property
Each property is identified by a name and namespace. These are initialized when the object is created and can't be changed thereafter.
attribute DPFPropertyValue value; // current value of this property
Value provides read/write access to the property's value. It can accept any data type.
readonly attribute DPFProperty parent; // parent property interface
Parent provides readonly access to the immediate parent property in the hierarchy.
readonly attribute DOMString DPFMetaDataExtInterfaceType; // or NULL readonly attribute any DPFMetaDataExtInterface; //optional metadata
These two attributes provide a means to attach property metadata through an optional external interface. The attribute DPFMetaDataExtInterfaceType names the type of the interface, and must be NULL if the DPFMetaDataExtInterface interface is not in use.
DPFProperty appendDPFProperty(in DPFProperty newChild)
raises(DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::HIERARCHY_REQUEST_ERR,
DPFException::NOT_FOUND_ERR,
DPFException::TYPE_MISMATCH_ERR,
DPFException::SYNTAX_ERR);
This method is used to append a new child property to the list of children of the current property at which this method is called. The current property is set as the Parent property to the newly added child property. The method takes as argument, the new child property and the return value would be the property that was appended.
A HIERARCHY_REQUEST_ERR would be raised if the child property being appended does not belong to the property type supported by the parent, if the child property being appended is an ancestor of the current parent property or a replica of the current property itself. A NO_MODIFICATION_ALLOWED_ERR is raised if the current parent property is readonly.
DPFProperty insertDPFPropertyBefore(in DPFProperty newChild,
in DPFProperty refChild)
raises(DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::HIERARCHY_REQUEST_ERR,
DPFException::NOT_FOUND_ERR,
DPFException::TYPE_MISMATCH_ERR,
DPFException::SYNTAX_ERR);
This method is used to insert a new child property before an existing child of the current property. The new child's Parent data item is set to this property. If it was previously the child of another property, it will be automatically removed from that property before being added to this one. The return value is the property being added. A HIERARCHY_REQUEST_ERR exception is raised if this property is of a type that does not allow children of the type of the newChild property, or if the property to append is one of this property's ancestors or this property itself. A NO_MODIFICATION_ALLOWED_ERR exception is raised if this property is readonly or if the previous parent of the property being inserted is readonly.
DPFProperty replaceDPFProperty(in DPFProperty newChild,
in DPFProperty oldChild)
raises(DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::HIERARCHY_REQUEST_ERR,
DPFException::NOT_FOUND_ERR,
DPFException::TYPE_MISMATCH_ERR,
DPFException::SYNTAX_ERR);
This method is used to replace an existing child property with a new child property. The new child's Parent data item is set to this property. If it was previously the child of another property, it will be automatically removed from that property before being added to this one. The return value is the property being replaced. A NOT_FOUND_ERR exception is raised if oldChild is not a child of this property. A HIERARCHY_REQUEST_ERR exception is raised if this property is of a type that does not allow children of the type of the newChild property, or if the property to append is one of this property's ancestors or this property itself. A NO_MODIFICATION_ALLOWED_ERR exception is raised if this property is readonly or if the previous parent of the property being inserted is readonly.
DPFProperty removeDPFProperty(in DPFProperty oldChild)
raises(DPFException::INVALID_ACCESS_ERR,
DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::SYNTAX_ERR,
DPFException::NOT_FOUND_ERR);
This method is used to remove an existing child property. This has the effect of setting its Parent data item to NULL. The return value is the property being removed. A NOT_FOUND_ERR exception is raised if oldChild is not a child of this property. A NO_MODIFICATION_ALLOWED_ERR exception is raised if this property is readonly or if the previous parent of the property being inserted is readonly.
boolean hasDPFProperty(in DOMString namespaceURI,
in DOMString PropertyName,
in boolean deep)
raises(DPFException::SYNTAX_ERR);
This method is used to determine whether this property has a given named property as identified by its name and namespace. If deep is true, the search applies to the children recursively. If false, the search is limited to the immediate children of this property. If there are no matching properties, the result is false.
DPFPropertyList getDPFPropertyList(in DOMString namespaceURI,
in DOMString propertyName,
in boolean deep)
raises(DPFException::NAMESPACE_ERR);
This method is used to obtain a list of the children with matching property name and namespace. If deep is true, the search applies to the children recursively. If false, the search is limited to the immediate children of this property. NULL can be used as a wildcard for the property name and namespace. If there are no matching properties, the result is an empty DPFPropertyList with length zero.
Search results may contain properties with the same name and namespace values and so appear to be identical. In order to disambiguate between the two, it is neccessary to compare their parent nodes. For example, there could be two or more GPS systems present with the inter-relation show in Figure 2.

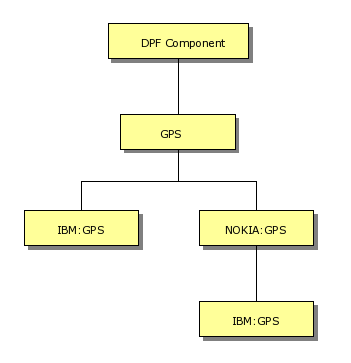

Figure 2. An example GPS hierarchy.
Calling getDPFPropertyList at node GPS with deep set to true returns both instances of the IBM:GPS properties. To disambiguate between the two, the parent interface can be queried. As a result it returns the GPS as the parent of the first such property and NOKIA as the parent of the second.
The DPFProperty interface also defines a read only attribute for metadata that could provide additional information about the property if needed. For example, the profile of IBM:GPS could be stored at some remote location and the information provided by this profile might be needed by the calling application.
DPFPropertyList searchDPFProperty(in DOMString namespaceURI,
in DOMString propertyName,
in DPFPropertyFilter dpfPropertyFilter,
in boolean deep)
raises(DPFException::NAMESPACE_ERR);
This method provides a way to obtain a filtered list of child properties, using an application defined filter passed via dpfPropertyFilter. The other parameters have the same meaning as they have for getDPFPropertyList. If there are no matching properties, the result is an empty DPFPropertyList with length zero. The application filter is defined by the DPFPropertyFilter interface:
boolean acceptDPFProperty(in DPFProperty dpfPropertyNode);
The filter should return true if the property passed by dpfPropertyNode is to be included in the list, and false if it is to be excluded.
DPFProperty item(in unsigned long index)
raises(DPFException::INDEX_SIZE_ERR,
DPFException::INVALID_ACCESS_ERR);
readonly attribute unsigned long length;
This is modeled on the DOM NodeList interface, and provides the abstraction of an ordered collection of properties. The item method returns the n-th entry in the list or NULL if the index provided is out of range. The items are numbered sequentially via an integral index that starts from zero for the first item in the collection. The length of the collection is available as a readonly value. The collection is manipulated using the method provided by the DPFProperty interface.
The DPFPropertyList is always live. This means that the list reflects the changes happening in the DPF property hierarchy. The DPFPropertyList is an array that holds pointers to the actual DPFProperties. If there are changes happening in the hierarchy tree, the index number in DPFPropertyList must be updated and the array extended accordingly.
If a DPFProperty node was accessed and then removed, the system points the removed node to an empty DPFProperty node.
In the DPFProperty interface, the value attribute has been typedefined for anytype. This means that the value could be a pointer to a data structure or contain structured data within itself. This assumption has implications on the DPFPropertyList being live. In such a case, the system raises an exception. This means that all such code must be enclosed within a try/catch statement.
readonly attribute DOMString version;
The DPFComponent interface forms the root node of the DPF hierarchy. DPFComponent derives from the DPFProperty interface and contains an additional readonly attribute called version. The value of the version attribute is the version number of the Dynamic Properties Framework component. The value for version for this release is "1.0". The value attribute of an DPFComponent does not have any meaning. The parent attribute of an DPFComponent has the value NULL.
The DPFEventTarget interface extends the DOM 2 EventTarget [DOM2-Events] interface and adds to it support for namespaces and event groups as specified in the W3C DOM 3 Note [DOM3-Events].
void addDPFEventListener(in DOMString namespaceURI,
in DOMString type,
in EventListener listener,
in DOMObject evGroup);
This method is used to add a listener for an DPFProperty notification identified by the associated type and namespace and event group. It is analogous to DOM3 addEventListenerNS. Listeners can be added at any level in the hierarchy of properties. Not all events will bubble up to the parent property, and this depends on the specific property and event.
The type parameter can be used to register for category of events rather than for a specific event. This assumes that event categories are expressed as a hierarchy of names. For example, in VoiceXML [VoiceXML] a specific event sent upon hangup is "connection.disconnect.hangup". This belongs to the category "connection.disconnect" which covers a range of events for different kinds of disconnect. This allows the use of '*' as a wild card, for example in "connection.disconnect.*" and "connection.*.hangup"
void removeDPFEventListener(in DOMString namespaceURI,
in DOMString type,
in EventListener listener);
This method is used to remove a listener for an DPFProperty notification identified by the associated type and namespace. It is analogous to DOM3 removeEventListenerNS.
readonly attribute DOMString namespaceURI;
void stopImmediatePropagation();
void initEventNS(in DOMString namespaceURIArg,
in DOMString eventTypeArg,
in boolean canBubbleArg,
in boolean cancelableArg);
The DPFEvent interface extends the DOM 2 Event interface and adds to it support for namespaces as specified in the W3C DOM 3 Note. Property specific events extend this interface with additional data items. The DOM event capture/bubbling model is supported and the event phase should be one of the enumerated phase types. The attributes and methods have the same meanings as defined in the DOM 2 Event interface [DOM2-Events], with the addition of the event namespace URI to allow events defined by different organizations to be differentiated by namespace.
The stopImmedatePropagation method is analogous to the method defined in the W3C DOM 3 Event interface. If called on an event, it prevents listeners registered within the same group, on the current target, to get triggered. Both the DOM 2 stopPropagation and the DOM 3 stopImmediatePropagation methods have no effect between groups of listeners.
void handleEvent(in Event event);
The EventListener interface is used to pass a listener to the DPFProperty addDPFEventListener method. Listeners can use the event's type and namespace attributes to determine which interface to cast the event to.
Defined exception error constants:
NO_MODIFICATION_ALLOWED_ERRHIERARCHY_REQUEST_ERRNOT_FOUND_ERRINVALID_ACCESS_ERRNAMESPACE_ERRTYPE_MISMATCH_ERRNOT_SUPPORTED_ERRSYNTAX_ERRINDEX_SIZE_ERRThe DPF eventing model conforms to the DOM 2 Event Specification [DOM2-Events] including capture and bubble phases.
The DPF event interfaces extend the DOM 2 event interfaces [DOM2-Events] and add to them methods to support event namespaces, groups and categories; these additional methods are extracted from the W3C DOM 3 Event Note [DOM3-Events]. When DOM 3 becomes a recommendation the DPF will update and align at that time.
Event namespaces can be used to distinguish between DPF events raised by properties that have the same name but are defined by different organizations. They also allow modules to listen for property events from a particular organization.
Event groups can be used to prevent listeners from stopping an event's propagation before other listeners have a chance to react to it. The DOM 3 Note specifies that if two listeners are registered in two different groups one cannot prevent the other from being triggered. This feature is useful when multiple modules are listening to the same event and some of them need a guarantee that they will indeed receive it regardless of some listeners in other groups stopping their propagation.
Event categories allow listeners to be registered for a hierarchy of DPF events rather than for a specific event type. For example, a listener can register for an "asr.*" event category, thus instructing the event processor to activate it for all property events that get raised from the subtree rooted at the "asr" property.
Modules that implement the DOM2 EventListener interface, such as a browser or Interaction Manager [IM], can register as listeners on the DPF property tree. Concurrent with the DOM2 Event propagation algorithm, when an DPFEvent is dispatched on the DPF property tree, listeners registered for this event type get activated. The listener receives an DPFEvent object type that may need to be copied or appropriately casted before it can be processed by that listener. For example, if a DOM browser registered as a listener for an DPFEvent gets activated, it copies the DPF event into a DOM event object before it propagates it on its own document tree.
This appendix contains the complete OMG IDL [IDL] definitions for the Dynamic Properties Framework with the exception of existing DOM modules for the DOM core and DOM events. which are used for some common DOM data types and the EventTarget interface.
// File: DPF.idl
#ifndef _DPF_IDL_
#define _DPF_IDL_
// include DOM IDL modules
#include "dom.idl"
#include "event.idl"
#pragma prefix "dpf.w3c.org"
module dpfproperty
{
interface DPFComponent;
interface DPFProperty;
interface DPFPropertyList;
interface DPFEvent;
interface DPFEventTarget;
typedef any DPFPropertyValue;
typedef dom::DOMString DOMString;
typedef dom::DOMTimeStamp DOMTimeStamp;
typedef dom::DOMObject DOMObject;
exception DPFException {
unsigned short code;
};
// DPFEventTarget extends DOM 2 EventTarget and adds to it methods to
// support event namespaces and groups.
interface DPFEventTarget : EventTarget
{
// analogous to DOM3 addEventListenerNS
void addDPFEventListener(in DOMString namespaceURI,
in DOMString type,
in DOMObject evGroup,
in EventListener listener);
// analogous to DOM3 removeEventListenerNS
void removeDPFEventListener(in DOMString namespaceURI,
in DOMString type,
in EventListener listener);
};
interface DPFComponent : DPFProperty
{
readonly attribute DOMString version;
};
// DPFProperty supports a hierarchy of property/value pairs
interface DPFProperty : DPFEventTarget
{
readonly attribute DPFProperty parent; // parent property interface
readonly attribute DOMString namespaceURI; // namespace for this property
readonly attribute DOMString name; // name of this property
attribute DPFPropertyValue value; // current value of this property
readonly attribute DOMString DPFMetaDataExtInterfaceType; // or NULL
readonly attribute any DPFMetaDataExtInterface; //optional metadata
DPFPropertyList getDPFPropertyList(in DOMString namespaceURI,
in DOMString propertyName,
in boolean deep)
raises(DPFException::NAMESPACE_ERR);
DPFPropertyList searchDPFProperty(in DOMString namespaceURI,
in DOMString propertyName,
in DPFPropertyFilter dpfPropertyFilter,
in boolean deep)
raises(DPFException::NAMESPACE_ERR);
boolean hasDPFProperty (in DOMString namespaceURI,
in DOMString propertyName,
in boolean deep)
raises(DPFException::SYNTAX_ERR);
DPFProperty insertDPFPropertyBefore(in DPFProperty newChild,
in DPFProperty refChild)
raises(DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::HIERARCHY_REQUEST_ERR,
DPFException::NOT_FOUND_ERR,
DPFException::TYPE_MISMATCH_ERR,
DPFException::SYNTAX_ERR);
DPFProperty replaceDPFProperty(in DPFProperty newChild,
in DPFProperty oldChild)
raises(DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::HIERARCHY_REQUEST_ERR,
DPFException::NOT_FOUND_ERR,
DPFException::TYPE_MISMATCH_ERR,
DPFException::SYNTAX_ERR);
DPFProperty removeDPFProperty(in DPFProperty oldChild)
raises(DPFException::INVALID_ACCESS_ERR,
DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::SYNTAX_ERR,
DPFException::NOT_FOUND_ERR);
DPFProperty appendDPFProperty(in DPFProperty newChild)
raises(DPFException::NO_MODIFICATIONS_ALLOWED_ERR,
DPFException::HIERARCHY_REQUEST_ERR,
DPFException::NOT_FOUND_ERR,
DPFException::TYPE_MISMATCH_ERR,
DPFException::SYNTAX_ERR);
};
// DPFPropertyList provides the abstraction of an ordered
// collection of DPFProperty interfaces. The items are
// accessible via an integral index, starting from 0.
interface DPFPropertyList
{
DPFProperty item (in unsigned long index);
readonly attribute unsigned long length;
};
exception DOMException {
unsigned short code;
};
// ExceptionCodes
const unsigned short NO_MODIFICATION_ALLOWED_ERR =0;
const unsigned short HIERARCHY_REQUEST_ERR =1;
const unsigned short NOT_FOUND_ERR =2;
const unsigned short INVALID_ACCESS_ERR =3;
const unsigned short NAMESPACE_ERR =4;
const unsigned short TYPE_MISMATCH =5;
const unsigned short NOT_SUPPORTED_ERR =6;
const unsigned short SYNTAX_ERR =7;
const unsigned short INDEX_SIZE_ERR =8;
// application defined filter for use with searchDPFProperty
interface DPFPropertyFilter
{
boolean acceptDPFProperty(in DPFProperty dpfPropertyNode);
};
// DPFEvent extends DOM2 Event interface and adds to it methods to
// support event namespaces and to stop propagation of an event
// within the same event listener group as specified in DOM 3
interface DPFEvent : Event
{
readonly attribute DOMString namespaceURI;
// analogous to stopImmediatePropagation in DOM 3.
void stopImmediatePropagation();
// analogous to initEventNS in DOM 3
void initEventNS(in DOMString namespaceURIArg,
in DOMString eventTypeArg,
in boolean canBubbleArg,
in boolean cancelableArg);
};
// the DOM2 EventListener copied here for completeness
interface EventListener
{
void handleEvent(in Event event);
};
};
#endif // _DPFPROPERTY_IDL_
This section provides a brief informative illustration of how the Dynamic Properties Framework could operate.
The first example is based on location notifications provided by GPS that can be used to resolve the devices postal code location.
Step one is to initialize the GPS location property to set the format to a postal code and the update frequency to 20 seconds. The location update event is bound to ECMAScript code that reads the value and uses the DOM to write it as the content of a span element.
<?xml version="1.0"?>
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en"
xmlns:dpf="http://www.w3.org/2004/11/dpf"
xmlns:ev="http://www.w3.org/2001/xml-events">
<head>
<title>GPS location example</title>
<!--
Initialize GPS location property in Dynamic Properties Framework
to provide updated values every 20 seconds with the format
specified to be the postal code for the device's GPS location.
The mechanism used to provide these updates is hidden from
the application and might be based on a Web Service.
-->
<script type="text/javascript">
<![CDATA[
DPF.location.format="postal code";
DPF.location.updateFrequency="20s";
]]>
</script>
<!--
This is an event handler that listens for location update
events raised whenever the location property is updated.
The handler reads the value and sets it as the content
of the span element with id="location". The defer attribute
is used to prevent execution when document is first loaded.
-->
<script defer="defer" type="text/javascript"
ev:event="dpf:locationUpdate">
<![CDATA[
var field = document.getElementById("location");
var postalcode = DPF.location;
field.childNodes[0].nodeValue = postalcode;
]]>
</script>
</head>
<body>
<h1>Track your location as you walk</h1>
<p>Your current postal code is: <span id="location">(please
wait)</span></p>
</body>
</html>
In the second example, a Web page is shown that displays whether the battery level is high or low. It uses the elements defined by the Content Selection for Device Independence specification [DISelect] to select alternative XHTML markup according to the current battery level as accessed through the Dynamic Properties Framework component using an XPath expression.
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:dpf="http://www.w3.org/2004/11/dpf"
xmlns:sel="http://www.w3.org/2004/06/diselect">
<head>
<title>Battery check</title>
</head>
<body>
<sel:select>
<!-- battery level is a number between 0 and 100 -->
<sel:when sel:expr="dpf:component()/device/battery < 20">
<h1 class="alert">Low Battery</h1>
<p>You are running low on power!</p>
</sel:when>
<sel:otherwise>
<h1 class="alert">High Battery</h1>
<p>You have plenty of power!</p>
</sel:otherwise>
</sel:select>
</body>
</html>
This appendix contains the complete ECMAScript [ECMAScript] binding for the DPF interfaces.
The editors would like to recognize the contributions of the following members of the W3C Multimodal Interaction Group (listed in alphabetical order):
