This document defines the W3C XQuery 1.0 and XPath 2.0 Data Model, which is the data model of at least [XPath 2.0], [XSLT 2.0], and [XQuery], and any other specifications that reference it. This data model is based on the [XPath 1.0] data model and earlier work on an [XML Query Data Model]. This document is the result of joint work by the [XSL Working Group] and the [XML Query Working Group].
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This is a Public Working Draft for review by W3C Members and other interested parties. Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
The XQuery 1.0 and XPath 2.0 Data Model has been defined jointly by the XML Query Working Group and the XSL Working Group (both part of the XML Activity).
This is a Last Call Working Draft which consolidates changes and editorial improvements undertaken in response to feedback received during the previous Last Call publication which begin on 2 May 2003. A list of the Last Call issues addressed by the Working Groups is also available.
Comments on this document are due on 15 February 2004. Comments should be sent to the W3C mailing list public-qt-comments@w3.org. (archived at http://lists.w3.org/Archives/Public/public-qt-comments/) with “[DM]” at the beginning of the subject field.
Patent disclosures relevant to this specification may be found on the XML Query Working Group's patent disclosure page at http://www.w3.org/2002/08/xmlquery-IPR-statements and the XSL Working Group's patent disclosure page at http://www.w3.org/Style/XSL/Disclosures.html.
1 Introduction
2 Concepts
2.1 Terminology
2.2 Notation
2.2.1 Prefix Bindings
2.3 Node Identity
2.4 Document
Order
2.5 Types
3 Data Model Construction
3.1 Direct
Construction
3.2 Construction from an
Infoset
3.3 Construction from a
PSVI
3.3.1 Mapping PSVI Additions to Types
3.3.2 Mapping xsi:nil on Element Nodes
3.3.3 Storing xs:dateTime, xs:date, and xs:time Values in the
Data Model
3.3.4 Retreiving the Typed Value of xs:dateTime, xs:date,
and xs:time Values
4 Data Model Serialization
5 Accessors
5.1 base-uri
Accessor
5.2 node-kind
Accessor
5.3 node-name
Accessor
5.4 parent Accessor
5.5 string-value
Accessor
5.6 typed-value
Accessor
5.7 type Accessor
5.8 children
Accessor
5.9 attributes
Accessor
5.10 namespaces
Accessor
5.11 nilled Accessor
6 Nodes
6.1 Document Nodes
6.1.1 Overview
6.1.2 Accessors
6.1.3 Construction from an Infoset
6.1.4 Construction from a PSVI
6.2 Element Nodes
6.2.1 Overview
6.2.2 Accessors
6.2.3 Construction from an Infoset
6.2.4 Construction from a PSVI
6.3 Attribute
Nodes
6.3.1 Overview
6.3.2 Accessors
6.3.3 Construction from an Infoset
6.3.4 Construction from a PSVI
6.4 Namespace
Nodes
6.4.1 Overview
6.4.2 Accessors
6.4.3 Construction from an Infoset
6.4.4 Construction from a PSVI
6.5 Processing
Instruction Nodes
6.5.1 Overview
6.5.2 Accessors
6.5.3 Processing Instruction Information Items
6.5.4 Construction from a PSVI
6.6 Comment Nodes
6.6.1 Overview
6.6.2 Accessors
6.6.3 Comment Information Items
6.6.4 Construction from a PSVI
6.7 Text Nodes
6.7.1 Overview
6.7.2 Accessors
6.7.3 Construction from an Infoset
6.7.4 Construction from a PSVI
7 Atomic Values
7.1 New Datatypes
7.1.1 xdt:untypedAny
7.1.2 xdt:untypedAtomic
7.1.3 xdt:anyAtomicType
7.1.4 xdt:dayTimeDuration
7.1.5 xdt:yearMonthDuration
8 Sequences
A XML Information Set Conformance
B References
B.1 Normative
References
B.2 Other
References
C Glossary (Non-Normative)

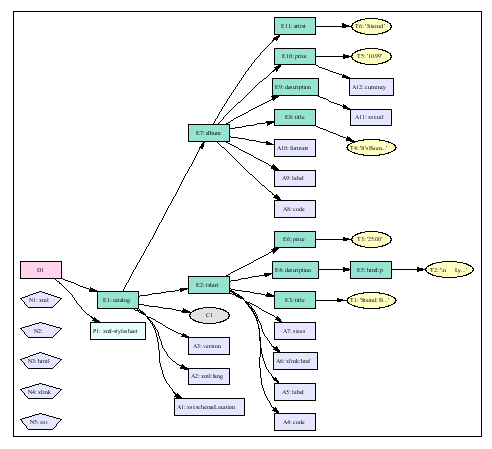

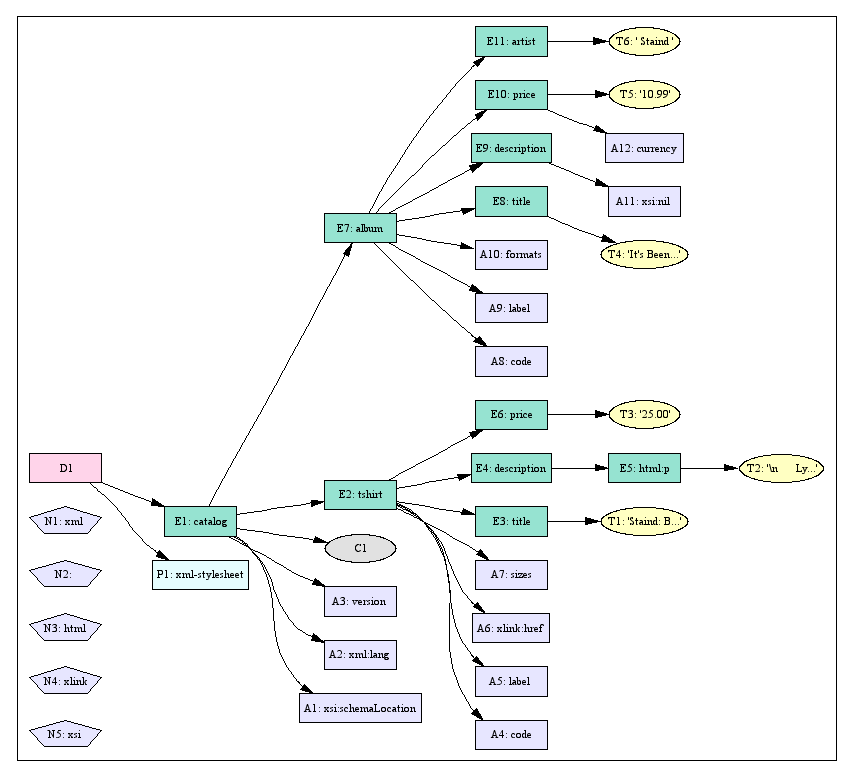

D Example (Non-Normative)
E Accessor Summary (Non-normative)
F Infoset Construction Summary
(Non-normative)
G PSVI Construction Summary
(Non-normative)
This document defines the XQuery 1.0 and XPath 2.0 Data Model, which is the data model of [XPath 2.0], [XSLT 2.0] and [XQuery]
The XQuery 1.0 and XPath 2.0 Data Model (henceforth "data model") serves two purposes. First, it defines precisely the information contained in the input to an XSLT or XQuery processor. Second, it defines all permissible values of expressions in the XSLT, XQuery, and XPath languages. A language is closed with respect to a data model if the value of every expression in the language is guaranteed to be in the data model. XSLT 2.0, XQuery 1.0, and XPath 2.0 are all closed with respect to the data model.
The data model is based on the [Infoset] (henceforth "Infoset"), but it requires the following new features to meet the [XPath 2.0 Requirements] and [XML Query Requirements]:
Support for XML Schema types. The XML Schema recommendations define features, such as structures ([Schema Part 1]) and simple data types ([Schema Part 2]), that extend the XML Information Set with precise type information.
Representation of collections of documents and of complex values. ([XML Query Requirements])
As with the Infoset, the XQuery 1.0 and XPath 2.0 Data Model specifies what information in the documents is accessible, but it does not specify the programming-language interfaces or bindings used to represent or access the data.
Every value in the data model is a sequence of zero or more items.
Every node is one of the seven kinds defined in 6 Nodes. Connected nodes form a tree that consists of a root node plus all the nodes that are reachable directly or indirectly from the root node via the dm:children, dm:attributes, and dm:namespaces accessors. Every node belongs to exactly one tree, and every tree has exactly one root node. [Definition: A tree whose root node is a document node is referred to as a document.] [Definition: A tree whose root node is some other kind of node is referred to as a fragment.]
An atomic value encapsulates an XML Schema atomic type and a corresponding value of that type. They are defined in 7 Atomic Values. A sequence is an ordered collection of nodes, atomic values, or any mixture of nodes and atomic values. A sequence cannot be a member of a sequence. A single item appearing on its own is modeled as a sequence containing one item. Sequences are defined in 8 Sequences.
Note: In XPath 1.0, the data model only defines nodes. The primitive data types (number, boolean, string, node-set) are part of the expression language, not the data model.
The data model can represent various values including not only the input and the output of a stylesheet or query, but all values of expressions used during the intermediate calculations. Examples include the input document or document repository (represented as a document node or a sequence of document nodes), the result of a path expression (represented as a sequence of nodes), the result of an arithmetic or a logical expression (represented as an atomic value), a sequence expression resulting in a sequence of items, etc.
In this document, we provide a precise definition of the properties of nodes in the XQuery 1.0 and XPath 2.0 Data Model, how they are accessed, and how they relate to values in the Infoset. We note wherever the XQuery 1.0 and XPath 2.0 Data Model differs from that of XPath 1.0.
This section outlines a number of general concepts that apply throughout this specification.
For a full glossary of terms, see C Glossary.
In this specification the words must, must not, should, should not, may and recommended are to be interpreted as described in [RFC 2119].
[Definition: In this specification, the term implementation-defined refers to a feature where the implementation is allowed some flexibility, and where the choices made by the implementation should be described in the vendor's documentation.]
[Definition: The term implementation-dependent refers to a feature where the behavior may vary from one implementation to another, and where the vendor is not expected to provide a full specification of the behavior.] (This might apply, for example, to limits on the size of data models that can be constructed.)
In all cases where this specification leaves the behavior implementation-defined or implementation-dependent, the implementation has the option of providing mechanisms that allow the user to influence the behavior.
Paragraphs labeled as Notes or described as examples are non-normative.
In addition to prose, we define a set of accessor functions to explain the data model. The accessors defined by the data model are shown with the prefix dm:. The prefix is always shown in italics to emphasize that these functions are abstract; they exist to explain the interface between the data model and specifications that rely on the data model: they are not and cannot be made accessible directly from the host language.
The signature of accessors is shown using the same style as [Functions and Operators]. For example:
dm:typed-value
($n
as
node()
) as
xdt:anyAtomicType*
Some accessors can accept or return sequences. The following notation is used to denote sequence values:
V* denotes a sequence of zero or more items of type V.
V? denotes a sequence of exactly zero or one items of type V.
V+ denotes a sequence of one or more items of type V.
In a sequence, V may be a node or an atomic value.
There are some functions in the data model that are partial functions. We use the occurrence indicators ? or * when specifying the return type of such functions. For example, a node may have one parent node or no parent. If the node argument has a parent, the dm:parent accessor returns a singleton sequence. If the node argument does not have a parent, it returns the empty sequence. The signature of dm:parent specifies that it returns an empty sequence or a sequence containing one node:
dm:parent
($n
as
node()
) as
node()?
This document relies on the [Infoset]. Information items and properties are indicated by the styles information item and [property], respectively.
This document frequently uses the term expanded-QName. [Definition: An expanded-QName is a pair of
values consisting of a namespace URI and a local name. They belong to the
value space of the XML Schema type xs:QName
. When this document
refers to xs:QName
we always mean the value space, i.e. a
namespace URI, local name pair (and not the lexical space referring to
constructs of the form prefix:local-name).]
Several prefixes are used throughout this document for notational convenience. The following bindings are assumed.
xs:
bound to
http://www.w3.org/2001/XMLSchema
xsi:
bound to
http://www.w3.org/2001/XMLSchema-instance
xdt:
bound to
http://www.w3.org/2003/11/xpath-datatypes
fn:
bound to
http://www.w3.org/2003/05/xpath-functions
In practice, any prefix that is bound to the appropriate URI may be used.
Because XML documents are tree-structured, we define the data model using conventional terminology for trees. The data model is a node-labeled, directed graph, in which each node has a unique identity. Every node in the data model is unique: identical to itself, and not identical to any other node.
This concept should not be confused with the concept of a unique ID, which is a unique name assigned to an element by the author to represent references using ID/IDREF correlation.
[Definition: A document order is defined among all the nodes used during a given query or transformation. Document order is a total ordering, although the relative order of some nodes is implementation-dependent. Informally, document order is the order returned by an in-order, depth-first traversal of the data model.] Document order is stable, which means that the relative order of two nodes will not change during the processing of a given query or transformation, even if this order is implementation-dependent.
Within a tree, document order satisfies the following constraints:
The root node is the first node.
The relative order of siblings is determined by their order in the XML representation of the tree. A node N1 occurs before a node N2 in document order if and only if the start of N1 occurs before the start of N2 in the XML representation.
Namespace nodes immediately follow the element node with which they are associated. The relative order of namespace nodes is stable but implementation-dependent.
Attribute nodes immediately follow the namespace nodes of the element with which they are associated. The relative order of attribute nodes is stable but implementation-dependent.
Element nodes occur before their children; children occur before following-siblings.
The relative order of nodes in distinct trees is stable but implementation-dependent, subject to the following constraint: If any node in tree T1 is before any node in tree T2, then all nodes in tree T1 are before all nodes in tree T2.
The data model uses expanded-QNames to represent the names of named types, which includes both the built-in types defined by [Schema Part 2] and named user-defined types declared in a schema and imported by a stylesheet or query. Since named types in XML Schema are global, an expanded-QName uniquely identifies such a type. The namespace name of the expanded-QName is the [target namespace] property of the type definition, and its local name is the [name] property of the type definition.
For anonymous types, the processor must construct an
anonymous type
name that is distinct from the name of every named type and the name of
every other anonymous type. [Definition: An
anonymous type name is an implementation defined, unique type name
provided by the processor for every anonymous type declared in an imported
schema.] Anonymous type names must be globally unique across
all anonymous types that are accessible to the processor. In the formalism of
this specification, we assume that the anonymous type names are
xs:QNames
, but in practice implementations are not required to
use xs:QNames
to represent the implementation-defined names of
anonymous types.
The data model associates type information with element nodes, attribute nodes and atomic values. The item is guaranteed to be a valid instance of that type.
When no type information exists for an element or an attribute node we frequently use the terminology "element with unknown type" or "attribute with unknown simple type".
The data model does not represent element or attribute declaration schema components, but it supports various type-related operations. The semantics of other operations, for example, checking if a particular instance of an element node has a given type is defined in [Formal Semantics].
In this section, we describe the constraints on data model construction.
The data model supports well-formed XML documents conforming to [Namespaces in XML]. Documents that are not well-formed are, by definition, not XML. XML documents that do not conform to [Namespaces in XML] are not supported (nor are they supported by [Infoset]).
In other words, the data model supports the following classes of XML documents:
Well-formed documents conforming to [Namespaces in XML],
DTD-valid documents conforming to [Namespaces in XML], and
W3C XML Schema-validated documents.
This document describes how to construct an instance of the data model from an [Infoset] or a Post Schema Validation Infoset (PSVI), the augmented infoset produced by an XML Schema validation episode.
An instance of the data model can also be constructed directly through application APIs, or from non-XML sources such as relational tables in a database.
The data model supports some kinds of values that are not supported by [Infoset]. Examples of these are well-formed document fragments and sequences of documents nodes. The data model also supports values that are not nodes. Examples of these are atomic values, sequences of atomic values, or sequences mixing nodes and atomic values. These are necessary to be able to represent the results of intermediate expressions in the data model during expression processing.
Although this document describes construction of a data model in terms of infoset properties, an infoset is not an absolutely necessary precondition for building an instance of the data model.
There are no constraints on how an instance of the data model may be constructed directly, save that the resulting data model instance must satisfy all of the constraints described in this document.
An instance of the data model can be constructed from an [Infoset]. A data model can only be constructed from infosets that satisfy the following general constraints:
All general and external parsed entities must be fully expanded. The Infoset must not contain any unexpanded entity reference information items.
The infoset must provide all of the properties identified as "required" in this document. The properties identified as "optional" may be used, if they are present. All other properties are ignored.
Constructing and instance of the data model from an information set must be consistent with the description provided for each node type.
An instance of the data model can be constructed from a PSVI that has been strictly, laxly, or skip validated or validated using any combination assessment modes. Constructing an instance of the data model from a PSVI must be consistent with the description provided in this section and with the description provided for each node type.
[Definition: An incompletely validated document is an XML document that has a corresponding schema but whose schema-validity assessment has resulted in one or more element or attribute information items being assigned values other than 'valid' for the [validity] property in the PSVI.]
The data model supports incompletely validated documents. Elements and attributes that are not valid are treated as having unknown types.
The most significant difference between Infoset construction and PSVI construction occurs in the area of type assignment. Other differences can also arise from schema processing: default attribute and element values may be provided, whitespace normalization of element content may occur, and the user-supplied lexical form of elements and attributes with atomic types may be lost.
A PSVI element or attribute information item may have a [validity] property. The [validity] property may be "valid", "invalid", or "notKnown" and reflects the outcome of schema-validity assessment. The only information that can be inferred from an invalid or not known validity value is that the information item is well-formed, therefore, we must associate very general type information with the element or attribute node if it is not known to be valid.
The precise definition of the type of an element or attribute information item depends on the properties of the Infoset or PSVI. In a PSVI, XML Schema only guarantees the existence of either the [type definition] property, or the [type definition namespace], [type definition name] and [type definition anonymous] properties. If the type definition refers to a union type, there are further properties defined, that refer to the type definition which actually validated the item's normalized value. These properties are either the [member type definition], or the [member type definition namespace], [member type definition name] and [member type definition anonymous] properties. If these are available, the type of an element or attribute will refer to the member type that actually validated the schema normalized value.
If the [validity] property exists and is "valid", the type of an element or attribute information item is represented by an expanded-QName whose namespace and local name correspond to the first applicable items in the following list:
If [member type definition] exists and its {name} property is present:
The {target namespace} and {name} properties of the [member type definition] property.
If the [type definition] property exists and its {name} property is present:
The {target namespace} and {name} properties of the [type definition] property.
If [member type definition anonymous] exists:
If it is false: the [member type definition namespace] and the [member type definition name].
Otherwise, the namespace and local name of the appropriate anonymous type name.
If [type definition anonymous] exists:
If it is false: the [type definition namespace] and the [type definition name]
Otherwise, the namespace and local name of the appropriate anonymous type name.
If the [validity] property does not exist or is not
"valid", the type of an element is xdt:untypedAny
and
the type of an attribute is xdt:untypedAtomic
.
xsi:nil
on Element Nodes[Schema Part 2] introduced a mechanism for
signaling that an element should be accepted as valid when it has no content
despite a content type which does not require or even necessarily allow empty
content. That mechanism is the xsi:nil
attribute.
The data model exposes this special semantic in the nilled property.
If the [validity] property exists on an element node and is "valid" then if the [nil] property exists and is true, then nilled property is "true". In all other cases, including all cases where schema validity assessment was not attempted or did not succeed, the nilled property is "false".
xs:dateTime
, xs:date
, and xs:time
Values in the Data Model[Schema Part 2] permits
xs:dateTime
, xs:date
, and xs:time
values both with and without timezones and therefore only specifies a partial
ordering between date and time values. In the data model, it is necessary to
preserve timezone information.
In order to achieve this goal, xs:dateTime
,
xs:date
, and xs:time
values must be stored with
care. If the lexical representation of the value includes a timezone, it is
converted to UTC as defined by [Schema Part 2] and
the timezone in the lexical representation is converted to a
xdt:dayTimeDuration
value. Implementations must
keep track of both these values for each xs:dateTime
,
xs:date
, and xs:time
stored.
Lexical representations that do not have a timezone are assumed to be in UTC for the purposes of normalization only. An empty sequence is used for their timezone.
Thus, for the purpose of validation, "2003-01-02T11:30:00-05:00" is converted to "2003-01-02T16:30:00Z", but in the data model it must be stored as as "(2003-01-02T16:30:00Z, -PT5H0M)". The value "2003-01-16T16:30:00" is stored as "(2003-01-02T16:30:00Z, ())" because it has no timezone.
xs:dateTime
, xs:date
,
and xs:time
ValuesFor xs:dateTime
, xs:date
and
xs:time
, the typed value is the atomic value that is determined
from its stored form as follows:
If the timezone component is not the empty sequence, then the value contains the time component, normalized to the timezone specified by the timezone component, as well as the timezone component. The stored values "(2003-01-02T16:30:00Z, -PT5H0M)" produce the value "2003-01-02T11:30:00-05:00".
If the timezone component is the empty sequence, then the time component without any indication of timezone. The stored values "(2003-01-02T16:30:00Z, ())" produce the value "2003-01-02T16:30:00".
Constructing an Infoset from an instance of the data model, for example in order to perform schema validity assessment, is accomplished by serializing the document and parsing it. Implementations are not required to implement this process literally, but they must obtain the same result as if they had.
Serialization of the data model is governed by [Serialization].
A set of accessors is defined on all seven kinds of nodes, see 6 Nodes. Some accessors return a constant empty sequence on certain node kinds. Some node kinds have additional accessors that are not summarized here.
In order for applications to be able to operate on instances of the data model, the model must expose properties of the items it contains. The data model does this by defining a family of accessor functions. These are not functions in the literal sense, they are not available for users or applications to call directly, rather they are descriptions of the interface that an implementation of the data model must expose to applications. Functions and operators available to end-users are described in [Functions and Operators].
base-uri
Accessordm:base-uri
($n
as
node()
) as
xs:anyURI?
The dm:base-uri accessor returns the base URI of a node as a sequence containing zero or one URI reference. For more information about base URIs, see [XML Base].
It is defined on all seven node types.
node-kind
Accessordm:node-kind
($n
as
node()
) as
xs:string
The dm:node-kind accessor returns a string identifying the kind of node. It will be one of “document”, “element”, “attribute”, “processing-instruction”, “comment”, or “text”.
It is defined on all seven node types.
node-name
Accessordm:node-name
($n
as
node()
) as
xs:QName?
The dm:node-name accessor returns the name of the node
as a sequence of zero or one xs:QName
s.
It is defined on all seven node types.
parent
Accessordm:parent
($n
as
node()
) as
node()?
The dm:parent accessor returns the parent of a node as a sequence containing zero or one nodes.
It is defined on all seven node types.
string-value
Accessordm:string-value
($n
as
node()
) as
xs:string
The dm:string-value accessor returns the string value of a node.
It is defined on all seven node types.
typed-value
Accessordm:typed-value
($n
as
node()
) as
xdt:anyAtomicType*
The dm:typed-value accessor returns the typed-value of the node as a sequence of zero or more atomic values.
It is defined on all seven node types.
type
Accessordm:type
($n
as
node()
) as
xs:QName?
The dm:type accessor returns the name of the type of a
node as a sequence of zero or one xs:QName
s.
It is defined on all seven node types.
children
Accessordm:children
($n
as
node()
) as
node()*
The dm:children accessor returns the children of a node as a sequence containing zero or more nodes.
It is defined on all seven node types.
attributes
Accessordm:attributes
($n
as
node()
) as
attribute()*
The dm:attributes accessor returns the attributes of a node as a sequence containing zero or more attribute nodes.
It is defined on all seven node types.
namespaces
Accessordm:namespaces
($n
as
node()
) as
namespace()*
The dm:namespaces accessor returns the namespaces associated with a node as a sequence containing zero or more namespace nodes.
It is defined on all seven node types.
nilled
Accessordm:nilled
($n
as
node()
) as
xs:boolean?
The dm:nilled accessor returns true if the node is "nilled", see 3.3.2 Mapping xsi:nil on Element Nodes.
It is defined on all seven node types, but always returns the empty sequence for all nodes except elements.
[Definition: The category of Node values contains seven distinct kinds of nodes: document, element, attribute, text, namespace, processing instruction, and comment.] The seven kinds of nodes are defined in the following subsections.
Document nodes encapsulate XML documents. Documents have the following properties:
base-uri, possibly empty.
children, possibly empty.
unparsed-entities, possibly empty.
document-uri, possibly empty.
Document nodes must satisfy the following constraints.
Every document node must have a unique identity, distinct from all other nodes.
The children must consist exclusively of element, processing instruction, comment, and text nodes if it is not empty. Attribute, namespace, and document nodes can never appear as children
The sequence of nodes in the children property is ordered and must be in document order.
The children property must not contain two consecutive text nodes.
If a node N is a child of a document node D, then the parent of N must be D.
If a node N has a parent document node D, then N must be among the children of D.
The children property must not contain two nodes with the same identity.
In the [Infoset], a document information item must have at least one child, its children must consist exclusively of element information items, processing-instruction information items and comment information items, and exactly one of the children must be an element information item. This data model is more permissive: a document node may be empty, it may have more than one element node as a child, and it also permits text nodes as children.
Implementations that support DTD processing and access to the unparsed entity accessors use the unparsed-entities property to associate information about an unordered collection of unparsed entities with a document node.
Returns the value of the base-uri property if it exists and is not
empty, otherwise returns ()
.
Returns "document
".
Returns ()
.
Returns ()
Returns the concatenation of the string-values of all its text node descendants in document order.
Returns dm:string-value of the node as an
xdt:untypedAtomic
value.
Returns ()
Returns the value of the children property.
Returns ()
Returns ()
Returns ()
Three additional accessors are defined on document nodes:
dm:unparsed-entity-system-id ( |
$node |
as document() , |
$entityname |
as xs:string ) as xs:string? |
The dm:unparsed-entity-system-id accessor returns the
system identifier of an unparsed external entity declared in the specified
document. If no entity with the name specified in $entityname
exists, or if the entity is not an external unparsed entity, the empty
sequence is returned.
dm:unparsed-entity-public-id ( |
$node |
as document() , |
$entityname |
as xs:string ) as xs:string? |
The dm:unparsed-entity-public-id accessor returns the
public identifier of an unparsed external entity declared in the specified
document. If no entity with the name specified in $entityname
exists, or if the entity is not an external unparsed entity, or if the entity
has no public identifier, the empty sequence is returned.
dm:document-uri
($node
as
document()
) as
xs:string?
The dm:document-uri accessor returns the absolute URI of the resource from which the document node was constructed, if the absolute URI is available. If there is no URI available, or if it cannot be made absolute when the data model is constructed, the empty sequence is returned.
For example, if a collection of documents is returned by the
fn:collection
function, the dm:document-uri may serve to distinguish between them
even though each has the same dm:base-uri.
The document information item is required. A Document Node is constructed for each document information item.
The following infoset properties are required: [children] and [base URI].
The following infoset properties are optional: [unparsed entities].
Document node properties are derived from the infoset as follows:
The value of the [base URI] property.
The sequence of nodes constructed from the information items found in the [children] property.
For each element, processing instruction, comment, and maximal sequence of adjacent character information items found in the [children] property, a corresponding element, processing instruction, comment, or text node is constructed and that sequence of nodes is used as the value of the children property.
If present among the [children], the [document type declaration] information item is ignored.
If the [unparsed entities] property is present and is not the empty set, the values of the unparsed entity information items must be used to support the dm:unparsed-entity-system-id and dm:unparsed-entity-public-id accessors.
The internal structure of the values of the unparsed-entities property is implementation defined.
Element nodes encapsulate XML elements. Elements have the following properties:
base-uri, possibly empty.
node-name
parent, possibly empty
type
children, possibly empty
attributes, possibly empty
namespaces, possibly empty
nilled
Element nodes must satisfy the following constraints.
Every element node must have a unique identity, distinct from all other nodes.
The children must consist exclusively of element, processing instruction, comment, and text nodes if it is not empty. Attribute, namespace, and document nodes can never appear as children
The sequence of nodes in the children property is ordered and must be in document order.
The children property must not contain two consecutive text nodes.
The children property must not contain two nodes with the same identity.
The attributes of an element must have distinct
xs:QName
s.
The namespace nodes of an element must have distinct names. At most one of the namespace nodes of an element has no name (this is the default namespace).
If a node N is a child of an element E, then the parent of N must be E.
Exclusive of attribute and namespace nodes, if a node N has a parent element E, then N must be among the children of E. (Attribute and namespace nodes have a parent, but they do not appear among the children of their parent.)
The data model permits element nodes without parents (to represent partial results during expression processing, for example). Such element nodes must not appear among the children of any other node.
If an attribute node A has a parent element E, then A must be among the attributes of E.
The data model permits attribute nodes without parents. Such attribute nodes must not appear among the attributes of any element node.
If a namespace node N has a parent element E, then N must be among the namespaces of E.
The data model permits namespace nodes without parents. Such namespace nodes must not appear among the namespaces of any element node.
The data model does not enforce a constraint that the namespaces of an
element must include namespace nodes for each of the namespace URIs used in
the element name and the names of its attributes, or of namespace URIs used
in the content of elements and attributes of type xs:QName
.
Applications of the data model (such as XSLT and XQuery) may enforce such
constraints in particular circumstances, but these constraints are not part
of the data model.
Returns the value of the base-uri property if it exists and is not
empty. Otherwise, if the element has a parent, returns the value of the
dm:base-uri of its parent; otherwise, returns
()
.
Returns "element
".
Returns the value of the node-name property.
Returns the value of the parent property.
Returns the string value calculated as follows:
If the element has a type of xdt:untypedAny
, a complex type
with complex content, or a complex type with mixed content, returns the
concatenation of the string-values of all its text node descendants in
document order. It returns ""
if the element has no text node
descendants.
If the element has a complex type with empty content, returns
""
.
If the element has a simple type or a complex type with simple content:
If the element type is xs:string
, or a type derived from
xs:string
, returns that string.
If the element type is xs:anyURI
, returns the characters of
the URI.
If the element type is xs:QName
returns the value calculated
as follows:
If the value has no namespace URI and the in-scope namespaces map the default namespace to any namespace URI, then an error is raised ("default namespace is defined").
If the value has a namespace URI, then there must be at least one prefix mapped to that URI in the in-scope namespaces. If there is no such prefix, an error is raised ("no prefix defined for namespace"). If there is more than one such prefix, the one that is chosen is implementation dependent.
If no error occurs, returns a string with the lexical form of a
xs:QName
using the prefix chosen as described above, and the
local name of the value.
If the element type is xs:dateTime
, xs:date
, or
xs:time
, returns the original lexical representation of the
typed value recovered as follows: if an explicit timezone was present, the
normalized value is adjusted using the explicit timezone; if an explicit
timezone was not present, the Z
is dropped from the normalized
value. The normalized value and the explicit timezone, if present, are
converted separately to xs:string
and concatenated to yield the
string value.
In all other cases, returns the concatenation of the string-values of all its text node descendants in document order.
Returns the typed value calculated as follows:
If the element has a type of xdt:untypedAny
or a complex type
with mixed content, returns the string value of the node as an instance of
xdt:untypedAtomic
.
If the element has a simple type or a complex type with simple content, returns a sequence of zero or more atomic values derived from the string-value of the node and its type in a way that is consistent with XML Schema validation.
For xs:dateTime
, xs:date
and
xs:time
, the typed value is the atomic value that is determined
from its tuple representation as described in 3.3.4 Retreiving the Typed Value of xs:dateTime,
xs:date, and xs:time Values.
If the node has a complex type with empty content, returns
()
.
If the node has a complex type with complex content, raises a type error, which may be handled by the host language.
Returns the value of the type property.
Returns the value of the children property.
Returns the value of the attributes property. The order of attribute nodes is stable but implementation dependent.
Returns the value of the namespaces property. The order of namespace nodes is stable but implementation dependent.
Returns the value of the nilled property.
The element information items are required. An Element Node is constructed for each element information item.
The following infoset properties are required: [namespace name], [local name], [children], [attributes], [in-scope namespaces], [base URI], and [parent].
Element node properties are derived from the infoset as follows:
The value of the [base URI] property.
An xs:QName
constructed from the [local name] property
and the [namespace name] property
The node that corresponds to the value of the [parent] property.
All element nodes constructed from an infoset have the type
xdt:untypedAny
.
The sequence of nodes constructed from the information items found in the [children] property.
For each element, processing instruction, comment, and maximal sequence of adjacent character information items found in the [children] property, a corresponding Element, Processing Instruction, Comment, or Text node is constructed and that sequence of nodes is used as the value of the children property.
Because the data model requires that all general entities be expanded, there will never be unexpanded entity reference information item children.
A set of Attribute Nodes constructed from the attribute information
items appearing in the [attributes] property. This includes all of
the "special" attributes (xml:lang
, xml:space
,
xsi:type
, etc.) but does not include namespace declarations
(because they are not attributes).
A set of Namespace Nodes constructed from the namespace information items appearing in the [in-scope namespaces] property.
Implementations may ignore namespace information
items for namespaces which do not appear in the expanded QName of any element or attribute
information item. This can arise when xs:QName
s are used in
content.
All element nodes constructed from an infoset have a nilled property of "false".
The following Element Node properties are effected by PSVI properties.
If the [validity] property exists and is “valid” on this element and all of its ancestors, type is assigned as described in 3.3.1 Mapping PSVI Additions to Types
Otherwise, xdt:untypedAny
.
If the [schema normalized value] PSVI property exists, the processor may, depending on the implementation, use a sequence of nodes containing the processing instruction and comment nodes corresponding to the processing instruction and comment information items found in the [children] property, plus a single text node whose string value is the the [schema normalized value] for the children property. The order of these nodes is implementation defined.
Otherwise, the sequence of nodes constructed from the information items found in the [children] property.
For each element, processing instruction, comment, and maximal sequence of adjacent character information items found in the [children] property, a corresponding element, processing instruction, comment, or text node is constructed and that sequence of nodes is used as the value of the children property.
Because the data model requires that all general entities be expanded, there will never be unexpanded entity reference information item children.
[Schema Part 2] introduced a mechanism for signaling that an element is valid even when it has no content despite a content type which does not allow empty content. The data model exposes this special semantic in the nilled property.
If the [validity] property exists on an element node and is "valid" then if the [nil] property exists and is true, then nilled property is "true". In all other cases, including all cases where schema validity assessment was not attempted or did not succeed, the nilled property is "false".
All other properties have values that are consistent with construction from an infoset.
Attribute nodes represent XML attributes. Attributes have the following properties:
node-name
string-value
parent, possibly empty
type
Attribute nodes must satisfy the following constraints.
Every attribute node must have a unique identity, distinct from all other nodes.
If a attribute node A has a parent element E, then A must be among the attributes of E.
The data model permits attribute nodes without parents (to represent partial results during expression processing, for example). Such attributes must not appear among the attributes of any element node.
For convenience, the element node that owns this attribute is called its "parent" even though an attribute node is not a "child" of its parent element.
If the attribute has a parent, returns the value of the dm:base-uri of its parent; otherwise it returns
()
.
Returns "attribute
".
Returns the value of the node-name property.
Returns the value of the parent property.
Returns the value calculated as follows:
If the attribute type is xdt:untypedAtomic
,
xs:string
, or a type derived from xs:string
,
returns that string.
If the attribute type is xs:anyURI
, returns the characters of
the URI.
If the attribute type is xs:QName
returns the value
calculated as follows:
If the value has no namespace URI, then an error is raised ("default namespace is defined") if the in-scope namespaces map the default namespace to any namespace URI.
If the value has a namespace URI, then there must be at least one prefix mapped to that URI in the in-scope namespaces. If there is no such prefix, an error is raised ("no prefix defined for namespace"). If there is more than one such prefix, the one that is chosen is implementation dependent.
If no error occurs, returns a string with the lexical form of a
xs:QName
using the prefix chosen as described above, and the
local name of the value.
If the attribute type is xs:dateTime
, xs:date
,
or xs:time
, returns the original lexical representation
recovered as follows: if an explicit timezone was present, the normalized
value is adjusted using the explicit timezone; if an explicit timezone was
not present, the Z
is dropped from the normalized value. The
normalized value and the explicit timezone, if present, are converted
separately to xs:string
and concatenated to yield the string
value.
Returns the value calculated as follows:
If the attribute has a type of xdt:untypedAtomic
, returns the
string value of the node as an instance of
xdt:untypedAtomic
.
If the attribute has a simple type, returns a sequence of zero or more atomic values derived from the string-value of the node and its type in a way that is consistent with XML Schema validation.
For xs:dateTime
, xs:date
and
xs:time
, the typed value is the atomic value that is determined
from its tuple representation as described in 3.3.4 Retreiving the Typed Value of xs:dateTime,
xs:date, and xs:time Values.
Returns the value of the type property.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
The attribute information items are required. An attribute node is constructed for each attribute information item.
The following infoset properties are required: [namespace name], [local name], [normalized value], [attribute type], and [owner element].
Attribute node properties are derived from the infoset as follows:
An xs:QName
constructed from the [local name] property
and the [namespace name] property
The [normalized value] property.
The element node that corresponds to the value of the [owner element] property.
If the [attribute type] property has one of the following values:
ID
, IDREF
, IDREFS
,
ENTITY
, ENTITIES
, NMTOKEN
, or
NMTOKENS
, an xs:QName
with the [attribute
type] as the local name and
"http://www.w3.org/2001/XMLSchema
" as the namespace name.
Otherwise, xdt:untypedAtomic
.
The following Attribute Node properties are effected by PSVI properties.
The [schema normalized value] PSVI property if that exists, otherwise
the [normalized value] property.
If the [validity] property does not exist on this node or any of its ancestors, Infoset processing applies.
Note that this processing is only performed if no part of the subtree that contains the node was schema validated. In particular, Infoset-only processing does not apply to subtrees that are "skip" validated in a document.
If the [validity] property exists and is "valid", type is assigned as described in 3.3.1 Mapping PSVI Additions to Types
Otherwise, xdt:untypedAtomic
.
All other properties have values that are consistent with construction from an infoset.
Note: attributes from the XML Schema instance namespace,
"http://www.w3.org/2001/XMLSchema-instance
",
(xsi:schemaLocation
, xsi:type
, etc.) appear as
ordinary attributes in the data model. They will be validated appropriately
by schema processors and will simply appear as attributes of type
xs:anySimpleType
if they haven't been schema validated.
Namespace nodes encapsulate XML namespaces. Namespaces have the following properties:
prefix, possibly empty.
uri
parent, possibly empty
Namespace nodes must satisfy the following constraints.
Every namespace node must have a unique identity, distinct from all other nodes.
If a namespace node N has a parent element E, then N must be among the namespaces of E.
The data model permits namespace nodes without parents, see below.
In XPath 1.0, namespace nodes were directly accessible by applications, by means of the namespace axis. In XPath 2.0 the namespace axis is deprecated, and it is not available at all in XQuery 1.0. XPath 2.0 implementations are not required to expose the namespace axis, though they may do so if they wish to offer backwards compatibility.
The information held in namespace nodes is instead made available to applications using functions defined in [Functions and Operators]. Some properties of namespace nodes are not exposed by these functions: in particular, properties related to the identity of namespace nodes, their parentage, and their position in document order. Implementations that do not expose the namespace axis can therefore avoid the overhead of maintaining this information.
Implementations that expose the namespace axis must
provide unique namespace nodes for each element. Each element has an
associated set of namespace nodes, one for each distinct namespace prefix
that is in scope for the element (including the xml
prefix,
which is implicitly declared by [Namespaces in
XML] and one for the default namespace if one is in scope for the
element. The element is the parent of each of these namespace nodes; however,
a namespace node is not a child of its parent element. Elements never share
namespace nodes.
Returns ()
.
Returns "namespace
".
If the implementation preserves information about the prefixes declared,
returns an xs:QName
with the value of the prefix property
in the local-name and an empty namespace name, otherwise returns
()
.
Returns the value of the parent property.
Returns the value of the uri property.
Returns the dm:string-value of the node as an
xdt:untypedAtomic
value.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
The namespace information items are required.
The following infoset properties are required: [prefix], [namespace name].
Namespace node properties are derived from the infoset as follows:
The [prefix] property.
The [namespace name] property.
The element to which this Namespace Node applies, if the implementation exposes any mechanism for accessing the dm:parent accessor of Namespace Nodes.
Processing instruction nodes encapsulate XML processing instructions. Processing instructions have the following properties:
target
content
base-uri, possibly empty
parent, possibly empty
Processing instruction nodes must satisfy the following constraints.
Every processing instruction node must have a unique identity, distinct from all other nodes.
The target must be an NCName
.
Returns the value of the base-uri property if it exists and is not
empty. Otherwise, if the processing instruction has a parent, returns the
value of the dm:base-uri of its parent; otherwise, returns
()
.
Returns "processing-instruction
".
Returns an xs:QName
with the value of the target
property in the local-name and an empty namespace name.
Returns the value of the parent property.
Returns the value of the content property.
Returns the dm:string-value of the processing instruction as a
xs:string
value.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
The processing instruction information items are optional.
Although the data model is able to represent processing instructions, it may be unnecessary or even onerous for some applications to do so. Applications should construct nodes in the data model to represent processing instructions. The decision whether or not to represent processing instructions is considered outside the scope of the data model, consequently the data model makes no attempt to control or identify if any or all processing instructions are ignored.
A Processing Instruction Node is constructed for each processing instruction information item that is not ignored.
The following infoset properties are required: [target], [content], [base URI], and [parent].
Processing instruction node properties are derived from the infoset as follows:
The value of the [target] property.
The value of the [content] property.
The value of the [base URI] property.
The node corresponding to the value of the [parent] property.
There are no processing instruction nodes for processing instructions that are children of a document type declaration information item.
Comment nodes encapsulate XML comments. Comments have the following properties:
content
parent
Comment nodes must satisfy the following constraints.
Every comment node must have a unique identity, distinct from all other nodes.
The string "--" must not occur within the content.
If the comment has a parent, returns the value of the dm:base-uri of its parent; otherwise, returns
()
.
Returns "comment
".
Returns ()
.
Returns the value of the parent property.
Returns the value of the content property.
Returns the dm:string-value of the comment as an
xs:string
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
The comment information items are optional.
Although the data model is able to represent comments, it may be unnecessary or even onerous for some applications to do so. Applications should construct nodes in the data model to represent comments. The decision whether or not to represent comments is considered outside the scope of the data model, consequently the data model makes no attempt to control or identify if any or all comments are ignored.
A Comment Node is constructed for each comment information item that is not ignored.
The following infoset properties are required: [content] and [parent].
Comment node properties are derived from the infoset as follows:
The value of the [content] property.
The node corresponding to the value of the [parent] property.
There are no comment nodes for comments that are children of a document type declaration information item.
Text nodes encapsulate XML character content. Text has the following properties:
content
parent
Text nodes must satisfy the following constraint:
A text node must not contain the empty string as its content.
In addition, document and element nodes impose the constraint that two consecutive text nodes can never occur as adjacent siblings.
If the text node has a parent, returns the value of the dm:base-uri of its parent; otherwise, returns
()
.
Returns "text
".
Returns ()
.
Returns the value of the parent property.
Returns the value of the content property.
Returns the dm:string-value of the node as an
xdt:untypedAtomic
value.
Returns xdt:untypedAtomic
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
The character information items are required. A Text Node is constructed for each maximal sequence of character information items.
The following infoset properties are required: [character code] and [parent].
The following infoset properties are optional: [element content white space].
A sequence of character information items is maximal if it satisfies the following constraints:
All of the information items in the sequence have the same parent.
The sequence consists of adjacent character information items uninterrupted by other types of information item.
No other such sequence exists that contains any of the same character information items and is longer.
Text node properties are derived from the infoset as follows:
A string comprised of characters that correspond to the [character code] properties of each of the character information items. Applications may ignore character information items for which [element content white space] exists and is "true".
Applications may construct text nodes in the data model to represent insignificant white space. This decision is considered outside the scope of the data model, consequently the data model makes no attempt to control or identify if any or all insignificant white space is ignored.
If insignificant white space is not ignored, it is treated exactly like any other character information item. After the data model has been constructed, there is no accessor which directly identifies insignificant white space. (Applications with access to type information may be able to determine if white space is significant or not.)
Regardless of insignificant white space handling, the content of the text node is not necessarily W3C normalized as described in the [Character Model]. It is the responsibility of data producers to provide appropriately normalized text, and the responsibility of programmers to make sure that operations do not de-normalize text.
The node corresponding to the value of the [parent] property.
[Definition: An atomic value is a value in the value space of an atomic type labeled with that atomic type.] [Definition: An atomic type is a primitive simple type or a type derived by restriction from another atomic simple type. Types derived by list or union are not atomic.]
There are 21 primitive atomic types, the 19 defined in Section 3.2
Primitive datatypesXS2 of [Schema Part 2] and xdt:untypedAtomic and
xdt:anyAtomicType. The “xdt:
” types,
including the atomic types xdt:dayTimeDuration and
xdt:yearMonthDuration, derived by restriction from
xs:duration
, are described below.
The value space of the atomic values is the union of the value spaces of the atomic types. This value space clearly includes those atomic values whose type is primitive, but it also includes those whose type is derived by restriction, as derivation by restriction always limits the value space.
Implementors may extend the set of types available. The value space of those types, as well as the behavior of those types when used in expressions, is implementation defined.
An XML Schema simple type definition has a [variety] which may be atomic, union, or list.
The value of a node whose type is an atomic type is represented as an atomic value of that type.
The value of a node whose type is a union type is represented by the appropriate value for the appropriate member type of the union type. If the member type is an atomic type, the value is represented as an atomic value of that type. If the member type is a list type, the value is represented as a sequence of atomic values whose type is the item type of the list type. The union type information is lost and only the specific type of the actual item is retained.
The value of a node whose type is a list type whose item type is an atomic type is represented by a sequence of atomic values whose type is the item type.
The value of a node whose type is a list type whose item type is a union type is represented by a sequence of atomic values, each of whose type is one of the member types of the union type. The union type information is lost and only the specific types of each individual item is retained.
An atomic value can be constructed from the value's lexical
representation. Given a string and an atomic type, the atomic value is
constructed in such a way as to be consistent with validation. If the string
does not represent a valid value of the type, an error is raised. When
xs:untypedAtomic
is specified as the type, no validation takes
place. The details of the construction are described in Section 5
Constructor FunctionsFO and the related
Section 17
CastingFO section of [Functions and Operators].
A string value can be constructed from an atomic value. Such a value is constructed by converting the atomic value to its string representation as described in Section 17 CastingFO. Using the canonical lexical representation for atomic values may not always be compatible with XPath 1.0. These and other backwards incompatibilities are described in Section H Backwards Compatibility with XPath 1.0 (Non-Normative)XP.
The abstract complex type xdt:untypedAny
is a subtype of
xs:anyType
and serves as a special type annotation to indicate
elements that have not been validated by a XML Schema or a DTD or that have
received a type annotation of xs:anyType
in the PSVI.
This datatype cannot be used in [Schema Part 1]
element declarations, nor can it be used as a base for user-defined complex
types. It can be used in the [XPath 2.0] SequenceType
XP production (for example in a function signature)
to specify the required type of an element. This datatype resides in the
namespace http://www.w3.org/2003/11/xpath-datatypes
.
The abstract atomic type xdt:untypedAtomic
is a subtype of
xdt:anyAtomicType
and serves as a special type annotation to
indicate elements or attributes that have not been validated by a XML Schema
or DTD, or that have received a type annotation of
xs:anySimpleType
in the PSVI. It is also used as the type of the
typed value of such nodes, and of text nodes.
This datatype cannot be used in [Schema Part 1]
element or attribute declarations, nor can it be used as a base for
user-defined atomic types, an item type for user-defined list types, or a
member type of user-defined union types. It can be used in the [XPath 2.0] SequenceType
XP production to define a required type (for
example in a function signature), to indicate that only an untyped atomic
value is acceptable. This datatype resides in the namespace
http://www.w3.org/2003/11/xpath-datatypes
.
The abstract simple type xdt:anyAtomicType
is a subtype of
xs:anySimpleType
and is the base type for all the primitive
atomic types described in [Schema Part 2], and for
xdt:untypedAtomic
.
This datatype cannot be used in [Schema Part 1]
element or attribute declarations, nor can it be used as a base for
user-defined atomic types, an item type for user-defined list types, or a
member type of user-defined union types. It can be used in the [XPath 2.0] SequenceType
XP production to define a required type (for
example in a function signature), to indicate that any atomic value is
acceptable. This datatype resides in the namespace
http://www.w3.org/2003/11/xpath-datatypes
.
[Definition: A sequence is an ordered collection of zero or more items.] [Definition: An item may be a node or an atomic value], i.e. a sequence may contain nodes, atomic values, or any mixture of nodes and atomic values. When a node is added to a sequence its identity remains the same. Consequently a node may occur in more than one sequence and a sequence may contain duplicate items.
An important characteristic of the data model is that there is no distinction between an item (a node or an atomic value) and a singleton sequence containing that item. An item is equivalent to a singleton sequence containing that item and vice versa.
Sequences never contain other sequences; if sequences are combined, the result is always a “flattened” sequence. In other words, appending “(d e)” to “(a b c)” produces a sequence of length 5: “(a b c d e)”. It does not produce a sequence of length 4: “(a b c (d e))”, such a nested sequence never occurs.
Note: Sequences replace node-sets from XPath 1.0. In XPath 1.0, node-sets do not contain duplicates. In generalizing node-sets to sequences in XPath 2.0, duplicate removal is provided by functions on node sequences.
A collection of documents is represented in the data model as a sequence of document nodes.
Equality comparison of sequences is performed by comparing the items of the sequences. Whereas you can compare the identity of two nodes, you cannot compare the identity of two sequences; you can only determine whether or not they contain the same members.
This specification conforms to the XML Information Set [Infoset]. The following information items must be exposed by the infoset producer to construct a data model:
The Document Information Item with [base URI] and [children] properties.
Element Information Items with [base URI], [children], [attributes], [in-scope namespaces], [local name], [namespace name], [parent] properties.
Attribute Information Items with [namespace name], [local name], [normalized value], [attribute type], and [owner element] properties.
Character Information Items with [character code] and [parent] properties.
Processing Instruction Information Items with [base URI], [target], [content] and [parent] properties.
Comment Information Items with [content] and [parent] properties.
Namespace Information Items with [prefix] and [namespace name] properties.
Other information items and properties made available by the Infoset processor are ignored. In addition to the properties above, the following properties from the PSV Infoset are required:
[validity], [type definition], [type definition namespace], [type definition name], [type definition anonymous], [member type definition], [member type definition namespace], [member type definition name], [member type definition anonymous] and [schema normalized value] properties on Element Information Items.
[validity], [type definition], [type definition namespace], [type definition name], [type definition anonymous], [member type definition], [member type definition namespace], [member type definition name], [member type definition anonymous] and [schema normalized value] properties on Attribute Information Items.
anonymous type name |
An anonymous type name is an implementation defined, unique type name provided by the processor for every anonymous type declared in an imported schema. |
atomic type |
An atomic type is a primitive simple type or a type derived by restriction from another atomic simple type. Types derived by list or union are not atomic. |
atomic value |
An atomic value is a value in the value space of an atomic type labeled with that atomic type. |
document |
A tree whose root node is a document node is referred to as a document. |
document order |
A document order is defined among all the nodes used during a given query or transformation. Document order is a total ordering, although the relative order of some nodes is implementation-dependent. Informally, document order is the order returned by an in-order, depth-first traversal of the data model. |
expanded-QName |
An expanded-QName is a pair of values consisting of a namespace URI
and a local name. They belong to the value space of the XML Schema type
|
fragment |
A tree whose root node is some other kind of node is referred to as a fragment. |
implementation-defined |
In this specification, the term implementation-defined refers to a feature where the implementation is allowed some flexibility, and where the choices made by the implementation should be described in the vendor's documentation. |
implementation-dependent |
The term implementation-dependent refers to a feature where the behavior may vary from one implementation to another, and where the vendor is not expected to provide a full specification of the behavior. |
incompletely validated |
An incompletely validated document is an XML document that has a corresponding schema but whose schema-validity assessment has resulted in one or more element or attribute information items being assigned values other than 'valid' for the [validity] property in the PSVI. |
item |
An item may be a node or an atomic value |
Node |
The category of Node values contains seven distinct kinds of nodes: document, element, attribute, text, namespace, processing instruction, and comment. |
sequence |
A sequence is an ordered collection of zero or more items. |
We use the following XML document to illustrate the information contained in a data model:
<?xml version="1.0"?> <?xml-stylesheet type="text/xsl" href="dm-example.xsl"?> <catalog xmlns="http://www.example.com/catalog" xmlns:html="http://www.w3.org/1999/xhtml" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.example.com/catalog dm-example.xsd" xml:lang="en" version="0.1"> <!-- This example is for data model illustration only. It does not demonstrate good schema design. --> <tshirt code="T1534017" label=" Staind : Been Awhile " xlink:href="http://example.com/0,,1655091,00.html" sizes="M L XL"> <title> Staind: Been Awhile Tee Black (1-sided) </title> <description> <html:p> Lyrics from the hit song 'It's Been Awhile' are shown in white, beneath the large 'Flock & Weld' Staind logo. </html:p> </description> <price> 25.00 </price> </tshirt> <album code="A1481344" label=" Staind : Its Been A While " formats="CD"> <title> It's Been A While </title> <description xsi:nil="true" /> <price currency="USD"> 10.99 </price> <artist> Staind </artist> </album> </catalog>
The document is associated with the URI "http://www.example.com/catalog.xml", and is valid with respect to the following XML schema:
<?xml version="1.0"?> <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:cat="http://www.example.com/catalog" xmlns:xlink="http://www.w3.org/1999/xlink" targetNamespace="http://www.example.com/catalog" elementFormDefault="qualified"> <xs:import namespace="http://www.w3.org/XML/1998/namespace" schemaLocation="http://www.w3.org/2001/xml.xsd" /> <xs:import namespace="http://www.w3.org/1999/xlink" schemaLocation="http://www.cs.rpi.edu/~puninj/XGMML/xlinks-2001.xsd" /> <xs:element name="catalog"> <xs:complexType> <xs:sequence> <xs:element ref="cat:_item" maxOccurs="unbounded" /> </xs:sequence> <xs:attribute name="version" type="xs:string" fixed="0.1" use="required" /> <xs:attribute ref="xml:base" /> <xs:attribute ref="xml:lang" /> </xs:complexType> </xs:element> <xs:element name="_item" type="cat:itemType" abstract="true" /> <xs:complexType name="itemType"> <xs:sequence> <xs:element name="title" type="xs:token" /> <xs:element name="description" type="cat:description" nillable="true" /> <xs:element name="price" type="cat:price" maxOccurs="unbounded" /> </xs:sequence> <xs:attribute name="label" type="xs:token" /> <xs:attribute name="code" type="xs:ID" use="required" /> <xs:attributeGroup ref="xlink:simpleLink" /> </xs:complexType> <xs:element name="tshirt" type="cat:tshirtType" substitutionGroup="cat:_item" /> <xs:complexType name="tshirtType"> <xs:complexContent> <xs:extension base="cat:itemType"> <xs:attribute name="sizes" type="cat:clothesSizes" use="required" /> </xs:extension> </xs:complexContent> <xs:attribute ref="xml:lang" /> </xs:complexType> <xs:simpleType name="clothesSizes"> <xs:union memberTypes="cat:sizeList"> <xs:simpleType> <xs:restriction base="xs:token"> <xs:enumeration value="oneSize" /> </xs:restriction> </xs:simpleType> </xs:union> </xs:simpleType> <xs:simpleType name="sizeList"> <xs:restriction> <xs:simpleType> <xs:list itemType="cat:clothesSize" /> </xs:simpleType> <xs:minLength value="1" /> </xs:restriction> </xs:simpleType> <xs:simpleType name="clothesSize"> <xs:union memberTypes="cat:numberedSize cat:categorySize" /> </xs:simpleType> <xs:simpleType name="numberedSize"> <xs:restriction base="xs:integer"> <xs:enumeration value="4" /> <xs:enumeration value="6" /> <xs:enumeration value="8" /> <xs:enumeration value="10" /> <xs:enumeration value="12" /> <xs:enumeration value="14" /> <xs:enumeration value="16" /> <xs:enumeration value="18" /> <xs:enumeration value="20" /> <xs:enumeration value="22" /> </xs:restriction> </xs:simpleType> <xs:simpleType name="categorySize"> <xs:restriction base="xs:token"> <xs:enumeration value="XS" /> <xs:enumeration value="S" /> <xs:enumeration value="M" /> <xs:enumeration value="L" /> <xs:enumeration value="XL" /> <xs:enumeration value="XXL" /> </xs:restriction> </xs:simpleType> <xs:element name="album" type="cat:albumType" substitutionGroup="cat:_item" /> <xs:complexType name="albumType"> <xs:complexContent> <xs:extension base="cat:itemType"> <xs:sequence> <xs:element name="artist" type="xs:string" /> </xs:sequence> <xs:attribute name="formats" type="cat:formatsType" use="required" /> </xs:extension> </xs:complexContent> <xs:attribute ref="xml:lang" /> </xs:complexType> <xs:simpleType name="formatsType"> <xs:list itemType="cat:formatType" /> </xs:simpleType> <xs:simpleType name="formatType"> <xs:restriction base="xs:token"> <xs:enumeration value="CD" /> <xs:enumeration value="MiniDisc" /> <xs:enumeration value="tape" /> <xs:enumeration value="vinyl" /> </xs:restriction> </xs:simpleType> <xs:complexType name="description" mixed="true"> <xs:sequence> <xs:any namespace="http://www.w3.org/1999/xhtml" processContents="lax" minOccurs="0" maxOccurs="unbounded" /> </xs:sequence> <xs:attribute ref="xml:lang" /> </xs:complexType> <xs:complexType name="price"> <xs:simpleContent> <xs:extension base="cat:monetaryAmount"> <xs:attribute name="currency" type="cat:currencyType" default="USD" /> </xs:extension> </xs:simpleContent> </xs:complexType> <xs:simpleType name="currencyType"> <xs:restriction base="xs:token"> <xs:pattern value="[A-Z]{3}" /> </xs:restriction> </xs:simpleType> <xs:simpleType name="monetaryAmount"> <xs:restriction base="xs:decimal"> <xs:fractionDigits value="2" /> <xs:pattern value="\d+\.\d{2}" /> </xs:restriction> </xs:simpleType> </xs:schema>
This example exposes the data model for a document that has an associated schema and has been validated successfully against it. In general, an XML Schema is not required, that is, the data model can represent a schemaless, well-formed XML document with the rules described in 2.5 Types.
The XML document is represented by the nodes described below. The value D1 represents a document node; the values E1, E2, etc. represent element nodes; the values A1, A2, etc. represent attribute nodes; the values N1, N2, etc. represent namespace nodes; the values P1, P2, etc. represent processing-instruction nodes; the values T1, T2, etc. represent text nodes.
For brevity:
Text nodes in the data model that contain only white space are not shown.
Literal strings are shown in quotes without the xs:string()
constructor
Literal decimals are shown without the xs:decimal()
constructor
Nodes are referred to using the syntax [nodeID]
xs:QNames are used with the following prefixes:
xs | http://www.w3.org/2001/XMLSchema |
xsi | http://www.w3.org/2001/XMLSchema-instance |
cat | http://www.example.com/catalog |
xlink | http://www.w3.org/1999/xlink |
html | http://www.w3.org/1999/xhtml |
The abbreviation "\n
" is used in string literals to represent
a newline character; this isn't supported in XPath, but it makes this
presentation clearer.
Accessors that return the empty sequence have been omitted.
To simplify the presentation, we’re assuming an implementation that does not expose the namespace axis. Therefore, we can share namespace nodes across multiple elements. See 6.4 Namespace Nodes.
// Document node D1 | ||
dm:base-uri(D1) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(D1) | = | "document" |
dm:string-value(D1) | = | " Staind: Been Awhile Tee Black (1-sided) \n Lyrics from the hit song 'It's Been Awhile'\n are shown in white, beneath the large\n 'Flock & Weld' Staind logo.\n 25.00 It's Been A While 10.99 Staind " |
dm:children(D1) | = | ([E1]) |
// Namespace node N1 | ||
dm:node-kind(N1) | = | "namespace" |
dm:node-name(N1) | = | xs:QName("", "xml") |
dm:string-value(N1) | = | "http://www.w3.org/XML/1998/namespace" |
// Namespace node N2 | ||
dm:node-kind(N2) | = | "namespace" |
dm:node-name(N2) | = | () |
dm:string-value(N2) | = | "http://www.example.com/catalog" |
// Namespace node N3 | ||
dm:node-kind(N3) | = | "namespace" |
dm:node-name(N3) | = | xs:QName("", "html") |
dm:string-value(N3) | = | "http://www.w3.org/1999/xhtml" |
// Namespace node N4 | ||
dm:node-kind(N4) | = | "namespace" |
dm:node-name(N4) | = | xs:QName("", "xlink") |
dm:string-value(N4) | = | "http://www.w3.org/1999/xlink" |
// Namespace node N5 | ||
dm:node-kind(N5) | = | "namespace" |
dm:node-name(N5) | = | xs:QName("", "xsi") |
dm:string-value(N5) | = | "http://www.w3.org/2001/XMLSchema-instance" |
// Processing Instruction node P1 | ||
dm:base-uri(P1) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(P1) | = | "processing-instruction" |
dm:node-name(P1) | = | xs:QName("", "xml-stylesheet") |
dm:string-value(P1) | = | "type="text/xsl" href="dm-example.xsl"" |
dm:parent(P1) | = | ([D1]) |
// Element node E1 | ||
dm:base-uri(E1) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E1) | = | "element" |
dm:node-name(E1) | = | xs:QName("http://www.example.com/catalog", "catalog") |
dm:string-value(E1) | = | " Staind: Been Awhile Tee Black (1-sided) \n Lyrics from the hit song 'It's Been Awhile'\n are shown in white, beneath the large\n 'Flock & Weld' Staind logo.\n 25.00 It's Been A While 10.99 Staind " |
dm:typed-value(E1) | = | fn:error() |
// xs:anyType because of the anonymous type definition | ||
dm:type(E1) | = | xs:anyType |
dm:parent(E1) | = | ([D1]) |
dm:children(E1) | = | ([E2], [E7]) |
dm:attributes(E1) | = | ([A1], [A2], [A3]) |
dm:namespaces(E1) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Attribute node A1 | ||
dm:node-kind(A1) | = | "attribute" |
dm:node-name(A1) | = | xs:QName("http://www.w3.org/2001/XMLSchema-instance", "xsi:schemaLocation") |
dm:string-value(A1) | = | "http://www.example.com/catalog dm-example.xsd" |
dm:typed-value(A1) | = | (xs:anyURI("http://www.example.com/catalog"), xs:anyURI("catalog.xsd")) |
dm:type(A1) | = | xs:anySimpleType |
dm:parent(A1) | = | ([E1]) |
// Attribute node A2 | ||
dm:node-kind(A2) | = | "attribute" |
dm:node-name(A2) | = | xs:QName("http://www.w3.org/XML/1998/namespace", "xml:lang") |
dm:string-value(A2) | = | "en" |
dm:typed-value(A2) | = | "en" |
dm:type(A2) | = | xs:NMTOKEN |
dm:parent(A2) | = | ([E1]) |
// Attribute node A3 | ||
dm:node-kind(A3) | = | "attribute" |
dm:node-name(A3) | = | xs:QName("", "version") |
dm:string-value(A3) | = | "0.1" |
dm:typed-value(A3) | = | "0.1" |
dm:type(A3) | = | xs:string |
dm:parent(A3) | = | ([E1]) |
// Comment node C1 | ||
dm:base-uri(C1) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(C1) | = | "comment" |
dm:string-value(C1) | = | " This example is for data model illustration only.\n It does not demonstrate good schema design. " |
dm:typed-value(C1) | = | |
dm:parent(C1) | = | ([E1]) |
// Element node E2 | ||
dm:base-uri(E2) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E2) | = | "element" |
dm:node-name(E2) | = | xs:QName("http://www.example.com/catalog", "tshirt") |
dm:string-value(E2) | = | " Staind: Been Awhile Tee Black (1-sided) \n Lyrics from the hit song 'It's Been Awhile'\n are shown in white, beneath the large\n 'Flock & Weld' Staind logo.\n 25.00 " |
dm:typed-value(E2) | = | fn:error() |
dm:type(E2) | = | cat:tshirtType |
dm:parent(E2) | = | ([E1]) |
dm:children(E2) | = | ([E3], [E4], [E6]) |
dm:attributes(E2) | = | ([A4], [A5], [A6], [A7]) |
dm:namespaces(E2) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Attribute node A4 | ||
dm:node-kind(A4) | = | "attribute" |
dm:node-name(A4) | = | xs:QName("", "code") |
dm:string-value(A4) | = | "T1534017" |
dm:typed-value(A4) | = | xs:ID("T1534017") |
dm:type(A4) | = | xs:ID |
dm:parent(A4) | = | ([E2]) |
// Attribute node A5 | ||
dm:node-kind(A5) | = | "attribute" |
dm:node-name(A5) | = | xs:QName("", "label") |
dm:string-value(A5) | = | "Staind : Been Awhile" |
dm:typed-value(A5) | = | xs:token("Staind : Been Awhile") |
dm:type(A5) | = | xs:token |
dm:parent(A5) | = | ([E2]) |
// Attribute node A6 | ||
dm:node-kind(A6) | = | "attribute" |
dm:node-name(A6) | = | xs:QName("http://www.w3.org/1999/xlink", "xlink:href") |
dm:string-value(A6) | = | "http://example.com/0,,1655091,00.html" |
dm:typed-value(A6) | = | xs:anyURI("http://example.com/0,,1655091,00.html") |
dm:type(A6) | = | xs:anyURI |
dm:parent(A6) | = | ([E2]) |
// Attribute node A7 | ||
dm:node-kind(A7) | = | "attribute" |
dm:node-name(A7) | = | xs:QName("", "sizes") |
dm:string-value(A7) | = | "M L XL" |
dm:typed-value(A7) | = | (xs:anySimpleType("M"), xs:anySimpleType("L"), xs:anySimpleType("XL")) |
dm:type(A7) | = | cat:sizeList |
dm:parent(A7) | = | ([E2]) |
// Element node E3 | ||
dm:base-uri(E3) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E3) | = | "element" |
dm:node-name(E3) | = | xs:QName("http://www.example.com/catalog", "title") |
dm:string-value(E3) | = | "Staind: Been Awhile Tee Black (1-sided)" |
dm:typed-value(E3) | = | xs:token("Staind: Been Awhile Tee Black (1-sided)") |
dm:type(E3) | = | xs:token |
dm:parent(E3) | = | ([E2]) |
dm:children(E3) | = | () |
dm:attributes(E3) | = | () |
dm:namespaces(E3) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Text node T1 | ||
dm:base-uri(T1) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(T1) | = | "text" |
dm:string-value(T1) | = | "Staind: Been Awhile Tee Black (1-sided)" |
dm:typed-value(T1) | = | xs:anySimpleType("Staind: Been Awhile Tee Black (1-sided)") |
dm:type(T1) | = | xs:anySimpleType |
dm:parent(T1) | = | ([E3]) |
// Element node E4 | ||
dm:base-uri(E4) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E4) | = | "element" |
dm:node-name(E4) | = | xs:QName("http://www.example.com/catalog", "description") |
dm:string-value(E4) | = | "\n Lyrics from the hit song 'It's Been Awhile'\n are shown in white, beneath the large\n 'Flock & Weld' Staind logo.\n " |
dm:typed-value(E4) | = | fn:error() |
dm:type(E4) | = | cat:description |
dm:parent(E4) | = | ([E2]) |
dm:children(E4) | = | ([E5]) |
dm:attributes(E4) | = | () |
dm:namespaces(E4) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Element node E5 | ||
dm:base-uri(E5) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E5) | = | "element" |
dm:node-name(E5) | = | xs:QName("http://www.w3.org/1999/xhtml", "html:p") |
dm:string-value(E5) | = | "\n Lyrics from the hit song 'It's Been Awhile'\n are shown in white, beneath the large\n 'Flock & Weld' Staind logo.\n " |
dm:typed-value(E5) | = | xdt:untypedAtomic(dm:string-value()) |
dm:type(E5) | = | xs:anyType |
dm:parent(E5) | = | ([E4]) |
dm:children(E5) | = | () |
dm:attributes(E5) | = | () |
dm:namespaces(E5) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Text node T2 | ||
dm:base-uri(T2) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(T2) | = | "text" |
dm:string-value(T2) | = | "\n Lyrics from the hit song 'It's Been Awhile'\n are shown in white, beneath the large\n 'Flock & Weld' Staind logo.\n " |
dm:typed-value(T2) | = | xs:anySimpleType("\n Lyrics from the hit song 'It's Been Awhile'\n are shown in white, beneath the large\n 'Flock & Weld' Staind logo.\n ") |
dm:type(T2) | = | xs:anySimpleType |
dm:parent(T2) | = | ([E5]) |
// Element node E6 | ||
dm:base-uri(E6) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E6) | = | "element" |
dm:node-name(E6) | = | xs:QName("http://www.example.com/catalog", "price") |
dm:string-value(E6) | = | "25.00" |
// The typed-value is based on the content type of the complex type for the element | ||
dm:typed-value(E6) | = | cat:monetaryAmount(25.0) |
dm:type(E6) | = | cat:price |
dm:parent(E6) | = | ([E2]) |
dm:children(E6) | = | () |
dm:attributes(E6) | = | () |
dm:namespaces(E6) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Text node T3 | ||
dm:base-uri(T3) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(T3) | = | "text" |
dm:string-value(T3) | = | "25.00" |
dm:typed-value(T3) | = | xs:anySimpleType("25.00") |
dm:type(T3) | = | xs:anySimpleType |
dm:parent(T3) | = | ([E6]) |
// Element node E7 | ||
dm:base-uri(E7) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E7) | = | "element" |
dm:node-name(E7) | = | xs:QName("http://www.example.com/catalog", "album") |
dm:string-value(E7) | = | " It's Been A While 10.99 Staind " |
dm:typed-value(E7) | = | fn:error() |
dm:type(E7) | = | cat:albumType |
dm:parent(E7) | = | ([E1]) |
dm:children(E7) | = | ([E8], [E9], [E10], [E11]) |
dm:attributes(E7) | = | ([A8], [A9], [A10]) |
dm:namespaces(E7) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Attribute node A8 | ||
dm:node-kind(A8) | = | "attribute" |
dm:node-name(A8) | = | xs:QName("", "code") |
dm:string-value(A8) | = | "A1481344" |
dm:typed-value(A8) | = | xs:ID("A1481344") |
dm:type(A8) | = | xs:ID |
dm:parent(A8) | = | ([E7]) |
// Attribute node A9 | ||
dm:node-kind(A9) | = | "attribute" |
dm:node-name(A9) | = | xs:QName("", "label") |
dm:string-value(A9) | = | "Staind : Its Been A While" |
dm:typed-value(A9) | = | xs:token("Staind : Its Been A While") |
dm:type(A9) | = | xs:token |
dm:parent(A9) | = | ([E7]) |
// Attribute node A10 | ||
dm:node-kind(A10) | = | "attribute" |
dm:node-name(A10) | = | xs:QName("", "formats") |
dm:string-value(A10) | = | "CD" |
dm:typed-value(A10) | = | cat:formatType("CD") |
dm:type(A10) | = | cat:formatType |
dm:parent(A10) | = | ([E7]) |
// Element node E8 | ||
dm:base-uri(E8) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E8) | = | "element" |
dm:node-name(E8) | = | xs:QName("http://www.example.com/catalog", "title") |
dm:string-value(E8) | = | "It's Been A While" |
dm:typed-value(E8) | = | xs:token("It's Been A While") |
dm:type(E8) | = | xs:token |
dm:parent(E8) | = | ([E7]) |
dm:children(E8) | = | () |
dm:attributes(E8) | = | () |
dm:namespaces(E8) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Text node T4 | ||
dm:base-uri(T4) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(T4) | = | "text" |
dm:string-value(T4) | = | "It's Been A While" |
dm:typed-value(T4) | = | xs:anySimpleType("It's Been A While") |
dm:type(T4) | = | xs:anySimpleType |
dm:parent(T4) | = | ([E8]) |
// Element node E9 | ||
dm:base-uri(E9) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E9) | = | "element" |
dm:node-name(E9) | = | xs:QName("http://www.example.com/catalog", "description") |
dm:string-value(E9) | = | "" |
// xsi:nil is true so the typed value is the empty sequence | ||
dm:typed-value(E9) | = | () |
dm:type(E9) | = | cat:description |
dm:parent(E9) | = | ([E7]) |
dm:children(E9) | = | () |
dm:attributes(E9) | = | ([A11]) |
dm:namespaces(E9) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Attribute node A11 | ||
dm:node-kind(A11) | = | "attribute" |
dm:node-name(A11) | = | xs:QName("http://www.w3.org/2001/XMLSchema-instance", "xsi:nil") |
dm:string-value(A11) | = | "true" |
dm:typed-value(A11) | = | xs:boolean("true") |
dm:type(A11) | = | xs:boolean |
dm:parent(A11) | = | ([E9]) |
// Element node E10 | ||
dm:base-uri(E10) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E10) | = | "element" |
dm:node-name(E10) | = | xs:QName("http://www.example.com/catalog", "price") |
dm:string-value(E10) | = | "10.99" |
dm:typed-value(E10) | = | cat:monetaryAmount(10.99) |
dm:type(E10) | = | cat:price |
dm:parent(E10) | = | ([E7]) |
dm:children(E10) | = | () |
dm:attributes(E10) | = | ([A12]) |
dm:namespaces(E10) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Attribute node A12 | ||
dm:node-kind(A12) | = | "attribute" |
dm:node-name(A12) | = | xs:QName("", "currency") |
dm:string-value(A12) | = | "USD" |
dm:typed-value(A12) | = | cat:currencyType("USD") |
dm:type(A12) | = | cat:currencyType |
dm:parent(A12) | = | ([E10]) |
// Text node T5 | ||
dm:base-uri(T5) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(T5) | = | "text" |
dm:string-value(T5) | = | "10.99" |
dm:typed-value(T5) | = | xs:anySimpleType("10.99") |
dm:type(T5) | = | xs:anySimpleType |
dm:parent(T5) | = | ([E10]) |
// Element node E11 | ||
dm:base-uri(E11) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(E11) | = | "element" |
dm:node-name(E11) | = | xs:QName("http://www.example.com/catalog", "artist") |
dm:string-value(E11) | = | " Staind " |
dm:typed-value(E11) | = | " Staind " |
dm:type(E11) | = | xs:string |
dm:parent(E11) | = | ([E7]) |
dm:children(E11) | = | () |
dm:attributes(E11) | = | () |
dm:namespaces(E11) | = | ([N1], [N2], [N3], [N4], [N5]) |
// Text node T6 | ||
dm:base-uri(T6) | = | xs:anyURI("http://www.example.com/catalog.xml") |
dm:node-kind(T6) | = | "text" |
dm:string-value(T6) | = | " Staind " |
dm:typed-value(T6) | = | xs:anySimpleType(" Staind ") |
dm:type(T6) | = | xs:anySimpleType |
dm:parent(T6) | = | ([E11]) |
A graphical representation of the data model for the preceding example is shown below. Document order in this representation can be found by following the traditional in-order, left-to-right, depth-first traversal; however, because the image has been rotated for easier presentation, this appears to be in-order, bottom-to-top, depth-first order.
Graphic representation of the data model. [large view, SVG] |
This section summarizes the return values of each accessor by node type.
Returns the value of the base-uri property if it exists and is not
empty, otherwise returns ()
.
Returns the value of the base-uri property if it exists and is not
empty. Otherwise, if the element has a parent, returns the value of the
dm:base-uri of its parent; otherwise, returns
()
.
If the attribute has a parent, returns the value of the dm:base-uri of its parent; otherwise it returns
()
.
Returns ()
.
Returns the value of the base-uri property if it exists and is not
empty. Otherwise, if the processing instruction has a parent, returns the
value of the dm:base-uri of its parent; otherwise, returns
()
.
If the comment has a parent, returns the value of the dm:base-uri of its parent; otherwise, returns
()
.
If the text node has a parent, returns the value of the dm:base-uri of its parent; otherwise, returns
()
.
Returns "document
".
Returns "element
".
Returns "attribute
".
Returns "namespace
".
Returns "processing-instruction
".
Returns "comment
".
Returns "text
".
Returns ()
.
Returns the value of the node-name property.
Returns the value of the node-name property.
If the implementation preserves information about the prefixes declared,
returns an xs:QName
with the value of the prefix property
in the local-name and an empty namespace name, otherwise returns
()
.
Returns an xs:QName
with the value of the target
property in the local-name and an empty namespace name.
Returns ()
.
Returns ()
.
Returns ()
Returns the value of the parent property.
Returns the value of the parent property.
Returns the value of the parent property.
Returns the value of the parent property.
Returns the value of the parent property.
Returns the value of the parent property.
Returns the concatenation of the string-values of all its text node descendants in document order.
Returns the string value calculated as follows:
If the element has a type of xdt:untypedAny
, a complex type
with complex content, or a complex type with mixed content, returns the
concatenation of the string-values of all its text node descendants in
document order. It returns ""
if the element has no text node
descendants.
If the element has a complex type with empty content, returns
""
.
If the element has a simple type or a complex type with simple content:
If the element type is xs:string
, or a type derived from
xs:string
, returns that string.
If the element type is xs:anyURI
, returns the characters of
the URI.
If the element type is xs:QName
returns the value calculated
as follows:
If the value has no namespace URI and the in-scope namespaces map the default namespace to any namespace URI, then an error is raised ("default namespace is defined").
If the value has a namespace URI, then there must be at least one prefix mapped to that URI in the in-scope namespaces. If there is no such prefix, an error is raised ("no prefix defined for namespace"). If there is more than one such prefix, the one that is chosen is implementation dependent.
If no error occurs, returns a string with the lexical form of a
xs:QName
using the prefix chosen as described above, and the
local name of the value.
If the element type is xs:dateTime
, xs:date
, or
xs:time
, returns the original lexical representation of the
typed value recovered as follows: if an explicit timezone was present, the
normalized value is adjusted using the explicit timezone; if an explicit
timezone was not present, the Z
is dropped from the normalized
value. The normalized value and the explicit timezone, if present, are
converted separately to xs:string
and concatenated to yield the
string value.
In all other cases, returns the concatenation of the string-values of all its text node descendants in document order.
Returns the value calculated as follows:
If the attribute type is xdt:untypedAtomic
,
xs:string
, or a type derived from xs:string
,
returns that string.
If the attribute type is xs:anyURI
, returns the characters of
the URI.
If the attribute type is xs:QName
returns the value
calculated as follows:
If the value has no namespace URI, then an error is raised ("default namespace is defined") if the in-scope namespaces map the default namespace to any namespace URI.
If the value has a namespace URI, then there must be at least one prefix mapped to that URI in the in-scope namespaces. If there is no such prefix, an error is raised ("no prefix defined for namespace"). If there is more than one such prefix, the one that is chosen is implementation dependent.
If no error occurs, returns a string with the lexical form of a
xs:QName
using the prefix chosen as described above, and the
local name of the value.
If the attribute type is xs:dateTime
, xs:date
,
or xs:time
, returns the original lexical representation
recovered as follows: if an explicit timezone was present, the normalized
value is adjusted using the explicit timezone; if an explicit timezone was
not present, the Z
is dropped from the normalized value. The
normalized value and the explicit timezone, if present, are converted
separately to xs:string
and concatenated to yield the string
value.
Returns the value of the uri property.
Returns the value of the content property.
Returns the value of the content property.
Returns the value of the content property.
Returns dm:string-value of the node as an
xdt:untypedAtomic
value.
Returns the typed value calculated as follows:
If the element has a type of xdt:untypedAny
or a complex type
with mixed content, returns the string value of the node as an instance of
xdt:untypedAtomic
.
If the element has a simple type or a complex type with simple content, returns a sequence of zero or more atomic values derived from the string-value of the node and its type in a way that is consistent with XML Schema validation.
For xs:dateTime
, xs:date
and
xs:time
, the typed value is the atomic value that is determined
from its tuple representation as described in 3.3.4 Retreiving the Typed Value of xs:dateTime,
xs:date, and xs:time Values.
If the node has a complex type with empty content, returns
()
.
If the node has a complex type with complex content, raises a type error, which may be handled by the host language.
Returns the value calculated as follows:
If the attribute has a type of xdt:untypedAtomic
, returns the
string value of the node as an instance of
xdt:untypedAtomic
.
If the attribute has a simple type, returns a sequence of zero or more atomic values derived from the string-value of the node and its type in a way that is consistent with XML Schema validation.
For xs:dateTime
, xs:date
and
xs:time
, the typed value is the atomic value that is determined
from its tuple representation as described in 3.3.4 Retreiving the Typed Value of xs:dateTime,
xs:date, and xs:time Values.
Returns the dm:string-value of the node as an
xdt:untypedAtomic
value.
Returns the dm:string-value of the processing instruction as a
xs:string
value.
Returns the dm:string-value of the comment as an
xs:string
.
Returns the dm:string-value of the node as an
xdt:untypedAtomic
value.
Returns ()
Returns the value of the type property.
Returns the value of the type property.
Returns ()
.
Returns ()
.
Returns ()
.
Returns xdt:untypedAtomic
.
Returns the value of the children property.
Returns the value of the children property.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
Returns the value of the attributes property. The order of attribute nodes is stable but implementation dependent.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
Returns the value of the namespaces property. The order of namespace nodes is stable but implementation dependent.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
Returns the value of the nilled property.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
Returns ()
.
This section summarizes data model construction from an Infoset for each kind of information item. General notes occur elsewhere.
The document information item is required. A Document Node is constructed for each document information item.
The following infoset properties are required: [children] and [base URI].
The following infoset properties are optional: [unparsed entities].
Document node properties are derived from the infoset as follows:
The value of the [base URI] property.
The sequence of nodes constructed from the information items found in the [children] property.
For each element, processing instruction, comment, and maximal sequence of adjacent character information items found in the [children] property, a corresponding element, processing instruction, comment, or text node is constructed and that sequence of nodes is used as the value of the children property.
If present among the [children], the [document type declaration] information item is ignored.
If the [unparsed entities] property is present and is not the empty set, the values of the unparsed entity information items must be used to support the dm:unparsed-entity-system-id and dm:unparsed-entity-public-id accessors.
The internal structure of the values of the unparsed-entities property is implementation defined.
The element information items are required. An Element Node is constructed for each element information item.
The following infoset properties are required: [namespace name], [local name], [children], [attributes], [in-scope namespaces], [base URI], and [parent].
Element node properties are derived from the infoset as follows:
The value of the [base URI] property.
An xs:QName
constructed from the [local name] property
and the [namespace name] property
The node that corresponds to the value of the [parent] property.
All element nodes constructed from an infoset have the type
xdt:untypedAny
.
The sequence of nodes constructed from the information items found in the [children] property.
For each element, processing instruction, comment, and maximal sequence of adjacent character information items found in the [children] property, a corresponding Element, Processing Instruction, Comment, or Text node is constructed and that sequence of nodes is used as the value of the children property.
Because the data model requires that all general entities be expanded, there will never be unexpanded entity reference information item children.
A set of Attribute Nodes constructed from the attribute information
items appearing in the [attributes] property. This includes all of
the "special" attributes (xml:lang
, xml:space
,
xsi:type
, etc.) but does not include namespace declarations
(because they are not attributes).
A set of Namespace Nodes constructed from the namespace information items appearing in the [in-scope namespaces] property.
Implementations may ignore namespace information
items for namespaces which do not appear in the expanded QName of any element or attribute
information item. This can arise when xs:QName
s are used in
content.
All element nodes constructed from an infoset have a nilled property of "false".
The attribute information items are required. An attribute node is constructed for each attribute information item.
The following infoset properties are required: [namespace name], [local name], [normalized value], [attribute type], and [owner element].
Attribute node properties are derived from the infoset as follows:
An xs:QName
constructed from the [local name] property
and the [namespace name] property
The [normalized value] property.
The element node that corresponds to the value of the [owner element] property.
If the [attribute type] property has one of the following values:
ID
, IDREF
, IDREFS
,
ENTITY
, ENTITIES
, NMTOKEN
, or
NMTOKENS
, an xs:QName
with the [attribute
type] as the local name and
"http://www.w3.org/2001/XMLSchema
" as the namespace name.
Otherwise, xdt:untypedAtomic
.
The namespace information items are required.
The following infoset properties are required: [prefix], [namespace name].
Namespace node properties are derived from the infoset as follows:
The [prefix] property.
The [namespace name] property.
The element to which this Namespace Node applies, if the implementation exposes any mechanism for accessing the dm:parent accessor of Namespace Nodes.
The character information items are required. A Text Node is constructed for each maximal sequence of character information items.
The following infoset properties are required: [character code] and [parent].
The following infoset properties are optional: [element content white space].
A sequence of character information items is maximal if it satisfies the following constraints:
All of the information items in the sequence have the same parent.
The sequence consists of adjacent character information items uninterrupted by other types of information item.
No other such sequence exists that contains any of the same character information items and is longer.
Text node properties are derived from the infoset as follows:
A string comprised of characters that correspond to the [character code] properties of each of the character information items. Applications may ignore character information items for which [element content white space] exists and is "true".
Applications may construct text nodes in the data model to represent insignificant white space. This decision is considered outside the scope of the data model, consequently the data model makes no attempt to control or identify if any or all insignificant white space is ignored.
If insignificant white space is not ignored, it is treated exactly like any other character information item. After the data model has been constructed, there is no accessor which directly identifies insignificant white space. (Applications with access to type information may be able to determine if white space is significant or not.)
Regardless of insignificant white space handling, the content of the text node is not necessarily W3C normalized as described in the [Character Model]. It is the responsibility of data producers to provide appropriately normalized text, and the responsibility of programmers to make sure that operations do not de-normalize text.
The node corresponding to the value of the [parent] property.
This section summarizes data model construction from a PSVI for each kind of information item. General notes occur elsewhere.
Construction from a PSVI is identical to construction from the Infoset.
The following Element Node properties are effected by PSVI properties.
If the [validity] property exists and is “valid” on this element and all of its ancestors, type is assigned as described in 3.3.1 Mapping PSVI Additions to Types
Otherwise, xdt:untypedAny
.
If the [schema normalized value] PSVI property exists, the processor may, depending on the implementation, use a sequence of nodes containing the processing instruction and comment nodes corresponding to the processing instruction and comment information items found in the [children] property, plus a single text node whose string value is the the [schema normalized value] for the children property. The order of these nodes is implementation defined.
Otherwise, the sequence of nodes constructed from the information items found in the [children] property.
For each element, processing instruction, comment, and maximal sequence of adjacent character information items found in the [children] property, a corresponding element, processing instruction, comment, or text node is constructed and that sequence of nodes is used as the value of the children property.
Because the data model requires that all general entities be expanded, there will never be unexpanded entity reference information item children.
[Schema Part 2] introduced a mechanism for signaling that an element is valid even when it has no content despite a content type which does not allow empty content. The data model exposes this special semantic in the nilled property.
If the [validity] property exists on an element node and is "valid" then if the [nil] property exists and is true, then nilled property is "true". In all other cases, including all cases where schema validity assessment was not attempted or did not succeed, the nilled property is "false".
All other properties have values that are consistent with construction from an infoset.
The following Attribute Node properties are effected by PSVI properties.
The [schema normalized value] PSVI property if that exists, otherwise
the [normalized value] property.
If the [validity] property does not exist on this node or any of its ancestors, Infoset processing applies.
Note that this processing is only performed if no part of the subtree that contains the node was schema validated. In particular, Infoset-only processing does not apply to subtrees that are "skip" validated in a document.
If the [validity] property exists and is "valid", type is assigned as described in 3.3.1 Mapping PSVI Additions to Types
Otherwise, xdt:untypedAtomic
.
All other properties have values that are consistent with construction from an infoset.
Note: attributes from the XML Schema instance namespace,
"http://www.w3.org/2001/XMLSchema-instance
",
(xsi:schemaLocation
, xsi:type
, etc.) appear as
ordinary attributes in the data model. They will be validated appropriately
by schema processors and will simply appear as attributes of type
xs:anySimpleType
if they haven't been schema validated.
Construction from a PSVI is identical to construction from the Infoset.
Construction from a PSVI is identical to construction from the Infoset.
Construction from a PSVI is identical to construction from the Infoset.
Construction from a PSVI is identical to construction from the Infoset.
