The Roadmap for Accessible Rich Internet Applications (WAI-ARIA Roadmap) addresses the accessibility of dynamic Web content for people with disabilities. The roadmap introduces the technologies to map controls, AJAX live regions, and events to accessibility APIs, including custom controls used for Rich Internet Applications (RIAs). The roadmap also describes new navigation techniques to mark common Web structures as menus, primary content, secondary content, banner information and other types of Web structures. These new technologies can be used to improve the accessibility and usability of Web resources by people with disabilities, without extensive modification to existing libraries of Web resources.
This roadmap identifies some technology gaps to achieve the desired access. Some of the technologies required to fill these gaps are under development in other W3C Groups, such as the XHTML Role Attribute Module [XHTML-ROLE] being developed by the HTML Activity. The remaining gaps are planned to be filled by two companion specifications: Roles for Accessible Rich Internet Applications [ARIA-ROLE] and States and Properties Module for Accessible Rich Internet Applications [ARIA-STATE].
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This document is a Working Draft by the Protocols & Formats Working Group of the Web Accessibility Initiative. The Working Group expects to advance this document to a Working Group Note.
This update revises the timeline expected to accomplish the objectives set out in the Roadmap, based on the progress to date of relevant specifications. There is significant new information about how the features in the WAI-ARIA suite should be implemented in HTML. The emphasis is on HTML 5, since the W3C HTML Working Group is actively considering related issues, but application to HTML 4 is also considered. There is also information about applicability to other host languages, including XML-based languages.
The PFWG seeks feedback on the requirements, gap analysis, and plan set out in this document. The PFWG would like to know, in particular:
Please provide comments to assist the group in improving this document. Comments on this document may be sent to public-pfwg-comments@w3.org (Archive). The Working Group requests that comments be made by 16 November 2007.
To assist you in your review, refer to the history of changes to WAI-ARIA Roadmap.
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. The group does not expect this document to become a W3C Recommendation. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
The disclosure obligations of the Participants of this group are described in the charter.
According to the SecuritySpace Technology Penetration Report, more than 55% of all Web sites today contain JavaScript, dramatically affecting the ability for persons with disabilities to access Web content. New Rich Internet Applications (RIAs) render custom widgets, modeling rich desktop componentry to perform UI updates without having to reload the entire page - much like a graphical user interface (GUI). Legacy GUI accessibility frameworks address these issues through a comprehensive accessibility application programming interface (API) and infrastructure to foster interoperability with assistive technologies. These APIs constitute a contract between applications and assistive technologies, such as screen readers, to enable them to access rich dynamic content with the appropriate semantics needed to produce a usable alternative. No such contract exists between modern RIAs and assistive technologies, creating an accessibility gap for persons with disabilities.
Unfortunately, HTML and other markup does not provide adequate markup to support accessible dynamic content. Until now, the W3C WAI has discouraged the use of JavaScript per Web Content Accessibility Guidelines (WCAG) 1.0 ([WCAG1], Checkpoint 6.1). A number of W3C initiatives are underway to address this problem using a declarative markup approach. This roadmap is designed to create a bridge to fix the interoperability problem with assistive technologies now by incorporating the appropriate meta data in current XHTML markup to support today's accessibility API. It will incorporate some of the advanced accessibility features, originally designed, in technologies like XHTML2. The intent of XHTML 2 is to make the enablement of Web applications and documents easier for authors. This roadmap will create cross-cutting technologies that XHTML authors may incorporate in their markup to describe GUI widgets and document structures to aide assistive technology vendors in providing accessible, usable solutions. The W3C WAI PF working group will work with User Agent manufacturers and assistive technology vendors to ensure a working solution.
Aspects of traditional HTML make accessible support of dynamic content difficult:
Authors of JavaScript generated content do not want to limit themselves to using standard tag elements that define the actual user interface element such as tables, ordered lists, etc. Rather, they make extensive use of tag elements such as DIVs in which they dynamically apply a UI through the use of style sheets and dynamic content changes. HTML DIV tags provide no semantic information. For example, authors may define a DIV as the start of a pop-up menu or even an ordered list. However, no HTML mechanism exists to:
In short, JavaScript needs an accessibility architecture it can write to such that a solution could be mapped to the accessibility frameworks on the native platform by the user agent.
Figure 1.0 Accessibility
Interoperability at a DOM Node without JavaScript
Figure 1.0 illustrates a typical DOM node in a Model-View-Controller architecture. On the node, data, or the "Model", which should include semantic information, is separated from the user interface presentation, the "View." Here, the document element is managed by the user agent based on the default behavior of the element. The user agent's default behavior at the document element forms the controller. Placed between the DOM node and the assistive technology is a box containing the contract provided by the user agent to the assistive technology. This data includes typical accessibility information found in the accessibility API for many of our accessible platforms for GUIs (role, state, caret, selection, text, hypertext, name description, parent/child information, parent/child information, and relations). For HTML and other W3C markup, the accessibility information provided solely depends upon what the element's tag name-and any accessibility attributes that map to that tag--provides. For example, the accessible role of a table is table. The author provides an accessible description by assigning a title attribute.
Figure 2.0 Accessibility
Interoperability at a DOM node with JavaScript
Figure 2.0 shows the same DOM node provided in Figure 1.0 but with JavaScript acting as the new controller. JavaScript overrides the default user agent behavior at the DOM node. It manipulates the data, content, and style in response to events caused by user interaction to produce custom widgets. In this situation the default accessibility information is no longer valid and therefore the contract is now invalid. Figure 2.0 shows the contract with asterisks in front of role, state, actions, value, event changes, and relations. These asterisks represent potential accessibility errors and gaps in the base markup. These gaps result from the author's inability to provide the new semantic data needed to support the contract.
Any solution to facilitate the creation of accessible RIAs must:
What is clear from the problem statement is that the author does not have the ability to provide the appropriate accessibility information in the markup to support the accessibility APIs on the target platform. This problem is not limited to HTML. It extends to other markup, including SVG. Some of these issues will be addressed through the introduction of declarative markup. New work being done on XForms and XHTML 2 are designed to incorporate accessibility features through the declarative markup of the language. This has the added benefit of reducing the enablement burdent on authors by leveraging existing accessibility information stored in the markup to offload some of the accessibility work to the user agent. That said, we need to build a bridge to fill the accessibility gaps of today's HTML markup, which will in turn lead to broad applicability to today's markup while moving forward with declarative markup to reduce the enablement effort.
Using Figure 1.0 as a template for addressing the problem and U.S. Section 508 accessibility standards, a gap analysis has been constructed in Table 1.0 to illustrate the gaps in the infrastructure and identify W3C standards that should be used to address the problem. In the right column, table cells that are empty or that indicate a limitation represent accessibility gaps in HTML and XHTML.
At this time, the primary effort in the W3C WAI Protocols and Formats working group is to focus on an extension to XHTML 1.1 and to provide a technique to support W3C ARIA in HTML 4.01 with a migration path to HTML 5. It should be noted that XHTML 1.0 could also be enhanced to support this extension through the use of a hybrid DTD that incorporates the extensions. The reason for focusing on XHTML 1.X is that XHTML is extensible through the use of namespaces and because it is renderable by today's browsers. For this work, we will produce the ARIA States and Properties [ARIA-STATE] document and ARIA Roles [ARIA-ROLE] document. The ARIA States and Properties will constitute extensions to XHTML 1.1 to fill most of the gaps needed to support accessibility API infrastructures and dynamic XHTML content. It will also incoporate a new role attribute from the XHTML Role Attribute Module [XHTML-ROLES] for which a set of accessible role values may be applied from the ARIA Roles specification in addition to its own standard role document landmarks to assist document navigation and restructuring. The XHTML Role Attribute Module is built into XHTML 2 [XHTML2].
The creation of the ARIA specifications and the use of Role was based on a comprehensive gap analysis of HTML(Table 2.0 ) and XHTML(Table 3.0). Each table shows not only a gap analysis (where things are missing to support Rich Internet Applications) but also a roadmap to fill those gaps. The roadmap over time plans to make accessibility a part of markup for XHTML, HTML, and eventually other W3C specifications with a strong focus on declarative markup. The critical extensions, today, needed to make accessible dynamic Web content accessible for XHTML 1.x, that may be made interoperable with assistive technologies, are summarized as:
ARIA States and Properties - This is the set of attribute modifications to XHTML necessary to provide full keyboard focus, the role attribute, and states and properties that may be mapped directly or indirectly to platform accessibility APIs to ensure full interoperability with assistive technologies for ARIA.
XHTML role attribute - The XHTML Role Attribute allows the author to annotate XML Languages with machine-extractable semantic information about the purpose of an element. It is targeted for accessibility, device adaptation, server-side processing, and complex data description. ARIA uses the role to provides the role information, in Figure 2 - Accessibility Interoperability at a DOM node with JavaScript to an asssitive technology. The XHTML Role Attribute Module [XHTML-ROLES], included in ARIA States and Properties [ARIA-STATE], introduces the role attribute as a modular extension to XHTML.
XHTML role document landmarks - The XHTML Role Attribute Module [XHTML-ROLES] provides a standard set of role attribute values designed to define pertinent parts of a document (landmarks) for the purpose of accessibility. User agents may incorporate device equivalents, such as key mappings in the case of a desktop user agent, to navigate to these sections of a document.
ARIA Roles - This specification defines the necessary core roles found in Accessibility API sets for Windows and Linux. Additionally, it describes roles representative of document structure. Use of document structure is necessary for assistive technologies to navigate complex documents and to know when they have entered active areas of a Web page such as in the case of a dynamic scripted Web application. The document is designed to help the user agents or authoring tools to determine what properties given role supports and to assist with accessibility API mapping of these properties. The taxonomy will be like a class hierarchy used to convey semantics and structure and, therefore, knowledge about each role. At this time, that taxonomy will be written in RDF.
Note: Although this work targets XHTML markup, IBM has contributed a W3C technique to embed role and state attributes into HTML documents allowing authors to avoid validation issues. This is may be of particular importance to Web sites needing to support this work in HTML.
In short, these specifications will be used to fix the dynamic accessibility of scripted Web content, in particular the use of JavaScript with HTML markup. They are meant to be cross-cutting and should apply to other markup like SVG. A look at the gap analysis in HTML(Table 2.0 ) and XHTML(Table 3.0) indicate other gaps needed to be addressed with Rich Internet Applications and the standards efforts set to address the gaps. Less critical for XHTML 1.X but helpful for accessibility will be the descriptive extensions to XML events and the new access element for XHTML 2. Web Content Accessibility Guidelines 2.0 calls for the ARIA properties in guideline 4.1 Maximize compatabality with current and future agents, including assistive technologies (roles, states, properties, and values) and section guideline 1.3 Create content that can be presented in different ways (for example spoken aloud, simpler layout, etc.) without losing information or structure (relationships).
The next section describes how the specifications are used together as well as how they will be implemented in HTML 4.
Adaptive technologies, which need to provide alternative access to complex user interfaces authored via HTML, are often left guessing at the semantics behind specific portions of HTML document. As an example, an XHTML document might use a certain HTML construct, such as a collection of DIVs, to create navigation bars, a site-navigation menu, and other GUI-like user interface widgets. To fix the problem, we incorporate the role attribute, assign the accessible state properties, and give the object focus using the new TABINDEX feature. Addition of this information helps authors to provide the necessary information to enable the user agent to support the accessibility API accessed by the adaptive technology.
Each platform accessibility API has the notion of a "role" for a GUI object. This is the case for Java Accessibility API [JAPI], Microsoft Active Accessibility [MSAA], Apple Accessibility for COCOA [AAC], and the Gnome Accessibility Toolkit (ATK) [GAP], or UI Automation for Longhorn [UIAUTOMATION] (called content type in UI Automation). The W3C ARIA specifications are based on XHTML 1.X and include the role attribute. The "role" attribute takes a qname, enabling authors to reference the role attribute from the ARIA Roles. In the following example, we use qname to reference the menu role in the Roles for Accessible Rich Internet Applications [ARIA-ROLE] specification, addressed later in this roadmap.
Example: Use of namespaces to incorporate role information information into XHTML 1.x
<?xml version="1.1" encoding="us-ascii"?> <!DOCTYPE html PUBLIC "Accessible Adaptive Applications//EN" http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:wairole="http://www.w3.org/2005/01/wai-rdf/GUIRoleTaxonomy#" > <body> <div role="wairole:menu"> File </div> </body> </html>
The HTML working group decided to make role a qname and allow others to define sets of standard roles. Furthermore, these roles should be extensible. It is the intent of the HTML working group to have these qnames refer to RDF, which defines the element. The RDF should ultimately define the object. [ARIA-ROLE] introduces the purpose of this taxonomy and how RDF can be used to describe these roles.
Since this is dynamic content, the state of these new repurposed objects will change. The States and Properties Module for Accessible Rich Internet Applications [ARIA-STATE] shall provide the common accessible properties needed to support the accessible state or property information provided by the platform accessibility API defined previously. This specification was created based on an analysis of the accessibility properties defined in MSAA and ATK. To pull in this information we again use namepaces to extend XHTML. The following example extends the previous approach by adding the haspopup accessibility property.
Example: Use of namespaces to incorporate accessible state information information into XHTML 1.x
<?xml version="1.1" encoding="us-ascii"?> <!DOCTYPE html PUBLIC "Accessible Adaptive Applications//EN" http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:wairole="http://www.w3.org/2005/01/wai-rdf/GUIRoleTaxonomy#" xmlns:aria="http://www.w3.org/2005/07/aaa" > <body> <div role="wairole:menu" aria:haspopup="true"> File </div> </body> </html>
A Windows user agent may now map this property to the Microsoft Active Accessibility state of STATE_SYSTEM_HASPOPUP. Adding or removing this state would result in the Windows user agent sending an EVENT_OBJECT_STATECHANGE event to the assistive technology. The task of the JavaScript page author would be to maintain this state attribute, which can easily be done through the use of Document Object Model calls.
Virtually all adaptive technology solutions, such as screen readers and onscreen keyboards, must know which object currently has focus. For example, an author might want to insert text into the current object with focus or to announce information about the object that has focus. With today's HTML 4.01 and XHTML 1.x, script authors can only provide focus to form and anchor elements yet the Document Object Model Specification allows all elements to receive events including keyboard events. This means that HTML, by design prohibits script authors from making all HTML elements keyboard accessible. This single problem effects usability of Web pages where one gains access to elements by using the Tab key on desktop browsers. This slow, unproductive, approach makes portal navigation difficult because all active elements must be tabbed through to put focus on an active element in the last portlet in a document. To solve this problem in XHTML 1.x, we are incorporating a feature in Firefox and IE to define the tabindex for -1. This allows a script author to give an element focus without placing it in the tab order: The following table describes these changes that will be incorporated into the new Accessible Adaptive Application specification.
| tabindex attribute | Focusable with mouse or JavaScript via element.focus() | Tab navigable |
|---|---|---|
| not present | Follows default behavior of element (yes for form controls, links, etc.) | Follows default behavior of element |
Negative, e.g. tabindex="-1" |
Yes | No, author must focus it with element.focus() as a
result of arrow or other key press |
Zero, e.g. tabindex="0" |
Yes | In tab order relative to element's position in document |
Positive, e.g. tabindex="33" |
Yes | Tabindex value directly specifies where this element is positioned in the tab order. These elements will be positioned in the tab order before elements that have tabindex="0" or that are naturally included in the tab order (form elements and links) |
The following example shows the introduction of TABINDEX to provide focus to a DIV having the new accessibility meta data:
Example: Use of tabindex to give non-form and anchor elements focus in XHTML 1.x
<?xml version="1.1" encoding="us-ascii"?> <!DOCTYPE html PUBLIC "Accessible Adaptive Applications//EN" http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:wairole="http://www.w3.org/2005/01/wai-rdf/GUIRoleTaxonomy#" xmlns:aria="http://www.w3.org/2005/07/aaa" > <body> <div role="wairole:menu" aria:haspopup="true" tabindex=-1> File </div> </body> </html>
XHTML 2 will allow all elements to receive focus, eliminating the need for this tabindex modification.
HTML 4.01 is non-extensible; it is not possible to extend HTML 4 through the use of namespaces. That said, members of the working group have worked with the HTML working group to pull together a vehicle that does not use namespaces, which at this time is supported by the HTML 5 effort. Firefox 3 is leading the way to implement this, and other browser manufacturers are working to support it as well. The technique allows all role values specififed in ARIA (including the XHTML Role attribute module) to be specified without a namespace prefix. Additionally, ARIA states and properties shall be represented as aria- followed by the concatenated ARIA state or property.
Example: Browser supported HTML technique for the tabindex example in section 5.1.3
<?xml version="1.1" encoding="us-ascii"?> <!DOCTYPE html PUBLIC "Accessible Adaptive Applications//EN" http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html> <body> <div role="menu" aria-haspopup="true" tabindex=-1> File </div> </body> </html>
Firefox 3 will also support a namespaced version of this example that is equivalent to the example in section 5.1.3. Because these properties are not found in HTML 4.01, a technique may be employed to use the class attribute and a microformat technique to store the ARIA properties as class attributes. The page author would use the JavaScript onload event to rewrite the class attributes as ARIA properties. This would pass HTMl 4.01 DTD validation. Once the properties are rewritten to use the technique in this section, the browser can provide the accessibility information to an assistive technology. IBM has contributed a W3C technique to embed role and state attributes into HTML documents that demonstrates this technique.
In addition to the common roles which will reside in ARIA Roles, both XHTML 2.0, and the XHTML Role attribute module [XHTML-ROLE] defines a collection of common role, regional, landmarks that define pertinent parts of a document for the purpose of accessibility. User agents may incorporate device equivalents, such as key mappings in the case of a desktop user agent, to navigate to these sections of a document independent of the Web site. The addition of these semantics allows the user agent to provide standardized navigation to common document sections. This is especially important for portals to improve the usability. These may be used as attributes in XHTML 1.x by applying them to sections of the document as shown in this example. Note: since these roles are a part of XHTML they do not need to be namespace qualified.
Example: Use of XHTML navigation role to define a landmark for the navigation section in an XHTML 1.X document
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd"> <html xml:lang="en" xmlns="http://www.w3.org/1999/xhtml" xmlns:wairole="http://www.w3.org/2005/01/wai-rdf/GUIRoleTaxonomy#" xmlns:aaa="http://www.w3.org/2005/07/aaa"> <head> <title>application/xhtml+xml: Navigation Roles Example 1</title> <link rel="stylesheet" href="css/nav1_xhtml.css" type="text/css" ></link> <script type="text/javascript" src="../js/globals.js"></script> <script type="text/javascript" src="../js/widgets_xhtml.js"></script> <link rel="icon" href="http://www.cites.uiuc.edu/favicon.ico" type="image/x-icon" /> <link rel="shortcut icon" href="http://www.cites.uiuc.edu/favicon.ico" type="image/x-icon" /> </head> <body onload="widgets.init()"> . . . <div id="leftnav"> <h2 class="nav" id="leftnav_label">Career Center Services</h2> <ul title="Career Center Services" role="navigation" aaa:labelledby="leftnav_label"> <li><a href="http://www.uiuc.edu/">Career Home</a></li> <li><a href="http://www.uiuc.edu/">Career Counseling</a></li> <li><a href="http://www.uiuc.edu/">Pre-Health Advising</a></li> <li><a href="http://www.uiuc.edu/">Services</a></li> <li><a href="http://www.uiuc.edu/">Workshops</a></li> <li><a href="http://www.uiuc.edu/">Resource Center</a></li> <li><a href="http://www.uiuc.edu/">Question Board/FAQ</a></li> </ul> ... </body>
The example above was taken from the header from the Career Center Web page at the University of Illinois at Urbana-Champaign. Students from this university, under Jon Gunderson's guidance created Accessibility extensions for Mozilla/Firefox, in part, to allow a page author or user to view a list of navigation landmarks. This tool, shown in Figure 3.0, lists the navigation sections on the page. Keyboard navigation of the list of navigation bars causes the corresponding document section to be highlighted. The title for each navigation region displays in the list.
Figure 3.0 Navigation bar list generated from role navigation landmarks
Figure 3.0 shows the Accessibility extensions for Mozilla/Firefox from the University of Illinois at Urbana-Champaign to render the document landmarks. This picture shows the Firefox Browser rendering the University of Illinois Career Career Center home page. In this example. The "List of Navigation Bars" viewer is shown, launched from the extension on the toolbar. The viewer shows that the secondary "Career Center Services" is selected resulting in that section of the document being highlighted in yellow. The Navigation Bar Lists Viewer lists the following list of titles corresponding to the navigation sections:
Editorial Note: we need to decide whether and where to keep the term "accessible adaptable applications" and where to update to the ARIA names.
It will be necessary to describe how to interact with a document element having a specific role. This is critical when defining roles not included in the common set specified previously. It should be possible to describe UI widgets and how to interact with them. RDF is a way for using data to describe data and provides a W3C standards-based approach to represent this information.

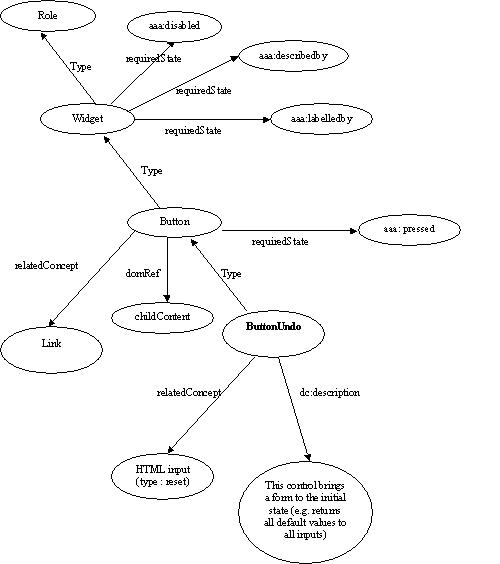

Figure 4.0 Partial RDF Map for ARIA Roles
Figure 4.0 Shows a basic RDF mapping that defines a set of terms and relationships defining an object. At the center is a Widget object that defines common states and properties for all GUI widgets. The Button object extends Widget and inherits defined accessibility properties from the superclass Widget. It also defines a relatedConcept property to a Link object. The ButtonUndo role extends Button and an instance of extends of Button. It has a relatedConcept of an HTML input object. ButtonUndo will introduce Dublin Core meta data such as the description of the object. The terms relatedConcept and requiredState are terms that will be defined as part of the corresponding RDF schema. Each role instance will represent standard Roles found in the platform accessibility APIs of platforms like Windows and Gnome as well as content structure. These roles will form the taxonomy. Each RDF role may be referenced using a QName from Host XML markup such as XHTML:
<div
role="wairole:ButtonUndo"> whereby
wairole:ButtonUndo expands to:
http://www.w3.org/2005/01/wai-rdf/GUIRoleTaxonomy#ButtonUndo in the
button markup.
The power of this design is that it enables user agents to go back into the corresponding RDF markup and determine what properties it supports for Accessibility API mapping. Also, new Web authoring tools can use the self-describing RDF to help test for accessibility conformance to semantic Web markup representing the role. Additional, middleware solutions can now make intelligent transformations of Web Content by processing the semantics behind rich browser and rich structured frameworks to adapt accessible solutions for a broader user base. Our immediate goal is to fix the accessibility problem with scripted Web content. Assistive technologies will use the standard roles to determine how to render most content. For custom widgets they should be able to determine how to interact with it using the RDF document defining the roles.

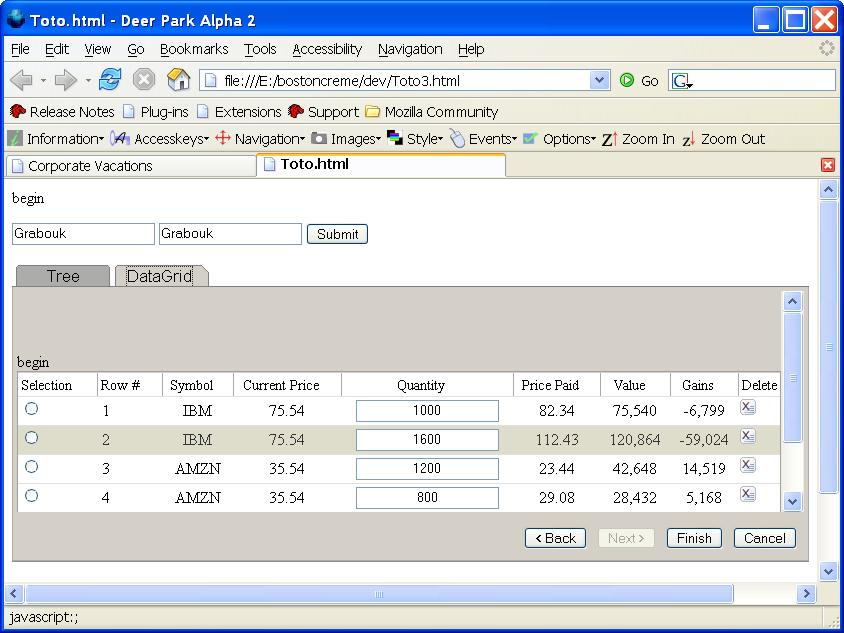

Figure 5.0 shows a DHTML example using XHTML, JavaScript, and CSS to produce a GUI-like application. This example of a DHTML Web page being developed in IBM shows a notebook tab with a data grid that behaves like a traditional desktop GUI. Keyboard navigation within the data grid is done with arrow keys. Navigation among the page tabs is done with the arrow keys. Navigation between the notebook tab, the edit fields, buttons, and the data grid is done using the Tab key. Accessible role and state meta data from the ARIA Roles and ARIA States and Properties specifications, respectively are added as attributes to each of the XHTML elements repurposed as GUI widgets dynamically. The user agent, in this case Firefox, maps this information to the platform accessibility API. Figure 6.0 shows the Microsoft Active Accessibility rendering of the new accessibility markup provided on the DataGrid page tab which has focus.

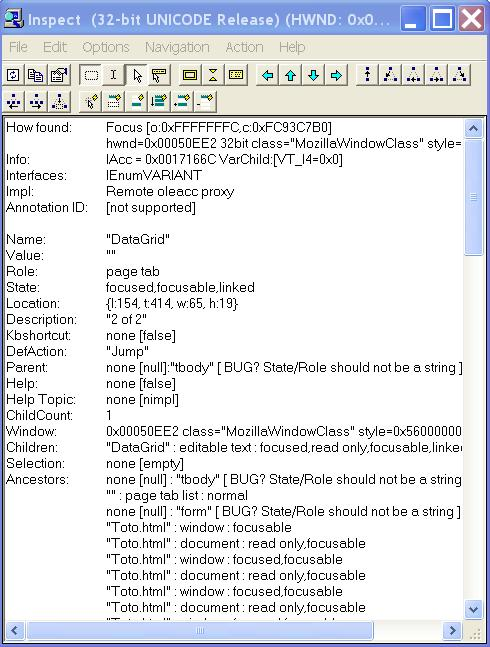

Figure 6.0 Microsoft Inspect Tool rendering of the page tab
DataGrid
Figure 6.0 show a Microsoft Inspect 32 rendering of the DataGrid Page page tab in Figure 5.0. Inspect32 provides Microsoft Active Accessibility information; here it shows the accessible role of "page tab" and accessible state information of focused, focusable, and linked. There are no page tab elements in XHTML. Here, an XHTML DIV element is repurposed by a JavaScript controller to look like a notebook tab. It is now able to receive focus, unlike in standard XHTML 1.X, and it does so without requiring tabbing. With these specifications, the script author can now add the accessibility properties to support platform accessibility API. Accessible state properties for the DataGrid page tab are shown as focused, focusable, and linked. Unlike a GUI application, authors need only enable their applications once for multiple operating system platforms.
Beyond scripted Web content, the working group intends to extend the use of roles to enable other user cases. These may include:
Interoperability between applications and assistive technologies requires event notification for accessibility. The events defined in Table 2.0 will be fired via the user agent. The accessible value and state property changes will be generated in response to changes in the DOM attributes as defined by the AAA specification. User agents supporting the platform accessibility API, will support event notification such as the MSAA EVENT_OBJECT_STATECHANGE or EVENT_OBJECT_VALUECHANGE events.
To now, the roadmap has addressed current XHTML markup as supported by today's desktop browsers. The markup in today's browsers, like accessibility, requires developers to do things manually through the use of JavaScript. While this is extremely flexible, it suffers from a number of problems:
Industry evolution has shown that we can do things better and produce more consistent cross-platform solutions to support accessibility and to reduce the enablement efforts of the author.
HTML 5 and the "serialized" XHTML version of HTML 5 are years away from standardization. We have preliminary consensus to add the ARIA states and properties, role, and tabindex changes needed for ARIA in HTML 5 as demonstrated in section 5.1.4. This is subject to change between now and when the specification goes to recommendation. We shall continue to promote its use adoption in industry to ensure that it stays there. A number of gaps remain, such as named event handlers and enhancements for access key, that we need to address. This work is in progress.
HTML is a device-dependent solution. An impaired user needs to make an intelligent decision as to what actions they can perform on a document element. An impaired user wishing to enumerate the available actions that may be performed on a page element is confronted with the unrevealing information provided by HTML's intrinsic events ([HTML], Section 18.2.3). The information provided is very device-specific and non-informative. For example, what action does an event handler perform in response to an onclick event? This is problematic for blind, low vision, and mobility-impaired users. More than one action may be performed on a given element. A mobility-impaired user would like to enumerate the handlers and make a decision. Generating the appropriate mouse event is problematic. Blind users and low vision users would like to make informed decisions before they accidentally make a purchase. Some information can be gleaned from the UI by sighted users; however, some of this information may be obscured from view due to the use of a magnifier by low vision users.
The HTML working group is working to address this problem through the use of XML events [XML-EVENTS]. XML Events provide XML languages with the ability to uniformly integrate event listeners and associated event handlers with Document Object Model (DOM) Level 2 event interfaces [DOM-EVENTS]. The result is to provide an interoperable way of associating behaviors with document-level markup. Through the use of XML, this is done declaratively. Having the ability to use XML to integrate listeners and handlers will allow us, in future versions of the XML event specification, to assign a descriptive purpose to the handlers.
This problem also manifests itself with event handlers authored via element script. XML Events and XML Handlers solve the first half of the accessibility problem by introducing a clean declarative syntax while encouraging authors to use high-level event names and descriptions. This gives the author the flexibility to assign device-specific mappings to event handlers while providing for added semantics. XForms 1.0 goes one step further, introducing declarative action handlers for commonly used event handlers, e.g., setfocus. The combination of REL navigation semantics, XML events, XML handlers, and XForms declarative markup set the stage for an access key replacement. Access key suffers from a lack of semantics and support for device independence. Dynamic Web content implies the use of event handlers. From an accessibility perspective, we need to assist the user in determining how to interact with a Web application in a device-independent way. The provision for named events and the ability to bind event handlers to document element events in the XML Event specification is critical. At the time of binding, we can incorporate the additional Role information as well as make use of the name information to provide semantics about what the event handler does. In the future, this information should be mapped to the available accessibility infrastructure by a UAAG-conforming user agent on the platform. Once complete, a user agent conforming to the DOM 3 event specification will allow for enumeration of event handlers with corresponding descriptions. The ability to query this information has been added to the EventTarget interface in DOM3 events through the hasEventListenerNS method.
Platform accessibility APIs such as Gnome ATSPI Accessible Action interface may now enumerate these actions for assistive technologies so that the user may be provided with descriptive information to make an informed decision about which action to take.
Screen reader users would be able to pop-up a list of event handlers in a list such as:
vs:
Authors wishing to incorporate XML events may do so to existing XHTML 1.1. markup through modularization.
The XForms [XFORMS] specification addresses the accessibility problem by:
The first benefit is that less JavaScript is required. XForms provides a common set of available actions that can be performed on a form. XForms is a declarative markup. The engineers who designed XForms took the standard use cases for how we create forms and built in support for the standard actions performed in a Web form. From an accessibility perspective, this means these functions should be available from the browser independent of platform. So, rather than guess what an onclick does on a form, the user should be able to access the available functions and notification events used in that specific form as defined by the XForms standard.
XForms interaction events include:
XForms also provides notification of events that actually occur during form operation. These types of events enable applications, like a screen reader, to provide alternative modalities such as speech.
XForms notification events include:
In addition to device-independent events, XForms provides another powerful feature, its model-view-controller design. XForms separates content from presentation while embedding relevant meta data in user interface constructs. XForms provides the following meta data:
XForms also encourages intent-based authoring by introducing these constructs:
This is important to assistive technologies, such as a screen reader, which would monitor the document to determine when to speak selected elements. If none of the cases within the switch are selected, the first case in document order becomes active by default. How those elements are rendered visually is of no consequence. The semantics are preserved.
The use of a standard data model reduces extensive author enablement work in the area of adding accessibility properties to content. The model, when bound to XForms elements, may be used by the user agent to directly support the platform accessibility API as shown in this abridged table:
This saves authoring time by leveraging the XForms model to support accessibility directly. IBM is beginning development platform accessibility support for XForms in 2005 as a contribution to the open source community.
XHTML 2 [XHTML2] is being designing to build accessibility in from the ground floor. It is clear from the roadmap that some XHTML 2 accessibility features are borrowed through the use of name spaces to extend XHTML 1.1 through modularization. XHTML 2 incorporates the role attribute, document landmarks, XForms, XML Events, and a number of other accessibility features. It introduces an access element designed to address device independence, semantic navigation, and activation. It also benefits from the ARIA Roles which is a cross-cutting technology. The XHTML 2 specification is still in working draft form. A future list of the extensive accessibility features of XHTML 2 will be necessary.
User agents are required to provide interoperable interfaces to assistive technology run times to produce a usable experience for users with a specific disability. A task of the roadmap will be to define requirements for UAAG. This is necessary provide a cohesion between user agent and author supplied state information.
User agents may need to adjust their user interface in response to state information stored in document elements. For example, an element having the focusable attribute set to true should result in a desktop user agent's placing the element in the keyboard tabbing order.
The WAI PF working group and IBM are working with assistive technologies to ensure support of the roadmap.
The WAI PF working group will be looking at ways to address authoring tools requirements for testing the accessibility of scripted Web content. The development of authoring tools to assist the author in testing dynamic Web content for accessibility is important. Today's accessibility fixers and checkers test to static Web content. Accessibility properties will change during Web page use. Web authoring tools should consider reusable accessible widgets and prompt for variable accessibility information such as title text. The use of RDF in the ARIA Roles should be used to ensure that properties may be supported by which roles. W3C Authoring Tools Accessibility Guidelines 2.0 [ATAG2] is developing requirements that will better address authors will creating accessible, dynamic, scripted Web content.
At this time, IBM is doing much of the prototyping of this work. Sample markup has been contributed by IBM and may be found on the Mozilla accessibility Web site. IBM is working on a best practices document and is contributing to WCAG 2.0 implementation techniques. UB Access is contributing much of the RDF design supporting the Role taxonomy work. At this time these guidelines are not yet made available.
The following table is the anticipated delivery timeline for portions of the WAI-ARIA suite and possible related documents. This is not a prescriptive timeline, but is provided to track the relevant technologies.
| Specification. | WD 1.0 | WD 2.0 | WD 3.0 |
WD 4.0 | LC | CR | Test Suites | Implementation Report | PR | REC |
|---|---|---|---|---|---|---|---|---|---|---|
| States and Properties Module for Accessible Rich Internet Applications [ARIA-STATE] | Q3 2006 | Q2 2007 | Q4 2007 | Q4 2007 |
Q1 2008 | Q1 2008 | Q2 2008 | Q2 2008 | Q2 2008 | |
| Roles for Accessible Rich Internet Applications [ARIA-ROLE] | Q3 2006 | Q4 2006 | Q2 2007 | Q4 2007 | Q4 2007 | Q1 2008 | Q1 2008 | Q2 2008 | Q2 2008 | Q2 2008 |
| XHTML Role Attribute Module [XHTML-ROLES] | Q3 2006 | Q4 2007 | Q3 2007 | Q4 2007 | Q1 2008 | |||||
|
XHTML2 Specification
[XHTML2] (Includes XForms) Note: In last call we point out that we may shift the namespace of the role attribute, and its standard role landmarks, from XHTML 2 to our own, if XHTML2 is not in last call. In CR we can include both namespaces, with the explicit note that whichever is most useless is definitely at risk of being dropped. |
Q2 2005 | TBD | TBD | TBD | TBD | TBD | TBD | |||
| Forward Looking Efforts: | ||||||||||
| XML Events 2 [XML-EVENTS] with handler descriptions (not critical for XHTML) | TBD | TBD | TBD | TBD | TBD | TBD | TBD | |||
| XForms 1.1 [XFORMS] | Q1 2007 | Q4 2007 | TBD | TBD | Q2 2008 | Q3 2008 |
The following table provides implementations of the new accessibility specifications for supporting dynamic accessible Web content.
| Implementation | Category of Implementation |
|---|---|
| Firefox 2.0 (including MSAA support) | user agent |
| GW Micro Window-Eyes 5.5 - with Firefox support | assistive technology (screen reader) |
| JAWS 7.0 with Firefox support(partial) | assistive technology (screen reader) |
| Windows Magnifier (with IE or Firefox 1.5) | assistive technology (magnifier) |
| Fire Vox | assistive technology (screen reader) |
| Internet Explorer from DOM API | user agent |
| Mozilla Firefox Test samples | content |
| Dojo JavaScript Toolkit | content - in Development |
| iCITA Firefox Accessibility Extension: Testing Tool | accessibility test tool |
| iCITA ARIA Example Widgets | content |
| Mozilla Firefox ARIA to Accessibility API mapping | User Agent Accessibility API mapping |
| Bindows Object Oriented Platform for AJAX Development | content - in Development |
| WAI Role Taxonomy Extension Tool | Tool - in Development |
This roadmap is designed to address the accessibility of dynamic, scripted, Web content that may be rendered in today's browser while bridging to future declarative standards, such as XHTML2, in the W3C. The extensions being created for XHTML 1.X are intended to be cross-cutting. This roadmap clearly indicates that WCAG, ATAG, and UAAG should be in lock step for a common strategy. All groups are impacted and are interdependent. Additionally, close work with mainstream working groups, like HTML, CSS, and Device Independence will not only produce a working solution but it will produce a working solution that will have a broader impact than just XHTML.
| Required Components | Who does what today? (HTML) | Technique to fill the gaps for HTML 4.01 | Plan to fill the gaps in HTML 5 |
|---|---|---|---|
| Events: | |||
| FocusChange | DOM 2 UI Events ([EVENTS], Section 1.6.1) | DOM 2 UI Events ([EVENTS], Section 1.6.1) | DOM 2 UI Events ([EVENTS], Section 1.6.1) |
| Activation | DOM Level 2 Device Independent UI Events ([EVENTS], Section 1.6.1, UIEvent) | ||
| Caret Change | User Agent API | User Agent API | User Agent API |
| * Value Change | User Agent to monitor valuenow, valuemax, and valuemin states in the States and Properties Module [ARIA-STATE] when implemented using the W3C technique to embed role and state attributes into HTML documents. For properties representing platform accessibility API values as specified by a given role, it will generate an accessible value change event. (See State Change Event below). | User Agent to monitor valuenow, valuemax, and valuemin states in the States and Properties Module [ARIA-STATE] when implemented using the W3C technique to embed role and state attributes into HTML documents. For properties representing platform accessibility API values as specified by a given role, it will generate an accessible value change event. (See State Change Event below). | |
| * State Change | User Agent to monitor specific accessibility states and properties in the States and Properties Module [ARIA-STATE] when implemented using the W3C technique to embed role and state attributes into HTML documents. For properties representing platform accessibility API states or properties defined for given role, the user agent will generate an accessible state or property change event. | User Agent to monitor specific accessibility states and properties in the States and Properties Module [ARIA-STATE] when implemented using the technique specified in section 5.1.4. For properties representing platform accessibility API states or properties defined for given role, the user agent will generate an accessible state or property change event. | |
| Selection Change | User Agent API | User Agent API | User Agent API |
| Mutation | DOM Events | DOM Events mapping | DOM Events mapping |
| Accessible Actions: | |||
| * Event Handler functional information and descriptive shortcuts | |||
| * Access to the available event handlers for enumerating the actions | DOM 3 Events | ||
| * State Information: | States and Properties Module [ARIA-STATE] as implemented using the W3C technique to embed role and state attributes into HTML documents. | States and Properties Module [ARIA-STATE]. | |
| * Role Information: | Limited to standard HTML tag names. (Mix Content/presentation) | Roles for Accessible Rich Internet Applications [ARIA-ROLE] and XHTML Role Attribute [XHTML-ROLE] as implemented using the W3C technique to embed role and state attributes into HTML documents. |
|
| Relationships: Parent/child | Limited DOM (affected by style) (Mix Content/presentation) | ||
| Relationships: (Label, MemberOf - Group, ControllerFor) | Limited to HTML (Title, alt, label) | States and Properties Module [ARIA-STATE] | |
| Text: | Core DOM 1 from parsed HTML | ||
| Content selection: | User Agent | ||
| Font/Font Style Information: | Can set but can't get final format | User Agents final format styling using CSS2 APIs or platform accessibility APIs | User Agents final format styling using CSS2 APIs or platform accessibility APIs |
| * Description/Help: | limited to HTML 4.0 - Alt Text, title text | States and Properties Module [ARIA-STATE] as implemented using the W3C technique to embed role and state attributes into HTML documents. | |
| * Accessible value: | limited to form elements | States and Properties Module [ARIA-STATE] as implemented using the W3C technique to embed role and state attributes into HTML documents. | |
| Coordinates (Bounding rectangle, etc.): | User Agents. Platform accessibility API | ||
| Accessible Name: | User Agent determines from HTML tag | ||
| * Respond Desktop Font/Color Changes | partial (conflicts with CSS and JavaScript) | CSS3 - Requires User Agent support | |
| * Device independent navigation: | Use of XHTML landmarks through the <link rel""> | XHTML 1 Role land marks | |
| *Accessibility API Mapping: | partial - User Agents | User Agent to map new AAA properties and role meta data to the platform accessibility API | |
| Provide focus to all active elements | TABINDEX=-1 best practice | TABINDEX |
Table 2.0 shows the roadmap for filling the gaps in Table 1.0 for HTML. The effort is designed to fill the gaps for HTML content using the W3C technique to embed role and state attributes into HTML documents. Required components marked with an asterisk indicate gaps to fill in the roadmap.
| Required Components | Who does what today? (XHTML) | Plan to fill the gaps for XHTML 1.X | Plan to fill gaps for XHTML 1.X + XForms | XML Events | Plan to fill the gaps for XHTML 2.0 |
|---|---|---|---|---|---|
| Events: | |||||
| FocusChange | DOM 2 UI Events ([EVENTS], Section 1.6.1) | ||||
| Activation | DOM Level 2 Device Independent UI Events ([EVENTS], Section 1.6.1, UIEvent) | ||||
| Caret Change | User Agent API | User Agent API | User Agent API | User Agent API | |
| * Value Change | User Agent to monitor valuenow, valuemax, and valuemin states in the States and Properties Module [ARIA-STATE] For properties representing platform accessibility API values as specified by a given role, it will generate an accessible value change event. (See State Change Event below). | User Agent to monitor change from WAI State Taxonomy information supplied by the Author and fire the platform specific Accessibility API event | |||
| * State Change | User Agent to monitor specific accessibility properties in the States and Properties Module [ARIA-STATE]. For properties representing platform accessibility API states, it will generate an AccessibleState Change event. (See Value Change above) | User Agent to monitor change from WAI State Taxonomy information supplied by the Author and fire the platform specific Accessibility API event | |||
| Selection Change | User Agent API | User Agent API | User Agent API | User Agent API | |
| Mutation | DOM Events | ||||
| Accessible Actions: | |||||
| * Event Handler functional information and descriptive shortcuts | XML Event handler "purpose" addition to XML Events [XML-EVENTS] Details:Need for XML Events |
access element XML Event handler "purpose" addition to XML Events [XML-EVENTS] Details:Need for XML Events* |
|||
| * Access to the available event handlers for enumerating the actions | DOM 3 Events | ||||
| * State Information: | States and Properties Module [ARIA-STATE]. | User Agent to map information found in XForms data model with limited use of States and Properties Module. User Agent of XForms data model to accessible state meta found in: States and Properties Module [ARIA-STATE]. | User Agent to map information found in XForms data model with limited use of States and Properties Module. User Agent of XForms data model to accessible state meta found in: States and Properties Module [ARIA-STATE] | ||
| * Role Information: | Limited to standard HTML tag names. (Mix Content/presentation) | ||||
| Relationships: Parent/child | Limited DOM (affected by style) (Mix Content/presentation) | ||||
| Relationships: (Label, MemberOf - Group, ControllerFor) | Limited to HTML (Title, alt, label) | States and Properties Module [ARIA-STATE] | State sand Properties Module [ARIA-STATE] label, group acquired from XForms |
label, group acquired from XForms incorporated into XHTML 2 | |
| Text: | Core DOM 1 from parsed HTML | ||||
| Content selection: | User Agent | ||||
| Font/Font Style Information: | Can set but can't get final format | User Agents final format styling using CSS2 APIs | User Agents final format styling using CSS2 APIs | User Agents final format styling using CSS2 APIs | |
| * Description/Help: | limited to HTML 4.0 - Alt Text, title text | States and Properties Module [ARIA-STATE] | Acquired from XForms help, XForms hint incorporated into XHTML 2 | Acquired from XForms help, XForms hint incorporated into XHTML 2 | |
| * Accessible value: | limited to form elements | States and Properties Module [ARIA-STATE] | User Agent acquires from XForms data model | User Agent Acquires from XForms data model incorporated into XHTML 2 | |
| Coordinates (Bounding rectangle, etc.): | User Agents. Platform accessibility API | ||||
| Accessible Name: | User Agent determines from HTML tag | ||||
| * Respond Desktop Font/Color Changes | partial (conflicts with CSS and JavaScript) | CSS3 - Requires User Agent support | CSS3 - Requires User Agent support | CSS3 - Requires User Agent Support | |
| * Device independent navigation: | Use of xhtml2 landmarks through the <link rel""> | XHTML 2 Role land marks | XHTML 2 Role land marks | XHTML 2 Role land marks, and Access Key replacement | |
| *Accessibility API Mapping: | partial - User Agents | User Agent to map new AAA properties and role meta data to the platform accessibility API | |||
| Provide focus to all active elements | TABINDEX=-1 best practice | TABINDEX | TABINDEX | All XHTML 2 elements shall be focusable. |
Table 3.0 shows the roadmap for filling the gaps in Table 1.0 for XHTML. Required components marked with an asterisk indicate gaps to fill in the roadmap. As you move to the right in the table a transition to more declarative markup will take place. The use of declarative markup reduces the enablement effort required while better addressing accessibility. Declarative markup is used to build accessibility in rather than bolting it on.
The following table indicates the specifications to track which address the gaps in the Roadmap.
| Specification. | XHTML 1.0, XHTML 1.1 | XHTML 2.0 |
|---|---|---|
| Accessible State Meta Data | States and Properties Module for Accessible Rich Internet Applications | XHTML2 Specification (includes XForms) |
| TABINDEX Correction for focus | States and Properties Module for Accessible Rich Internet Applications | All elements are focusable in XHTML 2 |
| Accessible Role Meta Data | Roles for Accessible Rich Internet Applications | Roles for Accessible Rich Internet Applications |
| Role Attribute | XHTML Role Attribute Module | XHTML2 Role Specification |
This section is informative.
The following contributed to the development of this document.
Special thanks to Aaron Leventhal for effort and insight as he implemented a working prototype of accessibility API bindings.
Simon Bates, Christian Cohrs, Becky Gibson, Barbara Hartel, Earl Johnson, Jael Kurz, Lisa Pappas, Vitaly Sourikov, Tom Wlodkowski.
This publication has been funded in part with Federal funds from the U.S. Department of Education under contract number ED05CO0039. The content of this publication does not necessarily reflect the views or policies of the U.S. Department of Education, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government.
