Like XML, XPath is a case-sensitive language. Keywords in XPath use lower-case characters and are not reserved—that is, names in XPath expressions are allowed to be the same as language keywords, except for certain unprefixed function-names listed in A.3 Reserved Function Names.
2.1 Expression Context
[Definition: The expression context for a given expression consists of all the information that can affect the result of the expression.] This information is organized into two categories called the static context and the dynamic context.
2.1.1 Static Context
[Definition: The static context of an expression is the information that is available during static analysis of the expression, prior to its evaluation.] This information can be used to decide whether the expression contains a static error. If analysis of an expression relies on some component of the static
context that has not been assigned a value, a static error is raised [err:XPST0001].
The individual components of the static context are summarized below. A default initial value for each component may be specified by the host language. The scope of each component is specified in C.1 Static Context Components.
-
[Definition: XPath 1.0 compatibility mode. This value is true if rules for backward compatibility with XPath Version 1.0 are in effect; otherwise it is false.]
-
[Definition: Statically known namespaces. This is a set of (prefix, URI) pairs that define all the namespaces that are known during static processing of a given expression.] The URI value is whitespace normalized according to the rules for the xs:anyURI type in [XML Schema]. Note the difference between in-scope namespaces, which is a dynamic property of an element node, and statically known namespaces, which is a static property of an expression.
-
[Definition: Default element/type namespace. This is a namespace URI or "none". The namespace URI, if present, is used for any unprefixed QName appearing in a position where an element or type name is expected.] The URI value is whitespace normalized according to the rules for the xs:anyURI type in [XML Schema].
-
[Definition: Default function namespace. This is a namespace URI or "none". The namespace URI, if present, is used for any unprefixed QName appearing in a position where a function name is expected.] The URI value is whitespace normalized according to the rules for the xs:anyURI type in [XML Schema].
-
[Definition: In-scope schema definitions. This is a generic term for all the element declarations, attribute declarations, and schema type definitions that are in scope during processing of an expression.] It includes the following three parts:
-
[Definition: In-scope schema types. Each schema type definition is identified either by an expanded QName (for a named type) or by an implementation-dependent type identifier (for an anonymous type). The in-scope schema types include the predefined schema types described in 2.5.1 Predefined Schema Types. ]
-
[Definition: In-scope element declarations. Each element declaration is identified either by an expanded QName (for a top-level element declaration) or by an implementation-dependent element identifier (for a local element declaration). ] An element declaration includes information about
the element's substitution group affiliation.
[Definition: Substitution groups are defined in [XML Schema] Part 1, Section 2.2.2.2. Informally, the substitution group headed by a given element (called the head element) consists of the set of elements that can be substituted for the head element without affecting the outcome of schema validation.]
-
[Definition: In-scope attribute declarations. Each attribute declaration is identified either by an expanded QName (for a top-level attribute declaration) or by an implementation-dependent attribute identifier (for a local attribute declaration). ]
-
[Definition: In-scope variables. This is a set of (expanded QName, type) pairs. It defines the set of variables that are available for reference within an expression. The expanded QName is the name of the variable, and the type is the static type of the variable.]
An expression that binds a variable (such as a for, some, or every expression) extends the in-scope variables of its subexpressions with the new bound variable and its type.
-
[Definition: Context item static type. This component defines the static type of the context item within the scope of a given expression.]
-
[Definition: Function signatures. This component defines the set of functions that are available to be called from within an expression. Each function is uniquely identified by its expanded QName and its arity (number of parameters).] In addition to the name and arity, each function signature specifies the static types of the function parameters and result.
The function signatures include the signatures of constructor functions, which are discussed in 3.10.4 Constructor Functions.
-
[Definition: Statically known collations. This is an implementation-defined set of (URI, collation) pairs. It defines the names of the collations that are available for use in processing expressions.] [Definition: A collation is a specification of the manner in
which strings and URIs are compared and, by extension, ordered. For a more complete definition of collation, see [XQuery 1.0 and XPath 2.0 Functions and Operators].]
-
[Definition: Default collation. This identifies one of the collations in statically known collations as the collation to be used by functions and operators for comparing and ordering values of type xs:string and xs:anyURI (and their subtypes) when no explicit collation is specified.]
-
[Definition: Base URI. This is an absolute URI, used when necessary in the resolution of relative URIs (for example, by the fn:resolve-uri function.)] The URI value is whitespace normalized according to the rules for the xs:anyURI type in [XML Schema].
-
[Definition: Statically known documents. This is a mapping from strings onto types. The string represents the absolute URI of a resource that is potentially available using the fn:doc function. The type is the static type of a call to fn:doc with the given URI as its literal argument. ] If the argument to fn:doc is a string
literal that is not present in statically known documents, then the static type of fn:doc is document-node()?.
Note:
The purpose of the statically known documents is to provide static type information, not to determine which documents are available. A URI need not be found in the statically known documents to be accessed using fn:doc.
-
[Definition: Statically known collections. This is a mapping from strings onto types. The string represents the absolute URI of a resource that is potentially available using the fn:collection function. The type is the type of the sequence of nodes that would result from calling the fn:collection function with this URI as its argument.] If the argument to
fn:collection is a string literal that is not present in statically known collections, then the static type of fn:collection is node()*.
Note:
The purpose of the statically known collections is to provide static type information, not to determine which collections are available. A URI need not be found in the statically known collections to be accessed using fn:collection.
-
[Definition: Statically known default collection type. This is the type of the sequence of nodes that would result from calling the fn:collection function with no arguments.] Unless initialized to some other value by an implementation, the value of statically known default collection type is node()*.
2.1.2 Dynamic Context
[Definition: The dynamic context of an expression is defined as information that is available at the time the expression is evaluated.] If evaluation of an expression relies on some part of the dynamic context that has not been assigned a value, a dynamic error is raised [err:XPDY0002].
The individual components of the dynamic context are summarized below. Further rules governing the semantics of these components can be found in C.2 Dynamic Context Components.
The dynamic context consists of all the components of the static context, and the additional components listed below.
[Definition: The first three components of the dynamic context (context item, context position, and context size) are called the focus of the expression. ] The focus enables the processor to keep track of which items are being processed by the expression.
Certain language constructs, notably the path expression E1/E2 and the filter expression E1[E2], create a new focus for the evaluation of a sub-expression. In these constructs, E2 is evaluated once for each item in the sequence that results from evaluating E1. Each time E2 is evaluated, it is evaluated with a different
focus. The focus for evaluating E2 is referred to below as the inner focus, while the focus for evaluating E1 is referred to as the outer focus. The inner focus exists only while E2 is being evaluated. When this evaluation is complete, evaluation of the containing expression continues with its original focus unchanged.
-
[Definition: The context item is the item currently being processed. An item is either an atomic value or a node.][Definition: When the context item is a node, it can also be referred to as the context node.] The context item is returned by an expression consisting of a single dot (.). When an expression E1/E2 or
E1[E2] is evaluated, each item in the sequence obtained by evaluating E1 becomes the context item in the inner focus for an evaluation of E2.
-
[Definition: The context position is the position of the context item within the sequence of items currently being processed.] It changes whenever the context item changes. Its value is always an integer greater than zero. The context position is returned by the expression fn:position(). When an expression E1/E2 or E1[E2] is evaluated, the context position in the inner focus
for an evaluation of E2 is the position of the context item in the sequence obtained by evaluating E1. The position of the first item in a sequence is always 1 (one). The context position is always less than or equal to the context size.
-
[Definition: The context size is the number of items in the sequence of items currently being processed.] Its value is always an integer greater than zero. The context size is returned by the expression fn:last(). When an expression E1/E2 or E1[E2] is evaluated, the context size in the inner focus for an evaluation of E2 is the number of items in the sequence obtained by
evaluating E1.
-
[Definition: Variable values. This is a set of (expanded QName, value) pairs. It contains the same expanded QNames as the in-scope variables in the static context for the expression. The expanded QName is the name of the variable and the value
is the dynamic value of the variable, which includes its dynamic type.]
-
[Definition: Function implementations. Each function in function signatures has a function implementation that enables the function to map instances of its parameter types into an instance of its result type. ]
-
[Definition: Current dateTime. This information represents an implementation-dependent point in time during the processing of an expression, and includes an explicit timezone. It can be retrieved by the fn:current-dateTime function. If invoked multiple times during the execution of
an expression, this function always returns the same result.]
-
[Definition: Implicit timezone. This is the timezone to be used when a date, time, or dateTime value that does not have a timezone is used in a comparison or arithmetic operation. The implicit timezone is an implementation-defined value of type xdt:dayTimeDuration. See [XML Schema] for the range of legal values of a
timezone.]
-
[Definition: Available documents. This is a mapping of strings onto document nodes. The string represents the absolute URI of a resource. The document node is the root of a tree that represents that resource using the data model. The document node is returned by the fn:doc function when applied to that URI.] The set of available documents is not limited to
the set of statically known documents, and it may be empty.
-
[Definition: Available collections. This is a mapping of strings onto sequences of nodes. The string represents the absolute URI of a resource. The sequence of nodes represents the result of the fn:collection function when that URI is supplied as the argument. ] The set of available collections is not limited to the set of statically known collections, and it may be empty.
-
[Definition: Default collection. This is the sequence of nodes that would result from calling the fn:collection function with no arguments.] The value of default collection may be initialized by the implementation.
2.2 Processing Model
XPath is defined in terms of the data model and the expression context.

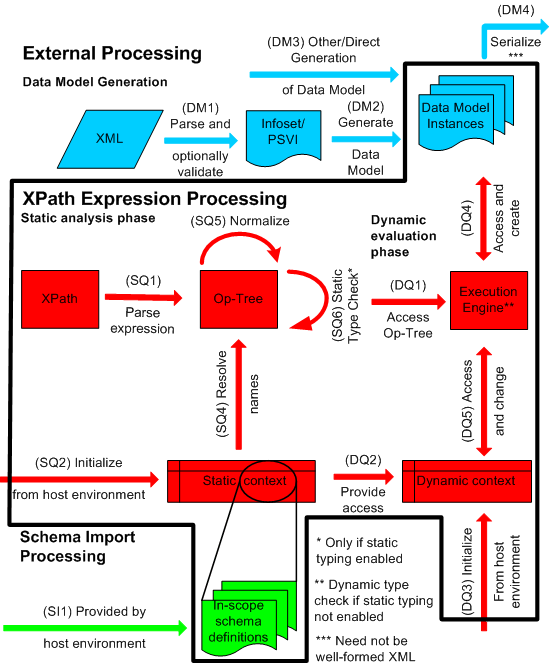

Figure 1: Processing Model Overview
Figure 1 provides a schematic overview of the processing steps that are discussed in detail below. Some of these steps are completely outside the domain of XPath; in Figure 1, these are depicted outside the line that represents the boundaries of the language, an area labeled external processing. The external processing domain includes generation of a data model instance that represents the data to be queried (see 2.2.1 Data Model Generation), schema import processing (see 2.2.2 Schema Import Processing) and serialization (see 2.2.4 Serialization). The area inside the boundaries of the language is known as the XPath processing domain, which includes the static analysis and dynamic evaluation phases (see 2.2.3 Expression Processing). Consistency constraints on the XPath processing domain are defined in 2.2.5 Consistency Constraints.
2.2.1 Data Model Generation
Before an expression can be processed, its input data must be represented as a data model instance. This process occurs outside the domain of XPath, which is why Figure 1 represents it in the external processing domain. Here are some steps by which an XML document might be converted to a data model instance:
-
A document may be parsed using an XML parser that generates an XML Information Set (see [XML Infoset]). The parsed document may then be validated against one or more schemas. This process, which is described in [XML Schema], results in an abstract information structure called the Post-Schema Validation Infoset (PSVI). If a document has no associated schema, its Information Set is preserved. (See DM1 in Fig. 1.)
-
The Information Set or PSVI may be transformed into a data model instance by a process described in [XQuery 1.0 and XPath 2.0 Data Model]. (See DM2 in Fig. 1.)
The above steps provide an example of how a data model instance might be constructed. A data model instance might also be synthesized directly from a relational database, or constructed in some other way (see DM3 in Fig. 1.) XPath is defined in terms of the data model, but it does not place any constraints on how data model instances are constructed.
[Definition: Each element node and attribute node in a data model instance has a type annotation (referred to in [XQuery 1.0 and XPath 2.0 Data Model] as its type-name property.) The type annotation of a node is a schema type that describes the relationship between
the string value of the node and its typed value.] If the data model instance was derived from a validated XML document as described in Section 3.3 Construction from a PSVIDM, the type annotations of the element and attribute nodes are derived from
schema validation. XPath does not provide a way to directly access the type annotation of an element or attribute node.
The value of an attribute is represented directly within the attribute node. An attribute node whose type is unknown (such as might occur in a schemaless document) is given the type annotation xdt:untypedAtomic.
The value of an element is represented by the children of the element node, which may include text nodes and other element nodes. The type annotation of an element node indicates how the values in its child text nodes are to be interpreted. An element that has not been validated (such as might occur in a schemaless document) is annotated with the schema type xdt:untyped. An element that has been validated and found to be partially
valid is annotated with the schema type xs:anyType. If an element node is annotated as xdt:untyped, all its descendant element nodes are also annotated as xdt:untyped. However, if an element node is annotated as xs:anyType, some of its descendant element nodes may have a more specific type annotation.
2.2.2 Schema Import Processing
2.2.3 Expression Processing
XPath defines two phases of processing called the static analysis phase and the dynamic evaluation phase (see Fig. 1). During the static analysis phase, static errors, dynamic errors, or type errors may be raised. During
the dynamic evaluation phase, only dynamic errors or type errors may be raised. These kinds of errors are defined in 2.3.1 Kinds of Errors.
Within each phase, an implementation is free to use any strategy or algorithm whose result conforms to the specifications in this document.
2.2.3.1 Static Analysis Phase
[Definition: The static analysis phase depends on the expression itself and on the static context. The static analysis phase does not depend on input data (other than schemas).]
During the static analysis phase, the XPath expression is parsed into an internal representation called the operation tree (step SQ1 in Figure 1). A parse error is raised as a static error [err:XPST0003]. The static context is initialized by the implementation (step SQ2). The static context is used to resolve schema type names, function names, namespace prefixes, and variable names (step SQ4). If a name of one of these kinds in the operation tree is not found in the static context, a static error ([err:XPST0008] or [err:XPST0017]) is raised (however, see exceptions to this rule in 2.5.4.3 Element Test and 2.5.4.5 Attribute Test.)
The operation tree is then normalized by making explicit the implicit operations such as atomization, type promotion, and extraction of Effective Boolean Values (step SQ5). The normalization process is described in [XQuery 1.0 and XPath 2.0 Formal Semantics].
Each expression is then assigned a static type (step SQ6). [Definition: The static type of an expression is a type such that, when the expression is evaluated, the resulting value will always conform to the static type.] If the Static Typing Feature is supported, the static types of various expressions are inferred according to the rules described in [XQuery 1.0 and XPath 2.0 Formal Semantics]. If the Static Typing Feature is not supported, the static types that are assigned are implementation-dependent.
During the static analysis phase, if the Static Typing Feature is in effect and an operand of an expression is found to have a static type that is not appropriate for that operand, a type error is raised [err:XPTY0004]. If
static type checking raises no errors and assigns a static type T to an expression, then execution of the expression on valid input data is guaranteed either to produce a value of type T or to raise a dynamic error.
The purpose of the Static Typing Feature is to provide early detection of type errors and to infer type information that may be useful in optimizing the evaluation of an expression.
2.2.3.2 Dynamic Evaluation Phase
[Definition: The dynamic evaluation phase is the phase during which the value of an expression is computed.] It occurs after completion of the static analysis phase.
The dynamic evaluation phase can occur only if no errors were detected during the static analysis phase. If the Static Typing Feature is in effect, all type errors are detected during static analysis and serve to inhibit the dynamic evaluation phase.
The dynamic evaluation phase depends on the operation tree of the expression being evaluated (step DQ1), on the input data (step DQ4), and on the dynamic context (step DQ5), which in turn draws information from the external environment (step DQ3) and the static context (step DQ2). The dynamic evaluation phase may create new data-model values (step DQ4) and it may extend the dynamic context (step DQ5)—for example, by binding values to variables.
[Definition: A dynamic type is associated with each value as it is computed. The dynamic type of a value may be more specific than the static type of the expression that computed it (for example, the static type of an expression might be xs:integer*, denoting a sequence of zero or more integers, but at evaluation time its value may have the dynamic type
xs:integer, denoting exactly one integer.)]
If an operand of an expression is found to have a dynamic type that is not appropriate for that operand, a type error is raised [err:XPTY0004].
Even though static typing can catch many type errors before an expression is executed, it is possible for an expression to raise an error during evaluation that was not detected by static analysis. For example, an expression may contain a cast of a string into an integer, which is statically valid. However, if the actual value of the string at run time cannot be cast into an integer, a dynamic error
will result. Similarly, an expression may apply an arithmetic operator to a value whose static type is xdt:untypedAtomic. This is not a static error, but at run time, if the value cannot be successfully cast to a numeric type, a dynamic error will be raised.
When the Static Typing Feature is in effect, it is also possible for static analysis of an expression to raise a type error, even though execution of the expression on certain inputs would be successful. For example, an expression might contain a function that requires an element as its parameter, and the static analysis phase might infer the static type of the function parameter to be an optional element. This case is treated as a type error and inhibits evaluation, even though the function call would have been successful for input data in which the optional element is present.
2.2.5 Consistency Constraints
In order for XPath to be well defined, the input data model instance, the static context, and the dynamic context must be mutually consistent. The consistency constraints listed below are prerequisites for correct functioning of an XPath implementation. Enforcement of these consistency constraints is beyond the scope of this
specification. This specification does not define the result of an expression under any condition in which one or more of these constraints is not satisfied.
Some of the consistency constraints use the term data model schema. [Definition: For a given node in a data model instance, the data model schema is defined as the schema from which the type annotation of that node was derived.] For a node that was constructed by some process other
than schema validation, the data model schema consists simply of the schema type definition that is represented by the type annotation of the node.
-
For every node that has a type annotation, if that type annotation is found in the in-scope schema definitions (ISSD), then its definition in the ISSD must be equivalent to its definition in the data model schema. Furthermore, all types that are derived by extension from the given type in the data model schema must also be
known by equivalent definitions in the ISSD.
-
For every element name EN that is found both in a data model instance and in the in-scope schema definitions (ISSD), all elements that are known in the data model schema to be in the substitution group headed by EN must also be known in
the ISSD to be in the substitution group headed by EN.
-
Every element name, attribute name, or schema type name referenced in in-scope variables or function signatures must be in the in-scope schema definitions, unless it is an element name referenced as part of an ElementTest or an attribute name referenced as part of an AttributeTest.
-
For each mapping of a string to a document node in available documents, if there exists a mapping of the same string to a document type in statically known documents, the document node must match the document type, using the matching rules in 2.5.4 SequenceType Matching.
-
For each mapping of a string to a sequence of nodes in available collections, if there exists a mapping of the same string to a type in statically known collections, the sequence of nodes must match the type, using the matching rules in 2.5.4 SequenceType Matching.
-
The sequence of nodes in the default collection must match the statically known default collection type, using the matching rules in 2.5.4 SequenceType Matching.
-
The value of the context item must match the context item static type, using the matching rules in 2.5.4 SequenceType Matching.
-
For each (variable, type) pair in in-scope variables and the corresponding (variable, value) pair in variable values such that the variable names are equal, the value must match the type, using the matching rules in 2.5.4 SequenceType Matching.
2.3 Error Handling
2.3.1 Kinds of Errors
As described in 2.2.3 Expression Processing, XPath defines a static analysis phase, which does not depend on input data, and a dynamic evaluation phase, which does depend on input data. Errors may be raised during each phase.
[Definition: A static error is an error that must be detected during the static analysis phase. A syntax error is an example of a static error.]
[Definition: A dynamic error is an error that must be detected during the dynamic evaluation phase and may be detected during the static analysis phase. Numeric overflow is an example of a dynamic error. ]
[Definition: A type error may be raised during the static analysis phase or the dynamic evaluation phase. During the static analysis phase, a type error occurs when the static type of an expression does not match the expected type of the context in which the expression occurs. During the dynamic evaluation phase, a type error occurs when the dynamic type of a value does not match the expected type of the context in which the value occurs. ]
The outcome of the static analysis phase is either success or one or more type errors, static errors, or statically-detected dynamic errors. The result of the dynamic evaluation phase is either a result value, a
type error, or a dynamic error.
During the static analysis phase, if the Static Typing Feature is in effect and the static type assigned to an expression other than () or data(()) is void(), a static error is raised [err:XPST0005]. This catches cases in which a query refers to an element or attribute that is not present in the in-scope schema definitions, possibly because of a spelling error.
Independently of whether the Static Typing Feature is in effect, if an implementation can determine during the static analysis phase that an expression, if evaluated, would necessarily raise a type error or a dynamic error, the implementation may (but is not
required to) report that error during the static analysis phase. However, the fn:error() function must not be evaluated during the static analysis phase.
[Definition: In addition to static errors, dynamic errors, and type errors, an XPath implementation may raise warnings, either during the static analysis phase or the dynamic evaluation phase. The circumstances in which warnings are raised, and the ways in which warnings are handled, are implementation-defined.]
In addition to the errors defined in this specification, an implementation may raise a dynamic error for a reason beyond the scope of this specification. For example, limitations may exist on the maximum numbers or sizes of various objects. Any such limitations, and the consequences of exceeding them, are implementation-dependent.
2.3.2 Identifying and Reporting Errors
The errors defined in this specification are identified by QNames that have the form err:XPYYnnnn, where:
-
err denotes the namespace for XPath and XQuery errors, http://www.w3.org/2004/07/xqt-errors. This binding of the namespace prefix err is used for convenience in this document, and is not normative.
-
XP identifies the error as an XPath error.
-
YY denotes the error category, using the following encoding:
-
nnnn is a unique numeric code.
Note:
The namespace URI for XPath and XQuery errors is not expected to change from one version of XPath to another. However, the contents of this namespace may be extended to include additional error definitions.
The method by which an XPath processor reports error information to the external environment is implementation-defined.
An error can be represented by a URI reference that is derived from the error QName as follows: an error with namespace URI NS and local part LP can be represented as the URI reference NS#LP. For example, an error whose QName is err:XPST0017 could be represented as http://www.w3.org/2004/07/xqt-errors#XPST0017.
Note:
Along with a code identifying an error, implementations may wish to return additional information, such as the location of the error or the processing phase in which it was detected. If an implementation chooses to do so, then the mechanism that it uses to return this information is implementation-defined.
2.3.3 Handling Dynamic Errors
Except as noted in this document, if any operand of an expression raises a dynamic error, the expression also raises a dynamic error. If an expression can validly return a value or raise a dynamic error, the implementation may choose to return the value or raise the dynamic error. For example, the logical expression expr1 and expr2 may return the value false if either
operand returns false, or may raise a dynamic error if either operand raises a dynamic error.
If more than one operand of an expression raises an error, the implementation may choose which error is raised by the expression. For example, in this expression:
($x div $y) + xs:decimal($z)
both the sub-expressions ($x div $y) and xs:decimal($z) may raise an error. The implementation may choose which error is raised by the "+" expression. Once one operand raises an error, the implementation is not required, but is permitted, to evaluate any other operands.
[Definition: In addition to its identifying QName, a dynamic error may also carry a descriptive string and one or more additional values called error values.] An implementation may provide a mechanism whereby an application-defined error handler can process error values and produce diagnostic messages.
A dynamic error may be raised by a built-in function or operator. For example, the div operator raises an error if its operands are xs:decimal values and its second operand is equal to zero. Errors raised by built-in functions and operators are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].
A dynamic error can also be raised explicitly by calling the fn:error function, which only raises an error and never returns a value. This function is defined in [XQuery 1.0 and XPath 2.0 Functions and Operators]. For example, the following function call raises a dynamic error, providing a QName that identifies the error, a descriptive string, and a diagnostic value (assuming that the prefix app is bound to a namespace containing
application-defined error codes):
fn:error(xs:QName("app:err057"), "Unexpected value", fn:string($v))
2.3.4 Errors and Optimization
Because different implementations may choose to evaluate or optimize an expression in different ways, certain aspects of the detection and reporting of dynamic errors are implementation-dependent, as described in this section.
An implementation is always free to evaluate the operands of an operator in any order.
In some cases, a processor can determine the result of an expression without accessing all the data that would be implied by the formal expression semantics. For example, the formal description of filter expressions suggests that $s[1] should be evaluated by examining all the items in sequence $s, and selecting all those that satisfy the predicate position()=1. In practice, many implementations will
recognize that they can evaluate this expression by taking the first item in the sequence and then exiting. If $s is defined by an expression such as //book[author eq 'Berners-Lee'], then this strategy may avoid a complete scan of a large document and may therefore greatly improve performance. However, a consequence of this strategy is that a dynamic error or type error that would be detected if the expression semantics were followed literally might not be detected at all if the
evaluation exits early. In this example, such an error might occur if there is a book element in the input data with more than one author subelement.
The extent to which a processor may optimize its access to data, at the cost of not detecting errors, is defined by the following rules.
Consider an expression Q that has an operand (sub-expression) E. In general the value of E is a sequence. At an intermediate stage during evaluation of the sequence, some of its items will be known and others will be unknown. If, at such an intermediate stage of evaluation, a processor is able to establish that there are only two possible outcomes of evaluating Q, namely the value V or an error, then the processor may deliver the result V without
evaluating further items in the operand E. For this purpose, two values are considered to represent the same outcome if their items are pairwise the same, where nodes are the same if they have the same identity, and values are the same if they are equal and have exactly the same type.
There is an exception to this rule: a processor is required to establish that the actual value of the operand E does not violate any constraints on its cardinality. For example, the expression $e eq 0 results in a type error if the value of $e contains two or more items. A processor is not allowed to decide, after evaluating the first item in the value of $e and finding it equal to zero, that the only possible outcomes are the value true or a
type error caused by the cardinality violation. It must establish that the value of $e contains no more than one item.
These rules apply to all the operands of an expression considered in combination: thus if an expression has two operands E1 and E2, it may be evaluated using any samples of the respective sequences that satisfy the above rules.
The rules cascade: if A is an operand of B and B is an operand of C, then the processor needs to evaluate only a sufficient sample of B to determine the value of C, and needs to evaluate only a sufficient sample of A to determine this sample of B.
The effect of these rules is that the processor is free to stop examining further items in a sequence as soon as it can establish that further items would not affect the result except possibly by causing an error. For example, the processor may return true as the result of the expression S1 = S2 as soon as it finds a pair of equal values from the two sequences.
Another consequence of these rules is that where none of the items in a sequence contributes to the result of an expression, the processor is not obliged to evaluate any part of the sequence. Again, however, the processor cannot dispense with a required cardinality check: if an empty sequence is not permitted in the relevant context, then the processor must ensure that the operand is not an empty sequence.
Examples:
-
If an implementation can find (for example, by using an index) that at least one item returned by $expr1 in the following example has the value 47, it is allowed to return true as the result of the some expression, without searching for another item returned by $expr1 that would raise an error if it were evaluated.
some $x in $expr1 satisfies $x = 47
-
In the following example, if an implementation can find (for example, by using an index) the product element-nodes that have an id child with the value 47, it is allowed to return these nodes as the result of the path expression, without searching for another product node that would raise an error because it has an id child whose value is not an integer.
For a variety of reasons, including optimization, implementations are free to rewrite expressions into equivalent expressions. Other than the raising or not raising of errors, the result of evaluating an equivalent expression must be the same as the result of evaluating the original expression. Expression rewrite is illustrated by the following examples.
-
Consider the expression //part[color eq "Red"]. An implementation might choose to rewrite this expression as //part[color = "Red"][color eq "Red"]. The implementation might then process the expression as follows: First process the "=" predicate by probing an index on parts by color to quickly find all the parts that have a Red color; then process the "eq" predicate by checking each of these parts to make sure it has only a single color. The result
would be as follows:
-
Parts that have exactly one color that is Red are returned.
-
If some part has color Red together with some other color, an error is raised.
-
The existence of some part that has no color Red but has multiple non-Red colors does not trigger an error.
-
The expression in the following example cannot raise a casting error if it is evaluated exactly as written (i.e., left to right). An implementation is permitted, however, to reorder the predicates to achieve better performance (for example, by taking advantage of an index). This reordering could cause the expression to raise an error.
$N[@x castable as xs:date][xs:date(@x) gt xs:date("2000-01-01")]
To avoid unexpected errors caused by expression rewrite, tests that are designed to prevent dynamic errors should be expressed using conditional expressions. Conditional expressions raise only dynamic errors that occur in the branch that is actually selected. Thus, unlike the previous example, the following example cannot raise a dynamic error if @x is not castable into an xs:date:
$N[if (@x castable as xs:date)
then xs:date(@x) gt xs:date("2000-01-01")
else false()]
2.4 Concepts
This section explains some concepts that are important to the processing of XPath expressions.
2.4.1 Document Order
An ordering called document order is defined among all the nodes accessible during processing of a given expression, which may consist of one or more trees (documents or fragments). Document order is defined in [XQuery 1.0 and XPath 2.0 Data Model], and its definition is repeated here for convenience. [Definition: The node ordering that is the reverse of document order is called reverse document order.]
Document order is a total ordering, although the relative order of some nodes is implementation-dependent. [Definition: Informally, document order is the order in which nodes appear in the XML serialization of a document.] [Definition: Document order is stable, which means that the relative
order of two nodes will not change during the processing of a given expression, even if this order is implementation-dependent.]
Within a tree, document order satisfies the following constraints:
-
The root node is the first node.
-
Every node occurs before all of its children and descendants.
-
Namespace nodes immediately follow the element node with which they are associated. The relative order of namespace nodes is stable but implementation-dependent.
-
Attribute nodes immediately follow the namespace nodes of the element node with which they are associated. The relative order of attribute nodes is stable but implementation-dependent.
-
The relative order of siblings is the order in which they occur in the children property of their parent node.
-
Children and descendants occur before following siblings.
The relative order of nodes in distinct trees is stable but implementation-dependent, subject to the following constraint: If any node in a given tree T1 is before any node in a different tree T2, then all nodes in tree T1 are before all nodes in tree T2.
2.4.2 Atomization
The semantics of some XPath operators depend on a process called atomization. Atomization is applied to a value when the value is used in a context in which a sequence of atomic values is required. The result of atomization is either a sequence of atomic values or a type error [err:FOTY0012]. [Definition: Atomization of a sequence
is defined as the result of invoking the fn:data function on the sequence, as defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].]
The semantics of fn:data are repeated here for convenience. The result of fn:data is the sequence of atomic values produced by applying the following rules to each item in the input sequence:
-
If the item is an atomic value, it is returned.
-
If the item is a node, its typed value is returned (err:FOTY0012 is raised if the node has no typed value.)
Atomization is used in processing the following types of expressions:
2.4.3 Effective Boolean Value
Under certain circumstances (listed below), it is necessary to find the effective boolean value of a value. [Definition: The effective boolean value of a value is defined as the result of applying the fn:boolean function to the value, as defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].]
The dynamic semantics of fn:boolean are repeated here for convenience:
-
If its operand is an empty sequence, fn:boolean returns false.
-
If its operand is a sequence whose first item is a node, fn:boolean returns true.
-
If its operand is a singleton value of type xs:boolean or derived from xs:boolean, fn:boolean returns the value of its operand unchanged.
-
If its operand is a singleton value of type xs:string, xdt:untypedAtomic, or a type derived from one of these, fn:boolean returns false if the operand value has zero length; otherwise it returns true.
-
If its operand is a singleton value of any numeric type or derived from a numeric type, fn:boolean returns false if the operand value is NaN or is numerically equal to zero; otherwise it returns true.
-
In all other cases, fn:boolean raises a type error [err:FORG0006].
The effective boolean value of a sequence is computed implicitly during processing of the following types of expressions:
-
Logical expressions (and, or)
-
The fn:not function
-
Certain types of predicates, such as a[b]
-
Conditional expressions (if)
-
Quantified expressions (some, every)
-
General comparisons, in XPath 1.0 compatibility mode.
Note:
The definition of effective boolean value is not used when casting a value to the type xs:boolean, for example in a cast expression or when passing a value to a function whose expected parameter is of type xs:boolean.
2.4.4 Input Sources
XPath has a set of functions that provide access to input data. These functions are of particular importance because they provide a way in which an expression can reference a document or a collection of documents. The input functions are described informally here; they are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators].
An expression can access input data either by calling one of the input functions or by referencing some part of the dynamic context that is initialized by the external environment, such as a variable or context item.
The input functions supported by XPath are as follows:
If one of the above functions is invoked repeatedly with arguments that resolve to the same absolute URI during the processing of a single expression, each invocation must return the same node sequence. This rule applies also to repeated invocations of fn:collection with zero arguments during the processing of a single expression.
2.5 Types
The type system of XPath is based on [XML Schema], and is formally defined in [XQuery 1.0 and XPath 2.0 Formal Semantics].
[Definition: A sequence type is a type that can be expressed using the SequenceType syntax. Sequence types are used whenever it is necessary to refer to a type in an XPath expression. The term sequence type suggests that this syntax is used to describe the type of an XPath value, which is always a sequence.]
[Definition: A schema type is a type that is (or could be) defined using the facilities of [XML Schema] (including the built-in types of [XML Schema]).] A schema type can be used as a type annotation on an element or attribute node (unless it is a non-instantiable type such as xs:NOTATION or xdt:anyAtomicType, in which case its derived types can be so
used). Every schema type is either a complex type or a simple type; simple types are further subdivided into list types, union types, and atomic types (see [XML Schema] for definitions and explanations of these terms.)
Atomic types represent the intersection between the categories of sequence type and schema type. An atomic type, such as xs:integer or my:hatsize, is both a sequence type and a schema type.
2.5.1 Predefined Schema Types
The in-scope schema types in the static context are initialized with a set of predefined schema types that is determined by the host language. This set may include some or all of the schema types defined by [XML Schema] in the namespace http://www.w3.org/2001/XMLSchema, represented in this document by the namespace prefix xs. It
may also include the schema types defined in the namespace http://www.w3.org/2005/04/xpath-datatypes, represented in this document by the namespace prefix xdt. The schema types in this namespace are defined in [XQuery 1.0 and XPath 2.0 Data Model] and are summarized below.
-
[Definition: xdt:untyped is used as the type annotation of an element node that has not been validated, or has been validated in skip mode.] No predefined schema types are derived from xdt:untyped.
-
[Definition: xdt:untypedAtomic is an atomic type that is used to denote untyped atomic data, such as text that has not been assigned a more specific type.] An attribute that has been validated in skip mode is represented in the Data Model by an attribute node with the type annotation xdt:untypedAtomic. No predefined schema types
are derived from xdt:untypedAtomic.
-
[Definition: xdt:dayTimeDuration is derived by restriction from xs:duration. The lexical representation of xdt:dayTimeDuration is restricted to contain only day, hour, minute, and second components.]
-
[Definition: xdt:yearMonthDuration is derived by restriction from xs:duration. The lexical representation of xdt:yearMonthDuration is restricted to contain only year and month components.]
-
[Definition: xdt:anyAtomicType is an atomic type that includes all atomic values (and no values that are not atomic).] It is derived from xs:anySimpleType, which is the base type for all simple types, including atomic, list, and union types. All specific atomic types such as xs:integer, xs:string, and xdt:untypedAtomic, are derived from
xdt:anyAtomicType.
Note:
xdt:anyAtomicType will not appear as the type of an actual value in a Data Model instance.

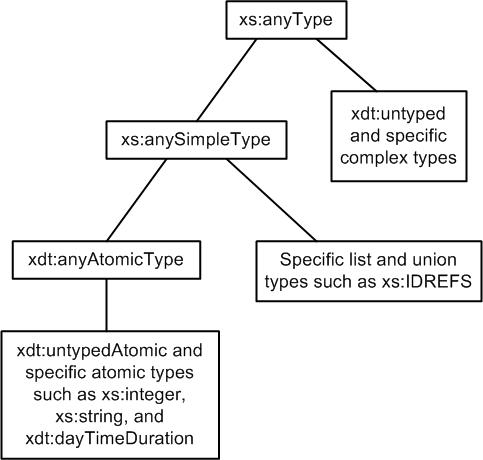

The relationships among the schema types in the xs and xdt namespaces are illustrated in Figure 2. A more complete description of the XPath type hierarchy can be found in [XQuery 1.0 and XPath 2.0 Functions and Operators].
Figure 2: Hierarchy of Schema Types used in XPath
2.5.2 Typed Value and String Value
Every node has a typed value and a string value. [Definition: The typed value of a node is a sequence of atomic values and can be extracted by applying the fn:data function to the node.] [Definition: The string value of a node is a string and can be extracted by applying the fn:string function to the node.]
Definitions of fn:data and fn:string can be found in [XQuery 1.0 and XPath 2.0 Functions and Operators].
An implementation may store both the typed value and the string value of a node, or it may store only one of these and derive the other from it as needed. The string value of a node must be a valid lexical representation of the typed value of the node, but the node is not required to preserve the string representation from the original source document. For example, if the typed value of a node is the
xs:integer value 30, its string value might be "30" or "0030".
As a convenience to the reader, the relationship between typed value and string value for various kinds of nodes is summarized and illustrated by examples below.
-
For text and document nodes, the typed value of the node is the same as its string value, as an instance of the type xdt:untypedAtomic. The string value of a document node is formed by concatenating the string values of all its descendant text nodes, in document order.
-
The typed value of a comment, namespace, or processing instruction node is the same as its string value. It is an instance of the type xs:string.
-
The typed value of an attribute node with the type annotation xs:anySimpleType or xdt:untypedAtomic is the same as its string value, as an instance of xdt:untypedAtomic. The typed value of an attribute node with any other type annotation is derived from its string value and type annotation using the lexical-to-value-space mapping defined in [XML Schema] Part 2 for the relevant
type.
Example: A1 is an attribute having string value "3.14E-2" and type annotation xs:double. The typed value of A1 is the xs:double value whose lexical representation is 3.14E-2.
Example: A2 is an attribute with type annotation xs:IDREFS, which is a list datatype whose item type is the atomic datatype xs:IDREF. Its string value is "bar baz faz". The typed value of A2 is a sequence of three atomic values ("bar", "baz", "faz"), each of type xs:IDREF. The typed value of a node is never treated as an instance of a named list type. Instead, if the type annotation of a node is a list type (such
as xs:IDREFS), its typed value is treated as a sequence of the atomic type from which it is derived (such as xs:IDREF).
-
For an element node, the relationship between typed value and string value depends on the node's type annotation, as follows:
-
If the type annotation is xdt:untyped or xs:anySimpleType or denotes a complex type with mixed content (including xs:anyType), then the typed value of the node is equal to its string value, as an instance of xdt:untypedAtomic.
Example: E1 is an element node having type annotation xdt:untyped and string value "1999-05-31". The typed value of E1 is "1999-05-31", as an instance of xdt:untypedAtomic.
Example: E2 is an element node with the type annotation formula, which is a complex type with mixed content. The content of E2 consists of the character "H", a child element named subscript with string value "2", and the character "O". The typed value of E2 is "H2O" as an instance of xdt:untypedAtomic.
-
If the type annotation denotes a simple type or a complex type with simple content, then the typed value of the node is derived from its string value and its type annotation in a way that is consistent with schema validation.
Example: E3 is an element node with the type annotation cost, which is a complex type that has several attributes and a simple content type of xs:decimal. The string value of E3 is "74.95". The typed value of E3 is 74.95, as an instance of xs:decimal.
Example: E4 is an element node with the type annotation hatsizelist, which is a simple type derived from the atomic type hatsize, which in turn is derived from xs:integer. The string value of E4 is "7 8 9". The typed value of E4 is a sequence of three values (7, 8, 9), each of type hatsize.
Example: E5 is an element node with the type annotation my:integer-or-string which is a union type with member types xs:integer and xs:string. The string value of E5 is "47". The typed value of E5 is 47 as an xs:integer, since xs:integer is the member type that validated the content of E5. In general, when the type annotation of a node is a union type, the typed value of the node will be an instance of one of the
member types of the union.
Note:
If an implementation stores only the string value of a node, and the type annotation of the node is a union type, the implementation must be able to deliver the typed value of the node as an instance of the appropriate member type.
-
If the type annotation denotes a complex type with empty content, then the typed value of the node is the empty sequence and its string value is the zero-length string.
-
If the type annotation denotes a complex type with element-only content, then the typed value of the node is undefined. The fn:data function raises a type error [err:FOTY0012] when applied to such a node. The string value of such a node is equal to the concatenated string values of all its text node descendants, in document order.
Example: E6 is an element node with the type annotation weather, which is a complex type whose content type specifies element-only. E6 has two child elements named temperature and precipitation. The typed value of E6 is undefined, and the fn:data function applied to E6 raises an error.
2.5.3 SequenceType Syntax
Whenever it is necessary to refer to a type in an XPath expression, the SequenceType syntax is used.
With the exception of the special type void(), a sequence type consists of an item type that constrains the type of each item in the sequence, and a cardinality that constrains the number of items in the sequence. Apart from the item type item(), which permits any kind of item, item types divide into node types (such as element()) and atomic types (such as
xs:integer).
Item types representing element and attribute nodes may specify the required type annotations of those nodes, in the form of a schema type. Thus the item type element(*, us:address) denotes any element node whose type annotation is (or is derived from) the schema type named us:address.
Here are some examples of sequence types that might be used in XPath expressions:
-
xs:date refers to the built-in atomic schema type named xs:date
-
attribute()? refers to an optional attribute node
-
element() refers to any element node
-
element(po:shipto, po:address) refers to an element node that has the name po:shipto and has the type annotation po:address (or a schema type derived from po:address)
-
element(*, po:address) refers to an element node of any name that has the type annotation po:address (or a type derived from po:address)
-
element(customer) refers to an element node named customer with any type annotation
-
schema-element(customer) refers to an element node whose name is customer (or is in the substitution group headed by customer) and whose type annotation matches the schema type declared for a customer element in the in-scope element declarations
-
node()* refers to a sequence of zero or more nodes of any kind
-
item()+ refers to a sequence of one or more nodes or atomic values
2.5.4 SequenceType Matching
[Definition: During evaluation of an expression, it is sometimes necessary to determine whether a value with a known
