Copyright © 2007 W3C® (MIT, ERCIM, Keio), All Rights Reserved. W3C liability, trademark and document use rules apply.
The Compound Document by Inclusion Framework defines how user agents and specification authors should deal with combining multiple namespaces in a single document in terms of DOM and rendering for example.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This is a First Public Working Draft of the Compound Documents by Inclusion Framework (editor's draft). Public comments to this Working Draft can be made to public-cdf@w3.org. This list is archived and acceptance of this archiving policy is requested automatically upon first post. To subscribe to this list send an email to public-cdf-request@w3.org with the word subscribe in the subject line.
This document has been produced by the Compound Document Formats Working Group as part of the Rich Web Clients Activity within the W3C Interaction Domain.
This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This section is informative.
Combining content delivery formats can often be desirable in order to provide a seamless experience to the user.
For example, XHTML-formatted content can be augmented by SVG objects, to create a more dynamic, interactive and self adjusting presentation.
A set of standard rules is required in order to provide this capability across a range of user agents and devices.
These are examples of Compound Documents:
This document defines a generic language-independent processing model for combining arbitrary document formats.
The Compound Document Framework is language-independent. While it is clearly meant to serve as the basis for integrating W3C's family of XML formats within its Interaction Domain (e.g., MathML, SMIL, SVG, VoiceXML, XForms, XHTML, XSL) with each other, together with CSS and the DOM; it can also be used to integrate non-W3C formats with W3C formats or integrate non-W3C formats with other non-W3C formats.
Everything in this specification is normative except for diagrams, examples, notes and sections marked non-normative.
The key words must, must not, required, shall, shall not, should, should not, recommended, may and optional in this document are to be interpreted as described in RFC 2119 [RFC2119].
This specification defines the following classes of products:
Rename this section to definitions? It's about defining the various scenario's you have after all.
(This section is informative)
A namespace uniquely identifies a set of names so that there is no ambiguity when objects having different origins but the same names are mixed together. An XML namespace is a collection of element type and attribute names. These element types and attribute names are uniquely identified by the name of the unique XML namespace of which they are a part. In an XML document, any element type or attribute name can thus have a two-part name consisting of the namespace name and the element or attribute name.
A Compound Document by inclusion combines XML markup from several namespaces into a single physical document. A number of standards exist, and continue to be developed, that are descriptions of XML markup within a single namespace. XHTML, XForms, SVG, and SMIL are some of the prominent examples of such standards, each having its own namespace. Each of these specifications focuses on one aspect of rich-content development. For example, XForms focuses on data collection and submission, SVG on vector graphis, and SMIL on synchronized multimedia.
To authors of content, each of these many standards is useful and important. However, it is the combination of elements of any number of these standards that lends true flexibility and power to rich document creation. A document may exist to be displayed within a web browser, provide contextual descriptions, to display an input form, with a scalable graphic and animation, all on the same page. XHTML, XForms, SVG, and SMIL, respectively, serve these needs, and could therefore be combined into a single multi-namespace document.
Consider this simple example, a Compound Document combining XHTML and SVG. The namespace declarations are marked by an appended comment to match the numbered namespaces listed below in the XML source in Example 1.
XHTML with SVG:
<?xml version="1.0" encoding="UTF-8"?> <html xmlns="http://www.w3.org/1999/xhtml"> <-- #1 <head> <title>SVG Circles by Inclusion</title> <style type="text/css"> #foo { border: 1px solid red } </style> </head> <body> <h1>3 SVG Circles by Inclusion</h1> <svg id="foo" style="height:20em" xmlns="http://www.w3.org/2000/svg" <-- #2 viewBox="0 0 350 450" > <g fill-opacity="0.7" stroke="black" stroke-width="2"> <circle fill="red" cx="220" cy="125" r="100"/> <circle fill="blue" cx="290" cy="225" r="100"/> <circle fill="green" cx="150" cy="225" r="100"/> </g> <rect width="450" height="350" fill="none" stroke="black"/> </svg> </body> </html>
XHTML Namespace declaration. The namespace for XHTML 1.0 is declared. Each XHTML element in the example above is unqualified, as the default namespace is that of XHTML.
SVG Namespace declaration. The namespace for SVG 1.0 is declared. Each SVG element in the example below is qualified with the svg: namespace prefix.
Compound Documents may be composed of a single document that contains multiple namespaces, as seen in Example 1. This is a Compound Document by Inclusion (CDI). However, a Compound Document may also be composed over several documents in which one document of a particular namespace references another separate document of a different namespace.
For example, a root or top-most document might contain XHTML content
for defining and formatting a page. This parent XHTML document can
reference another document of another namespace, through the use of the
XHTML <object>
element. This can be repeated for as
many documents as needed. The root document plus this collection of
separate, referenced documents is considered a Compound Document by
Reference (CDR). See Figure 2 for a simple CDR document in which an XHTML
root document contains a reference to a separate SVG child document having
markup for three colored circles.
Figure 2 shows a simple Compound Document by Reference where a XHTML document references a separate SVG document. Below you see the two markup fragments.
XHTML:
<?xml version="1.0"?> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>circles</title> </head> <body> <object height="280" width="360" type="image/svg+xml" data="circles.svg"/> </body> </html>
SVG:
<?xml version="1.0" encoding="UTF-8"?> <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 350 450" baseProfile="tiny" version="1.2" > <g fill-opacity="0.7" stroke="black" stroke-width="2"> <circle fill="red" cx="220" cy="125" r="100"/> <circle fill="blue" cx="290" cy="225" r="100"/> <circle fill="green" cx="150" cy="225" r="100"/> </g> <rect width="450" height="350" fill="none" stroke="black"/> </svg><p class="caption">Example 4: A SVG document with three circles (download)
And of course, a Compound Document may be a hybrid of both compound document by inclusion and Compound Document by reference.

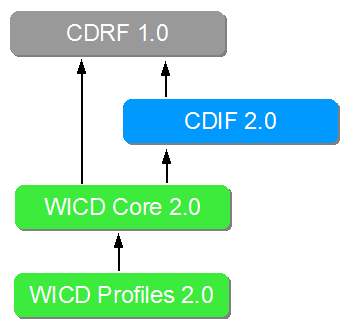

WICD Core is the foundation of rich multimedia content and describes rules for combining Hypertext Markup Language (XHTML) and scalable child objects, such as Scalable Vector Graphics (SVG), and XForms in a non device specific manner. WICD (pronounced "wicked") is an acronym for Web Integrated Compound Document.
WICD Core builds upon CDRF 1.0 and CDIF 2.0.
Profiles designed to enable rich multimedia content on a variety of devices such as: mobile handset devices, dekstop-type agents, and others.
Need some text here, perhaps reuse from CDRF.
What do we need to specify for DOM methods such as document.GetElementsByTagName("a") for if we have svg a tag and html a tags in a document?
Document
objects The Document
object in a Compound Document by inclusion
must expose the HTMLDocument
interface as well as all document-level interfaces of any other namespaces
found in the document that the user agent supports. For example, in a
compound document mixing XHTML and SVG the document object must expose both the HTMLDocument
and the SVGDocument
interfaces.
Need text. ACTION-524 on Steve...
Since DOM Level 3 Events handles namespaced eventing and appropriate handling of phases, no restrictions or enhancements are added. CDI profiles may define additional events and event processing restrictions.
Need to clarify that providing event attributes, such as SVG's onzoom on HTML div, it might be assumed by authors that it should be defined. If needed, script can be used addEventListener() on div tag to add handler for the onzoom event from SVG.
If we consider HTML based profiles, we will need to revisit with DOM Level 2 events
(This section is currently all informative)
XHTML allows multiple <html:style>
elements, as
children of the <html:head>
element. The styles from
these elements, plus external style sheets, plus inline style attributes,
together influence the complete document tree. SVG Full allows multiple
<svg:style>
elements throughout the document; again,
styles from these elements, plus external style sheets, plus inline style
attributes, together influence the complete document tree. SVG Tiny 1.2
restricts styling information to inline presentation attributes, for ease
of generation with XSLT. These have a specificity of zero so will be
overidden, in a CDI context, by any other style sheets, as the rules there
will have a higher specificity.
When content is combined by inclusion, this means that styles are also combined and will affect the entire tree; this may not be desirable.
<?xml version="1.0" encoding="UTF-8"?> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>circles</title> <style type="text/css"> body { color: black; font-size: 12px } a { color: green } </style> </head> <body> <h1>Some links and a graphic</h1> <p>A <a href="http://example.com/somewhere">link</a></p> <object data="scoping.svg" type="image/svg+xml" style="height: 4em"/> </body> </html>
<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 250 100" xmlns:x="http://www.w3.org/1999/xlink"> <style type="text/css"> * {font-style: italic } </style> <text x="20" y="60" font-size="40" color="blue">Another <a x:href="http://example.net/elsewhere" fill="currentColor">link</a></text> <rect width="250" height="100" fill="none" stroke="#700"/> </svg>
The sample rendering shows that the styling of each document is confined to that document.
If these documents are now combined by inclusion, the styles interact:
<?xml version="1.0" encoding="UTF-8"?> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>circles</title> <style type="text/css"> body { color: black; font-size: 12px } a { color: green } </style> </head> <body> <h1>Some links and a graphic</h1> <p>A <a href="http://example.com/somewhere">link</a></p> <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 250 100" xmlns:x="http://www.w3.org/1999/xlink" height="4em"> <style type="text/css"> * {font-style: italic } </style> <text x="20" y="60" font-size="40" color="blue">Another <a x:href="http://example.net/elsewhere" fill="currentColor">link</a></text> <rect width="250" height="100" fill="none" stroke="#700"/> </svg> </body> </html>
The link in the SVG is now green, and the text in the XHTML is now all in italics:
The following sections discuss solutions to this problem. At this stage, the CDF Working Group has not picked one or more solutions, and simply notes them as issues to facilitate discussion.
One way to avoid inadvertent styling changes is to explicitly scope the
<html:style>
and <svg:style>
elements. For example:
<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 250 100" xmlns:x="http://www.w3.org/1999/xlink"> <style type="text/css" scope="parent"> * {font-style: italic } </style> <text x="20" y="60" font-size="40" color="blue">Another <a x:href="http://example.net/elsewhere" fill="currentColor">link</a></text> <rect width="250" height="100" fill="none" stroke="#700"/> </svg>
When the document in Example 8 is included into a compound document, the styling will remain local to the graphic.
A related alternative would be to introduce a new
<cdf:style>
which is defined to be scoped to its parent
by default.
A further refinement would be to add an attribute to the
<style>
elements, containing a selector which defines
the scope (rather than hard-coding the scope to the parent of the style
element).
Ensure styling changes, whether it be with new
<cdf:style>
markup, needs to be coordinated with CSS
(default rules, conditional styling rules)
Restricting selectors to apply to particular XML namespaces, rather than all namespaces, also helps to control and localize styling.
<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 250 100" xmlns:x="http://www.w3.org/1999/xlink"> <style type="text/css"> @namespace s url(http://www.w3.org/2000/svg); s|* {font-style: italic } </style> <text x="20" y="60" font-size="40" color="blue">Another <a x:href="http://example.net/elsewhere" fill="currentColor">link</a></text> <rect width="250" height="100" fill="none" stroke="#700"/> </svg>
Modifying Example 7 to use namespace-aware selectors corrects the rendering to that which was desired.
<?xml version="1.0" encoding="UTF-8"?> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>circles</title> <style type="text/css"> @namespace h url(http://www.w3.org/1999/xhtml); body { color: black; font-size: 12px } h|a { color: green } </style> </head> <body> <h1>Some links and a graphic</h1> <p>A <a href="http://example.com/somewhere">link</a></p> <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 250 100" xmlns:x="http://www.w3.org/1999/xlink" height="4em"> <style type="text/css"> @namespace s url(http://www.w3.org/2000/svg); s|* {font-style: italic } </style> <text x="20" y="60" font-size="40" color="blue">Another <a x:href="http://example.net/elsewhere" fill="currentColor">link</a></text> <rect width="250" height="100" fill="none" stroke="#700"/> </svg> </body> </html>
Styling affects all namespaces, unless qualified
May need to control local/inheritance of styling (disable a subtree from inheriting styling). Action on Chris
This section is in need of rewording and references...
A profile conforming to this framework must declare which elements contain scripts for execution.
Documents loaded into a user agent may contain scripting elements. Such elements typically contain ECMAScript programs for execution within the user agent displaying the document.
Typical ECMAScript implementations provide the ability to create a scripting execution context which manages an instance of the script execution engine. Such an instance defines methods and properties available to the script author and mediates access to the DOM representing the parent document hosting the script.
In the compound document by reference (CDR) case, an ECMAScript execution context is instantiated for each separate document. These instances manage their own data. For example, an XHTML file referencing an SVG file will result in one instance of the script execution context for XHTML and one for SVG. Each instance may define methods and properties which are isolated between the two component parts of the document.
In the case of a compound document by inclusion (CDI), there is a single ECMAScript execution context. This means that all script elements in all namespaces will be processed by the same instance of the script engine. Thus, if a portion of the CDI document which is in the XHTML namespace contains methods and properties inside of an XHTML script element, these same methods and properties will be exposed to the parts of the document which are in the other namespaces, such as SVG.
Similarly, any script elements defined in the portion of the document which is in the SVG namespace that define properties and methods will have those properties and methods exposed to the parts of the document which are in other namespaces, such as XHTML.
Therefore, the resultant script execution context processes properties and methods which represent the union of all recognized script elements found in all of the namespaces within the CDI document.
Use of a CDI document with scripting provides the ability for content in multiple namespaces to share access to methods and properties declared in all of the component namespaces. This removes the need to provide explicit parent/child access for crossing namespace boundaries in relation to scripting.
Documents may support a mixture of CDI and CDR content. Authors using a mixture of CDR and CDI will have scripting behavior across the namespaces defined by the inclusion mechanism. In the CDR case, the script execution contexts will be isolated for each document.
This seciton is informative
Scenario 1
UA Supports: XHTML+SVG+XForms
Content is: XHTML+SVG
Scenario 2
UA Supports: XHTML+SVG
Content is: XHTML+SVG+XForms
CDI Profiles SHOULD define a filename suffix for identification by authoring tools and content providers.
If CDI-based content would like to identify itself as support the
framework, the filename suffix of .cdf
SHOULD be used.
CDI compliant content MUST provide metadata for framework or profile identification.
To indentify which profile is supported, they MUST be defined in the
cdf
XML
processing instruction [XML] such as:
<?cdf profile="profile-uri"?>
By providing the profile information within a XML processing instruction (PI) this enables authoring tools to apply appropriate authoring semantics such as content-assist editing, validation, view selection, etc. This also gives content providers a way to quickly inspect content for capabilities without having to rely on namespace and attribute parsing to determine the content's profile. In order to optimize lookup of this information, it is recommended that this PI SHOULD be within the first 4 lines of content.
In the case of existing mechanisms such as DOCTYPE
on
HTML, the cdf
XML processing instruction MUST take precendence. In other words, the DOCTYPE
will be ignorred.
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <?cdf profile="http://www.w3.org/2006/CDF/WICD"?>
In the case of usage of xsi:schemaLocation
with
cdf
PI, xsi:schemaLocation
take precendence for
schema resolution for validation
CDI profiles MUST define a MIME Type [MIME] which should be used to identify it using HTTP 1.1 Content-Type header.
CDI compliant user agents MUST supply in the
HTTP Accept
header the list of supported MIME types.
User agents that are conformant to the CDI Framework, it MUST provide the application/cdf+xml
MIME type and supported profiles using the prof
parameter in
the HTTP Accept
request header.
If a user agent only supports the CDI Framework and no supporting
profiles, it MUST provide the
application/cdf+xml
MIME type without the prof
parameter in the HTTP Accept
request header.
Servers that are conformant to the CDI Framework MUST provide the application/cdf+xml
MIME type in the HTTP Content-type
response header.
This MIME type will have a prof
parameter to allow for the definition of CDF profiles. The value of the
prof
parameter will be the URI that a CDF profile defines.
For W3C defined profiles, the value should be of the form
http://www.w3.org/<year<[/<month>]/<profile
name>
. This will provide enable detail for identification and
versioning of profiles. This URI value should not be changed for minor
version updates that are compatible. Only when major revision changes
occur that introduce incompatibilities should the profile URI be changed.
Sample of Accept
header is:
Accept: application/cdf+xml;prof="http://www.w3.org/2007/wicd-mobile http://www.w3.org/2008/prof3"
The usage of URIs for profile identifiers ensures that each profile is uniquely identified. The HTTP Accept request header is intended for a user agent to list all the MIME types it supports. This has become problematic as the number of MIME types has grown and pushing various limitations of the HTTP header lengths. To address this issue, a public registration service may be used to define shorthand identifiers to greatly reduce the size of the HTTP header.
For example, if we reuse the example from above we have:Accept: application/cdf+xml;prof="wm p3"
CDI compliant user agents that don't receive any profile information in
the HTTP Content-type
response header MAY leverage the cdf
processing
instruction.
See also infamous Appendix G Media Type Options and
<html> <head> <svg:svg id="c1"> <svg:circle fill="red" r="10px" /> </svg:svg> </head> <body> <!-- Reuse locally, as expected CDI case --> <svg:use xlink:link="#c1" /> <!-- Reference an SVG item within same document CDR case (is there another DOM???) --> <object data="#c1"> <param name="" value=""/> </object> <!-- Reference an SVG item within same document CDR case (is there another DOM???) --> <object data="#c1"> <param name="" value=""/> </object> <!-- Reference externally but fold into current DOM CDI case --> <xinclude src="#c1" /> <!-- Reference externally but fold into current DOM CDI case --> <xinclude src="circle.svg" /> </body> </html>
Timing in CDI documents is based SMIL 3.0 timing and synchronization and animation modules. SMIL 3.0 animation modules are already used for example, in SVG. However, in CDI timing and animations can be applied also to other languages than SVG.
Basically, there are three alternatives to implement timing in CDI documents. In the following examples, it is assumed that the CDI document contains both XHTML and SVG elements.
In the first alternative, SVG contains some animation elements. They refer only to SVG elements, and thus XHTML can not be animated. User agents, which support XHTML and SVG, already implement this approach.
In the second alternative, SVG animation elements contain URI references to XHTML elements. The animation are typically used for controlling the CSS properties of the XHTML elements. In the following example, SVG animate element contains an URI reference to the XHTML h1 element, which has id="foo". Since the attributeType is "CSS" the attributeName "width" is animated for duration of "10s" from the default value to value "10px".
<?xml version="1.0" encoding="Cp1252"?> <xhtml:html xmlns:xhtml="http://www.w3.org/1999/xhtml" xmlns:svg="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink"> <xhtml:head> </xhtml:head> <xhtml:body> <xhtml:h1 id="foo"> Hello World </xhtml:h1> <xhtml:p> <svg:svg> <svg:circle r="150"></svg:circle> <svg:animate attributeName="width" attributeType="CSS" xlink:href="#foo" to="10px" dur="10s" /> </svg:svg> </xhtml:p> </xhtml:body> </xhtml:html>
The third alternative is that all timing and animation information is collected together in one location, e.g., head section of the the document. The main advantage of this model is that the same SMIL timing and animation elements can control all the different languages included in the compound document. In addition, the timing between different language elements can be synchronized.
The centralized timing model is based on the SMIL 3.0 External Timing Module, which, in turn, is based on the SMIL 3.0 Timing and Synchronization and SMIL 3.0 BasicAnimation Modules. SMIL 3.0 External Timing Module uses the SMIL time containers to control the timing of non-SMIL languages and CSS properties. Individual language elements are selected from the host language(s) using CSS selector. This mechanism provides means to collect all timing information in one place and use it to control the timing and animation of elements belonging to different namespaces of the Compound Document. Because of its similarity with the CSS stylesheets the SMIL 3.0 External Timing Module is also called Timesheets.
Note: It should also be possible to control the timing of child documents from the parent document based on the Compound Document by Reference model. In addition, the animation sandwich model should function so that part of the animation can controlled from the centralized Timesheet and part within the animation elements of the included language.
Component languages, both parent and child, must be well-formed XML documents. XML documents must have a unique non-empty namespaces.
ACTION-658 Svante to work with Petri on this
dispatching is separate from rendering area xslt happens before dispatching mb: dispatch on elements - attrs in other name spaces do not affect dispatching. dispatch based ona 'type' attr pv: dispatching happens on elements *and* attributes. dispatch based on ns. some elements in other ns do not separately render but do get dispatched - eg xlink loc, xml events handler
content should never talk about specific components ua han register new handlers
a 'null' handler would mean that all contgent gets dispatched. some (eg metadata) might need no other processing besides parsing contet is not removed from dom tree when 'ignored' (ie processed by null handler) events propogate on the transformed tree (if no xslt, then the null transform)
granularity may be fine, so don't fire up multiple whole user agents. especially if dispatching attributes as well.
is it possible a namespace has multiple ways of handling, depending on context?
must allow extension namespaces.
pv: uses namespaced css to give contextually different rendering.
svg metadata element (rendering and dispatching to closely tied) ignores any content - parsed but not rendered.
how to handle rdf metadata with typically hundreds of namespaces? They do not really need any further handling. null handler for those.
handler is responsible for any DOM element and attribute creation beyond the core DOM
handler is responsible for any rendering that is needed
need to distinguish marked up texty that is to be rendered as text (perhaps with naqmespace aware css styling)
Can't assume that namespace declarations happen in specific places
Can't assume particular magic prefixes.
want to avoid backtrtacking in ns dispatching - decisions should be made in root to leraf order. so no contextual dispatching based in child elements.
however, need for one handler to affect the parameters of another handler (eg lists or citations that are done differently based on metadata). inter-handler communication. depends on when the metadata is handled. not a transformation.
can still use contextual styling with selectors (but using css with namespaces, obviously)
Should I18N be cascading? Do we need to spec anything, just use xml:lang? Just point to I18N guidelines?
See ACTION-433
Review ITS WD and report relation to CDI, ACTION-504
See ACTION-505 on Doug S and see XAG (accessibility guidelines)...
On ACTION-500 on Steve...
Basic assumptions:
Does the processing need to be uniform ? Can it be dependent on the including language ? e.g. XHTML and SVG have different processing of unknown content
<xhtml:div> <svg:switch> <svg:g requiredFormats="application/foo"> <!-- // works for namespaces which have a media type or requiredNamespace="..." --> <foo:bar ... > .... </foo:bar> </svg:g> <svg:text>Foo is not supported in this UA</svg:text> </svg:switch> </xhtml:div>
We need normative requirements on people making languages...
CDF profile candidate languages shall not be composed of chameleoned namespaces.
Specifications should not import an existing vocabulary into a another or new namespace (often known as chameleon namespaces), whether it is to use one technology within another or to import elements from a previous version of a specification into a new version. This creates problems for both content authors and user agent implementers when multiple namespaces import the same vocabulary:
document.getElementsByTagNameNS
[DOM3Core], [Selectors] or
XPath's name test [XPath] all become more complicated when searching for
the same element name within a set of namespaces, such as searching for
an XForms
input
element [XForms] within the XForms and XHTML2
namespaces.Fixup chameleon guideline section
See ACTION-438 on Kevin
When defining DOM interfaces, namely one that extends the DOM Document interface, consideration should be taken to ensure that methods and attributes don't conflict with other markup languages. This can't expected to be an exhaustive search, though likely candidates would be HTML and SVG.
This section is informative.
The editors would like to thank the following contributors:
fill in contributors
