Associating Resources with Namespaces

1 Preface

The names in a namespace form a collection:

• Sometimes it is a collection of element names (DocBook and XHTML, for example),

• sometimes it is a collection of attribute names (XLink, for example),

• sometimes it is a collection of functions (XQuery 1.0 and XPath 2.0 Data Model),

• sometimes it is a collection of properties (FOAF),

• sometimes it is a collection of concepts (WordNet), and many other uses are likely to arise.

There's no requirement that the names in a namespace only identify items of a single type; elements and attributes can both come from the same namespace as could functions and concepts or any other homogeneous or heterogeneous collection you can imagine. The names in a namespace can, in theory at least, be defined to identify any thing or any number of things.

Given the wide variety of things that can be identified, it follows that an equally wide variety of ancillary resources may be relevant to a namespace. A namespace may have documentation (specifications, reference material, tutorials, etc., perhaps in several formats and several languages), schemas (in any of several forms), stylesheets, software libraries, applications, or any other kind of related resource.

A user, encountering a namespace might want to find any or all of these related resources. In the absence of any other information, a logical place to look for these resources, or information about them, is at the location of the namespace URI itself.

[WebArch Vol 1] says that it is a Good Practice for the owner of a namespace to make available at the namespace URI “material intended for people to read and material optimized for software agents in order to meet the needs of those who will use the namespace”.

The question remains, how can we best provide both human and machine readable information at the namespace URI such that we can achieve the good practice identified by web architecture? One early attempt was [RDDL 1.0]. RDDL 1.0 is an XLink-based vocabulary for identifying the nature and purpose of related resources.

Several attempts were made to simplify RDDL. The TAG's original plan for addressing namespaceDocument-8 was to help define a simpler, standard RDDL format. However, this space has matured somewhat since the TAG's original discussions and RDDL 1.0 is now widely deployed. In addition, some of the proposed alternative formats are also deployed, and it seems likely that over time new variations may arise based on other evolving web standards.

This finding therefore attempts to address the problem by considering it in a more general fashion. We:

1. Define a conceptual model for identifying related resources that is simple enough to garner community consensus as a reasonable abstraction for the problem.

2. Show how RDDL 1.0 is one possible concrete syntax for this model.

3. Show how other concrete syntaxes could be defined and identified in a way that would preserve the model.

2 The Model

There may exist any number of additional resources that are related to a namespace. Borrowing on the terminology defined by [RDDL 1.0], we say that each of these other resources has a nature and a purpose. The nature of the resource is a machine-readable label that identifies “what kind of thing” it is. For example, its nature might be “HTML documentation” or “XML Schema” or “CSS Stylesheet”. The purpose of a resource, with respect to the resource identified by the namespace URI, is a machine-readable label that identifies “what use” the thing is. For example, its purpose might be “validation” or “normative reference” or “specification” or “transformation”.

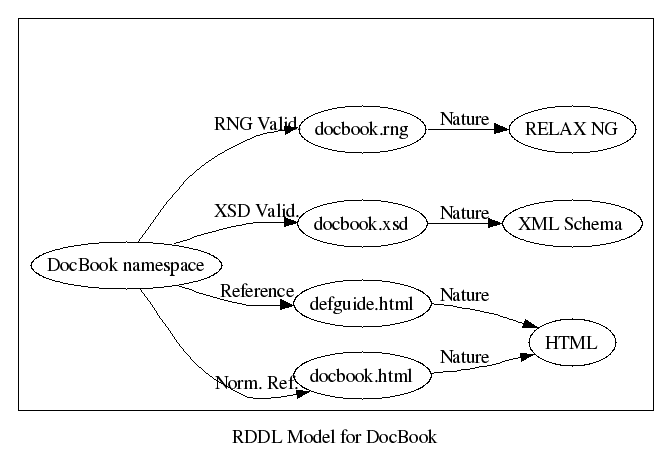

For example, here's a diagram of the model for some DocBook-related resources:

This model indicates that for the purpose of validation there are two schemas, docbook.xsd which has the nature “XML Schema” and docbook.rng which has the nature “RELAX NG”. This model also includes two examples of HTML documentation, defguide.html which has the purpose “reference” and docbook.html which has the purpose “normative reference”.

If an application can obtain this model from the document that it gets from the namespace URI, then it can find the relevant related resources. For example, a RELAX NG validator could find all the resources that serve the purpose “validation” and identify the one (or one of the ones) with the nature “RELAX NG” and proceed with a validation task. Similarly, a human being could find the resource with the purpose “specification” to locate the specification in a convenient format.

One way to write down the model described above is with RDF. There's nothing about the process of finding related resources that requires the model to be instantiated in RDF or requires any processor to know anything about RDF. But having the model in RDF will allow us to describe how the model can be obtained from specific kinds of documents.

Here's an example of the DocBook model above, expressed in RDF using [N3].

# RDDL Model for DocBook

@prefix assoc: <http://www.w3.org/2005/12/assoc#> .
@prefix purpose: <http://www.rddl.org/purposes#> .
@prefix dc: <http://purl.org/dc/elements/1.1/> .

<http://docbook.org/ns/docbook>
   assoc:relaxng-validation <http://docbook.org/xml/5.0b1/rng/docbook.rng> ;
   purpose:schema-validation <http://docbook.org/xml/5.0b1/xsd/docbook.xsd> ;
   purpose:normative-reference <http://docbook.org/specs/wd-docbook-docbook-5.0b1.html> ;
   purpose:reference <http://docbook.org/tdg5/en/html/> .

<http://docbook.org/xml/5.0b1/rng/docbook.rng>
   assoc:nature <http://relaxng.org/ns/structure/1.0> .

<http://docbook.org/xml/5.0b1/xsd/docbook.xsd>
   assoc:nature <http://www.w3.org/2000/10/XMLSchema> .

<http://docbook.org/specs/wd-docbook-docbook-5.0b1.html>
   assoc:nature <http://www.w3.org/1999/xhtml> .

<http://docbook.org/tdg5/en/html/>
   assoc:nature <http://www.w3.org/1999/xhtml> .

If we can construct this model from a namespace document, then we know we have all the information we need to locate related resources.

3 Namespace Document Formats

This section describes two formats deployed explicitly to address the question of namespace documents and a third format which can be seen as simultaneously providing a unified view of these two formats and also providing a model to make other new formats available.

<rddl:resource xlink:title="RELAX NG for validation"
	       xlink:arcrole="http://www.w3.org/2005/12/assoc#relaxng-validation"
	       xlink:role="http://relaxng.org/ns/structure/1.0"
	       xlink:href="http://docbook.org/xml/5.0b1/rng/docbook.rng">
A <a href="http://docbook.org/xml/5.0b1/rng/docbook.rng">schema</a>
for RELAX NG validation.
</rddl:resource>

A
<a rddl:nature="http://relaxng.org/ns/structure/1.0"
   rddl:purpose="http://www.w3.org/2005/12/assoc#relaxng-validation"
   href="http://docbook.org/xml/5.0b1/rng/docbook.rng">schema</a>
for RELAX NG validation.

3.3 Using GRDDL

A third approach is to use [GRDDL]. GRDDL provides a mechanism for gleaning resource descriptions from XML. Employing GRDDL allows an author to associate a transformation with a document. The result of applying that transformation is an RDF model (the resource description).

Given that our RDDL model can be expressed in RDF, such a gleaned resource description can be seen as a RDDL model. Consider the following example:

The URI http://www.w3.org/2000/10/swap/pim/usps is the namespace name for an RDF vocabulary that describes United States postal addressing terms. Its namespace document is an XHTML document that uses GRDDL to identify the transformation http://www.w3.org/2000/07/hs78/html2rdfs.

If this transformation is applied, the resulting resource description includes the following model fragment:

<http://www.w3.org/2000/10/swap/pim/usps>
 purpose:normative-reference <http://pe.usps.gov/cpim/ftp/pubs/Pub28/pub28.pdf>,
                             <http://pe.usps.gov/cpim/ftp/pubs/Pub63/Pub63.pdf> .

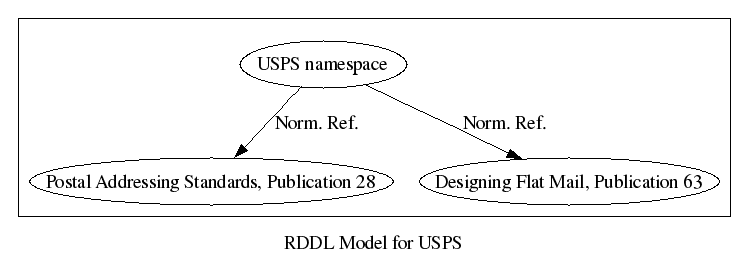

In other words, this RDDL model:

It's important to note that XSLT processing is not required to take advantage of GRDDL. For well-known transformation URIs, an application can be written to extract the data directly from the source markup without actually running an XSLT transformation. XSLT is only required when an application wants to support arbitrary GRDDL transformations.

In fact, a pair of well-known GRDDL transformation URIs for RDDL 1.0 and RDDL 2.0 will allow us to unify both RDDL variants and the GRDDL case.

4 Identifying Individual Terms

For many applications of namespaces, it's valuable not only to be able to point to the namespace as a whole, but also to be able to point to terms within that namespace. Fragment identifiers are the obvious mechanism for achieving this. For example, http://www.w3.org/2005/xpath-functions/#matches is the URI for the “matches” function, a term in the XQuery 1.0, XPath 2.0, and XSLT 2.0 Functions and Operators Namespace, http://www.w3.org/2005/xpath-functions/.

If it would be valuable to directly address specific terms in a namespace, namespace owners SHOULD provide identifiers for them. It follows that if the namespace document is available in multiple forms (RDDL 1.0, RDF through GRDDL, etc.) that consistent fragment identifiers MUST be made available. See 3.2.2. Fragment identifiers and content negotiation in [WebArch Vol 1].

5 Natures

The nature of a resource identifies the fundamental or essential characteristics of that resource. We often speak of the nature of documents in an informal manner: when we say “that's an XML Schema”, or “that's an HTML document”, or “that's an XML DTD”, we are identifying the nature of those documents.

The RDDL Model uses a URI to uniquely identify the nature of a resource. For XML vocabularies, the namespace URI is often suitable as an identifier for the nature of a resource encoded in that vocabulary. For other resources, the URI of the normative specification is appropriate. Here are the natures identified by [RDDL 1.0]:

http://www.rddl.org/natures#term

The nature of a defined term.

http://www.isi.edu/in-notes/iana/assignments/media-types/text/css

The nature of CSS.

http://www.isi.edu/in-notes/iana/assignments/media-types/application/xml-dtd

The nature of an XML DTD.

http://www.rddl.org/natures#mailbox

The nature of a mailbox.

http://www.isi.edu/in-notes/iana/assignments/media-types/text/html

The nature of generic HTML.

http://www.w3.org/TR/html4/

The nature of HTML 4.

http://www.w3.org/TR/html4/strict

The nature of HTML 4 Strict.

http://www.w3.org/TR/html4/transitional

The nature of HTML 4 Transitional.

http://www.w3.org/TR/html4/frameset

The nature of HTML 4 Frameset.

http://www.w3.org/1999/xhtml

The nature of XHTML 1.0.

http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict

The nature of XHTML 1.0 Strict

http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional

The nature of XHTML 1.0 Transitional.

http://www.w3.org/2000/01/rdf-schema#

The nature of an RDF Schema.

http://www.xml.gr.jp/xmlns/relaxCore

The nature of RELAX (not RELAX NG) Core.

http://www.xml.gr.jp/xmlns/relaxNamespace

The nature of RELAX (not RELAX NG) Namespace.

http://www.ascc.net/xml/schematron

The nature of Schematron.

http://www.rddl.org/natures#SOCAT

The nature of an OASIS Open Catalog.

http://www.w3.org/2000/10/XMLSchema

The nature of a W3C XML Schema.

http://www.w3.org/TR/REC-xml.html#dt-chardata

The nature of XML character data.

http://www.w3.org/TR/REC-xml.html#dt-escape

The nature of escaped XML.

http://www.w3.org/TR/REC-xml.html#dt-unparsed

The nature of an XML unparsed entity.

http://www.ietf.org/rfc/rfc2026.txt

The nature of an IETF RFC.

http://www.iso.ch/

The nature of an ISO Standard.

6 Purposes

Purpose is a relationship between a namespace name and another resource. Broadly, it describes the action one might take with the related resource. For example, with respect to an XML document, the purpose of an W3C XML Schema might be “validation”. For an XHTML 1.0 document, the purpose of the XHTML Recommendation might be “normative reference”.

Here are the purposes identified in [RDDL 1.0]:

http://www.rddl.org/purposes#validation

Serves the purpose of SGML or XML DTD validation.

http://www.rddl.org/purposes#schema-validation

Serves the purpose of W3C XML Schema validation.

http://www.rddl.org/purposes#module

Serves the purpose of a software module.

http://www.rddl.org/purposes#schema-module

Serves the purpose of a schema module.

http://www.rddl.org/purposes#entities

Serves the purpose of an entity or collection of entities.

http://www.rddl.org/purposes#notations

Serves the purpose of a notation or a collection of notations.

http://www.rddl.org/purposes#software-module

Serves the purpose of a software module.

http://www.rddl.org/purposes#software-package

Serves the purpose of a software package.

http://www.rddl.org/purposes#software-project

Serves the purpose of a software project.

http://www.rddl.org/purposes#JAR

Serves the purpose of a Java archive, a package of code and/or other resources.

http://www.rddl.org/purposes#reference

Serves the purpose of documentation.

http://www.rddl.org/purposes#normative-reference

Serves the purpose of normative documentation.

http://www.rddl.org/purposes#non-normative-reference

Serves the purpose of non-normative documentation.

http://www.rddl.org/purposes#prior-version

Serves the purpose of being a prior version.

http://www.rddl.org/purposes#definition

Serves the purpose of a definition (as to a specific term)

http://www.rddl.org/purposes#icon

Serves the purpose of an icon or other relevant image.

http://www.rddl.org/purposes#alternate

Serves the purpose of being an alternate.

http://www.rddl.org/purposes#canonicalization

Serves the purpose of being canonical.

http://www.rddl.org/purposes#directory

Serves the purpose of being a RDDL directory.

http://www.rddl.org/purposes#target

Serves the purpose of being the target URI (as of a #directory).

http://www.rddl.org/purposes#target

Serves the purpose of being the target URI (as of a #directory).
