This document specifies two profiles of [TTML1]: a text-only profile and an image-only profile. These profiles are intended to be used across subtitle and caption delivery applications worldwide, thereby simplifying interoperability, consistent rendering and conversion to other subtitling and captioning formats. The text profile is a superset of [ttml10-sdp-us].
The document defines extensions to [TTML1], as well as incorporates extensions specified in [ST2052-1] and [EBU-TT-D].
Both profiles are based on [SUBM].
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This document was published by the Timed Text Working Group as a Candidate Recommendation.
This document is intended to become a W3C Recommendation.
If you wish to make comments regarding this document, please send them to
public-tt@w3.org
(subscribe,
archives)
with [imsc]
at the start of your email's subject.
W3C publishes a Candidate Recommendation to indicate that the document is believed to be
stable and to encourage implementation by the developer community. This Candidate
Recommendation is expected to advance to Proposed Recommendation no earlier than
16 January 2015.
All comments are welcome.
Please see the Working Group's implementation report.
For this specification to exit the CR stage, at least 2 independent implementations of every feature defined in this specification but not already present in [TTML1] need to be documented in the implementation report. The implementation report is based on implementer-provided test results for the test suite (tests and sample content) maintained by the Working Group. The Working Group does not require that implementations are publicly available but encourages them to be so.
The Working Group expects the test suite and the implementation report to evolve significantly before the specification advances to Proposed Recommendation.
The Working Group has not identified features "at risk" for this specification.
Publication as a Candidate Recommendation does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 1 August 2014 W3C Process Document.
This document specifies two profiles of [TTML1]: a text-only profile and an image-only profile. These profiles are intended for subtitle and caption delivery worldwide, including dialog language translation, content description, captions for deaf and hard of hearing, etc.
The text-only profile is a strict superset of [ttml10-sdp-us].
The document defines extensions to [TTML1], as well as incorporates extensions specified in [ST2052-1] and [EBU-TT-D].
This specification uses the same conventions as [TTML1] for the specification of parameter attributes, styling attributes and metadata elements. In particular, Section 2.3 of [TTML1] specifies conventions used in the XML representation of elements.
All content of this specification that is not explicitly marked as non-normative is considered to be normative. If a section or appendix header contains the expression "non-normative", then the entirety of the section or appendix is considered non-normative.
Default Region. See Section 9.3.1 at [TTML1].
Document Instance. See Section 2.2 at [TTML1].
Intermediate synchronic document. See Section 9.3.2 at [TTML1].
Presentation processor. See Section 2.2 at [TTML1].
Transformation processor. See Section 2.2 at [TTML1].
Related Media Object. See Section 2.2 at [TTML1].
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words MAY, SHALL, SHALL NOT, and SHOULD are to be interpreted as described in [RFC2119].
A Document Instance that conforms to a profile defined herein SHALL satisfy all normative provisions specified by the profile.
A presentation processor that conforms to a profile defined in this specification SHALL:
A transformation processor that conforms to a profile defined in this specification SHALL:
The use of the term presentation processor (transformation processor) within this specification does not imply conformance to the DFXP Presentation Profile (DFXP Transformation Profile) specified in [TTML1]. In other words, it is not considered an error for a presentation processor (transformation processor) to conform to a profile defined in this specification without also conforming to the DFXP Presentation Profile (DFXP Transformation Profile).
A Document Instance SHALL NOT conform to the Text Profile and Image Profile simultaneously.
In applications that require subtitle/caption content in image form to be simultaneously available in text form, two distinct Document Instances, one conforming to the Text Profile and the other conforming to the Image Profile, SHOULD be offered. In addition, the Text Profile Document Instance SHOULD be associated with the Image Profile Document Instance such that, when image content is encountered, assistive technologies have access to its corresponding text form. The method by which this association is made is left to each application.
The ittm:altText
element specified 6.7.4 ittm:altText also allows text equivalent
string to be associated with an image, e.g. to support indexation of the content and also facilitate quality checking of the
document during authoring.
Annex D. WCAG Considerations specifically discusses this specification in the context of the [WCAG20] guidelines.
The Text Profile consists of Sections 6. Common Constraints and 7. Text Profile Constraints.
The Image Profile consists of Sections 6. Common Constraints and 8. Image Profile Constraints.
A Document Instance SHALL use UTF-8 character encoding as specified in [UNICODE].
A Document Instance MAY contain elements and attributes that are neither specifically permitted nor forbidden by a profile.
The following namespaces (see [xml-names]) are used in this specification:
Name | Prefix | Value | Defining Specification |
---|---|---|---|
XML | xml | http://www.w3.org/XML/1998/namespace | [xml-names] |
TT Parameter | ttp | http://www.w3.org/ns/ttml#parameter | [TTML1] |
TT Styling | tts | http://www.w3.org/ns/ttml#styling | [TTML1] |
TT Feature | none | http://www.w3.org/ns/ttml/feature/ | [TTML1] |
SMPTE-TT Extension | smpte | http://www.smpte-ra.org/schemas/2052-1/2010/smpte-tt | [ST2052-1] |
EBU-TT Styling | ebutts | urn:ebu:tt:style | [EBU-TT-D] |
IMSC 1.0 Styling | itts | http://www.w3.org/ns/ttml/profile/imsc1#styling | This specification |
IMSC 1.0 Parameter | ittp | http://www.w3.org/ns/ttml/profile/imsc1#parameter | This specification |
IMSC 1.0 Metadata | ittm | http://www.w3.org/ns/ttml/profile/imsc1#metadata | This specification |
IMSC 1.0 Extension | none | http://www.w3.org/ns/ttml/profile/imsc1/extension/ | This specification |
IMSC 1.0 Text Profile Designator | none | http://www.w3.org/ns/ttml/profile/imsc1/text | This specification |
IMSC 1.0 Image Profile Designator | none | http://www.w3.org/ns/ttml/profile/imsc1/image | This specification |
The namespace prefix values defined above are for convenience and document instances MAY use any prefix value that conforms to [xml-names].
The namespaces defined by this specification are mutable [namespaceState]; all undefined names in these namespaces are reserved for future standardization by the W3C.
A Document Instance SHOULD be authored assuming strict clipping of content that falls out of region areas, regardless of
the computed value of tts:overflow
for the region.
As specified in [TTML1], tts:overflow
has no effect on the extent of the region, and hence
the total normalized drawing area S(En) at 9.3 Paint Regions.
Each intermediate synchronic document of the Document Instance is intended to be displayed on a specific frame and removed on a specific frame of the related video object.
When mapping a media time expression M to a frame F of a related video object, e.g. for the purpose of rendering a Document Instance onto the related video object, the presentation processor SHALL map M to the frame F with the presentation time that is the closest to, but not less, than M.
In typical scenario, the same video program (the related video object) will be used for Document Instance authoring, delivery and user playback. The mapping from media time expression to related video object above allows the author to precisely associate subtitle video content with video frames, e.g. around scene transitions. In circumstances where the video program is downsampled during delivery, the application can specify that, at playback, the relative video object be considered the delivered video program upsampled to is original rate, thereby allowing subtitle content to be rendered at the same temporal locations it was authored.
If ttp:frameRate
is specified, then the product of ttp:frameRate
and
ttp:frameRateMultiplier
SHALL be the frame rate of the related video object.
A document can be made independent of the frame rate of the related video object by never using the
frames term in a time expression: as specified in 6.10 Features, ttp:frameRate
is
required only if the document includes one or more time expressions that uses the frames term.
The ittp:aspectRatio
attributes allows authorial control of the mapping of the root container of a Document Instance to the related video object frame.
If present, the ittp:aspectRatio
attribute SHALL conform to the following syntax:
ittp:aspectRatio : numerator denominator // numerator != 0; denominator != 0 numerator | denominator : <digit>+ |
The root container of a Document Instance SHALL be mapped to the related video object frame according to the following:
If ittp:aspectRatio
is present, the root container SHALL be mapped to a rectangular area within the
related video object such that:
ittp:aspectRatio
,Otherwise, the root container of a Document Instance SHALL be mapped to the related video object frame in its
entirety. If tts:extent
is present on the tt
element, the extents of the root container SHALL
be equal to the dimensions of the related video object frame.
ittp:aspectRatio
SHALL NOT be present if tts:extent
is present.
An ittp:aspectRatio
attribute is considered to be significant only when specified on the tt
element.
<tt xmlns="http://www.w3.org/ns/ttml" xmlns:ttm="http://www.w3.org/ns/ttml#metadata" xmlns:tts="http://www.w3.org/ns/ttml#styling" xmlns:ttp="http://www.w3.org/ns/ttml#parameter" xmlns:ittp="http://www.w3.org/ns/ttml/profile/imsc1#parameter" ittp:aspectRatio="4 3" > ... </tt>
As specified in Section 6.10 Features, tts:extent
is present if the
px
length measure is used anywhere within the document.
Integer pixel positions on the related video object frame computed from real percentage length values SHALL use half-up rounding, i.e. round(x) = floor(x+0.5).
A progressively decodable Document Instance is structured to facilitate presentation before the document is
received in its entirety, and can be identified using ittp:progressivelyDecodable
attribute.
A progressively decodable Document Instance is a Document Instance that conforms to the following:
head
element;p
element that occurs earlier in the document than any p
element that B includes;
p
; andIf present, the ittp:progressivelyDecodable
attribute SHALL conform to the following syntax:
ittp:progressivelyDecodable : "true" | "false" |
An ittp:progressivelyDecodable
attribute is considered to be significant only when specified on the
tt
element.
If not specified, the value of ittp:progressivelyDecodable
SHALL be considered to be equal to "false".
A Document Instance for which the computed value of ittp:progressivelyDecodable
is "true" SHALL be a
progressively decodable Document Instance.
A Document Instance for which the computed value of ittp:progressivelyDecodable
is "false" is neither
asserted to be a progressively decodable Document Instance nor asserted not to be a progressively decodable Document Instance.
<tt xmlns="http://www.w3.org/ns/ttml" xmlns:ttm="http://www.w3.org/ns/ttml#metadata" xmlns:tts="http://www.w3.org/ns/ttml#styling" xmlns:ttp="http://www.w3.org/ns/ttml#parameter" xmlns:ittp="http://www.w3.org/ns/ttml/profile/imsc1#parameter" ittp:progressivelyDecodable="true" > ... </tt>
[TTML1] specifies explicitly referencing of elements identified using xml:id
in the following
circumstances:
body
referencing region
elements. In this case, Requirement 4 above is
always satisfied.body
referencing style
elements. In this case, Requirement 4 above is
always satisfied.region
element referencing style
elements. In this case, Requirement 4 above is always
satisfied.style
element referencing other style
elements. In this case, Requirement 4 provides an
optimization of style
element ordering within the head
element.ttm:actor
element referencing a ttm:agent
element. In this case, Requirement 4 provides
optimization of metadata elements ordering within the document.ttm:agent
elements using the ttm:agent
attribute. In this
case, Requirement 4 provides optimization of metadata elements ordering within the document.itts:forcedDisplay
allows the processor to override the computed value of tts:visibility
attribute in conjunction with an application parameter displayForcedOnlyMode
.
If and only if the value of displayForcedOnlyMode
is "true", a content element with a itts:forcedDisplay
computed value of "false" SHALL NOT produce any visible rendering, but still affect layout, regardless of the computed
value of tts:visibility
.
The itts:forcedDisplay
attribute shall conform to the following:
Values: | false | true |
Initial: | false |
Applies to: | body , div , p , region , span |
Inherited: | yes |
Percentages: | N/A |
Animatable: | discrete |

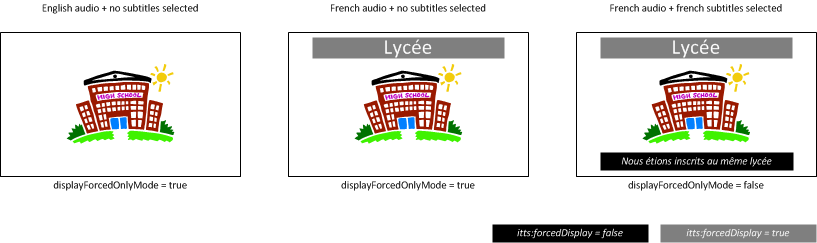

Annex C. Forced content (non-normative) illustrates the use of itts:forcedDisplay
in an application in which a
single document contains both hard of hearing captions and translated foreign language subtitles, using
itts:forcedDisplay
to display translation subtitles always, independently of whether the hard of hearing
captions are displayed or hidden.
The presentation processor SHALL accept an optional boolean parameter called displayForcedOnlyMode
,
whose value MAY be set by a context external to the presentation processor. If not set, the value of
displayForcedOnlyMode
SHALL be assumed to be equal to "false".
The algorithm for setting the displayForcedOnlyMode
parameter based on the circumstances under which the
Document Instance is presented is left to the application.
... <head> ... <region xml:id="r1" tts:origin="10% 2%" tts:extent="80% 10%" tts:color="white" itts:forcedDisplay="true" tts:backgroundColor="black"/> <region xml:id="r2" tts:origin="10% 80%" tts:extent="80% 88%" tts:color="white" tts:backgroundColor="black"/> ... </head> ... <div> <p region="r1" begin="1s" end="6s">Lycée</p> <!-- the following will not appear if displayForcedOnlyMode='true' --> <p region="r2" begin="4s" end="6s">Nous étions inscrits au même lycée.</p> </div> ...
As specified in [TTML1], the background of a region can be visible even if the computed value of tts:visibility
equals
"hidden" for all active content within. The background of a region for which itts:forcedDisplay
equals "true" can therefore remain visible even if itts:forcedDisplay
equals "false" for all active
content elements within the region and displayForcedOnlyMode
equals "true". Authors can avoid this situation, for instance, by ensuring that content
elements and the regions that they are flowed into always have the same value of itts:forcedDisplay
.
Although itts:forcedDisplay
, like all the TTML style attributes, has no defined semantics on a
br
content element, itts:forcedDisplay
will apply to a br
content element if it is
either defined on an ancestor content element of the br
content element or it is applied to a region element
corresponding to a region that the br
content element is being flowed into.
It is expected that the functionality of itts:forcedDisplay
will be mapped to a conditional
style construct in a future revision of this specification.
ittm:altText
allows an author to provide a text string equivalent for an element, typically an image. This
text equivalent MAY be used to support indexing of the content and also facilitate quality checking of the document during
authoring.
The ittm:altText
element SHALL conform to the following syntax:
<ittm:altText xml:id = ID xml:lang = string xml:space = (default|preserve) {any attribute not in the default namespace, any TT namespace or any IMSC 1.0 namespace}> Content: #PCDATA </ittm:altText> |
The ittm:altText
element SHALL be a child of the metadata
element.
8. Image Profile Constraints specifies the use of the ittm:altText
element with images.
... <div region="r1" begin="1s" end="6s" smpte:backgroundImage="1.png"> <metadata> <ittm:altText>Nous étions inscrits au même lycée.</ttm:title> </metadata> </div> ...
In contrast to the common use of alt
attributes in [HTML5], the ittm:altText
attribute content is not intended to be displayed in place of the element if the element is not loaded. The
ittm:altText
attribute content can however be read and used by assistive technologies.
A presented region is a temporally active region that satisfies the following conditions:
tts:opacity
is not equal to "0.0"; andtts:display
is not "none"; andtts:visibility
is not "hidden"; andtts:showBackground
is equal
to "always" and the computed value of tts:backgroundColor
has non-transparent alpha.All regions SHALL NOT extend beyond the root container, i.e. the intersection of the sets of coordinates belonging to a region (including its boundary) and the sets of coordinates belonging to the root container (including its boundary) is the set of coordinates belonging to the region (including its boundary).
No two presented regions in a given intermediate synchronic document SHALL overlap, i.e. the intersection of the sets of coordinates within each region (including its boundary) is empty.
The number of presented regions in a given intermediate synchronic document SHALL NOT be greater than 4.
Any sequence of consecutive intermediate synchronic documents SHALL be reproducible without error by the Hypothetical Render Model specified in Section 9. Hypothetical Render Model.
Unless specified otherwise,a Document Instance SHALL conform to the following:
Feature | Provisions |
---|---|
Relative to the TT Feature namespace | |
#animation |
MAY be used. |
#cellResolution |
MAY be used. |
#clockMode |
SHALL NOT be used. |
#content |
MAY be used. |
#core |
MAY be used. |
#display-block |
MAY be used. |
#display-inline |
MAY be used. |
#display-region |
MAY be used. |
#display |
MAY be used. |
#dropMode |
SHALL NOT be used. |
#extent-region |
MAY be used. The tts:extent attribute SHALL be present on all region elements. |
#extent-root |
MAY be used. If the document includes any length value that uses the px expression,
tts:extent SHALL be present on the tt element. |
#extent |
MAY be used. |
#frameRate |
If the document includes any time expression that uses the frames term, the ttp:frameRate
attribute SHALL be present on the tt element. |
#frameRateMultiplier |
MAY be used. |
#layout |
MAY be used. |
#length-cell |
SHALL NOT be used other than to specify the value of ebutts:linePadding . |
#length-integer |
MAY be used. |
#length-negative |
SHALL NOT be used. |
#length-percentage |
MAY be used. |
#length-pixel |
MAY be used. |
#length-positive |
MAY be used. |
#length-real |
MAY be used. |
#length |
MAY be used. |
#markerMode |
SHALL NOT be used. |
#metadata |
MAY be used. |
#opacity |
MAY be used. |
#origin |
MAY be used. |
#overflow |
MAY be used. |
#pixelAspectRatio |
SHALL NOT be used. |
#presentation |
MAY be used. |
#profile |
MAY be used. |
#showBackground |
MAY be used. |
#structure |
MAY be used. |
#styling-chained |
MAY be used. |
#styling-inheritance-content |
MAY be used. |
#styling-inheritance-region |
MAY be used. |
#styling-inline |
MAY be used. |
#styling-nested |
MAY be used. |
#styling-referential |
MAY be used. |
#styling |
MAY be used. |
#subFrameRate |
SHALL NOT be used. |
#tickRate |
MAY be used. ttp:tickRate SHALL be present on the tt element if the
#time-offset-with-ticks feature is used in the document. |
#timeBase-clock |
SHALL NOT be used. |
#timeBase-media |
SHALL be used. ttp:timeBase SHALL be present on the tt element and SHALL be equal to
"media". |
#timeBase-smpte |
SHALL NOT be used. |
#time-clock-with-frames |
MAY be used. |
#time-clock |
MAY be used. |
#time-offset-with-frames |
MAY be used. |
#time-offset-with-ticks |
MAY be used. |
#time-offset |
MAY be used. |
#timeContainer |
MAY be used. |
#timing |
MAY be used. All time expressions within a Document Instance SHOULD use the same syntax, either clock-time or offset-time . |
#transformation |
MAY be used. |
#unicodeBidi |
MAY be used. |
#visibility-block |
MAY be used. |
#visibility-inline |
MAY be used. |
#visibility-region |
MAY be used. |
#visibility |
MAY be used. |
#writingMode-horizontal-lr |
MAY be used. |
#writingMode-horizontal-rl |
MAY be used. |
#writingMode-horizontal |
MAY be used. |
#writingMode |
MAY be used. |
#zIndex |
MAY be used. |
Extension | Provisions |
Relative to the IMSC 1.0 Extension namespace | |
#aspectRatio |
MAY be used. |
#forcedDisplay |
MAY be used. |
#progressivelyDecodable |
MAY be used. |
#altText |
MAY be used. |
As specified in [TTML1], a #time-offset-with-frames
expression is translated to a media time
M according to M = 3600 · hours + 60 · minutes + seconds + (frames ÷ (ttp:frameRateMultiplier
·
ttp:frameRate
)).
This profile is associated with the following profile designator:
Profile Name | Profile Designator |
---|---|
IMSC 1.0 Text | http://www.w3.org/ns/ttml/profile/imsc1/text |
As specified in 6.10 Features, the presence of the ttp:profile
attribute is
not required by this profile. The profile designator specified above is intended to be generally used to signal conformance
of a Document Instance to the profile. The details of such signaling depends on the application, and can, for instance, use
metadata structures out-of-band of the Document Instance.
A Document Instance SHOULD be authored using characters selected from the sets specified in B. Recommended Character Sets.
The flow of text within a region depends the dimensions and spacing (kerning) between individual glyphs. The following allows, for instance, region extents to be set such that text flows without clipping.
When processing glyphs that match the combinations of computed font family and code point listed in A. Reference Fonts, e.g. during layout, a presentation processor or transformation processor SHALL use glyph metrics equal to the metrics of the specified reference font, unless the glyph is not defined by the reference font.
Implementations can use fonts other than those specified in A. Reference Fonts. Two fonts with equal metrics can have a different appearance, but flow identically.
The Document Instance SHALL conform to the following table:
Feature | Provisions |
---|---|
Relative to the TT Feature namespace | |
#backgroundColor-block |
MAY be used. |
#backgroundColor-inline |
MAY be used. |
#backgroundColor-region |
MAY be used. |
#backgroundColor |
MAY be used. |
#bidi |
MAY be used. |
#color |
MAY be used. The initial value of tts:color SHALL be "white". NOTE: This is consistent with
[ST2052-1]. |
#direction |
MAY be used. |
#displayAlign |
MAY be used. The initial value of tts:displayAlign SHALL be "after" for the Default Region. NOTE: This
is consistent with [ST2052-1]. |
#extent-region |
The tts:extent attribute when applied to a region element SHALL use px units or
"percentage" representation, and SHALL NOT use em units. |
#fontFamily-generic |
MAY be used. A tts:fontFamily of either "monospaceSerif" or "proportionalSansSerif" SHOULD be
specified for all presented text content. A tts:fontFamily of "default" SHALL be equivalent to "monospaceSerif". |
#fontFamily-non-generic |
MAY be used. |
#fontFamily |
MAY be used. |
#fontSize-anamorphic |
SHALL NOT be used. |
#fontSize-isomorphic |
MAY be used. |
#fontSize |
MAY be used. |
#fontStyle-italic |
MAY be used. |
#fontStyle-oblique |
MAY be used. |
#fontStyle |
MAY be used. |
#fontWeight-bold |
MAY be used. |
#fontWeight |
MAY be used. |
#length-em |
MAY be used. |
#lineBreak-uax14 |
MAY be used. |
#lineHeight |
MAY be used. An explicit <length> SHOULD be specified as there is no uniform implementation of the "normal" value
at the time of this writing. |
#nested-div |
MAY be used. |
#nested-span |
MAY be used. |
#origin |
The tts:origin attribute SHALL use px units or "percentage" representation, and SHALL NOT
use em units. |
#padding-1 |
MAY be used. |
#padding-2 |
MAY be used. |
#padding-3 |
MAY be used. |
#padding-4 |
MAY be used. |
#padding |
MAY be used. |
#textAlign-absolute |
MAY be used. |
#textAlign-relative |
MAY be used. |
#textAlign |
MAY be used. The initial value of tts:textAlign SHALL be "center" for the default region. NOTE: This
is consistent with [ST2052-1]. |
#textDecoration-over |
MAY be used. |
#textDecoration-through |
MAY be used. |
#textDecoration-under |
MAY be used. |
#textDecoration |
MAY be used. |
#textOutline-blurred |
SHALL NOT be used. |
#textOutline-unblurred |
MAY be used. |
#textOutline |
MAY be used. If specified, the border thickness SHALL be 10% or less than the associated font size. |
#wrapOption |
MAY be used. |
#writingMode-vertical |
MAY be used. |
Extension | Provisions |
Relative to the SMPTE-TT Extension Namespace | |
#image |
SHALL NOT be used. |
Relative to the IMSC 1.0 Extension namespace | |
#linePadding |
MAY be used. |
#multiRowAlign |
MAY be used. |
This profile is associated with the following profile designator:
Profile Name | Profile Designator |
---|---|
IMSC 1.0 Image | http://www.w3.org/ns/ttml/profile/imsc1/image |
As specified in 6.10 Features, the presence of the ttp:profile
attribute is
not required by this profile. The profile designator specified above is intended to be generally used to signal conformance
of a Document Instance to the profile. The details of such signaling depends on the application, and can, for instance, use
metadata structures out-of-band of the Document Instance.
A presented image is a div
element with a smpte:backgroundImage
attribute that does
not extend beyond a presented region.
In a given synchronic document, there shall be at most one presented image per presented region.
div
elementIf a smpte:backgroundImage
attribute is applied to a div
element:
div
element SHALL be specified and SHALL be
equal to the width and height of the image source referenced by the smpte:backgroundImage
;metadata
element of the div
element SHOULD contain an instance of
ittm:altText
that is a verbatim text equivalent of the image referenced by the
smpte:backgroundImage
attribute; andsmpte:backgroundImage
attribute SHALL reference a complete image that conforms to the PNG image coding
as specified in Sections 7.1.1.3 and 15.1 of [MHP]. If a pHYs chunk is present, it SHALL indicate square pixels. Note:
If no pixel aspect ratio is carried, the default of square pixels is assumed.In [TTML1], tts:extent
and tts:origin
do not apply to div
elements. In order to individually position multiple div
elements, each div
can be associated with a distinct region
with the desired tts:extent
and tts:origin
.
The features included in a Document Instance SHALL conform to the Table below:
Feature | Provisions |
---|---|
Relative to the TT Feature namespace | |
#bidi |
SHALL NOT be used. |
#color |
SHALL NOT be used. |
#content |
The p , span and br elements SHALL NOT be present. |
#direction |
SHALL NOT be used. |
#displayAlign |
SHALL NOT be used. |
#fontFamily |
SHALL NOT be used. |
#fontSize |
SHALL NOT be used. |
#fontStyle |
SHALL NOT be used. |
#fontWeight |
SHALL NOT be used. |
#length-em |
SHALL NOT be used. |
#lineBreak-uax14 |
SHALL NOT be used. |
#lineHeight |
SHALL NOT be used. |
#nested-div |
SHALL NOT be used. |
#nested-span |
SHALL NOT be used. |
#padding |
SHALL NOT be used. |
#textAlign |
SHALL NOT be used. |
#textDecoration |
SHALL NOT be used. |
#textOutline |
SHALL NOT be used. |
#wrapOption |
SHALL NOT be used. |
#writingMode-vertical |
SHALL NOT be used. |
Extension | Provisions |
Relative to the SMPTE-TT Extension namespace | |
#image |
smpte:backgroundImage MAY be used.smpte:backgroundImageHorizontal and smpte:backgroundImageVertical SHALL NOT be used.smpte:image SHALL NOT be used. |

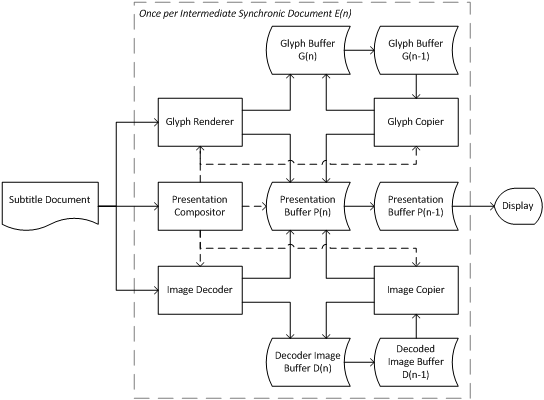

This Section specifies the Hypothetical Render Model illustrated in Fig. 1 Hypothetical Render Model .
The purpose of the model is to limit Document Instance complexity. It is not intended as a specification of the processing requirements for implementations. For instance, while the model defines a glyph buffer for the purpose of limiting the number of glyphs displayed at any given point in time, it neither requires the implementation of such a buffer, nor models the sub-pixel character positioning and anti-aliased glyph rendering that can be used to produce text output.
The model operates on successive intermediate synchronic documents obtained from an input Document Instance, and uses a simple double buffering model: while an intermediate synchronic document En is being painted into Presentation Buffer Pn (the "front buffer" of the model), the previous intermediate synchronic document En-1 is available for display in Presentation Buffer Pn-1 (the "back buffer" of the model).
The model specifies an (hypothetical) time required for completely painting an intermediate synchronic document as a proxy for complexity. Painting includes drawing region backgrounds, rendering and copying glyphs, and decoding and copying images. Complexity is then limited by requiring that painting of intermediate synchronic document En completes before the end of intermediate synchronic document En-1.
Whenever applicable, constraints are specified relative to root container dimensions, allowing subtitle sequences to be authored independently of related video object resolution.

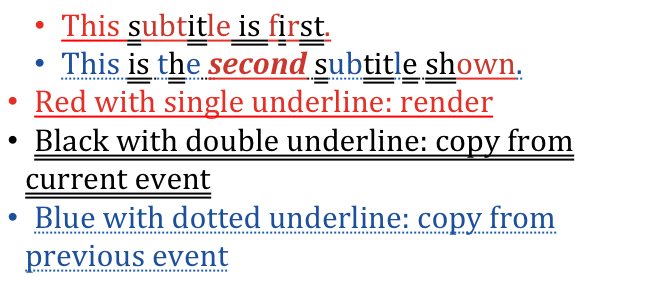

To enables scenarios where the same glyphs are used in multiple successive intermediate synchronic documents, e.g. to convey a CEA-608/708-style roll-up (see [CEA-608] and [CEA-708]), the Glyph Buffers Gn and Gn-1 store rendered glyphs across intermediate synchronic documents, allowing glyphs to be copied into the Presentation Buffer instead of rendered, a more costly operation.
Similarly, Decoded Image Buffers Dn and Dn-1 store decoded images across intermediate synchronic documents, allowing images to be copied into the Presentation Buffer instead of decoded.
The Presentation Compositor SHALL render in Presentation Buffer Pn each successive intermediate synchronic document En using the following steps in order:
The Presentation Compositor SHALL start rendering En:
The duration DUR(En) for painting an intermediate synchronic document En in the Presentation Buffer Pn SHALL be:
DUR(En) = S(En) / BDraw + DURT(En) + DURI(En)
Where:
The contents of the Presentation Buffer Pn SHALL be transferred instantaneously to Presentation Buffer Pn-1 at the presentation time of intermediate synchronic document En, making the latter available for display.
It is possible for the contents of Presentation Buffer Pn-1 to never be displayed. This can happen if Presentation Buffer Pn is copied twice to Presentation Buffer Pn-1 between two consecutive video frame boundaries of the related video object.
It SHALL be an error for the Presentation Compositor to fail to complete painting pixels for En before the presentation time of En.
Unless specified otherwise, the following table SHALL specify values for IPD and BDraw.
Parameter | Initial value |
---|---|
Initial Painting Delay (IPD) | 1 s |
Normalized background drawing performance factor (BDraw) | 12 s-1 |
BDraw effectively sets a limit on fillings regions - for example, assuming that the root container is ultimately rendered at 1920×1080 resolution, a BDraw of 12 s-1 would correspond to a fill rate of 1920×1080×12/s=23.7×220pixels s-1.
IPD effectively sets a limit on the complexity of any given intermediate synchronic document.
The total normalized drawing area S(En) for intermediate synchronic document En SHALL be
S(En) = CLEAR(En) + PAINT(En )
where CLEAR(E0) = 0 and CLEAR(En | n > 0) = 1, i.e. the root container in its entirety.
To ensure consistency of the Presentation Buffer, a new intermediate synchronic document requires clearing of the root container.
PAINT(En) SHALL be the normalized area to be painted for all regions that are used in intermediate synchronic document En according to
PAINT(En) = ∑Ri∈Rp SIZE(Ri) ∙ NBG(Ri)
where R_p SHALL be the set of presented regions in the intermediate synchronic document En.
NSIZE(Ri) SHALL be given by:
NSIZE(Ri) = (width of Ri ∙ height of Ri ) ÷ (root container height ∙ root container width)
NBG(Ri) SHALL be the total number of tts:backgroundColor
attributes associated with the given
region Ri in the intermediate synchronic document. A tts:backgroundColor
attribute is
associated with a region when it is explicitly specified (either as an attribute in the element, or by reference to a
declared style) in the following circumstances:
region
layout element that defines the region.div
, p
, span
or br
content element that is
to be flowed into the region for presentation in the intermediate synchronic document (see [TTML1] for more
details on when a content element is followed into a region).
set
animation element that is to be applied to content elements that are to be
flowed into the region for presentation in the intermediate synchronic document (see [TTML1] for more details
on when a set
animation element is applied to content elements).
Even if a specified tts:backgroundColor
is the same as specified on the nearest ancestor content element or
animation element, specifying any tts:backgroundColor
SHALL require an additional fill operation for all
region pixels.
The Presentation Compositor SHALL paint into the Presentation Buffer Pn all visible pixels of presented images of intermediate synchronic document En.
For each presented image, the Presentation Compositor SHALL either:
Two images SHALL be identical if and only if they reference the same encoded image source.
The duration DURI(En) for painting images of an intermediate synchronic document En in the Presentation Buffer SHALL be as follows:
DURI(En) = ∑Ii ∈ Ic NRGA(Ii) / ICpy + ∑Ij ∈ Id NSIZ(Ij) / IDec
where
NRGA(Ii) is the Normalized Image Area of presented image Ii and SHALL be equal to:
NRGA(Ii)= (width of Ii ∙ height of Ii ) ÷ ( root container height ∙ root container width )
NSIZ(Ii) SHALL be the number of pixels of presented image Ii.
The contents of the Decoded Image Buffer Dn SHALL be transferred instantaneously to Decoded Image Buffer Dn-1 at the presentation time of intermediate synchronic document En.
The total size occupied by images stored in Decoded Image Buffers Dn or Dn-1 SHALL be the sum of their Normalized Image Area.
The size of Decoded Image Buffers Dn or Dn-1 SHALL be the Normalized Decoded Image Buffer Size (NDIBS).
Unless specified otherwise, the following table SHALL specify ICpy, Idec, and NDBIS.
Parameter | Initial value |
---|---|
Normalized image copy performance factor (ICpy) | 6 |
Image Decoding rate (Idec) | 1 × 220 pixels s-1 |
Normalized Decoded Image Buffer Size (NDIBS) | 0.9885 |
For each glyph displayed in intermediate synchronic document En, the Presentation Compositor SHALL:
Two glyphs are identical if and only if the following [TTML1] styles are identical:
tts:color
tts:fontFamily
tts:fontSize
tts:fontStyle
tts:fontWeight
tts:textDecoration
tts:textOutline
The duration DURT(En) for painting the text of an intermediate synchronic document En in the Presentation Buffer is as follows:
DURT(En) = ∑Gi ∈ Gr NRGA(Gi) / Ren(Gi) + ∑Gj ∈ Gc NRGA(Gj) / GCpy
Where:
Gr and Gc SHALL include only glyphs in presented regions and SHALL NOT include a [UNICODE] Code Point if it does not result in a change to presentation, e.g. the Code Point is ignored.
The Normalized Rendered Glyph Area NRGA(Gi) of a glyph Gi SHALL be equal to:
NRGA(Gi)= (fontSize of Gi as percentage of root container height)2
The contents of the Glyph Buffer Gn SHALL be copied instantaneously to Glyph Buffer Gn-1 at the presentation time of intermediate synchronic document En.
The total size occupied by the glyphs stored in Glyph Buffers Gn or Gn-1 SHALL be the sum of their Normalized Rendered Glyph Area.
The size of Glyph Buffers Gn and Gn-1 SHALL be the Normalized Glyph Buffer Size (NGBS).
Unless specified otherwise, the following table SHALL specify GCpy, Ren and NGBS, and SHALL apply to all supported font styles (including provision of outline border).
Parameter | Initial value |
---|---|
Normalized glyph copy performance factor (GCpy) | 12 |
Text rendering performance factor Ren(Gi if Gi is not a CJK Unified Ideograph as specified in [UNICODE]. | 1.2 |
Text rendering performance factor Ren(Gi) if Gi is a CJK Unified Ideograph as specified in [UNICODE]. | 0.6 |
Normalized Glyph Buffer Size (NGBS) | 1 |
NRGA(Gi) does not take into account glyph decorations (e.g. underline), glyph effects (e.g. outline) or actual glyph aspect ratio. An implementation can determine an actual buffer size needs based on worst-case glyph size complexity.
Computed Font Family | Code Points | Reference Font |
---|---|---|
monospaceSerif | All code points specified in B. Recommended Character Sets | http://www.microsoft.com/typography/fonts/family.aspx?FID=10 (Courier New) |
proportionalSansSerif | All code points specified in B. Recommended Character Sets, excluding the code points defined for Semitic languages alone. | http://www.microsoft.com/typography/fonts/family.aspx?FID=8 (Arial) or http://www.linotype.com/en/526/Helvetica-family.html (Helvetica) |
proportionalSansSerif is not used in practice for Hebrew and Arabic captions and subtitles.
When authoring textual content, authors are encouraged to select from sets of characters based on the language indicated
using xml:lang
. The idea is to increase the confidence that the text will be presented correctly by
implementations targeting specific locales.
Specifically, for a given language, an author SHOULD choose characters from the set resulting from the union of the following sets:
Some of these sets MAY overlap.
Table 1 captures the set of characters intended to be available to authors across all languages. The terms used in the table are defined in [UNICODE].
(Basic Latin) |
---|
U+0020 - U+007E (Letterlike Symbols) |
U+2103 : DEGREES CELSIUS |
U+2109 : DEGREES FAHRENHEIT |
U+2120 : SERVICE MARK SIGN |
U+2122 : TRADE MARK SIGN |
(Latin-1 Supplement) |
U+00A0 - U+00FF |
(Number Forms) |
U+2153 – U+215F : Fractions |
(Latin Extended-A) |
U+0152 : LATIN CAPITAL LIGATURE OE |
U+0153 : LATIN SMALL LIGATURE OE |
U+0160 : LATIN CAPITAL LETTER S WITH CARON |
U+0161 : LATIN SMALL LETTER S WITH CARON |
U+0178 : LATIN CAPITAL LETTER Y WITH DIAERESIS |
U+017D : LATIN CAPITAL LETTER Z WITH CARON |
U+017E : LATIN SMALL LETTER Z WITH CARON |
(Box Drawing) |
U+2500 : BOX DRAWINGS LIGHT HORIZONTAL |
U+2502 : BOX DRAWINGS LIGHT VERTICAL |
U+250C : BOX DRAWINGS LIGHT DOWN AND RIGHT |
U+2510 : BOX DRAWINGS LIGHT DOWN AND LEFT |
U+2514 : BOX DRAWINGS LIGHT UP AND RIGHT |
U+2518 : BOX DRAWINGS LIGHT UP AND LEFT |
(Latin Extended-B) |
U+0192 : LATIN SMALL LETTER F WITH HOOK |
(Block Elements) |
U+2588 : FULL BLOCK |
(Spacing Modifier Letters) |
U+02DC : SMALL TILDE |
(Geometric Shapes) |
U+25A1 : WHITE SQUARE |
(General Punctuation) |
U+2010 - U+2015 : Dashes |
U+2016 - U+2027 : General punctuation |
U+2030 - U+203A : General punctuation |
(Musical Symbols) |
U+2669 : QUARTER NOTE |
U+266A : EIGHTH NOTE |
U+266B : BEAMED EIGHTH NOTES |
(Currency symbols) |
U+20AC : EURO SIGN |
Table 2 specifies supplementary character set that have proven useful in captioning and subtitling applications for a number of selected languages. Table 2 is non-exhaustive, and will be extended as needs arise.
Primary language subtag | Characters |
---|---|
lv, lt, et, tr, hr, cs, pl, sl, sk | (Latin Extended-A) U+0100 – U+017F |
nl | (Combining Diacritical Marks) U+0301 |
ro | (Latin Extended-A) U+0100 – U+017F (Latin Extended-B) U+0218 – U+0219 U+021A – U+021B |
el | (Combining Diacritical Marks) U+0301 U+0308 (Greek and Coptic) U+0386 – U+0387 U+0388 – U+03CE |
pt, es | (Currency symbols) U+20A1 – U+20A2 U+20B3 |
ar | (Arabic) U+060C – U+060D U+061B U+061E – U+061F U+0621 – U+063A U+0640 – U+0652 U+0660 – U+066D U+0670 |
he | (Hebrew) U+05B0 – U+05C3 U+05D0 – U+05EA U+05F3 – U+05F4 |
bs, bg, mk, ru, sr | (Latin Extended-A) U+0100 – U+017F (Cyrillic) U+0400 – U+045F |
uk | (Latin Extended-A) U+0100 – U+017F (Cyrillic) U+0400 – U+045F U+0490 – U+0491 (Spacing Modifier Letters) U+02BC (Letterlike Symbols) U+2116 |
kk | (Latin Extended-A) U+0100 – U+017F (Cyrillic) U+0400 – U+045F U+0492 – U+0493 U+049A – U+049B U+04A2 – U+04A3 U+04AE – U+04B1 U+04BA – U+04BB U+04D8 – U+04D9 U+04E8 – U+04E9 |
hu | (Latin Extended-A) U+0100 – U+017F (General Punctuation) U+2052 (Miscellaneous Mathematical Symbols-A) U+27E8–U+27E9 |
Fig. 3
Illustration of the use of itts:forcedDisplay
below illustrates the use of forced content, i.e. itts:forcedDisplay
and
displayForcedOnlyMode
. The content with itts:forcedDisplay
="true" is the French translation of the
"High School" sign. The content with itts:forcedDisplay
="false" are French subtitles capturing a voiceover.
When the user selects French as the playback language but does not select French subtitles,
displayForcedOnlyMode
is set to "true", causing the display of the sign translation, which is useful to any French
speaker, but hiding the voiceover subtitles as the voiceover is heard in French.
If the user selects French as the playback language and also selects French subtitles, e.g. if the user is hard-of-hearing,
displayForcedOnlyMode
is set to "false", causing the display of both the sign translation and the voiceover
subtitles.
The algorithm for setting the displayForcedOnlyMode
parameter and selecting the appropriate combination of
subtitle and audio tracks depends on the application.
In order to meet the guidelines in [WCAG20], the following considerations apply.
Guideline 1.1 of [WCAG20] recommends that an implementation provide text alternatives for all non-text content. In the context of this specification, this text alternative is intended primarily to support users of the subtitles who cannot see images. Since the images of an Image Profile Document Instance usually represent subtitle or caption text, the guidelines for authoring text equivalent strings given at Images of text of [HTML5] are appropriate.
Thus, for each subtitle in an Image Profile Document Instance, a text equivalent content in a Text Profile Document Instance SHOULD be written so that it conveys all essential content and fulfills the same function as the corresponding subtitle image. In the context of subtitling and captioning, this content will be (as a minimum) the verbatim equivalent of the image without précis or summarization. However, the author MAY include extra information to the text equivalent string in cases where styling is applied to the text image with a deliberate connotation, as a functional replacement for the applied style.
For instance, in subtitling and captioning, italics can be used to indicate an off screen speaker context (for example a voice from a radio). An author can choose to include this functional information in the text equivalent; for example, by including the word "Radio: " before the image equivalent text. Note that images in an Image Profile Document Instance that are intended for use as captions, i.e. intended for a hard of hearing audience, might already include this functional information in the rendered text.
Guideline 1.1 of [WCAG20] also recommends that accessible text alternatives must be "programmatically determinable." This means that the text must be able to be read and used by the assistive technologies (and the accessibility features in browsers) that people with disabilities use. It also means that the user must be able to use their assistive technology to find the alternative text (that they can use) when they land on the non-text content (that they can't use).
The following sample Document Instances conforms to the Text and Image Profiles, respectively. These samples are for illustration only, and are neither intended to capture current or future practice, nor exercise all normative prose contained in this specification.
<?xml version="1.0" encoding="UTF-8"?> <tt xml:lang="en" xmlns="http://www.w3.org/ns/ttml" xmlns:ttm="http://www.w3.org/ns/ttml#metadata" xmlns:tts="http://www.w3.org/ns/ttml#styling" xmlns:ttp="http://www.w3.org/ns/ttml#parameter" xmlns:ittp="http://www.w3.org/ns/ttml/profile/imsc1#parameter" ittp:aspectRatio="4 3"> <head> <layout> <region xml:id="area1" tts:origin="10% 10%" tts:extent="80% 10%" tts:backgroundColor="black" tts:displayAlign="center" tts:color="red"/> </layout> </head> <body> <div> <p region="area1" begin="0s" end="6s">Lorem ipsum dolor sit amet.</p> </div> </body> </tt>
<?xml version="1.0" encoding="UTF-8"?> <tt xmlns="http://www.w3.org/ns/ttml" xmlns:ttm="http://www.w3.org/ns/ttml#metadata" xmlns:tts="http://www.w3.org/ns/ttml#styling" xmlns:ttp="http://www.w3.org/ns/ttml#parameter" xmlns:smpte="http://www.smpte-ra.org/schemas/2052-1/2010/smpte-tt" xmlns:itts="http://www.w3.org/ns/ttml/profile/imsc1#styling" tts:extent="640px 480px" ttp:frameRate="25" xml:lang="fr"> <head> <layout> <region xml:id="region1" tts:origin="120px 410px" tts:extent="240px 40px" tts:showBackground="whenActive"/> <region xml:id="region2" tts:origin="120px 20px" tts:extent="240px 40px" tts:showBackground="whenActive"/> </layout> </head> <body> <div region="region1" begin="00:00:01:00" end="00:00:02:00" smpte:backgroundImage="1.png"/> <div region="region1" begin="00:00:03:20" end="00:00:04:12" smpte:backgroundImage="2.png"/> <div region="region2" itts:forcedDisplay="true" begin="00:00:03:20" end="00:00:04:12" smpte:backgroundImage="3.png"/> </body> </tt> </pre>
The following sections define extension designations, expressed as relative URIs (fragment identifiers) relative to the IMSC 1.0 Extension Namespace base URI.
A transformation processor supports the #progressivelyDecodable
feature if it recognizes and is
capable of transforming values of the ittp:progressivelyDecodable
.
A presentation processor supports the #progressivelyDecodable
feature if it implements presentation
semantic support for values of the ittp:progressivelyDecodable
attribute.
A transformation processor supports the #aspectRatio
feature if it recognizes and is capable of
transforming values of the ittp:aspectRatio
.
A presentation processor supports the #aspectRatio
feature if it implements presentation semantic
support for values of the ittp:aspectRatio
attribute.
A transformation processor supports the #forcedDisplay
feature if it recognizes and is capable of
transforming values of the itts:forcedDisplay
.
A presentation processor supports the #forcedDisplay
feature if it implements presentation semantic
support for values of the itts:forcedDisplay
attribute.
A transformation processor supports the #altText
feature if it recognizes and is capable of
transforming values of the ittm:altText
element.
A presentation processor supports the #altText
feature if it implements presentation semantic support
for values of the ittm:altText
element.
A transformation processor supports the #linePadding
feature if it recognizes and is capable of
transforming values of the ebutts:linePadding
attribute specified in [EBU-TT-D].
A presentation processor supports the #linePadding
feature if it implements presentation semantic
support for values of the ebutts:linePadding
attribute specified in [EBU-TT-D].
A transformation processor supports the #multiRowAlign
feature if it recognizes and is capable of
transforming values of the ebutts:multiRowAlign
attribute specified in [EBU-TT-D].
A presentation processor supports the #multiRowAlign
feature if it implements presentation semantic
support for values of the ebutts:multiRowAlign
attribute specified in [EBU-TT-D].
