2 Introduction to XForms
XForms has been designed on the basis of several years' experience with HTML
forms. HTML forms have formed the backbone of the e-commerce revolution, and
having shown their worth, have also indicated numerous ways they could be
improved.
The primary difference when comparing XForms with HTML forms, apart from
XForms being in XML, is the separation of the data being collected from the
markup of the controls collecting the individual values. By doing this, it not
only makes XForms more tractable by making it clear what is being submitted
where, it also eases reuse of forms, since the underlying essential part of a
Form is no longer irretrievably bound to the page it is used in.
A second major difference is that XForms, while designed to be integrated
into XHTML, is no longer restricted only to be a part of that language, but may
be integrated into any suitable markup language.
XForms has striven to improve authoring, reuse, internationalization,
accessibility, usability, and device independence. Here is a summary of the
primary benefits of using XForms:
- Strong typing
Submitted data is strongly typed and can be checked using
off-the-shelf tools. This speeds up form filling since it reduces the
need for round trips to the server for validation.
- XML submission
This obviates the need for custom server-side logic to marshal the
submitted data to the application back-end. The received XML instance
document can be directly validated and processed by the application
back-end.
- Existing schema re-use
This obviates duplication, and ensures that updating the validation
rules as a result of a change in the underlying business logic does not
require re-authoring validation constraints within the XForms
application.
- External schema augmentation
This enables the XForms author to go beyond the basic set of
constraints available from the back-end. Providing such additional
constraints as part of the XForms Model enhances the overall usability of
the resulting Web application.
- Internationalization
Using XML 1.0 for instance data ensures that the submitted data is
internationalization ready.
- Enhanced accessibility
XForms separates content and presentation. User interface controls
encapsulate all relevant metadata such as labels, thereby enhancing
accessibility of the application when using different modalities. XForms
user interface controls are generic and suited for
device-independence.
- Multiple device support
The high-level nature of the user interface controls, and the
consequent intent-based authoring of the user interface makes it possible
to re-target the user interaction to different devices.
- Less use of scripting
By defining XML-based declarative event handlers that cover common
use cases, the majority of XForms documents can be statically analyzed,
reducing the need for imperative scripts for event handlers.
2.1 An Example
In the XForms approach, forms are comprised of a section that describes what
the form does, called the XForms Model, and another section that describes
how the form is to be presented.

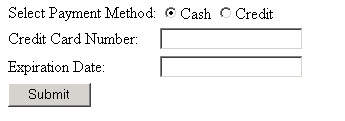

Consider a simple electronic commerce form that might be rendered as
follows:
It is clear that we are collecting a value that represents whether cash or a
credit card is being used, and if a credit card, its number and expiration
date.
This can be represented in the XForms model element, which in
XHTML would typically be contained within the head section:
<xforms:model>
<xforms:instance>
<ecommerce xmlns="">
<method/>
<number/>
<expiry/>
</ecommerce>
</xforms:instance>
<xforms:submission action="http://example.com/submit" method="post" id="submit" includenamespaceprefixes=""/>
</xforms:model>
This simply says that we are collecting three pieces of information (note
that we have as yet not said anything about their types), and that they will be
submitted using the URL in the action attribute.
XForms defines a device-neutral, platform-independent set of form controls suitable for
general-purpose use. The controls are bound to the XForms Model via
the XForms binding mechanism, in this simple case using the ref
attribute on the controls. In XHTML, this markup would typically appear within
the body section (note that we have intentionally defaulted the
XForms namespace prefix here):
<select1 ref="method">
<label>Select Payment Method:</label>
<item>
<label>Cash</label>
<value>cash</value>
</item>
<item>
<label>Credit</label>
<value>cc</value>
</item>
</select1>
<input ref="number">
<label>Credit Card Number:</label>
</input>
<input ref="expiry">
<label>Expiration Date:</label>
</input>
<submit submission="submit">
<label>Submit</label>
</submit>
Notice the following features of this design:
The user interface is not hard-coded to use radio buttons. Different
devices (such as voice browsers) can render the concept of "select one" as
appropriate.
Core form controls
always have labels directly associated with them as child elements— this
is a key feature designed to enhance accessibility.
There is no need for an enclosing form element, as in
HTML. (See 2.4 Multiple Forms per
Document for details on how to author multiple forms per
document)
Markup for specifying form controls has been simplified in comparison
with HTML forms.
The fact that you can bind form controls to the model like this simplifies
integrating XForms into other host languages, since any form control markup may
be used to bind to the model.
2.2 Providing XML Instance Data
The XForms
Processor can directly submit the data collected as XML. In the example,
the submitted data would look like this:
Submitted Data
<ecommerce>
<method>cc</method>
<number>1235467789012345</number>
<expiry>2001-08</expiry>
</ecommerce>
XForms processing keeps track of the state of the partially filled form
through this instance
data. Initial values for the instance data may be provided or left empty as
in the example. Element instance essentially holds a skeleton XML
document that gets updated as the user fills out the form. It gives the author
full control on the structure of the submitted XML data, including namespace
information. When the form is submitted, the instance data is serialized as an
XML document. Here is an alternative version of the earlier example:
Model
<xforms:model>
<xforms:instance>
<payment method="cc" xmlns="http://commerce.example.com/payment">
<number/>
<expiry/>
</payment>
</xforms:instance>
<xforms:submission action="http://example.com/submit" method="post" includenamespaceprefixes="#default"/>
</xforms:model>
In this case the submitted data would look like this:
Submitted Data
<payment method="cc" xmlns="http://commerce.example.com/payment">
<number>1235467789012345</number>
<expiry>2001-08</expiry>
</payment>
This design has features worth calling out:
There is complete flexibility in the structure of the XML instance
data, including the use of attributes. Notice that XML namespaces are used,
and that a wrapper element of the author's choosing contains the instance
data.
Empty elements number and expiry serve as
place-holders in the XML structure, and will be filled in with form data
provided by the user.
An initial value ("cc") for the form control is provided
through the instance data, in this case an attribute method.
In the submitted XML, this initial value will be replaced by the user
input, if the user changes the form control displaying that data.
To connect this instance data with form controls, the ref
attributes on the form controls need to be changed to point to the proper part
of the instance data, using binding expressions:
Binding Form Controls to Instance Nodes with ref
... xmlns:my="http://commerce.example.com/payment"
...
<xforms:select1 ref="@method">...</xforms:select1>
...
<xforms:input ref="my:number">...</xforms:input>
...
<xforms:input ref="/my:payment/my:expiry">...</xforms:input>
Binding expressions are based on XPath [XPath
1.0], including the use of the @ character to refer to
attributes, as seen here. Note that for illustrative purposes, the first two
expressions make use of the XPath context node, which defaults to the top-level
element (here my:payment). The third expression shows an absolute
path.
2.3 Constraining
Values
XForms allows data to be checked for validity as the form is being filled.
In the absence of specific information about the types of values being
collected, all values are returned as strings, but it is possible to assign
types to values in the instance data. In this example, number
should accept digits only, and should have between 14 and 18 digits and
expiry should accept only valid month/date combinations.
Furthermore, the credit card information form controls for
number and expiry are only relevant if the
"cc" option is chosen for method, but are required in
that case.
By specifying an additional component, model item properties, authors can include
rich declarative validation information in forms. Such information can be taken
from XML Schemas as well as XForms-specific additions, such as
relevant. Such properties appear on bind elements,
while Schema
constraints are expressed in an XML Schema fragment, either inline or
external. For example:
Declarative Validation with Model Item Properties
... xmlns:my="http://commerce.example.com/payment"...
<xforms:model>
...
<xforms:bind nodeset="/my:payment/my:number"
relevant="/my:payment/@method = 'cc'"
required="true()"
type="my:ccnumber"/>
<xforms:bind nodeset="/my:payment/my:expiry"
relevant="/my:payment/@method = 'cc'"
required="true()"
type="xsd:gYearMonth"/>
<xs:schema ...>
...
<xs:simpleType name="ccnumber">
<xs:restriction base="xsd:string">
<xs:pattern value="\d{14,18}"/>
</xs:restriction>
</xs:simpleType>
...
</xs:schema>
</xforms:model>
Note:
In the above example, the relevant expression uses absolute
XPath notation (beginning with /) because the evaluation context
nodes for computed expressions are determined by the
binding
expression (see 7.2 Evaluation Context),
and so any relative node path in the first bind
relevant above would be relative to
/my:payment/my:number
2.4 Multiple Forms
per Document
XForms processing places no limits on the number of individual forms that
can be placed in a single containing document. When a single document
contains multiple forms, each form needs a separate model element,
each with an id attribute so that they can be referenced from
elsewhere in the containing document.
In addition, form controls should specify which model element
contains the instance data to which they bind. This is accomplished through a
model attribute that is part of the binding attributes. If no
model attribute is specified on the binding element, the nearest
ancestor binding element's model attribute is used, and failing
that, the first XForms Model in document order is used. This technique is
called 'scoped resolution', and is used frequently in XForms.
The next example adds an opinion poll to our electronic commerce form.
Adding a poll model
<xforms:model>
<xforms:instance>
...payment instance data...
</xforms:instance>
<xforms:submission action="http://example.com/submit" method="post"/>
</xforms:model>
<xforms:model id="poll">
<xforms:instance>
<helpful/>
</xforms:instance>
<xforms:submission id="pollsubmit" .../>
</xforms:model>
Additionally, the following markup would appear in the body section of the
document:
Form Controls for poll model
<xforms:select1 ref="/helpful" model="poll">
<xforms:label>How useful is this page to you?</xforms:label>
<xforms:item>
<xforms:label>Not at all helpful</xforms:label>
<xforms:value>0</xforms:value>
</xforms:item>
<xforms:item>
<xforms:label>Barely helpful</xforms:label>
<xforms:value>1</xforms:value>
</xforms:item>
<xforms:item>
<xforms:label>Somewhat helpful</xforms:label>
<xforms:value>2</xforms:value>
</xforms:item>
<xforms:item>
<xforms:label>Very helpful</xforms:label>
<xforms:value>3</xforms:value>
</xforms:item>
</xforms:select1>
<xforms:submit submission="pollsubmit">
<xforms:label>Submit</xforms:label>
</xforms:submit>
The main difference here is the use of model="poll", which
identifies the instance. Note that submit refers to the
submission element by ID and does not require binding attributes.
More XForms examples can be found in H
Complete XForms Examples.
7 XPath Expressions in XForms
XForms uses XPath to address instance data nodes in binding expressions,
to express constraints, and to specify calculations. At the time of evaluation,
an XPath expression must be syntactically correct. In addition, the namespaces
the expression references must be in scope and the functions and variables it
references must be defined. If any of these conditions is not satisfied, an
exception (4.5.2 The
xforms-compute-exception Event) is raised, except for binding
expressions, which produce a different exception (4.5.1 The xforms-binding-exception
Event).
7.1 XPath Datatypes
XPath datatypes are used only in binding expressions and computed
expressions. XForms uses XPath datatypes boolean,
string, number, and node-set.
Additionally, the type object is used to denote a parameter or
return value that can be any one of the four XPath datatypes. A future version
of XForms is expected to use XPath 2.0, which includes support for XML Schema
datatypes.
7.2 Evaluation Context
Within XForms, the default model is the first model in
document order. The default instance of any model is the
first child instance in document order within that
model. XPath expressions appearing in various XForms attributes
are used to reference instance data. Every XPath expression requires an
evaluation context consisting of a node, position, size, variable bindings,
function set, and namespace context. For all evaluation contexts in XForms,
No variable bindings are in place.
The available function library is defined below in 7.5 The XForms Function Library.
Any namespace declarations in scope for the attribute that defines the
expression are applied to the expression.
The context node, position and size are determined according to rules
described below.
A binding element is any element that is explicitly allowed to have a
binding expression attribute, and a bound element is any element that
explicitly declares a binding expression attribute. A binding expression
attribute contains an XPath expression that references zero or more nodes of
instance data. Every XPath expression requires an evaluation context. The
in-scope evaluation context of a binding element provides an evaluation
context for the binding expression attribute. The following rules are used in
determining the node, position and size of the in-scope evaluation context:
A binding element is "outermost" if the element has no ancestor
binding elements. If an outermost binding element is contained by a
model, then the context node for the outermost binding element
is the top-level document element node of the default instance of the
containing model element. Otherwise, the context node for
outermost binding elements is the top-level document element node of the
default instance in the default model. For outermost binding elements, the
context size and position are 1.
The context node, position and size for non-outermost binding elements
is determined using the binding expression attribute or in-scope evaluation
context of the nearest ancestor binding element. This is also referred to
as "scoped resolution". For a non-outermost binding element:
If the nearest ancestor binding element is not a bound element,
then the in-scope evaluation context of the non-outermost binding
element is equivalent to the in-scope evaluation context of the nearest
ancestor binding element.
If the nearest ancestor binding element expresses a Single-Node
binding, then the in-scope evaluation context of the non-outermost
binding element has a context size and position of 1 and the context
node is the one resulting from the Single-Node binding of the nearest
ancestor binding element.
If the nearest ancestor binding element expresses a Node Set
binding, then the XForms processor dynamically generates an occurrence
of the non-outermost binding element for each of the nodes in the Node
Set Binding of the nearest ancestor binding element. The dynamic
in-scope evaluation context for each generated occurrence of the
non-outermost binding element has a context size equal to the size of
the nodeset identified by the Node Set Binding of the nearest ancestor
binding element, the context node is the node for which the occurrence
of the non-outermost binding element was generated, and the position is
equal to the position of the generator node in the nodeset identified
by the Node Set Binding of the nearest ancestor binding element.
If the nearest ancestor binding element expresses a Node Set
binding, then the non-outermost binding element has its own in-scope
evaluation context separately from those of its dynamically generated
occurences described above. The in-scope evaluation context has a
context position of 1, and the context node and size are set by the
first node and the size of the nodeset identified by the Node Set
binding of the nearest ancestor binding element.
Once the context node of the in-scope evaluation context has been
determined according to the rules above, if the binding element expresses a
model attribute that refers to a model other than
the one containing the context node, then the context node of the in-scope
evaluation context is changed to be the top-level document element node of
the default instance of the referenced model, and the context
position and size are changed to 1.
The in-scope evaluation context of an element that is not a binding
element is the same as if the element were a binding element. For example, the
in-scope evaluation context for the setindex action element is
required to provide the context for evaluating the index
attribute, so it is determined as if the element could contain a binding
expression attribute.
XPath expressions also appear in model item property attributes of the
bind element to define computed expressions. If the
bind element does not express a Node Set binding, then the
in-scope evaluation context for model item property attributes of the
bind is equal to the in-scope evaluation context for the
bind. Otherwise, the bind has a Node Set binding, and
computed expressions for each model item property attribute are generated for
each node. For each computed expression generated, the evaluation context node,
position and size are determined by the same method as dynamic in-scope
evaluation context rule above, except the computed expression is used in lieu
of a binding expression attribute such that the bind element is
the nearest ancestor binding element.
XPath expressions also appear in the special attributes of several other
XForms elements, such as the value attribute on
setvalue and output, the at attribute of
insert and delete, or the index
attribute of setindex. Generally, if the containing element does
not express a Single Node Binding or Node Set Binding, then the special
attribute is evaluated using the in-scope evaluation context. Special
attributes may be evaluated using the in-scope evaluation context even if the
containing element expresses a Single Node Binding or Node Set Binding.
However, for some special attributes, the evaluation context node, position and
size are based on the result of the Single Node Binding or Node set Binding.
Each special attribute that contains an XPath expression describes how its
evaluation context node, position and size are determined.
In the following example, the group has a binding expression of
level2/level3. According to the rules above, this outermost
element node would have a context node of /level1, which is the
document element node of the instance data. The select1 form
control then inherits a context node from the parent group.
Sample XML Instance Data
<level1>
<level2>
<level3 attr="xyz"/>
</level2>
</level1>
Binding Expression Context Nodes
<group ref="level2/level3">
<select1 ref="@attr" ... >
<label>...</label>
</select1>
</group>
This section describes how the in-scope evaluation context of an element is
determined, not whether the in-scope evaluation will be used. The Single-Node
Binding or Node Set Binding of a non-outermost binding element is not evaluated
if the in-scope evaluation context does not contain a context node. This can
occur if the Single-Node Binding or Node Set Binding of the nearest ancestor
bound element produces an empty nodeset. Also, if the Single-Node Binding or
Node Set Binding of an element is expressed with the bind
attribute, then the resulting node or nodeset is obtained from the referenced
bind element. The nodeset attribute of a
bind element is evaluated using the in-scope evaluation of the
bind element, not the in-scope evaluation context of an element
that references it with a bind attribute.
7.3 References,
Dependencies, and Dynamic Dependencies
An XPath expression references a node of
instance data if the node is selected during the evaluation of the expression.
A node is selected by matching an XPath NodeTest or by being returned
by a function call. For examples, a node can match a name test, a wildcard
test, a node type test, or it can be returned by or used as a parameter to a
function, or it can appear in a filter expression (where all of the prior
examples recursively apply). Once selected, a node is considered to be
referenced even if a filter expression subsequently excludes the node from
further participation in the expression evaluation. The reference list
of an XPath expression is the set of instance nodes that it references.
Example of References and Non-References
Given the following default instance:
<xforms:instance>
<data xmlns="">
<a attr="X">
<b attr="Y">
<c/>
</b>
<d/>
</a>
<a attr="Z">
<b attr="Z">
<c/>
</b>
<d/>
</a>
</data>
</xforms:instance>
and the following XPath expression:
a[@attr='X']/b[@attr='X']/c
Both nodes named a are referenced since both are matched by a
NameTest. The attr attribute in each element a is
referenced during the evaluation of the filter expression. The filter
expression rejects the second element a, but that element is still
considered to have been referenced because it was selected for further
processing during the expression evaluation.
The element named b in the first element a is
referenced, but element b in the second a is not
referenced because the expression evaluation did not proceed beyond the filter
expression that rejected the second a element.
While performing the NameTest for element b, observe that an
XPath expression evaluator may visit all the children of the first element
a in order to perform the NodeTest. However, a node is not
referenced if it is only visited but fails the NodeTest. In this case, the
NodeTest is a NameTest for b, which the element d
fails. Therefore, d is not referenced.
The filter expression test on b rejects the only element
b that has been selected so far because the attribute value of
attr does not match the equality test. Still, b and
its attribute attr have been referenced by this expression.
Element c is not considered to be referenced by this expression
given this data. Although a NameTest for c appears in the
expression, the evaluation of the expression did not proceed to perform the
NameTest due to the rejection of b by the filter expression.
Finally, note that an XPath expression can reference many nodes even if its
final result is an empty nodeset.
Note:
Defining a reference in terms of matching a NodeTest was a deliberate
design decision that creates more references than necessary in order to make
the computation system more responsive to certain types of changes without
needing a rebuild operation. When a leaf node is filtered from an expression by
a predicate, the leaf node is still considered to be referenced so that if the
condition changes such that the leaf node would be included in the result value
of the expression, then the expression will be recalculated without needing a
rebuild. However, once a node is rejected from an expression, further location
steps are not evaluated relative to the rejected node, so references for that
location step are only created based on its execution relative to accepted
nodes. For example, if the above expression were in a calculate,
and if the attribute of either b element changes to the value
X, the expression would be recalculated but it still does not
record a reference to any c elements until the references are
obtained in the next rebuild operation. Moreover, the excess references created
by the definition may cause some recalculation constructs to cease operation
due to circular references that would not be created with a stricter definition
of a reference. A future version of XForms may use a stricter version of
referencing for recalculation and a less strict definition of referencing for
the purpose of detecting and performing automatic rebuild operations.
The referencing of a repeat index by the index() function is
handled as a special case. Implementations must behave as if each occurrence of
a repeat is associated with an implicitly managed instance data
node containing the repeat index. If a repeat identified as
R1 contains a repeat identified as R2,
then a repeat index instance node is managed for each occurrence of
R2 that is generated by R1. An invocation of the
function index() in an XPath expression is considered to reference
the repeat index instance node corresponding to the repeat index value that it
returns.
If an XPath expression references an instance
node, then the expression result is dependent on the instance node. A
dependency list for an instance node is the list of XPath expressions of
a given category that are dependent upon the instance node. For example, in
Section 4.3.2 The xforms-recalculate
Event, the dependency list of computed expressions for each instance
node helps establish the recalculation order for the computed expressions when
the values of instance data nodes are changed.
The references of an XPath expression may be
altered by insertion of instance nodes since the new nodes may be referenced by
the XPath expression if it is re-evaluated. Similarly, the references of an
XPath expression may be altered by deletion of instance nodes that are being
referenced by the XPath expression. An XPath expression is dynamically
dependent on an instance node if its reference list is altered by
inserting, deleting or changing the value of the instance node. An instance
node is a dynamic dependency for an XPath expression if the expression
is dynamically dependent on the instance node. If an XPath expression contains
a dynamic dependency and the XForms processor is maintaining dependency lists
for the category of the XPath expression, then changing the dynamic dependency
implies a change to the dependency lists of instance nodes referenced by the
XPath expression.
The computational dependency data structure described in Section 4.3.2 The xforms-recalculate Event
essentially stores the dependency lists of instance nodes corresponding to all
the references made by computed expressions (see Appendix C Recalculation Sequence Algorithm for details). The
computational dependency data structure is not reconstructed in response to a
dynamic dependency change. Instead, the form author may request a rebuild of
the computational dependency data structures using the rebuild
action. Additionally, the insert and delete actions
set a rebuild flag so that computational dependency data structures will be
rebuild at the end of an action sequence.
Due to the rebuild flag setting on insert and
delete, a form author can use many kinds of dynamic dependencies
in model binding expressions and computed expressions without ever explicitly
invoking the rebuild action. This includes the use of functions
such as position(), last(), and count()
on element and attribute nodes because the return values of the functions in
these cases is fixed except when an insert or delete
occurs. By comparison, functions such as id(),
instance(), and index() can establish dynamic
dependencies that can necessitate invoking a rebuild if they are
used in model binding expressions or computed expressions because the results
of the functions are affected by changing the values of instance nodes, not by
inserting or deleting nodes.
7.4 Expression Categories
There are several different categories of XPath expressions used in XForms,
and they are processed at different times depending on the category. A binding
expression is an XPath expression used to bind a model item
property to one or more instance nodes, or to bind a form control to
instance data, or to specify the node or node set for operation by an action.
The evaluation schedule for binding expressions differs based on whether the
binding expression is a model binding expression, UI binding expression, or a
binding expression for an XForms action. XPath expressions are also used in
various other attributes of XForms binds, actions, form controls, and
submissions, and their descendant elements. These expressions
follow one of the three schedules associated with binding expressions as
described below.
7.4.1 Model Binding
Expressions and Computed Expressions
A model binding expression is a kind of
binding expression that can be used to declare model item properties, and is
used in the Node-Set binding of the bind element. A computed
expression is an XPath expression used to determine the value of a model item
property based on instance data. Several of the attributes of
bind are computed expressions, including calculate,
readonly, relevant, and required.
Dynamic dependencies in model binding expressions and computed expressions
will require manual rebuilding of dependencies.
Note:
If the index() function is being invoked from a model binding
expression or computed expression, it will be necessary to invoke
rebuild manually. If the repeat index change occurs due to an
implicit behavior such as a change to the focused form control, then the
rebuild (along with recalculate, revalidate and refresh) can be invoked from a
handler for DOMFocusIn attached to the repeat or each
repeat object.
7.4.2
Expressions in Actions and Submissions
Binding expressions on XForms actions and XPath expressions appearing in
other attributes of XForms actions are evaluated at the time the XForms action
is performed. In some cases, XForms actions have child elements that allow the
values of some of their attributes to be determined based on instance data. In
these cases, the value attribute of the child element is evaluated
at the time the corresponding attribute is needed in the processing model of
the containing XForms action.
Similarly, XPath expressions used in the attributes of
submission and its child elements (other than XForms actions) are
evaluated as needed within the submission processing model.
Form authors can use dynamic dependencies in the XPath expressions of XForms
Actions and Submissions without invoking any special data structure
reconstruction actions because implementations must behave as if these
expressions are evaluated as needed.
7.4.3 UI
Expressions
A UI Binding Expression is a Single Node
Binding or Node Set Binding in a form control. A UI expression is a UI
Binding Expression or an XPath expression appearing in a descendant element of
a form control, except for XPath expressions in the categories described above
(such as XForms action expressions). These include the Single Node Bindings and
Node Set Bindings of the additional elements that contribute to the behavior of
a form control (including label, help,
hint and alert, filename and
mediatype) and the selection helper elements
(itemset, label, value and
copy). This also includes the value attribute on
output and value elements.
Form authors can use dynamic dependencies in UI Expressions without invoking
any special data structure reconstruction actions because the state of the user
interface at the end of processing xforms-refresh is required to reflect the instance data
as if all UI Expressions had been re-evaluated.
Note:
Implementations may record UI Expression dependency lists on instance nodes
to help streamline detection of the need to re-evaluate a UI Expression at the
beginning of processing for xforms-refresh.
Such implementations may determine that a UI Expression is stale (needs
re-evaluation) when a node on which it depends has been changed. An
implementation may also indicate that all UI Expressions are stale if a node of
instance data is inserted, deleted or replaced, or the implementation may
streamline detection of which UI Expressions may be affected by the insertion,
deletion or replacement of an instance data node.
7.4.4 UI Binding
in other XML vocabularies
The XForms binding mechanism allows other XML vocabularies to make single
node bindings between custom user interface controls and XForms instance data.
As an example, XForms binding attribute bind might be used within
XHTML 1.x user interface controls as shown below. See 3.2.3 Single-Node Binding
Attributes.
XForms Binding In XHTML 1.x User Interface Controls
<html:input type="text" name="..." xforms:bind="fn"/>
7.4.5 Binding
Examples
Consider the following document with the one-and-only XForms model:
<xforms:model id="orders">
<xforms:instance xmlns="">
<orderForm>
<shipTo>
<firstName>John</firstName>
</shipTo>
</orderForm>
</xforms:instance>
<xforms:bind nodeset="/orderForm/shipTo/firstName" id="fn" />
</xforms:model>
The following examples show three ways of binding user interface control
xforms:input to instance element firstName declared
in the model shown above.
UI Binding Using Attribute ref
<xforms:input ref="/orderForm/shipTo/firstName">...
UI Binding Using Attribute bind
<xforms:input bind="fn">...
Specifies Model Containing The Instance Explicitly
<xforms:input model="orders" ref="/orderForm/shipTo/firstName">...
7.5 The XForms Function Library
The XForms Function Library includes the entire [XPath 1.0] Core Function Library, including
operations on node-sets, strings, numbers, and booleans.
The following sections define additional required functions for use within
XForms : 7.6 Boolean Functions, 7.7 Number Functions, 7.8 String Functions, 7.9 Date and Time Functions, 7.10 Node-set Functions , and 7.11 Object Functions.
The function library provided by an XForms processor may also contain other
extension functions as described in 7.12
Extension Functions.
If an error occurs in an XPath function, then an 4.5.2 The xforms-compute-exception
Event or 4.5.1 The
xforms-binding-exception Event occurs..
7.6 Boolean Functions
7.6.1 The
boolean-from-string() Function
boolean boolean-from-string(string)
Function boolean-from-string returns true if the
required parameter string is "true" or "1", or false
if parameter string is "false", or "0". This is useful when
referencing a Schema xsd:boolean datatype in an XPath expression.
If the parameter string matches none of the above strings, according to a
case-insensitive comparison, the return value is false.
7.6.2 The
is-card-number() Function
boolean is-card-number(string?)
If the string parameter conforms to the pattern restriction of the card-number datatype, then this function
applies the Luhn algorithm described in [Luhn
Patent] and returns true if the number satisfies the formula. Otherwise,
false is returned. If the parameter is omitted, it defaults to the string-value
of the current context node.
Examples (see also 5.2.7
xforms:card-number):
returns true if and only if the context node contains a string
that contains of zero or more digits and satisfies the formula.
is-card-number('4111111111111111')
returns true. Other examples of string constants that will
return true are : 5431111111111111,
341111111111111 and 6011601160116611.
returns false.
7.7 Number Functions
7.7.1 The avg() Function
number avg(node-set)
Function avg returns the arithmetic average of the result of
converting the string-values of each node in the argument node-set to a number.
The sum is computed with sum(), and divided with div
by the value computed with count(). If the parameter is an empty
node-set, or if any of the nodes evaluate to NaN, the return value
is NaN.
7.7.2 The min() Function
number min(node-set)
Function min returns the minimum value of the result of
converting the string-values of each node in argument node-set to
a number. "Minimum" is determined with the < operator. If the
parameter is an empty node-set, or if any of the nodes evaluate to
NaN, the return value is NaN.
7.7.3 The max() Function
number max(node-set)
Function max returns the maximum value of the result of
converting the string-values of each node in argument node-set to
a number. "Maximum" is determined with the < operator. If the
parameter is an empty node-set, or if any of the nodes evaluate to
NaN, the return value is NaN.
7.7.4 The
count-non-empty() Function
number count-non-empty(node-set)
Function count-non-empty returns the number of non-empty nodes
in argument node-set. A node is considered non-empty if it is
convertible into a string with a greater-than zero length.
7.7.5 The index() Function
number index(string)
Function index takes a string argument that is the
IDREF of a repeat and returns the current 1-based
position of the repeat index for the identified repeat—see 9.3.1 The repeat Element for details on
repeat and its associated repeat index. If the specified argument
does not identify a repeat, the function returns
NaN.
Note:
The IDREF obtained from the function parameter may not uniquely identify the
desired repeat if the repeat element bearing the
matching ID resides in a repeating construct such as element
repeat. The general method described in 4.7 Resolving ID References in XForms is used
to determine the desired run-time repeat object.
index
<xforms:trigger>
<xforms:label>Add to Shopping Cart</xforms:label>
<xforms:insert ev:event="DOMActivate" position="after"
nodeset="items/item" at="index('cartUI')"/>
</xforms:trigger>
7.7.6 The power() Function
number power(number, number)
Raises the first argument to the power of the second argument, returning the
result. If the calculation does not result in a real number, then
NaN is returned.
Examples:
returns 8
returns NaN.
if (prin>0 and dur>0 and rate>0, prin*rate/(1-power(1+rate, -dur)), 0)
returns a compounded interest payment value given a non-zero principal
(prin), duration (dur) and periodic interest rate
(rate).
7.7.7 The random() Function
number random(boolean?)
This function generates and returns a uniformly distributed random or
pseudorandom number in the range from 0.0 up to but excluding 1.0. This
function accepts an author-optional boolean parameter that is
false by default. If true, the random number
generator for this function is first seeded with a source of randomness before
generating the return value. A typical implementation may seed the random
number generator with the current system time in milliseconds when
random(true) is invoked, and it may apply a linear congruential
formula to generate return values on successive invocations of the function.
Example:
could return 0.14159265358979
7.7.8 The compare() Function
number compare(string, string)
This function returns -1, 0, or 1, depending on whether the value of the
first argument is respectively less than, equal to, or greater than the value
of second argument based on lexicographic comparison using Unicode code point
values [Unicode Collation Algorithm].
Example:
compare('apple', 'orange')
returns -1
7.8 String Functions
7.8.1 The if() Function
string if(boolean, string,
string)
Function if evaluates the first parameter as boolean, returning
the second parameter when true, otherwise the third parameter.
Note:
This function is deprecated because a future version of XForms is expected
to be based on [XPath 2.0], which contains an
if construct that is incompatible with this function.Form authors
and design tools are encouraged to use the function choose() from
Section 7.11.1 The choose() Function instead of
this function.
7.8.2 The property()
Function
string property(string)
This function accepts a string identifying a property name. If the property
name is not recognized, empty string is returned. The property definitions for
this function are as follows:
| Property |
Return Value |
version |
1.1 |
conformance-level |
full, basic or a
string beginning with full or basic |
| Any other NCName |
Reserved. Their use results in an exception
(see 7.5 The XForms Function Library for
the exception type) |
| QNameButNotNCName |
An implementation-specific property value,
such as a locale or timezone for the user agent. If the implementation
does not support the property, then empty string is returned. |
Examples:
returns 1.1
property('conformance-level')
may return full
7.8.3 The digest() Function
string digest(string, string,
string?)
This function accepts a string of data, a string indicating a cryptographic
hashing algorithm, and an author-optional string indicating an
encoding method. The data string is serialized as UTF-8, the hash value is then
computed using the indicated hash algorithm, and the hash value is then encoded
by the indicated method, and the result is returned by the function. The
following table presents the keywords for the second string parameter and the
corresponding hash algorithms:
This recommendation defines the values hex and
base64 for the third string parameter that indicates the encoding
method. If the parameter is missing, then the default is base64.
The hex and base64 encoding methods of this function
correspond to the encodings defined in [XML Schema
part 2] for the datatypes hexBinary and
base64Binary, respectively. For the hexadecimal encoding,
the digits 'a' through 'f' are encoded with lower case letters. Any
other string value given for the encoding method results in an exception (see
7.5 The XForms Function Library for the
exception type).
digest('abc', 'SHA-1', 'hex')
returns a9993e364706816aba3e25717850c26c9cd0d89d.
digest('abc', 'MD5', 'hex')
returns 900150983cd24fb0d6963f7d28e17f72.
digest('abc', 'SHA-256', 'hex')
returns
ba7816bf8f01cfea414140de5dae2223b00361a396177a9cb410ff61f20015ad
7.8.4 The hmac() Function
string hmac(string, string,
string, string?)
This function accepts a string for a key or shared secret, a string of data,
a string indicating a cryptographic hashing algorithm, and an
author-optional string indicating an encoding method. The key and
data strings are serialized as UTF-8, and they are subjected to the HMAC
algorithm defined in [HMAC] and parameterized by the
the hash algorithm indicated by the third parameter. The result is encoded with
the method indicated by the fourth parameter, and the result is returned by the
function.
The following table presents the keywords for the third string parameter and
the corresponding hash algorithms:
This recommendation defines the values hex and
base64 for the fourth string parameter that indicates the encoding
method. If the parameter is missing, then the default is base64.
The hex and base64 encoding methods of this function
correspond to the encodings defined in [XML Schema
part 2] for the datatypes hexBinary and
base64Binary, respectively. For the hexadecimal encoding,
the digits 'a' through 'f' are encoded with lower case letters. Any
other string value given for the encoding method results in an exception (see
7.5 The XForms Function Library for the
exception type).
hmac('Jefe', 'what do ya want for nothing?', 'SHA-1', 'hex')
returns effcdf6ae5eb2fa2d27416d5f184df9c259a7c79
hmac('Jefe', 'what do ya want for nothing?', 'MD5', 'hex')
returns 750c783e6ab0b503eaa86e310a5db738
hmac('Jefe', 'what do ya want for nothing?', 'SHA-256', 'hex')
returns
5bdcc146bf60754e6a042426089575c75a003f089d2739839dec58b964ec3843
7.9 Date and Time
Functions
Note:
The following XML Schema datatypes do not have specific functions for
manipulation within XForms expressions: xsd:time,
xsd:gYearMonth, xsd:gYear,
xsd:gMonthDay, xsd:gDay, xsd:gMonth.
Extension functions (7.12 Extension
Functions) may be used to perform needed operations on these datatypes.
7.9.1 The local-date()
Function
string local-date()
This function returns a lexical xsd:date obtained as if by the
following rules: the result of now() is converted to a local date
based on the user agent time zone information. If no time zone information is
available, then the date portion of the result of now() is
returned.
Example:
could return 2006-10-13-07:00
substring(local-date(), 1, 10)
could return 2006-10-13
days-to-date(days-from-date(local-date()) + 31)
returns a date that is 31 days from today. For example, if
local-date() returns 2006-10-13-07:00, then the
result is 2006-11-13.
7.9.2 The
local-dateTime() Function
string local-dateTime()
This function returns a lexical xsd:dateTime obtained as if by
the following rules: the result of now() is converted to a local
dateTime based on the user agent time zone information. If no time zone
information is available, then the result of now() is returned.
Example:
could return 2006-10-13T16:04:17-07:00
adjust-dateTime-to-timezone(seconds-to-dateTime(seconds-from-dateTime(local-dateTime()) + 7200))
Adds two hours (7200 seconds) to the local date and time, returning the
result in the local time zone. For example, if local-dateTime()
returns 2007-10-02T14:26:43-07:00, then the above expression
returns 2007-10-02T16:26:43-07:00
7.9.3 The now() Function
string now()
The now function returns the current UTC date and time as a
string value in the canonical XML Schema xsd:dateTime format. If
time zone information is available, it is used to convert the date and time to
UTC. If no time zone information is available, then the date and time are
assumed to be in UTC.
Note:
Attaching a calculation of "now()" to an instance data node
would not result in a stream of continuous recalculations of the XForms Model.
returns 2006-10-14T01:04:17Z if local-dateTime()
returns 2006-10-13T18:04:17-07:00
seconds-to-dateTime(seconds-from-dateTime(now()) + 7200)
Computes two hours from now, returning the result in UTC time. For example,
if now() returns 2007-10-02T21:26:43Z, then the above
expression returns 2007-10-02T23:26:43Z
7.9.4 The
days-from-date() Function
number days-from-date(string)
This function returns a whole number of days, according to the following
rules:
If the string parameter represents a legal lexical xsd:date or
xsd:dateTime, the return value is equal to the number of days
difference between the specified date or dateTime (normalized to UTC) and
1970-01-01. Hour, minute, and second components are ignored after
normalization. Any other input parameter causes a return value of
NaN.
Note:
If an xsd:date is given as the parameter, the timezone is
ignored if provided because there is no way to normalize to the date in the UTC
timezone without both the time and timezone.
Examples:
days-from-date("2002-01-01")
returns 11688
days-from-date("2002-01-01-07:00")
returns 11688
days-from-date("1969-12-31")
returns -1
7.9.5 The days-to-date()
Function
string days-to-date(number)
This function returns a string containing a lexical xsd:date
that corresponds to the number of days passed as the parameter according to the
following rules:
The number parameter is rounded to the nearest whole number, and the result
is interpreted as the difference between the desired date and
1970-01-01. An input parameter value of NaN results
in output of the empty string.
Examples:
returns 2002-01-01
returns 1969-12-31
7.9.6
The seconds-from-dateTime() Function
number seconds-from-dateTime(string)
This function returns a possibly fractional number of seconds, according to
the following rules:
If the string parameter represents a legal lexical
xsd:dateTime, the return value is equal to the number of seconds
difference between the specified dateTime (normalized to UTC) and
1970-01-01T00:00:00Z. If no time zone is specified, UTC is used.
Any other input string parameter causes a return value of NaN.
This function does not support leap seconds.
Example:
seconds-from-dateTime('1970-01-01T00:00:00Z')
returns 0
seconds-from-dateTime('1970-01-01T00:00:00-08:00')
returns 28800
7.9.7 The
seconds-to-dateTime() Function
string seconds-to-dateTime(number)
This function returns a string containing a lexical
xsd:dateTime that corresponds to the number of seconds passed as
the parameter according to the following rules:
The number parameter is rounded to the nearest whole number, and the result
is interpreted as the difference between the desired UTC dateTime and
1970-01-01T00:00:00Z. An input parameter value of NaN
results in output of the empty string. This function does not support leap
seconds.
Examples:
returns 1970-01-01T00:00:00Z
seconds-from-dateTime(28800)
returns 1970-01-01T08:00:00Z
seconds-to-dateTime(seconds-from-dateTime(now()) + 7200)
Computes two hours from now, returning the result in UTC time. For example,
if now() returns 2007-10-02T21:26:43Z, then the above
expression returns 2007-10-02T23:26:43Z
adjust-dateTime-to-timezone(seconds-to-dateTime(seconds-from-dateTime(now()) + 7200))
Computes two hours from now, returning the result in the local time zone.
For example, if now() returns 2007-10-02T21:26:43Z
and the local date and time is 2007-10-02T14:26:43-07:00, then the
above expression returns 2007-10-02T16:26:43-07:00
7.9.8 The adjust-dateTime-to-timezone()
Function
string adjust-dateTime-to-timezone(string)
This function adjusts a legal lexical xsd:dateTime received as
the string parameter to the local time zone of the implementation, and returns
the result. If the string argument contains no time zone, then the result is
the string argument with the local time zone as the time zone component. If the
implementation does not have access to time zone information, UTC is used. The
result is empty string if the string argument is the empty sequence or not a
legal lexical xsd:dateTime.
Examples:
adjust-dateTime-to-timezone('2007-10-07T02:22:00')
returns 2007-10-07T02:22:00-07:00 in the Pacific time zone
since daylight savings time applies.
adjust-dateTime-to-timezone('2007-10-02T21:26:43Z')
returns 2007-10-02T14:26:43-07:00 in the Pacific time zone
since daylight savings time applies.
adjust-dateTime-to-timezone(seconds-to-dateTime(seconds-from-dateTime(now()) + 7200))
Computes two hours from now, returning the result in the local time zone.
For example, if now() returns 2007-10-02T21:26:43Z
and the local date and time is 2007-10-02T14:26:43-07:00, then the
above expression returns 2007-10-02T16:26:43-07:00
7.9.9 The seconds() Function
number seconds(string)
This function returns a possibly fractional number of seconds, according to
the following rules:
If the string parameter represents a legal lexical
xsd:duration, the return value is equal to the number specified in
the seconds component plus 60 * the number specified in the minutes component,
plus 60 * 60 * the number specified in the hours component, plus 60 * 60 * 24 *
the number specified in the days component. The sign of the result will match
the sign of the duration. Year and month components, if present, are ignored.
Any other input parameter causes a return value of NaN.
Note:
Even though this function is defined based on a lexical
xsd:duration, it is intended for use only with
derived-from-xsd:duration datatypes, specifically
xforms:dayTimeDuration.
Examples:
seconds("P3DT10H30M1.5S")
returns 297001.5 (3 days, 10 hours, 30 minutes, and 1.5
seconds)
returns 0 because the year and month parts of the duration are
ignored and the remaining portions are unspecified and default to 0
returns NaN because the parameter is not a lexically valid
duration
7.9.10 The months() Function
number months(string)
This function returns a whole number of months, according to the following
rules:
If the string parameter represents a legal lexical
xsd:duration, the return value is equal to the number specified in
the months component plus 12 * the number specified in the years component. The
sign of the result will match the sign of the duration. Day, hour, minute, and
second components, if present, are ignored. Any other input parameter causes a
return value of NaN.
Note:
Even though this function is defined based on a lexical
xsd:duration, it is intended for use only with
derived-from-xsd:duration datatypes, specifically
xforms:yearMonthDuration.
Examples:
Examples:
returns 14 (1 year and 2 months)
returns -19 because the duration is negative and expresses 0
years and 19 months
7.10 Node-set
Functions
7.10.1 The instance()
Function
node-set instance(string?)
An XForms Model can contain more than one instance. This function allows
access to instance data, within the same XForms Model, but outside the instance
data containing the context node.
If the argument is omitted or is equal to the empty string, then the root
element node (also called the document element node) is returned for the
default instance in the model that contains the current context node.
Otherwise, the argument is converted to a string as if by a call to the
string function. This string is treated as an IDREF, which is
matched against instance elements in the containing document. If a
match is located, and the matching instance data is associated with the same
XForms Model as the current context node, this function returns a node-set
containing just the root element node (also called the document element node)
of the referenced instance data. In all other cases, an empty node-set is
returned.
Example:
For instance data corresponding to this XML:
<xforms:instance xmlns="" id="orderform">
<orderForm>
<shipTo>
<firstName>John</firstName>
</shipTo>
</orderForm>
</xforms:instance>
The following expression selects the firstName node. Note that
the instance function returns an element node, effectively
replacing the leftmost location step from the path:
ref="instance('orderform')/shipTo/firstName"
7.10.2 The current() Function
node-set current()
Returns the context node used to
initialize the evaluation of the containing XPath expression.
Examples:
For the following instance data:
<xforms:instance xmlns="">
<converter>
<amount>100</amount>
<currency>jpy</currency>
<convertedAmount></convertedAmount>
</converter>
</xforms:instance>
<xforms:instance xmlns="" id="convTable">
<convTable date="20040212" currency="cdn">
<rate currency="eur">0.59376</rate>
<rate currency="mxn">8.37597</rate>
<rate currency="jpy">80.23451</rate>
<rate currency="usd">0.76138</rate>
</convTable>
</xforms:instance>
and the following value calculation bind:
<bind nodeset="convertedAmount"
calculate="../amount *
instance('convTable')/rate[@currency=current()/../currency]"/>
the content value of /converter/convertedAmount is the product
of /converter/amount and the conversion table rate given by the
rate element whose currency attribute value matches
the content of /converter/currency.
For the following instance data:
<xforms:instance xmlns="" id="i1">
<months>
<mon>01</mon>
<mon>02</mon>
<mon>03</mon>
</months>
</xforms:instance>
<xforms:instance xmlns="" id="i2">
<months>
<month code="01">Jan</month>
<month code="02">Feb</month>
<month code="03">Mar</month>
</months>
</xforms:instance>
and the following repeat structure:
<repeat nodeset="mon">
<output value="instance('i2')/month[@code = current()]/>
</repeat>
the output should contain Jan Feb Mar.
7.10.3 The id() Function
node-set id(object, node-set?)
The object parameter provides one or more IDREFs. This may be
in the form of a string containing a space-separated list of IDREFs or a
node-set, each node of which contains an IDREF. The node-set
parameter provides nodes in one or more instance data documents to be searched.
If the node-set parameter is not given or is empty, then the instance data
document to be searched is the one containing the context node of the function
call. For each node in the node-set parameter (or its default), the set of
element nodes are collected with IDs that match the IDREFs from the
object parameter. The result of this function is a node-set
containing the union of the collected element nodes from each string. An
element node can be assigned an ID by means of an xml:id attribute
or an attribute that is assigned the type ID by a DTD or xsd:ID or any type
derived from xsd:ID by an XML schema, or the type model item
property.
Example:
Returns nodes identified by X or Y from the instance data document
associated with the root element of the instance identified by
Z.
7.10.4 The context() Function
node-set context()
This function returns the in-scope evaluation context node of the nearest
ancestor element of the node containing the XPath expression that invokes this
function. The nearest ancestor element may have been created dynamically as
part of the run-time expansion of repeated content as described in Section 4.7 Resolving ID References in XForms.
Example:
<setvalue ref="x" value="context()/y"/>
This action sets node x to the value of node y,
where both nodes are children of the in-scope evaluation context node for the
setvalue element.
Note:
An intended use of this function is in conjunction with the
repeat element (Section 9.3.1 The repeat
Element and the setvalue action element (Section 10.2 The setvalue Element). The intent is to
provide form authors with a means of expressing a value attribute
that is relative to the repeat context node when the Single Node Binding result
is not.
7.11 Object
Functions
7.11.1 The choose() Function
object choose(boolean, object,
object)
This function provides a conditional test that chooses an object to return
based on the boolean parameter. If the boolean parameter is true, then the
first object is returned, otherwise the second object is returned. Each of the
object parameters can be of any XPath datatype as described in Section 7.1 XPath Datatypes, and this function does
no type conversion of the parameter it chooses to return.
Note:
All parameters of an XPath function are evaluated, so the parameter that is
not returned by this function is still evaluated, and its result is discarded
by this function.
Note:
Form authors and design tools are encouraged to use this function instead of
the function if() described in Section 7.8.1
The if() Function, which has been deprecated. Because this function
returns an object instead of a string, migrating from if() to
choose() may occasionally require conversion of the return result
using the string() function.
Example:
choose(count(x) > 0, x, y)
Returns the node-set of matching x if it is non-empty and the
node-set matching y otherwise.
If the context node of the function contains attribute x, then
the nodeset containing that attribute is returned. Otherwise, the number
0 is returned.
7.11.2 The event() Function
object event(string)
Function event returns context specific information determined
by the string argument. The returned context information is an XPath
object whose type and content depends upon the requested property. Each event
describes what properties can be accessed by this function and the type and
value that will be returned as the result.
The event context properties available for each event are provided in the
sections that describe the events.
This function is intended for use in the XPath expressions of XForms
actions. If invoked for any other XPath expression, such as a binding
expression or model item property expression, this function returns the empty
string. If this function is invoked from an XPath expression for an XForms
action, then event context information is used from the most recently
dispatched event whose action handler contains the XForms action.
Some properties defined for an event may be unavailable if certain
prerequisite conditions were not met prior to the event being dispatched.
Implementations may also add custom properties. If the event context
information does not contain the property indicated by the string
argument, then an empty node-set is returned.
Examples:
If called from an xforms-insert event handler, a nodeset
is returned containing the instance data node or nodes inserted.
7.12 Extension
Functions
XForms documents may use additional XPath extension functions beyond those
described here. A number of useful community extensions are defined at [EXSLT]. The names of any such extension functions must
be declared in attribute functions on element model.
Such declarations are used by the XForms Processor to check against available
extension functions. XForms Processors perform this check at the time the
document is loaded, and halt processing by signaling an exception (4.5.2 The xforms-compute-exception
Event) if the XForms document declares an extension function for which
the processor does not have an implementation.
Note:
Explicitly declaring extension functions enables XForms Processors to detect
the use of unimplemented extension functions at document load-time, rather than
throwing a fatal exception (4.5.1 The
xforms-binding-exception Event or 4.5.2 The xforms-compute-exception
Event) during user interaction. Failure by authors to declare
extension functions will result in an XForms Processor potentially halting
processing during user interaction with a fatal error.
10 XForms Actions
This chapter defines the controller layer of XForms, an XML Events-based [XML Events] common set of actions that can be
invoked in response to events.
Note:
XForms itself defines no method for script-based event handling. The
definition of such facilities is a responsibility of the hosting language.
All form controls as well as other elements defined in this specification
have a set of common behaviors that encourage consistent authoring and
look and feel for XForms-based applications. This consistency comes from
attaching a common set of behaviors to the various form controls. In
conjunction with the event binding mechanism provided by XML Events, these
handlers provide a flexible means for forms authors to specify event processing
at appropriate points within the XForms user interface. XForms Actions are
declarative XML event handlers that capture high-level semantics. As a
consequence, they significantly enhance the accessibility of XForms-based
applications in comparison to previous Web technologies that relied exclusively
on scripting.
The elements and attributes included in this module are:
| Element |
Attributes |
Minimal Content Model |
| action |
Common, Events, Action Common |
(Action)* |
| setvalue |
Common, Events, Action Common, Single Node Binding, value
(string XPath Expression) |
PCDATA |
| insert |
Common, Events, Action Common, Node Set Binding, context (node
XPath Expresson), at (number XPath Expression), position
("before"|"after"), origin (nodeset XPath Expresson) |
EMPTY |
| delete |
Common, Events, Action Common, Node Set Binding, context (node
XPath Expresson), at (number XPath Expression) |
EMPTY |
| setindex |
Common, Events, Action Common, repeat (xsd:IDREF),
index (number XPath Expression) |
EMPTY |
| toggle |
Common, Events, Action Common, case (xsd:IDREF) |
case? |
| setfocus |
Common, Events, Action Common, control (xsd:IDREF) |
control? |
| dispatch |
Common, Events, Action Common, name (xsd:NMTOKEN),
targetid (xsd:IDREF), delay (xsd:nonNegativeInteger),
bubbles (xsd:boolean), cancelable (xsd:boolean) |
name?, targetid?, delay? [in any
order] |
| rebuild |
Common, Events, Action Common, model (xsd:IDREF) |
EMPTY |
| recalculate |
Common, Events, Action Common, model (xsd:IDREF) |
EMPTY |
| revalidate |
Common, Events, Action Common, model (xsd:IDREF) |
EMPTY |
| refresh |
Common, Events, Action Common, model (xsd:IDREF) |
EMPTY |
| reset |
Common, Events, Action Common, model (xsd:IDREF) |
EMPTY |
| load |
Common, Events, Action Common, Single Node Binding
(author-optional), resource (xsd:anyURI), show ("new" |
"replace") |
resource? |
| send |
Common, Events, Action Common, submission (xsd:IDREF)
|
EMPTY |
| message |
Common, Events, Action Common, Single Node Binding
(author-optional), level ("ephemeral" | "modeless" |
"modal"|QNameButNotNCName) |
(PCDATA|UI
Inline)* |
This module also defines the content set
"Action", which includes the following elements:
(action|setvalue|insert|delete|setindex|toggle|setfocus|dispatch|rebuild|recalculate|revalidate|refresh|reset|
load||send|message)*
The following group of attributes, here called Action Common, are
available to all Action elements:
| Element |
Attributes |
| Action |
if (boolean XPath Expression), while (boolean
XPath Expression) |
- if
Author-optional attribute defined in Section 10.17 Conditional Execution of XForms
Actions.
- while
Author-optional attribute defined in Section 10.18 Iteration of XForms Actions.
Additionally, this module defines the attribute group
"XML Events", which includes all of the "global" attributes defined in
the [XML Events] specification.
The following example shows how events can be used:
Action Syntax
<xforms:trigger>
<xforms:label>Reset</xforms:label>
<xforms:reset ev:event="DOMActivate" model="thismodel"/>
</xforms:trigger>
This example recreates the behavior of the HTML reset control,
which this specification does not define as an independent form control.
For each built-in XForms Action, this chapter lists the following:
Name
Common Attributes
Special Attributes
Description of behavior
All elements defined in this chapter explicitly allow global attributes from
the XML Events namespace, and apply the processing defined in that
specification in section 2.3 [XML Events].
An outermost action handler is an action
that is activated when the XForms processor is not executing any other action
handlers.
An inner action handler is an action that is
activated when the XForms processor is executing the declared actions of an outermost action handler. An inner
action handler may be within the content of the outermost action handler, or it
may be executed as the response to an event dispatched while performing all of
the actions initiated by the outermost action handler.
Deferred Updates: Sequences of one or
more XForms Actions have a deferred effect on XForms model and user interface
processing. Implementations are free to use any strategy to accomplish deferred
updates, but the end result must be as follows: Instance data changes performed
by a set of actions do not result in immediate computation dependency
rebuilding, recalculation, revalidate and form control refreshing until the
termination of the outermost action
handler, as described here. Each XForms model can be thought of as having a
set of deferred update Boolean flags, initially false at the start
of an outermost action handler,
to indicate whether each of the actions rebuild,
recalculate, revalidate, and refresh are
required for that model upon termination of the outermost action handler.
By default, the behavior of an action handler is performed one time when the
action is encountered in the execution sequence. However, execution of an
action handler may be conditional or iterated, as described in 10.17 Conditional Execution of XForms
Actions and 10.18 Iteration of XForms
Actions.
Execution of an outermost action
handler begins by setting the XForms processor into the state of executing
an outermost action handler.
The outermost action handler is
then performed, which may include the execution of inner action handlers. Finally, the XForms
processor is set into the state of not executing an outermost action handler and then the
deferred update is performed for each model.
The deferred update behavior for
a model consists of examining each deferred update Boolean flag in the order of
rebuild, recalculate, revalidate, and
refresh, and for each true flag, set the flag to
false and then dispatch the proper event to the model for that
deferred update flag (i.e. dispatch xforms-rebuild for a true
rebuild flag, xforms-recalculate for a true
recalculate flag, xforms-revalidate for a true
revalidate flag, and xforms-refresh for a true
refresh flag).
Note:
The XForms processor is not considered to be executing an outermost action handler at the time that
it performs deferred update behavior for XForms models. Therefore, event
handlers for events dispatched to the user interface during the deferred
refresh behavior are considered to be new outermost action handler.
Actions that manipulate properties of the XForms view layer begin by
invoking the deferred
update behavior so that the model and all data are up to date prior to
performing the action. The XForms Actions in this category are:
setfocus
toggle
setindex
Actions that directly invoke rebuild, recalculate, revalidate, or refresh
always have an immediate effect, and clear the corresponding deferred update
flag. The XForms Actions in this category are:
rebuild
recalculate
revalidate
refresh
Similarly, if the default processing of any of the events
xforms-rebuild, xforms-recalculate,
xforms-revalidate, or xforms-refresh are performed,
then the corresponding deferred update flag is cleared. The XForms Actions that
can dispatch these events are:
reset
dispatch
XForms Actions that change the tree structure of instance data result in
setting all four deferred update flags to true for the model over
which they operate. The XForms Actions in this category are:
insert
delete
XForms Actions that change only the value of an instance node results in
setting the deferred update flags for recalculate,
revalidate, and refresh to true and
making no change to the deferred update flag for rebuild for the
model over which they operate. The XForms Actions in this category are:
setvalue
setindex
Finally, the XForms submission process can affect deferred
update behavior. See Section 11.2 The
xforms-submit Event for details. XForms actions that are capable of
initiating an XForms submission are:
send
dispatch
10.1 The action Element
This action causes its child actions to be invoked in the order that they
are specified in the document.
Common Attributes: Common, Events, Action Common
Grouping Actions
<trigger>
<label>Click me</label>
<action ev:event="DOMActivate">
<reset model="thismodel"/>
<setvalue ref="."/>
</action>
</trigger>
10.2 The setvalue
Element
This action explicitly sets the value of the specified instance data node.
This action has no effect if the Single Node Binding does not select an
instance data node or if a readonly instance data node is selected. An
xforms-binding-exception occurs if the Single Node Binding
indicates a node whose content is not simpleContent (i.e., a node that has
element children).
Common Attributes: Common, Events, Action Common, Single Node Binding
Special Attributes:
- value
Author-optional attribute containing an
XPath expression to evaluate, with the result stored in the selected
instance data node. The evaluation context for this XPath expression is
the result from the Single Node Binding. To obtain the value, the result
of the expression is processed as if by call to the XPath
string function. An empty string is used if the XPath
evaluation fails.
The element content of setvalue specifies the literal value to
set; this is an alternative to specifying a computed value via attribute
value. If neither a value attribute nor text content
are present, the effect is to set the value of the selected node to the empty
string (""). If both are present, the value attribute is used. The
following examples contrast these approaches:
setvalue with Expression
<setvalue bind="put-here" value="a/b/c"/>
This causes the string value at a/b/c in the instance data to
be placed on the single node selected by the bind element with
id="put-here".
setvalue with Literal
<setvalue bind="put-here">literal string</setvalue>
This causes the value "literal string" to be placed on the single node
selected by the bind element with id="put-here".
Note:
See Section 7.10.4 The context() Function
for an example in which the context() function is used to provide
the same initial evaluation context node to both the ref and
value attributes. See Appendix B Patterns for Data Mutations for
numerous further usage patterns for sevalue, insert
and delete.
All strings are inserted into the instance data as follows:
Element nodes: If element child nodes are present, then an
xforms-binding-exception occurs. Otherwise, regardless of how
many child nodes the element has, the result is that the string becomes the
new content of the element. In accord with the data model of [XPath 1.0], the element will have either a
single non-empty text node child, or no children string was empty.
Attribute nodes: The string-value of the attribute is replaced with a
string corresponding to the new value.
Text nodes: The text node is replaced with a new one corresponding to
the new value, or the text node is eliminated if the new value is the empty
string.
Namespace, processing instruction, and comment nodes: behavior is
undefined (implementation-dependent).
the XPath root node: an xforms-binding-exception
occurs.
Note:
This action affects deferred
updates by setting the deferred update flags for recalculate, revalidate
and refresh.
10.3 The insert
Element
The insert action is used to create one or more nodes of
instance data by cloning one or more existing instance nodes. Attributes of the
insert action specify the node or nodes to be cloned and the
location within instance data where the clones will appear. The clones are deep
copies of the original nodes except the contents of nodes of type
xsd:ID are modified to remain as unique values in the instance
data after the clones are inserted.
Common Attributes: Common, Events, Action Common, Node Set Binding
(author-optional)
Special Attributes:
- context
Author-optional attribute containing an XPath
expression evaluated using the in-scope evaluation context. If the
model attribute is present, then it is processed as
described in 7.2 Evaluation Context
before evaluating this attribute. The Node Set Binding is required unless
this attribute is present. The result of the XPath expression is used to
override the in-scope evaluation context. If the result is an empty
nodeset or not a nodeset, then the insert action is terminated with no
effect. Otherwise, the first node of the nodeset is used as the new
in-scope evaluation context node, and the context position and size are
set to 1. By adjusting the in-scope evaluation context, this attribute
affects the subsequent evaluation of many other
attributes that can appear on insert,
including if, while, nodeset and
origin.
- origin
Author-optional attribute containing an XPath
expression evaluated using the in-scope evaluation context , which
may have been amended by the context attribute. The
origin node-set is the set of one or more nodes to be cloned
by the insert action. If this attribute is present and
resolves to a non-empty nodeset, then the result overrides the default
setting of the origin node-set as described below in the
processing of the insert action.
- at
Author-optional attribute containing an XPath
expression evaluated using the Node Set Binding node-set to help
determine the insert location node. This attribute is
ignored if the Node Set Binding is not specified or specifies an empty
node-set. The insert location node is a node within the Node
Set Binding node-set that is used to help determine where in the instance
to insert each node cloned by the insert. If this attribute
is present, then its result is used to override the default setting of
the insert location node as described below in the
processing of the insert action.
- position
Author-optional selector that indicates where to put
the cloned node or nodes relative to the insert location
node. Valid values are before and after,
and the latter is the default. This attribute is ignored if the Node Set
Binding node-set is not specified or empty. If the node at the
insert location node within the Node Set Binding node-set is
the document element of an instance, then this attribute is ignored.
Processing for the insert action is as follows:
The insert context is determined. If the
context attribute is not given, the insert
context is the in-scope evaluation context. Otherwise, the XPath
expression provided by the context attribute is evaluated
using the in-scope evaluation context, and the first node rule is applied
to obtain the insert context. The insert action
is terminated with no effect if the insert context is the
empty node-set.
The Node Set Binding node-set is determined. If a bind
attribute is present, it directly determines the Node Set Binding node-set.
If a nodeset attribute is present, it is evaluated within the
insert context to determine the Node Set Binding node-set. If
the Node Set Binding attributes are not present, then the Node Set Binding
node-set is the empty node-set. The insert action is
terminated with no effect if any of the following conditions is true:
The context attribute is not given and the Node Set
Binding node-set is the empty node-set.
The context attribute is given, the insert
context does not evaluate to an element node and the Node Set
Binding node-set is the empty node-set.
The origin node-set is determined. If the
origin attribute is not given and the Node Set Binding
node-set is empty, then the origin node-set is the empty
node-set. Otherwise, if the origin attribute is not given,
then the origin node-set consists of the last node of the Node
Set Binding node-set. If the origin attribute is given, the
origin node-set is the result of the evaluation of the
origin attribute in the insert context.
Namespace nodes and root nodes (parents of document elements) are
removed from the origin node-set. The
insert action is terminated with no effect if the origin
node-set is the empty node-set.
The insert location node is determined. If the Node Set
Binding node-set is not specified or empty, the insert location
node is the insert context node. Otherwise, if the
at attribute is not given, then the insert location
node is the last node of the Node Set Binding node-set. Otherwise,
an insert location node is determined from the at
attribute as follows:
The evaluation context node is the first node in document order
from the Node Set Binding node-set, the context size is the size of the
Node Set Binding node-set, and the context position is 1.
The return value is processed according to the rules of the XPath
function round(). For example, the literal
1.5 becomes 2, and the literal
'string' becomes NaN.
If the result is in the range 1 to the Node Set Binding node-set
size, then the insert location is equal to the result. If
the result is non-positive, then the insert location is
1. Otherwise, the result is NaN or exceeds
the Node Set Binding node-set size, so the insert location
is the Node Set Binding node-set size.
The insert location node is the node in the Node Set
Binding node-set at the position given by the insert
location.
The insert action is terminated with no effect if the
insertion will create nodes whose parent is readonly. This occurs if the
insert location node is readonly and the Node Set Binding
node-set is not specified or empty, or otherwise if the parent of the
insert location node is readonly.
Each node in the origin node-set is cloned in the order
it appears in the origin node-set.
The target location of each of the cloned nodes is
determined as follows:
If the Node Set Binding node-set is not specified or empty, then
the insert location node provided by the
context attribute is intended to be the parent of the
cloned node. The target location is dependent on the types
of the cloned node and the insert location node as
follows:
If the insert location node is not an element
node or root node, then it cannot be the parent of the cloned node,
so the target location is undefined.
If the insert location node is the root node of
an instance (which is the parent of the root element), and the
cloned node is an element, then the target location is
the root element of the instance.
If the insert location node is the root node of
an instance (which is the parent of the root element), and the
cloned node is not an element, then the target
location is before the first child of the insert
location node.
If the insert location node is an element, and
the cloned node is an attribute, then the target
location is the attribute list of the insert location
node.
If the insert location node is an element, and
the cloned node is not an attribute, then the target
location is before the first child of the insert
location node, or the child list of the insert
location node if it is empty.
Otherwise, the Node Set Binding node-set is specified and
non-empty, so the insert location node provided by the
Node Set Binding and author-optional at
attribute is intended to be the sibling of the cloned node. If the
insert location node is an attribute or root node, then
the target location is undefined. If the insert
location node is not an attribute or root node, then the
target location is immediately before or after the
insert location node, based on the position
attribute setting or its default.
The cloned node or nodes are inserted in the order they were cloned
into their target locations depending on their node type.
If the parent node of the target location is the instance root node
(which is the parent of the root document element of the instance), and if
the cloned node is an element, then the instance root element is deleted
before the cloned node is inserted at the target location. If the
cloned node is a duplicate of another attribute in its parent element, then
either the duplicate attribute is first removed or the
existing attribute value is updated. If a cloned node cannot be
placed at the target location due to a node type conflict or
because the target location is undefined, then the insertion
for that particular cloned node is ignored. Each cloned node that is
inserted is added to the inserted-nodes list that will be
provided in the xforms-insert event context information. For
each cloned node used to update an existing attribute node, the existing
attribute node is added to the list of inserted-nodes.
Note:
A node type conflict is a mismatch between the XPath node type and the
target location. For example, an attribute cannot be inserted
as a sibling before or after an element.
If the list of inserted-nodes is empty, then the
insert action is terminated with no effect.
The XForms action system's deferred update flags for rebuild,
recalculate, revalidate and refresh are set.
The insert action is successfully completed by
dispatching the xforms-insert event with appropriate context
information.
Note:
A repeat updates its index in response to this event if its
repeat collection changes size as a result of the insertion. See Section 9.3.3 Repeat Processing for
details.
Note:
This action affects deferred
updates by setting the deferred update flags for rebuild, recalculate,
revalidate and refresh.
Examples:
Inserting into a repeat, whether or not it is empty
When the repeat is empty, the at index is zero so
a new item is prepended to the child elements of
purchaseOrder. When the repeat is non-empty, the new
item is added after the node currently indexed by repeat
R.
...
<xforms:instance>
<purchaseOrder xmlns="">
<subtotal/>
<tax/>
<total/>
</purchaseOrder>
</xforms:instance>
<xforms:instance id="prototypes">
<prototypes xmlns="">
...
<item>
<product/>
<quantity/>
<unitcost/>
<price/>
</item>
...
</prototypes>
</xforms:instance>
...
<repeat nodeset="/purchaseOrder/item" id="R">
...
</repeat>
...
<xforms:trigger>
<xforms:label>Add to purchase order</xforms:label>
<xforms:action ev:event="DOMActivate>
<xforms:insert context="/purchaseOrder" nodeset="item" at="index('R')" origin="instance('prototypes')/item"/>
<xforms:setfocus control="R"/>
</xforms:action>
</xforms:trigger>
Insert and Read-Only Content
<model xmlns:my="http://example.org">
<instance>
<my:data>
<my:name>
<my:first-name>John</my:first-name>
<my:last-name>Doe</my:last-name>
</my:name>
<my:address>
<my:street>123 Main St.</my:street>
<my:city>Smallville</my:city>
</my:address>
</my:data>
</instance>
<bind nodeset="/my:data/my:name/" readonly="true()"/>
<bind nodeset="/my:data/my:address/my:street" readonly="true()"/>
<action ev:event="xforms-model-construct-done">
<insert id="I1" nodeset="my:name/*" ... />
<insert id="I2" nodeset="my:address/my:street" at="1" >
</action>
</model>
Insert I1 fails because it attempts to insert into the content of a readonly
node (my:name). Insert I2 succeeds even though the insert location
is a readonly node because the new node is placed as a sibling into the content
of the parent, which is not readonly.
See 10.4 The delete Element for an
example that uses insert and delete to make a
repeat that always shows at least one repeat item. See Appendix B Patterns for Data Mutations for
numerous further usage patterns for sevalue,
insert and delete.
10.4 The delete
Element
This action deletes one or more nodes from instance data.
Common Attributes: Common, Events, Action Common, Node Set Binding
Special Attributes:
- context
Author-optional attribute containing an XPath
expression evaluated using the in-scope evaluation context. If the
model attribute is present, then it is processed as
described in 7.2 Evaluation Context
before evaluating this attribute. The Node Set Binding is required unless
this attribute is present. The result of the XPath expression is used to
override the in-scope evaluation context. If the result is an empty
nodeset or not a nodeset, then the delete action is
terminated with no effect. Otherwise, the first node of the nodeset is
used as the new in-scope evaluation context node, and the context
position and size are set to 1. By adjusting the in-scope evaluation
context, this attribute affects the evaluation of subsequent attributes
that may appear on delete, including if,
while, and nodeset.
- at
Author-optional attribute containing an XPath
expression evaluated using the Node Set Binding node-set to determine the
delete location. If the Node Set Binding node-set is empty,
then this attribute is ignored.
Processing for the delete action is as follows:
The delete context is determined. It is set to the
in-scope evaluation context, possibly overridden by the
context attribute if that attribute is present. The
delete action is terminated with no effect if the delete
context is the empty node-set.
The Node Set Binding node-set is determined. If a bind
attribute is present, it directly determines the Node Set Binding node-set.
If a nodeset attribute is present, it is evaluated within the
delete context to determine the Node Set Binding node-set.
The behavior of the delete action is undefined if the
Node Set Binding node-set contains nodes from more than one
instance. The delete action is terminated
with no effect if the Node Set Binding is expressed and the Node Set
Binding node-set is the empty node-set. Otherwise, the Node Set Binding is
not expressed, so the Node Set Binding node-set is set equal to the delete
context node with a position and size of 1.
The delete location is determined. If the at
attribute is not specified, there is no delete location.
Otherwise, the delete location is determined by evaluating the
XPath expression specified by the at attribute as follows:
The evaluation context node is the first node in document order
from the Node Set Binding node-set, the context size is the size of the
Node Set Binding node-set, and the context position is 1.
The return value is processed according to the rules of the XPath
function round(). For example, the literal
1.5 becomes 2, and the literal
'string' becomes NaN.
If the result is in the range 1 to the Node Set Binding node-set
size, then the delete location is equal to the result. If
the result is non-positive, then the delete location is
1. Otherwise, if the result is NaN or exceeds
the Node Set Binding node-set size, the delete location is
the Node Set Binding node-set size.
If there is no delete location, each node in the Node Set
Binding node-set is deleted, except if the node is a readonly node, a
namespace node, a root node, or the root document element of an
instance, then that particular node is not deleted. Otherwise, if there is
a delete location, the node at the delete
location in the Node Set Binding node-set is deleted, except if the
node is the root document element of an instance or has a readonly parent
node, then that node is not deleted. The delete action is terminated with
no effect if no node is deleted.
The XForms action system's deferred update flags for rebuild,
recalculate, revalidate and refresh are set.
The delete action is successfully completed by
dispatching the xforms-delete event with appropriate context
information.
Note:
This action affects deferred
updates by setting the deferred update flags for rebuild, recalculate,
revalidate and refresh.
Examples:
Using delete and insert to Maintain a Non-empty
repeat repeat
In this example, the trigger is not in the repeat.
When it is activated, the indexed item in the repeat is first
deleted. Next, if that was the last item, then a new prototypical
item is inserted so that the repeat does not become
empty. The focus is then sent back to the repeat from the
trigger.
...
<xforms:trigger>
<xforms:label>Delete from purchase order</xforms:label>
<xforms:action ev:event="DOMActivate">
<xforms:delete context="/purchaseOrder" nodeset="item" at="index('R')"/>
<xforms:insert context="/purchaseOrder" if="not(item)"
nodeset="item" origin="instance('prototypes')/item"/>
<xforms:setfocus control="R"/>
</xforms:action>
</xforms:trigger>
Note:
The form author could have written
nodeset="/purchaseOrder/item" in the delete action,
but the context attribute was added for consistency with the
insert action.
Delete and Read-Only Content
<model xmlns:my="http://example.org">
<instance>
<my:data>
<my:name>
<my:first-name>John</my:first-name>
<my:last-name>Doe</my:last-name>
</my:name>
<my:address>
<my:street>123 Main St.</my:street>
<my:city>Smallville</my:city>
</my:address>
</my:data>
</instance>
<bind nodeset="/my:data/my:name/" readonly="true()"/>
<bind nodeset="/my:data/my:address/my:street" readonly="true()"/>
<action ev:event="xforms-model-construct-done">
<delete id="D1" nodeset="my:name/*" ... />
<delete id="D2" nodeset="my:address/my:street" at="1" >
<delete id="D3" nodeset="my:address" at="1" >
</action>
</model>
Delete D1 fails because it attempts to delete from the content of a readonly
node (my:name). Delete D2 succeeds even though the node to delete
is readonly because the node is not being changed, but rather removed from the
content of the parent, which is not readonly. Delete D3 succeeds even though it
contains a readonly node because a node can be deleted if its parent is not
readonly, and node deletion includes deletion of its attributes and content,
regardless of whether or not the attributes or content nodes are readonly.
See Appendix B Patterns for Data
Mutations for numerous further usage patterns for
sevalue, insert and
delete.
10.5 The setindex
Element
This XForms Action begins by invoking the deferred update behavior. This
action then marks a specific item as current in a repeating sequence (within 9.3.1 The repeat Element).
Common Attributes: Common, Events, Action Common
Special Attributes:
- repeat
Required reference to a repeating element.
- index
Required XPath expression that evaluates to a 1-based offset into
the sequence. The evaluation context is determined in the same manner as
the evaluation context for a Single-Node Binding (see 7.2 Evaluation Context).
If the selected index is 0 or less, an xforms-scroll-first
event is dispatched and the index is set to 1. If the selected index is greater
than the index of the last repeat item, an xforms-scroll-last
event is dispatched and the index is set to that of the last item. If the index
evaluates to NaN the action has no effect.
Note:
The IDREF from the repeat attribute may not uniquely identify
the desired repeat if the repeat
element bearing the matching ID resides within the content of another
repeat. The general method described in 4.7 Resolving ID References in XForms is used
to determine the desired run-time repeat object.
Note:
This action affects deferred
updates by performing deferred update in its initialization and by setting
the deferred update flags for recalculate, revalidate and refresh.
10.6 The toggle Element
This XForms Action begins by invoking the deferred update behavior. This
action then selects one possible case from an exclusive list of alternatives in
a switch.
This action performs the following:
Dispatches an xforms-deselect event to the currently
selected case in the switch containing the
identified case.
Adjusts the selected states (not the attribute values) on
the affected cases to reflect the new state of the switch
containing the identified case.
Dispatches an xform-select event to the case
just selected.
Common Attributes: Common, Events, Action Common
Special Attributes:
- case
Author-optional reference to a case
element. The case to select is specified
by this attribute or by the child element case.
The case to be selected by the switch is
identified by IDREF either by the attribute case or by a child case element. If no case
element contains the given identifier, then this action has no effect.
Note:
Whether the IDREF is obtained from the case attribute or
element, the IDREF may not uniquely identify the desired case if the case element bearing the matching
ID resides in a repeating construct such as element repeat. The
general method described in 4.7 Resolving ID
References in XForms is used to determine the desired run-time case
object.
Note:
This action affects deferred
updates by performing deferred update in its initialization.
10.6.1 The case
Element Child of the toggle Element
This section defines a child element of toggle named
case that is an alternate means of providing the identity of a case element to select with a switch.
Element: case
Common attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the case identity, the result of the
expression is processed as if by call to the XPath string
function. An empty string is used if the XPath evaluation fails.
Content: PCDATA
The case to be selected by the
toggle action is given by the case attribute or the
case element. If both are given, the element takes precedence. Due
to the addition of the element, the case attribute is no longer
required, but either the case attribute or the case
element must appear. The case element can provide the identity of
a case with either its string content or the
value attribute. If both are given, then the value
attribute takes precedence.
<toggle>
<case value="concat('case_', ../addressBlockType)"/>
</toggle>
10.7 The setfocus
Element
This XForms Action begins by invoking the deferred update behavior. This
action then dispatches an xforms-focus event (4.3.7 The xforms-focus Event) to the element
identified by attribute control or child element
control.
Common Attributes: Common, Events, Action Common
Special Attributes:
- control
Author-optional reference to a form control. The form control is specified
by this attribute or by the child element control.
The identity of the element to which the setfocus action
dispatches xforms-focus is given by the control
attribute or the control
element. If no such element contains the given identifier, then this action has
no effect.
Note:
Whether the IDREF is obtained from the control attribute or
element, the IDREF may not uniquely identify the desired form control if the
element bearing the matching ID resides in a repeating construct such as
element repeat. The general method described in 4.7 Resolving ID References in XForms is used
to determine the desired form control.
Note:
Changing the focus to a form control within a repeat object may cause one or
more repeat index values to be changed as described in Section 9.3.4 User Interface Interaction.
10.7.1
The control Element Child of the setfocus Element
This section defines a child element of setfocus named
control that is an alternate means of providing the element that
receives the xforms-focus event.
Element: control
Common attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the desired element identifier, the result of the expression is processed
as if by call to the XPath string function. An empty string
is used if the XPath evaluation fails.
Content: PCDATA
The identity of the element to which the setfocus action
dispatches xforms-focus is given by the control
attribute or the control element. If both are given, the element
takes precedence. Due to the addition of the element, the control
attribute is no longer required, but either the control attribute
or the control element must appear. The control
element can provide the desired element identifier with either its string
content or the value attribute. If both are given, then the
value attribute takes precedence.
<setfocus>
<control value="concat('input_', ../paymentType)"/>
</setfocus>
10.8 The dispatch
Element
This action dispatches an XML Event to a specific target element. Two kinds
of event can be dispatched:
Predefined XForms events (i.e., xforms-event-name), in which
case the bubbles and cancelable attributes are
ignored and the standard semantics as defined in 4
Processing Model apply.
An event created by the XForms author with no predefined XForms
semantics and as such not handled by default by the XForms Processor.
Common Attributes: Common, Events, Action Common
Special Attributes:
- name
Author-optional attribute for specifying the
name of the event to dispatch.
- targetid
Author-optional attribute for specifying the
reference to the event target.
- delay
Author-optional attribute that indicates the minimum
number of milliseconds to delay dispatching of the event to the target.
The default is the empty string, which indicates no delay.
- bubbles
Author-optional attribute containing a
boolean indicating if this event bubbles—as defined in [DOM2 Events]. The default value is
true for a custom event. For predefined events, this
attribute has no effect.
- cancelable
Author-optional attribute containing a
boolean indicating if this event is cancelable—as defined in [DOM2 Events]. The default value is
true for a custom event. For predefined events, this
attribute has no effect.
The event to be dispatched is given by the name attribute or
the name child element. Due to the
addition of the name element, the name attribute is
not required, but either the name attribute or the
name element must appear. If the event name is not specified or
empty string, then this action has no effect.
The element to which the event is to be dispatched is identified by the
targetid attribute or the targetid chlid element. Due to the
addition of the targetid element, the
targetid attribute is not required, but this
action has no effect unless the target identifier is specified by the element
or attribute. For backwards compatibility with documents created
for earlier versions of the specification, the processor of the
dispatch element may allow
the attribute named target and the child element
target to be used. The attribute and element named
target provide exactly the same behaviors as the
targetid attribute and element, except that the
target attribute and element are ignored if the
dispatch element also bears a targetid attribute or
contains a targetid child element.
Note:
Whether the IDREF is obtained from the targetid
attribute or targetid element, the IDREF may not
uniquely identify the desired target object if the element bearing the matching
ID resides in a repeating construct such as element repeat. The
general method described in 4.7 Resolving ID
References in XForms is used to determine the desired target object.
The event may be dispatched immediately or after a specified non-negative
number of milliseconds of delay. The event delay is specified the
delay attribute or by the child element delay. If the delay is not specified or if
the given value does not conform to xsd:nonNegativeInteger, then
the event is dispatched immediately as the result of the dispatch
action. Otherwise, the specified event is added to the delayed event queue
unless an event with the same name and target element already exists on the
delayed event queue. The dispatch action has no effect if the
event delay is a non-negative integer and the specified event is already in the
delayed event queue.
Note:
Since an element bearing a particular ID may be repeated, the delayed event
queue may contain more than one event with the same name and target IDREF. It
is the name and the target run-time element that must be unique.
If a run-time element is destroyed, then any delayed events targeted at that
element are removed from the delayed event queue. A run-time element may be
destroyed for a number of reasons, including shutdown of the form or removal of
form controls associated by a repeat with an instance data node
that is destroyed.
As soon as possible after the specified delay in milliseconds has elapsed,
the event is removed from the delayed event queue and then dispatched. In the
same manner used to handle user-generated events or the completion of an
asynchronous submission, the dispatch and processing of delayed events is done
without interrupting the processing of another event and its event handlers.
Note:
Because the delayed event is first removed from the delayed event queue and
then dispatched, a handler for a given event may dispatch the event again with
a delay. This can be used to perform simple polling and asynchronous looping
operations. Moreover, the if
attribute can be applied to the dispatch action to decide when to
discontinue the polling or looping based on a setting in instance data.
10.8.1 The
name Child Element
This section defines a new child element of dispatch that
provides an alternate means of specifying the name of the event to dispatch.
Element: name
Common attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the event name, the result of the expression is processed as if by call
to the XPath string function. An empty string is used if the
XPath evaluation fails.
Content: PCDATA
The event name of the dispatch action is given by the
name attribute or the name element. If both are
given, the element takes precedence. The name element can provide
the event name with either its string content or the value
attribute. If both are given, then the value attribute takes
precedence.
10.8.2
The targetid Child Element
This section defines a new child element of dispatch that
provides an alternate means of specifying the target of the event to be
dispatched.
Element: targetid
Common attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the event target, the result of the expression is processed as if by call
to the XPath string function. An empty string is used if the
XPath evaluation fails.
Content: PCDATA
The event target of the dispatch action is given by the
targetid attribute or the
targetid element. If both are given, the element
takes precedence. The targetid element can provide an
IDREF for the event target with either its string content or the
value attribute. If both are given, then the value
attribute takes precedence.
10.8.3 The
delay Child Element
This section defines a new child element of dispatch that
provides an alternate means of specifying the delay imposed on the event to be
dispatched.
Element: delay
Common attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the event delay, the result of the expression is processed as if by call
to the XPath string function. If the result does not conform
lexically to xsd:nonNegativeInteger, then the result of
empty string is used. An empty string is used if the XPath evaluation
fails.
Content: PCDATA
The event delay of the dispatch action is given by the
delay attribute or the delay element. If both are
given, the element takes precedence. The delay element can provide
the delay with either its string content or the value attribute.
If both are given, then the value attribute takes precedence.
10.9 The rebuild
Element
This action causes the default processing of xforms-rebuild to
happen, bypassing the normal event flow (i.e. the behavior occurs without
dispatching the xforms-rebuild event). This action results in the
XForms Processor rebuilding any internal data structures used to track
computational dependencies among instance data nodes —see 4.3.1 The xforms-rebuild Event.
Common Attributes: Common, Events, Action Common
Special Attributes:
- model
Author-optional XForms Model selector, as defined in 3.2.3 Single-Node Binding
Attributes. If this attribute is omitted, then the default is the
model associated with the in-scope evaluation context
node.
10.10 The
recalculate Element
This action causes the default processing of xforms-recalculate
to happen, bypassing the normal event flow (i.e. the behavior occurs without
dispatching the xforms-recalculate event). As a result, instance
data nodes whose values need to be recalculated are updated as specified in the
processing model—see 4.3.2 The
xforms-recalculate Event.
Common Attributes: Common, Events, Action Common
Special Attributes:
- model
Author-optional XForms Model selector, as defined in 3.2.3 Single-Node Binding
Attributes. If this attribute is omitted, then the default is the
model associated with the in-scope evaluation context
node.
10.11 The revalidate
Element
This action causes the default processing of xforms-revalidate
to happen, bypassing the normal event flow (i.e. the behavior occurs without
dispatching the xforms-revalidate event). This results in the
instance data being revalidated as specified by the processing model—see 4.3.3 The xforms-revalidate Event.
Common Attributes: Common, Events, Action Common
Special Attributes:
- model
Author-optional XForms Model selector, as defined in 3.2.3 Single-Node Binding
Attributes. If this attribute is omitted, then the default is the
model associated with the in-scope evaluation context
node.
10.12 The refresh
Element
This action causes the default processing of xforms-refresh to
happen, bypassing the normal event flow (i.e. the behavior occurs without
dispatching the xforms-refresh event). This action results in the
XForms user interface being refreshed, and the presentation of user
interface controls being updated to reflect the state of the underlying
instance data—see 4.3.4 The xforms-refresh
Event.
Common Attributes: Common, Events, Action Common
Special Attributes:
- model
Author-optional XForms Model selector, as defined in 3.2.3 Single-Node Binding
Attributes. If this attribute is omitted, then the default is the
model associated with the in-scope evaluation context
node.
10.13 The reset Element
This action initiates reset processing by dispatching an
xforms-reset event to the specified model. Processing
of event xforms-reset is defined in the processing model—see 4.3.5 The xforms-reset Event.
Common Attributes: Common, Events, Action Common
Special Attributes:
- model
Author-optional XForms Model selector, as defined in 3.2.3 Single-Node Binding
Attributes. If this attribute is omitted, then the default is the
model associated with the in-scope evaluation context
node.
10.14 The load Element
This action traverses the specified link.
Common Attributes: Common, Events, Action Common, Single-Node Binding
(author-optional)
Special Attributes:
- resource
Author-optional attribute. Link to an
external resource to load.
- show
Author-optional link behavior specifier. The allowed
values are "replace" and "new". If this attribute is missing, a default
value of "replace" is assumed.
The URI specifying the link to traverse may be pointed to by the Single Node
Binding attributes, if given, or by the resource attribute or the
name child element. Individually,
the Single Node Binding, resource element and
resource attribute are not required. If none are given, the action
has no effect. If the Single Node Binding is present and does not select an
instance data node, then this action has no effect. If the Single Node Binding
is given in addition to one of the resource attribute or
resource element, then the action has no effect.
The URI obtained in this manner is treated as a link to an external
resource, defined as an [XLink 1.0] link between
the load element and the remote resource indicated. No XLink
actuate value is defined, since control of actuation is defined by
XML Events. The XLink show value depends on the show
attribute.
The link indidicated by the URI obtained above is traversed. If the link
traversal fails, then an implementation-specific means of conveying the
link traversal failure occurs. Otherwise, processing for the document
(or portion of the document) reached by traversing the link is specified by the
show attribute. The following are the possible values for the
show attribute and the corresponding processing behaviors:
- new
The document is loaded into a new presentation context, e.g., a new
window. Form processing in the original window continues.
- replace
The document is loaded into the current window. Form processing is
interrupted, exactly as if the user had manually requested navigating to
a new document.
10.14.1 The
resource Element child of load
When it appears as the first child element of load, the
resource element provides the URI of the link, overriding the
resource attribute. As stated above, the load action
has no effect if both a resource and a Single Node Binding are
given. This element allows the URI used by the load to be
dynamically calculated based on instance data.
Common Attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the URI, the result of the expression is processed as if by call to the
XPath string function. An empty string is used if the XPath
evaluation fails.
Content: PCDATA
The URI to be used by the load can be specified with either the
value attribute or the string content of the resource
element. If both are specified, then the value attribute takes
precedence. If the load does not have a resource
element as its first child, then the URI is obtained from the
resource attribute or the Single Node Binding, if given.
10.15 The send Element
This action initiates submit processing by dispatching an
xforms-submit event. Processing of event
xforms-submit is defined in the processing model—see 4.3.9 The xforms-submit Event.
Common Attributes: Common, Events, Action Common
Special Attributes:
- submission
Author-optional attribute containing a
reference to a submission element. If this attribute is
given but does not identify a submission element, then the
send action has no effect. If this attribute is omitted,
then the first submission in document order from the
model associated with the in-scope evaluation context is
used.
10.16 The message
Element
This action encapsulates a message to be displayed to the to the user.
Common Attributes: Common, Events, Action Common, Single Node Binding
(author-optional)
Special Attributes:
- level
Author-optional attribute containing a
message level identifier, one of ("ephemeral"|"modeless"|"modal"|QNameButNotNCName). The default is
"modal" if the attribute is not specified. This specification does not
define behavior for QNameButNotNCName values.
The message specified can exist in instance data or as inline text. If more
than one source of message is specified in this element, the order of
precedence is: single node binding attributes, inline text.
The user interface for the message action is considered to be
created at the time the action occurs. If the message is obtained from the
inline content of the message action, then the output of any
output controls in the message content is determined
based on the instance data available when the message action
occurs. For example, the following example displays the message Hello,
world! as the form starts up:
<model>
<instance>
<data xmlns="">
<name>John</name>
</data>
</instance>
<action ev:event="xforms-ready">
<setvalue ref="name">world</setvalue>
<message level="modal">Hello, <output ref="name"/>!</message>
...</action>
</model>
In this example, the message includes the latest user input even though
other form controls not in the message action are not guaranteed
to be updated until the end of the xforms-refresh event
processing:
<input ref="birthday">
<label>Enter birthday:</label>
<message ev:event="xforms-invalid"><output ref="."/> isn't a valid birthday</message>
</input>
Note:
Due to deferred update behavior, if a message action is
preceded in an action sequence by other actions that change instance nodes, and
the message references nodes that are computationally dependent on the changed
nodes, then the form author should invoke the recalculate action
before the message action. Moreover, if the computational
dependencies involved nodes that were inserted or deleted, then the form author
should invoke rebuild prior to the recalculate.
A graphical browser might render a modal message as follows:
<model>
<message level="modal" ev:event="xforms-ready">This is not a drill!</message>
...
</model>
A modeless message is the foundation for displaying a help
message, which a graphical browser might render as follows:
<secret ref="/login/password">
<label>Password</label>
<help>Have you forgotten your password? Simply call 1-900-555-1212 and have
a major credit card handy.</help>
</secret>
An ephemeral message is the foundation for displaying a hint
message, which a graphical browser might render as follows:
<input ref="po/address/street1">
<label>Street</label>
<hint>Please enter the number and street name</hint>
</input>
10.17 Conditional
Execution of XForms Actions
The if attribute can be added to any XForms action. It contains
an [XPath 1.0] expression that is evaluated using
the in-scope evaluation context before the action is executed. The result of
the expression is converted to a boolean as if converted with the
boolean() function defined by the [XPath
1.0] specification. If the converted result of the expression evaluates to
false, then the action is not performed. If the converted result
is true, then the action is performed.
If this attribute is applied to an XForms action element and
the converted result of evaluation is false, then all of the
actions within the action element are omitted from the execution
of the XForms action sequence that invoked the action element. If
the result is true, then the contained actions are performed
according to the normal processing rules such as deferred update behavior and
applicability of conditional and iterative attributes.
Note:
In actions insert and delete, the attribute
context is evaluated before the if attribute.
Automatic Focus Advancement
The setfocus action in each input control is executed only if
the node bound to the control is a number of a particular length. The exacting
form author could perform further validity tests.
...
<input ref="areaCode" id="AreaCodeControl" incremental="true">
<label>Area Code</label>
<setfocus ev:event="xforms-value-changed" control="ExchangeControl" if="string-length(.)=3 and . > 0"/>
</input>
<input ref="exchange" id="ExchangeControl" incremental="true">
<label>Exchange</label>
<setfocus ev:event="xforms-value-changed" control="LocalControl" if="string-length(.)=3 and . > 0"/>
</input>
<input ref="local" id="LocalControl" incremental="true">
<label>Local</label>
<setfocus ev:event="xforms-value-changed" control="ExtensionControl" if="string-length(.)=4 and . > 0"/>
</input>
...
Handling Focus for Empty Repeats
The trigger that performs a delete conditionally sets the focus to a control
outside of the repeat if the repeat becomes empty due to the deletion. The
setfocus is called first because the delete removes
the context node.
...
<trigger id="InsertControl">
<label>Insert Row</label>
<action ev:event="DOMActivate">
<insert context="purchaseOrder/lines" nodeset="line"
at="index('PurchaseOrderRepeat')" origin="instance('prototype')"/>
<setfocus control="PurchaseOrderRepeat"/>
</action>
</trigger>
<repeat nodeset="purchaseOrder/lines/line" id="PurchaseOrderRepeat">
...
<trigger>
<label>Delete Row</label>
<action ev:event="DOMActivate">
<setfocus control="InsertControl" if="last()=1"/>
<delete nodeset="../line" at="index('PurchaseOrderRepeat')"/>
</action>
</trigger>
...
</repeat>
10.18 Iteration of
XForms Actions
The while attribute can be added to any XForms action. It
contains an [XPath 1.0] expression that is
evaluated using the in-scope evaluation context before the action is executed.
The result of the expression is converted to a boolean as if
converted with the boolean() function defined by the [XPath 1.0] specification. If the converted result of
the expression is true, then the XForms action is performed and
then the expression is re-evaluated. The XForms action is executed repeatedly
until the converted result of the expression evaluates to
false.
If this attribute is applied to an XForms action element, then
the sequence of XForms actions in its content are executed repeatedly once for
each time the immediately preceding evaluation of the expression yields a
result of true.
When XForms actions are iteratively executed, they are still subject to the
normal action processing rules such as deferred update and applicability of
conditional and iterative attributes.
An XForms action may be executed zero times due to this attribute.
Furthermore, if an action bears this attribute and the if
attribute, then the expressions of both attributes must evaluate to
true before each iterative execution of the action.
Note:
In actions insert and delete, the attribute
context is evaluated before the while attribute.
Therefore, context is re-evaluated before each iteration of the
actions controlled by the while attribute.
Summing Selected Results
Counter and accumlator variables are created in instance data to sum a
selection of values chosen by the user
<trigger>
<label>Get Sum</label>
<action ev:event="DOMActivate">
<setvalue ref="instance('temps')/counter" value="1"/>
<setvalue ref="instance('temps')/accumulator" value="0"/>
<action while="instance('temps')/counter <= count(/some/nodes)">
<setvalue ref="instance('temps')/accumulator"
value=". + instance('default')/some/nodes[number(instance('temps')/counter)]"
if="boolean-from-string(/some/nodes[number(instance('temps')/counter)]/@selected)"/>
<setvalue ref="instance('temps')/counter" value=". + 1"/>
</action>
</action>
</trigger>
11 The XForms Submission Module
XForms is designed to gather instance data, serialize it into an external
representation, and submit it with a protocol. XForms defines a set of options
for serialization and submission. The following sections define the processing
of instance data for submission, and the behavior for the serialization and
submission options.
11.1
The submission Element
The submission element represents declarative instructions on
what to submit, and how.
| Element |
Overview of Attributes |
Overview of Content Model |
| submission |
Common
ref (binding-expression)
bind (xsd:IDREF)
resource (xsd:anyURI)
action (xsd:anyURI) [deprecated]
mode ("asynchronous"|"synchronous")
method
("post"|"get"|"put"|"delete"|"multipart-post"|"form-data-post"|"urlencoded-post"|Any
other NCName|QNameButNotNCName)
validate (xsd:boolean)
relevant (xsd:boolean)
serialization
("application/xml"|"application/x-www-form-urlencoded"|"multipart/related"|"multipart/form-data"|"none")
version (xsd:NMTOKEN)
indent (xsd:boolean)
mediatype (xsd:string)
encoding (xsd:string)
omit-xml-declaration (xsd:boolean)
standalone (xsd:boolean)
cdata-section-elements (QNameList)
replace ("all"|"instance"|"text"|"none" | QNameButNotNCName)
instance (xsd:IDREF)
targetref (nodeset XPath Expression)
separator (';' | '&')
includenamespaceprefixes (xsd:NMTOKENS)
|
(resource | method | header)*, Action* |
Below is a more detailed decription of each attribute whose name and
datatype information appears above.
Common Attributes: Common
Special Attributes:
- resource
Attribute indicating the destination URI for submitting instance
data. This attribute is not author-optional unless the
destination URI is provided by the resource element, which
can dynamically specify the URI based on instance data, or the
action attribute. This attribute should be used in place of
the action attribute. Behavior of relative URIs in links is
determined by the host language, although [XML
Base] processing is strongly recommended.
- action
Deprecated author-optional attribute indicating the
destination URI for submitting instance data. Behavior of relative URIs
in links is determined by the host language, although [XML Base] processing is strongly recommended.
Due to the addition of the resource attribute, this
attribute is deprecated and optional. However, the destination URI must
be specified by this attribute or by either the resource
attribute or the resource element.
- ref
Author-optional selector binding expression enabling submission
of a portion of the instance data. The selected node, and all
descendants, are selected for submission. The default value is "/".
- bind
Author-optional reference to a bind
element. When present, the binding reference on this attribute is used in
preference to any binding reference from the ref
attribute.
- mode
Author-optional attribute defaulting to "asynchronous"
and with legal values of "synchronous" and "asynchronous". This attribute
controls whether or not the submission response processing is performed
as part of the default processing of event xforms-submit. An
asynchronous submission can complete default processing for this event
before the submission response is received; in this case, submission
response is processed once it is completely received asynchronously. For
a "synchronous" submission, the submission response is received and
processed during the default processing of event
xforms-submit.
- method
Author-optional attribute specifying the protocol
operation to be used to transmit the serialized instance data. There is
no default value because either the attribute method or the
element method must be specified. See Section 11.9 Submission Options for information
on how this attribute affects the default serialization of instance data
and the HTTP method [RFC 2616].
- validate
Author-optional boolean attribute that indicates
whether or not the data validation checks of the submission are
performed. The default value is "false" if the value of
serialization is "none" and "true" otherwise.
- relevant
Author-optional boolean attribute that indicates
whether or not the relevance pruning of the submission is performed. The
default value is "false" if the value of serialization is
"none" and "true" otherwise.
- serialization
Author-optional attribute that controls how and whether
to serialize instance data as part of the submission. The default value
of this attribute is based on the submission method as
described in Section 11.9 Submission
Options. If the attribute value is "none", then instance data is
not serialized as part of the submission. This can be useful for requests
that either require no data or that have the data already gathered in the
URI.
Note:
Setting serialization to "none" will also have the
default effect of preventing relevance pruning and validation. However,
the author is free to override this by setting relevant
and/or validate attributes to "true".
- version
Author-optional attribute specifying the
version of XML to be serialized. The default is "1.0".
- indent
Author-optional attribute specifying whether the
serializer should add extra white space nodes for readability. The
default is "false".
- mediatype
Author-optional attribute specifying the mediatype for
XML serialization of instance data. Authors should ensure that the type
specified is compatible with the data being submitted, such as
application/xml for posted XML data. The default is
"application/xml".
Note:
This attribute does not affect serialization and cannot be used to
override the serialization attribute. It is only used to
provide additional information about the submission data serialization
when the serialization is application/xml. For example, this
attribute could be used to indicate that the content type of the XML
serialization is text/xml.
- encoding
Author-optional attribute specifying an encoding for
serialization. The default is "UTF-8".
- omit-xml-declaration
Author-optional attribute specifying whether to omit
the XML declaration on the serialized instance data. The default value is
"false".
- standalone
Author-optional attribute specifying whether to include
a standalone declaration in the serialized XML.If the
omit-xml-declaration attribute has the value
true, then this attribute is ignored. Otherwise, if this
attribute is omitted, then the XML declaration does not include a
standalone document declaration, and if this attribute is specified, then
the XML declaration includes a standalone document declaration with the
same value as this attribute.
- cdata-section-elements
Author-optional attribute specifying element names to
be serialized with CDATA sections. The default is empty string.
- replace
Author-optional attribute specifying how the
information returned after submit should be applied. In the absence of
this attribute, "all" is assumed. The legal values are "all", "instance",
"text" and "none".
- instance
Author-optional attribute specifying the instance to
replace when the replace attribute value is "instance". When
the attribute is absent, then the default is the instance that contains
the submission data. An xforms-binding-exception (4.5.1 The xforms-binding-exception
Event) occurs if this attribute does not indicate an instance in
the same model as the submission.
- targetref
Author-optional attribute containing an XPath
expression that indicates the target node for data replacement. The
in-scope evaluation context of the submission element is
used to evaluate the expression. If replace is "instance",
then the target node is replaced by the submission result. If
replace is "text", then the content of the target node is
replaced by the submission result. For other values of the
replace attribute, this attribute is ignored. By default,
the target node is the document element of the instance indicated by the
instance attribute.
- separator
Author-optional attribute specifying the separator
character between name/value pairs in urlencoding. The default value is
'&'. To express the default, character entity
encoding is used: separator='&'.
- includenamespaceprefixes
Author-optional attribute providing control over
namespace serialization. If absent, all namespace nodes present in the
instance data are considered for serialization. If present, specifies
list of namespace prefixes to consider for serialization, in addition to
those visibly utilized. As in [Exc-C14N], the
special value #default specifies the default namespace.
The following examples show how various options on element
submission can affect serialization as
application/xml. Given the following XForms fragment:
<xforms:model xmlns:xforms="http://www.w3.org/2002/xforms"
xmlns:my="http://ns.example.org/2003">
<xforms:instance>
<qname xmlns="">my:sample</qname>
</xforms:instance>
<xforms:submission method="post" resource="..."/>
</xforms:model>
Note that the includenamespaceprefixes attribute is not
present, which causes all namespace nodes to be serialized, resulting in the
following serialized instance data:
<qname xmlns:xforms="http://www.w3.org/2002/xforms"
xmlns:my="http://ns.example.org/2003">my:sample</qname>
In particular, note that the XForms namespace has been serialized. To
prevent this example from including the unneeded XForms namespace while
maintaining the needed my prefix,
includenamespaceprefixes="my" must be added to the submission
element. When this attribute is present, the author takes responsibility to
list all namespace prefixes not visibly utilized by the submitted instance
data.
The following attributes correspond (in spelling, processing, and default
values) to attributes on the output element of [XSLT 1.0], with the exception of using
xsd:boolean to replace "yes"|"no":
version
indent
encoding
omit-xml-declaration
cdata-section-elements
Note:
The following XSLT attributes have no counterpart in XForms:
doctype-system
doctype-public
The table below provides an overview of the child elements of the XForms
submission element, including their attributes and content models.
Elements defined in the XForms Actions module are also allowed in the content
model of submission.
| Element |
Overview of Attributes |
Overview of Content Model |
| resource |
value (string XPath Expression) |
PCDATA |
| method |
value (string XPath Expression) |
PCDATA |
| header |
nodeset (nodeset XPath Expression) |
name, value+ |
| Action |
various |
various |
11.2 The
xforms-submit Event
Target: submission
Bubbles: Yes
Cancelable: Yes
Context Info: None
Under no circumstances may more than a single concurrent submit process be
under way for a particular XForms submission. From the start of the default
action of xforms-submit for a
submission, until immediately before
xforms-submit-done or xforms-submit-error is
dispatched to that submission, the default action for
subsequent xforms-submit events dispatched to that
submission is to dispatch xforms-submit-error
to that submission with context information containing an
error-type of submission-in-progress.
Otherwise, the default action for this event results in the following
steps:
The data model is updated based on some of the flags defined for deferred updates..
Specifically, if the deferred update rebuild flag is set for
the model containing this submission, then the
rebuild operation is performed without dispatching an event to invoke the
operation. Then, if the deferred update recalculate flag is
set for the model containing this submission,
then the recalculate operation is performed without dispatching an event to
invoke the operation. This sequence of operations affects the deferred update behavior by
clearing the deferred update flags associated with the operations
performed.
If the binding attributes of submission indicate an empty
nodeset or a non-element node, then submission processing is stopped after
dispatching event xforms-submit-error with context information
containing an error-type of no-data. Otherwise,
the binding attributes of submission indicate a node of
instance data.
The indicated node and all nodes for which it is an ancestor are
selected. If the attribute relevant is true,
whether by default or declaration, then any selected node which is not
relevant as defined in 6.1.4 The relevant
Property is deselected (pruned). If all instance nodes are
deselected, then submission processing is stopped after dispatching event
xforms-submit-error with context information containing an
error-type of no-data.
If the attribute validate is true,whether by
default or declaration, then all selected instance data nodes are checked
for validity according to the definition in 4.3.3 The xforms-revalidate Event (no
notification events are marked for dispatching due to this operation). Any
selected instance data node that is found to be invalid stops submission
processing after dispatching event xforms-submit-error with
context information containing an error-type of
validation-error.
The submission method is
determined.
The submission resource is
determined. If the resource is not specified, then submission
processing stops after dispatching even xforms-submit-error
with context information containing an error-type of
resource-error.
If the serialization attribute value is
"none", then the submission data serialization is the empty
string. Otherwise, the submission data serialization is determined as
follows. The event xforms-submit-serialize is dispatched. If
the submission-body property of the event is changed from the
initial value of empty string, then the content of the
submission-body property string is used as the
submission data serialization. Otherwise, the submission
data serialization consists of a serialization of the selected
instance data according to the rules stated in 11.9 Submission Options.
The submission headers are determined using the
header entries produced by the header element(s)
in the submission and the mediatype attribute or its
default.
The submission is performed based on the submission
headers, submission method, submission resource, and
submission data serialization. The exact rules of submission
are based on the URI scheme and the submission method, as defined in 11.9 Submission Options.
Note:
A submission with no resource specification can be used to test
validity of data. If the selected data is invalid, then the
xforms-submit-error has an error-type of
validation-error. If the selected data is valid, then the
xforms-submit-error has an error-type of
resource-error.
If the mode of the submission is
asynchronous, then default processing for this event ends after
the above steps, and submission processing is resumed once the response from
the submission is returned. In the same manner used to handle user-generated
events or the dispatch and processing of delayed events, the processing of the
asynchronous submission response is done without interrupting the processing of
any other event and its event handlers. If the mode of the
submission is synchronous, then the XForms processor
suspends user interaction with all form controls of the document and action
processing is blocked within the default processing for this event until the
response from the submission is returned.
The response returned from the submission is applied as follows:
For a success response including a body, when the value of the
replace attribute on element submission is
"all", the event xforms-submit-done may
be dispatched with appropriate context information, and submit
processing concludes with entire containing document being replaced with
the returned body.
For a success response including a body of an XML media type (as
defined by the content type specifiers in [RFC
3023]), when the value of the replace attribute on element
submission is "instance", the response is parsed
as XML. If the parse fails, then submission processing concludes after
dispatching xforms-submit-error with appropriate context
information, including an error-type of
parse-error. However, if the XML parse succeeds, then instance
data replacement is performed according to the rules specified in 11.10 Replacing Data with the Submission
Response. This operation may fail for a number of reasons,
including if processing of the targetref
attribute yields a readonly node (if replace="text") or a node
that either has a readonly parent or is not an element (if
replace="instance"). In this case, submission ends after
dispatching event xforms-submit-error with appropriate context
information, including an error-type of
target-error. Otherwise, the instance data replacement
succeeds. Submission processing then concludes after dispatching
xforms-submit-done with appropriate context information.
For a success response including a body of a non-XML media type (i.e.
with a content type not matching any of the specifiers in [RFC 3023]), when the value of the
replace attribute on element submission is
"instance", nothing in the document is replaced and submission
processing concludes after dispatching xforms-submit-error
with appropriate context information, including an error-type
of resource-error.
For a success response including a body of an XML media type (as
defined by the content type specifiers in [RFC
3023]) or a text media type (as defined by a content type of
text/*), when the value of the replace attribute
on element submission is "text", the response is
encoded as text. Then, the content replacement is performed according to
the rules specified in 11.10
Replacing Data with the Submission Response. If the processing of
the targetref attribute (including its default)
fails, then the submission processing concludes after dispatching
xforms-submit-error with appropriate context information,
including an error-type of target-error.
Otherwise, submission processing then concludes after dispatching
xforms-submit-done with appropriate context information.
For a success response including a body that is both a non-XML media
type (i.e. with a content type not matching any of the specifiers in [RFC 3023]) and a non-text type (i.e. with a
content type not matching text/*), when the value of the
replace attribute on element submission is
"text", nothing in the document is replaced and submission
processing concludes after dispatching xforms-submit-error
with appropriate context information, including an error-type
of resource-error.
For a success response including a body, when the value of the
replace attribute on element submission is
"none", submission processing concludes after dispatching
xforms-submit-done with appropriate context information.
For a success response not including a body, submission processing
concludes after dispatching xforms-submit-done with
appropriate context information.
Behaviors of other possible values for attribute replace
are not defined in this specification.
For an error response, when the value of the replace
attribute on element submission is "all",
either the document is replaced with an implementation-specific
indication of an error or submission processing concludes after
dispatching xforms-submit-error with appropriate context
information, including an error-type of
resource-error.
For an error response, when the value of the replace
attribute on element submission is not "all",
nothing in the document is replaced, and submission processing concludes
after dispatching xforms-submit-error with appropriate context
information, including an error-type of
resource-error.
In addition to initiating a submission with its default processing, XForms
actions can also provide handlers for the xforms-submit event to
peform tasks such as data preparation.
Example:
Preparing data for submission
<submission resource="http://example.com/searchDoctors" method="post" ref="instance('doctorSearchParams')"
replace="instance" targetref="instance('doctorList')" >
<action ev:event="xforms-submit">
<setvalue ref="diagnosis" value="instance('patientRecord')/malady"/>
<setvalue ref="city" value="instance('patientRecord')/city"/>
</action>
</submission>
The schema for the doctor search service requires certain portions of the
patient record in order to provide a list of specialists who could treat the
patient. The server-side module may perform database searches for doctors with
the required specialties as well as implement business rules such as providing
doctors that are within an acceptable distance of the given city. The resulting
list is provided to a separate instance so it can be presented to the user for
selection or used in subsequent availability searches.
11.3 The xforms-submit-serialize Event
Dispatched at the beginning of submission serialization (see 11.2 The xforms-submit Event).
Target: submission
Bubbles: Yes
Cancelable: No
Context Info:
| Property |
Type |
Value |
| submission-body |
node-set |
A document element node with a QName of
submission-body. The node initially contains an empty
string. Event handlers can write data into the node. If the string
value of this node is non-empty, then the string value is used in the
submission in lieu of the default instance data serialization. |
Note:
The submission-body property is a string, but the
event() function encapsulates the string in a text node so that
the string can be modified by the setvalue action, which sets a
value into a node determined by its Single Node Binding.
Note:
Since the submission-body is a string, this feature may be used
to submit non-XML data.
Default Action: If the event context submission-body property
string is empty, then no operation is performed so that the
submission will use the normal serialization data (see 11.2 The xforms-submit Event). Otherwise,
if the event context submission-body property string is non-empty,
then the serialization data for the submission is set to be the
content of the submission-body string.
Example:
Submitting plain text
<submission resource="http://example.com/greeter" method="post" mediatype="text/plain">
<setvalue ev:event="xforms-submit-serialize" ref="event('submission-body')" value="my/text"/>
</submission>
The string value of the element my/text is placed into the node
representing the submission body, so that is the text posted by the submission.
In this example, the result returned by the submission replaces the document.
This feature could be used to submit plain text, but it could also be used to
allow a document to submit its serialization rather than just submitting
instance data.
11.4 The
xforms-submit-done Event
Dispatched as an indication of: successful completion of a submission
process
Target: submission
Bubbles: Yes
Cancelable: No
Context Info:
| Property |
Type |
Value |
| resource-uri |
string |
The submission resource URI that succeeded
(xsd:anyURI) |
| response-status-code |
number |
The protocol return code of the success
response, or NaN if the submission did not receive a
success response. |
| response-headers |
node-set |
Zero or more elements, each one representing
a content header in the success response received by the submission.
The returned node-set is empty if the submission did not receive a
response or if there were no headers. Each element has a local name of
header with no namespace URI and two child elements,
name and value, whose string contents are the
name and value of the header, respectively. |
| response-reason-phrase |
string |
The protocol response reason phrase of the
success response. The string is empty if the submission did not receive
a response or if the response did not contain a reason phrase. |
Default Action: None; notification event only.
Example:
Submission Sequencing
<submission resource="https://example.com/getRecord" method="post" replace="instance" instance="record">
<send ev:event="xforms-submit-done" submission="chargeForRecord"/>
</submission>
<submission id="chargeForRecord" resource="https://example.com/chargeForRecord" method="get" serialization="none" replace="none"/>
The default instance data is submitted as the search criteria for a desired
record. Only upon successful completion of the submission is a second
submission performed to charge the user's account for the record.
11.5 The
xforms-submit-error Event
Dispatched as an indication of: failure of a submission process
Target: submission
Bubbles: Yes
Cancelable: No
Context Info:
| Property |
Type |
Value |
| error-type |
string |
One of the following:
submission-in-progress, no-data,
validation-error, parse-error,
resource-error, target-error. |
| resource-uri |
string |
The submission resource URI that failed
(xsd:anyURI) |
| response-status-code |
number |
The protocol return code of the error
response, or NaN if the failed submission did not receive
an error response. |
| response-headers |
node-set |
Zero or more elements, each one representing
a content header in the error response received by a failed submission.
The returned node-set is empty if the failed submission did not receive
an error response or if there were no headers. Each element has a local
name of header with no namespace URI and two child
elements, name and value, whose string
contents are the name and value of the header, respectively. |
| response-reason-phrase |
string |
The protocol response reason phrase of the
error response. The string is empty if the failed submission did not
receive an error response or if the error response did not contain a
reason phrase. |
| response-body |
object (string or node-set) |
When the error response specifies an XML
media type as defined by [RFC 3023], the
response body is parsed into an XML document and the root element of
the document is returned. If the parse fails, or if the error response
specifies a text media type (starting with text/), then
the response body is returned as a string. Otherwise, an empty string
is returned. |
Default Action: None; notification event only.
Example:
Reporting a Submission Error
<submission resource="https://example.com/getRecord" method="post" replace="instance" instance="record">
<message ev:event="xforms-submit-error">A submission error (<output value="event('error-type')"/>) occurred.</message>
</submission>
The default instance data is submitted as the search criteria for a desired
record. Only upon successful completion of the submission is a second
submission performed to charge the user's account for the record.
11.6 The Submission
Resource
The submission resource is the URI for the submission. It is of
type xsd:anyURI.
In XForms 1.0, the URI for submission was provided by the
action attribute. For consistency, form authors should now use the
attribute resource of type xsd:anyURI, which
deprecates the action attribute. If both action and
resource are present, then the resource attribute
takes precedence.
The resource element provides the submission URI, overriding
the resource attribute and the action attribute. If a
submission has more than one resource child element,
the first resource element child must be selected for use.
Individually, the resource element, the resource
attribute and the action attribute are not required. However, one
of the three is mandatory as there is no default submission resource.
11.6.1 The
resource Element
The resource element allows the URI used for a submission to be
dynamically calculated based on instance data.
Common Attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the URI, the result of the expression is processed as if by call to the
XPath string function. An empty string is used if the XPath
evaluation fails.
Content: PCDATA
The URI to be used by the submission can be specified with
either the value attribute or the string content of the
resource element. If both are specified, then the
value attribute takes precedence. If the submission
does not have a resource child element, then the submission URI is
obtained from the resource attribute or the action
attribute.
Example:
Submitting the default instance to a location determined dynamically from an
instance
<submission method="post">
<resource value="instance('params')/anyURI"/>
</submission>
11.7 The Submission
Method
The submission method indicates the submission protocol
operation to be performed.
The submission method may be specified by the method attribute.
The submission element can have a child element named
method, which overrides the submission method setting obtained
from the method attribute if both are specified. If more than one
method element is given, the first occurrence in document order
must be selected for use. Individually, the method element and the
method attribute are not required. However, one of the two is
mandatory as there is no default submission method.
11.7.1 The method
Element
The method element allows the submission method to be
dynamically calculated based on instance data.
Common Attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the method, the result of the expression is processed as if by call to
the XPath string function. An empty string is used if the
XPath evaluation fails.
Content: PCDATA
The method to be used by the submission can be specified with
either the value attribute or the string content of the
method element. If both are specified, then the value
attribute takes precedence. If the submission does not have a
method child element, then the submission method is obtained from
the method attribute.
11.8 The header Element
The header element can be used to contribute information to the
preamble of a submission in a manner appropriate to the protocol. The
submission element can contain zero or more header
child elements. Each produces zero or more header entries containing a
name, a value, and a combination. The entries are provided to the submission
protocol in the specified order. It is the responsibility of the submission
protocol implementation to combine the entries and to serialize the result into
submission protocol headers. Accordingly, entries may be re-ordered, combined,
or otherwise altered in accordance with the specific protocol implementation
requirements.
Common Attributes: None
Special Attributes:
- nodeset
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. One
or more header entries are generated for each
node selected by this attribute.
- combine
Author-optional attribute defaulting to "append" and
with legal values of "append", "prepend", and "replace". This attribute
controls the method of combination for entries produced by this element
header with other entries produced by other
header elements. This attribute and its default also provide
information for the protocol implementation, which may use some or all of
the information to combine XForms submission headers with headers
provided by the user agent.
Content: (name, value+) |
(value+, name)
If the header element does not contain a nodeset
attribute, then one header entry is created for each
value element. If the header element contains
a nodeset attribute, then for each selected node, one header
entry is created for each value element. The name and value
of the header entry are obtained from the required child elements
name (11.8.1 The name
Element) and value (11.8.2 The value Element). If the name
obtained from the name element is the empty string, then the
header entry is omitted.
The header entry order is determined as follows:
document order of header elements
node order of nodes in nodeset attribute
document order of value elements
The application of this order information to header serialization is
determined by the submission protocol.
If a header element defines the Content-type
header, then this setting overrides a Content-type set by the
mediatype attribute.
In the case of a multipart submission, the header entries are
combined with those for the first part of the submission.
Example:
Setting the Accept header
In the example below, the submission request uses the header
element to replace the user agent's existing value of the HTTP Accept header
with application/sparql-results+xml.
<submission id="loadConcepts"
resource="http://example.com/taxonomy/concepts" method="get"
ref="instance('conceptsList')" replace="instance">
<header combine="replace">
<name>Accept</name>
<value>application/sparql-results+xml</value>
</header>
</submission>
11.8.1 The name
Element
When the name element appears as a child of element
header, it is used to specify the name of a header entry to
be provided to the submission protocol.
Common Attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the header name, the result of the expression is processed as if by call
to the XPath string function. An empty string is used if the
XPath evaluation fails.
The header entry name may be given by the string content of the
name element, or by the result of the value
attribute. If both are given, the result from the value attribute
takes precedence. If the resulting name is the empty string, then the
entry is considered to be void, and it is not supplied to
the submission protocol.
11.8.2 The value
Element
When the value element appears as a child of element
header, it is used to specify the value component of a header
entry to be supplied to the submission protocol to
be added to the preamble of a submission. The value element may be
used more than once in a given element header, in which case
each value produces a new header entry.
Common Attributes: None
Special Attributes:
- value
Author-optional attribute containing an XPath
expression to evaluate using the in-scope evaluation context. To obtain
the header entry value, the result of the expression is
processed as if by call to the XPath string function. An
empty string is used if the XPath evaluation fails.
The header entry value may be given by the string content of
the value element, or by the result of the value
attribute. If both are given, the result from the value attribute
takes precedence.
Note:
The XPath string function combines multiple nodes by
concatenating them into a string separated with spaces. As a result, a header
value specified by a value element nodeset containing multiple
nodes may not be properly serialized in a submission protocol preamble. To
assure proper delivery of individual header items to the submission protocol,
restrict use of XPath expressions producing nodesets for element
header with attribute nodeset, where each node will
produce its own separate header entry, and use expressions resulting in only a
single node in element value.
11.9 Submission
Options
The XForms Model specifies a submission element containing the
following attributes and child elements that affect serialization and
submission. This section summarizes the behaviors for the allowable values of
these attributes and child elements, and presents subsections that define the
behavior for submission and serialization.
For the submission protocol obtained from the URI scheme in the submission resource, XForms normatively defines a
binding to HTTP/1.1 [RFC 2616].
Note:
Other bindings, in particular to the URI scheme "mailto:" may, and the
schemes "https:" and "file:" should, be supported. Bindings to these schemes
are not normatively defined in XForms. Implementations that choose to provide a
binding to these schemes should pay particular attention to privacy and
security concerns. Within the "http:" and "https:" schemes, form creators are
encouraged to follow the finding of the W3C Technical Architecture Group on
when to use the GET method: [TAG Finding 7]
The submission method determines the
default data serialization format, and both the submission method and the URI scheme in the submission resource determine the
submission protocol operation, according to the following table:
| URI scheme |
Submission
Method |
Default Serialization |
Submission Protocol Operation |
| http https mailto |
"post" |
application/xml |
HTTP POST or equivalent |
| http https file |
"get" |
application/x-www-form-urlencoded |
HTTP GET or equivalent |
| http https file |
"delete" |
application/x-www-form-urlencoded |
HTTP DELETE or equivalent |
| http https file |
"put" |
application/xml |
HTTP PUT or equivalent |
| http https mailto |
"multipart-post" |
multipart/related |
HTTP POST or equivalent |
| http https mailto |
"form-data-post" |
multipart/form-data |
HTTP POST or equivalent |
| http https mailto |
"urlencoded-post" |
application/x-www-form-urlencoded |
HTTP POST or equivalent |
| (any) |
Any other NCName |
application/xml |
As given by the Submission Method |
| (any) |
QNameButNotNCName |
implementation-defined |
implementation-defined |
Note:
Foreign-namespaced attribute values are allowed in the Submission Method, but no behavior is defined by
XForms.
11.9.1 The get Submission
Method
This submit method represents HTTP GET or the equivalent concept. The
serialized form data is delivered as part of the URI that is requested during
the submit process.
This method is not suitable for submission of forms that are intended to
change state or cause other actions to take place at the server. See [RFC 2616] for recommended uses of HTTP GET.
The URI is constructed as follows:
The submit URI is examined. If it does not already contain a
? (question mark) character, one is appended. If it does
already contain a question mark characterand the serialized form data
is non-empty, then a separator character from the attribute
separator is appended.
The serialized form data, if any, is appended to the
URI.
No message body is sent with the request.
Examples:
Simple search submission
<submission resource="http://example.com/search" method="get"/>
After doing relevance and validity checking on the data, the leaf nodes of
the default instance are submitted asynchronously, encoded as a URL
(application/x-www-form-urlencoded), to
http://example.com/search. The result replaces the whole page.
Reading from a local file
<submission resource="file:data.xml" method="get" serialization="none" replace="instance" instance="data" />
Replaces the instance 'data' with the content of the file data.xml.
Serialization, and its associated validity and relevance processing, is not
needed. See the corresponding example for saving a file in Section 11.9.3 The put Submission Method. The user agent
may restrict file access to a user-specific and domain-specific security zone
in local storage.
11.9.2 The post, multipart-post,
form-data-post, and urlencoded-post Submission Methods
These submit methods represent HTTP POST or the equivalent concept (such as
a mail message). The serialized form data is delivered as the message body.
Examples:
Posting instance data
<submission resource="https://example.com/jsp/orders" method="post" ref="/purchaseOrder" />
Submits the XML for a purchase order to a secure server order processing
system.
Simple posted login
<submission resource="http://example.com/login" method="urlencoded-post"/>
After doing relevance pruning and validity checking on the login data, the
leaf nodes of the default instance are submitted asynchronously in the posted
data, encoded based on the application/x-www-form-urlencoded
serialization, to http://example.com/login. The result replaces
the whole page.
11.9.3 The put Submission
Method
This submit method represents HTTP PUT or the equivalent concept (such as
writing to a local file). The serialized form data is delivered as the message
body.
Example:
Saving to a local file
<submission resource="file:data.xml" ref="instance('data')" method="put" validate="false" relevant="false" replace="none" />
Saves the instance 'data' to the file data.xml without validation checking
and relevance pruning. See the corresponding example for reading from a local
file in Section 11.9.1 The get Submission
Method. The user agent may restrict file access to a user-specific and
domain-specific security zone in local storage.
11.9.4 The delete Submission
Method
This submit method represents HTTP DELETE or the equivalent concept (such as
deleting a local file). The serialized form data is delivered in the same
manner as the get submission method (see 11.9.1 The get Submission Method).
11.9.5 Serialization as
application/xml
This format permits the expression of the instance data as XML that is
straightforward to process with off-the-shelf XML processing tools. In
addition, this format is capable of submission of binary content.
The steps for serialization are as follows:
An XML document is produced following the rules of the XML output
method defined in [XSLT 1.0] section 16 and 16.1,
using the values supplied as attributes of the submission
element.
Handling of namespace nodes: The default behavior is that every
namespace node is serialized according to the rules of the XML output
method, so that at least one namespace declaration appears in the
serialized XML for each in-scope namespace. Additional inherited
namespaces are declared on the root element of the serialized XML. If,
however, attribute includenamespaceprefixes on element
submission is present, then all namespace declarations not
visibly utilized in the instance data (as defined in [Exc-C14N]) and the default namespace if it is
empty are excluded from the root element serialization, unless the
corresponding namespace prefix is listed in the
includenamespaceprefixes attribute. The special value
#default represents the default namespace.
Mediatype: By default, the mediatype of the serialized XML
instance is application/xml, but can be changed to a
compatible type using element submission attribute
mediatype. Authors should ensure that the type specified
is compatible with application/xml.
11.9.6
Serialization as multipart/related
This format is intended for integration of XForms into environments that
involve large amounts of binary data where the inclusion of the data as
xsd:base64Binary or xsd:hexBinary is undesirable.
In this format, XML instance data is serialized as one part of the [RFC 2387] multipart/related message,
using the rules as described in 11.9.5
Serialization as application/xml. Binary content from
xsd:anyURI instance nodes populated by the upload
(see 8.1.6 The upload Element) control is
serialized in separate parts of the [RFC 2387]
multipart/related message.
This format follows the rules of multipart/related MIME data
streams for in [RFC 2387], with specific
requirements of this serialization listed below:
multipart/related message header requirements:
First body part (root) requirements:
Subsequent part requirements:
multipart/related
<submission method="multipart-post" resource="http://example.com/photo" />
Submits the instance data in multipart/related, along with the
selected file as an attachment.
POST /photo HTTP/1.0
Host: example.com
Content-Type: multipart/related; boundary=f93dcbA3; type=application/xml; start="<980119.X53GGT@example.com>"
Content-Length: xxx
--f93dcbA3
Content-Type: application/xml; charset=UTF-8
Content-ID: <980119.X53GGT@example.com>
<?xml version="1.0"?>
<uploadDocument>
<title>My Proposal</title>
<author>E. X. Ample</author>
<summary>A proposal for a new project.</summary>
<notes image="cid:980119.X17AXM@example.com">(see handwritten region)</notes>
<keywords>project proposal funding</keywords>
<readonly>false</readonly>
<filename>image.png</filename>
<content>cid:980119.X25MNC@example.com</content>
</uploadDocument>
--f93dcbA3
Content-Type: image/png
Content-Transfer-Encoding: binary
Content-ID: <980119.X25MNC@example.com>
...Binary data here...
--f93dcbA3
Content-Type: image/png
Content-Transfer-Encoding: binary
Content-ID: <980119.X17AXM@example.com>
...Binary data here...
--f93dcbA3--
11.9.7
Serialization as multipart/form-data
This format is for legacy compatibility to permit the use of XForms clients
with [RFC 2388] servers. This method is suitable
for the persistence of binary content. Contextual path information, attribute
values, namespaces and namespace prefixes are not preserved. As a result,
different elements might serialize to the same name.
Note:
Existing HTML user agents fail to encode special characters (such as double
quotes) and non-ASCII characters in the Content-Disposition:
form-data name and filename parameters. Since
this serialization method is supported for legacy applications only, new
applications should use application/xml or
multipart/related.
This format follows the rules for multipart/form-data MIME data
streams in [RFC 2388], with specific requirements
of this serialization listed below:
Each element node is visited in document order, except non-relevant
elements are skipped if the relevant setting of the
submission is true.
Each visited element that has no child element nodes (i.e., each leaf
element node) is selected for inclusion, including those that have no value
(no text node).
Element nodes selected for inclusion are encoded as
Content-Disposition: form-data MIME parts as defined in [RFC 2388], with the name parameter
being the element local name.
Element nodes of any datatype populated by upload also
have a Content-Disposition filename parameter, if
the filename is available.
Element nodes of any datatype populated by upload are
serialized as the specified binary content. In the case of
xsd:anyURI and derived types, the serialization content is
obtained from the URI. For xsd:base64Binary,
xsd:hexBinary, and derived types, the serialization content is
obtained by decoding the element string value.
Element nodes of any datatype not populated by upload are
serialized as the string value of the element (the concatenation of all
text node children, or empty string if the element has no text node
children).
The Content-Type must be text/plain except
for xsd:anyURI, xsd:base64Binary,
xsd:hexBinary, and derived types, in which case the header
represents the media type of the attachment if known, otherwise
application/octet-stream. If a character set is applicable,
the Content-Type may have a charset parameter.
Example:
multipart/form-data
<submission method="form-data-post" resource="http://example.com/photo" />
Submits the instance data in multipart/form-data, along with
the selected file as a part.
POST /photo HTTP/1.0
Host: example.com
Content-Type: multipart/form-data; boundary=AaB03x
Content-Length: xxx
--AaB03x
Content-Disposition: form-data; name="document"; filename="b.txt"
Content-Type: text/plain; charset=iso-8859-1
This is a file.
It has two lines.
--AaB03x
Content-Disposition: form-data; name="title"
A File
--AaB03x
Content-Disposition: form-data; name="summary"
This is my file
file test
--AaB03x--
11.9.8
Serialization as application/x-www-form-urlencoded
This format represents an extension of the [XHTML
1.0] form content type application/x-www-form-urlencoded with
specific rules for encoding non-ASCII and reserved characters.
This format is not suitable for the persistence of binary content.
Therefore, it is recommended that forms capable of containing binary content
use another serialization method.
The steps for serialization are as follows:
Each element node is visited in document order, except non-relevant
elements are skipped if the relevant setting of the
submission is true. Each visited element that has
no child element nodes (i.e., each leaf element node) is selected for
inclusion, including those that have no value (no text node). Note that
attribute information is not preserved.
Element nodes selected for inclusion are encoded as
EltName=value, where = is a literal character,
EltName represents the element local name, and
value represents the string value of the element (the
concatenation of all text node children, or empty string if the element has
no text node children). The separator character {sep} from the
separator attribute on submission is used between
pairs of encoded name/value pairs, e.g.
EltName1=value1{sep}EltName2=value2{sep}EltName3=value3. Note
that contextual path information is not preserved, nor are namespaces or
namespace prefixes. As a result, different elements might serialize to the
same name.
The encoding of EltName and value are as
follows: space characters are replaced by +, and then
non-ASCII and reserved characters (as defined by [RFC 2396] as amended by subsequent documents
in the IETF track) are escaped by replacing the character with one or
more octets of the UTF-8 representation of the character, with each
octet in turn replaced by %HH, where HH
represents the uppercase hexadecimal notation for the octet value and
% is a literal character. Line breaks are represented as
"CR LF" pairs (i.e., %0D%0A).
All such encodings are concatenated, maintaining document order.
Example:
application/x-www-form-urlencoded
This format consists of simple name-value pairs.
<PersonName title="Mr">
<GivenName>René</GivenName>
</PersonName>
Here is the instance data for the above example. Note that very little of
the data is preserved. Authors desiring greater data integrity should select a
different serialization format.
11.10
Replacing Data with the Submission Response
The submission element allows an author-optional
attribute named targetref. The attribute value is
interpreted as a binding expression to which the first node
rule is applied to obtain a replacement target node for the submission
response. This attribute is ignored unless the value of the
replace attribute is "instance" or "text".
For backwards compatibility with documents created for earlier versions of
the specification, the processor of the submission element may allow the author-optional
attribute named target to be used. The target
attribute provides exactly the same behaviors as the targetref
attribute except that the target attribute is ignored if the
submission element also bears a targetref
attribute.
The default replacement target node is the document element node of the
instance identified by the instance attribute, which is equal to
the default instance of the model if not specified. The evaluation context for
this attribute is the in-scope evaluation context for the
submission element, except the context node is modified to be the
document element of the instance identified by the instance
attribute if it is specified.
This attribute is evaluated only once a successful submission response has
been received and if the replace attribute value is "instance" or
"text". The first node rule is applied to the result.
The processing of the targetref attribute (and its
default) is considered to have failed if the result is any of the following:
an empty nodeset
a readonly node, if replace="text"
a non-element, if replace="instance"
a node whose parent is readonly, if replace="instance"
If the processing of the targetref attribute
fails, then submission processing ends after dispatching the event
xforms-submit-error with an error-type of
target-error.
If the replace attribute contains the value "text"
and the submission response conforms to an XML mediatype (as defined by the
content type specifiers in [RFC 3023]) or a text
media type (as defined by a content type specifier of text/*),
then the response data is encoded as text and replaces the content of the
replacement target node.
If the replace attribute contains the value
"instance" and the submission response conforms to an XML
mediatype (as defined by the content type specifiers in [RFC 3023]) and the XML parse of the submission
response succeeds, then the XML obtained from the submission response is used
to replace the target node. The XML in the response may have comment and
processing instruction nodes before and after the document element. These nodes
are discarded if the replacement target node is not the document element of an
instance. Otherwise, those processing instructions and comments replace any
processing instructions and comments that previously appeared outside of the
document element of the instance being replaced.
In the case of text replacement of the content of the replacement target
node, the replacement is performed by the XForms Action setvalue
(10.2 The setvalue Element). In the case
of instance node replacement, the replacement is performed by an XForms action
that performs some combination of node insertion and deletion operations that
are performed by the insert action (10.3 The insert Element) and the
delete action (10.4 The delete
Element). If the submission has a mode of
"asynchronous", then the text replacement action or the instance
node replacement action is an outermost action handler, so the deferred update behavior occurs at
the end of the action. If the mode is "synchronous",
then the text replacement action or the instance node replacement action is not
outermost since occurs during the default processing of
xforms-submit, so the appropriate deferred update flags are set based
on whether the action was a setvalue or whether it performed a
series of insert and delete actions.
Note:
In an asynchronous submission, the deferred update behavior ensures that the
user interface is up to date with the latest calculated values before the
xforms-submit-done event is dispatched. In a synchronous
submission, the calculated values dependent on replaced text or data nodes can
be made available to actions in the xforms-submit-done handler by
first invoking the recalculate action. A sequence of synchronous
submissions performed with successive send actions can avoid
refreshing the user interface until after the completion of the last
send action.
Examples:
Replacing a subtree of instance data
<submission resource="http://example.com/jsp/prefill" method="post" ref="name" replace="instance" targetref="address"/>
This submission would be invoked after the user enters a value for
name. Based on the name given, a simple server-side database
lookup is performed to get a last known address. The address
element is replaced with the result, prefilling part of the form for the
user.
Replacing text in an instance
<submission resource="http://example.com/postalCodeSearch" method="get" ref="address" replace="text" targetref="address/postalCode"/>
The address information is past to a postal code search service that returns
a textual result, which is placed into the postalCode element.
Submission and Read-Only Content
<model xmlns:my="http://example.org">
<instance>
<my:data>
<my:name>
<my:first-name>John</my:first-name>
<my:last-name>Doe</my:last-name>
</my:name>
<my:address>
<my:street>123 Main St.</my:street>
<my:city>Smallville</my:city>
</my:address>
</my:data>
</instance>
<bind nodeset="/my:data/my:name/" readonly="true()"/>
<bind nodeset="/my:data/my:address/my:street" readonly="true()"/>
<submission id="S1" targetref="my:name" replace="instance" method="post" resource="..."/>
<submission id="S2" targetref="my:name/my:first-name" replace="instance" method="post" resource="..."/>
<submission id="S3" targetref="my:name/my:first-name" replace="text" method="post" resource="..."/>
<submission id="S4" targetref="my:address/my:street" replace="text" method="post" resource="..."/>
</model>
Submission S1 succeeds because a readonly node (my:name) can be
replaced if its parent is not readonly. Submission S2 fails because a node
(my:first-name) cannot be replaced if its parent is readonly.
Submission S3 fails because the content of a readonly node cannot be replaced,
even if it is readonly due to inheritance. Submission S4 failse because the
content of a readonly node cannot be replaced, even if the node's parent is not
readonly.
11.11 Integration with SOAP
This section describes the integration of XForms submission with [SOAP 1.1] and [SOAP 1.2]
11.11.1 Representation of
SOAP Envelope
The single-node binding of the submission element refers to the
XML data to be submitted. In the case of a SOAP submission, the instance data
includes the SOAP envelope and related SOAP tags.
Note:
The form author may choose to store the data payload in one instance and
copy the data to the submission instance containing the SOAP envelope as part
of an xforms-submit event handler. The form author is responsible
for declaring the appropriate model item properties on both instances (e.g. the
relevant declarations).
11.11.2 Indicating a SOAP
submission
For a SOAP submission, the mediatype attribute of the
submission must be set to
the MIME type of application/soap+xml. The form author may append
charset and action MIME parameters.
Note:
The action MIME parameter has no effect unless the submission
method is "post" because the GET method implies no SOAP processing
by the receiving SOAP node.
Note:
SOAP 1.1 does not support the HTTP GET operation.
11.11.3 SOAP HTTP
Binding
The method attribute of the submission must be set to get or post
in order to access the SOAP HTTP binding.
If method="get", then the SOAP response message exchange
pattern is used. The HTTP headers must
contain the Accept parameter with a value conforming to the following
properties:
must begin with
application/soap+xml
If the submission mediatype contains a
charset MIME parameter, then it is appended to the
application/soap+xml MIME type. Otherwise, a
charset MIME parameter with same value as the
encoding attribute (or its default) is appended to the
application/soap+xml MIME type.
No other MIME parameters from the mediatype are copied to
the application/soap+xml MIME type
The q MIME parameter must not be specified in the
application/soap+xml MIME type so that the default quality of
1 is used.
If method="post", then the SOAP request-response message
exchange pattern is used. For SOAP 1.2, the current submission behavior of
using the mediatype attribute value as the value of the
Content-type parameter in the HTTP headers is sufficient. If the
instance data being submitted has as its root element node a SOAP envelope in
the SOAP 1.1 namespace
(http://schemas.xmlsoap.org/soap/envelope/), then:
the Content-type HTTP header is changed to
text/xml
the charset MIME parameter is appended . The
charset parameter value from the mediatype attribute is used
if it is specified. Otherwise, the value of the encoding
attribute (or its default) is used.
if the action MIME parameter appears in the
mediatype then a SOAPAction HTTP header is added and given a
value equal to the content of the action MIME parameter
Note:
XForms 1.1 does not support the SOAP email binding, so method="post" with a
mailto: scheme results in an xforms-submit-error
event before any submit processing message is dispatched.
Note:
XForms 1.1 does not support the SOAP 1.1 binding to the HTTP Extension
Framework.
Example:
Consuming a SOAP 1.1 Request-Response Web Service
<xforms:model xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/" xmlns:tns="http://webservice.example.exampleforms:instance id="data">
<data xmlns="">
<cit">
<xforms:instance id="data">
<data xmlns="">
<city>Victoria</city>
<country>Canada</country>
<weather>Mostly sunny and cool. High 12C. Low 3C.</weather>
</data>
</xforms:instance>
<xforms:instance id="GetWeatherSoapIn">
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<GetWeather xmlns="http://webservice.example.net">
<CityName>Victoria</CityName>
<CountryName>Canada</CountryName>
</GetWeather>
</soap:Body>
</soap:Envelope>
</xforms:instance>
<xforms:instance id="GetWeatherSoapOut">
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
<soap:Body>
<GetWeatherResponse xmlns="http://webservice.example.net">
<GetWeatherResult>Mostly sunny and cool. High 12C. Low 3C.</GetWeatherResult>
</GetWeatherResponse>
</soap:Body>
</soap:Envelope>
</xforms:instance>
<xforms:submission id="GetWeather" resource="http://webservice.example.net/getweather.asmx" method="post"
ref="instance('GetWeatherSoapIn')" mediatype="application/soap+xml; action=http://webservice.example.net/GetWeather"
replace="instance" instance="GetWeatherSoapOut">
<xforms:action ev:event="xforms-submit">
<xforms:setvalue ref="instance('GetWeatherSoapOut')/soap:Body/tns:GetWeather/tns:CityName"
value="instance('data')/city"/>
<xforms:setvalue ref="instance('GetWeatherSoapOut')/soap:Body/tns:GetWeather/tns:CountryName"
value="instance('data')/country"/>
</xforms:action>
<xforms:action ev:event="xforms-submit-done">
<xforms:setvalue ref="instance('data')/weather"
value="instance('GetWeatherSoapOut')/soap:Body/tns:GetWeatherResponse/tns:GetWeatherResult"/>
</xforms:action>
</xforms:submission>
</xforms:model>
<xforms:input ref="city">
<xforms:label>City </xforms:label>
<xforms:send ev:event="xforms-value-changed" submission="GetWeather"/>
</xforms:input>
<xforms:input ref="country">
<xforms:label>Country </xforms:label>
<xforms:send ev:event="xforms-value-changed" submission="GetWeather"/>
</xforms:input>
<xforms:output ref="weather">
<xforms:label>The weather forecast is </xforms:label>
</xforms:output>
This form accepts input of a city name and country name from the user. When
the user changes either value, the 'GetWeather' web service is initiated. On
xforms-submit, the user input is copied into the request envelope.
When the web service submission result is received, the
xforms-submit-done handler copies the weather forecast from the
response envelope to the data instance.
The submission and the request and response instances correspond to the web
service definition below:
<wsdl:definitions xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"
xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
xmlns:tns="http://webservice.example.net" targetNamespace="http://webservice.example.net">
<wsdl:types>
<xs:schema elementFormDefault="qualified" targetNamespace="http://webservice.example.net">
<xs:element name="GetWeather">
<xs:complexType>
<xs:sequence>
<xs:element minOccurs="0" maxOccurs="1" name="CityName" type="xs:string" />
<xs:element minOccurs="0" maxOccurs="1" name="CountryName" type="xs:string" />
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="GetWeatherResponse">
<xs:complexType>
<xs:sequence>
<xs:element minOccurs="0" maxOccurs="1" name="GetWeatherResult" type="xs:string" />
</xs:sequence>
</xs:complexType>
</xs:element>
...
</wsdl:types>
<wsdl:message name="GetWeatherSoapIn">
<wsdl:part name="parameters" element="tns:GetWeather" />
</wsdl:message>
<wsdl:message name="GetWeatherSoapOut">
<wsdl:part name="parameters" element="tns:GetWeatherResponse" />
</wsdl:message>
...
<wsdl:portType name="GetWeatherSoap">
<wsdl:operation name="GetWeather">
<wsdl:input message="tns:GetWeatherSoapIn" />
<wsdl:output message="tns:GetWeatherSoapOut" />
</wsdl:operation>
...
</wsdl:portType>
...
<wsdl:binding name="GetWeatherSoap" type="tns:GetWeatherSoap">
<soap:binding transport="http://schemas.xmlsoap.org/soap/http" style="document" />
<wsdl:operation name="GetWeather">
<soap:operation soapAction="http://webservice.example.net/GetWeather" style="document" />
<wsdl:input>
<soap:body use="literal" />
</wsdl:input>
<wsdl:output>
<soap:body use="literal" />
</wsdl:output>
</wsdl:operation>
...
</wsdl:binding>
<wsdl:service name="GetWeatherService">
<wsdl:port name="GetWeatherSoap" binding="tns:GetWeatherSoap">
<soap:address location="http://webservice.example.net/getweather.asmx" />
</wsdl:port>
...
</wsdl:service>
</wsdl:definitions>
11.11.4 Handling the SOAP
Response
The XForms processor must handle
client authorization and redirection.
SOAP faults (400 and 500 level errors) are handled in the same manner as
underlying HTTP errors, which is to say that an
xforms-submit-error event is dispatched.
On successful completion, the results are consumed according to the XForms
submission process, culminating in an xforms-submit-done event.
The form author may capture this event and copy data from the target instance
that receives the returned SOAP envelope to other instances that are designed
to carry only data.
