Weaving Meaning: The Semantic Web
Eric
Miller
W3C Semantic Web Activity Lead
Bioinformatics Summit
Bethesda, MD 2006-02-16
Slides
are available at
http://www.w3.org/2006/Talks/0216-semweb-em/
The challenge of collaboration across communities
I wonder how many of us relate to Gary Larson's Ginger
Original questions
What kind of controlled vocabulary is used in your application? Could it be shared with the community?
What data models have been developed in your project? Could they be shared with the community?
Is there an automated data validation process in your application? Could it be shared with the community?
What kinds of analysis tools are used in your project? Could they be shared with the community?
What are the challenges in integrating clinical data with basic research data and how have you resolved them?
- RDF facilitates the integration of structured and semi-structured data.
What standards are you using in your projects (CRFs, file formats, controlled vocabularies, file exchange, etc.)?
- We develop standards - URI, XML, RDF, OWL that provide the foundation for representing, integrating data on the Web
Semantic Web - Many things to many people
The World Wide Web Consortium
-
International consortium directed by Tim Berners-Lee
-
Mission: "Lead the Web to its full potential"
-
Hosts: MIT, ERCIM, Keio University
-
Defines Web standards: HTML, XML, Web Services, Semantic
Web, Mobile Web, WAI, I18N, etc.
-
W3C track record: building infrastructure to address
technical and social needs of the Web
Semantic Web
-
Data Integration across application, organizational,
community boundaries
-
Reduces the technical and social costs for effective
integration of networked data at various scales
How does it work?
-
Apply power of URIs to concepts of relational data
-
Model real things, not documents or database tables
Semantic Web: Identifying Concepts
-
Don't say "colour" say
<http://example.com/2002/std6#col>
The relational database

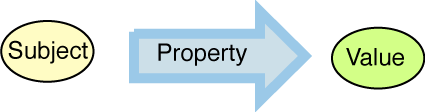

The element of the Semantic Web
-
Can be encoded in XML
-
Simplicity and mathematical consistency
-
This is called Resource Description Framework (RDF)

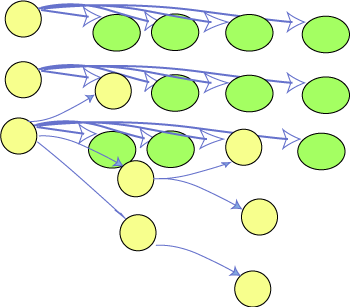

Semantic web includes tables,...
...trees
... everything
Building blocks
... enabling many things

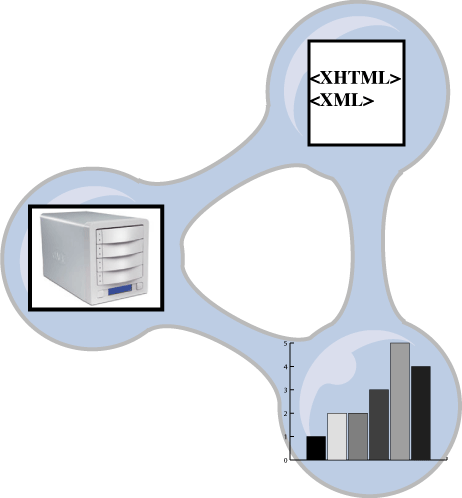

Wrapping, Enhacing the Existing Web
-
Web Evolution not Revolution
-
Exposing data hiding in documents, servers and databases
-
Machine Processible data on the Web
Applications connected by concepts
Enabling Data Integration
-
Facilitate the management, combination of data and services
-
-
-

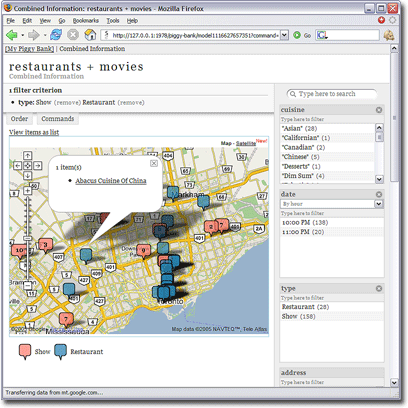

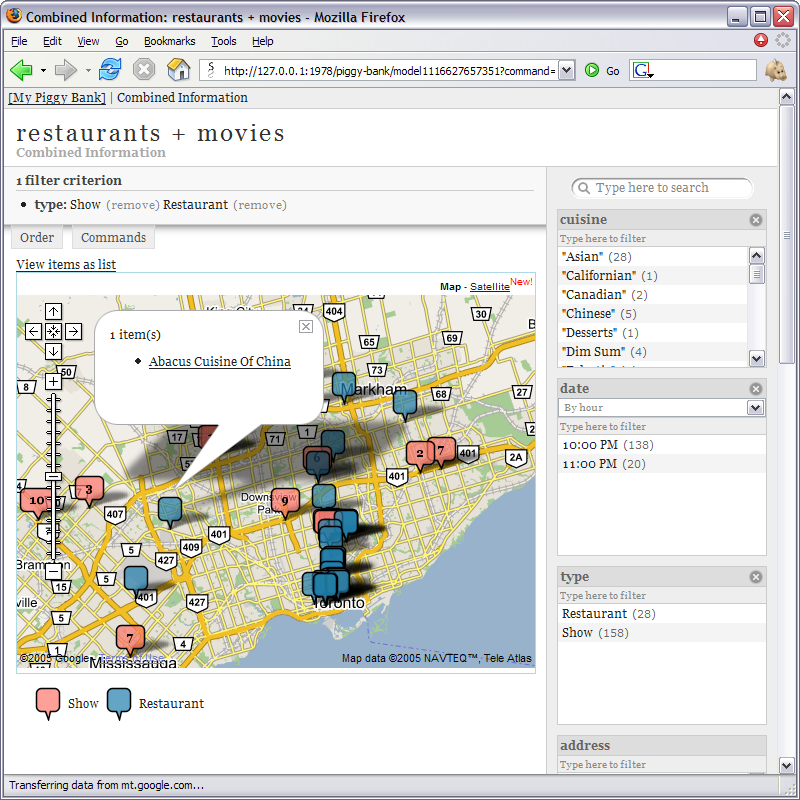

Piggy-Bank: Personal information management
- Semantic-Bank: Collaborative information management
- Solvent: Interactive Tool for helping exract data from particular web sites
|
|
Fractal Web of concepts
-
Across boundaries of scale -- personal, group, corporate,
community, global
-
Varying access levels
-
Tension between local and global standards
-
Society is a fractal tangle, so must the Semantic Web.
Semantic Web Technologies
Semantic Web Standards
-
Open standards, commercial and open source and tools -
technologies for modeling real world things; sharing
these models across the Web.
-
Focus is on Web Evolution
-
Web Evolution causing a quiet data revolution
Random sampling
-
Nokia
-
Oracle
-
Vodafone
-
IBM
-
Adobe
-
HP
- etc.
Equally impressive Open Source stories
Common Themes
- No "one schema" that can be used for describing everything
- No "right way" for describing / organizing anything
- Desire for Recombinant Data
-
Importance of "Partial Understanding"
-
Things change, plan up front for it
-
Need to free data from the application that
created it
-
The value in "as needed" data integration
-
Big wins come from many little ones
-
The power of links - network effect
-
Open-world, open solutions are cost effective
Social Demands on Semantic Web Architecture
Requirements
-
Security
-
High-granularity access control
-
Privacy
-
Intellectual Property management
W3C has faced these on the Web today:
-
Platform for Privacy Preferences
-
XML Signature, Encryption, Key Management
-
DRM, in progress
Semantic Web / Life Sciences
W3C Semantic Web for Life Sciences Workshop, Oct 2004
-
Too much information - no one can know everything
-
No one standard can represent everything
-
Different scales
-
Different perspectives
-
The problem of naming
-
Information sharing policies (personal, group, corporate, public)
-
Things change
-
Big wins come from many little ones
W3C Health Care and Life Sciences Group
Chairs: Eric Neumann, Teranode and Tonya Hongsermeier, Partners Healthcare
- Share use cases, applications, demonstrations, experiences
- Applying tools, developing guidelines for exposing collections in RDF
- GRDDL; A mechanism for connecting XHTML (e.g. microformats)
and XML dialects with the Semantic Web.
-
Simple Knowledge Organization System
(SKOS)
- SPARQL ; Common protocol and interface to expose databases /
application data as RDF - "Join the Web". Data Access working group
- Building / extending (where appropriate) core vocabularies for data integration
Lots of demos and applications
For those interested in learning more
- Partners Healthcare Systems on 'Clinical Knowledge Management'
- Agfa on 'Connected Knowledge' on Clinical Trials
- Active Semantic Electronic Medical Record, an application of Active Semantic Documents in health care - Semagix
- BioDash using Haystack; end user steering of decentralized data - IBM, Teranode
- Language & Computing's Knowledge Discovery Platform accelerates drug development through knowledge extraction and semantic integration - Language & Computing
Meeting Goals - Revisited
Identify areas of potential collaboration, synergy and reusable
resources within the different DAIT funded bioinformatics and data
management programs
- Too early to say :) Ask me tomorrow!
Meeting Goals - Revisited
Identify ways to bridge the gaps between clinical and mechanistic
data exchange
-
Expose services via the Web; use RDF / OWL for data representation
Meeting Goals - Revisited
Facilitate DAIT's clinical and basic science research agendas
-
Model the real world; Make core scientific resources that faciliate basic science availiable via the Semantic Web. Develope core vocabularies / ontologies that help bind together basic science and research.
- Think about machine readble persistence policies, licenses for data (e.g. ScienceCommons)
- Invest in the Web - "think globally, act locally"
- Choose Open Standards; your data is too important not to
- Shaping requirements for RDF Forms? (GRDDL'ing XForms)
Meeting Goals - Revisited
Identify workgroups for further standards development among the
different DAIT programs
More Information
-
Slides
are available at
http://www.w3.org/2006/Talks/0216-semweb-em/
-
W3C - http://www.w3.org/
-
Semantic Web Home
Page - http://www.w3.org/2001/sw/
-
Me - Eric
Miller, em@w3.org
