Efficient XML Interchange (EXI) Format 1.0

W3C Working Draft 26 March 2008

NOTE: This is the 3rd working draft.
This version:
http://www.w3.org/TR/2008/WD-exi-20080326/
Latest version:
http://www.w3.org/TR/exi/
Previous version:
http://www.w3.org/TR/2007/WD-exi-20071219/
Editors:
John Schneider, AgileDelta, Inc.
Takuki Kamiya, Fujitsu Laboratories of America, Inc.

This document is also available in these non-normative formats: XML.


Abstract

This document is the specification of the Efficient XML Interchange (EXI) format. EXI is a very compact representation for the Extensible Markup Language (XML) Information Set that is intended to simultaneously optimize performance and the utilization of computational resources. The EXI format uses a hybrid approach drawn from the information and formal language theories, plus practical techniques verified by measurements, for entropy encoding XML information. Using a relatively simple algorithm, which is amenable to fast and compact implementation, and a small set of data types, it reliably produces efficient encodings of XML event streams. The event production system and format definition of EXI are presented.

As elaborated in the Status section, this specification is subject to change. Items presently under consideration by the WG are either noted in the main text or listed in F Format Features Under Consideration.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This is the third Public Working Draft of the Efficient XML Interchange(EXI) Format 1.0 specification and is intended for review by W3C members and other interested parties. It has been developed by the Efficient XML Interchange (EXI) Working Group, which is part of the Extensible Markup Language (XML) Activity. A summary list of changes made to this document since the last publication is available.

The features and algorithms described in the normative portion of the document are specified in enough detail to be adequate for early implementation efforts. Other features the group is considering are found in the non-normative Appendix F Format Features Under Consideration, for which only brief descriptions are provided, and should probably not yet be considered for implementation.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

Comments on this document are invited and are to be sent to the public public-exi@w3.org mailing list (public archive).

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1. Introduction
    1.1 History and Design
    1.2 Notational Conventions and Terminology
2. Design Principles
3. Basic Concepts
4. EXI Streams
5. EXI Header
    5.1 Distinguishing Bits
    5.2 EXI Format Version
    5.3 EXI Options
6. Encoding EXI Streams
    6.1 Determining Event Codes
    6.2 Representing Event Codes
    6.3 Fidelity Options
7. Representing Event Content
    7.1 Built-in EXI Datatypes Representation
        7.1.1 Binary
        7.1.2 Boolean
        7.1.3 Decimal
        7.1.4 Float
        7.1.5 Integer
        7.1.6 Unsigned Integer
        7.1.7 QName
        7.1.8 Date-Time
        7.1.9 n-bit Unsigned Integer
        7.1.10 String
            7.1.10.1 Restricted Character Sets
        7.1.11 List
    7.2 Enumerations
    7.3 String Table
        7.3.1 String Table Partitions
        7.3.2 Partitions Optimized for Frequent use of Compact Identifiers
        7.3.3 Partitions Optimized for Frequent use of String Literals
    7.4 Pluggable CODECS
8. EXI Grammars
    8.1 Grammar Notation
        8.1.1 Fixed Event Codes
        8.1.2 Variable Event Codes
    8.2 Grammar Event Codes
    8.3 Pruning Unneeded Productions
    8.4 Built-in XML Grammars
        8.4.1 Built-in Document Grammar
        8.4.2 Built-in Fragment Grammar
        8.4.3 Built-in Element Grammar
    8.5 Schema-informed Grammars
        8.5.1 Schema-informed Document Grammar
        8.5.2 Schema-informed Fragment Grammar
        8.5.3 Schema-informed Element and Type Grammars
            8.5.3.1 EXI Proto-Grammars
                8.5.3.1.1 Grammar Concatenation Operator
                8.5.3.1.2 Element Grammars
                8.5.3.1.3 Type Grammars
                    8.5.3.1.3.1 SimpleType Grammars
                    8.5.3.1.3.2 Complex Type Grammars
                8.5.3.1.4 Attribute Uses
                8.5.3.1.5 Particles
                8.5.3.1.6 Element Terms
                8.5.3.1.7 Wildcard Terms
                8.5.3.1.8 Model Group Terms
                    8.5.3.1.8.1 Sequence Model Groups
                    8.5.3.1.8.2 Choice Model Groups
                    8.5.3.1.8.3 All Model Groups
            8.5.3.2 EXI Normalized Grammars
                8.5.3.2.1 Eliminating Productions with no Terminal Symbol
                8.5.3.2.2 Eliminating Duplicate Terminal Symbols
            8.5.3.3 Event Code Assignment
            8.5.3.4 Undeclared Productions
                8.5.3.4.1 Adding Productions when Strict is False
                8.5.3.4.2 Adding Productions when Strict is True
            8.5.3.5 Schema-informed Grammar Examples
                8.5.3.5.1 Proto-Grammar Examples
                8.5.3.5.2 Normalized Grammar Examples
                8.5.3.5.3 Complete Grammar Examples
9. EXI Compression
    9.1 Blocks
    9.2 Channels
        9.2.1 Structure Channel
        9.2.2 Value Channels
    9.3 Compressed Streams
10. Conformance

Appendices

A References
    A.1 Normative References
    A.2 Other References
B Infoset Mapping
    B.1 Document Information Item
    B.2 Element Information Items
    B.3 Attribute Information Item
    B.4 Processing Instruction Information Item
    B.5 Unexpanded Entity Reference Information item
    B.6 Character Information item
    B.7 Comment Information item
    B.8 Document Type Declaration Information item
    B.9 Unparsed Entity Information Item
    B.10 Notation Information Item
    B.11 Namespace Information Item
C XML Schema for EXI Options Header
D Initial Entries in String Table Partitions
    D.1 Initial Entries in Uri Partition
    D.2 Initial Entries in Prefix Partitions
    D.3 Initial Entries in Local-Name Partitions
E Deriving Character Sets from XML Schema Regular Expressions
F Format Features Under Consideration (Non-Normative)
    F.1 IEEE Floats
    F.2 Bounded Tables
    F.3 Indexed Elements
    F.4 Further Features Under Consideration
G Example Encoding (Non-Normative)
H Recent Specification Changes (Non-Normative)
    H.1 Changes from Second Public Working Draft
    H.2 Changes from First Public Working Draft
I Acknowledgements (Non-Normative)


1. Introduction

The Efficient XML Interchange (EXI) format is a very compact, high performance XML representation that was designed to work well for a broad range of applications. It simultaneously improves performance and significantly reduces bandwidth requirements without compromising efficient use of other resources such as battery life, code size, processing power, and memory.

EXI uses a grammar-driven approach that achieves very efficient encodings using a straightforward encoding algorithm and a small set of data types. Consequently, EXI processors are relatively simple and can be implemented on devices with limited capacity.

EXI is schema "informed", meaning that it can utilize available schema information to improve compactness and performance, but does not depend on accurate, complete or current schemas to work. It supports arbitrary schema extensions and deviations and also works very effectively with partial schemas or in the absence of any schema. The format itself also does not depend on any particular schema language, or format, for schema information.

[Definition:]  A program module called an EXI processor, whether it is part of a software or a hardware, is used by application programs to encode their structured data into EXI streams and/or to decode EXI streams to make the structured data accessible to them. This document not only specifies the EXI format, but also defines errors that EXI processors are required to detect and behave upon.

The primary goal of this document is to define the EXI format completely without leaving ambiguity so as to make it feasible for implementations to interoperate. As such, the document lends itself to describing the design and features of the format in a systematic manner, often declaratively with relatively few prosaic annotations and examples. Those readers who prefer a step-by-step introduction to the EXI format design and features are suggested to start with the non-normative [EXI Primer].

1.1 History and Design

EXI is the result of extensive work carried out by the W3C's XML Binary Characterization (XBC) and Efficient XML Interchange (EXI) Working Groups. XBC was chartered to investigate the costs and benefits of an alternative form of XML, and formulate a way to objectively evaluate the potential of a substitute format for XML. Based on XBC's recommendations, EXI was chartered, first to measure, evaluate, and compare the performance of various XML technologies (using metrics developed by XBC [XBC Measurement Methodologies]), and then, if it appeared suitable, to formulate a recommendation for a W3C format specification. The measurements results and analyses, are presented elsewhere [EXI Measurements Note]. The format described in this document is the specification so recommended.

The functional requirements of the EXI format are those that were prepared by the XBC WG in their analysis of the desirable properties of a high performance encoding for XML [XBC Properties]. Those properties were derived from a very broad set of use cases also identified by the XBC working group [XBC Use Cases].

The design of the format presented here, is largely based on the results of the measurements carried out by the group to evaluate the performance characteristics (mainly of processing efficiency and compactness) of various existing formats. The EXI format is based on Efficient XML [Efficient XML], including for example the basis heuristic grammar approach, compression algorithm, and resulting entropy encoding. Present work centers around evaluating and integrating some features from other measured format technologies into EXI (see Appendix F Format Features Under Consideration).

EXI is compatible with XML at the XML Information Set [XML Information Set] level, rather than at the XML syntax level. This permits it to encapsulate an efficient alternative syntax and grammar for XML, while facilitating at least the potential for minimizing the impact on XML application interoperability.

1.2 Notational Conventions and Terminology

The key words MUST, MUST NOT, REQUIRED, SHALL, SHALL NOT, SHOULD, SHOULD NOT, RECOMMENDED, MAY, and OPTIONAL, when they appear EMPHASIZED in this document, are to be interpreted as described in RFC 2119 [IETF RFC 2119]. Other terminology used to describe the EXI format is defined in the body of this specification.

The term event and stream is used throughout this document to denote EXI event and EXI stream respectively unless the words are qualified differently to mean otherwise.

This document specifies an abstract grammar for EXI. In grammar notation, all terminal symbols are represented in plain text and all non-terminal symbols are represented in italics. Grammar productions are represented as follows:

LeftHandSide :   Event  NonTerminal

A set of one or more grammar productions that share the same left-hand-side non-terminal symbol are often presented together along with event codes that uniquely identify events among the collocated productions as follows:

LeftHandSide :
Event 1  NonTerminal 1EventCode1
Event 2  NonTerminal 2EventCode2
Event 3  NonTerminal 3EventCode3
...
Event n  NonTerminal nEventCoden

Section 8.1 Grammar Notation introduces additional notations for describing productions and event codes in grammars. Those additional notations facilitates concise representation of the EXI grammar system.

Terminal symbols that are qualified with a qname permit the use of a wildcard symbol (*) in place of or as part of a qname. The forms of terminal symbols involving qname wildcards used in grammars and their definitions are described in the table below.

WildcardDefinition
    SE (*)The terminal symbol that matches a start element (SE) event with any qname.
    SE (uri : *)The terminal symbol that matches a start element (SE) event with any local-name in namespace uri.
    AT (*)The terminal symbol that matches an attribute (AT) event with any qname.

Several prefixes are used throughout this document to designate certain namespaces. The bindings shown below are assumed, however, any prefixes can be used in practice if they are properly bound to the namespaces.

PrefixNamespace Name
    exi           http://www.w3.org/2007/07/exi
    xml           http://www.w3.org/XML/1998/namespace
    xsd           http://www.w3.org/2001/XMLSchema
    xsi           http://www.w3.org/2001/XMLSchema-instance

In describing the layout of an EXI format construct, a pair of square brackets [ ] are used to surround the name of a field to denote that the occurrence of the field is optional in the structure of the part or component that contains the field.

In arithmetic expressions, the notation ⌈x⌉ where x represents a real number denotes the ceiling of x, that is, the smallest integer greater than or equal to x.

2. Design Principles

The following design principles were used to guide the development of EXI and encourage consistent design decisions. They are listed here to provide insight into the EXI design rationale and to anchor discussions on desirable EXI traits.

General:

One of primary objectives of EXI is to maximize the number of systems, devices and applications that can communicate using XML data. Specialized approaches optimized for specific use cases should be avoided.

Minimal:

To reach the broadest set of small, mobile and embedded applications, simple, elegant approaches are preferred to large, analytical or complex ones.

Efficient:

EXI must be competitive with hand-optimized binary formats so it can be used by applications that require this level of efficiency.

Flexible:

EXI must deal flexibly and efficiently with documents that contain arbitrary schema extensions or deviate from their schema. Documents that contain schema deviations should not cause encoding to fail.

Interoperable:

EXI must integrate well with existing XML technologies, minimizing the changes required to those technologies. It must be compatible with the XML Information Set [XML Information Set], without significant subsetting or supersetting, in order to maintain interoperability with existing and prospective XML specifications.

3. Basic Concepts

EXI achieves broad generality, flexibility, and performance, by unifying concepts from formal language theory and information theory into a single, relatively simple algorithm. The algorithm uses a grammar to determine what is likely to occur at any given point in an XML document and encodes the most likely alternatives in fewer bits. The fully generalized algorithm works for any language that can be described by a grammar (e.g., XML, Java, HTTP, etc.); however, EXI is optimized specifically for XML languages.

The built-in EXI grammar accepts any XML document or fragment and may be augmented with productions derived from XML Schemas [XML Schema Structures][XML Schema Datatypes], RELAX NG schemas [ISO/IEC 19757-2:2003], DTDs [XML 1.0] or other sources of information about what is likely to occur in a set of XML documents. The EXI encoder uses the grammar to map a stream of XML information items onto a smaller, lower entropy, stream of events.

The encoder then represents the stream of events using a set of simple variable length codes called event codes. Event codes are similar to Huffman codes [Huffman Coding], but are much simpler to compute and maintain. They are encoded directly as a sequence of values, or if additional compression is desired, they are passed to the EXI compression algorithm, which replaces frequently occurring event patterns to further reduce size.

When schemas are used, EXI also supports a user-customizable set of typed encodings for efficiently encoding typed values.

4. EXI Streams

[Definition:]  An EXI stream is an EXI header followed by an EXI body. [Definition:]  It is the EXI body that carries the content of the document, while the EXI header amongst its roles communicates the options that were used for encoding the EXI body. Section 5. EXI Header describes the EXI header. Values in an EXI stream are packed into bytes most significant bit first.

Applications that use EXI streams embedded in a container data format that discerns it is an EXI stream, dictates the EXI format version and the EXI Options used for its encoding, may with to omit the EXI header. Although an EXI Body is not a valid EXI stream, EXI processors MAY provide a capability to process an EXI body independent of an EXI stream.

[Definition:]  The building block of an EXI body is an EXI event. An EXI body consists of a sequence of EXI events representing an EXI document or an EXI fragment.

The EXI events permitted at any given position in an EXI stream are determined by the EXI grammar. The events occur in a well-formed manner with matching start element and end element events in the same fashion as XML. The EXI grammar incorporates knowledge of the XML grammar and may be augmented and refined using schema information and fidelity options. The EXI grammar is formally specified in section 8. EXI Grammars.

The following table summarizes the EXI events and associated content that occur in an EXI stream. The content items appear in an EXI stream in the order they are shown in the table. In addition, the table includes the grammar notation used to represent each event in this specification. Each event in an EXI stream participates in a mapping system that relates events to XML Information Items so that an EXI document as a whole serves to represent an XML Information Set. The table shows XML Information Items relevant to each EXI event type. Appendix B Infoset Mapping describes the mapping system in detail.

Table 4-1. EXI event types
EXI Event TypeContentGrammar NotationInformation Item
Start Document SDB.1 Document Information Item
End Document ED
Start Elementqname SE ( qname )B.2 Element Information Items
SE ( * )
End Element EE
Attributeqname, valueAT ( qname )B.3 Attribute Information Item
AT ( * )
CharactersvalueCHB.6 Character Information item
Namespace Declaration uri , prefix , local-element-ns NSB.11 Namespace Information Item
Comment textCMB.7 Comment Information item
Processing Instruction name, textPIB.4 Processing Instruction Information Item
DOCTYPE name, public, system, textDTB.8 Document Type Declaration Information item
Entity Reference nameERB.5 Unexpanded Entity Reference Information item

Section 6. Encoding EXI Streams describes the algorithm used to encode events in the EXI stream. As indicated in the table above, there are some event types that carry content with their event instances while other event types function as markers without content. A grammar production may match a specific Element or Attribute by qname or match any Element or Attribute using wildcard notation. When a grammar matches an Element or Attribute by qname, the qname is not part of the content. When a grammar matches an Element or Attribute using wildcard notation, the qname is part of the content.

SE events may be followed by a series of NS events. Each NS event either associates a prefix with an URI, assigns a default namespace, or in the case of a namespace declaration with an empty URI, rescinds one of such associations in effect at the point of its occurrence. The effect of the association or disassociation caused by a NS event stays in effect until the corresponding EE event occurs.

Like XML, the namespace of a particular element may be specified by a namespace declaration preceeding the element or a local namespace declaration following the element name. When the namespace is specified by a local namespace declaration, the local-element-ns flag of the associated NS event is set to true and the prefix of the element is set to the prefix of that NS event. When the namespace is specified by a previous namespace declaration, the local-element-ns flag of all local NS events is false and the prefix of the element is set according to the prefix component of the element qname. The series of NS events associated with a particular element may include at most one NS event with its local-element-ns flag set to true. The uri of a NS event with its local-element-ns flag set to true MUST match the uri of the associated SE event.

Each item in the event content has a data type associated with it as shown in the following table. The content of each event, if any, is encoded as a sequence of items each of which being encoded according to its data type in order starting with the first item followed by subsequent items.

Table 4-2. Data types of event content items
Content itemUsed inType
namePI, DT, ER 7.1.10 String
prefixNS 7.1.10 String
local-element-ns NS 7.1.2 Boolean
publicDT 7.1.10 String
qnameSE, AT 7.1.7 QName
systemDT 7.1.10 String
textCM, PI 7.1.10 String
uriNS 7.1.10 String
valueCH, ATAccording to the schema type (see 7. Representing Event Content) if any is in effect and the preserve.lexicalValues option is set to false, otherwise 7.1.10 String

Content items other than value have their inherent, fixed data types independent of their uses. The data type that governs each occurrence of the value item depends on the schema type if any that is in effect for the value in question. The type xsd:anySimpleType is used for values that do not have an associated schema-type, are schema-invalid, or occur in mixed content. Section 7. Representing Event Content describes how each of the types listed above are encoded in an EXI stream.

Editorial note
The syntax and semantics of NS event is so formulated in favor of simplicity in order not to incur processing cost that would have otherwise be involved by such operations as sorting and conditional branching, yet that it keeps the number of additional bits required to achieve the functionality in overall EXI streams to the minimal with the observation that the number of namespace declarations in an EXI stream is generally small.

5. EXI Header

Each EXI stream begins with an EXI header. The EXI header distinguishes EXI documents from text XML documents, identifies the version of the EXI format being used, and can specify the options used to process the body of the EXI stream. The EXI header has the following structure:

Distinguishing Bits
Presence Bit
for EXI Options
EXI Format Version[EXI Options][Padding Bits]

The EXI Options field within an EXI header is optional. Its presence is indicated by the value of the presence bit that follows Distinguishing Bits. The presence and absence is indicated by the value 1 and 0, respectively.

When either compression is used, or the alignment used is one of byte-alignment or pre-compression as dictated by EXI Options, padding bits of minumum length required to make the whole length of the header byte-aligned are added at the end of the header.

The details of Distinguishing Bits, EXI Format Version and EXI Options are described in the following sections.

5.1 Distinguishing Bits

[Definition:]   An EXI header starts with Distinguishing Bits part, which is a two bit field used to distinguish EXI documents from text XML documents. The first bit contains the value 1 and the second bit contains the value 0, as follows.

10

This 2 bit sequence is the minimum that suffices to distinguish EXI documents from XML documents since it is the minimum length bit pattern that cannot occur as the first two bits of a well-formed XML document represented in any one of the conventional character encodings, such as UTF-8, UTF-16, UCS-2, UCS-4, EBCDIC, ISO 8859, Shift-JIS and EUC, according to XML 1.0 [XML 1.0]. Therefore, XML Processors are expected to reject an EXI stream as early as they read and process the first byte from the stream.

Systems that use EXI documents as well as XML documents can look at the Distinguishing Bits to determine whether to interpret a particular stream as XML or EXI.

Editorial note
In addition to distinguishing EXI from XML, the 2 bit distinguishing bit pattern given above can distinguish EXI streams from quite a broad range of popular content types that occur on the web, like PNG. However, the working group has decided to introduce larger set of bits, such as a magic cookie, to distinguish EXI from a broader range of data types, the details of which are still under discussion by the working group.

5.2 EXI Format Version

[Definition:]   The third part in the EXI header is the EXI Format Version, which identifies the version of the EXI format being used. EXI format version numbers are integers. Each version of the EXI Format Specification specifies the corresponding EXI format version number to be used by conforming implementations. The EXI format version number that corresponds with this version of the EXI format specification is 0 (zero).

The first bit of the version field indicates whether the version is a preview or final version of the EXI format. A value of 0 indicates this is a final version and a value of 1 indicates this is a preview version. Final versions correspond to final, approved versions of the EXI format specification. An EXI processor that implements a final version of the EXI format specification is REQUIRED to process EXI streams that have a version field with its first bit set to 0 followed by a version number that corresponds to the version of the EXI specification the processor implements. Preview versions of the EXI format are useful for gaining implementation and deployment experience prior to finalizing a particular version of the EXI format. While preview versions may match drafts of this specification, they are not governed by this specification and the behaviour of EXI processors encountering preview versions of the EXI format is implementation dependent. Implementers are free to coordinate to achieve interoperability between different preview versions of the EXI format.

Following the first bit of the version is a sequence of one or more 4-bit unsigned integers representing the version number. The version number is determined by summing this sequence of 4-bit unsigned values. The sequence is terminated by any 4-bit unsigned integer with a value in the range 0-14. As such, the first 15 version numbers are represented by 4 bits, the next 15 are represented by 8 bits, etc.

Given an EXI stream with its stream cursor positioned just past the first bit of the EXI format version field, the EXI format version number can be computed by going through the following steps with version number initially set to 1.

  1. Read next 4 bits as an unsigned integer value.
  2. Add the value that was just read to the version number.
  3. If the value is 15, go to step 1, otherwise (i.e. the value being in the range of 0-14), use the current value of the version number as the EXI version number.

The following are example EXI format version numbers.

Example 5-1. EXI Format Version Examples
EXI Format Version FieldDescription
  1 0000  Preview version 1
  0 0000  Final version 1
  0 1110  Final version 15
  0 1111 0000  Final version 16
  0 1111 0001  Final version 17

EXI processors conforming with the final version of this specification MUST use the 5-bit value 0 0000 as the version number.

5.3 EXI Options

[Definition:]  The fourth part of the EXI header is the EXI Options, which provides a way to specify the options used to encode the body of the EXI stream. [Definition:]   The EXI Options are represented as an EXI Options document, which is an XML document encoded using the EXI format described in this specification. This results in a very compact header format that can be read and written with very little additional software.

The presence of EXI Options in its entirety is optional in EXI header, and it is predicated on the value of the presence bit that follows the Distinguishing Bits. When EXI Options are present in the header, an EXI Processor MUST observe the specified options to process the EXI stream that follows. Otherwise, an EXI Procesor may obtain the EXI options using another mechanism.

EXI processors MAY provide external means for applications or users to specify EXI Options when the EXI header is absent. Such EXI processors are typically used in controlled systems where the knowledge about the effective EXI Options is shared prior to the exchange of EXI documents. The mechanism to communicate out-of-bound EXI Options and their representation used in such systems are implementation dependent.

The following table describes the EXI options specified in the options field.

Table 5-1. EXI Options in Options Field
EXI OptionDescriptionDefault Value
alignment Alignment of event codes and content items bit-packed
compressionEXI compression is used to achieve better compactness false
strictStrict interpretation of schemas is used to achieve better compactness false
fragmentBody is encoded as an EXI fragment instead of an EXI document false
preserveSpecifies whether comments, pis, etc. are preserved all false
schemaIDIdentify the schema information, if any, used to encode the body none
codecMapIdentify pluggable CODECs used to encode body none
blockSizeSpecifies the block size used for EXI compression 1,000,000
[user defined]User defined headers may be added none

Appendix C XML Schema for EXI Options Header provides an XML Schema describing the EXI Options document. This schema is designed to produce smaller headers for option combinations used when compactness is critical.

The EXI Options document is encoded as an EXI body using the default options specified by the following XML document. An EXI Options document consists only of EXI body, and MUST not start with an EXI header.

Header options used for encoding the EXI Options document
  <header xmlns="http://www.w3.org/2007/07/exi">
    <strict/>
  </header>

[Definition:]  The alignment option is used to control the alignment of event codes and content items. The value is one of bit-packed, byte-alignment or pre-compression, of which bit-packed is the default value assumed when the "alignment" element is absent in the EXI Options document.

[Definition:]  Alignment option value bit-packed indicates that the the event codes and associated content are packed in bits without any paddings in-between.

[Definition:]  Alignment option value byte-alignment indicates that the event codes and associated content are aligned on byte boundaries. While byte-alignment generally results in EXI streams of larger sizes compared with their bit-packed equivalents, byte-alignment may provide a help in some use cases that involve frequent copying of large arrays of scalar data directly out of the stream. It can also make it possible to work with data in-place and can make it easier to debug encoded data by allowing items on aligned boundaries to be easily located in the stream.

[Definition:]  Alignment option value pre-compression alignment indicates that all steps involved in compression (see section 9. EXI Compression) are to be done with the exception of the final step of applying the DEFLATE algorithm. The primary use case of pre-compression is to avoid a duplicate compression step when compression capability is built into the transport protocol. In this case, pre-compression just prepares the stream for later compression.

[Definition:]  The compression option is a Boolean used to increase compactness using additional computational resources. The default value "false" is assumed when the "compression" element is absent in the EXI Options document. When set to true, the event codes and associated content are compressed according to 9. EXI Compression regardless of the alignment option value.

[Definition:]  The strict option is a Boolean used to increase compactness by using a strict interpretation of the schemas and omitting preservation of certain items, such as comments, processing instructions and namespace prefixes. The default value "false" is assumed when the "strict" element is absent in the EXI Options document. When set to true, the EXI grammars are restricted to only permit items declared in the schemas and omit NS, CM, PI, and ER events.

[Definition:]  The fragment option is a Boolean that indicates whether the EXI body is an EXI document or an EXI fragment. When set to true, the EXI body is an EXI fragment. Otherwise, the EXI body is an EXI document. [Definition:]  EXI fragments are analogous in concept to external general parsed entitiesXML in XML in that they consist of a sequence of elements, processing instructions and comments in containers of their own that are physically separate from the documents in which they are to be used. An EXI fragment is formally defined in terms of its grammar in Sections 8.4.2 Built-in Fragment Grammar and 8.5.2 Schema-informed Fragment Grammar . The XML Information Set an EXI stream is mapped onto contains a document information item if the stream represents an EXI document, otherwise, the XML Information Set does not have a document information item if the stream represents an EXI fragment. The order among elements, processing instructions and comments that appear at the root in an EXI fragment is deemed significant and MUST be preserved by EXI processors.

[Definition:]  The preserve option is a set of Booleans that can be set independently to control whether certain information items are preserved in the EXI stream. 6.3 Fidelity Options describes the set of information items effected by the preserve option.

[Definition:]  The schemaID option may be used to identify the schema information used to encode the EXI body. When the schemaID is nil, no schema information was used to encode the EXI body. When the schemaID option is absent (i.e., undefined), no statement is made about the schema information used to encode the EXI body and it is assumed this information is communicated out of band.

[Definition:]  The codecMap option identifies pluggable CODECs used to encode the EXI body as described in 7.4 Pluggable CODECS.

[Definition:]  The blockSize option specifies the block size used for EXI compression. When the blockSize option is absent, the default blocksize of 1,000,000 is used. The default blockSize is intentionally large but can be reduced for processing large documents on devices with limited memory.

6. Encoding EXI Streams

The rules for encoding a series of events as an EXI stream are very simple and are driven by a declarative set of grammars that describes the structure of an EXI stream. Every event in the stream is encoded using the same set of encoding rules, which are summarized as follows:

  1. Get the next event to be encoded
  2. If fidelity options indicate this event type is not processed, go to step 1
  3. Use the grammars to determine the event code of the event
  4. Encode the event code followed by the event content
  5. Evaluate the grammar production matched by the event
  6. Repeat until the End Document (ED) event is encoded

Namespace (NS) events are encoded before attribute (AT) events in the stream following the associated start element (SE) event. When built-in element grammars are used, attribute events can occur in any order. Otherwise, when schema-informed grammars are used for processing an element, AT(xsi:type) event comes first if present, followed by the AT(xsi:nil) event if present, followed by the rest of the attribute (AT) events in lexical order sorted first by qname's local-name then by qname's URI. Namespace (NS) events can occur in any order regardless of the grammars used for processing the associated element.

EXI uses the same simple procedure described above, to encode well-formed documents, document fragments, schema-valid information items, schema-invalid information items, information items partially described by schemas and information items with no schema at all. Only the grammars that describe these items differ. For example, an element with no schema information is encoded according to the XML grammar defined by the XML specification, while an element with schema information is encoded according to the more specific grammar defined by that schema.

[Definition:]  An event code is a sequence of 1 to 3 non-negative integers called parts. Each production in a grammar has an event code that distinguishes its event from that of other productions that share the same left-hand-side non-terminal symbol.

Section 6.1 Determining Event Codes describes in detail how the grammar is used to determine the event code of an event. Section 6.2 Representing Event Codes describes in detail how event codes are represented as bits. Section 6.3 Fidelity Options describes available fidelity options and how they effect the EXI stream. Section 7. Representing Event Content describes how the typed event contents are represented as bits.

6.1 Determining Event Codes

The structure of an EXI stream is described by the EXI grammars, which are formally specified in section 8. EXI Grammars. Each grammar defines which events are permitted to occur at any given point in the EXI stream and provides a pre-assigned event code for each event.

For example, the grammar productions below describe the events that can occur in a schema-informed EXI stream after the Start-Document (SD) event provided there are four global elements defined in the schema and provide an event code for each event:

Example 6-1. Example productions with event codes
SyntaxEvent Code
DocContent
SE ("A") DocEnd0
SE ("B") DocEnd1
SE ("C") DocEnd2
SE ("D") DocEnd3
SE (*) DocEnd4.0
DT DocContent4.1
CH DocContent4.2
CM DocContent4.3.0
PI DocContent4.3.1

At the point in an EXI stream where the above grammar productions are in effect, the event code of Start Element "A" (i.e. SE("A")) is 0. The event code of a DOCTYPE (DT) event at this point in the stream is 4.1, and so on.

6.2 Representing Event Codes

Each event code is represented by a sequence of 1 to 3 parts that uniquely identify an event. Event code parts are encoded in order starting with the first part followed by subsequent parts.

When the value of compression option is false, and bit-packed alignment option is used for the current processing of the stream, the ith part of an event code is encoded using the minimum number of bits required to distinguish it from the ith part of the other sibling event codes in the current grammar. Specifically, the ith part of an event code is encoded as an n-bit unsigned integer (7.1.9 n-bit Unsigned Integer), of which n is ⌈ log 2 m ⌉ where m is the number of distinct values used as the ith part of its own and all its sibling event codes in the current grammar. Two event codes are siblings at the ith part if and only if they share the same values in all preceding parts. All event codes are siblings at the first part.

On the other hand, when the value of compression option is true, or either byte-alignment or pre-compression alignment option is used, the ith part of an event code is encoded using the minimum number of bytes instead of bits required to distinguish it from the ith part of the other sibling event codes in the current grammar. Each part is encoded as an n-bit unsigned integer (7.1.9 n-bit Unsigned Integer), of which n is ⌈ log 2 m ⌉ where m is the number of distinct values used as the ith part of its own and all its sibling event codes in the current grammar. The number of bytes used for the n-bit unsigned integer representation in this case is equal to ⌈ n / 8 ⌉.

Regardless of the values of compression option and alignment option, if there is only one distinct value for a given part, the part is omitted (i.e., encoded in log 2 1 = 0 bits = 0 bytes).

For example, the nine event codes shown in the DocContent grammar above have a value ranging from 0 to 4 for their first part. There are five distinct values needed to identify the first part of these event codes. Therefore, when EXI compression and alignment are not in effect, the first part can be encoded in ⌈ log 2 5 ⌉ = 3 bits. In the same fashion, the number of bits used for encoding second and third part (if present) are calculated as ⌈ log 2 4 ⌉ = 2 bits and ⌈ log 2 2 ⌉ = 1 bits, respectively. On the other hand, when EXI compression or alignment is in effect, the number of bytes used for each part is ⌈ 3 / 8 ⌉ = 1 bytes for the first part, ⌈ 2 / 8 ⌉ = 1 bytes for the second part and ⌈ 1 / 8 ⌉ = 1 bytes for the third part.

The table below illustrates how the event codes of each event in the DocContent grammar above is encoded.

Example 6-2. Example event code encoding

Table 6-1. Example event code encoding when EXI compression is not in effect and bit-packed alignment option is used
EventPart valuesEvent Code Encoding# bits
SE ("A")0  0003
SE ("B")1  0013
SE ("C")2  0103
SE ("D")3  0113
SE (*)40 100  005
DT41 100  015
CH42 100  105
CM430100  11  06
PI431100  11  16
# distinct values ( m)542
# bits per part
  ⌈ log 2 m
321

Table 6-2. Example event code encoding when EXI compression is in effect, or either byte-alignment or pre-compression alignment option is used
EventPart valuesEvent Code Encoding# bytes
SE ("A")0  000000001
SE ("B")1  000000011
SE ("C")2  000000101
SE ("D")3  000000111
SE (*)40 00000100  000000002
DT41 00000100  000000012
CH42 00000100  000000102
CM43000000100  00000011  000000003
PI43100000100  00000011  000000013
# distinct values (m)542
# bytes per part
  ⌈ (log 2 m) / 8 ⌉
111

6.3 Fidelity Options

Some XML applications do not require the entire XML feature set and would prefer to eliminate the overhead associated with unused features. For example, the SOAP 1.2 specification [SOAP 1.2] prohibits the use of XML processing-instructions. In addition, there are many data-exchange use cases that do not require XML comments or DTDs.

Applications can use a set of fidelity options to specify the XML features they require. As specified in section 8.3 Pruning Unneeded Productions, EXI processors MUST use these fidelity options to prune the events that are not required from the grammars, improving compactness and processing efficiency.

The table below lists the fidelity options supported by this version of the EXI specification and describes the effect setting these options has on the EXI stream.

Table 6-3. Fidelity options
Fidelity optionEffect
Preserve.commentsCM events are preserved
Preserve.pisPI events are preserved
Preserve.dtdDOCTYPE and ER events are preserved
Preserve.prefixesNS events and namespace prefixes are preserved
Preserve.lexicalValuesLexical form of element and attribute values is preserved in value content items

EXI processors may report an error if the application attempts to encode events that have been pruned from the grammar or may simply ignore these events.

7. Representing Event Content

The content of each event in an EXI body is represented according to its type (see Table 4-2). In the absence of external type information or when the preserve.lexicalValues option is set to true, all attribute and character values are typed as String.

[Definition:]  EXI defines a minimal set of data types called Built-in EXI datatypes that define how values are represented in EXI streams as described in 7.1 Built-in EXI Datatypes Representation. The following table lists the built-in EXI datatypes, associated type identifiers and the XML Schema Language [XML Schema Datatypes] built-in types each is used to represent by default.

Table 7-1. Built-in EXI Datatypes
Built-in EXI DatatypeEXI Datatype ID XML Schema DatatypesXS2
Binary xsd:base64Binarybase64Binary
xsd:hexBinaryhexBinary
Boolean xsd:booleanboolean
Date-Time xsd:dateTimedateTime, time, date, gYearMonth, gYear, gMonthDay, gDay, gMonth
Decimal xsd:decimaldecimal
Float xsd:doublefloat, double
Integer xsd:integerinteger without minInclusive or minExclusive facets, or with minInclusive or minExclusive facet of negative value
Unsigned Integer nonNegativeInteger or integer with minInclusive or minExclusive facet value of 0 or above
n-bit Unsigned Integer integer with bounded range of 4095 or smaller as determined by the values of minInclusive, minExclusive, maxInclusive and maxExclusive facets.
String xsd:stringstring, anySimpleType, anyURI, duration, All types derived by union
List  All types derived by list, including IDREFS and ENTITIES
QName

By default, types derived from the XML Schema types above are also represented by the associated built-in EXI datatype. When there are more than one XML Schema types above from which a type is derived directly or indirectly, the closest ancestor is used to determine the built-in EXI datatype. For example, a value of XML Schema type xsd:int is represented by the same built-in type as for XML Schema type xsd:integer. Although xsd:int is derived indirectly from xsd:integer and also further from xsd:decimal, a value of xsd:int is processed as an instance of xsd:integer because xsd:integer is closer to xsd:int than xsd:decimal is in the datatype inheritance hierarchy.

Each EXI datatype identifier above is a QName. Datatype identifiers uniquely identify one of the built-in EXI datatypes. They are used by Pluggable CODECS to designate XML Schema types to built-in EXI datatypes different from the ones that are associated by default. Not all built-in EXI datatypes are assigned datatype identifiers. Only those that have identifiers are usable by Pluggable CODECS for designating alternative representations.

The rules used to represent values of String depend on the content items to which the values belong. There are certain content items whose value representation involve the use of string tables while other content items are represented using the encoding rule described in 7.1.10 String without involvement of string tables. The content items that use string tables and how each of such content items uses string tables to represent their values are described in 7.3 String Table.

Schemas can provide one or more enumerated values for types. EXI exploits those pre-defined values when they are available to represent values of such types in a more efficient manner than it would otherwise using built-in EXI datatypes. The encoding rule for representing a type of enumerated values is described in 7.2 Enumerations. Types that are derived from other types by union and their subtypes are always represented as String regardless of the availability of enumerated values. Representation of values of which the schema type is one of QName, Notation or a type derived therefrom by restriction are also not affected by enumerated values if any.

7.1 Built-in EXI Datatypes Representation

The following sections describe the encoding rules for representing built-in EXI datatypes.

7.1.1 Binary

Values typed as Binary are represented as a length-prefixed sequence of octets representing the binary content. The length is represented as an Unsigned Integer (see 7.1.6 Unsigned Integer).

7.1.2 Boolean

The number of distinct values that a Boolean can represent depends on the presence of pattern facets in the associated schema datatype. Those values are zero (0) and one (1) in the absence of patterns, whereas they are zero (0), one (1), two (2) and three (3) when patterns are available. With patterns, the value set is able to distinguish values not only arithmetically (0 or 1) but also between lexical variances. The following table shows the possible Boolean values as well as what each value represents with/without patterns in comparison.

Boolean valuewithout patternswith patterns
0  0 ("false" or "0")  0 ("false")
1  1 ("true" or "1")  0 ("0")
2N/A  1 ("true")
3  1 ("1")
# of distinct values (N)  2  4

When the value of compression option is false and the value bit-packed is used for alignment options, values typed as Boolean are represented using n-bit unsigned integer (7.1.9 n-bit Unsigned Integer) where n equals to log2(N) given the number of distinct values which is 2 or 4 depending on the presence of pattern facets as shown in the above table. Otherwise, they are represented using one byte.

7.1.3 Decimal

Values typed as Decimal are represented as a Boolean sign (see 7.1.2 Boolean) followed by two Unsigned Integers (see 7.1.6 Unsigned Integer). A sign value of zero (0) is used to represent positive Decimal values and a sign value of one (1) is used to represent negative Decimal values. The first Unsigned Integer represents the integral portion of the Decimal value. The second Unsigned Integer represents the fractional portion of the Decimal value with the digits in reverse order to preserve leading zeros.

7.1.4 Float

Values typed as Float are represented as two consecutive Integers (see 7.1.5 Integer). The first Integer represents the mantissa of the floating point number and the second Integer represents the base-10 exponent of the floating point number. The range of the mantissa is - (263) to 263-1 and the range of the exponent is - (214-1) to 214-1. Values typed as Float with a mantissa or exponent outside the accepted range are represented as schema-invalid values.

The exponent value -(214) is used to indicate one of the special values: infinity, negative infinity and not-a-number (NaN). An exponent value -(214) with mantissa values 1 and -1 represents positive infinity (INF) and negative infinity (-INF) respectively. An exponent value -(214) with any other mantissa value represents NaN.

A value represented as Float can be decoded by going through the following steps.

  1. Retrieve the mantissa value using the procedure described in 7.1.5 Integer.
  2. Retrieve the exponent value using the procedure described in 7.1.5 Integer.
  3. If the exponent value is -(214), the mantissa value 1 represents INF, the mantissa value -1 represents -INF and any other mantissa value represents NaN. If the exponent value is not -(214), the float value is m × 10e where m is the mantissa and e is the exponent obtained in the preceding steps.

Note:

Support for IEEE float representation is currently under consideration. (See F.1 IEEE Floats)

7.1.5 Integer

The Integer type supports signed integer numbers of arbitrary magnitude. Values typed as Integer are represented as a Boolean sign (see 7.1.2 Boolean) followed by an Unsigned Integer (see 7.1.6 Unsigned Integer). A sign value of zero (0) is used to represent positive integers and a sign value of one (1) is used to represent negative integers. For non-negative values, the Unsigned Integer holds the magnitude of the value. For negative values, the Unsigned Integer holds the magnitude of the value minus 1.

7.1.6 Unsigned Integer

The Unsigned Integer type supports unsigned integer numbers of arbitrary magnitude. Values typed as Unsigned Integer are represented using a sequence of octets. The sequence is terminated by an octet with its most significant bit set to 0. The value of the unsigned integer is stored in the least significant 7 bits of the octets as a sequence of 7-bit bytes, with the least significant byte first.

A value represented as Unsigned Integer can be decoded by going through the following steps with the initial value set to 0 and the initial multiplier set to 1.

  1. Read the next octet.
  2. Multiply the value of the unsigned number represented by the 7 least significant bits of the octet by the current multiplier and add the result to the current value.
  3. Multiply the multiplier by 128.
  4. If the most significant bit of the octet was 1, go back to step 1.
Editorial note
EXI also provides a modified representation for Integers that will not fit within a 64-bit integer to facilitate processing by devices that do not support big integers. This capability has not yet been specified.

7.1.7 QName

Values of type QName are encoded as a sequence of values representing the URI, local-name and prefix components of the QName in that order, where the prefix component is present only when the preserve.prefixes option is set to true.

When the QName value is specified by a schema-informed grammar using the SE(qname) or AT(qname) terminal symbols, URI and local-name are implicit and are omitted. Similarly, when the URI of the QName value is derived from a schema-informed grammar using SE(uri: *) terminal symbols, URI is implicit thus omitted in the representation, and only the local-name component is encoded as a String (see 7.1.10 String). Otherwise, URI and local-name components are encoded as Strings If the QName is in no namespace, the URI is represented by a zero length String.

When present, prefixes are represented as n-bit unsigned integers (7.1.9 n-bit Unsigned Integer), where n is log2(N) and N is the number of unique prefixes specified for the URI of the QName by preceding NS events in the EXI stream. Each unique prefix is assigned a unique n-bit integer (0 ... N-1) according to the order in which the associated NS event occurs in the EXI stream. If there are no prefixes specified for the URI of the QName by preceding NS events in the EXI stream, the prefix is undefined. An undefined prefix is represented using zero bits (i.e., omitted).

Given either a n-bit unsigned integer m that represents the prefix value or an undefined prefix, the effective prefix value is determined by following the rules described below in order. A QName is in error if it has an undefined prefix that cannot be resolved by the rules below.

  1. If the prefix is defined, select the m-th prefix value associated with the URI of the QName as the candidate prefix value. Otherwise, there is no candidate prefix value.
  2. If the QName value is part of an SE event followed by an associated NS event with an indicator value of 1, the prefix value is the prefix of such NS event. Otherwise, the prefix value is the candidate value, if any, selected in step 1 above.

7.1.8 Date-Time

Values typed as Date-Time are encoded as a sequence of values representing the individual components of the Date-Time. The following table specifies each of the possible date-time components along with how they are encoded.

Table 7-2. Date-Time components
ComponentValueType
YearOffset from 2000Integer ( 7.1.5 Integer)
MonthDay Month * 32 + Day 9-bit Unsigned Integer (7.1.9 n-bit Unsigned Integer) where day is a value in the range 1-31 and month is a value in the range 1-12.
Time((Hour * 60) + Minutes) * 60 + seconds17-bit Unsigned Integer (7.1.9 n-bit Unsigned Integer)
FractionalSecsFractional secondsUnsigned Integer ( 7.1.6 Unsigned Integer) representing the fractional part of the seconds with digits in reverse order to preserve leading zeros
TimeZoneTZHours * 60 + TZMinutes11-bit Unsigned Integer (7.1.9 n-bit Unsigned Integer) representing a signed integer offset by 840 ( = 14 * 60 )
presenceBoolean presence indicatorBoolean (7.1.2 Boolean)

The variety of components that constitute a value and their appearance order depend on the XML Schema type associated with the value. The following table shows which components are included in a value of each XML Schema type that is relevant to Date-Time datatype. Items listed in square brackets are included if and only if the value of its preceding presence indicator (specified above) is set to true.

Table 7-3. Assortment of Date-Time components
XML Schema TypeIncluded Components
gYearXS2Year, presence, [TimeZone]
gYearMonthXS2Year, MonthDay, presence, [TimeZone]
dateXS2
dateTimeXS2Year, MonthDay, Time, presence, [FractionalSecs], presence, [TimeZone]
gMonthXS2MonthDay, presence, [TimeZone]
gMonthDayXS2
gDayXS2
timeXS2Time, presence, [FractionalSecs], presence, [TimeZone]

7.1.9 n-bit Unsigned Integer

When the value of compression option is false and the value bit-packed is used for alignment options, values of type n-bit Unsigned Integer are represented as an unsigned binary integer using n bits. Otherwise, they are represented as an unsigned integer using the minimum number of bytes required to store n bits. Bytes are ordered with the least significant byte first.

The n-bit unsigned integer encoding is also used to encode bounded integers. These are integer values that have been constrained explicitly through the use of schema facets (for example, XML schema minInclusive and maxInclusive facets) or implicitly through the use of a restricted data type (for example, the XML schema unsignedByte type).

A bounded integer value is encoded as an offset (or delta) from the minimum value in the range. It is encoded in the minimum number of bits that would be necessary to hold any value within the full range. For example, if an integer is constrained to have a value between 3 and 10 (inclusively) and the value to be encoded is 7, the number encoded would be 7 - 3 = 4 and the number of bits needed would be 3.

If the range defined by the bounds is large, the average number of bits needed to encode a set of values can be larger than the number of bits needed if those values are encoded as variable-length integers (see 7.1.5 Integer). For this reason, a maximum range value is imposed such that if the value to be encoded is larger than this maximum, variable-length integer encoding is done. The maximum range value is 4095 which equates to a bit field length of no more than 12 bits.

7.1.10 String

Values of type String are represented as a length prefixed sequence of characters. The length indicates the number of characters in the string and is represented as an Unsigned Integer (see 7.1.6 Unsigned Integer). If a restricted character set is defined for the string (see 7.1.10.1 Restricted Character Sets), each character is represented as an n-bit Unsigned Integer (see 7.1.9 n-bit Unsigned Integer). Otherwise, each character is represented by its UCS code point encoded as an Unsigned Integer (see 7.1.6 Unsigned Integer).

EXI uses a string table to represent certain content items more efficiently. Section 7.3 String Table describes the string table and how it is applied to different content items.

7.1.10.1 Restricted Character Sets

If a string value is associated with a schema datatype and one or more of the datatypes in its datatype hierarchy has one or more pattern facets, there may be a restricted character set defined for the string value. The following steps are used to determine the restricted character set, if any, defined for a given string value associated with such a schema datatype.

First, determine the character set for each datatype in the datatype hierarchy of the string value that has one or more pattern facets according to section E Deriving Character Sets from XML Schema Regular Expressions. For each datatype with more than one pattern facet, compute the restricted character set based on the union of the regular expressions specified by its pattern facets. If the restricted character set for a datatype contains at least 255 characters or contains non-BMP characters, the character set of the datatype is not restricted and can be omitted from further consideration.

Then, compute the restricted character set for the string value as the intersection of all the character sets computed above. If the resulting character set contains less than 255 characters, the string value has a restricted character set and each character is represented using an n-bit Unsigned Integer (see 7.1.9 n-bit Unsigned Integer), where n is log2(N + 1) and N is the number of characters in the restricted character set.

The characters in the restricted character set are sorted by UCS code point and represented by integer values in the range (0 ... N-1) according to their ordinal position in the set. Characters that are not in this set are represented by the integer N followed by the UCS code point of the character represented as an Unsigned Integer.

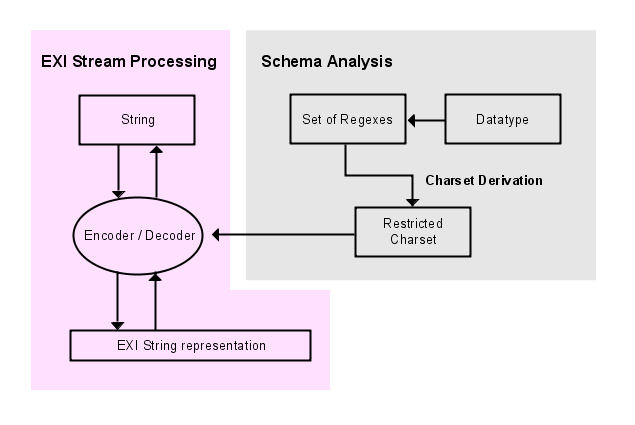

The figure below illustrates an overview of the process for determining and using restricted character sets described in this section.


String Processing Model

Figure 7-1. String Processing Model


7.1.11 List

Values of type List are encoded as a length prefixed sequence of values. The length is encoded as an Unsigned Integer (see 7.1.6 Unsigned Integer) and each value is encoded according to its type (see 7. Representing Event Content).

7.2 Enumerations

Values of enumerated types are encoded as n-bit Unsigned Integers (7.1.9 n-bit Unsigned Integer) where n = ⌈ log 2 m ⌉ and m is the number of items in the enumerated type. The value assigned to each item corresponds to its ordinal position in the enumeration in schema-order starting with position zero (0).

Exceptions are for schema types derived from others by union and their subtypes, QName or Notation and types derived therefrom by restriction. The values of such types are processed by their respective built-in EXI datatypes instead of being represented as enumerations.

7.3 String Table

EXI uses a string table to assign "compact identifiers" to some string values. Occurrences of string values found in the string table are represented using the associated compact identifier rather than encoding the entire "string literal". The string table is initially pre-populated with string values that are likely to occur in certain contexts and is dynamically expanded to include additional string values encountered in the document. The following content items are encoded using a string table:

When a string value is found in the string table, the value is encoded using the compact identifier and no changes are made to the string table as a result. When a string value is not found in the string table, its string literal is encoded as a String without using a compact identifier, only after which the string table is augmented by including the string value with an assigned compact identifier.

The string table is divided into partitions and each partition is optimized for more frequent use of either compact identifiers or string literals depending on the purpose of the partition. Section 7.3.1 String Table Partitions describes how EXI string table is partitioned. Section 7.3.2 Partitions Optimized for Frequent use of Compact Identifiers describes how string values are encoded when the associated partition is optimized for more frequent use of compact identifiers. Section 7.3.3 Partitions Optimized for Frequent use of String Literals describes how string values are encoded when the associated partition is optimized for more frequent use of string literals.

The life cycle of a string table spans the processing of a single EXI stream. String tables are not represented in an EXI stream or exchanged between EXI processors. A string table cannot be reused across multiple EXI streams; therefore, EXI processors MUST use a string table that is equivalent to the one that would have been newly created and pre-populated with initial values for processing each EXI stream.

7.3.1 String Table Partitions

The string table is organized into partitions so that the indices assigned to compact identifiers can stay relatively small. Smaller number of indices results in improved average compactness and the efficiency of table operations. Each partition has a separate set of compact identifiers and content items are assigned to specific partitions as described below.

Uri content items and the URI portion of qname content items are assigned to the uri partition. The uri partition is optimized for frequent use of compact identifiers and is pre-populated with initial entries as described in D.1 Initial Entries in Uri Partition. When a schema is provided, the uri partition is also pre-populated with the name of each target namespace URI declared in the schema, plus some of the namespace URIs used in wildcard terms (see section 8.5.3.1.7 Wildcard Terms for the condition), appended in lexicographical order.

Prefix content items are assigned to partitions based on their associated namespace URI. Partitions containing prefix content items are optimized for frequent use of compact identifiers and the string table is pre-populated with entries as described in D.2 Initial Entries in Prefix Partitions.

The local-name portion of qname content items are assigned to partitions based on the namespace URI of the qname content item of which the local-name is a part. Partitions containing local-names are optimized for frequent use of string literals and the string table is pre-populated with entries as described in D.3 Initial Entries in Local-Name Partitions. When a schema is provided, the string table is also pre-populated with the local name of each attribute, element and type declared in the schema, partitioned by namespace URI and sorted lexicographically.

Value content items are assigned simultaneously to the global value partition as well as to the "local" value partition that corresponds to the qname of the attribute or element in context at the time when the string table is looked up and the string value is not found in both global and local value partitions. Partitions containing value content items are optimized for frequent use of string literals and are initially empty.

7.3.2 Partitions Optimized for Frequent use of Compact Identifiers

String table partitions that are expected to contain a relatively small number of entries used repeatedly throughout the document are optimized for the frequent use of compact identifiers. This includes the uri partition and all partitions containing prefix content items.

When a string value is found in a partition optimized for frequent use of compact identifiers, the string value is represented as the value (i+1) encoded as an n-bit Unsigned Integer (7.1.9 n-bit Unsigned Integer), where i is the value of the compact identifier, n is ⌈ log2 (m+1) ⌉ and m is the number of entries in the string table partition at the time of the operation.

When a string value is not found in a partition optimized for frequent use of compact identifiers, the String value is represented as zero (0) encoded as an n-bit Unsigned Integer, followed by the string literal encoded as a String (7.1.10 String). After encoding the String value, it is added to the string table partition and assigned the next available compact identifier m.

7.3.3 Partitions Optimized for Frequent use of String Literals

The remaining string table partitions are optimized for the frequent use of string literals. This includes all string table partitions containing local-names and all string table partitions containing value content items.

When a string value is found in the partitions containing local-names, the string value is represented as zero (0) encoded as an Unsigned Integer (see 7.1.6 Unsigned Integer) followed by an the compact identifier of the string value. The compact identifier of the string value is encoded as an n-bit unsigned integer (7.1.9 n-bit Unsigned Integer), where n is ⌈ log2 m ⌉ and m is the number of entries in the string table partition at the time of the operation.

When a string value is not found in the partitions containing local-names, its string literal is encoded as a String (see 7.1.10 String) with the length of the string is incremented by one. After encoding the string value, it is added to the string table partition and assigned the next available compact identifier m.

As described above, value content items are assigned to two partitions, a "local" value partition and the global value partition. When a string value is found in the "local" value partition, the string value is represented as zero (0) encoded as an Unsigned Integer (see 7.1.6 Unsigned Integer) followed by the compact identifier of the string value in the "local" value partition. When a string value is found in the global value partition, but not in the "local" value partition, the String value is represented as one (1) encoded as an Unsigned Integer (see 7.1.6 Unsigned Integer) followed by the compact identifier of the String value in the global value partition. The compact identifier is encoded as an n-bit unsigned integer (7.1.9 n-bit Unsigned Integer), where n is ⌈ log2m ⌉ and m is the number of entries in the associated partition at the time of the operation.

When a string value is not found in the global or "local" value partition, its string literal is encoded as a String (see 7.1.10 String) with the length incremented by two. After encoding the string value, it is added to both the associated "local" value string table partition and the global value string table partition.

7.4 Pluggable CODECS

By default, each typed value in an EXI stream is represented by the associated built-in EXI data type (e.g., seeTable 7-1). However, [Definition:]  EXI processors MAY provide the capability to specify different built-in types or user-defined encoder/decoders (CODECS) for representing specific schema types. This capability is called Pluggable CODECS.

EXI processors that support Pluggable CODECS MAY provide external means to define and install user-defined CODECS, of which EXI processors are free to choose implementation dependent mechanisms. EXI processors MAY also provide means for applications or users to specify alternate built-in types or user-defined CODECS for representing specific schema types, the mechanisms of which are again implementation dependent.

When an EXI processor encodes an EXI stream using Pluggable CODECS, it MUST specify in the EXI header each schema type that is not represented using the default built-in type and the alternate built-in type or user-defined CODEC used for each one unless the whole EXI Options part of the header is omitted. An EXI processor that attempts to decode an EXI stream that specifies a user-defined CODEC in the EXI header that it does not recognize MAY report a warning, but this is not an error. However, when an EXI processor encounters a typed value that was encoded by a user-defined CODEC that it does not support, it MUST report an error.

The EXI options header, when it appears in an EXI stream, MUST include a codecMap element for each schema type that is not represented using the default built-in type. The codecMap element includes two child elements. The QName of the first child element identifies the schema type that is not represented using the default built-in type and the QName of the second child element identifies the alternate built-in type or user-defined CODEC used to represent that type. Built-in types are identified by the type identifiers in Table 7-1.

For example, the following codecMap element indicates all values of type xsd:decimal in the EXI stream are represented using the built-in String type, which has the type ID xsd:string:

Example 7-1. codecMap indicating all Decimal values are represented using built-in String type
    <codecMap xmlns:xsd="http://www.w3.org/2001/XMLSchema">
        <xsd:decimal/>
        <xsd:string/>
    </codecMap>

It is the responsibility of an EXI processor to interface with a particular implementation of built-in types or user-defined CODECs properly. In the example above, an EXI processor may need to provide a string value of the data being processed that is typed as xsd:decimal in order to interface with a built-in String type. In such a case, some EXI processors may have started with a decimal value and such processors may well translate the value into a string before passing the data to the built-in String type while other EXI processors may already have a string value of the data so that it can pass the value directly to the built-in String type without any translation.

As another example, the following codecMap element indicates all values of the used-defined type geo:geometricSurface are represented using the user-defined CODEC geo:geometricInterpolator:

Example 7-2. codecMap illustrating a used defined typed represented by a user defined CODEC.
    <codecMap xmlns:geo="http://www.example.com/Geometry">
        <geo:geometricSurface/>
	<geo:geometricInterpolator/>
    </codecMap>

Note:

EXI only defines a way to indicate the use of user-defined CODECs for representing values of specific types. CODECs which are assigned to types by QNames, are omnipresent only if the QName is one of those that represent built-in EXI datatypes. For CODECs of other QNames, EXI does not provide nor suggest a method by which they are identified and shared between EXI Processors. Therefore, its use needs to be restrained by weighing alternatives and considering the consequences of each in pros and cons, in order to avoid unruly proliferation of documents that use custom CODECs. Those applications that ever find Pluggable CODECS useful should make sure that they exchange such documents only among the parties that are pre-known or discovered to be able to process the user-defined CODECs that are in use. Otherwise, if it is not for certain if a receiver undestands the particular user-defined CODECs, the sender should never attempt to send documents that use user-defined CODECs to that recipient.

8. EXI Grammars

EXI is a knowledge based encoding that uses a set of grammars to determine which events are most likely to occur at any given point in an EXI stream and encodes the most likely alternatives in fewer bits. It does this by mapping the stream of events to a lower entropy set of representative values and encoding those values using a set of simple variable length codes or an EXI compression algorithm.

The result is a very simple, small algorithm that uniformly handles schema-less encoding, schema-informed encoding, schema deviations, and any combination thereof in EXI streams. These variations do not require different algorithms or different parsers, they are simply informed by different combinations of grammars.

The following sections describe the grammars used to inform the EXI encoding.

Note:

The grammar semantics in this specification are written for clarity and generality. They do not prescribe a particular implementation approach.

8.1 Grammar Notation

8.1.1 Fixed Event Codes

Each grammar production has an event code, which is represented by a sequence of one to three parts separated by periods ("."). Each part is an unsigned integer. The following are examples of grammar productions with event codes as they appear in this specification.

Example 8-1. Example productions with fixed event codes
ProductionsEvent Codes

LeftHandSide 1 :
Event 1   NonTerminal 10
Event 2   NonTerminal 21
Event 3   NonTerminal 32.0
Event 4   NonTerminal 42.1
Event 5   NonTerminal 52.2.0
Event 6   NonTerminal 62.2.1

LeftHandSide 2 :
Event 1   NonTerminal 10
Event 2   NonTerminal 21.0
Event 3   NonTerminal 31.1

The number of parts in a given event code is called the event code's length. No two productions with the same non-terminal symbol on the left-hand-side are permitted to have the same event code.

8.1.2 Variable Event Codes

Some non-terminal symbols are used on the right-hand-side in a production without an event prefixed to them. Such non-terminal symbols are macros and they are used to capture some recurring set of productions into symbols so that a symbol can be used in the grammar representation instead of including all the productions the macro represents in place every time it is used.

Example 8-2. Example productions that use macro non-terminal symbols
ABigProduction 1 :
Event 1   NonTerminal 10
Event 2   NonTerminal 21
LEFTHANDSIDE 1 (2.0)2.0

ABigProduction 2 :
Event 1   NonTerminal 10
LEFTHANDSIDE 1 (1.1)1.1
Event 2   NonTerminal 21.2

Because non-terminal macros are injected into the right-hand-side of more than one production, the event codes of productions with these macro non-terminals on the left-hand-side are not fixed, but will have different event code values depending on the context in which the macro non-terminal appears. This specification calls these variable event codes and uses variables in place of individual event code parts to indicate the event code parts are determined by the context. Below are some examples of variable event codes:

Example 8-3. Example non-terminal macros and its productions with variable event codes
LEFTHANDSIDE 1 (n.m) :
EVENT 1  NONTERMINAL 1 n.0
EVENT 2  NONTERMINAL 2 n.1
EVENT 3  NONTERMINAL 3 n. m+2
EVENT 4  NONTERMINAL 4 n. m+3
EVENT 5  NONTERMINAL 5 n. m+4.0
EVENT 6  NONTERMINAL 6 n. m+4.1

Unless otherwise specified, the variable n evaluates to the event code of the production in which the macro non-terminal LEFTHANDSIDE 1 appears on the right-hand-side. Similarly, the expression n. m represents the first two parts of the event code of the production in which the macro non-terminal LEFTHANDSIDE 1 appears on the right-hand-side.

Non-terminal macros are used in this specification for notational convenience only. They are not non-terminals, even though they are used in place of non-terminals. Productions that use non-terminal macros on the right-hand-side need to be expanded by macro substitution before such productions are interpreted. Therefore, ABigProduction 1 and ABigProduction 2 shown in the preceding example are equivalent to the following set of productions derived by expanding the non-terminal macro symbol LEFTHANDSIDE 1 and evaluating the variable event codes.

Example 8-4. Expanded productions equivalent to the productions used above
ABigProduction 1 :
Event 1   NonTerminal 10
Event 2   NonTerminal 21
EVENT 1  NONTERMINAL 12.0
EVENT 2  NONTERMINAL 22.1
EVENT 3  NONTERMINAL 32.2
EVENT 4  NONTERMINAL 42.3
EVENT 5  NONTERMINAL 52.4.0
EVENT 6  NONTERMINAL 62.4.1

ABigProduction 2 :
Event 1   NonTerminal 10
EVENT 1  NONTERMINAL 11.0
EVENT 2  NONTERMINAL 21.1
Event 2   NonTerminal 21.2
EVENT 3  NONTERMINAL 31.3
EVENT 4  NONTERMINAL 41.4
EVENT 5  NONTERMINAL 51.5.0
EVENT 6  NONTERMINAL 61.5.1

8.2 Grammar Event Codes

Each production rule in the EXI grammar includes an event code value that approximates the likelihood the associated production rule will be matched over the other productions with the same left-hand-side non-terminal symbol. Ultimately, the event codes determine the value(s) by which each non-terminal symbol will be represented in the EXI stream.

To understand how a given event code approximates the likelihood a given production will matched, it is useful to visualize the event codes for a set of production rules that have the same non-terminal symbol on the left-hand-side as a tree. For example, the following set of productions:

Example 8-5. Example productions with event codes
ElementContent :
EE0
SE (*) ElementContent1.0
CH ElementContent1.1
ER ElementContent1.2
CM ElementContent1.3.0
PI ElementContent1.3.1

represents a set of information items that might occur as element content after the start tag. Using the production event codes, we can visualize this set of productions as follows:


Event code tree for ElementContent grammar

Figure 8-1. Event code tree for ElementContent grammar


where the non-terminal symbols are represented by the leaf nodes of the tree and the event code of each production rule that contains a non-terminal symbol defines a path from the root of the tree to the node associated with that symbol. We call this the event code tree for a given set of productions.

An event code tree is similar to a Huffman tree [Huffman Coding] in that shorter paths are generally used for symbols that are considered more likely. However, event code trees are far simpler and less costly to compute and maintain. Event code trees are shallow and contain at most three levels. In addition, the length of each event code in the event code tree is assigned statically without analyzing the data. This classification provides some of the benefits of a Huffman tree without the cost.

8.3 Pruning Unneeded Productions

As discussed in section 6.3 Fidelity Options, applications MAY provide a set of fidelity options to specify the XML features they require. EXI processors MUST use these fidelity options to prune the events that are not required from the grammars, improving compactness and processing efficiency.

For example, the following set of productions represent the set of information items that might occur as element content after the start tag.

Example 8-6. Example productions with full fidelity
ElementContent :
EE0
SE (*) ElementContent1.0
CH ElementContent1.1
ER ElementContent1.2
CM ElementContent1.3.0
PI ElementContent1.3.1

If an application sets the fidelity options preserve.comments, preserve.pis and preserve.dtd to false, the productions matching comment (CM), processing instruction (PI) and entity reference (ER) events are pruned from the grammar, producing the following set of productions:

Example 8-7. Example productions after pruning
ElementContent :
EE0
SE (*) ElementContent1.0
CH ElementContent1.1

Removing these productions from the grammar tells EXI processors that comments and processing instructions will never occur in the EXI stream, which reduces the entropy of the stream allowing it to be encoded in fewer bits.

Each time a production is removed from a grammar, the event codes of the other productions with the same non-terminal symbol on the left-hand-side MUST be adjusted to keep them contiguous if its removal has left the remaining productions with non-contiguous event codes.

8.4 Built-in XML Grammars

This section describes the built-in XML grammar used by EXI when no additional information is available to describe the contents of the EXI stream. The built-in XML grammar is used when no schema exists, for elements with unrestricted types (e.g., xsd:anyType) and for schema extensions and deviations that are not declared by the schema.

A built-in XML grammar is self-evolving. The built-in grammar continuously reflects the knowledge being learned while processing an EXI stream onto itself in order to keep refining itself for subsequent use of the grammar within the extent of processing a single stream.

8.4.1 Built-in Document Grammar

In the absence of additional information about the content of the EXI stream, the following grammar describes the events that will occur in an EXI document.

SyntaxEvent Code

Document :
SD DocContent0

DocContent :
SE (*) DocEnd0
DT DocContent1.0
CM DocContent1.1.0
PI DocContent1.1.1

DocEnd :
ED0
CM DocEnd1.0
PI DocEnd1.1

Semantics:

All productions in the built-in Document grammars of the form LeftHandSide : SE (*) RightHandSide are evaluated as follows:

  1. Let qname be the qualified name of the element matched by SE (*)
  2. If a grammar does not exist for element qname, create one based on the Built-in Element Grammar
  3. Evaluate the element contents using a built-in grammar for element qname
  4. Evaluate the remainder of event sequence using RightHandSide.

8.4.2 Built-in Fragment Grammar

In the absence of additional information about the contents of an EXI stream, the following grammar describes the events that will occur in an EXI fragment. The grammar shown below represents the initial set of productions that belong to a built-in fragment grammar at the start of a stream processing, which is supplemented by the semantic description that explains the rules used to evolve the built-in fragment grammar to continuously improve it and be better prepared for subsequent uses of the same grammar during the rest of the processing of the stream.

SyntaxEvent Code

Fragment :
SD FragmentContent0

FragmentContent :
SE (*) FragmentContent0
ED1
CM FragmentContent2.0
PI FragmentContent2.1

Semantics:

All productions in the built-in Fragment grammars of the form LeftHandSide : SE (*) RightHandSide are evaluated as follows:

  1. Let qname be the qualified name of the element matched by SE (*)
  2. If a grammar does not exist for element qname, create one based on the Built-in Element Grammar
  3. Evaluate the element contents using a built-in grammar for element qname
  4. Create a production of the form LeftHandSide : SE (qname) RightHandSide with an event code 0
  5. Increment the first part of the event code of each production in the current grammar with the non-terminal LeftHandSide on the left hand side.
  6. Add the production created in step 4 to the grammar
  7. Evaluate the remainder of event sequence using RightHandSide.

All productions of the form LeftHandSide : SE (qname) RightHandSide that were previously added to the grammar upon the first occurrence of the element that has the qualified name qname are evaluated as follows when they are matched:

  1. Evaluate the element contents using a built-in grammar for element qname
  2. Evaluate the remainder of event sequence using RightHandSide.

8.4.3 Built-in Element Grammar

[Definition:]  EXI defines a built-in element grammar that is used in the absence of additional information about the contents of an EXI element prior to its processing. A built-in element grammar shown below is prescibed by EXI to reflect the events that will occur in an element and the order amongst them in general without any further constraint about what is likely or not likely to occur inside elements.

A single instance of built-in element grammar is shared by those elements in a stream that have the same qualified name and do not have additional a priori constraints as to their content. A separate instance of built-in element grammar is assigned to each qualified name upon the first occurrence of the elements of the same qualified name, thereafter the grammar continuously evolves by reflecting the knowledge learned while processing the content of those elements. The grammar shown below represents the initial set of productions that belong to a built-in element grammar at the time when a new instance is created, which is supplemented by the semantic description that explains the rules that are applied by the grammar onto itself to evolve and be better prepared for subsequent uses of the same grammar instance during the rest of the processing of the stream.

SyntaxEvent Code

StartTagContent :
EE0.0
AT (*) StartTagContent0.1
NS StartTagContent0.2
ChildContentItems (0.3)

ElementContent :
EE0
ChildContentItems (1.0)

ChildContentItems (n.m) :
SE (*) ElementContent n. m
CH ElementContent n.(m+1)
ER ElementContent n.(m+2)
CM ElementContent n.(m+3).0
PI ElementContent n.(m+3).1

Semantics:

All productions in the built-in Element grammar of the form LeftHandSide: AT (*) RightHandSide are evaluated as follows:

  1. Let qname be the qualified name of the attribute matched by AT (*)
  2. Create a production of the form LeftHandSide : AT (qname) StartTagContent with an event code 0 and increment the first part of the event code of each production in the current grammar with the non-terminal LeftHandSide on the left hand side
  3. Add the production created in the previous step to the grammar
  4. Evaluate the remainder of event sequence using RightHandSide.

All productions in the built-in Element grammars of the form LeftHandSide : SE (*) RightHandSide are evaluated as follows:

  1. Let qname be the qualified name of the element matched by SE (*)
  2. If a grammar does not exist for element qname, create one based on the Built-in Element Grammar
  3. Evaluate the element contents using a built-in grammar for element qname
  4. Create a production of the form LeftHandSide : SE (qname) RightHandSide with an event code 0
  5. Increment the first part of the event code of each production in the current grammar with the non-terminal LeftHandSide on the left hand side.
  6. Add the production created in step 4 to the grammar
  7. Evaluate the remainder of event sequence using RightHandSide.

All productions of the form LeftHandSide : SE (qname) RightHandSide that were previously added to the grammar upon the first occurrence of the element that has the qualified name qname are evaluated as follows when they are matched:

  1. Evaluate the element contents using a built-in grammar for element qname
  2. Evaluate the remainder of event sequence using RightHandSide.

All productions in the built-in Element grammar of the form LeftHandSide : CH RightHandSide are evaluated as follows:

  1. If a production of the form, LeftHandSide : CH RightHandSide with an event code of length 1 does not exist in the current element grammar, create one with event code 0 and increment the first part of the event code of each production in the current grammar with the non-terminal LeftHandSide on the left hand side.
  2. Add the production created in step 1 to the grammar
  3. Evaluate the remainder of event sequence using RightHandSide.

8.5 Schema-informed Grammars

This section describes the schema-informed grammars used by EXI when schema information is available to describe the contents of the EXI stream. Schema-informed grammars are independent of any particular schema language and can be derived from W3C XML Schemas, RELAX NG schemas, DTDs or other regular languages for describing what is likely to occur in an EXI stream.

Schema-informed grammars accept all XML documents and fragments regardless of whether and how closely they match the schema. The encoder encodes individual events using schema-informed grammars where they are available and falls back to the built-in XML grammars where they are not. In general, events for which a schema-informed grammar exists will be encoded more efficiently.

Unlike built-in XML grammars, schema-informed grammars are static and do not evolve, which permits the reuse of schema-informed grammars across the processing of multiple EXI streams. This is a single outstanding difference between the two grammar systems.

With such differences, however, their uses are not exclusive, but are connected together at individual grammar level. Of particular note is that built-in grammars that are called upon for schema-deviated parts or elements with unrestricted types (e.g. xsd:anyType) are still subject to dynamic grammar learning during the rest of the EXI stream processing as is described in 8.4.2 Built-in Fragment Grammar.

8.5.1 Schema-informed Document Grammar

When schema information is available to describe the contents of an EXI stream, the following grammar describes the events that will occur in an EXI document.

SyntaxEvent Code

Document :
SD DocContent0

DocContent :
SE (G 0) DocEnd0
SE (G 1) DocEnd1
  ⋮
SE (G n-1) DocEndn-1
SE (*) DocEnd n.0
DT DocContent n.1
CM DocContent n.2.0
PI DocContent n.2.1

N.B.
  • The variable n in the grammar above is the number of global elements declared in the schema. G 0, G 1, ... G n-1 represent all the qnames of global elements sorted lexicographically, first by localName, then by uri.
  • The terminal symbol SE (*) is only matched if a more specific match does not exist among SE(G 0), SE(G 1), ... SE(G n-1).
DocEnd :
ED0
CM DocEnd1.0
PI DocEnd1.1

Semantics:

All productions in the schema-informed document grammars of the form LeftHandSide : SE (*) RightHandSide are evaluated as follows:

  1. Let qname be the qualified name of the element matched by SE (*)
  2. If a grammar does not exist for Element qname, create one based on the Built-in Element Grammar
  3. Evaluate the element contents using the SE (qname) grammar

8.5.2 Schema-informed Fragment Grammar

When schema information is available to describe the contents of an EXI stream, the following grammar describes the events that will occur in an EXI fragment.

SyntaxEvent Code

Fragment :
SD FragmentContent0

FragmentContent :
SE (F 0) FragmentContent0
SE (F 1) FragmentContent1
  ⋮
SE (F n-1) FragmentContentn-1
ED n
SE (*) FragmentContent(n+1).0
CM FragmentContent(n+1).1.0
PI FragmentContent(n+1).1.1

N.B.
  • The variable n in the grammar above is the number of unique element qnames declared in the schema. F 0, F 1, ... F n-1 represent all the unique qnames of elements sorted lexicographically, first by localName, then by uri. If there is more than one element with the same qname, the qname is included only once with a relaxed grammar that accepts any content.
  • The terminal symbol SE (*) is only matched if a more specific match does not exist among SE(F 0), SE(F 1), ... SE(F n-1).
Semantics:

All productions in the schema-informed fragment grammars of the form LeftHandSide : SE (*) RightHandSide are evaluated as follows:

  1. Let qname be the qualified name of the element matched by SE (*)
  2. If a grammar does not exist for Element qname, create one based on the Built-in Element Grammar
  3. Evaluate the element contents using the SE (qname) grammar

8.5.3 Schema-informed Element and Type Grammars

[Definition:]  When one or more XML Schema is available to describe the contents of an EXI stream, a schema-informed element grammar Element i  is derived for each element declaration E i  described by the schemas, where 0 ≤ i < n and n is the number of element declarations in the schema.

[Definition:]  When one or more XML Schema is available to describe the contents of an EXI stream, a schema-informed type grammar Type i  is derived for each named type declaration T i  described by the schemas, where 0 ≤ i < n and n is the number of type declarations in the schema.

Each schema-informed element grammar and type grammar is constructed according to the following four steps:

  1. Create a proto-grammar that describes the content model according to available schema information (see section 8.5.3.1 EXI Proto-Grammars).
  2. Normalize the proto-grammar into an EXI grammar (see section 8.5.3.2 EXI Normalized Grammars).
  3. Assign event codes to each production in the normalized EXI grammar (see section 8.5.3.3 Event Code Assignment).
  4. Add additional productions to the normalized EXI grammar to represent events that may occur in the EXI stream, but are not described by the schema, such as comments, processing-instructions, schema-deviations, etc. (see section 8.5.3.4 Undeclared Productions).

Each element grammar Element i  includes a sequence of n non-terminals Element i, j , where 0 ≤ j < n. The content of the entire element is described by the first non-terminal Element i, 0 . The remaining non-terminals describe portions of the element content. Likewise, each type grammar Type i  includes a sequence of n non-terminals Type i, j  and the content of the entire type is described by the first non-terminal Type i, 0 .

The algorithms expressed in this section provide a concise and formal description of the EXI grammars for a given set of XML Schema definitions. More efficient algorithms likely exist for generating these EXI grammars and EXI implementations are free to use any algorithm that produces grammars and event codes that generate EXI encodings that match those produced by the grammars described here.

8.5.3.1 EXI Proto-Grammars

This section describes the process for creating the EXI proto-grammars from XML Schema declarations and definitions. EXI proto-grammars differ from normalized EXI grammars in that they may contain productions of the form:

LeftHandSide :
RightHandSize

where LeftHandSide and RightHandSide are both non-terminals. Whereas, all productions in a normalized EXI grammar contain exactly one terminal symbol and at most one non-terminal symbol on the right hand side. This is a restricted form of Greibach normal form [Greibach Normal Form].

EXI proto-grammars are derived from XML Schema in a straight-forward manner and can easily be normalized with simple algorithm (see 8.5.3.2 EXI Normalized Grammars).

8.5.3.1.1 Grammar Concatenation Operator

Proto-grammars are specified in a modular, constructive fashion. XML Schema components such as terms, particles, attribute uses are transformed each into a distinct proto-grammar, leveraging proto-grammars of their sub-components. At various stages of proto-grammar construction, two or more of proto-grammars are concatenated one after another to form more composite grammars.

The grammar concatenation operator ⊕ is a binary, associative operator that creates a new grammar from its left and right grammar operands. The new grammar accepts any set of symbols accepted by its left operand followed by any set of symbols accepted by its right operand.

Given a left operand Grammar L and a right operand Grammar R, the following operation

Grammar LGrammar R

creates a combined grammar by replacing each production of the form

Grammar Lk :
EE

where 0 ≤ k < n and n is the number of non-terminals that occur on the left hand side of productions in Grammar L, with a production of the form

Grammar Lk :
Grammar R0

connecting each accept state of Grammar L with the start state of Grammar R.

8.5.3.1.2 Element Grammars

This section describes the process for creating an EXI element grammar from an XML Schema element declarationXS1.

Given an element declaration E i , with properties {name}, {target namespace}, {type definition}, {scope} and {nillable}, create a corresponding EXI grammar Element i  for evaluating the contents of elements in the specified {scope} with qname localName = {name} and qname uri = {target namespace} .

Let T j be the {type definition} of E i  and Type j be the type grammar created from T j . The grammar Element i  describing the content model of E i  is created as follows.

Syntax:
Element i, 0 :
Type j, 0

8.5.3.1.3 Type Grammars

Given an XML Schema type definition T i , two type grammars are created, which are denoted by Type i  and TypeEmpty i . Type i is a grammar that fully reflects the type definition of T i , whereas TypeEmpty i is a grammar that accepts only the attribute uses and attribute wildcards of T i , if any.

Sections 8.5.3.1.3.1 SimpleType Grammars and 8.5.3.1.3.2 Complex Type Grammars describe the processes for creating Type i  and TypeEmpty i  from XML Schema simple type definitionsXS1 and complex type definitionsXS1.

8.5.3.1.3.1 SimpleType Grammars

This section describes the process for creating an EXI type grammar from an XML Schema simple type definitionXS1.

Given a simple type definition T i , with properties {name} and {target namespace}, create two new EXI grammars Type i and TypeEmpty ifor evaluating instances of types with qname localName = {name} and qname uri = {target namespace}.

Add the following grammar productions to Type i  and TypeEmpty i :

Syntax:
Type i, 0  :
CH [schema-valid value ] Type i, 1
Type i, 1  :
EE

TypeEmpty i, 0  :
EE

Note:
Productions of the form LeftHandSide : CH [schema-valid value ] RightHandSide represent typed character data that is valid with respect to the schema. Schema-invalid character data is represented by productions of the form LeftHandSide : CH [schema-invalid value ] RightHandSide described in section 8.5.3.4.1 Adding Productions when Strict is False.
8.5.3.1.3.2 Complex Type Grammars

This section describes the process for creating an EXI type grammar from an XML Schema complex type definitionXS1.

Given a complex type definition T i , with properties {name}, {target namespace}, {base type definition}, {derivation method}, {abstract}, {attribute uses}, {attribute wildcard} and {content type}, create two EXI grammars Type i and TypeEmpty ifor evaluating instances of types with qname localName = {name} and qname uri = {target namespace} , as follows .

Generate a grammar Attribute i , for each attribute use A i in {attribute uses} according to section 8.5.3.1.4 Attribute Uses. If an {attribute wildcard} is specified, add the following production to each grammar Attribute i generated above:

Attribute i, 0  :
AT(*) Attribute i, 0

Sort the attribute grammars first by qname localName, then by qname uri to form a sequence of grammars G 0 , G 1 , …, G n-1 , where n is the number of attribute uses in {attribute uses}.

If {content type} is a simple type definition T j , generate a grammar Content i as Type j according to section 8.5.3.1.3.1 SimpleType Grammars. Otherwise, if {content type} has a content model particle, generate a grammar Content i according to section 8.5.3.1.5 Particles.

If an {attribute wildcard} is specified and {content type} is not empty, add the following production to the Content i grammar generated above:

Content i, 0  :
AT(*) Content i, 0

Note that productions of the form LeftHandSide : AT(*) RightHandSide are only matched if a more specific match for the current event does not exist in the grammar.

Then, create the grammar Type i by combining the sequence of attribute use grammars constructed above and the Content i grammar using the grammar concatenation operator defined in section 8.5.3.1.1 Grammar Concatenation Operator as follows:

Type i = G 0G 1 ⊕ … ⊕ G n-1Content i

Create the grammar TypeEmpty i by combining only the sequence of attribute use grammars without ensuing content grammar as follows:

TypeEmpty i = G 0G 1 ⊕ … ⊕ G n-1
8.5.3.1.4 Attribute Uses

Given an attribute use A i with properties {required} and {attribute declaration}, where {attribute declaration} has properties {name}, {target namespace} and {scope}, generate a new EXI grammar Attribute i for evaluating attributes in the specified {scope} with qname localName = {name} and qname uri = {target namespace}. Add the following grammar productions to Attribute i :

Attribute i, 0  :
AT(qname) Attribute i, 1

Attribute i, 1  :
EE

If the {required} property of A i is false, add the following grammar production to indicate this attribute occurrence may be omitted from the content model.

Attribute i, 0  :
EE
8.5.3.1.5 Particles

Given an XML Schema particleXS1 P i with {min occurs}, {max occurs} and {term} properties, generate a grammar Particle i for evaluating instances of P i as follows.

If {term} is an element declaration, generate the grammar Term 0 according to section 8.5.3.1.6 Element Terms. If {term} is a wildcard, generate the grammar Term 0 according to section 8.5.3.1.7 Wildcard Terms Wildcard Terms. If {term} is a model group, generate the grammar Term 0 according to section 8.5.3.1.8 Model Group Terms.

Create {min occurs} copies of Term 0 .

G 0 , G 1 , …, G {min occurs}-1

If {max occurs} is not unbounded, create {max occurs} – {min occurs} additional copies of Term 0 ,

G {min occurs} , G {min occurs}+1 , …, G {max occurs}-1

Add the following productions to each of the grammars that do not already have a production of this form.

G i, 0  :
EE     where {min occurs} ≤ i < {max occurs}

indicating these instances of Term 0 may be omitted from the content model. Then, create the grammar for Particle i using the grammar concatenation operator defined in section 8.5.3.1.1 Grammar Concatenation Operator as follows:

Particle i = G 0G 1 ⊕ … ⊕ G {max occurs}-1

Otherwise, if {max occurs} is unbounded, generate one additional copy of Term 0 , G {min occurs} and replace all productions of the form:

G {min occurs}, k :
EE

with productions of the form:

G {min occurs}, k :
G {min occurs}, 0

indicating this term may be repeated indefinitely. Then if there is no production of the form:

G {min occurs}, 0 :
EE

add one after the other productions with the non-terminal G {min occurs}, 0 on the left hand side, indicating this term may be omitted from the content model. Then, create the grammar for Particle i using the grammar concatenation operator defined in section 8.5.3.1.1 Grammar Concatenation Operator as follows:

Particle i = G 0G 1 ⊕ … ⊕ G {min occurs}
8.5.3.1.6 Element Terms

Given a particle {term} PT i that is an XML Schema element declarationXS1 with properties {name} and {target namespace}, let S be the set of element declarations that directly or indirectly reaches the element declaration PT i through the chain of {substitution group affiliation} property of the elements, plus PT i itself if was not in the set. Sort the element declarations in S lexicographically first by {name} then by {target namespace}, which makes a sorted list of element declarations E 0 , E 1 , … E n-1  where n is the cardinality of S. Then create the grammar ParticleTerm i with the following grammar productions:

Syntax:

ParticleTerm i, 0 :
SE(qname 0 ) ParticleTerm i, 1
SE(qname 1 ) ParticleTerm i, 1
    ⋮
SE(qname n-1 ) ParticleTerm i, 1

ParticleTerm i, 1 :
EE

Note:

In the productions above, qname x  (where 0 ≤ x < n) represents a qname of which localname and uri are {name} property and {target namespace} property of the element declaration E x , respectively.

Semantics:


In a schema-informed grammar, all productions of the form LeftHandSide : SE(qname) RightHandSide are evaluated as follows:

  1. Evaluate the element contents using the SE(qname) grammar.
  2. Evaluate the remainder of the event sequence using RightHandSide
8.5.3.1.7 Wildcard Terms

Given a particle {term} PT i that is an XML Schema wildcardXS1 with property {namespace constraint}, a grammar that reflects the wildcard definition is created as follows.

Create a grammar ParticleTerm i containing the following grammar production:

ParticleTerm i, 1 :
EE

When the wildcard's {namespace constraint} is either any or other, add the following production to ParticleTerm i .

ParticleTerm i, 0 :
SE(*) ParticleTerm i, 1

Otherwise (i.e. {namespace constraint} being a set of namespace names), for each member value uri x  in {namespace constraint} where 0 ≤ x < n, and n is the number of members, augment the uri partition of the String table with uri x  (see section 7.3.1 String Table Partitions for String table pre-population), and add the following production to ParticleTerm i .

ParticleTerm i, 0 :
SE(uri x : *) ParticleTerm i, 1

Note that productions of which right hand side start with terminal SE(*) or SE(uri x : *) are only matched if a more specific match for the current event does not exist in the grammar. Terminals SE(uri x : *) are matched before it falls back to SE(*) among the productions of same LeftHandSide, if any.

Semantics:

In a schema-informed grammar, all productions of the form LeftHandSide : Terminal RightHandSide where Terminal is one of SE(*) or SE(uri x : *) are evaluated as follows:
  1. Let qname be the qualified name of the element matched by SE (*) or SE(uri x : *)
  2. If a grammar does not exist for Element qname, create one based on the Built-in Element Grammar.
  3. Evaluate the element contents using the SE(qname) grammar.
  4. Evaluate the remainder of the event sequence using RightHandSide
8.5.3.1.8 Model Group Terms
8.5.3.1.8.1 Sequence Model Groups

Given a particle {term} PT i that is a model group with {compositor} equal to "sequence" and a list of n {particles} P 0 , P 1 , …, P n-1 , create a grammar ParticleTerm i as follows:

If the value of n is 0, add the following productions to the grammar ParticleTerm i .

ParticleTerm i, 0 :
EE

Otherwise, generate a sequence of grammars Particle 0 , Particle 1 , …, Particle n-1 corresponding to the list of particles P 0 , P 1 , …, P n-1 according to section 8.5.3.1.5 Particles. Then combine the sequence of grammars using the grammar concatenation operator defined in section 8.5.3.1.1 Grammar Concatenation Operator as follows:

ParticleTerm i = Particle 0Particle 1 ⊕ … ⊕ Particle n-1
8.5.3.1.8.2 Choice Model Groups

Given a particle {term} PT i that is a model group with {compositor} equal to "choice" and a list of n {particles} P 0 , P 1 , …, P n-1 , create a grammar ParticleTerm i as follows:

If the value of n is 0, add the following productions to the grammar ParticleTerm i .

ParticleTerm i, 0 :
EE

Otherwise, generate a sequence of grammar productions Particle 0 , Particle 1 , …, Particle n-1 corresponding to the list of particles P 0 , P 1 , …, P n-1 according to section 8.5.3.1.5 Particles. Then create the grammar ParticleTerm i with the following grammar productions:

ParticleTerm i, 0 :
Particle 0, 0
Particle 1, 0
    ⋮
Particle n-1, 0

indicating the grammar for the term may accept any one of the given {particles}.

8.5.3.1.8.3 All Model Groups

Given a particle {term} PT i that is a model group with {compositor} equal to "all" and a list of n {particles} P 0 , P 1 , ..., P n-1 , create a grammar ParticleTerm i as follows:

Generate a set of grammars S 0 = { Particle 0 , Particle 1 , ..., Particle n-1 } corresponding to the list of particles P 0 , P 1 , ..., P n-1 according to section 8.5.3.1.5 Particles. Then, generate the grammar ParticleTerm i from the set S 0 by applying the following rules.

  1. Given a newly created grammar G and a set of m grammars, S = {G 0 , G 1 , …, G m-1 }, the productions of G are derived from S by the following steps.

  2. If the value of m is 0, add the following productions to the grammar G, which completes the grammar G.

    G :
    EE

  3. Otherwise, if m > 0, generate a sequence of grammars: Part j = C jAll(S – {G j }) where 0 ≤ j < m, C j is a copy of G j and All(S – {G j }) is the All grammar for the set (S – {G j }) created by applying this sequence of rules recursively starting step 1. Then add the following productions to the grammar G:

    G :
    Part 0, 0
    Part 1, 0
        ⋮
    Part m-1, 0

Note:

Although the algorithm used for constructing all model group grammars presented above is well suited for clearly describing the grammar system in an implementation-independent manner, implementations may choose a more efficient method for grammar construction because the number of grammars the algorithm would generate tends to grow exponentially relative to the number of particles. An example alternative grammar generation strategy that may lend better to implementation would be to use an array of boolean values each of which corresponds one of the particles to keep track of the particle occurrences and construct the grammars at run-time based on those particles that have yet to occur at the time of evaluation. This sort of simplified special handling of all model groups might be appealling given that all model group instances are properly disconnected from another model group instances in that all model group can only appear as the immediate content model of a complex type and the particles that they contain have always element terms, not model group terms. Implementations are free to choose or invent any method or any combination of methods to construct grammars for all model groups.
8.5.3.2 EXI Normalized Grammars

This section describes the process for converting an EXI proto-grammar derived from an XML Schema in accordance with section 8.5.3.1 EXI Proto-Grammars into an EXI normalized grammar. Each production in an EXI normalized grammar has exactly one non-terminal symbol on the left hand side and one terminal symbol on the right hand side followed by at most one non-terminal symbol on the right hand side. In addition, EXI normalized grammars contain no two grammar productions with the same non-terminal on the left side and the same terminal symbol on the right-hand-side. This is a restricted form of Greibach normal form [Greibach Normal Form].

EXI proto-grammars differ from normalized EXI grammars in that they may contain productions of the form:

LeftHandSide :
RightHandSize

where LeftHandSide and RightHandSide are both non-terminals. Therefore, the first step of the normalization process focuses on replacing productions in this form with productions that conform to the EXI normalized grammar rules. This process can produce a grammar that has more than one production with the same non-terminal on the left hand side and the same terminal symbol on the right hand side. Therefore, the second step focuses on eliminating such productions.

The first step of the normalization process is described in Section 8.5.3.2.1 Eliminating Productions with no Terminal Symbol. The second step is described in section 8.5.3.2.2 Eliminating Duplicate Terminal Symbols. Once these two steps are completed, the grammar will be an EXI normalized grammar.

8.5.3.2.1 Eliminating Productions with no Terminal Symbol

Given an EXI proto-grammar G i , with non-terminals G i, 0 , G i, 1 , …, G i, n-1 , replace each production of the form:

G i, j :
G i, k    where 0 ≤ j < n and 0 ≤ k < n

with a set of productions:

G i, j :
RHS(G i, k ) 0
RHS(G i, k ) 1
    ⋮
RHS(G i, k ) m-1

where RHS(G i, k ) 0 , RHS(G i, k ) 1 , …, RHS(G i, k ) m-1 represents the right hand side of each production in G i that has the non-terminal G j, k on the left hand side and m is the number of such productions.

Repeat this process until there are no more production of the form:

G i, j :
G i, k    where 0 ≤ j < n and 0 ≤ k < n

in the grammar G i .

8.5.3.2.2 Eliminating Duplicate Terminal Symbols

Given an EXI proto-grammar G i , with non-terminals G i, 0 , G i, 1 , …, G i, n-1 , identify all pairs of productions that have the same non-terminal on the left hand side and the same terminal symbol on the right hand side of the form:

G i, j :
Terminal G i, k
Terminal G i, l

where k  ≠  l and Terminal represents a particular terminal symbol and replace them with a single production:

G i, j :
Terminal G i, k ⊔ l

where G i, k ⊔ l is a distinct non-terminal that accepts the inputs accepted by G i, k and the inputs accepted by G i, l . Here the notation "  k ⊔ l  " denotes a union set of integers and is used to uniquely identify the index of such a non-terminal. If the non-terminal G i, k ⊔ l does not exist, create it as follows:

G i, k ⊔ l :
RHS(G i, k ) 0
RHS(G i, k ) 1
    ⋮
RHS(G i, k ) m-1

RHS(G i, l ) 0
RHS(G i, l ) 1
    ⋮
RHS(G i, l ) n-1

where RHS(G i, k ) 0, RHS(G i, k ) 1, …, RHS(G i, k ) m-1 and RHS(G i, l ) 0, RHS(G i, l ) 1, …, RHS(G i, l ) n-1 represent the right hand side of each production in the Grammar G i that has the non-terminals G j, k and G j, l on the left hand side respectively and m and n are the number of such productions.

Repeat this process until there are no more productions in the grammar G i of the form:

G i, j :
Terminal G i, k
Terminal G i, l

Then, identify any identical productions of the following form:

G i, j :
Terminal G i, k
Terminal G i, k

where 0 ≤ k < n, n is the number of productions in G i and Terminal represents a specific terminal symbol, then remove one of them until there are no more productions remaining in the grammar G i of this form.

8.5.3.3 Event Code Assignment

This section describes the process for assigning unique event codes to each production in a normalized EXI grammar. Given a normalized EXI grammar G i , apply the following process to each unique non-terminal G i, j that occurs on the left hand side of the productions in G i where 0 ≤ j < n and n is the number of such non-terminals in G i .

Sort all productions with G i, j on the left hand side in the following order:

  1. All productions with AT(qname) on the right hand side sorted lexically by qname localName, then by qname uri, followed by
  2. any production with AT(*) on the right hand side, followed by
  3. all productions with SE(qname) on the right hand side sorted in schema order, followed by
  4. any production with CH on the right hand side, followed by
  5. any production with EE on the right hand side

Given the sorted list of productions P 0 , P 1 , … P n with the non-terminal G i, j on the left hand side, assign event codes to each of the productions as follows:

ProductionsEvent Code
P 0 0
P 1 1
P n-1 n-1
8.5.3.4 Undeclared Productions

The normalized element and type grammars derived from a schema describe the sequences of child elements, attributes and character events that may occur in a particular EXI stream. However, there are additional events that may occur in an EXI stream that are not described by the schema, for example events representing comments, processing-instructions, schema deviations, etc.

This section describes the process for augmenting the normalized element and type grammars with productions that describe events that may occur in the EXI stream, but are not explicitly declared in the schema.

8.5.3.4.1 Adding Productions when Strict is False

This section describes the process for augmenting the normalized grammars when the value of the strict option is false. For each normalized element grammar Element i , identify the first non-terminal Element i, content that includes no productions with the non-terminal AT (qname) on the right hand side. Create a copy Element i, content2 of Element i, content and apply the following procedures.

Add the following production to each non-terminal Element i, j  that does not already include a production of the form Element i, j : EE, such that 0 ≤ j ≤ content.

SyntaxEvent Code

Element i, j :
EE n.m

where n.m represents the next available event code with length 2.


Let E i be the element declaration from which Element i was created and T k be the {type definition} of E i . Let Type k and TypeEmpty k be the type grammars created from T k (see section 8.5.3.1.3 Type Grammars). Add the following productions to Element i .

SyntaxEvent Code

Element i, 0 :
AT(xsi:type) Element i, 0 n.m
AT(xsi:nil) Element i, 0 n.(m+1)


where n.m represents the next available event code with length 2.


Note:

  • The value of each AT (xsi:type) event is represented as a QName (see 7.1.7 QName) unless there is no namespace in scope for the specified QName prefix. If there is no namespace in scope for the specified QName prefix, the AT (xsi:type) event is represented by the AT(*) [schema-invalid value] terminal (see below).
  • The value of each AT (xsi:nil) event is represented as a Boolean (see 7.1.2 Boolean) unless the given value is not a valid Boolean. If the value is not a schema-valid Boolean, the AT (xsi:nil) event is represented by the AT(*) [schema-invalid value] terminal (see below).
Semantics:

  • When using schemas, all productions of the form LeftHandSide : AT (xsi:type) are evaluated as follows:

  1. Let qname be the value of the xsi:type attribute
  2. If a grammar exists for the qname type, evaluate the element contents using the grammar for the qname type instead of the declared type for the current element

  • When using schemas, productions of the form LeftHandSide : AT (xsi:nil) are evaluated as follows:

  1. Let nil be the value of the xsi:nil attribute
  2. If nil is true, evaluate the element contents using the grammar for the TypeEmpty k, 0 type instead of the declared type for the current element

Add the following productions to each non-terminal Element i, j , such that 0 ≤ j ≤ content .

SyntaxEvent Code

Element i, j :
AT (*) Element i, j n.m
AT (qname 0 ) [schema-invalid value] Element i, j n.(m+1).0
AT (qname 1 ) [schema-invalid value] Element i, j n.(m+1).1
    ⋮     ⋮
AT (qname x-1 ) [schema-invalid value] Element i, j n.(m+1).(x-1)
AT (*) [schema-invalid value] Element i, j n.(m+1).(x)


where n.m represents the next available event code with length 2 and x represents the number of attributes declared in the schema for this context.


Note:

  • The value of each AT event that has a [schema-invalid value] is represented as a String (see 7.1.10 String).
  • Like an element, an attribute may occur in a schema-invalid context, have a schema-invalid value or both. However, unlike an element whose occurance and value are represented by separate SE and CH events, the occurance and value of an attribute are represented by a single AT event. Consequently, four kinds of AT terminals are needed to represent the four possible validity states for an attribute. The table below shows the AT terminals that represent each of these four validity states along with the equivalent combinations of SE and CH events for representing elements.

    Table 8-1. Events representing schema-valid and schema-invalid attributes and elements
    Schema-valid valueSchema-invalid value
    Schema-valid occurance
    AT(qname)
    SE(qname) CH
    AT(qname) [schema-invalid value]
    SE(qname) CH [schema-invalid value ]
    Schema-invalid occurance
    AT(*)
    SE(*) CH
    AT(*) [schema-invalid value]
    SE(*) CH [schema-invalid value ]
Semantics:

  • When using schemas, all productions of the form LeftHandSide : AT (*) are evaluated as follows:

  1. Let qname be the qualified name of the attribute matched by AT(*)
  2. If a global attribute definition exists for qname, represent the value of the attribute according to its datatype (see 7. Representing Event Content). Otherwise, represent the value of the attribute as a String (see 7.1.10 String).

Add the following production to Element i .

SyntaxEvent Code

Element i, 0 :
NS Element i, 0 n.m


where n.m represents the next available event code with length 2.

Add the following productions to each non-terminal Element i, j , such that 0 ≤ j ≤ content .

SyntaxEvent Code

Element i, j :
SE (*) Element i, content2 n.m
CH [schema-invalid value ] Element i, content2 n.(m+1)
ER Element i, content2 n.(m+2)
CM Element i, content2 n.(m+3).0
PI Element i, content2 n.(m+3).1


where n.m represents the next available event code with length 2.


Note:

  • Productions of the form LeftHandSide : CH [schema-invalid value ] RightHandSide match schema-invalid character data that is represented as untyped data in the EXI stream. Schema-valid character data is represented as typed data in the EXI stream matched by productions of the form LeftHandSide : CH [schema-valid value ] RightHandSide described in section 8.5.3.1.3.1 SimpleType Grammars.
  • The terminal symbol SE (*) is only matched if a more specific match for the current event does not exist in the grammar.

Add the following productions to Element i, content2 and to each non-terminal Element i, j  that does not already include a production of the form Element i, j : EE, such that content < j < n, where n is the number of non-terminals in Element i .

SyntaxEvent Code

Element i, j :
EE n


where n represents the next available event code with length 1.



Add the following productions to Element i, content2 and to each non-terminal Element i, j , such that content < j < n, where n is the number of non-terminals in Element i .

SyntaxEvent Code

Element i, j :
SE (*) Element i, j n.m
CH [schema-invalid value ] Element i, j n.(m+1)
ER Element i, j n.(m+2)
CM Element i, j n.(m+3).0
PI Element i, j n.(m+3).1


where n.m represents the next available event code with length 2.



Apply the process described above for element grammars to each normalized type grammar Type i .

8.5.3.4.2 Adding Productions when Strict is True

This section describes the process for augmenting the normalized grammars when the value of the strict option is true. For each normalized element grammar Element i, apply the following procedures.

Let E i be the element declaration from which Element i was created and T k be the {type definition} of E i . If T k has named sub-types, add the following production to Element i .

SyntaxEvent Code

Element i, 0 :
AT(xsi:type) Element i, 0 n.m


where n.m represents the next available event code with length 2.


Note:

  • The value of each AT (xsi:type) event is represented as a QName (see 7.1.7 QName).
Semantics:

  • When using schemas, all productions of the form LeftHandSide : AT (xsi:type) are evaluated as follows:

  1. Let qname be the value of the xsi:type attribute
  2. If a grammar exists for the qname type, evaluate the element contents using the grammar for the qname type instead of the declared type for the current element

Let Type k and TypeEmpty k be the type grammars created from T k (see section 8.5.3.1.3 Type Grammars). If the {nillable} property of E i is true, add the following production to Element i .

SyntaxEvent Code

Element i, 0 :
AT(xsi:nil) Element i, 0 n.m


where n.m represents the next available event code with length 2.


Note:

  • The value of each AT (xsi:nil) event is represented as a Boolean (see 7.1.2 Boolean).
Semantics:

  • When using schemas, productions of the form LeftHandSide : AT (xsi:nil) are evaluated as follows:

  1. Let nil be the value of the xsi:nil attribute
  2. If the value of nil is true, evaluate the element contents using the grammar for the TypeEmpty k, 0 type instead of the declared type for the current element
8.5.3.5 Schema-informed Grammar Examples

As an example to exercise the process to produce schema-informed element grammars, consider the following XML Schema fragment declaring two complex-typed elements, <product> and <order>:

Example 8-8. Example XML Schema fragment
<xs:element name="product">
  <xs:complexType>
    <xs:sequence maxOccurs="2">
      <xs:element name="description" type="xs:string" minOccurs="0"/>
      <xs:element name="quantity" type="xs:integer" />
      <xs:element name="price" type="xs:float" />
    </xs:sequence>
    <xs:attribute name="sku" type="xs:string" use="required" />
    <xs:attribute name="color" type="xs:string" use="optional" />
  </xs:complexType>
</xs:element>

<xs:element name="order">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="product" maxOccurs="unbounded" />
    </xs:sequence>
  </xs:complexType>
</xs:element>

Section 8.5.3.5.1 Proto-Grammar Examples guides you through the process of deriving EXI proto-grammars from the schema components available in the example schema above. EXI grammars in the normalized form that correspond to the proto-grammars are shown in section 8.5.3.5.2 Normalized Grammar Examples. Section 8.5.3.5.3 Complete Grammar Examples shows the complete EXI grammars for elements <product> and <order>.

8.5.3.5.1 Proto-Grammar Examples

Grammars for element declaration terms "description", "quantity" and "price" are as follows. See section 8.5.3.1.6 Element Terms for the rules used to derive grammars from element terms.


Term_description

Term_description 0 :
SE("description") Term_description 1

Term_description 1 :
EE

Term_quantity

Term_quantity 0 :
SE("quantity") Term_quantity 1

Term_quantity 1 :
EE

Term_price

Term_price 0 :
SE("price") Term_price 1

Term_price 1 :
EE


Grammars for element particle "description" are derived from Term_description given { minOccurs } value of 0 and { maxOccurs } value of 1. See section 8.5.3.1.5 Particles for the rules used to derive grammars from particles.


Particle_description

Term_description 0 :
SE("description") Term_description 1
EE

Term_description 1 :
EE


Grammars for element particle "quantity" and "prices" are the same as those of their terms (Term_quantity and Term_price, respectively) because { minOccurs } and { maxOccurs } are both 1.


Particle_quantity

Term_quantity 0 :
SE("quantity") Term_quantity 1

Term_quantity 1 :
EE

Particle_price

Term_price 0 :
SE("price") Term_price 1

Term_price 1 :
EE


Grammars for the sequence group term in <product> element declaration is derived from the grammars of subordinate particles as follows. See section 8.5.3.1.8.1 Sequence Model Groups for the rules used to derive grammars from a sequence group.

Term_sequence = Particle_descriptionParticle_quantityParticle_price

which yields the following grammars for Term_sequence.


Term_sequence

Term_description0 :
SE("description") Term_description1
Term_quantity 0

Term_description 1 :
Term_quantity 0

Term_quantity 0 :
SE("quantity") Term_quantity 1

Term_quantity 1 :
Term_price 0

Term_price 0 :
SE("price") Term_price 1

Term_price 1 :
EE


Grammars for the particle that is the content model of element <product> are derived from Term_sequence (shown above) given { minOccurs } value of 1 and { maxOccurs } value of 2. See section 8.5.3.1.5 Particles for the rules used to derive grammars from particles.


Particle_sequence

Term_description0,0 :
SE("description") Term_description0,1
Term_quantity0,0

Term_description0,1 :
Term_quantity0,0

Term_quantity0,0 :
SE("quantity") Term_quantity0,1

Term_quantity0,1 :
Term_price0,0

Term_price0,0 :
SE("price") Term_price0,1

Term_price0,1 :
Term_description1,0

Term_description1,0 :
SE("description") Term_description1,1
Term_quantity1,0
EE

Term_description1,1 :
Term_quantity1,0

Term_quantity1,0 :
SE("quantity") Term_quantity1,1

Term_quantity1,1 :
Term_price1,0

Term_price1,0 :
SE("price") Term_price1,1

Term_price1,1 :
EE


Grammars for attribute uses of attributes "sku" and "color" are as follows. See section 8.5.3.1.4 Attribute Uses for the rules used to derive grammars from attribute uses.


Use_sku

Use_sku 0 :
AT("sku") Use_sku 1

Use_sku 1 :
EE

Use_color

Use_color 0 :
AT("color") Use_color 1
EE

Use_color 1 :
EE


Note the subtle difference between grammars Use_sku and Use_color. In the first grammar of each, only Use_color contains a production of which the right hand side starts with EE, which stems from the difference in their occurrence optionality as defined in the schema.

Finally, grammars for the element <product> is derived from the grammars of its attribute uses and content model particle as follows. See section 8.5.3.1.3.2 Complex Type Grammars for the rules used to derive grammars from a complex type.

ProtoG_ProductElement = Use_colorUse_skuParticle_sequence

which yields the following grammars for element <product>.


ProtoG_ProductElement

Use_color 0 :
AT("color") Use_color 1
Use_sku 0

Use_color 1 :
Use_sku 0

Use_sku 0 :
AT("sku") Use_sku 1

Use_sku 1 :
Term_description0,0

Term_description0,0 :
SE("description") Term_description0,1
Term_quantity0,0

Term_description0,1 :
Term_quantity0,0

Term_quantity0,0 :
SE("quantity") Term_quantity0,1

Term_quantity0,1 :
Term_price0,0

Term_price0,0 :
SE("price") Term_price0,1

Term_price0,1 :
Term_description1,0

Term_description1,0 :
SE("description") Term_description1,1
Term_quantity1,0
EE

Term_description1,1 :
Term_quantity1,0

Term_quantity1,0 :
SE("quantity") Term_quantity1,1

Term_quantity1,1 :
Term_price1,0

Term_price1,0 :
SE("price") Term_price1,1

Term_price1,1 :
EE


The other element declaration <order> can be processed in the same fashion as was seen done above for element <product>, which would generate the following proto-grammars.


Term_product 0,0 :
SE("product") Term_product 0,1

Term_product 0,1 :
Term_product 1,0

Term_product 1,0 :
SE("product") Term_product 1,1
EE

Term_product 1,1 :
Term_product 1,0


In the above grammars, two grammars Term_product 0,1 and Term_product 1,1 are redundant because they serve for no other purpose than simply relaying one non-terminal to another. Though it is not required, the uses of non-terminals Term_product 0,1 and Term_product 1,1 are each replaced by Term_product 1,0 and Term_product 1,0, which produces the following modified proto-grammars.


ProtoG_OrderElement

Term_product 0,0 :
SE("product") Term_product 1,0

Term_product 0,1 :
Term_product 1,0

Term_product 1,0 :
SE("product") Term_product 1,0
EE

Term_product 1,1 :
Term_product 1,0

8.5.3.5.2 Normalized Grammar Examples

The element proto-grammars ProtoG_ProductElement and ProtoG_OrderElement produced in the previous section can be turned into their normalized forms which are shown below with an event code assigned to each production. See section 8.5.3.2 EXI Normalized Grammars for the process that converts proto-grammars into normalized grammars, and section 8.5.3.3 Event Code Assignment for the rules that determine the event codes of productions in normalized grammars.


NormG_ProductElement
Event Code
Use_color 0 :
AT("color") Use_color 1 0
AT("sku") Use_sku 1 1

Use_color 1 :
AT("sku") Use_sku 1 0

Use_sku 1 :
SE("description") Term_description0,1 0
SE("quantity") Term_quantity0,1 1

Term_description0,1 :
SE("quantity") Term_quantity0,1 0

Term_quantity0,1 :
SE("price") Term_price0,1 0

Term_price0,1 :
SE("description") Term_description1,1 0
SE("quantity") Term_quantity1,1 1
EE 2

Term_description1,1 :
SE("quantity") Term_quantity1,1 0

Term_quantity1,1 :
SE("price") Term_price1,1 0

Term_price1,1 :
EE 0

NormG_OrderElement
Event Code
Term_product 0,0 :
SE("product") Term_product 1,0 0

Term_product 1,0:
SE("product") Term_product 1,0 0
EE 1


Note that some grammars that were present in the proto-grammars have been removed in the normalized grammars. Those grammars were culled upon the completion of grammar normalization because their LeftHandSide are not referenced from RightHandSide of any available productions.

8.5.3.5.3 Complete Grammar Examples

The normalized grammars NormG_ProductElement and NormG_OrderElement are augumented with undeclared productions to become complete grammars which are shown below. See section 8.5.3.4 Undeclared Productions for the process that augments normalized grammars with productions that represent terminal symbols not declared in schemas.


CompleteG_ProductElement
Event Code
Use_color 0 :
AT("color") Use_color 1 0
AT("sku") Use_sku 1 1
UndeclaredEE 2.0
UndeclaredStartTagItems (2.1)  Use_color 0 2.1
UndeclaredContentItems (2.6)  Use_sku 1 2.6

Use_color 1 :
AT("sku") Use_sku 1 0
UndeclaredEE 1.0
UndeclaredStartTagItems (1.1)  Use_color 1 1.1
UndeclaredContentItems (1.6)  Use_sku 1 1.6

Use_sku 1 :
SE("description") Term_description0,1 0
SE("quantity") Term_quantity0,1 1
UndeclaredEE 2
UndeclaredContentItems (3.0)  Use_sku 1 3.0

Term_description0,1 :
SE("quantity") Term_quantity0,1 0
UndeclaredEE 1
UndeclaredContentItems (2.0)  Term_description0,1 2.0

Term_quantity0,1 :
SE("price") Term_price0,1 0
UndeclaredEE 1
UndeclaredContentItems (2.0)  Term_quantity0,1 2.0

Term_price0,1 :
SE("description") Term_description1,1 0
SE("quantity") Term_quantity1,1 1
EE 2
UndeclaredContentItems (3.0)  Term_price0,1 3.0

Term_description1,1 :
SE("quantity") Term_quantity1,1 0
UndeclaredEE 1
UndeclaredContentItems (2.0)  Term_description1,1 2.0

Term_quantity1,1 :
SE("price") Term_price1,1 0
UndeclaredEE 1
UndeclaredContentItems (2.0)  Term_quantity1,1 2.0

Term_price1,1 :
EE 0
UndeclaredContentItems (1.0)  Term_price1,1 1.0

CompleteG_OrderElement
Event Code
Term_product 0,0 :
SE("product") Term_product 1,0 0
UndeclaredEE 1.0
UndeclaredStartTagItems (1.1)  Term_product 0,0 1.1
UndeclaredContentItems (1.6)  Term_product 2 0,0 1.6

Term_product 2 0,0 :
SE("product") Term_product 1,0 0
UndeclaredEE 1
UndeclaredContentItems (2.0)  Term_product 2 0,0 2.0

Term_product 1,0 :
SE("product") Term_product 1,0 0
EE 1
UndeclaredContentItems (2.0)  Term_product 1,0 2.0


9. EXI Compression

The use of EXI compression increases compactness utilizing additional computational resources. EXI compression combines knowledge of XML with a widely adopted, standard compression algorithm to achieve higher compression ratios than would be achievable by applying compression to the entire stream.

EXI compression is applied when compression is turned on or when alignment is set to pre-compression. Byte-aligned representations of event codes and content items are more amenable to compression algorithms compared to unaligned representations because most compression algorithms operate on series of bytes to identify redundancies in the octets. Therefore, when EXI compression is used, event codes and content items of EXI events are encoded as aligned bytes in accordance with 6.2 Representing Event Codes and 7. Representing Event Content.

EXI compression splits a sequence of EXI events into a number of contiguous blocks of events. Events that belong to the same block are transformed into lower entropy groups of similar values called channels, which are individually well suited for standard compression algorithms. To reduce compression overhead, smaller channels are combined before compressing them, while larger channels are compressed independently. The criteria EXI compression uses to define and combine channels is intentionally simple to facilitate implementation, reduce processing overhead, and avoid the need to encode channel ordering or grouping information in the format. The figure below presents a schematic view of the steps involved in EXI compression.


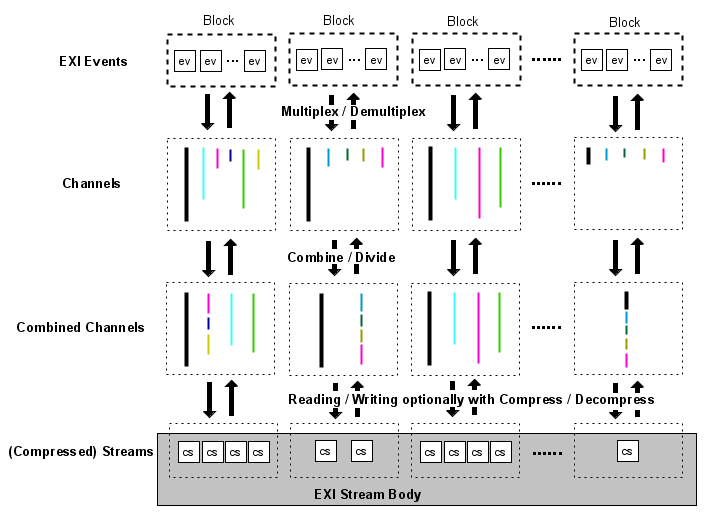

EXI Compression Overview

Figure 9-1. EXI Compression Overview


In the following sections, 9.1 Blocks defines blocks and explains how EXI events are partitioned into blocks. Section 9.2 Channels defines channels, their organization as well as how a group of channels correlate to its corresponding block of events. Section 9.3 Compressed Streams describes how some channels are combined as needed in preparation for applying compression algorithms on channels.

9.1 Blocks

EXI compression partitions the sequence of EXI events into a sequence of one or more non-overlapping blocks. Each block preceding the final block contains the minimum set of consecutive events that have exactly blockSize Attribute (AT) and Character (CH) values, where blockSize is the block size of the EXI stream (see 5.3 EXI Options). The final block contains no more than blockSize Attribute (AT) and Character (CH) values.

9.2 Channels

Events inside each block are multiplexed into channels. The first channel of each block is the structure channel described in Section 9.2.1 Structure Channel. The remaining channels in each block are value channels described in Section 9.2.2 Value Channels. The diagram below presents an exemplary view of the transformation in which events within a block are multiplexed into channels in one way and channels are demultiplexed into events in the other way.


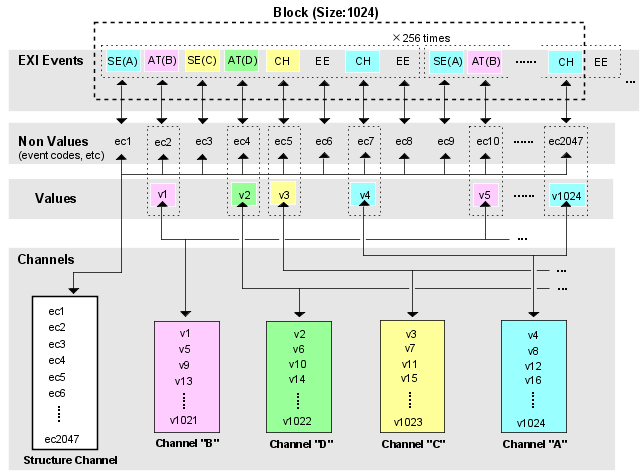

Multiplexing EXI events into channels

Figure 9-2. Multiplexing EXI events into channels


9.2.1 Structure Channel

The structure channel of each block defines the overall order and structure of the events in that block. It contains the event codes and associated content for each event in the block, except for Attribute (AT) and Character (CH) values, which are stored in the value channels. In addition, there are two attribute events whose values are stored in the structure channel instead of in value channels, which are xsi:nil and xsi:type attributes that match a schema-informed grammar production. These attribute events are intrinsic to the grammar system thus are essential in processing the structure channel because their values affect the grammar to be used for processing the rest of the elements on which they appear. All event codes and content in the structure stream occur in the same order as they occur in the EXI event sequence.

9.2.2 Value Channels

The values of the Attribute (AT) and Character (CH) events in each block are organized into separate channels based on the qname of the associated attribute or element. Specifically, the value of each Attribute (AT) event is placed in the channel identified by the qname of the Attribute and the value of each Character (CH) event is placed in the channel identified by the qname of its parent Start Element (SE) event. Each block contains exactly one channel for each distinct element or attribute qname that occurs in the block. The values in each channel occur in the order they occur in the EXI event sequence.

9.3 Compressed Streams

The channels in a block are further organized into compressed streams. Smaller channels are combined into the same compressed stream, while others are each compressed separately. Below are the rules applied within the scope of a block used to determine the channels to be combined together, the order of the compressed streams and the order amongst the channels that are combined into the same compressed stream.

If the block contains at most 100 values, the block will contain only 1 compressed stream containing the structure channel followed by all of the value channels. The order of the value channels within the compressed stream is defined by the order in which the first value in each channel occurs in the EXI event sequence.

If the block contains more than 100 values, the first compressed stream contains only the structure channel. The second compressed stream contains all value channels that contain no more than 100 values. And the remaining compressed streams each contain only one channel, each having more than 100 values. The order of the value channels within the second compressed stream is defined by the order in which the first value in each channel occurs in the EXI event sequence. Similarly, the order of the compressed streams following the second compressed stream in the block is defined by the order in which the first value of the channel inside each compressed stream occurs in the EXI event sequence.

Note:

EXI compression changes the order in which event codes and values are read and written to and from an EXI stream. Implementations must encode and decode values in this revised order so order sensitive constructs like the string table (see 7.3 String Table) work properly.

When the value of the compression option is set to true, each compressed stream in a block is stored using the standard DEFLATE Compressed Data Format defined by RFC 1951 [IETF RFC 1951]. Otherwise, when the value of the alignment option is set to pre-compression, each compressed stream in a block is stored directly without the DEFLATE algorithm.

10. Conformance

Note:

Description of EXI processor classes will be provided in this section. There will be classes of EXI processors each of which represents either the whole or some limited capacity of the capability defined in the preceding sections. The set of capability that may drive processor classification include schema processing, pluggable codecs.

A References

A.1 Normative References

IETF RFC 1951
DEFLATE Compressed Data Format Specification version 1.3, P. Deutsch, Author. Internet Engineering Task Force, May 1996. Available at http://www.ietf.org/rfc/rfc1951.txt.
IETF RFC 2119
Key words for use in RFCs to Indicate Requirement Levels, S. Bradner, Author. Internet Engineering Task Force, June 1999. Available at http://www.ietf.org/rfc/rfc2119.txt.
Unicode Database
The Unicode Consortium. Unicode Character Database (Revision 5.0.0). Available at: http://www.unicode.org/Public/5.0.0/ucd/UCD.html
XML 1.0
Extensible Markup Language (XML) 1.0 (Fourth Edition), T. Bray, J. Paoli, C. M. Sperberg-McQueen, and E. Maler, Editors. World Wide Web Consortium, 10 February 1998, revised 16 August 2006. This version is http://www.w3.org/TR/2006/REC-xml-20060816. The latest version is available at http://www.w3.org/TR/REC-xml.
XML Information Set
XML Information Set (Second Edition), J. Cowan and R. Tobin, Editors. World Wide Web Consortium, 24 October 2001, revised 4 February 2004. This version is http://www.w3.org/TR/2004/REC-xml-infoset-20040204. The latest version is available at http://www.w3.org/TR/xml-infoset.
XML Schema Structures
XML Schema Part 1: Structures Second Edition, H. Thompson, D. Beech, M. Maloney, and N. Mendelsohn, Editors. World Wide Web Consortium, 2 May 2001, revised 28 October 2004. This version is http://www.w3.org/TR/2004/REC-xmlschema-1-20041028. The latest version is available at http://www.w3.org/TR/xmlschema-1.
XML Schema Datatypes
XML Schema Part 2: Datatypes Second Edition, P. Byron and A. Malhotra, Editors. World Wide Web Consortium, 2 May 2001, revised 28 October 2004. This version is http://www.w3.org/TR/2004/REC-xmlschema-2-20041028. The latest version is available at http://www.w3.org/TR/xmlschema-2.

A.2 Other References

Efficient XML
Efficient XML, part of [EXI Measurements Note] independently referenced. The latest version is available at http://www.w3.org/TR/exi-measurements/#contributions-efx.
EXI Measurements Note
Efficient XML Interchange Measurements Note, Greg White, Jaakko Kangasharju, Don Brutzman and Stephen Williams, Editors. World Wide Web Consortium. The latest version is available at http://www.w3.org/TR/exi-measurements/.
EXI Primer
Efficient XML Interchange (EXI) Primer , Daniel Peintner, Santiago Pericas-Geertsen, Editors. World Wide Web Consortium. The latest version is available at http://www.w3.org/TR/exi-primer/.
Greibach Normal Form
A New Normal-Form Theorem for Context-Free Phrase Structure Grammars , Sheila A. Greibach, Author. Journal of the ACM Volume 12  Issue 1, January 1965, pp. 42–52.
Huffman Coding
A Method for the Construction of Minimum-Redundancy Codes, D. A. Huffman, Author. Proceedings of the I.R.E., September 1952, pp. 1098-1102.
ISO/IEC 19757-2:2003
Document Schema Definition Language (DSDL) -- Part 2: Regular-grammar-based validation -- RELAX NG
SOAP 1.2
SOAP Version 1.2 Part 1: Messaging Framework, M. Gudgin, M. Hadley, N. Mendelsohn, J-J. Moreau, H. Frystyk Nielsen, Editors. World Wide Web Consortium, 24 June 2003. This version is http://www.w3.org/TR/2003/REC-soap12-part1-20030624/. The latest version is available at http://www.w3.org/TR/soap12-part1/.
XBC Measurement Methodologies
XML Binary Characterization Measurement Methodologies, S. D. Williams and P. Haggar, Editors. World Wide Web Consortium, 31 March 2005. This version is http://www.w3.org/TR/2005/NOTE-xbc-measurement-20050331/. The latest version is available at http://www.w3.org/TR/xbc-measurement.
XBC Use Cases
XML Binary Characterization Use Cases, Mike Cokus and Santiago Pericas-Geertsen, Editors. World Wide Web Consortium, 31 March 2005. This version is http://www.w3.org/TR/2005/NOTE-xbc-use-cases-20050331/. The latest version is available at http://www.w3.org/TR/xbc-use-cases.
XBC Properties
XML Binary Characterization Properties, Mike Cokus and Santiago Pericas-Geertsen, Editors. World Wide Web Consortium, 31 March 2005. This version is http://www.w3.org/TR/2005/NOTE-xbc-properties-20050331/ The latest version is available at http://www.w3.org/TR/xbc-properties/.

B Infoset Mapping

This appendix contains the mappings between the XML Information Set [XML Information Set] model and the EXI format. Starting from the document information item, each information item definition is mapped to its respective unordered set of EXI event types. The actual order amongst information set items when it is relevant reflects the occurrence order of EXI events or their references in an EXI stream that correlate to the infoset items. As used in the XML Information Set specification, the Infoset property names are shown in square brackets, [thus].

B.1 Document Information Item

A document information item maps to a pair of SD and ED event with each of its properties subject to further mapping as shown in the following table.

Table B-1. Mapping between the document information item properties to EXI event types
PropertyEXI event types
[children]CM* PI* DT? [SE, EE]
[document element][SE, EE]
[notations]Computed based on text content item of DT to which each notation information set item maps to.
[unparsed entities]Computed based on text content item of DT to which each unparsed entity information set item maps to.
[base URI]The base URI of the EXI stream
[character encoding scheme]N/A
[standalone]Not available
[version]Not available
[all declarations processed]True if all declarations contained directly or indirectly in DT are processed, otherwise false, which is the processor quality as opposed to the information provided by the format.

B.2 Element Information Items

An element information item maps to a pair of a SE event and the corresponding EE event with each of its properties subject to further mapping as shown in the following table.

Table B-2. Mapping of the element information item properties to EXI event types
PropertyEXI event types
[namespace name]SE
[local name]SE
[prefix]SE
[children][SE, EE]* PI* CM* CH* ER*
[attributes]AT*
[namespace attributes]NS*
[in-scope namespaces] The namespace information items computed using the [namespace attributes] properties of this information item and its ancestors
[base URI]The base URI of the element information item
[parent]Computed based on the last SE event encountered that did not get a matching EE event if any, or computed based on the SD event

B.3 Attribute Information Item

An attribute information item maps to an AT event with each of its properties subject to further mapping as shown in the following table.

Table B-3. Mapping of the attribute information item properties to EXI event types
PropertyEXI event types
[namespace name]AT
[local name]AT
[prefix]AT
[normalized value]The value of AT
[specified]True if the item maps to AT, otherwise false
[attribute type] Computed based on AT and DT
[references] Computed based on [attribute type] and value of AT
[owner element]Computed based on the last SE event encountered that did not get a matching EE event

B.4 Processing Instruction Information Item

A processing instruction information maps to a PI event with each of its properties subject to further mapping as shown in the following table.

Table B-4. Mapping of the processing instruction information item properties to EXI event types
PropertyEXI event types
[target]PI
[content]PI
[base URI]The base URI of the processing information item
[notation] Computed based on the availability of the internal DTD subset
[parent]Computed based on the last SE event encountered that did not get a matching EE event type

B.5 Unexpanded Entity Reference Information item

An unexpanded entity reference information item maps to an ER with each of its properties subject to further mapping as shown in the following table.

Table B-5. Mapping of the entity reference information item properties to the EXI event types
PropertyEXI event types
[name]ER
[system identifier]Based on the availability of the internal DTD subset
[public identifier]Based on the availability of the internal DTD subset
[declaration base URI]The base URI of the unexpanded entity reference information item
[parent]Computed based on the last SE event encountered that did not get a matching EE event type

B.6 Character Information item

A character information item maps to the individual characters contained in a CH event following a SE event that did not get a matching EE event.

Table B-6. Mapping of the character information item properties and the EXI event types
PropertyEXI event types
[character code]Each character in CH
[element content whitespace]Computed based on [parent] and DT
[parent]Computed based on the last SE event encountered that did not get a matching EE event

B.7 Comment Information item

A comment information item maps to a CM event with each of its properties subject to further mapping as shown in the following table.

Table B-7. Mapping of the comment information item properties and the EXI event types
PropertyEXI event types
[content]text content item of CM
[parent]Computed based on the last SE event encountered that did not get a matching EE event, or the SD event

B.8 Document Type Declaration Information item

A document type declaration information item maps to a DT event with each of its properties subject to further mapping as shown in the following table.

Table B-8. Mapping of the document type declaration information item properties to the EXI event types
PropertyEXI event types
[system identifier]DT
[public identifier]DT
[children]Computed based on text content item of DT
[parent]Computed based on the SD event

B.9 Unparsed Entity Information Item

An unparsed entity information item maps to part of the text content item of DT event with each of its properties subject to further mapping as shown in the following table.

Table B-9. Mapping of the unparsed entity information item properties to EXI event types
PropertyEXI event types
[name]Computed based on text content item of DT
[system identifier]Computed based on text content item of DT
[public identifier]Computed based on text content item of DT
[declaration base URI]The base URI of the unparsed entity information item
[notation name]Computed based on text content item of DT
[notation]Computed based on text content item of DT

B.10 Notation Information Item

An notation information item maps to part of the text content item of DT event with each of its properties subject to further mapping as shown in the following table.

Table B-10. Mapping of the notation information item properties to EXI event types
PropertyEXI event types
[name]Computed based on text content item of DT
[system identifier]Computed based on text content item of DT
[public identifier]Computed based on text content item of DT
[declaration base URI]The base URI of the notation information item

B.11 Namespace Information Item

An namespace information item ismaps toa NS event with each of its properties subject to further mapping as shown in the following table.

Table B-11. Mapping of the namespace information item properties to EXI event types
PropertyEXI event types
[prefix]NS
[namespace name]NS

C XML Schema for EXI Options Header

The following schema describes the EXI options header. It is designed to produce smaller headers for option combinations used when compactness is critical.

<xsd:schema targetNamespace="http://www.w3.org/2007/07/exi"
            xmlns:xsd="http://www.w3.org/2001/XMLSchema"
            elementFormDefault="qualified">

  <xsd:element name="header">
    <xsd:complexType>
      <xsd:sequence>
        <xsd:element name="lesscommon" minOccurs="0">
          <xsd:complexType>
            <xsd:sequence>
              <xsd:element name="uncommon" minOccurs="0">
                <xsd:complexType>
                  <xsd:sequence>
                    <xsd:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element name="alignment" minOccurs="0">
                      <xsd:complexType>
                        <xsd:choice>
                          <xsd:element name="byte">
                            <xsd:complexType />
                          </xsd:element>
                          <xsd:element name="pre-compress">
                            <xsd:complexType />
                          </xsd:element>
                        </xsd:choice>
                      </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="codecMap" minOccurs="0" maxOccurs="unbounded">
                      <xsd:complexType>
                        <xsd:sequence>
                          <xsd:any namespace="##other" /> <!-- schema type -->
                          <xsd:any namespace="##other" /> <!-- CODEC -->
                        </xsd:sequence>
                      </xsd:complexType>
                    </xsd:element>
                  </xsd:sequence>
                </xsd:complexType>
              </xsd:element>
              <xsd:element name="preserve" minOccurs="0">
                <xsd:complexType>
                  <xsd:sequence>
                    <xsd:element name="dtd" minOccurs="0">
                      <xsd:complexType />
                    </xsd:element>
                    <xsd:element name="prefixes" minOccurs="0">
                      <xsd:complexType />
                    </xsd:element>
                    <xsd:element name="lexicalValues" minOccurs="0">
                      <xsd:complexType />
                    </xsd:element>
                    <xsd:element name="comments" minOccurs="0">
                      <xsd:complexType />
                    </xsd:element>
                    <xsd:element name="pis" minOccurs="0">
                      <xsd:complexType />
                    </xsd:element>
                  </xsd:sequence>
                </xsd:complexType>
              </xsd:element>
              <xsd:element name="blockSize" minOccurs="0">
                <xsd:simpleType>
                  <xsd:restriction base="xsd:unsignedInt" />
                </xsd:simpleType>
              </xsd:element>
            </xsd:sequence>
          </xsd:complexType>
        </xsd:element>
        <xsd:element name="common" minOccurs="0">
          <xsd:complexType>
            <xsd:sequence>
              <xsd:element name="compression" minOccurs="0">
                <xsd:complexType />
              </xsd:element>
              <xsd:element name="fragment" minOccurs="0">
                <xsd:complexType />
              </xsd:element>
              <xsd:element name="schemaId" minOccurs="0" nillable="true">
                <xsd:simpleType>
                  <xsd:restriction base="xsd:string" />
                </xsd:simpleType>
              </xsd:element>
            </xsd:sequence>
          </xsd:complexType>
        </xsd:element>
        <xsd:element name="strict" minOccurs="0">
          <xsd:complexType />
        </xsd:element>
      </xsd:sequence>
    </xsd:complexType>
  </xsd:element>

</xsd:schema>

D Initial Entries in String Table Partitions

D.1 Initial Entries in Uri Partition

The following table lists the entries that are initially populated in uri partitions, where partition name URI denotes that they are entries in the uri partition.

Table D-1. Initial values in uri partition
PartitionString IDString Value
URI0"" [empty string]
URI1"http://www.w3.org/XML/1998/namespace"
URI2"http://www.w3.org/2001/XMLSchema-instance"

When XML Schemas are used to inform the grammars for processing EXI body, there is an additional entry that is appended to the uri partition.

Table D-2. Additional entry when XML Schemas are used
PartitionString IDString Value
URI3"http://www.w3.org/2001/XMLSchema"

D.2 Initial Entries in Prefix Partitions

The following table lists the entries that are initially populated in prefix partitions, where XML-PF represents the partition for prefixes in the "http://www.w3.org/XML/1998/namespace" namespace and XSI-PF represents the partition for prefixes in the "http://www.w3.org/2001/XMLSchema-instance" namespace.

Table D-3. Initial prefix string table entries
PartitionString IDString Value
""0"" [empty string]
XML-PF0"xml"
XSI-PF0"xsi"

D.3 Initial Entries in Local-Name Partitions

The following table lists the entries that are initially populated in local-name partitions, where XML-NS represents the partition for local-names in the "http://www.w3.org/XML/1998/namespace" namespace, XSI-NS represents the partition for local-names in the "http://www.w3.org/2001/XMLSchema-instance" namespace, and XSD-NS represents the partition for local-names in the "http://www.w3.org/2001/XMLSchema" namespace.

Table D-4. Initial local-name string table entries
PartitionString IDString Value
XML-NS0"space"
XML-NS1"lang"
XML-NS2"id"
XML-NS3"base"
XSI-NS0"type"
XSI-NS1"nil"
XSD-NS0"anyType"
XSD-NS1"anySimpleType"
XSD-NS2"string"
XSD-NS3"normalizedString"
XSD-NS4"token"
XSD-NS5"language"
XSD-NS6"Name"
XSD-NS7"NCName"
XSD-NS8"ID"
XSD-NS9"IDREF"
XSD-NS10"IDREFS"
XSD-NS11"ENTITY"
XSD-NS12"ENTITIES"
XSD-NS13"NMTOKEN"
XSD-NS14"NMTOKENS"
XSD-NS15"duration"
XSD-NS16"dateTime"
XSD-NS17"time"
XSD-NS18"date"
XSD-NS19"gYearMonth"
XSD-NS20"gYear"
XSD-NS21"gMonthDay"
XSD-NS22"gDay"
XSD-NS23"gMonth"
XSD-NS24"boolean"
XSD-NS25"base64Binary"
XSD-NS26"hexBinary"
XSD-NS27"float"
XSD-NS28"double"
XSD-NS29"anyURI"
XSD-NS30"QName"
XSD-NS31"NOTATION"
XSD-NS32"decimal"
XSD-NS33"integer"
XSD-NS34"nonPositiveInteger"
XSD-NS35"negativeInteger"
XSD-NS36"long"
XSD-NS37"int"
XSD-NS38"short"
XSD-NS39"byte"
XSD-NS40"nonNegativeInteger"
XSD-NS41"positiveInteger"
XSD-NS42"unsignedLong"
XSD-NS43"unsignedInt"
XSD-NS44"unsignedShort"
XSD-NS45"unsignedByte"

E Deriving Character Sets from XML Schema Regular Expressions

XML Schema datatypes specification [XML Schema Datatypes] defines its regular expressionXS2 syntax for use in pattern facets of simple type definitions. Pattern facets are applied to values literally to constrain the set of valid values to those that lexically matches the specified regular expression. Though regular expression syntax is defined by dozens of productions, after all, they are character sets that constitute a regular expression at the finest granularity of the grammar, which are leveraged such as being combined, concatenated, complemented or subtracted in a bottom-up fashion to form a regular expression. In this regard, a regular expression can be seen as a sort of micro-schema that suggests a concrete character set to which characters in a string are likely to belong. The remainder of this section describes a method for deriving a character set from an XML Schema regular expression. Hereinafter, "character set" and "XML Schema regular expression" are referred to as "charset" and "regexp", respectively. Regexp syntax permits the use of character class escapesXS2 some of which depend on the mapping from code points to character properties. This document assumes the use of revision 5.0.0 of Unicode Standard [Unicode Database] to obtain the mapping.

At the top level, regexp syntax is summarized by the following three productions, excerpted here from [XML Schema Datatypes]. Note the notation used for the numbers that tag the productions. "XSD:" is prefixed to the original numeric tags to make it easier to discern them as belonging to XML Schema specification.

[XSD:1]XS2  regExp  ::=  branch  (  '|'  branch  )*
[XSD:2]XS2  branch  ::=  piece*
[XSD:3]XS2  piece  ::=  atom  quantifier?

These productions indicate that the charset of a regexp (i.e. regExp above) equals to the union of all the charsets each of which corresponds to an atom that participates in the regexp. There are exceptions which are based on empirical observations that are introduced here to identify certain regexps that are not subject to the computation of charsets. If any atom itself is or contains one of the following character groups directly or indirectly, the charset of the whole regexp is defined to be the entire set of XML characters.

Most regexps that contain one of the character groups listed above result in a very large number of characters, and even in such rare cases where it is not necessarily the case, there are usually alternative ways to describe the same effect more intuitively using none of the above constructs. The rest of this section describes the system to derive character sets from such regexps that do not contain any of the character groups listed above.

Shown below is the rule for assembling the charset of a regexp given a list of atoms that are contained directly in the regexp, excluding those atoms contained in sub-regexp parenthesized within the regexp (see [XSD:9] below) in which case the sub-regexp itself is the atom that is included in the list. Note the pseudo-function notation of the form CS(arg) with arg being a regexp construct denotes the method of obtaining the character set of the argument.

[1] CS(regExp) :=

    union of every CS(atom[0...N-1])

        where N represents the number of atoms

There are three kinds of atoms per its definition [XSD:9].

[XSD:9]XS2  atom  ::=  Char  |  charClass  |  (  '('  regExp  ')'  )

This production directly translates to the following rule for acquiring the charset of an atom.

[2] CS(atom) :=

    a single char represented by Char (if atom is Char)

    or

    CS(charClass) (if atom is charClass. See rule [3])

    or

    CS(regExp) (if atom is sub-regexp. See rule [1])

Similarly, there are three choices for charClass per its definition [XSD:11] below, which is followed by the corresponding rule for acquiring the charset of a charClass.

[XSD:11]XS2  charClass  ::=  charClassEsc  |  charClassExpr  |  WildcardEsc

[3] CS(charClass) :=

    CS(charClassEsc) (if charClass is charClassEsc. See [XSD:23] that defines
                      the characters contained in CS(charClassEsc) for each kind
                      of charClassEsc)

    CS(charClassExpr) (if charClass charClassExpr. See rule [3])

Note that there is no rule specified above for a charClass that is a WildcardEsc. This is because the presence of a WildcardEsc causes to conclude the charset of the regExp that contains this charClass to be the entire XML charset (See rule [1] above).

A charClassExpr is either posCharGroup, negCharGroup or charClassSub per production [XSD:12] and [XSD:13] as excerpted below.

[XSD:12]XS2  charClassExpr  ::=  '['  charGroup  ']'
[XSD:13]XS2  charGroup  ::=  posCharGroup  |  negCharGroup  |  charClassSub

This directly translates to the rule for charClassExpr charset as shown below.

[4] CS(charClassExpr) :=

    CS(posCharGroup) (if charClassExpr is posCharGroup. See rule [5])

    CS(charClassSub) (if charClassExpr is charClassSub. See rule [6])

Note that there is no rule specified above for a charClassExpr that is a negCharGroup. This is because the presence of a negCharGroup causes to conclude the charset of the regExp that contains this charClassExpr to be the entire XML charset (See rule [1] above).

posCharGroup is defined to be a sequence of charRange and charClassEsc per production [XSD:14].

[XSD:14]XS2  posCharGroup  ::=  (  charRange  |  charClassEsc  )+

The above production translates to the following rule for acquiring the charset of a posCharGroup.

[5] CS(posCharGroup) := union of every CS(charRange[0...M-1]) and
                                 every CS(charClassEsc[0...N-1])

        where M and N represent the number of charRanges and charClassEscs
        contained in the posCharGroup, respectively.

Lastly, charClassSub is defined using a subtraction operation as follows.

[XSD:16]XS2  charClassSub  ::=  (  posCharGroup  |  negCharGroup  )  '-'  charClassExpr

Because the presence of negCharGroup would have resulted in the containing regExp to have the entire XML charset in the first place, negCharGroup can be pruned from the above production, which makes the following reduced version of [XSD:16].

 [XSD:16']  charClassSub  ::=  posCharGroup  '-'  charClassExpr

The above production translates to the following rule for acquiring the charset of a charClassSub.

[6] CS(charClassSub) := characters that are found
                        in CS(posCharGroup) (See rule [5])
                        but not in CS(charClassExpr) (See rule [4])

F Format Features Under Consideration (Non-Normative)

This section describes format features that, at the time of writing, are under consideration by the WG. The list of proposed features and extensions under consideration is actually longer, only those that have been discussed by the WG are included here. Most of these features are intended to address the format's compactness, but some may also improve the processing efficiency of a format's processor. Each feature will be tested in order to collect data to determine whether their value outweighs the additional cost and complexity they would introduce into the format.

F.1 IEEE Floats

At least two of the use cases identified in the XML Binary Characterization Use Cases document suggested efficient support for floating point data aggregates such as arrays and matrices. The most popular representation for floating point values is that defined by the IEEE 754 standard. Native support for this standard datatype in EXI could result in significant performance improvements for those applications that manipulate large amounts of numerical data. In such XML applications, a lot of time can be spent converting to and from IEEE 754. We will determine whether such direct support for IEEE 754 and numerical aggregates is significantly greater than use of the existing mechanism for floats in EXI described above.

Even though the IEEE 754 is extremely popular, it is not supported in all platforms, for instance low and mid-end cell phones. Therefore, if support for this datatype is made mandatory in EXI, some conversion software would be needed in those platforms to fully support the format. However, having support for encoding and decoding IEEE 754 values should not be considered to be dependent on the availibility of a full IEEE 754 native library since it was estimated that a platform independent decode routine would take about 300 bytes of machine code.

F.2 Bounded Tables

When previously unseen content (such as strings, elements or attributes) is encountered during EXI encoding, it is always added to a string table or a grammar. The bounded tables feature sets an a priori bound on the sizes of the string table partitions and grammars. This feature is intended to improve the space efficiency of EXI processors. Assuming a bound on the sizes of strings in the document, this feature will allow the estimation of an absolute bound on space usage.

Fixing a processor's table sizes can negatively impact compactness in certain cases given that a string or grammar rule that would have been present under normal EXI rules may not exist. However, without this feature, it may be impossible for certain documents to be processed on devices with limited memory capabilities.

F.3 Indexed Elements

Some use cases would benefit from the ability to jump to specific locations in an EXI stream and begin reading events at those locations without reading any data prior to that point in the stream. To address this requirement, a user or application may identify a set of elements in an EXI stream that are Indexed Elements. Indexed Elements are self contained, meaning their content has no dependencies on external events or any impact those events may have had on context sensitive structures, such as string tables and learned content models. Indexed Elements are also byte aligned to facilitate seeking to their location in an EXI stream using common stream implementations.

A variety of higher level functions can be implemented on top of Indexed Elements, including random access of EXI streams and accelerated sequential access of EXI streams using skip-pointers. As an example application, an electronic document system could choose to index all the pages in the document and store the page locations in a global index. Applications and users could then jump directly to page 500 of a large document and display it immediately without reading or storing any of the preceding pages of the document.

F.4 Further Features Under Consideration

The following proposals - mostly from external feedback to the WG - are also under consideration. As with all other format features, the intention is to examine their effect on efficiency (compactness and processing efficiency) and specification complexity before deciding how to proceed further, ideally by sample code that can be run over the W3C EXI test suite.

  • Numeric representations - examine alternative representations of integers or decimals.
  • Date & time representations - examine alternative representations of date and time related types.
  • xsi:type in schema-less mode - examine the opportunity to use typed values in schema less mode.
  • String representation - examine more conventional string encodings.
  • Compression - examine the effect of an alternative non-packetized deflate step in the compression mode.

G Example Encoding (Non-Normative)

EXI Primer [EXI Primer] contains a section that explains the workings of EXI format using simple example documents. Those examples are intended to serve as a tool to confirm the understanding of the EXI format in action by going through encoding and decoding processes step by step.

H Recent Specification Changes (Non-Normative)

H.1 Changes from Second Public Working Draft

  • The order of content items for NS event has been corrected. (see Table 4-1)
  • The indicator content item in NS event type has been renamed to"local-element-ns", and improved its description for clarity (see section 4. EXI Streams).
  • The calculus of the MonthDay component used in Date-Time representation has been corrected (see section 7.1.8 Date-Time).
  • Described how the use of substitution groups in schemas affects the grammars (see section 8.5.3.1.6 Element Terms).
  • Described how the namespace constraints of wildcard terms are factored into the grammars. (see section 8.5.3.1.7 Wildcard Terms).

H.2 Changes from First Public Working Draft

  • Described how QNames are represented with prefixes when prefix preservation is turned on (see section 7.1.7 QName).
  • Described how the presence of pattern facets affects the encoding of EXI Boolean (see section 7.1.2 Boolean) and EXI String (see section 7.1.10 String) representation.
  • Values typed as integer with bounded range of 4095 or smaller are now represented as n-bit Unsigned Integers (see section 7.1.9 n-bit Unsigned Integer).

I Acknowledgements (Non-Normative)

This document is the work of the Efficient XML Interchange (EXI) WG.

Members of the Working Group are (at the time of writing, sorted alphabetically by last name):

The EXI Working Group would like to acknowledge the following former members of the group for their leadership, guidance and expertise they provided throughout their individual tenure in the WG. (sorted alphabetically by last name)

The EXI working group owes so much to our distinguished colleague from Nokia, Kimmo Raatikainen (1955-2008), on the progress of our work, who succumbed to an ailment on March 13, 2008. His breadth of knowledge, depth of insight, ingenuity and courage to speak up constantly shed a light onto us whenever the group seemed to stray into a futile path of disagreements during the course. We shall never forget and will always appreciate his presence in us, and great contribution that is omnipresent in every aspect of our work throughout.
