1
Introduction
(This section is informative)
The WICD Mobile profile is primarily designed to enable
rich multimedia content on mobile handset devices. These are
devices with:
- small, narrow screens (approximately 2 to 4 inch, up to 30-40
characters per line)
- 4- or 8-way joystick navigation (no pointing device)
2 Compound
Document by Reference Framework Compliancy
This document contains information, which is specific to the
WICD Mobile 1.0 profile. Any information that applies to
all WICD profiles, is compiled into the WICD Core 1.0
document. Any information that applies to "Compound Documents" in
general, can be found in the documents describing the "Compound
Document Framework" (CDR/CDI).
[assert-implement1:
Conformant WICD Mobile 1.0 user agents must implement
the
including the extended DOM API's and additional Events. ]
[assert-implement2:
Conformant WICD Mobile 1.0 user agents must implement
]

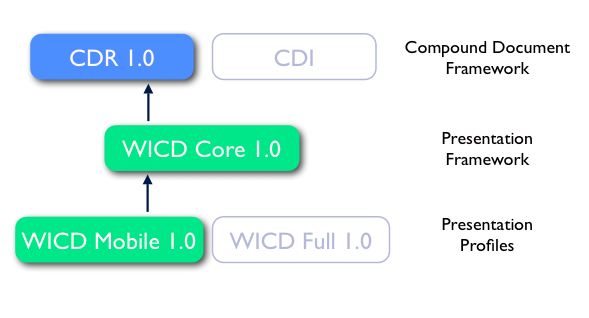

The following image shows the relation between WICD and CDRF
documents.
The following is a sample WICD Mobile 1.0 markup:
<?xml version="1.0"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML Basic 1.1//EN"
"http://www.w3.org/TR/xhtml-basic/xhtml-basic11.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en">
<head>
<title>Example WICD Mobile content</title>
</head>
<body>
<h1>Example WICD Mobile content<h1>
<object type="image/svg+xml" src="child.svg" width="50%" />
</body>
</html>
3 Document
Formats
3.2 ECMAScript
3rd Edition Compact Profile
[assert-ecmascript:
Conformant WICD Mobile 1.0 user agents must support
ECMAScript 3rd Edition Compact Profile (ES-CP) as a scripting
language. ]
3.2.1 ECMAScript
MIME Type
[assert-ecmascript-mime: ECMAScript documents should be
associated with the "application/ecmascript" mime type. ]
3.5 Bitmap
formats
[assert-bitmap-formats: The viewer must support
JPEG/JFIF [JPEG][JFIF] and PNG [PNG] raster image formats. Other
image formats may be supported in addition. For JPEG, the subset
defined in [SVG12] shall be supported. For PNG, all color types and
bit depths shall be supported, gamma correction shall be supported,
and any alpha or transparency information shall be used to
composite the image onto the background. ]
3.6 Audio formats
Audio may be incorporated into WICD 1.0 content in several ways.
It may be pointed to from an XHTML object element, or an SVG audio
element, or indirectly from an SVG video element where the video
includes audio.
[assert-audio-timing: In XHTML, there are no timing
elements. Thus, audio will play from the time the document is
loaded until the time the document is unloaded (eg, replaced by
another document as a result of following a link). ]
In conforming WICD 1.0 content, audio referenced from an XHTML
object element must have width and height of zero.
In SVG, audio may be triggered by user interaction or by
animations to start, stop, or change volume.
For accessibility, conforming WICD 1.0 user agents should
profile the option of switching off audio. [UAAG].
No audio format is mandated in this profile.
[assert-audio-formats: Any audio format supported by
the device must also be supported to be used with the <audio>
element in SVG and <object> element in XHTML. ]
3.7 Video
formats
Video may be incorporated into WICD 1.0 content in several ways.
It may be pointed to from an XHTML object element, or an SVG video
element.
[assert-video-timing: In XHTML, there are no timing
elements. Thus, video will play from the time the document is
loaded until the time the document is unloaded (eg, replaced by
another document as a result of following a link). ]
In SVG, video may be triggered by user interaction or by
animations to start, pause, rewind, or stop.
For accessibility, conforming WICD 1.0 user agents must provide
the option of pausing, rewinding, or stopping video.
No video format is mandated in this profile.
[assert-video-formats: Any video format supported by
the device must also be supported to be used with the <video>
element in SVG and <object> element in XHTML. ]
