W3C

SPARQL Query Language for RDF

W3C Working Draft 12 October 2004

This version:
http://www.w3.org/TR/2004/WD-rdf-sparql-query-20041012/
Latest version:
http://www.w3.org/TR/rdf-sparql-query/
Editors:
Eric Prud'hommeaux, W3C <eric@w3.org>
Andy Seaborne, Hewlett-Packard Laboratories, Bristol <andy.seaborne@hp.com>

Abstract

RDF is a flexible, extensible way to represent information about World Wide Web resources. It is used to represent, among other things, personal information, social networks, metadata about digital artifacts like music and images, as well as provide a means of integration over disparate sources of information. A standardized query language for RDF data with multiple implementations offers developers and end users a way to write and to consume the results of queries across this wide range of information. This document describes a query language for RDF, called SPARQL, for querying RDF data.

This document describes the query language part of SPARQL for easy access to RDF stores. It is designed to meet the requirements and design objectives described in the W3C RDF Data Access Working Group (DAWG) document "RDF Data Access Use Cases and Requirements".

Status of This document

This is a first Public Working Draft of the Data Access SPARQL Query Language by the RDF Data Access Working Group (part of the Semantic Web Activity) for review by W3C Members and other interested parties. It reflects the best effort of the editors to reflect implementation experience and incorporate input from various members of the WG, but is not yet endorsed by the WG as a whole. Some sections are incomplete and there are a number of issues in the document and working group issues. Please send comments to public-rdf-dawg-comments@w3.org, a mailing list with a public archive.

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced under the 5 February 2004 W3C Patent Policy. The Working Group maintains a public list of patent disclosures relevant to this document; that page also includes instructions for disclosing [and excluding] a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) with respect to this specification should disclose the information in accordance with section 6 of the W3C Patent Policy.

Per section 4 of the W3C Patent Policy, Working Group participants have 150 days from the title page date of this document to exclude essential claims from the W3C RF licensing requirements with respect to this document series. Exclusions are with respect to the exclusion reference document, defined by the W3C Patent Policy to be the latest version of a document in this series that is published no later than 90 days after the title page date of this document.


Table of Contents

Appendices

See also:

Issues

DAWG issues list


1 Introduction

Section status: bare outline

Key features in one page.  Refs to other documents by DAWG.

An RDF graph is a set of triples, each consisting of a subject, an object, and a property relationship between them as defined in RDF Concepts and Abstract syntax. These triples can come from a variety of sources. For instance, they may come directly from an RDF document. They may be inferred from other RDF triples. They may be the RDF expression of data stored in other formats, such as XML or relational databases.

SPARQL is a query language for accessing such RDF graphs. It provides facilities to:

As a data access language, it is suitable for both local and remote use. When used across networks, the companion document [@@ protocol document not yet published @@] describes a remote access protocol.

1.1 Document Conventions

When undeclared, the namespace rdf stands in place of http://www.w3.org/1999/02/22-rdf-syntax-ns#, the namespace rdfs stands in place of http://www.w3.org/2000/01/rdf-schema#, and the namespace xsd for http://www.w3.org/2001/XMLSchema#.

2 Making Simple Queries

Queries match graph patterns against the target graph of the query.  Patterns are like graphs but may named variables in place of some of the nodes or predicates; the simplest graph patterns are single triple patterns.  and graph patterns can be combined using various operators into more complicated graph patterns.

A binding is a mapping from the a variable in a query to terms. A pattern solution is a set of bindings which, when applied to the variables in the query, cab be used to produce a subgraph of the target graph; query results are a set of pattern solutions. If there are no result mappings, the query results is an empty set.

Pictorially, suppose we have a graph with two triples and the given triple pattern:

_:1 foaf:mbox "alice@work.example"

triple1

_:2 foaf:mbox "robt@home.example"

triple2

?who foaf:mbox ?addr

triplePattern1

with the result:

who addr
_:1 "alice@work.example"
_:2 "robt@home.example"

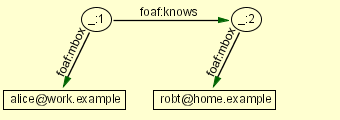

RDF graphs are constructed from one or more triples, ex. graph1.

_:1 foaf:mbox "alice@work.example". _1 foaf:knows _2. _:2 foaf:mbox "robt@home.example"

graph1

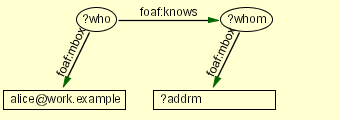

?who foaf:mbox "alice@work.example". ?who foaf:knows ?whom. ?whom foaf:mbox ?address

graphPattern1

A query for graphPattern1 will return the email address of people known by Alice (specifically, the person with the mbox alice@work.example). When matched against the example RDF graph, we get one result mapping which binds three variables:

who whom address
_:1 _:2 "robt@home.example"

2.1 Writing a Simple Query

The example below shows a query to find the title of a book from the information in an RDF graph. The query consists of two parts, the SELECT clause and the WHERE clause. Here, the SELECT clause names the variable of interest to the application, and the WHERE clause has one triple pattern.

Data:

<http://example.org/book/book1> <http://purl.org/dc/elements/1.1/title> "SPARQL Tutorial" .

Query:

SELECT ?title
WHERE  ( <http://example.org/book/book1> <http://purl.org/dc/elements/1.1/title> ?title )

Query Result:

title
"SPARQL Tutorial"

The terms delimited by "<>" are URI References [13] (URIRefs); URIRefs can also abbreviated with an XML QName-like form [14]; this is syntactic assistance and is translated to the full URIRef. Other RDF terms are literals which, following N-Triples syntax [7], are a string and optional language tag (introduced with '@') and datatype URIRef (introduced by '^^').

Variables in SPARQL queries have global scope; it is the same variable everywhere the name is used. Variables are indicated by '?'; the '?' does not form part of the variable's name.

An alternative choice here is '$'. Awaiting reports of usage in DB connection technologies.

Because URIRefs can be long, SPARQL provides an abbreviation mechanism. Prefixes can be defined and a QName-like syntax provides shorter forms: we also use the N3/Turtle [15] prefix mechanism for describing data. Prefixes apply to the whole query.

PREFIX  dc: <http://purl.org/dc/elements/1.1/>
SELECT  ?title
WHERE   ( <http://example.org/book/book1> dc:title ?title )
PREFIX  dc: <http://purl.org/dc/elements/1.1/>
PREFIX  : <http://example.org/book/>
SELECT  ?title
WHERE   ( :book1  dc:title  ?title )

Similarly, we abbreviate data:

@prefix dc:   <http://purl.org/dc/elements/1.1/> .
@prefix :     <http://example.org/book/> .
:book1  dc:title  "SPARQL Tutorial" .

Prefixes are syntactic: the prefix name does not effect the query, nor do prefix names in queries need to be the same prefixes as used for data. This query is equivalent to the previous one and will give the same results when applied to the same graph.

PREFIX  dcore:  <http://purl.org/dc/elements/1.1/>
PREFIX  xsd:    <http://www.w3.org/2001/XMLSchema#>
SELECT  ?title
WHERE   ( ?book dcore:title ?title )

RDF has typed literals. Such literals are written using "^^". Integers can be directly written and are interpreted as typed literals of datatype xsd:integer.

@prefix ns:   <http://example.org/ns#> .
@prefix xsd:  <http://www.w3.org/2001/XMLSchema#> .
@prefix :     <http://example.org/book/> .

:book1 ns:numPages  "200"^^xsd:integer .
:book2 ns:numPages  100 .

2.2 Triple Patterns

The building blocks of queries are triple patterns. Syntactically, a SPARQL triple pattern is a subject, predicate and object delimited by parentheses. The previous example shows a triple pattern with a variable subject (the variable book), a predicate of dcore:title and a variable object (the variable title).

( ?book dcore:title ?title )

A triple pattern applied to a graph matches all triples with identical RDF terms for the corresponding subject, predicate and object. The variables in the triple pattern, if any, are bound to the corresponding RDF terms in the matching triples.

Definition: RDF Term

An RDF Term is anything that can occur in the RDF data model.
let RDF-U be the set of all RDF URI References
let RDF-L be the set of all RDF Literals
let RDF-B be the set of all bNodes

The set of RDF Terms, RDF-T, is RDF-U union RDF-L union RDF-B

Definition: Query Variable

Let V be the set of all query variables.  V and RDF-T are disjoint.

A query variable is a name, used to define queries as graph patterns. A query variable is associated with RDF terms in a graph by a binding.

An RDF triple contains three components:

In SPARQL, a triple pattern is an RDF triple but with the addition that components can be a query variable instead.

Definition: Triple Pattern

The set of triple patterns is
    (RDF-U union RDF-B union V) x (RDF-U union V) x (RDF-T union V)

Definition: Binding

A binding is a pair which defines a mapping from a variable to an RDF Term. If B is such a binding, var(B) is the variable of the binding, and val(B) is the RDF term.

In this document, we illustrate bindings in results in tabular form,:

x y
"Alice" "Bob"

Not every binding needs to exist in every row of the table.

Definition: Triple Pattern Matching

A binding, B, defines a substitution subst(T, B)  on triple T that replaces every occurrence of the variable, var(B), with the corresponding RDF Term, val(B).

If SB is a set of bindings, with no two bindings having the same variable, we write
subst(T, SB) for the triple pattern formed by substituting variables in T using each B in SB.

Triple Pattern T matches RDF graph G with set of bindings, SB, if subst(T, SB) is a triple of G.

If the same variable name is used more than once in a pattern then, within each solution to the query, the variable has the same value.

For example, the query:

SELECT * WHERE ( ?x ?x ?v )

matches the triple:

rdf:type rdf:type rdf:Property .

with set of bindings:

x v
rdf:type rdf:Property

It does not match the triple:

rdfs:seeAlso rdf:type rdf:Property .

because the variable x would need to be both rdfs:seeAlso and rdf:type in the same set of bindings.

2.3 Graph Patterns

The keyword WHERE is followed by a Graph Pattern which is made of one or more Triple Patterns. These Triple Patterns are "and"ed together. More formally, the Graph Pattern is the conjunction of the Triple Patterns. In each query solution, all the triple patterns must be satisfied with the same binding of variables to values.

Data:

@prefix foaf:    <http://xmlns.com/foaf/0.1/> .

_:a  foaf:name   "Johnny Lee Outlaw" .
_:a  foaf:mbox   <mailto:jlow@example.com> .

There is a bNode [12] in this dataset. Just within the file, for encoding purposes, the bNode is identified by _:a but the information about the bNode label is not in the RDF graph. No query will be able to identify that bNode by the label used in the serialization.

Query:

PREFIX foaf:   <http://xmlns.com/foaf/0.1/>
SELECT ?mbox
WHERE
  ( ?x foaf:name "Johnny Lee Outlaw" )
  ( ?x foaf:mbox ?mbox )

Query Result:

mbox
<mailto:jlow@example.com>

This query contains a conjunctive graph pattern. A conjunctive graph pattern is a set of triple patterns, each of which must match for the graph pattern to match.

Definition: Graph Pattern (Partial Definition) – Conjunction

A set of triple patterns is a graph pattern GP.

For binding B, we write subst(GP, B) for the set of triple patterns formed by applying, for each T in GP, subst(T, B) .

Definition: Graph Pattern Matching

For set of bindings, SB, we write subst(GP, SB) for the graph pattern produced by using each binding B in SB to substitute variables in GP with the corresponding RDF Terms as given by SB.

Graph Pattern GP matches RDF graph G with set of bindings SB if subst(GP, SB) is a subgraph of G.

2.4 Multiple Matches

The results of a query are all the ways a query can match the graph being queried. Each result is one solution to the query and there may be zero, one or multiple results to a query, depending on the data.

Data:

@prefix foaf:  <http://xmlns.com/foaf/0.1/> .

_:a  foaf:name   "Johnny Lee Outlaw" .
_:a  foaf:mbox   <mailto:jlow@example.com> .
_:b  foaf:name   "Peter Goodguy" .
_:b  foaf:mbox   <mailto:peter@example.org> .

Query:

PREFIX foaf:   <http://xmlns.com/foaf/0.1/>
SELECT ?name, ?mbox
WHERE
  ( ?x foaf:name ?name )
  ( ?x foaf:box ?mbox )

Query Result:

name mbox
"Johnny Lee Outlaw" <mailto:jlow@example.com>
"Peter Goodguy" <mailto:peter@example.org>

The results enumerate the RDF terms to which the selected variables can be bound in the graph pattern. In the above example, the following two subsets of the data caused the two matches.

 _:a foaf:name  "Johnny Lee Outlaw" .
 _:a foaf:box   <mailto:jlow@example.com> .
 _:b foaf:name  "Peter Goodguy" .
 _:b foaf:box   <mailto:peter@example.org> .

For a simple, conjunctive graph pattern match, all the variables used in the query pattern will be bound in every solution.

Definition: Pattern Solution

A Pattern Solution of Graph Pattern GP on graph G is any set of bindings SB such that GP matches G with SB. Each binding B in SB, has a different variable.

For a graph pattern GP formed as a set of triple patterns, subst(GP, SB), has no variables and is a subgraph of G.

Definition: Query Solution

A Query Solution is a Pattern Solution where the pattern is the whole pattern of the query.

Definition: Query Results

The Query Results, for a given graph pattern GP on G, is R(GP,G), and is the set of all query solutions such that GP matches G.

R(GP, G) may be the empty set.

3 Constraining Values

Graph pattern matching creates bindings of variables. It is possible to further restrict possible solutions by constraining the allowable binding of variables to RDF Terms.  Constraints in SPARQL take the form of boolean-valued expressions; the language also allows application-specific filter functions.

Data:

@prefix dc:   <http://purl.org/dc/elements/1.1/> .
@prefix :     <http://example.org/book/> .
@prefix ns:   <http://example.org/ns#> .

:book1  dc:title  "SPARQL Tutorial" .
:book1  ns:price  42 .
:book2  dc:title  "The Semantic Web" .
:book2  ns:price  23 .

Query:

PREFIX  dc:  <http://purl.org/dc/elements/1.1/>
PREFIX  ns:  <http://example.org/ns#>
SELECT  ?title ?price
WHERE   ( ?x dc:title ?title )
        ( ?x ns:price ?price ) AND ?price < 30

Query Result:

title price
"The Semantic Web" 23

By having a constraint on the "price" variable, only one of the books matches the query. Like a triple pattern, this is just a restriction on the allowable values of a variable.

Definition: Constraints

A constraint is a boolean-valued expression of variables and RDF Terms that can be applied to restrict query solutions.

Definition: Graph Pattern (Partial Definition) – Constraints

A graph pattern can also include constraints. These constraints further restrict the possible query solutions of matching a graph pattern with a graph.

SPARQL defines a set of operations that all implementations must provide. In addition, there is an extension mechanism for boolean tests that are specific to an application domain or kind of data.

4 Including Optional Values

So far, the graph matching and value constraints allow queries that perform exact matches on a graph. For every solution of the query, every variable has an RDF Term. Sometimes useful, additional information about some item of interest in the graph can be found but, for another item, the information is not present. If the application writer wants that additional information, the query should not fail just because the some information is missing.

4.1 Optional Matching

Optional portions of the graph may be specified in either of two equivalent ways:

 OPTIONAL (?s ?p ?o)...
 [ (?s ?p ?o)... ]

Data:

@prefix foaf:       <http://xmlns.com/foaf/0.1/> .
@prefix rdf:        <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix rdfs:       <http://www.w3.org/2000/01/rdf-schema#> .

_:a  rdf:type        foaf:Person .
_:a  foaf:name       "Alice" .
_:a  foaf:mbox       <mailto:alice@work.example> .

_:b  rdf:type        foaf:Person .
_:b  foaf:name       "Bob" .

Query (these two are the same query using slightly different syntax):

PREFIX foaf: <http://xmlns.com/foaf/0.1/>
SELECT ?name ?mbox
WHERE  ( ?x foaf:name  ?name )
       OPTIONAL ( ?x  foaf:mbox  ?mbox )
PREFIX foaf: <http://xmlns.com/foaf/0.1/>
SELECT ?name ?mbox
WHERE  ( ?x foaf:name  ?name )
       [ ( ?x  foaf:mbox  ?mbox ) ]

Query result:

name mbox
"Alice" <mailto:alice@example.com>
"Bob"

Now, there is no value of mbox where the name is "Bob". It is left unbound in the result.

This query finds the names of people in the dataset, and, if there is an mbox property, retrieve that as well. In the example, only a single triple pattern is given in the optional match part of the query but in general it is a graph pattern.

For each optional block, the query processor attempts to match the query pattern. Failure to match the block does not cause this query solution to be rejected. The whole graph pattern of an optional block must match for the optional to add to the query solution.

4.2 Multiple Optional Blocks

A query may have zero or more top-level optional blocks. These blocks will fail or provide bindings independently. Optional blocks can also be nested, that is, an optional block may appear inside another optional block.

Data:

@prefix foaf:       <http://xmlns.com/foaf/0.1/> .
@prefix rdf:        <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix rdfs:       <http://www.w3.org/2000/01/rdf-schema#> .

_:a  foaf:name       "Alice" .
_:a  foaf:homepage   <http://work.example.org/alice/> .

_:b  foaf:name       "Bob" .
_:b  foaf:mbox       <mailto:bob@work.example> .

Query:

PREFIX foaf: <http://xmlns.com/foaf/0.1/>
SELECT ?name ?mbox ?hpage
WHERE  ( ?x foaf:name  ?name )
       [ ( ?x foaf:mbox ?mbox ) ]
       [ ( ?x foaf:homepage ?hpage ) ]

Query result:

name mbox hpage
"Alice" <http://work.example.org/alice/>
"Bob" <mailto:bob@example.com>

In this example, there are two independent optional blocks. Each depends only on variables defined in the non-optional part of the graph pattern. If a new variable is introduced in an optional block (as mbox and hpage are introduced in the previous example), that variable can be bound in that block and can not be mentioned in a subsequent block.

Variables in OPTIONAL blocks

A variable must only be bound in one optional block : either it is known to be bound in an outer optional block or set of triple patterns, or it is used in only one optional block at a given level of nesting.

The purpose of this rule is to enable the query processor to process the query blocks in arbitrary (or optimized) order. If a variable was introduced in one optional block and mentioned in another, it would be used to constrain the second. Reversing the order of the optional blocks would reverse the blocks in which the variable was was introduced and was used to constrain. Such a query could give different results depending on the order in which those blocks were evaluated.

4.3 Optional Matching – Formal Definition

In an optional match, either a graph pattern matches a graph and so defines a set of bindings, or gives an empty set of bindings but does not cause matching to fail overall. Any graph pattern optionally matches any graph in some way; it provides a empty set of bindings if the graph pattern does not match the graph.

Definition: Optional Matching

Given graph pattern GP1, and graph pattern GP2, let GP= (GP1 union GP2).

The optional match of GP2 of graph G, given GP1, defines a pattern solution PS such that:

if GP match G, then PS is the set of bindings where GP matches G
else PS is a pattern solution of GP1 matching G.

5 Nested Patterns

Section status: placeholder.

This sections will discuss combining graph patterns.

Graph patterns may contain nested patterns. We've seen this earlier in optional matches. Nested patterns are delimited with ()s:

It is likely that the grouping markers will change to be {} - braces - but the grammar rework has not been done.

( ( ?s ?p ?n2 ) ( ?n2 ?p2 ?n3 ) )

Definition: Graph Pattern – Nesting

A graph pattern GP can contain other graph patterns GPi. A query solution of Graph Pattern GP on graph G is any B such that each element GPi of GP matches G with binding B.

For example:

SELECT ?name ?foafmbox
PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
WHERE  ( ?x foaf:name ?name )
         ( ( ?x foaf:mbox ?mbox ) )

Because this example has a simple conjunction for the nested pattern, and because the nested pattern is a conjunctive element in the outer pattern, this has the same results:

SELECT ?name ?foafmbox
PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
WHERE  ( ?x foaf:name ?name ) ( ?x foaf:mbox ?mbox )

Optional blocks can be nested. The outer optional block must match for any nested one to apply. That is, the outer graph pattern pattern is fixed for the purposes of any nested optional block.

Data:

@prefix foaf:       <http://xmlns.com/foaf/0.1/> .
@prefix rdf:        <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix rdfs:       <http://www.w3.org/2000/01/rdf-schema#> .
@prefix vcard:      <http://www.w3.org/2001/vcard-rdf/3.0#> .

_:a  foaf:name       "Alice" .
_:a  foaf:mbox       <mailto:alice@work.example> .
_:a  vcard:N         _:d .

_:d  vcard:Family    "Hacker" .
_:d  vcard:Given     "Alice" .

_:b  foaf:name       "Bob" .
_:b  foaf:mbox       <mailto:bob@work.example> .

_:c  foaf:name       "Eve" .
_:c  vcard:N         _:e .

_:e  vcard:Family    "Hacker" .
_:e  vcard:Given     "Eve" .

Query:

SELECT ?foafName ?mbox ?fname ?gname
PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
PREFIX vcard:   <http://www.w3.org/2001/vcard-rdf/3.0#>
WHERE  ( ?x foaf:name ?foafname )
       [ ( ?x foaf:mbox ?mbox ) ]
       [ ( ?x  vcard:N  ?vc )
          [ ( ?vc vcard:Family ?fname )
            ( ?vc vcard:Given  ?gname )
          ]
       ]

Query result:

foafName mbox fname gname
"Alice" <mailto:alice@work.example> "Hacker" "Alice"
"Bob" <mailto:bob@work.example>
"Eve" "Hacker" "Eve

This query finds the name, optionally the mbox, and also optionally the vCard structured name components. By nesting the optional access to vcard:Family and vcard:Given, the query only reaches these if there is a vcard:N property. It is possible to expand out optional blocks to remove nesting at the cost of duplication of expressions. Here, the expression is a simple triple pattern on vcard:N but it could be a complex graph match with value constraints.

6 More Pattern Matching – Alternatives

Section status: working group is not working on this feature at the moment.

Feature on issues list as to whether to have it in the language or not.

7 More Pattern Matching – Unsaid

Section status: working group is not working on this feature at the moment. It is currently likely to be dropped from the SPARQL query language.

8 Choosing What to Query

Section status: Initial Draft

Charter: RDF graphs are often constructed through logical inference, and that sometimes the graphs are never materialized. Such graphs may be arbitrarily large or infinite.

A SPARQL query treats an RDF graph purely as data. A query processor is unaware of any inference an RDF store may provide and SPARQL makes no distinction between inferred triples and asserted triples.

May need revising - depends on discussions of accessing direct subclass relationship in an RDF inferred graph and other cases.

A SPARQL query is executed against some real or virtual RDF graph. The RDF graph can be given implicitly by the local API, externally from the SPARQL protocol or it can be specified in the query itself. The FROM clause gives URIs that the query processor can use to supply RDF Graphs for the query execution.

Query:

SELECT *
FROM <http://www.w3.org/2000/08/w3c-synd/home.rss>
WHERE ( ?x ?y ?z )

A query processor could use this URI to retrieve the document, parse it and use the resulting triples to provide the query graph. Aggregate graphs may also be queried by using multiple source URIs in the FROM clause such as:

SELECT ...
FROM <uri1>, <uri2>

An aggregate graph is the RDF-merge of a number of subgraphs. Implementations may provide a single web service target that aggregates multiple source URIs, accessed by the DAWG protocol or some other mechanism.

Will need to significantly update when the protocol is drafted.

The RDF graph may be constructed through inference rather than retrieval or never be materialized.

9 Querying the Origin of Statements

Section status: under discussion – likely to change. Just some initial text here.

While the RDF data model is limited to expressing triples with a subject, predicate and object, many RDF data stores augment this with a notion of the source of each triple ?. Typically, implementations associate RDF triples or graphs with a URI specifying their real or virtual origin. The SOURCE keyword allows you to query or constrain the source of the following triple pattern or nested graph pattern. The general form of the SOURCE query is:

 SOURCE <identifier> (?s ?p ?o)

If the identifier is a constant or bound variable, it will constrain the matches for the following term. If an unbound variable, the variable will be bound to all of the known sources for the term. A data store that does not support source SHOULD bind SOURCE variables to NULL and fail to match source-constrained queries.

aliceFoaf.n3:
@prefix  foaf:  <http://xmlns.com/foaf/0.1/> .

_:1 foaf:mbox <mailto:alice@work.example>.
_:1 foaf:knows _:2.
_:2 foaf:mbox <mailto:bob@work.example>.
_:2 foaf:age 32.
bobFoaf.n3:
@prefix  foaf:  <http://xmlns.com/foaf/0.1/> .

_:1 foaf:mbox <mailto:bob@work.example>.
_:1 foaf:PersonalProfileDocument <bobFoaf.n3>.
_:1 foaf:age 35.
PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
SELECT ?mbox  ?age  ?ppd
WHERE       ( ?alice foaf:mbox <mailto:alice@work.example> )
            ( ?alice foaf:knows ?whom )
            ( ?whom foaf:mbox ?mbox )
            ( ?whom foaf:PersonalProfileDocument ?ppd )
SOURCE ?ppd ( ?whom foaf:age ?age )
mbox age ppd
<mailto:bob@work.example> 35 <bobFoaf.n3>

This query returns the email addresses of people that Alice knows. It also returns their age according to their PersonalProfileDocument documents, as well as the URI of the document. Alice's guess of Bob's age (32) is not returned.

Any variable that is bound to NULL must not match another variable that is bound to NULL. Thus,

PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
SELECT ?given  ?family
WHERE SOURCE ?ppd ( ?whom foaf:given ?family )
      SOURCE ?ppd ( ?whom foaf:family ?family )

will match only if the source of both triples are known and the same.

? It is possible that future work will standardize the expression of source in an RDF graph. Until then, the semantics of a SPARQL SOURCE constant are not defined in terms of the RDF semantics.

10 Summary of Query Patterns

Section status: Create this after preceding sections moderately stable.

Will be a brief summary of the terms defined above to bring them together.

11 Query Forms

Section status: Initial Draft.

SPARQL has a number of query forms for returning results. These result forms use the bindings in the query results to form result sets or RDF graphs. A result set is a serialization of the bindings in a query result. The query forms are:

SELECT
Returns all, or a subset of, the variables bound in a query pattern match. Formats for the result set can be in XML or RDF/XML (see the result format document)
CONSTRUCT
Returns either an RDF graph that provides matches for all the query results or an RDF graph constructed by substituting variables in a set of triple patterns.
DESCRIBE
Returns an RDF graph that describes the resources found.
ASK
Returns whether a query pattern matches or not.

11.1 Choosing which Variables to Return

The SELECT form of results returns the variables directly. The syntax SELECT * is shorthand for select all the variables.

PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
SELECT ?name WHERE ( ?x foaf:name ?name )
PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
SELECT * WHERE ( ?x foaf:name ?name )

Results can be thought of as a table, with one row per query solution. Some cells may be empty because a variable is not bound in that particular solution.

SELECT DISTINCT

The result set can be modified by adding the DISTINCT keyword which ensures that every combination of variable bindings (i.e. each result) in a result set is unique. Thought of as a table, each row is different.

PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
SELECT DISTINCT ?name WHERE ( ?x foaf:name ?name )

SELECT LIMIT

The LIMIT form puts an upper bound on the number of solutions returned. A query may return a number of results up to and including the limit.

PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
SELECT ?name
WHERE ( ?x foaf:name ?name )
LIMIT 20

Limits on the number of results can also be applied via the SPARQL query protocol [@@ protocol document not yet published @@].

11.2 Constructing an Output Graph

The CONSTRUCT form returns an RDF graph specified by either a graph template or by "*". If a graph template is supplied, then the RDF graph is formed by taking each query solution and substituting the variables into the graph template and merging the triples into a single RDF graph:

PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
PREFIX vcard:   <http://www.w3.org/2001/vcard-rdf/3.0#>
CONSTRUCT   ( ?x foaf:name ?name )
WHERE       ( ?x vcard:FN ?name )

The CONSTRUCT form returns a single RDF graph formed as the union of the graph template with variable values obtained from each query result. Explicit variable bindings are not returned.

The form CONSTRUCT * returns a subgraph that has all the triples that matched the query. It will give all the same bindings if the query is executed on the subgraph.

PREFIX: vcard:  <http://www.w3.org/2001/vcard-rdf/3.0#>
CONSTRUCT * WHERE ( ?x vcard:FN ?name )

11.3 Descriptions of Resources

Section status: placeholder text - not integrated

The DESCRIBE form returns RDF data associated with a resource. The resource can be a query variable or it can be a URI. The RDF returned is the choice of the implementation; it should be the useful information the server has (within security matters outside of SPARQL) about a resource. It may include information about other resources: the RDF data for a book may also include details of the author.

The result is a single RDF graph.

A simple query such as

DESCRIBE ?x WHERE (?x ent:employeeId "1234")

might return a description of the employee and some other potentially useful details:

@prefix foaf:   <http://xmlns.com/foaf/0.1/> .
@prefix vcard:  <http://www.w3.org/2001/vcard-rdf/3.0> .
@prefix myOrg:   <http://myorg.example/employees#> .

_:a     myOrg:employeeId    "1234" ;
        foaf:mbox_sha1sum   "ABCD1234" ;
        vcard:N
         [ vcard:Family       "Smith" ;
           vcard:Given        "John" ; ] .

foaf:mbox_sha1sum  rdf:type  owl:InverseFunctionalProperty .

which includes the bNode closure for the vcard vocabulary vcard:N and vcard:ORG triples. For a vocabulary such as FOAF, where the data is typically all bNodes, returning sufficient information to identify a node such as the InverseFunctionalProperty foaf:mbox_sha1sum as well information which as name and other details recorded would be appropriate. In the example, the match to the WHERE clause was returned but this is not required.

In the returned graph there is information about one of the properties that the query server has deemed to be relevant and helpful in further processing.

DESCRIBE ?x, ?y WHERE (?x ns:marriedTo ?y)

When there are multiple resources found, the RDF data for each is merged into the result graph.

If the application already has the URI for the resource. This can be provided directly.

DESCRIBE <http://example.org/>

Possible graphs to note as reasonable returns:

11.4 Asking "yes or no" questions

Applications can use the ASK form to test whether or not a query pattern has a solution. No information is returned about the possible query solutions, just whether the server can find one or not.

PREFIX foaf:    <http://xmlns.com/foaf/0.1/>
ASK  (?x foaf:mbox_sha1sum "ABCD1234")

This query tests whether the knowledge base has any FOAF information with the given property and value.

12 Testing Values

Section status: placeholder text - not integrated

SPARQL defines a number of test operations on the RDF values in a query. These operations are chosen from the XQuery and XPath Functions and Operators.

Evaluation rules:

12.1 Standard Operations

The SPARQL language provides a subset of the operations on plain literals, XSD integers and XSD floats defined in XQuery and XPath Functions and Operators.

Not limited to integers and floats: may have other types such a dates.

XQuery and XPath Functions and Operators

XPath 2.0

XMLSchema

Best Practices Task Force on XML Schema Datatypes

12.2 Extending Value Testing

Section status: placeholder text - not integrated

Implementations may provide custom extended value testing operations, for example, for specialised datatypes. These are provided by functions in the query that return true or false for their arguments.

&qname(?var or constant, ?var or constant , ...)

Example:

SELECT ?x WHERE (?x ns:location ?loc) AND &func:test(?loc, 20)

A function can test some condition of bound and unbound variables or constants. The function is called for each possible query result (or the equivalent effect if optimized in some way). A function is named by URIRef in a qname form, and returns a boolean value. "true" means accept; "false" means reject this result.

If a query processor encounters a function that it does not provide, the query is not executed and an error is returned.

A. SPARQL Grammar

Section status: drafted – terminal syntax not checked against that of the XML 1.1 spec

This grammar defines the allowable constructs in a SPARQL query. The EBNF format is the same as that used in the XML 1.1 [14] specification. Please see the "Notation" section of that specification for specific information about the notation.

References to lexical tokens are enclosed in <>. Whitespace is skipped.

Notes: The term "literal" refers to a constant value, and not only an RDF Literal.

The grammar starts with the Query production.

Productions:

[1] Query ::= PrefixDecl* ReportFormat PrefixDecl* FromClause? WhereClause?
[2] ReportFormat ::= 'select' 'distinct'? <VAR> ( CommaOpt <VAR> )*
| 'select' 'distinct'? '*'
| 'construct' TriplePatternList
| 'construct' '*'
| 'describe' VarOrURI ( CommaOpt VarOrURI )*
| 'describe' '*'
| 'ask'
[3] FromClause ::= 'from' FromSelector ( CommaOpt FromSelector )*
[4] FromSelector ::= URI
[5] WhereClause ::= 'where' GraphPattern
[6] SourceGraphPattern ::= 'source' '*' GraphPattern1
| 'source' VarOrURI GraphPattern1
[7] OptionalGraphPattern ::= 'optional' GraphPattern1
| '[' GraphPattern ']'
[8] GraphPattern ::= PatternElement PatternElement*
[9] PatternElement ::= TriplePatternList
| ExplicitGroup
| PatternElementForms
[10] GraphPattern1 ::= PatternElement1
[11] PatternElement1 ::= SingleTriplePatternOrGroup
| PatternElementForms
[12] PatternElementForms ::= SourceGraphPattern
| OptionalGraphPattern
| 'and' Expression
[13] SingleTriplePatternOrGroup ::= TriplePattern
| ExplicitGroup
[14] ExplicitGroup ::= '(' GraphPattern ')'
[15] TriplePatternList ::= TriplePattern TriplePattern*
[16] TriplePattern ::= '(' VarOrURI VarOrURI VarOrLiteral ')'
[17] VarOrURI ::= <VAR>
| URI
[18] VarOrLiteral ::= <VAR>
| Literal
[19] PrefixDecl ::= 'prefix' <NCNAME> ':' QuotedURI
| 'prefix' ':' QuotedURI
[20] Expression ::= ConditionalOrExpression
[21] ConditionalOrExpression ::= ConditionalAndExpression ( '||' ConditionalAndExpression )*
[22] ConditionalAndExpression ::= ValueLogical ( '&&' ValueLogical )*
[23] ValueLogical ::= StringEqualityExpression
[24] StringEqualityExpression ::= EqualityExpression StringComparitor*
[25] StringComparitor ::= 'eq' EqualityExpression
| 'ne' EqualityExpression
| '=~' <PATTERN_LITERAL>
| '!~' <PATTERN_LITERAL>
[26] EqualityExpression ::= RelationalExpression RelationalComparitor?
[27] RelationalComparitor ::= '==' RelationalExpression
| '!=' RelationalExpression
[28] RelationalExpression ::= AdditiveExpression NumericComparitor?
[29] NumericComparitor ::= '<' AdditiveExpression
| '>' AdditiveExpression
| '<=' AdditiveExpression
| '>=' AdditiveExpression
[30] AdditiveExpression ::= MultiplicativeExpression AdditiveOperation*
[31] AdditiveOperation ::= '+' MultiplicativeExpression
| '-' MultiplicativeExpression
[32] MultiplicativeExpression ::= UnaryExpression MultiplicativeOperation*
[33] MultiplicativeOperation ::= '*' UnaryExpression
| '/' UnaryExpression
| '%' UnaryExpression
[34] UnaryExpression ::= UnaryExpressionNotPlusMinus
[35] UnaryExpressionNotPlusMinus ::= ( '~' | '!' ) UnaryExpression
| PrimaryExpression
[36] PrimaryExpression ::= <VAR>
| Literal
| FunctionCall
| '(' Expression ')'
[37] FunctionCall ::= '&' <QNAME> '(' ArgList? ')'
[38] ArgList ::= VarOrLiteral ( ',' VarOrLiteral )*
[39] Literal ::= URI
| NumericLiteral
| TextLiteral
[40] NumericLiteral ::= <INTEGER_LITERAL>
| <FLOATING_POINT_LITERAL>
[41] TextLiteral ::= String <LANG>? ( '^^' URI )?
[42] String ::= <STRING_LITERAL1>
| <STRING_LITERAL2>
[43] URI ::= QuotedURI
| QName
[44] QName ::= <QNAME>
[45] QuotedURI ::= <URI>
[46] CommaOpt ::= ','?

Terminals:

These terminals are further factored for readability.

[47] <URI> ::= "<" <NCCHAR1> (~[">"," "])* ">"
[48] <QNAME> ::= (<NCNAME>)? ":" <NCNAME>
[49] <VAR> ::= "?" <NCNAME>
[50] <LANG> ::= '@' <A2Z><A2Z> ("-" <A2Z><A2Z>)?
[51] <A2Z> ::= ["a"-"z","A"-"Z"]>
[52] <INTEGER_LITERAL> ::= (["+","-"])? <DECIMAL_LITERAL> (["l","L"])?
| <HEX_LITERAL> (["l","L"])?
[53] <DECIMAL_LITERAL> ::= <DIGITS>
[54] <HEX_LITERAL> ::= "0" ["x","X"] (["0"-"9","a"-"f","A"-"F"])+
[55] <FLOATING_POINT_LITERAL> ::= (["+","-"])? (["0"-"9"])+ "." (["0"-"9"])* (<EXPONENT>)?
| "." (["0"-"9"])+ (<EXPONENT>)?
| (["0"-"9"])+ <EXPONENT>
[56] <EXPONENT> ::= ["e","E"] (["+","-"])? (["0"-"9"])+
[57] <STRING_LITERAL1> ::= "'" ( (~["'","\\","\n","\r"]) | ("\\" ~["\n","\r"]) )* "'"
[58] <STRING_LITERAL2> ::= "\"" ( (~["\"","\\","\n","\r"]) | ("\\" ~["\n","\r"]) )* "\""
[59] <DIGITS> ::= (["0"-"9"])
[60] <PATTERN_LITERAL> ::= [m]/pattern/[i][m][s][x]
[61] <NCCHAR1> ::= ["A"-"Z"]
| "_" | ["a"-"z"]
| ["\u00C0"-"\u02FF"]
| ["\u0370"-"\u037D"]
| ["\u037F"-"\u1FFF"]
| ["\u200C"-"\u200D"]
| ["\u2070"-"\u218F"]
| ["\u2C00"-"\u2FEF"]
| ["\u3001"-"\uD7FF"]
| ["\uF900"-"\uFFFF"]
[62] <NCNAME> ::= <NCCHAR1> (<NCCHAR1> | "." | "-" | ["0"-"9"] | "\u00B7" )*

B. References

Section status: misc

References

[1] "Three Implementations of SquishQL, a Simple RDF Query Language", Libby Miller, Andy Seaborne, Alberto Reggiori; ISWC2002

[2] "RDF Query and Rules: A Framework and Survey", Eric Prud'hommeaux

[3] "RDF Query and Rule languages Use Cases and Example", Alberto Reggiori, Andy Seaborne

[4] RDQL Tutorial for Jena (in the Jena tutorial).

[5] RDQL BNF from Jena

[6] Enabling Inference, R.V. Guha, Ora Lassila, Eric Miller, Dan Brickley

[7] N-Triples

[8] RDF http://www.w3.org/RDF/

[9] "Representing vCard Objects in RDF/XML", Renato Iannella, W3C Note.

[10] "RDF Data Access Working Group"

[11] "RDF Data Access Use Cases and Requirements ? W3C Working Draft 2 June 2004", Kendall Grant Clark.

[12] "Resource Description Framework (RDF): Concepts and Abstract Syntax", Graham Klyne, Jeremy J. Carroll, W3C Recommendation.

[13] "RFC 2396", T. Berners-Lee, R. Fielding, L. Masinter, Internet Draft.

[14] "Namespaces in XML 1.1", Tim Bray et al., W3C Recommendation.

[15] "Turtle - Terse RDF Triple Language", Dave Beckett.

Valid XHTML 1.0!


CVS Change Log:


$Log: Overview.html,v $
Revision 1.10  2004/10/12 20:41:32  eric
- fixed latest version link

Revision 1.9  2004/10/12 19:37:51  connolly
oops... not trade, but reg

Revision 1.8  2004/10/12 19:33:13  eric
- fixed copyright

Revision 1.7  2004/10/12 18:56:57  eric
- spelling

Revision 1.6  2004/10/12 18:55:59  eric
- reflect impelementation experience in the SOTD

Revision 1.5  2004/10/12 18:43:03  connolly
2 kinds of issues

Revision 1.4  2004/10/12 18:40:37  connolly
working on STOD

Revision 1.3  2004/10/12 18:29:43  eric
- remove "this is a live document"
- add RCS-Id

Revision 1.2  2004/10/12 14:40:24  matthieu
Fixed anchor error references1 => references

Revision 1.1  2004/10/12 14:21:44  matthieu
Created

Revision 1.115  2004/10/12 09:46:58  eric
- CSS validated
- removed links to old text

Revision 1.114  2004/10/12 09:39:36  eric
validating pubrules compliance and CSS

Revision 1.113  2004/10/12 09:28:11  eric
: commit to check pubrules
- switch to publication headers (this version, ...)

Revision 1.112  2004/10/11 12:17:59  aseaborne
Changes in respect SimonR comments (part III)
http://lists.w3.org/Archives/Public/public-rdf-dawg/2004OctDec/0092.html

Revision 1.111  2004/10/11 11:06:29  aseaborne
Fixed CVS Date field

Revision 1.110  2004/10/11 11:05:12  aseaborne
Fixed entities.

Revision 1.109  2004/10/11 10:55:59  aseaborne
Changes based on Kevin's comments:
http://lists.w3.org/Archives/Public/public-rdf-dawg/2004OctDec/0085.html
Changes recorded in the archive.

Revision 1.107  2004/10/11 08:39:13  aseaborne
Changes based on SimonR's comments (partII)
http://lists.w3.org/Archives/Public/public-rdf-dawg/2004OctDec/0083.html

Reversed: bNode put back in list of RDF term in 2-intro

Revision 1.106  2004/10/10 13:05:54  eric
address more of SimonR's comments.

Revision 1.105  2004/10/10 12:24:17  eric
address more of PatH's comments.

Revision 1.104  2004/10/08 16:36:45  aseaborne
Changes based on first set of SimonR's comments:
http://lists.w3.org/Archives/Public/public-rdf-dawg/2004OctDec/0075.html

Revision 1.102  2004/10/08 16:00:43  aseaborne
Updates based on PatH's comments.
http://lists.w3.org/Archives/Public/public-rdf-dawg/2004OctDec/0054.html

Revision 1.101  2004/10/08 15:30:42  aseaborne
Minor changes

Revision 1.100  2004/10/08 15:24:02  aseaborne
+ Various small typographical changes.
+ Remove any implied fixed connection between FROM URIs and the graph
  (sec 8).  Indeed, a query processor can ignore FROM if it so chooses.
+ Tidied DESCRIBE

Revision 1.99  2004/10/08 14:53:45  aseaborne
+ Various small typographical changes.
+ Added "Pattern Solution" - a set of bindings with unique variables
  that satisfies some graph pattern

Revision 1.97  2004/10/07 22:14:02  eric
addressed howard's publication issues

Revision 1.96  2004/10/07 15:20:32  aseaborne
Fix <br>

Revision 1.95  2004/10/07 15:11:54  aseaborne
spell check with ,spell

Revision 1.94  2004/10/07 15:08:27  aseaborne
spell check with ,spell

Revision 1.93  2004/10/07 15:00:00  aseaborne
Changes arising from DaveB II comments
+ T => RDF-T in defn of query variable
+ Typos fixed as pointed out.

Revision 1.92  2004/10/07 14:45:41  aseaborne
+ Removed defintion of nesting
  Need to talk about combination of graph patterns here.
+ Removed defn of target graph.

Revision 1.91  2004/10/07 13:54:03  aseaborne
+ Changes example of matches to show data fragment (sec 4)
  Avoids potential issues of patterns matching patterns
+ Query Solution and Query Results defintions tidied up.
  Only the plural "Query Results" is defined.
+ Value Constraints defintion tidied
+ Query Stage becomes Query Block
+ Removed red issues in sec 4 (Including Optional Values) as the issue
  is in the issues list.
+ Commented out the Document Outline.
+ Have example with OPTIONAL
+ Sec 4.3 (defn of optional match) - rewritten

Revision 1.90  2004/10/06 15:45:49  aseaborne
Fixed some <br>'s

Revision 1.89  2004/10/06 15:34:47  aseaborne
+ Defn of Graph Pattern simplified.
+ Reworked matching definitions.
+ Defn of Graph Pattern Matching simplified.

Revision 1.88  2004/10/06 14:49:09  aseaborne
+ Section: Binding: remove use of "value" - can confuse.
+ Replaced subscipts on RDF.. with RDF-B etc.
+ removed "substitution" as a definition.  Text merged into triple
  pattern matching.  Use subst()
+ Went back and lowerceased var() and val()

Revision 1.86  2004/10/06 13:21:32  aseaborne
Fixed <a /> tags which break some editors

Revision 1.85  2004/10/06 10:34:54  aseaborne
CVS comment with </div>s broke defns.xsl\!

Revision 1.84  2004/10/06 10:32:04  aseaborne
Excess trailing </div>s broke defns.xsl

Revision 1.83  2004/10/06 08:21:06  eric
finishing first pass through DaveB's comments

Revision 1.82  2004/10/05 06:44:06  eric
working on dave's comments

Revision 1.81  2004/10/04 23:32:42  eric
- improved title

Revision 1.80  2004/10/04 15:38:57  aseaborne
+ Removed TOC 4.4 as there isn't such a section
+ Sec 8: Noted we need to revisit the text on what a query targets.
+ 11.3 Fix syntax of result data

Revision 1.79  2004/10/04 13:07:10  eric
addressed some of daves comments

Revision 1.78  2004/10/04 12:28:30  eric
- s/class="underline"/class="definedTerm"/
- added <div class="exampleOuter exampleInner"></div> around examples
- added but disabled style for examples
- removed commented section 9

Revision 1.77  2004/10/03 13:06:28  eric
- further simplified grammar
- added *lots* of style to the grammar

Revision 1.76  2004/10/03 01:15:44  eric
address typographic issues raised by steveH 02102004T22:14:56+0100

Revision 1.75  2004/10/03 01:01:39  eric
- simplified grammar
- up-cased keywords in grammar

Revision 1.74  2004/10/02 07:22:35  eric
- changed grammar1 anchor to grammar
- changed start production

Revision 1.73  2004/10/01 16:17:47  eric
fixed a couple syntax probs in the grammar file

Revision 1.72  2004/10/01 16:11:28  eric
embedded tokens in BNF and comment error messages

Revision 1.71  2004/10/01 10:35:30  eric
snapshot of grammar work

Revision 1.70  2004/09/30 17:41:49  aseaborne
+ removed editor notes that no longer are needed
+ removed old style result sets - leaving table-style

Revision 1.69  2004/09/30 13:38:42  aseaborne
+ removed issue slist - linked to issues doc.
+ Added informative links to XQuery/XPath Functions&Operators
  and XPath2.0 docs
+ Noted SWBPWG taskforce on xsd datatypes.
+ Noted bNodes in CONSTRUCT

Revision 1.68  2004/09/30 03:54:04  eric
validated

Revision 1.67  2004/09/29 15:51:47  aseaborne
+ Some text in sec 12 - Testing Values - just a hint
  of where we are going
+ Some intro text.
+ Fixed document outline to at least be not complete incorrect

Revision 1.66  2004/09/29 14:30:27  aseaborne
+ Wrote first pass of Query Forms (sec 11) using material already there

Revision 1.64  2004/09/29 08:27:23  eric
first pass at grammar

Revision 1.63  2004/09/29 00:20:14  eric
struck duplicate id="TriplePatterns"

Revision 1.62  2004/09/28 23:59:40  eric
html-validated

Revision 1.61  2004/09/28 16:47:49  aseaborne
+ Name is now SPARQL - no mention of BRQL
+ Added Kendall's abstract text.
+ Fixed a comment in sec 9 that ended too early.

Revision 1.60  2004/09/27 14:44:06  aseaborne
Continued changes due to Bristol Face-to-face meeting:

+ Bug-fixed definitions
+ Fixec orrupted ndashes (became \266 - reason unknown)

Revision 1.59  2004/09/26 08:13:12  eric
drafted new SOURCE section. should be superset of two old SOURCE sections.

Revision 1.58  2004/09/25 14:28:06  eric
some intro words to make it clear we are operating outside the RDF model
when implementing SOURCE

Revision 1.57  2004/09/25 10:09:12  eric
dtd-valid

Revision 1.56  2004/09/24 13:08:26  aseaborne
Changes from the Bristol Face-to-face meeting:
+ Change examples to (triple) syntax
+ Move text for disjunction to OtherText.html
+ Move text for unsaid to OtherText.html
