W3C

XQuery 1.0 and XPath 2.0 Data Model

W3C Working Draft 16 August 2002

This version:
http://www.w3.org/TR/2002/WD-query-datamodel-20020816/
Latest version:
http://www.w3.org/TR/query-datamodel/
Previous versions:
http://www.w3.org/TR/2002/WD-query-datamodel-20020430/
http://www.w3.org/TR/2001/WD-query-datamodel-20011220/
http://www.w3.org/TR/2001/WD-query-datamodel-20010607/
http://www.w3.org/TR/2001/WD-query-datamodel-20010215/
Editors:
Mary Fernández (XML Query WG), AT&T Labs <mff@research.att.com>
Jonathan Marsh (XSL WG), Microsoft <jmarsh@microsoft.com>
Marton Nagy (XML Query WG), Science Applications International Corporation (SAIC) <marton.nagy@saic.com>

This document is also available in this non-normative format: XML.


Abstract

This document defines the W3C XQuery 1.0 and XPath 2.0 Data Model, which is the data model of at least [XSLT 2.0], and [XQuery 1.0: A Query Language for XML], and any other specifications that reference it. This data model is based on the data models of [XPath] and [XML Query Data Model] and replaces [XML Query Data Model]. This document is the result of joint work by the [XSL Working Group] and the [XML Query Working Group].

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. The latest status of this document series is maintained at the W3C.

This is a Public Working Draft for review by W3C Members and other interested parties. It is a draft document and may be updated, replaced or made obsolete by other documents at any time. It is inappropriate to use W3C Working Drafts as reference material or to cite them as other than "work in progress". This is work in progress and does not imply endorsement by the W3C membership.

The most significant changes since the previous version are the following. The subsections on Nodes (4.1-4.7) have been reorganized to "sandbox" the mapping from the PSVI, i.e. make the definition of the accessors depend not on the PSVI properties, but on the arguments passed to the constructor. In particular the definition of the dm:typed-value() accessor has been updated and made more precise. We have defined the mapping from the data model to the XML Information Set in the sections 4.X.5. The section on Errors and all references to the error value have been removed. The constructors dm:element-node-atomic and dm:attribute-node-atomic have been removed.

The XQuery 1.0 and XPath 2.0 Data Model has been defined jointly by the XML Query Working Group (part of the XML Activity) and the XSL Working Group (part of the Style Activity).

Comments on this document should be sent to the W3C mailing list public-qt-comments@w3.org. (archived at http://lists.w3.org/Archives/Public/public-qt-comments/).

A list of current W3C Recommendations and other technical documents can be found at http://www.w3.org/TR/.

Patent disclosures relevant to this specification may be found on the XML Query Working Group's patent disclosure page at http://www.w3.org/2002/08/xmlquery-IPR-statements and the XSL Working Group's patent disclosure page at http://www.w3.org/Style/XSL/Disclosures.html.

Table of Contents

1 Introduction
2 Notation and Pseudo-code Syntax
3 Concepts
    3.1 Node Identity
    3.2 Document Order
    3.3 XML Schemas and the XML Information Set
    3.4 Types
    3.5 Typed Value and String Value
    3.6 Mapping PSV Infoset additions to Types
    3.7 Ignoring Comments, Processing Instructions, and Whitespace
4 Nodes
    4.1 Documents
        4.1.1 Overview
        4.1.2 Constructor
        4.1.3 Accessors
        4.1.4 PSVI to Datamodel Mapping
        4.1.5 Data Model to Infoset Mapping
    4.2 Elements
        4.2.1 Overview
        4.2.2 Constructor
        4.2.3 Accessors
        4.2.4 PSVI to Data Model Mapping
        4.2.5 Data Model to Infoset Mapping
    4.3 Attributes
        4.3.1 Overview
        4.3.2 Constructor
        4.3.3 Accessors
        4.3.4 PSVI to Data Model Mapping
        4.3.5 Data Model to Infoset Mapping
    4.4 Namespaces
        4.4.1 Overview
        4.4.2 Constructor
        4.4.3 Accessors
        4.4.4 PSVI to Data Model Mapping
        4.4.5 Data Model to Infoset Mapping
    4.5 Processing Instructions
        4.5.1 Overview
        4.5.2 Constructor
        4.5.3 Accessors
        4.5.4 PSVI to Data Model Mapping
        4.5.5 Data Model to Infoset Mapping
    4.6 Comments
        4.6.1 Overview
        4.6.2 Constructor
        4.6.3 Accessors
        4.6.4 PSVI to Data Model Mapping
        4.6.5 Data Model to Infoset Mapping
    4.7 Text
        4.7.1 Overview
        4.7.2 Constructor
        4.7.3 Accessors
        4.7.4 PSVI to Data Model Mapping
        4.7.5 Data Model to Infoset Mapping
5 Atomic Values
6 Sequences

Appendices

A XML Information Set Conformance
B References
C References (Non-Normative)

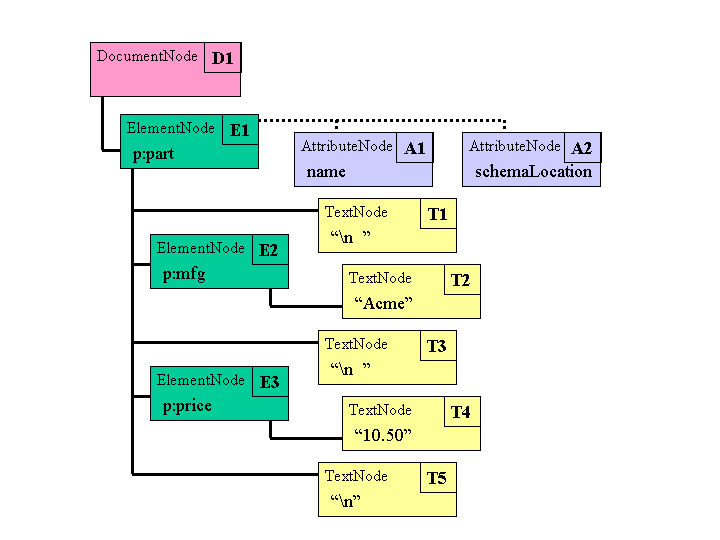

D Example (Non-Normative)
E Issues (Non-Normative)
F Open Issues (Non-normative)
G Resolved Issues (Non-normative)


1 Introduction

This document defines the XQuery 1.0 and XPath 2.0 Data Model, which is the data model of [XSLT 2.0] and [XQuery 1.0: A Query Language for XML] 1.0.

The XQuery 1.0 and XPath 2.0 Data Model (henceforth "data model") serves two purposes. First, it defines precisely the information contained in the input to an XSLT or XQuery processor. Second, it defines all permissible values of expressions in the XSLT, XQuery, and XPath languages. A language is closed with respect to a data model if the value of every expression in a language is guaranteed to be in the data model. XSLT 2.0, XQuery 1.0, and XPath 2.0 are all closed with respect to the data model.

The data model is based on the [XML Information Set] (henceforth "Infoset"), but it requires the following new features to meet the [XPath Requirements Version 2.0] and [XML Query Requirements]:

As with the Infoset, the XQuery 1.0 and XPath 2.0 Data Model specifies what information in the documents is accessible, but it does not specify the programming-language interfaces or bindings used to represent or access the data.

Every value handled by the data model is a sequence of zero or more items. An item is either a node or an atomic value. A node is defined in 4 Nodes and is one of seven node kinds. An atomic value encapsulates an XML Schema atomic type and a corresponding value of that type. They are defined in 5 Atomic Values. A sequence is an ordered collection of nodes, atomic values, or any mixture of nodes and atomic values. A sequence cannot be a member of a sequence. A single item appearing on its own is modeled as a sequence containing one item. Sequences are defined in 6 Sequences.

Note: In XPath 1.0, the data model only defines nodes. The primitive data types (number, boolean, string, node-set) are part of the expression language, not the data model.

The data model can represent various values including not only the input and the output of a query, but all values of expressions used during the intermediate calculations. Examples include the input document or document repository (represented as a document node or a sequence of document nodes), the result of a path expression (represented as a sequence of nodes), the result of an arithmetic or a logical expression (represented as an atomic value), a sequence expression resulting a sequence of integers, dates, QNames or other XML Schema atomic types (represented as a sequence of atomic values), etc. Examples of values that cannot be expressed directly by the data model include schema components, atomic values whose type is not an XML Schema atomic type, etc.

In this document, we provide a precise definition of how values in the XQuery 1.0 and XPath 2.0 Data Model are constructed and accessed, and how they relate to values in the Infoset. We note wherever the XQuery 1.0 and XPath 2.0 Data Model differs from that of XPath 1.0.

2 Notation and Pseudo-code Syntax

In addition to using prose, we define the data model using a functional notation. We chose this notation because it is simple and permits a precise definition of the data model, suitable for use by the formal semantics of XQuery. Although the notation has a functional style, we emphasize that the data model can be realized in a variety of programming languages and styles, for example, as object classes and methods in an object-oriented language.

Pseudo-code syntax is highlighted as follows:

function dm:typed-value(Node $n) returns AtomicValue*

In the psuedo-code syntax, the term Node denotes the category of node values, AtomicValue denotes the category of atomic values, and Item refers to the category of either node values or atomic values. V* denotes the category of sequence values all of whose members are in category V. V? and V+ denote subcategories of V*: The former denotes the category of sequences containing zero or one items, the latter refers to sequences containing one or more items. In a sequence, V may be a Node or AtomicValue, or the union (choice) of several categories of Items. For example, the following denotes a category of sequence containing any combination of comment and processing instruction nodes:

There are some functions in the data model that are partial functions. We use the occurrence indicators ? or * when specifying the return type of such functions. For example, a node may have one parent node or no parent. If the node argument has a parent, the dm:parent accessor returns a singleton sequence. If the node argument does not have a parent, it returns the empty sequence. The signature of dm:parent specifies that it returns an empty sequence or a sequence containing one element or document node:

function dm:parent(Node $n)
         returns (ElementNode | DocumentNode)?

The pseudo-code syntax defines functions to construct values, called constructors; and functions to access parts of values, called accessors (see [Issue-0033: Unclear relationship between values passed to the constructor, and those returned by the accessor]). The constructors and accessors defined by the data model are prefixed with dm

Note: The XPath 1.0 data model defines accessors, but does not define constructors.

The term signature of a function specifies the type of its zero or more inputs and the type of its one output. The following signature denotes a function f that takes values in the categories V1, ..., Vm and returns an output value in the category Vn.

function f(V1 $v1, ..., Vm $vm) returns Vn

A member of a particular category is a permissible argument to any function that accepts the category, for example, a ProcessingInstructionNode is a permissible argument to a function expecting a Node.

This document relies on the [XML Information Set]. Information items and properties are indicated by the styles information item and [property], respectively.

This document also provides pseudo-code syntax describing the mapping from the Infoset to the data model. To facilitate this we introduce accessors to the required infoset properties through InfoItem objects. These infoset accessors are for rhetorical purposes only and are not intended to be exposed outside this specification. We name the accessors of the Infoset using the convention infoset-<item-name>-<property-name>. Similarly, accessor functions that return PSV Infoset properties use the naming convention psvi-<item-name>-<property-name>. For example, infoset-element-attributes is the accessor that returns an element information item's [attributes] property:

function infoset-element-attributes(ElementItem $ii)
         returns AttributeItem*

An InfoItem is one of eleven kinds of item: document item, element item, attribute item, processing instruction item, unexpanded entity item, character item, comment item, document type declaration item, unparsed entity item, notation item, and namespace item.

The infoitem-kind accessor returns a string value representing the information item's kind, either "document", "element", "attribute", "character", "namespace", "processing-instruction", "comment", "document-type-declaration", "notation", or "unparsed-entity".

function infoitem-kind(InfoItem $ii) returns xs:string

Throughout this document, the namespace prefix xs indicates the [XMLSchema Part 1] namespace name http://www.w3.org/2001/XMLSchema. The namespace prefixes xf and op indicate the namespace of the functions and operators defined in Section 1.5 "Namespace Prefix" of [XQuery 1.0 and XPath 2.0 Functions and Operators].

The following is a list of some functions and operators that are used in this document but precisely defined in [XQuery 1.0 and XPath 2.0 Functions and Operators]:

This document frequently uses the term expanded-QName. An expanded-QName is a pair of values consisting of a namespace URI and a local name. They belong to the value space of the XML Schema type xs:QName. When this document refers to xs:QName we always mean the value space, i.e. a namespace URI, local name pair (and not the lexical space referring to constructs of the form prefix:local-name).

3 Concepts

3.1 Node Identity

Because XML documents are tree-structured, we define the data model using conventional terminology for trees. The data model is a node-labeled, tree-constructor representation, but also includes a concept of node identity. The identity of a node is established when a node-constructor is applied to create the node: each application of a node constructor creates a new node that is identical to itself, and not identical to any other node (see 4 Nodes).

The dm:node-equal function takes two nodes as arguments. It returns true if the arguments are identical and false otherwise.

function dm:node-equal(Node $n1, Node $n2)
         returns xs:boolean

This concept should not be confused with the concept of unique ID, which is a unique name assigned to an element by the author to represent references using ID/IDREF correlation.

3.2 Document Order

A document order is defined on all the nodes in a document. The document node is the first node. Element nodes, comment nodes, and processing instruction nodes occur in the order of their representation in the XML (after expansion of entities). Element nodes occur before their children. The namespace nodes of an element immediately follow the element node (see [Issue-0051: Document order of shared namespace nodes]). The relative order of namespace nodes is implementation-dependent. The attribute nodes of an element immediately follow the namespace nodes of the element. The relative order of attribute nodes is implementation-dependent. Reverse document order is the reverse of document order.

The relative order of nodes in distinct documents is implementation-dependent but stable. In other words, given two distinct documents A and B, if a node in document A is before a node in document B, then every node in document A is before every node in document B.

Note: The relative order of free-floating nodes (those not in a document) is not defined. See [Issue-0050: Relative order of free-floating nodes].

The dm:node-before function takes two nodes as arguments. It returns true if the first argument is before (but not identical to) the second one in document order and false otherwise

function dm:node-before(Node $n1, Node $n2)
         returns xs:boolean

3.3 XML Schemas and the XML Information Set

The data model is defined in terms of the [XML Information Set] after XML Schema validity assessment. XML Schema validity assessment is the process of assessing an XML element information item with respect to an XML Schema and augmenting it and some or all of its descendants with properties that provide information about validity and type assignment. The result of schema validity assessment is an augmented Infoset, known as the Post Schema-Validation Infoset, or PSVI.

The data model supports the following classes of XML documents:

  • Schema-validated documents, i.e., those validated with respect to a schema,

  • DTD-valid documents, i.e., those documents validated with respect to a DTD, and

  • Well-formed documents with no corresponding DTD or schema.

The data model does not support non-well-formed documents and documents that don't conform to XML Namespaces. These are not supported by the XML Information Set. On the other hand the data model does support some kinds of values that are not supported by the XML Information Set. Examples of these are well-formed document fragments, sequences of fragments or sequences of documents. The data model also supports values that are not nodes. Examples of these are atomic values, sequences of atomic values, or sequences mixing nodes and atomic values. These are necessary to be able to represent the results of intermediate expressions in the data model during expression processing.

Schema-validated documents include documents in which some elements or attributes have been validated by "lax" or "skip" validation ([XMLSchema Part 2]).

An "incompletely validated document" is an XML document that has a corresponding schema but whose schema-validity assessment has resulted in one or more element or attribute information items being assigned values other than 'valid' for the [validity] property in the PSVI.

The data model supports incompletely validated documents. See [Issue-0024: Support for Schema-invalid documents].

Note: This implies accommodation for the case where both a DTD and a schema are applied. This will probably require some reconciliation of the [attribute type] property with type information from the PSVI. See issue [Issue-0004: Schema/DTD].

In addition to specifying the transformation from the Post Schema Validation Infoset (PSVI) to the data model this document also specifies the transformation from the data model back to the XML Information Set. This is a useful notion that can be used for defining serialization and validation. Serialization can be viewed as a two step process, first transforming to the XML Infoset and then to an XML document. Validation is described conceptually as a process of mapping the data model to the XML Infoset followed by XML Schema validation producing a PSVI which is then loaded into the data model. The mapping from the data model to the Infoset is specified via the function

function dm:node-to-infoitem(Node $n) returns InfoItem

The function takes a data model Node as an argument and returns an Information Item. We define this for each data model node type in the appropriate section below. The returned InfoItem will be specified by having its type identified and its properties described. The definition of dm:node-to-infoitem() will be recursive. Furthermore we will find it convenient to use a second function dm:nodes-to-infoitems() which takes a sequence of data model Nodes and returns a sequence of InfoItems by applying dm:node-to-infoitem() on each member of the sequence of Nodes in turn and creating a sequence of the resulting InfoItems.

define function dm:nodes-to-infoitems(Node* $seq)
                returns InfoItem*
{
  for $node in $seq return dm:node-to-infoitem($node)
}

Editorial Note: There is an open issue about how to map namespaces declared globally in the query prolog during the data model to infoset transformation.

3.4 Types

The data model supports a representation of named types as expanded-QNames. An expanded-QName is a pair consisting of a namespace URI and a local name. Named types include both the built-in types defined by XML Schema Part 2 and types declared in a schema and imported by a query. Since named types in XML Schema are global, an expanded-QName uniquely identifies such a type, be it simple or complex: The namespace of the expanded-QName is the target namespace of the schema and its local name is the name of the type. The data model does not uniquely identify anonymous types and represents them by xs:anyType or xs:anySimpleType.

The data model associates type information with element nodes, attribute nodes and atomic values. If this type information is something other than xs:anyType or xs:anySimpleType, the item is guaranteed to be a valid instance of that type as defined by XML Schema. The data model defines an accessor dm:type() that returns an expanded-QName corresponding to the type of the element node, attribute node or atomic value, provided that the type is globally declared. It returns xs:anyType or xs:anySimpleType if it is locally declared or if no type information exists. When no type information exists for an element or an attribute node we frequently use the terminology "element with unknown type" or "attribute with unknown simple type".

The data model does not represent element or attribute declaration schema components, but it supports various type-related operations. The semantics of such operations, e.g. checking if a particular instance of an element node has a given type is defined in [XQuery 1.0 Formal Semantics].

3.5 Typed Value and String Value

The content of a text, attribute, or element node can be interpreted in either of two ways: as a string value or as a typed value. For these types of nodes, the typed value can be extracted by the dm:typed-value accessor, and the string value can be extracted by the dm:string-value accessor. The typed value of a node is a sequence of atomic values, and the string value of a node is a string. The typed value of a node is derived from its string value and its type in a way that is consistent with schema validation, as described in the definitions of the accessor functions for each kind of node.

3.6 Mapping PSV Infoset additions to Types

This section specifies how the type of an element or attribute node is computed from the PSV Infoset additions that specify validity and type assessment for the node's corresponding information item.

Editorial Note: The rules specifying the computation of the types from the PSVI do not yet reflect that this process depends on the conformance level of the processor. See [Issue-0077: PSVI to Type mapping dependence on conformance levels].

A PSV element (attribute) information item has a [validity] and a [type definition] property. The [validity] property may be "valid", "invalid", or "notKnown" and reflects the outcome of the element's (attribute's) schema-validity assessment. The [type definition] property contains an element information item that is isomorphic to the XML Schema type definition of the element or attribute information item. Roughly speaking these two properties are used to compute the type of an element or attribute in the data model, which corresponds to the {target namespace} and the {name} of the [type definition] property if [validity] is "valid", or to xs:anyType (xs:anySimpleType) otherwise. Notice that the only information that can be inferred from an invalid or not known validity value is that the information item is well-formed, therefore, we must associate some general type information with the element or attribute node.

The precise definition of the type of an element or attribute information item is slightly more complex due to the following factors. First, XML Schema only guarantees the existence of either the [type definition] property, or the [type definition namespace], [type definition name] and [type definition anonymous] properties. Second, if the type definition refers to a union type, there are further properties defined, that refer to the type definition which actually validated the element item's normalized value. These properties are either the [member type definition], or the [member type definition namespace], [member type definition name] and [member type definition anonymous] properties. If these are available the type of an element or attribute will refer to the member type that actually validated the schema normalized value. Having identified all the relevant properties we can now define how to compute a type.

The type of an element information item is represented by an expanded-QName whose namespace and local name corresponds to the first applicable item in the following list:

  • xs:anyType if the [validity] property is "invalid" or "notKnown", or

  • the {target namespace} and {name} properties of the [member type definition] schema component if that exists, or

  • the {target namespace} and {name} properties of the [type definition] schema component if that exists, or

  • the [member type definition namespace] and the [member type definition name] if [member type definition anonymous] exists and is false, or

  • the [type definition namespace] and the [type definition name] if [type definition anonymous] exists and is false, or

  • it corresponds to xs:anyType.

Editorial Note: The last bullet of the above definition is currently under discussion. It is very likely that a change will be made in a future draft to reflect a more precise definition covering derived types and the possible usage of generated type identifiers when no type names available. See [Issue-0076: PSVI to Type mapping supporting derived types].

The type of an attribute information item is represented by an expanded-QName. Its definition is the same as for element information items except for using xs:anySimpleType instead of xs:anyType above.

We will find it convenient to define the following function that will be used later in various sections. The infoitem-to-type function takes an element or an attribute information item and returns an xs:QName that corresponds to the type of its argument.

function infoitem-to-type((ElementItem|AttributeItem) $ii)
         returns xs:QName

define function infoitem-to-type(ElementItem $ii)
       returns xs:QName
{
  if (psvi-element-validity($ii) ne "valid") then
    return xf:QName-from-string("xs:anyType")
  else if (psvi-element-member-type-definition($ii) ne ())
       then
    let $typedef:= psvi-element-member-type-definition($ii)
    let $name:= psvi-typedefinition-name($typedef)
    let $ns:=  psvi-typedefinition-namespace($typedef)
    return xf:QName-from-uri($ns,$name)
  else if (psvi-element-type-definition($ii) ne ()) then
    let $typedef:= psvi-element-type-definition($ii)
    let $name:= psvi-typedefinition-name($typedef)
    let $ns:=  psvi-typedefinition-namespace($typedef)
    return xf:QName-from-uri($ns,$name)
  else if (psvi-element-member-type-definition-anonymous($ii)
           eq false) then
    let $name:= psvi-element-member-type-definition-name($ii)
    let $ns:=
        psvi-element-member-type-definition-namespace($ii)
    return xf:QName-from-uri($ns,$name)
  else if (psvi-element-type-definition-anonymous($ii)
           eq false) then
    let $name:= psvi-element-type-definition-name($ii)
    let $ns:= psvi-element-type-definition-namespace($ii)
    return xf:QName-from-uri($ns,$name)
  else
    return xf:QName-from-string("xs:anyType")
}

define function infoitem-to-type(AttributeItem $ii)
       returns xs:QName
{
  if (psvi-attribute-validity($ii) ne "valid") then
    return xf:QName-from-string("xs:anySimpleType")
  else if (psvi-attribute-member-type-definition($ii) ne ())
       then
    let $typedef:= psvi-attribute-member-type-definition($ii)
    let $name:= psvi-typedefinition-name($typedef)
    let $ns:=  psvi-typedefinition-namespace($typedef)
    return xf:QName-from-uri($ns,$name)
  else if (psvi-attribute-type-definition(a) ne ()) then
    let $typedef:= psvi-attribute-type-definition($ii)
    let $name:= psvi-typedefinition-name($typedef)
    let $ns:=  psvi-typedefinition-namespace($typedef)
    return xf:QName-from-uri($ns,$name)
  else if (psvi-attribute-member-type-definition-anonymous($ii)
           eq false) then
    let $name:= psvi-attribute-member-type-definition-name($ii)
    let $ns:=
        psvi-attribute-member-type-definition-namespace($ii)
    return xf:QName-from-uri($ns,$name)
  else if (psvi-attribute-type-definition-anonymous($ii)
           eq false) then
    let $name:= psvi-attribute-type-definition-name($ii)
    let $ns:= psvi-attribute-type-definition-namespace($ii)
    return xf:QName-from-uri($ns,$name)
  else
    return xf:QName-from-string("xs:anySimpleType")
}

Editorial Note: MF: Following two cases need to be completed: Given information items that validate with respect to a DTD, ... Given information items from a well-formed document, with no corresponding DTD or Schema...

3.7 Ignoring Comments, Processing Instructions, and Whitespace

Although the data model is able to represent comments, processing instructions, and insignificant whitespace, preservation of this information may be unnecessary and onerous for some applications.

Construction of a document from an XML information set is parameterized by three flags, ignore-comments, ignore-processing-instructions, and ignore-whitespace. If the ignore-comments flag is true, comment nodes are not preserved in the data model. If the ignore-processing-instructions flag is true, processing-instruction nodes are not preserved in the data model. If the ignore-whitespace flag is true, insignificant whitespace is not preserved.

ignore-comments                : xs:boolean
ignore-processing-instructions : xs:boolean
ignore-whitespace              : xs:boolean

Note: By whom these flags are set is not defined. See [Issue-0040: Setting and examining construction flags].

Expressions which rely upon the presence or absence of comments, processing instructions, or insignificant whitespace may produce different results for two data models created from the same infoset (XML document), when each data model is constructed with different settings of these flags.

Insignificant whitespace is defined as a text node that:

  1. contains no characters other than whitespace characters (as defined in XML 1.0), and

  2. has a parent element with a [validity] property with the value "valid", and a [type definition] property yielding a complex type with content-type of element-only.

Note: See [Issue-0034: Interaction of insignificant whitespace with comments]. Removal of insignificant whitespace might be performed automatically when consistent with the schema. See [Issue-0028: Whitespace handling]. XSLT's whitespace handling mechanism needs to be supported; see [Issue-0057: Support for XSLT whitespace stripping].

4 Nodes

The category of Node values contains seven distinct kinds of nodes: document, element, attribute, text, namespace, processing instruction, and comment. The seven kinds of nodes are defined in the following subsections. See [Issue-0078: Data model does not represent CDATA sections].

Each kind of node has its own constructor. The effect of a node constructor is to create a new node with a unique identity, distinct from all other nodes.

A set of accessors is defined on all seven kinds of Nodes. Some accessors return a constant empty sequence on certain node kinds.

The return types of the Node accessors are given below. Some kinds of nodes further restrict the return types; notably, many node kinds return a constant empty sequence for some of the accessors.

function dm:node-kind(Node $n)    returns xs:string
function dm:name(Node $n)         returns xs:QName?
function dm:base-uri(Node $n)     returns xs:anyURI?
function dm:string-value(Node $n) returns xs:string
function dm:typed-value(Node $n)  returns AtomicValue*
function dm:parent(Node $n)
         returns (ElementNode | DocumentNode)?
function dm:children(Node $n)
         returns (ElementNode | ProcessingInstructionNode
                  | CommentNode | TextNode)*
function dm:attributes(Node $n)   returns AttributeNode*
function dm:namespaces(Node $n)   returns NamespaceNode*
function dm:type(Node $n)         returns xs:QName?
function dm:unique-ID(Node $n)    returns xs:ID?

A tree contains a root plus all nodes that are reachable directly or indirectly from the root via the dm:children, dm:attributes, and dm:namespace accessors. Every node belongs to exactly one tree, and every tree has exactly one root node. A tree whose root node is a document node is referred to as a document. A tree whose root node is some other kind of node is referred to as a fragment.

4.1 Documents

4.1.1 Overview

Document nodes encapsulate XML documents. The information associated with a document node includes the following.

  • the base-uri of the document as an xs:anyURI

  • the children of the document as a sequence of one or more element, zero or more processing instruction, comment or text nodes

The above information associated with a document node is set during construction and can be accessed later via the accessor functions.

Note: Document nodes and XPath 1.0 root nodes are essentially identical.

In a well-formed document, the children of the document node consist exclusively of element nodes, processing-instruction nodes, and comment nodes, and exactly one of these children is an element node. A document node in the data model is more permissive: it permits more than one element node as a child and also permits text nodes as children. See [Issue-0074: Do we need Document fragments].

4.1.2 Constructor

A document node can be constructed using dm:document-node. The constructor takes a base URI value and a non-empty sequence of children nodes as arguments.

function dm:document-node(
           xs:anyURI $base-uri,
           (ElementNode | ProcessingInstructionNode
            | CommentNode | TextNode)+ $children)
         returns DocumentNode

Like all other node constructors, the document-node constructor has the effect of creating a new node with a unique identity, distinct from all other nodes.

4.1.3 Accessors

The accessors dm:base-uri and dm:children return the values passed to the constructor as arguments.

function dm:base-uri(DocumentNode $n)  returns xs:anyURI
function dm:children(DocumentNode $n)
         returns (ElementNode | ProcessingInstructionNode
                  | CommentNode | TextNode)+

The accessor dm:node-kind returns the string "document". The accessor dm:string-value returns the string-value of the document which is defined to be the concatenation of the string-values of all text-node descendants of the document node in document order.

function dm:node-kind(DocumentNode $n)    returns xs:string
function dm:string-value(DocumentNode $n) returns xs:string

The accessors dm:name, dm:typed-value, dm:parent, dm:attributes, dm:namespaces, dm:type and dm:unique-ID applied to a document node always return the empty sequence.

4.1.4 PSVI to Datamodel Mapping

When a data model fragment is created from the PSVI a document information item is mapped to a Document Node. The precise transformation is described by specifying the PSVI property corresponding to each argument of the document node constructor.

The base-uri argument corresponds to the [base URI] property.

The children argument corresponds to the information items found in the [children] property, omitting any document type declaration information items.

Note: There is no way to determine what DTD might apply to the data model. See [Issue-0042: System Id and Public Id are not exposed].

A document node is constructed from a Document Information Item by the infoitem-to-document-node function:

/* Accessors for document information items: */
function infoset-document-children(DocumentItem $ii)
         returns (ElementItem | ProcessingInstructionItem
                  | CommentItem | DocTypeItem)*
function infoset-document-base-uri(DocumentItem $ii)
         returns xs:anyURI
define function infoitem-to-document-node(DocumentItem $ii)
       returns DocumentNode
{
  let $kids:= collapse-text-nodes(sequence-map(
        infoitem-to-node, infoset-document-children($ii)))
  return dm:document-node(infoset-document-base-uri($ii),$kids)
}

The collapse-text-nodes function synthesizes a single text node from multiple text nodes. The sequence-map function applies its first function argument to each member of its second sequence argument and returns a new sequence containing the result of applying the function to each member of the sequence. In the pseudo-code above, infoitem-to-node is applied to each child of the document information item$ii and a new sequence of children nodes is constructed, each of which is a Node. The constructor dm:document-node constructs the document node in the data model.

function sequence-map(function $map, Item* $seq)
         returns Item*

The infoitem-to-node function maps an information item to a sequence of zero or one node.

define function infoitem-to-node(InfoItem $ii) returns Node?
{
  return
    if (infoitem-kind($ii) = "element") then
      infoitem-to-element-node($ii)
    else if (infoitem-kind($ii) = "character") then
      infoitem-to-single-character-text-node($ii)
    else if (infoitem-kind($ii) = "processing-instruction") then
      if (not(ignore-processing-instructions)) then
        infoitem-to-processing-instruction-node($ii)
      else empty-sequence()
    else if (infoitem-kind($ii) = "comment") then
      if (not(ignore-comments)) then
        infoitem-to-comment-node($ii)
      else empty-sequence()
    else
      empty-sequence()
}

4.1.5 Data Model to Infoset Mapping

The mapping of the data model to the XML Information Set maps a Document Node to a document information item. Given a Document Node $n, the properties of the corresponding document information item are specified as follows:

Document Information Item properties
[children] dm:nodes-to-infoitems(dm:children($n))
[notations] ()
[unparsed entities] ()
[base URI] dm:base-uri($n)

The values of the properties [character encoding scheme], [standalone], [version] and [all declarations processed] are implementation-defined but must be consistent with the rest of the InfoItem properties.

Since Document Nodes are permissive, (for instance allow zero or more than one element node children or allow text node children) the mapping via dm:node-to-infoitem() may not produce a valid InfoSet.

4.2 Elements

4.2.1 Overview

Element nodes encapsulate XML elements. The information associated with an element node includes the following.

  • the expanded-QName of the element as an xs:QName

  • the base-uri of the element as an xs:anyURI

  • the type of the element as an xs:QName

  • the children of the element as a sequence of zero or more element, processing instruction, comment or text nodes

  • the parent of the element as a sequence of zero or one element or document node

  • the attributes of the element as a sequence of zero or more attribute nodes

  • the namespaces of the element as a sequence of zero or more namespace nodes

  • the unique ID of the element (if any) as a sequence of zero or one xs:ID

The above information associated with an element node is set during construction and can be accessed later via the accessor functions.

Element nodes must satisfy the following constraints.

  1. An element node's children may not contain two consecutive text nodes. Consecutive text nodes are collapsed by the element constructor into one text node. The string value of the text node is the concatenation of the string values of the consecutive text nodes.

  2. The parent of any child of an element must be the element itself and any element that has a parent must be among its parent's children.

  3. The attributes of an element must have distinct names.

  4. The namespaces of an element must have distinct prefixes.

Due to the definition of the element node constructor the first two constraints above are automatically satisfied .

4.2.2 Constructor

An element node can be constructed using dm:element-node. The constructor takes an expanded-QName, a sequence of namespace nodes, a sequence of attribute nodes, a sequence of child nodes, and the node's type as arguments.

function dm:element-node(
           xs:QName $qname,
           NamespaceNode* $nsnodes,
           AttributeNode* $attrnodes,
           (ElementNode | ProcessingInstructionNode
            | CommentNode | TextNode)* $children,
           xs:QName $type)
         returns ElementNode

Like all other node constructors, the element node constructor has the effect of creating a new node with a unique identity, distinct from all other nodes.

If consecutive text nodes are specified as the children of an element node they are collapsed into one text node whose string value is the concatenation of the string values of the consecutive text nodes.

To guarantee that the parent-child relationship is invertible, (i.e. that the parent of any child of a node is itself and that any node that has a parent is among its parent's children), the element constructors logically create a copy of all of their namespace, attribute, and children arguments and set the parent property of these nodes to the newly created element node. As long as the parent-child constraint is satisfied, an implementation of the data model may choose to use specialized techniques to avoid creating physical copies of the arguments to an element constructor. See [Issue-0052: Element constructor copies nodes?].

The data model permits element nodes without parents. In fact element nodes created by the element node constructor never have parents unless they are enclosed in other node constructors. Such nodes may represent partial results during expression processing.

Editorial Note: Note that the constructor has no base-uri argument. In fact base-uri is currently underspecified. Future versions of this document will address this. See also [Issue-0030: Base URI is a property of element nodes]

4.2.3 Accessors

The accessors return information associated with an element node. Some accessors simply return the values that were passed in as arguments to the constructor, while others return values that are derived from the information associated with the element node. The accessors dm:name, dm:namespaces, dm:attributes, dm:children and dm:type are examples of the former kind.

function dm:name(ElementNode $n)       returns xs:QName
function dm:namespaces(ElementNode $n) returns NamespaceNode*
function dm:attributes(ElementNode $n) returns AttributeNode*
function dm:children(ElementNode $n)
         returns (ElementNode | ProcessingInstructionNode
                  | CommentNode | TextNode)*
function dm:type(ElementNode $n)       returns xs:QName

The accessor dm:node-kind returns the string constant "element". The accessor dm:parent returns a sequence containing zero or one nodes representing the parent of the element node. The accessor dm:base-uri returns a sequence containing zero or one uri references representing the base URI of the element node. The accessor dm:unique-ID returns a sequence containing the unique ID of the element if it has one; otherwise, it returns the empty sequence.

function dm:node-kind(ElementNode $n)  returns xs:string
function dm:parent(ElementNode $n)
         returns (ElementNode | DocumentNode)?
function dm:base-uri(ElementNode $n)   returns xs:anyURI?
function dm:unique-ID(ElementNode $n)  returns xs:ID?

The accessor dm:string-value returns the string-value of the element which is defined to be the concatenation of the string-values of all text-node descendants of the element node in document order.

Editorial Note: Note that the dm:string-value($n) and dm:string-value(dm:typed-value($n)) may give different results under this definition. The issue of whether to allow or possibly mandate dm:string-value to return the same result as the string-value of the typed value is still under discussion. See [Issue-0079: String-value vs. string-value of the typed-value].

function dm:string-value(ElementNode $n) returns xs:string

The accessor function dm:typed-value returns the typed-value of the node, which is a sequence of zero or more atomic values. The typed-value is closely related to the node's string-value and its type. For instance when the node's string-value is "3.14" and its type is xs:decimal the typed-value is a sequence containing the atomic value 3.14 of type decimal. In fact, when the type is an atomic type, typed-value is the atomic-value constructed from the string-value and the type. In the general case typed-value is defined via the function dm:atomic-value-sequence, which constructs a sequence of atomic values from a string and a type, in such a way to be consistent with validation.

define function dm:typed-value(ElementNode $n)
       returns AtomicValue*
{
  return dm:atomic-value-sequence(dm:string-value($n),
                                  dm:type($n))
}

It is noted that when the element node's type is xs:anyType then dm:typed-value returns the node's string-value as xs:anySimpleType. If the type is a complex type with complex content then invoking dm:typed-value raises an error.

4.2.4 PSVI to Data Model Mapping

When a data model fragment is created from the PSVI an element information item is mapped to an Element Node. The precise transformation is described by specifying the PSVI property corresponding to each argument of the element node constructor.

The expanded-QName of the element is obtained as follows. Its local part corresponds to the [local name] property. Its namespace URI corresponds to the [namespace name] property.

The children of the element node correspond to the following:

  • A single text node whose string-value is the [schema normalized value] PSVI property if that exists, or

  • The element, comment, processing instruction, and character information items appearing in the [children] property with consecutive character information item children being coalesced into a single text node.

Because the data model requires that all general entities be expanded, there will never be unexpanded entity reference information item children. See [Issue-0073: Whitespace normalization of the string-value of elements with simple content].

The attributes of the element node are nodes corresponding to attribute information items appearing in the [attributes] property. See [Issue-0071: Magic Attributes].

The namespaces of the element node are nodes corresponding to namespace information items appearing in the [in-scope namespaces] property. See [Issue-0062: Namespace fixups required].

The type of an element is an expanded-QName whose namespace and local name is computed as described in 3.6 Mapping PSV Infoset additions to Types. It is noted that if the type referenced would be a union type then type refers to the member type that actually validated the schema normalized value. See [Issue-0064: Including type definition in element constructors]. For an element in a well-formed document with no associated schema, type corresponds to xs:anyType. Consequently the typed-value of such an element is its string value as an instance of xs:anySimpleType.

The unique ID of the element node is an identifier optionally assigned by the user. It corresponds to the [normalized value] property of the attribute information item in the [attributes] property that has a type ID, if one exists.

Editorial Note: Need to make it clearer how the unique ID works given that the constructor has no unique ID argument.

Note: Using this definition, only IDs declared in a DTD are effective. See [Issue-0004: Schema/DTD]. Even so, this definition is not backward compatible with XPath 1.0. See [Issue-0038: XPath 1.0 treatment of non-unique IDs]. Furthermore, it doesn't even work as spec'd, see [Issue-0044: Unable to construct an element with unique ID].

An element node is constructed from an element information item by the infoitem-to-element-node function:

/* Accessors for element information items: */
function infoset-element-namespace-name(ElementItem $ii)
         returns xs:anyURI?
function infoset-element-local-name(ElementItem $ii)
         returns xs:string
function infoset-element-children(ElementItem $ii)
         returns InfoItem*
function infoset-element-attributes(ElementItem $ii)
         returns AttributeItem*
function infoset-element-in-scope-namespaces(ElementItem $ii)
         returns NamespaceItem*
function infoset-element-base-uri(ElementItem $ii)
         returns xs:anyURI

function psvi-element-validity(ElementItem $ii)
         returns xs:string
function psvi-element-type-definition(ElementItem $ii)
         returns ElementItem
function psvi-element-schema-normalized-value(ElementItem $ii)
         returns xs:string
define function infoitem-to-element-node(ElementItem $ii)
       returns ElementNode
{
  let $qname:= xf:QName-from-uri(
                 infoset-element-namespace-name($ii),
                 infoset-element-local-name($ii)) ,
      $nsnodes:= sequence-map(
                   infoitem-to-namespace-node,
                   infoset-element-in-scope-namespaces($ii)) ,
      $attrnodes:= sequence-map(
                     infoitem-to-attribute-node,
                     infoset-element-attributes($ii)) ,
      $kids:= collapse-text-nodes(sequence-map(
                infoitem-to-node,
                infoset-element-children($ii))) ,
      $type:= infoitem-to-type($ii)
  return dm:element-node(
           $qname, $nsnodes, $attrnodes, $kids, $type)
}

Note: [base URI] is discarded. See [Issue-0030: Base URI is a property of element nodes].

4.2.5 Data Model to Infoset Mapping

The mapping of the data model to the XML Information Set maps an Element Node to an element information item. Given an Element Node $n, the properties of the corresponding element information item are specified as follows:

Element Information Item properties
[namespace name] xf:get-namespace-uri(dm:name($n))
[local name] xf:get-local-name(dm:name($n))
[prefix] get-namespace-prefix(xf:get-namespace-uri(dm:name($n)))
[children] dm:nodes-to-infoitems(dm:children($n))
[attributes] dm:nodes-to-infoitems(dm:attributes($n))
[in-scope namespaces] dm:nodes-to-infoitems(dm:namespaces($n))
[base URI] dm:base-uri($n)
[parent] dm:nodes-to-infoitems(dm:parent($n))

Editorial Note: The get-namespace-prefix() function is not yet defined.

The value of the property [namespace attributes] is computed based on the difference of the namespaces of this element node and its parent's. This property contains a namespace attribute information item for each namespace that occurs in dm:namespaces($n), but not in dm:namespaces(dm:parent($n)). In addition, this property also contains a namespace attribute information item corresponding to xmlns="", if dm:namespaces(dm:parent($n)) contains a namespace node for the empty prefix, but dm:namespaces($n) does not.

4.3 Attributes

4.3.1 Overview

Attribute nodes encapsulate XML attributes. The information associated with an attribute node includes the following.

  • the expanded-QName of the attribute as an xs:QName

  • the string-value of the attribute as an xs:string

  • the type of the attribute as an xs:QName

  • the parent of the attribute as a sequence of zero or one element node

The above information associated with an attribute node is set during construction and can be accessed later via the accessor functions.

For convenience, the element node that owns this attribute is called its "parent" even though an attribute node is not a "child" of its parent element.

4.3.2 Constructor

An attribute node can be constructed using dm:attribute-node. The constructor takes the attribute's expanded-QName, string value and type.

function dm:attribute-node(
           xs:QName $qname, xs:string $value, xs:QName $type)
         returns AttributeNode

Like all other node constructors, the attribute node constructor has the effect of creating a new node with a unique identity, distinct from all other nodes.

4.3.3 Accessors

The accessors dm:name, dm:string-value and dm:type return the values passed to the constructor as arguments.

Editorial Note: Note that the dm:string-value($n) and dm:string-value(dm:typed-value($n)) may give different results under this definition. The issue of whether to allow or possibly mandate dm:string-value to return the same result as the string-value of the typed-value is still under discussion. See [Issue-0079: String-value vs. string-value of the typed-value].

function dm:name(AttributeNode $n)         returns xs:QName
function dm:string-value(AttributeNode $n) returns xs:string
function dm:type(AttributeNode $n)         returns xs:QName

The accessor dm:node-kind returns the string constant "attribute". The accessor dm:parent returns a sequence containing zero or one element nodes representing the parent of the attribute node.

function dm:node-kind(AttributeNode $n) returns xs:string
function dm:parent(AttributeNode $n)    returns ElementNode?

The accessor function dm:typed-value returns the typed-value of the node, which is a sequence of zero or more atomic values. The typed-value is closely related to the node's string-value and its type. It is defined via the function dm:atomic-value-sequence, which constructs a sequence of atomic values from a string and a type, in such a way to be consistent with validation. In particular when the type is an atomic type, typed-value is the atomic-value constructed from the string-value and the type. When the type of the attribute is xs:anySimpleType then dm:typed-value returns its string value as xs:anySimpleType.

define function dm:typed-value(AttributeNode $n)
                returns AtomicValue*
{
  return dm:atomic-value-sequence(dm:string-value($n),
                                  dm:type($n))
}

The accessors dm:base-uri, dm:attributes, dm:children, dm:namespaces and dm:unique-ID applied to an attribute node always return the empty sequence.

4.3.4 PSVI to Data Model Mapping

When a data model fragment is created from the PSVI an attribute information item is mapped to an Attribute Node. The precise transformation is described by specifying the PSVI property corresponding to each argument of the attribute node constructor.

The expanded-QName of the attribute is obtained as follows. Its local part corresponds to the [local name] property. Its namespace URI corresponds to the [namespace name] property.

The string value of the attribute node corresponds to the following:

  • the [schema normalized value] PSVI property if that exists, or

  • the [normalized value] property.

The type of an attribute is an expanded-QName whose namespace and local name is computed as described in 3.6 Mapping PSV Infoset additions to Types. It is noted that if the type referenced would be a union type then type refers to the member type that actually validated the schema normalized value. For an attribute in a well-formed document with no associated schema, type corresponds to xs:anySimpleType. Consequently the typed-value of such an attribute is its string value as an instance of xs:anySimpleType.

An attribute node is constructed from an attribute information item by the infoitem-to-attribute-node function:

/* Accessors for attribute information items: */
function infoset-attribute-namespace-name(AttributeItem $ii)
         returns xs:anyURI?
function infoset-attribute-local-name(AttributeItem $ii)
         returns xs:string
function infoset-attribute-normalized-value(AttributeItem $ii)
         returns xs:string
function infoset-attribute-owner-element(AttributeItem $ii)
         returns ElementItem

function psvi-attribute-validity(AttributeItem $ii)
         returns xs:string
function psvi-attribute-type-definition(AttributeItem $ii)
         returns ElementItem
function psvi-attribute-schema-normalized-value(
           AttributeItem $ii)
         returns xs:string
define function infoitem-to-attribute-node(AttributeItem $ii)
       returns AttributeNode
{
  let $qname:= xf:QName-from-uri(
                 infoset-attribute-namespace-name($ii),
                 infoset-attribute-local-name($ii)),
      $type:= infoitem-to-type($ii)
  return dm:attribute-node($qname,
           infoset-attribute-normalized-value($ii), $type)
}

Editorial Note: JM: Update the above to accommodate the possibility of schema-less and DTD validation.

4.3.5 Data Model to Infoset Mapping

The mapping of the data model to the XML Information Set maps an Attribute Node to an attribute information item. Given an Attribute Node $n, the properties of the corresponding attribute information item are specified as follows:

Attribute Information Item properties
[namespace name] xf:get-namespace-uri(dm:name($n))
[local name] xf:get-local-name(dm:name($n))
[prefix] get-namespace-prefix(xf:get-namespace-uri(dm:name($n)))
[normalized value] dm:string-value($n)
[owner element] dm:nodes-to-infoitems(dm:parent($n))

Editorial Note: The get-namespace-prefix() function is not yet defined.

The values of the properties [specified], [attribute type] and [references] are implementation-defined.

4.4 Namespaces

4.4.1 Overview

Namespace nodes encapsulate XML namespaces. The information associated with a namespace node includes the following.

  • the prefix of the namespace as an xs:string

  • the uri of the namespace as an xs:anyURI

The above information associated with a namespace node is set during construction and can be accessed later via the accessor functions.

Each element node has an associated set of namespace nodes corresponding to its in-scope namespaces.

A namespace node has no parent.

Note: From XPath 1.0 : "The parent of the namespace node is the element node in whose namespaces collection this node appears." See [Issue-0039: Parent of namespace nodes] and [Issue-0060: Sharing namespace nodes], and [Issue-0061: No access to prefix on free-floating attributes].

4.4.2 Constructor

A namespace node has the constructor dm:namespace-node, which takes a namespace prefix and the absolute URI of the namespace being declared. The namespace prefix may be the empty sequence. If the URI is the zero-length string, the prefix must be the empty sequence. Like all other node constructors, the namespace node constructor has the effect of creating a new node with a unique identity, distinct from all other nodes.

function dm:namespace-node(xs:string? $prefix, xs:string $uri)
         returns NamespaceNode

4.4.3 Accessors

The accessor dm:name returns the namespace prefix as the local-part of an xs:QName (whose namespace URI is the empty sequence). The accessor dm:string-value returns the namespace uri as an xs:string.

function dm:name(NamespaceNode $n)         returns xs:QName?
function dm:string-value(NamespaceNode $n) returns xs:string

The accessor dm:node-kind returns the string constant "namespace".

function dm:node-kind(NamespaceNode $n) returns xs:string

The accessors dm:base-uri, dm:typed-value, dm:parent, dm:children, dm:attributes, dm:namespaces, dm:type and dm:unique-ID applied to a namespace node always return the empty sequence.

4.4.4 PSVI to Data Model Mapping

When a data model fragment is created from the PSVI a namespace information item is mapped to a Namespace Node. The precise transformation is described by specifying the PSVI property corresponding to each argument of the attribute node constructor.

The prefix argument corresponds to the [prefix] property.

The uri argument corresponds to the [namespace name] property.

A namespace node is constructed from a namespace information item by the infoitem-to-namespace-node function:

function infoset-namespace-prefix(NamespaceItem $ii)
         returns xs:string?
function infoset-namespace-namespace-name(NamespaceItem $ii)
         returns xs:string
define function infoitem-to-namespace-node(NamespaceItem $ii)
       returns NamespaceNode
{
   return dm:namespace-node(infoset-namespace-prefix($ii),
            infoset-namespace-namespace-name($ii))
}

4.4.5 Data Model to Infoset Mapping

The mapping of the data model to the XML Information Set maps a Namespace Node to a namespace information item. Given a Namespace Node $n, the properties of the corresponding namespace information item are specified as follows:

Namespace Information Item properties
[prefix] xf:get-local-name(dm:name($n))
[namespace name] dm:string-value($n)

4.5 Processing Instructions

4.5.1 Overview

Processing instruction nodes encapsulate XML processing instructions. The information associated with a processing instruction node includes the following.

  • the target of the processing instruction as an xs:NCName

  • the content of the processing instruction as an xs:string

  • the parent of the processing instruction as a sequence of zero or one element or document node

The above information associated with a processing instruction node is set during construction and can be accessed later via the accessor functions.

The string '?>' may not occur within a processing instruction's target value ([XML Recommendation]).

4.5.2 Constructor

A processing-instruction node has the constructor dm:processing-instruction-node, which takes an NCName representing the target and a string representing the content. Like all other node constructors, the processing node constructor has the effect of creating a new node with a unique identity, distinct from all other nodes.

function dm:processing-instruction-node(
           xs:NCName $target, xs:string $content)
         returns ProcessingInstructionNode

4.5.3 Accessors

The accessor dm:name returns the target of the processing instruction as the local-part of an xs:QName (whose namespace URI is the empty sequence). The accessor dm:string-value returns the content of the processing instruction as an xs:string.

function dm:name(ProcessingInstructionNode $n)
         returns xs:QName
function dm:string-value(ProcessingInstructionNode $n)
         returns xs:string

The accessor dm:node-kind returns the string constant "processing-instruction". The accessor dm:parent returns a sequence containing zero or one element or document node representing the parent of the processing instruction node.

function dm:node-kind(ProcessingInstructionNode $n)
         returns xs:string
function dm:parent(ProcessingInstructionNode $n)
         returns (ElementNode | DocumentNode)?

The accessors dm:base-uri, dm:typed-value, dm:children, dm:attributes, dm:namespaces, dm:type and dm:unique-ID applied to a processing-instruction node always return the empty sequence.

4.5.4 PSVI to Data Model Mapping

When a data model fragment is created from the PSVI a processing instruction information item is mapped to a Processing Instruction Node. The precise transformation is described by specifying the PSVI property corresponding to each argument of the processing instruction node constructor. There are no processing instruction nodes for processing instructions that are children of a document type declaration information item.

The target argument of the processing instruction constructor corresponds to the [target] property.

The content argument corresponds to the [content] property.

A processing-instruction node is constructed from an processing instruction information item by the infoitem-to-processing-instruction-node function:

/* Accessors for processing instruction information items */
function infoset-processing-instruction-target(
           ProcessingInstructionItem $ii)  returns xs:string
function infoset-processing-instruction-content(
           ProcessingInstructionItem $ii)  returns xs:string
define function infoitem-to-processing-instruction-node(
         ProcessingInstructionItem $ii)
       returns ProcessingInstructionNode
{
  return dm:processing-instruction-node( xf:NCName(
           infoset-processing-instruction-target($ii)),
           infoset-processing-instruction-content($ii))
}

4.5.5 Data Model to Infoset Mapping

The mapping of the data model to the XML Information Set maps a Processing Instruction Node to a processing instruction information item. Given a Processing Instruction Node $n, the properties of the corresponding processing instruction information item are specified as follows:

Processing Instruction Information Item properties
[target] xf:get-local-name(dm:name($n))
[content] dm:string-value($n)
[base URI] dm:base-uri(dm:parent($n))
[notation] unknown
[parent] dm:nodes-to-infoitems(dm:parent($n))

4.6 Comments

4.6.1 Overview

Comment nodes encapsulate XML comments. The information associated with a comment node includes the following.

  • the content of the comment as an xs:string

  • the parent of the comment as a sequence of zero or one element or document node

The above information associated with a comment node is set during construction and can be accessed later via the accessor functions.

The string "--" (double-hyphen) must not occur within a comment's string value ([XML Recommendation]).

4.6.2 Constructor

A comment node has the constructor dm:comment-node, which takes a string value. Like all other node constructors, the comment node constructor has the effect of creating a new node with a unique identity, distinct from all other nodes.

function dm:comment-node(xs:string $content)
         returns CommentNode

4.6.3 Accessors

The accessor dm:string-value return the value passed to the constructor as the argument.

function dm:string-value(CommentNode $n) returns xs:string

The accessor dm:node-kind returns the string constant "comment". The accessor dm:parent returns a sequence containing zero or one element or document node representing the parent of the comment node.

function dm:node-kind(CommentNode $n) returns xs:string
function dm:parent(CommentNode $n)
         returns (ElementNode | DocumentNode)?

The accessors dm:name, dm:base-uri, dm:typed-value, dm:children, dm:attributes, dm:namespaces, dm:type and dm:unique-ID applied to a comment node always return the empty sequence.

4.6.4 PSVI to Data Model Mapping

When a data model fragment is created from the PSVI a comment information item is mapped to a Comment Node. The precise transformation is described by specifying the PSVI property corresponding to the argument of the comment node constructor. There are no comment nodes for comments that are children of a document type declaration information item.

The content argument of the comment constructor corresponds to the [content] property.

A comment node is constructed from a comment information item by the infoitem-to-comment-node function:

/* Accessors for comment information items */
function infoset-comment-value(CommentItem $ii)
         returns xs:string
define function infoitem-to-comment-node(CommentItem $ii)
       returns CommentNode
{
  return dm:comment-node(infoset-comment-value($ii))
}

4.6.5 Data Model to Infoset Mapping

The mapping of the data model to the XML Information Set maps a Comment Node to a comment information item. Given a Comment Node $n, the properties of the corresponding comment information item are specified as follows:

Comment Information Item properties
[content] dm:string-value($n)
[parent] dm:nodes-to-infoitems(dm:parent($n))

4.7 Text

4.7.1 Overview

Text nodes encapsulate consecutive XML character data. The information associated with a text node includes the following.

  • the content as an xs:string

  • the parent as a sequence of zero or one element or document node

The above information associated with a text node is set during construction and can be accessed later via the accessor functions.

Text nodes must satisfy the following constraints.

  1. A text node cannot contain the empty string as its content.

  2. Two consecutive text nodes can never occur as children of a node.

4.7.2 Constructor

A text node has the constructor dm:text-node and takes a string value. Like all other node constructors, the text constructor has the effect of creating a new node with a unique identity, distinct from all other nodes.

function dm:text-node(xs:string $content) returns TextNode

4.7.3 Accessors

The accessor dm:string-value return the value passed to the constructor as the argument.

function dm:string-value(TextNode $n) returns xs:string

The dm:typed-value accessor returns the string-value of the text node as xs:anySimpleType.

define function dm:typed-value(TextNode $n)
                returns AtomicValue
{
  return dm:atomic-value(dm:string-value($n),
                         xs:anySimpleType)
}

The accessor dm:node-kind returns the string constant "text". The accessor dm:parent returns a sequence containing zero or one element or document node representing the parent of the comment node.

function dm:node-kind(TextNode $n) returns xs:string
function dm:parent(TextNode $n)
         returns (ElementNode | DocumentNode)?

The accessors dm:name, dm:base-uri, dm:children, dm:attributes, dm:namespaces, dm:type and dm:unique-ID applied to a text node always return the empty sequence.

4.7.4 PSVI to Data Model Mapping

When a data model fragment is created from the PSVI a sequence of one or more consecutive character information items are mapped to a Text Node. As much character data as possible is grouped into each text node: a text node never has an immediately following or preceding sibling that is a text node. The precise transformation is described by specifying the PSVI property corresponding to the argument of the comment node constructor.

The content argument of the text node is the character data, which corresponds to the concatenated [character code] properties of each of the character information items.

Note: The string-value is not W3C normalized as described in the Character Model for the World Wide Web version 1.0 draft. See [Issue-0045: Text nodes are not W3C-normalized text].

The mapping from character information items to text nodes occurs in the infoitem-to-element-node function. The infoset-character-code accessor maps a character information item to the ISO 10646 character code (in the range 0 to #x10FFFF, though not every value in this range is a legal XML character code) of the character.

function infoset-character-code(CharacterItem $ii)
         returns Code

The function infoitem-to-single-character-text-node takes one character information item and maps it to a text node with a string value of length one.

define function infoitem-to-single-character-text-node(
         CharacterItem $ii)
       returns TextNode
{
  {-- convert character code to string of length 1 --}
  return dm:text-node(
           code2string(infoset-character-code($ii)))
}

Editorial Note: JM: need a definition or description of code2string.

The collapse-text-nodes function synthesizes a single text node from multiple text nodes. It calls infoitem-to-text-nodes to collapse recursively one or more consecutive text nodes in its argument sequence. If insignificant whitespace is ignored, any text node containing only whitespace is eliminated. All other nodes are returned unchanged.

define function collapse-text-nodes(Node* $nodes)
       returns Node*
{
  let $newnodes:= infoitem-to-text-nodes($nodes)
  return
    if (ignore-whitespace) then
      sequence-map(delete-whitespace-node, $newnodes)
    else $newnodes
}

define function infoitem-to-text-nodes(Node* $nodes)
       returns Node*
{
  if (xf:empty($nodes)) then return empty-sequence()
  else
    let $head:= op:item-at($nodes, 1),
        $tail:= xf:subsequence($nodes, 2)
    return
      if (dm:node-kind($head) = "text") then
        /* Collapse two consecutive text nodes and apply
           infoitem-to-text-nodes recursively */
        if (xf:empty($tail)) then $head
        else if (dm:node-kind(op:item-at($tail,1))="text") then
          infoitem-to-text-nodes(
            op:concatenate(
              dm:text-node(xf:concat(dm:string-value($head),
                   dm:string-value(op:item-at($tail,1)))),
              xf:subsequence($tail, 2)
            )
          )
        else op:concatenate($head,
               op:concatenate(op:item-at($tail,1),
                              infoitem-to-text-nodes($tail)))
      else op:concatenate($head, infoitem-to-text-nodes($tail))
  }

Editorial Note: JM: need a definition or description of delete-whitespace-node.

4.7.5 Data Model to Infoset Mapping

The mapping of the data model to the XML Information Set maps a Text Node to a sequence of character information items. Given a Text Node $n, the properties of the ithcharacter information items in the sequence are specified as follows (for $i = 1, 2, ..., xf:string-length(dm:string-value())):

Character Information Item properties
[character code] The ISO 10646 character code corresponding to xf:substring(dm:string-value($n),$i,1)
[element content whitespace] A boolean indicating whether the Text Node consists entirely of white space.
[parent] dm:nodes-to-infoitems(dm:parent($n))

5 Atomic Values

[Definition: An atomic value is a value in the value space of an XML Schema atomic type labeled with that corresponding atomic type or it is a string labeled with xs:anySimpleType. The type xs:anySimpleType marks a value that has been returned as the typed value of a node whose type is unknown (for instance because it hasn't been validated). ]

An XMLSchema atomic type [XMLSchema Part 2] may be primitive or derived. The primitive atomic types are named: xs:string, xs:boolean, xs:decimal, xs:float, xs:double, xs:duration, xs:dateTime, xs:time, xs:date, xs:gYearMonth, xs:gYear, xs:gMonthDay, xs:gDay, xs:gMonth, xs:hexBinary, xs:base64Binary, xs:anyURI, xs:QName, xs:NOTATION. A derived atomic type is derived by restriction and has a primitive base type and a set of constraining facets.

It is noted that the value space of the atomic values is the union of the value spaces of the nineteen primitive XML Schema types. This value space clearly includes those atomic values whose type is primitive, but it also includes those whose type is derived, as derivation by restriction always limits the value space.

An XMLSchema simple type [XMLSchema Part 2] may be also primitive or derived with the method of derivation being restriction, list or union. The atomic types are exactly those types where the derivation method is restriction only and not list or union. Values corresponding to such types are represented by atomic values. XML Schema simple types can be derived by list. Values corresponding to such types are represented by a sequence of atomic values whose type is the item type. XML Schema simple types can be derived by union. Values corresponding to such types lose the union type information and store one of the individual types.

An atomic value can be constructed from its lexical representation. dm:atomic-value takes a string and a corresponding atomic type and constructs an atomic value in such a way to be consistent with validation. In particular the construction takes into consideration the facets of the type. If the string does not represent a valid value of the type an error is raised. When xs:anySimpleType is specified as the type no validation takes place. The details of the construction are described in the "Constructor Functions" and the related "Casting Functions" section of [XQuery 1.0 and XPath 2.0 Functions and Operators].

function dm:atomic-value(xs:string $value, xs:QName $type)
         returns AtomicValue

This constructor corresponds very closely to the atomic value constructors specified in [XQuery 1.0 and XPath 2.0 Functions and Operators]. Each of those constructors takes a string in the lexical space of the given primitive type and returns the corresponding atomic value. For example, the constructor xf:decimal(xs:string) constructs an atomic value of type xs:decimal from a string. Analogous constructors exist for the other XML Schema primitive types.

Since the above constructor can only be used with atomic types we define a second one that works with more general types. The constructor dm:atomic-value-sequence takes a string and a corresponding type and creates a sequence of atomic values. The derivation of the sequence of atomic values from the string and the type is consistent with validation. If the string does not represent a valid value of the type an error is raised.

function dm:atomic-value-sequence(
           xs:string $value, xs:QName $type)
         returns AtomicValue*

Examples of using the constructor include the following.

If an atomic type is used as the argument to dm:atomic-value-sequence it constructs the same atomic value as dm:atomic-value. When a list type is used with dm:atomic-value-sequence the resulting sequence will contain atomic values whose type is the item type of the list type. In particular when any of the types xs:IDREFS, xs:NMTOKENS or xs:ENTITIES are used as arguments, the resulting sequence will contain atomic values whose type is xs:IDREF, xs:NMTOKEN or xs:ENTITY respectively. Using xs:anySimpleType as the argument signals that the type information is not known. This happens when the typed-value of an unvalidated attribute is accessed. Using xs:anyType as the argument results an atomic value of type xs:anySimpleType. This happens when the typed-value of an unvalidated element is accessed. If a complex type with complex content is used to invoke the constructor an error is raised.

The accessor dm:type returns an atomic value's type. The accessor dm:string-value can be used to recover a lexical representation of the atomic value. The details of converting an atomic value to its string representation are described in the "Casting Functions" section of [XQuery 1.0 and XPath 2.0 Functions and Operators]. In particular if the atomic value's type is primitive, dm:string-value returns the atomic value's canonical lexical representation for that primitive type as specified in [XMLSchema Part 2]. If the atomic value's type is derived, the lexical representation depends on whether a value is supplied for the type's pattern facet: If no such value is supplied dm:string-value returns the atomic value's canonical lexical representation for the base type (which is a primitive type). Otherwise dm:string-value returns a lexical representation that matches the value specified for the pattern facet. (This case includes xs:integers.) See [Issue-0072: Lexical representation of Schema primitive types].

function dm:type(AtomicValue $v)         returns xs:QName
function dm:string-value(AtomicValue $v) returns xs:string

Note: Using the canonical lexical representation for atomic values as described above may not always be compatible with XPath 1.0.

Note that the data model does not currently represent key values and key reference values as described in XML Schema Part 1 : Structures [XMLSchema Part 1]. In a future draft of this document, keys and key references may be represented in the data model (see [Issue-0032: Keys and key references not represented]).

6 Sequences

A sequence is an ordered collection of zero or more items. An item may be a node or an atomic value, i.e. a sequence may contain nodes, atomic values, or any mixture of nodes and atomic values (see [Issue-0035: Eliminate heterogeneous sequences]). When a node is added to a sequence its identity remains the same. Consequently one node may be contained in more than one sequence and a sequence may contain duplicate items. Unlike conventional lists, sequences are "flat", i.e., sequences may not contain other sequences.

An important characteristic of the data model is that there is no distinction between an item (i.e., a node or an atomic value) and a singleton sequence containing that item, i.e., an item is equivalent to a singleton sequence containing that item and vice versa.

Note: Sequences replace node-sets from XPath 1.0. In XPath 1.0, node-sets do not contain duplicates. In generalizing node-sets to sequences in XPath 2.0, duplicate removal is provided by functions on node sequences.

A collection of documents is represented in the data model as a sequence of document nodes (see [Issue-0023: Support for document repositories]).

A sequence has no identity. Equality comparison of sequences is performed only by comparing the items of the sequences.

The constructor empty-sequence constructs the empty sequence. The n-ary op:concatenate constructor creates a new sequence containing the values in its first argument followed by the concatenated values of its second through final arguments. In the function signatures below Item refers to a nodes or an atomic value. Since an item is equivalent to a singleton sequence containing the item, op:concatenate may be applied to items.

function empty-sequence()                  returns Item*
function op:concatenate(Item*, ..., Item*) returns Item*

A sequence has several accessors. They are defined in [XQuery 1.0 and XPath 2.0 Functions and Operators]. In this document the following four accessors are used. The empty accessor returns a boolean indicating whether or not the specified sequence is empty. The item-at accessor returns the item in the sequence that is located at the specified index. The subsequence accessor returns the contiguous sequence of items beginning at the specified position and continuing to the end of the sequence. The count function returns the number of items in the sequence.

function empty(Item*)                  returns xs:boolean
function item-at(Item*,xs:decimal)     returns Item
function subsequence(Item*,xs:decimal) returns Item*
function count(Item*)                  returns xs:unsignedInt

A XML Information Set Conformance

This specification conforms to the XML Information Set [XML Information Set]. The following information items must be exposed by the infoset producer to construct a data model fragment:

Other information items and properties made available by the Infoset processor are ignored. In addition to the properties above, the following properties from the PSV Infoset are required:

B References

XML Information Set
World Wide Web Consortium, XML Information Set (Infoset). See http://www.w3.org/TR/xml-infoset/.
XML Recommendation
World Wide Web Consortium, Extensible Markup Language (XML) 1.0 (Second Edition) See http://www.w3.org/TR/REC-xml.
XML Schema: Formal Description
World-Wide Web Consortium XML Schema: Formal Description, Working Draft, March 2001. See http://www.w3.org/TR/xmlschema-formal/.
XMLSchema Part 1
World Wide Web Consortium, XML Schema Part 1: Structures. See http://www.w3.org/TR/xmlschema-1.
XMLSchema Part 2
World Wide Web Consortium, XML Schema Part 2: Datatypes. See http://www.w3.org/TR/xmlschema-2.
XQuery 1.0 and XPath 2.0 Functions and Operators
World Wide Web Consortium, XQuery 1.0 and XPath 2.0 Functions and Operators. See http://www.w3.org/TR/xquery-operators/.

C References (Non-Normative)

W3C Style Activity
World Wide Web Consortium, Style Activity. See http://www.w3.org/Style/Activity.
W3C XML Activity
World Wide Web Consortium, XML Activity. See http://www.w3.org/XML/Activity.
XML Pointer Language (XPointer)
World Wide Web Consortium, XML Pointer Language (XPointer). See http://www.w3.org/TR/xptr/.
XML Query Data Model
World-Wide Web Consortium XML Query Data Model, Working Draft, Feb 2001. See http://www.w3.org/TR/2001/WD-query-datamodel-20010215/.
XML Query Requirements
World Wide Web Consortium, XML Query Requirements. See http://www.w3.org/TR/2001/WD-xmlquery-req-20010215.
XML Query Working Group
World Wide Web Consortium, XML Query Working Group. Home page: http://www.w3.org/XML/Activity#query-wg.
XPath
World-Wide Web Consortium XML Path Language (XPath): Version 1.0. November, 1999. See http://www.w3.org/TR/xpath.html.
XPath 2.0
World-Wide Web Consortium XML Path Language (XPath): Version 2.0. See http://www.w3.org/TR/xpath20/.
XPath Requirements Version 2.0
World Wide Web Consortium, XPath Requirements Version 2.0. See http://www.w3.org/TR/xpath20req.
XQuery 1.0 Formal Semantics
World Wide Web Consortium, XQuery 1.0 Formal Semantics. See http://www.w3.org/TR/query-semantics/
XQuery 1.0: A Query Language for XML
World Wide Web Consortium, XQuery 1.0: A Query Language for XML. See http://www.w3.org/TR/xquery/.
XSL Working Group
World Wide Web Consortium, XSL Working Group. Home page: http://www.w3.org/Style/XSL/.
XSLT 1.0
World Wide Web Consortium, XSL Transformations Language (XSLT): Version 1.0. See http://www.w3.org/TR/xslt.
XSLT 2.0
World Wide Web Consortium, XSL Transformations Language (XSLT): Version 2.0. See http://www.w3.org/TR/xslt20/.

D Example (Non-Normative)

We use the following XML document to illustrate the information contained in a data model fragment:

<?xml version="1.0"?>
<p:part xmlns:p="http://www.example.com/PartSchema"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation = "http://www.example.com/PartSchema
                              http://www.example.com/PartSchema"
        name="NB-401-nutbolt">
  <p:mfg>Acme</p:mfg>
  <p:price>10.50</p:price>
</p:part>

The document is associated with the URI "http://www.example.com/partlist/part0001.xml", and is valid with respect to the following XML schema:

<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
           targetNamespace="http://www.example.com/PartSchema"
           xmlns="http://www.example.com/PartSchema"
           elementFormDefault="qualified">
  <xs:element name="part" type="part-type"/>
  <xs:complexType name="part-type">
    <xs:sequence>
      <xs:element name="mfg" type="xs:string"/>
      <xs:element name="price" type="xs:decimal"/>
    </xs:sequence>
    <xs:attribute name="name" type="part-name"/>
  </xs:complexType>
  <xs:simpleType name="part-name">
    <xs:restriction base="xsd:string">
      <xs:pattern value="[A-Z]{2}-\d{3}-[A-Z]*"/>
    </xs:restriction>
  </xs:simpleType>
</xs:schema>

For this example, we chose an XML document and an XML Schema that illustrates the relationship between document content and its associated schema type information. In general, an XML Schema is not required, that is, the data model can represent a schemaless, well-formed XML document with the rules described in 3.4 Types.

The XML document is represented by the data-model constructors below. The value D1 represents a document node; the values E1, E2, etc. represent element nodes; the values A1, ... represent attribute nodes; the values N1, ... represent namespace nodes; the values T1, ... represent text nodes. Accessors that return a constant value for that node type are omitted.

// Document node D1
dm:base-uri(D1)     =
  xf:anyURI("http://www.example.com/partlist/part0001.xml")
dm:string-value(D1) = xf:string("\n  Acme\n  10.50\n")
dm:typed-value(D1)    [this function invocation raises an error]
dm:children(D1)     = E1

// Element node E1
dm:name(E1)         =
  xf:QName-from-uri("http://www.example.com/PartSchema","part")
dm:base-uri(E1)     =
  xf:anyURI("http://www.example.com/partlist/part0001.xml")
dm:string-value(E1) = xf:string("\n  Acme\n  10.50\n")
dm:typed-value(E1)    [this function invocation raises an error]
dm:parent(E1)       = D1
dm:children(E1)     = (T1, E2, T3, E3, T5)
dm:attributes(E1)   = A1
dm:namespaces(E1)   = (N1, N2)
dm:type(E1)         =
  xf:QName-from-uri("http://www.example.com/PartSchema",
                    "part-type")
dm:unique-ID(E1)    = ()

// Attribute node A1
dm:name(A1)         = xf:QName("name")
dm:string-value(A1) = xf:string("NB-401-nutbolt")
dm:typed-value(A1)  =
  dm:atomic-value("NB-401-nutbolt",
    xf:QName-from-uri("http://www.example.com/PartSchema",
                 "part-name"))
dm:parent(A1)       = E1
dm:type(A1)         =
  xf:QName-from-uri("http://www.w3.org/2001/XMLSchema","string")

// Attribute node A2
dm:name(A2)         =
  xf:QName-from-uri("http://www.w3.org/2001/XMLSchema-instance",
                    "schemaLocation")
dm:string-value(A2) =
  xf:string("http://www.example.com/PartSchema \
             http://www.example.com/PartSchema")
dm:typed-value(A2)  = ()
dm:parent(A2)       = E1
dm:type(A2)         =
  xf:QName-from-uri("http://www.w3.org/2001/XMLSchema",
                    "anySimpleType")

// Namespace node N1
dm:name(N1)         = xf:QName("xsi")
dm:string-value(N1) =
  xf:string("http://www.w3.org/2001/XMLSchema-instance")

// Namespace node N2
dm:name(N2)         = xf:QName("p")
dm:string-value(N2) =
  xf:string("http://www.example.com/PartSchema")

// Element node E2
dm:name(E2)         =
  xf:QName-from-uri("http://www.example.com/PartSchema","mfg")
dm:base-uri(E2)     =
  xf:anyURI("http://www.example.com/partlist/part0001.xml")
dm:string-value(E2) = xf:string("Acme")
dm:typed-value(E2)  =
  dm:atomic-value("Acme",
    xf:QName-from-uri("http://www.w3.org/2001/XMLSchema",
                      "string"))
                    = xf:string("Acme")
dm:parent(E2)       = E1
dm:children(E2)     = T2
dm:attributes(E2)   = ()
dm:namespaces(E2)   = (N1, N2)
dm:type(E2)         =
  xf:QName-from-uri("http://www.w3.org/2001/XMLSchema","string")
dm:unique-ID(E2)    = ()

// Element node E3
dm:name(E3)         =
  xf:QName-from-uri("http://www.example.com/PartSchema","price")
dm:base-uri(E3)     =
  xf:anyURI("http://www.example.com/partlist/part0001.xml")
dm:string-value(E3) = xf:string("10.50")
dm:typed-value(E3)  =
  dm:atomic-value("10.50",
    xf:QName-from-uri("http://www.w3.org/2001/XMLSchema",
                      "decimal"))
                    = xf:decimal("10.50")
dm:parent(E3)       = E1
dm:children(E3)     = T4
dm:attributes(E3)   = ()
dm:namespaces(E3)   = (N1, N2)
dm:type(E3)         =
  xf:QName-from-uri("http://www.w3.org/2001/XMLSchema",
                    "decimal")
dm:unique-ID(E3)    = ()

// Text node T1
dm:string-value(T1) = xf:string("\n  ")
dm:parent(T1)       = E1

// Text node T2
dm:string-value(T2) = xf:string("Acme")
dm:parent(T2)       = E2

// Text node T3
dm:string-value(T3) = xf:string("\n  ")
dm:parent(T3)       = E1

// Text node T4
dm:string-value(T4) = xf:string("10.50")
dm:parent(T4)       = E3

// Text node T5
dm:string-value(T5) = xf:string("\n")
dm:parent(T5)       = E1

A graphical depiction of the data model fragment, containing the information described in the text above (with the exception of the namespace nodes), is also included.

Note: MN: The issue of handling whitespace-only nodes is currently under discussion. See [Issue-0028: Whitespace handling]. Depending on the decisions, the picture below may change. In particular the whitespace-only nodes T1, T3, T5 may be omitted from a data model representation.

Graphical depiction of the data
model fragment.

E Issues (Non-Normative)

The issues in this section serve as a design history for this document. The ordering of issues is irrelevant. Each issue has a unique id of the form Issue-<dddd> (where d is a digit). This can be used for referring to the issue by <url-of-this-document>#Issue-<dddd>. Furthermore, each issue has a mnemonic header, a date, an optional description, and an optional resolution. For convenience, resolved issues are displayed in green. Some of the issues contain references to W3C internal archives. These are marked with "members only". Some of the descriptions of the resolved issues are obsolete w.r.t. to the current version of the document.

Issue-0001: PSV Infoset identity constraints

Date: Oct-2000
Raised by: Datamodel Editors

Description: What should be data-model representation, if any, of PSV Infoset identity-constraint tables?

Resolution: JM: Duplicate of [Issue-0032: Keys and key references not represented].

Issue-0002: Representation of atomic values

Date: Oct-2000
Raised by: Datamodel Editors

Description: This function assumes that the character information items for an atomic value (e.g., string, integer, floating-point number) are not interleaved with other information items (e.g., PIs or comments). The treatment of such interleaved values is not handled in this definition. This issue is addressed in threads beginning at: http://lists.w3.org/Archives/Member/w3c-archive/2000Jun/0090.html (members only) and http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2000Sep/0079.html (members only).

Resolution: MF: The data model does not preserve information items interleaved with the character info items of an atomic value.

Issue-0003: Example parent

Date: Oct-2000
Raised by: Datamodel Editors

Description: Remark Michael: An IDREF cannot point to an empty string.

Resolution: JM: Issue is obsolete, probably had something to do with Reference Nodes, which have been removed.

Issue-0004: Schema/DTD

Date: Oct-2000
Raised by: Datamodel Editors
Affects: 3.3 XML Schemas and the XML Information Set   4.2.4 PSVI to Data Model Mapping

Description: A document may refer to a DTD and have an associated schema. Currently, content model from the DTD is ignored, as are unique IDs from the schema. A coherent priority or merging strategy is needed.

Issue-0005: Lists of Simple Values

Date: Oct-2000
Raised by: Datamodel Editors

Description: The current data model draft takes only into account singleton value-nodes. It must represent lists of simple-type values as well. See http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2000May/0060.html (members only).

Peter suggests having a special-purpose kind of a TextNode that represents lists of simple types. An advantage of this approach is that the constraint that lists of simple types be homogeneous/monomorphic can be enforced. However, lists/forests already can be modeled in current data model, without adding more complexity. For example, an attribute's value could be modeled as a list of TextNodes:

    value    : (AttributeNode)  -> Sequence<TextNode>


A disadvantage of this approach is that the monomorphism constraint on lists derived from simple types is not enforced. However, given a type system for Query, such a constraint could be enforced. So Mary is in favor of not having a special-purpose kind of TextNode to represent lists, but instead model them by forests directly in the data model.

JM: note that the pseudo-code doesn't appear to handle schema list values.

Resolution: decision record (members only).

Issue-0006: Collections

Date: Oct-2000
Raised by: Datamodel Editors

Description: We need a more thorough definition of collections, perhaps in a separate section, which includes bags and defines collections formally.

In particular, the algebra (probably) will not support arbitrarily nested collections (i.e., lists of lists, sets of sets, etc.). We need to specify how collections are constructed. For example, in the data model, the basic collection is a forest, i.e., a list of Nodes. The forest constructor creates a singleton forest from one Node; or it creates a forest from two forests by concatenating the two forests:

    Forest = Node | Sequence<Node>

    forest : (Node) -> Forest
    function forest(Node n) =  Sequence<n>

    union : (Forest, Forest) -> Forest
    function union(f1, f2) = list-append f1 f2

    bagunion : (NodeBag, NodeBag) -> NodeBag
    setunion : (NodeSet, NodeSet) -> NodeSet


Similar constructors would exist for bags with and without duplicates.

    unordered : (Forest) -> NodeBag
    unique    : (NodeBag) -> NodeSet
    set = unique o unordered : (Forest) -> NodeSet


Resolution: Added section on Collections 6 Sequences.

Issue-0007: Text Nodes

Date: Oct-2000
Raised by: Datamodel Editors

Description: An alternative representation is to have a single TextNode whose base type is string:

      text-node  : (xs:string, S, Sequence<Node>) -> TextNode

This representation is more closely aligned with other node types in the data model, but it makes the simple type of leaf-node values opaque.

Peter Fankhauser compares and constrasts these options in : http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2000Apr/0174.html (members only).

Resolution: decision record (members only).

Issue-0008: Node vs edge centric data model

Date: Oct-2000
Raised by: Michael Rys

Description: Cite:

Let me summarize my issues with a node-centric datamodel right at the beginning. The first two are mentioned in the doc later on:

As long as (1) the data represents a tree, (2) easy bi-directional is not required, (3) projection/extension operations with object-preserving semantics are not required, a node-centric datamodel is isomorphic to an edge-centric datamodel and is easier to represent and understand.

As soon as anyone of the above requirements change, an edge model has several advantages:

  1. data represents a graph: naming the edges (relationships) becomes a must, since the names are now on the relationships and not on the objects. Uniform treatment of all edges (even the so far anonymous containment edges) makes defining operations easier since they are more orthogonal. With the possibility of distinguishing "type" from "name", even subelement names now semantically represent relationship names. For example, ShipAddr and BillAddr in

    <Order> <ShipAddr dt:dt="Address">...</ShipAddr> <BillAddr dt:dt="Address">...</BillAddr> </Order>

    are denoting relationships (ownership to be exact) from the order element to the Address elements.

  2. As soon as backwards pointers are introduced into a node-centric model, the representation becomes more complex and less elegant. Transforming data becomes more complex since the backwards pointer becomes part of the object state. Thus, if I define views where an element changes the parent, in the edge-centric case, this just adds a new relationship, the object state is unchanged, in the node-centric approach, I need to express now two parents in the object state.

  3. Projection/extension operations. Assume that I pose a query that projects name and address but hides the age of a person element. In the edge-centric approach, this means that the query logically transforms the graph context on which the query operates by removing the age edge from the context without touching the object state (the objects keeps its basetype), in the node-centric approach, the object state needs to change since the context transformation will remove the attribute property age. While both operations transform the context, I find the former to be more elegant than the later.

Resolution: MF: To align with XPath 1.0 and the Algebra, the data model is node centric.

Issue-0009: Schema info

Date: Oct-2000
Raised by: Michael Rys

Description: Cite:Sometimes one wants to use different schemata over the same basic XML fragment. So I would rather start with that in principle, the data model is schemaless and can provide the data model of any XML fragment given a schema. Thus, the schema postprocessing becomes a datamodel transformation that we make explicit (and that could be optimized with other operations that transform the datamodel graph).

Resolution: MN: This was an alternate design to the named typing proposal. With the acceptance of the named typing this isssue is closed. When using a different schemata over the same XML fragment (by invoking validate, see [XQuery 1.0 Formal Semantics]) a new instance is constructed and there is no need for postprocessing.

Issue-0010: Node identity

Date: Oct-2000
Raised by: Datamodel Editors

Description: Should the data model require that an implementation guarantee that the identity of a node is always preserved?

Resolution: MF: The data model always preserves node identity; the only operator that does not preserve node identity is copy.

Issue-0011: Access to facets

Date: Oct-2000
Raised by: Datamodel Editors

Description: In XML Schema, facets such as "nullable" is associated with an element declaration, which is an element name, complex type pair. If the query language needs access to such facets, we may need to replace ReferenceNode by a reference to the element declaration.

Resolution: MN: The data model represents named types as expanded-QNames. This way it supports type-related operations, but the semantics of such operations and the information that must be available to support them (e.g. facets) is described in the [XQuery 1.0 Formal Semantics].

Issue-0012: Representation of reference values

Date: Oct-2000
Raised by: Michael Rys

Description: Cite: The current representation of reference values is too much IDREF(S) centric. I would prefer a more general representation for XLink and the schema (and potentially graph operation) introduced reference mechanisms.

Resolution: JM: Removed reference nodes.

Issue-0013: Equality operators on collections

Date: 17-Jan-2001
Raised by: Mary Fernandez

Description: Equality operators '=' on collections are not defined.

Resolution: MF: Added Functions (subsequently removed to Functions and Operators spec).

Issue-0014: Elements with unordered children

Date: 17-Jan-2001
Raised by: Mary Fernandez

Description: Should the element constructor element-node also permit bags of children?

Resolution: MF: decision to use sequences everywhere in data model.

Issue-0015: Semantics of value equality operator '='

Date: 02-Feb-2001
Raised by: Mary Fernandez

Description: The semantics of the value equality operator '=' are undefined.

Resolution: JM: Defined in the Functions and Operators document.

Issue-0016: PSV Infoset Mapping - undefined terms

Date: 21-Feb-2001
Raised by: Michael Rys

Description: Code is undefined.

Resolution: Defined in 4.7 Text.

Issue-0017: Relationship between Ordered and Unordered collections

Date: 03-Mar-2001
Raised by: Mary Fernandez

Description: The relationship between ordered and unordered collections is not specified. Any ordered collection can be treated as an unordered collection.

Resolution: Unordered collections removed.

Issue-0018: Representation of lists of IDREFS and NMTOKENS

Date: 12-Mar-2001
Raised by: Michael Rys

Description: How are IDREF lists and NMTOKEN lists represented in data model.

Resolution: JM: Duplicate of [Issue-0005: Lists of Simple Values].

Issue-0019: Element constructor that performs schema processing

Date: 15-Mar-2001
Raised by: James Clark

Description: An alternate is to separate element construction from schema validity assessment. The element constructor would construct an element corresponding to the an element information item in the Infoset before schema validity assessment. To produce elements with types, the schema-process function would schema process an element with respect to a schema type to yield a new element with the full PSV infoset. The schema-process function would ignore any type information on attributes and elements and would assess the untyped value with respect to the given type.

Resolution: MN: The working groups decided not to pursue this alternate design. It is noted though that using the current constructors with the type set to either xs:anyType or to a more specific type makes them similar to either the first or the second function proposed here.

Issue-0020: Semantics of copy

Date: 27-Mar-2001
Raised by: Michael Kay

Description: Deep copy on a node is defined only informally. For example, does deep copy preserve base URI?

Resolution: JM: Obsolete - copy function removed (not used).

Issue-0021: Declared vs. In-scope namespaces

Date: 27-Mar-2001
Raised by: XPath 2.0 Task Force

Description: Currently, an element node preserved its declared namespace nodes, not its in-scope namespaces. Members of the XSLT WG point out this may make impossible to determine the meaning of data-model values that refer to the default namespace. This is a big, nasty problem.

Resolution: JM: Element constructor uses in-scope namespaces.

Issue-0022: Abstraction of Run-time type information

Date: 27-Mar-2001
Raised by: XPath 2.0 Task Force (Steve Zilles)

Description: The representation of run-time type information is very concrete -- it's the data model representation of a Schema type. The XPath task force would like a more abstract representation of runtime type that is not bound so tightly to XML Schema. This is an open design problem.

Resolution: MN: The data model currently represents named types in a more abstract manner, as expanded-QNames.

Issue-0023: Support for document repositories

Date: 27-Mar-2001
Raised by: XPath 2.0 Task Force
Affects: 6 Sequences

Description: Many people would like to see support for document repositories in XPath 2.0 with a corresponding notion in the data model. A document repository is easy to model as a sequence or bag of document nodes. It may have some additional properties, like for an ordered repository, order among all the nodes in the repository.

Issue-0024: Support for Schema-invalid documents

Date: 27-Mar-2001
Raised by: Michael Sperberg-McQueen

Description: In its current state, the data model clearly does not cover schema-invalid documents: section 3.3 says "We assume that the element is an instance of the type represented by Def-Type, i.e., the document 'type checks' or is valid with respect to the given schema."

I believe we may wish to extend / modify the data model to specify that:

  1. if the element is marked valid (i.e. if the [validity] property for the element information item has the value "valid"), then we assume that the element is an instance of the type represented by Def-Type

  2. otherwise, if the element is marked invalid (i.e. the [validity] property has the value "invalid" or "notKnown"), and if the element has neither attributes nor child elements, then we assume [observe] that the element is an instance of the type anySimpleType

  3. otherwise, we assume that the element is an instance of the type anyType

This would allow / require schema systems to be robust in the face of invalid documents. At first glance, that seems like a win.

Resolution: The data model answers the above issue in the following way: Section 3.3 specifically states that the data model supports incompletely validated documents. Section 3.4 (formerly 8.1) describes a function used in the pseudo-code segments that maps the elements with the different [validity] properties to the appropriate types. The mapping is inline with the solution suggested by the issue above. For further details see the discussion thread and decision record (members only).

Issue-0025: Types of Sequences

Date: 27-Apr-2001
Raised by: Mike Kay
Affects: 6 Sequences

Description: Should sequence values carry their type as do simple typed values and element and attribute nodes?

Issue-0026: Schema Component Values vs. Nodes

Date: 27-Apr-2001
Raised by: Mary Fernandez

Description: If schema component values becomes nodes, then does that mean they can occur any where in a document tree? I.e., can they be children of other nodes? What does this mean when a data model is serialized as a document?

Resolution: MN: The data model represents named types as expanded-QNames. They can be associated with element nodes, attribute nodes and atomic values. Consequently the question raised by the issue no longer applies.

Issue-0027: Lexical representation of simple-typed values

Date: 01-May-2001
Raised by: Mary Fernandez

Description: Given a simple-typed value, it may be necessary to recover its lexical representation, for example, when creating a text node that contains the value. It is not always possible to compute a unique lexical representation of a simple typed value.

Resolution: Changed the definition of the string-value accessor to return the canonical lexical representation of the simple typed value (as defined by XML Schema Part 2: Datatypes). decision record (members only)

Issue-0028: Whitespace handling

Date: 04-May-2001
Raised by: Jonathan Marsh
Affects: 3.7 Ignoring Comments, Processing Instructions, and Whitespace   D Example

Description: Whitespace handling needs to be more explicit. In the presence of a schema we have full knowledge of which whitespace is significant and which isn't, and can either mark whitespace as insignificant (and thus exclude it from text() and string-range() for instance), or automatically suppress whitespace in the data model. The former is appropriate given the dual representation of text nodes and values, the latter is appropriate if we only expose values.

Issue-0029: Use of Reference Nodes

Date: 04-May-2001
Raised by: Jonathan Marsh

Description: Reference nodes may be part of the data model, but will never appear from a mapping from the infoset. In addition they cannot be serialized. Without these two features there doesn't seem to be much point in having them. Should we leverage an existing syntax (e.g. IDREFS) or design a new syntax to represent them?

Resolution: Removed Reference Nodes.

Issue-0030: Base URI is a property of element nodes

Date: 04-May-2001
Raised by: Jonathan Marsh
Affects: 4.2.2 Constructor   4.2.4 PSVI to Data Model Mapping

Description: With external entities, and now with XML Base, the base URI can be scoped to various parts of the document. A base URI property should be added to Element Nodes, and the constructor and infoset mapping updated. Otherwise relative URIs in content cannot be correctly resolved.

Processing instructions also require an infoset-derived base URI. The base URI of attributes, for instance, should probably not be the empty sequence, if that does not adequately imply that the base URI of the element should be used instead.

Issue-0031: Schema component does not reveal [content] property

Date: 17-May-2001
Raised by: Ashok Malhotra

Description: Schema component does not reveal [content] property of [XML Schema: Formal Description] schema component. MF: Problem with revealing [content] property is that we/Schema/Query have to agree on syntax for component content (Sec 2.2.1 in [XML Schema: Formal Description]).

Resolution: MN: The data model represents named types as expanded-QNames. This way it supports type-related operations, but the semantics of such operations and the information that must be available to support them (e.g. [content] property) is described in the [XQuery 1.0 Formal Semantics].

Issue-0032: Keys and key references not represented

Date: 17-May-2001
Raised by: Query
Affects: 5 Atomic Values   Issue-0001: PSV Infoset identity constraints

Description: Note that the data model does not currently represent key values and key reference values as described in XML Schema Part 1 : Structures [XMLSchema Part 1]. In a future draft of this document, keys and key references will be represented in the data model.

Issue-0033: Unclear relationship between values passed to the constructor, and those returned by the accessor

Date: 28-April-2001
Raised by: James Clark
Affects: 2 Notation and Pseudo-code Syntax

Description: http://lists.w3.org/Archives/Member/w3c-xsl-query/2001Apr/0312.html (members only). Asks for inference rules, especially for the constuctor, describing when values returned by an accessor are the same as those set by the corresponding constructor. Especially unclear are when adjacent text nodes are collapsed, base URI and namespace declarations.

Issue-0034: Interaction of insignificant whitespace with comments

Date: 8-May-2001
Raised by: Michael Kay
Affects: 3.7 Ignoring Comments, Processing Instructions, and Whitespace

Description: http://lists.w3.org/Archives/Member/w3c-xsl-query/2001May/0053.html (members only). Clarify whether whitespace is classified as insignificant before or after PI and comment removal.

Issue-0035: Eliminate heterogeneous sequences

Date: 8-May-2001
Raised by: XSL WG (Michael Kay)
Affects: 6 Sequences

Description: http://lists.w3.org/Archives/Member/w3c-xsl-query/2001May/0054.html (members only), http://lists.w3.org/Archives/Member/w3c-xsl-query/2001May/0048.html (members only). Simplify operations such as distinct() by disallowing sequences mixing nodes and simple typed values. Suggests converting nodes in such a heterogeneous sequence to their typed values.

Issue-0036: Support for abstract types

Date: 19-July-2001
Raised by: XSL WG

Description: xsd:anySimpleType (and other abstract types) are not supported in the data model. The string-value of an xsd:anySimpleTyped is apparently the empty sequence - indicating that you can't really do useful operations on anySimpleType'd values. However, we apply a default schema which assigns xsd:anySimpleType, resulting in a proliferation of these types. How can we operate on these documents? Should we at least return a non-empty string-value() for an anySimpleType? Should we define additional operations such as +, *, for compatibility with XPath 1.0?

Resolution: MN: The data model now supports xs:anySimpleType and xs:anyType. The typed-value() of elements or attributes of this type is the string-value() as xs:anySimpleType. The semantics of the operations on atomic values of type xs:anySimpleType is defined in [XQuery 1.0: A Query Language for XML] and [XPath 2.0].

Issue-0037: Axis functions

Date: 19-July-2001
Raised by: XSL WG
Affects:

Description: Define (somewhere other than the data model document?) axis functions for non-primitive axes like descendants-or-self.

Issue-0038: XPath 1.0 treatment of non-unique IDs

Date: 13-August-2001
Raised by: Datamodel Editors
Affects: 4.2.4 PSVI to Data Model Mapping

Description: From XPath 1.0: "If an XML processor reports two elements in a document as having the same unique ID (which is possible only if the document is invalid) then the second element in document order must be treated as not having a unique ID." This has not been incorporated into this document.

Issue-0039: Parent of namespace nodes

Date: 13-August-2001
Raised by: Datamodel Editors
Affects: 4.4.1 Overview

Description: In XPath 1.0 namespace nodes have a parent. Should we adopt the XPath 1.0 behavior, the current behavior (no parent), or some other parent (e.g. the document)?

Issue-0040: Setting and examining construction flags

Date: 15-August-2001
Raised by: Jim Melton
Affects: 3.7 Ignoring Comments, Processing Instructions, and Whitespace

Description: [Jim] found [him]self wondering how those flags (parameters) get set/passed. More importantly, can a process ask whether "this instance" of the data model has those flags set or not? If so, how? If not, why not?

Issue-0041: Document node permissiveness unnecessary

Date: 15-August-2001
Raised by: Jonathan Marsh

Description: What are the use cases for being permissive about children of the document node? According to the note above, sequences of elements do not need a container node. Suggest removing this permissiveness.

Resolution: MN: The working groups decided to keep the document node permissiveness to support "well-balanced" trees. decision record (members only).

Issue-0042: System Id and Public Id are not exposed

Date: 15-August-2001
Raised by: Jim Melton
Affects: 4.1.4 PSVI to Datamodel Mapping

Description: In our model, there is no way for a query to determine what DTD is relevant for the data model instance. That seems like a piece of information that might be wanted occasionally (though probably not often).

Issue-0043: Treatment of common accessors inconsistent

Date: 15-August-2001
Raised by: Jonathan Marsh

Description: In some cases, when an accessor is inappropriate for a node, we omit that accessor. In other cases, we define it to always return the empty sequence. We need to rationalize these two design patterns.

Resolution: Use empty sequence throughout. decision record (members only).

Issue-0044: Unable to construct an element with unique ID

Date: 15-August-2001
Raised by: Jonathan Marsh
Affects: 4.2.4 PSVI to Data Model Mapping

Description: The unique ID property is defined on an element node, but is a function of an attribute information item. When an element node is constructed it is given an attribute node - not an info item. An attribute node is insufficient to remember the appropriate properties from the infoset in order for the element constructor to detect when an attribute is an ID declared in the DTD.

Issue-0045: Text nodes are not W3C-normalized text

Date: 17-August-2001
Raised by: Jim Melton
Affects: 4.7.4 PSVI to Data Model Mapping

Description: The Character Model for the World Wide Web version 1.0 working draft defines W3C-normalized text. The algorithm for constructing text nodes from character information items does not perform normalization to this form. Should it?

Issue-0046: Value of derived types?

Date: 17-August-2001
Raised by: Jim Melton

Description: In XML Schema, the type unsignedInt is a simple type, but it's a derived type (not a primitive type); the nearest corresponding primitive type is decimal. If I were to invoke the value accessor with something analogous to "value(cast as unsignedInt('10'))", does it return a decimal value, and is the SchemaComponent returned by type a component that describes decimal? I do not believe that this a non-issue because the only types supported in the data model are XPath 1.0's types (string, number, boolean, and node-set), since this document makes a strong point about using all of Schema's simple types. Thus, does value return the primitive value, or does it return something like the schema-normalized value of the specified simple type?

Resolution: Simple typed values encapsulate both the value and the type. The type of an unsignedInt is the SchemaComponent corresponding to the unsignedInt. The string representation on the other hand is the value's canonical lexical representation for the base type (which is a primitive type) as specified by XML Schema. Decision record (members only).

Issue-0047: Should errors be allowed in sequences?

Date: 17-August-2001
Raised by: Jim Melton

Description: The possibility that generating sequences in which one or more members are Error may sometimes be a useful way to produce partial results that can satisfy some sorts of queries.

Resolution: MN: The error value has been removed from the data model. This issue is now mute.

Issue-0048: Imprecise behavior of errors

Date: 17-August-2001
Raised by: Jim Melton

Description: I am very concerned that "How the error value is handled in a query processor is implementation-defined." I think we have to do a bit better than this, although leaving flexibility for implementations to do more for their users is a Good Thing.

Resolution: MN: The error value has been removed from the data model. The error behavior is described in [XPath 2.0].

Issue-0049: Alternative design of schema components

Date: 17-August-2001
Raised by: James Clark

Description: MF cite James: An alternative would be to have an extends accessor that returns deref([base]) if [derivation] is extension and empty sequence otherwise, and a restricts accessor that returns deref([base]) if [derivation] is restriction and empty sequence otherwise.

Resolution: MN: This proposal is not in the scope of the data model: The data model represents named types as expanded-QNames. The semantics of the type operations and the information that must be available to support them is described in the [XQuery 1.0 Formal Semantics].

Issue-0050: Relative order of free-floating nodes

Date: 17-August-2001
Raised by: Jim Melton
Affects: 3.2 Document Order   Issue-0058: Node constructors formalism of questionable value

Description: Are newly-constructed nodes in any particular order, such as some kind of document order? Does the order of these nodes have any relationship to the document order of the "input" data model instance? In fact, is the process being described properly characterized as "create a new data model instance from information derived from an existing data model instance", or something similar? Can more than one "new" document instance be created by a single query? In the fourth paragraph [Section 4], we see the phrase "the document node" --- is this the "existing document"'s document node, the "new document"'s document node, both, neither? Can more than one "existing" document instance be the source of information for a query?

Issue-0051: Document order of shared namespace nodes

Date: 28-August-2001
Raised by: Michael Kay
Affects: 3.2 Document Order

Description: Section 3.2 states that in the document ordering, the namespace nodes of an element follow the element but precede its attributes. This is inconsistent with the idea, suggested but not spelled out in 4.4, that a namespace node can be shared by several elements. In fact, the question of namespace node identity is not really tackled. My view is that namespace node identity should be determined by the combination of (document identity, namespace prefix, namespace URI), that the parent of a namespace node should be the document node, and that namespace nodes should be ordered after every other node in the document. (This is easier for implementations than placing them at the start of the document, because the number of namespace nodes is not known until parsing is complete).

Issue-0052: Element constructor copies nodes?

Date: 28-August-2001
Raised by: Michael Kay
Affects: 4.2.2 Constructor

Description: In section 4.2 Elements, the notion that the constructor makes a copy of the supplied child nodes seems strange. It's hard to square this with the definition of node identity. Also, I don't see why the provision is needed here, but not for the document node constructor. Wouldn't it be cleaner to define a precondition that all the child nodes supplied to the constructor must be parentless?

Issue-0053: Semantics of head and tail on empty sequences

Date: 28-August-2001
Raised by: Michael Kay

Description: Head would appear to be a partial function, it does not apply to empty sequences. If we follow the same conventions as elsewhere, that means head returns a Sequence(0,1)<item>, which perhaps begs the question as to how you extract the first member of this sequence...

Resolution: Replaced the accessors head and tail by the some of the sequence accessors defined in the Functions and Operators document.

Issue-0054: Complex types with simple content

Date: 6-September-2001
Raised by: Evan Lenz

Description: Currently, the typed-value of a complex type is the empty sequence. Should complex types with simple content (i.e. an element that contains only text but that also has an attribute) be treated differently than complex types with complex content?

Resolution: Now typed-value corresponds to the [schema normalized value] PSVI property if that exists, or the empty sequence otherwise. This way if an element has a complex type with simple content its typed-value may be something other than the empty sequence. For further details see the discussion thread and decision record (members only).

Issue-0055: Effect of xsi:nil

Date: 6-September-2001
Raised by: XSL WG

Description: The XSL WG wishes xsi:nil="true" to result in a typed-value of the empty sequence. This allows the differentiation of a null string value and an empty string.

Resolution: This is a duplicate of the resolved XPath Issue 0021: Handling of xsi:nil on Input. See the review of the XPath issues (members only). Accordingly closed this issue, updated the document to reflect the decision and added the related data model Issue-0071.

Issue-0056: Lightweight Schema Components

Date: 20-September-2001
Raised by: XPath TF

Description: Summary: The only necessary operation on Schema Components is instance-of(schema-component1, schema-component2). There is no need to expose the internal structure of Schema Components to enable this functionality. Instead we could provide an abstract Type object whose internal structure can be treated as a black box. See http://lists.w3.org/Archives/Member/w3c-xsl-query/2001Jul/0042.html (members only).

Resolution: MN: The data model represents named types as expanded-QNames, which is inline with the suggestion of the issue.

Issue-0057: Support for XSLT whitespace stripping

Date: 25-September-2001
Raised by: Michael Kay
Affects: 3.7 Ignoring Comments, Processing Instructions, and Whitespace

Description: XSLT allows a stylesheet to designate elements whose whitespace is to be stripped. We need to support this in the data model, or possibly elsewhere.

Similarly, a data model instance for a stylesheet has provisions for stripping comments and processing instructions.

Issue-0058: Node constructors formalism of questionable value

Date: 25-September-2001
Raised by: Michael Kay
Affects:

Description: Node constructors. I'm a bit concerned that this is lacking in rigor. Some of this is exposed in [Issue-0050: Relative order of free-floating nodes]. The idea that the constructor for a parent node (Element or Document) takes a copy of the supplied children node doesn't seem to be fully worked out. What does "taking a copy" mean, where is it defined? It has to be a deep copy to make sense; it has to preserve its name, its type, and its children, but not its base URI or its node identity, and it acquires a new position in document order. What happens about the namespace nodes when an element or attribute is copied? Altogether, I'm worried that this idea of node constructors looks formal, but is actually just as informal as the 1.0 specification. It's actually a very procedural description, and I can't really see why it's needed: if it's intended as a target vocabulary for the formal semantics of the language, then it's a pretty shaky foundation. I'd be much happier with a model that only defines the valid states in the system; if we are going to define the permitted state transitions, we need to be much more rigorous about it.

Issue-0059: Pseudo-formalism provides no value

Date: 25-September-2001
Raised by: Michael Kay
Affects:

Description: "The sequence-map function applies its first function argument to each member of its second sequence argument and returns a new sequence containing the result of applying the function to each member of the sequence." I really wonder whether it is a good idea to define the data model using a pseudo-formal language that we make up and half-explain as we go along? If we can't use an existing formal notation like Z or VDM that has a good specification we can reference, we should do the whole thing in English.

Issue-0060: Sharing namespace nodes

Date: 25-September-2001
Raised by: Michael Kay
Affects: 4.4.1 Overview

Description: We need to say something about the identity of namespace nodes, and about the fact that two namespace nodes for the same prefix and uri may need to be combined when an element is added to a document. Also "the element constructor logically creates a copy of all of its namespace..." - namespace nodes do not need to be copied(?)

Issue-0061: No access to prefix on free-floating attributes

Date: 25-September-2001
Raised by: Michael Kay
Affects: 4.4.1 Overview

Description: An observation: if an attribute node has no parent element (a floating attribute), then there is also no access to any namespace nodes. This makes it impossible to support the XPath 1.0 name() function, which returns a lexical QName for the node by finding a prefix that maps to the node's namespace URI.

[JM: Sounds like we need a QName object that is a triple, local-name, namesapce-uri, and prefix, to support XSLT.]

Issue-0062: Namespace fixups required

Date: 16-October-2001
Raised by: Michael Kay
Affects: 4.2.4 PSVI to Data Model Mapping

Description: The current XSLT draft includes a substantial piece of text on namespace fixup. This was introduced in the XSLT 1.1 working draft, and is basically designed to ensure that when an element or attribute is added to a result tree, namespace nodes are also added to declare any namespace URI used by the element or attribute. (At XSLT 1.0, this was handled at serialization time, but this had to change when temporary trees became accessible to the stylesheet). The description of namespace fixup logically belongs with the description of the node construction process in the data model document. http://lists.w3.org/Archives/Member/w3c-xsl-query/2001Oct/0036.html (members only).

Issue-0063: Is prefix preserved?

Date: 16-October-2001
Raised by: Michael Kay
Affects: 4 Nodes

Description: Although XSLT and the XPath 2.0 data model agree that element and attribute nodes do not hold a namespace prefix, XSLT has always hinted that prefixes might be preserved through a transformation where possible. http://lists.w3.org/Archives/Member/w3c-xsl-query/2001Oct/0036.html (members only).

[JM: the ability to recover the lexical value of an xs:QName simple type seems useful, perhaps even necessary. It is at least needed to support the name() function. A better description of the xs:QName accessors is required, perhaps unifying xs:QName and expanded-QName.]

Issue-0064: Including type definition in element constructors

Date: 16-October-2001
Raised by: Jeni Tennison

Description: The constructor for the element node probably should include the type definition in the constructor as well, for cases where the [type definition] of the element information item is not the same as the [type definition] of the [element declaration], which can occur if xsi:type is used in the document. Should the same be done for attribute node constructors for consistency, (even though attributes cannot have xsi:type attributes)? http://lists.w3.org/Archives/Public/www-xml-query-comments/2001Sep/0012.html.

Resolution: MN: The definition of the element an attribute constructors have been changed to take an xs:QName that represents the type definition and not the element or attribute declaration. The type definition can be either the [type definition] of the element information item or the more specific [type definition] of the [element declaration] when xsi:type is used.

Issue-0065: Proposal for alternative constructor

Date: 19-November-2001
Raised by: Mary Fernandez

Description: The element and attribute constructors are not convenient when constructing elements or attributes with simple-type content. An alternative constructor that takes a typed value directly (instead of only text nodes or normalized string values) would simplify dependent specifications. http://lists.w3.org/Archives/Member/w3c-xsl-query/2001Nov/0068.html (members only).

Resolution: Add the two new constructors proposed by Mary with the change that the element/attribute declarations are not optional and they are named differently (so we won't overload the constructors). decision record (members only)

Issue-0066: SchemaComponent support for substitutions groups

Date: 29-November-2001
Raised by: Ashok Malhotra

Description: SchemaComponents currently don't expose any substitution group information. http://lists.w3.org/Archives/Member/w3c-xml-query-wg/2001Nov/0358.html (members only).

Resolution: MN: The data model represents named types as expanded-QNames. This way it supports type-related operations, but the semantics of such operations and the information that must be available to support them (e.g. substitution groups) is described in the [XQuery 1.0 Formal Semantics].

Issue-0067: Align function call syntax

Date: 5-December-2001
Raised by: Marton Nagy

Description: The syntax of the function calls need to be aligned with the other working documents, in particular the Functions and Operators and the XQuery documents. Possible candidates are f:(T1,T2)->T or f(T1 $v1, T2 $v2)=>T.

Resolution: MN: The pseudo-calls and examples now use the XQuery syntax.

Issue-0068: Retaining the type of a sequence of heterogeneous simple typed values.

Date: 4-December-2001
Raised by: XPath Task Force

Description: When a sequence of heterogeneous simple typed values is passed as the content of an element constructor, is the type information associated with the simple typed values preserved? e.g. when using a sequence containing a decimal, a string and a boolean are these types preserved (or possibly changed to anySimpleType* ?). Note that XML Schema cannot describe this former. Related to this, should we ever allow an element constructor to create an instance that can not be serialized as XML text without loss of type information?

Resolution: MN: As a result of the adoption of Alternative 1 for element/attribute constructors, the data model no longer provides constructors accepting a sequence of atomic values as arguments. The current constructors can only create instances whose type can be described by XML Schema.

Issue-0069: Canonical form for derived types.

Date: 4-December-2001
Raised by: XPath Task Force
Affects:

Description: Should derived types have a canonical form? Should we ask XML Schema to fix this?

Issue-0070: Should the name accessor return "" or ()?

Date: 5-December-2001
Raised by: XPath Task Force
Affects: 4 Nodes

Description: Should the name accessor return "" or () for nodes that have no name?

Issue-0071: Magic Attributes

Date: 7-December-2001
Raised by: Michael Rys
Affects: 4.2.4 PSVI to Data Model Mapping

Description: Should the following attributes be represented in the data model? xmlns attributes, xml:lang, xml:space, xsi:nil (etc). If so, how?

Issue-0072: Lexical representation of Schema primitive types

Date: 13-January-2002
Raised by: Jeni Tennison
Affects: 5 Atomic Values

Description: Unfortunately the XML Schema Datatypes Rec doesn't detail the canonical lexical representation of all of the primitive types. In particular, no canonical lexical representation is specified for:

  1. xs:string, xs:base64Binary, xs:anyURI (but that's OK, I think we can guess)

  2. xs:duration - presumably the lexical representation contains all components of the duration (years, months, days, hours, minutes and seconds, even those that occur 0 times? Or are these omitted? In the latter case, what's the canonical lexical representation of PT0S? Since the number of seconds can be a decimal, is this decimal represented with a decimal point (i.e. using the canonical lexical representation for xs:decimal)?

  3. xs:date - what happens to the timezone component? Presumably, unlike xs:dateTime and xs:time, this isn't normalized to Z? (And similarly for xs:gYearMonth, xs:gYear, xs:gMonthDay, xs:Month, and xs:Day)

  4. xs:QName and xs:NOTATION - these are the trickiest (their value spaces are the same). The XML Schema Rec states that the lexical representation of a QName depends on the in-scope namespaces. Does this mean the ones in the query/stylesheet or the ones from the source document? What if there's more than one namespace declaration for the namespace URI? What if there aren't any?

http://lists.w3.org/Archives/Public/www-xml-query-comments/2002Jan/0268.html

Issue-0073: Whitespace normalization of the string-value of elements with simple content

Date: 13-January-2002
Raised by: Jeni Tennison

Description: Currently the data model says that the string value of an attribute node is normalized (according to the whitespace facet of its type); on the other hand, the string value of an element node is not normalized. The string value of elements with simple content should also be normalized in the same way as the string value of attributes. http://lists.w3.org/Archives/Public/www-xml-query-comments/2002Jan/0269.html

Resolution: MN: The mapping from the PSVI to the data model has been updated to use the [schema normalized value] PSVI property (if exists) in the case of both attributes or elements.

Issue-0074: Do we need Document fragments

Date: 12-February-2002
Raised by: Michael Rys
Affects: 4.1.1 Overview

Description: Currently the Document node in the data model is permissive in the number of element nodes it can directly contain whereas the infoset only allows a single element node. Since preserving the single element node constraint is important to enforce queries to generate only well-formed documents when generating documents, the question is whether the data model needs to introduce a docfragment node that is permissive and keep the document node to be non-permissive. See http://lists.w3.org/Archives/Member/w3c-xsl-query/2002Feb/0111.html (members only).

Issue-0075: Support for unparsed entities

Date: 26-June-2002
Raised by: Michael Kay
Affects:

Description: XSL WG has a requirement to access unparsed entities in a document. This is needed to support the XSLT 1.0 unparsed-entity-uri() function, and the unparsed-entity-public-id() function which we are adding for XSLT 2.0. In XSLT 1.0, unparsed entities were not described in the XPath data model, but in an XSLT addition to the data model. This solution is unsatisfactory: the data model should describe all the information that is available. The information is available in the InfoSet so there is no architectural problem in providing it. There is room for debate about how it is best provided (we don't really want another node type if we can help it), but the information should be there. We are not proposing, at this stage, that the functions unparsed-entity-uri() and unparsed-entity-public-id() be moved from XSLT into XPath, though that can easily be done if people want them. The information about unparsed entities in the data model would therefore not be available to XQuery users or to XPath users outside an XSLT environment.

Issue-0076: PSVI to Type mapping supporting derived types

Date: 29-July-2002
Raised by: Marton Nagy
Affects: 3.6 Mapping PSV Infoset additions to Types

Description: The last bullet in the definition of the PSVI to Type mapping does not handle derived types properly. In those cases we should not bottom out at xs:anyType, but attempt to use the rules all over again with the type from which the current type is derived. Also note that these rules need to be slightly different if we decide to use generated type identifiers when no type names are available.

Issue-0077: PSVI to Type mapping dependence on conformance levels

Date: 29-July-2002
Raised by: XPath Task Force
Affects: 3.6 Mapping PSV Infoset additions to Types

Description: The rules specifying the computation of the types from the PSVI do not yet reflect that this process depends on the conformance level of the processor. For Basic, are any type annotations preserved? The Query/XPath book says the data types are mapped to the nearest supertype, the Data Model needs to agree with this.

Issue-0078: Data model does not represent CDATA sections

Date: 31-July-2002
Raised by: Michael Kay
Affects: 4 Nodes

Description: It is not clear how the current data model can represent or accomodate CDATA sections. (This is also captured as Issue 0293 on the XPath issue list.)

Issue-0079: String-value vs. string-value of the typed-value

Date: 31-July-2002
Raised by: Marton Nagy
Affects: 4.2.3 Accessors   4.3.3 Accessors

Description: Note that the current definition of dm:string-value($n) is such that it may differ from dm:string-value(dm:typed-value($n)) for some element or attribute nodes $n. For instance given a node dm:element-node(my:a,(),(),dm:text-node("01"),xs:integer), its string-value gives "01", but the string-value of the typed-value is "1".

The possible resolutions are that we (a) prohibit, (b) allow or (c) mandate dm:string-value($n) to be dm:string-value(dm:typed-value($n)). The current text reflects (a). Option (b) would result in non-interoperable implementations. Option (c) is promising. In that case the element constructor would need to be a little smart and change the textnode to contain the string value of dm:atomic-value-sequence applied to the string-value of the original text node and the type passed to the constructor. Similar change would need to be done to the attribute constructor.

Issue-0080: Typed value of Document, PI and Comment nodes

Date: 1-August-2002
Raised by: Mary Fernandez
Affects: 4 Nodes

Description: There is currently an asymmetry between the data model and the F&O documents. In the data model, the typed-value accessor on document, comment, PI nodes returns the empty sequence. In the F&O document, the data() function applied to a document, namespace, comment or processing instruction node, raises an error.

My intuition is that data() should be defined on all nodes, just as string-value() is defined. Raising an error on document, comment, PI, seems draconian and has tripped me up in writing queries that iterate over a variety of nodes. If data() returns error on such nodes, one ends up with a lot of code checking what kind of node is bound to a variable, etc.

F Open Issues (Non-Normative)

G Resolved Issues (Non-Normative)
