Decentralized identifiers (DIDs) are a new type of identifier for verifiable, "self-sovereign" digital identity. DIDs are fully under the control of the DID controller, independent from any centralized registry, identity provider, or certificate authority. DIDs resolve to DID Documents — simple documents that describe how to use that specific DID.
This document specifies the algorithms and guidelines for resolving DIDs and dereferencing DID URLs.
This section describes the status of this document at the time of its publication. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
Comments regarding this document are welcome. Please file issues directly on GitHub, or send them to public-credentials@w3.org (subscribe, archives).
Portions of the work on this specification have been funded by the United States Department of Homeland Security's Science and Technology Directorate under contracts HSHQDC-17-C-00019. The content of this specification does not necessarily reflect the position or the policy of the U.S. Government and no official endorsement should be inferred.
Work on this specification has also been supported by the Rebooting the Web of Trust community facilitated by Christopher Allen, Shannon Appelcline, Kiara Robles, Brian Weller, Betty Dhamers, Kaliya Young, Kim Hamilton Duffy, Manu Sporny, Drummond Reed, Joe Andrieu, and Heather Vescent.
This document was published by the Decentralized Identifier Working Group as a First Public Working Draft using the Recommendation track.
Publication as a First Public Working Draft does not imply endorsement by W3C and its Members.
This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 03 November 2023 W3C Process Document.
DID resolution is the process of obtaining a DID document for a given DID. This is one of four required operations that can be performed on any DID ("Read"; the other ones being "Create", "Update", and "Deactivate"). The details of these operations differ depending on the DID method. Building on top of DID resolution, DID URL dereferencing is the process of retrieving a representation of a resource for a given DID URL. Software and/or hardware that is able to execute these processes is called a DID resolver.
This specification defines common requirements, algorithms including their inputs and results, architectural options, and various considerations for the DID resolution and DID URL dereferencing processes.
Note that while this specification defines some base-level functionality for DID resolution, the actual steps required to communicate with a DID's verifiable data registry are defined by the applicable DID method specification.

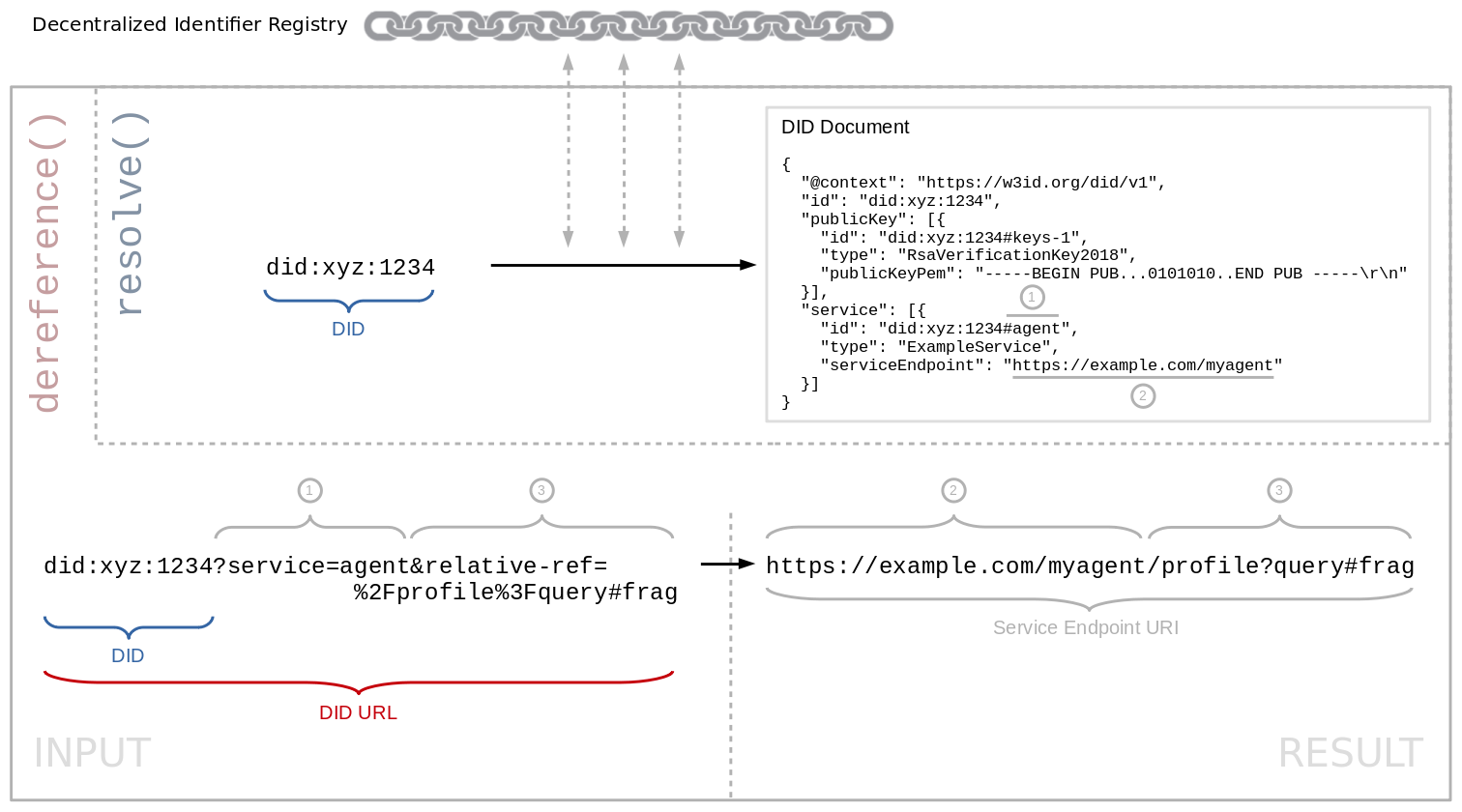

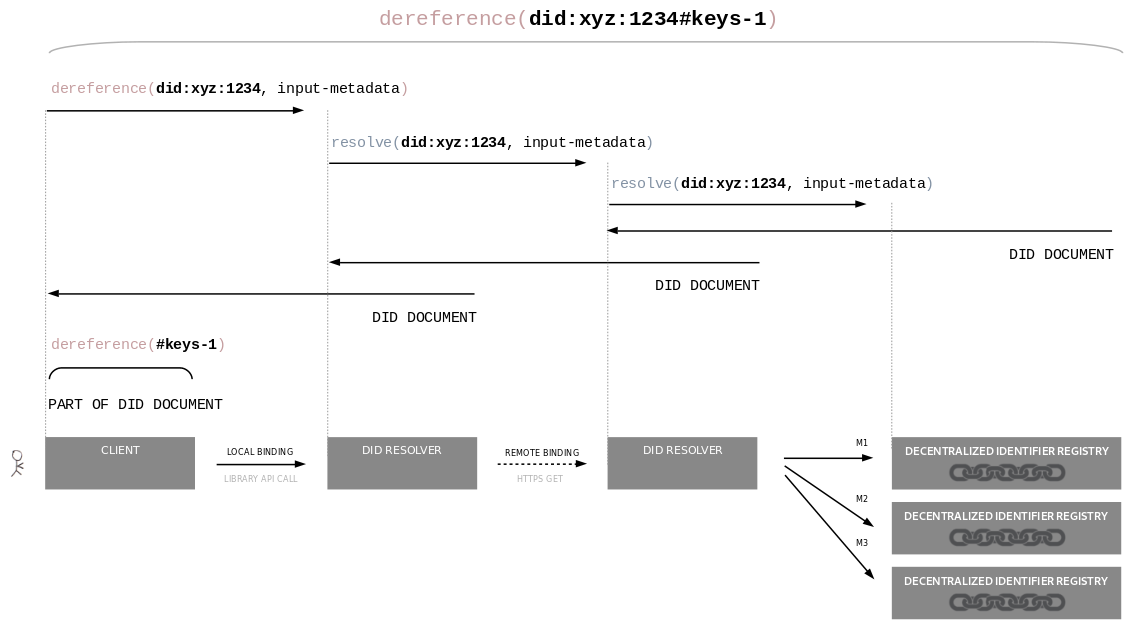

The difference between "resolving" a DID and "dereferencing" a DID URL is being thoroughly discussed by the community. For example, see this comment.
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words MAY, MUST, MUST NOT, OPTIONAL, RECOMMENDED, REQUIRED, and SHOULD in this document are to be interpreted as described in BCP 14 [RFC2119] [RFC8174] when, and only when, they appear in all capitals, as shown here.
A conforming DID resolver is any algorithm realized as software and/or hardware that complies with the relevant normative statements in 3. DID Resolution.
A conforming DID URL dereferencer is any algorithm realized as software and/or hardware that complies with the relevant normative statements in 4. DID URL Dereferencing.
This section defines the terms used in this specification and throughout decentralized identifier infrastructure. A link to these terms is included whenever they appear in this specification.
controller
property at the top level of the
DID document. Note that a DID controller might be the DID
subject.
#
). DID fragment syntax is identical to URI fragment syntax.
/
) character and ends with either a question mark
(?
) character, a fragment hash sign (#
) character,
or the end of the DID URL. DID path syntax is identical to URI path syntax.
See .
?
). DID query syntax is identical to URI query
syntax. See .
did:
as defined in . Each DID method specification defines a specific
DID method scheme that works with that specific DID method. In a specific DID
method scheme, the DID method name follows the first colon and terminates with
the second colon, e.g., did:example:
/
character), optional DID query
(with its leading ?
character), and optional DID fragment
(with its leading #
character).
A set of parameters that can be used together with a process to independently verify a proof. For example, a cryptographic public key can be used as a verification method with respect to a digital signature; in such usage, it verifies that the signer possessed the associated cryptographic private key.
"Verification" and "proof" in this definition are intended to apply broadly. For example, a cryptographic public key might be used during Diffie-Hellman key exchange to negotiate a shared symmetric key for encryption. This guarantees the integrity of the key agreement process. It is thus another type of verification method, even though descriptions of the process might not use the words "verification" or "proof."
The DID resolution functions resolve a DID into a DID document by using the "Read" operation of the applicable DID method as described in Method Operations. All conforming DID resolvers implement the functions below, which have the following abstract forms:
resolve(did, resolutionOptions) →
« didResolutionMetadata, didDocument, didDocumentMetadata »

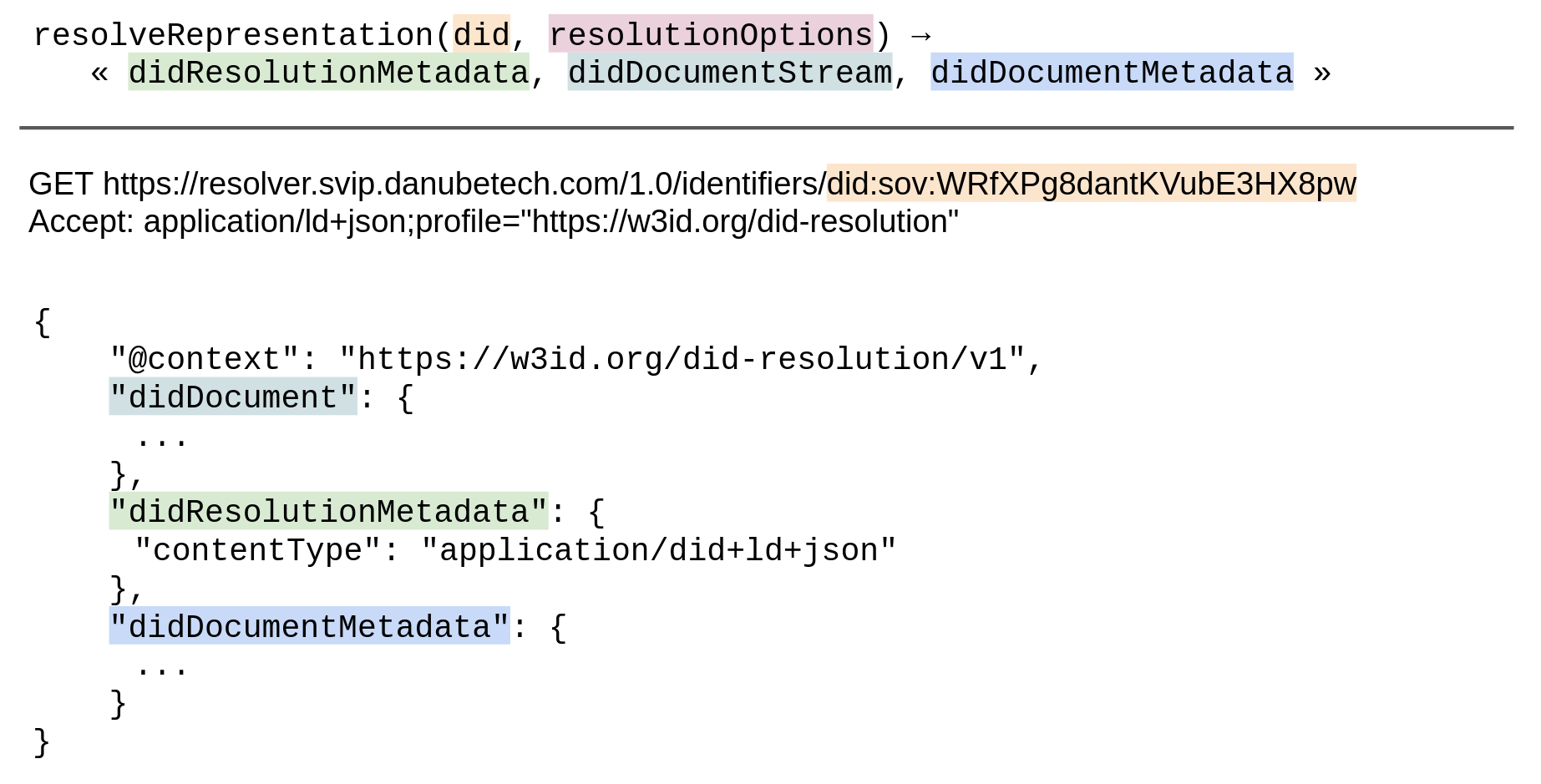

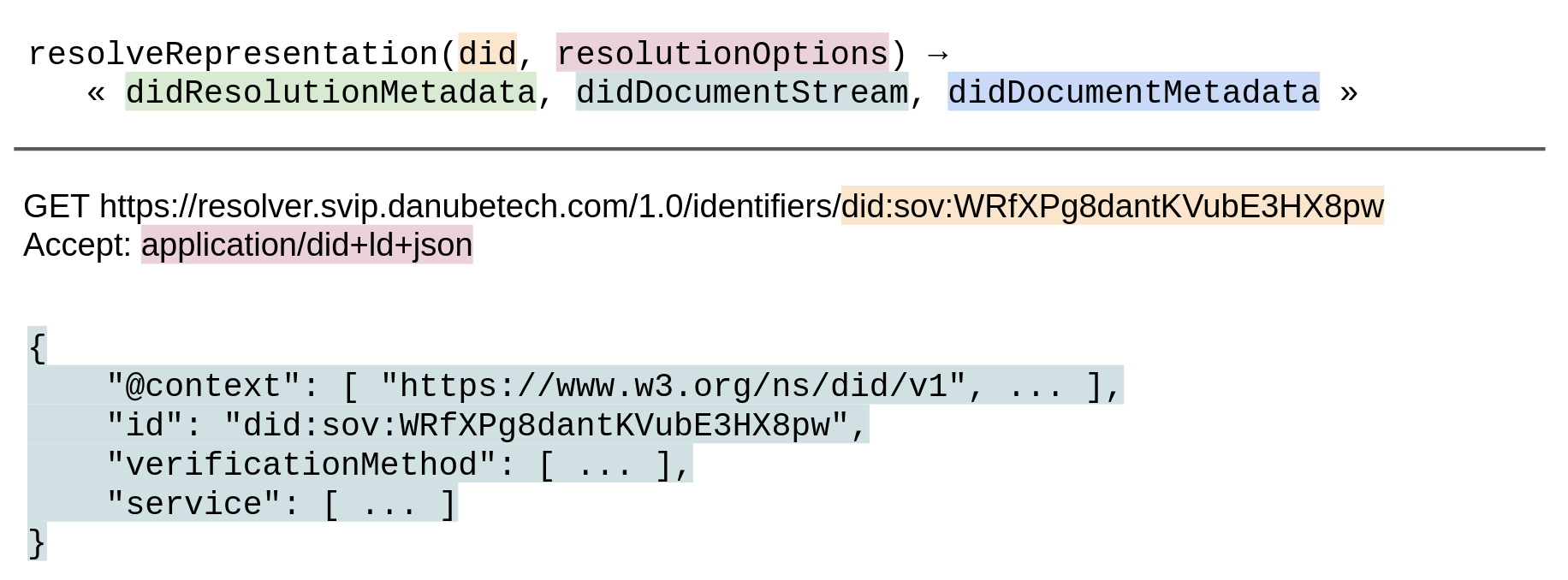

resolveRepresentation(did, resolutionOptions) →
« didResolutionMetadata, didDocumentStream, didDocumentMetadata »
The resolve
function returns the DID document in its
abstract form (a map). The
resolveRepresentation
function returns a byte stream of the DID
Document formatted in the corresponding representation.
The upper middle part of the diagram contains a rectangle with dashed grey outline, containing two blue-outlined rectangles, one above the other. The upper, larger rectangle is labeled, in blue, "Core Properties", and contains the following INFRA notation:
«[
"id" → "example:123",
"verificationMethod" → « «[
"id": "did:example:123#keys-1",
"controller": "did:example:123",
"type": "Ed25519VerificationKey2018",
"publicKeyBase58": "H3C2AVvLMv6gmMNam3uVA"
]» »,
"authentication" → «
"did:example:123#keys-1"
»
]»
The lower, smaller rectangle is labeled, in blue, "Core Representation-specific Entries (JSON-LD)", and contains the following monospaced INFRA notation:
«[ "@context" → "https://www.w3.org/ns/did/v1" ]»
From the grey-outlined rectangle, three pairs of arrows extend to three different black-outlined rectangles, aligned in a horizontal row side-by-side, in the bottom half of the diagram. Each pair of arrows consists of one blue arrow pointing from the grey-outlined rectangle to the respective black-outlined rectangle, labeled "produce", and one red arrow pointing in the reverse direction, labeled "consume". The first black-outlined rectangle in the row is labeled "application/did+ld+json", and contains the following JSON-LD data:
{
"@context": ["https://www.w3.org/ns/did/v1"],
"id": "did:example:123",
"verificationMethod": [{
"id": "did:example:123#keys-1",
"controller": "did:example:123",
"type": "Ed25519VerificationKey2018",
"publicKeyBase58": "H3C2AVvLMv6gmMNam3uVA"
}],
"authentication": [
"did:example:123#keys-1"
]
}
The second rectangle in the row is labeled "application/did+json" and contains the following JSON data:
{
"id": "did:example:123",
"verificationMethod": [{
"id": "did:example:123#keys-1",
"controller": "did:example:123",
"type": "Ed25519VerificationKey2018",
"publicKeyBase58": "H3C2AVvLMv6gmMNam3uVA"
}],
"authentication": [
"did:example:123#keys-1"
]
}
The third rectangle in the row is labeled "application/did+cbor", and contains hexadecimal data.
In the left part of the diagram, in the middle, there is a box, with black outline and light gray background. This box is labeled "VERIFIABLE DATA REGISTRY" and contains a symbol representing a graph with nodes and arcs. From this box, one arrow, labeled "resolve()", extends upwards and points to the top half of the diagram where the grey-outlined rectangle is located. Another arrow, labeled "resolveRepresentation()", extends downwards and points to the bottom half of the diagram, where the row of three black-outlined rectangles is located.
All conformant DID resolvers MUST implement the DID resolution functions for at least one DID method and MUST be able to return a DID document in at least one conformant representation.
Conforming DID resolver implementations do not alter the signature of
these functions in any way. DID resolver implementations might map the
resolve
and resolveRepresentation
functions to a
method-specific internal function to perform the actual DID resolution
process. DID resolver implementations might implement and expose
additional functions with different signatures in addition to the
resolve
and resolveRepresentation
functions specified
here.
The input variables
of the resolve
and resolveRepresentation
functions are
as follows:
These functions each return multiple values, and no limitations
are placed on how these values are returned together.
The return values of resolve
are
didResolutionMetadata, didDocument, and
didDocumentMetadata. The return values of
resolveRepresentation
are
didResolutionMetadata, didDocumentStream, and
didDocumentMetadata. These values are described below:
resolve
and
resolveRepresentation
functions, as it represents data about the
resolution process itself. This structure is REQUIRED, and in the case of an
error in the resolution process, this MUST NOT be empty. This metadata is
defined by 3.2 DID Resolution Metadata. If
resolveRepresentation
was called, this structure MUST contain a
contentType
property containing the Media Type of the
representation found in the didDocumentStream
. If the resolution is
not successful, this structure MUST contain an error
property
describing the error.
resolve
function was
called, this MUST be a DID document abstract data model (a map) as described in that
is capable of being transformed into a conforming DID Document
(representation), using the production rules specified by the representation.
The value of id
in the resolved DID document MUST
match the DID that was resolved. If the resolution is unsuccessful, this
value MUST be empty.
resolveRepresentation
function was called, this MUST be a byte stream of the resolved DID
document in one of the conformant
representations. The byte stream might then be
parsed by the caller of the resolveRepresentation
function into a
data model, which can in turn be validated and
processed. If the resolution is unsuccessful, this value MUST be an empty
stream.
didDocument
property. This metadata typically does not change between invocations of the
resolve
and resolveRepresentation
functions unless the
DID document changes, as it represents metadata about the DID
document. If the resolution is unsuccessful, this output MUST be an empty metadata structure. Properties defined by this
specification are in 3.3 DID Document Metadata.
The possible properties within this structure and their possible values are registered in the DID Specification Registries [DID-SPEC-REGISTRIES]. This specification defines the following common properties.
didDocumentStream
if such a representation is supported and
available. This property is OPTIONAL for the resolveRepresentation
function and MUST NOT be used with the resolve
function.
The possible properties within this structure and their possible values are registered in the DID Specification Registries [DID-SPEC-REGISTRIES]. This specification defines the following DID resolution metadata properties:
didDocumentStream
. This property is
REQUIRED if resolution is successful and if the
resolveRepresentation
function was called.
This property MUST NOT
be present if the resolve
function was called. The value of this
property MUST be an ASCII string that is the Media
Type of the conformant representations. The
caller of the resolveRepresentation
function MUST use this value
when determining how to parse and process the didDocumentStream
returned by this function into the data model.
accept
input metadata property is not supported by the DID
method and/or DID resolver implementation.
The possible properties within this structure and their possible values SHOULD be registered in the DID Specification Registries [DID-SPEC-REGISTRIES]. This specification defines the following common properties.
created
property to
indicate the timestamp of the Create operation.
The value of the property MUST be a string
formatted as an XML Datetime
normalized to UTC 00:00:00 and without sub-second decimal precision. For
example: 2020-12-20T19:17:47Z
.
updated
property to
indicate the timestamp of the last Update
operation for the document version which was resolved. The value of the
property MUST follow the same formatting rules as the created
property. The updated
property is omitted if an Update operation
has never been performed on the DID document. If an updated
property exists, it can be the same value as the created
property
when the difference between the two timestamps is less than one second.
true
. If a DID has not been deactivated, this property is OPTIONAL,
but if included, MUST have the boolean value false
.
nextUpdate
property if
the resolved document version is not the latest version of the document. It
indicates the timestamp of the next Update
operation. The value of the property MUST follow the same formatting rules
as the created
property.
versionId
property to
indicate the version of the last Update
operation for the document version which was resolved. The value of the
property MUST be an ASCII string.
nextVersionId
property
if the resolved document version is not the latest version of the document. It
indicates the version of the next Update
operation. The value of the property MUST be an ASCII string.
A DID method can define different forms of a DID that are
logically equivalent. An example is when a DID takes one form prior to
registration in a verifiable data registry and another form after such
registration. In this case, the DID method specification might need to
express one or more DIDs that are logically equivalent to the resolved
DID as a property of the DID document. This is the purpose of the
equivalentId
property.
DID document metadata MAY include an equivalentId
property.
If present, the value MUST be a set where each item is a
string that conforms to the rules in Section . The relationship is a statement that each
equivalentId
value is logically equivalent to the
id
property value and thus refers to the same DID subject.
Each equivalentId
DID value MUST be produced by, and a form
of, the same DID method as the id
property value. (e.g.,
did:example:abc
== did:example:ABC
)
A conforming DID method specification MUST guarantee that each
equivalentId
value is logically equivalent to the
id
property value.
A requesting party is expected to retain the values from the id
and
equivalentId
properties to ensure any subsequent
interactions with any of the values they contain are correctly handled as
logically equivalent (e.g., retain all variants in a database so an interaction
with any one maps to the same underlying account).
equivalentId
is a much stronger form of equivalence than
alsoKnownAs
because the equivalence MUST be guaranteed by
the governing DID method. equivalentId
represents a
full graph merge because the same DID document describes both the
equivalentId
DID and the id
property
DID.
If a requesting party does not retain the values from the id
and
equivalentId
properties and ensure any subsequent
interactions with any of the values they contain are correctly handled as
logically equivalent, there might be negative or unexpected issues that
arise. Implementers are strongly advised to observe the
directives related to this metadata property.
The canonicalId
property is identical to the
equivalentId
property except: a) it is associated with a
single value rather than a set, and b) the DID is defined to be
the canonical ID for the DID subject within the scope of the containing
DID document.
DID document metadata MAY include a canonicalId
property.
If present, the value MUST be a string that conforms to the rules in Section . The relationship is a statement that the
canonicalId
value is logically equivalent to the
id
property value and that the canonicalId
value is defined by the DID method to be the canonical ID for the DID
subject in the scope of the containing DID document. A
canonicalId
value MUST be produced by, and a form of, the
same DID method as the id
property value. (e.g.,
did:example:abc
== did:example:ABC
).
A conforming DID method specification MUST guarantee that the
canonicalId
value is logically equivalent to the
id
property value.
A requesting party is expected to use the canonicalId
value
as its primary ID value for the DID subject and treat all other
equivalent values as secondary aliases (e.g., update corresponding primary
references in their systems to reflect the new canonical ID directive).
canonicalId
is the same statement of equivalence as
equivalentId
except it is constrained to a single value that
is defined to be canonical for the DID subject in the scope of the DID
document. Like equivalentId
,
canonicalId
represents a full graph merge because the same
DID document describes both the canonicalId
DID and
the id
property DID.
If a resolving party does not use the canonicalId
value as
its primary ID value for the DID subject and treat all other equivalent values
as secondary aliases, there might be negative or unexpected issues that arise
related to user experience. Implementers are strongly advised to observe the
directives related to this metadata property.
The following DID resolution algorithm MUST be implemented by a conformant DID resolver.
did
rule of the
DID Syntax.
If not, the DID resolver MUST return the following result:
«[ "error" → "invalidDid" ]»
null
«[ ]»
«[ "error" → "methodNotSupported" ]»
null
«[ ]»
«[ "error" → "notFound" ]»
null
«[ ]»
«[ ]»
null
«[ "deactivated" → true ]»
There is discussion how a DID that has been deactivated should be treated during the DID resolution process.
Specify how signatures/proofs on a DID document should be verified during the DID resolution process.
Should we define functionality that enables discovery of the list of DID methods or other capabilities that are supported by a DID resolver? Or is this implementation-specific and out-of-scope for this spec? For example, see here and here.
The DID URL dereferencing function dereferences a DID URL into a resource with contents depending on the DID URL's components, including the DID method, method-specific identifier, path, query, and fragment. This process depends on DID resolution of the DID contained in the DID URL. DID URL dereferencing might involve multiple steps (e.g., when the DID URL being dereferenced includes a fragment), and the function is defined to return the final resource after all steps are completed. The following figure depicts the relationship described above.
The top left part of the diagram contains a rectangle with black outline, labeled "DID".
The bottom left part of the diagram contains a rectangle with black outline, labeled "DID URL". This rectangle contains four smaller black-outlined rectangles, aligned in a horizontal row adjacent to each other. These smaller rectangles are labeled, in order, "DID", "path", "query", and "fragment.
The top right part of the diagram contains a rectangle with black outline, labeled "DID document". This rectangle contains three smaller black-outlined rectangles. These smaller rectangles are labeled "id", "(property X)", and "(property Y)", and are surrounded by multiple series of three dots (ellipses). A curved black arrow, labeled "DID document - relative fragment dereference", extends from the rectangle labeled "(property X)", and points to the rectangle labeled "(property Y)".
The bottom right part of the diagram contains an oval shape with black outline, labeled "Resource".
A black arrow, labeled "resolves to a DID document", extends from the rectangle in the top left part of the diagram, labeled "DID", and points to the rectangle in the top right part of diagram, labeled "DID document".
A black arrow, labeled "refers to", extends from the rectangle in the top right part of the diagram, labeled "DID document", and points to the oval shape in the bottom right part of diagram, labeled "Resource".
A black arrow, labeled "contains", extends from the small rectangle labeled "DID" inside the rectangle in the bottom left part of the diagram, labeled "DID URL", and points to the rectangle in the top left part of diagram, labeled "DID".
A black arrow, labeled "dereferences to a DID document", extends from the rectangle in the bottom left part of the diagram, labeled "DID URL", and points to the rectangle in the top right part of diagram, labeled "DID document".
A black arrow, labeled "dereferences to a resource", extends from the rectangle in the bottom left part of the diagram, labeled "DID URL", and points to the oval shape in the bottom right part of diagram, labeled "Resource".
All conforming DID resolvers implement the following function which has the following abstract form:
dereference(didUrl, dereferenceOptions) →
« dereferencingMetadata, contentStream, contentMetadata »
The input variables of the dereference
function are as follows:
While it is valid for any didUrl
to be passed to a DID URL
dereferencer, implementers are expected to refer to 4. DID URL Dereferencing to
further understand common patterns for how a DID URL is expected
to be dereferenced.
dereference
function in addition to the
didUrl
itself. Properties defined by this specification are in 4.1 DID URL Dereferencing Options. This input is REQUIRED, but the
structure MAY be empty.
This function returns multiple values, and no limitations
are placed on how these values are returned together.
The return values of the dereference
include
dereferencingMetadata
, contentStream
,
and contentMetadata
:
error
property
describing the error.
dereferencing
function was called and successful, this MUST
contain a resource corresponding to the DID URL. The
contentStream
MAY be a resource such as a DID
document that is serializable in one of the conformant
representations, a verification
method, a service, or any other resource format that
can be identified via a Media Type and obtained through the resolution process.
If the dereferencing is unsuccessful, this value MUST be empty.
contentStream
. If the contentStream
is a DID document, this MUST be a didDocumentMetadata structure as
described in DID Resolution. If the dereferencing is unsuccessful, this
output MUST be an empty metadata structure.
Conforming DID URL dereferencing implementations do not alter the
signature of these functions in any way. DID URL dereferencing
implementations might map the dereference
function to a
method-specific internal function to perform the actual DID URL
dereferencing process. DID URL dereferencing implementations might
implement and expose additional functions with different signatures in addition
to the dereference
function specified here.
The possible properties within this structure and their possible values SHOULD be registered in the DID Specification Registries [DID-SPEC-REGISTRIES]. This specification defines the following common properties for dereferencing options:
contentStream
. The Media
Type MUST be expressed as an ASCII string. The
DID URL dereferencing implementation SHOULD use this value to determine
the contentType
of the representation contained in the
returned value if such a representation is supported and available.
The possible properties within this structure and their possible values are registered in the DID Specification Registries [DID-SPEC-REGISTRIES]. This specification defines the following common properties.
contentStream
SHOULD be expressed
using this property if dereferencing is successful. The Media
Type value MUST be expressed as an ASCII string.
contentStream
resulting from this dereferencing request.
The following DID URL dereferencing algorithm MUST be implemented by a conformant DID resolver. In accordance with [RFC3986], it consists of the following steps: Resolving the DID, dereferencing the primary resource, and dereferencing the secondary resource (only if the input DID URL contains a DID fragment:
did-url
rule of the
DID URL Syntax.
If not, the DID URL dereferencer MUST return the following result:
«[ "error" → "invalidDidUrl" ]»
null
«[ ]»
service
and optionally the relativeRef
DID parameter:
did:example:1234?service=files&relativeRef=%2Fmyresume%2Fdoc%3Fversion%3Dlatest
id
property contains a fragment which matches the value of the service
DID parameter of the
input DID URL. This is called the input service endpoint.serviceEndpoint
property of the
input service endpoint. This is called the input service endpoint URL.did:example:1234
did:example:1234/custom/path?customquery
«[ "error" → "notFound" ]»
null
«[ ]»
There have been discussions whether in addition to the DID parameter service
,
there could also be a DID parameter serviceType
to select services based
on their type rather than ID.
See
comments by Dave Longley about serviceType
.
If the input DID URL contains a DID fragment, then dereferencing of the secondary resource identified by the URL is dependent not on the URI scheme, but on the media type ([RFC2046]) of the primary resource, i.e., on the result of 4.3.1 Dereferencing the Primary Resource.
application/did+ld+json
, and the input DID URL contains a
DID fragment:
did:example:1234#keys-1
id
property matches the input DID URL, e.g., a public key or service endpoint in the
DID document. This is called the output resource.
When selecting the JSON-LD object from the DID document, the absolute
DID URL used to identify a graph node MUST be unique and present only once in the
DID document. If the identifier of the graph node is not unique,
including if a relative or base IRI mapped to an absolute IRI collides with
a different graph node's absolute IRI, then an error MUST be thrown.
Mention relative IRIs and that the DID itself is considered the base IRI for
the JSON-LD parser. Mention potential attack vector if @base
is injected into the
DID document.
Also see this discussion
on fully qualified DID URLs as the value of the id
field.
did:example:1234?service=files&relativeRef=%2Fmyresume%2Fdoc%3Fversion%3Dlatest#intro
fragment
component, raise an error.
This behavior of the DID fragment is analogous to the handling of a fragment in an HTTP URL in the
case when dereferencing it returns an HTTP 3xx
(Redirection) response with a
Location
header (see section 7.1.2 of [RFC7231].
This use of the DID fragment is consistent with the definition of the fragment identifier in [RFC3986]. It identifies a secondary resource which is a subset of the primary resource (the DID document).
This use of the DID fragment is furthermore consistent with the concept of Hash URIs for the Semantic Web [COOL-URIS].
Perhaps we can find a good reference somewhere from RDF, JSON-LD or Solid specifications that defines clearly the ability to use the fragment for identifying a specific resource in an RDF document.
Given the following input DID URL:
did:example:123456789abcdefghi#keys-1
... and the following resolved DID document:
{ "@context": "https://www.w3.org/ns/did/v1", "id": "did:example:123456789abcdefghi", "verificationMethod": [{ "id": "did:example:123456789abcdefghi#keys-1", "type": "Ed25519VerificationKey2018", "controller": "did:example:123456789abcdefghi", "publicKeyBase58": "H3C2AVvLMv6gmMNam3uVAjZpfkcJCwDwnZn6z3wXmqPV" }], "service": [{ "id": "did:example:123456789abcdefghi#agent", "type": "AgentService", "serviceEndpoint": "https://agent.example.com/8377464" }, { "id": "did:example:123456789abcdefghi#messages", "type": "MessagingService", "serviceEndpoint": "https://example.com/messages/8377464" }] }
... then the result of the 4. DID URL Dereferencing algorithm is the following output resource:
{ "@context": "https://www.w3.org/ns/did/v1", "id": "did:example:123456789abcdefghi#keys-1", "type": "Ed25519VerificationKey2018", "controller": "did:example:123456789abcdefghi", "publicKeyBase58": "H3C2AVvLMv6gmMNam3uVAjZpfkcJCwDwnZn6z3wXmqPV" }
Given the following input DID URL and the same resolved DID document as above:
did:example:123456789abcdefghi?service=messages&relativeRef=%2Fsome%2Fpath%3Fquery#frag
... then the result of the 4. DID URL Dereferencing algorithm is the following output service endpoint URL:
https://example.com/messages/8377464/some/path?query#frag
Change the diagram and/or examples to make them consistent.
Input and output metadata is often involved during the DID Resolution, DID URL dereferencing, and other DID-related processes. The structure used to communicate this metadata MUST be a map of properties. Each property name MUST be a string. Each property value MUST be a string, map, list, set, boolean, or null. The values within any complex data structures such as maps and lists MUST be one of these data types as well. All metadata property definitions registered in the DID Specification Registries [DID-SPEC-REGISTRIES] MUST define the value type, including any additional formats or restrictions to that value (for example, a string formatted as a date or as a decimal integer). It is RECOMMENDED that property definitions use strings for values. The entire metadata structure MUST be serializable according to the JSON serialization rules in the [INFRA] specification. Implementations MAY serialize the metadata structure to other data formats.
All implementations of functions that use metadata structures as either input or output are able to fully represent all data types described here in a deterministic fashion. As inputs and outputs using metadata structures are defined in terms of data types and not their serialization, the method for representation is internal to the implementation of the function and is out of scope of this specification.
The following example demonstrates a JSON-encoded metadata structure that might be used as DID resolution input metadata.
{
"accept": "application/did+ld+json"
}
This example corresponds to a metadata structure of the following format:
«[
"accept" → "application/did+ld+json"
]»
The next example demonstrates a JSON-encoded metadata structure that might be used as DID resolution metadata if a DID was not found.
{
"error": "notFound"
}
This example corresponds to a metadata structure of the following format:
«[
"error" → "notFound"
]»
The next example demonstrates a JSON-encoded metadata structure that might be used as DID document metadata to describe timestamps associated with the DID document.
{
"created": "2019-03-23T06:35:22Z",
"updated": "2023-08-10T13:40:06Z"
}
This example corresponds to a metadata structure of the following format:
«[
"created" → "2019-03-23T06:35:22Z",
"updated" → "2023-08-10T13:40:06Z"
]»
TODO: Describe how DID resolvers are implemented and used, describe the relevance of DID methods. Explain the difference between "method architectures" and "resolver architectures".
The DID resolution algorithm involves executing the Read operation on a DID according to its DID method (see 3. DID Resolution).
The mechanics of the "Read" operation can vary considerably between DID methods. In particular, no assumption should be made that:
As an example, mention what it means to "resolve" peer/off-ledger/microledger/edgechain DIDs (for instance, see [DID-PEER] and here).
As an example, mention what it means to "resolve" DIDs that are simply wrapped public keys (for instance, see [DID-KEY] and here).
Depending on the exact nature of the DID method's "Read" operation, the interaction between a DID resolver and the verifiable data registry may be implemented as a verifiable read or unverifiable read:
A verifiable read maximizes confidence in the integrity and correctness of the result of the "Read" operation ‐ to the extent possible under the applicable DID method. It can be implemented in a variety of ways, for example:
An unverifiable read does not have such guarantees and is therefore less desirable, for example:
Whether or not a verifiable read is possible depends not only on a DID method itself, but also on the way how a DID resolver implements it. DID methods MAY define multiple different ways of implementing their "Read" operation(s) and SHOULD offer guidance on how to implement a verifiable read in at least one way.
The guarantees associated with a verifiable read are still always limited by the architectures, protocols, cryptography, and other aspects of the underlying verifiable data registry. The strongest forms of verifiable read implementations are considered those that do not require any interaction with a remote network at all (for example, see [DID-KEY]), or that minimize dependencies on specific network infrastructure and reduce the "root of trust" to proven entropy and cryptography alone (for example, see [KERI]).
TODO: Describe how a client can potentially verify the result of a "Read" operation independently even if it does not trust the DID resolver (e.g., using state proofs).

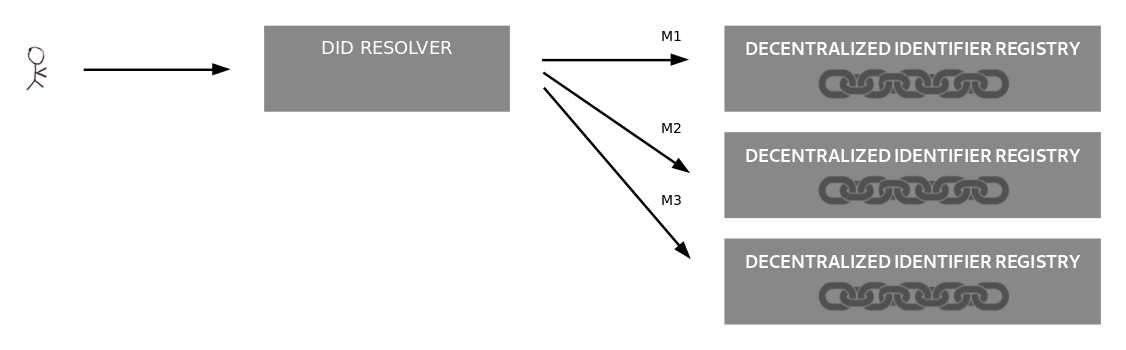

A DID resolver MUST support the DID resolution algorithm for at least one DID method and MAY support it for multiple DID methods:
In this case, the above considerations about verifiable read and unverifiable read implementations apply to each supported DID method individually.
The algorithms for DID resolution and DID URL dereferencing are defined as abstract functions (see 3. DID Resolution and 4. DID URL Dereferencing).

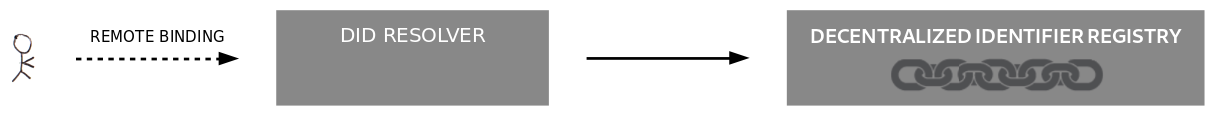

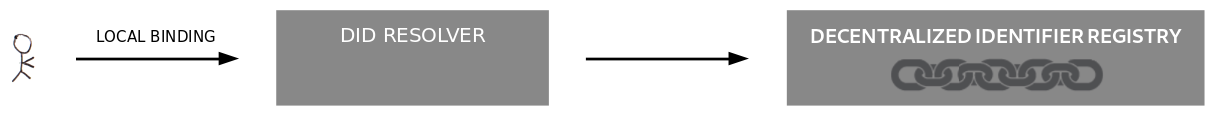

Those algorithms are implemented by DID resolvers. A DID resolver is invoked by a client via a binding. bindings define how the abstract functions are realized using concrete programming or communication interfaces. It is possible to distinguish between local bindings (such as a local command line tool or library API) and remote bindings (such as the HTTP(S) binding).TODO: Describe local bindings vs. remote bindings, and implications for privacy, security and trust.
Also describe mitigations against potential downsides of remote bindings, e.g.:
TODO: Discuss DID resolution in constrained user agents such as mobile apps and browsers.

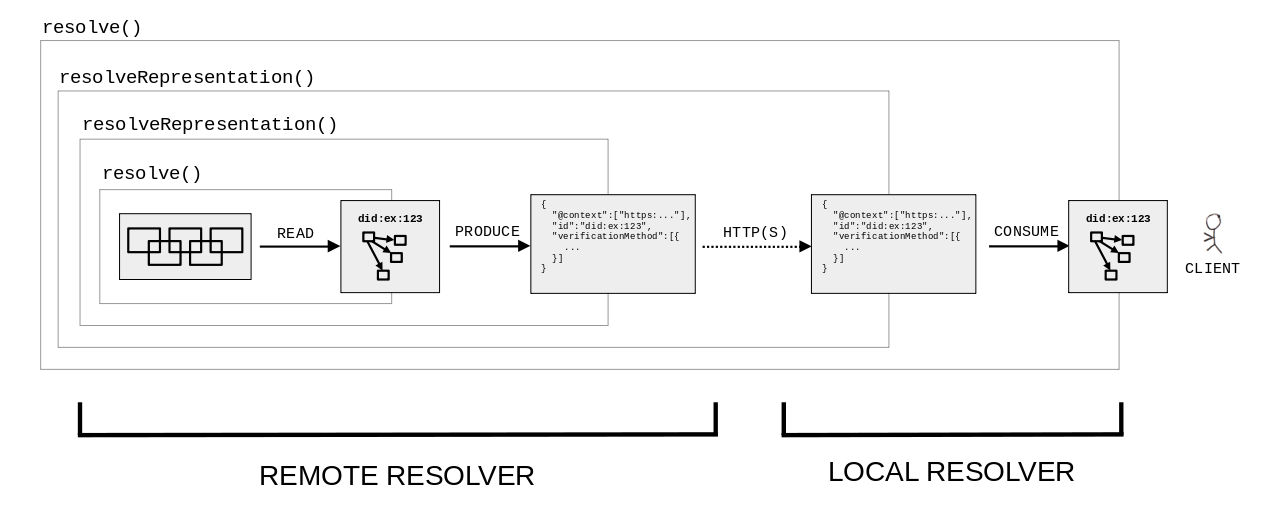

The following diagram shows how the resolve()
and resolveRepresentation()
functions
use production and consumption rules of DID document representation can apply in an architecture that involves
both a local resolver and a remote resolver.

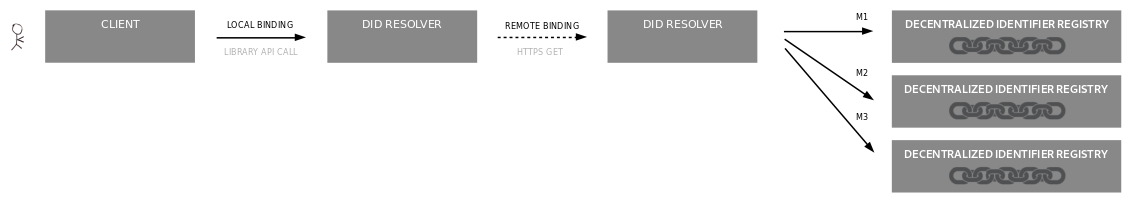

A DID resolver MAY invoke another DID resolver, which serves as a proxy that executes the DID resolution algorithm as defined in 3. DID Resolution.
The first DID resolver then acts as a client and chooses a suitable binding for invoking the second DID resolver. For example, a DID resolver may be invoked via a local binding (such as a command line tool), which in turn invokes another DID resolver via a remote binding (such as the HTTP(S) binding).
This is similar to a "stub resolver" invoking a "recursive resolver" in DNS architecture, although the concepts are not entirely comparable (DNS Resolution uses a single concrete protocol, whereas DID resolution is an abstract function realized by different DID methods and different bindings).

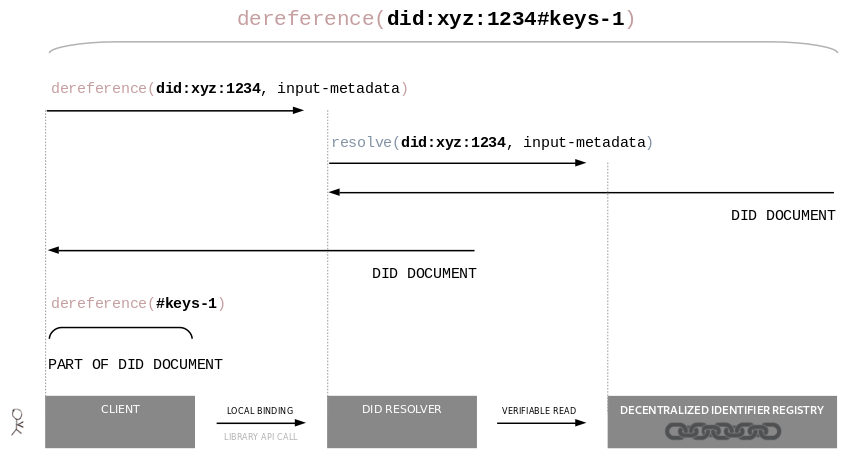

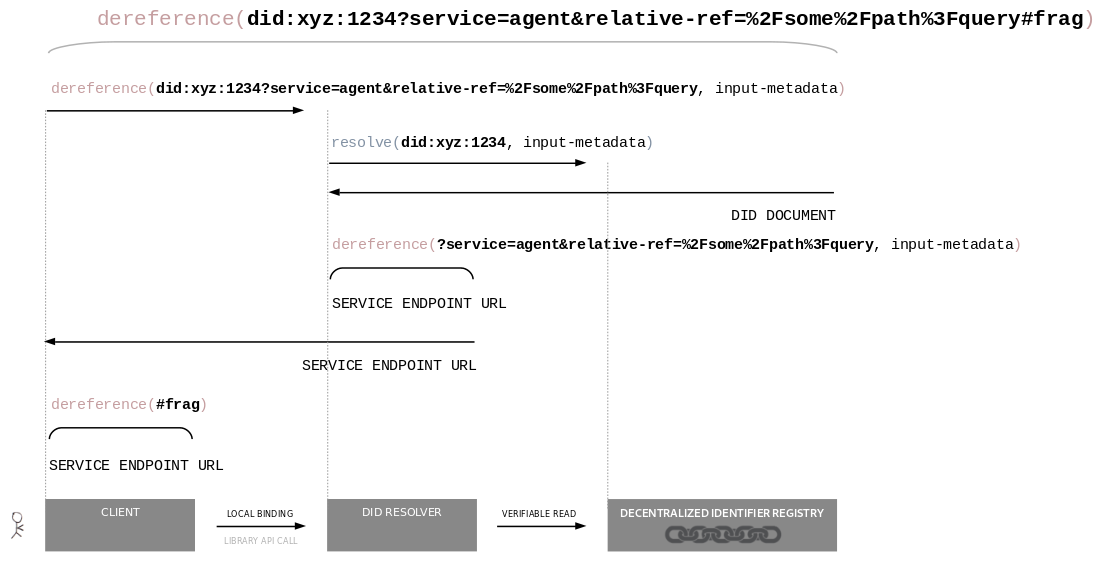

Different parts of the DID URL dereferencing algorithm may be performed by different components of a Resolver Architecture.
Specifically, when a DID URL with a DID fragment is dereferenced, then Dereferencing the Primary Resource is done by the DID resolver, and Dereferencing the Secondary Resource is done by the client.
Example: Given the DID URL did:xyz:1234#keys-1
, a DID resolver could be invoked
via local binding
for Dereferencing the Primary Resource (i.e., the DID document),
and the client could complete the DID URL dereferencing algorithm by
Dereferencing the Secondary Resource (i.e., a part of the DID document).
Example: Given the DID URL did:xyz:1234#keys-1
, a DID resolver could be invoked via
local binding which invokes another DID resolver via remote binding
for Dereferencing the Primary Resource (i.e., the DID document),
and the client could complete the DID URL dereferencing algorithm by
Dereferencing the Secondary Resource (i.e., a part of the DID document).
Example: Given the DID URL did:xyz:1234?service=agent&relativeRef=%2Fsome%2Fpath%3Fquery#frag
, a DID resolver could be invoked
for Dereferencing the Primary Resource (i.e., a service endpoint URL),
and the client could complete the DID URL dereferencing algorithm by
Dereferencing the Secondary Resource (i.e., a service endpoint URL with a fragment).
This section defines a data structure that represents the result of the algorithm described in 3. DID Resolution. A DID resolution result contains a DID document as well as DID resolution metadata and DID document metadata.
The media type of this data structure is defined to be application/ld+json;profile="https://w3id.org/did-resolution"
.
{ "@context": "https://w3id.org/did-resolution/v1", "didDocument": { "@context": "https://www.w3.org/ns/did/v1", "id": "did:example:123456789abcdefghi", "authentication": [{ "id": "did:example:123456789abcdefghi#keys-1", "type": "Ed25519VerificationKey2018", "controller": "did:example:123456789abcdefghi", "publicKeyBase58": "H3C2AVvLMv6gmMNam3uVAjZpfkcJCwDwnZn6z3wXmqPV" }], "service": [{ "id":"did:example:123456789abcdefghi#vcs", "type": "VerifiableCredentialService", "serviceEndpoint": "https://example.com/vc/" }] }, "didResolutionMetadata": { "contentType": "application/did+ld+json", "retrieved": "2024-06-01T19:73:24Z", }, "didDocumentMetadata": { "created": "2019-03-23T06:35:22Z", "updated": "2023-08-10T13:40:06Z", "method": { "nymResponse": { "result": { "data": "{\"dest\":\"WRfXPg8dantKVubE3HX8pw\",\"identifier\":\"V4SGRU86Z58d6TV7PBUe6f\",\"role\":\"0\",\"seqNo\":11,\"txnTime\":1524055264,\"verkey\":\"H3C2AVvLMv6gmMNam3uVAjZpfkcJCwDwnZn6z3wXmqPV\"}", "type": "105", "txnTime": 1.524055264E9, "seqNo": 11.0, "reqId": 1.52725687080231475E18, "identifier": "HixkhyA4dXGz9yxmLQC4PU", "dest": "WRfXPg8dantKVubE3HX8pw" }, "op": "REPLY" }, "attrResponse": { "result": { "identifier": "HixkhyA4dXGz9yxmLQC4PU", "seqNo": 12.0, "raw": "endpoint", "dest": "WRfXPg8dantKVubE3HX8pw", "data": "{\"endpoint\":{\"xdi\":\"http://127.0.0.1:8080/xdi\"}}", "txnTime": 1.524055265E9, "type": "104", "reqId": 1.52725687092557056E18 }, "op": "REPLY" } } } }
See corresponding open issue.
Need to define how this data structure works exactly, and whether it always contains a DID document or can also contain other results.
A DID document associated with a DID. The result of 3. DID Resolution.
This is a metadata structure (see section Metadata Structure in [DID-CORE]) that contains metadata about the DID Resolution process.
This metadata typically changes between invocations of the DID Resolution functions as it represents data about the resolution process itself.
The source of this metadata is the DID resolver.
Examples of DID Resolution Metadata include:
See also section DID Resolution Metadata in [DID-CORE].
This is a metadata structure (see section Metadata Structure in [DID-CORE]) that contains metadata about a DID Document.
This metadata typically does not change between invocations of the DID Resolution function unless the DID document changes, as it represents data about the DID document.
The sources of this metadata are the DID controller and/or the DID method.
Examples of DID Document Metadata include:
DID Document Metadata may also include method-specific metadata, e.g.:
See also section DID Document Metadata in [DID-CORE].
For certain data, it may be debatable whether it should be part of the DID document (i.e., data that describes the DID Subject), or whether it is metadata (i.e., data about the DID document or about the DID resolution process). For example the URL of the "Continuation DID document" in the BTCR method.
This section defines a data structure that represents the result of the algorithm described in 4. DID URL Dereferencing. A DID URL dereferencing result contains arbitrary content as well as DID resolution metadata and content metadata.
See corresponding open issue.
The media type of this data structure is defined to be application/ld+json;profile="https://w3id.org/did-resolution"
.
{ "@context": "https://w3id.org/did-resolution/v1", "content": { "@context": "https://www.w3.org/ns/did/v1", "id": "did:example:123456789abcdefghi", "authentication": [{ "id": "did:example:123456789abcdefghi#keys-1", "type": "Ed25519VerificationKey2018", "controller": "did:example:123456789abcdefghi", "publicKeyBase58": "H3C2AVvLMv6gmMNam3uVAjZpfkcJCwDwnZn6z3wXmqPV" }], "service": [{ "id":"did:example:123456789abcdefghi#vcs", "type": "VerifiableCredentialService", "serviceEndpoint": "https://example.com/vc/" }] }, "didUrlDereferencingMetadata": { "contentType": "application/did+ld+json", "retrieved": "2024-06-01T19:73:24Z", }, "contentMetadata": { "created": "2019-03-23T06:35:22Z", "updated": "2023-08-10T13:40:06Z", "method": { "nymResponse": { "result": { "data": "{\"dest\":\"WRfXPg8dantKVubE3HX8pw\",\"identifier\":\"V4SGRU86Z58d6TV7PBUe6f\",\"role\":\"0\",\"seqNo\":11,\"txnTime\":1524055264,\"verkey\":\"H3C2AVvLMv6gmMNam3uVAjZpfkcJCwDwnZn6z3wXmqPV\"}", "type": "105", "txnTime": 1.524055264E9, "seqNo": 11.0, "reqId": 1.52725687080231475E18, "identifier": "HixkhyA4dXGz9yxmLQC4PU", "dest": "WRfXPg8dantKVubE3HX8pw" }, "op": "REPLY" }, "attrResponse": { "result": { "identifier": "HixkhyA4dXGz9yxmLQC4PU", "seqNo": 12.0, "raw": "endpoint", "dest": "WRfXPg8dantKVubE3HX8pw", "data": "{\"endpoint\":{\"xdi\":\"http://127.0.0.1:8080/xdi\"}}", "txnTime": 1.524055265E9, "type": "104", "reqId": 1.52725687092557056E18 }, "op": "REPLY" } } } }
Arbitrary content associated with a DID URL. The result of 4. DID URL Dereferencing.
This is a metadata structure (see section Metadata Structure in [DID-CORE]) that contains metadata about the DID URL Dereferencing process.
This metadata typically changes between invocations of the DID URL Dereferencing functions as it represents data about the dereferencing process itself.
Add more details how DID URL dereferencing metadata works.
See also section DID URL Dereferencing Metadata in [DID-CORE].
This is a metadata structure (see section Metadata Structure in [DID-CORE]) that contains metadata about the content.
This metadata typically does not change between invocations of the DID URL Dereferencing function unless the content changes, as it represents data about the content.
Add more details how content metadata works.
If an invalid DID is detected during DID Resolution, the value of the DID Resolution Metadata error property MUST be invalidDid as defined in section DID Resolution Metadata in [DID-CORE].
If an invalid DID URL is detected during DID Resolution or DID URL dereferencing, the value of the DID Resolution or DID URL Dereferencing Metadata error property MUST be invalidDidUrl as defined in section DID URL Dereferencing Metadata in [DID-CORE].
If during DID Resolution or DID URL dereferencing a DID or DID URL doesn't exist, the value of the DID Resolution or DID URL dereferencing Metadata error property MUST be notFound as defined in sections DID Resolution Metadata and DID URL Dereferencing Metadata in [DID-CORE].
If a DID document representation is not supported during DID Resolution or DID URL dereferencing, the value of the DID Resolution Metadata error property MUST be representationNotSupported as defined in section DID Resolution Metadata in [DID-CORE].
If a DID method is not supported during DID Resolution or DID URL dereferencing, the value of the DID Resolution or DID URL Dereferencing Metadata error property MUST be methodNotSupported.
When an unexpected error occurs during DID Resolution or DID URL dereferencing, the value of the DID Resolution or DID URL Dereferencing Metadata error property MUST be internalError.
If an invalid public key value is detected during DID Resolution or DID URL dereferencing, the value of the DID Resolution or DID URL Dereferencing Metadata error property MUST be invalidPublicKey.
If the byte length of rawPublicKeyBytes does not match the expected public key length for the associated multicodecValue during DID Resolution or DID URL dereferencing, the value of the DID Resolution or DID URL Dereferencing Metadata error property MUST be invalidPublicKeyLength.
If an invalid public key type is detected during DID Resolution or DID URL dereferencing, the value of the DID Resolution or DID URL Dereferencing Metadata error property MUST be invalidPublicKeyType.
If an unsupported public key type is detected during DID Resolution or DID URL dereferencing, the value of the DID Resolution or DID URL Dereferencing Metadata error property MUST be unsupportedPublicKeyType.
This section defines bindings for the abstract algorithms in sections 3. DID Resolution and 4. DID URL Dereferencing.
This section defines a DID resolver binding which exposes the DID resolution and/or DID URL dereferencing functions (including all resolution options and output data) via an HTTP(S) endpoint. See 6.2 Resolver Architectures.
The HTTP(S) binding for DID resolvers requires a known HTTP(S) URL called the DID resolver HTTP(S) endpoint.
Using this binding, the DID resolution function (see 3. DID Resolution) and/or DID URL dereferencing function (see 4. DID URL Dereferencing) can be executed as follows:
accept
resolution option
as the Accept
HTTP header in the request.GET
request on the request HTTP(S) URL.error | HTTP status code |
---|---|
invalidDid
|
400
|
invalidDidUrl
|
400
|
notFound
|
404
|
representationNotSupported
|
406
|
methodNotSupported
|
501
|
internalError
|
500
|
(any other value) |
500
|
410
.Accept
HTTP header is absent or application/did+ld+json
(or other media type of a conformant representation of a DID document):
200
.Content-Type
header. The
value of this header MUST be application/did+ld+json
(or other media type of a conformant representation of a DID document).Accept
HTTP header.Accept
HTTP header is application/ld+json;profile="https://w3id.org/did-resolution"
:
200
.Content-Type
header. The
value of this header MUST be application/ld+json;profile="https://w3id.org/did-resolution"
.303
.Location
header. The value of this header
MUST be the output service endpoint URL.See here for an OpenAPI definition.
TODO: Review HTTP(S) binding for DID resolution and DID URL dereferencing, including the following topics:
Accept
and Content-Type
HTTP headers be used? How are
the resolve()
and resolveRepresentation()
functions called? See
this issue for a discussion.resolve()
and
dereference()
functions, or can/must a single HTTP(S) endpoint be used?Given the following DID resolver HTTP(S) endpoint:
https://dev.uniresolver.io/1.0/identifiers/
And given the following input DID:
did:sov:WRfXPg8dantKVubE3HX8pw
Then the request HTTP(S) URL is:
https://dev.uniresolver.io/1.0/identifiers/did:sov:WRfXPg8dantKVubE3HX8pw
The HTTP(S) binding can be invoked as follows:
curl -X GET https://dev.uniresolver.io/1.0/identifiers/did:sov:WRfXPg8dantKVubE3HX8pw

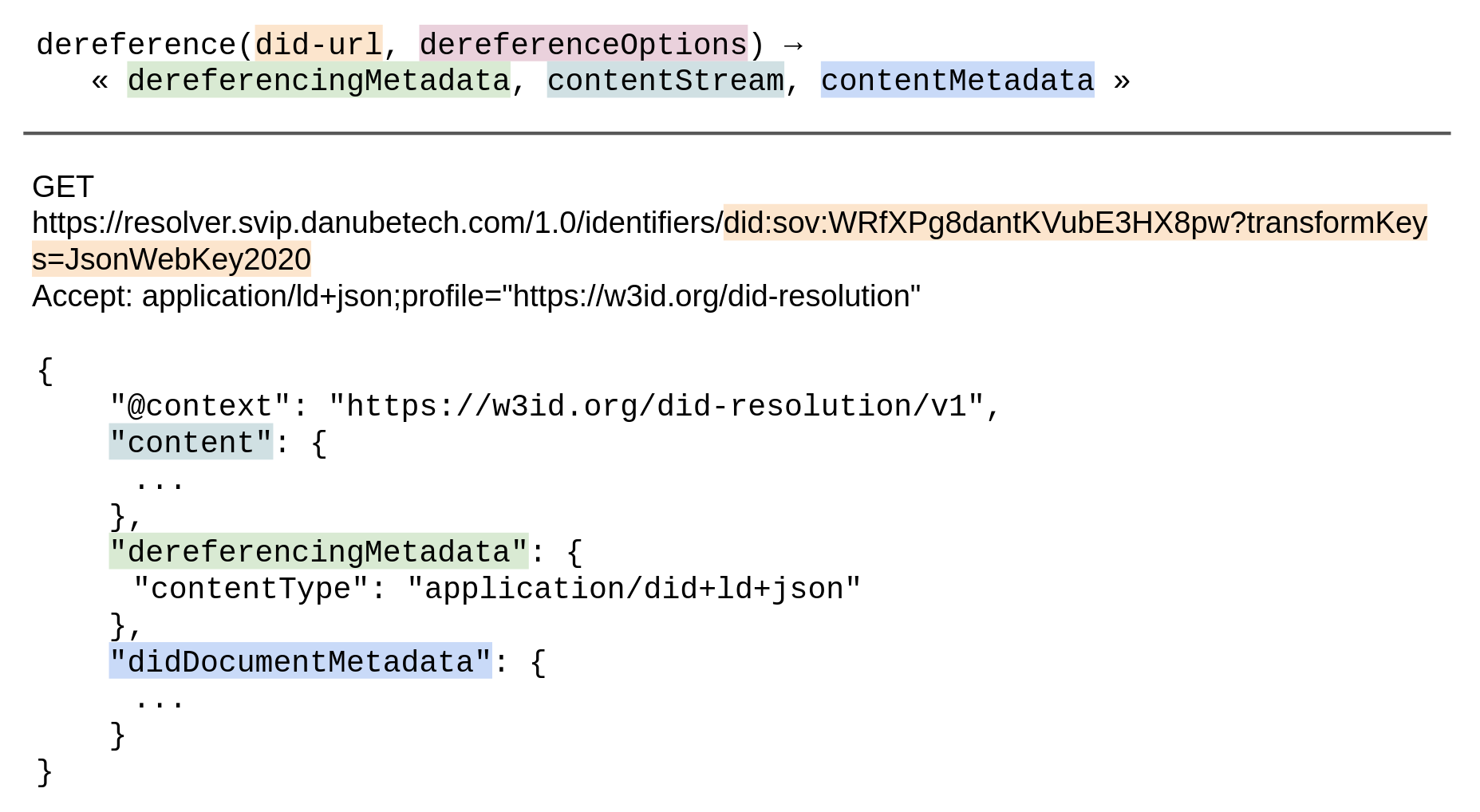

Additional examples of the HTTP(S) binding:

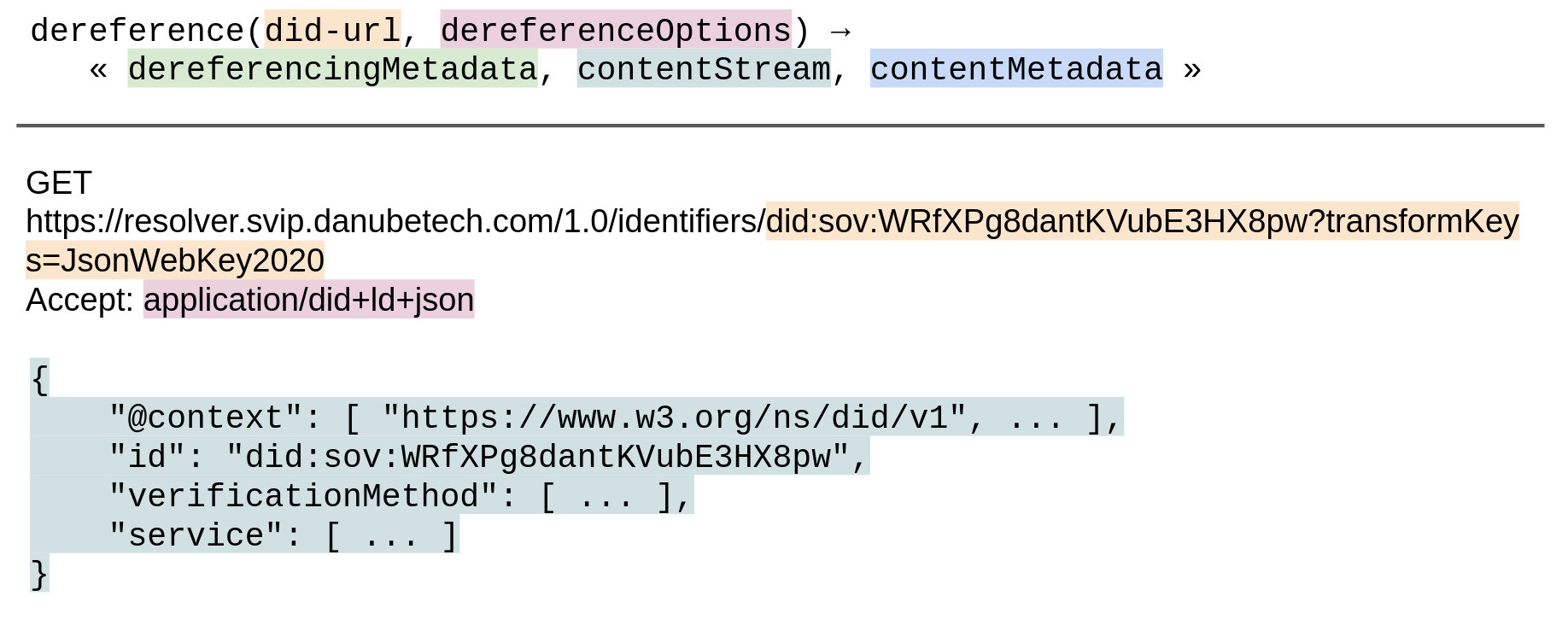

Additional examples of the HTTP(S) binding:
This section defines the inputs and the algorithm of Service Endpoint Construction, which returns a service endpoint URL as output. This algorithm is used when service endpoints are selected during DID URL dereferencing (see 4. DID URL Dereferencing).
In this section, path
, query
, and fragment
are understood as defined in [RFC3986].
The inputs of the Service Endpoint Construction algorithm are an input DID URL and an input service endpoint URL.
The requirements for the inputs of the Service Endpoint Construction algorithm are as follows:
path
component.query
component.fragment
component.query
component, remove it.fragment
component, remove it.path
component of the input DID URL to the output service endpoint URL.query
component, append ?
plus the query
to the output service endpoint URL.query
component, append ?
plus the query
to the output service endpoint URL.fragment
component, append #
plus the fragment
to the output service endpoint URL.fragment
component, append #
plus the fragment
to the output service endpoint URL.We could potentially allow query
components on both the
input DID URL and input service endpoint URL, if they both contain lists of
key/value parameters that can be merged.
Details of the Service Endpoint Construction algorithm have been discussed in April 2019 on the CCG mailing list, e.g., here or here.
Instead of defining our own algorithm, we could potentially re-use the "Relative Resolution" algorithm defined in [RFC3986].
Given the following input service endpoint URL:
https://example.com/messages/8377464
And given the following input DID URL:
did:example:123456789abcdefghi?service=messages&relativeRef=%2Fsome%2Fpath%3Fquery#frag
Then the output service endpoint URL is:
https://example.com/messages/8377464/some/path?query#frag
DID resolution and DID URL dereferencing do not involve any authentication or authorization functionality. Similar to DNS resolution, anybody can perform the process, without requiring any credentials or non-public knowledge.
The spec should clarify whether or not conformant resolvers MUST be public or MAY restrict access via some authentication and authorization scheme.
The current language doesn't make it clear if authentication is just out of scope or if it is disallowed.
Explain that DIDs are not necessarily globally resolvable, such as pairwise or N-wise "peer" DIDs.
See [RFC3339]: URIs have a global scope and are interpreted consistently regardless of context, though the result of that interpretation may be in relation to the end-user's context.
An advanced idea is that the result of DID resolution could be contextual or depend on policies, see this comment.
A related topic is whether (parts of) DID document could be encrypted, e.g., w3c/did-core/issues/25. Also see the use of the fragment in the IPID DID method.
A DID resolver may maintain a generic cache of DID documents. It may also maintain caches specific to certain DID methods.
The noCache
resolution option can be used to
request a certain kind of caching behavior.
This resolution option is OPTIONAL.
Possible values of this property are:
"false"
(default value): Caching of DID documents is allowed."true"
: Request that caching is disabled and a fresh DID document is retrieved from
the verifiable data registry.Caching behavior can be controlled by configuration of the DID resolver,
by the noCache
resolution option, or by contents of the DID document
(e.g., a cacheMaxTtl
field), or by a combination of these properties.
See corresponding open issue.
Perhaps we can re-use caching mechanisms of other protocols such as HTTP.
If a versionId
or
versionTime
DID parameter
is provided, the DID resolution
algorithm returns a specific version of the DID document.
The DID parameters versionId
and versionTime
are mutually exclusive.
The use of the versionId
DID parameter is specific to the DID method.
Its possible values may include sequential numbers, random UUIDs, content hashes, etc..
DID document metadata MAY contain a versionId
property that changes with each Update operation that is performed
on a DID document.
While most DID methods support the Update operation, there is no requirement for DID methods to keep all previous DID document versions, therefore not all DID methods support versioning.
See corresponding open issue.
There is discussion on the relationship between DID resolution and resolution of non-DID identifiers such as domain names, HTTP URIs, or e-mail addresses. This includes the questions how DIDs can be discovered from non-DID identifiers, and how links between identifiers can be verifiable.
Describe which methods a DID resolver should support, and potential implications.
This section lists additional DID URL dereferencing features that are under discussion and have not yet been incorporated into the algorithm.
A service endpoint may have
a serviceEndpoint
property with a value that is itself
a DID. This is interpreted as a "DID redirect" from the input DID to another. In this case, a "child"
DID resolution process can be launched to get to a "final" service endpoint.
The follow-redirect
resolution option can be supplied by a client as a hint to
instruct whether redirects should be followed. This resolution option is OPTIONAL.
See corresponding open issue.
DID redirects could not only apply to a single service endpoint, but to an entire DID document, therefore enabling portability use cases.
{ "id": "did:example:123456789abcdefghi#hub1", "type": "HubService", "serviceEndpoint": "did:example:xyz" }
A DID document may contain a "proxy" service type which would provide a mapping that needs to be followed in order to resolve to a final service URL.
Keeping track of a proposal here w3c-ccg/did-spec#90 (comment) that a DID Document could contain a "proxy" service type which would provide a mapping that needs to be followed in order to resolve to a final service URL.
{ "id": "did:example:123456789abcdefghi", "type": "ProxyService", "serviceEndpoint": "https://mydomain.com/proxy" }
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
Referenced in:
