VISS version 2-Transport

W3C Working Draft

More details about this document
This version:
https://www.w3.org/TR/2023/WD-viss2-transport-20231114/
Latest published version:
https://www.w3.org/TR/viss2-transport/
Latest editor's draft:
https://github.com/w3c/automotive/blob/gh-pages/spec/VISSv2_Transport.html
History:
https://www.w3.org/standards/history/viss2-transport/
Commit history
Editors:
Ulf Bjorkengren (Geotab (formerly Volvo Cars))
(한국전자통신연구원(ETRI))
Former editors:
Ulf Bjorkengren (Volvo Cars)
Patrick Lünnemann (Volkswagen Group)
Feedback:
GitHub w3c/automotive (pull requests, new issue, open issues)

Abstract

The Vehicle Information Service Specification (VISS) is a service for accessing vehicle information, signals from sensors on control units within a vehicle's network. It exposes this information using a hierarchical tree like taxonomy defined in COVESA Vehicle Signal Specification (VSS). The service provides this information in JSON format. The service may reside in the vehicle, or on servers in the internet with information already brought off the vehicle.

This specification describes a second version of VISS which has been implemented and deployed on production vehicles. It adds major new capabilities and improvements to the earlier version. The first version of VISS only supported WebSocket as a transport protocol, the second version is generalized to work across different protocols as some are better suited for different use cases. HTTP and MQTT are now supported with additional protocols used within the automotive industry being evaluated for inclusion. Subscription capabilities have been improved and access control has been added.

There are two parts to this specification, [viss2-core] and TRANSPORT. This document, the VISS version 2 TRANSPORT specification, describes the VISSv2 transport protocols, and the mapping of the message layer on these transports. The companion specification [viss2-core] describes the messaging layer.

Status of This Document

This section describes the status of this document at the time of its publication. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.

This document was published by the Automotive Working Group as a Working Draft using the Recommendation track.

Publication as a Working Draft does not imply endorsement by W3C and its Members.

This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

This document is governed by the 03 November 2023 W3C Process Document.

1. Introduction

This document describes the transport bindings of the Vehicle Information Service Specification, version 2. The split between transport bindings and messaging layer specifications improves readability and simplifies extending the specification to further transports in the future. This specification supports multiple transport bindings, the secure versions of HTTP, WebSocket, and MQTT.

2. Conformance

As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.

The key words MAY, MUST, SHALL, and SHOULD in this document are to be interpreted as described in BCP 14 [RFC2119] [RFC8174] when, and only when, they appear in all capitals, as shown here.

3. Terminology

The acronym 'VISSv2' is used to refer to this document, the VISS version 2 specification. The acronym 'VSS' is used to refer to the 'Vehicle Signal Specification' which is defined by the COVESA Alliance. The term 'WebSocket' when used in this document, is as defined in the W3C WebSocket API and the WebSocket Protocol.

4. Transport Common Definitions

This chapter defines features that SHALL be common for all transport protocols.

4.1 Status Codes

The server implementation SHALL support the error numbers listed in the table below, with the associated reason and message fields, for all supported transport protocols.

The client SHOULD support any status code defined in [RFC2616].

Error Number (Code) Error Reason Error Message
304 (Not Modified) not_modified No changes have been made by the server.
400 (Bad Request) bad_request The server is unable to fulfil the client request because the request is malformed.
400 (Bad Request) filter_invalid Filter requested on non-primitive type.
400 (Bad Request) invalid_duration Time duration is invalid.
400 (Bad Request) invalid_value The requested set value is invalid.
401 (Unauthorized) token_expired Access token has expired.
401 (Unauthorized) token_invalid Access token is invalid.
401 (Unauthorized) token_missing Access token is missing.
401 (Unauthorized) too_many_attempts The client has failed to authenticate too many times.
401 (Unauthorized) read_only The desired signal cannot be set since it is a read only signal.
403 (Forbidden) user_forbidden The user is not permitted to access the requested resource. Retrying does not help.
403 (Forbidden) user_unknown The user is unknown. Retrying does not help.
403 (Forbidden) device_forbidden The device is not permitted to access the requested resource. Retrying does not help.
403 (Forbidden) device_unknown The device is unknown. Retrying does not help.
404 (Not Found) invalid_path The specified data path does not exist.
404 (Not Found) private_path The specified data path is private and the request is not authorized to access signals on this path.
404 (Not Found) unavailable_data The requested data was not found.
404 (Not Found) invalid_subscriptionId The specified subscription was not found.
406 (Not Acceptable) insufficient_priviledges The priviledges represented by the access token are not sufficient.
406 (Not Acceptable) not_acceptable The server is unable to generate content that is acceptable to the client
429 (Too Many Requests) too_many_requests The client has sent the server too many requests in a given amount of time.
502 (Bad Gateway) bad_gateway The server was acting as a gateway or proxy and received an invalid response from an upstream server.
503 (Service Unavailable) service_unavailable The server is currently unable to handle the request due to a temporary overload or scheduled maintenance (which may be alleviated after some delay).
504 (Gateway Timeout) gateway_timeout The server did not receive a timely response from an upstream server it needed to access in order to complete the request.

4.2 Transport Payload

The payload SHALL have JSON format. See 6.2 JSON Schema Definitions for the payload format of the messages for the different transport protocols.

4.3 Authorization

If authorization is enabled on a signal requested by the client, it MUST provide a token to the server in order to verify that it is correctly authorized for the service it requests (see [viss2-core] document).Tokens are integrated in HTTP requests in the Authorization header. For WebSocket and MQTT requests an optional authorization property in the payload can be used.

5. Transport Protocols

The transport protocols supported are the secure versions of HTTP, WebSocket, and MQTT, the latter on which a thin application layer protocol is applied.
The server MUST support the HTTP and WebSocket protocols, other protocols are optional.
Further transport protocols may be supported in future versions of this specification.

5.1 HTTPS

The message data components described in the [viss2-core] document are in the first hand mapped to required HTTP parameters, and only when there is no appropriate mapping it is mapped to the payload. The subscribe/unsubscribe messages are not supported by this transport protocol.

5.1.1 Session Life Time Management

5.1.1.1 Initialization

Initialization involves setting up a secure HTTPS session between the client and the server. This ensures encrypted communication for data transmission. To initialize a secure session, the client sends a request to the server using the HTTPS protocol. This is achieved by connecting to the server's designated URL using the 'https://' scheme. The client can use a web browser, a native application, or a suitable library in the case of programmatically managed sessions.
While the client typically connects to the server using the specified hostname, which often includes the "www" prefix, it's important to note that this convention may not apply in situations where VISS operates within a local, in-vehicle network or if remote vehicle connections are allowed. The communication typically takes place over port 443, the default port for secure HTTPS connections. The hostname resolution can be done via DNS or configured through local settings.

5.1.1.2 Closure

Closure entails ending the established HTTPS session when the communication is complete or when the client no longer requires the connection. Either the client or the server can initiate the session closure. The client can signal the end of the session by sending an appropriate request to the server, indicating the intent to close the connection.
Upon session closure, any allocated resources, such as server-side threads or memory, are released, improving overall system efficiency.

5.1.2 Transport Messages

5.1.2.1 Read

The client MAY send a HTTPS GET request message to the server to get one or more value(s) of one or more vehicle signal(s). If the server is able to satisfy the request it SHALL return a response containing the requested value(s). If the server is unable to fulfil the request, e.g. because the client is not authorized to retrieve one or more of the signals, then the server response SHALL have the status code set to indicate error.

Example: Request:


              GET /Vehicle/Cabin/SeatPosCount   HTTP/1.1
              Host: 127.0.0.1:1337
              Accept: application/json
	      ...

Successful response:

              HTTP/1.1 200 OK
              Content-Type: application/json; charset=utf-8
	      ...
              {
                “data”:{“path”:”Vehicle.Cabin.SeatPosCount”,
                        “dp”:{“value”:[”2”, "3", "2"], “ts”:”2020-04-15T13:37:00Z”}
                       }
              }

Error response:

              HTTP/1.1 404 Not Found
              Content-Type: application/json; charset=utf-8
	      ...
              {
                "error": {"number": 404, "reason": "invalid_path", "message": "The specified data path does not exist."},
                "ts": "2020-04-15T13:37:00Z"
              }


5.1.2.1.1 Authorized Read

JWT tokens will be sent in the Authorization header, following with term Bearer and a space character.

The following example assumes eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1lIjoiSm9obiBEb2UifQ.xuEv8qrfXu424LZk8bVgr9MQJUIrp1rHcPyZw_KSsds is the actual token. A token header can be combined with all types of read requests.
Example: Request:


            GET /Vehicle/Drivetrain/InternalCombustionEngine/RPM   HTTP/1.1
            Host:127.0.0.1:1337
            Authorization:Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1lIjoiSm9obiBEb2UifQ.xuEv8qrfXu424LZk8bVgr9MQJUIrp1rHcPyZw_KSsds

Successful response:

            HTTP/1.1 200 OK
            Content-Type: application/json; charset=utf-8
	    ...
            {
              “data”:{“path”:”Vehicle.Drivetrain.InternalCombustionEngine.RPM”,
                      “dp”:{“value”:”2372”, “ts”:”2020-04-15T13:37:00Z”}
                     }
            }

Error response:

            HTTP/1.1 401 Unauthorized
            WWW-Authenticate: Bearer realm="127.0.0.1:1337",
                                     error="invalid_token",
                                     error_description="The access token is invalid or expired"
            Content-Type: application/json; charset=utf-8
	    ...
            {
              "error": {"number": 401, "reason": "token_invalid", "message": "Access token is invalid."},
              "ts": "2020-04-15T13:37:00Z"
            }


5.1.2.1.2 Search Read

The search read request uses the paths filter operation described in the [viss2-core] document to provide one or more path expressions, relative to the path in the GET URL.
Example: Request:


              GET /Vehicle/Cabin/Door?filter={"type":"paths", "parameter":"*/*/IsOpen"}   HTTP/1.1
              Host: 127.0.0.1:1337
              Accept: application/json
	      ...

Response:

              HTTP/1.1 200 OK
              Content-Type: application/json; charset=utf-8
	      ...
              {
                “data”:[{“path”:”Vehicle.Cabin.Door.Row1.Left.IsOpen”, “dp”:{“value”:”false”, “ts”:”2020-04-15T13:37:00Z”}},
                        {...},…
                        {“path”:”Vehicle.Cabin.Door.Row4.Right.IsOpen”, “dp”:{“value”:”true”, “ts”:”2020-04-15T13:37:00Z”}}
                       ]
              }

Error response:

              HTTP/1.1 404 Not Found
              Content-Type: application/json; charset=utf-8
	      ...
              {
                "error": {"number": 404, "reason": "invalid_path", "message": "The specified data path does not exist."},
                "ts": "2020-04-15T13:37:00Z"
              }


5.1.2.1.3 History Read

The history read request uses the history filter operation described in the [viss2-core] document to read recorded values for a given period backwards in time.
Example: Request:


              GET /Vehicle.Acceleration.Longitudinal?filter={"type":"history", "parameter":"P2DT12H"}   HTTP/1.1
              Host: 127.0.0.1:1337
              Accept: application/json
	      ...

Response:

              HTTP/1.1 200 OK
              Content-Type: application/json; charset=utf-8
	      ...
              {
                “data”:{“path”:”Vehicle.Acceleration.Longitudinal”, “dp”:[{“value”:”0.123”, “ts”:”2020-04-15T13:00:00Z”}, ..., {“value”:”0.125”, “ts”:”2020-04-15T13:37:00Z”}]}
              }


5.1.2.1.4 Signal Discovery Read

The signal discovery request uses the static metadata filtering type as described in the [viss2-core] document to retrieve metadata in the VSS tree. If the parameter object is set to an empty string, then all metadata in the addressed VSS nodes is returned. If only specific metadata is desired, the value can be set to this, e. g. "parameter":["type", "datatype"]. The values must be the names as defined in the VSS specification.

Example: Request:


              GET /Vehicle/Drivetrain/FuelSystem?filter={"type":"static-metadata", "parameter":""}   HTTP/1.1
              Host: 127.0.0.1:1337
              Accept: application/json
	      ...

Response:

              HTTP/1.1 200 OK
              Content-Type: application/json; charset=utf-8
	      ...
              {
                "metadata": {"FuelSystem":{"type":"branch","description":"Fuel system data.","children":{"HybridType, ... }}},
                "ts": "2020-04-15T13:37:00Z"
              }


The dynamic metadata, i. e. any other metadata kept by the vehicle system, is retrieved by the setting the "type" to "dynamic-metadata". The value MUST be set to one of the domain names as specified in the [viss2-core], Dynamic Metadata Filter Operation chapter.
Example: Request:


              GET /Vehicle?filter={"type":"dynamic-metadata", "parameter":"server_capabilities"}   HTTP/1.1
              Host: 127.0.0.1:1337
              Accept: application/json
	      ...

Response:

              HTTP/1.1 200 OK
              Content-Type: application/json; charset=utf-8
	      ...
              {
                "metadata": {"filter":["timebased", "change", "paths", "curvelog", "dynamic-metadata"], "access_ctrl": ["short_term", "signalset_claim"], "transport_protocol": "https", "wss"},
                "ts": "2020-04-15T13:37:00Z"
              }


5.1.2.2 Update

The client may request that the server sets the value of one or more signals e.g. to lock one or more doors or open a window by sending an HTTPS POST request to the server. In the case of several signals being set, they MUST all be of the same data type, and be set to the same value. If the server is able to satisfy the request its response SHALL have a 200 OK status code set. If an error occurs e.g. because the client is not authorized to set the requested value, or the value is read-only, the server response SHALL have the status code set to indicate error.

Example:


              POST /Vehicle/Drivetrain/Transmission/PerformanceMode   HTTP/1.1
              Host: 127.0.0.1:1337
              Accept: application/json
	      ...
              {
                "value": "sport"
              }

Successful response:

              HTTP/1.1 200 OK
              Content-Type: application/json; charset=utf-8
	      ...
              {
                "ts": "2020-04-15T13:37:00Z"
              }

Error response:

              HTTP/1.1 404 Not Found
              Content-Type: application/json; charset=utf-8
	      ...
              {
                "error": {"number": 404, "reason": "invalid_path", "message": "The specified data path does not exist."},
                "ts": "2020-04-15T13:37:00Z"
              }


5.1.2.2.1 Authorized Update

JWT tokens will be sent in the Authorization header, following with term Bearer and a space character.

The following example assumes eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1lIjoiSm9obiBEb2UifQ.xuEv8qrfXu424LZk8bVgr9MQJUIrp1rHcPyZw_KSsds is the actual token. A token header can be combined with all types of update requests.


            POST /Vehicle/Drivetrain/Transmission/PerformanceMode   HTTP/1.1
            Host:127.0.0.1:1337
            Authorization:Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1lIjoiSm9obiBEb2UifQ.xuEv8qrfXu424LZk8bVgr9MQJUIrp1rHcPyZw_KSsds
            {
              "value": "sport"
            }


5.2 Secure WebSocket

As the WebSocket protocol does not implicitly provide a logical association between the request and response messages described here a key-value pair with the keyname "requestId" is added to the data components described in the [viss2-core] document.
As the WebSocket protocol neither specifies a set of explicit methods, another key-value pair with the keyname "action" is also added. See 6.3 Action Definitions for the declaration of these new key-value pairs. All data components are mapped to the payload.

5.2.1 Session Life Time Management

5.2.1.1 Initialization

If the client application is an HTML Application running in a web runtime or is a web page running in a browser, the WebSocket instance may either be instantiated natively or be created using a 'standards compliant' WebSocket JavaScript library.

A WebSocket can also be initiated from a native (e.g. C++) Application or from an Application written using a 'Managed Runtime' language like Java or C#. It is assumed that native and managed clients use a suitable standards compliant WebSocket library to request that a WebSocket connection is opened on the server.

Implementations that support additional devices or multiple VISSv2 services should provide discovery. Alternatively, the location of a particular VISSv2 Server instance on the local vehicle network may be handled by configuration, either as part of a package manifest or by consulting a registry on application install. The 'wwwVISSv2' hostname in this specification is used an example.

A client running on the vehicle is able to connect to the VISSv2 Server instance using the hostname e.g. 'wwwVISSv2' and uses the default port 443. The hostname 'wwwVISSv2' may locally be mapped to the localhost IP address 127.0.0.1 e.g. by adding an entry to the /etc/hosts file.

The sub-protocol name SHALL be 'VISSv2' with the digit 2 being the version number. The sub-protocol version will be associated with exactly one VISS Server Specification version so that the client and server can correctly validate and parse request and response message packets.


	var vehicle  = new WebSocket("wss://wwwVISSv2:443", "VISSv2");


The client SHALL connect to the server over HTTPS and request that the server opens a WebSocket. All WebSocket communications between the client and server MUST be over ‘wss’. Non encrypted communication is not supported, hence the server MUST refuse ‘ws’ connection requests.

This specification assumes that a single WebSocket is used to enable communication between a client application and the server. The client MAY open more than one websocket. However, the server MAY refuse to open a subsequent WebSocket connection and the client is responsible for handling this gracefully.

If more than one WebSocket connection is established between a client application and the server then each connection MUST be managed independently. For example, subscriptions created using a particular WebSocket connection shall only trigger event messages via that connection and the client MUST use that WebSocket connection to unsubscribe.

If more than one WebSocket connection has been established between one or more clients and a particular server instance, there is a risk that race conditions and concurrency issues could occur. An example of this would be where two or more WebSocket connections are used to update a particular setting at the same time.

Unless explicitly stated otherwise, the client MAY only assume that the server implements a simple concurrency model where lost updates and dirty reads could potentially occur if the server has more than one WebSocket connection open.

5.2.1.2 Closure

The WebSocket may be closed by either the client or the server by invoking the ‘close()’ method on the WebSocket instance.

The following example shows the lifetime of a WebSocket on the client:


	// Open the WebSocket
	var vehicle  = new WebSocket("wss://wwwVISSv2:443", "VISSv2");
	…
	// Close the WebSocket
	vehicle.close();


The VISSv2 Server may terminate the WebSocket connection if it has not received a request for a period determined by the server. It is the client’s responsibility to handle this gracefully and to recover and request new subscriptions, where required.

5.2.2 Transport Messages

5.2.2.1 Read

The client MAY send a getRequest message to the server to get the value of one or more vehicle signals. If the server is able to satisfy the request it SHALL return a getSuccessResponse message. If the server is unable to fulfil the request, e.g. because the client is not authorized to retrieve one or more of the signals, then the server SHALL return a getErrorResponse message. The structure of these message objects is defined below.


Object NameAttributeTypeRequired
getRequestactionActionYes
pathstringYes
filterstringOptional
authorizationstringOptional
requestIdstringYes

Object NameAttributeTypeRequired
getSuccessResponseactionActionYes
requestIdstringYes
dataobject/arrayYes

In the table above the "data" attribute is either an object containing "value" and "ts" name/value pairs, or an array of such objects.

Object NameAttributeTypeRequired
getErrorResponseactionActionYes
requestIdstringYes
errorErrorYes
tsstringYes

Example:
Request:


              {
                "action": "get",
                "path": "Vehicle.Drivetrain.InternalCombustionEngine.RPM",
                "requestId": "8756"
              }

Successful response:

              {
                "action": "get",
                "requestId": "8756",
                “data”:{“path”:”Vehicle.Drivetrain.InternalCombustionEngine/RPM”,
                        “dp”:{“value”:”2372”, “ts”:”2020-04-15T13:37:00Z”}
                       }
              }

Error response:

              {
                "action": "get",
                "requestId": "8756",
                "error": {"number": 404, "reason": "invalid_path", "message": "The specified data path does not exist."},
                "ts": "2020-04-15T13:37:00Z"
              }


5.2.2.1.1 Authorized Read

If the operation on the VSS node that is addressed requires authorization, then the request must contain the field "authorization" with its value being a JWT token. The token validation must be successful for a getSuccessResponse to be returned, else a getErrorResponse is returned. A token can be combined with all types of read requests.

Example:
Request:


              {
                "action": "get",
                "path": "Vehicle.Drivetrain.InternalCombustionEngine.RPM",
                "authorization": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1...Zw_KSsds"
                "requestId": "8657"
              }

Response:

              {
                "action": "get",
                "requestId": "8657",
                “data”:{“path”:”Vehicle.Drivetrain.InternalCombustionEngine.RPM”,
                        “dp”:{“value”:”2372”, “ts”:”2020-04-15T13:37:00Z”}
                       }
              }


5.2.2.1.2 Search Read

A client may issue a search read request to access multiple values in one request message. This is realized by adding a "filter" object following the paths filter operation described in the [viss2-core].

Example:
Request:


              {
                "action": "get",
                "path": "Vehicle.Cabin",
                "filter": {"type":"paths", "parameter":["Door.*.*.IsOpen", "DriverPosition"]}value
                "requestId": "5688"
              }

Response:

              {
                "action": "get",
                “data”:[{“path”:”Vehicle.Cabin.Door.Row1.Left.IsOpen”, “dp”:{“value”:”false”, “ts”:”2020-04-15T13:37:00Z”}},
                        {...},…
                        {“path”:”Vehicle.Cabin.Door.Row4.Right.IsOpen”, “dp”:{“value”:”true”, “ts”:”2020-04-15T13:37:00Z”}},
                        {“path”:”Vehicle.Cabin.DriverPosition”, “dp”:{“value”:”1”, “ts”:”2020-04-15T07:00:00Z”}}
                       ]
                "requestId": "5688",
              }


5.2.2.1.3 History Read

A client may issue a history read request to access recorded data points. This is realized by adding a "filter" object following the history filter operation described in the [viss2-core].

Example:
Request:


              {
                "action": "get",
                "path": "Vehicle.Acceleration.Longitudinal",
                "filter": {"type":"history", "parameter":"P2DT12H"},
                "requestId": "5688"
              }

Response:

              {
                "action": "get",
                “data”: {“path”: ”Vehicle.Acceleration.Longitudinal”, “dp”: [{“value”: ”0.123”, “ts”: ”2020-04-15T13:00:00Z”}, {“value”: ”0.125”, “ts”: ”2020-04-15T13:37:00Z”}]},
                "requestId": "5688"
              }


5.2.2.1.4 Signal Discovery Read

A client may issue a signal discovery read request to access dynamic metadata. A successful response will contain the requested metadata from all nodes of the subtree defined by the subtree root node that is addressed by the path. The static metadata, i. e. the metadata in the VSS tree, is retrieved by the setting the "type" to "static-metadata", and the parameter object to relevant static metadata.

Example:
Request:


              {
                "action": "get",
                "path": "Vehicle.Drivetrain.FuelSystem",
                "filter":{"type":"dynamic-metadata", "parameter":["availability", "validate"]}
                "requestId": "5687"
              }

Response:

              {
                "action": "get",
                "requestId": "5687",
                "metadata": {"FuelSystem":{"availability":"available","validate":"read-write","children":{"HybridType", ... }}}
                "ts": "2020-04-15T13:37:00Z"
              }


5.2.2.2 Update

The client may request that the server sets the value of one or more signals e.g. to lock one or more doors or open a window by sending a setRequest message to the server. In the case of several signals being set, they MUST all be of the same data type, and be set to the same value. If the server is able to satisfy the request it SHALL return a setSuccessResponse message. If an error occurs e.g. because the client is not authorized to set the requested value, or the value is read-only, the server SHALL return a setErrorResponse message.

Object NameAttributeTypeRequired
setRequestactionActionYes
pathstringYes
valuestring/array/objectYes
authorizationstringOptional
requestIdstringYes

Object NameAttributeTypeRequired
setSuccessResponseactionActionYes
requestIdstringYes
tsstringYes

Object NameAttributeTypeRequired
setErrorResponseactionActionYes
requestIdstringYes
errorErrorYes
tsstringYes

Example:
Request:


              {
                "action": "set",
                "path": "Vehicle.Drivetrain.Transmission.PerformanceMode",
                "value": "sport",
                "requestId": "5687"
              }

Successful response:

              {
                "action": "set",
                "requestId": "5687",
                "ts": "2020-04-15T13:37:00Z"
              }

Error response:

              {
                "action": "set",
                "requestId": "5687",
                "error": {"number": 404, "reason": "invalid_path", "message": "The specified data path does not exist."},
                "ts": "2020-04-15T13:37:00Z"
              }

5.2.2.2.1 Authorized Update

If the operation on the VSS node that is addressed requires authorization, then the request must contain the field "authorization" with its value being a JWT token. The token validation must be successful for a setSuccessResponse to be returned, else a setErrorResponse is returned. A token can be combined with all types of update requests.

Example:
Request:


              {
                "action": "set",
                "path": "Vehicle.Drivetrain.Transmission.PerformanceMode",
                "value": "sport",
                "authorization": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1...Zw_KSsds"
                "requestId": "5687"
              }

Response:

              {
                "action": "set",
                "requestId": "5687",
                "ts": "2020-04-15T13:37:00Z"
              }


5.2.2.3 Subscribe

The client may send a subscribeRequest message to request a subscription to one or more signals, thereby requesting the server to repeatedly return subscription event messages, as specified by the filter request described in the [viss2-core]. The server MAY reduce the number of subcriptionEvent messages sent to the client in order to reduce processing demands.
If the server is able to satisfy the request it SHALL return a subscribeSuccessResponse message. If an error occurs e.g. because the client is not authorized to read the requested value, the server SHALL return a subscribeErrorResponse message. If an error occurs during the subscription session, the server shall return an subscriptionErrorEvent message.
The subscription variants are, as described in the [viss2-core] document:

  • timebased: event messages are issued at a regular time interval,
  • change: event messages are issued when the value has changed as specified,
  • range: event messages are issued when the value is in the specified range,
  • curvelog: event messages are issued when the buffer is full, and then processed according to the curve logging algorithm.
If none of the above trigger condition variants is specified, then an event message will be issued whenever the underlying vehicle system supplies a new data point to the server.

Object NameAttributeTypeRequired
subscribeRequestactionActionYes
pathstringYes
filterstringOptional
authorizationstringOptional
requestIdstringYes

Object NameAttributeTypeRequired
subscribeSuccessResponseactionActionYes
requestIdstringYes
subscriptionIdstringYes
tsstringYes

Object NameAttributeTypeRequired
subscribeErrorResponseactionActionYes
requestIdstringYes
errorErrorYes
tsstringYes

Object NameAttributeTypeRequired
subscriptionEventactionActionYes
subscriptionIdstringYes
dataobject/arrayYes
tsstringYes

Object NameAttributeTypeRequired
subscriptionErrorEventactionActionYes
subscriptionIdstringYes
errorErrorYes
tsstringYes

Example:
Request:


              {
                "action": "subscribe",
                "path": "Vehicle.Drivetrain.FuelSystem.Level",
                "filter": {"type":"timebased", "parameter":{"period":"500"}}
                "requestId": "6578"
              }

Successful response:

              {
                "action": "subscribe",
                "subscriptionId": "12345",
                "requestId": "6578",
                "ts": "2020-04-15T13:37:00Z"
              }

Error response:

              {
                "action": "subscribe",
                "requestId": "6578",
                "error": {"number": 404, "reason": "invalid_path", "message": "The specified data path does not exist."},
                "ts": "2020-04-15T13:37:00Z"
              }

Event:

              {
                "action": "subscription",
                "subscriptionId": "12345",
                “data”: {“path”: ”Vehicle.Drivetrain.FuelSystem.Level”,
                        “dp”: {“value”: ”50”, “ts”: ”2020-04-15T13:37:00Z”}
                },
                "ts": "2020-04-15T13:37:00Z"
              }

Error event:

              {
                "action": "subscription",
                "subscriptionId": "12345",
                "error": {"number": 401, "reason": "token_expired", "message": "Access token has expired."},
                "ts": "2020-04-15T13:37:00Z"
              }


5.2.2.3.1 Authorized Subscribe

If the operation on the VSS node that is addressed requires authorization, then the request must contain the field "authorization" with its value being a JWT token. The token validation must be successful for a subscribeSuccessResponse to be returned, else a subscribeErrorResponse is returned. An "authorization" key-value pair can be combined with all types of subscription requests.

Example:
Request:


              {
                "action": "subscribe",
                "path": "Vehicle.Drivetrain.FuelSystem.Level",
                "filter": {"type":"range", "parameter":[{"boundary-op":"gt", "boundary":"49"}, {"boundary-op":"lt", "boundary":"51"}]},
                "authorization": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1...Zw_KSsds",
                "requestId": "6578"
              }

Successful response:

              {
                "action": "subscribe",
                "subscriptionId": "12345",
                "requestId": "6578",
                "ts": "2020-04-15T13:37:00Z"
              }

Event:

              {
                "action": "subscription",
                "subscriptionId": "12345",
                “data”: {“path”: ”Vehicle.Drivetrain.FuelSystem.Level”,
                        “dp”: {“value”: ”50”, “ts”: ”2020-04-15T13:37:00Z”}
                },
                "ts": "2020-04-15T13:37:00Z"
              }


5.2.2.3.2 Curve Logging Subscribe

Curve logging data compression by eliminating data points that are within a set error margin is activated via a subscription request. Event messages will be issued when the buffer becomes full, after insignificant data points have been eliminated, refer the Curve logging Filter Operation chapter in the [viss2-core] documentation.

Example:
Request:


              {
                "action": "subscribe",
                "path": "Vehicle.Drivetrain.FuelSystem.Level",
                "filter": {"type":"curvelog", "parameter":{"maxerr":"0.5", "bufsize":"100"}},
                "requestId": "6578"
              }

Successful response:

              {
                "action": "subscribe",
                "subscriptionId": "12345",
                "requestId": "6578",
                "ts": "2020-04-15T13:37:00Z"
              }

Event:

              {
                "action": "subscription",
                "subscriptionId": "12345",
                “data”:{“path”: ”Vehicle.Drivetrain.FuelSystem.Level”,
                        “dp”:[{“value”: ”50”, “ts”: ”2020-04-15T13:38:00Z”}, ..., {“value”: ”25”, “ts”: ”2020-04-15T13:39:30Z”}]
                },
                "ts": "2020-04-15T13:37:00Z"
              }


5.2.2.3.3 Range Subscribe

Subscription to a range of values, that can have either a single boundary, or multipe boundaries as in the example below. For a more information how to use range of values, refer the Range Filter Operation chapter in the [viss2-core] documentation.

Example:
Request:


              {
                "action": "subscribe",
                "path": "Vehicle.Drivetrain.FuelSystem.Level",
                "filter": "filter":{"type":"range","parameter":[{"boundary-op":"lt","boundary":"50","combination-op":"OR"},{"boundary-op":"gt","boundary":"55"}]},
                "requestId": "6578"
              }

Successful response:

              {
                "action": "subscribe",
                "subscriptionId": "12345",
                "requestId": "6578",
                "ts": "2020-04-15T13:37:00Z"
              }

Event:

              {
                "action": "subscription",
                "subscriptionId": "12345",
                “data”:{“path”: ”Vehicle.Drivetrain.FuelSystem.Level”,
                        “dp”:{“value”: ”51”, “ts”: ”2020-04-15T14:00:00Z”},
                "ts": "2020-04-15T14:00:00Z"
              }


5.2.2.3.4 Change Subscribe

Subscription to when a signal has changed between two sequential captures. For a more information how to use change of values, refer the Change Filter Operation chapter in the [viss2-core] documentation.

Example:
Request:


              {
                "action": "subscribe",
                "path": "Vehicle.Drivetrain.FuelSystem.Level",
                "filter": "filter":{"type":"change","parameter":{"logic-op":"gt","diff":"10"}},
                "requestId": "6578"
              }

Successful response:

              {
                "action": "subscribe",
                "subscriptionId": "12345",
                "requestId": "6578",
                "ts": "2020-04-15T13:37:00Z"
              }

Event:

              {
                "action": "subscription",
                "subscriptionId": "12345",
                “data”:{“path”: ”Vehicle.Drivetrain.FuelSystem.Level”,
                        “dp”:{“value”: ”101”, “ts”: ”2020-04-15T14:00:00Z”},
                "ts": "2020-04-15T14:00:00Z"
              }


5.2.2.4 Unsubscribe

To unsubscribe from a subscription, the client SHALL send an unsubscribeRequest message to the server. If the server is able to satisfy the request it returns an unsubscribeSuccessResponse message. If an error occurs, for example because an invalid subscriptionId is passed to the server, an unsubscribeErrorResponse message is returned.
If the client has created more than one WebSocket instance, it MUST always unsubscribe using the same WebSocket instance that was originally used to create the subscription.

Object NameAttributeTypeRequired
unsubscribeRequestactionActionYes
subscriptionIdstringYes
requestIdstringYes

Object NameAttributeTypeRequired
unsubscribeSuccessResponseactionActionYes
subscriptionIdstringYes
requestIdstringYes
tsstringYes

Object NameAttributeTypeRequired
unsubscribeErrorResponseactionActionYes
subscriptionIdstringYes
requestIdstringYes
errorErrorYes
tsstringYes

Example:
Request:


              {
                "action": "unsubscribe",
                "subscriptionId": "12345",
                "requestId": "5786"
              }

Successful response:

              {
                "action": "unsubscribe",
                "subscriptionId": "12345",
                "requestId": "5786",
                "ts": "2020-04-15T13:37:00Z"
              }

Error response:

              {
                "action": "unsubscribe",
                "requestId": "6578",
                "error": {"number": 404, "reason": "invalid_subscriptionId", "message": "The specified subscription was not found"},
                "ts": "2020-04-15T13:37:00Z"
              }


5.3 MQTT

5.3.1 Application Level Protocol

For MQTT to support the complete VISSv2 interface, as decribed in the interface chapter of the [viss2-core] specification, an application level protocol that runs on top of MQTT is added. It is described in the following, please also see the sequence diagram below. To emulate the client-server pattern that is described in the [viss2-core] specification, the vehicle server, via its vehicle client, issues a subscribe request to the broker on a topic named VID/Vehicle, where VID is an identity that uniquely links to the vehicle in the access control ecosystem. This vehicle identity is not necessarily the manufacturer's Vehicle Identification Number (VIN).
The client on the "cloud side" of the broker is expected to have access to this vehicle identity. How it obtains it is out of scope for this specification. When the cloud client wants to issue a request to the vehicle server it first generates a unique topic name, which it subscribes to at the broker. It then generates a JSON formatted payload with the general structure
{"topic":"aUniqueTopic", "request":"VISSv2Request"}
where "aUniqueTopic" is the uniques topic name it just subscribed to, and "VISSv2Request" is the request for the vehicle server. This request MUST follow the payload format that is specified in the Websocket chapter of this specification. This JSON message is then issued to the broker, associated to the topic VID/Vehicle. This message will then be forwarded by the broker to the vehicle client, which forwards the string being the value of the "request" key in the message to the vehicle server. When the vehicle client receives the response to this request, it publishes it to the broker associated with the topic name that was the string value of the "topic" key name in the message it previously received from the broker.
The broker will then forward this message to the cloud side client that earlier subscribed to this topic name, which concludes the client-server based request-response as described in the [viss2-core] specification.
In the case of subscription requests the vehicle client needs to save the subscriptionId found in the subscribe response, together with the topic name associated to the subscribe request. When the vehicle server later issues event messages, the vehicle client must parse the subscriptionId from it, and retrieve the topic name associated to it. The vehicle client shall delete the saved topic name and subscriptionId when it receives an unsubscribe request in a message from the broker.
In following requests from the cloud side client, the unique topic name may be reused from the previous request-response cycle, or a new unique topic name may be generated. If a new topic name is generated, an unsubscribe should be issued on the old topic name. The vehicle client can continue to use the topic name it subscribes to.
The payload format of the response/event messages SHALL follow the payload format that is specified in the Websocket chapter of this specification. The access control model is applicable also over this transport alternative. The Access Token server should then implement its own version of the application level protocol described here, using the topic name "VID/ATS". The Access Grant Token server may also do the same, with the topic name "VID/AGTS", or if it is deployed in the cloud it may expose the HTTP interface that is defined in this specification.

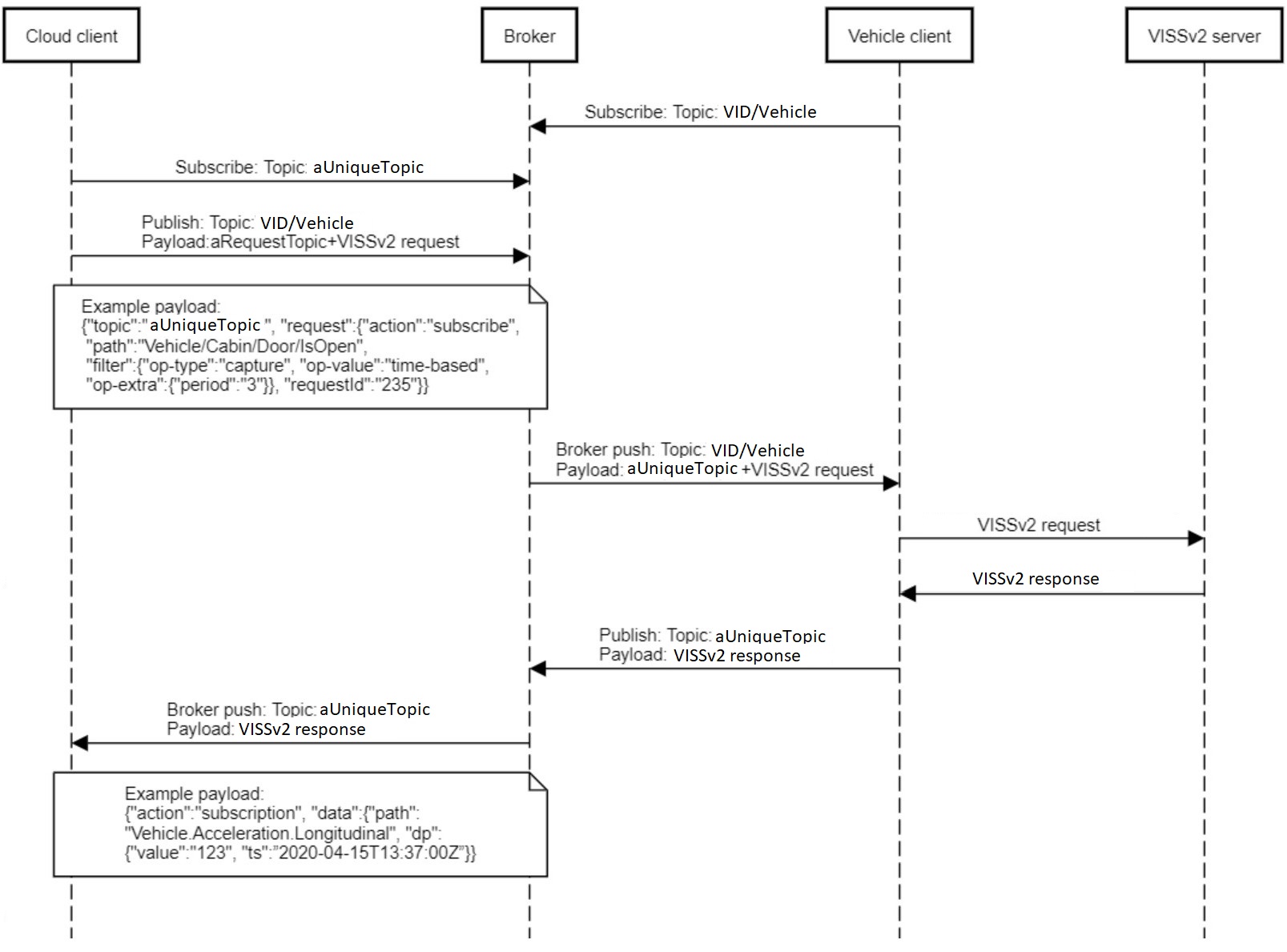

VISSv2 over MQTT
Figure 1 Message flow of VISSv2 over MQTT

5.3.2 Security Aspects

The MQTT architecture mandates a "broker" that acts as a middleman in between the client and server endpoints (the subscriber and the publisher in MQTT terminology). This broker has full access to the plaintext communication between the two endpoints as each of the endpoint's TLS channel terminates at the broker. This aspect should be considered when selecting to use the MQTT protocol.

5.3.3 Transport Messages

As mentioned in the "Application Level Protocol" chapter, the "request" messages issued to the broker contains two JSON formatted key-value pairs, where the value of the "request" key is a string that contains the request the vehicle server will respond to. The format of this request MUST follow the payload format that is specified in the Websocket chapter of this specification.

6. Definitions

6.1 Term Definitions

Attribute Type Description
action Action The type of action requested by the client or delivered by the server.
path String The path to a node in the VSS tree, as defined by the Vehicle Signal Specification (VSS).
requestId String Unique id value specified by the client. Returned by the server in the response and used by the client to link the request and response messages. The value MAY be an integer or a Universally Unique Identifier (UUID).
subscriptionId String Value returned by the server to uniquely identify each subscription.
authorization string A JWT formatted security token.
data object/array Contains a path and one or more data points.
dp object/array The data point contains a value and a timestamp.
ts string The Coordinated Universal Time (UTC) time stamp that represents the capture of the value.
value string The data value associated with the path.
filter string Provides a filtering mechanism to reduce the demands of a subscription on the server. Query format, see [viss2-core], Filter Request chapter.
metadata object Metadata describing the potentially available signal (sub)tree.
error Error Returns an error code, reason and message.

6.2 JSON Schema Definitions

The payload that is sent over the supported transport protocols SHALL use the JSON definitions in this appendix, unless otherwise specified in the VISSv2 TRANSPORT specification.
The definitions within this section describe the datatypes referenced within the JSON Schema for the VISSv2 WebSocket interfaces, and for the VISSv2 HTTP payloads.


{
    "definitions": {
        "action": {
            "enum": [ "get", "set", "subscribe", "subscription", "unsubscribe"],
            "description": "The type of action requested by the client and/or delivered by the server",
        },
        "path": {
            "description": "The path to the desired vehicle signal(s). It may require synthesis with additional path data, see [[viss2-core]], Paths Filter Operation chapter.",
            "type": "string"
        },
        "ts": {
            "description": "The time of the issuance of the message. For its format, see [[viss2-core]], Timestamps chapter.",
            "type": "string"
        },
        "filter": {
            "description": "May be specified in order to throttle the demands of subscriptions on the server. See [[viss2-core]], Filter Request chapter.",
            "type": "object/array",
            "properties": {
                "type": {
                    "description": "The different filter types.",
                    "type": "string"
                },
                "parameter": {
                    "description": "Parameter(s) for the different filter types",
                    "type": "object/array",
                }
            }
        },
        "data": {
            "description": "Data including path(s) and one or more data point(s).",
            "type": "object/array",
            "properties": {
                "path": {
                    "description": "The path to the vehicle signal.",
                    "type": "string"
                },
                "dp": {
                    "description": "Data point including one or more value and time samp",
                    "type": "object/array",
                    "properties": {
                        "value": {
                            "description": "The value related to the associated path.",
                            "type": "string/array/object"
                        },
                        "ts": {
                            "description": "Time of the value capture. For its format, see [[viss2-core]], Timestamps chapter.",
                            "type": "string"
                        }
                    }
                }
            }
        },
        "subscriptionId":{
            "description": "Integer handle value which is used to uniquely identify a subscription session.",
            "type": "string"
        },
        "metadata":{
            "description": "Static or dynamic metadata.",
            "type": "object"
        },
        "requestId": {
            "description": "Returned by the server in the response and used by the client to link the request and response messages.",
            "type": "string"
        },
        "error": {
            "description": "Server response for error cases",
            "type": "object",
            "properties": {
                "number": {
                    "description": "HTTP Status Code Number",
                    "type": "integer"
                },
                "reason": {
                    "description": "Pre-defined string value that can be used to distinguish between errors that have the same code",
                    "type": "string"
                },
                "message": {
                    "description": "Message text describing the cause in more detail",
                    "type": "string"
                }
            }
        }
    }
}


6.3 Action Definitions

The Action enumeration is used to define the type of action requested by the client. All client messages MUST contain a JSON structure that has an action name/value pair and the value of the action property MUST be one of the values specified in the enumeration:

get
Enables the client to read one or more values.
set
Enables the client to update one value.
subscribe
Enables the client to request event messages containing a JSON data structure with values for one or more vehicle signal.
unsubscribe
Enables the client to request that it should no longer receive event messages based on that subscription.
subscription
Enables the server to send event messages to the client containing a JSON data structure with values for one or more vehicle signals.

6.4 Error Definitions

The error number SHOULD be a status code defined in [RFC2616], c. f. chapter "Status codes". The error reason SHOULD be the corresponding reason-phrase from [RFC2616]. The error message is meant to give a more precise description of the error.

Object NameAttributeTypeRequired
Error numberintegerYes
reasonstringYes
messagestringYes

List of Figures

A. References

A.1 Normative references

[RFC2119]
Key words for use in RFCs to Indicate Requirement Levels. S. Bradner. IETF. March 1997. Best Current Practice. URL: https://www.rfc-editor.org/rfc/rfc2119
[RFC2616]
Hypertext Transfer Protocol -- HTTP/1.1. R. Fielding; J. Gettys; J. Mogul; H. Frystyk; L. Masinter; P. Leach; T. Berners-Lee. IETF. June 1999. Draft Standard. URL: https://www.rfc-editor.org/rfc/rfc2616
[RFC8174]
Ambiguity of Uppercase vs Lowercase in RFC 2119 Key Words. B. Leiba. IETF. May 2017. Best Current Practice. URL: https://www.rfc-editor.org/rfc/rfc8174
[viss2-core]
VISS version 2 - Core. Ulf Bjorkengren; Isaac Agudo; Wonsuk Lee. W3C. 27 September 2023. W3C Working Draft. URL: https://www.w3.org/TR/viss2-core/
