Gyroscope

W3C Candidate Recommendation Draft,

More details about this document
This version:
https://www.w3.org/TR/2023/CRD-gyroscope-20231207/
Latest published version:
https://www.w3.org/TR/gyroscope/
Editor's Draft:
https://w3c.github.io/gyroscope/
Previous Versions:
History:
https://www.w3.org/standards/history/gyroscope/
Feedback:
public-device-apis@w3.org with subject line “[gyroscope] … message topic …” (archives)
Gyroscope Issues Repository
Implementation Report:
https://www.w3.org/wiki/DAS/Implementations
Editor:
Anssi Kostiainen (Intel Corporation)
Former Editor:
Mikhail Pozdnyakov (Intel Corporation)
Test Suite:
web-platform-tests on GitHub

Abstract

This specification defines a concrete sensor interface to monitor the rate of rotation around the device’s local three primary axes.

Status of this document

This section describes the status of this document at the time of its publication. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.

This document was published by the Devices and Sensors Working Group as a Candidate Recommendation Draft using the Recommendation track. This document is intended to become a W3C Recommendation.

If you wish to make comments regarding this document, please send them to public-device-apis@w3.org (subscribe, archives). When sending e-mail, please put the text “gyroscope” in the subject, preferably like this: “[gyroscope] …summary of comment…”. All comments are welcome.

Publication as a Candidate Recommendation does not imply endorsement by W3C and its Members. A Candidate Recommendation Draft integrates changes from the previous Candidate Recommendation that the Working Group intends to include in a subsequent Candidate Recommendation Snapshot. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

The entrance criteria for this document to enter the Proposed Recommendation stage is to have a minimum of two independent and interoperable user agents that implementation all the features of this specification, which will be determined by passing the user agent tests defined in the test suite developed by the Working Group. The Working Group will prepare an implementation report to track progress.

This document was produced by a group operating under the W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

This document is governed by the 03 November 2023 W3C Process Document.

This document is maintained and updated at any time. Some parts of this document are work in progress.

1. Introduction

The Gyroscope API extends the Generic Sensor API [GENERIC-SENSOR] to provide information about the angular velocity around the device’s local X, Y and Z axis in terms of radian per seconds units.

2. Use Cases and Requirements

The use cases and requirements are addressed in the Motion Sensors Explainer document.

3. Examples

let sensor = new Gyroscope();
sensor.start();

sensor.onreading = () => {
    console.log("Angular velocity around the X-axis " + sensor.x);
    console.log("Angular velocity around the Y-axis " + sensor.y);
    console.log("Angular velocity around the Z-axis " + sensor.z);
};

sensor.onerror = event => console.log(event.error.name, event.error.message);

4. Security and Privacy Considerations

Sensor readings provided by inertial sensors, such as gyroscope, could be used by adversaries to exploit various security threats, for example, keylogging, location tracking, fingerprinting, user identifying and even eavesdropping.

Research papers published by security community, for instance, [KEYSTROKEDEFENSE], indicate that by throttling the frequency, risks of successful attacks are not fully eliminated, while throttling may greatly affect usefulness of a web application with legitimate reasons to use the sensors.

The [TOUCHSIGNATURES] research paper proposes that implementations can provide visual indication when inertial sensors are in use and/or require explicit user consent to access sensor readings. These mitigation strategies complement the generic mitigations defined in the Generic Sensor API [GENERIC-SENSOR].

5. Permissions Policy integration

This specification defines a policy-controlled feature identified by the string "gyroscope". Its default allowlist is "self".

6. Model

The Gyroscope sensor type has the following associated data:

Extension sensor interface

Gyroscope

Sensor permission names

"gyroscope"

Sensor feature names

"gyroscope"

Permission revocation algorithm

Invoke the generic sensor permission revocation algorithm with "gyroscope".

Default sensor

The device’s main gyroscope sensor.

Virtual sensor type

"gyroscope"

A latest reading of a Sensor of Gyroscope sensor type includes three entries whose keys are "x", "y", "z" and whose values contain current angular velocity about the corresponding axes.

The angular velocity is the rate at which the device rotates about a specified axis in a local coordinate system defined by the device. Its unit is the radian per second (rad/s) [SI].

The sign of the current angular velocity depends on the rotation direction and it must be according to the right-hand convention in a local coordinate system defined by the device, such that positive rotation around an axis is clockwise when viewed along the positive direction of the axis (see figure below).

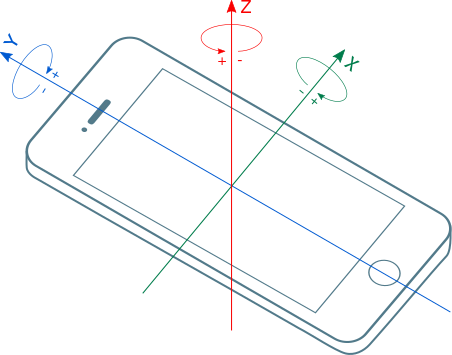

Device’s local coordinate system and rotation.

6.1. Reference Frame

The local coordinate system represents the reference frame for the Gyroscope readings. It can be either the device coordinate system or the screen coordinate system.

7. API

7.1. The Gyroscope Interface

[SecureContext, Exposed=Window]
interface Gyroscope : Sensor {
  constructor(optional GyroscopeSensorOptions sensorOptions = {});
  readonly attribute double? x;
  readonly attribute double? y;
  readonly attribute double? z;
};

enum GyroscopeLocalCoordinateSystem { "device", "screen" };

dictionary GyroscopeSensorOptions : SensorOptions {
  GyroscopeLocalCoordinateSystem referenceFrame = "device";
};
The new Gyroscope(sensorOptions) constructor steps are to invoke the construct a gyroscope object abstract operation with this and sensorOptions.

Supported sensor options for Gyroscope are "frequency" and "referenceFrame".

7.1.1. Gyroscope.x

The x attribute of the Gyroscope interface represents the current angular velocity around X-axis. In other words, this attribute returns the result of invoking get value from latest reading with this and "x" as arguments.

7.1.2. Gyroscope.y

The y attribute of the Gyroscope interface represents the current angular velocity around Y-axis. In other words, this attribute returns the result of invoking get value from latest reading with this and "y" as arguments.

7.1.3. Gyroscope.z

The z attribute of the Gyroscope interface represents the current angular velocity around Z-axis. In other words, this attribute returns the result of invoking get value from latest reading with this and "z" as arguments.

8. Abstract Operations

8.1. Construct a Gyroscope object

input

object, a Gyroscope object.

options, a GyroscopeSensorOptions object.

  1. Let allowed be the result of invoking check sensor policy-controlled features with object’s sensor type.

  2. If allowed is false, then:

    1. Throw a SecurityError DOMException.

  3. Invoke initialize a sensor object with object and options.

  4. If options.referenceFrame is "screen", then:

    1. Set object’s local coordinate system to the screen coordinate system.

  5. Otherwise, define object’s local coordinate system to the device coordinate system.

9. Automation

This section extends Generic Sensor API § 9 Automation by providing Gyroscope-specific virtual sensor metadata.

The per-type virtual sensor metadata map must have the following entry:

key

"gyroscope"

value

A virtual sensor metadata whose reading parsing algorithm is parse xyz reading.

10. Acknowledgements

Tobie Langel for the work on Generic Sensor API.

11. Conformance

Conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification.

All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

A conformant user agent must implement all the requirements listed in this specification that are applicable to user agents.

The IDL fragments in this specification must be interpreted as required for conforming IDL fragments, as described in the Web IDL specification. [WEBIDL]

Index

Terms defined by this specification

Terms defined by reference

References

Normative References

[ACCELEROMETER]
Anssi Kostiainen. Accelerometer. URL: https://w3c.github.io/accelerometer/
[GENERIC-SENSOR]
Rick Waldron. Generic Sensor API. URL: https://w3c.github.io/sensors/
[INFRA]
Anne van Kesteren; Domenic Denicola. Infra Standard. Living Standard. URL: https://infra.spec.whatwg.org/
[PERMISSIONS]
Marcos Caceres; Mike Taylor. Permissions. URL: https://w3c.github.io/permissions/
[PERMISSIONS-POLICY-1]
Ian Clelland. Permissions Policy. URL: https://w3c.github.io/webappsec-permissions-policy/
[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. March 1997. Best Current Practice. URL: https://datatracker.ietf.org/doc/html/rfc2119
[WEBIDL]
Edgar Chen; Timothy Gu. Web IDL Standard. Living Standard. URL: https://webidl.spec.whatwg.org/

Informative References

[KEYSTROKEDEFENSE]
Song, Yihang, et al. Two novel defenses against motion-based keystroke inference attacks. 2014. Informational. URL: https://arxiv.org/abs/1410.7746
[SI]
SI Brochure: The International System of Units (SI), 8th edition. 2014. URL: http://www.bipm.org/en/publications/si-brochure/
[TOUCHSIGNATURES]
Mehrnezhad, Maryam, et al. Touchsignatures: identification of user touch actions and pins based on mobile sensor data via javascript. 2016. Informational. URL: https://arxiv.org/abs/1602.04115

IDL Index

[SecureContext, Exposed=Window]
interface Gyroscope : Sensor {
  constructor(optional GyroscopeSensorOptions sensorOptions = {});
  readonly attribute double? x;
  readonly attribute double? y;
  readonly attribute double? z;
};

enum GyroscopeLocalCoordinateSystem { "device", "screen" };

dictionary GyroscopeSensorOptions : SensorOptions {
  GyroscopeLocalCoordinateSystem referenceFrame = "device";
};
