This specification defines several new DOM events that provide information about the physical orientation and motion of a hosting device.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
This document was published by the Geolocation Working Group as a Candidate Recommendation. If you wish to make comments regarding this document, please send them to public-geolocation@w3.org (subscribe, archives). All feedback is welcome.
A diff-marked version of this document from the previous draft is available for comparison purposes.
W3C publishes a Candidate Recommendation to indicate that the document is believed to be stable and to encourage implementation by the developer community. This Candidate Recommendation is expected to advance to Proposed Recommendation no earlier than 15 September 2016.
For this specification to exit the Candidate Recommendation stage, two independent implementations will be required to pass each test in the DeviceOrientation test suite.
Please see the Working Group's implementation report.
Publication as a Candidate Recommendation does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 1 September 2015 W3C Process Document.
All diagrams, examples, and notes in this specification are non-normative, as are all sections explicitly marked non-normative. Everything else in this specification is normative.
The key words "MUST", "MUST NOT", "REQUIRED", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in the normative parts of this document are to be interpreted as described in RFC2119. For readability, these words do not appear in all uppercase letters in this specification. [RFC2119]
Requirements phrased in the imperative as part of algorithms (such as "strip any leading space characters" or "return false and abort these steps") are to be interpreted with the meaning of the key word ("must", "should", "may", etc) used in introducing the algorithm.
Conformance requirements phrased as algorithms or specific steps may be implemented in any manner, so long as the end result is equivalent. (In particular, the algorithms defined in this specification are intended to be easy to follow, and not intended to be performant.)
User agents may impose implementation-specific limits on otherwise unconstrained inputs, e.g. to prevent denial of service attacks, to guard against running out of memory, or to work around platform-specific limitations.
Implementations that use ECMAScript to implement the APIs defined in this specification must implement them in a manner consistent with the ECMAScript Bindings defined in the Web IDL specification, as this specification uses that specification's terminology. [WEBIDL]
The events introduced by this specification implement the Event interface defined in the DOM4 Specification, [DOM4]. Implementations must therefore support this specification.
This section is non-normative.
This specification provides several new DOM events for obtaining information about the physical orientation and movement of the hosting device. The information provided by the events is not raw sensor data, but rather high-level data which is agnostic to the underlying source of information. Common sources of information include gyroscopes, compasses and accelerometers.
The first DOM event provided by the specification,
deviceorientation
, supplies the physical orientation
of the device, expressed as a series of rotations from a local
coordinate frame.
The second DOM event provided by this specification,
devicemotion
, supplies the acceleration of the device,
expressed in Cartesian coordinates in a coordinate frame defined in
the device. It also supplies the rotation rate of the device about
a local coordinate frame. Where practically possible, the event
should provide the acceleration of the device's center of mass.
Finally, the specification provides a
compassneedscalibration
DOM event, which is used to
inform Web sites that a compass being used to provide data for one
of the above events is in need of calibration.
The following code extracts illustrate basic use of the events.
Registering to receive deviceorientation
events:
window.addEventListener("deviceorientation", function(event) { // process event.alpha, event.beta and event.gamma }, true);
A device lying flat on a horizontal surface with the top of the screen pointing West has the following orientation:
{alpha: 90, beta: 0, gamma: 0};
To get the compass heading, one would simply subtract
alpha
from 360 degrees. As the device is turned on the
horizontal surface, the compass heading is (360 -
alpha
).
A user is holding the device in their hand, with the screen in a
vertical plane and the top of the screen pointing upwards. The
value of beta
is 90, irrespective of what
alpha
and gamma
are.
A user facing a compass heading of alpha degrees is holding the device in their hand, with the screen in a vertical plane and the top of the screen pointing to their right. The orientation of the device is:
{alpha: 270 - alpha, beta: 0, gamma: 90};
Showing custom UI to instruct the user to calibrate the compass:
window.addEventListener("compassneedscalibration", function(event) { alert('Your compass needs calibrating! Wave your device in a figure-eight motion'); event.preventDefault(); }, true);
Registering to receive devicemotion
events:
window.addEventListener("devicemotion", function(event) { // Process event.acceleration, event.accelerationIncludingGravity, // event.rotationRate and event.interval }, true);
A device lying flat on a horizontal surface with the screen
upmost has an acceleration
of zero and the following
value for accelerationIncludingGravity
:
{x: 0, y: 0, z: 9.81};
A device in free-fall, with the screen horizontal and upmost,
has an accelerationIncludingGravity
of zero and the
following value for acceleration
:
{x: 0, y: 0, z: -9.81};
A device is mounted in a vehicle, with the screen in a vertical
plane, the top uppermost and facing the rear of the vehicle. The
vehicle is travelling at speed v around a right-hand bend of radius
r. The device records a positive x component for both
acceleration
and
accelerationIncludingGravity
. The device also records
a negative value for rotationRate.gamma
:
{acceleration: {x: v^2/r, y: 0, z: 0}, accelerationIncludingGravity: {x: v^2/r, y: 0, z: 9.81}, rotationRate: {alpha: 0, beta: 0, gamma: -v/r*180/pi} };
This section is non-normative.
This specification is limited to providing DOM events for retrieving information describing the physical orientation and motion of the hosting device. The intended purpose of this API is to enable simple use cases such as those in Section 6.2. The scope of this specification does not include providing utilities to manipulate this data, such as transformation libraries. Nor does it include providing access to low sensor data, or direct control of these sensors.
User agents implementing this specification must provide a new
DOM event, named deviceorientation
. The corresponding
event must be of type DeviceOrientationEvent
and must
fire on the window
object. Registration for, and
firing of the deviceorientation
event must follow the
usual behavior of DOM4 Events, [DOM4].
User agents must also provide an event handler IDL attribute [HTML5] named
ondeviceorientation
on the window
object.
The type of the corresponding
event handler event type must be
deviceorientation
.
partial interface Window { attribute EventHandler ondeviceorientation; }; [Constructor(DOMString type, optional DeviceOrientationEventInit eventInitDict)] interface DeviceOrientationEvent : Event { readonly attribute double? alpha; readonly attribute double? beta; readonly attribute double? gamma; readonly attribute boolean absolute; }; dictionary DeviceOrientationEventInit : EventInit { double? alpha = null; double? beta = null; double? gamma = null; boolean absolute = false; };
The alpha
attribute must return the value it was
initialized to. When the object is created, this attribute must be
initialized to null.
The beta
attribute must return the value it was
initialized to. When the object is created, this attribute must be
initialized to null.
The gamma
attribute must return the value it was
initialized to. When the object is created, this attribute must be
initialized to null.
The absolute
attribute must return the value it was
initialized to. When the object is created, this attribute must be
initialized to false.
The event should fire whenever a significant change in orientation occurs. The definition of a significant change in this context is left to the implementation, though a maximum threshold for change of one degree is recommended. Implementations may also fire the event if they have reason to believe that the page does not have sufficiently fresh data.
The alpha
, beta
and gamma
attributes of the event must specify the orientation of the device
in terms of the transformation from a coordinate frame fixed on the
Earth to a coordinate frame fixed in the device. The coordinate
frames must be oriented as described below.

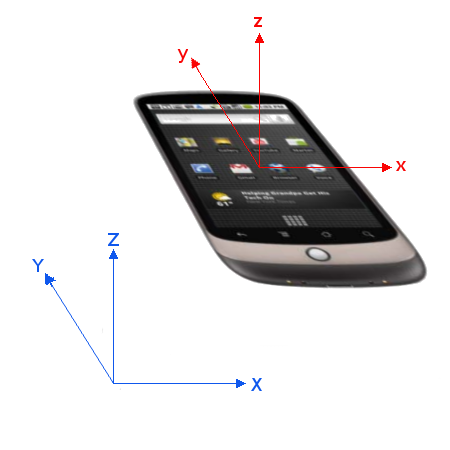

The Earth coordinate frame is a 'East, North, Up' frame at the user's location. It has the following 3 axes, where the ground plane is tangent to the spheriod of the World Geodetic System 1984 [WGS84], at the user's location.
For a mobile device such as a phone or tablet, the device
coordinate frame is defined relative to the screen in its standard
orientation, typically portrait. This means that slide-out elements
such as keyboards are not deployed, and swiveling elements such as
displays are folded to their default position. If the orientation
of the screen changes when the device is rotated or a slide-out
keyboard is deployed, this does not affect the orientation of the
coordinate frame relative to the device. Users wishing to detect
these changes in screen orientation may be able to do so with the
existing orientationchange
event. For a laptop
computer, the device coordinate frame is defined relative to the
integrated keyboard.
The transformation from the Earth coordinate frame to the device coordinate frame must use the following system of rotations.
Rotations must use the right-hand convention, such that positive rotation around an axis is clockwise when viewed along the positive direction of the axis. Starting with the two frames aligned, the rotations are applied in the following order:
Rotate the device frame around its z axis by alpha
degrees, with alpha
in [0, 360).
Rotate the device frame around its x axis by beta
degrees, with beta
in [-180, 180).

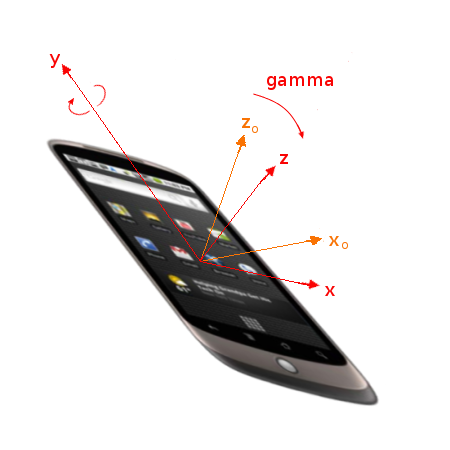

Rotate the device frame around its y axis by gamma
degrees, with gamma
in [-90, 90).
Thus the angles alpha
, beta
and
gamma
form a set of intrinsic Tait-Bryan angles of
type Z-X'-Y''. [EULERANGLES] Note
that this choice of angles follows mathematical convention, but
means that alpha
is in the opposite sense to a compass
heading. It also means that the angles do not match the
roll-pitch-yaw convention used in vehicle dynamics.
The deviceorientation
event tries to provide
relative values for the three angles (relative to some arbitrary
orientation), based on just the accelerometer and the gyroscope.
The implementation can still decide to provide absolute orientation
if relative is not available or the resulting data is more
accurate. In either case, the absolute
property must
be set accordingly to reflect the choice.
Implementations that are unable to provide all three angles must
set the values of the unknown angles to null. If any angles are
provided, the absolute
property must be set
appropriately. If an implementation can never provide orientation
information, the event should be fired with the alpha
,
beta
and gamma
attributes set to
null.
User agents implementing this specification must provide a new
DOM event, named deviceorientationabsolute
. The
corresponding event must be of type
DeviceOrientationEvent
and must fire on the
window
object. Registration for, and firing of the
deviceorientationabsolute
event must follow the usual
behavior of DOM4 Events, [DOM4].
User agents must also provide an event handler IDL attribute [HTML5] named
ondeviceorientationabsolute
on the window
object. The type of the corresponding
event handler event type must be
deviceorientationabsolute
.
The deviceorientationabsolute
event is completely
analogous to the deviceorientation
event, except
additional sensors like the magnetometer can be used to provide an
absolute orientation. The absolute
property must be
set to true
. If an implementation can never provide
absolute orientation information, the event should be fired with
the alpha
, beta
and gamma
attributes set to null.
User agents implementing this specification must provide a new
DOM event, named compassneedscalibration
that uses the
Event
interface defined in the DOM4 Events
specification [DOM4]. This event must
fire on the window
object. Registration for, and
firing of the compassneedscalibration
event must
follow the usual behavior of DOM4 Events [DOM4].
User agents must also provide an event handler IDL attribute [HTML5] named
oncompassneedscalibration
on the window
object. The type of the corresponding event must be
compassneedscalibration
.
This event must be fired when the user agent determines that a
compass used to obtain orientation data is in need of calibration.
Furthermore, user agents should only fire the event if calibrating
the compass will increase the accuracy of the data provided by the
deviceorientation
event.
The default action of this event should be for the user agent to present the user with details of how to calibrate the compass. The event must be cancelable, so that web sites can provide their own alternative calibration UI.
User agents implementing this specification must provide a new
DOM event, named devicemotion
. The corresponding event
must be of type DeviceMotionEvent
and must fire on the
window
object. Registration for, and firing of the
devicemotion
event must follow the usual behavior of
DOM4 Events, [DOM4].
User agents must also provide an event handler IDL attribute [HTML5] named ondevicemotion
on
the window
object. The type of the corresponding
event handler event type must be devicemotion
.
partial interface Window { attribute EventHandler ondevicemotion; }; [NoInterfaceObject] interface DeviceAcceleration { readonly attribute double? x; readonly attribute double? y; readonly attribute double? z; }; [NoInterfaceObject] interface DeviceRotationRate { readonly attribute double? alpha; readonly attribute double? beta; readonly attribute double? gamma; }; [Constructor(DOMString type, optional DeviceMotionEventInit eventInitDict)] interface DeviceMotionEvent : Event { readonly attribute DeviceAcceleration? acceleration; readonly attribute DeviceAcceleration? accelerationIncludingGravity; readonly attribute DeviceRotationRate? rotationRate; readonly attribute double? interval; }; dictionary DeviceAccelerationInit { double? x = null; double? y = null; double? z = null; }; dictionary DeviceRotationRateInit { double? alpha = null; double? beta = null; double? gamma = null; }; dictionary DeviceMotionEventInit : EventInit { DeviceAccelerationInit? acceleration; DeviceAccelerationInit? accelerationIncludingGravity; DeviceRotationRateInit? rotationRate; double? interval = null; };
The acceleration
attribute must return the value it
was initialized to. When the object is created, this attribute must
be initialized to null.
The accelerationIncludingGravity
attribute must
return the value it was initialized to. When the object is created,
this attribute must be initialized to null.
The rotationRate
attribute must return the value it
was initialized to. When the object is created, this attribute must
be initialized to null.
The interval
attribute must return the value it was
initialized to. When the object is created, this attribute must be
initialized to 0.
In the DeviceMotionEvent
events fired by the user
agent, the following requirements must apply:
The acceleration
attribute must be initialized with
the acceleration of the hosting device relative to the Earth frame,
expressed in the body frame, as defined in section 4.1. The acceleration must be
expressed in meters per second squared (m/s2).
Implementations that are unable to provide acceleration data
without the effect of gravity (due, for example, to the lack of a
gyroscope) may instead supply the acceleration including the effect
of gravity. This is less useful in many applications but is
provided as a means of providing best-effort support. In this case,
the accelerationIncludingGravity
attribute must be
initialized with the acceleration of the hosting device, plus an
acceleration equal and opposite to the acceleration due to gravity.
Again, the acceleration must be given in the body frame defined in
section 4.1 and must be expressed
in meters per second squared (m/s2).
The rotationRate
attribute must be initialized with
the rate of rotation of the hosting device in space. It must be
expressed as the rate of change of the angles defined in section 4.1 and must be expressed in
degrees per second (deg/s).
The interval
attribute must be initialized with the
interval at which data is obtained from the underlying hardware and
must be expressed in milliseconds (ms). It must be a constant, to
simplify filtering of the data by the Web application.
Implementations that are unable to provide all attributes must initialize the values of the unknown attributes to null. If an implementation can never provide motion information, the event should be fired with all attributes set to null.
This section is non-normative.
The API defined in this specification can be used to obtain information from hardware sensors like accelerometer, gyroscope, etc. The provided information is currently considered not sensitive enough to warrant specific sensor permission grants. However there have been academic efforts to exploit hardware specific sensor bias for fingerprinting purposes [FINGERPRINT]. Some researchers claim to be able to detect user touch actions with some reliability from sensor data [TOUCH]. In light of that implementations may consider permissions or visual indicators to signify the use of sensors by the page. Furthermore to minimize privacy risks, the chance of fingerprinting and other attacks the implementations should take into consideration the following suggestions:
Additionally, implementing these items will also have a beneficial impact on the battery life of mobile devices.
A gaming Web application monitors the device's orientation and interprets tilting in a certain direction as a means to control an on-screen sprite.
A Web application monitors the device's acceleration and applies signal processing in order to recognize certain specific gestures. For example, using a shaking gesture to clear a web form.
A mapping Web application uses the device's orientation to correctly align the map with reality.
This section is non-normative.
The following worked example is intended as an aid to users of the DeviceOrientation event.
Section 2 provided an example of using the DeviceOrientation event to obtain a compass heading when the device is held with the screen horizontal. This example shows how to determine the compass heading that the user is 'facing' when holding the device with the screen approximately vertical in front of them. An application of this is an augmented-reality system.
More precisely, we wish to determine the compass heading of the horizontal component of a vector which is orthogonal to the device's screen and pointing out of the back of the screen.
If v represents this vector in the rotated device body frame xyz, then v is as follows.
The transformation of v due to the rotation about the z axis can be represented by the following rotation matrix.
The transformation of v due to the rotation about the x axis can be represented by the following rotation matrix.
The transformation of v due to the rotation about the y axis can be represented by the following rotation matrix.
If R represents the full rotation matrix of the device in the earth frame XYZ, then since the initial body frame is aligned with the earth, R is as follows.
If v' represents the vector v in the earth frame XYZ, then since the initial body frame is aligned with the earth, v' is as follows.
The compass heading θ is given by
provided that β and γ are not both zero.
The compass heading calculation above can be represented in
JavaScript as follows to return the correct compass heading when
the provided parameters are defined, not null and represent
absolute
values.
var degtorad = Math.PI / 180; // Degree-to-Radian conversion function compassHeading( alpha, beta, gamma ) { var _x = beta ? beta * degtorad : 0; // beta value var _y = gamma ? gamma * degtorad : 0; // gamma value var _z = alpha ? alpha * degtorad : 0; // alpha value var cX = Math.cos( _x ); var cY = Math.cos( _y ); var cZ = Math.cos( _z ); var sX = Math.sin( _x ); var sY = Math.sin( _y ); var sZ = Math.sin( _z ); // Calculate Vx and Vy components var Vx = - cZ * sY - sZ * sX * cY; var Vy = - sZ * sY + cZ * sX * cY; // Calculate compass heading var compassHeading = Math.atan( Vx / Vy ); // Convert compass heading to use whole unit circle if( Vy < 0 ) { compassHeading += Math.PI; } else if( Vx < 0 ) { compassHeading += 2 * Math.PI; } return compassHeading * ( 180 / Math.PI ); // Compass Heading (in degrees) }
As a consistency check, if we set γ = 0, then
as expected.
Alternatively, if we set β = 90, then
as expected.
This section is non-normative.
Describing orientation using Tait-Bryan angles can have some disadvantages such as introducing gimbal lock [GIMBALLOCK]. Depending on the intended application it can be useful to convert the Device Orientation values to other rotation representations.
The first alternate orientation representation uses rotation matrices. By combining the component rotation matrices provided in the worked example above we can represent the orientation of the device body frame as a combined rotation matrix.
If R represents the rotation matrix of the device in the earth frame XYZ, then since the initial body frame is aligned with the earth, R is as follows.
The above combined rotation matrix can be represented in
JavaScript as follows provided passed parameters are defined, not
null and represent absolute
values.
var degtorad = Math.PI / 180; // Degree-to-Radian conversion function getRotationMatrix( alpha, beta, gamma ) { var _x = beta ? beta * degtorad : 0; // beta value var _y = gamma ? gamma * degtorad : 0; // gamma value var _z = alpha ? alpha * degtorad : 0; // alpha value var cX = Math.cos( _x ); var cY = Math.cos( _y ); var cZ = Math.cos( _z ); var sX = Math.sin( _x ); var sY = Math.sin( _y ); var sZ = Math.sin( _z ); // // ZXY rotation matrix construction. // var m11 = cZ * cY - sZ * sX * sY; var m12 = - cX * sZ; var m13 = cY * sZ * sX + cZ * sY; var m21 = cY * sZ + cZ * sX * sY; var m22 = cZ * cX; var m23 = sZ * sY - cZ * cY * sX; var m31 = - cX * sY; var m32 = sX; var m33 = cX * cY; return [ m11, m12, m13, m21, m22, m23, m31, m32, m33 ]; };
Another alternate representation of device orientation data is as Quaternions. [QUATERNIONS]
If q represents the unit quaternion of the device in the earth frame XYZ, then since the initial body frame is aligned with the earth, q is as follows.
The above quaternion can be represented in JavaScript as follows
provided the passed parameters are defined, are
absolute
values and those parameters are not null.
var degtorad = Math.PI / 180; // Degree-to-Radian conversion function getQuaternion( alpha, beta, gamma ) { var _x = beta ? beta * degtorad : 0; // beta value var _y = gamma ? gamma * degtorad : 0; // gamma value var _z = alpha ? alpha * degtorad : 0; // alpha value var cX = Math.cos( _x/2 ); var cY = Math.cos( _y/2 ); var cZ = Math.cos( _z/2 ); var sX = Math.sin( _x/2 ); var sY = Math.sin( _y/2 ); var sZ = Math.sin( _z/2 ); // // ZXY quaternion construction. // var w = cX * cY * cZ - sX * sY * sZ; var x = sX * cY * cZ - cX * sY * sZ; var y = cX * sY * cZ + sX * cY * sZ; var z = cX * cY * sZ + sX * sY * cZ; return [ w, x, y, z ]; }
We can check that a Unit Quaternion has been constructed correctly using Lagrange's four-square theorem
as expected.
Lars Erik Bolstad, Dean Jackson, Claes Nilsson, George Percivall, Doug Turner, Matt Womer
