W3C

Web Audio API

W3C Working Draft 13 December 2012

This version:
http://www.w3.org/TR/2012/WD-webaudio-20121213/
Latest published version:
http://www.w3.org/TR/webaudio/
Previous version:
http://www.w3.org/TR/2012/WD-webaudio-20120802/
Editor:
Chris Rogers, Google <crogers@google.com>

Abstract

This specification describes a high-level JavaScript API for processing and synthesizing audio in web applications. The primary paradigm is of an audio routing graph, where a number of AudioNode objects are connected together to define the overall audio rendering. The actual processing will primarily take place in the underlying implementation (typically optimized Assembly / C / C++ code), but direct JavaScript processing and synthesis is also supported.

The introductory section covers the motivation behind this specification.

This API is designed to be used in conjunction with other APIs and elements on the web platform, notably: XMLHttpRequest (using the responseType and response attributes). For games and interactive applications, it is anticipated to be used with the canvas 2D and WebGL 3D graphics APIs.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This is the fourth public Working Draft of the Web Audio API specification. It has been produced by the W3C Audio Working Group , which is part of the W3C WebApps Activity.

Please send comments about this document to <public-audio@w3.org> (public archives of the W3C audio mailing list). Web content and browser developers are encouraged to review this draft.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1. Introduction

This section is informative.

Audio on the web has been fairly primitive up to this point and until very recently has had to be delivered through plugins such as Flash and QuickTime. The introduction of the audio element in HTML5 is very important, allowing for basic streaming audio playback. But, it is not powerful enough to handle more complex audio applications. For sophisticated web-based games or interactive applications, another solution is required. It is a goal of this specification to include the capabilities found in modern game audio engines as well as some of the mixing, processing, and filtering tasks that are found in modern desktop audio production applications.

The APIs have been designed with a wide variety of use cases in mind. Ideally, it should be able to support any use case which could reasonably be implemented with an optimized C++ engine controlled via JavaScript and run in a browser. That said, modern desktop audio software can have very advanced capabilities, some of which would be difficult or impossible to build with this system. Apple's Logic Audio is one such application which has support for external MIDI controllers, arbitrary plugin audio effects and synthesizers, highly optimized direct-to-disk audio file reading/writing, tightly integrated time-stretching, and so on. Nevertheless, the proposed system will be quite capable of supporting a large range of reasonably complex games and interactive applications, including musical ones. And it can be a very good complement to the more advanced graphics features offered by WebGL. The API has been designed so that more advanced capabilities can be added at a later time.

1.1. Features

The API supports these primary features:

1.2. Modular Routing

Modular routing allows arbitrary connections between different AudioNode objects. Each node can have inputs and/or outputs. An AudioSourceNode has no inputs and a single output. An AudioDestinationNode has one input and no outputs and represents the final destination to the audio hardware. Other nodes such as filters can be placed between the AudioSourceNode nodes and the final AudioDestinationNode node. The developer doesn't have to worry about low-level stream format details when two objects are connected together; the right thing just happens. For example, if a mono audio stream is connected to a stereo input it should just mix to left and right channels appropriately.

In the simplest case, a single source can be routed directly to the output. All routing occurs within an AudioContext containing a single AudioDestinationNode:

modular routing

Illustrating this simple routing, here's a simple example playing a single sound:

ECMAScript


var context = new AudioContext();

function playSound() {
    var source = context.createBufferSource();
    source.buffer = dogBarkingBuffer;
    source.connect(context.destination);
    source.start(0);
}

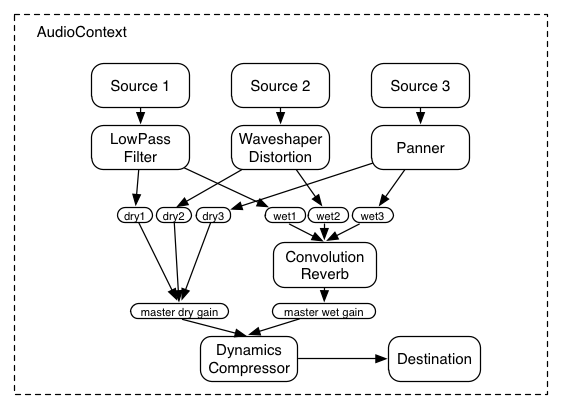

Here's a more complex example with three sources and a convolution reverb send with a dynamics compressor at the final output stage:

modular routing2
Example
ECMAScript


var context = 0;
var compressor = 0;
var reverb = 0;

var source1 = 0;
var source2 = 0;
var source3 = 0;

var lowpassFilter = 0;
var waveShaper = 0;
var panner = 0;

var dry1 = 0;
var dry2 = 0;
var dry3 = 0;

var wet1 = 0;
var wet2 = 0;
var wet3 = 0;

var masterDry = 0;
var masterWet = 0;

function setupRoutingGraph () {
    context = new AudioContext();

    // Create the effects nodes.
    lowpassFilter = context.createBiquadFilter();
    waveShaper = context.createWaveShaper();
    panner = context.createPanner();
    compressor = context.createDynamicsCompressor();
    reverb = context.createConvolver();

    // Create master wet and dry.
    masterDry = context.createGainNode();
    masterWet = context.createGainNode();

    // Connect final compressor to final destination.
    compressor.connect(context.destination);

    // Connect master dry and wet to compressor.
    masterDry.connect(compressor);
    masterWet.connect(compressor);

    // Connect reverb to master wet.
    reverb.connect(masterWet);

    // Create a few sources.
    source1 = context.createBufferSource();
    source2 = context.createBufferSource();
    source3 = context.createOscillator();

    source1.buffer = manTalkingBuffer;
    source2.buffer = footstepsBuffer;
    source3.frequency.value = 440;

    // Connect source1
    dry1 = context.createGainNode();
    wet1 = context.createGainNode();
    source1.connect(lowpassFilter);
    lowpassFilter.connect(dry1);
    lowpassFilter.connect(wet1);
    dry1.connect(masterDry);
    wet1.connect(reverb);

    // Connect source2
    dry2 = context.createGainNode();
    wet2 = context.createGainNode();
    source2.connect(waveShaper);
    waveShaper.connect(dry2);
    waveShaper.connect(wet2);
    dry2.connect(masterDry);
    wet2.connect(reverb);

    // Connect source3
    dry3 = context.createGainNode();
    wet3 = context.createGainNode();
    source3.connect(panner);
    panner.connect(dry3);
    panner.connect(wet3);
    dry3.connect(masterDry);
    wet3.connect(reverb);

    // Start the sources now.
    source1.start(0);
    source2.start(0);
    source3.start(0);
}


1.3. API Overview

The interfaces defined are:

2. Conformance

Everything in this specification is normative except for examples and sections marked as being informative.

The keywords “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “RECOMMENDED”, “MAY” and “OPTIONAL” in this document are to be interpreted as described in Key words for use in RFCs to Indicate Requirement Levels [RFC2119].

The following conformance classes are defined by this specification:

conforming implementation

A user agent is considered to be a conforming implementation if it satisfies all of the MUST-, REQUIRED- and SHALL-level criteria in this specification that apply to implementations.

3. Terminology and Algorithms

This specification includes algorithms (steps) as part of the definition of methods. Conforming implementations (referred to as "user agents" from here on) MAY use other algorithms in the implementation of these methods, provided the end result is the same.

4. The Audio API

4.1. The AudioContext Interface

This interface represents a set of AudioNode objects and their connections. It allows for arbitrary routing of signals to the AudioDestinationNode (what the user ultimately hears). Nodes are created from the context and are then connected together. In most use cases, only a single AudioContext is used per document. An AudioContext is constructed as follows:

        var context = new AudioContext();


Web IDL


callback DecodeSuccessCallback = void (AudioBuffer decodedData);
callback DecodeErrorCallback = void ();

[Constructor]
interface AudioContext {

    readonly attribute AudioDestinationNode destination;
    readonly attribute float sampleRate;
    readonly attribute double currentTime;
    readonly attribute AudioListener listener;
    readonly attribute unsigned long activeSourceCount;

    AudioBuffer createBuffer(unsigned long numberOfChannels, unsigned long length, float sampleRate);

    AudioBuffer createBuffer(ArrayBuffer buffer, boolean mixToMono);

    void decodeAudioData(ArrayBuffer audioData,
                         DecodeSuccessCallback successCallback,
                         optional DecodeErrorCallback errorCallback);


    // AudioNode creation
    AudioBufferSourceNode createBufferSource();

    MediaElementAudioSourceNode createMediaElementSource(HTMLMediaElement mediaElement);

    MediaStreamAudioSourceNode createMediaStreamSource(MediaStream mediaStream);

    ScriptProcessorNode createScriptProcessor(unsigned long bufferSize,
                                              optional unsigned long numberOfInputChannels = 2,
                                              optional unsigned long numberOfOutputChannels = 2);

    AnalyserNode createAnalyser();
    GainNode createGain();
    DelayNode createDelay(optional double maxDelayTime = 1.0);
    BiquadFilterNode createBiquadFilter();
    WaveShaperNode createWaveShaper();
    PannerNode createPanner();
    ConvolverNode createConvolver();

    ChannelSplitterNode createChannelSplitter(optional unsigned long numberOfOutputs = 6);
    ChannelMergerNode createChannelMerger(optional unsigned long numberOfInputs = 6);

    DynamicsCompressorNode createDynamicsCompressor();

    OscillatorNode createOscillator();
    WaveTable createWaveTable(Float32Array real, Float32Array imag);

};

4.1.1. Attributes

destination

An AudioDestinationNode with a single input representing the final destination for all audio (to be rendered to the audio hardware). All AudioNodes actively rendering audio will directly or indirectly connect to destination.

sampleRate

The sample rate (in sample-frames per second) at which the AudioContext handles audio. It is assumed that all AudioNodes in the context run at this rate. In making this assumption, sample-rate converters or "varispeed" processors are not supported in real-time processing.

currentTime

This is a time in seconds which starts at zero when the context is created and increases in real-time. All scheduled times are relative to it. This is not a "transport" time which can be started, paused, and re-positioned. It is always moving forward. A GarageBand-like timeline transport system can be very easily built on top of this (in JavaScript). This time corresponds to an ever-increasing hardware timestamp.

listener

An AudioListener which is used for 3D spatialization.

activeSourceCount

The number of AudioBufferSourceNodes that are currently playing.

4.1.2. Methods and Parameters

The createBuffer method

Creates an AudioBuffer of the given size. The audio data in the buffer will be zero-initialized (silent). An exception will be thrown if the numberOfChannels or sampleRate are out-of-bounds.

The numberOfChannels parameter determines how many channels the buffer will have. An implementation must support at least 32 channels.

The length parameter determines the size of the buffer in sample-frames.

The sampleRate parameter describes the sample-rate of the linear PCM audio data in the buffer in sample-frames per second. An implementation must support sample-rates in at least the range 22050 to 96000.

The createBuffer from ArrayBuffer method

Creates an AudioBuffer given the audio file data contained in the ArrayBuffer. The ArrayBuffer can, for example, be loaded from an XMLHttpRequest's response attribute after setting the responseType to "arraybuffer". Audio file data can be in any of the formats supported by the audio element.

The buffer parameter contains the audio file data (for example from a .wav file).

The mixToMono parameter determines if a mixdown to mono will be performed. Normally, this would not be set.

The following steps must be performed:

  1. Decode the encoded buffer from the AudioBuffer into linear PCM. If a decoding error is encountered due to the audio format not being recognized or supported, or because of corrupted/unexpected/inconsistent data then return NULL (and these steps will be terminated).
  2. If mixToMono is true, then mixdown the decoded linear PCM data to mono.
  3. Take the decoded (possibly mixed-down) linear PCM audio data, and resample it to the sample-rate of the AudioContext if it is different from the sample-rate of buffer. The final result will be stored in an AudioBuffer and returned as the result of this method.
The decodeAudioData method

Asynchronously decodes the audio file data contained in the ArrayBuffer. The ArrayBuffer can, for example, be loaded from an XMLHttpRequest's response attribute after setting the responseType to "arraybuffer". Audio file data can be in any of the formats supported by the audio element.

The decodeAudioData() method is preferred over the createBuffer() from ArrayBuffer method because it is asynchronous and does not block the main JavaScript thread.

audioData is an ArrayBuffer containing audio file data.

successCallback is a callback function which will be invoked when the decoding is finished. The single argument to this callback is an AudioBuffer representing the decoded PCM audio data.

errorCallback is a callback function which will be invoked if there is an error decoding the audio file data.

The following steps must be performed:

  1. Temporarily neuter the audioData ArrayBuffer in such a way that JavaScript code may not access or modify the data.
  2. Queue a decoding operation to be performed on another thread.
  3. The decoding thread will attempt to decode the encoded audioData into linear PCM. If a decoding error is encountered due to the audio format not being recognized or supported, or because of corrupted/unexpected/inconsistent data then the audioData neutered state will be restored to normal and the errorCallback will be scheduled to run on the main thread's event loop and these steps will be terminated.
  4. The decoding thread will take the result, representing the decoded linear PCM audio data, and resample it to the sample-rate of the AudioContext if it is different from the sample-rate of audioData. The final result (after possibly sample-rate converting) will be stored in an AudioBuffer.
  5. The audioData neutered state will be restored to normal
  6. The successCallback function will be scheduled to run on the main thread's event loop given the AudioBuffer from step (4) as an argument.
The createBufferSource method

Creates an AudioBufferSourceNode.

The createMediaElementSource method

Creates a MediaElementAudioSourceNode given an HTMLMediaElement. As a consequence of calling this method, audio playback from the HTMLMediaElement will be re-routed into the processing graph of the AudioContext.

The createMediaStreamSource method

Creates a MediaStreamAudioSourceNode given a MediaStream. As a consequence of calling this method, audio playback from the MediaStream will be re-routed into the processing graph of the AudioContext.

The createScriptProcessor method (please see the deprecation section about name change)

Creates a ScriptProcessorNode for direct audio processing using JavaScript. An exception will be thrown if bufferSize or numberOfInputChannels or numberOfOutputChannels are outside the valid range.

The bufferSize parameter determines the buffer size in units of sample-frames. It must be one of the following values: 256, 512, 1024, 2048, 4096, 8192, 16384. This value controls how frequently the onaudioprocess event handler is called and how many sample-frames need to be processed each call. Lower values for bufferSize will result in a lower (better) latency. Higher values will be necessary to avoid audio breakup and glitches. The value chosen must carefully balance between latency and audio quality.

The numberOfInputChannels parameter (defaults to 2) and determines the number of channels for this node's input. Values of up to 32 must be supported.

The numberOfOutputChannels parameter (defaults to 2) and determines the number of channels for this node's output. Values of up to 32 must be supported.

It is invalid for both numberOfInputChannels and numberOfOutputChannels to be zero.

The createAnalyser method

Creates a AnalyserNode.

The createGain method (please see the deprecation section about name change)

Creates a GainNode.

The createDelay method (please see the deprecation section about name change)

Creates a DelayNode representing a variable delay line. The initial default delay time will be 0 seconds.

The maxDelayTime parameter is optional and specifies the maximum delay time in seconds allowed for the delay line. If specified, this value must be greater than zero and less than three minutes or a NOT_SUPPORTED_ERR exception will be thrown.

The createBiquadFilter method

Creates a BiquadFilterNode representing a second order filter which can be configured as one of several common filter types.

The createWaveShaper method

Creates a WaveShaperNode representing a non-linear distortion.

The createPanner method

Creates an PannerNode.

The createConvolver method

Creates a ConvolverNode.

The createChannelSplitter method

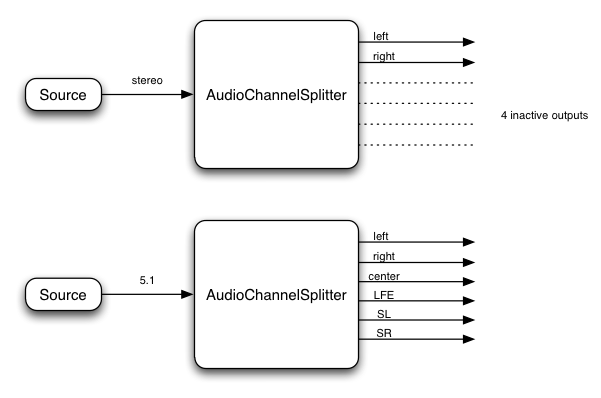

Creates an ChannelSplitterNode representing a channel splitter. An exception will be thrown for invalid parameter values.

The numberOfOutputs parameter determines the number of outputs. Values of up to 32 must be supported. If not specified, then 6 will be used.

The createChannelMerger method

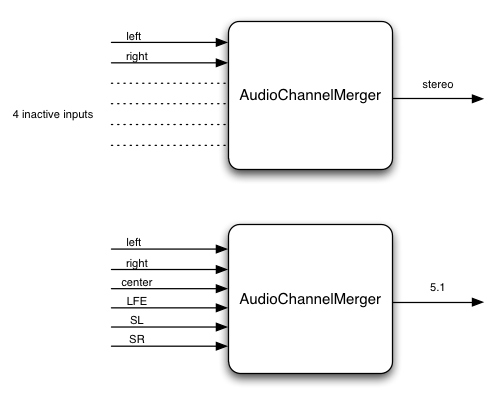

Creates an ChannelMergerNode representing a channel merger. An exception will be thrown for invalid parameter values.

The numberOfInputs parameter determines the number of inputs. Values of up to 32 must be supported. If not specified, then 6 will be used.

The createDynamicsCompressor method

Creates a DynamicsCompressorNode.

The createOscillator method

Creates an OscillatorNode.

The createWaveTable method

Creates a WaveTable representing a waveform containing arbitrary harmonic content. The real and imag parameters must be of type Float32Array of equal lengths greater than zero and less than or equal to 4096 or an exception will be thrown. These parameters specify the Fourier coefficients of a Fourier series representing the partials of a periodic waveform. The created WaveTable will be used with an OscillatorNode and will represent a normalized time-domain waveform having maximum absolute peak value of 1. Another way of saying this is that the generated waveform of an OscillatorNode will have maximum peak value at 0dBFS. Conveniently, this corresponds to the full-range of the signal values used by the Web Audio API. Because the WaveTable will be normalized on creation, the real and imag parameters represent relative values.

The real parameter represents an array of cosine terms (traditionally the A terms). In audio terminology, the first element (index 0) is the DC-offset of the periodic waveform and is usually set to zero. The second element (index 1) represents the fundamental frequency. The third element represents the first overtone, and so on.

The imag parameter represents an array of sine terms (traditionally the B terms). The first element (index 0) should be set to zero (and will be ignored) since this term does not exist in the Fourier series. The second element (index 1) represents the fundamental frequency. The third element represents the first overtone, and so on.

4.1.3. Lifetime

Once created, an AudioContext will not be garbage collected. It will live until the document goes away.

4.1b. The OfflineAudioContext Interface

OfflineAudioContext is a particular type of AudioContext for rendering/mixing-down (potentially) faster than real-time. It does not render to the audio hardware, but instead renders as quickly as possible, calling a render callback function upon completion with the result provided as an AudioBuffer. It is constructed by specifying the numberOfChannels, length, and sampleRate as follows:

var offlineContext = new OfflineAudioContext(unsigned long numberOfChannels, unsigned long length, float sampleRate);

Web IDL

callback OfflineRenderSuccessCallback = void (AudioBuffer renderedData);

[Constructor]
interface OfflineAudioContext : AudioContext {

    void startRendering();

    attribute OfflineRenderSuccessCallback oncomplete;

};

4.2. The AudioNode Interface

AudioNodes are the building blocks of an AudioContext. This interface represents audio sources, the audio destination, and intermediate processing modules. These modules can be connected together to form processing graphs for rendering audio to the audio hardware. Each node can have inputs and/or outputs. An AudioSourceNode has no inputs and a single output. An AudioDestinationNode has one input and no outputs and represents the final destination to the audio hardware. Most processing nodes such as filters will have one input and one output. Each type of AudioNode differs in the details of how it processes or synthesizes audio. But, in general, AudioNodes will process its inputs (if it has any), and generate audio for its outputs (if it has any).

An output may connect to one or more AudioNode inputs, thus fanout is supported. An input may be connected from one or more AudioNode outputs, thus fanin is supported.

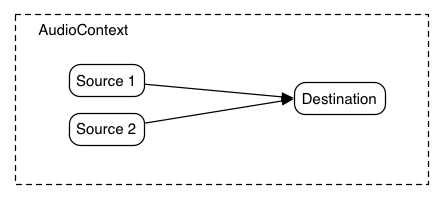

In order to handle this fanin, any AudioNode with inputs performs an up-mixing of all connections for each input:

  1. Calculate N: the maximum number of channels of all the connections to the input. For example, if an input has a mono connection and a stereo connection then this number will be 2.
  2. For each connection to the input, up-mix to N channels.
  3. Mix together all the up-mixed streams from (2). This is a straight-forward mixing together of each of the corresponding channels from each connection.

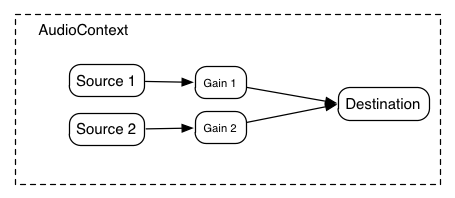

Please see Mixer Gain Structure for more informative details.

For performance reasons, practical implementations will need to use block processing, with each AudioNode processing a fixed number of sample-frames of size block-size. In order to get uniform behavior across implementations, we will define this value explicitly. block-size is defined to be 128 sample-frames which corresponds to roughly 3ms at a sample-rate of 44.1KHz.

Web IDL


interface AudioNode {

    void connect(AudioNode destination, optional unsigned long output = 0, optional unsigned long input = 0);
    void connect(AudioParam destination, optional unsigned long output = 0);
    void disconnect(optional unsigned long output = 0);

    readonly attribute AudioContext context;
    readonly attribute unsigned long numberOfInputs;
    readonly attribute unsigned long numberOfOutputs;

};

4.2.1. Attributes

context

The AudioContext which owns this AudioNode.

numberOfInputs

The number of inputs feeding into the AudioNode. This will be 0 for an AudioSourceNode.

numberOfOutputs

The number of outputs coming out of the AudioNode. This will be 0 for an AudioDestinationNode.

4.2.2. Methods and Parameters

The connect to AudioNode method

Connects the AudioNode to another AudioNode.

The destination parameter is the AudioNode to connect to.

The output parameter is an index describing which output of the AudioNode from which to connect. An out-of-bound value throws an exception.

The input parameter is an index describing which input of the destination AudioNode to connect to. An out-of-bound value throws an exception.

It is possible to connect an AudioNode output to more than one input with multiple calls to connect(). Thus, "fanout" is supported.

It is possible to connect an AudioNode to another AudioNode which creates a cycle. In other words, an AudioNode may connect to another AudioNode, which in turn connects back to the first AudioNode. This is allowed only if there is at least one DelayNode in the cycle or an exception will be thrown.

There can only be one connection between a given output of one specific node and a given input of another specific node. Multiple connections with the same termini are ignored. For example:

      nodeA.connect(nodeB);
      nodeA.connect(nodeB);

      will have the same effect as

      nodeA.connect(nodeB);

The connect to AudioParam method

Connects the AudioNode to an AudioParam, controlling the parameter value with an audio-rate signal.

The destination parameter is the AudioParam to connect to.

The output parameter is an index describing which output of the AudioNode from which to connect. An out-of-bound value throws an exception.

It is possible to connect an AudioNode output to more than one AudioParam with multiple calls to connect(). Thus, "fanout" is supported.

It is possible to connect more than one AudioNode output to a single AudioParam with multiple calls to connect(). Thus, "fanin" is supported.

An AudioParam will take the rendered audio data from any AudioNode output connected to it and convert it to mono by down-mixing if it is not already mono, then mix it together with other such outputs and finally will mix with the intrinsic parameter value (the value the AudioParam would normally have without any audio connections), including any timeline changes scheduled for the parameter.

There can only be one connection between a given output of one specific node and a specific AudioParam. Multiple connections with the same termini are ignored. For example:

      nodeA.connect(param);
      nodeA.connect(param);

      will have the same effect as

      nodeA.connect(param);

The disconnect method

Disconnects an AudioNode's output.

The output parameter is an index describing which output of the AudioNode to disconnect. An out-of-bound value throws an exception.

4.2.3. Lifetime

An AudioNode will live as long as there are any references to it. There are several types of references:

  1. A normal JavaScript reference obeying normal garbage collection rules.
  2. A playing reference for an AudioSourceNode. Please see details for each specific AudioSourceNode sub-type. For example, both AudioBufferSourceNodes and OscillatorNodes maintain a playing reference to themselves while they are in the SCHEDULED_STATE or PLAYING_STATE.
  3. A connection reference which occurs if another AudioNode is connected to it.
  4. A tail-time reference which an AudioNode maintains on itself as long as it has any internal processing state which has not yet been emitted. For example, a ConvolverNode has a tail which continues to play even after receiving silent input (think about clapping your hands in a large concert hall and continuing to hear the sound reverberate throughout the hall). Some AudioNodes have this property. Please see details for specific nodes.

Any AudioNodes which are connected in a cycle and are directly or indirectly connected to the AudioDestinationNode of the AudioContext will stay alive as long as the AudioContext is alive.

When an AudioNode has no references it will be deleted. But before it is deleted, the implementation must disconnect the node from any other AudioNodes which it is connected to. In this way it releases all connection references (3) it has to other nodes.

Regardless of any of the above references, an AudioNode will be deleted when its AudioContext is deleted.

4.3. The AudioSourceNode Interface

This is an abstract interface representing an audio source, an AudioNode which has no inputs and a single output:

      numberOfInputs  : 0
      numberOfOutputs : 1


Subclasses of AudioSourceNode will implement specific types of audio sources.

Web IDL


interface AudioSourceNode : AudioNode {

};

4.4. The AudioDestinationNode Interface

This is an AudioNode representing the final audio destination and is what the user will ultimately hear. It can be considered as an audio output device which is connected to speakers. All rendered audio to be heard will be routed to this node, a "terminal" node in the AudioContext's routing graph. There is only a single AudioDestinationNode per AudioContext, provided through the destination attribute of AudioContext.

      numberOfInputs  : 1
      numberOfOutputs : 0

Web IDL


interface AudioDestinationNode : AudioNode {

    readonly attribute unsigned long maxNumberOfChannels;
    attribute unsigned long numberOfChannels;

};

4.4.1. Attributes

maxNumberOfChannels

The maximum number of channels that the numberOfChannels attribute can be set to. An AudioDestinationNode representing the audio hardware end-point (the normal case) can potentially output more than 2 channels of audio if the audio hardware is multi-channel. maxNumberOfChannels is the maximum number of channels that this hardware is capable of supporting. If this value is 0, then this indicates that maxNumberOfChannels may not be changed. This will be the case for an AudioDestinationNode in an OfflineAudioContext.

numberOfChannels

The number of channels of the destination's input. This value will default to 2, and may be set to any non-zero value less than or equal to maxNumberOfChannels. An exception will be thrown if this value is not within the valid range. Giving a concrete example, if the audio hardware supports 8-channel output, then we may set numberOfChannels to 8, and render 8-channels of output.

4.5. The AudioParam Interface

AudioParam controls an individual aspect of an AudioNode's functioning, such as volume. The parameter can be set immediately to a particular value using the "value" attribute. Or, value changes can be scheduled to happen at very precise times (in the coordinate system of AudioContext.currentTime), for envelopes, volume fades, LFOs, filter sweeps, grain windows, etc. In this way, arbitrary timeline-based automation curves can be set on any AudioParam. Additionally, audio signals from the outputs of AudioNodes can be connected to an AudioParam, summing with the intrinsic parameter value.

Some synthesis and processing AudioNodes have AudioParams as attributes whose values must be taken into account on a per-audio-sample basis. For other AudioParams, sample-accuracy is not important and the value changes can be sampled more coarsely. Each individual AudioParam will specify that it is either an a-rate parameter which means that its values must be taken into account on a per-audio-sample basis, or it is a k-rate parameter.

Implementations must use block processing, with each AudioNode processing 128 sample-frames in each block.

For each 128 sample-frame block, the value of a k-rate parameter must be sampled at the time of the very first sample-frame, and that value must be used for the entire block. a-rate parameters must be sampled for each sample-frame of the block.

Web IDL


interface AudioParam {

    attribute float value;
    readonly attribute float computedValue;
    readonly attribute float minValue;
    readonly attribute float maxValue;
    readonly attribute float defaultValue;

    // Parameter automation.
    void setValueAtTime(float value, double startTime);
    void linearRampToValueAtTime(float value, double endTime);
    void exponentialRampToValueAtTime(float value, double endTime);

    // Exponentially approach the target value with a rate having the given time constant.
    void setTargetAtTime(float target, double startTime, double timeConstant);

    // Sets an array of arbitrary parameter values starting at time for the given duration.
    // The number of values will be scaled to fit into the desired duration.
    void setValueCurveAtTime(Float32Array values, double startTime, double duration);

    // Cancels all scheduled parameter changes with times greater than or equal to startTime.
    void cancelScheduledValues(double startTime);

};

4.5.1. Attributes

value

The parameter's floating-point value. This attribute is initialized to the defaultValue. If a value is set outside the allowable range described by minValue and maxValue no exception is thrown, because these limits are just nominal and may be exceeded. If a value is set during a time when there are any automation events scheduled then it will be ignored and no exception will be thrown.

computedValue

The final value controlling the audio DSP is calculated as follows:

  1. An intrinsic parameter value will be calculated at each time, which is either the value set directly to the .value attribute, or, if there are any scheduled parameter changes (automation events) with times before or at this time, the value as calculated from these events. If the .value attribute is set after any automation events have been scheduled, then these events will be removed. When read, the .value attribute always returns the intrinsic value for the current time. If automation events are removed from a given time range, then the intrinsic value will remain unchanged and stay at its previous value until either the .value attribute is directly set, or automation events are added for the time range.
  2. An AudioParam will take the rendered audio data from any AudioNode output connected to it and convert it to mono by down-mixing if it is not already mono, then mix it together with other such outputs. If there are no AudioNodes connected to it, then this value is 0, having no effect on the computedValue.
  3. The computedValue is the sum of the intrinsic value and the value calculated from (2).

The computedValue is constantly being updated by the audio rendering thread at each rendering time quantum. Thus when the main JavaScript thread reads this value, then it will reflect the latest computed value. This will mean that reading computedValue twice in a row will potentially return different results if the audio thread's computations have changed the computed value of an AudioParam. This is similar to how calling performance.now() will return an different up-to-date high-resolution time if called two times in a row.

minValue

Nominal minimum value. This attribute is informational and value may be set lower than this value.

maxValue

Nominal maximum value. This attribute is informational and value may be set higher than this value.

defaultValue

Initial value for the value attribute

4.5.2. Methods and Parameters

An AudioParam maintains a time-ordered event list which is initially empty. The times are in the time coordinate system of AudioContext.currentTime. The events define a mapping from time to value. The following methods can change the event list by adding a new event into the list of a type specific to the method. Each event has a time associated with it, and the events will always be kept in time-order in the list. These methods will be called automation methods:

  • setValueAtTime() - SetValue
  • linearRampToValueAtTime() - LinearRampToValue
  • exponentialRampToValueAtTime() - ExponentialRampToValue
  • setTargetAtTime() - SetTarget
  • setValueCurveAtTime() - SetValueCurve

The following rules will apply when calling these methods:

  • If one of these events is added at a time where there is already an event of the exact same type, then the new event will replace the old one.
  • If one of these events is added at a time where there is already one or more events of a different type, then it will be placed in the list after them, but before events whose times are after the event.
  • If setValueCurveAtTime() is called for time T and duration D and there are any events having a time greater than T, but less than T + D, then an exception will be thrown. In other words, it's not ok to schedule a value curve during a time period containing other events.
  • Similarly an exception will be thrown if any automation method is called at a time which is inside of the time interval of a SetValueCurve event at time T and duration D.

The setValueAtTime method

Schedules a parameter value change at the given time.

The value parameter is the value the parameter will change to at the given time.

The startTime parameter is the time in the same time coordinate system as AudioContext.currentTime.

If there are no more events after this SetValue event, then for t >= startTime, v(t) = value. In other words, the value will remain constant.

If the next event (having time T1) after this SetValue event is not of type LinearRampToValue or ExponentialRampToValue, then, for t: startTime <= t < T1, v(t) = value. In other words, the value will remain constant during this time interval, allowing the creation of "step" functions.

If the next event after this SetValue event is of type LinearRampToValue or ExponentialRampToValue then please see details below.

The linearRampToValueAtTime method

Schedules a linear continuous change in parameter value from the previous scheduled parameter value to the given value.

The value parameter is the value the parameter will linearly ramp to at the given time.

The endTime parameter is the time in the same time coordinate system as AudioContext.currentTime.

The value during the time interval T0 <= t < T1 (where T0 is the time of the previous event and T1 is the endTime parameter passed into this method) will be calculated as:

      v(t) = V0 + (V1 - V0) * ((t - T0) / (T1 - T0))


Where V0 is the value at the time T0 and V1 is the value parameter passed into this method.

If there are no more events after this LinearRampToValue event then for t >= T1, v(t) = V1

The exponentialRampToValueAtTime method

Schedules an exponential continuous change in parameter value from the previous scheduled parameter value to the given value. Parameters representing filter frequencies and playback rate are best changed exponentially because of the way humans perceive sound.

The value parameter is the value the parameter will exponentially ramp to at the given time. An exception will be thrown if this value is less than or equal to 0, or if the value at the time of the previous event is less than or equal to 0.

The endTime parameter is the time in the same time coordinate system as AudioContext.currentTime.

The value during the time interval T0 <= t < T1 (where T0 is the time of the previous event and T1 is the endTime parameter passed into this method) will be calculated as:

      v(t) = V0 * (V1 / V0) ^ ((t - T0) / (T1 - T0))


Where V0 is the value at the time T0 and V1 is the value parameter passed into this method.

If there are no more events after this ExponentialRampToValue event then for t >= T1, v(t) = V1

The setTargetAtTime method (please see the deprecation section about name change)

Start exponentially approaching the target value at the given time with a rate having the given time constant. Among other uses, this is useful for implementing the "decay" and "release" portions of an ADSR envelope. Please note that the parameter value does not immediately change to the target value at the given time, but instead gradually changes to the target value.

The target parameter is the value the parameter will start changing to at the given time.

The startTime parameter is the time in the same time coordinate system as AudioContext.currentTime.

The timeConstant parameter is the time-constant value of first-order filter (exponential) approach to the target value. The larger this value is, the slower the transition will be.

More precisely, timeConstant is the time it takes a first-order linear continuous time-invariant system to reach the value 1 - 1/e (around 63.2%) given a step input response (transition from 0 to 1 value).

During the time interval: T0 <= t < T1, where T0 is the startTime parameter and T1 represents the time of the event following this event (or infinity if there are no following events):

      v(t) = V1 + (V0 - V1) * exp(-(t - T0) / timeConstant)


Where V0 is the initial value (the .value attribute) at T0 (the startTime parameter) and V1 is equal to the target parameter.

The setValueCurveAtTime method

Sets an array of arbitrary parameter values starting at the given time for the given duration. The number of values will be scaled to fit into the desired duration.

The values parameter is a Float32Array representing a parameter value curve. These values will apply starting at the given time and lasting for the given duration.

The startTime parameter is the time in the same time coordinate system as AudioContext.currentTime.

The duration parameter is the amount of time in seconds (after the time parameter) where values will be calculated according to the values parameter..

During the time interval: startTime <= t < startTime + duration, values will be calculated:

      v(t) = values[N * (t - startTime) / duration], where N is the length of the values array.


After the end of the curve time interval (t >= startTime + duration), the value will remain constant at the final curve value, until there is another automation event (if any).

The cancelScheduledValues method

Cancels all scheduled parameter changes with times greater than or equal to startTime.

The startTime parameter is the starting time at and after which any previously scheduled parameter changes will be cancelled. It is a time in the same time coordinate system as AudioContext.currentTime.

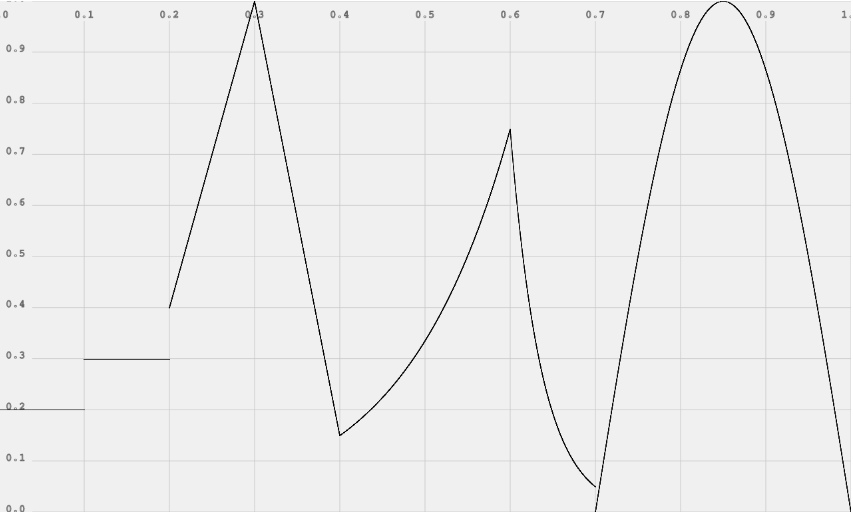

4.5.3. AudioParam Automation Example

Example
AudioParam automation
ECMAScript

var t0 = 0;
var t1 = 0.1;
var t2 = 0.2;
var t3 = 0.3;
var t4 = 0.4;
var t5 = 0.6;
var t6 = 0.7;
var t7 = 1.0;

var curveLength = 44100;
var curve = new Float32Array(curveLength);
for (var i = 0; i < curveLength; ++i)
    curve[i] = Math.sin(Math.PI * i / curveLength);

param.setValueAtTime(0.2, t0);
param.setValueAtTime(0.3, t1);
param.setValueAtTime(0.4, t2);
param.linearRampToValueAtTime(1, t3);
param.linearRampToValueAtTime(0.15, t4);
param.exponentialRampToValueAtTime(0.75, t5);
param.exponentialRampToValueAtTime(0.05, t6);
param.setValueCurveAtTime(curve, t6, t7 - t6);

4.7. The GainNode Interface

Changing the gain of an audio signal is a fundamental operation in audio applications. The GainNode is one of the building blocks for creating mixers. This interface is an AudioNode with a single input and single output:

    numberOfInputs  : 1
    numberOfOutputs : 1


which multiplies the input audio signal by the (possibly time-varying) gain attribute, copying the result to the output. By default, it will take the input and pass it through to the output unchanged, which represents a constant gain change of 1.

As with other AudioParams, the gain parameter represents a mapping from time (in the coordinate system of AudioContext.currentTime) to floating-point value. Every PCM audio sample in the input is multiplied by the gain parameter's value for the specific time corresponding to that audio sample. This multiplied value represents the PCM audio sample for the output.

The number of channels of the output will always equal the number of channels of the input, with each channel of the input being multiplied by the gain values and being copied into the corresponding channel of the output.

The implementation must make gain changes to the audio stream smoothly, without introducing noticeable clicks or glitches. This process is called "de-zippering".

Web IDL


interface GainNode : AudioNode {

    readonly attribute AudioParam gain;

};

4.7.1. Attributes

gain

Represents the amount of gain to apply. Its default value is 1 (no gain change). The nominal minValue is 0, but may be set negative for phase inversion. The nominal maxValue is 1, but higher values are allowed (no exception thrown).This parameter is a-rate

4.8. The DelayNode Interface

A delay-line is a fundamental building block in audio applications. This interface is an AudioNode with a single input and single output:

    numberOfInputs  : 1
    numberOfOutputs : 1


which delays the incoming audio signal by a certain amount. The default amount is 0 seconds (no delay). When the delay time is changed, the implementation must make the transition smoothly, without introducing noticeable clicks or glitches to the audio stream.

Web IDL


interface DelayNode : AudioNode {

    readonly attribute AudioParam delayTime;

};

4.8.1. Attributes

delayTime

An AudioParam object representing the amount of delay (in seconds) to apply. The default value (delayTime.value) is 0 (no delay). The minimum value is 0 and the maximum value is determined by the maxDelayTime argument to the AudioContext method createDelay. This parameter is k-rate

4.9. The AudioBuffer Interface

This interface represents a memory-resident audio asset (for one-shot sounds and other short audio clips). Its format is non-interleaved IEEE 32-bit linear PCM with a nominal range of -1 -> +1. It can contain one or more channels. It is analogous to a WebGL texture. Typically, it would be expected that the length of the PCM data would be fairly short (usually somewhat less than a minute). For longer sounds, such as music soundtracks, streaming should be used with the audio element and MediaElementAudioSourceNode.

An AudioBuffer may be used by one or more AudioContexts.

Web IDL


interface AudioBuffer {

    readonly attribute float sampleRate;
    readonly attribute long length;

    // in seconds
    readonly attribute double duration;

    readonly attribute long numberOfChannels;

    Float32Array getChannelData(unsigned long channel);

};

4.9.1. Attributes

sampleRate

The sample-rate for the PCM audio data in samples per second.

length

Length of the PCM audio data in sample-frames.

duration

Duration of the PCM audio data in seconds.

numberOfChannels

The number of discrete audio channels.

4.9.2. Methods and Parameters

The getChannelData method

Returns the Float32Array representing the PCM audio data for the specific channel.

The channel parameter is an index representing the particular channel to get data for. An index value of 0 represents the first channel. This index value MUST be less than numberOfChannels or an exception will be thrown.

4.10. The AudioBufferSourceNode Interface

This interface represents an audio source from an in-memory audio asset in an AudioBuffer. It generally will be used for short audio assets which require a high degree of scheduling flexibility (can playback in rhythmically perfect ways). The playback state of an AudioBufferSourceNode goes through distinct stages during its lifetime in this order: UNSCHEDULED_STATE, SCHEDULED_STATE, PLAYING_STATE, FINISHED_STATE. The start() method causes a transition from the UNSCHEDULED_STATE to SCHEDULED_STATE. Depending on the time argument passed to start(), a transition is made from the SCHEDULED_STATE to PLAYING_STATE, at which time sound is first generated. Following this, a transition from the PLAYING_STATE to FINISHED_STATE happens when either the buffer's audio data has been completely played (if the loop attribute is false), or when the stop() method has been called and the specified time has been reached. Please see more details in the start() and stop() description. Once an AudioBufferSourceNode has reached the FINISHED state it will no longer emit any sound. Thus start() and stop() may not be issued multiple times for a given AudioBufferSourceNode.

    numberOfInputs  : 0
    numberOfOutputs : 1

Web IDL


interface AudioBufferSourceNode : AudioSourceNode {

    const unsigned short UNSCHEDULED_STATE = 0;
    const unsigned short SCHEDULED_STATE = 1;
    const unsigned short PLAYING_STATE = 2;
    const unsigned short FINISHED_STATE = 3;

    readonly attribute unsigned short playbackState;

    attribute AudioBuffer? buffer;

    attribute AudioParam playbackRate;

    attribute boolean loop;
    attribute double loopStart;
    attribute double loopEnd;

    void start(double when, optional double offset = 0, optional double duration);
    void stop(double when);

};

4.10.1. Attributes

playbackState

The playback state, initialized to UNSCHEDULED_STATE.

buffer

Represents the audio asset to be played.

playbackRate

The speed at which to render the audio stream. The default playbackRate.value is 1. This parameter is a-rate

loop

Indicates if the audio data should play in a loop. The default value is false.

loopStart

An optional value in seconds where looping should begin if the loop attribute is true. Its default value is 0, and it may usefully be set to any value between 0 and the duration of the buffer.

loopEnd

An optional value in seconds where looping should end if the loop attribute is true. Its default value is 0, and it may usefully be set to any value between 0 and the duration of the buffer.

4.10.2. Methods and Parameters

The start method (please see the deprecation section about name change)

Schedules a sound to playback at an exact time.

The when parameter describes at what time (in seconds) the sound should start playing. It is in the same time coordinate system as AudioContext.currentTime. If 0 is passed in for this value or if the value is less than currentTime, then the sound will start playing immediately. start may only be called one time and must be called before stop is called or an exception will be thrown.

The offset parameter describes the offset time in the buffer (in seconds) where playback will begin. This parameter is optional with a default value of 0 (playing back from the beginning of the buffer).

The duration parameter describes the duration of the portion (in seconds) to be played. This parameter is optional, with the default value equal to the total duration of the AudioBuffer minus the offset parameter. Thus if neither offset nor duration are specified then the implied duration is the total duration of the AudioBuffer.

The stop method (please see the deprecation section about name change)

Schedules a sound to stop playback at an exact time. Please see deprecation section for the old method name.

The when parameter describes at what time (in seconds) the sound should stop playing. It is in the same time coordinate system as AudioContext.currentTime. If 0 is passed in for this value or if the value is less than currentTime, then the sound will stop playing immediately. stop must only be called one time and only after a call to start or stop, or an exception will be thrown.

4.10.3. Looping

If the loop attribute is true when start() is called, then playback will continue indefinitely until stop() is called and the stop time is reached. We'll call this "loop" mode. Playback always starts at the point in the buffer indicated by the offset argument of start(), and in loop mode will continue playing until it reaches the actualLoopEnd position in the buffer (or the end of the buffer), at which point it will wrap back around to the actualLoopStart position in the buffer, and continue playing according to this pattern.

In loop mode then the actual loop points are calculated as follows from the loopStart and loopEnd attributes:

    if ((loopStart || loopEnd) && loopStart >= 0 && loopEnd > 0 && loopStart < loopEnd) {
        actualLoopStart = loopStart;
        actualLoopEnd = min(loopEnd, buffer.length);
    } else {
        actualLoopStart = 0;
        actualLoopEnd = buffer.length;
    }

Note that the default values for loopStart and loopEnd are both 0, which indicates that looping should occur from the very start to the very end of the buffer.

Please note that as a low-level implementation detail, the AudioBuffer is at a specific sample-rate (usually the same as the AudioContext sample-rate), and that the loop times (in seconds) must be converted to the appropriate sample-frame positions in the buffer according to this sample-rate.

4.11. The MediaElementAudioSourceNode Interface

This interface represents an audio source from an audio or video element.

    numberOfInputs  : 0
    numberOfOutputs : 1

Web IDL


interface MediaElementAudioSourceNode : AudioSourceNode {

};

A MediaElementAudioSourceNode is created given an HTMLMediaElement using the AudioContext createMediaElementSource() method.

The number of channels of the single output equals the number of channels of the audio referenced by the HTMLMediaElement passed in as the argument to createMediaElementSource(), or is 1 if the HTMLMediaElement has no audio.

The HTMLMediaElement must behave in an identical fashion after the MediaElementAudioSourceNode has been created, except that the rendered audio will no longer be heard directly, but instead will be heard as a consequence of the MediaElementAudioSourceNode being connected through the routing graph. Thus pausing, seeking, volume, .src attribute changes, and other aspects of the HTMLMediaElement must behave as they normally would if not used with a MediaElementAudioSourceNode.

Example
ECMAScript

var mediaElement = document.getElementById('mediaElementID');
var sourceNode = context.createMediaElementSource(mediaElement);
sourceNode.connect(filterNode);


4.12. The ScriptProcessorNode Interface

This interface is an AudioNode which can generate, process, or analyse audio directly using JavaScript.

    numberOfInputs  : 1
    numberOfOutputs : 1


The ScriptProcessorNode is constructed with a bufferSize which must be one of the following values: 256, 512, 1024, 2048, 4096, 8192, 16384. This value controls how frequently the onaudioprocess event handler is called and how many sample-frames need to be processed each call. Lower numbers for bufferSize will result in a lower (better) latency. Higher numbers will be necessary to avoid audio breakup and glitches. The value chosen must carefully balance between latency and audio quality.

numberOfInputChannels and numberOfOutputChannels determine the number of input and output channels. It is invalid for both numberOfInputChannels and numberOfOutputChannels to be zero.

    var node = context.createScriptProcessor(bufferSize, numberOfInputChannels, numberOfOutputChannels);

Web IDL


interface ScriptProcessorNode : AudioNode {

    attribute EventListener onaudioprocess;

    readonly attribute long bufferSize;

};

4.12.1. Attributes

onaudioprocess

An event listener which is called periodically for audio processing. An event of type AudioProcessingEvent will be passed to the event handler.

bufferSize

The size of the buffer (in sample-frames) which needs to be processed each time onprocessaudio is called. Legal values are (256, 512, 1024, 2048, 4096, 8192, 16384).

4.13. The AudioProcessingEvent Interface

This interface is a type of Event which is passed to the onaudioprocess event handler used by ScriptProcessorNode.

The event handler processes audio from the input (if any) by accessing the audio data from the inputBuffer attribute. The audio data which is the result of the processing (or the synthesized data if there are no inputs) is then placed into the outputBuffer.

Web IDL


interface AudioProcessingEvent : Event {

    attribute ScriptProcessorNode node;
    readonly attribute double playbackTime;
    readonly attribute AudioBuffer inputBuffer;
    readonly attribute AudioBuffer outputBuffer;

};

4.13.1. Attributes

node

The ScriptProcessorNode associated with this processing event.

playbackTime

The time when the audio will be played in the same time coordinate system as AudioContext.currentTime. playbackTime allows for very tight synchronization between processing directly in JavaScript with the other events in the context's rendering graph.

inputBuffer

An AudioBuffer containing the input audio data. It will have a number of channels equal to the numberOfInputChannels parameter of the createScriptProcessor() method. This AudioBuffer is only valid while in the scope of the onaudioprocess function. Its values will be meaningless outside of this scope.

outputBuffer

An AudioBuffer where the output audio data should be written. It will have a number of channels equal to the numberOfOutputChannels parameter of the createScriptProcessor() method. Script code within the scope of the onaudioprocess function is expected to modify the Float32Array arrays representing channel data in this AudioBuffer. Any script modifications to this AudioBuffer outside of this scope will not produce any audible effects.

4.14. The PannerNode Interface

This interface represents a processing node which positions / spatializes an incoming audio stream in three-dimensional space. The spatialization is in relation to the AudioContext's AudioListener (listener attribute).

    numberOfInputs  : 1
    numberOfOutputs : 1

The audio stream from the input will be either mono or stereo, depending on the connection(s) to the input.

The output of this node is hard-coded to stereo (2 channels) and currently cannot be configured.

Web IDL


enum PanningModelType {
  "equalpower",
  "HRTF",
  "soundfield"
}

enum DistanceModelType {
  "linear",
  "inverse",
  "exponential"
}

interface PannerNode : AudioNode {

    // Default for stereo is HRTF
    attribute PanningModelType panningModel;

    // Uses a 3D cartesian coordinate system
    void setPosition(float x, float y, float z);
    void setOrientation(float x, float y, float z);
    void setVelocity(float x, float y, float z);

    // Distance model and attributes
    attribute DistanceModelType distanceModel;
    attribute float refDistance;
    attribute float maxDistance;
    attribute float rolloffFactor;

    // Directional sound cone
    attribute float coneInnerAngle;
    attribute float coneOuterAngle;
    attribute float coneOuterGain;

};

4.14.2. Attributes

panningModel

Determines which spatialization algorithm will be used to position the audio in 3D space. The default is "HRTF".

"equalpower"

A simple and efficient spatialization algorithm using equal-power panning.

"HRTF"

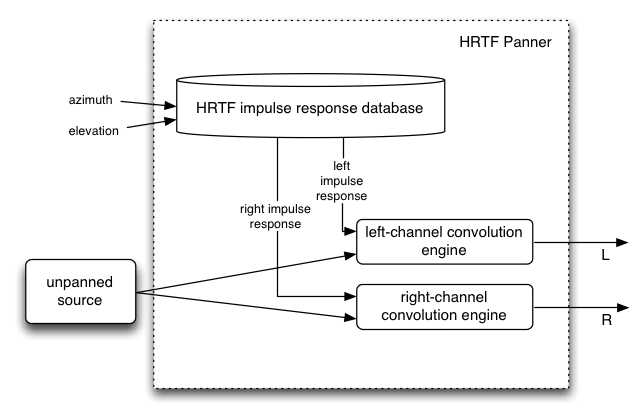

A higher quality spatialization algorithm using a convolution with measured impulse responses from human subjects. This panning method renders stereo output.

"soundfield"

An algorithm which spatializes multi-channel audio using sound field algorithms.

distanceModel

Determines which algorithm will be used to reduce the volume of an audio source as it moves away from the listener. The default is "inverse".

"linear"

A linear distance model which calculates distanceGain according to:

1 - rolloffFactor * (distance - refDistance) / (maxDistance - refDistance)

"inverse"

An inverse distance model which calculates distanceGain according to:

refDistance / (refDistance + rolloffFactor * (distance - refDistance))

"exponential"

An exponential distance model which calculates distanceGain according to:

pow(distance / refDistance, -rolloffFactor)

refDistance

A reference distance for reducing volume as source move further from the listener. The default value is 1.

maxDistance

The maximum distance between source and listener, after which the volume will not be reduced any further. The default value is 10000.

rolloffFactor

Describes how quickly the volume is reduced as source moves away from listener. The default value is 1.

coneInnerAngle

A parameter for directional audio sources, this is an angle, inside of which there will be no volume reduction. The default value is 360.

coneOuterAngle

A parameter for directional audio sources, this is an angle, outside of which the volume will be reduced to a constant value of coneOuterGain. The default value is 360.

coneOuterGain

A parameter for directional audio sources, this is the amount of volume reduction outside of the coneOuterAngle. The default value is 0.

4.14.3. Methods and Parameters

The setPosition method

Sets the position of the audio source relative to the listener attribute. A 3D cartesian coordinate system is used.

The x, y, z parameters represent the coordinates in 3D space.

The default value is (0,0,0)

The setOrientation method

Describes which direction the audio source is pointing in the 3D cartesian coordinate space. Depending on how directional the sound is (controlled by the cone attributes), a sound pointing away from the listener can be very quiet or completely silent.

The x, y, z parameters represent a direction vector in 3D space.

The default value is (1,0,0)

The setVelocity method

Sets the velocity vector of the audio source. This vector controls both the direction of travel and the speed in 3D space. This velocity relative to the listener's velocity is used to determine how much doppler shift (pitch change) to apply. The units used for this vector is meters / second and is independent of the units used for position and orientation vectors.

The x, y, z parameters describe a direction vector indicating direction of travel and intensity.

The default value is (0,0,0)

4.15. The AudioListener Interface

This interface represents the position and orientation of the person listening to the audio scene. All PannerNode objects spatialize in relation to the AudioContext's listener. See this section for more details about spatialization.

Web IDL


interface AudioListener {

    // same as OpenAL (default 1)
    attribute float dopplerFactor;

    // in meters / second (default 343.3)
    attribute float speedOfSound;

    // Uses a 3D cartesian coordinate system
    void setPosition(float x, float y, float z);
    void setOrientation(float x, float y, float z, float xUp, float yUp, float zUp);
    void setVelocity(float x, float y, float z);

};

4.15.1. Attributes

dopplerFactor

A constant used to determine the amount of pitch shift to use when rendering a doppler effect. The default value is 1.

speedOfSound

The speed of sound used for calculating doppler shift. The default value is 343.3 meters / second.

4.15.2. Methods and Parameters

The setPosition method

Sets the position of the listener in a 3D cartesian coordinate space. PannerNode objects use this position relative to individual audio sources for spatialization.

The x, y, z parameters represent the coordinates in 3D space.

The default value is (0,0,0)

The setOrientation method

Describes which direction the listener is pointing in the 3D cartesian coordinate space. Both a front vector and an up vector are provided. In simple human terms, the front vector represents which direction the person's nose is pointing. The up vector represents the direction the top of a person's head is pointing. These values are expected to be linearly independent (at right angles to each other). For normative requirements of how these values are to be interpreted, see the spatialization section.

The x, y, z parameters represent a front direction vector in 3D space, with the default value being (0,0,-1)

The xUp, yUp, zUp parameters represent an up direction vector in 3D space, with the default value being (0,1,0)

The setVelocity method

Sets the velocity vector of the listener. This vector controls both the direction of travel and the speed in 3D space. This velocity relative to an audio source's velocity is used to determine how much doppler shift (pitch change) to apply. The units used for this vector is meters / second and is independent of the units used for position and orientation vectors.

The x, y, z parameters describe a direction vector indicating direction of travel and intensity.

The default value is (0,0,0)

4.16. The ConvolverNode Interface

This interface represents a processing node which applies a linear convolution effect given an impulse response. Normative requirements for multi-channel convolution matrixing are described here.

    numberOfInputs  : 1
    numberOfOutputs : 1

Web IDL


interface ConvolverNode : AudioNode {

    attribute AudioBuffer buffer;
    attribute boolean normalize;

};

4.16.1. Attributes

buffer

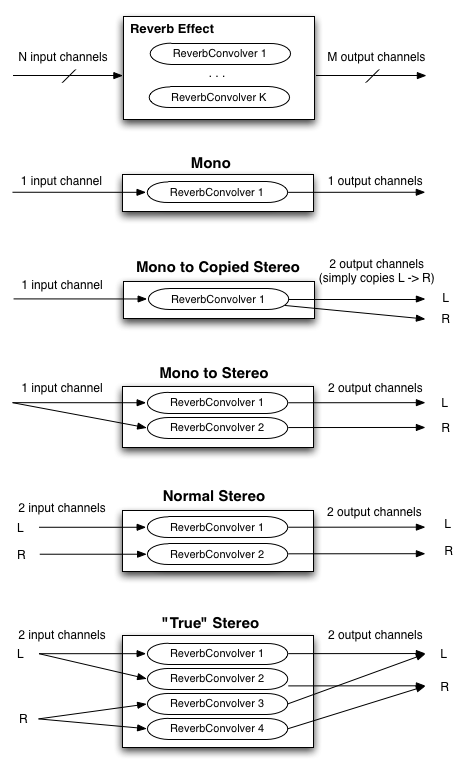

A mono, stereo, or 4-channel AudioBuffer containing the (possibly multi-channel) impulse response used by the ConvolverNode. At the time when this attribute is set, the buffer and the state of the normalize attribute will be used to configure the ConvolverNode with this impulse response having the given normalization.

normalize

Controls whether the impulse response from the buffer will be scaled by an equal-power normalization when the buffer atttribute is set. Its default value is true in order to achieve a more uniform output level from the convolver when loaded with diverse impulse responses. If normalize is set to false, then the convolution will be rendered with no pre-processing/scaling of the impulse response. Changes to this value do not take effect until the next time the buffer attribute is set.

If the normalize attribute is false when the buffer attribute is set then the ConvolverNode will perform a linear convolution given the exact impulse response contained within the buffer.

Otherwise, if the normalize attribute is true when the buffer attribute is set then the ConvolverNode will first perform a scaled RMS-power analysis of the audio data contained within buffer to calculate a normalizationScale given this algorithm:



float calculateNormalizationScale(buffer)
{
    const float GainCalibration = 0.00125;
    const float GainCalibrationSampleRate = 44100;
    const float MinPower = 0.000125;

    // Normalize by RMS power.
    size_t numberOfChannels = buffer->numberOfChannels();
    size_t length = buffer->length();

    float power = 0;

    for (size_t i = 0; i < numberOfChannels; ++i) {
        float* sourceP = buffer->channel(i)->data();
        float channelPower = 0;

        int n = length;
        while (n--) {
            float sample = *sourceP++;
            channelPower += sample * sample;
        }

        power += channelPower;
    }

    power = sqrt(power / (numberOfChannels * length));

    // Protect against accidental overload.
    if (isinf(power) || isnan(power) || power < MinPower)
        power = MinPower;

    float scale = 1 / power;

    // Calibrate to make perceived volume same as unprocessed.
    scale *= GainCalibration;

    // Scale depends on sample-rate.
    if (buffer->sampleRate())
        scale *= GainCalibrationSampleRate / buffer->sampleRate();

    // True-stereo compensation.
    if (buffer->numberOfChannels() == 4)
        scale *= 0.5;

    return scale;
}


During processing, the ConvolverNode will then take this calculated normalizationScale value and multiply it by the result of the linear convolution resulting from processing the input with the impulse response (represented by the buffer) to produce the final output. Or any mathematically equivalent operation may be used, such as pre-multiplying the input by normalizationScale, or pre-multiplying a version of the impulse-response by normalizationScale.

4.17. The AnalyserNode Interface

This interface represents a node which is able to provide real-time frequency and time-domain analysis information. The audio stream will be passed un-processed from input to output.

    numberOfInputs  : 1
    numberOfOutputs : 1    Note that this output may be left unconnected.

Web IDL


interface AnalyserNode : AudioNode {

    // Real-time frequency-domain data
    void getFloatFrequencyData(Float32Array array);
    void getByteFrequencyData(Uint8Array array);

    // Real-time waveform data
    void getByteTimeDomainData(Uint8Array array);

    attribute unsigned long fftSize;
    readonly attribute unsigned long frequencyBinCount;

    attribute float minDecibels;
    attribute float maxDecibels;

    attribute float smoothingTimeConstant;

};

4.17.1. Attributes

fftSize

The size of the FFT used for frequency-domain analysis. This must be a power of two.

frequencyBinCount

Half the FFT size.

minDecibels

The minimum power value in the scaling range for the FFT analysis data for conversion to unsigned byte values.

maxDecibels

The maximum power value in the scaling range for the FFT analysis data for conversion to unsigned byte values.

smoothingTimeConstant

A value from 0 -> 1 where 0 represents no time averaging with the last analysis frame.

4.17.2. Methods and Parameters

The getFloatFrequencyData method

Copies the current frequency data into the passed floating-point array. If the array has fewer elements than the frequencyBinCount, the excess elements will be dropped.

The array parameter is where frequency-domain analysis data will be copied.

The getByteFrequencyData method

Copies the current frequency data into the passed unsigned byte array. If the array has fewer elements than the frequencyBinCount, the excess elements will be dropped.

The array parameter is where frequency-domain analysis data will be copied.

The getByteTimeDomainData method

Copies the current time-domain (waveform) data into the passed unsigned byte array. If the array has fewer elements than the frequencyBinCount, the excess elements will be dropped.

The array parameter is where time-domain analysis data will be copied.

4.18. The ChannelSplitterNode Interface

The ChannelSplitterNode is for use in more advanced applications and would often be used in conjunction with ChannelMergerNode.

    numberOfInputs  : 1
    numberOfOutputs : Variable N (defaults to 6) // number of "active" (non-silent) outputs is determined by number of channels in the input


This interface represents an AudioNode for accessing the individual channels of an audio stream in the routing graph. It has a single input, and a number of "active" outputs which equals the number of channels in the input audio stream. For example, if a stereo input is connected to an ChannelSplitterNode then the number of active outputs will be two (one from the left channel and one from the right). There are always a total number of N outputs (determined by the numberOfOutputs parameter to the AudioContext method createChannelSplitter()), The default number is 6 if this value is not provided. Any outputs which are not "active" will output silence and would typically not be connected to anything.

Example:

channel splitter

Please note that in this example, the splitter does not interpret the channel identities (such as left, right, etc.), but simply splits out channels in the order that they are input.

One application for ChannelSplitterNode is for doing "matrix mixing" where individual gain control of each channel is desired.

Web IDL


interface ChannelSplitterNode : AudioNode {

};

4.19. The ChannelMergerNode Interface

The ChannelMergerNode is for use in more advanced applications and would often be used in conjunction with ChannelSplitterNode.

    numberOfInputs  : Variable N (default to 6)  // number of connected inputs may be less than this
    numberOfOutputs : 1


This interface represents an AudioNode for combining channels from multiple audio streams into a single audio stream. It has a variable number of inputs (defaulting to 6), but not all of them need be connected. There is a single output whose audio stream has a number of channels equal to the sum of the numbers of channels of all the connected inputs. For example, if an ChannelMergerNode has two connected inputs (both stereo), then the output will be four channels, the first two from the first input and the second two from the second input. In another example with two connected inputs (both mono), the output will be two channels (stereo), with the left channel coming from the first input and the right channel coming from the second input.

Example:

channel merger

Please note that in this example, the merger does not interpret the channel identities (such as left, right, etc.), but simply combines channels in the order that they are input.

Be aware that it is possible to connect an ChannelMergerNode in such a way that it outputs an audio stream with a large number of channels greater than the maximum supported by the audio hardware. In this case where such an output is connected to the AudioContext .destination (the audio hardware), then the extra channels will be ignored. Thus, the ChannelMergerNode should be used in situations where the number of channels is well understood.

Web IDL


interface ChannelMergerNode : AudioNode {

};

4.20. The DynamicsCompressorNode Interface

DynamicsCompressorNode is an AudioNode processor implementing a dynamics compression effect.

Dynamics compression is very commonly used in musical production and game audio. It lowers the volume of the loudest parts of the signal and raises the volume of the softest parts. Overall, a louder, richer, and fuller sound can be achieved. It is especially important in games and musical applications where large numbers of individual sounds are played simultaneous to control the overall signal level and help avoid clipping (distorting) the audio output to the speakers.

    numberOfInputs  : 1
    numberOfOutputs : 1

Web IDL


interface DynamicsCompressorNode : AudioNode {

    readonly attribute AudioParam threshold; // in Decibels
    readonly attribute AudioParam knee; // in Decibels
    readonly attribute AudioParam ratio; // unit-less
    readonly attribute AudioParam reduction; // in Decibels
    readonly attribute AudioParam attack; // in Seconds
    readonly attribute AudioParam release; // in Seconds

};

4.20.1. Attributes

All parameters are k-rate

threshold

The decibel value above which the compression will start taking effect. Its default value is -24, with a nominal range of -100 to 0.

knee

A decibel value representing the range above the threshold where the curve smoothly transitions to the "ratio" portion. Its default value is 30, with a nominal range of 0 to 40.

ratio

The amount of dB change in input for a 1 dB change in output. Its default value is 12, with a nominal range of 1 to 20.

reduction

A read-only decibel value for metering purposes, representing the current amount of gain reduction that the compressor is applying to the signal. If fed no signal the value will be 0 (no gain reduction). The nominal range is -20 to 0.

attack

The amount of time (in seconds) to reduce the gain by 10dB. Its default value is 0.003, with a nominal range of 0 to 1.

release

The amount of time (in seconds) to increase the gain by 10dB. Its default value is 0.250, with a nominal range of 0 to 1.

4.21. The BiquadFilterNode Interface

BiquadFilterNode is an AudioNode processor implementing very common low-order filters.

Low-order filters are the building blocks of basic tone controls (bass, mid, treble), graphic equalizers, and more advanced filters. Multiple BiquadFilterNode filters can be combined to form more complex filters. The filter parameters such as "frequency" can be changed over time for filter sweeps, etc. Each BiquadFilterNode can be configured as one of a number of common filter types as shown in the IDL below. The default filter type is "lowpass"

    numberOfInputs  : 1
    numberOfOutputs : 1

Web IDL


enum BiquadFilterType {
  "lowpass",
  "highpass",
  "bandpass",
  "lowshelf",
  "highshelf",
  "peaking",
  "notch",
  "allpass"
}

interface BiquadFilterNode : AudioNode {

    attribute BiquadFilterType type;
    readonly attribute AudioParam frequency; // in Hertz
    readonly attribute AudioParam detune; // in Cents
    readonly attribute AudioParam Q; // Quality factor
    readonly attribute AudioParam gain; // in Decibels

    void getFrequencyResponse(Float32Array frequencyHz,
                              Float32Array magResponse,
                              Float32Array phaseResponse);

};

The filter types are briefly described below. We note that all of these filters are very commonly used in audio processing. In terms of implementation, they have all been derived from standard analog filter prototypes. For more technical details, we refer the reader to the excellent reference by Robert Bristow-Johnson.

All parameters are k-rate with the following default parameter values:

frequency
350Hz, with a nominal range of 10 to the Nyquist frequency (half the sample-rate).
Q
1, with a nominal range of 0.0001 to 1000.
gain
0, with a nominal range of -40 to 40.

4.21.1 "lowpass"

A lowpass filter allows frequencies below the cutoff frequency to pass through and attenuates frequencies above the cutoff. It implements a standard second-order resonant lowpass filter with 12dB/octave rolloff.

frequency
The cutoff frequency
Q
Controls how peaked the response will be at the cutoff frequency. A large value makes the response more peaked. Please note that for this filter type, this value is not a traditional Q, but is a resonance value in decibels.
gain
Not used in this filter type

4.21.2 "highpass"

A highpass filter is the opposite of a lowpass filter. Frequencies above the cutoff frequency are passed through, but frequencies below the cutoff are attenuated. It implements a standard second-order resonant highpass filter with 12dB/octave rolloff.

frequency
The cutoff frequency below which the frequencies are attenuated
Q
Controls how peaked the response will be at the cutoff frequency. A large value makes the response more peaked. Please note that for this filter type, this value is not a traditional Q, but is a resonance value in decibels.
gain
Not used in this filter type

4.21.3 "bandpass"

A bandpass filter allows a range of frequencies to pass through and attenuates the frequencies below and above this frequency range. It implements a second-order bandpass filter.

frequency
The center of the frequency band
Q
Controls the width of the band. The width becomes narrower as the Q value increases.
gain
Not used in this filter type

4.21.4 "lowshelf"

The lowshelf filter allows all frequencies through, but adds a boost (or attenuation) to the lower frequencies. It implements a second-order lowshelf filter.

frequency
The upper limit of the frequences where the boost (or attenuation) is applied.
Q
Not used in this filter type.
gain
The boost, in dB, to be applied. If the value is negative, the frequencies are attenuated.

4.21.5 "highshelf"

The highshelf filter is the opposite of the lowshelf filter and allows all frequencies through, but adds a boost to the higher frequencies. It implements a second-order highshelf filter

frequency
The lower limit of the frequences where the boost (or attenuation) is applied.
Q
Not used in this filter type.
gain
The boost, in dB, to be applied. If the value is negative, the frequencies are attenuated.

4.21.6 "peaking"

The peaking filter allows all frequencies through, but adds a boost (or attenuation) to a range of frequencies.

frequency
The center frequency of where the boost is applied.
Q
Controls the width of the band of frequencies that are boosted. A large value implies a narrow width.
gain
The boost, in dB, to be applied. If the value is negative, the frequencies are attenuated.

4.21.7 "notch"

The notch filter (also known as a band-stop or band-rejection filter) is the opposite of a bandpass filter. It allows all frequencies through, except for a set of frequencies.

frequency
The center frequency of where the notch is applied.
Q
Controls the width of the band of frequencies that are attenuated. A large value implies a narrow width.
gain
Not used in this filter type.

4.21.8 "allpass"

An allpass filter allows all frequencies through, but changes the phase relationship between the various frequencies. It implements a second-order allpass filter

frequency
The frequency where the center of the phase transition occurs. Viewed another way, this is the frequency with maximal group delay.
Q
Controls how sharp the phase transition is at the center frequency. A larger value implies a sharper transition and a larger group delay.
gain
Not used in this filter type.

4.21.9. Methods

The getFrequencyResponse method

Given the current filter parameter settings, calculates the frequency response for the specified frequencies.

The frequencyHz parameter specifies an array of frequencies at which the response values will be calculated.

The magResponse parameter specifies an output array receiving the linear magnitude response values.

The phaseResponse parameter specifies an output array receiving the phase response values in radians.

4.22. The WaveShaperNode Interface

WaveShaperNode is an AudioNode processor implementing non-linear distortion effects.

Non-linear waveshaping distortion is commonly used for both subtle non-linear warming, or more obvious distortion effects. Arbitrary non-linear shaping curves may be specified.

    numberOfInputs  : 1
    numberOfOutputs : 1

Web IDL


interface WaveShaperNode : AudioNode {

    attribute Float32Array curve;

};

4.22.1. Attributes

curve

The shaping curve used for the waveshaping effect. The input signal is nominally within the range -1 -> +1. Each input sample within this range will index into the shaping curve with a signal level of zero corresponding to the center value of the curve array. Any sample value less than -1 will correspond to the first value in the curve array. Any sample value less greater than +1 will correspond to the last value in the curve array.

4.23. The OscillatorNode Interface

OscillatorNode represents an audio source generating a periodic waveform. It can be set to a few commonly used waveforms. Additionally, it can be set to an arbitrary periodic waveform through the use of a WaveTable object.

Oscillators are common foundational building blocks in audio synthesis. An OscillatorNode will start emitting sound at the time specified by the start() method.

Mathematically speaking, a continuous-time periodic waveform can have very high (or infinitely high) frequency information when considered in the frequency domain. When this waveform is sampled as a discrete-time digital audio signal at a particular sample-rate, then care must be taken to discard (filter out) the high-frequency information higher than the Nyquist frequency (half the sample-rate) before converting the waveform to a digital form. If this is not done, then aliasing of higher frequencies (than the Nyquist frequency) will fold back as mirror images into frequencies lower than the Nyquist frequency. In many cases this will cause audibly objectionable artifacts. This is a basic and well understood principle of audio DSP.

There are several practical approaches that an implementation may take to avoid this aliasing. But regardless of approach, the idealized discrete-time digital audio signal is well defined mathematically. The trade-off for the implementation is a matter of implementation cost (in terms of CPU usage) versus fidelity to achieving this ideal.

It is expected that an implementation will take some care in achieving this ideal, but it is reasonable to consider lower-quality, less-costly approaches on lower-end hardware.

Both .frequency and .detune are a-rate parameters and are used together to determine a computedFrequency value:

computedFrequency(t) = frequency(t) * pow(2, detune(t) / 1200)

The OscillatorNode's instantaneous phase at each time is the time integral of computedFrequency.

    numberOfInputs  : 0
    numberOfOutputs : 1 (mono output)

Web IDL


enum OscillatorType {
  "sine",
  "square",
  "sawtooth",
  "triangle",
  "custom"
}

interface OscillatorNode : AudioSourceNode {

    attribute OscillatorType type;

    const unsigned short UNSCHEDULED_STATE = 0;
    const unsigned short SCHEDULED_STATE = 1;
    const unsigned short PLAYING_STATE = 2;
    const unsigned short FINISHED_STATE = 3;

    readonly attribute unsigned short playbackState;

    readonly attribute AudioParam frequency; // in Hertz
    readonly attribute AudioParam detune; // in Cents

    void start(double when);
    void stop(double when);
    void setWaveTable(WaveTable waveTable);

};

4.23.1. Attributes

type

The shape of the periodic waveform. It may directly be set to any of the type constant values except for "custom". The setWaveTable() method can be used to set a custom waveform, which results in this attribute being set to "custom". The default value is "sine".

playbackState

defined as in AudioBufferSourceNode.

frequency

The frequency (in Hertz) of the periodic waveform. This parameter is a-rate

detune

A detuning value (in Cents) which will offset the frequency by the given amount. This parameter is a-rate

4.23.2. Methods and Parameters

The setWaveTable method

Sets an arbitrary custom periodic waveform given a WaveTable.

The start method (please see the deprecation section about name change)

defined as in AudioBufferSourceNode.

The stop method (please see the deprecation section about name change)

defined as in AudioBufferSourceNode.

4.24. The WaveTable Interface

WaveTable represents an arbitrary periodic waveform to be used with an OscillatorNode. Please see createWaveTable() and setWaveTable() and for more details.

Web IDL


interface WaveTable {

};

4.25. The MediaStreamAudioSourceNode Interface

This interface represents an audio source from a MediaStream. The first AudioMediaStreamTrack from the MediaStream will be used as a source of audio.

    numberOfInputs  : 0
    numberOfOutputs : 1

Web IDL


interface MediaStreamAudioSourceNode : AudioSourceNode {

};

6. Mixer Gain Structure

This section is informative.

Background

One of the most important considerations when dealing with audio processing graphs is how to adjust the gain (volume) at various points. For example, in a standard mixing board model, each input bus has pre-gain, post-gain, and send-gains. Submix and master out busses also have gain control. The gain control described here can be used to implement standard mixing boards as well as other architectures.

Summing Inputs

The inputs to AudioNodes have the ability to accept connections from multiple outputs. The input then acts as a unity gain summing junction with each output signal being added with the others:

unity gain summing junction

In cases where the channel layouts of the outputs do not match, an up-mix will occur to the highest number of channels.

Gain Control

But many times, it's important to be able to control the gain for each of the output signals. The GainNode gives this control:

mixer architecture new

Using these two concepts of unity gain summing junctions and GainNodes, it's possible to construct simple or complex mixing scenarios.

Example: Mixer with Send Busses

In a routing scenario involving multiple sends and submixes, explicit control is needed over the volume or "gain" of each connection to a mixer. Such routing topologies are very common and exist in even the simplest of electronic gear sitting around in a basic recording studio.

Here's an example with two send mixers and a main mixer. Although possible, for simplicity's sake, pre-gain control and insert effects are not illustrated:

mixer gain structure

This diagram is using a shorthand notation where "send 1", "send 2", and "main bus" are actually inputs to AudioNodes, but here are represented as summing busses, where the intersections g2_1, g3_1, etc. represent the "gain" or volume for the given source on the given mixer. In order to expose this gain, an GainNode is used:

Here's how the above diagram could be constructed in JavaScript:

Example
ECMAScript


var context = 0;
var compressor = 0;
var reverb = 0;
var delay = 0;
var s1 = 0;
var s2 = 0;

var source1 = 0;
var source2 = 0;
var g1_1 = 0;
var g2_1 = 0;
var g3_1 = 0;
var g1_2 = 0;
var g2_2 = 0;
var g3_2 = 0;

// Setup routing graph
function setupRoutingGraph() {
    context = new AudioContext();

    compressor = context.createDynamicsCompressor();

    // Send1 effect
    reverb = context.createConvolver();
    // Convolver impulse response may be set here or later

    // Send2 effect
    delay = context.createDelay();

    // Connect final compressor to final destination
    compressor.connect(context.destination);

    // Connect sends 1 & 2 through effects to main mixer
    s1 = context.createGain();
    reverb.connect(s1);
    s1.connect(compressor);

    s2 = context.createGain();
    delay.connect(s2);
    s2.connect(compressor);

    // Create a couple of sources
    source1 = context.createBufferSource();
    source2 = context.createBufferSource();
    source1.buffer = manTalkingBuffer;
    source2.buffer = footstepsBuffer;

    // Connect source1
    g1_1 = context.createGain();
    g2_1 = context.createGain();
    g3_1 = context.createGain();
    source1.connect(g1_1);
    source1.connect(g2_1);
    source1.connect(g3_1);
    g1_1.connect(compressor);
    g2_1.connect(reverb);
    g3_1.connect(delay);

    // Connect source2
    g1_2 = context.createGain();
    g2_2 = context.createGain();
    g3_2 = context.createGain();
    source2.connect(g1_2);
    source2.connect(g2_2);
    source2.connect(g3_2);
    g1_2.connect(compressor);
    g2_2.connect(reverb);
    g3_2.connect(delay);

    // We now have explicit control over all the volumes g1_1, g2_1, ..., s1, s2
    g2_1.gain.value = 0.2;  // For example, set source1 reverb gain

     // Because g2_1.gain is an "AudioParam",
     // an automation curve could also be attached to it.
     // A "mixing board" UI could be created in canvas or WebGL controlling these gains.
}



7. Dynamic Lifetime

Background

This section is informative. Please see AudioContext lifetime and AudioNode lifetime for normative requirements

In addition to allowing the creation of static routing configurations, it should also be possible to do custom effect routing on dynamically allocated voices which have a limited lifetime. For the purposes of this discussion, let's call these short-lived voices "notes". Many audio applications incorporate the ideas of notes, examples being drum machines, sequencers, and 3D games with many one-shot sounds being triggered according to game play.

In a traditional software synthesizer, notes are dynamically allocated and released from a pool of available resources. The note is allocated when a MIDI note-on message is received. It is released when the note has finished playing either due to it having reached the end of its sample-data (if non-looping), it having reached a sustain phase of its envelope which is zero, or due to a MIDI note-off message putting it into the release phase of its envelope. In the MIDI note-off case, the note is not released immediately, but only when the release envelope phase has finished. At any given time, there can be a large number of notes playing but the set of notes is constantly changing as new notes are added into the routing graph, and old ones are released.

The audio system automatically deals with tearing-down the part of the routing graph for individual "note" events. A "note" is represented by an AudioBufferSourceNode, which can be directly connected to other processing nodes. When the note has finished playing, the context will automatically release the reference to the AudioBufferSourceNode, which in turn will release references to any nodes it is connected to, and so on. The nodes will automatically get disconnected from the graph and will be deleted when they have no more references. Nodes in the graph which are long-lived and shared between dynamic voices can be managed explicitly. Although it sounds complicated, this all happens automatically with no extra JavaScript handling required.

Example

Example

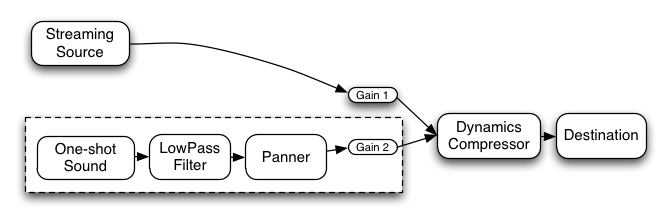

dynamic allocation

The low-pass filter, panner, and second gain nodes are directly connected from the one-shot sound. So when it has finished playing the context will automatically release them (everything within the dotted line). If there are no longer any JavaScript references to the one-shot sound and connected nodes, then they will be immediately removed from the graph and deleted. The streaming source, has a global reference and will remain connected until it is explicitly disconnected. Here's how it might look in JavaScript:

ECMAScript


var context = 0;
var compressor = 0;
var gainNode1 = 0;
var streamingAudioSource = 0;

// Initial setup of the "long-lived" part of the routing graph
function setupAudioContext() {
    context = new AudioContext();

    compressor = context.createDynamicsCompressor();
    gainNode1 = context.createGain();

    // Create a streaming audio source.
    var audioElement = document.getElementById('audioTagID');
    streamingAudioSource = context.createMediaElementSource(audioElement);
    streamingAudioSource.connect(gainNode1);

    gainNode1.connect(compressor);
    compressor.connect(context.destination);
}

// Later in response to some user action (typically mouse or key event)
// a one-shot sound can be played.
function playSound() {
    var oneShotSound = context.createBufferSource();
    oneShotSound.buffer = dogBarkingBuffer;

    // Create a filter, panner, and gain node.
    var lowpass = context.createBiquadFilter();
    var panner = context.createPanner();
    var gainNode2 = context.createGain();

    // Make connections
    oneShotSound.connect(lowpass);
    lowpass.connect(panner);
    panner.connect(gainNode2);
    gainNode2.connect(compressor);

    // Play 0.75 seconds from now (to play immediately pass in 0)
    oneShotSound.start(context.currentTime + 0.75);
}

8. Channel Layouts

It's important to define the channel ordering (and define some abbreviations) for different layouts.

The channel layouts are clear:

  Mono
    0: M: mono

  Stereo
    0: L: left
    1: R: right


A more advanced implementation can handle channel layouts for quad and 5.1:

  Quad
    0: L:  left
    1: R:  right
    2: SL: surround left
    3: SR: surround right

  5.1
    0: L:   left
    1: R:   right
    2: C:   center
    3: LFE: subwoofer
    4: SL:  surround left
    5: SR:  surround right


Other layouts can also be considered.

9. Channel up-mixing and down-mixing

For now, only considers cases for mono, stereo, quad, 5.1. Later other channel layouts can be defined.

Up Mixing

Consider what happens when converting an audio stream with a lower number of channels to one with a higher number of channels. This can be necessary when mixing several outputs together where the channel layouts differ. It can also be necessary if the rendered audio stream is played back on a system with more channels.

Mono up-mix:

    1 -> 2 : up-mix from mono to stereo
        output.L = input;
        output.R = input;

    1 -> 4 : up-mix from mono to quad
        output.L = input;
        output.R = input;
        output.SL = 0;
        output.SR = 0;

    1 -> 5.1 : up-mix from mono to 5.1
        output.L = 0;
        output.R = 0;
        output.C = input; // put in center channel
        output.LFE = 0;
        output.SL = 0;
        output.SR = 0;

Stereo up-mix:

    2 -> 4 : up-mix from stereo to quad
        output.L = input.L;
        output.R = input.R;
        output.SL = 0;
        output.SR = 0;

    2 -> 5.1 : up-mix from stereo to 5.1
        output.L = input.L;
        output.R = input.R;
        output.C = 0;
        output.LFE = 0;
        output.SL = 0;
        output.SR = 0;

Quad up-mix:

    4 -> 5.1 : up-mix from stereo to 5.1
        output.L = input.L;
        output.R = input.R;
        output.C = 0;
        output.LFE = 0;
        output.SL = input.SL;
        output.SR = input.SR;

Down Mixing

A down-mix will be necessary, for example, if processing 5.1 source material, but playing back stereo.


Mono down-mix:

    2 -> 1 : stereo to mono
        output = 0.5 * (input.L + input.R);

    4 -> 1 : quad to mono
        output = 0.25 * (input.L + input.R + input.SL + input.SR);

    5.1 -> 1 : 5.1 to mono
        output = 0.7071 * (input.L + input.R) + input.C + 0.5 * (input.SL + input.SR)


Stereo down-mix:

    4 -> 2 : quad to stereo
        output.L = 0.5 * (input.L + input.SL);
        output.R = 0.5 * (input.R + input.SR);

    5.1 -> 2 : 5.1 to stereo
        output.L = L + 0.7071 * (input.C + input.SL)
        output.R = R + 0.7071 * (input.C + input.SR)

Quad down-mix:

    5.1 -> 4 : 5.1 to quad
        output.L = L + 0.7071 * input.C
        output.R = R + 0.7071 * input.C
        output.SL = input.SL
        output.SR = input.SR

11. Spatialization / Panning

Background

A common feature requirement for modern 3D games is the ability to dynamically spatialize and move multiple audio sources in 3D space. Game audio engines such as OpenAL, FMOD, Creative's EAX, Microsoft's XACT Audio, etc. have this ability.

Using an PannerNode, an audio stream can be spatialized or positioned in space relative to an AudioListener. An AudioContext will contain a single AudioListener. Both panners and listeners have a position in 3D space using a right-handed cartesian coordinate system. The units used in the coordinate system are not defined, and do not need to be because the effects calculated with these coordinates are independent/invariant of any particular units such as meters or feet. PannerNode objects (representing the source stream) have an orientation vector representing in which direction the sound is projecting. Additionally, they have a sound cone representing how directional the sound is. For example, the sound could be omnidirectional, in which case it would be heard anywhere regardless of its orientation, or it can be more directional and heard only if it is facing the listener. AudioListener objects (representing a person's ears) have an orientation and up vector representing in which direction the person is facing. Because both the source stream and the listener can be moving, they both have a velocity vector representing both the speed and direction of movement. Taken together, these two velocities can be used to generate a doppler shift effect which changes the pitch.

During rendering, the PannerNode calculates an azimuth and elevation. These values are used internally by the implementation in order to render the spatialization effect. See the Panning Algorithm section for details of how these values are used.

The following algorithm must be used to calculate the azimuth and elevation:


// Calculate the source-listener vector.
vec3 sourceListener = source.position - listener.position;

if (sourceListener.isZero()) {
    // Handle degenerate case if source and listener are at the same point.
    azimuth = 0;
    elevation = 0;
    return;
}

sourceListener.normalize();

// Align axes.
vec3 listenerFront = listener.orientation;
vec3 listenerUp = listener.up;
vec3 listenerRight = listenerFront.cross(listenerUp);
listenerRight.normalize();

vec3 listenerFrontNorm = listenerFront;
listenerFrontNorm.normalize();

vec3 up = listenerRight.cross(listenerFrontNorm);

float upProjection = sourceListener.dot(up);

vec3 projectedSource = sourceListener - upProjection * up;
projectedSource.normalize();

azimuth = 180 * acos(projectedSource.dot(listenerRight)) / PI;

// Source in front or behind the listener.
double frontBack = projectedSource.dot(listenerFrontNorm);
if (frontBack < 0)
    azimuth = 360 - azimuth;

// Make azimuth relative to "front" and not "right" listener vector.
if ((azimuth >= 0) && (azimuth <= 270))
    azimuth = 90 - azimuth;
else
    azimuth = 450 - azimuth;

elevation = 90 - 180 * acos(sourceListener.dot(up)) / PI;

if (elevation > 90)
    elevation = 180 - elevation;
else if (elevation < -90)
    elevation = -180 - elevation;

Panning Algorithm

mono->stereo and stereo->stereo panning must be supported. mono->stereo processing is used when all connections to the input are mono. Otherwise stereo->stereo processing is used.

The following algorithms must be implemented:

Distance Effects

Sounds which are closer are louder, while sounds further away are quieter. Exactly how a sound's volume changes according to distance from the listener depends on the distanceModel attribute.

During audio rendering, a distance value will be calculated based on the panner and listener positions according to:

v = panner.position - listener.position
distance = sqrt(dot(v, v))

distance will then be used to calculate distanceGain which depends on the distanceModel attribute. See the distanceModel section for details of how this is calculated for each distance model.

As part of its processing, the PannerNode scales/multiplies the input audio signal by distanceGain to make distant sounds quieter and nearer ones louder.

Sound Cones

The listener and each sound source have an orientation vector describing which way they are facing. Each sound source's sound projection characteristics are described by an inner and outer "cone" describing the sound intensity as a function of the source/listener angle from the source's orientation vector. Thus, a sound source pointing directly at the listener will be louder than if it is pointed off-axis. Sound sources can also be omni-directional.

The following algorithm must be used to calculate the gain contribution due to the cone effect, given the source (the PannerNode) and the listener:


if (source.orientation.isZero() || ((source.coneInnerAngle == 360) && (source.coneOuterAngle == 360)))
    return 1; // no cone specified - unity gain

// Normalized source-listener vector
vec3 sourceToListener = listener.position - source.position;
sourceToListener.normalize();

vec3 normalizedSourceOrientation = source.orientation;
normalizedSourceOrientation.normalize();

// Angle between the source orientation vector and the source-listener vector
double dotProduct = sourceToListener.dot(normalizedSourceOrientation);
double angle = 180 * acos(dotProduct) / PI;
double absAngle = fabs(angle);

// Divide by 2 here since API is entire angle (not half-angle)
double absInnerAngle = fabs(source.coneInnerAngle) / 2;
double absOuterAngle = fabs(source.coneOuterAngle) / 2;
double gain = 1;

if (absAngle <= absInnerAngle)
    // No attenuation
    gain = 1;
else if (absAngle >= absOuterAngle)
    // Max attenuation
    gain = source.coneOuterGain;
else {
    // Between inner and outer cones
    // inner -> outer, x goes from 0 -> 1
    double x = (absAngle - absInnerAngle) / (absOuterAngle - absInnerAngle);
    gain = (1 - x) + source.coneOuterGain * x;
}

return gain;

Doppler Shift

The following algorithm must be used to calculate the doppler shift value which is used as an additional playback rate scalar for all AudioBufferSourceNodes connecting directly or indirectly to the AudioPannerNode:


double dopplerShift = 1; // Initialize to default value
double dopplerFactor = listener.dopplerFactor;

if (dopplerFactor > 0) {
    double speedOfSound = listener.speedOfSound;

    // Don't bother if both source and listener have no velocity.
    if (!source.velocity.isZero() || !listener.velocity.isZero()) {
        // Calculate the source to listener vector.
        vec3 sourceToListener = source.position - listener.position;

        double sourceListenerMagnitude = sourceToListener.length();

        double listenerProjection = sourceToListener.dot(listener.velocity) / sourceListenerMagnitude;
        double sourceProjection = sourceToListener.dot(source.velocity) / sourceListenerMagnitude;

        listenerProjection = -listenerProjection;
        sourceProjection = -sourceProjection;

        double scaledSpeedOfSound = speedOfSound / dopplerFactor;
        listenerProjection = min(listenerProjection, scaledSpeedOfSound);
        sourceProjection = min(sourceProjection, scaledSpeedOfSound);

        dopplerShift = ((speedOfSound - dopplerFactor * listenerProjection) / (speedOfSound - dopplerFactor * sourceProjection));
        fixNANs(dopplerShift); // Avoid illegal values

        // Limit the pitch shifting to 4 octaves up and 3 octaves down.
        dopplerShift = min(dopplerShift, 16);
        dopplerShift = max(dopplerShift, 0.125);
    }
}

12. Linear Effects using Convolution

Background

Convolution is a mathematical process which can be applied to an audio signal to achieve many interesting high-quality linear effects. Very often, the effect is used to simulate an acoustic space such as a concert hall, cathedral, or outdoor amphitheater. It can also be used for complex filter effects, like a muffled sound coming from inside a closet, sound underwater, sound coming through a telephone, or playing through a vintage speaker cabinet. This technique is very commonly used in major motion picture and music production and is considered to be extremely versatile and of high quality.

Each unique effect is defined by an impulse response. An impulse response can be represented as an audio file and can be recorded from a real acoustic space such as a cave, or can be synthetically generated through a great variety of techniques.

Motivation for use as a Standard

A key feature of many game audio engines (OpenAL, FMOD, Creative's EAX, Microsoft's XACT Audio, etc.) is a reverberation effect for simulating the sound of being in an acoustic space. But the code used to generate the effect has generally been custom and algorithmic (generally using a hand-tweaked set of delay lines and allpass filters which feedback into each other). In nearly all cases, not only is the implementation custom, but the code is proprietary and closed-source, each company adding its own "black magic" to achieve its unique quality. Each implementation being custom with a different set of parameters makes it impossible to achieve a uniform desired effect. And the code being proprietary makes it impossible to adopt a single one of the implementations as a standard. Additionally, algorithmic reverberation effects are limited to a relatively narrow range of different effects, regardless of how the parameters are tweaked.

A convolution effect solves these problems by using a very precisely defined mathematical algorithm as the basis of its processing. An impulse response represents an exact sound effect to be applied to an audio stream and is easily represented by an audio file which can be referenced by URL. The range of possible effects is enormous.

Implementation Guide

Linear convolution can be implemented efficiently. Here are some notes describing how it can be practically implemented.

Reverb Effect (with matrixing)

This section is normative.

In the general case the source has N input channels, the impulse response has K channels, and the playback system has M output channels. Thus it's a matter of how to matrix these channels to achieve the final result.

The subset of N, M, K below must be implemented (note that the first image in the diagram is just illustrating the general case and is not normative, while the following images are normative). Without loss of generality, developers desiring more complex and arbitrary matrixing can use multiple ConvolverNode objects in conjunction with an ChannelMergerNode.

Single channel convolution operates on a mono audio input, using a mono impulse response, and generating a mono output. But to achieve a more spacious sound, 2 channel audio inputs and 1, 2, or 4 channel impulse responses will be considered. The following diagram, illustrates the common cases for stereo playback where N and M are 1 or 2 and K is 1, 2, or 4.

reverb matrixing

Recording Impulse Responses

This section is informative.

impulse response

The most modern and accurate way to record the impulse response of a real acoustic space is to use a long exponential sine sweep. The test-tone can be as long as 20 or 30 seconds, or longer.
Several recordings of the test tone played through a speaker can be made with microphones placed and oriented at various positions in the room. It's important to document speaker placement/orientation, the types of microphones, their settings, placement, and orientations for each recording taken.

Post-processing is required for each of these recordings by performing an inverse-convolution with the test tone, yielding the impulse response of the room with the corresponding microphone placement. These impulse responses are then ready to be loaded into the convolution reverb engine to re-create the sound of being in the room.

Tools

Two command-line tools have been written:
generate_testtones generates an exponential sine-sweep test-tone and its inverse. Another tool convolve was written for post-processing. With these tools, anybody with recording equipment can record their own impulse responses. To test the tools in practice, several recordings were made in a warehouse space with interesting acoustics. These were later post-processed with the command-line tools.

% generate_testtones -h
Usage: generate_testtone
	[-o /Path/To/File/To/Create] Two files will be created: .tone and .inverse
	[-rate <sample rate>] sample rate of the generated test tones
	[-duration <duration>] The duration, in seconds, of the generated files
	[-min_freq <min_freq>] The minimum frequency, in hertz, for the sine sweep

% convolve -h
Usage: convolve input_file impulse_response_file output_file

Recording Setup

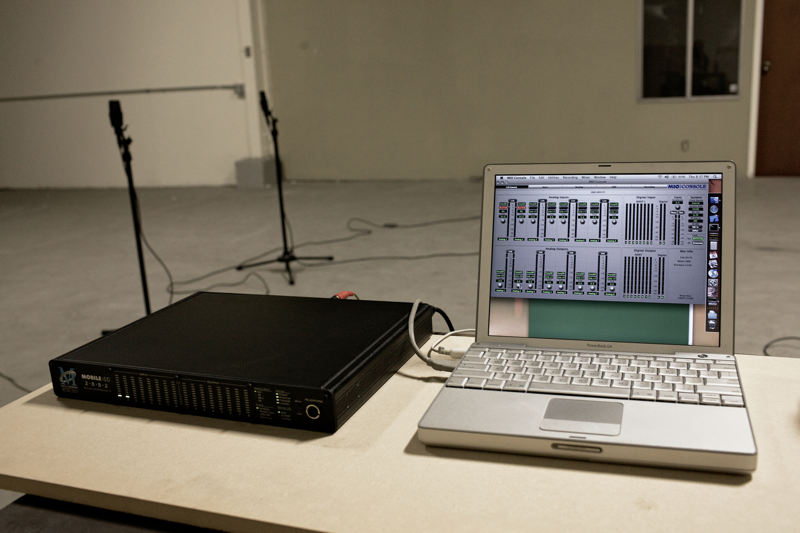

recording setup

Audio Interface: Metric Halo Mobile I/O 2882



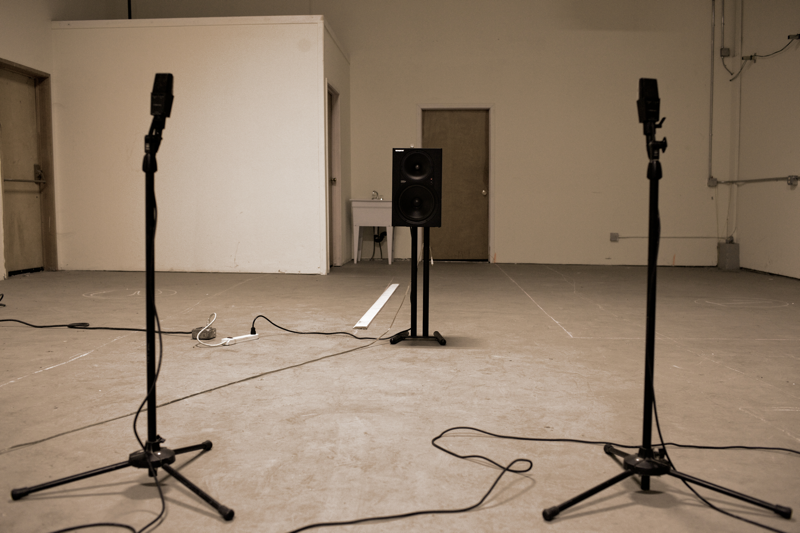

microphones speaker

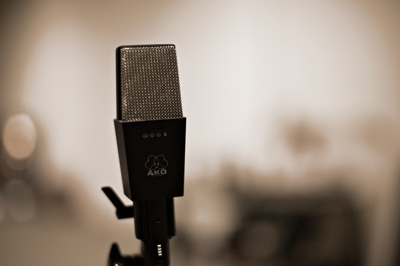

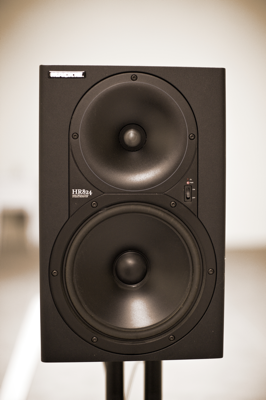

microphone speaker

Microphones: AKG 414s, Speaker: Mackie HR824


The Warehouse Space

warehouse

13. JavaScript Synthesis and Processing

This section is informative.

The Mozilla project has conducted Experiments to synthesize and process audio directly in JavaScript. This approach is interesting for a certain class of audio processing and they have produced a number of impressive demos. This specification includes a means of synthesizing and processing directly using JavaScript by using a special subtype of AudioNode called ScriptProcessorNode.

Here are some interesting examples where direct JavaScript processing can be useful:

Custom DSP Effects

Unusual and interesting custom audio processing can be done directly in JS. It's also a good test-bed for prototyping new algorithms. This is an extremely rich area.

Educational Applications

JS processing is ideal for illustrating concepts in computer music synthesis and processing, such as showing the de-composition of a square wave into its harmonic components, FM synthesis techniques, etc.

JavaScript Performance

JavaScript has a variety of performance issues so it is not suitable for all types of audio processing. The approach proposed in this document includes the ability to perform computationally intensive aspects of the audio processing (too expensive for JavaScript to compute in real-time) such as multi-source 3D spatialization and convolution in optimized C++ code. Both direct JavaScript processing and C++ optimized code can be combined due to the APIs modular approach.

15. Performance Considerations

15.1. Latency: What it is and Why it's Important

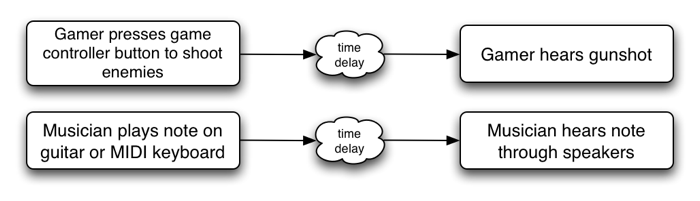

latency

For web applications, the time delay between mouse and keyboard events (keydown, mousedown, etc.) and a sound being heard is important.

This time delay is called latency and is caused by several factors (input device latency, internal buffering latency, DSP processing latency, output device latency, distance of user's ears from speakers, etc.), and is cummulative. The larger this latency is, the less satisfying the user's experience is going to be. In the extreme, it can make musical production or game-play impossible. At moderate levels it can affect timing and give the impression of sounds lagging behind or the game being non-responsive. For musical applications the timing problems affect rhythm. For gaming, the timing problems affect precision of gameplay. For interactive applications, it generally cheapens the users experience much in the same way that very low animation frame-rates do. Depending on the application, a reasonable latency can be from as low as 3-6 milliseconds to 25-50 milliseconds.

15.2. Audio Glitching

Audio glitches are caused by an interruption of the normal continuous audio stream, resulting in loud clicks and pops. It is considered to be a catastrophic failure of a multi-media system and must be avoided. It can be caused by problems with the threads responsible for delivering the audio stream to the hardware, such as scheduling latencies caused by threads not having the proper priority and time-constraints. It can also be caused by the audio DSP trying to do more work than is possible in real-time given the CPU's speed.

15.3. Hardware Scalability

The system should gracefully degrade to allow audio processing under resource constrained conditions without dropping audio frames.

First of all, it should be clear that regardless of the platform, the audio processing load should never be enough to completely lock up the machine. Second, the audio rendering needs to produce a clean, un-interrupted audio stream without audible glitches.

The system should be able to run on a range of hardware, from mobile phones and tablet devices to laptop and desktop computers. But the more limited compute resources on a phone device make it necessary to consider techniques to scale back and reduce the complexity of the audio rendering. For example, voice-dropping algorithms can be implemented to reduce the total number of notes playing at any given time.

Here's a list of some techniques which can be used to limit CPU usage:

15.3.1. CPU monitoring

In order to avoid audio breakup, CPU usage must remain below 100%.

The relative CPU usage can be dynamically measured for each AudioNode (and chains of connected nodes) as a percentage of the rendering time quantum. In a single-threaded implementation, overall CPU usage must remain below 100%. The measured usage may be used internally in the implementation for dynamic adjustments to the rendering. It may also be exposed through a cpuUsage attribute of AudioNode for use by JavaScript.

In cases where the measured CPU usage is near 100% (or whatever threshold is considered too high), then an attempt to add additional AudioNodes into the rendering graph can trigger voice-dropping.

15.3.2. Voice Dropping

Voice-dropping is a technique which limits the number of voices (notes) playing at the same time to keep CPU usage within a reasonable range. There can either be an upper threshold on the total number of voices allowed at any given time, or CPU usage can be dynamically monitored and voices dropped when CPU usage exceeds a threshold. Or a combination of these two techniques can be applied. When CPU usage is monitored for each voice, it can be measured all the way from the AudioSourceNode through any effect processing nodes which apply uniquely to that voice.

When a voice is "dropped", it needs to happen in such a way that it doesn't introduce audible clicks or pops into the rendered audio stream. One way to achieve this is to quickly fade-out the rendered audio for that voice before completely removing it from the rendering graph.

When it is determined that one or more voices must be dropped, there are various strategies for picking which voice(s) to drop out of the total ensemble of voices currently playing. Here are some of the factors which can be used in combination to help with this decision:

15.3.3. Simplification of Effects Processing

Most of the effects described in this document are relatively inexpensive and will likely be able to run even on the slower mobile devices. However, the convolution effect can be configured with a variety of impulse responses, some of which will likely be too heavy for mobile devices. Generally speaking, CPU usage scales with the length of the impulse response and the number of channels it has. Thus, it is reasonable to consider that impulse responses which exceed a certain length will not be allowed to run. The exact limit can be determined based on the speed of the device. Instead of outright rejecting convolution with these long responses, it may be interesting to consider truncating the impulse responses to the maximum allowed length and/or reducing the number of channels of the impulse response.

In addition to the convolution effect. The PannerNode may also be expensive if using the HRTF panning model. For slower devices, a cheaper algorithm such as EQUALPOWER can be used to conserve compute resources.

15.3.4. Sample Rate

For very slow devices, it may be worth considering running the rendering at a lower sample-rate than normal. For example, the sample-rate can be reduced from 44.1KHz to 22.05KHz. This decision must be made when the AudioContext is created, because changing the sample-rate on-the-fly can be difficult to implement and will result in audible glitching when the transition is made.

15.3.5. Pre-flighting

It should be possible to invoke some kind of "pre-flighting" code (through JavaScript) to roughly determine the power of the machine. The JavaScript code can then use this information to scale back any more intensive processing it may normally run on a more powerful machine. Also, the underlying implementation may be able to factor in this information in the voice-dropping algorithm.

TODO: add specification and more detail here

15.3.6. Authoring for different user agents

JavaScript code can use information about user-agent to scale back any more intensive processing it may normally run on a more powerful machine.

15.3.7. Scalability of Direct JavaScript Synthesis / Processing

Any audio DSP / processing code done directly in JavaScript should also be concerned about scalability. To the extent possible, the JavaScript code itself needs to monitor CPU usage and scale back any more ambitious processing when run on less powerful devices. If it's an "all or nothing" type of processing, then user-agent check or pre-flighting should be done to avoid generating an audio stream with audio breakup.

15.4. JavaScript Issues with real-time Processing and Synthesis:

While processing audio in JavaScript, it is extremely challenging to get reliable, glitch-free audio while achieving a reasonably low-latency, especially under heavy processor load. The problems are even more difficult with today's generation of mobile devices which have processors with relatively poor performance and power consumption / battery-life issues.

16. Example Applications

This section is informative.

Please see the demo page for working examples.

Here are some of the types of applications a web audio system should be able to support:

Basic Sound Playback

Simple and low-latency playback of sound effects in response to simple user actions such as mouse click, roll-over, key press.


3D Environments and Games

quake

Electronic Arts has produced an impressive immersive game called Strike Fortress, taking advantage of 3D spatialization and convolution for room simulation.

beach demo

3D environments with audio are common in games made for desktop applications and game consoles. Imagine a 3D island environment with spatialized audio, seagulls flying overhead, the waves crashing against the shore, the crackling of the fire, the creaking of the bridge, and the rustling of the trees in the wind. The sounds can be positioned naturally as one moves through the scene. Even going underwater, low-pass filters can be tweaked for just the right underwater sound.



box2d 8-ball

Box2D is an interesting open-source library for 2D game physics. It has various implementations, including one based on Canvas 2D. A demo has been created with dynamic sound effects for each of the object collisions, taking into account the velocities vectors and positions to spatialize the sound events, and modulate audio effect parameters such as filter cutoff.

A virtual pool game with multi-sampled sound effects has also been created.


Musical Applications

garageband shiny drum machine tonecraft

Many music composition and production applications are possible. Applications requiring tight scheduling of audio events can be implemented and can be both educational and entertaining. Drum machines, digital DJ applications, and even timeline-based digital music production software with some of the features of GarageBand can be written.

Music Visualizers

music visualizer

When combined with WebGL GLSL shaders, realtime analysis data can be presented in entertaining ways. These can be as advanced as any found in iTunes.

Educational Applications

javascript processing

A variety of educational applications can be written, illustrating concepts in music theory and computer music synthesis and processing.


Artistic Audio Exploration

There are many creative possibilites for artistic sonic environments for installation pieces.


17. Security Considerations

This section is informative.

18. Privacy Considerations

This section is informative. When giving various information on available AudioNodes, the Web Audio API potentially exposes information on characteristic features of the client (such as audio hardware sample-rate) to any page that makes use of the AudioNode interface. Additionally, timing information can be collected through the RealtimeAnalyzerNode or ScriptProcessorNode interface. The information could subsequently be used to create a fingerprint of the client.

Currently audio input is not specified in this document, but it will involve gaining access to the client machine's audio input or microphone. This will require asking the user for permission in an appropriate way, probably via the getUserMedia() API.

19. Requirements and Use Cases

Please see Example Applications

20. Deprecation Notes

Some method and attribute names have changed during API review. It is recommended that an implementation support both names:

AudioBufferSourceNode.noteOn() has been changed to start()
AudioBufferSourceNode.noteGrainOn() has been changed to start()
AudioBufferSourceNode.noteOff() has been changed to stop()

AudioContext.createGainNode() has been changed to createGain()
AudioContext.createDelayNode() has been changed to createDelay()
AudioContext.createJavaScriptNode() has been changed to createScriptProcessor()

OscillatorNode.noteOn() has been changed to start()
OscillatorNode.noteOff() has been changed to stop()

AudioParam.setTargetValueAtTime() has been changed to setTargetAtTime()

Some attributes taking constant values have changed during API review. The old way uses integer values, while the new way uses Web IDL string values. It is recommended that an implementation support both integer and string values for setting these attributes:

// PannerNode constants for the .panningModel attribute

// Old way
const unsigned short EQUALPOWER = 0;
const unsigned short HRTF = 1;
const unsigned short SOUNDFIELD = 2;

// New way
enum PanningModelType {
  "equalpower",
  "HRTF",
  "soundfield"
}
// PannerNode constants for the .distanceModel attribute

// Old way
const unsigned short LINEAR_DISTANCE = 0;
const unsigned short INVERSE_DISTANCE = 1;
const unsigned short EXPONENTIAL_DISTANCE = 2;

// New way
enum DistanceModelType {
  "linear",
  "inverse",
  "exponential"
}
// BiquadFilterNode constants for the .type attribute

// Old way
const unsigned short LOWPASS = 0;
const unsigned short HIGHPASS = 1;
const unsigned short BANDPASS = 2;
const unsigned short LOWSHELF = 3;
const unsigned short HIGHSHELF = 4;
const unsigned short PEAKING = 5;
const unsigned short NOTCH = 6;
const unsigned short ALLPASS = 7;

// New way
enum BiquadFilterType {
  "lowpass",
  "highpass",
  "bandpass",
  "lowshelf",
  "highshelf",
  "peaking",
  "notch",
  "allpass"
}
// OscillatorNode constants for the .type attribute

// Old way
const unsigned short SINE = 0;
const unsigned short SQUARE = 1;
const unsigned short SAWTOOTH = 2;
const unsigned short TRIANGLE = 3;
const unsigned short CUSTOM = 4;

// New way
enum OscillatorType {
  "sine",
  "square",
  "sawtooth",
  "triangle",
  "custom"
}

A.References

A.1 Normative references

[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. Internet RFC 2119. URL: http://www.ietf.org/rfc/rfc2119.txt

A.2 Informative references

No informative references.

B.Acknowledgements

Special thanks to the W3C Audio Working Group. Members of the Working Group are (at the time of writing, and by alphabetical order):
Berkovitz, Joe (public Invited expert);Cardoso, Gabriel (INRIA);Carlson, Eric (Apple, Inc.);Gregan, Matthew (Mozilla Foundation);Jägenstedt, Philip (Opera Software);Kalliokoski, Jussi (public Invited expert);Lowis, Chris (British Broadcasting Corporation);MacDonald, Alistair (W3C Invited Experts);Michel, Thierry (W3C/ERCIM);Noble, Jer (Apple, Inc.);O'Callahan, Robert(Mozilla Foundation);Paradis, Matthew (British Broadcasting Corporation);Raman, T.V. (Google, Inc.);Rogers, Chris (Google, Inc.);Schepers, Doug (W3C/MIT);Shires, Glen (Google, Inc.);Smith, Michael (W3C/Keio);Thereaux, Olivier (British Broadcasting Corporation);Wei, James (Intel Corporation);Wilson, Chris (Google, Inc.);

C. Web Audio API Change Log

user:        crogers
date:        Sun Dec 09 17:13:56 2012 -0800
summary:     Basic description of OfflineAudioContext

user:        crogers
date:        Tue Dec 04 15:59:30 2012 -0800
summary:     minor correction to wording for minValue and maxValue

user:        crogers
date:        Tue Dec 04 15:49:29 2012 -0800
summary:     Bug 20161: Make decodeAudioData neuter its array buffer argument when it begins decoding a buffer, and bring it back to normal when the decoding is finished

user:        crogers
date:        Tue Dec 04 15:35:17 2012 -0800
summary:     Bug 20039: Refine description of audio decoding

user:        crogers
date:        Tue Dec 04 15:23:07 2012 -0800
summary:     elaborate on decoding steps for AudioContext createBuffer() and decodeAudioData()

user:        crogers
date:        Tue Dec 04 14:56:19 2012 -0800
summary:     Bug 19770: Note that if the last event for an AudioParam is a setCurveValue event, the computed value after that event will be equal to the latest curve value

user:        crogers
date:        Tue Dec 04 14:48:04 2012 -0800
summary:     Bug 19769: Note that before the first automation event, the computed AudioParam value will be AudioParam.value

user:        crogers
date:        Tue Dec 04 14:40:51 2012 -0800
summary:     Bug 19768: Explicitly mention that the initial value of AudioParam.value will be defaultValue

user:        crogers
date:        Tue Dec 04 14:35:59 2012 -0800
summary:     Bug 19767: Explicitly mention that the 2nd component of AudioParam.computedValue will be 0 if there are no AudioNodes connected to it

user:        crogers
date:        Tue Dec 04 14:30:08 2012 -0800
summary:     Bug 19764: Note in the spec that AudioParam.minValue/maxValue are merely informational

user:        crogers
date:        Mon Dec 03 18:03:13 2012 -0800
summary:     Convert integer constants to Web IDL enum string constants

user:        crogers
date:        Mon Dec 03 15:19:22 2012 -0800
summary:     Bug 17411: (AudioPannerNodeUnits): AudioPannerNode units are underspecified

user:        Ehsan Akhgari (Mozilla)
date:        Thu Nov 29 15:59:38 2012 -0500
summary:     Change the Web IDL description of decodeAudioData arguments

user:        crogers
date:        Wed Nov 14 13:24:01 2012 -0800
summary:     Bug 17393: (UseDoubles): float/double inconsistency

user:        crogers
date:        Wed Nov 14 13:16:57 2012 -0800
summary:     Bug 17356: (AudioListenerOrientation): AudioListener.setOrientation vectors

user:        crogers
date:        Wed Nov 14 12:56:06 2012 -0800
summary:     Bug 19957: PannerNode.coneGain is unused

user:        crogers
date:        Wed Nov 14 12:40:46 2012 -0800
summary:     Bug 17412: AudioPannerNodeVectorNormalization): AudioPannerNode orientation normalization unspecified

user:        crogers
date:        Wed Nov 14 12:16:41 2012 -0800
summary:     Bug 17411: (AudioPannerNodeUnits): AudioPannerNode units are underspecified

user:        crogers
date:        Tue Nov 13 16:14:22 2012 -0800
summary:     be more explicit about maxDelayTime units

user:        crogers
date:        Tue Nov 13 16:02:50 2012 -0800
summary:     Bug 19766: Clarify that reading AudioParam.computedValue will return the latest computed value for the latest audio quantum

user:        crogers
date:        Tue Nov 13 15:47:25 2012 -0800
summary:     Bug 19872: Should specify the defaults for PannerNode's position, ...

user:        crogers
date:        Tue Nov 13 15:27:53 2012 -0800
summary:     Bug 17390: (Joe Berkovitz): Loop start/stop points

user:        croger
date:        Tue Nov 13 14:49:20 2012 -0800
summary:     Bug 19765: Note that setting AudioParam.value will be ignored when any automation events have been set on the object

user:        crogers
date:        Tue Nov 13 14:39:07 2012 -0800
summary:     Bug 19873: Clarify PannerNode.listener

user:        crogers
date:        Tue Nov 13 13:35:21 2012 -0800
summary:     Bug 19900: Clarify the default values for the AudioParam attributes of BiquadFilterNode

user:        crogers
date:        Tue Nov 13 13:06:38 2012 -0800
summary:     Bug 19884: Specify the default value and ranges for the DynamicsCompressorNode AudioParam members

user:        crogers
date:        Tue Nov 13 12:57:02 2012 -0800
summary:     Bug 19910: Disallow AudioContext.createDelay(max) where max <= 0

user:        crogers
date:        Mon Nov 12 12:02:18 2012 -0800
summary:     Add example code for more complex example

user:        Ehsan Akhgari (Mozilla)
date:        Thu Nov 01 11:32:39 2012 -0400
summary:     Specify the default value for the AudioContext.createDelay() optional argument in Web IDL

user:        Ehsan Akhgari (Mozilla)
date:        Tue Oct 30 20:29:48 2012 -0400
summary:     Mark the AudioParam members as readonly

user:        Ehsan Akhgari (Mozilla)
date:        Tue Oct 30 20:24:52 2012 -0400
summary:     Make GainNode and DelayNode valid Web IDL

user:        crogers
date:        Mon Oct 29 14:29:23 2012 -0700
summary:     consolidate AudioBufferSourceNode start() method

user:        crogers
date:        Fri Oct 19 15:15:28 2012 -0700
summary:     Bug 18332: Node creation method naming inconsistencies

user:        crogers
date:        Mon Oct 15 17:22:54 2012 -0700
summary:     Bug 17407: Interface naming inconsistency

user:        crogers
date:        Tue Oct 09 17:21:19 2012 -0700
summary:     Bug 17369: Oscillator.detune attribute not defined

user:        crogers
date:        Tue Oct 09 16:08:50 2012 -0700
summary:     Bug 17346: HTMLMediaElement integration

user:        crogers
date:        Tue Oct 09 15:20:50 2012 -0700
summary:     Bug 17354: AudioListener default position, orientation and velocity

user:        crogers
date:        Tue Oct 09 15:02:04 2012 -0700
summary:     Bug 17795: Behavior of multiple connections to same node needs to be explicitly defined

user:        crogers
date:        Mon Oct 08 13:18:45 2012 -0700
summary:     Add missing AudioContext.createWaveShaper() method

user:        crogers
date:        Fri Oct 05 18:13:44 2012 -0700
summary:     Bug 17399: AudioParam sampling is undefined

user:        crogers
date:        Fri Oct 05 17:41:52 2012 -0700
summary:     Bug 17386: Realtime Analysis empty section

user:        crogers
date:        Fri Oct 05 17:38:14 2012 -0700
summary:     minor tweak to down-mix section

user:        crogers
date:        Fri Oct 05 17:35:05 2012 -0700
summary:     Bug 17380: Channel down mixing incomplete

user:        crogers
date:        Fri Oct 05 15:40:57 2012 -0700
summary:     Bug 17375: MixerGainStructure should be marked as informative

user:        crogers
date:        Fri Oct 05 14:29:20 2012 -0700
summary:     Bug 17381: (EventScheduling): Event Scheduling ('Need more detail here')

user:        crogers
date:        Fri Oct 05 13:12:46 2012 -0700
summary:     Fix 18663: Need a method to get a readonly reading of the combined value when using AudioParam automation curve

user:        crogers
date:        Fri Oct 05 12:48:36 2012 -0700
summary:     Fix 18662: Setting audioparam value while there is an automation curve will cancel that automation curve and set value immediately

user:        crogers
date:        Fri Oct 05 12:26:28 2012 -0700
summary:     Fix 18661: Use startTime / endTime parameter names for AudioParam automation methods

user:        crogers
date:        Wed Oct 03 12:26:39 2012 -0700
summary:     Specify default value for .distanceModel

user:        crogers
date:        Tue Oct 02 12:33:36 2012 -0700
summary:     Fix Issues 17338 and 17337: AudioGain interface is not needed (Part 2)

user:        crogers
date:        Tue Oct 02 12:28:55 2012 -0700
summary:     Fix Issues 17338 and 17337: AudioGain interface is not needed

user:        Ehsan Akhgari (Mozilla)
date:        Wed Sep 26 18:22:36 2012 -0400
summary:     Make AudioBufferSourceNode.buffer nullable

user:        crogers
date:        Tue Sep 25 12:56:14 2012 -0700
summary:     noteOn/noteOff changed to start/stop -- added deprecation notes

user:        Ehsan Akhgari (Mozilla)
date:        Fri Aug 24 18:27:29 2012 -0400
summary:     Make the AudioContext object have a constructor

user:        Ehsan Akhgari (Mozilla)
date:        Fri Aug 24 15:54:10 2012 -0400
summary:     Denote IDL definitions as Web IDL

user:        Ehsan Akhgari (Mozilla)
date:        Fri Aug 24 15:04:37 2012 -0400
summary:     Use `long` instead of `int`, since the int type doesn't exist in Web IDL

user:        Ehsan Akhgari (Mozilla)
date:        Fri Aug 24 15:02:43 2012 -0400
summary:     Add a missing attribute keyword in AudioProcessingEvent

user:        Ehsan Akhgari (Mozilla)
date:        Tue Aug 21 15:36:48 2012 -0400
summary:     Remove the 'raises' notation from the IDLs

user:        crogers
date:        Thu Aug 16 16:30:55 2012 -0700
summary:     Issue 17398: Add more detailed information about how AudioParam value is calculated

user:        crogers
date:        Thu Aug 16 15:21:38 2012 -0700
summary:     another try with the style sheet

user:        crogers
date:        Thu Aug 16 14:53:54 2012 -0700
summary:     use local style sheet to avoid https errors

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 23:05:49 2012 -0400
summary:     Replace the white-space based indentation of Web IDL code with a CSS-based one

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 22:56:03 2012 -0400
summary:     Remove more useless trailing whitespaces

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 22:47:21 2012 -0400
summary:     Remove the optional 'in' keyword from the Web IDL method declarations

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 22:42:03 2012 -0400
summary:     Add trailing semicolons for Web IDL interface declarations

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 22:37:32 2012 -0400
summary:     Remove useless trailing spaces

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 22:35:33 2012 -0400
summary:     Use the correct Web IDL notation for the AudioBufferCallback callback type

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 22:28:37 2012 -0400
summary:     Remove the extra semicolon in the IDL file for AudioContext

user:        Ehsan Akhgari (Mozilla)
date:        Wed Aug 15 22:24:02 2012 -0400
summary:     Replace the old [Optional] IDL tag with the Web IDL optional keyword

user:        Ehsan Akhgari (Mozilla)
date:        Tue Aug 14 10:18:19 2012 -0400
summary:     Empty changeset to test my commit access

date:        Mon Aug 13 13:26:52 2012 -0700
* Integrate Thierry Michel's 3rd public working draft edits

date:        Tue Jun 26 15:56:31 2012 -0700
* add MediaStreamAudioSourceNode

date:        Mon Jun 18 13:26:21 2012 -0700
* minor formatting fix

date:        Mon Jun 18 13:19:34 2012 -0700
* Add details for azimuth/elevation calculation

date:        Fri Jun 15 17:35:27 2012 -0700
* Add equal-power-panning details

date:        Thu Jun 14 17:31:16 2012 -0700
* Add equations for distance models

date:        Wed Jun 13 17:40:49 2012 -0700
* Bug 17334: Add precise equations for AudioParam.setTargetValueAtTime()

date:        Fri Jun 08 17:44:26 2012 -0700
* fix small typo

date:        Fri Jun 08 16:54:04 2012 -0700
* Bug 17413: AudioBuffers' relationship to AudioContext

date:        Fri Jun 08 16:05:45 2012 -0700
* Bug 17359: Add much more detail about ConvolverNode

date:        Fri Jun 08 12:59:29 2012 -0700
* minor formatting fix

date:        Fri Jun 08 12:57:11 2012 -0700
* Bug 17335: Add much more technical detail to setValueCurveAtTime()

date:        Wed Jun 06 16:34:43 2012 -0700
*Add much more detail about parameter automation, including an example

date:        Mon Jun 04 17:25:08 2012 -0700
* ISSUE-85: OscillatorNode folding considerations

date:        Mon Jun 04 17:02:20 2012 -0700
* ISSUE-45: AudioGain scale underdefined

date:        Mon Jun 04 16:40:43 2012 -0700
* ISSUE-41: AudioNode as input to AudioParam underdefined

date:        Mon Jun 04 16:14:48 2012 -0700
* ISSUE-20: Relationship to currentTime

date:        Mon Jun 04 15:48:49 2012 -0700
* ISSUE-94: Dynamic Lifetime

date:        Mon Jun 04 13:59:31 2012 -0700
* ISSUE-42: add more detail about AudioParam sampling and block processing

date:        Mon Jun 04 12:28:48 2012 -0700
* fix typo - minor edits

date:        Thu May 24 18:01:20 2012 -0700
* ISSUE-69: add implementors guide for linear convolution

date:        Thu May 24 17:35:45 2012 -0700
* ISSUE-49: better define AudioBuffer audio data access

date:        Thu May 24 17:15:29 2012 -0700
* fix small typo

date:        Thu May 24 17:13:34 2012 -0700
* ISSUE-24: define circular routing behavior

date:        Thu May 24 16:35:24 2012 -0700
* ISSUE-42: specify a-rate or k-rate for each AudioParam

date:        Fri May 18 17:01:36 2012 -0700
* ISSUE-53: noteOn and noteOff interaction

date:        Fri May 18 16:33:29 2012 -0700
* ISSUE-34: Remove .name attribute from AudioParam

date:        Fri May 18 16:27:19 2012 -0700
* ISSUE-33: Add maxNumberOfChannels attribute to AudioDestinationNode

date:        Fri May 18 15:50:08 2012 -0700
* ISSUE-19: added more info about AudioBuffer - IEEE 32-bit

date:        Fri May 18 15:37:27 2012 -0700
* ISSUE-29: remove reference to webkitAudioContext

date:        Fri Apr 27 12:36:54 2012 -0700
* fix two small typos reported by James Wei

date:        Tue Apr 24 12:27:11 2012 -0700
* small cleanup to ChannelSplitterNode and ChannelMergerNode

date:        Tue Apr 17 11:35:56 2012 -0700
* small fix to createWaveTable()

date:        Tue Apr 13 2012
* Cleanup AudioNode connect() and disconnect() method descriptions.
* Add AudioNode connect() to AudioParam method.

date:        Tue Apr 13 2012
* Add OscillatorNode and WaveTable
* Define default values for optional arguments in createJavaScriptNode(), createChannelSplitter(), createChannelMerger()
* Define default filter type for BiquadFilterNode as LOWPASS

date:        Tue Apr 11 2012
* add AudioContext .activeSourceCount attribute
* createBuffer() methods can throw exceptions
* add AudioContext method createMediaElementSource()
* update AudioContext methods createJavaScriptNode() (clean up description of parameters)
* update AudioContext method createChannelSplitter() (add numberOfOutputs parameter)
* update AudioContext method createChannelMerger() (add numberOfInputs parameter)
* update description of out-of-bounds AudioParam values (exception will not be thrown)
* remove AudioBuffer .gain attribute
* remove AudioBufferSourceNode .gain attribute
* remove AudioListener .gain attribute
* add AudioBufferSourceNode .playbackState attribute and state constants
* AnalyserNode no longer requires its output be connected to anything
* update ChannelMergerNode section describing numberOfOutputs (defaults to 6 but settable in constructor)
* update ChannelSplitterNode section describing numberOfInputs (defaults to 6 but settable in constructor)
* add note in Spatialization sections about potential to get arbitrary convolution matrixing

date:        Tue Apr 10 2012
* Rebased editor's draft document based on edits from Thierry Michel (from 2nd public working draft).

date:        Tue Mar 13 12:13:41 2012 -0100
*  fixed all the HTML errors
*  added ids to all Headings
*  added alt attribute to all img
*  fix broken anchors
*  added a new status of this document section
*  added mandatory spec headers
*  generated a new table of content
*  added a Reference section
*  added an Acknowledgments section
*  added a Web Audio API Change Log

date:        Fri Mar 09 15:12:42 2012 -0800
* add optional maxDelayTime argument to createDelay()
* add more detail about playback state to AudioBufferSourceNode
* upgrade noteOn(), noteGrainOn(), noteOff() times to double from float

date:        Mon Feb 06 16:52:39 2012 -0800
* Cleanup ScriptProcessorNode section
* Add distance model constants for PannerNode according to the OpenAL spec
* Add .normalize attribute to ConvolverNode
* Add getFrequencyResponse() method to BiquadFilterNode
* Tighten up the up-mix equations

date:        Fri Nov 04 15:40:58 2011 -0700
summary:     Add more technical detail to BiquadFilterNode description (contributed by Raymond Toy)

date:        Sat Oct 15 19:08:15 2011 -0700
summary:     small edits to the introduction

date:        Sat Oct 15 19:00:15 2011 -0700
summary:     initial commit

date:        Tue Sep 13 12:49:11 2011 -0700
summary:     add convolution reverb design document

date:        Mon Aug 29 17:05:58 2011 -0700
summary:     document the decodeAudioData() method

date:        Mon Aug 22 14:36:33 2011 -0700
summary:     fix broken MediaElementAudioSourceNode link

date:        Mon Aug 22 14:33:57 2011 -0700
summary:     refine section describing integration with HTMLMediaElement

date:        Mon Aug 01 12:05:53 2011 -0700
summary:     add Privacy section

date:        Mon Jul 18 17:53:50 2011 -0700
summary:     small update - tweak musical applications thumbnail images

date:        Mon Jul 18 17:23:00 2011 -0700
summary:     initial commit of Web Audio API specification
