W3C

Resource Timing

W3C Working Draft 24 May 2011

This version:
http://www.w3.org/TR/2011/WD-resource-timing-20110524/
Latest version:
http://www.w3.org/TR/resource-timing/
Latest Editor's Draft:
http://www.w3c-test.org/webperf/specs/ResourceTiming/
Editors:
Jatinder Mann, Microsoft Inc.,
Zhiheng Wang, Google Inc.,
Anderson Quach, Microsoft Inc. (Until March 2011)

Abstract

This specification defines an interface for web applications to access timing information related to HTML elements.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This is a First Public Working Draft of "Resource Timing".

This document is produced by the Web Performance Working Group. The Web Performance Working Group is part of the Rich Web Clients Activity in the W3C Interaction Domain.

Please send comments to public-web-perf@w3.org (archived) with [ResourceTiming] at the start of the subject line.

You can find the latest Editor's Draft of this document in the W3C's Mercurial repository, which is updated on a regular basis.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Implementers should be aware that this document is not stable. Implementers who are not taking part in the discussions are likely to find the specification changing out from under them in incompatible ways. Vendors interested in implementing this document before it eventually reaches the Candidate Recommendation stage should join the aforementioned mailing lists and take part in the discussions.

Table of Contents

  1. 1 Introduction
  2. 2 Conformance requirements
  3. 3 Terminology
  4. 4 Resource Timing
    1. 4.1 Introduction
    2. 4.2 Resources Included
    3. 4.3 The PerformanceResourceTiming Interface
    4. 4.3 The Resource Timing Methods
    5. 4.5 Cross-origin Resources
  5. 5 Process
    1. 5.1 Processing Model
    2. 5.2 Monotonic Clock
  6. 6 Privacy
  7. 7 Security
  8. Acknowledgements

1 Introduction

This section is non-normative.

User latency is an important quality benchmark for Web Applications. While JavaScript-based mechanisms can provide comprehensive instrumentation for user latency measurements within an application, in many cases, they are unable to provide a complete end-to-end latency picture. While Navigation Timing [NavigationTiming] address part of the problem by providing timing information associated with a navigation, this document introduces the ResourceTiming interface to allow Javascript mechanisms to collect complete timing information related to resources on a document.

For example, the following Javascript shows a simple attempt to measure the time it takes to fetch a resource:

<!doctype html>
<html>
  <head>
  </head>
  <body onload="loadResources()">
    <script>
        function loadResources()
        {
           var start = new Date().getTime();
           var image1 = new Image();
           image1.src = 'http://w3c-test.org/webperf/image1.png';
           image1.onload = resourceTiming;

           var resourceTiming = function() {
               var now = new Date().getTime();
               var latency = now - start;
               alert("End to end resource fetch: " + latency);
           };
        }
    </script>
    <img src="http://w3c-test.org/webperf/image0.png">
  </body>
</html>

Though this script can measure the time it takes to fetch a resource, it cannot break down the time spent in various phases. Further, the script cannot easily measure the time it takes to fetch resources described in markup.

To address the need for complete information on user experience, this document introduces the PerformanceResourceTiming interface. This interface allows JavaScript mechanisms to provide complete client-side latency measurements within applications. With this interface, the previous example can be modified to measure a user's perceived load time of a resource.

The following script calculates the amount of time it takes to fetch every resource in the page, even those defined in markup. This example assumes that this page is hosted on http://w3c-test.org. One could further measure the amount of time it takes in every phase of fetching a resource with the PerformanceResourceTiming interface.

<!doctype html>
<html>
  <head>
  </head>
  <body onload="loadResources()">
    <script>
       function loadResources()
       {
          var image1 = new Image();
          image1.src = 'http://w3c-test.org/webperf/image1.png';
          image1.onload = resourceTiming;
       }

       function resourceTiming()
       {
           var resourceList = window.performance.getResourceTimings();
           for (i = 0; i < resourceList.length; i++)
           {
              if (resourceList[i].type == window.performance.INITIATOR_IMAGE)
              {
                 alert("End to end resource fetch: "+ resourceList[i].responseEnd - resourceList[i].resourceStart);
              }
           }
       }
    </script>
    <img id="image0" src="http://w3c-test.org/webperf/image0.png">
  </body>
</html>

2 Conformance requirements

All diagrams, examples, and notes in this specification are non-normative, as are all sections explicitly marked non-normative. Everything else in this specification is normative.

The key words "MUST", "MUST NOT", "REQUIRED", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in the normative parts of this document are to be interpreted as described in RFC2119. For readability, these words do not appear in all uppercase letters in this specification. [RFC2119]

Requirements phrased in the imperative as part of algorithms (such as "strip any leading space characters" or "return false and abort these steps") are to be interpreted with the meaning of the key word ("must", "should", "may", etc) used in introducing the algorithm.

Some conformance requirements are phrased as requirements on attributes, methods or objects. Such requirements are to be interpreted as requirements on user agents.

Conformance requirements phrased as algorithms or specific steps may be implemented in any manner, so long as the end result is equivalent. (In particular, the algorithms defined in this specification are intended to be easy to follow, and not intended to be performant.)

3 Terminology

The construction "a Foo object", where Foo is actually an interface, is sometimes used instead of the more accurate "an object implementing the interface Foo".

The term DOM is used to refer to the API set made available to scripts in Web applications, and does not necessarily imply the existence of an actual Document object or of any other Node objects as defined in the DOM Core specifications. [DOM3CORE]

A DOM attribute is said to be getting when its value is being retrieved (such as by author script), and is said to be setting when a new value is assigned to it.

The term "JavaScript" is used to refer to ECMA262, rather than the official term ECMAScript, since the term JavaScript is more widely known. [ECMA262]

Throughout this work, time is measured in milliseconds since midnight of January 1, 1970 (UTC).

4 Resource Timing

4.1 Introduction

This section is non-normative.

The PerformanceResourceTiming interface facilitates timing measurement of downloadable resources on the root page. It represents the timing information related to resources that initiate network downloads. For example, this interface is available for XMLHttpRequest objects [XMLHttpRequest], HTML elements [HTML5] such as iframe, img, script, object, audio, video, embed, and link with the link type of stylesheet, and SVG elements [SVG] such as svg.

The term "resource" is also used to refer to these elements in this work.

4.2 Resources Included in the PerformanceResourceTiming Interface

The PerformanceResourceTiming interface must include all resources fetched from the networking layer by the current browsing context. Resources that are retrieved from the user agent's networking layer cache must be included in the PerformanceResourceTiming interface.

The rest of this section is non-normative.

Examples:

The user agent may choose to limit how many resources are included in the PerformanceResourceTiming interface. The recommended maximum number of resources is 150, though this may be changed by the user agent. setResourceTimingBufferSize can be called to request a change to this limit.

4.3 The PerformanceResourceTiming Interface

interface PerformanceResourceTiming {

  const unsigned short INITIATOR_OTHER = 0;
  const unsigned short INITIATOR_LINK = 1;
  const unsigned short INITIATOR_CSS = 2;
  const unsigned short INITIATOR_SCRIPT = 3;
  const unsigned short INITIATOR_IMAGE = 4;
  const unsigned short INITIATOR_OBJECT = 5;
  const unsigned short INITIATOR_FRAME = 6;
  const unsigned short INITIATOR_SUBDOCUMENT = 7;
  const unsigned short INITIATOR_XMLHTTPREQUEST = 8;
  const unsigned short INITIATOR_EMBED = 9;
  const unsigned short INITIATOR_AUDIO = 10;
  const unsigned short INITIATOR_VIDEO = 11;
  const unsigned short INITIATOR_SVG = 12;
  const unsigned short INITIATOR_RESERVED = 255;

  readonly attribute unsigned short type;
  readonly attribute DOMString url;

  readonly attribute unsigned long long resourceStart;
  readonly attribute unsigned long long redirectStart;
  readonly attribute unsigned long long redirectEnd;
  readonly attribute unsigned long long fetchStart;
  readonly attribute unsigned long long domainLookupStart;
  readonly attribute unsigned long long domainLookupEnd;
  readonly attribute unsigned long long connectStart;
  readonly attribute unsigned long long connectEnd;
  readonly attribute unsigned long long secureConnectionStart;
  readonly attribute unsigned long long requestStart;
  readonly attribute unsigned long long responseStart;
  readonly attribute unsigned long long responseEnd;
};

type attribute

This attribute must return the type of object that initiated the request for the resource:

INITIATOR_OTHER: the initiator is not of any type listed below.
INITIATOR_LINK: the initiator is a LINK element.
INITIATOR_CSS: the initiator is a CSS.
INITIATOR_SCRIPT: the initiator is SCRIPT element.
INITIATOR_IMAGE: the initiator is an IMG element.
INITIATOR_OBJECT: the initiator is an OBJECT element.
INITIATOR_FRAME: the initiator is a FRAME element.
INITIATOR_SUBDOCUMENT: the initiator is an IFRAME element.
INITIATOR_XMLHTTPREQUEST: the initiator is a XMLHttpRequest object.
INITIATOR_EMBED: the initiator is an EMBED element.
INITIATOR_AUDIO: the initiator is an AUDIO element.
INITIATOR_VIDEO: the initiator is a VIDEO element.
INITIATOR_SVG: the initiator is a SVG element.
INITIATOR_RESERVED: this is reserved for future use.

url attribute

This attribute must return the resolved URL of the requested resource. The attribute must not change even if the fetch redirected to a different URL.

resourceStart attribute

This attribute must return the time immediately before the user agent starts to queue the resource for fetching. If there are HTTP redirects or equivalent when fetching the resource and if all the redirects or equivalent are from the same origin as the current document, this attribute must return the same value as redirectStart. Otherwise, this attribute must return the same value as fetchStart.

redirectStart attribute

If there are HTTP redirects or equivalent when fetching the resource and if all the redirects or equivalent are from the same origin as the current document, this attribute must return the starting time of the fetch that initiates the redirect.

If there are HTTP redirects or equivalent when fetching the resource and if any of the redirects are not from the same origin as the current document, and the Timing-Allow-Origin HTTP response header rules are met, this attribute must return the starting time of the fetch that initiates the redirect. Otherwise, this attribute must return zero.

redirectEnd attribute

If there are HTTP redirects or equivalent when fetching the resource and if all the redirects or equivalent are from the same origin as the current document, this attribute must return the time immediately after receiving the last byte of the response of the last redirect.

If there are HTTP redirects or equivalent when fetching the resource and if any of the redirects are not from the same origin as the current document, and the Timing-Allow-Origin HTTP response header rules are met, this attribute must return the time immediately after receiving the last byte of the response of the last redirect. Otherwise, this attribute must return zero.

fetchStart attribute

This attribute must return the time immediately before the user agent starts to fetch the resource.

domainLookupStart attribute

This attribute must return the time immediately before the user agent starts the domain name lookup for the resource. If a persistent connection [RFC 2616] is used or the resource is retrieved from relevant application caches or local resources, this attribute must return the same value as fetchStart.

If the last non-redirected fetch of the resource is not the same origin as the current document, domainLookupStart must return zero unless the Timing-Allow-Origin HTTP response header rules apply.

domainLookupEnd attribute

This attribute must return the time immediately after the user agent finishes the domain name lookup for the resource. If a persistent connection [RFC 2616] is used or the resource is retrieved from relevant application caches or local resources, this attribute must return the same value as fetchStart.

If the user agent has the domain information in cache, domainLookupStart and domainLookupEnd represent the times when the user agent starts and ends the domain data retrieval from the cache.

If the last non-redirected fetch of the resource is not the same origin as the current document, domainLookupEnd must return zero unless the Timing-Allow-Origin HTTP response header rules apply.

connectStart attribute

This attribute must return the time immediately before the user agent start establishing the connection to the server to retrieve the resource. If a persistent connection [RFC 2616] is used or the resource is retrieved from relevant application caches or local resources, this attribute must return value of domainLookupEnd.

If the last non-redirected fetch of the resource is not the same origin as the current document, connectStart must return zero unless the Timing-Allow-Origin HTTP response header rules apply.

connectEnd attribute

This attribute must return the time immediately after the user agent finishes establishing the connection to the server to retrieve the resource. If a persistent connection [RFC 2616] is used or the resource is retrieved from relevant application caches or local resources, this attribute must return the value of domainLookupEnd.

If the transport connection fails and the user agent reopens a connection, connectStart and connectEnd should return the corresponding values of the new connection.

connectEnd must include the time interval to establish the transport connection. It must not include other time interval such as SSL handshake and SOCKS authentication.

If the last non-redirected fetch of the resource is not the same origin as the current document, connectEnd must return zero unless the Timing-Allow-Origin HTTP response header rules apply.

secureConnectionStart attribute

This attribute is optional. User agents that don't have this attribute available must set it as undefined. When this attribute is available, if the scheme of the current page is HTTPS, this attribute must return the time immediately before the user agent starts the handshake process to secure the current connection. If the secureConnectionStart attribute is available but HTTPS is not used, this attribute must return zero.

If the last non-redirected fetch of the resource is not the same origin as the current document, secureConnectionStart must return zero unless the Timing-Allow-Origin HTTP response header rules apply.

requestStart attribute

This attribute must return the time immediately before the user agent starts requesting the resource. It is set prior to checking HTTP cache.

If the transport connection fails after a request is sent and the user agent reopens a connection and resend the request, requestStart must return the corresponding values of the new request.

If the last non-redirected fetch of the resource is not the same origin as the current document, requestStart must return zero unless the Timing-Allow-Origin HTTP response header rules apply.

responseStart attribute

This attribute must return the time immediately after the user agent receives the first byte of the response from the server, or from relevant application caches or from local resources.

If the last non-redirected fetch of the resource is not the same origin as the current document, responseStart must return zero unless the Timing-Allow-Origin HTTP response header rules apply.

responseEnd attribute

This attribute must return the time immediately after the user agent finishes receiving the last byte of the resource from from relevant application caches or from local resources.

4.4 The Resource Timing Methods

[Supplemental] Performance {
  void clearResourceTimings();
  PerformanceResourceTimingList getResourceTimings();
  PerformanceResourceTimingList getResourceTimingsByLocation( in Location location );
  void setResourceTimingBufferSize (in unsigned long maxSize);

  attribute Function onbufferfull;
};
interface PerformanceResourceTimingList{
   readonly attribute unsigned long length;
   getter ResourcePerformanceTiming(in unsigned long index);
};

clearResourceTimings method

The method clearResourceTimings clears the buffer used to store the current list of PerformanceResourceTiming resources.

No parameters

No return value

No exceptions

getResourceTimings method

The getResourceTimings interface retrieves an array of all PerformanceResourceTiming resources.

No Parameters

Return Value

PerformanceResourceTimingList

A list of PerformanceResourceTiming resources.

No exceptions

getResourceTimingsByLocation method

The getResourceTimingsByLocation interface retrieves an array of PerformanceResourceTiming resources as identified by the location.

Parameters

in location type of DOMLocator

The id parameter specifies which resource timings to retrieve.

Return Value

PerformanceResourceTimingList

A list of PerformanceResourceTiming resources.

No exceptions

setResourceTimingBufferSize method

The setResourceTimingBufferSize method, when invoked, must set the maximum number of PerformanceResourceTiming resources that may be stored in the buffer to the value of the maxSize parameter.

If this method is not called, the default maximum number of PerformanceResourceTiming resources stored must be 150, unless otherwise specified by the user agent.

Parameters

in maxSize type of unsigned long

The maxSize parameter sets the maximum number of PerformanceResourceTiming resources that will be stored in the buffer.

No return value

No exceptions

onbufferfull attribute

The callback onbufferfull is triggered when the buffer used to store the list of PerformanceResourceTiming is full. The callback can be used to package existing PerformanceResourceTiming resources and clear the buffered PerformanceResourceTiming list. While executing the onbufferfull callback, PerformanceResourceTiming will continue to be collected beyond the maximum limit of the resources allowed in the PerformanceResourceTiming interface until one of the following occurs:

  1. clearResourceTimings is called - The PerformanceResourceTimingList will begin with the n+1th item if it exists and the first n elements are released, where n is the maximum number of resources allowed in the PerformanceResourceTiming interface. If the n+1th item does not exist, the buffer is cleared. The max length of the PerformanceResourceTimingList does not change unless otherwise specified by setResourceTimingBufferSize.
  2. setResourceTimingBufferSize is called - The PerformanceResourceTimingList will extend and / or truncate to the buffer size specified.
  3. Neither clearResourceTimings or setResourceTimingBufferSize is called during the execution of the onbufferfull callback - no updates are made to the PerformanceResourceTimingList.

4.5 Cross-origin Resources

Information from cross-origin resources must be included in the PerformanceResourceTiming interface. In the absence of the Timing-Allow-Origin HTTP response header, these attributes must be set to zero: redirectStart, redirectEnd, domainLookupStart, domainLookupEnd, connectStart, connectEnd, requestStart, responseStart, and responseEnd.

The terms origin and same origin are defined by The HTTP Origin Header. [ORIGIN]

The term cross-origin is used to mean non same origin.

Server-side applications may return the Timing-Allow-Origin HTTP response header to allow the User Agent to fully expose, to the document origin(s) specified, the values of attributes that would have been zero due to the cross-origin restrictions previously specified in this section.

Timing-Allow-Origin Response Header

The Timing-Allow-Origin header indicates whether a resource's timing can be shared based by returning the value of the Origin request header in the response. ABNF:

Timing-Allow-Origin = "Timing-Allow-Origin" ":" origin-list-or-null | "*"

origin-list-or-null is defined by The HTTP Origin Header. [ORIGIN]

5 Process

5.1 Processing Model

Illustration

This section is non-normative.

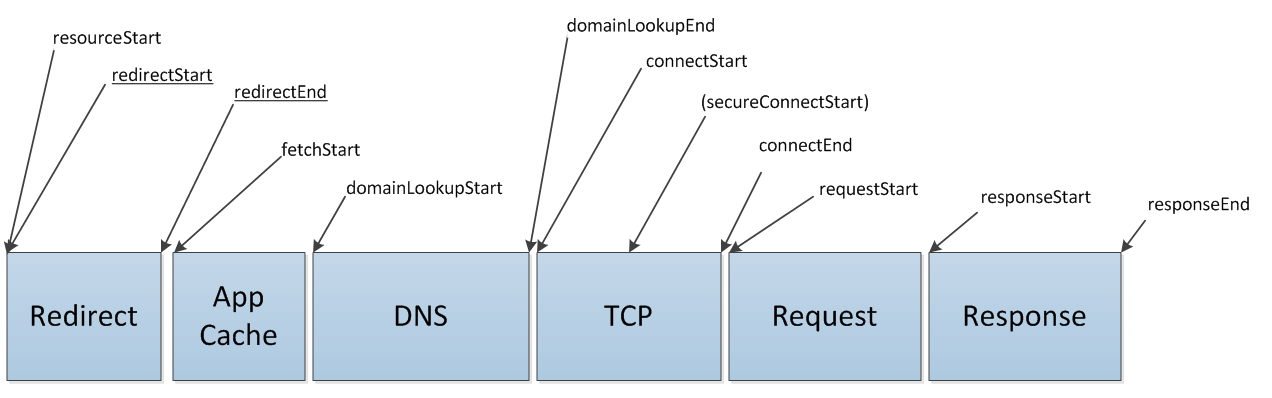

The following graph illustrates the timing attributes defined by the PerformanceResourceTiming interface. Attributes underlined may not be available when fetching resources from different origins. User agents may perform internal processing in between timings, which allow for non-normative intervals between timings.

Resource Timing attributes

  1. Once Window object of the current document is created, the user agent must create a primary buffer to store the list of PerformanceResourceTiming resources.
  2. Set the primary buffer to a size of 150, unless otherwise specified by the user agent or set by the setResourceTimingBufferSize method.
  3. For each resource fetched by the current browsing context, perform the following steps:
    1. Create a new PerformanceResourceTiming object.
    2. Immediately before the user agent starts to queue the resource for retrieval, record the current time as resourceStart.
    3. Record the initiator of the resource in type.
    4. Record the resolved URL of the requested resource in url.
    5. If the new resource is to be fetched using HTTP GET or equivalent, immediately before a user agent checks with the relevant application caches, record the current time as fetchStart. Otherwise, immediately before a user agent starts the fetching process, record the current time as fetchStart.
    6. If the resource is not to be fetched from the networking layer, such as being fetched from an in-memory cache, abort the following steps.
    7. If fetching the resource is aborted for any reason, abort the following steps.
    8. If the last non-redirected fetch of the resource is not the same origin as the current document and the Timing-Allow-Origin HTTP response header does not apply, the user agent must set redirectStart, redirectEnd, domainLookupStart, domainLookupEnd, connectStart, connectEnd, requestStart, responseStart, and responseEnd to zero and abort the following steps.
    9. Let domainLookupStart, domainLookupEnd, connectStart and connectEnd be the same value as fetchStart.
    10. If the resource is fetched from the relevant application cache or local resources, go to step 3.15.
    11. If no domain lookup is required, go to step 3.13. Otherwise, immediately before a user agent starts the domain name lookup, record the time as domainLookupStart.
    12. Record the time as domainLookupEnd immediately after the domain name lookup is successfully done. A user agent may need multiple retries before that. If the domain lookup fails, abort the following steps.
    13. If a persistent transport connection is used to fetch the resource, let connectStart and connectEnd be the same value of domainLookupEnd. Otherwise, record the time as connectStart immediately before initiating the connection to the server and record the time as connectEnd immediately after the connection to the server or the proxy is established. A user agent may need multiple retries before this time. If a connection can not be established, abort the following steps.
    14. If the user agent supports the secureConnectionStart attribute, in step 3.13, a user agent should also carry out these additional steps:
      1. If the scheme of the current resource is HTTPS, the user agent must record the time as secureConnectionStart immediately before the handshake process to secure the connection.
      2. If the scheme of the current resource is not HTTPS, the user agent must set the value of secureConnectionStart to 0.
    15. Immediately before a user agent starts sending the request for the resource, record the current time as requestStart.
    16. Record the time as responseStart immediately after the user agent receives the first byte of the response.
    17. Record the time as responseEnd immediately after receiving the last byte of the response.

      Return to step 3.13 if the user agent fails to send the request or receive the entire response, and needs to reopen the connection.

      Example

      When persistent connection [RFC 2616] is enabled, a user agent may first try to re-use an open connect to send the request while the connection can be asynchronously closed. In such case, connectStart, connectEnd and requestStart should represent timing information collected over the re-open connection.

    18. If the fetched resource results in an HTTP redirect or equivalent, then
      1. If the current resource and the resource that is redirected to are not from the same origin, set redirectStart and redirectEnd to 0. Then, return to step 3.5 with the new resource.
      2. If the value of redirectStart is not set, let it be the value of fetchStart.
      3. Let redirectEnd be the value of responseEnd.
      4. Set all the attributes in the PerformanceResourceTiming object to 0 except resourceStart, redirectStart, redirectEnd, type and url.
      5. Return to step 3.5 with the new resource.
    19. If the primary buffer is full, the callback onbufferfull must be triggered.
      1. Create a temporary buffer of PerformanceResourceTiming objects.
      2. Add the current resource to the temporary buffer.
      3. If there are additional resources that are collected during the onbufferfull callback, add them to the temporary buffer.
      4. If the clearResourceTimings method is called in the onbufferfull callback, clear all PerformanceResourceTiming objects in the primary buffer. Copy all PerformanceResourceTiming objects in the temporary buffer to the primary buffer.
      5. If the setResourceTimingBufferSize method is called in the onbufferfull callback, set the maximum size of the primary buffer to the maxSize parameter. If the maxSize parameter is larger than the previous size of the primary buffer, append PerformanceResourceTiming objects in the temporary buffer to the primary buffer up to the maxSize parameter.
      6. Discard the temporary buffer.
    20. If the primary buffer is not full, add the PerformanceResourceTiming object, created in step 3.1, to the primary buffer.
    21. If there are additional resources, return to step 3.1.

5.2 Monotonic Clock

The value of the timing attributes must monotonically increase to ensure timing attributes are not skewed by adjustments to the system clock during the navigation. The difference between any two chronologically recorded timing attributes must never be negative. The user agent must record the system clock at the beginning of the navigation and define subsequent timing attributes in terms of a monotonic clock measuring time elapsed from the beginning of the navigation.

6 Privacy

This section is non-normative.

When giving various timing information of how a resource is requested and process, the ResourceTiming interface potentially exposes such information to any page that has this resource included. To limit the access to the ResourceTiming interface, the same origin policy is enforced by default. Additionally, resource providers can explicitely allow timing information to be collected over a resource by adding the allow-timing meta tag to the HTML header, which specifies the domains that are allowed to access the timing information.

7 Security

This section is non-normative.

Similar to the discussion in the Privacy section.

Acknowledgements

We would like to sincerely thank Annie Sullivan, Darin Fisher, James Simonsen, Jason Weber, Jonas Sicking, Karen Anderson, Kyle Scholz, Nic Jansma, Steve Souders and Tony Gentilcore to acknowledge their contributions to this work.

References

[IETF RFC 2119]
Key words for use in RFCs to Indicate Requirement Levels, Scott Bradner, Author. Internet Engineering Task Force, March 1997. Available at http://www.ietf.org/rfc/rfc2119.txt.
[ORIGIN]
The Web Origin Concept, A. Barth, Author. Internet Engineering Task Force, November 2010. Available at http://tools.ietf.org/html/draft-abarth-origin.
[IETF RFC 2616]
Hypertext Transfer Protocol -- HTTP/1.1, R. Fielding et al., Authors. Internet Engineering Task Force, June 1999. Available at http://www.ietf.org/rfc/rfc2616.txt.
[DOM Level 3 Core]
Document Object Model Level 3 Core Specification, A. Le Hors, et al., Editors. World Wide Web Consortium, 7 April 2004. This version of the Document Object Model Level 3 Core Recommendation is http://www.w3.org/TR/2004/REC-DOM-Level-3-Core-20040407. The latest version of DOM Level 3 Core is available at http://www.w3.org/TR/DOM-Level-3-Core.
[ECMA-262]
ECMAScript Language Specification, 5th Edition. ECMA International, Standard ECMA-262, December 2009. This version of the ECMAScript Language is available from http://www.ecma-international.org/publications/standards/Ecma-262.htm.
[XMLHttpRequest]
XMLHttpRequest, Anne van Kesteren, Editor. World Wide Web Consortium, August 2010. This version of the XMLHttpRequest Candidate Recommendation is http://www.w3.org/TR/2010/CR-XMLHttpRequest-20100803/. The latest version of XMLHttpRequest is available at http://www.w3.org/TR/XMLHttpRequest/.
[HTML5]
HTML5, Ian Hickson, Editor. World Wide Web Consortium, May 2011. This version of the HTML5 is available from http://www.w3.org/TR/html5/. The latest editor's draft is available at http://dev.w3.org/html5/spec/.
[SVG]
Scalable Vector Graphics (SVG) 1.1, Erik Dahlström, et al, Editors. World Wide Web Consortium, May 2011. This version of the SVG specification is available from http://www.w3.org/TR/2011/WD-SVG11-20110512/. The latest version of SVG is available at http://www.w3.org/TR/SVG/.
[Navigation Timing]
Navigation Timing, Zhiheng Wang, Editor. World Wide Web Consortium, March 2011. This version of the Navigation Timing specification is available from http://www.w3.org/TR/2011/CR-navigation-timing-20110315/. The latest version of Navigation Timing is available at http://www.w3.org/TR/navigation-timing/.
