OWL 2 Web Ontology Language:
Structural Specification and Functional-Style Syntax

W3C Working Draft 02 December 2008

This version:: http://www.w3.org/TR/2008/WD-owl2-syntax-20081202/
Latest version:: http://www.w3.org/TR/owl2-syntax/
Previous version:: http://www.w3.org/TR/2008/WD-owl2-syntax-20081008/

Editors:: Boris Motik, Oxford University; Peter F. Patel-Schneider, Bell Labs Research, Alcatel-Lucent; Bijan Parsia, University of Manchester
Contributors:: Conrad Bock, National Institute of Standards and Technology (NIST); Achille Fokoue, IBM Corporation; Peter Haase, Forschungszentrum Informatik (FZI); Rinke Hoekstra, University of Amsterdam; Ian Horrocks, Oxford University; Alan Ruttenberg, Science Commons (Creative Commons); Uli Sattler, University of Manchester; Mike Smith, Clark & Parsia

This document is also available in these non-normative formats: PDF version.

Abstract

OWL 2 extends the W3C OWL Web Ontology Language with a small but useful set of features that have been requested by users, for which effective reasoning algorithms are now available, and that OWL tool developers are willing to support. The new features include extra syntactic sugar, additional property and qualified cardinality constructors, extended datatype support, simple metamodeling, and extended annotations.
This document defines OWL 2 ontologies in terms of their structure, and it also defines a functional-style syntax in which ontologies can be written. Furthermore, this document provides an informal description of each of the constructs provided by the language.

Status of this Document

May Be Superseded

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This document is being published as one of a set of 11 documents:

Last Call

The Working Group believes it has completed its design work for the technologies specified this document, so this is a "Last Call" draft. The design is not expected to change significantly, going forward, and now is the key time for external review, before the implementation phase.

Summary of Changes

This document contains a few changes since the previous version of 08 October 2008.

The structure of the annotation subsystem has been considerably refactored and extended.
Conjunction and disjunction of data ranges have been added.
The usage of owl:topDataProperty has been restricted to allow the datatype map to be extensible.
The formal definition of the datatype map has been slightly changed to make it compatible with the usual W3C definitions.
The owl:rational and rdf:XMLLiteral datatypes were added to the datatype map of OWL 2.
The status of metamodeling has been clarified.
Certain parts of the document (mainly in Sections 2, 3, and 5) have been rewritten for clarity.

Please Comment By 23 January 2009

The OWL Working Group seeks public feedback on these Working Drafts. Please send your comments to public-owl-comments@w3.org (public archive). If possible, please offer specific changes to the text that would address your concern. You may also wish to check the Wiki Version of this document for internal-review comments and changes being drafted which may address your concerns.

No Endorsement

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

Patents

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

[Show Short TOC]

1 Introduction
2 Preliminary Definitions
3 Ontologies
4 Datatype Maps
5 Entities and Literals
6 Property Expressions

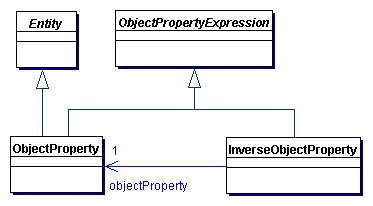

- 6.1 Object Property Expressions
  - 6.1.1 Inverse Object Properties
- 6.2 Data Property Expressions
7 Data Ranges
8 Class Expressions
9 Axioms
10 Annotations
- 10.1 Annotations of Ontologies, Axioms, and other Annotations
- 10.2 Annotation Axioms
11 Global Restrictions on Axioms
- 11.1 Property Hierarchy and Simple Object Property Expressions
- 11.2 The Restrictions on the Axiom Closure
12 Appendix: Internet Media Type, File Extension, and Macintosh File Type
13 Complete Grammar (Normative)
14 Index
15 Acknowledgments
16 References

1 Introduction

This document defines the OWL 2 language. The core part of this specification — called the structural specification — is independent of the concrete exchange syntaxes for OWL 2 ontologies. It describes the conceptual structure of OWL 2 ontologies and thus provides a normative abstract model for all (normative and nonnormative) syntaxes of OWL 2. This allows for a clear separation of the essential features of the language from issues related to any particular syntax. Furthermore, such a structural specification of OWL 2 provides the foundation for the implementation of OWL 2 tools such as APIs and reasoners.

This document also defines the functional-style syntax, which closely follows the structural specification and allows OWL 2 ontologies to be written in a compact form. This syntax is used in the definitions of the semantics of OWL 2 ontologies, the mappings from and into the RDF/XML exchange syntax, and the different profiles of OWL 2. Concrete syntaxes, such as the functional-style syntax, often provide features not found in the structural specification, such as a mechanism for abbreviating long IRIs.

An OWL 2 ontology is a formal conceptualization of a domain of interest. OWL 2 ontologies consist of the following three different syntactic categories:

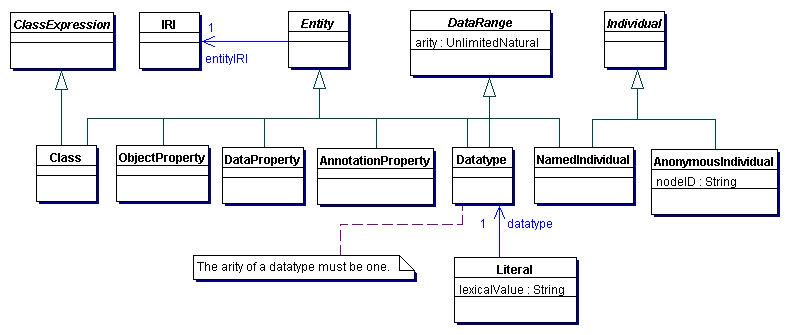

Entities, such as classes, properties, and individuals, are identified by IRIs and can be thought of as primitive terms or names. Entities represent basic elements of the domain being modeled. For example, a class a:Person can be used to model the set of all people. Similarly, the object property a:parentOf can be used to model the parent-child relationship. Finally, the individual a:Peter can be used to represent a particular person called "Peter".
Expressions represent complex notions in the domain being modeled. For example, a class expression describes a set of individuals in terms of the restrictions on the individuals' features.

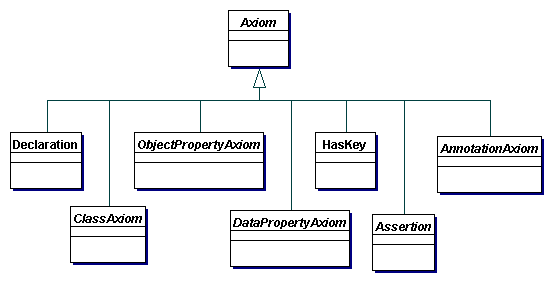

Axioms are statements that are asserted to be true in the domain being modeled. For example, using a subclass axiom, one can state that the class a:Student is a subclass of the class a:Person.

These three syntactic categories are used to express the logical part of OWL 2 ontologies — that is, they are interpreted under a precisely defined semantics that allows useful inferences to be drawn. For example, if an individual a:Peter is an instance of the class a:Student, and a:Student is a subclass of a:Person, then from the OWL 2 semantics one can derive that a:Peter is also an instance of a:Person.

In addition, entities, axioms, and ontologies can be annotated in OWL 2. For example, a class can be given a human-readable label that provides a more descriptive name for the class. Annotations have no effect on the logical aspects of an ontology — that is, for the purposes of the OWL 2 semantics, annotations are treated as not being present. Instead, the use of annotations is left to the applications that use OWL 2. For example, a graphical user interface might choose to visualize a class using one of its labels.

Finally, OWL 2 provides basic support for ontology modularization. In particular, an OWL 2 ontology O can import another OWL 2 ontology O' and thus gain access to all entities, expressions, and axioms in O'.

This document defines the structural specification of OWL 2, the functional syntax for OWL 2, and the behavior of datatype maps. Only the parts of the document related to these three purposes are normative. The examples in this document are informative and any part of the document that is specifically identified as informative is not normative. Finally, the informal descriptions of the semantics of OWL 2 constructs in this document are informative; the semantics is precisely specified in a separate document [OWL 2 Direct Semantics].

The italicized keywords MUST, MUST NOT, SHOULD, SHOULD NOT, and MAY specify certain aspects of the normative behavior of OWL 2 tools, and are interpreted as specified in RFC 2119 [RFC 2119].

2 Preliminary Definitions

This section presents certain preliminary definitions that are used in the rest of this document.

2.1 Structural Specification

The structural specification of OWL 2 consists of all the figures in this document and the notion of structural equivalence given below. It is used throughout this document to precisely specify the structure of OWL 2 ontologies and the observable behavior of OWL 2 tools. An OWL 2 tool MAY base its APIs and/or internal storage model on the structural specification; however, it MAY also choose a completely different approach as long as its observable behavior conforms to the one specified in this document.

The structural specification is defined using the Unified Modeling Language (UML) [UML], and the notation used is compatible with the Meta-Object Facility (MOF) [MOF]. This document uses only a very simple form of UML class diagrams that are expected to be easily understandable by readers familiar with the basic concepts of object-oriented systems. The names of abstract classes (i.e., classes that are not intended to be instantiated) are written in italic.

Elements of the structural specification are connected by associations, many of which are of the one-to-many type. Associations whose name is preceded by / are derived — that is, their value is determined based on the value of other associations and attributes. Whether the elements participating in associations are ordered and whether repetitions are allowed is made clear by the following standard UML conventions:

By default, all associations are sets; that is, the elements in them are unordered and repetitions are disallowed.
The { ordered,nonunique } attribute is placed next to the association ends that are ordered and in which repetitions are allowed. Such associations have the semantics of lists.

Whether two elements of the structural specification are considered to be the same is captured by the notion of structural equivalence, defined as follows. Elements o₁ and o₂ are structurally equivalent if and only if the following conditions hold:

If o₁ and o₂ are atomic values, such as strings, integers, or IRIs, they are structurally equivalent if they are identical according to the notion of identity specified by the respective atomic type.
If o₁ and o₂ are unordered associations without repetitions, they are structurally equivalent if each element of o₁ is structurally equivalent to some element of o₂ and vice versa.
If o₁ and o₂ are ordered associations with repetitions, they are structurally equivalent if they contain the same number of elements and each element of o₁ is structurally equivalent to the element of o₂ with the same index.
If o₁ and o₂ are complex elements consisting of other elements, they are structurally equivalent if
- both o₁ and o₂ are of the same type,
- each element of o₁ is structurally equivalent to the corresponding element of o₂, and
- each association of o₁ is structurally equivalent to the corresponding association of o₂.

Note that structural equivalence is not a semantic notion, as it is based only on comparing structures.

The class expression UnionOf( a:Person a:Animal ) is structurally equivalent to the class expression UnionOf( a:Animal a:Person ) because the order of the elements in an unordered association is not important.

The class expression UnionOf( a:Person ComplementOf( a:Person ) ) is not structurally equivalent to owl:Thing even though the two expressions are semantically equivalent.

Although set associations are widely used in the specification, sets written in one of the linear syntaxes (e.g., XML or RDF/XML) are not necessarily expected to be duplicate free. Duplicates SHOULD be eliminated from such constructs during parsing.

An ontology written in functional-style syntax can contain a class expression of the form UnionOf( a:Person a:Animal a:Animal ). During parsing, this expression should be "flattened" to give the expression UnionOf( a:Person a:Animal ).

2.2 BNF Notation

Grammars in this document are specified using the standard BNF notation, summarized in Table 1.

Table 1. The BNF Notation
Construct	Syntax	Example
nonterminal symbols	boldface	ClassExpression
terminal symbols	single quoted	'PropertyRange'
zero or more	curly braces	{ ClassExpression }
zero or one	square brackets	[ ClassExpression ]
alternative	vertical bar	Assertion \| Declaration

Terminal symbols used in the full-IRI, irelative-ref, NCName, languageTag, nodeID, nonNegativeInteger, and quotedString productions are defined by specifying their structure in English; to stress this, the English description is italicized.

Whitespace is a maximal sequence of space (U+20), horizontal tab (U+9), line feed (U+A), and carriage return (U+D) characters not occurring within a pair of " characters (U+22). A comment is a maximal sequence of characters that starts with the # (U+23) character and contains neither a line feed (U+A) nor a carriage return (U+D) character.

Whitespace and comments cannot occur within terminal symbols of the grammar. Whitespace and comments can occur between any two terminal symbols of the grammar, and all whitespace MUST be ignored. Whitespace MUST be introduced between a pair of terminal symbols if each terminal symbol in the pair consists solely of alphanumeric characters or matches the full-IRI, irelative-ref, NCName, nodeID, or quotedString production.

2.3 IRIs and Namespaces

Ontologies and their elements are identified using International Resource Identifiers (IRIs) [RFC3987]; thus, OWL 2 extends OWL 1, which uses Uniform Resource Identifiers (URIs). In the structural specification, IRIs are represented by the IRI class. All IRIs in this specification are written using the grammar described below.

An IRI can be written as a full IRI. The < (U+3C) and > (U+3E) characters surrounding a full IRI are not part of the IRI, but are used solely for quotation purposes, identifying an IRI as a full IRI.

Alternatively, an IRI it can be abbreviated as a CURIE [CURIE]. To this end, commonly used IRIs — called namespaces — are associated with a prefix. An IRI I belongs to a namespace NI if, in their string representation, NI is a prefix of I; the part of I not covered by NI is called a reference of I w.r.t. NI. An IRI I belonging to a namespace NI associated with a prefix pref is then commonly abbreviated as a CURIE pref:ref, where ref is the reference of I w.r.t. NI. CURIEs are not represented in the structural specification of OWL 2: if a concrete syntax of OWL 2 uses CURIEs to abbreviate long IRIs, these abbreviations MUST be expanded into full IRIs during parsing according to the rules of the respective syntax.

Table 2 defines the standard namespaces and the respective prefixes used throughout this specification.

Table 2. Standard Namespaces and Prefixes Used in OWL 2
Namespace prefix	Namespace
rdf	<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
rdfs	<http://www.w3.org/2000/01/rdf-schema#>
xsd	<http://www.w3.org/2001/XMLSchema#>
owl	<http://www.w3.org/2002/07/owl#>

IRIs belonging to the rdf, rdfs, xsd, and owl namespaces constitute the reserved vocabulary of OWL 2. As described in the following sections, the IRIs from the reserved vocabulary that are listed in Table 3 have special treatment in OWL 2. All IRIs from the reserved vocabulary not listed in Table 3 constitute the disallowed vocabulary of OWL 2 and MUST NOT be used in OWL 2 to name entities, ontologies, or ontology versions.

Table 3. Reserved Vocabulary of OWL 2 with Special Treatment
owl:backwardCompatibleWith	owl:bottomDataProperty	owl:bottomObjectProperty	owl:dateTime	owl:deprecated
owl:incompatibleWith	owl:Nothing	owl:priorVersion	owl:rational	owl:real
owl:realPlus	owl:Thing	owl:topDataProperty	owl:topObjectProperty	rdf:langPattern
rdf:text	rdf:XMLLiteral	rdfs:comment	rdfs:isDefinedBy	rdfs:label
rdfs:Literal	rdfs:seeAlso	xsd:anyURI	xsd:base64Binary	xsd:boolean
xsd:byte	xsd:decimal	xsd:double	xsd:float	xsd:hexBinary
xsd:int	xsd:integer	xsd:language	xsd:length	xsd:long
xsd:maxExclusive	xsd:maxInclusive	xsd:maxLength	xsd:minExclusive	xsd:minInclusive
xsd:minLength	xsd:Name	xsd:NCName	xsd:negativeInteger	xsd:NMTOKEN
xsd:nonNegativeInteger	xsd:nonPositiveInteger	xsd:normalizedString	xsd:pattern	xsd:positiveInteger
xsd:short	xsd:string	xsd:token	xsd:unsignedByte	xsd:unsignedInt
xsd:unsignedLong	xsd:unsignedShort

2.4 Integers, Strings, Language Tags, and Node IDs

Several types of syntactic elements are commonly used in this document. Nonnegative integers are defined as usual.

nonNegativeInteger := 'a nonempty finite sequence of digits between 0 and 9'

Characters and strings are defined in the same way as in [RDF:TEXT]. A character is an atomic unit of communication. The structure of characters is not further specified in OWL 2, other than to note that each character has a Universal Character Set (UCS) code point [ISO/IEC 10646]. The set of available characters is assumed to be infinite, and is thus independent from the currently actual version of UCS. A string is a finite sequence of characters, and the length of a string is the number of characters in it. In this document, strings are written as specified in [RDF:TEXT]: they are enclosed in double quotes (U+22), and a subset of the escaping mechanism of the N-triples specification [RDF Test Cases] is used to encode strings containing quotes.

quotedString := 'a finite sequence of characters in which " (U+22) and \ (U+5C) occur only in pairs of the form \" (U+22, U+5C) and \\ (U+22, U+22), enclosed in a pair of " (U+22) characters'

Language tags are nonempty strings as defined in BCP 47 [BCP 47]. In this document, language tags are not enclosed in double quotes; however, this does not lead to parsing problems since, according to BCP 47, language tags contain neither whitespace nor the parenthesis characters ( (U+28) and ) (U+29).

languageTag := 'a nonempty (not quoted) string defined as specified in BCP 47 [BCP 47]'

Node IDs are borrowed from the N-Triples specification [RDF Test Cases].

nodeID := 'a node ID of the form _:name as specified in the N-Triples specification [RDF Test Cases]'

3 Ontologies

An OWL 2 ontology is an instance O of the Ontology class from the structural specification of OWL 2 shown in Figure 1 that satisfies certain conditions given below. The main component of an OWL 2 ontology is its set of axioms, the structure of which is described in more detail in Section 9. Because the association between an ontology and its axioms is a set, an ontology cannot contain two axioms that are structurally equivalent. Apart from the axioms, ontologies can also contain ontology annotations (as described in more detail in Section 3.5), and they can also import other ontologies (as described in Section 3.4).

Figure 1. The Structure of OWL 2 Ontologies

The following list summarizes all the conditions that O is required to satisfy to be an OWL 2 ontology.

O MUST satisfy the restrictions on the presence of the ontology IRI and version IRI from Section 3.1;
O SHOULD satisfy the constraints on the uniqueness of the ontology IRI and version IRI from Section 3.1;
O SHOULD satisfy the restrictions on the import closure from Section 3.4;
each entity in O MUST have an IRI satisfying the restrictions on the usage of the reserved vocabulary from Sections 5.1–5.6;
each datatype in O MUST satisfy the restriction from Section 5.2;
each literal in O MUST satisfy the restriction from Section 5.7;
O MUST satisfy the typing constraints from Section 5.8.1;
each DatatypeRestriction in O MUST satisfy the restriction from Section 7.5;
each DataSomeValuesFrom and DataAllValuesFrom class expression in O MUST satisfy the restrictions from Section 8.4.1 and Section 8.4.2;
each DataPropertyRange axiom in O MUST satisfy the restriction from Section 9.3.5;
O MUST satisfy the global restriction from Section 11; and
each O' directly imported into O MUST satisfy all of these restrictions as well.

An instance O of the Ontology class MAY have consistent declarations as specified in Section 5.8.2; however, this is not strictly necessary to make O an OWL 2 ontology.

3.1 Ontology IRI and Version IRI

Each ontology MAY have an ontology IRI, which is used to identify an ontology. If an ontology has an ontology IRI, the ontology MAY additionally have a version IRI, which is used to identify the version of the ontology. The version IRI MAY, but need not be equal to the ontology IRI. An ontology without an ontology IRI MUST NOT contain a version IRI.

The following list provides conventions for choosing ontology IRI and version IRI in OWL 2 ontologies. This specification provides no mechanism for enforcing these constraints across the entire Web; however, OWL 2 tools SHOULD use them to detect problems in ontologies they process.

If an ontology has an ontology IRI but no version IRI, then a different ontology with the same ontology IRI but no version IRI SHOULD NOT exist.
If an ontology has both an ontology IRI and a version IRI, then a different ontology with the same ontology IRI and the same version IRI SHOULD NOT exist.
All other combinations of the ontology IRI and version IRI are not required to be unique. Thus, two different ontologies MAY have no ontology IRI and no version IRI; similarly, an ontology containing only an ontology IRI MAY coexist with another ontology with the same ontology IRI and some other version IRI.

The ontology IRI and the version IRI together identify a particular version from an ontology series — the set of all the versions of a particular ontology identified using a common ontology IRI. In each ontology series, exactly one ontology version is regarded as the current one. Structurally, a version of a particular ontology is an instance of the Ontology class from the structural specification. Ontology series are not represented explicitly in the structural specification of OWL 2—they exist only as a side-effect of the naming conventions described in this and the following sections.

3.2 Ontology Documents

An OWL 2 ontology is an abstract notion defined in terms of the structural specification. Each ontology is associated with an ontology document, which physically contains the ontology stored in a particular way. The name "ontology document" reflects the expectation that a large number of ontologies will be stored in physical text documents written in one of the syntaxes of OWL 2. OWL 2 tools, however, are free to devise other types of ontology documents — that is, to introduce other ways of physically storing ontologies.

Ontology documents are not represented in the structural specification of OWL 2, and the specification of OWL 2 makes only the following two assumptions about their nature:

Each ontology document can be accessed from an IRI by means of an appropriate protocol.
Each ontology document can be converted in some well-defined way into an ontology (i.e., into an instance of the Ontology class from the structural specification).

An OWL 2 tool might publish an ontology as a text document written in the functional-style syntax (see Section 3.7) and accessible from the IRI <http://www.example.com/ontology>. An OWL 2 tool could also devise a scheme for storing OWL 2 ontologies in a relational database. In such a case, each subset of the database representing the information about one ontology corresponds to one ontology document. To provide a mechanism for accessing these ontology documents, the OWL 2 tool should identify different database subsets with distinct IRIs.

The ontology document of an ontology O SHOULD be accessible from the IRIs determined by the following rules:

If O does not contain an ontology IRI (and, consequently, it does not contain a version IRI either), then the ontology document of O MAY be accessible from any IRI.
If O contains an ontology IRI OI but no version IRI, then the ontology document of O SHOULD be accessible from the IRI OI.
If D contains an ontology IRI OI and a version IRI VI, then the ontology document of O SHOULD be accessible from the IRI VI; furthermore, if O is the current version of the ontology series with the IRI OI, then the ontology document of O SHOULD also be accessible from the IRI OI.

Thus, the document containing the current version of an ontology series with some IRI OI SHOULD be accessible from OI. To access a particular version of OI, one needs to know that version's version IRI VI; then, the ontology document SHOULD be accessible from VI.

An ontology document of an ontology that contains an ontology IRI <http://www.example.com/my> but no version IRI should be accessible from the IRI <http://www.example.com/my>. In contrast, an ontology document of an ontology that contains an ontology IRI <http://www.example.com/my> and a version IRI <http://www.example.com/my/2.0> should be accessible from the IRI <http://www.example.com/my/2.0>. In both cases, the ontology document should be accessible from the respective IRIs using the HTTP protocol.

OWL 2 tools will often need to implement functionality such as caching or off-line processing, where ontology documents may be stored at addresses different from the ones dictated by their ontology IRIs and version IRIs. OWL 2 tools MAY implement a redirection mechanism: when a tool is used to access an ontology document at IRI I, the tool MAY redirect I to a different IRI DI and access the ontology document from there instead. The result of accessing the ontology document from DI MUST be the same as if the ontology were accessed from I. Furthermore, once the ontology document is converted into an ontology, the ontology SHOULD satisfy the three conditions from the beginning of this section in the same way as if it the ontology document were accessed from I. No particular redirection mechanism is specified — this is assumed to be implementation dependent.

To enable off-line processing, an ontology document that — according to the above rules — should be accessible from <http://www.example.com/my> might be stored in a file accessible from <file:///usr/local/ontologies/example.owl>. To access this ontology document, an OWL 2 tool might redirect the IRI <http://www.example.com/my> and actually access the ontology document from <file:///usr/local/ontologies/example.owl>. The ontology obtained after accessing ontology document should satisfy the usual accessibility constraints: if the ontology contains only the ontology IRI, then the ontology IRI should be equal to <http://www.example.com/my>, and if the ontology contains both the ontology IRI and the version IRI, then one of them should be equal to <http://www.example.com/my>.

3.3 Versioning of OWL 2 Ontologies

The conventions from Section 3.2 provide a simple mechanism for versioning OWL 2 ontologies. An ontology series is identified using an ontology IRI, and each version in the series is assigned a different version IRI. The ontology document of the ontology representing the current version of the series SHOULD be accessible from the ontology IRI and, if present, at its version IRI as well; the ontology documents of the previous versions SHOULD be accessible solely from their respective version IRIs. When a new version O in the ontology series is created, the ontology document of O SHOULD replace the one acessible from the ontology IRI (and it SHOULD also be accessible from its version IRI).

The ontology document containing the current version of an ontology series might be accessible from the IRI <http://www.example.com/my>, as well as from the version-specific IRI <http://www.example.com/my/2.0>. When a new version is created, the ontology document of the previous version should remain accessible from <http://www.example.com/my/2.0>; the ontology document of the new version, called, say, <http://www.example.com/my/3.0>, should be made accessible from both <http://www.example.com/my> and <http://www.example.com/my/3.0>.

3.4 Imports

An OWL 2 ontology can import other ontologies in order to gain access to their entities, expressions, and axioms, thus providing the basic facility for ontology modularization.

Assume that one wants to describe research projects about diseases. Managing information about the projects and the diseases in the same ontology might be cumbersome. Therefore, one might create a separate ontology O about diseases and a separate ontology O' about projects. The ontology O' would import O in order to gain access to the classes representing diseases; this allows one to use the diseases from O when writing the axioms of O'.

From a physical point of view, an ontology contains a set of IRIs, shown in Figure 1 as the directlyImportsDocuments association; these IRIs identify the ontology documents of the directly imported ontologies as specified in Section 3.2. The logical directly imports relation between ontologies, shown in Figure 1 as the directlyImports association, is obtained by accessing the directly imported ontologies and converting them into OWL 2 ontologies. The logical imports relation between ontologies, shown in Figure 1 as the imports association, is the transitive closure of directly imports. In Figure 1, associations directlyImports and imports are shown as derived associations, since their values are derived from the value of the directlyImportsDocuments association. Ontology documents usually store the directlyImportsDocuments association. In contrast, the directlyImports and imports associations are typically not stored in ontology documents, but are determined during parsing as specified in Section 3.6.

The following functional-style syntax ontology document contains an ontology that directly imports an ontology contained in the ontology document accessible from IRI <http://www.example.com/my/2.0>.

Ontology(<http://www.example.com/importing-ontology>
Import(<http://www.example.com/my/2.0>)

...
)

The IRIs identifying the ontology documents of the directly imported ontologies can be redirected as described in Section 3.2. For example, in order to access the ontology document from a local cache, the ontology document <http://www.example.com/my/2.0> might be redirected to <file:///usr/local/ontologies/imported.v20.owl>. Note that this can be done without changing the ontology document of the importing ontology.

The import closure of an ontology O is a set containing O and all the ontologies that O imports. The import closure of O SHOULD NOT contain ontologies O₁ and O₂ such that

O₁ and O₂ are different ontology versions from the same ontology series, or
O₁ contains an ontology annotation owl:incompatibleWith with the value equal to either the ontology IRI or the version IRI of O₂.

The axiom closure of an ontology O is the smallest set that contains all the axioms from each ontology O' in the import closure of O with all anonymous individuals renamed apart — that is, the anonymous individuals from different ontologies in the import closure of O are treated as being different; see Section 5.6.2 for further details.

3.5 Ontology Annotations

An OWL 2 ontology contains a set of annotations. These can be used to associate information with an ontology — for example the ontology creator's name. As discussed in more detail in Section 10, each annotation consists of an annotation property and an annotation value, and the latter can be a literal, an IRI, or an anonymous individual. Ontology annotations do not affect the logical meaning of the ontology.

ontologyAnnotations := { Annotation }

OWL 2 provides several built-in annotation properties for ontology annotations. The usage of these annotation properties on entities other than ontologies is discouraged.

The owl:priorVersion annotation property specifies the IRI of a prior version of the containing ontology.
The owl:backwardCompatibleWith annotation property specifies the IRI of a prior version of the containing ontology that is compatible with the current version of the containing ontology.
The owl:incompatibleWith annotation property specifies the IRI of a prior version of the containing ontology that is incompatible with the current version of the containing ontology.

3.6 Canonical Parsing

Many OWL 2 tools need to support ontology parsing — the process of converting an ontology document written in a particular syntax into an OWL 2 ontology. In order to be able to instantiate the appropriate classes from the structural specification, the ontology parser sometimes needs to know which IRIs are used in the ontology as entities of which type. This typing information is extracted from declarations — axioms that associate IRIs with entity types. Please refer to Section 5.8 for more information about declarations.

An ontology parser for the ontology documents written in functional-style syntax might encounter the following axiom:

SubClassOf ( a:Father SomeValuesFrom( a:parentOf a:Child ) )

From this axiom alone, it is not clear whether a:parentOf is an object or a data property, and whether a:Child is a class or a datatype. In order to disambiguate the types of these IRIs, the parser needs to look at the declarations in the ontology document being parsed, as well as those in the directly or indirectly imported ontology documents.

In OWL 2 there is no requirement for a declaration of an entity to physically precede the entity's usage in ontology documents; furthermore, declarations for entities can be placed in imported ontology documents and imports are allowed to be cyclic. In order to precisely define the result of ontology parsing, this specification defines the notion of canonical parsing. An OWL 2 parser MAY implement parsing in any way it chooses, as long as it produces a result that is structurally equivalent to the result of canonical parsing.

An OWL 2 ontology corresponding to an ontology document D_GI accessible at a given IRI GI can be obtained using the following canonical parsing process. All steps of this process MUST be successfully completed.

CP-1	Make AllDoc and Processed equal to the empty set, and make ToProcess equal to the set containing only the IRI GI.
CP-2	While ToProcess is not empty, remove an arbitrary IRI I from it and, if I is not contained in Processed, perform the following steps:
CP-2.1	Retrieve the ontology document D_I from I as specified in Section 3.2.
CP-2.2	Using the rules of the relevant syntax, analyze D and compute the set Decl(D_I) of declarations explicitly present in D_I and the set Imp(D_I) of IRIs of ontology documents directly imported in D_I.
CP-2.3	Add D_I to AllDoc, add I to Processed, and add each IRI from Imp(D_I) to ToProcess.
CP-3	For each ontology document D in AllDoc, perform the following steps:
CP-3.1	Compute the set AllDecl(D) as the union of the set Decl(D), the sets Decl(D') for each ontology document D' that is (directly or indirectly) imported into D, and the set of all declarations listed in Table 9. The set AllDecl(D) MUST satisfy the typing constraints from Section 5.8.1.
CP-3.2	Create an instance O_D of the Ontology class from the structural specification.
CP-3.3	Using the rules of the relevant syntax, analyze D and populate O_D by instantiating appropriate classes from the structural specification. Use the declarations in AllDecl(D) to disambiguate IRI references if needed; it MUST be possible to disambiguate all IRI references.
CP-4	For each pair of ontology documents DS and DT in AllDoc such that the latter is directly imported into the former, add O_DT to the directlyImports association of O_DS.
CP-5	For each ontology document D in AllDoc, set the imports association of O_D to the transitive closure of the directlyImports association of O_D.
CP-6	For each ontology document D in AllDoc, ensure that O_D is an OWL 2 ontology — that is, O_D MUST satisfy all the restrictions listed in Section 3.

It is important to understand that canonical parsing merely defines the result of the parsing process, and that an implementation of OWL 2 MAY optimize this process in numerous ways. In order to enable efficient parsing, OWL 2 implementations are encouraged to write ontologies into documents by placing all IRI declarations before the axioms that use these IRIs; however, this is not required for conformance.

A parser for the functional-style syntax of OWL 2 can parse the ontology in a single pass when the declarations for the IRIs are placed in the text of O physically before the IRIs are used. Similarly, a parser can optimize the handling of imported ontologies in cases when the import relation between the ontologies is acyclic.

3.7 Functional-Style Syntax

A functional-style syntax ontology document is a sequence of Unicode characters [UNICODE] accessible from some IRI by means of the standard protocols such that its text matches the ontologyDocument production of the grammar defined in this specification document, and it can be converted into an ontology by means of the canonical parsing process described in Section 3.6 and other parts of this specification document. A functional-style syntax ontology document SHOULD use the UTF-8 encoding [RFC3629].

ontologyDocument := { prefixDefinition } Ontology
prefixDefinition := 'Namespace' '(' [ prefix ] '=' namespace ')'
Ontology :=
    'Ontology' '(' [ ontologyIRI [ versionIRI ] ]
       directlyImportsDocuments
       ontologyAnnotations
       axioms
    ')'
ontologyIRI := IRI
versionIRI := IRI
directlyImportsDocuments := { 'Import' '(' IRI ')' }
axioms := { Axiom }

The following is a functional-style syntax ontology document containing an ontology with the ontology IRI <http://www.example.com/ontology1>. This ontology imports an ontology whose ontology document should be accessed from <http://www.example.com/ontology2>, and it contains an ontology annotation providing a label for the ontology and a single subclass axiom.

Ontology(<http://www.example.com/ontology1>
    Import(<http://www.example.com/ontology2>)
    Annotation( rdfs:label "The example" )

    SubClassOf( a:Child a:Person )
)

Each part of the ontology document matching the prefixDefinition production associates a prefix with a namespace. An ontology document MUST contain at most one such definition per prefix and at most one such definition without a prefix, and it MUST NOT contain a definition for a prefix listed in Table 2. Prefix definitions are used during parsing to expand CURIEs in the ontology document — that is, parts of the ontology document matching the curie production — into full IRIs as follows. The full IRI obtained by this expansion MUST be a valid IRI.

If the prefix of the CURIE is not present, then the ontology document being parsed MUST contain a definition without a prefix. The resulting full IRI is obtained by concatenating the namespace with the CURIE's reference.
If the prefix of the CURIE is present, then either Table 2 or the prefix definitions of the ontology document being parsed MUST contain a definition associating the prefix with a namespace. The resulting full IRI is obtained by concatenating the namespace with the CURIE's reference.

A functional-style syntax ontology document D can be converted into an OWL 2 ontology by instantiating the canonical parsing process from Section 3.6 as follows:

In step CP-2.2, Decl(D) is obtained from the Declaration production described in Section 5.8, and Imp(D) is obtained from the directlyImportsDocuments production described above.
In step CP-3.3, AllDecl(D) is used to disambiguate the Class, Datatype, ObjectProperty, DataProperty, AnnotationProperty, and NamedIndividual productions of the functional-style syntax grammar.

4 Datatype Maps

OWL 2 ontologies can contain literals and datatypes with built-in semantics, which describe well-known objects such as strings or integers. Each kind of such objects is called a datatype, and the set of all supported datatypes is called a datatype map. A datatype map is not a syntactic construct , so it is not included in the structural specification of OWL 2. Each datatype in a datatype map is identified by an IRI, and it can be used in OWL 2 ontologies as described in Section 5.2. Each datatype in the datatype map is described by the following components:

The value space is a set determining the set of values of the datatype. Elements of the value space are called data values.
The lexical space is a set of strings that can be used to refer to data values. Each member of the lexical space is called a lexical value, and it is mapped to a particular data value.
The facet space is a set of pairs of the form ⟨ F v ⟩, where F is an IRI called a constraining facet, and v is an arbitrary object called a value. Each such pair is mapped to a subset of the value space of the datatype.

The OWL 2 datatype map consists of the datatypes described in the rest of this section, most of which are based on XML Schema Datatypes, version 1.1 [XML Schema Datatypes]. The definitions of these datatypes in OWL 2 are largely the same as in XML Schema; however, there are minor differences, all of which are clearly identified. These differences were introduced mainly to align the semantics of OWL 2 datatypes with practical use cases.

OWL 2 tools MAY support datatypes that are not listed in this section. The semantic consequences of OWL 2 ontologies depend exclusively on the set of actually used datatypes [OWL 2 Direct Semantics], so supporting datatypes not listed in this section does not affect the consequences of OWL 2 ontologies that do not use these extra datatypes.

4.1 Numbers

OWL 2 provides a rich set of datatypes, listed in Table 4, for representing various kinds of numbers.

Value Spaces. The value spaces of all numeric datatypes are shown in Table 4. The value space of owl:realPlus contains the value spaces of all other numeric datatypes. The special values -0, +INF, -INF, and NaN are not identical to any number. In particular, -0 is not a real number and it is not identical to real number zero; to stress this distinction, the real number zero is often called a positive zero, written +0.

Table 4. Numeric Datatypes and Their Value Spaces
Datatype	Value Space
owl:realPlus	the set of all real numbers extended with four special values -0 (negative zero), +INF (positive infinity), -INF (negative infinity), and NaN (not-a-number)
owl:real	the set of all real numbers
owl:rational	the set of all rational numbers
xsd:double	the four special values -0, +INF, -INF, and NaN, plus the set of all real numbers of the form m × 2^e where m is an integer whose absolute value is less than 2⁵³ and e is an integer between -1075 and 970, inclusive
xsd:float	the four special values -0, +INF, -INF, and NaN, plus the set of all real numbers of the form m × 2^e where m is an integer whose absolute value is less than 2²⁴ and e is an integer between -149 and 104, inclusive
xsd:decimal	the set of all real numbers of the form i × 10^-n where i is an integer and n is a nonnegative integer
xsd:integer	the set of all integers
xsd:nonNegativeInteger	the set of all nonnegative integers
xsd:nonPositiveInteger	the set of all negative integers plus (positive) zero
xsd:positiveInteger	the set of all positive integers
xsd:negativeInteger	the set of all negative integers
xsd:long	the set of all integers between -9223372036854775808 and 9223372036854775807, inclusive
xsd:int	the set of all integers between -2147483648 and 2147483647, inclusive
xsd:short	the set of all integers between -32768 and 32767, inclusive
xsd:byte	the set of all integers between -128 and 127, inclusive
xsd:unsignedLong	the set of all integers between 0 and 18446744073709551615, inclusive
xsd:unsignedInt	the set of all integers between 0 and 4294967295, inclusive
xsd:unsignedShort	the set of all integers between 0 and 65535, inclusive
xsd:unsignedByte	the set of all integers between 0 and 255, inclusive

Feature At Risk #1: owl:rational support

Note: This feature is "at risk" and may be removed from this specification based on feedback. Please send feedback to public-owl-comments@w3.org.

The owl:rational datatype might be removed from OWL 2 if implementation experience reveals problems with supporting this datatype.

Lexical Spaces. Datatypes owl:realPlus and owl:real do not directly provide any lexical values.

The owl:rational datatype supports lexical values defined by the following grammar (whitespace within the grammar MUST be ignored and MUST NOT be included in the lexical values of owl:dateTime, and single quotes are used to introduce terminal symbols):

numerator '/' denominator

where numerator is an integer with the syntax as specified for the xsd:integer datatype, and denominator is a positive, nonzero integer with the syntax as specified for the xsd:integer datatype, not containing the plus sign. Each such lexical value of owl:rational is mapped to the rational number obtained by dividing numerator by denominator.

For each numeric datatype DT from XML schema, the lexical values of DT are defined as specified in XML Schema Datatypes [XML Schema Datatypes]. Furthermore, each lexical value of DT is assigned a data value as specified in XML Schema Datatypes [XML Schema Datatypes].

The lexical values of owl:rational, xsd:decimal, and the datatypes derived from xsd:integer are mapped to arbitrarily large and arbitrarily precise numbers. An OWL 2 implementation MAY support all such lexical values; however, it MUST support at least the following core lexical values, which can easily be mapped to the primitive values commonly found in modern implementation platforms:

All xsd:float and xsd:double lexical values are core lexical values.
A lexical value of type owl:rational is a core lexical value if its numerator and denominator are in the value space of xsd:long.
A lexical value of type xsd:decimal is a core lexical value if its data value is a number with absolute value less than 10¹⁶ and the representation of the number requires at most 16 digits in total.
A lexical value for xsd:integer or a type derived from xsd:integer is a core lexical value if its data value is in the value space of xsd:long.

Feature At Risk #2: xsd:decimal precision

The new XML Schema spec contains an acknowledged editorial error in the definition of core lexical values for xsd:decimal. This document will be updated to state that core decimal lexical values are those that can be expressed with sixteen decimal digits, as is stated here. This document will be updated to use the wording in the XML Schema spec if the change there is made in time.

Please send feedback to public-owl-comments@w3.org.

Equality and Ordering. The facet space of the numeric datatypes are based on the following definitions of equality and ordering.

The equality = is the smallest symmetric relation on the value space of owl:realPlus such that all of the following conditions hold:

x = x if x is a real number, -0, -INF, or +INF; and
-0 = +0.

Note that NaN is not equal to itself; furthermore, even though -0 is equal to +0, it is not identical to it.

To understand the distinction between identity and equality, consider the following example ontology:

PropertyAssertion( a:Meg a:numberOfChildren "+0"^^xsd:float )	The value of a:numberOfChildren for a:Meg is +0.
PropertyAssertion( a:Meg a:numberOfChildren "-0"^^xsd:float )	The value of a:numberOfChildren for a:Meg is -0.
FunctionalProperty( a:numberOfChildren )	An individual can have at most one value for a:numberOfChildren.

The last axiom states that no individual should have more than one distinct value for a:numberOfChildren. Even though positive and negative zeros are equal, they are distinct values; hence, the first two axioms violate the restriction of the last axiom, which leads to inconsistency.

The ordering < is the smallest relation on the value space of owl:realPlus such that all of the following conditions hold:

x < y if x and y are real numbers and x is smaller than y;
-INF < x < +INF for each real number x;
-INF < -0 < +INF;
-0 < x for each positive real number x; and
x < -0 for each negative real number x.

Note that +0 is a real number and is thus covered by the first two cases.

According to the above definition, the subset of the value space of owl:realPlus between -1 and 1 contains both +0 and -0.

Facet Space. The facet space of each numeric datatype DT is shown in Table 5.

Table 5. The Facet Space of each Numeric Datatype DT
Pair	Facet Value
⟨ xsd:minInclusive v ⟩ where v is from the value space of owl:realPlus	the set of all numbers x from the value space of DT such that x = v or x > v
⟨ xsd:maxInclusive v ⟩ where v is from the value space of owl:realPlus	the set of all numbers x from the value space of DT such that x = v or x < v
⟨ xsd:minExclusive v ⟩ where v is from the value space of owl:realPlus	the set of all numbers x from the value space of DT such that x > v
⟨ xsd:maxExclusive v ⟩ where v is from the value space of owl:realPlus	the set of all numbers x from the value space of DT such that x < v

Relationship with XML Schema. Numeric datatypes in OWL 2 differ from the numeric datatypes of XML Schema [XML Schema Datatypes] in the following aspects:

OWL 2 provides the owl:real, owl:realPlus, and owl:rational datatypes.
The value spaces of all datatypes are subsets of the value space of owl:realPlus; thus, unlike in XML Schema, the value spaces of xsd:float and xsd:double in OWL 2 are not disjoint with the value space of xsd:decimal.
Only a subset of the XML Schema constraining facets are supported.

In other respects, the numeric datatypes of OWL 2 are aligned with the definitions of XML Schema Datatypes [XML Schema Datatypes].

4.2 Strings

OWL 2 uses the rdf:text datatype for the representation of strings in a particular language. The definitions of the value space, the lexical space, the facet space, and the necessary mappings are given in [RDF:TEXT].

In addition, OWL 2 supports the following XML Schema Datatypes [XML Schema Datatypes]:

xsd:string
xsd:normalizedString
xsd:token
xsd:language
xsd:Name
xsd:NCName
xsd:NMTOKEN

As recommended in [RDF:TEXT], the value spaces of these datatypes are subsets of the value space of rdf:text; please refer to [RDF:TEXT] for a precise definition.

4.3 Boolean Values

The xsd:boolean datatype allows for the representation of Boolean values.

Value Space. The value space of xsd:boolean is the set containing exactly the two values true and false. These values are not contained in the value space of any other datatype.

Lexical Space. The xsd:boolean datatype supports the following lexical values:

"true" and "1" are mapped to the data value true, and
"false" and "0" are mapped to the data value false.

Facet Space. The xsd:boolean datatype does not support any constraining facets.

4.4 Binary Data

Datatypes xsd:hexBinary and xsd:base64Binary allow for the representation of binary data. The two datatypes are the same apart from fact that they support a different syntactic representation for lexical values.

Value Spaces. The value space of both xsd:hexBinary and xsd:base64Binary is the set of finite sequences of octets — integers between 0 and 255, inclusive.

Lexical Spaces. The lexical values of the xsd:hexBinary and xsd:base64Binary datatypes are strings of the form "abc", whose structure is specified in Sections 3.3.16 and 3.3.17 of XML Schema Datatypes [XML Schema Datatypes], respectively. The lexical values are mapped to data values as specified in XML Schema Datatypes [XML Schema Datatypes].

Facet Space. The facet space of the xsd:hexBinary and xsd:base64Binary datatypes is shown in Table 6.

Table 6. The Facet Space of the *xsd:hexBinary* and *xsd:base64Binary* Datatypes
Pair	Facet Value
⟨ xsd:minLength v ⟩ where v is a nonnegative integer	the set of finite sequences of octets of length at least v
⟨ xsd:maxLength v ⟩ where v is a nonnegative integer	the set of finite sequences of octets of length at most v
⟨ xsd:length v ⟩ where v is a nonnegative integer	the set of finite sequences of octets of length exactly v

4.5 IRIs

The xsd:anyURI datatype allows for the representation of IRIs.

Value Space. The value space of xsd:anyURI is the set of IRIs as defined in XML Schema Datatypes [XML Schema Datatypes]. Although each IRI has a string representation, the value space of xsd:anyURI is disjoint with the value space of xsd:string. The string representation of IRIs, however, can be described by a regular expression, so the value space of xsd:anyURI is isomorphic to the value space of xsd:string restricted with a suitable regular expression.

Lexical Space. The lexical values of the xsd:anyURI datatype and their mapping to data values are defined in Section 3.3.18 of XML Schema Datatypes [XML Schema Datatypes].

Note that the lexical values of xsd:anyURI include relative IRIs. If an OWL 2 syntax employs rules for the resolution of relative IRIs (e.g., the OWL 2 XML Syntax [OWL 2 XML Syntax] uses xml:base for that purpose), such rules do not apply to xsd:anyURI lexical values that represent relative IRIs; that is, the lexical values representing relative IRIs MUST be parsed as they are.

Facet Space. The facet space of the xsd:anyURI datatype is shown in Table 7.

Table 7. The Facet Space of the *xsd:anyURI* Datatype
Pair	Facet Value
⟨ xsd:minLength v ⟩ where v is a nonnegative integer	the set of IRIs I from the value space of xsd:anyURI such that the length of the string representation of I is at least v
⟨ xsd:maxLength v ⟩ where v is a nonnegative integer	the set of IRIs I from the value space of xsd:anyURI such that the length of the string representation of I is at most v
⟨ xsd:length v ⟩ where v is a nonnegative integer	the set of IRIs I from the value space of xsd:anyURI such that the length of the string representation of I is exactly v
⟨ xsd:pattern v ⟩ where v is a string regular expression with the syntax as in Section F of XML Schema Datatypes [XML Schema Datatypes]	the set of IRIs I from the value space of xsd:anyURI whose string representation matches the regular expression v

4.6 Time Instants

OWL 2 provides the owl:dateTime datatype for the representation of time instants. This datatype is equivalent to the xsd:dateTime datatype of XML Schema Datatypes [XML Schema Datatypes] with a required timezone.

Feature At Risk #3: owl:dateTime name

The name owl:dateTime is currently a placeholder. XML Schema 1.1 Working Group will introduce a datatype for date-time with required timezone. Once this is done, owl:dateTime will be changed to whatever name XML Schema chooses. If the schedule of the XML Schema 1.1 Working Group slips the OWL 2 Working Group will consider possible alternatives.

Please send feedback to public-owl-comments@w3.org.

Value Space. The value space of owl:dateTime is the set of numbers, where each number x represents the time instant occurring x seconds after the first time instant of the 1st of January 1 AD in the proleptic Gregorian calendar [ISO 8601:2004] (i.e., the calendar in which the Gregorian dates are retroactively applied to the dates preceding the introduction of the Gregorian calendar). This set can be seen as a "copy" of the set of real numbers — that is, it is disjoint with but isomorphic to the value space of owl:real. For simplicity, the elements from this set can be identified with real numbers.

Lexical Space. The owl:dateTime datatype supports lexical values defined by the following grammar (whitespace within the grammar MUST be ignored and MUST NOT be included in the lexical values of owl:dateTime, and single quotes are used to introduce terminal symbols):

year '-' month '-' date 'T' hour ':' minute ':' second timezone

The components of the this string are as follows:

Characters - (U+2D), T (U+54), and : (U+3A) separate the various parts of the string.
year is an integer consisting of at least four decimal digits optionally preceded by a minus sign; leading zero digits are prohibited except to bring the digit count up to four.
month, day, hour, and minute are integers consisting of exactly two decimal digits.
second is an integer consisting of exactly two decimal digits, or two decimal digits, a decimal point, and one or more trailing digits.
timezone specifies a count of minutes that has to be added to or subtracted from UTC in order to get local time. The grammar for timezone is given by the following three alternatives, each of which is mapped to an integer as specified next:
- a time point of the form '+' tzHours ':' tzMinutes between +00:00 (inclusive) and +14:00 (exclusive) is mapped to the value + tzHours × 60 + tzMinutes;
- a time point of the form '-' tzHours ':' tzMinutes between -00:00 (inclusive) and -14:00 (exclusive) is mapped to the value - tzHours × 60 + tzMinutes;
- 'Z' is mapped to the value 0.
month is between 1 and 12 (inclusive).
day is no more than 31 if month is one of 1, 3, 5, 7, 8, 10, or 12; no more than 30 if month is one of 4, 6, 9, or 11; no more than 29 if month is 2 and year is divisible by 400, or by 4 but not by 100; and no more than 28 if month is 2 and year is not divisible 4, or is divisible by 100 but not by 400.
hour, minute, and second represent a time point between 00:00:00 (inclusive) and 24:00:00 (exclusive).

Each such lexical value is assigned a data value as specified by the following function, where div represents integer division and mod is the remainder of integer division. This mapping does not take into account leap seconds: leap seconds will be introduced in UTC as deemed necessary in future; since the precise date when this will be done is not known, the OWL 2 specification ignores leaps seconds.

dataValue(year, month, day, hour, minutes, seconds, timezone) =
31536000 × (year-1) +	# convert all previous years to seconds
86400 × ( (year-1) div 400 - (year-1) div 100 + (year-1) div 4) +	# adjust for leap years
86400 × Sum_{m < month} daysInMonth(year, m) +	# add the duration of each month
86400 × (day-1) +	# add the duration of the previous days
3600 × hour + 60 × (minutes - timezone) + seconds	# add the current time

daysInMonth(y, m) =
28	if m = 2 and [ (y mod 4 ≠ 0) or (y mod 100 = 0 and y mod 400 ≠ 0) ]
29	if m = 2 and [ (y mod 400 = 0) or (y mod 4 = 0 and y mod 100 ≠ 0) ]
30	if m ∈ { 4, 6, 9, 11 }
31	if m ∈ { 1, 3, 5, 7, 8, 10, 12 }

Lexical values of owl:dateTime can represent an arbitrary date. An OWL 2 implementation MAY support all such lexical values; however, it MUST support at least all lexical values in which the absolute value of the year component is less than 10000 (i.e., whose representation requires at most four digits), and in which the second component is a number with at most three decimal digits.

Facet Space. The facet space of the owl:dateTime datatype is shown in Table 8.

Table 8. The Facet Space of the *owl:dateTime* Datatype
Pair	Facet Value
⟨ xsd:minInclusive v ⟩ where v is from the value space of owl:dateTime	the set of all time instants x from the value space of owl:dateTime such that x = v or x > v
⟨ xsd:maxInclusive v ⟩ where v is from the value space of owl:dateTime	the set of all time instants x from the value space of owl:dateTime such that x = v or x < v
⟨ xsd:minExclusive v ⟩ where v is from the value space of owl:dateTime	the set of all time instants x from the value space of owl:dateTime such that x > v
⟨ xsd:maxExclusive v ⟩ where v is from the value space of owl:dateTime	the set of all time instants x from the value space of owl:dateTime such that x < v

4.7 XML Literals

OWL 2 uses the rdf:XMLLiteral datatype for the representation of XML content in OWL 2 ontologies. The definitions of the value space, the lexical space, and the mapping from the lexical to the value space are given in Section 5.1 of the RDF specification [RDF]. The rdf:XMLLiteral datatype supports no constraining facets.

Feature At Risk #4: rdf:XMLLiteral support

Note: This feature is "at risk" and may be removed from this specification based on feedback. Please send feedback to public-owl-comments@w3.org.

The rdf:XMLLiteral datatype might be removed from OWL 2 if implementation experience reveals problems with supporting this datatype.

5 Entities and Literals

Entities are the fundamental building blocks of OWL 2 ontologies, and they define the vocabulary — the named terms — of an ontology. In logic, the set of entities is usually said to constitute the signature of an ontology. Apart from entities, OWL 2 ontologies typically also contain literals, such as strings or integers.

The structure of entities and literals in OWL 2 is shown in Figure 2. Classes, datatypes, object properties, data properties, annotation properties, and named individuals are entities, and they are all uniquely identified by an IRI. Classes can be used to model sets of individuals; datatypes are sets of literals such as strings or integers; object and data properties can be used to represent relationships in the modeled domain; annotation properties can be used to associate nonlogical information with ontologies, axioms, and entities; and named individuals can be used to represent actual objects from the domain being modeled. Apart from named individuals, OWL 2 also provides for anonymous individuals — that is, individuals that are analogous to blank nodes in RDF [RDF Syntax] and that are accessible only from within the ontology they are used in. Finally, OWL 2 provides for literals, which consist of a lexical value and a datatype specifying how to interpret this value.

Figure 2. The Hierarchy of Entities in OWL 2

5.1 Classes

Classes can be understood as sets of individuals.

Class := IRI

IRIs used to identify classes MUST NOT be in the reserved vocabulary, apart from owl:Thing and owl:Nothing, which are available in OWL 2 as built-in classes with a predefined semantics.

The class with IRI owl:Thing represents the set of all individuals. (In the DL literature this is often called the top concept.)
The class with IRI owl:Nothing represents the empty set. (In the DL literature this is often called the bottom concept.)

Classes a:Child and a:Person can be used to model the set of all children and persons, respectively, in the application domain, and they can be used in an axiom such as the following one:

SubClassOf( a:Child a:Person )

Each child is a person.

5.2 Datatypes

Datatypes are entities that refer to sets of values described by a datatype map (see Section 4). Thus, datatypes are analogous to classes, the main difference being that the former contain values such as strings and numbers, rather than individuals. Datatypes are a kind of data ranges, which allows them to be used in restrictions. All datatypes have arity one. The built-in datatype rdfs:Literal denotes any set that contains the union of the value spaces of all datatypes in the datatype map. Each datatype other than rdfs:Literal MUST belong to the datatype map.

Datatype := IRI

The datatype xsd:integer denotes the set of all integers. It can be used in axioms such as the following one:

PropertyRange( a:hasAge xsd:integer )

The range of the a:hasAge property is xsd:integer.

5.3 Object Properties

Object properties connect pairs of individuals.

ObjectProperty := IRI

IRIs used to identify object properties MUST NOT be in the reserved vocabulary, apart from owl:topObjectProperty and owl:bottomObjectProperty, which are available in OWL 2 as built-in object properties with a predefined semantics.

The object property with IRI owl:topObjectProperty connects all possible pairs of individuals. (In the DL literature this is often called the top role.)
The object property with IRI owl:bottomObjectProperty does not connect any pair of individuals. (In the DL literature this is often called the bottom role.)

The object property a:parentOf can be used to represent the parenthood relationship between individuals. It can be used in axioms such as the following one:

PropertyAssertion( a:parentOf a:Peter a:Chris )

Peter is a parent of Chris.

5.4 Data Properties

Data properties connect individuals with literals. In some knowledge representation systems, functional data properties are called attributes.

DataProperty := IRI

IRIs used to identify data properties MUST NOT be in the reserved vocabulary, apart from owl:topDataProperty and owl:bottomDataProperty, which are are available in OWL 2 as built-in data properties with a predefined semantics.

The data property with IRI owl:topDataProperty connects all possible individuals with all literals. (In the DL literature this is often called the top role.)
The data property with IRI owl:bottomDataProperty does not connect any individual with a literal. (In the DL literature this is often called the bottom role.)

The data property a:hasName can be used to associate a name with each person. It can be used in axioms such as the following one:

PropertyAssertion( a:hasName a:Peter "Peter Griffin" )

Peter's name is "Peter Griffin".

5.5 Annotation Properties

Annotation properties can be used to provide an annotation for an ontology, axiom, or an IRI. The structure of annotations is further described in Section 10.

AnnotationProperty := IRI

IRIs used to identify annotation properties MUST NOT be in the reserved vocabulary, apart from the following IRIs from the reserved vocabulary, which are are available in OWL 2 as built-in annotation properties.

The rdfs:label annotation property can be used to provide an IRI with a human-readable label.
The rdfs:comment annotation property can be used to provide an IRI with a human-readable comment.
The rdfs:seeAlso annotation property can be used to provide an IRI with another IRI such that the latter provides additional information about the former.
The rdfs:isDefinedBy annotation property can be used to provide an IRI with another IRI such that the latter provides information about the definition of the former; the way in which this information is provided is not described by this specification.
An annotation with the owl:deprecated annotation property and the value equal to "true"^^xsd:boolean can be used to specify that an IRI is deprecated.
The owl:priorVersion annotation property is described in more detail in Section 3.5.
The owl:backwardCompatibleWith annotation property is described in more detail in Section 3.5.
The owl:incompatibleWith annotation property is described in more detail in Section 3.5.

The comment provided by the following annotation assertion axiom might, for example, be used by an OWL 2 tool to display additional information about the IRI a:Peter.

AnnotationAssertion( rdfs:comment a:Peter "The father of the Griffin family from Quahog." )

This axiom provides a comment for the IRI a:Peter.

5.6 Individuals

Individuals represent actual objects from the domain being modeled. There are two types of individuals in OWL 2. Named individuals are given an explicit name that can be used in any ontology in the import closure to refer to the same individual. Anonymous individuals are local to the ontology they are contained in.

Individual := NamedIndividual | AnonymousIndividual

5.6.1 Named Individuals

Named individuals are identified using an IRI. Since they are given an IRI, named individuals are entities. IRIs used to identify named individuals MUST NOT be in the reserved vocabulary.

NamedIndividual := IRI

The individual a:Peter can be used to represent a particular person. It can be used in axioms such as the following one:

ClassAssertion( a:Person a:Peter )

Peter is a person.

5.6.2 Anonymous Individuals

If an individual is not expected to be used outside an ontology, one can model it as an anonymous individual, which is identified by a local node ID. Anonymous individuals are analogous to blank nodes in RDF [RDF Syntax].

AnonymousIndividual := nodeID

Anonymous individuals can be used, for example, to represent objects whose identity is of no relevance, such as the address of a person.

PropertyAssertion( a:livesAt a:Peter _:1 )	Peter lives at some (unknown) address.
PropertyAssertion( a:city _:1 a:Quahog )	This unknown address is in the city of Quahog and...
PropertyAssertion( a:state _:1 a:RI )	...in the state of Rhode Island.

Special treatment is required in case anonymous individuals with the same node ID occur in two different ontologies. In particular, these two individuals are structurally equivalent (because they have the same node ID); however, they are treated as different individuals in the semantics of OWL 2 (because anonymous individuals are local to an ontology they are used in). The latter is achieved by renaming anonymous individuals apart when constructing the axiom closure of an ontology O: if anonymous individuals with the same node ID occur in two different ontologies in the import closure of O, then one of these individuals MUST be replaced in the axiom closure of O with a fresh anonymous individual (i.e., with an anonymous individual having a globally unique node ID).

Assume that ontologies O₁ and O₂ both use _:a5, and that O₁ imports O₂. Although they both use the same local node ID, the individual _:a5 in O₁ may be different from the individual _:a5 in O₂.

At the level of the structural specification, individual _:a5 in O₁ is structurally equivalent to individual _:a5 in O₂. This might be important, for example, for tools that use structural equivalence to define the semantics of axiom retraction.

In order to ensure that these individuals are treated differently by the semantics they are renamed apart when computing the axiom closure of O₁ — either _:a5 in O₁ is replaced with a fresh anonymous individual, or this is done for _:a5 in O₂.

5.7 Literals

Literals represent values such as particular strings or integers. They are analogous to literals in RDF [RDF Syntax] and can also be understood as individuals denoting known data values. Each literal consists of a lexical value, which is a string, and a datatype. The lexical value MUST conform to restrictions as specified by the datatype in the datatype map. The datatype map also determines how the literal is mapped to the actual data value. The datatypes and literals supported in OWL 2 are described in more detail in Section 4.

Literals are generally written in the functional-style syntax as "abc"^^datatype. The functional-style also supports the abbreviations for common types of text literals [RDF:TEXT], and OWL 2 implementations SHOULD use these abbreviated forms whenever possible. These abbreviations are purely syntactic shortcuts and are thus not reflected in the structural specification of OWL 2.

Literals of the form "abc"^^xsd:string SHOULD be abbreviated to "abc".
Literals of the form "abc@languageTag"^^rdf:text SHOULD be abbreviated to "abc"@languageTag.

Literal := typedLiteral | abbreviatedXSDStringLiteral | abbreviatedRDFTextLiteral
typedLiteral := lexicalValue '^^' Datatype
lexicalValue := quotedString
abbreviatedXSDStringLiteral := quotedString
abbreviatedRDFTextLiteral := quotedString '@' languageTag

"1"^^xsd:integer is a literal that represents the integer 1.

"Family Guy" is an abbreviation for "Family Guy"^^xsd:string — a literal with the lexical value "Family Guy" and the datatype xsd:string.

"Padre de familia"@es is an abbreviation for the literal "Padre de familia@es"^^rdf:text — a literal denoting a pair consisting of the string "Padre de familia" and the language tag es denoting the Spanish language.

Two literals are structurally equivalent if and only if both the lexical value and the datatype are structurally equivalent; that is, literals denoting the same data value are structurally different if either their lexical value or the datatype is different.

Even through literals "1"^^xsd:integer and "+1"^^xsd:integer are interpreted as the integer 1, these two literals are not structurally equivalent because their lexical values are not the same. Similarly, "1"^^xsd:integer and "1"^^xsd:positiveInteger are not structurally equivalent because their datatypes are not the same.

5.8 Entity Declarations and Typing

Each IRI I used in an OWL 2 ontology O can, and sometimes even must, be declared in O; roughly speaking, this means that the axiom closure of O must contain an appropriate declaration for I. A declaration for I in O serves two purposes:

A declaration says that I exists — that is, it says that I is part of the vocabulary of O.
A declaration associates with I an entity type — that is, it says whether I is used in O as a class, datatype, object property, data property, annotation property, an individual, or a combination thereof.

An ontology might contain a declaration for the IRI a:Person and state that this IRI is a class. Such a declaration states that a:Person exists in the ontology and it states that the IRI is used as a class. An ontology editor might use declarations to implement functions such as "Add New Class".

In OWL 2, declarations are a type of axiom; thus, to declare an entity in an ontology, one can simply include the appropriate axiom in the ontology. These axioms are nonlogical in the sense that they do not affect the direct semantics of an OWL 2 ontology [OWL 2 Direct Semantics]. The structure of entity declarations is shown in Figure 3.

Figure 3. Entity Declarations in OWL 2

Declaration := 'Declaration' '(' axiomAnnotations Entity ')'
Entity :=
    'Class' '(' Class ')' |
    'Datatype' '(' Datatype ')' |
    'ObjectProperty' '(' ObjectProperty ')' |
    'DataProperty' '(' DataProperty ')' |
    'AnnotationProperty' '(' AnnotationProperty ')' |
    'NamedIndividual' '(' NamedIndividual ')'

The following axioms state that the IRI a:Person is used as a class and that the IRI a:Peter is used as an individual.

Declaration( Class( a:Person ) )
Declaration( NamedIndividual( a:Peter ) )

Declarations for the built-in entities of OWL 2, listed in Table 9, are implicitly present in every OWL 2 ontology.

Table 9. Declarations of Built-In Entities
Declaration( Class( owl:Thing ) )
Declaration( Class( owl:Nothing ) )
Declaration( ObjectProperty( owl:topObjectProperty ) )
Declaration( ObjectProperty( owl:bottomObjectProperty ) )
Declaration( DataProperty( owl:topDataProperty ) )
Declaration( DataProperty( owl:bottomDataProperty ) )
Declaration( Datatype( rdfs:Literal ) )
Declaration( Datatype( I ) )	for each IRI I of a datatype in the datatype map (see Section 4)
Declaration( AnnotationProperty( I ) )	for each IRI I of a built-in annotation property listed in Section 5.5

5.8.1 Typing Constraints

Let Ax be a set of axioms. An IRI I is declared to be of type T in Ax if a declaration axiom of type T for I is contained in Ax or in the set of built-in declarations listed in Table 9. The set Ax satisfies the typing constraints of OWL 2 if all of the following conditions are satisfied:

Property typing constraints:
- If an object property with an IRI I occurs in some axiom in Ax, then I is declared in Ax as an object property.
- If a data property with an IRI I occurs in some axiom in Ax, then I is declared in Ax as a data property.
- If an annotation property with an IRI I occurs in some axiom in Ax, then I is declared in Ax as an annotation property.
- No IRI I is declared in Ax as being of more than one type of property; that is, no I is declared in Ax to be both object and data, object and annotation, or data and annotation property.
Class/datatype typing constraints:
- If a class with an IRI I occurs in some axiom in Ax, then I is declared in Ax as a class.
- If a datatype with an IRI I occurs in some axiom in Ax, then I is declared in Ax as a datatype.
- No IRI I is declared in ax to be both a class and a datatype.
No declaration for an IRI I violates the constraints on the usage of reserved vocabulary listed in the previous sections.

The axiom closure Ax of each OWL 2 ontology O MUST satisfy the typing constraints of OWL 2.

The typing constraints thus ensure that the sets of IRIs used as object, data, and annotation properties in O are disjoint and that, similarly, the sets of IRIs used as classes and datatypes in O are disjoint as well. These constraints are used for disambiguating the types of IRIs when reading ontologies from external transfer syntaxes. All other declarations are optional.

An IRI I can be used as an individual in O even if I is not declared as an individual in O.

Declarations are often omitted in the examples in this document in cases where the types of entities are clear.

5.8.2 Declaration Consistency

Although declarations are optional for the most part, they can be used to catch obvious errors in ontologies.

The following ontology erroneously refers to the individual a:Petre instead of the individual a:Peter.

Ontology(<http://www.my.example.com/example>
ClassAssertion( a:Person a:Petre )
)

There is no way of telling whether a:Petre was used by mistake. If, in contrast, all individuals in an ontology were by convention required to be declared, this error could be caught by a simple tool.

An ontology O is said to have consistent declarations if each IRI I occurring in the axiom closure of O in position of an entity with a type T is declared in O as having type T. OWL 2 ontologies are not required to have consistent declarations: an ontology MAY be used even if its declarations are not consistent.

The ontology from the previous example fails this check: a:Petre is used as an individual but the ontology does not declare a:Petre to be an individual, and similarly for a:Person. In contrast, the following ontology satisfies this condition.

Ontology(<http://www.my.example.com/example>
    Declaration( Class( a:Person ) )
    Declaration( NamedIndividual( a:Peter ) )
    ClassAssertion( a:Person a:Peter )
)

5.9 Metamodeling

According to the typing constraints from Section 5.8.1, an IRI I can be used in an OWL 2 ontology to refer to more than one type of entity. Such usage of I is often called metamodeling, because it can be used to state facts about classes and properties themselves. In such cases, the entities that share the same IRI I should be understood as different "views" of the same underlying notion identified by the IRI I.

Consider the following ontology.

ClassAssertion( a:Dog a:Brian )	Brian is a dog.
ClassAssertion( a:Species a:Dog )	Dog is a species.

In the first axiom, the IRI a:Dog is used as a class, while in the second axiom, it is used as an individual; thus, the class a:Species acts as a metaclass for the class a:Dog. The individual a:Dog and the class a:Dog should be understood as two "views" of one and the same IRI — a:Dog. Under the OWL 2 Direct Semantics [OWL 2 Direct Semantics], these two views are interpreted independently: the class view of a:Species is interpreted as a unary predicate, while the individual view of a:Species is interpreted as a constant.

Both metamodeling and annotations provide means to associate additional information with classes and properties. The following rule-of-the-thumb can be used to determine when to use which construct:

Metamodeling should be used when the information attached to entities should be considered a part of the domain being modeled.
Annotations should be used when the information attached to entities should not be considered a part of the domain being modeled and when it should not contribute to the logical consequences of an ontology.

Consider the following ontology.

ClassAssertion( a:Dog a:Brian )	Brian is a dog.
ClassAssertion( a:PetAnimals a:Dog )	Dogs are pet animals.
AnnotationAssertion( a:addedBy a:Dog "Seth MacFarlane" )	The IRI a:Dog has been added to the ontology by Seth MacFarlane.

The facts that Brian is a dog and that dogs are pet animals are statements about the domain being modeled. Therefore, these facts are represented in the above ontology via metamodeling. In contrast, the information about who added the IRI a:Dog to the ontology does not describe the actual domain being modeled, but might be interesting from a management point of view. Therefore, this information is represented using an annotation.

6 Property Expressions

Properties can be used in OWL 2 to form property expressions.

6.1 Object Property Expressions

Object properties can by used in OWL 2 to form object property expressions. They are represented in the structural specification of OWL 2 by ObjectPropertyExpression, and their structure is shown in Figure 4.

Figure 4. Object Property Expressions in OWL 2

As one can see from the figure, OWL 2 supports only two kinds of object property expressions. Object properties are the simplest form of object property expressions, and inverse object properties allow for bidirectional navigation in class expressions and axioms.

ObjectPropertyExpression := ObjectProperty | InverseObjectProperty

6.1.1 Inverse Object Properties

An inverse object property expression InverseOf( P ) connects an individual I₁ with I₂ if and only if the object property P connects I₂ with I₁.

InverseObjectProperty := 'InverseOf' '(' ObjectProperty ')'

Consider the ontology consisting of the following assertion.

PropertyAssertion( a:fatherOf a:Peter a:Stewie )

Peter is the father of Stewie.

This ontology entails that a:Stewie is connected via InverseOf( a:fatherOf ) to a:Peter.

6.2 Data Property Expressions

For symmetry with object property expressions, the structural specification of OWL 2 also introduces the notion of data property expressions, as shown in Figure 5. The only allowed data property expression is a data property; thus, DataPropertyExpression in the structural specification of OWL 2 can be seen as a place-holder for possible future extensions.

Figure 5. Data Property Expressions in OWL 2

DataPropertyExpression := DataProperty

7 Data Ranges

Datatypes, such as strings or integers, can be used to express data ranges — sets of tuples of literals. Each data range is associated with a positive arity, which determines the size of the tuples in the data range. All datatypes have arity one. This specification currently does not define data ranges of arity more than one; however, by allowing for n-ary data ranges, the syntax of OWL 2 provides a "hook" allowing implementations to introduce extensions such as comparisons and arithmetic.

Data ranges can be used in restrictions on data properties, as discussed in Sections 8.4 and 8.5. The structure of data ranges in OWL 2 is shown in Figure 6. The simplest data ranges are datatypes. The DataIntersectionOf, DataUnionOf, and DataComplementOf data ranges provide for the standard set-theoretic operations on data ranges; in logical languages these are usually called conjunction, disjunction, and negation, respectively. The DataOneOf data range consists of exactly the specified set of literals. Finally, the DatatypeRestriction data range restricts the value space of a datatype by a constraining facet.

Figure 6. Data Ranges in OWL 2

7.1 Intersection of Data Ranges

An intersection data range IntersectionOf( DR₁ ... DR_n ) contains all data values that are contained in the value space of every data range DR_i for 1 ≤ i ≤ n. All data ranges DR_i must be of the same arity.

DataIntersectionOf := 'IntersectionOf' '(' DataRange DataRange { DataRange } ')'

The data range IntersectionOf( xsd:nonNegativeInteger xsd:nonPositiveInteger ) contains exactly the integer 0.

7.2 Union of Data Ranges

A union data range UnionOf( DR₁ ... DR_n ) contains all data values that are contained in the value space of at least one data range DR_i for 1 ≤ i ≤ n. All data ranges DR_i must be of the same arity.

DataUnionOf := 'UnionOf' '(' DataRange DataRange { DataRange } ')'

The data range UnionOf( xsd:string xsd:integer ) contains all strings and all integers.

7.3 Complement of Data Ranges

A complement data range ComplementOf( DR ) contains all literals that are not contained in the data range DR.

DataComplementOf := 'ComplementOf' '(' DataRange ')'

The complement data range ComplementOf( xsd:positiveInteger ) consists of literals that are not positive integers. In particular, this data range contains the integer zero and all negative integers; however, it also contains all strings (since strings are not positive integers).

7.4 Enumeration of Literals

An enumeration of literals OneOf( lt₁ ... lt_n ) contains exactly the explicitly specified literals lt_i with 1 ≤ i ≤ n.

DataOneOf := 'OneOf' '(' Literal { Literal } ')'

The enumeration of literals OneOf( "Peter" "1"^^xsd:integer ) contains exactly two literals: the string "Peter" and the integer one.

7.5 Datatype Restrictions

A datatype restriction DatatypeRestriction( DT F₁ lt₁ ... F_n lt_n ) consists of a unary datatype DT and n pairs ⟨ F_i lt_i ⟩. Let v_i be the data values of the corresponding literals lt_i. Each pair ⟨ F_i v_i ⟩ MUST be contained in the facet space of DT in the datatype map (see Section 4). The resulting unary data range is obtained by restricting the value space of DT according to the semantics of all ⟨ F_i v_i ⟩ (multiple pairs are interpreted conjunctively).

DatatypeRestriction := 'DatatypeRestriction' '(' Datatype constrainingFacet restrictionValue { constrainingFacet restrictionValue } ')'
constrainingFacet := IRI
restrictionValue := Literal

The data range DatatypeRestriction( xsd:integer xsd:minInclusive "5"^^xsd:integer xsd:maxExclusive "10"^^xsd:integer ) contains exactly the integers 5, 6, 7, 8, and 9.

8 Class Expressions

In OWL 2, classes and property expressions are used to construct class expressions, sometimes also called descriptions, and, in the description logic literature, complex concepts. Class expressions represent sets of individuals by formally specifying conditions [OWL 2 Direct Semantics] on the individuals' properties; individuals satsifying these conditions are said to be instances of the respective class expressions. In the structural specification of OWL 2, class expressions are represented by ClassExpression.

A class expression can be used to represent the set of "people that have at least one child". If an ontology additionally contains statements that "Peter is a person" and that "Peter has child Chris", then Peter can be classified as an instance of the mentioned class expression.

OWL 2 provides a rich set of primitives that can be used to construct class expressions. In particular, it provides the well known Boolean connectives and, or, and not; a restricted form of universal and existential quantification; number restrictions; enumeration of individuals; and a special self-restriction.

As shown in Figure 2, classes are the simplest form of class expressions. The other, complex, class expressions, are described in the following sections.

8.1 Propositional Connectives and Enumeration of Individuals

OWL 2 provides for enumeration of individuals and all standard Boolean connectives, as shown in Figure 7. The ObjectIntersectionOf, ObjectUnionOf, and ObjectComplementOf class expressions provide for the standard set-theoretic operations on class expressions; in logical languages these are usually called conjunction, disjunction, and negation, respectively. The ObjectOneOf class expression contains exactly the specified individuals.

Figure 7. Propositional Connectives and Enumeration of Individuals in OWL 2

8.1.1 Intersection of Class Expressions

An intersection class expression IntersectionOf( CE₁ ... CE_n ) contains all individuals that are instances of all class expressions CE_i for 1 ≤ i ≤ n.

ObjectIntersectionOf := 'IntersectionOf' '(' ClassExpression ClassExpression { ClassExpression } ')'

Consider the ontology consisting of the following axioms.

ClassAssertion( a:Dog a:Brian )	Brian is a dog.
ClassAssertion( a:CanTalk a:Brian )	Brian can talk.

The class expression IntersectionOf( a:Dog a:CanTalk ) describes all dogs that can talk and, consequently, a:Brian is classified as an instance of this expression.

8.1.2 Union of Class Expressions

A union class expression UnionOf( CE₁ ... CE_n ) contains all individuals that are instances of at least one class expression CE_i for 1 ≤ i ≤ n.

ObjectUnionOf := 'UnionOf' '(' ClassExpression ClassExpression { ClassExpression } ')'

Consider the ontology consisting of the following axioms.

ClassAssertion( a:Man a:Peter )	Peter is a man.
ClassAssertion( a:Woman a:Lois )	Lois is a woman.

The class expression UnionOf( a:Man a:Woman ) describes all individuals that are instances of either a:Man or a:Woman; consequently, both a:Peter and a:Lois are classified as instances of this expression.

8.1.3 Complement of Class Expressions

A complement class expression ComplementOf( CE ) contains all individuals that are not instances of the class expression CE.

ObjectComplementOf := 'ComplementOf' '(' ClassExpression ')'

Consider the ontology consisting of the following axioms.

DisjointClasses( a:Man a:Woman )	Nothing can be both a man and a woman.
ClassAssertion( a:Woman a:Lois )	Lois is a woman.

The class expression ComplementOf( a:Man ) describes all things that are not instances of a:Man. Since a:Lois is known to be a woman and nothing can be both a man and a woman, then a:Lois is necessarily not a a:Man; therefore, a:Lois is classified as an instance of this complement class expression.

OWL 2 has open-world semantics, so negation in OWL 2 is the same as in classical (first-order) logic. To understand open-world semantics, consider the ontology consisting of the following assertion.

ClassAssertion( a:Dog a:Brian )

Brian is a dog.

One might expect a:Brian to be classified as an instance of ComplementOf( a:Bird ): the ontology does not explicitly state that a:Brian is an instance of a:Bird, so this statement seems to be false. In OWL 2, however, this is not the case: it is true that the ontology does not state that a:Brian is an instance of a:Bird; however, the ontology does not state the opposite either. In other words, this ontology simply does not contain enough information to answer the question whether a:Brian is an instance of a:Bird or not: it is perfectly possible that the information to that effect is actually true but it has not been included in the ontology.

The ontology from the previous example (in which a:Lois has been classified as a:Man), however, contains sufficient information to draw the expected conclusion. In particular, we know for sure that a:Lois is an instance of a:Woman and that a:Man and a:Woman do not share instances. Therefore, any additional information that does not lead to inconsistency cannot lead to a conclusion that a:Lois is an instance of a:Man; furthermore, if one were to explicitly state that a:Lois is an instance of a:Man, the ontology would be inconsistent and, by definition, it then entails all possible conclusions.

8.1.4 Enumeration of Individuals

An enumeration of individuals OneOf( a₁ ... a_n ) contains exactly the individuals a_i with 1 ≤ i ≤ n.

ObjectOneOf := 'OneOf' '(' Individual { Individual }')'

Consider the ontology consisting of the following axioms.

EquivalentClasses( a:GriffinFamilyMember OneOf( a:Peter a:Lois a:Stewie a:Meg a:Chris a:Brian ) )	The Griffin family consists exactly of Peter, Lois, Stewie, Meg, and Brian.
DifferentIndividuals( a:Quagmire a:Peter a:Lois a:Stewie a:Meg a:Chris a:Brian )	Quagmire, Peter, Lois, Stewie, Meg, Chris, and Brian are all different from each other.

The class a:GriffinFamilyMember now contains exactly the six explicitly listed individuals. Since we also know that a:Quagmire is different from these six individuals, this individual is classified as an instance of the class expression ComplementOf( a:GriffinFamilyMember ). The last axiom is necessary to derive this conclusion; without it, the open-world semantics of OWL 2 would allow for situations where a:Quagmire is the same as a:Peter, a:Lois, a:Stewie, a:Meg, a:Chris, or a:Brian.

To understand how the open-world semantics affects enumerations of individuals, consider the ontology consisting of the following axioms.

ClassAssertion( a:GriffinFamilyMember a:Peter )	Peter is a member of the Griffin Family.
ClassAssertion( a:GriffinFamilyMember a:Lois )	Lois is a member of the Griffin Family.
ClassAssertion( a:GriffinFamilyMember a:Stewie )	Stewie is a member of the Griffin Family.
ClassAssertion( a:GriffinFamilyMember a:Meg )	Meg is a member of the Griffin Family.
ClassAssertion( a:GriffinFamilyMember a:Chris )	Chris is a member of the Griffin Family.
ClassAssertion( a:GriffinFamilyMember a:Brian )	Brian is a member of the Griffin Family.

The class a:GriffinFamilyMember now also contains the mentioned six individuals, just as in the previous example. The main difference to the previous example, however, is that the extension of a:GriffinFamilyMember is not closed: the semantics of OWL 2 assumes that information about a potential instance of a:GriffinFamilyMember may be missing. Therefore, a:Quagmire is now not classified as an instance of the class expression ComplementOf( a:GriffinFamilyMember ), and this does not change even if we add the axiom stating that all of these six individuals are different from each other.

8.2 Object Property Restrictions

Class expressions in OWL 2 can be formed by placing restrictions on object property expressions, as shown in Figure 8. The ObjectSomeValuesFrom class expression allows for existential quantification over an object property expression, and it contains those individuals that are connected through an object property expression to at least one instance of a given class expression. The ObjectAllValuesFrom class expression allows for universal quantification over an object property expression, and it contains those individuals that are connected through an object property expression only to instances of a given class expression. The ObjectHasValue class expression contains those individuals that are connected by an object property expression to a particular individual. Finally, the ObjectHasSelf class expression contains those individuals that are connected by an object property expression to themselves.

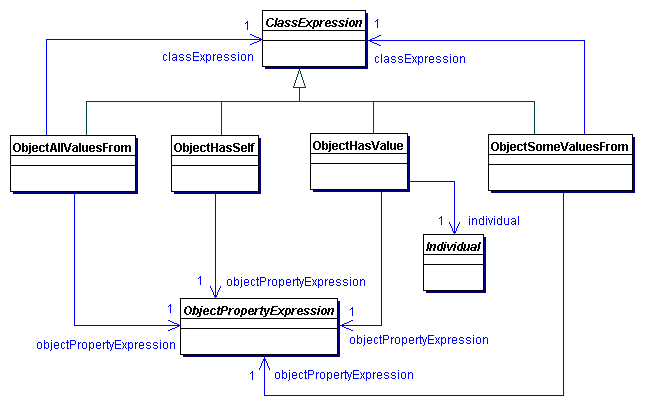

Figure 8. Restricting Object Property Expressions in OWL 2

8.2.1 Existential Quantification

An existential class expression SomeValuesFrom( OPE CE ) consists of an object property expression OPE and a class expression CE, and it contains all those individuals that are connected by OPE to an individual that is an instance of CE. Provided that OPE is simple according to the definition in Section 11, such a class expression can be seen as a syntactic shortcut for the class expression MinCardinality( 1 OPE CE ).

ObjectSomeValuesFrom := 'SomeValuesFrom' '(' ObjectPropertyExpression ClassExpression ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:fatherOf a:Peter a:Stewie )	Peter is the father of Stewie.
ClassAssertion( a:Man a:Stewie )	Stewie is a man.

The existential expression SomeValuesFrom( a:fatherOf a:Man ) contains those individuals that are connected by the a:fatherOf property to individuals that are instances of a:Man and, consequently, a:Peter is classified as an instance of this class expression.

8.2.2 Universal Quantification

A universal class expression AllValuesFrom( OPE CE ) consists of an object property expression OPE and a class expression CE, and it contains all those individuals that are connected by OPE only to individuals that are instances of CE. Provided that OPE is simple according to the definition in Section 11, such a class expression can be seen as a syntactic shortcut for the class expression MaxCardinality( 0 OPE ComplementOf( CE ) ).

ObjectAllValuesFrom := 'AllValuesFrom' '(' ObjectPropertyExpression ClassExpression ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasPet a:Peter a:Brian )	Brian is a pet of Peter.
ClassAssertion( a:Dog a:Brian )	Brian is a dog.
ClassAssertion( MaxCardinality( 1 a:hasPet ) a:Peter )	Peter has at most one pet.

The universal expression AllValuesFrom( a:hasPet a:Dog ) contains those individuals that are connected through the a:hasPet property only with individuals that are instances of a:Dog; in other words, it contains individuals that have only dogs as pets. The ontology axioms clearly state that a:Peter is connected by a:hasPet only to instances of a:Dog: it is impossible to connect a:Peter by a:hasPet to an individual different from a:Brian without making the ontology inconsistent. Therefore, a:Peter is classified as an instance of AllValuesFrom( a:hasPet a:Dog ).

The last axiom — that is, the axiom stating that a:Peter has at most one pet — is critical for the inference from the previous paragraph due to the open-world semantics of OWL 2. Without this axiom, the ontology might not have listed all the individuals to which a:Peter is connected by a:hasPet. In such a case a:Peter would not be classified as an instance of AllValuesFrom( a:hasPet a:Dog ).

8.2.3 Individual Value Restriction

A has-value class expression HasValue( OPE a ) consists of an object property expression OPE and an individual a, and it contains all those individuals that are connected by OPE to a. Each such class expression can be seen as a syntactic shortcut for the class expression SomeValuesFrom( OPE OneOf( a ) ).

ObjectHasValue := 'HasValue' '(' ObjectPropertyExpression Individual ')'

Consider the ontology consisting of the following axiom.

PropertyAssertion( a:fatherOf a:Peter a:Stewie )

Peter is the father of Stewie.

The has-value class expression HasValue( a:fatherOf a:Stewie ) contains those individuals that are connected through the a:fatherOf property with the individual a:Stewie so, consequently, a:Peter is classified as an instance of this class expression.

8.2.4 Self-Restriction

A self-restriction HasSelf( OPE ) consists of an object property expression OPE, and it contains all those individuals that are connected by OPE to themselves.

ObjectHasSelf := 'HasSelf' '(' ObjectPropertyExpression ')'

Consider the ontology consisting of the following axiom.

PropertyAssertion( a:likes a:Peter a:Peter )

Peter likes himself.

The self-restriction HasSelf( a:likes ) contains those individuals that like themselves so, consequently, a:Peter is classified as an instance of this class expression.

8.3 Object Property Cardinality Restrictions

Class expressions in OWL 2 can be formed by placing restrictions on the cardinality of object property expressions, as shown in Figure 9. All cardinality restrictions can be qualified or unqualified: in the former case, the cardinality restriction only applies to individuals that are connected by the object property expression and are instances of the qualifying class expression; in the latter case the restriction applies to all individuals that are connected by the object property expression (this is equivalent to the qualified case with the qualifying class expression equal to owl:Thing). The class expressions ObjectMinCardinality, ObjectMaxCardinality, and ObjectExactCardinality contain those individuals that are connected by an object property expression to at least, at most, and exactly a given number of instances of a specified class expression, respectively.

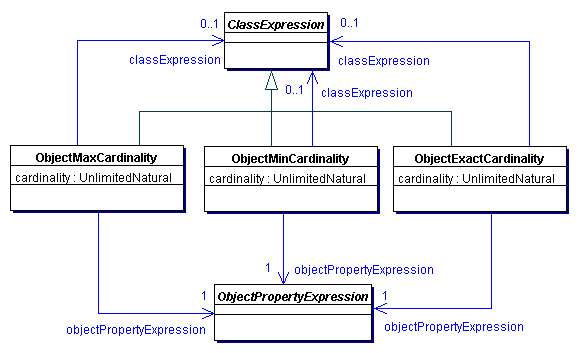

Figure 9. Restricting the Cardinality of Object Property Expressions in OWL 2

8.3.1 Minimum Cardinality

A minimum cardinality expression MinCardinality( n OPE CE ) consists of a nonnegative integer n, an object property expression OPE, and a class expression CE, and it contains all those individuals that are connected by OPE to at least n different individuals that are instances of CE. If CE is missing, it is taken to be owl:Thing.

ObjectMinCardinality := 'MinCardinality' '(' nonNegativeInteger ObjectPropertyExpression [ ClassExpression ] ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:fatherOf a:Peter a:Stewie )	Peter is the father of Stewie.
ClassAssertion( a:Man a:Stewie )	Stewie is a man.
PropertyAssertion( a:fatherOf a:Peter a:Chris )	Peter is the father of Chris.
ClassAssertion( a:Man a:Chris )	Chris is a man.
DifferentIndividuals( a:Chris a:Stewie )	Chris and Stewie are different from each other.

The minimum cardinality expression MinCardinality( 2 a:fatherOf a:Man ) contains those individuals that are connected by a:fatherOf to at least two different instances of a:Man. Since a:Stewie and a:Chris are both instances of a:Man and are different from each other, a:Peter is classified as an instance of MinCardinality( 2 a:fatherOf a:Man ).

Due to the open-world semantics, the last axiom — stating that a:Chris and a:Stewie are different from each other — is necessary for this inference: without this axiom, it is possible that a:Chris and a:Stewie are actually the same individual.

8.3.2 Maximum Cardinality

A maximum cardinality expression MaxCardinality( n OPE CE ) consists of a nonnegative integer n, an object property expression OPE, and a class expression CE, and it contains all those individuals that are connected by OPE to at most n different individuals that are instances of CE. If CE is missing, it is taken to be owl:Thing.

ObjectMaxCardinality := 'MaxCardinality' '(' nonNegativeInteger ObjectPropertyExpression [ ClassExpression ] ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasPet a:Peter a:Brian )	Brian is a pet of Peter.
ClassAssertion( MaxCardinality( 1 a:hasPet ) a:Peter )	Peter has at most one pet.

The maximum cardinality expression MaxCardinality( 2 a:hasPet ) contains those individuals that are connected by a:hasPet to at most two individuals. Since a:Peter is known to be connected by a:hasPet to at most one individual, it is certainly also connected by a:hasPet to at most two individuals so, consequently, a:Peter is classified as an instance of MaxCardinality( 2 a:hasPet ).

The example ontology explicitly names only a:Brian as being connected by a:hasPet from a:Peter, so one might expect a:Peter to be classified as an instance of MaxCardinality( 2 a:hasPet ) even without the second axiom. This, however, is not the case due to the open-world semantics. Without the last axiom, it is possible that a:Peter is connected by a:hasPet to other individuals. The second axiom closes the set of individuals that a:Peter is connected to by a:hasPet.

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasDaughter a:Peter a:Meg )	Meg is a daughter of Peter.
PropertyAssertion( a:hasDaughter a:Peter a:Megan )	Megan is a daughter of Peter.
ClassAssertion( MaxCardinality( 1 a:hasDaughter ) a:Peter )	Peter has at most one daughter.

One might expect this ontology to be inconsistent: on the one hand, it says that a:Meg and a:Megan are connected to a:Peter by a:hasDaughter, but, on the other hand, it says that a:Peter is connected by a:hasDaughter to at most one individual. This ontology, however, is not inconsistent because the semantics of OWL 2 does not make the unique name assumption — that is, it does not assume distinct individuals to be necessarily different. For example, the ontology does not explicitly say that a:Meg and a:Megan are different individuals; therefore, since a:Peter can be connected by a:hasDaughter to at most one distinct individual, a:Meg and a:Megan must be the same. This example ontology thus entails the assertion SameIndividual( a:Meg a:Megan ).

One can axiomatize the unique name assumption in OWL 2 by explicitly stating that all individuals are different from each other. This can be done by adding the following axiom, which makes the example ontology inconsistent.

DifferentIndividuals( a:Peter a:Meg a:Megan )

Peter, Meg, and Megan are all different from each other.

8.3.3 Exact Cardinality

An exact cardinality expression ExactCardinality( n OPE CE ) consists of a nonnegative integer n, an object property expression OPE, and a class expression CE, and it contains all those individuals that are connected by OPE to exactly n different individuals that are instances of CE. If CE is missing, it is taken to be owl:Thing. Such an expression is actually equivalent to the expression

IntersectionOf( MinCardinality( n OPE CE ) MaxCardinality( n OPE CE ) ).

ObjectExactCardinality := 'ExactCardinality' '(' nonNegativeInteger ObjectPropertyExpression [ ClassExpression ] ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasPet a:Peter a:Brian )	Brian is a pet of Peter.
ClassAssertion( a:Dog a:Brian )	Brian is a dog.
ClassAssertion( AllValuesFrom( a:hasPet UnionOf( OneOf( a:Brian ) ComplementOf( a:Dog ) ) ) a:Peter )	Each pet of Peter is either Brian or it is not a dog.

The exact cardinality expression ExactCardinality( 1 a:hasPet a:Dog ) contains those individuals that are connected by a:hasPet to exactly one instance of a:Dog. The example ontology says that a:Peter is connected to a:Brian by a:hasPet and that a:Brian is an instance of a:Dog; therefore, a:Peter is an instance of MinCardinality( 1 a:hasPet a:Dog ). Furthermore, the last axiom says that any individual different from a:Brian that is connected to a:Peter by a:hasPet is not an instance if a:Dog; therefore, a:Peter is an instance of MaxCardinality( 1 a:hasPet a:Dog ). Consequently, a:Peter is classified as an instance of ExactCardinality( 1 a:hasPet a:Dog ).

8.4 Data Property Restrictions

Class expressions in OWL 2 can be formed by placing restrictions on data property expressions, as shown in Figure 10. These are similar to the restrictions on object property expressions, the main difference being that the expressions for existential and universal quantification allow for n-ary data ranges. All data ranges explicitly supported by this specification are unary; however, the provision of n-ary data ranges in existential and universal quantification allows OWL 2 tools to support extensions such as value comparisons and, consequently, class expressions such as "individuals whose width is greater than their height". Thus, the DataSomeValuesFrom class expression allows for a restricted existential quantification over a list of data property expressions, and it contains those individuals that are connected through the data property expressions to at least one literal in the given data range. The DataAllValuesFrom class expression allows for a restricted universal quantification over a list of data property expressions, and it contains those individuals that are connected through the data property expressions only to literals in the given data range. Finally, the DataHasValue class expression contains those individuals that are connected by a data property expression to a particular literal.

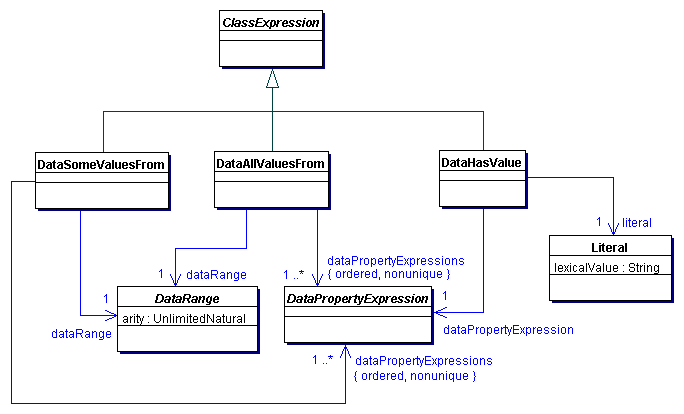

Figure 10. Restricting Data Property Expressions in OWL 2

8.4.1 Existential Quantification

An existential class expression SomeValuesFrom( DPE₁ ... DPE_n DR ) consists of n data property expressions DPE_i, 1 ≤ i ≤ n, and a data range DR whose arity MUST be n. Such a class expression contains all those individuals that are connected by DPE_i to literals lt_i, 1 ≤ i ≤ n, such that the tuple ⟨ lt₁, ..., lt_n ⟩ is in DR. A class expression of the form SomeValuesFrom( DPE DR ) can be seen as a syntactic shortcut for the class expression MinCardinality( 1 DPE DR ).

DataSomeValuesFrom := 'SomeValuesFrom' '(' DataPropertyExpression { DataPropertyExpression } DataRange ')'

Consider the ontology consisting of the following axiom.

PropertyAssertion( a:hasAge a:Meg "17"^^xsd:integer )

Meg is seventeen years old.

The existential class expression SomeValuesFrom( a:hasAge DatatypeRestriction( xsd:integer xsd:maxExclusive "20"^^xsd:integer ) ) contains all individuals that are connected by a:hasAge to an integer strictly less than 20 so, consequently, a:Meg is classified as an instance of this expression.

8.4.2 Universal Quantification

A universal class expression AllValuesFrom( DPE₁ ... DPE_n DR ) consists of n data property expressions DPE_i, 1 ≤ i ≤ n, and a data range DR whose arity MUST be n. Such a class expression contains all those individuals that are connected by DPE_i only to literals lt_i, 1 ≤ i ≤ n, such that each tuple ⟨ lt₁, ..., lt_n ⟩ is in DR. A class expression of the form AllValuesFrom( DPE DR ) can be seen as a syntactic shortcut for the class expression MaxCardinality( 0 DPE ComplementOf( DR ) ).

DataAllValuesFrom := 'AllValuesFrom' '(' DataPropertyExpression { DataPropertyExpression } DataRange ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:zipCode _:a1 "02903"^^xsd:integer )	The ZIP code of _:a1 is the integer 02903.
FunctionalProperty( a:hasZIP )	Each object can have at most one ZIP code.

In United Kingdom and Canada, ZIP codes are strings (i.e., they can contain characters and not just numbers). Hence, one might use the universal expression AllValuesFrom( a:hasZIP xsd:integer ) to identify those individuals that have only integer ZIP codes (and therefore have non-UK and non-Canadian addresses). The anonymous individual _:a1 is by the first axiom connected by a:zipCode to an integer, and the second axiom ensures that _:a1 is not connected by a:zipCode to other literals; therefore, _:a1 is classified as an instance of AllValuesFrom( a:hasZIP xsd:integer ).

The last axiom — stating that a:hasZIP is functional — is critical for the inference from the previous paragraph due to the open-world semantics of OWL 2. Without this axiom, the ontology is not guaranteed to list all literals that _:a1 is connected to by a:hasZIP; hence, without this axiom _:a1 would not be classified as an instance of AllValuesFrom( a:hasZIP xsd:integer ).

8.4.3 Literal Value Restriction

A has-value class expression HasValue( DPE lt ) consists of a data property expression DPE and a literal lt, and it contains all those individuals that are connected by DPE to lt. Each such class expression can be seen as a syntactic shortcut for the class expression SomeValuesFrom( DPE OneOf( lt ) ).

DataHasValue := 'HasValue' '(' DataPropertyExpression Literal ')'

Consider the ontology consisting of the following axiom.

PropertyAssertion( a:hasAge a:Meg "17"^^xsd:integer )

Meg is seventeen years old.

The has-value expression hasValue( a:hasAge "17"^^xsd:integer ) contains all individuals that are connected by a:hasAge to the integer 17 so, consequently, a:Meg is classified as an instance of this expression.

8.5 Data Property Cardinality Restrictions

Class expressions in OWL 2 can be formed by placing restrictions on the cardinality of data property expressions, as shown in Figure 11. These are similar to the restrictions on the cardinality of object property expressions. All cardinality restrictions can be qualified or unqualified: in the former case, the cardinality restriction only applies to literals that are connected by the data property expression and are in the qualifying data range; in the latter case it applies to all literals that are connected by the data property expression (this is equivalent to the qualified case with the qualifying data range equal to rdfs:Literal). The class expressions DataMinCardinality, DataMaxCardinality, and DataExactCardinality contain those individuals that are connected by a data property expression to at least, at most, and exactly a given number of literals in the specified data range, respectively.

Figure 11. Restricting the Cardinality of Data Property Expressions in OWL 2

8.5.1 Minimum Cardinality

A minimum cardinality expression MinCardinality( n DPE DR ) consists of a nonnegative integer n, a data property expression DPE, and a unary data range DR, and it contains all those individuals that are connected by DPE to at least n different literals in DR. If DR is not present, it is taken to be rdfs:Literal.

DataMinCardinality := 'MinCardinality' '(' nonNegativeInteger DataPropertyExpression [ DataRange ] ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasName a:Meg "Meg Griffin" )	Meg's name is "Meg Griffin".
PropertyAssertion( a:hasName a:Meg "Megan Griffin" )	Meg's name is "Megan Griffin".

The minimum cardinality expression MinCardinality( 2 a:hasName ) contains those individuals that are connected by a:hasName to at least two different literals. The xsd:string datatypes interprets different string literals as being distinct, so "Meg Griffin" and "Megan Griffin" are different; thus, the individual a:Meg is classified as an instance of the class expression MinCardinality( 2 a:hasName ).

8.5.2 Maximum Cardinality

A maximum cardinality expression MaxCardinality( n DPE DR ) consists of a nonnegative integer n, a data property expression DPE, and a unary data range DR, and it contains all those individuals that are connected by DPE to at most n different literals in DR. If DR is not present, it is taken to be rdfs:Literal.

DataMaxCardinality := 'MaxCardinality' '(' nonNegativeInteger DataPropertyExpression [ DataRange ] ')'

Consider the ontology consisting of the following axiom.

FunctionalProperty( a:hasName )

Each object can have at most one name.

The maximum cardinality expression MaxCardinality( 2 a:hasName ) contains those individuals that are connected by a:hasName to at most two different literals. Since the ontology axiom restricts a:hasName to be functional, all individuals in the ontology are instances of this class expression.

8.5.3 Exact Cardinality

An exact cardinality expression ExactCardinality( n DPE DR ) consists of a nonnegative integer n, a data property expression DPE, and a unary data range DR, and it contains all those individuals that are connected by DPE to exactly n different literals in DR. If DR is not present, it is taken to be rdfs:Literal.

DataExactCardinality := 'ExactCardinality' '(' nonNegativeInteger DataPropertyExpression [ DataRange ] ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasName a:Brian "Brian Griffin" )	Brian's name is "Brian Griffin".
FunctionalProperty( a:hasName )	Each object can have at most one name.

The exact cardinality expression ExactCardinality( 1 a:hasName ) contains those individuals that are connected by a:hasName to exactly one literal. Since the ontology axiom restricts a:hasName to be functional and a:Brian is connected by a:hasName to "Brian Griffin", it is classified as an instance of this class expression.

9 Axioms

The main component of an OWL 2 ontology is a set of axioms — statements that say what is true in the domain being modeled. OWL 2 provides an extensive set of axioms, all of which extend the Axiom class in the structural specification. As shown in Figure 12, axioms in OWL 2 can be declarations, axioms about classes, axioms about object or data properties, keys, assertions (sometimes also called facts), and axioms about annotations.

Figure 12. The Axioms of OWL 2

Axiom := Declaration | ClassAxiom | ObjectPropertyAxiom | DataPropertyAxiom | HasKey | Assertion | AnnotationAxiom

axiomAnnotations := { Annotation }

As shown in Figure 1, OWL 2 axioms can contain axiom annotations, the structure of which is defined in Section 10. Axiom annotations have no effect on the semantics of axioms — that is, they do not affect the meaning of OWL 2 ontologies [OWL 2 Direct Semantics]. In contrast, axiom annotations do affect structural equivalence: axioms will not be structurally equivalent if their axiom annotations are not structurally equivalent.

The following axiom contains a comment that explains the purpose of the axiom.

SubClassOf( Annotation( rdfs:comment "Male people are people.") a:Man a:Person)

Since annotations affect structural equivalence between axioms, the previous axiom is not structurally equivalent with the following axiom, even though these two axioms are equivalent according to the OWL 2 Direct Semantics [OWL 2 Direct Semantics].

SubClassOf( a:Man a:Person )

9.1 Class Expression Axioms

OWL 2 provides axioms that allow relationships to be established between class expressions, as shown in Figure 13. The SubClassOf axiom allows one to state that each instance of one class expression is also an instance of another class expression, and thus to construct a hierarchy of classes. The EquivalentClasses axiom allows one to state that several class expressions are equivalent to each other. The DisjointClasses axiom allows one to state that several class expressions are pairwise disjoint — that is, that they have no instances in common. Finally, the DisjointUnion class expression allows one to define a class as a disjoint union of several class expressions and thus to express covering constraints.

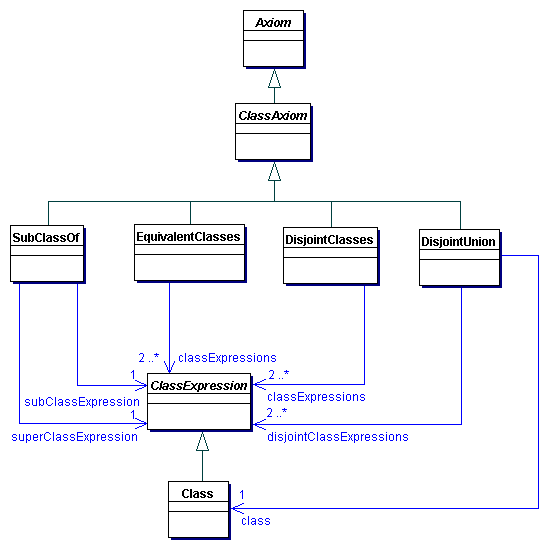

Figure 13. The Class Axioms of OWL 2

ClassAxiom := SubClassOf | EquivalentClasses | DisjointClasses | DisjointUnion

9.1.1 Subclass Axioms

A subclass axiom SubClassOf( CE₁ CE₂ ) states that the class expression CE₁ is a subclass of the class expression CE₂. Roughly speaking, this states that CE₁ is more specific than CE₂. Subclass axioms are a fundamental type of axioms in OWL 2 and can be used to construct a class hierarchy. Other kinds of class expression axiom can be seen as syntactic shortcuts for one or more subclass axioms.

SubClassOf := 'SubClassOf' '(' axiomAnnotations subClassExpression superClassExpression ')'
subClassExpression := ClassExpression
superClassExpression := ClassExpression

Consider the ontology consisting of the following axioms.

SubClassOf( a:Baby a:Child )	Each baby is a child.
SubClassOf( a:Child a:Person )	Each child is a person.
ClassAssertion( a:Baby a:Stewie )	Stewie is a baby.

Since a:Stewie is an instance of a:Baby, by the first subclass axiom a:Stewie is classified as an instance of a:Child as well. Similarly, by the second subclass axiom a:Stewie is classified as an instance of a:Person. This style of reasoning can be applied to any instance of a:Baby and not just a:Stewie; therefore, one can conclude that a:Baby is a subclass of a:Person. In other words, this ontology entails the axiom SubClassOf( a:Baby a:Person ).

Consider the ontology consisting of the following axioms.

SubClassOf( a:PersonWithChild SomeValuesFrom( a:hasChild UnionOf( a:Boy a:Girl ) ) )	A person that has a child has either at least one boy or a girl.
SubClassOf( a:Boy a:Child )	Each boy is a child.
SubClassOf( a:Girl a:Child )	Each girl is a child.
SubClassOf( SomeValuesFrom( a:hasChild a:Child ) a:Parent )	If some object has a child, then this object is a parent.

The first axiom states that each instance of a:PersonWithChild is connected to an individual that is an instance of either a:Boy or a:Girl. (Because of the open-world semantics of OWL 2, this does not mean that there must be only one such individual or that all such individuals must be instances of either a:Boy or of a:Girl.) Furthermore, each instance of a:Boy or a:Girl is an instance of a:Child. Finally, the last axiom says that all individuals that are connected by a:hasChild to an instance of a:Child are instances of a:Parent. Since this reasoning holds for each instance of a:PersonWithChild, each such instance is also an instance of a:Parent. In other words, this ontology entails the axiom SubClassOf( a:PersonWithChild a:Parent ).

9.1.2 Equivalent Classes

An equivalent classes axiom EquivalentClasses( CE₁ ... CE_n ) states that all of the class expressions CE_i, 1 ≤ i ≤ n, are semantically equivalent to each other. This axiom allows one to use each CE_i as a synonym for each CE_j — that is, in any expression in the ontology containing such an axiom, CE_i can be replaced with CE_j without affecting the meaning of the ontology. An axiom EquivalentClasses( CE₁ CE₂ ) is equivalent to the following two axioms:

SubClassOf( CE₁ CE₂ )
SubClassOf( CE₂ CE₁ )

Axioms of the form EquivalentClasses( C CE ), where C is a class and CE is a class expression, are often called definitions, because they define the class C in terms of the class expression CE.

EquivalentClasses := 'EquivalentClasses' '(' axiomAnnotations ClassExpression ClassExpression { ClassExpression } ')'

Consider the ontology consisting of the following axioms.

EquivalentClasses( a:Boy IntersectionOf( a:Child a:Man ) )	A boy is a male child.
ClassAssertion( a:Child a:Chris )	Chris is a child.
ClassAssertion( a:Man a:Chris )	Chris is a man.
ClassAssertion( a:Boy a:Stewie )	Stewie is a boy.

The first axiom defines the class a:Boy as an intersection of the classes a:Child and a:Man; thus, the instances of a:Boy are exactly those instances that are both an instance of a:Child and an instance of a:Man. Such a definition consists of two directions. The first direction implies that each instance of a:Child and a:Man is an instance of a:Boy; since a:Chris satisfies these two conditions, it is classified as an instance of a:Boy. The second direction implies that each a:Boy is an instance of a:Child and of a:Man; thus, a:Stewie is classified as an instance of a:Man and of a:Boy.

Consider the ontology consisting of the following axioms.

EquivalentClasses( a:MongrelOwner SomeValuesFrom( a:hasPet a:Mongrel ) )	A mongrel owner has a pet that is a mongrel.
EquivalentClasses( a:DogOwner SomeValuesFrom( a:hasPet a:Dog ) )	A dog owner has a pet that is a dog.
SubClassOf( a:Mongrel a:Dog )	Each mongrel is a dog.
ClassAssertion( a:MongrelOwner a:Peter )	Peter is a mongrel owner.

By the first axiom, each instance x of a:MongrelOwner must be connected via a:hasPet to an instance of a:Mongrel; by the third axiom, this individual is an instance of a:Dog; thus, by the second axiom, x is an instance of a:DogOwner. In other words, this ontology entails the axiom SubClassOf( a:MongrelOwner a:DogOwner ). By the fourth axiom, a:Peter is then classified as an instance of a:DogOwner.

9.1.3 Disjoint Classes

A disjoint classes axiom DisjointClasses( CE₁ ... CE_n ) states that all of the class expressions CE_i, 1 ≤ i ≤ n, are pairwise disjoint; that is, no individual can be at the same time an instance of both CE_i and CE_j for i ≠ j. An axiom DisjointClasses( CE₁ CE₂ ) is equivalent to the following axiom:

SubClassOf( CE₁ ComplementOf( CE₂ ) )

DisjointClasses := 'DisjointClasses' '(' axiomAnnotations ClassExpression ClassExpression { ClassExpression } ')'

Consider the ontology consisting of the following axioms.

DisjointClasses( a:Boy a:Girl )	Nothing can be both a boy and a girl.
ClassAssertion( a:Boy a:Stewie )	Stewie is a boy.

The axioms in this ontology imply that a:Stewie can be classified as an instance of ComplementOf( a:Girl ). If the ontology were extended with the assertion ClassAssertion( a:Girl a:Stewie ), the ontology would become inconsistent.

9.1.4 Disjoint Union of Class Expressions

A disjoint union axiom DisjointUnion( C CE₁ ... CE_n ) states that a class C is a disjoint union of the class expressions CE_i, 1 ≤ i ≤ n, all of which are pairwise disjoint. Such axioms are sometimes referred to as covering axioms, as they state that the extensions of all CE_i exactly cover the extension of C. Thus, each instance of C is an instance of exactly one CE_i, and each instance of CE_i is an instance of C. Each such axiom can be seen as a syntactic shortcut for the following two axioms:

EquivalentClasses( C UnionOf( CE₁ ... CE_n ) )
DisjointClasses( CE₁ ... CE_n )

DisjointUnion := 'DisjointUnion' '(' axiomAnnotations Class disjointClassExpressions ')'
disjointClassExpressions := ClassExpression ClassExpression { ClassExpression }

Consider the ontology consisting of the following axioms.

DisjointUnion( a:Child a:Boy a:Girl )	Each child is either a boy or a girl, each boy is a child, each girl is a child, and nothing can be both a boy and a girl.
ClassAssertion( a:Child a:Stewie )	Stewie is a child.
ClassAssertion( ComplementOf( a:Girl ) a:Stewie )	Stewie is not a girl.

By the first two axioms, a:Stewie is either an instance of a:Boy or a:Girl. The last assertion eliminates the second possibility, so a:Stewie is classified as an instance of a:Boy.

9.2 Object Property Axioms

OWL 2 provides axioms that can be used to characterize and establish relationships between object property expressions. For clarity, the structure of these axioms is shown in two separate figures, Figure 14 and Figure 15. The SubObjectPropertyOf axiom allows one to state that the extension of one object property expression is included in the extension of another object property expression. The EquivalentObjectProperties axiom allows one to state that the extensions of several object property expressions are the same. The DisjointObjectProperties axiom allows one to state that the extensions of several object property expressions are pairwise disjoint — that is, that they do not share pairs of connected individuals. The InverseObjectProperties axiom can be used to state that two object property expressions are the inverse of each other. The ObjectPropertyDomain and ObjectPropertyRange axioms can be used to restrict the first and the second individual, respectively, connected by an object property expression to be instances of the specified class expression.

Figure 14. Object Property Axioms in OWL 2, Part I

The FunctionalObjectProperty axiom allows one to state that an object property expression is functional — that is, that each individual can have at most one outgoing connection of the specified object property expression. The InverseFunctionalObjectProperty axiom allows one to state that an object property expression is inverse-functional — that is, that each individual can have at most one incoming connection of the specified object property expression. Finally, the ReflexiveObjectProperty, IrreflexiveObjectProperty, SymmetricObjectProperty, AsymmetricObjectProperty, and TransitiveObjectProperty axioms allow one to state that an object property expression is reflexive, irreflexive, symmetric, asymmetric, or transitive, respectively.

Figure 15. Axioms Defining Characteristics of Object Properties in OWL 2, Part II

9.2.1 Object Subproperties

Object subproperty axioms are analogous to subclass axioms, and they come in two forms.

The basic form is SubPropertyOf( OPE₁ OPE₂ ). This axiom states that the object property expression OPE₁ is a subproperty of the object property expression OPE₂ — that is, if an individual x is connected by OPE₁ to an individual y, then x is also connected by OPE₂ to y.

The more complex form is SubPropertyOf( PropertyChain( OPE₁ ... OPE_n ) OPE ). This axiom states that, if an individual x is connected by a sequence of object property expressions OPE₁, ..., OPE_n with an individual y, then x is also connected with y by the object property expression OPE. Such axioms are also known as complex role inclusions [SROIQ].

SubObjectPropertyOf := 'SubPropertyOf' '(' axiomAnnotations subObjectPropertyExpressions superObjectPropertyExpression ')'
subObjectPropertyExpressions := ObjectPropertyExpression | propertyExpressionChain
propertyExpressionChain := 'PropertyChain' '(' ObjectPropertyExpression ObjectPropertyExpression { ObjectPropertyExpression } ')'
superObjectPropertyExpression := ObjectPropertyExpression

Consider the ontology consisting of the following axioms.

SubPropertyOf( a:hasDog a:hasPet )	Having a dog is a kind of having a pet.
PropertyAssertion( a:hasDog a:Peter a:Brian )	Brian is a dog of Peter.

Since a:hasDog is a subproperty of a:hasPet, each tuple of individuals connected by the former property expression is also connected by the latter property expression. Therefore, this ontology entails that a:Peter is connected to a:Brian by a:hasPet; that is, the ontology entails the assertion PropertyAssertion( a:hasPet a:Peter a:Brian ).

Consider the ontology consisting of the following axioms.

SubPropertyOf( PropertyChain( a:hasMother a:hasSister ) a:hasAunt )	The sister of someone's mother is that person's aunt.
PropertyAssertion( a:hasMother a:Stewie a:Lois )	Lois is the mother of Stewie.
PropertyAssertion( a:hasSister a:Lois a:Carol )	Carol is a sister of Lois.

The axioms in this ontology imply that a:Stewie is connected by a:hasAunt with a:Carol; that is, the ontology entails the assertion PropertyAssertion( a:hasAunt a:Stewie a:Carol ).

9.2.2 Equivalent Object Properties

An equivalent object properties axiom EquivalentProperties( OPE₁ ... OPE_n ) states that all of the object property expressions OPE_i, 1 ≤ i ≤ n, are semantically equivalent to each other. This axiom allows one to use each OPE_i as a synonym for each OPE_j — that is, in any expression in the ontology containing such an axiom, OPE_i can be replaced with OPE_j without affecting the meaning of the ontology. The axiom EquivalentProperties( OPE₁ OPE₂ ) is equivalent to the following two axioms:

SubPropertyOf( OPE₁ OPE₂ )
SubPropertyOf( OPE₂ OPE₁ )

EquivalentObjectProperties := 'EquivalentProperties' '(' axiomAnnotations ObjectPropertyExpression ObjectPropertyExpression { ObjectPropertyExpression } ')'

Consider the ontology consisting of the following axioms.

EquivalentProperties( a:hasBrother a:hasMaleSibling )	Having a brother is the same as having a male sibling.
PropertyAssertion( a:hasBrother a:Chris a:Stewie )	Stewie is a brother of Chris.
PropertyAssertion( a:hasMaleSibling a:Stewie a:Chris )	Chris is a male sibling of Stewie.

Since a:hasBrother and a:hasMaleSibling are equivalent properties, this ontology entails that a:Chris is connected by a:hasMaleSibling with a:Stewie — that is, the ontology entails the assertion PropertyAssertion( a:hasMaleSibling a:Chris a:Stewie ) — and that a:Stewie is connected by a:hasBrother with a:Chris — that is, the ontology entails the assertion PropertyAssertion( a:hasBrother a:Stewie a:Chris ).

9.2.3 Disjoint Object Properties

A disjoint object properties axiom DisjointProperties( OPE₁ ... OPE_n ) states that all of the object property expressions OPE_i, 1 ≤ i ≤ n, are pairwise disjoint; that is, no individual x can be connected to an individual y by both OPE_i and OPE_j for i ≠ j.

DisjointObjectProperties := 'DisjointProperties' '(' axiomAnnotations ObjectPropertyExpression ObjectPropertyExpression { ObjectPropertyExpression } ')'

Consider the ontology consisting of the following axioms.

DisjointProperties( a:hasFather a:hasMother )	Fatherhood is disjoint with motherhood.
PropertyAssertion( a:hasFather a:Stewie a:Peter )	Peter is the father of Stewie.
PropertyAssertion( a:hasMother a:Stewie a:Lois )	Lois is the mother of Stewie.

In this ontology, the disjointness axiom is satisfied. If, however, one were to add an assertion PropertyAssertion( a:hasMother a:Stewie a:Peter ), the disjointness axiom would be invalidated and the ontology would become inconsistent.

9.2.4 Inverse Object Properties

An inverse object properties axiom InverseProperties( OPE₁ OPE₂ ) states that the object property expression OPE₁ is an inverse of the object property expression OPE₂. Thus, if an individual x is connected by OPE₁ to an individual y, then y is also connected by OPE₂ to x, and vice versa. Each such axiom can be seen as a syntactic shortcut for the following axiom:

EquivalentProperties( OPE₁ InverseOf( OPE₂ ) )

InverseObjectProperties := 'InverseProperties' '(' axiomAnnotations ObjectPropertyExpression ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

InverseProperties( a:hasFather a:fatherOf )	Having a father is the opposite of being a father of someone.
PropertyAssertion( a:hasFather a:Stewie a:Peter )	Peter is the father of Stewie.
PropertyAssertion( a:fatherOf a:Peter a:Chris )	Peter is the father of Chris.

This ontology entails that a:Peter is connected by a:fatherOf with a:Stewie — that is, the ontology entails the assertion PropertyAssertion( a:fatherOf a:Peter a:Stewie ) — and it also entails that a:Chris is connected by a:hasFather with a:Peter — that is, the ontology entails the assertion PropertyAssertion( a:hasFather a:Chris a:Peter ).

9.2.5 Object Property Domain

An object property domain axiom PropertyDomain( OPE CE ) states that the domain of the object property expression OPE is the class expression CE — that is, if an individual x is connected by OPE with some other individual, then x is an instance of CE. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubClassOf( SomeValuesFrom( OPE owl:Thing ) CE )

ObjectPropertyDomain := 'PropertyDomain' '(' axiomAnnotations ObjectPropertyExpression ClassExpression ')'

Consider the ontology consisting of the following axioms.

PropertyDomain( a:hasDog a:Person )	Only people can own dogs.
PropertyAssertion( a:hasDog a:Peter a:Brian )	Brian is a dog of Peter.

By the first axiom, each individual that has an outgoing a:hasDog connection must be an instance of a:Person. Therefore, a:Peter can be classified as an instance of a:Person; that is, this ontology entails the assertion ClassAssertion( a:Person a:Peter ).

Domain axioms in OWL 2 have a standard first-order semantics that is somewhat different from the semantics of such axioms in databases and object-oriented systems, where such axioms are interpreted as checks. The domain axiom from the example ontology would in such systems be interpreted as a constraint saying that a:hasDog can point only from individuals that are known to be instances of a:Person; furthermore, since the example ontology does not explicitly state that a:Peter is an instance of a:Person, one might expect the domain constraint to be invalidated. This, however, is not the case in OWL 2: as shown in the previous paragraph, the missing type is inferred from the domain constraint.

9.2.6 Object Property Range

An object property range axiom PropertyRange( OPE CE ) states that the range of the object property expression OPE is the class expression CE — that is, if some individual is connected by OPE with an individual x, then x is an instance of CE. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubClassOf( owl:Thing AllValuesFrom( OPE CE ) )

ObjectPropertyRange := 'PropertyRange' '(' axiomAnnotations ObjectPropertyExpression ClassExpression ')'

Consider the ontology consisting of the following axioms.

PropertyRange( a:hasDog a:Dog )	The range of the a:hasDog property is the class a:Dog.
PropertyAssertion( a:hasDog a:Peter a:Brian )	Brian is a dog of Peter.

By the first axiom, each individual that has an incoming a:hasDog connection must be an instance of a:Dog. Therefore, a:Brian can be classified as an instance of a:Dog; that is, this ontology entails the assertion ClassAssertion( a:Brian a:Dog ).

Range axioms in OWL 2 have a standard first-order semantics that is somewhat different from the semantics of such axioms in databases and object-oriented systems, where such axioms are interpreted as checks. The range axiom from the example ontology would in such systems be interpreted as a constraint saying that a:hasDog can point only to individuals that are known to be instances of a:Dog; furthermore, since the example ontology does not explicitly state that a:Brian is an instance of a:Dog, one might expect the range constraint to be invalidated. This, however, is not the case in OWL 2: as shown in the previous paragraph, the missing type is inferred from the range constraint.

9.2.7 Functional Object Properties

An object property functionality axiom FunctionalProperty( OPE ) states that the object property expression OPE is functional — that is, for each individual x, there can be at most one distinct individual y such that x is connected by OPE to y. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubClassOf( owl:Thing MaxCardinality( 1 OPE ) )

FunctionalObjectProperty := 'FunctionalProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

FunctionalProperty( a:hasFather )	Each object can have at most one father.
PropertyAssertion( a:hasFather a:Stewie a:Peter )	Peter is the father of Stewie.
PropertyAssertion( a:hasFather a:Stewie a:Peter_Griffin )	Peter Griffin is the father of Stewie.

By the first axiom, a:hasFather can point from a:Stewie to at most one distinct individual, so a:Peter and a:Peter_Griffin must be equal; that is, this ontology entails the assertion SameIndividual( a:Peter a:Peter_Griffin ).

One might expect the previous ontology to be inconsistent, since the a:hasFather property points to two different values for a:Stewie. OWL 2, however, does not make the unique name assumption, so a:Peter and a:Peter_Griffin are not necessarily distinct individuals. If the ontology were extended with the axiom DifferentIndividuals( a:Peter a:Peter_Griffin ), then it would indeed become inconsistent.

9.2.8 Inverse-Functional Object Properties

An object property inverse functionality axiom InverseFunctionalProperty( OPE ) states that the object property expression OPE is inverse-functional — that is, for each individual x, there can be at most one individual y such that y is connected by OPE with x. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubClassOf( owl:Thing MaxCardinality( 1 InverseOf( OPE ) ) )

InverseFunctionalObjectProperty := 'InverseFunctionalProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

InverseFunctionalProperty( a:fatherOf )	Each object can have at most one father.
PropertyAssertion( a:fatherOf a:Peter a:Stewie )	Peter is the father of Stewie.
PropertyAssertion( a:fatherOf a:Peter_Griffin a:Stewie )	Peter Griffin is the father of Stewie.

By the first axiom, at most one distinct individual can point by a:fatherOf to a:Stewie, so a:Peter and a:Peter_Griffin must be equal; that is, this ontology entails the assertion SameIndividual( a:Peter a:Peter_Griffin ).

One might expect the previous ontology to be inconsistent, since there are two individuals that a:Stewie is connected to by a:fatherOf. OWL 2, however, does not make the unique name assumption, so a:Peter and a:Peter_Griffin are not necessarily distinct individuals. If the ontology were extended with the axiom DifferentIndividuals( a:Peter a:Peter_Griffin ), then it would indeed become inconsistent.

9.2.9 Reflexive Object Properties

An object property reflexivity axiom ReflexiveProperty( OPE ) states that the object property expression OPE is reflexive — that is, each individual is connected by OPE to itself.

ReflexiveObjectProperty := 'ReflexiveProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

ReflexiveProperty( a:knows )	Everybody knows themselves.
ClassAssertion( a:Person a:Peter )	Peter is a person.

By the first axiom, a:Peter must be connected by a:knows to itself; that is, this ontology entails the assertion PropertyAssertion( a:knows a:Peter a:Peter ).

9.2.10 Irreflexive Object Properties

An object property irreflexivity axiom IrreflexiveProperty( OPE ) states that the object property expression OPE is irreflexive — that is, no individual is connected by OPE to itself.

IrreflexiveObjectProperty := 'IrreflexiveProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

IrreflexiveProperty( a:marriedTo )

Nobody can be married to themselves.

If this ontology were extended with the assertion PropertyAssertion( a:marriedTo a:Peter a:Peter ), the irreflexivity axiom would be contradicted and the ontology would become inconsistent.

9.2.11 Symmetric Object Properties

An object property symmetry axiom SymmetricProperty( OPE ) states that the object property expression OPE is symmetric — that is, if an individual x is connected by OPE to an individual y, then y is also connected by OPE to x. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubPropertyOf( OPE InverseOf( OPE ) )

SymmetricObjectProperty := 'SymmetricProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

SymmetricProperty( a:friend )	If x is a friend of y, they y is a friend of x.
PropertyAssertion( a:friend a:Peter a:Brian )	Brian is a friend of Peter.

Since a:friend is symmetric, a:Peter must be connected by a:friend to a:Brian; that is, this ontology entails the assertion PropertyAssertion( a:friend a:Brian a:Peter ).

9.2.12 Asymmetric Object Properties

An object property asymmetry axiom AsymmetricProperty( OPE ) states that the object property expression OPE is asymmetric — that is, if an individual x is connected by OPE to an individual y, then y cannot be connected by OPE to x.

AsymmetricObjectProperty := 'AsymmetricProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

AsymmetricProperty( a:parentOf )	If x is a parent of y, they y is not a parent of x.
PropertyAssertion( a:parentOf a:Peter a:Stewie )	Peter is a parent of Stewie.

If this ontology were extended with the assertion PropertyAssertion( a:parentOf a:Stewie a:Peter ), the asymmetry axiom would be invalidated and the ontology would become inconsistent.

9.2.13 Transitive Object Properties

An object property transitivity axiom TransitiveProperty( OPE ) states that the object property expression OPE is transitive — that is, if an individual x is connected by OPE to an individual y that is connected by OPE to an individual z, then x is also connected by OPE to z. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubPropertyOf( PropertyChain( OPE OPE ) OPE )

TransitiveObjectProperty := 'TransitiveProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

Consider the ontology consisting of the following axioms.

TransitiveProperty( a:ancestorOf )	If x is an ancestor of y and y is an ancestor of z, then x is an ancestor of z.
PropertyAssertion( a:ancestorOf a:Carter a:Lois )	Carter is an ancestor of Lois.
PropertyAssertion( a:ancestorOf a:Lois a:Meg )	Lois is an ancestor of Meg.

Since a:ancestorOf is transitive, a:Carter must be connected by a:ancestorOf to a:Meg; that is, this ontology entails the assertion PropertyAssertion( a:ancestorOf a:Carter a:Meg ).

9.3 Data Property Axioms

OWL 2 also provides for data property axioms. Their structure is similar to object property axioms, as shown in Figure 16. The SubDataPropertyOf axiom allows one to state that the extension of one data property expression is included in the extension of another data property expression. The EquivalentDataProperties allows one to state that several data property expressions have the same extension. The DisjointDataProperties axiom allows one to state that the extensions of several data property expressions are disjoint with each other — that is, they do not share individual–literal pairs. The DataPropertyDomain axiom can be used to restrict individuals connected by a property expression to be instances of the specified class; similarly, the DataPropertyRange axiom can be used to restrict the literals pointed to by a property expression to be in the specified unary data range. Finally, the FunctionalDataProperty axiom allows one to state that a data property expression is functional — that is, that each individual can have at most one outgoing connection of the specified data property expression.

Figure 16. Data Property Axioms of OWL 2

9.3.1 Data Subproperties

A data subproperty axiom SubPropertyOf( DPE₁ DPE₂ ) states that the data property expression DPE₁ is a subproperty of the data property expression DPE₂ — that is, if an individual x is connected by OPE₁ to a literal y, then x is connected by OPE₂ to y as well.

SubDataPropertyOf := 'SubPropertyOf' '(' axiomAnnotations subDataPropertyExpression superDataPropertyExpression ')'
subDataPropertyExpression := DataPropertyExpression
superDataPropertyExpression := DataPropertyExpression

Consider the ontology consisting of the following axioms.

SubPropertyOf( a:hasLastName a:hasName )	Having a last name is a kind of having a name.
PropertyAssertion( a:hasLastName a:Peter "Griffin" )	Peter's last name is "Griffin".

Since a:hasLastName is a subproperty of a:hasName, each individual connected by the former property to a literal is also connected by the latter property to the same literal. Therefore, this ontology entails that a:Peter is connected to "Peter" through a:hasName; that is, the ontology entails the assertion PropertyAssertion( a:hasName a:Peter "Peter" ).

9.3.2 Equivalent Data Properties

An equivalent data properties axiom EquivalentProperties( DPE₁ ... DPE_n ) states that all the data property expressions DPE_i, 1 ≤ i ≤ n, are semantically equivalent to each other. This axiom allows one to use each DPE_i as a synonym for each DPE_j — that is, in any expression in the ontology containing such an axiom, DPE_i can be replaced with DPE_j without affecting the meaning of the ontology. The axiom EquivalentProperties( DPE₁ DPE₂ ) can be seen as a syntactic shortcut for the following axiom:

SubPropertyOf( DPE₁ DPE₂ )
SubPropertyOf( DPE₂ DPE₁ )

EquivalentDataProperties := 'EquivalentProperties' '(' axiomAnnotations DataPropertyExpression DataPropertyExpression { DataPropertyExpression } ')'

Consider the ontology consisting of the following axioms.

EquivalentProperties( a:hasName a:seLlama )	a:hasName and a:seLlama (in Spanish) are synonyms.
PropertyAssertion( a:hasName a:Meg "Meg Griffin" )	Meg's name is "Meg Griffin".
PropertyAssertion( a:seLlama a:Meg "Megan Griffin" )	Meg's name is "Megan Griffin".

Since a:hasName and a:seLlama are equivalent properties, this ontology entails that a:Meg is connected by a:seLlama with "Meg Griffin" — that is, the ontology entails the assertion PropertyAssertion( a:seLlama a:Meg "Meg Griffin" ) — and that a:Meg is also connected by a:hasName with "Megan Griffin" — that is, the ontology entails the assertion PropertyAssertion( a:hasName a:Meg "Megan Griffin" ).

9.3.3 Disjoint Data Properties

A disjoint data properties axiom DisjointProperties( DPE₁ ... DPE_n ) states that all of the data property expressions DPE_i, 1 ≤ i ≤ n, are pairwise disjoint; that is, no individual x can be connected to a literal y by both DPE_i and DPE_j for i ≠ j.

DisjointDataProperties := 'DisjointProperties' '(' axiomAnnotations DataPropertyExpression DataPropertyExpression { DataPropertyExpression } ')'

Consider the ontology consisting of the following axioms.

DisjointProperties( a:hasName a:hasAddress )	Someone's name must be different from his address.
PropertyAssertion( a:hasName a:Peter "Peter Griffin" )	Peter's name is "Peter Griffin".
PropertyAssertion( a:hasAddress a:Peter "Quahog, Rhode Island" )	Peter's address is "Quahog, Rhode Island".

In this ontology, the disjointness axiom is satisfied. If, however, one were to add an assertion PropertyAssertion( a:hasAddress a:Peter "Peter Griffin" ), the disjointness axiom would be invalidated and the ontology would become inconsistent.

9.3.4 Data Property Domain

A data property domain axiom PropertyDomain( DPE CE ) states that the domain of the data property expression DPE is the class expression CE — that is, if an individual x is connected by DPE with some literal, then x is an instance of CE. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubClassOf( SomeValuesFrom( DPE rdfs:Literal) CE )

DataPropertyDomain := 'PropertyDomain' '(' axiomAnnotations DataPropertyExpression ClassExpression ')'

Consider the ontology consisting of the following axioms.

PropertyDomain( a:hasName a:Person )	Only people can have names.
PropertyAssertion( a:hasName a:Peter "Peter Griffin" )	Peter's name is "Peter Griffin".

By the first axiom, each individual that has an outgoing a:hasName connection must be an instance of a:Person. Therefore, a:Peter can be classified as an instance of a:Person; that is, this ontology entails the assertion ClassAssertion( a:Person a:Peter ).

Domain axioms in OWL 2 have a standard first-order semantics that is somewhat different from the semantics of such axioms in databases and object-oriented systems, where such axioms are interpreted as checks. Thus, the domain axiom from the example ontology would in such systems be interpreted as a constraint saying that a:hasName can point only from individuals that are known to be instances of a:Person; furthermore, since the example ontology does not explicitly state that a:Peter is an instance of a:Person, one might expect the domain constraint to be invalidated. This, however, is not the case in OWL 2: as shown in the previous paragraph, the missing type is inferred from the domain constraint.

9.3.5 Data Property Range

A data property range axiom PropertyRange( DPE DR ) states that the range of the data property expression DPE is the data range DR — that is, if some individual is connected by DPE with a literal x, then x is in DR. The arity of DR MUST be one. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubClassOf( owl:Thing AllValuesFrom( DPE DR ) )

DataPropertyRange := 'PropertyRange' '(' axiomAnnotations DataPropertyExpression DataRange ')'

Consider the ontology consisting of the following axioms.

PropertyRange( a:hasName xsd:string )	The range of the a:hasName property is xsd:string.
PropertyAssertion( a:hasName a:Peter "Peter Griffin" )	Peter's name is "Peter Griffin".

By the first axiom, each literal that has an incoming a:hasName link must be in xsd:string. In the example ontology, this axiom is satisfied. If, however, the ontology were extended with an assertion PropertyAssertion( a:hasName a:Peter "42"^^xsd:integer ), the range axiom would imply that the literal "42"^^xsd:integer is in xsd:string, which is a contradiction; therefore, the ontology would become inconsistent.

9.3.6 Functional Data Properties

A data property functionality axiom FunctionalProperty( DPE ) states that the data property expression DPE is functional — that is, for each individual x, there can be at most one distinct literal y such that x is connected by DPE with y. Each such axiom can be seen as a syntactic shortcut for the following axiom:

SubClassOf( owl:Thing MaxCardinality( 1 DPE ) )

FunctionalDataProperty := 'FunctionalProperty' '(' axiomAnnotations DataPropertyExpression ')'

Consider the ontology consisting of the following axioms.

FunctionalProperty( a:hasAge )	Each object can have at most one age.
PropertyAssertion( a:hasAge a:Meg "17"^^xsd:integer )	Meg is seventeen years old.

By the first axiom, a:hasAge can point from a:Meg to at most one distinct literal. In this example ontology, this axiom is satisfied. If, however, the ontology were extended with the assertion PropertyAssertion( a:hasAge a:Meg "15"^^xsd:integer ), the semantics of functionality axioms would imply that "15"^^xsd:integer is equal to "17"^^xsd:integer, which is a contradiction; therefore, the ontology would become inconsistent.

9.4 Keys

A key axiom HasKey( CE PE₁ ... PE_n ) states that each (named) instance of the class expression CE is uniquely identified by the (data or object) property expressions PE_i — that is, no two distinct (named) instances of CE can coincide on the values of all property expressions PE_i. A key axiom of the form HasKey( owl:Thing OPE ) is similar to the axiom InverseFunctionalProperty( OPE ); the main difference is that the first axiom is applicable only to individuals that are explicitly named in an ontology, while the second axiom is also applicable to individuals whose existence is implied by existential quantification. The structure of such axiom is shown in Figure 17.

Figure 17. Key Axioms in OWL 2

HasKey := 'HasKey' '(' axiomAnnotations ClassExpression ObjectPropertyExpression | DataPropertyExpression { ObjectPropertyExpression | DataPropertyExpression } ')'

Consider the ontology consisting of the following axioms.

HasKey( a:Person a:hasSSN )	Each person is uniquely identified by their social security number.
PropertyAssertion( a:hasSSN a:Peter "123-45-6789" )	Peter's social security number is "123-45-6789".
ClassAssertion( a:Person a:Peter )	Peter is a person.
PropertyAssertion( a:hasSSN a:Peter_Griffin "123-45-6789" )	Peter Griffin's social security number is "123-45-6789".
ClassAssertion( a:Person a:Peter_Griffin )	Peter Griffin is a person.

The first axiom makes a:hasSSN the key for individuals in the class a:Person; thus, if an instance of a:Person has a value for a:hasSSN, then this value must be unique. Since the values of a:hasSSN are the same for a:Peter and a:Peter_Griffin, these two individuals must be equal — that is, this ontology entails the assertion SameIndividual( a:Peter a:Peter_Griffin ).

One might expect the previous ontology to be inconsistent, since the a:hasSSN has the same value for two individuals a:Peter and a:Peter_Griffin. However, OWL 2 does not make the unique name assumption, so a:Peter and a:Peter_Griffin are not necessarily distinct individuals. If the ontology were extended with the axiom DifferentIndividuals( a:Peter a:Peter_Griffin ), then it would indeed become inconsistent.

The semantics of key axioms is specific in that these axioms apply only to individuals explicitly introduced in the ontology by name, and not to unnamed individuals (i.e., the individuals whose existence is implied by existential quantification). This makes key axioms equivalent to a variant of DL-safe rules [DL-Safe]. Thus, key axioms will typically not affect class-based inferences such as the computation of the subsumption hierarchy, but they will play a role in answering queries about individuals. This choice has been made in order to keep the language decidable.

Consider the ontology consisting of the following axioms.

HasKey( a:Person a:hasSSN )	Each person is uniquely identified by their social security number.
PropertyAssertion( a:hasSSN a:Peter "123-45-6789" )	Peter's social security number "123-45-6789".
ClassAssertion( a:Person a:Peter )	Peter is a person.
ClassAssertion( SomeValuesFrom( a:marriedTo IntersectionOf( a:Man HasValue( a:hasSSN "123-45-6789" ) ) ) a:Lois )	Lois is married to some man whose social security number is "123-45-6789".
SubClassOf( a:Man a:Person )	Each man is a person.

The fourth axiom implies existence of some individual x that is an instance of a:Man and whose value for the a:hasSSN data property is "123-45-6789"; by the fifth axiom, x is an instance of a:Person as well. Furthermore, the second and the third axiom say that a:Peter is an instance of a:Person and that the value of a:hasSSN for a:Peter is "123-45-6789". Finally, the first axiom says that a:hasSSN is a key property for instances of a:Person. Thus, one might expect x to be equal to a:Peter, and for the ontology to entail the assertion ClassAssertion( a:Man a:Peter ).

The inferences in the previous paragraph, however, cannot be drawn because of the DL-safe semantics of key axioms: x is an individual that has not been explicitly named in the ontology; therefore, the semantics of key axioms does not apply to x. Therefore, this OWL 2 ontology does not entail the assertion ClassAssertion( a:Man a:Peter ).

9.5 Assertions

OWL 2 supports a rich set of axioms for stating assertions — axioms about individuals that are often also called facts. For clarity, different types of assertions are shown in three separate figures, Figure 18, 19, and 20. The SameIndividual assertion allows one to state that several individuals are all equal to each other, while the DifferentIndividuals assertion allows for the opposite — that is, to state that several individuals are all different from each other. The ClassAssertion axiom allows one to state that an individual is an instance of a particular class.

Figure 18. Class and Individual (In)Equality Assertions in OWL 2

The ObjectPropertyAssertion axiom allows one to state that an individual is connected by an object property expression to an individual, while NegativeObjectPropertyAssertion allows for the opposite — that is, to state that an individual is not connected by an object property expression to an individual.

Figure 19. Object Property Assertions in OWL 2

The DataPropertyAssertion axiom allows one to state that an individual is connected by a data property expression to literal, while NegativeDataPropertyAssertion allows for the opposite — that is, to state that an individual is not connected by a data property expression to a literal.

Figure 20. Data Property Assertions in OWL 2

9.5.1 Individual Equality

An individual equality axiom SameIndividual( a₁ ... a_n ) states that all of the individuals a_i, 1 ≤ i ≤ n, are equal to each other. This axiom allows one to use each a_i as a synonym for each a_j — that is, in any expression in the ontology containing such an axiom, a_i can be replaced with a_j without affecting the meaning of the ontology.

SameIndividual := 'SameIndividual' '(' axiomAnnotations Individual Individual { Individual } ')'

Consider the ontology consisting of the following axioms.

SameIndividual( a:Meg a:Megan )	Meg and Megan are the same objects.
PropertyAssertion( a:hasBrother a:Meg a:Stewie )	Meg has a brother Stewie.

Since a:Meg and a:Megan are equal, one individual can always be replaced with the other one. Therefore, this ontology entails that a:Megan is connected by a:hasBrother with a:Stewie — that is, the ontology entails the assertion PropertyAssertion( a:hasBrother a:Megan a:Stewie ).

9.5.2 Individual Inequality

An individual inequality axiom DifferentIndividuals( a₁ ... a_n ) states that all of the individuals a_i, 1 ≤ i ≤ n, are different from each other; that is, no individuals a_i and a_j with i ≠ j can be derived to be equal. This axiom can be used to axiomatize the unique name assumption — the assumption that all different individual names denote different individuals.

DifferentIndividuals := 'DifferentIndividuals' '(' axiomAnnotations Individual Individual { Individual } ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:fatherOf a:Peter a:Meg )	Peter is the father of Meg.
PropertyAssertion( a:fatherOf a:Peter a:Chris )	Peter is the father of Chris.
PropertyAssertion( a:fatherOf a:Peter a:Stewie )	Peter is the father of Stewie.
DifferentIndividuals( a:Peter a:Meg a:Chris a:Stewie )	Peter, Meg, Chris, and Stewie are all different from each other.

The last axiom in this example ontology axiomatizes the unique name assumption (but only for the three names in the axiom). If the ontology were extended with an axiom FunctionalProperty( a:fatherOf ), this axiom would imply that a:Meg, a:Chris, and a:Stewie are all equal, which would invalidate the unique name assumption and would make the ontology inconsistent.

9.5.3 Class Assertions

A class assertion ClassAssertion( CE a ) states that the individual a is an instance of the class expression CE.

ClassAssertion := 'ClassAssertion' '(' axiomAnnotations ClassExpression Individual ')'

Consider the ontology consisting of the following axioms.

ClassAssertion( a:Dog a:Brian )	Brian is a dog.
SubClassOf( a:Dog a:Mammal )	Each dog is a mammal.

The first axiom states that a:Brian is an instance of the class a:Dog. By the second axiom, each instance of a:Dog is an instance of a:Mammal. Therefore, this ontology entails that a:Brian is an instance of a:Mammal — that is, the ontology entails the assertion ClassAssertion( a:Mammal a:Brian ).

9.5.4 Positive Object Property Assertions

A positive object property assertion PropertyAssertion( OPE a₁ a₂ ) states that the individual a₁ is connected by the object property expression OPE to the individual a₂.

ObjectPropertyAssertion := 'PropertyAssertion' '(' axiomAnnotations ObjectPropertyExpression sourceIndividual targetIndividual ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasDog a:Peter a:Brian )	Brian is a dog of Peter.
SubClassOf( SomeValuesFrom( a:hasDog owl:Thing ) a:DogOwner )	Things having a dog are dog owners.

The first axiom states that a:Peter is connected by a:hasDog to a:Brian. By the second axioms, each individual connected by a:hasDog to an individual is an instance of a:DogOwner. Therefore, this ontology entails that a:Peter is an instance of a:DogOwner — that is, the ontology entails the assertion ClassAssertion( a:DogOwner a:Peter ).

9.5.5 Negative Object Property Assertions

A negative object property assertion NegativePropertyAssertion( OPE a₁ a₂ ) states that the individual a₁ is not connected by the object property expression OPE to the individual a₂.

NegativeObjectPropertyAssertion := 'NegativePropertyAssertion' '(' axiomAnnotations objectPropertyExpression sourceIndividual targetIndividual ')'

Consider the ontology consisting of the following axiom.

NegativePropertyAssertion( a:hasSon a:Peter a:Meg )

Meg is not a son of Peter.

If this ontology were extended with an assertion PropertyAssertion( a:hasSon a:Peter a:Meg ), the negative object property assertion would be invalidated and the ontology would become inconsistent.

9.5.6 Positive Data Property Assertions

A positive data property assertion PropertyAssertion( DPE a lt ) states that the individual a is connected by the data property expression DPE to the literal lt.

DataPropertyAssertion := 'PropertyAssertion' '(' axiomAnnotations DataPropertyExpression sourceIndividual targetValue ')'

Consider the ontology consisting of the following axioms.

PropertyAssertion( a:hasAge a:Meg "17"^^xsd:integer )	Meg is seventeen years old.
SubClassOf( SomeValuesFrom( a:hasAge DatatypeRestriction( xsd:integer xsd:minInclusive "13"^^xsd:integer xsd:maxInclusive "19"^^xsd:integer ) ) a:Teenager )	Things older than 13 and younger than 19 (both inclusive) are teenagers.

The first axiom states that a:Meg is connected by a:hasAge to the literal "17"^^xsd:integer. By the second axioms, each individual connected by a:hasAge to an integer between 13 and 19 is an instance of a:Teenager. Therefore, this ontology entails that a:Meg is an instance of a:Teenager — that is, the ontology entails the assertion ClassAssertion( a:Teenager a:Meg ).

9.5.7 Negative Data Property Assertions

A negative data property assertion NegativePropertyAssertion( DPE a lt ) states that the individual a is not connected by the data property expression DPE to the literal lt.

NegativeDataPropertyAssertion := 'NegativePropertyAssertion' '(' axiomAnnotations DataPropertyExpression sourceIndividual targetValue ')'

Consider the ontology consisting of the following axiom.

NegativePropertyAssertion( a:hasAge a:Meg "5"^^xsd:integer )

Meg is not five years old.

If this ontology were extended with an assertion PropertyAssertion( a:hasAge a:Meg "5"^^xsd:integer ), the negative data property assertion would be invalidated and the ontology would become inconsistent.

10 Annotations

OWL 2 applications often need ways to associate information with ontologies, entities, and axioms in a way that does not affect the logical meaning of the ontology. Such information often plays a central role in OWL 2 applications. Although such information does not affect the formal meaning of an ontology (i.e., it does not affect the set of logical consequences that one can derive from an ontology), it is expected to be accessible in the structural specification of OWL 2. To this end, OWL 2 provides for annotations on ontologies, axioms, and entities.

One might want to associate human-readable labels with IRIs and use them when visualizing an ontology. To this end, one might use the rdfs:label annotation property to associate such labels with ontology IRIs.

Various OWL 2 syntaxes, such as the functional-style syntax, provide a mechanism for embedding comments into ontology documents. The structure of such comments is, however, dependent on the syntax, so these are simply discarded during parsing. In contrast, annotations are "first-class citizens" in the structural specification of OWL 2, and their structure is independent of the underlying syntax.

Since it is based on XML, the OWL 2 XML Syntax [OWL 2 XML Syntax] allows the embedding of the standard XML comments into ontology documents. Such comments are not represented in the structural specification of OWL 2 and, consequently, they should be ignored during document parsing.

10.1 Annotations of Ontologies, Axioms, and other Annotations

Ontologies, axioms, and annotations themselves can be annotated using annotations shown in Figure 21. As shown in the figure, such annotations consist of an annotation property and an annotation value, where the latter can be anonymous individuals, IRIs, and literals.

Figure 21. Annotations of Ontologies and Axioms in OWL 2

Annotation := 'Annotation' '(' annotationAnnotations AnnotationProperty AnnotationValue ')'
annotationAnnotations := { Annotation }
AnnotationValue := AnonymousIndividual | IRI | Literal

10.2 Annotation Axioms

OWL 2 provides means to state several types of axioms about annotation properties, as shown in Figure 22. These axioms have no effect on the Direct Semantics of OWL 2 [OWL 2 Direct Semantics], and they are treated as axioms only in order to simplify the structural specification of OWL 2.

Figure 22. Annotations of IRIs and Anonymous Individuals in OWL 2

AnnotationAxiom := AnnotationAssertion | SubAnnotationPropertyOf | AnnotationPropertyDomain | AnnotationPropertyRange

10.2.1 Annotation Assertion

An annotation assertion AnnotationAssertion( AP as at ) states that the annotation subject as — an IRI or an anonymous individual — is annotated with the annotation property AP and the annotation value av. Such axioms have no effect on the Direct Semantics of OWL 2 [OWL 2 Direct Semantics].

AnnotationAssertion := 'AnnotationAssertion' '(' axiomAnnotations AnnotationProperty AnnotationSubject AnnotationValue ')'
AnnotationSubject := IRI | AnonymousIndividual

The following axiom assigns a human-readable comment to the IRI a:Person.

AnnotationAssertion( rdfs:label a:Person "Represents the set of all people." )

Since the annotation is assigned to an IRI, it applies to all entities with the given IRI. Thus, if an ontology contains both a class and an individual a:Person, the above comment applies to both entities.

10.2.2 Annotation Subproperties

An annotation subproperty axiom SubPropertyOf( AP₁ AP₂ ) states that the annotation property AP₁ is a subproperty of the annotation property AP₂. Such axioms have no effect on the Direct Semantics of OWL 2 [OWL 2 Direct Semantics].

SubAnnotationPropertyOf := 'SubPropertyOf' '(' axiomAnnotations subAnnotationProperty superAnnotationProperty ')'
subAnnotationProperty := AnnotationProperty
superAnnotationProperty := AnnotationProperty

10.2.3 Annotation Property Domain

An annotation property domain axiom PropertyDomain( AP U ) states that the domain of the annotation property AP is the IRI U. Such axioms have no effect on the Direct Semantics of OWL 2 [OWL 2 Direct Semantics].

AnnotationPropertyDomain := 'PropertyDomain' '(' axiomAnnotations AnnotationProperty IRI ')'

10.2.4 Annotation Property Range

An annotation property range axiom PropertyRange( AP U ) states that the range of the annotation property AP is the IRI U. Such axioms have no effect on the Direct Semantics of OWL 2 [OWL 2 Direct Semantics].

AnnotationPropertyRange := 'PropertyRange' '(' axiomAnnotations AnnotationProperty IRI ')'

11 Global Restrictions on Axioms

The axiom closure Ax (with anonymous individuals renamed apart as explained in Section 5.6.2) of each OWL 2 ontology O MUST satisfy the global restrictions defined in this section. As explained in the literature [SROIQ], this restriction is necessary in order to obtain a decidable language. The formal definition of these conditions is rather technical, so it is split into two parts. Section 11.1 first introduces the notions of a property hierarchy and of simple object property expressions. These notions are then used in Section 11.2 to define the actual conditions on Ax.

11.1 Property Hierarchy and Simple Object Property Expressions

For an object property expression OPE, the inverse property expression INV(OPE) is defined as follows:

If OPE is an object property OP, then INV(OPE) = InverseOf( OP ).
if OPE is of the form InverseOf( OP ) for OP an object property, then INV(OPE) = OP.

The set AllOPE(Ax) of all object property expressions w.r.t. Ax is the smallest set containing OP and INV(OP) for each object property OP occurring in Ax.

An object property expression OPE is composite in the set of axioms Ax if

OPE is equal to owl:topObjectProperty or owl:bottomObjectProperty, or
Ax contains an axiom of the form
- SubPropertyOf( PropertyChain( OPE₁ ... OPE_n ) OPE ) with n > 1, or
- SubPropertyOf( PropertyChain( OPE₁ ... OPE_n ) INV(OPE) ) with n > 1, or
- TransitiveProperty( OPE ), or
- TransitiveProperty( INV(OPE) ).

The relation → is the smallest relation on AllOPE(Ax) for which the following conditions hold (A → B means that → holds for A and B):

if Ax contains an axiom SubPropertyOf( OPE₁ OPE₂ ), then OPE₁ → OPE₂ holds; and
if Ax contains an axiom EquivalentProperties( OPE₁ OPE₂ ), then OPE₁ → OPE₂ and OPE₂ → OPE₁ hold; and
if Ax contains an axiom InverseProperties( OPE₁ OPE₂ ), then OPE₁ → INV(OPE₂) and INV(OPE₂) → OPE₁ hold; and
if Ax contains an axiom SymmetricProperty(OPE), then OPE → INV(OPE) holds; and
if OPE₁ → OPE₂ holds, then INV(OPE₁) → INV(OPE₂) holds as well.

The property hierarchy relation →^* is the reflexive-transitive closure of →.

An object property expression OPE is simple in Ax if, for each object property expression OPE' such that OPE' →^* OPE holds, OPE' is not composite.

Roughly speaking, a simple object property expression has no direct or indirect subproperties that are either transitive or are defined by means of property chains, where the notion of indirect subproperties is captured by the property hierarchy. Consider the following axioms:

SubPropertyOf( PropertyChain( a:hasFather a:hasBrother ) a:hasUncle )	The brother of someone's father is that person's uncle.
SubPropertyOf( a:hasUncle a:hasRelative )	Having an uncle is a kind of having a relative.
SubPropertyOf( a:hasBiologicalFather a:hasFather )	Having a biological father is a kind of having a father.

The object property a:hasUncle occurs in an object subproperty axiom involving a property chain, so it is not simple. Consequently, the object property a:hasRelative is not simple either, because a:hasUncle is a nonsimple subproperty of a:hasRelative. In contrast, the object property a:hasBiologicalFather is simple, and so is a:hasFather.

11.2 The Restrictions on the Axiom Closure

The axioms Ax satisfy the global restrictions of OWL 2 if the following six conditions hold:

Each class expression in Ax of a type from the following list contains an object property expression that is simple in Ax:
- MinObjectCardinality, MaxObjectCardinality, ExactObjectCardinality, and ObjectHasSelf .
Each axiom in Ax of a type from the following list contains an object property expression that is simple in Ax:
- FunctionalObjectProperty, InverseFunctionalObjectProperty, IrreflexiveObjectProperty, AsymmetricObjectProperty, and DisjointObjectProperties.
The owl:topDataProperty property occurs in Ax only in the superDataPropertyExpression part of SubDataPropertyOf axioms.
A strict partial order (i.e., an irreflexive and transitive relation) < on AllOPE(Ax) exists that fulfills the following conditions:
- OP₁ < OP₂ if and only if INV(OP₁) < OP₂ for all object properties OP₁ and OP₂ occurring in AllOPE(Ax).
- If OPE₁ < OPE₂ holds, then OPE₂ →^* OPE₁ does not hold;
- Each axiom in Ax of the form SubPropertyOf( PropertyChain( OPE₁ ... OPE_n ) OPE ) with n ≥ 2 fulfills the following conditions:
  - OPE is equal to owl:topObjectProperty, or
  - n = 2 and OPE₁ = OPE₂ = OPE, or
  - OPE_i < OPE for each 1 ≤ i ≤ n, or
  - OPE₁ = OPE and OPE_i < OPE for each 2 ≤ i ≤ n, or
  - OPE_n = OPE and OPE_i < OPE for each 1 ≤ i ≤ n-1.
No axiom in Ax of the following form contains anonymous individuals:
- SameIndividual, DifferentIndividuals, NegativeObjectPropertyAssertion, and NegativeDataPropertyAssertion.
A forest F over the anonymous individuals in Ax exists such that the following conditions are satisfied, for OPE an object property expression, _:x and _:y anonymous individuals, and a a named individual:
- for each assertion in Ax of the form PropertyAssertion( OPE _:x _:y ), either _:x is a child of _:y or _:y is a child of _:x in F;
- for each pair of anonymous individuals _:x and _:y such that _:y is a child of _:x in F, the axiom closure Ax contains at most one assertion of the form PropertyAssertion( OPE _:x _:y ) or PropertyAssertion( OPE _:y _:x ); and
- for each anonymous individual _:x that is a root in F, the axiom closure Ax contains at most one assertion of the form PropertyAssertion( OPE _:x a ) or PropertyAssertion( OPE a _:x ).

The first two restrictions merely prohibit the usage of nonsimple properties in number restrictions and in certain axioms about object properties. The third restriction limits the usage of owl:topDataProperty. Without it, owl:topDataProperty could be used to write axioms about datatypes, which would invalidate Theorem DS1 from the OWL 2 Direct Semantics [OWL 2 Direct Semantics].

The main goal of the fourth restriction is to prevent cyclic definitions involving object subproperty axioms with property chains. Consider the following ontology:

SubPropertyOf( PropertyChain( a:hasFather a:hasBrother ) a:hasUncle )	The brother of someone's father is that person's uncle.
SubPropertyOf( PropertyChain( a:hasChild a:hasUncle ) a:hasBrother )	The uncle of someone's child is that person's brother.

The first axiom defines a:hasUncle in terms of a:hasBrother, while the second axiom defines a:hasBrother in terms of a:hasUncle. These two axioms are thus cyclic: the first one depends on the second one and vice versa. Such cyclic definitions are known to lead to undecidability of the basic reasoning problems. Thus, these two axioms mentioned above cannot occur together in an axiom closure of an OWL 2; however, each axiom alone may be allowed (depending on the other axioms in the closure).

A particular kind of cyclic definitions is known not to lead to decidability problems. Consider the following ontology:

SubPropertyOf( PropertyChain( a:hasChild a:hasSibling ) a:hasChild )

The sibling of someone's child is that person's child.

The above definition is cyclic, since the object property a:hasChild occurs in both the subproperty chain and as a superproperty. Axioms of this form, however, do not violate the global restrictions of OWL 2.

The fifth and the sixth restriction ensure that each OWL 2 ontology with anonymous individuals can be transformed to an equivalent ontology without anonymous individuals. Roughly speaking, this is possible if property assertions connect anonymous individuals in a tree-like way. Consider the following ontology:

PropertyAssertion( a:hasChild a:Francis _:x )	Francis has some (unknown) child.
PropertyAssertion( a:hasChild _:x a:Meg )	This unknown child has Meg...
PropertyAssertion( a:hasChild _:x a:Chris )	...Chris...
PropertyAssertion( a:hasChild _:x a:Stewie )	...and Stewie as children.

The connections between individuals a:Francis, a:Meg, a:Chris, and a:Stewie can be understood as a tree that contains _:x as its internal node. Because of that, the anonymous individuals can be "rolled-up"; that is, these four assertions can be replaced by the following equivalent assertion:

ClassAssertion(
    SomeValuesFrom( a:hasChild
       IntersectionOf(
          HasValue( a:hasChild a:Meg )
          HasValue( a:hasChild a:Chris )
          HasValue( a:hasChild a:Stewie )
       )
    )
    a:Francis
)

If the anonymous individuals were allowed to be connected by properties in arbitrary ways (and, in particular, in cycles), such a transformation would clearly be impossible. This transformation, however, is necessary in order to reduce the basic inference problems in OWL 2 to the appropriate description logic reasoning problems with known computational properties [SROIQ].

12 Appendix: Internet Media Type, File Extension, and Macintosh File Type

Contact: Ivan Herman / Sandro Hawke
See also: How to Register a Media Type for a W3C Specification Internet Media Type registration, consistency of use TAG Finding 3 June 2002 (Revised 4 September 2002)

The Internet Media Type / MIME Type for the OWL functional-style Syntax is text/owl-functional.

It is recommended that OWL functional-style Syntax files have the extension .ofn (all lowercase) on all platforms.

It is recommended that OWL functional-style Syntax files stored on Macintosh HFS file systems be given a file type of TEXT.

The information that follows will be submitted to the IESG for review, approval, and registration with IANA.

Type name: text
Subtype name: owl-functional
Required parameters: None
Optional parameters: charset This parameter may be required when transfering non-ASCII data across some protocols. If present, the value of charset should be UTF-8.
Encoding considerations

13 Complete Grammar (Normative)

This section contains the complete grammar of the functional-style syntax defined in this specification document. The grammar has been split into two parts. The following productions define the basic concepts such as IRIs and ontologies.

full-IRI := 'IRI as defined in [RFC3987], enclosed in a pair of < (U+3C) and > (U+3E) characters'
NCName := 'as defined in [XML Namespaces]'
irelative-ref := 'as defined in [RFC3987]'
nonNegativeInteger := 'a nonempty finite sequence of digits between 0 and 9'
quotedString := 'a finite sequence of characters in which " (U+22) and \ (U+5C) occur only in pairs of the form \" (U+22, U+5C) and \\ (U+22, U+22), enclosed in a pair of " (U+22) characters'
languageTag := 'a nonempty (not quoted) string defined as specified in BCP 47 [BCP 47]'
nodeID := 'a node ID of the form _:name as specified in the N-Triples specification [RDF Test Cases]'

namespace := full-IRI
prefix := NCName
reference := irelative-ref
curie := [ [ prefix ] ':' ] reference
IRI := full-IRI | curie

ontologyDocument := { prefixDefinition } Ontology
prefixDefinition := 'Namespace' '(' [ prefix ] '=' namespace ')'
Ontology :=
    'Ontology' '(' [ ontologyIRI [ versionIRI ] ]
       directlyImportsDocuments
       ontologyAnnotations
       axioms
    ')'
ontologyIRI := IRI
versionIRI := IRI
directlyImportsDocuments := { 'Import' '(' IRI ')' }
ontologyAnnotations := { Annotation }
axioms := { Axiom }

Declaration := 'Declaration' '(' axiomAnnotations Entity ')'
Entity :=
    'Class' '(' Class ')' |
    'Datatype' '(' Datatype ')' |
    'ObjectProperty' '(' ObjectProperty ')' |
    'DataProperty' '(' DataProperty ')' |
    'AnnotationProperty' '(' AnnotationProperty ')' |
    'NamedIndividual' '(' NamedIndividual ')'

AnnotationSubject := IRI | AnonymousIndividual
AnnotationValue := AnonymousIndividual | IRI | Literal
axiomAnnotations := { Annotation }

Annotation := 'Annotation' '(' annotationAnnotations AnnotationProperty AnnotationValue ')'
annotationAnnotations := { Annotation }

AnnotationAxiom := AnnotationAssertion | SubAnnotationPropertyOf | AnnotationPropertyDomain | AnnotationPropertyRange

AnnotationAssertion := 'AnnotationAssertion' '(' axiomAnnotations AnnotationProperty AnnotationSubject AnnotationValue ')'

SubAnnotationPropertyOf := 'SubPropertyOf' '(' axiomAnnotations subAnnotationProperty superAnnotationProperty ')'
subAnnotationProperty := AnnotationProperty
superAnnotationProperty := AnnotationProperty

AnnotationPropertyDomain := 'PropertyDomain' '(' axiomAnnotations AnnotationProperty IRI ')'

AnnotationPropertyRange := 'PropertyRange' '(' axiomAnnotations AnnotationProperty IRI ')'

The following productions define various constructors of OWL 2.

Class := IRI

Datatype := IRI

ObjectProperty := IRI

DataProperty := IRI

AnnotationProperty := IRI

Individual := NamedIndividual | AnonymousIndividual

NamedIndividual := IRI

AnonymousIndividual := nodeID

Literal := typedLiteral | abbreviatedXSDStringLiteral | abbreviatedRDFTextLiteral
typedLiteral := lexicalValue '^^' Datatype
lexicalValue := quotedString
abbreviatedXSDStringLiteral := quotedString
abbreviatedRDFTextLiteral := quotedString '@' languageTag

ObjectPropertyExpression := ObjectProperty | InverseObjectProperty

InverseObjectProperty := 'InverseOf' '(' ObjectProperty ')'

DataPropertyExpression := DataProperty

DataRange :=
    Datatype |
    DataIntersectionOf |
    DataUnionOf |
    DataComplementOf |
    DataOneOf |
    DatatypeRestriction

DataIntersectionOf := 'IntersectionOf' '(' DataRange DataRange { DataRange } ')'

DataUnionOf := 'UnionOf' '(' DataRange DataRange { DataRange } ')'

DataComplementOf := 'ComplementOf' '(' DataRange ')'

DataOneOf := 'OneOf' '(' Literal { Literal } ')'

DatatypeRestriction := 'DatatypeRestriction' '(' Datatype constrainingFacet restrictionValue { constrainingFacet restrictionValue } ')'
constrainingFacet := IRI
restrictionValue := Literal

ClassExpression :=
    Class |
    ObjectIntersectionOf | ObjectUnionOf | ObjectComplementOf | ObjectOneOf |
    ObjectSomeValuesFrom | ObjectAllValuesFrom | ObjectHasValue | ObjectHasSelf |
    ObjectMinCardinality | ObjectMaxCardinality | ObjectExactCardinality |
    DataSomeValuesFrom | DataAllValuesFrom | DataHasValue |
    DataMinCardinality | DataMaxCardinality | DataExactCardinality

ObjectIntersectionOf := 'IntersectionOf' '(' ClassExpression ClassExpression { ClassExpression } ')'

ObjectUnionOf := 'UnionOf' '(' ClassExpression ClassExpression { ClassExpression } ')'

ObjectComplementOf := 'ComplementOf' '(' ClassExpression ')'

ObjectOneOf := 'OneOf' '(' Individual { Individual }')'

ObjectSomeValuesFrom := 'SomeValuesFrom' '(' ObjectPropertyExpression ClassExpression ')'

ObjectAllValuesFrom := 'AllValuesFrom' '(' ObjectPropertyExpression ClassExpression ')'

ObjectHasValue := 'HasValue' '(' ObjectPropertyExpression Individual ')'

ObjectHasSelf := 'HasSelf' '(' ObjectPropertyExpression ')'

ObjectMinCardinality := 'MinCardinality' '(' nonNegativeInteger ObjectPropertyExpression [ ClassExpression ] ')'

ObjectMaxCardinality := 'MaxCardinality' '(' nonNegativeInteger ObjectPropertyExpression [ ClassExpression ] ')'

ObjectExactCardinality := 'ExactCardinality' '(' nonNegativeInteger ObjectPropertyExpression [ ClassExpression ] ')'

DataSomeValuesFrom := 'SomeValuesFrom' '(' DataPropertyExpression { DataPropertyExpression } DataRange ')'

DataAllValuesFrom := 'AllValuesFrom' '(' DataPropertyExpression { DataPropertyExpression } DataRange ')'

DataHasValue := 'HasValue' '(' DataPropertyExpression Literal ')'

DataMinCardinality := 'MinCardinality' '(' nonNegativeInteger DataPropertyExpression [ DataRange ] ')'

DataMaxCardinality := 'MaxCardinality' '(' nonNegativeInteger DataPropertyExpression [ DataRange ] ')'

DataExactCardinality := 'ExactCardinality' '(' nonNegativeInteger DataPropertyExpression [ DataRange ] ')'

Axiom := Declaration | ClassAxiom | ObjectPropertyAxiom | DataPropertyAxiom | HasKey | Assertion | AnnotationAxiom

ClassAxiom := SubClassOf | EquivalentClasses | DisjointClasses | DisjointUnion

SubClassOf := 'SubClassOf' '(' axiomAnnotations subClassExpression superClassExpression ')'
subClassExpression := ClassExpression
superClassExpression := ClassExpression

EquivalentClasses := 'EquivalentClasses' '(' axiomAnnotations ClassExpression ClassExpression { ClassExpression } ')'

DisjointClasses := 'DisjointClasses' '(' axiomAnnotations ClassExpression ClassExpression { ClassExpression } ')'

DisjointUnion := 'DisjointUnion' '(' axiomAnnotations Class disjointClassExpressions ')'
disjointClassExpressions := ClassExpression ClassExpression { ClassExpression }

ObjectPropertyAxiom :=
    SubObjectPropertyOf | EquivalentObjectProperties |
    DisjointObjectProperties | InverseObjectProperties |
    ObjectPropertyDomain | ObjectPropertyRange |
    FunctionalObjectProperty | InverseFunctionalObjectProperty |
    ReflexiveObjectProperty | IrreflexiveObjectProperty |
    SymmetricObjectProperty | AsymmetricObjectProperty |
    TransitiveObjectProperty

SubObjectPropertyOf := 'SubPropertyOf' '(' axiomAnnotations subObjectPropertyExpressions superObjectPropertyExpression ')'
subObjectPropertyExpressions := ObjectPropertyExpression | propertyExpressionChain
propertyExpressionChain := 'PropertyChain' '(' ObjectPropertyExpression ObjectPropertyExpression { ObjectPropertyExpression } ')'
superObjectPropertyExpression := ObjectPropertyExpression

EquivalentObjectProperties := 'EquivalentProperties' '(' axiomAnnotations ObjectPropertyExpression ObjectPropertyExpression { ObjectPropertyExpression } ')'

DisjointObjectProperties := 'DisjointProperties' '(' axiomAnnotations ObjectPropertyExpression ObjectPropertyExpression { ObjectPropertyExpression } ')'

ObjectPropertyDomain := 'PropertyDomain' '(' axiomAnnotations ObjectPropertyExpression ClassExpression ')'

ObjectPropertyRange := 'PropertyRange' '(' axiomAnnotations ObjectPropertyExpression ClassExpression ')'

InverseObjectProperties := 'InverseProperties' '(' axiomAnnotations ObjectPropertyExpression ObjectPropertyExpression ')'

FunctionalObjectProperty := 'FunctionalProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

InverseFunctionalObjectProperty := 'InverseFunctionalProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

ReflexiveObjectProperty := 'ReflexiveProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

IrreflexiveObjectProperty := 'IrreflexiveProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

SymmetricObjectProperty := 'SymmetricProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

AsymmetricObjectProperty := 'AsymmetricProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

TransitiveObjectProperty := 'TransitiveProperty' '(' axiomAnnotations ObjectPropertyExpression ')'

DataPropertyAxiom :=
    SubDataPropertyOf | EquivalentDataProperties | DisjointDataProperties |
    DataPropertyDomain | DataPropertyRange | FunctionalDataProperty

SubDataPropertyOf := 'SubPropertyOf' '(' axiomAnnotations subDataPropertyExpression superDataPropertyExpression ')'
subDataPropertyExpression := DataPropertyExpression
superDataPropertyExpression := DataPropertyExpression

EquivalentDataProperties := 'EquivalentProperties' '(' axiomAnnotations DataPropertyExpression DataPropertyExpression { DataPropertyExpression } ')'

DisjointDataProperties := 'DisjointProperties' '(' axiomAnnotations DataPropertyExpression DataPropertyExpression { DataPropertyExpression } ')'

DataPropertyDomain := 'PropertyDomain' '(' axiomAnnotations DataPropertyExpression ClassExpression ')'

DataPropertyRange := 'PropertyRange' '(' axiomAnnotations DataPropertyExpression DataRange ')'

FunctionalDataProperty := 'FunctionalProperty' '(' axiomAnnotations DataPropertyExpression ')'

HasKey := 'HasKey' '(' axiomAnnotations ClassExpression ObjectPropertyExpression | DataPropertyExpression { ObjectPropertyExpression | DataPropertyExpression } ')'

Assertion :=
    SameIndividual | DifferentIndividuals | ClassAssertion |
    ObjectPropertyAssertion | NegativeObjectPropertyAssertion |
    DataPropertyAssertion | NegativeDataPropertyAssertion

sourceIndividual := Individual
targetIndividual := Individual
targetValue := Literal

SameIndividual := 'SameIndividual' '(' axiomAnnotations Individual Individual { Individual } ')'

DifferentIndividuals := 'DifferentIndividuals' '(' axiomAnnotations Individual Individual { Individual } ')'

ClassAssertion := 'ClassAssertion' '(' axiomAnnotations ClassExpression Individual ')'

ObjectPropertyAssertion := 'PropertyAssertion' '(' axiomAnnotations ObjectPropertyExpression sourceIndividual targetIndividual ')'

NegativeObjectPropertyAssertion := 'NegativePropertyAssertion' '(' axiomAnnotations objectPropertyExpression sourceIndividual targetIndividual ')'

DataPropertyAssertion := 'PropertyAssertion' '(' axiomAnnotations DataPropertyExpression sourceIndividual targetValue ')'

NegativeDataPropertyAssertion := 'NegativePropertyAssertion' '(' axiomAnnotations DataPropertyExpression sourceIndividual targetValue ')'

14 Index

Editor's Note: The index will be created for the final version of the document.

15 Acknowledgments

The starting point for the development of OWL 2 was the OWL1.1 member submission, itself a result of user and developer feedback, and in particular of information gathered during the OWL Experiences and Directions (OWLED) Workshop series. The working group also considered postponed issues from the WebOnt Working Group.

This document is the product of the OWL Working Group (see below) whose members deserve recognition for their time and commitment. The editors extend special thanks to Bijan Parsia (University of Manchester), Mike Smith (Clark & Parsia) and Vojtech Svatek (K-Space) for their thorough reviews.

The regular attendees at meetings of the OWL Working Group at the time of publication of this document were: Jie Bao (RPI), Diego Calvanese (Free University of Bozen-Bolzano), Bernardo Cuenca Grau (Oxford University), Martin Dzbor (Open University), Achille Fokoue (IBM Corporation), Christine Golbreich (Université de Versailles St-Quentin), Sandro Hawke (W3C/MIT), Ivan Herman (W3C/ERCIM), Rinke Hoekstra (University of Amsterdam), Ian Horrocks (Oxford University), Elisa Kendall (Sandpiper Software), Markus Krötzsch (FZI), Carsten Lutz (Universität Bremen), Boris Motik (Oxford University), Jeff Pan (University of Aberdeen), Bijan Parsia (University of Manchester), Peter F. Patel-Schneider (Bell Labs Research, Alcatel-Lucent), Alan Ruttenberg (Science Commons), Uli Sattler (University of Manchester), Michael Schneider (FZI), Mike Smith (Clark & Parsia), Evan Wallace (NIST), and Zhe Wu (Oracle Corporation). We would also like to thank past members of the working group: Jeremy Carroll, Jim Hendler and Vipul Kashyap.

16 References

[OWL 2 Direct Semantics]: OWL 2 Web Ontology Language:Direct Semantics Boris Motik, Peter F. Patel-Schneider, Bernardo Cuenca Grau, eds. W3C Working Draft, 02 December 2008, http://www.w3.org/TR/2008/WD-owl2-semantics-20081202/. Latest version available at http://www.w3.org/TR/owl2-semantics/.
[OWL 2 XML Syntax]: OWL 2 Web Ontology Language:XML Serialization Boris Motik, Peter Patel-Schneider, eds. W3C Working Draft, 02 December 2008, http://www.w3.org/TR/2008/WD-owl2-xml-serialization-20081202/. Latest version available at http://www.w3.org/TR/owl2-xml-serialization/.
[SROIQ]: The Even More Irresistible SROIQ. Ian Horrocks, Oliver Kutz and Uli Sattler. In Proc. of the 10th Int. Conf. on Principles of Knowledge Representation and Reasoning (KR 2006). AAAI Press, 2006.
[XML]: Extensible Markup Language (XML) 1.1. Tim Bray, Jean Paoli, C. M. Sperberg-McQueen, Eve Maler, François Yergeau and John Cowan, eds. W3C Recommendation 16 August 2006, edited in place 29 September 2006.
[XML Namespaces]: Namespaces in XML 1.0 (Second Edition). Tim Bray, Dave Hollander, Andrew Layman and Richard Tobin, eds. W3C Recommendation 16 August 2006.
[XML Schema Datatypes]: W3C XML Schema Definition Language (XSD) 1.1 Part 2: Datatypes. D. Peterson, S. Gao, A. Malhotra, C. M. Sperberg-McQueen, H. S. Thompson, eds. W3C Working Draft 20 June 2008.
[RDF Syntax]: RDF/XML Syntax Specification (Revised). Dave Beckett, Editor, W3C Recommendation, 10 February 2004, http://www.w3.org/TR/rdf-syntax-grammar/.
[BCP 47]: BCP 47 - Tags for Identifying Languages. A. Phillips, M. Davis, eds., IETF, September 2006, http://www.rfc-editor.org/rfc/bcp/bcp47.txt.
[RFC 2119]: RFC 2119: Key words for use in RFCs to Indicate Requirement Levels. Network Working Group, S. Bradner. Internet Best Current Practice, March 1997.
[RFC3629]: UTF-8, a transformation format of ISO 10646, F. Yergeau, November 2003, http://www.ietf.org/rfc/rfc3629.txt
[RFC3986]: RFC 3986 Uniform Resource Identifier (URI): Generic Syntax, T. Berners-Lee, R. Fielding and L. Masinter, January 2005, http://www.ietf.org/rfc/rfc3986.txt
[RFC3987]: RFC 3987 - Internationalized Resource Identifiers (IRIs). M. Duerst and M. Suignard. IETF, January 2005, http://www.ietf.org/rfc/rfc3987.txt.
[OWL Semantics and Abstract Syntax]: OWL Web Ontology Language: Semantics and Abstract Syntax Peter F. Patel-Schneider, Patrick Hayes and Ian Horrocks, eds. W3C Recommendation, 10 February 2004, http://www.w3.org/TR/2004/REC-owl-semantics-20040210/. Latest version available at http://www.w3.org/TR/owl-semantics/.
[CURIE]: CURIE Syntax 1.0: A syntax for expressing Compact URIs. M. Birbeck and S. McCarron, Editors, W3C Working Draft, 26 November 2007, http://www.w3.org/TR/2007/WD-curie-20071126/.
[RDF Test Cases]: RDF Test Cases. Jan Grant and Dave Beckett, Editors, W3C Recommendation 10 February 2004, http://www.w3.org/TR/rdf-testcases/.
[ISO/IEC 10646]: ISO/IEC 10646-1:2000. Information technology — Universal Multiple-Octet Coded Character Set (UCS) — Part 1: Architecture and Basic Multilingual Plane and ISO/IEC 10646-2:2001. Information technology — Universal Multiple-Octet Coded Character Set (UCS) — Part 2: Supplementary Planes, as, from time to time, amended, replaced by a new edition or expanded by the addition of new parts. [Geneva]: International Organization for Standardization. ISO (International Organization for Standardization).
[DL-Safe]: Query Answering for OWL-DL with Rules. Boris Motik, Ulrike Sattler and Rudi Studer. Journal of Web Semantics: Science, Services and Agents on the World Wide Web, 3(1):41–60, 2005.
[IEEE 754]: IEEE Standard for Binary Floating-Point Arithmetic. Standards Committee of the IEEE Computer Society
[ISO 8601:2004]: ISO 8601:2004. Representations of dates and times. ISO (International Organization for Standardization).
[RDF]: Resource Description Framework (RDF): Concepts and Abstract Syntax. Graham Klyne and Jeremy J. Carroll, eds., W3C Recommendation 10 February 2004
[RDF:TEXT]: OWL 2 Web Ontology Language:rdf:text: A Datatype for Internationalized Text Jie Bao, Axel Polleres, Boris Motik. W3C Working Draft, 02 December 2008, http://www.w3.org/TR/2008/WD-rdf-text-20081202/. Latest version available at http://www.w3.org/TR/rdf-text/.
[UNICODE]: The Unicode Standard Version 3.0, Addison Wesley, Reading MA, 2000, ISBN: 0-201-61633-5, http://www.unicode.org/unicode/standard/standard.html
[UNISEC]: Unicode Security Considerations, Mark Davis and Michel Suignard, July 2008, http://www.unicode.org/reports/tr36/
[MOF]: Meta Object Facility (MOF) Core Specification, version 2.0. Object Management Group, OMG Available Specification January 2006.
[UML]: OMG Unified Modeling Language (OMG UML), Infrastructure, V2.1.2. Object Management Group, OMG Available Specification November 2007.

OWL 2 Web Ontology Language:Structural Specification and Functional-Style Syntax

W3C Working Draft 02 December 2008

Abstract

Status of this Document

May Be Superseded

Set of Documents

Last Call

Summary of Changes

Please Comment By 23 January 2009

No Endorsement

Patents

Contents

1 Introduction

2 Preliminary Definitions

2.1 Structural Specification

2.2 BNF Notation

2.3 IRIs and Namespaces

2.4 Integers, Strings, Language Tags, and Node IDs

3 Ontologies

3.1 Ontology IRI and Version IRI

3.2 Ontology Documents

3.3 Versioning of OWL 2 Ontologies

3.4 Imports

3.5 Ontology Annotations

3.6 Canonical Parsing

3.7 Functional-Style Syntax

4 Datatype Maps

4.1 Numbers

4.2 Strings

4.3 Boolean Values

4.4 Binary Data

4.5 IRIs

4.6 Time Instants

4.7 XML Literals

5 Entities and Literals

5.1 Classes

5.2 Datatypes

5.3 Object Properties

5.4 Data Properties

5.5 Annotation Properties

5.6 Individuals

5.6.1 Named Individuals

5.6.2 Anonymous Individuals

5.7 Literals

5.8 Entity Declarations and Typing

5.8.1 Typing Constraints

5.8.2 Declaration Consistency

5.9 Metamodeling

6 Property Expressions

6.1 Object Property Expressions

6.1.1 Inverse Object Properties

6.2 Data Property Expressions

7 Data Ranges

7.1 Intersection of Data Ranges

7.2 Union of Data Ranges

7.3 Complement of Data Ranges

7.4 Enumeration of Literals

7.5 Datatype Restrictions

8 Class Expressions

8.1 Propositional Connectives and Enumeration of Individuals

8.1.1 Intersection of Class Expressions

8.1.2 Union of Class Expressions

8.1.3 Complement of Class Expressions

8.1.4 Enumeration of Individuals

8.2 Object Property Restrictions

8.2.1 Existential Quantification

8.2.2 Universal Quantification

8.2.3 Individual Value Restriction

8.2.4 Self-Restriction

8.3 Object Property Cardinality Restrictions

8.3.1 Minimum Cardinality

8.3.2 Maximum Cardinality

8.3.3 Exact Cardinality

8.4 Data Property Restrictions

8.4.1 Existential Quantification

8.4.2 Universal Quantification

8.4.3 Literal Value Restriction

8.5 Data Property Cardinality Restrictions

8.5.1 Minimum Cardinality

8.5.2 Maximum Cardinality

OWL 2 Web Ontology Language:
Structural Specification and Functional-Style Syntax
