2. Basic Concepts: Policy
Expression
2.1
Web Services Policy
Web services are being successfully used for interoperable
solutions across various industries. One of the key reasons for
interest and investment in Web services is that they are
well-suited to enable service-oriented systems. XML-based
technologies such as SOAP, XML Schema and WSDL provide a
broadly-adopted foundation on which to build interoperable Web
services. The WS-Policy and WS-PolicyAttachment specifications
extend this foundation and offer mechanisms to represent the
capabilities and requirements of Web services as Policies.
Service metadata is an expression of the visible aspects of a
Web service, and consists of a mixture of machine- and
human-readable languages. Machine-readable languages enable
tooling. For example, tools that consume service metadata can
automatically generate client code to call the service. Service
metadata can describe different parts of a Web service and thus
enable different levels of tooling support.
First, service metadata can describe the format of the payloads
that a Web service sends and receives. Tools can use this metadata
to automatically generate and validate data sent to and from a Web
service. The XML Schema language is frequently used to describe the
message interchange format within the SOAP message construct, i.e.
to represent SOAP Body children and SOAP Header blocks.
Second, service metadata can describe the ‘how’ and ‘where’ a
Web service exchanges messages, i.e. how to represent the concrete
message format, what headers are used, the transmission protocol,
the message exchange pattern and the list of available endpoints.
The Web Services Description Language is currently the most common
language for describing the ‘how’ and ‘where’ a Web service
exchanges messages. WSDL has extensibility points that can be used
to expand on the metadata for a Web service.
Third, service metadata can describe the capabilities and
requirements of a Web service, i.e. representing whether and how a
message must be secured, whether and how a message must be
delivered reliably, whether a message must flow a transaction, etc.
Exposing this class of metadata about the capabilities and
requirements of a Web service enables tools to generate code
modules for engaging these behaviors. Tools can use this metadata
to check the compatibility of requesters and providers. Web
Services Policy can be used to represent the capabilities and
requirements of a Web service.
Web Services Policy is a machine-readable language for
representing the capabilities and requirements of a Web service.
These are called ‘policies’. Web Services Policy offers mechanisms
to represent consistent combinations of capabilities and
requirements, to determine the compatibility of policies, to name
and reference policies and to associate policies with Web service
metadata constructs such as service, endpoint and operation. Web
Services Policy is a simple language that has four elements -
Policy, All, ExactlyOne and
PolicyReference - and one attribute -
wsp:Optional.
2.2 Simple
Message
Let us start by considering a SOAP Message in the example
below.
Example
2-1. SOAP Message
<soap:Envelope>
<soap:Header>
<wsa:To>http://stock.contoso.com/realquote</wsa:To>
<wsa:Action>http://stock.contoso.com/GetRealQuote</wsa:Action>
</soap:Header>
<soap:Body>...</soap:Body>
</soap:Envelope>
This message uses message addressing headers. The
wsa:To and wsa:Action header blocks
identify the destination and the semantics implied by this message
respectively. (The prefix wsa is used here to denote
the Web Services Addressing XML Namespace. B. XML Namespaces lists all the
namespaces and prefixes that are used in this document.)
Let us look at a fictitious scenario used in this document to
illustrate the features of the policy language. A Web service
developer is building a client application that retrieves real time
stock quote information from Contoso, Ltd. Contoso supplies real
time data using Web services. The developer has Contoso’s
advertised WSDL description of these Web services. Contoso requires
the use of addressing headers for messaging. Just the WSDL
description is not sufficient for the developer to enable the
interaction between her client and these Web services. WSDL
constructs do not indicate requirements such as the use of
addressing.
(The example companies, organizations, products, domain
names, e-mail addresses, logos, people, places, and events depicted
herein are fictitious. No association with any real company,
organization, product, domain name, email address, logo, person,
places, or events is intended or should be inferred.)
Providers have the option to convey requirements, such as the
use of addressing, through word-of-mouth and documentation – as
they always have. To interact successfully with this service, the
developer may have to read any related documentation, call someone
at Contoso to understand the service metadata, or look at sample
SOAP messages and infer such requirements or behaviors.
Web Services Policy is a machine-readable language for
representing these Web service capabilities and requirements as
policies. Policy makes it possible for providers to represent such
capabilities and requirements in a machine-readable form. For
example, Contoso may augment the service WSDL description with a
policy that requires the use of addressing. The client application
developer can use a policy-aware client that understands this
policy and engages addressing automatically.
How does Contoso use policy to represent the use of addressing?
The example below illustrates a policy expression that requires the
use of addressing.
Example
2-2. Policy Expression
<Policy>
<wsap:UsingAddressing />
</Policy>
The policy expression in the above example consists of a
Policy main element and a child element
wsap:UsingAddressing. Child elements of the
Policy element are policy assertions. Contoso attaches
the above policy expression to a WSDL binding description.
The wsap:UsingAddressing element is a policy
assertion. (The prefix wsap is used here to denote the
Web Services Addressing – WSDL Binding XML Namespace.) This
assertion identifies the use of Web Services Addressing information
headers. A policy-aware client can recognize this policy assertion,
engage addressing automatically, and use headers such as
wsa:To and wsa:Action in SOAP
Envelopes.
It is important to understand the association between the SOAP
message and policy expression in the above example. As you can see
by careful examination of the message, there is no reference to any
policy expression. Just as WSDL does not require a message to
reference WSDL constructs (such as port, binding and portType), Web
Services Policy does not require a message to reference a policy
expression though the policy expression describes the message.
2.3 Secure
Message
In addition to requiring the use of addressing, Contoso requires
the use of transport-level security for protecting messages.
Example
2-3. Secure Message
<soap:Envelope>
<soap:Header>
<wss:Security soap:mustUnderstand="1" >
<wsu:Timestamp u:Id="_0">
<wsu:Created>2006-01-19T02:49:53.914Z</u:Created>
<wsu:Expires>2006-01-19T02:54:53.914Z</u:Expires>
</wsu:Timestamp>
</wss:Security>
<wsa:To>http://real.contoso.com/quote</wsa:To>
<wsa:Action>http://real.contoso.com/GetRealQuote</wsa:Action>
</soap:Header>
<soap:Body>...</soap:Body>
</soap:Envelope>
The SOAP message in the example above includes security
timestamps that express creation and expiration times of this
message. Contoso requires the use of security timestamps and
transport-level security - such as HTTPS – for
protecting messages. (The prefixes wss and
wsu are used here to denote the Web Services Security
and Utility namespaces.)
Similar to the use of addressing, Contoso indicates the use of
transport-level security using a policy expression. The example
below illustrates a policy expression that requires the use of
addressing and transport-level security for securing messages.
Example
2-4. Addressing and Security Policy Expression
<Policy>
<wsap:UsingAddressing />
<sp:TransportBinding>...</sp:TransportBinding>
</Policy>
The sp:TransportBinding element is a policy
assertion. (The prefix sp is used here to denote the
Web Services Security Policy XML Namespace.) This assertion
identifies the use of transport-level security – such as
HTTPS - for protecting messages. Policy-aware clients
can recognize this policy assertion, engage transport-level
security for protecting messages and include security timestamps in
SOAP Envelopes.
The client application developer can use a policy-aware client
that recognizes this policy expression and engages both addressing
and transport-level security automatically.
For the moment, let us set aside the contents of the
sp:TransportBinding policy assertion and consider its
details in a later section.
2.4 Other
Assertions
Thus far, we explored how Contoso uses policy expressions and
assertions for representing behaviors that must be engaged for a
Web service interaction. What is a policy assertion? What role does
it play? In brief, a policy assertion is a piece of service
metadata, and it identifies a domain (such as messaging, security,
reliability and transaction) specific behavior that is a
requirement. Contoso uses a policy assertion to convey a condition
under which they offer a Web service. A policy-aware client can
recognize policy assertions and engage these behaviors
automatically.
Providers, like Contoso, have the option to combine behaviors
for an interaction from domains such as messaging, security,
reliability and transactions. Using policy assertions, providers
can represent these behaviors in a machine-readable form. Web
service developers can use policy-aware clients that recognize
these assertions and engage these behaviors automatically.
Who defines policy assertions? Where are they? Policy assertions
are defined by Web services developers, product designers, protocol
authors and users. Like XML Schema libraries, policy assertions are
a growing collection. Several WS-* protocol specifications and
applications define policy assertions:
2.5 Combining Policy
Assertions
Policy assertions can be combined in different ways to express
consistent combinations of behaviors (capabilities and
requirements). There are three policy operators for combining
policy assertions: Policy, All and
ExactlyOne (the Policy operator is a
synonym for All).
Let us consider the All operator first. The policy
expression in the example below requires the use of addressing and
transport-level security. There are two policy assertions. These
assertions are combined using the All operator.
Combining policy assertions using the Policy or
All operator means that all the behaviors represented
by these assertions are required.
Example
2-5. Addressing and Security Policy Expression
<All>
<wsap:UsingAddressing />
<sp:TransportBinding>…</sp:TransportBinding>
</All>
In addition to requiring the use of addressing, Contoso allows
either the use of transport- or message-level security for
protecting messages. Web Services Policy language can indicate this
choice of behaviors in a machine-readable form. To indicate the use
of message-level security for protecting messages, Contoso uses the
sp:AsymmetricBinding policy assertion (see the example
below).
Example
2-6. Asymmetric Binding Security Policy Assertion
<sp:AsymmetricBinding>…</sp:AsymmetricBinding>
The sp:AsymmetricBinding element is a policy
assertion. (The prefix sp is used here to denote the
Web Services Security Policy namespace.) This assertion identifies
the use of message-level security – such as WS-Security
1.0 - for protecting messages. Policy-aware clients can
recognize this policy assertion, engage message-level security for
protecting messages and use headers such as
wss:Security in SOAP Envelopes.
To allow the use of either transport- or message-level security,
Contoso uses the ExactlyOne policy operator. Policy
assertions combined using the ExactlyOne operator
requires exactly one of the behaviors represented by the
assertions. The policy expression in the example below requires the
use of either transport- or message-level security for protecting
messages.
Example
2-7. Transport- or Message-Level Security Policy
Expression
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding>
</ExactlyOne>
Contoso requires the use of addressing and requires the use of
either transport- or message-level security for protecting
messages. They represent this combination using the
All and ExactlyOne operators. Policy
operators can be mixed to represent different combinations of
behaviors (capabilities and requirements). The policy expression in
the example below requires the use of addressing and one of
transport- or message-level security for protecting messages.
Example
2-8. Addressing and Transport- OR Message-Level Security
Policy Expression
<All>
<wsap:UsingAddressing />
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding>
</ExactlyOne>
</All>
Using this policy expression, Contoso gives the choice of
mechanisms for protecting messages to clients (or requesters).
2.6 Optional Policy Assertion
Through a customer survey program, Contoso learns that a
significant number of their customers prefer to use the Optimized
MIME Serialization (as defined in the MTOM specification) for
sending and receiving messages. Contoso adds optional support for
the Optimized MIME Serialization and expresses this optional
behavior in a machine-readable form.
To indicate the use of optimization using the Optimized MIME
Serialization, Contoso uses the
mtom:OptimizedMimeSerialization policy assertion (see
the example below).
Example
2-9. Optimized MIME Serialization Policy Assertion
<mtom:OptimizedMimeSerialization />
The mtom:OptimizedMimeSerialization element is a
policy assertion. (The prefix mtom is used here to
denote the Optimized MIME Serialization Policy namespace.) This
assertion identifies the use of MIME Multipart/Related
serialization as required for request and response messages.
Policy-aware clients can recognize this policy assertion and engage
Optimized MIME Serialization for messages. The semantics of this
assertion are reflected in messages: they use an optimized wire
format (MIME Multipart/Related serialization).
Like Contoso’s optional support for Optimized MIME
Serialization, there are behaviors that may be engaged (in contrast
to must be engaged) for a Web service interaction. A service
provider will not fault if these behaviors are not engaged. Policy
assertions can be marked optional to represent behaviors that may
be engaged for an interaction. A policy assertion is marked as
optional using the wsp:Optional attribute. Optional
assertions represent the capabilities of the service provider as
opposed to the requirements of the service provider.
In the example below, the Optimized MIME Serialization policy
assertion is marked optional. This policy expression allows the use
of optimization and requires the use of addressing and one of
transport- or message-level security. If a client sends an
optimized (MTOM) message, this will be indicated by characteristics
associated by using such an optimized message, including a wire
format that is a Multipart/Related message and a content-type
header of "application/xop+xml" for the outer package. In this
case, the response message will also be optimized, also having a
Multipart/Related message and content-type header of
"application/xop+xml". Note that when optimized messages are used,
the Multipart/Related message can have a single part containing the
primary SOAP envelope.
Example
2-10. Optional MIME Serialization, Addressing and Transport-
OR Message-Level Security Policy Expression
<All>
<mtom:OptimizedMimeSerialization wsp:Optional="true"/>
<wsap:UsingAddressing />
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding>
</ExactlyOne>
</All>
Contoso is able to meet their customer needs by adding optional
support for the Optimized MIME Serialization. An optional policy
assertion represents a behavior that may be engaged.
2.7 Nested Policy Expressions
In the previous sections, we considered two security policy
assertions. In this section, let us look at one of the security
policy assertions in little more detail.
As you would expect, securing messages is a complex usage
scenario. Contoso uses the sp:TransportBinding policy
assertion to indicate the use of transport-level security for
protecting messages. Just indicating the use of transport-level
security for protecting messages is not sufficient. To successfully
interact with Contoso’s Web services, the developer must know what
transport token to use, what secure transport to use, what
algorithm suite to use for performing cryptographic operations,
etc. The sp:TransportBinding policy assertion can
represent these dependent behaviors. In this section, let us look
at how to capture these dependent behaviors in a machine-readable
form.
A policy assertion – like the sp:TransportBinding -
identifies a visible domain specific behavior that is a
requirement. Given an assertion, there may be other dependent
behaviors that need to be enumerated for a Web Service interaction.
In the case of the sp:TransportBinding policy
assertion, Contoso needs to identify the use of a transport token,
a secure transport, an algorithm suite for performing cryptographic
operations, etc. A nested policy expression can be used to
enumerate such dependent behaviors.
What is a nested policy expression? A nested policy expression
is a policy expression that is a child element of a policy
assertion element. A nested policy expression further qualifies the
behavior of its parent policy assertion.
In the example below, the child Policy element is a
nested policy expression and further qualifies the behavior of the
sp:TransportBinding policy assertion. The
sp:TransportToken is a nested policy assertion of the
sp:TransportBinding policy assertion. The
sp:TransportToken assertion requires the use of a
specific transport token and further qualifies the behavior of the
sp:TransportBinding policy assertion (which already
requires the use of transport-level security for protecting
messages).
Example
2-11. Transport Security Policy Assertion
<sp:TransportBinding>
<Policy>
<sp:TransportToken>
<Policy>
<sp:HttpsToken RequireClientCertificate="false" />
</Policy>
</sp:TransportToken>
<sp:AlgorithmSuite>
<Policy>
<sp:Basic256Rsa15/>
</Policy>
</sp:AlgorithmSuite>
…
</Policy>
</sp:TransportBinding>
The sp:AlgorithmSuite is a nested policy assertion
of the sp:TransportBinding policy assertion. The
sp:AlgorithmSuite assertion requires the use of the
algorithm suite identified by its nested policy assertion
(sp:Basic256Rsa15 in the example above) and
further qualifies the behavior of the
sp:TransportBinding policy assertion.
Setting aside the details of using transport-level security, Web
service developers can use a policy-aware client that recognizes
this policy assertion and engages transport-level security and its
dependent behaviors automatically. That is, the complexity of
security usage is absorbed by a policy-aware client and hidden from
these Web service developers.
2.8 Referencing Policy
Expressions
Contoso has numerous Web service offerings that provide
different kinds of real-time quotes and book information on
securities such as GetRealQuote,
GetRealQuotes and GetExtendedRealQuote.
To accommodate the diversity of Contoso’s customers, Contoso
supports multiple WSDL bindings for these Web services. Contoso
provides consistent ways to interact with their services and wants
to represent these capabilities and requirements consistently
across all of their offerings without duplicating policy
expressions multiple times. How? It is simple - a policy expression
can be named and referenced for re-use.
A policy expression may be identified by an IRI and referenced
for re-use as a standalone policy or within another policy
expression. There are two mechanisms to identify a policy
expression: the wsu:Id and Name
attributes. A PolicyReference element can be used to
reference a policy expression identified using either of these
mechanisms.
Example
2-12. Common Policy Expression
<Policy wsu:Id=”common”>
<mtom:OptimizedMimeSerialization wsp:Optional="true"/>
<wsap:UsingAddressing />
</Policy>
In the example above, the wsu:Id attribute is used
to identify a policy expression. The value of the
wsu:Id attribute is an XML ID. The relative IRI for
referencing this policy expression (within the same document) is
#common. If the policy document IRI is
http://real.contoso.com/policy.xml then the absolute
IRI for referencing this policy expression is
http://real.contoso.com/policy.xml#common. (The
absolute IRI is formed by combining the document IRI,
# and the value of the wsu:Id
attribute.)
For re-use, a PolicyReference element can be used
to reference a policy expression as a standalone policy or within
another policy expression. The example below is a policy expression
that re-uses the common policy expression above.
Example
2-13. PolicyReference to Common Policy Expression
<PolicyReference URI="#common"/>
For referencing a policy expression within the same XML
document, Contoso uses the wsu:Id attribute for
identifying a policy expression and an IRI to this ID value for
referencing this policy expression using a
PolicyReference element.
The example below is a policy expression that re-uses the common
policy expression within another policy expression. This policy
expression requires the use of addressing, one of transport- or
message-level security for protecting messages and allows the use
of optimization.
Example
2-14. Secure Policy Expression
<Policy wsu:Id=”secure”>
<All>
<PolicyReference URI="#common"/>
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding >
</ExactlyOne>
</All>
</Policy>
The Name attribute is an alternate mechanism to
identify a policy expression. The value of the Name
attribute is an absolute IRI and is independent of the location of
the XML document where the identified policy expression resides in.
As such, referencing a policy expression using the
Name attribute relies on additional out of band
information. In the example below, the Name attribute
identifies the policy expression. The IRI of this policy expression
is http://real.contoso.com/policy/common.
Example
2-15. Common Policy Expression
<Policy Name=”http://real.contoso.com/policy/common”>
<mtom:OptimizedMimeSerialization wsp:Optional="true"/>
<wsap:UsingAddressing />
</Policy>
The example below is a policy expression that re-uses the common
policy expression above.
Example
2-16. PolicyReference to Common Policy Expression
<PolicyReference URI="http://real.contoso.com/policy/common"/>
2.9 Attaching Policy
Expressions to WSDL
A majority of Contoso’s customers use WSDL for building their
client applications. Contoso leverages this usage by attaching
policy expressions to the WSDL binding descriptions.
In the example below, the SecureBinding WSDL
binding description defines a binding for an interface that
provides real-time quotes and book information on securities. (The
prefixes wsdl and tns are used here to
denote the Web Services Description language XML namespace and
target namespace of this WSDL document.) To require the use of
security for these offerings, Contoso attaches the secure policy
expression in the previous section to this binding description. The
WSDL binding element is a common policy attachment
point. The secure policy expression attached to the
SecureBinding WSDL binding description applies to any
message exchange associated with any port that
supports this binding description. This includes all the message
exchanges described by operations in the
RealTimeDataInterface.
Example
2-17. Secure Policy Expression Attached to WSDL
Binding
<wsdl:binding name="SecureBinding" type="tns:RealTimeDataInterface" >
<PolicyReference URI="#secure" />
<wsdl:operation name="GetRealQuote">…</wsdl:operation>
…
</wsdl:binding>
In addition to providing real-time quotes and book information
on securities, Contoso provides other kinds of data through Web
services such as quotes delayed by 20 minutes and security symbols
through Web services (for example GetDelayedQuote,
GetDelayedQuotes, GetSymbol and
GetSymbols). Contoso does not require the use of
security for these services, but requires the use of addressing and
allows the use of optimization.
Example
2-18. Open Policy Expression Attached to WSDL
Binding
<wsdl:binding name="OpenBinding" type="tns:DelayedDataInterface" >
<PolicyReference URI="#common" />
<wsdl:operation name="GetDelayedQuote">…</wsdl:operation>
…
</wsdl:binding>
In the example above, the OpenBinding WSDL binding
description defines a binding for an interface that provides other
kinds of data such as quotes delayed by 20 minutes and security
symbols. To require the use of addressing and allow the use of
optimization, Contoso attaches the common policy expression in the
previous section to this binding description. As we have seen in
the SecureBinding case, the common policy expression
attached to the OpenBinding WSDL binding description
applies to any message exchange associated with any
port that supports this binding description. This
includes all the message exchanges described by operations in the
DelayedDataInterface.
As mentioned earlier, providers have the option to convey
requirements, such as the use of addressing or security, through
word-of-mouth and documentation – as they always have. The absence
of policy expressions in a WSDL document does not indicate anything
about the capabilities and requirements of a service. The service
may have capabilities and requirements that can be expressed as
policy expressions, such as the use of addressing, security and
optimization. Or, the service may not have such capabilities and
requirements. A policy aware client should not conclude anything
(other than ‘no claims’) about the absence of policy
expressions.
Service providers, like Contoso, can preserve and leverage their
investments in WSDL and represent the capabilities and requirements
of a Web service as policies. A WSDL document may specify varying
behaviors across Web service endpoints. Web service developers can
use a policy-aware client that recognizes these policy expressions
in WSDL documents and engages behaviors automatically for each of
these endpoints. Any complexity of varying behaviors across Web
service endpoints is absorbed by a policy-aware client or tool and
hidden from these Web service developers.
2.10 Policy
Automates Web Services Interaction
As you have seen, Web Services Policy is a simple language that
has four elements - Policy, All,
ExactlyOne and PolicyReference - and one
attribute - wsp:Optional. In practice, service
providers, like Contoso, use policy expressions to represent
combinations of capabilities and requirements. Web service
developers use policy-aware clients that understand policy
expressions and engage the behaviors represented by providers
automatically. A sizable amount of complexity is absorbed by
policy-aware clients (or tools) and is invisible to these Web
service developers.
Web Services Policy extends the foundation on which to build
interoperable Web services, hides complexity from developers and
automates Web service interactions.
3. Advanced Concepts:
Policy Expression
In 2. Basic
Concepts: Policy Expression, we covered the basics of Web
Services Policy language. This is the advanced section that
provides more in-depth materials for Web Services Policy
implementers and assertion authors. This section covers the
following topics:
-
What is a policy expression?
-
What is the normal form of a policy expression and how to
normalize policy expressions?
-
What is the policy data model?
-
How to select a compatible policy alternative?
-
How to attach policy expressions to WSDL constructs?
-
How to combine policies?
-
What are the extensibility points?
-
What are the parts of a policy assertion?
3.1
Policy Expression
A policy expression is the XML representation and interoperable
form of a Web Services Policy. A policy expression consists of a
Policy wrapper element and a variety of child and
descendent elements. Child and descendent elements from the policy
language are Policy, All, ExactlyOne and
PolicyReference. Other child elements of
Policy, All and ExactlyOne
are policy assertions. (The Policy element plays two
roles: wrapper element and operator.) Policy assertions can contain
a nested policy expression. Policy assertions can also be marked
optional to represent behaviors that may be engaged (capabilities)
for an interaction. The optional marker is the
wsp:Optional attribute which is placed on a policy
assertion element.
Let us take a closer look at Contoso’s policy expression (see
below) from the previous section.
Example
3-1. Contoso’s Secure Policy Expression
<Policy>
<All>
<mtom:OptimizedMimeSerialization wsp:Optional="true"/>
<wsap:UsingAddressing />
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding >
</ExactlyOne>
</All>
</Policy>
The Policy element is the wrapper element. The
All and ExactlyOne elements are the
policy operators. All other child elements of the All
and ExactlyOne elements are policy assertions from
domains such as messaging, addressing, security, reliability and
transactions.
3.2 Normal Form for Policy
Expressions
Web Services Policy language defines two forms of policy
expressions: compact and normal form. Up to this point, we have
used the compact form. The compact form is less verbose than the
normal form. The compact form is useful for authoring policy
expressions. The normal form is an intuitive representation of the
policy data model. We will look into the policy data model in the
next section.
The normal form uses a subset of constructs used in the compact
form and follows a simple outline for its XML representation:
Example
3-2. Normal Form for Policy Expressions
<Policy>
<ExactlyOne>
<All>
<x:AssertionA>…</x:AssertionA>
<y:AssertionB>…</y:AssertionB>
…
</All>
<All>
<x:AssertionA>…</x:AssertionA>
<z:AssertionC>…</z:AssertionC>
…
</All>
…
</ExactlyOne>
<Policy/>
The normal form consists of a Policy wrapper
element and has one child ExactlyOne element. This
ExactlyOne element has zero or more All
child elements. Each of these All elements has zero or
more policy assertions. The PolicyReference element
and wsp:Optional attribute are not used in the normal
form. And, a nested policy expression in the normal form has at
most one policy alternative.
The normal form represents a policy as a collection of policy
alternatives and a policy alternative as a collection of policy
assertions in a straight-forward manner.
The example below is a policy expression in the normal form.
This expression contains two policy alternatives: one that requires
the use of transport-level security and the other that requires the
use of message-level security for protecting messages.
Example
3-3. Transport- or Message-Level Security Policy Expression
in Normal Form
<Policy>
<ExactlyOne>
<All>
<sp:TransportBinding>…</sp:TransportBinding>
</All>
<All>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding >
</All>
</ExactlyOne>
</Policy>
A policy expression in the compact form can be converted to the
normal form. Web Services Policy language describes the algorithm
for this conversion.
Let us re-consider Contoso’s policy expression (see the example
below). Contoso requires the use of addressing and either
transport- or message-level security and allows the use of
optimization. This policy expression is in the compact form and has
four policy alternatives for requesters:
-
Requires the use of addressing and transport-level security
-
Requires the use of addressing and message-level security
-
Requires the use of optimization, addressing and transport-level
security and
-
Requires the use of optimization, addressing and message-level
security.
Example
3-4. Contoso’s Secure Policy Expression in Compact
Form
<Policy wsu:Id=”secure”>
<All>
<PolicyReference URI=”#common”/>
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding >
</ExactlyOne>
</All>
</Policy>
<Policy wsu:Id=”common”>
<mtom:OptimizedMimeSerialization wsp:Optional="true"/>
<wsap:UsingAddressing />
</Policy>
Let us look at the normal form for this policy expression. The
example below is Contoso’s policy expression in the normal form. As
you can see, the compact form is less verbose than the normal form.
The normal form represents a policy as a collection of policy
alternatives. Each of the All operators is a policy
alternative. There are four policy alternatives in the normal form.
These alternatives map to bullets (a) through (d) above.
Example
3-5. Contoso’s Policy Expression in Normal Form
<Policy>
<ExactlyOne>
<All> <!-- - - - - - - - - - - - - - Policy Alternative (a) -->
<wsap:UsingAddressing/>
<sp:TransportBinding>…</sp:TransportBinding>
</All>
<All> <!-- - - - - - - - - - - - - - Policy Alternative (b) -->
<wsap:UsingAddressing/>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding >
</All>
<All> <!-- - - - - - - - - - - - - - Policy Alternative (c) -->
<mtom:OptimizedMimeSerialization />
<wsap:UsingAddressing/>
<sp:TransportBinding>…</sp:TransportBinding>
</All>
<All> <!-- - - - - - - - - - - - - - Policy Alternative (d) -->
<mtom:OptimizedMimeSerialization />
<wsap:UsingAddressing/>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding>
</All>
</ExactlyOne>
</Policy>
The wsp:Optional attribute, nested policy
expression and PolicyReference element
are converted to their corresponding normal form. The
wsp:Optional attribute converts to two alternatives,
one with and the other without the assertion. A policy alternative
containing an assertion with a nested policy expression that has
multiple policy alternatives converts to multiple policy
alternatives where the assertion contains a nested policy
expression that has at most one policy alternative.
The PolicyReference element is replaced with its
referenced policy expression. See section 3.6 Policy Retrieval for more
details on how to retrieve referenced policy expressions.
3.3
Policy Data Model
In the previous section, we considered the normal form for
policy expressions. As we discussed, the normal form represents a
policy as a collection of policy alternatives. In this section, let
us look at the policy data model.
Contoso uses a policy to convey the conditions for an
interaction. Policy-aware clients, like the one used by the
developer in our example (as explained earlier in 2. Basic Concepts: Policy
Expression), view policy as an unordered collection of zero
or more policy alternatives. A policy alternative is an unordered
collection of zero or more policy assertions. A policy alternative
represents a collection of behaviors or requirements or conditions
for an interaction. In simple words, each policy alternative
represents a set of conditions for an interaction. The diagram

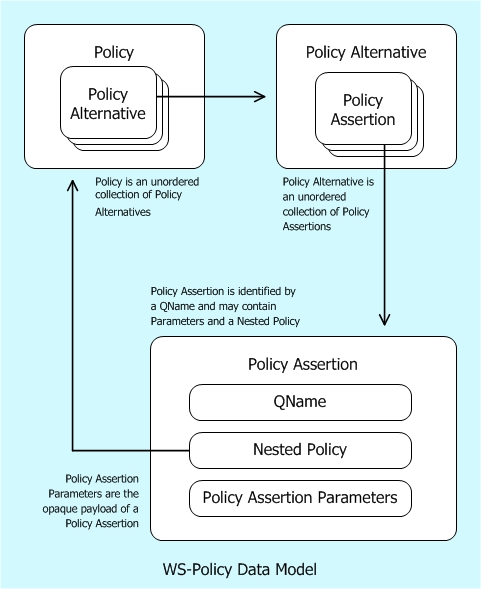

below describes the policy data model.
A policy-aware client uses a policy to determine whether one of
these policy alternatives (i.e. the conditions for an interaction)
can be met in order to interact with the associated Web Service.
Such clients may choose any of these policy alternatives and must
choose exactly one of them for a successful Web service
interaction. Clients may choose a different policy alternative for
a subsequent interaction. It is important to understand that a
policy is a useful piece of metadata in machine-readable form that
enables tooling, yet is not required for a successful Web service
interaction. Why? Web service developers could use the
documentation, talk to the service providers, or look at message
traces to infer these conditions for an interaction. Developers
continue to have these options, as they always had.
As we discussed, a policy assertion identifies a domain specific
behavior or requirement or condition. A policy assertion has a
QName that identifies its behavior or requirement or condition. In
the XML representation, the QName of the assertion element is the

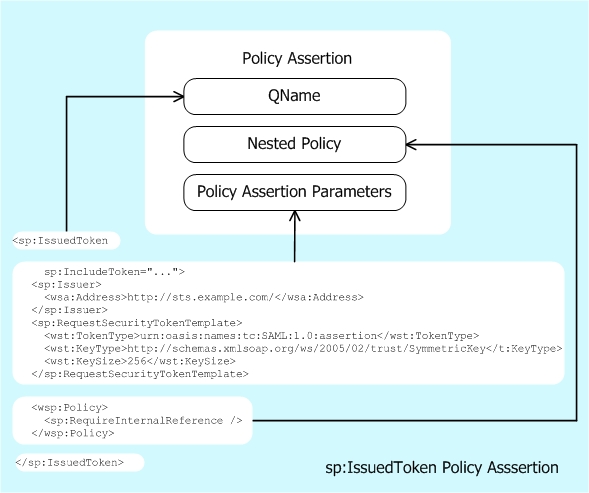

QName of the policy assertion. A policy assertion may contain
assertion parameters and a nested policy.
The assertion parameters are the opaque payload of an assertion.
Parameters carry additional useful pieces of information necessary
for engaging the behavior described by an assertion. In the XML
representation, the child elements and attributes of an assertion
are the assertion parameters.
We considered nested policy expressions in the context of a
security usage scenario. Let us look at its shape in the policy
data model. In the normal form, a nested policy is a policy that
has at most one policy alternative and is owned by its parent
policy assertion. The policy alternative in a nested policy
represents a collection of dependent behaviors or requirements or
conditions that qualify the behavior of its parent policy
assertion.
A policy-aware client supports a policy assertion if the client
engages the behavior or requirement or condition indicated by the
assertion. A policy-aware client supports a policy alternative if
the client engages the behaviors represented by all the assertions
in the alternative. A policy-aware client supports a policy if the
client engages the behaviors represented by at least one of the
policy alternatives.
In the previous section, we saw how the normal form of a policy
expression represents a policy as a collection of policy
alternatives. By policy language design, the normal form of a
policy expression directly maps to the policy data model:
-
Each child element of Policy/ExactlyOne/All maps to
a policy assertion.
-
Each Policy/ExactlyOne/All element and policy
assertions which correspond to its children map to a policy
alternative.
-
The Policy/ExactlyOne element maps to a collection
of policy alternatives.
-
The Policy wrapper element and policy alternatives
which correspond to the Policy/ExactlyOne element map
to a policy.

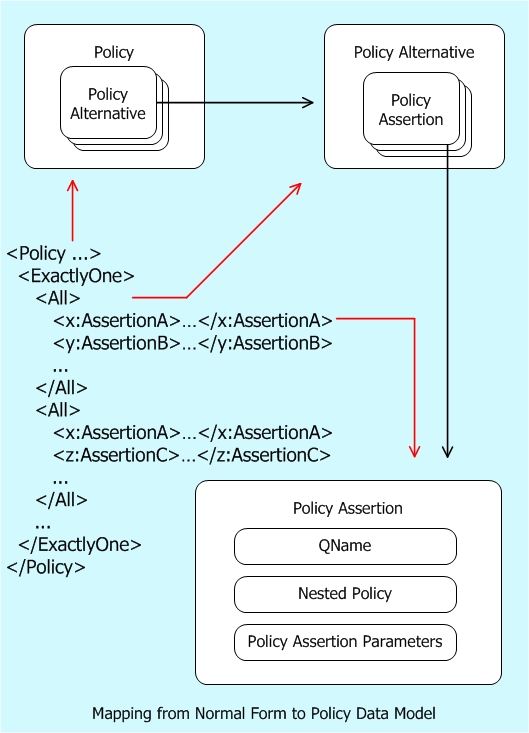

The diagram below describes this mapping from the normal form of
a policy expression to the policy data model.
3.4
Compatible Policies
A provider, like Contoso, and a requester, like the policy-aware
client used in our example, may represent their capabilities and
requirements for an interaction as policies and want to limit their
message exchanges to mutually compatible policies. Web Services
Policy defines an intersection mechanism for selecting compatible
policy alternatives when there are two or more policies.
The example below is a copy of Contoso’s policy expression (from
3.2 Normal Form
for Policy Expressions). As we saw before, Contoso offers
four policy alternatives. Of them, one of the policy alternatives
requires the use of addressing and transport-level security.
Example
3-6. Contoso’s Policy Expression
<Policy>
<ExactlyOne>
<All> <!-- - - - - - - - - - Contoso’s Policy Alternative (a) -->
<!-- - - - - - - - - - - - - - - - - - Policy Assertion (c1) -->
<wsap:UsingAddressing/>
<!-- - - - - - - - - - - - - - - - - - Policy Assertion (c2) -->
<sp:TransportBinding>…</sp:TransportBinding>
</All>
…
</ExactlyOne>
</Policy>
The client application developer's organization requires the use
of addressing and transport-level security for any interaction with
Contoso’s Web services. The developer represents these behaviors
using a policy expression illustrated in the example below in
normal form. This policy expression contains one policy alternative
that requires the use of addressing and transport-level
security.
Example
3-7. The Client Application's Policy Expression in Normal
Form
<Policy>
<ExactlyOne>
<All> <!-- - - - - - - - - - - - - - Client’s Policy Alternative -->
<!-- - - - - - - - - - - - - - - - - - Policy Assertion (t1) -->
<sp:TransportBinding>…</sp:TransportBinding>
<!-- - - - - - - - - - - - - - - - - - Policy Assertion (t2) -->
<wsap:UsingAddressing/>
</All>
</ExactlyOne>
</Policy>
The developer lets her policy-aware client select a compatible
policy alternative in Contoso’s policy. How does this client select
a compatible policy alternative? It is simple – it uses the policy
intersection. That is, the policy-aware client uses these two
policy expressions (the client’s and Contoso’s) and the policy
intersection to select a compatible policy alternative for this
interaction. Let us look at the details of policy intersection.
For two policy assertions to be compatible they must have the
same QName. And, if either assertion has a nested policy, both
assertions must have a nested policy and the nested policies must
be compatible. For example, policy assertions (c2) and (t1) have
the same QName, sp:TransportBinding. For this
discussion, let us assume that these two assertions have compatible
nested policies. These two assertions are compatible because they
have the same QName and their nested policies are compatible.
Two policy alternatives are compatible if each policy assertion
in one alternative is compatible with a policy assertion in the
other and vice-versa. For example, policy assertions (c1) and (c2)
in Contoso’s policy alternative are compatible with policy
assertions (t2) and (t1) in tje client’s policy alternative.
Contoso’s policy alternative (a) and the client’s policy
alternative are compatible because assertions in these two
alternatives are compatible.
Two policies are compatible if a policy alternative in one is
compatible with a policy alternative in the other. For example,
Contoso’s policy alternative (a) is compatible with the client’s
policy alternative. Contoso’s policy and the client’s policy are
compatible because one of Contoso’s policy alternative is
compatible with the client’s policy alternative.
For this interaction, the developer’s policy-aware client can
use policy alternative (a) to satisfy Contoso’s conditions or
requirements.
Similarly, policy intersection can be used to check if providers
expose endpoints that conform to a standard policy. For example, a
major retailer might require all their supplier endpoints to be
compatible with an agreed upon policy.
3.5 Attaching Policy
Expressions to WSDL
In 2. Basic
Concepts: Policy Expression, we looked into how Contoso
attached their policy expressions to the WSDL binding
element. In addition to the WSDL binding element, a
policy expression can be attached to other WSDL elements such as
service, port, operation and
message. These elements are the WSDL policy attachment
points in a WSDL document.

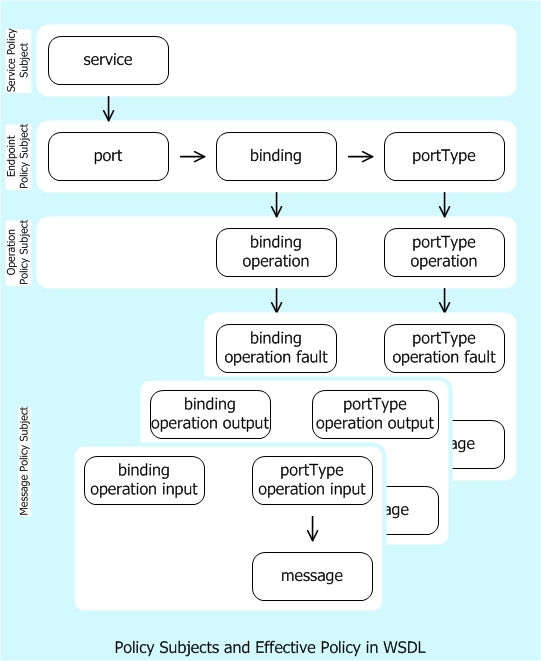

The WSDL attachment points are partitioned (as illustrated
below) into four policy subjects: message, operation, endpoint and
service. When attached, capabilities and requirements represented
by a policy expression apply to a message exchange or message
associated with (or described by) a policy subject.
The WSDL service element represents the service
policy subject. Policy expressions associated with a service policy
subject apply to any message exchange using any of the endpoints
offered by that service.
The WSDL port, binding and
portType elements collectively represent the endpoint
policy subject. Policy expressions associated with an endpoint
policy subject apply to any message exchange made using that
endpoint.
The WSDL binding/operation and
portType/operation elements collectively represent the
operation policy subject. Policy expressions associated with an
operation policy subject apply to the message exchange defined by
that operation.
The WSDL binding/operation/input,
portType/operation/input, and message
element collectively represent the message policy subject for the
input message. The WSDL binding/operation/output,
portType/operation/output, and message
element collectively represent the message policy subject for the
output message. The WSDL binding/operation/fault,
portType/operation/fault, and message
element collectively represent the message policy subject for the
fault message. Policy expressions associated with a message policy
subject apply only to that message.
In the example below, the policy expression is attached to an
endpoint policy subject.
Example
3-8. Contoso’s Policy Expression Attached to WSDL binding
Element
<wsdl:binding name="SecureBinding" type="tns:RealTimeDataInterface" >
<PolicyReference URI="#secure" />
<wsdl:operation name="GetRealQuote">…</wsdl:operation>
…
</wsdl:binding>
If multiple policy expressions are attached to WSDL elements
that collectively represent a policy subject then the effective
policy of these policy expressions applies. The effective policy is
the combination of the policy expressions that are attached to the
same policy subject. For example, the effective policy of an
endpoint policy subject is the combination of policy expressions
attached to a WSDL port element, policy expressions
attached to the binding element referenced by this
port, and policy expressions attached to the portType
element that is supported by this port. Let us consider how to
combine policy expressions in the next section.
Most of the policy assertions are designated for the endpoint,
operation or message policy subject. The commonly used WSDL
attachment points are:
| Policy Subject |
Commonly used attachment point (s) |
| Endpoint |
binding element |
| Operation |
binding/operation
element |
| Message |
binding/operation/input
and binding/operation/output elements |
3.6 Policy
Retrieval
Just as other service metadata languages, Web Services Policy
does not mandate any specific policy retrieval mechanism. Any
combination of any retrieval mechanisms in any order may be used
for referencing policy expressions. Example retrieval mechanisms
are:
-
Do nothing. A policy expression with the referenced IRI is
already known to be available in a local cache or chip (embedded
systems).
-
Use the referenced IRI and retrieve an existing policy
expression from the containing XML document: a policy element with
an XML ID.
-
Use the referenced IRI and retrieve a policy expression from
some policy repository (local or remote) or catalog. Policy tools
may use any protocols (say Web Services Metadata Exchange) for such
metadata retrieval. These protocols may require additional out of
band information.
-
Attempt to resolve the referenced IRI on the Web. This may
resolve to a policy element or a resource that contains a policy
element.
If the referenced policy expression is in the same XML document
as the reference, then the policy expression should be identified
using the wsu:Id (XML ID) attribute and referenced
using an IRI reference to this XML ID value.
WSDL 1.1 [WSDL 1.1] section
2.1 and WSDL 2.0 [WSDL 2.0 Core
Language] chapter 4 allow to import or include WSDL
documents into another WSDL document with the wsdl11:import,
wsdl20:import, and wsdl20:include statements. The importing and
imported WSDL documents constitute separate XML documents each. If
e.g. the importing WSDL document references a policy in the
imported WSDL document, the rules for policy references between
separate XML documents apply as described in 2.8 Referencing Policy
Expressions.
3.7
Combine Policies
Multiple policy expressions may be attached to WSDL constructs.
Let us consider how Contoso could have used multiple policy
expressions in a WSDL document. In the example below, there are two
policy expressions #common2 and #secure2
attached to the SecureBinding WSDL binding and
RealTimeDataPort WSDL port descriptions.
Example
3-9. Multiple Policy Expressions Attached to Endpoint Policy
Subject
<Policy wsu:Id=”common2”>
<mtom:OptimizedMimeSerialization wsp:Optional="true"/>
<wsap:UsingAddressing />
</Policy>
<Policy wsu:Id=”secure2”>
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding >
</ExactlyOne>
</Policy>
<wsdl:binding name="SecureBinding" type="tns:RealTimeDataInterface" >
<PolicyReference URI="#secure2" />
<wsdl:operation name="GetRealQuote">…</wsdl:operation>
…
</wsdl:binding>
<wsdl:service name=”RealTimeDataService”>
<wsdl:port name=”RealTimeDataPort” binding=”tns:SecureBinding”>
<PolicyReference URI="#common2"/>
…
</wsdl:port>
</wsdl:service>
As we discussed before, the WSDL port,
binding and portType elements
collectively represent the endpoint policy subject. In the example
above, the #common2 and #secure2 policy
expressions attached to the SecureBinding WSDL binding
and RealTimeDataPort WSDL port descriptions
collectively apply to any message exchange associated with the
RealTimeDataPort WSDL port.
As in the example above, multiple policy expressions may be
attached to Web service constructs that collectively represent a
single policy subject. When there are multiple policy expressions
attached to the same policy subject then the effective policy or
combination of these policy expressions apply to the associated
policy subject.
The effective policy is the combination of two or more policy
expressions attached to the same policy subject. The combination of
two policy expressions, also known as the merged policy expression,
is a new policy expression that combines these two policy
expressions using the All policy operator.
The policy expression below is the combination of the two policy
expressions attached to the SecureBinding WSDL binding
and RealTimeDataPort WSDL port descriptions. The
#common2 policy expression has two policy
alternatives. The #secure2 policy expression has two
policy alternatives. The combination of these two policies is
equivalent to Contoso’s secure policy in 2. Basic Concepts: Policy
Expression and has four policy alternatives. In other
words, the combination of two policies is the cross product of
alternatives in these two policies.
Example
3-10. Effective Policy of the Endpoint Policy Subject in the
Previous Example
<Policy>
<All>
<Policy>
<mtom:OptimizedMimeSerialization wsp:Optional="true"/>
<wsap:UsingAddressing/>
</Policy>
<Policy>
<ExactlyOne>
<sp:TransportBinding>…</sp:TransportBinding>
<sp:AsymmetricBinding>…</sp:AsymmetricBinding >
</ExactlyOne>
</Policy>
</All>
</Policy>
Of course, the above policy expression can be normalized. There
are four policy alternatives in the normal form. As we have seen in
the policy data model, a policy is an unordered collection of
policy alternatives. That is, the order of policy alternatives is
insignificant. Therefore, the order of combining these policy
expressions is insignificant.
3.8 Extensibility and
Versioning
Web Services Policy language is an extensible language by
design. The Policy, ExactlyOne,
All and PolicyReference elements are
extensible. The Policy, ExactlyOne and
All elements allow child element and attribute
extensibility. Extensions must not use the policy language XML
namespace name. A consuming processor processes known attributes
and elements, ignores unknown attributes and treats unknown
elements as policy assertions.
The PolicyReference element allows element and
attribute extensibility.
Web Services Policy language enables simple versioning practices
that allow requesters to continue the use of any older policy
alternatives in a backward compatible manner. This allows service
providers, like Contoso, to deploy new behaviors using additional
policy assertions without breaking compatibility with clients that
rely on any older policy alternatives.
The example below represents a Contoso version 1 policy
expression. This expression requires the use of addressing and
transport-level security for protecting messages.
Example
3-11. Contoso’s Version 1 Policy Expression
<Policy>
<ExactlyOne>
<All>
<wsap:UsingAddressing/>
<sp:TransportBinding>…</sp:TransportBinding>
</All>
</ExactlyOne>
</Policy>
Over time, Contoso adds support for advanced behaviors:
requiring the use of addressing and message-level security for
protecting messages. They added this advanced support without
breaking compatibility with requesters that rely on addressing and
transport-level security. The example below is Contoso’s version 2
policy expression. In this version, Contoso’s adds a new policy
alternative that requires the use of addressing and message-level
security. The clients that rely on addressing and transport-level
security may continue to interact with Contoso’s using the old
policy alternative. Of course, these clients have the option to
migrate from using old policy alternatives to new policy
alternatives.
Example
3-12. Contoso’s Version 2 Policy Expression
<Policy>
<ExactlyOne>
<All>
<wsap:UsingAddressing/>
<sp:TransportBinding>…</sp:TransportBinding>
</All>
<All> <!-- - - - - - - - - - - - - - - - NEW Policy Alternative -->
<wsap:UsingAddressing/>
<sp:AsymmetricBinding>…</sp: AsymmetricBinding >
</All>
</ExactlyOne>
</Policy>
When Contoso added support for advanced behaviors, they spent
time to plan for the continued support for existing clients, the
smooth migration from using current to advanced behaviors, and the
switch to use only the advanced behaviors in the near future (i.e.
sun-setting current behaviors). In this versioning scenario, policy
can be used to represent current and advanced behaviors in a
non-disruptive manner: no immediate changes to existing clients are
required and these clients can smoothly migrate to new
functionality when they choose to. This level of versioning support
in policy enables the same class of versioning best practices built
into WSDL constructs such as service, port and binding.
Let us look at tooling for unknown policy assertions. As service
providers, like Contoso, incrementally deploy advanced behaviors,
some requesters may not recognize these new policy assertions. As
discussed before, these requesters may continue to interact using
old policy alternatives. New policy assertions will emerge to
represent new behaviors and slowly become part of everyday
interoperable interaction between requesters and providers. Today,
most tools use a practical tolerant strategy to process new or
unrecognized policy assertions. These tools consume such
unrecognized assertions and designate these for user intervention.
As you would recognize, there is nothing new in this practice. This
is similar to how a proxy generator that generates code from WSDL
creates code for all the known WSDL constructs and allows Web
service developers to fill in code for custom or unknown constructs
in the WSDL.
3.9 Parts of a Policy
Assertion
As we discussed, a policy assertion identifies a domain specific
behavior or requirement or condition. A policy assertion has a
QName that identifies its behavior or requirement or condition. A
policy assertion may contain assertion parameters and a nested
policy.
Let us look at the anatomy of a policy assertion from the
security domain. The policy expression in the diagram below uses
the sp:IssuedToken policy assertion. This assertion
illustrates the use of assertion parameters and nested policy.
The sp:IssuedToken element is a policy assertion
that identifies the use of a security token – such as SAML token -
issued by a third party for protecting messages. A policy assertion
is an XML element. The QName of this element represents the
behavior identified by this policy assertion.
The sp:IssuedToken policy assertion has three
parameters: @sp:IncludeToken, sp:Issuer
and sp:RequestSecurityTokenTemplate.
The sp:IncludeToken attribute is a parameter that
contains information on whether a security token should be included
in messages or an external reference to the key of this security
token should be used. The sp:Issuer parameter is an
endpoint reference to a security token issuer. The
sp:RequestSecurityTokenTemplate parameter contains the
necessary information to request a security token from the
specified issuer. Parameters are the opaque payload of a Policy
Assertion, carry useful information for engaging the behavior
described by an assertion and are preserved through policy
processing such as normalize, merge and intersection. requesters
may use policy intersection to select a compatible policy
alternative for an interaction. Assertion parameters do not affect
the outcome of policy intersection.
For the sp:Issuer policy assertion parameter, the
assertion author uses the natural XML structural relationships (the
child elements and attributes) and encodes the relationship between
an assertion and its parameters in a machine readable form.
Assertion parameters may be represented as child XML elements or
attributes of an assertion. The policy language allows assertion
authors to strongly tie the relationship between an assertion and
its parameters using the natural XML structural relationships.
The sp:IssuedToken policy assertion has a nested
policy expression. The sp:RequireInternalReference
element is a nested policy assertion of the
sp:IssuedToken policy assertion. The
sp:RequireInternalReference assertion requires the use
of an internal reference for referencing the issued token. A nested
policy assertion further qualifies a dependent behavior of its
parent policy assertion. As mentioned earlier, requesters may use
policy intersection to select a compatible policy alternative for
an interaction. Nested policy assertions affect the outcome of
policy intersection.
The sp:IssuedToken security policy assertion
identifies a visible domain specific behavior: the use of a
security token – such as SAML token - issued by a third party for
protecting messages. This behavior is relevant to a Web service
interaction. For the sake of discussion, let us assume that Contoso
requires the use of a SAML token issued by a third party. Service
providers, like Contoso, must convey this usage and all the
necessary information to obtain this security token for Web service
developers. This is a key piece of metadata for a successful
interaction with Contoso’s Web services.
3.10 Versioning Policy
Language
| Editorial
note |
|
| The WG is contemplating
moving some or all of this material into a non-normative appendix
of the framework or attachment document. User feedback is
solicited |
Over time, the Policy WG or third parties can version or extend
the Policy Language with new or modified constructs. These
constructs may be compatible or incompatible with previous
versions. Some of the possible new constructs that have been
mentioned previously are: new operators, operator cardinality,
policy identification, compact syntax, Policy Inclusion, security,
referencing, attachment points, alternative priority, effective
dating, negotiation.
WS-Policy provides extensibility points on 6 elements with a
combination of attribute and/or element extensibility. The possible
extensibility points with their current extensibility - including
some outstanding issues related to extensibility - are:
-
Policy: element from ##other namespace and any attribute
-
PolicyReference: any attribute and a proposal to add any element
ExactlyOne, All: element from ##other namespace, no attribute
extensibility
-
PolicyAttachment: element from ##other namespace and any
attribute
-
AppliesTo: any element and any attribute
3.10.1 Policy Framework
WS-Policy Framework 1.5 specifies that any element that is not
known inside a Policy, ExactlyOne or All will be treated as an
assertion. The default value for wsp:Optional="false", which means
after normalization it will be inside an ExactlyOne/All
operator.
Let us show an example with a hypothetical new operator that is
a Choice with a minOccurs and a maxOccurs attributes, ala
XSD:Choice, in a new namespace. We use the wsp16 prefix to indicate
a hypothetical Policy Language 1.6 that is intended to be
compatible with Policy Language 1.5:
Example
3-13. Policy containing 1.5 and 1.6 Policies.
<wsp:Policy>
<wsp:ExactlyOne>
<wsp16:Choice wsp16:minOccurs="1" wsp16:maxOccurs="2">
...
</wsp16:Choice>
<wsp:All>
...
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
The normalization rule for wsp:Optional="false" would be applied
to the wsp16:Choice, yielding the following expression:
Example
3-14. Normalized Policy containing 1.5 and 1.6
Policies
<wsp:Policy>
<wsp:ExactlyOne>
<wsp:ExactlyOne>
<wsp:All>
<wsp16:Choice wsp16:minOccurs="1" wsp16:maxOccurs="2">
...
</wsp16:Choice>
</wsp:All>
</wsp:ExactlyOne>
<wsp:All>
...
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
Alternatively, the wsp:Optional could be set to "true" on the
choice, as in:
Example
3-15. Policy containing explicit wsp:Optional="true"
<wsp:Policy>
<wsp16:Choice wsp16:minOccurs="1" wsp16:maxOccurs="2"
wsp:Optional="true">
...
</wsp16:Choice>
</wsp:Policy>
The normalized form will be:
Example
3-16. Normalized policy
<wsp:Policy>
<wsp:ExactlyOne>
<wsp:All>
<wsp16:Choice wsp16:minOccurs="1" wsp16:maxOccurs="2">
...
</wsp16:Choice>
</wsp:All>
<wsp:All/>
</wsp:ExactlyOne>
</wsp:Policy>
Because the wsp16:Choice alternative isn't understood in either
normalized form, it will not be chosen as one of the alternatives
and will effectively be ignored. Policy intersection may be more
difficult with such compatible extensions. For example, the
previous will "look" like it has a wsp16:Choice typed assertion. To
determine intersection with a Policy that does not have the
wsp16:Choice type assertion, domain specific processing would have
to be done. However, there is an alternative that does not have the
wsp16:Choice, so intersection would yield the expected result.
Note: it is possible to add new names to the existing namespace,
such as:
Example
3-17. Policy containing 1.5 and 1.6 Policies all in the 1.5
namespace
<wsp:Policy>
<wsp:ExactlyOne>
<wsp:Choice wsp:minOccurs="1" wsp:maxOccurs="2">
...
</wsp:Choice>
<wsp:All>
...
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
Notice that using a new namespace can result in backwards and
forwards compatibility if normalization results in an optional
alternative.
Best practice: insert new elements in an optional alternative or
mark with wsp:Optional="true".
Incompatible versions of the Policy language may be indicated by
a new namespace name for at least the new and/or incompatible
elements or attributes. Imagine that the Choice operator is
required by a future version of Policy, then there will be a new
namespace for the Policy element. We use the wsp20 prefix to
indicate a hypothetical Policy Language 2.0 that is intended to be
incompatible with Policy Language 1.5:
Example
3-18. Policy containing 2.0 only Policies.
<wsp20:Policy>
<wsp20:ExactlyOne>
<wsp20:Choice wsp:minOccurs="1" wsp:maxOccurs="2">
...
</wsp20:Choice>
...
</wsp20:ExactlyOne>
</wsp20:Policy>
The new Policy operator could be embedded inside an existing
Policy element:
Example
3-19. Policy containing 2.0 (incompatible with 1.5) Policies
embedded in wsp 1.5 Policy.
<wsp:Policy>
<wsp20:Choice wsp:minOccurs="1" wsp:maxOccurs="2">
...
</wsp20:Choice>
...
</wsp20:Policy>
This will be treated as an Assertion for normalization and
intersection computation. This will result in only one alternative
that requires the wsp20:Choice, the intended behaviour for
incompatible changes.
Best practice: use a new namespace for new incompatible
construct and insert inside either: new Policy element OR existing
All for future incompatible policy extensions.
A future version of WS-Policy could support the current
operators in the existing namespace, such as:
Example
3-20. Policy containing 1.5 operator in 2.0 Policy
<wsp20:Policy>
<wsp:ExactlyOne>
<wsp20:Choice wsp:minOccurs="1" wsp:maxOccurs="2">
...
</wsp20:Choice>
...
</wsp:ExactlyOne>
</wsp20:Policy>
It is difficult to predict whether this functionality would be
useful. The future version of WS-Policy doesn't appear to be
precluded from doing this.
3.10.2 Policy Attachment
Policy attachment provides WSDL 1.1 and UDDI attachment points.
It appears that exchange of Policy will be in the context of WSDL
or UDDI. WRT WSDL, the policy model is an extension of the WSDL
definition. As such, it is likely that future versions of Policy
will be exchanged as multiple Policy expressions within a WSDL. One
alternative is that there would be a separate WSDL for each version
of Policy. The problem of how to specify and query for compound
documents is very difficult, so it is more likely that each version
of Policy will be exchanged within a WSDL.
We show an example of a new version of policy that allows QName
reference to Policies in the PolicyReference:
Example
3-21. WSDL containing 1.5 and 2.0 (compatible with 2.0)
Policy References.
<wsdl11:binding name="StockQuoteSoapBinding" type="fab:Quote" >
<wsoap12:binding style="document"
transport="http://schemas.xmlsoap.org/soap/http" />
<wsp:Policy>
<wsp:ExactlyOne>
<wsp:All>
<wsp:PolicyReference URI="#RmPolicy"
wsdl11:required="true" />
<wsp:PolicyReference URI="#X509EndpointPolicy"
wsdl11:required="true" />
</wsp:All>
<wsp:All>
<wsp:PolicyReferenceByQName ref="rmp:RMAssertion"
wsdl11:required="true" />
<wsp:PolicyReferenceByQName ref="sp:AsymmetricBinding"
wsdl11:required="true" />
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
<wsdl11:operation name="GetLastTradePrice" > ....
...
The PolicyReference element is attribute extensible. One example
of an addition is a list of backup URIs for the
PolicyReference:
Example
3-22. WSDL containing 1.5 and 2.0 (compatible with 2.0)
Policy References.
<wsdl11:binding name="StockQuoteSoapBinding" type="fab:Quote" >
<wsoap12:binding style="document"
transport="http://schemas.xmlsoap.org/soap/http" />
<wsp:Policy>
<wsp:ExactlyOne>
<wsp:All>
<wsp:PolicyReference URI="" wsp16:alternateURIs="URI*"
wsdl11:required="true" />
<wsp:PolicyReference URI="" wsp16:alternateURIs="URI*"
wsdl11:required="true" />
</wsp:All>
</wsp:ExactlyOne>
</wsp:Policy>
<wsdl11:operation name="GetLastTradePrice" > ....
...
The policy framework specification says that any unknown
attributes are ignored. A Policy 1.5 processor will not understand
the wsp16:alternateURI attribute, it will be ignored. A Policy 1.6
processor will understand the alternate URIs so it won't be
ignored.
PolicyAttachment and AppliesTo also have extensibility points.
We choose not to illustrate these at this time.
