Copyright © 2002 W3C® (MIT, INRIA, Keio), All Rights Reserved. W3C liability, trademark, document use, and software licensing rules apply.
SOAP Version 1.2 is a lightweight protocol intended for exchanging structured information in a decentralized, distributed environment. SOAP Version 1.2 Part 2: Adjuncts defines a set of adjuncts that may be used with SOAP Version 1.2 Part1: Messaging Framework. This specification depends on SOAP Version 1.2 Part 1: Messaging Framework [SOAP Part 1].
This section describes the status of this document at the time of its publication. Other documents may supersede this document. The latest status of this document series is maintained at the W3C.
This is the W3C Candidate Recommandation of the SOAP Version 1.2 specification for review by W3C members and other interested parties. The document is believed to be stable, and to encourage implementation by the developer community. It has been produced by the XML Protocol Working Group (WG), which is part of the Web Services Activity.
The XML Protocol Working Group expects to request that the Director advance this specification to Proposed Recommendation upon meeting the following three criteria:
Implementation experience have been gathered to demonstrate that SOAP processors based on the specification are implementable and have compatible behavior.
An implementation report shows that there are at least two different and interoperable implementations of every mandatory and optional feature. The evidence for this report is currently being summarized at http://www.w3.org/2000/xp/Group/2/03/soap1.2implementation.html.
Formal responses to all comments received by the Working Group.
The Candidate Recommendation review period ends on 24 January 2003. The review period is relatively short because implementations are already well underway, and the Working Group believes that implementation experience (e.g. from the implementations listed in http://www.w3.org/2000/xp/Group/2/03/soap1.2implementation.html) sufficient to meet its criteria will be available by 24 January 2003. Please send review comments to xmlp-comments@w3.org (public archive [XMLP Comments]). It is inappropriate to send discussion email to this address. Discussion of this document takes place on the public xml-dist-app@w3.org mailing list [XMLP Dist-App].
Patent disclosures relevant to this specification may be found on the Working Group's patent disclosure page.
Publication of this document does not imply endorsement by the W3C membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite a W3C Candidate Recommendation as anything other than a "work in progress."A list of current W3C technical reports can be found at http://www.w3.org/TR .
1. Introduction
2. SOAP Data Model
3. SOAP Encoding
4. SOAP RPC Representation
5. A Convention for Describing Features and Bindings
6. SOAP-Supplied Message Exchange Patterns and Features
7. SOAP HTTP Binding
8. References
A. The application/soap+xml Media Type
B. Mapping Application Defined Names to XML Names
C. Using W3C XML Schema with SOAP Encoding (Non-Normative)
D. Acknowledgements (Non-Normative)
1. Introduction
1.1 Notational Conventions
2. SOAP Data Model
2.1 Graph Edges
2.1.1 Edge labels
2.2 Graph Nodes
2.2.1 Single and Multi reference nodes
2.3 Values
3. SOAP Encoding
3.1 Mapping between XML and the SOAP Data Model
3.1.1 Encoding graph edges and nodes
3.1.2 Encoding simple values
3.1.3 Encoding compound values
3.1.4 Computing the Type Name property
3.1.4.1 itemType Attribute Information Item
3.1.5 Unique identifiers
3.1.5.1 id Attribute Information Item
3.1.5.2 ref Attribute Information Item
3.1.5.3 Constraints on id and ref attribute information
items
3.1.6 arraySize Attribute Information Item
3.1.7 valueType Attribute Information Item
3.2 Decoding Faults
4. SOAP RPC Representation
4.1 Use of RPC on the World Wide Web
4.1.1 Identification of RPC Resources
4.1.2 Distinguishing Resource Retrievals from other RPCs
4.2 RPC and SOAP Body
4.2.1 RPC Invocation
4.2.2 RPC Response
4.2.3 SOAP Encoding Restriction
4.3 RPC and SOAP Header
4.4 RPC Faults
5. A Convention for Describing Features and Bindings

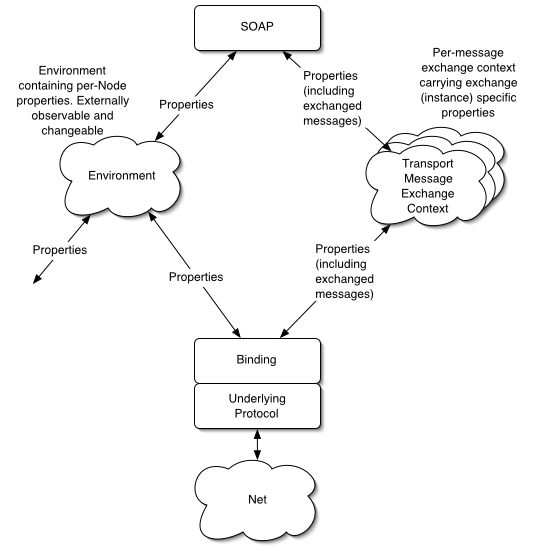

5.1 Model and Properties
5.1.1 Properties
5.1.2 Property Scope
5.1.2.1 Message Exchange Context
5.1.2.2 Environment Context
5.1.3 Properties and Features
6. SOAP-Supplied Message Exchange Patterns and Features
6.1 Property Conventions for SOAP Message Exchange Patterns
6.2 SOAP Request-Response Message Exchange Pattern
6.2.1 SOAP Feature Name
6.2.2 Description

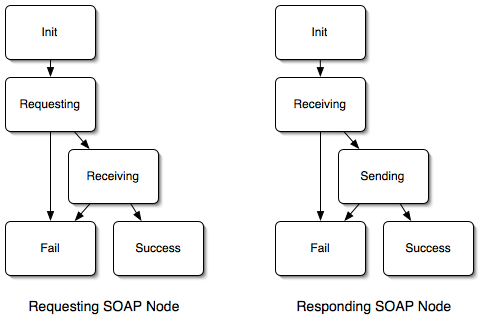

6.2.3 State Machine Description
6.2.4 Fault Handling
6.3 SOAP Response Message Exchange Pattern
6.3.1 SOAP Feature Name
6.3.2 Description
6.3.3 State Machine Description
6.3.4 Fault Handling
6.4 SOAP Web Method Feature
6.4.1 SOAP Feature Name
6.4.2 Description
6.4.3 SOAP Web Method Feature State Machine
7. SOAP HTTP Binding
7.1 Introduction
7.1.1 Optionality
7.1.2 Use of HTTP
7.1.3 Interoperability with non-SOAP HTTP Implementations
7.1.4 HTTP Media-Type
7.2 Binding Name
7.3 Supported Message Exchange Patterns
7.4 Supported Features
7.5 MEP Operation
7.5.1 Behavior of Requesting SOAP Node
7.5.1.1 Init
7.5.1.2 Requesting

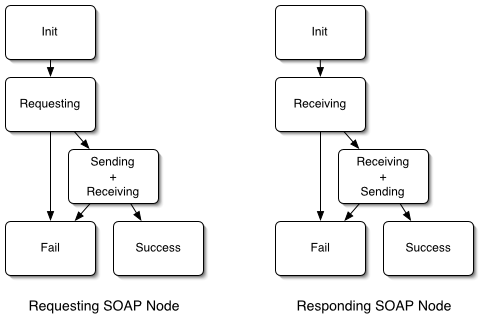

7.5.1.3 Sending+Receiving
7.5.1.4 Receiving
7.5.1.5 Success and Fail
7.5.2 Behavior of Responding SOAP Node
7.5.2.1 Init
7.5.2.2 Receiving
7.5.2.3 Receiving+Sending
7.5.2.4 Sending
7.5.2.5 Success and Fail
7.6 Security Considerations
8. References
8.1 Normative References
8.2 Informative References
A. The application/soap+xml Media Type
A.1 Registration
A.2 Security considerations
A.3 The action parameter
B. Mapping Application Defined Names to XML Names
B.1 Rules for mapping application defined names to XML Names
B.2 Examples
C. Using W3C XML Schema with SOAP Encoding (Non-Normative)
C.1 Validating using the minimum schema
C.2 Validating using the SOAP Encoding schema
C.3 Validating using more specific schemas
D. Acknowledgements (Non-Normative)
SOAP Version 1.2 (SOAP) is a lightweight protocol intended for exchange of structured information in a decentralized, distributed environment. The SOAP specification consists of three parts. Part 2 (this document) defines a set of adjuncts that MAY be used with the SOAP messaging framework:
The SOAP Data Model represents application-defined data structures and values as a directed, edge-labeled graph of nodes (see 2. SOAP Data Model).
The SOAP Encoding defines a set of rules for encoding instances of data that conform to the SOAP Data Model for inclusion in SOAP messages (see 3. SOAP Encoding).
The SOAP RPC Representation defines a convention for how to use the SOAP Data Model for representing RPC calls and responses (see 4. SOAP RPC Representation).
The section for describing features and bindings defines a convention for describing features and binding in terms of properties and property values (see 5. A Convention for Describing Features and Bindings).
The section on SOAP-Supplied Message Exchange Patterns and Features defines a request response message exchange pattern and a message exchange pattern supporting non-SOAP requests for SOAP responses, (see 6. SOAP-Supplied Message Exchange Patterns and Features).
The SOAP Web Method feature defines a feature for control of methods used on the World Wide Web (see 6.4 SOAP Web Method Feature).
The SOAP HTTP Binding defines a binding of SOAP to HTTP (see [RFC 2616]) following the rules of the SOAP Protocol Binding Framework, [SOAP Part 1] (see 7. SOAP HTTP Binding).
[SOAP Part0] is a non-normative document intended to provide an easily understandable tutorial on the features of the SOAP Version 1.2 specifications.
[SOAP Part 1] defines the SOAP messaging framework.
Note:
In previous versions of this specification the SOAP name was an acronym. This is no longer the case.
The keywords "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in [RFC 2119].
This specification uses a number of namespace prefixes throughout; they are listed in Table 1. Note that the choice of any namespace prefix is arbitrary and not semantically significant (see [XML InfoSet]).
Prefix | Namespace | Notes |
---|---|---|
env | "http://www.w3.org/2002/12/soap-envelope" | Defined by [SOAP Part 1]. |
enc | "http://www.w3.org/2002/12/soap-encoding" | A normative XML Schema [XML Schema Part1], [XML Schema Part2] document for the "http://www.w3.org/2002/12/soap-encoding" namespace can be found at http://www.w3.org/2002/12/soap-encoding. |
rpc | "http://www.w3.org/2002/12/soap-rpc" | A normative XML Schema [XML Schema Part1], [XML Schema Part2] document for the "http://www.w3.org/2002/12/soap-rpc" namespace can be found at http://www.w3.org/2002/12/soap-rpc. |
xs | "http://www.w3.org/2001/XMLSchema" | Defined in the W3C XML Schema specification [XML Schema Part1], [XML Schema Part2]. |
xsi | "http://www.w3.org/2001/XMLSchema-instance" | Defined in the W3C XML Schema specification [XML Schema Part1], [XML Schema Part2]. |
Namespace names of the general form "http://example.org/..." and "http://example.com/..." represent application or context-dependent URIs (see [RFC 2396]).
This specification uses the Extended Backus-Naur Form (EBNF) as described in [XML 1.0].
With the exception of examples and sections explicitly marked as "Non-Normative", all parts of this specification are normative.
The SOAP Data Model represents application-defined data structures and values as a directed edge-labeled graph of nodes. Components of this graph are described in the following sections.
The purpose of the SOAP Data Model is to provide a mapping of non-XML based data to some wire representation. It is important to note that use of the SOAP Data Model, the accompanying SOAP Encoding (see 3. SOAP Encoding), and/or the SOAP RPC Representation (see 4. SOAP RPC Representation) is OPTIONAL. Applications which already model data in XML may not need to use the SOAP Data Model. Due to their optional nature, it is NOT a requirement to implement the SOAP Data Model, the SOAP Encoding and/or the SOAP RPC Representation as part of a SOAP node.
Edges in the graph are said to originate at a graph node and terminate at a graph node. An edge that originates at a graph node is known as an outbound edge with respect to that graph node. An edge that terminates at a graph node is known as an inbound edge with respect to that graph node. An edge MAY originate and terminate at the same graph node. An edge MAY have only an originating graph node, that is be outbound only. An edge MAY have only a terminating graph node, that is be inbound only.
The outbound edges of a given graph node MAY be distinguished by label or by position. Position is a total order on such edges; thus, if any outbound edges from a given node are distinguished by position, then all outbound edges from that node are so distinguished.
An edge label is an XML Schema Qualified Name (see [XML Schema Part2]). Two edge labels are equal if and only if both of the following are true:
Their local name values are the same.
Either of the following is true:
Both of their namespace name values are missing.
Their namespace name values are both present and are both the same.
See 2.3 Values for uses of edge labels and position to distinguish the members of encoded values, and [XML Schema Part2] for more information about comparing XML qualified names.
A graph node has zero or more outbound edges. A graph node that has no outbound edges has an optional lexical value. All graph nodes have an optional type name of type xs:QName in the namespace named "http://www.w3.org/2001/XMLSchema" (see [XML Schema Part2]).
A simple value is represented as a graph node with a lexical value.
A compound value is represented as a graph node with zero or more outbound edges as follows:
A graph node whose outbound edges are distinguished solely by their labels is known as a "struct". The outbound edges of a struct MUST be labeled with distinct names (see 2.1.1 Edge labels).
A graph node whose outbound edges are distinguished solely by position is known as an "array". The outbound edges of an array MUST NOT be labeled.
SOAP Encoding provides a means of encoding instances of data that conform to the data model described in 2. SOAP Data Model. This encoding MAY be used to transmit data in SOAP header blocks and/or SOAP bodies. Other data models, alternate encodings of the SOAP Data Model as well as unencoded data MAY also be used in SOAP messages (see [SOAP Part 1], SOAP encodingStyle Attribute for specification of alternative encoding styles and see 4. SOAP RPC Representation for restrictions on data models and encodings used to represent SOAP Remote Procedure Calls).
The serialization rules defined in this section are
identified by the URI
"http://www.w3.org/2002/12/soap-encoding". SOAP
messages using this particular serialization SHOULD indicate
that fact by using the SOAP encodingStyle
attribute
information item (see [SOAP Part 1] SOAP
encodingStyle Attribute).
XML allows very flexible encoding of data. SOAP Encoding defines a narrower set of rules for encoding the graphs described in 2. SOAP Data Model. This section defines the encoding at a high level, and the subsequent sub-sections describe the encoding rules in more detail. The encodings described in this section can be used in conjunction with the mapping of RPC calls and responses specified in 4. SOAP RPC Representation.
The encodings are described below from the perspective of a de-serializer. In each case, the presence of an XML serialization is presumed, and the mapping to a corresponding graph is described.
More than one encoding is typically possible for a given graph. When serializing a graph for transmission inside a SOAP message, a representation that deserializes to the identical graph MUST be used; when multiple such representations are possible, any of them MAY be used. When receiving an encoded SOAP message, all representations MUST be accepted.
Each graph edge is encoded as an element information item and each element information item represents a graph edge. 3.1.3 Encoding compound values describes the relationship between edge labels and the [local name] and [namespace name] properties of such element information items.
The graph node at which an edge terminates is determined by examination of the serialized XML as follows:
If the element information item representing
the edge does not have a ref
attribute
information item (see 3.1.5.2 ref Attribute Information Item)
among its attributes then that element information
item is said to represent a node in
the graph and the edge terminates at that node.
In such cases the element
information item represents both a graph edge
and a graph node
If the element information item representing
the edge does have a ref
attribute
information item (see 3.1.5.2 ref Attribute Information Item) among its attributes,
then the value of that attribute information
item MUST be identical to the value of exactly one
id
attribute information item (
see 3.1.5.1 id Attribute Information Item) in the same envelope.
In this case the edge terminates at the graph node
represented by the element information item
on which the id
attribute information
item appears. That element information
item MUST be in the scope of an
encodingStyle
attribute with a value of
"http://www.w3.org/2002/12/soap-encoding"
(see [SOAP Part 1],
SOAP encodingStyle
Attribute).
All nodes in the graph are encoded as described in 1 above. Additional inbound edges for multi reference graph nodes are encoded as described in 2 above.
The lexical value of a graph node representing a simple value is the sequence of Unicode characters identified by the character information item children of the element information item representing that node. The element information item representing a simple value node MAY have among its attributes a 'valueType' attribute information item (see 3.1.7 valueType Attribute Information Item). Note that certain Unicode characters cannot be represented in XML (see [XML 1.0]).
An outbound edge of a graph node is encoded as an element information item child of the element information item that represents the node (see 3.1.1 Encoding graph edges and nodes). Particular rules apply depending on what kind of compound value the graph node represents. These rules are as follows:
For a graph edge which is distinguished by label, the [local name] and [namespace name] properties of the child element information item together determine the value of the edge label.
For a graph edge which is distinguished by position:
The ordinal position of the graph edge corresponds to the position of the child element information item relative to its siblings
The [local name] and [namespace name] properties of the child element information item are not significant.
The element information item representing a compound
value node MAY have among its attributes a
valueType
attribute information
item (see 3.1.7 valueType Attribute Information Item).
The following rules apply to the encoding of a graph node that represents an "array":
The element information item
representing an array node MAY have among its
attributes an itemType
attribute
information item (see 3.1.4.1 itemType Attribute Information Item).
The element information item
representing an array node MAY have among its
attributes an arraySize
attribute
information item (see 3.1.6 arraySize Attribute Information Item).
If a graph edge does not terminate in a graph node then it can either be omitted from the serialization or it can be encoded as an element information item with an xsi:nil attribute information item whose value is "true".
The type name property of a graph node is a {namespace name, local name} pair computed as follows:
If the element information item representing the
graph node has an xsi:type
attribute
information item
among its attributes then the type name property of the
graph node is the value of the xsi:type
attribute
information item.
Note:
This attribute is of type xs:QName (see [XML Schema Part2]); its value consists of the pair {namespace name, local name}. Neither the prefix used to construct the QName nor any information relating to any definition of the type is considered to be part of the value. The SOAP graph carries only the qualified name of the type.
Otherwise if the parent element information item of the
element information item representing the graph
node has an enc:itemType
attribute
information item (see 3.1.4.1 itemType Attribute Information Item)
among its attributes then the type
name property of the graph node is the value of the
enc:itemType
attribute information item
Otherwise the value of the type name property of the graph node is unspecified.
Note:
These rules define how the type name property of a graph node in a graph is computed from a serialized encoding. This specification does not mandate validation using any particular schema language or type system. Nor does it include built in types or provide any standardized faults to reflect value/type name conflicts.
However, nothing prohibits development of additional specifications to describe the use of SOAP Encoding with particular schema languages or type systems. Such additional specifications MAY mandate validation using particular schema language, and MAY specify faults to be generated if validation fails. Such additional specifications MAY specify augmentations to the deserialized graph based on information determined from such a validation. The use by SOAP Encoding of xsi:type is intended to facilitate integration with the W3C XML Schema language (see C. Using W3C XML Schema with SOAP Encoding). Other XML based schema languages, data schemas and programmatic type systems MAY be used but only to the extent that they are compatible with the serialization described in this specification.
The itemType
attribute information item has
the following Infoset properties:
A [local name] of itemType
.
A [namespace name] of "http://www.w3.org/2002/12/soap-encoding".
A [specified] property with a value of "true".
The type of the itemType
attribute
information item is xs:QName.
The value of the itemType
attribute
information item is used to compute the type name
property (see 3.1.4 Computing the Type Name property) of members of
an array.
The id
attribute information item has
the following Infoset properties:
A [local name] of id
.
A [namespace name] of "http://www.w3.org/2002/12/soap-encoding".
A [specified] property with a value of "true".
The type of the id
attribute
information item is xs:ID.
The value of the id
attribute information
item is a unique identifier that can be referred to by
a ref
attribute information item
(see 3.1.5.2 ref Attribute Information Item).
The ref
attribute information item has
the following Infoset properties:
A [local name] of ref
.
A [namespace name] of "http://www.w3.org/2002/12/soap-encoding".
A [specified] property with a value of "true".
The type of the ref
attribute information
item is xs:IDREF.
The value of the ref
attribute information
item is a reference to a unique identifier defined
by an id
attribute information item
(see 3.1.5.1 id Attribute Information Item).
The value of a ref
attribute information item MUST also be
the value of exactly one id
attribute information item.
A ref
attribute information item and
an id
attribute information item
MUST NOT appear on the same element information item.
The arraySize
attribute information item has
the following Infoset properties:
A [local name] of arraySize
.
A [namespace name] of "http://www.w3.org/2002/12/soap-encoding".
The type of the arraySize
attribute
information item is enc:arraySize.
The value of the arraySize
attribute information item
MUST conform to the following EBNF grammar
[1] | arraySizeValue | ::= | ("*" | concreteSize) nextConcreteSize* |
[2] | nextConcreteSize | ::= | whitespace concreteSize |
[3] | concreteSize | ::= | [0-9]+ |
[4] | whitespace | ::= | (#x20 | #x9 | #xD | #xA)+ |
The array's dimensions are represented by each item
in the list of sizes (unspecified size in case of
the asterisk). The number of items in the list
represents the
number of dimensions in the array. The asterisk, if present,
MUST only appear in the first position in the list.
The default value of the arraySize
attribute information item is "*", that is by
default arrays are considered to have a single dimension
of unspecified size.
The valueType
attribute information item has
the following Infoset properties:
A [local name] of valueType
.
A [namespace name] of "http://www.w3.org/2002/12/soap-encoding".
A [specified] property with a value of "true".
The type of the valueType
attribute
information item is enc:valueType.
The value of the valueType
attribute information item
MUST, if present, be one of the strings "simple" or "struct" or "array". The value
indicates what kind of a value this node represents - a simple value, a
compound struct value or a compound array value respectively.
During deserialization a SOAP receiver:
SHOULD generate an "env:Sender" SOAP
fault with a subcode of enc:MissingID
if the message contains a ref
attribute
information item but no corresponding id
attribute information item (see 3.1.5.3 Constraints on id and ref attribute information
items).
SHOULD generate an "env:Sender" SOAP
fault with a subcode of enc:DuplicateID
if the message contains two or more id
attribute
information item that have the same value. (see 3.1.5.3 Constraints on id and ref attribute information
items).
MAY generate an "env:Sender" SOAP fault with a
subcode of enc:UntypedValue
if the type name
property of an encoded graph node is unspecified.
One of the design goals of SOAP is to facilitate the exchange of messages that map conveniently to definitions and invocations of method and procedure calls in commonly used programming languages. For that purpose, this section defines a uniform representation of RPC requests and responses. It does not define actual mappings to any particular programming language. The representation is entirely platform independent and considerable effort has been made to encourage usage that is consistent with the Web in general.
As mentioned in section 2. SOAP Data Model, use and implementation of the SOAP RPC Representation is OPTIONAL.
The SOAP encodingStyle
attribute information item (see
[SOAP Part 1] SOAP encodingStyle
Attribute) is used to indicate the encoding style of
the RPC representation. The encoding thus specified MUST support the 2. SOAP Data Model. The encoding style defined in 3. SOAP Encoding supports such constructs and is therefore
suitable for use with the SOAP RPC Representation.
This SOAP RPC Representation is not predicated on any SOAP protocol binding. When SOAP is bound to HTTP, an RPC invocation maps naturally to an HTTP request and an RPC response maps to an HTTP response. (see 7. SOAP HTTP Binding). However, the SOAP RPC Representation is not limited to the SOAP HTTP Binding.
To invoke an RPC, the following information is needed:
The address of the target SOAP node.
A procedure or method name.
The identities and values of any arguments to be passed to the procedure or method. Arguments used to identify Web resources SHOULD be distinguished from those representing data or control information (see 4.1.1 Identification of RPC Resources.)
Values for properties as required by any features of the
binding to be used. For example, "GET" or "POST"
for the http://www.w3.org/2002/12/soap/features/web-method/Method
property of the 6.4 SOAP Web Method Feature.
Optional header data.
SOAP RPC relies on the protocol binding to provide a mechanism for carrying the URI of the target SOAP node. For HTTP the request URI indicates the resource against which the invocation is being made. Other than requiring it to be a valid URI, SOAP places no restriction on the form of an identifier (see [RFC 2396] for more information on URIs). The section 4.1.1 Identification of RPC Resources further discusses the use of URIs for identifying RPC resources.
The SOAP RPC Representation employs the 6.2 SOAP Request-Response Message Exchange Pattern and 6.3 SOAP Response Message Exchange Pattern. Use of the SOAP RPC Representation with other MEPs MAY be possible, but is beyond the scope of this specification.
The following guidelines SHOULD be followed when deploying SOAP RPC applications on the World Wide Web.
The World Wide Web identifies resources with URIs, but common programming conventions convey identification information in the arguments to procedures, or in the names of those procedures. For example, the call:
updateQuantityInStock(PartNumber="123", NewQuantity="200")
suggests that the resource to be
updated is the QuantityInStock
for PartNumber
"123".
Accordingly, when mapping to
or from a programming language method or procedure call, any arguments that serve to identify resources
(such as the part number above) should when practical be represented in the URI to which the SOAP message is addressed.
When mapping to or from a programming language method or procedure call, the name of which
identifies or qualifies the identification of a resource (such as QuantityInStock above), such naming or
qualification should when practical be represented in the URI to which the SOAP message is addressed.
No standard means of representation of arguments or method names is provided by this specification.
Note:
Conventions for specific URI encodings of procedure names and arguments, as well as for controlling the inclusion of such arguments in the SOAP RPC body could be established in conjunction with the development of Web Service interface description languages, could be developed when SOAP is bound to particular programming languages, or could be established on an application or procedure-specific basis.
The World Wide Web depends on mechanisms that optimize commonly performed information retrieval tasks. Specifically, protocols such as HTTP (see [RFC 2616]) provide a GET method which is used to perform safe retrievals, i.e. to perform retrievals that are idempotent, free of side effects, and for which security considerations do not preclude the use of cached results or URI-based resource identification.
Certain procedure or method calls represent requests for information retrieval. For example, the call:
getQuantityInStock(PartNumber="123")
might be used to retrieve the quantity established in the example above.
The following conventions can be employed to implement SOAP retrievals and other RPCs on the Web:
The conventions described in 4.1.1 Identification of RPC Resources are used to identify the resource with a URI.
In cases where all the arguments have been represented in the URI,
no SOAP header blocks are to be transmitted and the operation is a safe
retrieval, the 6.4 SOAP Web Method Feature and the 6.3 SOAP Response Message Exchange Pattern are used. Accordingly, no SOAP envelope is
transmitted for the request, and the
http://www.w3.org/2002/12/soap/features/web-method/Method
property is set to "GET". The results of the retrieval
are a SOAP RPC response as described in 4.2.2 RPC Response
In cases where the operation to be performed is not a retrieval, when
SOAP header blocks are to be transmitted (a digital signature, for example),
or when a retrieval is not safe, the 6.4 SOAP Web Method Feature and the 6.2 SOAP Request-Response Message Exchange Pattern are used. The
request envelope is encoded as described in 4.2.1 RPC Invocation, and the results are as described in 4.2.2 RPC Response. The http://www.w3.org/2002/12/soap/features/web-method/Method
property is
set to "POST".
The SOAP RPC Representation does not define any other value for the
http://www.w3.org/2002/12/soap/features/web-method/Method
.
RPC invocations (except for safe retrievals: see 4.1.2 Distinguishing Resource Retrievals from other RPCs) and responses are both carried in the
SOAP Body
element (see [SOAP Part 1] SOAP Body) using the
following representation:
An RPC invocation is modeled as follows:
The invocation is represented by a single struct containing an outbound edge for each [in] or [in/out] parameter. The struct is named identically to the procedure or method name and the conventions of B. Mapping Application Defined Names to XML Names SHOULD be used to represent method names that are not legal XML names.
Each outbound edge has a label corresponding to the name of the parameter. The conventions of B. Mapping Application Defined Names to XML Names SHOULD be used to represent parameter names that are not legal XML names.
Applications MAY process invocations with missing parameters but also MAY fail to process the invocation and return a fault.
An RPC response is modeled as follows:
The response is represented by a single struct containing an outbound edge for the return value and each [out] or [in/out] parameter.
Each parameter is represented by an outbound edge with a label corresponding to the name of the parameter. The conventions of B. Mapping Application Defined Names to XML Names SHOULD be used to represent parameter names that are not legal XML names.
A non-void return value is represented as follows:
There MUST be an outbound edge with a local name of result
and a namespace
name of "http://www.w3.org/2002/12/soap-rpc"
which terminates in a terminal node
The type of that terminal node is a xs:QName and its value is the name of the outbound edge which terminates in the actual return value.
If the return value of the procedure is void
then an outbound edge with a local name of result
and a namespace
name of "http://www.w3.org/2002/12/soap-rpc"
MUST NOT be present.
Invocation faults are handled according to the rules in 4.4 RPC Faults. If a protocol binding adds additional rules for fault expression, those MUST also be followed.
When using SOAP encoding (see 3. SOAP Encoding) in
conjunction with the RPC convention described here, the SOAP
Body
MUST contain only a single child element
information item, that child being the serialized RPC
invocation or response struct.
Additional information relevant to the encoding of an RPC invocation but not part of the formal procedure or method signature MAY be expressed in a SOAP envelope carrying an RPC invocation or response. Such additional information MUST be expressed as SOAP header blocks.
The SOAP RPC Representation introduces additional SOAP fault subcode values to be used in conjunction with the fault codes described in [SOAP Part 1] SOAP Fault Codes.
Errors arising during RPC invocations are reported according to the following rules:
A fault with a Value
of
Code
set to "env:Receiver" SHOULD
be generated when the receiver cannot handle the message
because of some temporary condition, e.g. when it is out of
memory.
Note:
Throughout this document, the term "Value
of
Code
" is used as a shorthand for "value of
the Value
child element information
item of the Code
element
information item" (see [SOAP Part 1], SOAP Code
Element ).
A fault with a Value
of Code
set to "env:DataEncodingUnknown"
SHOULD be generated when the arguments
are encoded in a data encoding unknown to the
receiver.
A fault with a Value
of Code
set to "env:Sender" and a
Value
of Subcode
set to
"rpc:ProcedureNotPresent"
MAY be generated when the receiver
does not support the procedure or method specified.
Note:
Throughout this document, the term "Value
of
Subcode
" is used as a shorthand for "value of
the Value
child element information
item of the Subcode
element
information item" (see [SOAP Part 1], SOAP Subcode
element).
A fault with a Value
of Code
set to "env:Sender" and a
Value
of Subcode
set to
"rpc:BadArguments"
MUST be generated when the receiver
cannot parse the arguments or when there is a
mismatch in number and/or type of the arguments
between what the receiver expects and what was
sent.
Other faults arising in an extension or from the application SHOULD be generated as described in [SOAP Part 1] SOAP Fault Codes.
In all cases the values of the Detail
and
Reason
element information items
are implementation defined. Details of their use MAY be specified by an
external document.
Note:
Senders might receive different faults from those listed above in response to an RPC invocation if the receiver does NOT support the (optional) RPC convention described here.
This section describes a convention describing Features (including MEPs) and Bindings in terms of properties and property values. The convention is sufficient to describe the distributed states of Feature and Binding specifications as mandated by the Binding Framework (see [SOAP Part 1] SOAP Protocol Binding Framework) and it is used to describe a Request-Response MEP (see 6.2 SOAP Request-Response Message Exchange Pattern), a Response MEP (see 6.3 SOAP Response Message Exchange Pattern), the SOAP Web Method feature (see 6.4 SOAP Web Method Feature) and the SOAP HTTP Binding (see 7. SOAP HTTP Binding) elsewhere in this document. Along with the convention itself, an informal model is defined that describes how properties propagate through a SOAP system. Note that this model is intended to be illustrative only, and is not meant to imply any constraints on the structure or layering of any particular SOAP implementation.
In general, a SOAP message is the information that one SOAP node wishes to exchange with another SOAP node according to a particular set of features, including a MEP. In addition, there may be information essential to exchanging a message that is not part of the message itself. Such information is sometimes called message meta-data. In the model, the message, any message meta-data, and the various information items that enable features are represented as abstractions called properties.
Under the convention, properties are represented as follows:
Properties are named with URIs.
Where appropriate, property values SHOULD have an XML Schema type listed in the specification which introduces the property.
Properties within a SOAP node differ in terms of their scope and the origins of their values. As shown in the figure below, we make the distinction between per message-exchange and more widely scoped properties by assigning them to different containers called Message Exchange Context and Environment Context respectively. All properties, regardless of their scope, are shared by a SOAP node and a particular Binding.
Figure 1: Model describing properties shared between SOAP and Binding
A message exchange context is a collection of properties whose scope is limited to an instance of a given message exchange pattern. An example of a message exchange context property is the identifier of the message exchange pattern in use.
The environment context is a collection of properties whose scope extends beyond an instance of a given message exchange pattern. Examples of environment context properties are the IP address of the SOAP node or the current date and time.
The values of properties in Environment may depend upon local circumstances (as depicted by the external arrow from Environment in the figure above). More specifically, the properties in the example could be influenced by an operating system user ID on whose behalf a message exchange is being executed. The mapping of information in a particular implementation to such properties is outside the scope of the binding framework although the abstract representation of such information as properties is not.
A feature may be expressed through multiple properties and a single property may enable more than one feature. For example, the properties called User ID and Password may be used to enable a feature called Authentication. As a second example, a single property called Message ID could be used to enable one feature called Transaction and a second feature called Message Correlation.
Table 2 describes the properties (in accordance with the property naming conventions defined in this document) that support the description of message exchange patterns (MEPs). Other properties may be involved in the specification of particular MEPs, but the properties in this table are generally applicable to all MEPs.
Property Name | Property Description | Property Type |
---|---|---|
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
The name of the MEP in operation. |
xs:anyURI |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason |
A value that denotes a pattern specific, binding independent reason for the failure of a message exchange. Underlying protocol binding specifications may define properties to convey more binding specific details of the failure. | xs:anyURI |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role |
The identifier of the pattern specific role of the local SOAP node participating in the message exchange. |
xs:anyURI |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/State |
The identifier of the current state of the message exchange. This value is managed by the binding instance and may be inspected by other entities monitoring the progress of the message exchange. |
xs:anyURI |
This section defines the message exchange pattern (MEP) called "Request-Response". The description is an abstract presentation of the operation of this MEP. It is not intended to describe a real implementation or to suggest how a real implementation should be structured.
This message exchange pattern is identified by the URI (see [SOAP Part 1] SOAP Features):
"http://www.w3.org/2002/12/soap/mep/request-response/"
The SOAP Request-Response MEP defines a pattern for the exchange of a SOAP message acting as a request followed by a SOAP message acting as a response. In the absence of failure in the underlying protocol, this MEP consists of exactly two SOAP messages.
In the normal operation of a message exchange conforming to the Request-Response MEP, a request message is first transferred from the requesting SOAP node to the responding SOAP node. Following the successful processing of the request message by the responding SOAP node, a response message is transferred from the responding SOAP node to the requesting SOAP node.
Abnormal operation during a Request-Response message exchange might be caused by a failure to transfer the request message, a failure at the responding SOAP node to process the request message, or a failure to transfer the response message. Such failures might be silent at either or both of the requesting and responding SOAP nodes involved, or might result in the generation of a SOAP or binding-specific fault (see 6.2.4 Fault Handling). Also, during abnormal operation each SOAP node involved in the message exchange might differ in its determination of the successful completion of the message exchange.
The scope of a Request-Response MEP is limited to the exchange of a request message and a response message between one requesting and one responding SOAP node. This pattern does not mandate any correlation between multiple requests nor specific timing for multiple requests. Implementations MAY choose to support multiple ongoing requests (and associated response processing) at the same time.
The Request-Response MEP defines a set of properties described in Table 3.
Property Name | Property Description | Property Type |
---|---|---|
http://www.w3.org/2002/12/soap/mep/OutboundMessage |
An abstract structure that represents the current outbound message in the message exchange. This abstracts both SOAP Envelope and any other information structures that are transferred along with the envelope. | Not specified |
http://www.w3.org/2002/12/soap/mep/InboundMessage |
An abstract structure that represents the current inbound message in the message exchange. This abstracts both SOAP Envelope and any other information structures that are transferred along with the envelope. | Not specified |
http://www.w3.org/2002/12/soap/mep/ImmediateDestination |
The identifier of the immediate destination of an outbound message. | xs:anyURI |
http://www.w3.org/2002/12/soap/mep/ImmediateSender |
The identifier of the immediate sender of an inbound message. | xs:anyURI |
To initiate a message exchange conforming to the Request-Response MEP, the requesting SOAP node instantiates a local message exchange context. Table 4 describes how the context is initialized.
Property Name | Property Value | Notes |
---|---|---|
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
"http://www.w3.org/2002/12/soap/mep/request-response/" | |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason |
"None" |
A relative URI whose
base URI is the value of
|
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role |
"RequestingSOAPNode/" |
A relative URI whose
base URI is the value of
|
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/State |
"Init" |
A relative URI whose base URI is the value of
|
http://www.w3.org/2002/12/soap/mep/OutboundMessage |
An abstraction of the request message | |
http://www.w3.org/2002/12/soap/mep/ImmediateDestination |
An identifier (URI) that denotes the responding SOAP node |
There may be other properties related to the operation of the message exchange context instance. Such properties are initialized according to their own feature specifications.
Once the message exchange context is initialized, control of the context is passed to a (conforming) local binding instance.
The diagram below shows the logical state transitions at
the requesting and responding SOAP nodes during the lifetime
of the message exchange. At each SOAP node, the local binding
instance updates (logically) the value of the
http://www.w3.org/2002/12/soap/bindingFramework/
ExchangeContext/State
property to reflect the current
state of the message exchange. The state names are relative
URIs, relative to a base URI value carried in the
http://www.w3.org/2002/12/soap/bindingFramework/
ExchangeContext/Role
property of the local message
exchange context.
Figure 2: Request-Response MEP State Transition Diagram.
When the local binding instance at the responding SOAP node starts to receive an inbound request message, it (logically) instantiates a message exchange context. Table 5 describes the properties that the binding initializes as part of the context's instantiation.
Property Name | Property Value | Notes |
---|---|---|
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
"http://www.w3.org/2002/12/soap/mep/request-response/" | Initialized as early as possible during the life cycle of the message exchange. |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason |
"None" | A relative URI whose base URI is the value of http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role |
"RespondingSOAPNode" |
A relative URI whose base URI is the value of Initialized as early as possible during the life cycle the message exchange. |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/State |
"Init" | A relative URI whose base URI is the
value of http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role |
When the requesting and responding SOAP nodes transition between states, the local binding instance (logically) updates a number of properties. Table 6 and Table 7 describe these updates for the requesting and the responding SOAP nodes, respectively.
CurrentState | Transition Condition | NextState | Action |
---|---|---|---|
"Init" | Unconditional | "Requesting" | Initiate transmission of request message
abstracted in
http://www.w3.org/2002/12/soap/mep/OutboundMessage . |
"Requesting" | Message transmission failure | "Fail" | Set
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"transmissionFailure" |
Start receiving response message | "Sending+Receiving" | Set
http://www.w3.org/2002/12/soap/mep/ImmediateSender to denote the sender of the response message (may differ from the values in http://www.w3.org/2002/12/soap/mep/ImmediateDestination ).
Start making an abstraction of the response message available in http://www.w3.org/2002/12/soap/mep/InboundMessage . |
|
"Sending+Receiving" | Message exchange failure | "Fail" | Set
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"exchangeFailure" |
Completed sending request message. Completed receiving response message. | "Success" |
CurrentState | Transition Condition | NextState | Action |
---|---|---|---|
"Init" | Start receiving request message | "Receiving" | Set
http://www.w3.org/2002/12/soap/mep/ImmediateSender to denote the sender of the request message (if determinable).
Start making an abstraction of the request message available in http://www.w3.org/2002/12/soap/mep/InboundMessage .
Pass control of message exchange context to SOAP processor. |
"Receiving" | Message reception failure | "Fail" | Set
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"receptionFailure". |
Start of response message available in http://www.w3.org/2002/12/soap/mep/OutboundMessage |
"Receiving+Sending" | Initiate transmission of response message abstracted in http://www.w3.org/2002/12/soap/mep/OutboundMessage . |
|
"Receiving+Sending" | Message exchange failure | "Fail" | Set http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"exchangeFailure". |
Completed receiving request message. Completed sending response message. | "Success" |
Bindings that implement this MEP MAY provide for streaming of SOAP responses. That is, responding SOAP nodes MAY begin transmission of a SOAP response while a SOAP request is still being received and processed. When SOAP nodes implement bindings that support streaming, the following rules apply:
All the rules in [SOAP Part 1] Binding Framework regarding streaming of individual SOAP messages MUST be obeyed for both request and response SOAP messages.
When using streaming SOAP bindings, requesting SOAP nodes MUST avoid deadlock by accepting and if necessary processing SOAP response information while the SOAP request is being transmitted.
Note:
Depending on the implementation used and the size of the messages involved, this rule MAY require that SOAP applications stream application-level response processing in parallel with request generation.
A requesting SOAP node MAY enter the "Fail" state, and thus abort transmission of the outbound SOAP request, based on information contained in an incoming streamed SOAP response.
During the operation of the Request-Response MEP, the participating SOAP nodes may generate SOAP faults.
If a SOAP fault is generated by the responding SOAP node
while it is in the "Receiving" state, the SOAP
fault is made available in http://www.w3.org/2002/12/soap/mep/OutboundMessage
and the
state machine transitions to the "Receiving+Sending" state.
This MEP makes no claims about the disposition or handling of SOAP faults generated by the requesting SOAP node during any processing of the response message that follows the "Success" state in the requesting SOAP node's state transition table (see Table 6).
This section defines the message exchange pattern (MEP) called "SOAP Response". The description is an abstract presentation of the operation of this MEP. It is not intended to describe a real implementation or to suggest how a real implementation should be structured.
This message exchange pattern is identified by the URI (see [SOAP Part 1] SOAP Features):
"http://www.w3.org/2002/12/soap/mep/soap-response/"
The SOAP Response MEP defines a pattern for the exchange of a non-SOAP message acting as a request followed by a SOAP message acting as a response. In the absence of failure in the underlying protocol, this MEP consists of exactly two messages, only one of which is a SOAP message:
A request transmitted in a binding-specific manner that does not include a SOAP envelope and hence does not involve any SOAP processing by the receiving SOAP node.
A response message which contains a SOAP envelope. The MEP is completed by the processing of the SOAP envelope following the rules of the SOAP processing model (see [SOAP Part 1], section SOAP Processing Model).
Abnormal operation during a SOAP Response message exchange might be caused by a failure to transfer the request message or the response message. Such failures might be silent at either or both of the requesting and responding SOAP nodes involved, or might result in the generation of a SOAP or binding-specific fault (see section 6.3.4 Fault Handling). Also, during abnormal operation each SOAP node involved in the message exchange might differ in its determination of the successful completion of the message exchange.
The scope of a SOAP Response MEP is limited to the request for an exchange of a response message between one requesting and one responding SOAP node. This pattern does not mandate any correlation between multiple requests nor specific timing for multiple requests. Implementations MAY choose to support multiple ongoing requests (and associated response processing) at the same time.
Note:
This MEP cannot be used in conjunction with features expressed as SOAP header blocks in the request because there is no SOAP envelope in which to carry them.
The SOAP Response MEP defines a set of properties described in Table 8.
Property Name | Property Description | Property Type |
---|---|---|
http://www.w3.org/2002/12/soap/mep/OutboundMessage
|
An abstract structure that represents the current outbound message in the message exchange. This abstracts both SOAP Envelope Infoset (which MAY be null) and any other information structures that are transferred along with the envelope. | Not specified |
http://www.w3.org/2002/12/soap/mep/InboundMessage
|
An abstract structure that represents the current inbound message in the message exchange. This abstracts both SOAP Envelope Infoset (which MAY be null) and any other information structures that are transferred along with the envelope. | Not specified |
http://www.w3.org/2002/12/soap/mep/ImmediateDestination
|
The identifier of the immediate destination of an outbound message. |
xs:anyURI |
http://www.w3.org/2002/12/soap/mep/ImmediateSender
|
The identifier of the immediate sender of an inbound message. |
xs:anyURI |
To initiate a message exchange conforming to the SOAP Response MEP, the requesting SOAP node instantiates a local message exchange context. Table 9 describes how the context is initialized.
Property Name | Property Value | Notes |
---|---|---|
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName
|
"http://www.w3.org/2002/12/soap/mep/soap-response/" | |
FailureReason
|
"None" | A relative URI whose base URI is the value of http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role
|
"RequestingSOAPNode" |
A relative URI whose base URI is the value of http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/State
|
"Init" | A relative URI whose
base URI is the value of
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role |
http://www.w3.org/2002/12/soap/mep/OutboundMessage
|
An abstraction of the request message that does not include a SOAP envelope infoset. | |
http://www.w3.org/2002/12/soap/mep/ImmediateDestination
|
An identifier (URI) that denotes the responding SOAP node |
There may be other properties related to the operation of the message exchange context instance. Such properties are initialized according to their own feature specifications.
Once the message exchange context is initialized, control of the context is passed to a (conforming) local binding instance.
The diagram below shows the logical state transitions at
the requesting and responding SOAP nodes during the lifetime
of the message exchange. At each SOAP node, the local binding
instance updates (logically) the value of the
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/State
property to
reflect the current state of the message exchange. The state names
are relative URIs, relative to a Base URI value carried in
the http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role
property of the local
message exchange context.
Figure 3: SOAP Response MEP State Transition Diagram
When the local binding instance at the responding SOAP node starts to receive an inbound request message, it (logically) instantiates a message exchange context. Table 10 describes the properties that the binding initializes as part of the context's instantiation.
Property Name | Property Value | Notes |
---|---|---|
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName
|
"http://www.w3.org/2002/12/soap/mep/soap-response/" |
Initialized as early as possible during the life cycle of the message exchange. |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason
|
"None" | A relative URI whose
base URI is the value of http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role
|
"RespondingSOAPNode" |
A relative URI whose
base URI is the value of Initialized as early as possible during the life cycle the message exchange. |
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/State
|
"Init" | A relative URI whose
base URI is the value of http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role |
When the requesting and responding SOAP nodes transition between states, the local binding instance (logically) updates a number of properties. Table 11 and Table 12 describe these updates for the requesting and the responding SOAP nodes, respectively.
CurrentState | Transition Condition | NextState | Action |
---|---|---|---|
"Init" | Unconditional | "Requesting" | Initiate request |
"Requesting" | Message transmission failure | "Fail" | Set
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"transmissionFailure"
|
Start receiving response message | "Receiving" | Set
http://www.w3.org/2002/12/soap/mep/ImmediateSender to denote the sender of the response message
(may differ from the values in http://www.w3.org/2002/12/soap/mep/ImmediateDestination ).
Start making an abstraction of the response message available in
http://www.w3.org/2002/12/soap/mep/InboundMessage . |
|
"Receiving" | Message exchange failure | "Fail" | Set
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"exchangeFailure"
|
Completed receiving response message. | "Success" |
CurrentState | Transition Condition | NextState | Action |
---|---|---|---|
"Init" | Start receiving request | "Receiving" |
Set |
"Receiving" | Message reception failure | "Fail" | Set
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"receptionFailure". |
Start of response message available in
http://www.w3.org/2002/12/soap/mep/OutboundMessage
|
"Sending" | Initiate transmission of response message abstracted in
http://www.w3.org/2002/12/soap/mep/OutboundMessage .
|
|
"Sending" | Message exchange failure | "Fail" | Set http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/FailureReason to
"exchangeFailure". |
Completed sending response message. | "Success" |
During the operation of the SOAP Response MEP, the participating SOAP nodes may generate SOAP faults.
If a SOAP fault is generated
by the responding SOAP node while it is in the
"Receiving" state, the SOAP fault is
made available in
http://www.w3.org/2002/12/soap/mep/OutboundMessage
and the state machine transitions to the
"Sending" state.
This MEP makes no claims about the disposition or handling of SOAP faults generated by the requesting SOAP node during any processing of the response message that follows the "Success" state in the requesting SOAP node's state transition table (see Table 11).
This section defines the "SOAP Web Method Feature".
The SOAP Web Method feature is identified by the URI (see [SOAP Part 1] SOAP Features):
"http://www.w3.org/2002/12/soap/features/web-method/"
Underlying protocols designed for use on the World Wide Web provide for manipulation of resources using a small set of Web methods such as GET, PUT, POST, and DELETE. These methods are formally defined in the HTTP specification [RFC 2616], but other underlying protocols might also support them. Bindings to HTTP or such other protocols SHOULD use the SOAP Web Method feature to give applications control over the Web methods to be used when sending a SOAP message.
Bindings supporting this feature SHOULD use the appropriate embodiment of that method if provided by the underlying protocol; for example, the HTTP binding provided with this specification represents the "GET" Web method as an HTTP GET request, and the "POST" method as an HTTP POST request (see 7. SOAP HTTP Binding). Bindings supporting this feature SHOULD provide to the receiving node indication of the Web method used for transmission.
The SOAP Web Method feature MAY be implemented by bindings to underlying transports that have no preferred embodiment of particular Web methods (e.g. do not distinguish GET from POST). Such bindings SHOULD provide to the receiving node indication of the Web method used for transmission, but need take no other action in support of the feature.
The SOAP Web Method feature defines a single property, which is described in Table 13.
Property Name | Property Description | Property Type |
---|---|---|
http://www.w3.org/2002/12/soap/features/web-method/Method
|
One of "GET", "POST", "PUT", "DELETE" (or others which may subsequently be added to the repertoire of Web methods.) | Not specified |
This specification provides for the use of the SOAP Web Method feature in conjunction with the 6.2 SOAP Request-Response Message Exchange Pattern and 6.3 SOAP Response Message Exchange Pattern message exchange patterns. This feature MAY be used with other MEPs if and only if provided for in the specifications of those MEPs.
A node sending a request message MUST provide a value for the
http://www.w3.org/2002/12/soap/features/web-method/Method
property.
A protocol binding supporting this feature SHOULD set the value of the
http://www.w3.org/2002/12/soap/features/web-method/Method
property at the receiving node to match that provided by the sender;
the means of
transmission for the method property is binding-specific.
A responding node SHOULD respond in a manner consistent with the Web method requested (e.g. a "GET" should result in retrieval of a representation of the identified resource) or SHOULD fault in an application-specific manner if the Web method cannot be supported.
Bindings implementing this feature MUST employ a Message Exchange Pattern with semantics that are compatible with the Web method selected. For example, the SOAP Response Message Exchange Pattern (see 6.3 SOAP Response Message Exchange Pattern) is compatible with GET.
Editorial note: JJM/MJH | 20020919 |
This section had grown over time into an unmanageable entity, with information spread over several paragraphs and notes in an unorganized manner. The editors felt that this situation could be easily remedied by merely shuffling paragraphs around and by creating a clear and coherent structure with four new subsections. This revised section is the result of that change. Unless decorated in green or red (as a result of some other issue resolution) the text has otherwise NOT changed. |
The SOAP HTTP Binding provides a binding of SOAP to HTTP. The binding conforms to the SOAP Protocol Binding Framework (see [SOAP Part 1] SOAP Protocol Binding Framework) and supports the message exchange patterns and features described in 6. SOAP-Supplied Message Exchange Patterns and Features.
The SOAP HTTP Binding is optional and SOAP nodes are NOT required to implement it. A SOAP node that correctly and completely implements the SOAP HTTP Binding may to be said to "conform to the SOAP 1.2 HTTP Binding."
The SOAP version 1.2 specification does not preclude development of other bindings to HTTP or bindings to other protocols, but communication with nodes using such other bindings is not a goal. Note that other bindings of SOAP to HTTP MAY be written to provide support for SOAP Message exchange patterns other than 6.2 SOAP Request-Response Message Exchange Pattern or the 6.3 SOAP Response Message Exchange Pattern. Such alternate bindings MAY therefore make use of HTTP features and status codes not required for this binding. For example, another binding might provide for a 202 or 204 HTTP response status to be returned in response to an HTTP POST or PUT (e.g. a one-way "push" MEP with confirmation).
The SOAP HTTP binding defines a base URI according to the rules in HTTP/1.1[RFC 2616]. I.e. the base URI is the HTTP Request-URI or the value of the HTTP Content-Location header field.
This binding of SOAP to HTTP is intended to make appropriate use of HTTP as an application protocol. For example, successful responses are sent with status code 200, and failures are indicated as 4XX or 5XX. This binding is not intended to fully exploit the features of HTTP, but rather to use HTTP specifically for the purpose of communicating with other SOAP nodes implementing the same binding. Therefore, this HTTP binding for SOAP does not specify the use and/or meaning of all possible HTTP methods, header fields and status responses. It specifies only those which are pertinent to the 6.2 SOAP Request-Response Message Exchange Pattern or the 6.3 SOAP Response Message Exchange Pattern, or which are likely to be introduced by HTTP mechanisms (such as proxies) acting between the SOAP nodes.
Certain optional features provided by this binding depend on capabilities provided by HTTP/1.1, for example content negotiation. Implementations SHOULD thus use HTTP/1.1 [RFC 2616] (or later compatible versions that share the same major version number). Implementations MAY also be deployed using HTTP/1.0, although in this case certain optional binding features may not be provided.
Note:
SOAP HTTP Binding implementations need to account for the fact that HTTP/1.0 intermediaries (which may or may not also be SOAP intermediaries) may alter the representation of SOAP messages, even in situations where both the initial SOAP sender and ultimate SOAP receiver use HTTP/1.1.
Particularly when used with the 6.3 SOAP Response Message Exchange Pattern, the HTTP messages
produced by this binding are likely to be
indistinguishable from those produced by non-SOAP implementations
performing similar operations.
Accordingly, some degree of interoperation can be made possible between SOAP nodes and other HTTP
implementations when using this binding.
For example, a conventional Web server (i.e. one not
written specifically to conform to this specification) might be used to respond
to SOAP-initiated HTTP GET's with representations of
Content-Type
"application/soap+xml".
Such interoperation is not a normative feature of this specification.
Even though HTTP often is used on the well-known TCP port 80, the use of HTTP is not limited to that port. As a result, it is possible to have a dedicated HTTP server for handling SOAP processing on a distinct TCP port. Alternatively, it is possible to use a separate virtual host for dealing with SOAP processing. Such configuration, however, is a matter of convenience and is not a requirement of this specification (see [SOAP Part 1] Binding to Application-Specific Protocols).
Conforming implementations of this binding:
MUST be capable of sending and receiving messages serialized using media type "application/soap+xml" whose proper use and parameters are described in A. The application/soap+xml Media Type.
MAY send requests and responses using other media types providing that such media types provide for at least the transfer of SOAP XML Infoset.
MAY, when sending requests, provide an HTTP Accept header field. This header field:
SHOULD indicate an ability to accept at minimum "application/soap+xml".
MAY additionally indicate willingness to accept other media types that satisfy 2 above.
This binding is identified by the URI (see [SOAP Part 1] SOAP Protocol Binding Framework):
"http://www.w3.org/2002/12/soap/bindings/HTTP/"
An implementation of the SOAP HTTP Binding MUST support the following message exchange patterns (MEPs):
"http://www.w3.org/2002/12/soap/mep/request-response/" (see 6.2 SOAP Request-Response Message Exchange Pattern)
"http://www.w3.org/2002/12/soap/mep/soap-response/" (see 6.3 SOAP Response Message Exchange Pattern)
An implementation of the SOAP HTTP Binding MUST support the following feature:
"http://www.w3.org/2002/12/soap/features/web-method/" (see 6.4 SOAP Web Method Feature)
The possible values of
http://www.w3.org/2002/12/soap/features/web-method/Method
property are restricted in this HTTP binding according to the MEP
in use (as present in
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName
):
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName |
http://www.w3.org/2002/12/soap/features/web-method/Method |
---|---|
"http://www.w3.org/2002/12/soap/mep/request-response/" | "POST" |
"http://www.w3.org/2002/12/soap/mep/soap-response/" | "GET" |
Note:
other SOAP Version 1.2 bindings to HTTP may permit
other combinations of
http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/ExchangePatternName
and
http://www.w3.org/2002/12/soap/features/web-method/Method
.
For binding instances conforming to this specification:
A SOAP node instantiated at an HTTP client may assume the role (i.e. the
property http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role
) of
"RequestingSOAPNode".
A SOAP node instantiated at an HTTP server may assume the role (i.e.
the property http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role
) of
"RespondingSOAPNode".
The remainder of this section describes the MEP state machine
and its relation to the HTTP protocol. In the state tables below,
the states are defined as values of the property http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/State
(see 6.2 SOAP Request-Response Message Exchange Pattern and 6.3 SOAP Response Message Exchange Pattern), and are of type xs:anyURI
.
For brevity, relative URIs are used, the base URI being the value of http://www.w3.org/2002/12/soap/bindingFramework/ExchangeContext/Role
.
The message exchange pattern in use is indicated by the HTTP method used in the request. HTTP GET corresponds to the SOAP-Response MEP, HTTP POST corresponds to the SOAP Request-Response MEP.
The overall flow of the behavior of a requesting SOAP node follows a state machine description consistent with either 6.2 SOAP Request-Response Message Exchange Pattern or 6.3 SOAP Response Message Exchange Pattern (differences are indicated as necessary.) This binding supports streaming and, as a result, requesting SOAP nodes MUST avoid deadlock by accepting and if necessary processing SOAP response information while the SOAP request is being transmitted (see 6.2.3 State Machine Description). The following subsections describe each state in detail.
In the "Init" state, a HTTP request is formulated according to Table 15 and transmission of the request is initiated.
Field | Value |
---|---|
HTTP Method | According to the http://www.w3.org/2002/12/soap/features/web-method/Method property (typically POST or GET). |
Request URI | The value of the URI carried in the
http://www.w3.org/2002/12/soap/mep/ImmediateDestination property of the
message exchange context. |
Content-Type header field |
The media type of the request entity body (if present) otherwise,
omitted (see 7.1 Introduction for a description of permissible media types).
If the SOAP envelope infoset in the http://www.w3.org/2002/12/soap/mep/OutboundMessage property is null,
then the Content-Type header field MAY be omitted. |
Accept header field (optional) |
List of media types that are acceptable in response to the request message. |
Additional header fields |
Generated in accordance with the rules for the binding specific expression of any optional features in use for this message exchange. For example, a Content-Encoding header field (see [RFC 2616], section 14.11) may be used to express an optional compression feature. |
HTTP entity body | SOAP message serialized according to the rules for
carrying SOAP messages in the media type given by the
Content-Type header field. Rules for carrying SOAP messages in
media type "application/soap+xml" are given
in A. The application/soap+xml Media Type. If the SOAP envelope infoset in the
|
In the "Requesting" state, sending of the request continues whilst waiting for the start of the response message. Table 16 details the transitions that take place when a requesting SOAP node receives an HTTP status line and response header fields. For some status codes there is a choice of possible next state. In cases where "Fail" is one of the choices, the transition is dependent on whether a SOAP message is present in the HTTP response. If a SOAP message is present, the next state is "Sending+Receiving" or "Receiving", otherwise the next state is "Fail". The choice between "Sending+Receiving" and "Receiving" depends of the MEP in use: "Sending+Receiving" is the next state for Request-Response whilst "Receiving" is the next state for SOAP-Response.
Status Code | Reason phrase | Significance/Action | NextState |
---|---|---|---|
2xx | Successful | ||
200 | OK |
The response message follows in HTTP response entity body.
Start making an abstraction of the response message available in
|
"Sending+Receiving" or "Receiving" |
3xx | Redirection | The requested resource has
moved and the HTTP request SHOULD be retried using the URI carried in the
associated Location header field as the new value for the
|
"Init" |
4xx | Client Error | ||
400 | Bad Request |
Indicates a problem with the received HTTP request message. |
"Sending+Receiving", "Receiving" or "Fail" |
401 | Unauthorized | Indicates that the HTTP request requires authorization. If the simple authentication feature is unavailable or the operation of simple authentication ultimately fails, then the message exchange is regarded as having completed unsuccessfully. |
"Requesting" or "Fail" |
405 | Method not allowed |
Indicates that the peer HTTP server does not support the requested HTTP method at the given request URI. The message exchange is regarded as having completed unsuccessfully. |
"Fail" |
415 | Unsupported Media Type |
Indicates that the peer HTTP server does not support the Content-type used to encode the request message. The message exchange is regarded as having completed unsuccessfully. |
"Fail" |
5xx | Server Error | ||
500 | Internal Server Error |
Indicates a server problem or a problem with the received request |
"Sending+Receiving", "Receiving" or "Fail" |
Table 16 refers to some but not all of the existing HTTP/1.1 [RFC 2616] status codes. In addition to these status codes, HTTP provides an open-ended mechanism for supporting status codes defined by HTTP extensions (see [RFC 2817] for a registration mechanism for new status codes). HTTP status codes are divided into status code classes as described in [RFC 2616], section 6.1.1. The SOAP HTTP binding follows the rules of any HTTP application which means that an implementation of the SOAP HTTP binding must understand the class of any status code, as indicated by the first digit, and treat any unrecognized response as being equivalent to the x00 status code of that class, with the exception that an unrecognized response must not be cached.
Note:
There may be elements in the HTTP infrastructure configured to modify HTTP response entity bodies for 4xx and 5xx status code responses. For example, some HTTP origin servers have such a feature as a configuration option. This behavior may interfere with the use of 4xx and 5xx status code responses carrying SOAP fault messages in HTTP and it is recommended that such behavior is disabled for resources accepting SOAP/HTTP requests. If the rewriting behavior cannot be disabled, SOAP/HTTP cannot be used in such configurations.
In the "Sending+Receiving" state (6.2 SOAP Request-Response Message Exchange Pattern only), the transmission of the request message and receiving of the response message is completed. The response message is assumed to contain a SOAP envelope serialized according to the rules for carrying SOAP messages in the media type given in the Content-Type header field.
The response MAY be of content type other than "application/soap+xml". Such usage is considered non-normative, and accordingly is not modeled in the state machine. Interpretation of such responses is at the discretion of the receiver.
In the "Receiving" state (6.3 SOAP Response Message Exchange Pattern only), receiving of the response message is completed. The response message is assumed to contain a SOAP envelope serialized according to the rules for carrying SOAP messages in the media type given in the Content-Type header field.
The response MAY be of content type other than
"application/soap+xml". Such a result is particularly
likely when a SOAP request sent with a http://www.w3.org/2002/12/soap/features/web-method/Method
of
"GET" is directed (intentionally or otherwise) to a
non-SOAP HTTP server. Such usage is considered non-normative, and
accordingly is not modeled in the state machine. Interpretation of
such responses is at the discretion of the receiver.
The overall flow of the behavior of a responding SOAP node follows a state machine description consistent with either 6.2 SOAP Request-Response Message Exchange Pattern or 6.3 SOAP Response Message Exchange Pattern (differences are indicated as necessary). The following subsections describe each state in detail.
In the "Init" state, the binding waits for the start of an inbound request message. Table 17 describes the errors that a responding SOAP node might generate while in the "Init" state. In this state no SOAP message has been received, therefore the SOAP node cannot generate a SOAP fault.
Problem with Message | HTTP Status Code | HTTP Reason Phrase (informative) |
---|---|---|
Malformed Request Message | 400 | Bad request |
HTTP Method is neither POST nor GET | 405 | Method Not Allowed |
Unsupported message encapsulation method | 415 | Unsupported Media |
In the "Receiving" state, the binding receives the request and any associated message and waits for the start of a response message to be available. Table 18 describes the HTTP response header fields generated by the responding SOAP node. Table 19 describes the HTTP Status Codes associated with SOAP faults that can be generated by the responding SOAP node.
Field | Value |
---|---|
Status line | 200, or set according to Table 19 if a SOAP fault was generated. |
Content-Type header field |
The media type of the response body, see 7.1 Introduction for a description of permissible media types. |
Additional header fields |
Generated in accordance with the rules for the binding specific expression of any optional features in use for this message exchange. For example, a Content-Encoding header field (see [RFC 2616], section 14.11) may be used to express an optional compression feature. |
HTTP Entity Body | SOAP message serialized according to the rules for carrying SOAP messages in the media type given by the Content-Type header field. Rules for carrying SOAP messages in "application/soap+xml" are given in A. The application/soap+xml Media Type. |
SOAP Fault | HTTP Status Code | HTTP Reason Phrase (informative) |
---|---|---|
env:VersionMismatch | 500 | Internal server error |
env:MustUnderstand | 500 | Internal server error |
env:Sender | 400 | Bad request |
env:Receiver | 500 | Internal server error |
env:DataEncodingUnknown | 500 | Internal server error |
In the "Receiving+Sending" state (6.2 SOAP Request-Response Message Exchange Pattern only) the binding completes receiving of the request message and transmission of the response message.
In the "Sending" state (6.3 SOAP Response Message Exchange Pattern only) the binding completes transmission of the response message.
The SOAP HTTP Binding (see 7. SOAP HTTP Binding) can be considered as an extension of the HTTP application protocol. As such, all of the security considerations identified and described in section 15 of the HTTP specification [RFC 2616] apply to the SOAP HTTP Binding in addition to those described in [SOAP Part 1] Security Considerations. Implementors of the SOAP HTTP Binding should carefully review this material.
This appendix defines the "application/soap+xml" media type which can be used to describe SOAP 1.2 messages serialized as XML. It is referenced by the corresponding IANA registration document [SOAP MediaType].
application
soap+xml
none
This parameter has identical semantics to the charset parameter of the "application/xml" media type as specified in [RFC 3023].
See section A.3 The action parameter.
Identical to those of "application/xml" as described in [RFC 3023], section 3.2, as applied to the SOAP envelope infoset.
See section A.2 Security considerations.
There are no known interoperability issues.
This document (Part 2) and [SOAP Part 1] (Part 1).
No known applications currently use this media type.
SOAP messages are not required or expected to be stored as files.
Identical to that of "application/xml" as described in [RFC 3023], section 5.
As specified in [RFC 3023], section 6. Also see [SOAP Part 1], section Use of URIs in SOAP.
TEXT
Mark Baker <mbaker@idokorro.com>
COMMON
The SOAP 1.2 specification set is a work product of the World Wide Web Consortium's XML Protocol Working Group. The W3C has change control over these specifications.
Because SOAP can carry application defined data whose semantics is independent from that of any MIME wrapper (or context within which the MIME wrapper is used), one should not expect to be able to understand the semantics of the SOAP message based on the semantics of the MIME wrapper alone. Therefore, whenever using the "application/soap+xml" media type, it is STRONGLY RECOMMENDED that the security implications of the context within which the SOAP message is used is fully understood. The security implications are likely to involve both the specific SOAP binding to an underlying protocol as well as the application-defined semantics of the data carried in the SOAP message (though one must be careful when doing this, as discussed in [SOAP Part 1], section Binding to Application-Specific Protocols.
Also, see [SOAP Part 1], the entire section Security Considerations.
In addition, as this media type uses the "+xml" convention, it shares the same security considerations as described in [RFC 3023], section 10.
action
parameterThis optional parameter can be used to specify the URI that identifies
the intent of the message. In SOAP 1.2, it serves a similar purpose
as the SOAPAction
HTTP header field did in SOAP 1.1. Namely, its value
identifies the intent of the message.
The value of the action parameter is an absolute URI-reference as defined by [RFC 2396]. SOAP places no restrictions on the specificity of the URI or that it is resolvable.
Although the purpose of the action parameter is to indicate the intent of the SOAP message there is no mechanism for automatically computing the value based on the SOAP envelope. In other words, the value has to be determined out of band.
It is recommended that the same value be used to identify sets of message types that are logically connected in some manner, for example part of the same "service". It is STRONGLY RECOMMENDED that the URI be globally unique and stable over time.
The presence and content of the action parameter MAY be used by servers such as firewalls to appropriately filter SOAP messages and it may be used by servers to facilitate dispatching of SOAP messages to internal message handlers etc. It SHOULD NOT be used as an insecure form of access authorization.
Use of the action parameter is OPTIONAL. SOAP Receivers MAY use it as a hint to optimize processing, but SHOULD NOT require its presence in order to operate.
This appendix details an algorithm for taking an application defined name, such as the name of a variable or field in a programming language, and mapping it to the Unicode characters that are legal in the names of XML elements and attributes as defined in [Namespaces in XML]
[5] | hexDigit | ::= | [0-9A-F] |
An XML Name has two parts: Prefix and LocalPart. Let Prefix be determined per the rules and constraints specified in Namespaces in XML [Namespaces in XML].
Let T be a name in an application, represented as a sequence of characters encoded in a particular character encoding.
Let M
be the implementation-defined function for
transcoding of the characters used in the application defined
name to an equivalent string of Unicode characters.
Note:
Ideally, if this transcoding is from a non-Unicode encoding, it should be both reversible and Unicode Form C normalizing (that is, combining sequences will be in the prescribed canonical order). It should be noted that some transcodings cannot be perfectly reversible and that NFC normalization may alter the original sequence in a few cases. See http://www.w3.org/TR/charmod/#sec-Transcoding. To ensure that matching names continue to match after mapping, Unicode sequences should be normalized using Unicode Normalization Form C.
Note:
This transcoding is explicitly to Unicode Scalar Values ("code points") and not to any particular character encoding scheme of Unicode, such as UTF-8 or UTF-16.
Note:
Note: Properly formed surrogate pair sequences must be converted to their respective scalar values ("code points") [That is, the sequence U+D800 U+DC00 should be transcoded to the character U+10000]. If the transcoding begins with a Unicode encoding, non-conforming (non-shortest form) UTF-8 and UTF-16 sequences must be converted to their respective scalar values.
Note:
The number of characters in T is not necessarily the same as the number of characters in M, because transcoding may be one-to-many or many-to-one. The details of transcoding may be implementation-defined. There may be (very rarely) cases where there is no equivalent Unicode representation for T; such cases are not covered here.
Let C be the sequence of Unicode
Scalar Values (characters) represented by M(T)
Let N be the number of characters in C. Let C1, C2, ..., CN be the characters of C, in order from most to least significant (logical order).
For each i between 1 (one) and N, let Xi be the Unicode character string defined by the following rules:
Case:
If Ci is undefined (that is, some character or sequence of characters as defined in the application's character sequence T contains no mapping to Unicode), then Xi is implementation-defined
If i<=N-1 and Ci is "_" (U+005F LOW LINE) and Ci+1 is "x" (U+0078 LATIN SMALL LETTER X), then let Xi be "_x005F_"
If i=1, and N>=3, and C1 is "x" (U+0078 LATIN SMALL LETTER X) or "X" (U+0058 LATIN CAPITAL LETTER X), and C2 is "m" (U+006D LATIN SMALL LETTER M) or "M" (U+004D LATIN CAPITAL LETTER M), and C3 is "l" (U+006C LATIN SMALL LETTER L) or "L" (U+004C LATIN CAPITAL LETTER L) (in other words, a string three letters or longer starting with the text "xml" or any re capitalization thereof), then if C1 is "x" (U+0078 LATIN SMALL LETTER X) then let X1 be "_x0078_"; otherwise, if C1 is "X" (U+0058 LATIN CAPITAL LETTER X) then let X1 be "_x0058_"
If Ci is not a valid XML NCName character (see [Namespaces in XML]) or if i=1 (one) and C1 is not a valid first character of an XML NCName (see [Namespaces in XML]) then:
Let U1, U2, ... , U8 be the eight hex digits [PROD: 5] such that Ci is "U+" U1 U2 ... U8 in the Unicode Scalar Value.
Case:
If U1=0, U2=0, U3=0, and U4=0, then let Xi="_x" U5 U6 U7 U8 "_".
This case implies that Ci is a character in the Basic Multilingual Plane (Plane 0) of Unicode and can be wholly represented by a single UTF-16 code point sequence U+U5U6U7U8.
Otherwise, let Xi be "_x" U1 U2 U3 U4 U5 U6 U7 U8 "_".
Otherwise, let Xi be Mi. That is, any character in X that is a valid character in an XML NCName is simply copied.
Let LocalPart be the character string concatenation of X1, X2, ... , XN in order from most to least significant.
Let XML Name be the QName per Namespaces in XML [Namespaces in XML]
As noted in 3.1.4 Computing the Type Name property SOAP graph nodes are labeled with type names, but conforming processors are not required to perform validation of encoded SOAP messages.
These sections describe techniques that can be used when validation with W3C XML schemas is desired for use by SOAP applications. Any errors or faults resulting from such validation are beyond those covered by the normative recommendation; from the perspective of SOAP, such faults are considered to be application-level failures.
Although W3C XML schemas are conventionally exchanged in the form of schema documents (see [XML Schema Part1]), the schema recommendation is build on an abstract definition of schemas, to which all processors need to conform. The schema recommendation provides that all such schemas include definitions for a core set of built in types, such as integers, dates, and so on (see [XML Schema Part1], Built-in Simple Type Definition). Thus, it is possible to discuss validation of a SOAP message against such a minimal schema, which is the one that would result from providing no additional definitions or declarations (i.e. no schema document) to a schema processor.
The minimal schema provides that any well formed XML document will validate, except that where an xsi:type is provided, the type named must be built in, and the corresponding element must be valid per that type. Thus, validation of a SOAP 1.2 message using a minimal schema approximates the behavior of the built-in types of SOAP 1.1.
Validation against the minimal schema (see C.1 Validating using the minimum schema) will not succeed where encoded graph nodes
have multiple inbound edges. This is because
elements representing such graph nodes will carry id
attribute information items which are not legal
on elements of type "xs:string",
"xs:integer" etc. The SOAP Encoding of such graphs MAY be validated
against the SOAP Encoding schema.
In order for the encoding to validate, edge labels, and
hence the
[local name] and [namespace name] properties of the
element information items, need to match those
defined in the SOAP Encoding schema. Validation of the encoded
graph against the SOAP Encoding schema would result in the
type name property of the nodes in the graph being assigned
the relevant type name.
It may be that schemas could be constructed to describe the encoding of
certain graphs. Validation of the encoded graph against such a schema would
result in the type name property of the graph nodes being assigned the
relevant type name. Such a schema can also supply default or fixed values
for one or more of the itemType
, arraySize
or
nodeClass
attribute
information items; the values of such defaulted attributes affect the
deserialized graph in the same manner as if the attributes had been
explicitly supplied in the message. Errors or inconsistencies thus
introduced (e.g. if the value of the attribute is erroneous or inappropriate)
should be reported as application-level errors; faults from the
"http://www.w3.org/2002/12/soap-encoding"
namespace should be reported only if the normative parts of this
specification are violated.
This document is the work of the W3C XML Protocol Working Group.
Members of the Working Group are (at the time of writing, and by alphabetical order): Vidur Apparao (Netscape), Carine Bournez (W3C), Michael Champion (Software AG), Glen Daniels (Macromedia), Paul Denning (Mitre), Colleen Evans (Progress Software), David Fallside (IBM), Dietmar Gaertner (Software AG), Martin Gudgin (Microsoft Corporation), Marc Hadley (Sun Microsystems), Gerd Hoelzing (SAP AG), Oisin Hurley (IONA Technologies), John Ibbotson (IBM), Ryuji Inoue (Matsushita Electric), Kazunori Iwasa (Fujitsu Limited), Mario Jeckle (DaimlerChrysler R. & Tech), Mark Jones (AT&T), Anish Karmarkar (Oracle), Jacek Kopecky (Systinet/Idoox), Yves Lafon (W3C), Michah Lerner (AT&T), Amy Lewis (Tibco), Noah Mendelsohn (IBM), Jeff Mischkinsky (Oracle), Nilo Mitra (Ericsson), Jean-Jacques Moreau (Canon), Don Mullen (Tibco), Masahiko Narita (Fujitsu Limited), Eric Newcomer (IONA Technologies), Henrik Nielsen (Microsoft Corporation), David Orchard (BEA Systems), Andreas Riegg (DaimlerChrysler R. & Tech), Herve Ruellan (Canon), Marwan Sabbouh (Mitre), Miroslav Simek (Systinet/Idoox), Nick Smilonich (Unisys), Lynne Thompson (Unisys), Pete Wenzel (SeeBeyond), Ray Whitmer (Netscape), Volker Wiechers (SAP AG).
Previous members were: Yasser alSafadi (Philips Research), Bill Anderson (Xerox), Camilo Arbelaez (WebMethods), Mark Baker (Idokorro Mobile (Planetfred)), Mark Baker (Sun Microsystems), Philippe Bedu (EDF (Electricite de France)), Olivier Boudeville (EDF (Electricite de France)), Don Box (DevelopMentor), Tom Breuel (Xerox), Dick Brooks (Group 8760), Winston Bumpus (Novell), David Burdett (Commerce One), Charles Campbell (Informix Software), Alex Ceponkus (Bowstreet), Miles Chaston (Epicentric), David Clay (Oracle), David Cleary (Progress Software), Conleth O'Connell (Vignette), Ugo Corda (Xerox), Paul Cotton (Microsoft Corporation), Fransisco Cubera (IBM), Ron Daniel (Interwoven), Glen Daniels (Allaire), Dug Davis (IBM), Ray Denenberg (Library of Congress), Frank DeRose (Tibco), Mike Dierken (DataChannel), Andrew Eisenberg (Progress Software), Brian Eisenberg (DataChannel), John Evdemon (XMLSolutions), David Ezell (Hewlett Packard), Eric Fedok (Active Data Exchange), Chris Ferris (Sun Microsystems), Daniela Florescu (Propel), Dan Frantz (BEA Systems), Michael Freeman (Engenia Software), Scott Golubock (Epicentric), Rich Greenfield (Library of Congress), Martin Gudgin (DevelopMentor), Hugo Haas (W3C), Mark Hale (Interwoven), Randy Hall (Intel), Bjoern Heckel (Epicentric), Erin Hoffman (Tradia), Steve Hole (MessagingDirect Ltd.), Mary Holstege (Calico Commerce), Jim Hughes (Fujitsu Software Corporation), Yin-Leng Husband (Compaq), Yin-Leng Husband (Hewlett Packard), Scott Isaacson (Novell), Murali Janakiraman (Rogue Wave), Eric Jenkins (Engenia Software), Jim d'Augustine (eXcelon), Jay Kasi (Commerce One), Jeffrey Kay (Engenia Software), Richard Koo (Vitria Technology Inc.), Alan Kropp (Epicentric), Julian Kumar (Epicentric), Peter Lecuyer (Progress Software), Tony Lee (Vitria Technology Inc.), Bob Lojek (Intalio), Henry Lowe (OMG), Brad Lund (Intel), Matthew MacKenzie (XMLGlobal Technologies), Murray Maloney (Commerce One), Richard Martin (Active Data Exchange), Highland Mary Mountain (Intel), Noah Mendelsohn (Lotus Development), Alex Milowski (Lexica), Kevin Mitchell (XMLSolutions), Ed Mooney (Sun Microsystems), Dean Moses (Epicentric), Rekha Nagarajan (Calico Commerce), Raj Nair (Cisco), Mark Needleman (Data Research Associates), Art Nevarez (Novell), Mark Nottingham (Akamai Technologies), David Orchard (Jamcracker), Kevin Perkins (Compaq), Jags Ramnaryan (BEA Systems), Vilhelm Rosenqvist (NCR), Waqar Sadiq (Vitria Technology Inc.), Rich Salz (Zolera), Krishna Sankar (Cisco), George Scott (Tradia), Shane Sesta (Active Data Exchange), Lew Shannon (NCR), John-Paul Sicotte (MessagingDirect Ltd.), Simeon Simeonov (Allaire), Simeon Simeonov (Macromedia), Aaron Skonnard (Developmentor), Soumitro Tagore (Informix Software), James Tauber (Bowstreet), Patrick Thompson (Rogue Wave), Jim Trezzo (Oracle), Asir Vedamuthu (WebMethods), Randy Waldrop (WebMethods), Fred Waskiewicz (OMG), David Webber (XMLGlobal Technologies), Stuart Williams (Hewlett Packard), Yan Xu (DataChannel), Amr Yassin (Philips Research), Susan Yee (Active Data Exchange), Jin Yu (Martsoft).
The people who have contributed to discussions on xml-dist-app@w3.org are also gratefully acknowledged.
