Use Cases and Requirements for Mapping Relational Databases to RDF

1.1 Why Mapping RDBs to RDF?

The Web of Data is constantly growing due to its compelling potential of facilitating data integration and retrieval. At the same time however, RDB systems host a vast amount of structured data in relational tables augmented with integrity constraints. In order to make this huge amount of relational data available for the Web of Data, a connection must be established between RDBs and a format suitable for the Web of Data.

The advantages of creating an RDF view of relational data are inherited from the Web of Data and can be summarized based on the tasks they facilitate:

• Integration: data in different RDBs can be integrated using RDF semantics and mechanisms; in this sense, the Web of Data can be imagined as one big database. Moreover, information in the database can be integrated with information that comes from other data sources.
• Retrieval: once data are published in the Web of Data (as opposed to relational databases), queries can span different data sources and more powerful retrieval methods can be built.

RDF data in the Web should be defined and linked in a way that makes it accessible for humans and machines [LinkedData]. The Web of data is a scalable environment with explicit semantics where not only humans can navigate information, but also machines are able to find connections and use them to navigate through the information space. In order to realise this global information space, we need to:

• follow a common model to describe, connect and access resources;
• name resources in an unambiguous way

The most common way to publish resources in the Web of Data follows the RDF model [RDF] and uses Uniform Resource Identifiers ([URI]) for resource identification, thereby facilitating the creation of a comprehensive and flexible resource description.

In the following, we will use RDB2RDF to denote any technique that takes as an input a RDB (schema and data) and produces one or more RDF graphs, as depicted in the following figure:

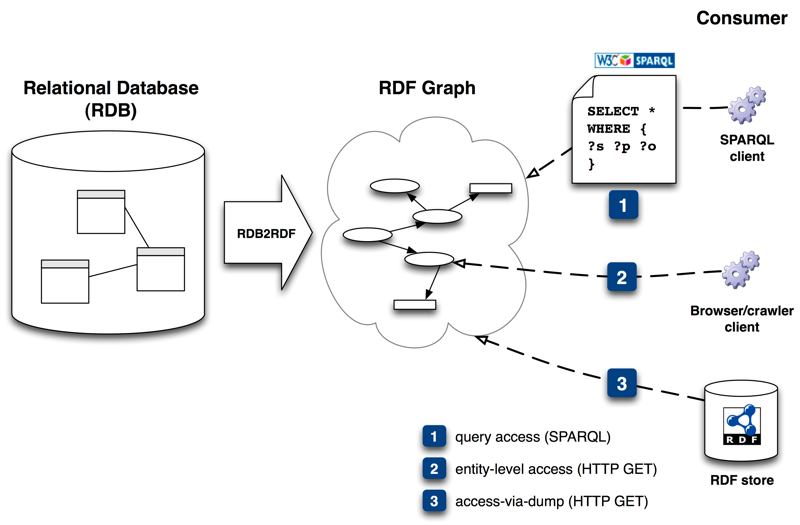

The consumer of the RDF Graph (virtual or materialized) essentially can access the RDF data in different ways:

1. Query access, which means the agent issues a SPARQL query against an endpoint exposed by the system and processes the results (typically the result is a SPARQL result set in XML or JSON);
2. Entity-level access, which means the agent performs an HTTP GET on a URI exposed by the system and processes the result (typically the result is an RDF graph);
3. Dump access, which means the agent performs an HTTP GET on dump of the entire RDF graph, for example in Extract, Transform, and Load (ETL) processes.

1.2 Why a standard RDB2RDF method?

With the advent of the Web of Data, researcher and practitioners have compared the RDB model and the RDF model [RDB-RDF] and surveyed different approaches to map them [RDBMSMapping]. As noted in the survey on existing RDB2RDF mapping approaches [RDB2RDFSurvey], a couple of proposals on how to tackle the RDB2RDF mapping issues are known.

Use of a standard for mapping language for RDB to RDF may allow use of a single mapping specification in the context of mirroring of schema and (possibly some or all of the) data in various databases, possibly from different vendors (e.g., Oracle database, MySQL, etc.) and located at various sites. Similarly structured data (that is, data stored using same schema) is useful in many different organizations often located in different parts of the world. These organizations may employ databases from different vendors due to one or more of many possible factors (such as, licensing cost, resource constraints, availability of useful tools and applications and of appropriate database administrators, etc.). Presence of a standard RDB2RDF mapping language allows creation and use of a single mapping specification against each of the hosting databases to present a single (virtual or materialized) RDF view of the relational data hosted in those databases and this RDF view can then be queried by applications using SPARQL query or protocol.

Another reason for a standard is to allow easy migration between different systems. Just as a single web-page in HTML can be viewed by two different Web browsers from different vendors, a single RDB2RDF mapping standard should allow a user from one database to expose their data as RDF, and then, when they export their data to another database, allow the newly imported data to be queried as RDF without changing the mapping file. For example, imagine that a database administrator is exposing weather data as Linked Data to be consumed by other applications. At first, this weather data is stored in a light-weight database (such as MySQL). However, as more and more weather data is collected, and more and more users access the Web data, the light-weight database may have difficulty scaling. Therefore, the database administrator migrates their database to a more heavy-weight database (such as Oracle Database 11g). Of course, the database administrator does not want to re-create the ability to view the data as RDF using a vendor-specific mapping file, but instead wants to seamlessly migrate the view of their data as RDF.

A standardized mapping between relational data and RDF allows the database administrator to migrate the view of their data as RDF across databases, allowing the vendors to compete on functionality and features rather than forcing database administrators to rewrite their entire relational data to RDF mapping when they want to migrate their data from one database to another.

Another motivation for a standard is that for certain classes of systems (such as CMS) a 'default' mapping could be defined which can be deployed no matter what underlying RDB is used. As these systems, such as Drupal or Wordpress, can be run on top of different underlying relational databases. A standardized way of mapping between relational data and RDF hence allows the underlying database to be changed without disturbing the content management system.

Further, having a standard mapping would simplify programming applications that access multiple database sources.

2.1 UC1 - Patient Recruitment

The Semantic Web for Health Care and Life Sciences Interest Group has created several demonstrators using SPARQL to query clinical and biological relational databases. Included is the database structure, sample data, and a SPARQL query. Following are six tables of sample diabetic patient data extracted from the University of Texas Health Science Center. Some columns have been omitted from this use case for brevity.

Accompanying each table are two RDF views (represented in Turtle) corresponding to HL7/RIM and CDISK SDTM ontology in RDFS. While there are many motivations for providing a common interface to administer distinct databases (access to patient history, shared rules for clinical decision support, etc.), in this case, SPARQL queries (following the table description) were used to find candidates for clinical studies. For these RDF graphs, the following namespaces apply:

@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .
@prefix hl7: <http://www.hl7.org/v3ballot/xml/infrastructure/vocabulary/vocabulary#>  .
@prefix stdm: <http://www.sdtm.org/vocabulary#>  .

<http://hospital.example/DB/Person/ID.1234561#record> a hl7:Person ;
   hl7:administrativeGenderCodePrintName Sex_DE:M ;
   hl7:livingSubjectBirthTime "1983-01-02T00:00:00Z"^^xsd:dateTime .

<http://hospital.example/DB/Person/ID.1234562#record> a hl7:Person ;
   hl7:administrativeGenderCodePrintName Sex_DE:F ;
   hl7:livingSubjectBirthTime "1963-12-27T00:00:00Z"^^xsd:dateTime .
<http://hospital.example/DB/Person/ID.1234563#record> a hl7:Person ;
   hl7:administrativeGenderCodePrintName Sex_DE:M ;
   hl7:livingSubjectBirthTime "1983-02-25T00:00:00Z"^^xsd:dateTime .

<http://hospital.example/DB/Person/ID.1234561#record> a sdtm:Patient ;
  stdm:dateTimeOfBirth "1983-01-02T00:00:00Z"^^xsd:dateTime .
<http://hospital.example/DB/Person/ID.1234562#record> a sdtm:Patient ;
  sdtm:dateTimeOfBirth "1963-12-27T00:00:00Z"^^xsd:dateTime ;
  sdtm:sex <http://hospital.example/DB/Sex_DE#F> .
<http://hospital.example/DB/Person/ID.1234563#record> a sdtm:Patient ;
  sdtm:dateTimeOfBirth "1983-02-25T00:00:00Z"^^xsd:dateTime ;
  sdtm:sex <http://hospital.example/DB/Sex_DE#F> .

<http://hospital.example/DB/Zex_DE/ID.2#record>

	hl7:administrativeGenderCodePrintName "Male"@en-us ;
	Sex_DE:EntryMnemonic "M"@en-us .
<http://hospital.example/DB/Zex_DE/ID.3#record>
	hl7:administrativeGenderCodePrintName "Female"@en-us ;
	Sex_DE:EntryMnemonic "F"@en-us .

<http://hospital.example/DB/Person/ID.1234561#record>
	stdm:sex <http://hospital.example/DB/Sex_DE#M> .
<http://hospital.example/DB/Person/ID.1234562#record>
	stdm:sex <http://hospital.example/DB/Sex_DE#F> .

<http://hospital.example/DB/Person/ID.1234563#record>
	stdm:sex <http://hospital.example/DB/Sex_DE#M> .

<http://hospital.example/DB/Person/ID.1234561#record>

	hl7:substanceAdministration <http://hospital.example/DB/Item_Medication/ID.99999999002#record> .
<http://hospital.example/DB/Item_Medication/ID.99999999002#record>
	a hl7:SubstanceAdministration ;
	hl7:effectiveTime _:t1 .
_:t1 hl7:start "2007-09-28T00:00:00"^^xsd:dateTime .
<http://hospital.example/DB/Person/ID.1234562#record>

	hl7:substanceAdministration <http://hospital.example/DB/Item_Medication/ID.99999999003#record> ;
	hl7:substanceAdministration <http://hospital.example/DB/Item_Medication/ID.99999999004#record> .

<http://hospital.example/DB/Item_Medication/ID.99999999003#record>
	a hl7:SubstanceAdministration ;
	hl7:effectiveTime _:t2 .
_:t2 hl7:start "2007-09-28T00:00:00"^^xsd:dateTime .
<http://hospital.example/DB/Item_Medication/ID.99999999004#record>
	a hl7:SubstanceAdministration ;
	hl7:effectiveTime _:t3 .
_:t3 hl7:start "2008-07-28T00:00:00"^^xsd:dateTime .

<http://hospital.example/DB/Item_Medication/ID.99999999002#record>

	hl7:consumable <http://hospital.example/DB/Medication_DE/ID.132139#record> .
_:t1 hl7:durationInDays 45 .
<http://hospital.example/DB/Item_Medication/ID.99999999003#record>

	hl7:consumable <http://hospital.example/DB/Medication_DE/ID.132139#record> .
<http://hospital.example/DB/Item_Medication/ID.99999999004#record>
	hl7:consumable <http://hospital.example/DB/Medication_DE/ID.132139#record> .
_:t2 hl7:durationInDays 45 .

<http://hospital.example/DB/Item_Medication/ID.99999999005#record>
	hl7:consumable <http://hospital.example/DB/Medication_DE/ID.132139#record> .
_:t3 hl7:durationInDays 45 .

<http://hospital.example/DB/Medication_DE/ID.132139#record>

	hl7:displayName "GlipiZIDE-Metformin HCl 2.5-250 MG Tablet" .

<http://hospital.example/DB/Medication_DE/ID.132139#record>
	spl:activeIngredient _:i1 .
_:i1 spl:classCode 54868079500 .

[ a sdtm:ConcomitantMedication ;
	sdtm:subject <http://hospital.example/DB/Person/ID.1234561#record> ;
	sdtm:standardizedMedicationName "GlipiZIDE-Metformin HCl 2.5-250 MG Tablet" ;
	hl7:activeIngredient [hl7:classCode 54868079500 ] ;
	sdtm:startDateTimeOfMedication "2007-09-28 00:00:00"^^xsd:dateTime ] .

[ a sdtm:ConcomitantMedication ;
	sdtm:subject <http://hospital.example/DB/Person/ID.1234562#record> ;
	sdtm:standardizedMedicationName "GlipiZIDE-Metformin HCl 2.5-250 MG Tablet" ;
	hl7:activeIngredient [ hl7:classCode 54868079500 ] ;
	sdtm:startDateTimeOfMedication "2007-09-28 00:00:00"^^xsd:dateTime ] .

[ a sdtm:ConcomitantMedication ;
	sdtm:subject <http://hospital.example/DB/Person/ID.1234562#record> ;
	sdtm:standardizedMedicationName "GlipiZIDE-Metformin HCl 2.5-250 MG Tablet" ;
	hl7:activeIngredient [ hl7:classCode 54868079500 ] ;
	sdtm:startDateTimeOfMedication "2008-07-28 00:00:00"^^xsd:dateTime ] .

PREFIX sdtm: <http://www.sdtm.org/vocabulary#>
PREFIX spl: <http://www.hl7.org/v3ballot/xml/infrastructure/vocabulary/vocabulary#>

SELECT ?patient ?dob ?sex # ?takes ?indicDate ?indicEnd ?contra
 WHERE {
  ?patient a sdtm:Patient ;
          sdtm:middleName ?middleName ;
          sdtm:dateTimeOfBirth ?dob ;
          sdtm:sex ?sex .

  [   sdtm:subject ?patient ;
      sdtm:standardizedMedicationName ?takes ;

      spl:activeIngredient [ spl:classCode 6809 ] ;
          sdtm:startDateTimeOfMedication ?indicDate
  ] .
  OPTIONAL {
  [   sdtm:subject ?patient ;
      sdtm:standardizedMedicationName ?disqual ;
      spl:activeIngredient [ spl:classCode 11289 ]
          sdtm:startDateTimeOfMedication ?indicDate
  ] }
} LIMIT 30

2.2 UC2 - Web applications (Wordpress)

In order to make the Web of Data useful to ordinary Web users, RDF and OWL have to be deployed on the Web on a much larger scale. Web applications such as Content Management Systems, online shops or community applications (e.g. Wikis, blogs, forums) already store their data in relational databases. Providing a standardized way to map the relational data and schema behind these Web applications into RDF, RDF-Schema and OWL will facilitate novel semantic browsing and search applications.

By supporting the long tail of Web applications and thus counteracting the centralization of the Web 2.0 applications, the planned RDB2RDF standardization will help to give control over data back to end-users and thus promote a democratization of the Web.

To support this use case, the mapping language should be easily implementable for lightweight Web applications and have a shallow learning curve to foster early adoption by Web developers.

We illustrate this use case with the example of Wordpress. Wordpress is a popular blogging Web application and installed on tens of thousands of Web servers. Wordpress used a relational database (MySQL) with a relatively simple schema:

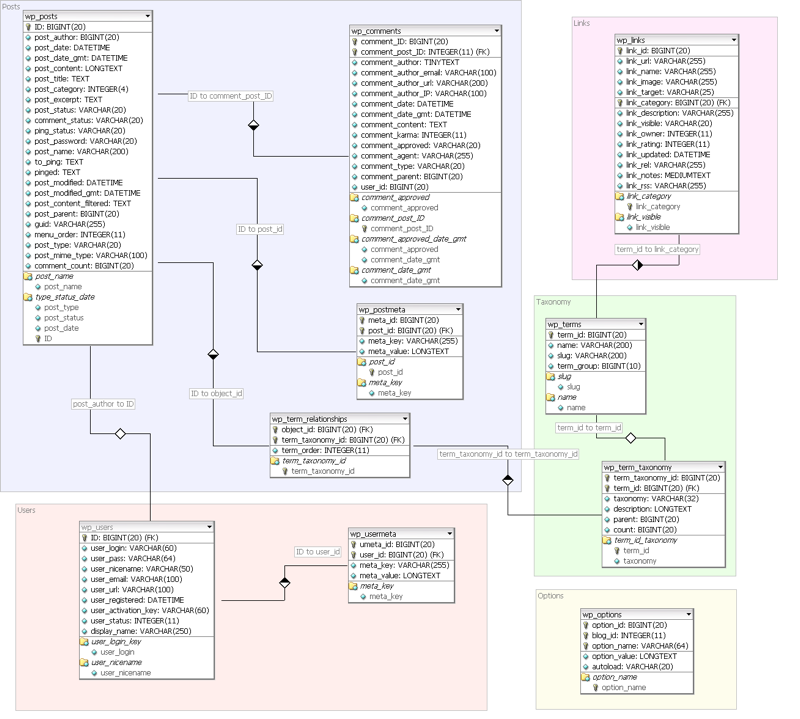

Wordpress SQL Schema:

• SQL Schema
• SQL Schema and complete data of blog.aksw.org
• NTriples export of the above database created using Triplify

A mapping should be able to reuse existing vocabularies.

Mapped to RDF the resulting ontology should contain the classes post, attachment, tag, category, user and comment. An example instance of the post class, for example, should look like:

@prefix sioc: <http://rdfs.org/sioc/ns#> .
@prefix dc: <http://purl.org/dc/terms/> .
@prefix dc11: <http://purl.org/dc/elements/1.1/> .

<http://blog.aksw.org/triplify/post/8> a sioc:Post .

<http://blog.aksw.org/triplify/post/8> sioc:has_creator <http://blog.aksw.org/triplify/user/5> .
<http://blog.aksw.org/triplify/post/8> dc:created       "2007-02-27T17:23:36"^^<http://www.w3.org/2001/XMLSchema#dateTime> .

<http://blog.aksw.org/triplify/post/8> dc11:title       "Submissions open: 3rd Workshop on Scripting for the Semantic Web" .

<http://blog.aksw.org/triplify/post/8> sioc:content     "The submissions web-site is now open for the 3rd Workshop on Scripting for the Semantic Web..." .
<http://blog.aksw.org/triplify/post/8> dc:modified      "2008-02-22T21:41:00"^^<http://www.w3.org/2001/XMLSchema#dateTime> .

SELECT ?name, ?title
WHERE {
  ?post   rdf:type       sioc:Post .
  ?post   dc:title       ?title .
  ?post   dc:has_creator ?author
  ?author foaf:name      ?name
}

2.3 UC3 - Integrating Enterprise Relational databases for tax control

Integrating relational databases and exposing them on the Web or Intranet requires the re-use of unique identifiers in order to integrate and interlink data about entities on different databases.

The re-use of unique identifiers allows:

• Joins between entities described in different databases.
• Join structured data (SQL) to structured data, from incompatible schema, or where data is dirty, poorly normalized, lacking proper keys/indices.

This use case is a pilot project for the Trentino region tax agency. Trentino is an autonomous region in the north of Italy. The region has a population of 1 million people and more than 200 municipalities with their own information systems. The goal of is to integrate and link tax related data about people, organizations, buildings, etc. This data come from different databases especially from the region's many municipalities, each with their own individual data structures.

The re-use of unique identifiers will provide a lightweight method for aggregating the data. In this way we are providing a tax agent an intelligent tool for navigating through the data present in the many different databases. Using unique identifiers, a tool can aggregate data and create a profile for each tax payer. Each user profile shows different type of information, with links to other entities such as the buildings owned, payments made, location of residence etc.

The RDF generated from the two databases is materialized and joined using the generated unique identifiers.

Example

Supposed that we have two tables (Anagrafe and Urban_Cadastre) from different databases, we select some typical attributes for the two tables to explain our conversion method. Table Angrafe includes the information about two type of entities, persons and locations (a person's residence place), and some other information:

Table Urban_Cadastre contains the information about buildings and their owners:

DDL:

CREATE TABLE Anagrafe (
 Firstname varchar
 Lastname varchar
 City_Residence_Place varchar
 Country_Residence_Place varchar
 Other_Info varchar
 PRIMARY KEY (Firstname, Lastname)
)

CREATE TABLE (
 Owner_Name varchar
 Building_LocalID integer
 Building_Address varchar
 Building_Type varchar
 PRIMARY KEY (Owner_Name)
)


Using traditional RDB2RDF translation methods the RDF representation for the two example tables coming from two different databases is shown below:

@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix database_anagrafe: <http://www.database1.org/anagrafe/> .

database_anagrafe:entry_row1 database_anagrafe:Other_Info "xyz" ;
    database_anagrafe:Country_Residence_Place "Italy" ;
    database_anagrafe:City_Residence_Place "Trento" ;
    database_anagrafe:Last_Name "Bouquet" ;
    database_anagrafe:First_Name "Paolo" .

@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix database_urbano: <http://www.database1.org/Urban_Cadastre/> .

database_urbano:entry_row1 database_urbano:Building_Type "3" ;
    database_urbano:Building_Address "VIA G.LEOPARDI" ;
    database_urbano:Building_LocalID "123456" ;
    database_urbano:Owner_Name "Paolo Bouquet" .

2.4 UC4 - rCAD: RNA Comparative Analysis Database

rCAD - RNA Comparative Analysis using SQLServer: the tremendous increase in available biological information creates opportunities to decipher the structure, function and evolution of cellular components while presenting new computational challenges for performance and scalability. To fully utilize this large increase in knowledge, it must be organized for efficient retrieval and integrated for multi-dimensional analysis. Given this, biologists are able to invent new comparative sequence analysis protocols that will yield new and different structural and functional information. Based on Microsoft SQL-server, we have designed and implemented the RNA Comparative Analysis Database - rCAD which supports comparative analysis of RNA sequence and structure, and unites, for the first time in a single environment, multiple dimensions of information necessary for alignment viewing, sequence metadata, structural annotations, structure prediction studies, structural statistics of different motifs, and phylogenetic analysis. This system provides a queryable environment that hosts efficient updates and rich analytics.

For this use-case, we will be presenting only the Sequence Alignment schema. The SQL-DDL for Microsoft SQL Server can be found here: rCAD Sequence Alignment SQL DDL

This use-case presents the issue of a schema that does not have an existing domain ontology in which it can be mapped to. The closest domain ontology is the Multiple Alignment Ontology (MAO) which can only be mapped to the Sequence Alignment part of the entire rCAD database. However, MAO is in the OBO language. Nevertheless, OBO ontologies can be translated to OWL (and back).

CREATE TABLE [AlignmentClassic].[Alignment]  (
    [AlnID]             int NOT NULL,
    [SeqTypeID]         tinyint NOT NULL,
    [AlignmentName]     varchar(max) NULL,
    [ParentAlnID]       int NULL,
    [NextColumnNumber]  int NOT NULL,
    CONSTRAINT [PK_Alignment] PRIMARY KEY([AlnID])
)
ON [PRIMARY]
GO
ALTER TABLE [AlignmentClassic].[Alignment]
    ADD CONSTRAINT [FK_Alignment_SequenceType]
    FOREIGN KEY([SeqTypeID])
    REFERENCES [dbo].[SequenceType]([SeqTypeID])
    ON DELETE NO ACTION
    ON UPDATE NO ACTION
GO
ALTER TABLE [AlignmentClassic].[Alignment]
    ADD CONSTRAINT [FK_Alignment_Alignment]
    FOREIGN KEY([ParentAlnID])
    REFERENCES [AlignmentClassic].[Alignment]([AlnID])
    ON DELETE NO ACTION
    ON UPDATE NO ACTION
GO

PREFIX rcad: <http://rcad.org/vocabulary/rcad.owl#>
rcad:Alignment rdf:type owl:Class .
rcad:AlignmentName rdf:type owl:DatatypeProperty.
rcad:AlignmentName rdfs:domain rcad:Alignment.
rcad:AlignmentName rdfs:range xsd:string.
rcad:NextColumnNumber rdf:type owl:DatatypeProperty.
rcad:NextColumnNumber rdfs:domain rcad:Alignment.
rcad:NextColumnNumber rdfs:range xsd:integer.
rcad:ParentAlnID rdf:type owl:ObjectProperty
rcad:ParentAlnID rdfs:domain rcad:Alignment
rcad:ParentAlnID rdfs:range rcad:Alignment

PREFIX rcad: <http://rcad.org/vocabulary/rcad.owl#>

PREFIX rcad-data: <http://rcad.org/vocabulary/rcad-data.rdf#>

rcad-data:alignment1000 a rcad:Alignment;
    rcad:AlignmentName "My Alignment 1000"^^xsd:string;
    rcad:NextColumnNumber "123"^^xsd:int;
    rcad:ParentAlnID rcad-data:alignment2000

CREATE TABLE [AlignmentClassic].[Alignment]  (
    [AlnID]             int NOT NULL,
    [SeqTypeID]         tinyint NOT NULL,
    [AlignmentName]     varchar(max) NULL,
    [ParentAlnID]       int NULL,
    [NextColumnNumber]  int NOT NULL,
    CONSTRAINT [PK_Alignment] PRIMARY KEY([AlnID])
)
GO
ALTER TABLE [AlignmentClassic].[Alignment]
    ADD CONSTRAINT [FK_Alignment_SequenceType]
    FOREIGN KEY([SeqTypeID])
    REFERENCES [dbo].[SequenceType]([SeqTypeID])
    ON DELETE NO ACTION
    ON UPDATE NO ACTION
GO
ALTER TABLE [AlignmentClassic].[Alignment]
    ADD CONSTRAINT [FK_Alignment_Alignment]
    FOREIGN KEY([ParentAlnID])
    REFERENCES [AlignmentClassic].[Alignment]([AlnID])
    ON DELETE NO ACTION
    ON UPDATE NO ACTION
GO

---

CREATE TABLE [AlignmentClassic].[AlignmentColumn]  (
    [AlnID]         int NOT NULL,
    [ColumnNumber]  int NOT NULL,
    [ColumnOrdinal] int NOT NULL,
    CONSTRAINT [PK_AlignmentColumn] PRIMARY KEY([AlnID],[ColumnNumber])
)
GO
ALTER TABLE [AlignmentClassic].[AlignmentColumn]
    ADD CONSTRAINT [FK_AlignmentColumn_Alignment]
    FOREIGN KEY([AlnID])
    REFERENCES [AlignmentClassic].[Alignment]([AlnID])
    ON DELETE NO ACTION
    ON UPDATE NO ACTION
GO

Following is a set of proposed requirements for R2RML.

3.1 Core Requirements

The analysis of the above use cases yields a set of core requirements for the R2RML.

  <http://mydb.example/prots/ID=18> db:name "YYHAB" .       # consistent function of the primary key
  <http://mydb.example/prots18/more/path> db:name "YYHAB" . # user-defined function of the primary key
  <http://www.uniprot.org/uniprot/P68250> db:name "YYHAB" . # user-defined function of arbitrary attributes

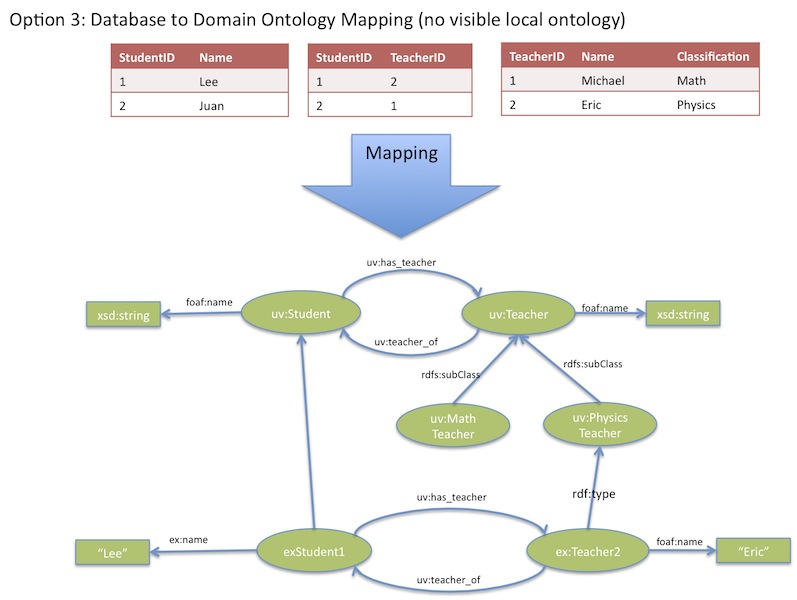

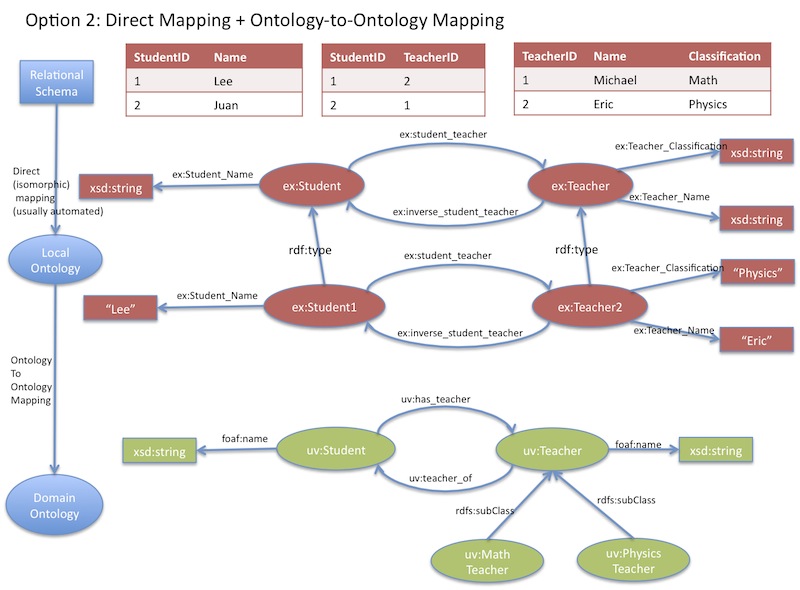

CREATE TABLE student (
  studentID int PRIMARY KEY,
  studentName varchar
)

CREATE TABLE teacher (
  teacherID int PRIMARY KEY,
  teacherName varchar
)

CREATE TABLE student_teacher (
  studentID int,
  teacherID int,
  PRIMARY KEY(studentID, teacherID),
  FOREIGN KEY(studentID) REFERENCES student(studentID),
  FOREIGN KEY(teacherID) REFERENCES teacher(teacherID)
)

 ex:student1 ex:studentName "Davis".
 ex:student2 ex:studentName "Evans".
 ex:student2 ex:studentName "Frank".


 ex:teacher1 ex:teacherName "Adams".
 ex:teacher2 ex:teacherName "Baker".
 ex:teacher3 ex:teacherName "Clark".


 ex:student1 ex:has_teacher ex:teacher1, ex:teacher 2 ;
 ex:student2 ex:has_teacher ex:teacher3 ;
 ex:student3 ex:has_teacher ex:teacher2 ;
 ...


 ex:teacher1 a ex:HistoryTeacher .
                 ex:teacher2 a ex:PhysicsTeacher .
                 ex:teacher3 a ex:MusicTeacher .


3.2 Optional Requirements
