Advanced CSS

Steven Pemberton

CWI and W3C
Kruislaan 413
1098 SJ Amsterdam
The Netherlands

Steven.Pemberton@cwi.nl
www.cwi.nl/~steven

This document is written in XHTML and CSS; while you will be able to read the content acceptably, you need a better browser than the one you are using to see this document properly.

About the Instructor

Steven Pemberton is a researcher at the CWI, The Centre for Mathematics and Computer Science, a nationally-funded research centre in Amsterdam, The Netherlands, the first non-military Internet site in Europe.

Steven's research is in interaction, and how the underlying software architecture can support the user. At the end of the 80's he built a style-sheet based hypertext system called Views.

Steven has been involved with the World Wide Web since the beginning. He organised two workshops at the first World Wide Web Conference in 1994, chaired the first W3C Style Sheets workshop, and the first W3C Internationalisation workshop. He was a member of the CSS Working Group from its start, and is a long-time member (now chair) of the HTML Working Group, and co-chair of the XForms Working Group. He is co-author of (amongst other things) HTML 4, CSS, XHTML and XForms.

Steven was until recently Editor-in-Chief of ACM/interactions.

Objectives

HTML has for too long, and incorrectly, been seen as a purely presentation language. It was originally designed as a structure description language, but extra elements were added later by browser manufacturers in order to influence the presentation. This has had the effect of limiting Web site usability by introducing presentation elements that slow down Web access, reduce or prevent accessibility to the sight-impaired, limit the sorts of devices that may be used to view websites, and reduce the end-user's options when viewing a document.

The World Wide Web Consortium (W3C) started the Style Sheet activity in 1995 in order to get HTML back to its pure form. The result of this was Cascading Style Sheets (CSS), which allows the separation of content and presentation in Web sites.

Using style sheets has many benefits, including:

Even if the Web remained based on HTML, these would be enough reasons to use style sheets. However, the Web is now going in a new direction: XML, and XML has no inherent presentation semantics at all. To use XML you have to use a style sheet to make your site visible.

As a part of the movement to XML, a new version of HTML, called XHTML, is being developed. Since all presentation-oriented elements are being dropped, style sheets will become essential there too.

So the objectives of this course are to give an advanced introduction to the use of CSS to style HTML and XML documents, covering in passing how this can improve usability.

Most attention will be paid to features introduced in CSS level 2

These notes have been produced entirely in XHTML and CSS, using different stylesheets for printing, screen use, and presentation.

It should go without saying that to properly appreciate this document, you have to view it with a browser with good CSS support.

If you can see this text, your browser apparently does not support CSS.

Index

Aims

The idea of this course is to introduce you to most features of CSS2, and illustrate how they can be used to good effect.

Along with a number of exercises, we will also be studying a number of advanced designs, with the question "How did they do that?"

This course assumes that you already know the basis of CSS:

However, it doesn't assume have you have followed part one of the course, so some features mentioned there will be repeated.

About bugs

There are many different CSS user agents, and they are not all as good as each other.

While I will be mentioning some shortcomings in some browsers, this is a course on CSS, and not a loving compilation of all the bugs that there are to be found and how to design around them: a course on CSS should have lasting value; a course on which browser has which bugs wouldn't.

Motivation

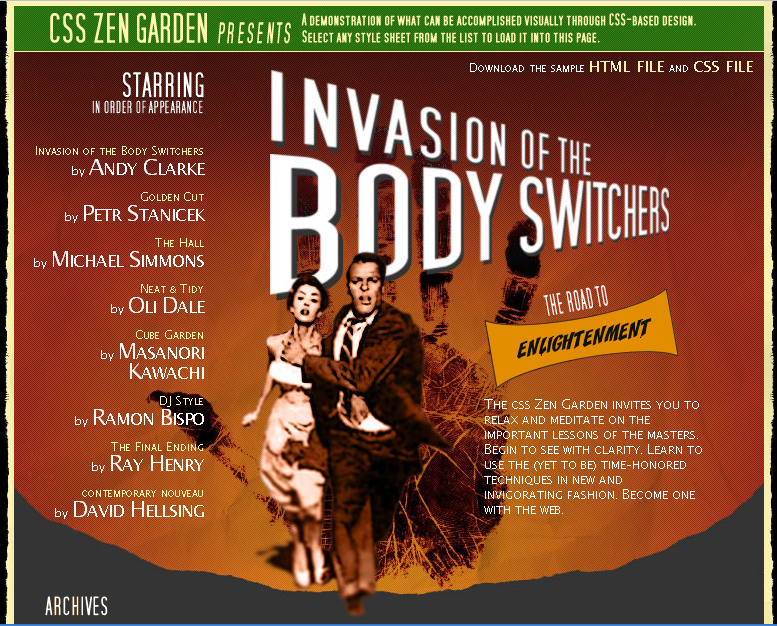

Csszengarden.com is a website with essentially one HTML page.

And hundreds of beautiful, breathtaking CSS stylesheets applied to that one page.

css Zen Garden

The Beauty of CSS Design

A demonstration of what can be accomplished visually through CSS-based design. Select any style sheet from the list to load it into this page.

Download the sample html file and css file

Is uses very simple HTML: div, h1, h2, h3, span, p, ul/li, a, acronym

As you look at each presented page, you have to keep repeating to yourself: this is the same HTML page.

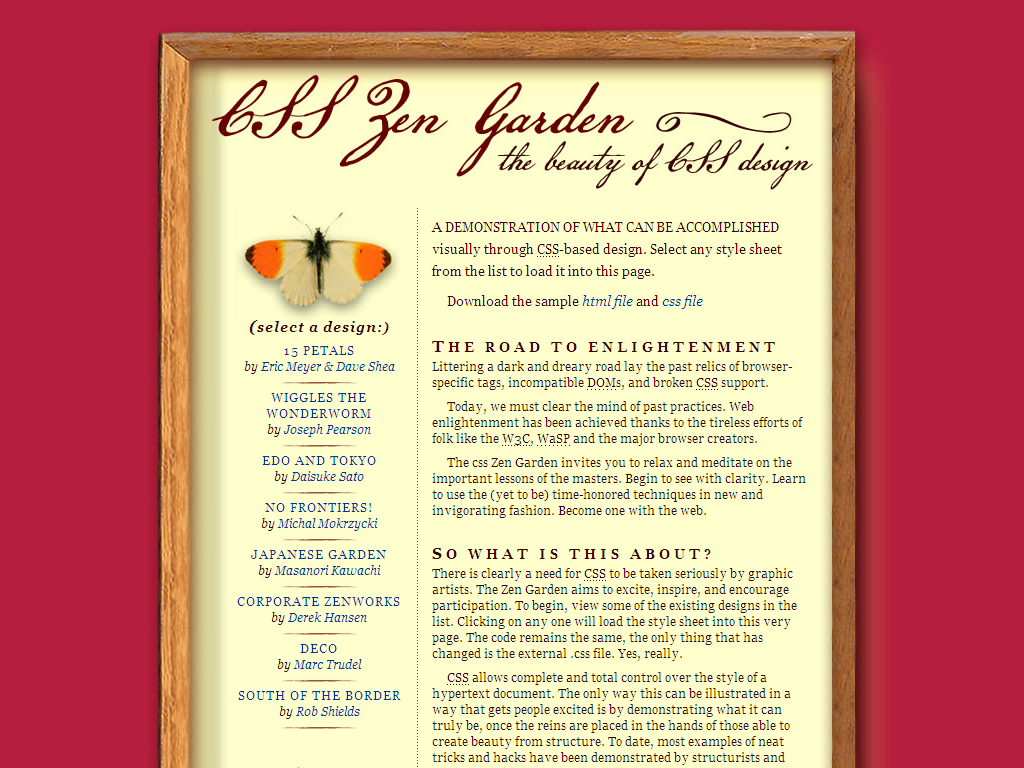

Butterfly
Post

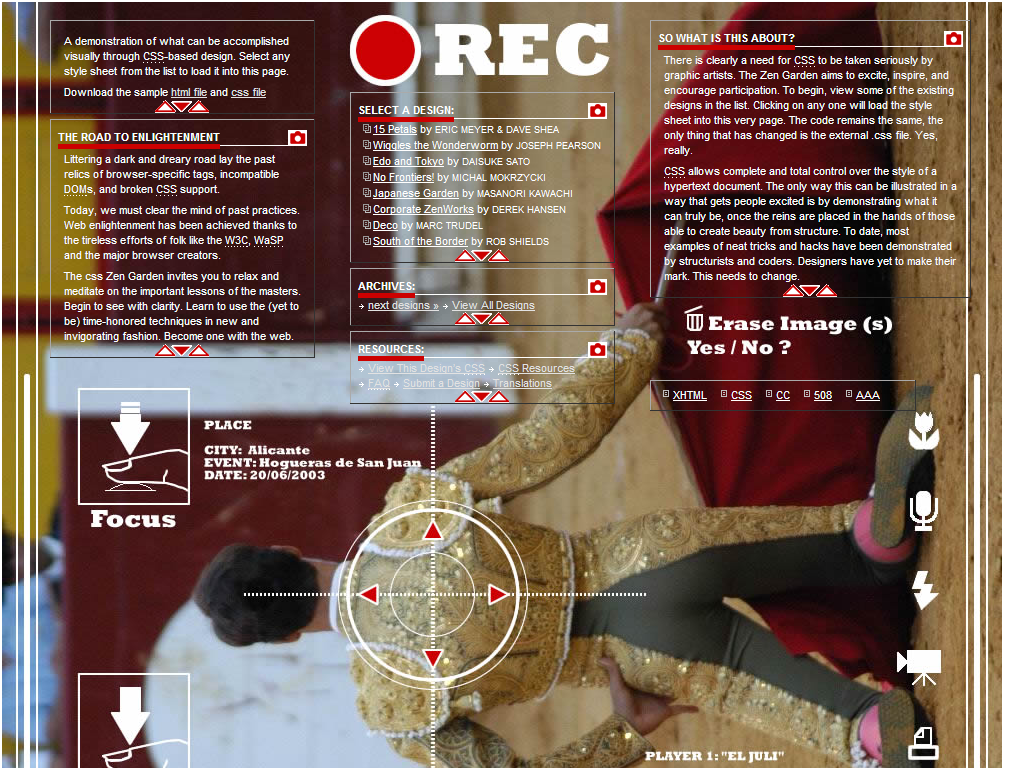

focus

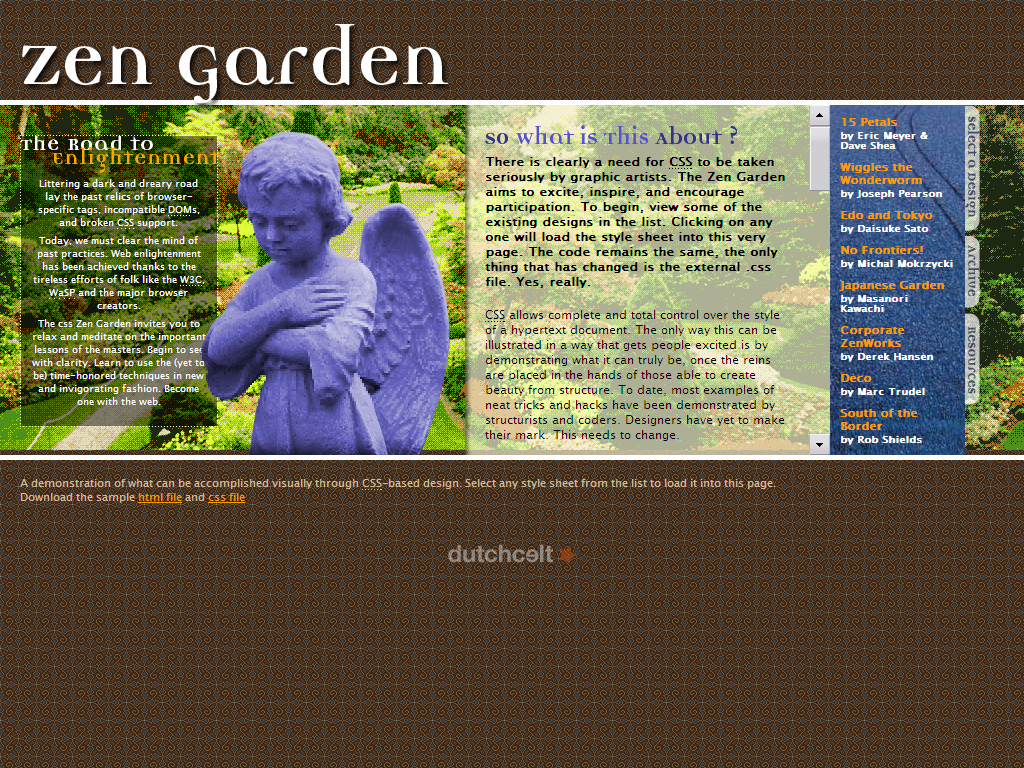

gemination

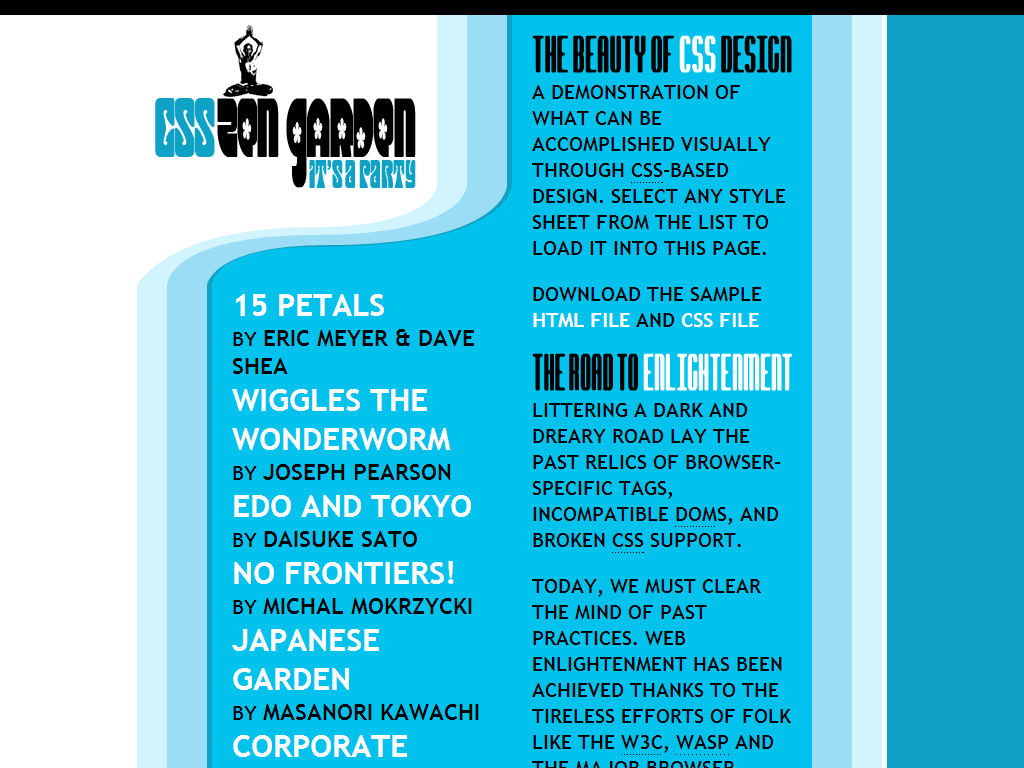

party
party

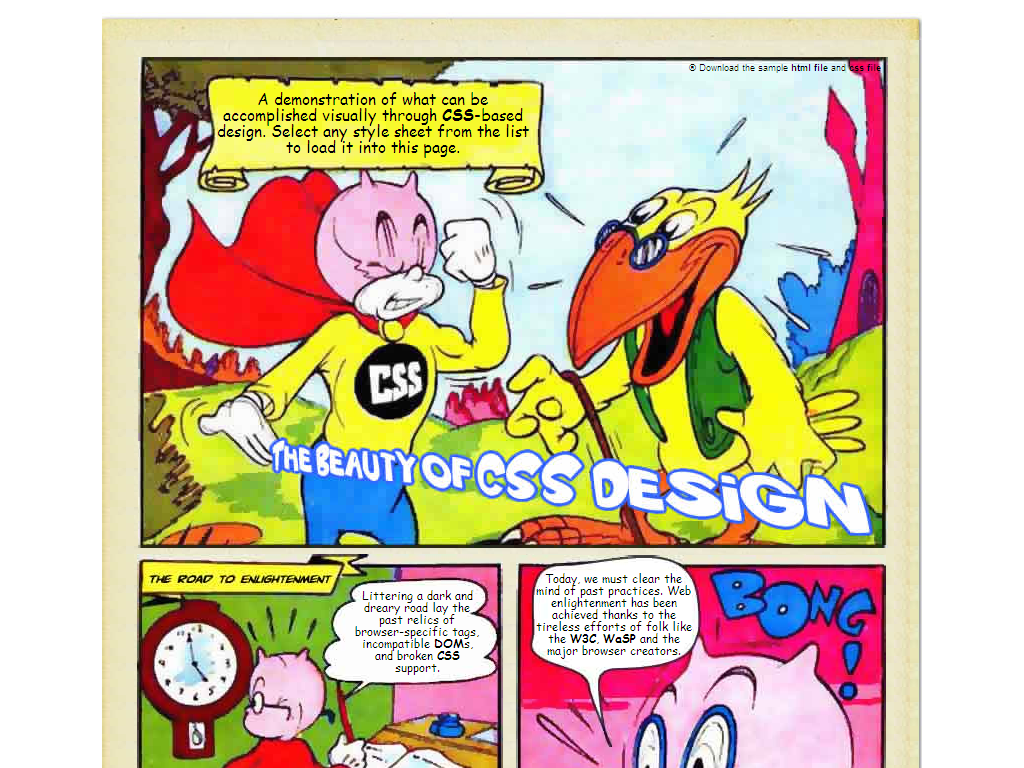

worm

Warning about old browsers

CSS implementations are now quite good, but older browsers had a variety of mistakes. Unfortunately, some browser manufacturers want to offer backwards compatibility with those buggy old browsers. So they have two modes: compliant mode, and legacy mode.

To decide which mode to use they look at the document.

Legacy and compliant modes

If you want your CSS to work right, always include a DOCTYPE at the head of your document.

Warning about XHTML/XML

XHTML is an XML application: it is XML.

However, it was designed to be sendable to old-fashioned browsers as HTML; the old browsers think they have received HTML, the new ones think they have received XHTML; there are some differences, but in most cases you won't notice them.

So when we say above "For XML it is always in compliant mode", for XHTML we mean "when the browser thinks it has received XHTML and not HTML".

Note that certain HTML-only rules in CSS do not apply to XHTML.

Also remember that HTML is case-insensitive, and XHTML isn't, so a quick way to find out what your browser thinks it has got is the following CSS:

h1 {color: green}
H1 {color: red}

About Valid Documents

HTML was designed so that incorrect documents are corrected by the browser.

However, you can never know exactly how the browser has corrected your document. This means that you don't know the exact structure of your underlying document.

Which means that you can't be sure how your CSS will be applied.

Therefore: always ensure you have a valid document.

For instance, check it at the W3C validator at validator.w3.org

CSS2 Selectors

CSS2 added a number of new selectors to CSS, to allow finer selection of elements.

One thing to remember about CSS is that it has a document-order processing model. So several selectors are asymmetric: you can select the first child element, but not the last, you can select the following element, but not the previous, and so on.

CSS2 Selector overview

*

E > F

E:first-child

E + F

E[att]

E[att="value"]

E[att~="value"]

:hover
:active
:focus

Universal selector

*: selects any element

This is useful for creating rules that are valid for all elements (for instance for a base style sheet that might work with several XML markup languages, where the root element is unknown).

* {color: black; background: white;
   font-family: sans-serif}

Note that a rule like

*.warning

is equivalent to

.warning

Child-of selector

E > F: selects any element F that is a child of E

For instance, these slides are in XHTML, and each slide is just a <div>.

I used to have for each slide

<div class="slide">

but now I can save typing, and have an unadorned <div>. Where I used to have the CSS rule:

div.slide {...}

I now have:

body>div {...}

which only selects divs which are a (direct) child of <body>

Alternative for child-of

Note that the rule

body div

also selects divs that are a child of <body>, but at any level, not just direct children. So if my slides themselves contain <div>s (which they do) then those divs would be selected too.

Another option I could have used was:

body div {... rules intended for slides... }
body div div {... rules to undo the above rules ... }

but it is nicer not to have to 'undo' presentation caused by other rules if you can avoid it.

First-child selector

E:first-child: selects any E that is the first child of its parent

So for instance, the following only selects paragraphs that are the first child of their parent:

p:first-child

Note that this slide does not have such a paragraph. The first child is a heading, so the above rule wouldn't apply to any paragraph here.

Usually though you want to be more specific. For instance, to select the first slide of this set:

body > :first-child

which selects any element that is a direct child of <body> that is also a first-child of its parent. Since there is only one of those, the first child of the body, it selects that.

Adjacent-sibling selector

(Sibling = brother or sister)

E + F: selects any F that directly follows an E

For instance, this selects any paragraph that follows another paragraph (i.e., not the first paragraph):

p + p {...}

On this slide I have coloured all such paragraphs red.

This selects any paragraph that follows a paragraph that is the first-child, i.e. the second paragraph:

p:first-child + p {...}

Attribute selector

E[att]: any E that has attribute att

For instance, a special selector for paragraphs that have id attributes:

p[id] {color: green}

or any element with an id:

[id] {color: green}
or
*[id] {color: green}

(More on this later when we talk about generated content)

Beware! Significant Spaces

a[id]

selects all a elements with an id attribute, while

a [id]

selects all elements that have an id attribute that are a descendent of an a element.

Attribute value selector

E[att="value"]: where att has exactly the value

Since class selectors like this:

p.warning {color: red}

don't work for generic XML markup, this sort of selector can be used instead:

p[class="warning"] {color: red}

Another example:

a[href="http://www.w3.org/"] {
      ... styling for 'home' link ...
}

Attribute partial value selector

E[att~="value"]: where one of the words of att is the value

This is the one you should really use for simulating class selectors, because the class attribute may contain more than one class:

<p class="warning sidebar">...

[class~="warning"] {color: red}
[class~="sidebar"] {float: left; ... } }

Both of these select the above paragraph.

Dynamic pseudo-classes

:hover - selects and element being hovered over (only a link in IE)

:active - selects an 'active' element (button in pressed state, link being retrieved)

:focus - selects an element that has 'focus', e.g. a link that has been tabbed to, a form input that is being typed in.

Microsoft Internet Explorer

Note that although most modern browsers support CSS 2, Microsoft Internet Explorer is not a 'modern browser' in this respect. In particular, almost none of the CSS2 selectors work in IE (:hover does).

This means that you can do special effect for other browsers, that IE won't see. For instance:

html>body {... IE won't see these rules ...}

(Look at CSS Zen Garden: Gemination in IE and a modern browser for a surprising example of this)

Example of CSS1-explicit display

One use of this difference is to display a warning.

For instance these slides have a warning at the beginning that is only displayed with IE (and other CSS1-only browsers) pointing out to people that they won't see the slides as they are intended. CSS2 browsers don't display the warning.

<p class="csscheck">This document is written in XHTML and CSS2;
 while you will be able to read the content acceptably,
 you need a better browser than the one you are using
 to see this document properly.</p>

.csscheck {color: red; font-size: 150%; width: 50%;
           margin-left: 1em; border: thick red solid}

body>div>.csscheck {display: none}

Since the second rule is more specific, its rules override the less-specific set. (i.e., the warning still has a border and so on, but they are just not displayed)

Practical 1

First let's look at an example.

These slides have a structure of a long series of <div>s; each div has a header of some level, usually followed by a paragraph. Write a rule that will convert the first paragraph of a slide to small caps.

Positioning

There are three main ways of positioning in CSS

Other lesser ways of positioning include using vertical-position and using margins. For instance, using margins:

<h1>My life</h1>
<p class="author">by Fred Bold</p>

p.author {margin-top: -1em; margin-left: 5em}

Floating

If you put an image in text, you get the following effect:

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. poppy At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

In other words: a big chunk of whitespace. Float lets the text flow around the image:

Float left and right:

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. poppy At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. poppy At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

The difference is due to text-alignment. Here it is aligned right:

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. poppy At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. poppy At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

Float left and right:

And here it is justified:

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. poppy At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. poppy At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

Floating text

You can float anything, not just images. For instance blocks of text.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

This is done by putting the sidebar in a <div class="sidebar">, and then using

.sidebar { float: left; width: 30%;
           background-color: yellow;
           margin: 0 1em 1em 0}

Advantages of float

The nice thing about float is that the floated content stays within the main flow of the document, surrounding text just avoids it automatically.

The only thing you have to take care of is the occasional

clear: both

for following content that must clear the floated content.

Reminder: clear

poppyLorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor.

A Heading

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

poppyLorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor.

A Heading

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

Clearing

Beware of this sort of problem, where the floated object is longer than the text:

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

Relative positioning

Relative addressing takes the positioned content and moves it relative to where it would originally have been. It leaves a 'hole' where it would have been:

Relative positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

Relative positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

This was done with:

.relative {position: relative; top: 5em; left: 5em}

Absolute positioning

On the other hand, absolute positioning takes the content out of the flow, moves it, and 'closes up' the gap, as if it had never been there:

Absolute positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

Absolute positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

This was done with:

.absolute {position: absolute; top: 5em; left: 5em}

Note that the heading is moved in relation to an absolute point, not the point where it came from.

Note about apparent transparency

In the above examples it looks like relative positioning produced a transparent yellow heading and absolute positioning produced an opaque yellow heading:

Relative positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

Absolute positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

However, this is just an effect of where in the document the text appears. The text after the relatively positioned heading is later in the document, and so is drawn on the screen later, i.e. over the earlier text. The absolutely positioned heading is also drawn over text that was drawn earlier. This therefore gives the appearance of transparency in one case and opaqueness in the other. Look at the borders above to see this effect more clearly.

Using layering

In the above examples it looks like relative positioning produced a transparent yellow heading and absolute positioning produced an opaque yellow heading:

Relative positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

Absolute positioning

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

In this case the relative header has been given a z-index: 2.

Layering 1

If you want to affect such layering explicitely, then you can use the z-index property. First let's relatively position some blocks.

red red red red
blue blue blue blue
yellow yellow
red red red red
blue blue blue blue
yellow yellow
.layer1 { background-color: red; position: relative;
          top: 2em; left: 2em; }
.layer2 { background-color: blue; position: relative;
          top: 0; left: 0; }
.layer3 { background-color: yellow; position: relative;
          top: -2em; left: 1em; }

Layering 2

Now we can apply the z-index property to the first block to make it be painted last:

red red red red
blue blue blue blue
yellow yellow
red red red red
blue blue blue blue
yellow yellow
.layer1, .layer1t { background-color: red; position: relative;
          top: 2em; left: 2em; z-index: 1 }
.layer2 { background-color: blue; position: relative;
           top: 0; left: 0; z-index: 1 }
.layer3 { background-color: yellow; position: relative;
            top: -2em; left: 1em; z-index: 1 }
.layer1t { z-index: 2 }

Absolutely positioned to what?

Admission: I had to cheat slightly in the slides with an absolutely positioned heading. Absolutely positioned elements are positioned 'absolutely' relative to the closest positioned ancestor element, or otherwise relative to the root element.

So if I had done nothing, the absolutely positioned title in that slide would have appeared somewhere on the first slide. So I positioned all slides relatively, but by (0, 0) so that they didn't move, but so that absolutely positioned elements within them would move within that slide.

Summary of relative and absolute positioning

So to summarise:

Put another way: when an element is positioned, all its children move with it.

Reminder: fixed positioning

See example. HTML:

<div class="nav">
   <h2>Links</h2>
   <p>
      <a href="...">Home</a>
      <a href="...">Away</a>
      ...
   </p>
</div>

And then in the CSS:

.nav { position: fixed;
       top: 0; right: 0;
       width: 6em;
       ...}
.nav a {display: block}

Overflow

Values: visible, hidden, scroll, auto, inherit
Default: visible

Overflow visible

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren.

Overflow hidden

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren.

Overflow scroll

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren.

Overflow auto

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren.

Hovering

The basis of hovering is for changing colours or similar. Like this:

a:hover {background-color: yellow}

But it offers more possibilities, such as this: [Hover here]Lorem ipsum dolor sit amet, consetetur sadipscing elitr.

Hovering

The basis is to have the pop-up text in the element that you are going to hover over:

<span class="popup">[Hover here]<span>Bla bla</span>
</span>

Then the default case is to make the pop-up text display: none:

.popup span {display: none}

Hovering

<span class="popup">[Hover here]<span>Bla bla</span>
</span>

Then, when we hover, we make the span visible, and position it as necessary:

.popup:hover span {
   display: block; width: 10em;
   background-color: yellow;
   border: dotted black thin;
}

[Hover here]Lorem ipsum dolor sit amet, consetetur sadipscing elitr.

You see that later content is pushed away, because the popup text is being displayed where it is in the content.

Hovering with relative position

<span class="popup">[Hover here]<span>Bla bla</span>
</span>
.popup:hover span {
   display: block; width: 10em;
   background-color: yellow;
   border: dotted black thin;
   position: relative; left: 30%; right: -10em;
}

[Hover here rel]Rel Lorem ipsum dolor sit amet, consetetur sadipscing elitr.

You see that later content is pushed away, because the popup text is being displayed where it is in the content, and then moved relative.

Hovering with absolute positioning

<span class="popup">[Hover here]<span>Bla bla</span>
</span>
.popup:hover span {
   display: block; width: 10em;
   background-color: yellow;
   border: dotted black thin;
   position: absolute; left: 30%; top: 12em;
}

[Hover here abs]Abs Lorem ipsum dolor sit amet, consetetur sadipscing elitr.

You see that later content is not pushed away, because the popup text is being taken out of the flow.

Hovering with margins

<span class="popup">[Hover here]<span>Bla bla</span>
</span>
.popup:hover span {
   display: block; width: 10em;
   background-color: yellow;
   border: dotted black thin;
   margin-top: -7em; margin-left: 7em;
}

[Hover here margins]Abs Lorem ipsum dolor sit amet, consetetur sadipscing elitr.

You see that later content moves up with the margins of the popup text.

Hovering with fixed positioning

<span class="popup">[Hover here]<span>Bla bla</span>
</span>
.popup:hover span {
   display: block; width: 10em;
   background-color: yellow;
   border: dotted black thin;
   position: fixed; top: 40%; left: 40%;
}

[Hover here fixed]Abs Lorem ipsum dolor sit amet, consetetur sadipscing elitr.

You see that later content is not pushed away, because the popup text is being taken out of the flow.

Practical 2

First, let's look at another example (also without images).

A div of class "gallery" contains a number of images; turn them into overlapping thumbnails, and bring them to the top when hovered.

Numbering

CSS allows you to automatically number elements. For instance, in an alternate stylesheet, these slides are automatically numbered (as you can see if you are looking at the printed version of these slides; the slide numbers are not in the content of the slides). You can use numbering for such things as ordered lists, for numbering headings, or for numbering diagrams or equations.

Generated content

The first part of the solution is to do with generated content:

p:before {content: "<<< "}
p:after  {content: " >>>"}

One

Two

Three

Here is a nice trick:

[id]:before { font-size: small;
              content: "id: " attr(id) " " }

(See the heading of this slide)

Counters

The next part of the solution is counters.

ol { counter-reset: item }
ol>li {counter-increment: item }

ol>li:before {content: counter(item) "." }

Counter-reset creates a counter if necessary, and sets it to 0.

Counter-increment creates the counter if necessary, setting it to 0, and then increments it.

Nested counters

Nesting creates a new level of counter. The increment applies then to the most recent one:

<ol>
<li> ...... (1)
<li> ...... (2)
   <ol> ... (2,0)
   <li> ... (2,1)
   <li> ... (2,2)
   </ol>
<li> ...... (3)

Nested counters

You can generate a list of all the counters with the same name:

li:before {content: counters(item, ".") ": " }

Which will generate something like:

2.2:

Resetting to different values

You can also do things like

counter-reset: item 20

and

counter-reset: chapter 0 section 0

and

counter-reset: chapter section

as well as

counter-increment: index 10

and

counter-increment: index 10 pointer 5

and

counter-increment: chapter verse

etc.

Formatting the counter

You can format the counter in different ways:

content: counter(item, lower-latin) ". "

will give i. ii. iii. iv. v. etc.

The second parameter is just the same as available for 'list-style-type':

disc | circle | square | decimal | decimal-leading-zero | lower-roman | upper-roman | lower-greek | lower-latin | upper-latin | armenian | georgian | lower-alpha | upper-alpha | none | inherit

This also works for the 'counters' function:

content: counters(item, ".", upper-latin)

Which will generate things like:

II.II II.III II.IV II.V

counter(item, disc) will format it as a disc and ignore the value.

Counter example

h2 {counter-increment: chapter;
    counter-reset: section figure eqn}
h2:before {content: "Chapter " counter(chapter) ": " }
.eqn {counter-increment: eqn}
.eqn:after {
    content: " ..." counter(chapter) "." counter(eqn)
}

E = MC2

Appendixes as well

h2.appendix {counter-increment: appx}
h2.appendix:before {
  content: "Appendix " counter(appx, upper-alpha) ": "
}

Which will generate something like:

Appendix A: References

Warning about counter properties

If you have a rule like

p {color: red; color: green}

Then the paragraph will be green; the second property overrides the first.

Similarly with counter-reset etc. They are properties, just like color and so on. So, if you have

h2 {counter-reset: chapter; counter-reset: section}

then only section will be reset! You must use rules like

h2 {counter-reset: chapter section}

Practical 3

1. Number these slides.

2. Number the headings of a document according to level. So the first h1 gets the number 1, the second gets the number 2, etc. The first h2 after the first h1 gets the number 1.1; the second h2 after the first h1 gets number 1.2; the first h2 after the second h1 gets the number 2.1.

1. This is a heading 1.
1.1. This is a heading 2.
1.2. This is a heading 2.
2. This is a heading 1.
2.1. This is a heading 2.
2.2. This is a heading 2.
2.2.1. This is a heading 3.
3. This is a heading 1.

Images

Essentially you have the choice between three different types of image:

Each type has its own advantages and disadvantages, and so the choice of which to use should depend on your needs.

An essential property of each format is that they are compressed: the storage and bandwidth needed is less than for the full image.

But beware: the image gets unpacked once it is used, so it can use much more memory than the compressed size. (One website I visited brought my machine to a crawl, and it turned out that it had a tiny (in bytes) image as background image. But when unpacked it was very large, and used up all my swap space.)

GIF

Properties:

This means:

Colour maps

Each pixel is a small number of bits, one for each pixel of the image. The number it represents is an index into the colour map.

The colour map is an array of up to 256 entries, each entry being 24 bits of colour information.

So instead of a million pixels of 24 bits, you have a million pixels of 8 bits, and 256 colour entries of 24 bits. I.e. a little more than 8 million bits instead of 24 million bits.

Pixels (as many as needed, from 1 to 8 bits):
  2 104 31

Colour map (up to 256 entries, each 24 bits):
  21323567 32767 3312433

JPG

Properties:

This means:

PNG

Properties of PNG:

This means:

Comparison

Comparison of 4 images

Tiff (7.5k) PNG (6.5k)
JPG (4.7k) GIF (4k)

Comparison of JPG compressions

High compressionLow compression

Low and high compression; 5 kB vs 32 kB

detail of fine compressions Detail of coarse compression

Comparison of GIF sizes

blank white half black half white black white split vertically Squiggle

Four gifs: size 941 1000 1102 2367 bytes

These differences are due to the different amount of repetition in the file.

Comparison of colour depth in GIF

256 128 64 32 16 8 4 2

From 256 to 2 colours. File sizes: 30 25 19 14 / 10 7 5 3 kB

Transparency trick

An oft-used trick is to make a sort of chess-board style of the pixels in the image, where alternate pixels are transparent. These are all the same image, on different coloured backgrounds:

A partially transparent PNG image

A partially transparent PNG image

A partially transparent PNG image

A partially transparent PNG image

Transparency trick

The same image as before, but enlarged

Transparency with GIF

These three divs have a transparent gif background image. One is a checked pattern of white and transparent, one grey and transparent, and one black and transparent. These three divs have a transparent gif background image. One is a checked pattern of white and transparent, one grey and transparent, and one black and transparent.

These three divs have a transparent gif background image. One is a checked pattern of white and transparent, one grey and transparent, and one black and transparent.

Transparency with PNG

This div contains a PNG image with varying levels of transparency across it. You should see different parts of this text showing through more or less according to the transparency. This div contains a PNG image with varying levels of transparency across it. You should see different parts of this text showing through more or less according to the transparency. This div contains a PNG image with varying levels of transparency across it. You should see different parts of this text showing through more or less according to the transparency.

This div contains a PNG image with varying levels of transparency across it. You should see different parts of this text showing through more or less according to the transparency. This div contains a PNG image with varying levels of transparency across it. You should see different parts of this text showing through more or less according to the transparency. This div contains a PNG image with varying levels of transparency across it. You should see different parts of this text showing through more or less according to the transparency.

Image replacement techniques

A major technique that is used in CSS Zen Garden is of replacing some text with an image.

This has an advantage over traditional uses of images for text, that the text is still in the document so that Google can see it, and so can blind people.

Let's look at an example for replacing a heading with an image:

Images for headlines

In the HTML, use a heading, with the text in a span:

<h1><span>Images for headlines</span></h1>

In the CSS, turn off the span:

h1 span {display: none}

and add a background image to the h1:

h1 { background-image: url(text.gif);
     background-repeat: no-repeat;
     background-position: 50% 50%
     height: 80px; width: 80px;  }

Image replacement problems

There can be some accessibility problems with this technique.

Some screen readers don't see text with 'display: none'.

No one sees anything if images have been turned off.

An alternative technique is to position the 'hidden' text off the screen (note that the span is not necessary):

h1 { text-indent: -100cm; ... }

Another technique is to move something over the top of the text, and then use the background image:

<h1>Images for headlines<span></span></h1>

h1 {position: relative}
h1 span { position: absolute; top: 0; left: 0;
          display: block;
          background-image: ...
}

Round corners

You can use background images to simulate round corners.

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum.

.curved { background: transparent url(curve.GIF)
              no-repeat 50% 0%;
          width: 211px; padding-top: 8px;
          font-size: 80%; margin-left: 10% }
}

Shadows

You can use background images to do shadow effects.

Image: shadow

At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit. At vero eos et accusam et justo duo dolores et ea rebum.

.shadow {
  background: transparent url(shadow.png)
              repeat-y 100% 100%;
  width: 211px; padding-top: 8px; padding-right: 2em;
  font-size: 80%; margin-left: 10% }
}

Shadows (2)

Here is an example of 3D effect tabs:

Home Away Products Support

Home Away Products Support

Uses these images:

.tab, .lasttab {
     display: block; float: left; height: 25px;
     background: url(tab_end.gif) right no-repeat #ccc;
     padding: 0 1em 0.25em 1em;
.lasttab { background-image: url(tab_end1.gif); }
...
<span class="tab">Home</span>
<span class="tab">Away</span>
<span class="tab">Products</span>
<span class="lasttab">Support</span>
}

Practical 4

Let's look at another example, also without images.

Make an element that has an image that changes when you hover over it.

Fluid Design

One of the big problems with many current web sites is the fixed design.

Part of the problem is that designers have grown up designing for paper, where you have complete control.

On the web, whatever designers may want, you no longer have complete control: you don't know the size of the screen, let alone the size of the window, or even the fonts available, let alone their sizes.

To best serve the interests of the user, you should attempt to utilise the screen real-estate as well as possible.

How not to do it

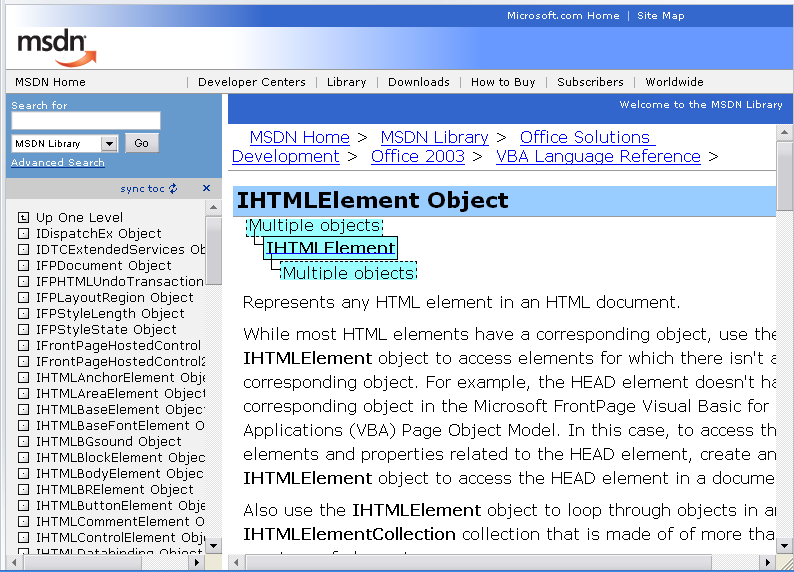

Here is an example site, luckily now changed, of a site underutilising the space available:

Bad use of screen space

How not to do it (2)

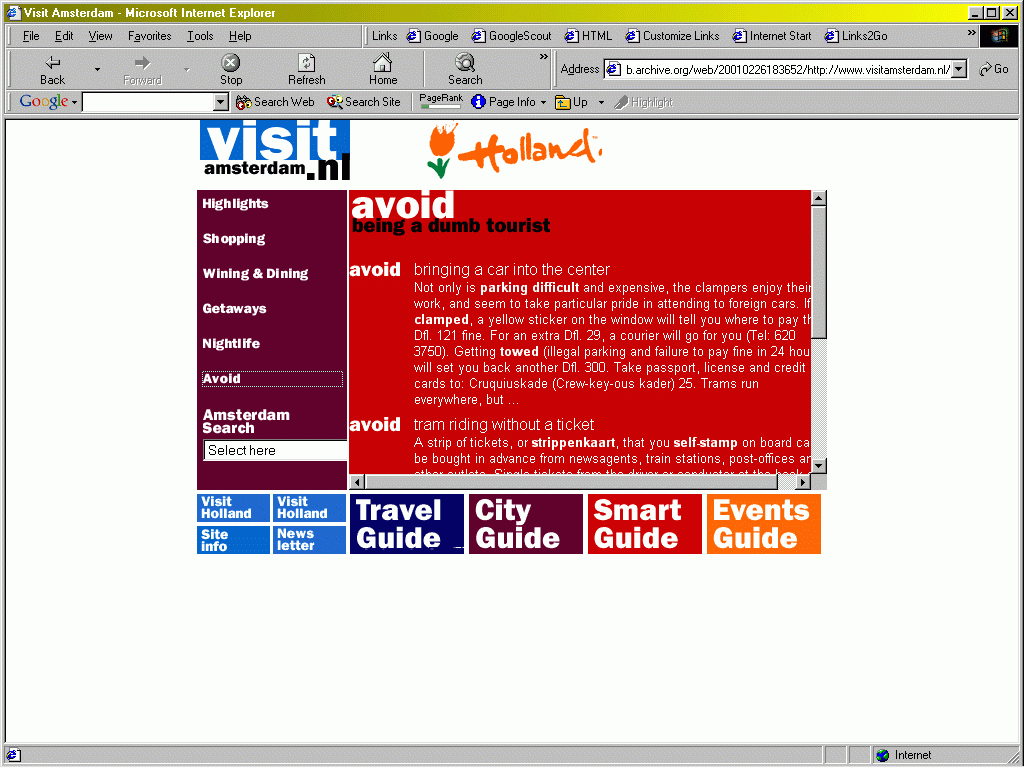

Here is a site that overuses the space, making it very hard to read. In particular you have to scroll horizontally to read the text.

Overusing the screen space

How to do it

The aim is to use the space as well as possible.

Reminder about sizes

Don't use pixels for sizes, except for images with an inherent size, because you don't know the resolution of the screen that anyone is using.

For instance, font-size: 12px will give you

Sizes

Similarly, avoid using point sizes as well:

Respect these people: try to use relative font sizes. Use font-size: 100% for paragraph text, font-size: 120% or so for headings, font-size: 80% for copyright statements, etc.

... almost every site I go to fails my three-second accessibility test: increasing the size of the type - Steve Krug in Don't Make Me Think (2nd ed)

Sizes for width

Similarly, don't use pixels for widths either, for the same reasons

Try whenever possible to express widths as percentages (which refers to the parent element) or as ems (which then refers to the current content.

Avoid too narrow or too wide text regions

Good typesetting practise requires you to match your line spacing to the length of the text lines. Long text lines should have wide line spacing, otherwise the reader is likely to get lost when going to the start of the next line.

However, CSS doesn't offer the facility to increase line spacing automatically with line length, so you should therefore restrict the length of your text lines.

But beware: too short lines are unreadable as well.

Example

Solemnly he came forward and mounted the round gunrest. He faced about and blessed gravely thrice the tower, the surrounding country and the awaking mountains. Then, catching sight of Stephen Dedalus, he bent towards him and made rapid crosses in the air, gurgling in his throat and shaking his head. Stephen Dedalus, displeased and sleepy, leaned his arms on the top of the staircase and looked coldly at the shaking gurgling face that blessed him, equine in its length, and at the light untonsured hair, grained and hued like pale oak.

Solemnly he came forward and mounted the round gunrest. He faced about and blessed gravely thrice the tower, the surrounding country and the awaking mountains. Then, catching sight of Stephen Dedalus, he bent towards him and made rapid crosses in the air, gurgling in his throat and shaking his head. Stephen Dedalus, displeased and sleepy, leaned his arms on the top of the staircase and looked coldly at the shaking gurgling face that blessed him, equine in its length, and at the light untonsured hair, grained and hued like pale oak.

Solemnly he came forward and mounted the round gunrest. He faced about and blessed gravely thrice the tower, the surrounding country and the awaking mountains. Then, catching sight of Stephen Dedalus, he bent towards him and made rapid crosses in the air, gurgling in his throat and shaking his head. Stephen Dedalus, displeased and sleepy, leaned his arms on the top of the staircase and looked coldly at the shaking gurgling face that blessed him, equine in its length, and at the light untonsured hair, grained and hued like pale oak.

min-width and max-width

These two properties allow you to constrain the width within certain bounds. Example:

Widths: this example paragraph has a width of 70%, a max-width of 30em and a min-width of 20em.

Some examples

Example 1

Some examples

Example 2

Some examples

Example 3

Some examples

Example 4

Some examples

Example 5

Device-independent design

Japanese cellphone use

There are now more browsers on mobile phones than on PCs.

Web sites seldom cater for small screen browsers, and yet it is so easy.

Device-independent design

Use device dependent stylesheets:

<link href="basic.css" rel="stylesheet" media="all" />
<link href="screen.css" rel="stylesheet" media="screen" />
<link href="phone.css" rel="stylesheet" media="handheld" />

or

<style type="text/css" media="handheld">
    ...
</style>

or

<style type="text/css" media="all">
    ... general rules ...
    @media screen { ... specific rules ... }
    @media handheld { ... specific rules ... }
</style>

Use fluid design.

Warning about media

Make sure you use the correct media values so that your content is usable on handheld devices.

If a handheld understands only media="handheld", then a document with:

<style type="text/css" media="screen">

will have only default styling on the handheld.

This is also true for:

<style type="text/css">

since the default is "screen".

Make sure that you use media="all", or include a stylesheet for media="handheld".

By the way

It is quite all right to use point sizes in a print style sheet

Practical 5

Let's look at another example, also without images.

Design a stylesheet for the print version of these slides.

Overview of properties, with examples and defaults

Overview of box properties

Web Resources for CSS, XML and XHTML

Quick Reference to Cascading Style Sheets, level 1

This version is based on:
http://www.w3.org/TR/REC-CSS1
Latest version:
http://www.w3.org/TR/WD-css1.html
Author:
Steven Pemberton (Steven.Pemberton@cwi.nl)

Syntax

a b c
a is followed by b is followed by c, in that order.
a | b
either a or b must occur
a || b
either a or b or both must occur, in any order
[a b]
brackets, used for grouping
a?
a is optional
a*
a is repeated 0 or more times
a+
a is repeated 1 or more times
a{1,4}
a is repeated at least once and at most 4 times.

Juxtaposition is stronger than the double bar, and the double bar is stronger than the bar. Thus "a b | c || d e" is equivalent to "[ a b ] | [ c || [ d e]]".

Definitions

Block-level elements
an element which has a line break before and after (e.g. <H1>, <P>)
Replaced element
An element which is replaced by content pointed to from the element. E.g., <IMG>.

Properties

In each definition

5.2    Font properties

5.2.2 font-family
[[<family-name> | <generic-family>],]* [<family-name> | <generic-family>]
Initial: UA specific
<generic-family>
serif | sans-serif | cursive | fantasy | monospace
5.2.3 font-style
normal | italic | oblique
5.2.4 font-variant
normal | small-caps
5.2.5 font-weight
normal | bold | bolder | lighter | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900
5.2.6 font-size
<absolute-size> | <relative-size> | <length> | <percentage>
Initial: medium
Percentage values: relative to parent element's font size
<absolute-size>
xx-small | x-small | small | medium | large | x-large | xx-large
<relative-size>
larger | smaller
5.2.7 font
[ <font-style> || <font-variant> || <font-weight> ]? <font-size> [ / <line-height> ]? <font-family>
Initial: not defined for shorthand properties
Percentage values: allowed on <font-size> and <line-height>

5.3    Color and background

5.3.1 color
<color>
Initial: UA specific
5.3.2 background-color*
<color> | transparent
5.3.3 background-image*
<url> | none
5.3.4 background-repeat*
repeat | repeat-x | repeat-y | no-repeat
5.3.5 background-attachment*
scroll | fixed
5.3.6 background-position*
[<percentage> | <length>]{1,2} | [top | center | bottom] || [left | center | right]
Applies to: block-level and replaced elements
Initial: 0% 0%
Percentage values: refer to the size of the element itself
5.3.7 background*
<background-color> || <background-image> || <background-repeat> || <background-attachment> || <background-position>
Initial: not defined for shorthand properties
Percentage values: allowed on <background-position>

5.4    Text properties

5.4.1 word-spacing
normal | <length>
5.4.2 letter-spacing
normal | <length>
5.4.3 text-decoration*
none | [ underline || overline || line-through || blink ]
Inherited: no, but see clarification below
5.4.4 vertical-align*
baseline | sub | super | top | text-top | middle | bottom | text-bottom | <percentage>
Applies to: inline elements
Percentage values: refer to the 'line-height' of the element itself
5.4.5 text-transform
capitalize | uppercase | lowercase | none
5.4.6 text-align
left | right | center | justify
Applies to: block-level elements
Initial: UA specific
5.4.7 text-indent
<length> | <percentage>
Applies to: block-level elements
Initial: 0
Percentage values: refer to parent element's width
5.4.8 line-height
normal | <number> | <length> | <percentage>
Percentage values: relative to the font size of the element itself

5.5    Box properties

5.5.1 margin-top*
<length> | <percentage> | auto
Initial: 0
Percentage values: refer to parent element's width
5.5.2 margin-right*
<length> | <percentage> | auto
Initial: 0
Percentage values: refer to parent element's width
5.5.3 margin-bottom*
<length> | <percentage> | auto
Initial: 0
Percentage values: refer to parent element's width
5.5.4 margin-left*
<length> | <percentage> | auto
Initial: 0
Percentage values: refer to parent element's width
5.5.5 margin*
[ <length> | <percentage> | auto ]{1,4}
Initial: not defined for shorthand properties
Percentage values: refer to parent element's width
5.5.6 padding-top*
<length> | <percentage>
Initial: 0
Percentage values: refer to parent element's width
5.5.7 padding-right*
<length> | <percentage>
Initial: 0
Percentage values: refer to parent element's width
5.5.8 padding-bottom*
<length> | <percentage>
Initial: 0
Percentage values: refer to parent element's width
5.5.9 padding-left*
<length> | <percentage>
Initial: 0
Percentage values: refer to parent element's width
5.5.10 padding*
[ <length> | <percentage> ]{1,4}
Initial: 0
Percentage values: refer to parent element's width
5.5.11 border-top-width*
thin | medium | thick | <length>
5.5.12 border-right-width*
thin | medium | thick | <length>
5.5.13 border-bottom-width*
thin | medium | thick | <length>
5.5.14 border-left-width*
thin | medium | thick | <length>
5.5.15 border-width*
[thin | medium | thick | <length>]{1,4}
Initial: not defined for shorthand properties
5.5.16 border-color*
<color>{1,4}
Initial: the value of the 'color' property
5.5.17 border-style*
none | dotted | dashed | solid | double | groove | ridge | inset | outset
5.5.18 border-top*
<border-top-width> || <border-style> || <color>
Initial: not defined for shorthand properties
5.5.19 border-right*
<border-right-width> || <border-style> || <color>
Initial: not defined for shorthand properties
5.5.20 border-bottom*
<border-bottom-width> || <border-style> || <color>
Initial: not defined for shorthand properties
5.5.21 border-left*
<border-left-width> || <border-style> || <color>
Initial: not defined for shorthand properties
5.5.22 border*
<border-width> || <border-style> || <color>
Initial: not defined for shorthand properties
5.5.23 width*
<length> | <percentage> | auto
Applies to: block-level and replaced elements
Percentage values: refer to parent element's width
5.5.24 height*
<length> | auto
Applies to: block-level and replaced elements
5.5.25 float*
left | right | none
5.5.26 clear*
none | left | right | both

5.6    Classification

5.6.1 display*
block | inline | list-item | none
5.6.2 white-space
normal | pre | nowrap
Applies to: block-level elements
5.6.3 list-style-type
disc | circle | square | decimal | lower-roman | upper-roman | lower-alpha | upper-alpha | none
Applies to: elements with 'display' value 'list-item'
5.6.4 list-style-image
<url> | none
Applies to: elements with 'display' value 'list-item'
5.6.5 list-style-position
inside | outside
Applies to: elements with 'display' value 'list-item'
5.6.6 list-style
<list-style-type> || <list-style-position> || <url>
Applies to: elements with 'display' value 'list-item'
Initial: not defined for shorthand properties

6.1    Length units

<length>
[+|-]?<number><unit>
<number>
<digit>+[.<digit>*]?
<unit>
<absolute-unit> | <relative-unit>
<absolute-unit>
mm | cm | in | pt | pc
<relative-unit>
em | ex | px

6.2    Percentage units

<percentage>
<number>%

6.3    Color units

<color>
<color-name> | <rgb>
<color-name>
aqua | black | blue | fuchsia | gray | green | lime | maroon | navy | olive | purple | red | silver | teal | white | yellow
<rgb>
#<hex><hex><hex> |
#<hex><hex><hex><hex><hex><hex> |
rgb(<number>, <number>, <number>) |
rgb(<percentage> <percentage>, <percentage>)

6.4    URL

<url>
url(<text>)
