Table of contents
      1. 4.8.12 The map element
      2. 4.8.13 The area element
      3. 4.8.14 Image maps
        1. 4.8.14.1 Authoring
        2. 4.8.14.2 Processing model
      4. 4.8.15 MathML
      5. 4.8.16 SVG
      6. 4.8.17 Dimension attributes

4.8.12 The map element

Categories
Flow content.
When the element only contains phrasing content: phrasing content.
Contexts in which this element can be used:
When the element only contains phrasing content: where phrasing content is expected.
Otherwise: where flow content is expected.
Content model:
Transparent.
Content attributes:
Global attributes
name
DOM interface:
interface HTMLMapElement : HTMLElement {
           attribute DOMString name;
  readonly attribute HTMLCollection areas;
  readonly attribute HTMLCollection images;
};

The map element, in conjunction with any area element descendants, defines an image map. The element represents its children.

The name attribute gives the map a name so that it can be referenced. The attribute must be present and must have a non-empty value with no space characters. The value of the name attribute must not be a compatibility-caseless match for the value of the name attribute of another map element in the same document. If the id attribute is also specified, both attributes must have the same value.

map . areas

Returns an HTMLCollection of the area elements in the map.

map . images

Returns an HTMLCollection of the img and object elements that use the map.

The areas attribute must return an HTMLCollection rooted at the map element, whose filter matches only area elements.

The images attribute must return an HTMLCollection rooted at the Document node, whose filter matches only img and object elements that are associated with this map element according to the image map processing model.

The IDL attribute name must reflect the content attribute of the same name.

Image maps can be defined in conjunction with other content on the page, to ease maintenance. This example is of a page with an image map at the top of the page and a corresponding set of text links at the bottom.

<!DOCTYPE HTML>
<TITLE>Babies™: Toys</TITLE>
<HEADER>
 <H1>Toys</H1>
 <IMG SRC="/images/menu.gif"
      ALT="Babies™ navigation menu. Select a department to go to its page."
      USEMAP="#NAV">
</HEADER>
 ...
<FOOTER>
 <MAP NAME="NAV">
  <P>
   <A HREF="/clothes/">Clothes</A>
   <AREA ALT="Clothes" COORDS="0,0,100,50" HREF="/clothes/"> |
   <A HREF="/toys/">Toys</A>
   <AREA ALT="Toys" COORDS="0,0,100,50" HREF="/toys/"> |
   <A HREF="/food/">Food</A>
   <AREA ALT="Food" COORDS="0,0,100,50" HREF="/food/"> |
   <A HREF="/books/">Books</A>
   <AREA ALT="Books" COORDS="0,0,100,50" HREF="/books/">
 </MAP>
</FOOTER>

4.8.13 The area element

Categories
Flow content.
Phrasing content.
Contexts in which this element can be used:
Where phrasing content is expected, but only if there is a map element ancestor.
Content model:
Empty.
Content attributes:
Global attributes
alt
coords
shape
href
target
rel
media
hreflang
type
DOM interface:
interface HTMLAreaElement : HTMLElement {
           attribute DOMString alt;
           attribute DOMString coords;
           attribute DOMString shape;
  stringifier attribute DOMString href;
           attribute DOMString target;
           attribute DOMString rel;
  readonly attribute DOMTokenList relList;
           attribute DOMString media;
           attribute DOMString hreflang;
           attribute DOMString type;

  // URL decomposition IDL attributes
           attribute DOMString protocol;
           attribute DOMString host;
           attribute DOMString hostname;
           attribute DOMString port;
           attribute DOMString pathname;
           attribute DOMString search;
           attribute DOMString hash;
};

The area element represents either a hyperlink with some text and a corresponding area on an image map, or a dead area on an image map.

If the area element has an href attribute, then the area element represents a hyperlink. In this case, the alt attribute must be present. It specifies the text of the hyperlink. Its value must be text that, when presented with the texts specified for the other hyperlinks of the image map, and with the alternative text of the image, but without the image itself, provides the user with the same kind of choice as the hyperlink would when used without its text but with its shape applied to the image. The alt attribute may be left blank if there is another area element in the same image map that points to the same resource and has a non-blank alt attribute.

If the area element has no href attribute, then the area represented by the element cannot be selected, and the alt attribute must be omitted.

In both cases, the shape and coords attributes specify the area.

The shape attribute is an enumerated attribute. The following table lists the keywords defined for this attribute. The states given in the first cell of the rows with keywords give the states to which those keywords map. Some of the keywords are non-conforming, as noted in the last column.

State Keywords Notes
Circle state circle
circ Non-conforming
Default state default
Polygon state poly
polygon Non-conforming
Rectangle state rect
rectangle Non-conforming

The attribute may be omitted. The missing value default is the rectangle state.

The coords attribute must, if specified, contain a valid list of integers. This attribute gives the coordinates for the shape described by the shape attribute. The processing for this attribute is described as part of the image map processing model.

In the circle state, area elements must have a coords attribute present, with three integers, the last of which must be non-negative. The first integer must be the distance in CSS pixels from the left edge of the image to the center of the circle, the second integer must be the distance in CSS pixels from the top edge of the image to the center of the circle, and the third integer must be the radius of the circle, again in CSS pixels.

In the default state state, area elements must not have a coords attribute. (The area is the whole image.)

In the polygon state, area elements must have a coords attribute with at least six integers, and the number of integers must be even. Each pair of integers must represent a coordinate given as the distances from the left and the top of the image in CSS pixels respectively, and all the coordinates together must represent the points of the polygon, in order.

In the rectangle state, area elements must have a coords attribute with exactly four integers, the first of which must be less than the third, and the second of which must be less than the fourth. The four points must represent, respectively, the distance from the left edge of the image to the left side of the rectangle, the distance from the top edge to the top side, the distance from the left edge to the right side, and the distance from the top edge to the bottom side, all in CSS pixels.

When user agents allow users to follow hyperlinks created using the area element, as described in the next section, the href, target attributes decide how the link is followed. The rel, media, hreflang, and type attributes may be used to indicate to the user the likely nature of the target resource before the user follows the link.

The target, rel, media, hreflang, and type attributes must be omitted if the href attribute is not present.

The activation behavior of area elements is to run the following steps:

  1. If the click event in question is not trusted (i.e. a click() method call was the reason for the event being dispatched), and the area element's target attribute is such that applying the rules for choosing a browsing context given a browsing context name, using the value of the target attribute as the browsing context name, would result in there not being a chosen browsing context, then raise an INVALID_ACCESS_ERR exception and abort these steps.

  2. Otherwise, the user agent must follow the hyperlink created by the area element, if any.

The IDL attributes alt, coords, href, target, rel, media, hreflang, and type, each must reflect the respective content attributes of the same name.

The IDL attribute shape must reflect the shape content attribute.

The IDL attribute relList must reflect the rel content attribute.

The area element also supports the complement of URL decomposition IDL attributes, protocol, host, port, hostname, pathname, search, and hash. These must follow the rules given for URL decomposition IDL attributes, with the input being the result of resolving the element's href attribute relative to the element, if there is such an attribute and resolving it is successful, or the empty string otherwise; and the common setter action being the same as setting the element's href attribute to the new output value.

4.8.14 Image maps

4.8.14.1 Authoring

An image map allows geometric areas on an image to be associated with hyperlinks.

An image, in the form of an img element or an object element representing an image, may be associated with an image map (in the form of a map element) by specifying a usemap attribute on the img or object element. The usemap attribute, if specified, must be a valid hash-name reference to a map element.

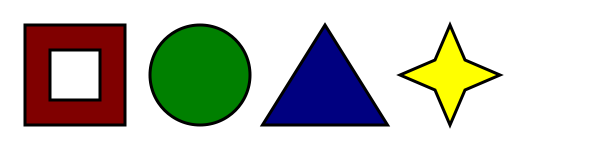

Consider an image that looks as follows:

A line with four shapes in it, equally spaced: a red hollow box, a green circle, a blue triangle, and a yellow four-pointed star.

If we wanted just the colored areas to be clickable, we could do it as follows:

<p>
 Please select a shape:
 <img src="shapes.png" usemap="#shapes"
      alt="Four shapes are available: a red hollow box, a green circle, a blue triangle, and a yellow four-pointed star.">
 <map name="shapes">
  <area shape=rect coords="50,50,100,100"> <!-- the hole in the red box -->
  <area shape=rect coords="25,25,125,125" href="red.html" alt="Red box.">
  <area shape=circle coords="200,75,50" href="green.html" alt="Green circle.">
  <area shape=poly coords="325,25,262,125,388,125" href="blue.html" alt="Blue triangle.">
  <area shape=poly coords="450,25,435,60,400,75,435,90,450,125,465,90,500,75,465,60"
        href="yellow.html" alt="Yellow star.">
 </map>
</p>
4.8.14.2 Processing model

If an img element or an object element representing an image has a usemap attribute specified, user agents must process it as follows:

  1. First, rules for parsing a hash-name reference to a map element must be followed. This will return either an element (the map) or null.

  2. If that returned null, then abort these steps. The image is not associated with an image map after all.

  3. Otherwise, the user agent must collect all the area elements that are descendants of the map. Let those be the areas.

Having obtained the list of area elements that form the image map (the areas), interactive user agents must process the list in one of two ways.

If the user agent intends to show the text that the img element represents, then it must use the following steps.

In user agents that do not support images, or that have images disabled, object elements cannot represent images, and thus this section never applies (the fallback content is shown instead). The following steps therefore only apply to img elements.

  1. Remove all the area elements in areas that have no href attribute.

  2. Remove all the area elements in areas that have no alt attribute, or whose alt attribute's value is the empty string, if there is another area element in areas with the same value in the href attribute and with a non-empty alt attribute.

  3. Each remaining area element in areas represents a hyperlink. Those hyperlinks should all be made available to the user in a manner associated with the text of the img.

    In this context, user agents may represent area and img elements with no specified alt attributes, or whose alt attributes are the empty string or some other non-visible text, in a user-agent-defined fashion intended to indicate the lack of suitable author-provided text.

If the user agent intends to show the image and allow interaction with the image to select hyperlinks, then the image must be associated with a set of layered shapes, taken from the area elements in areas, in reverse tree order (so the last specified area element in the map is the bottom-most shape, and the first element in the map, in tree order, is the top-most shape).

Each area element in areas must be processed as follows to obtain a shape to layer onto the image:

  1. Find the state that the element's shape attribute represents.

  2. Use the rules for parsing a list of integers to parse the element's coords attribute, if it is present, and let the result be the coords list. If the attribute is absent, let the coords list be the empty list.

  3. If the number of items in the coords list is less than the minimum number given for the area element's current state, as per the following table, then the shape is empty; abort these steps.

    State Minimum number of items
    Circle state 3
    Default state 0
    Polygon state 6
    Rectangle state 4
  4. Check for excess items in the coords list as per the entry in the following list corresponding to the shape attribute's state:

    Circle state
    Drop any items in the list beyond the third.
    Default state
    Drop all items in the list.
    Polygon state
    Drop the last item if there's an odd number of items.
    Rectangle state
    Drop any items in the list beyond the fourth.
  5. If the shape attribute represents the rectangle state, and the first number in the list is numerically less than the third number in the list, then swap those two numbers around.

  6. If the shape attribute represents the rectangle state, and the second number in the list is numerically less than the fourth number in the list, then swap those two numbers around.

  7. If the shape attribute represents the circle state, and the third number in the list is less than or equal to zero, then the shape is empty; abort these steps.

  8. Now, the shape represented by the element is the one described for the entry in the list below corresponding to the state of the shape attribute:

    Circle state

    Let x be the first number in coords, y be the second number, and r be the third number.

    The shape is a circle whose center is x CSS pixels from the left edge of the image and y CSS pixels from the top edge of the image, and whose radius is r pixels.

    Default state

    The shape is a rectangle that exactly covers the entire image.

    Polygon state

    Let xi be the (2i)th entry in coords, and yi be the (2i+1)th entry in coords (the first entry in coords being the one with index 0).

    Let the coordinates be (xi, yi), interpreted in CSS pixels measured from the top left of the image, for all integer values of i from 0 to (N/2)-1, where N is the number of items in coords.

    The shape is a polygon whose vertices are given by the coordinates, and whose interior is established using the even-odd rule. [GRAPHICS]

    Rectangle state

    Let x1 be the first number in coords, y1 be the second number, x2 be the third number, and y2 be the fourth number.

    The shape is a rectangle whose top-left corner is given by the coordinate (x1, y1) and whose bottom right corner is given by the coordinate (x2, y2), those coordinates being interpreted as CSS pixels from the top left corner of the image.

    For historical reasons, the coordinates must be interpreted relative to the displayed image, even if it stretched using CSS or the image element's width and height attributes.

Mouse clicks on an image associated with a set of layered shapes per the above algorithm must be dispatched to the top-most shape covering the point that the pointing device indicated (if any), and then, must be dispatched again (with a new Event object) to the image element itself. User agents may also allow individual area elements representing hyperlinks to be selected and activated (e.g. using a keyboard); events from this are not also propagated to the image.

Because a map element (and its area elements) can be associated with multiple img and object elements, it is possible for an area element to correspond to multiple focusable areas of the document.

Image maps are live; if the DOM is mutated, then the user agent must act as if it had rerun the algorithms for image maps.

4.8.15 MathML

The math element from the MathML namespace falls into the embedded content, phrasing content, and flow content categories for the purposes of the content models in this specification.

User agents must handle text other than inter-element whitespace found in MathML elements whose content models do not allow straight text by pretending for the purposes of MathML content models, layout, and rendering that that text is actually wrapped in an mtext element in the MathML namespace. (Such text is not, however, conforming.)

User agents must act as if any MathML element whose contents does not match the element's content model was replaced, for the purposes of MathML layout and rendering, by an merror element in the MathML namespace containing some appropriate error message.

To enable authors to use MathML tools that only accept MathML in its XML form, interactive HTML user agents are encouraged to provide a way to export any MathML fragment as an XML namespace-well-formed XML fragment.

The semantics of MathML elements are defined by the MathML specification and other applicable specifications. [MATHML]

Here is an example of the use of MathML in an HTML document:

<!DOCTYPE html>
<html>
 <head>
  <title>The quadratic formula</title>
 </head>
 <body>
  <h1>The quadratic formula</h1>
  <p>
   <math>
    <mi>x</mi>
    <mo>=</mo>
    <mfrac>
     <mrow>
      <mo form="prefix">−</mo> <mi>b</mi>
      <mo>±</mo>
      <msqrt>
       <msup> <mi>b</mi> <mn>2</mn> </msup>
       <mo>−</mo>
       <mn>4</mn> <mo>⁢</mo> <mi>a</mi> <mo>⁢</mo> <mi>c</mi>
      </msqrt>
     </mrow>
     <mrow>
      <mn>2</mn> <mo>⁢</mo> <mi>a</mi>
     </mrow>
    </mfrac>
   </math>
  </p>
 </body>
</html>

4.8.16 SVG

The svg element from the SVG namespace falls into the embedded content, phrasing content, and flow content categories for the purposes of the content models in this specification.

To enable authors to use SVG tools that only accept SVG in its XML form, interactive HTML user agents are encouraged to provide a way to export any SVG fragment as an XML namespace-well-formed XML fragment.

When the SVG foreignObject element contains elements from the HTML namespace, such elements must all be flow content. [SVG]

The content model for title elements in the SVG namespace inside HTML documents is phrasing content. (This further constrains the requirements given in the SVG specification.)

The semantics of SVG elements are defined by the SVG specification and other applicable specifications. [SVG]

The SVG specification includes requirements regarding the handling of elements in the DOM that are not in the SVG namespace, that are in SVG fragments, and that are not included in a foreignObject element. This specification does not define any processing for elements in SVG fragments that are not in the HTML namespace; they are considered neither conforming nor non-conforming from the perspective of this specification.

4.8.17 Dimension attributes

Author requirements: The width and height attributes on img, iframe, embed, object, video, and, when their type attribute is in the Image Button state, input elements may be specified to give the dimensions of the visual content of the element (the width and height respectively, relative to the nominal direction of the output medium), in CSS pixels. The attributes, if specified, must have values that are valid non-negative integers.

The specified dimensions given may differ from the dimensions specified in the resource itself, since the resource may have a resolution that differs from the CSS pixel resolution. (On screens, CSS pixels have a resolution of 96ppi, but in general the CSS pixel resolution depends on the reading distance.) If both attributes are specified, then one of the following statements must be true:

The target ratio is the ratio of the intrinsic width to the intrinsic height in the resource. The specified width and specified height are the values of the width and height attributes respectively.

The two attributes must be omitted if the resource in question does not have both an intrinsic width and an intrinsic height.

If the two attributes are both zero, it indicates that the element is not intended for the user (e.g. it might be a part of a service to count page views).

The dimension attributes are not intended to be used to stretch the image.

User agent requirements: User agents are expected to use these attributes as hints for the rendering.

The width and height IDL attributes on the iframe, embed, object, and video elements must reflect the respective content attributes of the same name.

For iframe, embed, and object the IDL attributes are DOMString; for video the IDL attributes are unsigned long.
