Unit Description

Smart Temperature Thing
  • Name: Smart Temperature Thing
  • Logo: tbd

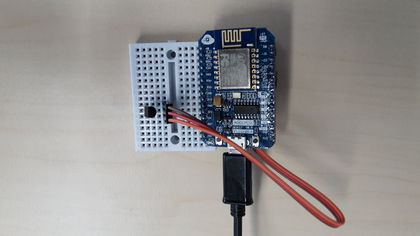

  • Hardware: ESP8266 Microcontroller + DS18B20 (digital Thermometer)
  • Software: NodeMCU firmware with Lua environment
  • WoT functions:
    • Role: Act as server (Temperature measurement) and client (search vote server and initiate votes)
    • Protocols: CoAP, HTTP
    • Encodings: JSON, EXI4JSON
    • Discovery: Register its Thing Description (TD) at the TD repository during startup
    • Application logic: Provides the temperature measurement as CoAP and HTTP resource (/temp). A threshold resource is provided (/thr) to set the threshold for 'too hot' and 'too cold' respectively.
  • Application description: The Smart Temperature Thing measures the current temperature value. If a particular kind of threshold is meet (e.g., temeperature is > 30°C) the Thing initate a semantic search at TD repository via a SPARQL query to report this circumstance 'too hot' to another Thing. If such a Thing exist, the TD repository answers the query with the relevant TD(s) which contains all information to initate a vote to such a 'Voter' Thing.
