W3C

Techniques for User Agent Accessibility Guidelines 1.0

W3C Working Draft 5-October-1999

This version:
http://www.w3.org/WAI/UA/WAI-USERAGENT-TECHS-19991005
(plain text, postscript, pdf, gzip tar file of HTML, zip archive of HTML)
Latest version:
http://www.w3.org/WAI/UA/WAI-USERAGENT-TECHS
Previous version:
http://www.w3.org/WAI/UA/WAI-USERAGENT-TECHS-19991004
Latest "User Agent Accessibility Guidelines 1.0":
http://www.w3.org/WAI/UA/WAI-USERAGENT
Editors:
Jon Gunderson <jongund@uiuc.edu>
Ian Jacobs <ij@w3.org>

Abstract

This document provides techniques for implementing the checkpoints defined in "User Agent Accessibility Guidelines 1.0". These techniques address the accessibility of user interfaces, content rendering, program interfaces, and languages such as HTML, CSS and SMIL.

This document is part of a series of accessibility documents published by the Web Accessibility Initiative.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. The latest status of this document series is maintained at the W3C.

This is a W3C Working Draft for review by W3C Members and other interested parties. It is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to use W3C Working Drafts as reference material or to cite them as other than "work in progress". This is work in progress and does not imply endorsement by, or the consensus of, either W3C or Members of the WAI User Agent (UA) Working Group.

While User Agent Accessibility Guidelines 1.0 strives to be a stable document (as a W3C Recommendation), the current document is expected to evolve as technologies change and content developers discover more effective techniques for designing accessible Web sites and pages.

This document has been produced as part of the Web Accessibility Initiative and intends to improve user agent accessibility for all users. The goals of the User Agent Guidelines Working Group are discussed in the Working Group charter. A list of the UA Working Group participants is available.

A list of current W3C Recommendations and other technical documents can be found at http://www.w3.org/TR.

Please send comments about this document to the public mailing list: w3c-wai-ua@w3.org.

Table of Contents


1 Priorities

Each checkpoint in this document is assigned a priority that indicates its importance for users.

[Priority 1]
This checkpoint must be satisfied by user agents as a native feature, otherwise one or more groups of users with disabilities will find it impossible to access information. Satisfying this checkpoint is a basic requirement for some individuals to be able to use the Web.
[Priority 2]
This checkpoint should be satisfied by user agents as a native feature, otherwise one or more groups of users will find it difficult to access information. Satisfying this checkpoint will remove significant barriers to accessing Web documents.
[Priority 3]
This checkpoint may be satisfied by user agents as a native feature to make it easier for one or more groups of users to access information. Satisfying this checkpoint will improve access to the Web for some individuals.

The checkpoints in this document are numbered to match their numbering in User Agent Accessibility Guidelines 1.0.

2 How the Techniques are Organized

This document is organized as follows:

User Agent Accessibility
This section introduces some general techniques to promote accessibility in user agent functionality.
Interfaces and Conventions
This section addresses user agent support for standard programming interfaces, operating system conventions, and W3C specifications.
HTML Techniques
This section explains how to implement features of HTML (refer to [HTML40], [HTML32]).
CSS Techniques
This section explains how to implement features of CSS1 and CSS2 (refer to [CSS1], [CSS2]).
SMIL Techniques
This section explains how to implement features of SMIL (refer to [SMIL]).

A checkpoint map has been provided for navigation of the techniques. For each checkpoint, the map includes its definition (as it appears in the "User Agent Accessibility Guidelines 1.0") and links to applicable techniques for the checkpoint. In addition, the beginning of each section of this document lists the checkpoints that are addressed in that section.

2.1 Examples

This document contains a number of examples that illustrate accessible solutions in HTML, CSS, etc.

3 User agent accessibility

A list of assistive technologies and browsers designed for accessibility is available at the WAI Web site (refer to [USERAGENTS]).

3.1 Access to content

Checkpoints in this section: 3.1, 3.2.

It is not sufficient to convert a rendering intended for one medium into a rendering for a different medium (e.g., a graphical rendering to speech) since structural information is lost. Examples: table cells, nested lists (want to know where list item ends).

Also, serial access to content not always convenient, so we need additional mechanisms to select and receive content.

3.1.1 Where does content come from?

Some combination of document source, style sheets (which may hide content or generate content), and user agent additions (which may add contextual information or dynamic information such as whether a link has been visited).

In addition, the user agent may want to provide "intelligent" access to content to simplify the view or to convey models more familiar to users than what is conveyed by the DTD alone.

In the Amaya browser ([AMAYA]), users may access attribute values as follows: Place the cursor at the element in question, open/swap to the structure view. You are shown list of attributes and values. Another technique: select the element (press escape in Linux), then the attributes are all available from the attributes menu. For alt, one can also look at the alternate view, which renders alt text instead of images - a lynx-like view. All the views are synchronized for navigation (and for editing).

3.1.2 What does access mean?

Access means that the user agent renders selected content. Content includes text, video, audio, and alternative equivalents to them (which may be attribute values, element content, external resources, etc.).

In the simplest case, the user agent renders the document (e.g., two-dimensional graphical layout, audio stream, line-by-line braille stream) and the user has access to the entire rendering.

But this is not sufficient and so the user agent must provide navigation mechanisms that allow the user to set the selection/focus and then request the selected content (or information about the content - refer to another section...).

User interface issues
Refer to the section on navigation for different navigation techniques (serial, direct, tree, etc.).
Structured v. Unstructured selection.
Contextual information
In addition to providing information about content, user agents should provide contextual information. Examples: table cell row/column position or header information. Or list item number within nested lists. Contextual information includes language of content as well.

3.1.3 Changes in content language

Checkpoints in this section: 3.3.

A user agent should treat content language as part of contextual information. When the language changes, the user agent should either render the content in the supported language or notify the user of the language change (if configured for notification). Rendering could involve speaking in the designated language in the case of an audio browser or screen reader. If the language was not supported, the language change notification could be spoken in the default language by a screen reader or audio browser.

Language information for HTML ("lang", "dir") and XML ("xml:lang") should be made available through the DOM ([DOM1]).

3.1.4 Changes over time

Checkpoints in this section: 3.4.

3.1.5 Abbreviations and acronyms

User agents should make available information about abbreviation and acronym expansions. For instance, in HTML, look for abbreviations specified by the ABBR and ACRONYM elements. The expansion may be specified with the "title" attribute.

To provide expansion information, user agents may:

3.2 Device independence

Checkpoints in this section: 1.2, 1.1, 1.3, 1.4, 1.5, 1.6

For non-text or replaced content:

For client-side image maps:

3.3 User control of style

To ensure accessibility, users must have final control over certain renderings.

For text and color:

Checkpoints in this section: 5.1, 5.2, 5.3, 5.4, 5.5, and 5.6.

[Ed. These may be rendered in a variety of ways. How do we specify rendering?]

Implement CSS ([CSS1], [CSS2]) including the CSS2 cascade order and user style sheets. The CSS2 cascade order ensures that user style sheets with "!important" take precedence over author style sheets, giving users final control. Style sheets give authors design flexibility while offering users final control over presentation (refer also to [WAI-WEBCONTENT], checkpoint 3.3). CSS should be implemented by user agents that implement CSS for text that it renders. CSS includes properties for audio, braille (fixed and refreshable), screen, and print rendering, and all relevant properties for supported output media should be implemented.

Note that in the CSS cascade order, markup is given less weight than style sheet rules. Thus, an author may use both presentation markup and style sheets, and user agents that support style sheets will prefer the latter.

A user style sheet can be implemented through a user interface, which means that the user may not have to understand how to write style sheets; they are generated or the user agent acts as though they were. For an example of this, refer to the style sheets implementation of Amaya ([AMAYA]), which provides a GUI-based interface to create and apply internal style sheets. The same technique could be used to control a user style sheet.

For images, applets, and animations:

Checkpoints in this section: 4.2 and 5.7.

Background images may be controlled by the use of local style sheets, and more effectively if these can be dynamically updated. Animation rate depends on the players used. User agents that provide native rendering of animation (for example a movie player, a driver for animated GIF images, or a java machine) should enable the control of animation rates, or at least allow the user to stop, and to play frame-by-frame, as well as straight rendering. A user agent could provide control of the general timing of a presentation, combined with the ability to select from available tracks manually. An issue to bear in mind is that when animation is synchronized with audio, a user may need the ability to play the animation separately from the associated audio.

For time-based presentations:

Implement user controls to start, atop, rewind and pause presentations, and where multiple tracks are supported, to choose which tracks should be rendered. SMIL ([SMIL]) provides for a number of these features. A SMIL implementation should provide for direct user control, as well as activation of the controls through a published API, for developers of assistive technologies.

For user agents rendering audio:

Checkpoints in this section: 5.11, 5.13, 5.9, 3.9, 3.8, and 5.12.

On selecting from among available description tracks. SMIL ([SMIL]) allows users to specify captions in different languages. By setting language preferences in the SMIL player, users may access captions (or audio) in different languages.

The G2 player from Real Networks currently allows users to specify which language they prefer, which can be evaluated in a SMIL document to choose from among text or audio tracks. Currently only one language can be indicated which does not permit choosing, for example, English spoken audio with Spanish captions.

The Quicktime player currently permits turning on and off any number of tracks individually, which can include audio, video, and text.

For user agents rendering video:

Checkpoints in this section: 5.8, 5.10, 5.9, and 3.8.

Implement the CSS positioning and/or SMIL layout languages. Allow the user to freeze a presentation, manually move and resize component video tracks (including captions, subtitles and signed translations) and to apply CSS stylesheets to text-based presentation and SVG.

For user agents rendering speech:

Checkpoints in this section: 3.8, 5.14, 5.15, and 5.16.

CSS2 ([CSS2]]) properties for speech can allow users to control speech rate, volume, and pitch. These can be implemented by allowing the user to write and apply a local style sheet, or can be automatically generated by means of (accessible) user controls, which should also be controllable through an API.

User interface:

Checkpoints in this section: 5.17.

3.3.1 Feature control

Checkpoints in this section: 4.1, 4.3, 4.4, 4.10, 4.9, and 4.5.

[Ed. Add note here that while useful to turn off support, say for all images, it's also useful to be able to view one particular image.]

User agents may:

For example, user agents may recognize the HTML construct target="_blank" and spawn the window according to the user's preference.

Checkpoints in this section: 4.14.

Page refresh according to an author-specified time interval can be achieved with the following markup in HTML:

<META http-equiv="refresh" content="60">

The user agent should allow the user to disable this type of page refresh.

Checkpoints in this section: 4.13.

Although no HTML specification defines this behavior formally, some user agents support the use of the META element to refresh the current page after a specified number of seconds, with the option of replacing it by a different URI. Instead of this markup, authors should use server-side redirects (with HTTP).

User agents can provide a link to another page rather than changing the page automatically.

3.4 Viewports, Selection, and Focus

3.4.1 Highlighting the viewport, selection, and focus

Checkpoints in this section: 9.1.

3.4.2 Tracking selection and focus

Checkpoints in this section: 10.2 and 8.2.

3.5 Navigation and searching

Checkpoints in this section: 8.7

Configuration of navigation, navigating sets of items (but not always linear, e.g., tables).

3.5.1 Navigation of active elements

Checkpoints in this section: 8.4.

Sequential navigation includes all active elements. User agents might provide other navigation mechanisms limited to a particular type of element. For example "Find the next table" or "Find the previous form". The following checkpoints suggest some types of navigation.

Direct navigation:

Excessive use of serial navigation can reduce the usability of software for both disabled and non-disabled users. As a developer, you need to determine the point at which tabbing gets in the way and provide a keyboard alternative. This is done through the use of keyboard shortcuts. Note that user agents must provide information about available shortcuts (the current keyboard configuration) to users.

3.5.2 Navigation of document structure

Checkpoints in this section: 8.6

3.5.3 Table navigation

Checkpoints in this section: 8.3

All users should be able to quickly determine the nature and purpose of a table. Examining the table visually often conveys a sense of the table contents with a quick scan of the cells. Users with blindness or low vision, users who have difficulty translating printed material, or users in an eyes-busy or speech-based environment may not able to do this. Providing table summary information, when first moving the point-of-regard to a table allows the nature of a table to be easily determined. In HTML, summary information for tables comes from the "summary" attribute on the TABLE element as well as the CAPTION element.

An auditory rendering agent, when the point-of-regard moves to a table, might say, "Table: Tax tables for 1998," thus identifying the nature of the table. The user could then use keyboard commands to move the point of regard to the next logical block of information, or use a different command to "burrow" into the table.

The "burrow" command should have an opposite "up" command, which would move the point of regard from an individual cell to the table as a whole, so that the user can leave a table from any cell within it, rather than navigating to the end.

If the user moves the focus up to look over the summary information, it should be possible to burrow back to the same cell.

When navigating a table that contains another table, this strategy can avoid confusion. For example, if each row of a table contained five cells, but the second row contained a 4x4 table in the third cell, a user could be disoriented when the row did not end as expected. However, when the point of regard moved to the third cell of the table, a compliant browser would report that this was a table, and describe its contents. The user would have the option of navigating to the forth cell of the parent table, or burrowing into the table within this cell.

When rendering tabular information, the fact that it is tabular information should be apparent. For a graphical user agent, such information is commonly made obvious by the border attribute or by visually apparent aligned white space between columns. However, for a non-graphical agent, such information must also be made evident.

As the user agent shifts the point of regard to a table, it should first allow users to access summary information about the table (e.g., the CAPTION element or the "summary" attribute in HTML). Access to this information allows the user to determine whether or not to examine the contents of the table, or to move the point of regard to the next block of content. Users should be able to choose not to have the summary information presented, if, for example, they visit a table frequently and don't want to hear the summary information repeated each time.

In many data tables, the meaning of the contents of a cell are related to the contents of adjacent cells. For example, in a table of sales figures, the sales for the current quarter might be best understood in relation to the sales for the previous quarter, located in the adjacent cell.

In order to provide access to contextual information for individuals using non-graphical browsers, or for individuals with certain types of learning disabilities, it is necessary for the user agent to allow the point of regard to be moved from cell to cell, both right/left and up/down via keyboard commands. The UA should inform the user when navigation has led to a table edge.

The most direct method of performing such navigation would be via the cursor keys, though other navigation strategies might be used.

Users of graphical browsers can easily locate cells within a table that are at the intersection of a row and column of interest. To provide equivalent access to users of non-graphical browsers, equivalent means of navigation should be provided. The search function of a browser will allow the user to locate key terms within a table, but will not allow the user to find cells that are at the intersection of rows and columns of interest.

Techniques:

The header information visible in a TH cell may be abbreviated, in which case it should be user preference to see the "abbr" value if any or the full contents.

Axis information may also help the user search into confined portions of the table.

Column groups and row groups are other confining partitions of a table in which a search may be limited.

Software:

3.5.4 Searching

Checkpoints in this section: 8.5.

3.5.5 View navigation

Checkpoints in this section: 8.1, 9.3.

[Ed. @@CMN: For example, Opera does allow the user to navigate between views - in it's case various windows, as does emacs-w3. Other systems rely on the Operating System to do it - in MSWindows and the X window system there are keyboard and mouse driven methods for moving among open windows.]

3.5.6 Skipping navigation bars

Author-supplied navigation mechanisms such as navigation bars at the top of each page may force users with screen readers or some physical disabilities to wade through numerous links on each page of a site. User agents may facilitate browsing for these users by allowing them to skip recognized navigation bars (e.g., through a configuration option). Some techniques for doing so include:

  1. Provide a functionality to jump to the first non-link content.
  2. In HTML, the MAP element may be used to mark up a navigation bar (even when there is no associated image). Thus, users might ask that MAP elements not be rendered in order to hide links inside the MAP element. Note. Starting in HTML 4.0, the MAP element allows block content, not just AREA elements.

3.6 Context and orientation

3.6.1 Status information

Checkpoints in this section: 10.4 and 10.5.

Status information - on resource loading - should be provided in a device-independent manner. Techniques include text and non-text status indicators. Users should be able to request status information or have it rendered automatically. User agents may allow users to configure when status information should be rendered (e.g., by hiding or showing the status bar).

Screen readers may provide access on demand (e.g., through the keyboard) to the most recent status information, or to announce the new information whenever it changes.

Useful status information:

User agents may allow users to configure what status information they want rendered.

3.6.2 Context for speech synthesis

Tools that work with synthesized speech do not always pronounce text correctly. Therefore, they should provide additional context so that users can understand content. Techniques include:

3.6.3 Element context

Checkpoints in this section: 9.4.

3.6.4 Links

Checkpoints in this section: 9.5, 9.6, and 9.7.

Lynx ([LYNX]) numbers each link and other element and provides information about the relative position of the section of the document. Position is relative to the current page and the number of the current page out of all pages. Each page usually has 24 lines.

Information about link status and other properties can be provided in an information view such as that provided by Netscape Navigator about how many and what types of elements are in a document.

User agents should not consider that all local links (to anchors in the same page) have been visited when the page has been visited.

User agents may use graphical or aural icons to indicate visited links or broken links.

Users should be able to:

3.6.5 Tables

Checkpoints in this section: 9.10 and 9.9.

Users of screen readers or other serial access devices cannot easily glean information about a page "at a glance". This is particularly difficult when accessing two-dimensional tables and trying to determine their content. Therefore, contextual information about tables (available from author-supplied markup or generated by the user agent) is very important to making them accessible.

Text metadata about tables can come from a number of elements, attributes, the structure of the table itself, or other sources. Useful information to make available to users includes:

3.6.6 Form controls

Checkpoints in this section: 9.11, 10.6, 9.8.

Statement of form submission problems from Gregory Rosmaita:

Point A: As a user, I do not want to be prompted time I submit a form, provided that I submitted the form by activating its submit button. If, however, I simply hit the ENTER or the RETURN key from within a FORM control (i.e., rather than explicitly activating the SUBMIT mechanism), I would like the UA to request confirmation before submitting the form content.

Point B: As a user, I do NOT want the form content automatically submitted if I inadvertently press the ENTER or RETURN key.

PROBLEM STATEMENT FOR POINT B:

Inadvertently pressing the RETURN or ENTER key is quite a prevalent phenomenon amongst users of every level of expertise - especially those who often find it necessary to switch between user agents. Lynx, for example, uses the ENTER key within FORMs as a means of exposing drop-down (or pop-up, depending upon your point of view) SELECT menus. Thus, when one encounters a SELECT menu using Lynx, one: exposes the content of the menu by pressing the ENTER key, and then is able to navigate between OPTIONs using the up and down arrows or via Lynx's text-search feature. When one finds the appropriate OPTION, it is selected by pressing ENTER, which causes the selected item to be displayed in the SELECT menu listbox.

The problems posed by the default "submit on enter" feature of most GUI browsers, is not limited to the SELECT menu problem outlined above. Lynx (as well as several other text-based browsers) uses the ENTER/RETURN key as a means of toggling several FORM controls, such as the selection of checkboxes and radio buttons.

Moreover, I would like to stress that the "Auto-Submit-On- Enter" feature is not only quite problematic for one operating in an eyes-free environment, but for those unaccustomed to using online forms, and for those unfamiliar with a particular user agent's default key- bindings for forms, as well as those (like myself and countless others) who surf the web using a variety of browsers, often switching from browser to browser -- ALT- TAB-ing from Lynx32 to MSIE to Opera, for example -- in order to better comprehend the contents of a page or while attempting to navigate an poorly structured site or a poorly marked-up form

Point C: As a speech user, I am constantly frustrated and misdirected by the use of javascript and event handler controlled pseudo-forms, wherein the user is presented with a menu (in the form of a listbox in GUI browsers), and is redirected to a different viewport upon selection of an OPTION.

PROBLEM STATEMENT FOR POINT C:

The markup behind such pseudo-forms is a mix of javascript (in particular the "function switchpage(select)" command) and HTML FORM controls, which utilize HTML4's event handler script attributes (in particular the "onchange" event handler attribute has been defined. An example (gleaned from the document source for one Web site follows:


  <SELECT NAME="condition" onchange="switchpage(this)">

When such a menu is encountered by a Web surfer who is using speech synthesis in conjunction with a javascript enabled user agent, his or her instinctual reaction will be to use the UA's navigation mechanism (usually the up and down arrows) to review the available OPTIONs. However, each time a new OPTION is displayed, the user is abruptly taken to a new viewport. Conversely, if one is using a user agent that does not support javascript (or has javascript support disabled), then the menu is displayed, but since there is no SUBMIT mechanism associated with it, there is no mechanism by which one can use the menu to quickly switch viewports - the apparent purpose of this type of pseudo-form. And while one can avoid having the viewport abruptly changed when encountering the menu (at least in the Windows environment) by using the ALT-LEFT-ARROW keystroke to display the menu in a drop-down list, (a) very few users know this keystroke, and (b) when one encounters a listbox on a page in an aural environment, one usually assumes that he or she is navigating a valid FORM, in which there are no unexpected side effects to perusing the contents of a SELECT menu using the arrow keys

Note. I have chosen to address the issue of pseudo-forms in this context, for, although they straddle the boundary between "Form Controls" and Checkpoint 5.8, pseudo-forms rely on FORM elements for activation This issue has been raised in the past, particularly by Chris Kreussling.

Techniques:

  1. Allow the user to configure the user agent. Choices should include: The default setting should be: "Prompt before submitting form content", so as to allow the user to decide whether or not HTML4 event handling will occur automatically.
  2. Configuration can be determined by prompting the user the first time an event handled or script-driven FORM is encountered. Choices should include: If the user chooses "Prompt Before Submitting Form Content", this prompt could be recycled in an abbreviated fashion. The prompt should include:

Refer also to [WAI-WEBCONTENT], checkpoint 6.3: Content developers must ensure that pages are accessible with scripts turned off or in browsers that don't support scripts.

3.6.7 Frames

Checkpoints in this section: 9.2.

User agents should provide information about:

Frames were originally designed for use by graphical user interfaces to allow the graphical viewport to be broken up into pieces that could change independently (e.g,. selecting an entry in a table of contents in one frame changes the contents of a second frame). People who use synthesized speech, refreshable braille, and magnified views need to have access to the frame information:

This information should be available through the DOM and appropriate accessibility interfaces. Using DOM and operating specific accessibility API to expose frame information provides one means for assistive technologies to provide alternative control of frames and rendering of frame information. The user agent should fully implement the DOM Level 1 Recommendation ([DOM1]) API related to frames: HTMLFrameSetElement, HTMLFrameElement, and HTMLIFrameElement.

For people with visual impairments who are enlarge text on the screen to improve readability, frames become distorted and unusable. Other users with cognitive disabilities sometimes become disoriented in complex side-by-side frame configurations. To improve access to frames, user agents should allow frames to be viewed as a list so the user can identify the number of frames and the functions of each frame. If no frames information is present it should also be rendered so the user can optionally use that view of the information.

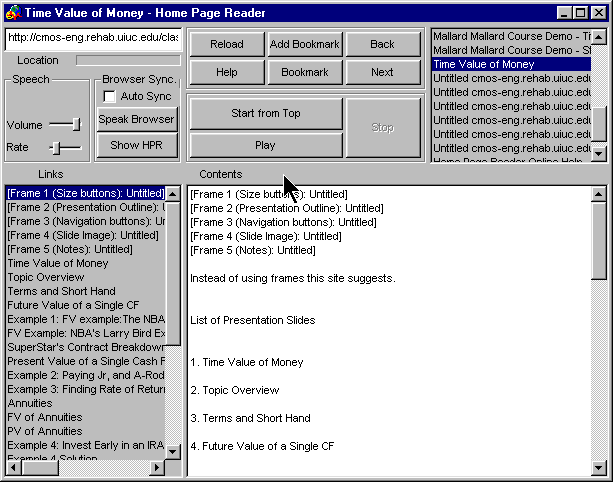

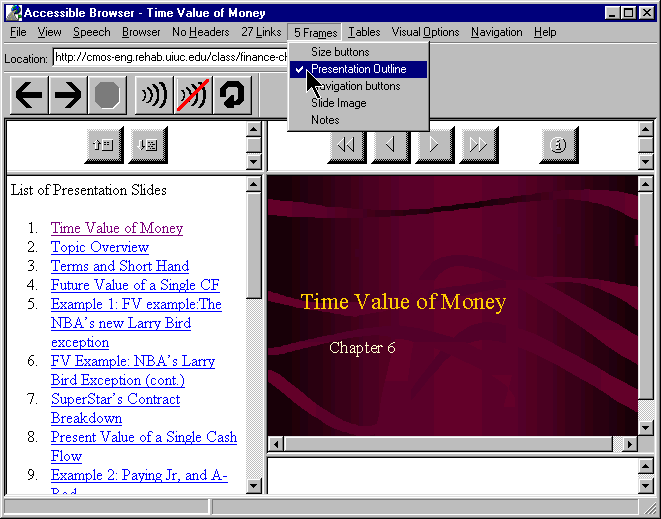

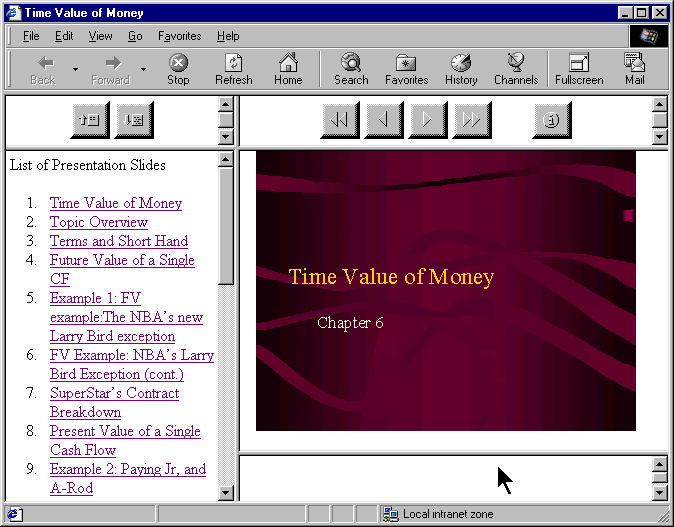

Consider renderings of the following document:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN">
<HTML lang="en">
<HEAD>
  <META http-equiv="Content-Type"
           content="text/html; charset=iso-8859-1">
  <TITLE>Time Value of Money</TITLE>
</HEAD>

<FRAMESET COLS="*, 388">
  <FRAMESET ROWS="51, *">
    <FRAME src="sizebtn" marginheight="5" marginwidth="1"
	   name="Size buttons" title="Size buttons">
    <FRAME src="outlinec" marginheight="4" marginwidth="4"
	   name="Presentation Outline"
           title="Presentation Outline">
  </FRAMESET>

  <FRAMESET ROWS="51, 280, *">
    <FRAME src="navbtn" marginheight="5" marginwidth="1"
	   name="Navigation buttons"
	   title="Navigation buttons">
    <FRAME src="slide001" marginheight="0" marginwidth="0"
	  name="Slide Image" title="Slide Image">
    <FRAME src="note001" name="Notes" title="Notes">
  </FRAMESET>
<NOFRAMES>
<P>List of Presentation Slides</P>
<OL>
<LI><A HREF="slide001">Time Value of Money</A>
<LI><A HREF="slide002">Topic Overview</A>
<LI><A HREF="slide003">Terms and Short Hand</A>
<LI><A HREF="slide004">Future Value of a Single CF</A>
<LI><A HREF="slide005">Example 1: FV example:The
NBA’s new Larry Bird exception</A>
<LI><A HREF="slide006">FV Example: NBA’s Larry
Bird Exception (cont.)</A>
<LI><A HREF="slide007">SuperStar’s Contract
Breakdown</A>
<LI><A HREF="slide008">Present Value of a Single
Cash Flow</A>
<LI><A HREF="slide009">Example 2: Paying Jr, and
A-Rod</A>
<LI><A HREF="slide010">Example 3: Finding Rate of
Return or Interest Rate</A>
<LI><A HREF="slide011">Annuities</A>
<LI><A HREF="slide012">FV of Annuities</A>
<LI><A HREF="slide013">PV of Annuities</A>
<LI><A HREF="slide014">Example 4: Invest Early in
an IRA</A>
<LI><A HREF="slide015">Example 4 Solution</A>
<LI><A HREF="slide016">Example 5: Lotto Fever
</A>
<LI><A HREF="slide017">Uneven Cash Flows: Example
6:Fun with the CF function</A>
<LI><A HREF="slide018">Example 6 CF worksheet inputs</A>
<LI><A HREF="slide019">CF inputs continued</A>
<LI><A HREF="slide020">Non-Annual Interest
Compounding</A>
<LI><A HREF="slide021">Example 7: What rate are
you really paying?</A>
<LI><A HREF="slide022">Nominal to EAR Calculator</A>
<LI><A HREF="slide023">Continuous Interest Compounding</A>
<LI><A HREF="slide024">FV and PV with non-annual
interest compounding</A>
<LI><A HREF="slide025">Non-annual annuities</A>
<LI><A HREF="slide026">Example 8: Finding Monthly
Mortgage Payment</A>
<LI><A HREF="slide027">solution to Example 8</A>
</OL>
</NOFRAMES>
</FRAMESET>
</HTML>

The following illustrate how some user agents handle this frameset.

First, rendering in Microsoft Internet Explorer 5.0 on a Windows platform:

Image shows the example frameset with five frame panes rendered in Microsoft Internet Explorer 5.0

Rendering by Lynx on Linux:

                                        Time Value of Money

   FRAME: Size buttons
   FRAME: Presentation Outline
   FRAME: Navigation buttons
   FRAME: Slide Image
   FRAME: Notes

   List of Presentation Slides
    1. Time Value of Money
    2. Topic Overview
    3. Terms and Short Hand
    4. Future Value of a Single CF
    5. Example 1: FV example:The NBA's new Larry Bird exception
    6. FV Example: NBA's Larry Bird Exception (cont.)
    7. SuperStar's Contract Breakdown
    8. Present Value of a Single Cash Flow
    9. Example 2: Paying Jr, and A-Rod
   10. Example 3: Finding Rate of Return or Interest Rate
   11. Annuities
   12. FV of Annuities
   13. PV of Annuities
   14. Example 4: Invest Early in an IRA
   15. Example 4 Solution
   16. Example 5: Lotto Fever
   17. Uneven Cash Flows: Example 6:Fun with the CF function
   18. Example 6 CF worksheet inputs
   19. CF inputs continued
   20. Non-Annual Interest Compounding
   21. Example 7: What rate are you really paying?
   22. Nominal to EAR Calculator
   23. Continuous Interest Compounding
   24. FV and PV with non-annual interest compounding
   25. Non-annual annuities
   26. Example 8: Finding Monthly Mortgage Payment
   27. solution to Example 8

Graphical rendering by Home Page Reader on Windows:

Image shows the example frameset
with five links for each of the frame elements in
IBM home page reader

Audio rendering by Home Page Reader on Windows: @@add here@@

User agents may also indicate the number of frames in a document and which frame is the current frame via the menu bar or popup menus. Users can configure the user agent to include a FRAMES menu item in their menu bar. The menu bar makes the information highly visible to all users and is very accessible to assistive technologies. In the following snapshot, the menu bar indicates the number of frames and a check next to the name of the frame element indicates which is the current frame:

Image shows a pull down menu indicating the number of frames in a
document, the labels associated with each frame, and a check mark to indicate
the current frame

3.6.8 Scripts

Checkpoints in this section: 10.1, 10.3.

3.6.9 Metadata

Metadata of all sorts: titles, dimensions, dates, relationships, etc. promotes accessibility by providing additional context to users. Text metadata is particularly useful since it can be rendered graphically, as braille, and as speech.

3.7 Keyboard access

Checkpoints in this section: 2.1.

3.7.1 Tabbing order

3.7.2 Keyboard shortcuts

Checkpoints in this section: 2.2, 2.3, 2.6.

Some suggestions:

  1. Allow the user to use the find command to jump to a link instead of tabbing there. It would save a lot of keystrokes, especially if one programs the keystrokes as macros. But this requires that focus moves to the location that find highlights.
  2. Allow the user to use find command to jump to text in buttons.
  3. Allow the user to use find command to jump to image by searching on its alternative content (e.g., "alt" attribute).
  4. Allow the user to separate setting the focus and activating the control. For links, first-time users of a page may want to hear link text (focus) before deciding whether to follow the link (activate). More experienced users of a page would prefer to follow the link directly, without the intervening focus step.

Some reserved keyboard shortcuts are listed in the appendix on accessibility features of some operating systems.

3.7.3 Software consistency

Checkpoints in this section: 9.12

3.8 Configuration

3.8.1 User profiles

Checkpoints in this section: 11.1

Configuration profiles allow individual users to save their user agent settings and re-apply them easily. This is particularly valuable in an environment where several people may use the same machine.

The user should be able to easily transfer profiles between installations of the same user agent. One way to facilitate this is to follow applicable operating system conventions for profiles.

Users should be able to switch rapidly between profiles (or the default settings). This is helpful when:

User agents may apply a profile when the user logs in. They may also allow users to apply settings interactively, for example by allowing them to choose from a list of named profiles in a menu.

Sample profiles (based on common usage scenarios) can assist users in the initial set up of the user agent. These profiles can serve as models and may be copied and fine-tuned to meet an individual's particular needs.

3.8.2 Keyboard configuration

Checkpoints in this section: 2.4, 2.8, 2.7, and 2.5

[Ed. Discuss keyboard access here. How access is specified in HTML: "accesskey".]

[Ed. New section. Users must be allowed to control keyboard configuration based on specific needs. For poor motor control, keys far apart on a regular keyboard. For poor mobility, keys close together. General principle: fewest keystrokes, short distance to move.]

3.8.3 User interface

Checkpoints in this section: 11.2.

3.9 Documentation

Checkpoints in this section: 12.2.

Universal design means that access to features that help accessibility should be integrated into normal menus. User agents should avoid regrouping access to accessibility features into specialized menus. Documentation includes anything that explains how to install, get help for, use, or configure the product. Users must have access to installation information, either in electronic form (CD-ROM, diskette, over the Web), by fax, or by telephone.

3.9.1 Where to document accessibility

Checkpoints in this section: 12.3.

Include references to accessibility features in these parts of the documentation:

  1. Indexes. Include terms related to product accessibility in the documentation index (e.g., "accessibility", "disability" or "disabilities").
  2. Tables of Contents. Include terms related to product accessibility in the documentation table of contents (e.g., features that promote accessibility)
  3. Include instructions on how to modify all user configurable defaults and preferences (e.g, images, video, style sheets, and scripts) as specified by the documentation.
  4. Include a list of all keyboard shortcuts in the accessibility section of the documentation.

3.9.2 Accessible documentation

Checkpoints in this section: 12.1.

Documentation created in HTML should follow the [WAI-WEBCONTENT].

Electronic documentation created in open standard formats such as HTML and ASCII can often be accessed in the user's choice of application such as a word processor or browser. Accessing documentation in familiar applications is particularly important to users with disabilities who must learn the functionalities of their tools and be able to configure them for their needs. Commonly used applications are also more likely to be compatible with assistive technology. Electronic documentation should not be provided in proprietary formats.

Users with print impairments may need or desire documentation in alternative formats such as Braille, large print, or audio tape. User agent manufacturers may provide user manuals in alternative formats. Documents in alternative formats can be created by agencies such as Recording for the Blind and Dyslexic and the National Braille Press.

User instructions should be expressed in an input device-independent manner. Provide instructions for using or configuring the user agent in a manner that can be understood by a user of any input device including a mouse or keyboard. For example, "Select the Home button on the toolbar" or "Select Home from the Go menu to return to the Home page."

4 Interfaces and conventions

4.1 System conventions

Checkpoints in this section: 6.6

Develop the UA User Interface (UI) with standard interface components per the target platform(s). Most major operating system platforms provide a series of design and usability guidelines, these should be followed when possible (see platforms below).

These checklists, style guides, and human interface guidelines provide very valuable information for developing applications (e.g., UAs) for any platform/operating system/GUI. If your custom interface cannot provide information or operation as defined above, then you may need to design your UA using any additional options provided by that platform.

For instance, software should use the standard interface for keyboard events rather than working around it.

Evaluate your standard interface components on the target platform against any built in operating system accessibility functions (see Appendix 8) and be sure your UA operates properly with all these functions.

For example, take caution with the following:

4.1.1 Some guidelines for specific platforms

4.1.2 General guidelines for producing accessible software

4.1.3 Support System Conventions for loading Assistive Technologies

User agents should support operating system or application environment (e.g., Java) conventions for loading assistive technologies. In the case of Java applets, the browser's Java Virtual Machine should support the Sun convention for loading an assistive technology. Writing an application that follows the Java system conventions for accessible software does not allow the applet to be accessible if an assistive technology designed for that environment cannot be run to make the applet accessible. Appendix 9 explains how an assistive technology developer can load its software into a Java Virtual Machine.

4.2 Testing UA operation with platform standards

Ensure your UA can be operated using the standard interfaces on the target platform(s). Some example tests include:

4.3 Accessibility interfaces

Checkpoints in this section: 6.1, 6.2, 6.3, 6.5.

The operating system application programming interfaces (APIs) that support accessibility are designed to provide a bridge between the standard user interface supported by the operating system and alternative user interfaces developed by third-party assistive technology vendors to provide access to persons with disabilities. Applications supporting these APIs are therefore generally more compatible with third-party assistive technology.

The User Agent Accessibility Guidelines Working Group strongly recommends using and supporting APIs that improve accessibility and compatibility with third-party assistive technology. Third-party assistive technology can use the accessibility information provided by the APIs to provide an alternative user interface for various disabilities.

The following is an informative list of currently public APIs that support accessibility:

Many operating systems have built-in accessibility features for improving the usability of the standard operating system by persons with disabilities. When designing software that runs above an underlying operating system, developers should ensure that the application:

  1. Makes use of operating system level features. See the appendix of accessibility features for some common operating systems.
  2. Inherits operating system settings related to accessibility. Pertinent settings include font and color information as well as other pieces of information discussed in this document.

Write output to and take input from standard system APIs rather than direct from hardware controls where possible. This will enable the I/O to be redirected from or to assistive technology devices - for example, screen readers and braille devices often redirect output (or copy it) to a serial port, while many devices provide character input, or mimic mouse functionality. The use of generic APIs makes this feasible in a way that allows for interoperability of the assistive technology with a range of applications.

User agents should use standard rather than custom controls when designing user agents. Third-party assistive technology developers are more likely able to access standard controls than custom controls. If you must use custom controls, review them for accessibility and compatibility with third-party assistive technology.

For information about rapid access to Microsoft Internet Explorer's DOM through COM, refer to [BHO].

4.4 The document object model

Checkpoints in this section: 6.4.

[Ed. Need to emphasize more of what DOM can do.]

A Document Object Model (DOM) is an interface to a standardized tree structure representation of a document. This interface allows authors to access and modify the document with client-side scripting language (e.g., JavaScript) in a consistent manner across scripting languages. As a standard interface, a DOM makes it easier not just for authors but for assistive technology developers to extract information and render it in ways most suited to the needs of particular users. Information of particular importance to accessibility that must be available through the DOM includes:

User agents should support W3C DOM Recommendations, including [DOM1] and [DOM2]]. The W3C Recommendation for DOM Level 1 ([DOM1]) provides access to HTML and XML document information. The DOM Level 2 ([DOM2]) is made of a set of core interfaces to create and manipulate the structure and contents of a document and a set of optional modules. These modules contain specialized interfaces dedicated to XML, HTML, an abstract view, generic stylesheets, Cascading Style Sheets, Events, traversing the document structure, and a Range object.

It is important to note that DOM is designed to be used on a server as well as a client and therefore many user interface-specific information such as screen coordinate information is not relevant and not supported by the DOM specification.

Assistive technologies also require information about browser highlight mechanisms (e.g., the selection and focus) that may not be available through the W3C DOM.

4.5 Information for assistive technologies

Note. The WAI Protocols and Formats Working Group is focusing its efforts on the DOM as the conduit from which to extract accessibility information from and to enhance the accessibility of a rendered document through a user agent. It is this are should concentrate on for providing access to user agent documents.

5 Support for HTML accessibility

[Ed. Link to W3C Note on HTML Accessibility Features instead of this section]

Checkpoints in this section: 7.2, 7.1

Following is a list of accessibility features in HTML:

5.1 Equivalent information

Checkpoints in this section: 3.1.

User agents must be able to recognize sources of alternative representations of content.

5.1.1 Sources of blinking text and animation

Checkpoints in this section: 4.6 and 4.7.

User agents that recognize the following sources of blinking text and animations must enable users to freeze that text.

In HTML
In CSS
In GIF animated images.
To be completed.

5.1.2 Alternative representations of information for images, video, applets

Checkpoints in this section: 3.5, 3.6.

Speech-based user agents providing accessible solutions for images should, by default, provide no information about images for which the author has provided no alternative text. The reason for this is that the image will clutter the user's view with unusable information adding to the confusion. In the case of an speech rendering, nothing should be spoken for the image element. This user should be able to turn off this option to find out what images were inaccessible so that the page author could be contacted to correct the problem.

In the case of videos, an assistive technology should, by default, notify the user know that a video exists as this will likely result in the launch of a plug-in. In the case of a video, user agents should indicate what type of video it is, accompanied by any associated alternative equivalent. User agents should prefer plug-ins that support system-specific accessibility features over those that don't. <>In the case of applets, an assistive technology should, by default, notify that an applet exists, as this will likely result in the launch of an associated plug-in or browser specific Java Virtual Machine. In the case of an Applet, the notification should include any associated alternative equivalent. This especially important for applet as applets typically do provide an application frame that would provide application title information.

When an applet is loaded, it should support the Java system conventions for loading an assistive technology (refer to Appendix 9). When the applet receives focus, the browser user agent should first notify the user about the applet as described in the previous paragraph and turn control over to the assistive technology that provides access to the Java applet.

Other techniques:

5.1.3 Textual equivalents for audio and video

Checkpoints in this section: 3.7 and 5.9.

Scenario-video showing professor writing complex equations and graphs on the overhead and discussing them but not describing what he/she actually wrote on the overhead. Without description this would be inaccessible to people with visual impairments. This could be generalize to any video presentation of visually rich or complex information where the visually presented information is critical to the understanding of the presentation.

5.1.4 Auditory equivalents for video

Checkpoints in this section: 3.7.

5.1.5 Frame equivalents

Checkpoints in this section: 4.12 and 4.11.

[Ed. See Scott's suggestions]

  1. In HTML, content of NOFRAMES.
  2. Otherwise, list of frames. Use "title" as name of frame, otherwise "name".

5.1.6 Alternative representations for tables

In HTML, "summary" attribute. Also, the "abbr" attribute for headers (see the section on table cells and headers).

5.2 Links

Checkpoints in this section: 9.8.

[Ed. Talk about CSS pseudo-classes for :hover]

[Ed. Talk about using :before to clearly indicate that something is a link (e.g., 'A:before { content : "LINK:" }')]

5.3 Tables

Tables were designed to structure relationships among data. In graphical media, tables are often rendered on a two-dimensional grid, but this is just one possible interpretation of the data. On the Web, the HTML TABLE element has been used more often than not to achieve a formatting effect ("layout tables") rather than as a way to structure true tabular data ("data tables").

Layout tables cause problems for some screen readers and when rendered, confuse users. Even data tables can be difficult to understand for users that browse in essentially one dimension, i.e. for whom tables are rendered serially. The content of any table cell that visually wraps onto more than one line can be a problem. If only one cell has content that wraps, there is less problem if it is in the last column. Large tables pose particular problems since remembering cell position and header information becomes more difficult as the table grows.

User agents facilitate browsing by providing access to specific table cells and their associated header information. How headers are associated with table cells is markup language-dependent.

Tabular navigation is required by people with visual impairments and some types of learning disabilities to determine the content of a particular cell and spatial relationships between cells (which may convey information). If table navigation is not available users with some types of visual impairments and learning disabilities may not be able to understand the purpose of a table or table cell.

5.3.1 Table rendering

A linear view of tables -- cells presented row by row or column by column -- can be useful, but generally only for simple tables. Where more complex structures are designed, allowing for the reading of a whole column from header downward is important as is carrying the ability to perceive which header belongs to which column or group of columns if more than one is spanned by that header. It is important for whole cells to be made available as chunks of data in a logical form. It might be that a header spans several cells so the header associated with that cell is part of the document chunk for that and each of the other cells spanned by that header. Inside the cell, order is important. It must be possible to understand what the relationships of the items in a cell are to each other.

Properly constructed data tables generally have distinct TH head cells and TD data cells. The TD cell content gains implicit identification from TH cells in the same column and/or row.

For layout tables, a user agent can assist the reader by indicating that no relationships among cells should be expected. Authors should not use TH cells just for their formatting purpose in layout tables, as those TH cells imply that some TD cells should gain meaning from the TH cell content.

When a table is "read" from the screen, the contents of multiline cells may become intermingled. For example, consider the following table:

This is the top left cell    This is the top right cell
of the table.                of the table.

This is the bottom left      This is the bottom right
cell of the table.           cell of the table.

If read directly from the screen, this table might be rendered as "This is the top left cell This is the top right cell", which would be confusing to the user.

A user agent should provide a means of determining the contents of cells as discrete from neighboring cells, regardless of the size and formatting of the cells. This information is made available through the DOM [DOM1]).

5.3.2 Cell rendering

Non-graphical rendering of information by a browser or an assistive technology working through a browser will generally not render more than a single cell, or a few adjacent cells at a time. Because of this, the location of a cell of interest within a large table may be difficult to determine for the users of non-graphical rendering.

In order to provide equivalent access to these users, compliant browsers should provide a means of determining the row and column coordinates of the cell having the point of regard via keyboard commands. Additionally, to allow the user of a non-graphical rendering technology to return to a cell, the browser should allow a means of moving the point of regard to a cell based on its row and column coordinates.

At the time the user enters a table, or while the point of regard is located within a table, the user agent should allow an assistive technology to provide information to the user regarding the dimensions (in rows and columns) of the table. This information, in combination with the summary, title, and caption, can allow the user with a disability to quickly decide whether to explore the table of skip over it.

Dimensions is an appropriate term, though dimensions needn't be constants. For example a table description could read: "4 columns for 4 rows with 2 header rows. In those 2 header rows the first two columns have "colspan=2". The last two columns have a common header and two subheads. The first column, after the first two rows, contains the row headers.

Some parts of a table may have 2 dimensions, others three, others four, etc. Dimensionality higher than 2 are projected onto 2 in a table presentation.

The contents of a cell in a data table are generally only comprehensible in context (i.e., with associated header information, row/column position, neighboring cell information etc.). User agents provide users with header information and other contextual information. Techniques for rendering cells include:

5.3.3 Cell header algorithm

User agents should use the algorithm to calculate header information provided in the HTML 4.0 specification ([HTML40], section 11.4.3).

Since not all tables are designed with the header information, user agents should provide, as an option, a "best guess" of the header information for a cell. Note that data tables may be organized top-to-bottom, bottom-to-top, right-to-left, and left-to-right, so user agents should consider all edge rows when seeking header information.

Some repair strategies for finding header information include:

The user may choose the form and amount of this information, possibly announcing the row heads only once and then the column head or its abbreviation ("abbr") to announce the cell content.

[Ed. The following issues were raised by Harvey Bingham.]

  1. TH cells on both the left and right of the table need to be considered.
  2. For TH cells with "rowspan" set: the content of those TH cells must be considered for each of the N-1 rows below the one containing that TH content.
  3. An internal TH in a row surrounded on either side by TDs has no means to specify to which (row or column) that TH overrides what existed to its left or above it.
  4. Finding column header cells assumes they are all above the TD cell to which they apply.
  5. A TH with "colspan" set needs to be included in the list of TH for the M-1 columns to the right of the column in which the TH is found.

5.4 Frames

Checkpoints in this section: 5.17

5.4.1 Frame formatting

Checkpoints in this section: 4.12.

Possible solutions:

5.5 Scripts

Checkpoints in this section: 4.8.

Certain elements of the document language may have associated event handlers that are triggered when certain events occur. User agents must be able to identify those elements with event handlers statically associated (i.e., associated in the document source, not in a script).

In HTML
All of the attributes beginning with the prefix "on": "onblur", "onchange", "onclick", "ondblclick", "onkeydown", "onkeypress", "onkeyup", "onload", "onmousedown", "onmousemove", "onmouseout", "onmouseover", "onmouseup", "onreset", "onselect", "onsubmit", and "onunload".
[Ed. Other sources? ]
[Ed. To be completed.]

5.6 Multimedia

[Ed. Talk about EMBED? Charles recommends that it be put inside an OBJECT if used.]

6 Support for CSS accessibility

Checkpoints in this section: 7.2, 7.1

The accessibility features of Cascading Style Sheets (refer to [CSS1] and [CSS2]) are described in [CSS-ACCESS].

Cascading Style Sheets may be part of a source document or linked externally. Stand-alone style sheets are useful for implementing user profiles in public access computer environments where several people use the same computer. User profiles allow for convenient customization and may be shared by a group.

7 Support for SMIL accessibility

Checkpoints in this section: 7.2, 7.1

The accessibility features of SMIL 1.0 (refer to [SMIL]) are described in [SMIL-ACCESS].

Accessible presentation means here that the information can be easily accessed by using different media and that the user can easily control whether to show the information or not.

8 Appendix: Accessibility features of some operating systems

Several of the more popular mainstream operating systems now include a common suite of built-in accessibility features that are designed to assist individuals with varying abilities. Despite operating systems differences, the built-in accessibility features use a similar naming convention and offer similar functionalities, within the limits imposed by each operating system (or particular hardware platform).

The following is a list of built-in accessibility features from several platforms:

StickyKeys
These allow users to perform a multiple simultaneous key sequence by pressing and releasing each key in sequential order. StickyKeys is designed to work with only those keys defined as modifier keys. Modifier keys are pressed in combination with other keys, to change the outcome of the second (or more) pressed keys. For example, the SHIFT key is defined as a modifier key, since it is commonly used to create upper case characters. Each operating system or hardware platform typically defines a set of keys which can act as modifier keys. The most common modifier keys include SHIFT, CONTROL, and ALTERNATE.
MouseKeys
These allow users to move the mouse cursor and activate the mouse button(s) from the keyboard.
RepeatKeys
These allow users to set how fast a key repeats (e.g., sometimes referred to as typematic rate) when the key is held pressed (e.g., Repeat Rate), and also allows control over how quickly the key starts to repeat after the key has been pressed (e.g., delay Until Repeat). Key repeating may also be eliminated.
SlowKeys
These instruct the computer not to accept a key as pressed until it has been pressed and held down for a specific user adjustable length of time.
BounceKeys
These prevent extra characters from being typed if the user bounces (e.g., tremor) on the same key when pressing or releasing it.
ToggleKeys
These provide an audible indication for the status of keys that have a toggled state (e.g., keys that maintain status after being released). The most common toggling keys include Caps Lock, Num Lock, and Scroll Lock.
SoundSentry
These monitor the operating system and applications for sounds, and attempt to provide a graphical indication when a sound is being played. Older versions of Sound Sentry may have flashed the entire display screen for example, while newer versions of SoundSentry provide the user with a selection of options, such as flashing the active window or flashing the active window caption bar.

The next three built in accessibility features are not as commonly available as the above group of features, but are included here for definition, completeness, and future compatibility.

ShowSounds
These are user setting or software switches that are available for the operating system and application (including user agents) APIs to read, to notify them that the user wishes audio information to also be presented in a graphical format.
High Contrast
These automatically change the display fonts and colors to choices which should provide for easier reading.
TimeOut
These allow the built-in accessibility features to automatically turn off if the computer is unused for a specified length of time, and is intended for use when the computer is in a public setting (e.g., library). TimeOut might also be referred to as reset or automatic reset.

The next accessibility feature listed here is not considered to be a built in accessibility feature (since it only provides an alternate input channel) and is presented here only for definition, completeness, and future compatibility.

SerialKeys
These allow a user to perform all keyboard and mouse functions from an external assistive device (such as communication aid) communicating with the computer via a serial character stream (e.g., serial port, IR port, etc.) rather than or in conjunction with, the keyboard, mouse, and other standard input devices/methods.

Microsoft Windows 95, Windows 98, and Window NT 4.0

For information about Microsoft keyboard configurations (Internet Explorer, Windows 95, Windows 98, and more), refer to [MS-KEYBOARD].

The following accessibility features can be adjusted from the Accessibility Options Control Panel:

Other keyboard shortcuts:

The Keyboard Response Group (KRG) contains three functions: RepeatKeys, SlowKeys, and BounceKeys. The KRG can be turned on from the keyboard with the pre-stored user default settings. There should also be an emergency activation scheme to turn the KRG on in some minimal configuration for those times or for those users who cannot operate the computer keyboard without a particular KRG function (e.g., SlowKeys). Note. SlowKeys and BounceKeys are mutually exclusive. In other words, if the acceptance delay for SlowKeys is some value other than "0", then the delay value for BounceKeys must be "0". SlowKeys and BounceKeys can both be "0", or in effect off, while RepeatKeys is on, or either SlowKeys or BounceKeys can be on with RepeatKeys. Therefore the following KRG combinations can be set by the user:

The common modifier for activation of the KRG is to press and hold the right VK_SHIFT key for 8 seconds (note, emergency activation when the right VK_SHIFT key is held for 12 or 16 seconds.

Additional accessibility features available in Windows 98:

Magnifier
This is a windowed, screen enlargement and enhancement program used by persons with low vision to magnify an area of the graphical display (e.g., by tracking the text cursor, focus, etc.). Magnifier can also invert the colors used by the system within the magnification window.
Accessibility Wizard
This is a setup tool intended to assist a person with making choices which setting up the accessibility features on a workstation.

Apple Macintosh Operating System

The following accessibility features can be adjusted from the Easy Access Control panel (Note: Apple convention uses a space within the accessibility feature names.)

The following accessibility features can be adjusted from the Keyboard Control Panel.

The following accessibility feature can be adjusted from the Sound or Monitors and Sound Control Panel (depends upon which version of the OS).

Additional accessibility features available for the Macintosh OS:

CloseView
This is a full screen, screen enlargement and enhancement program used by persons with low vision to magnify the information on the graphical display, and it can also change the colors used by the system.
SerialKeys
This is available as freeware from Apple and several other Web sites.

AccessX, X Keyboard Extension (XKB), and the X Window System

(Note: AccessX became a supported part of the X Window System X Server with the release of the X Keyboard Extension in version X11R6.1)

The following accessibility features can be adjusted from the AccessX graphical user interface X client on some DEC, SUN, and SGI operating systems. Other systems supporting XKB may require the user to manipulate the features via a command line parameter(s).

DOS (Disk Operating System)

The following accessibility features are available from a freeware program called AccessDOS, which is available from several Internet Web sites including IBM, Microsoft, and the Trace Center, for either PC-DOS or MS-DOS versions 3.3 or higher.

9 Appendix: Loading assistive technologies for DOM access

There are several methods for developers to accomplish this. Most of these methods fall into four categories:

  1. Launch the entire AT inside the address space of the (UA) browser
  2. Launch some part of the AT, a piece of stub code, a DLL, a Browser Helper Object [special DLL], etc., inside the address space of the (UA) browser
  3. Write your own combined UA/AT (e.g., pwWebSpeak)
  4. Out-of-process access to the DOM

These methods are ordered as developments within a rapidly changing technology with the most recent advances/methods listed first.

Loading assistive technologies for direct access to User Agent DOMs

Note. This method and the method described in the next section are very similar. What differs is the amount of, or capability of, the AT that actually gets loaded in the same process or address space as the User Agent.)

Access to application specific data across process boundaries might be costly in terms of performance. Therefore, user agents may wish to provide a mechanism to load the entire assistive technology (AT), into the process space of the application as a separate thread with direct access to the DOM.

Determining the Assistive Technologies to load

One technique is to store a reference to an assistive technology in a system registry file or, in the case of Jave, a properties file. Registry files are common among many operating system platforms.

In Windows you have the system registry file. On OS/2 you have the system.ini file and on distributed network client networks you often have a system registry server that an application running on the network client computer can query.

In Java 2, the existence of an "accessibility.properties" file causes the system event queue to examine the file for assistive technologies required for loading. If the file contains a property called "assistive_technologies", it will load all registered assistive technologies and start them on their own thread in the Java Virtual Machine that is a single process. An example entry for Java is as follows:

    assistive_technologies=com.ibm.sns.svk.AccessEngine

In Windows, a similar technique could be followed by storing the name of a Dynamic Link Library (DLL) for an assistive technology in a designated assistive technology key name, AT pair. An example entry for Windows could be as follows:

    HKEY_LOCAL_MACHINE\Software\Accessibility\DOM
           "ScreenReader, VoiceNavigation"

Attaching the Assistive Technologies to the DOM.

Once the assistive technology is determined from the registry, any user agent on the given operating system can now determine if an assistive technology needs to be loaded with their application and load it.

On a non-Java platform, a technique to do this would be to create a separate thread with a reference to the User Agent's DOM using a Dynamic Link Library (DLL). This new thread will load the DLL and call a specified DLL entry name with a pointer to the DOM interface. The assistive technology's task will then run until such time as is necessary to end communication with the DOM.

Once loaded, the assistive technology can monitor the DOM as needed. The assistive technology has the option of communicating with a main assistive technology of its own and process the DOM as a caching mechanism for the main AT application or be used as a bridge to the DOM for the main assistive technology.

In the future, it will be necessary to provide a more comprehensive reference to the application that not only provides direct access to it's client area DOM, but also multiple DOM's that it is processing and an event model for monitoring them.

Example Technique: Java's Direct Access

Java is a working example where the direct access to application components is performed in a timely manner. Here, an assistive technology running on a separate thread monitors GUI events such as focus changes. Focus changes give the AT notification of which component object has focus. The AT can communicate directly with all components in the application by walking the parent/child hierarchy and connecting to each component's methods and monitor events directly. In this case an AT has direct access to component specific methods as well as those provided for by the Java Accessibility API. There is no reason that a DOM interface to UA components could not be provided

In Java 1.1.x, Sun's Java access utilities load an assistive by monitoring the Java awt.properties file for the presence of assistive technologies and loads them as shown in the following code example:

import java.awt.*;
import java.util.*;

String atNames = Toolkit.getProperty("AWT.assistive_technologies",null);
if (atNames != null) {
    StringTokenizer parser = new StringTokenizer(atNames," ,");
    String atName;
    while (parser.hasMoreTokens()) {
       atName = parser.nextToken();
       try {
          Class.forName(atName).newInstance();
       }
       catch (ClassNotFoundException e) {
          throw new AWTError("Assistive Technology not found: " + atName);
       }
       catch (InstantiationException e) {
          throw new AWTError("Could not instantiate Assistive" +
                             " Technology: " + atName);
       }
       catch (IllegalAccessException e) {
          throw new AWTError("Could not access Assistive" +
                             " Technology: " + atName);
       } catch (Exception e) {
          throw new AWTError("Error trying to install Assistive" +
                             " Technology: " + atName + " " + e);
       }
    }
}

In the above code example, the function Class.forName(atName).newInstance() creates a new instance of the assistive technology. The constructor for the assistive technology will then be responsible for monitoring application component objects by monitoring system events.

In the following code example, the constructor for the assistive technology "Access Engine," adds a focus change listener using Java accessibility utilities. When the assistive technology is notified of an objects gaining focus it has direct access to that object. If the Object, o, implemented a DOM interface the assistive technology would now have direct access to the DOM in the same process space as the application.

   import java.awt.*;
   import javax.accessibility.*;
   import com.sun.java.accessibility.util.*;
   import java.awt.event.FocusListener;

   class AccessEngine implements FocusListener {
      public AccessEngine() {
         //Add the AccessEngine as a focus change listener
         SwingEventMonitor.addFocusListener((FocusListener)this);
      }

      public void focusGained(FocusEvent theEvent) {
         // get the component object source
         Object o = theEvent.getSource();
         // check to see if this is a DOM component
         if (o instanceof DOM) {
            ...
         }
      }
      public void focusLost(FocusEvent theEvent) {
         // Do Nothing
      }
   }

In this example, the assistive technology has the option of running standalone or acting as a cache for a bridge that communicates with a main assistive technology running outside the Java virtual machine.

Loading part of the assistive technologies for direct access to User Agent DOMs

Access to application specific data across process boundaries might be costly in terms of performance. Therefore, user agents may wish to provide a mechanism to load part of the assistive technology (AT) into the process space of the application as a separate thread, with direct access to the DOM, to provide the specific functionality they require. This could consist of a piece of stub code, a DLL, a Browser Helper Object, etc. An example of how to do this follows.

Browser Helper Objects

In order to attach to a running instance of Internet Explorer 4.0, you can use a "Browser Helper Object." A "Browser Helper Object" is a DLL that will attach itself to every new instance of Internet Explorer 4.0 (only if you explicitly run iexplore.exe). You can use this feature to gain access to the object model of a particular running instance of Internet Explorer. You can also use this feature to get events from an instance of Internet Explorer 4.0. This can be tremendously helpful when many method calls need to be made to IE, as each call will be performed much more quickly than the out of process case.

There are some requirements when creating a Browser Helper Object

For more information, please check out:

http://support.microsoft.com/support/kb/articles/Q179/2/30.asp.
http://msdn.microsoft.com/library/techart/bho.htm

Java Access Bridge

In order for native Windows ATs to gain access to Java applications without the creating a Java native solution Sun Microsystems provides the "Java Access Bridge." This bridge is loaded as an AT as described in section 6.1.3. The bridge uses a Java Native Invocation (JNI) to Dynamic Link Library) (DLL) communication and caching mechanism that allows a native assistive technology to gather and monitor accessibility information in the Java environment. In this environment, the AT determines that a Java application or applet is running and communicates with the Java Access Bridge DLL to process accessibility information about the application/applet running in the Java Virtual Machine.

Loading assistive technologies "as" the User Agent with access to the DOMs

Specialized user agents might also include the necessary assistive technology as part of their interface, and thus provide possibly the best of both worlds. An example would be pwWebSpeak, from The Productivity Works (refer to [Prodworks]).

[Ed. Have The Productivity Works provide short description.]

Loading assistive technologies for indirect access to User Agent DOMs

Access to application specific data across process boundaries or address space might be costly in terms of performance. However, there are other reasons to consider when accessing the User Agent DOM that might lead a developer to wish to access the DOM from their own process or memory address space. One obvious protection this method provides, is that if the User Agent application fails, it doesn't disable the user's AT as well. Another consideration would be legacy systems, where the user relies on their AT for access to other applications as well as the User Agent, and thus would have their AT loaded all the time, not just for accessing the User Agent.

There are several ways to gain access to the User Agent's DOM. Most User Agents support some kind of external interface, or act as a mini-server to other applications running on the desktop. Internet Explorer is a good example of this, as IE can behave as a component object model (COM) server to other applications. Mozilla, the open source release of Navigator also supports cross platform COM (XPCOM).

An example of using COM to access the IE Object Model can be seen in the code snippet below. This is an example of how to use COM to get a pointer to the WebBrowser2 module, which in turn allows you to get a interface/pointer to the document object, or IE DOM for the web page in view.

   /* first, get a pointer to the WebBrowser2 control */
   if (m_pIE == NULL) {
      hr = CoCreateInstance(CLSID_InternetExplorer,
           NULL, CLSCTX_LOCAL_SERVER, IID_IWebBrowser2,
           (void**)&m_pIE);

      /* next, get a interface/pointer to the document in view,
         this is an interface to the document object model (DOM)*/

      void CHelpdbDlg::Digest_Document() {
         HRESULT hr;
         if (m_pIE != NULL) {
            IDispatch* pDisp;
            hr = m_pIE->QueryInterface(IID_IDispatch, (void**) &pDisp);
            if (SUCCEEDED(hr)) {

               IDispatch* lDisp;
               hr = m_pIE->get_Document(&lDisp);
               if (SUCCEEDED(hr)) {

                   IHTMLDocument2* pHTMLDocument2;
                   hr = lDisp->QueryInterface(IID_IHTMLDocument2,
                               (void**) &pHTMLDocument2);
                   if (SUCCEEDED(hr)) {

                   /* with this interface/pointer, IHTMLDocument2*,
                      you can then work on the document */
                      IHTMLElementCollection* pColl;
                      hr = pHTMLDocument2->get_all(&pColl);
                      if (SUCCEEDED(hr)) {

                         LONG c_elem;
                         hr = pColl->get_length(&c_elem);
                         if (SUCCEEDED(hr)) {
                            FindElements(c_elem, pColl);
                         }
                         pColl->Release();
                      }
                      pHTMLDocument2->Release();
                   }
                   lDisp->Release();
               }
               pDisp->Release();
            }
         }
      }
   }

For more information on using COM with IE, please visit the Microsoft web site:

http://www.microsoft.com/com/default.asp

For more information on using XPCOM with Mozilla, please visit the Mozilla web site:

http://www.mozilla.org/

For a working example of the method described in 6.1.4, please visit the following web site and review HelpDB, developed as a testing tool for web table navigation.

http://trace.wisc.edu/world/web/document_access/

10 Appendix: Checkpoint Map

This index lists each checkpoint and the sections in this document where it is discussed. Furthermore, each guideline number links to its definition in the guidelines document. Each checkpoint also links to its definition in the guidelines document.

Guideline 1:

1.1 Ensure that all functionalities offered through the user interface may be operated through standard input device APIs supported by the operating system. [Priority 1] (Checkpoint 1.1 in guidelines)
Techniques are in section 3.2 Device independence
1.2 Ensure that the user can interact with all active elements in a device independent manner. [Priority 1] (Checkpoint 1.2 in guidelines)
Techniques are in section 3.2 Device independence
1.3 Ensure that the user can install the user agent software in a device independent manner. [Priority 1] (Checkpoint 1.3 in guidelines)
Techniques are in section 3.2 Device independence
1.4 Ensure that the user can configure the user agent in a device independent manner. [Priority 1] (Checkpoint 1.4 in guidelines)
Techniques are in section 3.2 Device independence
1.5 Ensure that the user can access user agent documentation in a device independent manner. [Priority 1] (Checkpoint 1.5 in guidelines)
Techniques are in section 3.2 Device independence
1.6 Ensure that all messages to the user (e.g., warnings, errors, etc.) are available through standard output device APIs supported by the operating system. [Priority 1] (Checkpoint 1.6 in guidelines)
Techniques are in section 3.2 Device independence

Guideline 2:

2.1 By default and without additional customization, ensure that all functionalities offered by the user agent may be operated through the standard keyboard API supported by the operating system. [Priority 1] (Checkpoint 2.1 in guidelines)
Techniques are in section 3.7 Keyboard access
2.2 Provide documentation on default keyboard commands and include with user agent documentation and/or user help system. [Priority 1] (Checkpoint 2.2 in guidelines)
Techniques are in section 3.7.2 Keyboard shortcuts
2.3 Provide information to the user about the current keyboard configuration. [Priority 1] (Checkpoint 2.3 in guidelines)
Techniques are in section 3.7.2 Keyboard shortcuts
2.4 Allow the user to configure the keystrokes used to activate user agent functionalities. Users should be able to configure single key activation of functionalities. [Priority 2] (Checkpoint 2.4 in guidelines)
Techniques are in section 3.8.2 Keyboard configuration
2.5 Allow the user to turn on and off author-specified keyboard configurations. [Priority 2] (Checkpoint 2.5 in guidelines)
Techniques are in section 3.8.2 Keyboard configuration
2.6 Use platform conventions to indicate which keys activate which user agent functionalities. [Priority 2] (Checkpoint 2.6 in guidelines)
Techniques are in section 3.7.2 Keyboard shortcuts
2.7 Avoid default keyboard configurations that interfere with system conventions. [Priority 2] (Checkpoint 2.7 in guidelines)
Techniques are in section 3.8.2 Keyboard configuration
2.8 Provide a default keyboard configuration for frequently performed operations. [Priority 3] (Checkpoint 2.8 in guidelines)
Techniques are in section 3.8.2 Keyboard configuration

Guideline 3:

3.1 Ensure that the user has access to all content, including alternative representations of content. [Priority 1] (Checkpoint 3.1 in guidelines)
Techniques are in section 3.1 Access to content and
5.1 Equivalent information
3.2 For dependent user agents only. Ensure that the user has access to the content of an element selected by the user. [Priority 1] (Checkpoint 3.2 in guidelines)
Techniques are in section 3.1 Access to content
3.3 Render content according to natural language identification. For unsupported natural languages, notify the user of language changes when configured to do so. [Priority 1] (Checkpoint 3.3 in guidelines)
Techniques are in section 3.1.3 Changes in content language
3.4 Provide time-independent access to time-dependent active elements or allow the user to control the timing of changes. [Priority 1] (Checkpoint 3.4 in guidelines)
Techniques are in section 3.1.4 Changes over time
3.5 When no alternative text representation has been specified, indicate what type of object is present. [Priority 2] (Checkpoint 3.5 in guidelines)
Techniques are in section 5.1.2 Alternative representations of information for images, video, applets
3.6 When alternative text has been specified explicitly as empty (i.e., an empty string), render nothing. [Priority 3] (Checkpoint 3.6 in guidelines)
Techniques are in section 5.1.2 Alternative representations of information for images, video, applets
3.7 Allow the user to specify that continuous equivalent tracks (e.g., closed captions, auditory descriptions, video of sign language, etc.) be rendered at the same time as audio and video tracks. [Priority 1] (Checkpoint 3.7 in guidelines)
Techniques are in section 5.1.3 Textual equivalents for audio and video and
5.1.4 Auditory equivalents for video
3.8 If a technology allows for more than one continuous equivalent tracks (e.g., closed captions, auditory descriptions, video of sign language, etc.), allow the user to choose from among the tracks. [Priority 1] (Checkpoint 3.8 in guidelines)
Techniques are in section 3.3 User control of style and
3.3 User control of style
3.9 If a technology allows for more than one audio track, allow the user to choose from among tracks. [Priority 1] (Checkpoint 3.9 in guidelines)
Techniques are in section 3.3 User control of style

Guideline 4:

4.1 Allow the user to turn on and off rendering of images. [Priority 1] (Checkpoint 4.1 in guidelines)
Techniques are in section 3.3.1 Feature control
4.2 Allow the user to turn on and off rendering of background images. [Priority 1] (Checkpoint 4.2 in guidelines)
Techniques are in section 3.3 User control of style
4.3 Allow the user to turn on and off rendering of video. [Priority 1] (Checkpoint 4.3 in guidelines)
Techniques are in section 3.3.1 Feature control
4.4 Allow the user to turn on and off rendering of sound. [Priority 1] (Checkpoint 4.4 in guidelines)
Techniques are in section 3.3.1 Feature control
4.5 Allow the user to turn on and off rendering of continuous equivalent tracks (e.g., closed captions, auditory descriptions, video of sign language, etc.) [Priority 1] (Checkpoint 4.5 in guidelines)
Techniques are in section 3.3.1 Feature control
4.6 Allow the user to turn on and off animated or blinking text. [Priority 1] (Checkpoint 4.6 in guidelines)
Techniques are in section 5.1.1 Sources of blinking text and animation
4.7 Allow the user to turn on and off animations and blinking images. [Priority 1] (Checkpoint 4.7 in guidelines)
Techniques are in section 5.1.1 Sources of blinking text and animation
4.8 Allow the user to turn on and off support for scripts and applets. [Priority 1] (Checkpoint 4.8 in guidelines)
Techniques are in section 5.5 Scripts
4.9 Allow the user to turn on and off support for user style sheets. [Priority 1] (Checkpoint 4.9 in guidelines)
Techniques are in section 3.3.1 Feature control
4.10 Allow the user to turn on and off support for author style sheets. [Priority 1] (Checkpoint 4.10 in guidelines)
Techniques are in section 3.3.1 Feature control
4.11 Allow the user to turn on and off support for spawned windows. [Priority 1] (Checkpoint 4.11 in guidelines)
Techniques are in section 5.1.5 Frame equivalents
4.12 Allow the user to choose between a frameset or its alternative supplied by the author. [Priority 2] (Checkpoint 4.12 in guidelines)
Techniques are in section 5.1.5 Frame equivalents
4.13 Allow the user to turn on and off author-specified page forwards that occur after a time delay and without user intervention. [Priority 3] (Checkpoint 4.13 in guidelines)
Techniques are in section 3.3.1 Feature control
4.14 Allow the user to turn on and off automatic page refresh. [Priority 3] (Checkpoint 4.14 in guidelines)
Techniques are in section 3.3.1 Feature control

Guideline 5:

5.1 Allow the user to control font family. [Priority 1] (Checkpoint 5.1 in guidelines)
Techniques are in section 3.3 User control of style
5.2 Allow the user to control the size of text. [Priority 1] (Checkpoint 5.2 in guidelines)
Techniques are in section 3.3 User control of style
5.3 Allow the user to control foreground color. [Priority 1] (Checkpoint 5.3 in guidelines)
Techniques are in section 3.3 User control of style
5.4 Allow the user to control background color. [Priority 1] (Checkpoint 5.4 in guidelines)
Techniques are in section 3.3 User control of style
5.5 Allow the user to control selection highlighting (e.g., foreground and background color). [Priority 1] (Checkpoint 5.5 in guidelines)
Techniques are in section 3.3 User control of style
5.6 Allow the user to control focus highlighting (e.g., foreground and background color). [Priority 1] (Checkpoint 5.6 in guidelines)
Techniques are in section 3.3 User control of style
5.7 Allow the user to control animation rate. [Priority 2] (Checkpoint 5.7 in guidelines)
Techniques are in section 3.3 User control of style
5.8 Allow the user to control video frame rates. [Priority 1] (Checkpoint 5.8 in guidelines)
Techniques are in section 3.3 User control of style
5.9 Allow the user to control the position of audio closed captions. [Priority 1] (Checkpoint 5.9 in guidelines)
Techniques are in section 3.3 User control of style and
5.1.3 Textual equivalents for audio and video
5.10 Allow the user to start, stop, pause, and rewind video. [Priority 2] (Checkpoint 5.10 in guidelines)
Techniques are in section 3.3 User control of style
5.11 Allow the user to control audio playback rate. [Priority 1] (Checkpoint 5.11 in guidelines)
Techniques are in section 3.3 User control of style
5.12 When the user agent renders audio natively, allow the user to control the audio volume. [Priority 2] (Checkpoint 5.12 in guidelines)
Techniques are in section 3.3 User control of style
5.13 Allow the user to start, stop, pause, and rewind audio. [Priority 2] (Checkpoint 5.13 in guidelines)
Techniques are in section 3.3 User control of style
5.14 Allow the user to control synthesized speech playback rate. [Priority 1] (Checkpoint 5.14 in guidelines)
Techniques are in section 3.3 User control of style
5.15 Allow the user to control synthesized speech volume. [Priority 1] (Checkpoint 5.15 in guidelines)
Techniques are in section 3.3 User control of style
5.16 Allow the user to control synthesized speech pitch, gender and other articulation characteristics. [Priority 2] (Checkpoint 5.16 in guidelines)
Techniques are in section 3.3 User control of style
5.17 When new windows or user interface components are spawned, allow the user to control window size and position. [Priority 2] (Checkpoint 5.17 in guidelines)
Techniques are in section 3.3 User control of style and
5.4 Frames

Guideline 6:

6.1 Use and provide accessible interfaces to other technologies. [Priority 1] (Checkpoint 6.1 in guidelines)
Techniques are in section 4.3 Accessibility interfaces
6.2 Provide programmatic read and write access to user agent functionalities and user interface controls (including selection and focus) by using operating system and development language accessibility resources and conventions. [Priority 1] (Checkpoint 6.2 in guidelines)
Techniques are in section 4.3 Accessibility interfaces
6.3 Notify dependent user agents of changes to content and user interface controls (including selection and focus) by using operating system and development language accessibility resources and conventions. [Priority 1] (Checkpoint 6.3 in guidelines)
Techniques are in section 4.3 Accessibility interfaces
6.4 Comply with W3C Document Object Model specifications and export interfaces defined by those specifications. [Priority 1] (Checkpoint 6.4 in guidelines)
Techniques are in section 4.4 The document object model
6.5 Provide programmatic exchange of information in a timely manner. [Priority 2] (Checkpoint 6.5 in guidelines)
Techniques are in section 4.3 Accessibility interfaces
6.6 Follow operating system conventions and accessibility settings. In particular, follow conventions for user interface design, default keyboard configuration, product installation, and documentation. [Priority 2] (Checkpoint 6.6 in guidelines)
Techniques are in section 4.1 System conventions

Guideline 7:

7.1 Implement the accessibility features defined for supported specifications. [Priority 1] (Checkpoint 7.1 in guidelines)
Techniques are in section 5 Support for HTML accessibility and
6 Support for CSS accessibility and
7 Support for SMIL accessibility
7.2 Support appropriate W3C Recommendations. [Priority 2] (Checkpoint 7.2 in guidelines)
Techniques are in section 5 Support for HTML accessibility and
6 Support for CSS accessibility and
7 Support for SMIL accessibility

Guideline 8:

8.1 Allow the user to navigate viewports (including frames). [Priority 1] (Checkpoint 8.1 in guidelines)
Techniques are in section 3.5.5 View navigation
8.2 For user agents that offer a browsing history mechanism, when the user returns to a previous view, restore the point of regard in the viewport. [Priority 1] (Checkpoint 8.2 in guidelines)
Techniques are in section 3.4.2 Tracking selection and focus
8.3 For dependent user agents only. Allow the user to navigate just among table cells of a table (notably left and right within a row and up and down within a column). [Priority 1] (Checkpoint 8.3 in guidelines)
Techniques are in section 3.5.3 Table navigation
8.4 Allow the user to navigate just among all active elements. [Priority 2] (Checkpoint 8.4 in guidelines)
Techniques are in section 3.5.1 Navigation of active elements
8.5 Allow the user to search for rendered text content, including alternative text content. [Priority 2] (Checkpoint 8.5 in guidelines)
Techniques are in section 3.5.4 Searching
8.6 Allow the user to navigate according to the structure of the resource. [Priority 2] (Checkpoint 8.6 in guidelines)
Techniques are in section 3.5.2 Navigation of document structure
8.7 Allow the user to configure structured navigation. [Priority 3] (Checkpoint 8.7 in guidelines)
Techniques are in section 3.5 Navigation and searching

Guideline 9:

9.1 Provide a mechanism for highlighting and identifying (through a standard interface where available) the current viewport, selection, and focus. [Priority 1] (Checkpoint 9.1 in guidelines)
Techniques are in section 3.4.1 Highlighting the viewport, selection, and focus
9.2 For dependent user agents only. Provide the user with information about the number of viewports. [Priority 2] (Checkpoint 9.2 in guidelines)
Techniques are in section 3.6.7 Frames
9.3 For dependent user agents only. Allow the user to view an outline of a resource constructed from its structural elements (e.g., from header and list elements). [Priority 2] (Checkpoint 9.3 in guidelines)
Techniques are in section 3.5.5 View navigation
9.4 Describe a selected element's position within larger structures (e.g., numerical or relative position in a document, table, list, etc.). [Priority 2] (Checkpoint 9.4 in guidelines)
Techniques are in section 3.6.3 Element context
9.5 For a selected link, indicate whether following the link will involve a fee. [Priority 2] (Checkpoint 9.5 in guidelines)
Techniques are in section 3.6.4 Links
9.6 For a selected link, provide information to help the user decide whether to follow the link. [Priority 2] (Checkpoint 9.6 in guidelines)
Techniques are in section 3.6.4 Links
9.7 Allow the user to configure what information about links to present. [Priority 3] (Checkpoint 9.7 in guidelines)
Techniques are in section 3.6.4 Links
9.8 Provide a mechanism for highlighting and identifying (through a standard interface where available) active elements. [Priority 3] (Checkpoint 9.8 in guidelines)
Techniques are in section 3.6.6 Form controls and
5.2 Links
9.9 For dependent user agents only. Provide access to header information for a selected table cell. [Priority 1] (Checkpoint 9.9 in guidelines)
Techniques are in section 3.6.5 Tables
9.10 For dependent user agents only. Indicate the row and column dimensions of a selected table. [Priority 3] (Checkpoint 9.10 in guidelines)
Techniques are in section 3.6.5 Tables
9.11 Provide information about form structure and navigation (e.g., groups of controls, control labels, navigation order, and keyboard configuration). [Priority 2] (Checkpoint 9.11 in guidelines)
Techniques are in section 3.6.6 Form controls
9.12 Maintain consistent user agent behavior and default configurations between software releases. Consistency is less important than accessibility and adoption of system conventions. [Priority 3] (Checkpoint 9.12 in guidelines)
Techniques are in section 3.7.3 Software consistency

Guideline 10:

10.1 Provide information about content and viewport changes (to users and through programming interfaces). [Priority 1] (Checkpoint 10.1 in guidelines)
Techniques are in section 3.6.8 Scripts
10.2 Ensure that when the selection or focus changes, it is in the viewport after the change. [Priority 2] (Checkpoint 10.2 in guidelines)
Techniques are in section 3.4.2 Tracking selection and focus
10.3 Allow the user to selectively turn on and off notification of common types of content and viewport changes. [Priority 3] (Checkpoint 10.3 in guidelines)
Techniques are in section 3.6.8 Scripts
10.4 When loading a resource (e.g., document, video clip, audio clip, etc.) indicate what portion of the resource has loaded and whether loading has stalled. [Priority 3] (Checkpoint 10.4 in guidelines)
Techniques are in section 3.6.1 Status information
10.5 Indicate the relative position of the viewport in a resource (e.g., the percentage of the document that has been viewed, the percentage of an audio clip that has been played, etc.). [Priority 3] (Checkpoint 10.5 in guidelines)
Techniques are in section 3.6.1 Status information
10.6 Prompt the user to confirm any form submission triggered indirectly, that is by any means other than the user activating an explicit form submit control. [Priority 2] (Checkpoint 10.6 in guidelines)
Techniques are in section 3.6.6 Form controls

Guideline 11:

11.1 Allow the user to configure the user agent in named profiles that may be shared (by other users or software). [Priority 2] (Checkpoint 11.1 in guidelines)
Techniques are in section 3.8.1 User profiles
11.2 Allow the user to configure the graphical arrangement of user interface controls. [Priority 3] (Checkpoint 11.2 in guidelines)
Techniques are in section 3.8.3 User interface

Guideline 12:

12.1 Provide a version of the product documentation that conforms to the Web Content Accessibility Guidelines. [Priority 1] (Checkpoint 12.1 in guidelines)
Techniques are in section 3.9.2 Accessible documentation
12.2 Ensure that all user agent functionalities that promote accessibility are documented. [Priority 1] (Checkpoint 12.2 in guidelines)
Techniques are in section 3.9 Documentation
12.3 Describe product features known to promote accessibility in a section of the product documentation. [Priority 2] (Checkpoint 12.3 in guidelines)
Techniques are in section 3.9.1 Where to document accessibility

Acknowledgments

Many thanks to the following people who have contributed through review and comment: Paul Adelson, James Allan, Denis Anson, Kitch Barnicle, Harvey Bingham, Olivier Borius, Judy Brewer, Bryan Campbell, Kevin Carey, Wendy Chisholm, David Clark, Chetz Colwell, Wilson Craig, Nir Dagan, Daniel Dardailler, B. K. Delong, Neal Ewers, Geoff Freed, John Gardner, Al Gilman, Larry Goldberg, Glen Gordon, John Grotting, Markku Hakkinen, Earle Harrison, Chris Hasser, Kathy Hewitt, Philipp Hoschka, Masayasu Ishikawa, Phill Jenkins, Jan Kärrman (for help with html2ps), Leonard Kasday, George Kerscher, Marja-Riitta Koivunen, Josh Krieger, Catherine Laws, Greg Lowney, Scott Luebking, William Loughborough, Napoleon Maou, Charles McCathieNevile, Masafumi Nakane, Mark Novak, Charles Oppermann, Mike Paciello, David Pawson, Michael Pederson, Helen Petrie, David Poehlman, Michael Pieper, Jan Richards, Hans Riesebos, Joe Roeder, Lakespur L. Roca, Gregory Rosmaita, Lloyd Rutledge, Liam Quinn, T.V. Raman, Robert Savellis, Rich Schwerdtfeger, Constantine Stephanidis, Jim Thatcher, Jutta Treviranus, Claus Thogersen, Steve Tyler, Gregg Vanderheiden, Jaap van Lelieveld, Jon S. von Tetzchner, Willie Walker, Ben Weiss, Evan Wies, Chris Wilson, Henk Wittingen, and Tom Wlodkowski,

References

For the latest version of any W3C specification, please consult the list of W3C Technical Reports.

[CSS1]
"CSS, level 1 Recommendation", B. Bos, H. Wium Lie, eds., 17 December 1996, revised 11 January 1999. This CSS1 Recommendation is http://www.w3.org/TR/1999/REC-CSS1-19990111.
[CSS2]
"CSS, level 2 Recommendation", B. Bos, H. Wium Lie, C. Lilley, and I. Jacobs, eds., 12 May 1998. This CSS2 Recommendation is http://www.w3.org/TR/1998/REC-CSS2-19980512.
[CSS-ACCESS]
"Accessibility Features of CSS", I. Jacobs, J. Brewer, The latest version of this W3C Note is available at http://www.w3.org/TR/CSS-access.
[DOM1]
"Document Object Model (DOM) Level 1 Specification", V. Apparao, S. Byrne, M. Champion, S. Isaacs, I. Jacobs, A. Le Hors, G. Nicol, J. Robie, R. Sutor, C. Wilson, and L. Wood, eds. The 1 October 1998 DOM Level 1 Recommendation is http://www.w3.org/TR/1998/REC-DOM-Level-1-19981001
[DOM2]
"Document Object Model (DOM) Level 2 Specification", L. Wood, A. Le Hors, V. Apparao, L. Cable, M. Champion, J. Kesselman, P. Le Hégaret, T. Pixley, J. Robie, P. Sharpe, C. Wilson, eds. The DOM2 specification is a Working Draft at the time of publication.
[HTML40]
"HTML 4.0 Recommendation", D. Raggett, A. Le Hors, and I. Jacobs, eds. The 24 April 1998 HTML 4.0 Recommendation is http://www.w3.org/TR/1998/REC-html40-19980424
[HTML32]
"HTML 3.2 Recommendation", D. Raggett, ed. The HTML 3.2 Recommendation is http://www.w3.org/TR/REC-html32
[MATHML]
"Mathematical Markup Language", P. Ion and R. Miner, eds. The 7 April 1998 MathML 1.0 Recommendation is http://www.w3.org/TR/1998/REC-MathML-19980407
[MICROPAYMENT]
"Common Markup for micropayment per-fee-links", T. Michel, ed. The latest version of this W3C Working Draft is available at http://www.w3.org/TR/Micropayment-Markup.
[RFC2119]
"Key words for use in RFCs to Indicate Requirement Levels", S. Bradner, March 1997.
[SMIL]
"Synchronized Multimedia Integration Language (SMIL) 1.0 Specification", P. Hoschka, editor. The 15 June 1998 SMIL 1.0 Recommendation is http://www.w3.org/TR/1998/REC-smil-19980615
[SMIL-ACCESS]
"Accessibility Features of SMIL", M-R. Koivunen, I. Jacobs. The latest version of this W3C Note is available at http://www.w3.org/TR/SMIL-access.
[UA-TECHNIQUES]
"Techniques for User Agent Accessibility Guidelines 1.0", J. Gunderson, I. Jacobs, eds. This document explains how to implement the checkpoints defined in "User Agent Accessibility Guidelines 1.0". The latest draft of the techniques is available at http://www.w3.org/WAI/UA/WAI-USERAGENT-TECHS/
[WAI-AUTOOLS]
"Authoring Tool Accessibility Guidelines", J. Treviranus, J. Richards, I. Jacobs, C. McCathieNevile, eds. The latest Working Draft of these guidelines for designing accessible authoring tools is available at http://www.w3.org/TR/WD-WAI-AUTOOLS/
[WAI-WEBCONTENT]
"Web Content Accessibility Guidelines 1.0", W. Chisholm, G. Vanderheiden, and I. Jacobs, eds. The 5 May 1999 Recommendation is http://www.w3.org/TR/1999/WAI-WEBCONTENT-19990505
[WAI-WEBCONTENT-TECHS]
"Techniques for Web Content Accessibility Guidelines 1.0", W. Chisholm, G. Vanderheiden, and I. Jacobs, eds. The latest version of this document is available at http://www.w3.org/TR/WAI-WEBCONTENT-TECHS
[XML]
"Extensible Markup Language (XML) 1.0.", T. Bray, J. Paoli, C.M. Sperberg-McQueen, eds. The 10 February 1998 XML 1.0 Recommendation is http://www.w3.org/TR/1998/REC-xml-19980210

Services

Note. W3C cannot maintain stability for any of the following references outside of its control. These references are included for convenience.

[ALTIFIER]
The Altifier Tool for generates "alt" text intelligently.
[AMAYA]
Amaya is W3C's testbed browser/editor.
[APPLE-HI]
Information on accessibility guidelines for Macintosh applications. Information on Apple's scripting model can be found at tn1095 and tn1164. Refer also to the Inside Macintosh chapter devoted to Interapplication Communication.
[BHO]
Browser Helper Objects: The Browser the Way You Want It, D. Esposito, January 1999.
[CCPP]
Composite Capability/Preference Profiles (CC/PP): A user side framework for content negotiation, F. Reynolds, J. Hjelm, S. Dawkins, and S. Singhal, eds. This W3C Note describes a general yet extensible framework for describing user preferences and device capabilities. The latest version is available at http://www.w3.org/TR/NOTE-CCPP/.
[ED-DEPT]
"Requirements for Accessible Software Design", US Department of Education, version 1.1 March 6, 1997.
[EITAAC]
"EITAAC Desktop Software standards", Electronic Information Technology Access Advisory (EITAAC) Committee.
[IBM-ACCESS]
"Software Accessibility" IBM Special Needs Systems.
[ICCCM]
"The Inter-Client communication conventions manual". A protocol for communication between clients in the X Window system.
[ICE-RAP]
"An ICE Rendezvous Mechanism for X Window System Clients", W. Walker. A description of how to use the ICE and RAP protocols for X Window clients.
[JAVA-ACCESS]
"IBM Guidelines for Writing Accessible Applications Using 100% Pure Java", R. Schwerdtfeger, IBM Special Needs Systems.
[JAVAAPI]
Information on Java Accessibility API can be found at Java Accessibility Utilities.
[JAVA-CHECKLIST]
"Java Accessibility Guidelines and Checklist". IBM Special Needs Systems.
[JAVA-TUT]
"The Java Tutorial. Trail: Creating a GUI with JFC/Swing". An online tutorial that describes how to use the Swing Java Foundation Class to build an accessible User Interface.
[LYNX]
The Lynx Browser.
[MSAA]
Information on active accessibility can be found at the Microsoft WWW site on Active Accessibility.
[MS-ENABLE]
Information on accessibility guidelines for Windows applications.
[MS-KEYBOARD]
Information on keyboard assistance for Internet Explorer and MS Windows.
[MS-SOFTWARE]
"The Microsoft Windows Guidelines for Accessible Software Design". Note. This page summarizes the guidelines and includes links to the full guidelines in various formats (including plain text).
[NOTES-ACCESS]
"Lotus Notes Accessibility Guidelines" IBM Special Needs Systems.
[Prodworks]
The Productivity Works.
[SUN-DESIGN]
"Designing for Accessibility", Eric Bergman and Earl Johnson. This paper discusses specific disabilities including those related to hearing, vision, and cognitive function.
[SUN-HCI]
"Towards Accessible Human-Computer Interaction", Eric Bergman, Earl Johnson, Sun Microsytems 1995. A substantial paper, with a valuable print bibliography.
[TRACE-REF]
"Application Software Design Guidelines" compiled by G. Vanderheiden. A thorough reference work.
[USERAGENTS]
List of Alternative Web Browsers. This list is maintained by WAI.
[WHAT-IS]
"What is Accessible Software", James W. Thatcher, Ph.D., IBM, 1997. This paper gives a short example-based introduction to the difference between software that is accessible, and software that can be used by some assistive technologies.
[XGuidelines]
Information on accessibility guidelines for Unix and X Window applications. The Open Group has various guides that explain the Motif and Common Desktop Environment (CDE) with topics like how users interact with Motif/CDE applications and how to customize these environments. Note. In X, the terms client and server are used differently from their use when discussing the Web.
