This document describes techniques for satisfying the checkpoints of "Web Content Accessibility Guidelines 1.0" when authoring HTML [HTML40]. The sections are organized by topic (and mirror the organization of the HTML 4.0 specification, [HTML40]).
An index of HTML elements and attributes provides information about all elements of HTML 4.0 and all attributes that affect accessibility directly. For each element, the index includes links to techniques that refer to it.
This document is part of a series of accessibility documents published by the Web Accessibility Initiative.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. The latest status of this document series is maintained at the W3C.
While Web Content Accessibility Guidelines 1.0 strives to be a stable document (as a W3C Recommendation), the current document is expected to evolve as technologies change and content developers discover more effective techniques for designing accessible Web sites and pages.
This is a W3C Working Draft for review by W3C Members and other interested parties. It is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to use W3C Working Drafts as reference material or to cite them as other than "work in progress". This is work in progress and does not imply endorsement by, or the consensus of, either W3C or participants in the Web Content Accessibility Guidelines (WCAG) Working Group.
This document has been produced as part of the W3C Web Accessibility Initiative. The goal of the Web Content Guidelines Working Group is discussed in the Working Group charter.
A list of current W3C Recommendations and other technical documents can be found at http://www.w3.org/TR.
Please send detailed comments on this document to wai-wcag-editor@w3.org.
Content developers should use structural markup and use it according to specification. Structural elements and attribute (refer to the index of HTML elements and attributes to identify them) promote consistency in documents and supply information to other tools (e.g., indexing tools, search engines, programs that extract tables to databases, navigation tools that use header elements, and automatic translation software that translates text from one language into another.
Checkpoints in this section:
Some structural elements provide information about the document itself. This is called "metadata" about the document -- Metadata is information about data. Well-crafted metadata can provide important orientation information to users. HTML elements that provide useful information about a document include:
Note that the (mandatory) TITLE element, which only appears once in a document, is different from the "title" attribute, which applies to almost every HTML 4.0 element. Content developers should use the "title" attribute in accordance with the HTML 4.0 specification. For example, "title" should be used with links to provide information about the target of the link.
This element can be used to provide information about the creator of the page.
This element can specify metadata for a document including keywords, and information about the author. Please refer to the section on automatic page refresh for information on why META should not be used to redirect or auto-refresh pages.
The following are deprecated HTML examples. The first changes the user's page at page at regular intervals. Content developers should not use this technique to simulate "push" technology. Developers cannot predict how much time a user will require to read a page; premature refresh can disorient users. Content developers should avoid periodic refresh and allow users to choose when they want the latest information.
Deprecated example.
<META http-equiv="refresh" content="60"> <BODY> <P>...Information... </BODY>
The following HTML example (using the META element) forwards the user from one page to another after a timeout. However, users should not redirect users with this markup since is non-standard, it disorients users, and it can disrupt a browser's history of visited pages.
Deprecated example.
<HEAD> <TITLE>Don't use this!</TITLE> <META http-equiv="refresh" content="5; http://www.acme.com/newpage"> </HEAD> <BODY> <P>If your browser supports Refresh, you'll be transported to our <A href="http://www.acme.com/newpage">new site</A> in 5 seconds, otherwise, select the link manually. </BODY>
Checkpoints in this section:
Validating to a published formal grammar and declaring that validation at the beginning of a document let's the user know that the structure of the document is sound. It also let's the user agent know where to look for semantics if it needs to. The W3C Validation Service validates documents against a whole list of published grammars.
It is preferable to validate to W3C grammars. Refer to the Accessibility Reviewed Technologies.
@@link to XML techniques when ready
Checkpoints in this section:
Content developers should use the LINK element and link types (refer to [HTML40], section 6.12) to describe document navigation mechanisms and organization. Some user agents may synthesize navigation tools or allow ordered printing of a set of documents based on such markup.
The following LINK elements might be included in the head of chapter 2 of a book:
<LINK rel="Next" href="chapter3"> <LINK rel="Previous" href="chapter1"> <LINK rel="Start" href="cover"> <LINK rel="Glossary" href="glossary">
End example.
Checkpoints in this section:
The following HTML 4.0 mechanisms group content and make it easier to understand.:
All of these grouping mechanisms should be used when appropriate and natural, i.e., when the information lends itself to logical groups. Content developers should not create groups randomly, as this will confuse all users.
Checkpoints in this section:
Long documents are often divided into a variety of chapters, chapters have subtopics and subtopics are divided into various sections, sections into paragraphs, etc. These semantic chunks of information make up the structure of the document.
Sections should be introduced with the HTML header elements (H1-H6). Other markup may complement these elements to improve presentation (e.g., the HR element to create a horizontal dividing line), but visual presentation is not sufficient to identify document sections.
Since some users skim through a document by navigating its headings, it is important to use them appropriately to convey document structure. Users should order heading elements properly. For example, in HTML, H2 elements should follow H1 elements, H3 elements should follow H2 elements, etc. Content developers should not "skip" levels (e.g., H1 directly to H3). Do not use headings to create font effects; use style sheets to change font styles for example.
Note that in HTML, heading elements (H1 - H6) only start sections, they don't contain them as element content. The following HTML markup shows how style sheets may be used to control the appearance of a header and the content that follows:
<HEAD> <TITLE>Cooking techniques</TITLE> <STYLE type="text/css"> /* Indent header and following content */ DIV.section2 { margin-left: 5% } </STYLE> </HEAD> <BODY> <H1>Cooking techniques</H1> ... some text here ... <DIV class="section2"> <H2>Cooking with oil</H2> ... text of the section ... </DIV> <DIV class="section2"> <H2>Cooking with butter</H2> ... text of the section ... </DIV>
End example.
See also the section on links.
Checkpoints in this section:
If you use a number of different languages on a page, make sure that any changes in language are clearly identified by using the "lang" attribute:
<P>And with a certain <SPAN lang="fr">je ne sais quoi</SPAN>, she entered both the room, and his life, forever. <Q>My name is Natasha,</Q> she said. <Q lang="it">Piacere,</Q> he replied in impeccable Italian, locking the door.
End example.
Identifying changes in language are important for a number of reasons:
It is also good practice to identify the primary language of a document, either with markup (as shown below) or through HTTP headers.
The following sections discuss ways to add structure to pieces of text.
Checkpoints in this section:
The proper HTML elements should be used to mark up emphasis: EM and STRONG. The B and I elements should not be used; they are used to create a visual presentation effect. The EM and STRONG elements were designed to indicate structural emphasis that may be rendered in a variety of ways (font style changes, speech inflection changes, etc.)
Checkpoints in this section:
Mark up abbreviations and acronyms with ABBR and ACRONYM and use "title" to indicate the expansion:
Example.
<P>Welcome to the <ACRONYM title="World Wide Web">WWW</ACRONYM>!
End example.
Checkpoints in this section:
The Q and BLOCKQUOTE elements mark up inline and block quotations, respectively.
Example.
This example marks up a longer quotation with BLOCKQUOTE:
<BLOCKQUOTE cite="http://www.shakespeare.com/loveslabourlost"> <P>Remuneration! O! that's the Latin word for three farthings. --- William Shakespeare (Love's Labor Lost). </P> </BLOCKQUOTE>
End example.
Checkpoints in this section:
Using markup (and style sheets) where possible rather than images (e.g., a mathematical equation) promotes accessibility for the following reasons:
As an example, consider these techniques for putting mathematics on the Web:
TeX is commonly used to create technical papers which are then converted to HTML for publication on the Web. However, converters tend to generate images, use deprecated markup, and use tables for layout. Consequently, content providers should:
The HTML 4.0 specification defines the following structural elements for miscellaneous markup needs:
Checkpoints in this section:
The HTML list elements DL, UL, and OL should only be used to create lists, not for formatting effects such as indentation.
refer to info on css and tables for layout @@links
Ordered lists help non-visual users navigate. Non-visual users may "get lost" in lists, especially in nested lists and those that do not indicate the specific nest level for each list item. Until user agents provide a means to identify list context clearly (e.g., by supporting the ':before' pseudo-element in CSS2), content developers should include contextual clues in their lists.
For numbered lists, compound numbers are more informative than simple numbers. Thus, a list numbered "1, 1.1, 1.2, 1.2.1, 1.3, 2, 2.1," provides more context than the same list without compound numbers, which might be formatted as follows:
1. 1. 2. 1. 3. 2. 1.
and would be spoken as "1, 1, 2, 1, 2, 3, 2, 1", conveying no information about list depth.
[CSS1] and [CSS2] allow users to control number styles (for all list, not just ordered) through user style sheets.
Example.
The following CSS2 style sheet shows how to specify compound numbers for nested lists created with either UL or OL elements. Items are numbered as "1", "1.1", "1.1.1", etc.
<STYLE type="text/css"> UL, OL { counter-reset: item } LI { display: block } LI:before { content: counters(item, "."); counter-increment: item } </STYLE>
End example.
Until either CSS2 is widely supported or user agents allow users to control rendering of lists through other means, authors should consider providing contextual clues in unnumbered nested lists. Non-visual users may have difficulties knowing where a list begins and ends and where each list item starts. For example, if a list entry wraps to the next line on the screen, it may appear to be two separate items in the list. This may pose a problem for legacy screen readers.
To change the "bullet" style of unordered list items created with the LI element, use style sheets. In CSS, it is possible to specify a fallback bullet style (e.g., 'disc') if a bullet image cannot be loaded.
Example.
<HEAD> <TITLE>Using style sheets to change bullets</TITLE> <STYLE type="text/css"> UL { list-style: url(star.gif) disc } </STYLE> </HEAD> <BODY> <UL> <LI>Audrey <LI>Laurie <LI>Alice </UL>
End example.
To further ensure that users understand differences between list items indicated visually, content developers should provide a text label before or after the list item phrase:
Example.
In this example, new information is communicated through text ("New"), font style (bold), and color (yellow bullet, red text on yellow background).
<HEAD> <TITLE>Bullet styles example</TITLE> <STYLE type="text/css"> .newtxt { font-weight: bold; color: red; background-color: yellow } .newbullet { list-style : url(yellow.gif) disc } </STYLE> </HEAD> <BODY> <UL> <LI class="newbullet">Roth IRA <SPAN class="newtext">New</SPAN></LI> <LI> 401(k)</LI> </UL> </BODY>
End example.
Checkpoints in this section:
Avoid using images as bullets in definition lists created with DL, DT, and DD. However, if this method is used, be sure to provide a text equivalent for the images.
Deprecated example.
<HEAD> <TITLE>Deprecated example using image in DL lists</TITLE> </HEAD> <BODY> <DL> <DD><IMG src="star.gif" alt="* ">Audrey <DD><IMG src="star.gif" alt="* ">Laurie <DD><IMG src="star.gif" alt="* ">Alice </DL>
Content developers should avoid list styles where bullets provide additional (visual) information. However, if this is done, be sure to provide a text equivalent describing meaning of the bullet:
Deprecated example.
<DL> <DD><IMG src="red.gif" alt="New:">Roth IRA</DD> <DD><IMG src="yellow.gif" alt="Old:">401(k)</DD> </DL>
This section discusses the accessibility of tables and elements that one can put in a TABLE element. Two types of tables are discussed: tables used to organize data, and tables used to create a visual layout of the page.
Checkpoints in this section:
Content developers may make HTML 4.0 data tables more accessible in a number of ways:
This markup will also help browsers linearize tables (also called table "serialization"). A row-based linear version may be created by reading the row header, then preceding each cell with the cell's column header. Or, the linearization might be column-based. Future browsers and assistive technologies will be able to automatically translate tables into linear sequences or navigate a table cell by cell if data is labeled appropriately. The WAI Evaluation and Repair working group is tracking the progress of tools as well as developing their own that will allow users to linearize or navigate tables cell by cell. Refer to [[WAI-ER]] and the following section on creating linearized versions of tables @@link.
For information about table headers, refer to the table header algorithm and discussion in the HTML 4.0 Recommendation ([HTML40], section 11.4.3).
This example shows how to associate data cells (created with TD) with their corresponding headers by means of the "headers" attribute. The "headers" attribute specifies a list of header cells (row and column labels) associated with the current data cell. This requires each header cell to have an "id" attribute.
<TABLE border="1" summary="This table charts the number of cups of coffee consumed by each senator, the type of coffee (decaf or regular), and whether taken with sugar."> <CAPTION>Cups of coffee consumed by each senator</CAPTION> <TR> <TH id="header1">Name</TH> <TH id="header2">Cups</TH> <TH id="header3" abbr="Type">Type of Coffee</TH> <TH id="header4">Sugar?</TH> <TR> <TD headers="header1">T. Sexton</TD> <TD headers="header2">10</TD> <TD headers="header3">Espresso</TD> <TD headers="header4">No</TD> <TR> <TD headers="header1">J. Dinnen</TD> <TD headers="header2">5</TD> <TD headers="header3">Decaf</TD> <TD headers="header4">Yes</TD> </TABLE>
End example.
A speech synthesizer might render this tables as follows:
Caption: Cups of coffee consumed by each senator Summary: This table charts the number of cups of coffee consumed by each senator, the type of coffee (decaf or regular), and whether taken with sugar. Name: T. Sexton, Cups: 10, Type: Espresso, Sugar: No Name: J. Dinnen, Cups: 5, Type: Decaf, Sugar: Yes
A visual user agent might render this table as follows:
The next example associates the same header (TH) and data (TD) cells as before, but this time uses the "scope" attribute rather than "headers". "Scope" must have one of the following values: "row", "col", "rowgroup", or "colgroup." Scope specifies the set of data cells to be associated with the current header cell. This method is particularly useful for simple tables. It should be noted that the spoken rendering of this table would be identical to that of the previous example. A choice between the "headers" and "scope" attributes is dependent on the complexity of the table. It does not affect the output so long as the relationships between header and data cells are made clear in the markup.
Example.
<TABLE border="1" summary="This table charts ..."> <CAPTION>Cups of coffee consumed by each senator</CAPTION> <TR> <TH scope="col">Name</TH> <TH scope="col">Cups</TH> <TH scope="col" abbr="Type">Type of Coffee</TH> <TH scope="col">Sugar?</TH> <TR> <TD>T. Sexton</TD> <TD>10</TD> <TD>Espresso</TD> <TD>No</TD> <TR> <TD>J. Dinnen</TD> <TD>5</TD> <TD>Decaf</TD> <TD>Yes</TD> </TABLE>
End example.

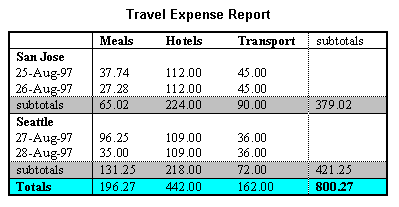

The following example shows how to create categories within a table using the "axis" attribute.
Example.
<TABLE border="1"> <CAPTION>Travel Expense Report</CAPTION> <TR> <TH></TH> <TH id="header2" axis="expenses">Meals <TH id="header3" axis="expenses">Hotels <TH id="header4" axis="expenses">Transport <TD>subtotals</TD> <TR> <TH id="header6" axis="location">San Jose <TH> <TH> <TH> <TD> <TR> <TD id="header7" axis="date">25-Aug-97 <TD headers="header6 header7 header2">37.74 <TD headers="header6 header7 header3">112.00 <TD headers="header6 header7 header4">45.00 <TD> <TR> <TD id="header8" axis="date">26-Aug-97 <TD headers="header6 header8 header2">27.28 <TD headers="header6 header8 header3">112.00 <TD headers="header6 header8 header4">45.00 <TD> <TR> <TD>subtotals <TD>65.02 <TD>224.00 <TD>90.00 <TD>379.02 <TR> <TH id="header10" axis="location">Seattle <TH> <TH> <TH> <TD> <TR> <TD id="header11" axis="date">27-Aug-97 <TD headers="header10 header11 header2">96.25 <TD headers="header10 header11 header3">109.00 <TD headers="header10 header11 header4">36.00 <TD> <TR> <TD id="header12" axis="date">28-Aug-97 <TD headers="header10 header12 header2">35.00 <TD headers="header10 header12 header3">109.00 <TD headers="header10 header12 header4">36.00 <TD> <TR> <TD>subtotals <TD>131.25 <TD>218.00 <TD>72.00 <TD>421.25 <TR> <TH>Totals <TD>196.27 <TD>442.00 <TD>162.00 <TD>800.27 </TABLE>
End example.
This table lists travel expenses at two locations: San Jose and Seattle, by date, and category (meals, hotels, and transport). The following image shows how a visual user agent might render it. [Description of travel table]
Checkpoints in this section:
Authors should use style sheets for layout and positioning. However, when it is necessary to use a table for layout, the table must linearize in a readable order. When a table is linearized, the contents of the cells become a series of paragraphs (e.g., down the page) one after another. Cells should make sense when read in row order and should include structural elements (that create paragraphs, headers, lists, etc.) so the page makes sense after linearization.
Also, when using tables to create a layout, do not use structural markup to create visual formatting. For example, the TH (table header) element, is usually displayed visually as centered, and bold. If a cell is not actually a header for a row or column of data, use style sheets or formatting attributes of the element.
Checkpoints in this section:
Tables used to lay out pages where cell text wraps pose problems for older screen readers that do not interpret the source HTML or browsers that do not allow navigation of individual table cells. These screen readers will read across the page, reading sentences on the same row from different columns as one sentence.
For example, if a table is rendered like this on the screen:
There is a 30% chance of Classes at the University of Wisconsin rain showers this morning, but they will resume on September 3rd. should stop before the weekend.
This might be read by a screen reader as:
There is a 30% chance of Classes at the University of Wisconsin rain showers this morning, but they will resume on September 3rd. should stop before the weekend.
It is usually very simple to linearize a table used to layout a page - simply strip the table markup from the table. There are several tools that do this, and it is becoming more common for screen readers and some browsers to linearize tables.
However, linearizing data tables requires a different strategy. Since data cells rely on the information provided by surrounding and header cells, the relationship information that is available visually needs to be translated into the linear table.
@@example
again, there are tools to help produce linearized versions of data tables. @@link
Quicktest! To get a better understanding of how a screen reader would read a table, run a piece of paper down the page and read your table line by line.
In HTML 3.2 browsers, the rows of a TFOOT element will appear before the table body.
Checkpoints in this section:
Good link text should not be overly general; don't use "click here." Not only is this phrase device-dependent (it implies a pointing device) it says nothing about what is to be found if the link if followed. Instead of "click here", link text should indicate the nature of the link target, as in "more information about sea lions" or "text-only version of this page". Note that for the latter case (and other format- or language-specific documents), content developers are encouraged to use content negotiation instead, so that users who prefer text versions will have them served automatically.
In addition to clear link text, content developers may specify a value of the "title" attribute that clearly and accurately describes the target of the link.
If more than one link on a page shares the same link text, all those links should point to the same resource. Such consistency will help page design as well as accessibility.
If two or more links refer to different targets but share the same link text, distinguish the links by specifying a different value for the "title" attribute of each A element.
"Auditory users" -- people who are blind, have difficulty seeing, or who are using devices with small or no displays -- are unable to scan the page quickly with their eyes. To get an overview of a page or to quickly find a link, these users will often tab from one link to the next or review a list of available links on a page.
Thus, for a series of related links, include introductory information in the first link, then distinguishing information in the links that follow. This will provide context information for users reading them in sequence.
Example.
<A href="my-doc.html">My document is available in HTML</A>, <A href="my-doc.pdf" title="My document in PDF">PDF</A>, <A href="my-doc.txt" title="My document in text">plain text</A>
End example.
When an image is used as the content of a link, specify a text equivalent for the image.
Example.
<A href="routes.html"> <IMG src="topo.html" alt="Current routes at Boulders Climbing Gym"> </A>
End example.
Or, if you provide link text, use a space as the "alt" attribute value of the IMG element. Note that this text will appear on the page next to the image.
Example.
<A href="routes.html"> <IMG src="topo.html" alt=" "> Current routes at Boulders Climbing Gym </A>
End example.
Checkpoints in this section:
@@this section needs to be updated with the MAP technique discussed a while back
When links are grouped into logical sets (for example, in a navigation bar that appears on every page in a site) they should be marked up as a unit. Navigation bars are usually the first thing someone encounters on a page. For users with speech synthesizers, this means having to hear a number of links on every page before reaching the interesting content of a page. There are several ways to allow users to bypass groups of links (as users with vision do when they see the same set on each page):
In the future, user agents will allow users to skip over elements such as navigation bars.
In HTML, use the DIV, SPAN, P, or FRAME elements to group links then identify the group with the "id" or "class" attributes.
Example.
In this example, the P element groups a set of links, the "class" attribute identifies it as a navigation bar (e.g., for style sheets), "tabindex" is set on an anchor following the group, and a link at the beginning of the group links to the anchor after the group. Also, note that the links are separated by non-link, printable characters (surrounded by spaces).
<HEAD> <TITLE>How to use our site</TITLE> </HEAD> <BODY> <P class="nav"> [<A href="#how">Bypass navigation bar</A>] [<A href="home.html">Home</A>] [<A href="search.html">Search</A>] [<A href="new.html">New and highlighted</A>] [<A href="sitemap.html">Site map</A>] </P> <H1><A name="how" tabindex="1">How to use our site</A></H1> <!-- content of page --> </BODY>
End example.
Checkpoints in this section:
Keyboard access to active elements of a page is important for many users who cannot use a pointing device. User agents may include features that allow users to bind keyboard strokes to certain actions. HTML 4.0 also allows content developers to specify keyboard shortcuts in documents via the "tabindex" attribute. Refer to the example in the previous section for an example of "tabindex."
Example.
In this example, if the user activates the "C" key, the link will be followed.
<A accesskey="C" href="doc.html" hreflang="en" title="XYZ company home page"> XYZ company home page</A>
End example.
Checkpoints in this section:
@@include info about using target attribute on A to generate new windows. test that an unknown target causes a new window to open.
The following sections discuss accessibility of images (including simple animations such as GIF animations) and image maps.
For information about math represented as images, refer to the section on using text markup and style sheets rather than images.
Checkpoints in this section:
When using IMG, specify a short text equivalent with the "alt" attribute. Note. The value of this attribute is referred to as "alt-text".
Example.
<IMG src="magnifyingglass.gif" alt="Search">
End example.
When using OBJECT, specify a text equivalent in the body of the OBJECT element:
Example.
<OBJECT data="magnifyingglass.gif" type="image/gif"> Search </OBJECT>
End example.
Checkpoints in this section:
When a short text equivalent does not suffice to adequately convey the function or role of an image, provide additional information in a file designated by the "longdesc" attribute:
Example.
<IMG src="97sales.gif" alt="Sales for 1997" longdesc="sales97.html">
In sales97.html:
A chart showing how sales in 1997 progressed. The chart
is a bar-chart showing percentage increases in sales
by month. Sales in January were up 10% from December 1996,
sales in February dropped 3%, ..
End example.
For user agents that don't support "longdesc", provide a description link as well next to the graphic:
Example.
<IMG src="97sales.gif" alt="Sales for 1997" longdesc="sales.html"> <A href="sales.html" title="Description of 1997 sales figures">[D]</A>
End example.
When using OBJECT, specify longer text equivalent within the element's content:
Example.
<OBJECT data="97sales.gif" type="image/gif"> Sales in 1997 were down subsequent to our <A href="anticipated.html">anticipated purchase</A> ... </OBJECT>
End example.
Note that OBJECT content, unlike "alt" text, can include markup. Thus, content developers can provide a link to additional information from within the OBJECT element:
Example.
<OBJECT data="97sales.gif" type="image/gif"> Chart of our Sales in 1997. A <A href="desc.html">textual description</A> is available. </OBJECT>
End example.
Note. Invisible d-links are deprecated in favor of the "longdesc" attribute.
An invisible d-link is a small (1-pixel) or transparent image whose "alt" attribute value is "D-link" or "D" and is part of the content of an A element. Like other d-links, it refers to a text equivalent of the associated image. Like other links, users can tab to it. Invisible d-links thus provide a (temporary) solution for designers who wish to avoid visible d-links for stylistic reasons.
Checkpoints in this section:
Avoid ascii art (character illustrations) and use real images instead since it is easier to supply a text equivalent for images. However, if ascii art must be used provide a link to jump over the ASCII art, as follows.
Example.
<P> <a href="#post-art">skip over ASCII art</a> <!-- ASCII art goes here --> <a name="post-art">caption for ASCII art</a>
End example.
ASCII art may also be marked up as follows [skip over ascii figure or consult a description of chart]:
Example.
% __ __ __ __ __ __ __ __ __ __ __ __ __ __ 100 | * | 90 | * * | 80 | * * | 70 | @ * | 60 | @ * | 50 | * @ * | 40 | @ * | 30 | * @ @ @ * | 20 | | 10 | @ @ @ @ @ | 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 Flash frequency (Hz)
End example.
Another option for smaller ascii art is to use an ABBR element with "title".
Example.
<P><ABBR title="smiley in ascii art">:-)</ABBR>
End example.
If the ASCII art is complex, ensure that the text equivalent adequately describes it.
Another way to replace ascii art is to use human language substitutes. For example, <wink> might substitute for a winking smiley: ;-). Or, the word "therefore" can replace arrows consisting of dashes and greater than signs (e.g., -->), and the word "great" for the uncommon abbreviation "gr8".
An image map is an image that has "active regions". When the user selects one of the regions, some action takes place -- a link may be followed, information may be sent to a server, etc. To make an image map accessible, content developers must ensure that each action associated with a visual region may be activated without a pointing device.
Image maps are created with the MAP element. HTML allows two types of image maps: client-side (the user's browser processes a URI) and server-side (the server processes click coordinates). For all image maps, content developers must supply a text equivalent.
Content developers should create client-side image maps (with "usemap") rather than server-side image maps (with "ismap") because server-side image maps require a specific input device. If server-side image maps must be used (e.g., because the geometry of a region cannot be represented with values of the shape attribute), authors must provide the same functionality or information in an alternative accessible format. One way to achieve this is to provide a textual link for each active region so that each link is navigable with the keyboard. If you must use a server-side image map, please consult the section on server-side image maps
Checkpoints in this section:
Provide text equivalents for image maps since they convey visual information. As with other links, the link text should make sense when read out of context. Refer to the section on Link Text for information on writing good link text. Users may also want keyboard shortcuts to access frequently followed links. Refer to the section on Keyboard access to links.
If AREA is used to create the map, use the "alt" attribute:
Example.
<IMG src="welcome.gif" alt="Image map of areas in the library" usemap="#map1"> <MAP name="map1"> <AREA shape="rect" coords="0,0,30,30" href="reference.html" alt="Reference"> <AREA shape="rect" coords="34,34,100,100" href="media.html" alt="Audio visual lab"> </MAP>
End example.
The following example illustrates the same idea, but uses OBJECT instead of IMG to insert the image to provide more information about the image:
Example.
<OBJECT data="welcome.gif" type="image/gif" usemap="#map1"> There are several areas in the library including the <A href="reference.html">Reference</A> section and the <A href="media.html">Audio Visual Lab</A>. </OBJECT> <MAP name="map1"> <AREA shape="rect" coords="0,0,30,30" href="reference.html" alt="Reference"> <AREA shape="rect" coords="34,34,100,100" href="media.html" alt="Audio visual lab"> </MAP>
End example.
In addition to providing a text equivalent, provide redundant textual links. If the A element is used instead of AREA, the content developer may describe the active regions and provide redundant links at the same time:
<OBJECT data="navbar1.gif" type="image/gif" usemap="#map1"> <MAP name="map1"> <P>Navigate the site. [<A href="guide.html" shape="rect" coords="0,0,118,28">Access Guide</A>] [<A href="shortcut.html" shape="rect" coords="118,0,184,28">Go</A>] [<A href="search.html" shape="circle" coords="184.200,60">Search</A>] [<A href="top10.html" shape="poly" coords="276,0,276,28,100,200,50,50,276,0"> Top Ten</A>] </MAP> </OBJECT>
End example.
Note that in the previous example, the MAP element is the content of the OBJECT element so that the alternative links will only be displayed if the image map (navbar1.gif) is not.
Note also that links have been separated by brackets ([]). This is to prevent older screen readers from reading several adjacent links as a single link as well as helps sighted users distinguish between links visually.
Content developers should make sure they include printable characters (such as brackets or a vertical bar (|)) surrounded by spaces between adjacent text links. The problem does not occur if images have been used as links; The alt-text will not be read as a single link because of the place-holding images that graphical browsers use when images are not loaded.
Checkpoints in this section:
When a server-side image map must be used, content developers should provide an alternative list of image map choices. There are three techniques:
Example.
<A href="http://myserver.com/cgi-bin/imagemap/my-map"> <IMG src="welcome.gif" alt="Welcome! (Text links follow)" ismap> </A> <P>[<A href="reference.html">Reference</A>] [<A href="media.html">Audio Visual Lab</A>]
End example.
Server-side and client-side image maps may be used as submit buttons in Forms. For more information, refer to the section Graphical buttons.
Checkpoints in this section:
@@discuss contrast issues with regard to images
Checkpoints in this section:
@@discuss avoiding movement caused by animated gifs.
While applets may be included in a document with either the APPLET or OBJECT element, OBJECT is the preferred method.
Checkpoints in this section:
If OBJECT is used, provide a text equivalent in the content of the element:
Example.
<OBJECT classid="java:Press.class" width="500" height="500"> As temperature increases, the molecules in the balloon... </OBJECT>
End example.
A more complex example takes advantage of the fact the OBJECT elements may be embedded to provide for alternative representations of information:
Example.
<OBJECT classid="java:Press.class" width="500" height="500"> <OBJECT data="Pressure.mpeg" type="video/mpeg"> <OBJECT data="Pressure.gif" type="image/gif"> As temperature increases, the molecules in the balloon... </OBJECT> </OBJECT> </OBJECT>
End example.
If APPLET is used, provide a text equivalent with the "alt" attribute and in the content in the APPLET element. This enables the content to transform gracefully for those user agents that only support one of the two mechanisms ("alt" or content).
Deprecated example.
<APPLET code="Press.class" width="500" height="500" alt="Java applet: how temperature affects pressure"> As temperature increases, the molecules in the balloon... </APPLET>
Checkpoints in this section:
If an applet (created with either OBJECT or APPLET) requires user interaction (e.g., the ability to manipulate a physics experiment) that cannot be duplicated in an alternative format, make the applet directly accessible.
For more information about developing accessible applets, please refer to [JAVAACCESS] and [IBMJAVA]. These companies have been developing an Accessibility API as well as making the Java Swing classes accessible.
Related checkpoints:
Checkpoints in this section:
Provide a text equivalent as for an image and auditory descriptions of visual information and captions where necessary. If an applet creates motion, developers should provide a mechanism for freezing this motion (for an example, refer to [TRACE]). Also, please refer to the next section for information about making audio and video presentations accessible.
Checkpoints in this section:
When necessary, a text equivalent should be provided for visual information to enable understanding of the page. For example, consider a repeating animation that shows cloud cover and precipitation as part of a weather status report. Since the animation is supplementing the rest of the weather report (that is presented in natural language - text), a less verbose description of the animation is necessary. However, if the animation appears in a pedagogical setting where students are learning about cloud formations in relation to land mass, then the animation ought to be described for those who can not view the animation but who also want to learn the lesson.
Other objects, such as those requiring a plug-in, should also use the OBJECT element. However, for backward compatibility with Netscape browsers, use the proprietary EMBED element within the OBJECT element as follows:
Deprecated example.
<OBJECT classid="clsid:A12BCD3F-GH4I-56JK-xyz" codebase="http://site.com/content.cab" width=100 height=80> <PARAM name="Movie" value="moviename.swf"> <EMBED src="moviename.swf" width=100 height=80 pluginspage="http://www.macromedia.com/shockwave/download/"> </EMBED> <NOEMBED> <IMG alt="Still from Movie" src="moviename.gif" width=100 height=80> </NOEMBED> </OBJECT>
End example.
For more information refer to [MACROMEDIA].
For visually enabled users, frames may organize a page into different zones. For non-visual users, relationships between the content in frames (e.g., one frame has a table of contents, another the contents themselves) must be conveyed through other means.
Frames as implemented today (with the FRAMESET, FRAME, and IFRAME elements) are problematic for several reasons:
In the following sections, we discuss how to make frames more accessible. We also provide an alternative to frames that uses HTML 4.0 and CSS and addresses many of the limitations of today's frame implementations.
Checkpoints in this section:
Example.
Use the "title" attribute to name frames.
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN"> <HTML> <HEAD> <TITLE>A simple frameset document</TITLE> </HEAD> <FRAMESET cols="10%, 90%" title="Our library of electronic documents"> <FRAME src="nav.html" title="Navigation bar"> <FRAME src="doc.html" title="Documents"> <NOFRAMES> <A href="lib.html" title="Library link"> Select to go to the electronic library</A> </NOFRAMES> </FRAMESET>
End example.
Checkpoints in this section:
Example.
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN"> <HTML> <HEAD> <TITLE>Today's news</TITLE> </HEAD> <FRAMESET cols="10%,*,10%"> <FRAMESET rows="20%,*"> <FRAME src="promo.html" name="promo" title="promotions"> <FRAME src="sitenavbar.html" name="navbar" title="Sitewide navigation bar" longdesc="frameset-desc.html#navbar"> </FRAMESET> <FRAME src="story.html" name="story" title="Selected story - main content" longdesc="frameset-desc.html#story"> <FRAMESET rows="*,20%"> <FRAME src="headlines.html" name="index" title="Index of other national headlines" longdesc="frameset-desc.html#headlines"> <FRAME src="ad.html" name="adspace" title="Advertising"> </FRAMESET> <NOFRAMES> <p><a href="noframes.html">No frames version</a></p> <p><a href="frameset-desc.html">Descriptions of frames.</a></p> </NOFRAMES> </FRAMESET> </HTML>
frameset-desc.html might say something like:
#Navbar - this frame provides links to the major sections of the site: World News, National News, Local News, Technological News, and Entertainment News. #Story - this frame displays the currently selected story. #Index - this frame provides links to the day's headline stories within this section.
End example.
Note that if the a frame's contents change, the text equivalent will no longer apply. Also, links to descriptions of a frame should be provided along with other alternative content in the NOFRAMES element of a FRAMESET.
Checkpoints in this section:
Example.
In this example, if the user reads "top.html":
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN"> <HTML> <HEAD> <TITLE>This is top.html</TITLE> </HEAD> <FRAMESET cols="50%, 50%" title="Our big document"> <FRAME src="main.html" title="Where the content is displayed"> <FRAME src="table_of_contents.html" title="Table of Contents"> <NOFRAMES> <A href="table_of_contents.html">Table of Contents.</A> <!-- other navigational links that are available in main.html are available here also. --> </NOFRAMES> </FRAMESET> </HTML>
and the user agent is not displaying frames, the user will have access (via a link) to a non-frames version of the same information.
End example.
Checkpoints in this section:
Content developers must provide text equivalents of frames so that their contents and the relationships between frames make sense. Note that as the contents of a frame change, so must change any description. This is not possible if an IMG is inserted directly into a frame. Thus, content developers should always make the source ("src") of a frame an HTML file. Images may be inserted into the HTML file and their text alternatives will evolve correctly.
Example.
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN"> <HTML> <HEAD> <TITLE>A correct frameset document</TITLE> </HEAD> <FRAMESET cols="100%" title="Evolving frameset"> <FRAME name="goodframe" src="apples.html" title="Apples"> </FRAMESET> </HTML>
<!-- In apples.html --> <P><IMG src="apples.gif" alt="Apples">
End example.
The following deprecated example should be avoided since it inserts IMG directly in a frame:
Deprecated example.
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN"> <HTML> <HEAD> <TITLE>A bad frameset document</TITLE> </HEAD> <FRAMESET cols="100%" title="Static frameset"> <FRAME name="badframe" src="apples.gif" title="Apples"> </FRAMESET> </HTML>
Note that if, for example, a link causes a new image to be inserted into the frame:
<P>Visit a beautiful grove of <A target="badframe" href="oranges.gif" title="Oranges">oranges</A>
the initial title of the frame ("Apples") will no longer match the current content of the frame ("Oranges").
Checkpoints in this section:
Content developers should avoid specifying a new window as the target of a frame with target="_blank".
One of the most common uses of frames is to split the user's browser window into two parts: a navigation window and a content window. As an alternative to frames, we encourage you to try the following:
Example.
<P> <OBJECT data="nav.html"> Go to the <A href="nav.html">table of contents</A> </OBJECT>
Putting the navigation mechanism at the end of the document means that when style sheets are turned off, users have access to the document's important information first.
OBJECT { float: left; width: 25% }
The following CSS rule attaches the navigation mechanism to the bottom-left corner of the page of the page and keeps it there even if the user scrolls down the page:
OBJECT { position: fixed; left: 0; bottom: 0 }
Note. Navigation mechanisms or other content may be inserted in a document by means of server-side includes.
Checkpoints in this section:
In the previous examples, note that frame sizes are specified in percentage. When a user resizes the window, the frames will adjust accordingly and remain readable.
This section discusses the accessibility of forms and form controls that one can put in a FORM element.
Checkpoints in this section:
In the next example, we specify a tabbing order among elements (in order, "field2", "field1", "submit") with "tabindex":
Example.
<FORM action="submit" method="post"> <P> <INPUT tabindex="2" type="text" name="field1"> <INPUT tabindex="1" type="text" name="field2"> <INPUT tabindex="3" type="submit" name="submit"> </FORM>
End example.
This example assigns "U" as the accesskey (via "accesskey"). Typing "U" gives focus to the label, which in turn gives focus to the input control, so that the user can input text.
Example.
<FORM action="submit" method="post"> <P> <LABEL for="user" accesskey="U">name</LABEL> <INPUT type="text" id="user"> </FORM>
End example.
Checkpoints in this section:
Content developers should group information where natural and appropriate. When form controls can be grouped into logical units, use the FIELDSET element and label those units with the LEGEND element:
Example.
<FORM action="http://somesite.com/adduser" method="post"> <FIELDSET> <LEGEND>Personal information</LEGEND> <LABEL for="firstname">First name: </LABEL> <INPUT type="text" id="firstname" tabindex="1"> <LABEL for="lastname">Last name: </LABEL> <INPUT type="text" id="lastname" tabindex="2"> ...more personal information... </FIELDSET> <FIELDSET> <LEGEND>Medical History</LEGEND> ...medical history information... </FIELDSET> </FORM>
End example.
Content developers should group information where natural and appropriate. For long lists of menu selections (which may be difficult to track), content developers should group SELECT items (defined by OPTION) into a hierarchy using the OPTGROUP element. Specifies a label for the group of options with the label attribute on OPTGROUP.
Example.
<FORM action="http://somesite.com/prog/someprog" method="post"> <P> <SELECT name="ComOS"> <OPTGROUP label="PortMaster 3"> <OPTION label="3.7.1" value="pm3_3.7.1">PortMaster 3 with ComOS 3.7.1 <OPTION label="3.7" value="pm3_3.7">PortMaster 3 with ComOS 3.7 <OPTION label="3.5" value="pm3_3.5">PortMaster 3 with ComOS 3.5 </OPTGROUP> <OPTGROUP label="PortMaster 2"> <OPTION label="3.7" value="pm2_3.7">PortMaster 2 with ComOS 3.7 <OPTION label="3.5" value="pm2_3.5">PortMaster 2 with ComOS 3.5 </OPTGROUP> <OPTGROUP label="IRX"> <OPTION label="3.7R" value="IRX_3.7R">IRX with ComOS 3.7R <OPTION label="3.5R" value="IRX_3.5R">IRX with ComOS 3.5R </OPTGROUP> </SELECT> </FORM>
End example.
Checkpoints in this section:
An example of LABEL used with "for" in HTML 4.0 is given in the previous section.
Checkpoints in this section:
Using images to decorate buttons allows developers to make their forms unique and easier to understand. Using an image for a button (e.g., with the INPUT element or BUTTON) is not inherently inaccessible - assuming a text equivalent is provided for the image.
However, a graphical form submit button created with INPUT, type="image" creates a type of server-side image map. Whenever the button is clicked with a mouse, the x and y coordinates of the mouse click are sent to the server as part of the form submission.
In the Image and Image Maps section, we discuss why server-side images ought to be avoided, and suggest using client-side image maps instead. In HTML 4.0, graphical buttons may now be client-side image maps. To preserve the functionality provided by the server, authors have the following options, as stated in the HTML 4.0 Recommendation ([HTML40], section 17.4.1):
If the server takes different actions depending on the location clicked, users of non-graphical browsers will be disadvantaged.
For this reason, authors should consider alternate approaches:
- Use multiple submit buttons (each with its own image) in place of a single graphical submit button. Authors may use style sheets to control the positioning of these buttons.
- Use a client-side image map together with scripting.
Checkpoints in this section:
Example.
Some legacy assistive technologies require initial text in form controls such as TEXTAREA in order to function properly.
<FORM action="http://somesite.com/prog/text-read" method="post"> <P> <TEXTAREA name=yourname rows="20" cols="80"> Please enter your name here. </TEXTAREA> <INPUT type="submit" value="Send"><INPUT type="reset"> </P> </FORM>
End example.
Provide a text equivalent for images used as "submit" buttons:
Example.
<FORM action="http://somesite.com/prog/text-read" method="post"> <P> <INPUT type="image" name=submit src="button.gif" alt="Submit"> </FORM>
End example.
Also refer to the section on keyboard access since this applies to form controls.
In some HTML 3.2 browsers,
This section discusses the accessibility of scripts included in a document via the SCRIPT element.
Checkpoints in this section:
@@this section needs work. plus, is this the best place for this discussion? should we have a separate "non-w3c" module?
Content developers must ensure that pages are accessible with scripts turned off or in browsers that don't support scripts.
Deprecated example. This is a dead-end link for a user agent where scripts are not supported or not loaded.
<A href="javascript:">...</A>
Checkpoints in this section:
An event handler is a script that is invoked when a certain event occurs (e.g, the mouse moves, a key is pressed, the document is loaded, etc.). In HTML 4.0, event handlers are attached to elements via event handler attributes (the attributes beginning with "on", as in "onkeyup").
Some event handlers, when invoked, produce purely decorative effects such as highlighting an image or changing the color of an element's text. Other event handlers produce much more substantial effects, such as carrying out a calculation, providing important information to the user, or submitting a form. For event handlers that do more than just change the presentation of an element, content developers should do the following:
Note that there is no keyboard equivalent to double-clicking ("ondblclick") in HTML 4.0.
Checkpoints in this section:
One way to accomplish this is with the NOSCRIPT element. The content of this element is rendered when scripts are not enabled.
Example.
<SCRIPT type="text/tcl"> ...some Tcl script to show a billboard of sports scores... </SCRIPT> <NOSCRIPT> <P>Results from yesterday's games:</P> <DL> <DT>Bulls 91, Sonics 80. <DD><A href="bullsonic.html">Bulls vs. Sonics game highlights</A> ...more scores... </DL> </NOSCRIPT>
End example.
Checkpoints in this section:
@@this section needs work.
Checkpoints in this section:
Linear version of HTML 4.0 element index.
This index lists all elements in HTML 4.0. The first column of this table links to the definition of the element in the HTML 4.0 specification ([HTML40]). Elements that are deprecated in HTML 4.0 are followed by an asterisk (*). Elements that are obsolete in HTML 4.0 or don't exist in a W3C specification of HTML (2.0, 3.2, 4.0) do not appear in this table.
The second column indicates other W3C specifications for HTML that included each element. The third column indicates the element's role.
The last column lists the sections in the current document where the element is discussed. An entry of "N/A" means that the element is not discussed in this document.
Element name | Defined also in | Role | Techniques |
---|---|---|---|
A | 2.0, 3.2 | Structure | N/A |
ABBR | Structure | N/A | |
ACRONYM | Structure | N/A | |
ADDRESS | 2.0, 3.2 | Metadata | N/A |
APPLET* | 3.2 | Replaced | N/A |
AREA | 3.2 | Structure | N/A |
B | 2.0, 3.2 | Presentation | N/A |
BASE | 2.0, 3.2 | Processing | N/A |
BASEFONT* | 3.2 | Presentation | N/A |
BDO | Processing | N/A | |
BIG | 3.2 | Presentation | N/A |
BLOCKQUOTE | 2.0, 3.2 | Structure | N/A |
BODY | 2.0, 3.2 | Structure | N/A |
BR | 2.0, 3.2 | Presentation | N/A |
BUTTON | Structure | N/A | |
CAPTION | 3.2 | Structure | N/A |
CENTER* | 3.2 | Presentation | N/A |
CITE | 2.0, 3.2 | Structure | N/A |
CODE | 2.0, 3.2 | Structure | N/A |
COL | Structure | N/A | |
COLGROUP | Structure | N/A | |
DD | 2.0, 3.2 | Structure | N/A |
DEL | Metadata | N/A | |
DFN | 3.2 | Structure | N/A |
DIR* | 2.0, 3.2 | Structure | N/A |
DIV | 3.2 | Structure | N/A |
DL | 2.0, 3.2 | Structure | N/A |
DT | 2.0, 3.2 | Structure | N/A |
EM | 2.0, 3.2 | Structure | N/A |
FIELDSET | Structure | N/A | |
FONT* | 3.2 | Presentation | N/A |
FORM | 2.0, 3.2 | Structure | N/A |
FRAME | Replaced | N/A | |
FRAMESET | Presentation | N/A | |
H1 | 2.0, 3.2 | Structure | N/A |
HEAD | 2.0, 3.2 | Structure | N/A |
HR | 2.0, 3.2 | Presentation | N/A |
HTML | 2.0, 3.2 | Structure | N/A |
I | 2.0, 3.2 | Presentation | N/A |
IFRAME | Replaced | N/A | |
IMG | 2.0, 3.2 | Replaced | N/A |
INPUT | 2.0, 3.2 | Structure | N/A |
INS | Metadata | N/A | |
ISINDEX* | 2.0, 3.2 | Structure | N/A |
KBD | 2.0, 3.2 | Structure | N/A |
LABEL | Structure | N/A | |
LEGEND | Structure | N/A | |
LI | 2.0, 3.2 | Structure | N/A |
LINK | 2.0, 3.2 | Metadata | N/A |
MAP | 3.2 | Structure | N/A |
MENU* | 2.0, 3.2 | Structure | N/A |
META | 2.0, 3.2 | Metadata | N/A |
NOFRAMES | Alternative | N/A | |
NOSCRIPT | Alternative | N/A | |
OBJECT | Replaced | N/A | |
OL | 2.0, 3.2 | Structure | N/A |
OPTGROUP | Structure | N/A | |
OPTION | 2.0, 3.2 | Structure | N/A |
P | 2.0, 3.2 | Structure | N/A |
PARAM | 3.2 | Processing | N/A |
PRE | 2.0, 3.2 | Presentation | N/A |
Q | Structure | N/A | |
S* | Presentation | N/A | |
SAMP | 2.0, 3.2 | Structure | N/A |
SCRIPT | 3.2 (DTD) | Processing | N/A |
SELECT | 2.0, 3.2 | Structure | N/A |
SMALL | 3.2 | Presentation | N/A |
SPAN | Structure | N/A | |
STRIKE* | 3.2 | Presentation | N/A |
STRONG | 2.0, 3.2 | Structure | N/A |
STYLE | 3.2 (DTD) | Processing | N/A |
SUB | 3.2 | Presentation | N/A |
SUP | 3.2 | Presentation | N/A |
TABLE | 3.2 | Structure | N/A |
TBODY | Structure | N/A | |
TD | 3.2 | Structure | N/A |
TEXTAREA | 2.0, 3.2 | Structure | N/A |
TFOOT | Structure | N/A | |
TH | 3.2 | Structure | N/A |
THEAD | Structure | N/A | |
TITLE | 2.0, 3.2 | Metadata | N/A |
TR | 3.2 | Structure | N/A |
TT | 2.0, 3.2 | Presentation | N/A |
U* | 3.2 | Presentation | N/A |
UL | 2.0, 3.2 | Structure | N/A |
VAR | 2.0, 3.2 | Structure | N/A |
Linear version of HTML 4.0 attribute index.
This index lists some attributes in HTML 4.0 that affect accessibility and what elements they apply to. The first column of this table links to the definition of the attribute in the HTML 4.0 specification ([HTML40]). Attributes and elements that are deprecated in HTML 4.0 ([HTML40]) are followed by an asterisk (*). Attributes and elements that are obsolete in HTML 4.0 or don't exist in a W3C specification of HTML (2.0, 3.2, 4.0) do not appear in this table. Attributes that apply to most elements of HTML 4.0 are indicated as such; please consult the HTML 4.0 specification for the exact list of elements with this attribute.
The second column indicates other W3C specifications for HTML that included each attribute. The third column indicates the elements that take each attribute. The fourth column indicates the attribute's role.
The last column lists the sections in the current document where the attribute is discussed. An entry of "N/A" means that the attribute is not discussed in this document.
Attribute name | Applies to elements | Role | Techniques |
---|---|---|---|
abbr | TD, TH | Alternative | N/A |
accesskey | A, AREA, BUTTON, INPUT, LABEL, LEGEND, TEXTAREA | User Interface | N/A |
alt | APPLET, AREA, IMG, INPUT | Alternative | N/A |
axis | TD, TH | Structure | N/A |
class | Most elements | Structure | N/A |
dir | Most elements | Processing | N/A |
for | LABEL | Structure | N/A |
headers | TD, TH | Structure | N/A |
hreflang | A, LINK | Metadata | N/A |
id | Most elements | Structure | N/A |
label | OPTION | Alternative | N/A |
lang | Most elements | Metadata | N/A |
longdesc | IMG, FRAME, IFRAME | Alternative | N/A |
scope | TD, TH | Structure | N/A |
style | Most elements | Processing | N/A |
summary | TABLE | Alternative | N/A |
tabindex | A, AREA, BUTTON, INPUT, OBJECT, SELECT, TEXTAREA | User Interface | N/A |
title | Most elements | Metadata | N/A |
usemap | IMG, INPUT, OBJECT | Processing | N/A |
The following is the list of HTML 4.0 attributes not directly related to accessibility. Content developers should use style sheets instead of presentation attributes. For even handler attributes, please refer to the section on device-independent event handlers for more detail.
The original draft of this document is based on "The Unified Web Site Accessibility Guidelines" [UWSAG]] compiled by the Trace R & D Center at the University of Wisconsin. That document includes a list of additional contributors.
Note. W3C cannot maintain stability for any of the following references outside of its control. These references are included for convenience.
