WAI-Adapt Explainer

W3C Group Draft Note

More details about this document
This version:
Latest published version:
Latest editor's draft:
Commit history
(Invited Expert)
Richard Schwerdtfeger (Knowbility) (Editor until October 2017)
GitHub w3c/adapt (pull requests, new issue, open issues)


People have very different needs. There are many people with cognitive and learning disabilities that affect their ability to interact with the web. Some people cannot process numeric information (dyscalculia), but others understand numbers better than words. Some people with severe language disabilities use symbols to represent words; some people need (or want) simplified user-interfaces. Different people find different layouts and types of content easier to understand, and what is useable and understandable by one person can be be too complex for another. The WAI-Adapt Task Force seeks to address these varied and conflicting user needs, so that content can be made more understandable to individual users based on their unique requirements. The various WAI-Adapt specification modules described in this Explainer provide various means for web technologies to address these requirements.

The various WAI-Adapt module specifications enable authors to selectively add semantic information about content to enable content and interface personalization for individual users. In turn this facilitates user-agents for people with learning and cognitive disabilities.

WAI-Adapt technologies allow authors to add additional semantic information using a collection of new attributes and values, with (in most cases) a fixed token list (taxonomies). This document provides an explanation for understanding how the WAI-Adapt attributes can be used to personalize a more accessible web site.

Status of This Document

This section describes the status of this document at the time of its publication. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.

This document was published by the Accessible Platform Architectures Working Group as a Group Draft Note using the Note track.

Group Draft Notes are not endorsed by W3C nor its Members.

This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

The W3C Patent Policy does not carry any licensing requirements or commitments on this document.

This document is governed by the 2 November 2021 W3C Process Document.

1. Introduction

The WAI-Adapt specification modules:

Personalization involves tailoring aspects of the user experience to meet the preferences or needs of individual users. For example, having familiar terms and symbols is critical for effective use of web content for many as described in the user scenarios and use cases published in the Making Content Usable (for COGA people). However what is familiar to one user will inevitably be new and foreign to another. Personalization based on WAI-Adapt AAC symbol support technologies supports loading a set of symbols that is appropriate for the specific user, ensuring that each user is presented with familiar symbols.

Technology holds the promise of being extremely flexible and the design of many systems includes the expectation that users can optimize their interaction experience according to their personal preferences or accessibility needs.

1.1 Why We Need WAI-Adapt

WAI-Adapt will allow assitive technology to:

  1. adapt to and meet the user's needs. Users who have difficulty with established, mainstream patterns can interact with interfaces modified to their preferences and abilities.
  2. modify levels of complexity as people's skills improve or decline over time. For example, extra support may be critical for some people but distracting for others.
  3. provide better support to users who require:
    • familiar and consistent symbols, iconography, and graphics
    • tooltips or similar on-demand help or clues
    • language they understand
    • fewer or more constrained features
    • clearer distinction between native and third-party content
    • custom keyboard shortcuts

To achieve this, we need standardized terms and supportive syntax. These can be linked to associated symbols, terms, translations and explanations. This allows modifications based on an individual's personal preferences.

Example of sending an email:

An author programmatically identifies that a button sends an email. Based on user preference settings the interface can be modified to:

  • render the button with an alternative term, and/or furnish an additional tooltip that is understandable by the individual user;
  • include F1 help that explains the send function in simple terms;
  • associate the button with a keyboard shortcut that is always used for send (Submit);
  • identify the button as important and always rendered in an emphasized form.

1.2 Use Case Examples

Requirements for WAI-Adapt elaborates many use cases that further contextualize the above summary of user needs. These example use cases form the basis of requirements for this technology. WAI-Adapt enables developers to create targeted extensions as additional use cases are encountered.


1.2.1 Easily Distracted / Overwhelmed

Someone who is either easily distracted or can be easily overwhelmed with too much information on a web page needs the ability to simplify the page. They want just the critical information, and need anything that is not integral to the understanding and use of the page suppressed.

Example: The user wants to get the latest weather report for their city and goes to a weather website.

Finding the actual weather forecast is actually a little challenging even if you have no disabilities due to all the additional content on the screen; along with advertisements, there is also the day's top stories, trending news, and social media to cognitively filter. If you are easily overwhelmed or distracted getting the key information about today's weather is a challenge. Having the ability to personalize and prioritize all but the key information (i.e. just the weather forecast for my city) is critical for this user.

In this example, the author can mark the <section>, <p>, or <div> that contains the actual weather report and any associated tools to manipulate the weather report (i.e. city search, hourly vs. 5 day forecast, etc.) with the adapt-simplification attribute (with a value of "critical"), and mark the other on-screen content as "medium" (default) or "low". (e.g. <p adapt-simplification="critical">Today’s forecast is a high of 95° and a low of 40°</p>)

For websites which rely on advertising revenue, it may be undesirable to completely suppress advertisements. We envision that this attribute could also facilitate relocating the most critical sections of a website above anything that is a lower priority. (i.e. Content re-ordering)

WAI-Adapt recognizes that appropriate simplification will often be task determined. A complex page will often support multiple tasks each of which could be critical to the user requiring simplification at different times. We propose to investigate how we might facilitate users defining what task is critical to them in the moment rather than pre-determining what is primary or secondary in advance.

1.2.2 Difficulty Understanding Numbers

Someone who has dyscalculia will have difficulty understanding numbers and will have a hard time interacting with websites that use numbers to convey information. Therefore, critical numeric information must be provided in an alternative format that the user can understand.

Example: The user wants to get the latest weather report for their city and goes to a weather website.

For today’s forecast, it shows a high of 95° and a low of 40°. This representation is not understandable for particular user. Presenting this numeric information as a symbol or text would benefit the user. For example, next to the number 95, there could be:

  • a picture of someone wearing shorts and a tee-shirt with the sun above or
  • simply a text alternative of “Very warm”.

Next to the number 40, there can be:

  • a picture of someone wearing a jacket with pants, or
  • a text alternative of “Very cold”.

Next to the humidity index of 90%, there could be a text alternative of “muggy”.

In this example, the author would mark up the numbers using the adapt-numberfree attribute. The default would show the numeric value. Those needing an alternative representation for numbers, would get an associated image or description/values as simplified text instead.

It is important to note that people with dyscalculia are often very good with words, so long text can be better than short numbers.

1.2.3 Mild-Moderate Language Impairment / Learning Disability

Those who have a moderate Language Impairment / Learning Disability may have a limited vocabulary. They will only know terms that are in the core vocabulary they have learned. They may also use symbols to represent words and concepts.

Example: The user may know the word "name" or "last name" but not recognize the term "family name" or "surname" as cognates.

For some users, learning new terms is a very slow process, requiring hours of work. For these users, reading web content may also be a very slow process, so that finding the information desired on some particular web page can present a laborious barrier. The ability to personalize a web page and present symbols instead, or alongside content can help some users better and more promptly understand the content being provided

Note that some people with language disabilities are good at numbers. They will want a long string of text replaced with a short number: <span adapt-easylang="90% of the time this happens"> normally this is the expected outcome</span>. This is the opposite of the numberfree example.

Additionally, because reading content for some users is extremely time-consuming, they may also want less content and fewer features on a given web page.

1.2.4 Severe Language Impairment

Some users with a severe speech and/or physical impairment may communicate using symbols, rather than written text, as part of an Augmentative and Alternative Communication (AAC) system. The use of symbols to represent words is their primary means of communication when both consuming and producing information. Symbol users face a wide variety of barriers to accessing web content, but one of the main challenges is a lack of standard inter-operability between different proprietary symbol sets, or a mechanism for translating the same concept from one symbol set to another.

User Stories include:

  • An assisted living home authors adult education courses and life-skills content, for example, how to make dinner using a microwave. Within their core user-base, users are accustomed to different symbol sets. The authors want to create content for all users across various symbol sets.
  • A large banking site wants people to be as autonomous as possible while using their services. They provide augmented symbol references onto their core services. They need a mechanism to programmatically support multiple symbol sets witin the code.
  • People who know different symbol sets wish to talk to each other.
  • A government agency creating information sheets about human rights and patient rights are seeking feedback from impacted users. They add symbols from a common symbol set to support a majority of different users. The agency would prefer to use a common symbol reference to support people who use or require different symbols. This allows all symbol set users to both read and edit the content.

Example: Using the adapt-symbol attribute, an author programmatically tags the label for a form input with the appropriate symbol value. Based on user preference settings, a browser helper application or stand-alone tool could then render that label using an appropriate symbol, alternative term, and/or furnishes an additional tool-tip that is understandable by the individual user. Using the Bliss Symbolics set's unique reference numbers as our 'taxonomy', other symbol sets can map their equivalent symbols against the Bliss set.

<label for="address" adapt-symbol="14885">Your Principal Residence</label>
<input type="textarea" id="address" adapt-purpose="street-address">

Where the symbol value 14855 maps back to "Home". Proof of Concept: Symbol Example

In the screen shots below, a browser extension uses the adapt-symbol attribute to load symbols that are familiar to the user.

Note that users learn a specific symbol vocabulary. However, the various symbol vocabularies are mutually unintelligible: users familiar with one set of symbols may not be familiar with or understand an alternative set. WAI-Adapt's adapt-symbol attribute offers a mechanism to translate between symbol sets, to allow people to communicate with one another where it was previously not possible.

screen shot, no symbols

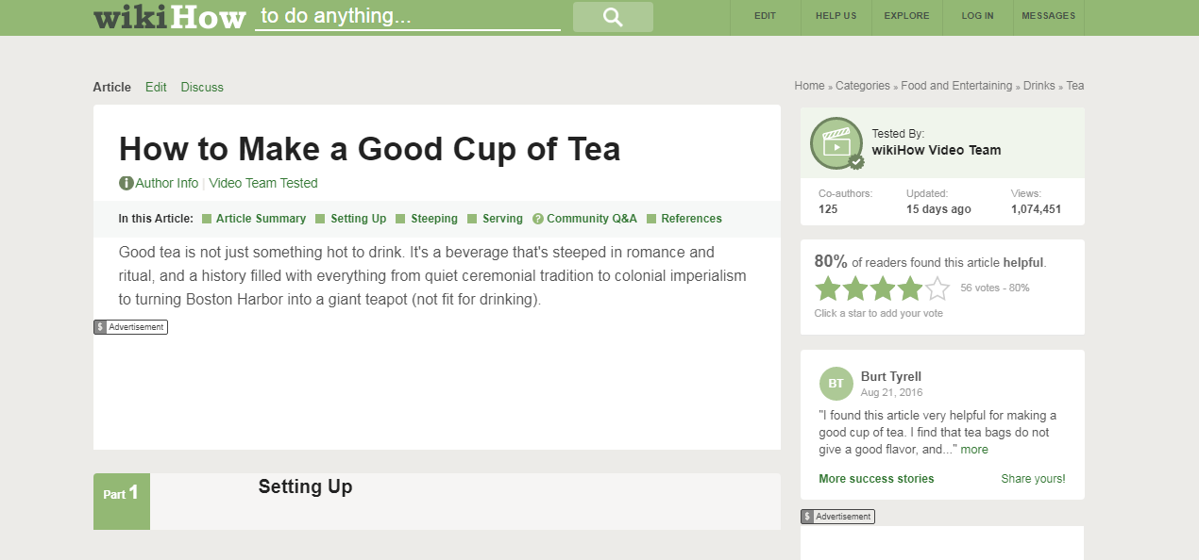

Figure 1 The original page
screen shot with less content and symbols

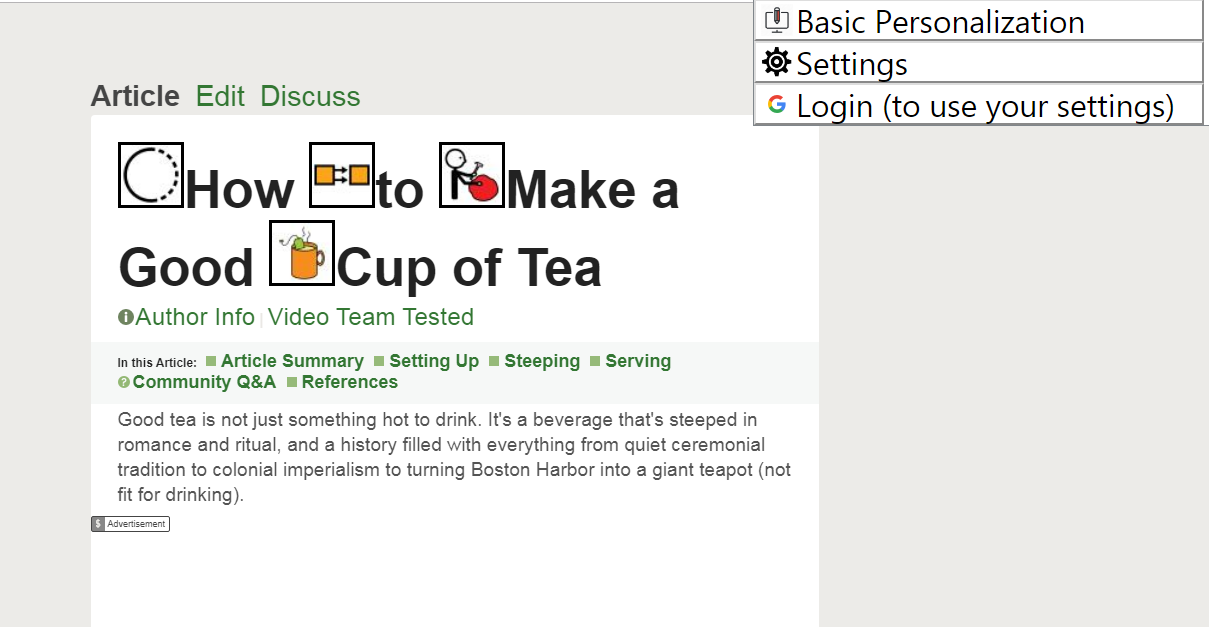

Figure 2 The same page loaded, but the user-agent has removed content and added symbols
screen shot with different symbols (bliss)

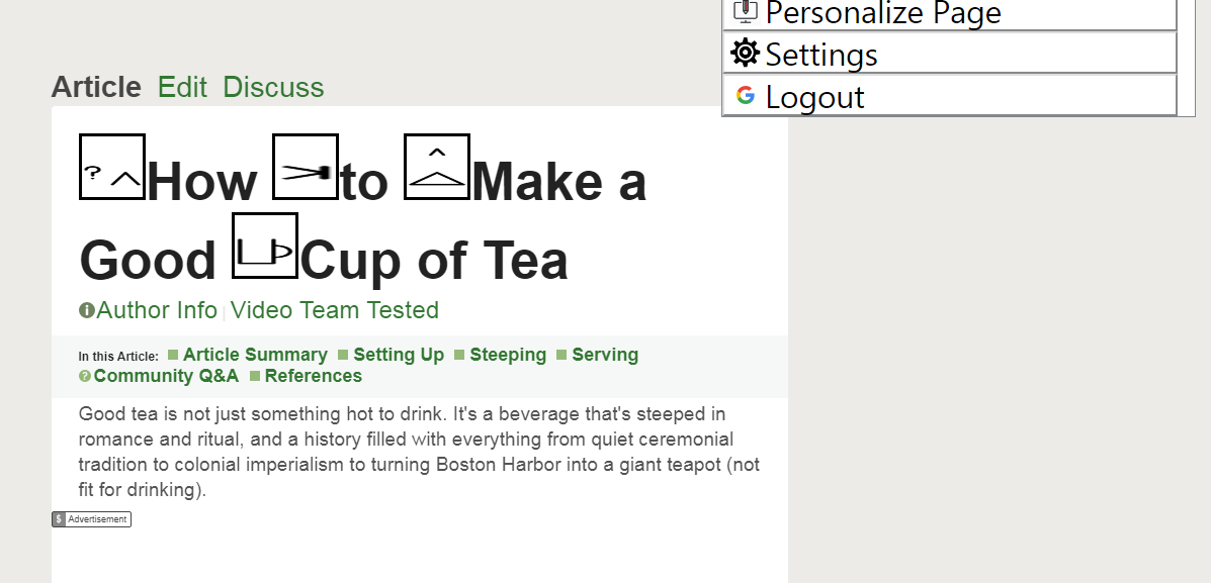

Figure 3 The same page loaded, but the user-agent has removed content and added different symbols that this user is more familiar with

1.2.5 Working Memory and Short-term Memory Impairment

Users may have differences in both working and short-term memory. For some users the number of items that can be held in working memory is a fraction of the amound most users can hold in memory. Whereas most adults can repeat about seven digits in correct order, some users may only manage two or three digits. When these users become distracted, they are also likely to forget any information in their working memory.

Example: Many processes consist of a sequence of separate steps or actions which must be performed by a user to complete a process or workflow.

Users need to remember completed tasks in order to identify their location in a process. In addition, a user must be able to navigate to completed tasks to make modifications or corrections.

A step indicator allows an author to define steps within a process or represent an entire user path outside of the context of a defined process. This includes turning steps between defined processes into breadcrumbs or linked steps that identify completed tasks. This allows the user to navigate back to completed steps and identify a user's current location in a path.

More information on personas and user needs can be found in Making Content Usable for People with Cognitive and Learning Disabilities.

1.3 Out of Scope

While the intention of this work is to introduce a new set of attributes to support WAI-Adapt, the following work items are out of scope:

We encourage a the development of these items and a list of implementations can be found on our wiki.

2. Modules

WAI-Adapt specifications will be published as individual modules. How many modules will eventually be created is unclear at the time of this writing. However, each module specification will include use cases and vocabularies. At this time only one specification module is advancing toward Candidate Recommendation status at W3C:

Additional modules, some available in early drafts, may include:

3. Vocabulary Structure

WAI-Adapt is made of a vocabulary of properties and their values. This generic structure makes it possible to apply WAI-Adapt in a variety of contexts by adapting how the vocabulary is instantiated. The Vocabulary Implementations section below describes current ways to use the vocabulary.

3.1 Properties

Properties are the main units of WAI-Adapt types supported by the vocabulary. A given property supports a specific type of WAI-Adapt. That property would only be used once on a given piece of content, but multiple different properties could be used on the same piece of content to address different needs.

3.2 Values

Values provide the specific WAI-Adapt information for the property. The possible values for each property are elaborated in the definition of the property in the modules. Some properties require the value to come from a predefined list of possible values, others can accept arbitrary strings, and some may accept multiple values. The attribute value may be one of the following types:

ID reference
Reference to the ID of another element in the same document
ID reference list
A list of one or more ID references.
A numerical value without a fractional component.
Any real numerical value.
Unconstrained value type.
One of a limited set of allowed values.
token list
A list of one or more tokens.
A Uniform Resource Identifier as defined by RFC 3986 [RFC3986]. It may reference a separate document, or a content fragment identifier in a separate document, or a content fragment identifier within the same document.
The attributes and values in this specification are not intended to overide the semantics exposed in the Accessibility Tree, but rather augment them. In the case of conflict between an element's semantics and the attribute values, validation algorithms should issue a warning but not an error.

4. Vocabulary Implementations

4.1 Current Usage

This publication of the WAI-Adapt provides several key-value pairs (attribute = value). These attributes include but are not limted to:

Other properties exist or will be developed as the modules mature.

4.2 Technology Comparison Summary

The task force reviewed various vocabulary options before deciding upon the use of the HTML attribute syntax. The list of technologies included:

4.2.1 Considerations in the decision process:

ease of authoring and potential ambiguity between WAI-Adapt and existing features;
ease of determining and parsing the properties & values and the ability to implement as an extension;
Host Languages
requirement for special host language support, works in multiple languages, integrates with ARIA and HTML, easy extension of the vocabulary, and needed number of new features;
necessity of multiple properties and interaction between properties, integration with other vocabularies, likely search engine support for content alternatives, and typed value support;
avoid segregation of accessibility from other features, provide a clear path to join with other W3C WAI-Adapt efforts, and stable enough to avoid modification of authored content over time;

The details of our research and discussion are documented on the Comparison of ways to use vocabulary in content and Prototypes with data dash pages in our Wiki.

5. Stakeholders

This document is useful for:

For early implementations of content we suggest including a link to an extension implementation that can maximize the benefit for users.

A. Acknowledgments

This section is non-normative.

The following people contributed to the development of this document.

A.1 Participants active in the WAI-Adapt TF at the time of publication

A.2 Other WAI-Adapt TF contributors, commenters, and previously active participants

A.3 Enabling funders

This publication has been funded initially under contract number ED-OSE-10-C-0067, then under contract number HHSP23301500054C, and now under HHS75P00120P00168. The content of this publication does not necessarily reflect the views or policies of the U.S. Department of Health and Human Services, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government. Some of the work on this project has also received funding from the European Union's Horizon 2020 research and innovation programme under grant agreement No.780529 and 643399.

B. References

B.1 Informative references

Uniform Resource Identifier (URI): Generic Syntax. T. Berners-Lee; R. Fielding; L. Masinter. IETF. January 2005. Internet Standard. URL: https://www.rfc-editor.org/rfc/rfc3986
