EditContext API

W3C First Public Working Draft

More details about this document
This version:
https://www.w3.org/TR/2021/WD-edit-context-20211221/
Latest published version:
https://www.w3.org/TR/edit-context/
Latest editor's draft:
https://w3c.github.io/edit-context/
History:
https://www.w3.org/standards/history/edit-context
Commit history
Editors:
(Microsoft Corporation)
(Microsoft Corporation)
Feedback:
GitHub w3c/edit-context (pull requests, new issue, open issues)
public-editing-tf@w3.org with subject line [edit-context] … message topic … (archives)
Participate
We are on GitHub.
File a bug.
Commit history.
Mailing list.

Abstract

The EditContext is a new API that allows authors to more directly participate in the text input process.

Status of This Document

This section describes the status of this document at the time of its publication. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.

This document was published by the Web Editing Working Group as a First Public Working Draft using the Recommendation track.

Publication as a First Public Working Draft does not imply endorsement by W3C and its Members.

This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

This document is governed by the 2 November 2021 W3C Process Document.

1. Introduction

This section is non-normative.

1.1 Background and Motivation

Modern operating systems provide mechanisms to produce text in a variety of ways: speech-to-text, virtual keyboards, handwriting recognition and many more. When an app wants to consume text input from these various sources, it must first provide a view of its currently editable text to the operating system. The view of editable text provides a common language that apps (having a variety of different document models) and sources of text (having a variety of different input methods) can both understand. Both the apps and input sources communicate with one another by expressing their desired changes to the state of the common view as an event that the other can handle to facilitate the text input process.

For the purposes of this document, a producer of text is known as a Text Input Method. The view provided by an app which wants to consume text is called a Text Edit Context. The service provided by the OS to facilitate the editing of text in the Text Edit Context by the Text Input Methods is called a Text Input Service.

Figure 1 Many Text Input Methods using a Text Input Service to communicate with many apps through their Text Edit Contexts.

Here’s a typical flow for the text input process in more detail:

  1. A user places focus into an editable region of the app.
  2. The app produces a Text Edit Context describing its editable region according to the standards set forth by the Text Input Service and provides that Text Edit Context to the Text Input Service.
  3. The Text Input Service triggers a Text Input Method to provide some user interface for capturing text input from the user and provides the Text Input Method the app generated Text Edit Context.
  4. The Text Input Method reads the location of selection and nearby text from the Text Edit Context to help tailor its user experience.
  5. The Text Input Method may also read screen coordinates for where the selection and editable region are located so that it can properly position its user interface next to the text being edited.
  6. The user interacts with the Text Input Method user interface to input text in some Text Input Method-specific way.
  7. The Text Input Method describes its desired modifications to the text and selection in the Text Edit Context in response to the user’s input.
  8. The app handles an event describing the desired modifications to its Text Edit Context and renders the result to the user.

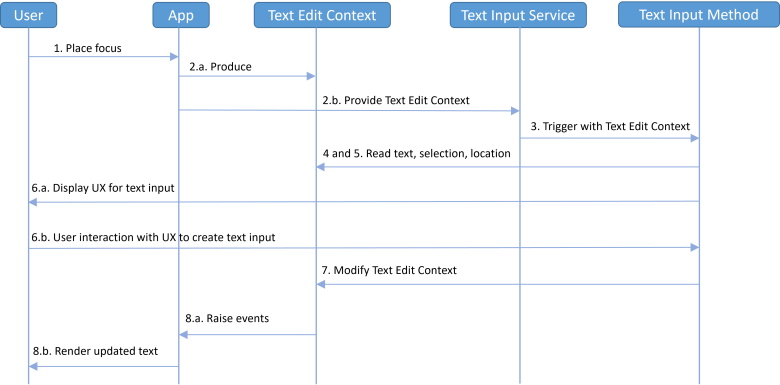

Figure 2 A sequence diagram illustrating a typical flow for text input.

Existing user agents handle the details of this text input process so that the author’s responsibility ends at declaring what elements of the document represent an editable region. Authors express which regions are editable using input elements, textarea elements, contenteditable elements, or by setting the designMode attribute to true to mark an entire document as editable.

As an editable region of the document is focused, the user agent automatically produces the Text Edit Context from the contents of the editable region and the position of the selection within it. When a Text Input Method produces text, the user agent translates the events against its Text Edit Context into a set of DOM and style modifications – only some of which are described using existing events that an author can handle.

Authors that want to produce sophisticated editing experiences may be challenged by the current approach. If, for example, the text and selection are rendered to a canvas, user agents are unable to produce a Text Edit Context to drive the text input process. Authors compensate by resorting to offscreen editable elements, but this approach comes with negative implications for accessibility, it deteriorates the input experience, and requires complex code to synchronize the position of the text in the offscreen editable element with the corresponding text in the canvas.

With the introduction of this EditContext API, authors can more directly participate in the protocol for text input and avoid the pitfalls described above.

1.2 The EditContext Model

An EditContext is a JavaScript projection of the Text Edit Context concept discussed in the previous section. Using an EditContext, an author can mark a region of the document editable by associating an instance of an EditContext with an element.

Associating an EditContext to an element makes that element intrinsically focusable. When the element is focused, the user agent will use the state of the EditContext to construct a Text Edit Context that is provided to the Text Input Service of the OS:

  1. Instead of deriving the contents of the Text Edit Context from the DOM, it will be taken from the EditContext.text property.
  2. Instead of deriving the location of selection within that text from the document’s selection, the user agent will use the offsets from the EditContext.selectionStart and EditContext.selectionEnd properties.
  3. Instead of querying the DOM’s associated CSS boxes for the size and position of selection, character bounds, and the editable region of the document, the EditContext.selectionBound, EditContext.characterBounds and EditContext.controlBound will be used.

Using an EditContext, an author can mark a region of the document editable by associating an EditContext object with an element as shown in the example below:

In the example below, the author is using a canvas to draw an editable region that allows the user to input a single line of text rendered with a monospace font. The text for the editable region is maintained by the author as a String. The text offsets for the selection in the editable region are maintained by the author as a pair of Numbers: selectionStart and selectionEnd. The Numbers refer to the count of the number of UTF-16 codepoints to the left of the start and end of the selection respectively. For the sake of communicating the bounding boxes for the current selection and the editable region of the document to Text Input Services, the author also computes the bounding rectangle in CSS pixels for the selection and the editable region of the document. The offset of the rectangle is expressed relative to the origin of the canvas element since that is the element to which the author has associated an EditContext. Since the model for the author’s representation of text and selection location matches the form expected by the EditContext API, the author can simply assign those properties to the EditContext associated with the canvas whenever those values change.

Building on the previous example, in response to user input, authors should handle the events of both the editable element (in this case a canvas) and the EditContext.

Input events against the DOM continue to describe the user’s intent

Against the EditContext, TextUpdateEvent describes changes to the text, the selection, and the composition range properties of the EditContext. TextFormatUpdateEvent describes changes to the style of the text. The updates received by the author’s code for text, selection, style, composition range changes should be rendered back to the canvas so the user can see what they are typing. CharacterBoundsUpdateEvent describes what character bounds are needed by the Text Input Service to support Text Input Method to properly display its user interface. After receiving CharacterBoundsUpdateEvent, the author is responsible to compute the requested character bounds and call updateCharacterBounds to update the character bounds cached in the EditContext.

Below example shows how to handle TextUpdateEvent, TextFormatUpdateEvent, and CharacterBoundsUpdateEvent to update the model and render the result to the canvas.

1.3 Interactions with Other Editing Primitives

An author doesn’t have to use a canvas element with an EditContext. In the example below the author uses a div to establish an editable region of the document and renders the contents into that editable region using various other styled elements, images and text. This allows the author to leverage other built-in editing primitives from the user agent such as selection and spellcheck.

2. Conformance

As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.

The key words MUST and MUST NOT in this document are to be interpreted as described in BCP 14 [RFC2119] [RFC8174] when, and only when, they appear in all capitals, as shown here.

This specification defines conformance criteria that apply to a single product: the user agent that implements the interfaces that it contains.

Conformance requirements phrased as algorithms or specific steps may be implemented in any manner, so long as the end result is equivalent. (In particular, the algorithms defined in this specification are intended to be easy to follow, and not intended to be performant.)

3. Extensions to the Element interface

WebIDLpartial interface Element {
     attribute EditContext? editContext;
};
editContext

An EditContext, initially null.

When an element is associated with an EditContext, it is focusable regardless of whether its contentediable attribute is true or not.

An EditContext is activated when the associated element is focused and deactivated when the associated element is blurred.

When an EditContext is activated, user text input MUST NOT modify DOM, instead, below steps should be implemented:

If in a composition:

  1. Fire an event named "beforeinput", if applicable to the user text input, at the focused element. If the beforeinput event is cancelled, abort these steps.
  2. Update the text, selectionStart, selectionEnd, compositionRangeStart, compositionRangeEnd, and isInComposition properties of the activated EditContext.
  3. Fire an event named "compositionstart" at the activated EditContext if it's a start of a composition.
  4. Fire an event named "textupdate" at the activated EditContext.
  5. Fire an event named "textformateupdate" at the activated EditContext.
  6. Fire an event named "characterboundsupdate" at the activated EditContext.
  7. Fire an event named "compositionend" at the activated EditContext if it's an end of a composition.

If not in a composition:

  1. Fire an event named "beforeinput", if applicable to the user text input, at the focused element. If the beforeinput event is cancelled, abort these steps.
  2. Update the text, selectionStart, selectionEnd, compositionRangeStart, compositionRangeEnd, and isInComposition properties of the activated EditContext.
  3. Fire an event named "textupdate" at the activated EditContext.
  4. Fire an event named "characterboundsupdate" at the activated EditContext.

An EditContext can be associated with multiple elements but only the element that has focus will receive beforeinput events.

3.1 Supported elements

Below is the list of elements that can be associated with EditContext: abbr, address, article, aside, b, blockquote, canvas, cite, code, del, details, dfn, div, dl, dd, dt, em, footer, form, h1, h2, h3, h4, h5, h6, hgroup, i, ins, kbd, label, mark, object, ol, output, p, pre, q, ruby, s, samp, section, small, span, strong, sub, sup, table, time, u, and ul.

4. The EditContext Interface

WebIDLdictionary EditContextInit {
    DOMString text;
    unsigned long selectionStart;
    unsigned long selectionEnd;
};

[Exposed=Window]
interface EditContext : EventTarget {
    constructor(optional EditContextInit options = {});

    undefined updateText(unsigned long rangeStart, unsigned long rangeEnd,
        DOMString text);
    undefined updateSelection(unsigned long start, unsigned long end);
    undefined updateControlBound(DOMRect controlBound);
    undefined updateSelectionBound(DOMRect selectionBound);
    undefined updateCharacterBounds(unsigned long rangeStart, sequence<DOMRect> characterBounds);

    sequence<Element> attachedElements();

    readonly attribute DOMString text;
    readonly attribute unsigned long selectionStart;
    readonly attribute unsigned long selectionEnd;
    readonly attribute unsigned long compositionRangeStart;
    readonly attribute unsigned long compositionRangeEnd;
    readonly attribute boolean isInComposition;
    readonly attribute DOMRect controlBound;
    readonly attribute DOMRect selectionBound;
    readonly attribute unsigned long characterBoundsRangeStart;
    sequence<DOMRect> characterBounds();

    attribute EventHandler ontextupdate;
    attribute EventHandler ontextformatupdate;
    attribute EventHandler oncharacterboundsupdate;
    attribute EventHandler oncompositionstart;
    attribute EventHandler oncompositionend;
};
text, of type DOMString
Initially empty string. The plain text view of the editable content.
selectionStart, of type unsigned long
Initially 0. The start position of the selection.
selectionEnd, of type unsigned long
Initially 0. The end position of the selection.
compositionRangeStart, of type unsigned long
Initially 0. The start position of the composition.
compositionRangeEnd, of type unsigned long
Initially 0. The end position of the composition.
isInComposition, of type boolean
Initially false. Whether there is an active composition.
controlBound, of type DOMRect
Initially 0s. The bounding box of the display surface where the text is rendered. The offset of the rectangle is expressed relative to the origin of the associated element.
Note

The control bound may be used by the OS for hittesting to trigger the virtual keyboard.

selectionBound, of type DOMRect
Initially 0s. The bounding box of the selection. The offset of the rectangle is expressed relative to the origin of the associated element. If the selection is collapsed, this is the bounding box of the caret.
characterBoundsRangeStart, of type unsigned long
Initially 0. The start position of the range where the character bounds are cached.
characterBounds() method
Initially empty array.

The method must follow these steps:

  1. If the EditContext is not activated, abort these steps.
  2. Return the cached character bounds. The offset of the rectangle is expressed relative to the origin of the associated element.
updateSelection() method

The method must follow these steps:

  1. If the EditContext is not activated, abort these steps.
  2. If start > end, abort these steps.
  3. set selectionStart to start
  4. set selectionEnd to end
updateSelectionBound() method

The method must follow these steps:

  1. If the EditContext is not activated, abort these steps.
  2. set selectionBound to selectoinBound.
updateControlBound() method

The method must follow these steps:

  1. If the EditContext is not activated, abort these steps.
  2. set controlBound to controlBound.
updateCharacterBounds() method

The method must follow these steps:

  1. If the EditContext is not activated, abort these steps.
  2. Set characterBoundsRangeStart to rangeStart.
  3. Set cached character bounds to characterBounds.
updateText() method

The method must follow these steps:

  1. If the EditContext is not activated, abort these steps.
  2. Replace the string in the range of rangeStart and rangeEnd of text with text.
attachedElements() method

The method returns elements that are associated with the EditContext.

Issue 1

should attachedElements() return elements that are removed from the tree? If yes, the EditContext will keep removed elements alive. If not, we probably shouldn't allow a disconnected element to associate with EditContext, otherwise, it would be confusing/unintuitive that we allow it but attachedElements returns empty.

ontextupdate

The event handler for TextUpdateEvent.

oncharacterboundsupdate

The event handler for CharacterBoundsUpdateEvent.

ontextformatupdate

The event handler for TextFormatUpdateEvent.

oncompositionstart

The event handler for the compositionstart event.

oncompositionend

The event handler for the compositionend event.

5. EditContext events

5.1 TextUpdateEvent

WebIDLdictionary TextUpdateEventInit {
    unsigned long updateRangeStart;
    unsigned long updateRangeEnd;
    DOMString text;
    unsigned long selectionStart;
    unsigned long selectionEnd;
    unsigned long compositionStart;
    unsigned long compositionEnd;
};

[Exposed=Window]
interface TextUpdateEvent : Event {
    constructor(optional TextUpdateEventInit options = {});
    readonly attribute unsigned long updateRangeStart;
    readonly attribute unsigned long updateRangeEnd;
    readonly attribute DOMString text;
    readonly attribute unsigned long selectionStart;
    readonly attribute unsigned long selectionEnd;
    readonly attribute unsigned long compositionStart;
    readonly attribute unsigned long compositionEnd;
};
updateRangeStart, of type unsigned long, readonly
The start position of the range that is to be replaced.
updateRangeEnd, of type unsigned long, readonly
The end position of the range that is to be replaced.
text, of type DOMString, readonly
The new string that is to replace the old string in the range.
selectionStart, of type unsigned long, readonly
The start position of the selection after the text replacement.
selectionEnd, of type unsigned long, readonly
The end position of the selection after the text replacement.
compositionStart, of type unsigned long, readonly
The start position of the composition after the text replacement.
compositionEnd, of type unsigned long, readonly
The end position of the composition after the text replacement.

5.2 TextFormatUpdateEvent

WebIDLdictionary TextFormatInit {
    unsigned long rangeStart;
    unsigned long rangeEnd;
    DOMString textColor;
    DOMString backgroundColor;
    DOMString underlineStyle;
    DOMString underlineThickness;
    DOMString underlineColor;
};

[Exposed=Window]
interface TextFormat {
    constructor(optional TextFormatInit options = {});
    attribute unsigned long rangeStart;
    attribute unsigned long rangeEnd;
    attribute DOMString textColor;
    attribute DOMString backgroundColor;
    attribute DOMString underlineStyle;
    attribute DOMString underlineThickness;
    attribute DOMString underlineColor;
};

dictionary TextFormatUpdateEventInit {
    sequence<TextFormat> textFormats;
};

[Exposed=Window]
interface TextFormatUpdateEvent : Event {
    constructor(optional TextFormatUpdateEventInit options = {});

    sequence<TextFormat> getTextFormats();
};
rangeStart, of type unsigned long, readonly
The start position of the range where the format is applied.
rangeEnd, of type unsigned long, readonly
The end position of the range where the format is applied.
textColor, of type DOMString, readonly
The color of the text. The value is a serialized sRGB values.
backgroundColor, of type DOMString, readonly
The color of the background. The value is a serialized sRGB values.
underlineStyle, of type DOMString, readonly
The style of the underline. The value is one of the following strings: "None", "Solid", "Dotted", "Dashed", and "Squiggle".
underlineThickness, of type DOMString, readonly
The thickness of the underline. The value is one of the following strings: "None", "Thin", and "Thick".
underlineColor, of type DOMString, readonly
The color of the underline. The value is a serialized sRGB values.
getTextFormats method
Returns an array of TextFormat that describes how text should be formatted in the DOM.

5.3 CharacterBoundsUpdateEvent

WebIDLdictionary CharacterBoundsUpdateEventInit {
    unsigned long rangeStart;
    unsigned long rangeEnd;
};

[Exposed=Window]
interface CharacterBoundsUpdateEvent : Event {
    constructor(optional CharacterBoundsUpdateEventInit options = {});

    readonly attribute unsigned long rangeStart;
    readonly attribute unsigned long rangeEnd;
};
rangeStart, of type unsigned long, readonly
The start position of the range where the character bounds are needed by Text Input Service
rangeEnd, of type unsigned long, readonly
The end position of the range where the character bounds are needed by Text Input Service

6. Privacy and Security Considerations

To mitigate potential security and privacy risks, browsers are expected to follow best practices described below.

A. IDL Index

WebIDLpartial interface Element {
     attribute EditContext? editContext;
};

dictionary EditContextInit {
    DOMString text;
    unsigned long selectionStart;
    unsigned long selectionEnd;
};

[Exposed=Window]
interface EditContext : EventTarget {
    constructor(optional EditContextInit options = {});

    undefined updateText(unsigned long rangeStart, unsigned long rangeEnd,
        DOMString text);
    undefined updateSelection(unsigned long start, unsigned long end);
    undefined updateControlBound(DOMRect controlBound);
    undefined updateSelectionBound(DOMRect selectionBound);
    undefined updateCharacterBounds(unsigned long rangeStart, sequence<DOMRect> characterBounds);

    sequence<Element> attachedElements();

    readonly attribute DOMString text;
    readonly attribute unsigned long selectionStart;
    readonly attribute unsigned long selectionEnd;
    readonly attribute unsigned long compositionRangeStart;
    readonly attribute unsigned long compositionRangeEnd;
    readonly attribute boolean isInComposition;
    readonly attribute DOMRect controlBound;
    readonly attribute DOMRect selectionBound;
    readonly attribute unsigned long characterBoundsRangeStart;
    sequence<DOMRect> characterBounds();

    attribute EventHandler ontextupdate;
    attribute EventHandler ontextformatupdate;
    attribute EventHandler oncharacterboundsupdate;
    attribute EventHandler oncompositionstart;
    attribute EventHandler oncompositionend;
};

dictionary TextUpdateEventInit {
    unsigned long updateRangeStart;
    unsigned long updateRangeEnd;
    DOMString text;
    unsigned long selectionStart;
    unsigned long selectionEnd;
    unsigned long compositionStart;
    unsigned long compositionEnd;
};

[Exposed=Window]
interface TextUpdateEvent : Event {
    constructor(optional TextUpdateEventInit options = {});
    readonly attribute unsigned long updateRangeStart;
    readonly attribute unsigned long updateRangeEnd;
    readonly attribute DOMString text;
    readonly attribute unsigned long selectionStart;
    readonly attribute unsigned long selectionEnd;
    readonly attribute unsigned long compositionStart;
    readonly attribute unsigned long compositionEnd;
};

dictionary TextFormatInit {
    unsigned long rangeStart;
    unsigned long rangeEnd;
    DOMString textColor;
    DOMString backgroundColor;
    DOMString underlineStyle;
    DOMString underlineThickness;
    DOMString underlineColor;
};

[Exposed=Window]
interface TextFormat {
    constructor(optional TextFormatInit options = {});
    attribute unsigned long rangeStart;
    attribute unsigned long rangeEnd;
    attribute DOMString textColor;
    attribute DOMString backgroundColor;
    attribute DOMString underlineStyle;
    attribute DOMString underlineThickness;
    attribute DOMString underlineColor;
};

dictionary TextFormatUpdateEventInit {
    sequence<TextFormat> textFormats;
};

[Exposed=Window]
interface TextFormatUpdateEvent : Event {
    constructor(optional TextFormatUpdateEventInit options = {});

    sequence<TextFormat> getTextFormats();
};

dictionary CharacterBoundsUpdateEventInit {
    unsigned long rangeStart;
    unsigned long rangeEnd;
};

[Exposed=Window]
interface CharacterBoundsUpdateEvent : Event {
    constructor(optional CharacterBoundsUpdateEventInit options = {});

    readonly attribute unsigned long rangeStart;
    readonly attribute unsigned long rangeEnd;
};

B. Contributors

Editor's note

Add contributors

C. References

C.1 Normative references

[dom]
DOM Standard. Anne van Kesteren. WHATWG. Living Standard. URL: https://dom.spec.whatwg.org/
[geometry-1]
Geometry Interfaces Module Level 1. Simon Pieters; Chris Harrelson. W3C. 4 December 2018. W3C Candidate Recommendation. URL: https://www.w3.org/TR/geometry-1/
[HTML]
HTML Standard. Anne van Kesteren; Domenic Denicola; Ian Hickson; Philip Jägenstedt; Simon Pieters. WHATWG. Living Standard. URL: https://html.spec.whatwg.org/multipage/
[RFC2119]
Key words for use in RFCs to Indicate Requirement Levels. S. Bradner. IETF. March 1997. Best Current Practice. URL: https://www.rfc-editor.org/rfc/rfc2119
[RFC8174]
Ambiguity of Uppercase vs Lowercase in RFC 2119 Key Words. B. Leiba. IETF. May 2017. Best Current Practice. URL: https://www.rfc-editor.org/rfc/rfc8174
[WEBIDL]
Web IDL Standard. Edgar Chen; Timothy Gu. WHATWG. Living Standard. URL: https://webidl.spec.whatwg.org/
