The WoT Profile Specification defines a Profiling Mechanism and a WoT Core Profile, which enables out of the box interoperability among things and devices. Out of the box interoperability implies, that devices can be integrated into various application scenarios without deep level adaptations. Typically only minor configuration operations are necessary (such as entering a network key, or IP address) to use the device in a certain scenario. These actions can be done by anyone without specific training.
The WoT Core Profile defines a set of constraints and rules, which compliant thing descriptions have to adopt to guarantee interoperability.These rules are prescriptive, to ensure that compliant implementations satisfy the semantic guarantees implied by them. We call this set of rules a Profile.
The WoT Profile Specification as defined in this document serves two purposes:
This document incudes a binding of the core data model to HTTP(S) and selected notification sub-protocols. The core data model can be bound to other protocols - it is expected that bindings to other protocols (e.g. MQTT, CoAP) will be defined in the near future.
A TD that is compliant to the core profile MUST adhere to both the constraints on the data model and the protocol binding.
Devices that constrain their use of the Thing Description to the WoT Core Profile can interoperate with each other out-of-the-box.
Note that the core profile is not exclusive. Device implementers are free to adopt other features of the thing description that go beyond the constraints of the core profile, however the interoperability guarantees of the core profile hold only for the WoT Core Profile subset.
The W3C WoT Thing Architecture [wot-architecture] and WoT Thing Description [wot-thing-description] define a powerful description mechanism and a format to describe myriads of very different devices, which may be connected over various protocols. The format is very flexible and open and puts very few normative requirements on devices that implement it.
However, this flexibility de-facto prevents interoperability, since, without additional rules, it allows implementers to make many choices that do not provide guarantees of common behavior between implementations.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
This document was published by the Web of Things Working Group as a First Public Working Draft. This document is intended to become a W3C Recommendation.
Comments regarding this document are welcome. Please send them to public-wot-wg@w3.org (archives).
Publication as a First Public Working Draft does not imply endorsement by the W3C Membership.
This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 1 August 2017 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 15 September 2020 W3C Process Document.
The W3C WoT Architecture [wot-architecture] and the WoT Thing Description [wot-thing-description] have been developed as a versatile format, that allows describing the interactions between multiple devices and protocols.
This flexibility permits an easy integration of new device types and protocols, however it risks interoperability, since there are no guarantees that two devices which are formally spec-compliant, will be able to communicate.
To increase adoption of the WoT specifications, interoperability between on premise devices, edge devices and the cloud is essential. Even if every manufacturer is implementing the current Thing Description specification in full flexibility, there is no interoperability guarantee; many choices are still left to the implementations and there are very few normative requirements that a device has to fulfill.
A Thing Description can be used in two fundamentally different deployment scenarios:
For green field deployments, where the implementations are being carried out and corresponding thing descriptions are being created, it is easier to achieve full interoperability by using a small, extensible Core Profile.
In the brown field area, due to the nature of existing deployments and protocols, a broad spectrum of variations and potentially high complexity of thing descriptions inhibits interoperability and will most likely lead to additional profiles of the WoT Thing Description and domain-specific thing consumer implementations.
The WoT Core Profile can be used by green field deployments and gives guidance to new implementers of the WoT specifications. It has already proved in brown-field scenarios in the PlugFests, where existing devices, that already existed as products, prototypes or demonstrators, were described with Thing Descriptions that are constrained to the Core Profile.
During the recent WoT PlugFests there were many de-facto agreements on the use of a small constrained subset of interaction patterns and protocol choices. These de-facto agreements select a common subset of the WoT Thing Description, based on proven interoperability among manufacturers.
The aim of this specification is to formalize these agreements by defining a WoT Core Profile based on the choices that were made by the implementers of PlugFest devices.
The WoT Core Profile contains additional normative requirements that MUST be satisfied by devices to be compliant to the profile.
Adoption of the WoT Core Profile will significantly limit the implementation burden of device and cloud implementors.
The WoT Core Profile was defined with the following main goals:
It makes choices on the required metadata fields as well as the supported interactions and protocol endpoints. It introduces some constraints on data schemas for properties and actions which are required for resource constrained devices in real-world deployments. The format does not forbid the use of additional elements of the WoT Thing Description for vendor specific extensions, however this will impact interoperability.
Devices, which implement the Core Profile, are out-of-the-box interoperable with other Core Profile compliant devices. Furthermore, the Core Profile simplifies device validation and compliance testing since a corresponding conformance test suite can be defined.
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words MAY, MUST, MUST NOT, NOT RECOMMENDED, RECOMMENDED, and SHOULD in this document are to be interpreted as described in BCP 14 [RFC2119] [RFC8174] when, and only when, they appear in all capitals, as shown here.
A device or consumer implementation complies with this specification if it follows the normative statements in the present document.
A JSON Schema [JSON-SCHEMA] to validate the compliance of a Thing Description with the core profile is provided in Appendix § A. JSON Schema of the Core Profile.
This specification uses the same terminology as the WoT Architecture and Thing Description specifications.
For convenience of the reader, we use the terms keyword and field for the linguistic notion vocabulary term as defined in the Thing Description Specification.
We use the terms device and thing in an interchangeable manner.
This section describes a generic mechanism to define a profile of the WoT Thing Description in a unambiguous way.
The W3C WoT Thing Description specification defines a formal language, i.e. a set of vocabulary terms (keywords), a set of classes that are built from these keywords, and a set of additional rules, that define constraints on permitted values and keyword presence (mandatory / optional) dependent on the context where the keyword is used. In addition the WoT Thing Description specification defines relationships and corresponding cardinalities between these classes.
The WoT Thing Description specification already has some constraints, but there is a wide variety of variations that are left to the interpretation or the discretion of an implementer. The rationale for the Core Profile is not to forbid complex things, rather to enable statements like:
A profile is a set of constraints and rules, which provide additional semantic guarantees that are applied to the WoT Thing Description specification. These constraints define a subset of valid WoT Thing Descriptions by defining additional rules on various aspects of the WoT Thing Description specification.
Constraints on | Rationale | Example |
---|---|---|
vocabulary of Thing Description classes | guaranteed set of metadata fields | Make specific vocabulary terms mandatory, remove others |
class relationships | unambiguous structure | limited cardinality, e.g. only one form per operation per interaction affordance. |
values of vocabulary terms | simplified processing | Limit the length of characters per string. Always use arrays, where the spec permits a string or an array of strings. |
data schemas | simplified processing | No arbitrary nested objects or arrays of arrays |
security | reduced implementation effort | Only a restricted set of security mechanisms |
protocol binding | guaranteed protocol semantics | limited protocol(s) and protocol features, Example: predefined mapping of http verbs (GET/PUT) to operation verbs, similar constraints for other protocols. |
These constraints and rules fall into two categories:
These two categories are orthogonal to each other, i.e. a data model that conforms to a profile can be mapped to different protocols. The protocol binding for each protocol may contain additional (protocol-specific) constraints.

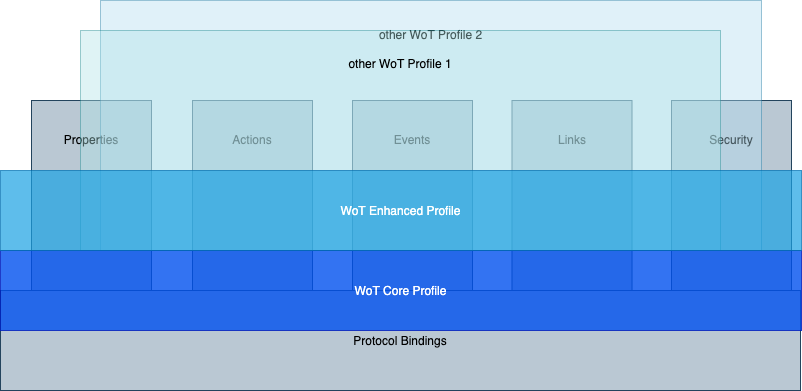

A profile is not exclusive, i.e. a thing may conform to multiple profiles. Profiles can build on top of each other or overlap, extended profiles can be built on top of the core profile.
This specification does not put any requirements on the scope and contents of other profiles.

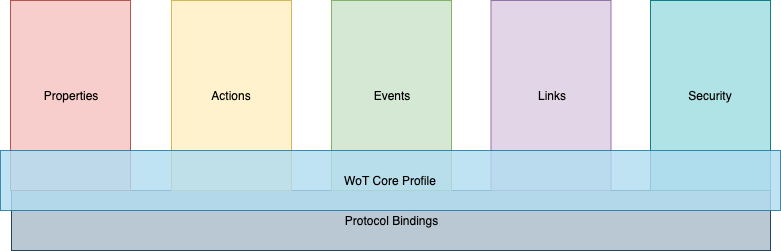

In the present document, we define a Core Profile by defining a Core Data Model and a set of Protocol Binding Rules for selected protocols.
The core data model incorporates the data model defined by chapter 5 of the Thing Description specification. The normative rules defined by that data model are the baseline for the definition of the core data model and are normative for the core data model. A core profile compliant implementation MUST additionally satisfy the requirements of this chapter.
The following rules are applicable to multiple classes of the WoT Thing Description Specification, as they provide clearer semantics, improved readability and simplified processing on resource constrained devices.
One of the primary benefits of the WoT Thing Description over a typical IoT format is the additional documentation for a human reader.
Therefore, the fields title
and
description
are MANDATORY for Things,
Property Affordances, Action Affordances, Event
Affordances and Data Schemas.
It is possible to have empty values for these fields, if, for specific purposes it is not desired to provide documentation, however this is NOT RECOMMENDED and the conscious decision is obvious from the TD.
The length of id
,
description
and descriptions
values is limited to 512 characters.
The length of title
and
titles
values is limited to 64
characters.
Where a type permits using an array of
string
or a string
, an array of
string
MUST be used.
TODO: decide if multiple types and contexts are required.
In this case the following section could be added:
The only exception to this rule are
@context
and @type
annotations, where both string
or
array of string
MAY be used.
Where a type permits using an array of
DataSchema
or a DataSchema
, an
array of DataSchema
MUST be used.
All elements of an enum
MUST be either string
or
number
. Different types in a single
enum
are NOT PERMITTED.
To provide minimum interoperability, the following metadata fields of a Thing MUST be contained in a compliant Thing Description:
keyword | type | remarks |
---|---|---|
title | string | human readable documentation |
id | urn_type | a globally unique urn of the thing |
description | string | human readable documentation |
created | date | human readable documentation |
modified | date | human readable documentation |
support | urn_type | human readable documentation |
security | array of string | simplified handling |
version | VersionInfo | clear versioning, easy to compare different TDs |
It is RECOMMENDED to use the value "" for strings, where the value cannot be determined.
If a Thing Description is used solely within a company, the email address of the developer SHOULD be used in the support field, if the Thing Description is provided externally, a support email address SHOULD be used.
It will be evaluated whether the profile also recommends some new TD terms that may be introduced in TD 1.1. Currently the following terms are discussed: serialNumber, hardwareRevision, softwareRevision, loc_latitude, loc_longitude loc_altitude, loc_height, and loc_depth. If these, or some of them, are defined in the TD 1.1 model, they may be recommended here in one of the next draft updates.
Data Schemas are used for the values of Properties, Action input and output parameters and Event message payloads. The value of a Data Schema can be a simple type (boolean, integer, number, string) or an instance of a structured type (array and object).
The Core Data Model applies the following constraints and rules to theDataSchema
class of section 5.3.2.1 of the
WoT Thing
Description Specification.
This section defines a subset of the class
DataSchema
that can be processed on
resource-constrained devices.
The Core Data Model
restricts the use of arrays and objects to the top
level of Data Schemas, i.e. only a one-level
hierarchy is permitted. The members of a top level
object
or array
MUST NOT be array or object types.
This may appear as a severe limitation, however it is motivated by integrating with multiple cloud services. Many enterprise services and applications are based on (relational) databases, where individual property values are stored. Of course databases can also store objects (e.g. encoded as a JSON string), however this will prevent processing by other enterprise applications.
If a property conceptually has a deeper structure, such as grid of lamps with RGB colors, the structure can be represented in the keyword of the property, i.e. lamp1_color_r, lamp1_color_g and lamp1_color_b. A similar mapping can be done for arrays and hierarchical objects. This constraint leads to simpler Thing Descriptions that can be handled by very limited devices.
The following fields MUST be contained in a DataSchema:
keyword | type | constraints |
---|---|---|
description | human readable description | |
type | string | one of boolean, integer, number, string, array or object |
The values object
, array
MAY only be used at the top level
of a Data Schema. The type value MUST
NOT be null
.
PropertyAffordance
class of section 5.3.1.3 of
the WoT Thing
Description Specification.
The following property fields MUST be contained in the
properties
element of a Profile
compliant TD:
keyword | type | constraints |
---|---|---|
title | string | unique name among all properties |
description | string | human readable description |
type | string | one of boolean ,
string , number ,
integer , object or
array . The type value
null MUST NOT
be used. |
The Thing Description permits arbitrary
object depths for properties. Parsing of a deeply nested
structure is not possible on resource constrained
devices. Therefore each property MAY contain array
or
object
elements only at top
level.
The following additional constraints MUST be applied to the Property Affordances of a Thing Description conforming to the Core Profile:
keyword | type | constraint |
---|---|---|
const | anyType | MUST NOT be used |
enum | array of simple type | Values of enums MAY only be simple types. Handling of any type is too complex to implement on resource constrained devices |
forms | array of Forms | The Array of Form of each property
MUST contain only a
single endpoint for each operation
readproperty ,
writeproperty ,
observeproperty ,
unobserveproperty . |
format | string | If the field format is used, only
formats defined in section 7.3.1-7.3.6 of
[JSON-SCHEMA]
MAY be used. |
oneOf | string | The DataSchema field oneOf does
not make sense for properties and MUST NOT be used. |
uriVariables | Map of DataSchema | uriVariables MUST NOT be used. |
It is highly RECOMMENDED to
always specify a unit
, if a value has a
metric. Authors of Thing Descriptions should be
aware, that units that are common in their geographic
region are not globally applicable and may lead to
misinterpretation with drastic consequences.
The field unit
could be used for
non-decimal numeric types as well, e.g. a string value
with binary or hex data ( 0xCAFEBABE
,
0b01000010
), where the unit is
hex
or bin
, to indicate how
the value should be interpreted. It is strongly
RECOMMENDED to use the values
hex
, oct
or bin
in this case to achieve interoperability.
ActionAffordance
class of section 5.3.1.4 of
the WoT Thing
Description Specification.
The following fields MUST be contained in an action element of an Core Profile compliant TD:
keyword | type | constraints |
---|---|---|
title | string | unique name among all actions |
input | array of DataSchema | all elements of the subclasses objectSchema and dataSchema MUST only contain simple types. |
output | array of DataSchema | all elements of the subclasses objectSchema and dataSchema MUST only contain simple types. |
The elements of the DataSchema subclasses ArraySchema
and ObjectSchema for the fields input
and
output
are restricted to simple types in a
Thing Description
conforming to the Core Data Model.
Without this limitation a higher implementation burden
would be put on resource constrained devices (arbitrary
cascaded arrays and multi-level objects) which cannot be
satisfied by all consuming devices.
The following additional constraints MUST be applied to the Interaction Affordances of a Thing Description conforming to the Core Data Model:
keyword | type | constraint |
---|---|---|
forms | array of Forms | The Array of Form of each action
MUST contain only a
single endpoint. |
format | string | If the field format is used, only
formats defined in section 7.3.1-7.3.6 of
[JSON-SCHEMA]
MAY be used. |
oneOf | string | The DataSchema field oneOf does
not make sense for properties and MUST NOT be used. |
uriVariables | Map of DataSchema | uriVariables MUST NOT be used. |
TODO:
- no optional parameters
- timeout
EventAffordance
class of section 5.3.1.5 of
the WoT Thing
Description Specification.
A Thing may provide more than one event mechanism to enable a variety of consumers.
TODO:
The events section needs to be signifcantly extended and define addtional constraints to ensure OOTBI. LongPoll, WebSockets and WebHooks can be considered as initial candidates for supported protocols for the event mechanism to identify appropriate data model constraints.
The individual protocol constraints need to be defined in a respective protocol binding chapter after they have been identified/evaluated in plugfests.
The following fields MUST be present in an event element of a Core TD:
keyword | type | constraints |
---|---|---|
title | string | unique name among all events |
description | string | human readable description |
data | set of DataSchema instances in a JSON object | only the DataSchema subclasses booleanSchema, IntegerSchema, NumberSchema, StringSchema are permitted |
The following additional constraints MUST be applied to the Event Affordances of a WoT Thing Description conforming to the profile:
keyword | type | constraint |
---|---|---|
forms | array of Forms | The Array of Form of each event
MUST contain only a
single endpoint. |
uriVariables | Map of DataSchema | uriVariables MUST NOT be used. |
A Thing may provide more than one event mechanism to enable a variety of consumers.
The following fields MUST be present in a form element of a Core TD:
keyword | type | constraints |
---|---|---|
title | string | unique name among all events |
description | string | human readable description |
data | set of DataSchema instances in a JSON object | only the DataSchema subclasses booleanSchema, IntegerSchema, NumberSchema, StringSchema are permitted |
The following additional constraints MUST be applied to the Form elements of a WoT Thing Description conforming to the Core profile:
keyword | type | constraint |
---|---|---|
security | string or Array of string | security at form level MUST NOT be used. |
scopes | string or Array of string | scopes MUST
NOT be used. |
The "type" relationship as defined in chapter 6 of [RFC6903] is reserved for indicating an instance relationship between a thing and a thing template. The Core Data Model does not put additional constraints or requirements on links. The interpretation of a link is out of scope.
The Core Data Model defines a subset of the security schemes that MAY be implemented on resource constrained devices. A security scheme MUST be defined at the thing level. The security scheme is applied to the thing as a whole, a thing may adopt multiple security schemes.
The set of security schemes supported in the Core Data Model is based on the PlugFest results. To ensure interoperability, a TD consumer, which compliant with the Core Data Model MUST support all of the following security schemes:
When using the "no security" or "Basic Auth" security schemes it is strongly recommended to use transport layer encryption.
This section describes how the Core Data Model is bound to different protocols. In addition to a set of mapping rules, it defines additional behavior, e.g. timeouts, error behavior, action semantics, etc.
All communication is using JSON payloads over HTTP(s). The content type header MUST be set to "application/json".
The HTTP verbs GET and PUT are mapped on reading and writing a property - all other protocol verbs return an error "405 Method Not Allowed".
Note: Since HTTP does not provide a pub/sub mechanism, the observe interaction is not supported directly. The event mechanism can be used instead to send notifications on property changes.
Multiple properties can be set/get by accessing the Properties endpoint.
Actions can be synchronous and asynchronous. The current TD specification does not distinguish these two cases and does not describe a detailed mechanism.
The HTTP verb POST is mapped to invoking an action on the actions endpoint - all other protocol verbs return an error "405 Method Not Allowed".
The default representation is JSON. Semantic annotations based on JSON-LD MAY be present but are not required to perform all interactions with the thing instance.
A Thing Description can be syntactically validated with the JSON Schema [JSON-SCHEMA] for compliance with the core profile.
Todo: Define a JSON-SCHEMA.
