1. Introduction
The Magnetometer Sensor extends the Generic Sensor API [GENERIC-SENSOR] to provide information about the geomagnetic field as detected by the device’s primary magnetometer sensor. The magnetometer sensor measures the ambient geomagnetic field for all three physical axes (x, y, z) in μT (micro Tesla).
Geomagnetic field is defined as the magnetic force field that surrounds the Earth. It is attributed to the combined effects of the planetary rotation and the movement of molten iron in the Earth’s core.
A magnetoresistive component (permalloy) is one which changes resistance in proportion to the strength of a magnetic field along its axis. The 3 axis magnetometer usually found in mobile phones, have 3 such components oriented such that each one is orthogonal to the other two, one each in the X, Y and Z directions in the device’s local coordinate system. Each individual magnetoresistive element senses only the component of the magnetic field parallel to the element axis and ignores field components orthogonal to the element axis.
2. Examples
let sensor = new MagnetometerSensor(); sensor.start(); sensor.onchange = function(event) { console.log("Magnetic field along the X-axis " + event.reading.magneticFieldX); console.log("Magnetic field along the Y-axis " + event.reading.magneticFieldY); console.log("Magnetic field along the Z-axis " + event.reading.magneticFieldZ); }; sensor.onerror = event => console.log(event.error.name, event.error.message);
3. Security and Privacy Considerations
There are no specific security and privacy considerations beyond those described in the Generic Sensor API [GENERIC-SENSOR].
4. Model
The Magnetometer Sensor’s associated Sensor subclass is the MagnetometerSensor
class.
The Magnetometer Sensor’s associated SensorReading subclass is the MagnetometerSensorReading
class.
The Magnetometer Sensor has a default sensor, which is the device’s main magnetometer sensor.
The Magnetometer Sensor has a single supported reporting mode which is "auto".
The Magnetometer Sensor’s permission name is "magnetometer"
.
It has no associated PermissionDescriptor.
The Magnetometer Sensor has an associated abstract operation to retrieve the sensor permission which must simply return a permission whose name is "magnetometer".
The Magnetometer Sensor has an associated abstract operation
to construct a SensorReading object which creates a new MagnetometerSensorReading
object and sets each of its magneticFieldX, magneticFieldY and magneticFieldZ attributes to zero.
The MagnetometerSensorReading
's attribute values must be in μT (micro Tesla),
expressed in a three-dimentional Cartesian local coordinate system defined by the device.
The sign of the geomagnetic field values must be according to the right-hand convention in a local coordinate system defined by the device.

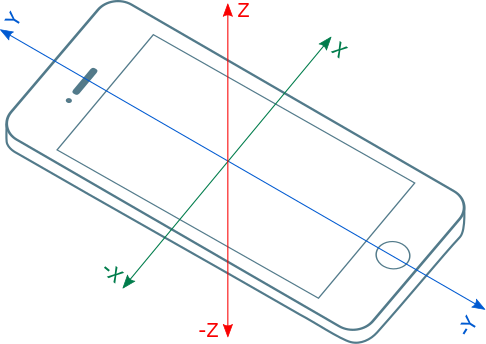

Note: The local coordinate system of a mobile device is usually defined relative to the device’s screen when the device in its default orientation (see figure below).
5. API
5.1. The MagnetometerSensor Interface
[Constructor(optional SensorOptions sensorOptions)] interface MagnetometerSensor : Sensor { readonly attribute MagnetometerSensorReading? reading; };
To Construct an MagnetometerSensor Object the user agent must invoke the construct a Sensor object abstract operation.
5.2. The MagnetometerSensorReading Interface
[Constructor(MagnetometerSensorReadingInit magnetometerSensorReadingInit)] interface MagnetometerSensorReading : SensorReading { readonly attribute double magneticFieldX; readonly attribute double magneticFieldY; readonly attribute double magneticFieldZ; }; dictionary MagnetometerSensorReadingInit { double magneticFieldX = 0; double magneticFieldY = 0; double magneticFieldZ = 0; };
5.2.1. The MagnetometerSensorReading constructor
The MagnetometerSensorReading constructor accepts MagnetometerSensorReadingInit
dictionary that is used for initialization of MagnetometerSensorReading
attributes.
5.2.2. The MagnetometerSensorReading attributes
The magneticFieldX attribute of the MagnetometerSensorReading
interface represents represents the geomagnetic field around X-axis.
The magneticFieldY attribute of the MagnetometerSensorReading
interface represents represents the geomagnetic field around Y-axis.
The magneticFieldZ attribute of the MagnetometerSensorReading
interface represents represents the geomagnetic field around Z-axis.
6. Limitations of Magnetometer Sensors
This section is non-normative.
The direction and magnitude of the Earth’s field changes with location, latitude in particular. For example, the magnitude is lowest near the equator and highest near the poles. Some hard-iron interference, meaning presence of permanent magnets (e.g. magnets in the speaker of a phone) in the vicinity of the sensor also affects the accuracy of the reading. Presence of electronic items, laptops, batteries, etc also contribute to the soft-iron interference. Flight Mode option in mobile phones might help in decreasing the electro magnetic interference.
In addition to the above spatial variations of the geomagnetic field, time based variations, like solar winds or magnetic storms, also distort the magnetosphere or external magnetic field of the earth.
7. Compass Heading Using Magnetometers
Compasses, instruments that align themselves with the magnetic poles of the Earth, have been used in navigation for centuries. The earth’s rotational axis defines the geographic north and south poles that we use for map references. It turns out that there is a discrepancy of around 11.5 degrees (around 1000 miles) between the geographic poles and the magnetic poles. Declination angle is applied to the magnetic direction to correct for this situation.
If the device is always level to the earth’s surface, compass heading can be determined by using just the magneticFieldX
and magneticFieldY
component of the earth’s magnetic field, that
is, the directions planar with the earth’s surface.
To determine geographic north (or true north) heading, add the appropriate declination angle.
Magnetic declination or declination angle is the angle on the horizontal plane between magnetic north and the true north and depends on the position on the Earth’s surface, and changes over time. By convention, declination is positive when magnetic north is east of true north, and negative when it is to the west. You can get real time value for magnetic declination e.g. using the Magnetic declination calculator provided by the National Oceanic and Atmospheric Administration (NOAA).
Magnetic north calculation is simple:
var headingDegrees = Math.atan2(event.reading.magneticFieldY, event.reading.magneticFieldX) * (180 / Math.PI); console.log('Heading in degrees: ' + headingDegrees);
To get geographic north (or true north) that considers the magnetic declination at the given latitude and longitude, further work is required:
// First, get the latitude and longitude (omitted for brevity). var latitude = 0, longitude = 0; // Then, get the magnetic declination using your favorite web service. var base = 'http://www.ngdc.noaa.gov/geomag-web/calculators/calculateDeclination'; fetch(base + '?lat1=' + latitude + '&lon1=' + longitude + '&resultFormat=csv') .then(response => response.text()).then(text => { var declinationDegrees = parseFloat(text.replace(/^#.*$/gm, '').trim().split(',')[4]); // Compensate for the magnetic declination to get the true north. console.log('True heading in degrees: ' + (headingDegrees + declinationDegrees)); });
If the device is not level to the Earth’s surface, we need to apply various tilt compensation techniques for which we need a 3-axis accelerometer. A specification for orientation sensor, which is a fusion of the accelerometer and magnetometer sensors, is required to implement this particular use case.
