Coordinate Systems, Transformations and Units

For all media, the SVG canvas describes "the space where the SVG content is rendered." The canvas is infinite for each dimension of the space, but rendering occurs relative to a finite rectangular region of the canvas. This finite rectangular region is called the SVG viewport. For visual media ([CSS21], section 7.3.1) the SVG viewport is the viewing area where the user sees the SVG content.

The size of the SVG viewport (i.e., its width and height) is determined by a negotiation process (see Establishing the size of the initial viewport) between the SVG document fragment and its parent (real or implicit). Once that negotiation process is completed, the SVG user agent is provided the following information:

Why are real world units relevant? Shouldn't we just be relying on CSS' fixed ratio of mm to px units?

Using the above information, the SVG user agent determines the viewport, an initial viewport coordinate system and an initial user coordinate system such that the two coordinates systems are identical. Both coordinates systems are established such that the origin matches the origin of the viewport (for the root viewport, the viewport origin is at the top/left corner), and one unit in the initial coordinate system equals one "pixel" in the viewport. (See Initial coordinate system.) The viewport coordinate system is also called viewport space and the user coordinate system is also called user space.

The supported length unit identifiers are: em, ex, px, pt, pc, cm, mm, in, and percentages.

A new user space (i.e., a new current coordinate system) can be established at any place within an SVG document fragment by specifying transformations in the form of transformation matrices or simple transformation operations such as rotation, skewing, scaling and translation. Establishing new user spaces via coordinate system transformations are fundamental operations to 2D graphics and represent the usual method of controlling the size, position, rotation and skew of graphic objects.

New viewports also can be established. By establishing a new viewport, you can redefine the meaning of percentages units and provide a new reference rectangle for "fitting" a graphic into a particular rectangular area. ("Fit" means that a given graphic is transformed in such a way that its bounding box in user space aligns exactly with the edges of a given viewport.)

7.2. The initial viewport

Do we need to port over some more up-to-date definitions of sizing from SVG Tiny 1.2?

The SVG user agent negotiates with its parent user agent to determine the viewport into which the SVG user agent can render the document. In some circumstances, SVG content will be embedded (by reference or inline) within a containing document. This containing document might include attributes, properties and/or other parameters (explicit or implicit) which specify or provide hints about the dimensions of the viewport for the SVG content. SVG content itself optionally can provide information about the appropriate viewport region for the content via the ‘width’ and ‘height’ XML attributes on the outermost svg element. The negotiation process uses any information provided by the containing document and the SVG content itself to choose the viewport location and size.

Talking about a "parent user agent" really makes this sound like we have a separate plugin SVG implementation communicating with a browser hosting the plugin. These days, it's going to be the same user agent.

The ‘width’ attribute on the outermost svg element establishes the viewport's width, unless the following conditions are met:

Under these conditions, the positioning properties establish the viewport's width.

Similarly, if there are positioning properties specified on the referencing element or on the outermost svg element that are sufficient to establish the height of the viewport, then these positioning properties establish the viewport's height; otherwise, the ‘height’ attribute on the outermost svg element establishes the viewport's height.

If the ‘width’ or ‘height’ attributes on the outermost svg element are in user units (i.e., no unit identifier has been provided), then the value is assumed to be equivalent to the same number of "px" units (see Units).

The initial clipping path for the SVG document fragment is established according to the rules described in The initial clipping path.

7.3. The initial coordinate system

For the outermost svg element, the SVG user agent determines an initial viewport coordinate system and an initial user coordinate system such that the two coordinates systems are identical. The origin of both coordinate systems is at the origin of the viewport, and one unit in the initial coordinate system equals one "pixel" (i.e., a px unit as defined in CSS 2.1 ([CSS21], section 4.3.2) in the viewport. In most cases, such as stand-alone SVG documents or SVG document fragments embedded (by reference or inline) within XML parent documents where the parent's layout is determined by CSS [CSS21] or XSL [XSL], the initial viewport coordinate system (and therefore the initial user coordinate system) has its origin at the top/left of the viewport, with the positive x-axis pointing towards the right, the positive y-axis pointing down, and text rendered with an "upright" orientation, which means glyphs are oriented such that Roman characters and full-size ideographic characters for Asian scripts have the top edge of the corresponding glyphs oriented upwards and the right edge of the corresponding glyphs oriented to the right.

If the SVG implementation is part of a user agent which supports styling XML documents using CSS 2.1 compatible px units, then the SVG user agent should get its initial value for the size of a px unit in real world units to match the value used for other XML styling operations; otherwise, if the user agent can determine the size of a px unit from its environment, it should use that value; otherwise, it should choose an appropriate size for one px unit. In all cases, the size of a px must be in conformance with the rules described in CSS 2.1 ([CSS21], section 4.3.2).

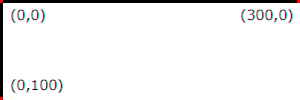

Example InitialCoords below shows that the initial coordinate system has the origin at the top/left with the x-axis pointing to the right and the y-axis pointing down. The initial user coordinate system has one user unit equal to the parent (implicit or explicit) user agent's "pixel".

7.4. Coordinate system transformations

A new user space (i.e., a new current coordinate system) can be established by specifying transformations in the form of a ‘transform’ property on a container element or graphics element or a ‘viewBox’ attribute on an ‘svg’, ‘symbol’, ‘marker’, ‘pattern’ and the ‘view’ element. The ‘transform’ property and ‘viewBox’ attribute transform user space coordinates and lengths on sibling attributes on the given element (see effect of the ‘transform’ attribute on sibling attributes and effect of the ‘viewBox’ attribute on sibling attributes) and all of its descendants. Transformations can be nested, in which case the effect of the transformations are cumulative.

The section "effect of the transform attribute on sibling attributes" has been removed since we now reference the ‘transform’ property, but we probably should still include a similar section on how the property affects attributes on the element.

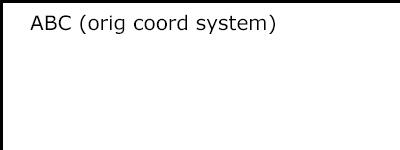

Example OrigCoordSys below shows a document without transformations. The text string is specified in the initial coordinate system.

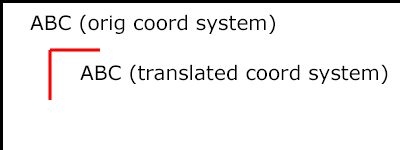

Example NewCoordSys establishes a new user coordinate system by specifying transform="translate(50,50)" on the third ‘g’ element below. The new user coordinate system has its origin at location (50,50) in the original coordinate system. The result of this transformation is that the coordinate (30,30) in the new user coordinate system gets mapped to coordinate (80,80) in the original coordinate system (i.e., the coordinates have been translated by 50 units in X and 50 units in Y).

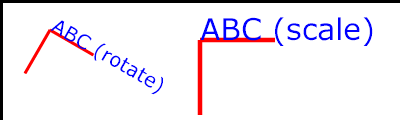

Example RotateScale illustrates simple rotate and scale transformations. The example defines two new coordinate systems:

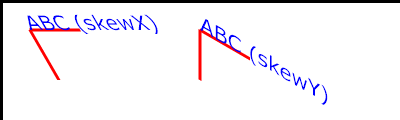

Example Skew defines two coordinate systems which are skewed relative to the origin coordinate system.

7.5. Nested transformations

Transformations can be nested to any level. The effect of nested transformations is to post-multiply (i.e., concatenate) the subsequent transformation matrices onto previously defined transformations:

For each given element, the accumulation of all transformations that have been defined on the given element and all of its ancestors up to and including the element that established the current viewport (usually, the ‘svg’ element which is the most immediate ancestor to the given element) is called the current transformation matrix or CTM. The CTM thus represents the mapping of current user coordinates to viewport coordinates:

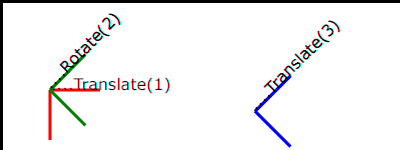

In the example above, the CTM within the third nested transformation (i.e., the transform="translate(130,160)") consists of the concatenation of the three transformations, as follows:

7.6. The ‘transform’ property

Name:	transform
Animatable:	yes

Do we need this blue box, and if so, should we expand it to include all of the property definition information? Some sections (such as for ‘color’) do not have the blue box. Others, like the one for ‘white-space’, have all the information from the CSS specification it comes from. Regardless, I think we don't need to mention whether the property is animatable since all properties are animatable.

The term <transform-list> used by this specification is equivalent to a list of <transform-functions>, the value of the ‘transform’ property.

7.7. The ‘viewBox’ attribute

The lacuna value for viewBox is not yet defined. Should we have an explicit 'none' keyword like in SVG Tiny 1.2?

It is often desirable to specify that a given set of graphics stretch to fit a particular container element. The ‘viewBox’ attribute provides this capability.

All elements that establish a new viewport (see elements that establish viewports), plus the ‘marker’, ‘pattern’ and ‘view’ elements have attribute ‘viewBox’. The value of the ‘viewBox’ attribute is a list of four numbers <min-x>, <min-y>, <width> and <height>, separated by whitespace and/or a comma, which specify a rectangle in user space which should be mapped to the bounds of the viewport established by the given element, taking into account attribute ‘preserveAspectRatio’. If specified, an additional transformation is applied to all descendants of the given element to achieve the specified effect.

A negative value for <width> or <height> is an error (see Error processing). A value of zero disables rendering of the element.

Proposal: disable rendering both for zero and negative width/height values inside the viewBox, but don't make it an error.

Example ViewBox illustrates the use of the ‘viewBox’ attribute on the outermost svg element to specify that the SVG content should stretch to fit bounds of the viewport.

The effect of the ‘viewBox’ attribute is that the user agent automatically supplies the appropriate transformation matrix to map the specified rectangle in user space to the bounds of a designated region (often, the viewport). To achieve the effect of the example on the left, with viewport dimensions of 300 by 200 pixels, the user agent needs to automatically insert a transformation which scales both X and Y by 0.2. The effect is equivalent to having a viewport of size 300px by 200px and the following supplemental transformation in the document, as follows:

To achieve the effect of the example on the right, with viewport dimensions of 150 by 200 pixels, the user agent needs to automatically insert a transformation which scales X by 0.1 and Y by 0.2. The effect is equivalent to having a viewport of size 150px by 200px and the following supplemental transformation in the document, as follows:

(Note: in some cases the user agent will need to supply a translate transformation in addition to a scale transformation. For example, on an outermost svg element, a translate transformation will be needed if the ‘viewBox’ attributes specifies values other than zero for <min-x> or <min-y>.)

Unlike the ‘transform’ property (see effect of the ‘transform’ attribute on sibling attributes), the automatic transformation that is created due to a ‘viewBox’ does not affect the ‘x’, ‘y’, ‘width’ and ‘height’ attributes (or in the case of the ‘marker’ element, the ‘markerWidth’ and ‘markerHeight’ attributes) on the element with the ‘viewBox’ attribute. Thus, in the example above which shows an ‘svg’ element which has attributes ‘width’, ‘height’ and ‘viewBox’, the ‘width’ and ‘height’ attributes represent values in the coordinate system that exists before the ‘viewBox’ transformation is applied. On the other hand, like the ‘transform’ property, it does establish a new coordinate system for all other attributes and for descendant elements.

Link to the "effect of the 'transform' attribute on sibling attributes" in the above paragraph needs to be update.

7.8. The ‘preserveAspectRatio’ attribute

In some cases, typically when using the ‘viewBox’ attribute, it is desirable that the graphics stretch to fit non-uniformly to take up the entire viewport. In other cases, it is desirable that uniform scaling be used for the purposes of preserving the aspect ratio of the graphics.

Attribute preserveAspectRatio="[defer] <align> [<meetOrSlice>]", which is available for all elements that establish a new viewport (see elements that establish viewports), plus the ‘image’, ‘marker’, ‘pattern’ and ‘view’ elements, indicates whether or not to force uniform scaling.

Is 'defer' supported in enough UAs and is it a compelling enough use-case to warrant it being kept?

For ‘image’ elements, ‘preserveAspectRatio’ indicates how referenced images should be fitted with respect to the reference rectangle and whether the aspect ratio of the referenced image should be preserved with respect to the current user coordinate system.

If the value of ‘preserveAspectRatio’ on an ‘image’ element starts with 'defer' then the value of the ‘preserveAspectRatio’ attribute on the referenced content if present should be used. If the referenced content lacks a value for ‘preserveAspectRatio’ then the ‘preserveAspectRatio’ attribute should be processed as normal (ignoring 'defer'). For ‘preserveAspectRatio’ on all other elements the 'defer' portion of the attribute is ignored.

The <align> parameter indicates whether to force uniform scaling and, if so, the alignment method to use in case the aspect ratio of the ‘viewBox’ doesn't match the aspect ratio of the viewport. The <align> parameter must be one of the following strings:

The <meetOrSlice> parameter is optional and, if provided, is separated from the <align> value by one or more spaces and then must be one of the following strings:

<svg width="450px" height="300px"
     xmlns="http://www.w3.org/2000/svg"
     xmlns:xlink="http://www.w3.org/1999/xlink">
  <desc>Example PreserveAspectRatio - illustrates preserveAspectRatio attribute</desc>
  <defs>
	<g id="smile">
<rect x='.5' y='.5' width='29' height='39' fill='black' stroke='red'/>
<g transform='translate(0, 5)'>
<circle cx='15' cy='15' r='10' fill='yellow'/>
<circle cx='12' cy='12' r='1.5' fill='black'/>
<circle cx='17' cy='12' r='1.5' fill='black'/>
<path d='M 10 19 A 8 8 0 0 0 20 19' stroke='black' stroke-width='2'/>
</g>
</g>
</defs>
  <rect x="1" y="1" width="448" height="298"
        fill="none" stroke="blue"/>
  <g font-size="9">
    <text x="10" y="30">SVG to fit</text>
    <g transform="translate(20,40)"><use xlink:href="#smile" /></g>
    <text x="10" y="110">Viewport 1</text>
    <g transform="translate(10,120)"><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;</g>
    <text x="10" y="180">Viewport 2</text>
    <g transform="translate(20,190)"><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;</g>

    <g id="meet-group-1" transform="translate(100, 60)">
      <text x="0" y="-30">--------------- meet ---------------</text>
      <g><text y="-10">xMin*</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin meet" viewBox="0 0 30 40"
             width="50" height="30"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(70,0)"><text y="-10">xMid*</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid meet" viewBox="0 0 30 40"
             width="50" height="30"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(0,70)"><text y="-10">xMax*</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax meet" viewBox="0 0 30 40"
             width="50" height="30"><use xlink:href="#smile" /></svg></g>
    </g>

    <g id="meet-group-2" transform="translate(250, 60)">
      <text x="0" y="-30">---------- meet ----------</text>
      <g><text y="-10">*YMin</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin meet" viewBox="0 0 30 40"
             width="30" height="60"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(50, 0)"><text y="-10">*YMid</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid meet" viewBox="0 0 30 40"
             width="30" height="60"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(100, 0)"><text y="-10">*YMax</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax meet" viewBox="0 0 30 40"
             width="30" height="60"><use xlink:href="#smile" /></svg></g>
    </g>

    <g id="slice-group-1" transform="translate(100, 220)">
      <text x="0" y="-30">---------- slice ----------</text>
      <g><text y="-10">xMin*</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin slice" viewBox="0 0 30 40"
             width="30" height="60"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(50,0)"><text y="-10">xMid*</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid slice" viewBox="0 0 30 40"
             width="30" height="60"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(100,0)"><text y="-10">xMax*</text><rect x='.5' y='.5' width='29' height='59' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax slice" viewBox="0 0 30 40"
             width="30" height="60"><use xlink:href="#smile" /></svg></g>
    </g>

    <g id="slice-group-2" transform="translate(250, 220)">
      <text x="0" y="-30">--------------- slice ---------------</text>
      <g><text y="-10">*YMin</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMinYMin slice" viewBox="0 0 30 40"
             width="50" height="30"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(70,0)"><text y="-10">*YMid</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMidYMid slice" viewBox="0 0 30 40"
             width="50" height="30"><use xlink:href="#smile" /></svg></g>
      <g transform="translate(140,0)"><text y="-10">*YMax</text><rect x='.5' y='.5' width='49' height='29' fill='none' stroke='blue'/>;
        <svg preserveAspectRatio="xMaxYMax slice" viewBox="0 0 30 40"
             width="50" height="30"><use xlink:href="#smile" /></svg></g>
    </g>
  </g>
</svg>

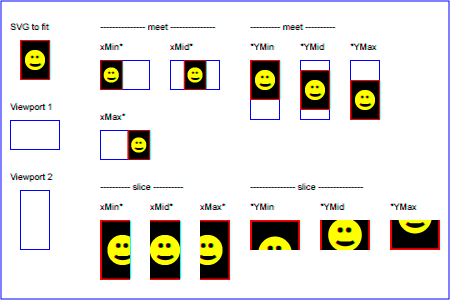

Example PreserveAspectRatio

View this example as SVG (SVG-enabled browsers only)

7.9. Establishing a new viewport

At any point in an SVG drawing, you can establish a new viewport into which all contained graphics is drawn by including an ‘svg’ element inside SVG content. By establishing a new viewport, you also implicitly establish a new viewport coordinate system, a new user coordinate system, and, potentially, a new clipping path (see the definition of the ‘overflow’ property). Additionally, there is a new meaning for percentage units defined to be relative to the current viewport since a new viewport has been established (see Units).

The bounds of the new viewport are defined by the ‘x’, ‘y’, ‘width’ and ‘height’ attributes on the element establishing the new viewport, such as an ‘svg’ element. Both the new viewport coordinate system and the new user coordinate system have their origins at (‘x’, ‘y’), where ‘x’ and ‘y’ represent the value of the corresponding attributes on the element establishing the viewport. The orientation of the new viewport coordinate system and the new user coordinate system correspond to the orientation of the current user coordinate system for the element establishing the viewport. A single unit in the new viewport coordinate system and the new user coordinate system are the same size as a single unit in the current user coordinate system for the element establishing the viewport.

Whether a new viewport also establishes a new additional clipping path is determined by the value of the ‘overflow’ property on the element that establishes the new viewport. If a clipping path is created to correspond to the new viewport, the clipping path's geometry is determined by the value of the ‘clip’ property. Also, see Clip to viewport vs. clip to ‘viewBox’.

7.10. Units

All coordinates and lengths in SVG can be specified with or without a unit identifier.

This is misleading – path data for example takes values that look like coordinates and lengths yet does not allow units.

When a coordinate or length value is a number without a unit identifier (e.g., "25"), then the given coordinate or length is assumed to be in user units (i.e., a value in the current user coordinate system). For example:

Alternatively, a coordinate or length value can be expressed as a number followed by a unit identifier (e.g., "25cm" or "15em"). (Note that CSS defined properties used in a CSS style sheet or the ‘style’ attribute require units for non-zero lengths, see SVG's styling properties.) The list of unit identifiers in SVG matches the list of unit identifiers in CSS: em, ex, px, pt, pc, cm, mm and in. The <length> type can also have a percentage unit identifier. The following describes how the various unit identifiers are processed:

Note that use of px units or any other absolute unit identifiers can cause inconsistent visual results on different viewing environments since the size of "1px" may map to a different number of user units on different systems; thus, absolute units identifiers are only recommended for the ‘width’ and the ‘height’ on outermost svg elements and situations where the content contains no transformations and it is desirable to specify values relative to the device pixel grid or to a particular real world unit size.

That's wrong. 1px always corresponds to one user unit, and the "absolute" units must be interpreted as CSS says to, i.e. as fixed multiples of the CSS px, and not anything to do with the display's resolution. The recommendation to use the absolute units (apart from px) only for ‘width’ and ‘height’ on root ‘svg’ is a good one, however. Defining the size of a document in mm and then using mm units for shapes within it is going to give counterintuitive results, since they'll be converted to user units to resolve against the view box.

Example Units below illustrates some of the processing rules for different types of units.

The three rectangles on the left demonstrate the use of one of the absolute unit identifiers, the "in" unit (inch). The reference image above was generated on a 96dpi system (i.e., 1 inch = 96 pixels). Therefore, the topmost rectangle, which is specified in inches, is exactly the same size as the middle rectangle, which is specified in user units such that there are 96 user units for each corresponding inch in the topmost rectangle. (Note: on systems with different screen resolutions, the top and middle rectangles will likely be rendered at different sizes.) The bottom rectangle of the group illustrates what happens when values specified in inches are scaled.

The example needs to be changed in light of the issue above about absolute units.

The three rectangles in the middle demonstrate the use of one of the relative unit identifiers, the "em" unit. Because the ‘font-size’ property has been set to 150 on the outermost ‘g’ element, each "em" unit is equal to 150 user units. The topmost rectangle, which is specified in "em" units, is exactly the same size as the middle rectangle, which is specified in user units such that there are 150 user units for each corresponding "em" unit in the topmost rectangle. The bottom rectangle of the group illustrates what happens when values specified in "em" units are scaled.

The three rectangles on the right demonstrate the use of percentages. Note that the width and height of the viewport in the user coordinate system for the viewport element (in this case, the outermost svg element) are 4000 and 2000, respectively, because processing the ‘viewBox’ attribute results in a transformed user coordinate system. The topmost rectangle, which is specified in percentage units, is exactly the same size as the middle rectangle, which is specified in equivalent user units. In particular, note that the ‘stroke-width’ property in the middle rectangle is set to 1% of the

sqrt((actual-width)**2 +
(actual-height)**2) / sqrt(2)

, which in this case is .01*sqrt(4000*4000+2000*2000)/sqrt(2), or 31.62. The bottom rectangle of the group illustrates what happens when values specified in percentage units are scaled.

7.11. Bounding boxes

bounding box: The bounding box (or "bbox") of an element is the tightest fitting rectangle aligned with the axes of that element's user coordinate system that entirely encloses it and its descendants.

Three kinds of bounding boxes can be computed for an element:

The object bounding box is the bounding box that contains only an element's geometric shape. For basic shapes, this is the area that is filled. Unless otherwise specified, this is what is meant by the unqualified term "bounding box".
The stroke bounding box is the bounding box that contains an element's geometric shape and its stroke shape.
The decorated bounding box is the bounding box that contains an element's geometric shape, its stroke shape and its markers.

Note that the values of the ‘opacity’, ‘visibility’, ‘fill’, ‘fill-opacity’, ‘fill-rule’, ‘stroke-dasharray’ and ‘stroke-dashoffset’ properties on an element have no effect on the bounding box of an element.

For curved shapes, the bounding box must enclose all portions of the shape along the edge, not just end points. Note that control points for a curve which are not defined as lying along the line of the resulting curve (e.g., the second coordinate pair of a Cubic Bézier command) must not contribute to the dimensions of the bounding box (though those points may fall within the area of the bounding box, if they lie within the shape itself, or along or close to the curve). For example, control points of a curve that are at a further distance than the curve edge, from the non-enclosing side of the curve edge, must be excluded from the bounding box.

Image showing the object bounding box of a quadratic Bézier curve.

The path 'M20,50 L35,100 H120 V50 Q70,10 20,50' is shown in light blue. On the left, a correct object bounding box of the path is shown. Note that it does not include the top-most control point of the curve, but it does include all of the blue shape, even the parts that lie outside of the convex hull of the control points.

Even if an element is not in the rendering tree – due to it being 'display: none', within a ‘defs’ element, not usually rendered like a ‘symbol’ element or not currently present in the document tree – it still has a bounding box. A call to getBBox on the element will return the same rectangle as if the element were rendered. However, an element that is not in the rendering tree does not contribute to the bounding box of any ancestor element.

The following example defines a number of elements. The expected object bounding box for each element with an ID is shown below.

<svg xmlns="http://www.w3.org/2000/svg"
     xmlns:xlink="http://www.w3.org/1999/xlink">

  <title>Bounding Box Calculation</title>
  <desc>Examples of elements with different bounding box results based on context.</desc>

  <defs id="defs-1">
     <rect id="rect-1" x="20" y="20" width="40" height="40" fill="blue" />
  </defs>

  <g id="group-1">
    <use id="use-1" xlink:href="#rect-1" x="10" y="10" />

    <g id="group-2" display="none">
      <rect id="rect-2" x="10" y="10" width="100" height="100" fill="red" />
    </g>
  </g>
</svg>

Element ID	Bounding Box Result
"`defs-1`"	{0, 0, 0, 0}
"`rect-1`"	{20, 20, 40, 40}
"`group-1`"	{30, 30, 40, 40}
"`use-1`"	{30, 30, 40, 40}
"`group-2`"	{10, 10, 100, 100}
"`rect-2`"	{10, 10, 100, 100}

For text content elements, for the purposes of the bounding box calculation, each glyph must be treated as a separate graphics element. he calculations must assume that all glyphs occupy the full glyph cell. For example, for horizontal text, the calculations must assume that each glyph extends vertically to the full ascent and descent values for the font. An exception to this is when the ‘extent’ attribute has been specified on the ‘text’ element, in which case the element's content area is its bounding box.

Because declarative or scripted animation can change the shape, size, and position of an element, the bounding box is mutable. Thus, the bounding box for an element shall reflect the current values for the element at the snapshot in time at which the bounding box is requested, whether through a script call or as part of a declarative or linking syntax.

An element which has zero width, zero height, or both (such as a vertical or horizontal line, or a ‘rect’ element with an unspecified ‘width’ or ‘height’) still has a bounding box, with a positive value for the positive dimension, or with '0' for both the width and height if no positive dimension is specified. Similarly, subpaths segments of a ‘path’ element with zero width and height must be included in that element's geometry for the sake of the bounding box.

An element with no position specified (such as a ‘path’ element with a value of (none) for the ‘d’ attribute) is positioned at the point (0,0) for the purposes of calculating a bounding box.

Note that elements whose DOM object does not derive from SVGGraphicsElement (such as gradient elements) do not have a bounding box, and thus have no interface to request a bounding box.

Elements in the rendering tree which reference unresolved resources shall still have a bounding box, defined by the position and dimensions specified in their attributes, or by the lacuna value for those attributes if no values are supplied. For example, the element <use xlink:href="#bad" x="10" y="10"/> would have a bounding box with an x and y of 10 and a width and height of 0.

The following algorithm defines how to compute a bounding box for a given element. The inputs to the algorithm are:

element, the element we are computing a bounding box for;
space, a coordinate space in which the bounding box will be computed;
fill, a boolean indicating whether the bounding box includes the geometry of the element and its descendants;
stroke, a boolean indicating whether the bounding box includes the stroke of the element and its descendants;
markers, a boolean indicating whether the bounding box includes the markers of the element and its descendants; and
clipped, a boolean indicating whether the bounding box is affected by any clipping paths applied to the element and its descendants.

Need to define what the union of rectangles with no area means.

The algorithm to compute the bounding box is as follows, depending on the type of element:

a shape

a text content element

an ‘a’ element within a text content element

Let box be a rectangle initialized to (0, 0, 0, 0).
Let fill-shape be the equivalent path of element if it is a shape, or a shape that includes each of the glyph cells corresponding to the text within the elements otherwise.
Need to update this take into account ‘extent’ on ‘text’.
If fill is true, then set box to the tightest rectangle in the coordinate system space that contains fill-shape.
The values of the ‘fill’, ‘fill-opacity’ and ‘fill-rule’ properties do not affect fill-shape.
If stroke is true and the element's ‘stroke’ is anything other than none, then set box to be the union of box and the tightest rectangle in coordinate system space that contains the stroke shape of the element, with the assumption that the element has no dash pattern.
The values of the ‘stroke-opacity’, ‘stroke-dasharray’ and ‘stroke-dashoffset’ do not affect the calculation of the stroke shape.
If markers is true, then for each marker marker rendered on the element:
1. For each descendant graphics element child of the ‘marker’ element that defines marker's content:
  1. If child has an ancestor element within the ‘marker’ that is 'display: none', has a failing conditional processing attribute, or is not an ‘a’, ‘g’, ‘svg’ or ‘switch’ element, then continue to the next descendant graphics element.
  2. Otherwise, set box to be the union of box and the result of invoking the algorithm to compute a bounding box with child as the element, space as the target coordinate space, true for fill, stroke and markers, and clipped for clipped.
    Need to determine whether 'display: none' on the ‘marker’ element itself has any effect here.
If clipped is true and the value of ‘clip-path’ on element is not none, then set box to be the tighest rectangle in coordinate system space that contains the intersection of box and the clipping path.
Return box.

a container element

‘use’

Let box be a rectangle initialized to (0, 0, 0, 0).
Let parent be the container element if it is one, or the root of the ‘use’ element's shadow tree otherwise.
For each descendant graphics element child of parent:
1. If child has an ancestor element within parent that is 'display: none', has a failing conditional processing attribute, or is not an ‘a’, ‘g’, ‘svg’ or ‘switch’ element, then continue to the next descendant graphics element.
2. Otherwise, set box to be the union of box and the result of invoking the algorithm to compute a bounding box with child as the element and the same values for space, fill, stroke, markers and clipped as the corresponding algorithm input values.
Return box.

‘canvas’

‘foreignObject’

‘iframe’

‘image’

‘video’

Return the tightest rectangle in coordinate space space that contains the rectangle defined by the ‘x’, ‘y’, ‘width’ and ‘height’ attributes of the element.
The fill, stroke and markers input arguments to this algorithm do not affect the bounding box returned for these elements.

The object bounding box, stroke bounding box or decorated bounding box of an element is the result of invoking the bounding box computation algorithm above with the following arguments: element is the element itself; space is the element's user coordinate system; fill is true; stroke is true if we are computing the stroke bounding box or decorated bounding box, and false othwerise; markers is true if we are computing the decorated bounding box, and false otherwise; and clipped is false.

7.12. Object bounding box units

The following elements offer the option of expressing coordinate values and lengths as fractions (and, in some cases, percentages) of the bounding box, by setting a specified attribute to 'objectBoundingBox' on the given element:

Need to invoke the bounding box computation algorithm from the previous section with fill = true and the other options false.

Element	Attribute	Effect
‘linearGradient’	‘gradientUnits’	Indicates that the attributes which specify the gradient vector (‘x1’, ‘y1’, ‘x2’, ‘y2’) represent fractions or percentages of the bounding box of the element to which the gradient is applied.
‘radialGradient’	‘gradientUnits’	Indicates that the attributes which specify the center (‘cx’, ‘cy’), the radius (‘r’) and focus (‘fx’, ‘fy’) represent fractions or percentages of the bounding box of the element to which the gradient is applied.
‘pattern’	‘patternUnits’	Indicates that the attributes which define how to tile the pattern (‘x’, ‘y’, ‘width’, ‘height’) are established using the bounding box of the element to which the pattern is applied.
‘pattern’	‘patternContentUnits’	Indicates that the user coordinate system for the contents of the pattern is established using the bounding box of the element to which the pattern is applied.
‘clipPath’	‘clipPathUnits’	Indicates that the user coordinate system for the contents of the ‘clipPath’ element is established using the bounding box of the element to which the clipping path is applied.
‘mask’	‘maskUnits’	Indicates that the attributes which define the masking region (‘x’, ‘y’, ‘width’, ‘height’) is established using the bounding box of the element to which the mask is applied.
‘mask’	‘maskContentUnits’	Indicates that the user coordinate system for the contents of the ‘mask’ element are established using the bounding box of the element to which the mask is applied.
‘filter’	‘filterUnits’	Indicates that the attributes which define the filter effects region (‘x’, ‘y’, ‘width’, ‘height’) represent fractions or percentages of the bounding box of the element to which the filter is applied.
‘filter’	‘primitiveUnits’	Indicates that the various length values within the filter primitives represent fractions or percentages of the bounding box of the element to which the filter is applied.

When keyword objectBoundingBox is used, then the effect is as if a supplemental transformation matrix were inserted into the list of nested transformation matrices to create a new user coordinate system.

First, the (minx,miny) and (maxx,maxy) coordinates are determined for the applicable element and all of its descendants. The values minx, miny, maxx and maxy are determined by computing the maximum extent of the shape of the element in X and Y with respect to the user coordinate system for the applicable element. The bounding box is the tightest fitting rectangle aligned with the axes of the applicable element's user coordinate system that entirely encloses the applicable element and its descendants. The bounding box is computed exclusive of any values for clipping, masking, filter effects, opacity and stroke-width. For curved shapes, the bounding box encloses all portions of the shape, not just end points. For ‘text’ elements, for the purposes of the bounding box calculation, each glyph is treated as a separate graphics element. The calculations assume that all glyphs occupy the full glyph cell. For example, for horizontal text, the calculations assume that each glyph extends vertically to the full ascent and descent values for the font.

Then, coordinate (0,0) in the new user coordinate system is mapped to the (minx,miny) corner of the tight bounding box within the user coordinate system of the applicable element and coordinate (1,1) in the new user coordinate system is mapped to the (maxx,maxy) corner of the tight bounding box of the applicable element. In most situations, the following transformation matrix produces the correct effect:

When percentages are used with attributes that define the gradient vector, the pattern tile, the filter region or the masking region, a percentage represents the same value as the corresponding decimal value (e.g., 50% means the same as 0.5). If percentages are used within the content of a ‘pattern’, ‘clipPath’, ‘mask’ or ‘filter’ element, these values are treated according to the processing rules for percentages as defined in Units.

Any numeric value can be specified for values expressed as a fraction or percentage of object bounding box units. In particular, fractions less are zero or greater than one and percentages less than 0% or greater than 100% can be specified.

Keyword objectBoundingBox should not be used when the geometry of the applicable element has no width or no height, such as the case of a horizontal or vertical line, even when the line has actual thickness when viewed due to having a non-zero stroke width since stroke width is ignored for bounding box calculations. When the geometry of the applicable element has no width or height and objectBoundingBox is specified, then the given effect (e.g., a gradient or a filter) will be ignored.

7.13. Intrinsic sizing properties of the viewport of SVG content

SVG needs to specify how to calculate some intrinsic sizing properties to enable inclusion within other languages. The intrinsic width and height of the viewport of SVG content must be determined from the ‘width’ and ‘height’ presentation attributes. If either of these are not specified, a value of 'auto' must be assumed. Specifically, percentage values do not provide an intrinsic width or height..

The intrinsic aspect ratio of the viewport of SVG content is necessary for example, when including SVG from an ‘object’ element in HTML styled with CSS. It is possible (indeed, common) for an SVG graphic to have an intrinsic aspect ratio but not to have an intrinsic width or height. The intrinsic aspect ratio must be calculated based upon the following rules:

In this example the intrinsic aspect ratio of the viewport is 2:1. The intrinsic width is 10cm and the intrinsic height is 5cm.

In this example the intrinsic aspect ratio of the outermost viewport is 1:1. An aspect ratio calculation in this case allows embedding in an object within a containing block that is only constrained in one direction.

Add more examples for the new auto value? E.g some of the examples provided by David Vest.

7.14. DOM interfaces

7.14.1. Interface SVGPointList

SVGPointList has the same attributes and methods as other SVGxxxList interfaces. Implementers may consider using a single base class to implement the various SVGxxxList interfaces.

7.14.2. Interface SVGTransform

SVGTransform is the interface for one of the component transformations within an SVGTransformList; thus, an SVGTransform object corresponds to a single component (e.g., 'scale(…)' or 'matrix(…)') within a ‘transform’ attribute specification.

7.14.3. Interface SVGTransformList

This section needs to be updated to describe how it reflects the value of the ‘transform’ property, or just defer to css3-tranforms if everything is defined there.

The SVGTransformList and SVGTransform interfaces correspond to the various attributes which specify a set of transformations, such as the ‘transform’ property which is available for many of SVG's elements.

SVGTransformList has the same attributes and methods as other SVGxxxList interfaces. Implementers may consider using a single base class to implement the various SVGxxxList interfaces.

An SVGTransformList object can be designated as read only, which means that attempts to modify the object will result in an exception being thrown, as described below.

7.14.4. Interface SVGAnimatedTransformList

7.14.5. Interface SVGPreserveAspectRatio

An SVGPreserveAspectRatio object can be designated as read only, which means that attempts to modify the object will result in an exception being thrown, as described below.

Chapter 7: Coordinate Systems, Transformations and Units

Contents

7.1. Introduction
