table
elementcaption
element,
followed by zero or more colgroup
elements, followed
optionally by a thead
element, followed optionally by
a tfoot
element, followed by either zero or more
tbody
elements or one or more tr
elements, followed optionally by a tfoot
element (but
there can only be one tfoot
element child in
total).border
interface HTMLTableElement : HTMLElement { attribute HTMLTableCaptionElement? caption; HTMLElement createCaption(); void deleteCaption(); attribute HTMLTableSectionElement? tHead; HTMLElement createTHead(); void deleteTHead(); attribute HTMLTableSectionElement? tFoot; HTMLElement createTFoot(); void deleteTFoot(); readonly attribute HTMLCollection tBodies; HTMLElement createTBody(); readonly attribute HTMLCollection rows; HTMLElement insertRow(optional long index); void deleteRow(long index); attribute DOMString border; };
The table
element represents data with
more than one dimension, in the form of a table.
The table
element takes part in
the table model. Tables have rows, columns, and
cells given by their descendants. The rows and columns form a grid;
a table's cells must completely cover that grid without overlap.
Precise rules for determining whether this conformance requirement is met are described in the description of the table model.
Authors are encouraged to provide information describing how to interpret complex tables. Guidance on how to provide such information is given below.
If a table
element has a (non-conforming) summary
attribute, and the user
agent has not classified the table as a layout table, the user agent
may report the contents of that attribute to the user.
Tables should not be used as layout aids. Historically, many Web authors have tables in HTML as a way to control their page layout making it difficult to extract tabular data from such documents. In particular, users of accessibility tools, like screen readers, are likely to find it very difficult to navigate pages with tables used for layout. If a table is to be used for layout it must be marked with the attribute role="presentation" for a user agent to properly represent the table to an assistive technology and to properly convey the intent of the author to tools that wish to extract tabular data from the document.
There are a variety of alternatives to using HTML tables for layout, primarily using CSS positioning and the CSS table model. [CSS]
The border
attribute may be specified on a table
element to
explicitly indicate that the table
element is not being
used for layout purposes. If specified, the attribute's value must
either be the empty string or the value "1
".
The attribute is used by certain user agents as an indication that
borders should be drawn around cells of the table.
Tables can be complicated to understand and navigate. To help users with this, user agents should clearly delineate cells in a table from each other, unless the user agent has classified the table as a layout table.
Authors and implementors are encouraged to consider using some of the table layout techniques described below to make tables easier to navigate for users.
User agents, especially those that do table analysis on arbitrary content, are encouraged to find heuristics to determine which tables actually contain data and which are merely being used for layout. This specification does not define a precise heuristic, but the following are suggested as possible indicators:
Feature | Indication |
---|---|
The use of the role attribute with the value presentation
| Probably a layout table |
The use of the border attribute with the non-conforming value 0
| Probably a layout table |
The use of the non-conforming cellspacing and cellpadding attributes with the value 0
| Probably a layout table |
The use of caption , thead , or th elements
| Probably a non-layout table |
The use of the headers and scope attributes
| Probably a non-layout table |
The use of the border attribute with a value other than 0
| Probably a non-layout table |
Explicit visible borders set using CSS | Probably a non-layout table |
The use of the summary attribute
| Not a good indicator (both layout and non-layout tables have historically been given this attribute) |
It is quite possible that the above suggestions are wrong. Implementors are urged to provide feedback elaborating on their experiences with trying to create a layout table detection heuristic.
caption
[ = value ]Returns the table's caption
element.
Can be set, to replace the caption
element. If the
new value is not a caption
element, throws a
HierarchyRequestError
exception.
createCaption
()Ensures the table has a caption
element, and returns it.
deleteCaption
()Ensures the table does not have a caption
element.
tHead
[ = value ]Returns the table's thead
element.
Can be set, to replace the thead
element. If the
new value is not a thead
element, throws a
HierarchyRequestError
exception.
createTHead
()Ensures the table has a thead
element, and returns it.
deleteTHead
()Ensures the table does not have a thead
element.
tFoot
[ = value ]Returns the table's tfoot
element.
Can be set, to replace the tfoot
element. If the
new value is not a tfoot
element, throws a
HierarchyRequestError
exception.
createTFoot
()Ensures the table has a tfoot
element, and returns it.
deleteTFoot
()Ensures the table does not have a tfoot
element.
tBodies
Returns an HTMLCollection
of the tbody
elements of the table.
createTBody
()Creates a tbody
element, inserts it into the table, and returns it.
rows
Returns an HTMLCollection
of the tr
elements of the table.
insertRow
(index)Creates a tr
element, along with a tbody
if required, inserts them into the table at the position given by the argument, and returns the tr
.
The position is relative to the rows in the table. The index −1 is equivalent to inserting at the end of the table.
If the given position is less than −1 or greater than the number of rows, throws an IndexSizeError
exception.
deleteRow
(index)Removes the tr
element with the given position in the table.
The position is relative to the rows in the table. The index −1 is equivalent to deleting the last row of the table.
If the given position is less than −1 or greater than the index of the last row, or if there are no rows, throws an IndexSizeError
exception.
The caption
IDL
attribute must return, on getting, the first caption
element child of the table
element, if any, or null
otherwise. On setting, if the new value is a caption
element, the first caption
element child of the
table
element, if any, must be removed, and the new
value must be inserted as the first node of the table
element. If the new value is not a caption
element,
then a HierarchyRequestError
DOM exception must be
thrown instead.
The createCaption()
method must return the first caption
element child of
the table
element, if any; otherwise a new
caption
element must be created, inserted as the first
node of the table
element, and then returned.
The deleteCaption()
method must remove the first caption
element child of
the table
element, if any.
The tHead
IDL
attribute must return, on getting, the first thead
element child of the table
element, if any, or null
otherwise. On setting, if the new value is a thead
element, the first thead
element child of the
table
element, if any, must be removed, and the new
value must be inserted immediately before the first element in the
table
element that is neither a caption
element nor a colgroup
element, if any, or at the end
of the table if there are no such elements. If the new value is not
a thead
element, then a
HierarchyRequestError
DOM exception must be thrown
instead.
The createTHead()
method must return the first thead
element child of the
table
element, if any; otherwise a new
thead
element must be created and inserted immediately
before the first element in the table
element that is
neither a caption
element nor a colgroup
element, if any, or at the end of the table if there are no such
elements, and then that new element must be returned.
The deleteTHead()
method must remove the first thead
element child of the
table
element, if any.
The tFoot
IDL
attribute must return, on getting, the first tfoot
element child of the table
element, if any, or null
otherwise. On setting, if the new value is a tfoot
element, the first tfoot
element child of the
table
element, if any, must be removed, and the new
value must be inserted immediately before the first element in the
table
element that is neither a caption
element, a colgroup
element, nor a thead
element, if any, or at the end of the table if there are no such
elements. If the new value is not a tfoot
element, then
a HierarchyRequestError
DOM exception must be thrown
instead.
The createTFoot()
method must return the first tfoot
element child of the
table
element, if any; otherwise a new
tfoot
element must be created and inserted immediately
before the first element in the table
element that is
neither a caption
element, a colgroup
element, nor a thead
element, if any, or at the end of
the table if there are no such elements, and then that new element
must be returned.
The deleteTFoot()
method must remove the first tfoot
element child of the
table
element, if any.
The tBodies
attribute must return an HTMLCollection
rooted at the
table
node, whose filter matches only
tbody
elements that are children of the
table
element.
The createTBody()
method must create a new tbody
element, insert it
immediately after the last tbody
element in the
table
element, if any, or at the end of the
table
element if the table
element has no
tbody
element children, and then must return the new
tbody
element.
The rows
attribute
must return an HTMLCollection
rooted at the
table
node, whose filter matches only tr
elements that are either children of the table
element,
or children of thead
, tbody
, or
tfoot
elements that are themselves children of the
table
element. The elements in the collection must be
ordered such that those elements whose parent is a
thead
are included first, in tree order, followed by
those elements whose parent is either a table
or
tbody
element, again in tree order, followed finally by
those elements whose parent is a tfoot
element, still
in tree order.
The behavior of the insertRow(index)
method depends on the state of
the table. When it is called, the method must act as required by the
first item in the following list of conditions that describes the
state of the table and the index argument:
rows
collection:IndexSizeError
exception.rows
collection has
zero elements in it, and the table
has no
tbody
elements in it:tbody
element, then
create a tr
element, then append the tr
element to the tbody
element, then append the
tbody
element to the table
element, and
finally return the tr
element.rows
collection has
zero elements in it:tr
element, append it to
the last tbody
element in the table, and return the
tr
element.rows
collection:tr
element, and append it
to the parent of the last tr
element in the rows
collection. Then, the newly
created tr
element must be returned.tr
element, insert it
immediately before the indexth tr
element in the rows
collection,
in the same parent, and finally must return the newly created
tr
element.When the deleteRow(index)
method is called, the user agent
must run the following steps:
If index is equal to −1, then
index must be set to the number if items in the
rows
collection, minus
one.
Now, if index is less than zero, or
greater than or equal to the number of elements in the rows
collection, the method must
instead throw an IndexSizeError
exception, and these
steps must be aborted.
Otherwise, the method must remove the indexth element in the rows
collection from its parent.
The border
IDL
attribute must reflect the content attribute of the
same name.
Here is an example of a table being used to mark up a Sudoku puzzle. Observe the lack of headers, which are not necessary in such a table.
<section> <style scoped> table { border-collapse: collapse; border: solid thick; } colgroup, tbody { border: solid medium; } td { border: solid thin; height: 1.4em; width: 1.4em; text-align: center; padding: 0; } </style> <h1>Today's Sudoku</h1> <table> <colgroup><col><col><col> <colgroup><col><col><col> <colgroup><col><col><col> <tbody> <tr> <td> 1 <td> <td> 3 <td> 6 <td> <td> 4 <td> 7 <td> <td> 9 <tr> <td> <td> 2 <td> <td> <td> 9 <td> <td> <td> 1 <td> <tr> <td> 7 <td> <td> <td> <td> <td> <td> <td> <td> 6 <tbody> <tr> <td> 2 <td> <td> 4 <td> <td> 3 <td> <td> 9 <td> <td> 8 <tr> <td> <td> <td> <td> <td> <td> <td> <td> <td> <tr> <td> 5 <td> <td> <td> 9 <td> <td> 7 <td> <td> <td> 1 <tbody> <tr> <td> 6 <td> <td> <td> <td> 5 <td> <td> <td> <td> 2 <tr> <td> <td> <td> <td> <td> 7 <td> <td> <td> <td> <tr> <td> 9 <td> <td> <td> 8 <td> <td> 2 <td> <td> <td> 5 </table> </section>
For tables that consist of more than just a grid of cells with headers in the first row and headers in the first column, and for any table in general where the reader might have difficulty understanding the content, authors should include explanatory information introducing the table. This information is useful for all users, but is especially useful for users who cannot see the table, e.g. users of screen readers.
Such explanatory information should introduce the purpose of the table, outline its basic cell structure, highlight any trends or patterns, and generally teach the user how to use the table.
For instance, the following table:
Negative | Characteristic | Positive |
---|---|---|
Sad | Mood | Happy |
Failing | Grade | Passing |
...might benefit from a description explaining the way the table is laid out, something like "Characteristics are given in the second column, with the negative side in the left column and the positive side in the right column".
There are a variety of ways to include this information, such as:
<p>In the following table, characteristics are given in the second column, with the negative side in the left column and the positive side in the right column.</p> <table> <caption>Characteristics with positive and negative sides</caption> <thead> <tr> <th id="n"> Negative <th> Characteristic <th> Positive <tbody> <tr> <td headers="n r1"> Sad <th id="r1"> Mood <td> Happy <tr> <td headers="n r2"> Failing <th id="r2"> Grade <td> Passing </table>
caption
<table> <caption> <strong>Characteristics with positive and negative sides.</strong> <p>Characteristics are given in the second column, with the negative side in the left column and the positive side in the right column.</p> </caption> <thead> <tr> <th id="n"> Negative <th> Characteristic <th> Positive <tbody> <tr> <td headers="n r1"> Sad <th id="r1"> Mood <td> Happy <tr> <td headers="n r2"> Failing <th id="r2"> Grade <td> Passing </table>
caption
, in a details
element<table> <caption> <strong>Characteristics with positive and negative sides.</strong> <details> <summary>Help</summary> <p>Characteristics are given in the second column, with the negative side in the left column and the positive side in the right column.</p> </details> </caption> <thead> <tr> <th id="n"> Negative <th> Characteristic <th> Positive <tbody> <tr> <td headers="n r1"> Sad <th id="r1"> Mood <td> Happy <tr> <td headers="n r2"> Failing <th id="r2"> Grade <td> Passing </table>
figure
<figure> <figcaption>Characteristics with positive and negative sides</figcaption> <p>Characteristics are given in the second column, with the negative side in the left column and the positive side in the right column.</p> <table> <thead> <tr> <th id="n"> Negative <th> Characteristic <th> Positive <tbody> <tr> <td headers="n r1"> Sad <th id="r1"> Mood <td> Happy <tr> <td headers="n r2"> Failing <th id="r2"> Grade <td> Passing </table> </figure>
figure
's figcaption
<figure> <figcaption> <strong>Characteristics with positive and negative sides</strong> <p>Characteristics are given in the second column, with the negative side in the left column and the positive side in the right column.</p> </figcaption> <table> <thead> <tr> <th id="n"> Negative <th> Characteristic <th> Positive <tbody> <tr> <td headers="n r1"> Sad <th id="r1"> Mood <td> Happy <tr> <td headers="n r2"> Failing <th id="r2"> Grade <td> Passing </table> </figure>
Authors may also use other techniques, or combinations of the above techniques, as appropriate.
The best option, of course, rather than writing a description explaining the way the table is laid out, is to adjust the table such that no explanation is needed.
In the case of the table used in the examples above, a simple
rearrangement of the table so that the headers are on the top and
left sides removes the need for an explanation as well as removing
the need for the use of headers
attributes:
<table> <caption>Characteristics with positive and negative sides</caption> <thead> <tr> <th> Characteristic <th> Negative <th> Positive <tbody> <tr> <th> Mood <td> Sad <td> Happy <tr> <th> Grade <td> Failing <td> Passing </table>
Good table layout is key to making tables more readable and usable.
In visual media, providing column and row borders and alternating row backgrounds can be very effective to make complicated tables more readable.
For tables with large volumes of numeric content, using monospaced fonts can help users see patterns, especially in situations where a user agent does not render the borders. (Unfortunately, for historical reasons, not rendering borders on tables is a common default.)
In speech media, table cells can be distinguished by reporting the corresponding headers before reading the cell's contents, and by allowing users to navigate the table in a grid fashion, rather than serializing the entire contents of the table in source order.
Authors are encouraged to use CSS to achieve these effects.
User agents are encouraged to render tables using these techniques whenever the page does not use CSS and the table is not classified as a layout table.
caption
elementtable
element.table
elements.interface HTMLTableCaptionElement : HTMLElement {};
The caption
element represents the title of the
table
that is its parent, if it has a parent and that
is a table
element.
The caption
element takes part in the table
model.
When a table
element is the only content in a
figure
element other than the figcaption
,
the caption
element should be omitted in favor of the
figcaption
.
A caption can introduce context for a table, making it significantly easier to understand.
Consider, for instance, the following table:
1 | 2 | 3 | 4 | 5 | 6 | |
---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | 7 |
2 | 3 | 4 | 5 | 6 | 7 | 8 |
3 | 4 | 5 | 6 | 7 | 8 | 9 |
4 | 5 | 6 | 7 | 8 | 9 | 10 |
5 | 6 | 7 | 8 | 9 | 10 | 11 |
6 | 7 | 8 | 9 | 10 | 11 | 12 |
In the abstract, this table is not clear. However, with a caption giving the table's number (for reference in the main prose) and explaining its use, it makes more sense:
<caption> <p>Table 1. <p>This table shows the total score obtained from rolling two six-sided dice. The first row represents the value of the first die, the first column the value of the second die. The total is given in the cell that corresponds to the values of the two dice. </caption>
This provides the user with more context:
1 | 2 | 3 | 4 | 5 | 6 | |
---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | 7 |
2 | 3 | 4 | 5 | 6 | 7 | 8 |
3 | 4 | 5 | 6 | 7 | 8 | 9 |
4 | 5 | 6 | 7 | 8 | 9 | 10 |
5 | 6 | 7 | 8 | 9 | 10 | 11 |
6 | 7 | 8 | 9 | 10 | 11 | 12 |
colgroup
elementtable
element, after any
caption
elements and before any thead
,
tbody
, tfoot
, and tr
elements.span
attribute is present: Empty.span
attribute is absent: Zero or more col
elements.span
interface HTMLTableColElement : HTMLElement { attribute unsigned long span; };
The colgroup
element represents a group of one or more columns in the table
that
is its parent, if it has a parent and that is a table
element.
If the colgroup
element contains no col
elements, then the element may have a span
content attribute
specified, whose value must be a valid non-negative
integer greater than zero.
The colgroup
element and its span
attribute take part in the
table model.
The span
IDL
attribute must reflect the content attribute of the
same name. The value must be limited to only non-negative
numbers greater than zero.
col
elementcolgroup
element that doesn't have
a span
attribute.span
HTMLTableColElement
, same as for
colgroup
elements. This interface defines one member,
span
.
If a col
element has a parent and that is a
colgroup
element that itself has a parent that is a
table
element, then the col
element
represents one or more columns in the column group represented by that
colgroup
.
The element may have a span
content attribute
specified, whose value must be a valid non-negative
integer greater than zero.
The col
element and its span
attribute take part in the
table model.
The span
IDL
attribute must reflect the content attribute of the
same name. The value must be limited to only non-negative
numbers greater than zero.
tbody
elementtable
element, after any
caption
, colgroup
, and
thead
elements, but only if there are no
tr
elements that are children of the
table
element.tr
elementsinterface HTMLTableSectionElement : HTMLElement { readonly attribute HTMLCollection rows; HTMLElement insertRow(optional long index); void deleteRow(long index); };
The HTMLTableSectionElement
interface is also
used for thead
and tfoot
elements.
The tbody
element represents a block of rows that consist of a body of data for
the parent table
element, if the tbody
element has a parent and it is a table
.
The tbody
element takes part in the table
model.
rows
Returns an HTMLCollection
of the tr
elements of the table section.
insertRow
( [ index ] )Creates a tr
element, inserts it into the table section at the position given by the argument, and returns the tr
.
The position is relative to the rows in the table section. The index −1, which is the default if the argument is omitted, is equivalent to inserting at the end of the table section.
If the given position is less than −1 or greater than the number of rows, throws an IndexSizeError
exception.
deleteRow
(index)Removes the tr
element with the given position in the table section.
The position is relative to the rows in the table section. The index −1 is equivalent to deleting the last row of the table section.
If the given position is less than −1 or greater than the index of the last row, or if there are no rows, throws an IndexSizeError
exception.
The rows
attribute
must return an HTMLCollection
rooted at the element,
whose filter matches only tr
elements that are children
of the element.
The insertRow(index)
method must, when invoked on an
element table section, act as follows:
If index is less than −1 or greater than the
number of elements in the rows
collection, the method must throw an IndexSizeError
exception.
If index is missing, equal to −1, or
equal to the number of items in the rows
collection, the method must
create a tr
element, append it to the element table section, and return the newly created
tr
element.
Otherwise, the method must create a tr
element,
insert it as a child of the table section
element, immediately before the indexth
tr
element in the rows
collection, and finally must
return the newly created tr
element.
The deleteRow(index)
method must remove the indexth element in the rows
collection from its parent. If
index is less than zero or greater than or equal
to the number of elements in the rows
collection, the method must
instead throw an IndexSizeError
exception.
thead
elementtable
element, after any
caption
, and colgroup
elements and before any tbody
, tfoot
, and
tr
elements, but only if there are no other
thead
elements that are children of the
table
element.tr
elementsHTMLTableSectionElement
, as defined for
tbody
elements.The thead
element represents the block of rows that consist of the column labels
(headers) for the parent table
element, if the
thead
element has a parent and it is a
table
.
The thead
element takes part in the table
model.
This example shows a thead
element being used.
Notice the use of both th
and td
elements
in the thead
element: the first row is the headers,
and the second row is an explanation of how to fill in the
table.
<table> <caption> School auction sign-up sheet </caption> <thead> <tr> <th><label for=e1>Name</label> <th><label for=e2>Product</label> <th><label for=e3>Picture</label> <th><label for=e4>Price</label> <tr> <td>Your name here <td>What are you selling? <td>Link to a picture <td>Your reserve price <tbody> <tr> <td>Ms Danus <td>Doughnuts <td><img src="http://example.com/mydoughnuts.png" title="Doughnuts from Ms Danus"> <td>$45 <tr> <td><input id=e1 type=text name=who required form=f> <td><input id=e2 type=text name=what required form=f> <td><input id=e3 type=url name=pic form=f> <td><input id=e4 type=number step=0.01 min=0 value=0 required form=f> </table> <form id=f action="/auction.cgi"> <input type=button name=add value="Submit"> </form>
tfoot
elementtable
element, after any
caption
, colgroup
, and thead
elements and before any tbody
and tr
elements, but only if there are no other tfoot
elements that are children of the table
element.table
element, after any
caption
, colgroup
, thead
,
tbody
, and tr
elements, but only if there
are no other tfoot
elements that are children of the
table
element.tr
elementsHTMLTableSectionElement
, as defined for
tbody
elements.The tfoot
element represents the block of rows that consist of the column summaries
(footers) for the parent table
element, if the
tfoot
element has a parent and it is a
table
.
The tfoot
element takes part in the table
model.
tr
elementthead
element.tbody
element.tfoot
element.table
element, after any
caption
, colgroup
, and thead
elements, but only if there are no tbody
elements that
are children of the table
element.td
or th
elementsinterface HTMLTableRowElement : HTMLElement { readonly attribute long rowIndex; readonly attribute long sectionRowIndex; readonly attribute HTMLCollection cells; HTMLElement insertCell(optional long index); void deleteCell(long index); };
The tr
element represents a row of cells in a table.
The tr
element takes part in the table
model.
rowIndex
Returns the position of the row in the table's rows
list.
Returns −1 if the element isn't in a table.
sectionRowIndex
Returns the position of the row in the table section's rows
list.
Returns −1 if the element isn't in a table section.
cells
Returns an HTMLCollection
of the td
and th
elements of the row.
insertCell
( [ index ] )Creates a td
element, inserts it into the table
row at the position given by the argument, and returns the
td
.
The position is relative to the cells in the row. The index −1, which is the default if the argument is omitted, is equivalent to inserting at the end of the row.
If the given position is less than −1 or greater than
the number of cells, throws an IndexSizeError
exception.
deleteCell
(index)Removes the td
or th
element with the
given position in the row.
The position is relative to the cells in the row. The index −1 is equivalent to deleting the last cell of the row.
If the given position is less than −1 or greater than
the index of the last cell, or if there are no cells, throws an
IndexSizeError
exception.
The rowIndex
attribute must, if the element has a parent table
element, or a parent tbody
, thead
, or
tfoot
element and a grandparent
table
element, return the index of the tr
element in that table
element's rows
collection. If there is no such
table
element, then the attribute must return
−1.
The sectionRowIndex
attribute must, if the element has a parent table
,
tbody
, thead
, or tfoot
element, return the index of the tr
element in the
parent element's rows
collection (for tables,
that's the HTMLTableElement.rows
collection; for table sections, that's the HTMLTableRowElement.rows
collection). If there is no such parent element, then the attribute
must return −1.
The cells
attribute
must return an HTMLCollection
rooted at the
tr
element, whose filter matches only td
and th
elements that are children of the
tr
element.
The insertCell(index)
method must act as follows:
If index is less than −1 or greater than the
number of elements in the cells
collection, the method must throw an IndexSizeError
exception.
If index is missing, equal to −1, or
equal to the number of items in cells
collection, the method must create
a td
element, append it to the tr
element,
and return the newly created td
element.
Otherwise, the method must create a td
element,
insert it as a child of the tr
element, immediately
before the indexth td
or
th
element in the cells
collection, and finally must
return the newly created td
element.
The deleteCell(index)
method must remove the indexth element in the cells
collection from its parent. If
index is less than zero or greater than or equal
to the number of elements in the cells
collection, the method must
instead throw an IndexSizeError
exception.
td
elementtr
element.colspan
rowspan
headers
interface HTMLTableDataCellElement : HTMLTableCellElement {};
The td
element represents a data cell in a table.
The td
element and its colspan
, rowspan
, and headers
attributes take part in the
table model.
User agents, especially in non-visual environments or where displaying the table as a 2D grid
is impractical, may give the user context for the cell when rendering the contents of a cell; for
instance, giving its position in the table model, or listing the cell's header cells
(as determined by the algorithm for assigning header cells). When a cell's header
cells are being listed, user agents may use the value of abbr
attributes on those header cells, if any, instead of the contents of the header cells
themselves.
th
elementtr
element.header
, footer
, sectioning content, or heading content descendants.colspan
rowspan
headers
scope
abbr
interface HTMLTableHeaderCellElement : HTMLTableCellElement { attribute DOMString scope; attribute DOMString abbr; };
The th
element represents a header cell in a table.
The th
element may have a scope
content attribute
specified. The scope
attribute is
an enumerated attribute with five states, four of which
have explicit keywords:
row
keyword, which maps to the row statecol
keyword, which maps to the column staterowgroup
keyword,
which maps to the row group stateth
element's
scope
attribute must not be in
the row group state if
the element is not anchored in a row group.colgroup
keyword,
which maps to the column group stateth
element's scope
attribute must
not be in the column
group state if the element is not anchored in a column group.The scope
attribute's
missing value default is the auto state.
The th
element may have an abbr
content attribute specified. Its value must be an alternative label for the header cell, to be
used when referencing the cell in other contexts (e.g. when describing the header cells that apply
to a data cell). It is typically an abbreviated form of the full header cell, but can also be an
expansion, or merely a different phrasing.
The th
element and its colspan
, rowspan
, headers
, and scope
attributes take part in the
table model.
The scope
IDL
attribute must reflect the content attribute of the
same name, limited to only known values.
The abbr
IDL attribute must reflect
the content attribute of the same name.
The following example shows how the scope
attribute's rowgroup
value affects which
data cells a header cell applies to.
Here is a markup fragment showing a table:
<table> <thead> <tr> <th> ID <th> Measurement <th> Average <th> Maximum <tbody> <tr> <td> <th scope=rowgroup> Cats <td> <td> <tr> <td> 93 <th scope=row> Legs <td> 3.5 <td> 4 <tr> <td> 10 <th scope=row> Tails <td> 1 <td> 1 <tbody> <tr> <td> <th scope=rowgroup> English speakers <td> <td> <tr> <td> 32 <th scope=row> Legs <td> 2.67 <td> 4 <tr> <td> 35 <th scope=row> Tails <td> 0.33 <td> 1 </table>
This would result in the following table:
ID | Measurement | Average | Maximum |
---|---|---|---|
Cats | |||
93 | Legs | 3.5 | 4 |
10 | Tails | 1 | 1 |
English speakers | |||
32 | Legs | 2.67 | 4 |
35 | Tails | 0.33 | 1 |

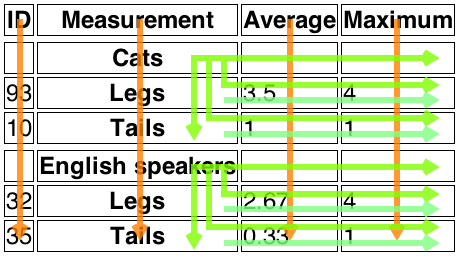

The headers in the first row all apply directly down to the rows in their column.
The headers with the explicit scope
attributes apply to all the
cells in their row group other than the cells in the first column.
The remaining headers apply just to the cells to the right of them.
td
and th
elementsThe td
and th
elements may have a colspan
content
attribute specified, whose value must be a valid non-negative
integer greater than zero.
The td
and th
elements may also have a
rowspan
content
attribute specified, whose value must be a valid non-negative
integer.
These attributes give the number of columns and rows respectively that the cell is to span. These attributes must not be used to overlap cells, as described in the description of the table model.
The td
and th
element may have a headers
content
attribute specified. The headers
attribute, if specified,
must contain a string consisting of an unordered set of unique
space-separated tokens that are case-sensitive,
each of which must have the value of an ID of a th
element taking
part in the same table as the
td
or th
element (as
defined by the table model).
A th
element with ID id is said
to be directly targeted by all td
and
th
elements in the same table that have headers
attributes whose values
include as one of their tokens the ID id. A
th
element A is said to be
targeted by a th
or td
element
B if either A is directly
targeted by B or if there exists an element
C that is itself targeted by the element
B and A is directly
targeted by C.
A th
element must not be targeted by
itself.
The colspan
, rowspan
, and headers
attributes take part in the
table model.
The td
and th
elements implement
interfaces that inherit from the HTMLTableCellElement
interface:
interface HTMLTableCellElement : HTMLElement {
attribute unsigned long colSpan;
attribute unsigned long rowSpan;
[PutForwards=value] readonly attribute DOMSettableTokenList headers;
readonly attribute long cellIndex;
};
cellIndex
Returns the position of the cell in the row's cells
list. This does not necessarily
correspond to the x-position of the cell in
the table, since earlier cells might cover multiple rows or
columns.
Returns −1 if the element isn't in a row.
The colSpan
IDL attribute must
reflect the colspan
content attribute. Its
default value is 1.
The rowSpan
IDL attribute must
reflect the rowspan
content attribute. Its
default value is 1.
The headers
IDL
attribute must reflect the content attribute of the
same name.
The cellIndex
IDL attribute must, if the element has a parent tr
element, return the index of the cell's element in the parent
element's cells
collection. If
there is no such parent element, then the attribute must return
−1.
The various table elements and their content attributes together define the table model.
A table consists of cells
aligned on a two-dimensional grid of slots with coordinates (x, y). The grid is finite, and is
either empty or has one or more slots. If the grid has one or more
slots, then the x coordinates are always in the
range 0 ≤ x < xwidth, and the y
coordinates are always in the range 0 ≤ y < yheight. If one or both of xwidth and yheight are zero, then the table is empty (has
no slots). Tables correspond to table
elements.
A cell is a set of slots anchored
at a slot (cellx, celly), and with a particular
width and height such that
the cell covers all the slots with coordinates (x, y) where cellx ≤ x < cellx+width and
celly ≤ y < celly+height. Cells can
either be data cells or header cells. Data cells
correspond to td
elements, and header cells correspond
to th
elements. Cells of both types can have zero or
more associated header cells.
It is possible, in certain error cases, for two cells to occupy the same slot.
A row is a complete set of slots
from x=0 to x=xwidth-1, for a particular value of y. Rows correspond to tr
elements.
A column is a complete set of
slots from y=0 to y=yheight-1, for a particular value of x. Columns can correspond to col
elements. In the absence of col
elements, columns are
implied.
A row group is a set of
rows anchored at a slot (0, groupy) with a particular height such that the row group covers all the slots
with coordinates (x, y)
where 0 ≤ x < xwidth and groupy ≤ y < groupy+height. Row groups
correspond to tbody
, thead
, and
tfoot
elements. Not every row is necessarily in a row
group.
A column group is a set
of columns anchored at a slot
(groupx, 0) with a
particular width such that the column group
covers all the slots with coordinates (x, y) where groupx ≤ x < groupx+width and
0 ≤ y < yheight. Column groups
correspond to colgroup
elements. Not every column is
necessarily in a column group.
Row groups cannot overlap each other. Similarly, column groups cannot overlap each other.
A cell cannot cover slots that are from two or more row groups. It is, however, possible for a cell to be in multiple column groups. All the slots that form part of one cell are part of zero or one row groups and zero or more column groups.
In addition to cells, columns, rows, row
groups, and column
groups, tables can have a
caption
element associated with them. This gives the
table a heading, or legend.
A table model error is an error with the data
represented by table
elements and their
descendants. Documents must not have table model errors.
To determine which elements correspond to which slots in a table associated with a
table
element, to determine the dimensions of the table
(xwidth and yheight), and to determine if
there are any table model
errors, user agents must use the following algorithm:
Let xwidth be zero.
Let yheight be zero.
Let pending tfoot
elements be
a list of tfoot
elements, initially empty.
Let the table be the table represented by the
table
element. The xwidth and yheight variables give the
table's dimensions. The table is
initially empty.
If the table
element has no children elements,
then return the table (which will be empty),
and abort these steps.
Associate the first caption
element child of the
table
element with the table. If
there are no such children, then it has no associated
caption
element.
Let the current element be the first
element child of the table
element.
If a step in this algorithm ever requires the current element to be advanced to the next child of the
table
when there is no such next child, then
the user agent must jump to the step labeled end, near the
end of this algorithm.
While the current element is not one of the
following elements, advance the current element to the next child of the
table
:
If the current element is a
colgroup
, follow these substeps:
Column groups: Process the current element according to the appropriate case below:
col
element childrenFollow these steps:
Let xstart have the value of xwidth.
Let the current column be the first
col
element child of the colgroup
element.
Columns: If the current column
col
element has a span
attribute, then parse its
value using the rules for parsing non-negative
integers.
If the result of parsing the value is not an error or zero, then let span be that value.
Otherwise, if the col
element has no span
attribute, or if trying to
parse the attribute's value resulted in an error or zero,
then let span be 1.
Increase xwidth by span.
Let the last span columns in the
table correspond to the current
column col
element.
If current column is not the last
col
element child of the colgroup
element, then let the current column be
the next col
element child of the
colgroup
element, and return to the step
labeled columns.
Let all the last columns in the
table from x=xstart to x=xwidth-1 form a
new column group,
anchored at the slot (xstart, 0), with width xwidth-xstart,
corresponding to the colgroup
element.
col
element childrenIf the colgroup
element has a span
attribute, then parse
its value using the rules for parsing non-negative
integers.
If the result of parsing the value is not an error or zero, then let span be that value.
Otherwise, if the colgroup
element has no
span
attribute, or
if trying to parse the attribute's value resulted in an
error or zero, then let span be 1.
Increase xwidth by span.
Let the last span columns in the
table form a new column group, anchored
at the slot (xwidth-span,
0), with width span, corresponding to
the colgroup
element.
While the current element is not one of
the following elements, advance the current element to the next child of the
table
:
If the current element is a
colgroup
element, jump to the step labeled
column groups above.
Let ycurrent be zero.
Let the list of downward-growing cells be an empty list.
Rows: While the current element is
not one of the following elements, advance the current element to the next child of the
table
:
If the current element is a
tr
, then run the algorithm for processing
rows, advance
the current element to the next child of the
table
, and return to the step labeled
rows.
Run the algorithm for ending a row group.
If the current element is a
tfoot
, then add that element to the list of pending tfoot
elements, advance the current element to the next child of the
table
, and return to the step labeled
rows.
The current element is either a
thead
or a tbody
.
Run the algorithm for processing row groups.
Return to the step labeled rows.
End: For each tfoot
element in the list of
pending tfoot
elements, in tree
order, run the algorithm for processing row
groups.
If there exists a row or column in the table containing only slots that do not have a cell anchored to them, then this is a table model error.
Return the table.
The algorithm for processing row groups, which is
invoked by the set of steps above for processing
thead
, tbody
, and tfoot
elements, is:
Let ystart have the value of yheight.
For each tr
element that is a child of the element
being processed, in tree order, run the algorithm for
processing rows.
If yheight > ystart, then let all the last rows in the table from y=ystart to y=yheight-1 form a new row group, anchored at the slot with coordinate (0, ystart), with height yheight-ystart, corresponding to the element being processed.
Run the algorithm for ending a row group.
The algorithm for ending a row group, which is invoked by the set of steps above when starting and ending a block of rows, is:
While ycurrent is less than yheight, follow these steps:
Increase ycurrent by 1.
Empty the list of downward-growing cells.
The algorithm for processing rows, which is invoked by
the set of steps above for processing tr
elements,
is:
If yheight is equal to ycurrent, then increase yheight by 1. (ycurrent is never greater than yheight.)
Let xcurrent be 0.
If the tr
element being processed has no
td
or th
element children, then increase
ycurrent by 1, abort this
set of steps, and return to the algorithm above.
Let current cell be the first
td
or th
element in the tr
element being processed.
Cells: While xcurrent is less than xwidth and the slot with coordinate (xcurrent, ycurrent) already has a cell assigned to it, increase xcurrent by 1.
If xcurrent is equal to xwidth, increase xwidth by 1. (xcurrent is never greater than xwidth.)
If the current cell has a colspan
attribute, then parse that
attribute's value, and let colspan be
the result.
If parsing that value failed, or returned zero, or if the attribute is absent, then let colspan be 1, instead.
If the current cell has a rowspan
attribute, then parse that attribute's
value, and let rowspan be the
result.
If parsing that value failed or if the attribute is absent, then let rowspan be 1, instead.
If rowspan is zero, then let cell grows downward be true, and set rowspan to 1. Otherwise, let cell grows downward be false.
If xwidth < xcurrent+colspan, then let xwidth be xcurrent+colspan.
If yheight < ycurrent+rowspan, then let yheight be ycurrent+rowspan.
Let the slots with coordinates (x, y) such that xcurrent ≤ x < xcurrent+colspan and ycurrent ≤ y < ycurrent+rowspan be covered by a new cell c, anchored at (xcurrent, ycurrent), which has width colspan and height rowspan, corresponding to the current cell element.
If the current cell element is a
th
element, let this new cell c
be a header cell; otherwise, let it be a data cell.
To establish which header cells apply to the current cell element, use the algorithm for assigning header cells described in the next section.
If any of the slots involved already had a cell covering them, then this is a table model error. Those slots now have two cells overlapping.
If cell grows downward is true, then add the tuple {c, xcurrent, colspan} to the list of downward-growing cells.
Increase xcurrent by colspan.
If current cell is the last td
or th
element in the tr
element being
processed, then increase ycurrent by 1, abort this set of steps, and
return to the algorithm above.
Let current cell be the next
td
or th
element in the tr
element being processed.
Return to the step labelled cells.
When the algorithms above require the user agent to run the algorithm for growing downward-growing cells, the user agent must, for each {cell, cellx, width} tuple in the list of downward-growing cells, if any, extend the cell cell so that it also covers the slots with coordinates (x, ycurrent), where cellx ≤ x < cellx+width.
Each cell can be assigned zero or more header cells. The algorithm for assigning header cells to a cell principal cell is as follows.
Let header list be an empty list of cells.
Let (principalx, principaly) be the coordinate of the slot to which the principal cell is anchored.
headers
attribute specifiedTake the value of the principal cell's
headers
attribute and
split it on
spaces, letting id list be the list
of tokens obtained.
For each token in the id list, if the
first element in the Document
with an ID equal to
the token is a cell in the same table, and that cell is not the
principal cell, then add that cell to header list.
headers
attribute specifiedLet principalwidth be the width of the principal cell.
Let principalheight be the height of the principal cell.
For each value of y from principaly to principaly+principalheight-1, run the internal algorithm for scanning and assigning header cells, with the principal cell, the header list, the initial coordinate (principalx,y), and the increments Δx=−1 and Δy=0.
For each value of x from principalx to principalx+principalwidth-1, run the internal algorithm for scanning and assigning header cells, with the principal cell, the header list, the initial coordinate (x,principaly), and the increments Δx=0 and Δy=−1.
If the principal cell is anchored in a row group, then add all header cells that are row group headers and are anchored in the same row group with an x-coordinate less than or equal to principalx+principalwidth-1 and a y-coordinate less than or equal to principaly+principalheight-1 to header list.
If the principal cell is anchored in a column group, then add all header cells that are column group headers and are anchored in the same column group with an x-coordinate less than or equal to principalx+principalwidth-1 and a y-coordinate less than or equal to principaly+principalheight-1 to header list.
Remove all the empty cells from the header list.
Remove any duplicates from the header list.
Remove principal cell from the header list if it is there.
Assign the headers in the header list to the principal cell.
The internal algorithm for scanning and assigning header cells, given a principal cell, a header list, an initial coordinate (initialx, initialy), and Δx and Δy increments, is as follows:
Let x equal initialx.
Let y equal initialy.
Let opaque headers be an empty list of cells.
Let in header block be true, and let headers from current header block be a list of cells containing just the principal cell.
Let in header block be false and let headers from current header block be an empty list of cells.
Loop: Increment x by Δx; increment y by Δy.
For each invocation of this algorithm, one of Δx and Δy will be −1, and the other will be 0.
If either x or y is less than 0, then abort this internal algorithm.
If there is no cell covering slot (x, y), or if there is more than one cell covering slot (x, y), return to the substep labeled loop.
Let current cell be the cell covering slot (x, y).
Set in header block to true.
Add current cell to headers from current header block.
Let blocked be false.
If there are any cells in the opaque headers list anchored with the same x-coordinate as the current cell, and with the same width as current cell, then let blocked be true.
If the current cell is not a column header, then let blocked be true.
If there are any cells in the opaque headers list anchored with the same y-coordinate as the current cell, and with the same height as current cell, then let blocked be true.
If the current cell is not a row header, then let blocked be true.
If blocked is false, then add the current cell to the headers list.
Set in header block to false. Add all the cells in headers from current header block to the opaque headers list, and empty the headers from current header block list.
Return to the step labeled loop.
A header cell anchored at the slot with coordinate (x, y) with width width and height height is said to be a column header if any of the following conditions are true:
scope
attribute
is in the column state, orscope
attribute
is in the auto state, and
there are no data cells in any of the cells covering slots with
y-coordinates y
.. y+height-1.A header cell anchored at the slot with coordinate (x, y) with width width and height height is said to be a row header if any of the following conditions are true:
scope
attribute
is in the row state, orscope
attribute
is in the auto state, the
cell is not a column header, and there are no data
cells in any of the cells covering slots with x-coordinates x .. x+width-1.A header cell is said to be a column group header if
its scope
attribute is in the
column group state.
A header cell is said to be a row group header if
its scope
attribute is in the
row group state.
A cell is said to be an empty cell if it contains no elements and its text content, if any, consists only of White_Space characters.
This section is non-normative.
The following shows how might one mark up the bottom part of table 45 of the Smithsonian physical tables, Volume 71:
<table> <caption>Specification values: <b>Steel</b>, <b>Castings</b>, Ann. A.S.T.M. A27-16, Class B;* P max. 0.06; S max. 0.05.</caption> <thead> <tr> <th rowspan=2>Grade.</th> <th rowspan=2>Yield Point.</th> <th colspan=2>Ultimate tensile strength</th> <th rowspan=2>Per cent elong. 50.8mm or 2 in.</th> <th rowspan=2>Per cent reduct. area.</th> </tr> <tr> <th>kg/mm<sup>2</sup></th> <th>lb/in<sup>2</sup></th> </tr> </thead> <tbody> <tr> <td>Hard</td> <td>0.45 ultimate</td> <td>56.2</td> <td>80,000</td> <td>15</td> <td>20</td> </tr> <tr> <td>Medium</td> <td>0.45 ultimate</td> <td>49.2</td> <td>70,000</td> <td>18</td> <td>25</td> </tr> <tr> <td>Soft</td> <td>0.45 ultimate</td> <td>42.2</td> <td>60,000</td> <td>22</td> <td>30</td> </tr> </tbody> </table>
This table could look like this:
Grade. | Yield Point. | Ultimate tensile strength | Per cent elong. 50.8 mm or 2 in. | Per cent reduct. area. | |
---|---|---|---|---|---|
kg/mm2 | lb/in2 | ||||
Hard | 0.45 ultimate | 56.2 | 80,000 | 15 | 20 |
Medium | 0.45 ultimate | 49.2 | 70,000 | 18 | 25 |
Soft | 0.45 ultimate | 42.2 | 60,000 | 22 | 30 |
The following shows how one might mark up the gross margin table on page 46 of Apple, Inc's 10-K filing for fiscal year 2008:
<table> <thead> <tr> <th> <th>2008 <th>2007 <th>2006 <tbody> <tr> <th>Net sales <td>$ 32,479 <td>$ 24,006 <td>$ 19,315 <tr> <th>Cost of sales <td> 21,334 <td> 15,852 <td> 13,717 <tbody> <tr> <th>Gross margin <td>$ 11,145 <td>$ 8,154 <td>$ 5,598 <tfoot> <tr> <th>Gross margin percentage <td>34.3% <td>34.0% <td>29.0% </table>
This table could look like this:
2008 | 2007 | 2006 | |
---|---|---|---|
Net sales | $ 32,479 | $ 24,006 | $ 19,315 |
Cost of sales | 21,334 | 15,852 | 13,717 |
Gross margin | $ 11,145 | $ 8,154 | $ 5,598 |
Gross margin percentage | 34.3% | 34.0% | 29.0% |
The following shows how one might mark up the operating expenses table from lower on the same page of that document:
<table> <colgroup> <col> <colgroup> <col> <col> <col> <thead> <tr> <th> <th>2008 <th>2007 <th>2006 <tbody> <tr> <th scope=rowgroup> Research and development <td> $ 1,109 <td> $ 782 <td> $ 712 <tr> <th scope=row> Percentage of net sales <td> 3.4% <td> 3.3% <td> 3.7% <tbody> <tr> <th scope=rowgroup> Selling, general, and administrative <td> $ 3,761 <td> $ 2,963 <td> $ 2,433 <tr> <th scope=row> Percentage of net sales <td> 11.6% <td> 12.3% <td> 12.6% </table>
This table could look like this:
2008 | 2007 | 2006 | |
---|---|---|---|
Research and development | $ 1,109 | $ 782 | $ 712 |
Percentage of net sales | 3.4% | 3.3% | 3.7% |
Selling, general, and administrative | $ 3,761 | $ 2,963 | $ 2,433 |
Percentage of net sales | 11.6% | 12.3% | 12.6% |
