CSS3 Paged Media Module

Abstract

This module describes the page model that partitions a flow into pages. It builds on the CSS3 Box model module and introduces and defines the page model and paged media. It adds functionality for pagination, page margins, headers and footers, image orientation. Finally it extends generated content for the purpose of cross-references with page numbers.

Status of this document

Table of contents

• 1. Dependencies on other modules
• 2. Introduction
  • 2.1. Terminology
• 3. Page boxes: the @page rule
  • 3.1. The page model
  • 3.2. Page types
  • 3.3. Page size
    • 3.3.1. Media Queries
    • 3.3.2. Page size: the 'size' property
    • 3.3.3. Rendering page boxes that do not fit a page sheet
    • 3.3.4. Positioning the page box on the sheet
  • 3.4. Page selector and page context
    • 3.4.1. Page selector grammar
    • 3.4.2. Cascading in the page context
  • 3.5. Page box margin, border and padding
  • 3.6. Left, right, and first pages
  • 3.7. Content outside the page box
• 4. Margin boxes
  • 4.1. At-rules for margin boxes
  • 4.2. Maximum Dimension of margin boxes
  • 4.3. Margin boxes and default values
    • 4.3.1. Margin box examples
  • 4.4. Populating margin boxes
• 5. Page breaks
  • 5.1. Break before/after elements: 'page-break-before', 'page-break-after', 'page-break-inside'
  • 5.2. Using named pages: 'page'
  • 5.3. Breaks inside elements: 'orphans', 'widows'
  • 5.4. Allowed page breaks
  • 5.5. Forced page breaks
  • 5.6. "Best" page breaks
• 6. Page-based extensions to counters and string-sets
  • 6.1. Page-based counters
  • 6.2. Determining which counter or string-set value to use: the 'page-policy' property
  • 6.3. Number of pages - 'pages' counter
• 7. Page based floats
  • 7.1. Page float area contexts
  • 7.2. Top and bottom page floats (in horizontal writing mode)
  • 7.3. Left and right page floats (in vertical writing mode)
  • 7.4. "Next" page floats
• 8. Orienting an image on the page
• References
  • Normative references
  • Other references

1. Dependencies on other modules

This CSS3 module depends on the following other CSS3 modules:

• the Box model module, which this module extends
• the Generated content module which this module extends

2. Introduction

Paged media (e.g., paper, transparencies, pages that are displayed on computer screens, etc.) differ from continuous media in that the content of the document is split into one or more discrete pages. To handle pages, CSS3 describes how:

• page breaks are created,
• the page size, margins, border, and padding are specified,
• headers and footers are established within the page margins, and
• content such as page counters and string-sets placed in the headers and footers.

CSS3 defines a page model that specifies how a document is formatted within a rectangular area, called the page box, that has finite width and height. The page box does not necessarily have a one-to-one correspond to the real sheet where the document will ultimately be rendered (paper, transparency, screen etc.). The CSS3 page model specifies formatting within the page box, but it is the user agent's responsibility to transferred the page box to the sheet. Some user agent transfer possibilities that are not addressed by CSS3 include:

• Transferring one page box to one sheet (e.g. single-sided printing)
• Transferring two page boxes to both sides of the same sheet (e.g. double-sided printing).
• Transferring N (small) page boxes to one sheet (called "N-up").
• Transferring one (large) page box to N x M sheets (called "tiling").
• Creating signatures. A signature is a group of pages printed on a sheet, which, when folded and trimmed like a book, appear in their proper sequence.
• Printing one document to several output trays.
• Outputting to a file.

Although CSS3 does not specify how user agents transfer page boxes to sheets, it does include certain mechanisms for telling user agents about the page sheet size and orientation. Furthermore, CSS3 assumes that one page box will be transfer to a side of a sheet.

2.1. Terminology

The keywords "MUST", "SHALL", "MUST NOT", "SHALL NOT", "REQUIRED", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" when used in this document are to be interpreted as described in RFC 2119 [RFC2119]. However, for readability, these words do not appear in all uppercase letters in this specification.

3. Page boxes: the @page rule

In the page model the document is transferred into one or more page boxes. The properties of a page box are determined by properties within the page context, which is the rule set of the @page rule. As with other boxes, a page box consists of margin, border, padding and content areas. Page boxes differ from other boxes in the following characteristics:

• The 'width' and 'height' properties do not apply to a page box. The size of the page box is specified using the 'size' property in a page context.
• Boxes, called margin boxes, can be placed in the page box margin area.

3.1. The page model

The following terminology and accompanying diagram describe the page model:

Page sheet

The page sheet is the area that corresponds to the area of the physical media. The illustration to the right shows a corner of a page sheet with its non-printable and printable areas labeled.

Non-printable area

The non-printable area is the area of a page sheet that a physical device such as a printer is not capable of marking, usually due to the printer's paper handling mechanism. This value is printer dependent and is usually a small area on each side of the page sheet, as well as, on the top and bottom. The left and right non-printable area are usually the same size, as are the top and bottom area.  However, the top/bottom and left/right areas can be different. Non-page marking user agents such as a browser MAY not be aware of this area or how it varies from device to device. Printing devices MUST adjust the layout of the document so that content is not lost. How this adjustment is accomplished is device dependent within the constraints expressed below in the sections Rendering page boxes that do not fit a page sheet and Content outside the page box.

Printable area

The printable area is the area of page sheet that a printer is capable of marking. The size of the printable area is the size of the page sheet reduced by the size of the non-printable area. This value is printing device dependent. Non-page marking user agents such as a browser MAY not be aware of this area or how it varies from printing device to printing device. Printing devices MUST adjust the layout of the document so that content is within the printable area. How this adjustment is accomplished is device dependent within the constraints expressed below in the sections Rendering page boxes that do not fit a page sheet and Content outside the page box.

Page box

A page box is derived from the box model and contains portions of the document flow destined for rendering on a page sheet. The width and height of the page box are determined by the size property. Unlike other boxes, the margins of the page box are subdivided into margin boxes. In the simplest case the page box is congruent with the page sheet. However, there are more complex use cases (see the transfer possibilities in the Introduction) where the page box differs from the page sheet in values such as size or orientation.

Page area

The page area is a synonym for the content area of the page box. The page area acts as a container for all the boxes laid out within a given page box.

Margin box

Margin boxes act as containing boxes for header/footer content. The following margin boxes are defined and illustrated in the diagram below:

Table 1 Margin box definitions

Box	Description	Placement
top	a box filling the area defined by the top margin of the page box for compatibility with previous versions of this document ([[!PGMED19990928]], 7.1.1).
top-left-corner	a fixed size box filling the area defined by the intersection of the top and left margins of the page box
top-left	a variable width box within the area defined by the top margin and adjoining the top-left-corner margin box
top-center	a variable width box within the area defined by the top margin, centered on the page area, and between the top-left and top-right margin boxes
top-right	a variable width box within the area defined by the top margin and adjoining the top-right-corner margin box
top-right-corner	a box filling the area defined by the intersection of the top and right margins of the page box
left-top	a variable height box within the area defined by the left margin and adjacent to the bottom of the top-left-corner.
left-middle	a variable height box in the area defined by the left margin, centered on the page area, and between the left-top and left-bottom margin boxes.
left-bottom	a variable height box within the area defined by the left margin and adjacent to the top of the bottom-left-corner.
right-top	a variable height box within the area defined by the right margin and adjacent to the bottom of the top-right-corner.
right-middle	a variable height box in the area defined by the right margin, centered on the page area, and between the right-top and right-bottom margin boxes.
right-bottom	a variable height box within the area defined by the right margin and adjacent to the top of the bottom-right-corner.
bottom	a box filling the area defined by the bottom margin of the page box for compatibility with previous versions of this document ([[!PGMED19990928]], 7.1.1).
bottom-left-corner	a box filling the area defined by the intersection of the bottom and left margins of the page box
bottom-left	a variable width box within the area defined by the bottom margin and adjoining the bottom-left-corner margin box
bottom-center	a variable width box within the area defined by the bottom margin, centered on the page area, and between the bottom-left and bottom-right margin boxes
bottom-right	a variable width box within the area defined by the bottom margin and adjoining the bottom-right corner margin box
bottom-right-corner	a box filling the area defined by the intersection of the bottom and right margins of the page box

3.2. Page types

Pages and their corresponding page layouts have many possible formats. Among the aspects of page layout that can vary are paper size, orientation of the layout with respect to the paper, order of the pages, how the document will be printed, and how the document will be bound. Some of these depend upon factors such as the major writing direction and the media type that are not be specified by this module. The following terminology is used to describe pages and page treatments:

Page Orientation

The page orientation is defined by comparing the length of the edges of a page box. The page box is a rectangle with two perpendicular edges called the long edge and the short edge. The length of the long edge is always greater than or equal to the length of the short edge. When the page box is square, the two edges are of the same length and either can be used as the long edge with the other being the short edge.

Portrait Orientation

A portrait page's height is greater than or equal to its width. Horizontal elements are parallel to the short edge and vertical elements to the long edge.

Landscape Orientation

A landscape page's width is greater than or equal to its height. Horizontal elements are parallel to the long edge and vertical elements to the short edge.

Front Side

Media used as a stack of sheets have two sides known as the front and the back. Typically, the user agent prints on the front side of the media when using only one side of the page sheet. Media used from a roll or continuous form will print only on the front side. CSS does not provide a mechanism to deal directly with the front and back sides, rather page layouts must be designed in terms of left and right pages.

Back Side

The back side of a sheet medium is the side that cannot be seen when looking at the front side. Typically, the back side is only used when printing on both sides of the medium. Unless using special paper stock such as letterhead it does not usually matter which side is the front and which is the back.

Duplex Printing

Duplex printing uses one page box per side of a page sheet and uses both sides of the page sheet. This module provides no ability to specify whether a document is duplex printed, but the concept of left and right pages is based on the assumption that the document is duplex printed, regardless of whether it actually is.

Binding Edge treatment

The binding edge is the edge of the page box that is towards the binding if the material is bound. The binding edge often has a larger margin than the opposite edge to provide for the space used by the binding. The binding edge can be any of the four edges. However, page sheets are customarily bound so that the binding edge of page boxes with portrait orientation is vertical. This module provides no method to specify the binding edge. In duplex printing, the binding edge is on opposite sides of the page box for the left and right pages.

Facing Pages

Facing pages are two sequential pages such that when the document is duplex printed they are on separate sheets of paper. Typically, the earlier page will be the back side of one sheet and the later page will be the front side of another. They are usually laid out so that the binding edges of facing pages are vertical and adjacent when the pages are placed in their normal reading orientation. It is up to the UA to determine whether the left page or the right page of a pair of facing pages is the earlier one of the sequence. How the UA makes this determination is implementation dependent but often depends upon the predominant writing direction of the document.

Major Writing Direction

The major writing direction for the document is determined by the UA. If the UA supports the 'direction' property from CSS2 or the CSS 3 Text Module it MUST determine it using the value of that property on the root element.

Left Page

A page that will be on the left if it is part of a pair of facing pages as typically laid out. Page layouts for documents using a left-to-right major writing direction have the earlier of the facing pages on the left. Rules for the left page can be specified using the ':left' page selector.

Right Page

A page that will be on the right if it is part of a pair of facing pages as typically laid out. Page layouts for documents using a right-to-left major writing direction have the earlier of the facing pages on the right. Rules for the right page can be specified using the ':right' page selector.

First Page

The first page in a set of pages. The UA determines which page is the first page. The first page is generally printed on the front side of a medium. Rules for the first page can be specified using the ':first' page selector. A first page can be either a left page or a right page but a UA MUST apply any rules defined for a first page in preference to those defined on a left page or a right page.

3.3. Page size

Different parts of the world use different paper sizes. It is a goal of this specification that web content should be adaptable to a range of different sizes without having to write a specific style sheet for each paper size.

However, in some situations it is important that a certain page size achieves a certain style. This proposal describes two ways of achieving this goal: Media Queries [MEDIAQ] allow different style sheets to be applied to different page sizes, and the 'size' property requests that the document is printed on a page which has a certain size. The CSS Working Group specifically welcomes feedback on the need for and feasibility of these features.

3.3.1. Media Queries

By using Media Queries [MEDIAQ], one style sheet can express different stylistic preferences for different page sizes. Consider this example:

   /* style sheet for "A4" printing */
   @media print and (width: 21cm) and (height: 29.7cm) {
      @page {
         margin: 3cm;
      }
   }

   /* style sheet for "letter" printing */
   @media print and (width: 8.5in) and (height: 11in) {
      @page {
          margin: 1in;
      }
   }

In the example above, "A4" sheets are given a "3cm" page margin, and "letter" sheets are given a "1in" page margin.

In Media Queries, the page is always considered to be in Portrait Orientation. That is, it is not necessary to write Media Queries that swap the width and height values to make sure the style sheet is applied.

3.3.2. Page size: the 'size' property

This property specifies the size and orientation of the containing box of the page box. The assumption is that there is only one page box mapped to a page sheet (or one page box mapped to either side of a page sheet) the 'size' property specifies the size of the page sheet.

The size of a page box MAY either be "absolute" (fixed size) or "relative" (scalable, i.e., fitting available sheet sizes). Relative page boxes allow user agents to scale a document and make optimal use of the page size.

Three values for the 'size' property create a relative page box:

auto

The page box will be set to the size and orientation of the page sheet chosen by the UA.

landscape

Specifies that the page's content be printed in landscape orientation. The page box is the same size as the page, and the longer sides are horizontal. If a '<length>' or '<page-size>' is not used, the size of the page sheet is chosen by the UA.

portrait

Specifies that the page's content be printed in portrait orientation. The page box is the same size as the page, and the shorter sides are horizontal. If a '<length>' or '<page-size>' is not used, the size of the page sheet is chosen by the UA.

@page {
  size: auto;/* auto is the initial value */
  margin: 10%;
}

<length>

The page box will be set to the given absolute length, If only one length value is specified, it sets both the width and height of the page box (i.e., the box is a square). The page context has a font associated with it either by an explicit use of the 'font-family' and 'font-size' properties or from the UA's default style sheet. Therefore, values in units of 'em' and 'ex' refer to the page context's font.

@page {
  size: 8.5in 11in;/* width height */
}

A page size can be specified using one of the following media names. This is the equivalent of specifying the '<page-size>' using length values. The definition of the the media names comes from Media Standardized Names [[!PWGMSN]]

A5

The page box SHOULD be set to the size of ISO A5 media: 148mm wide and 210 mm high. This is synonymous with portrait orientation.

A4

The page box SHOULD be set to the size of IS0 A4 media: 210 mm wide and 297 mm high. This is synonymous with portrait orientation. Landscape printing on A4 media can be specified by using 'landscape' with 'A4'.

A3

The page box SHOULD be set to the size of ISO A3 media: 297mm wide and 420mm high.

B5

The page box SHOULD be set to the size of ISO B3 media: 176mm wide by 250mm high.

B4

The page box SHOULD be set to the size of ISO B4 media: 250mm wide by 353mm high.

letter

The page box SHOULD be set to the size of North American letter media: 8.5 inches wide and 11 inches high. This is synonymous with portrait orientation. Landscape printing on letter media can be specified by using 'landscape' with 'letter'.

legal

The page box SHOULD be set to the size of North American legal: 8.5 inches wide by 14 inches high.

ledger

The page box SHOULD be set to the size of North American ledger: 11 inches wide by 17 inches high.

@page {
  size: A4 landscape;
}

User agents MAY allow users to control the transfer of the page box to the sheet (e.g., rotating an absolute page box that's being printed). This is outside the scope of this document

3.3.3. Rendering page boxes that do not fit a page sheet

If a page box does not fit the page sheet dimensions, the user agent MAY choose to:

• Rotate the page box 90° if this will make the page box fit.
• Scale the page box to fit the UA's page.
• Reformat the page if the page box will not fit in the UA's printable area.

The user agent SHOULD consult the user before performing these operations.

3.3.4. Positioning the page box on the sheet

When the page box is smaller than the page size, the user agent SHOULD center the page box on the sheet since this will align double-sided pages and avoid accidental loss of information that is printed near the edge of the sheet.

3.4. Page selector and page context

Authors specify dimensions, orientation, margins etc. of a page box within an @page rule. An @page rule consists of the keyword '@page', an OPTIONAL page name followed with no intervening space by an OPTIONAL page pseudo-class and a block of declarations and margin rules (said to be in the page context).

The OPTIONAL page name and OPTIONAL page pseudo-class constitutes the page selector. The page selector specifies for which pages the declarations apply. In CSS3, page selectors MAY designate first page, all left pages, all right pages, or a page with a specific name.

Properties for the page box are specified within a page context.

3.4.1. Page selector grammar

The syntax for a page selector is a specialization of the generic at-rule and MUST adhere to the following (more strict) grammar:

Each new lexical token are all specializations of the ATKEYWORD lexical token:

PAGE_SYM              ::= "@page"
TOP_SYM               ::= "@top"
TOPLEFTCORNER_SYM     ::= "@top-left-corner"
TOPLEFT_SYM           ::= "@top-left"
TOPCENTER_SYM         ::= "@top-center"
TOPRIGHT_SYM          ::= "@top-right"
TOPRIGHTCORNER_SYM    ::= "@top-right-corner"
BOTTOM_STYM           ::= "@bottom"
BOTTOMLEFTCORNER_SYM  ::= "@bottom-left-corner"
BOTTOMLEFT_SYM        ::= "@bottom-left"
BOTTOMCENTER_SYM      ::= "@bottom-center"
BOTTOMRIGHT_SYM       ::= "@bottom-right"
BOTTOMRIGHTCORNER_SYM ::= "@bottom-right-corner"
LEFTTOP_SYM           ::= "@left-top"
LEFTMIDDLE_SYM        ::= "@left-middle"
RIGHTBOTTOM_SYM       ::= "@right-bottom"
RIGHTTOP_SYM          ::= "@right-top"
RIGHTMIDDLE_SYM       ::= "@right-middle"
RIGHTBOTTOM_SYM       ::= "@right-bottom"


page :
       PAGE_SYM S* IDENT? pseudo_page? S*
       '{' S* [ declaration | margin ] [ ';' S* [ declaration | margin ]? ]* '}' S*
       ;

pseudo_page :
       ':' [ "left" | "right" | "first" ]
       ;

margin :
       margin_sym S* '{' declaration [ ';' S* declaration? ]* '}' S*
       ;

margin_sym :
       TOP_SYM |
       TOPLEFTCORNER_SYM |
       TOPLEFT_SYM |
       TOPCENTER_SYM |
       TOPRIGHT_SYM |
       TOPRIGHTCORNER_SYM |
       BOTTOM_SYM |
       BOTTOMLEFTCORNER_SYM |
       BOTTOMLEFT_SYM |
       BOTTOMCENTER_SYM |
       BOTTOMRIGHT_SYM |
       BOTTOMRIGHTCORNER_SYM |
       LEFTTOP_SYM |
       LEFTMIDDLE_SYM |
       LEFTBOTTOM_SYM |
       RIGHTTOP_SYM |
       RIGHTMIDDLE_SYM |
       RIGHTBOTTOM_SYM
       ;

The following restrictions and relaxations are made to the syntax above:

• The top margin box defined by the '@top' at-rule is deprecated in favor of those defined by '@top-left-corner', '@top-left', '@top-center', '@top-right', and '@top-right-corner'. Whenever the deprecated '@top' at-rule occurs with any of the non-deprecated at-rules listed above, the UA MUST ignore the declarations of the deprecated at-rule. This behavior allows a single document with both deprecated and non-deprecated at-rules to be processed by UA's that only support the deprecated at-rule, as well as by UA's that support the non-deprecated at-rules list above.
• The bottom margin box defined by the '@bottom' at-rule is deprecated in favor of those defined by '@bottom-left-corner', '@bottom-left', '@bottom-center', '@bottom-right', and '@bottom-right-corner'. Whenever the deprecated '@bottom' at-rule occurs with any of the non-deprecated, bottom margin box defining at-rules listed above, the UA MUST ignore the declarations of the deprecated at-rule.
• A CSS Keyword used as a page name MUST be treated as a syntax error.

@page { ... }
@page :left { ... }
@page :right { ... }
@page LandscapeTable { ... }
@page CompanyLetterHead:first { ... }
@page:first { ... }; /*  identifier and pseudo page. */

@page {
    @top { ... }  /* defines a header the width of the page */
    @bottom { ... } /* footer is the width of the page */
}
@page {
   @top { ... }     /* used by UA that doesn't know about @top-left */
   @top-left { ... }/* used by UA that does know about @top-left */
   @bottom  { ... } /* @top-left only eclipses @top }
}
@page {
   @top-left { ... /* document name */ }
   @bottom-center { ... /* page number */}
}
@page :left { @left-middle { ... /* page number in left margin */ }}
@page :right{ @right-middle { ... /* page number in right margins of right pages */}}

@page :left { @bottom-left-corner { ... /* left page numbers */ }}
@page :right { @bottom-right-corner { ... /* right page numbers */ }}
@page :first { @bottom-left-corner { ... /* empty footer on 1st page */ }
               @bottom-right-corner { ... /* empty footer */ } }

3.4.2. Cascading in the page context

Declarations in the page context obey the cascade just like normal CSS3 declarations.

Properties in an '@page' rule with a page name override those specified in an '@page' rule without a name. Properties specified in a ':left' (or ':right') '@page' rule override those specified in an '@page' rule that has no pseudo-class specified. Properties specified in a ':first' '@page' rule override those specified in ':left' (or ':right') '@page' rules.

@page {
  margin-left: 3cm;
}

@page :left {
  margin-left: 4cm;
}

3.5. Page box margin, border and padding

The margin, border and padding properties apply to the page box. They are specified within the page context. They follow the normal rules for box properties with the following exceptions:

• The page context has a font associated with it either by an explicit use of the 'font-family' and 'font-size' properties or from the UA's default style sheet. Therefore, values in units of 'em' and 'ex' refer to the page context's font.
• Percentage values on the margin, padding and border properties are relative to the dimensions of the containing box (defined by the 'size' property in the page context). For left and right margin, border and padding percentages are relative to the width of the containing box; for right and bottom margin, border and padding percentages are relative to the height of the containing box.
• The 'width' and 'height' properties do not apply to the page box (and SHOULD be treated as if they were set to 'auto').

3.6. Left, right, and first pages

When printing double-sided documents, the page boxes on left and right pages MAY be different. This MAY be expressed through CSS pseudo-classes defined in the page context.

All pages are automatically classified by user agents into either the ':left' or ':right' pseudo-class. The following example creates left and right binding edges using these pseudo-classes.

@page :left {
  margin-left: 3cm;
  margin-right: 4cm;
}

@page :right {
  margin-left: 4cm;
  margin-right: 3cm;
}

If different declarations have been given for left and right pages, the user agent MUST honor these declarations even if the user agent does not transfer the page boxes to left and right sheets (e.g., a printer that only prints single-sided).

Authors MAY also specify style for the first page of a document with the ':first' pseudo-class:

@page { margin: 2cm } /* All margins set to 2cm */

@page :first {
  margin-top: 10cm /* Top margin on first page 10cm */
}

Whether the first page of a document is ':left' or ':right' depends on the major writing direction of the document and is outside the scope of this document. However, to force a ':left' or ':right' first page, authors MAY insert a page break before the first generated box (e.g., in HTML, specify this for the BODY element).

3.7. Content outside the page box

When formatting content in the page model, some content MAY end up outside the page box. For example, an element whose 'white-space' property has the value 'pre' MAY generate a box that is wider than the page box. Also, when boxes are positioned absolutely, they MAY end up in "inconvenient" locations. For example, images MAY be placed on the edge of the page box. Similarly when boxes are positioned fixed they MAY also end up outside of the page box.

A specification for the exact formatting of such elements lies outside the scope of this document. However, we recommend that authors and user agents observe the following general principles concerning content outside the page box:

• User agents SHOULD avoid generating a large number of empty page boxes to honor the positioning of elements (e.g., you don't want to print 100 blank pages). Note, however, that generating a small number of empty page boxes MAY be necessary to honor the 'left' and 'right' values for 'page-break-before' and 'page-break-after'.
• Authors SHOULD not position elements in inconvenient locations just to avoid rendering them. Instead:
  • To suppress box generation entirely, set the 'display' property to 'none'.
  • To make a box invisible, set the 'visibility' property.
• User agents MAY handle boxes positioned outside the page box in several ways, including discarding them or creating page boxes for them at the end of the document.

4. Margin boxes

Margin boxes can be used to create page headers and footers, which are portions of the page set aside for supplementary information such as the page number or document title. The location of page headers and footer is one of the many graphic design choices a document's author makes.

Page Header

Typically, a page header is located at the top of the page in documents with a predominately horizontal writing direction and on the side opposite the binding edge for documents with a predominately vertical writing direction. One possible design of page headers for horizontally written documents uses the 'top-left-corner', 'top-left', 'top-center', 'top-right' and 'top-right-corner' margin boxes. Another design, for vertically written documents, could use the 'right-top', 'right-middle', and 'right-bottom' margin boxes for right facing pages and 'left-top', 'left-middle', and 'left-bottom' for left facing pages. However, there are no constraints placed on the use of margin boxes for page headers, other than those expressed in the discussion of restrictions to the grammar of the page selector

Page Footer

Typically, the page footer is at the opposite end of the page from the page header. For example, the design of a horizontally written document with a page header at the top of the page could use the 'bottom-left-corner', 'bottom-left', 'bottom-center', 'bottom-right' and 'bottom-right-corner' margin boxes as the page footer. The design of a vertically written document could use the margin boxes of the binding edge of the page for the page footer. However, there are no constraints placed on the use of margin boxes for page headers, other than those expressed in the discussion of restrictions to the grammar of the page selector

Please note that the margin boxes are oriented with respect to the content and are independent of page orientation, for example the top margin boxes are above the page box in both portrait and landscape orientation.

Margin boxes are created through margin at-rules inside the page context.

4.1. At-rules for margin boxes

A margin at-rule consists of an ATKEYWORD that identifies the margin box (e.g. '@top-left') and a block of declarations (said to be in the margin context).

@page {
  size: 8.5in 11in;
  margin: 10%;

  @top-left {
    content: "Hamlet";
  }
  @top-right {
    content: "Page " counter(pages);
  }
}

4.2. Maximum Dimension of margin boxes

The maximum potential width and height of each margin box is determined by establishing the containing box for the margin box in the steps shown below.  There are two quantities used in the follow calculations:

• max box width, which is the sum of the width of the page's left padding area, the width of the page area, and the width of the page's right padding area. In other words, it is the distance between the left page border and the right page border. This quantity is used when calculating dimensions of the top and bottom margin boxes.
• max box height, which is the sum of the height of the page's top padding area, the height of the page area, and the height o of the page's right padding area. In other words, it is the distance between the top page border and the bottom page border.  This quantity is used when calculating dimensions of the left and right margin boxes.

Calculations:

1. The margin areas of the page box are determined. This establishes the containing boxes for the margin boxes.
   When the page size approximates the page sheet, the non-printable area intrudes into the margin area are the page, so margins of approximately .125in for margin boxes are suggested.
2. When multiple top and bottom margin boxes are created, the five margin boxes at the top and bottom of the page are each treated as if they formed a table with one row and, potentially, five cells. The left and right margin boxes are treated as if they each formed a table with, potentially three rows and one column.
3. (deprecated usage) If a single top or bottom margin box is created by the '@top' or '@bottom' rule, respectively, it is treated as if it were a table with one row containing one cell the width of the page box, including the areas defined by the intersection of the left and right page box margins with the top or bottom margin. For example, given an 8.5 inch wide page with one inch margins, the boxes established with the '@top' or '@bottom' rules fill an area one inch high and 8.5 inches wide.
4. Margin boxes are treated as follows:
   • Each margin box is contained within a anonymous table cell. Margin, border and padding properties take on their initial value - i.e. no margin, no border and no padding and the margin's content box is congruent with the containing box.
   • As a consequence of the above, there are no visible borders between the cells, if any exist.
5. The box layout constraints are defined as follows:
   1. The right edge of the containing box for the 'top-left-corner' and 'bottom-left-corner' margin boxes MUST line up with the left border edge of the page box. Similarly, the left edge of the containing box for margin boxes 'top-right-corner' and 'bottom-right-corner' MUST line up with the right border edge of the page box.
   2. If the 'top-center' margin box is not empty, that is, it has content, it MUST be horizontally aligned with the middle of the page box content area, and the 'top-left' and 'top-right' MUST have the same width.  If the 'top-center' margin box is empty and 'width' is 'auto', then the box's width is zero and 'margin', 'padding' and 'border' properties do not apply.
   3. If the 'bottom-center' margin box is not empty, that is, it has content, it MUST be horizontally aligned with the middle of the page box content area, and the 'bottom-left' and 'bottom-right' MUST have the same width. If the 'bottom-center' margin box is empty and 'width' is 'auto', then the box's width is zero and 'margin', 'padding' and 'border' properties do not apply.
   4. If the 'left-middle' margin box is not empty, that is, it has content, it MUST be vertically aligned with the middle of the page box content area, and the 'left-top' and 'left-bottom' margin boxes MUST have the same height. If the 'left-middle' margin box is empty and 'height' is 'auto', the box's height is zero and 'margin', 'padding' and 'border' properties do not apply.
   5. If the 'right-middle' margin box is not empty, that is, it has content, it MUST be vertically aligned with the middle of the page box content area, and the 'right-top' and 'right-bottom' margin boxes MUST have the same height. If the 'right-middle' margin box is empty and 'height' is 'auto', the box's height is zero and 'margin', 'padding' and 'border' properties do not apply.
   6. If a margin box is empty, that is, it doesn't have any content, and its 'width' or height is set to 'auto', it MUST act as if it were not there, except in the following situations:
      1. When the 'top-center' and 'top-left' margin boxes are not empty and the 'top-right' box is empty, then its 'width' MUST be the same as the 'top-left' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
      2. When the 'top-center' and 'top-right' margin boxes are not empty and the 'top-left' box is empty, then its 'width' MUST be the same as the 'top-right' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
      3. When the 'bottom-center' and 'bottom-left' margin boxes are not empty and the 'bottom-right' box is empty, then its 'width' MUST be the same as the 'bottom-left' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
      4. When the 'bottom-center' and 'bottom-right' margin boxes are not empty and the 'bottom-left' box is empty, then its 'width' MUST be the same as the 'bottom-right' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
      5. When the 'left-middle' and 'left-top' margin boxes are not empty and the 'left-bottom' margin box is empty, then its 'height' MUST be the same as the 'left-top' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
      6. When the 'left-middle' and 'left-bottom' margin boxes are not empty and the 'left-top' margin box is empty, then its 'height' MUST be the same as the 'left-bottom' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
      7. When the 'right-middle' and 'right-top' margin boxes are not empty and the 'right-bottom' margin box is empty, then its 'height' MUST be the same as the 'right-top' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
      8. When the 'right-middle' and 'right-bottom' margin boxes are not empty and the 'right-top' margin box is empty, then its 'height' MUST be the same as the 'right-bottom' margin box, but its 'margin', 'border', and 'padding' properties do not apply.
   7. The maximum width of the 'top-center' margin box is determined by the following situations (the same calculations are used for the maximum width of the 'bottom-center' margin box).
      1. If the cell is not empty and the left and right cells are empty, that is, they don't have content, then the maximum width of the center cell is the max box width.
      2. If the cell is not empty, and the left or right cells, or both, are not empty then the maximum widths of the left, right and center cells are set proportional to their content within the constraints that the center cell is aligned on the center of the page and that the left and right cells are the same width. The maximum width of the center cell is the max box width multiplied by the ratio of the size of the content of the center cell to the sum of the sizes of the center cell's content and the largest content of either the left or right cells.
         max width = (max box width × size of the center content) ÷
         ∑( size of center content, 2 × max (size of the left content, size of the right content))
         How the size of the content of the left, center, and right cells is determined is implementation dependant.
   8. The maximum width of the top left and bottom left cells is determined by the following:
      1. If the cell is empty, the width is zero, except when a width is forced by the size of the right and center cells.
      2. If the cell is not empty, and the center and right cells are empty, then the maximum width is the max box width.
         max width = max box width
      3. If both the left and center cells have content, then the maximum width of the left cell is half of the subtraction of the maximum width of the center cell from the max box width. The right cell's width becomes the same and the left.
         max width = (max box width - max width of center cell) ÷ 2
   9. The maximum width of the top right and bottom right cells is determined by the following:
      1. If the cell is empty, the width is zero, except when a width is forced by the size of the left and center cells.
      2. If the cell is not empty, and the center and left cells are empty, then the maximum width is the max box width.
         max width = max box width
      3. If both the right and center cells have content, then the maximum width of the right cell is half of the subtraction of the maximum width of the center cell from the max box width.
         max width = (max box width - max width of center cell) ÷ 2
   10. The maximum height of the 'left-middle' margin box is determined by the following situations (the same calculations are used for the maximum height of the 'right-middle' margin box).
       1. If the cell is not empty and the top and bottom cells are empty, that is, they don't have content, then the maximum height of the middle cell is the max box height.
       2. If the cell is not empty, and the top or bottom cells, or both, are not empty then the maximum height of the top, middle, and bottom cells are set proportional to their content within the constraints that the middle cell is aligned on the center of the page and that the top and bottom cells are the same height. The maximum height of the middle cell is the max box height multiplied by the ratio of the size of the content of the middle cell to the sum of the sizes of the middle cell's content and the largest content of either the top or bottom cells.
          max height = (max box height × size of the middle content) ÷
          ∑( size of middle content, 2 × max (size of the top content, size of the bottom content))
          How the size of the content of the top, middle, and bottom cells is determined is implementation dependant.
   11. The maximum height of the left top and right top cells is determined by the following:
       1. If the cell is empty, the width is zero, except when a width is forced by the size of the bottom and middle cells.
       2. If the cell is not empty, and the middle and bottom cells are empty, then the maximum height is the max box height.
          max height = max box height
       3. If both the top and middle cells have content, then the maximum height of the top cell is half of the subtraction of the maximum height of the middle cell from the max box height. The bottom cell's width becomes the same and the top.
          max height = (max box height - max height of middle cell) ÷ 2
   12. The maximum height of the left bottom and right bottom cells is determined by the following:
       1. If the cell is empty, the height is zero, except when a height is forced by the height of the top and middle cells.
       2. If the cell is not empty, and the middle and top cells are empty, then the maximum height is the max box height.
          max height = max box height
       3. If both the bottom and middle cells have content, then the maximum height of the bottom cell is half of the subtraction of the maximum height of the middle cell from the max box height.
          max height = (max box height - max height of middle cell) ÷ 2

The maximum widths and heights for the containing boxes discussed above, are the maximum values for the margin boxes. Values of the 'width', 'height', 'padding', 'margin', and 'border' properties for these boxes that result in a value larger than the maximum MUST be ignored from the outside in, that is first the margin, then the border, and so forth. If, after ignoring margin, border, and padding, the width (or height) is too large, the maximum value MUST be used instead. This keeps the margin boxes from intruding into the page area or off the page.

4.3. Margin boxes and default values

Margin boxes have an initial value of zero for padding, border and margin. The default height of top boxes is the value of page box's top margin. The default height of the bottom boxes is the value of the page box's bottom margin. The initial value for 'content' is 'none'. The initial value of text-align, vertical-align, width and height for margin boxes is defined below:

4.3.1. Margin box examples

The following is a collection of examples of headers.

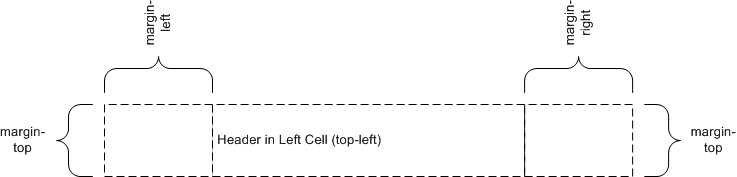

@page {
  @top-left { content: "Header in Left Cell (top-left)" }
}

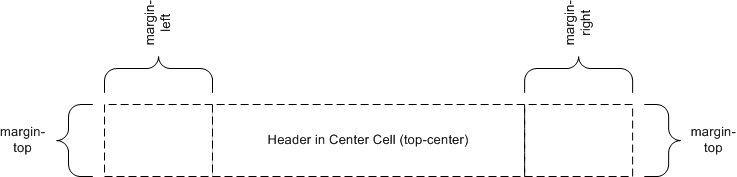

@page {
  @top-center { content: "Header in Center Cell (top-center)" }
}

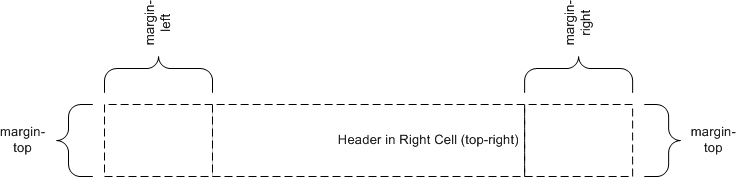

@page {
  @top-right { content: "Header in Right Cell (top-right)" }
}

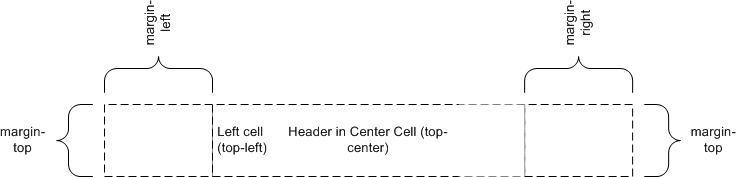

@page {
  @top-left { content: "Left Cell (top-left)" }
  @top-center { content: "Header in Center Cell (top-center)" }
}

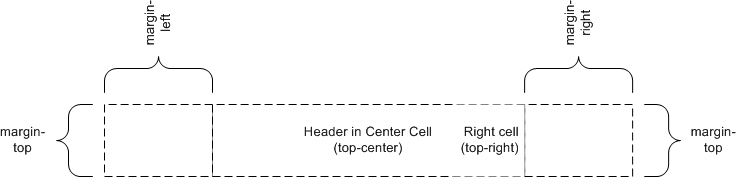

@page {
  @top-center { content: "Header in Center Cell (top-center)" }
  @top-right { content: "Right Cell (top-right)" }
}

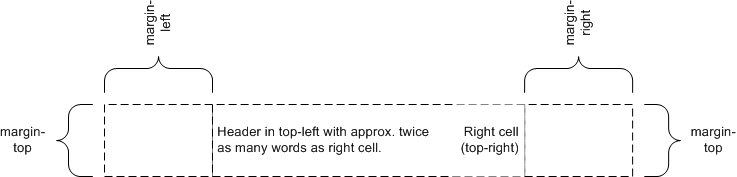

@page {
  @top-left { content: "Header in top-left with approx. "
                     "twice as many words as right cell." }
  @top-right { content: "Right cell (top-right)" }
}

4.4. Populating margin boxes

A margin box is instantiated if a margin context and one of the following conditions hold:

• If the computed value of 'content' is not 'none'.
• The properties 'width' and 'height' are set in the margin context.

h1 { string-set: chapter content() }
@page {
  margin: 10%;
  @top-center { content: string(chapter) }
}

Both counters and string-sets could be updated many times on a given page. Which value of a string-set or a counter is being referred to in a margin box is specified using the 'page-policy' property in the @string context or @counter context.

h1 { string-set: chapter content() }
@string chapter { page-policy: last }
@page {
  margin: %10;
  @top-center { content: string (chapter) }
}

To use the chapter name as it was when the processing of the page started, the designer would specify a 'page-policy' of 'start' instead of 'last'. Designers can also use the value of a string or counter after its first state change on a page by specifying 'first'.

5. Page breaks

The following sections explain page formatting in CSS3 paged media. Five properties indicate where the user agent MAY or SHOULD break pages, and on what page (left or right) the subsequent content SHOULD resume. Each page break ends layout in the current page box and causes remaining pieces of the document tree to be laid out in a new page box.

5.1. Break before/after elements: 'page-break-before', 'page-break-after', 'page-break-inside'

Values for these properties have the following meanings:

auto

Neither force nor forbid a page break before (after, inside) the generated box.

always

Always force a page break before (after) the generated box.

avoid

Avoid a page break before (after, inside) the generated box.

left

Force one or two page breaks before (after) the generated box so that the next page is formatted as a left page.

right

Force one or two page breaks before (after) the generated box so that the next page is formatted as a right page.

A potential page break location is typically under the influence of the parent element's 'page-break-inside' property, the 'page-break-after' property of the preceding element, and the 'page-break-before' property of the following element. When these properties have values other than 'auto', the values 'always', 'left', and 'right' take precedence over 'avoid'. See the section on allowed page breaks for the exact rules on how these properties MAY force or suppress a page break.

5.2. Using named pages: 'page'

The 'page' property can be used to specify a particular type of page where an element SHOULD be displayed.

@page rotated { size: landscape }
table { page: rotated; page-break-before: right }

The 'page' property works as follows: If a block box with inline content has a 'page' property that is different from the preceding block box with inline content, then one or two page breaks are inserted between them, and the boxes after the break are rendered on a page box of the named type. See "Forced page breaks" below.

@page narrow { size: 9cm 18cm }
@page rotated { size: landscape }
div { page: narrow }
table { page: rotated }

<div>
<table>...</table>
<table>...</table>
</div>

5.3. Breaks inside elements: 'orphans', 'widows'

The 'orphans' property specifies the minimum number of lines of a paragraph that MUST be left at the bottom of a page. The 'widows' property specifies the minimum number of lines of a paragraph that MUST be left at the top of a page. Examples of how they are used to control page breaks are given below.

5.4. Allowed page breaks

In the normal flow, page breaks can occur at the following places:

1. In the vertical margin between block boxes (or rows in a table). When a page break occurs here, the computed values of the relevant 'margin-top' and 'margin-bottom' properties are set to '0'.
2. Between line boxes inside a block box.

These breaks are subject to the following rules:

• Rule A: Breaking at (1) is allowed only if the 'page-break-after' and 'page-break-before' properties of all the elements generating boxes that meet at this margin allow it, which is when at least one of them has the value 'always', 'left', or 'right', or when all of them are 'auto'.
• Rule B: However, if all of them are 'auto' and the nearest common ancestor of all the elements has a 'page-break-inside' value of 'avoid', then breaking here is not allowed.
• Rule C: Breaking at (2) is allowed only if the number of line boxes between the break and the start of the enclosing block box is the value of 'orphans' or more, and the number of line boxes between the break and the end of the box is the value of 'widows' or more.
• Rule D: In addition, breaking at (2) is allowed only if the 'page-break-inside' property is 'auto'.

If the above doesn't provide enough break points to keep content from overflowing the page boxes, then rules B and D are dropped in order to find additional breakpoints.

If that still does not lead to sufficient break points, rules A and C are dropped as well, to find still more break points.

5.5. Forced page breaks

A page break MUST occur at (1) if, among the 'page-break-after' and 'page-break-before' properties of all the elements generating boxes that meet at this margin, there is at least one with the value 'always', 'left', or 'right'.

A page break MUST also occur at (1) if the last line box above this margin and the first one below it do not have the same value for 'page'.

5.6. "Best" page breaks

CSS3 does not define which of a set of allowed page breaks MUST be used; CSS3 does not forbid a user agent from breaking at every possible break point, or not to break at all. But CSS3 does recommend that user agents observe the following heuristics (while recognizing that they are sometimes contradictory):

• Break as few times as possible.
• Make all pages that don't end with a forced break appear to have about the same height.
• Avoid breaking inside a block that has a border.
• Avoid breaking inside a table.
• Avoid breaking inside a floated element.

6. Page-based extensions to counters and string-sets

6.1. Page-based counters

Counters apply to page contexts defined by means of the '@page' rule. This is useful for maintaining a page count.

@page {
  margin: 10%;
  counter-increment: page;

  @top-center {
    font-family: sans-serif;
    font-weight: bold;
    font-size: 2em;
    content: counter(page);
  }
}

6.2. Determining which counter or string-set value to use: the 'page-policy' property

'page-policy' determines which page-based occurrence of a given element is applied to a counter or string value:

start

Takes the value of the counter or string at the beginning of the page (before applying style to the elements of the page).

first

Takes the value after the first state change in the counter or string during processing of the page.

last

Takes the value following the final state change on the page.

Furthermore, if the counter-reset property is used in the same context, the 'page-policy' MUST be used to determine when a counter or string value is reset.

6.3. Number of pages - 'pages' counter

It is often useful to refer to the total number of pages in a document. A UA MUST act as if there was a counter with the name of 'pages' and its initial value was set to the total number of pages.

@page {
  counter-increment: page;
  @bottom-center { content: "Page " counter(page) " of " counter(pages);
}

Some CSS profiles might make 'pages' OPTIONAL because it would be too much work for the UAs to compute it. A UA that doesn't support 'pages' SHALL ignore any 'content' property that uses the 'pages' counter. It is therefore possible to write a simple stylesheet that covers UAs with differing capabilities:

@page {
  counter-increment: page;
  @bottom-center {
       content: "Page " counter(page);
       content: "Page " counter(page) " of " counter(pages);
  }
}

7. Page based floats

The capability of a float is extended to floating an element to a page float area in a page box. A page float positions an element to page float areas such as the top or bottom float area of the current page box.

7.1. Page float area contexts

Authors specify the dimensions, orientation, margins etc. of a page float area within an @page-float rule. An @page-float rule consists of the keyword '@page-float', white space, one of the following: 'top', 'bottom', 'left', or 'right', optional white space, and then a block of declarations (said to be the page float context).

top

This is an area at the top of the page box where an element whose 'float' property has the value 'top' is placed. The top of the float box is adjacent to the top of the page-area.

bottom

This is an area at the bottom of the page box where an element whose 'float' property has the value 'bottom' is placed. The bottom of the float box is adjacent to the bottom of the page-area.

left

This is an area at the left of the page box where an element whose 'float' property has the value 'left' is placed. The left side of the float box is adjacent to the left side of the page-area.

right

This is an area at the right of the page box where an element whose 'float' property has the value 'right' is placed. The right side of the float box is adjacent to the right side of the page-area.

@page {
  @float-area bottom {
       border-top: solid thin black;
       max-height: 50%
  }
}

7.2. Top and bottom page floats (in horizontal writing mode)

1. Top page floats are stacked vertically in the top of the top page float area.
2. The height of the top page float area is determined by 'height', 'min-height' and 'max-height' in the top page float context.
3. If a float doesn't fit in the top page float area and the top page float area contains other top floats then the float is moved to the next page's top page float area.
4. If a float doesn't fit in the top page float area and the top page float area is otherwise empty then the 'overflow' property determines what happens.
5. A top float appears below all top floats that precede it in the document.

Bottom page floats follow analogous rules.

*.float { float: bottom }

<div class="float">This text should appear near the bottom of the page</div>
<div class="float">The second float should appear after the first float</div>

7.3. Left and right page floats (in vertical writing mode)

1. Left floats are stacked horizontally in the left page float area.
2. The width of the left page float area is determined by 'width', 'min-width' and 'max-width' in the left page float context.
3. If a float doesn't fit in the left page float area and the left page float area contains other left floats then the float is moved to the next page's left page float area.
4. If a float doesn't fit in the left page float area and the left page float area is otherwise empty then the 'overflow' property determines what happens.
5. A left float appears to the right all left floats that precede it in the document if 'direction' is 'ltr' and to the left if 'direction' is 'rtl'.

Right page float floats follow analogous rules.

7.4. "Next" page floats

Sometimes it is useful to float an element to a page by itself or to have a page with contains only floating elements. This is done by assigning the float to a named page. An example of this would be a large figure in a document.

.largeFigure {
  float: left;
  clear: both
  page: large-figures
}

@page large-figures { ... /* definition of the page */ }

...

<div class="largeFigure">
  <img src="figure-1.png" alt="Figure-1 - Very large image"/>
</div>

8. Orienting an image on the page

Images from camera phones, digital cameras or scanners can appear crooked or sideways.  Furthermore, devices such as a camera phone, might not have the capability to correct the image.  However, this type of device can accept input from its user on the the kind of correction to perform, such as rotating the image by 90 degrees.  The image-orientation property provides a way to specify a rotation to be applied to an image, and, presumably, improve the image's presentation.  This facility is not intended to specify other image transformations such as flipping the image in the horizontal or vertical direction.  Also, this facility is not needed to correctly orient an image when printing in landscape or portrait orientation.

'image-orientation' specifies a rotation in the right or clockwise direction that a user agent should apply to an image.

Two values for the 'image-orientation' property apply to an image:

auto

The image will be set to the orientation of the page.

<angle>

A positive value MUST rotate the image around its center, to the right (in a clockwise direction), by the given number of degrees, radians or grads. Negative values MUST  perform the same rotation, but to the left or counter-clockwise direction. Values range from zero to 360 degrees, 6.2832 radians, or 400 grads result in unique rotations. Values may be either positive or negative. The user agent MAY reduce values larger than 359 degrees by a modulo of 360, however the orientations are equivalent. For example, the orientation of an image after a rotation of 450deg is always equivalent to a 90deg rotation. The same actions hold for radians and grads.

The following examples rotate the an image in four major orientations:
img.original   { image-orientation: auto  }
img.zero       { image-orientation: 0grad }
img.ninety     { image-orientation: 90deg }
img.pi         { image-orientation: 3.1416rad }
img.tilt       { image-orientation: -10grad }
...
<img class="pi" src=... />

References

Normative references

[MEDIAQ]

Håkon Wium Lie; Tantek Çelik; Daniel Glazman. Media queries. 8 July 2002. W3C Candidate Recommendation. (Work in progress.) URL: http://www.w3.org/TR/2002/CR-css3-mediaqueries-20020708

[RFC2119]

S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. Internet RFC 2119. URL: http://www.ietf.org/rfc/rfc2119.txt

Other references
