SVG contains the following set of basic shape elements:
Mathematically, these shape elements are equivalent to a 'path' element that would construct the same shape. The basic shapes may be stroked, filled and used as clip paths. All of the properties available for 'path' elements also apply to the basic shapes.
The 'rect' element defines a rectangle which is axis-aligned with the current user coordinate system. Rounded rectangles can be achieved by setting appropriate values for attributes rx and ry.
<!ENTITY % rectExt "" > <!ELEMENT rect (%descTitle;,(animate|set|animateMotion|animateColor|animateTransform %geExt;%rectExt;)*) > <!ATTLIST rect id ID #IMPLIED xml:lang NMTOKEN #IMPLIED xml:space (default|preserve) #IMPLIED class NMTOKENS #IMPLIED style CDATA #IMPLIED transform CDATA #IMPLIED %graphicsElementEvents; system-required NMTOKEN #IMPLIED system-language CDATA #IMPLIED x CDATA #IMPLIED y CDATA #IMPLIED width CDATA #REQUIRED height CDATA #REQUIRED rx CDATA #IMPLIED ry CDATA #IMPLIED > |
Attribute definitions:
If a properly specified value is provided for rx but not for ry, then the user agent processes the 'rect' element with the effective value for ry as equal to rx. If a properly specified value is provided for ry but not for rx, then the user agent processes the 'rect' element with the effective value for rx as equal to ry. If neither rx nor ry has a properly specified value, then the user agent processes the 'rect' element as if no rounding had been specified, resulting in square corners. If rx is greater than half of the width of the rectangle, then the user agent processes the 'rect' element with the effective value for rx as half of the width of the rectangle. If ry is greater than half of the height of the rectangle, then the user agent processes the 'rect' element with the effective value for ry as half of the height of the rectangle. If rx or ry is negative, then the user agent processes the 'rect' element as if the given attribute had a value of zero.
Mathematically, a 'rect' element can be mapped to an equivalent 'path' element as follows.
Example rect01 below expresses all values in physical units (centimeters, in this case). The 'rect' element is filled with yellow and stroked with navy.
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
"http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="12cm" height="4cm">
<desc>Example rect01 - rectangle expressed in physical units</desc>
<rect x="4cm" y="1cm" width="4cm" height="2cm"
style="fill:yellow; stroke:navy; stroke-width:0.1cm" />
</svg>
|
|
View this example as SVG (SVG-enabled browsers only)

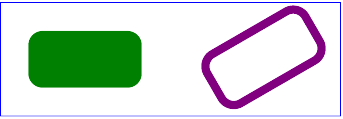

Example rect02 below specifies the coordinates of the two rounded rectangles in the user coordinate system established by the viewBox attribute on the 'svg' element and the transform attribute on the 'g' element. The rx specifies how to round the corners of the rectangles. Note that since no value has been specified for the ry attribute, it will be assigned the same value as the rx attribute.
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
"http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="12cm" height="4cm" viewBox="0 0 1200 400">
<desc>Example rect02 - rounded rectangles expressed in user coordinates</desc>
<rect x="100" y="100" width="400" height="200" rx="50"
style="fill:green;" />
<g transform="translate(700 300); rotate(-30)">
<rect x="0" y="0" width="400" height="200" rx="50"
style="fill:none; stroke:purple; stroke-width:30" />
</g>
</svg>
|
View this example as SVG (SVG-enabled browsers only)
The 'circle' element defines a circle based on a center point and a radius.
<!ENTITY % circleExt "" > <!ELEMENT circle (%descTitle;,(animate|set|animateMotion|animateColor|animateTransform %geExt;%circleExt;)*) > <!ATTLIST circle id ID #IMPLIED xml:lang NMTOKEN #IMPLIED xml:space (default|preserve) #IMPLIED class NMTOKENS #IMPLIED style CDATA #IMPLIED transform CDATA #IMPLIED %graphicsElementEvents; system-required NMTOKEN #IMPLIED system-language CDATA #IMPLIED cx CDATA "0" cy CDATA "0" r CDATA #REQUIRED > |
Attribute definitions:
Mathematically, a 'circle' element can be mapped to an equivalent 'path' element as follows.

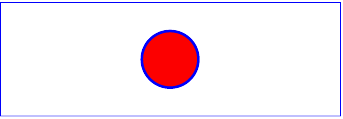

Example circle01 below expresses all values in physical units (centimeters, in this case). The 'circle' element is filled with red and stroked with blue.
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
"http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="12cm" height="4cm">
<desc>Example circle01 - circle expressed in physical units</desc>
<circle cx="6cm" cy="2cm" r="1cm"
style="fill:red; stroke:blue; stroke-width:0.1cm" />
</svg>
|
View this example as SVG (SVG-enabled browsers only)
The 'ellipse' element defines an ellipse which is axis-aligned with the current user coordinate system based on a center point and two radii.
<!ENTITY % ellipseExt "" > <!ELEMENT ellipse (%descTitle;,(animate|set|animateMotion|animateColor|animateTransform %geExt;%ellipseExt;)*) > <!ATTLIST ellipse id ID #IMPLIED xml:lang NMTOKEN #IMPLIED xml:space (default|preserve) #IMPLIED class NMTOKENS #IMPLIED style CDATA #IMPLIED transform CDATA #IMPLIED %graphicsElementEvents; system-required NMTOKEN #IMPLIED system-language CDATA #IMPLIED cx CDATA "0" cy CDATA "0" rx CDATA #REQUIRED ry CDATA #REQUIRED > |
Attribute definitions:
Mathematically, an 'ellipse' element can be mapped to an equivalent 'path' element as follows.

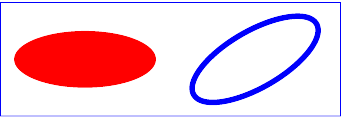

Example ellipse01 below specifies the coordinates of the two ellipses in the user coordinate system established by the viewBox attribute on the 'svg' element and the transform attribute on the 'g' 'ellipse' elements. Both ellipses uses the default values of zero for the cx and cy attributes (the center of the ellipse). The second ellipse is rotated.
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
"http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="12cm" height="4cm" viewBox="0 0 1200 400">
<desc>Example ellipse01 - ellipses expressed in user coordinates</desc>
<g transform="translate(300 200)">
<ellipse rx="250" ry="100"
style="fill:red" />
</g>
<ellipse transform="translate(900 200); rotate(30)"
rx="250" ry="100"
style="fill:none; stroke:blue; stroke-width: 20" />
</svg>
|
View this example as SVG (SVG-enabled browsers only)
The 'line' element defines a line segment that starts at one point and ends at another.
<!ENTITY % lineExt "" > <!ELEMENT line (%descTitle;,(animate|set|animateMotion|animateColor|animateTransform %geExt;%lineExt;)*) > <!ATTLIST line id ID #IMPLIED xml:lang NMTOKEN #IMPLIED xml:space (default|preserve) #IMPLIED class NMTOKENS #IMPLIED style CDATA #IMPLIED transform CDATA #IMPLIED %graphicsElementEvents; system-required NMTOKEN #IMPLIED system-language CDATA #IMPLIED x1 CDATA "0" y1 CDATA "0" x2 CDATA "0" y2 CDATA "0" > |
Attribute definitions:
Mathematically, an 'line' element can be mapped to an equivalent 'path' element as follows.

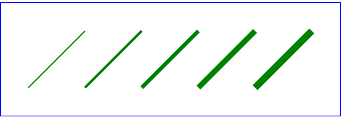

Example line01 below specifies the coordinates of the five lines in the user coordinate system established by the viewBox attribute on the 'svg' element. The lines have different thicknesses.
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
"http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="12cm" height="4cm" viewBox="0 0 1200 400">
<desc>Example line01 - lines expressed in user coordinates</desc>
<g style="fill:none; stroke:green">
<line x1="100" y1="300" x2="300" y2="100"
style="stroke-width:5" />
<line x1="300" y1="300" x2="500" y2="100"
style="stroke-width:10" />
<line x1="500" y1="300" x2="700" y2="100"
style="stroke-width:15" />
<line x1="700" y1="300" x2="900" y2="100"
style="stroke-width:20" />
<line x1="900" y1="300" x2="1100" y2="100"
style="stroke-width:25" />
</g>
</svg>
|
View this example as SVG (SVG-enabled browsers only)
The 'polyline' element defines a set of connected straight line segments. Typically, 'polyline' elements define open shapes.
<!ENTITY % polylineExt "" > <!ELEMENT polyline (%descTitle;,(animate|set|animateMotion|animateColor|animateTransform %geExt;%polylineExt;)*) > <!ATTLIST polyline id ID #IMPLIED xml:lang NMTOKEN #IMPLIED xml:space (default|preserve) #IMPLIED class NMTOKENS #IMPLIED style CDATA #IMPLIED transform CDATA #IMPLIED %graphicsElementEvents; system-required NMTOKEN #IMPLIED system-language CDATA #IMPLIED points CDATA #REQUIRED > |
Attribute definitions:
If an odd number of points is provided, then the element is in error, with the same user agent behavior as occurs with an incorrectly specified 'path' element.
Mathematically, a 'polyline' element can be mapped to an equivalent 'path' element as follows.
Example polyline01 below specifies a polyline in the user coordinate system established by the viewBox attribute on the 'svg' element.
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
"http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="12cm" height="4cm" viewBox="0 0 1200 400">
<desc>Example polyline01 - increasingly larger bars</desc>
<polyline style="fill:none; stroke:blue; stroke-width:10cm"
points="50,375
150,375 150,325 250,325 250,375
350,375 350,250 450,250 450,375
550,375 550,175 650,175 650,375
750,375 750,100 850,100 850,375
950,375 950,25 1050,25 1050,375
1150,375" />
</svg>
|
View this example as SVG (SVG-enabled browsers only)
The 'polygon' element defines a closed shape consisting of a set of connected straight line segments.
<!ENTITY % polygonExt "" > <!ELEMENT polygon (%descTitle;,(animate|set|animateMotion|animateColor|animateTransform %geExt;%polygonExt;)*) > <!ATTLIST polygon id ID #IMPLIED xml:lang NMTOKEN #IMPLIED xml:space (default|preserve) #IMPLIED class NMTOKENS #IMPLIED style CDATA #IMPLIED transform CDATA #IMPLIED %graphicsElementEvents; system-required NMTOKEN #IMPLIED system-language CDATA #IMPLIED points CDATA #REQUIRED > |
Attribute definitions:
If an odd number of points is provided, then the element is in error, with the same user agent behavior as occurs with an incorrectly specified 'path' element.
Mathematically, a 'polygon' element can be mapped to an equivalent 'path' element as follows.
Example polygon01 below specifies two polygons (a star and a hexagon) in the user coordinate system established by the viewBox attribute on the 'svg' element.
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
"http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="12cm" height="4cm" viewBox="0 0 1200 400">
<desc>Example polygon01 - star and hexagon</desc>
<polygon style="fill:red; stroke:blue; stroke-width:10"
points="350,75 379,161 469,161 397,215
423,301 350,250 277,301 303,215
231,161 321,161" />
<polygon style="fill:lime; stroke:blue; stroke-width:10"
points="850,75 958,137.5 958,262.5
850,325 742,262.6 742,137.5" />
</svg>
|
View this example as SVG (SVG-enabled browsers only)
The following is the BNF for points specifications in 'polyline' and 'polygon' elements. The following notation is used:
list-of-points:
wsp* coordinate-pairs?
coordinate-pairs:
coordinate-pair
| coordinate-pair comma-wsp coordinate-pairs
coordinate-pair:
coordinate comma-wsp coordinate
coordinate:
number-wsp
number-wsp:
number wsp*
number:
sign? integer-constant
| sign? floating-point-constant
comma-wsp:
comma? wsp*
comma:
","
integer-constant:
digit-sequence
floating-point-constant:
fractional-constant exponent?
| digit-sequence exponent
fractional-constant:
digit-sequence? "." digit-sequence
| digit-sequence "."
exponent:
( "e" | "E" ) sign? digit-sequence
sign:
"+" | "-"
digit-sequence:
digit
| digit digit-sequence
digit:
"0" | "1" | "2" | "3" | "4" | "5" | "6" | "7" | "8" | "9"
wsp:
(#x20 | #x9 | #xD | #xA)+
The SVGRectElement interface corresponds to the 'rect' element.
interface SVGRectElement : SVGStyledAndTransformedElement {
attribute SVGLength x;
attribute SVGLength y;
attribute SVGLength width;
attribute SVGLength height;
attribute SVGLength rx;
attribute SVGLength ry;
};
|
The SVGCircleElement interface corresponds to the 'circle' element.
interface SVGCircleElement : SVGStyledAndTransformedElement {
attribute SVGLength cx;
attribute SVGLength cy;
attribute SVGLength r;
};
|
The SVGEllipseElement interface corresponds to the 'ellipse' element.
interface SVGEllipseElement : SVGStyledAndTransformedElement {
attribute SVGLength cx;
attribute SVGLength cy;
attribute SVGLength rx;
attribute SVGLength ry;
};
|
The SVGLineElement interface corresponds to the 'line' element.
interface SVGLineElement : SVGStyledAndTransformedElement {
attribute SVGLength x1;
attribute SVGLength y1;
attribute SVGLength x2;
attribute SVGLength y2;
};
|
The SVGPointList interface is a base interface used by SVGPolylineElement and SVGPolygonElement.
interface SVGPointList {
SVGPoint createSVGPoint(); // Returns unattached point (0,0)
readonly attribute unsigned long number_of_lengths;
SVGPoint getSVGPoint(in unsigned long index);
// Replace all existing entries with a single entry.
void initialize(in SVGPoint newSVGPoint)
raises(DOMException);
void clear(); // Clear all entries, giving an empty list
SVGPoint insertBefore(in SVGPoint newSVGPoint,
in unsigned long index)
raises(DOMException);
SVGPoint replace(in SVGPoint newSVGPoint,
in unsigned long index)
raises(DOMException);
SVGPoint remove(in unsigned long index)
raises(DOMException);
SVGPoint append(in SVGPoint newSVGLength)
raises(DOMException);
};
|
The SVGPolylineElement interface corresponds to the 'polyline' element.
interface SVGPolylineElement : SVGStyledAndTransformedElement {
attribute SVGPointList points;
};
|
The SVGPolygonElement interface corresponds to the 'polygon' element.
interface SVGPolygonElement : SVGStyledAndTransformedElement {
attribute SVGPointList points;
};
|
