7 Coordinate Systems, Transformations and Units


Contents




7.1 Introduction

For all media, the SVG canvas describes "the space where the SVG content is rendered." The canvas is infinite for each dimension of the space, but rendering occurs relative to a finite rectangular region of the canvas. This finite rectangular region is called the SVG viewport. For visual media [CSS2-VISUAL], the SVG viewport is the viewing area where the user sees the SVG content.

The size of the SVG viewport (i.e., its width and height) is determined by a negotiation process (see Establishing the size of the initial viewport) between the SVG document fragment and its parent (real or implicit). Once that negotiation process is completed, the SVG user agent is provided the following information:

Using the above information, the SVG user agent determines the viewport, an initial viewport coordinate system and an initial user coordinate system such that the two coordinates systems are identical. Both coordinates systems are established such that the origin matches the origin of the viewport, and one unit in the initial coordinate system equals one "pixel" in the viewport. (See Initial coordinate system.) The viewport coordinate system is also called viewport space and and the user coordinate system is also called user space.

Lengths in SVG can be specified as:

The supported CSS length unit specifiers are: em, ex, px, pt, pc, cm, mm, in, and percentages.

A new user space (i.e., a new current coordinate system) can be established at any place within an SVG document fragment by specifying transformations in the form of transformation matrices or simple transformation operations such as rotation, skewing, scaling and translation. Establishing new user spaces via coordinate system transformations are fundamental operations to 2D graphics and represent the usual method of controlling the size, position, rotation and skew of graphic objects.

New viewports also can be established. By establishing a new viewport, you can redefine the meaning of some of the various CSS unit specifiers (px, pt, pc, cm, mm, in, and percentages) and provide a new reference rectangle for "fitting" a graphic into a particular rectangular area. ("Fit" means that a given graphic is transformed in such a way that its bounding box in user space aligns exactly with the edges of a given viewport.)

7.2 The initial viewport

The SVG user agent negotiates with its parent user agent using any CSS positioning parameters on the outermost 'svg' element and the width= and height= XML attributes that are required on the 'svg' element to determine the viewport into which the SVG user agent can render the document. In the negotiation process, if the parent document uses CSS positioning and the outermost 'svg' element contains CSS positioning properties [CSS2-POSN] which are sufficient to establish the width of the viewport, then the CSS positioning properties establish the viewport's width; otherwise, the width= attribute on the outermost 'svg' element establishes the viewport's width. Similarly, if the parent document uses CSS positioning and the outermost 'svg' element contains CSS positioning properties [CSS2-POSN] which are sufficient to establish the height of the viewport, then the CSS positioning properties establish the viewport's height; otherwise, the height= attribute on the outermost 'svg' element establishes the viewport's height.

In the following example, an SVG graphic is embedded within a parent XML document which is formatted using CSS layout rules. The width="100px" and height="200px" attributes are used to determine the initial viewport:

<?xml version="1.0" standalone="yes"?>
<parent xmlns="http://some.url">

   <!-- SVG graphic -->
   <svg xmlns='http://www.w3.org/Graphics/SVG/SVG-19991203.dtd'
      width="100px" height="200px">
      <path d="M100,100 Q200,400,300,100"/>
      <!-- rest of SVG graphic would go here -->
   </svg>

</parent>

Download this example

The initial clipping path for the SVG document fragment is established according to the rules described in The initial clipping path.


7.3 The initial coordinate system

For the outermost 'svg' element, the SVG user agent determines an initial viewport coordinate system and an initial user coordinate system such that the two coordinates systems are identical. The origin of both coordinate systems is at the origin of the viewport, and one unit in the initial coordinate system equals one "pixel" in the viewport. In most cases, such as stand-alone SVG documents or SVG document fragments embedded within XML parent documents where the parent's layout is determined by CSS [CSS2] or XSL [XSL], the initial viewport coordinate system (and therefore the initial user coordinate system) has its origin at the top/left of the viewport, with the positive X axis pointing towards the right, the positive Y axis pointing down, and text rendered with an "upright" orientation, which means glyphs are oriented such that Roman characters and full-size ideographic characters for Asian scripts have the top edge of the corresponding glyphs oriented upwards and the right edge of the corresponding glyphs oriented to the right.

Example InitialCoords below shows that the initial coordinate system has the origin at the top/left with the X axis pointing to the right and the Y axis pointing down. The initial user coordinate system has one user unit equal to the parent (implicit or explicit) user agent's "pixel".

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="300px" height="100px">
  <desc>Example InitialCoords - SVG's initial coordinate system</desc>

  <g style="fill:none; stroke:black; stroke-width:3">
    <line x1="0" y1="1.5" x2="300" y2="1.5" />
    <line x1="1.5" y1="0" x2="1.5" y2="100" />
  </g>
  <g style="fill:red; stroke:none">
    <rect x="0" y="0" width="3" height="3" />
    <rect x="297" y="0" width="3" height="3" />
    <rect x="0" y="97" width="3" height="3" />
  </g>
  <g style="font-size:14 font-family:Verdana">
    <text x="10" y="20">(0,0)</text>
    <text x="240" y="20">(300,0)</text>
    <text x="10" y="90">(0,100)</text>
  </g>
</svg>
Example InitialCoords
Example InitialCoords - SVG's initial coordinate system

View this example as SVG (SVG-enabled browsers only)



7.4 Coordinate system transformations

A new user space (i.e., a new current coordinate system) can be established by specifying transformations in the form of a transform attribute on a container element or graphics element. The transform attribute transforms all user space coordinates and lengths on the given element and all of its ancestors. Transformations can be nested, in which case the effect of the transformations are cumulative.

The following demonstrates simple transformations:

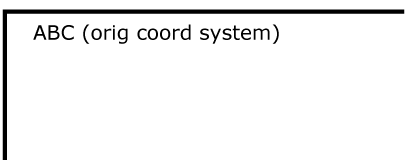

Example OrigCoordSys below shows a document without transformations. The text string is specified in the initial coordinate system.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="400px" height="150px">
  <desc>Example OrigCoordSys - Simple transformations: original picture</desc>
  <g style="fill:none; stroke:black; stroke-width:3">
    <!-- Draw the axes of the original coordinate system -->
    <line x1="0" y1="1.5" x2="400" y2="1.5" />
    <line x1="1.5" y1="0" x2="1.5" y2="150" />
  </g>
  <g>
    <text x="30" y="30" style="font-size:20 font-family:Verdana">
      ABC (orig coord system)
    </text>
  </g>
</svg>
Example OrigCoordSys
Example OrigCoordSys - SVG's initial coordinate system

View this example as SVG (SVG-enabled browsers only)

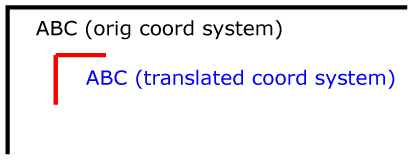

Example NewCoordSys establishes a new user coordinate system by specifying transform="translate(50,50)" on the third 'g' element below. The new user coordinate system has its origin at location (50,50) in the original coordinate system. The result of this transformation is that the coordinate (30,30) in the new user coordinate system gets mapped to coordinate (80,80) in the original coordinate system (i.e., the coordinates have been translated by 50 units in X and 50 units in Y).

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="400px" height="150px">
  <desc>Example NewCoordSys - New user coordinate system</desc>
  <g style="fill:none; stroke:black; stroke-width:3">
    <!-- Draw the axes of the original coordinate system -->
    <line x1="0" y1="1.5" x2="400" y2="1.5" />
    <line x1="1.5" y1="0" x2="1.5" y2="150" />
  </g>
  <g>
    <text x="30" y="30" style="font-size:20 font-family:Verdana">
      ABC (orig coord system)
    </text>
  </g>
  <!-- Establish a new coordinate system, which is
       shifted (i.e., translated) from the initial coordinate
       system by 50 user units along each axis. -->
  <g transform="translate(50,50)">
    <g style="fill:none; stroke:red; stroke-width:3">
      <!-- Draw lines of length 50 user units along
           the axes of the new coordinate system -->
      <line x1="0" y1="0" x2="50" y2="0" style="stroke:red"/>
      <line x1="0" y1="0" x2="0" y2="50" />
    </g>
    <text x="30" y="30" style="font-size:20 font-family:Verdana">
      ABC (translated coord system)
    </text>
  </g>
</svg>
Example NewCoordSys
Example NewCoordSys - New user coordinate system

View this example as SVG (SVG-enabled browsers only)

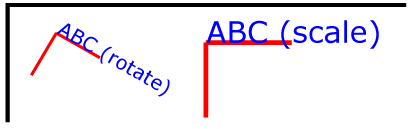

Example RotateScale illustrates simple rotate and scale transformations. The example defines two new coordinate systems:

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="400px" height="120px">
  <desc>Example RotateScale - Rotate and scale transforms</desc>
  <g style="fill:none; stroke:black; stroke-width:3">
    <!-- Draw the axes of the original coordinate system -->
    <line x1="0" y1="1.5" x2="400" y2="1.5" />
    <line x1="1.5" y1="0" x2="1.5" y2="120" />
  </g>
  <!-- Establish a new coordinate system whose origin is at (50,30)
       in the initial coord. system and which is rotated by 30 degrees. -->
  <g transform="translate(50,30)">
    <g transform="rotate(30)">
      <g style="fill:none; stroke:red; stroke-width:3">
        <line x1="0" y1="0" x2="50" y2="0" />
        <line x1="0" y1="0" x2="0" y2="50" />
      </g>
      <text x="0" y="0" style="font-size:20; font-family:Verdana; fill:blue">
        ABC (rotate)
      </text>
    </g>
  </g>
  <!-- Establish a new coordinate system whose origin is at (200,40)
       in the initial coord. system and which is scaled by 1.5. -->
  <g transform="translate(200,40)">
    <g transform="scale(1.5)">
      <g style="fill:none; stroke:red; stroke-width:3">
        <line x1="0" y1="0" x2="50" y2="0" />
        <line x1="0" y1="0" x2="0" y2="50" />
      </g>
      <text x="0" y="0" style="font-size:20; font-family:Verdana; fill:blue">
        ABC (scale)
      </text>
    </g>
  </g>
</svg>
Example RotateScale
Example RotateScale - Rotate and scale transforms

View this example as SVG (SVG-enabled browsers only)


Example Skew defines two coordinate systems which are skewed relative to the origin coordinate system.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="400px" height="120px">
  <desc>Example Skew - Show effects of skewX and skewY</desc>
  <g style="fill:none; stroke:black; stroke-width:3">
    <!-- Draw the axes of the original coordinate system -->
    <line x1="0" y1="1.5" x2="400" y2="1.5" />
    <line x1="1.5" y1="0" x2="1.5" y2="120" />
  </g>
  <!-- Establish a new coordinate system whose origin is at (30,30)
       in the initial coord. system and which is skewed in X by 30 degrees. -->
  <g transform="translate(30,30)">
    <g transform="skewX(30)">
      <g style="fill:none; stroke:red; stroke-width:3">
        <line x1="0" y1="0" x2="50" y2="0" />
        <line x1="0" y1="0" x2="0" y2="50" />
      </g>
      <text x="0" y="0" style="font-size:20; font-family:Verdana; fill:blue">
        ABC (skewX)
      </text>
    </g>
  </g>
  <!-- Establish a new coordinate system whose origin is at (200,30)
       in the initial coord. system and which is skewed in Y by 30 degrees. -->
  <g transform="translate(200,30)">
    <g transform="skewY(30)">
      <g style="fill:none; stroke:red; stroke-width:3">
        <line x1="0" y1="0" x2="50" y2="0" />
        <line x1="0" y1="0" x2="0" y2="50" />
      </g>
      <text x="0" y="0" style="font-size:20; font-family:Verdana; fill:blue">
        ABC (skewY)
      </text>
    </g>
  </g>
</svg>
Example Skew
Example Skew - Show effects of skewX and skewY

View this example as SVG (SVG-enabled browsers only)


Mathematically, all transformations can be represented as 3x3 transformation matrices of the following form:
      3-by-3 transformation matrix

Since only six values are used in the above 3x3 matrix, a transformation matrix is also expressed as a vector: [a b c d e f].

Transformations map coordinates and lengths from a new coordinate system into a previous coordinate system:
      3-by-3 transformation matrix

Simple transformations are represented in matrix form as follows:


7.5 Nested transformations

Transformations can be nested to any level. The effect of nested transformations is to post-multiply (i.e., concatenate) the subsequent transformation matrices onto previously defined transformations:

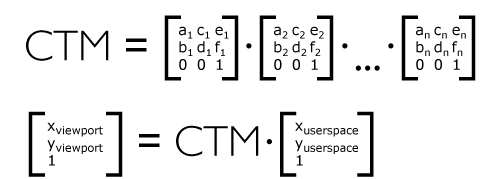

      3-by-3 matrix concatenation

For each given element, the accumulation of all transformations that have been defined on the given element and all of its ancestors up to and including the element which established the current viewport (usually, the 'svg' element which is the most immediate ancestor to the given element) is called the current transformation matrix or CTM. The CTM thus represents the mapping of current user coordinates to viewport coordinates:
current transformation matrix: CTM

Example Nested illustrates nested transformations.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="400px" height="150px">
  <desc>Example Nested - Nested transformations</desc>
  <g style="fill:none; stroke:black; stroke-width:3">
    <!-- Draw the axes of the original coordinate system -->
    <line x1="0" y1="1.5" x2="400" y2="1.5" />
    <line x1="1.5" y1="0" x2="1.5" y2="150" />
  </g>
  <!-- First, a translate -->
  <g transform="translate(50.90)">
    <g style="fill:none; stroke:red; stroke-width:3">
      <line x1="0" y1="0" x2="50" y2="0" />
      <line x1="0" y1="0" x2="0" y2="50" />
    </g>
    <text x="0" y="0" style="font-size:16; font-family:Verdana">
      ....Translate(1)
    </text>
	<!-- Second, a rotate -->
    <g transform="rotate(-45)">
      <g style="fill:none; stroke:green; stroke-width:3">
        <line x1="0" y1="0" x2="50" y2="0" />
        <line x1="0" y1="0" x2="0" y2="50" />
      </g>
      <text x="0" y="0" style="font-size:16; font-family:Verdana">
        ....Rotate(2)
      </text>
	  <!-- Third, another translate -->
      <g transform="translate(130,160)">
        <g style="fill:none; stroke:blue; stroke-width:3">
          <line x1="0" y1="0" x2="50" y2="0" />
          <line x1="0" y1="0" x2="0" y2="50" />
        </g>
        <text x="0" y="0" style="font-size:16; font-family:Verdana">
          ....Translate(3)
        </text>
      </g>
    </g>
  </g>
</svg>
Example Nested
Example Nested - Nested transformations

View this example as SVG (SVG-enabled browsers only)

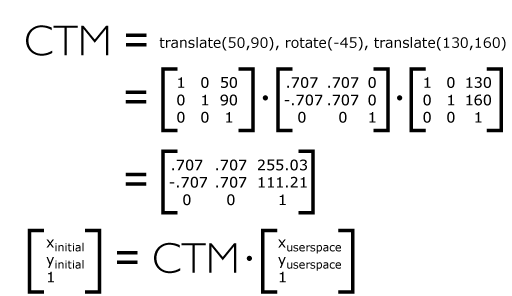

In the example above, the CTM within the the third nested transformation (i.e,, the transform="translate(130,160)") consists of the concatenation of the three transformations, as follows:
Matrix arithmetic example


7.6 The transform attribute

The value of the transform attribute is a <transform-list>, which is defined as a list of transform definitions, which are applied in the order provided. The individual transform definitions are separated by whitespace and/or a comma. The available types of transform definitions include:

All numeric values are real numbers. All angle values are expressed according to the rules for basic data type <angle>.

If a list of transforms is provided, then the net effect is as if each transform had been specified separately in the order provided. For example,

<g transform="translate(-10,-20) scale(2) rotate(45) translate(5,10)">
  <!-- graphics elements go here -->
</g>

is functionally equivalent to:

<g transform="translate(-10,-20)">
  <g transform="scale(2)">
    <g transform="rotate(45)">
      <g transform="translate(5,10)">
        <!-- graphics elements go here -->
      </g>
    </g>
  </g>
</g>

The transform attribute is applied to an element before processing any other coordinate or length values supplied for that element. In the element

<rect x="10" y="10" width="20" height="20" transform="scale(2)"/>

the x, y, width and height values are processed after the current coordinate system has been scaled uniformly by a factor of 2 by the transform attribute. Attributes x, y, width and height (and any other attributes or properties) are treated as values in the new user coordinate system, not the previous user coordinate system. Thus, the above 'rect' element is functionally equivalent to:

<g transform="scale(2)">
  <rect x="10" y="10" width="20" height="20"/>
</g>

The following is the BNF for values for the transform attribute. The following notation is used:

transform-list:
    wsp* transforms? wsp*

transforms:
    transform
    | transform comma-wsp+ transforms

transform:
    matrix
    | translate
    | scale
    | rotate
    | skewX
    | skewY

matrix:
    "matrix" wsp* "(" wsp*
       number comma-wsp
       number comma-wsp
       number comma-wsp
       number comma-wsp
       length comma-wsp
       length wsp* ")"

translate:
    "translate" wsp* "(" wsp* length ( comma-wsp length )? wsp* ")"

scale:
    "scale" wsp* "(" wsp* length ( comma-wsp number )? wsp* ")"

rotate:
    "rotate" wsp* "(" wsp* number wsp* ")"

skewX:
    "skewX" wsp* "(" wsp* number wsp* ")"

skewY:
    "skewY" wsp* "(" wsp* number wsp* ")"

length:
    number unit-specifier?

number:
    sign? integer-constant
    | sign? floating-point-constant

comma-wsp:
    (wsp+ comma? wsp*) | (comma wsp*)

comma:
    ","

integer-constant:
    digit-sequence

floating-point-constant:
    fractional-constant exponent?
    | digit-sequence exponent

fractional-constant:
    digit-sequence? "." digit-sequence
    | digit-sequence "."

exponent:
    ( "e" | "E" ) sign? digit-sequence

sign:
    "+" | "-"

digit-sequence:
    digit
    | digit digit-sequence

digit:
    "0" | "1" | "2" | "3" | "4" | "5" | "6" | "7" | "8" | "9"

unit-specifier:
    "em"| "ex" | "px" | "pt" | "pc" | "cm" | "mm" | "in" | "%"

wsp:
    (#x20 | #x9 | #xD | #xA)

For the transform attribute:

    Animatable: yes.

See the 'animateTransform' element for information on animating transformations.

7.7 The viewBox attribute

It is often desirable to specify that a given set of graphics stretch to fit a particular container element. The viewBox attribute provides this capability.

All elements that establish a new viewport (see elements that establish viewports) have attribute viewBox. The value of the viewBox attribute is a list of four numbers <min-x>, <min-y>, <width> and <height> which specify a rectangle in user space which should be mapped to the bounds of the viewport established by the given element, taking into account attribute preserveAspectRatio. If specified, an additional transformation is applied to all descendants of the given element to achieve the specified effect.

Example ViewBox illustrates the use of the viewBox attribute on the outermost 'svg' element to specify that the SVG content should stretch to fit bounds of the viewport.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="300px" height="200px" viewBox="0 0 1500 1000">
  <desc>Example ViewBox - uses the viewBox
   attribute to automatically create an initial user coordinate
   system which causes the graphic to scale to fit into the
   viewport no matter what size the viewport is.</desc>

  <!-- This rectangle goes from (0,0) to (1500,1000) in user space.
       Because of the viewBox attribute above,
       the rectangle will end up filling the entire area
       reserved for the SVG content. -->
  <rect x="0" y="0" width="1500" height="1000" style="fill:yellow" />

  <!-- A large, red triangle -->
  <path style="fill:red" d="M 750,100 L 250,900 L 1250,900 z"/>

  <!-- A text string that spans most of the viewport -->
  <text x="100" y="600" style="font-size:150; font-family:Verdana">
    Stretch to fit
  </text>
</svg>
Example ViewBox
Rendered into
viewport with
width=300px,
height=200px
      Rendered into
viewport with
width=150px,
height=200px
Example ViewBox - stretch to fit 300 by 200       Example ViewBox - stretch to fit 150 by 200

View this example as SVG (SVG-enabled browsers only)


The effect of the viewBox attribute is that the user agent automatically supplies the appropriate transformation matrix to map the specified rectangle in user space to the bounds of the viewport. To achieve the effect of the example on the left, with viewport dimensions of 300 by 200 pixels, the user agent needs to automatically insert a transformation which scales both X and Y by 0.2. The effect is equivalent to having a viewport of size 300px by 200px and the following supplemental transformation in the document, as follows:

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="300px" height="200px">

  <g transform="scale(0.2)">

    <!-- Rest of document goes here -->

  </g>
</svg>
To achieve the effect of the example on the right, with viewport dimensions of 150 by 200 pixels, the user agent needs to automatically insert a transformation which scales X by 0.1 and Y by 0.2. The effect is equivalent to having a viewport of size 150px by 200px and the following supplemental transformation in the document, as follows:
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="150px" height="200px">

  <g transform="scale(0.1 0.2)">

    <!-- Rest of document goes here -->

  </g>
</svg>

(Note: in some cases the user agent will need to supply a translate transformation in addition to a scale transformation. For example, on an outermost 'svg', a translate transformation will be needed if the viewBox attributes specifies values other than zero for <min-x> or <min-y>.)

For the viewBox attribute:

    Animatable: yes.

7.8 The preserveAspectRatio attribute

In some cases, it is necessary that force a uniform scaling transform to be used when utilizing viewBox, usually for the purposes of preserving the aspect ratio of the graphics being rendered in the viewport. A supplemental attribute preserveAspectRatio="<align> [<meetOrSlice>]", which is available for all elements that establish a new viewport (see elements that establish viewports), indicates whether or not to force uniform scaling. The <align> parameter indicates whether to force uniform scaling and, if so, the alignment method to use in case the aspect ratio of the viewBox doesn't match the aspect ratio of the viewport. The <align> parameter must be one of the following strings:

The <meetOrSlice> parameter is optional and must be one of the following strings:

Example PreserveAspectRatio illustrates the various options on preserveAspectRatio. To save space, XML entities have been defined for the three repeated graphic objects, the rectangle with the smile inside and the outlines of the two rectangles which have the same dimensions as the target viewports. The example creates several new viewports by including 'svg' sub-elements embedded inside the outermost 'svg' element (see Establishing a new viewport). The smile is drawing the text string ":)" rotated 90 degrees.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd" [
<!ENTITY Smile "
  <rect x='.5' y='.5' width='29' height='39' style='fill:yellow; stroke:red'/>
  <g transform='rotate(90)'>
    <text x='10' y='10' style='font-family:Verdana;
          font-weight:bold; font-size:14'>:)</text>
  </g>">
<!ENTITY Viewport1 "<rect x='.5' y='.5' width='49' height='29'
                          style='fill:none; stroke:blue'/>">
<!ENTITY Viewport2 "<rect x='.5' y='.5' width='29' height='59'
                          style='fill:none; stroke:blue'/>">
]>
<svg width="480px" height="270px" style="font-family:Verdana; font-size:8">
  <desc>Example PreserveAspectRatio - demonstrate available options</desc>
  <text x="10" y="30">SVG to fit</text>
  <g transform="translate(20,40)">&Smile;</g>
  <text x="10" y="110">Viewport 1</text>
  <g transform="translate(10,120)">&Viewport1;</g>
  <text x="10" y="180">Viewport 2</text>
  <g transform="translate(20,190)">&Viewport2;</g>
  <text x="100" y="30">--------------- meet ---------------</text>
  <g transform="translate(100,60)"><text y="-10">xMin*</text>&Viewport1;
    <svg preserveAspectRatio="xMinYMin meet" viewBox="0 0 30 40"
         width="50" height="30">&Smile;</svg></g>
  <g transform="translate(170,60)"><text y="-10">xMid*</text>&Viewport1;
    <svg preserveAspectRatio="xMidYMid meet" viewBox="0 0 30 40"
         width="50" height="30">&Smile;</svg></g>
  <g transform="translate(240,60)"><text y="-10">xMax*</text>&Viewport1;
    <svg preserveAspectRatio="xMaxYMax meet" viewBox="0 0 30 40"
         width="50" height="30">&Smile;</svg></g>
  <text x="330" y="30">---------- meet ----------</text>
  <g transform="translate(330,60)"><text y="-10">*YMin</text>&Viewport2;
    <svg preserveAspectRatio="xMinYMin meet" viewBox="0 0 30 40"
         width="30" height="60">&Smile;</svg></g>
  <g transform="translate(380,60)"><text y="-10">*YMid</text>&Viewport2;
    <svg preserveAspectRatio="xMidYMid meet" viewBox="0 0 30 40"
         width="30" height="60">&Smile;</svg></g>
  <g transform="translate(430,60)"><text y="-10">*YMax</text>&Viewport2;
    <svg preserveAspectRatio="xMaxYMax meet" viewBox="0 0 30 40"
         width="30" height="60">&Smile;</svg></g>
  <text x="100" y="160">---------- slice ----------</text>
  <g transform="translate(100,190)"><text y="-10">xMin*</text>&Viewport2;
    <svg preserveAspectRatio="xMinYMin slice" viewBox="0 0 30 40"
         width="30" height="60">&Smile;</svg></g>
  <g transform="translate(150,190)"><text y="-10">xMid*</text>&Viewport2;
    <svg preserveAspectRatio="xMidYMid slice" viewBox="0 0 30 40"
         width="30" height="60">&Smile;</svg></g>
  <g transform="translate(200,190)"><text y="-10">xMax*</text>&Viewport2;
    <svg preserveAspectRatio="xMaxYMax slice" viewBox="0 0 30 40"
         width="30" height="60">&Smile;</svg></g>
  <text x="270" y="160">--------------- slice ---------------</text>
  <g transform="translate(270,190)"><text y="-10">*YMin</text>&Viewport1;
    <svg preserveAspectRatio="xMinYMin slice" viewBox="0 0 30 40"
         width="50" height="30">&Smile;</svg></g>
  <g transform="translate(340,190)"><text y="-10">*YMid</text>&Viewport1;
    <svg preserveAspectRatio="xMidYMid slice" viewBox="0 0 30 40"
         width="50" height="30">&Smile;</svg></g>
  <g transform="translate(410,190)"><text y="-10">*YMax</text>&Viewport1;
    <svg preserveAspectRatio="xMaxYMax slice" viewBox="0 0 30 40"
         width="50" height="30">&Smile;</svg></g>
</svg>

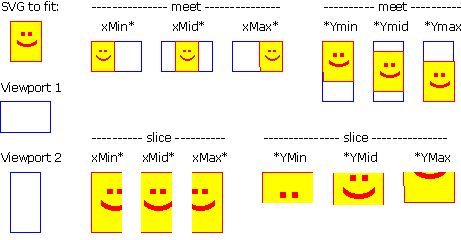

Example PreserveAspectRatio
Example PreserveAspectRatio - demonstrate available options

View this example as SVG (SVG-enabled browsers only)


For the preserveAspectRatio attribute:

    Animatable: yes.

7.9 Establishing a new viewport

At any point in an SVG drawing, you can establish a new viewport into which all contained graphics is drawn by including an 'svg' element inside SVG content. By establishing a new viewport, you also implicitly establish a new initial user space, new meanings for many of the CSS unit specifiers and, potentially, a new clipping path. The bounds of the new viewport are defined by the x, y, width and height attributes on the 'svg' element. Here is an example:

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="4in" height="3in">
  <desc>This SVG drawing embeds another one,
    thus establishing a new viewport
  </desc>
  <!-- The following statement establishing a new viewport
       and renders SVG drawing B into that viewport -->
  <svg x="25%" y="25%" width="50%" height="50%">
     <!-- drawing B goes here -->
  </svg>
</svg>

For an extensive example of creating new viewports, see Example PreserveAspectRatio.

In addition to the 'svg' element, the following other elements also establish a new viewport:

Whether a new viewport also establishes a new additional clipping path is determined by the value of the 'overflow' property on the element which establishes the new viewport. If a clipping path is created to correspond to the new viewport, the clipping path's geometry is determined by the value of the 'clip' property. Also, see Clip to viewport vs. clip to viewBox.

7.10 Units

All coordinates and lengths in SVG can be specified in one of the following ways:

<text style="font-size: 50">Text size is 50 user units</text>
<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="4in" height="3in">
  <desc>Demonstration of coordinate transforms
  </desc>
  <!-- The following two text elements will both draw with a
        font height of 12 pixels -->
   <text style="font-size: 12">This prints 12 pixels high.</text>
   <text style="font-size: 12px">This prints 12 pixels high.</text>

   <!-- Now scale the coordinate system by 2. -->
   <g transform="scale(2)">

      <!-- The following text will actually draw 24 pixels high
           because each unit in the new coordinate system equals
           2 units in the previous coordinate system. -->
      <text style="font-size: 12">This prints 24 pixels high.</text>

      <!-- The following text will actually still draw 12 pixels high
           because the CSS unit specifier has been provided. -->
      <text style="font-size: 12px">This prints 12 pixels high.</text>

   </g>
</svg>

Download this example

If possible, the SVG user agent must be passed the actual size of a px unit in inches or millimeters by its parent user agent. (See Conformance Requirements and Recommendations.) If such information is not available from the parent user agent, then the SVG user agent shall assume a px is defined to be exactly .28mm.

7.11 Redefining the meaning of CSS unit specifiers

The process of establishing a new viewport, such as when there is 'svg' element inside of another SVG 'svg', changes the meaning of the following CSS unit specifiers: px, pt, pc, cm, mm, in, and % (percentages). A "pixel" (the px unit) becomes equivalent to a single unit in the user coordinate system for the given 'svg' element. The meaning of the other absolute unit specifiers (pt, pc, cm, mm, in) are determined as an appropriate multiple of a px unit using the actual size of px unit (as passed from the parent user agent to the SVG user agent). Any percentage values that are relative to the current viewport will also represent new values.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG December 1999//EN"
  "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd">
<svg width="300px" height="300px">
  <desc>Transformation with establishment of a new viewport
  </desc>
  <!-- The following two text elements will both draw with a
        font height of 12 pixels -->
   <text style="font-size: 12">This prints 12 pixels high.</text>
   <text style="font-size: 12px">This prints 12 pixels high.</text>

   <!-- Now scale the coordinate system by 2. -->
   <g transform="scale(2)">

      <!-- The following text will actually draw 24 pixels high
           because each unit in the new coordinate system equals
           2 units in the previous coordinate system. -->
      <text style="font-size: 12">This prints 24 pixels high.</text>

      <!-- The following text will actually still draw 12 pixels high
           because the CSS unit specifier has been provided. -->
      <text style="font-size: 12px">This prints 12 pixels high.</text>
   </g>

   <!-- This time, scale the coordinate system by 3. -->
   <g transform="scale(3)">

      <!-- Establish a new viewport and thus change the meaning of
           some CSS unit specifiers. -->
      <svg style="left:0; top:0; right:100; bottom:100"
           width="100%" height="100%">

         <!-- The following two text elements will both draw with a
              font height of 36 screen pixels. The first text element
              defines its height in user coordinates, which have been
              scaled by 3. The second text element defines its height
              in CSS px units, which have been redefined to be three times
              as big as screen pixels due the <svg> element establishing
              a new viewport. -->
         <text style="font-size: 12">This prints 36 pixels high.</text>
         <text style="font-size: 12px">This prints 36 pixels high.</text>

      </svg>
   </g>
</svg>

Download this example

7.12 Processing rules for CSS units and percentages

Any values expressed in CSS units or percentages of the current viewport shall be implemented such that these values map to corresponding values in user space as follows:


7.13 DOM interfaces


7.13.1 Overview

This section describes the SVG-specific DOM interfaces that correspond to the topics described in this chapter.


7.13.2 Interface SVGPoint

Many of the SVG DOM interfaces refer to objects of class SVGPoint. An SVGPoint is an (x,y) coordinate pair. When used in matrix operations, an SVGPoint is treated as a vector of the form:

[x]
[y]
[1]
interface SVGPoint  {
  attribute SVGLength x;
  attribute SVGLength y;

  SVGPoint    matrixTransform(in SVGMatrix matrix); // vector' = matrix * vector
};

7.13.3 Interface SVGMatrix

interface SVGMatrix  {
  attribute float a;
  attribute float b;
  attribute float c;
  attribute float d;
  attribute SVGLength e;
  attribute SVGLength f;

  // Matrix utility functions.
  SVGMatrix    multiply(in SVGMatrix secondMatrix); // post-multiply secondMatrix
  SVGMatrix    inverse()
                          raises(SVGException);  // returns inverse matrix (SVG_MATRIX_NOT_INVERTABLE).
  SVGMatrix    translate(in SVGLength x, in SVGLength y); // same as translate transform.
  SVGMatrix    scale(in float scaleFactor); // same as scale transform.
  SVGMatrix    scaleNonOrthogonal(in float scaleFactorX, in float scaleFactorY);
  SVGMatrix    rotate(in SVGAngle angle); // same as rotate transform.
  SVGMatrix    rotateFromVector(in SVGLength x, in SVGLength y); // atan(y/x)
  SVGMatrix    flipX();  // +x <-> -x
  SVGMatrix    flipY();  // +y <-> -y
  SVGMatrix    skewX(in SVGAngle angle);  // same as skewX transform.
  SVGMatrix    skewY(in SVGAngle angle);  // same as skewY transform.
};

Many of SVG's graphics operations utilize 2x3 matrices of the form:

[a c e]
[b d f]

which, when expanded into a 3x3 matrix for the purposes of matrix arithmetic, become:

[a c e]
[b d f]
[0 0 1]

7.13.4 Interfaces SVGTransformList and SVGTransform

The SVGTransformList and SVGTransforminterfaces correspond to the various attributes which specify a transformations, such as the transform attribute, which is available for many of SVG's elements.

interface SVGTransformList {
  SVGTransform      createSVGTransform(); // Returns unattached identify matrix
  SVGTransform      createSVGTransformFromMatrix(in SVGMatrix matrix); // Returns unattached SVGTransform

  readonly attribute unsigned long  number_of_transforms;
  SVGTransform      getTransform(in unsigned long index);

  // Replace all existing entries with a single entry.
  void              initialize(in SVGTransform newSVGTransform)
                                           raises(DOMException);
  void              clear(); // Clear all entries, giving an empty list
  SVGTransform      insertBefore(in SVGTransform newSVGTransform,
                                           in unsigned long index)
                                           raises(DOMException);
  SVGTransform      replace(in SVGTransform newSVGTransform,
                                      in unsigned long index)
                                      raises(DOMException);
  SVGTransform      remove(in unsigned long index)
                                     raises(DOMException);
  SVGTransform      append(in SVGTransform newSVGTransform)
                                     raises(DOMException);

  // Consolidate all existing transforms into a single matrix transform
  SVGTransform      consolidate();
};
interface SVGTransform {
  // Transform Types
  const unsigned short kSVG_TRANSFORM_UNKNOWN   = 0;
  const unsigned short kSVG_TRANSFORM_MATRIX    = 1;
  const unsigned short kSVG_TRANSFORM_TRANSLATE = 2;
  const unsigned short kSVG_TRANSFORM_SCALE     = 3;
  const unsigned short kSVG_TRANSFORM_ROTATE    = 4;
  const unsigned short kSVG_TRANSFORM_SKEWX     = 5;
  const unsigned short kSVG_TRANSFORM_SKEWY     = 6;
  readonly attribute  unsigned short type;

  // a,b,c,d,e,f represent a matrix that represents the given transformation.
  // angle is a convenience value for kSVG_TRANSFORM_ROTATE,
  // kSVG_TRANSFORM_SKEWX and kSVG_TRANSFORM_SKEWY.
  //
  // For kSVG_TRANSFORM_MATRIX, the matrix contains the a, b, c, d, e, f values supplied by the user.
  //   (angle=0).
  // For kSVG_TRANSFORM_TRANSLATE, e and f represents the translation amounts.
  //   (a=1,b=0,c=0,d=1,angle=0).
  // For kSVG_TRANSFORM_SCALE, a and d represents the scale amounts.
  //   (b=0,c=0,e=0,f=0,angle=0).
  // For kSVG_TRANSFORM_ROTATE, kSVG_TRANSFORM_SKEWX and kSVG_TRANSFORM_SKEWY,
  // a, b, c and d represent the matrix which will result in the given transformation.
  // angle contains the angle specified for the operation.
  //   (e=0,f=0).
  attribute  SVGMatrix    matrix;
  attribute  SVGAngle     angle;
};

7.13.5 Interface SVGPreserveAspectRatio

The SVGPreserveAspectRatio interface corresponds to the preserveAspectRatio attribute, which is available for some of SVG's elements.

interface SVGPreserveAspectRatio {
  // Alignment Types
  const unsigned short kSVG_PRESERVEASPECTRATIO_NONE     = 0;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMINYMIN = 1;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMIDYMIN = 2;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMAXYMIN = 3;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMINYMID = 4;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMIDYMID = 5;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMAXYMID = 6;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMINYMAX = 7;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMIDYMAX = 8;
  const unsigned short kSVG_PRESERVEASPECTRATIO_XMAXYMAX = 9;
  readonly attribute  unsigned short align;

  // Meet-or-slice Types
  const unsigned short kSVG_MEETORSLICE_MEET  = 1;
  const unsigned short kSVG_MEETORSLICE_SLICE = 2;
  readonly attribute  unsigned short meetOrSlice;
};
