W3C

CSS Paged Media Module Level 3

W3C Working Draft 14 March 2013

This version:
http://www.w3.org/TR/2013/WD-css3-page-20130314/
Latest version:
http://www.w3.org/TR/css3-page/
Previous version:
http://www.w3.org/TR/2006/WD-css3-page-20061010/
Issue Tracking:
http://www.w3.org/Style/CSS/Tracker/products/13
Feedback:
www-style@w3.org with subject line “[css3-page] … message topic …” (archives)
Editors:
Melinda Grant, Hewlett-Packard
Elika J. Etemad, Hewlett-Packard (until April 2009) / Mozilla Corporation (since May 2009)
Håkon Wium Lie, Opera Software
Simon Sapin, Kozea

Abstract

This module describes the page model that partitions a flow into pages. It builds on the Box model module and introduces and defines the page model and paged media. It adds functionality for pagination, page margins, page size and orientation, headers and footers, widows and orphans, and image orientation. Finally it extends generated content to enable page numbering and running headers / footers.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

The (archived) public mailing list www-style@w3.org (see instructions) is preferred for discussion of this specification. When sending e-mail, please put the text “css3-page” in the subject, preferably like this: “[css3-page] …summary of comment…

This document was produced by the CSS Working Group (part of the Style Activity).

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1. Introduction

Paged media (e.g., paper, transparencies, photo album pages, pages displayed on computer screens as printed output simulations) differ from continuous media in that the content of the document is split into one or more discrete static display surfaces. To handle pages, CSS3 Paged Media describes how:

This module defines a page model that specifies how a document is formatted within a rectangular area, called the page box, that has finite width and height.

Although CSS3 does not specify how user agents transfer page boxes to sheets, it does include certain mechanisms for telling user agents about the intended page sheet size and orientation. In the general case, CSS3 assumes that one page box will be transferred to one surface of similar size.

All properties defined in this specification also accept the inherit keyword as their value, but for readability it has not been listed explicitly.

2. Conformance

All of the text in this specification is normative except sections explicitly marked as non-normative, examples, and notes. The keywords "MUST", "SHALL", "MUST NOT", "SHALL NOT", "REQUIRED", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" when used in this document are to be interpreted as described in RFC 2119 [RFC2119]. However, for readability, these words do not appear in all uppercase letters in this specification.

Examples in this specification are introduced with the words "for example" or are set apart from the normative text with class="example", like this:

This is an example of an informative example.

Informative notes begin with the word "Note" and are set apart from the normative text with class="note", like this:

Note, this is an informative note.

3. Page Terminology

The following terminology and accompanying diagrams help to describe the page model:

Page sheet
The corner of a page sheet with the non-printable area at the edge and printable area inside itThe page sheet is one surface of the physical medium. The illustration to the right shows a representation of the upper-left corner of a page sheet.
Printable and non-printable areas
The non-printable area is the area of a page sheet that a physical device such as a printer is not capable of marking reliably, usually due to the printer's paper handling mechanism. This value is printer dependent and is usually a small region along each edge of the page sheet. The printable area is the area of page sheet that a printer is capable of marking reliably. The size of the printable area is the size of the page sheet reduced by the size of the non-printable area. A user agent may not know the dimensions of this area for a particular printing device; but when its dimensions are known, user agents MAY adjust the formatting of the document so that content falls within the printable area. How this adjustment is accomplished is device dependent within the constraints expressed in the sections Rendering page boxes that do not fit a page sheet and Content outside the page box.
Page Orientation
The page orientation is defined by comparing the length of the edges of a page box. The page box is a rectangle with two perpendicular edges called the long edge and the short edge. The length of the long edge is always greater than or equal to the length of the short edge. When the page box is square, the two edges are of the same length and either can be used as the long edge with the other being the short edge. This specification defines page orientations of ‘portrait’ and ‘landscape’.
Portrait Orientation
A portrait page's height is greater than or equal to its width. Horizontal elements are parallel to the short edge and vertical elements to the long edge.
Landscape Orientation
A landscape page's width is greater than or equal to its height. Horizontal elements are parallel to the long edge and vertical elements to the short edge. Note that CSS3 makes no distinction between landscape and reverse-landscape orientations. However, future versions of CSS may do so. UAs should consider, when formatting for duplexed printing, the binding edge, page progression, and ease of reading when choosing between landscape and reverse-landscape renderings.
Duplex Printing
Duplex printing prints one page box per side of a page sheet and uses both sides of the page sheet. This module provides no ability to specify whether a document is duplex printed, but the concept of left and right pages is based on the assumption that the document is duplex printed, regardless of whether or not it actually is.
Binding Edge
The binding edge is the edge of the page box that is toward the binding if the material is bound. The binding edge often has a larger margin than the opposite edge to provide for the space used by the binding. The binding edge can be any of the four edges. However, page sheets are customarily bound so that the binding edge of page boxes with portrait orientation is vertical. This module provides no method to specify the binding edge. In duplex printing, the binding edge is on opposite sides of the page box for the left and right pages.
Facing Pages
Facing pages are two sequential pages such that when the document is duplex printed they are on separate sheets of paper. Typically, the earlier page will be the back side of one sheet and the later page will be the front side of another. They are usually laid out so that the binding edges of facing pages are vertical and adjacent when the pages are placed in their normal reading orientation.
Left Page
A page that would be on the left if it is part of a pair of facing pages as typically laid out. Page layouts for documents using a left-to-right page progression have the earlier of the facing pages on the left. Rules specific to the left page can be specified using the ‘:leftpage selector.
Right Page
A page that would be on the right if it is part of a pair of facing pages as typically laid out. Page layouts for documents using a right-to-left page progression have the earlier of the facing pages on the right. Rules specific to the right page can be specified using the ‘:rightpage selector.

4. The Page Model

In the paged media formatting model, the document is transferred into one or more page boxes. The page box is a specialized CSS box that maps to a rectangular print media surface, such as a page of paper. It is roughly analogous to the viewport.

As with other CSS boxes, a page box consists of margin, border, padding, and content areas. The content and margin areas of a page box have special functions:

The properties of a page box are determined by properties declared within the page context, which is the declaration block of the @page rule. Similarly the properties of a page-margin box are determined by properties declared within its margin context. Declarations in the page context can affect the page box and/or inherit to the page-margin boxes, but they do not apply to or inherit into the document's root element or other content.

The containing block of the page box is specified using the ‘size’ property in the page context. The width and horizontal margins of the page box are then calculated exactly as for a non-replaced block element in normal flow. [CSS21] The height and vertical margins of the page box are calculated analogously (instead of using the block height formulas). In both cases if the values are over-constrained, instead of ignoring any margins, the containing block is resized to coincide with the margin edges of the page box.

:root { font-size: 1vw; } @page { width: 50em; }

Because the page context inherits from the root, and the vw unit depends on the size of the page, this creates a cycle. How do we break it?

The first rule is a common use case for e.g. slides. The second rule is common in Japanese, where the page is sized to fit the paragraph text.

4.1. Page Backgrounds and Painting Order

When drawing a page of content, the page layers are painted in the following painting order (bottommost first):

  1. page background
  2. document canvas
  3. page borders
  4. document contents
  5. page-margin boxes

In the page model, the page background behaves similar to the root background: its background painting area is the entire page box, including its margins (regardless of ‘background-clip’). Page backgrounds are anchored within the page box's padding area by default (and honor ‘background-origin’ if the UA supports [CSS3BG]). However if ‘background-attachment’ is ‘fixed’ then the image is positioned relative to the page box including its margins (i.e. the background positioning area, like the background painting area, is the page's margin box).

The document canvas background is drawn as the page box's background: by default its background painting area covers the page box's border box, and for UAs that support [CSS3BG], follows the ‘background-clip’ value specified on the root element. It remains, however, positioned with respect to the root element or page area as usual.

With respect to the page-margin boxes, the document canvas, page borders, and all of the document contents are treated as a single element with a z-index value of ‘0’ that establishes a stacking context [CSS21]: the page-margin boxes never interleave with parts of the document content or between the content and the canvas. They may only paint in front of the document content or behind the document canvas. The page background is always painted underneath everything else.

The ‘z-index’ property applies to page-margin boxes. Since the ‘position’ property does not apply to page-margin boxes, ‘z-index’ always affects page-margin boxes as if they were positioned elements regardless of the ‘position’ property's value. Each page-margin boxes always establishes a stacking context.

The default painting order, or CSS2.1 Appendix E "tree order", of page-margin boxes with respect to each other is as follows:

  1. @top-left-corner
  2. @top-left
  3. @top-center
  4. @top-right
  5. @top-right-corner
  6. @right-top
  7. @right-middle
  8. @right-bottom
  9. @bottom-right-corner
  10. @bottom-right
  11. @bottom-center
  12. @bottom-left
  13. @bottom-left-corner
  14. @left-bottom
  15. @left-middle
  16. @left-top

Start with ‘@top-left-corner’, then go clockwise. This order is arbitrary but can be overridden with ‘z-index’. It only has a visible effect when page-margin boxes overlap, which should not happen in most cases.

4.2. Content outside the page box

When formatting content in the page model, some content may end up outside the page box. For example, an element whose ‘white-space’ property has the value ‘pre’ can generate a box that is wider than the page box. As another example, when boxes are positioned absolutely or relatively, they may end up in "inconvenient" locations. For example, images may be placed on the edge of the page box or 100,000 meters below the page box.

A specification for the exact formatting of such elements lies outside the scope of this document. However, it is recommended that authors and user agents observe the following general principles concerning content outside the page box:

4.3. Page Progression

CSS distinguishes between left pages and right pages on all documents, whether they are printed duplex or not. Each left page is followed by a right page and vice versa. Left and right pages can be styled differently with the :left and :right pseudo-classes.

Whether the first page of a document is a left page or a right page depends on the page progression of the document. The page progression is the direction in which the printed pages of a document would be sequenced when laid out side-to-side. For example, English and horizontally-set Japanese typically progress from left to right, whereas Arabic and vertically-set Japanese pages typically progress from right to left. In documents with a left-to-right page progression the first page of the document is a right page, and vice versa.

The page progression direction is determined as follows:

If the UA supports the ‘direction’ and ‘writing-mode’ properties from the CSS 3 Writing Modes Module [CSS3-WRITING-MODES], it must determine whether the first page is a left or right page from the values of those properties on the root element.

To explicitly force a document to begin printing on a left or right page, authors can specify a break-before value that that propagates a page break to the root. [CSS3-BREAK] The UA must suppress the first (empty) page(s) in this case (and the :first pseudo-class matches the first printed page).

html { break-before: always }

For an HTML document with a left-to-right page progression, the above style rule will cause the first page of the document to print on a ‘:left’ page

html { break-before: left }

For an HTML document, the above style rule will cause the first page of the document to print on a ‘:left’ page, regardless of the page progression.

5. Page Selectors and the Page Context

5.1. The @page Rule

Authors can specify various aspects of a page box, such as its dimensions, orientation, and margins, within an ‘@page’ rule. ‘@page’ rules are allowed wherever rule-sets are allowed. An ‘@page’ rule consists of the keyword ‘@page’, an OPTIONAL comma-separated list of page selectors and a block of declarations (said to be in the page context). An ‘@page’ rule can also contain other at-rules, interleaved between declarations. The current level of this specification only allows margin at-rules inside ‘@page’.

@page’ rules without a selector list apply to every page. Other ‘@page’ rules apply to pages that match at least one of their selectors. Properties declared within the page context apply to the page box.

If an error is encountered during the processing of a declaration block within a page or a margin context, the Rules for handling parsing errors apply; that is, valid declarations within the block are applied.

This rule is missing a CSSOM API. See discussion on www-style.

5.2. Page selectors

A page selector is made of either a page type selector or a page pseudo-class, followed by zero or more additional page pseudo-classes. No whitespace is allowed between components of a selector. The page selector grammar and examples can be found below.

A page selector is said to match a given page if and only if all of its components match the page.

A page type selector is a case-sensitive CSS identifier [CSS21]. It matches pages of the named page type generated by the ‘page’ property. A page type name of ‘auto’ (ASCII case-insensitive) does not make the rule invalid, but MUST never match.

A page pseudo-class is ASCII case-insensitive and has the same syntax as pseudo-classes in regular Selectors. [SELECT] The various page pseudo-classes are defined below.

5.2.1. Spread pseudo-classes: ‘:left’, ‘:right

When printing double-sided documents, left and right pages are often formatted differently. This can be expressed by using the ‘:left’ and ‘:right’ page pseudo-classes.

All pages are automatically classified by user agents as either left pages or right pages, based on page progression. The :left and :right pseudo-classes only match left or right pages, respectively.

The following example creates left and right binding edges using these pseudo-classes:
@page :left {
margin-left: 3cm;
margin-right: 4cm;
}

@page :right {
margin-left: 4cm;
margin-right: 3cm;
}

If different declarations have been given for left and right pages, the user agent MUST honor these declarations even if the user agent does not transfer the page boxes to left and right sheets (i.e., a printer that only prints on one side of the medium must nevertheless produce correctly formatted output).

Note. Adding declarations to the ‘:left’ or ‘:right’ pseudo-class does not necessarily influence whether the document comes out of the printer double- or single-sided (which is outside the scope of this specification).

5.2.2. First-page pseudo-class: ‘:first

The :first pseudo-class matches the first printed page of a document.

@page { margin: 2cm } /* All margins set to 2cm */

@page :first {
margin-top: 10cm /* Top margin on first page 10cm */
}

5.2.3. Blank-page pseudo-class: ‘:blank

The :blank pseudo-class matches content-empty pages that appear as a result of forced page breaks.

Only the ‘left’, ‘right’, ‘recto’ and ‘verso’ values of the ‘break-before’ and ‘break-after’ properties can generate pages that match ‘:blank’.

In this example, forced page break may occur before h1 elements.

h1 { break-before: left }

@page :blank {
  @top-center { content: "This page is intentionally left blank" }
}

A page matched by ‘:blank’ can also be matched by other page pseudo-classes.

If headers have been specified on all right pages, a blank right page will be matched by both :blank and :right. Therefore, margin boxes set on right pages will have to be removed unless they are wanted on blank pages. Here is an example where the top center header is removed from blank pages, while the page number remains:

h1 { break-before: left }

@page :blank {
  @top-center { content: none }
}

@page :right {
  @top-center { content: "Preliminary edition" }
  @bottom-center { content: counter(page) }
}

Due to the higher specificity of :blank over :right, the top center header is removed even if content: none comes before content: "Preliminary edition".

Note. Future versions of CSS may include other page pseudo-classes.

5.3. @page rule grammar

The syntax for the @page rule is a specialization of the generic at-rule defined by CSS 2.1. This grammar extends the at-rule syntax to allow @page rules nested inside @media rules. User agents MUST adhere to the following grammar:

See [CSS21], Section 4.1.1 and Appendix G for the expansion of missing productions:

All new lexical tokens are specializations of the ATKEYWORD lexical token:

PAGE_SYM              ::= "@page"
TOPLEFTCORNER_SYM     ::= "@top-left-corner"
TOPLEFT_SYM           ::= "@top-left"
TOPCENTER_SYM         ::= "@top-center"
TOPRIGHT_SYM          ::= "@top-right"
TOPRIGHTCORNER_SYM    ::= "@top-right-corner"
BOTTOMLEFTCORNER_SYM  ::= "@bottom-left-corner"
BOTTOMLEFT_SYM        ::= "@bottom-left"
BOTTOMCENTER_SYM      ::= "@bottom-center"
BOTTOMRIGHT_SYM       ::= "@bottom-right"
BOTTOMRIGHTCORNER_SYM ::= "@bottom-right-corner"
LEFTTOP_SYM           ::= "@left-top"
LEFTMIDDLE_SYM        ::= "@left-middle"
LEFTBOTTOM_SYM        ::= "@left-bottom"
RIGHTTOP_SYM          ::= "@right-top"
RIGHTMIDDLE_SYM       ::= "@right-middle"
RIGHTBOTTOM_SYM       ::= "@right-bottom"

media :
     MEDIA_SYM S* medium [ COMMA S* medium ]* LBRACE S* [ page_rule | ruleset ]* '}' S*
     ;

page_rule :
     PAGE_SYM S* page_selector_list '{' S* page_body '}' S*
     ;

page_selector_list :
     [ page_selector S* [ ',' page_selector S* ]* ]?
     ;

page_selector :
     pseudo_page+ | IDENT pseudo_page*
     ;

pseudo_page :
     ':' [ "left" | "right" | "first" | "blank" ]
     ;

page_body :  /* Can be empty */
     declaration? [ ';' S* page_body ]? |
     page_margin_box page_body
     ;

page_margin_box :
     margin_sym S* '{' S* declaration? [ ';' S* declaration? ]* '}' S*
     ;

margin_sym :
     TOPLEFTCORNER_SYM |
     TOPLEFT_SYM |
     TOPCENTER_SYM |
     TOPRIGHT_SYM |
     TOPRIGHTCORNER_SYM |
     BOTTOMLEFTCORNER_SYM |
     BOTTOMLEFT_SYM |
     BOTTOMCENTER_SYM |
     BOTTOMRIGHT_SYM |
     BOTTOMRIGHTCORNER_SYM |
     LEFTTOP_SYM |
     LEFTMIDDLE_SYM |
     LEFTBOTTOM_SYM |
     RIGHTTOP_SYM |
     RIGHTMIDDLE_SYM |
     RIGHTBOTTOM_SYM
     ;

The following are examples of page selectors (declaration block intentionally left blank)

@page { ... }
@page :left { ... }
@page :right { ... }
@page LandscapeTable { ... }
@page CompanyLetterHead:first { ... } /*  identifier and pseudo page. */
@page:first { ... }
@page toc, index { ... }
@page :blank:first { ... }

The following are examples of page-margin boxes where the declaration blocks are intentionally left blank.

@page {
 @top-left { ... /* document name */ }
 @bottom-center { ... /* page number */}
}
@page :left { @left-middle { ... /* page number in left margin */ }}
@page :right{ @right-middle { ... /* page number in right margins of right pages */}}

@page :left { @bottom-left-corner { ... /* left page numbers */ }}
@page :right { @bottom-right-corner { ... /* right page numbers */ }}
@page :first { @bottom-left-corner { ... /* empty footer on 1st page */ }
             @bottom-right-corner { ... /* empty footer */ } }

5.4. Cascading in the page context

Declarations in page and margin contexts cascade just like declarations in rule sets.

The specificity of page a selector is computed in a manner analogous to the computations defined in the Selectors module:

Note: Repeated occurrences of the same pseudo-classes are allowed and do increase specificity.

Due to storage limitations, implementations may have limitations on the size of f, g, or h. If so, values higher than the limit must be clamped to that limit, and not overflow.

Specificities are compared by comparing the three components in order (f, g, h): the specificity with a larger f value is more specific; if the two f values are tied, then the two g values are compared, etc. If all the values are tied, the two specificities are equal.

Some page specificity calculation examples follow:

@page { } /* specificity = (0,0,0) */
@page :left { } /* specificity = (0,0,1) */
@page :first { } /* specificity = (0,1,0) */
@page :blank:left { } /* specificity = (0,1,1) */
@page artsy { } /* specificity = (1,0,0) */
@page artsy:left { } /* specificity = (1,0,1) */
@page artsy:first { } /* specificity = (1,1,0) */

Consider the following usage example:

@page :left {
  margin-left: 4cm;
}

@page {
  margin-left: 3cm;
}

Due to the higher specificity of the pseudo-class selector, the left margin on left pages will be 4cm and all other pages (the right-facing pages) will have a left margin of 3cm.

In this example, the higher specificity of the green rules wins over the red rule. Therefore the first page will have blue text in the top-left page-margin box and green text in the top-right page-margin box, while subsequent pages will have red text in the page-margin boxes.

@page :first {
  color: green;

  @top-left {
    content: "foo";
    color: blue;
  }
  @top-right {
    content: "bar";
  }
}

@page { color: red;
  @top-center {
    content: "Page " counter(page);
  }
}

Page contexts cascade, so the following stylesheet would style pages with 25 millimeter margins and 14 point type in the page-margin boxes:

@page { margin: 25mm;}
@page { font-size: 14pt;}

6. Page-Margin Boxes

Page-margin boxes are boxes within the page margin that, like pseudo-elements, can contain generated content.

Page-margin boxes can be used to create page headers and footers, which are portions of the page set aside for supplementary information such as the page number or document title.

Typically, a page header is located at the top of the page in documents with a predominately horizontal writing direction and on the side opposite the binding edge for documents with a predominately vertical writing direction. One possible design of page headers for horizontally written documents uses the ‘@top-left-corner’, ‘@top-left’, ‘@top-center’, ‘@top-right’ and ‘@top-right-corner’ page-margin boxes. Another design, for vertically written documents, could use the ‘@right-top’, ‘@right-middle’, and ‘@right-bottom’ page-margin boxes for right facing pages and ‘@left-top’, ‘@left-middle’, and ‘@left-bottom’ for left facing pages.

The page footer is typically at the opposite end of the page from the page header. For example, the design of a horizontally written document with a page header at the top of the page could use the ‘@bottom-left-corner’, ‘@bottom-left’, ‘@bottom-center’, ‘@bottom-right’ and ‘@bottom-right-corner’ page-margin boxes as the page footer. The design of a vertically written document could use the page-margin boxes of the binding edge of the page for the page footer.

Page-margin boxes are positioned with respect to the page area and are independent of page orientation, for example the top page-margin boxes are above the page area in both portrait and landscape orientation. The various page-margin boxes are defined and illustrated in the diagram below:

Table 1 Page-Margin Box Definitions
Box Description Placement
top-left-corner a fixed-size box defined by the intersection of the top and left margins of the page box the top left corner box with margin, border, and padding, nested within intersection of the page's top and left margins
top-left a variable-width box filling the top page margin between the top-left-corner and top-center page-margin boxes the top left box with margin, border, and padding, nested in the page's top margin next to the top left corner box
top-center a variable-width box centered horizontally between the page's left and right border edges and filling the page top margin between the top-left and top-right page-margin boxes the top center box with margin, border, and padding, centered within the page's top margin
top-right a variable-width box filling the top page margin between the top-center and top-right-corner page-margin boxes the top right box with margin, border, and padding, nested within the page's top margin
top-right-corner a fixed-size box defined by the intersection of the top and right margins of the page box the top right corner box with margin, border, and padding, nested within the intersection of the page's top and right margin
left-top a variable-height box filling the left page margin between the top-left-corner and left-middle page-margin boxes left-top, left-middle, and left-bottom page-margin boxes in the page box's left margin
left-middle a variable-height box centered vertically between the page's top and bottom border edges and filling the left page margin between the left-top and left-bottom page-margin boxes
left-bottom a variable-height box filling the left page margin between the left-middle and bottom-left-corner page-margin boxes
right-top a variable-height box filling the right page margin between the top-right-corner and right-middle page-margin boxes right-top, right-middle, and right-bottom page-margin boxes in the page box's right margin
right-middle a variable-height box centered vertically between the page's top and bottom border edges and filling the right page margin between the right-top and right-bottom page-margin boxes
right-bottom a variable-height box filling the right page margin between the right-middle and bottom-right-corner page-margin boxes
bottom-left-corner a fixed-size box defined by the intersection of the bottom and left margins of the page box bottom left corner box with margin, border, and padding, nested within the page margin at the intersection of the left and bottom page margins
bottom-left a variable-width box filling the bottom page margin between the bottom-left-corner and bottom-center page-margin boxes bottom left page-margin box with margin, border, and padding, nested within the page's bottom margin next to the bottom-left-corner box
bottom-center a variable-width box centered horizontally between the page's left and right border edges and filling the bottom page margin between the bottom-left and bottom-right page-margin boxes bottom center box with margin, border, and padding, nested within the page's bottom margin and centered on the page
bottom-right a variable-width box filling the bottom page margin between the bottom-center and bottom-right-corner page-margin boxes bottom right page-margin box with margin, border, and padding, nested within the page's bottom margin and next to the bottom-right-corner box
bottom-right-corner a fixed-size box defined by the intersection of the bottom and right margins of the page box bottom right corner box with margin, border, and padding, nested within the page margin at the intersection of the right and bottom page margins

6.1. At-rules for page-margin boxes

Page-margin boxes are created by margin at-rules inside the page context. Authors should put these rules after any declarations in the page context as legacy clients may not handle declarations after margin at-rules correctly.

A margin at-rule consists of an ATKEYWORD that identifies the page-margin box (e.g. @top-left) and a block of declarations (said to be in the margin context).

The following style sheet establishes a page header containing the title ("Hamlet") on the left side and the page number, preceded by "Page ", on the right side:

@page {
  size: 8.5in 11in;
  margin: 10%;

  @top-left {
    content: "Hamlet";
  }
  @top-right {
    content: "Page " counter(page);
  }
}

6.2. Populating page-margin boxes

As with the ‘:before’ and ‘:after’ pseudo-elements, a specified ‘content: normal’ on a page-margin box computes to ‘none’. A page-margin box is generated if and only if the computed value of its ‘content’ property is not ‘none’. Otherwise, no box is generated, as for elements with ‘display: none’.

The ‘display’ property does not apply to page-margin boxes.

The following style sheet creates a green box in each corner of the page except the bottom-left corner.

  @page {
    @top-left-corner { content: " "; border: solid green; }
    @top-right-corner { content: url(foo.png); border: solid green; }
    @bottom-right-corner { content: counter(page); border: solid green; }
    @bottom-left-corner { content: normal; border: solid green; }
  }

6.3. Computing Page-margin Box Dimensions

The width and height of each page-margin box is determined by the rules below. These rules define the equivalent of CSS2.1 Sections 10.3 and 10.6 for page-margin boxes.

The rules for applying ‘min-height’, ‘max-height’, ‘min-width’, and ‘max-width[CSS21] do apply to page-margin boxes and may imply a recalculation of the width, height, and/or margins if the dimensions resulting from the specified ‘width’ or ‘height’ violate their constraints. If the UA does not support the ‘min-height’ or ‘min-width’ properties then it must behave as if ‘min-height’ and ‘min-width’ were always zero.

6.3.1. Page-Margin Box Layout Terminology

In addition to the box model definitions in CSS2.1 [CSS21], and the sizing terms in CSS Intrinsic Sizing [CSS3-SIZING], the following terms are defined for use in the subsequent page-margin box calculations:

available width
The sum of the page’s left border width, left padding, page area width, right padding, and right border width. In other words, it is the distance between the page box’s left right border edges. This quantity is used when calculating dimensions of the top and bottom page-margin boxes.
available height
The sum of the page’s top border width, top padding, page area height, bottom padding, and bottom border width. In other words, it is the distance between the page box’s top bottom border edges. This quantity is used when calculating dimensions of the left and right page-margin boxes.
outer width
The width of the outer edge, as defined in [CSS21].
outer min width
Like the outer width, except that min-content is used when the width is ‘auto’.
outer max width
Like the outer width, except that max-content is used when ‘width’ is ‘auto’.

The containing block for a corner page-margin box is the rectangle defined by the intersection of the two page margins meeting at that corner.

For all other page-margin boxes, the containing block is the rectangle formed by the encapsulating page margin minus the containing blocks of the adjacent corners' page-margin boxes. This means that the size of this containing block is given in one dimension by the used page margin and in the other dimension by the available width (for top and bottom page-margin boxes) or available height (for left and right page-margin boxes).

6.3.2. Page-Margin Box Variable Dimension Computation Rules

The following rules apply to ‘top-left’, ‘top-center’ and ‘top-right’ page-margin boxes, which are referred to as A, B, and C, respectively, in this section.

6.3.2.1. Margins

If the ‘margin-left’ or ‘margin-right’ property of any of the three boxes computes to ‘auto’, the used value is zero.

6.3.2.2. Resolving ‘auto’ widths

The following algorithm determines the used width of each box. For this purpose, boxes that are not generated are assumed to have a ‘width’ and an outer width of zero.

Note: The high-level goals are (in order of priority) to center the middle box (B) if it is generated, to minimize overflow and overlap, and to distribute space proportionally to the amount of content.

If the middle box (B) is not generated, distribute the available width to A and C as follows:

If the middle box (B) is generated, determine the ‘auto’ widths of A, B, and C as follows:

  1. First, resolve any ‘auto’ width of the middle box (B): Assume there are two boxes, B and AC, where each of AC's dimensions is double the maximum of A and C. (This preserves B's centering.) Distribute the space to these two boxes (B and the imaginary AC) as described for A and C above.
  2. Then, resolve any ‘auto’ widths of the side boxes (A and C) by setting that box's outer width to

    (available widthused outer size of B) ÷ 2

6.3.2.3. Handling ‘min-width’ and ‘max-width

The ‘min-width’ and ‘max-width’ properties [CSS21] apply to page-margin boxes in the variable dimension like on normal elements, except that the three boxes on the same side are considered together.

More precisely:

  1. The tentative used widths are calculated (without ‘min-width’ and ‘max-width’) following the rules under Resolving ‘auto’ widths above.
  2. If the tentative used width of any of the three boxes is greater than ‘max-width’, the rules above are applied again, but this time using the computed value of ‘max-width’ as the computed value for ‘width’.
  3. If the resulting width of any of the three boxes is smaller than ‘min-width’, the rules above are applied again, but this time using the value of ‘min-width’ as the computed value for ‘width’.
6.3.2.4. Positioning

Once the dimensions of the boxes are determined, they are positioned as follows:

6.3.2.5. Boxes on other sides

The used values for ‘bottom-left’, ‘bottom-center’ and ‘bottom-right’ page-margin boxes are established by the same rules as for ‘top-left’, ‘top-center’, and ‘top-right’, respectively.

The used values for ‘left-top’, ‘left-middle’ and ‘left-bottom’ boxes are established by the same rules, with "width" replaced by "height", "left" by "top", "right" by "bottom" and "center" by "middle".

The used values for ‘right-top’, ‘right-middle’ and ‘right-bottom’ page-margin boxes are established by the same rules as for ‘left-top’, ‘left-middle’ and ‘left-bottom’, respectively.

6.3.3. Page-Margin Box Fixed Dimension Computation Rules

The rules below are used to calculate the used values of each ‘top-left-corner’, ‘top-left’, ‘top-center’, ‘top-right’, and ‘top-right-corner’ page-margin box's ‘height’, ‘margin-top’, and ‘margin-bottom’ properties:

  1. The following constraint must hold among the used values of the margin box's properties:

    margin-top’ + ‘border-top-width’ + ‘padding-top’ + ‘height’ + ‘padding-bottom’ + ‘border-bottom-width’ + ‘margin-bottom’ = top page margin

  2. If ‘border-top-width’ + ‘padding-top’ + ‘height’ (if it is not ‘auto’) + ‘padding-bottom’ + ‘border-bottom-width’, plus ‘margin-top’ and/or ‘margin-bottom’ if not ‘auto’, is larger than the height of the top page margin, then any ‘auto’ values for ‘margin-top’ or ‘margin-bottom’ are, for the following rules, treated as zero.
  3. If at this point all of ‘height’, ‘margin-top’, and ‘margin-bottom’ have a computed value other than ‘auto’, the values are said to be "over-constrained". In this case, the specified value of ‘margin-top’ is treated as ‘auto’.
  4. If there is now exactly one value specified as ‘auto’, its used value follows from the equality.
  5. If ‘height’ is set to ‘auto’, any other ‘auto’ values become ‘0’ and ‘height’ follows from the resulting equality
  6. If both ‘margin-top’ and ‘margin-bottom’ are ‘auto’, their used values are equal. This vertically centers the page-margin box content within the top page margin.

The same rules apply to the bottom page-margin boxes (bottom-left-corner, bottom-left, bottom-center, bottom-right, and bottom-right-corner), except that in the overconstrained case, the ‘margin-bottom’ is ignored rather than the ‘margin-top’.

Analogous rules govern the properties for the left and right page-margin boxes with respect to ‘width’ (top-left-corner, left-top, left-middle, left-bottom, and bottom-left-corner; top-right-corner, right-top, right-middle, right-bottom, bottom-right-corner), with ‘top’ replaced by ‘left’, ‘bottom’ replaced by ‘right’, and ‘height’ replaced by ‘width’. In the overconstrained case for left (right) page-margin boxes, the specified value of ‘margin-left’ (‘margin-right’) is ignored.

6.4. Page-margin box examples

The following is a collection of examples of page-margin box usage.

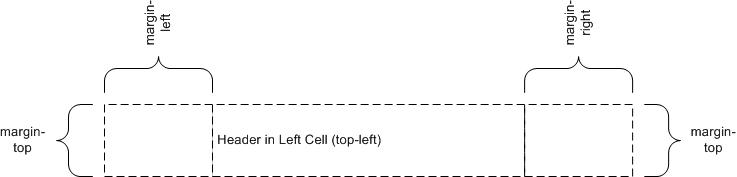

Here is an example of a page with only a top-left header:

@page {
@top-left { content: "Header in Left Cell (top-left)" }
}

Because there are no contents defined for the top-center or the top-right page-margin boxes, the extent of the top-left page-margin box is allowed to cross the center of the page box.

Header Example 1

The following is an example of a page with a centered header:

@page {
@top-center { content: "Header in Center Cell (top-center)" }
}

Header Example 2

The following is an example of a page with a single header in the top-right page-margin box:

@page {
@top-right { content: "Header in Right Cell (top-right)" }
}

Because the content of the center cell is empty, the extent of the top-right page-margin box is allowed to cross the center of the page box.

Header Example 3

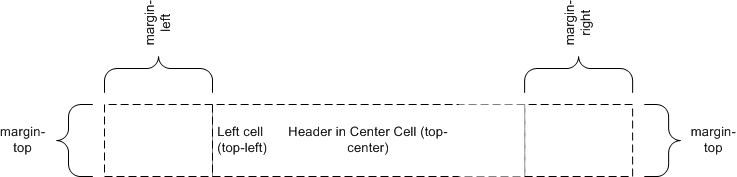

The following is an example of a page with a top-center and a top-left header:

@page {
@top-left { content: "Left Cell (top-left)" }
@top-center { content: "Header in Center Cell (top-center)" }
}

Header Example 4

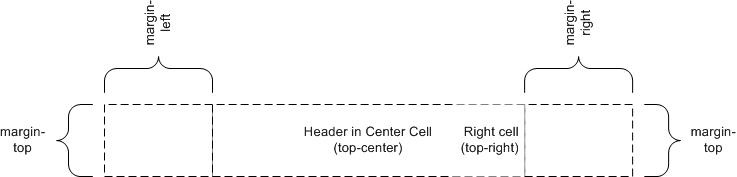

The following is an example of a page with a top-center and a top-right header:

@page {
@top-center { content: "Header in Center Cell (top-center)" }
@top-right { content: "Right Cell (top-right)" }
}

Header Example 5

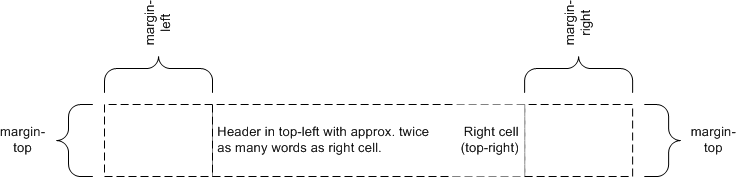

The following is an example of a page with top-left and top-right headers:

@page {
@top-left { content: "Header in top-left with approx. "
                   "twice as many words as right cell." }
@top-right { content: "Right cell (top-right)" }
}

Because there are no center cell contents, the extent of the top-left is allowed to cross the center of the page box.

Header Example 6

7. Page Properties

Appendix A defines the normative list of CSS 2.1 [CSS21] properties that apply to page boxes. If a conforming user agent supports any of these properties on block boxes, then it MUST also support that property in the page context. This specification additionally defines the ‘size’ property that only applies in the page context.

Properties that apply to the page-margin boxes can also be set within the page context: if inheritable or explicitly inherited (with the ‘inherit’ keyword in the margin context), they will inherit to the page-margin boxes.

The same appendix defines the normative list of CSS 2.1 [CSS21] properties that apply to page-margin boxes. If a conforming user agent supports any of these properties on block boxes, then it MUST also support that property in the margin context.

Other properties defined by [CSS21] do not apply in these contexts. Behavior for properties not included in CSS 2.1 is undefined.

Note: The intent of leaving other properties undefined is to allow the gradual addition of appropriate CSS3 properties as they emerge, without having to update this specification with each addition.

As with elements in the document, both the page context and the margin context have a computed value for every property, even if that property does not apply to the page or page-margin box.

The normal rules for CSS properties apply with the following exceptions:

It is recommended that user agents establish a default page margin via the user agent stylesheet that includes any non-printable area. It is further recommended that authors assume that the default page area will not include unprintable regions.

7.1. Page-based counters

Counters can be defined and controlled within an @page rule, and used as content in page-margin boxes. This is useful for maintaining a page count.

A ‘counter-increment’ within either a page or margin context causes the counter to increment with the generation of each page box.

If a counter is reset or incremented within the page context, it is in scope for all page-margin boxes and obscures all counters of the same name within the document.

If a counter is reset or incremented within a margin context, it is in scope for that page-margin box and obscures any counters of the same name in both the page context and the document.

If a counter that has not been reset or incremented within the margin context or the page context is used by counter() or counters() in the margin context, then the resultant value is exactly as if the page-margin box were an element within the document at the start of the page, inside the deepest element in the normal flow that spans the page break. Use of the counter in this way does not affect the calculation of the counter's value.

A counter named ‘page’ is automatically created and incremented by 1 on every page of the document, unless the ‘counter-increment’ property in the page context explicitly specifies a different increment for the ‘page’ counter. The implied ‘page’ counter is a real counter, and can be directly affected using the ‘counter-increment’ and ‘counter-reset’ properties when named explicitly in those properties. It can also be used in the ‘counter()’ and ‘counters()’ function forms.

The following rules result in the placement of the current page number in the middle of the outside margin of each page.

@page {
  margin: 10%;

  @top-center {
    font-family: sans-serif;
    font-weight: bold;
    font-size: 2em;
    content: counter(page);
  }
}

Adding the following rule will make all pages even-numbered.

@page {
  counter-increment: page 2;
}

Additionally, a counter named ‘pages’ is automatically created by the UA. Its value is always the total number of pages in the document. (In continuous media this is always 1.) The value of ‘pages’ cannot be manipulated: while ‘counter-reset’ and ‘counter-increment’ statements that set it are valid, they have no effect.

In all other respects, page-associated counters behave as described in [CSS21], Nested Counters and Scope and Counters.

7.2. Page-margin boxes and default values

Properties used within page or margin contexts take their initial values from their respective property definitions; however, user agents must behave as though the values in the following table were established by rules in the UA default style sheet.

Table 2. Default values for Page-Margin Boxes
Page-margin box text-align vertical-align
top-left-corner right middle
top-left left middle
top-center center middle
top-right right middle
top-right-corner left middle
left-top center top
left-middle center middle
left-bottom center bottom
right-top center top
right-middle center middle
right-bottom center bottom
bottom-left-corner right middle
bottom-left left middle
bottom-center center middle
bottom-right right middle
bottom-right-corner left middle

This example style sheet could be used to create a centered header with the current chapter name:

body {counter-reset: chapter;}
div.chapter {counter-increment: chapter;}
@page {
margin: 10%;
@top-center { content: "Chapter" counter(chapter) }
}

8. Page Size

People around the world use many different paper sizes. It is a goal of this specification that web content should be adaptable to a range of different sizes without having to write a specific style sheet for each paper size.

However, in some situations it is important that a certain page size achieves a certain style. One way to achieve this goal is to utilize the ‘size’ property, which indicates that the document should preferentially be displayed on a surface of a certain size; another method is to use Media Queries [MEDIAQ] which allow different style sheets to be applied to different page sizes.

8.1. Page size: the ‘size’ property

Name: size
Value: <length>{1,2} | auto | [ <page-size> || [ portrait | landscape] ]
Initial: auto
Applies to: page context
Inherited: N/A
Percentages: N/A
Media: paged
Computed value: specified value

This property specifies the target size and orientation of the page box’s containing block. In the general case, where one page box is rendered onto one page sheet, the ‘size’ property also indicates the size of the destination page sheet.

The size of a page box can either be "absolute" (fixed size) or "scalable" (i.e., fitting available sheet sizes). The first three values in the table below can be used to create scalable page boxes. Other values define a fixed-size page box, and thereby indicate the preferred output media size. When possible, output should be rendered on the media size indicated. If the specified size is not available, the rules for transposing a page box to a different size apply.

If a size property declaration is qualified by a ‘width’, ‘height’, ‘device-width’, ‘device-height’, ‘aspect-ratio’, ‘device-aspect-ratio’ or ‘orientation’ media query [MEDIAQ] (or other conditional on the size of the paper), then the declaration must be ignored. Media queries do not honor ‘size’: they assume the paper size that would be chosen if no @page rules were specified.

It would be useful if media queries could respond at least to sizes specified on an unqualified @page.

Another option could be to do like ‘@viewport’ rules [CSS-DEVICE-ADAPT]: First apply ‘@page’ rules (matching which selectors?), using the UA’s default page size for Media Queries and viewport-percentage lengths [CSS3VAL]. The resulting page size is the "base page size". The entire set of stylesheets is applied again, this time using the "base page size" for Media Queries and viewport-percentage lengths.

In the following example

  @page {
    size: 4in 6in;
  }

  @media (max-width: 6in) {
    @page {
      size: letter;
    }
  }


The second size declaration is ignored, i.e. the specified value of the size property is 4in 6in.

Value Description
auto The page box will be set to a size and orientation chosen by the UA. In the usual case, the page box size and orientation is chosen to match the target media sheet.
landscape Specifies that the page's content be printed in landscape orientation. The longer sides of the page box are horizontal. If a <page-size> is not specified, the size of the page sheet is chosen by the UA.
portrait Specifies that the page's content be printed in portrait orientation. The shorter sides of the page box are horizontal. If a <page-size> is not specified, the size of the page sheet is chosen by the UA.
<length> The page box will be set to the given absolute dimension(s). If only one length value is specified, it sets both the width and height of the page box (i.e., the box is a square). If two length values are specified, the first establishes the page box width, and the second the page box height. Values in units of em and ex refer to the page context's font. Negative lengths are illegal.
<page-size> A page size can be specified using one of the following media names. This is the equivalent of specifying the <page-size> using length values. The definition of the the media names comes from Media Standardized Names [PWGMSN].
A5
Equivalent to the size of ISO A5 media: 148mm wide and 210 mm high.
A4
Equivalent to the size of ISO A4 media: 210 mm wide and 297 mm high.
A3
Equivalent to the size of ISO A3 media: 297mm wide and 420mm high.
B5
Equivalent to the size of ISO B5 media: 176mm wide by 250mm high.
B4
Equivalent to the size of ISO B4 media: 250mm wide by 353mm high.
letter
Equivalent to the size of North American letter media: 8.5 inches wide and 11 inches high
legal
Equivalent to the size of North American legal: 8.5 inches wide by 14 inches high.
ledger
Equivalent to the size of North American ledger: 11 inches wide by 17 inches high.

The ‘<page-size>’ names can be used in conjunction with ‘landscape’ or ‘portrait’ to indicate both size and orientation.

8.1.1. Some examples:

@page {
size: A4 landscape;
}

The above example sets the width of the page box to be 297mm and the height to be 210mm. The page box in this example should be rendered on a page sheet size of 210 mm by 297 mm.

In the following example, the outer edges of the page box will align with the page. The percentage value on the margin property is relative to the page size so if the page sheet dimensions are 210mm x 297mm (i.e., A4), the margins are 21mm and 29.7mm. Assuming there are no page borders or padding set in the UA default style sheet, the resulting page area is 189mm by 367.3mm (210mm-21mm by 297mm-29.7mm).

@page {
size: auto;/* auto is the initial value */
margin: 10%;
}
@page {
size: 8.5in 11in;/* width height */
}

The above example sets the width of the page box to be 8.5 inches and the height to be 11 inches. This indicates that the page sheet size should be 8.5"x11" and the orientation ‘portrait’.

8.1.2. Media Queries

This section is informative.

By using Media Queries [MEDIAQ], one style sheet can express different stylistic preferences for different page sizes. Consider this example:

 /* style sheet for "A4" printing */
 @media print and (width: 21cm) and (height: 29.7cm) {
    @page {
       margin: 3cm;
    }
 }

 /* style sheet for "letter" printing */
 @media print and (width: 8.5in) and (height: 11in) {
    @page {
        margin: 1in;
    }
 }

In the example above, "A4" sheets are given a "3cm" page margin, and "letter" sheets are given a "1in" page margin.

8.2. Rendering page boxes that do not fit a page sheet

If a page box does not match the target page sheet dimensions, the user agent should do one of the following (in order of preference):

  1. Render the page box at the indicated size on a larger page sheet.
  2. Rotate the page box 90° if this will make the page box fit the page sheet.
  3. Scale the page box to fit the page sheet. (The aspect ratio of the page box should be preserved.)
  4. Graphically "slice" the page box onto multiple page sheets.
  5. Clip overflowed content (least preferred).

The user agent MAY wish to consult the user before performing these operations.

8.3. Positioning the page box on the sheet

When the page box is smaller than the page sheet, the user agent SHOULD either:

The user agent MAY wish to consult the user in this regard.

9. Page Breaks

The CSS Fragmentation Module [CSS3-BREAK] module defines how and where CSS boxes can be fragmented, including across page breaks. It defines a few properties that indicate where the user agent MAY or MUST break pages, and on what page (left or right) the subsequent content resumes. Each page break ends layout in the current page box and causes remaining pieces of the document tree to be laid out in a new page box.

9.1. Using named pages: ‘page

Name: page
Value: auto | <identifier>
Initial: auto
Applies to: boxes that create class 1 break points
Inherited: no (but see prose)
Percentages: N/A
Media: paged
Computed value: specified value

The ‘page’ property is used to specify a particular type of page (called a named page) on which an element MUST be displayed. If necessary, a forced page break is introduced and a new page generated of the specified type.

This page can be styled by using the same type name in a page selector.

Page type names are case-sensitive identifiers. However the ‘auto’ value, being a CSS keyword, is ASCII case-insensitive.

The ‘page’ property does not inherit. However, if the ‘page’ value on an element is ‘auto’, then its used value is the value specified on its nearest ancestor with a non-auto value. When specified on the root element, the used value for ‘auto’ is the empty string.

Because a previous version of this specification indicated that the ‘page’ property is inherited, an implementation that inherits the ‘page’ property and treats ‘auto’ as always naming the empty string remains conformant to CSS Paged Media Level 3. Note that this exception will be removed in Level 4. Therefore authors should not explicitly specify the ‘auto’ value on a descendant of an element with a non-‘auto’ value, as the resulting behavior will be unpredictable.

The ‘page’ property works as follows:

  1. First, any ‘auto’ values are resolved against non-‘auto’ ancestors (as specified above).
  2. Next, a start ‘page’ value and end ‘page’ value is determined for each box as the value (if any) propagated from its first or last child box (respectively), else the used value on the box itself. A child propagates its own start or end ‘page’ value if and only if the ‘page’ property applies to it.

    Note: A first or last child box is not always generated by a first or last child element. For example, an element could only have a previous sibling with ‘display: none’ which does not generate any box.

  3. The first printed page’s type is the start ‘page’ value of the root.
  4. If for any two boxes meeting at a Class 1 break point, the end ‘page’ value of the box preceding the break and start ‘page’ value of the box succeeding the break do not match, then a page break is forced between the two boxes, and content after the break resumes on a page box of the named type.

Essentially, the two ‘page’ values compared are those from the deepest boxes meeting at the class 1 break point, ignoring any subtrees rooted by boxes to which the ‘page’ property does not apply.

See [CSS3-BREAK] for additional details on page breaks.

In this example, the two tables are rendered on landscape pages (indeed, on the same page, if they fit). The page type "narrow" is used for the <p> after the second table, as the page properties for the table element are no longer in effect:

@page narrow { size: 9cm 18cm }
@page rotated { size: landscape }
div { page: narrow }
table { page: rotated }
with this document:
<div>
<table>...</table>
<table>...</table>
<p>This text is rendered on a 'narrow' page</p>
</div>

In Japanese documents, sometimes different parts of a single document will have different kihon hanmen. [JLREQ] The ‘page’ property, together with ‘@page’ rules specifying different page widths, can accomodate this type of layout:

<!DOCTYPE html>
<html lang="ja">
  <style>
    html   { writing-mode: vertical-rl;
             line-height: 1.6; }
    .main  { page: main;
             columns: 2; column-gap: 1rem; }
    .index { page: index;
             columns: 3; column-gap: 1rem; }
    @page       { margin: auto;    /* center kihon hanmen on page */
                  width:  40rem; } /* 1.6 × 25 lines        */
    @page main  { height: 61rem; } /* 2 × 30 chars + 1 × gap */
    @page index { height: 62rem; } /* 3 × 20 chars + 2 × gap */
  </style>
  <section class="main"> ... </section>
  <section class="index"> ... </section>
</html>

10. Image Properties

This section has been moved to [CSS3-IMAGES].

Appendix A: Applicable CSS2.1 Properties

CSS 2.1 Properties that apply within the page context

This list is described in the Page Properties section.

bidi properties direction
background properties background-color
background-image
background-repeat
background-attachment
background-position
background
border properties border-top-width
border-right-width
border-bottom-width
border-left-width
border-width
border-top-color
border-right-color
border-bottom-color
border-left-color
border-color
border-top-style
border-right-style
border-bottom-style
border-left-style
border-short-style
border-top
border-right
border-bottom
border-left
border
counter properties counter-reset
counter-increment
color
font properties font-family
font-size
font-style
font-variant
font-weight
font
height properties height
min-height
max-height
line-height
margin properties margin-top
margin-right
margin-bottom
margin-left
margin
outline properties outline-width
outline-style
outline-color
outline
padding properties padding-top
padding-right
padding-bottom
padding-left
padding
quotes
text properties letter-spacing
text-align
text-decoration
text-indent
text-transform
white-space
word-spacing
visibility
width properties width
min-width
max-width

CSS 2.1 properties that apply within the margin contexts

This list is described in the Page Properties section.

bidi properties direction
unicode-bidi
background properties background-color
background-image
background-repeat
background-attachment
background-position
background
border properties border-top-width
border-right-width
border-bottom-width
border-left-width
border-width
border-top-color
border-right-color
border-bottom-color
border-left-color
border-color
border-top-style
border-right-style
border-bottom-style
border-left-style
border-short-style
border-top
border-right
border-bottom
border-left
border
counter properties counter-reset
counter-increment
content
color
font properties font-family
font-size
font-style
font-variant
font-weight
font
height properties height
min-height
max-height
line-height
margin properties margin-top
margin-right
margin-bottom
margin-left
margin
outline properties outline-width
outline-style
outline-color
outline
overflow
padding properties padding-top
padding-right
padding-bottom
padding-left
padding
quotes
text properties letter-spacing
text-align
text-decoration
text-indent
text-transform
white-space
word-spacing
vertical-align
visibility
width properties width
min-width
max-width
z-index

Appendix B: Transfer Possibilities

Often, but not always, the page box has a one-to-one correspondence to the physical surface onto which the document is ultimately rendered. The CSS3 page model specifies formatting within the page box, but it is the user agent's responsibility to transfer the page box to the sheet. Some user agent transfer possibilities that are not addressed by CSS3 include:

Changes

Changes since the 10 October 2006 Working Draft are:

References

Normative References

[CSS21]
Bert Bos; et al. Cascading Style Sheets Level 2 Revision 1 (CSS 2.1) Specification. 7 June 2011. W3C Recommendation. URL: http://www.w3.org/TR/2011/REC-CSS2-20110607/
[CSS3-BREAK]
Rossen Atanassov; Elika J. Etemad. CSS Fragmentation Module Level 3. 23 August 2012. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2012/WD-css3-break-20120823/
[CSS3-SIZING]
Tab Atkins Jr.; Elika J. Etemad. CSS Intrinsic & Extrinsic Sizing Module Level 3. 27 September 2012. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2012/WD-css3-sizing-20120927/
[CSS3BG]
Bert Bos; Elika J. Etemad; Brad Kemper. CSS Backgrounds and Borders Module Level 3. 24 July 2012. W3C Candidate Recommendation. (Work in progress.) URL: http://www.w3.org/TR/2012/CR-css3-background-20120724/
[MEDIAQ]
Florian Rivoal. Media Queries. 19 June 2012. W3C Recommendation. URL: http://www.w3.org/TR/2012/REC-css3-mediaqueries-20120619/
[PWGMSN]
Ron Bergman; Tom Hastings. Media Standardized Names. 26 February 2002. IEEE ISTO Printer Working Group 5101.1-2002. URL: ftp://ftp.pwg.org/pub/pwg/candidates/cs-pwgmsn10-20020226-5101.1.pdf
[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. Internet RFC 2119. URL: http://www.ietf.org/rfc/rfc2119.txt
[SELECT]
Tantek Çelik; et al. Selectors Level 3. 29 September 2011. W3C Recommendation. URL: http://www.w3.org/TR/2011/REC-css3-selectors-20110929/

Informative References

[CSS-DEVICE-ADAPT]
Rune Lillesveen. CSS Device Adaptation. 15 September 2011. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2011/WD-css-device-adapt-20110915/
[CSS3-IMAGES]
Elika J. Etemad; Tab Atkins Jr. CSS Image Values and Replaced Content Module Level 3. 17 April 2012. W3C Candidate Recommendation. (Work in progress.) URL: http://www.w3.org/TR/2012/CR-css3-images-20120417/
[CSS3-WRITING-MODES]
Elika J. Etemad; Koji Ishii. CSS Writing Modes Module Level 3. 15 November 2012. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2012/WD-css3-writing-modes-20121115/
[CSS3VAL]
Håkon Wium Lie; Tab Atkins; Elika J. Etemad. CSS Values and Units Module Level 3. 28 August 2012. W3C Candidate Recommendation. (Work in progress.) URL: http://www.w3.org/TR/2012/CR-css3-values-20120828/
[JLREQ]
Yasuhiro Anan; et al. Requirements for Japanese Text Layout. 3 April 2012. W3C Working Group Note. URL: http://www.w3.org/TR/2012/NOTE-jlreq-20120403/
