The Organization Ontology

W3C Candidate Recommendation 25 June 2013

This version:
http://www.w3.org/TR/2013/CR-vocab-org-20130625/
Latest published version:
http://www.w3.org/TR/vocab-org/
Latest editor's draft:
http://dvcs.w3.org/hg/gld/raw-file/default/org/index.html
Previous version:
http://www.w3.org/TR/2012/WD-vocab-org-20121023/
Editor:
Dave Reynolds, Epimorphics Ltd.

Abstract

This document describes a core ontology for organizational structures, aimed at supporting linked data publishing of organizational information across a number of domains. It is designed to allow domain-specific extensions to add classification of organizations and roles, as well as extensions to support neighbouring information such as organizational activities.

Status of This Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This ontology was originally developed and published outside of W3C, but has been extended and further developed within the Government Linked Data Working Group.

Summary of changes

There have been no substantive changes since the Last Call version. For details on the minor changes see the change log.

Please Comment By 26 July 2013

This document was published by the Government Linked Data Working Group as a Candidate Recommendation. W3C publishes a Candidate Recommendation to indicate that the document is believed to be stable and to encourage implementation by the developer community.

The Working Group seeks to gather experience from implementations in order to increase confidence in the specification and meet the following defined exit criteria:

This document will remain a Candidate Recommendation until at least 26 July 2013. After that date, when and if the exit criteria are met, the group intends to request Proposed Recommendation status.

Please send reports of implementation experience, and other feedback, to public-gld-comments@w3.org (subscribe, archives).

At Risk features

The Working Group has marked one group of terms as At Risk and may seek to advance the specification with the removal of these terms if insufficient implementation experience can be gathered. The terms so marked are those in Section 5.6 Historical Information.

In addition the normative reference to [OWL-TIME] is At Risk. The Working Group seeks feedback from the community on whether [OWL-TIME] may be regarded as sufficiently stable and broadly implemented to be used as a normative reference. The Working Group may seek to advance the specification with the removal of this normative reference, in which case the range of org:memberDuring would be left open, simply recommending but not requiring use of time:Interval.

No Endorsement

Publication as a Candidate Recommendation does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

Patents

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

Introduction

This document describes a core ontology (ORG) for organizational structures, aimed at supporting linked data publishing of organizational information across a number of domains. It is designed to allow domain-specific extensions to add classification of organizations and roles, as well as extensions to support neighbouring information such as organizational activities.

This document does not prescribe any particular method of deploying data expressed in ORG. ORG is applicable in many contexts including RDF accessible via SPARQL endpoints, embedded in HTML pages, or serialized as an RDF/XML or Turtle. The examples in this document use Turtle [TURTLE-TR] in the interests of readability.

1. Overview of ontology

This section is non-normative.

This ontology is designed to enable publication of information on organizations and organizational structures including governmental organizations. It is intended to provide a generic, reusable core ontology that can be extended or specialized for use in particular situations.

The ontology gives terms to support the representation of:

This coverage corresponds to the type of information typically found in organizational charts. As such it does not offer a complete representation for all the nuances of organizational control structures and flows of accountability and empowerment. Developers are encouraged to create extension vocabularies for such purposes, building upon this generic foundation.

The ontology does not provide category structures for organization type, organization purpose or roles. Different domains will have different requirements for classification of such concepts. Instead the ontology provides just the core base concepts needed to allow extensions to add specific sub-class structures or classification schemes as required. Users of the ontology are encouraged to define profiles which strengthen interoperability by specifying particular controlled vocabularies to use for these concepts.

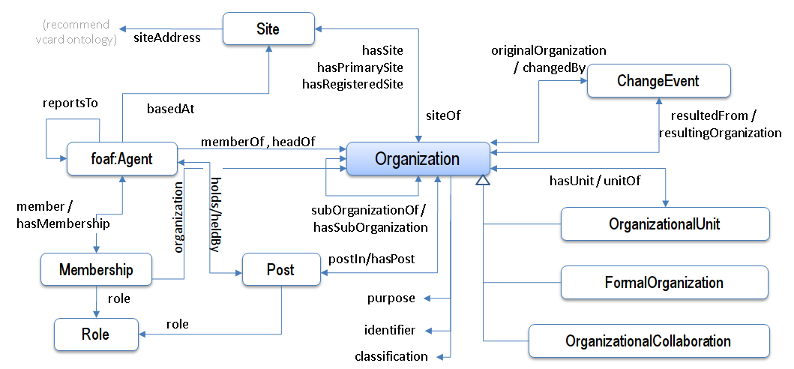

A pictorial illustration of the main classes and relationships in ORG is shown below. All terms are within the ORG namespace (http://www.w3.org/ns/org#, preferred prefix org:) unless an explicit prefix is given. The namespaces for all referenced vocabularies are giving in the section on Namespaces.

Diagram depicting core classes and relationships

1.1 Example

This section is non-normative.

This example illustrates a small fragment of the organizational structure of the UK Cabinet Office:

<http://reference.data.gov.uk/id/department/co>
    rdf:type org:Organization , central-government:Department;
    skos:prefLabel "Cabinet Office" ;
    org:hasUnit <http://reference.data.gov.uk/id/department/co/unit/cabinet-office-communications> .

<http://reference.data.gov.uk/id/department/co/unit/cabinet-office-communications>
    rdf:type org:OrganizationalUnit ;
    skos:prefLabel "Cabinet Office Communications" ;
    org:unitOf  <http://reference.data.gov.uk/id/department/co> ;
    org:hasPost <http://reference.data.gov.uk/id/department/co/post/246> .

<http://reference.data.gov.uk/id/department/co/post/246>
    skos:prefLabel "Deputy Director, Deputy Prime Minister's Spokesperson/Head of Communications" .
    org:postIn <http://reference.data.gov.uk/id/department/co/unit/cabinet-office-communications> ;
    org:heldBy <#person161> .


2. Description and commentary

2.1 Organizational structure

This section is non-normative.

The core class in the ontology is org:Organization which is intended to be applicable to a very broad range of organizations. It represents a collection of people organized together into a community or other social, commercial or political structure. The group has some common purpose or reason for existence which goes beyond the set of people belonging to it. An organization may itself be able to act as an agent.

We distinguish a particular sub-class of organization org:FormalOrganization to indicate organizations that are recognized in the world at large, in particular in legal jurisdictions, with associated rights and responsibilities. Examples include a corporation, charity, government or church.

The ontology then supports the notion of organizations being composed of other organizations in some hierarchy. The relations org:subOrganizationOf and org:hasSubOrganization establish these hierarchical links.

In some cases the sub-organization can be regarded as standalone - for example a legally recognized business may be part of a larger group or holding company. In other cases it is useful to refer to departments or organizational units such as the IT department which only have meaning within the context of the containing organization. The ontology supports that situation through a specialization of org:Organization called org:OrganizationalUnit. For convenience it also provides the relations org:hasUnit and org:unitOf which are specializations of the generic sub-organization links.

Note that the containment hierarchy is completely open. For example, org:FormalOrganizations are free to contain other org:FormalOrganizations.

Organizational hierarchy

In many organizations there is a hierarchy of unit structures. For example we might see a containment hierarchy like:

Corporation
  BusinessUnit
    Division
      Function

Such hierarchies are specific to the particular organization, or class of organization being modelled. Profiles of ORG may include sub-classes of org:Organization and org:OrganizationalUnit to represent such structures and specialize or restrict the use of org:hasSubOrganization to match the desired hierarchy.

Organizational classification

In a number of circumstances we wish to classify organizations. There are many approaches that could be taken for this. It can be based on the legal structure under which the organization operates. For example in UK legislation there are defined notions of Partnership, Limited Company etc that can be used as a basis for classification. Alternatively organizations can be classified by the service they provide (e.g. educational, manufacturing, legal service etc).

ORG is neutral with respect to such choices. It is anticipated that profiles will either introduce sub-classes of org:Organization or define a classification scheme for organizations. To support the latter the ontology supplies a property org:classification which can be used the classify an organization using a SKOS [SKOS-REFERENCE] concept scheme.

Which of these mechanisms to use depends on the situation. If the classification is not intrinsic to the organization but simply some way to group organizations, for example as part of a directory, then org:classification should be used. If the classification is a reflection of the intrinsic nature of the organization and affects other properties then the sub-class approach should be used. For example, only charities have charity numbers so it would be better to represent a charity as a sub-class of org:FormalOrganization rather than via a taxonomic labelling.

2.2 Membership and Reporting structure

This section is non-normative.

ORG provides a number of ways to represent the relationship between people and organizations, together with the internal reporting structure of an organization. Experience with early versions of the ontology demonstrated that there is no "one size that fits all". In some cases a very simple direct representation is preferred for ease of consumption. In other cases a more complex representation is needed to capture the nuances of the situation. An ORG profile may specify that a particular subset of these mechanisms be used.

Direct membership relation

This simplest representation provided by ORG is to directly state that some individual (represented as a foaf:Agent) is org:memberOf an organization. To represent specific roles that the person plays, ORG profiles may define sub-properties of org:memberOf. In particular, the notion of a leader or head of a organization is so common that ORG provides a built in property specialization of org:memberOf, namely org:headOf for this purpose.

For example:

<http://example.com/people#ceo>
  org:headOf    <http://example.com/org#id>.

Membership n-ary relationship

However, in general it is advantageous to have an explicit representation of the organizational role that the person fulfils (e.g. for publication of responsibilities associated with the role). This is supported by the org:Role class. The situation of an Agent fulfilling that role within an organization is then expressed through instances of the org:Membership n-ary relationship. This also makes it possible to annotate the relationship with qualifying information such as duration, salary, reference to the employment contract and so forth.

For example:

<http://example.com/org#id> a org:FormalOrganization;
    skos:prefLabel "Example Ltd".

eg:ctoRole a org:Role;
    skos:prefLabel "CTO".

[] a org:Membership;
    org:member <http://example.com/people#jo>;
    org:organization <http://example.com/org#id>;
    org:role eg:ctoRole;
    org:memberDuring [a time:Interval; time:hasBeginning [
                      time:inXSDDateTime "2009-11-01T09:00:00Z"^^xsd:dateTime]].

The relationship between this full n-ary relationship and the direct org:memberOf property can be expressed as an entailment rule, using SPARQL Construct [RDF-SPARQL-QUERY]:

CONSTRUCT {
    ?agent   org:memberOf  ?org.
} WHERE {
  [] a org:Membership;
    org:member       ?agent;
    org:organization ?org.
}

Since this representation can be a little less convenient to query and explore via linked data browsing tools the core allows both explicit roles and simple direct relations to be used simultaneously. The relationship between the Role resource and the corresponding property can be indicated through the org:roleProperty annotation. Thus we might extend the above example with:

eg:ctoRole a org:Role;
    org:roleProperty eg:ctoOf.

eg:ctoOf a owl:ObjectProperty, rdf:Property;
    skos:prefLabel "CTO";
    rdfs:subPropertyOf org:memberOf.

<http://example.com/people#jo>
  eg:ctoOf <http://example.com/org#id>.

The semantics of org:roleProperty can be expressed using a second closure rule:

CONSTRUCT {
    ?agent   ?roleprop  ?org.
} WHERE {
  [] a org:Membership;
    org:member       ?agent;
    org:organization ?org;
    org:role         [ org:roleProperty ?roleprop ].
}

Tool chains may generate org:Membership instances and then apply this closure rule to add any corresponding short-cut specializations of org:memberOf.

Posts

This section is non-normative.

The third representation that is provided by ORG is that of a org:Post which represents some position in the organization that may or may not be currently filled. Posts enable reporting structures and organization charts to be represented independently of the individuals holding those posts. Posts can report to other Posts.

So a org:Post can exist without someone holding that post. In contrast, a org:Membership represents the relationship between a particular individual (Agent) and the organization and does not exist unless there is an Agent to partake of the relationship.

While commonly a Post would be held by a single person there are situations in government organizations where a Post may itself be, or be treated as, an Organization. There are no disjointness constraints precluding an application of ORG from treating an entity as both a org:Post and an org:Organization simultaneously, if that is an appropriate modelling of the situation.

A post can have an associated org:Role.

Relationship between Posts and Memberships

In many situations only one of Post or Membership is needed, and ORG profiles may specify that use of one of the two is preferred. In cases where the structure of the organization is to be given, independently of the people within that structure, then org:Post is the appropriate representation to choose. In cases where the aim is to record the people who make up the organization and those memberships are likely to be annotated (e.g. with duration of the membership) then org:Membership is appropriate.

We can state a formal relationship between these representations in the form of two entailment rules:

CONSTRUCT {
  ?agent  org:memberOf ?org.
} WHERE {
  ?agent org:holds  ?post.
  ?post  org:postIn ?org.
}
CONSTRUCT {
  [] a org:Membership;
    org:member       ?agent;
    org:organization ?org;
    org:role         ?role.
} WHERE {
  ?agent org:holds  ?post.
  ?post  org:postIn ?org.
  ?post  org:role   ?role.
}

2.3 Location information

This section is non-normative.

ORG provides org:Site to represent locations at which organizations exist. The relations org:siteOf and org:hasSite establish links between a org:Site and an organization. We distinguish a primary site (org:hasPrimarySite) to indicate the default means by which an organization can be contacted, and a registered site (org:hasRegisteredSite) to indicate a legally registered site for the organization.

The ontology provides org:siteAddress to define the address of a site using a vocabulary such as the vCard [VCARD] vocabulary.

2.4 Organizational history

This section is non-normative.

Note
The terms mentioned in this section are At Risk. The Working Group believes these terms to be useful and well-founded. However, if insufficient evidence of implementation can be obtained during the Candidate Recommendation period then the Working Group may seek to advance the specification with these terms omitted.

Any aspect of organizational structure is subject to change over time. For the most part this should be handled by an external mechanism such as named graphs. When Organizations change substantially (not simply a change of personnel or internal structure), for example a merger to create a new organization, then the new Organization will typically be denoted by a new URI. In that case we need some vocabulary to describe that change over time and the relationship between the original and resulting resources. ORG provides org:ChangeEvent and associated properties as a foundation for this, building upon the PROV-O Provenance Vocabulary [PROV-O].

For example to indicate that an organization now called "Department for Education" was formed as a result of rebranding and restructuring and organization called "Department for Children Schools and Family" we might state:

    <http://example.com/DfE> a org:Organization;
        skos:prefLabel  "Department for Education"@en .

    <http://example.com/DCSF> a org:Organization;
        skos:prefLabel  "Department for Children Schools and Family"@en .

    <http://example.com/regorgMay2010> a org:ChangeEvent;
        rdfs:comment "Post-election re-organization and rebranding"@en ;
        org:originalOrganization  <http://example.com/DfE> ;
	org:resultingOrganization <http://example.com/DCSF> .

An application can use terms from the PROV-O vocabulary to further describe the change event, for example the period of time over which it occurred. Such usage of PROV-O terms should take into account the semantic constraints [PROV-CONSTRAINTS] of the PROV model.

It is sometimes convenient to be able to directly link from an organization to a previous organization from which it descended. This is supported by using the prov:wasDerivedFrom relationship. ORG declares the property chain axiom:

   SubObjectPropertyOf( ObjectPropertyChain( org:resultedFrom org:originalOrganization ) prov:wasDerivedFrom )

Which can also be expressed using a SPARQL CONSTRUCT

CONSTRUCT {
  ?orgR prov:wasDerivedFrom ?orgO .
} WHERE {
   ?orgR org:resultedFrom / org:originalOrganization ?orgO .
}

Thus in our previous example, given that org:resultedFrom and org:resultingOrganization are inverse of each other, we can deduce:

    <http://example.com/DfE> prov:wasDerivedFrom <http://example.com/DCSF> .

Note

In earlier versions of this ontology the OPMV Provenance Vocabulary was used. We believe that the PROV-O terms used here are equivalent to the corresponding OPMV terms previously used and that this change does not affect the semantics of the ontology.

2.5 Notes on modelling style

This section is non-normative.

Use of inverses: designers differ on whether providing pairs of inverse relationships between concepts is good practice compared to declaring each relationship in just one direction. In this design we provide inverses for most relations (omitting attribute-like relations). This makes it easier to query the data in linked data settings where a (non-symmetric) closed bounded description is often the default description of each resource. This does incur a cost in terms of maintenance of those relationships. Particular applications of the ontology may adopt a profile in which only certain directions are asserted in the data and leave it up to clients to apply any inverseOf reasoning they require.

Naming: some designers prefer to name properties by nouns which describe the object of the property, others prefer to treat property names as names of the link and use a pattern to indicate the direction of the link. Here we adopt the latter approach for those properties which are relational and especially when the direction is ambiguous. We use the URI pattern org:hasFoo/org:fooOf for this but simplify the labels to "foo" and "foo of" to improve readability in linked data viewers.

3. Conformance

As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.

The key words must, must not, required, should, should not, recommended, may, and optional in this specification are to be interpreted as described in [RFC2119].

A data interchange, however that interchange occurs, is conformant with ORG if:

A conforming data interchange:

An ORG profile is a specification for data interchange that adds additional constraints to ORG. Additional constraints in a profile may include (but are not limited to):

4. Namespaces

The namespace for ORG is http://www.w3.org/ns/org#. However, it should be noted that ORG extends and uses terms from other vocabularies. A full set of alphabetically ordered namespaces and prefixes used in this document is shown in the table below.

PrefixNamespaceReference
foafhttp://xmlns.com/foaf/0.1/[FOAF]
grhttp://purl.org/goodrelations/v1#[GOOD-RELATIONS]
provhttp://www.w3.org/ns/prov#[PROV-O]
orghttp://www.w3.org/ns/org#
owlhttp://www.w3.org/2002/07/owl#[OWL2-PRIMER]
timehttp://www.w3.org/2006/time#[OWL-TIME]
rdfhttp://www.w3.org/1999/02/22-rdf-syntax-ns#[RDF-CONCEPTS]
rdfshttp://www.w3.org/2000/01/rdf-schema#[RDF-SCHEMA]
skoshttp://www.w3.org/2004/02/skos/core#[SKOS-REFERENCE]
vcardhttp://www.w3.org/2006/vcard/ns#[VCARD]
dcthttp://purl.org/dc/terms/[DC11]

5. Ontology Reference

5.1 Index of classes and properties

Classes: | ChangeEvent | FormalOrganization | Membership | OrganizationalCollaboration | OrganizationalUnit | Organization | Post | Role | Site |

Properties: | basedAt | changedBy | classification | hasMember | hasMembership | hasPost | hasPrimarySite | hasRegisteredSite | hasSite | hasSubOrganization | hasUnit | headOf | heldBy | holds | identifier | linkedTo | location | memberDuring | memberOf | member | organization | originalOrganization | postIn | purpose | remuneration | reportsTo | resultedFrom | resultingOrganization | role | roleProperty | siteAddress | siteOf | subOrganizationOf | transitiveSubOrganizationOf | unitOf |

5.2 Organizational structure

5.2.1 Class: Organization

Represents a collection of people organized together into a community or other social, commercial or political structure. The group has some common purpose or reason for existence which goes beyond the set of people belonging to it and can act as an Agent. Organizations are often decomposable into hierarchical structures.

RDFS Class:org:Organization
subClassOf: foaf:Agent
equivalentClass: foaf:Organization
Usage note: It is recommended that SKOS lexical labels should be used to label the Organization. In particular skos:prefLabel for the primary (e.g. legally recognized name), skos:altLabel for alternative names (trading names, colloquial names) and skos:notation to denote codes from a code list. Alternative names: Collective, Body, Group.
Property: subOrganizationOf

Represents hierarchical containment of Organizations or OrganizationalUnits; indicates an Organization which contains this Organization.

RDF Property:org:subOrganizationOf
Domain and Range:org:Organization
Usage note: Inverse of org:hasSubOrganization.
Property: transitiveSubOrganizationOf

Represents hierarchical containment of Organizations or OrganizationalUnits; indicates an Organization which contains this Organization, directly or indirectly.

RDF Property:org:transitiveSubOrganizationOf
Domain and Range:org:Organization
Transitive super property of:org:subOrganizationOf
Usage note: The transitive closure of subOrganizationOf, giving a representation of all organizations that contain this one. Note that technically this is a super property of the transitive closure so it could contain additional assertions but such usage is discouraged.
Property: hasSubOrganization

Represents hierarchical containment of Organizations or OrganizationalUnits; indicates an organization which is a sub-part or child of this organization.

RDF Property:org:hasSubOrganization
Domain and Range:org:Organization
Usage note: Inverse of org:subOrganizationOf.
Property: purpose

Indicates the purpose of this Organization. There can be many purposes at different levels of abstraction but the nature of an organization is to have a reason for existence and this property is a means to document that reason. An Organization may have multiple purposes.

RDF Property:org:purpose
Domain:org:Organization
Usage note: It is recommended that the purpose be denoted by a controlled term or code list, ideally a skos:Concept. However, the range is left open to allow for other types of descriptive schemes. It is expected that profiles of this vocabulary will constrain the range of org:purpose. Alternative names: remit, responsibility (esp. if applied to OrganizationalUnits such as Government Departments).
Property: classification

Indicates a classification for this Organization within some classification scheme.

Note that it also permissible for applications to define sub-classes of org:Organization as a means to represent organizational categories.

RDF Property:org:classification
Domain:org:Organization
Range:skos:Concept
Usage note: Extension vocabularies may wish to specialize this property to have a range corresponding to a specific skos:ConceptScheme
Property: identifier

Gives an identifier, such as a company registration number, that can be used to used to uniquely identify the organization.

RDF Property:org:identifier
Domain:org:Organization
subPropertyOf: skos:notation
Usage note: Many different national and international identifier schemes are available from other vocabularies. The ORG ontology is neutral to which schemes are used. The particular identifier scheme should be indicated by the datatype of the identifier value. Using datatypes to distinguish the notation scheme used is consistent with recommended best practice for skos:notation of which this property is a specialization.
Property: linkedTo

Indicates an arbitrary relationship between two organizations.

RDF Property:org:linkedTo
Domain and Range:org:Organization
Usage note: Specializations of this can be used to, for example, denote funding or supply chain relationships.

5.2.2 Class: FormalOrganization

An Organization which is recognized in the world at large, in particular in legal jurisdictions, with associated rights and responsibilities. Examples include a corporation, charity, government or church.

RDFS Class:org:FormalOrganization
subClassOf: org:Organization
Usage note: Note that this is a super class of gr:BusinessEntity and it is recommended to use the GoodRelations vocabulary to denote Business classifications such as DUNS or NAICS.

5.2.3 Class: OrganizationalUnit

An Organization such as a department or support unit which is part of some larger Organization and only has full recognition within the context of that Organization. In particular the unit would not be regarded as a legal entity in its own right.

RDFS Class:org:OrganizationalUnit
subClassOf: org:Organization
Usage note: Units can be large and complex containing other Units. Alternative names: Department
Property: hasUnit

Indicates a unit which is part of this Organization, e.g. a Department within a larger Organization.

RDF Property:org:hasUnit
Domain:org:Organization
Range:org:OrganizationalUnit
subPropertyOf: org:hasSubOrganization
Usage note: Inverse of org:unitOf.
Property: unitOf

Indicates an Organization of which this Unit is a part, e.g. a Department within a larger Organization.

RDF Property:org:unitOf
Domain:org:OrganizationalUnit
Range:org:Organization
subPropertyOf: org:subOrganizationOf
Usage note: This is the inverse of org:hasUnit.

5.3 Membership, roles, posts and reporting

5.3.1 Property: memberOf

Indicates that a person is a member of the Organization with no indication of the nature of that membership or the role played. Note that the choice of property name is not meant to limit the property to only formal membership arrangements, it is also intended to cover related concepts such as affiliation or other involvement in the organization. Extensions can specialize this relationship to indicate particular roles within the organization or more nuanced relationships to the organization.

RDF Property:org:memberOf
Domain:foaf:Agent
Range:org:Organization
inverseOf:org:hasMember

5.3.2 Property: hasMember

Indicates a person who is a member of the subject Organization. Inverse of org:memberOf, see that property for further clarification.

RDF Property:org:hasMember
Domain:org:Organization
Range:foaf:Agent
Equivalent property:foaf:member
inverseOf:org:memberOf
Usage note: Provided for compatibility with foaf:member.

5.3.3 Property: headOf

Indicates that a person (or other agent) is the leader or formal head of the Organization.

RDF Property:org:headOf
Domain:foaf:Agent
Range:org:Organization
subPropertyOf:org:memberOf

5.3.4 Class: Membership

Indicates the nature of an Agent's membership of an organization.

RDFS Class:org:Membership
Usage note: Represents an n-ary relationship between an Agent, an Organization and a Role. It is possible to directly indicate membership, independent of the specific Role, through use of the org:memberOf property.
Property: member

Indicates the Person (or other Agent including Organization) involved in the Membership relationship.

RDF Property:org:member
Domain:org:Membership
Range:foaf:Agent
Type:owl:FunctionalProperty
Usage note: Inverse of org:hasMembership
Property: organization

Indicates the organization in which the Agent is a member.

RDF Property:org:organization
Domain:org:Membership
Range:org:Organization
Type:owl:FunctionalProperty
Property: role

Indicates the Role that the Agent plays in a Membership relationship with an Organization. Can also be used on a org:Post to indicate the role that any holder of the Post plays.

RDF Property:org:role
Domain:owl:unionOf(org:Membership org:Post)
Range:org:Role
Property: hasMembership

Indicates a membership relationship that the Agent plays.

RDF Property:org:hasMembership
Domain:foaf:Agent
Range:org:Membership
Usage note: Inverse of org:member.
Property: memberDuring

Optional property to indicate the interval for which the membership is/was valid.

RDF Property:org:memberDuring
Domain:org:Membership
Range:time:Interval
Note
The specification that the range of org:memberDuring is time:Interval is At Risk. The Working Group seeks feedback from the community on whether [OWL-TIME] may be regarded as sufficiently stable and broadly implemented to be used as a normative reference.

5.3.5 Class: Role

Denotes a role that a Person or other Agent can take in an organization. Instances of this class describe the abstract role; to denote a specific instance of a person playing that role in a specific organization use an instance of org:Membership.

RDFS Class:org:Role
subClassOf: skos:Concept
Usage note: It is common for roles to be arranged in some taxonomic structure and we use SKOS to represent that. The normal SKOS lexical properties should be used when labelling the Role. Additional descriptive properties for the Role, such as a Salary band, may be added by extension vocabularies.
Property: roleProperty

This is a metalevel property which is used to annotate a org:Role instance with a sub-property of org:memberOf that can be used to directly indicate the role for ease of query.

RDF Property:org:roleProperty
Domain:org:Role
Range:rdf:Property
Usage note: The intended semantics is that a Membership relation involving the Role implies the existence of a direct property relationship through an inference rule of the form: { [] org:member ?a; org:organization ?o; org:role [org:roleProperty ?r] } -> {?a ?r ?o}
Property: remuneration

Indicates a salary or other reward associated with the role.

RDF Property:org:remuneration
Domain:org:Role
Usage note: Typically this will be denoted using an existing representation scheme such as gr:PriceSpecification but the range is left open to allow applications to specialize it (e.g. to remunerationInGBP).

5.3.6 Class: Post

A Post represents some position within an organization that exists independently of the person or persons filling it. Posts may be used to represent situations where a person is a member of an organization ex officio (for example the Secretary of State for Scotland is part of UK Cabinet by virtue of being Secretary of State for Scotland, not as an individual person). A post can be held by multiple people and hence can be treated as a organization in its own right.

RDFS Class:org:Post
Property: holds

Indicates a Post held by some Agent.

RDF Property:org:holds
Domain: foaf:Agent
Range:org:Post
subPropertyOf: org:memberOf
Usage note: Inverse of org:heldBy.
Property: heldBy

Indicates an Agent which holds a Post.

RDF Property:org:heldBy
Domain:org:Post
Range: foaf:Agent
subPropertyOf: org:hasMember
Usage note: Inverse of org:holds.
Property: postIn

Indicates the Organization in which the Post exists.

RDF Property:org:postIn
Domain:org:Post
Range:org:Organization
Usage note: Inverse of org:hasPost.
Property: hasPost

Indicates a Post which exists within the Organization.

RDF Property:org:hasPost
Domain:org:Organization
Range:org:Post
Usage note: Inverse of org:postIn.

5.3.7 Property: reportsTo

Indicates a reporting relationship as might be depicted on an organizational chart. It can be used to indicate a reporting relationship directly between Agents or between Posts that Agents could hold.

RDF Property:org:reportsTo
Domain:owl:unionOf(foaf:Agent org:Post)
Range:owl:unionOf(foaf:Agent org:Post)
Usage note: The precise semantics of the reporting relationship will vary by organization but is intended to encompass both direct supervisory relationships (e.g. carrying objective and salary setting authority) and more general reporting or accountability relationships (e.g. so called dotted line reporting).

5.4 Location

5.4.1 Class: Site

An office or other premise at which the organization is located. Many organizations are spread across multiple sites and many sites will host multiple locations.

RDFS Class:org:Site
Usage note: In most cases a Site will be a physical location. However, we don't exclude the possibility of non-physical sites such as a virtual office with an associated post box and phone reception service. Extensions may provide sub-classes to denote particular types of site.
Property: siteAddress

Indicates an addess for the site in a suitable encoding. Use of a well known address encoding such as the vCard [VCARD] vocabulary is encouraged but the range is left open to allow other encodings to be used. The address may include email, telephone, and geo-location information and is not restricted to a physical address.

RDF Property:org:siteAddress
Domain:org:Site
Property: hasSite

Indicates a site at which the Organization has some presence even if only indirect (e.g. virtual office or a professional service which is acting as the registered address for a company).

RDF Property:org:hasSite
Domain:org:Organization
Range:org:Site
inverseOf:org:siteOf
Property: siteOf

Indicates an Organization which has some presence at the given site.

RDF Property:org:siteOf
Domain:org:Site
Range:org:Organization
inverseOf:org:hasSite
Property: hasPrimarySite

Indicates a primary site for the Organization, this is the default means by which an Organization can be contacted and is not necessarily the formal headquarters.

RDF Property:org:hasPrimarySite
Domain:org:Organization
Range:org:Site
subPropertyOf:org:hasSite
Property: hasRegisteredSite

Indicates the legally registered site for the organization, in many legal jurisdictions there is a requirement that FormalOrganizations such as Companies or Charities have such a primary designed site.

RDF Property:org:hasRegisteredSite
Domain:org:Organization
Range:org:Site
subPropertyOf:org:hasPrimarySite
Property: basedAt

Indicates the site at which a person is based. We do not restrict the possibility that a person is based at multiple sites.

RDF Property:org:basedAt
Domain:foaf:Person
Range:org:Site

5.4.2 Property: location

Gives a location description for a person within the organization, for example a Mail Stop for internal posting purposes.

RDF Property:org:location
Domain:foaf:Person
Range:xsd:string

5.5 Projects and other activities

5.5.1 Class: OrganizationalCollaboration

A collaboration between two or more Organizations such as a project. It meets the criteria for being an Organization in that it has an identity and defining purpose independent of its particular members but is neither a formally recognized legal entity nor a sub-unit within some larger organization. Might typically have a shorter lifetime than the Organizations within it, but not necessarily.

RDFS Class:org:OrganizationalCollaboration
subClassOf:org:Organization
Usage note: All members are org:Organizations rather than individuals and those Organizations can play particular roles within the venture. Alternative names: Project, Venture, Endeavour, Consortium

5.6 Historical information

Note
The terms defined in this section are At Risk. The Working Group believes these terms to be useful and well-founded. However, if insufficient evidence of implementation can be obtained during the Candidate Recommendation period then the Working Group may seek to advance the specification with these terms omitted.

5.6.1 Class: ChangeEvent

Represents an event which resulted in a major change to an organization such as a merger or complete restructuring. It is intended for situations where the resulting organization is sufficiently distinct from the original organizations that it has a distinct identity and distinct URI.

RDFS Class:org:ChangeEvent
subClassOf: prov:Activity
Usage note: Extension vocabularies should define sub-classes of this to denote particular categories of event. The time period over which the event occurred should be expressed using prov:startedAtTime and prov:endedAtTime. A textual description of the event may be given by dct:description.
Property: originalOrganization

Indicates one or more organizations that existed before the change event. Depending on the event they may or may not have continued to exist after the event.

RDF Property:org:originalOrganization
Domain:org:ChangeEvent
Range:org:Organization
inverseOf:org:changedBy
subpropertyOf:prov:used
Property: changedBy

Indicates a change event which resulted in a change to this organization.

RDF Property:org:changedBy
Domain:org:Organization
Range:org:ChangeEvent
inverseOf:org:originalOrganization
Usage note: Depending on the event the organization may or may not have continued to exist after the event.
Property: resultedFrom

Indicates an event which resulted in (led to, generated) this organization.

RDF Property:org:resultedFrom
Domain:org:Organization
Range:org:ChangeEvent
subpropertyOf:prov:wasGeneratedBy
inverseOf:org:resultingOrganization
Property: resultingOrganization

Indicates an organization which was created or changed as a result of the event.

RDF Property:org:resultingOrganization
Domain:org:ChangeEvent
Range:org:Organization
inverseOf:org:resultedFrom

Property chain axiom

In addition the ontology defines the following relationship between org:resultedFrom, org:originalOrganization and prov:wasDerivedFrom :

   SubObjectPropertyOf( ObjectPropertyChain( org:resultedFrom org:originalOrganization ) prov:wasDerivedFrom )

A. Change history

Changes since W3C Working Draft 23 October 2012 (Last Call):

Changes since W3C Working Draft 05 April 2012:

Changes since previous version 0.3 2010-06-09:

Changes since previous version 0.2 2010-06-07:

Changes since previous version 0.1 2010-05-28:

B. Acknowledgements

This ontology was originally developed for use by data.gov.uk as part of the UK Linked Data Kernel project under the leadership and guidance of John Sheridan (The National Archives). Jeni Tennison provided immensely useful feedback and suggestions on the first draft, which greatly improved its design. The work also took inspiration from a number of other ontologies, particularly the thoughtfully designed Gazette Organization ontology and Proton-top.

The editor gratefully acknowledges comments and support from the Government Linked Data Working Group - particularly to Daniel Vila for transcribing the original documentation into W3C format and to Bart van Leeuwen for feedback and discussions that resulted in the addition of org:Post.

The modelling of org:Post is closely based on the work of Jeni Tennison on modelling UK Government.

C. References

C.1 Normative references

[OWL-TIME]
Feng Pan; Jerry R. Hobbs. Time Ontology in OWL. 27 September 2006. W3C Working Draft. URL: http://www.w3.org/TR/2006/WD-owl-time-20060927
[OWL2-PRIMER]
Pascal Hitzler; Markus Krötzsch; Bijan Parsia; Peter F. Patel-Schneider; Sebastian Rudolph. OWL 2 Web Ontology Language:Primer. 27 October 2009. W3C Recommendation. URL: http://www.w3.org/TR/2009/REC-owl2-primer-20091027/
[PROV-O]
T. Lebo; S. Sahoo; D. McGuinness. PROV-O: The PROV Ontology April 2013. W3C Recommendation. URL: http://www.w3.org/TR/2013/REC-prov-o-20130430/
[RDF-CONCEPTS]
Graham Klyne; Jeremy J. Carroll. Resource Description Framework (RDF): Concepts and Abstract Syntax. 10 February 2004. W3C Recommendation. URL: http://www.w3.org/TR/2004/REC-rdf-concepts-20040210
[RDF-SCHEMA]
Dan Brickley; Ramanathan V. Guha. RDF Vocabulary Description Language 1.0: RDF Schema. 10 February 2004. W3C Recommendation. URL: http://www.w3.org/TR/2004/REC-rdf-schema-20040210
[RDF-SPARQL-QUERY]
Andy Seaborne; Eric Prud'hommeaux. SPARQL Query Language for RDF. 15 January 2008. W3C Recommendation. URL: http://www.w3.org/TR/2008/REC-rdf-sparql-query-20080115
[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. March 1997. Internet RFC 2119. URL: http://www.ietf.org/rfc/rfc2119.txt
[SKOS-REFERENCE]
Sean Bechhofer; Alistair Miles. SKOS Simple Knowledge Organization System Reference. 18 August 2009. W3C Recommendation. URL: http://www.w3.org/TR/2009/REC-skos-reference-20090818/
[TURTLE-TR]
Eric Prud'hommeaux, Gavin Carothers. Turtle: Terse RDF Triple Language. 19 February 2013. W3C Candidate Recommendation. URL: http://www.w3.org/TR/2013/CR-turtle-20130219/

C.2 Informative references

[DC11]
Dublin Core metadata initiative. Dublin Core metadata element set, version 1.1. July 1999. Dublin Core recommendation. URL: http://dublincore.org/documents/dcmi-terms/
[FOAF]
Dan Brickley, Libby Miller. FOAF Vocabulary Specification 0.98. 9 August 2010. URL: http://xmlns.com/foaf/spec/
[GOOD-RELATIONS]
Martin Hepp, GoodRelations Language Reference, Version 1.0, 1 October 2011, URL: http://www.heppnetz.de/ontologies/goodrelations/v1.html
[PROV-CONSTRAINTS]
James Cheney; Paolo Missier; Luc Moreau; eds. Constraints of the PROV Data Model. 12 March 2013, W3C Proposed Recommendation. URL: http://www.w3.org/TR/2013/PR-prov-constraints-20130312/
[VCARD]
R. Iannella; et al. Representing vCard Objects in RDF January 2010. W3C Member Sumission 20 January 2010. URL: http://www.w3.org/Submission/2010/SUBM-vcard-rdf-20100120
